Flattop regulates basal body docking and positioning in mono- and multiciliated cells

  1. Moritz Gegg
  2. Anika Böttcher
  3. Ingo Burtscher
  4. Stefan Hasenoeder
  5. Claude Van Campenhout
  6. Michaela Aichler
  7. Axel Walch
  8. Seth G N Grant
  9. Heiko Lickert  Is a corresponding author
  1. Helmholtz Center Munich, Germany
  2. Université libre de Bruxelles, Belgium
  3. University of Edinburgh, United Kingdom
  4. Univeristy of Edinburgh, United Kingdom
https://doi.org/10.7554/eLife.03842
Share this article
Cite this article
  1. Moritz Gegg
  2. Anika Böttcher
  3. Ingo Burtscher
  4. Stefan Hasenoeder
  5. Claude Van Campenhout
  6. Michaela Aichler
  7. Axel Walch
  8. Seth G N Grant
  9. Heiko Lickert
(2014)
Flattop regulates basal body docking and positioning in mono- and multiciliated cells
eLife 3:e03842.
https://doi.org/10.7554/eLife.03842
  2. Download BibTeX
  3. Download .RIS

Abstract

Planar cell polarity (PCP) regulates basal body (BB) docking and positioning during cilia formation, but the underlying mechanisms remain elusive. In this study, we investigate the uncharacterized gene Flattop (Fltp) that is transcriptionally activated during PCP acquisition in ciliated tissues. Fltp knock-out mice show BB docking and ciliogenesis defects in multiciliated lung cells. Furthermore, Fltp is necessary for kinocilium positioning in monociliated inner ear hair cells. In these cells, the core PCP molecule Dishevelled 2, the BB/spindle positioning protein Dlg3, and Fltp localize directly adjacent to the apical plasma membrane, physically interact and surround the BB at the interface of the microtubule and actin cytoskeleton. Dlg3 and Fltp knock-outs suggest that both cooperatively translate PCP cues for BB positioning in the inner ear. Taken together, the identification of novel BB/spindle positioning components as potential mediators of PCP signaling might have broader implications for other cell types, ciliary disease, and asymmetric cell division.

https://doi.org/10.7554/eLife.03842.001

eLife digest

Epithelial tissues are sheets of cells that line the surface of many parts of the body, including the airways and the inner ear. Small hair-like structures called cilia can be found on the top surface of many epithelial cells and are arranged in a precise, ordered pattern. Such patterning ensures that cilia can work in a co-ordinated manner, for example by beating together to help clearing mucus from airways.

Cilia grow out from ‘basal bodies’ and, like many other important structures in a cell, these basal bodies must be oriented along the correct side of an epithelial tissue. This is achieved by ‘planar cell polarity signaling’, which makes sure that the structures inside a cell are correctly aligned, and ensures that polarized cells themselves are correctly oriented across the epithelial tissue. Disruption of this signaling can result in developmental defects.

Some proteins help to establish polarity in a cell by altering the cell's cytoskeleton—the structural support and transport network of the cell. A ‘core’ complex of proteins then coordinates how the cells are arranged throughout the epithelial tissue. Although many of the proteins involved in each of these roles are known, how they interact with each other to establish planar cell polarity remains poorly understood.

Now, Gegg et al. report that, in mice, a protein called Flattop functions to position basal bodies—and thus cilia—by working together with another protein called Dlg3. In mice that cannot produce Flattop, cilia formation is defective in the lung, and the cilia in the inner ear are positioned incorrectly. Gegg et al. found that in the inner ear, Flattop and Dlg3 physically interact with each other and two other proteins—including one of the core proteins involved in planar cell polarity. This protein complex then surrounds the basal bodies at the point where they connect to the cell's cytoskeleton.

Future challenges will be to clarify how the protein complex anchors to the cytoskeleton and how it interacts with other core planar cell polarity proteins in the cells of the inner ear. It will also be important to see whether this protein complex fulfills a similar role in other ciliated epithelial tissues.

https://doi.org/10.7554/eLife.03842.002

Introduction

The conserved PCP signaling pathway regulates the orientation of cells and organelles within the plane of an epithelium and is crucially important for developmental patterning as well as organ morphogenesis, homeostasis, and physiology (Seifert and Mlodzik, 2007; Wang and Nathans, 2007; Peng and Axelrod, 2012; Wallingford, 2012). Pioneering studies in Drosophila and Xenopus have revealed that global, non-cell autonomous, and cell intrinsic signaling mechanisms act in concert to establish tissue polarity. Core PCP molecules including Van Gogh-like (Vangl1-2), Cadherin EGF LAG seven-pass G-type receptor (Celsr1-3), Frizzled (Fzd3, 6), Dishevelled (Dvl1-3), and Prickle (Pk1-2) are localized asymmetrically at the cell cortex to provide polarity information for morphogenesis and oriented cell division. Significant progress has been made in understanding the asymmetric core PCP localization in vertebrates but it is less clear how this regulates cytoskeletal rearrangements that drive morphogenesis via tissue specific downstream effector molecules (Wallingford, 2012). Thus, the identification of novel PCP effectors that indicate pathway activity and mediate signaling and/or morphogenesis will be the key to unravel the function of this molecular pathway in development and disease.

Besides the Rho family of GTPases, which are also implicated in apical–basal (A–B) polarity establishment, the best-studied PCP effector molecules are Inturned (Intu) and Fuzzy (Fuz) (Collier and Gubb, 1997; Park et al., 2006, 2008; Gray et al., 2009). Both directly regulate ciliogenesis by mediating the assembly of the apical actin cytoskeleton but are not required for the polarized accumulation of core PCP components. The core PCP molecule Dvl2 localizes near the base of cilia and functions together with Intu and Rho GTPases to dock and polarize BBs for cilia formation and directed ciliary beating (Park et al., 2008). BBs are amplified deep in the cytoplasm of multiciliated cells (MCCs) and apical plasma membrane (PM) transport depends on Dvl and the vesicle trafficking protein Sec8. Up-to-date it is not understood how core PCP molecules physically connect to effector molecules, how this leads to asymmetric membrane polarization and cytoskeletal rearrangements, and if these mechanisms are conserved among different cell types in various organs and during evolution.

First functional evidence for PCP in lung development came from the analysis of Celsr1, Vangl2, and Scribble (Scrib) mutant mice, which showed defects in branching morphogenesis and narrowed lung airways due to cytoskeletal and junctional defects (Yates et al., 2010). Multiciliated lung cells first arise at embryonic day (E) 14.0 in the trachea as well as in the main bronchi (Jain et al., 2010). Similar to the mucociliary epithelium in frog, differentiation depends on BB amplification, docking, and orientation that allows the formation of hundreds of motile cilia. The differentiation of multiciliated lung cells and the dynamics of the underlying cell biological processes can be modeled in air liquid interface (ALI) cultures of primary mouse tracheal epithelial cells (mTECs) (You et al., 2002; Vladar and Stearns, 2007; Vladar et al., 2012). Asymmetric localization of core PCP molecules at apical junctions regulates the orientation of motile cilia along the longitudinal tissue axis for directed beating and mucus clearing. This likely interdepends on non-cell autonomous cues and intrinsic polarized microtubule (MT) network topology (Vladar et al., 2012). Currently, PCP effector molecules that link core molecules, BBs, polarized MTs, and the actin cytoskeleton have not been identified. A better understanding of these molecular processes could provide further insight into a multitude of ciliary dysfunction syndromes of the lung and other organs.

The best-established model to study PCP in vertebrates is the organ of Corti in the inner ear (IE). Mechanosensory hair cells (HCs) are arranged in one inner (IHC) and three outer HC (OHC) rows. The lateral polarization of the V-shaped actin-based stereocilia bundles on HCs strongly depends on ciliogenesis and PCP for proper sound perception (Montcouquiol et al., 2003; Wang et al., 2005, 2006; Jones and Chen, 2008). Core PCP molecules like Celsr1, Dvl2/3, Fz3/6, and Vangl2 are localized to distinct apical membrane compartments of HCs and supporting cells (Ezan and Montcouquiol, 2013). This differential localization seems not sufficient to instruct morphogenesis of actin-rich hair bundles in mammals (Jones and Chen, 2008). Instead, it depends on opposing localization of evolutionarily conserved spindle positioning and apical polarity proteins that serve as a blueprint for kinocilium migration and bundle formation (Ezan et al., 2013; Tarchini et al., 2013). It remains unclear, how core PCP molecules couple to spindle positioning complexes and the actin cytoskeleton to orchestrate morphogenesis.

Spindle positioning proteins as well as the actin and MT cytoskeleton act together with cues from the cell cortex, such as apical junctions and polarity proteins to direct spindle positioning in mammalian epithelial cells (Kunda and Baum, 2009). In addition to Inscuteable (mInsc in mammals), Partner of Inscuteable (mPins/LGN in mammals) and the G-protein coupled receptor GαI and other evolutionary conserved proteins, such as the basolateral determinants and septate junction localized proteins Dlg and Scrib, regulate A–B spindle positioning (Knoblich, 2008; Siller and Doe, 2008). In mammals, five Dlgs have been identified and we have recently shown that their function has diverged during evolution (Van Campenhout et al., 2011). Interestingly, Dlg3 is the only family member that is involved in apical transport and required for tight junction (TJ) consolidation. Taken together, the function of Drosophila Dlg in spindle positioning (Bellaiche et al., 2001; Johnston et al., 2009; Bergstralh et al., 2013) and mammalian Dlg3 in PCP establishment (Van Campenhout et al., 2011), suggested to us that Dlg3 could mediate PCP-dependent BB positioning.

In this study, we identified Fltp as a gene expressed in regions of active PCP signaling including the node, the MCCs of the lung, and the sensory hair cells of the inner ear. Knock-out analysis revealed that Fltp is required for BB docking and cilia formation in the lung as well as BB and kinocilium positioning in the IE. Using ALI cultures, we show that Fltp expression is induced while BBs are amplified and docked at the apical PM in differentiating MCCs. Fltp localizes next to BBs, and MT plus ends in the apical actin network and is required for efficient BB docking and cilia formation. We provide evidence that Dlg3 functions together with Fltp to position BBs and kinocilia in the inner ear. Dlg3 and Fltp physically interact with each other, the core PCP protein Dvl2, and the pericentriolar matrix protein γ-Tubulin, suggesting that we have identified a novel BB positioning complex in the inner ear. Together, our data implicate that Fltp is a novel regulator important for BB docking and positioning in mono- and multiciliated cell types that acquire PCP.

Results

Identification of Fltp as a Foxa2 target gene

We discovered Fltp as a functionally non-annotated gene (1700009P17RiK) in a screen to identify Foxa2 target genes involved in polarity establishment (Burtscher and Lickert, 2009) and expressed in monociliated node cells (Tamplin et al., 2008; Kinzel et al., 2010). The enrichment of the transcription factor FOXA2 on conserved binding sites in the promoter region of the human FLTP ortholog (C1Orf192), suggests that FLTP is a direct target of FOXA2 (Figure 1A) (Weedon et al., 2014). The murine Fltp gene consists of six exons and the spliced mRNA codes for an open-reading frame (ORF) of 567 nucleotides that translates into a protein of 189 amino acids (Figure 1B,C). An alignment of the proteins of different species reveals a high conservation during evolution as well as an N-terminal SH3 binding domain and a C-terminal proline-rich repeat (PRR) (Figure 1C). Interestingly, the mouse 1700009P17RiK cDNA was also identified in a screen for mRNAs highly abundant in ciliated tissues (McClintock et al., 2008).

Figure 1 with 2 supplements see all
Download asset Open asset

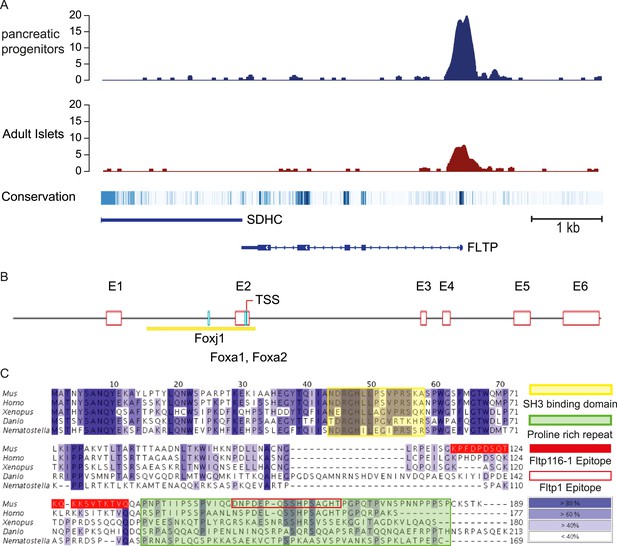

FLTP has active FOXA2 binding sites in its promoter and is conserved among species.

(A) A high amount of the endodermal transcription factor FOXA2 binds the human FLTP promoter in pancreatic progenitors and in adult islets, indicating that FLTP is a direct target of FOXA2 and expressed in these cells. (B) Fltp shows predicted (Genomatix) Foxj1, Foxa1, and Foxa2 binding sites in its promoter (clear red boxes: exons (E1–E6); yellow box: promoter; TSS: transcriptional start site; light blue boxes: Foxj1, Foxa1, Foxa2 binding sites). (C) Fltp protein alignment shows high conservation between different species (highest conservation in the first 76 amino acids). The mouse and human proteins are highly homologous (yellow box: SH3 binding domain; green box: predicted proline rich repeat (PRR); red filled box: peptide sequence of the Fltp116-1 epitope; red empty box: peptide sequence of the Fltp1 epitope; dark blue indicates conservation over 80%; lighter colors indicate less conservation).

https://doi.org/10.7554/eLife.03842.003
Figure 1—source data 1

Mendelian ratio of Fltp intercrosses on different backgrounds.

(A–C) Fltp animals are born roughly at the expected Mendelian ratio in C57Bl6/6NCrl, 129S6/SvEvTac, or CD1 background. Note: FltpZV/ZV animals are slightly underrepresented on the C57Bl6 and 129S6 background.

https://doi.org/10.7554/eLife.03842.004

To analyze the Fltp protein in more detail, we raised two polyclonal rabbit antibodies against a central and a C-terminal epitope (Figure 1C). We confirmed the specificity of these antibodies in western blot analysis and immunocytochemistry in transiently transfected HEK293T cells (Figures 1—figure supplement 1A–G, 2D). Endogenous Fltp protein localizes to the apical PM, the BB, and the primary cilium in monociliated mouse node cells, suggestive for a function of Fltp in BB transport, positioning, and/or ciliogenesis (Figure 2F,G).

Figure 2 with 1 supplement see all
Download asset Open asset
Fltp reporter and protein is detectable in mono- and multiciliated tissues.

(A and B) mRNA (Fltp in situ hybridization) (A) and lacZ reporter expression (B) are restricted to the node (n) at E7.5. (C–E)Whole-mount lacZ stained and benzyl alcohol/benzyl benzoate (BABB) cleared FltpZV/+ embryo and organs. (C) E11.5 embryo reveals reporter expression in the choroid plexi (cp), prechordal plate (pcp), eye (e), and floor plate (fp). (D) E17.5 IE shows reporter expression in posterior crista ampullaris (pca), lateral crista ampullaris (lca), anterior crista ampullaris (aca), utricular macula (uma), and saccular macula (sma) of the vestibular part as well as in the organ of Corti (oc). (E) E17.5 lung shows lacZ reporter activity in multiciliated lung epithelial cells. (F and G) Whole-mount antibody stained embryo (node, E7.75) analyzed by LSM reveals Fltp protein in vesicular fashion in the cytoplasm and along primary cilia (white arrow heads). (H–I′) Immunohistochemistry on cryosections combined with LSM analysis reveals Fltp at the apical plasma membrane and at cilia in multiciliated lung epithelial cells of Fltp+/+adult animals (H and H′). No Fltp immunoreactivity is detected in FltpZV/ZV lungs (I and I′). ZO-1 marks apical TJs, α-Tubulin (alpha Tub), and acetylated-Tubulin (aT), the tubulin network and cilia; nuclei are marked by DAPI and Fltp by Fltp1 (F and G) and Fltp116-1 (H–I′). Scale bars; 100 µm (A and B), 500 µm (C, D, E), 10 µm (F), 4 µm (G), and 10 µm (H–I′).

https://doi.org/10.7554/eLife.03842.007

Fltp is expressed in mono- and multiciliated tissues during PCP acquisition

To explore Fltp expression and function in vivo, we generated an FltpZV knock-in/knock-out allele by replacing the entire ORF by a multicistronic lacZ-Venus reporter cassette (Figure 1—figure supplement 2A and Supplemental ‘Materials and methods’). PCR genotyping as well as Southern and western blotting analysis confirmed the targeted homologous recombination and the generation of a null allele (Figure 1—figure supplement 2B–D). Fltp homozygous knock-out mice are born at roughly the expected Mendelian ratio and are viable and fertile on CD1, C57BL/6NCrl and 129S6/SvEvTac background (Figure 1—source data 1).

Next, we characterized the temporal and spatial expression pattern of the Fltp reporter during embryonic development. LacZ reporter activity in FltpZV/+ animals is first detectable in the embryonic node at E7.5 (Figure 2B), which accurately reflects endogenous mRNA expression (Figure 2A) and confirmed our previous findings (Tamplin et al., 2008; Lange et al., 2012). At E8.5–13.5, strong reporter activity is detected in the eye, notochord, floor plate of the neural tube, and all four choroid plexi (Figure 2C, Figure 2—figure supplement 1A–D), tissues that are either mono- or multiciliated and depend on active PCP signaling. Consistent with a potential function in the PCP pathway, LacZ reporter activity in the IE coincides with BB docking and kinocilium positioning at E13.5 (Figure 2—figure supplement 1E) (McKenzie et al., 2004; Ezan and Montcouquiol, 2013). The Fltp reporter remains expressed during development and early postnatal life in all six sensory regions of the IE (Figure 2D, Figure 5A, Figure 2—figure supplement 1C,E,F). Furthermore, Fltp reporter activity strongly correlates with the spatial and temporal onset of ciliogenesis in the lung trachea and the main bronchi at E14.5–17.5 (Figure 2E, Figure 2—figure supplement 1G,H). In adult lungs at postnatal day (P) 30, the dual lacZ and H2B-Venus reporter remains expressed in MCCs of the bronchioles, but not in non-ciliated cells of the alveoli (Figure 2—figure supplement 1I,J). To confirm the reporter studies, we analyzed cell type-specific and subcellular localization of the endogenous Fltp protein in the embryonic node and adult lung epithelium. Whole-mount antibody staining combined with laser scanning microscopy (LSM) on gastrula-stage embryos revealed that the Fltp protein is localized at the apical PM, TJs, primary cilia, and in the cytoplasm of node cells (Figure 2F,G). Immunohistochemistry on lung sections further shows that Fltp is highly enriched at the apical cortex and in cilia of the multiciliated bronchial epithelial cells (Figure 2H,Hʹ). The absence of Fltp immunoreactivity in FltpZV/ZV lung sections further confirmed antibody specificity (Figure 2I,Iʹ). Taken together, Fltp reporter and endogenous expression accurately correlate with onset of PCP establishment in the embryonic node, floor plate, choroid plexi, IE, and lung, which is indicative for a function in or downstream of the PCP pathway.

Fltp regulates BB docking and cilia formation in multiciliated lung cells

The embryonic and adult lung depends on PCP signaling for branching morphogenesis, BB docking, and cilia formation (Yates et al., 2010; Vladar et al., 2012). First, we investigated the highly stereotypic branching pattern in cleared lacZ stained lungs at P60 (Metzger et al., 2008). No difference was detectable in FltpT2AiCre/+; R26R/+(Gt[ROSA]26Sor) controls lungs with normal levels of Fltp protein (Soriano, 1999; Lange et al., 2012), FltpZV/+ heterozygous and FltpZV/ZV homozygous mutant lungs, indicating that Fltp has no function during branching morphogenesis (Figure 2E, Figure 3A–C). In contrast, measurement and quantification of terminal lung bronchiole diameters revealed a dose-dependent and statistically significant constriction of the distal airways (Figure 3A–D), suggesting that normal Fltp levels are important for lung airway homeostasis. To better understand the etiology of the airway constrictions, we analyzed Fltp expression and function on cellular level in Fltp+/+, FltpZV/+, and FltpZV/ZV adult lungs at P7 and P30 (Figure 3E–L). Fltp-driven H2B-Venus reporter activity was confined to the nuclei of multiciliated epithelial cells in FltpZV/+ and FltpZV/ZV lungs at P7 and P30. LSM analysis further confirmed that cilia formation was significantly affected in a dose-dependent fashion (Figure 3E–L), similar to PCP effector knock-down phenotypes in the mucociliary epithelium of Xenopus laevis (Park et al., 2006, 2008).

Figure 3
Download asset Open asset
Loss of Fltp leads to constricted distal airways and cilia formation defects in the lung.

(A–C) Whole-mount lacZ stained and BABB cleared distal airways of left lung lobes at P60. Red lines show how diameters were measured. (A) FltpT2AiCre/+; R26R/+is used as control (Ctrl). (B and C) FltpZV/+ and FltpZV/ZV animals show constricted distal airways. (D) Average distal airway diameter of Ctrl animals is 132.25 µm (n = 4; 125 bronchi), of FltpZV/+ animals is 99.68 µm (n = 3; 90), and of FltpZV/ZV animals is 90.06 µm (n = 3; 95). (E–G and I–K) Immunohistochemistry on cryosections of lung distal airway epithelium combined with LSM analysis. (E and I) In Fltp+/+animals BBs project cilia at the apical surface. (F and J) In FltpZV/+ animals less and shorter cilia are detectable. (G and K) FltpZV/ZV animals often show absence of or shorter cilia at the apical surface. Note that only very few BBs are docked at the apical surface. (H and L) FltpZV/ZV animals show significant shorter cilia than Fltp+/+ animals. In total we examined n = 3 (81 cells) for Fltp+/+, n = 2 (22) for FltpZV/+, and n = 2 (93) for FltpZV/ZV P7 animals. For P30 we examined n = 3 (121 cells) for Fltp+/+, n = 3 (134) for FltpZV/+, and n = 2 (138) for FltpZV/ZV. BBs are marked by γ-Tubulin (γTub), cilia by acetylated-Tubulin (aT), cell membrane by β-Catenin (βCat), nuclei by DAPI, and nuclei of Fltp reporter expressing cells by GFP. Statistical analysis uses an one way ANOVA (**p = 0.0028; ***p < 0.0001 for (D) and *p = 0.0143; **p = 0.0025 for (H and L)). Error bars show the 95% confidence interval of the mean (D) and the standard error of the mean (H and L). Scale bars; 200 µm (A–C).

https://doi.org/10.7554/eLife.03842.009

To analyze the dynamic cellular and molecular requirement for Fltp during BB docking, cilia formation, and PCP establishment, we employed the mTEC culture system (You et al., 2002; Vladar et al., 2012). Switching mTEC culture to ALI conditions induces a differentiation process of lung progenitor cells towards a MCC phenotype. During differentiation the progenitor cells pass through different maturation stages (Figure 4A): Monociliated lung progenitor cells (stage I) start centrosome/BB amplification followed by BB transport and docking (stage II–III) and subsequent cilia formation (stage IV) (Vladar et al., 2012). In these cultures, Fltp-driven H2B-Venus reporter activity is activated at the transition from stage I to stage II when centrosomes/BBs are amplified and docked in heterozygous and homozygous Fltp ALI cultures (Figure 4B). Fltp-H2B-Venus expression increases during maturation until cells are terminally differentiated. This correlates with active PCP signaling and initial asymmetric core component localization (Vladar et al., 2012). Subcellular co-localization studies further revealed that Fltp is localized to the apical, but not sub-apical actin cytoskeleton and fills the gaps in the actin network from where MT-based cilia project (Figure 4C–Cʹʹʹ,E). Moreover, Fltp co-localizes with newly synthesized MT plus ends that are labeled with anti-EB1 antibodies (Figure 4D). Together with the direct adjacent localization of Fltp next to the pericentriolar matrix stained by γ-Tubulin (Figure 4E), these data suggest that Fltp connects BBs and ciliary MT plus ends to the cortical actin cytoskeleton. To test this idea, we examined mTECs switched to ALI conditions from Fltp+/+ and FltpZV/ZV mice at day two and four of differentiation qualitatively and quantitatively. Fltp+/+ and FltpZV/ZV differentiated with comparable efficiencies and speed as measured by Fltp-driven H2B-GFP expression and centrosome amplification (Figure 4—figure supplement 1A), and a comparable number of centrosomes are formed in differentiating Fltp+/+ and FltpZV/ZV mTECs (Figure 4F,G), whereas BB docking and cilia formation was delayed at ALI+2 and +4 days of differentiation (Figure 4F–I, Figure 4—figure supplement 1B). Taken together, these data suggest that Fltp functions in the process of BB docking and cilia formation.

Figure 4 with 1 supplement see all
Download asset Open asset

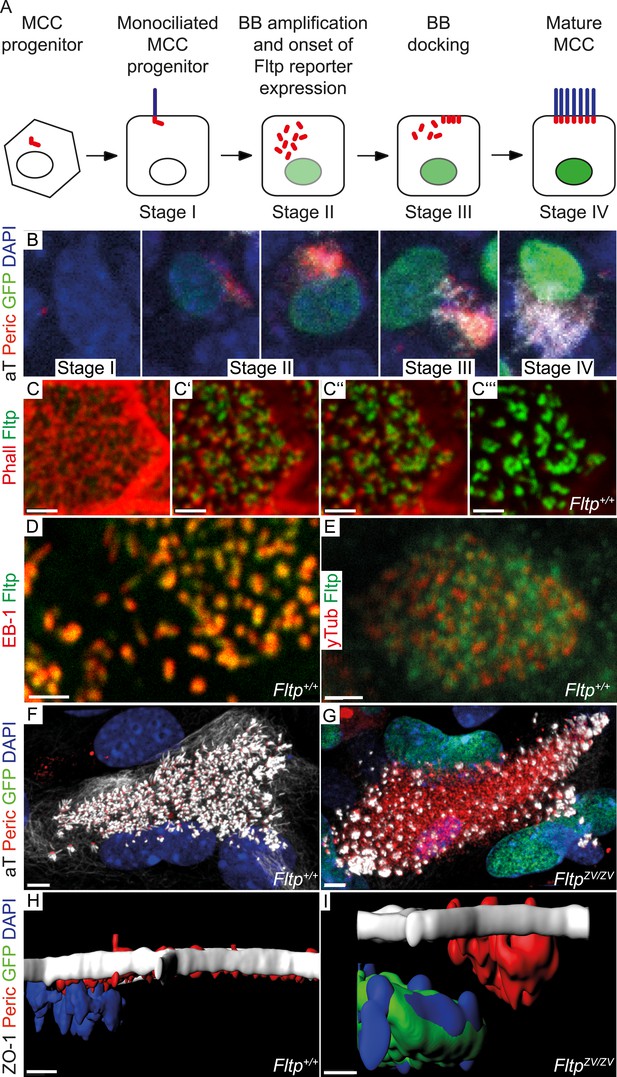

Fltp is expressed and necessary during BB docking.

(A) Scheme of multiciliated cell (MCC) maturation. A MCC progenitor projects a primary cilium at the apical surface (stage I). Centrosome amplification is the first sign of differentiation (stage II) followed by apical transport and docking of BBs (stage III). Fully differentiated cells project multiple motile cilia at the apical surface (stage IV). Staging according to Vladar and Stearns (2007). The green nucleus indicates Fltp reporter gene expression. (B–G) LSM of ALI culture of FltpZV and WT mTECs. (B) Onset and level of Fltp reporter expression correlate with the onset of BB amplification and ciliogenesis (stage II–IV) in cultured ALI mTECs as shown in the scheme in (A). (C–C′′′) Confocal sections of a single cell from the sub-apical actin level (C) over the apical actin level (C′ and C″) to the cilia level (C′′′) (ALI day 4). Fltp co-localizes with the MT-plus end binding protein EB-1 (D) (ALI day 4) next to the pericentriolar matrix (E) (ALI day 4) and to cilia in multiciliated Fltp+/+ cells (C′′′). (F) Fltp+/+ cell showing all BBs (red dots) projecting cilia (white stripes) at the apical surface (ALI day 4). (G) In many FltpZV/ZV cells the majority of BBs are not docked at the level of tight junctions marked by ZO-1 and do not project cilia (ALI day 4). (H and I) Side view IMARIS surface rendering shows that all BBs are docked at the apical surface in Fltp+/+ (H) (ALI day 4) in contrast to FltpZV/ZV cells where most BBs stay in the cytoplasm (I) (ALI day 4). BBs are marked by γ-Tubulin (γTub) and pericentrin (Peric), cilia and the tubulin network by tyrosinated-Tubulin (Tyr Tub) and acetylated-Tubulin (aT), the actin network by Phalloidin (Phall), MT plus ends by EB-1, Fltp protein by Fltp116-1, nuclei by DAPI, and nuclei of Fltp reporter expressing cells by GFP. Scale bars; 2 µm (C–C′′′, D, E), 5 µm (F and G).

https://doi.org/10.7554/eLife.03842.010

Fltp regulates kinocilium positioning and stereocilia bundle morphogenesis in the inner ear

To analyze the function of Fltp in PCP, BB positioning, and cilia formation in vivo, we employed the best-characterized mammalian PCP model system, the organ of Corti in the IE. Morphologically the IE looked normal and the cochlear duct is not significantly shortened or widened in FltpZV/+ and FltpZV/ZV mice, indicating that PCP-mediated convergent extension movements are not affected at P0 (data not shown). However, significant deviations of the polarized arrangement of stereocilia bundles can be seen in IHC and OHC rows with increasing severity closer to the apex along the apico-basal axis (Figure 5B–C,J–N). In addition, scanning electron microscopy (SEM) analysis uncovered severe stereocilia bundle morphogenesis defects and mispositioning of the MT-based kinocilium, very similar to phenotypes observed in mutants of spindle positioning proteins, such as Gαi3, mPins, mInsc, and LGN (Figure 5D–I) (Ezan et al., 2013; Tarchini et al., 2013).

Figure 5
Download asset Open asset
Fltp is required for kinocilium positioning and stereocilia bundle formation.

(A) Whole-mount LSM of an FltpZV/+ organ of Corti (OC) showing its different regions. Fltp reporter expression is restricted to all sensory HCs (IHC and OHC) of the OC (red dashed line). (B–M) Whole-mount SEM pictures of an E18.5 OC. (B and C) Fltp+/+ (WT) HCs at 50% of the OC length are perfectly polarized (B) whereas FltpZV/ZV (HOM) HCs show orientational defects (C). (D–I) Enlargements of HCs reveal perfect polarized kinocilia as well as highly ordered stereocilia in WT (D). HOM cells are misaligned and show split stereocilia bundles (E, G–I), general bundle morphology defects (E–I), as well as detached kinocilia (E). Polarity and stereocilia bundles disruption increases in HOM hair cells from 75% (K) to >75% (M) of OC length compared to WT cells (J and L). (N) Deviation of HCs from the polarity axis for WT and HOM animals significantly differs in all OC regions (<50%, 50%, 75%, >75%). Quantification of HC rotation was performed by measuring the angle from the normal tissue polarity (measured by the medial to distal alignment of the HC rows) to the middle of the stereocilia bundle. In total we examined n = 4 (219 HCs) of WT and n = 7 (426) of HOM animals. Statistical analysis uses circular statistics (****p < 0.0001). Error bars show the standard deviation. Kinocilia are marked by the red dashed lines, nuclei by DAPI, and nuclei of Fltp reporter expressing cells by GFP. Abbreviations: inner hair cell (IHC), outer hair cell (OHC1-3). Scale bars; 10 µm (B and C), 1 µm (D–I).

https://doi.org/10.7554/eLife.03842.012

To seek first evidence if Fltp functions in the PCP pathway, we investigated a potential genetic interaction of Fltp with the core PCP component Celsr1 (Curtin et al., 2003). As Fltp and Celsr1 are co-expressed in the cochlea of the IE (Shima et al., 2002), we compared stereocilia bundle morphogenesis in Celsr1crsh/crsh single mutant and FltpZV/ZV; Celsr1crsh/crsh double mutant cochleae at E18.5. On the mixed genetic background analyzed, Celsr1crsh/crsh animals showed rather normal bundle alignment in IHCs and OHCs from the base to the middle part of the cochlea (<50%), but the alignment was significantly disturbed closer to the apex (>50%) (Figure 6A,C,D). In contrast, FltpZV/ZV; Celsr1crsh/crsh double mutant cochleae revealed an increased degree of misaligned stereocilia bundles, most pronounced in the <50% region, and showed an additional fourth OHC row (Figure 6B–D). These data suggest that Fltp and the core PCP gene Celsr1 either act together in the PCP pathway or in two parallel pathways important for the morphogenesis of the cochlea. To clarify if Fltp is necessary to establish PCP in the IE according to the current model (Figure 6E) (Ezan and Montcouquiol, 2013), we further investigated the localization of core PCP components. No differences in the asymmetric distribution of Vangl1 and Dvl2 at the cell cortex along the medio-lateral axis were detected in Fltp+/+and FltpZV/ZV cochleae at E18.5 (Figure 6F–I), consistent with a function of Fltp downstream of core PCP molecules.

Figure 6
Download asset Open asset

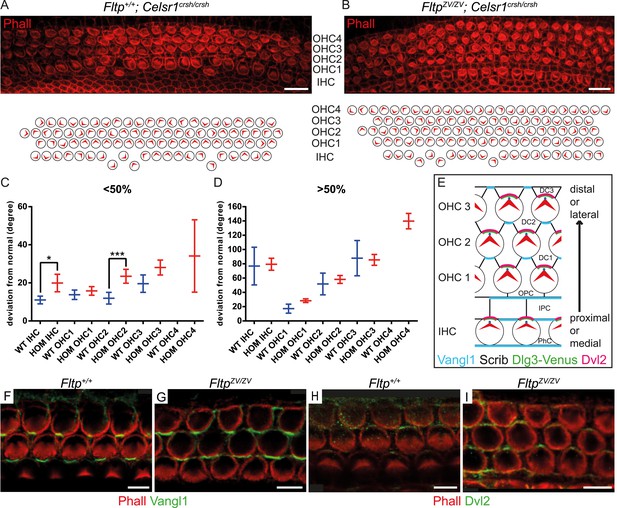

Fltp is a potential downstream mediator of PCP signaling.

(A–B) LSM of an E18.5 Fltp+/+; Celsr1crsh/crsh (WT) organ of Corti (OC) (A) revealed rotated outer (OHC) and inner hair cells (IHC). FltpZV/ZV; Celsr1crsh/crsh (HOM) OC (B) shows more severely rotated IHCs and OHCs as well as an additional OHC row in comparison to (A). (C and D) Hair cells of HOM (red) animals show a more pronounced PCP phenotype compared to WT (blue) in the region <50% and >50% of the OC (for cochlea region nomenclature and quantification method see Figure 5). In total we analyzed n = 1 (130 cells) at <50%, n = 1 (90) at >50% for WT, n = 5 (298) at <50%, n = 5 (743) at >50% for HOM. Statistical analysis uses a Kruskal–Wallis test (*p = 0.0375; ***p = 0.0003). Error bars show the 95% confidence interval of the mean. (E) Model illustrating PCP molecule localization in IE hair cells. (F–I) Whole-mount IE (E18.5) LSM of 3 OHC rows revealed Vangl1 localization at the lateral side of supporting cells in Fltp+/+ (F) and FltpZV/ZV (G) animals and Dvl2 localization at the lateral side of IE hair cells in Fltp+/+ (H) and FltpZV/ZV (I) animals indicating that core PCP protein localization is not disrupted. The actin network and stereocilia are marked by Phalloidin (Phall) and core PCP proteins by Vangl1 and Dvl2. Abbreviations: inner phalangeal cells (PhC), inner pillar cells (IPC), outer pillar cells (OPC), Deiters' cells (DC1-3). Scale bars; 10 µm (A and B), 5 µm (F–I).

https://doi.org/10.7554/eLife.03842.013

Dlg3 and Fltp regulate BB positioning in the inner ear

BB positioning and stereocilia bundle morphogenesis depend on spindle positioning proteins (Ezan et al., 2013; Tarchini et al., 2013), but how these connect to core PCP molecules and actin-rich stereocilia bundles is unknown. Due to PCP defects in the IE (Van Campenhout et al., 2011), we hypothesized that the mammalian scaffold protein Dlg3 might be a cortical adaptor for PCP-mediated BB positioning. Due to the lack of good antibodies and tools, we generated a transgenic mouse line that constitutively expresses a Venus fluorescent protein fused to the N-terminus of Dlg3 (Dlg3-Venus) (see Supplemental ‘Materials and methods’). Next, we examined the subcellular localization of the Dlg3-Venus fusion protein in relation to BB, kinocilium, stereocilia bundle, core PCP molecules, and TJs in cochlea HCs using LSM and three-dimensional reconstruction (Figure 7A–Bʹ,F–H). Dlg3 specifically localizes in a crescent shape to the bare zone around the BB and co-localizes with the core PCP component Dvl2 at lateral TJs (Figure 7A–Bʹ,G), the area where mPins/LGN, mInsc, and Gαi are localized (Ezan et al., 2013; Tarchini et al., 2013). This suggests that Dlg3 might have a conserved function in spindle/BB positioning (Johnston et al., 2009). Interestingly, Fltp localizes at the interface between Dlg3 and the actin-based stereocilia bundles (Figure 7C–Eʹ), further suggesting that Fltp might be an adaptor protein linking spindle/BB positioning proteins to the apical actin cortex.

Figure 7
Download asset Open asset
Fltp is located at the interface of apical actin and Dlg3 in IE hair cells.

(A, B, C–D′, F–H) Single section LSM of outer HCs of an Fltp+/+; Dlg3-Venus animal at E18.5 reveals that Dlg3-Venus is located at the lateral membrane and at the medial membrane (or the lateral membrane of the supporting cell) of IE HCs (A and B). Fltp is localized lateral to the cuticular plate (CP) and the stereocilia bundles (SC) (C and D). Dlg3-Venus is located in a lateral crescent overlapping with Fltp localization (C′ and D′). The unstained area marks the region of the BB (C′ and D′). Dlg3-Venus is co-localized with Dvl2 (G) at the most lateral membrane directly opposite of Vangl1 (F) and with ZO-1 at the apical membrane (H). (A′, B′, E, E′) IMARIS wireframe animation of a Dlg3-Venus IE HC showing Dlg3-Venus co-localization with the BB, the kinocilium, and actin (A′ and B′) and a Fltp+/+; Dlg3-Venus IE HC showing Fltp, Dlg3-Venus, and Phalloidin co-localization (E and E′). The actin network, the CP, and the SC are marked by Phalloidin (Phall), Fltp protein by Fltp116-1 (Fltp), the kinocilium by acetylated-Tubulin (aT), the BB by pericentrin (Peric), the apical cell membrane by ZO-1, core PCP proteins by Vangl1 and Dvl2, and Dlg3-Venus fusion protein by GFP. Scale bars; 2 µm (A–E′), 3 µm (F–H).

https://doi.org/10.7554/eLife.03842.014

We tested this idea by analyzing Dlg3 and BB localization in Fltp mutants. When compared to WT (Figure 8A–Dʹ,J, Figure 8—figure supplement 1A), the lateral crescent of Dlg3 in Fltp mutants is disturbed and BBs are not correctly positioned in the middle of the apical Dlg3 crescent (Figure 8E–Hʹ,J, Figure 8—figure supplement 1A), implicating that Fltp binds to Dlg3 to position BBs, kinocilia, and stereocilia bundles. If Dlg3 and Fltp cooperate to position BBs, one would predict that these proteins physically interact. Dlg3 contains a central SH3 domain which could bind to the SH3 binding or PRR domain of Fltp. We tested this by co-immunoprecipitation experiments of Streptavidin-Flag (SF)-tagged Dlg3 variants and Fltp-myc variants from serum starved and ciliated HEK293T cells (Figure 9A,B). These experiments suggest a physical interaction of Fltp with Dlg3, which requires the highly conserved N-terminal SH3 binding domain of Fltp, but not the SH3 domain of Dlg3 (Figure 9B). As Dvl2 localizes directly adjacent to Dlg3 and Fltp in the inner ear, we next examined the association of endogenous Dvl2 and γ-Tubulin with overexpressed SF full-length Fltp and SF-Dlg3 (Figure 9C). The interaction of Dvl2 with Dlg3 and Fltp and γ-Tubulin with Dvl2 and Dlg3 suggests that these proteins form a complex during BB transport and positioning. Finally, we tested the predicted requirement of Dlg3 for BB positioning by knock-out analysis (Figure 8K,L, Figure 8—figure supplement 1B,C). Taken together, these results suggest that Dlg3 is a BB positioning protein that is anchored at apical TJs (Van Campenhout et al., 2011) and cooperates with Fltp to position BB at the apical cortex of HCs in the cochlea at E18.5.

Figure 8 with 1 supplement see all
Download asset Open asset
Loss of Fltp or Dlg3 leads to BB mispositioning in IE hair cells.

(A–D) LSM of Fltp+/+; Dlg3-Venus (WT) IE HCs at E18.5 reveals BBs in the middle of the lateral Dlg3-Venus crescent. (B′–D′) IMARIS surface rendering pictures of WT HCs. (E–H) LSM of FltpZV/ZV; Dlg3-Venus (HOM) IE HCs at E18.5. BBs are located at the edge of the lateral Dlg3-Venus crescent. The crescent itself often shows defective localization. The red asterisk marks some affected cells. (F′–H′) IMARIS surface rendering pictures of HOM HCs. For quantification see Figure 8—figure supplement 1A. (I) For BB mispositioning analyses the angle between the middle of the Dlg3-Venus crescent and the BB location was measured. (J) BB position in affected HCs of HOM animals significantly differs from the position in the WT. In total we analyzed n = 2 (73 cells) for WT and n = 2 (119) for HOM. (K) LSM of Dlg3−/− (Dlg3tm1Grnt) IE HCs reveals mislocalized BBs and rotated hair cells. For quantification Figure 8—figure supplement 1B,C. (L) Analysis of BB mispositioning was performed as described in (I). BB position in affected HCs of Dlg3−/− (HOM) animals significantly differs from the Dlg3+/+ (WT) position. In total we analyzed n = 7 (470 cells) for WT and n = 13 (804) for HOM. Statistical analysis uses an one-way ANOVA (J) or a Kruskal–Wallis test (L) (****p < 0.0001). Error bars show the 95% confidence interval of the mean. The actin network and stereocilia are marked by Phalloidin (Phall), BBs by pericentrin (Peric), cilia by acetylated-Tubulin (aT), and Dlg3-Venus fusion protein by GFP. Abbreviation: inner hair cell (IHC), outer hair cell (OHC 1-3). Scale bars; 10 µm (A and E), 1 µm (B–D′, F–H′, K).

https://doi.org/10.7554/eLife.03842.015

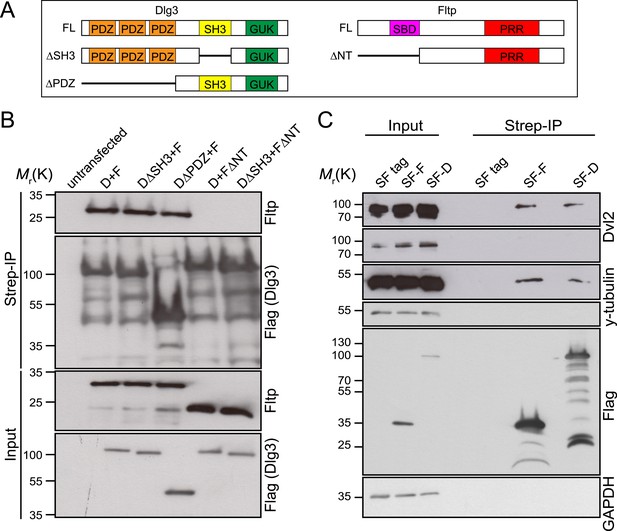

Figure 9
Download asset Open asset
Fltp interacts with proteins associated with the TJ complex (Dlg3), the BB (γ-Tubulin) and with the core PCP protein Dvl2.

(A) Dlg3 and Fltp constructs used for interaction domain mapping. (B) N-terminus of Fltp is essential for interaction with Dlg3. HEK293T cells were transfected with SF Dlg3 variants and with Fltp-myc variants. SF-tagged Dlg3 was immunoprecipitated using Streptavidin beads (Strep-IP). Full-length Fltp-myc was detected in the Strep-IP in the presence of full-length SF-Dlg3, SF-Dlg3ΔSH3, and SF-Dlg3ΔPDZ. FΔNT cannot be co-immunoprecipitated with SF-Dlg3. (C) Fltp and Dlg3 are found in a complex together with Dvl2 and γ-Tubulin. HEK293T cells were transfected with SF Dlg3 and SF Fltp. In a Strep-IP for Fltp and Dlg3, endogenous Dvl2 and γ-Tubulin were co-immunoprecipitated. Abbreviations: D: Dlg3; F: Fltp; SBD: SH3 binding domain; PRR: proline rich repeat.

https://doi.org/10.7554/eLife.03842.017

Discussion

Activation of the PCP pathway results in rearrangement of the actin and MT cytoskeleton via tissue specific effector molecules. Although actin and MT interactions need to be thoroughly controlled in virtually all cell types in different cell cycle phases across species from yeast to humans, it is surprising that not many adaptor proteins that mediate such interactions are identified (Rodriguez et al., 2003). These global cytoskeletal rearrangements underlie many fundamental morphogenetic processes in which cellular asymmetries need to be established and maintained, such as tissue morphogenesis, cell migration, or BB and spindle positioning in post-mitotic and mitotic cells, respectively (Wallingford, 2012). We describe the identification and functional analysis of Fltp, a protein that orchestrates cytoskeletal rearrangements in cells that acquire PCP. Our data suggest, that Fltp is important for BB docking and positioning in mammals through regulating actin and MT interactions.

Fltp is a potential PCP effector gene that regulates MT–actin interactions in mammals

Several lines of evidence suggest that Fltp is a potential PCP effector regulating the cytoskeleton. First, the Fltp gene and reporter are expressed in several tissues known to depend on active PCP signalling, such as the node, ependymal cells, floor plate, lung, eye, and IE. Second, Fltp expression kinetic correlates with dynamic PCP acquisition, terminal differentiation, and cellular morphogenesis in the lung and the IE. Third, the double knock-out of Fltp and the core PCP gene Celsr1 show a more severe PCP phenotype than both single mutants, raising the possibility that both genes act in the same pathway, which needs further confirmation. If this is the case, then Fltp seems to be a downstream effector molecule in the PCP pathway, as it is not required for PCP establishment, but rather for cell intrinsic PCP transduction leading to cytoskeletal rearrangements. This is supported by the fact that phenotypes observed for the PCP effectors Intu and Fuz in the mucociliary epithelium of the frog and Fltp in the murine lung are strikingly similar (Park et al., 2006, 2008). Additionally, spindle positioning rather than core PCP mutant phenotypes mirrors the Fltp mutant phenotype in the IE (Ezan et al., 2013; Tarchini et al., 2013). Finally, Fltp is localized at the interface of spindle positioning complexes that capture MT plus ends and connect to the PM and the apical actin cytoskeleton. Loss of Fltp leads to failure in BB docking and positioning most probably through disconnection of the BB, MT, and actin cytoskeleton in the mammalian lung and IE. Although the mechanisms of Fltp action in these two tissues might differ, a common theme seems that Fltp acts at the interface of the MT and actin cytoskeleton for BB docking and positioning, which we discuss in the following sections.

Fltp regulates BB docking and cilia formation in the lung

PCP is best studied in the mammalian IE, but is also apparent in MCCs of the lung and mucociliary epithelium of the frog skin (Wallingford, 2012). In both terminally differentiated cell types, core PCP molecules are asymmetrically localized at the apical PM and translate long-range PCP signals into cell intrinsic cytoskeletal changes that coordinate BB docking and positioning as well as cilia formation in mono- and multiciliated cells. In MCCs of the frog skin the PCP effector proteins Intu and Fuz have been shown to control ciliogenesis and together with Dvl control apical docking and planar polarization of BBs by coordinating apical actin assembly (Park et al., 2006, 2008). It was further suggested that the PCP effector Fuz and Dvl2 control membrane trafficking and vesicle fusion at the BB essential for ciliogenesis (Park et al., 2008; Gray et al., 2009). Studying Fltp function in the ALI primary cell culture system allowed us to link the onset of Fltp expression to the time of BB amplification, docking, and cilia formation. In MCCs, we have shown a close association of Fltp with the apical actin–MT cytoskeleton and BBs. Fltp localization at the apical surface is reminiscent of Dvl, Sec8, and Intu localization in frog multiciliated mucociliary epithelium (Park et al., 2006). Lack of Fltp function leads to BB docking defects and reduced number of cilia formed at the apical PM in ALI cultures and in vivo. Fltp physically interacts with Dlg3 and the core PCP molecule Dvl2, which regulates BB transport together with proteins of the secretory pathway (Park et al., 2008). We have previously shown that Dlg3 is the only Dlg family member that is monoubiquitinated by Nedd4 and Nedd4-like E3 ligases. This is required for apical PM transport mediated by the motor protein Dynein IC and Sec8, a component of the exocyst complex (Van Campenhout et al., 2011). Thus, taken together, these findings suggest that Fltp cooperates with Dlg and Dvl family members to regulate apical BB transport and docking of BBs in multiciliated tissues. However, there is likely not a strong parallel between BB docking in MCCs and BB positioning in the IE, a topic which needs to be addressed in the future.

Fltp and the spindle positioning protein Dlg3 act in concert to position BBs in the IE

To better understand the function of Fltp, we further focused our analysis on the IE as a well-described model for PCP. It was previously shown that core PCP molecules localize to distinct apical membrane compartments, but differential localization seems not sufficient to instruct morphogenesis of actin-rich hair bundles (Jones and Chen, 2008). Instead, BB as well as kinocilium formation and positioning is essential for hair bundle morphogenesis, which is regulated by opposing localization of spindle positioning proteins and apical polarity proteins (Ezan et al., 2013; Tarchini et al., 2013). mInsc, mPins/LGN, and Gαi localize in a microvilli-free zone (bare zone) at the lateral side, whereas the apical polarity complex consisting of Partitioning defective 3 and 6 (Par3, 6) as well as atypical protein kinase C (aPKC) localize at the medial side. Surprisingly, localization of spindle proteins was not affected in the classical PCP mutants (Ezan et al., 2013), which either suggests redundancy in the PCP pathway or alternative mechanisms that position spindle proteins and BBs in the IE. We provide evidence that Fltp and Dlg3 position BBs and stereocilia bundles in the IE in addition to Gαi, mPins/LGN, and mInsc, suggesting that we have identified important new molecules for BB/spindle positioning in mammals. Dlg3 and Fltp together surround the BB and anchor this organelle asymmetrically to the apical cortex likely via Dvl2 and TJ-associated proteins on the one side and attachment to the apical actin cytoskeleton on the other side. We have recently shown that the scaffold protein Dlg3 is important for apical polarity and TJ formation by interaction with a number of TJ-associated proteins (Van Campenhout et al., 2011). In the fruit fly, Dlg, Mushroom body defective (Mud), and Pins are absolutely necessary for spindle positioning in various cell types in vitro and in vivo (Bellaiche et al., 2001; Johnston et al., 2009; Bergstralh et al., 2013). The co-localization of Gαi, mPins/LGN and mInsc, and Dlg3-Venus in the bare zone further suggests that also in mammals these proteins act in concert to position BBs and spindles. Furthermore, the basolateral polarity complex consisting of Dlg, Lgl, and Scrib is known to establish membrane domains by reciprocal inhibitory interactions with the apical aPKC-Par3/6 polarity complex and to regulate A–B spindle positioning (Knoblich, 2008; Siller and Doe, 2008). These reciprocal inhibitory interactions of the apical and basolateral polarity complex at the apical surface further stabilized the positioning of BBs at the apical PM. But how spindle positioning complexes are linked to the actin cytoskeleton is still a mystery in mammals. In yeast, MT plus ends are captured by Kar9a, which binds directly to a type V myosin motor bound to actin filaments (Korinek et al., 2000; Lee et al., 2000). As described above, Fltp functions very likely as a molecular adaptor protein localized between the interface of spindle positioning complexes and the apical actin cytoskeleton. Loss of Fltp function leads to disconnection of MT-based kinocilium and actin-based stereocilia bundles. Together, this suggests that Fltp couples BB/spindle positioning proteins to core PCP molecules and to the actin cytoskeleton in the IE. Further studies have to be conducted to precisely clarify how this complex is anchored to the cytoskeleton and core PCP components.

Fltp function in development and disease

Knock-out analysis of Fltp revealed an important function in the terminal differentiation of multiciliated lung cells and the morphogenesis of stereocilia bundles on IE HCs. This emphasizes that PCP acquisition and remodeling of the actin- and MT-based cytoskeleton is crucially important for the maturation and function of terminally differentiated cell-types in tissues and organs. Consequently, mutations of both core PCP and effector molecules lead to a wide spectrum of ciliary dysfunction syndromes (Gerdes et al., 2009; Wallingford, 2012). For instance, in primary cilia dyskinesia, lack of directed mucociliary clearance and recurrent respiratory tract infections can eventually progress to permanent lung damage (Storm van's Gravesande and Omran, 2005). The Fltp knock-out mouse shows BB docking and cilia formation defects in MCCs of the lung as well as terminal airway constrictions. This suggests that human FLTP might be mutated in lung disease, a hypothesis that we are currently testing with our clinical partners. Moreover, mutation of Fltp leads to a stereocilia morphogenesis defect in the cochlea of the IE, which suggests that mutation of FLTP can cause hearing loss in human. Mutations in human DLG3 are associated with X-linked mental retardation (Lickert and Van Campenhout, 2012) and we have previously identified that the scaffolding protein Dlg3 regulates apical polarity and TJ formation as well as PCP in the IE (Van Campenhout et al., 2011). In this study, we have shown that Fltp and Dlg3 cooperate in BB positioning in the IE. As Drosophila Dlg acts as a tumor suppressor regulating proliferation and asymmetric cell division (Johnston et al., 2009), it is well possible that the Fltp–Dlg3 complex is involved in similar cellular processes in mammals. Indeed, we have evidence that Fltp regulates cell division of intestinal stem cells (Böttcher and Lickert, in preparation), suggesting that we identified a novel molecule with brought implication for ciliary disease and stem cell-mediated tissue homeostasis.

Materials and methods

Animal data

Request a detailed protocol

Mouse keeping was done at the central facilities at HMGU in accordance with the German animal welfare legislation and acknowledged guidelines of the Society of Laboratory Animals (GV-SOLAS) and of the Federation of Laboratory Animal Science Associations (FELASA). Post-mortem examination of organs was not subject to regulatory authorization.

Generation of Fltp antibodies

Request a detailed protocol

Fltp antibodies were generated as described previously (Lange et al., 2012). Two affinity purified polyclonal antibodies (Fltp1, Fltp116-1) against mouse Fltp using the peptide sequence: DNPDEPQSSHPSAGHT for Fltp1 and KPFDPDSQTKQKKSVTKTVQ for Fltp116-1 were raised in rabbit (Pineda, Berlin, Germany). The Fltp1 epitope locates to the less well conserved C-terminal PRR (Figure 1C, red empty box). The Fltp116-1 epitope (Figure 1C, red filled box) resides N-terminal to the Fltp1 epitope and is less conserved in human.

Antibodies

Primary antibodies used were rabbit anti-Fltp1 (Pineda, Berlin), rabbit anti-Fltp116-1 (Pineda, Berlin), mouse anti-ZO-1 (33–9100: Invitrogen, Carlsbad, CA), mouse anti-α-Tubulin (T6199; Sigma), mouse anti-acetylated Tubulin (T7451; Sigma), mouse anti-γ-Tubulin (ab11316; Abcam), rabbit anti-β-Catenin (C2206; Sigma), chicken anti-GFP (GFP-1020; Aves Labs), rat anti-tyrosinated Tubulin (MAB1864; Millipore), rabbit anti-pericentrin (PRB-432C; Covance), rabbit anti-Vangl1 (HPA025235; Sigma), rabbit anti-Dvl2 (3216; Cell Signaling), and Alexa Fluor 546 Phalloidin (A22283; Invitrogen). Immunostainings were performed as described in the Supplemental ‘Materials and methods’.

Western blot

Request a detailed protocol

Western blot analysis was performed by standard procedures. Following antibodies were used; mouse anti-Flag (A8592; Sigma), rabbit anti-Fltp1 (Pineda, Berlin), rabbit anti-Fltp116-1 (Pineda, Berlin), rabbit anti-Dvl2 (3216; Cell Signaling), mouse anti-γ-Tubulin (ab11316; Abcam), mouse anti-GAPDH (CB1001; Merck Bioscience).

X-gal (5-bromo-4-chloro-3-indolyl-β-D-galactoside) staining

Request a detailed protocol

β-gal staining of whole-mount embryos and organs were performed as previously described (Liao et al., 2009). Some tissues were further processed. Not BABB treated whole-mount embryos/organs were fixed, washed in PBS, and photographed. BABB treated embryos/organs were left in BABB for photographing.

SEM analysis

Request a detailed protocol

For SEM, inner ears were fixed in 2.5% glutaraldehyde in cacodylate buffer and then treated using standard procedures.

Generation of the FltpZV targeting vector

Request a detailed protocol

The knock-in/knock-out construct was designed as shown in Figure 3A. 5ʹ and 3ʹ HR for the Fltp gene were amplified by PCR (449, 450, 451, 452) using a C57BL/6J BAC clone (RP23-333P11) as template. These two PCR products were subcloned into the pL254 vector (Liao et al., 2009). The resulting vector was digested with HindIII, SpeI and electroporated into electrocompetent EL350 bacteria containing the Fltp BAC clone to retrieve the WT sequence between PCR homology arms resulting in the Fltp retrieval vector. For cloning of the knock-in/knock-out cassette in pBKS− 5ʹ and 3ʹ HR for the knock-in into the ATG of exon, two of Fltp were generated by PCR (453, 454, 455, 456) using the previously mentioned BAC as a template and subcloned into pBKS− using the introduced restriction sites, resulting in pBKS−-Fltp-HomArms. The targeting vector was generated by ligating the loxP flanked neomycin (neo) resistance cassette (PL-452) (Liu et al., 2003) into the pBKS−-H2B-Venus-intron-SV40pA plasmid resulting in pBKS−-H2B-Venus-intron-SV40pA-loxP-bGHpA-neo-EM7-PGK-loxP (pBKS−-H2B-Venus-neo). The T2A sequence from Thosea asigna virus was introduced into the NotI site of pBKS−-H2B-Venus-neo by annealing the following oligos 2A_fwd; 2A_rev, which created a NotI compatible overhang resulting in pBKS−-2A-H2B-Venus-neo. NLS-lacZ (nuclear localization signal-β-galactosidase fusion protein) was ligated into the pBKS−-2A-H2B-Venus-neo vector resulting in pBKS−-NLS-lacZ-2A-H2B-Venus-neo. To finish the minitargeting construct, we cloned pBKS−-NLS-lacZ-2A-H2B-Venus-neo into pBKS−-Fltp-HomArms (both cut with NotI and SalI). The minitargeting construct was cut out by SacII and KpnI, electroporated in EL350 bacteria, and introduced into PL254 via bacterial homologes recombination resulting in the final targeting construct (PL254-Fltp-NLS-lacZ-2A-H2B-Venus-intron-SV40pA-loxP-bGHpA-neo-EM7-PGK-loxP) which was confirmed by sequencing and is ready for electroporating into embryonic stem (ES) cells (after linearization by AscI).

Generation of the Fltp knock-out mouse line and Southern blot

Request a detailed protocol

To generate targeted ES cells, we electroporated IDG3.2-F1 ES cells (C57BL/6J x 129S6/SvEvTac) (Hitz et al., 2007) with the AscI-linearized FltpZV targeting vector and neomycin resistant clones were selected using 300 µg/ml G418 (Invitrogen). Homologous recombination at the Fltp locus was confirmed by Southern blot analysis of DraIII-digested genomic DNA using the Fltp 5ʹ-probe (620 bp) (5ʹ S Fltp FWD XhoI; 5ʹ S Fltp REV XbaI). 8 out of 100 clones (in total: 22 positive clones out of 289) showed homologous recombination. Due to restriction fragment length polymorphisms (RFLP) of the Bl/6J and 129S6 alleles and an isogenic Bl6 targeting vector, homologous recombination occurred preferentially on the Bl/6J allele and reduced the size of the restriction fragment from 16.443 bp to 11.469 bp. The 129S6 WT band is smaller in size than the Bl/6J WT band and is not targeted. Both ES cell clones gave birth to Δneo animals, but for the analysis we concentrated on one clone and founded the animal colony on this. After deletion of the neo cassette mice were backcrossed to C57Bl/6J to eliminate the Cre allele. Only those mice negative for the Cre allele were used for backcrossings to C57BL/6NCrl, 129S6/SvEvTac, or CD1 and further analyses were carried out with FltpZVΔneo/+ mice backcrossed several generations in C57BL/6NCrl, 129S6/SvEvTac, or CD1.

Generation of the Dlg3:Venus mouse line

Request a detailed protocol

The Dlg3-Venus mouse line was generated by electroporating a pCAG-Venus-Dlg3 construct into IDG3.2-F1 ES cells (C57BL/6J x 129S6/SvEvTac). Positive ES cells were aggregated with CD1 morulae and the resulting chimeras gave germ-line transmission of the Dlg3-Venus allele.

Isolation of mouse tracheal epithelial lung cells and ALI culture

Request a detailed protocol

Isolation of mouse tracheal epithelial cells (mTECs) and air liquid interface (ALI) culture was performed as described in Vladar and Brody (Vladar and Brody, 2013).

Mice were sacrificed and the trachea dissected out. The trachea was put into ice cold HamF12 medium supplemented with penicillin/streptomycin (P/S). Tissue surrounding the trachea was removed under the dissecting microscope in HamF12 medium. The trachea was digested in HamF12 medium supplemented with 1.5 mg/ml pronase (protease 14) at 4°C ON. On the next day the tube was put on ice, FBS (fetal bovine serum) was added to a concentration of 10% and the tube was inverted at least 12×. The tracheas were transferred into a new tube with HamF12 P/S 10% FBS medium and again inverted 12×. Tracheas of the same genotype can be pooled and centrifuged for 10 min at 4°C at 400×g. 200 µl HamF12 P/S per trachea were supplemented with 0.5 mg/ml DNaseI and 10 mg/ml BSA (bovine serum albumin), the trachea were resuspended and incubated for 5 min on ice. Subsequently, the tubes were centrifuged for 5 min at 4°C at 400×g. The cells were resuspended in MTEC basic medium (DMEM F12 [#21331-020; Invitro], 15 mM HEPES [1M stock], 3.6 mM sodium bicarbonate, 4 mM L-Glut [200 mM stock], P/S [100Glu× stock], Fungizone [500× stock]) with 10% FBS and incubated for 3–4 hr at 37°C. The supernatant was collected, centrifuged for 5 min at 400×g, and resuspended in 100–200 µl MTEC plus medium (MTEC basic, 10 μg/ml insulin (5 mg/ml stock), 5 μg/ml transferrin (5 mg/ml stock), 0.1 μg/ml cholera toxin (100 μg/ml stock), 25 ng/ml EGF (25 μg/ml stock), 30 μg/ml BPE, 5% FBS, 0.01 μM RA) for counting. 75.000 cells per cm2 were seeded on a transwell filter in MTEC plus medium. The medium was changed every 2 days. When the cells were confluent the MTEC culture was changed to an ALI culture by removing the medium on top of the filter and providing only medium supply from the bottom.

Immunoprecipitation

Request a detailed protocol

For the interaction analysis, we used HEK293T cells transfected with Fltp-TAP-TAG and as a control HEK293T cells only transfected with TAP-TAG.

The cells were rinsed with warm PBS and lysed with 1 ml ice cold lysis buffer (50 mM Tris/HCl, pH 7.4, 150 mM sodium chloride, 2 mM EDTA, pH 8, 1% Nonidet P-40, filtrate sterile) per 10 cm dish on ice. Cells were spinned down for 10 min at 10000×g at 4°C. Lysates were cleaned by filtration through syringe filters (MILLEX GP, 0.22 µm, Millipore). 1 mg of the filtered lysate was incubated with 50 µl Strep-Tactin superflow resin (IBA) in 1 ml of lysis buffer for 1 hr at 4°C in an overhead tumbler. The protein–Strep-Tactin solution was spinned down for 30 s at 7000×g and transferred to microspin columns (GE-Healthcare). The supernatant was spinned down for 5 s at 100×g, washed three times with 500 µl TBST (100 mM Tris/HCl, pH 7.4, 1.5 M sodium chloride, 1.0% Tween20), and centrifuged for 5 s, 100×g. The protein was eluted by 500 µl desthiobiotin elution buffer (IBA) and incubated for 10 min while mixing the resin for several times. The elute can now be used for western blot analysis.

Immunohistochemistry on cryosections and whole-mount immunohistochemistry

Request a detailed protocol

Dissected tissues were fixed in 4% paraformaldehyde (PFA) and cryoprotected by incubation in a sucrose gradient for at least 1 hr each (5%, 15%, 30%). Tissues were frozen in OCT (optimal cutting temperature) after which immunohistochemical staining was carried out on 8- to 12-µmthick sections, mounted on glass slides. Briefly, sections were rehydrated in PBS, permeabilised for 10 min in 0.1 M glycine/0.1% Triton X-100 in PBS, and blocked for 1 hr in 5% donkey serum/PBS-Tween 0.1% (PBS-T). Finally, the sections were incubated with the primary antibody in blocking solution ON at 4°C. The slides were washed with PBS-T, incubated with the secondary antibody in PBS for 2 hr at RT, washed with PBS, incubated with DAPI, and finally mounted with ProLong Gold antifade reagent (P36930; Invitrogen). Whole-mount immunohistochemistry was performed as previously described (Nakaya et al., 2005). Briefly, embryos were isolated, fixed for 20 min in 2% PFA in PBS, and then permeabilized in 0.1% Triton X-100 in 0.1 M glycine pH 8.0. After blocking in 10% FCS, 3% goat serum, 0.1% BSA, 0.1% Tween 20 for 2 hr, embryos were incubated with the primary antibody ON at 4°C in blocking solution. After several washes in PBS-T, embryos were incubated with secondary antibodies in blocking solution for 3 hr. During the final washes with PBS-T, embryos were stained with DAPI, transferred into 40% glycerol, and embedded between two coverslips using 120 µm Secure-Seal spacers (S24737; Invitrogen) and ProLong Gold antifade reagent.

Immunohistochemistry on inner ears

Request a detailed protocol

Whole-mount inner ears were isolated, fixed for 20 min in 4% PFA in PBS, then the cochlea was dissected out, permeabilized in 0.1% Triton X-100 in 0.1 M glycine pH 8.0. After blocking in 10% FCS, 3% goat serum, 0.1% BSA, 0.1% Tween 20 for 25 min, ears were incubated with the primary antibody ON at 4°C in blocking solution. After several washes in PBS-T, embryos were incubated with secondary antibodies in blocking solution for at least 3 hr. During the final washes with PBS-T, embryos were stained with DAPI. Alternatively ears were fixed/permeabilized for 10 min in 0.25% glutaraldehyde, 3.7% PFA, 3.7% sucrose, and 0.1% Triton X-100 in PHEM buffer (60 mM Pipes, 25 mM Hepes, 5 mM EGTA, 1 mM MgCl), the cochlea was dissected out and again fixed/permeabilized for 10 min in the same solution as above. After PBS washes blocking as described above was carried out. Finally, ears were embedded in a spacer between two cover slips.

Immunohistochemistry on ALI cultures

Request a detailed protocol

Antibody staining of ALI cultures was performed by cutting out, washing (PBS), and fixing (ice cold MeOH, 4% PFA, or fixed/permeabilised in 0.25% glutaraldehyde, 3.7% PFA, 3.7% sucrose, and 0.1% Triton X-100 in PHEM buffer depending on the primary antibody used) the Transwell membrane. Subsequently, membranes were treated as described above. Finally, membranes were embedded in a spacer between two cover slips.

Genotyping of mouse lines

Request a detailed protocol

Genotyping of the FltpZV mouse line (after Cre-mediated excision of the neomycin selection cassette) was performed using the forward primer 566 and 418 as well as the reverse primer 565. With an annealing temperature of 57°C and 35 cycles, this PCR amplified a WT product of 317 bp and a targeted of 387 bp.

For genotyping of the Dlg3:Venus mouse line, the forward primer 180 and the reverse primer 181 were used. A PCR performed with an annealing of 60°C and 32 cycles amplifies a product of 312 bp.

Genotyping of Dlg3 mouse line was performed using the forward primer 534 and the reverse primer 535 as well as the reverse primer 536. Amplification of 33 cycles with an annealing of 58°C yielded a WT product of 535 bp and a 215 bp product for the targeted allele. The gene trap clone P038A02 (R1 on a pure 129Sv6 genetic background) was obtained from the German Gene Trap Consortium. Dlg3tm1Grnt/Y male and Dlg3tm1Grnt/+ female mice on a C57Bl/6 background were genotyped as previously described (Cuthbert et al., 2007).

For genotyping of the FltpZV; Celsr1Crsh mouse line, we first performed a PCR with the forward primer 779 and the reverse primer 780 resulting in a 321 bp band. Next, we purified the PCR product via the PCR purification kit and sequenced the product in both directions. The adenine of the WT sequence was replaced by a guanine in the mutated sequence. For the FltpZV genotyping, we used the protocol described above.

Isolation of embryos and organs

Request a detailed protocol

Dissections of embryos and organs were carried out according to Nagy and Behringer (‘Manipulating the mouse embryo: a laboratory manual’). Embryos were staged according to Downs and Davies (Downs and Davies, 1993).

Tissue clearing with BABB

Request a detailed protocol

Tissues were dehydrated through a methanol/H2O series: 2 hr in 25% methanol/H2O, 2 hr in 50% methanol/H2O, 2 hr in 75% methanol/H2O, and ON in 100% methanol. Finally the tissue was transferred to BABB for clearing.

Whole-mount in situ hybridization

Request a detailed protocol

Whole-mount in situ hybridization was performed as previously described and Fltp mRNA was transcribed from a sequence-verified cDNA clone (Tamplin et al., 2008).

Paraffin sections

Request a detailed protocol

After in situ hybridization or lacZ staining, the embryos were dehydrated via a methanol series (25%, 50%, 75%, 2 × 100%) for 10 min per step. To clear the embryos, we incubated 2× in xylol for 5–10 min (depending on the thickness of the specimen). For tissue penetration of the paraffin, the specimen was left in paraffin at 65°C ON. On the next day, they were transferred into fresh paraffin and incubated at 65°C ON. The embryos were orientated and embedded into a mold. The cooled down paraffin blocks were mounted onto a grid and sectioned on a microtome. The sections were mounted on glass slides, dried ON at 37°C, dewaxed in xylol (2 × 15 min), fixed with mounting medium, and covered with a cover slip. After one night at 4°C, the sections were ready for microscopical analyses.

Histological staining of paraffin sections using Nuclear Fast Red (NFR)

Request a detailed protocol

First, paraffin sections on glass slides were dewaxed twice for 15 min in xylene. An alcohol row (100%, 90%, 80%, 70%, 1 min each) for rehydration followed and ended in H2O. Afterward, the slides were dipped into NFR for 1 min and thoroughly washed with dist. H2O. Then, a dehydration step followed within an afferent alcohol row (70–100%, see above). Finally, the slides were incubated twice in xylene for 15–30 min and once in Roti-Histol for 15–30 min. After incubation in Roti-Histol, slides were put on a paper towel, sprinkled with a few drops mounting medium, and covered with a cover slip.

Statistical analysis

Request a detailed protocol

Statistical significance was calculated using Prism (GraphPad Software). Circular statistics were done using MATLAB and R.

Image acquisition and analysis

Request a detailed protocol

Image acquisition was performed on a Leica DMI 6000 confocal microscope or on a Zeiss Lumar.V12 Stereo using an AxioCam MRc5 camera. Image analysis was performed with Leica LAS AF software, AxioVision (Zeiss), and Imaris 7.6.4 (Bitplane, Zürich, Switzerland).

Oligonucleotides for cloning

Request a detailed protocol

  • 5ʹ S Fltp FWD: 5ʹ-NNNCTCGAGGAGCCCTTACGCACACTTAAG-3ʹ

  • 5ʹ S Fltp REV: 5ʹ-NNNTCTAGACGGGACATTAACTGCATCTTATCTGAGGTTG-3ʹ

  • 011: 5ʹ-NNNACTAGTAGGTAAGTGTACCCAATTCGCCCTATAG-3ʹ

  • 012: 5ʹ-NNNGGATCCACGCGTTAAGATACATTGATGAGTTTGGAC-3ʹ

  • 013: 5ʹ-NNNTCTAGAATGGTGAGCAAGGGCGAGGAGCTGTTC-3ʹ

  • 014: 5ʹ-NNNACTAGTTTACTTGTACAGCTCGTCCATGCCGAGAG-3ʹ

  • 025: 5ʹ-NNNGCGGCCGCGCCACCATGCCAGAGCCAGCG-3ʹ

  • 026: 5ʹ-NNNTCTAGACTTAGCGCTGGTGTACTTGGTGATGG-3ʹ

  • 340: 5ʹ-NNNGCGGCCGCGCCACCATGAACCTTGAAGCTCGAAAAACAAAG-3ʹ

  • 341: 5ʹ-NNNGGCGCGCCTTTTTGACACCAGACCAACTGGTAATGGTAGC-3ʹ

  • 449: 5ʹ-NNNGGCGCGCCAGTCAGGAAGTGGAAGAGAAGAACACAG-3ʹ

  • 450: 5ʹ-NNNAAGCTTACTAGTGTGGTGGAGTGCCTGTCTACATGTG-3ʹ

  • 451: 5ʹ-NNNAAGCTTCACGACAGTCAAAGCTGCAATAGAAC-3ʹ

  • 452: 5ʹ-NNNGGATCCGGTAATTTGGCAATTATAGAACTCAGGC-3ʹ

  • 453: 5ʹ-NNNCCGCGGAGCAGACTTAACTATGTTGGGGAAACAGC-3ʹ

  • 454: 5ʹ-NNNGTCGACGCGGCCGCTGTTTACACTTGTTGCCTGGCAACTG-3ʹ

  • 455: 5ʹ-NNNGTCGACGGTCCTAGTCTAGCTGAGGTCCAGATC-3ʹ

  • 456: 5ʹ-NNNGGTACCATGCTGTGGGAGTCACTGACATTCTTG-3ʹ

Oligonucleotides for genotyping

Request a detailed protocol

  • 180: 5ʹ-GTGAACCGCATCGAGCTGAAGG-3ʹ

  • 181: 5ʹ-GAACTCCAGCAGGACCATGTG-3ʹ

  • 418: 5ʹ-AGCCATACCACATTTGTAGAGG-3ʹ

  • 534: 5ʹ-GGTCTCTGATGAAGCAGTGATTTTT-3ʹ

  • 535: 5ʹ-TGATGACCCATAGACAGTAGGATCA-3ʹ

  • 536: 5ʹ-CTAAAGCGCATGCTCCAGAC-3ʹ

  • 565: 5ʹ-CAGCATGGCATAGATCTGGAC-3ʹ

  • 566: 5ʹ-GAGGCTGACTGGGAACAATC-3ʹ

  • 779: 5ʹ-ACAACCTTTGGGCTCTCG-3ʹ

  • 780: 5ʹ-TATAGTCCCTCCGGACCTC-3ʹ

References

    1. Bergstralh DT
    2. Haack T
    3. St Johnston D
    (2013) Epithelial polarity and spindle orientation: intersecting pathways
    Philosophical Transactions of the Royal Society of London Series B, Biological Sciences 368:20130291.
    https://doi.org/10.1098/rstb.2013.0291
    1. Collier S
    2. Gubb D
    (1997)
    Drosophila tissue polarity requires the cell-autonomous activity of the fuzzy gene, which encodes a novel transmembrane protein
    Development 124:4029–4037.
    1. Downs KM
    2. Davies T
    (1993)
    Staging of gastrulating mouse embryos by morphological landmarks in the dissecting microscope
    Development 118:1255–1266.
    1. You Y
    2. Richer EJ
    3. Huang T
    4. Brody SL
    (2002)
    Growth and differentiation of mouse tracheal epithelial cells: selection of a proliferative population
    American Journal of Physiology Lung Cellular and Molecular Physiology 283:L1315–L1321.

Decision letter

  1. Jeremy Nathans
    Reviewing Editor; Howard Hughes Medical Institute, Johns Hopkins University School of Medicine, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “Flattop and Dlg3 cooperatively translate planar cell polarity cues for basal body positioning” for consideration at eLife. Your article has been favorably evaluated by Fiona Watt (Senior editor), Jeremy Nathans (Reviewing editor), and 3 reviewers.

The manuscript has been reviewed by three expert reviewers, and their assessments together with my own, forms the basis of this letter. I am including the three reviews (lightly edited) at the end of this letter, as there are many specific and useful suggestions in them that will not be repeated in the summary here.

All of the reviewers were impressed with the importance and novelty of your work. Overall, the experiments appear to be carefully executed. However, all three reviewers believe that the data is over-interpreted in many places, and that this detracts from the manuscript. In particular, the evidence for a direct connection with PCP is circumstantial. There are also significant questions related to the data presented in Figures 3 and 4, and Figure 4–figure supplement 1.

We would like to encourage you to resubmit a revised manuscript that addresses the specific issues raised in the reviews below. With respect to the writing, I can appreciate that in the current publishing environment one feels compelled to impress editors and reviewers, which leads to an almost irresistible temptation to over-state one's own conclusions. eLife is trying to restore some balance to the world of scientific writing; we welcome self-critical comments and we believe that such comments actually enhance the reader's ability to judge the science fairly.

I will offer two examples of scientific writing that I think illustrates the preceding point. They are from two papers on ubiquitin that form the core of the discoveries for which the authors shared the Nobel Prize.

Proposed role of ATP in protein breakdown: conjugation of protein with multiple chains of the polypeptide of ATP-dependent proteolysis.

Hershko A, Ciechanover A, Heller H, Haas AL, Rose IA. Proc Natl Acad Sci U S A. 1980 Apr;77(4):1783-6.

In the second paragraph of the Discussion section, after summarizing the evidence that leads the authors to propose the conjugation of APF-1 (=ubiquitin) to proteins as a way of marking them for degradation, the authors write : “Evidence that APF-1-proteins are intermediates in the breakdown of denatured protein as proposed in Fig. 6 is indirect and inconclusive at this time.”

Activation of the heat-stable polypeptide of the ATP-dependent proteolytic system.

Ciechanover A, Heller H, Katz-Etzion R, Hershko A. Proc Natl Acad Sci U S A. 1981 Feb;78(2):761-5.

In the last paragraph of the Discussion section, after describing their discovery and characterization of ubiquitin ligase, the authors write “Evidence suggesting the role of the APF-1-activating enzyme in conjugation and in ATP-dependent protein breakdown is not conclusive at present.”

Reviewer #1:

In this work, Moritz Gegg et al. study Fltp mutant mice and present evidence that Fltp plays a role in cilia docking by interacting with Dlg3. Since the work is based on studies of mutant mice and cells, it is very strong and I like the study very much.

I regret that several results are a bit overstated and/or not fully supported by the morphological illustrations provided. The main point is to tone down some overstated claims at several places in the text. As it is written, the paper presents a fully demonstrated model that is supported by the data but not yet demonstrated beyond reasonable doubt. The last part of the Introduction is a good example of what I mean. The whole discussion is unfortunately hyperbolic along the same lines.

I understand that formal proof of the model cannot be provided using reagents available and therefore the authors should not be required to do additional experiments.

On the other hand, they should pay attention and significantly edit their text to make it less speculative and more factual. I also have some remarks about figures.

1) Introduction:

In MGI, five Dlg genes are mentioned, each has been inactivated separately and Dlg1 is clearly the most critical, with neonatal lethality; intriguingly, Dlg3 knock-outs are reported to be viable and fertile.

2) Results:

a) Authors mention the presence of two P-rich domains in Fltp. P-rich regions are not detected using “conserved domain” (Entrez website), and the concentration of P in the boxed in Figure 1 does not seem that high. What criteria are used to support the existence of those two domains?

b) For antibody specificity (Figure–1 figure supplement 1A), is the alpha-tubulin a cross reaction? If yes, why are microtubules not seen in immunostained cells (Figure 1–figure supplement 1E)? It should be explicitly mentioned that the Abs were validated by immunocytochemistry in transfected cells.

c) Figure 2–figure supplement 1 F-I' and associated text: I cannot see endogenous Fltp green localization in monocilia. Could the figures be improved?

d) Figure 4 and associated text: This requires better explanations and/or illustrations. The text and legend do not allow the reader to understand Figure 4E. Similarly, it is not very clear that Fltp localizes along the length of cilia (B,B'). This being said, the defective docking of BB in culture is very convincing, more than what is described in vivo in Figure 3. How can this be explained?

e) Inner ear, Figure 5. From 5C, I have the impression that PCP in IHC is even more disturbed than in OHC, and seems to be confirmed in the quantification N. However, Fltp is said to be expressed on in OHC. Does this mean that Fltp has some non-cell autonomous effects, or that low expression is present in IHC?

f) For quantification, authors mention ANOVA; it is probably acceptable for relatively small angles, less than 40o in this series of data. Still, authors should be aware that comparison of angles is usually done using circular statistics, because arithmetic mean of angles is not meaningful.

g) The addition of phenotypes in Celsr1+Fltp mutants is interesting and worth showing. On the other hand, I do not think that this indicates that both proteins act in the same PCP pathway; they could just as well act in two parallel pathways. I think the text should be modified to take this into account. I also do not understand why authors looked at the localization of Vangl1 rather than Vangl2; which has a stronger action in PCP - for which good Abs are available commercially.

3) Last part of Results and Figure 7.

The subtitle and the following text are too strong. The data shown in Figure 7 are really informative, yet colocalisation does indicate but no prove interaction. The change in localization upon inactivation of Fltp, illustrated in Figure 8, provide a stronger argument for interaction than simple colocalisation, and the Co-IP in HEK cells is also a strong indication. As authors know and although their data are strong, interactions should be demonstrated using techniques such as IP in vivo, or FRET and others. I agree that this is undoable given the reagents available. However, given this intrinsic limitation, strong claims are not acceptable and should be significantly tuned down.

4) As mentioned above, the Discussion, although scholarly and informative, is somewhat hyperbolic and should be more nuanced. I would also like to have the opinion of the authors on why the effect on cilia docking is present only in some cells, whereas Fltp seems to be a unique gene without paralog.

Reviewer #2:

The authors present data showing that Fltp has a function in localizing basal bodies in multiciliated airway cells and in cochlear hair cells. Fltp is expressed in many ciliated cells where the PCP pathway functions. In fltp mutant MCCs, BBs fail to dock, and in mutant cochlea, BB/kinocilia are mispositioned and stereocilia bundles are misoriented and distorted. Fltp localizes apically in both cell types. The authors also describe, using a mutant, a function for Dlg3 in orienting BB/kinocilia. Finally, they show that transfected Fltp and Dlg3 co-IP, and that gamma tubulin and Dvl2 are also pulled down. These data could perhaps make a reasonable story that Fltp is involved in BB positioning in several cell types. However, the manuscript is written in such a way to substantially over-interpret their data, and a number of important holes in the data exist. As an appropriately described piece of work, it would be an editorial decision as to whether the results merit publication in this journal.

The overreaching interpretation of the results is evident with regard to several points. The authors devote considerable discussion to how Fltp participates in linking tubulin and actin in these processes, based only on the localization data and the phenotype, without any ultrastructure or biochemistry to support these conclusions. This discussion should all be deleted from the main text, and relegated to speculation in the Discussion.

A considerable omission is the failure to examine a potential role for Dlg3 in MCCs. Is there any MCC phenotype in the mutant? If not, how should one interpret the docking defect in comparison to the hair cell phenotype? This highlights the problem that there is not a strong parallel between BB docking in MCCs and BB positioning in hair cells.

A third substantial and related problem is that the model is very unclear. The cartoon suggests that Fltp localizes to stereocilia, but the binding data suggest it should be found with gamma tubulin at the BBs. Finally, the authors discuss function at the TJs. Since MCCs don't have the equivalent of stereocilia, where is the commonality? In these cells, Fltp is seen in the apical meshwork, but the resolution is too low to make specific conclusions about exactly where. We know too little to extract any inference about commonality of Fltp function from the two cell types.

There is one very troubling piece of data that must be explained, and unsatisfactory resolution will invalidate the MCC findings. The IMARIS resonstructions in Figure 4 HI show mostly docked vs many undocked BBs, but it is normally easy to find cells in day 4 cultures with undocked BBs, as cells continue to differentiate for some time. Care must be taken that these are representative. Therefore the quantitative data are essential. The MTEC data from day2 and day4 shown in Figure 4-figure supplement 1 are at best, extremely confusing, and at worst, suggest the possibility that the results should be discarded. First, it is unclear what the authors are measuring. The number of BBs? The number or percent of docked BBs? Number of cells with docked BBs? This must be made clear. Furthermore, in this highly reproducible system, at ALI+2 days, there are only very few cells with multiple cilia, yet the authors' data seem to suggest that 80% of the cells are multiciliated (to completion??). In the best wildtype cultures, 80% of cells are never seen to become multiciliated. Furthermore, by day 4, the number has declined to 60%? Why? At this stage, the numbers should still be increasing. In light of this, how are we to interpret the mutant results? We need a description of what is being measured, as well as images to corroborate.

Another problem is with the “genetic interaction” between fltp and celsr1. Genetic interaction is typically shown between heterozygotes that have no phenotype on their own, or between one het with no phenotype and a homozygote with a weak phenotype. The authors make double homozygous mutants and show an enhanced phenotype. Yet each homozygote has a phenotype of its own, and therefore the result could simply be an additive phenotype. The result therefore DOES NOT show a genetic interaction and provides NO EVIDENCE that Fltp is in the PCP pathway. The result is equally consistent with distinct pathways converging on a shared output. Numerous other statements describing Fltp function in PCP signaling are also misleading. For example, describing Dvl2 function at BBs as a PCP function is not valid. Indeed, the MCC phenotype is not a PCP phenotype at all, and the hair cell phenotype impacts PCP, but is presumably quite downstream. Taken together, it is not reasonable to describe the results as being effectors of PCP. This is another big example of interpretation not correctly reflecting the findings.

Reviewer #3:

This paper reports the discovery of a novel gene that acts as an essential downstream effector of PCP function in ciliated cells. Overall the paper is quite interesting and if correct would provide a good addition to the literature in this area, though there are several issue that must be resolved before publication can be considered. Moreover, many conclusions are overstated, and unnecessarily so, since the story is a good one even without the overreach.

The paper identified flattop in a screen for targets of foxa2, and this new gene is expressed in ciliated cells. Mutant mice display defects in the airway cilia as well as defects in kinocilium polarity in the cochlea, and these are traced to defects in basal body positioning. In the cochlea, fltp shows genetic interaction with the core PCP protein celsr1. The authors then show that the tight junction protein Dlg3 localizes to an interesting pattern in the cochlear hair cells and that fltp and dlg3 functionally and physically interact to control basal body position.

1) Many references are made to “Detailed” subcellular co-localization studies. But these data are not at all clear in their current form. In particular the data in Figure 3 are over-interpreted. It is stated that Fltp “specifically” colocalizes with newly synthesized MT plus-ends, but Figure 3B shows much green where there is no red and much of the converse as well.

2) The claim is made in Figure 3 that fltp is localized to the apical but not the sub-apical actin in multiciliated cells, yet Figure 3A shows only a single x/y image and Figure 3c shows Zo1, but not actin. How is this claim justifiable from these data?

3) The authors need to comment on the possible role for fltp in basal body amplification. According to Figure 5, the most obvious phenotype in the mutants may not be BB docking, but the reduction in BB numbers. This issue is a big one because recent work on cyclin O from Kinter and Omran shows that BB docking and amplification may be linked.

https://doi.org/10.7554/eLife.03842.018

Author response

Reviewer #1:

1) Introduction: In MGI, five Dlg genes are mentioned, each has been inactivated separately and Dlg1 is clearly the most critical, with neonatal lethality; intriguingly, Dlg3 knock-outs are reported to be viable and fertile.

The reviewer is right and we corrected this in the manuscript. However, Dlg3 KOs show low penetrance embryonic lethality which we have published recently (Van In mammals, four Dlgs et al., 2011; Dev Cell): “From E8.5 onward, Dlg3 mutants are statistically underrepresented, and mutants displayed incompletely penetrant defects in embryonic turning, failure of chorioallantoic fusion, posterior truncations (n = 16 out of 38), and lack of anterior neural induction (n = 6 out of 38; Figures 1A and 1B). Dlg3tm1Grnt null embryos also show occasionally an open brain phenotype (n = 8 out of 38; Figure 1–figure supplement 1B and1C). Taken together, both the Dlg3GtP038A02 and Dlg3tm1Grnt mutant alleles cause embryonic lethality with low penetrance.”

Change:

“In mammals, four Dlgs have been identified and we have recently shown that their function has diverged during evolution (Van Campenhout et al., 2011).”

To:

“In mammals, five Dlgs have been identified and we have recently shown that their function has diverged during evolution (Van Campenhout et al., 2011).”

2) Results:

a) Authors mention the presence of two P-rich domains in Fltp. P-rich regions are not detected using “conserved domain” (Entrez website), and the concentration of P in the boxed in Figure 1 does not seem that high. What criteria are used to support the existence of those two domains?

For identification of the PRRs we used the protein domain prediction tools (MyHits, HYPERLINK “http://hits.isb‐sib.ch/cgi‐bin/motif_scan” \o “http://hits.isb‐sib.ch/cgi‐bin/motif_scan”http://hits.isb‐sib.ch/cgi‐bin/motif_scan and Scansite, HYPERLINK “http://scansite.mit.edu” \o “http://scansite.mit.edu/”http://scansite.mit.edu). The C-terminal PRR (138-184) was identified by MyHits.

Author response image 1
Download asset Open asset

Unfortunately confusion occurred about the N-terminal PRR. The domain is now annotated as a SH3 binding domain identified by Scansite. However, PRRs are also known to be SH3 binding domains. We apologise for the mistake and we updated this in the manuscript and the figure (see below). We found Grb2 as an interaction partner in a Fltp interactome study indicating that this predicted Grb2 SH3 binding domain might be functional. Additionally, we showed that the N-terminal SH3 binding region of Fltp is important to bind Dlg3 (a SH3 domain containing protein, see Figure 9).

Author response image 2
Download asset Open asset

Changes:

“An alignment of the proteins of different species reveals a high conservation during evolution as well as N- and C-terminal proline-rich repeats (PRR) (Figure 1C).”

To:

“An alignment of the proteins of different species reveals a high conservation during evolution as well as a N-terminal SH3 binding domain and a C-terminal proline-rich repeat (PRR) (Figure 1C).”

“The mouse and human proteins are highly homolog (clear green boxes: predicted proline rich repeats (PRRs); red filled box: peptide sequence of the Fltp116-1 epitope; red empty box: peptide sequence of the Fltp1 epitope; dark blue indicates conservation over 80%; lighter colors indicate less conservation).”

To:

“The mouse and human proteins are highly homolog (yellow box: SH3 binding domain; green box: predicted proline rich repeat (PRR); red filled box: peptide sequence of the Fltp116-1 epitope; red empty box: peptide sequence of the Fltp1 epitope; dark blue indicates conservation over 80%; lighter colors indicate less conservation).”

Abbreviations: D: Dlg3; F: Fltp

To:

Abbreviations: D: Dlg3; F: Fltp; SBD: SH3 binding domain; PRR:Proline rich repeat.

“The Fltp1 epitope lies in the PRR of the less well conserved C-terminal part of the Fltp protein (Figure 1C, empty box). The Fltp116-1 epitope (Figure 1C, filled box) resides N-terminal to the Fltp1 epitope and is less conserved in human.”

To:

“The Fltp1 epitope locates to the less well conserved C-terminal PRR (Figure 1C, red empty box). The Fltp116-1 epitope (Figure 1C, red filled box) resides N-terminal to the Fltp1 epitope and is less conserved in human.”

b) For antibody specificity (Figure–1 figure supplement 1A), is the alpha-tubulin a cross reaction? If yes, why are microtubules not seen in immunostained cells (Figure 1–figure supplement 1E)? It should be explicitly mentioned that the Abs were validated by immunocytochemistry in transfected cells.

We apologise for the confusion regarding the alpha-Tubulin staining. The membrane was first probed with anti-Fltp antibodies, developed and subsequently with anti-alpha Tubulin antibodies to confirm equal loading. We state this in the new Figure legend (Figure 1–figure supplement 1A) and added that the antibodies were validated by immunocytochemistry in transfected cells to the manuscript.

Changes:

“We confirmed the specificity of these antibodies in Western blot analysis and immunocytochemistry (Figure 1–figure supplement 1A-G, 2D).”

To:

“We confirmed the specificity of these antibodies in Western blot analysis and immunocytochemistry in transiently transfected HEK293T cells (Figure 1–figure supplement 1A-G, 2D).”

“Anti-alpha-Tubulin antibody was subsequently used on the same blot to confirm equal loading.”

c) Figure 2–figure supplement 1 F-I' and associated text: I cannot see endogenous Fltp green localization in monocilia. Could the figures be improved?

We improved the quality and magnified endogenous Fltp cilia staining on monociliated node cells and multiciliated lung cells in Figures 2G and 2H’.

d) Figure 4 and associated text: This requires better explanations and/or illustrations. The text and legend do not allow the reader to understand Figure 4E. Similarly, it is not very clear that Fltp localizes along the length of cilia (B,B'). This being said, the defective docking of BB in culture is very convincing, more than what is described in vivo in Figure 3. How can this be explained?

We are sorry for the inadequate description of Figure 4E. We have added an illustration (Figure 4A) and a better explanation in the text.

Briefly, this figure describes how Fltp-H2B-Venus reporter expression is activated upon the differentiation of lung progenitor cells into multiciliated cells. Different stages (I-IV) can be used to categorise the chronologic events during ALI culture differentiation (Vladar and Stearns, 2007). There is a clear correlation between Fltp-H2B-Venus reporter expression and amplification of BBs, the first visible step of progenitor differentiation to MCCs (Figure 4A-B). We changed the text in the following way:”Upon switch to ALI culture, lung progenitor cells (stage I) differentiate into multiciliated epithelial cells by passing through stages of centrosome/BB amplification, BB docking (stage II-III) and cilia formation (stage IV). Fltp-driven H2B-Venus reporter activity is activated during centrosomes/BB amplification and docking (Figure 4E), correlating with active PCP signaling and the onset of asymmetric localization of core components (Vladar et al., 2012).”

To:

“Switching mTEC culture to ALI conditions induces a differentiation process of lung progenitor cells towards a MCC phenotype. During differentiation the progenitor cells pass through different maturation stages (Figure 4A): Monociliated lung progenitor cells (stage I) start centrosome/BB amplification followed by BB transport and docking (stage II-III) and subsequent cilia formation (stage IV) (Vladar and Stearns, 2007). In these cultures, Fltp-driven H2B-Venus reporter activity is activated at the transition from stage I to stage II when centrosomes/BBs are amplified and docked in heterozygous and homozygous Fltp ALI cultures (Figure 4B). Fltp-H2B-Venus expression increases during maturation until cells are terminally differentiated. This correlates with active PCP signaling and initial asymmetric core component localization (Vladar et al., 2012).”

“(A-G) LSM of ALI culture of FltpZV mTECs. (A-B’) Single cell from the apical actin level (A, B) to the cilia level (A’, B-B’) (ALI day 9). Fltp connects to the apical actin, apical tyrosinated-Tubulin and localizes along cilia in multiciliated Fltp+/+ cells (A-A’, B-B’). Fltp is localized at the apical TJ level (C) and co-localizes with BBs (D) (ALI day 4). (E) Onset and level of Fltp reporter expression correlates with onset of BB amplification and ciliogenesis in cultured ALI mTECs. Staging according to (Vladar and Stearns, 2007).”

To:

“(A) Scheme of multiciliated cell (MCC) maturation. A MCC progenitor projects a primary cilium at the apical surface (stage I). Centrosome amplification is the first sign of differentiation (stage II) followed by apical transport and docking of BBs (stage III). Fully differentiated cells project multiple motile cilia at the apical surface (stage IV). Staging according to (Vladar and Stearns, 2007). The green nucleus indicates Fltp reporter gene expression. (B-G) LSM of ALI culture of FltpZV and WT mTECs. (B) Onset and level of Fltp reporter expression correlates with onset of BB amplification and ciliogenesis (stage II-IV) in cultured ALI mTECs as shown in the scheme in (A). (C-C’’’) Confocal sections of a single cell from the sub-apical actin level (C) over the apical actin level (C’,C’’) to the cilia level (C’’’) (ALI day 4). Fltp co-localizes with the MT-plus end binding protein EB-1 (D) (ALI day 4) next to the pericentriolar matrix (E) (ALI day 4) and to cilia in multiciliated Fltp+/+ cells (C’’’).”

We agree that Fltp localisation at the cilium is not perfect. We removed B and B’

e) Inner ear, Figure 5. From 5C, I have the impression that PCP in IHC is even more disturbed than in OHC, and seems to be confirmed in the quantification N. However, Fltp is said to be expressed on in OHC. Does this mean that Fltp has some non-cell autonomous effects, or that low expression is present in IHC?

In the legend of Figure 5 we wrote that Fltp reporter expression is restricted to sensory HCs. This includes IHCs as well as OHCs. We changed this in the manuscript to make it clearer. Currently we have no reason to believe that Fltp might act non-cell autonomously.

Change:“Fltp reporter expression is restricted to sensory HCs of the OC (red dashed line).”

To:

“Fltp reporter expression is restricted to all sensory HCs (IHC and OHC) of the OC (red dashed line).”

f) For quantification, authors mention ANOVA; it is probably acceptable for relatively small angles, less than 40o in this series of data. Still, authors should be aware that comparison of angles is usually done using circular statistics, because arithmetic mean of angles is not meaningful.

We thank the reviewer for pointing this out. In fact, we were not aware that a proper analysis should be done using circular statistics. Most angles are less than 40 degrees, but there are some exceptions. We hence repeated the testing procedure, this time using the tools of circular statistics. Our first approach was to replace the standard ANOVA (for two groups) by a Watson-Williams test. This is readily implemented in MATLAB and R. However, both implementations require equal group sizes. This was not given in our data. We hence simply performed a two-sided t-test. In the test statistic, we calculated the mean and the standard deviation according to circular statistics. The resulting p-values turned out to be even lower than in our original analysis. In fact, they often were below detection limit. Our results hence change such that all differences between wild types and homozygotes are significant. We implemented the new statistics in Figure 5 N.

“Statistical analysis uses a one way ANOVA (*** P=0.0001; **** P<0.0001). Error bars show the 95% confidence interval of the mean.”

To:

“Statistical analysis uses circular statistics (**** P<0.0001). Error bars show the standard deviation.”

g) The addition of phenotypes in Celsr1+Fltp mutants is interesting and worth showing. On the other hand, I do not think that this indicates that both proteins act in the same PCP pathway; they could just as well act in two parallel pathways. I think the text should be modified to take this into account.

We agree with reviewer 1 and 2 that Celsr1 and Fltp could act in two parallel pathways. We changed this in the manuscript.

Changes:

“To directly test if Fltp functions in the PCP pathway, we investigated genetic interaction of Fltp with the core PCP component Celsr1 (Curtin et al., 2003).”

To:

“To seek first evidence if Fltp functions in the PCP pathway,we investigated a potential genetic interaction of Fltp with the core PCP component Celsr1 (Curtin et al., 2003).”

“This demonstrates that Fltp genetically interacts with the core PCP gene Celsr1 and acts in the PCP pathway.”

To:

“These data suggest that Fltp and the core PCP gene Celsr1 either act together in the PCP pathway or in two parallel pathways important for the morphogenesis of the cochlea.”

I also do not understand why authors looked at the localization of Vangl1 rather than Vangl2; which has a stronger action in PCP - for which good Abs are available commercially.

Thank you for the comment but we were not aware that good Vangl2 antibodies are available. To analyse PCP in lung MCCs and tracheal epithelium, Vladar et al. (2012) used Vangl1 antibodies and could demonstrate nice asymmetric localisation. Fukuda et al. (2014) additionally showed asymmetric Vangl1 distribution in the inner ear. Based on these findings we used Vangl1 as a marker to show asymmetric core PCP protein distribution.

3) Last part of Results and Figure 7.

The subtitle and the following text are too strong. The data shown in Figure 7 are really informative, yet colocalisation does indicate but no prove interaction. The change in localization upon inactivation of Fltp, illustrated in Figure 8, provide a stronger argument for interaction than simple colocalisation, and the Co-IP in HEK cells is also a strong indication. As authors know and although their data are strong, interactions should be demonstrated using techniques such as IP in vivo, or FRET and others. I agree that this is undoable given the reagents available. However, given this intrinsic limitation, strong claims are not acceptable and should be significantly tuned down.

We changed the subtitle and tuned down the statements accordingly.

4) As mentioned above, the Discussion, although scholarly and informative, is somewhat hyperbolic and should be more nuanced.

We partially rewrote the Discussion to tune down the overstated conclusions.

I would also like to have the opinion of the authors on why the effect on cilia docking is present only in some cells, whereas Fltp seems to be a unique gene without paralog.

This is a very interesting question for which we have no definitive answer. The most likely explanation is the presence of other genes with similar functions, such as the PCP effector molecules Intu and Fuz (see Discussion).

We have initially concentrated our analysis on the lung and inner ear. Closer inspection of other cell types might reveal additional phenotypes, e.g. multiciliated ependymal cells were not investigated. In very rare cases (<1%) we observed an exencephalus phenotype indicative of a PCP-related phenotype. In Figure 1–figure supplement 3B Mendelian ration shows a slight underrepresentation of Fltp 129 KO animals, which we note in the figure legend. It is highly speculative, but left-right defects due to inappropriate ciliary position at the node might cause congenital heart defects. We will investigate this possibility in future experiments.

Reviewer #2:

The authors present data showing that Fltp has a function in localizing basal bodies in multiciliated airway cells and in cochlear hair cells. Fltp is expressed in many ciliated cells where the PCP pathway functions. In fltp mutant MCCs, BBs fail to dock, and in mutant cochlea, BB/kinocilia are mispositioned and stereocilia bundles are misoriented and distorted. Fltp localizes apically in both cell types. The authors also describe, using a mutant, a function for Dlg3 in orienting BB/kinocilia. Finally, they show that transfected Fltp and Dlg3 co-IP, and that gamma tubulin and Dvl2 are also pulled down. These data could perhaps make a reasonable story that Fltp is involved in BB positioning in several cell types. However, the manuscript is written in such a way to substantially over-interpret their data, and a number of important holes in the data exist. As an appropriately described piece of work, it would be an editorial decision as to whether the results merit publication in this journal.

The overreaching interpretation of the results is evident with regard to several points. The authors devote considerable discussion to how Fltp participates in linking tubulin and actin in these processes, based only on the localization data and the phenotype, without any ultrastructure or biochemistry to support these conclusions. This discussion should all be deleted from the main text, and relegated to speculation in the Discussion.

We agree with the reviewer and toned down or deleted over-statements.

A considerable omission is the failure to examine a potential role for Dlg3 in MCCs. Is there any MCC phenotype in the mutant? If not, how should one interpret the docking defect in comparison to the hair cell phenotype? This highlights the problem that there is not a strong parallel between BB docking in MCCs and BB positioning in hair cells.

The aim of our study was not to compare BB docking in MCCs and BB/cilia positioning in inner ear hair cells, but rather to provide a description of the Fltp phenotype in the lung and inner ear. We focused more on cellular and molecular mechanism of Fltp function in the inner ear, as it is a well-described PCP model system (as stated in the new discussion). Due to the Fltp phenotype in BB positioning, we focused in this system on Dlg3, as Drosophila Dlg is a well-known spindle positioning protein.

For this reviewer we examined a potential role of Dlg3 in MCCs. We analysed lungs of Dlg3 KO animals and could not detect an obvious difference in BB docking or cilia formation between KOs and WT animals (n=2). This indicates that Dlg3 and Fltp cooperate in the inner ear to position BB/cilia and other Dlg family members might compensate for Dlg3 loss-of-function in the lung MCCs. We provide this information for the reviewer only, because this goes beyond the scope of our manuscript.

Author response image 3
Download asset Open asset

(A-B) Show cryosections of a WT lung stained with acetylated tubulin (red) and pericentrin (green) and DAPI (blue). BBs are docked and cilia formed. (C-D) Cryosections of a Dlg3 KO animal show docked BBs and cilia. Scale bars: (A,C) 7μm, (B,D) 2μm.

A third substantial and related problem is that the model is very unclear. The cartoon suggests that Fltp localizes to stereocilia, but the binding data suggest it should be found with gamma tubulin at the BBs.

We apologise and removed the model from the figure set.

Finally, the authors discuss function at the TJs.

We discuss Dlg3 function at the TJ in the context of the IE (Figure 7), because Dlg3 was shown to localise to apical TJs and interact with TJ-associated proteins (Van Campenhout et al., 2011; Dev Cell).

Since MCCs don't have the equivalent of stereocilia, where is the commonality? In these cells, Fltp is seen in the apical meshwork, but the resolution is too low to make specific conclusions about exactly where. We know too little to extract any inference about commonality of Fltp function from the two cell types.

We now provide higher quality pictures of the localization of Fltp in the apical meshwork (Figure 4). As stated above, we do not intend to extract commonality of Fltp function in mono- and multiciliated cell types. However, the obvious commonality is the localization and close association of Fltp with the apical actin and MT cytoskeleton, the BB(s) and cilia (compare Figure 4 and 7) and the function in BB docking and positioning (compare Figure 4, 5 and 8).

There is one very troubling piece of data that must be explained, and unsatisfactory resolution will invalidate the MCC findings. The IMARIS resonstructions in Figure 4 HI show mostly docked vs many undocked BBs, but it is normally easy to find cells in day 4 cultures with undocked BBs, as cells continue to differentiate for some time.

We agree with the reviewers comment that in day 4 cultures cells with undocked BBs can be found. This is exactly what we observed, except that Fltp homozygous cultures always show a reduced number of docked BBs compared to WT cultures.

Care must be taken that these are representative. Therefore the quantitative data are essential. The MTEC data from day 2 and day 4 shown in Figure 4-figure supplement 1 are at best, extremely confusing, and at worst, suggest the possibility that the results should be discarded. First, it is unclear what the authors are measuring. The number of BBs? The number or percent of docked BBs? Number of cells with docked BBs? This must be made clear.

We apologize for the bad representation of our data; we measured number of cells with docked BBs (amount of docked BBs was categorized in different percentage groups). As this is too complicated we simplified the quantification and took care that we analysed representatives.

ALI cultures do not always differentiate with same rate and efficiency. To normalize for variability in differentiation we only compared WT and HOM cultures when they differentiated to a comparable extend (Figure 4–figure supplement 1A). The percentage of differentiating MCCs; according to GFP/pericentrin staining among all cells analysed is shown.

Next, we examined BB docking by staging the differentiating cells into stage II-III (BB amplification and docking) and stage IV (every BB has a cilia and is docked) (see model Figure 4A). This revealed at day 2 and day 4 BB docking defects in Fltp knock-out cultures, when compared to WT (Figure 4–figure supplement 1B).

Representative images and how we quantified these are shown below:

Author response image 4
Download asset Open asset

(A-A’’) WT cultures at day 0, ALI day 2 and ALI day 4. In day 0 cultures MCCs are already present (A). Day 2 and day 4 ALIs show mostly 100% docked BBs (red, pericentrin; white, cilia) (A’,A’’). (B-B’’) In HOM cultures at day 0 some cells are already multiciliated but not to the same extend as WT cultures. At day 2 most stage II-III cells do not have docked their BBs yet. Significantly more BBs are docked in WT cultures (A’-A’’) than in HOM cultures (B’-B’’). Light white staining marks the intracellular MT network. Only bright white staining marks cilia.Scale bars; (A,B) 5μm; (A’,A’’) 25μm; (B’,B’’) 30μm.

Furthermore, in this highly reproducible system, at ALI+2 days, there are only very few cells with multiple cilia, yet the authors' data seem to suggest that 80% of the cells are multiciliated (to completion??). In the best wildtype cultures, 80% of cells are never seen to become multiciliated.

We only analysed cells differentiating into MCCs and excluded non-differentiating cells present in the ALI culture. The overall percentage of cells that started differentiating according to anti-GFP and anti-Pericentrin staining can be seen in the new Figure 4–figure supplement 1A (max. 22%). We categorized these cells into cells in stage II-III (BB amplification and docking) and stage IV (every BB has a cilia and is docked) in Figure 4–figure supplement 1B.

Additionally, we analysed mTECs at ALI day 0 (directly before switching) and day 1. We could show that MCCs are already present before switching to ALI conditions. We propose that cells which are already multiciliated at day 0 develop to fully mature stage IV MCCs by day 2 accounting for this high amount of stage IV cells at day 2 (Figure 4–figure supplement 1B).

Furthermore, by day 4, the number has declined to 60%? Why? At this stage, the numbers should still be increasing. In light of this, how are we to interpret the mutant results? We need a description of what is being measured, as well as images to corroborate.

This is a very good question for which we do not have a definitive answer. MCCs are already present at day 0 and 1. From day 0 to day 2 the amount of stage II-IV cells increases from approx. 5% to 18%. We hypothesize that this rapid increase in stage II-IV cells is due to the presence of MCCs before the switch to ALI conditions. These cells might also more efficiently show BB docking and cilia formation. Additionally, new stage I cells are entering the differentiation process after switch to ALI conditions. The amount of these cells increases and potentially reduce the number of docked stage IV cells at day 4. To definitively proof this hypothesis, we would need to do live cell analysis, which is beyond the scope of this work. The number of differentiating cells are still increasing.

Another problem is with the “genetic interaction” between fltp and celsr1. Genetic interaction is typically shown between heterozygotes that have no phenotype on their own, or between one het with no phenotype and a homozygote with a weak phenotype. The authors make double homozygous mutants and show an enhanced phenotype. Yet each homozygote has a phenotype of its own, and therefore the result could simply be an additive phenotype. The result therefore DOES NOT show a genetic interaction and provides NO EVIDENCE that Fltp is in the PCP pathway. The result is equally consistent with distinct pathways converging on a shared output.

We totally agree with the comment that Celsr1+Fltp could also act in two parallel pathways and we added this to the manuscript.

Numerous other statements describing Fltp function in PCP signaling are also misleading. For example, describing Dvl2 function at BBs as a PCP function is not valid. Indeed, the MCC phenotype is not a PCP phenotype at all, and the hair cell phenotype impacts PCP, but is presumably quite downstream. Taken together, it is not reasonable to describe the results as being effectors of PCP. This is another big example of interpretation not correctly reflecting the findings.

We agree and have toned down the statements as outlined above for reviewer 1.

Reviewer #3:

1) Many references are made to “Detailed” subcellular co-localization studies. But these data are not at all clear in their current form. In particular the data in Figure 3 are over-interpreted. It is stated that Fltp “specifically” colocalizes with newly synthesized MT plus-ends, but Figure 3B shows much green where there is no red and much of the converse as well.

We agree and apologise for the bad quality of Figure 4. We changed several panels and added a co-staining of Fltp and EB-1.

2) The claim is made in Figure 3 that fltp is localized to the apical but not the sub-apical actin in multiciliated cells, yet Figure 3A shows only a single x/y image and Figure 3c shows Zo1, but not actin. How is this claim justifiable from these data?

We replaced Figure 4A and show now a Z stack which shows that Fltp is not localized to the subapical actin network (Figure 4C), but to the apical actin cytoskeleton (Figure 4C’-C’’), cilia (Figure 4C’’’), MT plus ends (Figure 4D) and around the pericentriolar matrix (Figure 4E).

3) The authors need to comment on the possible role for fltp in basal body amplification. According to Figure 5, the most obvious phenotype in the mutants may not be BB docking, but the reduction in BB numbers. This issue is a big one because recent work on cyclin O from Kinter and Omran shows that BB docking and amplification may be linked.

Thank you for the valuable comment. This is an interesting point but the phenotype observed is a clear BB docking phenotype. We reanalysed the data and have not noticed cells with significant less centrosomes in Fltp KO ALI cultures compared to WT ALIs (also compare Figure 4F and 4G).

https://doi.org/10.7554/eLife.03842.019

Article and author information

Author details

  1. Moritz Gegg

    1. Institute of Stem Cell Research, Helmholtz Center Munich, Munich, Germany
    2. Institute of Diabetes and Regeneration Research, Helmholtz Center Munich, Munich, Germany
    Contribution
    MG, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.

  2. Anika Böttcher

    1. Institute of Stem Cell Research, Helmholtz Center Munich, Munich, Germany
    2. Institute of Diabetes and Regeneration Research, Helmholtz Center Munich, Munich, Germany
    Contribution
    AB, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.

  3. Ingo Burtscher

    1. Institute of Stem Cell Research, Helmholtz Center Munich, Munich, Germany
    2. Institute of Diabetes and Regeneration Research, Helmholtz Center Munich, Munich, Germany
    Contribution
    IB, Designed the Fltp knock out construct, Conception and design
    Competing interests
    The authors declare that no competing interests exist.

  4. Stefan Hasenoeder

    1. Institute of Stem Cell Research, Helmholtz Center Munich, Munich, Germany
    2. Institute of Diabetes and Regeneration Research, Helmholtz Center Munich, Munich, Germany
    Contribution
    SH, Helped to establish ALI culture, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.

  5. Claude Van Campenhout

    Genetique du Developpement, L'Institut de biologie et de médecine moléculaires, Université libre de Bruxelles, Gosselies, Belgium
    Contribution
    CVC, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.

  6. Michaela Aichler

    Research Unit Analytical Pathology, Helmholtz Center Munich, Munich, Germany
    Contribution
    MA, Helped to analyse SEM data
    Competing interests
    The authors declare that no competing interests exist.

  7. Axel Walch

    Research Unit Analytical Pathology, Helmholtz Center Munich, Munich, Germany
    Contribution
    AW, Helped to analyse SEM data
    Competing interests
    The authors declare that no competing interests exist.

  8. Seth G N Grant

    1. Centre for Clinical Brain Sciences, University of Edinburgh, Edinburgh, United Kingdom
    2. Centre for Neuroregeneration, Univeristy of Edinburgh, Cambridge, United Kingdom
    Contribution
    SGNG, Provided the Dlg3 knock out animals
    Competing interests
    The authors declare that no competing interests exist.

  9. Heiko Lickert

    1. Institute of Stem Cell Research, Helmholtz Center Munich, Munich, Germany
    2. Institute of Diabetes and Regeneration Research, Helmholtz Center Munich, Munich, Germany
    Contribution
    HL, Conception and design, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    For correspondence
    heiko.lickert@helmholtz-muenchen.de
    Competing interests
    The authors declare that no competing interests exist.

Funding

Deutsche Forschungsgemeinschaft (Emmy-Noether Fellowship)

  • Heiko Lickert

European Research Council (ERC CiliaryDisease)

  • Heiko Lickert

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are extremely grateful to A Theis and B Vogel for excellent technical assistance and mouse work, Neil Copeland for generously providing plasmids and bacterial strains for homologous recombination in bacteria, and Ralf Kühn for IDG3.2 ES cells. Special thanks goes to Christiane Fuchs (ICB Consulting) for the circular statistics. We are particularly grateful to Jennifer Murdoch for providing Celsr1crsh animals. This work was supported by an Emmy-Noether Fellowship and the European Union with the ERC starting grant CiliaryDisease dedicated to HL. For financial support, HL thanks the Helmholtz Society, German Research Foundation, and German Center for Diabetes Research (DZD e.V.). This work was funded (in part) by the Helmholtz Alliance ICEMED—Imaging and Curing Environmental Metabolic Diseases, through the Initiative and Networking Fund of the Helmholtz Association.

Ethics

Animal experimentation: Mouse keeping was done at the central facilities at HMGU in accordance with the German animal welfare legislation and acknowledged guidelines of the Society of Laboratory Animals (GV-SOLAS) and of the Federation of Laboratory Animal Science Associations (FELASA). Post-mortem examination of organs was not subject to regulatory authorization.

Reviewing Editor

  1. Jeremy Nathans, Howard Hughes Medical Institute, Johns Hopkins University School of Medicine, United States

Version history

  1. Received: July 1, 2014
  2. Accepted: October 7, 2014
  3. Accepted Manuscript published: October 8, 2014 (version 1)
  4. Version of Record published: November 6, 2014 (version 2)

Copyright

© 2014, Gegg et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,401
    Page views
  • 498
    Downloads
  • 39
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Moritz Gegg
  2. Anika Böttcher
  3. Ingo Burtscher
  4. Stefan Hasenoeder
  5. Claude Van Campenhout
  6. Michaela Aichler
  7. Axel Walch
  8. Seth G N Grant
  9. Heiko Lickert
(2014)
Flattop regulates basal body docking and positioning in mono- and multiciliated cells
eLife 3:e03842.
https://doi.org/10.7554/eLife.03842

Categories and tags

Research organism

Further reading

    1. Cell Biology

    Mitochondrial defects caused by PARL deficiency lead to arrested spermatogenesis and ferroptosis

    Enrico Radaelli, Charles-Antoine Assenmacher ... Marco Spinazzi
    Research Article Updated

    Impaired spermatogenesis and male infertility are common manifestations associated with mitochondrial diseases, yet the underlying mechanisms linking these conditions remain elusive. In this study, we demonstrate that mice deficient for the mitochondrial intra-membrane rhomboid protease PARL, a recently reported model of the mitochondrial encephalopathy Leigh syndrome, develop early testicular atrophy caused by a complete arrest of spermatogenesis during meiotic prophase I, followed by degeneration and death of arrested spermatocytes. This process is independent of neurodegeneration. Interestingly, genetic modifications of PINK1, PGAM5, and TTC19 – three major substrates of PARL with important roles in mitochondrial homeostasis – fail to reproduce or modify this severe phenotype, indicating that the spermatogenic arrest arises from distinct molecular pathways. We further observed severe abnormalities in mitochondrial ultrastructure in PARL-deficient spermatocytes, along with prominent electron transfer chain defects, disrupted coenzyme Q (CoQ) biosynthesis, and metabolic rewiring. These mitochondrial defects are associated with a germ cell-specific decrease in GPX4 expression leading arrested spermatocytes to ferroptosis – a regulated cell death modality characterized by uncontrolled lipid peroxidation. Our results suggest that mitochondrial defects induced by PARL depletion act as an initiating trigger for ferroptosis in primary spermatocytes through simultaneous effects on GPX4 and CoQ – two major inhibitors of ferroptosis. These findings shed new light on the potential role of ferroptosis in the pathogenesis of mitochondrial diseases and male infertility warranting further investigation.

    1. Cell Biology
    2. Physics of Living Systems

    A mechanosensing mechanism controls plasma membrane shape homeostasis at the nanoscale

    Xarxa Quiroga, Nikhil Walani ... Pere Roca-Cusachs
    Research Article

    As cells migrate and experience forces from their surroundings, they constantly undergo mechanical deformations which reshape their plasma membrane (PM). To maintain homeostasis, cells need to detect and restore such changes, not only in terms of overall PM area and tension as previously described, but also in terms of local, nano-scale topography. Here we describe a novel phenomenon, by which cells sense and restore mechanically induced PM nano-scale deformations. We show that cell stretch and subsequent compression reshape the PM in a way that generates local membrane evaginations in the 100 nm scale. These evaginations are recognized by I-BAR proteins, which triggers a burst of actin polymerization mediated by Rac1 and Arp2/3. The actin polymerization burst subsequently re-flattens the evagination, completing the mechanochemical feedback loop. Our results demonstrate a new mechanosensing mechanism for PM shape homeostasis, with potential applicability in different physiological scenarios.

    1. Cell Biology

    PM2.5 leads to adverse pregnancy outcomes by inducing trophoblast oxidative stress and mitochondrial apoptosis via KLF9/CYP1A1 transcriptional axis

    Shuxian Li, Lingbing Li ... Xietong Wang
    Research Article

    Epidemiological studies have demonstrated that fine particulate matter (PM2.5) is associated with adverse obstetric and postnatal metabolic health outcomes, but the mechanism remains unclear. This study aimed to investigate the toxicological pathways by which PM2.5 damaged placental trophoblasts in vivo and in vitro. We confirmed that PM2.5 induced adverse gestational outcomes such as increased fetal mortality rates, decreased fetal number and weight, damaged placental structure, and increased apoptosis of trophoblasts. Additionally, PM2.5 induced dysfunction of the trophoblast cell line HTR8/SVneo, including in its proliferation, apoptosis, invasion, migration and angiogenesis. Moreover, we comprehensively analyzed the transcriptional landscape of HTR8/SVneo cells exposed to PM2.5 through RNA-Seq and observed that PM2.5 triggered overexpression of pathways involved in oxidative stress and mitochondrial apoptosis to damage HTR8/SVneo cell biological functions through CYP1A1. Mechanistically, PM2.5 stimulated KLF9, a transcription factor identified as binding to CYP1A1 promoter region, which further modulated the CYP1A1-driven downstream phenotypes. Together, this study demonstrated that the KLF9/CYP1A1 axis played a crucial role in the toxic progression of PM2.5 induced adverse pregnancy outcomes, suggesting adverse effects of environmental pollution on pregnant females and putative targeted therapeutic strategies.
