Re-visiting the trans insertion model for complexin clamping

  1. Shyam S Krishnakumar  Is a corresponding author
  2. Feng Li
  3. Jeff Coleman
  4. Curtis M Schauder
  5. Daniel Kümmel
  6. Frederic Pincet
  7. James E Rothman
  8. Karin M Reinisch  Is a corresponding author
  1. Yale University School of Medicine, United States
  2. Univeristät Osnabrück, Germany
  3. Ecole Normale Supérieure, France
Short Report
  • Cited 18
  • Views 1,197
  • Annotations
Cite this article as: eLife 2015;4:e04463 doi: 10.7554/eLife.04463

Abstract

We have previously proposed that complexin cross-links multiple pre-fusion SNARE complexes via a trans interaction to function as a clamp on SNARE-mediated neurotransmitter release. A recent NMR study was unable to detect the trans clamping interaction of complexin and therefore questioned the previous interpretation of the fluorescence resonance energy transfer and isothermal titration calorimetry data on which the trans clamping model was originally based. Here we present new biochemical data that underscore the validity of our previous interpretation and the continued relevancy of the trans insertion model for complexin clamping.

https://doi.org/10.7554/eLife.04463.001

eLife digest

Molecules called neurotransmitters are used to carry signals between neurons. The neurotransmitters in the first neuron are stored in small bubble-like structures called synaptic vesicles. When this neuron is ready to send a signal to a second neuron, the membrane that encloses the synaptic vesicle fuses with the cell membrane that surrounds the neuron. This involves SNARE proteins in the vesicle membrane interacting with similar proteins in the cell membrane to form a SNARE complex, which then proceeds to ‘zip’ the two membranes together.

Other proteins are involved in the fusion process and the release of the neurotransmitters. For example, complexins bind to SNARE proteins during the formation of the SNARE complex in order to temporarily halt the fusion process. This ‘clamping’ interaction ensures that the neurotransmitters are released at the appropriate time.

Researchers have proposed two different models of the clamping interaction. In the trans clamping model a region in the complexins called the accessory helix extends forward and clamps SNARE proteins that are present on the two membranes. An alternative model explains clamping in terms of electrostatic interactions between the accessory helix and the two membranes. These interactions are repulsive because the accessory helix and the membranes are all negatively charged.

Now Krishnakumar, Li et al.—including some of the researchers who first proposed the trans clamping model—have used a variety of biochemical techniques to re-examine the clamping interaction. These experiments support the idea that the accessory helix binds to and clamps a SNARE protein, as suggested by the trans clamping model. The results of recent in vivo experiments on fruit flies have also provided support for the trans clamping model, although further work is need to compare the models in both in vitro and in vivo systems.

https://doi.org/10.7554/eLife.04463.002

Introduction

The tightly regulated release of neurotransmitters is key to all information processing in the neural circuitry. The fusion of a synaptic vesicle to release the neurotransmitters is mediated by the SNARE (Soluble N-ethylmaleimide-sensitive factor Attachment protein REceptor) complex, which forms between vesicle and target membranes as v-SNAREs emanating from transport vesicles assemble with t-SNAREs emanating from target membranes (Sollner et al., 1993; Weber et al., 1998; Jahn and Scheller, 2006). Key proteins regulating SNARE-mediated fusion at the synapse are the calcium sensor synaptotagmin and complexin (CPX) (Brose et al., 1992; McMahon et al., 1995; Fernandez-Chacon et al., 2001; Giraudo et al., 2006; Sudhof and Rothman, 2009). Genetic and physiological studies in a number of model systems show that CPX inhibits the spontaneous release of neurotransmitters and is also essential for synchronous exocytosis (Huntwork and Littleton, 2007; Maximov et al., 2009; Yang et al., 2010; Martin et al., 2011; Cho et al., 2014). CPX ‘clamps’ the SNARE assembly process to prevent the continuous release of neurotransmitters (Giraudo et al., 2006). It does so by stabilizing the SNAREs in an otherwise unavailable ‘intermediate’ energetic state in which the four helix bundle is about 50% zippered (Li et al., 2011).

Based on the X-ray crystal structure of CPX bound to a mimetic of this half-zippered intermediate in which only the N-terminal portion (residues 26–60) of v-SNARE, VAMP2, is present (SNAREΔ60), we proposed a molecular model for the clamping of the SNARE assembly by CPX (Kümmel et al., 2011). We found that the CPX central helix (CPXcen, the SNARE-binding domain) binds one SNAREpin while the accessory helix (CPXacc, the clamping domain) extends away and bridges to a second SNAREpin. The CPXacc interacts with the t-SNARE in the second SNAREpin, occupying the v-SNARE binding site, thus inhibiting the full assembly of the SNARE complex. Further, the intermolecular trans clamping interaction of CPX organizes the SNAREpins into a ‘zig-zag’ topology that is incompatible with opening a fusion pore (Krishnakumar et al., 2011; Kümmel et al., 2011).

We used isothermal titration calorimetry (ITC) to characterize the interaction of the CPXacc with the t-SNARE, fluorescence resonance energy transfer (FRET) analysis to establish the angled conformation of CPXacc which allows the trans clamping interaction, and the cell–cell fusion assay (Hu et al., 2003) to functionally test the zig-zag model for CPX clamping (Krishnakumar et al., 2011; Kümmel et al., 2011). Recently, Rizo, Rosenmund, and colleagues (Trimbuch et al., 2014) have re-examined the clamping interaction of CPX and have raised concerns regarding the interpretation of the ITC and FRET data and the use of the cell–cell fusion assay as an in vitro system to study CPX clamping (Krishnakumar et al., 2011; Kümmel et al., 2011). Here we address these concerns and argue that the trans clamping model we had previously proposed remains relevant.

Results

ITC experiments

In our earlier paper we used ITC experiments to confirm that the CPXacc interacts with the t-SNARE in the truncated pre-fusion SNARE complex (SNAREΔ60) as predicted by the X-ray crystal structure (Kümmel et al., 2011). To measure this interaction, we blocked the central helix binding site by pre-binding the SNAREΔ60 complex with a truncated form of CPX (CPX-48; residues 48–134) before titration. In the recent report by Trimbuch et al. (2014) the authors suggest that the 1.5 molar excess of the CPX-48 that was used to block the CPXcen binding does not saturate the central helix binding site and the heat observed upon addition of CPX to blocked SNAREΔ60 arises from the completion of CPXcen binding rather than from interactions involving the CPXacc. This was primarily based on their ITC data which showed that CPX-47 (CPX47–134) binds to truncated complex SNARE∆60 with an affinity constant (Kd) = 2.39 ± 0.19 µM and to non-truncated SNARE complex with Kd = 339 ± 9 nM (Trimbuch et al., 2014). The binding constant for full-length CPX and a non-truncated SNARE complex is reported to be ∼20 nM (Pabst et al., 2002) and, given that CPX-48 has an intact central helix including all SNARE-interacting residues (residues 48, 52, 69, and 70) (Chen et al., 2002), the expectation would be that CPX-48 and full-length CPX bind to the non-truncated SNARE complex with similar affinities. This discrepancy prompted us to repeat their ITC experiments and, under our experimental conditions, the Kd for CPX-48 binding to the post-fusion SNARE complex was 43 ± 7 nM (Figure 1A, Table 1), much closer to the value reported for the full-length CPX (Pabst et al., 2002). We found further that CPX-48 bound the pre-fusion SNAREΔ60 with a Kd = 457 ± 47 nM (Figure 1B, Table 1), or about five times more tightly than reported by Trimbuch et al. (2014). These binding constants ensure the near saturation (∼96%) of the central helix binding site under the conditions (1.5 molar excess of CPX-48) reported in Kümmel et al. (2011). Thus, with the blocked SNAREΔ60, only the interaction between CPXacc and t-SNARE would be measured. This is supported by the fact that the interaction affinity could be modulated by the mutations in CPXacc. Hydrophobic mutations (D27L, E34F, R37A) increased the binding affinity (approximately eightfold stronger than the wild-type, Table 1), while the introduction of charged residues (A30E, A31E, L41E, A44E) abolished the interaction (Kümmel et al., 2011).

Characterization of interaction of complexin (CPX)-48 with pre- and post-fusion SNARE complex by isothermal titration calorimetry.

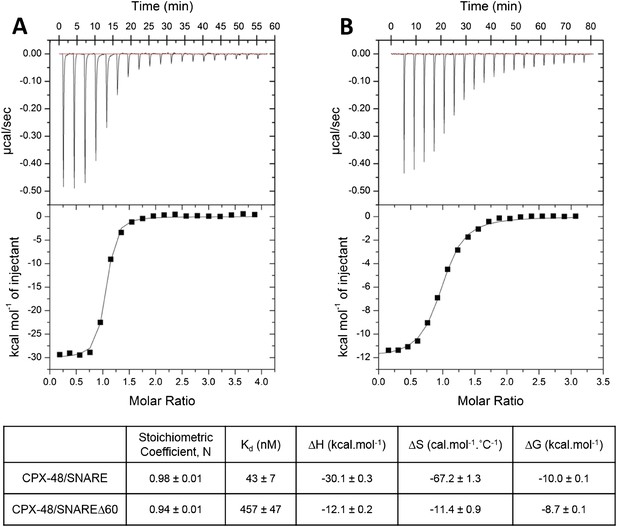

Representative thermograms of CPX-48 titrated into post-fusion SNARE (A) or pre-fusion SNARE∆60 complex (B). The solid lines represent the best fit to the corresponding data points using non-linear least squares fit with the one-set-of-sites model. The results of the fit from 2–3 independent trials are shown in Table 1.

https://doi.org/10.7554/eLife.04463.003
Table 1

Affinity constants (Kd) for complexin (CPX) binding to SNARE complexes measured by isothermal titration calorimetry

https://doi.org/10.7554/eLife.04463.004
ComplexinBinding partnerBinding affinity (Kd)Reference
CPX1–134Ternary SNARE19 nMPabst et al. (2002)
CPX48–134Ternary SNARE43 ± 7 nMThis study
CPX48–134SNAREΔ60457 ± 47 nMThis study
CPX1–134Blocked SNAREΔ60 (1.5-fold excess of CPX48–134)16 µMKümmel et al. (2011)
Super-clamp CPX1–134 (D27L E34F R37A)Blocked SNAREΔ60 (1.5-fold excess of CPX48–134)2 µMKümmel et al. (2011)
CPX1–134Blocked SNAREΔ60 (3-fold excess of CPX48–134)15.2 ± 1.4 µMCurrent study
CPX26–83Blocked SNAREΔ60 (3-fold excess of CPX48–134)23.9 ± 0.1 µMCurrent study

To restore confidence in our ITC data reported in Kümmel et al. (2011), we also repeated the ITC binding experiments using 2.5–3-fold molar excess of CPX-48 to completely block the CPXcen binding (≥99%). We found that CPX binds to the blocked SNAREΔ60 with a binding affinity of 15.2 ± 1.4 µM (Figure 2A, Table 1), matching well the Kd ∼16 µM reported in Kümmel et al. (2011). We note that in these experiments as well as those reported in Kümmel et al. we titrated full-length CPX (residues 1–134) into the blocked SNAREΔ60, and not the minimal functional domain (residues 26–83) as we had implied (“we used a complexin construct comprising both the central and accessory helices [residues 26–83]” [Kümmel et al., 2011]), and we apologize for this reporting error. We have now additionally carried out the ITC experiments with the minimal functional domain (CPX26–83) and find that this truncated version also binds to the blocked SNAREΔ60, albeit with slightly weaker affinity (Kd = 23.9 ± 0.1 µM) compared with full-length CPX (Figure 2B, Table 1). Taken together, the data strongly support our earlier conclusion that the ITC binding studies carried out with CPX titrated into blocked SNAREΔ60 correctly reflect the binding of CPXacc to t-SNARE. Consistent with this, we have recently also been able to characterize the binding of mammalian CPXacc to Drosophila t-SNAREs using blocked Drosophila pre-fusion SNARE complex (Cho et al., 2014). Mutations in the CPXacc predicted to enhance or decrease the binding of CPXacc to t-SNARE exhibit corresponding binding profiles in ITC experiments (Cho et al., 2014) in support of the trans insertion model (Kümmel et al., 2011).

Interaction of complexin accessory helix (CPXacc) with the t-SNARE groove for full-length and truncated (residue 26–83) CPX characterized by isothermal titration calorimetry.

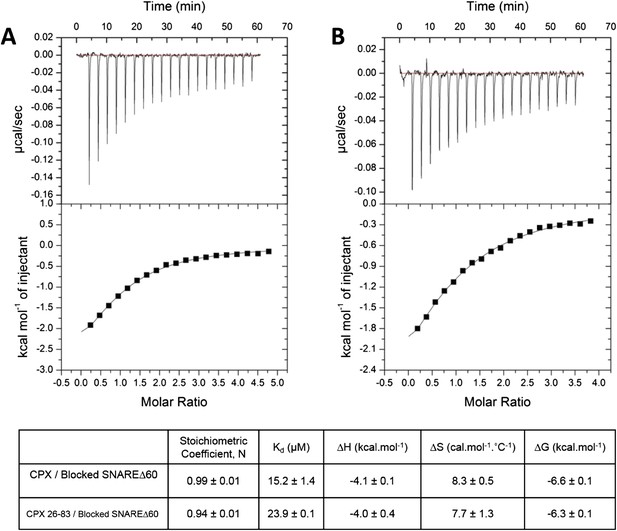

Full-length (A) or CPX26–83 (B) were titrated into pre-fusion SNAREΔ60 complex with the CPX central helix (CPXcen) binding site blocked with CPX-48 to exclusively measure the CPXacc–t-SNARE clamping interaction. The solid lines represent the best fit to the corresponding data points using non-linear least squares fit with one-set-of-sites-model and results of the fit are shown in Table 1. All experiments were conducted in triplicate and a representative thermogram is shown.

https://doi.org/10.7554/eLife.04463.005

Further, to directly monitor the multiple binding modes of CPX to the pre-fusion SNAREpin, we carried out new ITC experiments where we titrated full-length CPX into unblocked SNAREΔ60. As our initial ITC data had suggested that the accessory helix of super clamp CPX (residues 1–134 with D27L, E34F, R37A; scCPX) binds to SNAREΔ60 with ∼10× higher affinity (Table 1) than wild-type (Kümmel et al., 2011), we used scCPX for this analysis. As shown in Figure 3A, titration of scCPX into the unblocked SNAREΔ60 results in a thermal graph characteristic of a reaction involving multiple binding sites, demonstrating that CPX has more than one binding site per SNAREΔ60 complex. The data can be best approximated using the independent thermodynamic parameters for the CPXcen and CPXacc interaction, with the assumption that both the truncated SNAREΔ60 and scCPX are bivalent (Figure 3B). We observed a qualitatively similar titration curve for wild-type CPX (Figure 3C) but, since the CPXacc interaction with SNAREΔ60 is much weaker, the fitting with multiple binding sites was not resolved in detail.

Isothermal titration calorimetry indicates multivalent interactions between SNAREΔ60 and CPX.

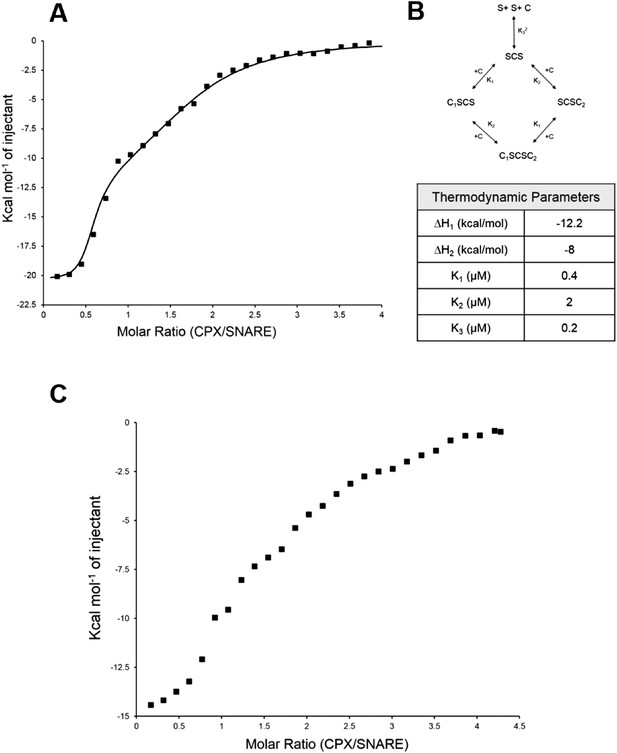

(A) Calorimetric titration of super-clamp complexin (scCPX; residues 1–134, with D27L, E34F, R37A mutations) into pre-fusion SNAREΔ60 complex describes a multi-site interaction of CPX. The solid lines represent the predicted binding thermogram assuming that both scCPX and truncated SNAREΔ60 are bivalent with well-defined independent thermodynamic parameters describing CPX central helix and CPX accessory helix binding (B). (C) Representative thermogram of full-length wild-type CPX (residues 1–134) titrated into unblocked SNAREΔ60.

https://doi.org/10.7554/eLife.04463.006

We suspect that experimental factors such as the buffer conditions, purification methodology (i.e., presence or absence of affinity tags), and the method used to determine the protein concentration (Bradford/BCA or A280) might contribute to the variability in the ITC data between the two papers. The latter is of particular significance since the quantitation of small proteins/peptide (<7 kDa) is highly dependent on the method used. However, we are unable to pinpoint the differences in protocol between the two studies since several relevant experimental details (e.g., whether affinity tags were present or what method was used for protein quantification) are not described in Trimbuch et al. Another discrepancy with regard to the ITC measure may derive from the way the blocked SNAREΔ60 complex was assembled. In our experience, assembly of SNARE complex with VAMP60 or similarly truncated VAMP using only the concentration–dilution cycles as carried out in the Trimbuch et al. report results in heterogeneous samples, with non-productive aggregates and un-assembled components not very effectively removed by the concentration cycle. In our experimental regimen we always purified the truncated SNARE complex on a Superdex 75 gel filtration column to ensure good quality of the assembled complexes. Column-purified SNAREΔ60 complexes were subsequently incubated with gel-filtration purified CPX-48 to form the blocked SNAREΔ60 complex used in the ITC experiments. We also note that Pabst et al. (2002) used a more stringent purification protocol (Mono-Q purification) even though they used a different SNAP25 construct for the preparation of the SNARE complexes for their ITC studies and report Kd values similar to our findings (Pabst et al., 2002). The samples used by Trimbuch et al. for the NMR analysis appear to be homogeneous, however.

FRET analysis

We used FRET analysis to establish that the angled conformation of CPXacc also occurs in solution and is not dictated by crystal packing (Kümmel et al., 2011). We placed the donor probe on SNAP25, acceptor probe on CPXacc, and used donor quenching to track the positioning of the CPXacc in the pre- and post-fusion SNARE complex (Krishnakumar et al., 2011; Kümmel et al., 2011). The FRET data were consistent with the CPXacc locating parallel to the SNARE complex in the fully-assembled SNARE complex, but moving away from the SNAREs in the pre-fusion half-zippered complex (Krishnakumar et al., 2011; Kümmel et al., 2011). In Trimbuch et al. (2014), based on NMR analysis, it was stated that the CPXacc helix is poorly structured even when bound to the SNARE complex and exhibits higher flexibility with c-terminal truncation of VAMP. The authors therefore suggested that the low FRET state we observed in the pre-fusion SNAREpin and assign to the ‘angled’ conformation can be explained by the enhanced flexibility of the CPXacc in this complex. Even though this is not in contradiction to the trans clamping model we have proposed, there are several lines of evidence (Krishnakumar et al., 2011; Kümmel et al., 2011) arguing against this interpretation. (1) We observe a well-defined ‘high’ and ‘low’ FRET state for CPX bound to the post- and pre-fusion SNARE using two different FRET pairs with different R0 values (Stilbene/Bimane, R0 ∼27Å and Bimane/Oregon Green, R0 ∼38Å), and the FRET distances in these CPX–SNARE complexes match very well with the predicted distance in the pre- and post-fusion crystal structures (Kümmel et al., 2011). Further, a study by Choi et al. suggests that a completely unstructured CPX would result in a higher FRET signal than a more structured form (Choi et al., 2011), so the decrease in FRET efficiency for CPX bound to SNAREΔ60 is not consistent with increased disorder. (2) For both the FRET pairs tested, acceptor placed at residue 31 on CPXacc shows weaker FRET compared with residue 38, consistent with the idea that the CPXacc extends away from the pre-fusion SNARE complex, with dye on residue 31 locating further away from the donor (on SNAP25) than the dye on residue 38 (Kümmel et al., 2011, Figure 4). (3) In the accompanying paper (Krishnakumar et al., 2011), we tested the effect of VAMP truncation on the orientation of CPXacc and observed the same well-defined low FRET state (∼15% FRET) for CPX bound to SNARE∆69, SNARE∆65, or SNARE∆60 complexes (Krishnakumar et al., 2011, Figure 1B). But NMR analysis for same or similarly truncated SNARE complexes showed equally dramatic enhancement of local flexibility in CPXacc with increasing truncation on the VAMP c-terminus (SNARE∆68 versus SNARE∆62 versus SNARE∆60 in Trimbuch et al. (2014), Figure 2C,F). (4) Finally, the FRET signal we observed in the ‘low’ FRET state is higher than the FRET signal obtained when we used a CPX construct with enhanced flexibility (CPX–GPGP) in which a helix-breaking GPGP linker was inserted between the central and accessory helices of CPX for either SNARE∆60 or the post-fusion SNARE complex (Kümmel et al., 2011, Figure 4D). Trimbuch et al. argued that, since we observe only a small change in FRET signal for CPX–GPGP compared with CPX–SNARE∆60, the results obtained with the GPGP mutant are not conclusive. To address this concern we tested CPX–GPGP bound to SNARE∆60 and SNARE complex using the medium range Bimane/Oregon green FRET pair (R0 ∼38Å). As shown in Figure 4, the GPGP insertion results in a dramatic decrease in the FRET signal, with the CPXacc locating further away from both SNARE∆60 and the SNARE complex. These data suggest that the increased flexibility does not explain the decreased FRET signal in the pre-fusion truncated SNARE complex.

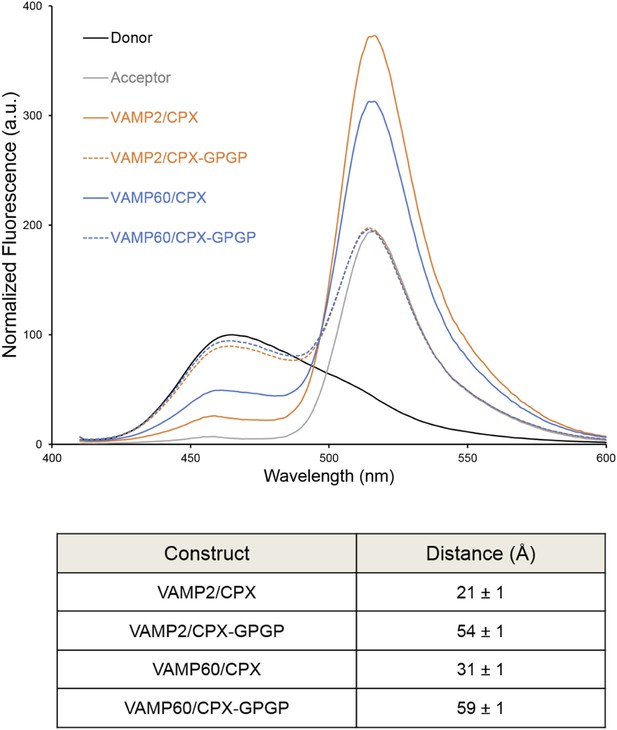

Bimane–Oregon green fluorescence resonance energy transfer (FRET) experiments probing the effect of flexibility on complexin (CPX) orientation in pre- and post-fusion CPX–SNARE complexes.

The FRET labeling positions were residue 193 on SNAP25 (Bimane) and residue 38 on CPX (Oregon green). Fluorescence emission spectra of Bimane only (black), Oregon green only (grey), and Bimane–Oregon green labeled CPX–SNARE complexes containing VAMP2 (residues 25–96, orange), VAMP60 (residues 25–60, blue) confirms the angled (low FRET) configuration of CPX accessory helix (CPXacc) in the pre-fusion SNARE complex (VAMP60). The near complete loss of FRET for the flexible CPX mutant (helix breaking GPGP insertion between CPXacc and CPC central helix (CPXcen); CPX–GPGP, dashed lines) compared with the wild-type (WT, solid lines) in both pre- and post-fusion SNARE complexes shows that the difference in FRET signal observed with WT CPX is not due to increased flexibility of the CPXacc in the pre-fusion complex. FRET distances in these CPX–SNARE complexes determined from the quenching of the donor (Bimane) fluorescence is shown (table) and standard deviations are reported from 2–3 independent experiments.

https://doi.org/10.7554/eLife.04463.007

Thus, taken together, our data are consistent with our earlier conclusion that the low FRET state corresponds to a defined angled configuration on the CPXacc in the pre-fusion complex. This is corroborated by functional data showing that the inhibitory function of CPX requires a fully-folded and rigid CPX helix (Radoff et al., 2014), and introducing flexibility within the minimal functional domain of CPX (residue 26–83) results in a reduction or loss of clamping ability corresponding to the degree of instability introduced (Kümmel et al., 2011; Cho et al., 2014; Radoff et al., 2014).

NMR analysis

Using NMR, Trimbuch et al. were unable to detect any interaction between a peptide corresponding to CPXacc only (CPX26–48) and SNARE∆60 (Trimbuch et al., 2014). This experiment is in agreement with our ITC measurements, which did not detect an interaction between SNARE∆60 and CPX26–48 alone (unpublished). We suspect that the conformations sampled by CPX26–48 are dependent on its protein context, and this might account for the different binding affinities observed for the shorter (CPX26–48) compared with the longer (CPX26–83 and CPX1–134) constructs. For example, our circular dichroism (CD) measurements showed that CPXacc (residues 26–48) by itself is unfolded, but CPX26–83 forms a stable α-helical structure (Figure 5A).

Circular dichroism (CD) and dynamic light scattering (DLS) experiments.

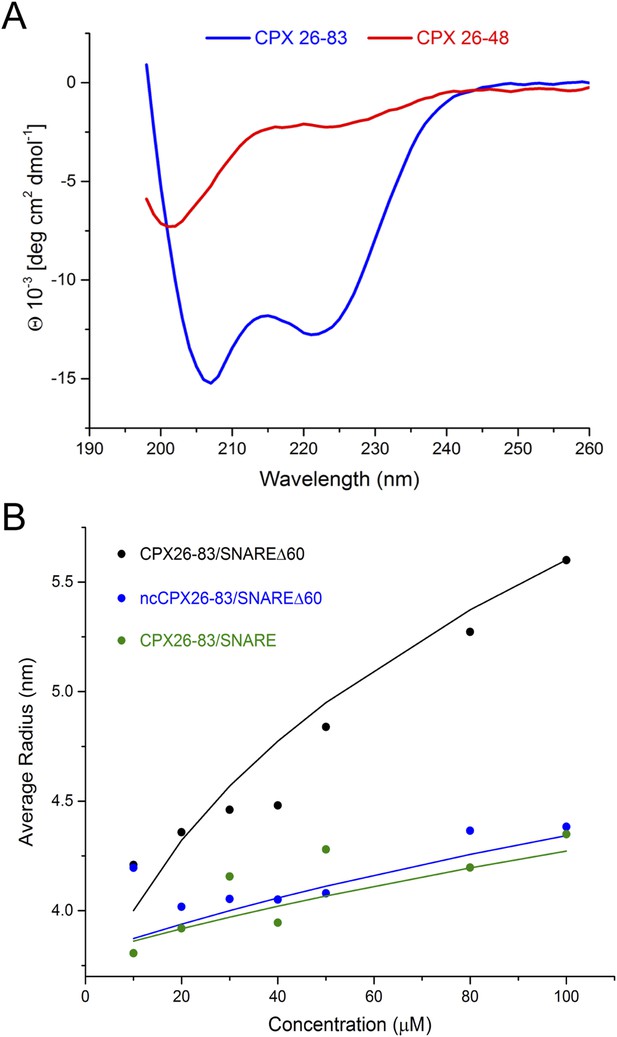

(A) CD spectra of the complexin (CPX) accessory domain (CPX26–48) and the CPX minimal functional domain (CPX26–83). The continuous CPX construct (26–83, blue) with uninterrupted accessory and central domain shows the characteristics of an α-helical protein. In contrast, the isolated CPX accessory domain (26–48) shows little secondary structure and appears mostly unfolded. This may explain why no interaction between the CPX accessory region and SNAREΔ60 was observed by NMR. (B) DLS analysis showing the formation of the high-order oligomers of CPX–SNAREΔ60 in the concentration range used in the NMR experiments in Trimbuch et al. (2014). Experimental average particle radius of pre-formed CPX26–83/SNAREΔ60 (black dots), ncCPX26–83/SNAREΔ60 (blue dots), and CPX26–83/SNARE (green dots) at varying concentration is shown. The solid lines (same color scheme) represent the average gyration radius of the oligomers calculated from the semi-quantitative model described in ‘Materials and methods’.

https://doi.org/10.7554/eLife.04463.008

However, Trimbuch et al. (2014) also did not observe any dramatic shifts and/or broadening of the CPXacc cross-peaks, as would be expected for insertion into the t-SNARE groove (Kümmel et al., 2011), when they used CPX26–83. We note that the prediction from our model is that the trans CPXacc–t-SNARE interactions would lead to the formation of CPX/SNAREΔ60 polymers, which would not be visible in NMR studies due to line broadening. Thus, if there is a trans interaction, then the NMR technique may not be well suited for its interrogation. This cross-linked high-order oligomeric state is evident qualitatively in the ITC experiments where we titrated full-length CPX into unblocked SNAREΔ60 (Figure 3). Dynamic light scattering (DLS) analysis (Figure 5B, black circles) similarly suggests that CPX26–83/SNAREΔ60 complexes begin to oligomerize at the concentration regime used in Trimbuch et al. (25–50 μM). The DLS data are consistent with a model predicting the size of the oligomers (see ‘Materials and methods’ for details on the model, Figure 5B, black line) which incorporates the Kd of ∼25 µM obtained from our ITC analysis of the CPX26–83 and blocked SNAREΔ60 interaction. In contrast, we observe only a small change in the apparent size if we disrupt the binding of CPXacc to t-SNARE either by introducing non-clamping mutations (ncCPX26–83; A30E, A31E, L41E, A44E) in CPXacc (Figure 5B, blue circles) or by blocking the t-SNARE groove using a fully assembled ternary SNARE complex (Figure 5B, green circles). Based on our oligomerization model, this small change in the particle size could only be fitted by assuming a very low affinity interaction (Kd ≥ 250 µM) such as might arise from non-specific aggregation (Figure 5B, blue and green lines).

We suspect that the concentrations used in the NMR studies (∼25–50 μM) (Trimbuch et al., 2014), which correspond to the lower end of the range of concentration used for NMR studies, were adjusted to avoid oligomerization and line broadening effects. Because small proteins are difficult to quantitate and because our Kd values, which depend on concentration measurements for their accuracy, are only approximate, it is plausible that, under the NMR conditions of Trimbuch et al., most of the CPX–SNAREΔ60 complexes were monomeric, with only a small fraction in an oligomeric form. Thus, under the experimental conditions used by Trimbuch et al., CPXacc might not have an appreciable interaction with the t-SNARE groove, and the minor bound fraction would not be visible in NMR spectra owing to the large size of the cross-linked oligomers, assuming that there is no exchange between the monomeric and oligomeric forms of CPX–SNAREΔ60. Therefore, we believe that the negative NMR data in Trimbuch et al. do not preclude a trans interaction between CPX and the SNAREΔ60 complex.

In vivo analysis

In Trimbuch et al., the authors tested the CPXacc/t-SNARE insertion model using the autaptic neuronal culture derived from CPX triple KO mice (CPX TKO). They found that the super clamp and non-clamp CPX mutations, which are predicted to enhance or decrease CPXacc–t-SNARE binding, respectively, did not have the expected effect on evoked or spontaneous release. Based on this, they concluded that functional data do not support the CPXacc insertion/zig-zag model (Trimbuch et al., 2014) and raised concerns regarding the use of the cell–cell fusion assay (Giraudo et al., 2006, 2009; Krishnakumar et al., 2011; Kümmel et al., 2011) as an in vitro system to study CPX clamping.

These results and conclusions must be viewed with caution since the studies in knockout neurons, particularly in autaptic neuronal cultures, reveal a more restricted role of CPX in the neurotransmitter release (Reim et al., 2001; Xue et al., 2007, 2008; Yang et al., 2013). Specifically, the inhibitory function of CPX has not been observed in the autaptic system: that is, both evoked and spontaneous release are reduced in CPX TKO mice (Reim et al., 2001; Xue et al., 2008; Trimbuch et al., 2014). In contrast, other preparations like rodent mass cultured neurons with reduced CPX expression and invertebrates lacking CPX exhibit reduced evoked release and enhanced spontaneous release (Huntwork and Littleton, 2007; Yang et al., 2010; Cho et al., 2014). Therefore, these systems may be more relevant to examine the mechanism of CPX function in regulating vesicle fusion, particularly in its ability to inhibit and regulate spontaneous release. In rescue experiments with rodent mass cultured neurons in which CPX was knocked down, CPX mutants that either enhanced or disrupted the CPXacc–SNARE interactions (super-clamp and poor clamp, respectively) resulted in corresponding reductions and enhancements in spontaneous release compared with wild-type CPX controls (Yang et al., 2010). Recent experiments at the Drosophila neuromuscular junction, which in the absence of CPX exhibits large increases in spontaneous release, directly examined the role of a CPX zig-zag array in regulating spontaneous release. Using genetic rescue approaches, CPX mutants predicted to prevent the formation of the zig-zag array (CPX–GPGP) disrupt the ability of CPX to clamp spontaneous release, while mutations predicted to enhance the CPXacc–t-SNARE interaction (super-clamp mutation) exhibit a strong clamping ability (Cho et al., 2014). These results taken together are consistent with a CPX cross-linking model mediating the CPX clamping function to regulate spontaneous release, even though recent reports suggest that the inhibitory and activating functions of CPX may be separable (Yang et al., 2010; Cho et al., 2014; Lai et al., 2014). In addition, these in vivo studies (Yang et al., 2010; Cho et al., 2014) support many of the observations made first with the cell–cell fusion assay (Giraudo et al., 2006, 2008, 2009; Krishnakumar et al., 2011; Kümmel et al., 2011; Li et al., 2011), underscoring the validity and the relevancy of the in vitro cell–cell fusion assay to study CPX clamping.

Electrostatic hindrance model

As an alternative to the insertion/zig-zag model, Trimbuch et al. advanced an ‘electrostatic hindrance model’ for CPX clamping (Trimbuch et al., 2014). This was based on the finding that increasing or decreasing the net negative charge on CPXacc inhibits or stimulates neurotransmitter release, respectively (Trimbuch et al., 2014). We note that a number of both in vitro and in vivo studies on CPXacc modification argue strongly against the electrostatic hindrance model (Yang et al., 2010; Kümmel et al., 2011; Cho et al., 2014; Radoff et al., 2014). Introducing two (L41E, A44E) or four (A30E, A31E, L41E, A44E) negatively charged mutations in the mammalian CPXacc has been shown to entirely abolish or severely diminish the interaction of CPXacc with the mammalian or Drosophila t-SNARE, respectively (Kümmel et al., 2011; Cho et al., 2014). Consistent with this finding, the similar mutations have been shown to abrogate the clamping function of CPX in both in vitro cell–cell fusion assay (Kümmel et al., 2011) and in vivo rescue experiments with knockdown neurons (Yang et al., 2010). Further, in contrast to the electrostatic model, increasing the hydrophobicity of CPXacc has been shown to enhance the clamping function of CPX (Yang et al., 2010; Kümmel et al., 2011; Cho et al., 2014).

Discussion

We believe that the new in vitro data presented above and physiological data published recently (Cho et al., 2014) should dispel the concerns raised by Trimbuch et al. regarding the plausibility of the insertion/zig-zag model. Specifically, ITC binding experiments with blocked SNARE complexes, where a 2.5–3-fold excess of blocking peptide was present, have corroborated the interaction of CPXacc with the t-SNARE groove in a pre-fusion (truncated) SNARE complex as observed in the crystal structure (Figure 2 and Kümmel et al., 2011). Additionally, titration of scCPX into unblocked truncated SNARE complex revealed multiple binding sites consistent with independent binding sites for CPXcen and scCPXacc, thus describing the essential feature of the trans clamping interaction of CPX (Figure 3). FRET analysis (using two FRET pairs with different R0 values) with ‘flexible’ CPX construct (CPX–GPGP) has clearly demonstrated that the low FRET state corresponding to the angled conformation, which describes the trans clamping interaction, is due to discrete conformational change and not because of increased CPX flexibility (Figure 4 and Kümmel et al., 2011). Lastly, the physiological relevance of the insertion model was established by independent genetic rescue experiments in the Drosophila neuromuscular junction, wherein mutations in CPX that are predicted to prevent the formation of the SNAREpin array were found to disrupt the ability of CPX to clamp spontaneous release (Cho et al., 2014).

All of our data are consistent with a model in which CPXacc from one SNAREpin interacts in trans with the t-SNARE groove of a second SNAREpin. As we emphasized in Kümmel et al., we do not propose that the interactions are necessarily exactly as observed in a single crystal structure for which scCPX was used and where hydrophobic accessory helix residues (which are hydrophilic in wild-type CPX) interact with hydrophobic residues in a partially assembled SNARE complex. Details of the interaction between wild-type CPXacc and t-SNARE must be different (they are also weaker, explaining why the wild-type CPX clamps less well), and we can well imagine a scenario in which wild-type CPXacc interacts with a slightly different surface of the assembling SNARE complex. In fact, we found that a single mutation in the CPXacc (F34M) results in two distinct binding interfaces for scCPX, but both giving rise to the same zig-zag topology. Both interactions involved the same face of CPXacc and t-SNARE, although the binding site on t-SNARE was extended by two helical turns for the mutant (Kümmel et al., 2011). The consideration that interactions of wild-type and scCPX and the SNARE complex are not identical does not, however, exclude the possibility that a trans interaction of some sort is responsible for clamping. We also suspect that yet unknown additional interactions in the pre-fusion complex, which are not represented in our crystal structure, may further stabilize the trans clamping interaction (Cho et al., 2014; Radoff et al., 2014). We do not consider the trans clamping model proven, but it remains the most well-defined model for which a good amount of evidence is available.

Materials and methods

Plasmid constructs and protein purification

The constructs used in this study are GST-PreScission-VAMP2Δ60 (human VAMP2 residues 29–60), pET15b-oligohistidine-thrombin-VAMP2 (human VAMP2 residues 29–96), pET28-oligohistidine-synataxin1A (containing rat syntaxin 1a residues 191–265), oligohistidine-SUMO-SNAP25N (containing human SNAP25A residues 7–82), oligohistidine-SUMO-SNAP25C (containing human SNAP25A residues 141-203) and pET15b-oligohistidine-thrombin-CPX (containing human complexin1 residues 1-134); residues 1–134 with flexible GPGP insert between residues 49–50 (CPX–GPGP), residues 26–83 (CPX26–83); residues 26–83 with non-clamping mutations A30E, A31E, L41E, A44E (ncCPX26–83). Truncated CPX constructs, including residues 48-134 (CPX-48), residues 26-48 (CPX26-48) was purified as oligohistidine-SUMO constructs. All constructs were expressed and purified as described previously (Krishnakumar et al., 2011; Kümmel et al., 2011). To ensure high quality, all proteins were purified on a High-load Superdex 75 (16/60, GE Healthcare; Piscataway, NJ) gel filtration column.

ITC analysis

ITC experiments were carried out as described previously (Krishnakumar et al., 2011; Kümmel et al., 2011; Cho et al., 2014). To assemble the post-fusion and pre-fusion SNAREΔ60 complex, Syntaxin 1a, SNAP25N, SNAP25C, and VAMP2 or VAMPΔ60 were mixed (molar ratio of 1:1.2:1.2:1.2 for the post-fusion complex and 1:1.2:1.2:1.6 for pre-fusion SNAREΔ60 complex) and incubated overnight at 4°C. The assembled complexes were purified from non-productive aggregates and unassembled components by gel filtration (High-load Superdex 75 16/60, GE Healthcare). To form the blocked SNAREΔ60 complex, purified SNAREΔ60 complex was mixed with 2.5 molar excess of CPX-48 and incubated overnight at 4°C to ensure complete binding. Then, we titrated CPX-48 back into this initial mixture of SNAREΔ60 and CPX48-134. If there was heat signal, we added more CPX-48 to the mixture. This process was repeated until negligible residual heat signal was observed (control experiment). Then we titrated full length CPX1-134 into the exact same mixture of blocked SNAREΔ60 as used in the control experiment. By comparing the full length CPX titration with the control titration, we determined the binding interaction between CPX N-terminus and C-terminal unzippered t-SNARE. To ensure buffer uniformity to measure the weak interactions, CPX variants and the different SNARE complexes were extensively dialyzed (4 L for 4 hr followed by another 4 L overnight) into the same phosphate buffered saline (PBS) buffer (pH 7.4, 137 mM NaCl, 3 mM KCl, 10 mM sodium phosphate dibasic, 2 mM potassium phosphate monobasic, 0.25 mM TCEP) before the ITC analysis. The concentrations of dialyzed proteins were determined by bicinchoninic acid (BCA) protein assay kit (Thermo Scientific; Waltham, Ma) and/or Bradford assay (Bio Rad; Hercules, CA) with bovine serum albumin (BSA) as the standard. ITC experiments were performed with a Microcal ITC200 (Malvern Instruments, UK). Typically, ∼200 µl of SNARE solution was loaded into the sample cell and ∼60 µl of CPX solution was loaded into the syringe. The protein concentrations used for the titration were as follows: 110 µM CPX-48 titrated into 5.8 µM SNARE (Figure 1A); 210 µM CPX-48 titrated into 14 µM SNAREΔ60; ∼360 µM CPX1–134 or CPX26–83 titrated into ∼20 µM blocked SNAREΔ60 (Figure 2); 150 µM wild-type or scCPX1–134 titrated into 7.5 µM SNAREΔ60 (Figure 3). The heat change from each injection was integrated and then normalized by the moles of CPX in the injection. The thermographs were analyzed by non-linear least squares fit with the one-set-of-sites-model in Microcal Origin ITC200 software package to obtain the stoichiometric number (N), the molar binding enthalpy (ΔH), and the association constant (Ka). The equilibrium dissociation constant (Kd), the binding free energy (ΔG), and the binding entropy (ΔS) were calculated using the thermodynamic equations:

Kd=1Ka.
ΔG=ΔHTΔS=RTln(Ka).

FRET analysis

FRET measurements were carried out as described previously (Krishnakumar et al., 2011; Kümmel et al., 2011). SNAP25 D193C was labeled with the donor probe, Bimane (Monochlorobimane, Invitrogen) and the scCPX Q38C was labeled with acceptor Oregon green (Oregon green 488 maleimide, Invitrogen). The proteins were labeled using 10× molar excess of dye in 50 mM Tris buffer, pH 7.4, containing 150 mM NaCl, 10% glycerol, and 1 mM TCEP. Following overnight incubation at 4°C, the excess dye was separated from the labeled proteins using a NAP desalting column (GE Healthcare). The labeling efficiency was calculated using ε396 = 5300 L M−1 cm−1 for Bimane and ε496 = 76,000 L M−1 cm−1 for Oregon green, and the protein concentration was measured using the Bradford assay with BSA as standard. Typically, the labeling efficiency was >95% for both Bimane-SNAP25 and Oregon green-CPX. The double-labeled CPX–SNARE complexes were assembled overnight at 4°C and purified by gel filtration on a Superdex 75 (10/30, GE Healthcare) gel filtration column. All fluorescence data were obtained on a Perkin-Elmer (Waltham, MA) LS55 luminescence spectrometer operating at 25°C. Excitation and emission slits of 5 nm were used in all measurements. Fluorescence emission spectra were measured over the range of 410–600 nm with the excitation wavelength set at 396 nm. The donor probe concentration was adjusted to 2 µM in all samples.

Circular dichroism (CD) analysis

CD spectra of peptides corresponding to the CPX accessory domain alone (residues 26–48) or the minimal functional domain (residues 26–83) were recorded in PBS using Chirascan CD spectrometer (Applied Photophysics, UK) at 25°C from the range of 260 nm–198 nm at 1 nm bandwidth.

Dynamic light scattering (DLS) analysis

CPX–SNAREΔ60 complexes containing wild-type CPX1–134 were assembled and purified as previously described (Krishnakumar et al., 2011; Kümmel et al., 2011). DLS experiments were carried out on a DynaPro NanoStar instrument (Wyatt Technology; Santa Barbara, CA) at a wavelength of 663.76 nm operating at 4°C. Protein samples were centrifuged (10 min at 13,000×g) and data were collected using DynaPro disposable cuvettes. Autocorrelations for 20 s were collected over 15 acquisitions. Points were eliminated if the intensity fluctuated by more than 15% from the average. Data were analyzed with DYNAMICS 7.1.7.16 software (Wyatt Technology).

In DLS there is oligomerization of CPX–SNAREΔ60. We can try to model this process as an equilibrium between bound and unbound CPX–SNAREΔ60, wherein the bound state is generated by the interaction of CPXacc with the t-SNARE groove. Thus, this equilibrium can be written as:

(1) CPXSNAREΔ60+ CPXSNAREΔ60KdCPXSNAREΔ60CPXSNAREΔ60.

which, in terms of concentration, gives:

(2) [unbound CPXSNAREΔ60]2= Kd * [bound CPXSNAREΔ60].

Keeping in mind that

(3) [unbound CPXSNAREΔ60]+[bound CPXSNAREΔ60]=[CPXSNAREΔ60]initial,

where [CPX–SNAREΔ60]initial is the initial concentration, the equilibrium concentrations can be calculated from (2) and (3) as:

(4) unbound CPXSNAREΔ60]=  Kd(1+4[CPXSNAREΔ60]initialKd1)2.
(5) [bound CPXSNAREΔ60]=  [CPXSNAREΔ60]initialKd(1+4[CPXSNAREΔ60]initialKd1)2.

Then, the probability that an accessory helix is bound is given by:

(6) p=[boundCPXSNAREΔ60][CPXSNAREΔ60]initial=1Kd(1+4[CPXSNAREΔ60]initialKd1)2[CPXSNAREΔ60]initial,

and the average number of monomers is equal to:

(7) N=p1p+1=2[CPXSNAREΔ60]initKd(1+4[CPXSNAREΔ60]initKd1).

We will model the gyration radius of an N-mer as:

(8) r =N0.5 r0,

where r0 is the distance between two particles in the array and the reflection of monomer size. The r value is quantitative for long ideal polymers but is only semi-quantitative for non-ideal oligomers under consideration here.

The experimental results can be well approximated by Equation 8 using r0 = 3.5 nm and the CPXacc–t-SNARE interaction described by Kd = 25 µM for CPX26–83 titrated into blocked SNAREΔ60. This r0 value is reasonable considering the dimensions of the CPX–SNAREΔ60 unit within the zig-zag array. Hence, the oligomerization we observe by DLS is consistent with the Kd values we measured by ITC (Figure 2). In support of the idea that the CPXacc–t-SNARE clamping interaction results in the oligomeric state, CPX–SNARE complexes containing either ncCPX26–83 (A30E, A31E, L41E, A44E) or the full ternary SNARE complex show only a small change in the average particle radius. This behavior can be modeled using Equation 8 with r0 = 3.8 nm and only if we assume a very low affinity interaction, namely Kd = 250 µM for ncCPX into SNAREΔ60 and Kd = 300 µM for CPX into the full ternary SNARE complex. This suggests that this change in particle size might be a result of non-specific aggregation. Note that r0 values for specific and non-specific oligomerization are not necessarily expected to be identical.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29

Decision letter

  1. Axel T Brunger
    Reviewing Editor; Stanford University, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “Re-visiting the trans Insertion Model for Complexin Clamping” for consideration at eLife. Your article has been favorably evaluated by Randy Schekman (Senior editor) and 3 reviewers, one of whom is a member of our Board of Reviewing Editors.

The following individuals responsible for the peer review of your submission have agreed to reveal their identity: Axel Brunger (Reviewing editor) and Ad Bax (Peer Reviewer). A third reviewer remains anonymous.

The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

In this article the authors present arguments to dispute the findings and conclusions drawn by Trimbuch et al. (eLife 2014). Most importantly, the authors measure a ten times higher affinity between the complexin accessory helix and blocked SNARE complex by ITC, and another ITC experiment provides evidence for multiple binding sites of complexin to SNARE complex. The authors speculate that the higher affinity is due to better homogeneity of their purified SNARE complexes, and argue that lower affinity (presumably caused by heterogeneity) of the Trimbuch et al. complexes combined with the high mobility of the side-chains (as determined by the Kümmel et al. crystal structure) would explain why Trimbuch et al. could not detect an interaction between the complexin accessory domain and SNARE complex by ITC and NMR. The authors also provide arguments that the neuronal culture by Trimbuch et al. may represent a special case, and that the electrostatics hindrance model is in disagreement with other data.

We note that simply mixing syntaxin, S25 and synaptobrevin/VAMP is well-known to generate all sorts of complexes other than the canonical SNAREs (examples include 2:1 Sx:S25 or antiparallel SNAREs as in Weninger, PNAS 2004). However, the NMR spectra by Trimbuch et al. appear to argue against this possibility (see point 2 below). The increased ITC affinity data for binding of complexin to the truncated SNARE complex compared to the data by Trimbuch et al. is compelling. However, it is not clear how to explain the lack of interactions as observed by the NMR experiments by Trimbuch et al.

Major comments:

1) The authors should confirm that it is indeed sample homogeneity that explains the difference in affinities measured by ITC with apparently identical (or very similar) SNARE and complexin constructs. Ideally, complexes should be purified according to the protocol by Trimbuch et al. and by the protocol described in this paper, and then ITC experiments performed side-by-side with both sets of proteins. We note that other potential differences could be: presence or absence of tags (apparently all tags in the present work have been removed, but there is no information in the paper by Trimbuch et al), the concentration used in the various experiments (there is no information about the protein concentration used for the ITC experiments in the present work), the buffer conditions, and the possibility of oligomers of the various SNARE complexes.

2) The criticisms of Trimbuch's NMR results are problematic, as that NMR data appears fairly solid. For example, the statement that “the NMR spectra similarly speak to this flexibility as opposed to complete unfolding”, for example, is not warranted. If the backbone were even somewhat ordered, one would expect substantial chemical shift changes upon interaction, as well as broadening due to the increased spectral density at zero frequency (J(0)), even if the backbone order parameter, S^2, were as low as, say, 0.5. The fact that CPX26-48 shows considerably less helicity (by CD) than CPX(26-83) (Figure 5) is a valid criticism, as apparently a high degree of alpha helicity of residues 30-48 requires the presence of residues 49-65. However, considering that the accessory helix is clearly in a dynamic equilibrium between transient helix and coil, and this equilibrium is shifted from perhaps 60% helicity (based on 13Ca shifts in Pabst, JBC 2000, to perhaps ∼10-20% (?) based on the CD data of Figure 5) one would still expect to see this interaction as NMR is incredibly sensitive to even very weak binding. So, even while shortening the accessory helix indeed is expected to weaken the affinity, it would not explain the complete absence of an interaction, seen in Figure 2G of Trimbuch or even in the superclamp CPX Figure 2A spectrum of their supplement 2. Even if the affinity were as weak as ∼1 mM, one would still expect to see the onset of peak shifting and broadening in such spectra.

In the subsection headed “NMR Analysis”, the authors attribute the absence of evidence for an interaction between the CPX accessory helix and SNAREdelta60 again to the heterogeneous nature of the truncated SNARE complexes. The NMR spectra presented in Figure 3 of Trimbuch et al. of the full-length and truncated SNARE complex show no sign of heterogeneity of the SNARE complexes themselves. Morever, Trimbuch et al. also do not see any evidence for such an interaction in SCdelta(68) or for the full length complex, and not even for the superclamp-Cpx, whereas comparison of the interactions/shift changes observed for the central helix point to a tight complex for full length SC, with progressively less tight (fast exchange) binding for CPX residues in the “linker region” of complexin (residues 58-69). Notably, more C-terminal CPX resonances (73, 80, 82, 83) are completely unaffected by SCdelta68 and SCdelta62 mutations, and assuming these residues make authentic interactions in the full length complex, these still must be present in the truncated complexes. So, the fact that Trimbuch's central helix residues adopt unique chemical shifts with rather uniform line widths effectively rules out the possibility of a heterogeneous (truncated, 2:1 or otherwise) distribution of truncated SNARE complexes. Other explanations must be provided in the present work in order to criticize the NMR data by Trimbuch et al.

3) The criticism in Trimbuch of the original FRET results by Kümmel et al. is that the decreased FRET in the cases interpreted by Krishnakumar as indicating the complexin accessory helix angling away from the SNARE bundle could also be interpreted as increased flexibility in the structured state due to the mutations and truncations. The response of the current paper is to include new data with a FRET pair having a longer Rzero, showing more substantial elimination of FRET due to the GPGP insertion, for which the small but possibly detectable FRET change in the previous experiments with the shorter Rzero dye pair. Despite the fact that the new longer-Rzero, GPGP-insert data support Kümmel's interpretation that complexin angles away modestly, not totally flexible, the reviewers don't view these FRET experiment as conclusive evidence of either static or dynamic configurations. They don't have the distance or time resolution needed. Rather, they are useful observations that can be consistent with models derived from aggregating several other experiments.

In this context, the authors may wish to consult the paper by Choi et al, Structure, 2011 (10.1016/j.str.2011.01.011) that showed that complexin is in an extended conformation when bound to complete SNARE complex, whereas it is in a more coiled conformation when unbound. Thus, if the unbound part of complexin were completely unstructured when bound to the truncated SNARE complex, one would expect actually higher FRET efficiency to the label site on the SNARE complex. In contrast, a lower FRET efficiency is observed, consistent with the notion that complexin is in an angled conformation when bound to truncated SNARE complex. However, the mutation shown in Figure 4 induces a further decrease of FRET efficiency, a result that is incompatible if complexin were unstructured (in the subsection headed “FRET Analysis”). Rather, this insertion probably introduces a hinge between the core and accessory domains, which may explain the decreased FRET efficiency. A discussion of these points should be included.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for sending your work entitled “Re-visiting the trans Insertion Model for Complexin Clamping” for consideration at eLife. Your article has been favorably evaluated by Randy Schekman (Senior editor), a Reviewing editor, and 2 reviewers.

The Reviewing editor and the other reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

We thank the authors for addressing many of our concerns and the inclusion of new supporting data (DLS experiment). Overall, the difference in ITC measurements reported in this work and the work by Trimbuch et al. remains the most compelling evidence that warrants publication of this work. We encourage communication between the two groups to resolve this issue after this work has been accepted.

The revised manuscript requires some revision. In particular, we strongly encourage control experiments for the newly presented DLS data. We promise expeditious consideration after the revision has been received and anticipate full acceptance assuming that the suggested control experiments produce the expected outcome.

Comments:

1) The authors now show new and highly relevant DLS data, indicating that indeed translational diffusion decreases upon increasing the concentration of CPX-SNARE_delta60 (please clarify whether this DLS data is indeed for CPX or CPX26-83, used for panel A in this figure). In particular if the DLS data was obtained for CPX (Kd ∼15 microM), the DLS data are not particularly compelling as evidence for hetero-oligomerization involving multiple SNARE complexes and complexins, as one would have expected a substantially larger increase in apparent particle radius than observed. Thus, the authors are requested to present a model that might explain their observation.

2) If such a model can be obtained, an important control for the DLS experiment is missing: measuring the DLS signal for a tuncated CPX without the accessory helix in complex with SNARE_delta60. Ideally, the authors should also perform the experiment for the “poor-clamp” mutant (A30E, A31E, L41E, A44E).

3) The very low ellipticity of ∼-7.3*10^-3 at ∼200 nm seen in the CD spectrum of CPX26-48 (Figure 5A) is a concern. For example, synaptobrevin produces a minimum of ∼ -13 *10^-3 at ∼200 nm (J.Biol.Chem, 272, 28036-28041, 1997). The concentration measurement of CPX26-48 and normalization of the CD should be checked.

4) Currently, the substantial number of Kd values and their corresponding proteins are distributed throughout the text and figures. It would be useful if they could also be compiled in a single table, such that a reader can more easily compare the various values, along with an explanation of the various constructs and SNARE complexes used, including “blocked” SNARE complex.

5) In the subsection headed “NMR Analysis”, CD only defines total helicity of CPX26-83, and one cannot uniquely assign this to 26-48. Moreover, the NMR study of Pabst et al. (JBC 275:19808-18, 2000) provides fairly strong evidence that residues 28-64 in free complexin form one contiguous helix. Thus, the statement should be corrected accordingly.

https://doi.org/10.7554/eLife.04463.009

Author response

1) The authors should confirm that it is indeed sample homogeneity that explains the difference in affinities measured by ITC with apparently identical (or very similar) SNARE and complexin constructs. Ideally, complexes should be purified according to the protocol by Trimbuch et al. and by the protocol described in this paper, and then ITC experiments performed side-by-side with both sets of proteins. We note that other potential differences could be: presence or absence of tags (apparently all tags in the present work have been removed, but there is no information in the paper by Trimbuch et al), the concentration used in the various experiments (there is no information about the protein concentration used for the ITC experiments in the present work), the buffer conditions, and the possibility of oligomers of the various SNARE complexes.

We agree with the reviewers that heterogeneity of the SNARE complexes alone does not explain the absence of any interaction between SNAREΔ60 and complexin as observed by NMR, since the spectra attest to the homogeneity of the SNARE preparation. It is possible that they partly contribute to the discrepancy between our ITC data and that of the other group, but we agree with the reviewers that additional experimental factors, like the buffer conditions, purification methodology (i.e. presence or absence of affinity tags), and the method used to determine the protein concentration (Bradford/BCA or A280) might contribute to the variability in the Kd values. The latter is of particular significance since concentration determination of small proteins/peptide (<7 kDa) are highly dependent on the method used. However, we are unable to systematically compare the two studies since several important experimental details (for example, whether affinity tags were present or what method was used for protein quantification) are not described in Trimbuch et al. We have now amended and expanded the relevant section in our main text (under the subsection headed “ITC Experiments”) addressing the difference between the two studies. In addition, we have now included explicit details of our experimental conditions for the ITC experiments, including the concentrations used.

2) The criticisms of Trimbuch's NMR results are problematic, as that NMR data appears fairly solid. For example, the statement thatthe NMR spectra similarly speak to this flexibility as opposed to complete unfolding, for example, is not warranted. If the backbone were even somewhat ordered, one would expect substantial chemical shift changes upon interaction, as well as broadening due to the increased spectral density at zero frequency (J(0)), even if the backbone order parameter, S^2, were as low as, say, 0.5. The fact that CPX26-48 shows considerably less helicity (by CD) than CPX(26-83) (Figure 5) is a valid criticism, as apparently a high degree of alpha helicity of residues 30-48 requires the presence of residues 49-65. However, considering that the accessory helix is clearly in a dynamic equilibrium between transient helix and coil, and this equilibrium is shifted from perhaps 60% helicity (based on 13Ca shifts in Pabst, JBC 2000, to perhaps ∼10-20% (?) based on the CD data of Figure 5) one would still expect to see this interaction as NMR is incredibly sensitive to even very weak binding. So, even while shortening the accessory helix indeed is expected to weaken the affinity, it would not explain the complete absence of an interaction, seen in Figure 2G of Trimbuch or even in the superclamp CPX Figure 2A spectrum of their supplement 2. Even if the affinity were as weak as ∼1 mM, one would still expect to see the onset of peak shifting and broadening in such spectra.

In the subsection headedNMR Analysis, the authors attribute the absence of evidence for an interaction between the CPX accessory helix and SNAREdelta60 again to the heterogeneous nature of the truncated SNARE complexes. The NMR spectra presented in Figure 3 of Trimbuch et al. of the full-length and truncated SNARE complex show no sign of heterogeneity of the SNARE complexes themselves. Morever, Trimbuch et al. also do not see any evidence for such an interaction in SCdelta(68) or for the full length complex, and not even for the superclamp-Cpx, whereas comparison of the interactions/shift changes observed for the central helix point to a tight complex for full length SC, with progressively less tight (fast exchange) binding for CPX residues in thelinker regionof complexin (residues 58-69). Notably, more C-terminal CPX resonances (73, 80, 82, 83) are completely unaffected by SCdelta68 and SCdelta62 mutations, and assuming these residues make authentic interactions in the full length complex, these still must be present in the truncated complexes. So, the fact that Trimbuch's central helix residues adopt unique chemical shifts with rather uniform line widths effectively rules out the possibility of a heterogeneous (truncated, 2:1 or otherwise) distribution of truncated SNARE complexes. Other explanations must be provided in the present work in order to criticize the NMR data by Trimbuch et al.

The reviewer comments have prompted us to reconsider our explanation for why the NMR data do not show an in-trans interaction between CPXacc/SNARE 60 complexes. Upon further reflection, we note that the prediction from our model is that in-trans CPXacc-SNAREΔ60 interactions would lead to the formation of CPX-SNARE 60 polymers at the concentration range used by Trimbuch et al. (∼25-50 μM), and these polymers would not be visible in NMR studies due to line broadening. This cross-linked higher-order oligomeric state is evident qualitatively in the ITC data shown (Figure 3). We have now also observed by DLS that CPX/SNARE60 complexes begin to oligomerize at concentrations of 10-35 μM (new data in Figure 5B), in the expected range, if there is a in-trans interaction between CPXacc and SNAREΔ60 with Kd∼25 μM (Figure 2 with CPX26-83,). We suspect that the concentrations used in the Trimbuch et al. NMR studies (25-50 μM), which are at the lower end of the concentration range used for NMR studies, were adjusted to avoid oligomerization and line broadening effects. Because protein concentrations are difficult to measure accurately, especially for small proteins, and our binding constants (Kd∼25 μM) are calculated based on the protein concentration, it is plausible that at the concentrations used in the NMR experiments, the complexes were mostly monomeric, with only a small fraction in oligomeric form. Especially if there is no exchange between the monomeric and oligomeric forms of CPX-SNAREΔ60 complexes, then the small fraction of CPXacc/SNAREΔ60 in the oligomers, which would be invisible by NMR, would not be evident from the NMR spectra. Our ITC and the NMR data of Trimbuch et al. are therefore reconcilable, and the NMR data do not necessarily preclude the trans interaction observed by ITC.

The NMR data that there is no interaction between the peptide corresponding to CPX accessory helix alone (CPX26-48) and SNAREΔ60 agrees with our unpublished findings from ITC, where we also did not detect an interaction. We should have mentioned this in our first version of this manuscript – this is why, for us, these particular NMR results were “not unexpected”. We did, however, discover the CPXacc-t-SNARE interaction with full length CPX or CPX26-83 and the SNAREΔ60 by ITC. Although, it is not entirely clear to us why CPX26-48 does not interact with SNAREΔ60, the CPX26-48 construct clearly behaves very differently in solution from the full length CPX protein. We show data that even CPX26-83 has significantly more helical character than the CPX26-48 (Figure 5A). This may explain, at least in part, the lack of an interaction that is observed when using CPX26-48. We also note that the longer versions of CPX (residues 1-134) used in our initial ITC studies in Kümmel et al. are likely more physiologically relevant than the shorter CPX26-48 version.

3) The criticism in Trimbuch of the original FRET results by Kümmel et al. is that the decreased FRET in the cases interpreted by Krishnakumar as indicating the complexin accessory helix angling away from the SNARE bundle could also be interpreted as increased flexibility in the structured state due to the mutations and truncations. The response of the current paper is to include new data with a FRET pair having a longer Rzero, showing more substantial elimination of FRET due to the GPGP insertion, for which the small but possibly detectable FRET change in the previous experiments with the shorter Rzero dye pair. Despite the fact that the new longer-Rzero, GPGP-insert data support Kümmel's interpretation that complexin angles away modestly, not totally flexible, the reviewers don't view these FRET experiment as conclusive evidence of either static or dynamic configurations. They don't have the distance or time resolution needed. Rather, they are useful observations that can be consistent with models derived from aggregating several other experiments.

In this context, the authors may wish to consult the paper by Choi et al, Structure, 2011 (10.1016/j.str.2011.01.011) that showed that complexin is in an extended conformation when bound to complete SNARE complex, whereas it is in a more coiled conformation when unbound. Thus, if the unbound part of complexin were completely unstructured when bound to the truncated SNARE complex, one would expect actually higher FRET efficiency to the label site on the SNARE complex. In contrast, a lower FRET efficiency is observed, consistent with the notion that complexin is in an angled conformation when bound to truncated SNARE complex. However, the mutation shown in Figure 4 induces a further decrease of FRET efficiency, a result that is incompatible if complexin were unstructured (in the subsection headed “FRET Analysis”). Rather, this insertion probably introduces a hinge between the core and accessory domains, which may explain the decreased FRET efficiency. A discussion of these points should be included.

The reviewers expressed reservation regarding our earlier conclusion that the new FRET experiment with probes with larger R0 value provides conclusive evidence that CPXacc angles away from the SNARE complex and not totally flexible. We have included the calculated FRET distances (Figure 4) between CPXacc and pre-fusion/post-fusion SNARE complex (with and without the GPGP insert) to further support our conclusion that CPXacc angles away from the SNARE complex as a rigid helix and not completely flexible, and we have moderated our conclusions. In addition, as recommended by the reviewers, we incorporate the Choi et al. 2011 paper, which suggests that a completely unstructured CPX would result in a higher FRET signal than a more structured form, to support that the accessory helix is in fact structured when CPX is bound to SNAREΔ60. With respect to the GPGP-insertion mutant, we have revised the text to read that the GPGP-insertion between CPXcen and CPXacc results “enhanced flexibility” of the CPXacc rather than complete un-structuring of the accessory helix (under the subsection headed “FRET Analysis”).

[Editors' note: further revisions were requested prior to acceptance, as described below.]

1) The authors now show new and highly relevant DLS data, indicating that indeed translational diffusion decreases upon increasing the concentration of CPX-SNARE_delta60 (please clarify whether this DLS data is indeed for CPX or CPX26-83, used for panel A in this figure). In particular if the DLS data was obtained for CPX (Kd ∼15 microM), the DLS data are not particularly compelling as evidence for hetero-oligomerization involving multiple SNARE complexes and complexins, as one would have expected a substantially larger increase in apparent particle radius than observed. Thus, the authors are requested to present a model that might explain their observation.

The reviewers requested to present a model to explain the DLS data showing the increase in particle size as a function of concentration. We have therefore included the following section to the Materials and methods section and the predicted particle size curve in Figure 5B:

“In the DLS, there is oligomerization of CPX-SNAREΔ60. We can try to model this process as an equilibrium between bound and unbound CPX-SNAREΔ60, wherein the bound state is generated by the interaction of CPXacc with the t-SNARE groove. […] This is reasonable considering the CPX-SNAREΔ60 as a prolate ellipsoid of dimensions 12 x 5 x 5 nm3, then the theoretical r0 would be (6 x 2.5 x 2.5)1/3 = 3.35 nm. Hence, the oligomerization we observe by DLS is perfectly consistent with the Kd values, we measure by ITC (Figure 2)”.

2) If such a model can be obtained, an important control for the DLS experiment is missing: measuring the DLS signal for a tuncated CPX without the accessory helix in complex with SNARE_delta60. Ideally, the authors should also perform the experiment for thepoor-clampmutant (A30E, A31E, L41E, A44E).

The reviewers also requested to include control experiments in the DLS to verify that the CPXacc-t-SNARE interaction gives rise to the high order oligomers. We therefore included the following control experiments: (i) non-clamp mutant CPX26-83 (ncCPX26-83) carrying A30E, A31E, L41E, A44E mutations with SNAREΔ60 and (ii) wild type CPX26-83 in complex with fully assembled ternary SNARE complex. In both cases, we observe a small change in the average particle size, which could be fitted using our model, only assuming a very low affinity interaction (Kd = 250 µM for ncCPX into SNAREΔ60 and Kd = 300 µM for CPX into full ternary SNARE complex), such as arise from non-specific aggregation. The data and fitting are included in Figure 5B and referenced in the main text (under the subsection headed “NMR Analysis”).

3) The very low ellipticity of ∼-7.3*10^-3 at ∼200 nm seen in the CD spectrum of CPX26-48 (Figure 5A) is a concern. For example, synaptobrevin produces a minimum of ∼ -13 *10^-3 at ∼200 nm (J.Biol.Chem, 272, 28036-28041, 1997). The concentration measurement of CPX26-48 and normalization of the CD should be checked.

The reviewers expressed concern regarding the low ellipticity values in the CD spectrum of CPX26-48. We believe that this due to difficulty in accurately measuring the concentration of a small peptide, which lacks any aromatic residues. However, the data is still consistent with the idea that the peptide corresponding to the accessory helix alone (CPX26-83) is not completely structured.

4) Currently, the substantial number of Kd values and their corresponding proteins are distributed throughout the text and figures. It would be useful if they could also be compiled in a single table, such that a reader can more easily compare the various values, along with an explanation of the various constructs and SNARE complexes used, includingblockedSNARE complex.

As requested by the reviewers, we have now included a table (Table 1) summarizing all the Kd values and the corresponding protein constructs, including description of these complexes.

5) In the subsection headed “NMR Analysis”, CD only defines total helicity of CPX26-83, and one cannot uniquely assign this to 26-48. Moreover, the NMR study of Pabst et al. (JBC 275:19808-18, 2000) provides fairly strong evidence that residues 28-64 in free complexin form one contiguous helix. Thus, the statement should be corrected accordingly.

We agree with the reviewers that CD spectrum of CPX26-83 applies to the entire helix and cannot be uniquely applied to the accessory helix alone, and we have therefore modified the relevant section in the first paragraph under the subsection headed “NMR Analysis” to read “our circular dichroism (CD) measurements showed that CPXacc (residues 26-48) by itself is unfolded, but CPX26-83 forms a stable α-helical structure (Figure 5A)”.

https://doi.org/10.7554/eLife.04463.010
