Brood care in a 100-million-year-old scale insect

  1. Bo Wang Is a corresponding author
  2. Fangyuan Xia
  3. Torsten Wappler
  4. Ewa Simon
  5. Haichun Zhang
  6. Edmund A Jarzembowski
  7. Jacek Szwedo
  1. Chinese Academy of Sciences, China
  2. University of Bonn, Germany
  3. Nanjiao Bieshu 394, China
  4. University of Silesia, Poland
  5. Natural History Museum, United Kingdom
  6. University of Gdańsk, Poland
Short Report
Cited
15
Views
3,652
Comments
0
Cite as: eLife 2015;4:e05447 doi: 10.7554/eLife.05447

Abstract

Behavior of extinct organisms can be inferred only indirectly, but occasionally rare fossils document particular behaviors directly. Brood care, a remarkable behavior promoting the survival of the next generation, has evolved independently numerous times among animals including insects. However, fossil evidence of such a complex behavior is exceptionally scarce. Here, we report an ensign scale insect (Hemiptera: Ortheziidae), Wathondara kotejai gen. et sp. nov., from mid-Cretaceous Burmese amber, which preserves eggs within a wax ovisac, and several freshly hatched nymphs. The new fossil is the only Mesozoic record of an adult female scale insect. More importantly, our finding represents the earliest unequivocal direct evidence of brood care in the insect fossil record and demonstrates a remarkably conserved egg-brooding reproductive strategy within scale insects in stasis for nearly 100 million years.

https://doi.org/10.7554/eLife.05447.001

eLife digest

Many animals care for and protect their offspring to increase their survival and fitness. Insects care for their young using a range of strategies: some dig underground chambers for their young, whilst others carry their brood around on their own bodies. However, it was unclear when these strategies first evolved in insects.

Now Wang et al. report that they have discovered the earliest fossil evidence of an insect caring for its young, in the form of a female insect preserved with her brood in a specimen of ancient amber. The amber comes from northern Myanmar, where amber deposits are around 95–105 million years old. The fossilised insect is an adult female scale insect with a cluster of around 60 eggs on her abdomen. Six young scale insect nymphs are also preserved in the same piece of amber. Wang et al. named this newly discovered species Wathondara kotejai, after an earth goddess in South-East Asian Buddhist mythology and the late Polish entomologist Jan Koteja.

Most scale insect fossils found to date have been males. Fossilised adult females are scarcer, most likely because female scale insects are wingless and less mobile and therefore less prone to accidental burial. The fossil reported by Wang et al. is therefore a rare find, and it is also sufficiently well preserved to reveal that the female's eggs are contained within a wax-coated egg sac. Today there are many species of scale insects, most of which are parasites of plants and many are economically important pests of trees and shrubs. In living relatives of W. kotejai, females use a similar wax coating to protect themselves and their offspring: young nymphs hatch inside the egg sac and remain there for a few days before emerging into the outside world.

This new fossil provides a unique insight into the anatomy and life cycle of a long-extinct insect; it also demonstrates that brood care in insects is an ancient trait that dates back to at least around 100 million years ago at the height of the age of the dinosaurs.

https://doi.org/10.7554/eLife.05447.002

Introduction

Brood care is an altruistic trait that evolved to enhance the fitness of offspring at a cost to the parents and represents a breakthrough in the adaptation of organisms to their environment (Tallamy, 1984; Clutton-Brock, 1991; Gilbert and Manica, 2010). Fossil evidence of such an ephemeral behavior is extremely rare, reported mainly in dinosaurs (Meng et al., 2004; Varricchio et al., 2008), ostracods (Siveter et al., 2007, 2014), arachnids (Engel and Grimaldi, 2014), but rarely in insects. Until now only two putative examples in Mesozoic insects have been described based on fossils (Peñalver et al., 2012; Cai et al., 2014). Although phylogenetic analyses suggest some ancient insects evolved brood care (e.g., Korb et al., 2012), only fossils provide unequivocal direct evidence. In this study, we report on an exceptionally preserved insect from mid-Cretaceous Burmese amber, which represents the earliest unequivocal direct evidence of brood care in the insect fossil record and sheds new light on the early evolution of such behavior.

Results

Systematic paleontology

Order Hemiptera Linnaeus, 1758.

Family Ortheziidae Amyot and Serville, 1843.

Wathondara kotejai gen. et sp. nov. Simon, Szwedo and Xia.

Etymology

The generic name refers to Wathondara—goddess of earth in Buddhist mythology from Southeast Asia. Gender: feminine. The species is named after the late Polish entomologist Jan Koteja in recognition of his significant contribution to the study of both extant and fossil scale insects.

Holotype

BA14011. The amber piece preserves an adult female with eggs, six first-instar nymphs, and a weevil. It is polished in the form of a flattened ellipsoid cabochon, clear and transparent, with diameter about 11 mm, height about 5 mm, and weight about 0.8 g.

Locality and age

Specimen is from Kachin Province in northern Myanmar. Burmese amber has been dated biostratigraphically from late Albian to Cenomanian (about 105 to 95 million years old), based on an ammonite and palynology (Cruickshank and Ko, 2003; Ross et al., 2010). The U-Pb dating of zircons from the volcaniclastic matrix of the amber gave an age of 98.8 ± 0.6 million year (Shi et al., 2012).

Diagnosis (based on adult female)

Body elongate oval, dorsoventrally flattened (seems to be natural condition). Antennae 8-segmented; first segment straight, elongate, thicker than others, trapezoid in shape; second segment cylindrical distinctly longer than others; antennal segments III–VIII with numerous setae of hair-like and fleshy types, some of them almost as long as apical setae on segment VIII. Apical segment cylindrical with long and stout apical seta and additional shorter subapical seta situated on subapical projection. Legs slender; trochanter fused with femur; tibia and tarsus fused, with numerous spine-like setae. Tarsal claw without denticles; claw digitules hair-like, thin, and short.

Description

Amber specimen preserves adult female with about 60 elliptical eggs (0.3 mm long, 0.2 mm wide) in wax ovisac, and six first-instar nymphs near adult (Figure 1). Adult body elongate oval, 6 mm long, 2 mm wide (with ovisac). Antenna about 1.2 mm long, inserted ventrally at frontal margin, with eight segments (Figure 2C); first, the widest, trapezoidal; second, the longest, cylindrical; segments III to VII, club-like; segment VIII cylindrical, with subapical projection; length of antennal segments (in mm) I—0.162; II—0.350; III—0.130; IV—0.130; V—0.145; VI—0.115; VII—0.125; VIII—0.220. Segments I and II covered with scarce hair-like setae, segments III to VII with subapical fleshy setae on external margins and hair-like setae; some setae almost as long as apical setae of VIII segment; segment VIII with subapical seta on projection (0.075 mm long) and apical seta (0.097 mm long). Eyes not easily observable, placed on short stalks. Labium apparently 2-segmented. Legs well-developed; tarsal claw small, slightly bent, without denticle. Anal ring visible on dorsum. Spiracles, wax glands, and most body setae not visible. Wax secretion of ortheziid type, with nine pairs of marginal lobes, two triangular frontal lobes, three elongate triangular median lobes, nine submedian pairs, and posterior lobes (Figure 3). Wax covering made partly translucent due to preservation in amber, completely covering dorsum (Figure 2A). Ovisac well-developed, 3 mm long, 2.1 mm wide (Figure 2D). Six associated first-instar nymphs are of similar size, 0.3 mm long, 0.2 mm wide, with only 6-segmented antennae (Figure 1D).

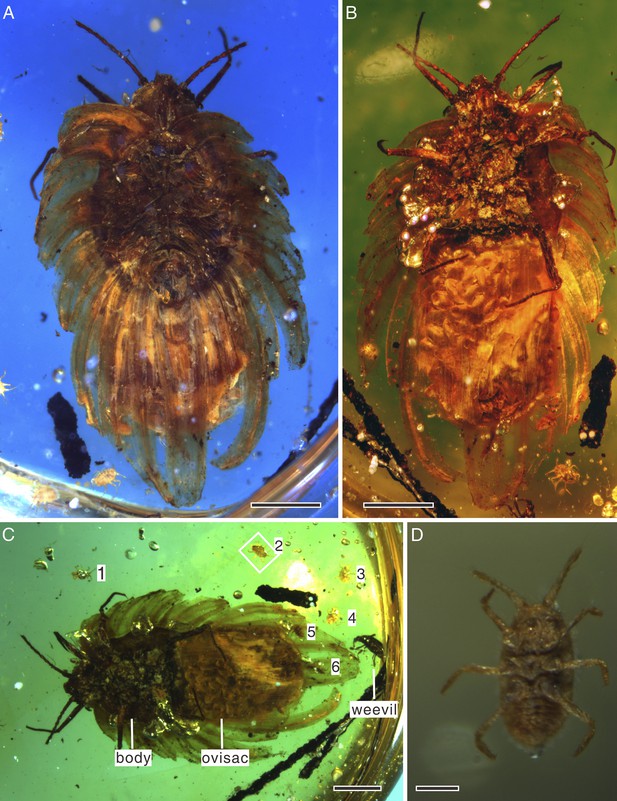

Wathondara kotejai gen. et sp. nov. Simon, Szwedo and Xia from mid-Cretaceous Burmese amber.

(A) Habitus in dorsal view, stacked image with a blue filter. (B) Habitus in ventral view, stacked image with a green filter. (C) Habitus in ventral view, stacked image with a green filter. Note the weevil under the adult. The numbers 1–6 represent six first-instar nymphs. (D) Enlargement of a nymph in (C). Scale bars of (A, B and C) represent 1 mm; scale bar of (D) represents 0.1 mm.

https://doi.org/10.7554/eLife.05447.003

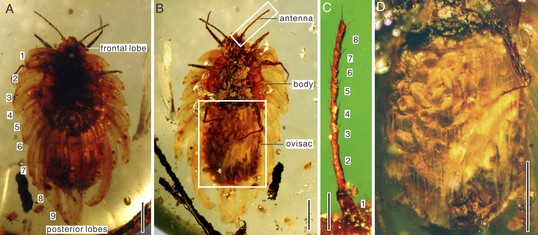

Wathondara kotejai gen. et sp. nov. Simon, Szwedo and Xia from mid-Cretaceous Burmese amber.

(A) Habitus in dorsal view. The numbers 1–9 indicate nine marginal wax lobes. (B) Habitus in ventral view. (C) Enlargement of the antenna in (B). (D) Enlargement of the ovisac in (B). Scale bars of (A, B, and D) represent 1 mm; scale bar of (C) represents 0.25 mm.

https://doi.org/10.7554/eLife.05447.004

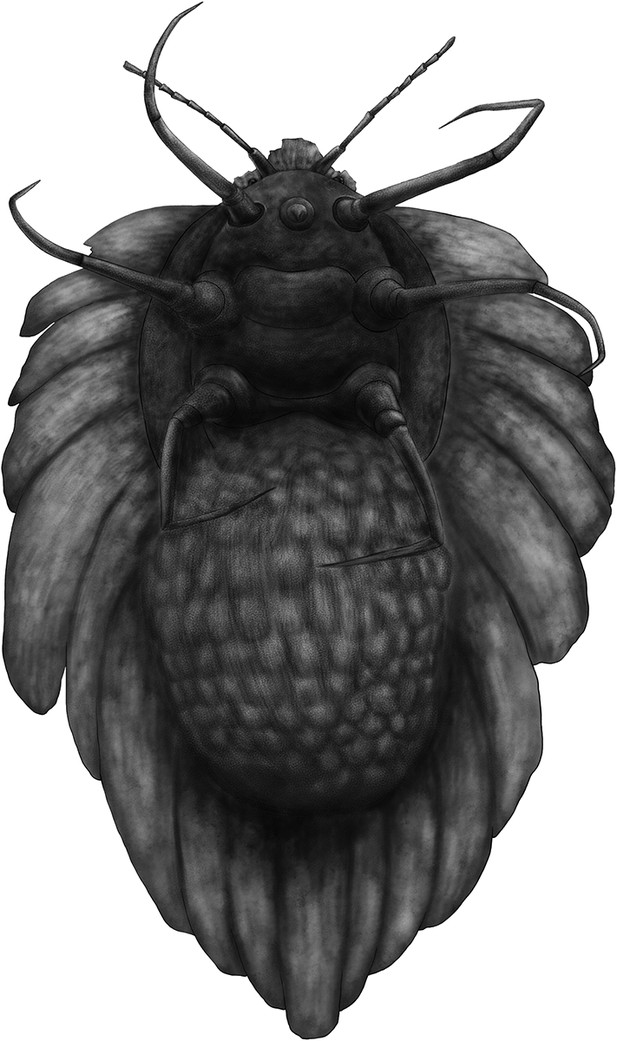

Drawing of brooding Wathondara kotejai gen. et sp. nov. Simon, Szwedo and Xia in ventral view.

The ovisac and wax covering are made nearly transparent by preservation in amber.

https://doi.org/10.7554/eLife.05447.005

Discussion

Scale insects (Coccoidea), with about 7800 species, are highly diverse, and most of them are obligatory plant parasites often of economic importance (Ben-Dov et al., 2014). They exhibit many unusual features of morphology, reproduction, and life history and are thus considered as some of the most evolutionarily fascinating organisms amongst insects (Wappler and Ben-Dov, 2008; Hodgson and Hardy, 2013). The female life cycle involves two or three actively feeding instars prior to the adult stage, and adult females are wingless, resembling the immature stages (Gullan and Cook, 2007). In contrast, adult males are delicate, ephemeral insects with simplified wing venation (Hodgson and Hardy, 2013). Scale insects separated from their sister-group, the aphids, at least by the Middle Permian based on the earliest occurrence of Aphidomorpha (Szwedo et al., 2015), with the fossil record probably extending back to the Middle Triassic (trace fossils in Figure 4). However, their fossil record is over-dominated by males entrapped in fossil resins, and fossil adult females are very scarce—probably because they are commonly sedentary or sessile on host plants (Koteja, 2000). To our knowledge, the new fossil is the only Mesozoic record of an adult female, the next oldest being from the late Eocene Baltic amber (Koteja and Żak-Ogaza, 1988).

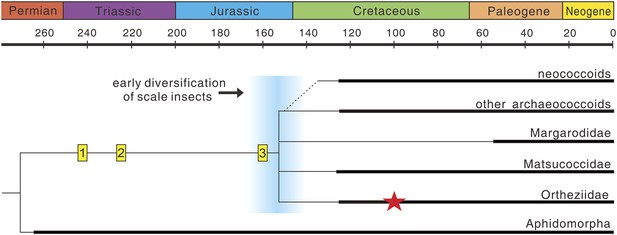

The evolution of scale insects.

Hypothetical phylogeny based on Hodgson and Hardy (2013) and Vea and Grimaldi (2015) (extinct families omitted). Matsucoccidae, Ortheziidae, Margarodidae are commonly considered as the most primitive families (Vea and Grimaldi, 2015), but their phylogenetic relationships are still unresolved (e.g., Gullan and Cook, 2007; Hodgson and Hardy, 2013). Thick lines indicate the known extent of the fossil record. (1) Undescribed scale marks on plants from the Middle Triassic Dont Formation of Italy (T Wappler, personal observation, October 2014); (2) scale marks on plants from the Late Triassic Molteno Formation of South Africa (Labandeira, 2006); (3) putative, undescribed scale insect from the Late Jurassic (Grimaldi and Engel, 2005); Red star represents Wathondara kotejai from mid-Cretaceous Burmese amber. An early diversification of scale insects probably occurred during the end of the Jurassic or earliest Cretaceous (blue area), and later radiations are probably closely related to the rise of angiosperms and ants (Grimaldi and Engel, 2005).

https://doi.org/10.7554/eLife.05447.006

Wathondara kotejai is unambiguously referable to Ortheziidae, as evidenced by its general habitus with its body covered with wax plates, ensign-like ovisac, stalked eyes, and well-developed legs (Kozár, 2004). Furthermore, W. kotejai shares two potential synapomorphies with Recent and Tertiary, crown-group Ortheziidae: differentiated apical and subapical setae on the last antennal segment, and trochanter and femur fused (Vea and Grimaldi, 2012). Two Cretaceous genera have been tentatively attributed to Ortheziidae: Burmorthezia Vea and Grimaldi in mid-Cretaceous Burmese amber is considered as an extinct sister group to the crown-group Ortheziidae (Vea and Grimaldi, 2012), while Cretorthezia Koteja and Azar in Early Cretaceous Lebanese amber is probably a stem group of scale insects (Koteja and Azar, 2008; Hodgson and Hardy, 2013) or an extinct group within Ortheziidae (Vea and Grimaldi, 2015). Additionally, a putative female (Cretorthezia sp.) from Burmese amber was tentatively identified as an ortheziid, and its systematic position is still uncertain (Koteja and Azar, 2008; Vea and Grimaldi, 2012). Our new fossil supports the view that crown-group Ortheziidae are present in the mid-Cretaceous.

The seventh, eighth, ninth, and posterior wax lobes of W. kotejai are distinctly extended and cover the ovisac dorsally. The thick wax cover not only protects the adult female but also serves to shelter her eggs and first instars. Extant ortheziid females have a band of pores on the ventral side of the abdomen, which secrete a waxy ovisac. The eggs and hatched nymphs are protected within the ovisac (Figure 3), as in extant ortheziids and monophlebids (Vogelsang and Szklarzewicz, 2001). In extant species, the young nymphs hatch within this ovisac and remain there for a few days until they have acquired a thin covering of wax secretion (visible in our specimens as a slight white pubescence on the fossil nymphs), then crawl out through a split in the wax at the distal end of the ovisac (Gullan and Kosztarab, 1997). Extant first instars are mobile and serve as principle agents for dispersion and seeking out suitable feeding sites (Koteja, 2001). This egg brooding is widely considered to be a primitive form of brood care (e.g., Royle, et al., 2012; Wong et al., 2013; Siveter et al., 2014). Some Early Cretaceous cockroaches have been reported with an ootheca attached (Grimaldi and Engel, 2005, Figure 7.72). However, it is not definitive evidence of egg brooding, because some cockroaches subsequently deposit the ootheca in a suitable crevice. Therefore, W. kotejai provides the earliest unequivocal evidence of brood care in insects.

Brood care is considered to have evolved independently in at least seven insect orders (Wong et al., 2013). This remarkable behavior takes several forms of which the most common are egg brooding and offspring attendance. Scale insects have evolved a variety of methods to protect their eggs and hatched nymphs from unfavorable abiotic conditions and natural enemies. Some extant species (e.g., Diaspididae, some Pseudococcidae) even possess an ovoviviparous form or pseudoplacental viviparity (Gullan and Kosztarab, 1997). In addition to Ortheziidae, ovisacs occur in many other families, for example, Monophlebidae, unrelated Coccidae and many Pseudococcidae, in all of which the secretions of a variety of tubular ducts and disc-pores combine to form the ovisac (Ben-Dov et al., 2014). These various types of ovisacs have evolved convergently to protect their offspring from wet and dry conditions, honeydew contamination, and natural enemies (Gullan and Kosztarab, 1997). Our study demonstrates that these significant behavioral and morphological adaptations, associated with considerable maternal investment, were already well established by the mid-Cretaceous.

Many extant Ortheziidae females feed on roots and fungal mycelia or mosses and lichens (Vea and Grimaldi, 2012) and ‘run about’ in forest litter with the eggs carried in the ovisac attached to their bodies. This is considered to be the most primitive habit in scale insects (Gullan and Kosztarab, 1997; Koteja, 2001), and similar brood care behavior also occurs in other early scale insects, for example, Margarodidae and Matsucoccidae (Koteja, 2001). Therefore, this behavior probably has an early origin and maybe a synapomorphy for scale insects. Flowering plants and ants are thought to be important drivers for radiation of the most diverse advanced group, the neococcoids (Grimaldi and Engel, 2005). However, both factors are absent in the evolutionary history of basal groups of scale insects (Figure 4). Brood care, greatly promoting the survival of offspring (Royle et al., 2012), could therefore have been an important driver for the early radiation of scale insects which occurred during the end of the Jurassic or earliest Cretaceous (Figure 4).

Despite a great taxonomic diversity of extant insects with brood care (Wong et al., 2013), direct evidence of such behavior has been reported only in Cenozoic ambers (Peñalver et al., 2012). The new fossil is unique in providing evidence of ovarian and juvenile developmental stages in a fossil insect. More remarkably, it represents the earliest direct evidence of brood care in insects and highlights the long-term stasis of this behavior in archaeococcoids, extending nearly 100 million years.

Materials and methods

Burmese amber (amber from northern Myanmar) harbors the most diverse biota in amber from the Cretaceous, and more than 200 families of arthropods have been reported from this deposit. Amber has been recorded from the Shwebo, Thayetmyo, Pakokku, and Pegu districts in Myanmar. However, the only commercial source is the Hukawng Valley in Tanaing Township, Myitkyina District of Kachin State. The amber under study is from an amber mine located near Noije Bum Village, Tanaing Town (Figure 1 in Kania et al., 2015). Four institutes (Nanjing Institute of Geology and Palaeontology, Lingpoge Amber Museum, Huxuan Amber Museum, and Fushun Amber Institute) have collected more than 100,000 amber pieces from this mine, and each piece commonly contains some insects. All these amber pieces were collected from the ‘amber layer’. These deposits have been investigated and dated in detail by Cruickshank and Ko (2003) and Shi et al. (2012). We tentatively followed the age (98.8 ± 0.6 million years) given by U-Pb dating of zircons from the volcaniclastic matrix of the amber (Shi et al., 2012). However, some evidence (e.g., high degree of roundness of amber, bivalve borings on the surface of the amber) suggests that the amber was probably reworked before being deposited in the volcaniclastic matrix.

The type specimen is currently housed in the Nanjing Institute of Geology and Palaeontology (NIGP), Chinese Academy of Sciences and will eventually be deposited in the Lingpoge Amber Museum in Shanghai (specimen available for study by contacting BW or FX). Photographs were taken using a Zeiss SteREO Discovery V20 microscope system. By merging several photographs of one sample, at different focal planes, a single final photograph was created in which the entire sample was in focus. Blue and green filters were used to improve the contrast between the insect and amber. The figures were prepared with CorelDraw X4 and Adobe Photoshop CS3.

Nomenclatural acts

The electronic edition of this article conforms to the requirements of the amended International Code of Zoological Nomenclature, and hence the new names contained herein are available under that Code from the electronic edition of this article. This published work and the nomenclatural acts it contains have been registered in ZooBank, the online registration system for the ICZN. The ZooBank LSIDs (Life Science Identifiers) can be resolved and the associated information viewed through any standard web browser by appending the LSID to the prefix ‘http://zoobank.org/’. The LSID for this publication is: urn:lsid:zoobank.org:pub: 01114A99-586C-4BAD-9F84-4E3FDBFFD86F. The electronic edition of this work was published in a journal with an ISSN, and has been archived and is available from the following digital repositories: PubMed Central, CLOCKSS, Steinmann Institute at University of Bonn, Natural History Museum (London), University of Gdańsk, and Nanjing Institute of Geology and Palaeontology (CAS).

References

  1. 1
    ScaleNet: a database of the scale insects of the world
    1. Y Ben-Dov
    2. DR Miller
    3. GAP Gibson
    (2014)
    ScaleNet: a database of the scale insects of the world, http://www.sel.barc.usda.gov/SCALENET/scalenet.htm.
  2. 2
  3. 3
    The evolution of parental care
    1. T Clutton-Brock
    (1991)
    Princeton: Princeton University Press.
  4. 4
  5. 5
    Whipspiders (Arachnida, Amblypygi) in amber from the early Eocene and mid-Cretaceous
    1. MS Engel
    2. DA Grimaldi
    (2014)
    Novitates Paleoentomologicae 9:1–17.
  6. 6
  7. 7
    Evolution of the insects
    1. DA Grimaldi
    2. MS Engel
    (2005)
    Cambridge: Cambridge University Press.
  8. 8
    Phylogeny and higher classification of the scale insects (Hemiptera: Sternorrhyncha: Coccoidea)
    1. PJ Gullan
    2. LG Cook
    (2007)
    Zootaxa 1668:413–425.
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
    Scale insects (Homoptera, Coccinea) from the Upper Cretaceous New Jersey amber
    1. J Koteja
    (2000)
    In: D Grimaldi, editors. Studies on fossils in amber, with particular reference to the Cretaceous of New Jersey. Leiden: Backhuys. pp. 147–229.
  14. 14
    Essays on coccids (Hemiptera: Coccinea). palaeontology without fossils?
    1. J Koteja
    (2001)
    Prace Muzeum Ziemi 46:41–53.
  15. 15
    Scale insects from lower Cretaceous amber of Lebanon (Hemiptera: Sternorrhyncha: coccoidea)
    1. J Koteja
    2. D Azar
    (2008)
    Alavesia 2:133–167.
  16. 16
    Newsteadia succini sp.n. (Homoptera, Coccinea) from Baltic amber
    1. J Koteja
    2. B Żak-Ogaza
    (1988)
    Annales Zoologici 41:9–14.
  17. 17
    Ortheziidae of the world
    1. F Kozár
    (2004)
    Budapest, Plant Protection Institute, Hungarian Academy of Sciences.
  18. 18
    Silurian to Triassic plant and insect clades and their associations: new data, a review, and interpretations
    1. CC Labandeira
    (2006)
    Arthropod Structure & Development 64:53–94.
  19. 19
  20. 20
  21. 21
    Chapter 12. Burmese Amber
    1. A Ross
    2. C Mellish
    3. P York
    4. B Crighton
    (2010)
    In: D Penney, editors. Biodiversity of fossils in amber from the major world deposits. Manchester: Siri Scientific Press. pp. 208–235.
  22. 22
    The evolution of parental care
    1. NJ Royle
    2. PT Smiseth
    3. M Kölliker
    (2012)
    Oxford: Oxford University Press.
  23. 23
  24. 24
    Brood care in a Silurian ostracod
    1. DJ Siveter
    2. Author
    3. MD Sutton
    4. DEG Briggs
    (2007)
    Proceedings. Biological sciences/The Royal Society 274:465–469.
    https://doi.org/10.1098/rspb.2006.3756
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33

Decision letter

  1. Marcel Dicke
    Reviewing Editor; Wageningen University, The Netherlands

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “Brood care in a 100-million-year-old scale insect” for consideration at eLife. Your article has been favorably evaluated by Ian Baldwin (Senior editor), a Reviewing editor, and 3 reviewers.

The Reviewing editor has assembled the following comments to help you prepare a revised submission.

The three reviewers appreciated your study. The following main issues were identified and should be addressed in the revision.

1) Whilst it may be true that this record is the first record of actual eggs and young having been found in an insect showing brood care, the importance is slightly over-emphasised. There are earlier records of what are close to the ortheziids (e.g., Burmacoccus, from the Early Cretaceous, is pretty clearly an ortheziid, and Cretorthezia, also from the Early Cretaceous, is very probably an ortheziid, although these taxa are based on adult males). It is highly probable that these two genera also had adult females with an ovisac, which would surely only be used for brood care. Koteja and Azar (2008) also described an adult female or late nymph that he placed in Cretorthezia which looked very similar to extant ortheziids and is therefore very likely to have had an ovisac. Emphasising that Palaeorthezia extends crown-group Ortheziidae back only to the mid-Cretaceous therefore seems to overstate their study when there are earlier known probable ortheziid species. This should be explicitly addressed in the manuscript.

2) What is the suggestion about genus/species authorship? Who of the authors of the manuscript will be author of the genus/species? This should be made clear.

3) Figure 4 is based on studies by at least four other sets of workers and some of the studies were not based on any phylogenetic analyses. The tree is therefore hypothetical and this needs to be stated explicitly. Also, Palaeorthezia is not apparently included. Surely it should be. But, if it were, it would not be the earliest ortheziid in this figure! You need to include the names of the genera you are referring to in numbers 5 (Early Cretaceous Lebanese amber), 6 (Mid-Cretaceous Burmese amber) and 7 (Eocene Baltic Amber). This would make it much easier for other workers to follow the arguments in this paper.

4) A significant issue that needs to be addressed is the clear delineation of diagnoses for the new genus and species (even if they are the same), and a clear indication of what collection the specimen will be accessioned within. Both of these issues have implications for whether or not the new taxa can be made available under the ICZN.

5) There appears to be a minor misunderstanding of the Shi et al. (2012) study that established a radiometric age estimate for the deposit (slightly younger than 100 Ma, as opposed to older than 100 Ma), but this does not impact the main findings of the paper, and is also easily addressed.

https://doi.org/10.7554/eLife.05447.007

Author response

1) Whilst it may be true that this record is the first record of actual eggs and young having been found in an insect showing brood care, the importance is slightly over-emphasised. There are earlier records of what are close to the ortheziids (e.g., Burmacoccus, from the Early Cretaceous, is pretty clearly an ortheziid, and Cretorthezia, also from the Early Cretaceous, is very probably an ortheziid, although these taxa are based on adult males). It is highly probable that these two genera also had adult females with an ovisac, which would surely only be used for brood care. Koteja and Azar (2008) also described an adult female or late nymph that he placed in Cretorthezia which looked very similar to extant ortheziids and is therefore very likely to have had an ovisac. Emphasising that Palaeorthezia extends crown-group Ortheziidae back only to the mid-Cretaceous therefore seems to overstate their study when there are earlier known probable ortheziid species. This should be explicitly addressed in the manuscript.

Only two Cretaceous genera have been tentatively attributed to Ortheziidae: Burmorthezia and Cretorthezia. The genus Burmorthezia Vea and Grimaldi, based on second-instar nymphs from mid-Cretaceous Burmese amber, is considered to be an extinct sister group to the crown-group Ortheziidae (Vea and Grimaldi, 2012, page 778: “Cladistically, it is likely that Burmorthezia should be assigned to a new family sister to the Ortheziidae…”). The other genus Cretorthezia Koteja and Azar was erected based on an adult male from Early Cretaceous Lebanese amber. It has been considered to be a stem group of scale insects (Hodgson and Hardy, 2013, Figure 3) or a group within Ortheziidae (Vea and Grimaldi, 2015, Figure 24). A putative female (‘Cretorthezia sp.’, unnamed) was tentatively identified as an ortheziid by Koteja and Azar (2008), and was further discussed by Vea and Grimaldi (2012). This female has wax lobes typical of the Ortheziidae, but preserves some strikingly plesiomorphic features (Vea and Grimaldi, 2012). Thus, the systematic position of this specimen is still uncertain.

The reviewers also mentioned the genus Burmacoccus Koteja, which is based on an adult male from mid-Cretaceous Burmese amber. It belongs to a separate family Burmacoccidae (Koteja, 2004), and two recent cladistic analyses also show that it is not closely related to Ortheziidae (Hodgson and Hardy, 2013, Figure 3; Vea and Grimaldi, 2015, Figure 24).

We agreed with the reviewers that the statement that the fossil “extends crown-group Ortheziidae back to the mid-Cretaceous” is “slightly over-emphasised” because Cretorthezia from Lebanese amber may be a real ortheziid. We have revised the following to the Discussion:

“Two Cretaceous genera have been tentatively attributed to Ortheziidae: Burmorthezia Vea and Grimaldi in mid-Cretaceous Burmese amber is considered […]. Our new fossil supports the view that crown-group Ortheziidae are present in the mid-Cretaceous.”

2) What is the suggestion about genus/species authorship? Who of the authors of the manuscript will be author of the genus/species? This should be made clear.

Simon, Szwedo, and Xia are the authors of the genus/species. We have added the genus/species authorship in the main text: “Wathondara kotejai Simon, Szwedo, and Xia, 2015”.

3) Figure 4 is based on studies by at least four other sets of workers and some of the studies were not based on any phylogenetic analyses. The tree is therefore hypothetical and this needs to be stated explicitly. Also, Palaeorthezia is not apparently included. Surely it should be. But, if it were, it would not be the earliest ortheziid in this figure! You need to include the names of the genera you are referring to in numbers 5 (Early Cretaceous Lebanese amber), 6 (Mid-Cretaceous Burmese amber) and 7 (Eocene Baltic Amber). This would make it much easier for other workers to follow the arguments in this paper.

During the review process of our manuscript, a new paper about fossil scale insects has been published (Vea and Grimaldi, 2015). It has already presented a comprehensive summary of fossil scale insects, including all taxa and fossil deposits. Thus, we slightly changed our figure to label only several new key taxa that are important for our discussion. We have revised the figure caption of Figure 4.

4) A significant issue that needs to be addressed is the clear delineation of diagnoses for the new genus and species (even if they are the same), and a clear indication of what collection the specimen will be accessioned within. Both of these issues have implications for whether or not the new taxa can be made available under the ICZN.

We have added more access information about the specimen to the Materials and methods: “… and will eventually be deposited in the Lingpoge Amber Museum in Shanghai (specimen available for study by contacting B.W. or F.X.).” In this manuscript, we gave only the most important information of this specimen, including a brief diagnosis for the new taxa in this manuscript (the same as Chen et al. eLife 2014; 3:e02844), making it available under the ICZN. We will present a detailed description in the following paper that will be published in a specialized journal.

5) There appears to be a minor misunderstanding of the Shi et al. (2012) study that established a radiometric age estimate for the deposit (slightly younger than 100 Ma, as opposed to older than 100 Ma), but this does not impact the main findings of the paper, and is also easily addressed.

Shi et al. (2012) gave an age for the volcanoclastic matrix of the amber using U-Pb dating of zircons, and they thought that “the age of the volcanic lithic components should be regarded as the age of the amber”. However, some unpublished evidence (e.g., high degree of roundness, bivalve borings on the surface) suggests that the amber was probably reworked before being deposited in the volcanoclastic matrix. Thus, the age of amber may be older than that of the volcanoclastic matrix.

The detailed discussion of the age is beyond the aim of the paper. We agree with the reviewer that “this does not impact the main findings of the paper”. Thus, we have changed the “over 100 million years” to “nearly 100 million years”, and added a brief introduction to Materials and methods: “We tentatively followed the age (98.8 ± 0.6 million years) given by U-Pb dating of zircons from the volcanoclastic matrix of the amber (Shi et al., 2012). However, some evidence (e.g., high degree of roundness of amber, bivalve borings on the surface of the amber) suggests that the amber was probably reworked before being deposited in the volcanoclastic matrix.”

https://doi.org/10.7554/eLife.05447.008
