Dynamic BMP signaling polarized by Toll patterns the dorsoventral axis in a hemimetabolous insect

  1. Lena Sachs
  2. Yen-Ta Chen
  3. Axel Drechsler
  4. Jeremy A Lynch
  5. Kristen A Panfilio
  6. Michael Lässig
  7. Johannes Berg
  8. Siegfried Roth Is a corresponding author
  1. University of Cologne, Germany
  2. Bundesministerium für Umwelt, Naturschutz, Bau und Reaktorsicherheit, Germany
  3. University of Illinois at Chicago, United States
Research Article
Cited
5
Views
1,178
Comments
0
Cite as: eLife 2015;4:e05502 doi: 10.7554/eLife.05502

Abstract

Toll-dependent patterning of the dorsoventral axis in Drosophila represents one of the best understood gene regulatory networks. However, its evolutionary origin has remained elusive. Outside the insects Toll is not known for a patterning function, but rather for a role in pathogen defense. Here, we show that in the milkweed bug Oncopeltus fasciatus, whose lineage split from Drosophila's more than 350 million years ago, Toll is only required to polarize a dynamic BMP signaling network. A theoretical model reveals that this network has self-regulatory properties and that shallow Toll signaling gradients are sufficient to initiate axis formation. Such gradients can account for the experimentally observed twinning of insect embryos upon egg fragmentation and might have evolved from a state of uniform Toll activity associated with protecting insect eggs against pathogens.

https://doi.org/10.7554/eLife.05502.001

eLife digest

How an animal develops from a fertilized egg has fascinated scientists for decades. As such, much effort has gone into answering the related question: what makes the belly (or underside) of an animal develop differently from its back?

Like almost all other biological processes, the development of an embryo is controlled by interactions between different molecules within cells and tissues. Some of these molecules promote the activity of others; some have the opposite effect; and together these molecules and their interactions form ‘signaling networks’. One such network, which involves a protein called BMP, is needed to establish the belly-to-back axis of nearly all animals. However, insects are a unique exception. Most insects (including flies, beetles and wasps) use a different signaling network to control their development from their belly to their back, one that involves a protein called Toll instead. This is unexpected because, in other animals, Toll proteins are best known for their role in the immune system; and it remains unclear how Toll signaling came to be involved in insect development.

Now, Sachs, Chen et al. have studied an insect—called the milkweed bug—that is unlike most insects in that it does not have a larval stage (i.e., a maggot or a caterpillar) in its life-cycle. This characteristic makes the milkweed bug more similar to the ancestor of all insects, and thus makes it an excellent model to study how the Toll protein took over from BMP in insect development.

First, Sachs, Chen et al. experimentally reduced BMP signaling in milkweed bug embryos. This caused the embryos to develop features all around their bodies that are normally only associated with the animal's underside. In other insects, the development of these so-called ‘ventral’ features is typically controlled by Toll signaling; but in the milkweed bug this activity instead depends on a protein called Sog. Indeed, when Sachs, Chen et al. experimentally reduced both BMP and Toll signaling, the effect was the same as having reduced only BMP signaling, implying that Toll is not needed. Instead, Toll increased the level of the Sog protein up to a particular threshold. Above this threshold, Sog and BMP control each other to set out the animal's body plan. As insects evolved, it seems likely that Toll transitioned from being a trigger of BMP signaling to an important controller of insect development in its own right. But why was Toll put in the egg in the first place? It is possible that Toll was required to protect the eggs of early insects from attack by bacteria and fungi. Future work will now test this assumption and aim to explain how and why the Toll protein changed its role—from immunity to development—during evolution.

https://doi.org/10.7554/eLife.05502.002

Introduction

In the fly Drosophila melanogaster, the Toll pathway has essential functions both for innate immunity and for dorsoventral (DV) axis formation (Leulier and Lemaitre, 2008; Stein and Stevens, 2014). While Toll's immune function is broadly conserved in animals ranging from hydra to humans, its role in axis formation appears to be an evolutionary novelty of insects (Leulier and Lemaitre, 2008; Franzenburg et al., 2012; Gilmore and Wolenski, 2012). Other animals do not employ Toll but rather use BMP signaling to establish their DV axis (De Robertis, 2008). BMP signaling also plays a crucial, but spatially restricted role in Drosophila DV patterning (O'Connor et al., 2006). This suggests that Toll signaling was recruited into an ancestral BMP-based patterning network during evolution of the insect lineage.

So far molecular studies of DV patterning in insects have been largely restricted to the most speciose supraorder, Holometabola, the insects with complete metamorphosis (Lynch and Roth, 2011). However, already within the Holometabola, a clear evolutionary trend was observed: the more basally branching lineages show an increased reliance on BMP signaling while the importance of Toll signaling is reduced (Figure 1). In Drosophila, both the polarity and pattern of the DV axis depend on a stable long range gradient of Toll signaling that promotes the graded nuclear uptake of the NF-κB transcription factor Dorsal (Reeves and Stathopoulos, 2009). NF-κB/Dorsal acts in a concentration-dependent manner to activate or repress genes required for DV cell fate specification (Figure 1). The ventral cell fates of the mesoderm, mesectoderm and neuroectoderm directly depend on NF-κB/Dorsal target genes. The dorsal cell fates (non-neurogenic ectoderm and extraembryonic amnioserosa) are determined in a more indirect way by Toll signaling restricting and polarizing an opposing BMP signaling gradient (O'Connor et al., 2006; Hong et al., 2008). The gene regulatory network (GNR) controlled by NF-κB/Dorsal has been extensively characterized. It encompasses 60–70 target genes which fall into six classes according to their enhancer structure (Hong et al., 2008). The sensitivity of these enhancers to different NF-κB/Dorsal concentrations is fine-tuned by ubiquitously distributed activators and repressors (Garcia and Stathopoulos, 2011; Ozdemir et al., 2014).

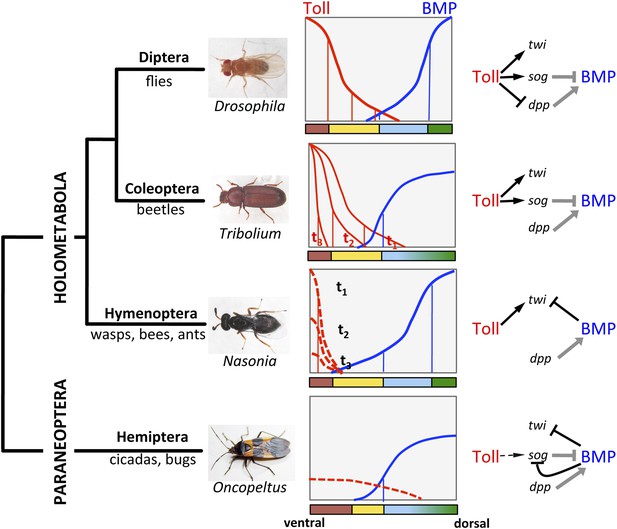

The evolution of Toll's role in dorsoventral (DV) patterning in insects.

In holometabolous insects Toll signaling is activated by ventral eggshell cues and forms an activity gradient (red) that is essential at the very least for specifying the ventral-most cells on the DV axis, giving rise to the mesoderm (brown), by activating the gene twist (twi) (black arrow). In the fly Drosophila Toll signaling not only determines the mesoderm, but also the neuroectoderm (yellow) and restricts BMP signaling to the dorsal side through several parallel mechanisms, including the activation of the BMP inhibitor short gastrulation (sog) (black arrow) and repression of the major BMP ligand decapentaplegic (dpp) (black T-bar) (Hong et al., 2008; Reeves and Stathopoulos, 2009). On the dorsal side a BMP gradient (blue) is established (gray arrow and T-bar indicate BMP ligand production and inhibition, respectively) that specifies non-neurogenic ectoderm (blue) and extraembryonic tissue (green) (O'Connor et al., 2006). Toll signaling is dynamic in Tribolium and polarizes BMP signaling only by activating sog (Nunes da Fonseca et al., 2008). BMP signaling in turn has an increased role in ectodermal patterning compared to flies (van der Zee et al., 2006). In contrast to both Drosophila and Tribolium Toll signaling in the wasp Nasonia appears to be restricted to a narrow ventral region where it is only transiently active. Here, Toll signaling is required to induce mesodermal and mesectodermal fates. But the size of the mesodermal region as well as the fate and position of all other regions along the DV axis are determined by a BMP signaling gradient emanating from the dorsal side by an unknown (Toll-independent) mechanism (black T-bar indicates repression of twi) (Özüak et al., 2014a, 2014b). Thus, in the holometabolous insects BMP signaling gets increasingly more important towards basally branching groups, while Toll's role is diminished, but remains essential for ventral-most cell fates. Here we provide evidence that the bug Oncopeltus, representing the Hemiptera within the sister group of Holometabola (Paraneoptera), uses Toll signaling only as spatial cue (dashed black arrow) to polarize a dynamic BMP signaling network that establishes a gradient responsible for patterning the cell fates along the DV axis. The key regulatory element of this network is the transcriptional repression of sog by BMP signaling. A reaction-diffusion model which incorporates this regulatory element shows that the formation of stable BMP gradients requires only weakly polarized Toll signaling (Box 1).

https://doi.org/10.7554/eLife.05502.003

All major components of the BMP signaling network are controlled by NF-κB/Dorsal: one of the BMP ligands, the BMP2/4 homolog decapentaplegic (dpp), and the extracellular protease tolloid (tld) are repressed by NF-κB/Dorsal and thus confined to the dorsal side of the embryo while an extracellular BMP inhibitor, the chordin homolog short gastrulation (sog), and a transcriptional repressor of BMP target genes (brinker, brk) are activated by NF-κB/Dorsal at the ventral side (Jazwinska et al., 1999; O'Connor et al., 2006; Hong et al., 2008; Rushlow and Shvartsman, 2012). The ventral-to-dorsal transport of Sog and Sog-BMP complexes and their dorsal cleavage by Tld leads to a BMP signaling gradient with peak levels at the dorsal side. Thus, Toll signaling via NF-κB/Dorsal not only provides precise spatial information for the ventral half of the axis, but indirectly also determines the patterning of the dorsal half. An independent maternal input at the dorsal side of Drosophila embryos has been discussed, but it apparently plays only a minor role (Araujo and Bier, 2000).

In contrast to Drosophila, Toll signaling in the beetle Tribolium castaneum is highly dynamic due to positive and negative feedback of Toll pathway components (Nunes da Fonseca et al., 2008). These dynamics lead to a temporally shifting NF-κB/Dorsal gradient which refines and disappears before the major DV patterning genes have established stable expression domains. This suggests that NF-κB/Dorsal concentration thresholds play a less direct role in specifying these domains (Chen et al., 2000). In addition, NF-κB/Dorsal does not act as a repressor of BMP signaling components or as an activator of brk (Nunes da Fonseca et al., 2010). Consequently, the establishment of the BMP gradient entirely relies on ventral (NF-κB/Dorsal dependent) activation of sog. The BMP gradient in turn is required for all the polarity of the ectoderm (van der Zee et al., 2006). Thus, in Tribolium the direct role of Toll signaling is largely restricted to mesoderm and mesectoderm (Figure 1).

Finally, in the wasp Nasonia, representing the basal-most branch (Hymenoptera) of the Holometabola, Toll signaling appears to be active only in a narrow domain along the ventral midline, where it is required to induce ventral-most cell fates (Özüak et al., 2014b). However, the borders of the ventrally expressed genes are not defined by thresholds of Toll signaling, but rather by repressive BMP signaling. Thus, in Nasonia BMP signaling specifies gene expression domains along the entire DV axis (Figure 1). In this respect the DV system in Nasonia is similar to the ancestral type of DV axis formation in bilaterian animals. However, a closer look at the mechanisms of gradient formation reveals that the Nasonia system is highly derived even when compared to Drosophila. Functional studies show that the BMP gradient of Nasonia is established from a maternal source along the dorsal midline independent from ventral Toll signaling (Özüak et al., 2014b). Indeed, the Nasonia genome lacks a sog homolog and no ventrally expressed BMP inhibitor was identified (Özüak et al., 2014a). The establishment of BMP signaling gradients by an opposing inhibitor gradient of Chordin/Sog is however, one of the most conserved aspects of DV axis formation in Bilateria and is even preserved in flies (De Robertis, 2008). Moreover, given the fact that Nasonia also uses Toll for mesoderm/mesectoderm induction, it establishes its DV axis in a bipolar manner employing independent signaling sources along the ventral and dorsal midline of the egg. Bipolar DV axis formation has so far not been described in any other system.

Despite all the variability found so far in Holometabola there are two common themes. (1) In more basal lineages BMP signaling is responsible for functions that are performed by Toll signaling in more derived lineages. (2) The ventral-most regions of the DV axis, giving rise to the mesoderm and mesectoderm, remain strictly dependent on Toll signaling. By studying a representative of insects with incomplete metamorphosis (Hemimetabola) we asked whether this situation is characteristic for all insects or whether a further reduction of the DV patterning function of Toll can be observed, allowing us to analyze how it originated.

To this end we investigated DV patterning in the milkweed bug, Oncopeltus fasciatus, representing the order Hemiptera, within the sister group (Paraneoptera) to the Holometabola (Liu and Kaufman, 2009). We provide evidence that in Oncopeltus Toll is indeed no longer essential for mesoderm formation since repression of BMP signaling suffices to induce mesoderm. Like in other systems inhibition of BMP signaling is accomplished by sog. However, the transcriptional regulation of sog in Oncopeltus is more dynamic than in the other well-studied systems. It combines uniform Toll-independent activation with ventral enhancement by Toll and repression by BMP. We build a theoretical model based on the experimental findings and show that the BMP/sog pathway in Oncopeltus exhibits self-organized patterning (Box 1). Specifically, the interplay of BMP-dependent sog repression and Sog-dependent BMP transport generates a Turing instability (Turing, 1952). Toll's role in this system seems to be reduced to providing a trigger that enhances Sog activity above a certain threshold to initiate the patterning process. However, this patterning mechanism differs from the well-studied activator-inhibitor models (Gierer and Meinhardt, 1972); while sog is inhibited by BMP, there is no activator in our model.

Results

To mark different DV regions of Oncopeltus blastoderm embryos we chose twist (twi), a ventrally expressed marker for the mesoderm (Thisse et al., 1988) (Figure 2A lateral view), single minded (sim), a mesectodermal marker (Thomas et al., 1988) expressed in lateral stripes bordering the mesoderm and in a ventral-anterior domain (Figure 2B lateral view), and short gastrulation (sog), the insect homolog of the BMP antagonist Chordin (Francois et al., 1994), which is expressed in a ventral domain slightly broader than that of twi (Figure 2C lateral view).

Figure 2 with 2 supplements see all
Knockdown (KD) of BMP signaling components results in completely ventralized (dpp-, tld-RNAi) or completely dorsalized (sog-, tsg-RNAi) embryos.

Expression of twi (A, E, I, M, Q), sim (B, F, J, N, R) and sog (C, G, K, O, S) in wild type (wt) embryos (AC), dpp-RNAi embryos (EG), sog-RNAi embryos (IK), tsg-RNAi embryos (MO) and tld-RNAi embryos (QS) monitored by whole mount in situ hybridization (ISH). The view is lateral with the dorsal side pointing up (AC), ventral (K), or not determined as the expression is DV-symmetric (EG, I, J, MO, QS). Embryos are at the blastoderm stage (∼26–32 hpf: A, C, EG, IK, M, O, Q, S), or at the beginning of anatrepsis (posterior invagination of the embryo, ∼33–37 hpf) (B). Scale bar (A) corresponds to 200 µm. For phenotype frequencies and confirmation of KD see Figure 2—figure supplement 2 and Figure 5—figure supplement 1. (D, H, L, P, T) Simulations of the reaction diffusion system described in Box 1 on a two-dimensional cylinder (Figure 10). Depicted is one half of the cylinder surface stretching from the dorsal (D) to the ventral (V) midline. Blue: sog expression (η). Gray: BMP concentration (b). (D) In wt sog expression is confined to a ventral stripe. (H) Loss of BMP (b = 0) leads to uniform derepression of sog. (L) Loss of sog (s = 0) leads to uniformly high levels of BMP. (P) Loss of Tsg was modeled by assuming that no Sog-BMP complexes are formed (k+ = 0). This results in high BMP signaling throughout the embryo. (T) Loss of Tld was modeled by reducing the degradation constant of Sog (αs) by 90%. As Sog-BMP complexes are not degraded, BMP is not released, causing uniform derepression of sog.

https://doi.org/10.7554/eLife.05502.004

None of the known dorsally expressed genes from the Holometabola showed specific dorsal expression in early Oncopeltus embryos. This includes both the BMP signaling components (O'Connor et al., 2006) decapentalplegic (dpp), glass bottom boat (gbb), tolloid (tld) and twisted gastrulation (tsg) (Figure 2—figure supplement 1) as well as target genes potentially activated by BMP signaling like zerknüllt, pannier, dorsocross and iroquois (Panfilio et al., 2006; Nunes da Fonseca et al., 2010; Buchta et al., 2013) (data not shown). In the absence of dorsal marker genes we monitored the distribution of phosphorylated Mad (pMAD), the activated form of the transcription factor downstream of BMP signaling (Dorfman and Shilo, 2001; van der Zee et al., 2006). In early embryos pMAD accumulates more strongly in nuclei of dorsal than of ventral cells (Figure 3A,F; nuclear density can be used to distinguish dorsal and ventral regions of the embryos, Figure 3—figure supplement 1). Over time this asymmetry is enhanced. At the beginning of gastrulation, high levels of pMAD are restricted to the dorsal 30% of the egg circumference with sharp lateral borders (Figure 3—figure supplement 1). Within the domain of high nuclear concentrations the pMAD distribution is flat; i.e., it lacks the sharp peak along the dorsal midline which has been observed in Drosophila and Nasonia and is also less graded than the pMAD profile of Tribolium (Dorfman and Shilo, 2001; van der Zee et al., 2006; Özüak et al., 2014b).

Figure 3 with 1 supplement see all
BMP signaling activity is uniformly abolished or expanded in ventralized or dorsalized phenotypes, respectively.

pMAD distribution in blastoderm stage (26–32 hr post fertilization, hpf) wt (A, A′, F, F′), dpp-RNAi (B, B′, G, G′), sog-RNAi (C, C′, H, H′), tsg-RNAi (D, D′, I, I′) and Toll1-RNAi (E, E′, J, J′) embryos. For each embryo a ventral and a dorsal view, or views from opposite sides if DV polarity is lacking (BG, D-J) are shown. Magnified surface views to the right of each embryo (x') reveal the presence or absence of pMAD in individual nuclei. The scale bar (A, A′) corresponds to 50 µm. For identifying the polarity of the DV axis and for BMP signaling activity during later development see Figure 3—figure supplement 1.

https://doi.org/10.7554/eLife.05502.007

Having established these four markers of distinct DV domains, we first analyzed the role of BMP signaling in Oncopeltus. Nuclear pMAD accumulation was largely abolished by knockdown (KD), via parental RNAi targeting the ortholog of Drosophila BMP ligand dpp (O'Connor et al., 2006). This result confirms the specificity of our pMAD staining and demonstrates that the KD leads to a severe reduction of BMP signaling in the early embryo (Figure 3B,G).

Strikingly, this reduction of BMP signaling results in a massive expansion of twi and sog expression around the entire embryonic circumference (Figure 2E,G, for phenotype frequencies see Figure 2—figure supplement 2). The loss of lateral expression of sim (Figure 2F) shows that all fates dorsal to the mesoderm are lacking, indicating that the embryo is completely ventralized. Thus, BMP signaling is required in Oncopeltus to restrict the ventral-most, mesodermal cell fate. Absence of BMP signaling leads to a complete loss of DV polarity, which is not recovered during later stages of development (Figure 4D–F), a phenotype so far not known from other insects where BMP signaling either has no influence on the mesoderm (van der Zee et al., 2006; Lynch and Roth, 2011) or only partially suppresses mesodermal cell fates (Özüak et al., 2014b).

Late phenotypes of dpp, sog and Toll1 KD embryos.

Expression of msh (top row), sim (center row), and twi (bottom row) in wt (AC), dpp-RNAi (DF), sog-RNAi (GI) and Toll1-RNAi (JL) embryos monitored by ISH. The anterior of the embryo is on the left. Embryos are at the germ band stage (∼40–48 hpf). msh: in wt germ band stage embryos msh is expressed in the dorsal-most part of the CNS and in the mesoderm of the limb buds (dorsal-lateral view). dpp-RNAi germ band embryos lack msh expression except for an anterior domain. sog- or Toll1-pRNAi embryos have a tube-like appearance lacking mesoderm and limb buds. Along these tubes msh is either not expressed or it is expressed at uniform levels around the entire circumference. This indicates that the ectoderm of sog- and Toll1 KD embryos is dorsalized either at the level of the dorsal non-neurogenic or the dorsal-most neurogenic ectoderm. sim: in wt germ band stage embryos sim is expressed along the ventral midline (ventral-lateral view). Upon dpp-, sog- or Toll1-pRNAi, sim expression is lacking except for a ring of expression at the posterior tip of the growth zone in sog-RNAi and Toll1-RNAi embryos. This indicates that the ventral neuroectoderm is lost in these KD embryos. twi: in germ band stage embryos twi is expressed in the invaginated mesoderm, which forms initially a cord within the embryo (lateral view). In dpp-RNAi embryos twi is expressed in the entire germ band indicating complete mesodermalization. In sog-and Toll1-RNAi embryos twi is not expressed. This, in addition to the loss of sim expression, indicates that sog and Toll1 KD embryos consistently lack ventral cell fates along their entire AP axis. Scale bar corresponds to 200 µm.

https://doi.org/10.7554/eLife.05502.009

Given the striking expansion of the ventral-most cell fate upon loss of BMP signaling in Oncopeltus, we wondered how ectopic BMP signaling would affect DV patterning. For this purpose we knocked down sog and twisted gastrulation (tsg). Sog (Chordin) is known from Drosophila and several vertebrates to inhibit BMP signaling via ligand sequestering (Little and Mullins, 2006; O'Connor et al., 2006). For Tsg both anti- and pro-BMP functions have been observed (Wang and Ferguson, 2005; Little and Mullins, 2006; Nunes da Fonseca et al., 2010; Özüak et al., 2014b). In Oncopeltus, the KD of these two genes causes elevated levels of pMAD at the ventral side and frequently leads to a uniform distribution of pMAD around the embryonic circumference, indicating that the asymmetry of BMP signaling depends on sog and tsg (Figure 3C,D,H,I). The levels of pMAD around the entire circumference are similar to the levels found at the dorsal side of wild type (wt) embryos. The KD embryos show a complete loss of the mesoderm and mesectoderm, as demonstrated by the loss or strong reduction of twi, sog and sim expression (Figure 2I–K,M–O; for phenotype frequencies see Figure 2—figure supplement 2). This further indicates dorsalization and a lack of DV polarity when BMP signaling is uninhibited.

During later development, DV polarity is not recovered: gastrulation and all subsequent morphogenetic movements lack DV asymmetry (Figure 4G–I). Thus, in Oncopeltus, in contrast to all other insects analyzed so far (Lynch and Roth, 2011), BMP signaling has to be suppressed ventrally by Sog (in conjunction with Tsg) to allow polarization of the DV axis and specification of ventral cells. The essential role of Sog is supported by the consequences of a depletion of Tolloid (Tld), which is known to cleave and inactivate Sog and thereby to release bound BMP ligands (O'Connor et al., 2006). As with the dpp KD, tld KD leads to a complete ventralization of the embryo, indicating that BMP ligands are largely (or completely) sequestered in inhibitory Sog-BMP complexes in the absence of Tld (Figure 2Q–S).

Besides the complete loss of embryonic DV polarity, the KD phenotypes reveal an interesting regulatory feature of the BMP network in Oncopeltus. sog expression is expanded or suppressed by reducing (dpp KD) or expanding (tsg KD) BMP activity, respectively, demonstrating that BMP signaling negatively regulates its own antagonist in Oncopeltus. This was never observed in holometabolous insects, where sog expression either exclusively depends on Toll signaling lacking feedback control by BMP (Drosophila and Tribolium) (Jazwinska et al., 1999; van der Zee et al., 2006) or is absent (Nasonia) (Özüak et al., 2014b). However, in spiders (Akiyama-Oda and Oda, 2006), vertebrates (De Robertis and Kuroda, 2004), and sea anemones (Saina et al., 2009) the sog homolog chordin is directly or indirectly repressed by BMP signaling, indicating that the BMP network of Oncopeltus exhibits a regulatory property that is ancestral for animals.

As all cell fates along the DV axis are affected by BMP signaling, we wondered whether Toll signaling is even required for DV patterning in Oncopeltus. A recent study in another hemipteran, Rhodnius prolixus has provided evidence that Toll signaling plays a role in DV patterning (Berni et al., 2014). In Oncopeltus, KD of the Toll1 ortholog resulted in loss of twi and sim expression (Figure 5E,F) and sog expression was completely lacking in 38% of the mid and late blastoderm stage embryos (Figure 5G; for phenotype frequencies and confirmation of KD see Figure 5—figure supplement 1). As expected, this leads to high uniform levels of pMAD around the entire embryo circumference (Figure 3E,J). Expression analysis of germ band stage embryos confirms that the Toll1 KD embryos are dorsalized and lack all DV polarity (Figure 4J–L). KD of other downstream components of Toll signaling (Myd88, Pelle, Tube-like kinase) leads to identical phenotypes (data not shown). Two homologs of NF-κB/Dorsal (Of-dl1 and Of-dl2), the transcription factor acting downstream of Toll signaling (Stein and Stevens, 2014), were identified. KD of both caused a loss of ventral gene expression, albeit to varying degrees, indicating at least partially redundant functions (shown for dl1: Figure 5H–J; Figure 5—figure supplement 1). Taken together, interfering with Toll signaling leads to dorsalized phenotypes, which closely resemble those produced by KD of sog and tsg.

Figure 5 with 1 supplement see all
BMP signaling is epistatic to Toll signaling in Oncopeltus.

Expression of twi (A, E, H, L), sim (B, F, I, M), sog (C, G, J, N, P, R, T, V) in wt embryos (AC, R, T, V), Toll1-RNAi embryos (EG, P), dl1-RNAi embryos (HJ) and Toll1-dpp-RNAi embryos (LN) monitored by ISH. The view is ventral (AC, J, T, V), or not determined as the expression is DV symmetric (EG, H, I, LN, P, R). Embryos are at the blastoderm stage (AC, EG, HJ, LN: 26–32 hpf; PV see figure labels). Green arrowheads mark the anterior border of sim expression. The scale bar (A) corresponds to 200 µm. For phenotype frequencies and confirmation of KD see Figure 5—figure supplement 1. (D, K, O, Q, S, U, W) Simulations of the reaction diffusion system described in Box 1 on a two-dimensional cylinder (Figure 10). Depicted is the ventral part of the cylinder. Blue: sog expression level (η). Gray: BMP concentration (b). (D) wt: sog expression is confined to a ventral stripe. (K) Upon loss of active NF-κB/Dorsal (d = 0) due to either KD of Toll1 or KD of dl1, early activation of sog (P) is insufficient to initiate patterning resulting in uniformly high BMP signaling. (O) Upon simultaneous loss of Dorsal (d = 0) and BMP (b = 0) sog activation is possible despite lack of NF-κB/Dorsal; however, activation is uniform. (Q) sog activation at early stages in the absence of Toll signaling (d = 0). This reflects ηo, NF-κB/Dorsal-independent sog activation (Box 1). (S, U, W) Developmental progression of sog activation (η) during blastoderm stages.

https://doi.org/10.7554/eLife.05502.010

However, loss of Toll signaling also has consequences not observed by manipulating the BMP pathway. This becomes apparent by looking at marker genes expressed in head anlagen like muscle-specific homeobox (msh). In wt blastoderm embryos msh is expressed in a stripe with a sharp anterior border and a posterior border positioned at approximately 60% egg length (0% is the posterior pole). After Toll1 and dl1 KD the posterior msh border is shifted anteriorly, typically to 80% egg length, and the stripe expands towards the anterior tip of the embryo (Figure 6B,C). This does not occur in dorsalized embryos after tsg KD (Figure 6D). Using other markers, AP shifts have also not been seen in ventralized embryos after dpp and tld KD (see anterior sim stripe in Figure 2F,R). We therefore assume that Toll, unlike BMP signaling, is not only dedicated to DV patterning in Oncopeltus, but also contributes to specifying the AP axis. A role for Toll in positioning the embryo along the AP axis has recently been suggested for the hemipteran Rhodnius (Berni et al., 2014).

Toll signaling affects AP patterning.

Expression of msh is monitored by ISH in blastoderm embryos. The view is lateral (A), or not determined as the expression is DV symmetric (BD). The red arrowheads mark the posterior border of msh expression which is positioned at approximately 60% egg length (0% posterior pole) in wt (A) and tsg KD (D) embryos. In Toll1 and dl1 KD embryos, the msh domain expands to the anterior tip of the embryo and its posterior border is shifted anteriorly (to approximately 80% egg length).

https://doi.org/10.7554/eLife.05502.012

Since twi and sog are completely dependent on Toll signaling for their activation in all studied holometabolous insects, we hypothesized that the expansion of twi and sog in dpp KD was due to a corresponding expansion of Toll signaling in the absence of BMP-dependent repression. To test this hypothesis, we produced embryos simultaneously lacking Toll and BMP signaling. To our surprise the Toll1 dpp double KD embryos showed uniform twi and sog expression along the embryonic circumference (Figure 5L,N; Figure 5—figure supplement 1), the same as the dpp single KD (Figure 2E,G). However, in contrast to the single KD of dpp, the double KD embryos also show an expansion and/or shift of the sog, twi and (anterior) sim domains towards the anterior pole (compare Figure 2E–G and Figure 5L–N). This is likely due to the additional role of Toll signaling in anterior patterning and allows for an unambiguous distinction between double and single KD embryos (additional confirmation by RT-PCR, Figure 5—figure supplement 1). Our results suggest that DV patterning genes that require Toll signaling for expression in other insects can be activated in the absence of Toll signaling in Oncopeltus. As these genes are repressed by elevated BMP activity their state of expression seems to be mainly controlled by different levels of BMP signaling. This leads to the crucial question: What then is Toll's role within the DV patterning system of Oncopeltus if Toll is neither strictly required to activate ventral genes nor to prevent their repression?

To address this question we carefully studied the dynamics of sog expression in wt and Toll1 KD embryos. Interestingly, sog transcription is activated ubiquitously in early blastoderm embryos (Figure 5R). Only later is sog expression enhanced at the ventral side, while weak sog expression is still seen dorsally (Figure 5T,V). Finally, during mid-blastoderm (25–28 hpf) the typical sog expression domain is established, with high levels in the ventral 40% and no detectable expression in the dorsal 60% of the germ rudiment (Figures 5C, 2C). Early Toll1 KD embryos show uniform expression of sog (Figure 5P), which disappears during later stages (Figure 5G). Thus, Toll is not required to initiate sog expression, but rather to enhance its expression ventrally. A weakly asymmetric Toll gradient might suffice to fulfill this function.

To get a first impression of the shape of the Toll signaling gradient in Oncopeltus, we analyzed the expression of cactus (cact) genes encoding the insect I-κB homologs which bind to NF-κB/Dorsal and prevent nuclear transport (Bergmann et al., 1996). The transcriptional activation of I-κB genes by Toll signaling appears to be an ancestral negative feedback loop essential for attenuating the innate immune response triggered by Toll (Hoffmann et al., 2002). During Drosophila and Tribolium DV patterning cact is an early target gene of Toll signaling expressed in regions of high nuclear NF-κB/Dorsal concentrations (Sandmann et al., 2007; Nunes da Fonseca et al., 2008). The same appears to apply to Nasonia where cact expression is restricted to a narrow stripe straddling the ventral midline indicating a highly refined pattern of Toll activity (Buchta et al., 2013; Özüak et al., 2014b). The Oncopeltus genome harbors six cact paralogs, four of which are expressed during blastoderm stages (Vargas Jentzsch et al., 2015) (and data not shown). While cact1, 2 and 4 show only weakly asymmetric expression (Figure 7A–C, and data not shown), cact3 is expressed in a broad ventral domain encompassing 60–80% of the embryonic circumference with graded borders toward the dorsal side (Figure 7E–G,I,J). The expression of cact3 does not refine into a more narrow domain, but remains broad during later blastoderm stages. Toll1 KD embryos lack (or show reduced) cact1 and cact3 expression, confirming the regulatory link known from other insects (Figure 7D,H). These observations support the notion that in Oncopeltus, Toll signaling is transiently active almost along the entire DV axis and forms a shallow gradient with lower levels in the dorsal half.

Expression of cact1 and cact3.

Expression of cact1 (AD) and cact3 (EH) are monitored by ISH with embryos at early to late blastoderm stages (20–32 hpf). (A′D′, E′, H′) SYTOX Green staining shows nuclear density to determine developmental stage. (A, B) cact1 expression is initiated evenly. (C) With proceeding development cact1 expression vanishes from the dorsal side. (D) 20% of Toll1 KD embryos lack cact1 expression. The remainder show reduced expression compared to wt. (E) cact3 expression is initiated uniformly along the DV axis between 20% and 60% egg length. (F, G) In older blastoderm stages cact3 is expressed in a broad domain encompassing 60–80% of the egg circumference. (H) 47% of Toll1 KD embryos lack cact3 expression. The remainder show reduced expression compared to wt. (I, J) Double ISH for cact3 (blue) and sog (red) confirms that cact3 is expressed ventrally and that its domain expands more dorsally than the sog domain.

https://doi.org/10.7554/eLife.05502.013

In sum, our empirical observations lead to the following model for DV patterning in Oncopeltus (Figure 1, Box 1). We posit that during early blastoderm stages, weak uniform BMP signaling is balanced by the uniform Toll-independent production of the BMP inhibitor Sog. A shallow Toll signaling gradient breaks this symmetry by enhancing sog expression at the ventral side. This leads both to ventral suppression of BMP signaling, and to a flux of BMP-Sog complexes to the dorsal side. Subsequently, the Tld-dependent cleavage of Sog releases BMP and hence increases BMP signaling. Since BMP signaling represses sog expression, the asymmetry initiated by Toll is dynamically enhanced.

Box 1

Temporal progression of pattern formation.

We built a reaction-diffusion model of the BMP/Sog system based on (i) inhibition of sog expression by BMP, (ii) sog transcriptional activation by NF-κB/Dorsal, (iii) the binding of Sog to BMP and (iv) the rapid diffusion of the Sog-BMP complex.

A simple Michaelis–Menten model of sog regulation gives the rate of sog expression

ηs(b,d)=η0+η1d/d0(1+b/b0)(1+d/d0),

in terms of the local concentrations b (BMP) and d (NF-κB/Dorsal). η0 is the rate of sog expression in the absence of NF-κB/Dorsal and BMP, η1 > η0 is the asymptotic rate of sog expression at high concentrations of NF-κB/Dorsal and in the absence of BMP. This model can exhibit an instability of the homogeneous state (Box figure 1). Consider a small ‘seed’ of elevated Sog concentration arising from the polarity cue provided by NF-κB/Dorsal. Sog molecules bind BMP and the complexes diffuse away quickly, leading to a depletion of BMP. Since BMP represses sog, this leads to a local increase of sog expression, causing the seed to grow. In the steady state, there is a region of high Sog levels (where BMP diffuses away quickly due to complex formation) around the original seed, and a region of high BMP levels away from the seed, where sog is repressed by BMP.

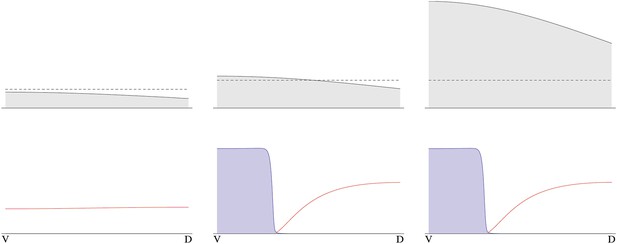

Box figure 1
Temporal progression of pattern formation.

Simulated concentration profiles of NF-κB/Dorsal, Sog and BMP are plotted at successive time points, starting from a broad peak of NF-κB/Dorsal (left to right: t = 0 hr, 4 hr, 6 hr and steady state; see Table 1 for parameter values). The x-axis shows the circumference of the embryo, with the dorsal and ventral sides marked as D and V, respectively.

https://doi.org/10.7554/eLife.05502.015

The instability turns out to be controlled by the level of NF-κB/Dorsal. A threshold amount of NF-κB/Dorsal is required initially to build a stripe of high Sog concentration near the initial NF-κB/Dorsal maximum (Figures 8, 9). This effect also leads to the phenomenon of twinning: if the amount of NF-κB/Dorsal is above the threshold in both halves of the embryo, a cut along the DV axis can lead to the formation of a stripe in each half (Box figure 2).

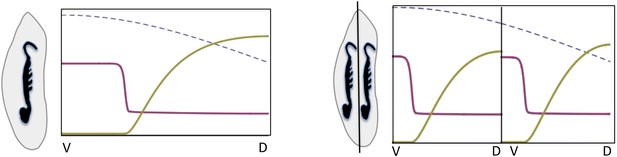

Box figure 2
Embryonic twinning in Euscelis.

Simulation of wt (left) showing Sog (red) and BMP (green) protein concentration profiles along the DV axis at steady state given initial NF-κB/Dorsal protein levels (blue: dashed line). A schematic drawing on the left shows a wt Euscelis embryo at the germ band stage. Simulations after the DV axis is split in two halves (right) result in the formation of one BMP gradient in each half. Thus, the proposed model can account for the embryonic twinning observed in Euscelis after production of dorsal and ventral egg fragments shown schematically on the left (Sander, 1971).

https://doi.org/10.7554/eLife.05502.016

The dynamics of our model are similar to those of activator-inhibitor models of pattern formation (Turing, 1952; Gierer and Meinhardt, 1972). However, in our model there is no explicit activator. Instead, the patterning mechanism emerges from the transport of the Sog-BMP complex away from areas with elevated Sog concentration, leading to a derepression of sog by removal of BMP.

https://doi.org/10.7554/eLife.05502.014

To investigate the dynamics of the Sog/BMP system we constructed a minimal reaction-diffusion model as in previous work in Drosophila (Eldar et al., 2002) (Box 1, ‘Materials and methods’). In this model the rate of sog expression combines NF-κB/Dorsal-independent and NF-κB/Dorsal-dependent activation with repression of sog by BMP. Parameter settings were selected such that NF-κB/Dorsal-dependent sog activation is necessary in order to initiate patterning (Figures 8, 9 and Table 1). This mode of sog activation tightly links DV axis formation to egg polarity via Toll signaling (Stein and Stevens, 2014) and provides stability against random fluctuations (Box 1, ‘Materials and methods’, Figure 9).

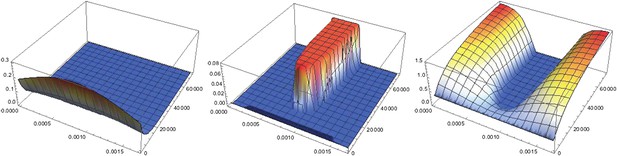

Dynamics of pattern formation.

Each plot shows the concentration of a particular protein species in space (x running from 0 to lx along the front of the plot parameterizing the circumference of the cylinder) and time (running towards the back). Left: the concentration of NF-κB/Dorsal shows a broad Gaussian profile that decays to zero with time. Center: starting from a uniform distribution a region of high Sog concentrations forms where the initial distribution of NF-κB/Dorsal had its maximum. Right: BMP is depleted where Sog levels are high. Initial conditions are b(x, t = 0) = 0.32, s(x, t = 0) = 0.01, c(x, t = 0) = 0.14, d(x, t = 0) = Doexp{12(2/lx)2(x2/lx)2}. Throughout the text Do=0.3, except in the twinning figure (Box 1), where Do=1 was used to ensure a sufficient amount of NF-κB/Dorsal in both halves of the embryo.

https://doi.org/10.7554/eLife.05502.017
Pattern formation from different initial levels of NF-κB/Dorsal.

The initial concentration gradient of NF-κB/Dorsal is shown on top (gray). Initial amplitudes of NF-κB/Dorsal are Do=0.15,0.3,1 from left to right, the dashed line indicates the threshold NF-κB/Dorsal concentration required for patterning. Below, steady-state levels of free BMP (red) and free Sog are shown (blue, rescaled to facilitate plotting on the same plot as BMP).

https://doi.org/10.7554/eLife.05502.018
Table 1

Model parameters.

https://doi.org/10.7554/eLife.05502.019
η2.8 × 10−4
η12 × 10−3
b00.2
d01
ηb4 × 10−5
αs2 x 10−3
αb5 × 10−5
αc2 × 10−4
K+5
k5 × 10−5
Ds1.5 × 10−13
Db7.8 × 10−13
Dc2.5 × 10−9
lx0.0017
  1. Units are arbitrary but are suggested to be seconds for time and meters for length.

Two-dimensional simulations on a cylinder representing the trunk region of the ellipsoid embryo show that the model robustly replicates the formation of stripe-like sog expression domains (Figure 2D; Figure 5D,W; Figure 10). Moreover, the model correctly recovers the steady state of sog expression and BMP distribution in KD embryos (Figure 2H,L,P,T; Figure 5K,O), including the dynamics of sog expression in Toll1 KD (Figure 5Q,K), as well as wt embryos (Figure 5S,U,W).

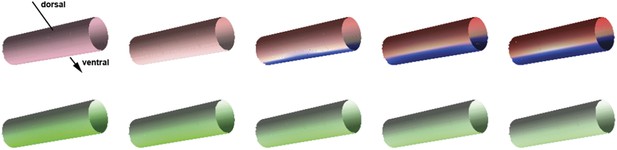

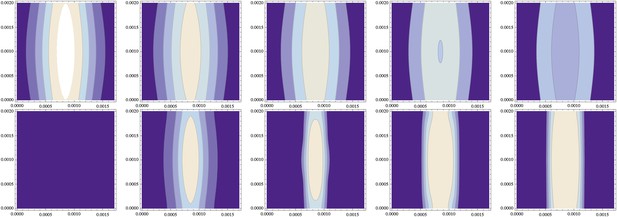

Pattern formation in two dimensions.

Starting from a distribution of NF-κB/Dorsal with a broad maximum running in parallel to the cylinder's axis (bottom, shown in green), a stripe of high Sog concentration develops (top, Sog shown in blue, BMP shown in red). The figures show concentrations at times 0, 1000, 2000, 3000, 4000 from left to right.

https://doi.org/10.7554/eLife.05502.020

Simulations also reveal that even weakly polarized NF-κB/Dorsal gradients result in sharp BMP signaling profiles (Box 1, Figure 9). The final patterning output is robust with regard to variation in width of the NF-κB/Dorsal gradient along the AP axis (Figure 11). Likewise, raising the NF-κB/Dorsal concentration above the critical threshold for sog activation along the entire DV axis had no impact on the patterning output (Figure 9).

Independence from the stripe of initial conditions (same data as Figure 10).

(top) The initial distribution of NF-κB/Dorsal from Figure 10 varies along the cylinder's axis (y-direction of this contour plot, with the x-direction describing the circumference) in both standard deviation and amplitude by about 10%; d(x,t=0)=exp{522(1+0.1sin(πy/ly))2(x2/lx)2}(1+0.1sin(πy/ly)), and decays over time (time points 0, 1000, 2000, 3000, 4000 shown from left to right). (bottom) The resulting distribution of Sog (and correspondingly of BMP) becomes uniform along the cylinder axis.

https://doi.org/10.7554/eLife.05502.021

Such weakly polarized, broad NF-κB/Dorsal distributions in conjunction with the proposed dynamic BMP signaling system can explain embryonic twinning induced by egg fragmentation in another hemipteran species, the leaf hopper Euscelis plebejus (Sander, 1971). In the course of his experiments, Sander produced dorsal and ventral egg fragments during early development (preblastoderm) using a guillotine which completely separated the two egg halves. Complete germ band embryos developed within each half (Box 1). The model proposed here can reproduce such regulative behavior. A split along the DV axis prior to the initiation of patterning prevents diffusion from the ventral to the dorsal half. Thus, BMP acting as a long-range inhibitor of sog expression cannot travel from the ventral to the dorsal half to suppress sog. Since the NF-κB/Dorsal gradient extends to the dorsal half, sog can be activated dorsally and initiates a second round of patterning. Consequently, sog domains and BMP gradients are produced independently in each half despite the NF-κB/Dorsal gradient itself not having been altered (Box 1). The sizes of the sog and BMP domains are adjusted to the dimensions of the egg halves implying that the patterning process shows almost perfect scaling. Furthermore, the predicted orientation of the embryos with ventral sides pointing to the dorsal egg pole (after axis inversion through anatrepsis, [Panfilio, 2008]) corresponds to the most frequently observed experimental outcome (Sander, 1971). Thus, our model represents a minimal BMP/Sog (Chordin) system that exhibits self-organized DV patterning and explains a striking result from classical insect embryology. The only requirement for the NF-κB/Dorsal gradient is that it extends into the dorsal half of the embryo. The expression of cact suggests that this condition is fulfilled in Oncopeltus. Unfortunately, the mechanical properties of Oncopeltus eggs prevents egg fragmentation to directly investigate the potential for twinning.

Discussion

This paper describes three key properties of DV patterning in Oncopeltus. (1) BMP signaling represses the transcription of its extracellular inhibitor sog, a feature so far not observed in other insects, but characteristic for spiders and vertebrates. (2) BMP signaling patterns the entire DV axis by acting repressively on ventral cell fates. This is similar to other bilaterian animals but within insects has so far only been seen in the hymenopteran Nasonia, a representative of the most basally branching holometabolous insect order. (3) Toll is neither a long-range morphogen, as in Drosophila and Tribolium, nor a local inducer of particular cell fates (mesoderm and mesectoderm), as in Nasonia. In Oncopeltus, Toll apparently only acts via its control of BMP signaling. In the following, we discuss these three points and their implications for the evolution of DV patterning in insects.

BMP represses sog in Oncopeltus

In Drosophila and Tribolium, the expression of sog is dependent on Toll signaling (van der Zee et al., 2006; Liberman and Stathopoulos, 2009; Nunes da Fonseca et al., 2010). sog can be neither activated in absence of Toll (Stathopoulos and Levine, 2004) nor can it be repressed by ectopic BMP signaling (Jazwinska et al., 1999). However, a binding site for transcription factors acting downstream of BMP signaling (Schnurri-Mad-Medea sites) has recently been identified within the proximal enhancer of Drosophila sog (Ozdemir et al., 2014). Its functional significance is not known, but it might represent an evolutionary relict of the regulatory logic we have observed in Oncopeltus in which inhibitory BMP signaling is essential for defining the sog expression domain. A negative feedback of BMP on sog/chordin expression is familiar from many animal phyla. It has even been found in sea anemones, predating the emergence of the bilaterian body plan (Saina et al., 2009; Genikhovich et al., 2015). For both hemichordates and basal chordates, evidence was provided that BMP suppresses chordin, directly or indirectly (Lowe et al., 2006; Yu et al., 2007). This applies also to spiders, which however have evolved a special strategy of DV axis formation that is radically different from most other animal phyla. In spiders the migration of the BMP expressing cumulus cells towards a symmetric ring of chordin expression breaks DV symmetry (Akiyama-Oda and Oda, 2006). Thus, spiders polarize the DV axis not by localizing inhibitor expression, but rather by localizing BMP.

Among the well-studied DV patterning systems, Oncopeltus can be best compared to vertebrates. In the zebrafish and the frog the negative regulation of chordin by BMP signaling is an important feature to explain normal patterning and axis duplication (twinning) after transplantations (Oelgeschläger et al., 2003; De Robertis, 2009; Langdon and Mullins, 2011; Xue et al., 2014). However, the networks involved in size regulation of the embryonic axis are more complex and require many additional components such as ADMP (antidorsalizing morphogenetic protein), a BMP-type ligand co-expressed with Chordin, and Sizzled, an antagonist of Tld that is co-expressed with BMP. ADMP and Sizzled have been implicated in scaling both experimentally and by modeling approaches (Reversade and De Robertis, 2005; Ben-Zvi et al., 2008; Inomata et al., 2013). No homologs of these genes were found in the Oncopeltus genome and transcriptomes (Ewen-Campen et al., 2011) (Vargas Jentzsch et al., 2015), and appropriate scaling occurred in our theoretical simulations of twinning, without the need to invoke such additional modulators.

Thus, the Oncopeltus system is surprisingly simple and may represent a minimal network able to support self-organized patterning. Our theoretical model emerged from modifications of equations that have been used to describe the formation of peak levels of BMP signaling along the dorsal midline in Drosophila (Eldar et al., 2002). The BMP signaling peak in Drosophila forms within a domain of uniform dpp and tld expression and depends on both the diffusion of Sog-BMP complexes towards the dorsal side (from the ventral source region of sog) and on the degradation of Sog by Tld to release active BMP ligands dorsally. The Drosophila system is static, that is, the regions of ventral sog expression and the abutting regions of dpp and tld are fixed by the NF-κB/Dorsal gradient. The early dynamics of the system are restricted to reaction diffusion processes. In Oncopeltus, on the other hand, the transcriptional feedback of BMP signaling on sog expression creates a situation in which the size of the sog expression domain itself is an outcome of the system dynamics and becomes largely independent from NF-κB/Dorsal.

In Drosophila and Tribolium the transport of BMP by Sog leads to dorsal BMP signaling levels that are higher than the signaling levels in the absence of Sog (Dorfman and Shilo, 2001; van der Zee et al., 2006). This seems not to be the case in Oncopeltus, as the uniformly high BMP levels seen in sog or tsg KD embryos match the levels found on the dorsal side of control embryos (Figure 3). Furthermore, the BMP profile during normal development is flat, with a narrow and steep transition between uniform BMP signaling dorsally and the absence of BMP signaling ventrally. In our simulations the sog and BMP profiles are also flat, indicating that the negative feedback of BMP signaling on sog expression might prohibit the formation of sharp peak levels of BMP signaling (Box 1, Figures 8, 9). Similarly, in vertebrates Chordin-mediated BMP transport does not markedly enhance BMP signaling levels, as chordin KD does not lead to lateralization, but rather to ventralization of the embryo (Schulte-Merker et al., 1997; Oelgeschläger et al., 2003).

An unusual feature of the Oncopeltus system is the strong anti-BMP function of Tsg. In Drosophila Tsg has a mild pro-BMP function that is independent of Sog (Wang and Ferguson, 2005). In Tribolium, Tsg is essential for all BMP activity in a Sog-independent manner (Nunes da Fonseca et al., 2010). The same holds true for Nasonia, which lacks Sog (Özüak et al., 2014b), suggesting that a Sog-independent pro-BMP function of Tsg might be ancestral for insects. To our surprise we observed the opposite in Oncopeltus, where the strong anti-BMP function of tsg is responsible for the similarity of the sog and tsg KD phenotypes (Figures 2, 3). Thus, Sog can exert its inhibitory effect on BMP only in the presence of Tsg. It will be interesting to find out whether this strong anti-BMP function of Tsg has a particular significance in a system where sog is repressed by BMP signaling.

We assume that patterning in Oncopeltus is initiated when NF-κB/Dorsal-dependent enhancement of sog expression at the ventral side exceeds a certain threshold. This conclusion is based on the analysis of embryos with incomplete KD of sog (Figures 2K, 5J). Such embryos frequently show an asymmetric pMAD distribution although they lack ventral gene (twi, sim) expression (Figure 2—figure supplement 2). Thus, ventral BMP signaling has to decrease below a certain threshold to enable normal DV pattern formation. This may provide the system with robustness against fluctuating BMP signaling levels. In our theoretical analysis, the homogeneous steady state of Sog and BMP undergoes a Turing instability when NF-κB/Dorsal-dependent activation of sog reaches a threshold (Figure 9). Then, rapid diffusion of BMP-Sog complexes and derepression of sog upon removal of BMP from the ventral side lead to the formation of a stripe with high expression of sog. The position of the stripe is determined by the initial NF-κB/Dorsal polarity cue.

BMP patterns the entire DV axis in Oncopeltus

In all insects studied so far the specification of mesodermal and mesectodermal cell fates requires Toll signaling. In Drosophila and Tribolium, the shape of the NF-κB/Dorsal gradient directly or indirectly determines the width of the mesodermal domain (Chen et al., 2000; Hong et al., 2008; Nunes da Fonseca et al., 2008). In Nasonia all ventrally expressed genes (e.g., twi) are first turned on in a narrow stripe straddling the ventral midline (Özüak et al., 2014b). This region also shows high levels of cact expression indicating high activity of Toll signaling. Subsequently, cact expression disappears, however, the expression of ventral genes expands. The size of their final domains is determined by repressive BMP signaling from the dorsal side, since KD of BMP leads to progressive expansion of ventral gene expression resulting in a massive, albeit nonuniform expansion of the mesoderm. Thus, in Nasonia BMP effects all subdivisions of the DV axis (Özüak et al., 2014b). However, the expansion of ventral genes remains dependent on their prior activation by Toll, as Toll bmp double KD embryos lack the expression of ventral genes like twi.

In Oncopeltus dpp KD embryos, twi is completely derepressed, that is, its expression is uniform around the embryonic circumference and the developing embryos are fully mesodermalized (Figures 2E, 4F). This phenotype does not result from a progressive expansion of a narrow domain as in Nasonia. Most importantly, the same phenotype is observed in Toll dpp double KD embryos, with the exception that twi expression in addition expands anteriorly due to an AP function of Toll signaling (Figure 5L). These data suggest that Toll signaling in Oncopeltus is no longer strictly required to activate ventral genes. As a consequence, all cell fate decisions along the DV axis of Oncopeltus ultimately depend on different levels of BMP signaling.

As pointed out previously, the early pattern of BMP signaling in Oncopeltus seems to be very simple with a plateau of high signaling at the dorsal side and a broad domain lacking BMP signaling ventrally (Figure 3—figure supplement 1). Accordingly, the early DV fate map of Oncopeltus has apparently only few subdivisions. Although we have thus far not identified genes expressed specifically on the dorsal side, we expect such genes to have broad expression domains encompassing 30–50% of the embryonic circumference. Likewise, the ventral twi and early sim domains are broad (data not shown). sim refines to lateral stripes bordering twi during later blastoderm stages. None of the columnar genes (vnd, ind, msh) show stripe-like expression in lateral regions of the blastoderm as in holometabolous insects (von Ohlen and Doe, 2000; Wheeler et al., 2005; Buchta et al., 2013). We therefore expect that the early BMP gradient provides little patterning information on either the dorsal or ventral side, and that further refinement occurs progressively during and after gastrulation. This refinement also includes large-scale morphogenetic movements. For example, the narrow twi domain of germ band embryos (Figure 4C) results from massive convergent extension during anatrepsis (posterior invagination of the embryo and the amnion into the yolk [Panfilio, 2008]).

In Oncopeltus Toll function is restricted to polarizing BMP signaling

Several lines of evidence suggest that the Toll gradient acts differently in Oncopeltus compared to the known holometabolous insects: (i) BMP is epistatic to Toll, (ii) ventrally expressed genes can be readily suppressed by increased BMP signaling, (iii) the repression of sog by BMP makes the distribution of BMP signaling largely independent from that of Toll signaling. Although we have not demonstrated the latter point experimentally, modeling shows that adding the repression of sog by BMP to the well known reaction diffusion system (Eldar et al., 2002) leads to a decoupling of input (Toll signaling) and output (BMP signaling) patterns (Figures 9, 11). Toll remains essential at the ventral side to initiate patterning, and therefore, it would be highly interesting to monitor Toll activity by looking at the NF-κB/Dorsal distribution.

In absence of functional antibodies we used the expression of the early Toll target gene cact as a proxy for Toll signaling. In all known holometabolous insects cact is activated by the NF-κB/Dorsal gradient. This applies even to Drosophila as demonstrated with the help of an enhancer reporter construct which shows twist-like expression (Sandmann et al., 2007). However, due to maternal loading of cact, its zygotic expression apparently has little functional relevance in Drosophila (Roth et al., 1991). In Tribolium, cact is only zygotically expressed and tightly follows the shifting gradient of NF-κB/Dorsal (Nunes da Fonseca et al., 2008). Finally, in Nasonia, cact expression is restricted to a narrow stripe straddling the ventral midline where the expression of all other Toll signaling-dependent ventral genes is initiated (Özüak et al., 2014b). Although the NF-κB/Dorsal distribution is not known from Nasonia, a cluster of NF-κB/Dorsal binding sites in the vicinity of the cact transcript suggests a direct regulatory input by Toll signaling. By analogy we assume that the broad, weakly graded expression of cact in Oncopeltus reflects a flat Toll signaling gradient which extends from the ventral to the dorsal half of the embryo (Figure 7).

The upstream cascade, which leads to Toll activation in Drosophila (Stein and Stevens, 2014) appears to be largely conserved in Oncopeltus (data not shown). Preliminary data suggest that the asymmetry of Toll signaling originates from asymmetric eggshell cues that are established during oogenesis. By activating Toll signaling in a broad gradient, these eggshell cues would provide global polarity to the embryo, which is essential for establishing bilateral symmetry. Such a strong geometric influence does not exclude, but rather enables, certain forms of self-organized patterning. Classical insect embryology had described many instances of partial or complete twinning after experimental interference with patterning along the DV axis of the egg (Sander, 1976). These experiments were not restricted to hemimetabolous insects, but included examples from beetles as well as butterflies.

The most famous set of experiments was conducted by Sander with Euscelis, a leaf hopper which (like Oncopeltus) belongs to the Hemiptera (Sander, 1971). Sander produced not only left and right, but also dorsal and ventral egg fragments and was able to recover apparently complete germ rudiments from all fragments. These findings could not previously be explained on the basis of the fairly deterministic mechanism of DV axis formation known from Drosophila. The mechanism we have discovered in Oncopeltus can, in principle, account for this type of axis duplication (Box 1). As long as Toll activity is globally provided so that sog can also be activated in the dorsal half of the egg, a new round of patterning can be initiated dorsally. A prerequisite for pattern re-initiation is a diffusion barrier, which prevents the transport of (inhibitory) BMP molecules from the ventral to the dorsal side. The guillotine-like mechanism with which Sander separated the egg fragments provided such a barrier.

In summary, the data presented here not only provide a potential explanation for experiments from classical insect embryology, they also suggest a scenario of how the elaborate morphogen function of Toll signaling found in Drosophila could have originated and evolved (Figure 1). Ancestrally, Toll signaling might have only provided a polarizing function for a self-organizing BMP system responsible for patterning the entire DV axis. Within certain lineages (e.g., flies, beetles and wasps) Toll signaling became more important in directly specifying cell fates along the axis, gradually replacing ancestral BMP functions.

Our data might also help to explain the transition from the ancestral immune function of Toll found in most metazoan lineages (Gilmore and Wolenski, 2012) to its unique role in DV patterning restricted to insects. Recent findings show that insect eggs are immune competent (Jacobs and van der Zee, 2013; Jacobs et al., 2014). We suggest that this also applied to ancestral insects and that furnishing their eggs with a Toll-mediated pathogen defense system was crucial for early insects to adopt a terrestrial life style. The activation of Toll signaling by eggshell cues might have been fairly uniform throughout the embryo. Subsequently, only a mild polarization of Toll signaling together with weak transcriptional inputs on sog were sufficient to initiate the co-option of Toll signaling for DV patterning.

Materials and methods

Gene annotation and analysis

Putative O. fasciatus homologs of Toll and BMP signaling components were found by a local blast against a maternal and embryonic transcriptome (Ewen-Campen et al., 2011) using the NCBI blast+ toolkit and BioEdit software, or by degenerate PCR followed by RACE PCR using the SMARTER RACE kit (Clontech, France) to extend the sequence information. Specific primers of all candidates were designed for sequencing, cloning and to confirm the homology with Drosophila and Tribolium (Supplementary file 1). Phylogenetic and molecular evolutionary analyses were then conducted using MEGA version 5 (Tamura et al., 2011) or phylogeny.fr (Dereeper et al., 2008). All Oncopeltus gene sequences have been submitted to GenBank.

RNA interference and KD efficiency validation

To knock down gene function, gene-specific double-stranded RNA (dsRNA) (0.1–8 µg/µl) for parental RNAi was prepared as previously described and injected into virgin females (Nunes da Fonseca et al., 2008). After injection, embryos were collected, fixed and stored in methanol at −20°C as previously described (Liu and Kaufman, 2004) for further phenotype analysis. Total RNA from a single cohort of staged embryos was homogenized and extracted by TRIzol reagent (Life Technologies, Germany) with DNase treatment, and cDNA was synthesized with the VILO Kit (Invitrogen, Germany), following manufacturers' protocols. Gene expression analysis using semi-quantitative RT-PCR was performed using gene-specific primers, with an annealing temperature of 60°C, and 30 thermocycles.

In situ hybridization and immunohistochemistry

Detection of gene expression was performed by in situ hybridization (ISH) with digoxigenin-labeled probes as previously described (Liu and Kaufman, 2004). The double ISH was performed with digoxigenin (DIG) and biotin labeled probes hybridized simultaneously followed by incubation with anti-Biotin-AP (1:5000, Roche, Germany). After the first round of staining the anti-Biotin-AP antibody was inactivated by treating the embryos with 0.1 M Glycine-HCl, pH = 2.2, 0.1% Tween20 for 10 min, followed by washing, blocking and incubation with the second AP antibody (anti-DIG-AP, 1:5000, Roche, Germany). For color reactions we used the HNPP Fluorescent Detection Set (Roche, Germany) and NBT/BCIP. Immunostaining was performed using anti-Phospho-Smad1/5 (41D10) rabbit antibodies (Cell Signaling, Germany) with 1:30 dilution. We introduced the TSA plus DNP system (Perkin Elmer, Waltham, MA) to amplify the signal before DAB detection (or DAB with nickel ammonium sulfate).

Reaction-diffusion model of the BMP/Sog system

Qualitative description of the model

We build a reaction-diffusion model of the BMP/Sog system in Oncopeltus based on a minimal number of components and their interactions. At the core are the following processes:

  • Expression of BMP and of sog. The expression of sog is repressed by BMP and (indirectly) enhanced by NF-κB/Dorsal, whereas BMP is constitutively expressed.

  • Binding of Sog protein to BMP protein to form a Sog-BMP complex, and the dissociation of the Sog-BMP complex.

  • Diffusion of BMP, Sog, and the Sog-BMP complex. Crucially, the diffusion constant of the Sog-BMP complex is higher than that of either BMP or Sog.

  • The presence of an initial distribution of NF-κB/Dorsal, leading to a locally enhanced expression of sog. This initial distribution acts as a polarity cue.

  • Degradation of BMP, Sog, and NF-κB/Dorsal. Degradation of NF-κB/Dorsal makes this polarity cue to disappear with time.

Before formulating and analyzing this model we discuss its dynamics qualitatively. Consider a small ‘seed’ of elevated Sog concentration in a specific location (for instance as the result of the polarity cue provided by NF-κB/Dorsal). The Sog molecules bind BMP and the complexes diffuse away quickly, leading to a depletion of BMP. Since BMP represses Sog, this leads to a local increase in Sog production, causing the small ‘seed’ to grow. The steady-state consists of areas where BMP has been depleted (and where levels of Sog are high), bordering areas with high levels of BMP (and low levels of Sog). In the former, sog is not repressed due to the absence of BMP, and BMP is absent due to complex formation with Sog and diffusive transport. In the latter, high levels of BMP repress sog expression. The resulting non-equilibrium steady state will be examined in detail elsewhere.

Comparison with other models

We consider only one BMP ligand and neglect the fact that BMPs are secreted as homodimers or heterodimers (Shimmi et al., 2005), although we have experimental evidence for a second BMP ligand in Oncopeltus (Figure 2—figure supplement 1). This is in agreement with other recent theoretical models for BMP gradient formation (Mizutani et al., 2005; Shimmi et al., 2005; Ben-Zvi et al., 2008; Umulis et al., 2010; Peluso et al., 2011; Inomata et al., 2013) and reflects the notion that additional ligands might contribute to increased robustness (Shimmi et al., 2005), but have no essential impact on the mechanisms of pattern formation. The binding of the BMPs to their receptors is not part of our model although we are aware of receptor-mediated degradation affecting the mean free path of the ligand (Mizutani et al., 2005). The model also neglects the binding of Tsg to Sog-BMP complexes and does not explicitly mention Tolloid (Tld), the enzyme that cleaves Sog. This can be justified by the fact that in blastoderm embryos tsg transcripts are not detectable (by ISH) suggesting very weak uniform expression and that tld is evenly expressed around the embryonic circumference (Figure 2—figure supplement 1). Similar assumptions have been made in a recent model for BMP signaling in Xenopus (Inomata et al., 2013).

Our minimal model has similarity to one originally suggested by Eldar et al. (2002) (Meinhardt and Roth, 2002) with the crucial difference that sog expression itself is controlled by BMP signaling. The NF-κB/Dorsal gradient in our model plays a similar role as the source density in the Gierer-Meinhardt model, which was used to explain regulative behavior in hydra (Gierer and Meinhardt, 1972). In fact the mechanism of pattern formation bears some similarity with the local activation-lateral inhibition mechanism proposed by Gierer and Meinhardt (1972): BMP inhibits Sog production through transcriptional repression. However, this is the sole regulatory interaction in our model. Local self-activation arises from the fast transport of BMP within Sog-BMP complexes, which moves the repressor for sog from regions of high sog expression (increasing sog expression in those regions) to regions of low sog expression (decreasing sog expression there).

Reaction-diffusion model

To describe the repression of sog by BMP we use a Michaelis–Menten model; the rate of sog expression is proportional to 1/(1 + b/b0) where b is the concentration of BMP and b0 is the concentration of BMP reducing the expression of sog by a factor of two. The constant of proportionality depends on the NF-κB/Dorsal concentration d, which enhances sog expression. In the absence of BMP, the sog expression rate (η0 + η1 d/d0 )/(1 + d/d0) extrapolates between η0 at d = 0 and η1 > η0 at high levels of d. d0 denotes the concentration where the intermediate transcription rate (η0 + η1)/2 is reached. Combining the repression of sog by BMP with its enhancement by NF-κB/Dorsal we obtain the transcription rate of sog as a function of the concentrations of BMP and NF-κB/Dorsal as,

(1) ηs(b,d)=η0+η1d/d0(1+b/b0)(1+d/d0).

This model of expression regulation can also be derived from a thermodynamic model of two transcription factors (a repressor and an activator) independently binding to a regulatory region.

We model the geometry of the embryo as a cylinder with circumference lx. When taking all concentrations to be constant along the axis of the cylinder, one obtains an effectively one-dimensional model. This assumption will be examined below, where the dynamics on the surface of the cylinder are considered. In the one-dimensional case, the concentrations s of Sog, b of BMP, c of the Sog-BMP complex, and d of the transcription factor NF-κB/Dorsal depend on time and on the variable x[0,lx] running along the circumference of the cylinder, with x = 0 denoting the ventral side and x = lx/2 the dorsal side.

We now formulate a reaction-diffusion model for the concentrations s(x,t) of Sog, b(x,t) of BMP, c(x,t) of the Sog-BMP complex, and d(x,t) of the transcription factor NF-κB/Dorsal. Under the processes described above, these concentrations evolve as,

ts=Ds2s+ηs(b,d)k+sb+kcαss,
(2) tb=Db2b+ηbk+sb+kc+αscαbb,
tc=Dc2c+k+sbkcαsc,
td=αdd.

In one dimension 2=2/x2, D with appropriate subscript denotes the diffusion constants, analogously η the rates of gene expression, α the degradation rates, and k+ and k the binding and unbinding rates of Sog and BMP. Table 1 gives the parameters used here. We neglect degradation of BMP in the complex, although our results do not depend on this. It turns out that many of these parameters can be changed over at least one order of magnitude without affecting pattern formation (Table 2).

Table 2

Range of model parameter values where a single stripe is formed

https://doi.org/10.7554/eLife.05502.022
ηs¯6 × 10−4–1.4 × 10−3
b00.1–0.5
ηb8 × 10−6–10−4
αs1.6 × 10−3–1.2 × 10−2
αb0–10−4
K+0.05–200
k0–0.5
Ds0–10−9
Db0–10−11
Dc7 × 10−10–10−6
  1. Each parameter is varied keeping the other parameters fixed at the values specified in Table 1. One exception is the parameters η0andη1, which affect pattern formation jointly through the parameter ηs¯(d)η0+η1d/d01+d/d0 which is set to 1.2 × 10−3 (except in the first line, where this parameter itself is varied).

Writing the sog expression rate as ηs(b,d)ηs¯(d)/(1+b/b0) with ηs¯(d)η0+η1d/d01+d/d0, we see that the NF-κB/Dorsal concentration d controls the difference in sog expression between high and low levels of BMP. We will show below that pattern formation crucially depends on (i) a sufficiently high diffusion rate of the Sog-BMP complex and (ii) repression of sog expression by BMP. The homogeneous state (uniform concentrations of BMP, Sog, and the Sog-BMP complex) can be stable at low levels of NF-κB/Dorsal, but becomes unstable (via the mechanism above) once a certain critical NF-κB/Dorsal level is reached. Once a stripe has formed, however, it can persist even in the absence of NF-κB/Dorsal (Figure 8).

We now explore the dynamics of pattern formation in this model starting from different concentrations of the transcription factor NF-κB/Dorsal (shown in gray), resulting in steady-state concentrations of Sog and BMP shown blue and red, respectively. Starting from small levels of NF-κB/Dorsal, a steady state with uniformly low level of Sog arises (Figure 9, left). A threshold amount of NF-κB/Dorsal is required initially to form a stripe of high Sog concentration (Figure 9, center). As a result, small fluctuations in the NF-κB/Dorsal concentration thus do not lead to the formation of a stripe. The size of this stripe does not change if the initial amount of NF-κB/Dorsal is increased (Figure 9, right). This NF-κB/Dorsal-induced instability of the homogeneous state is also behind the twinning phenomenon (Box 1): if the level of NF-κB/Dorsal exceeds the critical threshold everywhere in the system, a stripe of Sog centered on the maximum of NF-κB/Dorsal forms. Elsewhere, sog is repressed by BMP and transported away from the high-Sog stripe via the Sog-BMP complex. If the system is divided into two separate halves, this transport is interrupted, but the NF-κB/Dorsal level is still above the critical threshold everywhere. Now there are two maxima of NF-κB/Dorsal (one in each of the two halves), and a stripe of Sog forms at each of them.

Stability analysis

We perform a linear stability analysis to determine when a spatially homogeneous steady-state solution is instable against small sinusoidal spatial oscillations. For now, we consider a spatially uniform NF-κB/Dorsal concentration d as a parameter that can be tuned to take on different values. Then the reaction-diffusion Equations (2) become,

ts=Ds2s+fs(s(x,t),b(x,t),c(x,t)),
(3) tb=Db2b+fb(s(x,t),b(x,t),c(x,t)),
tc=Dc2c+fc(s(x,t),b(x,t),c(x,t)),

with the shorthands,

fs(s,b,c)=ηs¯(d)/(1+b/b0)k+sb+kcαss,
(4) fb(s,b,c)=ηbk+sb+kc+αscαbb,
fc(s,b,c)=k+sbkcαsc.

We now consider a spatially homogeneous fixed point of Equation (3) defined by s(x,t)=s¯,b(x,t)=b¯,c(x,t)=c¯ with 0=fs(s¯,b¯,c¯)=fb(s¯,b¯,c¯)=fc(s¯,b¯,c¯). In the vicinity of such a fixed point the reaction-diffusion dynamics can be written as,

(5) t(s(x,t)b(x,t)c(x,t))=D2x2(s(x,t)b(x,t)c(x,t))+A(s(x,t)s¯b(x,t)b¯c(x,t)c¯),

where A is a matrix of partial derivatives evaluated at the fixed point,

(6) A=\left(fss|0fsb|0fsc|0fbs|0fbb|0fbc|0fcs|0fcb|0fcc|0\right)

and D is the diagonal matrix,

(7) D=(DsDsDc).

The standard ansatz to check stability of the fixed point against small spatial oscillations proceeds by adding a sinusoidal term to the fixed point (Turing, 1952).

(8) (s(x,t)b(x,t)c(x,t))=(s¯b¯c¯)+ewt+ikx(δsδbδc).

Inserting this ansatz into Equation (5) gives the eigenvalue equation,

(9) w(δsδbδc)=(ADk2)(δsδbδc).

The fixed point is stable against small spatial sinusoidal perturbations in one spatial dimension if and only if for all values of the wave vector k compatible with the cylindrical geometry all eigenvalues w of the matrix ADk2 have a negative real part. Figure 12 shows the largest eigenvalue of ADk2 for the wavenumber k = 2π/lx, that is, the smallest non-zero wavenumber compatible with the circular geometry, showing how the homogeneous steady state becomes unstable for sufficiently large values of Dc and d.

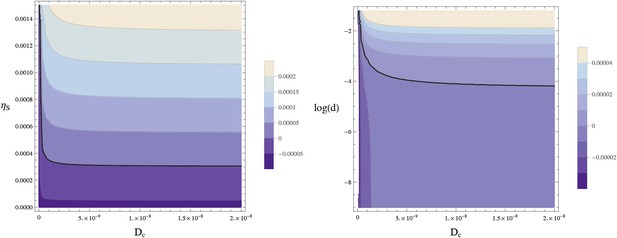

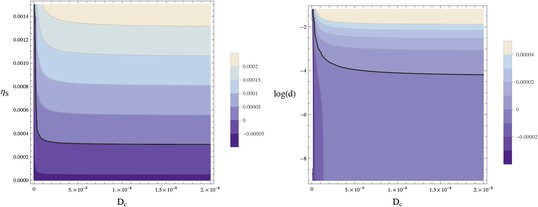

Stability of the homogeneous fixed point.

This contour plot shows the largest eigenvalue w of ADk2 for k = 2π/lx. The thick line separates the parameters leading to a stable homogeneous fixed point (w < 0) from an instable homogeneous fixed point (w > 0). (left) w is plotted as a function of the diffusion constant of the Sog-BMP complex and the rate of sog expression at zero BMP, ηs¯. (right) The same data are plotted against log(d) using ηs¯(d)η0+η1d/d01+d/d0. The homogeneous fixed point becomes unstable for sufficiently large values of the diffusion constant of the complex Dc and the concentration of NF-κB/Dorsal d. The remaining parameters are as given in Table 1.

https://doi.org/10.7554/eLife.05502.023

Dynamics in two dimensions

We now explore the dynamics of the model constructed above on a two-dimensional cylinder. The surface of the cylinder is described by a variable y[0,ly=0.002] running along its axis, and x[0,lx] running along the circumference. The equations of motion follow from Equation (2) with 2=2/x2+2/y2 and open boundary conditions at the two ends of the cylinder. We use the same parameters as in the one-dimensional case (Table 1). Starting from an initial distribution of NF-κB/Dorsal along the ventral side of the cylinder, a stripe of Sog forms along the cylinder (Figure 10). All concentrations turn out to be independent of y. We find this also holds in the steady state if the initial distribution of NF-κB/Dorsal varies in the y-direction. This becomes more apparent in Figure 11, where the initial distribution of NF-κB/Dorsal from Figure 10 is shown in a contour plot, alongside the steady-state concentration of Sog. Thus, our model produces stripes of constant width (sog expression), which are centered on the ventral midline defined by NF-κB/Dorsal. This is a remarkable feature as it had been difficult to produce striped patterns centered on the midline with local activation-lateral inhibition or substrate depletion mechanisms (Meinhardt, 2004).

References

  1. 1
  2. 2
    sog and dpp exert opposing maternal functions to modify toll signaling and pattern the dorsoventral axis of the Drosophila embryo
    1. H Araujo
    2. E Bier
    (2000)
    Development 127:3631–3644.
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
    The maternal NF-kappaB/dorsal gradient of Tribolium castaneum: dynamics of early dorsoventral patterning in a short-germ beetle
    1. G Chen
    2. K Handel
    3. S Roth
    (2000)
    Development 127:5145–5156.
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
    Biphasic activation of the BMP pathway patterns the Drosophila embryonic dorsal region
    1. R Dorfman
    2. BZ Shilo
    (2001)
    Development 128:965–972.
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
    Axis patterning by BMPs: Cnidarian network reveals evolutionary constraints
    1. G Genikhovich
    2. P Fried
    3. MM Prünster
    4. JB Schinko
    5. AF Gilles
    6. D Fredman
    7. K Meier
    8. D Iber
    9. U Technau
    (2015)
    Cell Reports, 10.1016/j.celrep.2015.02.035.
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
    The role of brinker in mediating the graded response to Dpp in early Drosophila embryos
    1. A Jazwinska
    2. C Rushlow
    3. S Roth
    (1999)
    Development 126:3323–3334.
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
    Dorsoventral polarity of the Nasonia embryo primarily relies on a BMP gradient formed without input from Toll
    1. O Özüak
    2. T Buchta
    3. S Roth
    4. JA Lynch
    (2014b)
    Current Biology 24:2393–2398.
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
    cactus, a maternal gene required for proper formation of the dorsoventral morphogen gradient in Drosophila embryos
    1. S Roth
    2. Y Hiromi
    3. D Godt
    4. C Nüsslein-Volhard
    (1991)
    Development 112:371–388.
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
    Sequence of the twist gene and nuclear localization of its protein in endomesodermal cells of early Drosophila embryos
    1. B Thisse
    2. C Stoetzel
    3. C Gorostiza-Thisse
    4. F Perrin-Schmitt
    (1988)
    The EMBO Journal 7:2175–2183.
  62. 62
  63. 63
    The chemical basis of morphogenesis
    1. AM Turing
    (1952)
    Philosophical Transactions of the Royal Society B: Biological Sciences 237:37–72.
    https://doi.org/10.1098/rstb.1952.0012
  64. 64
  65. 65
  66. 66
    Oncopeltus fasciatus official gene set v1.1
    1. IM Vargas Jentzsch
    2. DST Hughes
    3. MFT Poelchau
    4. The O. fasciatus curation community
    5. S Richards
    6. KA Panfilio
    (2015)
    Oncopeltus fasciatus official gene set v1.1, http://dx.doi.org/10.15482/USDA.ADC/1173142.
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71

Decision letter

  1. Naama Barkai
    Reviewing Editor; Weizmann Institute of Science, Israel

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “Toll's patterning role emerged as a polarity cue for self-regulatory BMP signaling” for consideration at eLife. Your article has been favorably evaluated by Diethard Tautz (Senior editor), a Reviewing editor, and three reviewers.

Sachs et al., study DV patterning in the milkweed bug Oncopeltus fasciatus. They use RNAi methods and mathematical modeling to study interactions between the Toll and BMP signaling pathways. From their RNAi data, the authors conclude that (1) BMP signaling is active throughout the DV axis and must be repressed ventrally through expression of sog to allow ventral patterning; and (2) Toll is not required to support any cell types but is required for symmetry breaking.

All reviewers agreed that this is an interesting study addressing an important question in developmental biology, namely how do DV patterning mechanisms in different animals relate and what was the ancestral system like. The authors make a convincing argument for looking at the milkweed bug.

However, it was also agreed by all that more information is needed, especially in view of the recent CB paper from the PI lab on Nasonia, which already makes the point regarding the decreasing role of the Toll pathway. Several additional data are therefore essential:

1) More information on the expression patterns of the different players in the BMP pathway is essential: Where is dpp expressed? It is implied that dpp is no longer under Toll-dependent regulation in the milkweed bug (e.g. Figure 1 diagram), however no in situ data is included. The authors also suggest that multiple BMP ligands may be supporting activation of this signaling pathway. Their expression should be shown and discussed. Could they be repressed by Dorsal?

2) What is the expression pattern of Tolloid? Similar arguments to point 1.

3) The ability to trace the expression of the Zen homologue as an indicator of maximal BMP signaling in different backgrounds could be very informative.

4) More information on the pattern of the Toll gradient shape would be important.

5) Additional support for the Toll1-dpp-RNAi results should be provided. (one may worry that the Toll1 RNAi support weak activation that becomes apparent in the absence of BMP signaling; What does Toll1-dl1-dpp RNAi look like? How about Toll1-tld RNAi?).

In addition, it would be interesting to directly define the shape of the Dorsal gradient (e.g. by indirect immunofluorescence if antibodies are available or could be produced in a reasonable length of time) as this shape is an important output of the modeling. In Box 1, the first diagram suggests that the height and width of the Dorsal gradient increases in time. What is the evidence to support this in the milkweed bug? In Box 1, the second diagram shows that in the middle of the “twinned” embryo, a peak of BMP signaling abuts a domain of high sog expression. How is this possible?

The authors should also discuss how sog can be expressed in a small ventral domain in dl1-RNAi mutants. There must be some “polarity cue” and yet development does not proceed normally. So the levels of Dorsal are important to some degree? Previous studies in Drosophila have provided evidence that genes expressed in lateral regions (e.g. brinker) are ubiquitously expressed in dl dpp double mutants. Is sog expressed ubiquitously within dl dpp double Drosophila mutants?

Reviewer 2:

In the manuscript by Sachs et al., the authors present an analysis of DV patterning in the milkweed bug Oncopeltus fasciatus. They use RNAi methods and mathematical modeling to study interactions between the Toll and BMP signaling pathways. From their RNAi data, the authors conclude that (1) BMP signaling is active throughout the DV axis and must be repressed ventrally through expression of sog to allow ventral patterning; and (2) Toll is not required to support any cell types but is required for symmetry breaking. This is an interesting study addressing an important question in developmental biology, namely how do DV patterning mechanisms in different animals relate and what was the ancestral system like. The authors make a convincing argument for looking at the milkweed bug.

The data are suggestive of the hypothesis, that Toll signaling is symmetry breaking, but do not demonstrate it. Alternately, rather, the data show that BMP signaling acts broadly and then is refined.

Furthermore, the addition of some data and controls is necessary. Methods available in this new model system are limited, understandably. Perhaps this is why the mathematical modeling was included, because it was accessible; and yet I found the addition of modeling to explain “twinning” more confusing than helpful. In any case, the individual and joint contributions of dorsal genes, BMP ligand expression and roles, and the possibility of off-target effects for RNAi constructs should (and can) be addressed.

In summary, this is a very interesting study and the results are significant. However, either additional experimental evidence must be included or the title should be revised. If the study is revised to refocus on the broad role of BMP signaling, then the novelty of the study is perhaps compromised by the authors' recent study in Nasonia (Ozuak et al., 2014).

Specific comments:

1) Where is dpp expressed? It is implied that dpp is no longer under Toll-dependent regulation in the milkweed bug (e.g. Figure 1 diagram), however no in situ data is included. The authors also suggest that multiple BMP ligands may be supporting activation of this signaling pathway. Their expression should be shown and discussed. Could they be repressed by Dorsal?

2) Previous studies in Drosophila have provided evidence that genes expressed in lateral regions (e.g. brinker) are ubiquitously expressed in dl dpp double mutants. Is sog expressed ubiquitously within dl dpp double Drosophila mutants?

3) In Box 1, the first diagram suggests that the height and width of the Dorsal gradient increases in time. What is the evidence to support this in the milkweed bug?

4) In Box 1, the second diagram shows that in the middle of the “twinned” embryo, a peak of BMP signaling abuts a domain of high sog expression. How is this possible?

Reviewer 3:

The paper by Sachs et al. examines the roles of the Toll and BMP pathways in DV patterning of the Hemimetabolous insect Oncopelus. With the universal role of BMP DV patterning in multicellular organisms, and the restricted role of the Toll pathway in DV patterning of Holometabolous insects like Drosophila, the question was what is the relation of the Toll and BMP pathways in DV patterning of Oncopelus. They show that BMP signaling is required to repress expression of early ventral and lateral genes (twi and sog) in the dorsal region. At early embryogenesis Sog displays a low and uniform expression. The role of Toll signaling is only to break this symmetry and lead to an increase (even a moderate one) in Sog levels at the ventral side. In a double RNAi mutant for Toll and dpp, ventral fates take over the entire embryo, indicating that in this species this is the default, and the role of Toll is only to repress BMP signaling in the ventral region by elevating the level of Sog. Because of the cross regulatory interactions between dpp and Sog, this leads to a stable BMP activation pattern and expression of the cardinal genes in restricted domains. Computational analysis indicates that this regulatory circuitry is robust to fluctuations, and requires only a minimal bias by the Toll pathway.

In general, the detailed dissection of developmental pathways in organisms that are removed from Drosophila, which is successfully used by the Roth lab, and especially the deviations from what we know in Drosophila, provide a fresh view not only on the evolution of these pathways, but also on their regulatory logic. This work is a case in point.

Several experiments were missing and would provide a broader view of the topic:

1) What is the expression profile of dpp in Oncopelus embryos at different stages? This is important because it would provide the context to interpret the results in Sog RNAi embryos. Is the global activation of the BMP pathway a result of BMP diffusion from the dorsal region, or a reflection of a uniform expression of dpp? If dpp expression is restricted to the dorsal region, is the repression of expression in the ventral region dependent on Toll signaling, similar to the induction of Sog?

2) What is the expression pattern of Tolloid? Similar arguments to point 1.

3) What is the nuclear distribution pattern of Dorsal1 and Dorsal2 in wt embryos, and in embryos in which dpp signaling has been eliminated? I know that this analysis would require a significant work of raising antibodies, but perhaps it could be circumvented by injection of a plasmid expressing tagged or GFP-linked Dorsal1. It would be important to see the pattern of the Toll activation gradient, and to assess if it extends sufficiently into the dorsal side, to account for the proposed bias in that region in the that is relevant to the Sander experiment (Box 1). It would also be important to demonstrate that the Toll gradient is the primary symmetry-breaking event, and is not affected by the loss of the downstream BMP pathway.

Several points should be clarified further in the text, without a requirement for additional experiments:

Sog levels were not erased but only reduced in the Sog RNAi embryos (Figure 2K). While the residual Sog is now uniformly expressed, there still appears to be some difference between the level of pMad in the dorsal vs. ventral parts of the embryo (Figure 3C,H). This would not agree with the model, but perhaps the embryos shown are not representative, or maybe there is still some bias in the expression of Sog which resolves only to a very shallow pMad pattern because of the limited levels of Sog?

The central point of the paper is the switch from a uniform distribution of Sog, to the restricted expression of Sog in the ventral and ventro-lateral domains, and the complementary pattern of BMP activation, triggered by the ventral bias of Toll signaling. The ability to convert even a small bias (as in the middle panel of Figure 8) to a bistable robust BMP pattern, clearly relies on transport of the Sog-BMP complex and its cleavage in the dorsal region by Tolloid. In this respect the logic of modulating BMP signaling is similar to what was described in Drosophila. It is not clear however whether this process is also responsible (as it is in Drosophila) for generating a graded pattern WITHIN the domain of BMP signaling. As far as I could tell, the pMad levels in embryos that are depleted for Sog were comparable to wt, suggesting that in the absence of inhibition by Sog, the levels of dpp are sufficient to elicit maximal signaling and no further concentration of the ligand is required. Also, the late patterns of pMad show sharp borders and fairly uniform expression within the dorsal region (Figure 3F). I would like to see some more discussion of this issue, regarding the question whether a graded BMP activation pattern is or is not generated within the dorsal region.

https://doi.org/10.7554/eLife.05502.025

Author response

Sachs et al., study DV patterning in the milkweed bug Oncopeltus fasciatus. They use RNAi methods and mathematical modeling to study interactions between the Toll and BMP signaling pathways. From their RNAi data, the authors conclude that (1) BMP signaling is active throughout the DV axis and must be repressed ventrally through expression of sog to allow ventral patterning; and (2) Toll is not required to support any cell types but is required for symmetry breaking.

All reviewers agreed that this is an interesting study addressing an important question in developmental biology, namely how do DV patterning mechanisms in different animals relate and what was the ancestral system like. The authors make a convincing argument for looking at the milkweed bug.

However, it was also agreed by all that more information is needed, especially in view of the recent CB paper from the PI lab on Nasonia, which already makes the point regarding the decreasing role of the Toll pathway. Several additional data are therefore essential:

The reviewers have noted that a decreasing role of Toll signaling accompanied by an expanded function of BMP was already described in our recent CB paper on Nasonia. Indeed, we had found evidence for a diminished role of Toll signaling even in earlier work on the beetle Tribolium (van der Zee et al., 2006). To show that our new findings for Oncopeltus provide an important step in an evolutionary progression we have expanded Figure 1 and included Tribolium as well as Nasonia. We also added more material to the Introduction and Discussion to explain the difference between Nasonia and Oncopeltus. In brief: Nasonia represents a highly derived system as it is the only insect known so far which establishes the DV pattern in a bipolar manner. The BMP gradient appears to emerge from a maternal source along the dorsal midline independently from Toll and without transport through a ventrally expressed inhibitor. Sog is missing from the genome. In this respect Nasonia’s DV patterning system is more derived than that of Drosophila. Nasonia Toll on the other hand remains responsible for ventral fates providing highly refined patterning information along the ventral midline. The Toll dpp double knockdown in Nasonia lacks mesoderm, in contrast to the double knockdown in Oncopeltus. Taken together while BMP is the dominant morphogen in Nasonia both the formation of the BMP gradient and the continued requirement of Toll signaling for the mesoderm/mesectoderm formation are in strong contrast to the DV patterning system of Oncopeltus that clearly represents an ancestral state with similarities to spiders and vertebrates.

1) More information on the expression patterns of the different players in the BMP pathway is essential: Where is dpp expressed? It is implied that dpp is no longer under Toll-dependent regulation in the milkweed bug (e.g. Figure 1 diagram), however no in situ data is included. The authors also suggest that multiple BMP ligands may be supporting activation of this signaling pathway. Their expression should be shown and discussed. Could they be repressed by Dorsal?

The expression of the components of the BMP system including dpp, a second BMP ligand (gbb), tolloid and twisted gastrulation (tsg) are now shown in Figure 2—figure supplement 1. All of these components are either uniformly expressed or have extremely low expression levels, so that they cannot be detected at early blastoderm stages when their activity is required for BMP gradient formation. We know that the probes work since they detect the conserved local expression in late stages. Very low levels are apparently sufficient to support patterning. A similar situation was observed in Tribolium and Nasonia where early dpp and tsg are weakly and evenly expressed at the stages when the BMP gradient forms (van der Zee et al., 2006; Fonseca et al., 2010; Özüak et al., 2014). Thus, regulatory inputs of Toll signaling on these components are alreadylacking in Tribolium and Nasonia and might have evolved only in the lineage leading to Drosophila.

2) What is the expression pattern of Tolloid? Similar arguments to point 1.

See response to point 1.

3) The ability to trace the expression of the Zen homologue as an indicator of maximal BMP signaling in different backgrounds could be very informative.

Low levels of Oncopeltus zen expression are found along the entire circumference of early blastoderm embryos and resolves into a complex pattern that spans the egg circumference at the differentiated blastoderm stage (Panfilio et al., 2006). This is one example of many genes dorsally expressed in Drosophila and other holometabolous insects, which we tried to use as marker genes and found that they are absent, evenly expressed, or have altered expression domains during blastoderm stages. The failure of the candidate gene approach highlights one of the difficulties connected to working with a hemimetabolous insect. Many aspects of DV patterning are apparently not conserved. In the future we plan unbiased genomic approaches (RNA-seq) combined with RNAi KD to identify new marker genes.

4) More information on the pattern of the Toll gradient shape would be important.

The closest approximation of the Toll activation gradient is the nuclear Dorsal gradient since it has not been possible in insects to directly detect activated Toll receptors or the distribution of the Toll ligand Spätzle. We agree that it would be crucial to show the nuclear Dorsal gradient and have raised antibodies against Oncopeltus Dorsal1 already at the beginning of our study. However, the antibodies are only useful for western blots and have not worked for whole mount stainings. The fixation methods for early Oncopeltus blastoderm embryos are excellent for ISH, but do not reliably preserve protein epitopes. The pMAD stainings provided a lucky exception. We have also tried transient expression essays with GFP constructs. But this was not successful so far. In the future we plan to establish transgenesis and, using the genome which is close to completion, we want to perform genome editing with the CRISPR/Cas9 system.

Given the lack of Dorsal staining we have added cactus in situs. This had been our proxy for Toll activity in Nasonia where we also lack anti-Dorsal antibodies. In all insects studied so far including Drosophila (Sandmann et al 2007) cactus is an early target gene of Toll signaling and this seems to be an ancestral regulatory circuitry since it has also been observed as an essential element in the innate immune system. Oncopeltus possesses several cactus paralogs. Strong knockdown of early expressed paralogs lead to a failure of normal blastoderm formation. However, weak knockdown shows mild ventralization, indicating that at least two of the paralogs are involved in DV patterning. One of them shows early ventral expression which encompasses approximately 60-70% of the egg circumference (the domain is wider than that of sog). This indicates that early Toll signaling extends into the dorsal half of the embryo, a prerequisite for explaining the Sander experiment. These considerations are now addressed in the manuscript with the additional cact data (new Figure 7).

5) Additional support for the Toll1-dpp-RNAi results should be provided. (one may worry that the Toll1 RNAi support weak activation that becomes apparent in the absence of BMP signaling; What does Toll1-dl1-dpp RNAi look like? How about Toll1-tld RNAi?).

For the epistasis analysis we have chosen the two genes which give the most complete and most penetrant knockdowns: Toll1 and dpp. All other Toll signalling or BMP signalling components give more variable knockdown results (Figure 2—figure supplement 2). This applies in particular to dorsal1 as there are two dorsal genes (dl1 and dl2) which as single KD lead only to partial dorsalization. Most importantly we are sure that we are dealing with double KD embryos as we observed a phenotypic feature of the Toll KD in the background of the Toll-dpp KD: the anterior shift of twi, sim and sog domains. We have now more explicitly described the function of Toll signalling in AP patterning (Figure 6). We are confident that other double KD combinations like Toll-tld or dl1-pp could not provide clearer results.

In this context it is important to note that elevated BMP levels also provide strong evidence for a fundamental difference in ventral gene regulation between Oncopeltus and the known Holometabolous insects. In Drosophila and Tribolium, twi and sog cannot be repressed by elevating BMP levels. Toll/Dorsal rigidly determines their expression domains. However, in Oncopeltus they are readily repressed by elevated BMP, indicating that their expression state is primarily dependent on the BMP levels and not on Toll/Dorsal.

In addition, it would be interesting to directly define the shape of the Dorsal gradient (e.g. by indirect immunofluorescence if antibodies are available or could be produced in a reasonable length of time) as this shape is an important output of the modeling. In Box 1, the first diagram suggests that the height and width of the Dorsal gradient increases in time. What is the evidence to support this in the milkweed bug? In Box 1, the second diagram shows that in the middle of thetwinnedembryo, a peak of BMP signaling abuts a domain of high sog expression. How is this possible?

See response to point 4.

The authors should also discuss how sog can be expressed in a small ventral domain in dl1-RNAi mutants. There must be somepolarity cueand yet development does not proceed normally. So the levels of Dorsal are important to some degree? Previous studies in Drosophila have provided evidence that genes expressed in lateral regions (e.g. brinker) are ubiquitously expressed in dl dpp double mutants. Is sog expressed ubiquitously within dl dpp double Drosophila mutants?

In contrast to the Toll knockdown, the dl1 knockdown does not cause a complete disruption of Toll signalling (possibly due to redundancy with dl2). Despite the fact that all dl1 knockdown embryos have residual sog the majority lack twi and sim. Thus, we have to assume a threshold for sog which has to be exceeded to initiated stable patterning.

Sog is not expressed in dl-dpp double mutants since its activation is strictly dependent on Dorsal like in all other insects studied so far except in Oncopeltus. The same applies for early brinker expression in Drosophila. It is only the late brinker (shortly before gastrulation) that is expressed in dl-dpp mutant embryos since at this stage dpp is required to repress brk.

Reviewer 2:

[…] In summary, this is a very interesting study and the results are significant. However, either additional experimental evidence must be included or the title should be revised. If the study is revised to refocus on the broad role of BMP signaling, then the novelty of the study is perhaps compromised by the authors' recent study in Nasonia (Ozuak et al., 2014).

Specific comments:

1) Where is dpp expressed? It is implied that dpp is no longer under Toll-dependent regulation in the milkweed bug (e.g. Figure 1 diagram), however no in situ data is included. The authors also suggest that multiple BMP ligands may be supporting activation of this signaling pathway. Their expression should be shown and discussed. Could they be repressed by Dorsal?

2) Previous studies in Drosophila have provided evidence that genes expressed in lateral regions (e.g. brinker) are ubiquitously expressed in dl dpp double mutants. Is sog expressed ubiquitously within dl dpp double Drosophila mutants?

3) In Box 1, the first diagram suggests that the height and width of the Dorsal gradient increases in time. What is the evidence to support this in the milkweed bug?

In Box 1 we assumed that Dorsal (blue) decreases in time. In Tribolium the upregulation of cactus leads to decreasing nuclear Dorsal concentrations and a disappearance of the gradient. The same is likely to be the case in Nasonia. If cactus has a similar function in Oncopeltus it also would attenuate Toll signalling (see point 4). For the purpose of modelling we want to show in Box 1 that the BMP system is self-organizing and after initiation through Dorsal (by activating sog) becomes independent from Dorsal.

4) In Box 1, the second diagram shows that in the middle of thetwinnedembryo, a peak of BMP signaling abuts a domain of high sog expression. How is this possible?

We are now explaining the Sander experiment in more detail. Sander used a guillotine to fragment the embryos in two separate halves along the lateral midline. Thus, there is no flow of signalling proteins between the dorsal and ventral fragments. Therefore, high BMP can be exposed to high Sog along the lateral plane bisection.

Reviewer 3:

[…] In general, the detailed dissection of developmental pathways in organisms that are removed from Drosophila, which is successfully used by the Roth lab, and especially the deviations from what we know in Drosophila, provide a fresh view not only on the evolution of these pathways, but also on their regulatory logic. This work is a case in point.

Several experiments were missing and would provide a broader view of the topic:

1) What is the expression profile of dpp in Oncopelus embryos at different stages? This is important because it would provide the context to interpret the results in Sog RNAi embryos. Is the global activation of the BMP pathway a result of BMP diffusion from the dorsal region, or a reflection of a uniform expression of dpp? If dpp expression is restricted to the dorsal region, is the repression of expression in the ventral region dependent on Toll signaling, similar to the induction of Sog?

2) What is the expression pattern of Tolloid? Similar arguments to point 1.

3) What is the nuclear distribution pattern of Dorsal1 and Dorsal2 in wt embryos, and in embryos in which dpp signaling has been eliminated?

I know that this analysis would require a significant work of raising antibodies, but perhaps it could be circumvented by injection of a plasmid expressing tagged or GFP-linked Dorsal1. It would be important to see the pattern of the Toll activation gradient, and to assess if it extends sufficiently into the dorsal side, to account for the proposed bias in that region in the that is relevant to the Sander experiment (Box 1). It would also be important to demonstrate that the Toll gradient is the primary symmetry-breaking event, and is not affected by the loss of the downstream BMP pathway.

Several points should be clarified further in the text, without a requirement for additional experiments:

Sog levels were not erased but only reduced in the Sog RNAi embryos (Figure 2K). While the residual Sog is now uniformly expressed, there still appears to be some difference between the level of pMad in the dorsal vs. ventral parts of the embryo (Figure 3C,H).

Figure 2K shows the embryo from the ventral side. Residual sog expression is present only ventrally and correlates with a weak pMAD gradient in sog RNAi embryos. Like the residual sog expression in dl1 RNAi embryos this is not sufficient to initiate stable patterning since 100% of the sog RNAi embryos lack twi expression. Apparently the system shifts only into a stable patterning regime if a certain threshold for pMAD asymmetry is exceeded.

This would not agree with the model, but perhaps the embryos shown are not representative, or maybe there is still some bias in the expression of Sog which resolves only to a very shallow pMad pattern because of the limited levels of Sog?

The central point of the paper is the switch from a uniform distribution of Sog, to the restricted expression of Sog in the ventral and ventro-lateral domains, and the complementary pattern of BMP activation, triggered by the ventral bias of Toll signaling. The ability to convert even a small bias (as in the middle panel of Figure 8) to a bistable robust BMP pattern, clearly relies on transport of the Sog-BMP complex and its cleavage in the dorsal region by Tolloid. In this respect the logic of modulating BMP signaling is similar to what was described in Drosophila. It is not clear however whether this process is also responsible (as it is in Drosophila) for generating a graded pattern WITHIN the domain of BMP signaling. As far as I could tell, the pMad levels in embryos that are depleted for Sog were comparable to wt, suggesting that in the absence of inhibition by Sog, the levels of dpp are sufficient to elicit maximal signaling and no further concentration of the ligand is required. Also, the late patterns of pMad show sharp borders and fairly uniform expression within the dorsal region (Figure 3F). I would like to see some more discussion of this issue, regarding the question whether a graded BMP activation pattern is or is not generated within the dorsal region.

We agree that there is no detectable BMP gradient within the early BMP domain and that the sog as well as the tsg knockdowns produce uniform high levels of BMP signalling similar to those found in wt within the dorsal 30%. We are now commenting on these observations in the Discussion section. In Oncopeltus, a more fine grained pattern of BMP signalling with a sharp dorsal peak is established later during gastrulation and requires the function of the second BMP ligand Gbb as well as the local up-regulation of dpp transcription. We believe that during blastoderm stages the DV fate map of Oncopeltus does not reach (most notably at the dorsal side) the high spatial precision known from (the long-germ insects) Drosophila and Nasonia. This precision is only established at later stages. The situation is similar to (the short germ insect) Tribolium (Fonseca et al., 2010). We are currently in the process of preparing a manuscript, which addresses these later events.

https://doi.org/10.7554/eLife.05502.026

Article and author information

Author details

  1. Lena Sachs

    Institute for Developmental Biology, University of Cologne, Köln, Germany
    Contribution
    LS, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Yen-Ta Chen
    Competing interests
    The authors declare that no competing interests exist.
  2. Yen-Ta Chen

    Institute for Developmental Biology, University of Cologne, Köln, Germany
    Contribution
    Y-TC, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Lena Sachs
    Competing interests
    The authors declare that no competing interests exist.
  3. Axel Drechsler

    1. Institute for Developmental Biology, University of Cologne, Köln, Germany
    2. Bundesministerium für Umwelt, Naturschutz, Bau und Reaktorsicherheit, Bonn, Germany
    Contribution
    AD, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  4. Jeremy A Lynch

    1. Institute for Developmental Biology, University of Cologne, Köln, Germany
    2. Department of Biological Sciences, University of Illinois at Chicago, Chicago, United States
    Contribution
    JAL, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  5. Kristen A Panfilio

    Institute for Developmental Biology, University of Cologne, Köln, Germany
    Contribution
    KAP, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  6. Michael Lässig

    Institute for Theoretical Physics, University of Cologne, Cologne, Germany
    Contribution
    ML, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  7. Johannes Berg

    Institute for Theoretical Physics, University of Cologne, Cologne, Germany
    Contribution
    JB, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  8. Siegfried Roth

    Institute for Developmental Biology, University of Cologne, Köln, Germany
    Contribution
    SR, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    siegfried.roth@uni-koeln.de
    Competing interests
    The authors declare that no competing interests exist.

Funding

Deutsche Forschungsgemeinschaft (DFG) (CRC 680)

  • Yen-Ta Chen
  • Jeremy A Lynch
  • Kristen A Panfilio
  • Michael Lässig
  • Johannes Berg
  • Siegfried Roth

Ministerium für Innovation, Wissenschaft und Forschung des Landes Nordrhein-Westfalen (NRW International Graduate School of Development Health and Disease)

  • Yen-Ta Chen

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This article is dedicated to the memory of the late Klaus Sander (1929-2015), who discovered anteriorposterior morphogen gradients in insects and the regulative patterning along the DV axis. His experiments provided the main motivation for the research conducted in SR’s lab, leading to the current paper. We thank Rodrigo Nunes da Fonseca for comments and discussions and are grateful to Waldemar Wojciech and Matt Benton for suggestions, corrections and help with Figure 1. This work has been supported by the CRC 680 of the DFG and the NRW International Graduate School of Development Health and Disease.

Reviewing Editor

  1. Naama Barkai, Reviewing Editor, Weizmann Institute of Science, Israel

Publication history

  1. Received: November 5, 2014
  2. Accepted: April 12, 2015
  3. Version of Record published: May 12, 2015 (version 1)

Copyright

© 2015, Sachs et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,178
    Page views
  • 224
    Downloads
  • 5
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    Stefanie Hampel et al.
    Research Advance Updated
