Neural tuning matches frequency-dependent time differences between the ears

  1. Victor Benichoux Is a corresponding author
  2. Bertrand Fontaine
  3. Tom P Franken
  4. Shotaro Karino
  5. Philip X Joris Is a corresponding author
  6. Romain Brette Is a corresponding author
  1. Ecole Normale Supérieure, France
  2. Sorbonne Universités, France
  3. Institut National de la Santé et de la Recherche Médicale, France
  4. UMR_7210, École des Neurosciences de Paris Île-de-France, Centre National de la Recherche Scientifique, France
  5. Albert Einstein College of Medicine, United States
  6. University of Leuven, Belgium
  7. University of Tokyo, Japan
Research Article
Cited
5
Views
1,215
Comments
0
Cite as: eLife 2015;4:e06072 doi: 10.7554/eLife.06072

Abstract

The time it takes a sound to travel from source to ear differs between the ears and creates an interaural delay. It varies systematically with spatial direction and is generally modeled as a pure time delay, independent of frequency. In acoustical recordings, we found that interaural delay varies with frequency at a fine scale. In physiological recordings of midbrain neurons sensitive to interaural delay, we found that preferred delay also varies with sound frequency. Similar observations reported earlier were not incorporated in a functional framework. We find that the frequency dependence of acoustical and physiological interaural delays are matched in key respects. This suggests that binaural neurons are tuned to acoustical features of ecological environments, rather than to fixed interaural delays. Using recordings from the nerve and brainstem we show that this tuning may emerge from neurons detecting coincidences between input fibers that are mistuned in frequency.

https://doi.org/10.7554/eLife.06072.001

eLife digest

When you hear a sound, such as someone calling your name, it is often possible to make a good estimate of where that sound came from. If the sound came from the left, it would reach your left ear before your right ear, and vice versa if the sound originated from your right. The time that passes between the sound reaching each ear is known as the ‘interaural time difference’. Previous research has suggested that specific neurons in the brain respond to specific interaural time differences, and the brain then uses this interaural time difference to locate the sound.

Sounds come in various frequencies from high-pitched alarms to low bass tones, and how a neuron responds to interaural time differences appears to change according to the frequency of the sound being played. For example, a given neuron may respond to a 200- microsecond interaural time difference when a tone is played at a high frequency, but show no response to this time difference when the tone is played at a low frequency. To date, researchers had been unable to explain why this occurs.

Here, Benichoux et al. investigated this topic by playing a variety of sounds to anaesthetized cats. Electrodes were used to record the responses of individual neurons in the cats' brains, and the properties of the sound waves that reached the cats' ears were also recorded. These experiments revealed that the time it took a sound to travel from a location to each of the cats' ears, and consequently the interaural time difference, depended on whether it was a high-pitched or a low-pitched sound. This happened because different properties of the environment, such as the angle of the cat's head, affected specific frequencies in different ways.

As expected, the neurons' responses were also affected by sound frequency. Indeed, the neurons' behaviour mirrored that of the sound waves themselves. This shows that neurons do not, as previously thought, simply react to specific interaural differences. Instead, these neurons use both sound frequency and interaural time differences to produce a thorough approximation of the sound's location. The precise mechanisms that generate this brain adaptation to the animal's environment remain to be determined.

https://doi.org/10.7554/eLife.06072.002

Introduction

Acoustical waves produced by a sound source reach the two ears at slightly different times depending on its spatial position. Interaural time differences (ITDs) are used by many species to localize sounds in the horizontal plane. In mammals, neurons in the medial superior olive (MSO), just three synapses away from the cochlear receptors, are sensitive to both ITD and sound frequency. It is thought that their activity encodes ITD in a frequency band, and is then interpreted in terms of spatial position. They project to neurons in the inferior colliculus (IC), which inherit these properties.

The firing rate of these neurons is strongly modulated by the ITD of a tone presented binaurally through earphones. For a 600 Hz tone, the neuron shown in Figure 1A, recorded in the IC of a cat, responds maximally at a ‘best ITD’ of 345 μs, close to the maximum natural ITD reported for cat (about 350 μs) (Roth et al., 1980). In the Jeffress model, the textbook model of ITD processing (Jeffress, 1948; Joris and Yin, 2007), ITD tuning arises from the detection of coincidences between spikes relayed from auditory nerve fibers tuned to the same frequency at the two ears, and the neuron responds maximally when the sound's ITD equals the mismatch in axonal conduction delay between inputs from the two cochleae. This model predicts that, for a given neuron, ITD tuning is independent of the sound's frequency. However, at 900 Hz, the neuron of Figure 1 is tuned to an ITD of 158 μs and barely responds to an ITD of 345 μs, while at 400 Hz the neuron responds maximally at 500 μs and is much less responsive at 345 μs (Figure 1A). In fact, the range of best ITDs that this neuron shows at different stimulus frequencies spans several hundred μs (Figure 1B), which is large considering that the maximum natural ITD in cats is ∼350 μs. Thus, the ITD tuning of this neuron varies broadly with sound frequency. This property has been observed in binaural neurons of many species, including cats (Yin and Kuwada, 1983), guinea pigs (McAlpine et al., 1996; Palmer and Kuwada, 2005), rabbits (Kuwada et al., 1987), chinchilla (Bremen and Joris, 2013), gerbils (Day and Semple, 2011) and dogs (Goldberg and Brown, 1969), but no functional significance has been associated with it. Readers should note that this property is observed within neurons as a function of frequency, and differs from the population property that has also been widely observed, where neurons tuned to low frequencies tend to have larger best ITDs than high-frequency neurons (McAlpine et al., 1996; Hancock and Delgutte, 2004; Joris et al., 2006; Day and Semple, 2011; Bremen and Joris, 2013).

Figure 1 with 4 supplements see all

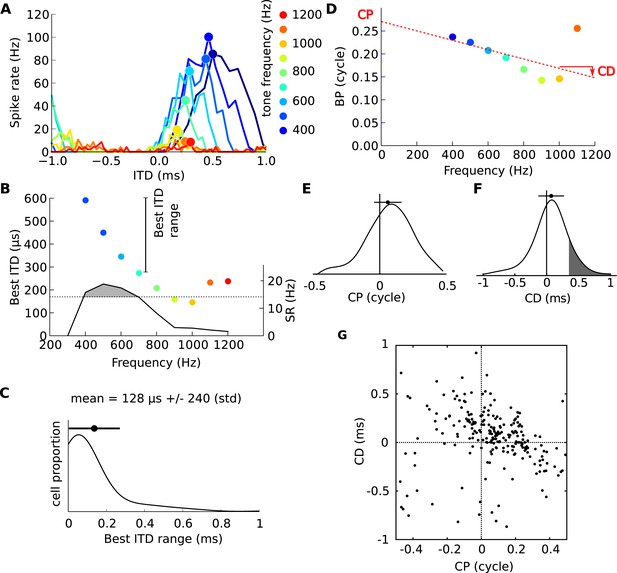

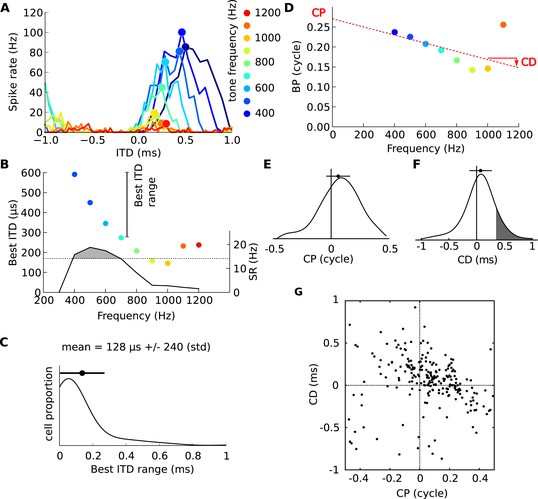

Frequency-dependence of best delays.

(A) Firing rate vs ITD for one neuron, to tones between 400 Hz (blue) and 1200 Hz (orange). (B) Best interaural time difference (ITD) (colored dots, left axis), and sync-rate (SR), (black line, right axis) vs frequency for the same cell. Data points with SR higher than 80% of the maximum value are used to calculate the range of best ITD (shaded area above dotted line). (C) Distribution of the range of best ITDs across all 186 cells. (D) Best phase (BP) vs frequency and linear regression. The characteristic phase (CP, here 0.27 cycle) is the intercept; the characteristic delay (CD, here −0.102 ms) is the slope. (E) Distribution of CP across all cells (N = 186). (F) Distribution of CD. (G) CD vs CP across all cells.

https://doi.org/10.7554/eLife.06072.003

On the other hand, it is known that in natural environments, the acoustic ITD itself varies not only with spatial position but also with frequency, due to sound diffraction by the head (Roth et al., 1980) and early reflections from the ground (Gourévitch and Brette, 2012). Here we show with acoustical recordings and simulations that the variation of ITD with frequency can be substantial at the scale of a single neuron's receptive field. We then show that the detailed statistics of this variation are matched by the tuning of binaural neurons. Finally, we show that slight mismatches in the frequency tuning of auditory nerve fibers projecting to binaural neurons are a plausible mechanism to explain tuning to complex binaural features of ecological environments, and we show the existence of asymmetries in the spectral properties of MSO inputs using intracellular recordings.

Results

Frequency dependence of neural tuning

We examined ITD tuning in 186 IC neurons of cats tuned at a characteristic frequency (CF, frequency of lowest rate threshold) between 100 and 3300 Hz (see Figure 1—figure supplement 3). We found that the best ITDs of a neuron, at the different frequencies to which they were sensitive, spanned on average a range of 128 μs (± 240 μs) (Figure 1C). This extent is large, considering the maximum natural ITD reported for cats (∼350 μs) and their ability to discriminate ITDs differing by only 20 μs (Wakeford and Robinson, 1974).

The dependence of best ITD on sound frequency can be analyzed more precisely (Yin and Kuwada, 1983). The best ITD can be expressed relative to the period of the tone's frequency f, and is then called the best phase (BP): BP = best ITD × f (Figure 1D). For a neuron with a fixed best ITD that does not depend on frequency, BP is a linear function of frequency with 0 y-intercept. But the neuron shown in Figure 1D does not fit this simple relationship: a better fit is a linear relationship with an offset at 0 Hz, called the characteristic phase (CP), measured between −0.5 and 0.5 cycle. We computed circular-linear regressions for all 186 neurons, which were highly significant in most cases (Figure 1—figure supplement 1; see also other examples on Figure 1—figure supplement 4). We found that CP was broadly distributed across an entire cycle (Figure 1E), indicating that the best ITD of many neurons is not fixed but depends on frequency. The slopes of linear regressions are called characteristic delays (CD; Figure 1D,F) (Yin and Kuwada, 1983). If neurons were tuned to fixed ITDs in the contralateral field, we would expect CDs to be distributed between approximately 0 μs and 350 μs. In our neurons, the CDs are mainly positive (corresponding to contralateral leading sounds) and mostly within the natural range of 350 μs, but a minority of cells have negative CDs (38%) and a smaller minority have CDs larger than 350 μs (19%, grey area in Figure 1F). Most intriguingly, CDs are negatively correlated with CPs (Figure 1G). We checked with bootstrap analysis that this negative correlation is not due to measurement artifacts (Figure 1—figure supplement 2). All these observations are consistent with previous findings in other species (Yin and Kuwada, 1983; McAlpine et al., 1996; Palmer and Kuwada, 2005).

Frequency dependence of ITD

We looked in the acoustics for a functional rationale for the frequency-dependence of neural tuning to ITD within single neurons. It is known that the acoustic ITD itself varies not only with spatial position but also with frequency, due to sound diffraction by head and body (Roth et al., 1980). This variation can be quantified by analyzing head-related transfer functions (HRTFs), which measure the acoustical filtering of the head and body for sources at various positions. Figure 2A shows the variation of phase ITD with frequency for different source directions in an anaesthetized cat (Tollin and Koka, 2009). The ‘phase’ ITD reported here is the value of the ITD of a pure tone stimulus at a given frequency (see ‘Materials and methods’ for additional ITD definitions). These patterns are consistent with previous acoustical measurements in cats using tones (Roth et al., 1980). We also found similar patterns in high-resolution recordings on a taxidermist model of a cat with a natural posture (Figure 2B). We checked that these patterns were not due to possible limitations of acoustical recordings by comparing them with numerical simulations of HRTF obtained on a 3D model of the same cat (Rébillat et al., 2014) (Figure 2C,D). The global structure of these patterns is consistent with a spherical model of the head (Kuhn, 1977) (Figure 2E). However, their fine structure depends on posture (Figure 2C,D, cat's head in a different position), on the presence of a ground (Figure 2E,F, spherical head model without and with a ground plane), and on whether the source is in the front or in the back (Figure 2A–D, solid vs dashed curves)—because of reflections on the body of the cat. We remark that reflections on the ground or on the body of the cat come too early to be separated from the direct signal (Gourévitch and Brette, 2012) and they must be considered as an integral part of the binaural signal received by the animal. Thus in ecological conditions, the ITD generally varies with frequency for a given source position.

Figure 2 with 1 supplement see all

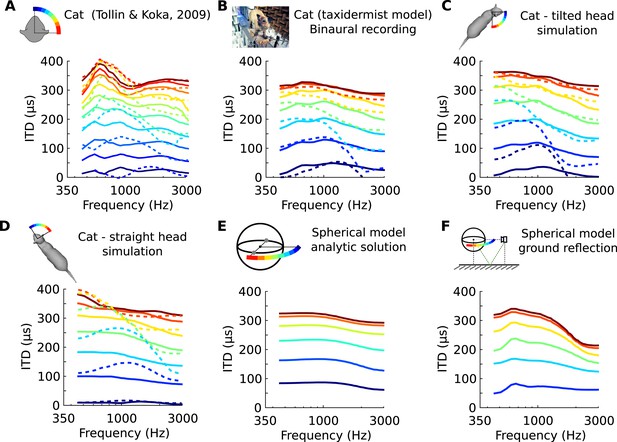

Frequency-dependence of ITD in several acoustical datasets.

(A) ITD vs frequency for sound directions on the horizontal plane (azimuth 15–90°, spaced by 15°), measured in a live cat and previously reported (Roth et al., 1980). (B) Acoustical measurements on a taxidermist model of a cat in a large anechoic room (same azimuths). Dashed curves show symmetric positions for sources to the back of the animal. Note that the head is tilted to the right; azimuths are relative to the head (not the body). (C) Numerical calculation of ITDs by boundary element method (BEM) simulation on a 3D model of the same cat as B (grey shape), obtained from photographs. (D) Same as C, but with a straightened head. (E) Analytical calculation of ITDs for a spherical rigid head. (F) Same as E, but with an additional reflection from the ground. Head and source are placed 1.7 meter from each other and 20 cm above the ground.

https://doi.org/10.7554/eLife.06072.008

Natural signals do not consist of a single frequency but typically have a certain bandwidth, and individual binaural neurons integrate signal information from a range of frequencies, which matches the bandwidth of filtering in the cochlea (Mc Laughlin et al., 2007). In view of the dependence of the acoustical binaural cue (ITD) on frequency (Figure 2), the next question becomes how this compares to the neural dependence of best ITD on frequency. We tested whether the features seen in the electrophysiological data could be explained by the hypothesis that neurons are tuned to frequency-dependent ITDs as found in ecological environments. This is illustrated in Figure 3 which shows frequency-dependent ITDs and zooms in on the frequency band 600–1000 Hz for 3 azimuths. If a neuron were tuned to a fixed ITD (e.g., 325 μs, in Figure 3B, top), then it would be most responsive to different azimuths at different frequencies. On the other hand, if the neuron were tuned to a fixed spatial azimuth, then its best ITD would vary with frequency to match the variation of ITD with frequency at that position (Figure 3B, bottom). Since the relationship between ITD and frequency is not fixed but depends on variables in listener, source, and environment—as illustrated in Figure 2—we looked for statistical correspondences between acoustical and neural measurements.

Figure 3 with 1 supplement see all

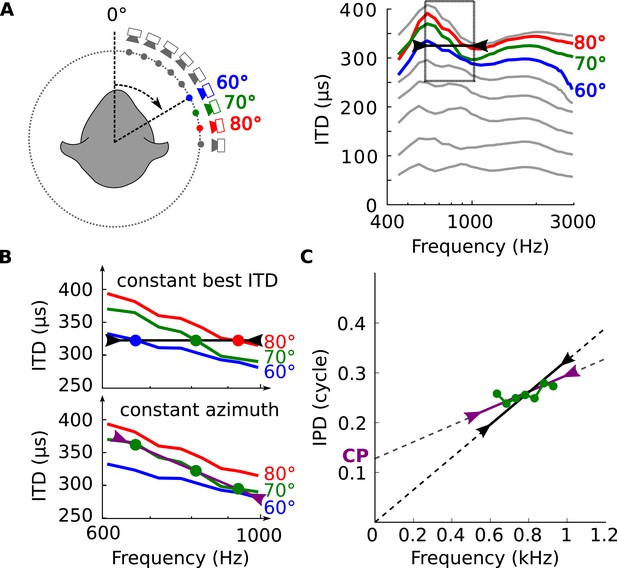

Tuning to frequency-dependent ITDs.

(A) Left, head-related transfer functions (HRTFs) are measured binaurally for different speaker positions. Right, ITD vs frequency in cat at 60, 70 and 80° on the horizontal plane. (B) A neuron for which best ITD is fixed across frequency (top, black line) is tuned to different azimuths depending on frequency, while a neuron with fixed azimuth tuning has a frequency-dependent best ITD (bottom, purple line). (C) IPD vs frequency at 70° over a 300 Hz window around 800 Hz (green curve and circles). The black segment represents an ITD of 325 μs that is fixed across frequency, equal to the ITD at 800 Hz. The purple segment represents the best linear approximation of IPD around that frequency (intercept 0.12 cycle, slope 167 μs).

https://doi.org/10.7554/eLife.06072.010

We analyzed the frequency-dependence of ITD in the acoustical recordings in the same way as we analyzed the frequency-dependence of best ITD in cells. For each azimuth and center frequency, we extracted a CD and CP from the acoustical data. For example, for a 70° azimuth and center frequency of 800 Hz (Figure 3B, bottom), we approximate the interaural phase difference (IPD = ITD × f) for that location by a linear function of frequency (Figure 3C, purple line). The acoustical CD and CP are the slope and intercept of the linear regression. Other examples are shown on Figure 3—figure supplement 1. Physically, the acoustical CD is the envelope ITD and the acoustical CP is the difference between envelope and fine structure ITD, expressed in cycles (see Figure 2—figure supplement 1). We then produced statistics by sampling center frequencies according to the CF distribution in the recorded neurons, and azimuths according to a uniform distribution in the contralateral hemifield (including front and back).

In agreement with the physiological data, the acoustic measurements show a unimodal and broad CP distribution, with a small but significant positive bias (Figure 4A). Consistent with the measured neurons, the acoustic CDs are mainly positive and mostly within 350 μs, but with a sizeable number of data points with negative or with large CDs (Figure 4B, and Figure 4—figure supplement 3 for negative CDs). While some large neural CDs (>500 μs) lie outside the range of ITDs (Figure 2), all remain inside the range of acoustical CD. Finally, the acoustic data also show an inverse correlation between CD and CP (Figure 4C). Thus, key properties of neural CD and CP, which are the main metrics that have been used in the description of tuning to ITD, are well-matched to binaural acoustics studied with these same metrics.

Figure 4 with 3 supplements see all
Acoustical analysis.

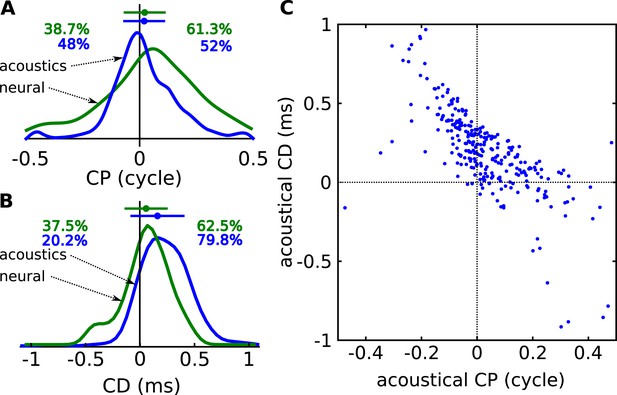

(A) Distribution of CP in the cells (green) and in the acoustics based on acoustical measurements (blue). Error bars represent the mean ± STD/2, and percentages the proportion of positive/negative values. (B) Distribution of CD in cells (green) and in acoustics (blue). (C) CD vs CP in the acoustics.

https://doi.org/10.7554/eLife.06072.012

Quantitatively, the distributions of CD and CP in the acoustic data depend on how space is sampled, which could alternatively be uniform over directions in the front only (Figure 4—figure supplement 1A), or inferred from the electrophysiological recordings (Figure 4—figure supplement 1B), or biased towards the side (Figure 4—figure supplement 1C) or the center (Figure 4—figure supplement 1D), as suggested in the barn owl (Fischer and Peña, 2011). In particular, the proportion of negative CDs varies between 8% and 31% depending on the choice of azimuth distribution, because negative CDs are observed mostly for azimuth near 0° or 180° (Figure 4—figure supplement 3). Distributions of CD and CP also quantitatively depend on the frequency range of the analysis (CF < 1 kHz in Figure 4—figure supplement 2A–C; CF > 1 kHz in Figure 4—figure supplement 2D–F). However, despite the quantitative differences, the same qualitative features remain. Other factors may contribute quantitative variations, such as posture, reflections off the ground, distance and elevation. Thus, the statistics of frequency-dependent ITDs in acoustical recordings qualitatively match those of frequency-dependent neural tuning to ITD.

Theoretical explanation

The inverse correlation between CP and CD can be explained by the variation of ITD with frequency. In a simple spherical head model (Figure 5A), ITDs are larger at low frequency than at high frequency, but these variations are small on a local scale (Figure 5B, blue [Kuhn, 1977]). However, variations appear on a local frequency scale as soon as features of ecological environments are introduced, such as diffraction on the complex shape of head and body of real animals (Figure 3), or early reflections off the ground (Figure 5B, green [Gourévitch and Brette, 2012]). As a result of these variations, the IPD vs frequency curve is non-linear (Figure 5C,D). When a tangent is moved along this curve (dashed lines in Figure 5C), the slope decreases at the same time as the intercept increases. Because slope and intercept correspond to acoustical CD and CP, this means that for neurons tuned to the same spatial configuration but different frequencies, CD and CP should be inversely correlated (Figure 5E,F). These variations in CD and CP across frequency are small for a simple spherical head (Figure 5F), but they become large as soon as a ground plane is included (Figure 5E). We note that reflections off the ground cannot be temporally separated from the direct signal because delays are very short (about 150 μs for a source 1.5 m away from the cat's head [Gourévitch and Brette, 2012]) and must thus be considered as part of the signal reaching the two ears. Thus the acoustical space encountered by the animal cannot be adequately described by fixed ITDs. As a result, it cannot be unambiguously represented by neurons tuned to only fixed ITDs (corresponding to the vertical line CP = 0 in Figure 5E,F).

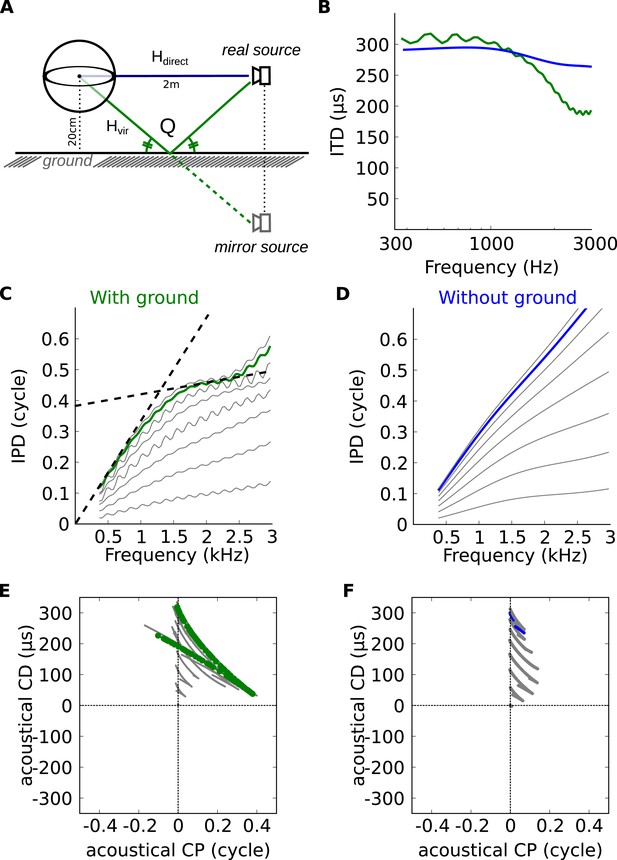

Theoretical explanation of inverse CP-CD relationship.

(A) A spherical head model with a ground reflection. (B) ITD vs frequency in the spherical model for a source at 70°, with (green) and without (blue) ground reflection. (C, D) IPD vs frequency for the same position as in B (green and blue) and for other positions between 0 and 90° (light gray curves). (E, F) Predicted CD vs CP for the two cases.

https://doi.org/10.7554/eLife.06072.016

A possible physiological mechanism

In the textbook model of ITD processing (Jeffress, 1948; Joris and Yin, 2007), a binaural neuron in the MSO detects coincidences between spikes produced by monaural neurons driven by the left and right ear that are tuned to the same CF. Best ITDs near 0 ms imply that the left and right signals arrive coincidentally at the binaural neuron; ITDs >0 ms imply that the inputs from the contralateral ear reach the binaural neuron with some delay relative to those of the ipsilateral ear. However, this mechanism produces frequency-independent best ITDs, that is, CP = 0, which is not consistent with most of the physiological data (Figure 1E) (Kuwada et al., 1997).

Frequency-dependent best delays could be produced by small mismatches in the CFs of the monaural inputs to a binaural cell (Schroeder, 1977; Shamma et al., 1989; Bonham and Lewis, 1999), and some features of binaural responses are consistent with such mismatches (Joris et al., 2006; Day and Semple, 2011). We studied the effects of mismatches in CF with a coincidence analysis of responses of several hundred cat auditory nerve fibers. We model the response of a binaural coincidence detector neuron receiving inputs from two slightly different points on the cochlea, leading to a CF mismatch (Figure 6A, top panel). This is achieved by counting the coincidences between the spike trains of two recorded fibers with slightly different frequency tuning (Figure 6A, right panel), in response to a range of pure tones. By varying the delay between the spike trains, ‘pseudobinaural’ ITD curves at different frequencies are generated.

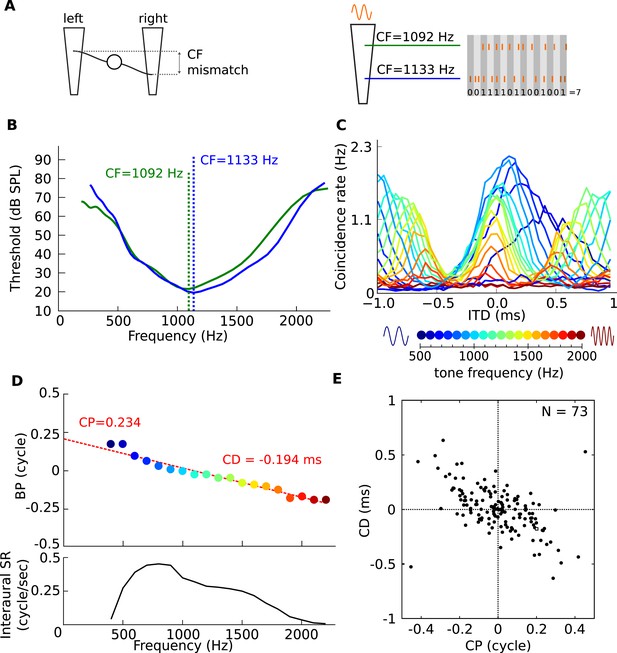

Mechanism for frequency-dependent neural tuning.

(A) Schematics of the coincidence analysis. The left schematic illustrates the concept of cochlear disparities. The trapezoids schematize the cochlear basilar membrane. A left and right fiber originate from a different cochlear place and converge on a binaural neuron. The right schematic illustrates the counting of coincidences between spike trains from two fibers in response to a single tone. Due to the cochlear traveling wave, the spike trains of the more apical (green) fiber are expected to be delayed in time and lagged in phase relative to the more basal (blue) fiber. (B) Threshold tuning curves of the two example fibers. (C) Pseudobinaural tuning curves: Coincidence counts as a function of ITD for a pair of fibers for different tone frequencies. Each curve is color coded with the frequency of the stimulus, scale is presented below the plot. (D) BP as a function of frequency for the same nerve pair as C. (E) CD vs CP over a population of coincidence detectors receiving inputs from cat auditory nerve fibers with mismatched CF (<0.1 octave; CF < 3.3 kHz).

https://doi.org/10.7554/eLife.06072.017

Figure 6C shows the results of coincidence analysis on responses to tones with frequencies between 400 and 2200 Hz (bin width = 50 μs), for two fibers with similar but slightly different frequency tuning (CF = 1092 Hz and 1133 Hz, Figure 6B). The maxima of these ITD-curves are the best ITD of a model binaural coincidence detector receiving inputs from those two fibers: they show a frequency dependent BD with CP = 0.234 and CD = −0.194 ms (Figure 6D).

Using auditory nerve data from a single animal, we simulated the CP and CD of a population of binaural coincidence detector cells. We counted coincidences for different delays between spike trains of 73 pairs of fibers with slightly mismatched CF (≤0.1 octave), and processed the resulting coincidence counts with a CP-CD analysis identical to that used on real binaural neurons (Figure 1). Figure 6E shows that here as well, CP is broadly distributed and inversely correlated with CD. Note that the CP distribution is centered on 0 because we symmetrized the distribution by representing each fiber pair twice to simulate random mismatches between the inputs from the two sides, where sometimes the ipsilateral fiber is higher in CF and sometimes the contralateral fiber (i.e., reflecting both positive and negative CF mismatches). The distribution of Figure 6E is consistent with the phase characteristics of the cochlear traveling wave, which generates frequency-dependent delays and ultimately drives the hair cells and auditory nerve fibers (Schroeder, 1977; Shamma et al., 1989; Bonham and Lewis, 1999; Day and Semple, 2011), and shows that very small CF mismatches are sufficient to produce CPs of the same magnitude as measured in binaural cells.

In order to provide direct evidence of CF disparities in mammals, we obtained in vivo patch clamp recordings from 6 gerbil MSO cells, using the method described in a recent study (Franken et al., 2015). The rate of excitatory presynaptic events (EPSPs) was measured during monaural ipsi- or contralateral presentation of pure tones at different frequencies (Figure 7). The data show that afferents to MSO cells can differ in their spectral composition, albeit in a complex manner. This confirms an observation in juxtacellular recordings (see Figure 5 of (van der Heijden et al., 2013)) and suggests that CF mismatches in mammals may play a role in shaping tuning of ITD sensitive cells.

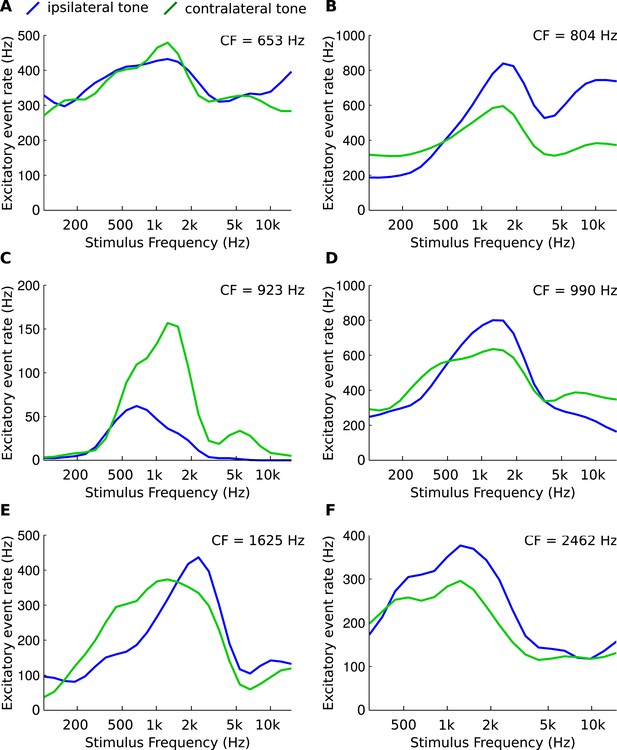

Asymmetries in frequency tuning in the excitatory inputs to the gerbil medial superior olive (MSO).

(AF) Rate of excitatory presynaptic events (EPSPs) in 6 MSO cells, with different CF, in response to tones as a function of frequency. Stimuli are presented ipsilaterally (blue function) or contralaterally (green function). Only EPSPs ≥ the median EPSP amplitude are included. Functions were smoothed using a 3-point running average.

https://doi.org/10.7554/eLife.06072.018

Random cochlear disparities are not a sufficient mechanism to account for the physiological distribution (Figure 1E,F) because they fail to account for the positive bias of CP and CD values. Such a bias can be obtained by systematic cochlear disparities (i.e., where the contralateral inputs are tuned to lower CFs than the ipsilateral inputs) (Joris et al., 2006). It can also be obtained by considering mismatches in axonal conduction delays, in addition to CF mismatches: axonal delays add to the CD without changing the CP. Such delay mismatches could result from the longer contralateral than ipsilateral path length to reach the off-midline MSO, or from other structural axonal differences between contra- and ipsilateral branches (Seidl et al., 2010).

Discussion

We analyzed the frequency-dependence of ITD in acoustical recordings, and found that its statistical properties qualitatively match those of ITD tuning in binaural neurons of the cat's IC. This is consistent with the hypothesis that these neurons are tuned to binaural features of ecological acoustic space rather than to a fixed ITD. Moreover, we find that the binaural tuning observed does not need complex wiring but could be based in a rather straightforward way on properties of the auditory periphery.

Ecological interaural time disparities, and constraints on binaural sensitivity

The binaural tuning in our sample of IC neurons, quantified with traditional measures of CD and CP, matches that of many previous physiological studies (Palmer and Kuwada, 2005). However, we go further by making an explicit comparison with distributions of the same metrics applied to acoustical measurements. This leads to two new insights. First, we provide evidence that the distribution of neural CDs and CPs and acoustical CDs and CPs are similarly constrained. Second, large CDs are present acoustically. Taken together our results suggest that the binaural tuning of IC cells is constrained by the range of delays that the animal experiences.

Our findings and interpretation relate to two points that have been much discussed in the literature. Non-zero CPs in the neural data have puzzled investigators since the first reports of ITD-sensitivity, both in terms of their physiological origin and their functional significance (Rose et al., 1966; Yin and Kuwada, 1983). Perhaps even more puzzling has been the discrepancy observed between the distribution of physiological CDs and acoustical (phase) ITDs, for example, as reported in HRTF measurements (for cat: [Roth et al., 1980; Tollin and Koka, 2009], and Figure 2). As was pointed out since the first physiological data became available (McFadden, 1973), neuronal CDs seem to cover an ‘unnecessarily’ wide range including ITDs that animals will not naturally encounter. Various interpretations have been given to this discrepancy (McAlpine et al., 2001). However, the appropriate comparison is not between physiological CDs and acoustical phase ITDs, but with acoustical CDs (i.e., envelope ITDs). As shown here for acoustical measurements (Figure 4B), due to the frequency dependence of the phase ITD, CDs have a wide distribution and actually exceed the range of physiological CDs. The range of acoustical CDs that drives a given cell can therefore exceed the range of phase ITDs computed from HRTF data.

Complexity of ecological acoustical environments

Because the frequency-dependence of ITD reported here reflects the physical interaction of the sound with the ears, head, body, and ground plane, it should also apply to other species. We applied our analysis to HRTFs of humans (Figure 8A–C), for whom ITDs dominate below ∼1.5 kHz (Wightman and Kistler, 1992; Macpherson and Middlebrooks, 2002). The same basic relationship between acoustical CD and CP is present.

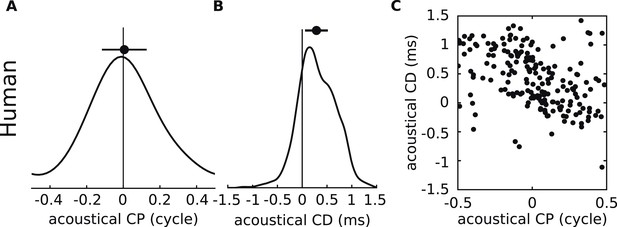

Acoustical analysis of human.

(AC) Predictions using human HRTFs (IRCAM LISTEN HRTF database) for the distributions of acoustical CP (A), CD (B) and 200 sample points from the joint CP-CD distribution (C) over a 100–1500 Hz frequency range.

https://doi.org/10.7554/eLife.06072.019

Our study emphasizes the notion that the binaural cues that an auditory system has to process in ecological environments are much more complex and rich than in idealized settings. We have focused here on the contribution of sound diffraction by the head and body, a phenomenon that is always present, even in anechoic environments. Because the effect depends on the detailed morphology of the animal, it varies with posture in a systematic way (see Figure 2C,D and [Rébillat et al., 2014]). Early reflections, in particular from the ground (again a constant element in ecological environments of terrestrial animals), produce interferences with the direct sound that result in large frequency-dependent variations of ITD, especially at low frequencies (Gourévitch and Brette, 2012). Ground reflections typically arrive very shortly after the direct sound and are therefore an integral part of the binaural signal received by the animal. The interferences they produce are determined primarily by the delay of the reflection (related to the distance) and secondarily by the nature of the reflecting object (grass, sand, snow, etc). There are many other sources of complexity in ecological environments. For example, natural sound sources are rarely point sources producing spherical wavefronts, as assumed in most studies. Many are large (a river) and directional (human speech), some are partially occluded by objects (a prey hiding in a bush). The sound of one's own footstep travels through air but also through the body, which produces different acoustical cues (Hood, 1962). We suggest that the binaural system of animals is adapted to these complex natural acoustical cues.

This complexity must be addressed by any sound localization theory and imposes particular difficulties (Brette, 2010; Goodman and Brette, 2010; Goodman et al., 2013). For example, if ITD depends on the position of the pinnae, or posture, as is the case for the cat (Figure 2, and [Tollin and Koka, 2009]), then proprioceptive information must be taken into account to interpret binaural cues. Unarguably, this property makes the task more difficult for the animal, but not more difficult than taking into account other known causes of ITD variation—such as source distance and elevation—when mapping ITD to source direction.

The fact that ITD depends on factors other than azimuthal position implies that binaural neurons in the MSO are not tuned to source direction per se, but rather to temporal binaural features of acoustical spaces—a notion that generalizes frequency-independent ITD. If binaural tuning develops from exposure to natural sounds (Seidl and Grothe, 2005), then it would be expected that its properties reflect those of ecological acoustical environments, especially given that very small cochlear disparities give rise to significant frequency-dependence of ITD tuning in binaural neurons (Figure 6).

We can think of two ways of testing the hypothesis that binaural neurons are tuned to properties of ecological acoustical spaces. One is to raise animals in environments with structured but manipulated acoustical cues (as opposed to unstructured noise as in [Seidl and Grothe, 2005]), for example using earplugs, and observe the changes in ITD tuning of binaural neurons. Another one is to measure spatial receptive fields of binaural neurons (instead of ITD selectivity curves) and test whether they depend on spectral properties of sounds.

Mechanisms of ITD tuning

In previous work, nonlinear phase-frequency relationships (i.e., where the best ITD is not constant) are typically considered to be ‘biological noise’. Thus, even though frequency-dependent best ITDs are clearly an important characteristic of the physiological data (Figure 1), there are to our knowledge no functional interpretations of this characteristic. The observation (Figure 6) that CF mismatches can generate nonlinear phase-frequency relationships (CP ≠ 0), combined with the presence of such relationships in the binaural and acoustic data, suggest a rather simple new view on neural binaural properties. The view is that limitations in the accuracy of wiring in the binaural system produce a property that benefits binaural hearing. Refinements of this wiring in combination with mismatches in axonal delays produce a range of binaural sensitivities well-matched to the acoustic scenes that the system is faced with. It was previously shown that random CF mismatches in the wiring to the contralateral and ipsilateral pathways to IC could account for the negative correlation between CF and range of best ITDs measured with delayed noise (Joris et al., 2006). Here we show that appropriate CF and axonal delay mismatches can account for the dependence of best ITD on tone frequency within single cells, matching acoustical properties.

Besides cochlear disparities, a range of mechanisms have been proposed to account for the best delays of ITD-sensitive neurons: axonal length (Jeffress, 1948), phase-locked inhibition (Brand et al., 2002), asymmetric placement of the axon (Zhou et al., 2005), asymmetry in synaptic kinetics between contra- and ipsilateral inputs (Jercog et al., 2010), differences in axonal conduction time (Seidl et al., 2010), and phase delays generated by the interaction of intrinsic properties with input spike patterns (Franken et al., 2015). All of these proposals face difficulties to explain all the data available, and it is at present unclear which of these mechanisms, or perhaps mix of mechanisms, is in place, or whether perhaps the main mechanism has not been identified yet. Moreover, discussions of these various mechanisms usually focus on CD, leaving it unclear whether and how they would affect CP. Axonal length and conduction time are expected to generate pure time delays and would therefore not generate CPs different from 0. The report first proposing phase-locked inhibition as a source of internal delay (Brand et al., 2002) provided model results illustrating how best ITD at different frequencies was little affected by stimulus frequency, that is, also predicted that inhibition would be equivalent to a pure time delay (CP = 0). Later, more extensive modeling (Day and Semple, 2011) showed that adjustment of model inhibitory parameters allows creation of a wide range of non-zero CP values, but that CP remained within 0.1 cycle when more realistic inhibitory synaptic time constants were used. To our knowledge, asymmetrical axonal placement and asymmetry in synaptic kinetics have not been examined regarding a possible contribution to CP. However, these two proposals, as well as phase-locked inhibition, received little experimental support from a recent in vivo intracellular MSO study (Franken et al., 2015).

Cochlear disparities have been proposed before as a mechanism for generating internal delays, in place of axonal delay mismatches (Schroeder, 1977; Shamma et al., 1989; Bonham and Lewis, 1999). The original form of that hypothesis, where such disparities are the sole source of internal delays, has been rejected in the barn owl: CF mismatches are observed but they are relatively small and do not correlate with ITD tuning (Pena et al., 2001; Fischer and Peña, 2009). They are nonetheless significant as they contribute predicted delays of up to 50 μs (Pena et al., 2001). Importantly, in contrast with the original cochlear disparity hypothesis, our proposed mechanism combines small CF mismatches (just 40 Hz in Figure 6) and axonal delay mismatches. A mix of cochlear disparities and pure time delays was also proposed to account for non-linear phase-frequency relationships observed in gerbil MSO responses (Day and Semple, 2011). In cat MSO, (Yin and Chan, 1990) reported that monaural best frequencies differed by 0.2 octaves or less for 13 of the 18 cells (and more for 5 cells). As we show in Figure 6, this order of magnitude is sufficient to produce the observed frequency-dependence of best ITD. Intracellular recordings from MSO neurons allowed us to directly measure the monaural inputs and confirm that they can differ in spectral properties. Additional experiments are needed to compare frequency-dependent properties of ITD tuning with the mismatched frequency tuning of monaural inputs.

Our data are from the IC, one synapse removed from the sites of binaural interaction. In our mechanistic explanation, we have assumed that frequency-dependent properties of ITD tuning observed in IC neurons are inherited from the MSO. This is in agreement with electrophysiological data in the MSO of cats (Yin and Chan, 1990) and gerbils (Day and Semple, 2011; van der Heijden et al., 2013), which also show frequency-dependent ITD tuning (broad distributions of CP). Alternatively, nonlinearities at the level of the IC could reflect convergence of inputs, for example, from binaural neurons in MSO, LSO, and DNLL (McAlpine et al., 1998). For example, LSO neurons have CP close to 0.5 (Joris, 1996; Tollin and Yin, 2005). Neurons with CP close to 0 have been categorized as ‘peakers’, because peaks of their ITD selectivity curves align across frequency, while neurons with CP close to 0.5 have been categorized as ‘troughers’, because troughs align across frequency (Batra et al., 1997). These two categories are traditionally considered as predominantly reflecting MSO or LSO input, respectively. Neurons with intermediate CP are then categorized as ‘tweeners’, presumably reflecting a combination of MSO and LSO inputs. However, our electrophysiological data showed no clear categories in the distribution of CP (Figure 1E). Instead, the distribution was broad and unimodal around CP = 0, which argues against the categorization of cells as peaker, trougher, and tweener. In addition, electrophysiological studies in the MSO of cats (Yin and Chan, 1990) and gerbils (Day and Semple, 2011) also show cells with non-zero CP. Our auditory nerve data shows that very small mismatches in CF of inputs to binaural cells are sufficient to produce significantly non-zero CP, without postulating any additional mechanism than coincidence detection (Figure 6).

In summary, while the mechanisms of ITD tuning remain unclear, one attractive feature of cochlear disparities is that they provide a simple mechanism to generate non-zero CPs, which we show here are a likely desirable property of the binaural system as they match the acoustics that animals face, when combined with a physiological source of pure time delays.

Materials and methods

Electrophysiological recording

Our methods for single unit recording have been described before: in the cat IC and auditory nerve (Joris et al., 2005, 2006), and in the gerbil MSO (Franken et al., 2015). All procedures were approved by the institutional Animal Care Committee and were in accordance with the NIH Guide for the Care and Use of Laboratory Animals.

In cat experiments, anesthesia was induced with acepromazine and ketamine and maintained for surgical preparation and recording with pentobarbital. Induction of anesthesia in gerbils was with ketamine and xylazine; maintenance was with ketamine and diazepam. All animals were placed on a heating pad in a double-walled sound-attenuated chamber. Sound stimuli were delivered dichotically with speakers coupled to earbars that were tightly coupled to the ear canals. The stimuli were generated digitally and were compensated for the acoustic transfer function measured with a probe microphone near the eardrum.

In the cat, bullas were vented with tubing. The IC was exposed anterior to the tentorium; the auditory nerve was exposed via a posterior fossa approach. Single IC neurons were recorded with metal electrodes; auditory nerve fibers with high impedance glass micropipettes. The neural signal was amplified, filtered, timed (1 μs resolution) and displayed using standard techniques. The dorsal border of the central nucleus of the IC was defined physiologically by the presence of background discharges phase-locked to binaural beats of low-frequency pure tones, and the IC was histologically processed to confirm the site of recording to the central nucleus. Binaural IC recordings were obtained from 31 animals, monaural auditory nerve recordings from 1 animal.

Binaural beat stimuli were long duration (typically 1 or 5 s) tones presented over a range of frequencies bracketing the limits of the response area; the step increment was between 25 and 200 Hz to ensure adequate sampling. The tones to the two ears had a small (1 or 2 Hz) difference. Typically the contralateral ear was at the higher frequency (positive beat) but the opposite (negative beat) was also often tested. The number of repetitions was typically between 1 and 10, and the SPL was 60 dB.

In vivo whole-cell recordings were obtained from MSO neurons in the gerbil (Franken et al., 2015). Membrane potential was recorded in current clamp mode during monaural presentations of pure tones at different frequencies (typically 1–3 repetitions of 50–250 ms long tones in 0.3 octave increments, at 60 dB SPL). Excitatory post-synaptic events were detected as described in Franken et al. (2015).

In both experiments, CF to binaural stimulation was determined with a threshold tracking algorithm.

Analysis of cat IC data

Selection

The spikes fired by a cell in response to multiple presentation cycles of a binaural beat are aggregated into a period histogram. The average vector of the period histogram has length defined as the vector strength (VS, [Goldberg and Brown, 1969]) and angle defined as the BP. There were on average 9.5 (±4) different tone frequencies per cell, and never fewer than 5. At each frequency, interaural phase difference (IPD) sensitivity was tested using a Rayleigh test. Only data points where the null hypothesis of uniformity could be rejected were included (p < 0.001). If a strong onset component was present, this part of the response, or the response to the entire first beat cycle, was discarded.

Calculation of CP and CD

For each cell, the relationship between frequency and BP is fitted to a line in phase space, which yields a phase intercept called the CP and a slope called the characteristic delay (CD):

BP(f) CP + CD.f,

where f is frequency and phases are in cycle. Because phase space is circular (0 cycle and 1 cycle are the same phase), the proper way to fit a line is to perform a circular linear fit, involving circular distances (Luling et al., 2011). This avoids unwrapping the BP, which is unreliable.

Additionally, because the cell does not respond in the same way at all frequencies, some data points should be given a stronger weight in the regression. This weight is generally chosen to be the sync-rate (SR), which is the product of discharge rate and vector strength (VS, defined with respect to the beat frequency [Yin et al., 1986; Kuwada et al., 1987]).

The regression then consists in determining the values CP and CD that minimizes the following quantity:

fSR(f).d(BP(f),CP+CD.f),

where d(.) is the circular distance between 0 and 1:

d(x,y)=12[1cos(2π(xy))].

Because this minimization problem is non-linear and potentially has local minima, it is solved in two steps. First, the (CP, CD) parameter space is systematically sampled on a regular grid (CP between −0.5 and 0.5 cycle, CD between −2 and 2 ms). The best pair of parameter values is then used as the initial value to a gradient descent algorithm.

Range of best ITD

Best ITDs are computed over a frequency range where the response's sync-rate (SR, see above) is above 80% of its maximal value (Figure 1B). The range of best ITDs (Figure 1C) is the difference between the maximal and minimal best ITD over this 80% range.

Fit quality

The quality of the circular linear regression described above was determined in two ways (Figure 1—figure supplement 1). First, we calculated the residual error, which is the distance between data points and the regression line:

residual=1Nfd(BP(f),CP+CD.f),

which gives a number between 0 (perfect match) and 1. The distribution of residual errors from the cell data and the model data are reported in Figure 1—figure supplement 1A.

Second, we checked the statistical significance of the fit using the same approach as in Yin and Kuwada (1983). We want to reject the null hypothesis that the cells have uniformly distributed BP between −0.5 and 0.5 cycles, using the residual error as a statistic. We generate surrogate data under the null hypothesis, the only parameter of interest being the number of measured frequency points. We then perform the circular linear fit and measure the residual error. We obtain the probability distribution of observing a given residual error under the null hypothesis, for every possible number of frequency points. The cumulative of that distribution gives the linearity significance measure (Figure 1—figure supplement 1B). The null hypothesis could not be rejected (p > 0.05) in only 1.2% of the cells. Example of significant (green) and non-significant (red) circular-linear fits are presented for cell BP (Figure 1—figure supplement 1C) and acoustical IPD data (Figure 1—figure supplement 1D).

CP-CD correlation analysis

CP and CD are two covarying quantities obtained from a single linear regression, therefore spurious correlations across the CP and CD measured in different cells could be induced. We designed a statistical test to check that this could not by itself explain the inverse correlation between CP and CD observed across all cells (Figure 1—figure supplement 2A). In a linear regression, the errors in estimated intercept and slope are inversely correlated (Figure 1—figure supplement 2B). Despite this, the correlation across CP and CD measurements for different cells can be either negative or positive (Figure 1—figure supplement 2C shows an example of positive correlation for 4 cells).

We try to reject the null hypothesis that CP and CD are independent across the population of cells, despite the covariation of CP and CD estimates within each cell. We first estimate the covariation of CP and CD estimates by computing the (CP, CD) distribution for each cell obtained from bootstrapped samples (Figure 1—figure supplement 2B). That is, if there are n measured frequencies, we pick n frequencies at random (with possible repetitions) and measure CP and CD, then reiterate many times to obtain a distribution, from which we extract the covariance matrix.

Second, we generate 200 random (CP, CD) points under the hypothesis that CP and CD are independent, using the distributions measured in cells (Figure 1—figure supplement 2D). Correlated noise is then added to each datapoint, according to the distribution previously measured in bootstrap samples (Figure 1—figure supplement 2E). Correlation is then measured across all data points using Spearman's rank correlation ρ (which does not require linearity, Figure 1—figure supplement 2F). The procedure is repeated 106 times so as to obtain a distribution of ρ, which is slightly biased towards negative values (Figure 1—figure supplement 2G), reflecting the negative correlation in the added noise. Comparing the measured correlation in the original data to the cumulative of the distribution on the surrogate data provides us with a p-value of 10−6, thus we can safely reject the hypothesis that the observed CP-CD correlation is due to the co-variation of linear regression estimates.

Acoustical measurements

HRTFs of an anesthetized cat were obtained from a previous study (Tollin and Koka, 2009). They consist of 36 measurements in the horizontal plane with evenly spaced azimuth.

The analysis was also performed on other HRTF sets (Figure 2). We measured HRTFs of a taxidermist model of cat from the Paris Museum of Natural History (Figure 2B) in a large anechoic chamber at IRCAM (Paris). We used the same experimental setup as the (IRCAM LISTEN HRTF database, date unknown) using the sine-sweep method. Miniature microphones were placed at the entry of the meatus, which had been occluded by the taxidermy procedure.

As a control, we obtained a 3D model of the same cat from photographs (Figure 2C, insert) and numerically calculated HRTF with a boundary element method (Otani and Ise, 2006; Rébillat et al., 2014). The calculations were also performed on the 3D model after manually tilting the head 45° on the 3D model so as to align it with the body.

HRTFs of a spherical head model were computed based on the analytic solution of the wave equation (Figure 2E,F, Figure 5), as detailed in (Duda and Martens, 1998). The head diameter was measured on the 3D, model of the cat (d = 7.3 cm).

Naturalistic ground reflections were included in the spherical model (Figure 2F, Figure 5) using the method described in (Gourévitch and Brette, 2012). The head was placed 20 cm above ground, and the sound source was placed at the same distance of the ground, one meter away from the head. The ground was modeled with flow resistivity of 5.105 (kP.s/m2), which is between grass (105) and sand (106).

In Figure 8, we used previously measured HRTFs of one randomly picked subject of the (IRCAM LISTEN HRTF database), measured for 72 positions on the horizontal plane.

Analysis of acoustical measurements

HRTF analysis

We analyze the frequency-dependence of ITD in HRTFs in frequency bands. For each center frequency F, we consider a window centered around F with bandwidth BW(C) = F/Q(F), where Q(.) was a linear function of F derived from the cell recordings by linear regression (Q(CF) = 1.04 + (3.8 × 10−4 s).CF). We then compute acoustical CP and CD from the IPD in this window as in recorded cells.

In Figure 4, azimuths are sampled from a uniform distribution in the contralateral hemifield (see below for other distributions shown in Figure 4—figure supplement 1). Center frequencies are distributed as the CFs of recorded cells. We first estimate the distribution of CFs in the data using Gaussian kernel estimation, constrained between 300 Hz and 3 kHz. Then N = 200 points are drawn from this distribution, with random azimuth (as in Figure 4C).

Distributions of azimuth

We also considered four alternative distributions of azimuth (Figure 4—figure supplement 1). In Figure 4—figure supplement 1A, azimuth is uniformly distributed between 0° and 90° (i.e., only in the front). In Figure 4—figure supplement 1B, azimuth is distributed according to the distribution of best azimuth (BA) of the cells (see below). In Figure 4—figure supplement 1C, azimuths near 90° are favored, according to the following (non-normalized) distribution:

P(θ)=(1+cos(θ90))4.

In Figure 4—figure supplement 1D, azimuths near the midline are favored, according to the distribution proposed in the barn owl in (Fischer and Peña, 2011), with a contralateral constraint.

BA

The BA of a cell is defined as the azimuth that elicits the largest response in that cell. We assume that it occurs when the IPD is closest to the cell's BP across the relevant frequency range. Therefore the cell's BA is the azimuth that minimizes the following quantity:

fd(BP(f),IPD(f)),

where d(.) is the circular distance. The minimization is performed as previously described. Frequency points where chosen as in the acoustical analysis.

Since BPs and IPDs are not necessarily measured at the same frequency points, the closest available frequency was chosen for IPD(f), which was never further than a few Hz away given the high sampling rate of HRTF measurements.

Signal-processing interpretation of ITD

ITD definitions

Consider the HRTF filters at given position with an IPD measured in cycles. There are two common definitions of interaural delays:

group ITD measures the ITD of the envelopes:

ITDg(f)=ddfIPD(f).

phase ITD measures the ITD of the signals' fine structure:

ITDp(f)=IPD(f)f,

where the bracket operator . represents the unwrapping operation. With a discrete set of frequency points, it means that phase jumps |IPDkIPDk1| greater than 1 cycle are replaced by their 1-cycle complement.

If the phase ITD is constant, then the interaural phase (IPD) depends linearly on frequency: IPD(f) = ITDgf (Figure 2—figure supplement 1A, top). In this special case, which occurs in the absence of sound diffraction (no head), group and phase ITDs are equal at all frequencies.

In measurements and in models of HRTFs, however, the phase ITD varies with frequency (see, e.g., Figure 2). Equivalently, the IPD is not a linear function of frequency anymore (Figure 2—figure supplement 1A, bottom, gray line), and group and phase ITD are different. Over a small enough frequency band (such as within a single auditory filter), the IPD can still be correctly described with an affine approximation (Figure 2—figure supplement 1A, bottom, black line):

ITDp(f)=IDI(f)+fITDg(f).

Notice on the above that if ITDp(f) is constant then IDI = 0 cycles for all frequencies. We thus define the Interaural Diffraction Index (IDI), a frequency-dependent quantity that represents how much the ITD varies because of diffraction effects:

IDI(f)=f(ITDp(f)ITDg(f)).

IDI is a phase quantity (measured in cycles) that also has an interesting interpretation in terms of signal processing (see section below).

Envelope and fine-structure ITDs

If the phase ITD is constant across frequencies, then monaural signals are delayed versions of one another. On the other hand, when phase ITD is frequency-dependent; it is unclear what transformation monaural signals go through. On Figure 2—figure supplement 1 we simulated the effects of complex, frequency-dependent ITD on a source signal. The top panel of Figure 2—figure supplement 1B depicts the ipsilateral signal, an amplitude-modulated pure tone (it is equal to the source signal for simplicity). We simulate HRTFs with either a linear phase response with ITDg = 5 ms, IDI = 0 cycles (Figure 2—figure supplement 1A, top) or an ‘affine’ phase response with ITDg = 5 ms, IDI = 0.5 (Figure 2—figure supplement 1A, bottom). The signal arriving at the contralateral ear is depicted on middle and bottom panels of Figure 2—figure supplement 1B. Because the envelope delay is the same in both situations, the envelopes are delayed by the same amount regardless of IDI. The fine structure, however, is delayed differently in that it is in antiphase when IDI = 0.5. In fact, the fine structure undergoes an additional phase shift equal to the value of IDI.

This effect is reflected on the interaural cross correlation functions, where the position of the peak of the envelope of the cross correlation is the same in both situations (Figure 2—figure supplement 1C, green tick), while the peak of the fine structure of the cross correlation (blue tick) is shifted by an amount in phase equal to the IDI (red segment).

In conclusion, a general frequency-dependent ITD can be understood as having two effects on the monaural signals. The contralateral signal is the ipsilateral signal delayed by an amount equal to the group ITD, while the contralateral signal's fine structure undergoes an additional phase shift equal to the IDI.

Application to the cat HRTFs

We computed ITDp, ITDg and IDI over a range of frequencies on the cat HRTF (Figure 2—figure supplement 1D, same data as is in Figure 2A), for an azimuth of 70°. Distributions of ITDg, ITDp and IDI over frequencies (300–3000 Hz) and positions (on the horizontal plane) are depicted in Figure 2—figure supplement 1E. Notice how, in general, ITDg and ITDp are different and the distribution of ITDg is wider than that of ITDp.

The computation of ITDp, ITDg and IDI followed the same method as the computation of CP and CD. For a given azimuth and center frequency f, the IPD is approximated by an affine function of frequency on a window of size f/4 around f, using circular linear regression, as previously described. The slope of the regression is an estimate of ITDg(f) and the intercept of IDI(f). Phase ITD is obtained with the formula:

ITDp(f)=ITDg(f)+IDI(f)f.

References

  1. 1
    Sensitivity to interaural temporal disparities of low- and high-frequency neurons in the superior olivary complex. I. Heterogeneity of responses
    1. R Batra
    2. S Kuwada
    3. DC Fitzpatrick
    (1997)
    Journal of Neurophysiology 78:1222–1236.
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
    Response of binaural neurons of dog superior olivary complex to dichotic tonal stimuli: some physiological mechanisms of sound localization
    1. JM Goldberg
    2. PB Brown
    (1969)
    Journal of Neurophysiology 32:613–636.
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
    http://recherche.ircam.fr/equipes/salles/listen/index.html
    1. IRCAM LISTEN HRTF database
    (2003)
    http://recherche.ircam.fr/equipes/salles/listen/index.html.
  18. 18
    A place theory of sound localization
    1. LA Jeffress
    (1948)
    Journal of Comparative and Physiological Psychology 41:35–39.
    https://doi.org/10.1037/h0061495
  19. 19
  20. 20
  21. 21
    Envelope coding in the lateral superior olive. II. Characteristic delays and comparison with responses in the medial superior olive
    1. PX Joris
    (1996)
    Journal of Neurophysiology 76:2137–2156.
  22. 22
  23. 23
  24. 24
    Model for interaural time differences in azimuthal plane
    1. GF Kuhn
    (1977)
    The Journal of the Acoustical Society of America 62:157–167.
    https://doi.org/10.1121/1.381498
  25. 25
    Intracellular recordings in response to monaural and binaural stimulation of neurons in the inferior colliculus of the cat
    1. S Kuwada
    2. R Batra
    3. TC Yin
    4. DL Oliver
    5. LB Haberly
    6. TR Stanford
    (1997)
    The Journal of Neuroscience 17:7565–7581.
  26. 26
    Interaural phase-sensitive units in the inferior colliculus of the unanesthetized rabbit: effects of changing frequency
    1. S Kuwada
    2. TR Stanford
    3. R Batra
    (1987)
    Journal of Neurophysiology 57:1338–1360.
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
    Convergent input from brainstem coincidence detectors onto delay-sensitive neurons in the inferior colliculus
    1. D McAlpine
    2. D Jiang
    3. TM Shackleton
    4. AR Palmer
    (1998)
    The Journal of Neuroscience 18:6026–6039.
  32. 32
  33. 33
  34. 34
  35. 35
    Binaural and spatial coding in the inferior colliculus
    1. AR Palmer
    2. S Kuwada
    (2005)
    In: JA Winer, CE Schreiner, editors. The inferior colliculus. New York: Springer. pp. 377–410.
  36. 36
    Cochlear and neural delays for coincidence detection in owls
    1. JL Pena
    2. S Viete
    3. K Funabiki
    4. K Saberi
    5. M Konishi
    (2001)
    The Journal of Neuroscience 21:9455–9459.
  37. 37
  38. 38
    Some neural mechanisms in the inferior colliculus of the cat which may be relevant to localization of a sound source
    1. JE Rose
    2. NB Gross
    3. CD Geisler
    4. JE Hind
    (1966)
    Journal of Neurophysiology 29:288–314.
  39. 39
  40. 40
    New viewpoints in binaural interactions
    1. MR Schroeder
    (1977)
    Psychophysics and Physiology of Hearing pp. 455–467.
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
    Lateralization of tonal stimuli by the cat
    1. OS Wakeford
    2. DE Robinson
    (1974)
    The Journal of the Acoustical Society of America 55:649–652.
    https://doi.org/10.1121/1.1914577
  48. 48
  49. 49
    Interaural time sensitivity in medial superior olive of cat
    1. TC Yin
    2. JC Chan
    (1990)
    Journal of Neurophysiology 64:465–488.
  50. 50
    Effects of interaural time delays of noise stimuli on low-frequency cells in the cat's inferior colliculus. I. Responses to wideband noise
    1. TC Yin
    2. JC Chan
    3. DR Irvine
    (1986)
    Journal of Neurophysiology 55:280–300.
  51. 51
    Binaural interaction in low-frequency neurons in inferior colliculus of the cat. III. Effects of changing frequency
    1. TC Yin
    2. S Kuwada
    (1983)
    Journal of Neurophysiology 50:1020–1042.
  52. 52

Decision letter

  1. David C Van Essen
    Reviewing Editor; Washington University in St Louis, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for sending your work entitled “Frequency-dependent time differences between the ears are matched in neural tuning” for consideration at eLife. Your article has been favorably evaluated by Eve Marder (Senior editor), a Reviewing editor, and two reviewers, one of whom, Catherine Carr, has agreed to share her identity.

The Reviewing editor and the reviewers discussed their comments before we reached this decision, and the Reviewing editor has assembled the following comments to help you prepare a revised submission.

The manuscript is written well and figures are organized clearly. The authors make the case that environmental factors pose challenges to understand sound localization as simple mapping of azimuth through ITDs. While neither the HRTF or ITD results are new, the interpretation of them is, and calls into question the simplest interpretation of the currently dominant two-channel model. Thus, a major strength of this paper is the connection between the features seen in the electrophysiological data and the hypothesis that neurons are tuned to frequency-dependent ITDs as found in ecological environments. By analogy, incorporating statistics of natural stimuli have changed our understanding of early vision.

The concerns raised by the two reviewers are substantial and largely complementary to one another. Some of the concerns relate to clarifying what is new in the present study versus ground that has been covered in other publications noted by the reviewers.

1) A similar model and similar conclusions for the IC were previously published by Joris (PNAS, 2006). Please clarify whether the current analysis was based on the same data, and whether the main new finding is the tie to the ecologically appropriate HRTFs.

2) The concept of frequency mismatches and cochlear delays (stereausis), first proposed by Shamma (1989) has been tested and rejected many times. To be more convincing, please thoroughly discuss results that show there are frequency differences in ipsi- and contralateral inputs into MSO.

3) With respect to testing the model, please discuss recently published data by van der Heijden et al., 2013 and Day and Semple, 2011, that cover some of the same ground as in this paper, with fewer neurons but with the more difficult recordings from MSO. Could some of your findings reflect processing in the MSO as opposed to in the IC?

4) The frequency-dependence of ITD at a particular azimuth (Figure 3) would be better presented with more detail. Fits to frequency vs ITD or IPD (Figures 3B, C) for constant azimuth are presented for a bandwidth limited to a linear portion of the frequency vs. ITD plot. How were these bandwidths selected for frequencies lying near maxima or minima of these plots?

5) A few more examples of neural best phase (BP) vs frequency plots would convey the range of data. In figure 1D, and appearing in published studies, deviation from linearity is greatest at high frequency. In the acoustic data, the greatest deviation shown from Tollin and Koka is at low frequency. Are the neural data shown here not representative, or is the suggestion made from using taxidermy or spherical models that the Tollin and Koka data may not be so representative of a more typical environmental situation?

6) In Figure 4, distributions of CP and CD are provided, based upon the distribution of neural CFs. It would be useful to know the distribution of neural CFs in the sample and also which features of the ITD vs frequency at constant azimuth plots yield the varying values of CD and CP (at least positive vs negative values). That is, do particular features of these graphs depend upon the neural sample of CF, noting that the sample may not reflect the actual distribution of CF in the inferior colliculus?

7) Predictions of the inverse relationship between CD and CP are shown for acoustic measurements (Figure 4C), but negative CDs seem not to be as prevalent as in the neural data (Figure 1G). These data are collected for a spherical head model. If feasible, please consider exploring this idea using data measured by Tollin and Koka from living cats, to determine if a broader range of CPs and more negative CDs are achieved.

8) The general discussion would be more directed if you consider relative contributions of CF mismatch, acoustic environment and inhibition in generating BP vs frequency plots. Essentially, this discussion may help explain why there are relatively fewer non-physiological ITDs in Figure 6E than in Figure 1G.

9) You apparently aim toward a test of your ideas whereby awake animals would listen to a range of frequencies emanating from a closely spaced set of azimuthal locations (Figure 3) during single unit recordings. Some suggestion of how, experimentally, to dissect acoustic and several neural mechanisms would help conclude this story.

https://doi.org/10.7554/eLife.06072.020

Author response

1) A similar model and similar conclusions for the IC were previously published by Joris (PNAS, 2006). Please clarify whether the current analysis was based on the same data, and whether the main new finding is the tie to the ecologically appropriate HRTFs.

The Joris et al. (2006) study was in fact quite different from this study. The focus in that study was on the problem of the dependence of best ITD on CF across populations of IC neurons. Best ITD was measured with delayed noise (not tones). Specifically, it was shown that 1) cochlear disparity can create significant delays; 2) a fixed distance mismatch along the cochleae can create an inverse correlation between best ITD and CF in binaural neurons.

The question we address is different. We ask what is the origin of the dependence of best ITD on stimulus frequency (not characteristic frequency), where this dependence is measured for each cell (not across cells). We show that this dependence measured in cells matches the acoustic dependence of ITD on frequency measured in HRTFs, which suggests that cells are tuned to acoustical properties of natural environments (rather than measuring fixed ITDs). Accordingly, our analysis of data has focused on characteristic phase (CP) and characteristic delay (CD), which are measures of the dependence of best ITD on stimulus frequency, and those were not addressed in Joris et al. (2006).

In the same way, we showed here that the cochlear disparity model can produce significant frequency-dependence of best ITD (not CF-dependence) within a given binaural cell, as measured by CP. As discussed below, we also propose that a combination of cochlear mismatches and axonal delay mismatches can explain the variety of CP and CD observed in cells.

Finally, regarding the data, data shown in Joris et al. (2006) are responses to noise, not to tones. In the experimental data we report, the frequency of the tonal stimulus is varied, in contrast with the previous study where the stimulus was a broadband noise that was identical for all fibers studied. This allowed us to compute pseudo-binaural curves for different frequencies, and in turn extract CP and CD measures for each cell.

We clarified these points in the revised Discussion.

2) The concept of frequency mismatches and cochlear delays (stereausis), first proposed by Shamma (1989) has been tested and rejected many times. To be more convincing, please thoroughly discuss results that show there are frequency differences in ipsi- and contralateral inputs into MSO.

The stereausis model (first advanced by Schroeder, 1977) proposes that cochlear mismatches are used instead of axonal delay mismatches, to generate internal delays. We propose that cochlear mismatches are used in addition to axonal delay mismatches, to generate appropriate frequency-dependence of internal delays.

The stereausis model in its original form (not the one we propose) has been rejected in the barn owl nucleus laminaris, not in mammals. Our proposition addresses ITD tuning in mammals, but we can briefly comment on findings in the barn owl. It has been found in NL that CF mismatches between monaural inputs to a binaural cell are small but significant and asymmetrical (Peña et al., J Neurosci 2001; see Figure 5A; see also Fischer and Peña, Biol Cybern 2009). However there was no correlation with ITD tuning, which contradicts the stereausis model (i.e. that the cochlear mismatch is the main determinant of best ITD). But this does not mean that CF mismatches did not contribute to ITD tuning at all. On the contrary, Peña et al. (J Neurosci 2001) report that the CF mismatches were large enough to create predicted delays of up to 50 µs, which is quite substantial for barn owls. Thus the available data in barn owls contradict the original stereausis model, but not ours. The CF mismatches that we show are necessary to obtain the required frequency-dependence of best ITD are small (40 Hz in Figure 6), unlike the large differences required in the original stereausis model.

In mammals, there is unfortunately little data on CF mismatches in the monaural inputs to MSO neurons. In cats, Yin and Chan (J Neurophy 1990) report (p 480) that BFs (not CFs) were generally similar for both ears: they differed by 0.2 octaves or less for 13 of the 18 cells. As we show on Figure 6, this order of magnitude is sufficient to produce the observed frequency-dependence of best ITD. In gerbils, Day and Semple (J Neurophy, 2011) also found frequency-dependent best ITDs in MSO neurons. They showed that those relationships could be explained using a periphery model by a combination of cochlear mismatches and axonal delays (i.e., similar to our proposition, not original stereausis), but unfortunately there was no direct physiological evidence in that study.

Thus, while the original stereausis model does not appear consistent with earlier data, our proposition is to strengthen the hypothesis, we show in the revised manuscript an analysis of in vivo intracellular recordings in gerbil MSO cells (Figure 7). It shows in 6 cells the monaural EPSP rate as a function of tone frequency for both sides. It appears that there can indeed be differences in frequency tuning between ipsi- and contralateral inputs. Additional experiments would be needed to relate those differences with the frequency-dependence of ITD tuning.

We added a paragraph in the Discussion to address these points.

3) With respect to testing the model, please discuss recently published data by van der Heijden et al., 2013 and Day and Semple, 2011, that cover some of the same ground as in this paper, with fewer neurons but with the more difficult recordings from MSO. Could some of your findings reflect processing in the MSO as opposed to in the IC?

We agree that the questions we address would be ideally addressed in the MSO. As pointed out, MSO recordings are more challenging and this study required a large number of cells and stimulus conditions to be able to make statistical comparisons with acoustics. The mechanism we propose indeed applies primarily to the MSO, and it is assumed that ITD tuning in IC is inherited from MSO. This is to be contrasted with the proposition that complex ITD tuning in IC results from the integration of MSO cells with different center frequencies (McAlpine et al., 1998).

In both papers mentioned above, it was shown that MSO neurons do have frequency-dependent ITD tuning, as we observed in our IC recordings. They also both suggest that those properties are primarily due to coincidences between excitatory inputs, as opposed to, for example, delays induced by inhibition. A recent intracellular in vivo study in MSO neurons shows that inhibition does not produce internal delays (Franken et al., Nat Neurosci 2015), contrary to previous claims (Brand et al., Nature 2002). This set of studies suggests indeed that our model and findings should primarily apply to the MSO. We added a paragraph in the Discussion. Finally, we added our own MSO data which address frequency tuning more directly than the MSO studies mentioned, and with intracellular recordings so a clean assessment could be made of the frequency tuning of the monaural inputs (point 3, above).

4) The frequency-dependence of ITD at a particular azimuth (Figurr 3) would be better presented with more detail. Fits to frequency vs ITD or IPD (Figures 3B, C) for constant azimuth are presented for a bandwidth limited to a linear portion of the frequency vs. ITD plot. How were these bandwidths selected for frequencies lying near maxima or minima of these plots?

In the revised text, we inserted an additional figure (Figure 3–figure supplement 1) with more fits to frequency vs. IPD, which should clarify this point. The choice of bandwidth is explained in the Methods (roughly proportional to center frequency, reflecting cochlear filter bandwidths). Note that the linear regression is done not on the frequency-ITD plots, but on the frequency-IPD plots.

5) A few more examples of neural best phase (BP) vs frequency plots would convey the range of data. In figure 1D, and appearing in published studies, deviation from linearity is greatest at high frequency. In the acoustic data, the greatest deviation shown from Tollin and Koka is at low frequency. Are the neural data shown here not representative, or is the suggestion made from using taxidermy or spherical models that the Tollin and Koka data may not be so representative of a more typical environmental situation?

As suggested, we inserted an additional figure in the revised text showing more examples (Figure 1–figure supplement 4). The high frequency points shown in Figure 1D, which deviate from the linear regression, contributes very little to the response of the cell (see Figure 1B, sync-rate) and therefore to the values of CP and CD. Figure 1–figure supplement 1 shows that linear regressions are in fact quite accurate for most cells. We address the acoustical question in response to the next remark below.

6) In Figure 4, distributions of CP and CD are provided, based upon the distribution of neural CFs. It would be useful to know the distribution of neural CFs in the sample and also which features of the ITD vs frequency at constant azimuth plots yield the varying values of CD and CP (at least positive vs negative values). That is, do particular features of these graphs depend upon the neural sample of CF, noting that the sample may not reflect the actual distribution of CF in the inferior colliculus?

We now show the distribution of CF and BF in the cells (Figure 1–figure supplement 3). To address the question of dependence on CF, we performed the same analysis of acoustical CP and CD for low CF (<1 kHz) and high CF (>1 kHz), shown in Figure 4–figure supplement 2. The features are qualitatively similar.

7) Predictions of the inverse relationship between CD and CP are shown for acoustic measurements (Figure 4C), but negative CDs seem not to be as prevalent as in the neural data (Figure 1G). These data are collected for a spherical head model. If feasible, please consider exploring this idea using data measured by Tollin and Koka from living cats, to determine if a broader range of CPs and more negative CDs are achieved.

Figure 4C actually was based on Tollin and Koka’s data, not the spherical model. Indeed negative CDs are not as prevalent as in neural data. The proportion of negative CDs actually depends on the choice of distribution of azimuths, as shown in Figure 4–figure supplement 2 (we added percentages on the figure). In general, there tend to be more negative CDs when the azimuth is close to 0° or 180° (i.e. when ITDs are small). We discuss this point in more detail in the revised text, and added a figure showing the proportion of negative acoustical CDs as a function of azimuth (Figure 4–figure supplement 3).

8) The general discussion would be more directed if you consider relative contributions of CF mismatch, acoustic environment and inhibition in generating BP vs frequency plots. Essentially, this discussion may help explain why there are relatively fewer non-physiological ITDs in Figure 6E than in Figure 1G.

We added a discussion of these different mechanisms. Note that CF mismatch and inhibition are two possible mechanisms; acoustic environment is not a mechanism, it is the target match for those two candidate mechanisms.

Note also that Figure 6E only includes CF mismatches, not axonal delay mismatches—this figure was meant to show that positive CPs can be obtained with CF mismatches, but we also postulate additional axonal delay mismatches.

9) You apparently aim toward a test of your ideas whereby awake animals would listen to a range of frequencies emanating from a closely spaced set of azimuthal locations (Figure 3) during single unit recordings. Some suggestion of how, experimentally, to dissect acoustic and several neural mechanisms would help conclude this story.

We added some text in the revised discussion at the two relevant places. Indeed there are two distinct aspects to be tested. One is that binaural neurons are tuned to complex binaural invariants rather than fixed ITDs, and testing this hypothesis would involve measuring spatial receptive fields with sounds that differ in spectrum of spectrotemporal envelope. Another possibility is to raise animals with manipulated acoustical cues (for example with an earplug), and observe how properties of ITD tuning are changed. The other aspect is that such tuning might be produced by a combination of CF and axonal delay mismatch. This is only a proposed mechanism, which we find plausible. It could perhaps be tested with binaural reverse correlation and/or retrograde tracing in MSO neurons, but of course this is quite challenging, especially if it has to be done in many cells.
