1. Chromosomes and Gene Expression
Download icon

The β-hairpin of 40S exit channel protein Rps5/uS7 promotes efficient and accurate translation initiation in vivo

  1. Jyothsna Visweswaraiah
  2. Yvette Pittman
  3. Thomas E Dever  Is a corresponding author
  4. Alan G Hinnebusch  Is a corresponding author
  1. National Institutes of Health, United States
Research Article
  • Cited 14
  • Views 1,000
  • Annotations
Cite this article as: eLife 2015;4:e07939 doi: 10.7554/eLife.07939

Abstract

The eukaryotic 43S pre-initiation complex bearing tRNAiMet scans the mRNA leader for an AUG start codon in favorable context. Structural analyses revealed that the β-hairpin of 40S protein Rps5/uS7 protrudes into the 40S mRNA exit-channel, contacting the eIF2∙GTP∙Met-tRNAi ternary complex (TC) and mRNA context nucleotides; but its importance in AUG selection was unknown. We identified substitutions in β-strand-1 and C-terminal residues of yeast Rps5 that reduced bulk initiation, conferred ‘leaky-scanning’ of AUGs; and lowered initiation fidelity by exacerbating the effect of poor context of the eIF1 AUG codon to reduce eIF1 abundance. Consistently, the β-strand-1 substitution greatly destabilized the ‘PIN’ conformation of TC binding to reconstituted 43S·mRNA complexes in vitro. Other substitutions in β-hairpin loop residues increased initiation fidelity and destabilized PIN at UUG, but not AUG start codons. We conclude that the Rps5 β-hairpin is as crucial as soluble initiation factors for efficient and accurate start codon recognition.

https://doi.org/10.7554/eLife.07939.001

eLife digest

To make a protein, the DNA sequence of a gene is first copied to make an mRNA molecule, which is then translated into a protein by a molecular machine called the ribosome. The first step of translation is known as initiation. Several proteins referred to as initiation factors can bind to the small subunit of the ribosome, which itself is composed of an RNA molecule and numerous proteins, and form a pre-initiation complex (or PIC for short). This complex contains a molecule called initiator tRNA that is specialized for initiation. The PIC then attaches to the mRNA and starts scanning it, searching the sequence for an AUG triplet to serve as the start codon. The sequence immediately surrounding an AUG triplet, known as the context, influences the likelihood of its selection as the start site. When the start codon is recognized by the initiator tRNA in the PIC, the complete ribosome assembles and begins to build the protein. Choosing the correct start codon is crucial to ensure that the correct protein is made from every mRNA in the cell.

The PIC can adopt an ‘open’ state, which makes it easier to scan the mRNA for the correct start codon and ignore triplets similar in sequence to AUG (like UUG) or AUG triplets in a poor context. Once the correct AUG start codon has been recognized, the PIC changes to a ‘closed’ state, ceases to scan, and assembles the complete ribosome.

One of the proteins that make up the small ribosomal subunit (called Rps5 in budding yeast) is located near the channel where the mRNA molecule exits the PIC during scanning, and is also thought to be involved in translation initiation. However, the role of Rps5 in recognizing the start codon is poorly understood.

Visweswaraiah et al. have now studied Rps5—in particular, a region of this protein that adopts a hairpin structure that dips into the exit channel—using genetic and biochemical methods. In mutant yeast cells in which the hairpin structure was mutated, translation initiation was diminished at suboptimal start codons—including a UUG start codon and an AUG codon in poor context—thus making translation initiation more accurate.

Visweswaraiah et al. then performed experiments on PICs built from purified components to determine how the Rps5 mutations might affect the assembly and stability of the PIC. The results revealed that mutating the upper region of the Rps5 hairpin destabilized the closed state of the PIC when either an AUG or UUG start codon was present in the mRNA. However, other mutations of the hairpin structure destabilized the closed state of the PIC only at a UUG start codon. In both cases, the mutations made the PIC more likely to remain in the open conformation and continue scanning at incorrect or suboptimal start codons, making it more likely that translation begins at the correct AUG start codon.

These results indicate that the Rps5 hairpin is crucial for both efficiently and accurately recognizing the start codon to begin translation. This suggests that ribosomal proteins not only contribute to ribosome structure but can actively participate with other initiation factors in choosing the correct start sites for protein synthesis on all mRNAs in the cell.

https://doi.org/10.7554/eLife.07939.002

Introduction

Accurate identification of the translation initiation codon is critical to ensure synthesis of the correct cellular proteins. In eukaryotic cells this process generally occurs by a scanning mechanism, wherein the small (40S) ribosomal subunit first recruits initiator tRNA (Met-tRNAi) in a ternary complex (TC) with eIF2-GTP in a reaction stimulated by eIFs 1, 1A, and 3. The resulting 43S pre-initiation complex (PIC) attaches to the mRNA 5′ end and scans the 5′ UTR for an AUG, using complementarity with the anticodon of Met-tRNAi to identify the start codon and assemble a 48S PIC. Nucleotides immediately surrounding the AUG, particularly the −3 and +4 positions (referred to below as context nucleotides), also influence start codon selection. During scanning, the GTP bound to eIF2 in the TC is hydrolyzed in the 43S PIC in a manner dependent on the GTPase activating protein eIF5, but Pi release is blocked by eIF1, which also impedes stable binding of Met-tRNAi in the P site. Start codon recognition triggers dissociation of eIF1 from the 40S subunit, which allows interaction between eIF5 and the C-terminal tail (CTT) of eIF1A, Pi release from eIF2-GDP·Pi, and more stable TC binding in the P site (Figure 1). Subsequent dissociation of eIF2-GDP and other eIFs from the 48S PIC enables eIF5B-catalyzed subunit joining and formation of an 80S initiation complex with Met-tRNAi base-paired to AUG in the P site (reviewed in Hinnebusch, 2014).

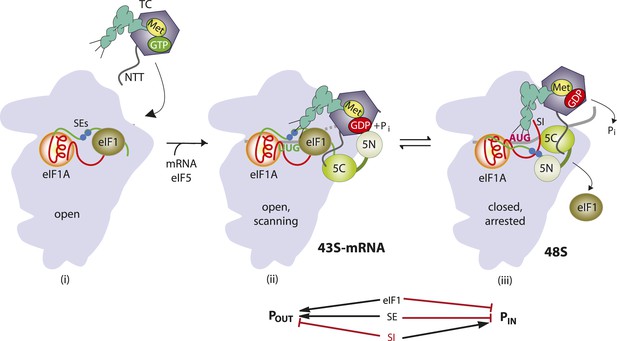

Model describing conformational rearrangements of the PIC during scanning and start codon recognition.

Assembly of the PIC, scanning and start codon selection in WT cells. (i) eIF1 and the scanning enhancer (SEs) elements in the CTT of eIF1A stabilize an open conformation of the 40S subunit to which the TC loads rapidly. (ii) The 43S PIC in the open conformation scans the mRNA for the start codon with Met-tRNAi bound in the POUT state. The GAP domain in the N-terminal domain of eIF5 (5N) stimulates GTP hydrolysis by the TC to produce GDP•Pi, but release of Pi is blocked. The unstructured NTT of eIF2β interacts with eIF1 to stabilize eIF1•40S association and the open conformation. (iii) On AUG recognition, Met-tRNAi moves from the POUT to PIN state, clashing with eIF1 and the CTT of eIF1A. Movement of eIF1 and the eIF1A CTT away from the P site disrupts eIF1's interaction with eIF2β-NTT, and the latter interacts with the eIF5-CTD. eIF1 dissociates from the 40S subunit, and the eIF5-NTD disengages from eIF2 and interacts with the eIF1A CTT instead, dependent on the SE elements, thereby facilitating Pi release from eIF2. The eIF5-CTD moves into the position on the 40S subunit previously occupied by eIF1 and blocks reassociation of eIF1. (Below) Arrows summarize that eIF1 and the eIF1A SE elements promote POUT and block transition to the PIN state, whereas the scanning inhibitor (SI) element in the NTT of eIF1A stabilizes the PIN state. (Adapted from Hinnebusch and Lorsch, 2012; Nanda et al., 2013).

https://doi.org/10.7554/eLife.07939.003

eIF1 plays a dual role in the scanning mechanism. It promotes an open, scanning-conducive conformation of the PIC (Pestova and Kolupaeva, 2002) to which TC rapidly loads, bound in a state capable of inspecting successive triplets entering the P site (dubbed POUT) (Passmore et al., 2007; Saini et al., 2010); and it also blocks recognition of near-cognate start codons (e.g., UUG) (Yoon and Donahue, 1992) and AUG codons in poor sequence context (Pestova and Kolupaeva, 2002). Hence, eIF1 must dissociate from the 40S subunit (Maag et al., 2005; Cheung et al., 2007) to allow Pi release (Algire et al., 2005) and rearrangement to a scanning-incompatible state with Met-tRNAi base paired with AUG and more tightly bound in the PIN conformation (Passmore et al., 2007; Saini et al., 2010). Consistent with this, structural analyses of different PICs reveal that eIF1 and eIF1A promote rotation of the 40S head relative to the body (Lomakin and Steitz, 2013) (Hussain et al., 2014), which is likely instrumental in TC binding in the POUT conformation, but that eIF1 physically obstructs Met-tRNAi binding in the PIN state (Rabl et al., 2011; Lomakin and Steitz, 2013). Accordingly, eIF1 is deformed and displaced from its 40S location in the open complex during the POUT to PIN transition (Hussain et al., 2014). Consequently, mutations that weaken eIF1 binding to the 40S subunit reduce the rate of TC loading, while elevating initiation at near-cognate codons or AUGs in poor context, by destabilizing the open/POUT conformation and favoring rearrangement to the closed/PIN state during scanning (Martin-Marcos et al., 2011, 2013). Moreover, decreasing wild-type (WT) eIF1 abundance reduces initiation accuracy, whereas overexpressing eIF1 suppresses initiation at near cognates or AUGs in poor context (Valasek et al., 2004; Alone et al., 2008; Ivanov et al., 2010; Saini et al., 2010; Martin-Marcos et al., 2011). This tight link between eIF1 abundance and initiation accuracy is exploited to autoregulate eIF1 expression, as the AUG start codon of the eIF1 gene (SUI1 in yeast) occurs in poor context—a feature conserved throughout eukaryotic evolution—and the frequency of recognizing its own start codon is inversely related to eIF1 abundance (Ivanov et al., 2010; Martin-Marcos et al., 2011).

The stability of the codon-anticodon duplex is an important determinant of initiation accuracy, as the rate of the POUT to PIN transition and stability of the PIN state are both favored by AUG vs non-AUG start codons (Kolitz et al., 2009). It is possible that favorable context also contributes to the stability of PIN (Pisarev et al., 2006; Martin-Marcos et al., 2011), but the stimulatory effect of optimum context on initiation rate is not understood at the molecular level. There is evidence that the context nucleotides are recognized by the α-subunit of eIF2, as replacement of heterotrimeric eIF2 with the eIF2βγ heterodimer reduced the efficiency of AUG recognition and diminished the stimulatory effect of optimum context on 48S PIC assembly in a reconstituted mammalian system (Pisarev et al., 2006). Moreover, crosslinking experiments (Pisarev et al., 2006; Sharifulin et al., 2013) and structural analyses of a mammalian 43S PIC (Hashem et al., 2013) and a partial yeast (py48S) PIC (Hussain et al., 2014) indicate that the N-terminal domain (D1) of eIF2α is in proximity to the −3 nucleotide of the mRNA in the exit channel of the 40S subunit. These and other studies (Lomakin and Steitz, 2013) revealed that the conserved β-hairpin of the 40S protein uS7 (Rps5 in yeast) lies in the vicinity of eIF2α-D1 and the −3 nucleotide of mRNA in reconstituted 43S/48S PICs (Figure 2A,B); however, functional evidence that eIF2α-D1 and the Rps5 β-hairpin have important roles in start codon recognition in vivo is lacking.

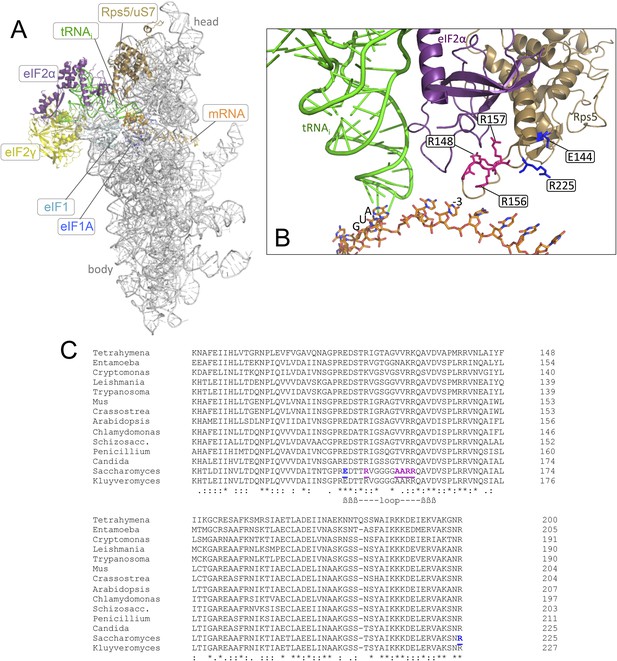

Location in the py48S PIC, and sequence conservation, of the Rps5 β-hairpin loop.

(A, B) Depiction of the partial yeast 48S PIC (PDB 3J81) showing Rps5 (gold), mRNA (orange), Met-tRNAi (green), eIF2α (purple), eIF2γ (yellow), eIF1 (cyan) and eIF1A (blue). For clarity other ribosomal proteins, eIF2β and putative eIF5 densities are not shown. Residues implicated here in AUG recognition are shown with stick side-chains and highlighted (as in panel C) in blue or pink. (C) Alignment of Rps5 sequences from diverse eukaryotes using the Clustal Omega algorithm (http://www.ebi.ac.uk/Tools/msa/clustalo/). The β- hairpin loop is annotated below the alignment and residues implicated in this study in AUG recognition are highlighted in blue or pink and underlined.

https://doi.org/10.7554/eLife.07939.004

In this report, we establish that the β-hairpin of Rps5 is critically required for both efficient and accurate translation initiation in vivo. Substituting Glu-144 (E144) in β-strand 1 of the hairpin, or the proximal C-terminal residue R225 (Figure 2B), confers a marked reduction in the efficiency of AUG recognition. This defect exacerbates the effect of poor context at the SUI1 mRNA start codon to reduce eIF1 cellular abundance and thereby increase recognition of near-cognate UUG codons as a secondary effect. Analysis in the yeast reconstituted system reveals striking destabilization of the PIN state formed at AUG codons by E144R mutant 40S subunits. Substitutions in the loop portion of the Rps5 β-hairpin also destabilize the PIN state, but produce this effect selectively for near-cognate UUG start codons, and thereby dampen UUG initiation in vivo. These findings indicate that the Rps5 β-hairpin functions on a par with soluble initiation factors, such as eIF1, eIF1A and eIF2, to insure efficient and accurate start codon recognition in eukaryotic cells.

Results

Substitutions E144R and R225K impair translation initiation and start codon selection in vivo

To examine the role of the Rps5 β-hairpin in start codon recognition, we introduced single substitutions into 3 residues of β-strand 1 (144EDT146) and 8 of the 10 residues in the hairpin loop (147TR148 and 151GGGARRQ158) (Supplementary file 1). Residues in the β-strands, and the loop residues proximal to the β-strands, are among the most highly conserved in evolution (Figure 2C). We also substituted the last four residues of Rps5 (222KSNR225) in view of their strong conservation and proximity to the β-hairpin, and because invariant Glu144 in β-strand 1 (E144) appears to form a salt-bridge with C-terminal residue R225 in the yeast 80S ribosome (Ben-Shem et al., 2011) (Figure 2B). Residues were generally substituted with Ala to shorten the side-chain, or with basic or acidic residues to introduce or alter side-chain charge (Supplementary file 1). The mutations were generated in an RPS5 allele under its own promoter on a low-copy plasmid and examined in a yeast strain with WT chromosomal RPS5 under a galactose-inducible promoter (PGAL1). Mutant phenotypes were scored following a switch from galactose to glucose, where PGAL1-RPS5 expression is repressed. Despite strong sequence conservation of many β-hairpin residues (Figure 2C), only the G151S substitution was lethal and prevented growth on glucose medium; however, several substitutions conferred a slow-growth (Slg) phenotype, including E144R and R225K (Figure 3A, glucose; Supplementary file 1).

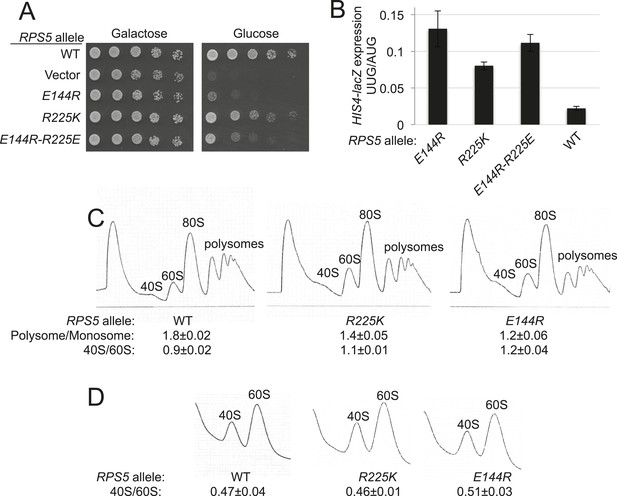

RPS5 mutations E144R and R225K impair translation initiation and elevate UUG initiation without reducing 40S subunit abundance in vivo.

(A) 10-fold serial dilutions of transformants of PGAL1-RPS5 his4-301 strain (JVY07) with the indicated plasmid-borne RPS5 alleles were spotted on synthetic medium supplemented with histidine and containing galactose (SGal + His + Ura + Trp) or glucose (SD + His + Ura + Trp) as carbon source and incubated at 30°C for 3 days (Glucose) or 4 days (Galactose). (B) Strains from (A) also harboring HIS4-lacZ reporters with AUG or UUG start codons (plasmids p367 and p391, respectively) were cultured in SD + His + Trp at 30°C to A600 of ∼1 and β-galactosidase specific activities were measured in WCEs in units of nanomoles of o-nitrophenyl- β-D-galactopyranoside (ONPG) cleaved per min per mg of total protein. Ratios of mean expression of the UUG and AUG reporters calculated from four transformants are plotted with error bars (indicating S.E.M.s). (C) Strains from (A) were cultured in SD + His + Ura + Trp at 30°C to A600 of ∼1, and cycloheximide was added prior to harvesting. WCEs were separated by sucrose density gradient centrifugation and scanned at 254 nm to yield the tracings shown. Mean Polysome/Monosome and 40S/60S ratios (and S.E.M.s) from four replicates are indicated. Student's t-test indicates that the mean values for polysome/monosome ratio in the RPS5 mutants are reduced significantly from the WT (p < 0.0005). (D) Similar to (C) but the cultures were not treated with cycloheximide and lysed in buffers without MgCl2 to allow separation of the dissociated ribosomal subunits.

https://doi.org/10.7554/eLife.07939.005

To identify effects on fidelity of start codon selection, the mutant strains were assayed for expression of otherwise identical HIS4-lacZ reporters containing an AUG or UUG start codon. Substantial (>twofold) increases in expression of the UUG relative to AUG reporter (UUG:AUG ratio) were observed only for E144R and three different mutations substituting Arg225. Mutations E144R and R225K elevated the UUG:AUG ratio by 5.9- and 3.6-fold, respectively (Figure 3B and Supplementary file 1). To test the importance of the Glu144/Arg225 salt-bridge, we constructed the E144R/R225E double mutant in which the salt-bridge should be reinstated. This strain displayed a Slg phenotype and increased UUG:AUG ratio similar in magnitude to that of the R225K mutant but less severe than seen for the E144R strain (Figure 3A,B). The fact that combining these mutations did not produce more severe phenotypes than those conferred by E144R alone is consistent with the possibility that reinstating the salt-bridge mitigates the effects of the E144R single mutation, with the stipulation that the WT identity of E144 or R225 is needed for robust Rps5 function. Thus, although the salt-bridge is reinstated, the substitution of one or both residues still impairs growth and initiation fidelity in the double mutant. Additional experiments are needed to establish the importance of the salt bridge for Rps5 function.

Mutations in various initiation factors are known that elevate the UUG:AUG ratio and restore translation of mutant his4-301 mRNA, which lacks the AUG start codon, by enabling initiation at the third, UUG codon, thereby suppressing histidine auxotrophy and conferring a Sui (Suppressor of initiation codon mutation) phenotype. However, neither E144R nor R225K suppress the His phenotype of his4-301 to confer the Sui phenotype. Based on previous observations of Sui mutants, it is possible that the Rps5 substitutions do not elevate the UUG:AUG ratio sufficiently to produce enough his4-301 product for adequate histidine biosynthesis (Dorris et al., 1995; Martin-Marcos et al., 2013). For example, the eIF1 mutations sui1-K37A and sui1-R33A increase the UUG:AUG ratio by 4.8- and 7.7-fold, but only the latter suppresses the His phenotype of his4-301 (Martin-Marcos et al., 2013). Alternatively, the Rps5 mutations could interfere with an unknown aspect of histidine biosynthesis or utilization (Nanda et al., 2009).

Consistent with their Slg phenotypes, E144R and R225K conferred significant reductions in the polysome:monosome (P/M) ratio (p-value <0.0005) (Figure 3C), indicating a reduced rate of bulk translation initiation relative to elongation, with the greater reduction conferred by the mutation (E144R) with the stronger Slg phenotype (Figure 3A). Neither mutant significantly perturbed the ratio of 40S to 60S subunits (Figure 3C,D), suggesting that the initiation defects arise from altered 40S function rather than abnormalities in expression of Rps5, 40S biogenesis, or stability of mature 40S subunits. Thus, it appears that E144R and R225K reduce the function of Rps5 in stimulating the rate of general translation initiation and promoting accurate start codon selection.

E144R and R225K elevate UUG initiation indirectly by exacerbating the effect of poor context of the SUI1 start codon and thereby reducing eIF1 abundance

In addition to increasing initiation from near-cognate UUG codons, certain Sui mutations in eIF1, eIF1A, and eIF2β are known to enhance initiation from AUG codons in poor context. As such, they suppress the effects of the suboptimal context of the AUG codon of SUI1 mRNA and increase expression of the encoded eIF1 protein (Martin-Marcos et al., 2011). This phenotype is illustrated for the Sui sui1-L96P mutation in Figure 4A (lanes 7, 8 vs 5, 6). However, unlike previously described mutations that enhance UUG recognition, rps5-E144R and -R225K paradoxically decrease eIF1 abundance (Figure 4A, lanes 1–4 vs 5, 6) to a degree that correlates with their elevated UUG:AUG HIS4-lacZ initiation ratios (Figure 3B). Consistently, E144R and R225K reduce expression of a SUI1-lacZ reporter bearing the native, suboptimal context at the three nucleotides preceding the AUG codon (−3CGU−1), but not that of a modified SUI1opt-lacZ reporter with an optimized AUG context (−3AAA−1) (Figure 4B). Thus, the rps5 mutations exacerbate the effect of suboptimal context and decrease AUG recognition on WT SUI1 mRNA. The reduction in eIF1 abundance implies that the rps5 mutations overcome the autoregulation of eIF1 expression, wherein low eIF1 levels suppress the effect of poor context at the SUI1 AUG codon to boost eIF1 abundance (Ivanov et al., 2010; Martin-Marcos et al., 2011). Accordingly, it appears that the rps5 mutations evoke a pronounced defect in recognition of the native SUI1 AUG codon that prevails even at low cellular concentrations of eIF1 that would normally boost SUI1 translation.

Figure 4 with 2 supplements see all

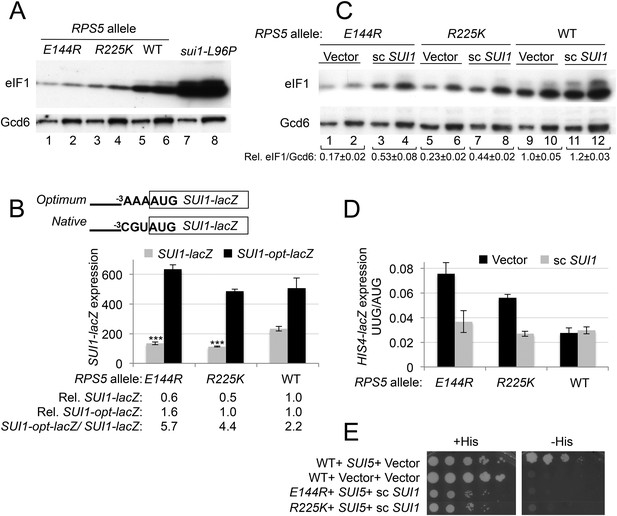

RPS5 mutations E144R and R225K exacerbate poor context at the native SUI1 AUG to reduce eIF1 expression and indirectly confer Sui- phenotypes, but evoke Ssu- phenotypes when eIF1 abundance is boosted.

(A) WCEs of strains from Figure 3A, and from sui1-L96P strain H4564, were subjected to Western analysis using antibodies against eIF1 or Gcd6 (as loading control). Two amounts of each extract differing by a factor of two were loaded in successive lanes. (B) Strains from Figure 3A also harboring SUI1-lacZ (pPMB24) or SUI1- opt-lacZ (pPMB25) reporters were cultured and assayed for β-galactosidase activities as described in Figure 3B. Mean expression levels and S.E.M.s from four transformants are plotted, and relative (Rel.) mean expression levels normalized to that of the WT strain are listed below the histogram. Student's t-test indicates that the mean values for SUI1-lacZ expression in the RPS5 mutants are reduced significantly from the WT (***p < 0.0005). (C) WCEs of strains from Figure 3A also harboring sc SUI1 plasmid pPMB21 or empty vector were subjected to Western analysis as in (A). Signal intensities were quantified and mean eIF1/Gcd6 ratios are listed below the blot with S.E.Ms (D) HIS4-lacZ reporters with AUG or UUG start codons were assayed in strains from (C) as in Figure 3B. (E) his4-301 strains with the indicated WT or mutant RPS5 alleles (from Figure 3A) harboring sc SUI1 plasmid pPMB21, SUI5 plasmid p4281, or empty vectors were spotted on SD plates containing (SD + His) or lacking histidine (SD-His) and incubated for 3 days and 5 days, respectively.

https://doi.org/10.7554/eLife.07939.006

Interestingly, the discrimination against native poor context at SUI1 with attendant reduced eIF1 expression represents a hyperaccuracy phenotype displayed by known Ssu (Suppressor of Sui) mutations in eIF1, eIF1A, and eIF2β, which additionally suppress the elevated UUG:AUG ratio conferred by various Sui mutations (Martin-Marcos et al., 2011). Hence, the fact that rps5-E144R and -R225K discriminate against poor context at SUI1 but elevate the UUG:AUG ratio seems paradoxical. However, their elevated UUG:AUG ratio (hypoaccurate) phenotype could be explained by the reduced levels of eIF1 present in these rps5 mutants (Hinnebusch, 2011). Indeed, we found that increasing the level of WT eIF1 by adding an extra plasmid-borne copy of WT SUI1 (Figure 4C, scSUI1 vs Vector transformants) mitigated the Sui phenotypes of both rps5 mutants, reducing their UUG:AUG ratios to essentially WT levels (Figure 4D). Introducing scSUI1 also mitigated their Slg phenotypes, slightly for -R225K and substantially for -E144R (Figure 4—figure supplement 1). The resulting rps5/scSUI1 strains exhibit reduced eIF1 levels compared to WT cells containing an extra copy of SUI1 (Figure 4C, lanes 3–4 and 7–8 vs 11–12), indicating that the rps5 mutations still exacerbate the effect of poor AUG context at higher levels of eIF1 expression. We conclude that the increased recognition of UUG start codons conferred by the rps5 mutations is an indirect consequence of their reduced expression of eIF1.

As noted above, reducing eIF1 expression by discriminating against the poor context of the SUI1 AUG codon is a phenotype of known Ssu (hyperaccuracy) mutants (Martin-Marcos et al., 2011). Since rps5 mutations also reduced eIF1 expression in a context-dependent manner, we next examined whether they exhibit Ssu phenotypes by testing them for the ability to suppress the dominant Sui phenotype of the SUI5 variant of eIF5 (eIF5-G31R) (Huang et al., 1997). This test was conducted using the RPS5 mutant strains harboring scSUI1 to compensate for the reduced eIF1 expression responsible for their Sui phenotypes. Introducing SUI5 on a plasmid conferred the expected His+/Sui phenotype in the his4-301 strain harboring WT RPS5 and native eIF1 levels (Figure 4E, compare row 1 with 2). Importantly, this His+ phenotype was eliminated in the corresponding rps5-E144R and -R225K mutants when eIF1 levels were boosted by introduction of scSUI1, as the reduction in growth on −His medium was greater than that seen on +His medium in the rps5/SUI5 mutants vs the RPS5/SUI5 strain (Figure 4E, rows 3–4 vs 1). Suppression of the His+ phenotype of SUI5 could arise from defective induction of GCN4 mRNA with attendant impairment of HIS4 transcription (Hinnebusch, 2005); however, at least rps5-E144R does not reduce the expression of a GCN4-lacZ reporter in amino acid starved cells containing an extra copy of SUI1 (Figure 4—figure supplement 2). Hence, similar to known Ssu mutations in eIF1 or eIF1A (Martin-Marcos et al., 2011), the rps5-E144R mutation appears to suppress recognition of the UUG start codon of his4-301 mRNA in addition to discriminating against poor context at the SUI1 AUG codon.

E144R and R225K confer leaky scanning of an upstream AUG start codon

As noted above, the rps5 mutations decrease recognition of the SUI1 start codon and suppress UUG initiation when eIF1 levels are restored. We next asked whether they also decrease recognition of an upstream AUG codon and allow leaky scanning to the downstream ORF. A GCN4-lacZ reporter was employed with a modified version of upstream ORF1 that is elongated to overlap the GCN4 ORF (el.uORF1). This construct is ideally suited for this query because virtually all scanning ribosomes normally recognize the uORF1 AUG (uAUG-1), and reinitiation at the downstream AUG of the GCN4 main ORF following termination of el.uORF1 translation is almost non-existent, so that translation of the main ORF is extremely low (Grant et al., 1994). Remarkably, rps5-E144R confers a dramatic increase in leaky scanning through el.uORF1, elevating GCN4-lacZ expression by 20-fold for the construct containing optimum context (−3AAA−1) at uAUG-1 (Figure 5, row 1, WT vs E144R). This effect is nearly comparable to the ∼40-fold increase in leaky scanning seen in WT cells for the extremely weak uAUG-1 context of −3UUU−1 (Figure 5, WT, row 5 vs row 1). rps5-E144R also evokes a large ∼10-fold increase in leaky scanning for the el.uORF1 construct with the uAUG-1 context of intermediate strength (−3UAA−1), but only a ∼fourfold increase with the weakest context of −3UUU−1 (Figure 5, rows 3 and 5, WT vs E144R). Expression of the construct lacking uAUG-1 is not significantly affected by rps5-E144R (Figure 5, row 7, WT vs E144R), consistent with leaky scanning being the source of elevated GCN4-lacZ expression for the various el.uORF1 constructs. The R225K mutation also increases leaky scanning of uAUG-1, but to a lesser degree: 3.5-fold for −3AAA−1, 3.3-fold for −3UAA−1, and 1.7-fold for −3UUU−1 (Figure 5, rows 1, 3, 5; WT vs R225K). The increases in leaky scanning conferred by the rps5 mutations were relatively unaffected by the restoration of WT eIF1 levels by introducing scSUI1 (Figure 5, rows 2, 4, 6 vs 1, 3, 5, respectively). This was anticipated because the reduced levels of eIF1 in the rps5 mutants (lacking scSUI1) would not be expected to reduce uAUG-1 recognition and confer leaky scanning, as decreased eIF1 abundance is associated with increased start codon recognition (at least for near-cognate start codons or AUG codons in poor context) (Pestova and Kolupaeva, 2002; Ivanov et al., 2010; Martin-Marcos et al., 2011). We conclude that the rps5 substitutions impair recognition of GCN4 uAUG-1, whether located in perfect or poor surrounding sequence context, to allow increased translation of the downstream GCN4 coding sequences.

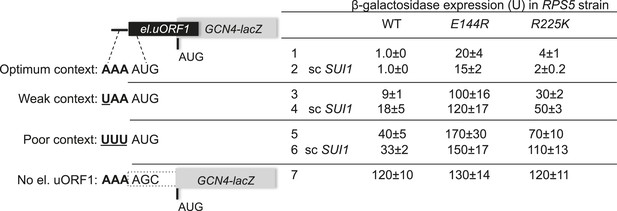

RPS5 mutations E144R and R225K confer strong leaky scanning of GCN4 uAUG-1 in vivo.

β-galactosidase activities were measured in WCEs of strains from Figure 4C harboring the scSUI1 plasmid (as indicated) and el.uORF1 GCN4-lacZ reporters pC3502, pC4466, or pC3503 containing, respectively, the depicted optimum, weak, or poor context of uAUG-1; or uORF-less GCN4-lacZ reporter pC3505 with a mutated uAUG-1. Mean expression values with S.E.M.s were determined from four transformants as described in Figure 3B.

https://doi.org/10.7554/eLife.07939.009

Ssu substitution E144R destabilizes the PIN conformation of the 48S PIC in vitro

The multiple defects in start codon recognition conferred by rps5-E144R suggest that it destabilizes the PIN state of the 48S PIC. We tested this hypothesis by analyzing the effects of E144R on the equilibrium and rate constants governing TC binding to the 40S subunit in the yeast reconstituted translation system. To this end, we purified 40S subunits from rps5Δ::kanMX deletion strains harboring either plasmid-borne rps5-E144R or WT RPS5 as the only source of Rps5. We began by measuring the affinity of WT TC, assembled with [35S]-Met-tRNAi, for mutant or WT 40S subunits in the presence of saturating eIF1, eIF1A and a model mRNA containing an AUG start codon (mRNA(AUG)), using native gel electrophoresis to separate 40S-bound and unbound fractions of TC. Reactions conducted with increasing concentrations of 40S subunits revealed that 43S∙mRNA(AUG) complexes assembled with either E144R or WT 40S subunits have relatively high affinities for TC (Figure 6A), with Kd values of ≤1 nM (Figure 6E). In the absence of mRNA, the affinities for TC are similar between 43S PICs assembled with mutant or WT 40S subunits (Figure 6E); however, the endpoint of the reaction is markedly reduced for the E144R complexes (Figure 6B). It was previously proposed that the endpoints of TC binding reactions achieved at saturating 40S concentrations reflect the distribution of PICs between open and closed states. The open state was assumed to be unstable during electrophoresis, and thus could not be visualized, leading to endpoints of <1 (measured as fractions of TC bound to 40S complexes) for reactions using mRNA lacking an AUG codon (Kapp et al., 2006; Kolitz et al., 2009), or tRNAiMet mutants (Dong et al., 2014), in which the open complex is favored over the closed state. Hence, the reduced endpoint seen in Figure 6B suggests that the closed state of 43S complexes formed with E144R mutant ribosomes is unstable and rearranges to the less stable, open conformation during electrophoresis. This interpretation supports the hypothesis that E144R destabilizes the closed state of the PIC.

Figure 6 with 1 supplement see all

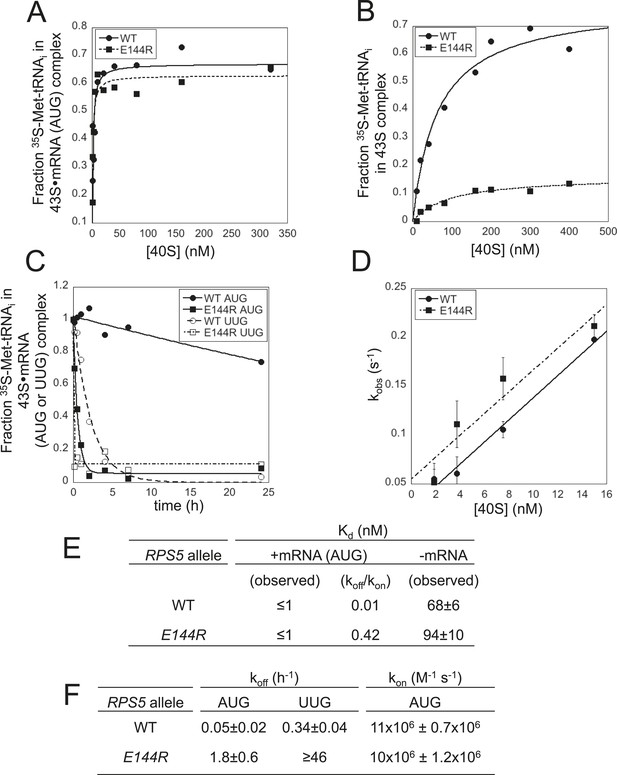

Rps5 Ssu- substitution E144R destabilizes the PIN state in vitro to a greater extent at UUG vs AUG start codons.

(A, B) Determination of Kd values for TC with [35S]-Met-tRNAi binding to 40S·eIF1·eIF1A complexes assembled with WT or E144R mutant 40S subunits and either mRNA (AUG) (A) or without mRNA (B). (C) Analysis of TC dissociation from 43S·mRNA complexes assembled with WT or E144R mutant 40S subunits and either mRNA(AUG) or mRNA(UUG). Representative curves selected from at least three independent experiments are shown. (D) Determination of kon values for TC binding to 40S·eIF1·eIF1A complexes from plots of observed rate constants (kobs) vs 40S concentration for WT or E144R mutant 40S subunits and mRNA(AUG). (E, F) Kd, koff and kon values with S.E.M.s determined in (AD).

https://doi.org/10.7554/eLife.07939.010

Direct evidence for this last conclusion came from determining rate constants for TC association and dissociation for 43S complexes bound to mRNA. To measure the TC off-rate (koff), 43S∙mRNA complexes were formed as above using TC assembled with [35S]-Met-tRNAi, and the amount of [35S]-Met-tRNAi remaining in the slowly-migrating PIC was measured at different times after adding a chase of excess unlabeled TC. In agreement with previous findings (Kolitz et al., 2009; Dong et al., 2014; Martin-Marcos et al., 2014), TC dissociates very little from WT PICs formed with mRNA(AUG) over the time course of the experiment, yielding a rate constant of only 0.05 hr−1 (Figure 6C; summarized in Figure 6F). By contrast, TC dissociation from WT PICs assembled on an otherwise identical mRNA containing a UUG start codon is ∼sevenfold faster (koff = 0.34 hr−1), reflecting the reduced stability of the PIN state at this near-cognate start codon (Figure 6C,F) (Kolitz et al., 2009). Remarkably, for 43S∙mRNA(AUG) complexes assembled with E144R 40S subunits, the dissociation rate was increased ∼36-fold compared to that seen for the corresponding WT complexes (from 0.05 hr−1 to 1.8 hr−1; Figure 6C,F). An even larger increase in koff of ∼130-fold was measured for mRNA(UUG) complexes assembled with E144R vs WT 40S subunits (≥46 hr−1 vs 0.34 hr−1; Figure 6C,F). These findings provide strong biochemical evidence that E144R destabilizes PIN at both AUG and UUG start codons with a relatively stronger effect on the near-cognate triplet, which coincides with the in vivo effects of E144R of reducing recognition of the SUI1 AUG and GCN4 uAUG-1 start codons, and of suppressing UUG initiation on his4-301 mRNA.

The rates of TC association (kon) were measured by mixing labeled TC with different concentrations of WT or E144R 40S subunits and saturating eIF1, eIF1A and mRNA(AUG). Aliquots were removed at different time points, the reactions terminated with excess unlabeled TC, and the amount of labeled TC in PICs was measured by native gel electrophoresis. The slope of the plot of the pseudo-first-order rate constants (kobs) for PIC formation vs 40S concentration yields the second-order rate constant (kon) (Kolitz et al., 2009). The kon values measured for WT and E144R 40S subunits were essentially identical (Figure 6D,F), indicating that PICs formed with the mutant ribosomes assemble the POUT complex and rearrange to PIN at the same rates achieved with WT ribosomes, and that rps-E144R primarily reduces the stability of the PIN state. Calculation of Kd values using the measured rate constants koff and kon reveals that E144R decreases the affinity of TC for 43S∙mRNA(AUG) complexes by ∼40-fold (Figure 6E, koff/kon). Together, the in vitro experiments demonstrate that E144R reduces the affinity of TC for 43S∙mRNA PICs by destabilizing the PIN state, with a relatively greater effect at UUG vs AUG start codons.

Interestingly, we found that E144R confers the Gcd phenotype, derepressing a GCN4-lacZ reporter by more than fourfold in non-starvation conditions (Figure 6—figure supplement 1), which indicates a defect in TC binding to 40S subunits in vivo. A decreased rate of TC binding derepresses GCN4-lacZ expression because scanning 40S subunits that have translated uORF1 and resumed scanning can bypass the start codons of the inhibitory uORFs 2–4 before rebinding TC, and then reinitiate further downstream at the GCN4 AUG codon (Hinnebusch, 2005). Derepression of GCN4-lacZ by E144R was evident even in the presence of scSUI1 (Figure 4—figure supplement 2, E144R/scSUI1 vs WT, unstarved), indicating that it does not result solely from the reduced eIF1 abundance in this mutant. Because E144R does not reduce the rate of TC binding to 43S·mRNA complexes (∼WT kon value, Figure 6F), but greatly increases its off-rate (elevated koff, Figure 6F), we infer that the Gcd phenotype of E144R arises instead from dissociation of TC from a fraction of re-scanning 40S subunits, enabling their bypass of uORFs 2–4, followed by re-binding of TC in time to reinitiate at GCN4. This mechanism was described previously for Gcd substitutions of 18S rRNA residues in the P site of the 40S subunit that, like rps5-E144R, destabilize TC binding in vitro and confer leaky-scanning of an uAUG in vivo (Dong et al., 2008).

Substitutions in the loop region of the Rps5 β-hairpin increase fidelity of start codon selection independently of context nucleotides

Having concluded that rps5-E144R can suppress UUG initiation once native eIF1 levels have been restored, we examined the remaining β-hairpin substitutions we constructed for this Ssu phenotype. Remarkably, eight different mutations affecting various loop residues were found to suppress the His+ phenotypes conferred by dominant Sui alleles SUI3-2 and SUI5, including R148A/E, R156A/E, R157A/E, A154R and A155E (Figure 7A, -His panel; cf. WT and rps5 strains harboring SUI3-2 or SUI5). With the possible exception of R157E, they also suppressed the dominant Slg phenotype of SUI5 (Figure 7A, +His panel; cf. WT and rps5 strains harboring SUI5)—a hallmark of known Ssu mutations in eIF1 (Martin-Marcos et al., 2014). Furthermore, R148A/E, R156A/E and R157A suppressed the elevated UUG:AUG ratio of HIS4-lacZ expression conferred by SUI3-2 (Figure 7B,C), demonstrating bona fide Ssu phenotypes for these mutations.

Figure 7 with 1 supplement see all

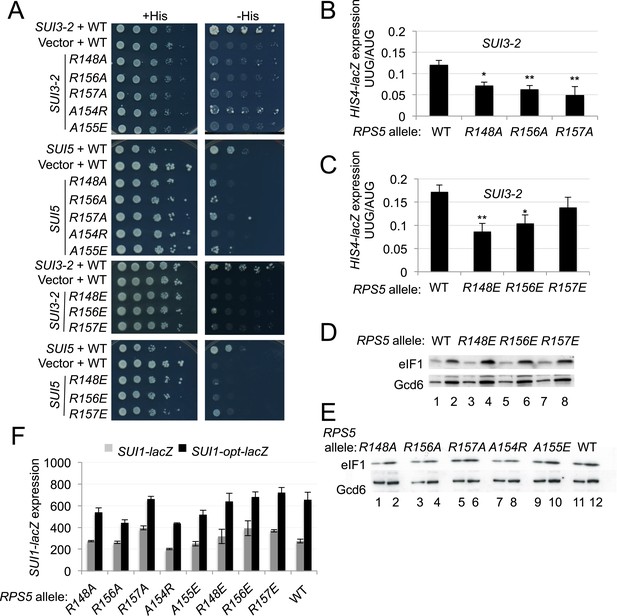

Substitutions in loop residues of the Rps5 β-hairpin confer Ssu- phenotypes.

(A) 10-fold serial dilutions of PGAL1-RPS5 his4-301 strain (JVY07) transformed with the indicated plasmid-borne RPS5 alleles and either SUI3-2 plasmid p4280, SUI5 plasmid p4281, or empty vector were spotted on SD + His + Ura (+His) or SD + Ura (−His) and incubated at 30°C for 3 days and 5 days, respectively. (B, C) Strains from (A) also harboring HIS4-lacZ reporters with AUG or UUG start codons (plasmids p367 and p391, respectively) were analyzed as in Figure 3B. Ratios of mean expression of the UUG and AUG reporters calculated from four transformants are plotted with S.E.M.s. Student's t-test indicates that the mean UUG/AUG expression in the RPS5 mutants is significantly reduced when compared to WT (*p < 0.05, **p < 0.005). (D, E) WCEs of his4-301 strains with the indicated RPS5 alleles were subjected to Western analysis as in Figure 4A. (F) WCEs of strains from (D, E) also harboring SUI1-lacZ (pPMB24) or SUI1-opt-lacZ (pPMB25) reporters were assayed for β-galactosidase activities as described in Figure 4B. Mean expression levels and S.E.M.s from four transformants are plotted.

https://doi.org/10.7554/eLife.07939.012

In addition to discriminating against non-AUG codons, Ssu mutations in eIF1 and eIF1A exacerbate the effect of suboptimal context of the SUI1 AUG start codon and reduce eIF1 expression. As such, they exacerbate the differential expression of SUI1-lacZ fusions containing native, suboptimal context vs optimized context by specifically reducing expression of the native-context reporter (Martin-Marcos et al., 2011). However, none of the rps5 Ssu mutants exhibit diminished eIF1 abundance (Figure 7D,E), or selectively diminish expression of the SUI1-lacZ fusion with native context (Figure 7F). Nor do they increase leaky scanning of uAUG-1 regardless of its context in the el.uORF1 reporters (Figure 7—figure supplement 1). Thus, unlike known Ssu mutations affecting eIF1 and eIF1A, the rps5 Ssu substitutions in the β-hairpin loop suppress recognition of UUG codons without affecting utilization of AUG codons in poor context.

Ssu substitution R148E destabilizes the PIN conformation of the PIC at UUG codons

To reveal the molecular mechanism of the Ssu substitutions in the β-hairpin loop, we analyzed mutant 40S subunits purified from rps5-R148E cells in the reconstituted yeast system. Measurements of TC binding to 43S·mRNA(AUG) complexes or 43S complexes without mRNA revealed reaction endpoints (Figure 8A,B) and Kd values (<1 nM for 43S·mRNA(AUG) complexes, Figure 8E) indistinguishable between WT and R148E mutant ribosomes, as were rates of TC dissociation (koff) from these complexes containing AUG start codons (Figure 8C, AUG, WT vs R148E; Figure 8F, WT eIF2β, AUG values). However, R148E increased the koff for 43S·mRNA(UUG) complexes by ∼twofold, suggesting destabilization of PIN specifically at UUG codons (Figure 8C,F, WT eIF2β, UUG). To support this conclusion, we repeated the koff measurements using eIF2 harboring the Sui substitution in eIF2β encoded by SUI3-2 (S264Y). Consistent with previous results (Martin-Marcos et al., 2014), in reactions with WT 40S subunits, SUI3-2 eliminates detectable TC dissociation from AUG complexes and also delays TC dissociation from UUG complexes (Figure 8D) compared to that seen using WT eIF2 (Figure 8C), thus decreasing the koff for UUG complexes by ∼threefold (Figure 8F; WT eIF2β vs eIF2β-S264Y, WT RPS5, UUG complexes). These results are consistent with the elevated UUG initiation conferred by SUI3-2 in vivo. Importantly, in assays with the SUI3-2 variant of eIF2, rps5-R148E produced a marked, ∼fourfold increase in koff for the UUG complexes without affecting dissociation of the corresponding AUG complexes (Figure 8D,F). Thus, rps5-R148E preferentially destabilizes the PIN conformation at UUG start codons, overriding the opposing effect of SUI3-2 of enhancing the stability of the UUG complex. These biochemical results are in accordance with our finding that rps5-R148E suppresses the elevated UUG:AUG initiation ratio conferred by SUI3-2 in vivo.

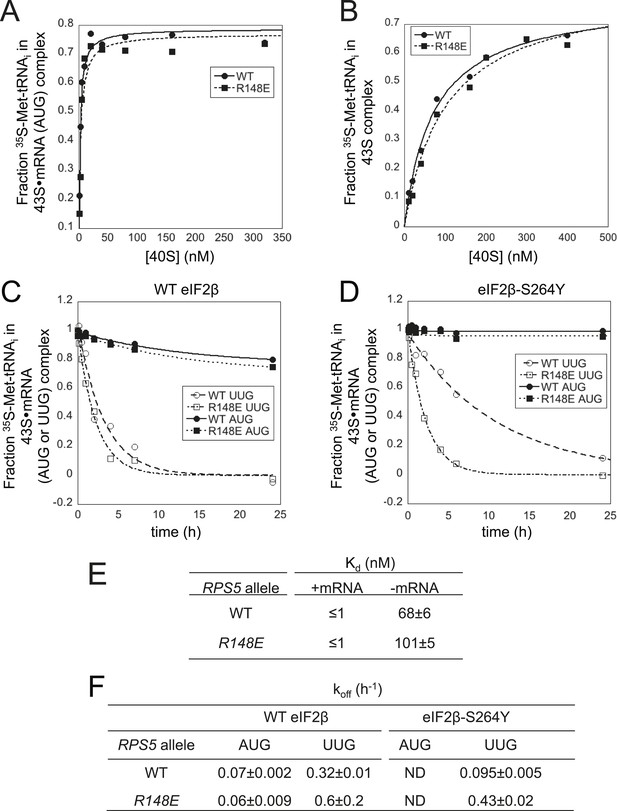

Rps5 Ssu- substitution R148E destabilizes PIN in vitro selectively at UUG codons.

(A, B) Determination of Kd values for TC with [35S]-Met-tRNAi binding to 40S·eIF1·eIF1A complexes assembled with WT or R148E mutant 40S subunits and either mRNA (AUG) (A) or without mRNA (B). (C, D) Analysis of TC dissociation from 43S·mRNA complexes assembled with WT or R148E mutant 40S subunits and mRNA(AUG) or mRNA(UUG), conducted using WT eIF2 (C) or eIF2β-S264Y mutant eIF2 (D). Representative curves selected from at least three independent experiments are shown. (E, F) Kd, koff values with S.E.M.s determined in (AD). ND, no dissociation observed.

https://doi.org/10.7554/eLife.07939.014

Discussion

In this study, we obtained genetic and biochemical evidence implicating the β-hairpin of Rps5 in achieving efficient and accurate start codon recognition in vivo. In the recent py48S cryo-EM structure (Hussain et al., 2014), this domain projects into the mRNA exit channel of the 40S subunit and the hairpin loop approaches the key context nucleotide at the −3 position of mRNA. The β-hairpin also interacts with eIF2α-DI, which mimics an E-site tRNA and contacts the Met-tRNAi in the P site (Figure 2A). Our genetic findings indicate that the E144R substitution in β-strand 1 of the hairpin reduces the rate of bulk translation initiation (Figure 3C) and dramatically impairs recognition of GCN4 uAUG-1 in optimal context by the scanning PIC, conferring a higher incidence of leaky scanning for the el.uORF1-GCN4-lacZ reporter than described thus far for any initiation factor mutation (Elantak et al., 2010). The E144R mutation also impairs recognition of the SUI1 AUG codon in its native, suboptimal context, and suppresses utilization of the UUG start codon in his4-301 mRNA in different Sui mutants to confer an Ssu phenotype. Our biochemical analysis of E144R mutant 40S subunits revealed a drastic destabilization of the PIN state of reconstituted 48S PICs at AUG or UUG codons (Figure 9), with a stronger effect on the inherently less stable UUG complexes. These biochemical phenotypes can account for both the defects in AUG recognition and the reduction in UUG:AUG initiation ratio (Ssu phenotype) conferred by rps5-E144R in vivo.

Figure 9 with 1 supplement see all
β-hairpin of Rps5 has a critical role in start codon recognition during translation initiation by stabilizing initiator tRNA binding to the pre-initiation complex.

Model summarizing the role of the conserved β-hairpin residues in Rps5 in start codon recognition. See Figure 1 for description of the open/POUT and closed/PIN states of the PIC and roles of eIF1 and the SE/SI elements of eIF1A in regulating conformational rearrangements and reactions accompanying AUG recognition. Results from this study indicate that Rps5 β-hairpin residues E144 and R148 function in stabilizing the PIN conformation of TC binding, with E144 having a stronger effect, as indicated by the thicker arrow.

https://doi.org/10.7554/eLife.07939.015

The E144R mutation conferred a greater increase in leaky scanning of GCN4 uAUG-1 in optimum context (∼20-fold) vs uAUG-1 in poor context (∼fourfold). This difference could be interpreted to indicate that E144R disrupts recognition of optimum context nucleotides, so that its deleterious effect on AUG recognition is dampened when the optimum context nucleotides are absent. However, this interpretation would overlook the fact that it is impossible to detect an increase in leaky scanning of uAUG-1 in poor context by 20-fold, as only a ∼threefold reduction in its recognition yields GCN4-lacZ expression essentially indistinguishable from that seen in the absence of uAUG-1 itself (Figure 5, cf. constructs UUUAUG vs AAAAGC in WT cells). Thus, it seems plausible that E144R suppresses uAUG-1 recognition equally well for poor and optimal context. By contrast, E144R and R225K impair recognition of the SUI1 AUG only when it resides in poor context, suggesting that the effects of these Rps5 mutations are limited to the inherently weaker initiation site of native SUI1 mRNA. This conclusion would be consistent with the fact that E144R and R225K also suppress recognition of the UUG start codon of his4-301 mRNA, which resides in moderately strong context, as near-cognate codons are inherently weaker initiation sites even when present in optimum context.

Extending this last interpretation of E144R and R225K—that they preferentially discriminate against poor initiation sites—to explain our findings on leaky scanning of GCN4 uAUG-1 would require a stipulation that uAUG-1 is a relatively weak initiation site even with the native optimum context present, which seems at odds with the fact that nearly all scanning ribosomes recognize native uAUG-1 in WT GCN4 mRNA (Grant et al., 1994). However, one distinctive feature of WT uORF1 and the elongated el.uORF1 contained in our leaky scanning reporter is the absence of typical coding sequences 3′ of the uAUG-1 start codon. WT uORF1 is only 3 codons long, and much of el.uORF1 is derived from non-translated triplets that normally reside between uORF4 and the GCN4 coding sequence. This region has a relatively low propensity for secondary structure (Kertesz et al., 2010), which might enable elongating ribosomes to clear the initiation region more rapidly than occurs with more typical coding sequences. In fact, the properties of the leaky scanning reporter insure that the increases in GCN4-lacZ expression observed in the Rps5 mutants reflect diminished recognition of uAUG-1 relative to the main ORF start codon by scanning PICs. Considering that the rps5 mutations appear to have no effect on recognition of the main ORF AUG in the GCN4-lacZ construct lacking el.uORF1 (Figure 5, row 7), the presence of greater secondary structure in the main ORF could reduce the rate of scanning through the initiation region to promote start codon recognition in a way that would be lacking at the el.uORF1 start codon. If elongating ribosomes located in the initiation region can enhance initiation by this mechanism, this could compensate for the reduction in PIN stability conferred by E144R and R225K for the SUI1 and GCN4 initiation regions in a way that would not occur for el.uORF1, making the latter sensitive to the destabilizing effects of these mutations even with optimum context present. Consistent with this scenario, it was shown recently that the presence of slowly-translated codons near the AUG codon can affect the initiation rate in yeast cells (Chu et al., 2014). Thus, it seems plausible that E144R and R225K decrease the efficiency of start codon recognition only for weak initiation sites, including near-cognate UUG codons and sub-optimal AUG start sites, without reducing recognition of AUG codons in strong context that initiate structured coding sequences.

The impaired recognition of the native SUI1 AUG codon and attendant reduced synthesis of eIF1 conferred by the rps5-E144R and -R225K mutations evokes increased recognition of near-cognate, UUG start codons. While this elevated UUG:AUG initiation ratio is the expected outcome of diminished eIF1 abundance (Ivanov et al., 2010; Martin-Marcos et al., 2011), previously described Ssu substitutions in eIF1 and eIF1A reduce eIF1 levels by the same mechanism described here—discriminating against the weak context of the native SUI1 AUG—but they suppress, rather than elevate, the UUG:AUG initiation ratio despite reduced eIF1 levels (Martin-Marcos et al., 2011). Thus, these eIF1 and eIF1A Ssu substitutions appear to have a stronger effect than rps5-E144R and -R225K in blocking selection of UUG start codons. On the other hand, the eIF1A and eIF1 Ssu substitutions confer much smaller increases in leaky scanning of GCN4 uAUG-1 (Fekete et al., 2007) (Pilar Martin Marcos and AGH, unpublished observations) compared to that seen here for rps5-E144R, thus indicating a relatively greater defect in AUG recognition for the Rps5 mutation.

In addition to the mutations affecting the upper, structured portion of the β-hairpin loop (E144R and R225K), we also identified Ssu substitutions in the loop region that discriminate against UUG codons in the presence of Sui substitutions in eIF5 or eIF2β. Consistent with this, an exemplar of such mutations, rps5-R148E, specifically destabilized the PIN state formed at UUG, but not AUG, start codons in reconstituted PICs in vitro. The Rps5 loop substitutions do not discriminate against the weak context of the SUI1 AUG codon, nor increase leaky scanning of el.uORF1 even when uAUG-1 resides in poor context, and thus exclusively destabilize PICs lacking a cognate (AUG) start codon. They differ from previously described Ssu substitutions in eIF1 (Martin-Marcos et al., 2011) in that the Rps5 substitutions efficiently suppress UUG initiation but do not discriminate against the poor context of the native SUI1 AUG codon. This distinction might be explained by noting that eIF1 is the principal ‘gate-keeper’ that blocks utilization of weak initiation sites (Hinnebusch, 2014). As the eIF1 Ssu substitutions delay eIF1 release from the 40S subunit on start codon recognition (Martin-Marcos et al., 2013), they might discriminate more broadly against unstable PICs regardless of whether they lack strong context or a perfect codon:anticodon duplex in the P site. Our Rps5 loop substitutions, by contrast, appear to have a more nuanced effect that destabilizes PIN only when a mismatch occurs in the codon:anticodon duplex itself. As summarized in Figure 9, our results indicate that both E144 and R148 promote start codon selection by stabilizing the PIN state, and the finding that E144R reduces initiation at both UUG and sub-optimal AUG codons, while R148E impairs only UUG recognition, can be explained as the result of a relatively stronger contribution of E144 vs R148 to the stability of the PIN state.

There are several possibilities to explain how perturbing the Rps5 β-hairpin destabilizes the PIN state and reduces start codon recognition. The proximity of the hairpin loop to the E site (Figure 2) suggests a disruption of Rps5 contacts with the context nucleotides in mRNA. Indeed, R156 in the loop interacts with the backbone of rRNA helix 23, which in turn contacts the −3 context nucleotide (Figure 9—figure supplement 1) (Hussain et al., 2014). If this interaction promotes the PIN state, it would help explain why loop residue substitutions impair recognition of UUG start codons (Ssu phenotype). However, except for the lethal substitution G151S, all of the substitutions affecting loop residues we examined—G151 through Q158—have weaker phenotypes compared to the E144R substitution in β-strand 1 of the hairpin itself, distant from the context nucleotides. Thus, perhaps structural alteration of the β-hairpin by E144R indirectly perturbs the conformation of the N-terminal tail of yeast Rps5, which promotes AUG recognition by its interaction with Rps16/uS9 (Ghosh et al., 2014), whose C-terminal tail closely approaches the codon-anticodon duplex in the P site (Hussain et al., 2014). Alternatively, E144R might affect the conformation or location of ribosomal proteins Rps28 and Rps14, also located in the exit channel and in contact with the Rps5 β-hairpin (Hussain et al., 2014), or of domain 1 of eIF2α, which interacts with other regions of Rps5 as well as Met-tRNAi in the PIN complex (Figure 2). In these latter scenarios, the inherent flexibility of the Rps5 hairpin loop could prevent loop substitutions from altering the orientation of the β-hairpin and attendant perturbations within the PIC compared to effects exerted by E144R or R225K on the structured portion of the hairpin.

The β-hairpin of uS7 also protrudes into the mRNA exit channel of bacterial ribosomes in position to interact with mRNA residues just upstream from the P site codon (Jenner et al., 2007). In bacterial elongation complexes, the hairpin is also in proximity to E-site tRNA, and truncation of the hairpin increases the frequency of frameshifting, most likely by allowing premature dissociation of the E-site tRNA (Devaraj et al., 2009). Interestingly, in the yeast py48S PIC, eIF2α-D1 essentially occupies the position of E-site tRNA (Hussain et al., 2014), in accordance with our suggestion that altering the β-hairpin of yeast uS7/Rps5 could impair start codon selection by perturbing the position or flexibility of eIF2α-D1. Regardless of the exact mechanisms involved, the strong impairment of AUG recognition in vivo and marked destabilization of the PIN state in vitro conferred by E144R dramatically illustrates that a 40S ribosomal protein functions as an equal partner with soluble initiation factors in ensuring efficient and accurate start codon recognition.

Materials and methods

Plasmids and yeast strains

Request a detailed protocol

Yeast strains and plasmids are listed in Supplementary files 2, 3, respectively.

Yeast strains used in this study are listed in Supplementary file 2. The PGAL1-RPS5 strain JVY07 was generated from HLV01a (MATa ura3-52 trp1Δ-63 leu2-3112 his4-301(ACG)) by the one-step PCR strategy (Longtine et al., 1998) using the kanMX4 cassette and selecting for resistance to kanamycin on rich medium containing galactose as carbon source (YPGal). Integration of the kanMX:PGAL1 promoter cassette at RPS5 was verified by PCR analysis of genomic DNA using the appropriate primers. JVY07 was shown to be inviable on glucose medium (where the GAL1 promoter is repressed) in a manner fully complemented by plasmid-borne RPS5 alleles on pJV01 and pJV09. Derivatives of JVY07 harboring low copy LEU2 plasmids containing WT (pJV09) or mutant RPS5 alleles (pJV12-pJV53), listed in Supplementary file 3, were generated by transformation.

To avoid possible contamination with WT 40S subunits (from leaky expression of PGAL1-RPS5 on glucose medium) transformants of JVY07 containing rps5 alleles were not used for purifying mutant 40S subunits, and haploid strains harboring the relevant rps5 alleles as the only source of Rps5 were generated for this purpose. Diploid strain F2009/YSC1021-672858 (MATa/MATα ura3-∆0/ura3-∆0 leu2-∆0/leu2-∆0 his3∆-1/his3∆-1 lys2-∆0/LYS2 met15-∆0/MET15 rps5∆::kanMX/RPS5) was transformed with URA3 RPS5 plasmid pJV38 and sporulated. Tetrads were dissected and analyzed for resistance to G418 to identify rps5Δ::kanMX ascospores, which was verified by PCR analysis of genomic DNA with appropriate primers. One such strain was selected as JVY11, and used as host to replace pJV38 with plasmids pJV09, pJV13 and pJV39, harboring RPS5, rps5-E144R, rps5-R148E, respectively, by plasmid-shuffling on medium containing 5-FOA (Boeke et al., 1987), resulting in strains JVY29, JVY15 and JVY52.

Plasmids used in this study are listed in Supplementary file 3. pJV01 was made by inserting into pRS315 a 1.6 kb BamHI restriction fragment containing RPS5 flanked by 640 bp upstream and 320 bp downstream of the coding sequences that was amplified from genomic DNA of strain HLV01a. A BglII restriction site was introduced into pJV01 120 bp upstream of the RPS5 ORF using the QuikChange site-directed mutagenesis system (Agilent Technologies, Santa Clara, CA) to create pJV09, which was verified by DNA sequencing of the entire 1.6 kb insert. Introduction of the BglII site did not appreciably affect RPS5 expression, as pJV09 and pJV01 were indistinguishable for complementation of strain JVY07 for growth on glucose medium. The insert from pJV09 was sub-cloned into pRS316 to create pJV38. RPS5 fragments were amplified by fusion PCR to introduce the desired site-directed mutations, using primers listed in Supplementary file 4 and pJV09 as template DNA. The mutagenized fragments were digested with BglII and NdeI and inserted between the same two restriction sites in pJV09, to produce pJV12-pJV52 (Supplementary file 3). Plasmid pJV53 was constructed similarly by using primers R225K, R225K_r and pJV13 (that was verified by sequencing) as template DNA. All constructs were verified by DNA sequencing of 1 kb from the inserted BglII site beyond the NdeI restriction site, covering the entire RPS5 ORF.

Biochemical analyses of yeast cells

Request a detailed protocol

Assays of β-galactosidase activity in whole-cell extracts (WCEs) were performed as described previously (Moehle and Hinnebusch, 1991). The sequence context of the start codon for both AUG and UUG HIS4-lacZ reporters is: 5′-AUA(AUG/UUG)G-3′. For Western analysis, WCEs were prepared by trichloroacetic acid extraction as described (Reid and Schatz, 1982), and immunoblot analysis was conducted as described previously (Martin-Marcos et al., 2011) with antibodies against eIF1 (Valasek et al., 2004) and Gcd6 (Bushman et al., 1993). Enhanced chemiluminescence (Amersham) was used to visualize immune complexes, and signal intensities were quantified by densitometry using NIH ImageJ software.

Polysome profile analysis

Request a detailed protocol

For polysome analysis, strains were grown in SD + His + Ura + Trp at 30°C to A600, ∼1. Cycloheximide was added (50 μg/ml) 5 min prior to harvesting, and WCE was prepared in breaking buffer (20 mM Tris–HCl, pH 7.5, 50 mM KCl, 10 mM MgCl2, 1 mM dithiothreitol, 5 mM NaF, 1 mM phenylmethylsulfonyl fluoride, 1 Complete EDTA-free Protease Inhibitor Tablet (Roche)/50 ml buffer). 15 A260 units of WCE was separated by velocity sedimentation on a 4.5–45% sucrose gradient by centrifugation at 39,000 rpm for 3 hr in an SW41Ti rotor (Beckman). Gradient fractions were scanned at 254 nm to visualize ribosomal species.

Biochemical analysis in the reconstituted yeast translation system

Initiation factors eIF1A and eIF1 were expressed in Escherichia coli and purified using the IMPACT system (NEB), and His6-tagged eIF2 was overexpressed in yeast and purified as described (Acker et al., 2007). WT and mutant 40S subunits were purified from yeast as described previously (Acker et al., 2007). Model mRNAs with the sequences 5′-GGAA[UC]7UAUG[CU]10C-3′ and 5′-GGAA[UC]7UUUG[CU]10C-3′ were purchased from Thermo Scientific. Yeast tRNAiMet was synthesized from a hammerhead fusion template using T7 RNA polymerase and charged with [35S]-methionine or unlabeled methionine as previously described (Acker et al., 2007). Kd values of TC (assembled with [35S]-Met-tRNAi) and 40S∙eIF1∙eIF1A∙mRNA PICs, and rate constants of TC association/dissociation for the same PICs, were determined by gel shift assays as described previously (Kolitz et al., 2009) with the minor modifications described below.

Buffers and reagents

Request a detailed protocol

For all experiments, the reaction buffer was 30 mM Hepes-KOH (pH 7.4), 100 mM potassium acetate (pH 7.4), 3 mM magnesium acetate, and 2 mM dithiothreitol. The composition of the enzyme buffer was 20 mM Hepes-KOH (pH 7.4), 100 mM KOAc (pH 7.4), 2 mM DTT, and 10% glycerol.

Measurements of TC Kd values in 40S·eIF1·eIF1A and 40S·eIF1·eIF1A·mRNA complexes

Request a detailed protocol

Gel shift assays were performed as described previously (Kolitz et al., 2009) with the following modifications. GDPNP·Mg2+ was used at 100 µM, as this lower concentration was found not to reduce complex formation. TC was pre-formed for 15 min at 26°C before mixing with 40S subunits at various concentrations and the remaining factors. 10-fold concentrated stocks of 40S subunits were prepared by serial dilution. Final component concentrations in the reactions were: 1 nM [35S]-Met-tRNAi, 100 µM GDPNP, 200 nM eIF2, 1 µM each of eIF1 and eIF1A, and mRNA (when present) at 1 µM. Complexes containing mRNA(AUG) were incubated at least 30 min at 26°C, whereas complexes lacking mRNA were incubated at least 45 min at 26°C. Total reaction volumes were 12 µl and were mixed with 3 µl of native gel dye (Acker et al., 2007) before resolving 13 µl by gel electrophoresis at 25 W for 30–45 min. Following electrophoresis, gel wells were washed to remove excess free [35S]-Met-tRNAi. The fraction of [35S]-Met-tRNAi bound to 40S·eIF1·eIF1A or 40S·eIF1·eIF1A·mRNA complexes was measured using a PhosphorImager, plotted against the 40S subunit concentration, and the data were fit with a hyperbolic or quadratic binding equation, with the latter employed for tight binding.

Kinetics of TC association and dissociation in 40S·eIF1·eIF1A·mRNA complexes

Request a detailed protocol

Measurements were carried out essentially as described previously (Kolitz et al., 2009). Reactions were performed in Recon buffer at final component concentrations of 250 nM eIF2, 1 nM [35S]-Met-tRNAi, 1 µM eIF1, 1 µM eIF1A, and 10 µM mRNA. Dissociation rates (koff values) were measured by monitoring the amount of labeled TC bound in 40S·eIF1·eIF1A·mRNA complexes over time using a native gel shift assay, as described above. 40S·eIF1·eIF1A·mRNA complexes were preassembled for 2 hr at 26°C in a reaction vol of 60 µl. Aliquots of 6 µl were removed at different times and mixed with 3 µl of a chase of unlabeled WT TC, containing 750 nM eIF2 and 300 nM Met-tRNAi, representing a 300-fold excess over labeled TC. After addition of the chase to all time points, the reactions were mixed with native gel dye and loaded directly on a running native gel. A converging time course was employed so that all samples could be loaded simultaneously. The fraction of [35S]-Met-tRNAi in 43S complexes was determined as described above and the data were fit with a single exponential equation. Association rates were measured by mixing labeled TC with 40S·eIF1·eIF1A·mRNA complexes and quenching the binding reaction at various times by adding a 300-fold excess of unlabeled WT TC. Reactions were assembled as described above using 6 µl of sample and 3 µl of chase, and completed reactions were mixed with 2 µl of native gel dye before resolving 10 µl by gel electrophoresis. As above, samples were loaded within min on a running native gel. The kobs values were calculated by plotting the fraction of [35S]-Met-tRNA bound to 40S·eIF1·eIF1A·mRNA complexes against time and fitting the data with a single exponential equation. The resulting kobs values were plotted vs the 40S subunit concentrations used in different experiments and the data were fit to a straight line. The slopes of these lines correspond to the second-order rate constants (kon) for TC binding.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
    Evidence that GCD6 and GCD7, translational regulators of GCN4 are subunits of the guanine nucleotide exchange factor for eIF-2 in Saccharomyces cerevisiae
    1. JL Bushman
    2. AI Asuru
    3. RL Matts
    4. AG Hinnebusch
    (1993)
    Molecular and Cellular Biology 13:1920–1932.
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
    Mutations in GCD11, the structural gene for eIF-2γ in yeast, alter translational regulation of GCN4 and the selection of the start site for protein synthesis
    1. DR Dorris
    2. FL Erickson
    3. EM Hannig
    (1995)
    The EMBO Journal 14:2239–2249.
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
    Association of RAP1 binding sites with stringent control of ribosomal protein gene transcription in Saccharomyces cerevisiae
    1. CM Moehle
    2. AG Hinnebusch
    (1991)
    Molecular and Cellular Biology 11:2723–2735.
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
    Import of proteins into mitochondria. Yeast cells grown in the presence of carbonyl cyanide m-chlorophenylhydrazone accumulate massive amounts of some mitochondrial precursor polypeptides
    1. GA Reid
    2. G Schatz
    (1982)
    The Journal of Biological Chemistry 257:13056–13061.
  43. 43
  44. 44
  45. 45
  46. 46
    The sui1 suppressor locus in Saccharomyces cerevisiae encodes a translation factor that functions during tRNAiMet recognition of the start codon
    1. HJ Yoon
    2. TF Donahue
    (1992)
    Molecular and Cellular Biology 12:248–260.

Decision letter

  1. Nahum Sonenberg
    Reviewing Editor; McGill University, Canada

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for submitting your work entitled “The β-hairpin of 40S exit channel protein Rps5/uS7 promotes efficient and accurate translation initiation in vivo” for peer review at eLife. Your submission has been favorably evaluated by Randy Schekman (Senior editor), a Reviewing editor, and three reviewers.

The reviewers have discussed the reviews with one another and the Reviewing editor has drafted this decision to help you prepare a revised submission.

The following individuals responsible for the peer review of your submission have agreed to reveal their identity: Nahum Sonenberg (Reviewing editor); Matt Sachs and Sunnie Thompson (peer reviewers). A further reviewer remains anonymous.

Your manuscript represents an important contribution to the problem of accuracy mechanisms in protein synthesis, and the role of the small ribosomal subunit protein Rps5 in translation initiation site selection. By skillful extensive genetic and biochemical experiments, the authors identified a new element that assists recognition of the proper start codon during the initiation step in the eukaryotic model system of yeast. The data clearly indicate that the conserved β-hairpin and the C-terminal extension of ribosomal protein uS7 play a significant role in selection of the start codon while a pre-initiation complex scans messenger RNA to begin translation. The genuine finding that uS7 helps to recognize a correct initiation site in yeast is reminiscent of the well-known example of protein S12, which is important for accurate selection of tRNA during decoding in bacteria. The presented results center the attention on the idea that ribosomal proteins are not only ‘building blocks’ in the ribosome structure, but are also actively involved in its function together with numerous translation factors. The findings provide important and new insights into the molecular mechanism of how scanning eukaryotic ribosomes accomplish initiation site selection.

However, the reviewers raised several issues regarding the exact interpretation of some of the data, and the clarity of the arguments. You could consider adding additional transitional sentences, particularly when introducing more detailed aspects of initiation, and by breaking complex sentences into separate sentences. We hope that you will find the great majority of the comments to be useful in strengthening the paper. The comments of the three reviewers are listed below verbatim:

Reviewer #1:

Visweswaraiah et al. provide an important and well-executed study on the role of the small ribosomal subunit protein Rps5 in translation initiation site selection. The major findings are (i) specific mutations in the beta-hairpin region of this ribosomal protein, which from structural studies is near the site of start-codon recognition, have substantial impact on start codon selection and (ii) these mutations have a different spectrum of effects on start codon selection than do mutations of translation initiation factors. These analyses combine Saccharomyces genetics with biophysical approaches that use a reconstituted cell free system to address how the interplay between the ternary complex, the ribosome, and key initiation factors control start site selection. The findings provide important and new insights into the molecular mechanism of how scanning eukaryotic ribosomes accomplish initiation site selection.

The manuscript is well-written and organized but may be improved overall by considering where additional transitional sentences could help readers, particularly when introducing more detailed aspects of initiation, and by breaking complex sentences into separate sentences.

Specific comments are as follows:

Abstract: Include the idea of the relative importance of Rps5 relative to eIFs at the conclusion of the Abstract?

Introduction: The GTP bound to eIF2 […] the transition to this may be too abrupt in the first paragraph of the Introduction. Possibly give a more general overview into start site selection (as also occurs in subsequent paragraphs) and put this later in the Introduction?

Introduction, first paragraph: “AUG recognition triggers dissociation”. Use instead “start codon recognition triggers dissociation”.

Introduction, start of second paragraph: Define this TC-binding as loading so that the reference to loading is explicit and not inferred?

In the second paragraph of the subsection headed “Substitutions E144R and R225K impair translation initiation and start codon selection in vivo”: S223A mutation is also 2-fold in Supplementary file 1.

In the same paragraph: I had trouble following the reasoning that the salt bridge might still be important although reinstating it had little impact on phenotype because the nature of the residues might be more important. Simply say that at this point that there is not direct evidence for the importance of the salt bridge?

Still in subsection “Substitutions E144R and R225K impair translation initiation and start codon selection in vivo”: Comment on lacZ reporter ratios or levels for these other mutants that enable UUG initiation from his4-301 that confer Sui- phenotypes? Then readers could get a sense of comparison for Figure 3B (also relevant for the second paragraph of the subsection headed “E144R and R225K elevate UUG initiation indirectly by exacerbating the effect of poor context of the SUI1 start codon and thereby reducing eIF1 abundance”).

In the second paragraph of the subsection “E144R and R225K elevate UUG initiation indirectly by exacerbating the effect of poor context of the SUI1 start codon and thereby reducing eIF1 abundance”: Is there a Slg- phenotype for R225K in Figure 4—figure supplement 1? Also, in the lower panel, was the Y-axis of the image accidentally stretched (the colonies all look more oval than round).

In the last paragraph of the subsection headed “E144R and R225K confer leaky scanning of an upstream AUG start codon”: The authors appreciate that the effect on initiation of the elongated uORF1 UAUG1 relative to initiation at the GCN4 AUG is complicated to interpret. Perhaps simply note that mechanistic possibilities are considered in the discussion and also move some of this material to the Discussion where these concerns are addressed?

In the last paragraph of the subsection headed “Ssu- substitution E144R destabilizes the PIN conformation of the 48S PIC in vitro”: It is a minor point, but the connections between Figure 6—figure supplement 1 and Figure 4—figure supplement 2 due to possible specific effects of genotype changes is left open (specifically how GCN4-lacZ levels differ with the RPS5 alleles with/without increased eIF1 dose is not clear).

In the first paragraph of the subsection headed “Substitutions in the loop region of the Rps5 β-hairpin increase fidelity of start codon 19 selection independently of context nucleotides”: R157E did not seem to have as substantial an effect (or I missed something).

Discussion, second paragraph: Impossible to increase or impossible to detect an increase?

Discussion, end of fourth paragraph: Are there possible ramifications for the tRNA anticodon's interactions with the start codon? This subject is discussed later.

Figure 1: Scanning inhibitor SI element in eIF1A NTT is not specifically indicated in the figure (it is in Figure 9).

Figure 2D: State in legend that region of gradient where polysomes would have been is not shown (I assume they are not there)?

Figure 4–figure supplement 1: As mentioned above, R225K data look stretched for Y axis; if this is the case, then fix.

Reviewer #2:

The manuscript “The β-hairpin of 40S exit channel protein Rps5/uS7 promotes efficient and accurate translation initiation in vivo” represents an important contribution to the problem of accuracy mechanisms in protein synthesis. By skillful extensive genetic and biochemical experiments, the authors identified a new element that assists recognition of the proper start codon during the initiation step in the eukaryotic model system of yeast. The provided data clearly indicate that the conserved β-hairpin and the C-terminal extension of ribosomal protein uS7 play a significant role in selection of the start codon while a pre-initiation complex scans messenger RNA to begin translation. This information is undoubtedly valuable for ‘untangling’ complicated process of mRNA scanning during initiation in eukaryotes. The genuine finding that uS7 helps to recognize a correct initiation site in yeast is reminiscent of the well-known example of protein S12, which is important for accurate selection of tRNA during decoding in bacteria. The presented results center the attention on the idea that ribosomal proteins are not only ‘building blocks’ in the ribosome structure but are also actively involved in its function together with numerous translation factors. In my opinion, the manuscript fully deserves to be published by eLife because it solidly establishes a specific role of ribosome protein uS7 in initiation process.

My major concern is related to the results describing effects of mutations in uS7 on initiation from near-cognate UUG start codon. Because initiator Met-tRNAMet is expected to form less than three standard base-pairs with this codon, an initiation complex assembled on mRNA with UUG, a priori, is less stable than the complex formed on the AUG codon with complete three base-pairs. Consequently, the results describing, for example, dissociation of the initiation complexes assembled on the UUG codon can be exaggerated because inherently unstable complexes additionally fall apart owing to the experimental procedure (viz. electrophoresis during 45 min). Hence, Figure 6C shows that the initiation complex assembled on the UUG codon with the wild type 40S is very weak compared to the stable complex on the AUG codon. In this regard, it would be more correct to describe relative effects rather than provide exact values of constants. Since the Y-axis of most of the graphs is presented in arbitrary units, it would be also very helpful to show actual dmp/cpm values to demonstrate efficiency of signals and their differences.

I would also like to add the following suggestions:

1) It is not explained in the figures why eIF3 is not depicted in the schemes (Figures 1, 9) and why in Figure 2B the authors provide a picture of the 48S initiation complex with only a few components while normal 48S contains much more initiation factors bound to the 40S subunit?

2) In Figure 2B I would recommend to use a more conventional orientation of 18S rRNA of the small ribosomal subunit, to clearly depict where exactly uS7 is located, where tRNAMet binds etc. I have the same problem with Figure 2C: normally mRNA is shown with its 5'-nucleotides at the left and P-site codon on the right. In general, figure legends do not contain all necessary information.

3) The Discussion part is rather narrowed to a specific role of uS7 in eukaryotic initiation. It would be useful to draw some parallels with the role of the same protein in bacterial protein synthesis, whose conserved loop shares the same location relatively to the E- and P-site elements.

Reviewer #3:

The manuscript by Visweswaraiah et al., describes a functional role for rps5 in start codon recognition. Previous studies have shown that rps5 contacts the nucleotide at the -3 position (5' to the AUG start codon), which may suggest that rps5 affects start codon selection or fidelity. This manuscript examines the role of rps5 on start codon recognition, both for recognition of the AUG and for the sequence context of the AUG. Their findings revealed that mutations in rps5 resulted in a decrease in AUG recognition for start codons that were not in the optimal sequence context. As a result of this expression levels of eIF1, which uses a suboptimal start codon context to regulate its gene expression, are lower. When eIF1 levels were increased by expressing eIF1 from a plasmid, initiation at UUG returned to wild-type levels suggesting that the decrease in eIF1 is responsible for the increase in UUG initiation and not the rps5 mutants. However, there must be some additional effect of rps5 on UUG initiation since it was able to suppress UUG recognition in a yeast strain that harbored an eIF5 mutation that increased UUG initiation (Figure 4E). The authors used binding studies to examine the affinity of the ternary complex bound to the Wild-type and rps5 mutant 40S ribosomes. They show that the mutant rps5 destabilizes the PIN/closed state. Interestingly, the transition from POUT to PIN is not affected, however, the stability of the PIN complexes is decreased for the rps5 mutant ribosomes. Overall the findings are interesting and significant in that they suggest a novel role for rps5 in start codon recognition, but the manuscript was a bit difficult to understand and it would benefit from additional clarifications and simplifications. Please see the following comments.

It is unclear why the rps5 mutants promote leaking scanning for the GCN4 reporter, since the phenotype is that these mutations confer a hyperaccurate initiation phenotype one would assume that a start codon in a good sequence context would be as good as WT initiation or better (the structural argument provided is not clear nor satisfying as written). However, it does appear that while the rps5 mutants confer reduced initiation at start codons in a poor or week context that they may not enhance initiation in a favorable context. Could it be possible that a general decrease in frequency of start codon recognition could just have a much greater effect on the weaker or poor context AUGs and relatively less on the AUG in a good sequence context? Would this explain all the data, the binding studies showing reduced complex formation, the decrease in UUG initiation, and SUI1 initiation? As the manuscript reads it appears that there are more than one model/mechanism for how rps5 is affecting translation initiation depending on which reporter or assay is used. For example, when ribosomes with rps5 mutations don't recognize the GCN4 uAUG it is promoting leaky scanning, but when it doesn't recognize the SUI1 or UUG it is hyperaccurate.

It is not clear how rps5 could be affecting initiation at UUG codons given is position, perhaps the authors could discuss this further in the Discussion. Is the UUG in good sequence context or could this also be contributing to its initiation? What does moderately strong? Is the -3 position optimal? Perhaps defining these sequences would go a long way towards answering these questions.

There seems to be some disconnect between the Introduction and the Results where the authors state that rps5 is required for efficient initiation. It is unclear where in the results the rate of initiation was measured. Perhaps the authors can better define what they mean by efficiency.

At the end of the second paragraph of the subsection headed “E144R and R225K elevate UUG initiation indirectly by exacerbating the effect of poor context of the SUI1 start codon and thereby reducing eIF1 abundance” and Figure 4. The authors conclude: “the increased recognition of UUG start codons conferred by the rps5 mutations is an indirect consequence of their reduced expression of eIF1.” They show that expressing eIF1 from a plasmid returns UUG/AUG recognition ratio back to WT and eIF1 levels increase (although quantification would be helpful as they appear not to come back to wt level). However, the authors assume but do not show whether the defect in sequence context is still present when eIF1 is expressed from a plasmid. Figure 4B should be repeated with yeast strains expressing eIF1 from a plasmid. <textboxend>

https://doi.org/10.7554/eLife.07939.021

Author response

Reviewer #1:

[…] The manuscript is well-written and organized but may be improved overall by considering where additional transitional sentences could help readers, particularly when introducing more detailed aspects of initiation, and by breaking complex sentences into separate sentences.

Specific comments are as follows:

Abstract: Include the idea of the relative importance of Rps5 relative to eIFs at the conclusion of the Abstract?

We have included the relative importance of Rps5 in the Abstract and the sentence has now been changed to: “We conclude that the Rps5 β-hairpin is as crucial as soluble initiation factors for efficient and accurate start codon recognition.”

Introduction: The GTP bound to eIF2 […] the transition to this may be too abrupt in the first paragraph of the Introduction. Possibly give a more general overview into start site selection (as also occurs in subsequent paragraphs) and put this later in the Introduction?

To make the transition smoother we have changed the sentence as below:

“During scanning, the GTP bound to eIF2 in the TC is hydrolyzed in the 43S PIC in a manner dependent on the GTPase activating protein eIF5, but Pi release is blocked by eIF1, which also impedes stable binding of Met-tRNAi in the P site.”

Introduction, first paragraph: “AUG recognition triggers dissociation”. Use instead “start codon recognition triggers dissociation”.

We have replaced AUG with start codon and the sentence now reads as “Start codon recognition triggers dissociation of eIF1”.

Introduction, start of second paragraph: Define this TC-binding as loading so that the reference to loading is explicit and not inferred?

We modified the sentence to: “…to which TC rapidly loads, bound in a state capable of inspecting successive triplets entering the P site…”

In the second paragraph of the subsection headed “Substitutions E144R and R225K impair translation initiation and start codon selection in vivo”: S223A mutation is also 2-fold in Supplementary file 1.

We wanted readers to note that E144R and 3 different substitutions of Arg255 are the only mutations that increased the UUG:AUG ratio substantially, which we defined as greater than two-fold, and the ratio for S223A does not exceed 2-fold.

In the same paragraph: I had trouble following the reasoning that the salt bridge might still be important although reinstating it had little impact on phenotype because the nature of the residues might be more important. Simply say that at this point that there is not direct evidence for the importance of the salt bridge?

We reasoned that combining the two mutations E144R and R225E both of which conferred >2-fold increases in the UUG:AUG ratio, should give an additive effect and increase the UUG:AUG ratio more than either of the single mutants. Since the double mutant did not increase the UUG:AUG ratio more than E144R alone, we inferred that reinstating the salt bridge mitigates to some degree the effects of the E144R single mutant. However, in deference to the referee, we added the sentence: “Additional experiments are needed to establish the importance of the salt bridge for Rps5 function” (Results).

Still in the subsection “Substitutions E144R and R225K impair translation initiation and start codon selection in vivo”: Comment on lacZ reporter ratios or levels for these other mutants that enable UUG initiation from his4-301 that confer Sui- phenotypes? Then readers could get a sense of comparison for Figure 3B (also relevant for the second paragraph of the subsection headed “E144R and R225K elevate UUG initiation indirectly by exacerbating the effect of poor context of the SUI1 start codon and thereby reducing eIF1 abundance”).

We added the sentence: “For example, the eIF1 mutations sui1-K37A and sui1-R33A increase the UUG:AUG ratio by 4.8- and 7.7-fold, but only the latter suppresses the His- phenotype of his4-301” (Results).

In the second paragraph of the subsection headed “E144R and R225K elevate UUG initiation indirectly by exacerbating the effect of poor context of the SUI1 start codon and thereby reducing eIF1 abundance”: Is there a Slg- phenotype for R225K in Figure 4–figure supplement 1? Also, in the lower panel, was the Y-axis of the image accidentally stretched (the colonies all look more oval than round).

R225K has a Slg- phenotype here when compared to the WT in row 1. To clarify the different extents of suppression by scSUI1, we added the sentence: “Introducing scSUI1 also mitigated their Slg- phenotypes, slightly for -R225K and substantially for -E144R”. The image has been adjusted to its original state in which the cell spottings and individual colonies appear round.

In the last paragraph of the subsection headed “E144R and R225K confer leaky scanning of an upstream AUG start codon”: The authors appreciate that the effect on initiation of the elongated uORF1 UAUG1 relative to initiation at the GCN4 AUG is complicated to interpret. Perhaps simply note that mechanistic possibilities are considered in the discussion and also move some of this material to the Discussion where these concerns are addressed?

We thank the reviewer for this suggestion and have removed this paragraph from the Results and integrated most of it into the Discussion.

In the last paragraph of the subsection headed “Ssu- substitution E144R destabilizes the PIN conformation of the 48S PIC in vitro”: It is a minor point, but the connections between Figure 6–figure supplement 1 and Figure 4–figure supplement 2 due to possible specific effects of genotype changes is left open (specifically how GCN4-lacZ levels differ with the RPS5 alleles with/without increased eIF1 dose is not clear).

This is a good point. We added the following sentence: “Derepression of GCN4-lacZ by E144R was evident even in the presence of lcSUI1 (Figure 4–figure supplement 2, E144R/scSUI1 vs. WT, unstarved), indicating that it does not result solely from the reduced eIF1 abundance in this mutant.”

In the first paragraph of the subsection headed “Substitutions in the loop region of the Rps5 β-hairpin increase fidelity of start codon 19 selection independently of context nucleotides”: R157E did not seem to have as substantial an effect (or I missed something).

We agree that R157E did not significantly reduce the UUG:AUG ratio and have removed it from the text. The sentence now reads “Furthermore, R148A/E, R156A/E and R157A suppressed the elevated UUG:AUG ratio”.

Discussion, second paragraph: Impossible to increase or impossible to detect an increase?

We have changed the phrase to “it is impossible to detect an increase in leaky scanning”.

Discussion, end of fourth paragraph: Are there possible ramifications for the tRNA anticodon's interactions with the start codon? This subject is discussed later.

As the reviewer notes, the ramifications for the tRNA anticodon’s interaction with the start codon are discussed later in the Discussion.

Figure 1: Scanning inhibitor SI element in eIF1A NTT is not specifically indicated in the figure (it is in Figure 9).

Figure 1 now has the SI element in eIF1A indicated.

Figure 2D: State in legend that region of gradient where polysomes would have been is not shown (I assume they are not there)?

The experimental conditions used in Figure 3D dissociate polysomes and 80S monosomes and allow separation of the ribosomal subunits. The legend now reads: “Similar to (C) but the cultures were not treated with cycloheximide and lysed in buffers without MgCl2 to allow separation of the dissociated ribosomal subunits.”

Figure 4–figure supplement 1: As mentioned above, R225K data look stretched for Y axis; if this is the case, then fix.

Addressed above.

Reviewer #2:

[…] My major concern is related to the results describing effects of mutations in uS7 on initiation from near-cognate UUG start codon. Because initiator Met-tRNAMet is expected to form less than three standard base-pairs with this codon, an initiation complex assembled on mRNA with UUG, a priori, is less stable than the complex formed on the AUG codon with complete three base-pairs. Consequently, the results describing, for example, dissociation of the initiation complexes assembled on the UUG codon can be exaggerated because inherently unstable complexes additionally fall apart owing to the experimental procedure (viz. electrophoresis during 45 min). Hence, Figure 6C shows that the initiation complex assembled on the UUG codon with the wild type 40S is very weak compared to the stable complex on the AUG codon. In this regard, it would be more correct to describe relative effects rather than provide exact values of constants. Since the Y-axis of most of the graphs is presented in arbitrary units, it would be also very helpful to show actual dmp/cpm values to demonstrate efficiency of signals and their differences.

The in vitro reconstituted experiments in this study are based on the thorough analysis from the Lorsch lab described in Kolitz et al. (2009), using single and double substitutions in the mRNA start codon to investigate the effects of base-pair mismatches with initiator tRNA on the rates of TC association and dissociation from 43S·mRNA complexes. They found that when UUG replaces AUG in the mRNA, the rate constant for TC binding (kon) was reduced by ∼40%, while the dissociation rate constant (koff) was increased ∼4-fold, to yield an increase in Kd of ∼7-fold. Thus, the referee is correct in stating that the UUG complex is inherently less stable than the AUG complex; however, this difference is the key feature of this assay that allows us to discern relatively greater effects of Ssu- mutations on UUG versus AUG complexes. Based on the measured Kd values in Kolitz et al. (2009), UUG is the near-cognate closest to AUG in forming a stable PIC. With WT ribosomes, the UUG complexes are still quite stable, with <20% dissociating in the first hour of incubation; and even less dissociation occurs when the ß-S264Y variant of eIF2 is employed, as done in Figure 8D where the destabilizing effect of R148E on UUG complexes was established. Note also that the key conclusion that E144R destabilizes the PIC derives in large part from its effect of increasing the koff for the highly stable AUG complex (Figure 6C). Dissociation of the UUG complexes during electrophoresis is not an issue because this would occur equally for all of the time points in the assay, including the zero-time point from which dissociation during the incubation is measured as a function of time. This assay has been used in several previous papers that we published in collaboration with the Lorsch lab, including the analysis of Sui- and Ssu- mutations in initiator tRNA (Dong et al., 2014), and of eIF1 Ssu- mutations by Martin-Marcos et al. (2014). Hence, we believe that the comparable analyses of rps5 Ssu- mutations presented here is both appropriate and accurate.

I would also like to add the following suggestions:

1) It is not explained in the figures why eIF3 is not depicted in the schemes (Figures 1, 9) and why in Figure 2B the authors provide a picture of the 48S initiation complex with only a few components while normal 48S contains much more initiation factors bound to the 40S subunit?

We did not include eIF3 in the schematic models of Figures 1 and 9 for several reasons. First, eIF3 is a large, multisubunit complex and accurately displaying even a simplified PIC containing only eIFs 1, 1A, TC and mRNA is already challenging. Second, the binding sites in the PIC for all of eIF3’s subunits are not yet known, and adding the well-established binding site for the PCI domains of eIF3α and -c on the solvent-exposed side of the 40S subunit would add little to visualization of the subunit interface surface depicted in these schematics. Third, the functions of the eIF3 subunits in scanning and AUG selection are not well established and Figures 1 and 9 are used to facilitate descriptions of the known functions of eIFs. Figure 2B (now Figure 2A) is the partial yeast 48S structure from Hussain et al. (2014) where densities visible at high resolution were obtained only for the 40S, eIF1, eIF1A, mRNA, tRNAi and eIF2α; nevertheless, it still represents the most complete PIC at reasonably high resolution currently available. We have altered Figure 2A to show the gamma subunit of eIF2 to indicate better the orientation of TC in the structure. The Figure 2A-B legend was modified to include: “Depiction of the partial yeast 48S PIC (PDB 3J81) showing Rps5 (gold), mRNA (orange), Met-tRNAi (green), eIF2α (purple), eIF2γ (yellow), eIF1 (cyan) and eIF1A (blue). For clarity other ribosomal proteins, eIF2β and putative eIF5 densities are not shown.”

2) In Figure 2B I would recommend to use a more conventional orientation of 18S rRNA of the small ribosomal subunit, to clearly depict where exactly uS7 is located, where tRNAMet binds etc. I have the same problem with Figure 2C: normally mRNA is shown with its 5'-nucleotides at the left and P-site codon on the right. In general, figure legends do not contain all necessary information.

We appreciate the reviewer’s point. While it might be non-standard, we chose the view in Figure 2A because it illustrates most clearly the location of uS7 in the mRNA exit channel, the residues identified in this study that affect initiation, and the position of the uS7 hairpin relative to the mRNA nucleotides and eIF2α-D1, which are all depicted similarly in Figure 2B after zooming in on the exit channel. We note that Figure 1 of Devaraj et al., on the effects of S7 hairpin mutations on frameshifting in E. coli, depicts exactly the same view of the bacterial components of the exit channel.

3) The Discussion part is rather narrowed to a specific role of uS7 in eukaryotic initiation. It would be useful to draw some parallels with the role of the same protein in bacterial protein synthesis, whose conserved loop shares the same location relatively to the E- and P-site elements.

We agree with the reviewer and have included the following sentences in the final paragraph: “The β-hairpin of uS7 also protrudes into the mRNA exit channel of bacterial ribosomes in position to interact with mRNA residues just upstream from the P site codon (Jenner et al. 2007). In bacterial elongation complexes, the hairpin is also in proximity to E-site tRNA, and truncation of the hairpin increases the frequency of frameshifting most likely by allowing premature dissociation of the E-site tRNA (Devaraj et al. 2009). Interestingly, in the yeast py48S PIC, eIF2α-D1 occupies the position of E-site tRNA (Hussain et al, 2014), in accordance with our suggestion that altering the β-hairpin of yeast uS7/Rps5 impairs start codon selection by altering the position or flexibility of eIF2α-D1.”

Reviewer #3:

[…] The authors used binding studies to examine the affinity of the ternary complex bound to the Wild-type and rps5 mutant 40S ribosomes. They show that the mutant rps5 destabilizes the PIN/closed state. Interestingly, the transition from POUT to PIN is not affected, however, the stability of the PIN complexes is decreased for the rps5 mutant ribosomes. Overall the findings are interesting and significant in that they suggest a novel role for rps5 in start codon recognition, but the manuscript was a bit difficult to understand and it would benefit from additional clarifications and simplifications. Please see the following comments.

It is unclear why the rps5 mutants promote leaking scanning for the GCN4 reporter, since the phenotype is that these mutations confer a hyperaccurate initiation phenotype one would assume that a start codon in a good sequence context would be as good as WT initiation or better (the structural argument provided is not clear nor satisfying as written). However, it does appear that while the rps5 mutants confer reduced initiation at start codons in a poor or week context that they may not enhance initiation in a favorable context. Could it be possible that a general decrease in frequency of start codon recognition could just have a much greater effect on the weaker or poor context AUGs and relatively less on the AUG in a good sequence context? Would this explain all the data, the binding studies showing reduced complex formation, the decrease in UUG initiation, and SUI1 initiation? As the manuscript reads it appears that there are more than one model/mechanism for how rps5 is affecting translation initiation depending on which reporter or assay is used. For example, when ribosomes with rps5 mutations don't recognize the GCN4 uAUG it is promoting leaky scanning, but when it doesn't recognize the SUI1 or UUG it is hyperaccurate.

We thank the referee for this suggestion. We agree with his/her interpretation and had actually laid the groundwork for advancing it as a likely scenario with the text in the second and third paragraphs of the Discussion that seeks to explain the increased leaky scanning observed for uAUG-1 in optimum context as the result of el.uORF1 being unstructured. However, at the end, we failed to propose this explanation explicitly. To rectify this, we added the following sentence: “Thus, it seems plausible that E144R and R225K decrease the efficiency of start codon recognition only for weak initiation sites, including near-cognate UUG codons and sub-optimal AUG start sites, without reducing recognition of AUG codons in strong context that initiate structured coding sequences.” And later in the Discussion we state: “As summarized in Figure 9, our results indicate that both E144 and R148 promote start codon selection by stabilizing the PIN state, and the finding that E144R reduces initiation at both UUG and sub-optimal AUG codons, while R148E impairs only UUG recognition, can be explained as the result of a relatively stronger contribution of E144 versus R148 to the stability of the PIN state”.

It is not clear how rps5 could be affecting initiation at UUG codons given is position, perhaps the authors could discuss this further in the Discussion.

We had presented various possibilities at the end of the Discussion of how mutations in the β-hairpin might affect start codon recognition. Briefly, we suggested a disruption of the interaction of hairpin loop residues with the rRNA residue in close proximity to the -3 context nucleotide, perturbation of the hairpin interaction with Rps16 whose CTT closely approaches the codon-anticodon duplex in the P-site, and altering the interaction with domain-1 of eIF2α that interacts with both tRNAi and the mRNA 5’ of the start codon. We now suggest that this last mechanism would be analogous to the role of the orthologous hairpin in bacterial S7 in stabilizing the E-site tRNA during elongation, as eIF2α-D1 and E-site tRNA occupy very similar positions.

Is the UUG in good sequence context or could this also be contributing to its initiation? What does moderately strong? Is the -3 position optimal? Perhaps defining these sequences would go a long way towards answering these questions.

The sequence context for the HIS4-lacZ UUG reporter examined in vivo is strong, while that of the model mRNA used for in vitro experiments is weak. However, no effect of context has been observed thus far in the reconstituted system using the model mRNAs. Given the concordance of our findings in vivo with the HIS4-lacZ UUG reporter and those in vitro with the UUG model mRNA, we believe that context plays a minor role in suppression of UUG initiation by the Rps5 substitutions. Moreover, the context for the UUG and AUG HIS4-lacZ reporters are identical, and the same holds for the UUG and AUG model mRNAs, which is now stated explicitly in Results. The sequences of the model mRNAs used in the assays were mentioned in the Materials and methods, and we have now added the context of the HIS4-lacZ reporters to that section as well.

There seems to be some disconnect between the Introduction and the Results where the authors state that rps5 is required for efficient initiation. It is unclear where in the results the rate of initiation was measured. Perhaps the authors can better define what they mean by efficiency.

In Figure 3C, we show that the R225K and E144R mutants exhibit moderate, but statistically significant reductions in the polysome:monosome ratio, which indicates a reduction in the rate of initiation versus elongation. We have cited this result in the first paragraph of the Discussion as evidence that the E144R substitution in β-strand 1 of the hairpin reduces the rate of bulk translation initiation. Combining this result with the increased leaky scanning of GCN4 uAUG-1 conferred by this mutation leads us to conclude that selection of AUG codons by the scanning PIC is less efficient in this Rps5 mutant.

At the end of the second paragraph of the subsection headed “E144R and R225K elevate UUG initiation indirectly by exacerbating the effect of poor context of the SUI1 start codon and thereby reducing eIF1 abundance” and Figure 4. The authors conclude: “the increased recognition of UUG start codons conferred by the rps5 mutations is an indirect consequence of their reduced expression of eIF1.” They show that expressing eIF1 from a plasmid returns UUG/AUG recognition ratio back to WT and eIF1 levels increase (although quantification would be helpful as they appear not to come back to wt level). However, the authors assume but do not show whether the defect in sequence context is still present when eIF1 is expressed from a plasmid. Figure 4B should be repeated with yeast strains expressing eIF1 from a plasmid.

We have quantified the blots and added the results to Figure 4C, and the reviewer is correct that the levels of eIF1 are not fully restored to the WT level when an extra copy of SUI1 under its native promoter is introduced into the mutants on a single-copy plasmid (compare lanes 3-4 and 7-8 to 9-10). Despite this, the increase in eIF1 levels in the mutants achieved with scSUI1 is sufficient to restore the elevated UUG/AUG ratio to the WT level (Figure 4D). This demonstrates that elevated UUG initiation is an indirect consequence of low eIF1 levels in the mutants, which is the main point of this experiment. The fact that the eIF1 levels in the mutants harboring scSUI1 remain well below those seen in the corresponding WT/scSUI1 transformant (lanes 3-4 & 7-8 vs. 11-12) indicates that enhanced discrimination against the poor context of native SUI1 still occurs in the mutants at the boosted levels of eIF1. Similarly, we show later in the paper that the increased leaky scanning of GCN4 uAUG-1 in the mutants is not diminished by increasing eIF1 levels with scSUI1. Thus, we think it is clear that the defects in AUG recognition, whether for the native SUI1 AUG or GCN4 uAUG-1, do not arise from the reduced eIF1 levels in the mutants. In fact, because eIF1 promotes scanning, reduced eIF1 levels per se should diminish discrimination against the poor context of SU1I and boost eIF1 levels; and if anything, should reduce, not increase, leaky scanning of uAUG-1.

https://doi.org/10.7554/eLife.07939.022

Article and author information

Author details

  1. Jyothsna Visweswaraiah

    Laboratory of Gene Regulation and Development, National Institute of Child Health and Human Development, National Institutes of Health, Bethesda, United States
    Contribution
    JV, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  2. Yvette Pittman

    Laboratory of Gene Regulation and Development, National Institute of Child Health and Human Development, National Institutes of Health, Bethesda, United States
    Contribution
    YP, Conception and design, Acquisition of data
    Competing interests
    The authors declare that no competing interests exist.
  3. Thomas E Dever

    Laboratory of Gene Regulation and Development, National Institute of Child Health and Human Development, National Institutes of Health, Bethesda, United States
    Contribution
    TED, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    Thomas.Dever@nih.gov
    Competing interests
    The authors declare that no competing interests exist.
  4. Alan G Hinnebusch

    Laboratory of Gene Regulation and Development, National Institute of Child Health and Human Development, National Institutes of Health, Bethesda, United States
    Contribution
    AGH, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    ahinnebusch@nih.gov
    Competing interests
    The authors declare that no competing interests exist.

Funding

National Institutes of Health (NIH) (Intramural Program)

  • Alan G Hinnebusch

The funder had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Jagpreet Nanda for guidance with the in vitro reconstitution assays, and Jon Lorsch and members of our laboratories for helpful advice. This work was supported in part by the Intramural Program of the National Institutes of Health.

Reviewing Editor

  1. Nahum Sonenberg, McGill University, Canada

Publication history

  1. Received: April 5, 2015
  2. Accepted: July 1, 2015
  3. Accepted Manuscript published: July 2, 2015 (version 1)
  4. Version of Record published: July 24, 2015 (version 2)

Copyright

This is an open-access article, free of all copyright, and may be freely reproduced, distributed, transmitted, modified, built upon, or otherwise used by anyone for any lawful purpose. The work is made available under the Creative Commons CC0 public domain dedication.

Metrics

  • 1,000
    Page views
  • 263
    Downloads
  • 14
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Chromosomes and Gene Expression
    2. Evolutionary Biology
    Ryan Bracewell et al.
    Research Article
    1. Chromosomes and Gene Expression
    2. Genetics and Genomics
    Sara Masachis et al.
    Research Article Updated
