Structural dynamics of E. coli single-stranded DNA binding protein reveal DNA wrapping and unwrapping pathways

  1. Sukrit Suksombat
  2. Rustem Khafizov
  3. Alexander G Kozlov
  4. Timothy M Lohman Is a corresponding author
  5. Yann R Chemla Is a corresponding author
  1. University of Illinois at Urbana-Champaign, United States
  2. Washington University School of Medicine, United States
Research Article
  • Cited 14
  • Views 2,294
  • Annotations
Cite as: eLife 2015;4:e08193 doi: 10.7554/eLife.08193

Abstract

Escherichia coli single-stranded (ss)DNA binding (SSB) protein mediates genome maintenance processes by regulating access to ssDNA. This homotetrameric protein wraps ssDNA in multiple distinct binding modes that may be used selectively in different DNA processes, and whose detailed wrapping topologies remain speculative. Here, we used single-molecule force and fluorescence spectroscopy to investigate E. coli SSB binding to ssDNA. Stretching a single ssDNA-SSB complex reveals discrete states that correlate with known binding modes, the likely ssDNA conformations and diffusion dynamics in each, and the kinetic pathways by which the protein wraps ssDNA and is dissociated. The data allow us to construct an energy landscape for the ssDNA-SSB complex, revealing that unwrapping energy costs increase the more ssDNA is unraveled. Our findings provide insights into the mechanism by which proteins gain access to ssDNA bound by SSB, as demonstrated by experiments in which SSB is displaced by the E. coli recombinase RecA.

https://doi.org/10.7554/eLife.08193.001

eLife digest

The DNA double helix consists of two strands coiled around each other. However, there are many instances when DNA must be separated into its individual strands—for example, when the DNA sequence needs to be copied. These single-stranded structures are highly prone to damage. For protection, the single-stranded DNA can wrap around single-stranded DNA binding (SSB) proteins, which also control how other maintenance proteins interact with the DNA.

SSB proteins from the bacteria species Escherichia coli wrap single-stranded DNA into a variety of topologies known as binding modes. By using a technique that uses a laser to exert forces on an individual DNA molecule, Suksombat et al. unraveled DNA from a single SSB protein. This revealed that the unraveling occurs in a series of steps that correspond well to the known binding modes. These steps also provide the energies required to unravel the single-stranded DNA. Further experiments showed that SSBs can slide along DNA without having to change their binding mode.

The unraveling and sliding mechanisms are likely to be used by other proteins to gain access to DNA coated with SSBs. The next step is to understand how SSBs interact with these other proteins, and how their various wrapping configurations affect this interaction.

https://doi.org/10.7554/eLife.08193.002

Introduction

Escherichia coli single-stranded DNA binding protein (EcoSSB) is an essential protein involved in most aspects of genome maintenance (Meyer and Laine, 1990; Lohman and Ferrari, 1994; Shereda et al., 2008). It binds with high affinity and little sequence specificity (Lohman and Overman, 1985; Lohman and Ferrari, 1994) to single stranded (ss)DNA intermediates formed during DNA replication, recombination, and repair, protecting them from both nucleolytic and chemical damage. SSB also interacts directly with more than a dozen proteins involved in genome maintenance, regulating their access to ssDNA and bringing them to their sites of action (Shereda et al., 2008).

EcoSSB is one of the most extensively studied ssDNA binding proteins. It consists of four identical subunits (∼19 kDa each) that form a functional tetramer (Raghunathan et al., 1997, 2000) (Figure 1A) that is stable over a wide range of solution conditions and at sub-nanomolar protein concentrations (Lohman and Overman, 1985; Bujalowski and Lohman, 1991b). Each monomer contains an oligonucleotide/oligosaccharide binding (OB) fold that contains the ssDNA binding site (Raghunathan et al., 2000). Thermodynamic studies have shown that EcoSSB tetramers bind and wrap ssDNA in a variety of binding modes that differ primarily in the number of OB folds that interact with the tetramer (Lohman and Ferrari, 1994). Three different binding modes have been identified on poly(dT) at 25°C, termed (SSB)65, (SSB)56 and (SSB)35, which occlude 65, 56, and 35 nucleotides (nt) per tetramer, respectively, with a fourth mode observed at 37°C that occludes 40 nt (Bujalowski and Lohman, 1986). These modes can reversibly interconvert, with the transitions influenced primarily by salt concentration and type as well as protein binding density on the DNA (Bujalowski and Lohman, 1986). The (SSB)35 mode also binds ssDNA with high cooperativity, forming protein clusters (Sigal et al., 1972; Ruyechan and Wetmur, 1975; Lohman et al., 1986; Kozlov et al., 2015) that may be important during DNA replication (Lohman et al., 1988). It has been suggested that SSB utilizes all of these binding modes during its different roles in genome maintenance (Lohman et al., 1988) and that transitions between modes may control access of other proteins to the ssDNA (Wessel et al., 2013; Bhattacharyya et al., 2014).

Figure 1 with 6 supplements see all

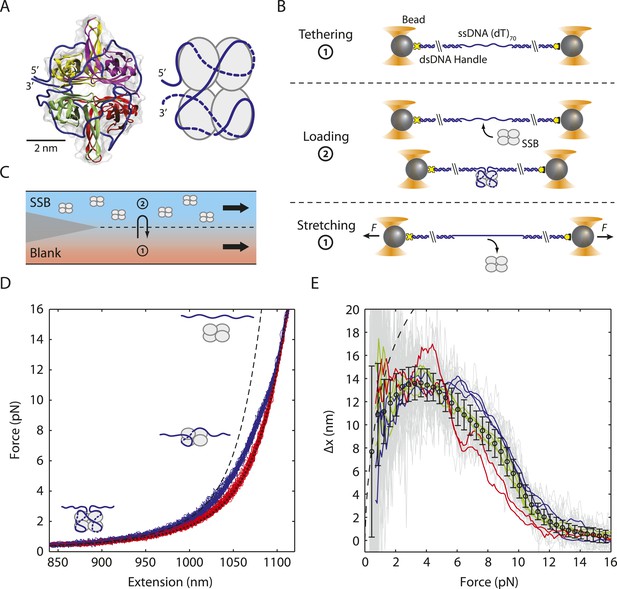

Unwrapping of ssDNA from Escherichia coli SSB under mechanical tension.

(A) Crystal structure (Protein Data Bank ID number 1EYG) and schematic representation of an E. coli SSB tetramer wrapped by 70 nt of ssDNA (blue) in the (SSB)65 mode. From 5′ to 3′, ssDNA interacts with the yellow, purple, green and red subunits. (B) Schematic of SSB unwrapping experiment. A DNA construct consisting of two long double-stranded DNA (dsDNA) handles and a short (dT)70 ssDNA site is tethered between two optically trapped beads in the absence of SSB (Position 1, panel C). When moved to the stream containing SSB (Position 2), a single SSB tetramer binds to the ssDNA site at low tension (∼0.5 pN). The tethered DNA is moved back to the blank stream (Position 1) and a ramping force is applied. Stretching the nucleoprotein complex to >20 pN causes the SSB to dissociate. (C) Experimental flow chamber. Two separate streams containing experimental buffer only (red, Position 1) and buffer plus 0.5 nM SSB (blue, Position 2) form a laminar interface with minimal mixing. (D) Representative force-extension curves (FECs). Relaxing curves (red) are obtained after SSB dissociation, and are well fit to a polymer model of bare DNA (black dotted line, ‘Materials and methods’). Stretching curves (purple) of the SSB-ssDNA complex deviate from a model assuming the protein adopts the (SSB)65 wrapping mode at all forces (black dashed line). Cartoon illustration of SSB unwrapping shows the SSB behavior at particular forces. (E) Change in extension upon SSB wrapping vs applied force. The change in extension is determined from the extension difference between stretching and relaxing curves in (D). Individual traces (gray) are binned and averaged to yield a mean change in extension (black opened circle; error bars are S.D.). The data deviates from the model (dashed line, determined from the difference between the dashed and dotted lines in (D)) at forces >1 pN. Representative traces (red, green, and blue) display the differences between the individual and averaged traces.

https://doi.org/10.7554/eLife.08193.003

Crystallographic studies of a C-terminal truncation of the SSB tetramer (SSBc) with two molecules of (dC)35 bound suggest a model for the (SSB)65 mode in which 65 nt of ssDNA wrap around an SSB tetramer in a topology resembling the seams on a baseball (Raghunathan et al., 2000) (Figure 1A). Based on this structure, a model for the (SSB)35 mode has also been proposed (Raghunathan et al., 2000). Less is known about the wrapping configurations of the other binding modes, especially the (SSB)56 mode that has only been detected on long poly(dT) ssDNA (Bujalowski and Lohman, 1986). However, various techniques such as electron microscopy (Chrysogelos and Griffith, 1982; Griffith et al., 1984), SSB fluorescence quenching (Lohman and Overman, 1985; Bujalowski and Lohman, 1986, 1989a, 1989b; Lohman et al., 1986) and sedimentation (Bujalowski et al., 1988) have provided some basic constraints.

Recent single-molecule studies have provided new insights on SSB-ssDNA complex dynamics. Single-molecule FRET (smFRET) measurements characterized transitions between binding modes (Roy et al., 2007) and established that EcoSSB tetramers can diffuse along ssDNA (Roy et al., 2009) by a reptation mechanism (Zhou et al., 2011). Force spectroscopy approaches have also proven useful in studying single-stranded DNA binding protein interactions with DNA (Pant et al., 2005; Shokri et al., 2006; Hatch et al., 2007, 2008). Force not only adds another variable to perturb protein-DNA interactions but also provides a well-defined reaction coordinate to quantify the energy landscape governing those interactions. Using a combination of optical traps and smFRET, Zhou et al. (2011) showed that force gradually unravels ssDNA from EcoSSB and proposed that the energy landscape for SSB-ssDNA interactions is smooth, with few barriers to unwrapping.

Here, we present direct observations of a single EcoSSB tetramer interacting with ssDNA using force spectroscopy combined with single-molecule fluorescence microscopy. Applying mechanical force to destabilize the SSB-ssDNA complex and facilitate transitions between binding modes, we show that the ssDNA exhibits discrete wrapping states consistent with the known (SSB)65, (SSB)56 and (SSB)35 binding modes. Our results are compatible with putative models of the (SSB)35 structure (Raghunathan et al., 2000) and reveal a likely wrapping configuration for the (SSB)56 mode. SSB-(dT)70 complexes exhibit reversible force-induced transitions between modes without dissociation and SSB can diffuse along ssDNA in the different binding modes, indicating a highly dynamic complex. The data also reveal details of the energy landscape for SSB-ssDNA interactions. In contrast to previous suggestions (Zhou et al., 2011), the landscape contains multiple barriers between discrete wrapping conformations, suggesting a distinct wrapping pathway for EcoSSB. Moreover, the energy density is unbalanced, such that the energy cost of unwrapping increases as ssDNA is unraveled from its ends. These findings along with studies of the competition between E. coli SSB and the RecA recombinase protein demonstrate how SSB bound in its different modes might regulate accessibility to ssDNA of other genome maintenance proteins.

Results

Force unravels ssDNA from a single SSB tetramer

We used dual trap optical tweezers to stretch a SSB-ssDNA complex mechanically. As shown in Figure 1B, two trapped functionalized micron-sized beads were tethered together by a DNA construct consisting of a 70-nt poly(dT) ssDNA segment flanked by two long double-stranded DNA (dsDNA) ‘handles’ (‘Materials and methods’). The length of the ssDNA was chosen to accommodate one SSB tetramer in its (SSB)65 binding mode. We also worked under salt conditions and protein concentrations known to favor the (SSB)65 mode in the absence of mechanical tension (Bujalowski and Lohman, 1986; Roy et al., 2007) (‘Materials and methods’). Force-extension curves (FECs) of this construct in the absence of protein (Figure 1—figure supplement 1, green) were in excellent agreement with theoretical models of DNA elasticity (‘Materials and methods’; Figure 1—figure supplement 1, black dashed line). The total extension of the ‘bare’ DNA molecule, xbare, is given by the sum of the extensions of the dsDNA handles and the ssDNA binding site at a tension F:

(1) xbare(F)=ξds(F)·Nds+ξss(F)·Nss,

where ξds(F) and ξss(F) are the extension of one dsDNA base pair and one ssDNA nucleotide given by the extensible worm-like chain (XWLC, Bustamante et al., 1994) and ‘snake-like chain (SLC)’ model (Saleh et al., 2009), respectively (‘Materials and methods’; Figure 1—figure supplement 2). Nds = 3260 bp is the total length of the dsDNA handles and Nss = 70 nt is that of the ssDNA loading site.

To investigate a single SSB tetramer-ssDNA complex, protein in solution was added to the construct (‘Materials and methods’; Figure 1B,C) for a short period of incubation, allowing one SSB to bind the 70-nt ssDNA. The molecule was then stretched in the absence of free proteins in solution (Figure 1B,C). FECs of stretching and relaxing many molecules are shown in Figure 1D. The stretching FECs (violet) of the SSB-DNA complex displayed a shorter extension compared to those without protein due to ssDNA compaction by the SSB. Upon stretching to a force >20 pN and relaxing the molecule, the FECs (Figure 1, red) matched those in the absence of protein (Figure 1—figure supplement 1, green), indicating that the SSB had dissociated during the stretching process. We confirmed that a single SSB was loaded onto the DNA and dissociated at high force through simultaneous fluorescence detection of dye labeled protein. Using an instrument combining optical traps with a single-molecule fluorescence confocal microscope (Comstock et al., 2011), we detected SSB site-specifically labeled with an average of one AlexaFluor555 fluorophore (SSBf) as we obtained a FEC (Figure 1—figure supplement 3; ‘Materials and methods’). The average dissociation force was 10.3 ± 0.9 pN, consistent with previous reports (Zhou et al., 2011). Integrating the area between protein-bound and bare FECs to the force at which the complex spends half its time bound and half unbound yielded a value for the SSB-ssDNA wrapping free energy of 22 ± 2 kBT (‘Materials and methods’) similar to a previously reported value (Zhou et al., 2011).

The difference in extension between stretching and relaxing FECs provides information on the SSB-ssDNA wrapping conformation as a function of force. For SSB-bound DNA, we first considered that SSB adopted the canonical (SSB)65 structure (Raghunathan et al., 2000). We thus expected a FEC given by Equation 1 with Nss = 70 − 65 = 5 nt due to occlusion by the SSB. As shown in Figure 1D, the stretching FECs (violet) diverged significantly from this theoretical model (black dashed line). Figure 1E displays the extension difference, Δx, between the stretching and corresponding relaxing curves as a function of tension F, averaged over many molecules (N = 36; black points), and the corresponding theoretical model (black dashed line). The agreement between model and data at tensions <1 pN is consistent with 65 nt being wrapped around SSB at low forces. Beyond this force, however, Δx is consistently below the prediction, indicating that the SSB wraps <65 nt of ssDNA, in agreement with earlier measurements (Zhou et al., 2011).

Interestingly, neither the data in Figure 1E nor in those previous studies (Zhou et al., 2011) provide evidence for discrete wrapping morphologies such as (SSB)56 and (SSB)35 as observed in ensemble studies. If different SSB modes are stable and interconvertible, discrete transitions in the extension would have been expected in the stretching-relaxing experiment. However, detecting intermediates would be possible only if the rate at which the force was ramped was slower than the transitions between intermediates. Moreover, averaging over multiple molecules here and in Zhou et al. (2011) likely conceals transitions between SSB-ssDNA wrapping intermediates. Example individual traces (Figure 1E, blue, red, and green curves) support this view by illustrating the variability among FECs and their divergence from the average behavior (black). Rips in some of these traces (for example, the red traces at 5 pN) suggest that SSB may undergo transitions between different wrapping states.

SSB binds ssDNA in intermediate wrapping states under tension

To investigate the presence of intermediate wrapping states further, we measured binding of individual SSB tetramers to the ssDNA at constant tension by operating the optical trap in a force-clamp mode ([Neuman and Block, 2004], ‘Materials and methods’). As shown in Figure 2A, a DNA construct was initially held in the optical tweezers at a desired constant tension (2–10 pN) and protein was added. After a short time, an SSB binds, and the DNA is compacted upon wrapping. At the end of each observation, protein was dissociated by increasing the tension to a force (∼25 pN) at which SSB cannot remain stably bound. This cycle was repeated numerous times to monitor new protein binding to the same DNA construct.

Figure 2 with 1 supplement see all

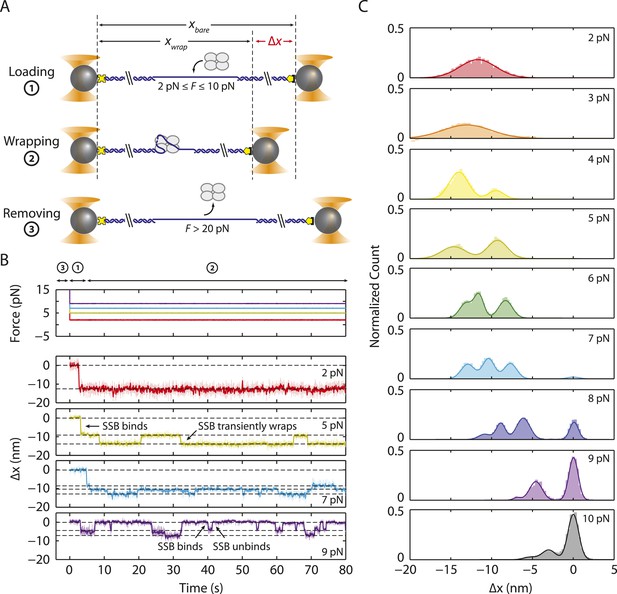

Intermediate ssDNA wrapping states of SSB under tension.

(A) Schematic of SSB constant force wrapping experiment. A DNA construct is held between two optical traps under a constant tension between 2–10 pN in the presence of protein. An extension change, Δx, is measured upon SSB binding, wrapping or unwrapping ssDNA. At the end of each observation, SSB is removed by stretching the DNA construct to high force (>20 pN). (B) Representative time traces of SSB-ssDNA wrapping at 2, 5, 7, and 9 pN (red, green, blue, and purple respectively). Extension change data were acquired at 66 kHz and boxcar averaged to 10 Hz (dark color). In all traces, SSB first binds and compacts ssDNA as indicated by an extension decrease. Depending on tension, SSB displays several intermediate wrapping states. Black dashed lines represent the mean extension change of each particular wrapping state. (C) Extension change distribution from many SSB wrapping traces at constant tensions between 2–10 pN. The color map matches that in (B). Solid lines are multi-Gaussian fits to the distributions.

https://doi.org/10.7554/eLife.08193.010

Figure 2B shows the change in DNA end-to-end extension, Δx, upon binding of SSB as a function of force. Using bare DNA as a reference (set to 0 nm), negative extension changes correspond to ssDNA wrapping and positive changes to release of wrapped DNA. At low tensions (<3 pN), we observed that individual SSBs bind and compact ssDNA in a single step (Figure 2B). SSBs remained bound to the ssDNA indefinitely at these tensions. In contrast, at higher tensions, (3–8 pN), we observed multiple steps upon SSB binding, with dynamic transitions among 2 to 3 distinct states (Figure 2B, dashed lines) depending on tension, but no dissociation of SSB. We interpret these dynamic changes in extension as wrapping and unwrapping transitions between intermediate conformations of a single ssDNA-SSB complex. Working at low SSB concentrations (0.5 nM) favored the likelihood that multiple SSBs do not bind during one cycle. We corroborated this interpretation with measurements of fluorescently labeled SSBf. Figure 2—figure supplement 1 shows that a single SSB tetramer was responsible for the observed wrapping-unwrapping dynamics. Near the dissociation force (9–10 pN), we observed multiple instances of one-step wrapping followed by complete release of ssDNA. At these forces, SSB is unable to bind the DNA tether stably, and the observed transitions correspond to protein binding and dissociation. This interpretation is also confirmed by measurements using fluorescent SSBf (Figure 2—figure supplement 1, right panel), in which dissociation events correlate with loss of fluorescence.

Figure 2C shows the combined extension change distributions from many individual SSBs at different tensions. Similarly to the force-ramp results, Δx decreases as tension increases, indicating that the amount of ssDNA wrapped by SSB decreases. However, in contrast to the force-ramp experiment, the constant force experiment provides evidence for intermediate wrapping conformations of SSB, since multiple states are observed at many tensions. The areas under the peaks in the distributions indicate that SSB spends different amounts of time in these particular states. As tension is increased, the SSB-ssDNA complex shifts to states with smaller Δx, corresponding to lower extents of ssDNA wrapping.

Intermediates correlate with different SSB binding modes

We considered the possibility that these intermediate DNA wrapping states correspond to the different SSB binding modes observed on poly(dT) in ensemble measurements (Bujalowski and Lohman, 1986). Figure 3A displays the mean extension changes from the peaks of the distributions in Figure 2C. Interpreting these changes in extension, Δx, and attributing these to binding modes required a detailed model. As shown in Figure 3B, ssDNA wrapping by SSB contributes in two ways to the extension of the DNA tether: (i) it removes Nw ssDNA nucleotides wrapped by the SSB, and (ii) it adds length due to the effective physical size of the SSB-ssDNA complex, xSSBeff, as noted in other mechanical unfolding studies (Gao et al., 2012). The extension of the wrapped DNA molecule, xwrap, is thus:

(2) xwrap(F)=ξds(F)·Nds+ξss(F)·(NssNw)+xSSBeff(Nw,F).
Figure 3 with 3 supplements see all
SSB wrapping modes.

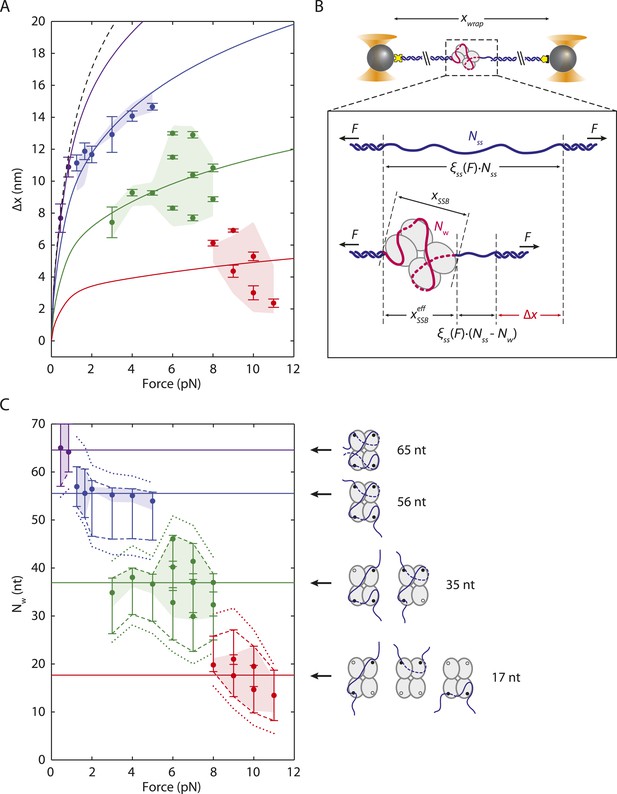

(A) Mean change in extension Δx vs tension for each wrapping state, derived from the peaks of the distributions in Figure 2C. Error bars represent S.E.M. and were determined by bootstrapping. The dashed line is the model in Figure 1D. Solid lines represent models of Δx based on Equation 3 for SSB wrapping Nw = 65, 56, 35, and ∼17 nt (purple, blue, green, and red, respectively; ‘Materials and methods’). Data points are clustered into 4 groups corresponding to those states (purple, blue, green, and red circles). (B) Schematic representation of Δx. Top: Bare ssDNA (with Nss = 70 nt) and its extension, xbare, based on a polymer elasticity model Equation 1 (‘Materials and methods’). Bottom: SSB-wrapped ssDNA showing the number of wrapped nucleotides, Nw (<70, red) and the remaining unwrapped nucleotides (NssNw, blue). The extension of wrapped DNA, xwrap is calculated from an elasticity model and the effective physical size of the SSB-ssDNA complex, xSSBeff, Equation 2 (‘Materials and methods’). Δx is the difference between xwrap and xbare, Equation 3. (C) Number of wrapped nucleotides Nw vs tension F. Each data point in (A) is mapped to Nw using the model described in the text (‘Materials and methods’; Figure 3—figure supplement 1). Dotted lines represent the maximum possible range of Nw for each colored group of points based on xSSBeff being <6.5 nm (Figure 3—figure supplement 1, left panel). Dashed lines represent a tighter range of possible Nw for each group of points derived from the SSB-ssDNA structure (Figure 3—figure supplement 1, middle panel). Error bars represent this range for each individual data point. The shaded areas represent the tightest range of possible Nw for each group based on the ‘hotspot’ analysis described in the text (Figure 3—figure supplement 1, right panel). The points are the best estimates of Nw from the model. The shaded areas and solid lines in (C) map directly to those in (A). Cartoon schematics depict possible wrapping modes corresponding to the 4 groups.

https://doi.org/10.7554/eLife.08193.012

The extension change upon wrapping, Δx, is the difference between xwrap and the extension of the bare molecule xbare, given by Equation 1:

(3) Δx(F)=ξss(F)·NwxSSBeff(Nw,F).

xSSBeff accounts for the distance between the two ends of the wrapped ssDNA on the SSB (Figure 3B). This geometrical term depends on the size of the SSB and the geometry of wrapped ssDNA around the protein, and is thus a function of Nw (and F). For example, based on the proposed model for the (SSB)65 structure (Raghunathan et al., 2000) xSSBeff(Nw=65) <2 nm since the ends of the wrapped ssDNA exit at nearly the same point on the protein (Figure 1A). In the (SSB)35 structural model, however, the ssDNA strand exits at opposite ends of the protein and xSSBeff(Nw=35) is predicted to be ∼5.5 nm. xSSBeff must also account for the rotational degree of freedom of the nucleoprotein complex, and only the projection along the direction of the applied force contributes to the extension of the DNA tether. As force F is exerted, a torque is applied on the complex, orienting it along the direction of tension. This effect is modeled by

(4) xSSBeff(Nw,F)=xSSB(Nw)·L(FxSSB/kBT),

where xSSB is the distance between wrapped ssDNA ends in the protein's frame of reference (Figure 3B) and L(z) ≡ coth(z) − 1/z is the orientation factor, derived from the alignment of a particle undergoing rotational Brownian motion to an external torque (‘Materials and methods’).

Substituting Equation 4 into Equation 3 provides an expression for the measured extension change Δx at each force F in terms of the SSB-ssDNA configuration parameters Nw and xSSB. Thus, for each data point Δx(F) in Figure 3A there exists a set of possible values for the pair Nw and xSSB (‘Materials and methods’). Figure 3—figure supplement 1 displays how selected data points from Figure 3A each project onto a curve of allowed values in the space of Nw and xSSB (colored lines). Structural considerations limit the range of possible Nw and xSSB. The fact that xSSBeff can be no greater than the size of the SSB (i.e., 0 < xSSB < 6.5 nm) places a restriction on the range of possible values Nw can have for each Δx (Figure 3—figure supplement 1 left panel, dotted colored lines; Figure 3C dotted colored lines). We limited the range of Nw further by utilizing the (SSB)65 structure (Raghunathan et al., 2000) to restrict the potential geometries of any intermediate wrapping states. By measuring the end-to-end distance between every pair of nucleotides separated by Nw nt along the ssDNA in the structural model, we imposed a lower and upper bound on xSSB at each force F (Figure 3—figure supplement 1 middle panel, gray contours and shaded area; ‘Materials and methods’). This refined range of possible Nw restricts our observed wrapping intermediates to four bands centered around Nw = ∼65, 50–60, 30–40, and 10–20 nt (Figure 3C dashed colored lines). The first three correspond well with the (SSB)65, (SSB)56, and (SSB)35 wrapping states observed at 25°C on poly(dT).

A better estimate for xSSB and Nw at each force F was obtained by recognizing that specific amino acid residues within EcoSSB are known to contact the ssDNA. Trp-40, Trp-54, Trp-88 and Phe-60 have been shown to play important roles in maintaining protein-DNA stability (Casas-Finet et al., 1987; Khamis et al., 1987; Ferrari et al., 1997). Crystal structure analysis also implicates Trp-54 and Arg-56 as important in creating pockets of positive electrostatic potential on the SSB surface for ssDNA to bind (Raghunathan et al., 2000). Lastly, a DNA density map generated by all-atom molecular dynamics (MDs) simulations of SSB (Maffeo, 2015) in solution with free oligonucleotides showed that DNA interacts most strongly to regions on each monomer near residues 54–56 (Trp-88 and Phe-60 are also located near this region) (Figure 3—figure supplement 1 right schematic, residues highlighted in green; ‘Materials and methods’). Based on these results, we identified the Trp-54/His-55/Arg-56 cluster as a ‘hotspot’, residues on each SSB monomer that may serve as anchor points along the DNA wrapping path on the SSB. Our best estimates for Nw at each force F, shown in Figure 3C (colored points), were obtained by considering the distances between groups of nucleotides near each hotspot (Figure 3—figure supplement 1 right panel, black contours; ‘Materials and methods’).

Our models consistently show that ssDNA unwraps in discrete steps with tension, instead of gradually as proposed previously (Zhou et al., 2011). As tension increases from 0–8 pN, the number of wrapped nucleotides decreases in a stepwise manner from 65 to 56 to ∼35 nt (Figure 3C, purple, blue, and green points, respectively), matching very well to the known binding modes. The best estimates for Nw and xSSB also generate models for the ssDNA wrapping conformations for each intermediate (Figure 3C; schematics and Figure 3—figure supplement 2). Control experiments using an SSB mutant confirm our analysis. Mutation of Trp-54 to Ser was previously shown to disrupt interactions with ssDNA and favor wrapping in the (SSB)35 mode (Ferrari et al., 1997). We similarly found that the number of nucleotides wrapped by this mutant was lower than that of the wild type SSB, with Nw = 35 nt being the most probable wrapping conformation over the range of tensions assayed (Figure 3—figure supplement 3).

SSB in intermediate wrapping states can diffuse on ssDNA

We next investigated whether the different wrapping states of SSB affect its dynamics on ssDNA, in particular its ability to diffuse. We monitored simultaneously the wrapping state of SSB and its position on ssDNA using the combined optical tweezers-confocal fluorescence microscope. We measured the latter using smFRET between the DNA construct modified with a single acceptor fluorophore (Cy5) at the 5′ ss-dsDNA junction and fluorescent SSBf labeled with an average of one donor fluorophore (AlexaFluor555) (Figure 4A).

Figure 4 with 1 supplement see all

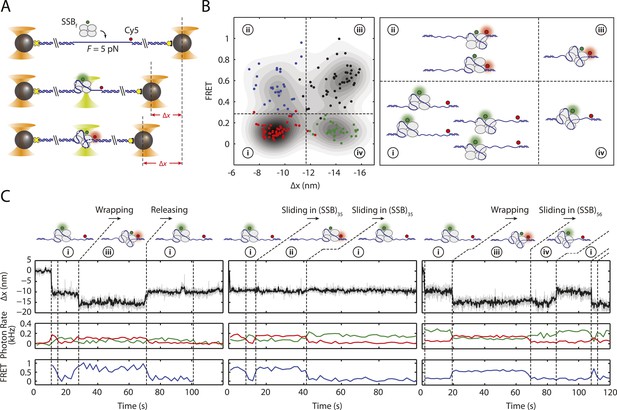

SSB binding modes and diffusion mechanism.

(A) Schematic of fluorescently labeled SSB, SSBf, ssDNA wrapping experiment. A Cy5-labeled DNA construct is tethered between two optical traps under a constant tension of 5 pN. Upon binding of an AlexaFluor555-labeled SSB, both DNA extension change, Δx, and single-molecule FRET are measured simultaneously. (B) Scatter plot of FRET efficiency and Δx. Data (circles) are assigned to 4 states (red (i), blue (ii), black (iii), and green (iv)) based on the value of FRET and Δx. A density map of the combined FRET-extension states overlaid with the scatter plot confirms that the data can be separated into 4 states. Cartoon illustrations of nucleoprotein complexes demonstrate possible SSB wrapping configurations corresponding to the 4 assigned states. (C) Representative traces showing combined fluorescence and DNA extension measurements. Change in extension (top; boxcar averaged to 50 Hz) and fluorescence (middle; boxcar averaged to 0.5 Hz) of donor (SSBf, green) and acceptor (Cy5, red) are measured simultaneously. Together, FRET efficiency (bottom; blue) and extension change (top; black) reveal the SSB wrapping states (i and ii, iii and iv) and their dynamics (ssDNA wrapping/releasing and sliding).

https://doi.org/10.7554/eLife.08193.016

Upon SSBf binding to ssDNA held at a constant 5 pN tension, we observed transitions between the two wrapping states with Nw = 35 nt and 56 nt, based on the analysis from the previous section. We also observed transitions between two FRET states with high (E ∼ 0.5) and low FRET efficiencies (E ∼ 0) corresponding to SSBf positioned at the 5′ ss-dsDNA junction vs the 3′ end, respectively. As shown in Figure 4B, all four combined extension-FRET states could be detected in our data: ‘i’—35 nt wrapping and low FRET, ‘ii’—35 nt wrapping and high FRET, ‘iii’—56 nt wrapping and high FRET, and ‘iv’—56 nt wrapping and low FRET. Inspection of individual time traces revealed cases in which transitions in extension and FRET were correlated. Figure 4C (left) shows an example of such a transition from state i → iii → i, in which an SSB in (SSB)35 mode wraps an additional ∼20 nt of ssDNA from the 5′ end into (SSB)56 mode, then releases the same end of DNA. This confirms our interpretation that these changes in extension represent transitions between binding modes. Alternately (Figure 4C; middle and right) we observed cases in which FRET transitions occurred independently of changes in wrapping state. The two-state time traces indicate SSB diffusing across the sensitive distance range of smFRET (about one Förster radius, ∼6 nm = 18 nt [Forster, 1948]) and support a reptation mechanism for SSB diffusion (Figure 4—figure supplement 1), as previously proposed (Zhou et al., 2011). Diffusion of SSB occurred in both (SSB)35 (Figure 4C; middle) and (SSB)56 (Figure 4C; right) wrapping modes. We reasoned that the lifetimes of the high FRET states in these traces correspond approximately to the time the protein takes to diffuse by one Förster radius from the ss-dsDNA junction, and estimated a diffusion constant D ≈ 27 nt2/s for the (SSB)35 mode and 15 nt2/s for the (SSB)56 mode. This range of values is consistent with prior reports (Roy et al., 2009) when accounting for temperature (∼23°C in our measurements) and the expected reduction in D due to the 5 pN tension (Roy et al., 2009; Zhou et al., 2011). We observed no examples (0 of N = 82) of transitions from state i → iii → ii—wrapping one end of DNA and releasing the other—providing no support for a ‘rolling’ mechanism of diffusion (Romer et al., 1984) (Figure 4—figure supplement 1).

Discussion

Due to its homotetrameric nature, the EcoSSB protein can bind ssDNA in a number of different modes that differ in the number of nucleotides occluded in complexes with long ssDNA (Bujalowski and Lohman, 1986; Lohman and Ferrari, 1994; Roy et al., 2007). SSB-ssDNA complexes can transition between these modes in vitro and their stabilities can be modulated by changes in solution conditions (salt, pH, temperature) as well as the SSB to DNA ratio. Our experiments show that force can also be used to control the ssDNA wrapping state of EcoSSB. This has revealed stable intermediate states of (dT)70 ssDNA wrapping around a single SSB tetramer that correlate well with the known [NaCl]-induced poly(dT) binding modes, (SSB)65, (SSB)56, (SSB)35 that have been observed for SSB binding to longer poly(dT) (Lohman and Overman, 1985; Bujalowski and Lohman, 1986).

The observation of stable force-induced SSB-(dT)70 intermediates provides new details about the likely wrapping topologies of the different binding modes. Our results are consistent with the ssDNA wrapping topology proposed for the (SSB)65 mode based on a crystal structure (Figure 3C; schematic, and Figure 3—figure supplement 2) (Raghunathan et al., 2000). They also suggest that the (SSB)56 mode has ssDNA bound to all four subunits, but with the 3′ terminal ssDNA end unraveled to the nearest hotspot (Figure 3C; schematic, and Figure 3—figure supplement 2). This model is consistent with studies (Bujalowski and Lohman, 1989a, 1989b) suggesting that all 4 monomers of an SSB tetramer interact with ssDNA upon binding a molecule of (dT)56. At forces in the range of 5–8 pN, we observe between 1 to 3 separate states wrapping 30–40 nt. Our data and analysis are not sensitive enough to ascribe specific wrapping conformations to each. We believe at least two conformations wrapping ∼35 nt are consistent with the observed extension changes, one of which is nearly identical to the proposed (SSB)35 structure (Raghunathan et al., 2000) (Figure 3C schematic, and Figure 3—figure supplement 2). Interestingly, prior studies (Roy et al., 2007) have suggested the existence of an alternate ‘(SSB)35b’ mode that occludes 35 nt but is structurally distinct from (SSB)35, consistent with our observations. At tensions >8 pN, we also observed a stable intermediate reflecting ∼17 nt of bound ssDNA (Bujalowski and Lohman, 1989a, 1989b, 1991b). Here, a multitude of wrapping conformations around two monomers is consistent with the data (Figure 3C schematic, and Figure 3—figure supplement 2). Although fluorescence quenching studies (Bujalowski and Lohman, 1991a) suggest that (dT)16 would bind to one monomer of SSB, partial interactions with two monomers in our structural model may sum to those of a monomer. It is possible that near dissociation, wrapping geometries could be more heterogeneous. Prior studies have shown that EcoSSB can bind to ssDNA as short as (dT)8 (Krauss et al., 1981). However, we do not observe long-lived intermediates wrapping less than ∼17 nt before SSB dissociation.

Analyzing the transitions between wrapping intermediates (Figure 2B) reveals that almost every transition (N = 373 out of 380 total, 98%) occurs between adjacent wrapping states, that is, between (SSB)56 and (SSB)35, but never directly between (SSB)56 and (SSB)17. This suggests a single, linear kinetic pathway for wrapping (Figure 3—figure supplement 2, right to left) and unwrapping (left to right). This proposed pathway is corroborated by measurements of E. coli SSB in competition with RecA for ssDNA. As shown in Figure 5A,B, we first loaded a single SSB tetramer onto ssDNA at a force of 5 pN, where our analysis shows the protein interconverts between the (SSB)56 and (SSB)35 modes. We then added RecA to the complex under conditions favoring polymerization into ssDNA-RecA filaments (‘Materials and methods’). (To prevent polymerization of RecA onto the dsDNA handles, the construct was synthesized with the 70-nt ssDNA loading site flanked by short non-DNA spacers [‘Materials and methods’]). In the absence of SSB, RecA extends the construct by ∼10 nm as it fills the ssDNA (Figure 5—figure supplement 1), consistent with previous reports that ssDNA-RecA filaments are 50% longer than dsDNA (Hegner et al., 1999; Galletto et al., 2006) (‘Materials and methods’). When RecA is added to ssDNA wrapped by a single SSB, RecA takes longer to polymerize but eventually removes the SSB in a stepwise fashion (Figure 5C). Analyzing the measured extension changes from many measurements (Figure 5D; ‘Materials and methods’) reveals that the SSB is unraveled in discrete steps, corresponding to the same pathway of intermediates, (SSB)35 → (SSB)17 → unbound, as proposed above (Figure 3—figure supplement 2).

Figure 5 with 1 supplement see all

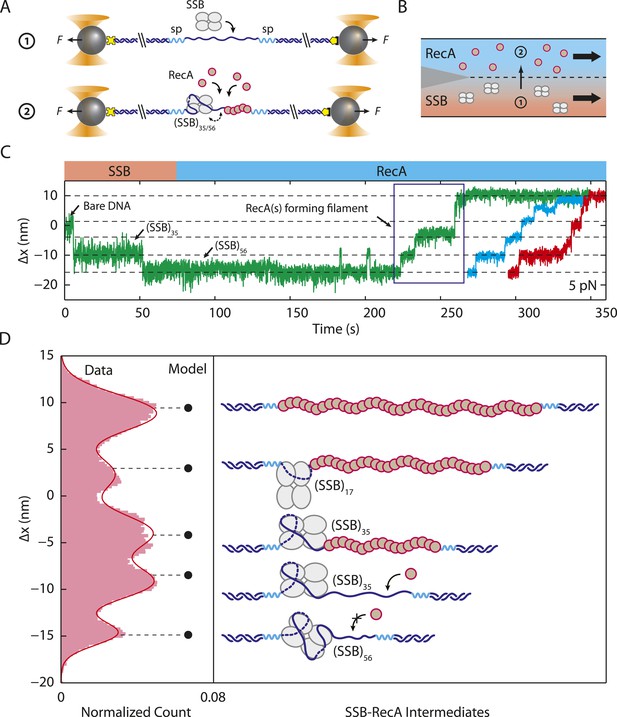

Unwrapping of ssDNA from SSB by RecA filament formation.

(A) Schematic representation of SSB-RecA experiment. A standard DNA construct consisting of a 70-nt single-stranded DNA ((dT)70) fragment was synthesized to contain two internal 18-atom hexa-ethylene-glycol spacers at both ss-dsDNA junctions (cyan; ‘Materials and methods’). The spacers prevent RecA filament formation onto the dsDNA. The construct is tethered in the presence of SSB (Position 1). After the SSB binds, the tethered DNA is moved to the stream containing RecA for observation (Position 2). (B) Experimental flow chamber for SSB-RecA experiment. Two separate streams contain experimental buffer plus 0.5 nM SSB (red, Position 1) and buffer plus 125 nM RecA and 125 μM ATP-γS (blue, Position 2). (C) Representative time traces showing competition between RecA and SSB on ssDNA (green, blue, red). Transient wrapping-unwrapping of SSB slows down the nucleation of RecA. Formation of RecA filament extends ssDNA (blue box), displaces the SSB, and stops after reaching the spacers at the ss-dsDNA junctions. The dotted lines correspond to the model in (D). (D) Extension change distribution of SSB-RecA intermediates at a constant tension of 5 pN (pink) obtained from many RecA filament formation time traces (N = 25). Five states representing SSB-RecA dissociation intermediates are illustrated (schematics) and assigned to peaks of the distribution. Extensions corresponding to these states are predicted using polymer models of elasticity (black dots and dotted lines, ‘Materials and methods’).

https://doi.org/10.7554/eLife.08193.018

The ability to measure the extension of each wrapping state as a function of force also allows us to construct an energy landscape for the SSB-ssDNA complex. Using the extension histograms in Figure 2C, we determined the probabilities of occupying specific wrapping modes at each force, and from these we calculated the free energy differences between modes (‘Materials and methods’; for simplicity, we ascribed intermediates with similar Nw to the same wrapping state). We also used the lifetimes of each wrapping state and transition probabilities at each force (Figure 2B) to estimate the barrier heights between states (‘Materials and methods’). Our analysis (Figure 6) shows that the free energy of wrapping into the (SSB)65 mode is 21 ± 1 kBT, in excellent agreement with the area between protein-bound and bare FECs (22 ± 2 kBT; Figure 1D). Interestingly, this wrapping free energy is not distributed evenly among the 65 nt. Instead, we find that 73% of the energy is concentrated in the first 35 nt wrapped (energy density = 0.44 ± 0.02 kBT/nt). In contrast, the (SSB)65 and (SSB)56 states are separated by only ∼0.7 kBT (energy density ∼0.07 kBT/nt). This finding suggests that the last ∼10 nt wrapped are more susceptible to unraveling and thus might be more accessible to other proteins competing for ssDNA. This unbalanced energy density profile may provide a mechanism by which SSB is displaced by the recombinase RecA, which requires a foothold of 6–17 nt to polymerize into filaments (Joo et al., 2006; Bell et al., 2012). We note that in the RecA/SSB competition experiment (Figure 5), we observe RecA filaments forming only once the SSB transitions to the (SSB)35 mode, granting access to >14 nt of ssDNA.

Figure 6 with 2 supplements see all
Energy landscape of SSB wrapping.

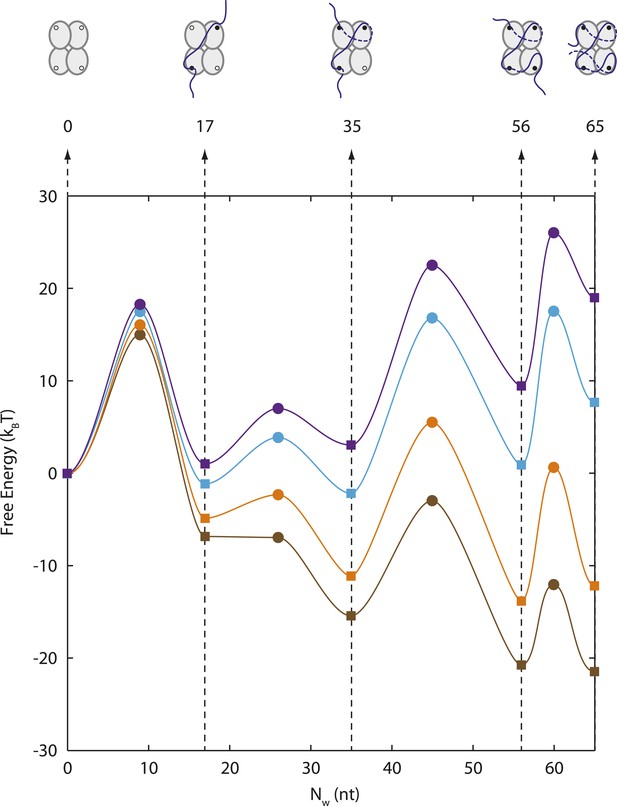

Energy landscapes of a single SSB wrapping ssDNA at representative forces reconstructed from extension change probability distributions vs tension (Figure 2C). The potential wells correspond to the stable SSB-ssDNA intermediates (cartoon schematics): (SSB)65, (SSB)56, (SSB)35, (SSB)17, and unbound, respectively. The energy associated with each intermediate is determined from the occurrence probabilities for each state (squares, ‘Materials and methods’). The barrier heights and positions (circles) are determined from the state lifetimes (‘Materials and methods’). In the absence of tension, SSB wraps ssDNA in the (SSB)65 binding mode. Increasing tension (brown, orange, cyan, purple lines correspond to 0, 3, 7, 9 pN, respectively) tilts the energy landscape, changes the free-energy difference between wrapping intermediates, and favors different SSB-ssDNA binding modes.

https://doi.org/10.7554/eLife.08193.020

Our measurements that SSB can diffuse on ssDNA while in different wrapping modes provide insights into how SSBs could be redistributed along ssDNA by other proteins seeking access to ssDNA. The observation of SSB-ssDNA rearrangements without unwrapping or rewrapping (Figure 4) points to a sliding mechanism of diffusion in which ssDNA reptates along the protein, consistent with prior models (Zhou et al., 2011). In Figure 5, we believe RecA polymerization likely slides the SSB to one ssDNA-dsDNA junction prior to unravelling it (Roy et al., 2009; Bell et al., 2012). Interestingly, the data in Figure 4 suggest that diffusion may be faster in the (SSB)35 mode. The transition rates between FRET states are ∼1.8× larger in the (SSB)35 mode than in the (SSB)56 mode. The observation that a smaller site size leads to faster diffusion is consistent with reports that human RPA, which covers 30 nt, has a larger diffusion coefficient than EcoSSB in its (SSB)65 mode (Nguyen et al., 2014).

Previous work has proposed that different wrapping modes may be used selectively in different DNA metabolic processes (e.g., replication vs recombination) (Sancar et al., 1981; Lohman et al., 1988). How and which of these modes are used for particular processes remains unclear, as experimental proof of this proposition has proven difficult to obtain in vitro. We anticipate that the control of SSB wrapping mode by applied force may be a useful experimental tool to test this hypothesis.

Materials and methods

Sample preparation

SSB, fluorescently labeled SSB, and RecA

Both wild-type and fluorescently labeled E. coli SSB were expressed and purified as described previously (Lohman et al., 1986; Roy et al., 2009), with an addition of a dsDNA cellulose column to remove a minor exonuclease contaminant (Bujalowski and Lohman, 1991b). The labeled SSB was single-point mutated from Ala to Cys at position 122 in the C-terminus, and labeled with AlexaFluor555 maleimide (Invitrogen, Grand Island, NY) to the extent of ∼25% (∼1 dye per tetramer) as described previously (Roy et al., 2009). E. coli RecA was purchased from New England Biolabs (M0249S; Ipswich, MA).

Single-stranded DNA construct

The single-stranded DNA construct consisted of three separate fragments ligated together (Figure 1—figure supplement 5): ‘Right Handle’ (RH), ‘Left Handle’ (LH), and ‘Binding Site’ (BS). The handles served as functionalized linkers that connected to trapped beads through biotin-streptavidin and digoxigenin-anti-digoxigenin linkages and spatially separated the beads from the protein binding site. LH was synthesized from PCR amplification of the PBR322 plasmid (New England Biolabs, Ipswich, MA) using a 5′-biotin-labeled primer and digested to a 1550-bp length with the PspGI restriction enzyme (New England Biolabs, Ipswich, MA), leaving a 5-nt 5′ overhang. RH was PCR-amplified from the phage lambda DNA (New England Biolabs, Ipswich, MA) using a 5′-digoxigenin-labeled primer and digested with the TspRI restriction enzyme (New England Biolabs, Ipswich, MA), resulting in a 1710-bp dsDNA with a 9-nt 3′ overhang.

The last fragment of the construct, BS, consisted of a 70-nt poly(dT) oligodeoxyribonucleotide flanked by sequences complementary to both overhangs of LH and RH: 5′-CCTGG (T)70 CCCACTGGC-3′. In some experiments, a Cy5 fluorescence dye was attached directly to the DNA backbone using phosphoramidite chemistry at the location between the 5′ complementary sequence and the 70-nt poly(dT) region. The final construct had one digoxigenin and one biotin on opposing ends for linkages to anti-digoxigenin- and streptavidin-coated beads, respectively. All oligonucleotides were custom-ordered from Integrated DNA Technologies (Coralville, IA).

In the experiments with RecA, BS was modified to contain two internal 18-atom hexa-ethylene-glycol spacers (iSp18; Integrated DNA Technology, Coralville, IA) between the 70-nt poly(dT) and the complementary overhangs. This modification prevented RecA filament formation onto the dsDNA handles (Figure 5A, cyan). The BS fragment was ligated to RH and LH to form a complete construct.

Instrument design

Optical tweezers

Experiments were performed using a high-resolution dual optical trap instrument combined with a confocal microscope as previously described (Comstock et al., 2011). The dual traps were formed by timesharing a single IR laser (a 5-W, 1064-nm diode-pumped solid-state laser, YLR-5-1064-LP; IPG Photonics, Oxford, MA), by intermittently deflecting the laser between two angles with an acousto-optic modulator (AOM; IntraAction Corp., Bellwood, IL). The instrument was housed in a temperature-controlled room at ∼23°C.

The IR beams were tightly focused by a 60×, water-immersion microscope objective (Nikon, Tokyo, Japan) to form two optical traps inside the sample chamber. Each trap held a single polystyrene bead during an experiment. Bead displacements were detected by back–focal plane interferometry: forward-scattered laser light was collected by a second identical objective lens, imaged onto a quadrant photodiode detector, and analyzed. In all experiments, both traps were calibrated by measuring the power spectral density of bead Brownian motion. Trap stiffnesses were typically equal to 0.3 pN/nm.

Fluorescence probes were excited by a 532-nm 5-mW laser (DPGL-05S, World Star Tech, Toronto, ON, Canada) interlaced with the trapping IR laser at a rate of 66 kHz (Comstock et al., 2011). Fluorescence light from donor and acceptor dyes emitted from within a confocal volume was collected by the front objective, band-pass filtered, focused through a 20-µm pinhole, and imaged onto two avalanche photodiodes (APDs) (PerkinElmer, Waltham, MA). The AlexaFluor555 emission passed through a 580-nm low-pass filter (Chroma Technology Corp., Bellows Falls, VT) to one APD, and the Cy5 emission through a 680-nm low-pass filter to the second APD.

Flow chamber

A custom-designed laminar flow chamber ([Brewer and Bianco, 2008], Figure 1—figure supplement 4), consisting of two glass coverslips (12-545-M, 24 × 60-1, ThermoFisher, Waltham, Massachusetts) sandwiching melted Nescofilm (Karlan, Phoenix, AZ) was patterned with channels. Eight holes with a diameter of 2 mm were drilled onto one of the coverslips by a laser engraver system (VLS2.30; Universal Laser Systems, Scottsdale, AZ) to create four inlets and four outlets. The Nescofilm was cut into three separate channels using the same laser system. Top and bottom channels were connected to a central channel through glass capillaries (OD = 100 ± 10 μm, ID = 25.0 ± 6.4 μm; Garner Glass Co., Claremont, CA). The chamber was mounted onto an anodized aluminum frame into which inlet and outlet tubing (ABW00001; Tygon, Saint-Gobain, Akron, OH and PE20; Intramedic, Becton Dickinson and Company, Sparks, MD) was connected.

Three syringe pumps (PHD 2000 Infusion; Harvard Apparatus, Holliston, MA) were used to control the flow through the different channels: top, central, and bottom, separately (Figure 1—figure supplement 4). The top and bottom channels were injected with anti-digoxigenin and streptavidin beads, respectively. In the central channel, two streams of appropriate buffers were pumped at a speed of 140 µm/s (∼100 µl/hr) and merged to form a laminar interface. In a typical experiment, a DNA molecule tethered between trapped beads could be moved across the interface using a motorized stage controller in ∼2 s.

Optical tweezers experiment

Except where otherwise noted, experiments were performed in a working buffer containing 100 mM Tris-HCl (pH 7.6), 10 mM NaCl, 0.1 mM EDTA. An oxygen scavenging system (pyranose oxidase [P4234; Sigma–Aldrich, St. Louis, MO] and catalase [219001; EMD Millipore, Billerica, MA]) was added to increase tether and fluorescence photobleaching lifetime (Landry et al., 2009); to this buffer, 0.5 nM of SSB protein was added. For the measurements involving fluorescence, an oxygen triplet-state quencher (Trolox; Sigma–Aldrich, St. Louis, MO) was added to the working buffer to prevent fluorophore blinking (Rasnik et al., 2006). Experimental conditions were chosen to be compatible with the optical trapping assay and to favor the (SSB)65 mode in the absence of force. The (SSB)65 mode is known to be stabilized at high [NaCl] (>200 mM), the (SSB)56 mode at intermediate [NaCl] (50–100 mM), and the (SSB)35 mode at low [NaCl] (10 mM) (Bujalowski and Lohman, 1986). Mg2+ and polyamines also facilitate formation of the high site size modes (Bujalowski and Lohman, 1986; Wei et al., 1992). We independently verified that the (SSB)65 mode was favored in the experimental conditions above (100 mM Tris-HCl, low SSB concentration), by measuring a binding isotherm using fluorescence of Cy5-(dT)70-Cy3-dT with SSB (Figure 1—figure supplement 6).

In all experiments, a single-stranded DNA construct was first tethered between a trapped streptavidin-coated bead and an anti-digoxigenin-coated bead in buffer. The tether was then stretched under tension to obtain a FEC. The FEC was used to check behavior of the tether by verifying it against a theoretical polymer model (Figure 1—figure supplement 1).

Force-ramp experiment

A tether was moved into the SSB stream at low tension to allow a single SSB to bind (Figure 1—figure supplement 4, Position 2). After a period of incubation, the tether was moved back to the blank buffer (Position 1) to ensure that no other SSBs were present during experiment. To observe single SSB unwrapping, a force-ramp experiment was performed by increasing the trap separation at a rate of ∼65 nm/s until the tether tension reached ∼25 pN. The tether was then relaxed back at the same rate to the original starting position.

Constant force experiment

Constant force experiments were performed with a PID controller loop that monitored the trapped bead positions and controlled the trap separation to maintain a constant tension on a tethered DNA molecule. The constant force experiment was initiated in the blank buffer stream at constant tensions ranging from 2 to 11 pN (Figure 1—figure supplement 4, Position 1). While keeping tension constant, the tether was moved into the SSB stream to allow a single SSB to bind (Position 2). After an SSB bound, the tether was moved back to the blank buffer stream for observation.

RecA-SSB competition experiment

These experiments were performed in a working buffer containing 20 mM Tris(OAc), pH 7.5, 10 mM NaCl, 4 mM Mg(OAc)2, and an oxygen scavenging system. The experiment was initiated in a buffer stream containing 0.5 nM of SSB only at a constant tension of 5 pN (Figure 5A,B). After an SSB bound (Figure 5B; Position 1), the tethered construct was moved into the buffer stream containing 125 nM of RecA and 125 µM ATP-γS for observation (Position 2). ATP-γS (A1388; Sigma–Aldrich, St. Louis, MO) was included to stabilize the RecA filament.

Data analysis

Single-stranded DNA polymer modeling

The total extension of the tether was decomposed into dsDNA and ssDNA components as shown in Equation 1. The extension of each of these segments was computed separately. The dsDNA segment was modeled with an XWLC (Bustamante et al., 1994). Parameters for dsDNA were obtained from the literature (Baumann et al., 1997); we used a persistence length of 53 nm, a stretch modulus of 1200 pN, and a contour length per base pair of 0.338 nm bp−1. The ssDNA segment was fitted to the recently reported ‘snake-like’ chain model (Saleh et al., 2009). Parameters were obtained by comparing the amount of salt (monovalent ion) used in our buffer to the lookup table provided (Saleh et al., 2009). Representative FECs of the DNA construct containing 3260 bp dsDNA and 70 or 140-nt poly(dT) ssDNA (Figure 1—figure supplement 2; green and orange, respectively) were fitted to the model (black dashed and dotted lines, respectively). FEC data of both constructs were in excellent agreement with theoretical models of DNA elasticity.

We validated the use of the SLC model for ssDNA of varying lengths by subtracting FECs of a construct containing a 70-nt ssDNA site (red) from those of a construct with a 140-nt poly(dT) ssDNA site (orange) at each force. The resulting extension difference (Figure 1—figure supplement 2, inset) displayed an excellent agreement with the SLC model for 70 nt (black dashed line). (The extension difference was also used to determine one of the parameters of the SLC model, the ssDNA extension at 20 pN [Saleh et al., 2009]. For 70-nt ssDNA, this was determined to be ∼35 nm.)

SSB-ssDNA complex modeling

Modeling the effect of SSB-ssDNA complex size on extension

Equation 2 models the extension of SSB-wrapped DNA. The second term in the expression represents the extension due to the remaining NssNw nucleotides of ssDNA unwrapped by the protein, and the third represents the contribution to the extension from the physical size of the SSB-ssDNA complex. For the latter, we approximated the ssDNA-wrapped SSB as a rigid body of size xSSB that is able to diffuse rotationally. The effect of tension F on the ssDNA is to orient the complex along the direction of tension. The energy associated with orienting the SSB-ssDNA complex is given by:

Eorient=F·xSSB=FxSSBcosθ,

where F is the force vector, xSSB the vector defined by the entry and exit points of the wrapped ssDNA on the protein (Figure 3B), and θ is the angle between the two vectors. The effective size of the SSB, that is, that which contributes to the measured extension, is given by the projection of xSSB onto the force axis, xSSBeff=xSSBcosθ, where 〈…〉 denotes the thermal average. This average is obtained by integrating a Boltzmann distribution of orientation energies over all possible orientation angles θ, φ:

cosθ=o2πdφoπsinθdθcosθexp(FxSSBcosθ/kBT)o2πdφoπsinθdθexp(FxSSBcosθ/kBT).

Note that θ, φ correspond to the angles in a spherical coordinate system with force pointing along the z-axis. Carrying out the integrals yields:

cosθ=coth(FxSSBkBT)kBTFxSSB,

known as the Langevin function, L(FxSSB/kBT) in Equation 4, first derived for the classical model of paramagnetism (Langevin, 1905). The same expression has also been used to model protein size effects in mechanical unfolding studies (Chen et al., 2015). For forces F >> kBT/xSSB, the complex aligns with the force vector and cosθ1.

Determination of SSB wrapping conformation from extension change data

Equations 3, 4 relate the measured extension change Δx at each force F to the number of wrapped nucleotides, Nw, and the distance between ssDNA entry and exit points on the SSB, xSSB. Substituting Equation 4 into Equation 3 and solving for Nw yields

(5) Nw=Δx(F)+xSSBcoth(FxSSB/kBT)kBT/Fξss(F),

where the definition of the Langevin function L(z) was used. Entering an extension change data point Δx(F) and ssDNA elasticity model value ξss(F) into Equation 5 at a given force F yields a single-valued function of Nw in terms of xSSB. The functions Nw(xSSB) represent the set of allowable values of the pair xSSB, Nw for each extension change data point Δx(F), and are plotted as colored curves in Figure 3—figure supplement 1 for selected data points from Figure 3A. The widths of the curves correspond to the error bars in Figure 3A.

We restricted the range of allowable values for Nw by placing upper and lower limits on xSSB, xSSB,max and xSSB,min, based on structural constraints. At coarsest level, xSSB is bounded by the size of the protein, such that xSSB,min = 0 and xSSB,max = 6.5 nm. This provided upper and lower limits on Nw for each data point Δx(F) (Figure 3—figure supplement 1 left panel, dotted colored lines). A stricter set of constraints was obtained from the maximum and minimum end-to-end distances between pairs of wrapped nucleotides ni and nj separated by Nw nt (i.e., |ninj| = Nw − 1). We used the SSB-ssDNA crystal structure (Raghunathan et al., 2000) to determine these bounds, xSSB,max(Nw) and xSSB,min(Nw) (Figure 3—figure supplement 1 middle panel, gray contours and shaded area). The intersection points between the curves generated by Equation 5 and xSSB,max(Nw) and xSSB,min(Nw) provided a tighter set of limits on Nw for each data point Δx(F) (Figure 3—figure supplement 1 middle panel, dashed colored lines).

The best estimates for Nw were obtained by considering ‘hotspots’ of interactions. Clusters of residues on the SSB tetramer to which nucleotides preferentially associated were determined from the SSB crystal structure (Raghunathan et al., 2000), biochemical studies (Casas-Finet et al., 1987; Ferrari et al., 1997; Raghunathan et al., 2000), and recent all-atom MDs simulations (Maffeo, 2015). In the latter, a density map of DNA on EcoSSB was generated from MD simulations of the protein with free nucleotides in solution. The density map was extracted from the atomic trajectory by replacing each C1′ atom on the nucleotide with a Gaussian distribution with standard deviation equal to the van der Waals radius of the atom. This process was repeated at every frame of the simulation trajectory and the result temporally averaged. The resulting density map was then spatially averaged with maps produced by rotation about each symmetry axis of the homotetramer (Maffeo, personal communication). The regions of highest DNA density were found to be located near the Trp-54, His-55, and Arg-56 residues, consistent with their known role in maintaining protein-DNA stability (Casas-Finet et al., 1987; Ferrari et al., 1997; Raghunathan et al., 2000) (Figure 3—figure supplement 1, green molecular surfaces).

Nucleotides in the wrapped ssDNA interacting with these ‘hotspots’ were determined based on the distance between their phosphate groups and the amino acid residues 54–56. Utilizing the SSB crystal structure, 6–7 nt per hotspot were found within a 5–7 Å distance. The set of distances, xSSB, and number of nucleotides, Nw, between groups of nucleotides associated with each hotspot were then calculated and a smooth contour spanning the range of that set determined (Figure 3—figure supplement 1 right panel, black numbered contours). The intersection points between the curves generated by Equation 5 and the contours from the above hotspot analysis provided the tightest set of limits on Nw for each data point Δx(F) (Figure 3—figure supplement 1 right panel, shaded colored areas). We selected the center of the range as the best estimate for Nw (black dots). These served as a basis for determining the possible wrapping conformations of the complex (Figure 3C colored points).

RecA-SSB competition model

The extension of ssDNA is known to increase by 50% compared to B-form dsDNA upon binding by RecA (Hegner et al., 1999; Galletto et al., 2006). Thus, the extension of the construct fully polymerized with RecA, xRecA, is given by:

(6) xRecA(F)=ξds(F)·Nds+1.5ξds(F)·Nss,

where Nds = 3260 bp is the total length of the dsDNA handles and Nss = 70 nt is that of the ssDNA loading site. Subtracting Equation 6 from the extension of the bare DNA molecule, xbare, given by Equation 1, gives the extension change:

Δx(F)=1.5ξds(F)·Nssξss(F)·Nss,

which is ∼10 nm at F = 5 pN, closely matching observations (Figure 5—figure supplement 1).

In measurements of RecA displacing a bound SSB (Figure 5), the extension change includes contributions from SSB alone, RecA with SSB, and RecA alone on ssDNA. The first and last of these are given by Equations 2, 6, respectively. A molecule loaded with Nw nucleotides wrapped by an SSB, and the remaining NssNw nucleotides loaded with RecA, on the other hand, has an extension:

(7) xSSB+RecA(F)=ξds(F)·Nds+1.5ξds(F)·(NssNw)+xSSBeff(Nw,F).

In Figure 5D, five distinct states are observed. These are well modeled by the following: (i) one SSB in the (SSB)56 binding mode with no RecA bound (Equation 2 with Nw = 56 nt), (ii) one SSB in the (SSB)35 binding mode with no RecA bound (Equation 2 with Nw = 35 nt), (iii) one SSB in the (SSB)35 binding mode with all remaining unwrapped nucleotides fully loaded with RecA (Equation 7 with Nw = 35 nt), (iv) one SSB in the (SSB)17 binding mode with all remaining unwrapped nucleotides fully loaded with RecA (Equation 7 with Nw = 17 nt), (v) no SSB bound, RecA fully polymerized on the ssDNA (Equation 6).

Energy landscape

Determination of wrapping intermediate energies

The energy landscape of the SSB-ssDNA nucleoprotein complex was estimated from FECs and from data of wrapping conformation vs force. First, the total free energy of wrapping, Gwrap, was estimated from the area between FECs of the protein-bound and bare DNA molecules, xwrap(F) and xbare(F) (see Equations 1, 2 and Figure 1), integrated to the average SSB dissociation force. The free energy of the protein-bound DNA molecule to a force F is given by:

GSSBbound(F)=Gwrap+0Fxwrap(F)dF,

whereas that of the bare, protein-free DNA is Gbare(F)=0Fxbare(F)dF. Both integrals represent the free energy of stretching to force F. At the dissociation force F1/2, the probabilities that an SSB is wrapped or unwrapped are equal, that is, the two free energies are equal. It follows that:

Gwrap=0F1/2(xbare(F)xwrap(F))dF,

which is the negative area between the FECs in Figure 1.

The remaining features of the energy landscape were determined from the wrapping conformation probabilities vs force. The presence of four wrapping conformations, (SSB)65, (SSB)56, (SSB)35, (SSB)17, and an unwrapped state implies that the energy landscape is dominated by five potential wells. Applying force to the complex tilts the energy landscape (Bustamante et al., 2004), and changes the free-energy difference between these states. The probability the complex adopts a particular wrapping state i at force F is given by the Boltzmann distribution, that is,

(8) pi(F)e(Gi+Gstretch(F))/kBT,

where Gi is the free energy of state i and Gstretch(F)=0Fxi(F)dF is the free energy of stretching the SSB-ssDNA complex in state i to force F. The free energy difference between two states i and j can, therefore, be expressed as

(9) pi(F)pi(F)=e(ΔGij+ΔGstretch(F))/kBT,

where ΔGij = GiGj and ΔGstretch(F)=0F(xi(F)xj(F))dF.

As described in the text, each peak in the histograms of extension change vs force in Figure 2 was assigned a particular wrapping state i, as detailed in Figure 3. We determined the probability pi(F) from the ratio of the area under the peak to the total area in the histogram at force F, (Figure 6—figure supplement 1). From Equation 9, we determined the free energy difference between pairs of states, evaluating ΔGstretch(F) from the area between curves of extension vs force for the two wrapping states i and j according to Equation 2. Since some of the same states were populated at different forces, we obtained several estimates of the same free energy differences. All yielded consistent values, which were averaged together and used to calculate a standard error. Setting the free energy of the unwrapped state G0 = 0, the free energy associated with each state was calculated to be G17 = −6.80 ± 0.82 kBT, G35 = −15.38 ± 0.57 kBT, G56 = −20.39 ± 0.83 kBT, and G65 = −21.11 ± 0.83 kBT. The corresponding energy landscape is presented in Figure 6.

Determination of barrier heights

The barrier heights for the energy landscape of the SSB-ssDNA nucleoprotein complex were estimated from lifetime measurements of the different wrapping conformations vs force as shown in Figure 2. The four identified wrapping conformations, (SSB)65, (SSB)56, (SSB)35, (SSB)17, and the unwrapped state undergo force-induced transitions between each other according to the following linear kinetic pathway:

(10) 017355665,

ordered from smallest to largest extension change relative to unwrapped. The rate constants for transitions between states i and j at a force F have the form (Dudko et al., 2008):

kij(F)=k0exp((ΔG+0FΔx(F)dF)/kBT),

where k0 is the attempt rate over the barrier, ΔG is the barrier height at zero force, and Δx is the distance between state i and the transition state between i and j. The integral in the exponential accounts for the effect of force on the barrier (Dudko et al., 2008). For Δx > 0, corresponding to a wrapping transition, the barrier increases with force and the rate decreases (conversely, for Δx < 0, corresponding to unwrapping, the barrier decreases and the rate increases). For example, the rate of wrapping from (SSB)35 to (SSB)56 is given by

(11) k3556(F)=k0exp((G35/56G35)+0F(x35/56(F)x35(F))dFkBT),

where G35 and x35 are the free energy and extension of the (SSB)35 state and G35/56 and x35/56 are the free energy and extension of the transition state between the two wrapping states. The corresponding rate of unwrapping from (SSB)56 to (SSB)35 is

(12) k5635(F)=k0exp((G35/56G56)+0F(x56(F)x35/56(F))dFkBT).

Note that the equilibrium constant between the two states is

k3556eq(F)=k3556(F)k5635(F)=e((G56G35)+0F(x56(F)x35(F))dF)/kBT,

which matches Equation 9, as expected.

According to the pathway (10), the lifetime of the i-th state is given by the rates out of that state:

τi=1kii+1+kii1.

In addition, the probabilities that the complex undergoes a transition from state i to i ± 1 are given by:

pii±1=kii±1kii+1+kii1.

Both quantities were measured directly from the constant force experiments (Figure 2), and the individual wrapping and unwrapping rate constants were determined from the relation kii ± 1 = pii ± 1/τi (Figure 6—figure supplement 2). To determine the barrier heights, we fitted these rates to expressions of the form Equations 11, 12. We used a value of k0 ∼ 107 s−1 for the attempt rate, consistent with estimates based on Kramers' kinetic theory (Kramers, 1940) and the range of values used in nucleosome unwrapping experiments (Pope et al., 2005) and protein and nucleic acid unfolding experiments (Yang and Gruebele, 2003; Woodside et al., 2006). For simplicity, we assumed the transition state extensions xi were force-independent. In addition, we used the values for the wrapping intermediate free energies Gi and extensions xi obtained from analysis of the wrapping probabilities vs force, as described in the previous section.

Thus, the data in Figure 6—figure supplement 2 were fitted globally using six parameters: G35/56 = −2.9 kBT, G17/35 = 6.9 kBT, G0/17 = 15 kBT, measured relative to the unwrapped state energy G0 = 0; and x35/56 = 11.7 nm, x17/35 = 6.4 nm, x0/17 = 1.5 nm, measured relative to the unwrapped state extension x0 = 0. We estimate the error in the barrier heights to be ∼3 kBT, due to the uncertainty in the attempt rate k0. The spatial and temporal resolution of our measurement at forces ≤1 pN did not allow an accurate determination of the transition rates between (SSB)65 and (SSB)56 binding modes. Presumably, the transitions are too rapid to be detected. We estimated that the barrier between those two states must be <15 kBT, based on the argument that intermediates lasting >0.3 s would be detected. The corresponding energy landscape is presented in Figure 6. The positions of the barriers were estimated to be roughly halfway between states based on the fact that the wrapping and unwrapping transitions between those states were equally force-dependent (Figure 6—figure supplement 2).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
    Monomer-tetramer equilibrium of the Escherichia coli ssb-1 mutant single strand binding protein
    1. W Bujalowski
    2. TM Lohman
    (1991b)
    The Journal of Biological Chemistry 266:1616–1626.
  10. 10
    Binding mode transitions of Escherichia coli single strand binding protein-single-stranded DNA complexes. Cation, anion, pH, and binding density effects
    1. W Bujalowski
    2. LB Overman
    3. TM Lohman
    (1988)
    The Journal of Biological Chemistry 263:4629–4640.
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
    A mutation in E. coli SSB protein (W54S) alters intra-tetramer negative cooperativity and inter-tetramer positive cooperativity for single-stranded DNA binding
    1. ME Ferrari
    2. J Fang
    3. TM Lohman
    (1997)
    Biophysical Chemistry 64:235–251.
  19. 19
    *Zwischenmolekulare Energiewanderung Und Fluoreszenz
    1. T Forster
    (1948)
    Annalen Der Physik 2:55–75.
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
    Magnetism and theory of electrons
    1. P Langevin
    (1905)
    Annales De Chimie Et De Physique 5:70–127.
  33. 33
    E. coli single strand binding protein: a new look at helix-destabilizing proteins
    1. TM Lohman
    2. W Bujalowski
    3. LB Overman
    (1988)
    Trends in Biochemical Sciences 13:250–255.
  34. 34
  35. 35
  36. 36
    Two binding modes in Escherichia coli single strand binding protein-single stranded DNA complexes. Modulation by NaCl concentration
    1. TM Lohman
    2. LB Overman
    (1985)
    The Journal of Biological Chemistry 260:3594–3603.
  37. 37
  38. 38
    Quantitative all-atom and coarse-grained molecular dynamics simulation studies of DNA
    1. C Maffeo
    (2015)
    Doctoral Dissertation, University of Illinois at Urbana-Champaign.
  39. 39
    The single-stranded DNA-binding protein of Escherichia coli
    1. RR Meyer
    2. PS Laine
    (1990)
    Microbiological Reviews 54:342–380.
  40. 40
    Optical trapping
    1. KC Neuman
    2. SM Block
    (2004)
    The Review of Scientific Instruments 75:2787–2809.
    https://doi.org/10.1063/1.1785844
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
    The E. coli single-stranded DNA binding protein is mobile on DNA: 1H-NMR study of its interaction with oligo- and polynucleotides
    1. R Romer
    2. U Schomburg
    3. G Krauss
    4. G Maass
    (1984)
    Biochemistry 23:6132–6137.
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
    Sequences of the ssb gene and protein
    1. A Sancar
    2. KR Williams
    3. JW Chase
    4. WD Rupp
    (1981)
    Proceedings of the National Academy of Sciences of USA 78:4274–4278.
    https://doi.org/10.1073/pnas.78.7.4274
  53. 53
  54. 54
  55. 55
    A DNA-unwinding protein isolated from Escherichia coli: its interaction with DNA and with DNA polymerases
    1. N Sigal
    2. H Delius
    3. T Kornberg
    4. ML Gefter
    5. B Alberts
    (1972)
    Proceedings of the National Academy of Sciences of USA 69:3537–3541.
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60

Decision letter

  1. John Kuriyan
    Reviewing Editor; Howard Hughes Medical Institute, University of California, Berkeley, United States

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for submitting your work entitled “Structural dynamics of E. coli single-stranded DNA binding protein reveal wrapping and unwrapping pathways” for peer review at eLife. Your submission has been favorably evaluated by John Kuriyan (Senior Editor) and three reviewers.

The reviewers have discussed their reviews with one another and the editor has drafted this decision to help you prepare a revised submission.

This is an interesting manuscript that reports the multiple conformations of single-stranded DNA (ssDNA) wrapped on E. Coli ssDNA binding protein (SSB) and their interconversion dynamics. Interactions between ssDNA and SSB have been widely investigated using different experimental approaches, including single-molecule methods. In this work, Suksombat et al. applied single-molecule force and fluorescence spectroscopy with improved resolution to elucidate the conformations of ssDNA on SSB. An earlier study (Zhou et al., Cell 2011), using a similar approach, demonstrated that the interactions between SSB and ssDNA are modulated by tension applied to the nucleic acid, and that SSB tetramers likely diffuse along ssDNA by a reptation mechanism. Consistent with published findings, the authors observe deviation from a fully wrapped state (65 nt) at forces above 1 pN, indicating partial ssDNA dissociation. In constant tension experiments, the authors are able to directly observe transitions among multiple discrete states differing in extension, indicating intermediate wrapping states. Simultaneous fluorescence detection of single labeled SSB molecules indicates that transitions between these states are not due to binding of additional SSB molecules to the same DNA molecule. Comparison with structural models suggests that the distinct wrapping states are consistent with previously described states involving 17, 35, 56 and 65 nt. The experimental results presented here do not allow an unambiguous assignment to structural states. The authors' interpretation is, however, supported by experimental data obtained with a SSB mutant that has a defect in a DNA-binding “hot spot”.

smFRET experiments with labels on SSB and on the DNA under tension enabled the author to visualize wrapping/unwrapping transitions and sliding of DNA-bound SSB (Figure 4). Their results are consistent with the previously described reptation mechanism of SSB diffusion along ssDNA. Holding SSB-loaded ssDNA at 5pN in the presence of RecA revealed a step-wise displacement of SSB by RecA polymerization. Interestingly, the states observed during the process agree well with the 17, 35 and 56 nt wrapping states, lending further support to the notion that these states are actual intermediates of the (un)wrapping process. Finally, they determine an energy landscape for the ssDNA-SSB complex that shows that the unwrapping energy increases with the unraveling of the ssDNA from the protein.

The work showcases the technical merit of combined high-resolution optical trapping and fluorescence detection, and has the potential to lead to widespread applications of this technique in other complex systems. Although the work is, in principle, suitable for eLife, the reviewers have raised several substantial concerns that need to be addressed in a revised manuscript.

Important concerns to address:

1) One of the authors’ central findings is that ssDNA unwraps from SSB in discrete steps, not gradually (as proposed earlier). This finding implies barriers of substantial heights between the intermediates. Additional analysis (e.g. with step-finding or hidden Markov model type approaches) would reveal the force-dependent rates for transitions between individual states and, thus, the heights of the barriers separating individual states. Such insight would add value to the energy landscape presented in Figure 6. From the data presented in this study (e.g. Figure 2B), it appears that such an analysis should be feasible. The reviewers feel that the calculation of these rates is important, because they may show an optimal pathway for SSB to bind and dissociate.

2) Individual SSB binding and unbinding events were resolved, as are shown in Figure 2. However, such discrete unbinding events are not seen in the force-extension curves exhibited in Figure 1D expected as rip signals. The authors are recommended to show representative traces with such rips. If these rips cannot be detected during the stretching process, please explain why.

3) In Figure 1E, does the extension difference converge to zero at a zero force? If not, how was the area calculated to derive the association energy between ssDNA and SSB?

4) Figure 3: The SSB-ssDNA structure appears to be symmetric. Why does ssDNA dissociate from SSD following an asymmetric pathway as shown by the models in Figure 3C?

5) In the third paragraph of the subsection “Intermediates correlate with different SSB binding modes,” the authors start to explain how they are mapping the different binding modes on to the structure of SSB. This approach is mostly displayed and explained with Figure 3–figure supplement 1. This explanation is not clear. It was not possible to judge the xSSB vs Nw contour plots in this supplemental figure, as well as the mapping of the “force” lines onto this contour map. Given the prominent role of this figure and method, it is paramount that more effort is put into explaining it.

6) Figure 3B is not explained in the main text. It is quite important to do so because it is the raw data that leads to Figure 3C. 3C, in turn, is the plot that forms the basis of the mapping of the different modes on the proteins. Figure 3B shows large error bars, in particular at low forces. The error bars of the data taken at the lowest force intercept all model lines. The other low force points do so as well to a certain extent. Oddly enough the error bars in Figure 3C have become very small for these forces. How is that possible? Moreover, from these low force points the authors conclude that they represent the fully wrapped SSB complex. That seems not really a conclusion that can be drawn on the basis of the data in Figure 3B. Without that conclusion the interpretation of the other states is considerably less solid.

7) In the third paragraph of the Discussion the authors discuss that in the presence of SSB, RecA removes the SSB in a stepwise fashion as shown in Figure 5C. However, the data without SSB shows also a stepwise binding of the RecA (see Figure 5–figure supplement 1). So it seems that it nearly impossible to assign steps in the RecA binding to actual removal events of the SSB. The authors should address this issue.

Other points that the authors should consider:

1) The control experiment with the SSB mutant is quite nice. However, the manuscript would benefit from a more thorough analysis of these data as well. Given the fact that they can measure the different binding states in the mutant, it should also be feasible to do an analysis that is similar to the one done in Figure 3. Such analysis should demonstrate that ssDNA maps in a similar way onto the mutant SSB.

2) To derive the conformations of different binding states, it is crucial to model the intrinsic size of the SSB-DNA complex based on the crystal structure, as is illustrated in Figure 3A. The same method has previously been applied to derive protein folding intermediates (please see Figure S10 in Gao, Y. et al., Science 337, 1340-1343, 2012), which should be cited.

3) In the second paragraph of the subsection “SSB in Intermediate Wrapping States Can Diffuse on ssDNA,” the authors proposed that SSB diffuses through a reptation mechanism. Because there is no detectable extension change during the sliding process, the ssDNA may slide via small bulges. Thus, it is expected that the FRET signal accompanying the sliding process should change continuously, but not abruptly as is shown in Figure 4C. Please clarify this. Can the diffusion constant be estimated from the signals? In addition, the argument to rule out the rolling mechanism of diffusion is not understood. Please revise the relevant sentences to clarify the argument.

4) Wrapping/unwrapping depends on the ionic conditions of the buffer. The experiments presented here were carried out in 100 mM Tris-HCl (pH 7.6), 10 mM NaCl, 0.1 mM EDTA. The authors claim (in the subsection “Optical tweezers experiment”) that this buffer favors (SSB)65 mode, but do not show data. This data should be presented in the supplement, if possible.

5) It is not always clear what the error bars represent. It may help the reader to add this information to the respective figure or figure legend.

6) In Figure 2, some of the extensions in panel B do not seem to match the extensions in panel C, particularly for the 7 pN and 9 pN data (i.e. the position of the dotted lines in B does not match the position of the peaks in C). Is there a reason for this discrepancy?

7) Readers may find it a bit confusing that part of the experimental data (the RecA experiments) is described in the Discussion section.

8) The schematic in the inset of Figure 3A is misleading/confusing, because it seems to indicate that SSB introduces an “offset” of the dsDNA portions along the vertical axis. The representation in the top panel of Figure 3A seems better.

9.. The authors do not provide a reference for the correction that they apply to model the effect of tension on the effective SSB length based on the molecule's rotational degrees of freedom. This should be better explained in the Methods section.

10). Would one expect to see discrete transitions in the traces presented in Figure 1D, based on the observation of discrete transitions at constant force (Figure 2B)? Perhaps the authors can comment on this point.

https://doi.org/10.7554/eLife.08193.023

Author response

1) One of the authors’ central findings is that ssDNA unwraps from SSB in discrete steps, not gradually (as proposed earlier). This finding implies barriers of substantial heights between the intermediates. Additional analysis (e.g. with step-finding or hidden Markov model type approaches) would reveal the force-dependent rates for transitions between individual states and, thus, the heights of the barriers separating individual states. Such insight would add value to the energy landscape presented in Figure 6. From the data presented in this study (e.g. Figure 2B), it appears that such an analysis should be feasible. The reviewers feel that the calculation of these rates is important, because they may show an optimal pathway for SSB to bind and dissociate.

This is a good suggestion. In the revised manuscript we describe how measurements of the dwell times and transition probabilities between different wrapping states (Figure 2B) were used to determine the force-dependent rate constants for transitions between the states (plotted in a new Figure 6–figure supplement 2). From these we were able to estimate barrier heights, making reasonable assumptions for the “attempt rate” over the barrier and for the force-dependence of the transition rate. These considerations are discussed in the revised Materials and methods section.

In terms of determining an optimal pathway for SSB binding, we note that nearly every transition in our data set (373 out of 380) occurs between adjacent states in the energy landscape (Figure 6). For example, we only observe transitions between (SSB)56 and (SSB)35, and never directly between (SSB)56 and (SSB)17. As discussed in the revised text this indicates a single, linear kinetic pathway for wrapping, consistent with the energy landscape proposed.

2) Individual SSB binding and unbinding events were resolved, as are shown in Figure 2. However, such discrete unbinding events are not seen in the force-extension curves exhibited in Figure 1D expected as rip signals. The authors are recommended to show representative traces with such rips. If these rips cannot be detected during the stretching process, please explain why.

This is an important point. The rips are difficult to detect in FECs because they are small (typically <5 nm, as seen in Figure 2B-C) and because the pulling rate is fast (∼40 nm/s, as seen in Figure 1–figure supplement 3), which smooths over transitions. As explained in the original text we believe this is also why the wrapping intermediates were not detected in earlier pulling measurements by Zhou et al. (Cell, 2011). Thus, the best way to observe these transitions experimentally is at a constant force and averaging the data to low bandwidth, as in Figure 2B. Nevertheless, rips are occasionally observed in the FECs. For example, the two red traces in Figure 1E show ∼5-nm transitions at ∼5 pN, which match well with the transition between (SSB)56 and (SSB)35 modes observed in constant force experiment at 5 pN (see Figure 2B-C, 3A: blue and green data points at 5 pN). We note that such rips are easier seen in the extension change Δx vs. F plot rather than the raw FEC due to their small size. Some text has been added to clarify this point.

3) In Figure 1E, does the extension difference converge to zero at a zero force? If not, how was the area calculated to derive the association energy between ssDNA and SSB?

The extension difference does extrapolate to zero. This is seen by observing that the FECs for bare and SSB-bound DNA converge at low forces (Figure 1 and Figure 1–figure supplement 1). Moreover, the model to which the data are fitted to goes through the origin. This is clarified in the revised Figure 1–figure supplement 1 and caption. The wrapping energy was calculated from the area between two FECs.

4) Figure 3: The SSB-ssDNA structure appears to be symmetric. Why does ssDNA dissociate from SSD following an asymmetric pathway as shown by the models in Figure 3C?

This is an important point. The SSB-ssDNA structure is actually not symmetric about the entry and exit points of ssDNA on the protein. This can be seen by following the DNA strands from the 5’ and 3’ ends in Figure 1A. The contacts made by ssDNA with the protein are different depending which end one starts from. While the 5’ end first interacts with the proximal subunit (shown in yellow in Figure 1A), the 3’ end actually makes contacts with corresponding residues in the distal subunit (red, Figure 1A). We have added clarifying text in the Figure 1 caption. This rationalizes why ssDNA unravels asymmetrically in our schematics (Figure 3C and Figure 3–figure supplement 2).

5) In the third paragraph of the subsection “Intermediates correlate with different SSB binding modes,” the authors start to explain how they are mapping the different binding modes on to the structure of SSB. This approach is mostly displayed and explained with Figure 3–figure supplement 1. This explanation is not clear. It was not possible to judge the xSSB vs Nw contour plots in this supplemental figure, as well as the mapping of the “force” lines onto this contour map. Given the prominent role of this figure and method, it is paramount that more effort is put into explaining it.

We thank the reviewers for pointing this out. We have added extensive discussion in the main text and Materials and methods and revised Figure 3–figure supplement 1 to clarify our model. We have also switched panels 3A and 3B in the revision for clarity. As explained in this new text, each colored “force line” in Figure 3–figure supplement 1 represents all the possible values Nw and xSSB can take for a given individual data point Δx at force F in (revised) Figure 3A. This stems from Eqs. (3) and (4), which show that Δx(F) is a function of both Nw and xSSB. In the revised Figure 3–figure supplement 1, we have also given each “force line” a thickness representing the error associated with the data point Δx(F) that generated it (see point #6 below).

The three panels in Figure 3–figure supplement 1 use the structural data to confine the range of allowable xSSB and restrict the range of Nw possible for each data point Δx at force F. This is done three times in Figure 3–figure supplement 1, where we place the least (left panel) to most restrictive (right panel) limits. The least restrictive limit is simply that xSSB must be <6.5 nm, the largest dimension of the SSB. At the next level (middle panel), we use the structure of ssDNA around SSB to determine the maximum and minimum xSSB possible for a given Nw. The grey shaded area in this panel thus represents the space of possible pairs of Nw and xSSB given the structure, and the intersection between it and a force line provides the range of Nw consistent with the corresponding data point Δx at force F. At the last level (right panel), we use the ‘hotspot’ analysis to restrict the space of possible pairs of Nw and xSSB even further (black contours), giving us the tightest limits and best estimates of Nw for each data point Δx at force F.

The procedure allows us to map every data point of Δx vs. F in Figure 3A (revised) to a corresponding range of Nw vs. F in Figure 3C. It is important to point out that every level of this analysis leads to the same four “bands” in Figure 3C (colored purple, blue, green, red; compare dotted lines, dashed lines, and shaded areas for the three levels of analysis), and thus basic features of our model are not so sensitive on the limits placed on xSSB.

6) Figure 3B is not explained in the main text. It is quite important to do so because it is the raw data that leads to Figure 3C. 3C, in turn, is the plot that forms the basis of the mapping of the different modes on the proteins. Figure 3B shows large error bars, in particular at low forces. The error bars of the data taken at the lowest force intercept all model lines. The other low force points do so as well to a certain extent. Oddly enough the error bars in Figure 3C have become very small for these forces. How is that possible? Moreover, from these low force points the authors conclude that they represent the fully wrapped SSB complex. That seems not really a conclusion that can be drawn on the basis of the data in Figure 3B. Without that conclusion the interpretation of the other states is considerably less solid.

We thank the reviewers for noticing these errors. We have added text to describe this figure panel (3B in the original manuscript, now 3A in the revision). Briefly, this panel displays the values of the peaks of the Δx distributions in Figure 2B vs. force. These represent the mean extension in each of the different wrapping states. In our original submission, the error bars were the standard deviations, obtained from the widths of the peaks in Figure 2B. However, we now realize that the standard error of the mean (or how accurately we determine the mean extension) would be more meaningful, and have modified the figure and caption in our revision accordingly.

Note that the standard error of the mean is much smaller than the standard deviation. As a result, the low-force data (purple) is clearly more consistent with the 65 wrapping model (purple line) than any other. This result is consistent with Zhou et al. (Cell, 2011), who reported that the protein wraps 65 nt at forces ≤ 1 pN.

In addition, we have carried out a more careful analysis of the errors in this analysis. In the revised Figure 3–figure supplement 1, we now account for the standard error in Δx in the “force” lines (represented as the width of the line). This changes the error bars in Figure 3C slightly, particularly at F = 0.5-1 pN, which the reviewers correctly noted were too small in the original submission.

7) In the third paragraph of the Discussion the authors discuss that in the presence of SSB, RecA removes the SSB in a stepwise fashion as shown in Figure 5C. However, the data without SSB shows also a stepwise binding of the RecA (see Figure 5–figure supplement 1). So it seems that it nearly impossible to assign steps in the RecA binding to actual removal events of the SSB. The authors should address this issue.

This is an important point. While we observe pauses in the RecA-only binding traces, these do not appear at the same locations over multiple traces. As a result, the histograms in Figure 5–figure supplement 1 (right panel), which sum over ALL measurements, display no features between the initial (0 nm) and final (9 nm) pauses. In contrast, the majority of RecA+SSB traces display pauses at the same set of positions, and these thus emerge clearly in the histograms in Figure 5. To clarify this point, we have added text to the captions and additional example traces to Figure 5 and Figure 5–figure supplement 1.

Other points that the authors should consider:

1) The control experiment with the SSB mutant is quite nice. However, the manuscript would benefit from a more thorough analysis of these data as well. Given the fact that they can measure the different binding states in the mutant, it should also be feasible to do an analysis that is similar to the one done in Figure 3. Such analysis should demonstrate that ssDNA maps in a similar way onto the mutant SSB.

We thank the reviewers for this suggestion. We have collected additional data and added a similar analysis for the SSB mutant. In the revised Figure 3–figure supplement 3, we show a plot of wrapping state vs. force for this mutant. The same wrapping states emerge as for wt SSB (56, 35, 17 nt), with the equilibrium shifted toward less ssDNA wrapping, and 35 nt the most likely configuration (some 56 nt wrapping intermediate is observed at the lower forces, but is much less likely). The mutant SSBs also dissociate at a lower force (∼5 pN).

2) To derive the conformations of different binding states, it is crucial to model the intrinsic size of the SSB-DNA complex based on the crystal structure, as is illustrated in Figure 3A. The same method has previously been applied to derive protein folding intermediates (please see Figure S10 in Gao, Y. et al., Science 337, 1340-1343, 2012), which should be cited.

Thank you for the suggestion. The reference has been added to the text.

3) In the second paragraph of the subsection “SSB in Intermediate Wrapping States Can Diffuse on ssDNA,” the authors proposed that SSB diffuses through a reptation mechanism. Because there is no detectable extension change during the sliding process, the ssDNA may slide via small bulges. Thus, it is expected that the FRET signal accompanying the sliding process should change continuously, but not abruptly as is shown in Figure 4C. Please clarify this. Can the diffusion constant be estimated from the signals? In addition, the argument to rule out the rolling mechanism of diffusion is not understood. Please revise the relevant sentences to clarify the argument.

To answer the first point, it is important to remember that FRET efficiency is a highly non-linear function of distance: E = 1/(1+(r/r0)6). FRET changes most rapidly at distances close to the Förster radius r0 = 6 nm, a range of ±2 nm about r0. This non-linearity results in abrupt transitions in FRET as the SSB diffuses over this distance range. At 5 pN, where the measurements were carried out, r0 = 6 nm ≈ 17 nt, and FRET will saturate whenever the SSBf is <11 nt or >22 nt from the ss-dsDNA junction. Combined with the 0.5 Hz frequency at which the data are plotted in Figure 4, we should expect the “two-state” behavior we observe as the SSBf diffuses rapidly across the short distance range of FRET. We have added text to clarify this point.

This reasoning can be used to estimate the SSB diffusion constant. To a good approximation, the lifetime of the high FRET state corresponds to the time the SSB takes to diffuse a distance equal to the Förster radius from the ss-dsDNA junction. This yields D = 15-27 nt2/s depending on binding mode. Roy et al. (Nature 2009) reported measurements of the diffusion coefficient across a range of temperatures (and at zero force). Using their numbers, we determine a D = 75 nt2/s at 23°C (our measurement temperature) and zero force. Moreover, according to Zhou et al. (Cell, 2011) a force of 5 pN will reduce D by a factor of ∼4, yielding ∼20 nt2/s, in very good agreement with our estimates. We have added this information to the main text.

As for our argument ruling out a rolling mechanism, we have added a new schematic clarifying this point. Figure 4–figure supplement 1 illustrates what signal we would expect for such a mechanism vs. sliding/reptation.

4) Wrapping/unwrapping depends on the ionic conditions of the buffer. The experiments presented here were carried out in 100 mM Tris-HCl (pH 7.6), 10 mM NaCl, 0.1 mM EDTA. The authors claim (in the subsection “Optical tweezers experiment”) that this buffer favors (SSB)65 mode, but do not show data. This data should be presented in the supplement, if possible.

We have added the biochemical data to which the reviewers are referring. A new Figure 1–figure supplement 6 shows a binding isotherm at high (100 mM) Tris-HCl measuring fluorescence from a Cy3-Cy5 fluorescently labeled (dT)70 oligonucleotide with SSB. The data show that a single SSB wraps (dT)70 in (SSB)65 mode whenever [SSB] ≤ [(dT)70].

5) It is not always clear what the error bars represent. It may help the reader to add this information to the respective figure or figure legend.

We have added this information wherever appropriate. Please see the revised captions for Figure 1, Figure 3, Figure 1–figure supplement 1.

6) In Figure 2, some of the extensions in panel B do not seem to match the extensions in panel C, particularly for the 7 pN and 9 pN data (i.e. the position of the dotted lines in B does not match the position of the peaks in C). Is there a reason for this discrepancy?

At 7 pN, the change in extension of all three states in panel B (approximately -8 nm, -10.5 nm, -13 nm) matches very well with the extension change distributions in panel C. At 9 pN, the discrepancy comes from the fact that the distribution is a collection of many data traces. The -7 nm extension state is rare, as seen from the fact that the corresponding peak in the distribution is small. The representative trace we had selected in the original manuscript displayed only two states. To avoid confusion, we selected a different trace in the revised Figure 2C that displays all three states.

7) Readers may find it a bit confusing that part of the experimental data (the RecA experiments) is described in the Discussion section.

While we appreciate the reviewers’ comment, we feel these data are best introduced during the discussion of binding intermediates and unwrapping pathway.

8) The schematic in the inset of Figure 3A is misleading/confusing, because it seems to indicate that SSB introduces an “offset” of the dsDNA portions along the vertical axis. The representation in the top panel of Figure 3A seems better.

We thank the reviewers for pointing this out. We have made an adjustment to the revised Figure 3A.

9) The authors do not provide a reference for the correction that they apply to model the effect of tension on the effective SSB length based on the molecule's rotational degrees of freedom. This should be better explained in the Methods section.

A reference on the effect of tension on the SSB length has been added to the text, and a derivation included in the Materials and methods section.

10) Would one expect to see discrete transitions in the traces presented in Figure 1D, based on the observation of discrete transitions at constant force (Figure 2B)? Perhaps the authors can comment on this point.

Please see our answer above under “Important concern #2”.
