Endothelial Ca2+ oscillations reflect VEGFR signaling-regulated angiogenic capacity in vivo

  1. Yasuhiro Yokota
  2. Hiroyuki Nakajima
  3. Yuki Wakayama
  4. Akira Muto
  5. Koichi Kawakami
  6. Shigetomo Fukuhara
  7. Naoki Mochizuki  Is a corresponding author
  1. National Cerebral and Cardiovascular Center Research Institute, Japan
  2. National Institute of Genetics, Japan
  3. Japan Agency for Medical Research and Development, Japan
Research Article
  • Cited 20
  • Views 2,932
  • Annotations
Cite this article as: eLife 2015;4:e08817 doi: 10.7554/eLife.08817

Abstract

Sprouting angiogenesis is a well-coordinated process controlled by multiple extracellular inputs, including vascular endothelial growth factor (VEGF). However, little is known about when and how individual endothelial cell (EC) responds to angiogenic inputs in vivo. Here, we visualized endothelial Ca2+ dynamics in zebrafish and found that intracellular Ca2+ oscillations occurred in ECs exhibiting angiogenic behavior. Ca2+ oscillations depended upon VEGF receptor-2 (Vegfr2) and Vegfr3 in ECs budding from the dorsal aorta (DA) and posterior cardinal vein, respectively. Thus, visualizing Ca2+ oscillations allowed us to monitor EC responses to angiogenic cues. Vegfr-dependent Ca2+ oscillations occurred in migrating tip cells as well as stalk cells budding from the DA. We investigated how Dll4/Notch signaling regulates endothelial Ca2+ oscillations and found that it was required for the selection of single stalk cell as well as tip cell. Thus, we captured spatio-temporal Ca2+ dynamics during sprouting angiogenesis, as a result of cellular responses to angiogenic inputs.

https://doi.org/10.7554/eLife.08817.001

eLife digest

Throughout life, new blood vessels grow out like branches from existing vessels in a process called “sprouting angiogenesis”. This involves some of the endothelial cells that line the inner surface of the blood vessel migrating outwards, creating a vessel sprout made up of tip cells and stalk cells.

Sprouting is controlled by two opposing signaling systems. One pathway is triggered by a molecule called vascular endothelial growth factor (VEGF). This molecule binds to receptor proteins to activate a range of signaling processes that stimulate endothelial cells to become tip cells, and so encourage the formation of new sprouts. However, it was not known exactly when or how the endothelial cells respond to these signals.

By contrast, the Notch signaling pathway inhibits sprouting angiogenesis. The two signaling pathways interact with each other: VEGF signaling in tip cells activates Notch signaling in neighboring cells, which then prevents VEGF signaling in these cells. This feedback mechanism helps a new sprout to form by suppressing tip-like activity in the cells surrounding a new tip cell, forcing these cells to become stalk cells.

Activating VEGF receptors also causes brief increases, or oscillations, in the level of calcium ions inside the endothelial cells. Now, Yokota, Nakajima et al. have investigated VEGF activity by genetically engineering zebrafish embryos so that fluorescent proteins inside their endothelial cells emit more light when calcium ion levels inside the cell increase. As zebrafish embryos are transparent, this change in fluorescence can be seen in the living animal. Imaging the embryos revealed that calcium ion oscillations occur in both tip and stalk cells in response to VEGF signaling as they bud from vessels. Notch signaling can also regulate the calcium ion oscillations; this controls whether an individual cell becomes a tip or a stalk cell, and restricts the number of stalk cells in the sprout.

The flow of blood through the vessels is also thought to influence calcium ion oscillations in endothelial cells. Future studies could therefore use the imaging technique developed by Yokota, Nakajima et al. to investigate how blood flow influences the development of new blood vessels.

https://doi.org/10.7554/eLife.08817.002

Introduction

An extensive branched blood vessel network is crucial to deliver oxygen and nutrients to tissues and organs. Such branched structures of blood vessels form mainly by sprouting angiogenesis, which involves the emergence of new vessels from the pre-existing vasculature (Eilken and Adams, 2010; Herbert and Stainier, 2011; Phng and Gerhardt, 2009). In the early steps of sprouting angiogenesis, specific motile endothelial cells (ECs) activated by angiogenic cues become leading tip cells and migrate outward from the parental vessels (Gerhardt et al., 2003). As the tip cell migrates from the parental vessel, neighboring ECs migrate by following the tip cell as stalk cells to keep connection between the tip cell and the parental vessel. While tip cells guide the sprouts, stalk cells constitute the base of the sprouts and are, therefore, considered to be less active than tip cells.

Sprouting angiogenesis is triggered by extracellular stimuli. Among them, vascular endothelial growth factor (VEGF)-A induces EC motility and loosen interendothelial cell junction by activating a tyrosine kinase receptor, VEGF receptor-2 (VEGFR2), to induce sprouting (Ferrara, 2009; Lohela et al., 2009). VEGF-A stimulates proliferation of ECs as well as survival (Koch and Claesson-Welsh, 2012; Lohela et al., 2009). VEGFR3 (also known as Flt4), a receptor of VEGF-C, is also required for developmental or tumor angiogenesis (Tammela et al., 2008). Especially, Vegfr3 is essential for venous sprouting from the posterior cardinal vein (PCV) in zebrafish (Hogan et al., 2009). However, little is known about how VEGF-A/VEGFR2 or VEGF-C/VEGFR3 signaling in ECs induces initial sprouting in vivo.

While sprouting angiogenesis is promoted by VEGFR, it is negatively coordinated by delta-like 4 (Dll4)/Notch signaling (Eilken and Adams, 2010; Lohela et al., 2009; Phng and Gerhardt, 2009). During sprouting angiogenesis, Dll4/Notch signaling between ECs determines the selection of single tip cells among ECs of the pre-existing vessel by restricting the angiogenic behavior of neighboring ECs (Hellström, et al., 2007). In studies using mouse and zebrafish, loss of Dll4/Notch signaling results in an increased number of ECs showing tip cell behavior (Hellström, et al., 2007; Leslie et al., 2007; Siekmann and Lawson, 2007; Suchting et al., 2007). While VEGF-A/VEGFR2 signaling and Dll4/Notch signaling have opposing roles in regulating blood vessel sprouting, they are tightly linked in a negative feedback loop. VEGFR2 activation in tip cells leads to an up-regulation of the Notch ligand Dll4 and subsequent activation of Notch signaling in the following stalk cells (Lobov et al., 2007; Suchting et al., 2007; Zarkada et al., 2015). Increased Notch activity leads to the downregulation of VEGFR2 and/or VEGFR3, thereby restricting VEGFR2- or VEGFR3-dependent signaling in the stalk cells (Benedito et al., 2012; Siekmann and Lawson, 2007; Zarkada et al., 2015). Indeed, VEGFR3 expression is suppressed by Dll4/Notch signaling in zebrafish and mice (Benedito et al., 2012; Siekmann and Lawson, 2007; Tammela et al., 2008; Zygmunt et al., 2011). On the other hand, it is unclear to what extent VEGFR2 expression is suppressed by Dll4/Notch signaling (Benedito et al., 2012; Jakobsson et al., 2010; Suchting et al., 2007). VEGFR2 and VEGFR3 are responsible for the aberrant angiogenesis induced by loss of Dll4/Notch signaling (Hogan et al., 2009; Leslie et al., 2007; Siekmann and Lawson, 2007; Suchting et al., 2007; Zarkada et al., 2015); however, it is still unclear how ECs behave in response to VEGFR-dependent angiogenic cues and how their behavior is spatio-temporally regulated by Dll4/Notch signaling.

Binding of VEGF-A to VEGFR2 induces dimerization of VEGFR2 and autophosphorylation of tyrosine residues in VEGFR2, leading to the activation of various downstream signaling pathways. Autophosphorylated VEGFR2 associates with phospholipase C-γ (PLCγ) and increases intracellular Ca2+ via accumulation of inositol 1,4,5-triphosphate (IP3) (Koch and Claesson-Welsh, 2012; Moccia et al., 2012) and store-operated Ca2+ entry (Li et al., 2011). Besides VEGF-A, various chemical and mechanical stimuli induce an increase of intracellular Ca2+ as a common second messenger in ECs (Ando and Yamamoto, 2013; Moccia et al., 2012). However, little is known about when and where the Ca2+ responses in ECs occur during vascular development in vivo. We considered that we could precisely monitor Ca2+ responses in vivo by using genetically encoded fluorescent Ca2+ monitoring probes which can be used for detecting rapid Ca2+ responses in living animals (Muto et al., 2013; Rose et al., 2014). We hypothesized that Ca2+ dynamics might represent one of EC responses to angiogenic cues during sprouting angiogenesis.

In this study, we succeeded in visualizing the intracellular Ca2+ dynamics in ECs at single-cell resolution in zebrafish by performing high-speed, three-dimensional (3D) time-lapse imaging, and uncovered how Ca2+ dynamics are spatio-temporally regulated during sprouting angiogenesis. Intracellular Ca2+ oscillations occurred in migrating tip and stalk cells, in a manner dependent upon VEGFR signaling. By investigating when and how Dll4/Notch signaling regulates endothelial Ca2+ oscillations, we demonstrated how suppressive Dll4/Notch signaling was involved in the selection of tip cells from the dorsal aorta (DA) and that of stalk sells in intersomitic vessels (ISVs).

Results

Ca2+ oscillations in budding tip cells from the DA

To understand how individual EC responds to angiogenic stimuli, we examined the dynamics of intracellular Ca2+ in ECs during sprouting angiogenesis in vivo. We conducted in vivo Ca2+ imaging by expressing a genetically encoded Ca2+ indicator, GCaMP7a (GFP-based Ca2+ probe) (Muto et al., 2013) in ECs of zebrafish. GCaMP7a is an improved version of GCaMP (Nakai et al., 2001), an engineered GFP that increases fluorescence upon the Ca2+ elevation (Figure 1—figure supplement 1A). Firstly, we established a transgenic fish line, Tg(fli1:Gal4FF);(UAS:GCaMP7a), in which GCaMP7a was driven by the endothelial specific promoter fli1 via the Gal4/UAS system (Asakawa et al., 2008). This Tg line showed an increase of fluorescence exclusively in ECs in response to Ca2+ elevation (Figure 1—figure supplement 1B). Secondly, to distinguish each EC, we developed a Tg fish line, Tg(fli1:H2B-mC), in which EC nuclei was labeled by H2B-mCherry, and crossed this line with the Tg(fli1:Gal4FF);(UAS:GCaMP7a) line. We confirmed that almost all ECs expressed GCaMP7a in developing trunk vessels of these triple Tg embryos (Figure 1—figure supplement 2A), although the expression of GCaMP7a varied among ECs. To monitor fast Ca2+ dynamics in ECs (see Figure 1—figure supplement 2B,C), we used a light sheet microscopy, which allows rapid acquisitions in living embryos by illuminating the sample with a focused light sheet perpendicularly to the direction of observation (Huisken et al., 2004).

We examined intracellular Ca2+ dynamics in budding ECs of the DA close to somite boundaries at 24–27 somite stages (ss). We defined these budding ECs as tip cells, because we confirmed that they eventually became tip cells. These tip cells showed sustained and non-periodic Ca2+ oscillations (Figure 1A,B, Figure 1—figure supplement 2B,C and Video 1). To avoid missing the fast Ca2+ oscillations by taking z-axis images, we performed the time-lapse 2D imaging and confirmed that Ca2+ oscillations could be observed at more than every min (Figure 1—figure supplement 2B,C). In every oscillation, a Ca2+ spike occurs throughout the cytoplasm (Figure 1—figure supplement 2B). The time to reach the peak of individual oscillations was varied 5.6–18.7 s (average, 9.0 s) (Figure 1C). Therefore, hereafter we performed 3D time-lapse imaging analyses at 5 s intervals to capture all Ca2+ oscillations. Intracellular Ca2+ levels of individual ECs were quantified at each time point by measuring fluorescence intensity of GCaMP7a, while tracking H2B-mC-labelled cell nuclei over time (Figure 1—figure supplement 2D; see Materials and methods). We analyzed Ca2+ oscillations by the frequency and average increases in relative fluorescence intensity of GCaMP7a from the base line (mean ΔF/F0). Frequency of Ca2+ oscillations is elevated by increased levels of agonists in some cases in ECs (Carter et al., 1991; Jacob et al., 1988; Moccia et al., 2003; Mumtaz et al., 2011) and non-ECs (Woods et al., 1986). Meanwhile, the amplitude of Ca2+ rise and total Ca2+ increases may possibly reflect the dose of agonists (Brock et al., 1991; Fewtrell, 1993; Sage et al., 1989). Thus, in this study, we quantified the oscillations to describe the oscillatory activity in individual EC (see ‘Materials and methods’). Our quantification analyses clearly revealed that budding tip cells exhibited oscillatory activity at 24–27 ss (Figure 1D,E). Repetitive Ca2+ transients were not detected in other ECs within the DA (Figure 1A,B,D). These results indicate that the Ca2+ imaging method we used precisely detects the endogenous intracellular increase or decrease of Ca2+ in vivo.

Figure 1 with 2 supplements see all
Ca2+ oscillations in tip cells during budding from the dorsal aorta (DA).

(A) 3D-rendered time-sequential images of the trunk regions of Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos during vessel sprouting from the DA (24 somite stage (ss)). 3D images were acquired using a light sheet microscope. The merged images of GCaMP7a (green) and H2B-mC (red) images are shown in the following images, unless otherwise described. All the zebrafish images are lateral views and displayed as anterior to the left. A green arrowhead indicates a tip cell outlined by a dashed line. (i)-(v) and other images are those indicated by the arrowheads indicated at a graph in B. (B) The fluorescence changes in GCaMP7a (ΔF/F0) of individual ECs from A indicated by arrowheads (green, light gray, dark gray, and black) at the left panel are shown as a graph. To measure the fluorescence intensity of GCaMP7a (green) in individual EC, the cell nucleus (red) was tracked over time (see ‘Materials and methods’). (C) Dot-plot graphs depicting the time to reach the peak of each Ca2+-oscillation in tip cells. Time-lapse 2D slice images of Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos taken every 100 ms as in Figure 1—figure supplement 2B were analyzed for quantification. Horizontal lines represent mean ± s.d. (n = 18). (D) Quantification of Ca2+ oscillation frequency (left) and mean ΔF/F0 (right) in tip cells and other ECs within the DA during tip cell budding (24–27 ss) (see ‘Materials and methods’). Each dot represents the value for a single cell. Horizontal lines represent mean ± s.d. (n ≥ 8). (E) Schematic model of tip cells showing Ca2+ oscillations when they sprout from the DA. Intensity of green reflects the frequency of Ca2+ oscillations. Scale bar, 10 μm in A. ***p < 0.001. DA, dorsal aorta.

https://doi.org/10.7554/eLife.08817.003
Video 1
Ca2+ oscillations in tip cell during budding from the dorsal aorta (DA).

Time-lapse recording of 3D-rendered light sheet images of the Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos at 24 somite stage (ss). Green, GCaMP7a fluorescence; red, H2B-mC fluorescence. Elapsed time from the start point of imaging is in seconds (s). Lateral view, anterior to the left. Scale bar, 10 μm.

https://doi.org/10.7554/eLife.08817.006

Vegfa/Vegfr2 signaling, but not Vegfr3 signaling, is responsible for Ca2+ oscillations in ECs sprouting from the DA

Intracellular Ca2+ oscillations are known to occur in response to physiological concentrations of agonists in vitro in many cell types (Fewtrell, 1993; Woods et al., 1986) including ECs (Jacob et al., 1988; Moccia et al., 2003; Sage et al., 1989), suggesting that Ca2+ oscillations detected here may represent EC response to angiogenic stimuli. To examine which angiogenic stimuli are responsible for Ca2+ oscillations during vessel sprouting from the DA, we first tested the involvement of Vegfr2 since VEGF-A/VEGFR2 signaling is essential for sprouting angiogenesis (Koch and Claesson-Welsh, 2012; Lohela et al., 2009) and can increase intracellular Ca2+in vitro (Figure 1—figure supplement 1C) (Brock et al., 1991). Firstly, we examined the effect of inhibiting Vegfr2 on Ca2+ oscillations by using an inhibitor of VEGFR2, ki8751 (Kubo et al., 2005). When we treated 22 ss embryos with ki8751 and performed Ca2+ imaging analyses at 24–27 ss, the Ca2+ oscillations detected in budding tip cells of control embryos (Figure 1) were completely abolished by the treatment of ki8751 (Figure 2A–C). Tip cell migration stopped in ki8751-treated embryos (Figure 2—figure supplement 1A), confirming that ki8751 inhibits Vegfr2 of zebrafish. ki8751 might also inhibit Vegfr3 activity, because, in our previous results, ki8751 treatment blocked Vegfr3-dependent venous sprout from the PCV in zebrafish (Kwon et al., 2013). Therefore, we regarded ki8751 as a zebrafish Vegfr inhibitor in this study. To confirm the specific contribution of Vegfr2 in budding ECs from the DA to Ca2+ oscillation there, we knocked-down vegfr2 (also termed kdrl) by injecting antisense oligonucleotides (MO) (Wiley et al., 2011). Although we observed partial sprouts from the DA in the morphants as reported in vegfr2 mutants (Covassin et al., 2006), Ca2+ oscillations were markedly reduced in these budding cells (Figure 2D–F), suggesting that Ca2+ oscillations in ECs budding from the DA are dependent upon Vegfr2 activation.

Figure 2 with 3 supplements see all

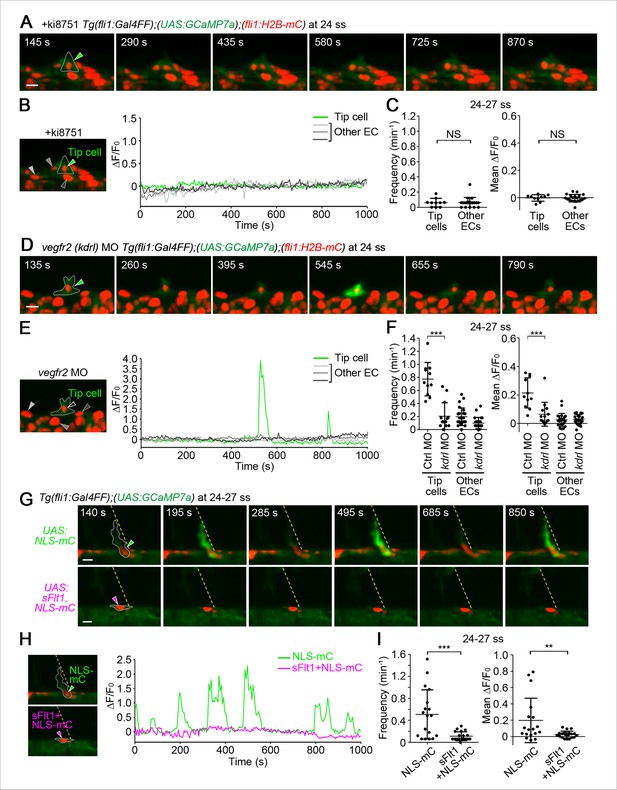

The Ca2+ oscillations during tip cell budding depend upon Vegfa/Vegfr2 signaling.

(A) 3D-rendered time-sequential images of Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos treated with a Vegfr inhibitor, ki8751, during tip cell budding. The embryos were treated from 22 ss with ki8751 and time-lapse imaged at 24 ss. A green arrowhead indicates a tip cell outlined by a dashed line. The elapsed time (s) after starting imaging of an embryo is indicated at the left upper corner. (B) The fluorescence changes in GCaMP7a (ΔF/F0) of individual ECs from A indicated by arrowheads (green, light gray, dark gray, and black) at the left panel are shown as a graph. (C) Quantification of Ca2+ oscillation frequency (left) and mean ΔF/F0 (right) as in Figure 1D in ki8751-treated embryos. The embryos were treated from 22 ss with ki8751 and imaged at 24–27 ss (n ≥ 10). (D) 3D-rendered time-sequential images of Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos during tip cell budding (24 ss) injected with vegfr2 (kdrl) morpholino (MO). (E) The fluorescence changes in GCaMP7a (ΔF/F0) of individual ECs from D indicated by arrowheads at the left panel are shown as a graph. (F) Quantification of Ca2+ oscillation frequency (left) and mean ΔF/F0 (right) in tip cells and other ECs within the DA in control MO- or vegfr2 MO-injected embryos during tip cell budding at 24–27 ss (n ≥ 11). (G) 3D-rendered time-sequential images of Tg(fli1:Gal4FF);(UAS:GCaMP7a) embryos at 24–27 ss injected with control UAS:NLS-mC plasmid (upper) or UAS:sFlt1,NLS-mC plasmid (lower) which drives the expression of NLS-mC or both sFlt1 and NLS-mC simultaneously in ECs in a mosaic manner, respectively. Green and red arrowheads indicate NLS-mC-expressing ECs and both sFlt1- and NLS-mC-expressing ECs, respectively. Yellow dashed lines indicate positions of somite boundaries. (H) The fluorescence changes in GCaMP7a (ΔF/F0) of individual ECs from G indicated by arrowheads at the left panel are shown as a graph. (I) Quantification of Ca2+ oscillatory activity in ECs expressing NLS-mC and both sFlt1 and NLS-mC at 24–27 ss. Graphs show Ca2+ oscillation frequency (left) and mean ΔF/F0 (right) of NLS-mC-positive ECs within the DA close to somite boundaries (NLS-mC, n = 18; sFlt1+ NLS-mC, n = 20). Horizontal lines represent mean ± s.d.. Scale bars, 10 μm in A, D and G. **p < 0.01, ***p < 0.001; NS, not significant.

https://doi.org/10.7554/eLife.08817.007

We further tried to confirm whether Ca2+ oscillations depend upon Vegfa/Vegfr2 signaling by examining the effect of forced expression of soluble Flt1 (sFlt1), a potent Vegfa trap, on Ca2+ oscillations. sFlt1 was transiently and specifically expressed in ECs in a mosaic manner by injecting plasmids at one-cell stage. While expression of control NLS-tagged mCherry (NLS-mC) did not affect Ca2+ oscillations in budding ECs (Figure 2G–I; NLS-mC), co-expression of sFlt1 and NLS-mC in ECs completely inhibited Ca2+ oscillations of ECs close to somite boundaries (Figure 2G–I; sFlt1+NLS-mC). Tip cell sprouting was also inhibited by expressing sFlt1 (Figure 2—figure supplement 1B), as previously reported (Zygmunt et al., 2011). Collectively, our results indicate that Vegfa/Vegfr2 signaling is required for the Ca2+ oscillations during tip cell budding from the DA.

VEGFR3 signaling is another signaling pathway that facilitates sprouting angiogenesis (Covassin et al., 2006; Tammela et al., 2008). To investigate the role of Vegfr3 in Ca2+ oscillations in the budding ECs from the DA, we examined Ca2+ oscillation in vegfr3 morphants (Hogan et al., 2009). vegfr3 morphants exhibited loss of venous sprout from the PCV (Figure 2—figure supplement 1C) and phenocopied vegfr3 null mutant fish (Hogan et al., 2009). These vegfr3 morphants did not show any alteration of Ca2+ oscillations during tip cell budding (Figure 2—figure supplement 2A–C). These results suggest that Vegfr3 is not involved in the Ca2+ responses during vessel sprouting from the DA.

While ISV sprouts from the DA are mainly driven by Vegfa/Vegfr2 signaling, those from the PCV are driven by Vegfc/Vegfr3 signaling (Hogan et al., 2009). We observed that tip cells in the venous sprouts from the PCV exhibited Ca2+ oscillations in a manner dependent upon Vegfr3 (Figure 2—figure supplement 3A–D). Thus, Ca2+ oscillations are not only specific for arterial sprouting, but also occur in venous sprouting that is regulated by Vegfc/Vegfr3 signaling.

ECs close to somite boundaries have potential to sprout from the DA

To know when and how single tip cells are selected, we looked at Ca2+ dynamics in ECs of the DA before ECs sprouted from the DA. Prior to sprouting from the DA, Ca2+ oscillations occurred widely within the DA (Figure 3A,B and Video 2) and were completely dependent upon Vegfr2 (Figure 3—figure supplement 1A–D). Loss of Ca2+ oscillations in vegfr2 morphants (Figure 3—figure supplement 1C,D) was rescued in ECs expressing Vegfr2 (Figure 3—figure supplement 1E,F), indicating a specific role of Vegfr2 in Ca2+ oscillations. Although ISV sprouts usually emerge from the DA just anterior to each somite boundary (Zygmunt et al., 2011), Ca2+-oscillating cells were not restricted to specific regions within the DA before vessel sprouting (17–19 ss, Figure 3C). These results suggest that single tip cells are not specified among the ECs of the DA before sprouting as far as Ca2+ oscillation is used as an indicator (Figure 3D).

Figure 3 with 1 supplement see all

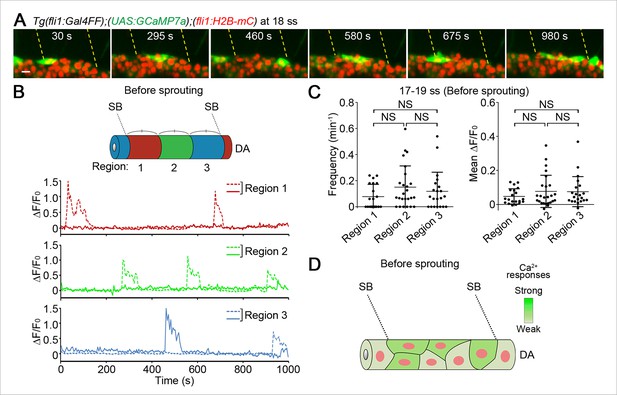

Ca2+-oscillating cells were not restricted to specific regions within the DA before vessel sprouting.

(A) 3D-rendered time-sequential images of Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos before ISV sprouting (18 ss). Yellow dashed lines indicate positions of somite boundaries. (B) The DA is subdivided into three regions (Region 1–3) between two somite boundaries (SBs) as illustrated in the scheme (upper). The fluorescence changes in GCaMP7a (ΔF/F0) of individual ECs from A are shown as separate graphs (Region 1–3), determining the region to which individual EC belongs by the location based on the position of the nucleus at the start of time-lapse imaging. A representative graph of two ECs at each region is shown. (C) Quantification of Ca2+ oscillation frequency (left) and mean ΔF/F0 (right) in ECs of the indicated regions within the DA before vessel sprouting (17–19 ss). Horizontal lines represent mean ± s.d. (n ≥ 20). (D) Schematic illustration of Ca2+ dynamics before tip cell budding. Before tip cells sprout from the DA, Ca2+ oscillations are found broadly in ECs within the DA. Scale bar, 10 μm in A. NS, not significant. SB, somite boundary; DA, dorsal aorta.

https://doi.org/10.7554/eLife.08817.011
Video 2
Ca2+ oscillations occur widely within the DA before vessel sprouting.

Time-lapse recording of 3D-rendered light sheet images of the Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos at 18 ss. Green, GCaMP7a fluorescence; red, H2B-mC fluorescence. Elapsed time is in seconds (s). Scale bar, 10 μm.

https://doi.org/10.7554/eLife.08817.013

Next, we examined endothelial Ca2+ dynamics just after vessel sprouting (19–22 ss). Since ISV sprouts emerge bilaterally from the DA, we analyzed one side of sprouting ISVs. When ECs within the DA started to sprout dorsally (19–22 ss), Ca2+ oscillations were detected in two neighboring ECs (45.2%) or single ECs (52.4%) at somite boundaries, either of which sprouted dorsally (Figure 4A and Figure 4—figure supplement 1). We confirmed that two neighboring ECs were not the result of a recent division (86%, n = 7, data not shown). These results suggest that the initial selection of single tip cells is not completed just after the onset of vessel sprouting. Ca2+ response became restricted to single tip cells at later stage (24–27 ss) (Figure 4A), suggesting the completion of tip cell selection. Then, to visualize the process of tip cell selection between two neighboring cells exhibiting Ca2+ oscillations, we performed Ca2+ imaging for a longer period and found that only one cell maintained the oscillations over time (Figure 4B,C and Video 3). We also noticed that the ECs losing Ca2+ response retracted their sprout (Figure 4B), implying that these cells lost their ability to respond to angiogenic cues. The ECs showing sustained Ca2+ oscillations eventually became tip cells (18/18, Figure 4—figure supplement 2). Thus, our results provide evidence that the initial selection of tip cells is determined even after ECs start to migrate from the DA (Figure 4D).

Figure 4 with 3 supplements see all

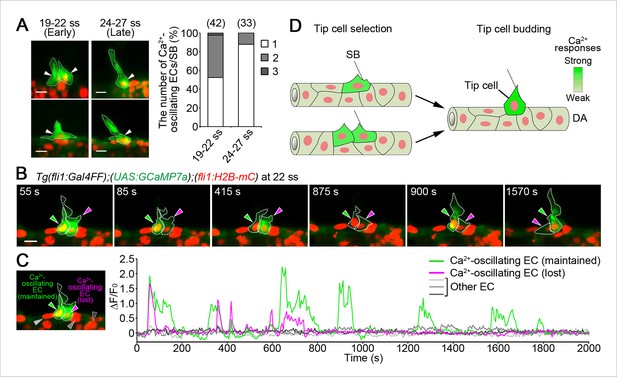

Iinitial tip cell selection in the DA.

(A) The number of Ca2+-oscillating ECs within the DA at each somite boundary of Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos at 19–22 and 24–27 ss. Graph shows percentage of the number of a Ca2+-oscillating cell (1), two cells (2), and three cells (3) at a somite boundary among the total number of somite boundaries (indicated at the top) observed. Two each representative 3D-rendered images of Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) at 19–22 and 24–27 ss are shown in the left. Arrowheads indicate Ca2+-oscillating cells. (B) 3D-rendered time-sequential images of Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos from 22 ss. Green arrowheads indicate an EC which maintained Ca2+ oscillations, whereas red arrowheads indicate an EC which lost Ca2+ oscillations. Similar results were obtained in five independent experiments. (C) The fluorescence changes in GCaMP7a (ΔF/F0) of the ECs indicated by arrowheads in B and indicated at the left panel are shown as a graph. (D) Schematic illustration of Ca2+ dynamics during tip cell budding. Ca2+ oscillations are detected mostly in a single or two-neighboring EC(s) at the onset of vessel sprouting. Finally, only single budding tip cell exhibits Ca2+-oscillation at later stages. Scale bars, 10 μm in A and B. SB, somite boundary; DA, dorsal aorta.

https://doi.org/10.7554/eLife.08817.014
Video 3
The process of tip cell selection.

Time-lapse recording of 3D-rendered light sheet images of the Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos just after vessel sprouting from the DA (22 ss). Elapsed time is in seconds (s). Scale bar, 10 μm.

https://doi.org/10.7554/eLife.08817.018

Sema-PlexinD1 (PlxnD1) signaling is required to determine the position of tip cell budding in the vicinity of somite boundaries (Zygmunt et al., 2011). We observed ectopically budding ECs exhibiting Ca2+ oscillations in plxnD1 morphants (Figure 4—figure supplement 3), confirming an essential role of PlxnD1 in the allocation of budding ECs from the DA.

Stalk cells also exhibit Ca2+ oscillations during budding from the DA

We then examined Ca2+ dynamics at later stages of ISV formation. Sustained repetitive Ca2+ oscillations in tip cells were observed when ECs following tip cells were budding from the DA (Figure 5A–C). We defined those following ECs as stalk cells, because they eventually became stalk cells. Interestingly, Ca2+ oscillations also occurred in budding stalk cells (Figure 5A,B and Video 4), although their oscillation frequency and mean ΔF/F0 were lower than those in tip cells (Figure 5C,D). We further found that the Ca2+ oscillations both in tip cells and budding stalk cells were Vegfr-dependent (Figure 5C and Figure 5—figure supplement 1). In clear contrast, we did not detect Ca2+ oscillations in other ECs that remained in the DA (Figure 5A–C).

Figure 5 with 1 supplement see all

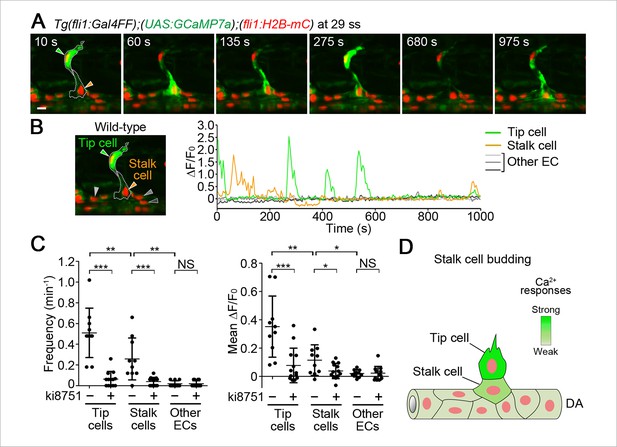

Ca2+ oscillations in stalk cells during budding from the DA.

(A) 3D-rendered time-sequential images of Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos during stalk cell budding from the DA (29 ss). Green and orange arrowheads indicate tip and stalk cells, respectively. (B) The fluorescence changes in GCaMP7a (ΔF/F0) of individual ECs from A indicated by arrowheads (green, orange, light gray, dark gray, and black) at the left panel are shown as a graph. (C) Quantification of Ca2+ oscillatory activity in untreated and ki8751-treated embryos during stalk cell budding from the DA as in A and Figure 5—figure supplement 1A, respectively. Graphs show Ca2+ oscillation frequency (left) and mean ΔF/F0 (right) in tip cells, stalk cells and other ECs within the DA in untreated and ki8751-treated embryos (Untreated, n ≥ 10; ki8751-treated, n ≥ 13). (D) Stalk cells that are budding from the DA have significant Vegfr2 activity, albeit weaker than that in tip cells. Scale bar, 10 μm in A. *p < 0.05, **p < 0.01, ***p < 0.001; NS, not significant. DA, dorsal aorta.

https://doi.org/10.7554/eLife.08817.019
Video 4
Ca2+ oscillations occur in stalk cell during budding from the DA.

Time-lapse recording of 3D-rendered light sheet images of the Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos at 29 ss. Elapsed time is in seconds (s). Scale bar, 10 μm.

https://doi.org/10.7554/eLife.08817.021

Vegfr2 in tip cells and stalk cells is required for their migration from the DA

To investigate the significance of the Vegfr2 activity in tip and stalk cells, we examined the behavior of ECs expressing dominant-negative Vegfr2. We generated a dominant-negative Vegfr2 by deleting the C-terminus of zebrafish Vegfr2 (Vegfr2-ΔC) (Millauer et al., 1994). Firstly, to validate whether Vegfr2-ΔC can block Vegfa/Vegfr2 signaling in zebrafish ECs, we established a Tg fish line, Tg(fli1:Gal4ff);(UAS:Vegfr2-ΔC,NLS-mC), that expresses Vegfr2-ΔC simultaneously with NLS-mC in ECs. In primary culture cells dissociated from the Tg embryos, Vegfaa-induced Erk phosphorylation was blocked in the Vegfr2-ΔC-expressing ECs (Figure 6A,B; Vegfr2-ΔC+NLS-mC). In contrast, in the cells dissociated from the control Tg(fli1:Gal4ff);(UAS:NLS-mC) embryos that expressed NLS-mC alone in ECs, the Erk phosphorylation was not blocked (Figure 6A,B; NLS-mC). These results confirmed that Vegfaa/Vegfr2 signaling is blocked by Vegfr2-ΔC expression. Consistently, ISV sprouting was blocked in the Tg embryos expressing Vegfr2-ΔC in ECs. We, then, observed the behavior of ECs expressing Vegfr2-ΔC in a mosaic manner by injecting the plasmids expressing Vegfr2-ΔC at one-cell stage. While expression of NLS-mC alone neither affect tip, stalk, nor DA cells (Figure 6C,D; NLS-mC), the cells expressing both Vegfr2-ΔC and NLS-mC rarely became tip and stalk cells and remained in the DA (Figure 6C,D; Vegfr2-ΔC+NLS-mC). These results suggest that the activation of Vegfr2 in tip cells and stalk cells is crucial for their exit from the DA.

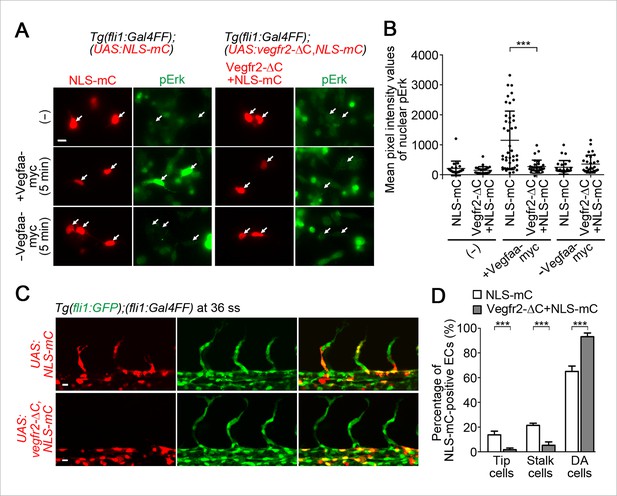

Vegfr2 activation in stalk cells is crucial for their migration from the DA.

(A) The cells dissociated from Tg(fli1:Gal4FF);(UAS:NLS-mC) or Tg(fli1:Gal4FF);(UAS:Vegfr2-ΔC,NLS-mC) embryos (34 hpf) cultured on laminin-coated dish were kept untreated (-) or treated for 5 min with the supernatants from HEK293T cells transfected with (+) or without (-) Vegfaa-myc. The cells were immunostained with anti-phospho-Erk (pErk) antibody. mC images (red) and pErk images (green) are shown. Arrows indicate NLS-mC-positive ECs. (B) Quantitative analyses by the results of A are shown as dot-plot graphs depicting mean pixel intensity values with ± s.d. of nuclear pErk in NLS-mC-positive ECs. Each dot represents the value of single cell (n > 20). Similar results were obtained in four independent experiments. (C) Confocal stack fluorescence images of Tg(fli1:GFP);(fli1:Gal4FF) embryos at 36 ss injected with control UAS:NLS-mC plasmid (upper) or UAS:Vegfr2-ΔC,NLS-mC plasmid (lower) which drives the expression of NLS-mC or both Vegfr2-ΔC and NLS-mC simultaneously in ECs in a mosaic manner, respectively. (D) By counting the numbers of NLS-mC-positive ECs constituting tip cells, stalk cells, and DA cells as observed in C in an embryo, the percentage of each group among total number of NLS-mC-positive ECs is indicated. The data are derived from five independent experiments, in each of which ≥ 26 NLS-mC-positive cells were measured. Scale bars, 10 μm in A and C. ***p < 0.001.

https://doi.org/10.7554/eLife.08817.022

The Ca2+-oscillatory activity in stalk cells coming out completely from the DA becomes comparable to that in tip cells

We then investigated Ca2+ dynamics after stalk cells completely came out from the DA. Ca2+ oscillations in stalk cells out of the DA were comparable to those in tip cells (Figure 7A–C and Video 5). The Ca2+ oscillations were also dependent upon Vegfr2 (Figure 7C and Figure 7—figure supplement 1).

Figure 7 with 2 supplements see all

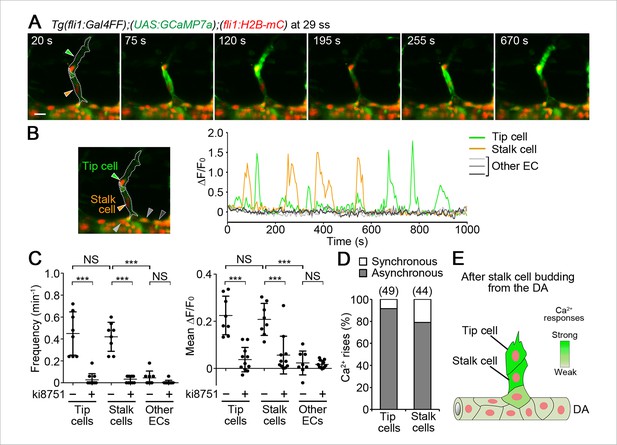

Ca2+ oscillations in tip and stalk cells that completely come out from the DA.

(A) 3D-rendered time-sequential images of Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos after stalk cells migrate out of the DA (29 ss). Green and orange arrowheads indicate tip and stalk cells, respectively. (B) The fluorescence changes in GCaMP7a (ΔF/F0) of individual ECs from A indicated by arrowheads (green, orange, light gray, dark gray, and black) at the left panel are shown as a graph. (C) Quantification of Ca2+ oscillatory activity in untreated and ki8751-treated embryos after stalk cells migrate out of the DA as in A and Figure 7—figure supplement 1A, respectively. Graphs show Ca2+ oscillation frequency (left) and mean ΔF/F0 (right) in tip cells, stalk cells and other ECs within the DA in untreated and ki8751-treated embryos. (Untreated, n ≥ 8; ki8751-treated, n ≥ 11). (D) Quantification of the number of synchronous and asynchronous Ca2+ rise between tip and stalk cells. We here define the case, in which a Ca2+ rise in one cell occurs within 10 s late behind a Ca2+ rise in the other cell, as synchronous. The number of synchronous and asynchronous Ca2+ rise were quantified in tip and stalk cells. Percentages of synchronous and asynchronous Ca2+ increase to total Ca2+ increase are shown. The total number of Ca2+ rise analyzed in tip cells and stalk cells is indicated at the top. (E) Schematic illustration of Ca2+-oscillatory activity in stalk cells. Frequency of Ca2+ oscillations found in stalk cells are comparable to that in tip cells after stalk cells have completely come out from the DA. Scale bar, 10 mm in A. ***p < 0.001; NS, not significant. DA, dorsal aorta.

https://doi.org/10.7554/eLife.08817.023
Video 5
Ca2+ oscillations occur both in tip and stalk cells after stalk cell migrates out of the DA.

Time-lapse recording of 3D-rendered light sheet images of the Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos at 29 ss. Elapsed time is in seconds (s). Scale bar, 10 μm.

https://doi.org/10.7554/eLife.08817.026

Ca2+ increases generally occur by two modes: one is intracellular Ca2+ waves which only propagate within a single cell; the other is intercellular Ca2+ waves (ICWs) which transmit from one cell to the next via gap junctions or extracellular messengers. To investigate whether Ca2+ oscillations were due to either mechanism, we measured how often the oscillations in tip or stalk cells were synchronized with adjacent stalk or tip cells, respectively. We found that 78.9% of Ca2+ oscillations in stalk cells occurred independently of tip cells, and 91.6% of oscillations in tip cells occurred independently of stalk cells (Figure 7D). These results clearly indicate that most Ca2+ oscillations observed in tip and stalk cells occurs independently of each other and not through ICWs. Therefore, our findings suggest that not only tip cells but also stalk cells have potential to respond to angiogenic cues (Figure 7E). Similarly to the earlier stage, Ca2+ oscillations were not detected in the ECs within the DA (Figure 7A–C), except in ECs that were budding from the DA and following stalk cells (Figure 7—figure supplement 2).

Dll4/Notch signaling is crucial for suppressing Ca2+ responses in ECs adjacent to tip cells during budding

To understand how tip cell behavior is spatio-temporally regulated by Dll4/Notch signaling, we examined the effect of the inhibition of Dll4/Notch signaling on Ca2+ dynamics. Previous reports have shown that MO-mediated knockdown of Dll4 leads to an increased number of ECs exhibiting tip cell behavior in zebrafish ISVs, which phenocopies loss of Notch signaling (Siekmann and Lawson, 2007). Therefore, we analyzed Ca2+ oscillations before and during vessel sprouting in dll4 morphants (Siekmann and Lawson, 2007). Before sprouting of ISVs, the number of Ca2+-oscillating ECs and their oscillatory activity were significantly increased in the entire DA in dll4 morphants (Figure 8A–C), suggesting that Dll4 suppresses the Vegfr2-dependent angiogenic responses in entire ECs of the DA. When ECs start budding at 19–22 ss, the Ca2+ responses were restricted to single ECs in 44.5% at somite boundaries in the control morphants, whereas those were, in 20.8% in dll4 morphants (Figure 9A; 19–22 ss). Most dll4 morphants had two or more budding ECs exhibiting Ca2+ oscillations (79.2%; Figure 9A; 19–22 ss). Thus, our findings support the hypothesis that Dll4 restricts the number of ECs showing tip cell behavior when they sprout from the pre-existing vessels. In the later stages (24–27 ss), while the Ca2+ responses became restricted to single tip cells in the control embryos, two or more neighboring ECs exhibited Ca2+ oscillations in dll4 morphants (74.1%; Figure 9A; 24–27 ss). Consistently in the dll4 morphants, repetitive Ca2+ oscillations were maintained in the two neighboring ECs, both of which were budding from the DA (Figure 9B,C and Video 6). Similar results were observed in notch1b morphants (Figure 9—figure supplement 1). These results suggest that Dll4/Notch signaling regulates the selection of single tip cell from two or more ECs showing Ca2+ oscillation. In dll4 morphants, Ca2+ responses were detected exclusively in budding ECs, but not in other ECs within the DA (Figure 9D), suggesting that Dll4 suppresses the tip cell behavior especially in ECs adjacent to budding tip cells, but not in the entire DA after tip cell budding.

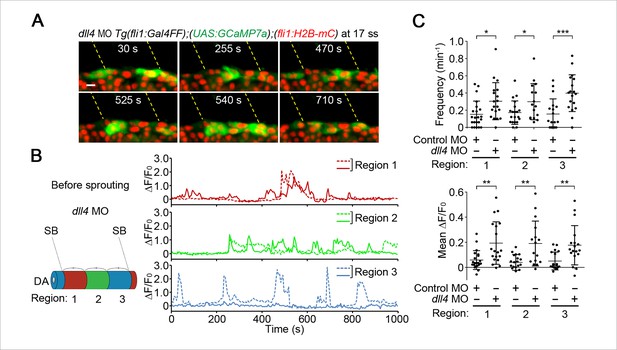

Dll4 attenuates Ca2+ oscillations in the entire DA before ISV sprouting.

(A) 3D-rendered time-sequential images of Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos before ISV sprouting injected with dll4 MO (17 ss). Yellow dashed lines indicate positions of somite boundaries. (B) The DA is subdivided into three regions (Region 1–3) as illustrated in the scheme (left). The fluorescence changes in GCaMP7a (ΔF/F0) of individual ECs from A are shown as separated graphs (Region 1–3) as in Figure 3B. A representative graph of two ECs at each region is shown. (C) Quantification of Ca2+ oscillation frequency (upper) and mean ΔF/F0 (lower) in ECs of the indicated regions within the DA in control MO- or dll4 MO-injected embryos before vessel sprouting (17–19 ss). Horizontal lines represent mean ± s.d. (n ≥ 16). Scale bar, 10 mm in A. *p < 0.05, **p < 0.01, ***p < 0.001. DA, dorsal aorta.

https://doi.org/10.7554/eLife.08817.027
Figure 9 with 4 supplements see all

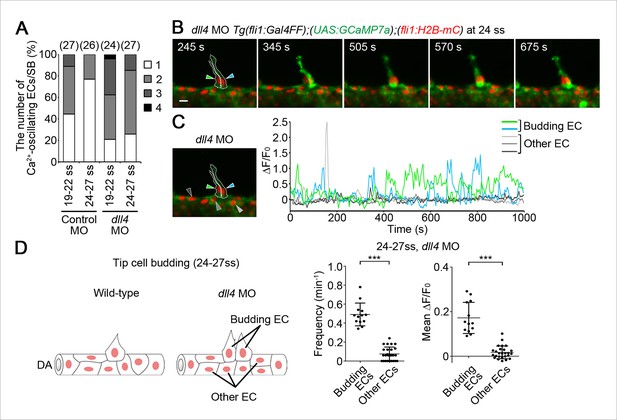

Dll4 is involved in suppressing Ca2+ responses in ECs adjacent to tip cells.

(A) The number of Ca2+-oscillating ECs at each somite boundary of the embryo injected with control MO or dll4 MO was quantified as in Figure 4A. (B) 3D-rendered time-sequential images of Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos during tip cell budding injected with dll4 MO (24 ss). Green and blue arrowheads indicate two neighboring Ca2+-oscillating ECs, both of which are budding from the DA. (C) The fluorescence changes in GCaMP7a (ΔF/F0) of individual ECs from B indicated by arrowheads at the left panel are shown as a graph. (D) Ca2+ oscillation frequency (left) and mean ΔF/F0 (right) in budding ECs and other ECs within the DA in dll4 morphants during tip cell budding at 24–27 ss as illustrated at the left panel (n ≥ 13). Scale bar, 10 mm in B. ***p < 0.001. DA, dorsal aorta.

https://doi.org/10.7554/eLife.08817.028
Video 6
Ca2+ oscillations are maintained in two neighboring cells in the absence of dll4 during tip cell budding.

Time-lapse recording of 3D-rendered light sheet images of the Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos during tip cell budding from the DA injected with dll4 morpholino antisense oligo (MO). The recording started at 24 somite stage. Elapsed time is in seconds (s). Scale bar, 10 μm.

https://doi.org/10.7554/eLife.08817.033

Next, we investigated the effect of inhibition of Vegfr in the dll4 morphants on Ca2+ dynamics. Treatment with ki8751 completely abolished the Ca2+ oscillations observed in the dll4 morphants (Figure 9—figure supplement 2), suggesting that an increase in the number of oscillating cells in the dll4 morphants reflects an increase in the number of ECs showing either Vegfr2 or Vegfr3 activation. In zebrafish, arterial overproliferation and hypersprouting in the absence of Dll4/Notch signaling is, at least partially, attributed to ectopically enhanced Vegfr3 activation (Hogan et al., 2009; Siekmann and Lawson, 2007). Accordingly, Vegfr3 might be involved in the ectopic Ca2+ oscillations during vessel sprouting in dll4 morphant. To assess the contribution of Vegfr3 to the ectopic Ca2+ oscillations, we examined Ca2+ oscillations in vegfr3/dll4 double morphants at 24–27 ss when the Ca2+ responses became restricted to single tip cells in wild-type embryos (Figure 4A). In vegfr3/dll4 double morphants, Ca2+ oscillations were detected in two or more neighboring cells in 65.8% at somite boundaries (Figure 9—figure supplement 3), although the phenotype in the double morphants was slightly milder than that in the dll4 morphants (74.1%; Figure 9A; 24–27 ss). Thus, Vegfr3 is partially involved in increases in oscillating cells in the absence of Dll4/Notch signaling. On the other hand, these results imply that ectopic Ca2+ oscillations occur even in the absence of vegfr3 after inhibiting Dll4/Notch signaling. Considering that the Ca2+ responses in dll4 morphants were completely abolished by ki8751 treatment (Figure 9—figure supplement 2), our findings suggest that Dll4/Notch signaling might restrict the tip cell number mainly by suppressing Vegfr2 signaling. Since Vegfr3 is responsible for hypersprouting of ISVs in the dorsal part of the dll4 morphants (Hogan et al., 2009), Dll4/Notch signaling might not suppress Vegfr3 signaling in the early stage but suppress it in the later stage.

To investigate the mechanism how Dll4/Notch signaling suppresses Vegfr2 signaling in ECs of zebrafish, we tested the effect of inhibiting Dll4/Notch signaling on the expression of vegfr2 during sprouting of the ISVs. However, we could detect any increase in the expression of neither vegfr2 nor its paralog kdr in the trunk vessels of dll4 morphants (Figure 9—figure supplement 4), suggesting that Dll4/Notch signaling inhibits the Vegfr2 signaling cascade rather than vegfr2 expression.

Dll4 is required for the selection of single stalk cells

We further investigated the role of Dll4/Notch signaling in stalk cell selection. Of note, when stalk cells began to migrate from the DA, Ca2+ oscillations were mainly detected only in single stalk cells in the DA, but not in adjacent cells apart from tip cells (Figure 10A). Because Dll4/Notch signaling regulates the selection of single tip cells (Figure 9) (Eilken and Adams, 2010; Lohela et al., 2009; Phng and Gerhardt, 2009), we hypothesized that it might also regulate the selection of single stalk cell. To test this hypothesis, we examined the effect of knockdown of Dll4 on Ca2+ dynamics during stalk cell budding. While Ca2+ oscillations were mostly detected in single stalk cell in the control embryos, they were often detected in two or more neighboring ECs following tip cells in dll4 morphants (Figure 10A–D). Longer time-lapse imaging confirmed that both Ca2+-oscillating stalk cell in the dll4 morphants eventually came out from the DA to form the ISVs. These results suggest that Dll4/Notch signaling regulates the selection of single stalk cell by restricting angiogenic behavior in the ECs adjacent to the stalk cells.

Dll4 is involved in the selection of single stalk cells.

(A) The number of Ca2+-oscillating ECs following tip cells in each ISV of uninjected, or control MO- or dll4 MO-injected Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos during stalk cell budding when an EC/ECs following a tip cell is/are budding from the DA. Graph shows the occurrence rate of the indicated numbers of Ca2+-oscillating cells in each ISV among the total number of ISVs observed (indicated at the top). (B) 3D-rendered time-sequential images of Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos during stalk cell budding from the DA injected with dll4 MO (25 ss). A green arrowhead indicates tip cell. Orange and red arrowheads indicate budding stalk cells following tip cell. (C) The fluorescence changes in GCaMP7a (ΔF/F0) of individual ECs from B indicated by arrowheads at the left panel are shown as a graph. (D) Ca2+ oscillation frequency (left) and mean ΔF/F0 (right) in tip cells, stalk cells, and other ECs within the DA in dll4 morphants during stalk cell budding (n ≥ 10). As illustrated at the left panel, we designated budding ECs that follow tip cells as stalk cells. Scale bar, 10 mm in B. ***p < 0.001; NS, not significant. DA, dorsal aorta.

https://doi.org/10.7554/eLife.08817.034

We then investigated the role of Dll4/Notch signaling after stalk cell budding from the DA. Even in the absence of dll4, we could not detect significant increases in oscillatory activity in both tip and stalk cells that came out of the DA (Figure 11A–C). Thus, Dll4/Notch signaling does not suppress the Ca2+-responses in the initial sprouting from the DA to form ISVs.

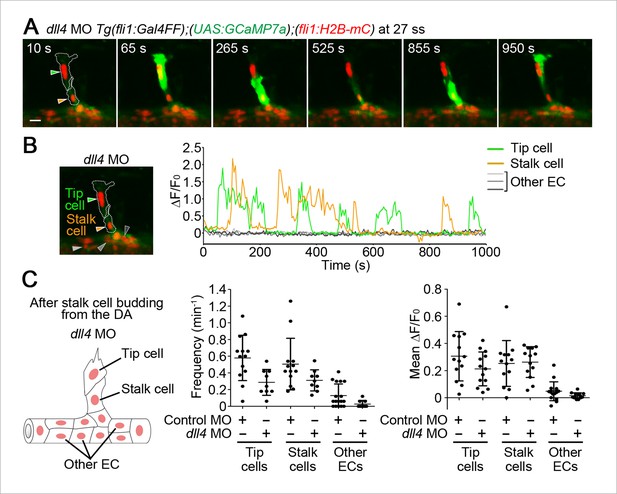

Dll4 does not regulate Ca2+ oscillations in stalk cells after they completely migrate out of the DA.

(A) 3D-rendered time-sequential images of Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos after stalk cell budding from the DA injected with dll4 MO (27 ss). Green and orange arrowheads indicate tip and stalk cells, respectively. (B) The fluorescence changes in GCaMP7a (ΔF/F0) of individual ECs from A indicated by arrowheads at the left panel are shown as a graph. (C) Ca2+ oscillation frequency (left) and mean ΔF/F0 (right) in tip cells, stalk cells, and other ECs within the DA in control MO- or dll4 MO-injected embryos after stalk cell budding from the DA as illustrated at the left panel. (n ≥ 9). Scale bar, 10 mm in A.

https://doi.org/10.7554/eLife.08817.035

Discussion

In the present study, we visualized Ca2+ dynamics, for the first time, in ECs during sprouting angiogenesis in vivo. By quantitatively analyzing Ca2+ dynamics in individual ECs, we have uncovered how Ca2+ responses are spatio-temporally regulated at the single-cell level (Figure 12). Intracellular Ca2+ oscillations occurred in ECs exhibiting angiogenic behavior, such as sprouting and migration. Therefore, visualizing Ca2+ oscillations allowed us to monitor EC responses to angiogenic cues. While Ca2+ oscillations depended upon Vegfa/Vegfr2 signaling in ECs sprouting from the DA, they were also detected in venous sprouts in response to Vegfc/Vegfr3. Thus, Ca2+ oscillations in ECs occur during both arterial and venous sprouting and subsequent migration.

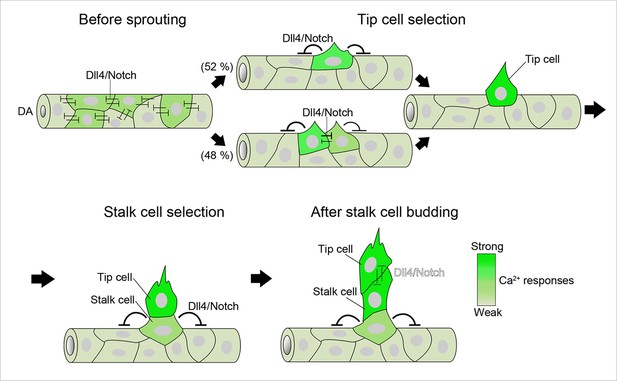

A schematic representation of endothelial Ca2+ responses during sprouting angiogenesis from the DA.

Ca2+ oscillations occur widely within the DA before ISV sprouting. Dll4/Notch signaling attenuates Ca2+ responses in the entire DA at this stage. Ca2+ oscillations are restricted to single or two neighboring ECs just after vessel sprouting and then further restricted to single ECs that eventually become tip cells. Dll4/Notch signaling is required for the selection of single tip cells. During stalk cell budding, tip cells and stalk cells exhibit Ca2+ oscillations, although the Ca2+-oscillatory activity in stalk cells is weaker than that in tip cells. Dll4/Notch signaling regulates the selection of single stalk cells. After stalk cells completely come out from the DA, strong Ca2+ oscillations occur both in tip cells and stalk cells. Intensity of green reflects the frequency of Ca2+ oscillations. DA, dorsal aorta.

https://doi.org/10.7554/eLife.08817.036

Oscillatory increases of intracellular Ca2+ were dependent upon Vegfa/Vegfr2 signaling in ECs budding from the DA. VEGF-A treatment induces Ca2+ rise in cultured human ECs, although their Ca2+ response is not oscillatory (Brock et al., 1991; Favia et al., 2014; Li et al., 2011). In vitro, VEGF-A induces Ca2+ rise by the PLCγ-IP3-IP3R pathway (Koch and Claesson-Welsh, 2012; Moccia et al., 2012), by store-operated Ca2+ entry involving Orai1 and CRAC channel (Li et al., 2011) and by lysosomal Ca2+ release involving two-pore channel TPC2 (Favia et al., 2014). Since intracellular Ca2+ oscillations generally occur through the concerted action between several Ca2+ transporters (Smedler and Uhlen, 2014), further studies are needed to delineate whether Vegfr2 signaling directly regulates Ca2+ store or Ca2+ channels in ECs in vivo. Furthermore, it is also required to detect where intracellular Ca2+ increases during sprouting angiogenesis. Although we observed an increase in Ca2+ throughout the cytoplasm, if ECs respond to Vegfa, the initial increase of Ca2+ might be found in a manner dependent upon the distribution of Vegfr2. In cultured ECs, they exhibit Ca2+ oscillations only in the front of the cells but not in the rear during migration (Tsai et al., 2014). These polarized Ca2+ oscillations might be detected if we can improve the time/spatial resolution of imaging of zebrafish in vivo.

Ca2+ imaging at single-cell resolution pointed to the new regulatory mechanism underlying the formation of stalk cells following tip cells in the ISV. Lateral inhibitory action of Dll4/Notch signaling is essential for selection of tip cells (Eilken and Adams, 2010; Lohela et al., 2009; Phng and Gerhardt, 2009); however, it is unknown how stalk cells are specified and migrate from the parental vessels. We found that stalk cells have Vegfr-dependent Ca2+ oscillations when they start budding following tip cells and that Dll4/Notch signaling is required for the selection of single stalk cell similarly to tip cell selection (Figure 12). VEGF-A/VEGFR2 signaling is active in stalk cells and is important for cell proliferation in mouse retina angiogenesis (Gerhardt et al., 2003). Here, we propose that Vegfr2 activation in stalk cells is also necessary for the selection of stalk cells and their exit from the parental vessels during ISV formation. Thus, our Ca2+ imaging highlighted a novel role of Vegfr2 in stalk cells.

Tip cells and stalk cells are selected during sprouting angiogenesis. In the present study, we focused on the stage of ECs budding from the DA and observed that even two cells showing Ca2+ oscillations budded from the DA and that one of them finally became single tip cell. Jacobsson et al. report that tip cells and stalk cells change their positions in elongating vessels sprouts (Jakobsson et al., 2010), whereas in the earlier stage, we did not observe interexchange of tip cells and stalk cells, suggesting that their plasticity of tip and stalk depends upon the stage and type of angiogenesis.

Dll4/Notch signaling is required for selection of single tip cell and single stalk cell during budding from the DA. Our findings support the notion that Dll4 in tip cells suppresses tip cell behavior in adjacent cells for the initial selection of tip cell (Eilken and Adams, 2010; Herbert and Stainier, 2011; Lohela et al., 2009; Phng and Gerhardt, 2009). Meanwhile, it has not been determined whether tip cells also suppress angiogenic responses in stalk cells via Dll4/Notch signaling during vessel elongation. Our results indicate that inhibitory activity of Dll4 toward Ca2+ responses in stalk cells diminishes after stalk cells come out from the DA. Instead, Dll4/Notch signaling restricts the number of stalk cells. Thus, our results suggest that Dll4/Notch-mediated lateral inhibition leads to suppression of angiogenic responses mainly in ECs within the DA adjacent to budding tip or stalk cells to restrict excess budding from the DA (Figure 12). Our Ca2+ imaging provide novel insights into how Dll4/Notch signaling spatio-temporally controls angiogenic behavior.

Endothelial Ca2+ responses can be used as an indicator of cellular responses to extracellular stimuli. In this study, we show that endothelial Ca2+ oscillations occur during sprouting angiogenesis in response to Vegfa/Vegfr2 and Vegfc/Vegfr3 signaling. We could investigate endothelial Ca2+ responses induced by other chemical or mechanical stimuli. Among them, blood flow is a well-studied input that induces an intracellular Ca2+ increase in ECs (Ando and Yamamoto, 2013). Blood flow-dependent Ca2+ increases were recently reported in zebrafish embryos (Goetz et al., 2014). Our Ca2+ imaging analyses have captured flow-dependent Ca2+ oscillations in various types of vessels (Yokota et al., unpublished data): therefore, Ca2+ imaging analysis will be a useful system for understanding quantitatively how individual ECs are regulated by blood flow in vivo. Thus, in vivo Ca2+ imaging in ECs presented here will become a powerful tool to investigate the dynamic behavior of individual ECs in vascular development and homeostasis in the future studies.

Materials and methods

Zebrafish husbandry

Request a detailed protocol

Zebrafish (Danio rerio) were maintained and bred under standard conditions. The experiments using zebrafish were approved by the animal committee of National Cerebral and Cardiovascular Center (No. 14005) and performed according to the guidance of the Institute.

Plasmid constructs

Request a detailed protocol

cDNA fragments encoding zebrafish H2B, sFlt1, Vegfr2 (Kdrl), Kdr, and Vegfaa were amplified by PCR using a cDNA library derived from zebrafish embryos and cloned into pCR4 Blunt TOPO vector (Invitrogen, Carlsbad, CA).

A cDNA encoding mCherry was subcloned into the pTol2-fli1 vector to construct the pTol2-fli1:mC plasmid (Wakayama et al., 2015). Then, the cDNA encoding H2B was inserted into the pTol2-fli1-mC vector to generate the pTol2-fli1:H2B-mC plasmid.

An oligonucleotide-encoding nuclear localization signal (NLS) derived from SV40 (PKKKRKV) was inserted into pmCherry-C1 vector (Clontech, Takara Bio Inc., Japan) to generate the plasmid encoding NLS-tagged mCherry (NLS-mC). The NLS-mC cDNA followed by polyA sequece was subcloned into the pTol2-E1b-UAS-E1b vector to construct the pTol2-E1b-UAS-E1b:NLS-mC plasmid (also used as the UAS:NLS-mC plasmid for microinjection) (Wakayama et al., 2015). The cDNA encoding zebrafish sFlt1 was inserted into the pTol2-E1b-UAS-E1b:NLS-mC vector to construct the pTol2-UAS:sFlt1,NLS-mC plasmid. The pTol2-UAS:Vegfr2-ΔC,NLS-mC was constructed by inserting a cDNA fragment that encodes Vegfr2 lacking the intracellular domain (amino acid 783–1181) into the pTol2-E1b-UAS-E1b:NLS-mC vector. The nuclear export signal (NES, derived from a HIV-1Rev protein; LQLPPLERLTLD)-tagged mC cDNA followed by polyA signal was subcloned into the pTol2-E1b-UAS-E1b vector to construct the pTol2-E1b-UAS-E1b:NES-mC plasmid. The cDNA encoding full length Vegfr2 was then inserted into the pTol2-E1b-UAS-E1b:NES-mC vector to construct the pTol2-UAS:Vegfr2,NES-mC plasmid. The cDNA encoding zebrafish Vegfaa was inserted into the pcDNA3.1 vector (Invitrogen) together with 1xMyc tag to construct the pcDNA3.1-Vegfaa-myc.

Transgenic zebrafish lines

Request a detailed protocol

To generate the Tg(fli1:H2B-mC), Tg(UAS:NLS-mC), and Tg(UAS:Vegfr2-ΔC,NLS-mC) zebrafish lines, the corresponding pTol2-based plasmid DNAs (15 pg) were microinjected along with Tol2 transposase mRNA (30 pg) into one-cell stage embryos of AB or Tg(fli1:Gal4FF) zebrafish. Tol2 transposase mRNAs were in vitro transcribed with SP6 RNA polymerase from NotI-linearized pCS-TP vector using the mMESSAGE mMACHINE kit (Ambion, Thermo Fisher Scientific, Waltham, MA). The embryos showing transient mCherry expression in the vasculature were selected, raised to adulthood, and crossed with wild-type AB to identify germline transmitting founder fishes.

Tg(UAS:GCaMP7a) fish and Tg(UAS:GFP);SAGFF(LF)27C fish were used (Bussmann et al., 2010; Muto et al., 2013). Tg(fli1:EGFP) fish were provided by N Lawson (University Massachusetts Medical School, USA) (Lawson and Weinstein, 2002). Tg(fli1:Gal4FF) fish line was a gift from M Affolter (University of Basel, Switzerland) (Totong et al., 2011; Zygmunt et al., 2011).

Injections of morpholino oligonucleotides and plasmids

Request a detailed protocol

For morpholino oligonucleotide (MO)-mediated knockdown, embryos were injected at one-cell or two-cell stage with control MO (Gene Tools, LLC, Philomath, OR), 3 ng of vegfr2 MO, 7 ng of dll4 MO, 3 ng of vegfr3 MO, 3 ng of plxnD1, and 7 ng of notch1b MO. The sequences for the already-validated MOs used in this study are: vegfr2 MO, 5′-CACAAAAAGCGCACACTTACCATGT-3′;dll4 MO, 5′- TAGGGTTTAGTCTTACCTTGGTCAC-3′; vegfr3 MO, 5′-TTAGGAAAATGCGTTCTCACCTGAG-3′; plxnD1 MO, 5′- CACACACACTCACGTTGATGATGAG-3′; notch1b MO, 5′-AATCTCAAACTGACCTCAAACCGAC-3′ (Leslie et al., 2007; Siekmann and Lawson, 2007; Torres-Vázquez, et al., 2004; Wiley et al., 2011).

To express sFlt1, Vegfr2-ΔC, and full length Vegfr2 transiently using the Tol2 system, we co-injected the plasmids with capped Tol2 transposase mRNA (30 pg) (Kawakami et al., 2004). To co-express sFlt1 and NLS-mC transiently in ECs, 30 pg pTol2-UAS:sFlt1, NLS-mC (UAS:sFlt1,NLS-mC) plasmid was injected into one-cell stage of the Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC). In these embryos, the expression of sFlt1 and NLS-mC is simultaneously driven in ECs by a Gal4/UAS-based bidirectional expression system. To express both Vegfr2-ΔC and NLS-mC simultaneously in ECs, 30 pg pTol2-UAS:Vegfr2-ΔC,NLS-mC (UAS:Vegfr2-ΔC,NLS-mC) plasmid was injected into one-cell stage of the Tg(fli1:Gal4FF);(fli1:GFP). In these embryos, expression was induced in a mosaic manner (see Figure 6C). As a negative control, 30 pg pTol2-UAS:NLS-mC (UAS:NLS-mC) plasmid was injected. To express Vegfr2 and NES-mC simultaneously in ECs, 30 pg pTol2-UAS:Vegfr2,NES-mC (UAS:Vegfr2,NES-mC) plasmid was injected into one-cell stage of the Tg(fli1:Gal4FF);(UAS:GCaMP7a).

Chemical treatment

Request a detailed protocol

The Tg(fli1:Gal4FF);(UAS:GCaMP7a);(fli1:H2B-mC) embryos were treated with 1 μM ki8751, an inhibitor of Vegfr, from 40–90 min before starting light sheet imaging, and subsequently during the imaging.

Zebrafish image acquisition and processing

Request a detailed protocol

For light sheet imaging, zebrafish embryos were dechorionated and anesthetized in 0.4 mg/ml rocuronium bromide (Merk Sharp and Dohme, Kenilworth, NJ) in E3 embryo medium (5 mM NaCl, 0.17 mM KCl, 0.33 mM CaCl2, 0.33 mM MgSO4). The anesthetized embryos were pulled into the small glass capillaries containing 1% low-melting agarose in E3 medium, using a metal plunger. After the gel set, the fish were slightly extruded from the capillary and immersed in the chamber containing E3 medium. Light sheet imaging was performed with a Lightsheet Z.1 system (Carl Zeiss, Germany) equipped with a water immersion 20x detection objective lens (W Plan Apochromat, NA 1.0), dual sided 10x illumination objective lenses (LSMF, NA 0.2), a pco.edge scientific CMOS camera (PCO) and ZEN software. For all 3D time-lapse datasets, a z-interval of 4 μm, and a time interval of 5 s were used. z-stack images were 3D volume rendered and analyzed with IMARIS 7.7.1 software (Bitplane AG, Switzerland). For 2D time-lapse imaging, a time interval of 100 ms was used.

For confocal imaging, zebrafish embryos were dechorionated, anesthetized in 0.016% tricaine (Sigma-Aldrich, St. Louis, MO) in E3 medium, and mounted in 1% low-melting agarose poured onto a 35-mm diameter glass-based dish (Asahi Techno Glass, Japan) as previously described (Fukuhara et al., 2014). Confocal images were taken with a FluoView FV1000 confocal uplight microscope system (Olympus, Japan) equipped with a water-immersion 20x lens (XLUMPlanFL, NA 1.0). Images were analyzed with FV10-ASW3.1 viewer (Olympus).

Quantitative analysis of intracellular Ca2+ oscillations

Request a detailed protocol

In our Ca2+ imaging using light sheet microscopy, we analyzed the ISVs and DA located in middle trunk region of embryos at somite levels 8 to 14. Time-lapse images were collected every 5 s for 1000–2000 s with a z-interval of 4 μm. Z-stack images were 3D volume-rendered and analyzed with IMARIS 7.7.1 software (Bitplane AG). ISV sprouts emerge bilaterally from the DA. Thus, to focus on sprouting angiogenesis occurring on one side, our analyses were performed at either side (left or right side) of the embryos by cropping. To quantify intracellular Ca2+ levels of individual ECs at each time point, the cell nuclei labeled with H2B-mC were automatically (or manually in some cases) tracked over time using IMARIS software. Then, for each individually tracked EC, we set a spherical region of interest (ROI) of 4–11 μm in diameters that is slightly larger than the nucleus (see Figure 1—figure supplement 2D). The diameters of every spherical ROI were carefully set to cover the nucleus and part of the cytoplasm but do not overlap with adjacent ECs. We then defined the highest voxel intensity of the GCaMP7a fluorescence within the ROI as the florescent intensity (F) of GCaMP7a in the EC. Because intracellular Ca2+ waves spread rapidly and uniformly throughout the cytoplasm of each EC (see Figure 1—figure supplement 2B), the spherical ROIs including part of the cytoplasmic region are enough to detect intracellular Ca2+ waves. ΔF/F0 was calculated as (F − F0)/ F0, where F0 is the baseline florescent intensity of GCaMP7a averaged over a 50-s period. Fluorescence changes in GCaMP7a of individual ECs are represented as ΔF/F0 traces in the graphs, and mean ΔF/F0 was calculated by taking the average of every ΔF/F0. The frequency of intracellular Ca2+ oscillations was counted as the number of Ca2+ oscillations per min. ΔF/F0 increase of 20% from the baseline was defined as an oscillation, while 100% is the average of the three highest ΔF/F0 peaks in oscillating ECs of wild-type embryos. The ECs, which underwent mitosis through the time-lapse images, were removed from our quantification analyses because we found that ECs never exhibit any Ca2+ rise during M phase.

Cell culture, transfection, and time-lapse imaging

Request a detailed protocol

HUVECs were purchased from Kurabo (Japan), maintained on a collagen-coated dish in endothelial cell growth medium (EGM-2, Lonza, Switzeland), and used for the experiments before passage 7. HEK293T cells were cultured in DMEM (Nacalai Tesque, Japan) with 10% FBS and antibiotics (100 mg/ml streptomycin and 100 U/ml penicillin). HUVECs and 293T cells were transfected with plasmid DNA using ViaFect transfection reagent (Promega, Madison, WI) and 293fectin transfection reagent (Invitrogen), respectively.

HUVECs expressing GCaMP7a were time-lapse imaged with an inverted fluorescence microscope (IX-81; Olympus) equipped with a Plan-Apochromat 40x/1.00 NA oil immersion objective lens (Olympus) and with a pE-1 LED excitation system (CoolLED) with a cooled charge-coupled device camera (Neo5.5 sCMOS; Andor Technology, UK). The cells were imaged at 37 oC with 5% CO2 using a heating chamber (Tokai Hit, Japan).

Preparation of zebrafish embryo primary cells, immunocytochemistry, and quantification

Request a detailed protocol

Tg(fli1:Gal4FF);(UAS:NLS-mC) or Tg(fli1:Gal4FF);(UAS:Vegfr2-ΔC, NLS-mC) embryos at 34 hpf were dechorionated and collected into a 1.5-ml tube after removing the yolk, washed in phosphate buffered saline (PBS), and digested with 500 μl of protease solution (PBS with 1 mg/ml trypsin, 2.7 mg/ml Collagenase P and 1mM EDTA, pH 8.0) for 15 min at 28oC under occasional pipetting. Digestion of the embryos was terminated with 50 μl of stop solution (PBS with 30% fetal bovine serum [FBS] and 6 mM calcium chloride). The dissociated cells were filtered with 35-μm cell strainers (BD Falcon, Thermo Fisher Scientific) and subsequently cultured on glass-base dish coated with laminin in L15 medium (Life Technologies, Carlsbad, CA) with 50 U/ml penicillin and 0.05 mg/ml streptomycin at 28oC. The cells spread on the culture dishes for 3.5 hr were used for experiments.

The supernatants of HEK293T cells transfected with or without the plasmid DNA encoding Vegfaa-myc were collected 36 hr after the transfection and added to zebrafish primary cells. After stimulation, the cells were fixed with 4% paraformaldehyde (PFA) in PBS for 15 min at RT, permiabilized with 0.2% Triton X-100 for 30 min at RT and blocked with 3% BSA in PBS for 30 min at RT. The cells were immunostained with anti-phospho-ERK (pERK) antibody (#4370, Cell Signaling Technology, Danvers, MA) in 3% BSA in Can Get Signal Immunostain solution (TOYOBO, Japan) at 4°C overnight. Protein reacting with the antibody was visualized with species-matched Alexa-Fluor 488-labeled secondary antibody (Invitrogen). Fluorescence images were taken with an inverted fluorescence microscope (IX-81) equipped with a Plan-Apochromat 60x/1.40 NA oil immersion objective lens, an X-cite 110LED excitation system (Excelitas Technologies, Waltham, MA) and a cooled charge-coupled device camera (CoolSNAP HQ; Roper Scientific, Photometrics, Tucson, AZ). The microscope and image acquisition were controlled by MetaMorph software (Molecular Devices, Sunnyvale, CA).

Quantification of the fluorescence intensity of pErk staining was performed with MetaMorph software. We defined a region of interest (ROI) kept at constant size (4 μm in diameter) inside the nucleus of NLS-mC-expressing ECs, and measured the mean fluorescence intensity of pErk staining within the ROI after subtracting the background.

Whole-mount in situ hybridization

Request a detailed protocol

Whole-mount in situ hybridization (WISH) of zebrafish embryos was performed as described previously (Fukuhara et al., 2014).

Statistical analyses

Request a detailed protocol

Data were analyzed using GraphPad Prism software. Statistical significance for paired samples was determined using Student’s t test. Data were considered statistically significant at p < 0.05.

References

  1. 1
  2. 2
  3. 3
  4. 4
    Tumor-secreted vascular permeability factor increases cytosolic Ca2+ and von willebrand factor release in human endothelial cells
    1. TA Brock
    2. HF Dvorak
    3. DR Senger
    (1991)
    The American Journal of Pathology 138:213–221.
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
    Synchronized oscillations in cytoplasmic free calcium concentration in confluent bradykinin-stimulated bovine pulmonary artery endothelial cell monolayers
    1. SO Sage
    2. DJ Adams
    3. C van Breemen
    (1989)
    The Journal of Biological Chemistry 264:6–9.
  39. 39
  40. 40
    Frequency decoding of calcium oscillations
    1. E Smedler
    2. P Uhlén
    (2014)
    Biochimica Et Biophysica Acta (BBA) - General Subjects 1840:964–969.
    https://doi.org/10.1016/j.bbagen.2013.11.015
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
    VEGFR3 does not sustain retinal angiogenesis without VEGFR2
    1. G Zarkada
    2. K Heinolainen
    3. T Makinen
    4. Y Kubota
    5. K Alitalo
    (2015)
    Proceedings of the National Academy of Sciences of the United States of America 112:761–766.
    https://doi.org/10.1073/pnas.1423278112
  51. 51

Decision letter

  1. Janet Rossant
    Reviewing Editor; University of Toronto, Canada

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for submitting your work entitled "In vivo endothelial Ca2+ imaging reveals spatio-temporal regulation of Vegfr2 signaling during sprouting angiogenesis" for peer review at eLife. Your submission has been favorably evaluated by Janet Rossant (Senior editor), a Reviewing editor, and four reviewers.

The reviewers have discussed the reviews with one another and the Reviewing editor has drafted this decision to help you prepare a revised submission.

Summary:

This paper makes use of an improved calcium activity reporter line to examine calcium dynamics at single cell resolution during sprouting angiogenesis of intersomitic vessels from the dorsal aorta in the zebrafish. Using a number of manipulations of the Vegf and Notch signaling pathways, the authors are able to provide novel information about the spatio-temporal regulation of calcium dynamics during this process.

Essential revisions:

Overall, the reviewers agreed that manuscript reflects a significant amount of work and establishes a new model to study Ca2+ signaling in endothelial cells in a living animal, with potentially novel insights. The experiments are carefully quantified, and the statistical analyses are well performed. Nevertheless, there are critical conceptual, as well as experimental issues that need to be addressed before this article is suitable for publication. All of the reviewers identified the same major issue of whether changes in Ca oscillations are a direct readout of VEGF signaling, as claimed, or an indirect reaction to the presence or absence of angiogenic sprouts. It was felt that the conclusions in the Results section and discussion on using GCaMP7 as a bonafide read out of VEGFR2 activity dynamics in vivo is premature and problematic.

In order to address this issue, the reviewers made the following recommendations which need to be addressed in any revised version of the manuscript:

1) The authors should tone down their conclusions that they have a live readout for VEGFR signaling and focus on the correlation with endothelial activity in migration and sprouting, rather than as a direct readout of VEGFR signaling.

2) In order to further explore whether the calcium oscillations are directly related to VEGF signaling, it is suggested that you examine whether similar oscillations occur in endothelial cells that sprout in response to Vegfc/Vegfr3 or Bmp signaling. This recommendation is essential for further consideration.

3) It is also suggested that you might attempt mosaic overexpression of Vegfr2 in ECs, in order to assess whether this gain of function could induce Ca2+ responses during the angiogenic process. This recommendation may be harder to perform and interpret and so is not absolutely mandatory

4) Because the transgenic reporter line is new, some control experiments are crucial for publication. The authors should show that the endothelial-specific Ca probe responds as expected by looking at well-established agonists and antagonists of Ca signaling.

https://doi.org/10.7554/eLife.08817.037

Author response

Essential revisions:

Overall, the reviewers agreed that manuscript reflects a significant amount of work and establishes a new model to study Ca2+ signaling in endothelial cells in a living animal, with potentially novel insights. The experiments are carefully quantified, and the statistical analyses are well performed. Nevertheless, there are critical conceptual, as well as experimental issues that need to be addressed before this article is suitable for publication. All of the reviewers identified the same major issue of whether changes in Ca oscillations are a direct readout of VEGF signaling, as claimed, or an indirect reaction to the presence or absence of angiogenic sprouts. It was felt that the conclusions in the Results section and discussion on using GCaMP7 as a bonafide read out of VEGFR2 activity dynamics in vivo is premature and problematic. In order to address this issue, the reviewers made the following recommendations which need to be addressed in any revised version of the manuscript:

First of all, we thank the editor and the reviewers for their practical suggestions and comments to improve our manuscript. As the reviewers pointed out, our claim that endothelial Ca2+ oscillations are a bonafide readout of Vegfr2 signaling is premature, because Ca2+ oscillations are only a branch of multiple Vegfr2 downstream signaling. According to the reviewers’ advice, we weakened the conclusion by changing the title and rewriting the manuscript accordingly. We now believe that the results obtained by our new additional experiments thoroughly fulfill the reviewers’ concerns. Our replies to each point are as follows.

1) The authors should tone down their conclusions that they have a live readout for VEGFR signaling and focus on the correlation with endothelial activity in migration and sprouting, rather than as a direct readout of VEGFR signaling.

According to the reviewers’ advice, we have toned down our conclusions that Ca2+ responses are a live readout for Vegfr2 signaling and have instead highlighted the conclusions that endothelial Ca2+ responses correlate with angiogenic cellular behaviors such as migration and sprouting. We have focused on the Ca2+ oscillations as a result of responses to angiogenic cues. We have changed the title and rewritten the revised manuscript.

2) In order to further explore whether the calcium oscillations are directly related to VEGF signaling, it is suggested that you examine whether similar oscillations occur in endothelial cells that sprout in response to Vegfc/Vegfr3 or Bmp signaling. This recommendation is essential for further consideration.

The angiogenesis we looked at is about the sprouting from the main trunk vessels of zebrafish. Therefore, according to the reviewers’ suggestions, we examined the possibility that Vegfc/Vegfr3 signaling instead of BMP might also induce Ca2+ oscillations.

We have monitored Ca2+ responses in ECs of the venous sprouts (secondary sprouts) from the posterior cardinal vein (PCV), which occurred in response to Vegfc/Vegfr3 signaling (Hogan et al. Development 136:4001-4009, 2009). Tip cells in the venous sprouts exhibited apparent Ca2+ oscillations in a manner dependent on Vegfr3. These data are included as new Figure 2—figure supplement 3A-D.

3) It is also suggested that you might attempt mosaic overexpression of Vegfr2 in ECs, in order to assess whether this gain of function could induce Ca2+ responses during the angiogenic process. This recommendation may be harder to perform and interpret and so is not absolutely mandatory

According to the reviewers’ advice, we have overexpressed Vegfr2 and NES (nuclear export signal) tagged-mCherry to mark the cells in which overexpressed Vegfr2 is distinguished from other ECs in a mosaic manner. However, we could not detect significant enhancement of Ca2+ oscillations in the ECs expressing exogenous Vegfr2 before or during sprouting angiogenesis from the dorsal aorta (DA). We consider that overexpression of Vegfr2 could not cause a gain of function effect, because ECs might have a surplus amount of endogenous Vegfr2 to respond to endogenous Vegfa. Then, we examined the effect of Vegfr2 over-expression in vegfr2 morphants. Whereas Ca2+ oscillations were abolished in ECs within the DA in vegfr2 morphants, exogenous Vegfr2 recovered Ca2+ oscillations in the morphants (new Figure 3—figure supplement 1C-F). These new results support our notion that Vegfr2 is an essential regulator of the Ca2+ oscillations in the DA.

4) Because the transgenic reporter line is new, some control experiments are crucial for publication. The authors should show that the endothelial-specific Ca probe responds as expected by looking at well-established agonists and antagonists of Ca signaling.

Precisely following the reviewers’ comments, we have confirmed that GFP from GCaMP7 reflects changes in intracellular Ca2+ levels in ECs. While inonomycin treatment markedly enhanced GCaMP7a fluorescence in HUVECs (new Figure 1—figure supplement 1A) and in zebrafish (new Figure 1—figure supplement 1C), BAPTA-AM treatment blocked enhancement of GCaMP7a fluorescence induced by VEGF-A (new Figure 1—figure supplement 1B).

https://doi.org/10.7554/eLife.08817.038

Article and author information

Author details

  1. Yasuhiro Yokota

    Department of Cell Biology, National Cerebral and Cardiovascular Center Research Institute, Suita, Japan
    Contribution
    YY, Acquisition of data, Analysis and interpretation of data
    Contributed equally with
    Hiroyuki Nakajima
    Competing interests
    The authors declare that no competing interests exist.
  2. Hiroyuki Nakajima

    Department of Cell Biology, National Cerebral and Cardiovascular Center Research Institute, Suita, Japan
    Contribution
    HN, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Yasuhiro Yokota
    Competing interests
    The authors declare that no competing interests exist.
  3. Yuki Wakayama

    Department of Cell Biology, National Cerebral and Cardiovascular Center Research Institute, Suita, Japan
    Contribution
    YW, Developing transgenic zebrafish lines
    Competing interests
    The authors declare that no competing interests exist.
  4. Akira Muto

    1. Division of Molecular and Developmental Biology, National Institute of Genetics, Mishima, Japan
    2. Department of Genetics, SOKENDAI (The Graduate University for Advanced Studies), National Institute of Genetics, Mishima, Japan
    Contribution
    AM, Developing transgenic zebrafish lines
    Competing interests
    The authors declare that no competing interests exist.
  5. Koichi Kawakami

    1. Division of Molecular and Developmental Biology, National Institute of Genetics, Mishima, Japan
    2. Department of Genetics, SOKENDAI (The Graduate University for Advanced Studies), National Institute of Genetics, Mishima, Japan
    Contribution
    KK, Developing transgenic zebrafish lines
    Competing interests
    The authors declare that no competing interests exist.
  6. Shigetomo Fukuhara

    Department of Cell Biology, National Cerebral and Cardiovascular Center Research Institute, Suita, Japan
    Contribution
    SF, Conception and design
    Competing interests
    The authors declare that no competing interests exist.
  7. Naoki Mochizuki

    1. Department of Cell Biology, National Cerebral and Cardiovascular Center Research Institute, Suita, Japan
    2. AMED-CREST, Japan Agency for Medical Research and Development, Suita, Japan
    Contribution
    NM, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    nmochizu@ri.ncvc.go.jp
    Competing interests
    The authors declare that no competing interests exist.

Funding

Japan Society for the Promotion of Science (22122003)

  • Naoki Mochizuki

Japan Agency for Medical Research and Development (CREST 13414779)

  • Naoki Mochizuki

Japan Society for the Promotion of Science (15K18976)

  • Hiroyuki Nakajima

Takeda Science Foundation

  • Naoki Mochizuki

Japan Foundation for Applied Enzymology

  • Hiroyuki Nakajima

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank LK Phng for critical reading for the manuscript. We are grateful to M Sone, T Babazono, W Koeda, K Hiratomi, and E Okamoto for excellent technical assistance and K Shioya for excellent fish care.

Ethics

Animal experimentation: The experiments using zebrafish were approved by the animal committee of National Cerebral and Cardiovascular Center (No. 14005) and performed according to the guidance of the Institute.

Reviewing Editor

  1. Janet Rossant, University of Toronto, Canada

Publication history

  1. Received: May 18, 2015
  2. Accepted: November 19, 2015
  3. Accepted Manuscript published: November 20, 2015 (version 1)
  4. Version of Record published: December 31, 2015 (version 2)

Copyright

© 2015, Yokota et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,932
    Page views
  • 742
    Downloads
  • 20
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology
    2. Neuroscience
    Julia L Meng et al.
    Research Article Updated
    1. Developmental Biology
    2. Evolutionary Biology
    Sruthi Purushothaman et al.
    Research Article
