Structural basis of interprotein electron transfer in bacterial sulfite oxidation

  1. Aaron P McGrath
  2. Elise L Laming
  3. G Patricia Casas Garcia
  4. Marc Kvansakul
  5. J Mitchell Guss
  6. Jill Trewhella
  7. Benoit Calmes
  8. Paul V Bernhardt
  9. Graeme R Hanson
  10. Ulrike Kappler  Is a corresponding author
  11. Megan J Maher  Is a corresponding author
  1. Centenary Institute, Australia
  2. University of Sydney, Australia
  3. La Trobe Institute for Molecular Science, La Trobe University, Australia
  4. The University of Queensland, Australia
  5. University of Queensland, Australia
Research Article
  • Cited 8
  • Views 927
  • Annotations
Cite this article as: eLife 2015;4:e09066 doi: 10.7554/eLife.09066

Abstract

Interprotein electron transfer underpins the essential processes of life and relies on the formation of specific, yet transient protein-protein interactions. In biological systems, the detoxification of sulfite is catalyzed by the sulfite-oxidizing enzymes (SOEs), which interact with an electron acceptor for catalytic turnover. Here, we report the structural and functional analyses of the SOE SorT from Sinorhizobium meliloti and its cognate electron acceptor SorU. Kinetic and thermodynamic analyses of the SorT/SorU interaction show the complex is dynamic in solution, and that the proteins interact with Kd = 13.5 ± 0.8 μM. The crystal structures of the oxidized SorT and SorU, both in isolation and in complex, reveal the interface to be remarkably electrostatic, with an unusually large number of direct hydrogen bonding interactions. The assembly of the complex is accompanied by an adjustment in the structure of SorU, and conformational sampling provides a mechanism for dissociation of the SorT/SorU assembly.

https://doi.org/10.7554/eLife.09066.001

eLife digest

A key feature of many important chemical reactions in cells is the transfer of particles called electrons from one molecule to another. The sulfite oxidizing enzymes (or SOEs) are a group of enzymes that are found in many organisms. These enzymes convert sulfite, which is a very reactive compound that can damage cells, into another compound called sulfate. As part of this process the SOE transfers electrons from sulfite to other molecules, such as oxygen or a protein called cytochrome c. In the past, researchers have described the three-dimensional structure of three SOEs using a technique called X-ray crystallography. However, it has been difficult to study how SOEs pass electrons to other molecules because of the temporary nature of the interactions.

McGrath et al. studied an SOE called SorT, which is found in bacteria. The SorT enzyme passes electrons from sulfite to another protein called SorU. McGrath used X-ray crystallography to determine the three-dimensional structures of versions of these proteins from a bacterium called Sinorhizobium meliloti. This included structures of the proteins on their own, and when they were bound to each other. These structures revealed that a subtle change in the shape of SorU occurs when the proteins interact, which enables an electron to be quickly transferred.

McGrath et al. also found that the interface between the two proteins showed an unexpectedly high number of contact sites. These strengthen the interaction between the two proteins, which helps to make electron transfer more efficient. However, these contact sites do not prevent the two proteins from quickly moving apart after the electrons have been transferred. The next challenge is to find out whether these observations are common to SOEs from other forms of life.

https://doi.org/10.7554/eLife.09066.002

Introduction

Although electron transfer reactions are key biochemical events, which underpin fundamental processes, such as respiration and photosynthesis, the study of the molecular details of the interprotein interactions at their core can be largely intractable. In particular, atomic resolution crystal structures of electron transfer complexes are rare, due to their fundamentally transient nature (Antonyuk et al., 2013). Electron transfer pathways are made up of chains of redox proteins, which provide a path for the controlled flow of electrons and rely on efficient docking of protein redox partners through noncovalent, dynamic protein-protein interfaces (Moser et al., 1992). Complementary electrostatic surfaces, hydrophobic interactions and dynamics at the protein-protein interface have all been proposed to contribute to efficient interprotein electron transfer (Leys and Scrutton, 2004), with a strong correlation between the driving force for the reaction, the distance between redox centers and the rate of electron transfer (Moser et al., 1992; Marcus and Sutin, 1985).

Interprotein electron transfer processes are central to the redox conversions of cellular sulfur compounds, which are an evolutionarily ancient type of metabolism that has existed as long as cellular life (Schidlowski, 1979; Kappler et al., 2008). Sulfur-containing compounds mediate many crucial reactions in the cell (for example, in coenzyme A, sulfur containing amino acids or glutathione), but their reactivity also makes them potentially toxic (Kappler, 2011). Sulfite in particular, is a highly reactive sulfur compound that can cause damage to proteins, DNA and lipids, resulting in oxidative stress and irreversible cellular damage (Feng et al., 2007). In most cells, the detoxification of sulfite by oxidation to sulfate (Equation 1) is catalyzed by sulfite oxidizing enzymes (SOEs) (Kisker et al., 1997).

(1) SO32- + H2O  SO42- + 2H+ + 2e-

SOEs from plants, higher animals and bacteria have been characterized and they all catalyze the same fundamental reaction. However, their cellular functions, catalytic properties (Kappler, 2011; Feng et al., 2007; Kappler and Wilson, 2009; Hille, 2002; Hänsch et al., 2007) and the identities of their natural electron acceptors vary significantly. Some SOEs transfer electrons to oxygen (Schrader et al., 2003), while others interact with redox proteins such as cytochrome c (Kisker et al., 1997; Kappler and Wilson, 2009; Low et al., 2011; Bailey et al., 2009; Cohen and Fridovich, 1971; Cohen and Fridovich, 1971; Cohen et al., 1971) or as yet unknown cellular components (Kappler, 2011; Low et al., 2011; Bailey et al., 2009; Wilson and Kappler, 2009). To date, three unique crystal structures of SOEs have been reported: from chicken, plant and bacteria, which differ significantly in their domain architectures and redox cofactor compositions. However, none of these studies show details of a SOE in complex with its external electron acceptor (Kisker et al., 1997; Schrader et al., 2003; Kappler and Bailey, 2005). At present, no structural information on the molecular interactions of any of these enzymes with their respective electron acceptors is available and the determinants that dictate the type of electron acceptor individual SOEs employ, while maintaining the efficiency of the basic enzyme reaction are open questions. (Kappler, 2011; Kappler, 2008)

Here, we have investigated an electron transfer complex involving the periplasmic SorT sulfite dehydrogenase from the α-Proteobacterium Sinorhizobium meliloti, which represents a structurally uncharacterized type of SOE, and its electron acceptor, the c-type cytochrome SorU (Low et al., 2011; Wilson and Kappler, 2009). In S. meliloti the SorT sulfite dehydrogenase is part of a sulfite detoxification system that is induced in response to the degradation of sulfur containing substrates such as the organosulfonate taurine (Wilson and Kappler, 2009). Electrons derived from sulfite oxidation are passed on to the SorU cytochrome, and likely then to cytochrome oxidase, as S. meliloti is capable of sulfite respiration (Low et al., 2011). Here, we report the crystal structures of both the isolated SorT and SorU proteins and the biochemical and structural analyses of the SorT/SorU electron transfer complex. This is the first time that a crystal structure of a molybdenum enzyme in complex with its external electron acceptor has been solved.

Results

The interactions between SorT and SorU are highly dynamic and efficient in solution

Sulfite-oxidizing enzymes, particularly those from bacteria, are known to be highly efficient catalysts (Kappler, 2011; Kappler and Enemark, 2015). Previous work has established that SorT is able to transfer electrons to the SorU cytochrome that is encoded on the same operon; however, no kinetic details of the interaction were reported (Low et al., 2011). With the artificial electron acceptor ferricyanide, SorT was shown to have a turnover number of 338 ± 3 s-1 (Low et al., 2011; Wilson and Kappler, 2009). Employing SorU as the substrate, we analyzed the kinetics of the interaction between SorT and SorU and found the interaction to be fast and highly specific, with a KM(SorU) of 32 ± 5 μM and a kcat of 140 ± 11 s-1, confirming that SorU is the natural electron acceptor of SorT. Measurement of the thermodynamics of the SorT/SorU interaction by isothermal titration calorimetry (ITC) revealed a dissociation constant of Kd = 13.5 ± 0.8 μM with a determined stoichiometry of 0.8 ± 0.2. These values are in the range observed for other electron transfer complexes (Dell'acqua et al., 2008; Pettigrew et al., 2003) and match a model where SorT sequentially transfers two electrons, derived from sulfite oxidation, to two SorU molecules. In other words, the SorT/SorU complex must form twice (with two different ferric SorU protein molecules) to complete the oxidative half reaction of SorT.

The KM of SorT for SorU is very close to its affinity for sulfite (KM = 15.5 ± 1.9 μM [Wilson and Kappler, 2009]), and the turnover number in the SorU-based assay is ~40% of that seen with ferricyanide as the electron acceptor (Wilson and Kappler, 2009), where no significant reorientation and docking of the electron acceptor is required. These data reveal interesting details about the formation of the SorT/SorU complex, which appears to form with similar affinities between the two proteins when both are oxidized as in the ITC experiments and in a system where SorT constantly undergoes oxidation and reduction (SorU-based enzyme assay). In addition, the similarity between the determined values of Kd and KM indicates that the affinity of SorT for SorU is unaffected by the presence of substrate or product. However, the kinetic parameters for this interaction are clearly distinct from those for other sulfite-oxidizing enzymes, such as the bacterial SorAB enzyme or chicken sulfite oxidase (CSO), both of which have much higher affinities for their respective electron accepting cytochromes c (both with KM(Cyt c) ca. 2 μM) (Kappler et al., 2006). The catalytic turnover of CSO is relatively slow (kcat = 47.5 ± 1.9 s-1), due to a mechanism requiring internal rearrangement, while turnover of SorAB with its natural electron acceptor (334 ± 11 s-1) is significantly faster than that for SorT (Kappler and Enemark, 2015; Kappler et al., 2006).

The crystal structure of the SorT homodimer reveals a head to tail subunit arrangement

In order to investigate whether there are any structural reasons for these differences, we solved the crystal structure of SorT by molecular replacement and refined it to 2.4 Å resolution. The structure shows two homodimeric assemblies per asymmetric unit (Table 1), which is in agreement with the quaternary structure as determined by MALLS (Low et al., 2011; Wilson and Kappler, 2009). Unexpectedly however, within the SorT homodimer the protomers are oriented in a head-to-tail orientation (Figure 1A), a subunit arrangement that has not been previously observed in structures of sulfite-oxidizing enzymes. In keeping with the nomenclature applied to other structurally-characterized SOEs, a ‘dimerization’ domain typically defines the interface between the two monomers (Kisker et al., 1997; Schrader et al., 2003), but the structure of the SorT dimer does not follow this paradigm.

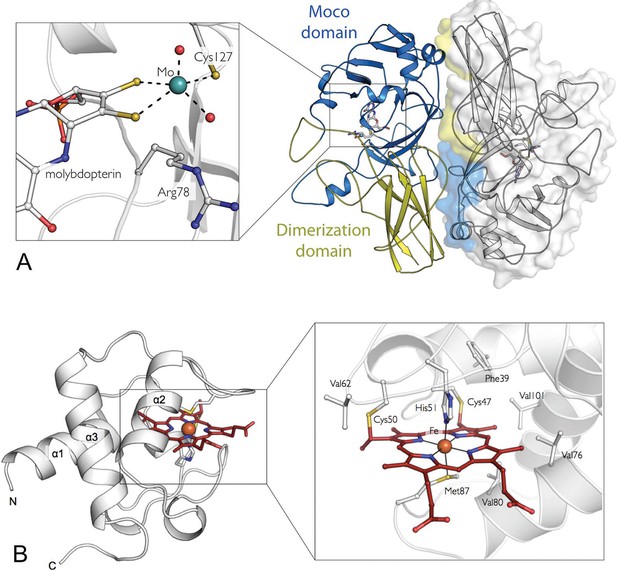

The crystal structures of the SorT and SorU proteins in isolation.

(A) The structure of the SorT homodimer. Molecule A in blue/yellow; molecule B in gray (with transparent surface). For molecule A, the ‘SUOX-fold domain’ and ‘dimerization domain’ are represented in blue and yellow, respectively. The molybdopterin cofactor is shown as sticks within the SUOX-fold domain. The corresponding domains of the opposing protomer (shown in molecular surface representation), which constitute the dimer interface are colored to highlight the ‘head-to-tail’ dimer arrangement. INSET: a closer view of the molybdenum binding-site: the molybdenum atom (green sphere) is coordinated by two dithioline ligands from the molybdopterin (yellow spheres), residue Cys 127, an axial oxo ligand and an equatorial hydroxo or water ligand (red spheres). (B) The structure of SorU. The main three helices are labeled and the heme cofactor is shown in red. INSET: the heme binding site with the heme cofactor, coordinating residues, covalent links to Cys 50 and 57 and hydrophobic residues lining binding site: Phe 39, Val 62, Val 76, Val 80, Val 101 highlighted.

https://doi.org/10.7554/eLife.09066.003
Table 1

Data collection and refinement statistics.

https://doi.org/10.7554/eLife.09066.004
SorTSorUSorT/SorU complex
Data collection
Space GroupP21F222P21212
Cell dimensions
a, b, c (Å)
96.0, 92.2, 109.470.9, 129.2, 197.0109.6, 95.8, 49.9
α, β, γ (°)
90, 89.7, 9090, 90, 9090, 90, 90
X-ray sourceAUS MX2AUS MX2AUS MX2
λ (Å)0.9500.9540.954
DetectorADSC Quantum 315rADSC Quantum 315rADSC Quantum 315r
Resolution range (Å)50-2.4 (2.43-2.35)a50-2.2 (2.28-2.20)50-2.5 (2.50-2.59)
Observed reflections2405219634064273
Unique reflections779712345318883
Completeness (%)98.4 (99.4)99.9 (100)99.3 (99.6)
Multiplicity3.1 (3.1)4.1 (4.1)3.4 (3.4)
<I/σ(I)>6.7 (2.1)8.9 (1.6)8.8 (1.7)
Rmerge (%)b15.9 (66.7)13.3 (76.6)13.9 (76.6)
Refinement
Reflections in working set740242211317781
Reflections in test set39271201960
Protomers per ASU441
Total atoms (non-H)1137829413422
Protein atoms1089025423290
Metal atoms442
Water atoms37622763
Other atoms10816867
Rwork (%)c20.8 (31.7)19.2 (30.8)21.1 (30.2)
Rfree (%)d23.9 (34.7)24.0 (34.3)26.0 (36.5)
Rmsd bond lengths (Å)0.0080.0060.012
Rmsd bond angles (deg)1.080.911.41
<B> (Å2)e32.520.638.0
Cruickshank's DPI0.070.230.49
PDB ID4PW34PWA4PW9
  1. aValues in parenthesis are for highest-resolution shell

  2. b Rmerge = ∑hkl| Ii (hkl) - <I(hkl)> |/∑hkli Ii (hkl)

  3. c Rwork = ∑h | Fobs – Fcalc |/∑hFobs

  4. d Calculated as for Rwork using 10% of the diffraction data that had been excluded from the refinement

  5. eAs calculated by BAVERAGE (Winn et al., 2011)

Nevertheless, the fold of the SorT monomers is similar to those of other SOEs (Kisker et al., 1997; Schrader et al., 2003; Kappler and Bailey, 2005), comprising a central ‘SUOX-fold’ domain (Workun et al., 2008) that harbors the Mo active site and a ‘dimerization’ domain (Figure 1A). The SorT active site has a square-pyramidal geometry seen in all other SOE structures with a five coordinate molybdenum atom and a single tricyclic pyranopterin cofactor (Figure 1A, Table 2) (George and Pickering, 1999).

Table 2

Mo coordination geometry in the active site of SorT.

https://doi.org/10.7554/eLife.09066.005
BondDistance (Å)
Mo-S1 (pterin)2.4
Mo-S2 (pterin)2.4
Mo-S (Cys 127)2.3
Mo=O1.7
Mo-OH/H2O1.9

Single electron reduction of SorT to its EPR active MoV form was achieved using a combination of Ti(III)citrate and a suite of organic redox mediators. The MoV EPR spectrum is similar to the so-called ‘high pH’ EPR signature of SOEs (Figure 2A, Table 3, Appendix 1). An additional feature is the presence of superhyperfine coupling between the unpaired electron on the Mo ion and two nearby I = ½ nuclei. This implies that the equatorially coordinated O-donor is an aqua ligand at pH 8 (Figure 2B(ii)) or that a hydroxido ligand is hydrogen bonded with a water molecule whose proximal H-atom is coupled with the electron spin on Mo (Figure 2B(i), Appendix 1).

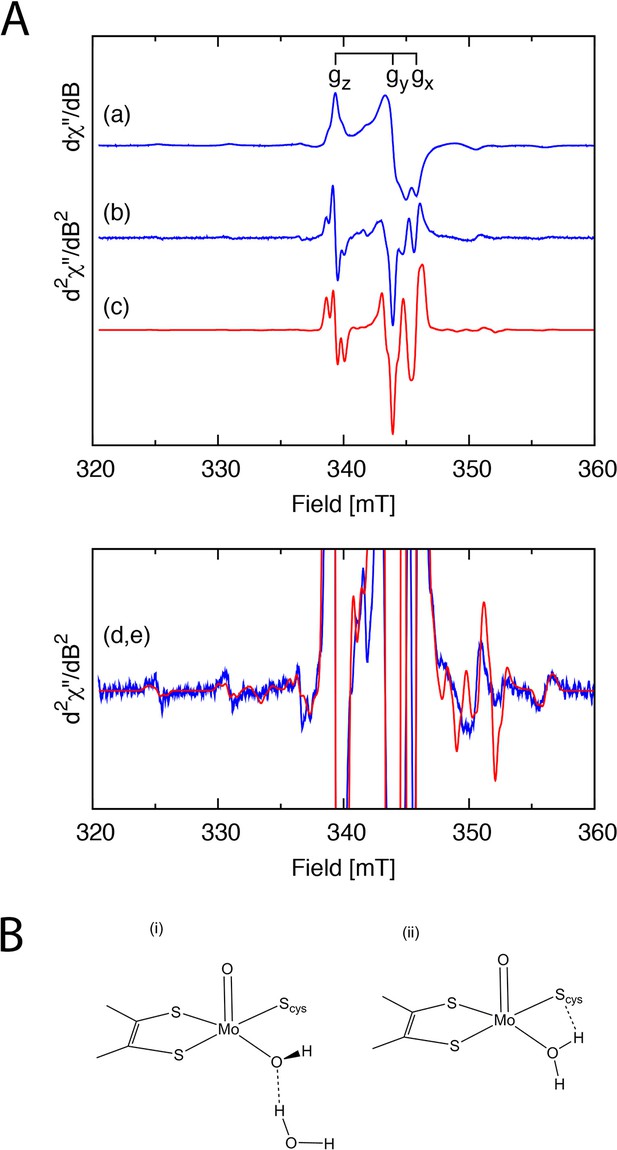

EPR analysis of the SorT protein.

(A) X-band EPR spectra of the Mo(V) center in SorT. (a) First and (b) second derivative EPR spectra of SorT at 0 mV vs NHE in tricine pH 8.0, υ= 9.43462 GHz, T = 136.3 K. (c) Computer simulation of the second derivative spectrum with the spin Hamiltonian parameters listed in Table 3; (d,e) Expansion of spectra (b) and (c), respectively. (B) Schematic structures of the (i) high and (ii) low pH forms of sulfite oxidase.

https://doi.org/10.7554/eLife.09066.006
Table 3

Spin Hamiltonian parameters for the Mo(V) center of SorT and various low and high pH forms of human, avian, plant and bacterial sulfite oxidases.

https://doi.org/10.7554/eLife.09066.007
SpeciesParameterXYZβoRef
SorTg1.949301.959971.98632-
A(95Mo)b20.536.053.926
A(1H)b,c3.54.04.80
SorAcg1.95411.96611.9914-dKlein, et al., 2013
Human SOg Low pH1.96461.97232.0023-Enemark, et al., 2010
A(1H)b11.477.107.71-Enemark, et al., 2010
Chicken SOg (Low pH)1.96581.97202.0037-Drew and Hanson, 2009
A(1H)b11.937.377.95-Drew and Hanson, 2009
g (High pH)1.95311.96411.9872Drew and Hanson, 2009
A. Thaliana SOg (Low pH)1.9631.9742.005-Enemark, et al., 2006
A(1H)b11.99.210.3--Enemark, et al., 2006
g (High pH)1.9561.9641.989-Enemark, et al., 2006
  1. aNon-coincident angle between g and A (rotation about x axis). bUnits 10-4 cm-1. c Two magnetically equivalent protons (I=1/2) were included in the computer simulated spectra. c95Mo hyperfine couplings were unresolved and the shoulders on gz were incorrectly attributed to 95Mo hyperfine resonances. dEuler angles were not determined.

Within the SorT dimer, the subunit interface involves both the 'SUOX-fold' and the ‘dimerization’ domains (Figure 1A), resulting in a buried surface area of ~1280 Å2 per monomer, which is approximately 9% of the solvent-accessible surface of each monomer. The functional consequences and structural origins of these significant differences among the quaternary structures of SOEs are at this point unknown, as all of these enzymes are highly catalytically active, have similar active site structures and no known kinetic cooperativity that would imply a functional role for the different oligomeric assemblies (Kappler and Wilson, 2009; Hänsch et al., 2007; Wilson and Rajagopalan, 2004).

In complex, SorT and SorU form a SorU/SorT2/SorU assembly that reveals a pathway for electron transfer

Despite the dynamic nature of the SorT/SorU interaction, it was possible to co-crystallize SorT with SorU, resulting in the crystal structure of the SorT/SorU complex, where a single SorT/SorU entity is present per asymmetric unit, and the application of crystallographic 2-fold symmetry reveals a SorU/SorT2/SorU assembly (Figure 3A, Table 1). Small-angle X-ray scattering (SAXS) with a sample prepared as a stoichiometric mixture of SorT and SorU (Figure 3B, Table 4, Appendix 2-Figure 1) confirmed that the structure observed in the crystal is preserved in solution.

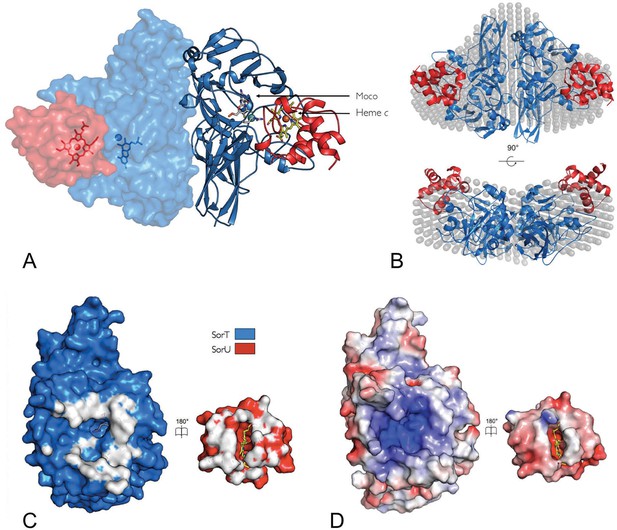

The structure of the SorT/SorU electron transfer complex.

(A) The asymmetric unit from the crystal structure of the SorT/SorU complex contains the functional electron transfer complex. The SorU/SorT2/SorU complex is revealed by the application of crystallographic symmetry operators. The positions of the redox active molybdenum (SorT) and heme c (SorU) cofactors are indicated. (B) Two views of an overlay of the SorU/SorT2/SorU crystal structure with the averaged and filtered dummy atom model from 10 ab initio reconstructions as revealed by SAXS analyses. (C) ‘Open-book unfolding’ of SorT/SorU complex (SorT is shown in blue, SorU in red) indicating the ‘footprint’ of interfacing residues from each protein. (D) The same view as Panel C, showing the charge complementarity of the SorT/SorU interface (areas of positive charge in blue, negative charge in red and neutral in white).

https://doi.org/10.7554/eLife.09066.008
Table 4

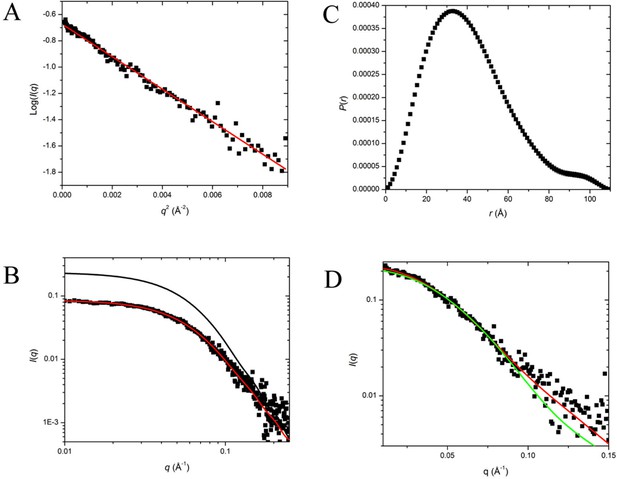

Data collection and processing parameters for analysis of the SorT/SorU complex in solution by Small Angle X-ray Scattering (SAXS).

https://doi.org/10.7554/eLife.09066.009
Data collection parameters
InstrumentSAXSess (Anton Paar)
Beam geometry10 mm slit
AH, LH (Å-1), GNOM beam geometry definition0.28, 0.12
q-range measured (Å-1)0.01-0.400
Exposure time (min)60 (4 x 15)
SorT2SorU2 concentration range (mg mL-1)2.75-5.5
Temperature (ºC)10
Structural parameters*
Rg (Å), I(0) (cm-1)
from Guinier (desmeared data) q*Rg < 1.3
30.8 ± 0.4, 0.223 ± 0.002
Rg (Å), I(0) (cm-1)
from P(r) (q-range 0.01 – 0.25 Å-1)
32.0 ± 0.3, 0.235 ± 0.002
dmax (Å) from P(r)110
Molecular mass determination*
Molecular mass Mrfrom Guinier I(0) (ratio with expected)108741 (0.984)
Molecular mass Mrfrom P(r) I(0) (ratio with expected)114593 (1.037)
SorT2SorU2 parameters calculated from sequence and chemical composition
Molecular volume (Å3)134385
Molecular weight Mr (Da)110556
Partial specific volume (cm3 g-1)0.732
Contrast (X-rays) (Δρ x 1010 cm-2)2.895
Modeling results and validation
Crystal structure Rg, dmax (Å)
SorT/SorU2/SorT
SorT

31.3, 108
27.9, 99
Crystal structure compare to desmeared I(q) (χ-value)
SorT/SorU2/SorT (q-range 0.01 – 0.15 Å-1)
SorT (q-range 0.01 – 0.15 Å-1)

1.7
2.3
Results from 10 ab initio shape restorations. P1 symmetry:
Average molecular volume (Å3)
Normalised spatial distribution (NSD) and NSD variation
χ value for fit to desmeared data

140800
0.508 (0.008)
1.8
Software employed
Calculation of expected Mr, △ρ and υ valuesMULCh
Primary data reduction, I(q) vs q SAXSQuant 1D
DesmearingSAXSQuant
Guinier analysisPRIMUS
P(r) analysisGNOM
Model I(q) from crystal coordinatesCRYSOL
ab initio shape restorationsDAMMIN
3D graphics representationsPYMOL
  1. *Reported for 2.75 mg ml-1 measurement.

The central assembly within the SorU/SorT2/SorU complex is the SorT homodimer, which is identical to the structure of the SorT homodimer alone (Figures 1A and 3A, Table 1). The structure of the SorU protein, both within the SorT/SorU complex and when crystallized in isolation (Figure 1B, Table 1), is predominantly α-helical with three major α-helices arranged to form a bundle that frames the heme-binding site (Figure 1B) (C47XXC50H, axial ligands: His 51 and Met 87).

In the SorT/SorU complex, the SorU protein docks within a pocket adjacent to the SorT active site, with the heme cofactor located at the protein-protein interface (Figures 3A and 4A). The shortest ‘edge-to-edge’ distance between the SorT Mo atom and the propionate group from the SorU heme c cofactor is 8.2 Å, which is well within the distance for fast electron transfer through the protein medium (Page et al., 1999). PATHWAY analysis (Onuchic et al., 1992) (Table 5) further indicates that the dominant electron tunneling pathway from SorT to SorU proceeds from the Mo atom, via the coordinating H2O/OH-, to the guanidinium group of SorT residue Arg 78 and across the protein-protein interface to the heme propionate group and to the pyrrole ring of heme c to the heme iron (Figure 4B, Table 5).

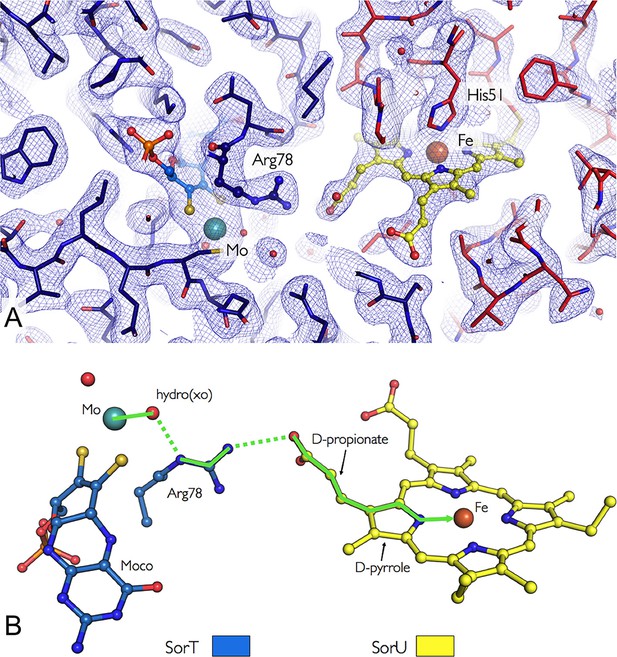

Orientation of the redox cofactors in the crystal structure of the SorT/SorU electron transfer complex.

(A) Electron density map in the region of the SorT/SorU interface. The SorT molecule is represented in blue and the SorU molecule in red. The 2Fo-Fc electron density map (contoured at 1σ) is shown as a blue net and the redox cofactors (molybdenum and heme) are colored according to the representation in Panel B. (B) Pathway for electron transfer (Beratan et al., 1992).

https://doi.org/10.7554/eLife.09066.010
Table 5

Electron transfer parameters between SorT (Mo) and SorU (Fe) as calculated by PATHWAYS (Onuchic et al., 1992).

https://doi.org/10.7554/eLife.09066.011
Distance (Mo-Fe, Å)16.5 Å
Atomic packing density (ρ)0.97
Average decay exponential (β)0.97
Electronic coupling (HDA)3.4 x 10-4
Maximum ET rate (s-1)1.2 x 107

Conformational change reminiscent of an ‘induced fit’ mechanism facilitates docking and electron transfer between SorT and SorU

Specific structural adaptations of the SorU protein take place when the SorT/SorU assembly is formed (Figure 5B). A surface loop on SorU (residues 82–93) moves away from the SorT/SorU complex interface, leading to a reorientation of the heme ligand residue Met 87 so that a different Met 87 rotamer coordinates the iron in the SorU structures within and outside of the complex (Figure 5B). This change in the structure of SorU is required to allow a Mo-heme edge-to-edge distance of ‘closest approach’ of ca. 8 Å within the SorT/SorU assembly. Without this adjustment (for example, if the SorU residue 82–93 loop structure remained rigid) the closest approach for the redox cofactors would be ca. 10 Å.

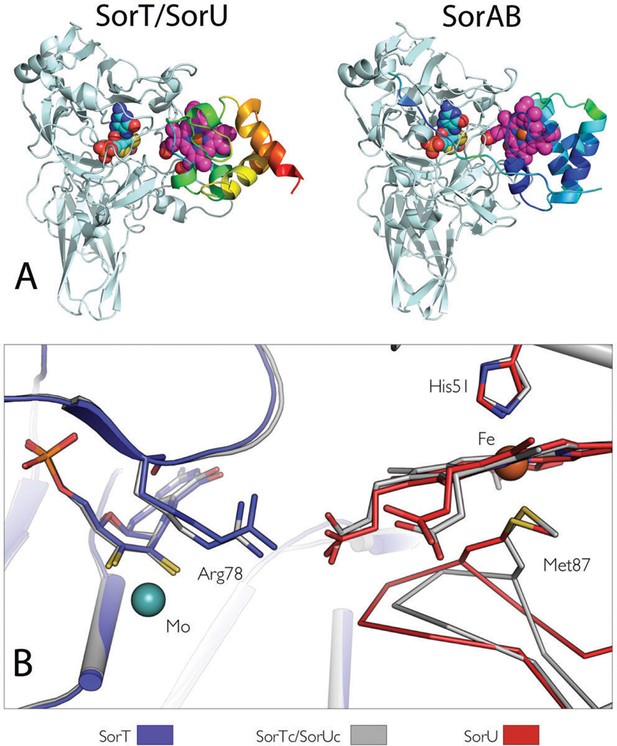

Comparisons of (A) the SorT/SorU and SorAB structures and (B) the structures of SorT and SorU within and outside of the electron transfer complex.

(A) Structures of the SorT/SorU (left) and SorAB (right) complexes, where the Cα traces of the heme-containing protomers are colored according to temperature factor. (B) Superposition of the SorT and SorU structures within and outside of the electron transfer complex, highlighting conformational changes that were observed to accompany complex formation. The crystal structures of SorT and SorU within the SorT/SorU complex are shown in gray, and the superposed structures of SorT and SorU determined alone are shown in blue and red respectively.

https://doi.org/10.7554/eLife.09066.012

Changes in the conformation of axial heme ligands are known to alter the orbital interactions between the iron atom and the ligand, which can change the redox properties of the heme group (Tai et al., 2013). However, this does not appear to be the case here as the redox potential of the SorU heme was determined by optical spectroelectrochemistry to be +108(±10) and +111(±10) mV vs. NHE (pH 8.0), respectively, in the presence and absence of SorT (Table 6, Figure 6B).

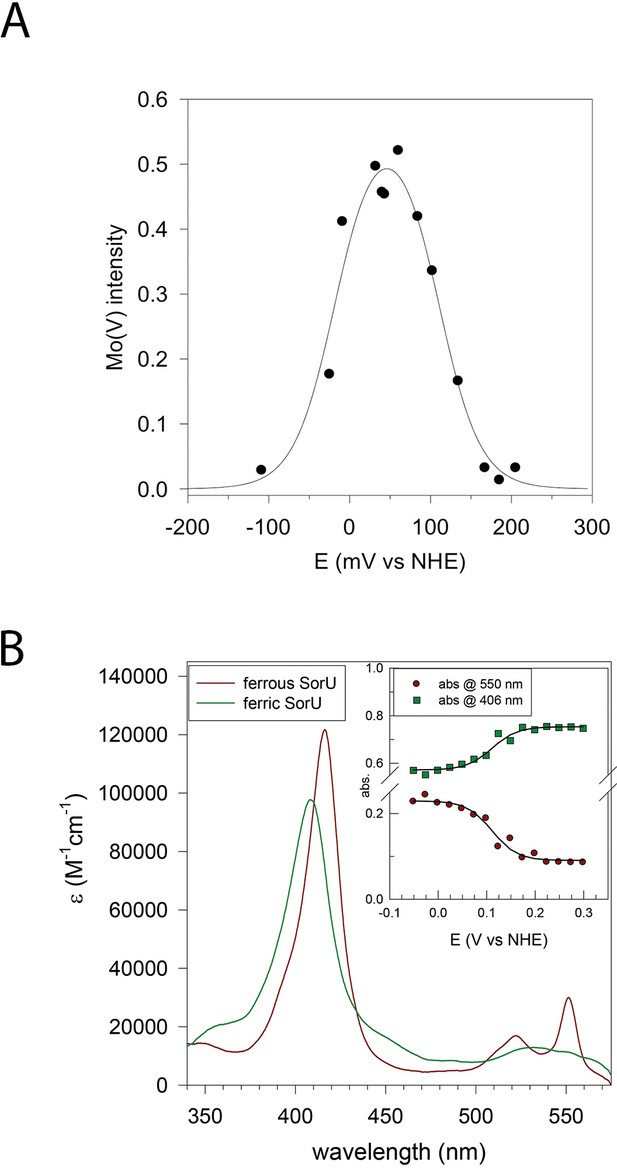

Redox analyses of the SorT protein and the SorT/SorU complex.

(A) Plot of EPR intensity (Ip) at 343 mT (from MoV form of SorT) as a function of solution redox potential (E mV vs NHE). The solid line is a fit to the equation I(E) = Ip1 =10(E-E1)/59 + 10(E2-E)/59 using the potentials E1 = MoVI/V = +110(±10) mV and E2 MoV/IV-18(±10) mV vs NHE). (B) Electronic spectra of ferric and ferrous SorU obtained from spectroelectrochemistry. Inset: plot of absorbance at 550 nm (ferrous α-band) and 406 nm (ferric Soret band) as a function of applied potential. The solid lines are theoretical curves based on the equation Abs = (εox10(E-E')/59) +εred)1 + 10(E-E')/59Ctot where the extinction coefficients refer to the oxidized and reduced forms of the protein and Abs is the absorbance at this same wavelength. ctot is the total protein concentration. The redox potential (E' = +111 mV vs NHE) was obtained by global analysis of all potential dependent spectra across all wavelengths with the program ReactLab Redox (Maeder and King).

https://doi.org/10.7554/eLife.09066.013
Table 6

Redox potential values for SorT and SorUa.

https://doi.org/10.7554/eLife.09066.014
ProteinCoupleEº (mV vs NHE)
SorTMoVI/V+110(±10)
MoV/IV-18(±10)
SorUFeIII/II+108 (±10)
SorU
(in the presence of SorT)
FeIII/II+111 (±10)
  1. aRedox potentials of SorT were determined by redox potentiometry, and SorU redox potentials by optical spectroelectrochemistry.

The MoVI/V and MoV/IV redox potentials of SorT (+110(±10) mV and -18(±10) mV vs. NHE (pH 8)) were determined by an EPR-monitored redox titration where the initial EPR-silent MoVI form is reduced to the EPR-active MoV state (Figure 2A), which then gives way to the EPR-silent MoIV form at low potential, resulting in a bell-shaped curve (Table 6, Figure 6A). The high MoVI/V potential at pH 8 matches that of the ferris/ferrous redox couple. (3,4).

The structural change in SorU indicates that an ‘induced fit’ mechanism is responsible for the formation of a productive SorT/SorU electron transfer complex. This type of mechanism has in the past been used to describe electron transfer complexes (involving electron transfer flavoproteins or ferredoxin reductases) where the protein partners include mobile domains, and where conformational change is necessary for the creation of high affinity protein-protein interfaces (Senda et al., 2007; Toogood et al., 2007). However, although facilitating redox interactions, these systems are distinct from the docking mechanism seen for the SorT and SorU proteins which accompanies modifications to the structure of SorU and allows the two redox centers to attain positions of closest approach for fast electron transfer.

The SorT/SorU interface features extensive electrostatic interactions

The SorT/SorU complex interface shows significant charge complementarity, with the negative charge on SorU correlating with a concentration of positive charges at the SorU binding site on SorT (Figures 3C,D). Unlike other known cytochromes c that can act as electron acceptors to SOEs (Low et al., 2011; Brody and Hille, 1999; Kappler et al., 2000), the electrostatic surface of SorU has an overall negative charge (Figures 3C,D). The positive charge on the SorT surface therefore explains the low catalytic activity of SorT with horse heart cytochrome c (7 U/mg, pI ~10), the natural electron acceptor for vertebrate SOEs, compared to the high activity observed with SorU (212 U/mg; pI ~4) (Kappler, 2011; Low et al., 2011; Wilson and Kappler, 2009). In its electrostatic nature, the interaction surface between SorT and SorU is unusual. Structures of other cytochrome-containing electron transfer complexes (Nojiri et al., 2009; Axelrod et al., 2002; Pelletier and Kraut, 1992; Solmaz and Hunte, 2008) show binding interfaces characterized by a ‘ring’ of electrostatic interactions that encompass contact surfaces that are predominantly hydrophobic. In fact, the ‘steering’ of electron transfer partners by electrostatic interactions, accompanied by ‘tuning’ via hydrophobic interactions is a dominant observation for protein-protein electron transfer complexes (Nojiri et al., 2009; Axelrod et al., 2002; Pelletier and Kraut, 1992; Solmaz and Hunte, 2008).

An unusually large number of hydrogen bonds and salt bridges characterize the SorT/SorU interface

In addition to the electrostatic interactions that support the formation of the SorT/SorU complex, there are six hydrogen bonds found at the SorT/SorU protein-protein interface, as well as a salt bridge between the SorT active site residue Arg 78 and a propionate group of the SorU heme moiety (Table 7, Figure 7). This is an unusually large number in comparison with structures of other cytochrome-containing electron transfer complexes (Nojiri et al., 2009; Axelrod et al., 2002; Pelletier and Kraut, 1992; Solmaz and Hunte, 2008), which tend to have fewer hydrogen bonds and lack salt bridges. In fact, direct hydrogen bonds between electron transfer proteins are generally considered unfavorable for a transient interaction because of energetically disadvantageous desolvation (Miyashita et al., 2003). Also significant is the observation that no intermolecular interactions at the interface are mediated by water molecules (Figure 7) (Nojiri et al., 2009; Gray and Winkler, 2005). In fact, very little ordered water is observed in proximity to the interfacing region of the SorT molecule (a total of 2 water molecules only and these are hydrogen bonded to the SorT molecule rather than mediating the SorT/SorU interaction). However, the current analysis is limited by the moderate resolution of the current structure (2.6 Å), which as a consequence, includes only ca. 0.15 modeled water molecules per residue.

Table 7

Comparison of the protein-protein interfaces in the SorT/SorU and SorAB structures.

https://doi.org/10.7554/eLife.09066.015
ParameterSorT/SorUaSorABb
SorTSorUSorASorB
Average relative B factorc2)0.91.51.01.1
Buried surface area (Å2)d64469612541380
Interfacing residuesd31214633
Hydrogen-bonds630e
Salt-bridges12e
Shape complementarity statisticf0.630.77
  1. aThis work

  2. bPDB code 2BLF (Kappler and Bailey, 2005)

  3. cCalculated as the average for the protomer of interest divided by the average for the entire complex structure.

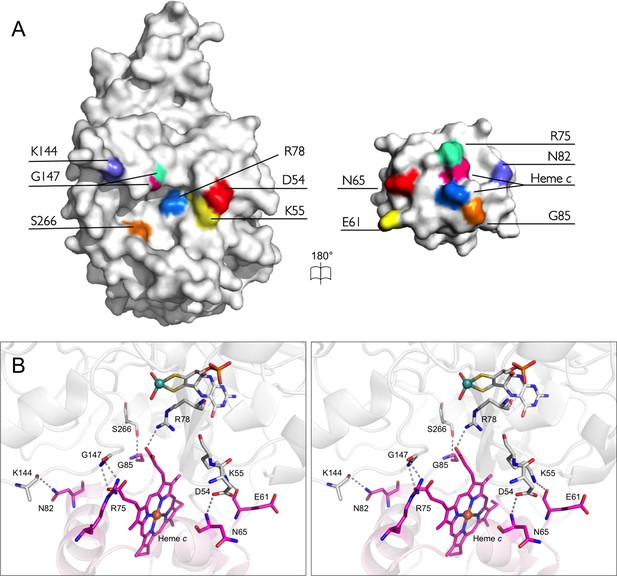

The bonding network at the interface of SorT/SorU.

(A) An open-book representation depicts residues involved in forming stable bonds at the interface between SorT and SorU as corresponding color patches mapped onto the molecular surface. (B) Stereoview of the interface between SorT and SorU. Bonding residues are shown as sticks with bonds shown as dashes between atoms. SorT is shown in light grey and SorU is shown in magenta.

https://doi.org/10.7554/eLife.09066.016

Compared with the subunit interface of the SorAB bacterial sulfite dehydrogenase, which contains 30 hydrogen-bonds and 2 salt bridges (Kappler and Bailey, 2005), supporting a permanent, heterodimeric complex of a heme c subunit (SorB) and a Mo cofactor containing (SorA) catalytic subunit (Kappler and Bailey, 2005) (Table 7), the extent of the subunit interactions in the SorT/SorU structure is modest. The difference between the permanent SorAB and the transient SorT/SorU complexes is also illustrated by calculations of the shape complementarity and the buried surface areas between the protomers (Lawrence and Colman, 1993), with the latter being about twice as large for the SorAB assembly than for SorT/SorU (Table 7). Interestingly, much of the additional contact area between molecules in the SorAB structure derives from the SorB N-terminal structure (residues B501-B518, PDB 2BLF), which extends away from the core of the subunit, wraps around the SorA ‘SUOX-fold' domain and contributes one salt-bridge and 6 hydrogen bonding interactions (Table 7) (Kappler and Bailey, 2005). This feature is absent from the SorU structure.

The dynamic SorT/SorU interaction observed in solution is reflected in the crystal

Despite the intricate assembly of interactions at the protein-protein interface, but in agreement with the kinetics and thermodynamics of the SorT/SorU interaction in solution, the SorT/SorU contact is dynamic, as illustrated by a temperature factor analysis of the complex structure. Within the SorT/SorU complex, the SorU protein shows a significantly increased average atomic temperature factor (reflecting significant flexibility) relative to the structure of the SorT protomer (1.5 versus 0.9 Å2, respectively; Table 7). Furthermore, the relative temperature factors per residue for the SorU molecule increase with increasing distance from the SorT/SorU interface (Figure 5A), indicating that the SorU molecule is dynamic relative to SorT within the crystalline lattice. In contrast, the ‘static’ SorAB complex shows uniform, low temperature factors for both redox subunits (Table 7, Figure 5A). This observation is an exquisite illustration of ‘conformational sampling’ within the SorT/SorU electron transfer complex, which results from the conformational flexibility of one protein redox partner relative to the other and both facilitates electron exchange by accessing the optimal orientations of each redox partner and promotes fast dissociation of the complex following transfer (Leys and Scrutton, 2004; van Amsterdam et al., 2002).

Discussion

By describing the structure of the SorT/SorU complex in this work, we report the first example of a structure of an SOE in complex with its external electron acceptor; all previous structures of SOEs being of the enzymes and their internal heme domains or subunits only (Kisker et al., 1997; Schrader et al., 2003; Kappler and Bailey, 2005). The structure of the SorT/SorU complex therefore allows insights into electron transfer in what is thought to be a highly prevalent type of bacterial SOE (Low et al., 2011) and into protein-protein electron transfer in general. While the complex shows dynamic adaptations similar to those demonstrated previously for electron transfer complexes and has a dissociation constant of the right order of magnitude, it also shows some features that have not been seen in electron transfer complexes, namely an interface that is stabilized by a relatively large number of hydrogen bonds and salt bridges, and an induced fit docking mechanism.

The structure of the protein-protein interface in the SorT/SorU structure is particularly intriguing. The relative lack of bound water molecules, mirrors more the observations made of permanent heterodimeric complexes than transient interactions (Gray and Winkler, 2005). Previous investigations into the factors that influence protein-protein docking for electron transfer have shown that the strength of the protein-protein interaction correlates linearly with the product of the total charges on the protein partners (Trana et al., 2012; Xiong et al., 2010). In this way, the affinity between the SorT/SorU proteins (Kd = 13.5 ± 0.8 μM) correlates with the fast measured turnover rates (kcat of 140 ± 11 s-1) and with the predominantly electrostatic nature of the protein-protein interface.

The turnover number for SorT with SorU as the electron acceptor is also in the range of values measured for the human sulfite oxidase (HSO) and CSO (25.0 ± 1.3 s-1 and 47.5 ± 1.9 s-1, respectively), but significantly slower than that observed for the permanent SorAB complex (345 ± 11 s-1) (Kappler et al., 2006; Wilson and Rajagopalan, 2004; Brody and Hille, 1999). Importantly, in the structure of SorAB, the docking site of the heme subunit (SorB) with the SorA subunit is almost identically positioned to that seen for SorT/SorU, with major differences existing only in the number of hydrogen bonds and salt bridges in the protein-protein interface. For the CSO and HSO enzymes, docking of the mobile heme b domain near the Mo active site has been proposed to be similar to that seen for SorT/SorU (Utesch and Mroginski, 2010). It should be noted, however, that the docking events in CSO (and HSO) and between SorT/SorU serve fundamentally different purposes: for CSO and HSO, domain docking enables intramolecular electron transfer and involves a heme domain that is an intrinsic part of the enzyme. This is a step that precedes interactions with the external electron acceptor for these enzymes. In contrast, and despite the fact that it is occupying a similar docking site to that predicted for CSO and HSO (Utesch and Mroginski, 2010), SorU is the external electron acceptor for SorT and the electron transfer is intermolecular.

The SorT/SorU complex described here thus represents an elegant compromise between the requirements for fast and efficient electron transfer and reaction specificity. It also illustrates new aspects for highly dynamic protein-protein interactions: (i) A relatively large number of hydrogen bonds and salt bridges may be required to form the initial stable protein complex, but this does not preclude a dynamic protein – protein interaction; (ii) relatively subtle structural adjustments in one redox partner (SorU) can facilitate electron transfer by ideally locating the redox active cofactors in close proximity; (iii) the comparatively complex binding interface in SorT/SorU can be counterbalanced by the conformational sampling of one protein relative to the other, which enables the rapid dissolution of the complex following electron exchange.

It remains to be seen whether these principles apply to other SOE – external electron acceptor interactions. Future work should focus on investigating interaction interfaces in currently little studied SOEs where new types of interactions may be present as for many of these enzymes currently no external electron acceptor is known.

Materials and methods

Protein overexpression, purification, data collection and structure solution

Recombinant SorT and SorU proteins were overproduced and purified as previously described (Low et al., 2011), with minor modifications. SorT was crystallized by hanging drop vapor diffusion with drops consisting of equal volumes (2 μL) of protein and crystallization solution (0.1 M HEPES pH 7.5, 8% ethylene glycol, 0.1 M manganese (II) chloride tetrahydrate and 17.5% PEG 10,000) at 20°C. Crystals were cryoprotected in reservoir solution with 30% glycerol before flash-cooling in liquid nitrogen. Small (ca. 20 × 10 × 10 μ) crystals of SorU were grown in drops containing equal volumes (2 μL) of protein and reservoir solution (1.8 M tri-sodium citrate, pH 5.5, 0.1 M glycine), which were harvested and flash-cooled in liquid nitrogen without additional cryoprotection. Purified SorT (20 mM Tris pH 7.8, 2.5% glycerol) and SorU (20 mM Tris pH 7.8, 150 mM NaCl) were mixed and incubated on ice at a molar ratio of 2:1 (SorU:SorT; total protein concentration 8 mgmL-1) before crystallization via hanging-drop vapor diffusion with a reservoir solution containing 0.2 M sodium formate, 0.1 M Bis-Tris propane pH 7.5 and 20% PEG 3350. Crystals grew to a maximum size of ca. 150 x 100 x 20 μ in 4 days at 20°C and were flash-cooled in liquid nitrogen after brief soaking in mother liquor containing 30% glycerol. All diffraction data were collected on an ADSC Quantum 315r detector at the Australian Synchrotron on beamline MX2 at 100 K and were processed with HKL2000 (Otwinowski and Minor, 1997). Unit cell parameters and data collection statistics are presented in Table 1.

The crystal structure of SorT was solved by molecular replacement using PHASER (McCoy et al., 2007) with a search model generated with CHAINSAW (Chainsaw, 2008) from the SorA portion of the SorAB crystal structure (29.0% sequence identity, Protein Data Bank entry 2BLF [Kappler and Bailey, 2005]) as a template (Larkin et al., 2007). The resulting model was refined by iterative cycles of amplitude based twin refinement (using twin operators H, K, L and –H, -K, L with estimated twin fractions of 0.495 and 0.505 respectively) within REFMAC (Murshudov et al., 2011), interspersed with manual inspection and correction against calculated electron density maps using COOT (Emsley and Coot, 2004). The refinement of the model converged with residuals R = 0.208 and Rfree = 0.239 (Table 1). The structure of the SorT/SorU complex was solved by molecular replacement using PHASER (McCoy et al., 2007), with the refined SorT structure as a search model. Initial rounds of refinement yielded a difference Fourier electron density map, which clearly showed positive difference density for the location of one molecule of SorU per asymmetric unit, which was manually built using COOT (Emsley and Coot, 2004). Refinement was carried out with REFMAC5 (Murshudov et al., 2011) and PHENIX (Adams et al., 2002) and converged with residuals R = 0.211 and Rfree = 0.260 (Table 1). The refined SorU model, from the SorT/SorU complex structure, was used as a search model to solve the SorU structure by molecular replacement using PHASER (McCoy et al., 2007). Refinement was carried out with REFMAC5 and PHENIX (Adams et al., 2002) and converged with residuals R= 0.192 and Rfree = 0.240. All structures were judged to have excellent geometry as determined by MOLPROBITY (Chen et al., 2010)(Table 1).

Small-angle X-ray scattering (SAXS)

SAXS analysis of the SorT/SorU complex was performed in a buffer of 20 mM Tris pH 7.8, 2.5% v/v glycerol. Purified SorU and SorT were mixed and incubated on ice at a molar ratio of 2:1 (SorU:SorT), generating two samples of total protein concentrations 2.75 and 6.25 mgmL-1, respectively. SAXS data were measured as described previously(Jeffries et al., 2011) with the data collection parameters listed in Table 4. Data were reduced to I(q) vs q (q=4πsinθλ,where q=4sin2θ is the scattering angle) using the program SAXSquant that includes corrections for sample absorbance, detector sensitivity, and the slit geometry of the instrument. Intensities were placed on an absolute scale using the known scattering from H2O. Protein scattering was obtained by subtraction of the scattering from the matched solvents (20 mM Tris pH 7.8, 2.5% v/v glycerol obtained from the flow-through after protein concentration by centrifugal ultrafiltration). Molecular weight (Mr) estimates for the proteins were made using the equation from Orthaber(Orthaber et al., 2000): Mr=NAI(0)C△ρM2 where NAis Avogadro’s number, C is the protein concentration and △ρM=△ρυ, where △ρ is the protein contrast and υ the partial specific volume, both of which were determined using the program MULCh(Whitten et al., 2008).

The ATSAS program package(Volkov and Svergun, 2003) was used for data analysis and modeling, with the specific programs used detailed in Table 4, along with the data ranges and results of each of the calculations. Further detail on data interpretation and analysis for these experiments is detailed in Appendix 2.

Electron paramagnetic resonance (EPR) spectroscopy

Continuous-wave X-band (ca. 9 GHz) (CW) electron paramagnetic resonance (EPR) spectra were recorded with a Bruker Elexsys E580 CW/pulsed EPR spectrometer fitted with a super high Q resonator; the microwave frequency and magnetic field were calibrated with a Bruker microwave frequency counter and a Bruker ER 036TM Teslameter, respectively. A microwave power of 20 mW was used and optimal spectral resolution was obtained by keeping the modulation amplitude to a 1/10 of the linewidth. A flow-through cryostat in conjunction with a Eurotherm (B-VT-2000) variable temperature controller provided temperatures of 127–133 K at the sample position in the cavity.

Bruker’s Xepr (version 2.6b.45) software was used to control the data acquisition including, spectrometer tuning, signal averaging, temperature control and visualization of the spectra. Computer simulation of the EPR spectra were performed with the following spin Hamiltonian (Equation 2)

(2) H = βB·g·S + S·A(95,97Mo)· I -gnβB·I + i=12(S·A(1H)·I - gnβnB·I)

using the XSophe-Sophe-XeprView (version 1.1.4) computer simulation software suite(Hanson et al., 2004; Hanson et al., 2013) on a personal computer, running the Mandriva Linux v2010.2 operating system. Further detail on data interpretation and analysis for these experiments is detailed in Appendix 1.

EPR-monitored redox potentiometry

The MoIV/V and MoV/VI redox potentials of SorT were determined by an EPR-monitored redox titration carried out in a Belle technology anaerobic box. The protein solution (1.5 mL, 40-90 μM in Tris-HCl, pH 8.0 and 10% glycerol) also contained the following redox mediators at concentrations of ~50 µM: diaminodurol (2,3,5,6-tetramethylphenylene-1,4-diamine, Em,7 +276 mV), dichlorophenolindophenol (Em,7 +217 mV), 2,6-dimethylbenzoquinone (Em,7 +180 mV), phenazine methosulfate (Em,7 +80 mV), 2,5-dihydroxybenzoquinone (Em,7 –60 mV) indigo trisulfonate (Em,7 -90 mV), 2-hydroxy-1,4-naphthoquinone (Em,7 -152 mV) and anthraquinone 2-sulfonate (Em,7 -230 mV). The reductant was Ti(III) citrate and the oxidant was NaS2O8 (both ~100 mM). After addition of titrant and equilibration (15–30 min), the equilibrium potential was measured with a combination Pt wire/AgAgCl redox electrode attached to a Hanna 8417 meter calibrated against the quinhydrone redox couple (Eo′ (pH 7) = +284 mV vs NHE). A 100 μL aliquot of protein was withdrawn and transferred to an EPR tube (in the anaerobic box) which was then sealed and then carefully frozen in liquid nitrogen (outside the box). Potentials for all experiments were measured with a combination Pt wire-Ag/AgCl electrode attached to a Hanna 8417 meter. The intensity of the MoV signal (I) was recorded as a function of measured potential (E), Figure 6.

Optical spectroelectrochemistry

Spectroelectrochemistry of SorU in isolation and the SorT:SorU complex was performed with a Bioanalytical Systems BAS100B/W potentiostat connected to a Bioanalytical Systems thin layer spectroelectrochemical cell (0.5 or 1 mm pathlength) bearing a transparent Au mini-grid working electrode, a Pt wire counter and Ag/AgCl reference electrode. Redox mediators (all Fe complexes) used in the experiment were employed at concentrations of 50 μM (Figure 8).

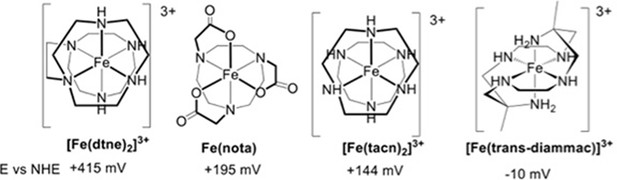

Redox mediators employed in optical spectroelectrochemistry experiments.
https://doi.org/10.7554/eLife.09066.017

None exhibit any significant absorption in the spectral range of interest at micromolar concentrations. The total solution volume was ca. 700 μL. The buffer was 20 mM Tris (pH 8) containing 200 mM NaCl as supporting electrolyte. The SorU concentration was ca. 50 μM, while experiments on the SorU:SorT complex used approximately equal concentrations of both proteins (50 μM). Spectra were acquired within a Belle Technology anaerobic box with an Ocean Optics USB2000 fibre optic spectrophotometer. Initially, the cell potential was poised at ca. -100 mV and the system was allowed to equilibrate until no further spectral changes were apparent (fully reduced SorU). The potentials were then increased in 50 mV increments and the spectrum was measured when no further changes were seen (5–10 min). When the protein was fully oxidized the potential was scanned in the reverse direction in 50 mV intervals to establish reversibility. Data were fitted using the program ReactLab Redox (Maeder and King).

Isothermal titration calorimetry (ITC)

Affinity measurements were conducted using a Microcal ITC200 system (GE Healthcare) at 25°C using SorT and SorU in buffer (25 mM HEPES pH 7.5, 150 mM NaCl and 2.5% glycerol) at final concentrations of 300 μM and 30 μM, respectively. SorT at a concentration of 300 μM was titrated with eighteen injections (2.0 μl each) of SorU. All affinity measurements were performed in triplicate and fitted using a single site mode. Protein concentrations were estimated using Bicinchoninic acid (BCA) protein assay kit (Thermo Fisher Scientific, Waltham, MA).

Enzyme kinetics

Sulfite dehydrogenase enzyme assays were carried out as described previously (Low et al., 2011; Wilson and Kappler, 2009; Kappler et al., 2000). The reduced – oxidized extinction coefficient for SorU at 550 nm was 17.486 mM-1 cm-1 as determined by spectroelectrochemistry. Data fitting was carried out using Sigmaplot 12 (Systat).

Appendix 1

Supplemental material on the interpretation of EPR data

The optimum potential to measure the continuous wave (CW) EPR spectrum of the Mo(V) center in SorT was found to be +50 mV from the redox potentiometry experiments (Figure 6A). The CW EPR spectrum at +0 mV (Figure 2A(a)) arises from a single rhombically distorted Mo(V) center.

Naturally abundant Mo consists of a mixture of isotopes (95,97Mo, I=5/2, 25.5% abundance; 92,94,96,98,100Mo, I=0, 74.5% abundance) and, consequently, the spectrum consists of three I=0 resonances corresponding to the principal directions of the g-matrix and six (2I+1) satellite resonances, each with an intensity of ~4%. Increased spectral resolution was obtained by numerically differentiating the spectrum and carefully Fourier filtering (Hamming function) the spectrum to remove the high-frequency noise without distorting the spectrum (Figure 2A(b)). Interestingly, a close examination of the gz resonance around 339.35 mT reveals a triplet (Figure 2A) (Hanson et al., 2004; 2013) in an approximate ratio of 1:2:1. Computer simulation of the CW EPR spectrumwith a monoclinic (Cs symmetry) spin Hamiltonian (Equation 2) incorporating two magnetically equivalent I=1/2 nuclei and the spin Hamiltonian parameters listed in Table 3 produces the spectrum shown in Figure 2A(c).

Previously we have shown in a study of model Mo(V) complexes that the non-coincident angle, β (rotation of Ay,z from gy,z about x) can be accurately determined utilizing multifrequency CW EPR in conjunction with computer simulation studies (Drew et al., 2007a; 2007b). Herein, the increased spectral resolution in the second derivative spectrum and the narrow line widths enable an accurate determination of the non-coincident angle β without resorting to the use of multiple microwave frequencies. Computer simulation of the second derivative spectrum showed that the 95,97Mo hyperfine resonant field positions along the ‘z’ and ‘y’ directions were highly sensitive to the magnitude of these hyperfine couplings and the non-coincident angle β. The excellent agreement between the simulated and experimental second derivative spectra (Figure 2A(b)(c)) gives confidence in the values of the spin Hamiltonian parameters. We have also shown through a systematic density functional theory study that the non-coincident angle β can be correlated to the pterin fold angle(Drew and Hanson, 2009), and for β=26o, the predicted pterin fold angle would be 5.6o, which is in good agreement with that determined (1.9o±0.2o) from the X-ray crystal structure of SorT.

CW and pulsed EPR spectra of the Mo(V) center in human, avian, plant and bacterial sulfite have been extensively studied (Table 3)(Kappler et al., 2000; Enemark et al., 2010; Doonan et al., 2008; Lamy et al., 1980; Astashkin et al., 2002; Klein et al., 2013; Enemark et al., 2006; Astashkin et al., 2005). The Mo(V) CW EPR spectra of SO from humans, birds and plants are pH dependent. The CW EPR spectra arise from a Mo(V) center with rhombic or lower symmetry and at low pH the resonances are split into a doublet arising from a strongly coupled proton (Table 3). CW and pulsed EPR spectra in conjunction with isotope enrichment (17O, 2H) studies have identified the origin of the proton as an equatorial hydroxo ligand. Loss of the proton superhyperfine coupling at high pH in the CW EPR spectrum, was shown through orientation selective multifrequency electron spin echo envelope modulation (ESEEM) studies to be a rotation of the hydroxo moiety out of the xy plane (rather than deprotonation), thereby reducing the unpaired electron spin density on the 1H nucleus of the hydroxo ligand (Enemark et al., 2010; Klein et al., 2013; Astashkin et al., 2009). 17O ESEEM studies also revealed two other weakly coupled oxygen ligands, the axially coordinated Mo=O moiety and a weakly coupled OH- moiety hydrogen bonded to the equatorial hydroxyo ligand (Klein et al., 2013; Astashkin et al., 2009).

In contrast, the Mo(V) EPR spectra of SOEs from bacteria (SorA [Kappler et al., 2000] and SorT) are pH independent. A comparison of the gz resonances from SorA(Kappler et al., 2000) and SorT (Figure 2) shows their lineshapes to be very similar, both exhibiting shoulders. Herein, we have clearly shown through computer simulation of the Mo(V) CW EPR spectrum that the shoulders do not arise from 95,97Mo hyperfine coupling (Figure 2, Table 3), but arise from two weakly coupled 1H nuclei. While the computer simulation assumed that the two protons were magnetically equivalent, a slight magnetic inequivalence of the two 1H superhhyperfine couplings cannot be ruled out. The origin of the 1H superhyperfine couplings is likely to be either (i) an equatorial aqua ligand with the protons lying outside of the equatorial plane, thereby reducing the overlap with Mo based dxy orbital containing the unpaired electron or (ii) an equatorial hydroxo ligand which is hydrogen bonded to another hydroxyl moiety (Figure 2B) where both protons lie outside of the equatorial plane. The proton superhyperfine couplings are similar to those found from pulsed EPR studies of SorA(Enemark et al., 2010; Raitsimring et al., 2005).

Appendix 2

Supplemental material for the interpretation of SAXS data

The scattering data from the sample prepared as a stoichiometric mixture of SorT and SorU is presented in Figure 3B and Appendix 2-figure 1, while Table 4 summarizes the structural parameters derived from those data. Significantly the Mr value determined from I(0) is in excellent agreement with that expected for a 2:2 complex (within 2-4% for calculations based on Guinier or P(r)derived I(0)). Further, the scattering data fit the crystal structure of the SorT/SorU complex reasonably well, yielding a χ value of 1.7 for the overall fit and good agreement with the crystal structure Rg value. This agreement is not expected to be perfect as the crystal structure is missing a total of 56 residues: 33 from the N-terminus of the SorT, 2 from the N-terminus of SorU and 21 from the C-terminus of SorU; accounting for 12% of the total molecular mass. By comparison, a significantly worse χ value of 2.3 is obtained by fitting only the SorT dimer, which also predicts a significantly smaller Rg value than was observed (28 Å compared to 31 Å).

Dummy atom reconstructions yielded shapes that had the expected molecular volume and in projection had the expected shape for the SorU/SorT2/SorU assembly, although the shapes were consistently a somewhat flatter disk-like structure than that observed in the crystal structure (Figure 3B). This result is not unexpected, as this class of structure (flattened anisotropic particles) is known to present some difficulty on ab initio shape reconstructions (Volkov and Svergun, 2003).

Appendix 2-figure 1
SAXS Data and Interpretation.

(A) Guinier plot of the desmeared I(q) versus q; (B) log:log plot of the measured (slit smeared) I(q) versus q with the P(r)- model I(q) (black line) and smeared P(r)-model I(q) (red line) fits; (C) P(r) versus r for the P(r) model in (B), dmax is 110 Å; (D) superposition of the desmeared I(q) versus q with that calculated from the crystal structure of the SorT/SorU2/SorT complex (red line) and the SorT dimer (green line).

https://doi.org/10.7554/eLife.09066.018

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
    Hepatic sulfite oxidase. a functional role for molybdenum
    1. HJ Cohen
    2. I Fridovich
    3. KV Rajagopalan
    (1971)
    The Journal of Biological Chemistry 246:374–382.
  12. 12
    Hepatic sulfite oxidase. purification and properties
    1. HJ Cohen
    2. I Fridovich
    (1971)
    The Journal of Biological Chemistry 246:359–366.
  13. 13
    Hepatic sulfite oxidase. the nature and function of the heme prosthetic groups
    1. HJ Cohen
    2. I Fridovich
    (1971)
    The Journal of Biological Chemistry 246:367–373.
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
    Coot : model-building tools for molecular graphics
    1. P Emsley
    2. K Cowtan
    (2004)
    Acta Crystallographica Section D Biological Crystallography 60:2126–2132.
    https://doi.org/10.1107/S0907444904019158
  20. 20
  21. 21
    High-Resolution EPR Spectroscopy of Mo Enzymes. Sulfite Oxidases: Structural and Functional Implications
    1. JH Enemark
    2. AV Astashkin
    3. AM Raitsimring
    (2010)
    In: GR Hanson, LJ Berliner, editors. Metals in Biology: Applications of High Resolution EPR to Metalloenzymes. Biological Magnetic Resonance. New York, NY: Springer New York. pp. 121–168.
    https://doi.org/10.1007/978-1-4419-1139-1_6
  22. 22
    Sulfite oxidizing enzymes
    1. C Feng
    2. G Tollin
    3. JH Enemark
    (2007)
    Biochimica Et Biophysica Acta (BBA) - Proteins and Proteomics 1774:527–539.
    https://doi.org/10.1016/j.bbapap.2007.03.006
  23. 23
  24. 24
    Long-range electron transfer
    1. HB Gray
    2. JR Winkler
    (2005)
    Proceedings of the National Academy of Sciences of the United States of America 102:3534–3539.
    https://doi.org/10.1073/pnas.0408029102
  25. 25
  26. 26
    XSophe – Sophe – XeprView and Molecular Sophe: Computer Simulation Software Suites for the Analysis of Continuous Wave and Pulsed EPR and ENDOR Spectra
    1. GR Hanson
    2. CJ Noble
    3. S Benson
    (2013)
    In: A Lund, M Shiotani, editors. EPR of Free Radicals in Solids: Trends in Methods and Applications (2nd Edition). Progress in Theoretical Chemistry and Physics. Heidelberg, Germany: Springer. pp. 223–283.
    https://doi.org/10.1007/978-94-007-4893-4_5
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
    Sulfite-oxidizing enzymes
    1. U Kappler
    2. JH Enemark
    (2015)
    JBIC Journal of Biological Inorganic Chemistry 20:253–264.
    https://doi.org/10.1007/s00775-014-1197-3
  35. 35
    Sulfite oxidation in sinorhizobium meliloti
    1. U Kappler
    2. JJ Wilson
    (2009)
    Biochimica Et Biophysica Acta-Bioenergetics 1787:1516–1525.
  36. 36
    Bacterial Sulfite Dehydrogenases - Enzymes for Chemolithtrophs Only? Microbial Sulfur Metabolism
    1. U Kappler
    (2008)
    Berlin: Springer.
  37. 37
    Bacterial sulfite-oxidizing enzymes
    1. U Kappler
    (2011)
    Biochimica Et Biophysica Acta (BBA) - Bioenergetics 1807:1–10.
    https://doi.org/10.1016/j.bbabio.2010.09.004
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
    SAXS experiments on absolute scale with kratky systems using water as a secondary standard
    1. D Orthaber
    2. A Bergmann
    3. O Glatter
    (2000)
    Journal of Applied Crystallography 33:218–225.
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
    Antiquity and evolutionary status of bacterial sulfate reduction: sulfur isotope evidence
    1. M Schidlowski
    (1979)
    Origins of Life 9:299–311.
  61. 61
  62. 62
  63. 63
  64. 64
    CHAINSAW: a program for mutating pdb files used as templates in molecular replacement
    1. N Stein
    (2008)
    Journal of Applied Crystallography 41:641–643.
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
    MULCh. modules for the analysis of small-angle neutron contrast variation data from biomolecular assemblies
    1. AE Whitten
    2. SZ Cai
    3. J Trewhella
    (2008)
    Journal of Applied Crystallography 39:277–286.
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76

Decision letter

  1. Michael A Marletta
    Reviewing Editor; University of California, Berkeley, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your work entitled "Structural basis of interprotein electron transfer in bacterial sulfite oxidation" for peer review at eLife. Your submission has been favorably evaluated by Michael Marletta (Senior editor). Michael also served as the Reviewing editor, and sought advice from two reviewers.

The reviewers have discussed the reviews with one another and Michael Marletta has drafted this decision to help you prepare a revised submission.

Summary:

This manuscript by McGrath et al. reports the structure of a sulfite oxidizing enzyme (SorT) and its interaction with an electron acceptor SorU, a c-type cytochrome. The authors make the point of the importance of sulfite oxidizing enzyme (SOEs) in overall sulfur metabolism. They note this work is the first co-structure of an SOE with its native electron acceptor, and they further note this is likely the first such characterization for a Mo-containing enzyme. They compare and contrast their SorT structure to that of other SOE structures. In the co-structure they characterize the possible electron transfer pathway between the Mo of SorT and the heme of the SorU. Conformational changes of SorU that allow this interaction to shorten in the co-protein structure vs rigid docking of the individual monomers is described. The protein electrochemistry shows no significant change in the midpoint potential of SorU upon interacting with SorT. The authors discuss the electrostatic interactions between the two proteins, which they consider unusual for cytochrome based ET complexes, including the presence of salt bridges and 5 H-bonds. They then contrast to a relevant "permanent" heterodimer complex between SorB and SorA by which the SorU/SorT interactions are much lower, and the authors discuss specific differences in the protein/protein interactions of the two different pairs. The contrast is extended to looking at the relative temperature factors between proteins of the two pairs, with higher conformational flexibility in the SorU of the SorT/SorT complex. The high conformational flexibility is related by the authors to the thermodynamics of binding and the kinetics of the SorT reaction.

Essential revisions:

We feel that the focus of the paper is not on the protein-protein interface as we were led to believe. In fact there is no structure of the H bonding interactions (the R/propionate interaction is shown) and no discussion of water molecules at the interface. The authors need to either rewrite the paper to focus on the as advertised protein-protein interaction or refocus on a comparison of this sulfite dehydrogenase with others that have the heme domain tethered to the dehydrogenase domain.

The authors have done a lot of work and there are not many examples of two proteins that are involved in electron transfer. The work is thus interesting and important. However, there is little discussion of the well characterized proteins with not only structure, but kinetics and where electrostatic interactions have been changed and the kinetic consequences have been evaluated. The work of Brian Hoffman in particular, but also that of Crane and Gray, is relevant. The authors need to define the focus of the paper. Most of the Discussion, for example, was focused on evolution. The Introduction was too general and did not contain enough background information as provided on sulfite dehydrogenases and what is known.

Minor points:

1) The Abstract is way too general and needs details on the system being investigated, the Kd determined for the protein-protein interactions and the details of the interface. What are the oxidation states, for example of the crystallized proteins etc? What is the reaction catalyzed by SorT?

2) The Introduction is also way too general, ex about sulfur metabolism, and should be focused on the systems that have been well studied crystallographically and kinetically and what has been learned.

3) Figure 2A was very difficult to read due to poor choice of font. We could not really see the EPR spectra.

4) Figure 3 should be removed altogether as the reader does not see much and the description in the text is sufficient.

5) A new figure with the interface and the H bonding interactions, waters should be added in addition to Figure 6B with the salt bridge.

6) We think you should consider moving the details about the protein-protein interaction, such as Kd and turnover numbers, first rather than last.

7) Is the catch phrase "caught in the act" necessary?

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Structural basis of interprotein electron transfer in bacterial sulfite oxidation" for further consideration at eLife. Your revised article has been favorably evaluated by Michael Marletta (Senior editor and Reviewing editor) and two reviewers. The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

In the subsection title “The crystal structure of the SorT homodimer reveals a unique subunit arrangement”, the “unique subunit arrangement” is with respect to what? Why not say a unique head to tail orientation or something alike?

We found the structures in Figure 2B on the EPR figure confusing. How do you know there is a hydroxide ion?

https://doi.org/10.7554/eLife.09066.025

Author response

Essential revisions:

We feel that the focus of the paper is not on the protein-protein interface as we were led to believe. In fact there is no structure of the H bonding interactions (the R/propionate interaction is shown) and no discussion of water molecules at the interface. The authors need to either rewrite the paper to focus on the as advertised protein-protein interaction or refocus on a comparison of this sulfite dehydrogenase with others that have the heme domain tethered to the dehydrogenase domain. The authors have done a lot of work and there are not many examples of two proteins that are involved in electron transfer. The work is thus interesting and important. However, there is little discussion of the well characterized proteins with not only structure, but kinetics and where electrostatic interactions have been changed and the kinetic consequences have been evaluated. The work of Brian Hoffman in particular, but also that of Crane and Gray, is relevant. The authors need to define the focus of the paper. Most of the Discussion, for example, was focused on evolution. The Introduction was too general and did not contain enough background information as provided on sulfite dehydrogenases and what is known.

We have included Figure 7, which illustrates the inter-protein hydrogen bonding interactions in the SorT/SorU complex. We note that the current resolution of the SorT/SorU (2.6 Å) structure limits the analysis of the water structure (with only 0.15 water molecules per residue modeled into the structure), but thank the reviewers for this suggestion. We have added a description within the Results section of the manuscript (subheading “An unusually large number of hydrogen bonds and salt bridges characterize the SorT/SorU interface”) to detail this part of the structure.

We have chosen to focus on the SorT/SorU protein-protein interaction as suggested and as described above included an additional figure and text to emphasise this part of the analysis.

We have used the work of Hoffman and Gray to guide our analyses as suggested (Onuchic et al., 1992; Gray and Winkler, 2005; Trana et al., 2012; Xiong et al., 2010 and Beratan et al., 1992).

We have refocused the Discussion away from the evolutionary aspects to a more detailed analysis of the structure in the context with the kinetics and thermodynamic measurements as suggested.

We have re-written the Introduction to provide more detail on the background to sulfite dehydrogenases in particular.

Minor points:

1) The Abstract is way too general and needs details on the system being investigated, the Kd determined for the protein-protein interactions and the details of the interface. What are the oxidation states, for example of the crystallized proteins etc.? What is the reaction catalyzed by SorT?

The Abstract has been entirely rewritten to include the suggested points.

2) The Introduction is also way too general, ex about sulfur metabolism, and should be focused on the systems that have been well studied crystallographically and kinetically and what has been learned.

As mentioned in ‘Essential Revisions’ above, the Introduction has been rewritten to include responses to these suggestions.

3) Figure 2A was very difficult to read due to poor choice of font. We could not really see the EPR spectra.

A new Figure 2 (now Figure 2 and Figure 6) with greater clarity has been included. We are happy to make further alterations to these figures if the current resolution remains insufficient.

4) Figure 3 should be removed altogether as the reader does not see much and the description in the text is sufficient.

We have removed Figure 3.

5) A new figure with the interface and the H bonding interactions, waters should be added in addition to Figure 6B with the salt bridge.

We have prepared a new Figure 7, which illustrates the hydrogen bonding structure at the protein-protein interface.

6) We think you should consider moving the details about the protein-protein interaction, such as Kd and turnover numbers, first rather than last.

These experiments are now detailed first in the Results section as suggested (subheading “The interactions between SorT and SorU are highly dynamic and efficient in solution”).

7) Is the catch phrase "caught in the act" necessary?

No; this has been removed.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

In the subsection title “The crystal structure of the SorT homodimer reveals a unique subunit arrangement”, the “unique subunit arrangement” is with respect to what? Why not say a unique head to tail orientation or something alike?

We have changed the title of this section to the following as suggested: “The crystal structure of the SorT homodimer reveals a head to tail subunit arrangement”.

We found the structures in Figure 2B on the EPR figure confusing. How do you know there is a hydroxideion?

We thank the editor for pointing this out – there was an overlooked error in Figure 2B, which has now been corrected. The figure now reflects the text on paragraph three, subheading “The crystal structure of the SorT homodimer reveals a head to tail subunit arrangement”.

https://doi.org/10.7554/eLife.09066.026

Article and author information

Author details

  1. Aaron P McGrath

    Structural Biology Program, Centenary Institute, Sydney, Australia
    Present address
    Skaggs School of Pharmacy and Pharmaceutical Sciences, University of California, San Diego, La Jolla, United States
    Contribution
    APM, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  2. Elise L Laming

    School of Molecular Bioscience, University of Sydney, Sydney, Australia
    Present address
    The Victor Chang Cardiac Research Institute, Sydney, Australia
    Contribution
    ELL, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  3. G Patricia Casas Garcia

    Department of Biochemistry and Genetics, La Trobe Institute for Molecular Science, La Trobe University, Melbourne, Australia
    Contribution
    GPCG, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  4. Marc Kvansakul

    Department of Biochemistry and Genetics, La Trobe Institute for Molecular Science, La Trobe University, Melbourne, Australia
    Contribution
    MK, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  5. J Mitchell Guss

    School of Molecular Bioscience, University of Sydney, Sydney, Australia
    Contribution
    JMG, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  6. Jill Trewhella

    School of Molecular Bioscience, University of Sydney, Sydney, Australia
    Contribution
    JT, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  7. Benoit Calmes

    1. Centre for Metals in Biology, The University of Queensland, Brisbane, Australia
    2. School of Chemistry and Molecular Biosciences, The University of Queensland, Brisbane, Australia
    Contribution
    BC, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  8. Paul V Bernhardt

    1. Centre for Metals in Biology, The University of Queensland, Brisbane, Australia
    2. School of Chemistry and Molecular Biosciences, The University of Queensland, Brisbane, Australia
    Contribution
    PVB, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  9. Graeme R Hanson (deceased)

    1. Centre for Metals in Biology, The University of Queensland, Brisbane, Australia
    2. Centre for Advanced Imaging, University of Queensland, Brisbane, Australia
    Contribution
    GRH, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  10. Ulrike Kappler

    1. Centre for Metals in Biology, The University of Queensland, Brisbane, Australia
    2. School of Chemistry and Molecular Biosciences, The University of Queensland, Brisbane, Australia
    Contribution
    UK, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    u.kappler1@uq.edu.au
    Competing interests
    The authors declare that no competing interests exist.
  11. Megan J Maher

    Department of Biochemistry and Genetics, La Trobe Institute for Molecular Science, La Trobe University, Melbourne, Australia
    Contribution
    MJM, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    m.maher@latrobe.edu.au
    Competing interests
    The authors declare that no competing interests exist.

Funding

Australian Research Council (Discovery Project Grant DP0878525)

  • Ulrike Kappler

National Health and Medical Research Council (CJ Martin Postdoctoral Research Fellowship 1053624)

  • Aaron P McGrath

Australian Research Council (Discovery Project Grant DP1211465)

  • Paul V Bernhardt

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

This work was supported by a La Trobe Institute for Molecular Science (LIMS) Senior Research Fellowship to MJM, an Australian Research Council grant and Fellowship (DP0878525) to UK and an NHMRC CJ Martin Postdoctoral Research Fellowship to APM. PVB also acknowledges financial support from the Australian Research Council (DP1211465). Aspects of this research were undertaken on the Macromolecular Crystallography beamline at the Australian Synchrotron (Victoria, Australia) and we thank the beamline staff for their enthusiastic and professional support. A/Prof Matthew Perugini (La Trobe University) is thanked for very helpful discussions. Assistance with EPR sepctroscopy from Dr Jeff Harmer and Dr Chris Noble (Centre for Advanced Imaging, University of Queensland) is also gratefully acknowledged.

Reviewing Editor

  1. Michael A Marletta, University of California, Berkeley, United States

Publication history

  1. Received: May 28, 2015
  2. Accepted: November 12, 2015
  3. Accepted Manuscript published: December 19, 2015 (version 1)
  4. Accepted Manuscript updated: December 23, 2015 (version 2)
  5. Version of Record published: February 4, 2016 (version 3)

Copyright

© 2015, McGrath et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 927
    Page views
  • 232
    Downloads
  • 8
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Ching-Ju Tsai et al.
    Research Article Updated
    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Vivekanandan Shanmuganathan et al.
    Research Article Updated
