Oviductal estrogen receptor α signaling prevents protease-mediated embryo death

  1. Wipawee Winuthayanon  Is a corresponding author
  2. Miranda L Bernhardt
  3. Elizabeth Padilla-Banks
  4. Page H Myers
  5. Matthew L Edin
  6. Fred B Lih
  7. Sylvia C Hewitt
  8. Kenneth S Korach
  9. Carmen J Williams  Is a corresponding author
  1. National Institute of Environmental Health Sciences, National Institutes of Health, United States
  2. Washington State University, United States
Research Article
  • Cited 18
  • Views 1,335
  • Annotations
Cite as: eLife 2015;4:e10453 doi: 10.7554/eLife.10453

Abstract

Development of uterine endometrial receptivity for implantation is orchestrated by cyclic steroid hormone-mediated signals. It is unknown if these signals are necessary for oviduct function in supporting fertilization and preimplantation development. Here we show that conditional knockout (cKO) mice lacking estrogen receptor α (ERα) in oviduct and uterine epithelial cells have impaired fertilization due to a dramatic reduction in sperm migration. In addition, all successfully fertilized eggs die before the 2-cell stage due to persistence of secreted innate immune mediators including proteases. Elevated protease activity in cKO oviducts causes premature degradation of the zona pellucida and embryo lysis, and wild-type embryos transferred into cKO oviducts fail to develop normally unless rescued by concomitant transfer of protease inhibitors. Thus, suppression of oviductal protease activity mediated by estrogen-epithelial ERα signaling is required for fertilization and preimplantation embryo development. These findings have implications for human infertility and post-coital contraception.

https://doi.org/10.7554/eLife.10453.001

eLife digest

In female mammals, eggs made in the ovaries travel to the uterus via tubes called oviducts (or Fallopian tubes). If sperm fertilize these eggs on the way, they complete this journey as early embryos and then implant into the wall of the uterus. As sperm and then newly fertilized embryos travel down these tubes, they encounter fluid inside the oviduct, which is generated by the cells that line the tube.

The hormonal changes that occur with the menstrual cycle alter the complexity and cellular composition of the uterus. When an egg is fertilized, further changes in the levels of the hormones, estrogen and progesterone, ensure the uterus becomes receptive to the embryo. However, it remains unknown whether such hormone-mediated signals also regulate the oviduct to support fertilization and early embryo development.

To investigate this question, Winuthayanon et al. studied female mice that lack an important estrogen receptor in the cells that line their oviducts and uterus. These mice are infertile. This is partly because most sperm become stuck in the uterus and fail to reach the eggs in the oviduct in order to fertilize them. The oviduct also becomes a hostile environment for both eggs and embryos, as reflected in damaged eggs and the complete loss of all new embryos by two days after fertilization. These embryos die, not because their development fails, but because their outer membrane becomes damaged and breaks apart. Winuthayanon et al. showed that this is due to the persistence of enzymes that form part of the immune system inside the oviduct. These enzymes can degrade proteins and damage cell membranes.

The presence of this estrogen receptor on the inner lining of the oviduct thus appears to be crucially important for reproduction (these effects were not seen when it is removed from other cells of the oviduct). The loss of this receptor also reveals the vital role that estrogen plays in suppressing parts of the immune response to ensure the oviduct provides a supportive environment for fertilization and embryo development. These findings could also have future application in the development of new contraceptives and might also shed light on the causes of human infertility.

https://doi.org/10.7554/eLife.10453.002

Introduction

In eutherian mammals, fertilization and preimplantation embryo development occur in the oviduct (Fallopian tube in humans), a tubular reproductive tract structure comprised of an inner columnar epithelium supported by mesenchymal tissues including stroma, smooth muscle, and an outer serosa. Oviduct tissue complexity, cellular composition, and luminal fluid components differ along the length of the oviduct and change temporally in response to alterations in steroid hormone levels that occur with the estrous/menstrual cycle (Buhi et al., 2000). Estrogen levels are highest in the period immediately prior to ovulation and are decreasing when fertilization occurs in the oviductal ampulla. During the several days of preimplantation embryo development, there is a continued decrease in estrogen and an increase in progesterone. In the uterus, cyclic alterations in steroid hormone levels orchestrate the initial proliferation and then cellular differentiation of the endometrium. These changes are critical for establishment of uterine receptivity to the implanting embryo. It is unknown what role, if any, steroid hormone-mediated signals have in regulating oviductal function to support fertilization and preimplantation embryo development.

We have shown previously using mice with an epithelial cell-selective ablation of estrogen receptor α (ERα) in the female reproductive tract (Wnt7aCre;Esr1f/f) that ERα-mediated crosstalk between stromal and epithelial compartments in the uterus is critical for generating a receptive endometrium (Winuthayanon et al., 2010). In the oviduct, ERα is also found in both mesenchymal and epithelial compartments (Yamashita et al., 1989), but the contributions of ERα in either of these compartments to oviductal function have not been evaluated. Here, we used epithelial cell (Wnt7aCre;Esr1f/f) and stromal cell (Amhr2Cre;Esr1f/-) selective ERα ablation in mouse models to test the hypothesis that estrogen signaling via ERα in the epithelial cells regulates expression of secreted molecules required to create a microenvironment supportive of fertilization and preimplantation embryo development.

Results

Mice lacking ERα in epithelial but not mesenchymal cells have impaired fertilization

Female mice lacking ERα only in reproductive tract epithelial cells were generated by crossing our Esr1f/f mice (Hewitt et al., 2010) with Wnt7acre mice (Winuthayanon et al., 2010) and are referred to as ‘cKO’ mice. Mice lacking ERα only in reproductive tract mesenchymal cells were generated by crossing Esr1f/- with Amhr2Cre mice (Huang et al., 2012) and are referred to as ‘mesenchymal cKO’ mice. In cKO mice, ERα was not detected in any oviduct epithelial cells, whereas ERα expression in the stromal and muscular layers was no different than in wild-type (WT) mice (control littermates) (Figure 1, see also Figure 1—figure supplement 1). In mesenchymal cKO mice, ERα was effectively deleted from stromal and muscle cells underlying the epithelium throughout the oviduct (Figure 1). Minimal ablation of ERα in the epithelial cells was observed in some regions of the mesenchymal cKO oviduct. No gross or microscopic morphological alterations in oviduct structure were observed in either cKO mouse line. We previously showed that cKO females cycle and mate normally, indicating that gonadotropins and sex steroid hormones are not altered in these mice (Winuthayanon et al., 2010). To determine whether lack of ERα in either epithelial or mesenchymal compartments affected fertilization, zygotes (one-cell embryos) were collected from normally cycling, mated females at 0.5 days post coitum (dpc). Despite similar numbers of spontaneously ovulated eggs found in the oviducts (typically 7–8), cKO mice had 58% as many zygotes as WT controls, whereas mesenchymal cKO mice had numbers similar to controls (Figure 2A,B). There was also no difference in ovulation efficiency following superovulation (Figure 2C). Taken together, these findings indicate that lack of ERα in epithelial cells, but not mesenchymal cells, reduces fertilization.

Figure 1 with 1 supplement see all
Conditional deletion of estrogen receptor α (ERα) from cell type-selective regions of the oviduct.

Representative immunohistochemical analysis of ERα in the oviduct regions indicated from wild-type (WT), conditional knockout (cKO), and mesenchymal cKO mice. Scale bar = 100 μm. ERα protein expression in the cKO uterus was reported previously (Winuthayanon et al., 2010).

https://doi.org/10.7554/eLife.10453.003
Figure 2 with 1 supplement see all

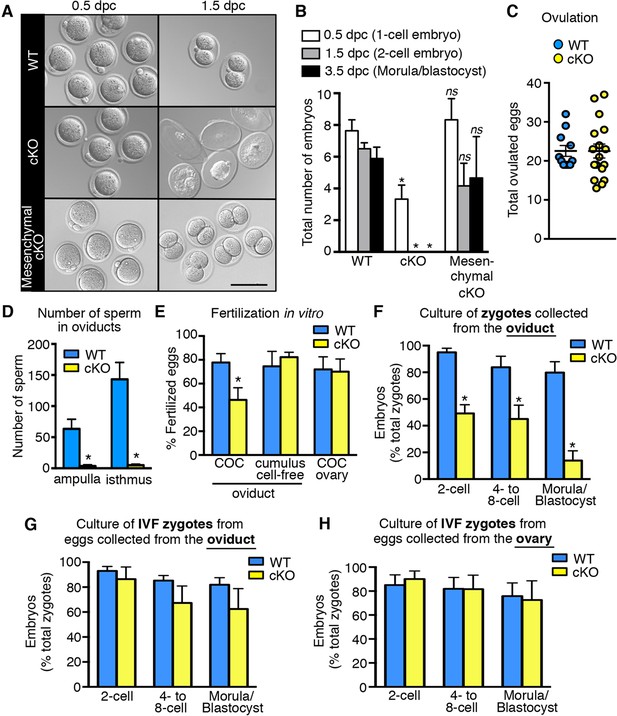

Decreased fertilization and increased embryo death in oviducts lacking epithelial estrogen receptor α (ERα).

(A) Images of zygotes and two-cell embryos collected at 0.5 and 1.5 dpc from each genotype. Scale bar = 100 μm. (B) Total embryos collected at the indicated time points (n = 3–11 mice/group). *p< 0.05 vs WT at similar time-point; ns, no significant difference vs WT at similar time-point. (C) Total ovulated oocytes from WT and cKO females after stimulation with gonadotropins (n = 10–16 mice/group). (D) Number of sperm present in the indicated regions of WT and cKO oviducts following mating. Graph shows number of sperm within cumulus cell masses in the ampulla (n = 5 mice/group) and relative number of sperm flushed from the isthmus region (n = 6 mice/group). *, significant difference compared to WT at designated location, Mann–Whitney test, p <0.01. (E) IVF efficiency. Cumulus-oocyte complexes (COCs) were collected from the oviducts or ovaries of superovulated WT and cKO females and then inseminated. Cumulus cells were removed from one set of oviduct COCs prior to insemination (cumulus cell-free). Graph indicates the percentage of eggs fertilized out of the total collected (n = 5–7 mice/group). (F) Development in vitro of zygotes collected from oviducts of WT and cKO mice. Embryo morphology recorded after 24 hr (two-cell stage), 48 hr (four- to eight-cell stage), and 72 hr (morula and blastocyst stages) (n = 4–5 mice/group). (G,H) Development in vitro of zygotes generated by IVF of oocytes from (G) oviducts (n = 5–7 mice/group) or (H) ovaries of WT and cKO mice (n = 5–7 mice/group). All graphs represent mean ± SEM. *, significant difference compared to WT at designated time point, p<0.05. cKO: Conditional knockout; dpc: Days post coitum; IVF: In vitro fertilization; WT: Wild-type.

https://doi.org/10.7554/eLife.10453.005

Impaired fertilization could be explained by effects on sperm, on ovulated eggs, or on both. To determine if lack of epithelial cell ERα affected sperm migration to the site of fertilization, female mice were mated and the numbers of sperm to reach the ovulated cumulus masses in the ampulla and the sperm storage reservoir in the isthmus (Suarez, 2008) at 0.5 dpc were counted. Despite high numbers of sperm present in the uterine horns, there was a dramatic reduction in the numbers of sperm to reach both the ampulla and isthmus regions of the oviduct in cKO compared to WT mice (Figure 2D, see also Figure 2—figure supplement 1), suggesting that effects on sperm migration explained the reduced fertilization. Of note, we found that the mass of sperm in the upper uterine horns of cKO mice was held within a dense, partially solidified mass that retained the tubular shape of the uterine horn following release into culture medium. In contrast, sperm released into culture medium from control uterine horns rapidly dispersed into small clumps. This finding suggested that abnormalities in post-ejaculation seminal fluid processing in the uterine horn caused the failure of sperm migration into the oviduct.

To evaluate whether lack of epithelial ERα could also affect fertilizability of the ovulated eggs, cumulus-oocyte complexes (COCs) were removed from the oviducts and inseminated. In vitro fertilization (IVF) of the eggs from cKO oviducts was still only about 50% as efficient as controls (Figure 2E). Removal of the surrounding cumulus cells using hyaluronidase completely rescued IVF of eggs from cKO oviducts to the same level as that of control eggs. Similarly, eggs within intact COCs removed directly from the ovary just prior to ovulation to completely avoid exposure to the cKO oviduct were fertilized in vitro as well as control eggs from WT ovaries. Taken together, these findings indicate that fertilization is impaired in the cKO mouse due to abnormal sperm migration into the oviduct and detrimental effects of the oviduct environment on the cumulus cell masses surrounding the eggs.

The oviductal microenvironment in mice lacking epithelial ERα is toxic to preimplantation embryos

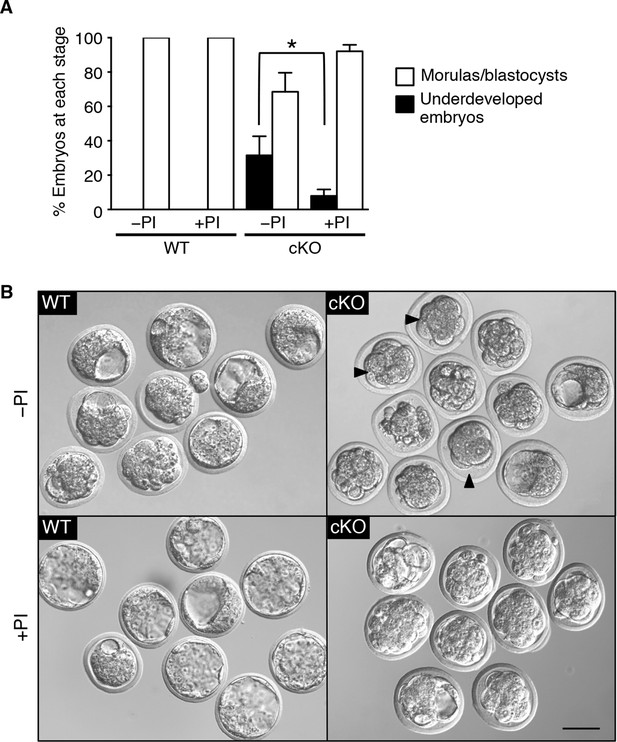

To evaluate preimplantation embryo development in vivo, oviducts of normally cycling, mated females were flushed at 1.5 dpc and the recovered embryos were counted. Oviducts from WT females contained two-cell embryos (Figure 2A,B); however, cKO oviducts had no living embryos. Instead, only remnants of non-viable eggs or embryos were recovered (Figure 2A), indicating that all zygotes present at 0.5 dpc died before the two-cell stage. In contrast, mesenchymal cKO oviducts contained similar numbers of embryos with an appearance comparable to controls when collected on both 1.5 dpc (two-cell embryos) and 3.5 dpc (morulae/blastocysts) (Figure 2A,B). We conclude that expression of epithelial, but not mesenchymal, ERα in the oviduct is crucial for preimplantation embryo development. Furthermore, when zygotes were recovered from cKO oviducts ∼6 hr after fertilization and then cultured in vitro, less than 50% cleaved to the two-cell stage, and only 14% progressed to the blastocyst stage, whereas more than 80% of the zygotes from WT oviducts developed to the blastocyst stage (Figure 2F). However, if eggs were collected from either cKO oviducts or ovaries and then fertilized in vitro, the resulting zygotes developed to the blastocyst stage at a rate comparable to WT (Figure 2G,H). These results indicate that the zygotes’ developmental potential was severely compromised even if they were exposed to the cKO oviduct environment for only a few hours after fertilization.

Epithelial ERα regulates prostaglandin levels and inflammatory response mediators in the oviduct

To identify factor(s) in the cKO oviduct that could be responsible for inhibiting fertilization and embryo development, we used microarray analysis to compare transcripts in whole oviducts collected at 0.5 and 1.5 dpc from WT and cKO mice, respectively. The most highly altered genes at 0.5 and 1.5 dpc are listed in Tables 1 and 2, respectively; representative genes were validated using real-time PCR (Figure 3). Using Ingenuity Pathway Analysis software, we found that biological functions significantly altered at 0.5 dpc included tissue development, lipid metabolism, inflammatory response, and cellular growth and proliferation (Table 3). At 1.5 dpc, there were fewer altered biological functions than at 0.5 dpc; these functions included tissue development, inflammatory response, cellular movement, and small molecule biochemistry (Table 4). Unsupervised hierarchical clustering of the microarray signal intensities indicated two groups of gene expression patterns, one consisting of WT 0.5 dpc, and the second including all remaining groups (Figure 4A). Note that in the cKO samples, replicates from both 0.5 and 1.5 dpc did not all cluster together, unlike WT sample replicates, which clustered together according to the day of pregnancy. Instead, the cKO 0.5 dpc samples were much more similar to both the cKO 1.5 dpc and WT 1.5 dpc samples. These findings demonstrate that estrogen signaling via epithelial ERα has dramatic effects on oviductal gene expression at 0.5 dpc but not 1.5 dpc and are consistent with the normal pattern of estrous cycle estrogen levels that reach a peak prior to ovulation and then drop significantly by 1.5 dpc.

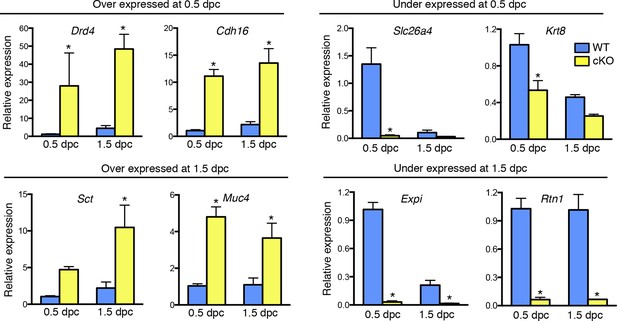

Validation of up- and down-regulated genes in conditional knockout (cKO) compared to Wild-type (WT) oviducts at 0.5 and 1.5 dpc using real-time PCR analysis.

The transcripts were selected from microarray datasets for over- and under-expression in cKO oviducts compared to WT at 0.5 or 1.5 dpc, as indicated (n = 4–7 mice/group; mean ± SEM). Data represents relative expression level normalized to Rpl7. *, significant difference compared to WT at same time point, p<0.05. dpc: Days post coitum.

https://doi.org/10.7554/eLife.10453.007

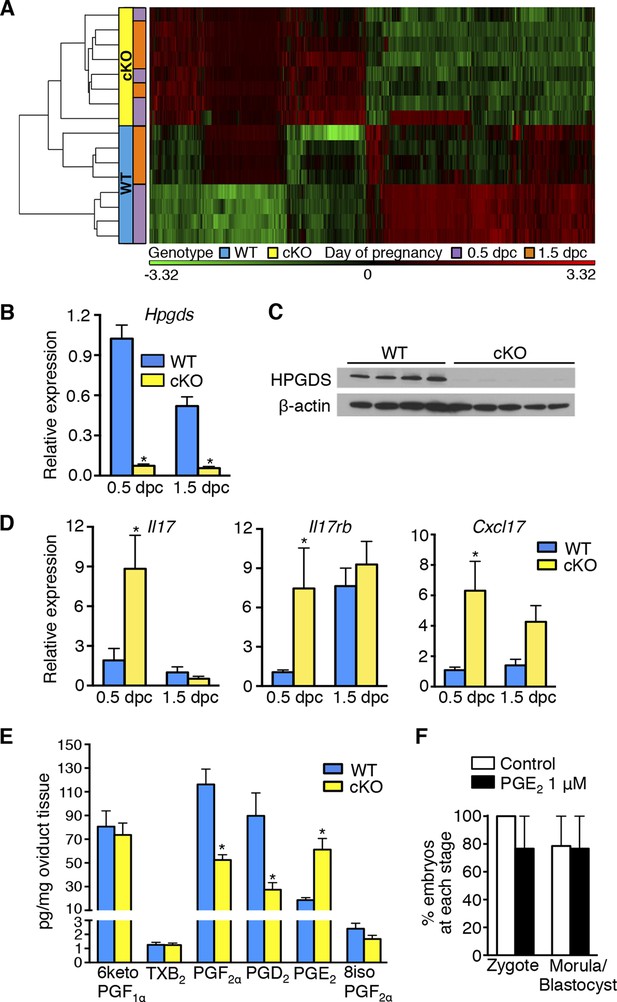

Aberrant oviduct innate immune function in the absence of oviductal epithelial estrogen receptor α (ERα).

(A) Unsupervised hierarchical clustering of microarray data from wild-type (WT) and conditional knockout (cKO) oviducts at 0.5 and 1.5 dpc. Using a 1.5-fold cutoff, 3263 probes were significantly different between WT and cKO oviducts at 0.5 dpc, whereas only 321 probes were different at 1.5 dpc. The heat map shows log2 transformed and standardized g Processed Signals (signal intensities). Green color represents probes with intensity less than mean; red color represents probes with intensity more than mean. Each horizontal bar represents data from a single animal; n = 4 mice/group. (B) Real-time PCR of hematopoietic prostaglandin D synthase (Hpgds) transcript in WT and cKO oviducts at 0.5 and 1.5 dpc (n = 4–7 mice/group). (C) Immunoblot of HPGDS expression in WT and cKO oviducts at 0.5 dpc; β-actin was used as a loading control. Protein lysate from one mouse in each lane; n = 4–5 mice/group. (D) Real-time PCR of interleukin-17 (Il17), interleukin-17 receptor b (Il17rb), and chemokine (CXC motif) ligand 17 (Cxcl17)transcripts in WT and cKO oviducts at 0.5 and 1.5 dpc (n = 4–7 mice/group). (E) Prostaglandin profile in whole oviduct tissues from WT and cKO at 0.5 dpc. 6ketoPGF, 6-keto-prostaglandin F; TXB2, thromboxane B2; PGF, prostaglandin F; PGD2, prostaglandin D2; PGE2, prostaglandin E2; and 8isoPGF, 8-iso-prostaglandin F (n = 6–7 mice/group). (F) Number of fertilized eggs (zygotes) after insemination in the presence of PGE2 and number of morulae and blastocysts 3 days after treating zygotes with 1 μM PGE2 as compared to vehicle control (n = 36–40 oocytes/group). For all panels, graphs represent mean ± SEM and asterisks indicate significant difference compared to WT at designated time point, p<0.05. dpc: Days post coitum; HPGDS: hematopoietic prostaglandin D synthase.

https://doi.org/10.7554/eLife.10453.008
Table 1

Highly altered genes in cKO compared to WT oviducts at 0.5 dpc.

https://doi.org/10.7554/eLife.10453.009
SymbolEntrez gene nameFold change (cKO vs WT)p-value
Drd4 Dopamine receptor D438.3573.40E-04
Cdh16 Cadherin 16, KSP-cadherin33.7966.04E-08
Clca1 Chloride channel accessory 126.7863.40E-03
Lrrc39 Leucine-rich repeat containing 3924.8851.97E-06
Olfr632 Olfactory receptor 63223.1831.45E-08
Sct Secretin21.0794.74E-06
Ost alpha Organic solute transporter alpha20.6701.87E-04
Kif12 Kinesin family member 1219.8141.37E-05
Enthd1 ENTH domain containing 118.3752.03E-03
Or8g2 Olfactory receptor, family 8, subfamily G, member 217.5965.42E-05
Trp5 Transient receptor potential cation channel, member 516.9471.35E-05
Olfr676 Olfactory receptor 67616.1059.31E-04
Or1s1 Olfactory receptor, family 1, subfamily S, member 115.8868.80E-08
Cdh7 Cadherin 7, type 215.7726.51E-10
Chrna6 Cholinergic receptor, nicotinic, alpha 615.6614.81E-04
Col8a1 Collagen, type VIII, alpha 114.8859.07E-05
Olfr470 Olfactory receptor 47014.5422.39E-03
Prrt3 Proline-rich transmembrane protein 314.2928.79E-03
Pla2g5 Phospholipase A2, group V14.2561.84E-07
Slc35f4 Solute carrier family 35, member F414.0912.83E-03
Dhrs9 Dehydrogenase/reductase (SDR family) member 9-13.5306.61E-05
Or1j4 Olfactory receptor, family 1, subfamily J, member 4-13.6218.64E-07
Hiat1 Hippocampus abundant transcript 1-13.9099.65E-04
Znf385b Zinc finger protein 385B-14.0324.32E-07
Cyp7a1 Cytochrome P450, family 7, subfamily A, polypeptide 1-14.1641.53E-06
Olfr1316 Olfactory receptor 1316-14.2257.13E-07
Cux1 Cut-like homeobox 1-14.3312.87E-04
Expi Extracellular proteinase inhibitor-14.3732.52E-06
Sh2d4b SH2 domain containing 4B-15.4121.33E-04
Olfr1196 Olfactory receptor 1196-15.4492.26E-05
Thsd7b Thrombospondin, type I, domain containing 7B-16.3359.09E-05
Slc7a14 Solute carrier family 7 (orphan transporter), member 14-16.4455.52E-05
Olfr992 Olfactory receptor 992-17.7709.70E-06
Olfr181 Olfactory receptor 181-18.0048.70E-06
Upk1a Uroplakin 1A-18.5252.05E-05
Bpifc BPI fold containing family C-18.5781.06E-05
C1orf50 Chromosome 1 open-reading frame 50-22.3333.35E-05
Tshr Thyroid stimulating hormone receptor-36.7584.18E-06
Dcpp Demilune cell and parotid protein-129.6422.22E-03
C6orf15 Chromosome 6 open-reading frame 15-148.2547.15E-05
  1. cKO: Conditional knockout; dpc: Days post coitum; WT: Wild-type.

Table 2

Highly altered genes in cKO compared to WT oviducts at 1.5 dpc.

https://doi.org/10.7554/eLife.10453.010
SymbolEntrez gene nameFold change (cKO vs WT)p-value
Clca1 Chloride channel accessory 134.2632.60E-04
Pcdh8 Protocadherin 827.0101.34E-05
Sct Secretin13.0706.05E-06
Myom2 Myomesin (M-protein) 2, 165kDa12.1631.16E-05
Klk8 Kallikrein-related peptidase 88.7368.45E-04
Crp C-reactive protein, pentraxin-related7.9044.30E-04
C2orf51 Chromosome 2 open-reading frame 516.9053.72E-04
Muc4 Mucin 4, cell surface associated5.9321.02E-04
Cntf Ciliary neurotrophic factor5.6431.02E-05
Csn1s1 Casein alpha s15.3742.03E-04
Dbh Dopamine β-hydroxylase5.2486.50E-07
Hs6st3 Heparan sulfate 6-O-sulfotransferase 35.0863.19E-05
G6pc2 Glucose-6-phosphatase, catalytic, 24.3706.53E-04
Nr0b1 Nuclear receptor subfamily 0, group B, member 14.2312.95E-05
Krt15 Keratin 154.1152.60E-04
Kcnd2 Potassium voltage-gated channel, member 24.0532.78E-04
Il18r1 Interleukin 18 receptor 14.0012.54E-05
Cxcl17 Chemokine (C-X-C motif) ligand 173.9542.79E-07
Nrgn Neurogranin (protein kinase C substrate, RC3)3.8812.85E-04
Trvp6 Transient receptor potential cation
channel member 6
3.8082.64E-05
Cntnap2 Contactin-associated protein-like 2-4.4711.41E-04
Gpr64 G-protein-coupled receptor 64-4.5272.05E-06
Ly6a Lymphocyte antigen 6 complex, locus A-4.5854.28E-04
Unc5cl Unc-5 homolog C (C. elegans)-like-4.6376.55E-04
Sbp Spermine-binding protein-4.6816.20E-05
Hpgds Hematopoietic prostaglandin D synthase-4.7902.61E-05
Galntl5 UDP-N-acetyl-α-d-galactosamine:polypeptide
N-acetylgalactosaminyltransferase-like 5
-4.8047.22E-04
Gabra5 Gamma-aminobutyric acid (GABA)
A receptor, alpha 5
-5.3099.81E-05
Sftpd Surfactant protein D-5.4101.14E-04
Uox Urate oxidase, pseudogene-5.4112.05E-04
Ctse Cathepsin E-6.7618.95E-04
Calml3 Calmodulin-like 3-7.8429.63E-07
Sectm1 Secreted and transmembrane 1-8.1303.06E-05
Reg1a Regenerating islet-derived 1 alpha-8.2555.03E-05
Upk1a Uroplakin 1A-8.8396.84E-05
Rtn1 Reticulon 1-9.9438.23E-06
Mlc1 Megalencephalic leukoencephalopathy
with subcortical cysts 1
-11.7583.67E-06
Expi Extracellular proteinase inhibitor-13.6921.96E-06
Atp6v1c2 ATPase, H transporting, V1 subunit C2-14.2254.67E-06
C6orf15 Chromosome 6 open reading frame 15-253.7223.51E-07
  1. cKO: Conditional knockout; dpc: Days post coitum; WT: Wild-type.

Table 3

Selected Ingenuity top biological function categories at 0.5 dpc.

https://doi.org/10.7554/eLife.10453.011
Categoryp-value# Molecules
Tissue development
Tissue development3.12E-10362
Cell–cell adhesion3.33E-0422
Accumulation of monocytes8.34E-045
Angiogenesis of organ1.16E-0315
Accumulation of phagocytes1.26E-0322
Development of endothelial tissue3.61E-0338
Accumulation of eosinophils5.73E-038
Lipid metabolism
Synthesis of lipid4.66E-08117
Steroid metabolism3.13E-0648
Metabolism of cholesterol1.42E-0421
Metabolism of prostaglandin1.24E-0327
Synthesis of eicosanoid2.02E-0332
Synthesis of prostaglandin D23.75E-039
Inflammatory response
Inflammation3.52E-0469
Accumulation of monocytes8.34E-045
Accumulation of phagocytes1.26E-0322
Accumulation of eosinophils5.73E-038
Accumulation of antigen-presenting cells8.80E-0313
Cellular growth and proliferation
Proliferation of endothelial cells3.59E-0332
Proliferation of endocrine cells4.48E-0314
Proliferation of chondrocytes5.56E-0312
Proliferation of epidermal cells7.78E-0320
Proliferation of B-lymphocyte-derived
cell lines
8.20E-0319
Proliferation of Th2 cells8.70E-035
  1. dpc: Days post coitum.

Table 4

Selected Ingenuity top biological function categories at 1.5 dpc.

https://doi.org/10.7554/eLife.10453.012
Categoryp-value# Molecules
Tissue development
Tissue development3.06E-0344
Development of organ1.05E-0230
Aggregation of cells1.46E-028
Organization of tissue1.48E-026
Inflammatory response
Immune response of neutrophils4.91E-034
Chemotaxis of antigen-presenting cells6.37E-035
Immune response of phagocytes1.56E-025
Cellular movement
Mobilization of cells6.75E-034
Mobilization of neutrophils8.24E-032
Small molecule biochemistry
Production of eicosanoid3.51E-037
Synthesis of prostaglandin E26.13E-035
Synthesis of lipid1.13E-0215
  1. dpc: Days post coitum.

The entire female reproductive tract functions as a mucosal immune barrier and secreted antimicrobial proteins form a significant component of the local innate immune response (Wira et al., 2011). Biologic activity of antimicrobial proteins is modulated by secreted proteases and protease inhibitors (PIs), both of which can also serve as antimicrobials in the female reproductive tract and at other mucosal surfaces (Shaw et al., 2008; Wira et al., 2011; Aboud et al., 2014; Dittmann et al., 2015). Immune suppression by steroid hormones during mid-cycle creates a window of susceptibility to infection well documented in human tissues (Wira et al., 2010). Because the embryos in the cKO oviducts were dying rather than simply failing to develop, we hypothesized that estrogen signaling via epithelial ERα is required to suppress secretion of oviduct antimicrobial molecules that can cause preimplantation embryo death. This idea is consistent with the identification of inflammatory response as a biological category significantly altered in the cKO oviduct at both 0.5 and 1.5 dpc (Tables 3 and 4). The altered inflammatory response genes included proteases, PIs, defensins, chemokines (including Il17, Il17rb, and Cxcl17), and enzymes regulating prostaglandin (PG) production such as hematopoietic prostaglandin D synthase (Hpgds) (Figure 4B–D; Table 5). Liquid chromatography-tandem mass spectrometry was used to determine the PG profile of WT and cKO oviducts at 0.5 dpc. PGD2 and PGF levels were significantly lower, whereas PGE2 was increased in cKO compared to WT oviducts (Figure 4E). PGs are not normal components of embryo culture medium, so we reasoned that lack of PGD2 and PGF could not cause embryo death in vivo. In contrast, PGE2 was elevated in the cKO oviducts and in theory could contribute to the embryo phenotype either directly by effects on the embryo or indirectly by effects on the oviduct. To determine if PGE2 could directly cause embryo death, we added PGE2 to the culture medium during fertilization of WT eggs and during the entire period of embryo development to the blastocyst stage. Inclusion of excess PGE2 had no effect on fertilization or embryo development (Figure 4F), suggesting that although epithelial ERα regulates oviduct PG production, these lipid compounds alone are not directly responsible for causing embryo death.

Table 5

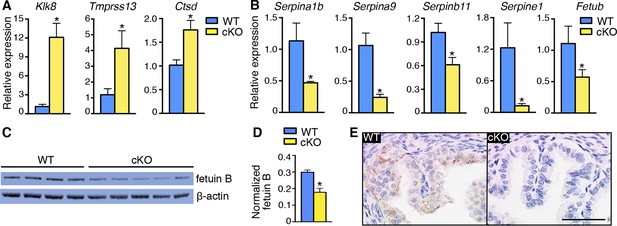

Protease, protease inhibitor, and antimicrobial peptide transcripts in cKO compared to WT oviducts at 0.5 dpc.

https://doi.org/10.7554/eLife.10453.013
SymbolEntrez gene nameFold change (cKO vs WT)p-value
Proteases
Tmprss15 Transmembrane protease, serine 1516.412.33E-09
Klk8 Kallikrein related-peptidase 810.349.85E-04
Prss42 Protease, serine, 429.637.67E-03
Prss7 Protease, serine, 7 (enterokinase)8.542.34E-02
Klk9 Kallikrein related-peptidase 95.627.06E-06
Prss33 Protease, serine, 335.355.07E-04
Prss51 Protease, serine, 512.961.65E-02
Prss41 Protease, serine, 412.691.36E-04
Klk7 Kallikrein related-peptidase 72.632.55E-05
Prss32 Protease, serine, 322.453.10E-02
Tmprss13 Transmembrane protease, serine 132.146.83E-03
Cma1 Chymase 1, mast cell2.052.53E-02
Prss35 Protease, serine, 351.903.10E-02
Prss34 Protease, serine, 341.891.92E-02
Mcpt4 Mast cell protease 41.823.45E-02
Prss23 Protease, serine, 231.663.54E-02
Tmprss6 Transmembrane protease, serine 61.524.69E-04
Ctsd Cathepsin D1.514.89E-02
Prss3 Protease, serine, 3-1.813.10E-02
Klk1b3 Kallikrein 1-related peptidase b3-2.082.86E-02
Klk1b8 Kallikrein 1-related peptidase b8-2.312.44E-03
Prss58 Protease, serine, 58-2.461.27E-02
Klk1b26 Kallikrein 1-related peptidase b26-4.014.57E-02
Klk1b11 Kallikrein 1-related peptidase b11-4.041.25E-02
Klk1 Kallikrein 1-4.081.11E-03
Prss29 Protease, serine, 29-4.203.96E-02
Klk12 Kallikrein related-peptidase 12-4.682.05E-03
Klk1b24 Kallikrein 1-related peptidase b24-6.133.12E-03
Klk1b21 Kallikrein 1-related peptidase b21-8.854.72E-03
Klk1b27 Kallikrein 1-related peptidase b27-9.652.72E-03
Prss28 Protease, serine, 28-28.092.34E-02
Protease inhibitors
Serpini2 Serine (or cysteine) peptidase inhibitor, clade I (pancpin), member 26.993.89E-02
Serpinb7 Serine (or cysteine) peptidase inhibitor, clade B (Ovalbumin), member 76.282.63E-02
Serpinb9f Serine (or cysteine) peptidase inhibitor,
clade B, member 9f
5.973.82E-02
Serpinb12 Serine (or cysteine) peptidase inhibitor,
clade B, member 12
2.051.12E-02
Serpine2 Serine (or cysteine) peptidase inhibitor,
clade E, member 2
1.794.87E-02
Cstb Cystatin B (stefin B)-1.762.25E-04
Serpinb11 Serine (or cysteine) peptidase inhibitor,
clade B (ovalbumin), member 11
-2.102.99E-03
Fetub Fetuin beta-2.251.14E-02
Csta Cystatin A (stafin A)-2.653.80E-03
Serpine1 Serine (or cysteine) peptidase inhibitor,
clade E, member 1
-2.694.02E-02
Serpina3b Serine (or cysteine) peptidase inhibitor,
clade A, member 3B
-3.302.49E-02
Serpina1b Serine (or cysteine) peptidase inhibitor,
clade A, member 1B
-3.495.80E-03
Serpina1e Serine (or cysteine) peptidase inhibitor,
clade A, member 1E
-4.044.02E-02
Serpina9 Serine (or cysteine) peptidase inhibitor,
clade A (alpha-1 antiproteinase,
antitrypsin), member 9
-4.222.52E-03
Wfdc18 (or Expi)WAP four-disulfide core domain
18 (or extracellular proteinase inhibitor)
-13.691.96E-06
Antimicrobial peptides
Defb8 Defensin, beta 813.122.78E-02
Defa38 Defensin, alpha 383.482.42E-02
Defa3 Defensin, alpha 32.213.35E-05
Defb116 Defensin, beta 116-2.501.03E-02
Defb103b Defensin, beta 103B-3.241.06E-03
Defa4 Defensin, alpha 4-5.703.46E-02
Defb34 Defensin, beta 34-10.026.15E-05
  1. cKO: Conditional knockout; dpc: Days post coitum; WT: Wild-type.

The immune response mediators identified in the microarray analysis were highly enriched for antimicrobial peptides, proteases, and PIs (Table 5), all of which have bactericidal activity. At 0.5 dpc, many serine protease transcripts were increased (Figure 5A) and serine and cysteine PIs were decreased (Figure 5B) in cKO compared to WT oviducts (Table 5), suggesting that overall protease activity was elevated. In contrast, expression of proteases and PIs was comparable between WT and mesenchymal cKO oviducts on 0.5 dpc (Figure 5—figure supplement 1). These findings suggested that protease activity in the oviduct environment could explain the embryo death phenotype.

Figure 5 with 1 supplement see all
Alterations in expression of proteases and protease inhibitors in oviducts lacking epithelial estrogen receptor α (ERα).

Real-time PCR of the indicated (A) proteases and (B) protease inhibitors in wild-type (WT) and conditional knockout (cKO) oviducts at 0.5 dpc (n = 4–7 mice/group; mean ± SEM). (C) Immunoblot analysis of fetuin B in WT and cKO oviducts; β-actin served as a loading control. Protein lysate from one mouse in each lane; n = 4–5 mice/group. (D) Quantitation of fetuin B signal intensity normalized to β-actin. (E) Fetuin B localization in WT and cKO oviducts at 0.5 dpc. Images shown are representative of n = 4 mice/group. Scale bar = 50 μm. For all panels, asterisk indicates significant difference compared to WT, p<0.05. dpc: Days post coitum.

https://doi.org/10.7554/eLife.10453.014

Protease-mediated disruption of plasma membrane integrity leads to embryo death

Treatment with proteases is a well-established method of removing the zona pellucida (ZP), the protective extracellular matrix that surrounds ovulated eggs and developing embryos. Protease treatment results in an initial swelling of the ZP, a morphological change consistent with the ZP appearance of the dead embryos recovered from cKO oviducts (Figure 2A). The ZP is comprised of three heavily glycosylated proteins, ZP1, ZP2, and ZP3. After fertilization, there is a physiological proteolytic cleavage of ZP2 when the eggs undergo cortical granule exocytosis and release the protease ovastacin; this change makes the ZP resistant to penetration by additional sperm (Burkart et al., 2012). ZP2 cleavage is responsible for the observation of ‘zona hardening’ after fertilization, defined experimentally by an increased resistance of the ZP to dissolution by proteases in vitro (Smithberg, 1953; Gulyas and Yuan, 1985).

One of the cysteine protease inhibitors with reduced expression in cKO oviducts was fetuin B (Table 5), which has inhibitory activity toward ovastacin (Dietzel et al., 2013). We found that fetuin B protein levels were decreased in cKO oviducts (Figure 5C,D). In WT oviducts, most fetuin B localized to epithelial cells; the protein was minimally detected in cKO oviducts (Figure 5E). Altered expression of fetuin B was not observed in mesenchymal cKO oviducts (Figure 5—figure supplement 1), indicating that fetuin B expression is regulated by estrogen-epithelial ERα signaling.

Although the large number of cortical granules released at fertilization causes sufficient ovastacin release to almost completely cleave ZP2 and prevent polyspermy, oocytes also gradually release cortical granules with time following hormone-induced initiation of maturation (Ducibella et al., 1990). The consequent release of ovastacin from the cortical granules causes a small but significant amount of ZP2 cleavage and zona hardening when ovulated eggs are cultured in vitro in the absence of serum (which contains fetuin), or in vivo in Fetub-/- mice (Schroeder et al., 1990; Dietzel et al., 2013). We took advantage of ZP2 sensitivity to protease-mediated cleavage over time to determine if protease activity within the cKO oviducts was increased. Ovulated eggs were collected 16 hr after human chorionic gonadotropin (hCG) administration, when they would have spent ∼4 hr in the oviduct, and then evaluated for premature ZP2 proteolysis. Based on immunoblot analyses, ovulated eggs recovered from cKO oviducts had significantly less intact ZP2 and more cleaved ZP2 (Figure 6A–C). This finding demonstrates that there is a physiologically relevant increase in protease action on the ZP within cKO oviducts in vivo.

Figure 6 with 1 supplement see all

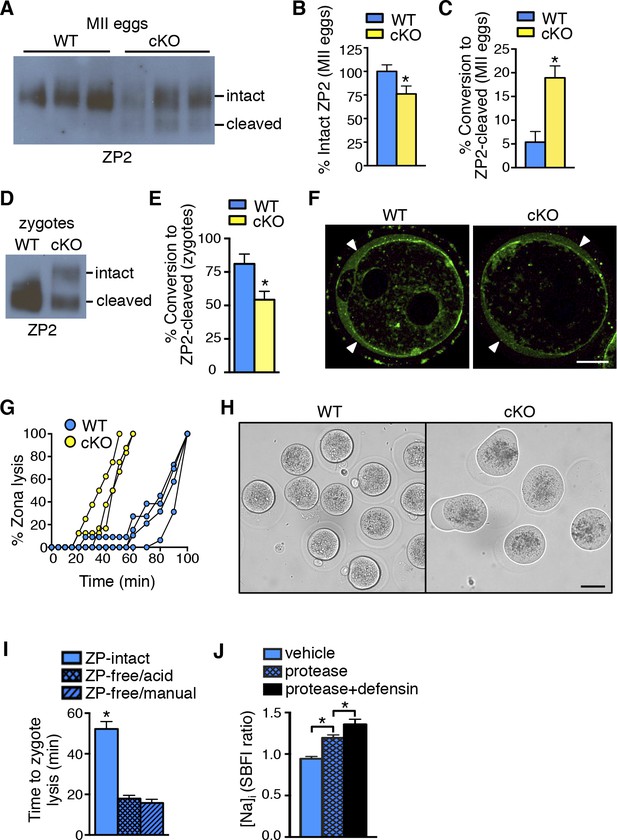

Zona pellucida alterations due to elevated protease activity in oviducts lacking epithelial estrogen receptor α (ERα).

(A) Immunoblot analysis of ZP2 protein in eggs retrieved from wild-type (WT) and conditional knockout (cKO) oviducts ∼4 hr after ovulation. Eight eggs from one mouse/lane. (B,C) Quantitation of the percentage intact ZP2 protein (B) and percentage conversion from intact ZP2 to cleaved ZP2 (C) in ovulated eggs from WT and cKO oviducts (n = 6 mice/group); *p<0.05. (D) Immunoblot analysis of ZP2 in zygotes retrieved from WT and cKO oviducts ∼10 hr after fertilization. Ten zygotes pooled from 3 mice per lane. (E) Percentage conversion from intact ZP2 to cleaved ZP2 in zygotes from WT and cKO oviducts. Graph presents data from 7 pools of 10 embryos per group; mean ± SEM. *p <0.05, T-test. (F) Images of zygotes from WT and cKO oviducts stained for cortical granules. Arrowheads indicate cortical granule contents in the perivitelline space. Scale bar = 20 μm. (G) Percentage ZP lysis over time in zygotes retrieved from WT and cKO oviducts and incubated in 0.2% α-chymotrypsin. Each line represents data from one mouse. (H) Images of WT and cKO zygotes after 90 min incubation in 0.2% α-chymotrypsin (n = 3–4 mice/group). Scale bar = 50 μm. (I) Time to lysis for zygotes cultured in 0.4% α-chymotrypsin with ZP either intact or removed using treatment with acidic Tyrode’s solution or manual microdissection, as indicated. Graph presents data from 15–21 embryos per treatment over three independent experiments; mean ± SEM. *p<0.05, ANOVA. (J) [Na]i in WT zygotes exposed to vehicle, 0.2% α-chymotrypsin (protease), or 0.2% α-chymotrypsin and recombinant defensins (protease defensin). Graph shows relative [Na]i as indicated by SBFI 340/380 ratio (n = 10–12 embryos/group; mean ± SEM). *p <0.05, ANOVA. cKO: Conditional knockout; MII: Metaphase II; [Na]i: Intracellular sodium; SBFI: Sodium-binding benzofuran isophthalate;WT: Wild-type; ZP: Zona pellucida.

https://doi.org/10.7554/eLife.10453.016

To determine whether ovastacin-mediated ZP2 cleavage occurred normally after fertilization, we then examined ZP proteins in zygotes removed from the oviducts ∼10 hr after fertilization. As expected, zygotes from WT oviducts had almost complete conversion of ZP2 to cleaved ZP2 (Figure 6D,E). In contrast, zygotes from cKO oviducts had much lower ZP2 cleavage, indicating that the normal process of ovastacin-mediated cleavage of the N-terminal region of ZP2 was disrupted. This difference was not due to failure of cortical granule exocytosis because immunofluorescence analysis revealed no differences in cortical granule release or material in the perivitelline space in zygotes from WT and cKO oviducts (Figure 6F). Consistent with the lower ZP2 conversion, the ZP of cKO zygotes dissolved twice as quickly as that of WT zygotes when the embryos were subjected to additional protease digestion in vitro using 0.2% α-chymotrypsin (Figure 6G). Of note, during the process of ZP dissolution in α-chymotrypsin, zygotes from cKO oviducts underwent swelling and lysis, whereas WT zygotes remained intact for up to an hour after their ZPs were completely dissolved (Figure 6H and Video 1,2). These findings suggested that the cKO oviduct environment affected not only ZP structure but also zygote plasma membrane integrity.

Video 1
Morphology of zygotes from WT oviducts during protease treatment in vitro.

Zygotes collected from WT oviducts at 24 hr following hCG administration and mating were cultured in PBS containing 0.2% α-chymotrypsin. Images were taken every 5 min for 60 min and are shown at 3 frames/s. hCG: Human chorionic gonadotropin; WT: Wild-type.

https://doi.org/10.7554/eLife.10453.018
Video 2
Morphology of zygotes from cKO oviducts during protease treatment in vitro.

Zygotes collected from cKO oviducts at 24 hr following hCG administration and mating were cultured in PBS containing 0.2% α-chymotrypsin. Images were taken every 5 min for 60 min and are shown at 3 frames/s. cKO: Conditional knockout; hCG: Human chorionic gonadotropin.

https://doi.org/10.7554/eLife.10453.019

Increased protease activity in the cKO oviduct could contribute to embryo death by altering the ZP, by acting directly on the zygote plasma membrane, or through a combination of both mechanisms. To test whether proteases are capable of penetrating an intact ZP to access and cleave plasma membrane proteins, a glycosylphosphatidylinositol (GPI)-anchored Enhanced Green Fluorescent Protein (EGFP) that contains a trypsin-sensitive linker sequence (Rhee et al., 2006) was expressed in ZP-intact oocytes. The oocytes were imaged while 0.04% α-chymotrypsin was added to the culture medium. EGFP fluorescence at the plasma membrane began to decline within less than 30 s after protease addition and was nearly absent after 2 min (Video 3), indicating that α-chymotrypsin rapidly penetrates the ZP to access proteins located at the cell membrane. To determine whether presence of the ZP protects embryos from protease-induced lysis, WT ZP-intact zygotes and WT zygotes with their ZP removed by either mechanical microdissection or by brief exposure to acidic Tyrode’s solution were cultured in 0.4% α-chymotrypsin, and time to cell lysis was determined. Regardless of the ZP removal method, ZP-free embryos lysed much more rapidly than ZP-intact embryos (Figure 6I). These data show that although α-chymotrypsin is able to rapidly pass through the ZP to access the plasma membrane, the presence of the ZP slows protease-mediated embryo lysis.

Video 3
Protease treatment rapidly cleaves membrane-associated protein despite presence of ZP.

Movie shows green fluorescence signal after ZP-intact oocytes expressing a GPI-linked EGFP on the extracellular surface of the plasma membrane were treated with 0.04% α-chymotrypsin. Baseline imaging was performed for 5 min and then imaging was paused for 1 min to allow addition of α-chymotrypsin to the imaging drop. The movie file shows the last frame of baseline imaging, followed by subsequent images taken every 10 s, shown at 3 frames/s. This pattern of fluorescence loss is representative of 5 imaging experiments, each using 6–12 EGFP-GPI-expressing oocytes. (Note that treatment with 0.2% α-chymotrypsin caused complete loss of signal too rapidly to be visualized). ZP: Zona pellucida.

https://doi.org/10.7554/eLife.10453.020

The embryo lysis that occurred in vivo in the cKO oviduct and the embryo swelling and lysis that occurred in vitro following protease treatment suggested there were alterations in plasma membrane permeability and ion balance. We first tested whether protease activity alone could disrupt plasma membrane integrity by measuring intracellular sodium ([Na]i) levels, which increase as cells lose the ability to maintain physiological ion gradients (Bortner et al., 2001). Zygotes incubated in α-chymotrypsin had increased [Na]i as compared to vehicle-treated zygotes (Figure 6J). Because oviducts express numerous antimicrobial peptides, <strike>including</strike> defensins, that can disrupt permeability of microbial membranes (Yeaman and Yount, 2003), we tested whether these molecules could also affect zygote membrane integrity. Zygotes incubated in both α-chymotrypsin and recombinant defensins had further increased [Na]i when compared to zygotes treated with α-chymotrypsin alone (Figure 6J). However, zygotes incubated for several hours in recombinant defensins alone had no morphological evidence of membrane disruption whether or not the ZP was present (Figure 6—figure supplement 1). Taken together, these findings indicate that elevated protease activity can disrupt zygote membrane integrity sufficiently to induce embryo lysis, but that antimicrobial molecules may also contribute to the embryo lysis phenotype.

Based on these in vitro studies, we reasoned that if elevated protease activity in the cKO oviducts caused ZP and plasma membrane changes that led to embryo death, then these embryos should be protected by inhibition of protease activity . To test this idea, WT zygotes were transferred into oviducts of WT or cKO recipients at 0.5 dpc using embryo transfer medium that either did or did not contain serine and cysteine PIs. Three days later, the oviducts and uteri were flushed to collect surviving embryos. A significant percentage of zygotes transferred to cKO recipients without PIswere underdeveloped, whereas inclusion of PI s rescued embryo development to control levels (Figure 7A,B). These findings indicate that excessive protease activity in the cKO oviduct luminal microenvironment is a proximate cause of the embryo development failure.

Excessive protease activity in vivo in the conditional knockout (cKO) oviduct leads to embryo development failure.

(A) Percentage of underdeveloped embryos and morula/blastocyst stage embryos retrieved from pseudopregnant wild-type (WT) and cKO recipients that received no protease inhibitors (–PI) or received protease inhibitors ( PI) during embryo transfer (n = 5–12 mice/group and 42–64 embryos/group; mean ± SEM, *p <0.05). (B) Representative images of embryos retrieved from WT and cKO recipients at 3.5 dpc in –PI and PI groups. Arrowheads indicate examples of underdeveloped embryos. Scale bars = 50 μm.

https://doi.org/10.7554/eLife.10453.021

Discussion

In this report, we uncover a pivotal role for epithelial ERα in altering the balance of activities of secreted proteases and PIs in the oviduct to allow successful fertilization and early embryo development. Lack of epithelial ERα in the female reproductive tract results in impaired fertilization by inhibiting sperm migration from the uterus into the oviduct and altering the properties of the cumulus cell mass surrounding the ovulated eggs. The successfully fertilized eggs are exposed to excess oviduct protease activity that disrupts ZP and plasma membrane integrity, causing protease-mediated embryo lysis that may also be promoted by antimicrobial peptides. These findings indicate that the preovulatory increase in estrogen levels not only serves to stimulate ovarian follicle development and uterine endometrial growth, but also has an essential and previously unrecognized function in regulating oviduct physiology.

Global alterations in gene expression critical for implantation have been extensively documented for the uterus (Reese et al., 2001; Kao et al., 2002). These alterations are programmed by the integrated output of cyclic steroid hormone signals and are mediated by nuclear receptors, mainly in the endometrial stromal and epithelial cells. Our findings that fertilization and preimplantation embryo development are normal in mice lacking mesenchymal ERα indicate that ERα-mediated signaling in this compartment is not a major regulator of oviduct function in early pregnancy. We propose instead that elevated estradiol levels in the periovulatory period act via epithelial ERα to alter secretion of oviduct innate immune mediators, particularly proteases and PIs, and that this process is essential to generate a luminal environment capable of supporting fertilization and embryo development (Figure 8).

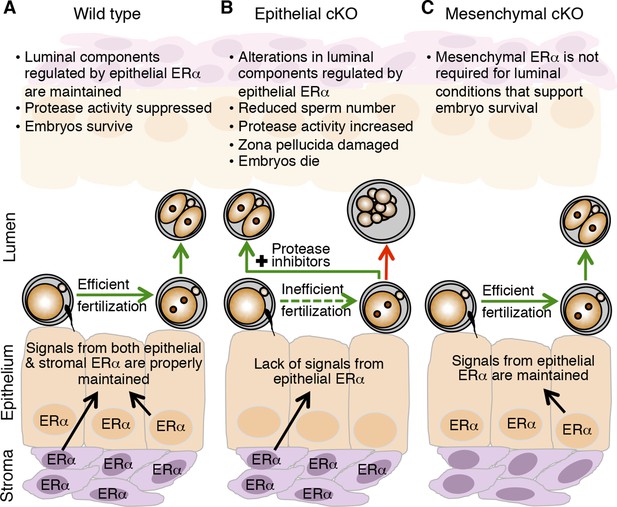

Schematic describing how estrogen receptor α (ERα) in oviduct epithelial cells supports fertilization and early embryo development.

(A) In wild-type mice, estrogen signals to ERα in both stromal and epithelial cells to suppress secretion of innate immune mediators and generate a luminal environment supportive of sperm migration, fertilization, and preimplantation embryo development. (B) In mice lacking ERα in oviduct epithelial cells, estrogen signaling to stromal cells alone cannot suppress secretion of oviduct immune mediators, resulting in increased protease activity. There is a failure of sperm migration, impaired fertilization, and lysis of successfully fertilized embryos. Embryos can be rescued by inserting protease inhibitors into the oviduct lumen. (C) In mice lacking ERα in oviduct stromal cells, the luminal environment fully supports fertilization and embryo development.

https://doi.org/10.7554/eLife.10453.022

Several factors likely contribute to the lower fertilization efficiency in the cKO oviducts, but the primary reason appears to be the failure of sperm migration from the uterine horn into the oviduct. Failure of sperm migration may be explained by the abnormal character of the ejaculate present in the uterine horns of cKO mice following mating. In rodents, a dense, hard copulatory plug forms in the vagina following mating as a consequence of the protein crosslinking activity of transglutaminase IV, which is generated in the prostate gland and induces coagulation of seminal vesicle proteins (Dean, 2013). Although the ejaculate directly enters the rodent uterus, a copulatory plug does not normally form there, so secretions within the uterine lumen must either prevent protein crosslinking or promote liquefaction of the ejaculate. In humans, a copulatory plug does not form; instead, ejaculated semen coagulates into a gelatinous mass that then liquefies. Liquefaction is mediated by the activity of kallikrein 3 (KLK3; better known as prostate-specific antigen), a chymotrypsin-like protease, which promotes release of sperm from the coagulum [reviewed in (Robert and Gagnon, 1999)]. Rodents have evolved a large number of kallikrein-related proteins (Olsson and Lundwall, 2002), some of which are expressed in the uterus and estrogen-regulated (Corthorn et al., 1997; Rajapakse et al., 2007). We detected several kallikreins in the oviduct that were highly homologous to human KLK3, including Klk1 and Klk1b-family kallikreins, and were downregulated in cKO mice (Table 5). Furthermore, we previously demonstrated that estrogen induces Klk1b5 expression in the uterus of WT but not cKO mice (Winuthayanon et al., 2014). These findings suggest that downregulation of KLK3-like proteins in the cKO uterus causes a failure of semen liquefaction, providing a plausible explanation for the failure of sperm migration into the oviduct.

Additional factors within the oviductal environment could also impair fertilization efficiency. Effects of luminal components on the cumulus-oocyte masses could diminish their ability to secrete chemoattractants that promote directional sperm migration (Eisenbach and Giojalas, 2006), or the oviductal epithelial cells could secrete alternate chemoattractants that disrupt the directional signal. This idea is consistent with our findings that there were significant alterations in chemokines and their receptors expressed in the cKO oviduct and that there were alterations in PGs, which can modulate chemokine secretion (Kalinski, 2012). Effects of altered oviductal PGs, chemokines, proteases, or PIs on the cumulus cells and/or extracellular matrix structure could also contribute to our observation of impaired fertilization in vitro (Kim et al., 2008; Tamba et al., 2008; Beek et al., 2012).

Proteolytic cleavage of ZP2 is a physiological event mediated by ovastacin, a metalloendoprotease contained within the egg’s cortical granules that undergo exocytosis at the time of fertilization in the oviduct (Burkart et al., 2012). When ZP2 is cleaved, the sperm no longer recognize and bind to the egg’s ZP; therefore, ZP2 cleavage promotes monospermic fertilization (Gahlay et al., 2010). Ovastacin can also be released prior to fertilization via spontaneous cortical granule exocytosis during meiotic maturation in the ovarian follicle. Studies in the Fetub-/- mouse demonstrated that fetuin B, a cysteine PI synthesized in the liver and present in serum, limits ovastacin-mediated premature ZP2 cleavage in the ovarian follicle so that fertilization can occur (Dietzel et al., 2013). Here, we have shown that fetuin B is also expressed locally in the oviduct in response to estrogen signaling in the epithelial cells. This finding suggests that in the Fetub-/- mouse, complete lack of oviductal fetuin B contributes to the observed fertilization failure. In the ERα cKO mouse, the ∼50% reduction in fetuin B explains at least some of the elevation in protease activity in the oviductal lumen.

We found that the cKO oviduct had significant alterations in the expression of a large number of proteases and PIs, in addition to fetuin B. These changes resulted in an overall increase in protease activity within the oviduct milieu documented by the increase in ZP2 cleavage in cKO eggs. Protease action also explains the obvious morphological alterations in ZP structure of the lysed embryos recovered from cKO oviducts because these changes were prevented by artificially reducing protease activity in vivo, a procedure that also rescued embryo development to a large extent. These alterations in overall ZP structure, which were not observed in ovulated eggs recovered after only ∼4 hr in the cKO oviducts, could explain the apparent contradiction between increased oviductal protease activity and lower levels of ZP2 cleavage following fertilization in the cKO oviduct. For example, the altered ZP structure could have allowed more rapid passage of ovastacin through the ZP matrix, resulting in lower efficiency of ZP2 cleavage.

ZP thinning or removal is associated with egg and embryo death prior to the two-cell stage in oviducts in vivo but not during culture in vitro (Modlinski, 1970; Liu et al., 1996; Rankin et al., 1996; Rankin et al., 2001). These findings can now be explained by our demonstration that in the presence of a disrupted or absent ZP, embryos lose membrane integrity when exposed to proteases similar to those present in the oviduct during the post-ovulatory time period. Because proteases rapidly penetrate the ZP to access proteins at the plasma membrane, our data suggest that the intact ZP serves as a ‘decoy substrate’ by providing a large excess of substrate for oviductal proteases that are then less able to disrupt embryo plasma membrane integrity.

Whether or not antimicrobial peptides such as defensins in the cKO oviduct contribute to the embryo lysis phenotype is less clear. The heavily glycosylated ZP protein matrix has a strong resemblance to bacterial cell walls, which are comprised of a lattice structure of cross-linked peptidoglycans (Osborn, 1969). Like the ZP, bacterial cell walls and phospholipid membranes are negatively charged, a property thought to enhance the affinity of antimicrobial peptides that typically have a net positive charge (Wassarman, 1988; Yeaman and Yount, 2003). These findings indicate that the ZP could serve as a protective barrier for the embryo in part by serving as a ‘sink’ for antimicrobial peptides. Mammalian phospholipid membranes, in contrast, are generally charge-neutral, which is a property that protects them from antimicrobial peptide actions (Matsuzaki, 1999). We showed that the combination of protease and defensins increased zygote membrane permeability to sodium more than protease alone, whereas defensins alone did not affect the zygote plasma membrane. Based on these findings, we speculate that in the cKO oviduct, the initial action of proteases on the zygote plasma membrane alters its charge sufficiently to allow antimicrobial peptides to further disrupt membrane integrity and promote cell lysis.

Infertility in women with hydrosalpinges (inflamed, dilated Fallopian tubes) is partially explained by direct effects of the tubal fluid on embryo development (Ozmen et al., 2007). Indeed, culture of mouse zygotes in human hydrosalpingeal fluid leads to zygote degeneration and retarded embryo development (Mukherjee et al., 1996; Beyler et al., 1997). We found that zygotes fertilized in vivo did not survive in the cKO oviduct and that there were detrimental effects on in vitro embryo development only after a several-hour exposure of these zygotes to the cKO oviduct lumen. These findings strongly suggest that innate immune mediators in the luminal fluid of cKO oviducts have persistent effects on embryo development in vitro. The poor but better survival of WT zygotes exposed for 3 days to cKO oviducts in our embryo transfer experiments is likely a result of at least two factors: 1) dilutional effects of the culture medium transferred into the oviduct during the embryo transfer procedure that would partially mitigate effects of proteases and antimicrobial peptides and 2) several hours less time spent in the cKO oviduct because fertilization occurred in a WT oviduct prior to embryo collection and transfer. The critical time frame during which the PIs prevented embryo death was likely to be on the first day of pregnancy, based on the minimal differences in gene expression between cKO and WT oviducts on pregnancy day 1.5 and relatively low circulating estrogen levels on pregnancy days 1.5–3.5.

In summary, we propose that elevated estradiol levels in the preovulatory period act via epithelial ERα to suppress protease-mediated aspects of innate immunity in the oviduct. This response to cyclic steroid hormone levels allows the oviduct to alternate between functioning as a mucosal immune barrier and an environment supportive of fertilization and embryo development. These findings imply that disruption of estrogen signaling, for example by endocrine disruptors or post-coital contraceptives, could prevent pregnancy by interfering with suppression of the oviductal mucosal immune response. Lastly, embryotoxic effects of abnormally elevated innate immune mediators in the Fallopian tubes may contribute to infertility in women with hydrosalpinges, endometriosis, or unexplained infertility.

Materials and methods

Animals

CF-1 female mice (6-week old; Harlan Laboratories) and B6D2F1/J male mice (8–12 week old; Jackson Laboratory) were obtained commercially. The generation and genotyping of female reproductive tract epithelial ERα knockout (cKO) mouse model was previously described (Winuthayanon et al., 2010). Amhr2Cre mice (Huang et al., 2012) were crossed with Esr1f/- mice (Hewitt et al., 2010) to generate mice with a conditional deletion of ERα in the mesenchyme of the female reproductive tract. Females of Amhr2Cre ;Esr1f/- genotype were designated as mesenchymal cKO. Heterozygous Esr1f/- littermates were used as a control group for mesenchymal cKO mice; the heterozygous phenotype was the same as all WT controls used in this study. All animals were maintained and handled according to NIH Animal Care and Use Committee guidelines.

Oocyte collection and in vitro fertilization

Adult female mice were superovulated with gonadotropins as previously described (Jefferson et al., 2009). COCs were collected either from the ovaries 10 hr after hCG injection by puncturing preovulatory follicles with a 30G needle or from the oviductal ampulla 15 hr after hCG injection. IVF was performed as described previously (Jefferson et al., 2009) using either intact COCs or cumulus cell-free eggs obtained by hyaluronidase treatment of oviduct COCs. Fertilization was determined by the presence of two pronuclei (one-cell embryos or zygotes) 6–8 hr after insemination. Embryo development was monitored daily.

Embryo collection and culture

Spontaneously cycling adult females were housed singly with a B6D2F1/J male overnight. Zygotes were collected from the oviduct at 11:00 am on 0.5 dpc. Two-cell embryos were collected from the oviduct at 9:00 am on 1.5 dpc. Unless otherwise specified, embryos from each mouse were cultured separately in microdrops of potassium simplex optimized medium with amino acids (KSOM/AA; Millipore, Billerica, MA) covered with mineral oil and embryo morphological appearance was documented daily. To test the effects of PG E2 (PGE2) on fertilization and embryo development, oocytes were fertilized in Nunc four-well culture plates (Thermo Scientific, Grand Island, NY) in 400 µL human tubal fluid medium (MR-070-D, Millipore) containing 0.1% ethanol (vehicle control) or 1 μM PGE2 (Cayman Chemical, Ann Arbor, MI). Alternatively, pronuclear stage zygotes from superovulated and mated CF-1 females were cultured in 400 µL KSOM/AA containing 0.1% ethanol or 1 μM PGE2. For these experiments, the medium was not covered with mineral oil to avoid loss of the PGE2 from the aqueous phase.

GPI-EGFP cRNA synthesis and microinjection

DNA containing an acrosin signal sequence, EGFP, and Thy1 C-terminal GPI-anchoring sequence was amplified by PCR from the pCX::GFP-GPI2 construct, kindly provided by Anna-Katerina Hadjantonakis (Rhee et al., 2006), and cloned into the SalI and XbaI sites of the pIVT expression plasmid (Igarashi et al., 2007). The ATG sequence in the SphI site of the pIVT multiple cloning region was mutated to GTG using the QuikChange site-directed mutagenesis kit (Agilent, Santa Clara, CA) to avoid premature initiation of translation. Of note, the linker sequence between EGFP and the GPI-anchor contains a predicted trypsin cleavage site. Oocyte collection, culture, and microinjection were performed as previously described (Bernhardt et al., 2011). Oocytes were injected with 5–10 pL of cRNA at a pipette concentration of 0.5 μg/μL.

Protease and defensin treatments and cell imaging

For comparison of ZP lysis times in vitro, zygotes were collected from superovulated and mated cKO or WT females 24 hr after hCG injection (∼10 hr after fertilization) and then cultured in 0.2% α-chymotrypsin in PBS under mineral oil at 37°C as previously described (Gulyas and Yuan, 1985). ZP digestion was observed under a light microscope at 5–10 min intervals until all zonae were completely lysed. Zona lysis time [t50] was calculated as previously described (Dietzel et al., 2013). For intracellular sodium ([Na]i) measurement, WT zygotes were either kept ZP-intact or underwent ZP removal using 0.5% pronase. The zygotes were then loaded for 45 min with 20 μM sodium-binding benzofuran isophthalate acetoxymethyl ester (SBFI-AM; Life Technologies, Grand Island, NY) in PBS alone, PBS containing 0.2% α-chymotrypsin, or PBS containing 0.2% α-chymotrypsin and a combination of α-defensin 1 and β-defensin 3 (Abcam, Cambridge, MA) each at 50 μg/mL. [Na]i was detected using an inverted fluorescent microscope with excitation at 340 and 380 nm as described previously for [Ca2]i measurement (Miao et al., 2012).

Germinal vesicle (GV)-stage oocytes from PMSG-treated CF-1 females were injected with cRNA encoding GPI-linked EGFP targeted to the extracellular surface of the plasma membrane. The oocytes were held overnight in medium containing 10 μM milrinone (Sigma, St. Louis, MO) to prevent maturation and allow protein expression and then placed in PBS in glass-bottom dishes for imaging. GFP fluorescence was recorded every 3–10 s following α-chymotrypsin addition to a final concentration of 0.04%. Imaging was performed as previously described (Miao et al., 2012) except that the excitation wavelength was 470 nm. GV oocytes were used rather than metaphase-II arrested eggs or zygotes because adequate targeting of GPI-linked GFP to the plasma membrane was not observed in eggs or embryos microinjected with this cRNA.

For experiments to determine how presence of the ZP affected time to zygote lysis, zygotes were collected from superovulated and mated CF-1 females. Acid-mediated ZP removal was accomplished by brief exposure to acidic Tyrode’s solution (pH 1.6) followed by extensive washing in Leibovitz L-15 medium (Life Technologies) containing 1% calf serum (Atlanta Biologicals, Flowery Branch, GA). Manual ZP removal was accomplished by drilling a slit in the zygote ZP approximately 50 μm × 6 μm using a piezo drill and micromanipulator system followed by gentle pipetting using a 70 μm inner diameter capillary. Time to zygote lysis was measured starting after transfer to drops of PBS containing 0.4% α-chymotrypsin. For comparison of ZP-free and ZP-intact embryos, lysis time was determined by performing ratiometric calcium imaging of fura-2 AM-loaded embryos, as previously described (Miao et al., 2012). Time of lysis was indicated by a rise in intracellular calcium prior to lysis, followed by a drop in fluorescence when integrity of the plasma membrane was lost. For comparing ZP removal methods, lysis time was determined from bright-field images captured every 5–7 s.

Embryo transfer and recovery

Embryos were transferred into the oviduct of recipient females according to published procedures (Nagy et al., 2003). Briefly, adult WT and cKO females were mated with vasectomized B6D2F1/J males to generate pseudopregnant recipient females, as determined by the presence of a copulatory plug. Pronuclear stage zygotes were flushed at 10:00 am from the oviducts of superovulated and mated CF-1 donor females. Immediately before transfer, the zygotes were placed into KSOM/AA medium that contained no additive or contained two PIs, 100 µM E64 and 50 µM AEBSF (both from Thermo Scientific). E64 is an irreversible cysteine protease inhibitor and AEBSF is an irreversible serine protease inhibitor. Zygotes (8–12 zygotes per recipient) were transferred along with less than 1 µL of medium into a single oviduct of a pseudopregnant recipient at 0.5 dpc. The zygotes were transferred in medium containing protease inhibitors into 5 WT and 5 cKO pseudopregnant recipients, and in medium alone into 16 WT and 16 cKO pseudopregnant recipients. Three days later (3.5 dpc), the recipients were euthanized and the embryos were flushed separately from both the uteri and oviducts to ensure that all embryos were recovered. Only recipients that had viable embryos, which documented a successful embryo transfer procedure, were included in the results; 4 WT and 6 cKO recipients were excluded. Flushed non-viable embryos were excluded because they could not be distinguished accurately from ovulated, unfertilized eggs generated by the pseudopregnant recipients.

Oviductal sperm counting

Spontaneously cycling WT and cKO females were mated with Hspa2-GFP males (Brown et al., 2014). The oviducts were collected at 0.5 dpc (10:00 am). The cumulus cell masses were removed from the ampullary region of each oviduct and placed on slides under cover slips. The number of GFP-positive sperm within the cumulus cell masses from both oviducts was counted for each mouse using an epifluorescence microscope; the total number from both cumulus masses was considered the number of ampullary sperm for one mouse. Sperm entry into the oviductal reservoir was tested using superovulated and mated WT and cKO females. The reproductive tracts were collected from the females with copulatory plugs at 0.5 dpc (15–17 hr after hCG administration). The oviducts were dissected from the uteri as close to the uterine horn as possible, and then flushed from the ampulla toward the isthmus, beginning distal to the cumulus mass, using ∼30 µL water via a 30 G needle. The number of sperm flushed from each oviduct was counted in one imaging field using a 40X objective; the two counts were added together to obtain a relative count of isthmic sperm for one mouse. The contents of the uterine horns were also flushed out and examined under a dissecting microscope for the presence of sperm and the character of the ejaculate.

Microarray analysis and real time RT-PCR

Spontaneously cycling WT and cKO females were mated with B6D2F1/J males. The oviducts were collected at 0.5 and 1.5 dpc and snap frozen in liquid nitrogen. RNA was extracted as previously described (Hewitt and Korach, 2011). Gene expression analysis was conducted using Agilent Whole Mouse Genome 4 × 44 multiplex format oligo arrays (Agilent Technologies). The data were deposited in NCBI's Gene Expression Omnibus (Accession #GSE37471). The data were log (2) transformed and normalized using Partek Genomics Suite (Partek Inc., St. Louis, MO). ANOVA was used to detect differentially expressed genes between groups. Gene lists were generated using a false discovery rate < 0.05 and absolute value fold change ≥1.5. Hierarchical clustering was done using Partek’s default clustering method. The microarray results were validated by real-time RT-PCR as previously described (Winuthayanon et al., 2010). Expression values were calculated as fold change normalized to ribosomal protein L7 (Rpl7) expression and relative to WT 0.5 dpc oviduct. The primer sequences are listed in Table 6.

Table 6

List of the primer sequences used for real-time RT-PCR reactions.

https://doi.org/10.7554/eLife.10453.023
SymbolEntrez gene nameSequences (Forward ([F]) and Reverse [(R]):5’ → 3’
Cdh16 Cadherin 16F: GCATTGCCCAGGTGCACTGGA
R: AAGGGTCCTGGAGGCTGGCT
Ctsd Cathepsin DF: GACAACAATAGGGTCGGCTT
R: GCTGGCTTCCTCTACTGGAC
Cxcl17 Chemokine (C-X-C motif) ligand 17F: AAGCCACGGGGACCAACACC
R: GGCTTGCAGGAACCAATCTTTGC
Drd4 Dopamine receptor 4F: TGGACGTCATGCTGTGCACCG
R: GGTCACGGCCACGAACCTGTC
Fetub Fetuin BF: ACGTCTAGCCTTCTGCGATT
R: TCCACTGTAAGCCACTCTGC
Hpgds Hemopoietic prostaglandin D synthaseF: GGACTTACAATCCACCAGAGC
R: TCCCAGCCAAATCTGTGTTTT
Il17 Interleukin 17F: CTGGAGGATAACACTGTGAGAGT
R: TGCTGAATGGCGACGGAGTTC
Il17rb Interleukin 17 receptor BF: TCAGCGCCCATAACATCCCCA
R: ACGTGGTTTAGGCAGCCTGGC
Klk8 Kallikrein related-peptidase 8F: GTTCCACCCTCTTCCTCAGA
R: CTCCCATGAACAGAAGCAGA
Krt8 Keratin 8F: TGAAGAAGGATGTGGACTGTGCCT
R: ATGCGGGTCTCCTCGTCATACATT
Muc4 Mucin 4F: ACCATGTCTTGGGGAACGTC
R: ATGCAGGTGAGGTATTCCTGA
Rpl7 Ribosomal protein L7F: AGCTGGCCTTTGTCATCAGAA
R: GACGAAGGAGCTGCAGAACCT
Rtn1 Reticulon 1F: AACGTCGTCGCGGGAACTGT
R: AGCTGCCATACCTGTGGATGCAGT
Sct SecretinF: CCCACGCCGATGCTACTGCT
R: TCTTGGGGTCCTGGGAGGTGC
Serpina1b Serine (or cysteine) peptidase inhibitor, clade A, member 1BF: ATCACCCGGATCTTCAACAA
R: CTCATCGATGGTCAGCACAG
Serpina9 Serine (or cysteine) peptidase inhibitor, clade A, member 9F: CAGGTGAGACTCCCTTCCTT
R: GTGGGAGGACTCTTGGTTGT
Serpinb11 Serine (or cysteine) peptidase inhibitor, clade B, member 11F: TCTTCTGAGTGCAGCCAAGT
R: AACGCTGAGGGAGTTCTGTT
Serpine1 Serine (or cysteine) peptidase inhibitor, clade E, member 11F: ACCGGAATGTGGTCTTCTCT
R: TGCCCTTCTCATTGACTTTG
Tmprss13 Transmembrane protease, serine 13F: ATAGGTCGCAATGTCCTTCC
R:TCTCAAACCACAGTGGGAAC
Tshr Thyroid stimulating hormone receptorF: CCTGACAGCTATAGACAACGATGCC
R: ACGCTGGTGGAAGACACATCTAGCA
Wfdc18 (or Expi)WAP four-disulfide core domain 18 (or extracellular proteinase inhibitor)F: TTTGTTCTGGTAGCTTTGATTTTCA
R: GCGCCAGGTTTTTCTTTGG

Immunoblot and immunohistochemistry analyses

Spontaneously cycling WT and cKO females were mated with B6D2F1/J males, and oviducts were collected at 0.5 dpc for protein analysis. For oviduct immunoblots, protein was extracted and analyzed as described previously (Hewitt et al., 2003). The β-actin (#SC1616-R), fetuin B (#PA5-29468), and HPGDS (#MBS601438) antibodies were purchased from Santa Cruz Biotechnology (Dallas, TX), Thermo Scientific, and MyBiosource (San Diego, CA), respectively, and used at a 1:1000 dilution. Immunohistochemical analyses of oviducts were performed as described previously for uterine tissue (Winuthayanon et al., 2010). For immunohistochemical analysis, fetuin B and HPGDS antibodies were diluted at 1:200 and 1:1000, respectively. For ZP immunoblots, MII eggs from COCs were collected 16 hr after hCG injection, freed of cumulus cells using hyaluronidase, washed, and then snap frozen in 5 μL of Tissue Protein Extraction Reagent (Thermo Scientific); zygotes were collected at 5:00 pm on the day of the copulatory plug. An equal volume of reducing sample buffer was added, then the samples were denatured, separated on a 4–12% tris-glycine gel (Novex, Grand Island, NY) and transferred to a polyvinyl difluoride membrane (Life Technologies). Blots were blocked in tris-buffered saline and Tween 20 (TBST) containing 3% bovine serum albumin (BSA) and then incubated overnight at 4°C in primary antibody diluted in blocking solution. Primary ZP antibodies (graciously provided by Dr. Jurrien Dean, NIDDK) were as follows: ZP1, mAB M-1.4 diluted 1:500 (Rankin et al., 1999); ZP2, mAB M2c.2 diluted 1:5000 (Rankin et al., 2003); ZP3, mAB IE-10 diluted 1:10,000 (East et al., 1985). The secondary antibody was horseradish peroxidase-conjugated goat anti-rat IgG (Santa Cruz) diluted 1:10,000 in TBST. Chemiluminescence detection was carried out using SuperSignal West Pico (Thermo Scientific). Percentage of ZP2 protein cleavage was calculated as previously described (Ducibella et al., 1990). Immunofluorescence analysis of cortical granules was performed using lens culinaris agglutinin as described previously (Connors et al., 1998) except that the ZPs were left intact to allow visualization of perivitelline space material.

Eicosanoid profile analysis

Oviducts were collected at 0.5 dpc from mated WT and cKO females as described above, weighed and immediately frozen in liquid nitrogen. 250 μL of 0.1% acetic acid in 5% methanol was added to each oviduct. Oviducts were homogenized in a Tissuelyzer II (Qiagen, Valencia, CA) for 5 min at 30 Hz. An internal standard including d4-PGE2, 10(11)-epoxyheptadecanoic acid, and 10,11-dihydroxynonadecanoic acid (30 ng each) was added to each sample. Lipids were isolated by serial liquid/liquid extractions with ethyl acetate. Ethyl acetate was evaporated under gentle nitrogen flow and samples were reconstituted in 50 μL of 30% ethanol. Oxylipid profile was analyzed by liquid chromatography-tandem mass spectrometry as previously described (Edin et al., 2011).

Statistics

Data were analyzed using GraphPad Prism version 5.0 for Mac OS X. All data are presented as mean ± SEM and evaluated for statistically significant differences (p <0.05) using a two-way ANOVA with Bonferroni’s post-hoc test, unless otherwise indicated.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
    Biological and biochemical consequences of global deletion of exon 3 from the ER alpha gene
    1. SC Hewitt
    2. GE Kissling
    3. KE Fieselman
    4. FL Jayes
    5. KE Gerrish
    6. KS Korach
    (2010)
    FASEB Journal : Official Publication of the Federation of American Societies for Experimental Biology 24:4660–4667.
    https://doi.org/10.1096/fj.10-163428
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
    The role of the zona pellucida in the development of mouse eggs in vivo
    1. JA Modliński
    (1970)
    Journal of Embryology and Experimental Morphology 23:539–547.
  33. 33
    Hydrosalpinx fluid has embryotoxic effects on murine embryogenesis: a case for prophylactic salpingectomy
    1. T Mukherjee
    2. AB Copperman
    3. C Mccaffrey
    4. CA Cook
    5. M Bustillo
    6. MF Obasaju
    (1996)
    Fertility and Sterility 66:851–853.
  34. 34
    Manipulating the mouse embryo: a laboratory manual (Third ed.)
    1. A Nagy
    2. M Gertsenstein
    3. K Vintersten
    4. R Behringer
    (2003)
    John Inglis, editors. New York: Cold Spring Harbor Laboratory Press.
  35. 35
    Organization and evolution of the glandular kallikrein locus in mus musculus
    1. AY Olsson
    2. A Lundwall
    (2002)
    Biochemical and Biophysical Research Communications 299:305–311.
  36. 36
  37. 37
  38. 38
  39. 39
    Mice homozygous for an insertional mutation in the Zp3 gene lack a zona pellucida and are infertile
    1. T Rankin
    2. M Familari
    3. E Lee
    4. A Ginsberg
    5. N Dwyer
    6. J Blanchette-Mackie
    7. J Drago
    8. H Westphal
    9. J Dean
    (1996)
    Development  122:2903–2910.
  40. 40
    Abnormal zonae pellucidae in mice lacking ZP1 result in early embryonic loss
    1. T Rankin
    2. P Talbot
    3. E Lee
    4. J Dean
    (1999)
    Development  126:3847–3855.
  41. 41
  42. 42
    Defective zonae pellucidae in Zp2-null mice disrupt folliculogenesis, fertility and development
    1. TL Rankin
    2. M O'Brien
    3. E Lee
    4. K Wigglesworth
    5. J Eppig
    6. J Dean
    (2001)
    Development  128:1119–1126.
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
    The effect of different proteolytic enzymes on the zona pellucida of mouse ova
    1. M Smithberg
    (1953)
    Anat Rec pp. 117–554.
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57

Decision letter

  1. Janet Rossant
    Reviewing Editor; University of Toronto, Canada

eLife posts the editorial decision letter and author response on a selection of the published articles (subject to the approval of the authors). An edited version of the letter sent to the authors after peer review is shown, indicating the substantive concerns or comments; minor concerns are not usually shown. Reviewers have the opportunity to discuss the decision before the letter is sent (see review process). Similarly, the author response typically shows only responses to the major concerns raised by the reviewers.

Thank you for submitting your work entitled "Oviductal estrogen receptor α signaling prevents protease-mediated embryo death" for peer review at eLife. Your submission has been favorably evaluated by Janet Rossant (Senior editor and Reviewing editor) and two reviewers.

The reviewers have discussed the reviews with one another and the Reviewing editor has drafted this decision to help you prepare a revised submission

Summary:

This study describes a surprising and novel role for ER-alpha in the mouse oviduct. Conditional knockout of the gene in oviductal epithelial cells but not in the mesenchyme results not only in a decrease in sperm transport to the site of fertilization but also in increased protease activity (and antimicrobial peptides) causes zona rupture and preimplantation embryo lethality. Much research on fertilization and preimplantation development has involved in vitro studies, which constitutes a very artificial environment. A major strength of this study is that it focuses on functional analysis in the oviduct where fertilization and early cleavage events actually occur. The figures and videos are of exceptional quality, and, overall, this manuscript is judged to be valuable contribution to our understanding of oviductal function in fertilization and early development.

Essential revisions:

The work was judged to be for the most part complete and many of the conclusions are well justified by the data. Thus the reviewers do not feel that there are major additional experiments that need to be performed. However, they raise a number of questions that they would like to see in a revised manuscript and for which you may decide that some new experimental data might help in the interpretation.

1) The work on sperm transport is exciting, in that it shows reduced sperm arrival at the oviduct. This coincides with reduced fertilization (subsection “Mice Lacking ERα in Epithelial But Not Mesenchymal Cells Have Impaired Fertilization” et seq.). The question that arises is whether unfertilized oocytes were found in the oviduct. Can the failure of fertilization be due to simple fewer male gametes, or are fewer oocytes transported? Do the authors have any idea where the "missing" sperm are in the cKO oviduct?

2) Removal of cumulus cells improved IVF of COCs recovered from cKO oviducts. Do the authors have any idea as to whether sperm penetration of the COC is compromised, whether they undergo a premature acrosome reaction? Such information would be very useful.

3) If there is an assay that would capture total protease activity and you can obtain oviduct fluid, I would encourage the authors to assay the fluid to ascertain whether the protease activity is higher in the cKO than WT. Such data would permit them to make a statement rather than speculate. Note: it is not essential that this experiment be conducted because it may not be feasible.

4) The authors need to provide more background information/rationale regarding why they looked at ZP2 conversion following maturation. They provide this information the Discussion, but a reader not familiar with this system may be unaware of the maturation-associated proteolysis of ZP2. The same holds for providing background information/rationale regarding the effect of protease treatment on ZP dissolution, i.e., zona hardening.

5) In Figure 1, there appears to be no expression of Esr1 in the isthmus of the oviduct of the Esr1 cKO mice, while it seems to be present in the WT animals.

6) The results presented in Figure 2E are intriguing, as it would seem that the cKO oviduct has an effect on the cumulus complexes. This is not further discussed.

7) The authors dismiss the eicosanoids as effectors of embryo demise because elevated PGE2 did not affect embryos in culture. It is more likely that PGE contributes to the phenotype by its effects on the oviduct itself, and this should be mentioned.

8) The ovostacin/fetuin data appear contradictory. There is a reduction in ZP2 cleavage in the cKO, accompanied by an apparent loss of fetuin, the inhibitor of ovostacin. One might expect that decreased fetuin should result in greater ovostacin activity and thus greater cleavage of ZP2. This should probably be discussed.

9) The defensin experiments (subsection “Protease-Mediated Disruption of Plasma Membrane Integrity Leads to Embryo Death” et seq.) are interesting, but are not judged to be extensive or definitive enough, to justify the conclusion that oviductal innate immune suppression mediated by Esr1 signaling is required for fertilization and preimplantation embryo development. The focus of the discussion and conclusions should be on the microarray findings on proteases and the wealth of functional data on proteases presented in the manuscript. Indeed, the defensins are not featured in the excellent summary slide (Figure 8).

10) The results presented in Figure 7 are somewhat surprising, as they indicate the persistence of exogenous protease inhibitors in the oviduct for a fairly long period of time. It is not clear to what the percentage data refer, how could 100% of the embryos be at the morula/blastocyst stage, while 30% ore underdeveloped in the cKO -PI group.

11) The conclusions about effects on the innate immune system seem to somewhat of a stretch and should be modified.

https://doi.org/10.7554/eLife.10453.026

Author response

The work was judged to be for the most part complete and many of the conclusions are well justified by the data. Thus the reviewers do not feel that there are major additional experiments that need to be performed. However, they raise a number of questions that they would like to see in a revised manuscript and for which you may decide that some new experimental data might help in the interpretation. 1) The work on sperm transport is exciting, in that it shows reduced sperm arrival at the oviduct. This coincides with reduced fertilization (subsection “Mice Lacking ERα in Epithelial But Not Mesenchymal Cells Have Impaired Fertilization” et seq.). The question that arises is whether unfertilized oocytes were found in the oviduct. Can the failure of fertilization be due to simple fewer male gametes, or are fewer oocytes transported? Do the authors have any idea where the "missing" sperm are in the cKO oviduct?

Yes, unfertilized oocytes were found in the oviduct. When zygotes were collected from the oviducts of spontaneously cycling, mated cKO females at 11:00 am on 0.5 dpc, we routinely found that about half of the 7-8 total ovulated eggs were fertilized and the rest were not. This point has now been clarified in the text of the Results (first paragraph).

To address the question of the “missing” sperm, we performed additional experiments to determine if the sperm manage to enter the “sperm reservoir” in the isthmus of the oviduct after mating and deposition in the uterus. Wild type and cKO females were superovulated and mated. The following morning, females with copulatory plugs were sacrificed and the reproductive tracts removed. The oviducts were dissected from the uteri as close to the uteri as possible, and then flushed from the ampulla toward the isthmus, beginning distal to the cumulus mass, using ~30 µL water via a 30 G needle. The number of sperm flushed from each oviduct was counted. We found that there were far fewer sperm in the oviductal isthmus in the cKO mice, indicating that migration from the uterus to oviduct was severely impaired. These new findings were added to the graph in Figure 2D, and a representative image of the sperm flushed from the oviducts is provided as Figure 2–figure supplement 1.

In addition, the upper uterine horns were flushed to release the luminal contents. We found that the mass of sperm in the upper uterine horns of cKO mice was held within a dense, partially solidified mass that retained the tubular shape of the uterine horn following release into culture medium. In contrast, sperm released into culture medium from control uterine horns rapidly dispersed into small clumps. This finding suggests that in response to estrogen signaling, the normal uterine epithelium secretes components that prevent solidification of the ejaculate in the uterine horn, and thus prevents changes similar to those that form the vaginal copulatory plug. The altered seminal fluid properties in the cKO uterine horns likely explain the decreased numbers of sperm in the oviductal sperm reservoir and the subsequent low numbers of sperm to reach the oviductal ampulla. These findings are now mentioned in the Results (second paragraph) and Discussion (third paragraph); the Methods section was also appropriately revised.

2) Removal of cumulus cells improved IVF of COCs recovered from cKO oviducts. Do the authors have any idea as to whether sperm penetration of the COC is compromised, whether they undergo a premature acrosome reaction? Such information would be very useful.

As outlined in our response to question #6 below, we did not tease out the mechanisms that could underlie the reduction in fertilization efficiency of the cumulus cell masses recovered from the cKO oviducts, such as alterations in timing of acrosomal exocytosis. We agree that these would be very interesting and useful experiments to perform, but we felt that they were not as critical as determining the mechanisms underlying the 100% embryo death phenotype in vivo and would require a large number of additional experiments. We have added a new paragraph to the Discussion that explores further the effects of the oviductal environment on both sperm migration and fertilization in vitro (fourth paragraph).

3) If there is an assay that would capture total protease activity and you can obtain oviduct fluid, I would encourage the authors to assay the fluid to ascertain whether the protease activity is higher in the cKO than WT. Such data would permit them to make a statement rather than speculate. Note: it is not essential that this experiment be conducted because it may not be feasible.

This was an experiment that we were very eager to perform. Unfortunately, despite numerous attempts, we were only able to collect far less than 1 µL fluid from a mouse oviduct, and we were only able to do that if the fluid was collected shortly following ovulation when the oviduct fluid was likely mixed with follicular fluid. Given the difficulty in obtaining fluid, we did not feel that we could reliably collect samples from WT and cKO oviducts that would provide a valid comparison. Our inability to carry out this experiment led to the alternative experiment of examining the cleavage status of the zona pellucida of the ovulated eggs as an indirect indicator of protease activity in the oviduct, which we showed in Figure 5A-C. Application of CRISPR/Cas9 gene targeting methods in larger size animals such as rats, cows or pigs, which have larger oviducts from which oviductal fluid can be reliably obtained, may allow a direct test of protease activity in oviducts lacking ER alpha in epithelial cells.

4) The authors need to provide more background information/rationale regarding why they looked at ZP2 conversion following maturation. They provide this information the Discussion, but a reader not familiar with this system may be unaware of the maturation-associated proteolysis of ZP2. The same holds for providing background information/rationale regarding the effect of protease treatment on ZP dissolution, i.e., zona hardening.

We have added more information regarding ZP2 cleavage and zona hardening in the Results section for the benefit of readers less familiar with zona pellucida changes that occur with age and following fertilization (subsection “Protease-Mediated Disruption of Plasma Membrane Integrity Leads to Embryo Death”, first and third paragraphs).

5) In Figure 1, there appears to be no expression of Esr1 in the isthmus of the oviduct of the Esr1 cKO mice, while it seems to be present in the WT animals.

There is minimal staining for ERα in the smooth muscle and stromal cells of the isthmus region of the oviduct in both WT and cKO mice, and there was no difference in the intensity of ERα staining in these cell types in the two groups. The vast majority of the ERα staining in this region is in the epithelial cells, where there is an obvious lack of staining in the cKO. Additional oviductal isthmus sections stained for ERα from WT and cKO mice have been added to the manuscript (Figure 1–figure supplement 1) to provide additional examples of the staining patterns in each group for the reader.

6) The results presented in Figure 2E are intriguing, as it would seem that the cKO oviduct has an effect on the cumulus complexes. This is not further discussed.

We were not initially anticipating that the cumulus mass being present or absent would impact on the success of in vitro fertilization. Our finding that fertilization efficiency was far lower in vitro unless the cumulus cells were removed indicated that even a short amount of time spent by the cumulus mass in the oviductal environment was detrimental. One explanation for this finding is that the rather sticky cumulus mass brings with it proteases (or other components) from the oviduct that then negatively impact on the function of sperm that were not exposed to the oviductal environment. An alternate explanation is that the oviductal environment directly affects either the hyaluronic acid matrix between the cumulus cells such that the sperm have more difficulty reaching and penetrating the zona pellucida, or causes alterations in the expression of chemoattractant molecules by the cumulus cells. Either explanation is plausible, and they are not exclusive. Because of this reviewer comment, we have now added a new paragraph to the Discussion that explores further the effects of the oviductal environment on both sperm migration and fertilization in vitro (fourth paragraph).

However, teasing out these details was not something we pursued because the finding was related to an in vitro assay, was a partial effect (IVF was about 50% as efficient), and was likely to be multifactorial and so would require extensive experiments. The failure of sperm migration into the oviduct was so dramatic that it seemed much more likely that this was the explanation for the low fertilization efficiency in vivo, rather than an effect of the oviductal environment on the cumulus cell matrix.

7) The authors dismiss the eicosanoids as effectors of embryo demise because elevated PGE2 did not affect embryos in culture. It is more likely that PGE contributes to the phenotype by its effects on the oviduct itself, and this should be mentioned.

We were testing whether the eicosanoids could directly cause embryo lysis, which they did not appear to do. But yes, it is certainly possible that the eicosanoids could affect oviductal function in a way that promotes embryo lysis. We have added text to the Results to raise this possibility (subsection “Epithelial ERα Regulates Prostaglandin Levels and Inflammatory Response Mediators in the Oviduct”, second paragraph).

8) The ovostacin/fetuin data appear contradictory. There is a reduction in ZP2 cleavage in the cKO, accompanied by an apparent loss of fetuin, the inhibitor of ovostacin. One might expect that decreased fetuin should result in greater ovostacin activity and thus greater cleavage of ZP2. This should probably be discussed.

The apparent contradiction in our findings that fetuin B was decreased and ZP2 cleavage was also decreased is now addressed in the Discussion (sixth paragraph).

9) The defensin experiments (subsection “Protease-Mediated Disruption of Plasma Membrane Integrity Leads to Embryo Death” et seq.) are interesting, but are not judged to be extensive or definitive enough, to justify the conclusion that oviductal innate immune suppression mediated by Esr1 signaling is required for fertilization and preimplantation embryo development. The focus of the discussion and conclusions should be on the microarray findings on proteases and the wealth of functional data on proteases presented in the manuscript. Indeed, the defensins are not featured in the excellent summary slide (Figure 8).

We agree that the defensin data is not extensive or definitive, and does not belong in the summary schematic because we have no evidence that it represents a functional difference between the WT and cKO oviducts. The expression levels of various defensins were different in the WT and cKO oviducts, but there was not an overall up- or down-regulation of defensin expression in the cKO oviduct, and even direct application of defensins to embryos in vitro did not cause embryo lysis (Figure 6–figure supplement 1), so it is unlikely that defensins alone explain the embryo lysis phenotype. Instead, we believe that the information provided regarding how defensins could contribute to the protease-mediated embryo lysis phenotype brings out the multifaceted nature of the innate immune environment present in the oviduct lumen.

Our conclusions regarding oviductal innate immune suppression are based on our understanding that both proteases and protease inhibitors function as important components of the innate immune system. For example, kallikreins are proteases that function to activate antimicrobial peptides (reviewed in Yu et al., Biol. Chem. 2014, 395:931) and have been documented to have this function in the human female reproductive tract (Shaw et al., Biol Chem 2008, 389:1513). SLPI and elafin are protease inhibitors that have antibacterial, antifungal, and antiviral activities (see Lecaille et al., Biochimie 2015, doi:10.1016/j.biochi.2015.08.014). Proteases and protease inhibitors both serve as innate immune mediators in the female reproductive tract (Wira et al., J Reprod Immunol 2011, 65:196; Aboud et al., American Journal of Reproductive Immunology 2014, 71:12). One of the downregulated protease inhibitors we identified in cKO oviducts, Serpine1, was recently demonstrated to function as a secreted protease inhibitor that inhibits influenza A virus spreading by preventing viral surface glycoprotein maturation (Dittmann et al., Cell 2015, 160:631). In response to this reviewer concern, we have included additional information regarding antimicrobial proteins in the Results section (subsection “Epithelial ERα Regulates Prostaglandin Levels and Inflammatory Response Mediators in the Oviduct”, second paragraph) and modified the Abstract, Significance Statement, and the first and second paragraphs of the Discussion to focus more on the protease/protease inhibitor findings.

10) The results presented in Figure 7 are somewhat surprising, as they indicate the persistence of exogenous protease inhibitors in the oviduct for a fairly long period of time. It is not clear to what the percentage data refer, how could 100% of the embryos be at the morula/blastocyst stage, while 30% ore underdeveloped in the cKO -PI group.

We agree it is highly unlikely that the exogenous protease inhibitors would persist in the oviduct for 3 days. However, we found by microarray analysis that in contrast to the large differences in gene expression in WT and cKO oviducts on pregnancy day 0.5, there was very little difference in the gene expression patterns on pregnancy day 1.5. Although we did not perform microarrays on pregnancy days 2.5 or 3.5, we would predict that on these days the oviduct would have similarly small differences because estradiol levels are relatively low, and progesterone levels are high. The critical time, therefore, that the exogenous protease inhibitors are needed is on pregnancy day 0.5 when there are the most differences between the WT and cKO oviductal environments. A statement to this effect has been added to the Discussion (end of ninth paragraph).

We also agree that the graph representing the embryo development data in Figure 7A could be somewhat difficult to follow, and as a result we have changed the graph format. The stacked bars in the original graph represented in white the morula/blastocyst embryos, and in black the underdeveloped embryos. So, in the cKO-PI group, there were ~30% underdeveloped and 70% morula/blast, while in the cKO + PI group there were ~10% underdeveloped and 90% morula/blast. All mice in both WT groups had 100% morula/blast, and no underdeveloped embryos. We have now un-stacked the bars to make the graph clearer. The numbers of embryos per group were moved into the Figure legend.

11) The conclusions about effects on the innate immune system seem to somewhat of a stretch and should be modified.

Please see response to question #9.

https://doi.org/10.7554/eLife.10453.027

Article and author information

Author details

  1. Wipawee Winuthayanon

    1. Reproductive and Developmental Biology Laboratory, National Institute of Environmental Health Sciences, National Institutes of Health, Research Triangle Park, United States
    2. School of Molecular Biosciences, College of Veterinary Medicine, Washington State University, Pullman, United States
    Contribution
    WW, Performed majority of experiments, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    winuthayanonw@vetmed.wsu.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-5196-8471
  2. Miranda L Bernhardt

    Reproductive and Developmental Biology Laboratory, National Institute of Environmental Health Sciences, National Institutes of Health, Research Triangle Park, United States
    Contribution
    MLB, Performed the ZP/embryo lysis experiments, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0001-5424-5685
  3. Elizabeth Padilla-Banks

    Reproductive and Developmental Biology Laboratory, National Institute of Environmental Health Sciences, National Institutes of Health, Research Triangle Park, United States
    Contribution
    EPB, Performed the ZP immunoblots and oviductal isthmus sperm counts, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  4. Page H Myers

    Comparative Medicine Branch, National Institute of Environmental Health Sciences, National Institutes of Health, Research Triangle Park, United States
    Contribution
    PHM, Performed embryo transfer experiments, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  5. Matthew L Edin

    Immunity, Inflammation and Disease Laboratory, National Institute of Environmental Health Sciences, National Institutes of Health, Research Triangle Park, United States
    Contribution
    MLE, Conducted the eicosanoid profile analysis, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  6. Fred B Lih

    Epigenetics and Stem Cell Biology Laboratory, National Institute of Environmental Health Sciences, National Institutes of Health, Research Triangle Park, United States
    Contribution
    FBL, Conducted the eicosanoid profile analysis, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  7. Sylvia C Hewitt

    Reproductive and Developmental Biology Laboratory, National Institute of Environmental Health Sciences, National Institutes of Health, Research Triangle Park, United States
    Contribution
    SCH, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0001-7713-0805
  8. Kenneth S Korach

    Reproductive and Developmental Biology Laboratory, National Institute of Environmental Health Sciences, National Institutes of Health, Research Triangle Park, United States
    Contribution
    KSK, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  9. Carmen J Williams

    Reproductive and Developmental Biology Laboratory, National Institute of Environmental Health Sciences, National Institutes of Health, Research Triangle Park, United States
    Contribution
    CJW, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    williamsc5@niehs.nih.gov
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0001-6440-7086

Funding

National Institute of Environmental Health Sciences (1ZIAES70065)

  • Wipawee Winuthayanon
  • Sylvia C Hewitt
  • Kenneth S Korach

National Institute of Environmental Health Sciences (1ZIAES025034)

  • Matthew L Edin

National Institute of Environmental Health Sciences (1ZIAES050167)

  • Fred B Lih

National Institute of Environmental Health Sciences (1ZIAES102405)

  • Miranda L Bernhardt
  • Elizabeth Padilla-Banks
  • Carmen J Williams

The funder had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Richard Behringer (University of Texas MD Anderson Cancer Center) for the Amhr2-Cre and Wnt7a-Cre mice, Mitch Eddy (NIEHS) for the Hspa2-GFP mice, Jurrien Dean (NIDDK) for the ZP antibodies, Anna-Katerina Hadjantonakis (Memorial Sloan Kettering Cancer Center) for the GPI-GFP construct, and Yingpei Zhang and Brianna Pockette for technical assistance. This research was supported by the Intramural Research Program of the NIH, National Institutes of Environmental Health Sciences: 1ZIAES025034 (MLE), 1ZIAES050167 (FBL), 1ZIAES70065 (KSK), and 1ZIAES102405 (CJW).

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocol ASP 01-30 of the National Institute of Environmental Health Sciences (NIEHS). The protocol was approved by the NIEHS Animal Care and Use Committee. All surgery was performed under isofluorane anesthesia, and every effort was made to minimize suffering.

Reviewing Editor

  1. Janet Rossant, Reviewing Editor, University of Toronto, Canada

Publication history

  1. Received: July 29, 2015
  2. Accepted: September 29, 2015
  3. Version of Record published: December 1, 2015 (version 1)

Copyright

This is an open-access article, free of all copyright, and may be freely reproduced, distributed, transmitted, modified, built upon, or otherwise used by anyone for any lawful purpose. The work is made available under the Creative Commons CC0 public domain dedication.

Metrics

  • 1,335
    Page views
  • 351
    Downloads
  • 18
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Developmental Biology and Stem Cells
    Matthew P Harris, Gloria Arratia
    Insight
    1. Developmental Biology and Stem Cells
    Amrutha Kizhedathu et al.
    Research Article Updated
