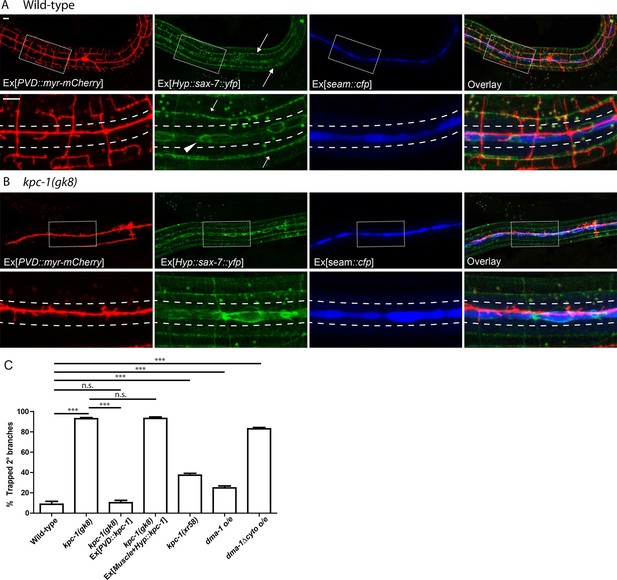

We reported previously that one component of the PVD dendrite guidance complex, SAX-7, was enriched at specific sub-cellular locations in hypodermal cells (Dong et al., 2013). As shown in Figure 1A, YFP tagged SAX-7 expressed in the hypodermal cell was highly enriched in two longitudinal sublateral stripes (arrows) which precisely co-localized with the PVD 3° branches labeled by mCherry. In addition to these lines, SAX-7 also showed strong enrichment at ring-shaped structures that likely represented the junctions between seam cells (labeled by CFP using a seam cell-specific promoter Pnhr-81) and the major hypodermal syncytium (Figure 1A, arrowhead). The seam cells are two rows of specialized hypodermal cells that line up along the lateral midlines of the worms and cover a region in which longitudinal PVD 1° dendrites extend (Sulston and Horvitz, 1977). The location of this SAX-7 zone dictated that PVD 2° branches would encounter an area with a high level of the adhesion molecule SAX-7 as they grow away from the 1° dendrite.

Since PVD 2° dendrites do not elaborate extensive branches in this SAX-7-rich 'trap zone', developing PVD dendrites appear to ignore SAX-7 here. We reasoned that disabling the normal escaping mechanism would lead to trapping of PVD dendrites within the zone. Indeed, in our forward genetic screen for mutants with defects in PVD morphology, we isolated three mutants, wy916, wy920 and wy936, which showed a dramatic phenotype in which PVD dendrites were completely trapped near the 1° dendrites. This phenotype resembled that of a previously reported mutant allele kpc-1(gk8) (Schroeder et al., 2013; Salzberg et al., 2014). We confirmed that wy916, wy920 and wy936 were alleles of kpc-1 by complementation test.

In contrast to the wild-type 2° dendrites, which extended away from the 1° dendrite, 2° branches in kpc-1 mutants remained restricted to a narrow region close to the 1° dendrite (Figure 1B). Co-labeling of the PVD neuron, hypodermal SAX-7-YFP and the seam cells revealed that the 2° dendrites in kpc-1 mutants were trapped inside the area with enriched SAX-7 (Figure 1B). We quantified the percentage of 2° dendrites that failed to extend beyond the seam cell zone near the 1° dendrite and found that the kpc-1 mutants had a significantly larger portion of dendrites that were trapped in this zone than wild-type (Figure 1C). Expressing KPC-1 in PVD using the PVD-specific ser2prom3 promoter fully rescued the dendritic defects, while expressing KPC-1 in hypodermal and muscle cells failed to rescue the phenotypes, consistent with previous reports that KPC-1 was expressed and functioned autonomously in the PVD neuron (Figure 1C) (Schroeder et al., 2013; Salzberg et al., 2014).

We next examined the temporal requirement for KPC-1 during dendritic development using the hsp16.48 heat shock promoter (Stringham et al., 1992). Heat shock expression of KPC-1 at different developmental time points caused drastically different effects (Figure 1—figure supplement 1D). Expressing KPC-1 during L1 or L2 larval stages before the outgrowth PVD 2° branches did not modify the kpc-1(gk8) mutant phenotype (Figure 1—figure supplement 1A,D). Expression of KPC-1 during the early L3 stage, in contrast, during 2° branch outgrowth, produced robust rescue of all dendritic branches: 2° branches were able to grow out of the high SAX-7 region around the seam cells and formed full menorahs (Figure 1—figure supplement 1B,D). Heat shock expression during later stages produced an altered phenotype in which the branches that were trapped and stabilized before KPC-1 expression remained trapped in the region while the newly developed branches could grow out and form 3° and 4° branches (Figure 1—figure supplement 1C,D). These results agreed with a previous report using temporal RNAi (Salzberg et al., 2014) and demonstrated that KPC-1 was required during a stringent time window when the 2° branches synchronously bypassed the high level SAX-7 region to allow proper outgrowth.

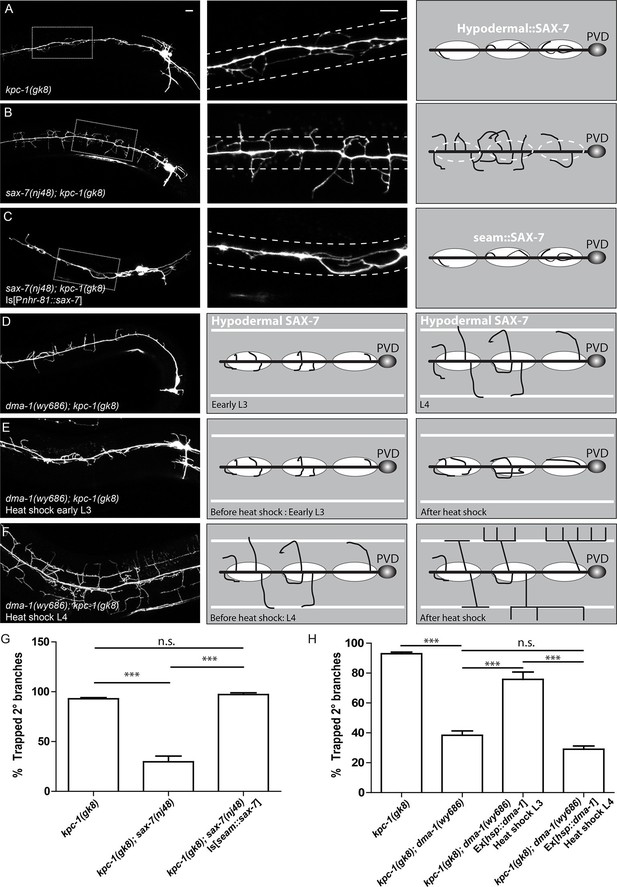

If the 2° dendrites in the kpc-1 mutants were indeed 'trapped' in the region by the locally enriched SAX-7, we expected that removing the SAX-7 ligand, its cofactor MNR-1, or their cognate receptor DMA-1, would release the dendrites from the trap zone. Alternatively, if KPC-1 was required for dendritic outgrowth per se, double mutants between kpc-1 and any member of the ligand-receptor complex would show a PVD dendritic phenotype that was similar to that of the kpc-1 mutants. Consistent with previous reports (Schroeder et al., 2013; Salzberg et al., 2014), we observed that the kpc-1; sax-7, kpc-1; mnr-1 and kpc-1; dma-1 double mutants showed PVD morphologies indistinguishable from those of the sax-7, mnr-1 or dma-1 single mutants (Figure 2, Figure 2—figure supplement 2). Instead of remaining within a tight zone close to the 1° dendrites like in the kpc-1 single mutants (Figure 2A), 2° dendrites of the double mutants extended further out in both dorsal and ventral directions (Figure 2B, Figure 2—figure supplement 1, 2). Since the dendritic morphologies of the sax-7, mnr-1 and dma-1 mutants were highly disorganized with many short ectopic 2° branches, there were more 2° branches in the 'trap zone' compared with the wild-type animals (Figure 2—figure supplement 2H). Nevertheless, the percentages of trapped dendrites in the double mutants were comparable to those of single mutants of the tripartite complex but were significantly lower than that in the kpc-1 single mutants (Figure 2—figure supplement 2H). This result suggested that defects in the kpc-1 mutants arose as a result of ectopic activation of ligand-receptor signaling near the seam cells.

Figure 2 with 3 supplements see all

Download asset Open asset

Our 'trapping' model inferred that the SAX-7 molecule was required locally near the primary dendrite to restrict 2° branches around the 1° dendrite. We next directly tested this hypothesis by ectopically expressing SAX-7 in seam cells in kpc-1; sax-7 double mutants. In striking contrast to the double mutants themselves (Figure 2B), the PVD dendrites in the kpc-1; sax-7 double mutants expressing SAX-7 in seam cells were trapped in the seam cell area, with very few 2° branches reaching far from the 1° dendrite (Figure 2C,G). These results further supported the notion that the dendritic trapping phenotype in the kpc-1 mutants was due to the excessive activity of the SAX-7/MNR-1/DMA-1 complex near the seam cells. We also ectopically expressed SAX-7 and MNR-1 in the ALM and PLM neurons in the sax-7; kpc-1 double mutants (Figure 2—figure supplement 3). ALM and PLM neurons have long neurites that extend in the dorsal and ventral sublateral nerve cords and overlap with the locations where PVD 3° branches form and grow. This ectopic expression converted the sax-7 mutant-like dendritic pattern (Figure 2B) to a striking new pattern: the entire PVD dendritic arbor followed the PLM and ALM neurites (Figure 2—figure supplement 3A).

Similar to sax-7; kpc-1, PVD morphologies of the double mutants between dma-1 and kpc-1 also clearly resembled the dma-1 but not kpc-1 single mutants, with disrupted organization and complete loss of menorahs but no trapping phenotype (Figure 2D, Figure 2—figure supplement 1D, Figure 2—figure supplement 2B,C and H). The trapping model also predicted that resupplying DMA-1 to dma-1; kpc-1 double mutants during the outgrowth of 2° branches within the trapping zone would restore the trapping phenotype (Figure 2D, middle panel) while expression after the 2° branches reached beyond the trapping zone would not (Figure 2D, right panel). To test this, we utilized the heat shock promoter to express DMA-1 at different time points in dma-1; kpc-1 mutants. Consistent with our hypothesis, providing DMA-1 during early L3 when the 2° branches grew within the trap zone led to robust restoration of the trapping phenotype (Figure 2E,H). On the contrary, expressing DMA-1 at later time points, when most of the branches in dma-1 mutants had already extended beyond the trapping zone, led to a striking rescue of 3° and 4° branches (Figure 2F,H), again demonstrating strongly that dendrites in the kpc-1 mutants did not lack outgrowth capability and maintained intact SAX-7/MNR-1/DMA-1 signaling. Instead, the kpc-1 mutant PVD dendrites responded excessively to the guidance cues SAX-7 and MNR-1 near the seam cells, which limited their growth to the 'trap zone'.

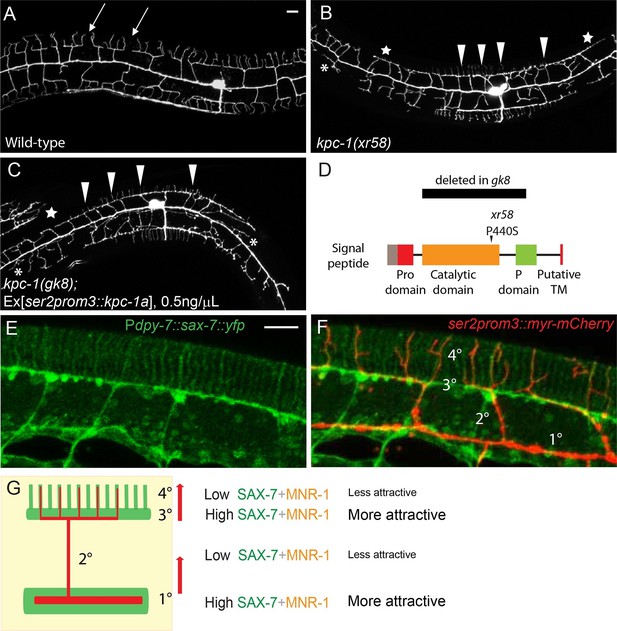

In an independent genetic screen for mutants with PVD dendrite self-avoidance defects, we isolated another allele of kpc-1, xr58, which resulted in an amino acid substitution P440S (Figure 3D). Unlike a previously reported mutation of the same amino acid (kpc-1(my24), P440L) which gave rise to a null phenotype, the PVD neurons of the kpc-1(xr58) mutants showed a fully penetrant, complex phenotype (Figure 3B) (Schroeder et al., 2013). Similar to the complete loss-of-function kpc-1(gk8) mutants (Figure 1B, 3D), some 2° dendrites in kpc-1(xr58) mutants were trapped near the 1° dendrites (Figure 3B, asterisks, Figure 1C). The 2° dendrite trapping phenotype was much weaker than that in the gk8 allele yet significantly different from that in the wild-type animals (Figure 1C, 3A–B). Unlike the PVD dendrites of the kpc-1 null mutants, which failed to make any intact menorahs, many 2° dendrites in the kpc-1(xr58) mutants, especially those in the proximal region near the cell body, could successfully extend away from the 1° dendrite and formed full menorahs with T-shaped 3° branches and many 4° branches on them. However, the 3° branches in this mutant had a striking self-avoidance defect (Figure 3B, arrowheads). In wild-type animals, 3° branches showed stringent self-avoidance. Neighboring 3° dendrites almost never overlapped with each other and instead showed gaps in between (Figure 3A, arrows). The self-avoidance phenotype of the xr58 allele was similar to that of two previously reported weak alleles of kpc-1 (Salzberg et al., 2014) whose 3° dendrites remained in the same 2D plane but showed extensive overlap. We quantified the percentage of 'T'-shaped 3° dendrites that made contact with their neighbors and found that around 70% of 3° branches had self-avoidance defects in the kpc-1(xr58) mutants, compared to only 2% in wild-type worms (Figure 5C). In addition to the self-avoidance defects of the 3° branches, kpc-1(xr58) also had a reduced number of 4° branches. Except in the most proximal menorah (closest to the cell body), the 4° dendrites were largely absent from the menorahs (Figure 3B, stars, Figure 5D).

Figure 3 with 1 supplement see all

Download asset Open asset

Figure 4 with 2 supplements see all

Download asset Open asset

Figure 5 with 1 supplement see all

Download asset Open asset

Several lines of evidence suggested that kpc-1(xr58) was a partial loss-of-function allele of kpc-1. First, KPC-1 encodes a conserved proprotein convertase and is a homolog of mammalian Furin (Schroeder et al., 2013; Hung et al., 2014). kpc-1(xr58) had a missense point mutation in the catalytic domain of KPC-1, which likely affected its protease function. Injecting a mutated version of kpc-1 cDNA containing the P440S mutation into the null kpc-1(gk8) deletion mutants produced a dendritic phenotype that was milder than gk8 but indistinguishable from that of kpc-1(xr58), suggesting that the xr58 allele was a hypomorphic allele (data not shown). Second, expressing the wild-type kpc-1 cDNA at a very low concentration in the kpc-1(gk8) null allele resulted in a PVD morphology that was similar to that of the xr58 mutants (Figure 3C, Figure 3—figure supplement 1D and E). Third, RNAi against kpc-1 also gave rise to a similar PVD dendritic phenotype to that of xr58 (data not shown). Since RNAi was often inefficient in worm neurons, this result further supported the notion that the kpc-1(xr58) phenotype represented a partial loss of KPC-1 activity in the PVD neuron.

Despite the seemingly different phenotypes between the null allele and partial loss-of-function allele of kpc-1, both phenotypes could be regarded as trapping of the dendritic branches. High levels of SAX-7 were present both around the primary dendrite and along the 3° branch sites (Liang et al., 2015), where dendritic branches preferentially grew in kpc-1 null and partial loss-of-function alleles, respectively (Figure 3E). In other words, in wild-type animals, the growth of both the 2° and 4° dendrites required them to move away from the high SAX-7 regions (Figure 3F,G). Insufficient KPC-1 function led to failures of dendrites to leave the high SAX-7 intermediate targets.

The full activation of mammalian Furin requires proteolytic cleavage of its N-terminal Pro domain by its own catalytic domain (Thomas, 2002). Indeed, when the worm KPC-1 was expressed in cultured Drosophila S2 cells, we found two protein products that corresponded to full-length and Pro domain-cleaved KPC-1 based on size (Figure 3—figure supplement 1F). With sequence analysis, we identified two adjacent putative cleavage sites in the N-terminus of KPC-1 (Figure 3—figure supplement 1A, right panel). We mutated both sites with R to A mutations and found that the resulting mutant protein completely lacked the self-cleavage product when expressed in S2 cells (Figure 3—figure supplement 1F), suggesting that these two sites were indeed responsible for the self-cleavage of KPC-1. To assess the physiological function of these cleavage sites, we introduced these two mutations into the endogenous kpc-1 locus using the CRISPR/Cas9 system (Paix et al., 2014). The mutants exhibited a PVD dendritic phenotype indistinguishable from that of the gk8 null mutants (Figure 3—figure supplement 1A), demonstrating the necessity of Pro domain cleavage for the activation of KPC-1. Furthermore, we artificially deleted the Pro domain and expressed this mutant form in the kpc-1(gk8) null allele to test if this truncated version of KPC-1 still retained its activity. Consistent with our hypothesis, KPC-1 lacking the Pro domain could fully rescue the gk8 mutants. Both secondary trapping and menorah outgrowth phenotypes were restored to wild-type level (Figure 3—figure supplement 1B,D and E). Since the xr58 mutation was in the protease domain, we hypothesized that the partial loss of function might be due to inefficient self-cleavage. To test this, we engineered the same P440S mutation into the Pro domain deleted version of KPC-1 and expressed this construct in kpc-1(xr58) mutants (Figure 3—figure supplement 1C, right panel). Since it was no longer necessary to remove the Pro domain and self-activate, we expected this mutant form to bypass the catalytic defect of xr58 and restore normal dendritic morphology. KPC-1ΔProP440S fully rescued the 2° branch trapping phenotype (Figure 3—figure supplement 1C and D) and partially restored the number of 4° branches (Figure 3—figure supplement 1C and E). This was consistent with our model that, similar to mammalian Furin, KPC-1 also needed to cleave its own Pro domain to be fully activated.

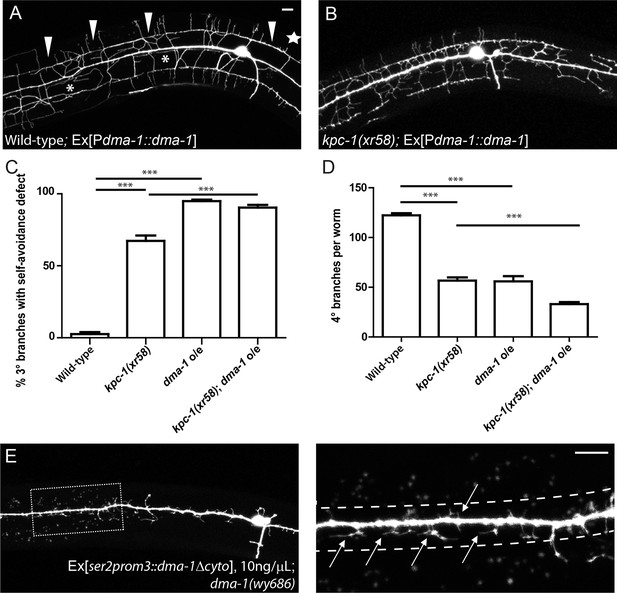

The dendritic morphology of the kpc-1(xr58) mutant was reminiscent of the phenotype caused by overexpression of DMA-1 in PVD (Figure 5A) (Liu and Shen, 2012): First, neurons overexpressing DMA-1 had severe self-avoidance defects. Their 3° dendrites often failed to avoid each other and formed a continuous fascicle that covered the entire sublateral line (Figure 5A, arrowheads, Figure 5C). In addition, many 2° dendrites were trapped around the 1° dendrite (Figure 5A, asterisks, Figure 1C), and the total number of 4° branches was decreased (Figure 5A, star, Figure 5D). All three aspects of the DMA-1 overexpression phenotype were similar to those of the kpc-1(xr58) mutants, suggesting that having too much DMA-1 led to similar consequences as insufficient KPC-1 activity. Since both KPC-1 and DMA-1 functioned autonomously in the PVD neuron, we hypothesized that KPC-1 might affect the PVD dendrites through regulating DMA-1.

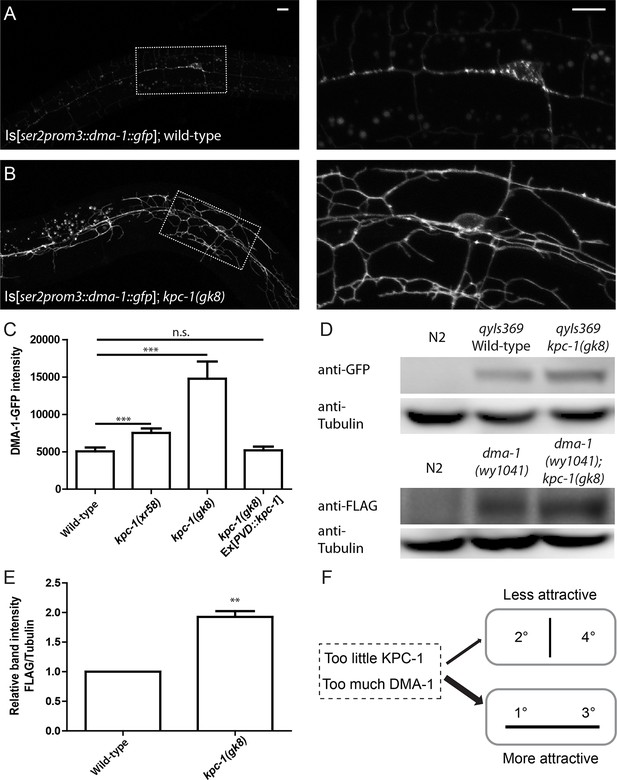

We utilized several approaches to directly examine DMA-1 in kpc-1 mutants. First, we visualized the DMA-1 protein with an integrated reporter expressing gfp-tagged dma-1 genomic DNA driven by the PVD-specific ser2prom3 promoter. This transgenic reporter allowed us to monitor the amount of DMA-1 receptors at precise locations in the entire PVD dendritic arbor. In wild-type animals, diffuse DMA-1-GFP fluorescence was localized to all dendritic compartments including the higher order branches (Figure 4A). Discrete GFP puncta could also be found in the cell body and 1° dendrites, which were likely secretory or endocytic vesicles that carry DMA-1 (Figure 4A, right panel). In wild-type neurons, DMA-1-GFP intensity in the discrete puncta was significantly higher than the diffuse staining in the dendrites (Figure 4A). In the kpc-1(gk8) mutants, we observed a striking increase in the diffuse DMA-1-GFP intensity in the entire dendritic arbor (Figure 4B). Quantification of the brightness of diffuse DMA-1-GFP on the dendrite, which was likely membrane-localized DMA-1-GFP, showed a dramatic increase in the kpc-1(gk8) allele compared with wild-type (Figure 4C). A similar but less dramatic increase in DMA-1-GFP intensity was observed for the weak allele kpc-1(xr58) as well (Figure 4C). Such up-regulation could be completely rescued by PVD autonomous expression of KPC-1 (Figure 4C). To quantify the total DMA-1-GFP protein level, we performed Western blot analysis using an antibody against GFP and confirmed that there was indeed an overall increase in DMA-1 protein level in the kpc-1 mutants (Figure 4D). Furthermore, we monitored endogenous DMA-1 by engineering a YFP into the dma-1 genomic locus using CRISPR (Paix et al., 2014). Despite dim fluorescence intensity, we were able to visualize the endogenous expression and observed a DMA-1 localization pattern similar to what we saw using high copy transgenes, with both membrane and vesicular distribution of the protein (data not shown). When we crossed the dma-1::yfp knockin strain into kpc-1(gk8), we again observed dramatic increase in DMA-1-YFP intensity in the double mutants (Figure 4—figure supplement 1D). Similarly, a 2xFLAG tag was inserted in frame into the endogenous locus of dma-1 using CRISPR (Paix et al., 2014), and we again measured significant up-regulation of DMA-1 protein level in kpc-1 mutants (Figure 4D,E). As a control, we examined the fluorescent intensity and localization of HPO-30, another transmembrane protein important for PVD development (Smith et al., 2013), and observed no significant change in its dendritic levels in the kpc-1(gk8) mutants despite severe morphology defects (Figure 4—figure supplement 1A–C). We also performed qPCR and found that there was no difference in dma-1 transcript level between wild-type and kpc-1(gk8) mutants (Figure 4—figure supplement 1E). These results further supported the notion that KPC-1 specifically down-regulated the DMA-1 protein level without affecting transcription.

We noticed an increase in branching in the proximal region when we overexpressed DMA-1 in the kpc-1 mutants (Figure 4B, Figure 4—figure supplement 2A). Although most dendrites were still trapped around the 1° neurite (Figure 4—figure supplement 2A, right panel), some 2° dendrites close to the soma extended away to form 3° branches. We suspected that the very high level of DMA-1 on the dendritic membrane caused by both the lack of KPC-1 and the DMA-1 overexpression transgene might saturate the SAX-7/MNR-1 ligands in the region, allowing the dendrites to escape. To test this hypothesis, we further overexpressed SAX-7 and MNR-1 in the hypodermal cells in this genetic background, and indeed saw that the dendrites were trapped near the seam cells again (Figure 4—figure supplement 2B).

Genetic interactions between kpc-1 and dma-1 were also in support of this model. First, overexpressing DMA-1 in the kpc-1(xr58) allele further enhanced the dendritic phenotypes (Figure 5B). The 3° branches in these animals showed an even more severe self-avoidance defect than the kpc-1(xr58) worms, and the number of 4° branches was further reduced (Figure 5C,D). Second, we found that overexpression of a truncated version of DMA-1 lacking its entire cytosolic domain generated a dramatic trapping phenotype that mimicked that of the kpc-1(gk8) null mutant (Figure 5E). In these animals, 2° dendrites were short and trapped around the 1° dendrite. We suspected that the cytosolic domain of DMA-1 may contain signaling motifs that were important for its endocytosis, so overexpressing a DMA-1 construct which lacked these motifs led to higher level of DMA-1 on the dendritic membrane than overexpression of the full length DMA-1 did, thereby produced a more severe trapping phenotype. The same construct, when expressed at a much lower level could partially rescue the dma-1 mutant phenotype by allowing the formation of 3° and a small number of 4° branches (Figure 5—figure supplement 1D). We also generated a similar mutant allele of dma-1 lacking its cytosolic domain using the CRISPR/Cas9 system (Friedland et al., 2013) and observed a similar phenotype. 2° and 3° branches of these mutants developed normally, suggesting that this truncated protein was partially functional (Figure 5—figure supplement 1A,C). Interestingly, removing KPC-1 in this genetic background resulted in a severe trapping phenotype, indicating that KPC-1 did not regulate DMA-1 through its cytosolic domain and that the extracellular domain of DMA-1 was sufficient to respond to SAX-7/MNR-1 and to generate trapping (Figure 5—figure supplement 1B). The striking similarity between the kpc-1 null and the strain overexpressing the truncated DMA-1 shown in Figure 5E, together with the observation that the loss of DMA-1 suppressed the trapping phenotype of the kpc-1(gk8) mutant allele, argued strongly that the overabundance of the DMA-1 receptor was responsible for the phenotypes in the loss-of-function alleles of kpc-1 (Figure 4F).

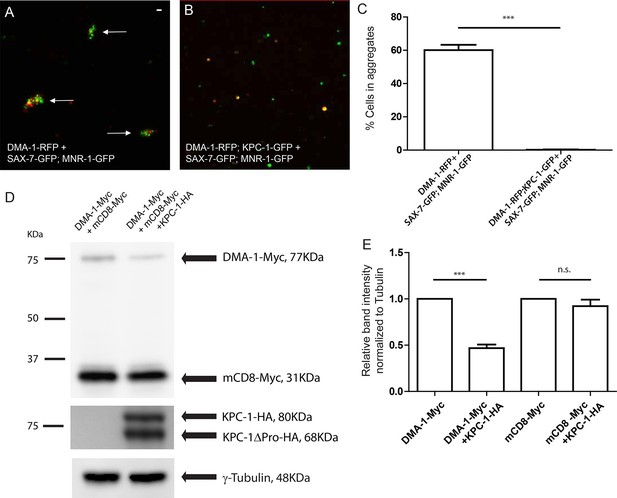

To test whether KPC-1 directly affected the interaction between DMA-1 and its ligands SAX-7 and MNR-1, we co-expressed KPC-1 and DMA-1 in Drosophila S2 cells and asked whether these cells could still form aggregates with cells expressing SAX-7/MNR-1. As we have reported previously, when DMA-1-RFP expressing cells were mixed with cells co-expressing SAX-7-GFP and MNR-1-GFP, the red and green cells formed clusters that indicated direct interaction between the DMA-1 receptor and the SAX-7/MNR-1 complex in trans (Figure 6A, arrows, Figure 6C) (Dong et al., 2013). Co-transfection of KPC-1 with DMA-1 in the same cells completely blocked cell aggregation (Figure 6B,C). We then directly examined the amount of DMA-1 in the cells by probing for Myc-tagged DMA-1 with an anti-Myc antibody on Western blots, and found that, consistent with what we have observed in worms, the DMA-1 level was diminished in the cells co-expressing KPC-1 (Figure 6D,E). Another type I transmembrane protein mCD8 was co-transfected in the same cell cultures and was not affected, showing that the effect of KPC-1 on DMA-1 was specific. This result showed that KPC-1 down-regulated DMA-1 not only in worm neurons but also in Drosophila S2 cells.

Figure 6 with 1 supplement see all

Download asset Open asset

Since DMA-1 functioned as the membrane receptor for dendritic branching, we examined the membrane localization of DMA-1 and how it was modified by KPC-1 in adhesive S2R+ cells. DMA-1-RFP alone localized to the plasma membrane, which could be seen particularly clearly on the filopodial and lamellipodial structures (Figure 6—figure supplement 1A). However, when KPC-1-CFP was co-transfected with DMA-1-RFP, membrane-localized DMA-1-RFP was diminished (Figure 6—figure supplement 1B). In contrast, neither the level nor the localization of mCD8 was affected by KPC-1.

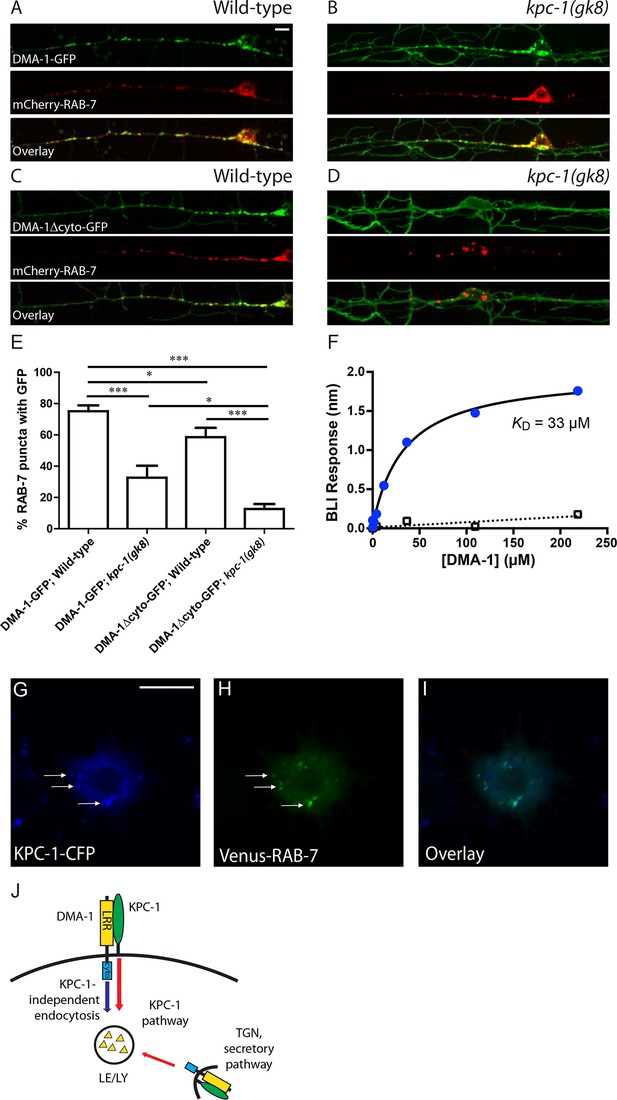

Receptor down-regulation is often achieved by targeting the transmembrane proteins to endosomal pathways either from the trans-Golgi network (TGN) or via endocytosis from the plasma membrane (Katzmann et al., 2002; Maxfield and McGraw, 2004). We first asked whether DMA-1 was targeted to late endosomes and lysosomes in wild-type worms. An extrachromosomal array expressing mCherry-RAB-7 marker which labeled the late endosomes/lysosomes (Poteryaev et al., 2010) was co-expressed with the integrated DMA-1-GFP line to visualize DMA-1 and the late endosomes simultaneously. Indeed, the intracellular DMA-1-GFP puncta showed a high degree of co-localization with mCherry-RAB-7 in wild-type PVD neurons (Figure 7A). Around 80% of RAB-7 vesicles co-localized with DMA-1-GFP (Figure 7E). This result indicated that DMA-1 was indeed targeted to late endosomes in wild-type animals. In contrast, in kpc-1(gk8) mutant animals, concomitant with the increased DMA-1-GFP level on the dendritic membrane, there was reduced co-localization between DMA-1-GFP and RAB-7 vesicles (Figure 7B,E). We hypothesized that surface DMA-1 could be down-regulated via two distinct mechanisms: One that required the cytosolic domain of DMA-1 but was independent of KPC-1, and the KPC-1 pathway. The fact that overexpression of cytosolic truncated DMA-1 produced a much stronger gain-of-function phenotype than full length DMA-1 (Figure 5E) argued that cytosolic region-mediated endocytosis of DMA-1 might help to down-regulate its level on the plasma membrane. Indeed, DMA-1Δcyto-GFP exhibited much stronger membrane localization when expressed at comparable levels as the full length protein (Figure 7C). We then quantified the co-localization between mCherry-RAB-7 and DMA-1Δcyto-GFP and observed a reduction in the percentage of RAB-7 vesicles containing GFP (Figure 7C and E). Furthermore, when we crossed the integrated transgene expressing DMA-1Δcyto-GFP into kpc-1(gk8) mutants, the GFP signal appeared almost exclusively on the plasma membrane (Figure 7D). Very few vesicles were seen throughout the dendritic arbor and only 10% of late endosomes labeled by mCherry-RAB-7 contained DMA-1Δcyto-GFP (Figure 7D and E). Since both DMA-1 and KPC-1 were predicted to be type I transmembrane proteins, and since the down-regulation of DMA-1 by KPC-1 did not require the cytosolic domain, we reasoned that KPC-1 might target DMA-1 for degradation through directly interacting with its extracellular domain. To test this hypothesis, DMA-1 and KPC-1 ectodomains were expressed using baculoviruses in High Five cells and purified. Direct binding between these proteins was detected with an apparent dissociation constant of 33 µM using biolayer interferometry (Figure 7F, blue circles). No binding was detected between DMA-1 and the negative control, the ectodomain of human GPR56 (Figure 7F, open rectangles).

Figure 7

Download asset Open asset

We made several attempts to visualize KPC-1 in the PVD neuron. KPC-1 tagged on both its N- and C-termini produced very weak fluorescent signal. We thus turned to the S2R+ cells, in which a similar down-regulation effect of KPC-1 on DMA-1 had been observed (Figure 6—figure supplement 1A,B). We co-expressed KPC-1-CFP and Venus-RAB-7 in these cells and observed strong co-localization between KPC-1 and RAB-7 (Figure 7G–I, arrows). Together, these data were consistent with a model in which KPC-1 bound directly to the ectodomain of DMA-1 and targeted the receptor to late endosomes and lysosomes for degradation (Figure 7J). In kpc-1 mutants, the level of DMA-1 was increased on the dendritic plasma membrane, leading to excessive responsiveness to the guidance signals SAX-7 and MNR-1. Consequently, PVD dendrites became trapped at intermediate targets with enriched SAX-7 and failed to move away.

Receptor-ligand interaction is an important theme in neural development. It has been shown by the classic studies on axon guidance that the same ligand can trigger a variety of responses in different neuronal types depending on the membrane receptor contents of their growth cones. Netrin functions as a chemoattractant when binding to the UNC-40/DCC receptor but repels axons containing an UNC-5 and UNC-40/DCC receptor complex (Hedgecock et al., 1990; Tessier-Lavigne and Goodman, 1996; Hong et al., 1999; Powell et al., 2008). In regions of the nervous system that are wired in a topographic fashion such as the superior colliculus in the visual system, the relative level of Eph receptors dictates where in the Ephrin gradient an axon stops (Cheng et al., 1995; Wilkinson, 2001; Mann et al., 2002). Even the same neuron can respond to a ligand differently at different decision points during development. In Drosophila, Comm functions in pre-crossing commissural axons to keep the Robo receptor level low by sorting the receptors into endosomes, whereas Comm is turned off after the axon has crossed the midline and the Robo receptor is restored on the surface of growth cones to gain responsiveness to the midline repellent Slit and prevent axons from recrossing (Keleman et al., 2002; Keleman et al., 2005; Dickson and Gilestro, 2006). Similarly, commissural axons in the mammalian spinal cord change their responses to Slit by altering their expression of the Robo3 splicing isoforms. (Sabatier et al., 2004; Chen et al., 2008). Hence, the temporal and spatial regulation of receptors is critical to achieving precise neural development.

We present a new case in neurite morphogenesis in which dynamic regulation of the guidance receptor is required for proper development. Like axons, dendrites face the challenge of ignoring and escaping from intermediate targets with high affinity guidance cues after reaching them. We show that KPC-1/Furin is responsible for down-regulation of the DMA-1 receptor to allow dendrites to move away from an area with enriched SAX-7/MNR-1 ligands.

KPC-1 is a worm proprotein convertase known to process and activate proteins and peptides by proteolytic cleavage at a conserved consensus sequence (Thomas, 2002). For example, KPC-1 was shown to be a major convertase to cleave and activate insulin peptides in neurons for the activation of the dauer formation pathway (Hung et al., 2014). Our results, like previous studies, indicate that KPC-1 functions in multi-dendritic neurons to assist dendritic morphogenesis and is in the same genetic pathway as the SAX-7/MNR-1/DMA-1 signaling complex (Schroeder et al., 2013; Salzberg et al., 2014). However, our results provide strong genetic and cell biological evidence that the morphological defects of the PVD dendrites in the kpc-1 mutants are due to enhanced, rather than decreased, response to the SAX-7/MNR-1 ligands.

First, we showed a causal relationship between the presence of the SAX-7/MNR-1/DMA-1 tripartite complex and the dendritic trapping phenotype of the kpc-1 mutants. Dendrites of the kpc-1 mutants were trapped in regions with high levels of SAX-7. In the null allele of kpc-1, almost all 2° dendrites were unable to extend away from the hypodermal-seam cell junction region where SAX-7 was highly enriched. Removal of SAX-7 or other components of the tripartite complex completely suppressed the trapping phenotype in the kpc-1 null mutants. Dendritic morphologies of the kpc-1; sax-7/mnr-1/dma-1 double mutants were indistinguishable from the sax-7, mnr-1 or dma-1 single mutants but were drastically different from the kpc-1 null mutants. Thus, the outgrowth defect of kpc-1 mutants was due to the trapping of dendrites caused by excessive response to SAX-7 and MNR-1. To further confirm this model, we used ectopic expression of SAX-7 to manipulate ligand distribution and tested if that was sufficient to cause a predictable trapping pattern. Indeed, we could trap the kpc-1 mutant dendrites ectopically by expressing SAX-7 and MNR-1 in seam cells or PLM and ALM neurons (Figure 2, Figure 2—figure supplement 3). Also, when we expressed the DMA-1 receptor at a late developmental stage in dma-1; kpc-1 double mutants when dendrites had 'escaped' from the trap zone, menorah structures could be largely rescued, showing that PVD’s ability to extend dendrites and respond to the ligand complex was intact in kpc-1 mutants.

Second, we showed that the DMA-1 receptor was down-regulated by KPC-1 both endogenously in PVD neurons and in heterologous cell systems (Figure 4, Figure 6). Overexpression of a cytoplasmic domain deleted version of DMA-1 mimicked the kpc-1(gk8) phenotype (Figure 5E), showing that the dendritic defects of kpc-1 mutants could be attributed to excessive amounts of DMA-1 on the membrane. In the weak kpc-1(xr58) allele, overexpression of DMA-1 enhanced the 3° self-avoidance and the 4° outgrowth phenotypes, which further supported the notion that the phenotypes arose as a result of elevation in DMA-1 level.

How does KPC-1 down-regulate DMA-1? Both proteins are predicted to be type I transmembrane proteins, with KPC-1 having a C-terminal transmembrane domain but no cytosolic domain. The topology of these proteins suggested that KPC-1 could cleave DMA-1’s ectodomain at specific sites and inactivate DMA-1. We could not, however, identify any consensus Furin cleavage sites in the DMA-1 protein sequence. Likewise, we did not observe any truncated product of DMA-1 in the presence of KPC-1 (Figure 4—figure supplement 1F). Instead, we observed a reduction in the total amount of DMA-1 when KPC-1 was co-expressed in systems that we examined. These results suggested that KPC-1 did not cleave DMA-1 but rather down-regulated DMA-1 via a different mechanism. We also found that, consistent with the proteins’ topologies, the regulation of DMA-1 by KPC-1 did not require its cytosolic domain, since double mutants between a dma-1 allele lacking its cytosolic domain dma-1(wy908) and kpc-1(gk8) still showed strong trapping phenotype (Figure 5—figure supplement 1B). We therefore hypothesized that KPC-1 functioned similarly to another member of the mammalian convertase family, PCSK9, which down-regulated the LDL receptor through directly binding to its extracellular EGF domain and targeting the receptor to the endocytic pathway for degradation (Lagace et al., 2006; Zhang et al., 2007; Poirier and Mayer, 2013). Consistent with this model, we detected direct interaction between the ectodomains of DMA-1 and KPC-1 and observed that KPC-1 localized to the late endosomes and lysosomes when expressed in S2R+ cells.

In summary, we show that KPC-1 down-regulates the DMA-1 receptor through direct interaction with its extracellular domain in PVD neurons. This function is necessary to allow developing dendrites to move away from the intermediate targets where the guidance cues SAX-7 and MNR-1 are highly enriched before reaching their final destinations. These results demonstrate that precise regulation of receptor levels is critical for dendrite branching and patterning.

N2 Bristol was used as the wild-type strain. Worms were raised on OP50 Escherichia coli (E. coli)-seeded nematode growth medium (NGM) plates at 20°C or room temperature, following standard protocol (Brenner, 1974). All transgenes and plasmids are listed in Supplementary file 1-Tables S1 and S2.

To generate new dma-1 alleles by CRIPSR/Cas9-mediated genome editing, Peft-3::cas9 (50 ng/μL), pU6::dma-1 sgRNA (50 ng/μL), Punc-122::rfp (50 ng/μL) and Pmyo-3::mCherry (5 ng/μL) were injected into wyIs592 (ser2prom3:: myr::gfp) worms. F1 worms with abnormal PVD dendrite morphologies were identified through fluorescence microscopy and rescued. 8 of 24 F1 worms carried germ line mutations (point mutations, small insertions/deletions) in dma-1, which were revealed by sequencing. wy908 contained an 8 base pairs deletion that caused a frame shift leading to premature stop codons in the cytosolic domain of dma-1.

A similar approach was used to insert 2xFLAG into the cytosolic domain of dma-1 using CRISPR/Cas-9 combined with homologous repair. A single-stranded repair template carrying 2xFLAG and 50 base pairs of homology sequences on each end was co-injected at 50ng/μL and successful insertion was confirmed by PCR genotyping and sequencing. The FLAG tag was inserted between the third and fourth amino acids after the transmembrane domain, and we confirmed with fluorescent microscopy that these mutants had normal PVD morphology and thus the edited dma-1 allele was still fully functional.

The kpc-1(wy1060) allele was generated using a 113 base pairs single-stranded repair template. The 136th and the 143th Arginines were mutated to Alanines. The entire coding region of kpc-1 was sequenced to confirm precise homologous recombination and no other mutations were identified. Sequences of all sgRNAs and repair oligos are listed in Supplementary file 1-Table S3.

Images of DMA-1-GFP and HPO-30-GFP were acquired in live animals using a Zeiss Axio Observer Z1 microscope equipped with a Plan-Apochromat 63X/1.4NA objective, Yokagawa spinning disk head, 488 nm and 561 nm diode lasers, and a Hamamatsu ImagEm EMCCD camera driven by MetaMorph (Molecular Devices, Sunnyvale, CA). Other fluorescent images were captured using a Plan-Apochromat 40X/1.3NA objective on a Zeiss LSM710 confocal microscope (Carl Zeiss, Germany). Worms were immobilized on 2% agarose pads using a mixture of 225 mM 2,3-butanedione monoxime and 2.5 mM levamisole (Sigma-Aldrich, St. Louis, MO). Z-stacks were collected and maximum intensity projections were used for additional analysis.

Drosophila S2 and S2R+ cells were obtained from the Drosophila Genomics Resource Center and cultured in Schneider’s insect medium (Sigma) according to the manufacturer’s description and transfected using Effectene (Qiagen, Valencia, CA). S2 cell aggregation assays were performed as previously described (Zorio et al., 1994). All plasmids used for transfection are listed in Supplementary file 1-Table S2. For the aggregation assay, S2 cells were transfected with Pactin::sax-7::gfp +Pactin::mnr-1::gfp, Pactin::dma-1::rfp or Pactin::dma-1::rfp+ Pactin::kpc-1::gfp. 3 days after transfection, cells were washed with 5 mL phosphate buffered saline (PBS) and resuspended in S2 medium at 10⁶ cell/mL. 500 μL of green cells were mixed with 500 μL red cells and rotated at 30 rpm for 3 hours at room temperature. 3 μL of each mixture was immediately spotted on glass slides for imaging and quantification.

Similarly, S2R+ cells were cultured in 4-well chamber slides (Fisher Scientific, Waltham, MA) and transfected with Pactin::dma-1::rfp, Pactin::mCD8::Venus, Pactin::kpc-1::cfp and Pactin::Venus::rab-7. The cells were washed with PBS and imaged on a Zeiss LSM710 confocal microscope (Carl Zeiss) 2 days after transfection.

For Figure 3—figure supplement 1E, S2 cells were transfected with Pactin::kpc-1::HA or Pactin::kpc-1R136AR143A::HA and for Figure 6D, with Pactin::dma-1::Myc alone or with Pactin::kpc-1::HA. 3 days after transfection, cells were collected from T25 tissue culture flasks and lysed in lysis buffer (1xPBS, 1% Triton X-100 and 1% protease inhibitor cocktail (Sigma)) for 20 min on ice. Cell lysates were spun at 13,000 rpm for 10 min and supernatants were collected and detected using Western blot analysis with mouse antibody to HA (1:1000, Roche) or rabbit antibody to Myc (1:2000, Santa Cruz Biotechnology, Dallas, TX) and HRP-conjugated goat antibodies to mouse or rabbit (1:20,000, Jackson Immuno Research West Grove, PA).

For Figure 4D, twenty 10 cm NGM plates of each worm strain were lysed in RIPA lysis buffer (Sigma) with 1% protease inhibitor cocktail (Sigma) using Lysing Matrix C and the FastPrep-24 tissue homogenizer (MPbio, Santa Ana, CA). Lysates were spun at 13,000 rpm for 10 min. Supernatants were collected and analyzed using Western blots with mouse antibody to GFP (1:1000, Roche, Indianapolis, IN), mouse antibody to FLAG (1:5000, Sigma) and HRP-conjugated goat antibody to mouse (1:20,000, Jackson Immuno Research).

For protein expression, the ectodomain of DMA-1 (amino acids 20–507) was cloned into the baculoviral transfer plasmid pAcGP67-A (BD Biosciences Pharmingen, San Jose, CA) with a C-terminal hexahistidine tag, and the ectodomain of KPC-1 (amino acids 34–673) was cloned into pAcGP67-A with a C-terminal biotinylation-acceptor peptide and a hexahistidine tag. Proteins were expressed using the baculoviruses in High Five cells, and secreted into expression media (Insect-XPRESS, Lonza, Walkersville, MD, supplemented with 10 μg/mL gentamicin). Proteins were purified using affinity against Ni²⁺-NTA agarose resin (Qiagen), followed by gel filtration chromatography with a Superdex 200 10/300 column in HEPES-buffered saline (HBS, 10 mM HEPES pH 7.2, 150 mM NaCl). Both proteins eluted as single, monodisperse peaks at volumes indicative of being monomeric. KPC-1 was further treated with the E. coli enzyme BirA (biotin ligase) for biotinylation, and re-purified with gel filtration chromatography.

We measured binding between KPC-1 and DMA-1 using biolayer interferometry (BLItz System, ForteBio, Pall Life Sciences, Port Washington, NY) with streptavidin tips (SA Biosensors; Fortebio, Menlo Park, CA) to capture biotinylated DMA-1. DMA-1 was immobilized to saturation at ~4.6 nm BLI responses. KPC-1 in HBS at varying concentrations from 0.45 µM to 218 µM was titrated on the biosensor tip. Association and dissociation kinetics were observed to be fast; equilibrium binding responses were used to fit the data to the one-site Langmuir absorption isotherm model (Figure 7F, blue circles). No corrections were applied for non-specific binding. The maximum response calculated from the isotherm (2.0 nm) indicates a biosensor surface with ~60% active protein, an experimentally sensible value. Dissociation constant (K_D) was calculated to be 33.5 ± 5.3 µM and 31.6 ± 7.2 µM over duplicate runs.

As a negative control, the SA tip was decorated with biotinylated ectodomain of human GPR56 (a kind gift from Celia Giulietta Fernandez) to ~11.5 nm BLI response levels. DMA-1 was observed not to bind to GPR56 (Figure 7F, open rectangles).

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

This work was supported by the Howard Hughes Medical Institute and by NIH (1R01NS082208-01A1) to KS, by NIH (5R01GM111320) and by NSF (IOS-1455758) to C Chang. The work in the Özkan's lab was supported by a Klingenstein-Simons Fellowship in the Neuroscience. We thank the Caenorhabditis Genetics Center for the kpc-1(gk8) strain, the laboratories of L Luo and M Scott for Drosophila S2 and S2R+ cell lines, CG Fernandez for the GPR56 protein, and M Snyder for allowing us to use the FastPrep equipment. We also thank C Richardson for critical reading of the manuscript.
