Active and water-soluble form of lipidated Wnt protein is maintained by a serum glycoprotein afamin/α-albumin

  1. Emiko Mihara
  2. Hidenori Hirai
  3. Hideki Yamamoto
  4. Keiko Tamura-Kawakami
  5. Mami Matano
  6. Akira Kikuchi
  7. Toshiro Sato
  8. Junichi Takagi Is a corresponding author
  1. Osaka University, Japan
  2. Keio University School of Medicine, Japan
Tools and Resources
Cited
10
Views
2,468
Comments
0
Cite as: eLife 2016;5:e11621 doi: 10.7554/eLife.11621

Abstract

Wnt plays important role during development and in various diseases. Because Wnts are lipidated and highly hydrophobic, they can only be purified in the presence of detergents, limiting their use in various in vitro and in vivo assays. We purified N-terminally tagged recombinant Wnt3a secreted from cells and accidentally discovered that Wnt3a co-purified with a glycoprotein afamin derived from the bovine serum included in the media. Wnt3a forms a 1:1 complex with afamin, which remains soluble in aqueous buffer after isolation, and can induce signaling in various cellular systems including the intestical stem cell growth assay. By co-expressing with afamin, biologically active afamin-Wnt complex can be easily obtained in large quantity. As afamin can also solubilize Wnt5a, Wnt3, and many more Wnt subtypes, afamin complexation will open a way to put various Wnt ligands and their signaling mechanisms under a thorough biochemical scrutiny that had been difficult for years.

https://doi.org/10.7554/eLife.11621.001

eLife digest

The Wnt signaling pathway helps animal cells to communicate with each other to coordinate the formation of tissues and organs. The pathway relies on a protein called Wnt that is released from cells and binds to a receptor protein called Frizzled on the surface of other cells to trigger changes in gene activation. Defects in the Wnt signaling pathway contribute to cancer and other diseases.

Great progress has been made in understanding Wnt signaling, but certain types of experiments have been hindered because it has been difficult to isolate pure Wnt proteins. This is partly because Wnt proteins are attached to a fatty molecule that is important for their activity but also makes these proteins “hydrophobic,” or repelled by water.

Hydrophobic proteins have a strong tendency to clump or aggregate when they are isolated from cells, which reduces the biological activity of proteins. Adding detergents to the aggregates can break them apart, but can also hinder the proteins’ activities and cannot be used in all experiments. Previous research has shown that mammalian cells grown in the presence of blood serum can produce Wnt proteins that do not aggregate. Blood serum is a complex mixture of different molecules obtained from blood and is commonly added to cells grown in the laboratory. However, adding serum can have also undesirable effects and it is not understood why serum stops Wnt proteins forming aggregates.

Using biochemical methods, Mihara et al. have now identified the component in blood serum that prevents Wnt proteins from aggregating. The experiments showed that a protein in the blood serum called afamin binds tightly to Wnt proteins. Furthermore, the complex between afamin and Wnt was biologically active, and could bind to the Frizzled receptor and trigger an appropriate response in cells.

Mihara et al. then generated cells that produced both afamin and Wnt and used them to purify large amounts of biologically active Wnt/afamin complexes. This method avoids the potentially undesirable effects of using detergents or serum, and will therefore likely be useful for future experiments and therapeutic applications. Further work is also needed to understand why afamin binds to Wnt proteins and whether this is important for Wnt signaling.

https://doi.org/10.7554/eLife.11621.002

Introduction

Wnt proteins constitute a large family of secreted glycoproteins that control diverse aspects of embryonic development and adult homeostasis (Logan and Nusse, 2004). As they influence the balance between proliferation and differentiation in many cell types, they are fundamentally implicated in the biological processes with great medical importances, including bone formation (Regard et al., 2012), immune regulation (Yu et al., 2010), cancer (Zimmerman et al., 2012), and stem cell renewal (ten Berge et al., 2011). At least 19 Wnt proteins are present in mammals, each serving different but potentially overlapping functions (Holstein, 2012). All mammalian Wnts are predicted to be covalently lipidated at a conserved Ser residue (Takada et al., 2006; Willert et al., 2003), a modification essential to their biological activity because of its contribution to the interaction with Frizzled receptors (Janda et al., 2012). Due to the strong hydrophobic property granted by the lipid moiety, however, purified Wnt proteins tend to lose their biological activity, probably due to the aggregation even in the presence of detergents (Dhamdhere et al., 2014).

The most general source for soluble Wnt ligands used in a paracrine-type experiments (i.e., exogenous addition of ligands) is the culture supernatants of cells producing Wnts. In fact, L cells (mouse fibroblastic cell line) stably expressing Wnt3a (Willert et al., 2003) or Wnt5a (Chen et al., 2003) have been established and are already available from a public cell bank. Curiously, it has been known that Wnt secretion from cultured cells require the presence of bovine serum in the media (Willert, 2008). As a result, Wnt-containing culture media would always have to contain ~10% serum, precluding the use of such sample in biological assays that are sensitive to the factors contained in bovine serum (e.g., growth factors and proteases). The serum component(s) that support Wnt secretion has not been identified, and it is generally assumed that serum lipids render the hydrophobic Wnt proteins soluble. Willert et al had found that the inclusion of a detergent CHAPS at 1% can solubilize Wnt proteins and successfully developed a method to purify Wnt proteins from serum-containing media, which opened a way to apply purified Wnts to various experimental systems (Willert, 2008). By using this technology, several Wnt ligands are now commercially available in a purified format. However, the Wnt ligands thus purified contain CHAPS and are incompatible with detergent-sensitive cell-based assays. Moreover, CHAPS-solubilized Wnt quickly loses its biological activity upon incubation at 37°C, unless it is reconstituted into lipid vesicle (Dhamdhere et al., 2014).

In the present report, we identified the serum component responsible for the aqueous partitioning of Wnt proteins as a serum glycoprotein afamin rather than lipid molecules. Afamin and Wnt apparently makes 1:1 complex in the culture media, which is highly soluble in detergent-free buffers upon isolation but is decomposed upon the addition of 1% CHAPS. Afamin-Wnt complex is biologically active, indicating that afamin can deliver Wnt ligands to its receptors on cell surface. By using afamin as a carrier, we succeeded in preparing large quantity of biologically active Wnt3a, Wnt5a, and Wnt3 proteins with no other components, which can be stored at 4°C.

Results

We first systematically explored the tagging condition for the expression and secretion of mouse Wnt3a in HEK cells, and found that N-terminal addition of the 21-residue 'TARGET(Tg)' tag developed in our lab (Tabata et al., 2010) (see schematics in Supplementary file 1) was compatible. As shown in Figure 1A, conditioned medium (CM) from HEK cells stably expressing Tg-Wnt3a contained Wnt3a antigen at a level comparable to that from L-3a cells. The Wnt reporter assay revealed that both CM possessed similar activity (Figure 1B), indicating that the N-terminal tagging did not impair the biological activity of Wnt3a that had been successfully secreted into the media. The TARGET tag system takes advantage of the specific recognition of concatenated YPGQ sequence by a monoclonal antibody P20.1 (Nogi et al., 2008), allowing the rapid one-step purification of tagged protein by a buffer containing competing peptide or 40% propylene glycol. Affinity purification of Tg-Wnt3a from the CM was conducted on P20.1-Sepharose, resulting in the ~37 kDa protein band corresponding to the tagged Wnt3a appearing in the peptide-eluted fractions (Figure 2, lanes 7–9). Near-complete removal of the bovine serum albumin (BSA), the largest protein constituent present in the CM, was achieved during the purification, although very small amount of BSA is still contaminated in the eluted fractions. However, we noticed that protein bands with relative molecular masses of 70 and 25 kDa were always present in the fractions containing Wnt3a (Figure 2). Among them, the 70-kDa protein was reproducibly co-purified with Wnt3a at near stoicheometric fashion, while the amount of 25-kDa protein was generally much lower than Wnt3a and varied among different experiments. As these proteins do not appear in the elution fractions from the P20.1-Sepharose incubated with the control CM lacking Wnt3a, they are likely to associate and be co-purified with Wnt3a. The N-terminal sequence of the 25-kDa band (GDDPQSSWDRV) revealed that it is the bovine apolipoprotein A1 (ApoA1; NP_776667). This is consistent with the report by Neumann et al that a part of secreted Wnt3a is released onto ApoA1-containing HDL particles (Neumann et al., 2009). In contrast, N-terminal Edman sequencing of the 70-kDa band derived a sequence of LPTQPQDVDD, which was in 100% match with the first 10 residues of a relatively unknown protein called afamin (NP_001179104).

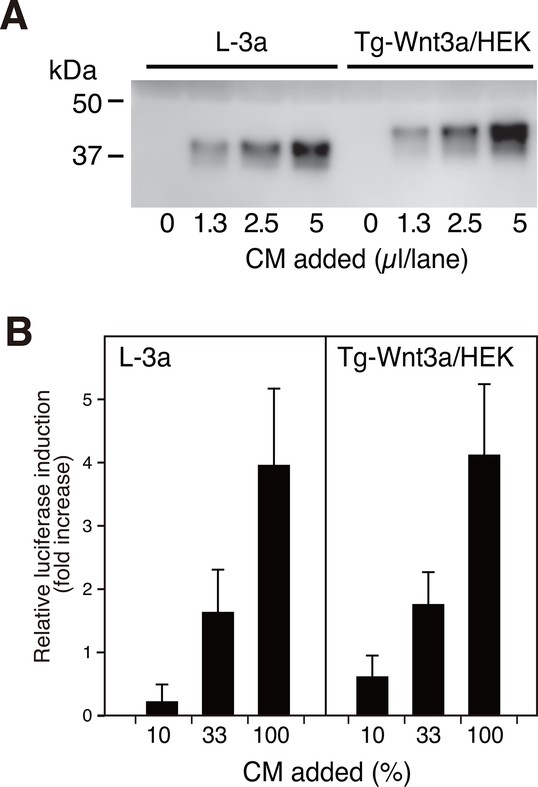

N-terminally tagged Wnt3a secretion from HEK cells.

(A) Indicated amounts of CM from the confluent L cells stably expressing untagged Wnt3a (L-3a) or HEK293S GnT1- cells stably expressing TARGET-tagged Wnt3a (Tg-Wnt3a/HEK) were subjected to a Western blotting using anti-mouse Wnt3a antibody. Note that Tg-Wnt3a migrate slower than the untagged Wnt3a due to the presence of extra 35-residue (~4 kDa) tag sequence. (B) The stable TCF reporter cells were incubated with the indicated concentration of CM for 6 hr. Luciferase activities in the cell lysates were determined and expressed as the relative increase from the control value obtained in the mock-treated cells. Data are mean ± SD of three independent experiments, in which quadruplicate determinations were made. See also Figure 1—source data 1.

https://doi.org/10.7554/eLife.11621.003

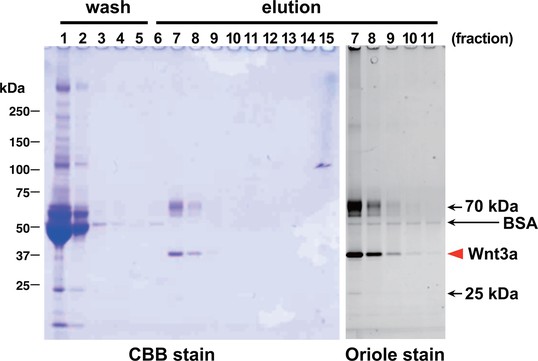

Affinity purification of tagged Wnt3a from the culture supernatants.

A small column of Sepharose coupled with anti-TARGET tag antibody P20.1 (~3 ml) that had been incubated with ~220 ml of CM from the confluent culture was washed with TBS, followed by elution with TBS containing 0.2 mg/ml competing C8 peptide. Ten µl sample from each fraction (fraction size = 3 ml) was subjected to 5–20% SDS-PAGE under nonreducing condition and stained with Coomassie Blue. A portion of the same gel (fractions 7–11) was stained with Oriole fluorescent stain to visualize minor contaminating bands.

https://doi.org/10.7554/eLife.11621.005

Afamin (AFM), also known as α-albumin, is a plasma glycoprotein that belongs to the albumin superfamily proteins (Lichenstein et al., 1994). Little is known about the physiological function of this protein except for its potential role as a carrier of vitamin E (Kratzer et al., 2009), and there have been no reports that suggest functional linkage between AFM and Wnts. In order to confirm that AFM and Wnt3a are associated in the CM, we raised a monoclonal antibody against bovine AFM and performed immunoprecipitation from the Wnt3a-containing CM. As clearly shown in Figure 3A, both tagged and untagged Wnt3a can be co-immunoprecipitaed with bovine AFM from the CM, indicating that Wnt3a itself but not the tag portion has ability to specifically bind to AFM. This result prompted us to investigate whether serum AFM represents the agent responsible for the ability of serum to allow soluble Wnt3a secretion into the medium. To this end, we produced and purified recombinant human AFM protein using mammalian expression system (Figure 3—figure supplement 1) and tested its ability to facilitate Wnt3a secretion into the serum-free media by L-3a and stable Tg-Wnt3a-expressing HEK cells. As reported previously, Wnt3a was successfully secreted into the media when 5% fetal calf serum (FCS) is present, but is nearly absent in the supernatant when the same cells are cultured in a plain DMEM (Figure 3B). Remarkably, addition of purified recombinant human AFM into the media restored the Wnt3a secretion in a dose dependent manner, even though the medium contained no other proteins or special additives (Figure 3B). Albumin superfamily comprises of four members, including serum albumin, AFM, α-fetoprotein (AFP), and vitamin D binding protein (VDBP), all present in blood at different concentrations (Lichenstein et al., 1994). We prepared all of them in recombinant form (Figure 3—figure supplement 1) and tested their ability to support Wnt3a secretion. As shown in Figure 3C, only AFM was able to enhance Wnt3a secretion, suggesting that AFM is the major serum factor responsible for this activity.

Figure 3 with 1 supplement see all

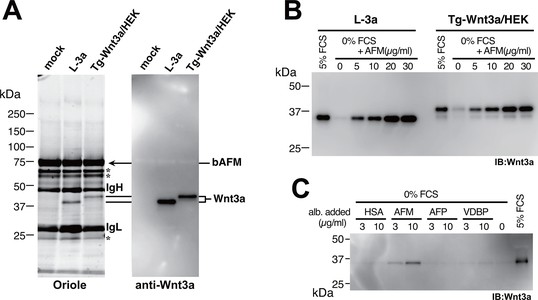

Serum afamin binds to Wnt3a secreted from cells.

(A) Serum-containing CM from the mock, L-3a, or Tg-Wnt3a/HEK cells were incubated with Sepharose beads immobilized with an anti-bovine AFM monoclonal antibody (clone B91) and the immunoprecipitated materials were separated by SDS-PAGE under reducing condition, followed by Oriole Fluorescent protein stain (left) and anti-Wnt3a immunoblotting (right). Positions for bovine AFM and tagged/untagged Wnt3a are shown in the right. Asterisks denote nonspecific serum-derived proteins. (B) L-3a or Tg-Wnt3a/HEK cells were cultured in DMEM containing various concentrations of serum or purified recombinant human AFM for 5 days, and the resultant CMs (3 µl) were subjected to the anti-Wnt3a immunoblotting. (C) Effect of various albumin family proteins to support Wnt3a secretion from L-3a cells is evaluated as in (B). HSA, human serum albumin; AFM, human afamin; AFP, human α-fetoprotein; VDBP, mouse vitamin D binding protein.

https://doi.org/10.7554/eLife.11621.006

Although many researchers have purified Wnt proteins from serum-containing culture media, no one had reported the presence of serum afamin in their preparations. As the critical trick for the successful Wnt purification discovered by Willert et al is the addition of 1% CHAPS at the beginning of the purification steps (Willert, 2008), we speculated that AFM-Wnt interaction may be susceptible to a detergent treatment. In order to test this hypothesis, the partially pure Wnt3a preparation containing AFM was subjected to size exclusion chromatography (SEC) on a Superdex 200 column in the presence or absence of 1% CHAPS. Under both conditions, the majority of the proteins formed large high-molecular weight (HMW) aggregates eluting at a void peak around 8–10 ml (Figures 4A and B). In the detergent-free condition (panels labeled as “'– CHAPS”' in Figure 4), however, there is a second peak eluting at 13.6 ml corresponding to the size of ~100 kDa. Coomassie staining (Figure 4C) and anti-Wnt3a immunoblot (Figure 4D) revealed that Wnt3a protein is contained in this 100-kDa peak as well as in the HMW fractions. When the same set of samples were probed with anti-AFM antisera, AFM immunoreactivity was solely present in the 100-kDa peak and not in the HMW fractions (Figure 4E). As the apparent size of this peak (100 kDa) is close to the sum of the molecular masses of Wnt3a (37 kDa) and AFM (70 kDa), we conclude that this peak represents the stable and monodispersed 1:1 complex formed between Wnt3a and AFM. In contrast to AFM, the 25-kDa ApoA1 antigen was broadly present in the HMW fractions but not in the 13.6-ml peak (Figure 4F), suggesting that the Wnt3a trapped in HDL particles accounts for at least part of the HMW peak. It also became evident that the HMW fractions are enriched by Wnt3a oligomers that are covalently crosslinked by disulfide bonds, while such oligomers are absent in AFM-containing fractions (Figure 4D). In sharp contrast to the results described above, the gel filtration profile obtained in the presence of 1% CHAPS (panels labeled as +CHAPS) shows completely different pattern; the Wnt3a do not co-elute with AFM any more but present in a broad range of fractions centered around ~50 kDa, with a concomitant increase in the covalent oligomer formation (Figures 4B–D). In addition, elution positions for ApoA1 is shifted to the fractions with much smaller size (Figure 4F), suggesting that the HDL particles can no longer exist under this condition. Based on these observations, we conclude that the specific interaction between Wnt3a and AFM is lost in the presence of 1% CHAPS, hence evaded from the discovery of its presence in the previous studies.

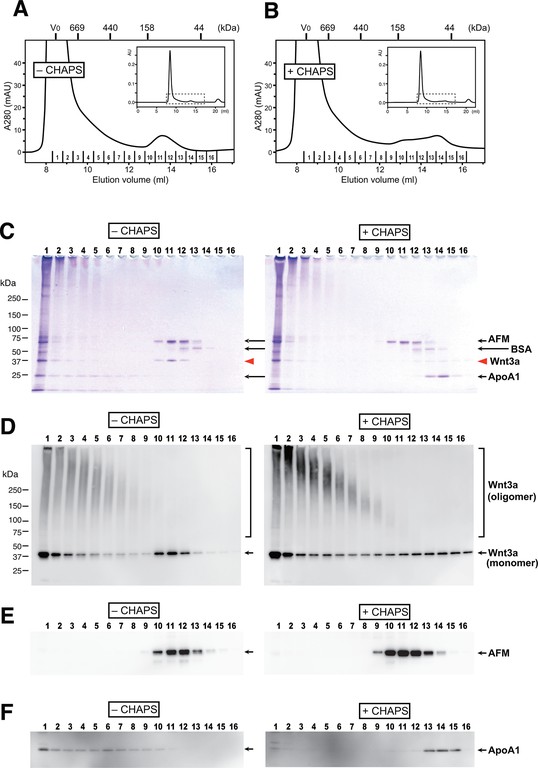

AFM and Wnt3a form stable 1:1 complex in the absence of detergents.

(A,B) SEC profiles of affinity-purified Wnt3a preparation in the absence (A, –CHAPS) or presence (B, +CHAPS) of 1% CHAPS. Graphs are expanded view of the areas indicated by dotted line box in the whole chromatograms (insets). Elusion positions for molecular mass standards including thyroglobulin (669 kDa), ferritin (440 kDa), aldorase (158 kDa) and ovalbumin (44 kDa) are indicated at the top. Sixteen fractions collected from each chromatography are subjected to nonreducing SDS-PAGE on 5–20% gradient gels, followed by Coomassie Blue staining (C) or immunoblotting with anti-Wnt3a (D), anti-bovine AFM (E), or anti-bovine ApoA1 (F). In (C) ~ (F), analysis of the samples from (A) and (B) are shown in the left (–CHAPS) or right (+CHAPS) panels, respectively.

https://doi.org/10.7554/eLife.11621.008

We next checked if the Wnt3a complexed with AFM retains its biological activity. When the purified AFM-Wnt3a complex dissolved in a CHAPS-free buffer was tested in the Wnt/β-catenin-responsive TCF reporter assay using HEK293 cells stably expressing luciferase gene under the control of TCF/LEF, concentration-dependent induction of reporter was observed (Figure 5A, left). The positive signal was detected at concentration as low as 0.56 nM (20 ng/ml), and reached the saturation at around 15 nM (500 ng/ml). In contrast, commercially available carrier-free Wnt3a protein (R&D; Systems, purified according to the method by Willert et al. (Willert, 2008)) exhibited much lower activity in the same assay condition (Figure 5A, right). Because of the concentration range employed for this sample (<45 nM) to minimize the amount of CHAPS brought into the cell culture condition, it is not clear if the signal reached the saturation. Assuming that the maximum reporter induction achievable by two different Wnt3a preparations is identical, the EC50 value for the AFM-Wnt3a complex is estimated to be 5~10-fold lower than that for the purified Wnt3a. Furthermore, AFM-Wnt3a complex exhibited similar activity before and after the storage at 4°C for 1 month in PBS (Figure 5—figure supplement 1), indicating the stable nature of this preparation in the absence of any detergents.

Figure 5 with 2 supplements see all

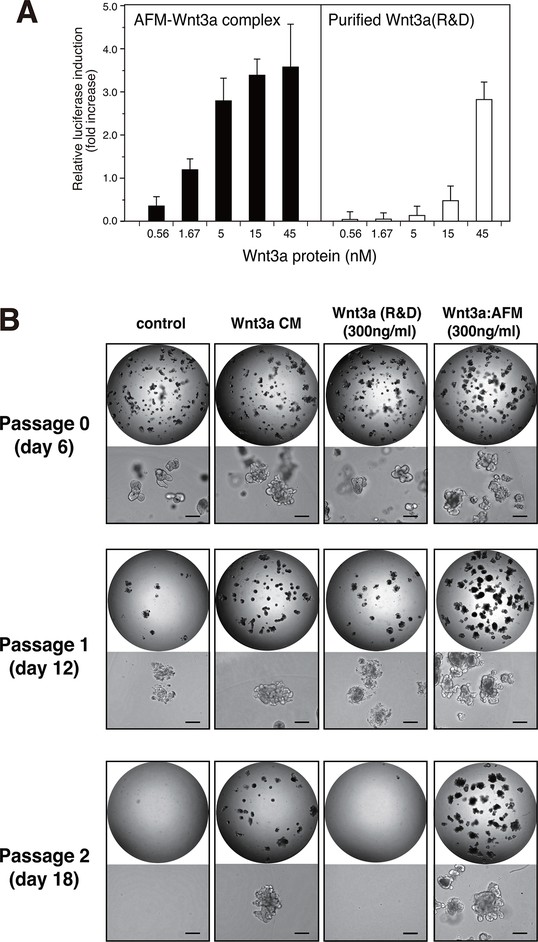

Wnt3a in complex with AFM is biologically active.

(A) Comparison between the purified Wnt3a from a commercial source and the AFM-Wnt3a complex. Increasing concentrations of Wnt3a proteins are added to TCF reporter cells and the Wnt signaling activities are evaluated as in Figure 1B. The data are mean ± SD of three independent experiments, in which quadruplicate determinations were made. See Figure 5—source data 1. (B) AFM-Wnt3a complex supports self-renewal of human intestinal stem cells. The ability of single-cell dissociated human intestinal organoids to expand was evaluated by culturing in the absence (control) or presence of various forms of Wnt3a preparations. Photographs are taken every 7 days at a low (x2, entire view of one 48-well, upper panels) and the high (x 10, lower panels) magnifications. Bar: 200 µm.

https://doi.org/10.7554/eLife.11621.009

The biological activity of AFM-Wnt3a complex was also evaluated using the human intestinal organoid culture. Active Wnt3a signal is required for the stem cells present at the bottom of the intestinal crypt to self-renew (Sato and Clevers, 2013), and it is established that human colonic organoids require a set of growth factors (including Wnt3a, EGF, noggin, and R-spondin-1) for sustained expansion (Sato et al., 2011). Incubation of the single-cell dissociated human intestinal organoids with the serum-containing CM of Wnt3a-expressing cells together with other components successfully supported the continued growth and expansion of the organoids (Figure 5B, 'Wnt3a CM), while in the absence of Wnt3a (Figure 5B, control) the cells ceased proliferation after the second passage. However, purified Wnt3a obtained from a commercial source failed to show this activity when added at 300 ng/ml to the culture (Figure 5B, Wnt3a(R&D;)). This result is consistent with the finding by Dhamdhere et al that CHAPS-purified Wnt3a lose its activity upon prolonged incubation at 37°C (Dhamdhere et al., 2014). It seems likely that continued presence of active Wnt3a during the long culture (7 days per passage) is required for the expansion of the organoid. In contrast, AFM-Wnt3a complex was able to support organoid expansion at the same concentration (Figure 5B, Wnt3a:AFM, and Figure 5—figure supplement 2). When supplemented with the same concentration of AFM-Wnt3a complex in the medium for each passage, organoids were able to expand for more than 18 passages over a period of 4 months (data not shown). As this culture media does not include any detergents, high salt, or serum components, it provides ideal experimental condition to evaluate growth, renewal, and differentiation of the intestinal or other type of stem cells for various studies.

To check if the ability of AFM to solubilize and stabilize Wnt protein in aqueous environment is specific to Wnt3a, we established a stable HEK cell line expressing N-terminally tagged mouse Wnt5a and purified it from the CM. As shown in Figure 6A, Tg-Wnt5a co-purified with serum afamin by the anti-tag immunoaffinity chromatography, just like Wnt3a (compare with Figure 2). Furthermore, the SEC profile of the immunopurified Wnt5a preparation was essentially the same as that of Wnt3a, showing the presence of monodispersed AFM-Wnt5a complex peak eluting at around 150 kDa, in addition to the HMW aggregate fractions (Figure 6B and Figure 6—figure supplement 1). Finally, the AFM-Wnt5a complex thus purified was biologically active, because it induced phosphorylation of Dvl2 in NIH3T3 cells at concentrations above 10 ng/ml (Figure 6C). Importantly, the activity of AFM-Wnt5a complex was indistinguishable with that of AFM-free Wnt5a protein freshly purified from the CM using the conventional method (Kurayoshi et al., 2007).

As an exogenous addition of AFM in the serum-free culture condition promoted secretion of Wnt3a from cells (Figure 3B), we hypothesized that AFM may be able to enhance the production of Wnts when present during their biosynthesis within cells. Therefore, we evaluated the effect of AFM co-expression on the transient expression of Wnt3a in Expi293F cells. In order to increase the yield during the immunoaffinity purification, we changed the tag sequence attached to the N-terminus of Wnt3a to a recently developed PA tag (construct #3 in Supplementary file 1), which has shorter sequence than the TARGET tag and yet recognized by its antibody (NZ-1) with very high affinity (Fujii et al., 2014). Transient transfection of PA-Wnt3a alone into the suspension culture of Expi293F cells did not result in the secretion of Wnt3a (Figure 7A. lane 1), which was expected because the culture medium for this cell line did not contain serum. In contrast, when the cells were co-transfected with PA-Wnt3a and human AFM, ~37-kDa Wnt3a band became visible in the NZ-1 immunoprecipitates along with the associated AFM (Figure 7A, lane 2), confirming the ability of AFM to enhance Wnt production/secretion by co-expression. Using this co-expression system, we further evaluated the effect of AFM on the expression and secretion of various Wnt family proteins other than mouse Wnt3a and Wnt5a. To this end, expression constructs for all 19 members of human Wnt proteins containing N-terminal PA tag were prepared from the Open Source Wnt Project DNA collection (Najdi et al., 2012). Out of the 19 PA-tagged human Wnts, 12 members (Wnt1, Wnt2b, Wnt3, Wnt3a, Wnt5a, Wnt7a, Wnt7b, Wnt8a, Wnt9a, Wnt9b, Wnt10a, and Wnt10b) could be secreted at detectable level from HEK293T cells when transfected alone in the presence of serum (Figure 7—figure supplement 1). These 12 Wnts were then subjected to the AFM co-expression experiments. As in the case of mouse Wnt3a, 12 human Wnt proteins exhibited no or very little secretion into the serum-free culture media when singly transfected into the Expi293F cells (Figure 7B, lanes marked with –). However, their expression was enhanced upon the co-transfection with human AFM (Figure 7B, lanes marked with +). Although the extent of the enhancement varied among different Wnts, all Wnts directly associated with AFM as evidenced by the co-immunoprecipitation experiments (Figure 7C), suggesting that AFM can serve as a secretion vehicle for most if not all Wnt proteins to aid their simple purification. The culture media containing various Wnts in complex with AFM thus obtained were tested for their ability to activate Wnt/β-catenin signaling in TCF reporter cells. As shown in Figure 7D, only Wnt3 and Wnt3a showed significant activity in this assay system. This result contradicts with that obtained by Najdi et al who reported that, in addition to Wnt3 and Wnt3a, other Wnts including Wnt1, Wnt7a, Wnt7b, Wnt8a, Wnt9b, and Wnt10b were capable of activating Wnt/β-catenin signaling in HEK cells to some extent (Najdi et al., 2012). However, they evaluated the activity of untagged Wnts in an autocrine format by directly transfecting each Wnt into the reporter cells rather than exogenously adding the secreted Wnt proteins. We confirmed that some of our PA-tagged Wnts including Wnt1, Wnt9b, and Wnt10b also showed some activity when tested in the autocrine type of assay (Figure 7—figure supplement 2). It is therefore possible that the discrepancy reflects the requirement of the cell-associated Wnt presentation for some Wnt subtypes to signal, which has been postulated for Wnt1 (Green et al., 2013). Still, there is a possibility that the signaling property of these Wnts are attenuated by the complex formation with AFM.

Figure 6 with 1 supplement see all

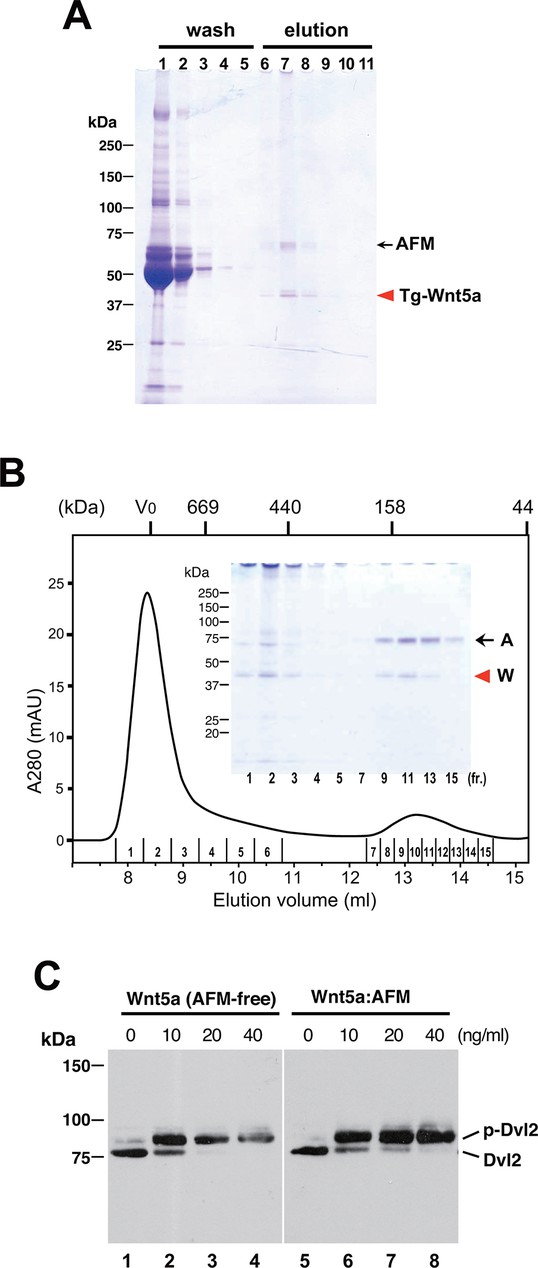

Serum AFM binds and solubilize Wnt5a.

(A) Purification of Tg-Wnt5a from the CM of stable HEK cell line was conducted as in the case for Tg-Wn3a, and the resulting column fractions were analyzed by SDS-PAGE and Coomassie Blue staining. Positions for the 70-kDa bovine AFM and the 40-kDa mouse Wnt5a are shown at the right. (B) SEC profile of the tag-purified Wnt5a. Note that the ~150-kDa peak (fractions 9–13) contains roughly equimolar amounts of AFM (A) and Wnt5a (W) proteins as judged by the non-reducing SDS-PAGE (inset). The 40-kDa Wnt5a was present in both HMW and monodispersed fractions. See also Figure 6—figure supplement 1. (C) Biological activity of AFM-Wnt5a complex. NIH3T3 cells were incubated with either AFM-free, untagged Wnt5a (lanes 1–4) or the purified Tg-Wnt5a:AFM complex (lanes 5–8) at increasing concentrations. The level of cellular Dvl2 phosphrylation was assessed by the mobility shift of Dvl2 band in the anti-Dvl2 immunoblots using the whole cell lysates.

https://doi.org/10.7554/eLife.11621.015
Figure 7 with 2 supplements see all

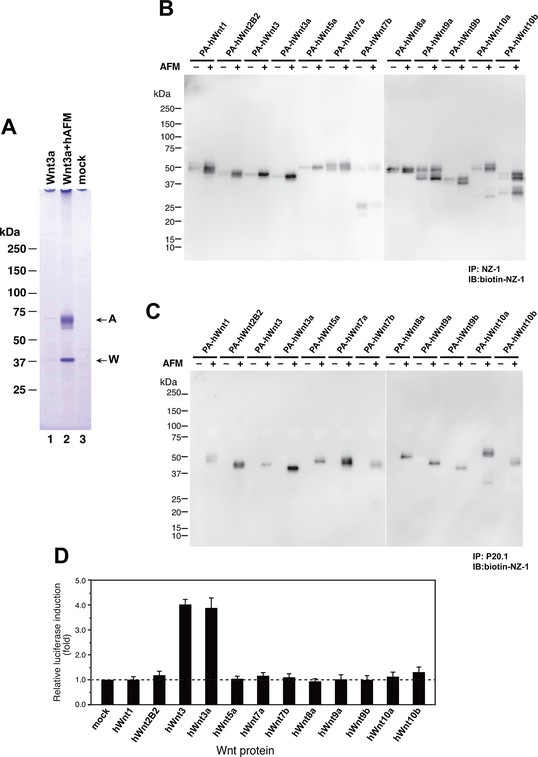

Increased production/secretion of various Wnt proteins by the co-expression with AFM.

(A) Expi293F cells were transiently transfected with PA-tagged mouse Wnt3a (lane 1), PA-tagged mouse Wnt3a + Tg-tagged human AFM (lane 2), or mock (lane 3) plasmids under the serum-free condition and the resultant culture supernatants were subjected to the immunoprecipitation with anti-PA tag antibody NZ-1 and analyzed on a nonreducing 5–20% SDS-PAGE gel followed by Coomassie Blue staining. A, Tg-hAFM; W, PA-mWnt3a. (B–D) AFM co-expression facilitates various Wnt secretion. N-terminally PA-tagged human Wnts are transiently co-transfected with Tg-tagged human AFM into Expi293F cells, and the culture media are immunoprecipitated with either anti-PA NZ-1 (B) or anti-Tg P20.1 (C), followed by immunoblotting with biotinylated NZ-1 to visualize PA-tagged Wnts. In (D), the same set of culture media are subjected to the TCF reporter assay as in Figure 1B, to see if they can induce Wnt/β-catenin signaling. The data are mean ± SE (n = 4) from a representative experiment. See Figure 7—source data 1.

https://doi.org/10.7554/eLife.11621.017

Taking advantage of the scalable nature of the transient expression using suspension cells, we performed large-scale expression/purification of mouse Wnt3a and human Wnt3. As shown in Figure 8A, both Wnt proteins can be purified from the culture media of transfected Expi293F cells using anti-PA tag immunoaffinity resin, solely in complex with the co-expressed human AFM. Typically, we obtained ~170 µg mouse Wnt3a and ~120 µg human Wnt3 from a 300 ml culture media. Although it is difficult to tell whether AFM and Wnt can form complex before the secretion (e.g., in the secretary compartments) or the complex formation is exclusively a post-secretion event (i.e., associated after both proteins are secreted separately), this result indicates that AFM does not need to be added as protein but can be simultaneously produced with Wnts in the same cells to support its secretion. As in the case of AFM-Wnt complex formed in the serum-containing culture media (i.e., Figures 2 and 6), the AFM-Wnt3a/3 complex produced from cells upon co-expression primarily behaved as a monodispersed molecular species (Figure 8B,C, fraction II). Furthermore, both Wnts are not present in the HMW peak (fraction I), suggesting that the absence of serum components in the culture media is advantageous to obtain cleaner Wnt samples devoid of contaminating proteins such as HDL. Although the estimated molecular size for these complexes (~140 kDa) is significantly different from that obtained in the previous experiment (100 kDa, Figure 4A), the recombinant human AFM used in the co-expression experiments carries one more N-glycosylation site and a long (36 residues) N-terminal tag peptide compared to the serum-derived, natural bovine AFM, which may have contributed to the larger Stokes radius of the complex. Finally, we confirmed that AFM-Wnt3a as well as AFM-Wnt3 complexes thus produced were active in the Wnt/β-catenin signaling reporter assay, exhibiting similar concentration dependency with that of AFM-Wnt3a complex purified from serum-containing CM (Figure 8D,E). Overall, the AFM co-expression strategy combined with the use of transient transfection of suspension cells is an excellent choice of method when the production of biologically active Wnt ligands at large quantity is required.

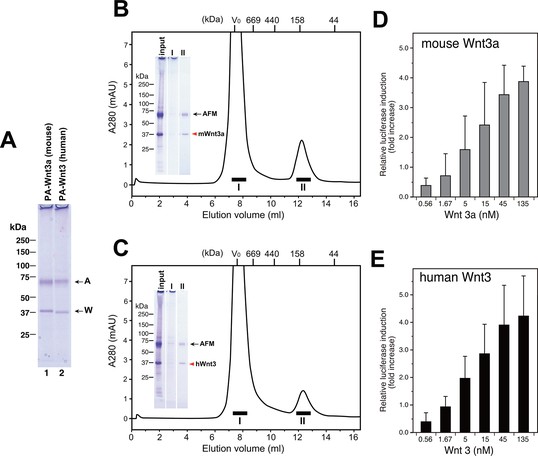

Large scale production of Wnt3a and Wnt3 by using AFM co-expression method.

(A) A 300 ml culture of Expi293F cells were used to co-express Tg-tagged human AFM and PA-tagged mouse Wnt3a or human Wnt3. The AFM-Wnt complexes were purified from the co-transfected culture media using NZ-1-immunoaffinity resin and checked for its purity on a nonreducing 5–20% SDS-PAGE gel followed by Coomassie Blue staining. (B,C) SEC profile of the NZ-1-purified AFM-Wnt3a (B) or AFM-Wnt3 (C) complex. The eluted material from the NZ-1 immunoaffinity chromatography (input, same as the sample shown in (A)) was subjected to the SEC on Superdex 200, showing two peaks. The void peak (fraction I) comprised only of HMW aggregates that barely enter the top of separation gel, while the ~140-kDa peak (fraction II) contained AFM and Wnt3a/Wnt3 at similar amounts. (D,E) Signaling activity of AFM-Wnt complex prepared by AFM co-expression method. The NZ-1-purified AFM-Wnt3a (D) or AFM-Wnt3 (E) complex was subjected to the TCF reporter assay as in Figure 5A. The data are mean ± SD of three independent experiments, in which quadruplicate determinations were made. See Figure 8—source data 1.

https://doi.org/10.7554/eLife.11621.022

Discussion

Despite their fundamental involvement in general metazoan development as well as various human diseases, Wnt proteins and their mechanism of action had evaded biochemical scrutiny for many years. The most enigmatic character of Wnt proteins is their hydrophobic nature due to the covalent lipid modification discovered by Willert et al (Willert et al., 2003), which was later identified by Takada and colleagues as an acylation of conserved Ser residue with palmitoleic acid (Takada et al., 2006). Although the Wnt purification method established by Willert et al set an important milestone in the Wnt research, its application to the structure-function studies had been slow due to both the technical difficulties associated with the method that involves multiple steps of large-scale chromatography, and the unavoidable presence of detergent in the final sample. The next breakthrough in the Wnt preparation was brought by Garcia and colleagues, who determined the crystal structure of Xenopus Wnt8 (Janda et al., 2012). They expressed Wnt8 protein as a stable and tight complex with a fragment of its receptor Frizzled8 (Fz8), which sequestered the problematic acyl chain and increased the solubility of the complex. The structure clarified the essential role of the fatty acid moiety in the receptor recognition, and offered a first molecular view about how Wnt initiate signal outside the cell. However, this kind of soluble Wnt proteins cannot be used in the functional assays, because the important active site (i.e., the receptor binding site) is already masked in the complex and unavailable. Another way of making Wnt proteins soluble in aqueous solution is to remove the acyl chain that renders the insolubility. In fact, Kakugawa et al have recently reported an extracellular deacylase called Notum, which removes the palmitoleic acid attached to the conserved Ser residue in Wnt3a (Kakugawa et al., 2015). However, the resultant deacylated Wnt, although it may be water-soluble, lacks biological activity and its utility in the structure-function analysis is limited. Probably the best known method to present purified active Wnt proteins in the absence of potentially cell toxic compounds is to reconstitute them in a liposome (Morrell et al., 2008). Although the liposome-packaged Wnt3a have long life at 37°C and may potentially be suitable for the in vivo delivery (Dhamdhere et al., 2014), one still needs to produce large quantity of CHAPS-solubilized Wnt proteins, which remains technically demanding.

We discovered that AFM has unexpected ability to solubilize/partition the lipophilic Wnt proteins in the culture media of Wnt-producing cells. AFM can specifically and stoicheometrically interact with several Wnt proteins, allow them to stay dispersed in aqueous solution, and keep them from inactivation/aggregation during the storage. As AFM is an endogenous protein abundantly present in mammalian body, complexation with AFM is an ideal format of Wnt preparation suitable for the use in various biochemical, cell biological, or even therapeutic applications. AFM is a member of albumin superfamily plasma proteins, which comprises of four proteins existing in blood at widely different concentrations ranging from as low as 50 ng/ml for AFP to extraordinarily high 40 mg/ml for serum albumin (Lichenstein et al., 1994). AFM is present in normal adult blood at 10–30 µg/ml but its physiological function remains unknown, except for its potential role as a vitamin E transport protein (Dieplinger and Dieplinger, 2015). Interestingly, AFM is able to bind hydrophobic substances like other albumin family proteins, but the binding specificity seems to be unique (Voegele et al., 2002). The facts that 1) only AFM but not other three albumin family proteins can capture Wnts and 2) the interaction between AFM and Wnt is completely disrupted by 1% CHAPS seem to indicate that AFM uses its unique lipid-binding pocket to bind and sequester the palmitoleic moiety of Wnt proteins. If such lipid binding specificity of AFM is responsible for this special ability, all Wnt ligands, or even non-Wnt proteins that are modified by palmitoleic acid may be protected by AFM. In fact, we found that 12 different Wnt proteins were able to associate with AFM, leading to the secretion from cells into a serum-free medium upon co-expression with AFM. The idea that AFM binds and sequester fatty acid chain of Wnts may seem to contradict with the fact that AFM-Wnt complex is highly active in cell-based assays, because the acyl chain moiety has to be available for the receptor (i.e., Fz) binding to initiate signaling. We speculate that the affinity of AFM to the fatty acid is strong enough to make stable complex with lipid-modified Wnt but weaker than that of Fz CRD, enabling it to 'deliver' the ligand to the receptor at the cell surface.

Although the experimental/technological importance of the activity of AFM as a Wnt carrier protein is clear, its relevance in physiology remains to be explored. AFM, as other albumin family proteins, is primarily synthesized in the liver and present not only in blood but also in other adult body fluids including cerebrospinal, ovarian follicular, and seminal fluids (Dieplinger and Dieplinger, 2015). However, nothing is known about its expression pattern or potential function during mammalian development. As invertebrates do not have albumin family proteins, AFM does not seem to play essential roles in the evolutionary ancient function of Wnt singaling pathway. Nevertheless, the Wnt-binding activity is likely to be conserved among mammalian AFM, since bovine (Figure 3A), human (Figures 3B and C), and mouse (data not shown) AFM are all capable of supporting Wnt secretion from cells. Brack et al reported that Wnt or Wnt-like molecule present in the serum from aged mice may be responsible for the conversion of muscle stem cells from myogenic to fibrogenic phenotypes (Brack et al., 2007). It is possible that Wnt ligands present in adult body fluids play unidentified (patho)physiological roles under certain condition, which may be regulated by AFM through its carrier function.

In Drosophila, there is a known Wnt carrier protein called Swim, which is a secreted glycoprotein of ~50 kDa belonging to the lipocalin family transport proteins (Mulligan et al., 2012). Like AFM, Swim binds Wg ligand in an acyl chain-dependent manner, and maintains the solubility and activity of purified Wg. Reduction of Swim leads to a more confined distribution of extracellular Wg around the producing cells, suggesting its role in establishing the proper long-range Wg gradient. There are a number of other factors that can mediate transport of Wnt ligands from the secreting cells to the responding cells, including Wnt-containing exosome assembled by the Evi/Wntless-mediated Wnt trafficking (Gross et al., 2012), large lipoprotein particles that carry not only Wnt but also other lipid modified morphogen Hedgehog (Panakova et al., 2005), and cell surface heparan sulfate proteoglycans that serve as the reservoir for Wnt to shape the extracellular gradient (Han et al., 2005). AFM may be considered as a new candidate factor involved in the regulation of Wnt distribution and presentation in mammals. Genetic manipulation of AFM gene in mice and their phenotypic analyses are eagerly waited.

Materials and methods

Plasmids and cell culture

cDNAs coding for mouse Wnt3a and Wnt5a, monoclonal antibodies against mouse Wnt3a and Wnt5a, and L cell stably expressing mouse Wnt3a (L-3a) (Shibamoto et al., 1998) were all kindly provided by Shinji Takada (Okazaki Integrated Bioscience Center, Japan). The Open Source Wnt Project plasmids containing ORF clones for human Wnt proteins (Najdi et al., 2012) were obtained from Addgene. A cDNA coding for the human afamin was a generous gift from Luc Bélanger (Research Center, L’Hotel-Dieu de Québec, Canada). cDNAs coding for the following proteins were obtained by DNA synthesis based on their reported nucleotide sequences; bovine AFM (NM_001192175), human serum albumin (BC034023), human AFP (BC027881), and mouse VDBP (AK010965). A highly pure, carrier-free recombinant mouse Wnt3a protein was purchased from R&D; Systems (catalogue No. 1324-WNP-010/CF). HEK293T, HEK293S GnT1 (kindly provided by G. Korhana), and L-3a cells are maintained in basal media containing DMEM (for HEK lines) or DMEM/F12_1:1 (for L-3a), supplemented with 10% fetal calf serum (FCS). All cell transfection experiments were performed using X-tremeGENE HP (Roche).

Recombinant production of Wnt proteins

Expression constructs for mouse and human Wnt proteins with various N-terminal tags were designed to include tobacco etch virus (TEV) protease cleavage sequence after the tag as shown in Supplementary file 1, and constructed by extension PCR. Expression plasmids for various albumin family proteins with N-terminal tag (either Tg or PA tag) were also constructed by the same strategy. The coding region for Tg-Wnt3a was subcloned into a mammalian episomal expression vector pEBMulti-Hyg (Wako Pure Chemical, Japan) and used to transfect HEK293S GnT1- cells. Transfected cells were selected against medium containing 0.2 mg/ml hygromycin B, and the resistant polyclonal cell population confirmed to maintain high Wnt3a-producing ability over the repeated passages were used for the protein production. HEK293S GnT1- cells stably producing Tg-Wnt5a were established in a similar manner. For the co-expression of Wnt and AFM, expression plasmids for Tg-hAFM and N-terminally PA tagged mouse or human Wnts were co-transfected at a DNA ratio of 10:1 using the Expi293 Expression System (Life Technologies Inc. Tokyo Japan), according to the procedures recommended by the manufacturer. The culture medium was harvested at 90 hr post-transfection, and immediately used for the Wnt/β-catenin reporter assay or the protein purification.

Protein purification

Purification of the TARGET-tagged Wnt proteins was conducted according to the general procedure described previously (Nogi et al., 2008). Briefly, precleared CM was incubated with P20.1-Sepharose at 1~2 ml beads/100 ml CM at 4°C for 3 hr, followed by packaging into a small column. The resin was washed with 5 column volume of 20 mM Tris, 150 mM NaCl, pH 7.5 (TBS) and then eluted with 0.2 mg/ml C8 peptide (PRGYPGQV) in TBS. Elution peak fractions were combined and concentrated by a centrifugal ultrafiltration devise (Spin-X UF, MWCO 10,000, Corning). For further purification, if necessary, the sample was subjected to size exclution chromatography on Superdex 200 10/300GL column (GE Healthcare) equilibrated with TBS. When used in cell-based activity assays, purified samples were dialyzed against phosphate-buffered saline (PBS) and filter-sterilized before use. PA-tagged albumin family proteins were produced using the Expi293 Expression System, and purification of these proteins as well as the Tg-AFM:PA-Wnt complexes from the CM using NZ-1-Sepharose affinity chromatography was performed based on the protocol reported by Fujii et al (Fujii et al., 2014). The concentration of the Wnt3a or Wnt3 in the purified AFM complex was estimated by a densitometric analysis of protein bands in the SDS-PAGE gel using BSA as standard. Untagged Wnt5a was purified from the CM of stable L cell line as described previously (Kurayoshi et al., 2007).

Antibodies

Monoclonal antibodies against bovine AFM were prepared by a conventional hybridoma method using the mouse myeloma cell line P3U1 and Balb/C mice immunized with the tag-cleaved bovine AFM protein. Of total of six independent clones, a clone B91 (IgG1, κ) recognized native bovine AFM with high affinity and was compatible with the immunoprecipitation experiments (see below). The same bovine AFM protein was used as immunogen to raise antisera in rabbits. To raise antisera against bovine ApoA1, two peptide segments (residues 1–12, DDPQSSWDRVKD, and residues 161–174, QLAPYSDDLRQRLT) were selected based on their potential antigenicity and used as immunogens after conjugation with KLH. Antibodies were purified from culture supernatants (for monoclonal antibodies) or rabbit sera (for polyclonal antibodies) by using affinity chromatography on Protein A-Sepharose (GE Healthcare). Purified anti-TARGET tag P20.1 and anti-PA tag NZ-1 antibodies (Fujii et al., 2014; Nogi et al., 2008) were obtained from Wako Pure Chemical Co.

Immunoprecipitation and immunoblotting

Purified B91 IgG was coupled to CNBr-activated Sepharose beads (GE Healthcare) at a density of ~2 mg IgG/ml beads by the protocol provided by the manufacturer. For the immunoprecipitation of bovine AFM from the serum-containing media, a 20 µl of B91-Sepharose beads were incubated with 1 ml of various CM at 4°C for 3 h, washed three times with TBS, and boiled after the addition of 30 µl of SDS sample buffer. The samples were subjected to SDS-PAGE and visualized by either Oriole fluorescent protein stain (BIO-RAD) or anti-Wnt3a immunoblotting. For anti-Wnt3a and anti-Wnt5a immunoblottings, the samples were separated by SDS-PAGE, transferred to PVDF membrane, and incubated with 5 µg/ml anti-Wnt antibodies that had been biotinylated by using EZ-Link NHS-LC Biotin (PIERCE Chemical Co.). After washing, the membranes were probed with peroxidase-conjugated Streptavidin (VECTOR Laboratories, SA-5004), followed by visualization with enhanced chemiluminescence reagent. All other immunoblotting experiments were conducted in a similar manner, except for the use of unlabeled primary antibodies (30 µg/ml for rabbit polyclonal anti-bovine AFM, 1/500 dilution for rabbit antisera against ApoA1) and peroxidase-conjugated secondary anti-rabbit IgG (Sigma A-6154, 0.4 µg/ml). Pull-down experiments of various Wnt proteins co-expressed with Tg-hAFM in Expi293F cells were conducted using NZ-1- or P20.1-Sepharose as described previously (Fujii et al., 2014; Nogi et al., 2008), followed by biotinylated NZ-1 immunoblotting to visualize PA-tagged Wnts.

Wnt activity measurements

For the luciferase reporter assays, HEK293 cells stably integrated with a firefly luciferase gene under the control of TCF/LEF response element (BPS Bioscience) were used. Cells were suspended at ~8 105 cells/ml and seeded in 96-well plates at 50 µl/well, followed by an overnight culture before the assay. For the preparation of CM containing Wnt3a, stable Wnt3a-producing cells were cultured for 3~4 days until they reach 80–90% confluency. The harvested CM were diluted with the control CM from the similarly cultured HEK293T cells to adjust for the presence of any common cell metabolites. When purified Wnt3a or AFM-Wnt3a complex were used, they were diluted in PBS from the stock solution and further diluted with a fresh DMEM containing 10% FCS. About 50-µl of the test reagents were added to the reporter cells and incubated for 6 prior to a brief washing and cell lysis. Reporter activities contained in the lysates were measured using a dual luciferase reporter assay system (Promega). Each assay was performed in quadruplicate.

For the Dvl2 phosphorylation assay, NIH3T3 cells were cultured in the presence of varying concentrations of Wnt5a proteins. As the stock solution of the purified untagged Wnt5a contained 1% CHAPS (Kurayoshi et al., 2007), AFM-Wnt5a complex devoid of detergents were preincubated with 1% CHAPS for 1 hr at 4°C. Both samples were diluted with the fresh media containing 1% BSA, where the final concentration of CHAPS was below 0.01%. After the treatment with Wnt5a for 2 hr, the cells were lysed in lysis buffer (20 mM Tris-HCl [pH 8.0], 1% Nonidet P-40, 137 mM NaCl, 10% glycerol, 1 mM phenylmethylsulfonyl fluoride, 20 µg/ml aprotinin, 20 µg/ml leupeptin, 5 mM NaF, 5 mM Na3VO4, and 50 mM β-glycerophosphate) and cell lysates were subjected to the immunoblotting with anti-Dvl2 antibody (Cell signaling Technology).

Human intestinal organoid culture assay

The supporting effect of Wnt3a on the growth and expansion of human intestinal organoid cultures were evaluated using the method established previously (Sato et al., 2011). Colonic samples were obtained at Keio University Hospital with written informed consent and consent to publish. Normal mucosa samples were derived from tissue biopsy specimen taken from patients with colonic tumor, which were located at least 5 cm away from the edge of tumors. Crypts were dissociated from the samples by a combination of EDTA treatment and physical pipetting, and isolated. They were suspended in Matrigel, placed at the center of each well of a 48-well plate, and overlaid with 125 µl of defined serum-free medium containing a cocktail of essential factors including R-spondin (500 ng/ml), EGF (50 ng/ml), Noggin (100 ng/ml), A83-01 (TGF-β receptor 1 inhibitor, 500 nM), and SB 202190 (p38 MAPK inhibitor, 10 µM). The culture was started by the addition of the same volume of Wnt3a-containing solution, either as a fresh CM of L-3a cells or concentration-adjusted Wnt3a or AFM-Wnt3a complex in PBS, and the crypt morphology and numbers were observed daily. Upon the outgrowth, the organoids were passaged every week by gentle pipetting at 1:5 ratio into the fresh medium.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
    Afamin is a new member of the albumin, alpha-fetoprotein, and vitamin d-binding protein gene family
    1. HS Lichenstein
    2. DE Lyons
    3. MM Wurfel
    4. DA Johnson
    5. MD McGinley
    6. JC Leidli
    7. DB Trollinger
    8. JP Mayer
    9. SD Wright
    10. MM Zukowski
    (1994)
    The Journal of Biological Chemistry 269:18149–18154.
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33

Decision letter

  1. William I Weis
    Reviewing Editor; Stanford University, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your work entitled "Active and water-soluble form of lipidated Wnt protein is maintained by a serum glycoprotein afamin/α-albumin" for consideration by eLife. Your article has been favorably reviewed by John Kuriyan (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors.

The reviewers have discussed the reviews with one another and the Reviewing editor has drafted this decision to help you prepare a revised submission.

Summary:

Purification of Wnt proteins has been difficult due to their generally poor expression and the presence of a covalently attached lipid. The presence of detergent needed for solubility makes these preparations incompatible with some applications. Moreover, the purified proteins are not very stable, and their activity is also somewhat variable, making assessment of specific activity impossible. Here, the authors show that afamin/α-albumin forms 1:1 complexes with two different Wnt proteins. These complexes are highly stable, do not require any detergent, and are bioactive.

Essential revisions:

The reviewers agree that this work potentially represents a significant technical advance in purifying active Wnt proteins. However, only two Wnt proteins have been tested, and these two are known to be relatively easy to express and purify. Therefore, it is felt that you need to demonstrate that afamin can aid in the expression and purification of at least a few other Wnt proteins. Although there may not be suitable assays for Wnts other than 3a and 5a, Wnt10 is likely to activate β-catenin and would therefore be a useful candidate for assessing functionality.

The other important issue to address is the claim of higher specific activity for the Wnt3a/afamin complex versus the standard purification, which would be an important advantage. However, the statement that the EC50 value is "nearly 10 fold lower" than the purified commercial Wnt 3a does not appear to be supported by the data in Figure 5A, as it is not clear where saturation is reached for either graph, especially that of the R&D; material.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Active and water-soluble form of lipidated Wnt protein is maintained by a serum glycoprotein afamin/α-albumin" for further consideration at eLife. Your revised article has been favorably evaluated by John Kuriyan (Senior Editor) and a Reviewing editor. The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below:

The revised manuscript has largely addressed the reviewer concerns, and now shows that afamin can aid in the expression of a number of Wnt proteins. You have also demonstrated improved purification and demonstrated activity of another Wnt, Wnt3. It is not clear that the expression levels offer a clear advantage versus serum culture for most Wnts (in this regard, have you reprobed the blot in Figure 7—figure supplement 1 for the tag?), but the simplicity of the purification seems to offer a real advantage in time and cost.

It is troublesome that no other afamin-stabilized Wnts give a TOPFLASH signal in Figure 7D, given the Najdi et al. results. Although you speculate that this is due to using a paracrine rather than autocrine assay, have you assessed this by co-transfection? You should address this question before publication.

https://doi.org/10.7554/eLife.11621.025

Author response

The reviewers agree that this work potentially represents a significant technical advance in purifying active Wnt proteins. However, only two Wnt proteins have been tested, and these two are known to be relatively easy to express and purify. Therefore, it is felt that you need to demonstrate that afamin can aid in the expression and purification of at least a few other Wnt proteins. Although there may not be suitable assays for Wnts other than 3a and 5a, Wnt10 is likely to activate β-catenin and would therefore be a useful candidate for assessing functionality.

We thank the reviewers for recognizing the merit of our findings. According to the request above, we obtained DNAs for all human Wnt proteins made public by The Open Source Wnt Project and constructed PA-tagged expression plasmids for all of them. For the 12 Wnts (out of 19) that could be secreted from transfected HEK cells in the presence of serum (now shown in Figure 7—figure supplement 1), we tested afamin co-expression and found that all of them show moderate to substantial increase in the expression/secretion into the media (new Figure 7B). Moreover, all of them were found to be associated directly with afamin (new Figure 7C), indicating that afamin can indeed aid in the expression and secretion of a wide range of Wnt subtypes other than Wnt3a and Wnt5a. When we performed TCF reporter assay for these samples, however, only Wnt3 and Wnt3a were active (new Figure 7D). Some of these Wnts are reported to be capable of activating β-catenin pathway, as pointed out in the review comment, and we do not know the exact reason for this discrepancy. One thing we do know is that most studies (including Najdi et al. paper reporting the construction of the Open Source Wnt collection) use “autocrine” type of experiment where each Wnt is directly transfected into the reporter cell itself. So we speculate that certain Wnts can activate β-catenin pathway efficiently only when they are simultaneously expressed in the same cell. As Wnt3 was the only additional Wnt whose activity can be evaluated in our system, we chose this Wnt to see if the list of Wnt types with confirmed afamin-aided purification can be expanded. This was indeed the case, because we could purify highly active human Wnt3 in complex with human afamin from the co-transfected HEK cells, just as easy as for mouse Wnt3a (new Figure 8). These additional data are assembled into new Figures 7 and 8, and the results are described in the Results section in the revised manuscript. Due to the increased number of the Wnt expression constructs (now 22 in total), the schematics of the construct design for all Wnt proteins are made and submitted as a Supplementary file 1 (replacing the old Figure 1–figure supplement 1).

The other important issue to address is the claim of higher specific activity for the Wnt3a/afamin complex versus the standard purification, which would be an important advantage. However, the statement that the EC50 value is "nearly 10 fold lower" than the purified commercial Wnt 3a does not appear to be supported by the data in Figure 5A, as it is not clear where saturation is reached for either graph, especially that of the R&D material.

The reason why we used these rather vague words to describe the activity difference between the two samples was, as correctly pointed out by the reviewer, the fact that we were not sure if the activity of the R&D; sample has reached saturation. Also, the dose-dependent curve for the AFM-Wnt3a complex did not conform to a standard sigmoidal shape, making it difficult to clearly define the EC50 values. Another technical excuse is that our TCF reporter assay was quantitatively not so reproducible despite our best efforts, making us hesitant to give exact values. We repeated the experiment using more reliable assay system (described in more detail in the following section) and obtained highly reproducible dose-dependent curves for both samples (now appears as a new Figure 5A). It is confirmed that the activity for the AFM-Wnt3a complex has reached saturation, with the EC50 being somewhere between 1.67 and 5 nM. The activity of R&D; sample on the other hand still cannot be saturated within the concentration range used. We did not want to increase the concentration further not only because it becomes unbearably expensive (requiring 7 µg of ~$2,000/10µg protein for additional one data point) but also it causes inclusion of higher concentration of CHAPS brought into the cell culture. If we can assume that the maximum signal elicited by the two different sample is identical (which is theoretically reasonable), it is safe to assume that the EC50 for the R&D; sample is between 15 and 45 nM. Based on these considerations, we decided to restate the description of the difference as “5~10-fold lower”, which is a conservative estimate. These points are all described clearly in the revised manuscript (Results, fourth paragraph).

[Editors' note: further revisions were requested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below: The revised manuscript has largely addressed the reviewer concerns, and now shows that afamin can aid in the expression of a number of Wnt proteins. You have also demonstrated improved purification and demonstrated activity of another Wnt, Wnt3. It is not clear that the expression levels offer a clear advantage versus serum culture for most Wnts (in this regard, have you reprobed the blot in Figure 7—figure supplement 1 for the tag?), but the simplicity of the purification seems to offer a real advantage in time and cost.

We are glad that the reviewers felt that our revised manuscript sufficiently addressed most of the points raised and was improved. Regarding Figure 7—figure supplement 1, the purpose of having this figure was just to show which Wnt types were compatible with the serum-aided secretion after the N-terminal PA tagging (it is a Western blot probed with anti-PA tag antibody). We are not trying to say (and do not believe) that the expression levels upon the co-expression of afamin in the serum culture condition is higher than in the absence, because there is enough afamin protein already present in the bovine serum. In any case, we completely agree that the primary advantage of the current method over serum culture is the ability of obtaining the detergent-free Wnt proteins with a very simple protocol. Therefore, we revised the relevant sections in the text (Results, seventh and eighth paragraphs; and Discussion, second paragraph) to avoid misunderstanding that the afamin co-expression is superior to the serum-containing culture system as far as the expression level is concerned.

It is troublesome that no other afamin-stabilized Wnts give a TOPFLASH signal in Figure 7D, given the Najdi et al.results. Although you speculate that this is due to using a paracrine rather than autocrine assay, have you assessed this by co-transfection? You should address this question before publication.

Yes, this point has been our concern too. Encouraged by the suggestion, we now performed autocrine assay (i.e., direct transfection of Wnts into the reporter cells) and found that similar set of Wnts (Wnt1, Wnt3, Wnt3a, Wnt9b, and Wnt10b) were capable of activating TCF reporter (new Figure 7—figure supplement 2). Although we do not know the exact reason why only Wnt3 and Wnt3a can signal in the paracrine-type assay format, it is possible that other Wnts (particularly Wnt1) need to be presented on cell surface for the efficient signaling. However, there is a possibility that these Wnts cannot signal when they are secreted into the medium as a complex with afamin. All these possibilities are stated in the revised manuscript (Results, seventh paragraph).

https://doi.org/10.7554/eLife.11621.026

Article and author information

Author details

  1. Emiko Mihara

    Laboratory of Protein Synthesis and Expression, Institute for Protein Research, Osaka University, Suita, Japan
    Contribution
    EM, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  2. Hidenori Hirai

    Laboratory of Protein Synthesis and Expression, Institute for Protein Research, Osaka University, Suita, Japan
    Contribution
    HH, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  3. Hideki Yamamoto

    Department of Molecular Biology and Biochemistry, Graduate School of Medicine, Osaka University, Suita, Japan
    Contribution
    HY, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  4. Keiko Tamura-Kawakami

    Laboratory of Protein Synthesis and Expression, Institute for Protein Research, Osaka University, Suita, Japan
    Contribution
    KTK, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  5. Mami Matano

    Department of Gastroenterology, Keio University School of Medicine, Tokyo, Japan
    Contribution
    MM, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  6. Akira Kikuchi

    Department of Molecular Biology and Biochemistry, Graduate School of Medicine, Osaka University, Suita, Japan
    Contribution
    AK, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  7. Toshiro Sato

    Department of Gastroenterology, Keio University School of Medicine, Tokyo, Japan
    Contribution
    TS, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  8. Junichi Takagi

    Laboratory of Protein Synthesis and Expression, Institute for Protein Research, Osaka University, Suita, Japan
    Contribution
    JT, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    takagi@protein.osaka-u.ac.jp
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-1219-475X

Funding

Japan Agency for Medical Research and Development (Research Center Network for Realization of Regerative Medicine)

  • Toshiro Sato

Ministry of Education, Culture, Sports, Science, and Technology (Grant-in-Aid for Scientific Research on Innovative Areas)

  • Junichi Takagi

Ministry of Education, Culture, Sports, Science, and Technology (Platform for Drug Discovery, Informatics, and Structural Life Science Grant)

  • Junichi Takagi

Ministry of Education, Culture, Sports, Science, and Technology (X-ray Free Electron Laser Priority Strategy Program)

  • Junichi Takagi

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to thank Ryoko Asaki for excellent technical assistance and Mie Sakai for preparation of the manuscript. This work was supported in part by the Grant-in-Aid for Scientific Research on Innovative Areas (Analysis and Synthesis of Multidimensional Immune Organ Network, to JT) from the Ministry of Education, Culture, Sports, Science and Technology of Japan (MEXT), by the 'Platform for Drug Discovery, Informatics, and Structural Life Science'grant from the MEXT (to JT), by the X-ray Free Electron Laser Priority Strategy Program”' grant from the MEXT (to JT), and by the Research Center Network for Realization of Regenerative Medicine project from Japan Agency for Medical Research and Development (AMED) (to TS).

Ethics

Human subjects: Colonic samples were obtained at Keio University Hospital with written informed consent and consent to publish. Normal mucosa samples were derived from tissue biopsy specimen taken from patients with colonic tumor, which were located at least 5 cm away from the edge of tumors. The study was approved by the ethical committees of the Keio University Hospital.

Reviewing Editor

  1. William I Weis, Reviewing Editor, Stanford University, United States

Publication history

  1. Received: September 15, 2015
  2. Accepted: January 18, 2016
  3. Version of Record published: February 23, 2016 (version 1)
