Stem cell progeny contribute to the schistosome host-parasite interface

  1. James J Collins III Is a corresponding author
  2. George R Wendt
  3. Harini Iyer
  4. Phillip A Newmark Is a corresponding author
  1. University of Illinois at Urbana-Champaign, United States
  2. UT Southwestern Medical Center, United States
  3. Howard Hughes Medical Institute, University of Illinois at Urbana-Champaign, United States
Short Report
Cited
5
Views
1,772
Comments
0
Cite as: eLife 2016;5:e12473 doi: 10.7554/eLife.12473

Abstract

Schistosomes infect more than 200 million of the world's poorest people. These parasites live in the vasculature, producing eggs that spur a variety of chronic, potentially life-threatening, pathologies exacerbated by the long lifespan of schistosomes, that can thrive in the host for decades. How schistosomes maintain their longevity in this immunologically hostile environment is unknown. Here, we demonstrate that somatic stem cells in Schistosoma mansoni are biased towards generating a population of cells expressing factors associated exclusively with the schistosome host-parasite interface, a structure called the tegument. We show cells expressing these tegumental factors are short-lived and rapidly turned over. We suggest that stem cell-driven renewal of this tegumental lineage represents an important strategy for parasite survival in the context of the host vasculature.

https://doi.org/10.7554/eLife.12473.001

eLife digest

Schistosomes are parasitic worms that infect and cause chronic disease in hundreds of millions of people in the developing world. A major reason these parasites are so damaging is that they are capable of living and reproducing in the human bloodstream for decades.

Previous research had shown that schistosomes have a population of stem cells that are proposed to promote the parasite’s survival inside the host’s bloodstream. However, it was not clear what role these cells play in the worms.

Collins et al. have now found that, in a parasitic worm called Schistosoma mansoni, a large number of these stem cells are destined to become cells that generate the parasite’s skin. This unique tissue is known as the tegument, and had long been thought to have evolved in parasitic flatworms to help them survive in their host and evade its immune defenses. Therefore, Collins et al.’s findings suggest a new mechanism by which stem cells can promote the survival of a parasite inside its host.

In the long-term, these findings could lead to new treatments for parasitic infections and may shed light on the evolution of parasitic flatworms. An important future challenge will be to determine if disrupting these parasites’ stem cells, and their ability to generate new tegumental cells, has any effect on the parasite inside its host.

https://doi.org/10.7554/eLife.12473.002

Introduction

Neoblasts are pluripotent stem cells essential for regeneration and tissue homeostasis in a variety of free-living flatworms, most notably freshwater planarians (Newmark and Sánchez Alvarado, 2002; Wagner et al., 2011). Previously, it was shown that schistosomes, like their free-living relatives, also possess neoblasts, capable of self-renewal and differentiation into tissues such as the intestine and muscle (Collins et al., 2013). However, the role these cells play in the biology of the parasites in their mammalian host was unexplored. To decipher the cellular functions of schistosome neoblasts, we compared the short-term and long-term transcriptional consequences for the parasite following neoblast depletion (Figure 1a).

Figure 1 with 2 supplements see all

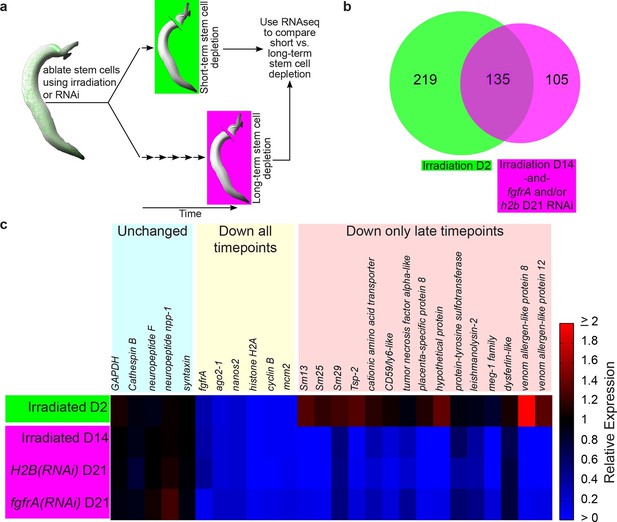

Identification of genes down-regulated after long-term stem cell depletion.

(a) Scheme for transcriptional profiling studies. (b) Venn Diagram showing number of genes significantly down-regulated after short-term (green) and long-term (magenta) stem cell depletion. (c) Heat map showing relative gene expression for various treatments and time points. Only a subset of representative genes is displayed.

https://doi.org/10.7554/eLife.12473.003

Results and discussion

To examine the transcriptional effects of neoblast ablation, we exploited the observation that expression of genes in differentiated tissues (e.g., the intestine) is unaffected at 48 hr following irradiation, whereas the neoblasts are irreversibly killed (Collins et al., 2013). Previously, we demonstrated that many genes down-regulated at 48 hr following irradiation were associated with the schistosome neoblasts (Collins et al., 2013). Thus, we reasoned that by comparing the gene expression profiles of parasites shortly after neoblast ablation (48 hr) to parasites two weeks after their neoblasts had been killed, we could characterize the long-term consequences of neoblast depletion. Specifically, we expected genes down-regulated at both early and late time points to be neoblast-enriched factors, whereas genes only down-regulated at later time points would be genes that require neoblasts for maintaining their expression. To add specificity to this dataset, removing genes whose expression could be influenced non-specifically by irradiation (Solana et al., 2012), we also profiled parasite transcriptomes after long-term RNA interference (RNAi) targeting either of two genes required for the maintenance of proliferating neoblasts: fgfrA (Collins et al., 2013) or histone H2B (Figure 1—figure supplement 1).

From our transcriptional profiling experiments of male somatic tissues we identified 135 genes that were down regulated (≥1.25x, p<0.05) in both our irradiation and RNAi datasets (Figure 1b, Supplementary file 1). As anticipated, this gene set included a number of known stem cell- (e.g., nanos2 and ago2-1[Collins et al., 2013]) and cell cycle-specific (cyclinB and mcm2) genes (Figure 1b,c and Supplementary file 1). More importantly, we identified 105 genes that were not down-regulated at D2 post-irradiation but were significantly down regulated (≥1.25x, p<0.05) at D14 post-irradiation and following RNAi of either fgfrA or histone H2B (Figure 1b,c and Supplementary file 1). For brevity, we will refer to these 105 genes as delayed irradiation-sensitivity (DIS) genes. We also noted a small class of genes that were modestly down regulated at early time points and highly down regulated after long-term stem cell depletion (Supplementary file 1). The most striking example of this class was the schistosome orthologue of the planarian p53 (Pearson and Sánchez Alvarado, 2010), which was down-regulated ~2 fold at 48 hr and nearly 150 fold at D14 post-irradiation (Supplementary file 1).

To validate our transcriptional profiling experiments, we examined a subset of these DIS genes by whole-mount in situ hybridization at D2 and D7 following irradiation. As anticipated, expression of cathepsin B, a gene expressed in differentiated intestinal cells, was unaffected at either time point (Figure 2a). Conversely, the expression of genes associated with the neoblasts (fgfrA and nanos2) was substantially reduced at D2 and the expression of these genes did not return by D7 (Figure 2a), confirming that stem cells are irreversibly depleted by irradiation. Consistent with our RNAseq data, the number of cells expressing p53 is modestly reduced at D2 post-irradiation and dramatically reduced by D7 (Figure 2a). In contrast to the neoblast-expressed genes and p53, at D2 the number of cells expressing the DIS genes tsp-2, sm13, sm29, and val-8 was unaffected (Figure 2a). However, by D7 post-irradiation the expression of these genes was severely depleted (Figure 2a). We did note in our RNAseq experiments, and in independent qPCR experiments, a modest increase in val-8 mRNA levels 48 hr post-irradiation (Figure 1 and Figure 1—figure supplement 2). Since, the number of val-8+ cells did not appear to dramatically change at 48 hr post-irradiation (Figure 2a), it is possible that some val-8+ cells had elevated levels of the val-8 mRNA. To directly examine the relationship between genes expressed in neoblasts and the DIS genes, we performed double fluorescence in situ hybridization (FISH) experiments with histone H2B, p53, and tsp-2. We observed no co-expression of the DIS gene tsp-2 with histone H2B Figure 2—figure supplement 1, suggesting that DIS genes are expressed in a population of cells other than neoblasts. Consistent with our observations following irradiation, we observed that p53 was expressed in both the histone H2B+ neoblasts and tsp-2+ cells (Figure 2—figure supplement 1). Together, these data strongly support the model that the DIS genes are expressed in an irradiation-sensitive population of cells that is molecularly distinct from the neoblasts.

Figure 2 with 1 supplement see all
Cells expressing DIS genes are lost following stem cell depletion and express genes associated with the schistosome tegument.

(a) Whole-mount in situ hybridization to detect genes expressed in: the intestine (Cathepsin B); neoblasts (fgfrA, nanos2); or cells expressing DIS genes (tsp-2, sm13, sm29, val-8) in either untreated parasites or worms at D2 or D7 following irradiation. p53 is also shown as an example of a gene modestly down-regulated at early time points and highly down-regulated at late time points after neoblast ablation. Expression of DIS genes is unaffected at day 2 following irradiation but is substantially reduced by day 7. n > 3 for each data point. (b) Left, cartoon showing the organization of the schistosome tegument. Right, fluorescence in situ hybridization and DAPI labeling overlaid on a Differential Interference Contrast (DIC) micrograph showing the distribution of tsp-2+ cells relative to the tegument. Although some cells expressing lower levels of tsp-2 are located more internally, a majority of tsp-2+ cells were located just beneath the parasite muscle layer. (c) Double fluorescence in situ hybridization showing co-localization of tsp-2 with the indicated tegumental factors. Images are representative of parasites (n > 3) recovered from two separate groups of mice. Scale bars: (a) 100 µm, (b, c) 20 µm.

https://doi.org/10.7554/eLife.12473.006

Upon closer examination we noted that a number of the DIS genes encoded proteins previously shown by immunological and/or proteomic approaches to be associated with the parasite's surface (e.g., tsp-2 (Tran et al., 2006; Pearson et al., 2012; Wilson, 2012), sm13 (Abath et al., 2000; Wilson, 2012), sm29 (Braschi and Wilson, 2006; Cardoso et al., 2008; Wilson, 2012), sm25 (Abath et al., 1999; Castro-Borges et al., 2011; Wilson, 2012)). The schistosome surface is covered by a continuous syncytial structure, called the tegument (Figure 2b), which serves as the primary barrier between the parasite and its host. This unique tissue is connected by cytoplasmic bridges to nucleated cell bodies that sit in the mesenchyme, beneath the parasite’s body-wall muscles (Morris and Threadgold, 1968; Wilson and Barnes, 1974) (Figure 2b). To determine if these DIS genes are expressed in a tegument-associated cell population, we performed double FISH experiments. We first examined the distribution of the mRNA for a Tetraspanin, TSP-2, that encodes a well-characterized tegument-specific factor (Braschi and Wilson, 2006; Tran et al., 2006; Pearson et al., 2012). TSP-2 is currently being explored as an anti-schistosome vaccine candidate due to its presence on the parasite surface (Hotez et al., 2010). Consistent with tsp-2 being expressed in a tegument-associated cell population, we found that a majority of tsp-2cells are located immediately beneath the parasite’s body-wall muscle layer (Figure 2b). To further examine this tsp-2+ cell population, we performed double FISH with other DIS genes known to encode proteins expressed in the tegument. We observed that DIS genes encoding a panel of known tegumental factors, including sm13 (Smp_195190), sm29 (Smp_072190), sm25 (Smp_195180), an amino acid transporter (Smp_176940) (Wilson, 2012), a dysferlin protein (Smp_141010) (Braschi and Wilson, 2006; Wilson, 2012), an endophillin B1 (Castro-Borges et al., 2011; Wilson, 2012), and a cd59-like molecule (Smp_081920) (Wilson, 2012) were expressed in a largely overlapping population of cells with tsp-2 immediately beneath the dorsal body-wall muscles (Figure 2c). Given their position in the parasite, and their expression of many known tegumental genes, our data indicate that tsp-2+ cells represent a population of tegument-associated cells.

Our data suggest that tsp-2+ cells co-express many known tegumental factors and are lost within a few days following stem cell depletion. We envision two models to explain these observations. First, tsp-2+ cells could represent a relatively long-lived population that requires the continual presence of the somatic neoblasts for their survival. Alternatively, the tsp-2+ cells could be a short-lived cell population that requires a pool of stem cells for its continuous renewal. In the absence of this renewal, the tsp-2+ cells are rapidly depleted. To distinguish between these possibilities, we performed pulse-chase experiments with the thymidine analogue EdU (Salic and Mitchison, 2008). This approach allows us to specifically label neoblasts at S-phase and monitor their differentiation over time (Collins et al., 2013). In these experiments, parasite-infected mice were injected with EdU and the distribution of EdU+ cells relative to the tsp-2+ cells was monitored every other day for 11 days (Figure 3a). If the tsp-2+cells are long-lived and turn over slowly, we would anticipate that few tsp-2+cells would become EdU+ over the chase period. However, if these cells were renewed rapidly by the neoblasts, we would expect a large fraction of tsp-2+ cells to become EdU+. Furthermore, since EdU levels are diluted following cell division, over time differentiating neoblasts would contain less EdU, resulting in a reduction in the EdU levels in tsp-2+ cells.

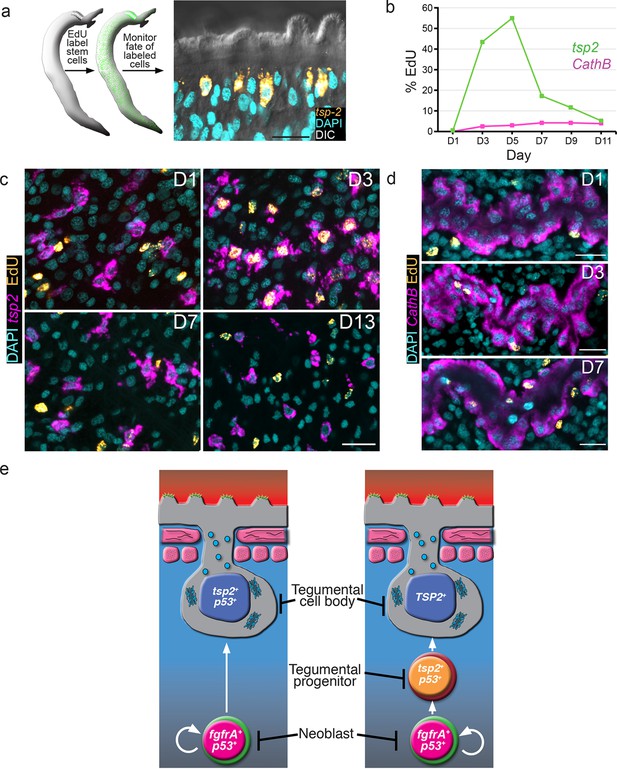

tsp-2+ cells are renewed by stem cells and then rapidly turned over.

(a) Cartoon showing EdU pulse-chase strategy to examine the differentiation of stem cells into tsp-2+ cells. (b) Quantification of the number of EdU+tsp-2+or EdU+cathepsin B+ cells following a single pulse of EdU given to parasites in vivo. Percentages of EdU+ tsp-2+/total tsp-2+ cells were D1 0.22% (2/917), D3 41% (323/787), D5 52% (299/575), 13% (57/437), D9 8.1% (49/603), D11 1.4% (8/567). Percentages of EdU+ Cathepsin B/ total Cathepsin B+ cells were D1 0% (0/1570), D3 2.4% (26/1057), D5 2.9% (61/2044), D7 4.2% (58/1359), D9 4.3% (106/2469), D11 3.9% (64/1646). Data were collected from 5 male parasites recovered from two separate mice, except for cathepsin B labeling at D11 where parasites were recovered from a single mouse. (c, d) Fluorescence in situ hybridization showing the EdU labeling of tsp-2+ or cathepsin B+ cells at various time points following an EdU pulse. Scale bars, 15 µm. (e) Potential models for tegumental cell differentiation.

https://doi.org/10.7554/eLife.12473.008

At D1 following an EdU pulse, <0.25% of tsp-2+ cells were EdU+ (Figure 3b,c), indicating that the tsp-2+ cells are not proliferative. After a 3-day chase period, however, we noted that over 40% of tsp-2+cells were newly born EdU+ cells (Figure 3b,c). This result suggests that stem cells initially incorporating EdU were capable of replenishing nearly half of the tsp-2+ cells within three days. Beyond D5, we noted a rapid reduction in the number of tsp-2+ EdU+ cells and an overall reduction in the EdU levels per cell (Figure 3b,c). These data suggest that tsp-2+ cells are a short-lived cell population that is continuously renewed by the neoblasts during the parasite’s life in its definitive host. To determine if this rapid rate of neoblast-driven renewal was unique to tsp-2+ cells, we also examined the kinetics of EdU labeling of the schistosome intestine. In contrast to the tsp-2+ cells, only 2.5% of cathespin B+ intestinal cells were EdU+ at D3, and this level remained fairly constant throughout the 11D time course (Figure 3b,d). Thus, the kinetics of tegumental cell birth differs from that of intestinal cells. Taken together, our data suggest that on a population level neoblasts are 'biased' toward the rejuvenation of tsp-2+ cells over other lineages.

In planarians, a population of postmitotic neoblast progeny displays similar sensitivity to irradiation as this tsp-2+ tegument-associated cell population (Eisenhoffer et al., 2008). These planarian neoblast progeny similarly express a p53-like protein as well as a large collection of planarian-specific molecules (Eisenhoffer et al., 2008; Zhu et al., 2015). Most importantly, these planarian cells serve as progenitors to terminally differentiated epidermal cells (van Wolfswinkel et al., 2014; Tu et al., 2015). Thus, it appears that free-living and parasitic flatworms utilize similar developmental strategies for epidermal maintenance. Presently, electron microscopy is the only methodology to unambiguously identify tegumental cell bodies in schistosomes. Therefore, with current technology, it is not possible to determine which of the irradiation-sensitive cells expressing DIS genes are terminally differentiated tegumental cell bodies. In light of this limitation, our data are consistent with two models (Figure 3e). In the first model, proliferating neoblasts differentiate to produce a short-lived population of terminally differentiated tegumental cell bodies expressing tsp-2 and other DIS genes (i.e., sm13, sm25, sm29, etc.). In the alternative model, cells expressing tsp-2 (and other DIS genes) represent a population of short-lived progenitors to terminally differentiated tegumental cell bodies. Regardless of which model (or combination of these models) is correct, our data suggest that a primary function of the schistosome neoblasts is to generate cells that contribute to the tegument.

The mammalian bloodstream would appear to be a rather inhospitable niche for a pathogen. In the case of schistosomes, there is little dispute about the importance of the tegument in defending the parasite from host immunity (McLaren, 1980; Skelly and Alan Wilson, 2006), yet the properties of this tissue that afford the parasite protection in blood are unclear. Indeed, numerous ideas have been proposed to explain this phenomenon, including tegumental absorption of host antigens (Smithers et al., 1969; Clegg et al., 1971) and the turnover of the unique tegumental outer membranes (Perez and Terry, 1973; Wilson and Barnes, 1977). Based on our data, we suggest that neoblast-driven tegumental regeneration may play a key role in the parasite’s ability to survive in the mammalian host. By undergoing continuous tegumental renewal, the parasite is likely capable of rapidly turning over the tegument and regenerating damage inflicted inside the host (e.g., via immune attack). Thus, an important goal for future studies is to address the role of neoblasts in parasite survival and tegumental function in vivo.

Materials and methods

Parasite acquisition and culture

Adult S. mansoni (6–8 weeks post-infection) were obtained from infected mice by hepatic portal vein perfusion with 37°C DMEM (Mediatech, Manassas, VA) plus 5% Fetal Bovine Serum (FBS, Hyclone/Thermo Scientific Logan, UT) and heparin (200–350 U/ml). Parasites were rinsed several times in DMEM + 5% FBS and cultured (37°C/5% CO2) in Basch’s Medium 169 (Basch, 1981) and 1x Antibiotic-Antimycotic (Gibco/Life Technologies, Carlsbad, CA 92008). Media were changed every 1–3 days.

γ-irradiation, RNAi and transcriptional profiling

For transcriptional profiling of irradiated worms, parasites were harvested from mice, suspended in Basch medium 169, and exposed to 200 Gy of γ-irradiation using a Gammacell-220 Excel with a Co60 source (Nordion, Ottawa, ON, Canada). Control parasites were mock irradiated. Parasites were cultured in Basch Medium 169 and 48 hr or 14D post-irradiation males were separated from female parasites using 0.25% ethyl 3-aminobenzoate methanesulfonate. Following separation, the head and testes of males were amputated with a sharpened tungsten needle (Collins et al., 2013) and purified total RNA was prepared from the remaining somatic tissue from pools of 9–18 parasites using Trizol (Invitrogen, Carlsbad, CA) and DNase treatment (DNA-free RNA Kit, Zymo Research, Irvine, CA). Three independent biological replicates were performed for both control and irradiated experimental groups. For RNAi of fgfrA and histone H2B, parasites were treated with dsRNA as previously described (Collins et al., 2013), and RNA was extracted at D21 using similar procedures as used for the irradiated parasites. Detailed files of the RNAseq results can be found in Supplementary file 2. Three biological replicates were performed for fgfrA(RNAi) and two biological replicates for H2B(RNAi). Control RNAi treatments with an irrelevant dsRNA synthesized from the ccdB and camR-containing insert of plasmid pJC53.2 (Collins et al., 2013) were performed alongside fgfrA and H2B dsRNA treatments.

To measure transcriptional differences, RNAseq analysis was performed on an Illumina HiSeq2000 and analyzed using CLC Genomics Workbench as described previously (Collins et al., 2013). To define genes down-regulated in all treatment groups and genes specifically down-regulated following long-term stem cell depletion, we first compared the lists of genes down-regulated (>1.25 fold change, p<0.05, t-test) at D2 and D14 post-irradiation. This list was then cross-referenced to our RNAi datasets to define the DIS genes and the 135 genes down regulated in both the irradiation and RNAi treatments. To reduce false negatives we only required genes to be significantly down-regulated in either the fgfrA(RNAi) or the H2B(RNAi) treatments. For quantification of gene expression RNA was reverse transcribed (iScript, Biorad) and quantitative real-time PCR was performed on a BioRad CFX96 Real Time System with iTaq Universal SYBR Green Supermix (Biorad). Relative expression was determined using the ΔΔCt method and mean ΔCt values of biological replicates were used to make statistical comparisons between treatments. Oligonucleotide sequences are listed in Supplementary file 3.

Parasite labeling and Imaging

Whole-mount in situ hybridization and EdU labeling of parasites grown in mice were performed as previously described (Collins et al., 2013) Tyramide Signal Amplication for double fluorescence in situ hybridization was performed essentially as previously described ( Collins et al., 2010) except 100mM sodium azide was used to quench peroxidase activity between rounds of signal development. cDNAs used for RNAi or in situ hybridization were cloned in plasmid pJC53.2 using TA-based cloning (Collins et al., 2010) or Gibson assembly (New England Biolabs Gibson Assembly Master Mix, E2611S); oligonucleotide primer sequences are listed in Supplementary file 3. Imaging of specimens was performed similar to previous studies (Collins et al., 2010; 2011) using either a Zeiss LSM 710 or Zeiss LSM 700 for confocal imaging or a Leica MZ205 or Zeiss AxioZoom for brightfield imaging. For whole-mount in situ hybridizations on irradiated parasites, parasites were recovered from mice, exposed to 200 Gy of X-ray irradiation using a CellRad irradiator (Faxitron Bioptics, Tucson, AZ) or 100 Gy of Gamma Irradiation on a J.L. Shepard Mark I-30 Cs137 source, and cultured in vitro for indicated periods of time.

References

  1. 1
    Ultrastructural localization of Sm15 and Sm25, two major tegumental adult worm antigens of Schistosoma mansoni
    1. FG Abath
    2. EM Hirst
    3. P Hagan
    4. AJ Simpson
    (1999)
    Parasite 6:243–247.
  2. 2
  3. 3
    Cultivation of Schistosoma mansoni in vitro. I. Establishment of cultures from cercariae and development until pairing
    1. PF Basch
    (1981)
    The Journal of Parasitology 67:179–185.
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
    Schistosoma mansoni: The Parasite Surface in Relation to Host Immunity, Letchworth, England, John Wiley and Sons, Ltd
    1. DJ McLaren
    (1980)
    Schistosoma mansoni: The Parasite Surface in Relation to Host Immunity, Letchworth, England, John Wiley and Sons, Ltd.
  14. 14
    Ultrastructure of the tegument of adult Schistosoma mansoni
    1. GP Morris
    2. LT Threadgold
    (1968)
    The Journal of Parasitology 54:15–27.
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
    A chemical method for fast and sensitive detection of DNA synthesis in vivo
    1. A Salic
    2. TJ Mitchison
    (2008)
    Proceedings of the National Academy of Sciences of the United States of America 105:2415–2420.
    https://doi.org/10.1073/pnas.0712168105
  20. 20
  21. 21
    Host antigens in schistosomiasis
    1. SR Smithers
    2. RJ Terry
    3. DJ Hockley
    (1969)
    Proceedings of the Royal Society B: Biological Sciences 171:483–494.
    https://doi.org/10.1098/rspb.1969.0007
  22. 22
  23. 23
  24. 24
    Egr-5 is a post-mitotic regulator of planarian epidermal differentiation
    1. KC Tu
    2. L-C Cheng
    3. H TK Vu
    4. JJ Lange
    5. SA McKinney
    6. CW Seidel
    7. A Sánchez Alvarado
    (2015)
    eLife, 4, 10.7554/eLife.10501.
  25. 25
  26. 26
  27. 27
    The tegument of Schistosoma mansoni: observations on the formation, structure and composition of cytoplasmic inclusions in relation to tegument function
    1. RA Wilson
    2. PE Barnes
    (1974)
    Parasitology 68:239–258.
  28. 28
    The formation and turnover of the membranocalyx on the tegument of
    1. RA Wilson
    2. PE Barnes
    (1977)
    Parasitology 74:61–71.
  29. 29
  30. 30
    A mex3 homolog is required for differentiation during planarian stem cell lineage development
    1. SJ Zhu
    2. SE Hallows
    3. KW Currie
    4. C Xu
    5. BJ Pearson
    (2015)
    eLife, 4, 10.7554/eLife.07025.

Decision letter

  1. Alejandro Sánchez Alvarado
    Reviewing Editor; Stowers Institute for Medical Research, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your work entitled "Stem cell progeny contribute to the schistosome host-parasite interface" for consideration by eLife. Your article has been reviewed by two peer reviewers, including Alex Loukas, and the evaluation has been overseen by Alejandro Sánchez Alvarado as the Reviewing Editor and Janet Rossant as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The present manuscript by Collins et al., extends on an earlier discovery by the authors on the presence of adult somatic stem cells in schistosome blood flukes. Here they report on the participation of these cells in the constant renewal of the tegument of these organisms. The authors show that the adult stem cells (neoblasts) generate a short-lived cell population of terminally differentiated tegumental cell bodies/progenitors expressing several of formerly characterized tegumental factors associated with the parasite's surface. The study sheds new light on the function of neoblasts for parasite survival. This is a significant contribution to our understanding of how these organisms can survive for decades within the hostile bloodstream of its final mammalian host while defending immune attacks. Moreover, given the importance of many of the molecules found in the tegument in terms of vaccine discovery and development, the work presented here on their biogenesis has important ramifications for the development of future control strategies for this important human disease.

There are, however, a few essential revisions the authors need to address in order for this well-designed study to be ultimately published in eLife.

Essential revisions:

1) There is some confusion regarding gene annotations among Figure 1C, Supplementary file 1, and Supplementary file 2:

In contrast to cyclinB and mcm2, nanos2 and ago2-1 cannot be found in Supplementary file 1 (please comment);

Smp_179320 (eukaryotic translation initiation factor 2C, Supplementary file 1) is annotated as ago2 in GeneDB;

Smp_051920 (hypothetical protein, Supplementary file 1) is annotated as nanos1 (not nanos2) in GeneDB;

Smp_157300 (tyrosine kinase, Supplementary file 1) is annotated as basic fibroblast growth factor receptor 1 A in GeneDB; is this corresponding to fgfrA targeted by RNAi?

Why can histone H2B not be found in Supplementary file 1 although it was a target of RNAi?;

Smp_181530 (tetraspanin, Supplementary file 2) is annotated as cd63 antigen (tetraspanin family member) in GeneDB; does this gene correspond to tsp-2 (Figure 1C)?

Smp_141010 is annotated as dysferlin1 in GeneDB whereas it is named fer-1-related in Supplementary file 2.

2) Many genes are downregulated by h2b(RNAi) and fgfrA(RNAi) to a comparable extent, e.g. Smp_133990 (topbb1, Supplementary file 1) and Smp_174820 (Ser/Thr kinase, Supplementary file 1). These genes show also a similar downregulation after 48h and D14 post-irradiation. However, some genes, e.g. Smp_095290 (zinc finger protein, Supplementary file 1), Smp_194180 (hypothetical protein, Supplementary file 1), and Smp_139530 (cellular tumor antigen P53, Supplementary file 1) show a much higher transcriptional downregulation following h2b(RNAi) in comparison to fgfrA(RNAi). How can this be explained? Is this due to differences of RNAi efficacies (have these been determined by real time PCR)?

3) Interestingly, this finding is paralleled by a significantly higher downregulation after D14 in comparison to 48h post-irradiation. How can this be explained (e.g. by mRNA stability?), and is this somehow related to the former observation (differences in RNAi efficacies)?

4) How can the differing reductions of histone H2A transcription levels (Smp_086860 and Smp_002930) be explained (Supplementary file 1)?

The observation of deviating transcriptional downregulation following h2b(RNAi) in comparison to fgfrA(RNAi) can also be seen for genes only down-regulated at late time points (Supplementary file 2), e.g. SmVAL8, Sm25, Sm13, and SmVAL12 (Smp_123550, Smp_195180, Smp_195190, and Smp_123540). Moreover, SmVAL8 transcription seems to be slightly but significantly increased after 48h post-irradiation before drastically downregulated (D14). How can this be explained?

5) One would expect that the ablation of neoblasts and the following decreased replenishment of tegumental cell bodies impede surface renewal. As a consequence this would lead to morphological changes at the surface area. Has this been observed microscopically?

https://doi.org/10.7554/eLife.12473.016

Author response

1) There is some confusion regarding gene annotations among Figure 1C, Supplementary file 1, and Supplementary file 2: In contrast to cyclinB and mcm2, nanos2 and ago2-1 cannot be found in Supplementary file 1 (please comment); Smp_179320 (eukaryotic translation initiation factor 2C, Supplementary file 1) is annotated as ago2 in GeneDB; Smp_051920 (hypothetical protein, Supplementary file 1) is annotated as nanos1 (not nanos2) in GeneDB; Smp_157300 (tyrosine kinase, Supplementary file 1) is annotated as basic fibroblast growth factor receptor 1 A in GeneDB; is this corresponding to fgfrA targeted by RNAi?; Smp_181530 (tetraspanin, Supplementary file 2) is annotated as cd63 antigen (tetraspanin family member) in GeneDB; does this gene correspond to tsp-2 (Figure 1C)? Smp_141010 is annotated as dysferlin1 in GeneDB whereas it is named fer-1-related in Supplementary file 2.

We have updated the annotations in Supplementary file 1 and Supplementary file 2 to include the most recent annotations available from the curators at the Wellcome Trust Sanger Institute. In cases where we have ascribed names to genes (e.g. fgfrA and nanos2) we have contacted the genome curators and the annotations in GeneDB have been updated.

Why can histone H2B not be found in Supplementary file 1 although it was a target of RNAi?; To address this point we’ve included the entire H2B RNAi dataset (in addition to the fgfrA (RNAi) and D14 irradiation datasets) as a new supplemental table (Supplementary file 3). In this dataset the h2b mRNA (Smp_108390) is down regulated > 15 fold, verifying that our knockdown was successful. Why is h2b not significantly down regulated in our other datasets? We attribute this observation to basal levels of histone expression in non-neoblast cells. Although neoblasts express high levels of histone h2b, as a population they only represent a small fraction (~5%) of cells in the animal. Thus, neoblast ablation (by for example fgfrA RNAi or irradiation) fails to completely reduce the H2B mRNA levels while still drastically reducing the number of neoblasts expressing high levels of H2B transcript (See Collins et al., 2013 Nature 494, 476–479, Figure 4C vs. Figure S8).

2) Many genes are downregulated by h2b(RNAi) and fgfrA(RNAi) to a comparable extent, e.g. Smp_133990 (topbb1, Supplementary file 1) and Smp_174820 (Ser/Thr kinase, Supplementary file 1). These genes show also a similar downregulation after 48h and D14 post-irradiation. However, some genes, e.g. Smp_095290 (zinc finger protein, Supplementary file 1), Smp_194180 (hypothetical protein, Supplementary file 1), and Smp_139530 (cellular tumor antigen P53, Supplementary file 1) show a much higher transcriptional downregulation following h2b(RNAi) in comparison to fgfrA(RNAi). How can this be explained? Is this due to differences of RNAi efficacies (have these been determined by real time PCR)?

In our experience RNAi of H2B rapidly results in a complete loss of proliferative neoblasts whereas RNAi of fgfrA fails to ablate the entire neoblast pool (see Collins et al., (2013) Nature 494, 476–479). Therefore, we fully expect that h2b RNAi will result in a larger fold change down regulation for neoblast expressed and DIS genes even though both H2B and fgfrA genes are down-regulated >10 fold in our RNAseq datasets (Supplementary file 3).

3) Interestingly, this finding is paralleled by a significantly higher downregulation after D14 in comparison to 48h post-irradiation. How can this be explained (e.g. by mRNA stability?), and is this somehow related to the former observation (differences in RNAi efficacies)?

The reviewers are correct, this is a very interesting observation and we have added additional data analyzing Smp_139530 (p53) to the manuscript (Figure 2A and Figure 2—figure supplement 1). We find that in addition to being expressed in neoblasts the schistosome p53 homolog is also highly expressed in tsp-2 cells. Based on this observation we interpret our transcriptional profiling results as follows: At 48 hours following irradiation p53 is partially down-regulated due to neoblast loss and then by day 14 the transcript is highly down regulated due to loss of the tsp-2+ cells. This result also adds value to the paper since the planarian orthologue of this gene is expressed in a similar manner (i.e., in the neoblasts and their immediate progeny, see Pearson & Sánchez Alvarado (2010) Development 137, 213–221). This provides additional evidence supporting the evolutionary conservation of the mechanisms regulating planarian and schistosome epidermal lineages.

4) How can the differing reductions of histone h2a transcription levels (Smp_086860 and Smp_002930) be explained (Supplementary file 1)?

We have examined the sequences of Smp_086860 and Smp_002930 and they appear to encode two distinct Histone H2A genes with differing amino acid sequences. Why do we observe differing levels of fold change down regulation? One possibility is that one of these genes is a histone variant. In other organisms histone variants can be regulated differently than the conical histones (see Kamakaka and Biggins. (2005) Genes and Dev. 19:295-316). Indeed, Smp_002930 shares >90 identity to histone H2A isoforms in Humans, whereas Smp_086860 only shares about 75-80% identity with human H2A proteins. Thus, Smp_086860 may encode a neoblast-enriched H2A variant.

The observation of deviating transcriptional downregulation following h2b(RNAi) in comparison to fgfrA(RNAi) can also be seen for genes only down-regulated at late time points (Supplementary file 2), e.g. SmVAL8, Sm25, Sm13, and SmVAL12 (Smp_123550, Smp_195180, Smp_195190, and Smp_123540).

This comment was addressed in point 2.

Moreover, SmVAL8 transcription seems to be slightly but significantly increased after 48h post-irradiation before drastically downregulated (D14). How can this be explained?

We have examined this observation in more detail by performing qPCR at 48 hours post-irradiation (Figure 1—figure supplement 2) and in situhybridizations for val-8 at both 48 hours and 7 days post-irradiation (Figure 2A). We observe that val-8 is expressed at slightly higher levels at 48 hours post-irradiation by qPCR yet doesn’t seem to be expressed in noticeably more cells at the same time point by in situ hybridization. Thus, we speculate that val-8 mRNA maybe present at slightly higher levels in the val-8+ cells at 48 hours. Based on this we speculate that irradiation may alter the differentiating neoblasts such that they turn on some differentiation markers (e.g., val-8) at slightly higher levels.

5) One would expect that the ablation of neoblasts and the following decreased replenishment of tegumental cell bodies impede surface renewal. As a consequence this would lead to morphological changes at the surface area. Has this been observed microscopically?

This is an excellent point and a major priority of our ongoing efforts. However, there are several challenges we need to tackle before we can address this issue in a comprehensive manner and therefore we feel this extends beyond the scope of this manuscript. We first must determine when the tegumental cell bodies are depleted following neoblast loss. The data presented here do not address this point. In principle, the tsp-2 mRNA+ cells could represent the entire tegumental cell pool, a subset of the tegumental cell bodies, or progenitors to the definitive tegument (Figure 3E). Addressing this point will allow us to determine the proper time point to examine the tegument microscopically. As far as microscopic analyses the preferred methodology would be Transmission Electron Microscopy (TEM), ideally using the methodology developed by Hockley and McLaren (Hockley DJ, McLaren DJ. 1973 Int J Parasitol. 3(1):13-25) that allows for visualization of both the inner and outer tegumental membranes. Unfortunately, our efforts to robustly reproduce this approach have yet to be successful, and therefore we are exploring other methodologies, including High Pressure Freezing and Freeze Substitution that should better preserve the membranes. Finally, since it has been noted that the tegument does not behave normally in vitro (see pg., 252 in Skelly, P. J. and R. A. Wilson (2006). "Making sense of the schistosome surface." Adv Parasitol 63: 185-284) the ideal experiment would be to examine the tegument of neoblast-depleted parasites during the course of an experimental infection. While we are developing the methodologies to perform these experiments, they are still at least a year from reaching a publishable endpoint.

https://doi.org/10.7554/eLife.12473.017

Article and author information

Author details

  1. James J Collins III

    1. Department of Cell and Developmental Biology, University of Illinois at Urbana-Champaign, Urbana, United States
    2. Department of Pharmacology, UT Southwestern Medical Center, Dallas, United States
    3. Howard Hughes Medical Institute, University of Illinois at Urbana-Champaign, Urbana, United States
    Contribution
    JJC, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    JamesJ.Collins@UTSouthwestern.edu
    Competing interests
    The authors declare that no competing interests exist.
  2. George R Wendt

    Department of Pharmacology, UT Southwestern Medical Center, Dallas, United States
    Contribution
    GRW, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  3. Harini Iyer

    1. Department of Cell and Developmental Biology, University of Illinois at Urbana-Champaign, Urbana, United States
    2. Howard Hughes Medical Institute, University of Illinois at Urbana-Champaign, Urbana, United States
    Contribution
    HI, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  4. Phillip A Newmark

    1. Department of Cell and Developmental Biology, University of Illinois at Urbana-Champaign, Urbana, United States
    2. Howard Hughes Medical Institute, University of Illinois at Urbana-Champaign, Urbana, United States
    Contribution
    PAN, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    pnewmark@life.illinois.edu
    Competing interests
    The authors declare that no competing interests exist.

Funding

Howard Hughes Medical Institute (Investigator)

  • Phillip A Newmark

National Institutes of Health (R21AI099642)

  • Phillip A Newmark

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Melanie Issigonis and Bo Wang for comments on the manuscript, as well as Alvaro Hernandez and the High-Throughput Sequencing Unit of the Roy J Carver Biotechnology Center for Illumina sequencing. This work was supported by NIH R21AI099642 (PAN). Mice and B. glabrata snails were provided by the NIAID Schistosomiasis Resource Center of the Biomedical Research Institute (Rockville, MD) through NIH-NIAID Contract HHSN272201000005I for distribution through BEI Resources. PAN is an investigator of the Howard Hughes Medical Institute. In adherence to the Animal Welfare Act and the Public Health Service Policy on Humane Care and Use of Laboratory Animals, all experiments with and care of vertebrate animals were performed in accordance with protocols approved by the Institutional Animal Care and Use Committee (IACUC) of the University of Illinois at Urbana-Champaign (protocol approval number 10035) and UT Southwestern Medical Center (protocol approval number APN 2014-0072). RNAseq datasets are available at NCBI under the accession numbers GSE42757 and GSE75861. The authors declare no competing interests.

Ethics

Animal experimentation: In adherence to the Animal Welfare Act and the Public Health Service Policy on Humane Care and Use of Laboratory Animals, all experiments with and care of vertebrate animals were performed in accordance with protocols approved by the Institutional Animal Care and Use Committee (IACUC) of the University of Illinois at Urbana-Champaign (protocol approval number 10035) and UT Southwestern Medical Center (protocol approval number APN 2014-0072).

Reviewing Editor

  1. Alejandro Sánchez Alvarado, Reviewing Editor, Stowers Institute for Medical Research, United States

Publication history

  1. Received: October 21, 2015
  2. Accepted: March 3, 2016
  3. Accepted Manuscript published: March 22, 2016 (version 1)
  4. Version of Record published: April 15, 2016 (version 2)

Copyright

© 2016, Collins et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,772
    Page views
  • 467
    Downloads
