Two FGFRL-Wnt circuits organize the planarian anteroposterior axis

  1. M Lucila Scimone
  2. Lauren E Cote
  3. Travis Rogers
  4. Peter W Reddien  Is a corresponding author
  1. Whitehead Institute for Biomedical Research, United States
  2. Massachusetts Institute of Technology, United States
  3. Howard Hughes Medical Institute, Massachusetts Institute of Technology, United States
Research Article
  • Cited 32
  • Views 3,331
  • Annotations
Cite this article as: eLife 2016;5:e12845 doi: 10.7554/eLife.12845

Abstract

How positional information instructs adult tissue maintenance is poorly understood. Planarians undergo whole-body regeneration and tissue turnover, providing a model for adult positional information studies. Genes encoding secreted and transmembrane components of multiple developmental pathways are predominantly expressed in planarian muscle cells. Several of these genes regulate regional identity, consistent with muscle harboring positional information. Here, single-cell RNA-sequencing of 115 muscle cells from distinct anterior-posterior regions identified 44 regionally expressed genes, including multiple Wnt and ndk/FGF receptor-like (ndl/FGFRL) genes. Two distinct FGFRL-Wnt circuits, involving juxtaposed anterior FGFRL and posterior Wnt expression domains, controlled planarian head and trunk patterning. ndl-3 and wntP-2 inhibition expanded the trunk, forming ectopic mouths and secondary pharynges, which independently extended and ingested food. fz5/8-4 inhibition, like that of ndk and wntA, caused posterior brain expansion and ectopic eye formation. Our results suggest that FGFRL-Wnt circuits operate within a body-wide coordinate system to control adult axial positioning.

https://doi.org/10.7554/eLife.12845.001

eLife digest

Some animals can regrow tissues that have been amputated. A group of flatworms called planarians are often used as a model to study the regeneration process because they are able to restore any lost tissue or even an entire animal from tiny pieces of the body. For regeneration to be successful, it is important to ensure that the new tissues form in the correct locations in the body.

The planarian body is divided into three main parts: head, trunk and tail. Several gene products involved in specifying what tissues regenerate are made by muscle cells along the planarian body. Some of the genes are involved in mechanisms that allow cells to communicate with each other, such as the Wnt signaling pathway. These genes could form a coordinated system to control regeneration, but their precise roles remain poorly understood.

Two groups of researchers have now independently identified genes that provide cells with information about their location in the flatworm body. Scimone, Cote et al. used a technique called RNA sequencing in individual muscle cells to identify 44 genes that have different levels of expression across the head, trunk and tail regions. These genes included multiple components of the Wnt signaling pathway and others that encode members of the FGFRL family of signaling proteins.

Further experiments revealed two distinct sets of genes, or “gene circuits”, that provide information to correctly position tissues in the head and trunk regions of the worm. For example, inhibiting the activity of the wntP-2 or ndl-3 genes increased the size of the trunk of the worms and caused extra mouths and pharynges (muscular organ used for eating) to form. On the other hand, blocking the activity of genes in the other gene circuit caused the brain to expand and extra eyes to form.

Another study by Lander and Petersen found that wntP-2 and ndl-3 act with another gene called ptk7, which encodes another component of the Wnt signaling pathway. Together these findings suggest that the Wnt-FGFRL circuits act in a body-wide system that co-ordinates where and which new tissues form during regeneration. A future challenge is to find out how the genes identified in these studies interact and how the cells of the animal interpret this information to properly regenerate missing tissues.

https://doi.org/10.7554/eLife.12845.002

Introduction

Adult animals replace cells during tissue turnover and, in many cases, regeneration. How animals specify and maintain regional tissue identity during these processes is poorly understood. Planarians can regenerate any missing body part and replace aged tissues during homeostasis, presenting a powerful system for identifying adult positional information mechanisms (Reddien and Sánchez Alvarado, 2004; Reddien, 2011).

Planarian regeneration requires an abundant population of dividing cells called neoblasts that includes pluripotent stem cells (Wagner et al., 2011; Rink, 2013; Reddien, 2013). Accordingly, many genes required for regeneration are required for neoblast biology. However, some phenotypes associated with gene inhibition do not impact the capacity of animals to regenerate, but instead affect the outcome of regeneration, suggestive of a role for such genes in providing positional information. For example, inhibition of components of the Wnt signaling pathway causes regeneration of heads in place of tails, generating two-headed animals with heads facing opposing directions (Petersen and Reddien, 2008; Gurley et al., 2008; Iglesias et al., 2008). Neoblasts are also constantly utilized for the replacement of differentiated cells during natural tissue turnover. Several striking planarian phenotypes associated with altered regional tissue identity during tissue turnover have also been identified, including hypercephalized (Wnt-signaling inhibition) (Petersen and Reddien, 2008; Gurley et al., 2008; Iglesias et al., 2008) and ventralized (BMP-signaling inhibition) (Reddien et al., 2007; Molina et al., 2007; Orii and Watanabe, 2007) planarians. Reminiscent of the roles of Wnt and Bmp in planarian regeneration and tissue turnover, Wnt regulates anterior-posterior (AP) axis development (Petersen and Reddien, 2009b; Niehrs, 2010) and Bmp regulates dorsal-ventral (DV) axis development (De Robertis and Sasai, 1996) in many animal phyla.

Many receptors, ligands, and secreted inhibitors belonging to key pathways that regulate development in many organisms, such as BMP and Wnt pathways are constitutively expressed in a regionalized manner across adult planarian body axes (Reddien, 2011). Interestingly, these genes are predominantly expressed together in the same planarian tissue, the body-wall muscle (Witchley et al., 2013). Expression patterns of these genes can change dynamically following injury (Petersen and Reddien, 2008; Petersen and Reddien, 2009a; Gurley et al., 2010; Witchley et al., 2013), and some of these changes can occur in existing muscle cells in the absence of neoblasts (Witchley et al., 2013). Body-wall muscle is distributed peripherally around the entire planarian body, and the known expression domains of candidate patterning molecules in muscle broadly span the AP, DV, and medial-lateral (ML) body axes, raising the possibility that muscle provides a body-wide coordinate system of positional information that controls regional tissue identity in tissue turnover and regeneration (Witchley et al., 2013). However, the roles for many of these genes with regionally restricted expression in muscle are poorly understood, and it is likely that many genes with regionally restricted expression in muscle and roles in positional information await identification.

Identification of muscle as a major site of expression of genes controlling regeneration and tissue turnover in adult planarians presented the opportunity for systematic characterization of positional information in an adult metazoan. To this end, we performed single-cell RNA sequencing on muscle cells isolated from 10 discrete regions along the planarian AP axis and found 44 genes for which expression within planarian muscle was restricted to specific AP domains. An RNA interference (RNAi) screen of many of these genes revealed two similar circuits each containing FGFRL and Wnt components that are required for the normal patterning of two distinct regions of the planarian body: the head and the trunk.

Results

Single muscle cell sequencing reveals 44 genes expressed in restricted domains along the AP axis

The prior identification of a single, body-wide cell type (body-wall muscle) expressing genes implicated in patterning in restricted domains (Witchley et al., 2013) raised the possibility that RNA sequencing of muscle cells could systematically identify components of this candidate adult positional information system. We sought such genes with regional expression in muscle utilizing single-cell RNA sequencing of muscle cells isolated from different regions along the AP axis. Non-dividing single cells from 10 consecutive regions along the AP axis (Figure 1A) were isolated by fluorescence activated cell sorting (FACS), and the resulting single-cell cDNA libraries were screened by qRT-PCR for expression of planarian muscle markers before sequencing (Methods, Figure 1—figure supplement 1A–C, Supplementary file 1A). Cells expressed an average of 3,253 transcripts, within the range reported for planarian single-cell libraries (Wurtzel et al., 2015). Principal component analysis (PCA) on the 177 single cells sequenced was performed using highly variable transcripts. Two significant principal components that separated cells by expression of muscle markers (PC1<0) and expression of neoblast markers (PC2<0) were identified (details in Methods, Figure 1—figure supplement 1D–F, Supplementary file 1B). PCA and troponin expression confirmed the identity of 115 muscle cells, and these 115 cells were used in all subsequent analyses (Figure 1—figure supplement 1D, Supplementary file 1A).

Figure 1 with 2 supplements see all

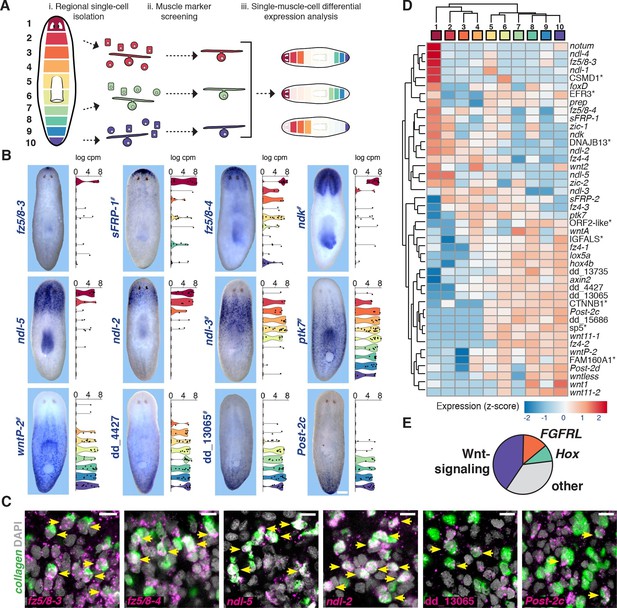

Single-muscle-cell RNA sequencing identifies regionally expressed genes on the planarian AP axis.

(A) Single cells from each colored AP region were isolated by FACS and resultant cDNA was screened by qRT-PCR for muscle marker expression. Positive cells were sequenced and analyzed for differential expression. (B) Whole-mount in situ hybridization (ISH) (n=2 experiments) shows expression of a subset of new and previously known (#) muscle regionally expressed genes (mRGs). Images are representative of n>10 animals for new mRGs. Anterior, up. Scale bar, 100 μm. Right, violin plots show the expression distribution in muscle cells (black dots) within the 10 dissected regions. cpm, counts per million. (C) Double fluorescence ISH (FISH) show co-localization of several newly identified mRGs (magenta) and the muscle marker collagen (green). DAPI was used to label nuclei DNA (gray). Yellow arrows point to cells co-expressing both genes. Scale bar, 10 μm. (D) Heat map shows hierarchical clustering of the average expression per region of the 44 identified mRGs. Top color bar indicates dissected region. (*) marks genes that are named by best human BLASTx hits. (E) Pie chart shows the percentage, within the 44 genes shown in D, of Wnt-signaling genes, FGFRL, and Hox homologs.

https://doi.org/10.7554/eLife.12845.003

Single-cell differential expression (SCDE, [Kharchenko et al., 2014]) analysis of the data was used to identify regionally expressed genes in the muscle single cell sequencing data, because of its ability to identify transcripts of genes with known anterior and posterior expression patterns (details in Methods, Figure 1—figure supplement 1G). SCDE analyses of three different anterior-versus-posterior region comparisons (Materials and methods, Figure 1A, Figure 1—figure supplement 1H, Supplementary file 1C–E) identified transcripts of 99 genes as differentially expressed at p<0.005. To further validate the regional expression of these candidate genes, RNA probes were generated for all statistically significant transcripts (88/99 successfully amplified) and whole-mount in situ hybridization (ISH) was performed (Figure 1B). 18 genes with regional expression in muscle have been previously identified (Figure 1—figure supplement 2, [Witchley et al., 2013; Vogg et al., 2014; Reuter et al., 2015]). Although these three SCDE analyses correctly identified 13 of these 18 genes, those expressed in rare muscle cells (wnt1, foxD, zic-1), in shallow gradients (sFRP-2), or broadly (wntA), were below statistical significance (Materials and methods, Figure 1—figure supplement 1H, Figure 1—figure supplement 2B). Therefore, an additional 168 genes, for which transcripts showed non-significant differential expression in the SCDE analysis, were tested by ISH. ISH reveals expression in all tissue types, which might obscure detection of regional expression within muscle cells for some genes by this method. Nonetheless, ISH analysis verified 44 of these genes as regionally expressed (35/44 with p<0.005 in any of anterior-versus-posterior SCDE analyses) from the total 256 genes tested, including 26 previously not reported to be regionally expressed in muscle (Figure 1B, Figure 1—figure supplement 2, Supplementary file 1F). All newly identified regionally expressed genes tested were expressed at least in part in cells expressing the planarian muscle marker collagen (Figure 1C).

The term position control gene (PCG) has been used for genes with both regional adult expression, and patterning abnormal RNAi phenotypes or prediction by sequence to be in a pathway regulating planarian patterning (Witchley et al., 2013). The function for many such PCGs awaits elucidation. Many of the genes identified here have as yet no known function and cannot be linked to known signaling pathways by sequence; we will therefore use in this manuscript the broadly inclusive term muscle regionally expressed gene (mRG). Hierarchical clustering of the average expression per region of the 44 mRGs identified recapitulates the AP order of the regions (Figure 1D). Interestingly, the 44 identified mRGs identified here were comprised mainly of genes encoding Wnt-signaling components, Hox-family transcription factors, and fibroblast growth factor receptor-like (FGFRL) proteins (Figure 1E), suggesting that these gene families have prominent roles in providing positional information for maintaining and regenerating the planarian primary body axis.

Regionally expressed genes in muscle, including FGFRL and Wnt-pathway genes, constitute an axial expression map in adult muscle

Combinatorial expression analysis using fluorescence ISH (FISH) of previously known mRGs and those newly described here generated a map depicting multiple, overlapping expression domains in planarian muscle along the planarian AP axis (Figure 2A, Figure 2—figure supplement 1A). Few genes, like sFRP-2 and ptk7 (Gurley et al., 2010; Reuter et al., 2015), were expressed broadly in the trunk. The posterior involves multiple overlapping expression domains of genes encoding Wnt, Hox, and novel proteins (Petersen and Reddien, 2008; Adell et al., 2009; Iglesias et al., 2008; Reuter et al., 2015; Currie et al., 2016). The anterior region involves overlapping expression domains of several components of the Wnt pathway and genes of the FGFRL family (Petersen and Reddien, 2008; Rink et al., 2009), some of which extended from the anterior head tip to varying posterior extents of the head and some were expressed in the pre-pharyngeal region (Figure 2—figure supplement 2).

Figure 2 with 4 supplements see all

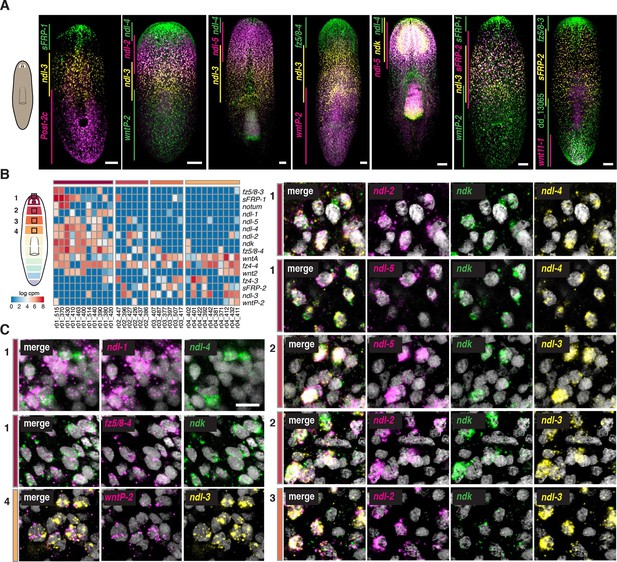

Co-expression of mRGs along the AP axis.

(A) FISH using mRGs maps discrete domains of mRG expression onto the planarian AP axis. Bars on left indicate the approximate extent of the expression domain for each of the genes analyzed. Images are representative of n≥5 animals. Anterior, up. Scale bar, 100 μm. (B) Heatmap shows co-expression of anterior FGFRL and Wnt pathway mRGs in the four anterior regions indicated in the cartoon (1–4). Each column shows expression within a single cell with color bars above indicating the dissected region of origin for the cell. cpm, counts per million (C) FISH using different FGFRL/ndl probes and Wnt pathway mRGs show co-expression in the four regions depicted in the cartoon. Black boxes (1–4) in the cartoon in B show the region imaged for the FISH, as denoted by the number and colored rectangle next to the merged image. Scale bar, 10 μm. Images are representative of n≥5 animals.

https://doi.org/10.7554/eLife.12845.006

FGFRL-family proteins, which lack the intracellular kinase domain present in FGFRs, have been little studied but are broadly conserved (Figure 2—figure supplement 2, [Cebrià et al., 2002; Bertrand et al., 2009]). The molecular mechanism of action of FGFRL proteins is not well understood. Planarians have six FGFRL-encoding genes, named nou darake (ndk), the defining member of the FGFRL family (Cebrià et al., 2002), and nou darake-like (ndl)-1 through ndl-5 (Figure 2—figure supplement 2). All of these FGFRL genes were identified in the SCDE analyses as AP mRGs (Figure 1D). At least three of the five FGFRL genes with expression at the anterior-most region of the animal (ndk, ndl-1, ndl-2, ndl-4, ndl-5) were co-expressed in all 11 muscle cells isolated and sequenced from the anterior head tip (region 1); 10/11 of these cells also co-expressed ndk and frizzled5/8–4 (fz5/8–4) (Figure 2B). In the single muscle cells sequenced from the pre-pharyngeal region (region 4), 3/6 cells expressing ndl-3 also expressed wntP-2. FISH also demonstrated co-expression of FGFRL and Wnt-pathway genes together in the same cells in regions where their expression domains overlapped (Figure 2C). Similarly, extensive co-expression of multiple mRGs in single muscle cells was observed in different regions along the entire AP axis (Figure 2—figure supplement 1B).

Wnt signaling is also required for maintenance of the AP axis, with β-catenin-1 RNAi animals developing ectopic heads around the entire body during tissue turnover (Petersen and Reddien, 2008; Gurley et al., 2008; Iglesias et al., 2008). At early timepoints following RNAi (7–9 days after first RNAi feeding), β-catenin-1 RNAi animals showed subtle posterior expansions of ndl-5 and ndl-2 expression domains (Figure 2—figure supplement 3). Later, ectopic expression of ndl-5 in posterior and lateral locations occurred and preceded ectopic expression of ndl-2 (9 days after first RNAi feeding) even before the appearance of ectopic eyes. Fully formed ectopic heads (21 days after first RNAi feeding) showed clear ectopic expression of the pre-pharyngeal mRG ndl-3 (Figure 2—figure supplement 3). Gross anatomical changes in the AP axis are therefore accompanied by corresponding changes in FGFRL expression domains.

The axial expression map of genes in planarian adult muscle is reminiscent of regionalized gene expression patterns found during embryonic development in other species (Pankratz and Jäckle, 1993; De Robertis et al., 2000; Jaeger et al., 2012) and provides a tool to dissect adult positional identity maintenance and regeneration.

Functional analysis of AP mRGs from major gene families

The regional expression of mRGs raises the possibility that many of these genes will have a role in controlling regional tissue identity. Therefore, we sought to determine with functional assays the roles of particular mRGs in the maintenance and/or regeneration of regional tissue identity. The prominence of a few gene families in the dataset of mRGs suggests that FGFRL/Wnt/Hox genes are major patterning determinants of the planarian AP axis. We, therefore, performed extensive single and multi-gene RNAi to identify the roles of these genes in adult positional identity (Supplementary file 1G). Inhibition of single or combinations of Hox genes and a subset of FGFRL genes (ndl-1, ndl-2, ndl-4, and ndl-5) did not result in animals with a robust abnormal phenotype (Supplementary file 1G). Additionally, expression of other members of the FGFRL family was not affected under these RNAi conditions at the time-point analyzed (Figure 2—figure supplement 4). However, we found striking AP patterning phenotypes when inhibiting a subset of Wnt pathway components and FGFRL genes as described below.

ndl-3 and wntP-2 restrict the number of mouths and pharynges in the planarian trunk

The ndl-3 gene is expressed from below the eyes to the esophagus at the anterior end of the pharynx (Figure 1B, [Rink et al., 2009]), which is located centrally in the animal trunk (Figure 3A). ndl-3 RNAi resulted in a striking phenotype: the formation of two or more mouths and two pharynges (Figure 3A–C, Figure 3—figure supplement 1A–D). The ectopic mouths and pharynges of ndl-3 RNAi animals appeared within the trunk, posterior to the original mouth/pharynx location. This phenotype emerged both during tissue turnover in uninjured animals (Figure 3—figure supplement 1C) and following regeneration (Figure 3A, Figure 3—figure supplement 1A). In the case of regeneration, animals initially regenerated a single mouth/pharynx, but as regenerating animals grew following feeding, ectopic mouths and pharynges emerged. Inhibition of the posterior mRG wntP-2/wnt11-5 also caused ectopic mouth and pharynx formation (Figure 3A–C, Figure 3—figure supplement 1A–D), in agreement with a recent report (Sureda-Gómez et al., 2015). Double RNAi of ndl-3 and wntP-2 was synergistic (Figure 3A, Fisher’s exact test p<0.0001 for ndl-3, p=0.0153 for wntP-2, Figure 3—figure supplement 1C). Inhibition of ndl-3 and wntP-2 also resulted in pharyngeal cavity expansion (Figure 3B,C, Figure 3—figure supplement 1B), and in increased numbers of para-pharyngeal cells (Figure 3B), which express the matrix metalloproteinase mmp1 (Newmark et al., 2003). In summary, when either ndl-3 or wntP-2 was inhibited, ectopic trunk structures were added sequentially as the animal grew and replaced tissues.

Figure 3 with 1 supplement see all

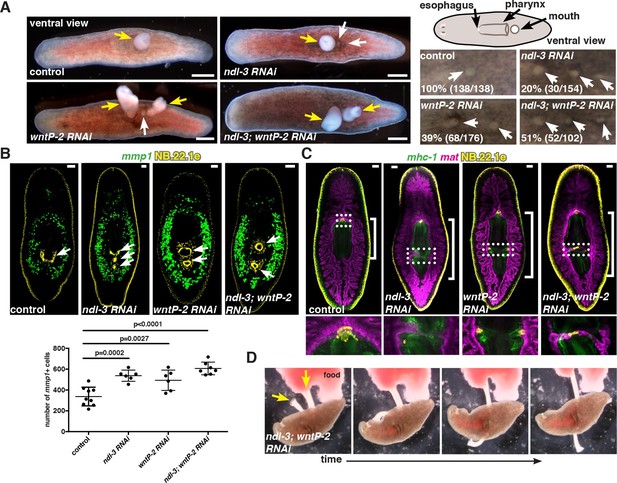

ndl-3 and wntP-2 restrict trunk positional identity.

(A) Live, ventral images of ectopic pharynges and mouths in 20–30 day post-amputation (dpa) RNAi animals. Right top, cartoon depicts esophagus, pharynx, and mouth. Left, pharynges (yellow arrows) and ectopic mouths without a protruding pharynx (white arrows). Scale bar, 500 μm. Right bottom, mouths (white arrows) in 7 dpa RNAi animals. Anterior, left. Total number of animals were pooled from at least 2 independent RNAi experiments. (B) Increased numbers of para-pharyngeal mmp1+ cells in RNAi animals. NB.22.1e labels mouths. Graph below shows mean ± SD (n>8 animals/condition, 2 pooled experiments, One-way ANOVA). (C) Esophagus-gut connection in 20 dpa trunk fragments, region in dotted rectangle is shown at higher magnification below. FISH: mat (gut), mhc-1 (pharynx), and NB.22.1e (esophagus). Bracket, pharyngeal cavity length. (D) Time-lapse images of an ndl-3; wntP-2 RNAi animal eating liver through both pharynges (yellow arrows), see Video 1.

https://doi.org/10.7554/eLife.12845.011

The planarian pharynx is a long muscular organ that can extend through the mouth to ingest food (Reddien and Sánchez Alvarado, 2004) and connects to the intestine through the esophagus at the medial anterior end of the pharyngeal cavity. In ndl-3 and wntP-2 RNAi animals, ectopic esophagi (NB.22.1e+) formed in variable locations, including from the side of the pharyngeal cavity wall and from a gut branch crossing the pharyngeal cavity (Figure 3C). Despite variable positioning, ectopic pharynges always integrated through an esophagus into the intestine, demonstrating remarkable plasticity in the mechanisms underlying tissue organization. Ectopic pharynges in ndl-3; wntP-2 RNAi or wntP-2 RNAi animals were also functional – animals simultaneously projected both pharynges and each pharynx displayed independent food searching behavior, such as on opposite sides of the animal or in different directions (Figure 3D, Video 1).

Video 1
Control, wntP-2, and ndl-3; wntP-2 RNAi animals eating from one or two pharynges.
https://doi.org/10.7554/eLife.12845.013

Inhibition of ndl-3 and wntP-2 affects the expression domains of trunk mRGs

Next, we examined whether trunk expansion in ndl-3 and wntP-2 RNAi animals with ectopic pharynges and mouths affected the mRG axial expression map described above. Anterior-most mRG expression domains (sFRP-1 and ndl-5) were present and showed no overt changes following ndl-3 and wntP-2 RNAi (Figure 4A–C, Figure 4—figure supplement 1A). By contrast, the ndl-3 expression domain was expanded to the ectopic posterior esophagus in wntP-2 RNAi animals (Figure 4A,D). In both wntP-2 and ndl-3; wntP-2 RNAi animals, the expression domain of sFRP-2 (Figure 4—figure supplement 1D) was also extended towards the animal posterior. By contrast, expression of the pre-pharyngeal mRGs wnt2 and ndl-2 was changed only slightly or not at all (Figure 4—figure supplement 1B,C). Conversely, the broad posterior expression domain of wntP-2 was significantly reduced in ndl-3 RNAi animals (Figure 4B,E). Expression of other posterior mRGs such as fz4-1 and dd_13065 was still present in ndl-3, wntP-2, and ndl3; wntP-2 RNAi animals (Figure 4—figure supplement 1E,F). Thus, both ndl-3 and wntP-2 are required for maintaining normal trunk tissue pattern including associated mRG expression domains, but not head or tail patterns of mRG expression. Altogether, these data suggest that the trunk patterning defects of ndl-3 and wntP-2 RNAi animals only affect local mRG expression within the axial map.

Figure 4 with 1 supplement see all
Trunk mRG gradients are shifted in ndl-3 and wntP-2 RNAi animals with ectopic pharynges/mouths.

mRG expression analyses by FISH: (A) expanded expression of trunk mRG ndl-3, (B) reduction of the lateral expression of the posterior mRG wntP-2. Left panel, ventral view. Right panel, dorsal view. Red arrows point to the mRG expression domain boundary shifted. White arrows point to mouths. Yellow arrows indicate esophagus. Anterior, up. Scale bar, 100 μm. All FISH images are representative of n>8 animals per condition, and at least 2 independent RNAi experiments have been performed. (C–E) Graphs show quantification of the shifts in expression domains for the mRGs shown in the FISH experiments (mean ± SD, at least 3 independent experiments were pooled. One-way ANOVA for sFRP-1, unpaired Student's t-tests for ndl-3 and wntP-2). Cartoons on the left depict the expression domain in the wild-type animal and the distance that was measured in each case. Length of expression domain measured was normalized by total length of the animal. All measurements were scored blind.

https://doi.org/10.7554/eLife.12845.014

ndk, fz5/8–4, and wntA control head patterning in planarians

In addition to trunk patterning phenotypes, we found that fz5/8–4 RNAi caused ectopic eye formation and expansion of the brain posteriorly in both uninjured and regenerating animals (Figure 5A,B, Figure 5—figure supplement 1A,C). fz5/8–4 showed graded anterior expression, strongest at the head tip, and brain expression (Figure 1B). The fz5/8–4 RNAi phenotype was similar to that previously described for ndk and wntA RNAi (Figure 5—figure supplement 1B, [Cebrià et al., 2002; Kobayashi et al., 2007; Adell et al., 2009; Hill and Petersen, 2015]). ndk is expressed in head muscle and the brain (Figure 1B, [Cebrià et al., 2002; Witchley et al., 2013]) and restricts brain tissues to the animal head (Cebrià et al., 2002). wntA is expressed broadly, with strong expression at the posterior base of the brain (Figure 1—figure supplement 2B, [Kobayashi et al., 2007; Adell et al., 2009; Hill and Petersen, 2015]). wntA; ndk double RNAi animals showed a stronger phenotype in homeostasis (Figure 5A,B) and regeneration (Kobayashi et al., 2007), than did single gene RNAi animals. Double RNAi of fz5/8–4 and either ndk or wntA also showed a synergistic effect during tissue turnover (Figure 5A,B, Figure 5—figure supplement 1B, Fisher’s exact test p<0.0001 for both ndk and wntA). Additionally, RNAi of four out of five other ndl (FGFRL)-family members further enhanced the fz5/8–4; ndk double RNAi phenotype (Figure 5—figure supplement 1D, Supplementary file 1G), suggesting that multiple FGFRL genes synergize to control head pattern with ndk.

Figure 5 with 1 supplement see all

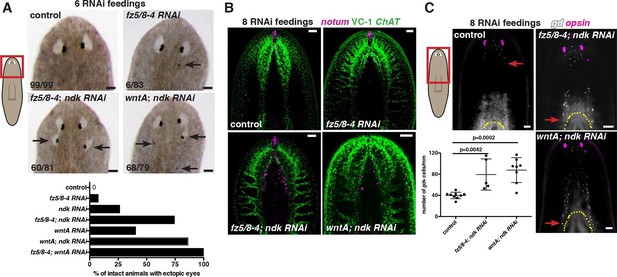

fz5/8–4, wntA, and ndk restrict head positional identity.

(A) Posterior ectopic eyes seen in uninjured RNAi animals. Black arrows, ectopic eyes. Total number of animals have been pooled from 3 independent RNAi experiments. Cartoon on left shows area imaged. Graph below shows the percentage of intact animals with ectopic posterior eyes in each RNAi condition. (B,C) Posterior expansion of neuronal markers (B) ChAT and notum and eyes (anti-ARRESTIN/VC-1 antibody, images representative of n>5) and (C) glutamic acid decarboxylase (gd, red arrows mark posterior-most cell) and photoreceptor marker opsin. Cartoon on left shows area imaged. Below, graph shows increased gd+ cell numbers, mean ± SD (n>5 animals/condition, 2 independent RNAi experiments, One-way ANOVA) normalized by the length from head tip to the esophagus.

https://doi.org/10.7554/eLife.12845.016

The ndk RNAi phenotype is poorly understood. For instance, are mRG expression domains expanded along with the brain in ndk RNAi animals, and what diversity of cell types expands posteriorly? Following eight RNAi feedings, fz5/8–4; ndk, wntA; ndk, and fz5/8–4; wntA double RNAi intact animals showed posterior expansion of multiple neuron classes from different head regions suggesting that the entire head-restricted nervous system expanded posteriorly (Figure 5B,C, Figure 5—figure supplement 1E,F). After eight RNAi feedings, a time point at which brain expansion was visible, non-neural mag-1+ adhesive gland cells (Zayas et al., 2010) showed normal distribution (Figure 6—figure supplement 1A). By 12 RNAi feedings, however, mag-1+ cells were disorganized (Figure 6A, Figure 6—figure supplement 1D), indicating that non-neural head cell types were eventually affected, but not visibly posteriorized, by these RNAi conditions.

Figure 6 with 1 supplement see all

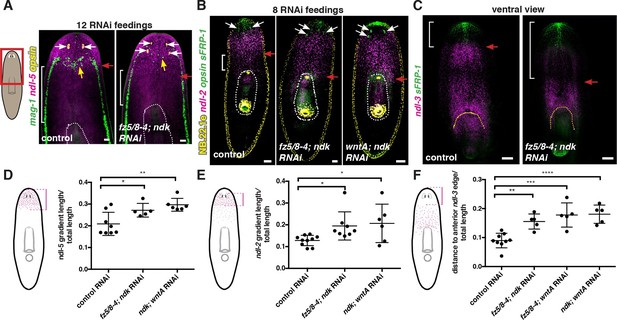

Anterior and prepharyngeal mRG gradients are shifted in fz5/8–4, ndk, and wntA RNAi animals with expanded brain tissue and ectopic eyes.

(A,B) Expansion of mRG expression domains towards the animal posterior. White bracket marks distance between mRG posterior boundary and esophagus; red arrows mark expression domain shifts. White dotted lines outline pharynx. (A) ndl-5, and (B) ndl-2. (A) Disorganization of mag-1 expression (yellow arrows). White arrows and opsin expression mark eyes. (C) Retraction of the pre-pharyngeal mRG ndl-3. Red arrows points to the shift towards the posterior of the anterior gradient boundary. White bracket indicates distance from the tip of the head to the anterior edge of the ndl-3 gradient. In all panels, anterior is up. Scale bar, 100 μm. All FISH images are representative of n>10 animals and at least 2 independent RNAi experiments were performed. (D–F) Graphs show quantification of the expression domain shifts for the mRGs shown in the FISH experiments (mean ± SD, at least 3 independent experiments were pooled, One-way ANOVA). Cartoons on the left depict the expression domain in the wild-type animal and the distance (normalized to total length) that was measured in each case. All measurements were scored blind.

https://doi.org/10.7554/eLife.12845.018

We next examined whether the axial mRG map changed in RNAi animals with posterior ectopic eyes. Anterior-most (sFRP-1 and ndl-4) and posterior (wntP-2, wnt11-1, and wnt11-2) mRG expression domains did not visibly change in fz5/8–4; ndk RNAi or wntA; ndk double RNAi animals, even under strong RNAi conditions (12 RNAi feedings, multiple ectopic eyes) (Figure 6B,C, Figure 6—figure supplement 1B–D). By contrast, ndl-2 expression, which is normally restricted to a domain immediately posterior to the eyes, was expanded into the pre-pharyngeal region after eight RNAi feedings (Figure 6B,E), and showed a more severe posterior expansion after 12 RNAi feedings (Figure 6—figure supplement 1B). Similarly, ndl-5, ndk, and wnt2 expression domains extended posteriorly into the pre-pharyngeal region in RNAi animals with strong phenotypes (Figure 6A,D, Figure 6—figure supplement 1C,E). By contrast, the anterior end of the pre-pharyngeal ndl-3 expression domain was significantly posterior-shifted (Figure 6C,F). Our results indicate that ndk, wntA, and fz5/8–4 are required to restrict anterior tissues and associated expression domains of mRGs to the head region, while leaving the anterior tip, trunk, and tail mRG domains unaffected.

Discussion

Single-cell sequencing has recently been used to identify transcriptomes for multiple planarian cell types (Wurtzel et al., 2015). We utilized single-cell sequencing to map axial gene expression within the planarian muscle. Planarian muscle was previously found to express several genes with known roles in adult tissue patterning in planarians, raising the possibility that muscle functions to produce a body-wide coordinate system of positional information (Witchley et al., 2013). Traditional RNA sequencing approaches to identifying candidate adult positional information in planarians is limited by the diversity of gene expression in heterogeneous tissue. The identification of a particular cell type expressing genes associated with regional tissue identity allowed application of regional single-cell sequencing to surmount this challenge. We applied this approach to the AP axis, and identified mRGs that constitute an expression map of muscle cells of the planarian primary axis (Figure 7A). Coordinate systems of positional information, such as those proposed to control embryonic development (De Robertis et al., 2000; Petersen and Reddien, 2009b; Niehrs, 2010), might exist within adult tissues of many animals, including humans (Rinn et al., 2006), however there is little functional data regarding positional information and maintenance of the adult body plan. Here, we described several mRGs that work together to pattern and maintain two distinct body regions, the head and the trunk.

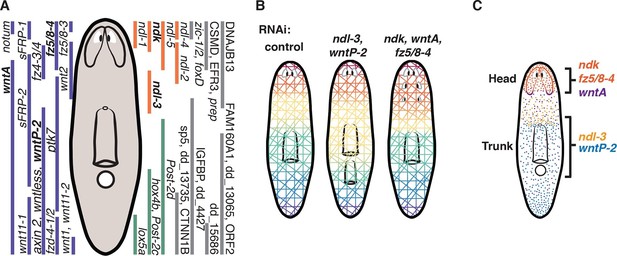

Two FGFRL-Wnt circuits control AP patterning in planarians.

(A) Expression domains of all identified mRGs along the planarian AP axis. Wnt pathway (purple), FGFRL (orange), and Hox genes (green). In bold, genes shown here to be involved in maintaining regional identity. (B) Cartoons summarize the characterized RNAi phenotypes. ndl-3 and wntP-2 restrict the number of pharynges and mouths in the trunk region. wntP-2 RNAi animals with ectopic pharynges/mouths have an expanded ndl-3 domain whereas ndl-3 RNAi animals with ectopic pharynges/mouths have a reduced wntP-2 expression domain. fz5/8–4, ndk, and wntA restrict the brain tissue to the head. Inhibition of these genes results in ectopic posterior eyes, brain expansion, and expanded domains of head mRGs. (C) Expression domains of the two FGFRL-Wnt circuits are shown. Black brackets indicate the region controlled by the FGFRL-Wnt circuits.

https://doi.org/10.7554/eLife.12845.020

Constitutive regional expression of planarian orthologs to genes with key developmental roles in metazoans has been hypothesized to be important for multiple aspects of planarian body plan maintenance (Reddien, 2011). Here we show that both the planarian head and trunk require an FGFRL-Wnt circuit to maintain adult regional tissue identity. Different FGFRL and Wnt genes are used in the two body locations; however, in both cases, an FGFRL expression domain is juxtaposed by a posterior Wnt expression domain. Strikingly, inhibition of either gene (FGFRL or Wnt) caused posterior expansion and sequential duplications of structures normally found within the head and trunk regions, resulting in expanded brain and ectopic eyes in one case, and ectopic pharynges and mouths in the other (Figure 7B).

Following inhibition of any of the components of these FGFRL-Wnt circuits, the axial expression map shows local shifts in expression domains coincident with the expansion of specific regionally restricted tissues such as brain and pharynx (Figure 7B). These results suggest that muscle, a tissue found uniformly throughout the animal, marks different AP regions through combinatorial expression of mRGs. This implies that communication exists between muscle cells and the underlying region-specific tissues. Understanding the coordination between muscle cells and tissues within AP regions is necessary for determining how planarians are able to robustly maintain and regenerate their entire body plan. Positional information must be integrated into the decision to generate and pattern new tissue during planarian growth and regeneration. mRGs might therefore influence the regional behavior of neoblasts and/or their division progeny.

The two FGFRL-Wnt circuits described in this work are striking examples of body plan plasticity during homeostatic tissue turnover. In both cases, inhibition by RNAi of FGFRL genes (i.e., reduction or absence of the FGFRL expression domain) and inhibition of Wnt pathway components (i.e., expansion of the FGFRL expression domain) are coincident with the same phenotype of expanded regional identity. Future characterization of the biochemical properties of FGFRLs and elucidation of the mechanisms of interaction between Wnt/Fz pathways and FGFRLs might help in understanding this property. We propose that FGFRL proteins confine the regions where specific tissues in both the head and trunk can normally form and that the Wnt gene of each circuit acts by restricting tissues at the anterior end of its expression domain (Figure 7B,C). Given the similarities of the distinct FGFRL-Wnt circuits for patterning two different body regions, FGFRL-Wnt circuits might be broadly utilized, but presently underappreciated, patterning modules of animal body plans.

Materials and methods

Animals

Asexual Schmidtea mediterranea strain (CIW4) animals starved 7–14 days prior experiments were used.

Muscle single cell isolation and library construction

Animals were dissected into 10 adjacent regions along the AP axis, and only the midline region (i.e., in between the ventral nerve cords) of each segment was utilized, to minimize heterogeneity caused by gradients expressed along the medio-lateral axes. 10 regions were chosen to balance consistency of amputation and AP resolution. The pharynx was dissected out and discarded for the regions 5 and 6. Fragments were dissociated into single cells. Single cell suspensions for each region were stained labeled with Hoechst, and non-dividing single cells were sorted by flow cytometry into 96 well plates containing 5 ul of total cell lysis buffer (Qiagen, Germany) with 1% β-mercaptoethanol. Subsequently, amplified cDNA libraries were made from each single cell using the SmartSeq2 method (Picelli et al., 2013; 2014; Wurtzel et al., 2015), and tested by qRT-PCR for the expression of the muscle markers collagen and troponin (collagen Fw: GGTGTACTTGGAGACGTTGGTTTA, collagen Rv: GGTCTACCTTCTCTTCCTGGAAC; troponin Fw: ACAGGGCCTTGCAACTATTTTCATC, troponin Rv: GAAGCTCGACGTCGACAGGA). Cells expressing either or both of these muscle-specific genes (~5 in 96 cells) were used to make libraries using the Nextera XT kit (Illumina, Inc). Libraries were sequenced (Illumina Hi-seq) and fastq files generated by Illumina 1.5 and examined by fastqc.

Identification of muscle cell expression profiles

Sequencing data was submitted to the GEO database as GSE74360. Each cell was sequenced twice, once with 80 bp reads and once with 40 bp reads, and reads from both sequencing runs were concatenated. Reads were trimmed using cutadapt to remove Nextera transposon sequences CTGTCTCTTATA and TATAAGAGACAG (overlap 11 bp) and low quality 3 base pairs (quality score less than 30) before mapping to the dd_Smed_v4 assembly (http://planmine.mpi-cbg.de; [Liu et al., 2013]) using bowtie 1 (Langmead et al., 2009) with -best alignment parameter. Bowtie 1 was used because of its better sensitivity mapping <50 bp reads. Read counts from prominent mitochondrial and ribosomal RNAs (dd_smedV4_0_0_1, dd_Smed_v4_7_0_1, and dd_Smed_v4_4_1_1) were discarded. Reads from the same isotig were summed to generate raw read counts for each transcript (Wurtzel et al., 2015). Libraries with fewer than 1000 expressed (>2 reads) transcripts were discarded, leaving 177 cells, expressing an average of 3,253 unique transcripts with an average of 430,114 reads mapped (Supplementary file 1A, Figure 1—figure supplement 1E). Counts per million reads (cpm) were log transformed after addition of a pseudocount and used as expression values for violin plots and heatmap in Figure 2B. Principal component (PC) analysis on a set of highly expressed transcripts (4 < mean expression < 8) with high variance (dispersion > 1.2) was extended to the entire set of transcripts to identify two significant PCs (Seurat [Satija et al., 2015], Supplementary file 1B). The transcripts defining PC1<0 are all found within the top 45 of the published set of muscle-enriched transcripts (Wurtzel et al., 2015). Two clear populations were separated by PC analysis, one of which included 115 cells that expressed troponin (>4 cpm) (Figure 1—figure supplement 1D,F). These 115 muscle cells were used for all subsequent analysis (Supplementary file 1A). Average expression per region (Seurat) for each transcript (Figure 1D) or expression per cell (Figure 2—figure supplement 1B) was centered and scaled to generate expression z-scores used for heatmap visualization. Dendrograms show complete hierarchical clustering using Euclidean distance (Figure 1D, Figure 2—figure supplement 1B).

Single cell differential analysis

Rv3.2.2 was used for all subsequent data analysis and visualization, relying on the following packages: Seurat (Satija et al., 2015), SCDE (Kharchenko et al., 2014), matrixStats, ROCR (Sing et al., 2005), ggplot2, RColorBrewer (http://colorbrewer2.org). To determine the best differential expression analysis method to identify putative mRGs, we tested three statistical methods: SCDE (Kharchenko et al., 2014), bimod (McDavid et al., 2013), and t-test (Student's t-test) for their ability to identify known mRGs. For each of the statistical tests, we compared cells from the head tip (region 1) versus those from the tail tip (region 10) and determined the rank and statistical significance of 10 canonical mRGs (Figure 1—figure supplement 1G). Based on its ability to identify mRGs present only in a subset of cells within a region (e.g., wnt11-1, sFRP-1, notum), we chose SCDE for all further differential expression analysis. Note that SCDE explicitly accounts for drop-out rates due to single-cell sequencing by calculating a probability distribution for each transcript in each cell before calculating differential expression between groups. To identify putative mRGs, we performed three differential expression analyses: anterior (regions 1, 2, 3; n=23 cells) versus posterior (regions 8, 9, 10; n=38 cells); head (region 1; 11 cells) versus post-pharyngeal (regions 7, 8, 9; n=35 cells); pre-pharyngeal (regions 2, 3, 4; n=22 cells) versus tail (region 10; n=12 cells) (Figure 1A). All transcripts with a |Z| score greater than 2.58 (p<0.005) in any of the SCDE analyses were screened by ISH (Supplementary file 1C–E). Z-scores corrected for multiple hypothesis testing are reported in Supplementary file 1C–E, however we used uncorrected Z-scores due to their ability to rank many more transcripts. In addition, 168 genes below our statistical cutoff were successfully amplified from cDNA and screened by ISH (Supplementary file 1C–E).

To determine if our method correctly classified transcripts as mRGs, we used a combined score from all three SCDE analyses (Figure 1—figure supplement 1H, [Wan and Sun, 2012]). If there is no differential expression of a gene along the AP axis, then the minimum p-value from any of the analyses, p[1] = min(p1, …, pk) where pi is the p-value from ith analysis, is expected to follow a beta distribution with parameters 1 and k (Tippett, 1931). A differential expression score was calculated based on beta distribution, Smin= -log(P(beta(1,k) < p[1])), and used to rank all transcripts. Note that this scoring system only ranks transcripts, and that statistical significance of differential expression is only interpretable within the analysis performed. We then quantified how well our analyses, as scored by Smin, classified transcripts as mRGs, as determined by ISH validation. The receiver-operator curve plots the false positive rate versus the true positive rate for each value of Smin based on ISH validation. The area under the curve (0.88, perfect classification = 1, random classification = 0.5) indicates that Smin and therefore our SCDE analyses are able to correctly classify transcripts as mRGs visible by ISH.

Gene cloning and whole-mount in situ hybridizations

Primers used to PCR amplify all planarian transcripts are listed in Supplementary file 1C–E. 44 mRGs were cloned from cDNA into the pGEM vector (Promega, Madison, WI). RNA probes were synthesized and nitroblue tetrazolium/5-bromo-4-chloro-3-indolyl phosphate (NBT/BCIP) colorimetric whole-mount in situ hybridizations (ISH) were performed as described (Pearson et al., 2009). Fluorescence in situ hybridizations (FISH) were performed as described (King and Newmark, 2013) with minor modifications. Briefly, animals were killed in 5% NAC before fixation in 4% formaldehyde. Following treatment with proteinase K (2 μg/ml) and overnight hybridizations, samples were washed twice in pre-hyb buffer, 1:1 pre-hyb:2X SSC, 2X SSC, 0.2X SSC, PBST. Subsequently, blocking was performed in 5% casein (10X solution, Sigma, St. Louis, MO) and 5% inactivated horse serum PBST solution when anti-DIG or anti-DNP antibodies were used, and in 10% casein PBST solution when an anti-FITC antibody was used. Post-antibody binding washes and tyramide development were performed as described (King and Newmark, 2013). Peroxidase inactivation with 1% sodium azide was done for 90 min at RT. Live animal images were taken with a Zeiss Discovery Microscope. Fluorescent images were taken with a Zeiss LSM700 Confocal Microscope. Co-localization analysis of FISH signals was performed using Fiji/ImageJ. For each channel, histograms of fluorescence intensity were used to determine the cut-off between signal and background. All FISH images shown are maximal intensity projections. A median filter was applied using the ImageJ Despeckle function. Images are representative of results seen in >5 animals per panel.

RNAi

dsRNA was prepared from in vitro transcription reactions (Promega) using PCR-generated templates with flanking T7 promoters, followed by ethanol precipitation, and annealed after resuspension in water. dsRNA was then mixed with planarian food (liver) (Rouhana et al., 2013) and 2 ul per animal of the liver containing dsRNA was used in feedings. For the RNAi screen (Supplementary file 1G), the following feeding protocol was used: animals were fed six times in three weeks, cut in four pieces (head, pre-pharyngeal, trunk and tail pieces), allowed to regenerate for 10 days, fed all together six times in another three weeks, and cut again into the four pieces described above. Seven days following amputation (7 dpa), trunk pieces were scored (Supplementary file 1G, Figure 3A right panels, Figure 3—figure supplement 1A, and Figure 5—figure supplement 1A), and fixed at day 20 following amputation for further analysis (Figure 3 and Figure 4). Five to 10 trunk pieces were kept after the first regeneration cycle, and were fed once a week for another 12 weeks and were scored after that period (homeostasis, Supplementary file 1G). Animals for homeostasis RNAi experiments for trunk patterning studies (Figure 3—figure supplement 1C) were fed eight times in four weeks and scored a week after the last feeding. In RNAi experiments for head patterning analysis, animals were fed eight times in four weeks, scored after the first six feedings (Figure 5A, Figure 5—figure supplement 1B,D), and fixed seven days after the last feeding (without amputation). For longer time point experiments, animals were fed twelve times in six weeks and fixed seven days after the last feeding. For all RNAi conditions tested, the total amount of dsRNA per feeding per animal was kept constant. Therefore, for example, when RNAi of two or more genes was performed, dsRNA for each gene was diluted in half. For combinations of dsRNAs, synergistic effects of double RNAi were calculated using Fisher’s exact test (Figure 3A, 5A, Figure 3—figure supplement 1C). Minimum sample sizes were estimated using difference of proportion power calculation with h=0.4 (ectopic mouths) or h=0.8 (ectopic eyes), sig.level=0.05, and power=0.8 (n=98.1 or n=24.5). RNAi animals with ectopic pharynges/mouths were treated with 0.2% chlorotone, which results in muscle relaxation and pharynx protrusion through the mouth (Figure 3A, left panels). For RNAi enhancement experiments of ndl-3; wntP-2 RNAi with β-catenin-1, animals were fed five times with a combination of ndl-3 and wntP-2, and starting in the sixth feeding, β-catenin-1 or control dsRNA was added to the mix of ndl-3 and wntP-2 for another three, four, or five feedings (being a total of eight, nine or 10 feedings, Figure 3—figure supplement 1E). For the β-catenin-1 RNAi experiment shown in Figure 2—figure supplement 3, animals were fed once, twice, or four times with β-catenin-1 or control dsRNA. Animals were fixed at different days after the first RNAi feeding.

Quantitative reverse-transcriptase PCR

Samples were processed and analyzed as described (Owen et al., 2015). Briefly, total RNA was isolated from fragments from individual intact worms or from individual regenerated fragments, as indicated by cartoons in figures, in 0.75mL Trizol (Life Technologies, Carlsbad, CA) following manufacturer's instructions. Samples were homogenized for 30s using TissueLyser II (Qiagen). Following RNA purification and resuspension in dH20, concentrations for each sample were measured by Qubit using RNA HS Assay Kit (Life Technologies). 5 ng of RNA were treated with 1U amplification-grade DNAse I (Life Technologies) for 15 min at room temperature before DNAse heat-inactivation for 10 min at 65°C in the presence of 2.5 mM EDTA. Multiplex reverse-transcription and 15 cycles of PCR amplification were performed on DNAse-treated RNA using pooled outer primers at 50 nM each and Superscript III/Platinum Taq enzyme mix (Supplementary file 1H). Following outer primer digestion with ExoI (15U, New England Biolabs, Ipswich, MA), samples were diluted to 500pg/ul and checked for presence of g6pd by qRT-PCR (7500 Fast PCR System, Applied Biosystems). Samples and inner primers were loaded onto a 96.96 Dynamic Array Fast IFC chip (Fluidigm BioMark) and analyzed as described (Supplementary file 1H, [Owen et al., 2015]). Ct values from two technical replicates were averaged and normalized by the average Ct value of three housekeeping genes (g6pd, clathrin, and ubiquilin, [van Wolfswinkel et al., 2014]) to generate ΔCt values. Log2 fold-changes were determined by the ΔΔCt method by calculating the difference from the average ΔCt value of control RNAi replicates. Heatmap of average ΔΔCt values was generated by pheatmap in R. Bar graphs show mean ΔΔCt +/- standard deviation with individual ΔΔCt values. Statistical tests (unpaired Student’s t-test or one-way ANOVA followed by Dunnett’s multiple comparisons test) were performed between individual ΔΔCt values.

Expression domain quantification

FISH of the mRG of interest was performed in control RNAi animals and RNAi animals showing phenotypes (ectopic pharynx or ectopic eyes) in at least three independent experiments, and images taken with same intensity settings within an experiment. The extent of an mRG expression domain was measured in ImageJ as depicted in cartoons by blind scoring maximal intensity projections. For ndl-2, the extent of the domain with strong expression and not total expression was measured. The length of the mRG expression domain was normalized by the length of the animal. Statistical analysis of expression domain shifts were determined by one-way ANOVA followed by Dunnett’s multiple comparisons test.

Immunostainings

Animals were fixed as for in situ hybridizations and then treated as described (Newmark and Sánchez Alvarado, 2000). A mouse anti-ARRESTIN antibody (kindly provided by Kiyokazu Agata) was used in a 1:5000 dilution, and an anti-mouse-Alexa conjugated antibody was used in a 1:500 dilution.

Cell quantification and statistical analysis

Numbers of cintillo+and gd+cells were counted and normalized by the length between the anterior tip of the animal and the esophagus in control, fz5/8–4; ndk, and wntA; ndk RNAi animals after eight RNAi feedings (Figure 5C, Figure 5—figure supplement 1E). One-way ANOVA and Dunnet’s post-test were used to determine significant differences between the different conditions and the control. Similarly, cells expressing the metalloproteinase mmp1 were counted in control, wntP-2, ndl-3, and ndl-3; wntP-2 RNAi trunk pieces after 12 RNAi feedings and two rounds of regeneration (20 dpa, screen RNAi protocol, Figure 3B). One-way ANOVA and Dunnet post-test were used to determine significant differences between the different conditions and the control. Minimum sample-size estimations were calculated using balanced one-way analysis of variance power calculation with k=4 (mmp1) or k=3 (cintillo and gd), f=0.8, sig.level=0.05, and power=0.8 (n=5.3 or n=6.1).

Phylogenetic analysis: accession numbers

Genbank: Homo sapiens: NP_068742.2 (FGFRL1). Mus musculus: NP_473412.1 (FGFRL1). Xenopus tropicalis NP_001011189.1 (FGFRL1). Strongylocentrotus purpuratus NP_001165523.1 (FGFRL1). Dj, Dugesia japonica: BAC20953.1 (Ndk), BAP15931.1 (Ndl-2), BAQ21471.1 (Ndl-3), BAQ21471.1 (Ndl-1). Nematostella vectensis XP_001635234.1 (FGFRL-1). Uniprot: Ciona intestinalis F7BEX9 (FGFRL1). Genomic database: Capitella sp. I: CAPC1_170033 (FGFRL1). Lottia gigantean: LOTGI_167118 (FGFRL1). Schistosoma mansoni: Smp_052290 (Ndk), Smp_036020 (Ndl-5) Planmine/Genbank: Schmidtea mediterranea: dd_11285/ADD84674.1(Ndk), dd_12674/ADD84675.1 (Ndl-4), dd_5102/AFJ24803.1(Ndl-5), dd_6604/ADD84676.1 (Ndl-3), dd_8310 (Ndl-1), dd_8340 (Ndl-2).Dendrocoelum lacteum: Dlac_193209/JAA92597.1 (Ndk), Dlac_194186/JAA92596.1 (Ndl-4), Dlac_184398 (Ndl-5), Dlac_178408 (Ndl-3-2), Dlac_182339 (Ndl-3-1), Dlac_189993 (Ndl-1), Dlac_170672 (Ndl-2-1), Dlac_181923/JAA92595.1 (Ndl-2-2). Planaria torva: Ptor_24279 (Ndk-1), Ptor_18635 (Ndk-2), Ptor_24521(Ndl-4-1), Ptor_34251 (Ndl-4-2), Ptor_36400 (Ndl-5-1), Ptor_68870 (Ndl-5-2), Ptor_24828 (Ndl-3-1), Ptor_27132 (Ndl-3-2), Ptor_29905 (Ndl-1), Ptor_23702 (Ndl-2). Polycelis tenuis: Pten_63627 (Ndk-1), Pten_14428 (Ndk-2), Pten_6171 (Ndl-4), Pten_43037 (Ndl-5), Pten_46975 (Ndl-3), Pten_39799 (Ndl-1-1), Pten_47685 (Ndl-1-2), Pten_41107 (Ndl-2). Polycelis nigra: Pnig_15421 (Ndk-1), Pnig_6593 (Ndk-2), Pnig_29523 (Ndl-4-2), Pnig_3947 (Ndl-4-1), Pnig_25001 (Ndl-5), Pnig_3933 (Ndl-3), Pnig_25308 (Ndl-1), Pnig_22111 (Ndl-2).

References

  1. 1
  2. 2
  3. 3
  4. 4
    Hox gene complement and expression in the planarian Schmidtea mediterranea
    1. KW Currie
    2. DD Brown
    3. S Zhu
    4. C Xu
    5. V Voisin
    6. GD Bader
    7. BJ Pearson
    (2016)
    EvoDevo, 7, 10.1186/s13227-016-0044-8.
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
    The Development of the Drosophila Melanogaster. Chapter 9. Blastorderm Segmentation
    1. MJ Pankratz
    2. H Jäckle
    (1993)
    New York: Cold Spring Harbor Laboratories Press.
  25. 25
  26. 26
    A wound-induced Wnt expression program controls planarian regeneration polarity
    1. CP Petersen
    2. PW Reddien
    (2009a)
    Proceedings of the National Academy of Sciences of the United States of America 106:17061–17066.
    https://doi.org/10.1073/pnas.0906823106
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
    The methods of statistics
    1. LHC Tippett
    (1931)
    London: Williams and Norgate ltd.
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50

Decision letter

  1. Alejandro Sánchez Alvarado
    Reviewing Editor; Stowers Institute for Medical Research, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your work entitled "Two FGFRL-Wnt circuits organize the planarian AP axis" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Alejandro Sánchez Alvarado as Reviewing Editor and Fiona Watt as the Senior Editor. One of the three reviewers has agreed to reveal her identity: Yukiko Yamashita.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

In the manuscript by Scimone, et al., the authors build upon their previous study of spatial signaling pathways being transcribed by muscle nuclei: Witchley et al., 2013. In order to describe the heterogeneity of signals transcribed by muscles, and how those signals may change along the axis of the worm, the authors use single cell RNA deep sequencing of 115 muscle cells isolated from different axial levels. This manuscript identifies genes that are expressed regionally along the anterior/posterior axis in planarian body wall muscle, which are thought to provide a coordinate system for axial information. Trying several analysis methods, the authors settle on one and then perform an in situ hybridization screen of 252 transcripts to look for regionally restricted transcripts. The RNA sequencing of single muscle cells identified 44 new regionally-expressed genes, many of which are members of the Wnt, FGFRL, and Hox gene families. Knockdown of these genes resulted in two overall classes of phenotypes: those that affect trunk identity, with formation of ectopic mouths, and those that affect anterior identity, with formation of ectopic photoreceptors. In both cases, the genes required for head or trunk identity consist of one Wnt and one FGFRL, suggesting that these proteins may form a regulatory circuit conveying regional axial information to underlying tissues in the animal.

Essential revisions:

The use of single-cell RNA-sequencing to identify transcripts expressed in particular cell types is a novel, powerful technique in planarians. The finding that signaling pathways such as Wnt and FGFRL cooperate to establish axial patterning is not altogether surprising, but understanding how this coordinate system functions is valuable. However, before publication some changes need to be made to improve the clarity of the story.

1) This manuscript should be expanded into a full article due to the vast amounts of data currently buried in supplemental (Figure 1—figure supplement 3 for example). Additionally, a very detailed protocol and sequence analysis accompanying this article would be helpful. Currently, sequencing depth or testing of sensitivity by mRNA spike-ins is not discussed or performed, and should be strongly considered to expand upon.

2) The selection criteria for these 44 new regionally-expressed genes is not clear from the text. Additionally, in screening 252 genes by in situ hybridization, why were 166 non-statistically-significant genes in this analysis? Also, in Figure 1—figure supplement 2, why are only 38 in situs instead of 44? Stating the reasons for these inclusions and omissions will improve the clarity of the manuscript.

3) The claim that WntP-2 and ndl-3 only affect trunk identity and not head identity is poorly supported by the data as shown. The SFRP-1 expression patterns in Figure 2E-F seem to be moderately expanded, and it is difficult to tell how the authors determine the boundaries of these domains. Can they be quantified to show reproducibility across a population instead of in a single image? Similarly, the expression pattern boundaries shown in Figure 2—figure supplement 2 are difficult to see, and quantification would help.

4) The authors suggest in the conclusion that the Wnt signals form the posterior boundary for the FGFRLs. To prove that this system functions this way, does knockdown of multiple Wnts alter the FGFRL distribution? Does overall perturbation of global Wnt signaling (by knockdown of β-catenin or APC) alter patterning of these genes?

5) Levels of WNTP-2, ndl-3, fz5/8-4, ndk RNAi efficacy should be quantified by qRTPCR or RNAseq, as is standard in the planarian field.

6) Because the phenotype of wntA, ndk, and fz5/8-4 are all in a similar direction (head expansion), there cannot be a negative arrow from wntA to ndk in the model in Figure 4. Please modify accordingly if you propose this is a genetic arrow, or increase resolution if you propose this is a small-scale boundary restriction.

7) The authors did not put the ndl's in the context of regional head/tail repression by βcat/APC. In the case of the trunk domain expanding posterior, can this be suppressed by βcat RNAi's anteriorizing effects?

8) In the end, this is largely an ndl story as well as trying to get a handle on what the muscle cells are capable of in terms of signaling complexity. The authors state that 4/5 ndl's were differentially detected in muscle cells, yet it is hard to get a feeling for how they are regionally restricted, how they overlap with each other, and what how each of their phenotypes affect patterning as a whole. The authors should show the RNAi phenotypes for each of the ndl's and show the effects on the patterning of the others as well as the WNT's used in this manuscript. Secondly, they should quantify the overlap in each of the genes and support this by co-detection in single muscle cells using the data already in hand. The authors missed an opportunity here to perform some analyses on what mRGs were detected in single muscle cells – they should perform such an analysis (instead of the average expression for a region shown in Figure 1C). For example, do all ndk-expressing muscles also express wntA and/or fz5/8-4? Are there transcription factor differences that can explain the expression profile of a given muscle? This would be very informative.

https://doi.org/10.7554/eLife.12845.024

Author response

Essential revisions: The use of single-cell RNA-sequencing to identify transcripts expressed in particular cell types is a novel, powerful technique in planarians. The finding that signaling pathways such as Wnt and FGFRL cooperate to establish axial patterning is not altogether surprising, but understanding how this coordinate system functions is valuable. However, before publication some changes need to be made to improve the clarity of the story. 1) This manuscript should be expanded into a full article due to the vast amounts of data currently buried in supplemental (Figure 1—figure supplement 3 for example). Additionally, a very detailed protocol and sequence analysis accompanying this article would be helpful. Currently, sequencing depth or testing of sensitivity by mRNA spike-ins is not discussed or performed, and should be strongly considered to expand upon.

We agreed with the reviewers and have expanded this manuscript into a full article. We also agree with the reviewers that more detail for the single-cell sequencing could enhance the paper. Therefore we have added details of the sequencing analysis to the Results, including average number of transcripts detected per cell and to the Materials and methods, including average number of reads per cell, with additional references to Supplementary file 1A where the values for the individual cells are listed. Of note, a recent manuscript from our lab describes the single cell sequencing protocol used here in detail as well, and we also have added reference to this published detailed protocol to the paper (Wurtzel et al., 2015). We have included that the genes defining the final muscle cells used for the differential expression analysis were within the muscle-enriched set found by Wurtzel et al., 2015. The Smart-seq2 library preparation protocol (Picelli et al., Nature Methods, 2013), which we used for this work, does not use EERC spike-ins for normalization. Single-cell sequencing does suffer from drop-out rates, which is accounted for by the statistical modeling present in SCDE (Kharchenko et al., 2014), and this is noted in the Materials and methods.

2) The selection criteria for these 44 new regionally-expressed genes is not clear from the text. Additionally, in screening 252 genes by in situ hybridization, why were 166 non-statistically-significant genes in this analysis? Also, in Figure 1—figure supplement 2, why are only 38 in situs instead of 44? Stating the reasons for these inclusions and omissions will improve the clarity of the manuscript.

We thank the reviewers for pointing out this area of confusion. 35 of the 44 mRGs described were within the 99 genes that had statistically significant p-values from the SCDE analyses performed and that also showed regional expression by in situ hybridization. The additional 9 mRGs verified by in situ hybridization came from 168 genes below the significant p-value in the SCDE analyses. The reason for including these 168 non-significant genes was because of the absence of a few previously known mRGs within the 99 (p-value<0.005) group. mRGs that were expressed in shallow gradients (e.g., sFRP-2) or in very few cells (wnt1, foxD, zic-1) were not present within the 99 significant genes. We therefore sought to examine the possibility that the threshold of p-value<0.005 was too stringent to capture all mRGs in the data. On the other hand, lowering the threshold would increase the false positive rate. We therefore tested additional genes with different significance values to seek additional mRGs. Because only 4 more mRGs (plus 5 previously known mRGs) were found with this approach, we concluded we were near saturation of the data. i.e., further sampling below the significance level threshold set would reveal mainly false positives not validated by ISH (see Figure 1—figure supplement 1H, Methods subsection “Single cell differential analysis”). We re-wrote this section in the Results (subsection “Single muscle cell sequencing reveals 44 genes expressed in restricted domains along the AP axis”) to make this approach clearer.

Previously, we did not include all 44 genes in Figure 1—figure-supplement 2 because some of those genes were already shown in Figure 1. Now, for clarity purposes, we include all 44 genes in Figure 1—figure supplement 2.

3) The claim that WntP-2 and ndl-3 only affect trunk identity and not head identity is poorly supported by the data as shown. The SFRP-1 expression patterns in Figure 2E-F seem to be moderately expanded, and it is difficult to tell how the authors determine the boundaries of these domains. Can they be quantified to show reproducibility across a population instead of in a single image? Similarly, the expression pattern boundaries shown in Figure 2—figure supplement 2 are difficult to see, and quantification would help.

We agreed with the reviewers about the challenge in visualizing shifts in individual images of expression domains from a figure. Therefore, we now added quantifications of all the expression domains that we thought might be shifting between the different RNAi conditions. We now demonstrate statistical significant shifts for the expression domains of the trunk mRGs ndl-3, wntP-2, and sFRP-2 in wntP-2 / ndl-3 RNAi conditions (Figure 4, Figure 4—figure supplement 1C,D). ndl-2, showed subtle-to-no changes in its expression domain between conditions, and we describe it accordingly. The particular case of sFRP-1 asked for showed no significant changes in its expression domain between the control and the RNAi groups. We also similarly quantified anterior expression domains, now shown in Figure 6.

4) The authors suggest in the conclusion that the Wnt signals form the posterior boundary for the FGFRLs. To prove that this system functions this way, does knockdown of multiple Wnts alter the FGFRL distribution? Does overall perturbation of global Wnt signaling (by knockdown of β-catenin or APC) alter patterning of these genes?

We re-wrote those conclusions to be more specific about the role of Wnt signaling setting in the FGFRL expression domain. Specifically, we know state: "Following inhibition of any of the components of these FGFRL-Wnt circuits, the axial expression map shows local shifts in expression domains coincident with the expansion of specific regionally restricted tissues such as brain and pharynx (Figure 7B)." The ndl-3 expression domain shifted in wntP-2 RNAi animals that had extra pharynges/mouths, which we now clarify in the main text and in figure legends. We do not want to conclude at this point that wntP-2 directly regulates the ndl-3 domain, but that the wntP-2 phenotype involves ndl-3 expansion. We also performed a new experiment to examine the role of global canonical Wnt signaling (by β-catenin-1 RNAi) in FGFRL expression domains distributions (Figure 2—figure supplement 3). In the progression of the β-catenin-1 RNAi phenotype, we found mild changes in distributions of FGFRL expression domains followed by large-scale re-patterning of the body (ectopic head formation) with associated large-scale FGFRL domain changes. Because of the transformation of the body plan (ectopic heads), it is difficult to make strong conclusions about the latter changes. Overall, we seek to avoid strong conclusions about direct regulation of ndl domains by Wnts, but state that some ndl expression domains change robustly when body plans change following Wnt perturbation.

5) Levels of WNTP-2, ndl-3, fz5/8-4, ndk RNAi efficacy should be quantified by qRTPCR or RNAseq, as is standard in the planarian field.

We now included quantification by qRT-PCR as well as FISH experiments to show the efficacy of all the RNAi conditions (Figure 3—figure supplement 1D, Figure 5—figure supplement 1C).

6) Because the phenotype of wntA, ndk, and fz5/8-4 are all in a similar direction (head expansion), there cannot be a negative arrow from wntA to ndk in the model in Figure 4. Please modify accordingly if you propose this is a genetic arrow, or increase resolution if you propose this is a small-scale boundary restriction.

The arrow in the previous version between the wnts and ndk was not meant to be a genetic arrow, but rather meant to reflect the expansion of the expression domains of the FGFRLs in Wnt RNAi animals with phenotypes. We modified the presentation of the model such that arrows are not shown anymore; we now simply depict changes in expression domains in 7B and describe them in the legend.

7) The authors did not put the ndl's in the context of regional head/tail repression by βcat/APC. In the case of the trunk domain expanding posterior, can this be suppressed by βcat RNAi's anteriorizing effects?

We have now performed this suggested experiment. We inhibited β-catenin-1 with RNAi in animals previously treated with ndl-3 and wntP-2 dsRNA. We observed that if anything, β-catenin-1 RNAi further enhances the phenotype observed in the double ndl-3; wntP-2 RNAi animals (Figure 3—figure supplement 1E).

8) In the end, this is largely an ndl story as well as trying to get a handle on what the muscle cells are capable of in terms of signaling complexity. The authors state that 4/5 ndl's were differentially detected in muscle cells, yet it is hard to get a feeling for how they are regionally restricted, how they overlap with each other, and what how each of their phenotypes affect patterning as a whole. The authors should show the RNAi phenotypes for each of the ndl's and show the effects on the patterning of the others as well as the WNT's used in this manuscript. Secondly, they should quantify the overlap in each of the genes and support this by co-detection in single muscle cells using the data already in hand. The authors missed an opportunity here to perform some analyses on what mRGs were detected in single muscle cells – they should perform such an analysis (instead of the average expression for a region shown in Figure 1C). For example, do all ndk-expressing muscles also express wntA and/or fz5/8-4? Are there transcription factor differences that can explain the expression profile of a given muscle? This would be very informative.

We show the average expression per region and whole-mount in-situ hybridization pattern for all ndls in Figure 1D, Figure 1—figure supplement 2, and Figure 2—figure supplement 2 and clarify that all six ndls were differentially expressed in the SCDE analyses (subsection “Regionally expressed genes in muscle, including FGFRL and Wnt-pathway genes, constitute an axial expression map in adult muscle”). All ndls that worked well by FISH (all except ndl-1) were pair-wise tested for spatial overlap (Figure 2A). We now analyzed triple FISH for overlap of ndls within individual cells where their spatial domains overlapped, and show this data in a new Figure 2C. We also now present heatmaps in the main figure (Figure 2B) from single cell sequencing, where individual cell data is shown, allowing visualization of overlap between all ndls in single cells from the anterior regions. We also have commented in the text on the degree of overlap in the single-cell sequencing data (same section). Finally, we show the single-cell sequencing data for all of the muscle cells in Figure 2—figure supplement 2, which shows overlap between mRGs in all single muscle cells spanning the AP axis. In addition, we now analyzed by FISH and quantified by qRT-PCR the expression of each ndl family member when one or more of the ndl genes was inhibited by RNAi (Figure 2—figure supplement 4). We found that single ndl RNAi (and even combination ndl RNAi) only significantly affected the expression of that ndl and not the others in this experiment. We have not identified transcription factor differences that would explain the expression profiles of a given muscle cell, but there are several transcription factors that are mRGs (zic-1, zic-2, foxD, prep, sp5, and the Hox genes) most of which have been functionally investigated in other papers.

https://doi.org/10.7554/eLife.12845.025
