Abstract

The vinegar fly Drosophila melanogaster is equipped with two peripheral olfactory organs, antenna and maxillary palp. The antenna is involved in finding food, oviposition sites and mates. However, the functional significance of the maxillary palp remained unknown. Here, we screened the olfactory sensory neurons of the maxillary palp (MP-OSNs) using a large number of natural odor extracts to identify novel ligands for each MP-OSN type. We found that each type is the sole or the primary detector for a specific compound, and detects these compounds with high sensitivity. We next dissected the contribution of MP-OSNs to behaviors evoked by their key ligands and found that MP-OSNs mediate short- and long-range attraction. Furthermore, the organization, detection and olfactory receptor (Or) genes of MP-OSNs are conserved in the agricultural pest D. suzukii. The novel short and long-range attractants could potentially be used in integrated pest management (IPM) programs of this pest species.

https://doi.org/10.7554/eLife.14925.001

Introduction

Like all insects, the vinegar fly, D. melanogaster, is equipped with two peripheral olfactory organs, the antenna and maxillary palp. The antenna, the main olfactory organ, is covered with four types of sensilla: basiconic, trichoid, intermediate and coeloconic. These four sensillum types house olfactory sensory neuron (OSN) types responding to different kinds of chemical stimuli and thus serve distinct chemosensory functions. In contrast, the palp has only three different subtypes of basiconic sensilla, each housing two MP-OSNs. Because of the overlapping response spectra between MP- and antennal OSNs (Ant-OSNs) (de Bruyne et al., 1999; 2001) as well as the location of the maxillary palp in close vicinity to the labellum, the main taste organ in flies, a function connected to taste enhancement has been suggested for the MP-OSNs (Shiraiwa et al., 2008). However, taste enhancement would be a very general function for six types of MP-OSNs expressing seven different odorant receptors (Ors). In our previous work we presented data on the importance of Or71a, which is expressed in the maxillary palp sensillum pb1B, in proxy detection of dietary antioxidants (Dweck et al., 2015). It is not yet known whether the other MP-OSNs are also dedicated to detect specific ecologically relevant chemical compounds, and if so, what the ecological importance of these compounds is.

In several other insects, MP-OSNs are involved in detection of specific chemical compounds that are not covered within the receptive range of Ant-OSNs. For example, in both the hawk moth Manduca sexta and the African malaria mosquito Anopheles gambiae, CO2 detection is primarily mediated via maxillary and/or labial palp OSNs (Thom et al., 2004; Lu et al., 2007). Mammals are also known to possess several peripheral olfactory organs. In mouse, e.g., the main olfactory epithelium is complemented with the vomeronasal organ, the septal organ and the Grueneberg ganglion, each having distinct functions (reviewed in Knaden and Hansson, 2014). The presence of specific functions in different olfactory organs in other insects and in mammals suggests that the maxillary palp may also be involved in the detection of specific chemicals in Drosophila.

In the present study, we present a systematic electrophysiological examination of MP-OSNs of D. melanogaster using 52 different complex odor sources containing more than 11,300 chemical compounds. We find that each MP-OSN is either the sole or the primary detector of a specific chemical compound and that the maxillary palp contains independent and important olfactory channels that mediate both short- and long-range attraction. Finally, we find that the organization, detection and Or genes of MP-OSNs are conserved in the agricultural pest D. suzukii, and identify novel short and long-range attractants that could potentially be used in IPM programs of this pest species.

Results and discussion

Screen for novel natural ligands for MP-OSNs

Although extensive work has been done on the olfactory sense of the vinegar fly, D. melanogaster, none (e.g. for pb3A-OR59c, Pb2A-Or33c) or very few ligands have been identified for the different MP-OSNs (de Bruyne et al., 1999, Goldman et al., 2005; Marshall et al., 2010). In addition, the previously identified ligands activate Ant-OSNs as well as MP-OSNs and have been shown to be much better ligands for Ant-OSNs (i.e. require high concentrations to activate MP-OSNs) (de Bruyne et al., 1999; Hallem and Carlson, 2006). This suggests that the best ligands of the different MP-OSNs have not yet been identified. Towards this end, we screened each of the six MP-OSNs with headspace collections from 52 different complex, ecologically relevant odor sources using GC-SSR (Figure 1A,B and Figure 1—figure supplement 16, Figure 1—source data 1). These odor sources included 34 fruits, seven microbes, and eleven types of mammal feces. Our GC-SSR measurements revealed that each of the tested headspace collections triggered a response from at least one palp OSN type. Fecal, fruit and microbial volatiles elicited responses from six, five and two palp OSN types, respectively. The pb2B MP-OSN was activated exclusively by fecal volatiles, whereas the other five types were activated by fruit, microbial, and fecal volatiles.

Figure 1 with 8 supplements see all

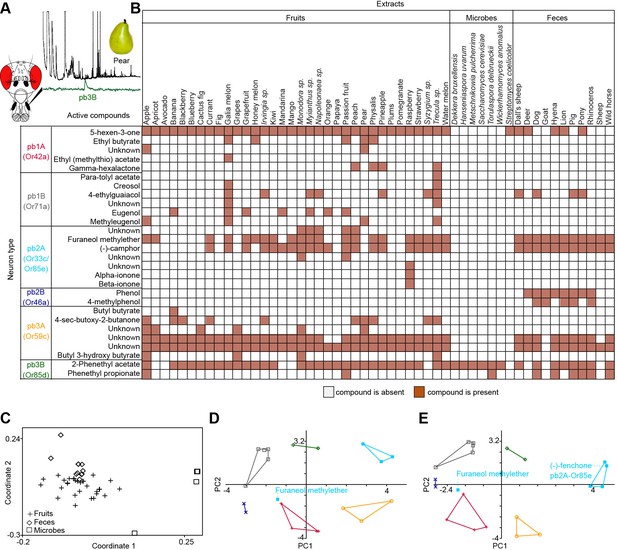

Screen for novel natural ligands for MP-OSNs.

(A) Representative gas chromatography-linked single sensillum measurement (GC-SSR) from pb3B (green trace) stimulated with headspace extract of pear (black trace). (B) Presence/Absence matrix of the physiologically active compounds identified from the different headspace extracts for each MP-OSN in the GC-SSR experiments (i.e. each filled box represents not only the presence of this odor in a specific fruit, but also a physiological response in GC-SSR recordings). (C) NMDS plot based on a presence/absence matrix for the active peaks across the tested samples. (D) PCA plot showing the distribution of the ligands recognized by MP-OSNs in a 32-dimensional odor space. PC1 and PC2 explain 23% and 22% of the variance, respectively. (E) PCA plot showing the distribution of the ligands recognized by MP-OSNs and (-)-fenchone (the main ligand of Or85e-expressing OSNs) in a 32-dimensional odor space. PC1 and PC2 explain 24% and 21% of the variance, respectively.

https://doi.org/10.7554/eLife.14925.002

These large-scale GC-SSR experiments allowed us to test whether the 52 headspace collections of fruits, microbes and mammal feces are separated in the neural space of the maxillary palp. We performed a nonmetric multidimensional scaling (NMDS) based on a presence/absence matrix for the SSR active peaks across the tested samples using Bray-Courtis dissimilarity. This analysis indicated that the 52 headspace collections were separated into three distinct groups; one group for fruit samples, another group for microbial samples and the last group for fecal samples (Figure 1C, Figure 1—source data 1). The significance of the differences between these three groups was assessed by the analysis of similarity (ANOSIM) score (R = 0.61, p<0.0001). These results suggest that the information provided by the different MP-OSNs is sufficient to categorize fruits, microbes, and feces.

The physiologically active peaks from each extract were then identified via GC-mass spectroscopy (GC-MS) and co-injection with synthetic standards, which were purchased except for 5-hexen-3-one and butyl-3-hydroxy butyrate, which were synthesized in house (see Materials and methods). The total number of distinguishable flame ionization detection (FID) peaks in the samples was 11326, of which only 328 FID peaks elicited responses (Figure 1B, Figure 1—figure supplement 7, and Figure 1—figure supplement 8). 225 of these peaks corresponded to 20 different compounds (Table 1). The remaining peaks corresponded to eight different compounds, which remain unidentified because their mass spectra did not match that of any reference compound. The identified compounds belonged to four different chemical classes: alcohols, esters, phenols and ketones. Six of the physiologically active compounds occurred in most extracts, whereas the other 22 compounds were extract specific. Phenol and 4-methylphenol occurred exclusively in fecal extracts (Figure 1B, Figure 1—figure supplement 4).

Table 1

List of physiologically active compounds identified for MP-OSNs including their Chemical Abstract Service numbers (CAS no.).

https://doi.org/10.7554/eLife.14925.012
CompoundCAS no.
5-hexen-3-one24253-30-3
Ethyl butyrate105-54-4
Ethyl (methylthio) acetate4455-13-3
Gamma-hexalactone695-06-7
Para-tolyl acetate140-39-6
Creosol93-51-6
4-ethylguaiacol2785-89-9
Eugenol97-53-0
Methyleugenol93-15-2
Furaneol methylether4077-47-8
(-)-camphor464-48-2
Alpha-ionone127-41-3
Beta-ionone14901-07-6
Phenol108-95-2
4-methylphenol106-44-5
Butyl butyrate109-21-7
4-sec-butoxy-2-butanone106-44-5
Butyl 3-hydroxy butyrate53605-94-0
2-Phenethyl acetate103-45-7
Phenethyl propionate122-70-3

We next compared the distribution of the ligands recognized by different MP-OSNs in an odor space of 32 DRAGON descriptors (i.e. physicochemical properties such as number of benzene-like rings and number of double bonds), which were previously selected by Haddad et al. (2008). The 32 descriptors were then normalized using z-scrores and visualized in a two-dimensional principal component analysis (PCA) plot using variance-covariance matrix (Figure 1D, Figure 1—source data 1). In this odor space, odors with similar descriptors mapped close to each other, whereas odors with diverse descriptors distributed widely. Indeed, compounds that activated different MP-OSNs differed in their descriptors and, hence, distributed widely in the two-dimensional odor space. Compounds, however, that activated the same MP-OSN clustered together except for the ligands recognized by pb2A (Figure 1D).

Three out of four identified ligands for pb2A grouped close to each other, whereas the fourth ligand (furaneol methylether) spaced very widely. This could be explained by the fact that pb2A is the only MP-OSN that expresses two olfactory receptors, Or33c and Or85e (Couto et al., 2005; Goldmann et al., 2005). In order to predict which of these two receptors could detect which of the pb2A ligands, we included (-)-fenchone, a previously identified best ligand for Or85e (Goldman et al., 2005), in our PCA. (-)-fenchone distributed widely from furaneol methylether and instead clustered with the other three ligands of pb2A (Figure 1E, Figure 1—source data 1). This result suggests that the responsiveness of pb2A to furaneol methylether was due to the expression of Or33c, while the responsiveness of pb2A to (-)-camphor, alpha- and beta-ionone was due to the expression of Or85e.

Each MP-OSN is either the sole or the primary detector for specific chemical compounds

To determine which of the identified ligands is the best activator for each MP-OSN, we examined the dose-response relationships in SSR (Figure 2, Figure 2—source data 1) and GC-SSR (Figure 3, Figure 3—source data 1) experiments. Only one best ligand was identified for most MP-OSNs except for pb1B and pb3B, where two best ligands for each were identified (Figure 2). The detection threshold of pb1A, pb1B, pb2B and pb3B for their best activators was 10–7 dilution, whereas the detection threshold of pb2A and pb3A was 10–6 and 10–4dilution, respectively (Figure 2). This high sensitivity suggests that the maxillary palps could be involved in evaluating odor sources over long distance similar to the antennae.

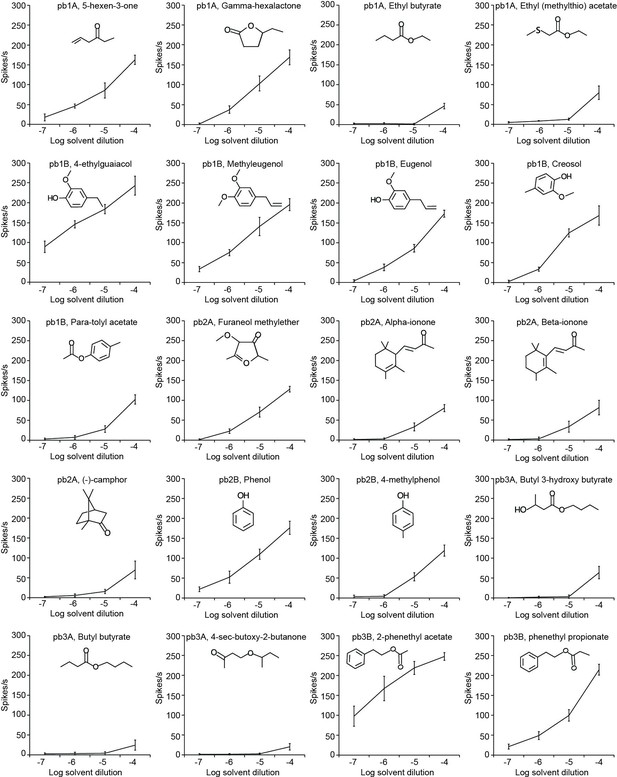

SSR dose-response curves for each MP-OSN stimulated with its physiologically active compounds (n = 5).

Error bars represent SEM.

https://doi.org/10.7554/eLife.14925.013

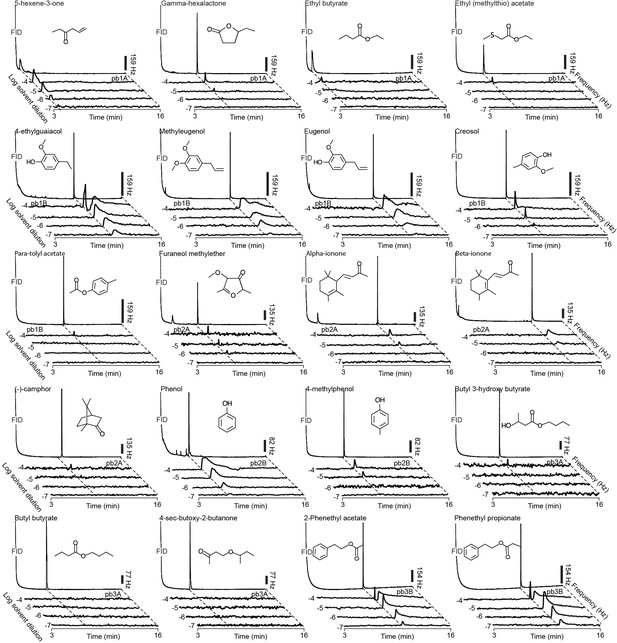

Representative GC-SSR dose-response traces for each MP-OSN stimulated with its physiologically active compounds (n = 3).

Scale bars represent the neuronal firing rate [hz].

https://doi.org/10.7554/eLife.14925.015

Several studies have suggested the existence of a labeled-line mode of odor coding in the olfactory and gustatory systems that signifies the presence of ecologically relevant signals of high biological importance (reviewed in Depetris-Chauvin et al., 2015). We next tested whether the best activators of MP-OSNs are detected via a single information channel. We screened all OSN types present on the antenna with these activators at 10–4 dilution using GC-SSR (Figure 4A, Figure 4—figure supplement 1, Figure 4—source data 1). We used this dosage because it is the maximum concentration that we can inject in the GC. Four of these best activators (5-hexen-3-one, methyleugenol, furaneol methylether, and phenol) elicited no response from any of the Ant-OSNs, while the other four triggered responses from four additional Ant-OSNs (Figure 4A, Figure 4—figure supplement 1). Interestingly, when odors activated both Ant-OSNs and MP-OSNs (4-ethylguaiacol: Or69a and Or71a; 2-phenethyl acetate and phenethyl propionate: Or67a and Or85d; butyl 3-hydroxy butyrate: Or59c and Or85a) in the latter two cases the receptor pairs cluster on a phylogenetic tree, suggesting a shared ancestor (Robertson et al., 2003).

Figure 4 with 1 supplement see all
MP-OSNs are dedicated to detect specific chemical compounds.

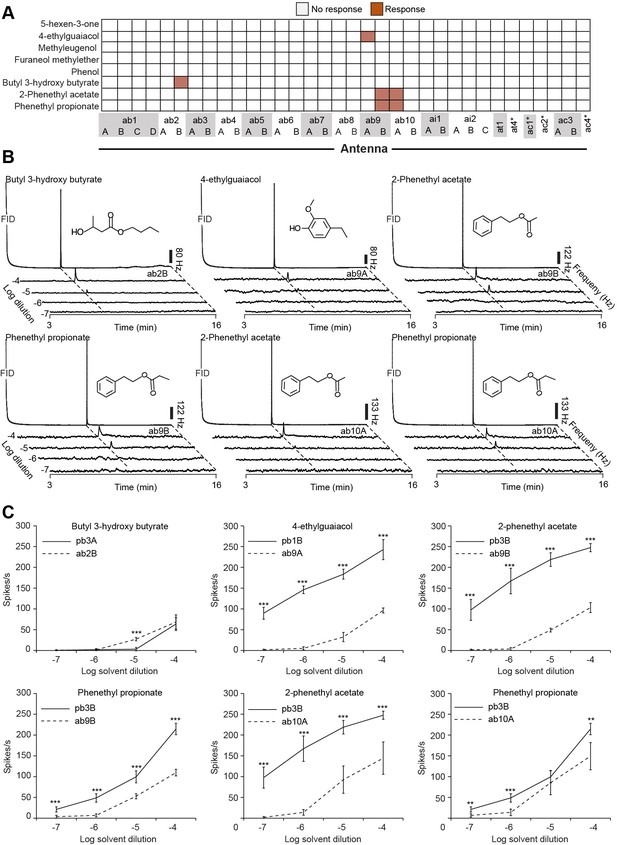

(A) Presence/Absence matrix of the GC-SSR responses of the MP-OSNs best activators across the Ant-OSNs (n = 3, dilution, 10–4 in hexane). Asterisks denote the total response of a sensillum type when spike sorting of OSNs failed. (B) Representative traces of GC-SSR dose response relationship from ab2A, ab9A, ab9B and ab10A OSNs (n = 3). Scale bars represent the neuronal firing rate [hz]. (C) SSR dose-response curves. Error bars represent SEM. The symbols ** and *** indicate statistically significant differences between OSN types with p<0.001, and p<0.0001, respectively (two-tailed Independent Samples T Test, n = 5).

https://doi.org/10.7554/eLife.14925.017

To know the primary olfactory detector of the four activators that activate both MP- and Ant-OSNs, we performed dose-response relationships, but this time from the activated Ant-OSNs (Figure 3B,C). Three of the compounds were primarily detected by the MP-OSNs as the 10–5 detection threshold for these Ant-OSNs was two orders of magnitude higher than the 10–7 detection threshold for MP-OSNs. In addition, the number of spikes elicited by these three compounds at any tested concentration from MP-OSNs is significantly higher from Ant-OSNs except for phenethyl propionate at 10–5 concentration from pb3B and ab10A. The fourth activator, butyl 3-hydroxy butyrate, was primarily detected by the Ant-OSN ab2B. The detection threshold of ab2B to this compound was one order of magnitude (10–5 dilution) lower than that of the corresponding MP-OSN pb3A (10–4 dilution). Together, this data suggests that the MP-OSNs are either the sole or the primary detectors of ecologically relevant concentrations of 5-hexen-3-one, 4-ethylguaiacol, methyleugenol, furaneol methylether, phenol, 2-phenethyl acetate, and phenethyl propionate (Table 2).

Table 2

Best activators of MP-OSNs.

https://doi.org/10.7554/eLife.14925.020

Palp OSN

Odorant

Chemical structure

Detection threshold

pb1A

5-hexen-3-one

10-7

pb1B

4-ethylguaiacol/Methyleugenol

10-7

pb2A

Furaneolmethylether

10-6

pb2B

Phenol

10-7

pb3A

Butyl 3-hydroxy butyrate

10-4

pb3B

2-Phenethyl acetate/Phenethyl propionate

10-7

Contribution of MP-OSNs to short-range and long-range attraction

We next screened innate behavioral responses of flies to the best activators of MP-OSNs. We used trap and T-maze assays to measure short-range attraction, and wind tunnel assays to measure long-range attraction. In trap and T-maze experiments, we used 10–4 concentration, which is similar to the concentration used to measure the specificity of these ligands to different OSN types. In wind tunnel experiments, we used 10–2 concentration because the wind tunnel is supplied with a continuous airstream (0.3 m/s), which further dilutes this concentration. Six out of the eight tested compounds were behaviorally active; two compounds, 5-hexen-3-one and furaneol methylether, in T-maze assays, four compounds, 4-ethylguaiacol, methyleugenol, 2-phenethyl acetate and phenethyl propionate, in trap assays, and one compound, furaneol methylether, in wind tunnel assays (Figure 5A, Figure 5—source data 1). The finding that odors are differentially attractive in the trap and the T-maze assays is not new. E.g, the well-known Drosophila attractant, ethyl acetate, is attractive in T-maze assays (Farhan et al., 2013) and neutral in trap assays (Knaden et al., 2012). Part of the explanation of this variation might be due to flies flying in traps assays for 24 hr, while walking in T-maze assays for only 40 min. However, as so far never any odor was observed to be attractive in one and repellent in the other assay, we regard each odor that elicited at least attraction in one assay as attractive.

Figure 5 with 2 supplements see all

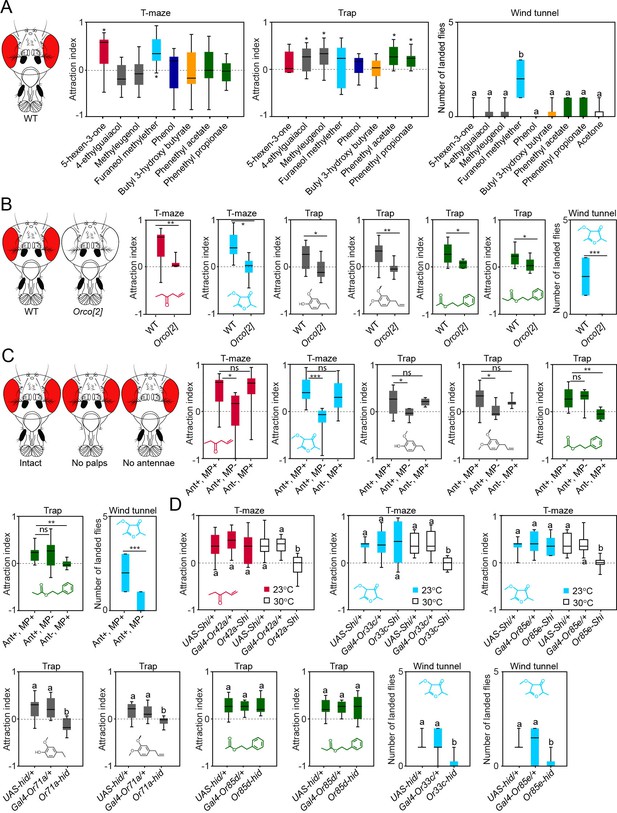

Contribution of the maxillary palp to the behaviors evoked by the palp best activators.

(A) Behavioral responses of WT flies to the palp best activators (10–4 dilution used for trap and T-maze experiments, and 10–2 dilution used for wind tunnel experiments). For T-maze and trap assays, the symbol * indicates significant differences from the solvent control (p<0.05, Wilcoxon signed rank test, n = 10). For wind tunnel assays, different letters indicate significant differences between groups (p<0.05, Kruskal Wallis test with Dunn’s multiple comparison, n = 10). (B) Behavioral responses of WT and Orco[2] flies to the behaviorally active compounds (10–4 dilution used for trap and T-maze experiments and 10–2 dilution used for wind tunnel experiments). The symbols *, ** and *** indicate statistically significant differences between the attraction indices of the genotypes with p<0.01, p<0.001, and p<0.0001, respectively (two-tailed Mann-Whitney U test, n = 10). (C) Behavioral responses of WT (Ant+, MP+), palp-amputated flies (Ant+, MP-) and antenna-amputated flies (Ant-, MP+) to the behaviorally active compounds (10–4 dilution used for trap and T-maze experiments and 10–2 dilution used for wind tunnel experiments). The symbols *, ** and *** indicate statistically significant differences between groups with p<0.01, p<0.001, and p<0.0001, respectively; ‘ns’ indicates no significant differences between groups (Kruskal Wallis test with Dunn’s multiple comparison for selected groups, n = 10). (D) Behavioral responses of flies with a killed or silenced specific MP-OSN population, the corresponding parental lines, and WT flies. Different letters indicate significant differences between groups (Kruskal Wallis test with Dunn’s multiple comparison). Black line: median; boxes: upper and lower quartiles; whiskers: minimum and maximum values.

https://doi.org/10.7554/eLife.14925.021
Organization, detection, and or genes of MP-OSNs are conserved in D. suzukii.

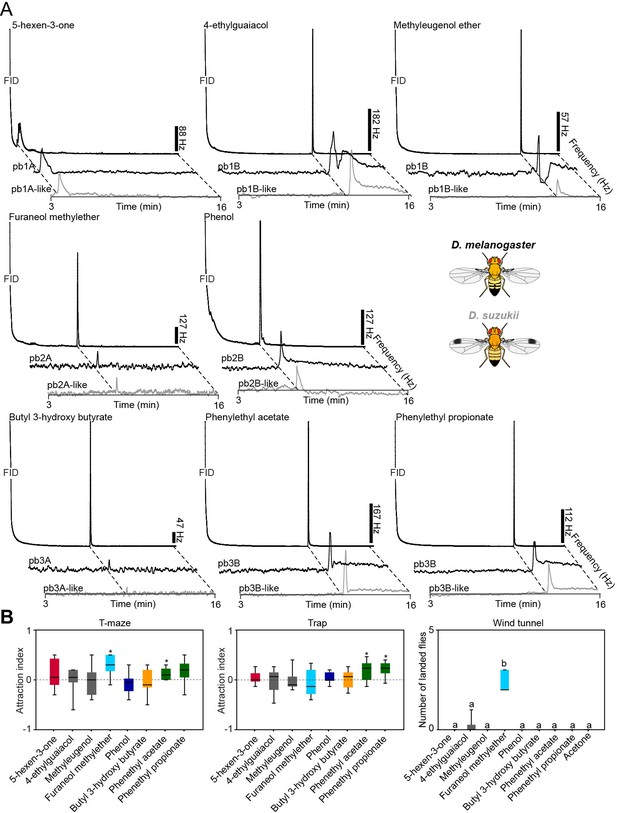

(A) Representative GC-SSR traces from palp OSNs in D. suzukii and D. melanogaster, stimulated with the palp best ligands (dilution 10–4) (n = 3). (B) Behavioral responses of D. suzukii to D. melanogaster palp best activators (10–4 dilution used for trap and T-maze assays, and 10–2 dilution used for wind tunnel experiments). For T-maze and trap assays, the symbol * indicates significant differences from the solvent control (p<0.05, Wilcoxon signed rank test, n = 10). For wind tunnel assays, different letters indicate statistically significant differences between groups (p<0.05, Kruskal Wallis with Dunn’s multiple comparison). Black line: median; boxes: upper and lower quartiles; whiskers: minimum and maximum values.

https://doi.org/10.7554/eLife.14925.027

We next tested the behavioral responses of anosmic Orco[2] mutant flies, lacking the co-receptor necessary for the function of canonical Or receptors (Larsson et al., 2004), to the behaviorally active compounds. In contrast to WT flies, Orco[2] mutant flies were not attracted by these compounds (Figure 5B, Figure 5—source data 1), suggesting that the flies’ behavior displayed to these compounds requires Or genes.

In the T-maze many pure chemicals become repellent at higher concentrations (Strutz et al. 2014). We, thus, measured innate responses of flies to 10–2 concentration of these ligands. We found, indeed, that flies are strongly repelled by 5-hexen-3-one, 4-ethylgauaicol, and phenol (Figure 5—figure supplement 1 and Figure 5—source data 1). Interestingly, the aversion elicited by this concentration was independent of functioning Ors (Figure 5—figure supplement 1 and Figure 5—source data 1). We, therefore, excluded this concentration in our further experiments. From our results we conclude that the palp best ligands represent positive cues at lower concentration, and that the processing of this information requires Or genes, while the processing of higher concentrations seems to be independent of functioning Ors.

To ensure that the behaviors evoked by the active compounds were mediated through the maxillary palps, we surgically removed either maxillary palps or antennae (we excluded wind tunnel experiments here, as the antenna has been shown to be involved in flight control [Budick et al. 2007]), and then tested behavioral responses of the manipulated flies. For 4-ethylguaiacol, 5-hexen-3-one, methyleugenol and furaneol methylether, amputation of the palps resulted in loss of attraction, while amputation of the antennae did not affect the behavior (Figure 5C, Figure 5—source data 1). Interestingly for 2-phenethyl acetate and phenethyl propionate amputation of the palps had no effect on the behavior, while amputation of the antennae abolished attraction elicited by these two compounds (Figure 5C, Figure 5—source data 1). We next killed or silenced a specific MP-OSN population using the temperature-sensitive mutant dynamin shibirets (UAS-shits) or head involution defective (UAS- hid). We avoided using the shibirets effector in trap assays and wind tunnel experiments to avoid any temperature effect on flying flies. In T-maze and trap assays, the behavioral response to the corresponding ligand was abolished except for 2-phenethyl acetate and phenethyl propionate (Figure 5D, Figure 5—source data 1). In wind tunnel experiments, killing pb2A OSNs via expression of hid from Or33c- or Or85e-promoter significantly reduced attraction towards furaneol methylether compared to both parental lines (Figure 5D, Figure 5—source data 1). Taken all together, we conclude that the maxillary palp contains olfactory channels that mediate both short- and long-range attraction to specific chemical compounds.

Organization, detection, and Or genes of MP-OSNs are conserved in D. suzukii

We selected D. suzukii to test whether the organization, detection and Or genes of MP-OSNs are conserved in another species. D. suzukii has recently invaded North America and Europe from Asia (Rota-Stabelli et al., 2013) and has become a serious agricultural pest for soft fruits causing devastating economic cost for farmers each year. Unlike most drosophilid flies including D. melanogaster that D. suzukii feed and oviposit on undamaged, ripening fruits. Thus, D. suzukii represents an interesting neuroethological model to study olfactory changes that parallel the evolutionary shift in the preference towards ripening over fermenting fruits.

We hence screened the MP-OSNs of D. suzukii with the best activators of D. melanogaster using GC-SSR. We found that the maxillary palp of D. suzukii contains three sensillum types as found in D. melanogaster, and that OSN types and their pairing within a particular sensillum type in D. suzukii are the same as in D. melanogaster. In addition, our screen revealed that the detection of these compounds is also conserved in D. suzukii (Figure 6A). Whether MP-OSNs of D. suzukii are the sole or the primary detectors of these ligands as found in D. melanogaster remains subject for future investigation.

We next aimed to know whether Or genes underlying these responses are also conserved in MP-OSNs of D. suzukii. We extracted the ortholog sequences of the genes expressed in the MP-OSNs in D. melanogaster from the public database of the D. suzukii genome (http://spottedwingflybase.oregonstate.edu/). These genes were then amplified from cDNA of our lab strain of D. suzukii (stock no. 14023–0311.01), cloned and sequenced. Five gene sequences were identified in full length, while the other two gene sequences (Or85d and Or85e) were partial. The gene sequences generated from the cDNA of our lab strain were submitted to the European Nucleotide Archive under the accession numbers LT555550-LT555555. We next aligned the amino acid sequences of the genes generated from the cDNA of our lab strain with those of D. melanogaster to compare their similarities. This comparison revealed that the amino acid sequences of these genes are well conserved in the D. suzukii genome: Or33c (82.2%), Or42a (90%), Or46a (83.5%), Or59c (78.4%), Or71a (81.4%), Or85d (86.5%) and Or85e (85%). We thus demonstrate that the organization, the detection of D. melanogaster palp best activators and the D. melanogaster Or genes of MP-OSNs are conserved in D. suzukii.

Like D. suzukii and D. melanogaster, also other closely related species share the same set of orthologs of olfactory genes expressed in MP-OSNs (Guo and Kim, 2007; de Bruyne et al., 2010), which might be either due to phylogenetic constraints or to their similar feeding habits (all examined species in this group feed on fruit-associated yeast). However, differences have been described for more distantly related species, such as D. mojavensis (cactus feeder), D. virilis (sap feeder), D. grimshawi (tree feeder) and Scaptomyza flava (leaf feeder). D. mojavensis, D. virilis and D. grimshawi have lost orthologs of Or59c, which is expressed in the D. melanogaster pb3A (Guo and Kim, 2007; de Bruyne et al., 2010), whereas S. flava has lost the ortholog of Or85d, which is expressed in the D. melanogaster pb3B (Goldman-Huertas et al., 2015). In line with these notions pb3A was not found during electrophysiological recordings from palp sensilla of D. virilis (de Bruyne et al., 2010).

While the MP-OSNs of all close relatives of D. melanogaster express the same set of olfactory receptors, the similar tuning of these MP-OSNs that we found in D. suzukii and D. melanogaster cannot necessarily be assumed for all species of the D. melanogaster species group. On the antenna e.g. the change of only few amino acids in a D. sechellia ortholog of the D. melanogaster Or22a gene has been shown to result in changed tuning curves of the corresponding OSN (Dekker et al., 2005). Hence, future studies will reveal whether the tuning of MP-OSNs is generally more conserved than the one of Ant-OSNs

Conservation of the behavioral readouts to palp best activators in D. suzukii

To investigate whether the behavioral readouts of the olfactory inputs to the palp best activators are conserved in D. suzukii, we next examined innate responses of D. suzukii to these activators in trap, T-maze and wind tunnel assays (Figure 6B). The yeast producing volatile 2-phenethyl acetate and phenethyl propionate (Dweck et al., 2015; Christiaens et al., 2014), elicited positive chemotaxis in trap and/or T-maze two-choice assays, while the ripening signal, furaneol methylether (Ulrich et al., 1997), induced positive chemotaxis and upwind attraction. The fermentation signals produced by the metabolism of hydrocinnamic acids in fruits by yeasts, 4-ethylguaiacol and methyleugenol (Dweck et al., 2015), did not induce any behavioral response in D.suzukii in contrast to D. melanogater. Krause Pham and Ray (2015) reported a similar case, where they found that the avoidance behavior of D. melanogaster to CO2, which is highly emitted by ripe fruits, is not conserved any more in D. suzukuii, although the CO2 detection and the genes responsible for this detection are conserved.

Conclusions

In summary, we demonstrate that the maxillary palp in the vinegar fly, D. melanogaster contains OSNs that mediate both short-and long-range attraction evoked by specific chemical compounds in the flies’ ecological niche. Interestingly, although the sensitivity of MP-OSNs was described to be rather low (de Bruyne et al., 1999; Hallem and Carlson, 2006), which led to the assumption that MP-OSNs are basically involved in taste enhancement (Shiraiwa et al., 2008), we show that their sensitivity to some compounds can be as high as in Ant-OSNs. Furthermore, MP-OSN specific ligands did not only attract walking flies over short distance, but in one case (furaneol methylether, Or33c) even motivated flies to fly towards the source.

Finally we found that although the detection of D. melanogaster palp best activators and Or genes of MP-OSNs are conserved in the agricultural pest D. suzukii. However, only behavioral readouts to 2-phenethyl acetate and phenethyl propionate produced by yeast volatiles, and furaneol methylether that represent ripening signal in strawberries are conserved. Contrary, behavioral readouts to the yeast metabolites 4-ethylguaiacol and methyleugenol that represent fermentation signals, are not conserved in this pest species These behavioral changes might represent a taxon-specific adaptation to the newly emerging ecological niche of this pest species.

Materials and methods

Fly stocks

Request a detailed protocol

All experiments with wild type (WT) D. melanogaster were carried out with the Canton-S strain. D. suzukii (stock no. 14023–0311.01) was obtained from the UCSD Drosophila Stock Center (www.stockcenter.ucsd.edu). Transgenic lines were obtained from the Bloomington Drosophila stock center (http://flystocks.bio.indiana.edu/), except for UAS-Shibirets, which was a kind gift from G.M. Rubin (Janelia Farm Research Campus, USA).

Complete genotypes of all strains used in this study

Request a detailed protocol

Shits-Or42a

Females

w1118/w1118; +/+; UAS-Shits/+

w1118/w1118; +/+; +/Or42a-Gal4

w1118/w1118; +/+; UAS-Shits/Or42a-Gal4

Shits-Or33c

Females

w1118/w1118; +/+; UAS-Shits/+

w1118/w1118; +/+; +/Or33c-Gal4

w1118/w1118; +/+; UAS-Shits/Or33c-Gal4

Shits-Or85e

Females

w1118/w1118; +/+; UAS-Shits/+

w1118/w1118; +/+; +/Or85e-Gal4

w1118/w1118; +/+; UAS-Shits/Or85e-Gal4

hid-Or71a

Females

w1118/w1118; UAS-hid/+; +/+

w1118/w1118; +/+; +/Or71a-Gal4

w1118/w1118; UAS-hid/+; +/Or71a-Gal4

Males

w1118/Y; UAS-hid /+; +/+

w1118/Y; +/+; +/Or71a-Gal4

w1118/Y; UAS-hid/+; +/Or71a-Gal4

hid-Or85d

Females

w1118/w1118; UAS-hid/+; +/+

w1118/w1118; +/+; +/Or85d-Gal4

w1118/w1118; UAS-hid/+; +/Or85d-Gal4

Males

w1118/Y; UAS-hid /+; +/+

w1118/Y; +/+; +/Or85d-Gal4

w1118/Y; UAS-hid/+; +/Or85d-Gal4

Odor samples

Request a detailed protocol

Fruit samples were either ripe or in early fermentation stage. Microorganisms were kept on strain-specific media (HiMedia, http://www.himedialabs.com), following standard protocols. Mammalian fecal samples were provided by the Leipzig Zoo.

Headspace collections

Request a detailed protocol

The headspaces of the different samples were collected for 24 hr on a Super-Q filter (50 mg, Analytical Research Systems, Inc., www.ars-fla.com). The samples were placed individually in an l liter laboratory glass bottle that was halfway filled with samples and closed with a custom-made polyether ether ketone (PEEK) stopper. Airflow at 0.5 L/min was drawn through the flask by a pressure pump. Filters were eluted with 300 μl hexane and samples stored at -20°C until analysis.

SSR/GC-SSR/GC-MS

Request a detailed protocol

Adult flies were immobilized in pipette tips, and the palps or antennae were placed in a stable position onto a glass coverslip. Sensilla were localized under a binocular at 1000× magnification, and the extracellular signals originating from the OSNs were measured by inserting a tungsten wire electrode into the base of a sensillum. The reference electrode was inserted into the eye. Signals were amplified (10×; Syntech Universal AC/DC Probe; www.syntech.nl), sampled (10,667 samples/s), and filtered (100–3000 Hz with 50/60-Hz suppression) via a USBIDAC connection to a computer (Syntech). Action potentials were extracted using Syntech Auto Spike 32 software. For SSR, neuron activities were recorded for 10 s, starting 2 s before a stimulation period of 0.5 s. Responses from individual neurons were calculated as the increase (decrease) in the action potential frequency (spikes/s) relative to the prestimulus frequency. For GC-SSR, neuron activities were recorded for 1220 s, the time of a single GC run. For GC stimulation, 1 μl of the odor sample was injected into a GC (Agilent 6890, column: DB5, 30 m long, 0.32 mm id, 0.25 μm film thickness; inlet at 250°C, oven: 50°C for 2 min, then 15°C min-1 up to 250°C, held for 5 min; carrier gas: helium, 2.0 ml min-1 constant flow). The GC was equipped with a 4-arm effluent splitter (Gerstel, www.gerstel.com), with split ratio 1:1 and N2(30.3 kPa) as makeup gas. One arm was connected with the flame ionization detector (FID) of the GC and the other arm introduced into a humidified air stream (200 ml min-1). GC-separated components were directed toward the palps of the mounted fly. Signals from OSNs and FID were recorded simultaneously. Headspace samples were analyzed by GC-MS (Agilent 6890GC & 5975bMS, Agilent Technologies, www.agilent.com).

Chemicals

All odorants tested were purchased from commercial sources (Sigma, http://www.sigma-aldrich.com and TCI America, http://www.tcichemicals.com/en/us/) except for 5-hexen-3-one and butyl 3-hydroxy butyrate, which were synthesized in house from propionitrile and allyl bromide using the protocol of Rousseau et al. (1981), and from ethyl-3-oxobutanoate using the protocol of Padhi et al. (2003), respectively.

Trap experiments

Request a detailed protocol

In this paradigm thirty 4–5 day-old mated female flies that were starved with free access to water for 24 hr were introduced into a small box (length, 10 cm; width, 8 cm; height, 10 cm) that contained two smaller containers (height, 4.5 cm; diameter, 3 cm). The reason for performing these experiments with only females is that hungry females live longer than hungry males. For 24 hr, flies could enter (but not leave) these containers through a pipette tip (tip opening, 2 mm). Containers were equipped with the lid of an Eppendorff cap that was loaded with either an odorant or solvent. The attraction index (AI) was calculated as AI = (O−C) / 30, where O is the number of flies entered the odorant containing trap and C is the number of flies entered the solvent containing trap. The index could range from -1 (complete avoidance) to 1 (complete attraction). A value of 0 characterizes no response, i.e. the odor is not detected or is neutral. Experiments were carried out in a climate chamber at 20, 25 or 30°C and 70% humidity. Experiments were started in the morning with 12 hr of white light, followed by 12 hr of no light.

T-maze experiments

Request a detailed protocol

T-maze experiments were carried out as described in Stensmyr et al. (2012). In brief, thirty 4–5 days old starved and mated female and male flies were introduced into the bottom part of a t-shaped tube (length of each arm, 4 cm; diameter, 1 cm) and during 40 min were allowed to enter (but not to leave) via pipette tips (tip opening, 2 mm) eppendorff caps attached to the two upper arms of the t-shaped tube. The lids of the Eppendorff caps contained 0.5 ml agar (1%) that was loaded either with 50 μl of the odorant or with solvent only. The positions of odorant and solvent within the t-mazes were changed repeatedly. The attraction index (AI) was calculated as AI = (O-C)/30, where O is the number of flies entered the odorant containing trap and C is the number of flies entered the solvent containing trap. Experiments were carried out in a climate chamber at 20, 25 or 30°C and 70% humidity. For shibire experiments, flies were warmed at 30°C for 30 min prior to behavioral assays. All t-maze assays were performed under white light.

Wind tunnel experiments

Request a detailed protocol

Free-flight experiments were performed in a wind tunnel that was built as described previously (Becher et al., 2010), with the airstream in the tunnel (0.3 m/s) produced by a fan and filtered through activated charcoal. The wind tunnel was maintained within a climate chamber set to 27°C and 50–55% humidity. Five flies (following suggestions from Becher et al. (2010) for highest responses rates in wind tunnel assays, we used 2 days old flies that were mated and starved for 24 hr) were together released at the center position of the downwind side of the tunnel. No differences between sexes were noted, and thus the data were pooled (Figure 5—figure supplement 2, Figure 5—figure supplement 2—source data 1). 50 µl of a 10–2 dilution of the odorant in acetone (solvent) was delivered onto a filter paper, which was placed in a plastic tube (diameter, 3 cm). The tube was horizontally suspended within the airstream in the center position of the upwind side of the tunnel. Flies landing at the tube were counted for the first 10 min after release. All wind tunnel experiments were performed under white light.

Gene annotation

Request a detailed protocol

Annotated genomic sequences of Drosophila suzukii were obtained from SpottedWingFlyBase (http://spottedwingflybase.oregonstate.edu). Drosophila melanogaster Or sequences were downloaded from flybase.org. Using the BLAST algorithm we identified gene models of the Drosophila melanogaster orthologs of Or33c, Or42a, Or46a, Or59c, Or71a, Or85d and Or85e in the Drosophila suzukii genome. The gene models were curated manually by comparison with the sequences of Drosophila melanogaster. For gene sequences see Supplementary file 1.

RT-PCR and cDNA cloning

Request a detailed protocol

The third antennal segment and palps of ~100 D. suzukii flies were collected and transferred to Eppendorf cups chilled on dry ice. Subsequently they were homogenized with ceramic beads for 15 min at 50 Hz in a TissueLyser LT (Qiagen, Hilden Germany). Total RNA was isolated using TRizol isolation following the manufacture´s protocol. The extracted total RNA was dissolved in RNAse free water. The quality was checked by gel electrophoresis and the concentration was measured photometrically. cDNA synthesis for RT-PCR was done by using SuperScript III First-Strand Synthesis Kit (Invitrogen, Life Technology, Grand Island, USA). RT-PCR was performed according to standard protocols, using primers of the table below with an annealing temperature of 57°C. PCR products were cloned into pCR2.1 vector (Invitrogen, Life Technology, Grand Island, USA). Sequencing was performed by Eurofins Genomics.

GeneForward primerReverse primer
DsuzOr33c5´ACC ATG GTC ATC ATC GAT AGT GTT CAT 3´5´CTA TAT ACC TTT CAC CCG CAC CAC 3´
DsuzOr42a5´ATG GAG CTG CAA AGA ATC ATT CCG 3´5`TCA ATC GTC TTC ATC AGA TTT GGC TAA 3´
DsuzOr46a5´ACC ATG AGC AAC AGA GTG GAA ATC 3´5´CTA ACT GTT GAC CCG CTT TAG CAA 3´
DsuzOr59c5´ACC ATG AAG AAG CCG CTC TTT GAA CGT 3´5´TTA GGG CTC TAC TTC CCC TGC ATT 3´
DsuzOr71a5´ACC ATG GAT TAC GAC CGA ATT CGA CCA 3´5´CTA TTG GTT CAT GTT GAG CAG CAA G 3´
DsuzOr85d5´ATG GCA GCG AAG AAG CAA ACT CAA 3´5´ TCA GGT ACT ATA CAT TGT GCG CAG 3´
DsuzOr85e5´ATG GCC AGT CTT CAG TTC CAC GG 3´5´GGG CGT GTT TCC ACCATG AGC 3´

Data analysis

Request a detailed protocol

Chemometric analysis was performed as outlined in Haddad et al. (2008), and was used as basis for a Principal Component Analysis (PCA) performed in PAST (folk.uio.no/ohammer/past/). Normality and homogeneity of variances were tested in SPSS (www.spss.com) to select appprociate statistical tests. All statistical tests were performed with SPSS or Graphpad Instat.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
    Odor coding in a model olfactory organ: the Drosophila maxillary palp
    1. M de Bruyne
    2. PJ Clyne
    3. JR Carlson
    (1999)
    The Journal of Neuroscience 19:4520–4532.
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
    Molecular evolution of the insect chemoreceptor gene superfamily in Drosophila melanogaster
    1. HM Robertson
    2. CG Warr
    3. JR Carlson
    (2003)
    Proceedings of the National Academy of Sciences of the United States of America 100 Suppl 2:14537–14542.
    https://doi.org/10.1073/pnas.2335847100
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31

Decision letter

  1. Kristin Scott
    Reviewing Editor; University of California, Berkeley, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Olfactory Channels Associated with the Drosophila Maxillary Palp Mediate Short- and Long-range Attraction" for consideration by eLife. Your article has been favorably evaluated by a Senior editor and three reviewers, one of whom is a member of our Board of Reviewing Editors.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This manuscript examines the ligand selectivity and function of the maxillary palp in olfactory coding in Drosophila melanogaster and suzukii. The authors use single sensilla electrophysiological recordings and GC-MS to isolate odors that activate the different classes of palp neurons in melanogaster, determine the sensitivity of the response, and compare with antennal sensitivity. They show that these odors influence short- and long- range olfactory behaviors and require the maxillary palp. Moreover, suzukii palp responds to the same odors. Overall, this is a potentially important analysis of olfactory responses in the maxillary palp and the role of these odors in behavior. However, there are major concerns about the methodology and documentation of the study that must be addressed.

1) The odorant concentrations used for the behavioral assays are far above those used for specific pb neuron activation. What odor concentrations are experienced by the fly at choice points? Do the odor concentrations used for behavioral experiments elicit the same activation patterns as the concentrations used for recording? The authors need to more definitely demonstrate that their behavioral conditions replicate their SSR data. As it is now, it is possible that the odorant concentrations they used may very well activate non-pb neurons, and it is that activation of these other olfactory neurons that are guiding the observed behaviors.

2) The authors should provide full SSR data (MP and antenna responses to all odors tested and all dilutions), raw or as plots similar to Figure 2, or as a table like Figure 3A, and grade the responses based on intensities, for both antenna and MP responses; doing this will be necessary to assess olfactory specificity of MP-OSNs. Reviewers and authors will be familiar with the impact of e.g. the Hallem and Carlson 2006 on study of 24 antennal receptors, which included a table summarizing all odorant/receptor responses. 10 years later we should expect something similar for the 6 receptor neurons/7 ORs of the palp.

3) The behavioral results that are used to argue for short- and long-range attraction are not straightforward. For some odors, the authors observe attraction in T-maze but not in the trap assay, nor wind-assay, for others only in the trap-assay. The authors give no explanation for this variation and do not justify their subsequent choice only to consider those odor-assay combinations that gave positive results. Similarly, the authors provide no information on why in some assays only females were used, why sometimes flies were starved, or why the assay duration and fly age was varied between assays. The behavioral studies need to be better documented. Details required:

A) Odorant concentrations experienced by the fly (as mentioned above).

B) Genetic background of experimental animals. Are genetic reagents backcrossed (i.e., OrX-GAL4, and UAS-shibire) into the same genetic background?

C) Experimental conditions: were flies starved or fed? Were experiments performed in the dark or light? Age of flies? Virgins?

D) For significance, which 'controls' are the experimental groups being compared to? For example, in Figure 1D, is the WT 30C flies compared to the Or42a-Shi 30C flies? This needs to be described more fully.

E) Did the authors perform positive controls to verify that their assays could identify repulsive behaviors? If the authors want to claim certain odorants guide attraction, they need to verify that they would have seen the lack of attraction (repulsion) in their assay if this was a possibility. Cyclopentanone has been found to be repellant to flies (Tauxe, 2013) as well as many other odorants.

F) T-maze assay. a) The authors use 40 minutes in the T-maze assay. Since the T-maze is used as a read-out for innate olfactory valence responses, shorter times should be used (2-5 minutes should be sufficient). b) Did the authors change the side in the T-maze that contained the odor tube?

4) The same wild-type data is apparently used repeatedly in Figure 4 in comparisons to different experimental condition. For example, WT bar representing 5-hexen-3-one is the same in 4A, 4B, 4C; WT bar representing strawberry furanone is the same in 4A, 4B, 4C. How did the authors control for changes in behavioral effects that often occur when control and experimental behaviors are not performed in parallel? Even slight variations in temperature and humidity can have large effects on olfactory behaviors.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Olfactory Channels Associated with the Drosophila Maxillary Palp Mediate Short- and Long-range Attraction" for further consideration at eLife. Your revised article has been favorably evaluated by a Senior editor, a Reviewing editor, and one reviewer.

The manuscript has been improved but there are some remaining text and figure clarification issues that need to be addressed before acceptance, as outlined below:

1) The GC-SSR axis in Figure 3 and Figure 4 is not clear. What is the scale? Should this not be represented as a vertical scale bar?

2) Figure 1. The main graphic (panel B) shows what odorants are present in different extracts. What is the connection to the response properties of the palp neurons? Rather than odor present, shouldn't neuron response be mapped?

3) Figure 4A. What odor concentrations do these represent?

4) Figure 5A. Controls should have been compared to solvent odor controls, and not to zero. For example, maybe in their assay, the solvent itself leads to some attraction. Or if given a choice between two solvent background odors, the behavior would become highly variable (larger spread) such that the significantly different from zero data points would no longer be significant.

5) Figure 1B. Unknown spelled Unknow in pb1B section.

6) Genotypes, subsection “Complete genotypes of all strains used in this study”. w1118 instead of w118.

https://doi.org/10.7554/eLife.14925.031

Author response

1) The odorant concentrations used for the behavioral assays are far above those used for specific pb neuron activation. What odor concentrations are experienced by the fly at choice points? Do the odor concentrations used for behavioral experiments elicit the same activation patterns as the concentrations used for recording? The authors need to more definitely demonstrate that their behavioral conditions replicate their SSR data. As it is now, it is possible that the odorant concentrations they used may very well activate non-pb neurons, and it is that activation of these other olfactory neurons that are guiding the observed behaviors.

We adjusted this in the text and wrote that "In trap and T-maze experiments, we used 10-4 concentration, which is similar to the concentration used to measure the specificity of these ligands to different OSN types. In wind tunnel experiments, we used 10-2 concentration because the wind tunnel is supplied with continuous airstream (0.3 m/s), which further dilutes this concentration.”

However, even when we assume that the used concentration activated additional OSNs, the manipulation of palp and antenna, and specific OSNs clearly showed the role of MP-OSNs in the observed behavior.

2) The authors should provide full SSR data (MP and antenna responses to all odors tested and all dilutions), raw or as plots similar to Figure 2, or as a table like Figure 3A, and grade the responses based on intensities, for both antenna and MP responses; doing this will be necessary to assess olfactory specificity of MP-OSNs. Reviewers and authors will be familiar with the impact of e.g. the Hallem and Carlson 2006 on study of 24 antennal receptors, which included a table summarizing all odorant/receptor responses. 10 years later we should expect something similar for the 6 receptor neurons/7 ORs of the palp.

We provided the full SSR data and added Figure 1—figure supplements 18, Figure 2, Figure 2—source data 1, Figure 3—source data 1, Figure 4B—source data 1, Figure 4C—source data 1, and Figure 6A—source data 1.

3) The behavioral results that are used to argue for short- and long-range attraction are not straightforward. For some odors, the authors observe attraction in T-maze but not in the trap assay, nor wind-assay, for others only in the trap-assay. The authors give no explanation for this variation and do not justify their subsequent choice only to consider those odor-assay combinations that gave positive results. Similarly, the authors provide no information on why in some assays only females were used, why sometimes flies were starved, or why the assay duration and fly age was varied between assays. The behavioral studies need to be better documented. Details required:

We agree that it is a bit confusing that flies become attracted to one odor within one but not within another assay. However, it has been shown many times that, whether a fly becomes attracted or not by an odorant strongly depends on the bioassay. We therefore decided to use several bioassays. We agree that for the most attractive odorant one would assume that the fly becomes attracted in all assays. However, as already shown even for the well-known attractant ethyl acetate, some assays fail to show attraction (ethyl acetate: Knaden et al. 2012). We, therefore regard an odor as attractive if it at least provokes attraction in one of the assays used. We added “The finding that odors are differentially attractive in the trap and the T-maze assays is not new. E.g., the well-known Drosophila attractant, ethyl acetate, is attractive in T-maze assays (Farhan et al., 2013) and neutral in trap assays (Knaden et al., 2012). Part of the explanation of this variation might be due to flies flying in traps assays for 24 h, while walking in T-maze assays for only 40 min. However, as so far never any odor was observed to be attractive in one and repellent in the other assay, we regard each odor that elicited at least attraction in one assay as attractive.”

A) Odorant concentrations experienced by the fly (as mentioned above).

See our arguments above.

B) Genetic background of experimental animals. Are genetic reagents backcrossed (i.e., OrX-GAL4, and UAS-shibire) into the same genetic background?

Yes. We added to the Materials and methods section this information and now give the complete genotypes of all strains used in this study.

C) Experimental conditions: were flies starved or fed? Were experiments performed in the dark or light? Age of flies? Virgins?

We apologize and have now added all information on mating state, age, and experimental conditions to the Materials and methods part.

D) For significance, which 'controls' are the experimental groups being compared to? For example, in Figure 1D, is the WT 30°C flies compared to the Or42a-Shi 30C flies? This needs to be described more fully.

We agree that the comparison with WT flies is not correct. We have now deleted the WT data from this part of the figure and e.g. the Or42a-Shi 30C flies both with Or42a-Shi 23C flies as well as with the parental lines.

E) Did the authors perform positive controls to verify that their assays could identify repulsive behaviors? If the authors want to claim certain odorants guide attraction, they need to verify that they would have seen the lack of attraction (repulsion) in their assay if this was a possibility. Cyclopentanone has been found to be repellant to flies (Tauxe, 2013) as well as many other odorants.

We agree that such a positive control would be helpful and have added data from experiments with higher concentrations: “Many pure chemicals become repellent at higher concentrations (Strutz et al. 2014). We, thus, measured innate responses of flies to 10-2 concentration of these ligands. We found, indeed, that flies are strongly repelled by 5-hexen-3-one, 4-ethylgauaicol, and phenol (Figure 5—figure supplement 1 and Figure 5—source data 2). Interestingly, the aversion elicited by this concentration was independent of functioning Ors (Figure 5—figure supplement 1 and Figure 5—source data 2). We, therefore, excluded this concentration in our further experiments.”

F) T-maze assay. a) The authors use 40 minutes in the T-maze assay. Since the T-maze is used as a read-out for innate olfactory valence responses, shorter times should be used (2-5 minutes should be sufficient).

Different T-maze assays exist. In the T-maze that people e.g. use for learning assays indeed flies need only 2-5 minutes for decision. However, the T-maze used in our manuscript was developed in the Sidiqi lab (used e.g. by Stensmyr et al. Cell 2012; Farhan et al. Scientific Reports 2013). As the flies need to pass a pipette tip to enter each arm of the T-maze, decision time needs to be longer.

b) Did the authors change the side in the T-maze that contained the odor tube?

Yes. We added this information to the Methods section.

4) The same wild-type data is apparently used repeatedly in Figure 4 in comparisons to different experimental condition. For example, WT bar representing 5-hexen-3-one is the same in 4A, 4B, 4C; WT bar representing strawberry furanone is the same in 4A, 4B, 4C. How did the authors control for changes in behavioral effects that often occur when control and experimental behaviors are not performed in parallel? Even slight variations in temperature and humidity can have large effects on olfactory behaviors.

As we now compare all genetic modified flies with their parental lines WT is not used as a control as often anymore (only to compare with flies with removed antennae or palps, and Orco flies). The condition inside the climatic chamber is computer controlled, which hopefully reduces variation between experiments. However, in addition, we did not perform all 10 replicates of a single experiment at the same time, but tested e.g. some WT replicates, some Orco replicates and some manipulated flies in parallel.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

The manuscript has been improved but there are some remaining text and figure clarification issues that need to be addressed before acceptance, as outlined below:

1) The GC-SSR axis in Figure 3 and Figure 4 is not clear. What is the scale? Should this not be represented as a vertical scale bar?

We apologize for this and have now added a scale bar to both figures. We also mention scale bar in the figure legend.

2) Figure 1. The main graphic (panel B) shows what odorants are present in different extracts. What is the connection to the response properties of the palp neurons? Rather than odor present, shouldn't neuron response be mapped?

We have rewritten the part of the figure legend (“Presence/Absence matrix of the physiologically active compounds identified from the different headspace extracts for each MP-OSN in the GC-SSR experiments (i.e. each filled box represents not only the presence of this odor in a specific fruit, but also a physiological response in GC-SSR recordings).”) and hope that this decreased the confusion.

3) Figure 4A. What odor concentrations do these represent?

We apologize and have added the information to the figure legend (“GC-SSR responses of the MP-OSNs best activators across the Ant-OSNs (n = 3, dilution, 10-4 in hexane).”)

4) Figure 5A. Controls should have been compared to solvent odor controls, and not to zero. For example, maybe in their assay, the solvent itself leads to some attraction. Or if given a choice between two solvent background odors, the behavior would become highly variable (larger spread) such that the significantly different from zero data points would no longer be significant.

We agree that all responses should be compared to solvent odor controls. That is actually what we did (for each trap assay sample we count the number of flies in the trap filled with odor and solvent, and in the trap with solvent only. The attraction index (AI) is calculated as (number of flies in odor trap-number of flies in solvent trap)/total number of flies. An AI of 0 depicts equal attraction of odor and solvent, while an AI of 1 is a result of strong attraction to the odor (-1: strong repellency of the odor). Hence, by testing the result against 0, one tests, whether the odor is more (or less) attractive than the solvent control. To clarify we now tested against solvent control directly (resulting in the same level of significance) and have re-written the figure legend accordingly (“For T-maze and trap assays, the symbol * indicates significant differences from the solvent control (p < 0.05, Wilcoxon signed rank test, n = 10)”).

5) Figure 1B. Unknown spelled Unknow in pb1B section.

Has been changed.

6) Genotypes, subsection “Complete genotypes of all strains used in this study”. w1118 instead of w118.

Has been changed.

https://doi.org/10.7554/eLife.14925.032

Article and author information

Author details

  1. Hany KM Dweck

    Department of Evolutionary Neuroethology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    HKMD, Final approval of submitted version, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Shimaa AM Ebrahim
    For correspondence
    hdweck@ice.mpg.de
    Competing interests
    No competing interests declared.
  2. Shimaa AM Ebrahim

    Department of Evolutionary Neuroethology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    SAME, Final approval of submitted version, Acquisition of data, Drafting or revising the article
    Contributed equally with
    Hany KM Dweck
    Competing interests
    No competing interests declared.
  3. Mohammed A Khallaf

    Department of Evolutionary Neuroethology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    MAK, Final approval of submitted version, Acquisition of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  4. Christopher Koenig

    Department of Evolutionary Neuroethology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    CK, Final approval of submitted version, Acquisition of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  5. Abu Farhan

    Department of Evolutionary Neuroethology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Present address
    Department of Cell Biology, Molecular Neurobiology Program, Skirball Institute of Biomolecular Medicine, New York University School of Medicine, New York, United States
    Contribution
    AF, Final approval of submitted version, Acquisition of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  6. Regina Stieber

    Department of Evolutionary Neuroethology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    RS, Final approval of submitted version, Acquisition of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  7. Jerrit Weißflog

    Mass Spectrometry Group, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    JW, Final approval of submitted version, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    No competing interests declared.
  8. Aleš Svatoš

    Mass Spectrometry Group, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    AS, Final approval of submitted version, Analysis and interpretation of data, Contributed unpublished essential data or reagents
    Competing interests
    No competing interests declared.
  9. Ewald Grosse-Wilde

    Department of Evolutionary Neuroethology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    EG-W, Final approval of submitted version, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    No competing interests declared.
  10. Markus Knaden

    Department of Evolutionary Neuroethology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    MK, Final approval of submitted version, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Bill S Hansson
    For correspondence
    mknaden@ice.mpg.de
    Competing interests
    No competing interests declared.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6710-1071
  11. Bill S Hansson

    Department of Evolutionary Neuroethology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    BSH, Final approval of submitted version, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Markus Knaden
    For correspondence
    hansson@ice.mpg.de
    Competing interests
    BSH: Vice President of the Max Planck Society, one of the three founding funders of eLife, and a member of eLife's Board of Directors

Funding

Max-Planck-Gesellschaft

  • Bill S Hansson

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We wish to thank Richard A Fandino and Jan E Bello for comments on the manuscript.

Reviewing Editor

  1. Kristin Scott, University of California, Berkeley, United States

Publication history

  1. Received: February 2, 2016
  2. Accepted: May 21, 2016
  3. Accepted Manuscript published: May 23, 2016 (version 1)
  4. Version of Record published: June 29, 2016 (version 2)

Copyright

© 2016, Dweck et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,889
    Page views
  • 654
    Downloads
  • 15
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
