Active suppression of a leaf meristem orchestrates determinate leaf growth

  1. John Paul Alvarez Is a corresponding author
  2. Chihiro Furumizu
  3. Idan Efroni
  4. Yuval Eshed Is a corresponding author
  5. John L Bowman Is a corresponding author
  1. Monash University, Australia
  2. The Hebrew University of Jerusalem, Israel
  3. Weizmann Institute of Science, Israel
  4. University of California, Davis, United States
Research Article
Cited
8
Views
2,963
Comments
0
Cite as: eLife 2016;5:e15023 doi: 10.7554/eLife.15023

Abstract

Leaves are flat determinate organs derived from indeterminate shoot apical meristems. The presence of a specific leaf meristem is debated, as anatomical features typical of meristems are not present in leaves. Here we demonstrate that multiple NGATHA (NGA) and CINCINNATA-class-TCP (CIN-TCP) transcription factors act redundantly, shortly after leaf initiation, to gradually restrict the activity of a leaf meristem in Arabidopsis thaliana to marginal and basal domains, and that their absence confers persistent marginal growth to leaves, cotyledons and floral organs. Following primordia initiation, the restriction of the broadly acting leaf meristem to the margins is mediated by the juxtaposition of adaxial and abaxial domains and maintained by WOX homeobox transcription factors, whereas other marginal elaboration genes are dispensable for its maintenance. This genetic framework parallels the morphogenetic program of shoot apical meristems and may represent a relic of an ancestral shoot system from which seed plant leaves evolved.

https://doi.org/10.7554/eLife.15023.001

Introduction

Traditionally, plant organs are divided into organs with indeterminate growth such as shoots, roots and vascular cambia, whose growth is maintained by meristems, groups of pluripotent cells, and organs with determinate growth such as leaves or floral organs. Fossil evidence indicates that seed plant leaves evolved from ancestral shoot systems, and further, the dichotomous morphology of early seed plant leaves suggests growth via a persistent apical meristem (reviewed in [Kenrick and Crane, 1997; Floyd and Bowman, 2010]). However, as anatomical features typical of apical or vascular meristems are not present in leaves, whether developing leaves grow from a localized meristem has been debated for nearly a century (Foster, 1936; Hagemann and Gleissberg, 1996).

In one of the first detailed examinations of development at the plant shoot apex Caspar Wolff described the leaf lamina arising from the margins of Brassica 'capitata' (cabbage) leaves (Wolff, 1759). Subsequently, Avery suggested that early lamina growth of Nicotiana tabaccum was initiated by a row of subepidermal initial cells located at the upper-lower (adaxial-abaxial) leaf boundary that he termed the 'marginal meristem' (Avery, 1933). However, it had already been noted that later protracted growth in leaves occurs in tissues that are not marginal, but rather within the developing lamina in a region described as a 'plate meristem' (Schüepp, 1918, 1926). Thus, early views of leaf development were perceived to consist of two growth phases (Foster, 1936). An early ephemeral phase of cell divisions without cell expansion produces the characteristic 6–10 cell layers of the leaf thickness via submarginal periclinal cell divisions and epidermal anticlinal divisions. This is followed by a later prolonged growth phase where the bulk of two-dimensional lamina growth is produced via a plate meristem in which cell divisions are predominantly anticlinal. Analyses of leaf development in the middle of the 20th century sought to identify patterns of submarginal cell divisions to identify initial cells, but the patterns of cell division were highly variable between species casting doubt on the presence of specific initials (Foster, 1936).

More recently, examination of mitotic indices during leaf development revealed that a higher rate of cell division is observed in submarginal (i.e. plate meristem) regions of the leaf as compared to the margins (Maksymowych and Erickson, 1960; Fuchs, 1966; Thomasson, 1970; Dubuc-Lebreux and Sattler, 1981; Jéune, 1981). Furthermore, sector analysis of leaf development in several eudicot species, including N. tabacum, revealed that most clonal sectors were located between the midrib and the margin, with only a minority extending all the way to the margin (Dulieu, 1968; Poethig and Sussex, 1985; Dolan and Poethig, 1998), indicating that leaves do not grow from the margins sensu stricto, and calling into question the concept of the leaf marginal meristem. However, noting the overall lack of organized cell division patterns in plants, Hagemann and Gleissberg argued that the defining features of meristems are their organogenetic potential and cytohistological state rather than specific cell division patterns. Thus, in their view the marginal meristem (or ‘blastozone’, as they refer to it) is responsible for primary morphogenetic events, e.g. lamina initiation, but is used up early in leaf development, with most lamina expansion occurring during a later leaf differentiation phase (Hagemann and Gleissberg, 1996). Although this is a compelling model, evidence for this interpretation has been mainly observational and circumstantial.

Here we show that removal of multiple growth suppressing transcriptional factors results in indeterminate growth of the margins of all lateral organs, coupled with sustained organogenesis and activity of gene modules shared amongst other plant meristems. Our finding supports the presence of a specific leaf meristem, and conforms to the view stemming from the fossil record that recruitment of suppressors of meristematic activity was critical in seed plant leaf evolution and development.

Results

In Arabidopsis, leaf morphogenesis is initiated at the flanks of the shoot apical meristem (SAM) where leaf primordia develop as flattened lamina with defined abaxial, adaxial and marginal cell types (Tsukaya, 2013). Lamina development requires the juxtaposition of abaxial/adaxial polarity factors, including adaxial class III HD-Zip and abaxial KANADI transcription factors. These lie on either side of a narrow middle domain expressing the WUSCHEL RELATED HOMEOBOX (WOX) genes, PRESSED FLOWER (PRS) and WOX1, and together promote organ growth and differentiation (Nakata et al., 2012; Wang et al., 2011; Eshed et al., 2004). In Arabidopsis leaf development, expression of growth genes rapidly diminishes distally but can persist proximally (Donnelly et al., 1999; Nath et al., 2003). This proximo-distal differentiation gradient is regulated by CIN-TCP transcription factors (Nath et al., 2003). A reduction of five CIN-TCPs targeted by the endogenous microRNA, miR319a (also known as miR-JAW) results in delayed basipetal progression of a mitotic arrest front and increased cell proliferation particularly at leaf margins, producing crinkly and serrated leaves (Efroni et al., 2008; Ori et al., 2007; Palatnik et al., 2003). Increased distal leaf growth and serrations are also observed when the activities of the four NGA transcription factors are reduced (Figure 1—figure supplement 1) (Trigueros et al., 2009Alvarez et al., 2009). The NGAs and CIN-TCPs are co-expressed at many stages of leaf development, exemplified by the distal expression of TCP3, TCP4, NGA1 and NGA4 in young leaves (Figure 1—figure supplement 2) and in contrast to the reported expression of miR319 at the leaf base (Obayashi et al., 2009; Nag et al., 2009). This, together with similarities in their loss-of-function phenotypes, suggests shared roles in leaf development. To investigate functional redundancy, we introduced a constitutive expression construct of miR319a (35S:miR319) targeting the five CIN-TCP genes (Palatnik et al., 2003) into a quadruple NGA mutant (nga1,2,3,4) that lacks NGA activities.

Strikingly, simultaneous reduction in expression of these nine genes resulted in continuous de novo formation of tissue at the margins of all lateral organs including cotyledons, leaves and floral organs (Figure 1A–B, Figure 1—figure supplement 3). Indistinguishable phenotypes were observed in plants constitutively expressing both miR319a and the previously characterized artificial miRNA amiR-NGA (Alvarez et al., 2009), facilitating easier and more extensive characterization of the indeterminate growth phenotype. 35S:miR319a/35S:amiR-NGA plants grow more slowly, are later flowering, and their leaf margins harbor proliferative cell populations unlike those of 35S:amiR-NGA and 35S:miR319a singly transgenic plants (Figure 1C–G, Figure 1—figure supplement 38). Application of stain to 35S:miR319a/35S:amiR-NGA leaf margins indicates continued proliferation at the leaf margin, with the marker displaced sub-marginally over time (Figure 1D1–D2, Figure 1—figure supplement 3). In 35S:miR319a nga1,2,3,4 or 35S:miR319a/35S:amiR-NGA plants, the entirety of the older leaf margin consists of small densely packed cells lacking chlorophyll, rather than the large, elongate cells characteristic of wild-type leaf margins (Figure 1C–I, Figure 1—figure supplement 58). Sections of leaf primordia and differentiating leaves suggest that the six-cell-layered blade organization of young wild-type leaf primordia is maintained at 35S:miR319a/35S:amiR-NGA leaf margins ([Nakata et al., 2012]; Figure 1E–G, Figure 1—figure supplement 8).

Figure 1 with 15 supplements see all
Reduction in NGA and CIN-TCP activities renders organ margins indeterminate.

(A, B) Overview of wild-type (WT) and 35S:miR319a nga1,2,3,4 (miR319a nga1,2,3,4) cotyledons (A) and leaves (B). (C-I) Close ups of leaf margins of WT and 35S:miR319a-amiR-NGA plants. (D1-D2) Third leaf of 35S:miR319a/35S:amiR-NGA plant marked with nail polish (arrows; light blue and dark blue), demonstrating the ongoing growth from the margins along 21 days. (E) Transverse sections through the distal end of developing wild-type and 35S:miR319a/35S:amiR-NGA leaves showing large versus small marginal cells (arrows). (F) Developing wild-type and 35S:miR319a/35S:amiR-NGA leaf primordia exhibit a similar six-cell-layered blade anatomy (outlined). (G) The margin of older wild-type margins have large, differentiated cells, whereas the 35S:miR319a/35S:amiR-NGA leaf margin retains the primordial blade structure. (H) The marginal cells of wild-type are elongated (arrowhead), while small isodiametric cells and initiating trichomes are found at 35S:miR319a/35S:amiR-NGA margins (I; arrow). (J) Transcriptome-based differentiation-score distributions of dissected 35S:miR319a/35S:amiR-NGA leaf margins, sorted primordia cells expressing FIL gene, and proximal or distal halves of seventh wild-type leaves (see Materials and methods for details). (K-L) Expression of ATML1:H2B-mYFP (yellow), ATHB8:GUS (M, N; blue), PIN1:PIN1-GFP (O; green), and PRS:GUS (P; blue) in developing leaves of indicated genotypes and a young wild-type leaf primordium (O1, P1). Note the distal exclusion of marker expression in slightly older wild-type leaves (O2, P2) while arrows indicate persisting expression along the distal margin with reduced NGA and CIN-TCP activities. ad, adaxial leaf side; ab, abaxial leaf side. Scale bars: A, D1-D2, 2 mm; B, 5 mm; C, 1 mm; 50 μm in other panels.

https://doi.org/10.7554/eLife.15023.002

The digital differentiation index (DDI) assesses relative leaf maturity from global gene expression profiles (Efroni et al., 2008). The index of dissected, older 35S:miR319a/35S:amiR-NGA leaf margins clearly matches that of initiating primordia (Figure 1J). This result is further supported by the expression of markers that highlight continued cell division, distinguishing epidermal nuclei (ATML1:H2B-mYFP), epidermal plasma membrane (ATML1:mCitrine-RCI2A), general cell division (CYCB1;1:GFP), initiating trichomes (highlighted by GL2:GFP) and stomatal lineage proliferation (TMM:GUS-GFP) (Figure 1K,L, Figure 1—figure supplement 7), which demonstrate ongoing leaf-primordium-like activity at the leaf margins. In initiating wild-type leaves, auxin flux, marked by PINFORMED1 (PIN1) expression, converges at the distal tip and at serrations, where it inwardly canalizes leaf vascular development, before becoming restricted to proximal margins of older leaves (Bilsborough et al., 2011; Scarpella et al., 2006). Compared to wild-type leaves, in both 35S:amiR-NGA and 35S:miR319a individual knockdown leaves auxin flux persists longer at distal leaf margins. Strikingly, in the 35S:miR319a/35S:amiR-NGA combined knockdown leaves, auxin flux continues around the entire leaf margin (Figure 1O, Figure 1—figure supplement 9). Auxin canalization and ongoing de novo vasculature morphogenesis at these margins is marked by expression of the provascular makers ATHB8 and MONOPTEROS (MP) (Figure 1M–N, Figure 1—figure supplements 7 and 10). Paralleling marginal auxin flux, the organ marginal markers PRS and WOX1 are transiently expressed in initiating wild-type leaves before becoming proximally restricted. When NGA or CIN-TCP activities are reduced, PRS and WOX1 distal expression persists in older leaves whereas in the combined loss in 35S:miR319a/35S:amiR-NGA leaves PRS and WOX1 expression occurs in an uninterrupted marginal band, again suggesting that these margins retain meristematic properties equivalent to initiating leaf primordia (Figure 1P, Figure 1—figure supplements 11 and 12).

That expression of miR319a-amiR-NGA under control of the PRS regulatory sequences results in indeterminate margins confirms that marginal loss of NGA and CIN-TCP activity is sufficient to allow the maintenance of these meristematic characteristics (Figure 1—figure supplement 13). Notably the lamina away from the margins of PRS>>miR319a-amiR-NGA is thinner and more wild-type in appearance than that of 35S:miR319a/35S:amiR-NGA leaves suggesting that the broader, non-marginal expression of the NGAs and CIN-TCPs may reflect an activity in regulating cell expansion that remains functional in PRS>>miR319a-amiR-NGA leaves (Figure 1—figure supplement 8 and Figure 1—figure supplement 13).

The extended maintenance of primordium identity was also observed in the cotyledons of 35S:miR319a nga1,2,3,4 or 35S:miR319a/35S:amiR-NGA plants, which continuously produce tissue with leaf characteristics including stellate trichome formation (Figure 1A, Figure 1—figure supplement 14). Changes in the expression pattern of the cell division marker CYCB1;1:GFP are apparent in the distal embryonic cotyledons while the respective expression of ATML1:H2B-mYFP and MONOPTEROS demonstrates the absence of the normal, marginal cell differentiation program and ectopic production of provascular strands implying an active marginal meristem similar to that observed in leaves (Figure 1—figure supplement 15). Notably there was no evidence for impaired dormancy of 35S:miR319a nga1,2,3,4 or 35S:miR319a/35S:amiR-NGA seed suggesting that the seed-based program of imposed dormancy was as effective on this cotyledon marginal meristem as on the embryonic shoot and root meristems. After germination, cotyledons of 35S:miR319a nga1,2,3,4 or 35S:miR319a/35S:amiR-NGA seedlings continue growth and express growth markers unlike wild-type (Figure 1—figure supplements 14 and 15). The floral organs of NGA and CIN-TCP compromised plants also exhibit prolonged marginal growth (Figure 1—figure supplement 3). Hence NGA and CIN-TCP redundantly suppress marginal growth in all aerial lateral organs.

Ongoing growth from the organ margin may be a consequence of ectopic activation of a SAM program. We surveyed the expression of genes that are expressed in the SAM but not in leaves of Arabidopsis, and no evidence was found for the expression of meristem genes including SHOOT MERISTEMLESS (STM), WUSCHEL (WUS) and CLAVATA1/3 (CLV1/3) in indeterminate leaf margins of 35S:miR319a/35S:amiR-NGA plants (Figure 2A–E). In agreement, the 35S:miR319a-amiR-NGA transgene conferred indeterminate growth of cotyledon and/or leaf margins in stm-11 knat6-1 bp-9 triple and wus-1 single mutants where SAM activity is respectively lost or disrupted (Figure 2F–L). Thus, continued marginal growth in 35S:miR319a-amiR-NGA double knockdown leaves is not a consequence of secondarily acquiring characteristics of the indeterminate SAM, as for example in YABBY-compromised mutants (Sarojam et al., 2010).

Figure 2 with 1 supplement see all
Regulators of SAM maintenance and leaf margin elaboration are dispensable for maintenance of the marginal leaf meristem.

(A) Relative mRNA expression levels of meristem regulators in cells collected from apices and in indeterminate leaf margins. Levels of three class 1 KNOX genes, STM, KNAT1 and KNAT2, as well as WUS and CLV1/3 are shown. Levels were determined in sorted cells expressing WUS or CLV3 (meristem-expressed) or FIL (expressed in developing organs) (see Materials and methods for details) and compared with those in 35S:miR319a/35S:amiR-NGA indeterminate leaf margins (labeled as Margins). Heatmap color represents the row Z-score. (B, C) STM:GUS and (D, E) WUS:GUS expression (blue) is confined to the vegetative shoot meristem (arrows) both in wild-type and 35S:miR319a/35S:amiR-NGA plants. (FI) stm-11 knat6-1 bp-9, (JL) wus-1, and (M-Q) cuc2-3 cuc3-105 seedlings have a disrupted apical meristem. Arrowheads denote fused cotyledons. In the presence of the 35S:miR319a-amiR-NGA transgene, cotyledons (G, H, I, K, N, O) and leaves (K, L, P, Q) grow indeterminately (arrows) in these mutants. Close-ups of the indeterminate margin are shown in I, L, Q. Leaves in P and Q are produced from a SAM that grows through fused cuc2-3 cuc3-105 cotyledons such as those depicted in O. cot, cotyledon. Scale bars: B-E, J, K, 5 mm; F-H, M-O, 2 mm; I, L, Q, 0.5 mm; P, 1 cm.

https://doi.org/10.7554/eLife.15023.023

The NAC transcription factors CUP-SHAPED COTYLEDON2 (CUC2) and CUC3 are regulators of leaf margin shape in Arabidopsis and other angiosperm species, and ectopic activation of CUC genes promotes adventitious shoot formation (Blein et al., 2008; Aichinger et al., 2012; Hibara et al., 2003), suggesting that deregulation of CUC genes may account for the indeterminate growth phenotype. However, we found that the cotyledon and/or leaf margins continue to grow in cuc2 cuc3 and cuc1 cuc2 mutants expressing the 35S:miR319a-amiR-NGA transgene. This indicates that continued margin growth is independent of CUC-mediated marginal elaboration (Figure 2M–Q, Figure 2—figure supplement 1).

Since lamina growth is an outcome of an interaction between adaxial and abaxial factors and involves the marginal leaf WOX genes (Nakata et al., 2012; Eshed et al., 2004), the role of polarity factors and WOX genes in maintaining continued marginal growth was investigated. The respective adaxial, marginal and abaxial genes PHABULOSA (PHB), PRS and KANADI1 (KAN1) are expressed in young, wild-type leaf primordia before diminishing in a basipetal fashion (Figure 3A,C,E,G–H, Figure 3—figure supplement 1). At the margins of 35S:miR319a/35S:amiR-NGA leaves, PHB, PRS and KAN1 gene expression continues indefinitely, with spatial relationships maintained, implying that in older leaves with reduced CIN-TCP and NGA activities, the collective interplay among these genes is sustained as established in initiating wild-type leaf primordia (Figure 3A–H, Figure 1—figure supplement 11, Figure 3—figure supplement 1). To test whether adaxial/abaxial tissue polarity and associated WOX activities are required for marginal leaf growth we examined the effects of mutations in these genes on indeterminate marginal growth. Semi-dominant PHB alleles produce two leaf types on the same plant: partially radialized leaves with distal lamina and completely radialized (adaxialized) leaves (Figure 3I). In 35S:miR319a/35S:amiR-NGA phb-1d/+ plants, leaves with distal lamina exhibited ectopic marginal growth while radialized leaves did not, demonstrating that ongoing marginal growth first requires the juxtaposition of polarity factors (Figure 3J, Figure 3—figure supplement 2). PRS and WOX1 redundantly promote growth as an output of the abaxial/adaxial polarity program (Nakata et al., 2012). The combined loss of NGA and CIN-TCP activities in 35S:miR319a/35S:amiR-NGA plants results in both PRS and WOX1 expression occurring as an uninterrupted marginal band in older leaves (Figure 1P, Figure 1—figure supplements 11 and 12). Notably, prs wox1 double mutants suppressed the indeterminate marginal growth in 35S:miR319a/35S:amiR-NGA plants (Figure 3K–L, Figure 3—figure supplement 3). Hence the ongoing leaf margin growth is dependent on both the polarity program and the leaf-specific WOX genes.

Figure 3 with 3 supplements see all
Marginal meristem activity requires juxtaposition of adaxial/abaxial polarity factors.

(AF) Adaxial PHB:GUS (A, B), central PRS:GUS (C, D) and abaxial KAN1:GUS (E, F) expression domains (blue) in transverse sections with abaxial sides facing upward. Young wild-type leaf primordia (A, C, E) and older 35S:miR319a/35S:amiR-NGA leaf margins (B, D, F) are shown. (GH) PHB:GUS (G) and KAN1:GUS (H) in whole wild-type (left) and 35S:miR319a/35S:amiR-NGA (right) leaves. Arrows denote continued expression. (I) Completely (right) and partially (left) radialized leaves of phb-1d/+ mutants. (J) phb-1d /+ 35S:miR319a/35S:amiR-NGA leaves. The distal lamina exhibits continual marginal growth (arrowhead) whereas a radialized leaf lacks such growth (arrow). (K) Wild-type, prs wox1, and prs wox1 35S:miR319a-amiR-NGA leaves at equivalent age. (L) Close-ups of differentiated leaf margins of wild-type (L1), prs wox1 (L2) and prs wox1 35S:miR319a-amiR-NGA (L3; compare with the indeterminate leaf margin in Figure 1C). (MP) kan1 kan2 leaves showing abaxial outgrowths (M), and ectopic expression of PIN1:PIN1-GFP (N), PRS:GUS (O) and NGA1:GUS (P) associated with abaxial outgrowths. (Q) A kan1 kan2 35S:miR319a-amiR-NGA leaf showing proliferative tissue outgrowth. (R, S) as2-14 leaves showing ectopic, adaxial PRS:GUS expression (S). (T) From left to right shown are as2-14 35S:amiR-NGA, as2-14 35S:miR319a, as2-14 35S:miR319a/35S:amiR-NGA leaves with increasing adaxial outgrowths. (U) Close-up of the adaxial surface of as2-14 35S:miR319a/35S:amiR-NGA leaf. ad/ab, adaxial and abaxial leaf sides. Scale bars: GJ, M, 2 mm; L, 1 mm; K, Q, R, T, 5 mm; 50 μm in other panels.

https://doi.org/10.7554/eLife.15023.025

To further characterize the relationships between the different leaf domains, we investigated weak polarity mutant backgrounds where ectopic sites of adaxial/abaxial juxtaposition lead to outgrowths, which have marginal identity, from the leaf lamina (Nakata et al., 2012; Wang et al., 2011; Eshed et al., 2004). The abaxial surfaces of developing kan1 kan2 mutant leaves exhibit ectopic expression of PIN1, PRS and NGA1 (Figure 3M–P). Reducing both NGA and CIN-TCP activity in the kan1 kan2 background results in a striking proliferation of leaf tissue from the abaxial surface (Figure 3Q, Figure 3—figure supplement 2). Similarly, reducing NGA and CIN-TCP activities in mutants of the adaxial factor ASYMMETRIC LEAVES2 (AS2), where patches of ectopic, adaxial PRS expression are observed, resulted in adaxial lamina proliferation (Figure 3R–U, Figure 3—figure supplement 2). A shift in the marginal program with corresponding lamina outgrowths can also be achieved through direct manipulation of WOX1 expression, such as ectopic abaxial expression of WOX1 in FIL:WOX1 plants (Figure 4A–C) (Nakata et al., 2012). Here, as in kan1 kan2 mutant leaves, we detected PIN1 and NGA1 expression in the abaxial outgrowths.

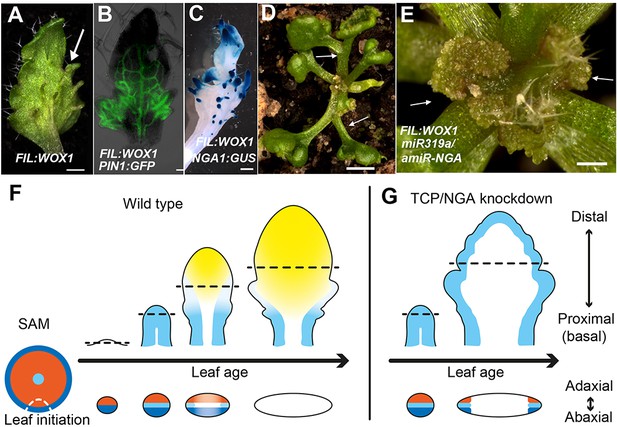

Dynamic restriction of the leaf meristem.

(AC) FIL:WOX1 leaf with developing abaxial outgrowths (arrow in A). These outgrowths show prolonged PIN1:PIN1-GFP (B) and NGA1:GUS (C) expression. (D, E) In FIL:WOX1 35S:miR319a/35S:amiR-NGA first leaves show occasional bifurcation (arrows in D) and later emerging leaves are highly proliferative (arrows in E) in the distal domain. (F, G) Scheme depicting developing wild-type (F) and CIN-TCP/NGA compromised (G) leaves shown from a proximo-distal perspective (above horizontal arrows) and abaxial-adaxial perspective captured at the dashed-line (below horizontal arrows). Leaves are physically and evolutionarily derived from shoot apical meristems (SAM; left most cartoon in F). The SAM is radially patterned with external (blue), internal (red) and central WOX (aqua) domains. In wild-type leaf primordia (F) the pre-pattern at the SAM (white dash line) is converted into juxtaposed abaxial and adaxial domains directing WOX activation in an intervening domain. Feedback between these three domains stabilizes the leaf meristem, promotes lamina growth and maintains pluripotency (Nakata and Okada, 2012) before meristem activity is restricted to the proximal marginal domains by CIN-TCP/NGA activities (yellow), permitting prolonged growth only at the proximal region of the leaf. In leaves where CIN-TCP/NGA activities are reduced (G), meristem activity is maintained at all margins in a pattern reminiscent of initiating leaf primordia. Scale bars: A, C, D, 2 mm; E, 1 mm; 50 μm in B.

https://doi.org/10.7554/eLife.15023.029

The indeterminate cell proliferation and patterning of the leaf margin in 35S:miR319a/35S:amiR-NGA plants suggests it is self-organizing, a property of meristems, consistent with results demonstrating positive and negative feedbacks between PRS/WOX1 and adaxial/abaxial polarity factors (Nakata and Okada, 2012). The lack of marginal growth in radialized phb-1d/+ organs and its ectopic placement at discrete positions of the lamina when the adaxial/abaxial patterning is compromised argues for a major role of the polarity factors in marginal positioning of a leaf meristem that requires the intervening activity of WOX genes. In turn, a negative feedback loop between the marginally restricted meristem and NGA/CIN-TCP activities may lead to the ephemeral nature of this meristem. In agreement, leaves of FIL:WOX1 that are likely relieved from such feedback regulation, maintained a highly meristematic nature and failed to differentiate and expand when NGA and CIN-TCP activities were jointly reduced (Figure 4D,E).

Discussion

The observation that loss of NGAs and CIN-TCPs results in indeterminate leaf margins suggests that the early wild-type leaf primordium has a meristem that acts during a brief developmental window and that is gradually restricted spatially (Figure 4F–G). This interpretation is consistent with classical morphological and anatomical studies in which the definition of the marginal meristem was extended to include the entire meristematic leaf primordium at very early stages of leaf development (Hagemann, 1970). If a leaf primoridum is damaged or bifurcated at this stage, nearly complete regeneration of normal leaf morphology is possible (Goebel, 1902; Figdor, 1906; Snow and Snow, 1941; Sachs, 1969). Subsequently, as the meristematic regions become restricted to the margins or portions of the margins, damage or bifurcation of the leaf primordium results in progressively more limited regenerative capacity (Snow and Snow, 1941; Sachs, 1969; Figdor, 1926). Arabidopsis leaves are argued to possess a basal meristem that remains transiently active after leaf initiation before transitioning to petiole development — a process regulated by the BLADE-ON-PETIOLE (BOP) genes (Hepworth et al., 2005; Ichihashi et al., 2011; Kuchen et al., 2012Laux et al., 1996). Our observations are consistent with early distal expression of CIN-TCP and NGA genes repressing the meristem distally, but the lack of early proximal expression allows marginal persistence of the leaf meristem at the leaf base, as reflected by PRS expression dynamics and leaf marginal cell differentiation along the proximo-distal axis (Nakata et al., 2012) (Figure 1P, Figure 1—figure supplements 6 and 8).

Whereas Arabidopsis leaves differentiate from tip to base, leaf differentiation in some other angiosperm species can proceed from base to tip (Trécul 1853; Ikeuchi et al., 2013). We thus speculate that variations in lateral organ growth within an individual and among species reflect differential maintenance of meristem activity along the marginal and proximo-distal axes. Remarkable diversity in leaf shape can arise from growth variation along the margin including leaf lobing. Lobe formation in many species relies on leaf-specific activity of class 1 KNOX (KNOX1) genes, which the simple leaves of Arabidopsis lack (Piazza et al., 2010). However, lobes can be mimicked by ectopic KNOX1 expression in Arabidopsis leaves. The radialized leaves of phb-1d/+ plants, a prs wox1 background and NGA1 over-expression, all suppresses the KNOX1-induced lobing phenotype, indicating that an active marginal meristem is a prerequisite to respond to KNOX1 activity (Figure 3—figure supplement 3). Thus modulation in the marginal restriction of meristem activities can contribute to leaf shape diversity.

Cotyledons and floral organs are viewed as modified leaves. In Arabidopsis, lack of a basally restricted meristem may distinguish them from leaves in their response to reduced CIN-TCPs and NGA activity. In these organs, additional growth is confined to the distal region whereas in leaves the entire margin is affected (Figure 1A–B, Figure 1—figure supplements 3, 14 and 15). The observation that leaf tissue grows from cotyledon tips suggests a brief activity of a marginal meristem in cotyledons. Prolongation of the marginal meristem activity likely uncouples growth from the embryonic cotyledon program, and therefore, cotyledons continue to grow the same way as leaves.

How can our observations of a potential continuing meristematic activity at leaf margins be reconciled with classical concepts of marginal and plate meristems in leaves and with the denial of their existence based on mitotic indices and sector analyses? Seed plant leaves evolved from ancestral shoot systems; thus, the shoot apical meristem (SAM) may provide an analogy, or perhaps homology (Floyd and Bowman, 2010). The seed plant SAM exhibits two distinct organizational features. Firstly, SAMs feature a tunica-corpus structure in which cell divisions in the tunica are almost exclusively anticlinal (Schmidt, 1924). Secondly, the seed plant SAM exhibits cytohistological zonation that is correlated with functional zonation (Foster, 1938). The central zone (CZ) exhibits low rates of mitoses and acts to supply cells to the peripheral zone (PZ) and rib zone (RZ) where mitotic activity is high, and organogenesis occurs (Steeves and Sussex, 1989). Consistent with these patterns of cell division, cell lineage analyses of the SAM reveals that the majority of sectors observed do not extend to include the SAM, but rather are presumed to originate in derivatives of the peripheral/rib zones (Dulieu, 1969; Jegla and Sussex, 1989; Furner and Pumfrey, 1992).

As with SAMs, leaf meristems can also be interpreted to consist of distinct organizational zones. Regions of low and high mitotic activity correspond to the classically defined ‘marginal’ and ‘plate’ meristems (Foster, 1936; Avery, 1933; Schüepp, 1926; Maksymowych and Wochok, 1969; Maksymowych and Erickson, 1960; Fuchs, 1966; Thomasson, 1970; Dubuc-Lebreux and Sattler, 1981; Jéune, 1981). Consistent with these mitotic indices, cell lineage analyses reveal that the majority of sectors produced in developing leaves are derived from regions internal to the margins (Dulieu, 1968; Poethig and Sussex, 1985; Dolan and Poethig, 1998). While marginal activity of the leaf meristem in wild-type Arabidopsis may be brief, we show here that when extended, cells generated at the margins are displaced towards the center of the leaf, displaying a maturation gradient, similar to the PZ and RZ cells displaced from the CZ of the SAM.

The CZ of the SAM is characterized by the expression of a WOX gene, WUSCHEL (Mayer et al., 1998). Loss-of-function WUS alleles generate a functional SAM, but the CZ fails to be maintained, leading to the eventual depletion of cells in the active PZ and RZ (Laux et al., 1996). Similarly, the leaf meristem exhibits WOX gene expression, whose function is required for continued leaf growth, but leaves can initiate and grow for a while without marginal WOX expression (Nakata et al., 2012; Vandenbussche et al., 2009). The SAM features a tunica-corpus structure in which cell divisions in the tunica are almost exclusively anticlinal ([Schmidt, 1924] and others). As with the SAM, the leaf marginal domain is also organized into epidermal and sub-epidermal layers. Analysis of periclinal chimeras revealed that the epidermal layers of the leaf are clonally related, whereas the mesophyll and vascular bundles are derived from subepidermal layers ([Foster, 1936; Avery, 1933; Baur, 1909] and references therein). The lack of differentiation of leaf marginal cells in 35S:miR319a/35S:amiR-NGA plants is consistent with these cells remaining meristematic.

Our results are largely consistent with classical views of leaf development — that the leaf primordium is broadly meristematic at its inception, and that meristematic potential is subsequently restricted to the marginal regions (Foster, 1936; Hagemann and Gleissberg, 1996; Jéune, 1981; Sachs, 1969). In our view, the marginal and plate meristems represent two zones of a leaf meristem, analogous, or perhaps homologous, to the central and peripheral zones of the SAM.

We suggest that the marginal restriction of the leaf meristem is in part maintained and guided by the same adaxial and abaxial factors that function in shoot and cambial meristems, and all three meristems are maintained by the activity of different WOX paralogs, suggesting the repeated use of a molecular module (Figure 4F) (Aichinger et al., 2012). Sharing of genetic modules implies either common descent or co-option of modules to pattern novel structures. Since seed plant leaves evolved from ancestral shoot systems, common descent is plausible. In this scenario, the leaf meristem module has been modified from an ancestral shoot meristem module to include the leaf-specific WOX1 and PRS paralogs (Lin et al., 2013; Nardmann and Werr, 2013) that arose in a common ancestor of seed plants. Additional regulators such as the YABBY genes, which are instrumental in lamina growth and restrict activity of SAM factors (Sarojam et al., 2010), and later acting factors limiting leaf meristem activity (i.e., CIN-TCP and NGA) were integrated into the leaf program. Growth suppressors modulating leaf meristem activity were recruited from genes of both ancient and recent origins — CIN-TCP genes are present in all land plants (Navaud et al., 2007) whereas NGA genes evolved recently, perhaps within seed plants (Alvarez et al., 2009). Thus the leaf marginal meristem genetic program may have been derived via elaboration of an ancestral shoot program, reflecting the derivation of the leaf from a modified shoot. The identification of such genetic framework provides a unification of how the entire seed plant shoot system is built from apical, vascular, cambial, and leaf meristems that are mechanistically similar. The evolution of seed plant leaves from an ancestral shoot system can be interpreted as evolving via the recruitment of regulatory mechanisms to suppress the morphogenetic potential of the leaf meristem.

Materials and methods

Plant material and growth conditions

For leaf analyses plants were grown under short-day conditions (10 hr light) at 20°C for 15 to 20 days.

A number of lines for genetic and image analyses were generously provided for use in this study. The cuc2-3 cuc3-105 lines were provided by Masao Tasaka (Hibara et al., 2006). The prs wox1 lines were a gift from Tom Gerats (Vandenbussche et al., 2009). TMM:GUS-GFP line was provided by Fred Sack (Nadeau and Sack, 2002). The ATML1:mCitrine-RCI2A and ATML1:H2B-mYFP were a gift from Adrienne Roeder (Roeder et al., 2010). John Celenza and Peter Doerner provided the CycB1;1::CycB1;1-GUS and CycB1;1::CycB1;1-GFP marker lines. The PIN1:PIN1-GFP and DR5:GFP were supplied by Jiří Friml (Friml et al., 2003). GL2::ERGFP:NOS was provided by Philip Benfey and Ji-Young Lee (Lee et al., 2006). ATHB8:GUS was obtained from the Arabidopsis Biological Resource Center (ABRC), Ohio State University, USA. The MONOPTEROS/ARF5:GFP line was gift from Dolf Weijers. The NGA4:GUS line is nga4-1, a Ds gene trap allele (SGTSET7056) (Alvarez et al., 2009). Similarly PHB:GUS is phb-6, a Ds gene trap allele (SGT4606) in the first exon of PHB (Hawker and Bowman, 2004). The BLS:STM and BLS promoter, transactivation line (BLS LacIH17-GAL4 (LhG4)) have been previously described (Shani et al., 2009; Furumizu et al., 2015; Lifschitz et al., 2006). The BLS promoter drives gene expression in young leaf primordia but not in younger, initiating leaf primordia.

Histology and microscopy

For tissue sections and scanning electron microscopy (SEM), samples were immersed in 2% glutaraldehyde in 0.025 M sodium phosphate buffer (pH 6.8) and vacuum infiltrated for up to one hour. For sections, specimens were then washed, dehydrated in an ethanol series, and infiltrated and embedded in LR White resin. 2 µm-thick sections were cut, dried onto slides, and stained with toluidine blue. For SEM, glutaraldehyde-fixed tissues were further fixed in 1% OsO4 before dehydration through a graded ethanol series and critical point dried using liquid CO2. Specimens were coated with gold in an Eiko 1B.5 sputter coater and viewed using a Hitachi s570 scanning electron microscope.

For histochemical analysis of GUS activity, samples were infiltrated with GUS staining solution [0.2% (w/v) Triton X-100, 2 mM potassium ferricyanide, 2 mM potassium ferrocyanide, and 1.9 mM 5-bromo-4-chloro-3-indolyl-β-glucuronide in 50 mM sodium phosphate buffer, pH 7.0] and incubated at 37°C.

To prepare cleared samples, tissue was fixed overnight in 9:1 (v:v) ethanol:acetic acid at room temperature. After rehydration in a graded ethanol series, samples were rinsed with water and were cleared with chloral hydrate solution [1:8:2 (v:w:v) glycerol:chloral hydrate:water], dissected, and viewed.

Fluorescence was observed using a Zeiss Axioskop2 mot plus microscope using filter set 46 for YFP (excitation BP 500/20; beam splitter FT 515; emission BP 535/30), filter set 13 for GFP (excitation BP 470/20; beam splitter FT 495; emission BP 505–530), and filter set 43 HE (excitation BP 550/25; beam splitter FT 570; emission BP 605/70) or Semrock SpOr-B-000 filter set (excitation BP 543/22; beam splitter FT 562; emission BP 586/20) for RFP. Images were collected using AxioVision software individually or as part of a Z stack that included light field and DIC (differential interference contrast) images as well. Deconvolution processing was carried out for some images.

The color of the nail polish applied to cotyledon and leaves was digitally altered to accommodate red-green colourblind viewers.

Plasmid construction and plant transformation

Overexpression of miR319a (35S:miR319a) was carried out using a 323 bp fragment of the miR319a encoding locus including 28 bp upstream and 92 bp downstream sequences of the annotated stem-loop structure. This was cloned downstream of the 35S promoter in pART7 or the array of the lac operator (OP) sequences in a BJ36-derivative plasmid for transactivation. The 35S:amiR-NGA and OP:amiR-NGA constructs used to knockdown expression of all four NGA genes have been described previously (Alvarez et al., 2006). To create expression constructs of the miR319a-amiR-NGA di-miR (two miRNAs concatemerized for co-transcription), the 323 bp, miR319a encoding fragment was cloned 5’ of the 235 bp amiR-NGA gene downstream of the 35S promoter in pART7 or the array of the lac operator (OP) sequences in a BJ36-derived plasmid. Plants expressing two transgenes, 35S:amiR-NGA and 35S:miR319a, are labeled miR319a/amiR-NGA while those expressing the di-miR are labeled miR319a-amiR-NGA. A high proportion of plants expressing the 35S:miR319a-amiR-NGA di-miR had a strong phenotype equivalent to F1 plants from a cross between selected, individual 35S:amiR-NGA and 35S:miR319a expressing lines with strong phenotypes.

To construct a GUS reporter line of TCP4 (At3g15030), which is subject to the regulation by its endogenous miRNA, miR319, approximately 3.9 kb of the upstream sequence, which starts from the 3’ end of the annotated upstream gene (At3g15020) and ends before the TCP4 start codon, was PCR amplified and TA cloned into pCRII (Invitrogen). An approximately 1.7 kb of fragment downstream of the TCP4 stop codon, which extends into the annotated downstream gene (At3g15040), was cloned with the miR319a target site in TCP4 built into the forward PCR primer. The two fragments were subsequently cloned contiguously into BJ36 plasmid to create a TCP4 promoter cassette, and the GUS coding sequence was cloned between the 5’ and 3’ TCP4 regulatory regions and upstream of the miR319 target site.

Similarly, to create a GUS reporter line of TCP3 (At1g53230) subject to regulation by its endogenous miRNA, miR319, approximately 3.1 kb of the upstream sequence beginning from the 3’ end of the annotated upstream gene (At1g53240) transcript and ends before the TCP3 start codon was PCR-amplified and TA cloned into pCRII (Invitrogen). An approximately 2.2 kb of fragment downstream of the TCP3 stop codon, which extends into the annotated downstream gene (At1g53220), was cloned with the miR319a target site in TCP3 built into the forward PCR primer. The two fragments were subsequently cloned contiguously into BJ36 plasmid to create a TCP3 promoter cassette, and the GUS coding sequence was cloned between the 5’ and 3’ TCP3 regulatory regions and upstream of the miR319 target site.

For the GUS marker line of WOX1 (At3g18010), a 2.3 kb fragment upstream from the start codon and a 3.8 kb fragment downstream of the stop codon were PCR amplified and TA cloned into pCRII. The two fragments were cloned contiguously into BJ36 plasmid, and the GUS coding sequence was cloned between the upstream and downstream regulatory regions.

The PRS/WOX3 (At2g28610) promoter GUS line was created using a PCR fragment of a 6.3 kb sequence upstream of the PRS/WOX3 start codon. The PRS/WOX3 promoter was cloned upstream of the GUS coding region in the BJ36-derivative, pRITA.

The KANADI1:GUS reporter line was created by cloning the GUS encoding DNA fragment downstream of the KANADI1 (At5g16560) promoter that consists of a 884 bp fragment of the conserved second intron fused to a 5.3 kb fragment upstream of KANADI1, which has been previously described (Efroni et al., 2008).

All constructs were subcloned into pMLBART or pART27 binary vector and were introduced into Agrobacterium tumefaciens strain GV3101 by electroporation. Transgenic lines were generated by Agrobacterium-mediated transformation, and transformants were selected on soil on the basis of resistance to the herbicide BASTA or kanamycin. Primers used to clone the different cDNAs and promoters are described in Supplementary file 1.

Transcriptome analysis

RNA was extracted from tissue removed with scissors from the 0.5–1 mm marginal region of older 35S:miR319a/35S:amiR-NGA leaves (older than that presented in Figure 1,D1, Figure 1—figure supplement 3,D1 using the Qiagen RNeasy plant mini kit. cDNA was synthesized and hybridized to Affymetrix ATH1 arrays according to the manufacturer’s recommendations in two biological replicates. The data have been uploaded to NCBI GEO, Series number: GSE78693 and GSE12691. Signal values were obtained and normalized using MAS5. Publicly available microarray data were obtained from GEO-OMNIBUS (GSE13596: cells isolated from various domains of the inflorescence meristem, GSE5630: dissected leaf 7 from wild-type 17-days-old plants [Schmid et al., 2005]), and normalized using MAS5. Digital Differentiation Index (DDI) analysis was carried out as in Efroni et al. (2008), using the same set of samples for marker calibration set. Analysis was done using R 2.7.2 (www.r-project.org) and Bioconductor 2.2 (www.bioconductor.org/).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
    Développement des organes foliacés chez Nicotiana tabacum et le probleme des Méristémes marginaux
    1. M Dubuc-Lebreux
    2. R Sattler
    (1981)
    Phytomorphology 30:17–32.
  11. 11
    Emploi Des chimeres chlorophylliennes pout l'etude de l'ontogenése foliaire
    1. H Dulieu
    (1968)
    Bulletin Scientifique De Bourgogne 25:13–72.
  12. 12
    Mutations somatiques chlorophylliennes induites et ontogénie caulinaire
    1. H Dulieu
    (1969)
    Bulletin Scientifique De Bourgogne 26:18–102.
  13. 13
  14. 14
  15. 15
    Über Regeneration der Blattspreite bei Scolopendrium Scolopendrium
    1. W Figdor
    (1906)
    Berichte Der Deutschen Botanischen Gesellschaft 24:13–16.
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
    Observations sur l'extension en largeur Du limbe foliaire Du Lupinus albus L
    1. C Fuchs
    (1966)
    Comptes Rendus De l'AcadéMie Des Sciences SéRies D 263:1212–1215.
  22. 22
    Cell fate in the shoot apical meristem of Arabidopsis thaliana
    1. I Furner
    2. J Pumfrey
    (1992)
    Development 115:755–764.
  23. 23
  24. 24
    Ueber Regeneration im Pflanzenreich
    1. K Goebel
    (1902)
    Biologisches Centralblatt 22:385–397.
  25. 25
  26. 26
    Studien zur Entwicklungsgeschichte der Angiospermenblfitter. Ein Beitrag zur Klärung ihres Gestaltungsprinzips
    1. W Hagemann
    (1970)
    Botanische Jahrbücher Fur Systematik 90:297–413.
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
    Modèle empirique Du Développement des feuilles de Dicotylédones
    1. B Jéune
    (1981)
    Bulletin Du Museum National d'Hisoirie Naturelle. Séction B, Adansonia, Botanique, Phytochimié 4:433–459.
  35. 35
    The Origin and Early Diversification of Land Plants: A Cladistic Study
    1. P Kenrick
    2. P Crane
    (1997)
    Washington, DC: Smithsonian Institution Press..
  36. 36
  37. 37
    The WUSCHEL gene is required for shoot and floral meristem integrity in Arabidopsis
    1. T Laux
    2. KF Mayer
    3. J Berger
    4. G Jürgens
    (1996)
    Development 122:87–96.
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
    Regeneration experiments on the determination of the form of leaves
    1. T Sachs
    (1969)
    Israel Journal Of Botany 18:21–30.
  58. 58
  59. 59
  60. 60
  61. 61
    Histologische studien an phanerogamen vegertationspunkten
    1. A Schmidt
    (1924)
    Botanisches Archiv 8:345–404.
  62. 62
    Zur Entwicklungsgeschichte Des Blattes Von Acer Pseudoplatanus L
    1. O Schüepp
    (1918)
    Vierteljahrsschrift Der Naturforschenden Gesellschaft in Zürich 63:99–105.
  63. 63
    Meristeme
    1. O Schüepp
    (1926)
    Berlin, Gebr. Borntraeger.
  64. 64
  65. 65
    Regeneration of leaflets in lupins
    1. M Snow
    2. R Snow
    (1941)
    The New Phytologist 40:133–138.
  66. 66
    Patterns in Plant Development (2nd edn)
    1. T Steeves
    2. I Sussex
    (1989)
    Cambridge University Press.
  67. 67
    Quelques observations sur la répartition des zones de croissance de la feuille Du Jasminium Nudiflorum Lindley
    1. M Thomasson
    (1970)
    Candollea 25:297–340.
  68. 68
  69. 69
    Mémoires sur la formation des feuilles
    1. A Trécul
    (1853)
    Annales Des Sciences Naturelles-Zoologie Et Biologie Animale 20:235–314.
  70. 70
  71. 71
  72. 72
  73. 73
    Theoria Generationis
    1. C Wolff
    (1759)
    Halae ad Salam, Christ. Hendel.

Decision letter

  1. Richard Amasino
    Reviewing Editor; University of Wisconsin, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Active suppression of a leaf marginal meristem orchestrates determinate leaf growth" for consideration by eLife. Your article has been reviewed by three peer reviewers one of whom, Richard Amasino, is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Detlef Weigel as the Senior Editor.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This paper presents very interesting data that is suitable for publication in eLife. An understanding of how growth is limited in organs so that they achieve the proper final shape and size is important to both animal and plant developmental biologists and this work is an important advance in achieving that understanding.

The main issue to consider is whether or not this work does in fact demonstrate the existence of marginal meristems. The framing of the Introduction and other parts of the paper indicate that the data demonstrate the involvement of marginal meristems in leaf development, and that a longstanding issue is now resolved. Clearly there is proliferation at the leaf edges in the mutant-i.e., a marginal meristem-like proliferation can occur in the mutant background. But as noted below in the specific comments of reviewers, you could interpret the data as a broad failure of the mutant to exit an early leaf margin program of development and progress to the next stage of leaf blade development. Is this early leaf margin program of development really a marginal meristem? I.e., is it rigorously established that this early stage of development really has the attributes of a marginal meristem? For example, evidence that a bona fide meristem exists in the mutant situation could be that WOX genes are of central importance for the proliferation phenotype, which would be similar to what we know for root, shoot and cambium. Is the characterization of the prs wox1 double mutants sufficient to show this? There has been a Plant Cell paper on prs wox1 mutants (http://www.plantcell.org/content/24/2/519.long); the markers used in this paper are mostly different from the ones in the current paper, and in our view, the authors of the current work do not sufficiently frame their results with respect to phenotypes and conclusions from the Plant Cell paper.

We think a more balanced discussion of the marginal meristem issue would better serve the readers. Thus, in a revision, the points below ought to be addressed "head on" for the readers even if you choose to disagree with them.

1) Would it be possible to define what a marginal meristem is, in terms of where the initial (stem) cells are located? The distinction between a "marginal" and "plate" meristems has never been clear to me. The paper implies that cells at apex of the margin are not involved, unlike a shoot tip, but we can't find the evidence suggesting that they are only sub-marginal. In fact, it could be argued that loss of elongated epidermal cells from the margin is consistent with gain of meristem characters here. Similarly, might the contribution of cell layers be affected (e.g., might L1 cells divide periclinally at the margin)?

2) The evidence against marginal meristems in later stages of leaf development is convincing (e.g., from Poethig & Sussex's clonal analysis in the 1980s). However, some believe they have not been ruled out earlier in development – if you define a marginal meristem in terms of undifferentiated, dividing cells close the margin, then most of a small leaf primordium qualifies. The interpretation is therefore that reducing NGA and CIN-TCP activity reveals the existence of a marginal meristem that is normally transient, that this supports an origin of the leaf from a condensed shoot system and that gain of NGA and CIN-TCP activities might have been involved in the condensation.

Does reduction in NGA and CIN-TCP activity really reveal a marginal meristem that occurs early in development of a wild-type leaf? We agree that there are similarities in gene expression between a young wild-type primordium and the margins of an older NGA/CIN-TCP-reduced leaf, but does this also extend to cell division and cell morphology (e.g., absence of elongated marginal cells)? Do these morphologies persist towards the base of the wild-type primordium, which retains its meristem-like gene expression for longer than the tip?

3) Is there really a need to invoke an old concept (marginal meristem) that carries a lot of baggage? Especially since previous evidence indicates there is no persistent marginal meristem that establishes the leaf blade and since this paper doesn't address the existence of a marginal meristem in normal leaf growth. Indeed the continued proliferation of the leaf margins could be interpreted as an inability of the leaf margins to exit the early developmental phase that sets up the earliest outgrowth of the leaf margins and establishes the young leaf blades. Perhaps the Introduction and Conclusions could be presented in the context of either 1) addressing the problem of how organs find their correct final size or 2) what cellular components are required for leaves to progress from the pattern of growth typical of early primordium stage to the pattern of growth that defines the later stage leaf.

4) The authors find that some, but not all, of the genes involved in shoot apical meristem development also act at the proliferative leaf margins of the tcp nga mutant plants. The incomplete similarity is one of the important findings of this paper. For that reason, we suggest the following change to the Impact statement: "We describe a meristem acting at the margins of leaves, the activity of which requires some of the same, or paralogous, genetic factors as other shoot meristems, but its suppression employs factors acting primarily in leaves and other determinate organs."

5) In the absence of a clonal analysis or tracking of cells over time, which would be a big ask, marking cells with nail polish seems to provide good evidence for a marginal meristem. Marked cells appear to displaced internally, implying that growth occurs between them and the margin. Could we have this in the main figures and in more detail (e.g., showing whether some marked cells remain at the margin, consistent with sub-marginal initials and whether the growth separating the marks from the margin involves cell division).

6) The authors concentrate on development occurring at the leaf margins and this is indeed dramatic. But several of the genes targeted are expressed in leaf domains beyond the margins (e.g. TCP3,4 and NGA1,4). Do non-marginal regions of the leaf display differences in growth or are abnormalities limited to the margins? From some of the images, it appears that the central regions have relatively sparse venation – do NGA and TCP factors promote higher order venation in the central part of the leaf?

7) It would be good to establish the extent to which genes are knocked down by the artificial microRNAs or natural microRNAs in this study. Are all members of the gene family knocked down to the same extent? It should be relatively easy to do qRT-PCR experiments to answer this. Controls for more distantly related gene family members should be included.

8) The authors concentrate on development occurring at the leaf margins and this is indeed dramatic. But several of the genes targeted are expressed in leaf domains beyond the margins (e.g. TCP3,4 and NGA1,4). Do non-marginal regions of the leaf display differences in growth or are abnormalities limited to the margins? From some of the images, it appears that the central regions have relatively sparse venation – do NGA and TCP factors promote higher order venation in the central part of the leaf.

https://doi.org/10.7554/eLife.15023.033

Author response

1) Would it be possible to define what a marginal meristem is, in terms of where the initial (stem) cells are located? The distinction between a "marginal" and "plate" meristems has never been clear to me. The paper implies that cells at apex of the margin are not involved, unlike a shoot tip, but we can't find the evidence suggesting that they are only sub-marginal. In fact, it could be argued that loss of elongated epidermal cells from the margin is consistent with gain of meristem characters here. Similarly, might the contribution of cell layers be affected (e.g., might L1 cells divide periclinally at the margin)?

We have extended the Introduction and Discussion sections to include more detailed descriptions of the literature. Much of point 1 is discussed in the literature of the middle of last century, whereby a marginal meristem was defined as including both epidermal cells that divide only anticlinally (an thus producing only abaxial and adaxial epidermis), and sub- epidermal (sub-marginal) cells that divide both anticlinally and periclinally (producing all internal cell layers). The marginal meristem was thought to be restricted to only a few cells at the margin. The loss of differentiated marginal epidermal cells in the NGA/TCP loss-of- function lines is consistent with this view. The plate meristem was defined as being proximal to the margin, extending over a much larger spatial area than the marginal meristem.

In our revised version we argue that leaf primordia as a whole are made of a leaf meristem. This is clearly evident in anatomical sections as presented in Figure 4. We next argue that gradual differentiation imposed by leaf specific programs acts to spatially restrict this meristem to marginal and basal domain. Thus, the marginal leaf meristem does not represent a unique identity, but rather a specific stage during leaf development that can last for different periods in different plants as extensively described by Hagemann and Gleisberg in 1996.

We also argue that the leaf meristem is maintained and defined by WOX gene expression. In the NGA/TCP loss-of-function lines, this meristem continues unabated for the life of the plant, but in wild-type plants it is shut down early. Just as in the SAM or root, loss-of-function of the WOX genes results not in a complete loss of growth, but a failure to maintain a pluripotent stem cell population, e.g. wuschel mutants produce a few leaves but the failure to maintain a central zone results in an eventual loss of production of organs from the SAM. In the leaf, loss of wox1 and prs results in an analogous phenotype — production of a bit of leaf tissue but a failure to maintain continued marginal growth. Thus, prs wox1 mutations are epistatic to the NGA/TCP loss-of-function alleles. Further evidence of the role of these marginal cells comes from an experiment whereby the dimiR-NGA/TCP was driven with the PRS regulatory sequences, which also results in indeterminate meristematic growth at the leaf margin. While a major caveat may include inherent feedbacks, this experiment does suggest that the repression of WOX gene expression at the leaf margin is critical for whole leaf differentiation. Given our knowledge of hormone production in leaf margins, particularly auxin, this observation is not surprising.

2) The evidence against marginal meristems in later stages of leaf development is convincing (e.g., from Poethig & Sussex's clonal analysis in the 1980s). However, some believe they have not been ruled out earlier in development – if you define a marginal meristem in terms of undifferentiated, dividing cells close the margin, then most of a small leaf primordium qualifies. The interpretation is therefore that reducing NGA and CIN-TCP activity reveals the existence of a marginal meristem that is normally transient, that this supports an origin of the leaf from a condensed shoot system and that gain of NGA and CIN-TCP activities might have been involved in the condensation.

These statements are in accordance to the literature, e.g. that nearly the entire leaf primordium at an early stage is meristematic. This idea is further supported by classical experiments on the effects of surgical leaf primordia dissection at different stages, a discussion of which can be found in the modified Discussion. This is exactly the idea we were attempting to portray in our original paper, but it was perhaps too cryptic. We do hope that the new version makes our point clearer.

Does reduction in NGA and CIN-TCP activity really reveal a marginal meristem that occurs early in development of a wild-type leaf? We agree that there are similarities in gene expression between a young wild-type primordium and the margins of an older NGA/CIN-TCP-reduced leaf, but does this also extend to cell division and cell morphology (e.g., absence of elongated marginal cells)? Do these morphologies persist towards the base of the wild-type primordium, which retains its meristem-like gene expression for longer than the tip?

We have included additional observations that support the idea that the leaf marginal cells in NGA/TCP loss-of-function alleles resemble at the morphological and anatomical levels that cells at the margins of wild-type leaf primordia. See Figure 1—figure supplements 56.

3) Is there really a need to invoke an old concept (marginal meristem) that carries a lot of baggage? Especially since previous evidence indicates there is no persistent marginal meristem that establishes the leaf blade and since this paper doesn't address the existence of a marginal meristem in normal leaf growth. Indeed the continued proliferation of the leaf margins could be interpreted as an inability of the leaf margins to exit the early developmental phase that sets up the earliest outgrowth of the leaf margins and establishes the young leaf blades. Perhaps the Introduction and Conclusions could be presented in the context of either 1) addressing the problem of how organs find their correct final size or 2) what cellular components are required for leaves to progress from the pattern of growth typical of early primordium stage to the pattern of growth that defines the later stage leaf.

This appears to be a matter of semantics, whether one calls the meristematic activity at the margins of early wild-type leaf primordia and which continues in NGA/TCP loss-of-function allele a marginal meristem or rather early leaf meristematic activity that continues at the margins in NGA/TCP loss-of-function alleles. We would argue this amount to the same thing, if one accepts that the early leaf primordium is meristematic, especially at its margin.

We are not sure how our work (1) addresses how organs contribute to the correct final size, as this is a combination of both meristematic activity and cell enlargement. We only wish to state that local continued proliferation can contribute to leaf form, and that the temporal and spatial shutting down on the meristematic margin could be one mechanism by which leaf shape is sculpted. We are also not sure how our work relates to the identification of (2) cellular components that are required for leaves to progress from the pattern of growth typical of early primordium stage to the pattern of growth that defines the later stage leaf.

Does this mean what causes cells to differentiate once displaced from the meristem? If so, neither NGA nor TCP are required for this as cells displaced from the meristematic margin in the NGA/TCP loss-of-function alleles gradually differentiate into regular leaf tissues.

4) The authors find that some, but not all, of the genes involved in shoot apical meristem development also act at the proliferative leaf margins of the tcp nga mutant plants. The incomplete similarity is one of the important findings of this paper. For that reason, we suggest the following change to the Impact statement: "We describe a meristem acting at the margins of leaves, the activity of which requires some of the same, or paralogous, genetic factors as other shoot meristems, but its suppression employs factors acting primarily in leaves and other determinate organs."

This has been altered to reflect the suggestion of the reviewers. Our idea is that, since leaves evolved from shoot systems, similar molecular mechanisms may be involved in their potentials

“they could either share genetic components, or use paralogous components, or in some cases dispense with certain factors.”

5) In the absence of a clonal analysis or tracking of cells over time, which would be a big ask, marking cells with nail polish seems to provide good evidence for a marginal meristem. Marked cells appear to displaced internally, implying that growth occurs between them and the margin. Could we have this in the main figures and in more detail (e.g., showing whether some marked cells remain at the margin, consistent with sub-marginal initials and whether the growth separating the marks from the margin involves cell division).

We have moved these experimental results to the main text, see Figure 1. One problem with the proposed experiments is the expectation suggested. The central zone of the shoot apical meristem has been described as a permanent office with no permanent workers (Newman 1965), and there is no reason to suspect that the meristematic region at the leaf margin is any different. Thus, even if the experiment was feasible, we might not expect any markers, e.g. carbon particles, to reside continually at the margin. A clonal analysis experiment in the NGA/TCP loss-of-function background could provide some insight, but we consider this to be beyond the scope of this work.

6) The authors concentrate on development occurring at the leaf margins and this is indeed dramatic. But several of the genes targeted are expressed in leaf domains beyond the margins (e.g. TCP3,4 and NGA1,4). Do non-marginal regions of the leaf display differences in growth or are abnormalities limited to the margins? From some of the images, it appears that the central regions have relatively sparse venation – do NGA and TCP factors promote higher order venation in the central part of the leaf?

While we have concentrated on the marginal aspects of growth and differentiation, the observation that both NGA and TCP are broadly expressed in developing leaves suggests a function in regions of the leaf that are undergoing differentiation. In an attempt to separate the marginal function from other potential functions, the dimiR-NGA/TCP was driven with the PRS regulatory sequences. Comparisons of sections of these leaves with those from the more constitutively expressed dimiR reveal effects on cell expansion that appear independent from the phenotype of indeterminate growth — this data has been added in Figure 1—figure supplement 13.

Concerning possible differences vasculature development and ATHB8 expression (old Figure 1 1 K, L; new Figure 1M,N; old supplementary Figure 1 sup 7 new supplementary Figure 1 sup 10). We reevaluated vascular development using MP/ARF5:GFP as a provascular marker as shown in Figure 1—figure supplement 7. These data do not suggest a significant difference in older, more internal lamina tissues of 35S:miR319a/35S:amiR-NGA versus wild-type leaves per se. However, it does appear that in 35S:miR319a/35S:amiR-NGA leaves the midrib, which is not vascularised apart from the midvein, is considerably enlarged. This gives the impression of a larger internal region without vascular expression of either ATHB8: GUS or MP/ARF5:GFP. Also there is a tendency for the cleared, highly curled 35S:miR319a/35S:amiR-NGA leaves to tear when being flattened for examination that can open the leaf up internally and further the impression of limited vascular marker expression.

7) It would be good to establish the extent to which genes are knocked down by the artificial microRNAs or natural microRNAs in this study. Are all members of the gene family knocked down to the same extent? It should be relatively easy to do qRT-PCR experiments to answer this. Controls for more distantly related gene family members should be included.

Relevant data has been added as a data source file (file 4). It is also noted that the 35S:miR- NGA exhibits a phenotype indistinguishable from that of the nga1,2,3,4 quadruple mutant.

8) The authors concentrate on development occurring at the leaf margins and this is indeed dramatic. But several of the genes targeted are expressed in leaf domains beyond the margins (e.g. TCP3,4 and NGA1,4). Do non-marginal regions of the leaf display differences in growth or are abnormalities limited to the margins? From some of the images, it appears that the central regions have relatively sparse venation – do NGA and TCP factors promote higher order venation in the central part of the leaf.

Repeat of point 6.

Below are listed = the new/modified figures and the changes along with a rational for the changes.

Figure 1

Figure 1B I have replaced the 35S:miR319a nga1,2,3,4 leaf with one that is more dramatic and more typical.

Figure 1D has been replaced by an expansion of Figure 1—figure supplement 3 D1 and D2 in keeping with the reviewers requests.

Insertion of sections Figure 1E–G. The reviewers requested more detail on the margins and to put the data in the context of Nakata et al. 2012 paper. In that paper they present the P4-P5 leaf primordia of the wild type formed a six-cell-layered blade consisting of the epidermal, subepidermal and two inner cell layers. So, here we present similar stages in the context of the early primordial and present evidence that this is maintained in older 35S:miR319a/35S:amiR-NGA leaf margins.

Figure 1—figure supplement 3. Ongoing marginal growth in leaves with reduced CINTCP and NGA gene activities. In A, the original 35S:miR319a nga1,2,3,4 leaf was replaced with another 35S:miR319a nga1,2,3,4 leaf and a 35S:miR319a/35S:amiR-NGA leaf with a more dramatic and typical specimen.

Figure 1—figure supplement 5. SEM margins.

What was Figure 1—figure supplement 5. In the initial version had some SEM of the margins and morphological markers of the leaves and this has been split into two figures. One with SEM and the other with markers (Figure 1—figure supplement 7). Important detail was lost in the original in our opinion and this is more interesting and demonstrative.

Figure 1—figure supplement 6. Wild-type leaf margin cells exhibit a proximal to distal cell expansion gradient lost in 35S:amiR-NGA/35S:miR319a leaves.

A new figure detailing the proximal to distal marginal-cell-differentiation gradient as requested by the reviewers.

Figure 1—figure supplement 7. Morphological and marker analyses in leaves with reduced CIN-TCP and NGA gene activities. Again what was Figure 1—figure supplement 5. But the markers alone and MP/ARF5:GFP as a provascular marker included as the reviewers requested more detail on vasculature development.

Figure 1—figure supplement 8. Reduced NGATHA and CIN-TCP activity results in a meristematic leaf margin. New supplementary figure with sections which is an extension of Figure 1F–G. Puts sections in context and suggests that internally 35S:miR319a/35S:amiR-NGA leaves appear thicker, with larger cells.

Figure 1—figure supplement 11. PRS:GUS expression. Same as the original supplement except an older 35S:miR319a/35S:amiR-NGA leaf included (E) that used to be part of Figure 3 (originally Figure 3G)

Figure 1—figure supplement 13. Reduced NGATHA and CIN-TCP activity in the PRESSED FLOWER (PRS) domain alters leaf marginal growth. This is a new supplemental figure where the miR319a, amiR-NGA and miR-319a-amiR-NGA are expressed under control of the PRS promoter. This is to respond to the reviewers request to see if we can tease out the functions of the genes at the margins versus more internal regions. The microRNAs expressed at the margins via PRS influence growth and give indeterminate leaves in PRS>>miR-319a-amiR-NGA leaves. Notably the internal tissues of PRS>>miR-319a-amiR-NGA leaves do not exhibit the expanded thickness of 35S:miR319a/35S:amiR-NGA leaves suggesting a possible role for the NGATHAs, CIN-TCPs away from the margins may be to regulate cell expansion.

Figure 1—figure supplement 15. Morphological and marker analyses in cotyledons with reduced CIN-TCP and NGA gene activities. Modification of the original Figure 1—figure supplement 11. Morphological and marker analyses in cotyledons with reduced CIN-TCP and NGA gene activities from the previous version. We have additionally inserted ATML1- H2B-mYFP (margins) and MP/ARF5:GFP (vasculature) expression to be comparable with the leaf analysis and to provide supporting evidence for a marginal meristem in the embryonic cotyledons.

Figure 3. Removed Figure 3G which was the older leaf with PRS:GUS expression as this seemed redundant with PRS:GUS expression presented in Figure 1P and Figure 1—figure supplement 11. Figure 3 was then restructured to be bigger and more logical in flow. Also Figure 3A–F have been rearranged vertically to maintain a consistent adaxial-facing-up for transverse sections throughout the paper.

Figure 3—figure supplement 1. Arranged D-F vertically to be consistent with the sections in the rest of the paper-adaxial facing up. Added ad-adaxial, ab-abaxial.

https://doi.org/10.7554/eLife.15023.034

Article and author information

Author details

  1. John Paul Alvarez

    School of Biological Sciences, Monash University, Melbourne, Australia
    Contribution
    JPA, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    john.alvarez@monash.edu
    Competing interests
    The authors declare that no competing interests exist.
  2. Chihiro Furumizu

    School of Biological Sciences, Monash University, Melbourne, Australia
    Contribution
    CF, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  3. Idan Efroni

    The Robert H. Smith Institute of Plant Sciences and Genetics in Agriculture, The Hebrew University of Jerusalem, Rehovot, Israel
    Contribution
    IE, Acquisition of data, Analysis and interpretation of data
    Competing interests
    The authors declare that no competing interests exist.
  4. Yuval Eshed

    Department of Plant and environmental Sciences, Weizmann Institute of Science, Rehovot, Israel
    Contribution
    YE, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    yuval.eshed@weizmann.ac.il
    Competing interests
    The authors declare that no competing interests exist.
  5. John L Bowman

    1. School of Biological Sciences, Monash University, Melbourne, Australia
    2. Department of Plant Biology, University of California, Davis, Davis, California, United States
    Contribution
    JLB, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    John.Bowman@monash.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0001-7347-3691

Funding

Australian Research Council (DP110100070)

  • John Paul Alvarez
  • Chihiro Furumizu
  • John L Bowman

Israel Science Foundation (863-06)

  • John Paul Alvarez
  • Yuval Eshed

United States - Israel Binational Agricultural Research and Development Fund (3767-05)

  • John Paul Alvarez
  • Yuval Eshed
  • John L Bowman

Australian Research Council (DP130100177)

  • John Paul Alvarez
  • Chihiro Furumizu
  • John L Bowman

Australian Research Council (DP160100892)

  • John Paul Alvarez

European Molecular Biology Organization (185-2010)

  • Idan Efroni

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Masao Tasaka, Tom Gerats, Fred Sack, Adrienne Roeder, John Celenza, Peter Doerner, Jiří Friml, Dolf Weijers, Philip Benfey and Ji-Young Lee as well as the Arabidopsis Biological Resource Center (ABRC), Ohio State University, USA for plant material. We are grateful to David Smyth, Naomi Ori, Sureshkumar Balasubramanian, and Alexander Goldschmidt for helpful discussions as well as members of the Bowman laboratory for their valuable input. The authors acknowledge the facilities, scientific and technical assistance of Monash Micro Imaging, Monash University and Joan Clark as well as David Stewart from Zeiss for technical assistance. We also thank the Electron Microscopy Unit, Weizmann Institute of Science. Idan Efroni was supported by an EMBO Long term fellowship 185–2010. This work was supported by Australian Research Council grants DP110100070, DP130100177, DP160100892 (JLB) and Research Grant 863–06 from ISF (YE) and 3767–05 from BARD (YE and JLB).

Reviewing Editor

  1. Richard Amasino, Reviewing Editor, University of Wisconsin, United States

Publication history

  1. Received: February 5, 2016
  2. Accepted: September 30, 2016
  3. Accepted Manuscript published: October 6, 2016 (version 1)
  4. Accepted Manuscript updated: October 11, 2016 (version 2)
  5. Version of Record published: November 4, 2016 (version 3)

Copyright

© 2016, Alvarez et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,963
    Page views
  • 1,034
    Downloads
  • 8
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading
