Combined ALK and MDM2 inhibition increases antitumor activity and overcomes resistance in human ALK mutant neuroblastoma cell lines and xenograft models

  1. Hui Qin Wang
  2. Ensar Halilovic
  3. Xiaoyan Li
  4. Jinsheng Liang
  5. Yichen Cao
  6. Daniel P Rakiec
  7. David A Ruddy
  8. Sebastien Jeay
  9. Jens U Wuerthner
  10. Noelito Timple
  11. Shailaja Kasibhatla
  12. Nanxin Li
  13. Juliet A Williams
  14. William R Sellers
  15. Alan Huang
  16. Fang Li  Is a corresponding author
  1. Novartis Institutes for BioMedical Research, United States
  2. Novartis Institutes for BioMedical Research, Switzerland
  3. Genomics Institute of the Novartis Research Foundation, United States
Research Article
  • Cited 15
  • Views 1,669
  • Annotations
Cite this article as: eLife 2017;6:e17137 doi: 10.7554/eLife.17137

Abstract

The efficacy of ALK inhibitors in patients with ALK-mutant neuroblastoma is limited, highlighting the need to improve their effectiveness in these patients. To this end, we sought to develop a combination strategy to enhance the antitumor activity of ALK inhibitor monotherapy in human neuroblastoma cell lines and xenograft models expressing activated ALK. Herein, we report that combined inhibition of ALK and MDM2 induced a complementary set of anti-proliferative and pro-apoptotic proteins. Consequently, this combination treatment synergistically inhibited proliferation of TP53 wild-type neuroblastoma cells harboring ALK amplification or mutations in vitro, and resulted in complete and durable responses in neuroblastoma xenografts derived from these cells. We further demonstrate that concurrent inhibition of MDM2 and ALK was able to overcome ceritinib resistance conferred by MYCN upregulation in vitro and in vivo. Together, combined inhibition of ALK and MDM2 may provide an effective treatment for TP53 wild-type neuroblastoma with ALK aberrations.

https://doi.org/10.7554/eLife.17137.001

Introduction

Neuroblastoma is a common pediatric solid tumor that arises from neural crest cells, typically in the adrenal medulla or paraspinal ganglia with metastases to bone and bone marrow in high-risk cases (Maris, 2010). It remains a leading cause of childhood cancer-related death despite the use of multimodal dose-intensive chemotherapy, radiation therapy and immunotherapeutic strategies (Smith et al., 2010). More effective therapeutic approaches are needed to improve cure rates among children with high-risk neuroblastoma while minimizing treatment-related toxicity. Recent efforts have been directed toward the development of new treatment strategies targeting validated molecular abnormalities underlying the malignant process.

Highly penetrant, heritable ALK mutations have been identified as the major cause of familial neuroblastoma. Somatic mutations in ALK are also found as oncogenic drivers in up to 10% of sporadic neuroblastoma with a gene amplification frequency of approximately 2% (Chen et al., 2008; George et al., 2008; Janoueix-Lerosey et al., 2008; Mossé et al., 2008). These mutations cause single amino acid substitution in the ALK kinase domain and result in autophosphorylation and constitutive activation of the RTK. The most frequently mutated residues, R1275, F1174 and F1245, account for 85% of mutations in ALK (Bresler et al., 2014). The discovery of germline and somatic activating mutations in ALK provides a molecular rationale and a tractable target for treating neuroblastoma.

Crizotinib is a small-molecule adenosine triphosphate (ATP)-competitive inhibitor that has activity against ALK, MET and ROS1 RTKs (Cui et al., 2011). Therapy with crizotinib has significant clinical activity in patients with non-small cell lung cancer (NSCLC), anaplastic large cell lymphoma (ALCL) and inflammatory myofibroblastic tumor (IMT) that harbor ALK rearrangements (Kwak et al., 2010; Mossé et al., 2013). The marked clinical success of crizotinib in treating ALK-positive NSCLC tumors led to an early phase clinical trial in patients with recurrent or refractory neuroblastoma (Mossé et al., 2013). However, only one of 11 neuroblastoma patients with known ALK mutations responded in this study. Ceritinib is a second-generation ALK inhibitor that has 20-fold higher potency against ALK than crizotinib in enzymatic assays (Marsilje et al., 2013). It has demonstrated marked clinical activity in both crizotinib-naive and crizotinib-relapsed ALK-positive NSCLC patients (Shaw et al., 2014). In a phase I study of pediatric cancer, 14 neuroblastoma patients with known ALK mutations were treated with ceritinib (Birgit Geoerger et al., 2015). To date, only two patients showed partial responses, and one patient with ALK F1174L mutated neuroblastoma had shrinkage of a retroperitoneal mass. Overall, the responses of relapsed neuroblastoma with known ALK-activating mutations to crizotinib or ceritinib were not optimal for such targeted therapies.

ALK F1174L and F1174C mutations were identified as acquired resistance mutations in oncogenic ALK fusion proteins during crizotinib and ceritinib treatments, respectively (Friboulet et al., 2014; Sasaki et al., 2010). Biochemical analyses revealed that the F1174L mutation increased ATP-binding affinity of ALK and reduced its susceptibility to crizotinib inhibition (Bresler et al., 2014, Bresler et al., 2011). In a recent study, Infarinato and colleagues have shown that PF06463922, a highly potent ALK inhibitor for wild-type ALK and various ALK mutants, exhibits superior antitumor activity in neuroblastoma xenografts harboring the ALK F1174L mutation (Infarinato et al., 2016), providing a rationale for assessing the efficacy of newer generation ALK inhibitors in clinical trials for treating patients with ALK-mutated neuroblastoma. However, the majority of the tumors that harbor the crizotinib- and ceritinib-sensitive ALK R1275Q mutation did not respond in the trials of crizotinib and ceritinib in neuroblastoma patients (Mossé et al., 2013; Birgit Geoerger et al., 2015). These results suggest that the low response rates in these clinical studies is not likely to be solely attributed to the inherent primary resistance caused by the ALK F1174 substitutions in neuroblastoma. In addition, ALK mutations have been identified in both low- and high-risk neuroblastoma with equal frequency (Bresler et al., 2014), suggesting that activated ALK cooperates with other oncogenic aberrations to define high- versus low-risk tumors. For example, ALK mutations are frequently observed in MYCN-amplified neuroblastomas, and most of ALK amplifications co-occur with MYCN amplification (George et al., 2008; Bresler et al., 2014; Bagci et al., 2012; De Brouwer et al., 2010). ALK mutations that co-occur with MYCN amplification are biased toward F1174 substitutions. Constitutively, activated ALK synergizes with MYCN overexpression in inducing neuroblastoma in animal models, and the co-occurrence of ALK F1174 mutations and MYCN amplification defines a subset of neuroblastoma patients with particularly poor outcome (Berry et al., 2012; Heukamp et al., 2012; Zhu et al., 2012). Therefore, the co-occurrence of mutations in ALK with dysregulation in other oncogenic drivers, such as MYCN amplification, may further limit the activity of single-agent ALK inhibitors.

Combinatorial therapies that target other signaling pathways in addition to ALK may be required to improve the effectiveness of ALK inhibitors in neuroblastomas that harbor ALK aberrations. In this study, we assessed the antitumor activity of ceritinib in combination with NVP-CGM097, a potent and selective small molecule inhibitor of MDM2, in ALK-mutated or ALK-amplified neuroblastoma models. MDM2 functions as an E3 ubiquitin ligase that targets p53 for proteasome-mediated degradation. p53 protein plays a critical role in tumor suppression by regulating the expression of genes involved in cell cycle arrest and apoptosis. Thus, CGM097 exerts its antitumor effects by stabilizing p53 and activating p53 pathways (Jeay et al., 2015; Weisberg et al., 2015). However, to elicit these responses, tumor cells must possess wild-type or functional p53 (Jeay et al., 2015; Weisberg et al., 2015). In contrast to the high frequency of TP53 mutations observed in many human cancers of adults, mutations of TP53 have been reported in less than 2% of neuroblastomas at diagnosis and 15% at relapse (Carr-Wilkinson et al., 2010; Tweddle et al., 2003). Here, we report that the combination of ceritinib with CGM097 promotes apoptosis in ALK mutant/TP53 wild-type neuroblastoma cell lines and results in complete tumor regression and markedly prolonged survival in neuroblastoma xenograft models. In addition, ceritinib and CGM097 combination overcomes acquired ceritinib resistance caused by MYCN upregulation in an ALK-driven neuroblastoma model. Our study as well as the exceptionally low rate of TP53 mutations in neuroblastoma provides the rationale for testing combinatorial inhibition of ALK and MDM2 as a therapeutic approach for treating TP53 wild-type neuroblastomas with aberrantly activated ALK.

Results

Treatment of single-agent ALK inhibitors is not sufficient for maximal antitumor effect in neuroblastoma models expressing constitutively activated ALK

We first examined the anti-proliferative and cytotoxic effect of four ALK inhibitors – crizotinib, ceritinib, alectinib and PF06463922 – in four neuroblastoma cell lines that harbor ALK aberrations. These cell lines were characterized with respect to their genetic status of ALK, MYCN and TP53 (Table 1). Crizotinib, ceritinib and alectinib have been approved by multiple health authorities to treat advanced NSCLC harboring ALK rearrangements, whereas PF06463922 is a next-generation ALK inhibitor with higher potency and selectivity and appears to be active against all known clinically acquired ALK mutations (Johnson et al., 2014; Zou et al., 2015). Zou et al. have directly compared the potency of crizotinib, ceritinib, alectinib and PF06463922 in Ba/F3 cells engineered to express wild-type or F1174L-mutated EML4-ALK (Zou et al., 2015). They reported that the IC50 values of crizotinib, ceritinib, alectinib and PF06463922 on cell proliferation of Ba/F3 cells expressing wild-type EML4-ALK were 88 nM, 25 nM, 39 nM and 2.7 nM, respectively; and 106 nM, 40 nM, 28 nM and 4.8 nM, respectively, in Ba/F3 cells expressing EML4-ALK F1174L mutant.

Table 1

ALK-amplified, ALK-mutant and ALK wild-type neuroblastoma cell lines of varying TP53 and MYCN status.

https://doi.org/10.7554/eLife.17137.002
Cell lineALK statusMYCN statusTP53 status
 NB-1AmpAmpWt
 SH-SY5YF1174LNon-AmpWt
 KP-N-RT-BM-1F1174LAmpWt
 NB-1643R1275QAmpWt
 IMR-32WtAmpWt
 KELLYF1174LAmpMut
  1. Amp, amplified; Non-Amp, non-amplified; Wt, wild type; Mut, mutant

NB-1 cells, which carry ALK amplification and no ALK mutations in the kinase domain, displayed pronounced dose-dependent decrease in cell viability when treated with the four ALK inhibitors (Figure 1A). The sensitivity of NB-1 matches the potency of these ALK inhibitors in Ba/F3 cells expressing wild-type EML4-ALK as reported by Zou et al. (201)5 (Figure 1B) and was reflected by the levels of inhibition of phospho-ALK and the components of the downstream signaling of ALK (Figure 1C). We next assessed the activity of ceritinib against xenografts derived from NB-1 cells. The response of NB-1 xenografts to ceritinib was transient, and tumors resumed growth 2 weeks after the start of the treatment (Figure 3A and Figure 3—source data 1), suggesting that single-agent ALK inhibition may not be sufficient to achieve durable response in a subset of ALK-driven neuroblastoma tumors.

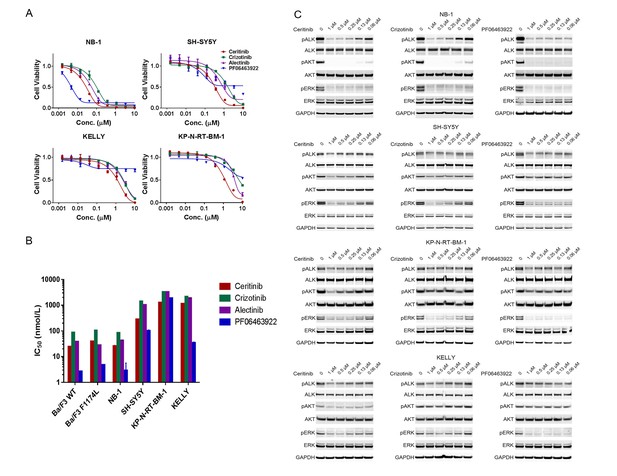

ALK inhibitors inhibit or partially inhibit the proliferation of neuroblastoma cell lines harboring ALK aberrations.

(A) Dose response curves of ALK-amplified or ALK mutant neuroblastoma cell lines exposed to the ALK inhibitors ceritinib, crizotinib, alectinib and PF06463922. Relative cell growth was quantified using CellTiter-Glo on day 6. Data are shown as mean ± SEM from three biological replicates. (B) IC50 values of ceritinib, crizotinib, alectinib and PF06463922 across Ba/F3 cells expressing wild-type or F1174L-mutated EML4-ALK and neuroblastoma cell lines harboring ALK aberrations. The data of Ba/F3 cells were reported by Zou and colleagues (28). (C) Inhibition of ALK autophosphorylation and downstream signaling by ceritinib, crizotinib and PF06463922 in ALK-amplified or ALK mutant neuroblastoma cell lines. Cells were harvested after treatment for 4 hr with the indicated compounds at different concentrations. Whole cell lysates were analyzed by Western blotting to detect the levels of ALK, AKT and ERK proteins and their phosphorylation.

https://doi.org/10.7554/eLife.17137.003

All these four ALK inhibitors displayed reduced anti-proliferative activity in the neuroblastoma cell lines that harbor the ALK F1174L mutation compared with NB-1 (Figure 1A and B). Although PF06463922 most robustly inhibited phospho-ALK and phospho-ERK in these cell lines (Figure 1C), we did not observe significantly greater growth inhibition in the F1174L-mutated cell lines by PF06463922 compared with crizotinib, ceritinib and alectinib (Figure 1A). Consistent with prior observations (Infarinato et al., 2016), PF06463922 caused a partial growth inhibition in cell lines with the ALK F1174L mutation (Figure 1A), presumably due to the high specificity of PF06463922 for ALK. In addition, the IC50 values for the four ALK inhibitors in the F1174L neuroblastoma cell lines were 10 to 100-fold higher than the IC50 values in Ba/F3 cells expressing EML4-ALK F1174L mutant (Zou et al., 2015) (Figure 1B). These data suggest that, in addition to ALK signaling, other pathways may contribute to the survival of the F1174L-mutated neuroblastoma cells. To further assess the activity of ceritinib against neuroblastoma tumors that harbor the F1174L mutation in vivo, we examined the antitumor effect of ceritinib in SH-SY5Y xenograft tumors in mice. Treatment of ceritinib showed limited efficacy in SH-SY5Y xenograft tumors, resulting in slower tumor growth compared with vehicle-treated mice (Figure 3A and Figure 3—source data 1). Altogether, these data suggest that ALK inhibition alone is not sufficient to achieve durable and deep responses in neuroblastoma tumors that contain ALK aberrations, and that a combination therapy that consists of an ALK inhibitor and a second agent is required.

Concurrent activation of the tumor suppressor p53 and inhibition of ALK synergistically suppress neuroblastoma growth

Small-molecule MDM2 antagonists that disrupt the interaction between p53 and MDM2 to activate the p53 pathway have shown initial signs of antitumor efficacy in patients with solid and hematologic malignancies (Andreeff et al., 2016; Ray-Coquard et al., 2012). MDM2 antagonists function through activation of p53 and hence efficacy of this therapeutic class is restricted to tumors that retain wild-type TP53. Mutations in TP53 occur rarely in neuroblastoma (Tweddle et al., 2003), and p53 pathway is mainly inactivated through mechanisms that affect stability and nuclear shuttling of p53 protein, such as MDM2 amplification and p14ARF impairment (Carr-Wilkinson et al., 2010). These tumors should remain amenable to MDM2 inhibition. In order to test this, we examined the anti-proliferative effect of the MDM2 inhibitor CGM097 in a panel of neuroblastoma cell lines, including five TP53 mutant and six TP53 wild-type cell lines (Figure 2A). Consistent with the mechanism of action of MDM2 inhibitors, the TP53 wild-type neuroblastoma cell lines were significantly more sensitive than the TP53 mutant cell lines. Whereas all five TP53 mutant cell lines had IC50 values greater than 11 µM, the IC50 values of all the TP53 wild-type cell lines were below 3.5 µM (range 0.8–3.5 µM) (Figure 2A). To evaluate the in vivo antitumor activity of CGM097 against TP53 wild-type neuroblastoma tumors that harbor wild-type ALK or ALK aberrations, we treated xenografts derived from ALK-amplified NB-1 cells, F1174L-mutated SH-SY5Y cells, R1275Q-mutated NB-1643 cells and ALK wild-type IMR-32 cells. CGM097 alone at 50 mg/kg/day demonstrated no inhibition of tumor growth in these models (Figure 3A and Figure 3—source data 1), suggesting that single-agent treatment with MDM2 inhibitors is not sufficient to inhibit the growth of TP53 wild-type neuroblastoma tumors expressing wild-type or activated ALK.

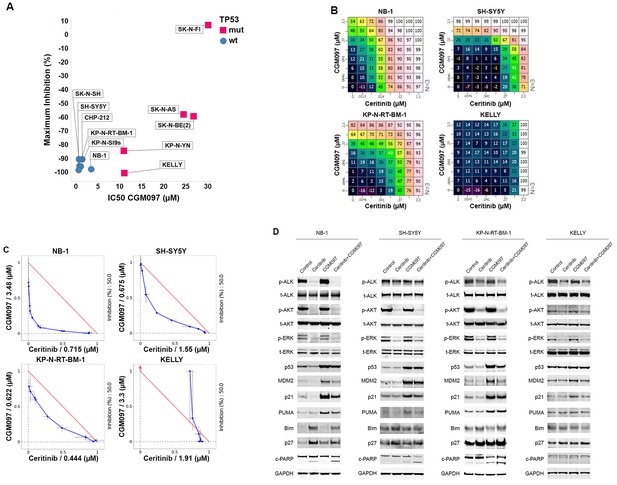

Combination of ceritinib with CGM097 leads to increased antitumor activity in TP53 wild-type neuroblastoma cell lines harboring ALK aberrations.

(A) Sensitivity of a panel of TP53 wild-type and mutant neuroblastoma cell lines to CGM097 treatment for 72 hr. Maximum percentages of inhibition are on the y-axis, and IC50 values are on the x-axis. (B) Growth effects of combining ceritinib and CGM097 in ALK-amplified or ALK mutant neuroblastoma cells. In each grid, the effects correspond to increasing doses of CGM097 on the y-axis and increasing doses of ceritinib on the x-axis. All remaining points on the grid display the results of the combination of the two inhibitors that correspond to the single-agent concentrations denoted on the two axes. Values are displayed as percentage of inhibition based on comparisons made with the Day 3 untreated controls. (C) Isobologram analysis of the data in (B). Doses of CGM097 are on the y-axis, and ceritinib on the x-axis. The red straight line in each panel defines all the pairs of doses of ceritinib and CGM097 that lead to 50% of proliferation inhibition from simple additivity. The points on the blue curve represent the actual doses of ceritinib and CGM097, when combined, to achieve 50% of inhibition. The blue curves of the TP53 wild-type cell lines bow under the red lines, indicating the combination of ceritinib and CGM097 is synergistic. (D) Enhanced apoptosis as evidenced by increased levels of cleaved PARP in TP53 wild-type neuroblastoma cells with ALK amplification or mutation when treated with ceritinib in combination with CGM097. Cells were incubated with DMSO, 1 µM ceritinib, 2 µM CGM097 and 1 µM ceritinib plus 2 µM CGM097 for 16 hr.

https://doi.org/10.7554/eLife.17137.004

The identification of ALK-activating mutations in a subset of neuroblastoma tumors, the extremely low mutation rate of TP53 and the insufficiency of single-agent ALK or MDM2 inhibitors to inhibit the growth of this type of tumors prompted us to hypothesize that inhibition of the ALK pathway with concurrent induction of the p53 pathway might result in synergistic antitumor effects. To test this hypothesis, we exposed the four neuroblastoma cell lines that harbor ALK aberrations to combinations of ceritinib and CGM097. Of these four cell lines, one carried TP53 mutation (KELLY), and the rest were TP53 wild-type (Table 1). Cells were exposed to ceritinib and CGM097 at concentrations ranging from 0 to 3.3 µM and cell proliferation was measured at 72 hr. The 64 different combinations for each cell line are depicted in a dose matrix in which percentages of growth inhibition relative to non-treated cells are indicated and visualized using a color scale (Figure 2B). A combination index that measures dose shifting when combination treatments achieve a 50% growth inhibitory effect was calculated from the isobologram for each cell line to represent the strength of synergy (Lehár et al., 2009). An examination of these matrices indicates that the combinations of ceritinib and CGM097 at the concentrations greater than 100 nM resulted in improved growth inhibition compared to treatments with either compound alone in all three TP53 wild-type cell lines (Figure 2B). Isobologram analysis revealed that the effects of combining ceritinib and CGM097 were synergistic in these three cell lines (Figure 2C). In contrast to the TP53 wild-type cell lines, CGM097 alone was completely ineffective in inhibiting the growth of the TP53-mutated KELLY cells, and no improved growth inhibition of the combination was observed in these cells (Figure 2B and C).

To elucidate the molecular mechanism of synergy between the ALK and MDM2 inhibitor, we examined their effects on protein signaling and pathway modulation. Effective target inhibition was achieved with CGM097, as evident by an accumulation in p53 protein itself and the induction of p53 direct effectors, p21 and MDM2 proteins (Figure 2D). Ceritinib caused a reduction of phospho-ALK, phospho-AKT and phospho-ERK signaling, likewise demonstrating effective target and pathway inhibition (Figure 2D). As expected, CGM097 was unable to induce p53 protein or its downstream effectors in TP53 mutant KELLY cells as expected (Figure 2D). When the components in the cell cycle and apoptosis pathways were examined, CGM097 caused induction of p21 and PUMA, while ceritinib caused induction of p27 and Bim (Figure 2D). Therefore, together ceritinib and CGM097 induced a complementary, yet non-overlapping set of anti-proliferative and apoptosis-stimulating molecules, which resulted in synergistic antitumor effects (Figure 2D). Only when combined, the two compounds could cause significant increase of cleaved PARP (Figure 2D), suggesting that the combination leads to cell death.

Given the improved in vitro efficacy of combined ALK and MDM2 inhibition, we next determined whether ceritinib in combination with CGM097 was effective in the neuroblastoma mouse xenograft models. Mice bearing tumor xenografts were treated with vehicle, ceritinib, CGM097 or both. CGM097 was not effective in NB-1 (ALK amplified), SH-SY5Y (ALK F1174L) and NB-1643 (ALK R1275Q) models (Figure 3A and Figure 3—source data 1). In ceritinib single-agent treated group, NB-1 tumors exhibited an initial shrinkage, but resumed growth quickly (Figure 3A and Figure 3—source data 1). Ceritinib monotherapy was partially effective in the SH-SY5Y and NB-1643 models, resulting in slower tumor growth compared with the vehicle-treated group (Figure 3A and Figure 3—source data 1). In contrast to the limited or transient responses to the single-agent treatments, the combination led to complete and durable tumor regressions throughout treatment period in NB-1, SH-SY5Y and NB-1643 models (Figure 3A and Figure 3—source data 1). Two (NB-1) or eight (SH-SY5Y) weeks after the combination treatment was stopped, two out of five animals and three out of four animals showed tumor regrowth for NB-1 and SH-SY5Y, respectively (Figure 3A and Figure 3—source data 1). The recurrent tumors remained sensitive to the combination treatment (data not shown), suggesting that the residual disease was not completely eliminated in a subset of animals. Neither single agent nor combination treatments showed antitumor activity in the IMR-32 xenograft tumors that contain wild-type ALK and TP53 (Figure 3A and Figure 3—source data 1), suggesting that the combined inhibition of ALK and MDM2 provides an effective treatment in TP53 wild-type neuroblastoma with ALK aberrations. The in vivo administration of ceritinib in combination with CGM097 for 3 days resulted in inhibition of phospho-ALK, induction of p21 and increased levels of cleaved PARP compared with either single agent alone (Figure 3B), which is in agreement with the observations made in vitro.

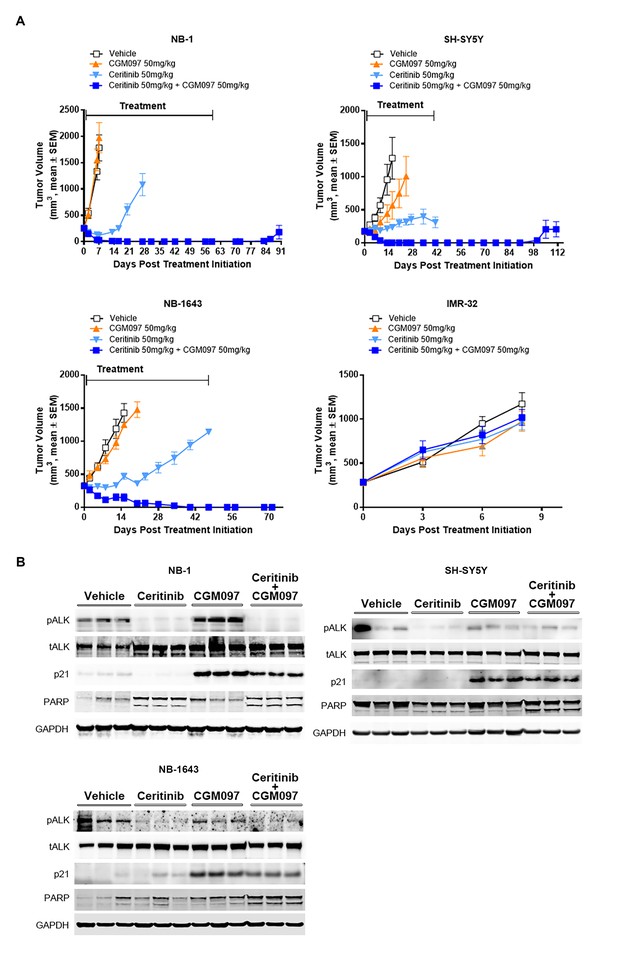

Combination of ceritinib with CGM097 leads to increased antitumor activity in TP53 wild-type neuroblastoma xenograft tumors harboring ALK aberrations.

(A) The improved in vivo efficacy in the NB-1, SH-SY5Y and NB-1643 xenograft mouse models that harbor wild-type TP53 and ALK aberrations when ceritinib was combined with CGM097 and lack of antitumor activity of this combination in the IMR-32 xenograft tumors that harbor wild-type TP53 and ALK. The neuroblastoma cell lines NB-1, SH-SY5Y and IMR-32 were implanted into the flanks of nude mice and NB-1643 in SCID mice. Animals were randomized into four groups when the average tumor volume was 200–300 mm3 and received vehicle, ceritinib (50 mg/kg), CGM097 (50 mg/kg) or both inhibitors in combination. Combination of ceritinib with CGM097 was withdrawn on day 60 and day 45 for NB-1 and SH-SY5Y, respectively, to allow tumor regrowth. Tumor dimensions and body weights were measured at the time of randomization and twice weekly thereafter for the study duration. Average tumor volume and SEM are shown as a function of time. (B) Inhibition of phospho-ALK, induction of p21 and increased levels of cleaved PARP in NB-1, SH-SY5Y and NB-1643 xenograft tissues treated with ceritinib in combination with CGM097. Animals were treated with vehicle, ceritinib (50 mg/kg), CGM097 (50 mg/kg) or both inhibitors in combination for 3 days. Tumor tissues were recovered 4 hr after the last dose treatment and analyzed by Western blotting.

https://doi.org/10.7554/eLife.17137.005

The transcription of genes encoding ribosomal proteins and the protein level of MYCN are increased in NB-1 ceritinib-resistant tumors

Although tumors in ceritinib single-agent treated NB-1 mouse xenografts exhibited initial regressions, these tumors quickly resumed growth (Figure 3A and Figure 3—source data 1). To identify the molecular mechanism that allowed these tumors to grow out in the presence of continued ALK inhibition, we sequenced poly(A)-selected RNA extracted from tissues of NB-1 tumors that progressed on ceritinib treatment and those treated with a vehicle to identify differentially expressed genes between these two groups. We found a marked increase in the expression of a group of genes in the ceritinib-resistant tumors when we plotted the gene expression levels of the ceritinib-resistant tumors versus those of the vehicle-treated tumors (Figure 4A and Supplementary file 1). Interestingly, the majority of these genes upregulated in the ceritinib-resistant tumors encode RPS and RPL proteins of the small and large ribosomal subunits and translation elongation factors (Figure 4A). The Myc family of transcription factors stimulates ribosome biogenesis by enhancing the transcription of ribosomal RNA and genes encoding many RPS and RPL proteins (van Riggelen et al., 2010). In addition, MYCN has been shown to upregulate the transcription of RPS and RPL genes and translation initiation and elongation factors in human neuroblastoma cell lines (Boon et al., 2001). With the selective upregulation of genes encoding proteins of the small and large ribosomal subunits in the ceritinib resistant tumors, we hypothesized that the expression of MYCN might be increased in these tumors. Western blot analysis of three individual tumors collected from the vehicle-treated or ceritinib-resistant mice revealed an increase in the expression of MYCN in the NB-1 ceritinib-resistant tumors (Figure 4B).

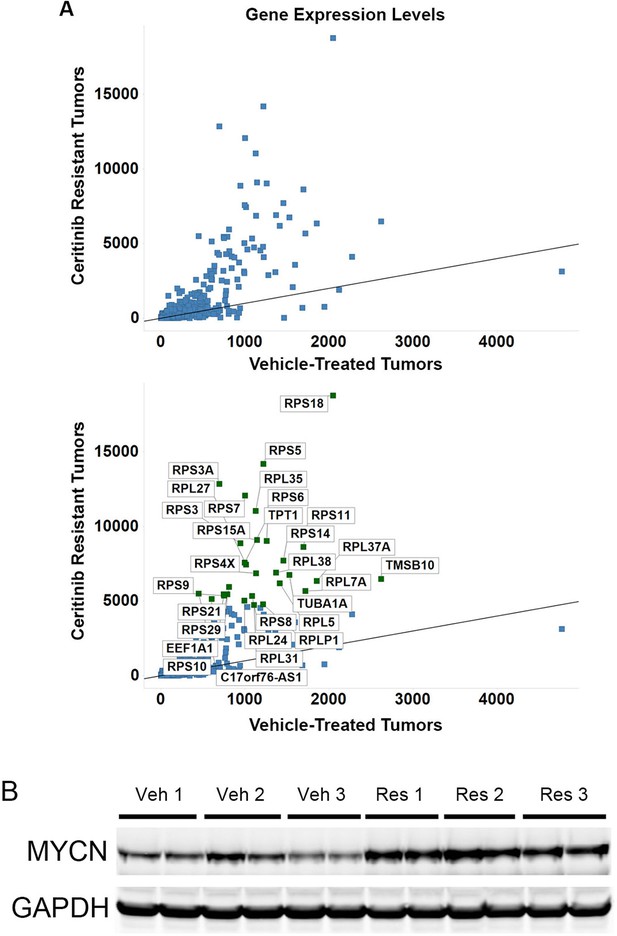

The transcription of ribosomal proteins and the protein level of MYCN are increased in NB-1 ceritinib-resistant tumors.

(A) Upregulation of transcription of ribosomal protein components in NB-1 ceritinib-resistant tumors. RPS and RPL genes encode proteins of the small and large ribosomal subunits, respectively. The lower panel is identical to the upper panel except that the upregulated genes are labeled with their gene symbols. NB-1 tumors that progressed under treatment with 50 mg/kg ceritinib and NB-1 tumors treated with vehicle as shown in Figure 3A were analyzed by RNA-Seq. Gene expression levels quantified by FPKM are shown as the average from two individual tumors in each group. FPKM, Fragments Per Kilobase of transcript per Million fragments mapped. (B) Upregulation of MYCN protein in NB-1 ceritinib-resistant tumors. Tissues of NB-1 tumors that progressed during treatment with 50 mg/kg ceritinib and NB-1 tumors treated with vehicle as shown in Figure 3A were recovered and analyzed by Western blot analysis. Veh, vehicle-treated tumors. Res, ceritinib-resistant tumors.

https://doi.org/10.7554/eLife.17137.007

Increase in MYCN expression causes resistance to ceritinib in the NB-1 cells and CGM097 restores their sensitivity to ceritinib

To further investigate the role of MYCN upregulation in resistance to ceritinib, we exposed the NB-1 cells to 0.2 µM ceritinib in vitro. Initially, a large portion of the cells was killed or showed no signs of proliferation. After 3 weeks of treatment, the cells grew out in the presence of 0.2 µM ceritinib. The resultant cell line, NB-1R, showed significantly decreased sensitivity to ceritinib as compared to the parental cell line (Figure 5A). Similar to the observations made in the ceritinib-resistant NB-1 xenografts, Western blot analysis of these ceritinib-resistant cells revealed markedly increased expression of MYCN (Figure 5B). However, ALK signaling was strongly suppressed in the resistant cells, as exemplified by reduced levels of phospho-ALK, phospho-AKT and phospho-ERK (Figure 5B). We further developed PF06463922-resistant SH-SY5Y and KP-N-RT-BM-1 cells by treating the parental cells with 1 µM of PF06463922 for 3 to 4 months (Figure 5—figure supplement 1A). To achieve adequate ALK inhibition while avoiding the off-target effects associated with high concentrations of ceritinib, we chose PF06463922 as the ALK inhibitor for these two cell lines because it is more potent against the ALK F1174L mutation than ceritinib. The levels of MYCN were again markedly increased in these two PF06463922-resistant cell lines compared to their parental cells (Figure 5—figure supplement 1B). These results suggest that despite the ALK inhibitor-mediated suppression of ALK signaling, MYCN upregulation may be sufficient to drive proliferation in the presence of ALK inhibitors.

Figure 5 with 2 supplements see all

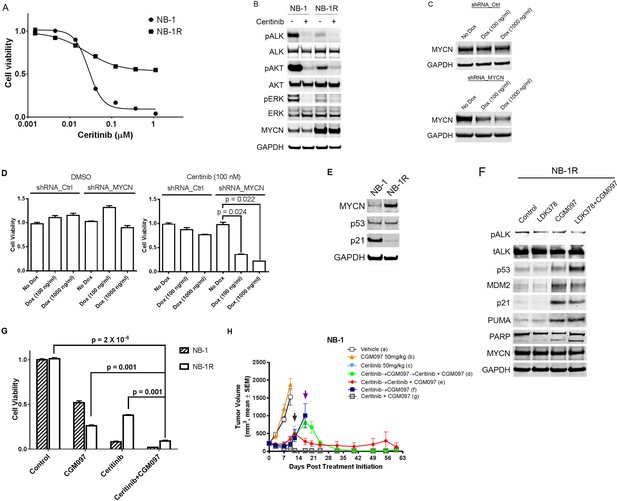

CGM097 restores ceritinib sensitivity in NB-1 cells that develop resistance to ceritinib as a result of increased level of MYCN.

(A) Decreased sensitivity of NB-1R cells to ceritinib in vitro. NB-1R cells were derived from NB-1 cells by growing them in 200 nM ceritinib for 3 weeks. (B) Upregulation of MYCN in NB-1R cells. NB-1 parental and resistant cells were treated with ceritinib for 2 hr, and cell extracts were immunoblotted to detect the indicated proteins. (C) Downregulation of MYCN by a doxycycline-inducible MYCN-specific shRNA in NB-1R cells. Lentiviral doxycycline-inducible vectors containing non-target control sequence or shRNA against MYCN were introduced into NB-1R cells. The cells were exposed to doxycycline at increased concentrations for 7 days, and cell extracts were immunoblotted with MYCN antibodies. Dox, Doxycycline. (D) Restored sensitivity of NB-1R cells to ceritinib by knocking down the expression of MYCN. Doxycycline-inducible control and MYCN-specific shRNAs were introduced into NB-1R cells. The cells were treated with DMSO or 0.2 µM ceritinib in the presence or absence of doxycycline for 14 days. Relative cell growth was quantified using the CellTiter-Glo assay. Data are shown as mean ± SEM from three biological replicates. (E) Downregulation of p21 in NB-1R cells. Cell lysates of parental and resistant cells were immunoblotted to detect the indicated proteins. (F) Restored level of p21 in NB-1R cells treated with CGM097. NB-1R cells were treated for 16 hr with 0.2 µM ceritinib alone, 1 µM CGM097 alone, or the two compounds in combination. Cells were harvested after the treatments, and cell lysates were analyzed by Western blotting. (G) Increased anti-proliferative activity of ceritinib in combination with CGM097 in NB-1R cells. NB-1 parental and NB-1R cells were treated with 0.2 µM ceritinib alone, 1 µM CGM097 alone, or the two compounds in combination for 6 days. Relative cell growth was quantified using the CellTiter-Glo assay. Data are shown as mean ± SEM from three biological replicates. (H) Restored ability of ceritinib to inhibit ceritinib-resistant NB-1 tumor growth when it was combined with CGM097 in vivo. Animals were randomized into treatment groups following NB-1 cell implantation when the average tumor volume was ~ 220–250 mm3, and treatments were initiated. On day 10, mice in vehicle and CGM097-treated groups were taken down. On day 12, tumors in mice treated with 50 mg/kg ceritinib progressed, and they were randomized into the following groups: (1) ceritinib treatment was terminated and CGM097 treatment was started at the time point indicated by black arrow (dark blue curve), (2) ceritinib treatment was terminated and CGM097 treatment was started at the time point indicated by black arrow, and then treatment with ceritinib and CGM097 combination was started at the time point indicated by purple arrow (green curve), (3) ceritinib treatment was terminated and ceritinib and CGM097 combination treatment was started at the time point indicated by black arrow (red curve). All these treatments ended on day 60. Average tumor volume and SEM are shown as a function of time.

https://doi.org/10.7554/eLife.17137.008

To test whether upregulation of MYCN is responsible for ceritinib resistance, the NB-1R cell line was stably transduced with lentiviral doxycycline-inducible vectors containing non-target control sequence or shRNA against MYCN. In the absence of doxycycline, no reduction of MYCN protein was observed in the MYCN shRNA-expressing NB-1R cells (Figure 5C). In contrast, exposure to doxycycline led to a dose-dependent reduction in MYCN protein levels (Figure 5C). While MYCN knockdown in DMSO-treated NB-1R cells did not significantly affect the cell viability, downregulation of MYCN restored the sensitivity of the NB-1R cells to ceritinib (Figure 5D), suggesting that both ALK inhibition and reduction in MYCN level are required for inhibiting the growth of NB-1R cells. In addition, shRNA-mediated downregulation of MYCN resulted in increased levels of phospho-ALK but had no effect on the expression of p53 and p21 (Figure 5—figure supplement 2).

The contradictory roles of the MYC family in promoting cell proliferation and sensitizing cells to apoptosis have been well established (Meyer and Penn, 2008). MYC deregulation activates the p53 pathway and triggers apoptosis, which serves as a major mechanism for preventing MYC-mediated tumorigenesis. Tumors are able to evade MYC-induced apoptosis by introducing defects in the p14ARF-MDM2-p53 axis and its effectors and regulators, and restoring the abrogated p53 pathway may provide an approach to force MYC-deregulated tumors to undergo apoptosis. In the absence of TP53 mutations, defects in the p53 pathway, in general, allow neuroblastoma cells to circumvent the safeguard against MYCN-driven neoplasia. Our RNA-Seq data revealed that TP53 gene remained wild-type in the ceritinib-resistant NB-1R cells, as in the parental NB-1 cells. However, expression of p21, one of the major p53 transcriptional target genes, was strongly decreased in the ceritinib-resistant cells (Figure 5E), indicating that the p53 signaling might be impaired in the NB-1R cells.

To determine if activating the p53 pathway and increasing the expression of p21 could restore the sensitivity to ceritinib, we treated the NB-1R cells with CGM097 alone or in combination with ceritinib for 16 hr. CGM097 treatment resulted in an increase in p53 expression and induction of its target genes, including p21, MDM2 and PUMA (Figure 5F). In addition, CGM097 restored the sensitivity of the NB-1R, SH-SY5YR and KP-N-RT-BM-1R cells to ceritinib or PF06463922 to a level comparable to that in the parental cells (Figure 5G and Figure 5—figure supplement 1C). Ceritinib in combination with CGM097 caused increased anti-proliferative activity and decreased viability of NB-1R cells compared to either agent alone (Figure 5G), presumably through induction of stronger apoptosis, evident by induction of cleaved PARP (Figure 5F).

To further assess the activity of combination of ceritinib with CGM097 in overcoming the acquired resistance to ceritinib monotherapy in vivo, we treated NB-1 tumor-bearing mice with vehicle, ceritinib alone, CGM097 alone or ceritinib plus CGM097. When the animals in the ceritinib-treated group became resistant to ceritinib (tumor sizes reached 400–500 mm3), they were randomized again into two groups and the treatments were switched to either CGM097 monotherapy or combination of ceritinib with CGM097. Under CGM097 monotherapy treatment, tumors continued to grow (Figure 5H). In contrast, the combination treatment led to fast tumor regressions (red curve in Figure 5H). The ceritinib-resistant tumors that switched to CGM097 monotherapy continued to grow to 800–900 mm3 and were re-challenged with the combination of ceritinib and CGM097. The combination treatment once again caused complete tumor regressions in these tumors (green curve in Figure 5H). CGM097 alone could not reverse the outgrowth of ceritinib-resistant tumors (dark blue curve in Figure 5H), indicating that both ALK inhibition and p53 activation are required for inhibiting the growth of ceritinib-resistant tumors. The occurrence of resistance was prevented all together when the tumors were treated with ceritinib in combination with CGM097 from the start (grey curve in Figure 5H), similar to the results shown in Figure 3A. Taken together, these data strongly suggest that combined inhibition of ALK and MDM2 in TP53 wild-type neuroblastoma with ALK aberrations may provide an effective therapeutic modality capable of preventing as well as overcoming the resistance observed with the ALK inhibitor monotherapy.

Discussion

Although the identification of activating ALK mutations and the demonstration of the oncogenic role of mutant ALK have established ALK as a therapeutic target in neuroblastoma, clinical studies of crizotinib and ceritinib in pediatric cancers have shown that patients with ALK-mutated neuroblastoma responded less favorably than pediatric patients with ALK-rearranged tumors, such as ALCL and IMT (Mossé et al., 2013; Birgit Geoerger et al., 2015). In the rare cases where the neuroblastoma patients had objective responses, their tumor cells expressed the ALK R1275Q mutation. Previous preclinical work has shown that crizotinib inhibited growth of neuroblastoma xenografts expressing ALK R1275Q or amplified wild-type ALK, but failed to inhibit growth of xenografts harboring F1174L-mutated ALK (Bresler et al., 2011). ALK F1174 mutations arose as acquired resistance mutations in oncogenic ALK fusion proteins during crizotinib and ceritinib treatments (Friboulet et al., 2014; Sasaki et al., 2010), suggesting that F1174L may cause primary resistance to certain ALK inhibitors in neuroblastoma. PF06463922 is a highly potent ALK inhibitor that is active against a range of ALK mutations, including F1174L. It has single-agent antitumor activity in neuroblastoma xenografts that express the three most common ALK mutations – F1174L, R1275Q and F1245C (Infarinato et al., 2016), providing the rationale to test more potent ALK inhibitors in clinic. However, there are still limitations likely associated with treating ALK-aberrant neuroblastoma with single-agent ALK inhibitors, including the newer generation inhibitors. In the clinical studies of crizotinib and ceritinib in pediatric patients with ALK-driven neuroblastoma, most tumors harboring R1275Q-mutated ALK did not respond to the treatments even although cells with the R1275Q mutation are sensitive to both drugs. In this preclinical study, consistent with the observations made by other groups (Infarinato et al., 2016), we found that PF06463922 treatment only led to 25% to 50% inhibition in cell lines expressing the ALK F1174L mutation (Figure 1A). Tumor cell plasticity may render the remaining cells resistant to PF06463922 and eventually lead to recurrences during long-term treatments, which is the typical case with single-agent therapies. Multiple epidemiological studies on the distribution of ALK mutations in relation to MYCN status and other genomic parameters have revealed the co-occurrence of ALK mutations and MYCN amplification in neuroblastoma (Bagci et al., 2012; De Brouwer et al., 2010), indicating that additional oncogenic drivers exist other than ALK. Moreover, F1174L is significantly overrepresented in tumors with MYCN amplification, and almost all ALK-amplified tumors are also MYCN-amplified. All these findings suggest that the challenge for treating ALK-driven neuroblastomas is to overcome de novo resistance and combinatorial therapies are required to maximize the clinical benefit of ALK inhibition in neuroblastoma with ALK aberrations.

Previous studies have shown that ALK inhibition synergizes with chemotherapy or CDK4 inhibition in preclinical models of neuroblastoma (Krytska et al., 2016; Wood et al., 2016), and a clinical trial (NCT02780128) for testing the combination of ceritinib and ribociclib in ALK-mutant neuroblastoma patients is ongoing. In our study, several lines of evidence prompted us to assess the effectiveness of the combination of ceritinib and CGM097 in neuroblastoma models expressing activated ALK. First, activation of p53 signaling by MDM2 inhibitors provides a therapeutic approach for tumors that retain wild-type TP53 (Jeay et al., 2015; Weisberg et al., 2015). In contrast to the high mutation rate of TP53 in adult cancers, mutational inactivation of TP53 occurs in less than 2% of neuroblastoma tumors at diagnosis (Tweddle et al., 2003). The rate of TP53 mutations increases to 15% in relapsed neuroblastoma (Carr-Wilkinson et al., 2010). However, the p53 pathway is mainly inactivated via other mechanisms, such as MDM2 amplification and p14ARF impairment, in relapsed neuroblastoma (Carr-Wilkinson et al., 2010). These tumors should remain amenable to MDM2 inhibition. Second, MDM2 inhibition leads to increases in p53 levels and cell death in neuroblastoma through induction of cell cycle arrest and apoptosis. In agreement with our own work using CGM097 (Figure 2A), targeted disruption of the MDM2/p53 interaction by the small molecule MDM2 antagonists, such as nutlin-3 and RG7388, suppresses the proliferation of both chemoresistant and sensitive neuroblastoma cell lines with wild-type TP53 (Chen et al., 2015; Van Maerken et al., 2009, 2006). Finally, ALK mutations and MYCN amplification co-occur in a subset of neuroblastoma patients, emphasizing the need to target both oncogenes. Although it remains difficult to inhibit MYCN directly, disruption of the MDM2-p53 interaction by MDM2 inhibitors may provide an effective strategy for treating MYCN-amplified neuroblastoma. MYCN-amplified and TP53 wild-type neuroblastoma cell lines show remarkable sensitivities to MDM2 antagonists in vitro (Chen et al., 2015; Van Maerken et al., 2006; Gamble et al., 2012). In addition, MDM2 contributes to tumorigenesis in a MYCN-driven transgenic mouse model for neuroblastoma, and its haploinsufficency reduces MYCN-driven tumor incidence and inhibits tumor growth via p53-mediated apoptosis (Chen et al., 2009). In this study, we have demonstrated that treatment with ceritinib in combination with CGM097 synergistically inhibits the proliferation of ALK-mutated and TP53 wild-type neuroblastoma cell lines in vitro and results in a shrinkage of tumor volumes below palpable detection in vivo, providing evidence for the effectiveness of combined inhibition of ALK and MDM2.

Resistance to targeted therapies remains a major problem in treatment of cancer patients. In most cases, tumors develop resistance to single-agent cancer therapeutics within a few months. To our knowledge, this is the first work that shows upregulation of MYCN acts as a mechanism by which ALK-driven neuroblastoma cells develop resistance to ALK inhibitors. We found that ALK- and MYCN-amplified NB-1 cells rapidly develop resistance to ceritinib even though they are extremely sensitive to ceritinib in culture with an IC50 value less than 50 nM. Several elegant studies in transgenic zebrafish and mouse models have already demonstrated synergistic effect of expressing activated ALK together with MYCN on inducing neuroblastoma (Berry et al., 2012; Heukamp et al., 2012; Zhu et al., 2012). Mutationally activated ALK may suppress the apoptotic response induced by MYCN, and prolonged treatment with ALK inhibitors can shift the equilibrium between pro-survival and pro-apoptotic pathways, which enables a subset of tumors cells to survive. However, additional stress, such as exposure to MDM inhibitors, can disrupt the balance established by ALK inhibition and lead the cells that become resistant to ALK inhibitors toward apoptosis. The detailed mechanisms underlying these effects remain to be determined. Given the observations that ALK F1174L occurs at a higher frequency in MYCN-amplified tumors and almost all ALK-amplified tumors are also MYCN-amplified, it is unlikely that durable responses can be achieved by targeting ALK alone. In this study, we have shown that CGM097, when combined with ceritinib, is able to prevent and overcome the resistance conferred by MYCN upregulation through, at least in part, restoring the defects in p53 pathways and promoting apoptosis.

Some limitations of this study should be considered. Although ceritinib in combination with CGM097 induced complete and sustained tumor regression for the duration of the treatment in xenograft mouse models of neuroblastoma, tumor growth was observed 2 to 8 weeks after discontinuation of the treatment (Figure 3A). The recurrent tumors still responded to the combinatorial treatment after it was restarted (data not shown), suggesting that the treatment did not eliminate the residual disease. It will be interesting to test whether a more potent ALK inhibitor, such as PF06463922, in combination with CGM097 or other MDM2 antagonists can delay or prevent tumor regrowth after treatment termination. In addition, future work will be needed to assess the extent to which our findings can be extrapolated to xenograft models that express F1245C.

In summary, our results show that CGM097 significantly enhances the antitumor activity of ceritinib in neuroblastoma with aberrantly activated ALK by inducing a complementary set of anti-proliferative and pro-apoptotic signaling. We also find that neuroblastoma cell lines with ALK aberrations develop resistance to ALK inhibition as a result of MYCN upregulation. Induction of p53 by CGM097 in these ALK inhibition-resistant tumor cells restores their sensitivity. These findings support the clinical evaluation of combined inhibition of ALK and MDM2 as a therapeutic approach in TP53 wild-type neuroblastoma with constitutively activated ALK.

Materials and methods

Cell lines and culture

Request a detailed protocol

The neuroblastoma cell lines used in this study and their ALK, MYCN and TP53 genetic status are listed in Table 1. SH-SY5Y and IMR-32 were obtained from the American Type Culture Collection (ATCC), KELLY from Leibniz Institute DSMZ, NB-1643 from Children's Oncology Group (COG) Cell Culture and Xenograft Repository and NB-1 and KP-N-RT-BM-1 from JCRB Cell Bank. SH-SY5Y cells were cultured in a 1:1 mixture of EMEM and F12 Medium supplemented with 10% Fetal Bovine Serum (FBS), KELLY and NB-1 cells in RPMI-1640 supplemented with 10% FBS, IMR-32 cells in EMEM supplemented with 10% FBS, NB-1643 cells in IMDM supplemented with 20% FBS and 1X ITS (5 µg/mL insulin, 5 µg/mL transferrin and 5 ng/mL selenous acid) and KP-N-RT-BM-1 cells in RPMI-1640 supplemented with 15% FBS. The NB-1R cell line was generated by culturing NB-1 cells in 0.2 μM ceritinib in vitro for 3 weeks, and maintained in RPMI-1640 supplemented with 10% FBS and 0.2 μM ceritinib. The SH-SY5YR and KP-N-RT-BM-1R cell lines were generated by culture the parental cells in 1 μM PF06463922 in vitro for 3 to 4 months. All cell lines were determined to be free of mycoplasma contamination by a PCR detection methodology performed at Idexx Radil (Columbia, MO). The identity of the cell lines was confirmed periodically throughout the study using SNP fingerprinting.

Reagents

Ceritinib and CGM097 were synthesized in the Global Discovery Chemistry Department at NIBR (Novartis). For in vitro studies, ceritinib and CGM097 were dissolved in 100% dimethyl sulfoxide (DMSO) at concentrations of 5 mM and 10 mM, respectively, and stored at −20°C until use. For in vivo studies, ceritinib was formulated in 0.5% CMC and 0.5% Tween 80 in water, and CGM097 was dissolved in 0.5% HPMC. Antibodies against phospho and total ALK, ERK, AKT, total p21, p27, PUMA, BIM and PARP were obtained from Cell Signaling, p53 from Santa Cruz Biotechnology, MYCN from Proteintech Group and MDM2 and GAPDH from EMD Millipore.

Cell viability and proliferation assays

Request a detailed protocol

To determine the effects of compounds on cell proliferation, cells were plated in 96-well plates at a density of 5000–10,000 cells per well to achieve 70% of confluence in a volume of 100 µL, and grown for 24 hr prior to treatment. Cells were then treated with DMSO or compounds at concentrations ranging from 1.5 nM to 10 µM (threefold dilutions). After 6 days, cell proliferation was measured using the CellTiter-Glo luminescent cell viability assay (Promega, Madison, WI) and Victor4 plate reader (Perkin Elmer, Waltham, MA). Percent inhibition was calculated relative to DMSO signal, and all results shown are the mean of triplicate measurements.

For synergy analyses of drug combinations, 5000–10,000 cells suspended in 100 µl media were plated in triplicate into each well of 96-well tissue culture plates and grown for 24 hr prior to treatments. Ceritinib and CGM097 at different concentrations defined by a dose matrix were added to the cells such that all pair-wise combinations as well as the single agents were represented. Cells were incubated for 72 hr following compound addition, and cell viability was measured using the CellTiter-Glo luminescent cell viability assay (Promega) and Victor4 plate reader (Perkin Elmer). Isobolograms and combination indices were determined as described by Lehar et al. (Lehár et al., 2009).

Western blot analysis

Request a detailed protocol

Cells were seeded into six-well plates at 50% of confluence, allowed to attach for 16 hr and treated. Cells were lysed in Cell Lysis Buffer (Cell Signaling Technology) containing Protease Inhibitor Cocktail (Roche Life Science, Indianapolis, IN) and PhosSTOP Phosphatase Inhibitor Cocktail (Roche). Lysates were centrifuged at 18,000 X g for 10 min at 4°C, and the supernatant was loaded to 4–12% Bis-Tris gradient gels (Invitrogen, Carlsbad, CA). The subsequent procedures were performed according to the recommendations of the antibody manufacturers.

Silencing of MYCN

Request a detailed protocol

Cells were plated into six-well plates at 50% of confluence and allowed to attach for 16 hr. On the next day, cells were incubated with SMARTvector inducible lentiviral shRNA particles targeting MYCN or non-targeting control shRNA particles (Dharmacon, Lafayette, CO). The sequences targeted by these shRNAs are as follows: control, 5'-TGGTTTACATGTTGTGTGA-3'; MYCN, 5’-TAGGTATGAACTTCCAGTC-3’. Medium was replaced with fresh medium containing 1 µg/ml of puromycin after 24 hr, and selection was completed after 2 weeks. Transduced cells were maintained in RPMI-1640 supplement with 10% Tet System Approved FBS (Clontech, Mountain View, CA) and 1 µg/ml of puromycin. Expression of shRNAs was induced by 100 ng/ml or 1000 ng/ml of doxycycline in growth medium.

RNA sequencing and data processing

Request a detailed protocol

RNA sequencing and data processing were conducted as described elsewhere (Li et al., 2015). Briefly, 0.5 µg of high-quality total RNA extracted from each fresh frozen tumor tissue sample was used to construct a sequencing library with the Illumina TruSeq RNA Sample Prep Kit. The libraries were sequenced on an Illumina HiSeq 2500, and transcriptomic alignments and gene expression quantification were performed using Array Studio 6.0 (OmicSoft, Cary, NC). The RNA-Seq data accession number in GEO is GSE82143.

Xenograft studies

Request a detailed protocol

All in vivo studies were reviewed and approved by the Novartis Institutes of Biomedical Research Institutional Animal Care and Use Committee (IACUC) in accordance with applicable local, state, and federal regulations. The NB-1, NB-1643 and IMR-32 cells were harvested during exponential growth. Each athymic female nude mouse (Harlan Laboratories, Indianapolis, IN) was inoculated subcutaneously in the upper right flank with 2 × 106 NB-1 or IMR-32 cells suspended in 0.2 ml cold PBS. The severe combined immunodeficiency (SCID) mice were used to propagate NB-1643 xenograft tumors by injecting 1 × 107 NB-1643 cells suspended in a 1:1 mixture of cold PBS and Matrigel (BD Biosciences, San Jose, CA) subcutaneously into each animal. The development of SH-SY5Y xenograft tumors comprised two steps. In the first step, 1 × 107 SH-SY5Y cells harvested during exponential growth were suspended in a 1:1 mixture of cold PBS and Matrigel in a total volume of 0.2 ml, and injected subcutaneously into the upper right flank of nude mice. Tumors established in this step were collected and fragmented. Tumor fragments were then implanted into the upper right flank of nude mice. Tumor volumes were monitored with calipers twice per week. When tumor volume reached approximately 200 mm3, mice were randomized (n = 4 or 5 per group) and orally administered vehicle, 50 mg/kg ceritinib, 50 mg/kg CGM097 or 50 mg/kg ceritinib plus 50 mg/kg CGM097 daily, respectively.

In the study to test if CGM097 alone or CGM097 in combination with ceritinib is able to overcome ceritinib resistance in vivo, mice-bearing ceritinib-resistant NB-1 tumors were randomized into three groups (n = 5 per group) when the tumors progressed under ceritinib treatment and the volume of ceritinib-resistant tumors reached 500 mm3. In the first group, ceritinib single-agent treatment was terminated, and mice were treated with CGM097 at 50 mg/kg daily for 5 days. In the second group, ceritinib single-agent treatment was terminated, and mice were treated with CGM097 at 50 mg/kg daily for 5 days, and then CGM097 at 50 mg/kg plus ceritinib at 50 mg/kg daily for 43 days. In the third group, ceritinib single-agent treatment was terminated, and mice were treated with CGM097 at 50 mg/kg plus ceritinib at 50 mg/kg daily for 48 days.

Statistical analysis

Request a detailed protocol

Values for the cell proliferation assays are expressed as means ± SEM. Statistically significant differences between the means were evaluated using ANOVA followed by Student’s t-test. The p-values of multiple comparisons were corrected by the Bonferroni method.

References

  1. 1
  2. 2
  3. 3
  4. 4
    Phase I study of ceritinib in pediatric patients (Pts) with malignancies harboring a genetic alteration in ALK (ALK+): Safety, pharmacokinetic (PK), and efficacy results
    1. JS Birgit Geoerger
    2. CM Zwaan
    3. M Casanova
    4. M Fischer
    5. L Moreno
    6. T Trahair
    7. I Jimenez
    8. HJ Kang
    9. AS Pappo
    10. E Schafer
    11. BD Weiss
    12. ME Healy
    13. K Li
    14. T Lin
    15. A Boral
    16. ADJ Pearson
    (2015)
    Annual Meeting of the American-Society-of-Clinical-Oncology.
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42

Decision letter

  1. Chi Van Dang
    Reviewing Editor; University of Pennsylvania, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Combined ALK and MDM2 inhibition increases antitumor activity and overcomes resistance in ALK mutant neuroblastoma" for consideration by eLife. Your article has been favorably evaluated by Tony Hunter (Senior Editor) and three reviewers, one of whom, Chi Van Dang, is a member of our Board of Reviewing Editors.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a response to the significant concerns raised before a formal a revised manuscript is invited.

Summary:

Wang and colleagues determine that combination therapy of ALK inhibitor ceritinib with MDM2 inhibitor CGM097 cooperate in vitro and in vivo, and promote apoptosis in vitro ALK mutant/WT TP53 neuroblastoma cell lines. Combination therapy caused regression and increased survival in neuroblastoma xenograft models derived from two of these lines. Additionally, they report that ceritinib resistance may be caused by MYCN upregulation, and can be rescued by combination therapy. This work is of interest in the field given the challenges of inhibiting full-length mutant ALK in neuroblastoma. The major weakness is the limited in vitro and in vivo testing in models not fully representative of ALK alterations identified in patients, and the lack of data in ALK wild-type models to support this combination in a biomarker-driven population. While the mechanism for synergy by activation of non-overlapping pro-apoptotic and anti-proliferative proteins is well-supported, the mechanism for efficacy of CGM097 and combination therapy for ceritinib-resistant tumor lines is less clear, with the connection to MYCN relatively tenuous.

Essential revisions:

1) The cell line and xenograft sample set is insufficient given the breadth of publications in this field, and should be expanded in order to provide robust rationale for dual targeting of ALK and MDM2 in ALK-driven neuroblastoma models. The 4 cell lines screened (1 with ALK amplification and 3 with the same ALK F1174L mutation) are not representative of all 3 hot spot mutations found in patient samples, and no ALK wild-type models are evaluated in vitro or in vivo- this is problematic. A model harboring an R1275Q mutation should be tested, since this represents the most common ALK mutation in neuroblastoma and it is even referenced by the authors (Introduction, fourth paragraph) that the clinical responses reported in patients with this crizotinib/ceritinib-sensitive mutation is underwhelming. The in vivo experiments should also be expanded to models harboring the R1275Q mutation (and F1245), and would be more robust if the combination was tested in patient-derived xenografts as opposed to conventional xenografts generated from the cell lines. Several recent publications focused on ALK inhibition strategies in neuroblastoma show persuasive activity in PDX models, including compelling data in several such models with single agent PF06463922. The combination data with ceritinib/CGM907 presented here is limited and not convincingly superior.

2) Why was CGM097 used as opposed to HDM201, which is the compound in clinical trials?

3) The authors comment that "ALK mutations are frequently observed in MYCN-amplified neuroblastomas" and again reference the "co-occurrence of ALK mutations and MYCN amplification" in the Discussion. Important to note that in the largest series reporting the frequency and spectrum of ALK mutations in neuroblastoma (Bresler et al., Cancer Cell 2014), ALK mutations were found in 10.9% of MYCN-amplified tumors versus 7.2% of those without MYCN amplification (not a major difference). Additionally, the Discussion states that "ALK mutations and MYCN amplification co-occur in a subset of neuroblastoma patients with the poorest clinical outcome…," – this is not accurate. While patients with both amplified MYCN and F1174-mutated ALK had a significantly worse event-free survival than patients with neither, patient outcome did not differ significantly according to the location of the mutation in any analysis done in the Bresler et al. paper reporting on close to 1600 patients.

4) Despite compelling initial anti-tumor activity in the 2 in vivo models tested, tumors recurred shortly after discontinuation of therapy. In a recent paper by Krytska et al. (CCR 2015), crizotinib combined with standard cytotoxic agents sensitized ALK-mutant neuroblastoma xenografts with wild-type p53. When this combination was evaluated in SY5Y xenografts (same model tested with ceritinib/CGM907), known to be crizotinib-resistant, sustained complete tumor regressions were reported and maintained for 24-weeks post cessation of treatment. No reference is made to this paper and it is not clear how or if the ceritinib/CGM907 combination could be complementary or superior.

5) in vitro signaling data (Figure 2D) do not persuasively show that dual targeting of ALK and MDM2 induced further activation of p53 or MDM2 compared to single agent MDM2 inhibition with CGM907; nor does the combination convincingly cause a significant increase of cleaved PARP, as noted by the authors. Additionally, the immunoblotting does not appear to show more profound downregulation of pERK and pAKT with the combination. Investigators should look for on-target activity in vivo, as kinetics of response are likely to differ.

6) The experiment showing that sensitivity to ceritinib in NB-1R could be restored by knocking down the expression of MYCN was elegant and suggests a role of MYCN in this model of resistance. It would be informative to assess whether MYCN downregulation (genetically and pharmacologically) impacts P-ALK levels.

7) In Figure 4E, the authors suggest that p53 signaling might be impaired in the NB-1R cells. However, this suggestion does not correlate with higher sensitivity of to CGM097 in these cells compared to the sensitive counterpart cells (NB-1) – Figure 4G. Also in Figure 4E, p53 levels are very similar in both cell lines and do not correlate with the differences seen in p21 levels. Is it possible that p21 levels in these cells are being modulated by MYCN instead, as has previously been suggested (Iraci et al., 2011)?

8) Similarly to data shown in Figure 2D in the sensitive cells including NB-1, the combination of ceritinib and CGM097 in the resistant NB-1R cells does not convincingly increase levels of p53-related proteins compared to CGM097 single agent alone (Figure 4F), overall suggesting that, at least in vitro, this combination is effective through other non-p53 mediated pathways. Immunoblotting analysis of tumors from in vivo experiments would be worth investigating.

9) Does cell death induction shown in Figures 2D and 4G translate to induction of apoptosis in treated tumors in vivo? Can apoptosis analysis be added to Figures 2E and 4H?

10) The authors conclude that an increase in MYCN expression causes resistance to ceritinib in the NB-1 cells and CGM097 restores sensitivity. The MYCN shRNA experiment in Figure 4D shows restoration of ceritinib sensitivity in a single cell line. Can this be extended to support generality in additional lines, and does overexpression of MYCN in sensitive cells drive resistance?

11) Ceritinib appears to decrease the levels of p53, MDM2, and p21 levels in Figure 2D. Do the authors have insight into this observation?

12) In Figure 4F, where NB-1R cells are treated with monotherapy and combination therapy, are levels of MYCN restored to NB-1 parental levels? The blot for p-Alk here is poor quality and difficult to evaluate.

13) The RNA-seq data in Figure 3A represent the tumors that progressed under treatment with 50 mg/kg ceritinib and NB-1 tumors treated with vehicle. How many mice does this represent, and is this RNA-seq data an average? Can these details be more clearly stated? Additionally, while the genes displayed are specifically ribosomal subunit genes and other translation-related genes, what was the fold change of MYCN detected by their RNA-seq experiment? Do these data support data in Figure 3B.

14) The authors suggest that the p53 axis becomes disrupted in the NB-1R cells, and also show these cells strongly decrease expression of p21, and that this confers resistance since treatment with CGM097 restores sensitivity. Are NB-1R cells less sensitive to etoposide treatment?

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Combined ALK and MDM2 inhibition increases antitumor activity and overcomes resistance in human ALK mutant neuroblastoma cell lines and xenograft models" for further consideration at eLife. Your revised article has been favorably evaluated by Tony Hunter as the Senior Editor, Chi Dang as the Reviewing Editor and two reviewers.

The manuscript has been improved and responsive to the reviewers' comments, but there are some remaining issues that need to be addressed textually before acceptance. Please address the nuances of your findings in the Discussion or where applicable and submit the revision with altered text responding the key points of the following issues:

1) in vivo data shown in Figure 3 in ALKi-naïve cell line xenografts harboring varying ALK status: While antitumor activity with dual targeting of ALK and MDM2 is compelling, it does not appear superior to several already published data (crizotinib plus chemotherapy; ceritinib plus ribociclib), nor are the data convincingly superior to published data for lorlatinib alone in some of the very same models (NB1643 and SY5Y). How does time to regrowth compare with other combinations tested, or with lorlatinib alone? The anti-tumor activity in NB1643 is not compelling. While there is no doubt that combination strategies are needed to delay or overcome acquired resistance, the challenge for ALK-driven neuroblastomas is overcoming de novo resistance. Authors need to put their work in context with the published literature for this disease- especially in their Discussion.

2) It is interesting that lorlatinib was used to generate resistance in in vitro models – why was 1 μM used to treat parental cells? This is a very high dose (and certainly would not be relevant clinically) for such a potent ALK inhibitor, and the resulting phenotype is unlikely to model what will happen in patients.

3) Would still prefer to see data with HDM201; at the very least, authors need to mention that HDM201 is in fact in phase 1 testing in neuroblastoma patients with p53 wild type status (NCT02780128), as is the combination of ceritinib and ribociclib for neuroblastoma patients with ALK-driven tumors. How do they envision moving this to the clinic? Are they suggesting that lorlatinib (a Pfizer drug) be combined with HDM201 (a Novartis drug)?

4) Need to change very first sentence in Introduction – "Neuroblastoma is the most common extracranial childhood solid tumor"- this exact phrase has been used hundreds of times.

5) Fourth paragraph in Introduction, as well as early on in the Discussion, the authors postulate why pediatric patients with NB did not respond to crizotinib or ceritinib – the authors need to be very careful here as the implications made about why patients with ALK-mutant neuroblastoma did not respond to direct ALK kinase inhibition with crizotinib or ceritinib is not accurate. These are heavily pretreated patients whose tumor genome evolves dramatically under the selective pressure of multimodal therapy for high-risk neuroblastoma and selects for therapy resistance irrespective of the presence of an oncogenic driver such as ALK, and testing targeted therapies in this context is unlikely to reflect the therapy-naïve patients at diagnosis who are most likely to benefit from incorporation of ALK inhibition. In addition, I am not aware that the phase 1 study of ceritinib has been published.

6) A lot of data were generated in the NB1 model – important to put into context that ALK amplification is very rare in these patients (2% overall).

7) Discussion (fourth paragraph) – studying this combination in PDX models is likely more relevant than transgenic models.

8) Mechanism of synergy still not clear. Given the role of p53 in modulating cell cycle arrest combined with the finding that ceritinib alone induces P-Rb dowregulation in models of neuroblastoma (Wood A. et al., 2016), it would be informative to assess levels of this major cell cycle modulator and potential G1 arrest in the combination-treated cells versus single agent. For the resistance model, the authors suggest that the MYCN and p21 axis cannot explain sensitivity to the combination. Nevertheless, the levels of key modulators that induce p53 signaling are not shown. Also, if the p53 signaling responsible for regulating p21 is impaired in NB-1R, molecules downstream of p21 such as P-Rb, cyclins etc. should be assessed. Last, given that MYCN is a pivotal regulator of the cell cycle, it would be interesting to perform a cell cycle analysis in these cells.

https://doi.org/10.7554/eLife.17137.016

Author response

Essential revisions:

1) The cell line and xenograft sample set is insufficient given the breadth of publications in this field, and should be expanded in order to provide robust rationale for dual targeting of ALK and MDM2 in ALK-driven neuroblastoma models. The 4 cell lines screened (1 with ALK amplification and 3 with the same ALK F1174L mutation) are not representative of all 3 hot spot mutations found in patient samples, and no ALK wild-type models are evaluated in vitro or in vivo- this is problematic. A model harboring an R1275Q mutation should be tested, since this represents the most common ALK mutation in neuroblastoma and it is even referenced by the authors (Introduction, fourth paragraph) that the clinical responses reported in patients with this crizotinib/ceritinib-sensitive mutation is underwhelming. The in vivo experiments should also be expanded to models harboring the R1275Q mutation (and F1245), and would be more robust if the combination was tested in patient-derived xenografts as opposed to conventional xenografts generated from the cell lines. Several recent publications focused on ALK inhibition strategies in neuroblastoma show persuasive activity in PDX models, including compelling data in several such models with single agent PF06463922. The combination data with ceritinib/CGM907 presented here is limited and not convincingly superior.

We agree with the reviewers that additional neuroblastoma models which contain different ALK hotspot mutations should be tested. We have established collaboration with the Genomics Institute of the Novartis Research Foundation to test the ceritinib and CGM097 combination in NB-1643 xenograft tumors. NB-1643 cells contain the ALK R1275Q mutation, MYCN amplification and wild-type TP53. We will also test this combination in vitroand in vivo in a neuroblastoma model which contains wild-type ALK. When work is completed, our revised manuscript will describe a diverse set of neuroblastoma models including those that contain ALK amplification, two different hot-spot ALK mutations (F1174L and R1275Q) and wild-type ALK.

We do not have access to neuroblastoma cell lines that contain the ALK F1245 mutations and neuroblastoma PDX models. We are aware that these models exist in a few labs in academic institutions. However, it usually takes at least six months to establish collaborations between external institutions and us, assuming that the proposal for the collaboration can be approved. Therefore, it is not feasible for us to include additional models, beyond the ones proposed, in a reasonable time frame.

We agree with the reviewers that PF06463922 is remarkably effective in xenograft models of neuroblastoma expressing the common ALK mutations. However, resistance to single-agent targeted therapies remains a major problem in treatment of cancer patients. Recently, we have established a cell line that shows significantly decreased sensitivity to PF06463922 as compared to the parental SH-SY5Y cell line. We have demonstrated marked increase of MYCN expression in PF06463922-resistant SH-SY5Y cells, and will test whether CGM097 can restore the sensitivity of these cells to PF06463922. In this study, we underscore the notion that concurrent inhibition of ALK and MDM2 provides an improved therapy compared to treatments with single-agent ALK inhibitors. We are hopeful that more potent ALK inhibitors, such as PF06463922, in combination with next-generation MDM2 antagonists can not only induce complete remission in ALK-mutated neuroblastoma but prevent tumor recurrence.

2) Why was CGM097 used as opposed to HDM201, which is the compound in clinical trials?

CGM097 is indeed also being tested in clinical trials. A Phase I dose escalation study of CGM097 in adult patients with selected advanced solid tumors with wild-type p53 is ongoing (NCT01760525). CGM097 and HDM201 share the same mechanism of action. Tested in several hundred cell lines of various tumor types, both compounds selectively inhibit the growth of the cells expressing wild-type p53. In these tumor cell lines, both compounds activate downstream p53 effector pathways that decrease cell proliferation and increase apoptosis. HDM201 is in fact a more potent inhibitor. However, HDM201 has a very fast clearance in mice. Given that the mechanism of action is identical and pharmacokinetic properties in the mouse are more desirable with CGM097, we feel that for the purposes of this study and for the conclusions being made, the use of CGM097 is just as adequate as it would be with HDM201. Moreover, our drug exposure studies of CGM097 and ceritinib when used in combination show no drug-drug interaction, further justifying the use of CGM097 for these combination studies.

3) The authors comment that "ALK mutations are frequently observed in MYCN-amplified neuroblastomas" and again reference the "co-occurrence of ALK mutations and MYCN amplification" in the Discussion. Important to note that in the largest series reporting the frequency and spectrum of ALK mutations in neuroblastoma (Bresler et al., Cancer Cell 2014), ALK mutations were found in 10.9% of MYCN-amplified tumors versus 7.2% of those without MYCN amplification (not a major difference). Additionally, the Discussion states that "ALK mutations and MYCN amplification co-occur in a subset of neuroblastoma patients with the poorest clinical outcome…," – this is not accurate. While patients with both amplified MYCN and F1174-mutated ALK had a significantly worse event-free survival than patients with neither, patient outcome did not differ significantly according to the location of the mutation in any analysis done in the Bresler et al. paper reporting on close to 1600 patients.

We appreciate the point made by the reviewers. In the revised manuscript, we will make our comments on the co-occurrence of ALK mutations and MYCN amplification more specific. We will replace these sentences with the following ones: 1) ALK F1174 mutations occur in a high proportion of MYCN-amplified cases; 2) ALK mutations that co-occur with MYCN amplification were biased toward F1174 substitutions; 3) Patients with both the ALK F1174 mutations and MYCN amplification have a significantly worse event-free survival than patients with neither. We will cite the Bresler paper when we make these comments in the manuscript.

4) Despite compelling initial anti-tumor activity in the 2 in vivo models tested, tumors recurred shortly after discontinuation of therapy. In a recent paper by Krytska et al. (CCR 2015), crizotinib combined with standard cytotoxic agents sensitized ALK-mutant neuroblastoma xenografts with wild-type p53. When this combination was evaluated in SY5Y xenografts (same model tested with ceritinib/CGM907), known to be crizotinib-resistant, sustained complete tumor regressions were reported and maintained for 24-weeks post cessation of treatment. No reference is made to this paper and it is not clear how or if the ceritinib/CGM907 combination could be complementary or superior.

We will cite the paper published by Krytska et al. This paper describes another promising therapy for treating ALK-mutated neuroblastoma. However, it may not be straightforward to compare different treatments in different studies conducted at different labs. We foresee both of these therapies being tested in clinical trials, where the superiority or the lack of would be addressed.

5) in vitro signaling data (Figure 2D) do not persuasively show that dual targeting of ALK and MDM2 induced further activation of p53 or MDM2 compared to single agent MDM2 inhibition with CGM907; nor does the combination convincingly cause a significant increase of cleaved PARP, as noted by the authors. Additionally, the immunoblotting does not appear to show more profound downregulation of pERK and pAKT with the combination. Investigators should look for on-target activity in vivo, as kinetics of response are likely to differ.

We report that combined inhibition of ALK using ceritinib and MDM2 using CGM097 induces a complementary set of anti-proliferative and pro-apoptotic proteins, which leads to greater apoptosis compared to each single agent alone. We do not think that the synergy is resulted from the enhanced target inhibition caused by the other compound. The increased levels of cleaved PARP in the three p53 wild-type cell lines treated with the combination is clear in Figure 2D. Importantly, in the summary of the reviewers’ comment, the reviewers stated that “the mechanism for synergy by activation of non-overlapping pro-apoptotic and anti-proliferative proteins is well-supported”. However, we agree with the reviewer that we should assess the levels of target inhibition and apoptosis in vivo. We have already evaluated induction of apoptosis in treated NB-1 xenograft tumors and found that the combination induced greater apoptosis compared to the single-agent treatments, consistent with the observations made in vitro. The same experiment in SH-SY5Y xenograft tumors is ongoing. These results will be included in the revised manuscript.

6) The experiment showing that sensitivity to ceritinib in NB-1R could be restored by knocking down the expression of MYCN was elegant and suggests a role of MYCN in this model of resistance. It would be informative to assess whether MYCN downregulation (genetically and pharmacologically) impacts P-ALK levels.

We appreciate the reviewer’s positive comment. We will conduct the experiments suggested by the reviewer.

7) In Figure 4E, the authors suggest that p53 signaling might be impaired in the NB-1R cells. However, this suggestion does not correlate with higher sensitivity of to CGM097 in these cells compared to the sensitive counterpart cells (NB-1) – Figure 4G. Also in Figure 4E, p53 levels are very similar in both cell lines and do not correlate with the differences seen in p21 levels. Is it possible that p21 levels in these cells are being modulated by MYCN instead, as has previously been suggested (Iraci et al., 2011)?

The reviewer is asking an excellent question. We will test whether p21 levels are modulated by MYCN in NB-1R cells transduced with lentiviral doxycycline-inducible vectors containing shRNA against MYCN. The p53 levels are very similar in NB-1 and NB-1R cell lines, but the p21 level is significantly lower in the NB-1R cell line than in the NB-1 cell line. Since p21 is one of the major p53 transcriptional target genes, we think that the p53 signaling responsible for regulating p21 expression might be impaired in the NB-1R cells.

We have demonstrated that increase in MYCN expression causes resistance to ceritinib in NB-1R cells because MYCN knockdown restores the sensitivity of NB-1R cells to ceritinib. MYC family proteins have two contradictory roles: promoting cell proliferation and sensitizing cells to apoptosis. The p14ARF-MDM2-p53 axis and its effectors keep the MYCN level in check. The defects in p53 signaling in NB-1R cells allow them to proliferate in the presence of significantly upregulated MYCN. Therefore, NB-1R cells are more sensitivity to CGM097 than the parental cells because they rely more on MYCN to proliferate and are more vulnerable to induced p53 signaling.

8) Similarly to data shown in Figure 2D in the sensitive cells including NB-1, the combination of ceritinib and CGM097 in the resistant NB-1R cells does not convincingly increase levels of p53-related proteins compared to CGM097 single agent alone (Figure 4F), overall suggesting that, at least in vitro, this combination is effective through other non-p53 mediated pathways. Immunoblotting analysis of tumors from in vivo experiments would be worth investigating.

We cannot exclude the possibilities that CGM097 and its combination with ceritinib can have effects mediated through non-p53 pathways. However, ceritinib and CGM097 combination has no effect on KELLY, the p53-mutant cell line, suggesting that major contribution of CGM097 in this combination is the induction of p53 signaling. We are not suggesting that the synergy is the result of the combination being able to increase the levels of p53 more than CGM097 single agent alone. We provide data to describe the mechanism for synergy to be the activation of non-overlapping pro-apoptotic and anti-proliferative proteins from the combined ALK and MDM2 inhibition.

We agree with the reviewer that we should assess the levels of target inhibition and apoptosis in vivo. We have already evaluated induction of apoptosis in treated NB-1 xenograft tumors and found that the combination induced greater apoptosis compared to the single-agent treatments, consistent with the observations made in vitro. The same experiment in SH-SY5Y xenograft tumors is ongoing. These results will be included in the revised manuscript.

9) Does cell death induction shown in Figures 2D and 4G translate to induction of apoptosis in treated tumors in vivo? Can apoptosis analysis be added to Figures 2E and 4H?

We thank the reviewer for this suggestion. We have already assessed induction of apoptosis in treated NB-1 xenograft tumors and found that the combination induced greater apoptosis compared to the single-agent treatments, consistent with the observations made in vitro. The same experiment in SH-SY5Y xenograft tumors is ongoing. These results will be included in the revised manuscript.

10) The authors conclude that an increase in MYCN expression causes resistance to ceritinib in the NB-1 cells and CGM097 restores sensitivity. The MYCN shRNA experiment in Figure 4D shows restoration of ceritinib sensitivity in a single cell line. Can this be extended to support generality in additional lines, and does overexpression of MYCN in sensitive cells drive resistance?

We do have additional lines to show that MYCN is upregulated in cells that are resistant to ALK inhibition. Recently, we have demonstrated markedly increased MYCN expression in PF06463922-resistant SH-SY5Y cells that harbor the ALK F1174L mutation, similar to the findings in ceritinib-resistant NB-1 cells. We chose PF06463922 in this cell line to achieve better ALK inhibition because SH-SY5Y contains the ALK F1174L mutation. We will test whether CGM097 can restore the sensitivity of these resistant cells to PF06463922. We are also treating KP-N-RT-BM-1 cells with PF06463922. If we can establish PF06463922-resistant KP-N-RT-BM-1 cells within the timeline we proposed for submitting the revised manuscript, we will conduct the same experiments in these cells, too. These results will be included in the revised manuscript.

We attempted to overexpress MYCN in NB-1 cells without success. We have preliminary results to show that upregulation of MYCN in the resistant cells is mainly caused by MYCN stabilization. This will be the focus of our future work.

11) Ceritinib appears to decrease the levels of p53, MDM2, and p21 levels in Figure 2D. Do the authors have insight into this observation?

The reviewer is making an excellent comment. We made the same observation, but we do not have further insight into this observation. Downregulation of p53 by ALK inhibition may serve as a survival mechanism in ALK-mutated neuroblastoma cells treated with ALK inhibitors. Therefore, restoring or even increasing the level of p53 by MDM2 inhibitors can improve the efficacy of ALK inhibitors.

12) In Figure 4F, where NB-1R cells are treated with monotherapy and combination therapy, are levels of MYCN restored to NB-1 parental levels? The blot for p-Alk here is poor quality and difficult to evaluate.

We will reblot p-ALK and assess the levels of MYCN as the reviewer suggested.

13) The RNA-seq data in Figure 3A represent the tumors that progressed under treatment with 50 mg/kg ceritinib and NB-1 tumors treated with vehicle. How many mice does this represent, and is this RNA-seq data an average? Can these details be more clearly stated? Additionally, while the genes displayed are specifically ribosomal subunit genes and other translation-related genes, what was the fold change of MYCN detected by their RNA-seq experiment? Do these data support data in Figure 3B.

This represents two mice for each condition and the expression of each gene shown in Figure 3A is an average. We will provide the details in the revised manuscript. All the gene expression values are in the Supplementary file 1. The FPKM values of MYCN of control and ceritinib-resistant tumors are 529 and 638, respectively. Therefore, the increased protein level of MYCN is not due to the increased transcription of MYCN. We have preliminary data to show that upregulation of MYCN protein is caused by MYCN stabilization. MYCN is not a very stable protein, with a half-life less than one hour. The protein encoded by MYCNOS (NCYM) plays a role in stabilizing MYCN and its expression is increased more than 10 fold in the resistant tumors1. How MYCN is upregulated in ALK inhibitor resistant cells will be the focus of our future studies.

1 NCYM, a Cis-antisense gene of MYCN, encodes a de novo evolved protein that inhibits GSK3β resulting in the stabilization of MYCN in human neuroblastomas. Suenaga Y, et al. PLoS Genet. 2014

14) The authors suggest that the p53 axis becomes disrupted in the NB-1R cells, and also show these cells strongly decrease expression of p21, and that this confers resistance since treatment with CGM097 restores sensitivity. Are NB-1R cells less sensitive to etoposide treatment?

We do not think the decreased expression of p21 confers resistance. The increase in MYCN expression causes resistance to ceritinib in NB-1R cells because MYCN knockdown restores the sensitivity of NB-1R cells to ceritinib. MYC family proteins have two contradictory roles: promoting cell proliferation and sensitizing cells to apoptosis. The p14ARF-MDM2-p53 axis and its effectors keep the MYCN level in check. The defects in the p53 axis exemplified by the decreased expression of p21 in NB-1R cells allow them to proliferate in the presence of significantly upregulated MYCN.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

The manuscript has been improved and responsive to the reviewers' comments, but there are some remaining issues that need to be addressed textually before acceptance. Please address the nuances of your findings in the Discussion or where applicable and submit the revision with altered text responding the key points of the following issues:

1) in vivo data shown in Figure 3 in ALKi-naïve cell line xenografts harboring varying ALK status: While antitumor activity with dual targeting of ALK and MDM2 is compelling, it does not appear superior to several already published data (crizotinib plus chemotherapy; ceritinib plus ribociclib), nor are the data convincingly superior to published data for lorlatinib alone in some of the very same models (NB1643 and SY5Y). How does time to regrowth compare with other combinations tested, or with lorlatinib alone? The anti-tumor activity in NB1643 is not compelling. While there is no doubt that combination strategies are needed to delay or overcome acquired resistance, the challenge for ALK-driven neuroblastomas is overcoming de novo resistance. Authors need to put their work in context with the published literature for this disease- especially in their Discussion.

We do agree with the reviewer that it is important to put our manuscript in the context of the published literature. We have cited the relevant literature in the Introduction and Discussion sections, and have put our manuscript in that context. However, we cannot make direct comparative statements between ours and the papers cited. This manuscript was not designed to conduct rigorous head to head comparisons. For the same reasons, we believe that the reviewer cannot claim superiority of other studies over ours either. Nonetheless, we do show marked antitumor activity of ceritinib in combination with CGM097 in these models, providing rationale for testing this combination in patients. Furthermore, previous publications do not describe mechanisms responsible for resistance to ALK inhibition nor do they provide tested suggestions to overcome the resistance. We however demonstrate that concomitant inhibition of MDM2 and ALK can overcome ALK inhibitor-resistance conferred by MYCN upregulation.

The reviewer suggests that the anti-tumor activity in NB-1643 xenografts is not compelling. We observed that ceritinib monotherapy only delayed the tumor growth and the tumor volume increased more than 2-fold compared to day 0. In contrast, the combination treatment resulted in nearly complete tumor regression (7% of the tumor volume at day 0). After we submitted the revised manuscript, the treatments were stopped, but we continue to observe the animals. We found sustained tumor regression in the combination-treated group. We have updated the NB-1643 results in Figure 3A to reflect this additional observation. We think that the anti-tumor activity of the ceritinib/CGM097 combination treatment in this model is even more striking.

We do agree with the reviewer that the challenge for ALK-driven neuroblastomas is overcoming de novo resistance. Our Figures 1 and 3 speak to that point. To make this point clearer, and as the reviewer suggested, we added the following text in the Discussion: all these findings suggest that the challenge for treating ALK-driven neuroblastomas is to overcome de novo resistance and combinatorial therapies are required to maximize the clinical benefit of ALK inhibition in neuroblastoma with ALK aberrations (Discussion, end of first paragraph).

2) It is interesting that lorlatinib was used to generate resistance in in vitro models – why was 1 μM used to treat parental cells? This is a very high dose (and certainly would not be relevant clinically) for such a potent ALK inhibitor, and the resulting phenotype is unlikely to model what will happen in patients.

To develop lorlatinib-resistant SH-SY5Y and KP-N-RT-BM-1 cells, we wanted to choose a dose that achieves maximum inhibition of ALK while still retaining on-target selectivity (using suboptimal dosing could also result in phenotypes that are not modeling the relevant and complete inhibition of ALK). In our studies, the dose response curves showed no off-target killing in SH-SY5Y and KP-N-RT-BM-1 cells when lorlatinib was dosed at 1 µM (Figure 1A), while at that same dose the strongest phospho-ALK inhibition was observed (Figure 1C).

3) Would still prefer to see data with HDM201; at the very least, authors need to mention that HDM201 is in fact in phase 1 testing in neuroblastoma patients with p53 wild type status (NCT02780128), as is the combination of ceritinib and ribociclib for neuroblastoma patients with ALK-driven tumors. How do they envision moving this to the clinic? Are they suggesting that lorlatinib (a Pfizer drug) be combined with HDM201 (a Novartis drug)?

As the reviewer suggested, we have mentioned the clinical study of ceritinib and ribociclib combination in the Discussion section (second paragraph). However, the treatment of single agent HDM201 in TP53 wild-type neuroblastoma is not addressing ALK mutants.

The following criticism from the reviewer: “Are they suggesting that lorlatinib (a Pfizer drug) be combined with HDM201 (a Novartis drug)?” we find to be off-base. The scientific merit of a paper does not hinge on the clinical candidacy. As such, numerous articles have been published in eLife and elsewhere with molecules that are not clinical candidates (for example consider publications with JQ1). Furthermore, it is beyond the scope of this scientific manuscript and this letter to provide justification of how two pharmaceutical companies could do business together and jointly bring drugs to the patients. However, we believe that our manuscript provides a strong rationale and a novel idea to test the efficacy of combined inhibition of ALK and MDM2 in ALK-mutant neuroblastoma.

4) Need to change very first sentence in Introduction – "Neuroblastoma is the most common extracranial childhood solid tumor"- this exact phrase has been used hundreds of times.

The first sentence was changed to “Neuroblastoma is a common pediatric solid tumor that arises from neural crest cells”.

5) Fourth paragraph in Introduction, as well as early on in the Discussion, the authors postulate why pediatric patients with NB did not respond to crizotinib or ceritinib – the authors need to be very careful here as the implications made about why patients with ALK-mutant neuroblastoma did not respond to direct ALK kinase inhibition with crizotinib or ceritinib is not accurate. These are heavily pretreated patients whose tumor genome evolves dramatically under the selective pressure of multimodal therapy for high-risk neuroblastoma and selects for therapy resistance irrespective of the presence of an oncogenic driver such as ALK, and testing targeted therapies in this context is unlikely to reflect the therapy-naïve patients at diagnosis who are most likely to benefit from incorporation of ALK inhibition. In addition, I am not aware that the phase 1 study of ceritinib has been published.

The reviewer raised an interesting hypothesis. In the Introduction section, we describe the lack of efficacy of ALK inhibitors in ALK-mutant neuroblastoma in the context of other ALK-driven cancers. Early phase clinical trials of crizotinib and ceritinib showed significant clinical activity in patients with non-small cell lung cancer (NSCLC), anaplastic large cell lymphoma (ALCL) and inflammatory myofibroblastic tumor (IMT) that harbor ALK rearrangements. These patients were also heavily pretreated with multimodal therapies.

The clinical study of ceritinib in pediatric cancer has been published. The citation is listed below and in the manuscript.

Birgit Geoerger, J.S., Christian M. Zwaan, Michela Casanova, Matthias Fischer, Lucas Moreno, Toby Trahair, Irene Jimenez, Hyoung Jin Kang, Alberto S. Pappo, Eric Schafer, Brian D. Weiss, Mary Ellen Healy, Ke Li, Tiffany Lin, Anthony Boral, Andrew DJ Pearson, Phase I study of ceritinib in pediatric patients (Pts) with malignancies harboring a genetic alteration in ALK (ALK+): Safety, pharmacokinetic (PK), and efficacy results. J Clin Oncol, 2015. 33(suppl): p. abstr 10005.

6) A lot of data were generated in the NB1 model – important to put into context that ALK amplification is very rare in these patients (2% overall).

Our revised manuscript describes a diverse set of neuroblastoma models including those that contain ALK amplification, two different hot-spot ALK mutations (F1174L and R1275Q) that account for 73% of ALK mutant neuroblastoma. The NB-1 cell line and xenografts were used as the major model for studying the resistance mechanism because it is the only model that is truly sensitive to ALK inhibition. We also included two additional models that contain the F1174L mutation for studying mechanism responsible for resistance to ALK inhibition. As the reviewer requested, we have added the frequency of ALK amplification in the Introduction section (second paragraph).

7) Discussion (fourth paragraph) – studying this combination in PDX models is likely more relevant than transgenic models.

Modified according to the reviewer’s suggestion.

8) Mechanism of synergy still not clear. Given the role of p53 in modulating cell cycle arrest combined with the finding that ceritinib alone induces P-Rb dowregulation in models of neuroblastoma (Wood A. et al., 2016), it would be informative to assess levels of this major cell cycle modulator and potential G1 arrest in the combination-treated cells versus single agent. For the resistance model, the authors suggest that the MYCN and p21 axis cannot explain sensitivity to the combination. Nevertheless, the levels of key modulators that induce p53 signaling are not shown. Also, if the p53 signaling responsible for regulating p21 is impaired in NB-1R, molecules downstream of p21 such as P-Rb, cyclins etc. should be assessed. Last, given that MYCN is a pivotal regulator of the cell cycle, it would be interesting to perform a cell cycle analysis in these cells.

In our manuscript, we indeed showed that CGM097 caused induction of p21 and PUMA, while ceritinib caused induction of p27 and Bim. Therefore, ceritinib and CGM097 induce a complementary, yet non-overlapping set of anti-proliferative and apoptosis stimulating molecules, which resulted in synergistic antitumor effects. It is well established that induction of p21 and p27 leads to cell cycle arrest, and that PUMA and Bim function through BH3-dependent mechanisms to induce apoptosis. It would be interesting to further differentiate and monitor temporal contributions of cell cycle arrest and apoptosis to the effectiveness of this combination in future studies.

https://doi.org/10.7554/eLife.17137.017

Article and author information

Author details

  1. Hui Qin Wang

    Disease Area Oncology, Novartis Institutes for BioMedical Research, Cambridge, United States
    Contribution
    HQW, Data curation, Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Ensar Halilovic
    Competing interests
    The authors declare that no competing interests exist.
  2. Ensar Halilovic

    Disease Area Oncology, Novartis Institutes for BioMedical Research, Cambridge, United States
    Contribution
    EH, Data curation, Formal analysis, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Hui Qin Wang
    Competing interests
    The authors declare that no competing interests exist.
  3. Xiaoyan Li

    Disease Area Oncology, Novartis Institutes for BioMedical Research, Cambridge, United States
    Contribution
    XL, Formal analysis, Investigation, Methodology
    Competing interests
    The authors declare that no competing interests exist.
  4. Jinsheng Liang

    Disease Area Oncology, Novartis Institutes for BioMedical Research, Cambridge, United States
    Contribution
    JL, Formal analysis, Investigation, Methodology
    Competing interests
    The authors declare that no competing interests exist.
  5. Yichen Cao

    Disease Area Oncology, Novartis Institutes for BioMedical Research, Cambridge, United States
    Contribution
    YC, Formal analysis, Investigation, Methodology
    Competing interests
    The authors declare that no competing interests exist.
  6. Daniel P Rakiec

    Disease Area Oncology, Novartis Institutes for BioMedical Research, Cambridge, United States
    Contribution
    DPR, Investigation, Methodology
    Competing interests
    The authors declare that no competing interests exist.
  7. David A Ruddy

    Disease Area Oncology, Novartis Institutes for BioMedical Research, Cambridge, United States
    Contribution
    DAR, Investigation, Methodology
    Competing interests
    The authors declare that no competing interests exist.
  8. Sebastien Jeay

    Disease Area Oncology, Novartis Institutes for BioMedical Research, Basel, Switzerland
    Contribution
    SJ, Resources, Project administration
    Competing interests
    The authors declare that no competing interests exist.
  9. Jens U Wuerthner

    Disease Area Oncology, Novartis Institutes for BioMedical Research, Basel, Switzerland
    Contribution
    JUW, Resources, Project administration
    Competing interests
    The authors declare that no competing interests exist.
  10. Noelito Timple

    Genomics Institute of the Novartis Research Foundation, San Diego, United States
    Contribution
    NT, Investigation, Methodology
    Competing interests
    The authors declare that no competing interests exist.
  11. Shailaja Kasibhatla

    Genomics Institute of the Novartis Research Foundation, San Diego, United States
    Contribution
    SK, Investigation, Methodology
    Competing interests
    The authors declare that no competing interests exist.
  12. Nanxin Li

    Genomics Institute of the Novartis Research Foundation, San Diego, United States
    Contribution
    NL, Resources, Project administration
    Competing interests
    The authors declare that no competing interests exist.
  13. Juliet A Williams

    Disease Area Oncology, Novartis Institutes for BioMedical Research, Cambridge, United States
    Contribution
    JAW, Resources, Project administration
    Competing interests
    The authors declare that no competing interests exist.
  14. William R Sellers

    Disease Area Oncology, Novartis Institutes for BioMedical Research, Cambridge, United States
    Contribution
    WRS, Resources, Project administration, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  15. Alan Huang

    Disease Area Oncology, Novartis Institutes for BioMedical Research, Cambridge, United States
    Contribution
    AH, Resources, Investigation, Project administration
    Competing interests
    The authors declare that no competing interests exist.
  16. Fang Li

    Disease Area Oncology, Novartis Institutes for BioMedical Research, Cambridge, United States
    Contribution
    FL, Conceptualization, Resources, Data curation, Software, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    fli@tangotx.com
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0497-4200

Funding

Novartis

  • Fang Li

The research was funded by Novartis, Inc., where all authors were employees at the time the study was conducted. The authors declare no other competing financial interests.

Acknowledgements

The NB-1643 cell line was provided by the Children’s Oncology Group Cell Culture/Xenograft Repository.

Ethics

Animal experimentation: All in vivo studies were reviewed and approved by the Novartis Institutes of Biomedical Research Institutional Animal Care and Use Committee (IACUC) in accordance with applicable local, state, and federal regulations. If needed, a letter from the IACUC Chair can be provided to confirm that all in vivo studies were reviewed and approved by the Novartis IACUC. Below is the contact of the Novartis IACUC Chair. CeCe Brotchie-Fine, MA, CPIA Manager, Animal Welfare Compliance IACUC Chair & Animal Welfare Officer T +1 617 871 5064 M+1 617 834 4784 Email: Candice.brotchie-fine@novartis.com Novartis Institutes for BioMedical Research, Inc. 700 Main Street, 460 A Cambridge, MA 02139 USA

Reviewing Editor

  1. Chi Van Dang, University of Pennsylvania, United States

Publication history

  1. Received: April 23, 2016
  2. Accepted: April 18, 2017
  3. Accepted Manuscript published: April 20, 2017 (version 1)
  4. Version of Record published: May 17, 2017 (version 2)

Copyright

© 2017, Wang et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,669
    Page views
  • 390
    Downloads
  • 15
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cancer Biology
    2. Immunology and Inflammation
    Biancamaria Ricci et al.
    Research Article

    Cancer-associated fibroblasts (CAFs) are a heterogeneous population of mesenchymal cells supporting tumor progression, whose origin remains to be fully elucidated. Osterix (Osx) is a marker of osteogenic differentiation, expressed in skeletal progenitor stem cells and bone-forming osteoblasts. We report Osx expression in CAFs and by using Osx-cre;TdTomato reporter mice we confirm the presence and pro-tumorigenic function of TdTOSX+ cells in extra-skeletal tumors. Surprisingly, only a minority of TdTOSX+ cells expresses fibroblast and osteogenic markers. The majority of TdTOSX+ cells express the hematopoietic marker CD45, have a genetic and phenotypic profile resembling that of tumor infiltrating myeloid and lymphoid populations, but with higher expression of lymphocytic immune suppressive genes. We find Osx transcript and Osx protein expression early during hematopoiesis, in subsets of hematopoietic stem cells and multipotent progenitor populations. Our results indicate that Osx marks distinct tumor promoting CD45- and CD45+ populations and challenge the dogma that Osx is expressed exclusively in cells of mesenchymal origin.

    1. Cancer Biology
    Joana G Marques et al.
    Research Article

    The NuRD complex subunit CHD4 is essential for fusion-positive rhabdomyosarcoma (FP-RMS) survival, but the mechanisms underlying this dependency are not understood. Here, a NuRD-specific CRISPR screen demonstrates that FP-RMS is particularly sensitive to CHD4 amongst the NuRD members. Mechanistically, NuRD complex containing CHD4 localizes to super-enhancers where CHD4 generates a chromatin architecture permissive for the binding of the tumor driver and fusion protein PAX3-FOXO1, allowing downstream transcription of its oncogenic program. Moreover, CHD4 depletion removes HDAC2 from the chromatin, leading to an increase and spread of histone acetylation, and prevents the positioning of RNA Polymerase 2 at promoters impeding transcription initiation. Strikingly, analysis of genome-wide cancer dependency databases identifies CHD4 as a general cancer vulnerability. Our findings describe CHD4, a classically defined repressor, as positive regulator of transcription and super-enhancer accessibility as well as establish this remodeler as an unexpected broad tumor susceptibility and promising drug target for cancer therapy.
