Proton currents constrain structural models of voltage sensor activation

  1. Aaron L Randolph
  2. Younes Mokrab
  3. Ashley L Bennett
  4. Mark SP Sansom
  5. Ian Scott Ramsey  Is a corresponding author
  1. Virginia Commonwealth University School of Medicine, United States
  2. University of Oxford, United Kingdom
Research Article
  • Cited 19
  • Views 1,152
  • Annotations
Cite this article as: eLife 2016;5:e18017 doi: 10.7554/eLife.18017

Abstract

The Hv1 proton channel is evidently unique among voltage sensor domain proteins in mediating an intrinsic ‘aqueous’ H+ conductance (GAQ). Mutation of a highly conserved ‘gating charge’ residue in the S4 helix (R1H) confers a resting-state H+ ‘shuttle’ conductance (GSH) in VGCs and Ci VSP, and we now report that R1H is sufficient to reconstitute GSH in Hv1 without abrogating GAQ. Second-site mutations in S3 (D185A/H) and S4 (N4R) experimentally separate GSH and GAQ gating, which report thermodynamically distinct initial and final steps, respectively, in the Hv1 activation pathway. The effects of Hv1 mutations on GSH and GAQ are used to constrain the positions of key side chains in resting- and activated-state VS model structures, providing new insights into the structural basis of VS activation and H+ transfer mechanisms in Hv1.

https://doi.org/10.7554/eLife.18017.001

Introduction

The superfamily of voltage sensor (VS) domain proteins includes tetrameric voltage-gated cation channels (VGCs), voltage-sensitive phosphatases (VSPs) and the Hv1 proton channel. VS domains sense changes in membrane potential and undergo voltage-dependent conformational rearrangements that gate the ion channel and lipid phosphatase activities in associated effector domains. Hv1 lacks a separate effector domain, and instead mediates a depolarization-activated H+-selective ‘aqueous’ conductance (GAQ) that is intrinsic to the VS domain (Ramsey et al., 2006, 2010; Sasaki et al., 2006). Biophysical properties of GAQ gating in Hv1 are similar to pore domain gating in tetrameric VGCs (Ramsey et al., 2006; Sasaki et al., 2006; Decoursey, 2003; Gonzalez et al., 2013), and GAQ can therefore be used to directly monitor conformational changes in the Hv1 VS domain.

X-ray structures demonstrate that VS domains from phylogenetically distant species share a similar architecture: a membrane-integral bundle of four α-helices (S1-S4) surrounds an hourglass-shaped central crevice with hydrated vestibules facing the intra- or extra-milieux (Long et al., 2005; Takeshita et al., 2014; Li et al., 2014; Long et al., 2007; Guo et al., 2016; Kintzer and Stroud, 2016; Zhang et al., 2012; Payandeh et al., 2011). Hydrophobic groups appear to limit solvent accessibility at the waist of the central crevice in both resting- and activated-state VS structures, while ionizable side chains, including conserved Arg residues in S4, appear to be solvent-exposed (Long et al., 2005; Takeshita et al., 2014; Li et al., 2014; Zhang et al., 2012; Payandeh et al., 2011; Krepkiy et al., 2009; Lacroix et al., 2014; Krepkiy et al., 2012). Available VS domain structures are consistent with experimental data showing that the central crevice VS domain forms a pathway for the transmembrane movement of gating charge (QG) that is carried mainly by S4 Arg side chains (Vargas et al., 2012; Bezanilla, 2008; Seoh et al., 1996; Aggarwal and MacKinnon, 1996), and that the transmembrane electrical field is focused within the central crevice (Ahern and Horn, 2005; Starace and Bezanilla, 2004; Campos et al., 2007).

Changes in membrane potential are thought to drive S4 to move from its resting ‘down’ conformation to its ‘up’ position in the activated VS, but estimates of the magnitude of vertical S4 displacement vary widely (from ~5 Å to ~20 Å), depending on the experimental technique used (Li et al., 2014; Guo et al., 2016; Vargas et al., 2012; Posson et al., 2005; Ruta et al., 2005; Banerjee and MacKinnon, 2008; Larsson et al., 1996; Cha et al., 1999). In contrast to S4, the S1-S3 helices appear to form a relatively immobile scaffold (Long et al., 2005; Vargas et al., 2012; Ahern and Horn, 2005; Tombola et al., 2007; Jensen et al., 2012; Delemotte et al., 2011). A highly conserved Phe residue in S2 (F2.50; F150 in Hv1; refer to Table 1 and Figure 1—figure supplement 1 for the residue numbering scheme used here) faces into the VS central crevice and evidently participates in the formation of a hydrophobic barrier that helps to focus the electric field (Ramsey et al., 2010; Long et al., 2007; Jensen et al., 2012; Wood et al., 2012; Freites et al., 2006; Gosselin-Badaroudine et al., 2012). In the Shaker K+ channel, F2.50 (F290) exhibits state-dependent interactions with various S4 Arg side chains (Lacroix et al., 2014; Tao et al., 2010), and thereby serves as a spatial reference point in resting- and activated-state VS domain X-ray and model structures.

Table 1

Numbering of selected residues in Hv1 and Shaker VS domain sequences.

https://doi.org/10.7554/eLife.18017.002
Residue positionHs Hv1
number
mHv1cc numberCi Hv1 numberShaker number
1.48V109V105V157I237
1.51D112D108D160S240
1.52A113A109S161I241*
1.54L115L111L163I243
1.55V116V112V164F244
2.44I144F140L192T284
2.46I146I142I194C286
2.47L147L143L195I287*
2.50F150F146F198F290
2.51M151M147M199T291
3.53V177I173V225A319
3.54V178V174V226I320
3.58F182F178F230F324
3.61D185D181D233L327
3.65L189L185I237V331
4.40L198L194I248M356
4.43L201L197L251L358
4.44I202I198V252A359
4.46L204L200L254L361
4.47R205R201R255R362
  1. *Shaker I241H (I1.52) and I287H (I2.47) confer GSH (Campos et al., 2007).

  2. Functionally substitutes for D1.51 in background of D112V (Morgan et al., 2013).

  3. Ile3.53 was transferred from Ci VSP into mHv1cc chimera (Takeshita et al., 2014).

In silico studies of VS domain structure can help to bridge structural and experimental data by delineating probable atomic interactions, mapping solvent accessibility and identifying possible routes for ion conduction (Ramsey et al., 2010; Jensen et al., 2012; Delemotte et al., 2011; Wood et al., 2012; Freites et al., 2006; Chamberlin et al., 2014, 2015; Kulleperuma et al., 2013). Congruous with the X-ray structure of an Hv1-based chimeric protein (mHv1cc; pdb: 3WKV), Hv1 homology models generally agree that F2.50 (F150) is appropriately located to participate in the formation of a hydrophobic barrier within the central crevice (Ramsey et al., 2010; Wood et al., 2012; Chamberlin et al., 2014, 2015; Kulleperuma et al., 2013). Mutation of an acidic residue in S1 (D1.51/D112) that is selectively conserved in Hv1 and VSPs causes large positive shifts in the GAQ-V relation and compromises H+ selectivity (Ramsey et al., 2010; Musset et al., 2011; Berger and Isacoff, 2011), consistent with its predicted location near F2.50/F150 (Ramsey et al., 2010; Wood et al., 2012; Chamberlin et al., 2014, 2015; Kulleperuma et al., 2013). Ionization of D1.51/D112 was suggested to be necessary for H+ transfer via GAQ, but the necessity of an anion at this position to maintain exquisite H+ selectivity suggests that the side chain is likely to remain ionized when GAQ is open (Musset et al., 2011). The permeability of D1.51/D112 mutants, including D112H and D112K, to solution anions (Cl-, MeSO3- and possibly OH-) strongly argues that the VS central crevice is well-hydrated in the Hv1 activated-state conformation, consistent with the hypothesis that H+ conduction occurs in a water wire and does not require explicit ionization of protein side chains (Ramsey et al., 2010).

Although free energy changes calculated by a quantum mechanical (QM) model suggest that D112/D1.51 can be neutralized (Dudev et al., 2015), the orientation of the two side chains contained in the simple model system used in this study (D112/D1.51 and R2/R4.50) differs substantially from that seen in activated-state Hv1 model structures (Ramsey et al., 2010; Wood et al., 2012; Chamberlin et al., 2014, 2015; Kulleperuma et al., 2013). Computational approaches that explicitly define the proton hold promise for elucidating H+ transfer mechanism(s), but their sensitivity to subtle geometric differences in various models reinforces the need for rigorous experimental testing of candidate model structures in advance of their implementation for calculating electronic structure. Experimental approaches that can be used to map the locations of functionally important residue side chains with high spatial resolution are therefore needed. Although GAQ measurement is a potentially powerful tool for exploring structure-function relationships in Hv1, the absence of GAQ in most VS domain proteins limits its more widespread implementation. Furthermore, experimental validation of electrically silent resting-state VS domain conformations, which may serve as useful controls for theoretical studies, is problematic.

Gain-of-function mutations are reported to confer resting-state proton-selective ‘shuttle’ (GSH) or monovalent cation-nonselective ‘omega’ (GΩ) conductances in VS domain proteins, and residues that line the central crevice or ‘gating pore’ have been identified in several studies (Starace and Bezanilla, 2004; Gosselin-Badaroudine et al., 2012; Tombola et al., 2005; Capes et al., 2012; Gamal El-Din et al., 2010, 2014; Sokolov et al., 2005; Struyk and Cannon, 2007). However, putative resting-state Hv1 VS domain X-ray and model structures contain hydrophobic (Takeshita et al., 2014; Chamberlin et al., 2014) or electrostatic (Li et al., 2015) barriers that would appear to prevent GSH and GΩ, consistent with the absence of resting-state currents in experimental studies in R1H (Kulleperuma et al., 2013) and R1A/C/S (Ramsey et al., 2006; Sasaki et al., 2006) mutant Hv1 channels, respectively. To address the paradoxical lack of GSH in Hv1 R1H (Kulleperuma et al., 2013), we expressed Hv1 R1H in mammalian cells and measured whole-cell currents under voltage clamp. We find that R1H does confer GSH in Hv1 without abrogating GAQ. The effects of second-site mutations in the background of R1H impose tight spatial constraints on the positions of key residue side chains. We present new resting-state Hv1 VS domain model structures that are distinct from previous models and fully consistent with available experimental data.

Results

The relative positions of conserved Arg residues in the S4 segments from Drosophila Kv1-family Shaker K+ channel (Dm Shaker), voltage-sensitive phosphatase from Ciona intestinalis (Ci VSP), and human Hv1 (Hs Hv1) are shown in an amino acid sequence alignment (Figure 1A, Figure 1—figure supplement 1). To facilitate comparisons between disparate VS domain sequences and structures, we adopt a generic numbering system (Table 1Figure 1—figure supplement 1) that is analogous to one used for G-protein coupled receptors (Isberg et al., 2015). In this numbering scheme, the most highly conserved S4 Arg residue, R2, is designated R4.50 (Figure 1A, Table 2, Figure 1—figure supplement 1). Whereas the R1-R3 positions are conserved in most VS domain proteins, Hv1 uniquely bears a polar neutral residue (N214/N4/N4.56) in the R4 position (Figure 1A, Figure 1—figure supplement 1).

Figure 1 with 2 supplements see all
A resting-state H+ ‘shuttle’ conductance in Hv1 R1H.

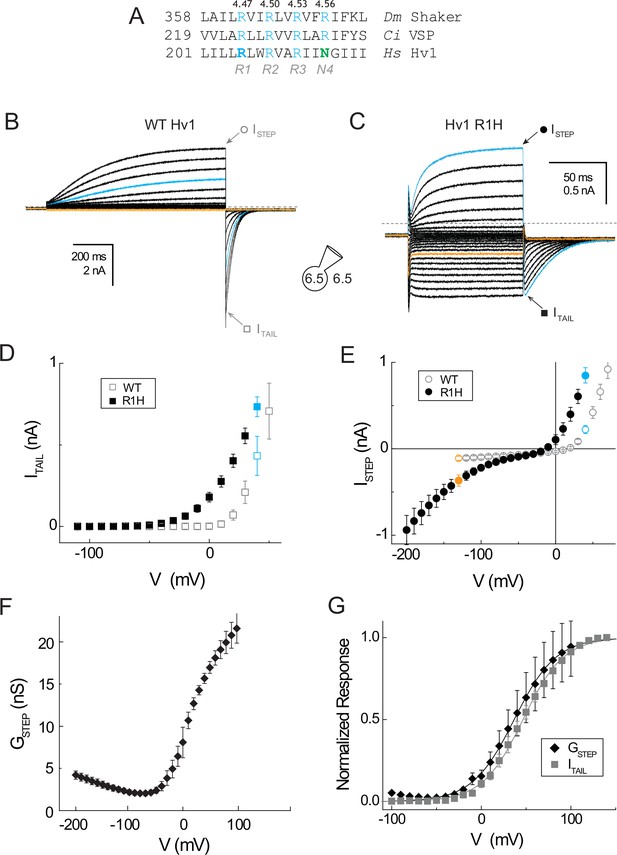

(A) A multiple sequence alignment of the S4 helix in Drosophila melanogaster Shaker (GI:288442), Ciona intestinalis Voltage Sensitive Phosphatase (GI:76253898) and Homo sapiens Hv1 (GI:38783432) is shown. Numbering indicates amino acid position and bold typeface indicates residues that are mutated in this study. Conserved S4 Arg residues are shown in blue and Asn214 in Hv1 is green. (B, C) Whole-cell currents in a representative cell expressing Hv1 R1H are elicited by voltage steps from a holding potential of −60 mV to −130 mV through +70 mV in increments of +10 mV in a representative cell expressing WT Hv1 (B) or from a holding potential of −50 mV to −200 mV through +40 mV in increments of +10 mV (C). Tail currents measured at −90 mV and recording solutions (pHO 6.5, pHI 6.5) are indicated in the diagram. Symbols indicate the approximate times at which ISTEP (circles) and ITAIL (squares) are measured. Colored lines indicate currents measured at +40 mV (cyan) or −130 mV (orange) and dashed lines indicate the zero current amplitudes. (D, E) ITAIL-V (D) and ISTEP-V (E) relations are shown for WT Hv1 (open symbols) and R1H (filled symbols). Colored symbols indicate currents measured at +40 mV (cyan) and −130 mV (orange), as shown in B and C. Symbols represent means ± SEM from n = 4 (ISTEP, WT), n = 6 (ISTEP, R1H), n = 6 (ITAIL, WT), or n = 7 (ITAIL, R1H) cells. Linear leak currents are subtracted from the ITAIL-V relations in D. (F) The mean GSTEP-V relation calculated from data in E exhibits a ‘U’ shape in which the apparent maximal GSTEP amplitudes at positive and negative potentials are unequal. The data suggest that GAQ is open at positive potentials while the resting-state H+ shuttle conductance (GSH) is open at more negative voltages. (G) The voltage dependence of the intrinsic activated-state H+ conductance (GAQ) in Hv1 R1H is estimated from ITAIL (gray squares) measured at −90 mV in symmetrical pH 6.5 recording solutions as shown in B and C. GSTEP (black diamonds) is calculated from ISTEP (see Materials and methods). GSTEP and ITAIL are normalized to their apparent maxima in each cell and symbols represent the mean ± SEM from n = 6 (ISTEP) or n = 7 (ITAIL) cells. Solid lines represent fits of the data between −50 mV and +100 mV to a Boltzmann function (ITAIL, gray line: V0.5 = 46.5 mV, dx = 22.6; GSTEP, black line; V0.5 = 36.7 mV, dx = 23.4).

https://doi.org/10.7554/eLife.18017.003
Table 2

Effects of Hv1 mutations on GAQ gating. ITAIL was measured in cells expressing the indicated constructs and VTHR was estimated by visual inspection of raw current records as described (Materials and methods). The data represent means ± SEM from determinations in the indicated number (n) of cells.

https://doi.org/10.7554/eLife.18017.006
constructGAQ VTHR
(mV)
SEMn
WT*+726
N4R*+1734
R1A*+634
R1H−25.01.920
R1H-N4R−20.72.214
D185A-R1H+40.01.913
D185H-R1H+80.03.87

His mutations at R4.47 in Shaker (R362H) and Ci VSP (R221H) are each sufficient to confer a resting-state GSH (Starace and Bezanilla, 2004; Villalba-Galea et al., 2013), but resting-state current was not observed in Hv1 R205H (Kulleperuma et al., 2013). Cytotoxicity associated with the expression of a constitutive H+ conductance can hamper efforts to measure GSH (Campos et al., 2007), so we expressed Hv1 R1H in a tetracycline-inducible congenic HEK-293 cells 1–4 days after induction (see Materials and methods). Consistent with previous reports (Ramsey et al., 2010; Kulleperuma et al., 2013), cells expressing EGFP-tagged WT Hv1 or Hv1 R1H display voltage- and time-dependent currents (Figure 1B,C). Current amplitudes during the voltage step (ISTEP) and immediately after subsequent hyperpolarization (ITAIL) are typically larger in cells expressing WT Hv1 than in cells expressing R1H (Figure 1B,C). As previously reported (Kulleperuma et al., 2013), we find that the time courses of GAQ activation and deactivation are substantially more rapid in Hv1 R1H than WT Hv1 (Figure 1B,C). ITAIL-V relations and VTHR analyses demonstrate that GAQ activation is shifted negatively by −32 mV in R1H, from +7 mV in WT Hv1 (Ramsey et al., 2010) to −25.0 ± 1.9 mV (n = 20) in R1H (Figure 1D; Table 2). pHO-dependent shifts in ITAIL reversal potentials (Figure 1—figure supplement 2; 52.2 mV/pH unit at pHI 6.5 and 50.5 mV/pH unit at pHI 7.0) are close to the Nernst prediction (58.2 mV/pH unit) under our recording conditions (~20°C), suggesting that R1H does not substantially alter H+ selectivity for GAQ.

A resting-state ‘H+ shuttle’ conductance (GSH) in Hv1 R1H

We routinely observe robust inward ISTEP at negative potentials in cells expressing Hv1 R1H (Figure 1C,E). Whereas the ISTEP-V relation for WT Hv1 is outwardly rectifying, the ISTEP-V relation in R1H exhibits double rectification with an apparent plateau at intermediate voltages near −30 mV (Figure 1E). The inwardly-rectifying shape of the steady-state ISTEP-V relation in Hv1 R1H at negative potentials is similar to other R1H VS domain mutants (Starace and Bezanilla, 2004; Capes et al., 2012; Struyk and Cannon, 2007; Villalba-Galea et al., 2013) but distinct from the bell-shaped ISTEP-V relations in Shaker R2H and R3H that utilize a carrier-type (GCA) mechanism for Htransfer (Starace and Bezanilla, 2001; Starace et al., 1997). To discriminate resting- and activated-state conductances in Hv1, we use GSH terminology in reference to the channel-like H+ conductances observed in R1H VS domain mutants.

The ISTEP-V curve in Hv1 R1H exhibits prominent inward rectification at negative potentials (Figure 1E), similar to Shaker and Ci VSP R1H mutants (Starace and Bezanilla, 2004; Villalba-Galea et al., 2013), whereas at potentials > −30 mV, ISTEP-V curve in Hv1 R1H exhibits outward rectification like WT Hv1 (Figure 1E). The apparent ‘plateau’ in the ISTEP-V relation near −30 mV appears to result when both GSH and GAQ are close to their respective minima (Figure 1E). Consistent with this interpretation, the doubly-rectifying ISTEP-V relation gives rise to a ‘U-shaped’ GSTEP-V relation in Hv1 R1H (Figure 1F). The net GSTEP-V may be interpreted to represent the amalgam of distinct conductances (GSH and GAQ) that have distinct voltage dependencies, opposite gating polarity and unequal maximal amplitudes. Classical ion channel gating theory predicts that G = N·γ·POPEN (where γ is unitary conductance, N is channel number and POPEN is open probability), and we therefore infer that GSH = NSH·γSH·POPEN-SH and GAQ = NAQ·γAQ·POPEN-AQ. If each Hv1 R1H mutant VS domain mediates both GSH and GAQ (albeit at different potentials), i.e., NSH = NAQ and γAQ≠ γSH (Figure 1F).

ISTEP-V and ITAIL-V relations in WT Hv1 are apparently linear at negative voltages (Figure 1D,E), consistent with the expectation that POPEN-AQ will asymptotically approach its minimum as the membrane potential becomes more negative (Gonzalez et al., 2013; Cherny et al., 1995). In R1H however, the inward ISTEP clearly becomes larger as membrane potential becomes more negative (Figure 1E). GSTEP also rises with additional hyperpolarization, suggesting that the voltage-dependent increase in inward current results from an increase in POPEN-SH (Figure 1F). The notion that GSH gating reflects a change in VS conformation is consistent with results from a study conducted showing that Ci Hv1 exhibits kinetically distinct fluorescence changes with distinct voltage dependencies (Qiu et al., 2013). However, GAQ and GSH gating measured here are more widely separated than the fluorescence changes (Qiu et al., 2013), suggesting that GSH may report an earlier transition in the Hv1 activation pathway.

The GSTEP-V relation in Hv1 R1H exhibits a local minimum near −50 to −70 mV; at these intermediate potentials, GSTEP could reflect contributions from GAQ and GSH, in addition to voltage-independent membrane leakage (GLEAK). Inspection of the GAQ-mediated ITAIL-V relation in R1H indicates that POPEN-AQ is negligibly small at voltages negative to −40 mV (Figure 1G), but the unambiguous dissection of GSH gating is compromised by the contributions of GSH and GLEAK to the aggregate GSTEP. To measure GSH gating in isolation, we sought to test the hypothesis that mutagenesis could be used to experimentally block GAQ. We therefore combined R1H with D112V, which is reported to abrogate GAQ (Musset et al., 2011), but so far we have been unable to measure either GSH or GAQ in cells expressing channels D112X-R1H double-mutant (where X is Val, Asn or Ala; not shown).

N214R isolates the resting-state GSH from the intrinsic GAQ

Previous studies show that N4R and N4K mutations attenuate outward ISTEP mediated by GAQ, but have comparatively little effect on inward ITAIL, indicating that basic side chains at this position block the H+ permeation pathway in a voltage-dependent fashion (Ramsey et al., 2010; Sakata et al., 2010). We therefore incorporated N4R into the background of Hv1 R1H (R1H-N4R) and measured expressed currents as described for the R1H single mutant. Hv1 R1H-N4R mediates robust inward currents carried by GSH like R1H, but outward GAQ-mediated ISTEP amplitude is substantially reduced, and the remaining current exhibit a linear dependence on membrane potential and is thus attributable to GLEAK (Figure 2A,B). The time course of ITAIL decay in N4R (Ramsey et al., 2010) and R1H-N4R (Figure 2A) is evidently monophasic and notably lacks the ‘hook’ seen in the presence of the gating modifier 2GBI (Hong et al., 2013), indicating that R1H-N4R channels are open, but blocked, at positive voltages, and relief of a block occurs instantaneously upon hyperpolarization (Figure 2A).

Figure 2 with 1 supplement see all
A second-site N4R mutation isolates GSH in Hv1 R1H.

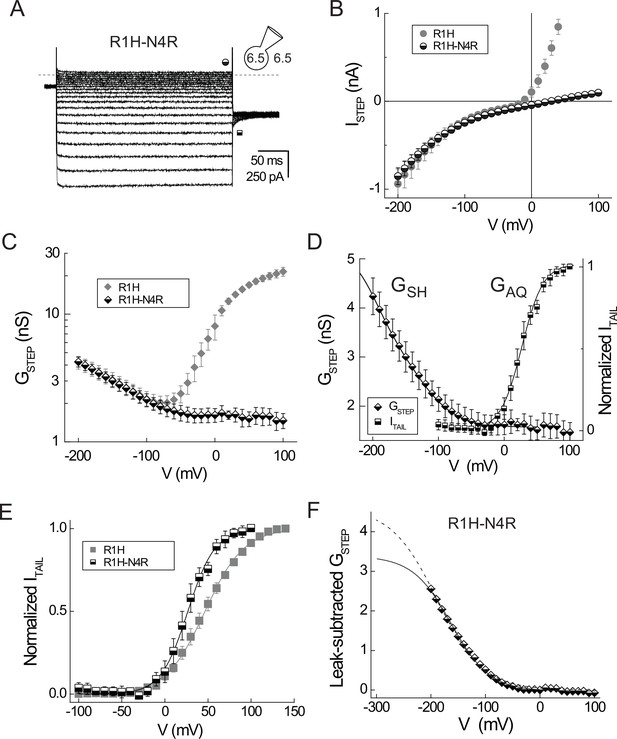

(A) Representative whole-cell currents in a cell expressing Hv1 R1H-N4R are elicited by voltage steps to −150 mV through +40 mV in increments of +10 mV from a holding potential of −30 mV; ITAIL is measured at −90 mV. Recording solutions are symmetrical pH 6.5, as indicated. Symbols indicate approximate times at which ISTEP (half-filled circles) and ITAIL (half-filled squares) are measured; the dashed line indicates the zero current amplitude. (B) The ISTEP-V relations for R1H-N4R (half-filled circles) and R1H (filled gray circles; data from Figure 1) are plotted together for comparison. Note that outward ISTEP mediated by GAQ is apparently absent in R1H-N4R but inward currents mediated by GSH are similar in R1H and R1H-N4R. For R1H-N4R, symbols represent means ± SEM n = 4 cells. (C) GSTEP-V relations for R1H-N4R (half-filled diamonds) and R1H (filled gray diamonds; data from Figure 1) are shown without leak subtraction. Note the log scale for GSTEP. Data represent means ± SEM from n = 3 cells expressing R1H-N4R that exhibited similar resting-state current amplitudes. (D) GSTEP-V (half-filled diamonds) and normalized ITAIL-V (half-filled squares) relations for R1H-N4R are scaled to illustrate their relative positions on the voltage axis. Data represent means ± SEM from n = 3 cells with similar current amplitudes. ITAIL data from each cell is linear leak-subtracted and normalized to its amplitude at +100 mV prior to averaging. Lines represent fits of the data to single Boltzmann functions (GSTEP: GSTEPmin = 1.5 nS, GSTEPmax = 5.5 nS, V0.5 = −172.1 mV, dx = 40.4; ITAIL: V0.5 = 26.3 mV, dx = 16.3). (E) Leak-subtracted normalized ITAIL-V relations for R1H (filled gray squares; data from Figure 1) and R1H-N4R (half-filled squares) are plotted together for comparison. Lines represent fits to single Boltzmann functions (R1H: V0.5 = 46.5 mV, dx = 22.6; R1H-N4R: V0.5 = 26.3 mV, dx = 16.3). (F) GSH gating was estimated by fitting the leak-subtracted GSTEP-Vrelation to Boltzmann functions in which V0.5 is either free to vary (solid line: GSHmax = 3.4 nS, V0.5 = −164 mV, dx = 35.4) or constant (see Figure 4F, dashed line: V0.5 = VPEAK = −189 mV, GSHmax = 4.6 nS, dx = 42.1).

https://doi.org/10.7554/eLife.18017.007

Unlike R1H, the steady-state R1H-N4R ISTEP-V relation is inwardly rectifying (Figure 2B). A comparison of R1H and R1H-N4R GSTEP-V relations shows that the GAQ component is absent in R1H-N4R, and GSH approaches saturable minimum at voltages positive to ~−30 mV (Figure 2C). Linear subtraction of the leakage (GLEAK = 1.5 ± 0.2 nS at +100 mV and GLEAK = 1.6 ± 0.2 nS at 0 mV; n = 4 cells) yields a GSTEP-V relation that is readily fit to a single Boltzmann function (Figure 2F), although ambiguity about the maximal amplitude of GSH at large negative potentials does not permit unambiguous determination of the V0.5 or slope factors determined from curve fitting (Figure 2F). Although GAQ is blocked at positive potentials in R1H-N4R, the inward ITAIL carried by GAQ remains measurable, and VTHR for activation of GAQ is similar in R1H and R1H-N4R (Figure 2A,D; Table 2), Boltzmann fits of the respective ITAIL-V relations illustrate that the fitted slope value is steeper and midpoint (V0.5) is ~20 mV more negative in R1H-N4R compared to R1H (Figure 2E). Although N4R dramatically decreases outward current carried by GAQ, the second-site mutation appears to have only a modest effect on GAQ gating. Wide separation in the positions of the normalized G-V relations (Figure 2D) indicates that GSH and GAQ gating report thermodynamically distinct steps in the Hv1 activation pathway.

Our data suggest that voltage-dependent closure of GSH reports initial VS activation while GAQ gating reflects a late gating transition. Our results are similar, but not identical, to Shaker R1H (Starace and Bezanilla, 2004). For example, the time courses of GSH opening and closing in Hv1 R1H-N4R (Figure 2A) are evidently faster than Shaker and Ci VSP R1H mutants (Starace and Bezanilla, 2004; Villalba-Galea et al., 2013), possibly indicating that GSH gating in Hv1 does not require substantial conformational rearrangement of the protein backbone. In contrast, the time course of GAQ-mediated ISTEP and ITAIL (Figures 1C, 2A) are comparatively slow, suggesting that activation and deactivation gating requires more extensive protein conformational rearrangements. GSH gating and GAQ block by N4R are likely to involve rapid local changes in the orientation of side chains that lie in or near the focused electrical field, and GSH gating phenomenologically resembles pore block by a permeant ion. GΩ gating in R1A/C/S mutant Shaker channels is similarly attributed to block by the protein-associated side chains of S4 Arg residues, which permeate the ‘gating pore’ during VS activation. Consistent with the small apparent gating valence (0.5–0.7 e0; Figure 2F) estimated from Boltzmann fits, local reorientation of the imidazole side chain in the introduced His at R1 could account for the voltage dependence of GSH gating.

D185 selectively stabilizes the activated, GAQ-open conformation of the Hv1 VS domain

Differences in the voltage dependence of GSH and GAQ gating suggest that mutation of residues which selectively stabilize the activated-state Hv1 VS conformation may preferentially perturb GAQ gating. An acidic residue in S3, D185/D3.61, is conserved only in Hv1 (Figure 1—figure supplement 1). D185 mutations produce dramatic shifts in VTHR toward positive potentials (Ramsey et al., 2010) without altering H+ selectivity (Musset et al., 2011), consistent with the hypothesis that this residue participates in an interaction that stabilizes the GAQ-open, activated-state conformation. We therefore introduced D185A and D185H mutations into the background of R1H and measured their effects on GSH and GAQ gating. As in Hv1 R1H and R1H-N4R, cells expressing D185-R1H double mutants manifest robust steady-state inward currents at negative membrane potentials (Figure 3A,B; Figure 3—figure supplement 1). As expected, the GAQ gating is shifted positively in D185H-R1H and D185A-R1H (Figure 3C,D; Figure 3—figure supplement 1A,B). Compared to R1H, VTHR is shifted +65 mV in D185A-R1H and +105 mV in D185H-R1H (Table 2; Figure 3G,H); the effects of D185 mutations in the background of R1H are similar to the effects of single D185A or D185H mutations (Ramsey et al., 2010).

Figure 3 with 2 supplements see all
D185 mutations selectively affect GAQ gating.

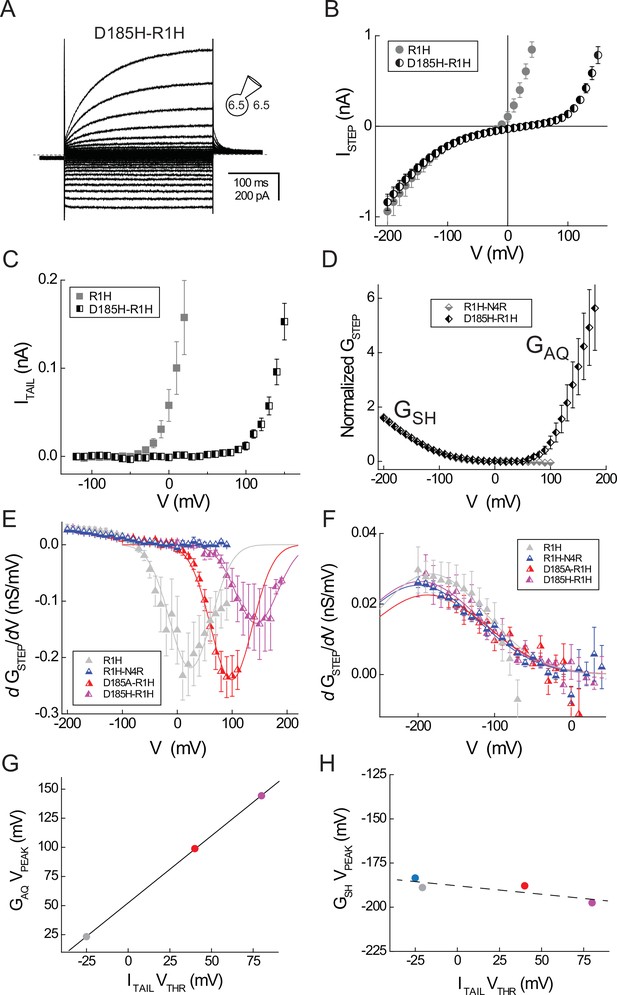

(A) Representative whole-cell current records elicited by voltage steps from −120 mV to +150 mV in a cell expressing Hv1 D185H-R1H in symmetrical pH 6.5 recording solutions are shown. (B) The ISTEP-V relation for D185H-R1H (half-filled circles) is compared to R1H (filled gray circles; data from Figure 1). (C) The mean ITAIL-V relation for D185H-R1H (half-filled squares) is compared to R1H (filled gray squares; data from Figure 1). Linear leak currents are subtracted from the data. (D) The normalized leak-subtracted GSTEP-V relations for D185H-R1H (black half-filled diamonds) and R1H-N4R (gray half-filled diamonds; data from Figure 2) are compared. Linear GLEAK calculated between 0 mV and +50 mV is subtracted from the D185H-N4R data and GSTEP is normalized to its value at −140 mV. A Boltzmann fit to the mean D185H-R1H GSTEP-V relation between −200 mV and +50 mV (GMAX = 2.2, dx = 35.3, V0.5 = −164.9 mV; not shown) yields similar gating parameters to R1H-N4R (see Figure 2). (E) dGSTEP/dV-V relations are calculated from leak-subtracted GSTEP-V data measured in cells expressing R1H (gray triangles), R1H-N4R (blue triangles), D185A-R1H (red triangles), or D185H-R1H (violet triangles). For clarity, only data between −200 mV and +40 mV are shown in panel F. Lines represent Gaussian fits to the data between −100 mV and +100 mV (R1H, gray line: A = −20.8, ω = 76.2, VPEAK = +23.3 mV), −20 mV and +110 mV (D185A-R1H, red line: A = −22.9, ω = 76.2, VPEAK = +98.9 mV), or 0 mV and +190 mV (D185H-R1H, violet line: A = −13.3, ω = 76.2, VPEAK = +144.3 mV). For Gaussian fits to R1H and D185A-R1H data, ω is constrained to the value determined from a fit to D185H-R1H data (ω = 76.2). D185A-R1H and D185H-R1H data represent means ± SEM from n = 3 cells; R1H data are replotted from Figure 2 and R1H-N4R data is replotted from Figure 4. (F) Symbols represent dGSTEP/dV-V relations (panel E) between −200 mV and +40 mV only and lines represent Gaussian fits to the data (R1H, gray line: A = 5.1, ω = 143.8, VPEAK = −183.5 mV; R1H-N4R, blue line: A = 5.6, ω = 155.5, VPEAK = −188.9 mV; D185A-R1H, red line: A = 4.4, ω = 155.5, VPEAK = −187.9 mV; D185H-R1H, violet line: A = 5.1, ω = 155.5, VPEAK = −197.5 mV). (G, H) VPEAK values for GAQ (from E) and GSH (from F) gating are plotted against VTHR for GAQ-mediated ITAIL (data from Table 2) in cells expressing R1H (gray circle), R1H-N4R (blue circle), D185A-R1H (red circle) and D185H-N4R (violet circle). Note that GAQ VPEAK is not measured for R1H-N4R (G). Effects of D185 mutations on GAQ gating estimated from VPEAK and VTHR are strongly correlated (solid black line in G, R = 0.99) whereas the effects of mutations on GSH gating are weakly correlated with their effects GAQ gating (dashed black line in H, R = −0.84).

https://doi.org/10.7554/eLife.18017.009

Like R1H alone, D185H-R1H and D185A-R1H exhibit U-shaped GSTEP-V relations (Figure 3D; Figure 3—figure supplement 1A) that are similar to R1H (Figure 2), indicating that GSH is not abrogated by D185 mutation. In contrast to R1H, the ITAIL-V and GSTEP-V relations in D185A-R1H and D185H-R1H exhibit a wider plateau at intermediate potentials (Figure 3D; Figure 3—figure supplement 1A), which facilitates GLEAK subtraction (Figures 3D, Figure 3—figure supplement 1) and analysis of GSH gating. At negative voltages where GSH is open, the D185H-R1H and D185A-R1H ISTEP-V and GSTEP-V relations are similar to R1H and R1H-N4R (Figure 3D; Figure 3—figure supplement 1A,B), indicating that GSH gating is unaffected by D185 mutation. D185 mutations therefore appear to selectively destabilize the GAQ-open conformation of the Hv1 VS domain, but do not alter interactions that are important for resting-state stabilization.

First derivative analyses of G-V relations

Next we sought to test the hypothesis that changes in GSH gating can also be experimentally measured. However, the lack of GSH saturation at negative potentials limits our ability to accurately determine GSH gating parameters for from fits of GSTEP-V data to a Boltzmann function, even when the contributions to the net GSTEP from GSH and GLEAK are defined (Figure 2F). To circumvent this limitation, we reasoned that an analysis of the first derivatives of GSTEP-V relations (dGSTEP/dV) could be a useful alternative approach. First, we simulated ideal GSTEP-V relations using a Boltzmann function (Figure 3—figure supplement 2A,C). As expected, a plot of dGSTEP/dV vs. the applied potential (dGSTEP/dV-V) yields a bell-shaped distribution (Figure 3—figure supplement 2B,D). Fitting the data to a Gaussian function allows us to estimate the voltage at which the curve peaks (VPEAK). Fitted VPEAK values are correlated to V0.5 in simulated GSH and GAQ Boltzmann distributions (Figure 3—figure supplement 2E). Altering the amplitude and position of simulated GSTEP-V relations to reflect the known effect of changing pHO on GAQ gating produces a commensurate shift (40 mV/pH unit) in VPEAK (Figure 3—figure supplement 2A–E). We confirm that experimentally-measured V0.5 (estimated by Boltzmann fitting of ITAIL-V relations) and VPEAK (from Gaussian fits to dITAIL/dV-V) values are similarly pHO-dependent using experimental ITAIL data in R1H-N4R (Figure 3—figure supplement 2F,G). The slopes of the V0.5-pHO and VPEAK-pHO relations in R1H-N4R are each close to 40 mV/pH unit (Figure 3—figure supplement 2G).

Our analyses of simulated and experimental data indicate that VPEAK can be used to estimate the positions of G-V relations when experimental conditions preclude direct measurement of either Gmin or Gmax. We therefore compared estimated GAQ gating parameters in R1H, D185A-R1H and D185H-R1H determined from analyses of VPEAK and VTHR. In D185H-R1H, ITAIL does not clearly reach saturation at voltages ≤+200 mV, but the dGSTEP/dV-V relation rises to a peak near +150 mV and falls again at more positive potentials (Figure 3E). Although we did not measure R1H-D185A over as wide a range of positive potentials, we observe a peak in the dGSTEP/dV-V data near +100 mV (Figure 3E), suggesting that the midpoint of the GAQ-V relation was reached. Gaussian fits of data from R1H, D185A-R1H and D185H-R1H yield VPEAK values of +23.3 mV, +98.9 mV and +144.3 mV, respectively (Figure 3E), and VPEAK is well-correlated to VTHR (Figure 3G).

In contrast to GAQ gating, dGSTEP/dV-V relations at negative voltages are similar in R1H, R1H-N4R, D185A-R1H and D185H-R1H (Figure 3F), and the fitted VPEAK values indicate that GSH gating is poorly correlated with the VTHR for GAQ gating (Figure 3H). First derivative analyses of G-V relations therefore appear to quantitatively agree with results obtained using the established VTHR method (Musset et al., 2008). We noted earlier that the apparent maximal amplitudes of GAQ and GSH (GAQmax and GSHmax, respectively) are distinct (Figures 1F, 2C), but our estimate of GSHmax remains tentative (Figure 2F). Using VPEAK determined from first derivative analysis (VPEAK = −189 mV = V0.5) to constrain Boltzmann fits to the R1H-N4R data yields a revised estimate of GSHmax and the slope factor for GSH gating (GSHmax = 4.6 nS, dx = 42.1; Figure 2F, dashed line).

By subtracting the voltage-independent leak (GLEAK = 1.5 nS in R1H-N4R; Figure 2C), we calculated the net GSTEP-V for R1H (Figure 1F) and estimated the voltage dependence of GAQ gating (V0.5 = 29.4 mV; Figure 2—figure supplement 1), which compares favorably with the value determined from direct measurement of the R1H-N4R ITAIL-V relation (V0.5 = 26.3 mV; Figure 2E). The foregoing analysis allows us to directly compare GAQmax (22.2 nS; Figure 2—figure supplement 1) and GSH max (4.6 nS; Figure 2F); after leak subtraction, GAQmax/GSHmax = 4.8. Assuming that the maximum open probabilities for GAQ and GSH (POPENmax-AQ and POPENmax-SH) are equal, the data suggest that the respective unitary conductances (γAQmax and γSHmax, respectively) also differ by a factor of ~5. Stated differently, the data indicate that the capacity for H+ transfer via the His-dependent GSH pathway is about 5 times smaller than that of the intrinsic GAQ.

GSH and GAQ gating are equally sensitive to changes in extracellular pH

A hallmark feature of GAQ gating in native and expressed Hv1 channels is the sensitivity of GAQ gating to changes in the pH gradient (Ramsey et al., 2006; Sasaki et al., 2006; Cherny et al., 1995). Mutations of candidate ionizable residues surprisingly failed to alter the sensitivity to changes in pHO (Ramsey et al., 2010), and the molecular mechanism for △pH sensing remains unknown. A kinetic model of Hv1 gating predicts that a voltage-independent transition governs GAQ opening, and this gating step could also be required for the channel’s strong sensitivity to changes in △pH (Villalba-Galea, 2014). In order to determine whether earlysteps in the Hv1 activation pathway are sensitive to changes in △pH, we measured GSH gating in cells expressing Hv1 R1H-N4R at pHO 5.5, 6.5 and 7.5 (Figure 4A–C). Consistent with the effect of extracellular acidification to increase the driving force for inward H+ current, ISTEP increases as pHO is lowered (Figure 4D). The ISTEP-V relations remain inwardly rectifying for each pH tested, suggesting that GAQ block by N4R is not perturbed by changing pHO (Figure 4D).

GSH and GAQ gating in R1H-N4R are similarly sensitive to changes in pHO.

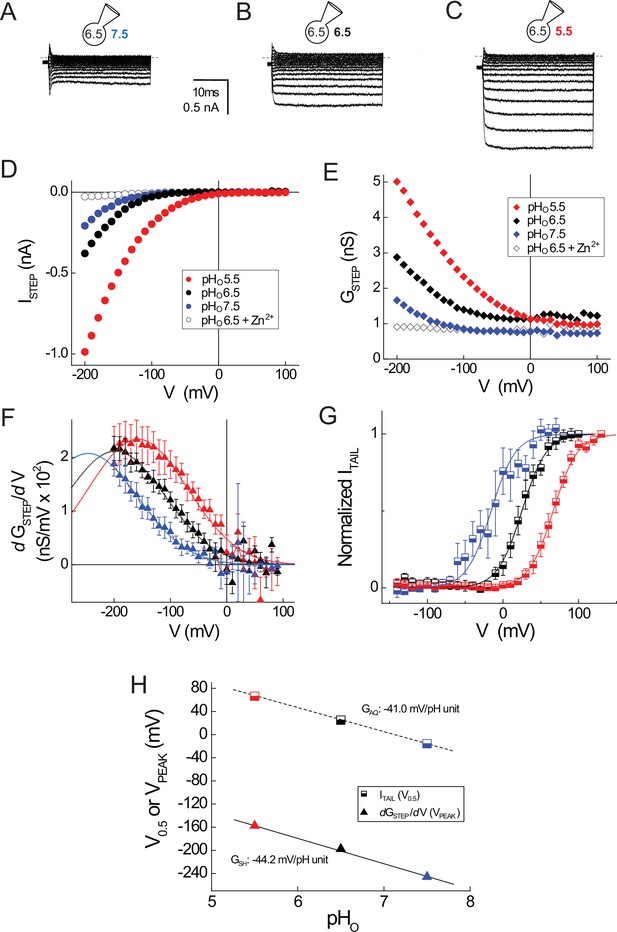

(AC) Representative whole-cell currents elicited by voltage steps (−200 mV to +100 mV in 10 mV increments) in a cell expressing R1H-N4R that was superfused with pHO 7.5 (A), pHO 6.5 (B) and pHO 5.5 (C) recording solutions are shown. (D) ISTEP-V relations at pHO 7.5 (filled blue circles), pHO 6.5 (filled black circles) or pHO 5.5 (filled red circles) are shown for the records in AC. Open black circles represent ISTEP measured at pHO 6.5 + 1 mM Zn2+ in the same cell (raw traces not shown). (E) GSTEP-V relations at pHO 7.5 (filled blue diamonds), pHO 6.5 (filled black diamonds), pHO 5.5 (filled red diamonds) or pHO 6.5 + 1 mM Zn2+ (open black diamonds) calculated from the data in D are shown. (F) dGSTEP/dV is plotted in function of the membrane potential at which GSTEP was measured at pHO 5.5 (red triangles), pHO 6.5 (black triangles) or pHO 7.5 (blue triangles) in R1H-N4R. Data points represent means ± S.E.M. from n = 8 (pHO 5.5), n = 12 (pHO 6.5) or n = 10 (pHO 7.5) cells. Dashed lines represent fits of the mean dGSTEP/dV-V relations between −200 mV and +100 mV to Gaussian functions: red line, pHO 5.5: A = 5.2, ω = 176.4, VPEAK = −157.4 mV; black line, pHO 6.5: A = 4.7, ω = 176.4, VPEAK = −197.6 mV; blue line, pHO 7.5: A = 4.6, ω = 176.4, VPEAK = −245.7 mV. (G) ITAIL-V relations after steps to the indicated voltages at pHO 7.5 (half-filled blue squares), pHO 6.5 (half-filled black squares), or pHO 5.5 (half-filled red squares) are shown. ITAIL is normalized to the apparent maximum current at each pHO. Data points represent means ± S.E.M. in n = 9 (pHO 5.5), n = 10 (pHO 6.5) or n = 4 (pHO 7.5) cells. Lines represent fits of the mean data to Boltzmann functions (red line, pHO 5.5: V0.5 = +66.3 mV, dx = 16.2; black line, pHO 6.5: V0.5 = +25.0 mV, dx = 16.2; blue line, pHO 7.5: V0.5 = −15.7 mV, dx = 16.2). (H) The pHO dependence of GSH (estimated from fitted VPEAK values in mean dGSTEP/dV-V relations; triangles) and GAQ (estimated from fitted V0.5 values in mean ITAIL-V relations; squares) is compared. Lines represent linear fits of the data (GSH: −44.2 mV/pH unit; GAQ: −41.0 mV/pH unit).

https://doi.org/10.7554/eLife.18017.012

Congruent with the effect of changing pHO on ISTEP, GSTEP amplitude also varies with pHO in R1H-N4R (Figure 4E). To determine whether changing pHO shifts the apparent position of the GSH-V relation, we compared the dGSTEP/dV-V relations at pHO 5.5, 6.5 and 7.5 (Figure 4F). Gaussian fits to the data reveal that VPEAK (pHO7.5, VPEAK = −227 ± 9 mV, n = 11; pHO 6.5, VPEAK = −180 ± 7 mV, n = 14; pHO 5.5, VPEAK = −156 ± 10 mV, n = 8) is sensitive to changes in pHO (Figure 4F). To directly compare the pHO dependence of GAQ and GSH gating in R1H-N4R, we also measured ITAIL at pHO 5.5, 6.5 and 7.5 and fit the normalized data to a Boltzmann function (Figure 4G). Similar to WT Hv1, V0.5 (GAQ gating) shifts −41.0 mV/pH unit in R1H-N4R (Figure 4H). Interestingly, VPEAK (GSH gating) shifts −44.2 mV/pH unit (Figure 4H), indicating that GSH and GAQ gating are similarly sensitive to changes in pHO. Together with the effect of D185 mutations on GAQ gating, our findings imply that △pH-dependent gating occurs early in the Hv1 activation pathway, and later steps (like GAQ opening) inherit their △pH sensitivity from a previous gating transition. The sensitivity of GSH-V relations to changes in pHO, but not to D185 mutation, further reinforces our conclusion that GAQ and GSH report thermodynamically distinct gating transitions.

An experimentally-constrained model of the Hv1 VS domain resting-state structure

R1H mutations are sufficient to confer phenomenologically similar GSH in VS domains from Hv1, Shaker and Ci VSP, suggesting the mechanism of H+ transfer and resting-state VS structure are similar. A likely mechanism is H+ shuttling mechanism via ionizable nitrogen atom(s) in the imidazole ring of the introduced His (Starace and Bezanilla, 2004). H+ delivery to and removal from the introduced His presumably requires that hydrogen bonds are formed between nitrogen atoms and intra- and extra-cellular waters, and protons short-circuit the sharply-focused electrical field as they are shuttled by the introduced His (Starace and Bezanilla, 2004). The introduced His imidazole ring side chain is therefore likely to be in or near the hydrophobic barrier, and thus close to F150/F2.50, in the GSH-open, resting-state VS domain conformation. With the exception of At TPC1 DII VS domain X-ray structures (Guo et al., 2016; Kintzer and Stroud, 2016), R1/R4.47 is not close to F2.50 in putative resting-state VS domain X-ray structures, and the structural basis for H+ transfer via GSH in R1H mutants remains unclear (Takeshita et al., 2014; Li et al., 2014; Vargas et al., 2012; Jensen et al., 2012; Delemotte et al., 2011; Chamberlin et al., 2014; Li et al., 2015).

We therefore generated a new resting-state Hv1 VS domain model (Hv1 D) in which R1 is located adjacent to F150/F2.50 and subjected the Hv1 D model to all-atom molecular dynamics (MD) simulations as described previously (Ramsey et al., 2010). We also subsequently produced an R1H mutant resting-state Hv1 model structure (Hv1 E) and subjected the mutant model to MD simulation. The backbone structures of Hv1 D and the recently-solved X-ray structures of the domain II VS from At TPC1 (At TPC1 DII VS; pdb: 5W1J and 5DQQ), which adopts a resting-state conformation (Guo et al., 2016; Kintzer and Stroud, 2016), are remarkably similar (Figure 5F). The main difference between Hv1 D and At TPC1 DII VS domains is the tilt of S4 relative to membrane normal. S4 is more vertically oriented in Hv1 D than At TPC1 DII (Figure 5F), but given that S4 is likely to be highly mobile, the subtle difference in S4 tilt is perhaps not surprising. As suggested by protein sequence alignment (Figure 1—figure supplement 1) R537, rather than R531 (Guo et al., 2016; Kintzer and Stroud, 2016), in At TPC1 DII VS occupies a similar position as R1/R205/R4.47 in Hv1 (Figure 5G), and we therefore define R537 as R1/R4.47. R1/R4.47 Cα positions in Hv1D and AtTPC1 DII are separated by 2.9 Å, and the side chains of these residues are similarly directed to the intracellular side of F2.50 (Figure 5G). Small differences in Cα distances are also measured between D/N1.51 (1.0 Å), F2.50 (2.0 Å) and D/E3.61 (3.5 Å) in Hv1 D/At TPC1 DII VS, and these side chains are also oriented similarly in both structures (Figure 5G). In summary, the structural similarity between the At TPC1 DII X-ray structure (Guo et al., 2016; Kintzer and Stroud, 2016) and Hv1 D model VS domains strongly argues that our Table 1new Hv1 model represents a thermodynamically stable protein conformation.

Figure 5 with 4 supplements see all
New Hv1 D (WT) and Hv1 E (R1H) VS domain resting-state model structures.

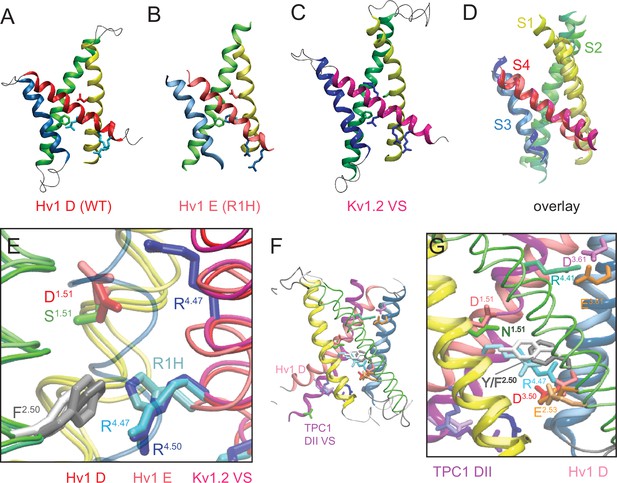

(AD) Ribbon diagrams represent backbone structures in snapshots taken from MD simulations of the Hv1 D (WT) VS domain resting-state model structure (A), Hv1 E R1H mutant model structure (B), resting-state Kv1.2 VS domain Rosetta model structure (Pathak et al., 2007) that was used as the template for construction of Hv1 D (C). The model structures in AC are overlain in D to illustrate their overall structural similarity. Transmembrane helical backbones in AD are color coded: S1, yellow; S2, green; S3, blue; S4 red. Video 1 shows similar representations of Hv1 D, Hv1 E and Kv1.2 resting-state model structures rotated about the vertical axis. (E) An overlay of the Hv1 D, Hv1 E and Kv1.2 resting-state Rosetta VS domain model structures illustrates the relative positions of S1-S4 helical backbones (tubes colored as in AD). Selected side chains (Hv1 D: D112/D1.51, red; F150/F2.50, light gray; R1/R205/R4.47, cyan; Hv1 E: D112/D1.51, light red; F150/F2.50, white; R1H/R205H, cyan/blue; Kv 1.2: S176/S1.51, green; F233/F2.50, dark gray; R1/R4.47 and R2/R4.50, blue) are shown in colored licorice. For clarity, only the S3 helix from Hv1 D (transparent blue tube) is shown. (F) The backbone structures of Hv1 D model and At TPC1 DII X-ray (pdb: 5EJ1) VS domains are overlain. S1, S3 and S4 helices are shown as ribbons and S2 helices are shown as tubes. Helical segments are colored as in AD and loop regions are gray; lighter shades represent Hv1 D and darker shades represent TPC1. Selected side chains in Hv1 D/TPC1 (D/N1.51, red/green; F/Y2.50, gray/white; D/E3.61, magenta/orange) are shown in colored licorice. (G) A magnified view of the overlain Hv1 D and TPC1 structures illustrates the similar positions of selected side chains, which are shown in colored licorice (Hv1 D: D112/D1.51, pale red; F150/F2.50, light gray; E153/E2.53, pale orange; D174/D3.50, pale red; D185/D3.61, pale magenta; R1/R205/R4.47, pale cyan; TPC1: N443/N1.51, green; Y475/Y2.50, white; E478/E2.53, orange; D500/D3.50, red; E511/E3.61, orange; R531/R4.41, aqua; R537/R1/R4.47, cyan).

https://doi.org/10.7554/eLife.18017.013

As in At TPC1 DII VS X-ray structures, we find that the R1/R4.47 terminal amine is oriented toward the intracellular vestibule in Hv1 D, where it is predicted to participate in a Coulombic interaction with a conserved acidic residue, D174/D3.50 (Figure 5G; Figure 5—figure supplement 4F), that is part of the intracellular electrostatic network (Ramsey et al., 2010; Long et al., 2005). In Hv1 E, D174/D3.50 interacts primarily with R2/R4.50, rather than R1H (Figure 5—figure supplement 1G), which is consistent with our observation that the GAQ-V relation is slightly shifted toward negative potentials. The Coulombic interaction between R1/R4.47 and D174/D3.50appears to help to stabilize a GAQ-closed, VS resting-state conformation. R1/R4.47 also forms a salt bridge with D112/D1.51 in Hv1 D (Figure 5—figure supplement 1F), but experimental data show that the main effect of D112 mutations is to shift the GAQ-V relation toward positive potentials, suggesting that D112 plays a more important role in activated-state stabilization than resting-state stabilization (Ramsey et al., 2010). Consistent with this interpretation, we find that although D112 makes a stable electrostatic interaction with a protonated nitrogen atom of the R1H imidazole ring in Hv1 E, R1H only moderately shifts the GAQ-V relation (Table 2; Figure 1G). Later we explore possible activated-state interactions between D112 and R3/R4.53 (Figure 6A). Although Coulombic interactions involving D112 are reorganized in Hv1 E compared to Hv1 D (Figure 5—figure supplement 1F,G), distances between Cα atoms of selected atoms (D112/D1.51, F150/F2.50, D185/D3.61 and R1/R205/R4.47) are nonetheless similar (Figure 5—figure supplement 3A,B), illustrating that the VS domain architecture is similarly stable in Hv1 D and Hv1 E models.

Comparisons of available resting-state model and X-ray VS domain structures suggest an emerging pattern: the vertical position of S4 relative to S1-S3 is characteristically different in Hv1 D and At TPC1 DII compared to other VS domain X-ray structures. For example, the register of S4 Arg residues is shifted by one helical turn in the Kv1.2 resting-state model, where R2 (R4.50) occupies the same position as R1/R4.47 in Hv1 D (Figure 5E; Video 1). Similar differences in the register of S4 Arg residues are noted when Hv1 D is compared to putative resting-state conformations in Kv1.2–2.1 chimera (Kv chimera) VS domain models (Jensen et al., 2012; Delemotte et al., 2011) or the Ci VSD ‘down’ (Ci VSDD, pdb: 4G80) (Li et al., 2014) X-ray structure (Figure 5—figure supplement 1). In Hv1 FL, the R1/R4.47 side chain extends into the extracellular vestibule and the R2 side chain is close to F2.50, similar to Kv 1.2, Kv chimera and Ci VSDD (Figure 5—figure supplement 1E; Video 1). Despite divergent approaches used to elucidate possible resting-state structures, the backbone structure and positions of other key residues in Ci VSDD, including D1.51/D129 and F161/F2.50 are nearly superimposable with their positions in Hv1 D (Figure 5—figure supplement 1D,E). As expected, the backbone structures of S1-S4 helices in Hv1 D (WT) and Hv1 E (R1H) are also quite similar to the Kv1.2 resting-state (Pathak et al., 2007) template structure (Figure 5A–E; Video 1).

Video 1
Rotating side view of superimposed Kv1.2 resting-state, Hv1 D and Hv1 E model structures.

Protein backbone and side chains are as described in Figure 5A–D. The animation shows the structures in rotation about the vertical axis.

https://doi.org/10.7554/eLife.18017.018

Consistent with the experimental observation that R1H confers GSH, and R1H is therefore readily accessible to intra- and extra-cellular solvent (Starace and Bezanilla, 2004), we observe that R1H is accessible to water molecules from both sides of the membrane, and the central crevice is similarly hydrated during Hv1 D and Hv1 E MD simulations (Figure 5—figure supplement 3C–I). The imidazole group of R1H is adjacent to F150/F2.50, midway between D112/D1.51 and D174/D3.50, and appears to be appropriately positioned to shuttle protons between waters in the intracellular and extracellular vestibules (Figure 5E; Figure 5—figure supplement 3C–I; Videos 2, 3). In contrast, the central crevices in a Ci Hv1 VS domain resting-state model structure (Chamberlin et al., 2014) and the mHv1cc Hv1/VSP/GCN4 chimeric protein (mHv1cc; pdb: 3WKV) are occupied by hydrophobic side chains (Figure 5—figure supplement 4A–C; Videos 2, 3). In mHv1cc, a cluster of aliphatic side chains caps the central crevice on the extracellular side of R1 (Figure 5—figure supplement 4A; Videos 2, 3), preventing formation of a continuous hydrated pathway for H+ transfer (Takeshita et al., 2014), and extracellular water access to R1/R4.47 is also evidently precluded in Ci Hv1 (Figure 5—figure supplement 4B; Videos 2, 3). Although hydrophobic side chains form a ring that surrounds the central hydrophilic crevice in Hv1 D and Hv1 E, R1 and R1H side chains are clearly visible within the gating pores when the model structures are viewed from the extracellular space (Figure 5—figure supplement 4C; Video 3).

Video 2
Rotating side view of Hv1 E and mHv1cc.

Protein backbone and side chains are as described in Figure 5—figure supplement 4A–C. Animation shows the structures in rotation about the vertical axis.

https://doi.org/10.7554/eLife.18017.019
Video 3
Rocking extracellular view of mHv1cc, Hv1 D and Hv1 E.

Protein backbone and side chains are as described in Figure 5—figure supplement 4A–C. The animation shows the structures viewed from the extracellular side in a rocking motion.

https://doi.org/10.7554/eLife.18017.020

In both Hv1 D and Hv1 E, we find that D112/D1.51 is on the extracellular side of F2.50 and is readily accessible to solvent (Figure 5E; Figure 5—figure supplement 3C–I). The position of D112/D1.51 is consistent with experimental data showing that D112 is required for exquisite H+ selectivity via GAQ and mutant channels (other than D112V or D112E, which are either non-functional or similar to WT Hv1, respectively) are permeable to anions (Musset et al., 2011), strongly arguing that the environment around D1.51 is solvent-exposed. Consistent with experimental data showing that V116 (V1.55) is functionally redundant with D1.51 in supporting GAQ (Morgan et al., 2013), we find that V1.55 is physically close to D1.51 in Hv1 D and Hv1 E models (Figure 5—figure supplement 4C). However, we have so far been unable to measure currents associated with GSH (or GAQ) in HEK-293 cells expressing R1H-D112A, R1H-D112N or R1H-D112V double-mutant channels (not shown), and it remains unclear whether R1H-D112X mutations disrupt the structure of the permeation pathway, displace necessary water molecules, or attenuate plasma membrane targeting. In contrast to Hv1 D and Hv1 E, the D1.51, R1 and R2 side chains are closely packed into a hydrophobic crevice (Figure 5—figure supplements 4A, Videos 2, 3) and evidently shielded from waters in mHv1cc (Takeshita et al., 2014).

D185/D3.61 mutations dramatically shift the GAQ-V relation toward positive potentials, indicating that this acidic side chain is likely to participate in an interaction that stabilizes the activated-state VS conformation. Interestingly, the Hv1 D185-equivalent (E511/E3.61) is also present in the At TPC1 DII VS domain (Figure 1—figure supplement 1), but in the X-ray structures E511/E3.61 interacts with R531/R4.41 (Guo et al., 2016; Kintzer and Stroud, 2016). R531/R4.41 is not conserved in Hv1 (Figure 1—figure supplement 1), suggesting that D3.61 has a specific function in Hv1 that is not shared among other VS domains. Identifying the interacting partner(s) of D185/D3.61 in Hv1 model structures is therefore of interest. In Hv1 FL, D185/D3.61 is close enough to engage in a Coulombic interaction with R1 and appears to be solvent-accessible (Figure 5—figure supplement 4F; Video 4), but in mHv1cc, hydrophobic side chains fill the extracellular vestibule and the D3.61/D181 carboxylate is tightly packed between non-polar side chains, including F178/F3.58, L184/L3.64, L197/L4.43 and L200/L4.46 (Figure 5—figure supplement 2D,F; 4AFigure 6—figure supplement 4F), and evidently inaccessible to solvent (Takeshita et al., 2014). Consistent with experimental data showing that D185 mutations do not alter GSH gating, we observe that D185 is located at the extracellular end of S3 in a solvent-accessible location that is distant from R1 in Hv1 D (Figure 5—figure supplements 3H, 4F).

Video 4
Rotating view of Hv1 D and Hv1 FL resting-state model structures.

S1-S3 helices are represented by colored tubes (S1, yellow; S2, green, S3, blue), S4 segments are shown as thick colored ribbons (Hv1 D, blue; Hv1 FL, violet) and loops (for Hv1 D only) are shown as thin gray tubes. Selected side chains are shown in colored licorice (D112, red; F150, gray; D185, magenta; R1, cyan; R2, blue; R3, violet; N4, green). The animation shows the structures in rotation about the vertical axis.

https://doi.org/10.7554/eLife.18017.021

In contrast to the Hv1 D resting-state model, D185/D3.61 is located close to R3/R4.53 in the activated-state Hv1 B model (Ramsey et al., 2010). We show here that introduction of the N214R (N4R) mutation into Hv1 B does not alter the overall structure or stability of the VS domain, and D185/D3.61 remains close enough to R3 to participate in a stable Coulombic interaction with R3/R4.53 (Figure 6; Figure 6—figure supplement 1). As observed previously in Hv1 B (Ramsey et al., 2010), R3/R4.53 makes a bidentate interaction with D112/D1.51and D185/D3.61 in Hv1 B N4R (Figure 6; Figure 6—figure supplement 1). However, N4R addition allows D112/D1.51 to form a new salt bridge with N4R (Figure 6—figure supplement 1) that may help stabilize the GAQ-open conformation; this arrangement is in good agreement with experimental effects of N4R and N4K mutations, which markedly slow the timecourse of ITAIL decay (Ramsey et al., 2010). Although we have not explicitly tested this hypothesis using computational approaches, the N4R side chain appears to be appropriately positioned to sense changes in the electrical field that is thought to be focused near F150/F2.50 (Ahern and Horn, 2005; Starace and Bezanilla, 2004). Rapid movement of a cationic N4R terminal amine within the electrical field is consistent with the experimental observation that outward currents carried by GAQ exhibit rapid voltage-dependent block/unblock in Hv1 R1H-N4R (Figure 2).

Figure 6 with 4 supplements see all
Comparison of resting- and activated-state Hv1 VS domain model structures.

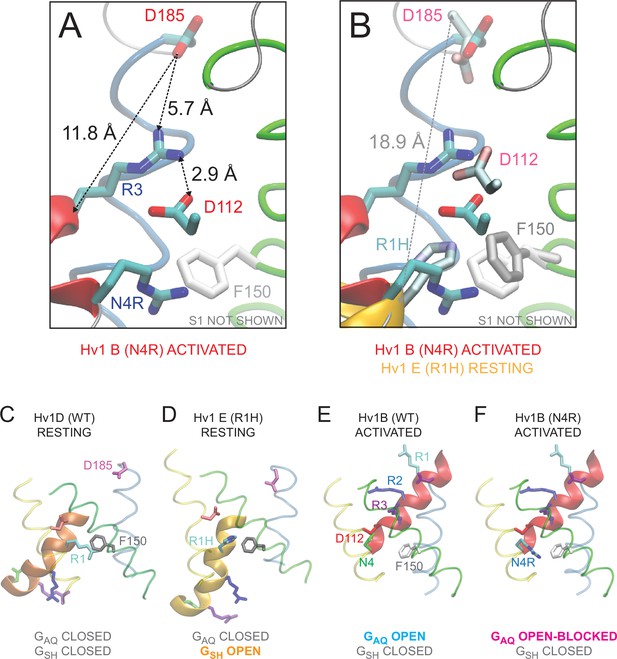

(A) Hv1 B was mutated (N4R) in silico and subjected to energy minimization to demonstrate the possible position of the N4R side chain in a VS-activated (GAQ-blocked) conformation. Other atomic positions are not appreciably different from Hv1 B. S2 (green) and S3 (blue) helices are represented by colored tubes; S4 is shown as a red ribbon and S1 is not shown. Side chains of D112 (D1.51), D185 (D3.61), R3 (R4.53) and N4R (N4.56R) are shown in the colored licorice ‘element’ scheme (carbon, cyan; oxygen, red; nitrogen, blue) and the F150 (F2.50) side chain is white. Distances (in Å) between selected carboxylate oxygen atoms in D112 or D185 and either R3 nitrogen atoms or the R3 Cα atom are indicated by dashed arrows. (B) Positions of selected residue side chains in the Hv1 E mutant model structure (produced by in silico R1H mutation of Hv1 D) are superimposed on Hv1 B N4R shown in A. D112, D185 and R1H side chains are represented by ‘brushed metal’ coloring of licorice element representations; F150 is gray. The S4 helix in Hv1 E is shown as a gold ribbon; other helices are as shown in A. The dashed arrow indicates the distance (in Å) between the Cα atoms of D185 and R1H in Hv1 E. (CF) Backbones of Hv1 D (C), Hv1 E (D), Hv1 B (E) and the Hv1 B N4R mutant (F) model structures are represented by thin (S1-S3) or thick (S4) colored ribbons and inter-helical loop regions are represented by gray tubes. Selected residue side chains are shown in colored licorice (D112/D1.51, red; F150/F2.50, gray or white; D185/D3.61, magenta; R1/R4.47, cyan; R2/R4.50, blue; R3/R4.53, violet; N4/N214/N4.56, green; N4R, cyan/blue). Structures are vertically aligned by the position of the F150/F2.50 Cα atom. Labels indicate the predicted functional state of the protein that correspond to the depicted structure. In CF, helices are colored yellow (S1), green (S2) and blue (S3) and inter-helical loop regions are not shown for clarity; S4 residues 202–214 are colored red (Hv1 B), copper (Hv1 D) or gold (Hv1 E). Video 4 shows Hv1 B activated- and Hv1 D resting-state model structures in rotation.

https://doi.org/10.7554/eLife.18017.022

The availability of experimentally-refined resting- and activated-state Hv1 model structures suggests that the models could provide insights into the conformational changes associated with VS activation. Consistent with a generally accepted model of VS activation (Vargas et al., 2012), we find that the main difference between our experimentally-constrained activated- and resting-state Hv1 VS domain model structures is the position of S4 relative to the S1-S3 bundle, which appears to form a relatively immobile scaffold (Figure 6—figure supplements 2A–E and 3A,B; Video 5). To estimate the amplitude of S4 displacement in resting- vs. activated-state VS domain X-ray and model structures, we measured distances between equivalent atoms after performing structure-based alignments. Comparing Cα-Cα distances between R1 side chains in Hv1 D or Hv1 E and Hv1 B indicates that the S4 backbone is displaced ~15 Å; somewhat smaller distances (11 Å–13 Å) are measured when Hv1 D is compared to other activated-state structures (Figure 6—figure supplements 3, 4). Most of the calculated difference in R1-R1 Cα distance is observed in the vertical (z, i.e., membrane normal) axis, but differences in helical tilt and twist are also observed (Figure 6—figure supplements 24). In summary, our comparisons of VS domain structures suggest that the S4 helix is likely to undergo an ~11–15 Å vertical translation during activation of the Hv1 VS domain.

Video 5
Rotating view of Hv1 B activated- and Hv1 D resting-state model structures.

S1-S3 helices are represented by thin colored ribbons (S1, yellow; S2, green, S3, blue), S4 segments are shown as thick colored ribbons (Hv1 B, yellow; Hv1 D, blue) and loops are shown as thin gray tubes. Selected side chains are shown in colored licorice (Hv1 B: D112, red; F150, gray; D185, magenta; R1, cyan; R2, blue; R3, violet; Hv1 D: D112, pink; F150, white; R1, cyan; R2, blue; R3, violet; N4, green). Animation shows the structures in rotation about the vertical axis.

https://doi.org/10.7554/eLife.18017.027

Discussion

The main experimental result from this study is that R205H (R1H) is sufficient to endow Hv1 with a resting-state H+ shuttle conductance (GSH). Our results are consistent with previous reports describing GSH in other VS domain R1H mutants (Starace and Bezanilla, 2004; Struyk and Cannon, 2007; Villalba-Galea et al., 2013) but contrast with a previous study in Hv1 (Kulleperuma et al., 2013). One possible explanation for the discrepancy is that GSH is difficult to measure when mutant Hv1 channel expression levels are low, as in the previous study (Kulleperuma et al., 2013), whereas the inducible expression system used here drives the high expression that is evidently necessary to reproducibly measure GSH. Importantly, we show that second-site mutations (N4R and D185A or D185H) experimentally separate the GSH-V and GAQ-V relations, allowing us to simultaneously monitor thermodynamically distinct gating transitions in Hv1. Our experimental approach may therefore be generally useful for probing structure-function relationships in VS domain-containing proteins.

Although R1H dramatically accelerates GAQ gating kinetics, the effect of R1H on the apparent POPEN-AQ-V relation is modest (Figure 1, Table 2), and GAQ remains H+-selective (Figure 1—figure supplement 2) (Kulleperuma et al., 2013). GSH in Shaker R1H is also H+-selective (Starace and Bezanilla, 2004), and the sensitivity of inward resting-state current amplitude to changes in pHO indicates that GSH in Hv1 (Figure 4), Ci VSP (Villalba-Galea et al., 2013) and Shaker (Starace and Bezanilla, 2004) R1H mutants are likely to utilize a shared mechanism. A simple explanation for the available data is that R1H mutations primarily affect side chain pKa, allowing channel-like proton shuttling in the resting state without substantially affecting protein structure or VS activation mechanism. R1 mutation to other side chains (i.e., R1A/C/Q/S) confers a resting-state ‘omega’ conductance (GΩ) that is permeable to small monovalent cations (Na+ and K+) and thus distinct from GSH (Gosselin-Badaroudine et al., 2012; Tombola et al., 2005; Capes et al., 2012; Gamal El-Din et al., 2010, 2014; Sokolov et al., 2005). For reasons that remain unclear, R1A and R1Q are insufficient to confer GΩ in Hv1 (Ramsey et al., 2006; Sasaki et al., 2006). Further studies are also needed to determine whether Hv1 R2H or R3H mutant proteins mediate carrier-like (GCA) conducting states similar to those reported in Shaker (Starace and Bezanilla, 2001; Starace et al., 1997). We conclude that GAQ, GSH, GΩ and GCA reflect distinct types of ‘gating pore’ conductances (GGP), and that each exhibits characteristic gating and ion permeation properties which can be experimentally exploited to interrogate resting-state structure-function relationships.

Resting-state H+ shuttling in Hv1 R1H

Among various GGP, GSH measurement has unique properties that offer deep insight into VS activation mechanism and structure: (1) The sufficiency of R1H to confer GSH implies that the introduced His imidazole side chain ‘short-circuits’ a highly focused electrical field in the VS domain resting conformation (Starace and Bezanilla, 2004; Villalba-Galea et al., 2013; Starace et al., 1997). (2) R1 appears to contribute ~1 e0 to the gating valence in both Shaker and Hv1 (Gonzalez et al., 2013; Seoh et al., 1996; Aggarwal and MacKinnon, 1996), and GSH gating exhibits a similarly small (~0.7 e0) apparent valence, constraining possible side chain positions within the electric field (Gonzalez et al., 2013; Ahern and Horn, 2005; Tao et al., 2010). (3) Voltage-dependent block of GAQ by N4R places terminal nitrogen atoms at the intracellular entrance of the H+ permeation pathway and therefore close to the hydrophobic barrier formed by conserved hydrophobic side chains, including F2.50. Biophysical properties of R1H and the effects of second-site mutations can thus be used to experimentally constrain the relative positions of specific side chains in VS domain model structures (Figure 6—figure supplements 24).

Our comparison of new and existing resting-state VS domain model and X-ray structures highlights structural features that are required for GSH. The VS domain contains an hourglass-shaped aqueous central crevice with a central hydrophobic barrier (Ramsey et al., 2010; Takeshita et al., 2014; Wood et al., 2012; Chamberlin et al., 2014; Kulleperuma et al., 2013). The electrical field is highly focused across the hydrophobic barrier, and side chain chemistry at this location is therefore exquisitely sensitive to changes in membrane potential (Lacroix et al., 2014; Vargas et al., 2012; Tao et al., 2010). Although VS domains share a common protein fold, subtle differences in local structure and chemistry have the potential to imbue different voltage sensors with divergent functional properties (i.e., H+ permeation or pH-dependent gating). A detailed understanding of the similarities and differences in VS domain structure is therefore essential for dissecting VS mechanism.

Hv1 VS domain resting-state structure

Grotthuss-type H+ shuttling by the R1H imidazole side chain demonstrates that in the resting-state conformation, R1 is located at the hydrophobic constriction and the central crevice is hydrated and accessible to both intra- and extra-cellular water molecules. Resting-state VS domain structures (Figures 5, 6) in which the R1 side chain extends away from F2.50 and into the extracellular vestibule (Takeshita et al., 2014; Li et al., 2014; Jensen et al., 2012; Delemotte et al., 2011; Li et al., 2015) may therefore represent intermediate-state conformations rather than the full resting-state conformation. A distinguishing feature of the Hv1 D resting state model and At TPC1 DII VS domain X-ray structures is the orientation of the R1 side chain, which extends into the intracellular vestibule (Figure 5). The position of the R1 side chain is consistent with the hypothesis that a local, voltage-dependent conformational rearrangement of R1 (or R1H) constitutes an initial step in the VS activation pathway, and that GSH gating directly reports this transition.

Consistent with our data, D233/D3.61 and R1/R255/R4.47 are distant in the Ci Hv1 resting-state model (Chamberlin et al., 2014); however, the R255 side chain is intracellular to F2.50 in the Ci Hv1 model and R1 does not appear to be appropriately positioned to mediate GSH if it were mutated to His (the ability of R1H mutation to confer GSH in Ci Hv1 remains to be tested experimentally). In mHv1cc, the D181/D1.61 faces away from both R1/R201/R4.47 and R2/R204/R4.50, and these ionizable side chains are uncharacteristically packed into hydrophobic crevices (Figures 6A; Figure 5—figure supplement 4A; Video 2) (Takeshita et al., 2014). Finding these ionizable side chains in hydrophobic environments is unexpected because R1-R3 are expected to contribute cationic gating charge (Gonzalez et al., 2013; Seoh et al., 1996; Aggarwal and MacKinnon, 1996) and D1.51 and D3.61 appear to engage in Coulombic interactions that stabilize the activated-state conformation of the Hv1 VS domain (see below). In contrast to mHv1cc, D/N1.51, D/E3.61, R4.47, R4.50 and R4.43 are readily solvent-accessible in Hv1 D and At TPC1 DII VS domains.

Hv1 VS domain activated-state structure

Outward current carried by GAQ is selectively blocked in R1H-N4R, and rapid (< 1 ms) relief of block upon subsequent hyperpolarization (Figure 2A) strongly implicates that the N4R side chain functions as a tethered blocker operating from the intracellular side of the H+ permeation pathway. In agreement with a widely-accepted prevailing model of structural rearrangement during VS activation, we find that the position of F2.50 is similar in GAQ-open (Hv1 B) and GSH-open (Hv1 D) model structures, and the central hydrophobic barrier is evidently maintained throughout the Hv1 gating cycle. Nonetheless, the gating pore remains well-hydrated in both resting and activated-state conformations (Figure 5—figure supplement 3). By analogy, we hypothesize that R3 needs to move outward, past F2.50, to unblock the central crevice and open GAQ. The dramatic positive shifts in GAQ-V relations imparted by D185/D3.61 (Figure 3) and R3 (Ramsey et al., 2010) mutations argue that interactions between these side chain are required for activated-state stabilization in WT Hv1 channels.

Consistent with the observation that D112/D1.51 mutations also cause large positive shifts in the GAQ-V relation (Ramsey et al., 2010), we find that R3 also interacts with D112 in the Hv1 B model structure. D185 mutations do not alter GSH-V gating, indicating that this residue does not meaningfully contribute to stabilization of the Hv1 VS resting-state conformation, and D185 is appropriately distant from R1 in the Hv1 D resting-state model. In contrast to our experimental observations, a D185-R1 interaction is predicted to stabilize the Hv1 FL model activated-state conformation (Li et al., 2015). We conclude that GAQ opening is directly controlled by a late step in the Hv1 activation pathway that requires interactions between D185 and one or more S4 Arg residues, most likely R3. We hypothesize that D185/D3.61 functions to pull S4 upward, and thus helps to stabilize the GAQ-open conformation. D112/D1.51 also appears to play an important role in stabilizing S4 in the GAQ-permissive conformation of S4, and may indirectly interact with D185 through R3, as seen in Hv1 B N4R (Figure 6—figure supplement 1). D1.51 and D3.61 are selectively conserved in Hv1 channel VS domains (Figure 1—figure supplement 1), and their contributions to activated-state stabilization are predicted to be necessary for H+ channel activity.

GAQ closing requires only a small inward translation of R3 toward F2.50. The R3-associated cation may disrupt the hydrogen bond network required for H+ transfer and/or electrostatically prevent inward H+ flux through the central crevice. Membrane hyperpolarization presumably drives the VS through several non-conducting intermediate states similar to those seen in Kv channel VS domain simulations (Jensen et al., 2012; Delemotte et al., 2011), and the full resting conformation is achieved when R1 reaches the position near F2.50 seen in Hv1 D (Figure 5E). The mechanism outlined above is generally consistent with a widely accepted model of the VS activation process (Vargas et al., 2012), and GSH data reported here extend this model to Hv1 channel gating.

An intriguing but as yet unresolved question is whether the amplitude of S4 movement is similar in Hv1, Ci VSP and voltage-gated channels like Shaker and Kv1.2. The gating valence in Shaker K+ channels is ~3 electronic charges (e0) per VS domain, and likely reflects the movement of R1-R4 side chains in or through the electrical field (Bezanilla, 2008; Seoh et al., 1996; Aggarwal and MacKinnon, 1996). A limiting slope analysis of Hv1 gating suggests that the effective gating valence (~2.5 e0/VS) is slightly smaller than Shaker (Gonzalez et al., 2013), consistent with the substitution of a neutral polar Asn (N4.56; N214 or N4 in Hv1) at the R4 position (Figure 1A, Figure 1—figure supplement 1). The decreased gating charge in Hv1 suggests that VS activation (and thus GAQ opening) might require a smaller displacement of S4 than is seen in prototypical VGCs like Shaker. However, except for state-dependent mapping of chemical sensitivity in Ci Hv1 (Gonzalez et al., 2013), experimental data that constrain S4 position in resting- and activated-state conformations of the Hv1 VS domain have not been reported.

Atomic distances measured in resting- and activated-state Hv1 models suggest that R1 (R4.47) Cα atoms in S4 could move as much as 14–16 Å (Figure 6—figure supplements 3 and 4). Shorter distances (11–13 Å) are measured when Hv1 D is compared to other activated-state VS domain models (Figure 6—figure supplements 3 and 4). The apparent flexibility of Arg side chains in VS domains (Li et al., 2014) suggests that the magnitude of S4 translation may not be easily inferred from measurements of gating valence alone. Proton transfer via GSH and voltage-dependent block of GAQ appear to place stringent constraints on the relative positions of target side chain atoms, and may offer advantages over alternative approaches, such as chemical accessibility in Cys mutant proteins, for ascertaining structural changes that occur during VS activation. However, a systematic comparison of experimental and structural strategies in each model system is needed to identify specific advantages and liabilities of various approaches. The combination of electrophysiological and computational approaches used here allows researchers to iteratively refine model structures and experimentally interrogate new structure-based hypotheses of mechanism in the context of biophysically-determined kinetic and thermodynamic parameters of protein function, and is thus faster and more flexible than structural determination by X-ray crystallography alone. Although our experimental data probably do not offer sufficient spatial resolution to discriminate whether S4 moves ~12 Å vs. ~14 Å, it is difficult to reconcile our data with models in which S4 movement is closer to 5 Å, such as is seen when Ci VSDU and Ci VSDD X-ray structures are compared (Figure 6—figure supplements 3 and 4) (Li et al., 2014).

Direct comparisons of GAQ and GSH gating reveal additional insight into the VS activation mechanism. GAQ-V and GSH-V relations are oppositely sensitive to changes in membrane potential and gated over widely-separated ranges of voltage change, and thus report thermodynamically distinct gating transitions. We show for the first time that GAQ and GSH gating is similarly sensitive to changes in pHO (Figure 4). In a previously proposed Hv1 gating scheme, the pH dependence of GAQ gating attributed to closed-state transitions that occur early in the Hv1 activation pathway (Villalba-Galea, 2014), and the pHO dependence of GSH gating reported here is consistent with this model. Voltage clamp fluorimetry (VCF) in Ci Hv1 also supports the conclusion that VS conformational rearrangements are detectable prior to GAQ opening (Qiu et al., 2013), but the pH dependence of fluorescence changes has not been investigated in Hv1. Intriguingly, a VCF study conducted in hERG (Shi et al., 2014) suggests that pH-dependent gating could be a more widespread property of VS activation mechanism than has previously been appreciated.

The mechanism of pHO-dependent gating in Hv1 is enigmatic. pHO sensitivity is surprisingly refractory to neutralizing mutagenesis of ionizable residues in Hv1 (Ramsey et al., 2010; Musset et al., 2011; Morgan et al., 2013). Recently, W207/W4.49 mutations were shown to alter the pH sensitivity of GAQ gating at alkaline pHO, but pH-dependent gating at physiological pHO is similar to WT Hv1 (Cherny et al., 2015). W207 is not predicted to face the hydrated central crevice in either resting- or activated-state Hv1 VS domain models, and the mechanism by which W207X mutations affect pH-dependent GAQ gating remains mysterious (Cherny et al., 2015). Given that GSH and GAQ appear to share the requirement for a hydrated central crevice H+ permeation, a plausible hypothesis is that changes in pHor pHI exert their effects mainly by affecting hydrogen bonding patterns in the central crevice. For example, pH-dependent changes in Coulombic interactions within the extracellular vestibule could be coupled with reciprocal conformational changes in the structure of the intracellular electrostatic network, thus altering the VS resting-activated equilibrium. However, the mechanism of pH-dependent conformational coupling remains to be elaborated.

Proton conduction and selectivity in Hv1

The difference in the apparent maximal amplitudes of GSH and GAQ suggests that the mechanisms of H+ transfer could be distinct. We and others previously hypothesized that proton permeation via GAQ occurs in a water wire (Ramsey et al., 2010; Wood et al., 2012; Freites et al., 2006); DeCoursey and colleagues subsequently argued side chain ionization of D112/D1.51 is required for H+ transfer (Musset et al., 2011; Dudev et al., 2015). If proton transfer via GAQ and GSH operate by a ‘shuttle’ mechanism requiring explicit ionization of D112 or R1H, respectively, we might expect the unitary conductances (γAQ and γSH) to be similar. If GAQ = N·γAQPOPEN-AQ and GSH = N·γSH·POPEN-SH, the observation that apparent GAQmax is ~five-fold larger than GSHmax (Figure 2) argues that γAQ ≈ 5·γSH. The smaller GSH unitary H+ transfer capacity is consistent with the hypothesis that hydrogen bonds, which are necessary for H+shuttling, are constrained by H+ donor and acceptor atom geometry and distance (Cherny et al., 2015). Although D112/D1.51 is necessary for maintaining the exquisitely high H+ selectivity measured in WT Hv1 (Dudev et al., 2015), necessity for D112/D1.51 to directly catalyze GAQ H+ transfer (Dudev et al., 2015) has not been experimentally determined, and a water-wire mechanism for GAQ (Ramsey et al., 2010) is equally compatible with the available experimental data. We hypothesize that GAQ utilizes ensemble of highly dynamic hydrogen bonds between and among waters and protein atoms diffusive in the central crevice for H+ transfer in a water wire. Functional redundancy imbued by a water wire is consistent with the resiliency of Hv1 to mutagenesis and potentially explains the more robust H+ transfer capacity of GAQ.

Our experimental and computational results suggest a mechanism for H+ conduction and selectivity in Hv1 that is distinct from the interpretation of Dudev, et al. (Dudev et al., 2015). An acidic residue in S1 (D1.51; E1.51 or D1.55 in mutant channels) located in the hydrated central crevice prevents permeation of solution anions (i.e., Cl-, MeSO3- or OH) while R3/R4.53 limits cation (Li+ or Na+) permeability (Musset et al., 2011; Berger and Isacoff, 2011; Morgan et al., 2013). D112/D1.51 and R3/R4.53 mutations allow ions other than H+ to permeate, as reported (Musset et al., 2011; Berger and Isacoff, 2011), demonstrating that these side chains remain ionized in WT Hv1 when GAQ is open. Because monovalent ions (other than H+) are unlikely to permeate as dehydrated ions in D112/D1.51 and R3/R4.53 mutant channels, the central crevice remains well-hydrated in these mutant channels (Ramsey et al., 2010). We hypothesize that the previously proposed water-wire mechanism for GAQ remains operational in D112/D1.51 and R3/R4.53 mutants, but permeating ions like Na+ and Cl- transiently disrupt the hydrogen bond structure that is necessary for Grotthuss-type H+ transfer via GAQ. However, intervals between diffusive ion permeation events, rapid H+ transfer in the water wire continues unabated. The eroded selectivity reported for D112 and R3 mutants therefore reflects the time-averaged amalgam of two distinct conduction mechanisms: 1) monovalent ion diffusion through a water-filled gating pore, and 2) Grotthuss-type proton transfer in a water wire. In short, GAQ in both WT and mutant Hv1 channels is mediated water-wire proton transfer, but mutant channels allow more diffusive anion/cation leakage through the hydrated central crevice.

Taken together, our experimental data and model structures indicate that GAQ and GSH share a common H+ permeation pathway within the hydrated central crevice, but the underlying mechanisms of H+ transfer are distinct. A water wire supports GAQ, while H+ shuttling via GSH requires explicit ionization of the introduced His side chain. The unitary conductance of GSH, which is ~5 times smaller than GAQ, reflects the additional complexity that is inherent to the H+ shuttle process. The His side chain must first accept a proton from water in the extracellular vestibule, likely undergo a rotation or tautomerization event that delivers the associated proton across the hydrophobic barrier, donate H+ to water in the intracellular vestibule, and finally return to the initial conformation to repeat the cycle. The H+ shuttle mechanism is channel-like in the sense that voltage-dependent conformational changes gate GSH and the ISTEP-V relation appears linear (Ohmic) at large negative voltages but transporter-like with respect to the necessity for side chain ionization. GAQ, on the other hand, requires only water molecules, and the myriad possible hydrogen bonding patterns within the hydrated crevice confers a functionally robust, rapid, and H+-selective proton transfer pathway. Systematic testing of the hypotheses elaborated here will require additional computational and experimental strategies, but the results of future studies are likely to produce fundamentally important insights into the mechanisms of VS activation gating by changes in voltage and pH gradients and strategies that underlie H+-selective transport in VS domains and other protein systems.

Materials and methods

Molecular biology and cell lines

Request a detailed protocol

Human Hv1 cDNA (NM_032369) carrying an N-terminal Venus tag was subcloned from pBSTA (gift of Carlos A. Villalba-Galea) into pcDNA5/FRT/TO using standard methods and isogenic tetracycline-inducible FlpIn293-TREx stable cell lines were generated according to the manufacturer’s directions (ThermoFisher Scientific, Waltham, MA ). Parental FlpIn293-TREx cells were obtained directly from the manufacturer and cultured as instructed; cells were not independently authenticated or tested for mycoplasma. Hygromycin B (100 µg/ml) was used for selection and propagation of isogenic stable cell lines. Cells were plated onto glass coverslips and expression of mutant Hv1 proteins was induced by addition of tetracycline (0.5–1 µg/ml) to the culture medium 12–48 hr prior to electrophysiology. Close to 100% of tetracycline-induced cells typically express Venus fluorescence, and both the intensity and pattern of fluorescence was similar among cells expressing a given mutation. Absolute current amplitudes appeared to correlate positively with increasing [tetracycline] and induction time, although this pattern was not studied systematically.

Electrophysiology

Request a detailed protocol

Whole-cell currents were measured at 22–24°C using a List EPC-7 or A-M Systems model 2400 amplifier. Data were low-pass filtered at 2–5 kHz digitized at 10–20 kHz using a National Instruments USB-5221 or USB-5251 DAQ interfaced to a PC computer running a custom LabVIEW 7-based data acquisition and amplifier control program (C. A. Villalba-Galea; details and software distribution available on request). Data were analyzed using Clampfit9 (Molecular Devices) and Origin 6.0 (Microcal). The standard intracellular and extracellular solutions contained (in mM): 100 Bis (2-hydroxyethyl) amino-tris(hydroxymethyl) methane (Bis-Tris), 1 ethylene glycol tetraacetic acid (EGTA), 8 HCl and pH was adjusted to 6.5 and final osmolality of 310–320 mOsm by addition of tetramethylammonium hydroxide (TMA·OH) and methanesulfonic acid (HMeSO3). Current reversal potentials and pHO-dependent gating were measured in bath solutions containing either 100 mM 2-(N-morpholino) ethanesulfonic acid (MES, pH 5.5) or 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES), pH 7.5 in place of Bis-Tris, as previously described (Ramsey et al., 2010). Series resistance was not routinely compensated and liquid junction potential corrections are not applied.

Data analysis

Request a detailed protocol

Unless otherwise indicated, the data represent means ± SEM of values measured in n cells. ISTEP represents the peak current during steps to the indicated potentials. In most cases, ISTEP was stable, but in cells with large currents we sometimes observed a decay in the amplitude of ISTEP during the voltage step that we attribute to a change in the pH gradient, which may not be sufficiently controlled by 100 mM pH buffer in the recording solutions when GSH is open. ISTEP is measured during voltage steps and ITAIL represents peak current immediately after a subsequent hyperpolarizing step determined by fitting current time course to a single exponential function GSTEP was calculated from GSTEP = ISTEP/V-EREV where EREV is the zero-current potential determined from inspection of the ISTEP-V relation. ITAIL amplitude is determined by fitting current decay to a mono-exponential function of the form ITAIL = I0 + Ae-V/t (where I0 is the minimum current after decay of ITAIL, A is current amplitude, V is membrane potential and t is time) and extrapolating fits to the instant at which the voltage was changed. VTHR, the apparent threshold for activation of ITAIL is estimated from visual inspection of ITAIL as previously described (Musset et al., 2008). Steady-state conductance during voltage steps (GSTEP) is calculated from GSTEP = ISTEP/V-EREV where EREV is the zero-current potential determined from inspection of the ISTEP-V relation. In some experiments (see Figure 1—figure supplement 2), we changed VTAIL (following a constant VSTEP) to determine EREV of tail currents as previously described (Ramsey et al., 2006). Offline linear leak subtraction of ISTEP-V relations was performed only in cases where the I-V relations are clearly linear (i.e., ISTEP-V in R1H-N4R at Vm > 0 mV and ITAIL-V in R1H or R1H-N4R at Vm < −50 mV). ITAIL-V relations are fit to a Boltzmann function of the form: ITAIL=(ITAILmax)(ITAILmin)1+eVV0.5dx+ITAILmin, where V0.5 is the voltage at which 50% of the maximum current is reached, dx is a slope factor, and ITAILmax and ITAILmin represent the maximum and minimum tail current amplitudes, respectively. GSTEP-V relations are fit to a single Boltzmann of the form GSTEP=(GSTEPmax)(GSTEPmin)1+eVV0.5dx+GSTEPmin where V0.5, dx, GSTEPmax and GSTEPmin have the same meanings as defined for ITAIL. In some cases, effective gating valence (zG) was calculated from fitted dx values by zG = RT/F·dx, where F, R and T have their usual meanings (e.g., RT/F = 25.3 mV at 20°C). dGSTEP/dV relations are fit to a Gaussian function of the form dGSTEP/dV=(dGSTEP/dV)0+(Aϖπ/2)e2(VVPEAK)2ϖ2, where VPEAK is the voltage at which the function reaches its maximum and ω is a width factor.

Homology modeling and simulation

Request a detailed protocol

Models for Hv1 in putative activated (Hv1 C) and resting (Hv1 D) states were developed from the Kv1.2 X-ray structure (pdb:3LUT) and resting state model structure of the Shaker voltage-gated K+ channel (Pathak et al., 2007) templates, respectively, using standard homology modelling procedures as described previously (Ramsey et al., 2010; Mokrab and Sansom, 2011). Hv1 B model construction was published previously (Ramsey et al., 2010). Briefly, homologous sequences were obtained for the target sequences and structures from UniRef100 (Bairoch et al., 2005) using non-iterative BLAST (e-value < 10). The two proteins were aligned using MAFFT (Katoh et al., 2002) based on the BLOSUM62 substitution matrix (Henikoff and Henikoff, 1992). Next, a structural profile (i.e. Position-Specific Substitution Matrices - PSSMs) was calculated for the structure and a sequence profile for the target sequence was created. The structural profile was then aligned against the sequence profile using FUGUE (Shi et al., 2001). The resulting structure-sequence alignment was manually adjusted to ensure conservation of key residues, then used as input for MODELLER (Sali and Blundell, 1993) to generate ten models per alignment. The best models were selected based on the energy and constraint violation values of MODELLER and the sequence-structure compatibility scores of pG (Sánchez and Sali, 1998), PROSA2003 (https://prosa.services.came.sbg.ac.at/prosa.php) (Sippl, 1993) and VERIFY3D (http://nihserver.mbi.ucla.edu/Verify_3D/) (Lüthy et al., 1992) as previously described (Ramsey et al., 2010; Mokrab and Sansom, 2011). Any unreliable regions in the model were improved by altering the alignments manually using ViTO (http://abcis.cbs.cnrs.fr/VITO/DOC/index.html) (Catherinot and Labesse, 2004).

All-atom molecular dynamics (MD) simulations were prepared as described (Sands and Sansom, 2007). Side-chain ionization states were determined based on pKa calculations performed using PROPKA (http://propka.ki.ku.dk/). Ionizable residues were predicted to be in the default states at pH 7 based on standard pKa values for each residue. We adopted lipid parameters as used previously (Berger et al., 1997). Prior to the production run, a 1 ns equilibration run was performed during which all of the heavy (i.e., not H+) protein atoms were harmonically restrained with an isotropic force constant of 1000 kJ mol−1 nm−1. Restrained MD runs were performed at 300K for each protein-bilayer system. Finally, all positional restraints were removed and 20 ns duration production run simulations were performed for each system. MD simulations were performed using GROMACS 3.3 (Van Der Spoel et al., 2005), implementing the GROMOS96 force field (http://www.gromos.net). Lipid parameters were based on GROMOS96, supplemented with additional bond, angle and dihedral terms (Berger et al., 1997). All energy minimization procedures used < 1000 steps of the steepest descent method in order to relax any steric conflicts generated during system setup. Long-range electrostatic interactions were calculated using the particle mesh Ewald (PME) method, with a 12 Å cutoff for the real space calculation (Sagui et al., 2004). A cut-off of 12 Å was used for the van der Waals interactions. The simulations were performed at constant temperature, pressure and number of particles. The temperature of the protein, lipid and solvent (waters and ions) were separately coupled using the Nosé-Hoover thermostat (Popov and Knyazev, 2014) at 310°K, with a coupling constant, τT = 0.1 ps. System pressures were semi-isotropically coupled using the Parrinello-Rahman barostat (Parrinello and Rahman, 1981) at 1 bar with a coupling constant, τP = 1 ps and compressibility = 4.5 × 10–5 bar−1. The LINCS algorithm (Hess, 2008) was used throughout to constrain bond lengths. The time step for integration in both simulations was 2 fs. All analyses used GROMACS tools and locally written code.

The final snapshots from Hv1 D GROMOS96 MD simulation was used as the template for the introduction of the R1H mutation using the Mutator plugin (VMD 1.9.2). The final snapshot of the GROMOS96 MD of the Hv1 B model structure (Ramsey et al., 2010) was used as the template for production of Hv1 B N4R using Modeller 9.16 (Sali and Blundell, 1993). All side chains were assumed to have the typical solution pKa defined in PROPKA (Dolinsky et al., 2004; Olsson et al., 2011), and His residues were modeled with the delta nitrogen (HSD) protonated, which was the ionization state predicted by PROPKA. WT and mutant resting- and activated-state models were subsequently imbedded in a POPC membrane and solvated with a 150 mM KCl solution and energy-minimized in order to remove any unfavorable contacts. After energy minimization POPC lipid tails were allowed to equilibrate around the protein for 0.5 ns, after which the system was simulated according the NPT ensemble with harmonic constraints (5 kcal/mol·Å) applied to the alpha carbons for 1.5 ns. Once the system reached equilibrium, as judged by protein RMSD, stable system volume, and converged energy terms, Hv1-POPC systems were then simulated for 10 ns with the NPT ensemble at 300K. All energy minimizations were carried out in 5000 steps using conjugate gradient and line search algorithms. Simulations were carried out according to the CHARMM36 force field (Best et al., 2012) with the NPT ensemble at 300K and 1 bar using a CUDA build of NAMD 2.10 (Phillips et al., 2005) on a GPU server. Long range electrostatic interactions were calculated using a PME method with a 12 Å cutoff distance. Constant temperature is accomplished using Langevin dynamics and constant pressure control is accomplished using a Nose-Hoover Langevin piston. 2 fs time steps were used. All analysis was carried out in VMD1.9.2. Protein structures were aligned using MultiSeq STAMP (Roberts et al., 2006) implemented in VMD1.9.2; structures in Figure 5—figure supplement 2 were aligned using DeepAlign (http://raptorx.uchicago.edu/DeepAlign/submit/). Structural comparisons to Hv1 FL were conducted on chain A of the dimer, which is not identical to chain B (Li et al., 2015). Coordinates for Ci VSDU (pdb: 4G7V), Ci VSDD (pdb: 4G80), mHv1cc chimera (pdb: 3WKV), Kv1.2 (pdb: 3LUT) and At TPC1 DII (pdb: 5E1J and 5DQQ) VS domain X-ray structures are available at http://www.rcsb.org.

References

    1. Bezanilla F
    (2008) How membrane proteins sense voltage
    Nature Reviews. Molecular Cell Biology 9:323–332.
    https://doi.org/10.1038/nrm2376

Decision letter

  1. Kenton J Swartz
    Reviewing Editor; National Institutes of Health, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Proton currents constrain structural models of voltage sensor activation" for consideration by eLife. Your article has been favorably evaluated by Gary Westbrook (Senior editor) and three reviewers, one of whom, Kenton J Swartz (Reviewer #1), is a member of our Board of Reviewing Editors. The following individual involved in review of your submission has agreed to reveal their identity: David E Clapham (Reviewer #3). The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This is an interesting manuscript describing the creation and careful characterization of a proton shuttle in the resting state of the voltage-activated proton channel (Hv1) by introduction of a His residue at the outer R1 position within the S4 helix. The authors have done all the right experiments to understand the R1H mutant, the experimental data appear to have been very thoughtfully collected and analyzed, and are of very high quality. The significance of the proton shuttle is that it positions the R1 position of S4 down near the charge transfer Phe in S2 where one could readily imagine protons hopping between external and internal solutions. The authors also create new models for the resting and activated states of Hv1, and these are compared with structures and models of Hv1 and other proteins containing S1-S4 domains. Overall we think the work is appropriate for eLife, but the text and computational components will require careful revision.

Essential revisions:

1) Throughout the manuscript the authors complicate the story by assuming that the voltage-dependence for GSH must reflect a conformational change in the protein, rather than arising from an intrinsic rectification to proton permeation. Until we get to Figure 4F, all the data actually would support a mechanism involving rectification of permeation. Also, the apparent shifts in the dG/dV analysis are only a hint. We suggest removing all verbiage about gating mechanisms surrounding GSH until you get to the section of the Results where you wish to present the Figure 4F experiment. Then you can raise the issue about mechanism of voltage-dependence to GSH, remind the reader about mutants affecting GAQ and not GSH, and then show how pH seems to shift both and talk about what that might mean. The authors ideas may be on the right track, but they don't have very firm ground to stand on and the presentation should reflect that.

2) The paper is straightforward to read and understand for experts, but it is too longwinded and will be impenetrable for the outsider. Terms like Ftail and Fhook are thrown about and won't be clear to those who haven't read the Larsson paper. In its present form it will probably only be read by scientists working on Hv1 or those who are total nerds and simply love the topic of voltage sensing. We think it can and should be reduced by 25-50% with careful editing and rethinking about what really needs to be discussed. The modeling parts of the Results and Discussion (see also point #4 below), in particular, need serious trimming and prioritization about what really needs to be discussed.

3) It is true that GSH was not evident in the previous paper cited for the R1H mutant, but in that work they only show data down to -10 mV, a voltage where the shuttle current would be very small. That study focused on looking at accessibility of inserted His to Zn, not on explicitly looking for a shuttle conductance. One sentence in the Results section would suffice to accurately state that GSH was not reported in earlier work, but that those authors did not pulse negative enough to see it.

4) We have serious reservations about the analysis of the modeling. First, the description of the generation of Hv1 E is not clear: "Representations of Hv1 E represent the first snapshot in a trajectory of ten possible structural conformations collected from a 1 ns MD production run." What is meant by "ten possible structural conformations"? Second, the analysis presented is based on single snapshots from MD simulations, which may or may not be representative, or may be one of multiple populated configurations, as the authors themselves point out in the last paragraph of the Discussion: "Because Arg side chains may exhibit a high degree of dynamic flexibility (9), distance measurements inferred from static snapshots here and elsewhere should be regarded as relatively coarse descriptions of conformational rearrangements in a highly dynamic protein domain." If only single snapshots are being reported, then what is the point of running MD simulations in the first place? And what is the criterion for a particular choice of snapshot? Were the trajectories clustered and the most populated cluster chosen? Third, with MD trajectories in hand, the authors have the opportunity to analyze internal hydration structure and dynamics, as well as electrostatic potential, as many others have done previously for Kv and Hv channels. However, no such analysis was performed, and statements such as the following (among others), are not substantiated by simple inspection of a single snapshot lacking water molecules:

"Hv1 D and E model structures are consistent with the notion that both gating charges and permeating protons cross the focused electrical field through a hydrated crevice."

"the central crevice remains substantially open, and may accommodate water molecules that are necessary for H+ shuttling via R1H"

"we find that the imidazole ring of R1H is apparently located within the solvent-accessible VS domain central crevice"

"Although Hv1 D and Hv1 E appear to be fully compatible with GSH experimental data reported here, other putative resting-state Hv1 VS domain structures evidently do not contain sufficiently hydrated central crevices to accommodate H+-shuttle function."

"Taken together, the experimental data and model structures reported here suggest that GAQ and GSH share a common H+ permeation pathway with S4 gating charges and that translation of S4 during VS activation must be of sufficient amplitude to 'unblock' the hydrated central crevice to open G_AQ."

In short, we think that many of the conclusions emerging from the modeling are not substantiated by the data presented. We therefore request that the amount of space (text and figures) devoted to the modeling be greatly reduced. To the extent that you wish to draw conclusions from the modeling, we request that you quantitatively analyze your Hv1 models to provide more information on hydration and electrostatics.

https://doi.org/10.7554/eLife.18017.028

Author response

Essential revisions:

1) Throughout the manuscript the authors complicate the story by assuming that the voltage-dependence for GSH must reflect a conformational change in the protein, rather than arising from an intrinsic rectification to proton permeation. Until we get to Figure 4F, all the data actually would support a mechanism involving rectification of permeation. Also, the apparent shifts in the dG/dV analysis are only a hint. We suggest removing all verbiage about gating mechanisms surrounding GSH until you get to the section of the Results where you wish to present the Figure 4F experiment. Then you can raise the issue about mechanism of voltage-dependence to GSH, remind the reader about mutants affecting GAQ and not GSH, and then show how pH seems to shift both and talk about what that might mean. The authors ideas may be on the right track, but they don't have very firm ground to stand on and the presentation should reflect that.

We appreciate the Reviewers’ keen insight and agree that it is difficult to ascertain with certainty whether GSH gating results from large-scale movements of the protein (such as voltage-dependent translation of the S4 helix) vs. subtler, possibly local, conformational rearrangements (that might be more typical of pore block by a protein-associated moiety or ion). As suggested by the Reviewers, we have tried to remove potentially confusing verbiage about the mechanism of GSH gating from the Results and to more carefully cite support for our interpretations of the data. We added a section to the Discussion addressing how voltage-dependent GSH gating could result from local reorientation of the introduced His side chain within the electric field that is sharply focused across the gating pore.

We agree with the Reviewers’ concerns about the reported pH-dependent shifts in dGSTEP/dV relations, and realize that even our most diligent efforts to quantify the pHO dependence of GSH gating are not entirely satisfying. We have tried numerous different experimental strategies to address this issue and present only the results that most compellingly argue that GSH gating is modified by changes in pH. Other experimental and analytical approaches that are not presented here also yield tantalizingly believable evidence of pH-dependent GSH gating, but ultimately are not more convincing than the reported VPEAK shifts of dGSTEP/dV relations. Given that the mechanism of pH-sensitive gating in Hv1 remains essentially unknown, we feel that this work makes a potentially important contribution to the field.

Finally, the results reported here (in which we reproducibly measure whole-cell proton currents to -200 mV in cells that express a cytotoxic, leaky H+ channel) represent a heroic effort on the part of the graduate student who conducted the majority of the experiments. We and others may find ways to improve our experimental approaches in the future, but the reported results represent our best effort so far to characterize GSH gating under less-than-optimal experimental conditions.

2) The paper is straightforward to read and understand for experts, but it is too longwinded and will be impenetrable for the outsider. Terms like Ftail and Fhook are thrown about and won't be clear to those who haven't read the Larsson paper. In its present form it will probably only be read by scientists working on Hv1 or those who are total nerds and simply love the topic of voltage sensing. We think it can and should be reduced by 25-50% with careful editing and rethinking about what really needs to be discussed. The modeling parts of the Results and Discussion (see also point #4 below), in particular, need serious trimming and prioritization about what really needs to be discussed.

We have comprehensively revised the manuscript, eliminating non-essential verbiage and Figures. The revised Introduction and Results and Discussion now totals 8721 words (37% shorter than the originally-submitted 13,869 word manuscript).

3) It is true that GSH was not evident in the previous paper cited for the R1H mutant, but in that work they only show data down to -10 mV, a voltage where the shuttle current would be very small. That study focused on looking at accessibility of inserted His to Zn, not on explicitly looking for a shuttle conductance. One sentence in the Results section would suffice to accurately state that GSH was not reported in earlier work, but that those authors did not pulse negative enough to see it.

We have modified our treatment of the discrepancy between our results and the previous report by Kulleperuma, et al. (2013) in the Discussion:

“Our results are consistent with previous reports describing GSH in other VS domain R1H mutants (1-3) but contrast with a previous study in Hv1 (4). One possible explanation for the discrepancy is that GSH is difficult to measure when mutant Hv1 channel expression levels are low, as in the previous study (4), whereas the inducible expression system used here drives the high expression that is evidently necessary to reproducibly measure GSH.”

To clarify, Kulleperuma, et al. (2013) state in Results that “All three constructs were nonconducting at negative voltages and opened with time during depolarizing pulses. Specifically, we did not observe evidence for H+ conductance activated at negative voltages, or for proton carrier activity at intermediate voltages, as might have been expected by analogy with the His scanning studies of Starace and Bezanilla in Shaker K+ channels (Starace et al., 1997; Starace and Bezanilla, 2001, 2004).”

Furthermore, in their Conclusion the same authors state: “In summary, the only definitive conclusion from the properties of the Arg→His mutants of hHV1 is that R205H does not act as a hyperpolarization-activated proton channel at negative voltages.”

Our reading of the literature suggests that DeCoursey and colleagues were well aware of the experimental conditions necessary for GSH measurement, but nevertheless arrived at an erroneous conclusion, and we are obliged to correct this factual error in the scientific record.

4) We have serious reservations about the analysis of the modeling. First, the description of the generation of Hv1 E is not clear: "Representations of Hv1 E represent the first snapshot in a trajectory of ten possible structural conformations collected from a 1 ns MD production run." What is meant by "ten possible structural conformations"?

We regret that the description of the Hv1 E simulation was unclear. We have modified the Methods to more clearly describe our in silico approaches and added additional information from MD trajectories to reinforce the veracity of our interpretations (see Figure 5—figure supplements 1, 3 and Figure 6—figure supplement 1). Part of the Reviewers’ concern could be a result of the fact that the Hv1 B and D models were originally produced and simulated in the UK, but Hv1 B N4R and Hv1 E (R1H) mutant models were subsequently built and subjected to MD simulation in the US. The fact that in silico approaches utilized by different individual researchers are not identical, but nonetheless yield highly similar structures, should be reassuring. In addition to new quantitative measurements of model structure behavior during MD simulations added to Figure supplements, we have clarified the Homology modeling and MD simulation section in Methods.

Second, the analysis presented is based on single snapshots from MD simulations, which may or may not be representative, or may be one of multiple populated configurations, as the authors themselves point out in the last paragraph of the Discussion: "Because Arg side chains may exhibit a high degree of dynamic flexibility (9), distance measurements inferred from static snapshots here and elsewhere should be regarded as relatively coarse descriptions of conformational rearrangements in a highly dynamic protein domain." If only single snapshots are being reported, then what is the point of running MD simulations in the first place? And what is the criterion for a particular choice of snapshot? Were the trajectories clustered and the most populated cluster chosen?

We realize that the statement about Arg side chain flexibility is confusing, and have revised this section for clarity.

“The apparent flexibility of Arg side chains in VS domains (5) suggests that the magnitude of S4 translation may not be easily inferred from measurements of gating valence alone. Proton transfer via GSH and voltage-dependent block of GAQ appear to place stringent constraints on the relative positions of target side chain atoms, and may offer advantages over alternative approaches, such as chemical accessibility in Cys mutant proteins, for ascertaining structural changes that occur during VS activation.”

Typical MD trajectories contain thousands to millions of individual frames, so choices must be made about which snapshots to use for static images in the published Figures. We have tried to select representative snapshots, but in fact each frame is in some way different from all others, and no snapshot is totally representative. We have added additional data from Hv1 D and Hv1 E MD trajectories (Figure 5—figure supplements 1F, G and 3A, B; Figure 6—figure supplement 1D, E) showing that Cα atom distances and electrostatic interactions are constant, indicating that the structures are stable in the simulation environment. This data argues that distance measurements made between sites in the protein backbone are likely to be quite similar, regardless of which particular snapshot is used for comparison to other structures.

Are MD simulations necessary for this work? As the title of the manuscript indicates, our intention to use experimental data to constrain possible Hv1 models. MD simulations are necessary for ascertaining whether a particular model structure is thermodynamically stable, and represent a necessary quality check for model structures. The model structures presented here represent the culmination of many iterative attempts to build models that are most consistent with all of the available experimental data, but even our best efforts do not guarantee that any model will remain stable in the all-atom MD simulation environment after model-building, lipid equilibration, energy minimization and harmonic constraint.

MD simulations should not be interpreted as evidence that a given model is any more representative of a physiologically meaningful conformation, or that our preferred model is necessarily more accurate than any of myriad other possible models. Our experience indicates that software packages such as Modeller afford the investigator tremendous latitude at the model-building stage, and potentially important features of candidate model structures are subject to bias resulting from both the selection of different technical parameters and investigator ignorance or preference. We are encouraged by the observations that the models presented here are both stable in an MD environment (and thus energetically feasible) and are evidently superior to models built by other groups in that they are uniquely consistent with experimental data. We feel that atomic models which are validated by directed experiments offer more information content than less rigorously-tested models and X-ray structures determined from proteins subjected to biochemical torture, reconstitution, and crystallization under non-physiological conditions. We are hopeful that our sustained effort to successfully merge experimental and computational approaches will yield a deeper understanding of the structural basis of VS activation and H+ permeation mechanisms in Hv1.

Third, with MD trajectories in hand, the authors have the opportunity to analyze internal hydration structure and dynamics, as well as electrostatic potential, as many others have done previously for Kv and Hv channels. However, no such analysis was performed, and statements such as the following (among others), are not substantiated by simple inspection of a single snapshot lacking water molecules:

We previously reported that activated-state Hv1 model structures contain a well-hydrated central crevice (Ramsey et al., 2010) and are thus aware of the capabilities and limitations or water modeling in standard MD simulations. However, we omitted descriptions of hydration and water structure in resting-state Hv1 models here because the analysis did not seem to add substantially to the experimental results, which strongly argue that the central crevice is hydrated. Indeed, most of the points of concern raised below are statements that are based on experimental observations, not model structures. However, to allay the concerns of the Reviewers, we added Figures showing central crevice water occupancy in Hv1 D and Hv1 E resting-state models during MD simulations. We have also substantially modified the text as suggested, and hope that the revised manuscript fairly balances experimental constraints and structural inferences to yield innovates mechanistic hypotheses.

"Hv1 D and E model structures are consistent with the notion that both gating charges and permeating protons cross the focused electrical field through a hydrated crevice."

We believe that this statement is well supported by available evidence and not based on observations of models or their behavior in MD simulations. We clearly state that our new model structures are merely consistent with multiple experimental observations here and elsewhere showing that a single residue substitution (R1H) is sufficient to confer GSH (Starace, et al., 2004; Villalba-Galea, et al., 2013).

"the central crevice remains substantially open, and may accommodate water molecules that are necessary for H+ shuttling via R1H"

H+ shuttling via GSH evidently requires water molecules to function as proton donor to and acceptor from the introduced R1 His (Starace, et al., 2004). Without water, the mechanism by which H+ would manage to cross the thickness of the membrane is difficult to conceive. We showed previously (Ramsey et al., 2010) that ionizable residues throughout Hv1 are dispensable for H+ conduction, so the possibility that a latent proton wire exists somewhere in the protein and is selectively enabled by R1H seems remote. Another possibility is that protons somehow tunnel through the protein, but we have no way to directly test this hypothesis using conventional experimental approaches. Given that a number of other studies (including Krepkiy et al., 2012) show or imply that VS domains contain substantially hydrated crevices, we infer water is necessary for H+ shuttling and that this is the simplest explanation for the experimental data.

"we find that the imidazole ring of R1H is apparently located within the solvent-accessible VS domain central crevice"

Newly added data in Figure 5—figure supplements 3E and 3I directly addresses this concern.

"Although Hv1 D and Hv1 E appear to be fully compatible with GSH experimental data reported here, other putative resting-state Hv1 VS domain structures evidently do not contain sufficiently hydrated central crevices to accommodate H+-shuttle function."

This conclusion is drawn from our inspection of hydrophobic packing in Ci Hv1, mHv1cc and Hv1FL model and X-ray structures (Figure 6A-D and Figure 6—figure supplement 1A-D), which do not contain sufficient space to accommodate water molecules that could function to bridge R1H to the intra- and extra-cellular bulk solvent. Hv1 D and Hv1 E are clearly distinct from Ci Hv1, mHv1cc and Hv1FL in this regard, and we have added additional Figures to support this interpretation (Figure 5—figure supplement 3).

"Taken together, the experimental data and model structures reported here suggest that GAQ and GSH share a common H+ permeation pathway with S4 gating charges and that translation of S4 during VS activation must be of sufficient amplitude to 'unblock' the hydrated central crevice to open G_AQ."

Although we think that there is ample experimental evidence in the manuscript and literature to support this conclusion, we modified the text and added new data to address the Reviewers’ concern. Our interpretation that the S4 gating charges block the H+ permeation pathway is based on the results of previous studies of GΩ and GSH in Shaker and other channels (6, 7); to this literature we add the observation that N4R creates a voltage-dependent block of GAQ. X-ray and model structures strongly suggest that the central crevice (‘gating pore’) is the only continuously hydrated pathway in VS domains, and we and others agree that the simplest explanation is that traversing H+ and gating charges share the ‘gating pore’ (1, 6-10). This possibility is further supported by our MD simulations, in which we observe robust hydration of the central crevice (see new panels in Figure 5—figure supplement 3). Thus, experimental data and structural studies appear to mutually support the hypothesis that proton flux through GAQ and GSH utilize the VS ‘gating pore’ for H+ transfer in Hv1.

In short, we think that many of the conclusions emerging from the modeling are not substantiated by the data presented. We therefore request that the amount of space (text and figures) devoted to the modeling be greatly reduced. To the extent that you wish to draw conclusions from the modeling, we request that you quantitatively analyze your Hv1 models to provide more information on hydration and electrostatics.

To address the Reviewers’ concerns we have: 1) Reduced the number of main Figures showing structural representations to two (Figures 5 and 6) and moved important (but visually dense) comparisons between Hv1 model and X-ray structures to the Figure supplements; 2) added data from MD simulations (Figure 5—figure supplements 1F,G,3A–E and Figure 6—figure supplement 1) that supports our conclusions about structure and water accessibility in Hv1 B N4R, Hv1 D and Hv1 E; 3) added a comparison to the At TPC1 DII VS domain X-ray structure (Figure 5F,G); and 4) substantially reduced the amount of text in the Results and Conclusions sections dealing with structural comparisons.

Our conclusions about central crevice hydration, water access to R1H, GAQ block by S4 Arg gating charges, and gating pore/proton transfer pathways utilizing the same structural feature are mainly based on experimental data, not on modeling or MD simulations. We reiterate that one of the main intentions of this manuscript is to demonstrate how carefully designed and executed experiments can be used to constrain structural conformations of the VS domain. We feel that the manuscript has the potential to make a valuable contribution to the field by comparing and contrasting our new Hv1 models with previously published model and X-ray structures, most of which do not satisfy the expectations imposed by GSH and GAQ experimental data in some important way.

https://doi.org/10.7554/eLife.18017.029

Article and author information

Author details

  1. Aaron L Randolph

    1. Department of Physiology and Biophysics, Virginia Commonwealth University School of Medicine, Richmond, United States
    2. Medical College of Virginia Campus, Virginia Commonwealth University School of Medicine, Richmond, United States
    Present address
    Department of Anesthesiology, Yale University School of Medicine, New Haven, United States
    Contribution
    ALR, Designed and analyzed experiments, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  2. Younes Mokrab

    Department of Biochemistry, University of Oxford, Oxford, United Kingdom
    Present address
    Sidra Medical Research Center, Doha, Qatar
    Contribution
    YM, Conceived, designed, analyzed model structures, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1611-6692
  3. Ashley L Bennett

    1. Department of Physiology and Biophysics, Virginia Commonwealth University School of Medicine, Richmond, United States
    2. Medical College of Virginia Campus, Virginia Commonwealth University School of Medicine, Richmond, United States
    Contribution
    ALB, Conceived, designed, analyzed model structures, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
  4. Mark SP Sansom

    Department of Biochemistry, University of Oxford, Oxford, United Kingdom
    Contribution
    MSPS, Conceived, designed, analyzed model structures, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6360-7959
  5. Ian Scott Ramsey

    1. Department of Physiology and Biophysics, Virginia Commonwealth University School of Medicine, Richmond, United States
    2. Medical College of Virginia Campus, Virginia Commonwealth University School of Medicine, Richmond, United States
    Contribution
    ISR, Conceived, designed, analyzed and interpreted experiments, Analyzed model structures and prepared graphical renderings, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article, Contributed unpublished essential data or reagents
    For correspondence
    ian.ramsey@vcuhealth.org
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6432-4253

Funding

National Institute of General Medical Sciences (R01GM092908)

  • Aaron L Randolph
  • Ashley L Bennett
  • Ian Scott Ramsey

Wellcome Trust

  • Younes Mokrab
  • Mark SP Sansom

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors wish to thank Wendy Calchary, Audrey Le and Xuanyu Meng for technical assistance and Louis J De Felice and Carlos A Villalba-Galea for helpful discussions.

Reviewing Editor

  1. Kenton J Swartz, National Institutes of Health, United States

Publication history

  1. Received: May 20, 2016
  2. Accepted: August 29, 2016
  3. Accepted Manuscript published: August 30, 2016 (version 1)
  4. Version of Record published: October 14, 2016 (version 2)

Copyright

© 2016, Randolph et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,152
    Page views
  • 375
    Downloads
  • 19
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Neuroscience
    2. Structural Biology and Molecular Biophysics
    Jordana K Thibado et al.
    Research Article

    The metabotropic glutamate receptors (mGluRs) form a family of neuromodulatory G protein-coupled receptors that contain both a seven-helix transmembrane domain (TMD) and a large extracellular ligand-binding domain (LBD) which enables stable dimerization. While numerous studies have revealed variability across subtypes in the initial activation steps at the level of LBD dimers, an understanding of inter-TMD interaction and rearrangement remains limited. Here we use a combination of single molecule fluorescence, molecular dynamics, functional assays, and conformational sensors to reveal that distinct TMD assembly properties drive differences between mGluR subtypes. We uncover a variable region within transmembrane helix 4 (TM4) that contributes to homo- and heterodimerization in a subtype-specific manner and tunes orthosteric, allosteric and basal activation. We also confirm a critical role for a conserved inter-TM6 interface in stabilizing the active state during orthosteric or allosteric activation. Together this study shows that inter-TMD assembly and dynamic rearrangement drive mGluR function with distinct properties between subtypes.

    1. Microbiology and Infectious Disease
    2. Structural Biology and Molecular Biophysics
    Caillat Christophe et al.
    Research Article

    The HIV-1 gp120/gp41 trimer undergoes a series of conformational changes in order to catalyze gp41-induced fusion of viral and cellular membranes. Here, we present the crystal structure of gp41 locked in a fusion intermediate state by an MPER-specific neutralizing antibody. The structure illustrates the conformational plasticity of the six membrane anchors arranged asymmetrically with the fusion peptides and the transmembrane regions pointing into different directions. Hinge regions located adjacent to the fusion peptide and the transmembrane region facilitate the conformational flexibility that allows high affinity binding of broadly neutralizing anti-MPER antibodies. Molecular dynamics simulation of the MPER Ab-stabilized gp41 conformation reveals a possible transition pathway into the final post-fusion conformation with the central fusion peptides forming a hydrophobic core with flanking transmembrane regions. This suggests that MPER-specific broadly neutralizing antibodies can block final steps of refolding of the fusion peptide and the transmembrane region, which is required for completing membrane fusion.
