Abstract

Biological macromolecules function in highly crowded cellular environments. The structure and dynamics of proteins and nucleic acids are well characterized in vitro, but in vivo crowding effects remain unclear. Using molecular dynamics simulations of a comprehensive atomistic model cytoplasm we found that protein-protein interactions may destabilize native protein structures, whereas metabolite interactions may induce more compact states due to electrostatic screening. Protein-protein interactions also resulted in significant variations in reduced macromolecular diffusion under crowded conditions, while metabolites exhibited significant two-dimensional surface diffusion and altered protein-ligand binding that may reduce the effective concentration of metabolites and ligands in vivo. Metabolic enzymes showed weak non-specific association in cellular environments attributed to solvation and entropic effects. These effects are expected to have broad implications for the in vivo functioning of biomolecules. This work is a first step towards physically realistic in silico whole-cell models that connect molecular with cellular biology.

https://doi.org/10.7554/eLife.19274.001

eLife digest

Much of the work that has been done to understand how cells work has involved studying parts of a cell in isolation. This is particularly true of studies that have examined the arrangement of atoms in large molecules with elaborate structures like proteins or DNA. However, cells are densely packed with many different molecules and there is little proof that proteins keep the same structures inside cells that they have when they are studied alone.

To really understand how cells work, new ways to understand how molecules behave inside cells are needed. While this cannot be achieved directly, technology has now reached the stage where we can, to some extent, study living cells by recreating them virtually. Simulated cells can copy the atomic details of all the molecules in a cell and can estimate how different molecules might behave together.

Yu et al. have now developed a computer simulation of part of a cell from the bacterium, Mycoplasma genitalium, one of the simplest forms of life on Earth. This model suggested new possible interactions between molecules inside cells that cannot currently be studied in real cells. The model shows that some proteins have a much less rigid structure in cells than they do in isolation, whilst others are able to work together more closely to carry out certain tasks. Finally, the model predicted that small molecules such as food, water and drugs would move more slowly through cells as they become stuck or trapped by larger molecules.

These results could be particularly important in helping to improve drug design. Currently the simulations are limited, and can only model parts of simple cells for less than a thousandth of a second. However, in future it should be possible to recreate larger and more complex cells, including human cells, for longer periods of time. These could be used to better study human diseases and help to design new treatments. The ultimate goal is to simulate a whole cell in full detail by combining all the available experimental data.

https://doi.org/10.7554/eLife.19274.002

Introduction

How biomolecules efficiently function in real biological environments with crowding and significant chemical and physical heterogeneity remains a fundamental question in biology (Minton, 2001). Typical cytoplasmic macromolecular concentrations are 300–450 g/L or 25–45 vol% (Zimmerman and Trach, 1991). Metabolites add about 10 g/L (Bennett et al., 2009). Volume exclusion upon crowding favors compact macromolecular states (Minton, 2001), but the full physicochemical nature of cellular environments with attractive and repulsive interactions, solvation effects and co-solvents apparently leads to more varied effects (Monteith et al., 2015; Harada et al., 2013, 2012; Feig and Sugita, 2012; Kim and Mittal, 2013; Tanizaki et al., 2008). The key question is whether and how the in vivo behavior of biological macromolecules differs from their well-characterized in vitro properties.

In-cell NMR and other recent experiments of cell-like solutions point at possible native state destabilization upon crowding (Monteith et al., 2015; Inomata et al., 2009; Hong and Gierasch, 2010; Sakakibara et al., 2009). Such observations contradict a simple excluded volume model (Minton, 2001) and a full understanding of how cellular environments modulate protein structures remains elusive. Cellular environments reduce the diffusive dynamics of macromolecules, but, again, details of how exactly macromolecules and metabolites move in an environment that is highly crowded and rich in varying interactions are unclear. Crowded environments also provide increased opportunities for weak protein-protein interactions due to frequent random encounters but it is unknown to what extent such weak interactions may benefit the efficiency of metabolic cascades or other coordinated biological processes.

As experiments are beginning to approach realistic cellular environments, it remains extremely challenging to probe biomolecular structure and dynamics in cellular environments without either perturbing the system that is being studied or the environment. Theoretical studies have the potential to overcome such challenges (Im et al., 2016). Whole-cell modeling based on the metabolic network of Mycoplasma genitalium (MG) has been able to predict phenotype variations (Karr et al., 2012), but without considering physical details. Molecular-level models have captured aspects of cellular environments (McGuffee and Elcock, 2010; Ando and Skolnick, 2010; Cossins and Jacobson, 2011), but the full biological complexity has not been reached (Feig and Sugita, 2013). Driven by data from high-throughput experiments, we built a comprehensive cytoplasmic model based primarily on MG and its nearest relative, Mycoplasma pneumoniae (Feig et al., 2015; Kühner et al., 2009). Here, this model is subject to molecular dynamics simulations to examine in atomistic detail how realistic cellular environments affect the dynamic interplay of proteins, nucleic acids, and metabolites.

Results

All-atom molecular dynamics (MD) simulations were applied to three atomistic cytoplasmic models containing proteins, nucleic acids, metabolites, ions and water, explicitly. We studied MGh, based on a cytoplasmic model built previously with 103 million atoms in a cubic (100 nm) (Bennett et al., 2009) box (Figure 1 and Table 1) (Feig et al., 2015), and two different subsections, MGm1 and MGm2, with 12 million atoms (Table 1). Unrestrained MD simulations were carried out for 20 ns (MGh), 140 ns (MGm1) (Video 1), and 60 ns (MGm2). Although the simulation times, limited by resource constraints, may seem short, ensemble averaging over many copies of the same molecules in different local environments allowed for meaningful statistics. Furthermore, the three systems were started from different initial conditions providing further statistical significance.

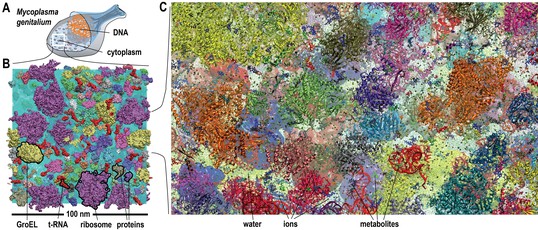

Figure 1 with 3 supplements see all
Molecular model of a bacterial cytoplasm.

(A) Schematic illustration of Mycoplasma genitalium (MG). (B) Equilibrated MGh system highlighted with proteins, tRNA, GroEL, and ribosomes. (C) MGh cl ose-up showing atomistic level of detail. See also supplementary Figures 1 and 2 for structures of individual macromolecules and metabolites as well as supplementary Figure 3 for initial configurations of the simulated systems.

https://doi.org/10.7554/eLife.19274.003
Table 1

Simulated cytoplasmic systems.

https://doi.org/10.7554/eLife.19274.007

System

MGh

MGm1

MGm2

MGcg

Cubic box length (nm)

99.8

48.2

48.2

106.2

Program

GENESIS

GENESIS

NAMD

GENESIS

Simulation time

20 ns

140 ns

60 ns

10 × 20 μs

number of molecules

Ribosomes

31

3

3

24

GroELs

20

3

3

24

Proteins

1238

182

133

1927

RNAs

284

28

44

298

Metabolites

41,006

5.005

5.072

Ions

214,000

23,049

27,415

Waters

26,263,505

2,944,143

2,893,830

Total # of atoms

103,708,785

11,737,298

11,706,962

  1. See also Figure 1—figure supplement 3 showing initial configurations and supplementary material with lists of the individual molecular components.

Video 1
Nanosecond dynamics of the MGm1 system in atomistic detail.

Macromolecules are shown with both cartoon and lines. Metabolites and ions are shown with stick or sphere. Macromolecules in back ground are shown with surface representation.

https://doi.org/10.7554/eLife.19274.008

Native state stability of biomacromolecules in cellular environments

The stabilities of five proteins (phosphoglycerate kinase, PGK; pyruvate dehydrogenase E1.a, PDHA; NADH oxidase, NOX; enolase, ENO; and translation initiation factor 1, IF1) and tRNA (ATRN) in the cellular environments in terms of root mean square displacements (RMSD) from the initial homology models and radii of gyration (Rg) were compared with simulations in dilute solvents (Figure 2A and Table 2). We focused on these systems because of large copy numbers to obtain sufficient statistics. Average RMSD values with respect to the initial models were lower or the same in the cellular environment compared to dilute solvent for PGK, NOX, ENO, and IF1 but increased for PDHA. The stability of individual copies varied significantly presumably at least in part as a function of the local environment consistent with recent work by Ebbinghaus et al. that found significant variations in protein folding rates within a single cell (Ebbinghaus et al., 2010). Some copies of PDHA significantly departed from the native structures in the cellular environment and those molecules had extensive contacts with other proteins (Figure 2—figure supplement 2 and Video 2) similar to previously observed destabilizations of native structures due to protein-protein interactions in crowded environments (Harada et al., 2013; Feig and Sugita, 2012). To further understand the mechanism by which PDHA became destabilized, we analyzed one copy that denatured significantly in more detail (we denote this copy as PDHA*). Time traces shown in Figure 2—figure supplement 2 illustrate that the increase in RMSD coincides with the formation of protein-protein contacts, in particular with PYK. Additional energetic analysis indicates that the destabilization is driven by an overall decrease in the crowding free energy (see Figure 2—figure supplement 2). Further decomposition reveals a decrease in protein-protein electrostatic energies and van der Waals interactions while electrostatic solvation energies increase as PDHA becomes destabilized (Figure 2—figure supplement 2E,F). This means that favorable protein-protein electrostatic interactions between PDHA and the crowders are counteracted by unfavorable solvation as far as the dominant electrostatic component is concerned. The combination of the electrostatic and electrostatic solvation contributions increases (Figure 2—figure supplement 2E) suggesting that based on electrostatics and solvation alone the destabilization of PDHA* would not be favorable. However, this increase is more than outweighed by a decrease in the van der Waals interaction energy that suggests that, in the case of PDHA*, non-specific, shape-driven interactions ultimately lead to native state destabilization. In addition, the overall solvent-accessible surface area of the PDHA*-crowder system decreases as evidenced by the decrease in the asp term (which is proportional to the solvent-accessible surface area), further contributing to the interaction of the destabilized PDHA* with the crowder environment being more favorable than the initial non-interacting native PDHA*.

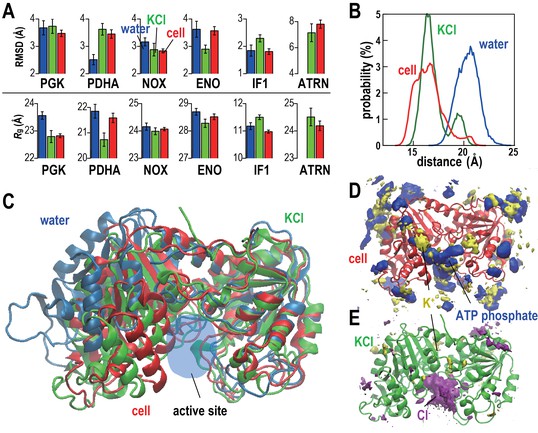

Figure 2 with 3 supplements see all
Conformational stability of macromolecules in crowded and dilute environments.

(A) Time-averaged RMSDs (from starting structures) and radii of gyration (Rg) for selected macromolecules in MGm1(red), in dilute solution with only counterions (blue) and with KCl excess salt (green). Statistical errors are with respect to copies of the same type. (B) Probability of the center of mass distances between the ligand binding sites dlig for PGK in MGm1 (red), in water (blue), and in KCl (green). (C): Final snapshots of PGK in MGm1 (red), in water (blue), and in KCl (green). (D) Time- and ensemble-averaged 3D distribution of atoms in the ATP phosphate group (blue, 0.002 Å−3) and K+ (yellow, 0.001 Å−3) around PGK in MGm1. (E) Time- and ensemble-averaged 3D distribution of K+ (yellow, 0.001 Å−3) and Cl- (purple, 0.001 Å−3) around PGK in KCl aqueous solution. See also supplementary Figures 1, 2 and 3 showing time series of structural stability measures and the influence of the local crowding environment on the structure of PGK and PDHA.

https://doi.org/10.7554/eLife.19274.009
Table 2

Simulated single protein reference systems.

https://doi.org/10.7554/eLife.19274.013

System

Cubic box [nm]

# of waters

# of ions

# of metabolites

# of atoms

Simulation time* [ns]

PGK_w

9.89

30,787

Cl: 8

0

98,886

4 × 140

PGK_i

9.87

30,374

K+: 217, Cl: 225

0

98,081

4 × 140

PDHA_w

9.90

31,032

Na+: 7

0

98,779

2 × 140

PDHA_i

9.98

30,627

K+: 224, Cl: 217

0

97,998

2 × 140

IF1_w

9.92

32,785

Cl-: 4

0

99,535

2 × 140

IF1_i

9.90

32,312

K+: 233, Cl: 237

0

98,582

2 × 140

NOX_w

9.89

30,473

Cl: 3

0

98,708

2 × 140

NOX_i

9.87

30,007

K+: 222, Cl: 225

0

97,754

2 × 140

ENO_w

9.85

28,050

Na+: 2

0

98,330

2 × 140

ENO_i

9.84

27,648

K+: 203, Cl: 201

0

97,526

2 × 140

ATRN_i

9.88

31,734

K+: 231, Cl: 156

0

98,032

2 × 140

ACKA_m

14.71

102,379

K+: 231, Cl: 156

168

325,691

2 × 510

  1. *The first 10 ns of each trajectory was discarded as equilibration.

Video 2
Conformational dynamics highlighting partial denaturation of one copy of PDHA (green, tube) due to interactions with proteins in the vicinity.
https://doi.org/10.7554/eLife.19274.014

Rg values, reflecting overall compactness, were generally lower in the cellular environment over dilute solvent as expected from the volume exclusion effect (Minton, 2001). However, dilute solvent with added KCl matching the molality of the cytoplasm led to a similar reduction in Rg as in the cellular environment (Figure 2A). We focused additional analysis on PGK, where FRET measurements in the presence of polyethylene glycol (PEG) and coarse-grained simulations have suggested that its two domains come closer upon crowding concomitant with higher enzymatic activity (Dhar et al., 2010). In living cells, folded structures are also stabilized (Ebbinghaus et al., 2010; Guo et al., 2012). Consistent with these studies, the distance between the two ligand-binding sites (dlig) in MGm1 decreased relative to that in water, but a similar decrease also occurred in the KCl solution (Figure 2B–C). The PGK domain cleft attracted high concentrations of ATP in the cell where Cl- was found in the KCl simulations (Figure 2D–E). However, we found little correlation between dlig and the crowder coordination number of PGK (Nc) (Figure 2—figure supplement 3). To understand this observation in more detail, we looked again at one specific copy PGK (denoted as PGK*) where we correlated the time series of dlig with macromolecular crowder contacts, nucleotides entering the cleft, and the resulting additional charge (Figure 2—figure supplement 3). It can be seen that dlig closely tracks the charge in the cleft with more compact conformations occurring when more negative charge is present. The charge would screen electrostatic repulsion across the cleft between a large number of basic residues and allow the two ligand-binding domains to come closer. In this specific example, ATP and/or CTP entering the cleft region (Figure 2—figure supplement 3E) are responsible for bringing the negative charge to the cleft (Figure 2—figure supplement 3E). On the other hand, contacts with crowder molecules are not well correlated with dlig for this copy of PGK* (Figure 2—figure supplement 3F) mirroring the overall lack of correlation of dlig with crowder contacts (Figure 2—figure supplement 3B). These observations suggest that electrostatic stabilization by ions can induce similar effects as may be expected due to volume exclusion effects and that non-specific interactions with metabolites can affect biomolecular structures in unexpected ways.

Weak non-specific interactions of metabolically related enzymes

The high concentration of macromolecules in the cytoplasm allows macromolecules to weakly interact without forming traditional complexes. Such ‘quinary’ interactions have been proposed before (Monteith et al., 2015), but experimental studies in complex cellular environments are challenging and their biological significance is unclear. Based on distance changes for proximal macromolecular pairs relative to the initially randomly setup systems (ΔdAB) we compared interactions between regular proteins, RNAs, and huge complexes (ribosome and GroEL) to determine relative affinities for each other between these types of macromolecules (Figure 3A). The electrostatically-driven strong repulsion among RNAs and between RNAs and huge macromolecules (mainly ribosomes) is readily apparent. Repulsion between proteins and RNA and huge complexes is weaker, whereas protein-protein interactions were neutral. However, proteins involved in the glycolysis pathway showed weak attraction. An attraction of glycolytic enzymes is consistent with experimental data indicating the formation of dynamic complexes to enhance the multi-step reaction efficiency via substrate channeling (Dutow et al., 2010). Specific complex formation or specific weak interactions may allow related enzymes to associate, but here we observe non-specific weak associations that do not follow identifiable interaction patterns between different enzymes and require an alternate rationalization.

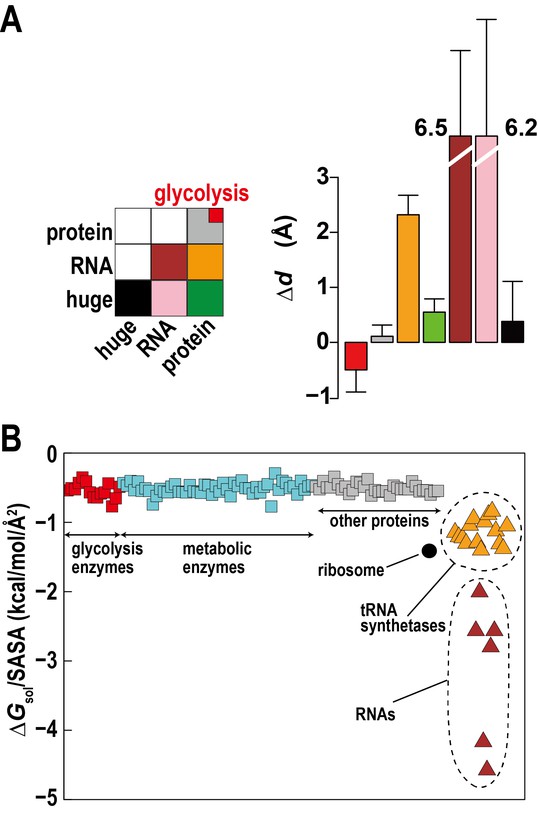

Figure 3 with 1 supplement see all
Association of metabolic proteins in crowded environments.

(A) Intermolecular distance changes between initial and final time (ΔdAB) for pairs of glycolytic enzymes, other regular proteins, RNAs, and ribosomes/GroEL (huge). (B) Solvation free energies ΔGsol normalized by the solvent-accessible surface area (SASA) for equilibrated copies of macromolecules in MGm1 using GBMV (Lee et al., 2003) in CHARMM (Brooks et al., 2009). See also supplementary Figure 1 showing the influence of large macromolecules on the association of small proteins based on simple Lennard-Jones mixtures.

https://doi.org/10.7554/eLife.19274.015

One explanation can be found based on the relative solvation free energies of glycolytic enzymes. Calculated solvation free energies for glycolytic enzymes are similarly favorable as other proteins, but they are less favorable compared to tRNA, aminoacyl tRNA synthetases with tRNA, and ribosomes, which together make up about a third of the macromolecular mass (Figure 3B). This suggests that solvation effects effectively cause a weak attraction of glycolytic enzymes (and other similar proteins) as they are relatively hydrophobic compared to the RNA containing molecular components.

Another aspect is the large size difference between glycolytic enzymes and ribosomes. Simulations of two-component mixtures of Lennard-Jones spheres to focus on entropic effects (Figure 3—figure supplement 1) show an increased concentration of smaller particles within a distance of two to three times their radii when large particles are present vs. a homogenous mixture of small particles. This is an indirect consequence of Asakura-Oosawa-type depletion forces where attraction between large particles excludes smaller particles bringing them closer to each other (Asakura and Oosawa, 1958). Therefore, the presence of large ribosomes enhances the proximity of smaller enzymes.

We note that a possible biological significance of relative size differences between enzymes and other smaller biomolecules such as metabolites has been raised before by Srere (Srere, 1984) in the context of protein-protein interactions and substrate channeling in metabolically-related enzymes. However, these early ideas were not yet informed by the full knowledge of structural biology that is available today and, therefore, did not provide clear physical rationales for how enzymes sizes and size distributions may relate to biological function.

Diffusive properties of biological macromolecules in cellular environments

Translational diffusion coefficients (Dtr) of Green Fluorescent Proteins (GFPs) and GFP-attached proteins (GAPs) are reduced about tenfold in Escherichia coli cells compared to dilute solutions (Nenninger et al., 2010) but much less is known how exactly the slow-down in diffusion depends on the local cellular environment. We calculated Dtr for the macromolecules in MGm1 as a function of their Stokes radius, RS, from our simulations (Figure 4; Video 3). Remarkably, experimental values are matched without adjusting parameters suggesting that our model based on MG may capture the physical properties of bacterial cytoplasms more generally. Convergence analysis from our data (Figure 4—figure supplement 1) combined with previous studies of diffusion rates (McGuffee and Elcock, 2010; Ando and Skolnick, 2010) suggests that long-time diffusion rates are approached already at 100 ns, although with slight overestimation (McGuffee and Elcock, 2010). There is also excellent agreement between the all-atom MD simulations and estimates of Dtr from coarse-grained Stokesian dynamics (SD) simulations of spherical macromolecules (MGcg, Table 1) in the presence of hydrodynamic interactions (Ando and Skolnick, 2010) (Figure 4B). The ratio Dtr/D0 that describes the slow-down in diffusion due to crowding relative to diffusion in dilute solvent D0, based on values estimated by HYDROPRO (Fernandes and de la Torre, 2002), decreases as 1/Rs as expected from previous studies of diffusion in crowded solutions (McGuffee and Elcock, 2010; Roosen-Runge et al., 2011; Szymański et al., 2006; Banks and Fradin, 2005). Given the classical 1/Rs dependency in dilute solvent, Dtr follows a 1/Rs (Zimmerman and Trach, 1991) dependency in crowded environments. Inverse quadratic functions are excellent fits to both the atomistic and coarse-grained simulation results (Figure 4A).

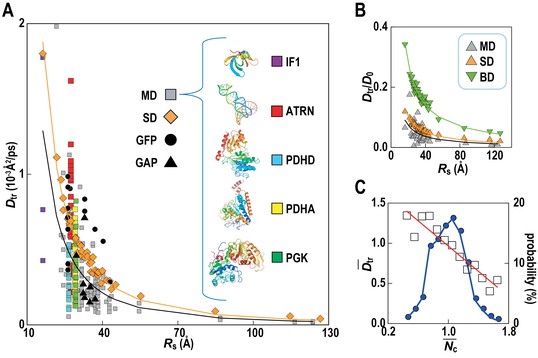

Figure 4 with 2 supplements see all
Translational diffusion of macromolecules in MGm1 slows down as a function of Stokes radius and is dependent on local crowding.

(A) Translational diffusion coefficients (Dtr) of macromolecules in MGm1 vs. Stokes radii (Rs) from MD, and SD compared with experimental data for green fluorescent protein (GFP) and GFP-attached proteins in E. coli (Nenninger et al., 2010). Fitted functions are Dtr = 341/Rs2 (MD) and Dtr = 496/Rs2 (SD). (B) Dtr/D0 using D0 from HYDROPRO (Fernandes and de la Torre, 2002) for MGm1 (grey), SD (orange), and BD (green). Fitted functions for Dtr/D0 are 1.5/Rs (MD), 2.0/Rs (SD), and 5.6/Rs (BD). (C) Normalized translational diffusion coefficient (Dtr¯) vs. normalized coordination number (Nc¯) for selected macromolecules (white squares) and distribution of macromolecules vs. Nc¯ (blue line). See also supplementary Figures 1 and 2 showing the dependency of the calculated diffusion coefficients on the observation time and the influence of the local crowding environment on the diffusion coefficients of individual proteins.

https://doi.org/10.7554/eLife.19274.017
Video 3
Diffusive motion of macromolecules during the last 130 ns of the MGm1 system.

Macromolecules are shown with surface representation. Ribosomes and GroELs are colored violet and yellow respectively. Other groups of molecules are colored differently for each individual macromolecule.

https://doi.org/10.7554/eLife.19274.020

Although the ensemble-averaged diffusive properties follow a simple 1/R(Zimmerman and Trach, 1991) function, there is a wide spread of Dtr in different copies of the same macromolecule type (Figure 4A) as a consequence of experiencing different local environments (Figure 4—figure supplement 2). The diffusion constant Dtr as a function of the normalized coordination number with surrounding macromolecules, Nc¯, follows a linear trend when averaged over different types of macromolecules (Figure 4C) with diffusion rates, on average, varying threefold between environments with the least and most contacts with surrounding molecules. As molecules diffuse through the cytoplasm, a given molecule thus exhibits a spatially varying rate of diffusion over time scales of 1 μs–1 ms, based on how long it takes for the smallest and largest macromolecules to diffuse by twice their Stokes radius.

We also report rotational motion (Figure 5) from our simulations. Rotational properties of macromolecules in physically realistic cellular environments have not yet been described in detail due to simplified models and the use of spherical approximations in past studies. We find that, in general, rotational diffusion follows the same trend as for translational diffusion, including a very similar dependency on local crowding (Figure 5—figure supplement 1). A similar reduction of translational and rotational diffusion upon crowding on shorter, sub-microsecond time scales found here is consistent with experimental data from quasi-elastic neutron backscattering and NMR relaxometry (Roosen-Runge et al., 2011; Roos et al., 2016). However, our simulations are too short to probe the suggested protein species dependent decoupling of rotational and translational diffusion on longer time scales based on pulsed field gradient NMR measurements of dense protein solutions (Roos et al., 2016).

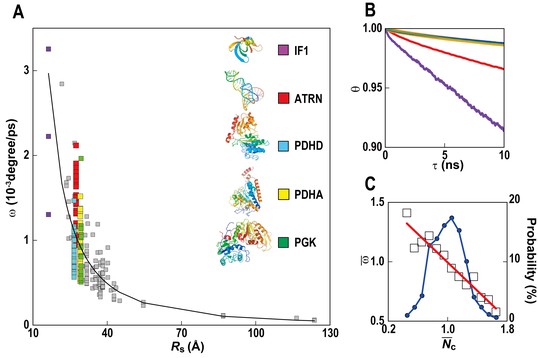

Figure 5 with 1 supplement see all
Rotational diffusion of macromolecules.

(A) Averaged angular velocity (ω) of macromolecules in MGm1 as a function of their Stokes radii (Rs) (gray squares with IF1, ATRN, PDHD, PDHA, and PGK highlighted in purple, red, blue, yellow, and green, respectively) (B) Rotational correlation functions (θ) of macromolecules (IF1, ATRN, PDHD, PDHA, and PGK colored in purple, red, blue, yellow, and green, respectively). (C) Normalized angular velocities (ω¯) vs. normalized coordination numbers (Nc¯) (white square) averaged over abundant macromolecules vs. macromolecular distribution as in Figure 4. See also supplementary Figure 1 showing the influence of the local crowding environment on the rotational diffusion of individual macromolecules.

https://doi.org/10.7554/eLife.19274.021

Diffusive properties of solvent and metabolites in cellular environments

As expected (Harada et al., 2012), the diffusion of water and ions was slowed down significantly in the cytoplasmic environment (Table 3), but little is known about the behavior of low molecular weight organic molecules in the cytoplasm. Translational diffusion rates Dtr of the metabolites in MGm1 exhibit a much more rapid decrease with increasing molecular weight, proportional to 1/Rs (Bennett et al., 2009), compared with the 1/Rs (Zimmerman and Trach, 1991) decrease seen for macromolecules (Figure 6A). Especially highly-charged phosphates diffused much slower than would be expected simply due to crowding. This observation is in stark contrast to recent experimental results (Rothe et al., 2016) that suggest that the diffusion of small molecules should be reduced less in crowded environments than for the much larger macromolecules. Based on our simulations this is a consequence of a large fraction of the metabolites interacting non-specifically with macromolecules (Figure 6B). Once metabolites are bound on the surface of a macromolecule, diffusion becomes two-dimensional and slows down considerably as illustrated in detail for ATP and valine (Figure 6C; Video 4). Trapping of metabolites on macromolecular surfaces reduces the effective concentration of freely-diffusing metabolites consistent with recent experiments that have inferred a large fraction of surface-interacting metabolites due to crowding (Duff et al., 2012). A recent analysis of absolute metabolite concentrations in E. coli has found that most concentrations were above the values of the Michaelis constant Km for enzymes binding those metabolites (Bennett et al., 2009). This has led to the conclusion that most enzyme active sites should be saturated under biological conditions. However, this argument neglects the possibility of significant non-specific metabolite-protein interactions suggested by the present study, which would imply much lower active site occupancies than expected from the absolute metabolite concentrations.

Table 3

Diffusion of water and ions. Translational diffusion constants [Å2/ps] in the cytoplasm (Mgm1) and dilute solvent (simulation of PGK in excess salt matching cytoplasmic concentration).

https://doi.org/10.7554/eLife.19274.023

Cytoplasm

Dilute solvent

τmax 1.0 (ns)

τmax 10 (ns)

τmax 1.0 (ns)

τmax 10 (ns)

water

0.32

0.29

0.42

0.41

K+

0.079

0.068

0.22

0.21

Na+

0.017

0.015

N/A

N/A

Cl

0.17

0.14

0.22

0.21

Mg2+

0.0073

0.0051

N/A

N/A

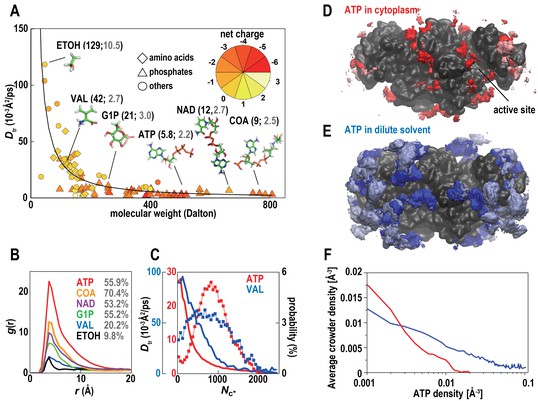

Figure 6 with 1 supplement see all
Metabolites in cytoplasmic environments interact extensively with macromolecules resulting in significantly reduced diffusion.

(A) Translational diffusion coefficients (Dtr) for metabolites in MGm1 as a function of molecular weight (phosphates: diamond; amino acids: triangles; others: circles; color reflects charge). For abundant metabolites, diffusion coefficients in bulk (black) and during macromolecular interaction (grey) are given in parentheses. (B) Normalized conditional distribution function, g(r), for heavy atoms of selected metabolites vs. the distance to the closest macromolecule heavy atom. The percentage of metabolites interacting with a macromolecule is listed. (C) Dtr of ATP and VAL as a function of the coordination number with macromolecules (Nc*) (line) and the distribution of Nc* (%) (line with points). (D) Time-averaged 3D distribution of all atoms in ATP (red, 0.008 Å−3) around ACKA molecules in MGm1. Pink color indicates regions where all-atom crowder densities also exceed 0.008 Å−3. (E) Same as in (D) but the density of ATP is shown in dilute solvent (blue) with light blue indicating overlap with the crowder density distribution form the MGm1 simulations. (F) Correlation between average crowder atom densities in MGm1 and volume density grid voxel ATP densities in dilute (blue) and crowded (red) environments. In the dilute case, we compute the crowder atom densities in MGm1 as a function of the grid ATP densities in the dilute simulations of PDHA. Therefore, high average crowder atom densities in the cytoplasmic model at sites with high ATP densities under dilute conditions means that those ATP sites would be displaced by interacting crowders in the cytoplasmic environment. See also supplementary Figure 1 showing analysis details for the calculation of the ATP distributions.

https://doi.org/10.7554/eLife.19274.024
Video 4
Diffusive motion of metabolites during the last 130 ns of the MGm1 system.

Macromolecules are shown with surface representation. Metabolites and ions are shown with van der Waals spheres. Phosphates, amino acids, ions, and other metabolites are highlighted with red, green, yellow, and blue.

https://doi.org/10.7554/eLife.19274.026

We further compared the interaction of ATP with the highly abundant ATP-binding protein acetate kinase (ACKA) between cellular and dilute environments with ATP present at the same molality. The number density profiles ρ(r) show a decreased concentration of ATP in the vicinity of ACKA (Figure 6—figure supplement 1D) in the cellular environment. In part, this results from reduced accessible volume around ACKA upon crowding (Figure 6—figure supplement 1E), but competition can play another role since ATPs can interact with many other proteins instead of ACKA. The three-dimensional distribution of ATP around ACKA (Figure 6D) shows not just reduced binding of ATP in the cell but also binding at different sites. For example, ATP binding to the cleft region between the two dimer subunits only features prominently in the cellular environment. This is a consequence of crowder interactions competing with ATP binding (Figure 6). A large fraction of the high-density ATP binding sites seen in dilute solvent overlap with crowder interaction sites while only very few ATP binding sites under crowded conditions overlap with crowder atom densities (Figure 6D/E/F). The active site cleft is largely unaffected by crowder interactions and therefore binding to the active site should be unaffected by crowding. However, because the non-active site binding sites are very different we expect that the binding kinetics is affected by the presence of the crowders. Further exploration of how exactly the thermodynamics and kinetics of metabolite-protein interactions are affected by the presence of the cytoplasm will require extensive additional analysis and will be deferred to a future study.

Discussion

This study provides unprecedented details of the interactions of biomolecules in a complete cytoplasmic environment. Our model emphasizes that in vivo environments are significantly different from in vitro conditions and illustrates that the inclusion of the full physical environment and the presence of all cellular components exerts more than just the simple volume exclusion effect commonly associated with crowding. We find new evidence for native state perturbations in cellular environments as a result of ‘quinary’ protein-protein interactions consistent with recent NMR studies (Monteith et al., 2015) but also as a result of electrostatic factors due to interactions with ions and metabolites that compete with volume exclusion effects. Our results suggest that native-state perturbations towards functionally compromised states under in vivo conditions may be a more general phenomenon that should be taken into account when interpreting in vitro studies and relying on structures obtained via crystallography.

Another significant insight that is of biological importance is the observation of weak association of glycolytic enzymes in our model. While glycolytic enzymes dominate our cytoplasmic model, both of our explanations, reduced solvation energies and entropic sorting due to size differences, would apply to the majority of metabolic enzymes and we expect that metabolic enzymes as a whole are brought into closer proximity in the cellular environment, thereby generally enhancing metabolic rates. An intriguing question is whether biological systems have evolved to exhibit such characteristics. The large relative size of ribosomes and their large RNA contents may therefore be desirable features outside the immediate context of their function in translation.

Our simulations also allowed us to carry out a detailed analysis of diffusive properties that revealed significant heterogeneity in macromolecular diffusion as a function of the local environment and a surprisingly significant reduction of metabolite diffusion as a result of sticky interactions with macromolecular surfaces. The latter has implications for the number of metabolites actually present in bulk solvent and has consequences for the mechanism of ligand binding in cellular environments.

One recurring aspect in our study is the prominent role of electrostatics that is manifested in different forms, such as the differential solvation between metabolic proteins and RNAs and RNA-containing complexes and metabolite-protein interactions that alter protein structure via electrostatic screening but are also at least in part responsible for reducing the amount of freely-diffusing metabolites. These findings mirror in part ideas by Spitzer and Poolman that hypothesized electrochemical effects to be a major factor in organizing crowded cytoplasms (Spitzer and Poolman, 2005).

The effect of cellular environments on and by metabolites and metabolic enzymes is a major focus of the present study. The present work points at reduced effective ligand concentrations near the macromolecule surface and altered protein-ligand interactions under cellular conditions. Therefore, cell-focused in silico drug design protocols that capture competing interactions and altered kinetic properties under cellular conditions could offer significant advantages over current single-molecule protocols.

All of the results presented here were obtained via computer simulations that, although increasingly reliable and based on experimentally-driven models, still only represent theoretical predictions. One potential concern is that the structural models used here were obtained largely via homology modeling. While the accuracy of structure prediction has increased over the last decade (Kryshtafovych et al., 2014), using such models may affect the accuracy of our results reported here, in particular with respect to the effects of the cellular environment on protein stability. In order to diminish such effects, we focused our analysis on relative comparisons of the same homology models in the cellular environment and in dilute solvent which we believe is meaningful even if the models are only approximations of the real structures. At the same time, the analysis of diffusive properties and non-specific protein-protein interactions is expected to be driven mostly by overall shape, size, and electrostatics rather than specific structural details and, therefore, we expect those results not to be affected significantly by the use of homology models.

The simulations presented here are limited by relatively short simulation lengths due to computational resource constraints. The observed macromolecular diffusion was largely limited to motion within a local environment without enough time to trade places with other macromolecules and certainly without exploring a substantial fraction of the volumes of our simulation systems. The short simulation times affect the estimates of long-time diffusive behavior including the possibility of anomalous diffusion that would not be expected to appear until macromolecules actually exchange with each other. On the other hand, the analysis of native state destabilization and non-specific protein-protein interactions relies essentially on interactions within just the local environment that are being sampled extensively on the time scale of our simulations, while averaging over many different copies in different environments is assumed to provide equivalent statistics to following a single copy that diffuses over much longer time scales. We therefore expect that much longer simulations would primarily reduce the statistical uncertainties without fundamentally altering the results reported here with respect to macromolecular stability and interactions. However, we expect that longer time scales would allow sampling of specific macromolecular and ligand binding equilibria, e.g. tRNA binding to tRNA synthetases, protein oligomerization, or binding of metabolite substrates to their respective target protein active sites, none of which we observed in the course of our simulations.

Force field inaccuracies are another concern and this work is a true test of the transferability and compatibility of the CHARMM force field parameters for close molecular interactions under conditions where force field parameters have not been validated extensively and artifacts, e.g. overstabilization of protein-protein contacts, are possible (Petrov and Zagrovic, 2014). Therefore, additional simulations with other force fields are desirable and follow-up by experiments is essential. The suggested metabolite-induced compaction of PGK should be observable experimentally and it should also be possible to measure weak associations of metabolic enzymes in dense protein solutions with and without nucleic acids and with and without ribosomes using suitable fluorescence probes, for example. Variations of diffusive properties as a function of the local cellular environments and the diffusion of metabolites in cellular environments may be more difficult to determine experimentally but we hope that our work will stimulate experimental efforts to determine such properties.

The next step from the model presented here is a whole-cell model in full physical detail to include the genomic DNA, the cell membrane with embedded proteins, and cytoskeletal elements. Such a model would require in excess of 10 (Tanizaki et al., 2008) particles at an atomistic level of detail. As additional experimental data becomes available and computer platforms continue to increase in scale, this may become possible in the foreseeable future. Such a whole-cell model would bring to bear the tremendous advances in structural biology to make a complete connection between genotypes and phenotypes at the molecular level that is difficult to achieve with the empirical systems biology models in use today.

Materials and methods

Model system construction

We constructed a comprehensive cytoplasmic model at pH = 7 based on MG containing proteins, nucleic acids, metabolites, ions, and explicit water, consistent with predicted biochemical pathways as described previously (Feig et al., 2015). The model is meant to cover a cytoplasmic section that does not contain membranes, DNA, or cytoskeletal elements and includes only essential gene products. Molecular concentrations were estimated based on proteomics and metabolomics data for a very closely related organism, M. pneumoniae and macromolecular structures were predicted via homology modeling and complexes were built where possible (see Figure 1).

All-atom molecular dynamics simulations

The cytoplasmic model covered a cubic box of size (100 nm) (Bennett et al., 2009) with about 100 million atoms (MGh; Figure 1A). This system corresponds to 1/10th of a whole MG cell. Based on MGh, we also built two smaller subsets (MGm1 and MGm2), each with a (50 nm) (Bennett et al., 2009) volume and containing about 12 million atoms. The subsets were constructed like the complete system but using molecular copy numbers from two different 1/eighth subsets of the MGh system. All-atom MD simulations were carried out over 140 ns for MGm1 and 60 ns for MGm2 of with the first 10 ns were discarded as equilibration. For MGh, we performed 20 ns MD simulation with the first 5 ns considered as equilibration. MGm1 and MGh trajectories were obtained with GENESIS (Jung et al., 2015) on the K computer. MGm2 was run as a control using NAMD 2.9 (Phillips et al., 2005). Analysis was performed with the in-house program MOMONGA and the MMTSB Tool Set (Feig et al., 2004). System details are given in Table 1 and a list of macromolecules and metabolites are provided as supplementary material.

Systems with single macromolecules in explicit solvent were built for phosphoglycerate kinase (PGK), pyruvate dehydrogenase E1.a (PDHA), NADH oxidase (NOX), enolase (ENO), translation initiation factor 1 (IF1), tRNA (ATRN), and acetate kinase (ACKA). PGK, PDHA, NOX, ENO and IF1, were solvated in pure water (with counterions) and aqueous solvent with excess KCl. The molality of K+ ions was adjusted to match the MGm1 system. ATRN was only simulated in the presence of the added salt. ACKA was simulated in water and in a mixture of metabolites with the components and molalities chosen such that they match the MGm1 system. Details for these systems are given in Table 2. MD simulations of single macromolecules in dilute solvent were repeated two to four times using different initial random seeds. Details about the number and length of runs for each system are given in the Table 2.

In all atomistic simulations, initial models were minimized for 100,000 steps via steepest descent. For the first 30 ps of equilibration, a canonical (NVT) MD simulation was performed with backbone Cα and P atoms of the macromolecules harmonically restrained (force constant: 1.0 kcal/mol/Å [Zimmerman and Trach, 1991]) while gradually increasing the temperature to 298.15 K. We then performed an isothermal-isobaric (NPT) MD simulation for 10 ns without restraints. Production MD runs were carried out under the NVT ensemble for MGm1 and MGm2. For MGh, we ran a total of 20 ns in the NPT ensemble without switching to the NVT ensemble. The CHARMM c36 force field (Best et al., 2012) was used for all of the proteins and RNAs. The force-field parameters for the metabolites were either taken from CGenFF (Vanommeslaeghe et al., 2010) or constructed by analogy to existing compounds. All bonds involving hydrogen atoms in the macromolecules were constrained using SHAKE (Ryckaert et al., 1977). Water molecules were rigid by using SETTLE (Miyamoto and Kollman, 1992) which allowed a time step of 2 fs. Van der Waals and short-range electrostatic interactions were truncated at 12.0 Å, and long-range electrostatic interactions were calculated using particle-mesh Ewald summation (Darden et al., 1993) with a (512) (Bennett et al., 2009) grid for MGm1 and MGm2 and a (1024) (Bennett et al., 2009) grid for MGh. The temperature (298.15 K) was held constant via Langevin dynamics (damping coefficient: 1.0 ps−1) and pressure (1 atm) was regulated in the NPT runs by using the Langevin piston Nosé-Hoover method (Hoover et al., 2004; Nosé, 1984) (damping coefficient: 0.1 ps−1).

Brownian and Stokesian dynamics simulations

A coarse-grained model of the MG cytoplasm, MGcg., was built for Stokesian and Brownian dynamics simulations. Here, each macromolecule was represented by a sphere with the radius a set to the Stokes radius estimated by HYDROPRO (Fernandes and de la Torre, 2002) based on the modeled structures. The number of copies for each macromolecule was set to be 8 times larger than that in MGm1 because most of the atomistic simulation data presen ted here is based on this system. The number and radii of macromolecules are listed in supplementary material.

MGcg was simulated via Brownian dynamics (BD) without hydrodynamics interactions (HIs) (Ermak and McCammon, 1978) and Stokesian dynamics (SD) (Brady and Bossis, 1988; Durlofsky et al., 1987), which includes not only the far-field HI but also the many-body and near-field HIs. For BD simulations without HIs, we used a second-order integration scheme introduced by Iniesta and de la Torre (Iniesta and García de la Torre, 1990), which is based on the original first-order algorithm developed by Ermak and McCammon (Ermak and McCammon, 1978). We only considered repulsive interactions between particles to take into account excluded volume effects, which are described by a half-harmonic potential,

(1) Vij={12k(rijaiajΔ)2ifrij<ai+aj+Δ0ifrijai+aj+Δ

where k is the force constant, rij is the distance between particles i and j, ai and aj are the radii of particles i and j, respectively, and Δ is an arbitrary parameter representing a buffer distance between particles. In this study, a Δ=1A˚ and k=10kBT/Δ2 with the Boltzmann constant kB were used, which means that Vij=5kBT at the distance rij=ai+aj. For SD simulations, the modified mid-point BD algorithm introduced by Banchio and Brady (Banchio and Brady, 2003) and based on Fixman’s idea (Fixman, 1978) was used. All BD and SD simulations were performed under periodic boundary conditions at 298 K. A time step of 8 ps was used, which roughly corresponds to 0.0005 × a2/Dtr for the particle with the smallest radius in the system, where Dtr is the translational diffusion constant (which is equal to kBT/6πηa with the viscosity of water η). Ten independent simulations were performed, each over 20 μs with different random seeds from randomly generated different initial configurations, using BD and SD implementations in the program GENESIS (Jung et al., 2015).

Calculation of root mean square displacements (RMSD) of macromolecules

RMSD values were determined for Cα and P atoms after best-fit superpositions. Structures obtained after short-time (10 ps) MD simulations in water started from the initial predicted models were used as reference structures since experimental structures are not available.

Highly flexible regions where Cα and P atoms had root mean square fluctuations (RMSF) larger than 3.0 Å2 (for proteins) or 4.0 Å2 (for tRNA) were eliminated from the analysis. Time and copy-averaged values with their respective standard errors were calculated from t0 = 50 ns to tend = 130 ns in MGm1.

Calculation of translational diffusion coefficients

The time evolution of the square displacement of a macromolecule α in a given time window i (r2(α,i,τ)) was obtained by tracking the center of mass of α. Multiple profiles of r2(α,i,τ) were obtained by sliding windows up to a size of τmax = 10 ns using an interval of Δti = 10 ps for macromolecules and up to τmax = 1 ns for metabolites using an interval of Δti = 1 ns starting from the beginning of the production trajectories up to tendτmax, where tend is the maximum length of a given simulation (see Table 1). In the case where diffusion coefficients are compared with coordination numbers (see below) Δti = 500 ps was chosen. These profiles were then averaged to obtain mean square displacements (MSD) according to:

(2) r2(α,τ)t=1(tendτmax)/Δtiir2(α,i,τ)

To obtain translational diffusion coefficient Dtr, a linear function was fitted to the MSD curve and Dtr was computed from the slope of the fitting line using the Einstein relation.

(3) Dtr=r2(α,τ)t6τ

For Figures 4A, 5A and 6A and Figure 4—figure supplement 1, only the last 80% of the MSD curve were used for fitting to enhance the accuracy. The entire MSD curve was used to generate Figures 4C, 5C and 6C, and Figure 4—figure supplement 2 and Figure 5—figure supplement 1.

The simulation results were shown with experimentally measured diffusion coefficients of green fluorescence protein (GFP) and GFP-attached proteins (Nenninger et al., 2010). In order to map the experimental data onto the simulations results, Stokes radii, Rs, of GFPs (GFP, GFP oligomers, and GFP attached proteins) were estimated from the relation between the molecular weight, Mw, and Rs obtained by HYDROPRO (Fernandes and de la Torre, 2002) for macromolecules in MGm1. Mw vs Rs data were fitted with an exponential function (Rs = 2.54 Mw2.86) which was used to estimate Rs for the GFP constructs based on their Mw values.

Analysis of rotational motion

To analyze the overall tumbling motion of a macromolecule α, we adopted the procedure developed by Case et al. (Wong and Case, 2008) using the rotation matrix that minimizes the RMSD of α against the reference structure, the rotational correlation function in a given time window i (θ(α,i,τ)) as a function of τ was obtained using sliding windows as in the calculation of the translational diffusion coefficients (see above) as follows with τmax = 10 ns:

(4) θ(α,τ)t=1(tendτmax)/Δtiiθ(α,i,τ)(τ <τmax)

Time-ensemble averages of rotational correlation functions for macromolecule type A were obtained by taking average for multiple copies of α belonging to the type A.

(5) θ(A,τ)αt=1Nαθ(α,τ)t(αA)

The rotational relaxation timeτrel was obtained by fitting a single exponential (McGuffee and Elcock, 2010)

(6) θ(A,τ)αtexp(τ/τrel)

Finally, the rotational diffusion coefficient of macromolecule type A was obtained as

(7) Drot(A)=1/2τrel

To obtain time-averaged angular velocities for a molecule α, the inner product of the rotated unit vectors at t=ti and t=ti+τmax were calculated as:

(8) Δej(τmax)t=1(tendτmax)/Δtitiej(ti+τmax)ej(ti)j

The time-averaged angular velocity  ω t of α in units of degrees was obtained as follows,

(9) ωt=180πarccos(Δej(τmax)tτmax)

Calculation of coordination number of crowders

To measure the local degree of crowding around a given target molecule α, we used the number of backbone Cα and P atoms in other macromolecules within the cutoff distance Rcut = 50 Å from the closest Cα and P atoms of α at a given time t as the instantaneous coordination number of crowder atoms, Nc(α,t), (For metabolites, we calculated the instantaneous coordination number of heavy atoms in crowder from the center of mass of a target metabolite m with a cutoff value of Rcut = 25 Å. This quantity is denoted as Nc*(m,t)). Time averages of Nc(α,t), and Nc*(m,t) were calculated over 10 ns windows advanced in 500 ps steps for macromolecules and over 1 ns windows advanced 1 ns steps for metabolites, respectively.

Characterization of macromolecular interactions

Macromolecular interactions were analyzed by using the center of mass distance for macromolecule pairs. The change of the distance between a target macromolecule α and one of the surrounding macromolecule β, Δdαβ, during the entire production trajectory from t0 to tend was calculated as:

(10) Δdαβ(Rcut)=rc(α,β, tend)trc(α,β, t0)t,

where t denotes the time average of center of mass distance rc(α,β, t) in the short time window τshort at the beginning and at the end of the time window. The selection of surrounding molecules β was based on the scaled distances r¯ between two protein pairs

(11) r¯(α,β)=2rc(α,β)Rs(α)+Rs(β)

where Rs(α/β) is the Stokes radius of each molecule. β was selected as surrounding molecule when the time-averaged distance from α is shorter than the cutoff distance Rcut at the beginning of time window.

(12) r¯(α,β,ti)t<Rcut.

The ensemble average of the distance change between two macromolecule groups A and B as a function of the cutoff radius, Rcut, ΔdAB(Rcut), was obtained for macromolecule pairs belonging to each group. In this study, ΔdAB(Rcut) was calculated using the longest time window for MGm1 (tend = 130 ns, τshort = 5 ns), MGm2 (tend = 50 ns, τshort = 5 ns), and MGh (tend = 15 ns, τshort = 0.5 ns). The profile at Rcut2 reflects the short-range interaction (picking up the macromolecule pairs which are almost fully attached each other), while it converges to zero at larger Rcut because the number of macromolecule pairs having no interaction rapidly increase. ΔdAB(Rcut) was then averaged between Rcut = 2 and 3 to reduce the noise. The averaged value is denoted simply as ΔdAB. A cutoff distance of Rcut = 3 corresponds to macromolecule pairs separated by about their diameter. ΔdAB values were calculated for MGh, MGm1 and MGm2, and combined with a weighted average according to the different lengths of the trajectories. ΔdAB were obtained for the half of macromolecule pairs (whose scaled distance are initially less than 3.0) selected randomly from each macromolecule group. We repeated this calculation for 50 times, and obtained standard deviations (SD) for 50 × 2 = 100 values. Standard error was obtained by SD/2.

Macromolecular association was analyzed separately for protein-protein, protein-RNA, and RNA-RNA interactions (see text). We separately analyzed interactions among proteins involved in the glycolysis pathways, which consist of HPRK (HPr/HPr kinase/phosphorylase), PYK (pyruvate kinase), TPIA (triosephosphate isomerase), GAPA (glyceraldehyde-3-phosphate dehydrogenase), PFKA (6-phosphofructokinase), FBA (fructose-biphosphate aldolase), ENO (enolase), PGI (glucose-6-phosphate isomerase), PGM (phosphoglycerate mutase) and PGK (phosphoglycerate kinase). Both multimeric and monomeric units were included in the analysis.

Calculation of spatial distribution functions of metabolites

Proximal radial distribution functions, g(r), were calculated for the distances between centers of heavy atoms in target metabolites and the nearest heavy atom of surrounding macromolecules. The number of atoms in a given target metabolite, which exist in the theoretically accessible volume (V(r), show as gray layers in Figure 6—figure supplement 1A), n(r), were obtained as a function of distance r. The volume and pairwise distances were averaged from snapshots taken at 5 ns intervals for the cellular systems and at 1 ns intervals for the dilute systems. The atomic number density ρ(r) was calculated by dividing n(r) by V(r). To obtain the normalized distribution functions, ρ(r) were divided by the atomic number density in the furthest region from the surface of macromolecules ρ(),

(13) g(r)=n(r)V(r)ρ().

To obtain the numerical values for V(r), the periodic boundary box was divided into 1 Å grids, and V(r) were approximated by counting the grids whose center is inside the V(r) (thick black squares in Figure 6—figure supplement 1A). The profiles of g(r) were obtained in a histogram with bin size 0.5 Å. ρ() was approximated by taking the average value of ρ(r) from 20 Å to 25 Å.

ρ(r) of ATP was also obtained only with respect to the 13 ACKA molecules in the crowded system MGm1 as well as for the single ACKA under dilute conditions with metabolites and ions (ACKA_m) (Figure 6—figure supplement 1D). We used the entire 130 ns production trajectory of MGm1. For dilute conditions (ACKA_m) a total of 1 μs sampling from multiple trajectories was used.

In addition to ρ(r) and g(r), the three-dimensional distribution of the atomic number density ρ(r) of metabolites or ions around the target proteins were generated with a grid size of 1 Å. ρ(r)  were calculated for each snapshot, and iso-density surfaces were projected onto a reference structure of the target protein by removing translational and rotational motion of the protein (Figure 2C–E, and 6D-E in the main manuscript). For the density calculations, snapshots saved at 100 ps intervals for cellular systems and saved at 50 ps for dilute systems were used.

Because ACKA has two symmetrical domains (i.e., homodimer), ATP atoms around one domain were transposed to the other domain, and ρ(r) were then calculated by counting both original and transposed solvent atoms in the same grid to generate symmetry-averaged densities (see Figure 6D–E).

Characterization of the two-dimensional diffusion of metabolites

For selected metabolites we analyzed the interaction with macromolecule surfaces. Metabolites were considered to be interacting with a macromolecular surface if the distance between the center of mass of a metabolite and the nearest heavy atom of any of the surrounding macromolecules was less than 10 Å for the large metabolites COA and NAD, and less than 8 Å for ATP, VAL, G1P, and ETOH. If a metabolite interacted continuously with the same macromolecule for more than 5 ns before and after a given time, we considered the metabolite to be moving on the macromolecular surface, therefore exhibiting two-dimensional diffusion. Mean square displacements (MSD) of these metabolites were averaged separately and the slope was divided by four instead of six when determining Dtr to reflect two-dimensional vs. three-dimensional diffusion.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56

Decision letter

  1. Yibing Shan
    Reviewing Editor; DE Shaw Research, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Macromolecular Dynamics, Stability, and Atomistic Interactions in a Bacterial Cytoplasm" for consideration by eLife. Your article has been favorably evaluated by John Kuriyan (Senior Editor) and three reviewers, one of whom, Yibing Shan (Reviewer #1), is a member of our Board of Reviewing Editors.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission. It should be possible for you to address these issues without running new simulations. Note, also, that the editor asks you to change the title of the manuscript so that it conveys to the reader more clearly what was actually done.

Summary:

This pioneering work simulates a substantial fraction of a bacterial cytoplasm using all-atom molecular dynamics simulations, aiming to elucidate how interactions in a crowded environment affect the stability and diffusion properties of macromolecules. It is a technical feat to construct and to simulate such an enormous all-atom model of more than 100 million atoms. The simulations break new ground of molecular dynamics in terms of system scale. The work shows that, among other findings, protein structural dynamics and ligand binding in the crowded environment differ from diluted solution as theoretically expected and that metabolic enzymes exhibit a tendency to cluster spatially.

Essential revisions:

The reviewers recognize the herculean effort and the groundbreaking nature of this work. To publish this work in eLife, however, the manuscript needs revisions in several aspects:

1) The simulation lengths of tens of nanoseconds are too short for the system to equilibrate and to have a chance to depart significantly from the initial model. Different macromolecules will, on average, experience different environments which will affect their behavior (indeed, the authors observe wildly different behaviors for different copies of the same molecules). Given the very small diffusion coefficients involved (~1*10-3 A2/ps for macromolecules and ~1*10-2 A2/ps for ions), the macromolecules move on average by a few angstroms to a few nanometers during the entire simulation. Given the size of the systems 50-100 nm, they are largely "frozen" in such a short timescale. Ideally, the simulation lengths should be of micro- to milliseconds, allowing enough time for the macromolecules to diffuse the entire length of the simulation box. The reviewers understand that such simulation length is impossible even with today's largest supercomputers, but the manuscript needs to acknowledge this important limitation of the work and discuss in-depth its implications to help the readers correctly interpret the results.

2) The manuscript also needs to discuss the potential issues of inaccuracy of the models the simulations are initiated from. For example, the fact that many of the protein structures the system entails are homology models with only short equilibration (20 picoseconds) will likely have consequences for the findings concerning protein stability. It is difficult to assess the "stability" of these protein models from the RMSD traces, in particular on such short timescale. It is likely that some of these models would undergo substantial unfolding and rearrangements on longer timescales as suggested by the relatively large RMSDs from the stating structure, even when flexible regions are omitted. These potential issued should acknowledged and analyzed to the extent that is feasible.

3) More details should be given concerning how non-specific intermolecular interactions affect protein conformational dynamics. It will be useful to follow one or two protein molecules as examples, with a focus on the intermolecular interactions they experienced in the course of the simulation.

4) The mechanism by which inter-biomolecular interactions affect protein ligand binding is obscure from the manuscript. Why is ATP distribution on the ACKA molecule differs in cytoplasm and in aqueous solution? The reason for this somewhat surprising observation needs further Discussion.

5) The manuscripts and the potential impact of this work would benefit if the authors can make an effort to improve the text. The conclusions need to be clearly stated in the Abstract and the Discussion. For instance, in the Abstract, the authors write about nonspecific interactions 'affecting' several properties. The reader needs to know what is affected, by how much and compared to what. This lack of clarity is a general feature. Similarly, the authors write about 'stability' in the first paragraph of the subsection “Native state stability of biomolecules in cellular environments”, but never define it.

The authors write about decreased distances between proteins in their model, but the reader needs to know, 'compared to what?' For a baseline, the authors could refer to Spitzer and Poolman paper: 2005 Electrochemical structure of the crowded cytoplasm. Trends Biochem Sci 30:536.

https://doi.org/10.7554/eLife.19274.028

Author response

Essential revisions:

The reviewers recognize the herculean effort and the groundbreaking nature of this work. To publish this work in eLife, however, the manuscript needs revisions in several aspects:

1) The simulation lengths of tens of nanoseconds are too short for the system to equilibrate and to have a chance to depart significantly from the initial model. Different macromolecules will, on average, experience different environments which will affect their behavior (indeed, the authors observe wildly different behaviors for different copies of the same molecules). Given the very small diffusion coefficients involved (~1*10-3 A2/ps for macromolecules and ~1*10-2 A2/ps for ions), the macromolecules move on average by a few angstroms to a few nanometers during the entire simulation. Given the size of the systems 50-100nm, they are largely "frozen" in such a short timescale. Ideally, the simulation lengths should be of micro- to milliseconds, allowing enough time for the macromolecules to diffuse the entire length of the simulation box. The reviewers understand that such simulation length is impossible even with today's largest supercomputers, but the manuscript needs to acknowledge this important limitation of the work and discuss in-depth its implications to help the readers correctly interpret the results.

The point is well-taken. One way we are addressing this issue is by combining analysis for three different systems (to have different initial configurations). We are also taking advantage of ensemble averaging and focused our analysis of macromolecules and metabolites on those that are present at large copy numbers. So, effectively, we would argue, we already have sampling for some molecules on the microsecond time scale (by combining sampling from different copies). This is already mentioned in the text.

Nevertheless, we followed the reviewers’ suggestion and added further discussion in the Discussion section.

2) The manuscript also needs to discuss the potential issues of inaccuracy of the models the simulations are initiated from. For example, the fact that many of the protein structures the system entails are homology models with only short equilibration (20 picoseconds) will likely have consequences for the findings concerning protein stability. It is difficult to assess the "stability" of these protein models from the RMSD traces, in particular on such short timescale. It is likely that some of these models would undergo substantial unfolding and rearrangements on longer timescales as suggested by the relatively large RMSDs from the stating structure, even when flexible regions are omitted. These potential issued should acknowledged and analyzed to the extent that is feasible.

The initial equilibration of each model was short but there was additional equilibration after constructing the cytoplasmic models. The results concerning protein stability were reported only for the last 80 ns of the longest trajectory (neglecting the first 50 ns as equilibration). Furthermore, we fully recognize the issues with using homology models but to control for that, we focused our analysis on the relative comparison between the cellular and dilute solvent environments where we simulated the same homology models. We believe that the relative comparison is meaningful even for approximate structural models of the proteins in our system.

We added further discussion in the sixth paragraph of the Discussion section to elaborate on this point.

3) More details should be given concerning how non-specific intermolecular interactions affect protein conformational dynamics. It will be useful to follow one or two protein molecules as examples, with a focus on the intermolecular interactions they experienced in the course of the simulation.

We carried out additional analyses to provide more insight into how the cellular environment affects proteins. We selected PDHA and PGK as two examples. For PDHA, we show time traces for one example where increases in RMSD and Rg are correlated with specific crowder contacts and changes in intra- and inter-molecular energy components to better illustrate the driving forces at play. For PGK, we show that crowder contacts, although present, are less important than the presence of charge in the active site cleft to favor more compact states. Again this is shown via time traces for a selected copy of PGK. A description of the results from the additional analyses was added to the main text with Figure 2—figure supplements 1,2 now showing the additional data.

4) The mechanism by which inter-biomolecular interactions affect protein ligand binding is obscure from the manuscript. Why is ATP distribution on the ACKA molecule differs in cytoplasm and in aqueous solution? The reason for this somewhat surprising observation needs further Discussion.

The short answer is that the presence of crowder molecules occludes binding sites present in dilute solvent. To show this we now compare averaged densities of crowder atoms with ATP around ACKA. We believe that there is a direct effect of simply displacing ATP and an indirect effect of ATPs binding to different sites compared to dilute solvent because not all of the dilute solvent sites are available. Interestingly, the active site is buried deeply enough to be unaffected by direct overlap with crowder molecules but based on the differences in binding sites we expect that ligand diffusion towards the active site is strongly affected by the crowded environment. These are questions that would warrant extensive further analysis, but to keep the present manuscript focused, we added only brief additional discussion to the main text with additional data shown in Figure 6.

5) The manuscripts and the potential impact of this work would benefit if the authors can make an effort to improve the text. The conclusions need to be clearly stated in the Abstract and the Discussion. For instance, in the Abstract, the authors write about nonspecific interactions 'affecting' several properties. The reader needs to know what is affected, by how much and compared to what.

We rewrote the Abstract to state our findings more clearly.

This lack of clarity is a general feature. Similarly, the authors write about 'stability' in the first paragraph of the subsection “Native state stability of biomolecules in cellular environments”, but never define it.

We added text to clarify what we mean by stability.

The authors write about decreased distances between proteins in their model, but the reader needs to know, 'compared to what?' For a baseline, the authors could refer to Spitzer and Poolman paper: 2005 Electrochemical structure of the crowded cytoplasm. Trends Biochem Sci 30:536.

The reference is with respect to the initial models that were setup by random placements. What we are focusing on is the relative change of different types of macromolecules moving relatively further away from each other while others come closer. We added text to clarify this point. We also added some additional discussion to the Discussion section to emphasize electrostatic effects and refer to the related ideas discussed in the Spitzer & Poolman paper.

https://doi.org/10.7554/eLife.19274.029

Article and author information

Author details

  1. Isseki Yu

    1. iTHES Research Group, RIKEN, Saitama, Japan
    2. Theoretical Molecular Science Laboratory, RIKEN, Saitama, Japan
    Contribution
    IY, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  2. Takaharu Mori

    1. iTHES Research Group, RIKEN, Saitama, Japan
    2. Theoretical Molecular Science Laboratory, RIKEN, Saitama, Japan
    Contribution
    TM, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  3. Tadashi Ando

    1. Laboratory for Biomolecular Function Simulation, RIKEN Quantitative Biology Center, Kobe, Japan
    Contribution
    TA, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  4. Ryuhei Harada

    1. Computational Biophysics Research Team, RIKEN Advanced Institute for Computational Science, Kobe, Japan
    Contribution
    RH, Acquisition of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  5. Jaewoon Jung

    1. Computational Biophysics Research Team, RIKEN Advanced Institute for Computational Science, Kobe, Japan
    Contribution
    JJ, Acquisition of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  6. Yuji Sugita

    1. iTHES Research Group, RIKEN, Saitama, Japan
    2. Theoretical Molecular Science Laboratory, RIKEN, Saitama, Japan
    3. Laboratory for Biomolecular Function Simulation, RIKEN Quantitative Biology Center, Kobe, Japan
    4. Computational Biophysics Research Team, RIKEN Advanced Institute for Computational Science, Kobe, Japan
    Contribution
    YS, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    1. sugita@riken.jp
    Competing interests
    The authors declare that no competing interests exist.
  7. Michael Feig

    1. Laboratory for Biomolecular Function Simulation, RIKEN Quantitative Biology Center, Kobe, Japan
    2. Department of Biochemistry and Molecular Biology, Michigan State University, East Lansing, United States
    Contribution
    MF, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    1. feig@msu.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0001-9380-6422

Funding

National Institutes of Health (R01 GM092949)

  • Michael Feig

National Science Foundation (MCB 1330560)

  • Michael Feig

National Science Foundation (XSEDE TG-MCB090003)

  • Takaharu Mori
  • Michael Feig

Ministry of Education, Culture, Sports, Science, and Technology (High Performance Computing Infrastructure Strategic Program)

  • Yuji Sugita

Ministry of Education, Culture, Sports, Science, and Technology (Innovative Drug Discovery Infrastructure through Functional Control of Biomolecular Systems)

  • Yuji Sugita

Ministry of Education, Culture, Sports, Science, and Technology (Grant-in Aid 26119006)

  • Yuji Sugita

Ministry of Education, Culture, Sports, Science, and Technology (Grant-in Aid 25410025)

  • Isseki Yu

Japan Science and Technology Agency (CREST)

  • Yuji Sugita

RIKEN

  • Isseki Yu
  • Takaharu Mori
  • Tadashi Ando
  • Ryuhei Harada
  • Jaewoon Jung
  • Yuji Sugita
  • Michael Feig

National Institutes of Health (R01 GM084953)

  • Michael Feig

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank K Takahashi and T Yanagida for discussion and Mr. Takase for technical assistance with computations. Computational resources were used at the RIKEN Advanced Institute for Computational Science (K computer) through the HPCI strategic research project (Project ID: hp120309, hp130003, hp140229, hp150233, hp160207), at the Texas Advanced Computing Center through an XSEDE allocation (TG-MCB090003), and at the RIKEN Integrated Cluster of Clusters (RICC). Funding was provided by the Fund from the High Performance Computing Infrastructure (HPCI) Strategic Program of the Ministry of Education, Culture, Sports, Science and Technology (MEXT) (to YS), a grant from Innovative Drug Discovery Infrastructure through Functional Control of Biomolecular Systems, Priority Issue 1 in Post-K Supercomputer Development (to YS), a Grant-in-Aid for Scientific Research on Innovative Areas “Novel measurement techniques for visualizing ‘live’ protein molecules at work” (No. 26119006) (to YS), a grant from JST CREST on “Structural Life Science and Advanced Core Technologies for Innovative Life Science Research” (to YS), RIKEN QBiC and iTHES (to YS), a Grant-in-Aid for Scientific Research (C) from MEXT (No. 25410025) (to IY), and from NIH (GM092949, GM084953) (to MF), and NSF (MCB 1330560) (to MF).

Reviewing Editor

  1. Yibing Shan, Reviewing Editor, DE Shaw Research, United States

Publication history

  1. Received: June 30, 2016
  2. Accepted: September 28, 2016
  3. Version of Record published: November 1, 2016 (version 1)

Copyright

© 2016, Yu et al

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 9,507
    Page views
  • 1,198
    Downloads
  • 8
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry
    2. Neuroscience
    Hansen Wang et al.
    Research Article
