Analyzing native membrane protein assembly in nanodiscs by combined non-covalent mass spectrometry and synthetic biology

Tools and Resources
Cited
6
Views
1,923
Comments
0
Cite as: eLife 2017;6:e20954 doi: 10.7554/eLife.20954

Abstract

Membrane proteins frequently assemble into higher order homo- or hetero-oligomers within their natural lipid environment. This complex formation can modulate their folding, activity as well as substrate selectivity. Non-disruptive methods avoiding critical steps, such as membrane disintegration, transfer into artificial environments or chemical modifications are therefore essential to analyze molecular mechanisms of native membrane protein assemblies. The combination of cell-free synthetic biology, nanodisc-technology and non-covalent mass spectrometry provides excellent synergies for the analysis of membrane protein oligomerization within defined membranes. We exemplify our strategy by oligomeric state characterization of various membrane proteins including ion channels, transporters and membrane-integrated enzymes assembling up to hexameric complexes. We further indicate a lipid-dependent dimer formation of MraY translocase correlating with the enzymatic activity. The detergent-free synthesis of membrane protein/nanodisc samples and the analysis by LILBID mass spectrometry provide a versatile platform for the analysis of membrane proteins in a native environment.

https://doi.org/10.7554/eLife.20954.001

Introduction

Crucial cellular processes depend on membrane proteins and their interactions. The majority of membrane proteins is organized in higher order complexes and oligomeric assembly is frequently used to modulate protein function or it is even essential for activity. Unfortunately, the analysis of membrane protein oligomerization in vivo is challenging due to the high complexity of natural membranes. Furthermore, classical in vitro studies need to implement disruption of membranes and subsequent solubilization of the membrane proteins into detergents (Seddon et al., 2004). This relatively harsh treatment can irreversibly modify the stoichiometry or even disrupt and unfold native membrane protein complexes. In addition, the presence and composition of the lipid environment can influence folding, proper adoption of quaternary structures and the assembly of heteromeric complexes. Lipids can even be components of membrane protein structures and act as modulators of membrane protein function (van Dalen et al., 2002; Hunte and Richers, 2008; Laganowsky et al., 2014). In this respect, the recently developed nanodisc technology, based on well-defined disc-shaped bilayer patches stabilized by two copies of a membrane scaffold protein, provides excellent and well-defined alternative lipid environments for membrane proteins (Bayburt and Sligar, 2010) (Figure 1). The utilization of nanodiscs is extremely beneficial as they are completely soluble, enabling the application of numerous biophysical and biochemical techniques for the characterization of membrane proteins in a native bilayer environment (Denisov and Sligar, 2016). Furthermore, in order to avoid potentially critical detergent contacts of membrane proteins, we have developed a detergent-free strategy for the co-translational insertion of membrane proteins into preformed empty nanodiscs by cell-free (CF) expression (Roos et al., 2014). For example, in the case of the extremely detergent-sensitive E. coli MraY translocase, a membrane-integrated enzyme essential for lipid I biosynthesis, this lipid-based CF expression (L-CF) was the only way to obtain functionally folded protein (Ma et al., 2011; Henrich et al., 2016). In addition, CF expression enables the production of toxic or otherwise difficult membrane proteins and provides numerous options for their efficient labeling (Reckel et al., 2010; Henrich et al., 2015b).

Processes for membrane protein complex characterization.

(a and b) Workflows implementing cellular expression and detergent solubilization of membrane proteins. (a) Membrane protein analysis with non-MS-related methods. (b) Membrane protein analysis with ESI-MS. (c) Proposed method combining cell-free co-translational membrane insertion with LILBID-MS analysis. Detergents and lipids are highlighted in orange and grey, respectively. The membrane scaffold protein is represented by blue helices and membrane proteins with red helices. The critical membrane extraction step is emphasized by the red box.

https://doi.org/10.7554/eLife.20954.002

Most techniques employed to analyze protein complexes such as cross-linking, fluorescence spectroscopy or electron paramagnetic resonance spectroscopy frequently involve extensive protein modifications. However, oligomeric states of proteins can be extremely sensitive toward covalent modifications or environmental parameters (Politi et al., 2009; Maciejko et al., 2015). Recently developed non-covalent mass spectrometry (MS) using mild ionization techniques such as electrospray-ionization (ESI) or laser-induced-liquid-bead-ion-desorption (LILBID) thus became key technologies for the analysis of soluble proteins as well as of detergent solubilized membrane proteins (Barrera and Robinson, 2011). Sample transfer from solution to gas phase is most critical for non-covalent MS and requires carefully adjusted settings to maintain intact membrane protein complexes (Barrera et al., 2008). LILBID-MS as a technique complementary to ESI-MS emerged as new tool to investigate membrane proteins in native-like environments, especially based on its wide tolerance to additives needed for membrane protein solubilization (Morgner et al., 2007; Vonck et al., 2009; Maciejko et al., 2015).

The approach to employ ESI-MS in combination with nanodiscs has recently been successful to investigate membrane proteins in a native-like lipid environment (Hopper et al., 2013; Marty et al., 2016) (Figure 1b). However, this procedure still includes the risk of complex disintegration by the classical detergent treatment of the protein samples (Figure 1b). By combining cell-free synthetic biology (Hodgman and Jewett, 2012; Smith et al., 2014), nanodiscs and LILBID-MS, we have established a new platform avoiding any detergent contacts and enabling the analysis of non-modified membrane proteins in their initial expression environment (Figure 1c). In addition, the created synergies streamline the process of membrane protein complex analysis by reducing the workflow to three basic steps (Figure 1c). The platform is suitable for a wide range of applications as it extends the analysis of challenging membrane proteins (i) that cannot be synthesized in vivo, (ii) that are sensitive to detergents, (iii) that do not tolerate covalent modifications or (iv) that require stable isotope labeling for better resolution.

We demonstrate the versatility of our approach by analyzing oligomeric states of six different membrane proteins from different functional classes and by gaining first insights indicating a lipid-dependent dimerization of E. coli MraY translocase.

Results

LILBID-MS analysis of empty nanodiscs

Initially, we investigated empty nanodiscs consisting only of the scaffold protein and lipids to define the individual particle behavior. When the LILBID laser, desorbing the sample droplets, was tuned to a low laser power of 10 mJ, signals were revealed corresponding to intact nanodiscs comprising two copies of the scaffold protein and roughly 200 DPPC lipids (Figure 2a). However, spectra remain broad and not well resolved and are not suitable for detailed assignments. Nevertheless, single lipids could be resolved by tuning the laser power to 23 mJ causing the disintegration of the nanodiscs. Detected signals correspond to scaffold proteins with a few remaining lipid molecules. A complete overview of all analyzed empty nanodiscs is shown in Table 1. The homogeneity of the analyzed nanodiscs was controlled by size exclusion chromatography (Figure 2—figure supplements 1b, 2b and 3b and Figure 3b) and exemplarily by negative stain electron microscopy (Figure 2—figure supplement 1b).

Figure 2 with 3 supplements see all
Adjusting LILBID-MS conditions for nanodiscs analysis.

Pictograms illustrate complexes of the corresponding peaks and are labeled with the particle charge in the gas-phase. (a) The different laser intensities are indicated. The monomer region of MSP1E3D1 with lipid attachments is enlarged in the inset. (b) Structure of the lipid DPPC used for nanodisc formation.

https://doi.org/10.7554/eLife.20954.003

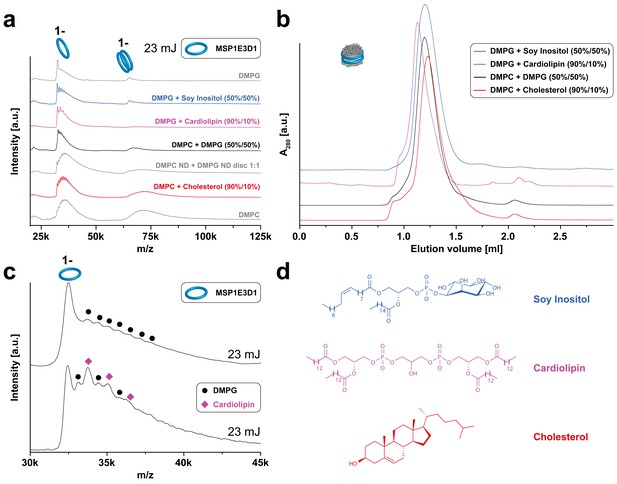

LILBID-MS analysis of MSP1E3D1 nanodiscs assembled with lipid mixtures.

Pictograms illustrate the detected particles. The applied laser intensity is indicated. (a) LILBID-MS spectra of nanodiscs containing the indicated lipid mixtures as well as single lipid types. (b) Corresponding size exclusion profiles of the nanodiscs on a Superdex 200 3.2/30 increase column with a flow rate of 0.075 µl/min. (c) LILBID-MS spectra of MSP1E3D1 (DMPG) (top) and MSP1E3D1 (DMPG/cardiolipin) nanodiscs (bottom). Circles and squares highlight peaks generated by DMPG or cardiolipin molecules attached to MSP1E3D1 monomers. (d) Structures of lipids used for nanodisc formation.

https://doi.org/10.7554/eLife.20954.007
Table 1

Characteristics of nanodiscs and contained bilayer for used combinations of different scaffold proteins with various lipids.

https://doi.org/10.7554/eLife.20954.008

Scaffold

Nanodisc diameter [nm]

Lipid

Protein:lipid ratio in nanodisc reaction mix

Attached lipids (LILBID)

Transition tempature [°C]

Headgroup charge Σ charges

Hydrophobic tail

Double bonds

Length

MSP1D1ΔH5

8

DMPC

1:50

15

24

0

0

14

DMPG

1:45

6

23

−1

0

14

MSP1

10

DMPC

1:80

17

24

0

0

14

DMPG

1:70

9

23

−1

0

14

MSP1E3D1

12

DMPC

1:115

19

24

0

0

14

DMPG

1:110

11

23

−1

0

14

DPPC

1:100

18

41

0

0

16

POPG

1:90

15

−2

−1

0/1

16/18

DOPC

1:80

21

−17

0

2

18

DOPG

1:80

20

−18

−1

2

18

DOPS

1:90

20

−11

−1

2

18

DOPE

1:80

8

−16

0

2

18

Mixtures

Lipid ratio

DMPG/DMPC

1:115

11

50/50

−1/0

0/0

14/14

DMPG/Cardiolipin

1:120

12

90/10

−1/–2

0/0

14/14

DMPG/Inositol

1:110

15

50/50

−1/–1

0/0;1

14/16;18

DMPC/Cholesterol

1:115

23

90/10

0/0

0/ n.d.

14/ n.d.

E. coli total lipids

1:50

n.i.

n.d.

n.d.

n.d.

n.d.

  1. n.d. = not defined.

  2. n.i. = not investigated.

In contrast to previous ESI-MS-studies (Marty et al., 2012), intact nanodiscs were hardly detected at the refined LILBID settings necessary to achieve resolved signals (Figure 2—figure supplement 13). To investigate the influence of different nanodisc features on the obtained mass spectra, we scanned various scaffold proteins and lipids. Switching from MSP1D1ΔH5 over MSP1 to the larger MSP1E3D1 scaffold protein coincides with an increase from six to up to eleven attached DMPG molecules (Figure 2—figure supplement 1a, Table 1). Elongation of the alkyl chain with unsaturated alkyl groups led to further increased numbers of attached lipids with 15 or 20 for POPG and DOPG, respectively (Figure 2—figure supplement 2a, Table 1). In contrast to the chain length, the variation of the lipid head groups (from DOPG to DOPS or DOPC) did not modulate lipid attachments drastically (Figure 2—figure supplement 3a, Table 1). Notably, the utilization of DOPE lipids leads to the formation of highly heterogeneous nanodiscs (Figure 2—figure supplement 3a,b). This could be caused by the intrinsic tendency of PE lipids to form non-bilayer phases with higher curvature (Gruner, 1985), which possibly prevents the formation of proper nanodiscs. Moreover, as shown for the multi-drug transporter EmrE, non-bilayer lipids can significantly decrease reconstitution and activity of membrane proteins in liposomes (Curnow et al., 2004). Due to these possible negative effects on disc stability, nanodiscs reconstituted with DOPE were excluded from further studies.

More complex lipid compositions as present in native membranes were mimicked by mixtures including lipids such as cholesterol or cardiolipin (Figure 3). In case of DMPG:cardiolipin mixtures, the mass difference between the two lipids was sufficient to clearly distinguish and count the scaffold-bound cardiolipin and DMPG molecules (Figure 3c). It appears therefore feasible to tune the complexity of resulting mass spectra via specific nanodisc selection as well as to identify lipids staying attached to proteins within the sample. In general, spectra of nanodiscs composed out of lipids with shorter chain length lead to better resolved spectra due to the decreased number of attached lipid molecules. This will be especially important the more complicated the spectra of membrane protein/nanodiscs complexes are. Therefore, nanodiscs containing the short-chain lipids DMPG and DMPC were chosen for the following studies of membrane protein/nanodiscs complexes.

Oligomeric state analysis of membrane proteins in nanodiscs

To establish the reliability of the method for analyzing membrane proteins from nanodiscs, we started with well-studied model systems with known subunit stoichiometry (Table 2). The potassium channel KcsA (Cortes and Perozo, 1997; van Dalen et al., 2002), the small multidrug transporter EmrE (Ubarretxena-Belandia et al., 2003; Morrison et al., 2012) (Figure 4a) and the signal peptidase LspA (Vogeley et al., 2016) are known to be tetramer, dimer and monomer, respectively. The complexes were co-translationally inserted into nanodiscs assembled with the scaffold protein MSP1E3D1 and either DMPG or DMPC lipids. The big nanodiscs containing MSP1E3D1 were chosen as they performed best in previous studies regarding membrane protein solubilization (Roos et al., 2012).

Figure 4 with 1 supplement see all

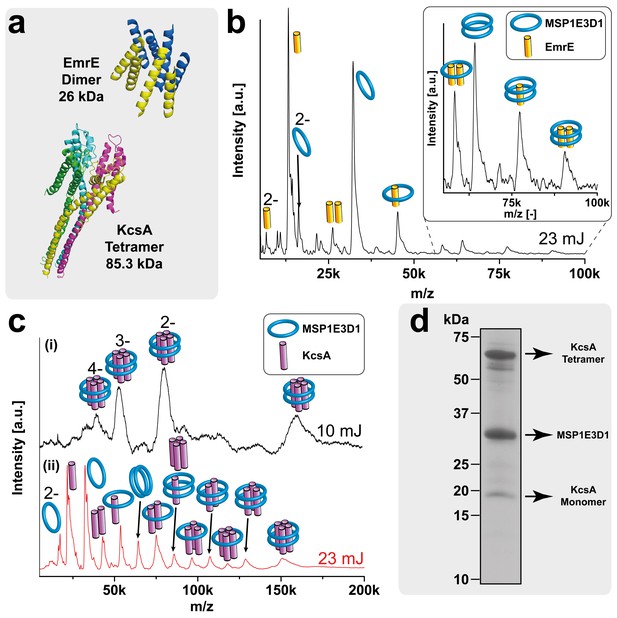

LILBID-MS analysis of KcsA and EmrE nanodisc complexes.

Pictograms in mass spectra illustrate the assigned complex for every peaks. Charge states are indicated if they differ from 1-. The different laser intensities are indicated. (a) 3D structures and mass of KcsA (PDB: 3EFF) and EmrE (PDB: 2I68) (b) Mass spectrum of EmrE MSP1E3D1 (DMPG) complexes. Free monomer and dimer can be dissociated from the scaffold proteins. (c) KcsA MSP1E3D1 (DMPG) complexes analyzed at different laser conditions. Under soft conditions, (i) the KcsA tetramer with two scaffold proteins appears with one to four charges. Higher desorption laser energy (ii) leads to dissociation of scaffold or KcsA proteins. Monomer and dimer of KcsA without scaffold proteins are visible, but free tri- and tetramer cannot yet be unambiguously assigned due to overlap with other species. (d) SDS-PAGE analysis of the KcsA MSP1E3D1 (DMPG) sample allowed verifying the formation of SDS stable tetramer.

https://doi.org/10.7554/eLife.20954.009
Table 2

Construct list combining full name, size and expression system with the abbreviation. The theoretical masses of the different constructs are calculated by the Expasy tool protparam according to the primary sequence. Based on that the theoretical molecular weights of labeled proteins are calculated by the addition of masses of the single amino acids subtracted by the number of water molecules corresponding to the number of peptide bonds.

https://doi.org/10.7554/eLife.20954.011

Protein

Molecular weight [kDa]

Full name

Reference

Theoretical

Experimental

PR

27.09*

27.19*

Proteorhodopsin (green variant)

(Reckel et al., 2011)

KcsA

21.33/22.70

21.38/22.77

pH-gated potassium channel KcsA

-

Emre

13.00

13.09

Multidrug transporter EmrE

(Roos et al., 2012)

LspA

21.52/22.83

21.63/22.84

Lipoprotein signal peptidase

(Laguerre et al., 2016)

hHv1-VSD

20.80/22.28

20.89/22.20

Human proton channel - voltage sensing domain

(Li et al., 2015)

Bs-MraY

37.88

37.93

Phospho-N-acetylmuramyl-pentapeptide-transferase B.subtilis

(Henrich et al., 2016)

Ec-MraY

42.22

42.29

Phospho-N-acetylmuramyl-pentapeptide-transferase E.coli

(Henrich et al., 2016)

MSP1

25.3

25.40

Membrane scaffold protein

(Denisov et al., 2004)

MSP1E3D1

31.96

32.08

Membrane scaffold protein

(Denisov et al., 2004)

MSP1D1ΔH5

19.49/21.46

19.53/21.50

Membrane scaffold protein

(Hagn et al., 2013)

  1. * Molecular mass according to covalent coupling of all trans-retinal.

  2. † Molecular mass according to heavy isotope labeling.

  3. ‡ Molecular mass according to cleavage of the His6-tag.

For all proteins, clear MS signals were detected corresponding to the expected oligomeric states in combination with the two membrane scaffold proteins (MSPs) (Figures 4b,c and 5a). Elevated laser energies revealed additional signals assigned to the respective complexes after loss of MSPs or target complex subunits. Figure 4b clearly shows signals consistent with EmrE monomer and dimer without any attached scaffold proteins, indicating that within LILBID-MS analysis the EmrE complex can be dissociated from the nanodiscs without losing its integrity. Similar signals for KcsA tri- and tetramer without scaffold proteins cannot yet be unambiguously assigned due to higher complexity of the sample causing overlap with other species (Figure 4c (ii)). Further modifications that allow successful assignment will be explained in the next section. However, the tetrameric stoichiometry deduced from the low-laser intensity spectra could be confirmed by SDS-PAGE (Cortes and Perozo, 1997) (Figure 4d). Comparison of EmrE spectra taken in LILBID anionic as well as in cationic mode revealed similar complexes (Figure 4—figure supplement 1). As spectra appeared to be better resolved in the anionic mode, this type was chosen for all further measurements.

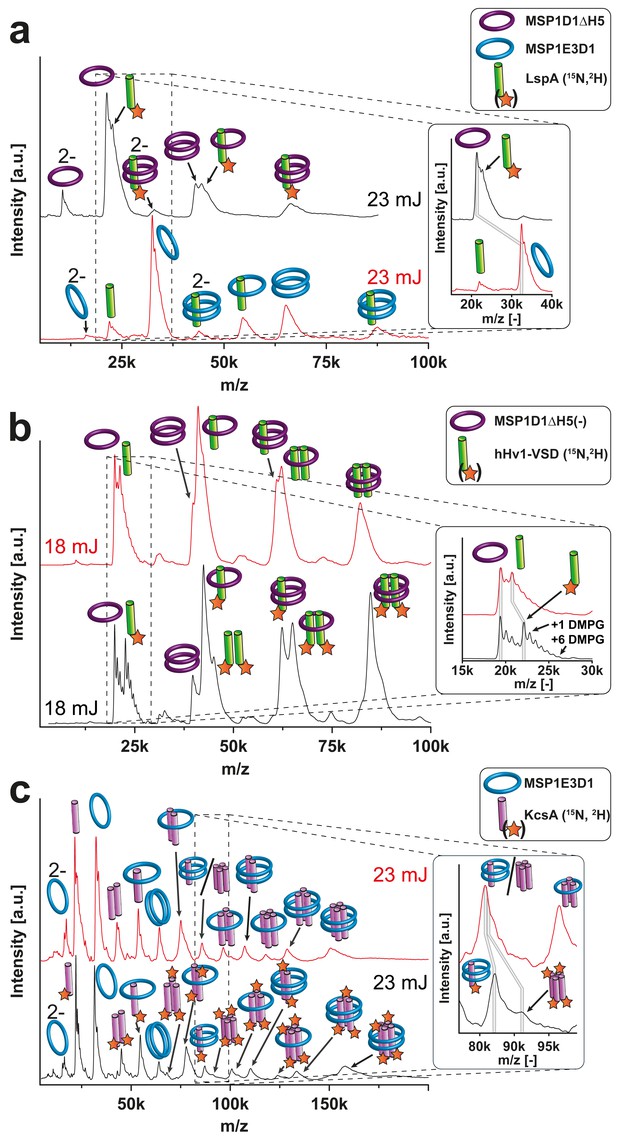

Resolution refinement by isotopic labeling or scaffold protein exchange.

Relevant mass shifts reducing the peak overlap are highlighted in the insets. Pictograms illustrate the corresponding complex of detected peaks and asterix highlight heavy isotope-labeled protein as indicated. The different laser intensities are indicated. (a and c) Spectra of labeled and non-labeled samples are shown by a black and a red line, respectively. (a) hHv1-VSD in nanodiscs using MSP1D1ΔH5 scaffold proteins (19.49 kDa). Labeling shifts the hHv1-VSD monomer about 2 kDa. (b) KcsA MSP1E3D1 (DMPG) complexes. Mass shift for the free KcsA tri- and tetramer (3.63 and 4.48 kDa, respectively) are sufficient to stop overlap with other species. (c) Spectra of LspA MSP1D1ΔH5 (DMPC) complexes in black and of LspA MSP1E3D1 (DMPG) complexes in red. 15N, 2H labeled LspA (22.57 kDa) could not be sufficiently separated from MSP1D1ΔH5 (21.46 kDa). However, spectra of unlabeled LspA (21.52 kDa) inserted into MSP1E3D1 discs show no overlap.

https://doi.org/10.7554/eLife.20954.012

Besides these two well-characterized model systems, we further analyzed nanodiscs containing the voltage-sensing domain of the human proton channel Hv1 (hHv1-VSD). In this case, the nanodiscs were assembled using the smaller MSP version MSP1D1ΔH5 as the preparation of cell-free produced VSD samples has already been optimized for NMR investigations (Laguerre et al., 2016). We could reveal a dimeric state (Figure 5b), despite the lack of the intracellular domain being proposed as the main dimerization interface. Thus, our strategy supports recent findings that this domain is not essential for hHv1 dimerization (Li et al., 2015).

Refinement of LILBID-MS signal resolution by isotope labeling

As expected, signal overlap of different fragments upon increased sample complexity can limit the evaluation and assignment of our spectra. In Figure 4c, the signals of the free KcsA tri- and tetramer fragments without attached scaffold proteins are ambiguous as they are too close in mass to other potential species. As an example, the 85.32 kDa KcsA tetramer differs only by 0.07 kDa from a complex of two MSP1E3D1 scaffold proteins with one KcsA monomer. An efficient approach for minimizing such overlap is labeling of the membrane proteins with stable isotopes such as 15N, 13C and/or 2H, which is a key advantage of the implemented cell-free expression technique (Sobhanifar et al., 2010).

As expected, the 15N and 2H isotope labeling of KcsA in MSP1E3D1 nanodiscs improved spectral resolution and revealed signals for the free tetramer at 91.08 kDa, now separated by 4.14 kDa from the KcsA monomer with two attached MSPs detected at 86.93 kDa (Figure 5c).

Similarly, ambiguity is also present in the spectra of hHv-1-VSD (Figure 5b). The scaffold protein MSP1D1ΔH5 without the implemented His6-tag has a molecular mass of 19.49 kDa and is therefore close to the hHv1-VSD monomer (20.80 kDa). Again, 15N and 2H labeling of hHv1-VSD separates both signals clearly by increasing the mass of hHv1-VSD to 22.20 kDa, now resulting into a mass difference of 2.71 kDa. For KcsA and hHv1-VSD, the separation of signals by heavy isotope labeling was sufficient to reveal the different oligomeric states despite the attachments of lipids. Unfortunately, similar lipid attachments prevented the clear separation of the signals of uncleaved MSP1D1ΔH5 at 21.46 kDa from that of a signal peptidase monomer LspA at 22.84 kDa by the 15N, 2H labeling approach (Figure 5a). However, signal overlap can alternatively be addressed by using different scaffold protein derivatives for nanodiscs assembly. Translation of unlabeled LspA (21.52 kDa) into MSP1E3D1 nanodiscs instead of MSP1D1ΔH5 nanodiscs sufficiently separated the signals now revealing the expected monomeric state of LspA.

Oligomer formation of proteorhodopsin (PR) in nanodiscs

In order to explore the limits of our strategy, we analyzed the seven transmembrane helix green-light absorbing PR, a light-driven retinal containing proton pump. PR forms up to hexameric complexes in its natural membrane environment but is also stable and active as a monomer (Klyszejko et al., 2008; Reckel et al., 2011; Maciejko et al., 2015). Single-molecule force microscopy with cell-free synthesized PR/nanodisc samples already suggested multimeric conformations of PR co-translationally inserted into MSP1E3D1 nanodiscs (Roos et al., 2012).

Monomeric PR occupies a surface of around ~6 nm2. A pentameric or hexameric complex of PR would thus potentially require a membrane space of at least 25–30 nm2 and 33–36 nm2, respectively (Klyszejko et al., 2008). It should therefore be possible that even such rather large complexes can assemble within nanodiscs composed of MSP1E3D1 having a calculated membrane area of 113 nm2 (Denisov et al., 2004). As proposed and in agreement with previous findings obtained with complementary techniques, the MS analysis under mild laser conditions of cell-free generated PR/nanodiscs complexes composed of MSP1E3D1 and DMPG revealed multimeric states of PR. The spectra show a distribution of complexes containing two scaffold proteins and up to six PR. Elevated laser conditions revealed various additional signals of PR with or without scaffold proteins indicating the formation of stable PR complexes up to penta- and hexamers (Figure 6a). In accordance to the results obtained with KcsA and EmrE, this data further confirms the capability of the implemented cell-free expression approach to generate native higher oligomers of diverse membrane proteins by co-translational insertion into nanodiscs.

Figure 6 with 1 supplement see all

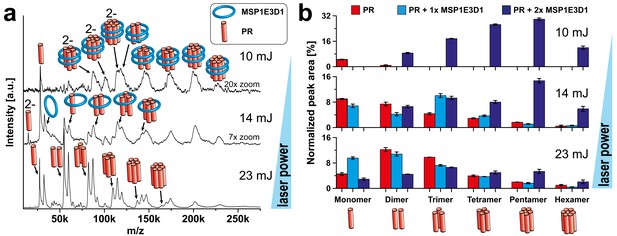

Complex analysis of PR with varying laser conditions.

LILBID-MS spectra of cell-free expressed PR with increasing laser power (a) and corresponding statistical analysis of the abundance of different complex species (b). The different laser intensities are indicated and pictograms illustrate the corresponding complex of the detected peaks. (a) PR in nanodiscs composed of MSP1E3D1 and DMPG shows up to hexameric complexes with two attached scaffold molecules. With elevated laser powers, these complexes get more and more disrupted and plain PR complexes without scaffold attachments can be detected. This is nicely illustrated by the statistical analysis (b) of the spectra shown in (a). Using low-laser intensities mainly PR complexes associated to scaffold proteins can be detected. The values of the bars correspond to the means of 2–3 measurements and the error bars display the standard deviation.

https://doi.org/10.7554/eLife.20954.013

But what is the significance of the different observed species? To interpret these it is helpful to compare KcsA and PR. Mild laser conditions revealed only tetrameric complexes for KcsA (Figure 4c), but a variety of oligomeric states for other proteins such as PR (Figure 6a). A possible explanation could be laser-induced dissociation of protein complexes, with the degree of dissociation depending on the particular complex stability. Detection of several oligomeric forms could also reflect a natural variation in complex formation. PR is folded and active under numerous conditions such as pentamers or hexamers, and its characteristic photocycle is observed even in monomeric conformation (Reckel et al., 2011). However, we have seen that, if laser dissociation occurs, the scaffold proteins are among the first proteins to leave the disc (Figure 6), giving rise to signals representing complexes with only one or no scaffold proteins. As the dominating species of the heterogeneous distribution of PR oligomerization states under mild laser conditions all include both scaffold proteins we can conclude that the detected species represent complexes in solution, meaning that PR is present in different oligomeric states. Under high laser intensities PR oligomers without scaffold proteins are released and can be detected as well up to hexamers, indicating that the PR proteins indeed form complexes and are not present as individual entities in the nanodiscs.

The potential importance of the lipid environment for protein oligomerization is further demonstrated by the comparison of cell-free expressed PR either in the presence of nanodiscs or detergents. Protein synthesized in the presence of the detergents DH7PC and GDN, previously identified to support the folding and stability of PR, was mostly present in monomeric conformation (Figure 6—figure supplement 1a). This observation is in agreement with previous structural studies with solution NMR by using identical sample preparations and showing monomeric PR (Reckel et al., 2011). In contrast to the utilization of different detergents that results in different oligomer distributions (Reckel et al., 2011; Maciejko et al., 2015), the variation of the lipid within the nanodiscs bilayer does not change the oligomerization behavior of cell-free produced PR (Figure 6—figure supplement 1b). In the case of PR lipids seem to support the formation of higher oligomer complexes but PR does not discriminate between different lipid species. Due to the increased number of attached lipids for other lipid species as discussed before for empty nanodiscs the peaks get broader and less resolved, but the overall peak pattern stays the same indicating a comparable oligomeric composition (Figure 6—figure supplement 1b).

Structure-function relationship of MraY

The membrane-integrated enzyme MraY is essential for the bacterial peptidoglycan biosynthesis by linking cytoplasmic precursors to membrane-bound lipid carrier molecules resulting in lipid I formation. Like LspA, MraY is a potential target for drug design to tackle multiple-resistant bacteria (Bugg et al., 2016). In contrast to PR which’s oligomer formation is not discriminated by the bilayer environment, the activity of MraY homologues is remarkably dependent on specific lipid requirements (Roos et al., 2012; Henrich et al., 2016). While B. subtilis MraY activity is not lipid selective, the activity of MraY homologues from Gram-negative bacteria such as E. coli requires anionic lipids like DMPG (Henrich et al., 2016). In respect to the formation of oligomers of MraY two-hybrid studies (White et al., 2010), crosslinking experiments and the crystal structures of MraY (Chung et al., 2013, 2016) indicate a dimeric state, but correlations of the oligomeric state and catalytic activity within different lipid environments have not yet been studied.

We have analyzed the oligomeric states of B. subtilis MraY and of E. coli MraY in MSP1E3D1 nanodiscs assembled with either anionic or non-charged zwitterionic lipids. B. subtilis MraY always revealed a dimeric state within both lipid environments (Figure 7a). In contrast, E. coli MraY shows dimer formation only if inserted into membranes composed out of the anionic lipid DMPG, but it remains monomeric in DMPC (Figure 7b). Interestingly, a signal for the dimeric state of E.coli MraY could be restored by using nanodiscs containing an equimolar mixture of DMPC and DMPG (Figure 7b). The observed dimer formation exactly correlates with the previously reported enzymatic activity in the different membranes (Figure 7c) (Henrich et al., 2016), suggesting for the first time that the active conformation of MraY could be a dimer and that this conformation is triggered by the composition of the bilayer. A lipid-like electron density in the crystal structure of Aquifex aeolicus MraY located in a hydrophobic tunnel within the dimer interface (Chung et al., 2013) (Figure 7d) further supports a potential role of lipids for MraYs structural and functional integrity.

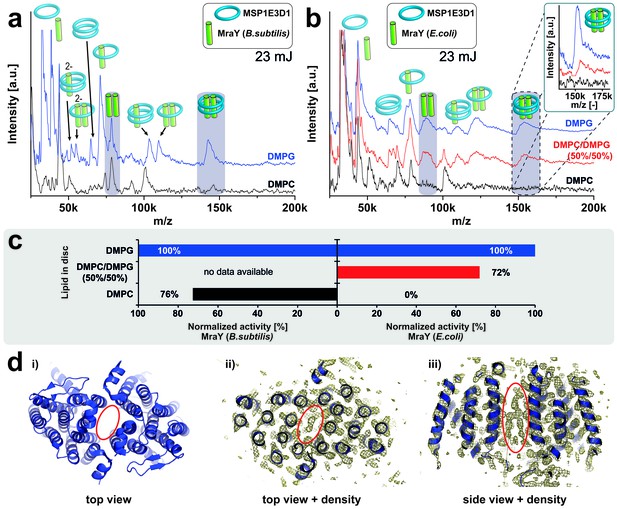

Lipid related effect on structure and function of E. coli MraY.

LILBID-MS spectra of B. subtilis MraY (a) and E. coli MraY (b) in MSP1E3D1 nanodiscs with different lipids. Pictograms illustrate the composition of detected signals and lipids for each sample are indicated. Grey boxes in spectra highlight MraY dimer signals with and without scaffold protein. The different laser intensities are indicated. The inset shows a close-up of the MraY dimer region with scaffold measured under high-mass conditions. (c) Enzymatic activity of B. subtilis and E. coli MraY in nanodiscs with corresponding lipids (Henrich et al., 2016). (d) 3D crystal structure of A. aeolicus MraY (PDB: 4 J72). Electron density maps of top and side views indicate a hydrophobic tunnel within the dimer interface potentially filled with lipid molecules as highlighted by a red ellipse (Chung et al., 2013).

https://doi.org/10.7554/eLife.20954.015

Discussion

While detergents are well-established environments for the analysis of membrane proteins and their non-covalent interactions, they can drastically affect conformation and stoichiometry of membrane protein complexes. The presented strategy is therefore complementary to established techniques as it allows a completely detergent-free process suitable also for detergent-sensitive membrane proteins. Moreover, our platform provides valuable synergies by combining (i) fast and efficient production of even toxic or specifically labeled membrane proteins enabled by cell-free expression, (ii) defined, stable membrane environments contributed by nanodiscs and (iii) sensitive and tunable particle detection facilitated by LILBID-MS. This strategy is, furthermore, a fast and straightforward process and does not depend on chemical protein modifications.

The complexity of MS spectra of membrane protein/nanodiscs complexes is increased by the presence of the scaffold protein that can impede the clear identification of membrane protein signals. Labeling of the target protein with stable isotopes can address this problem as demonstrated for KcsA or hHv1-VSD. The sample production by cell-free expression is here highly advantageous, as the complete control over low-molecular-weight compounds in cell-free systems allows efficient labeling of synthesized proteins in any amino acid combination (Reckel et al., 2010; Sobhanifar et al., 2010; LaGuerre et al., 2015). Switching to a different scaffold protein upon nanodiscs preparation could be an alternative option to improve spectral resolution as demonstrated for LspA. In general, even complicated LILBID-MS spectra are comparably straight forward to analyze. Despite the complexity caused by numerous oligomeric states of the target protein in addition to its combinations with different numbers of the scaffold protein, within LILBID-spectra every species is only present with a few charge states (Morgner et al., 2006). In our nanodiscs spectra mainly the singly charged species are observed.

An important tool to probe complex stability as well as interactions between membrane proteins and/or lipids is the laser intensity of LILBID-MS. Elevated laser intensity modulates the LILBID process resulting into partly disintegrated nanodisc structures. This is presumably caused during the explosive expansion of the sample droplet after laser irradiation. Lipids are lost most likely due to deformation and subsequent rupture of the flat disc-shaped membrane. However, the mild ionization conditions of LILBID-MS are capable of preserving at least partly the initial membrane protein complex. The absence of scaffold proteins and lipids, furthermore, improves spectral resolution and helps to identify the intact as well as partly dissociated protein complexes. This is especially effective if the scaffold size is largely compared to the protein complexes (Figure 5a).

The presented platform appears to be well suited to address challenging biological questions. Complexes indicating an artificial stoichiometry different from the expected oligomeric state could never be found for any tested protein. The highest detected oligomeric state always corresponded to the previously determined native state of the target. The results, furthermore, indicate that the implemented L-CF expression of membrane proteins results into the assembly of native complexes. Therefore, the strategy allows to rapidly determine the oligomeric state of a protein within the nanodiscs in context of a membrane with defined lipid composition, giving important insights for the understanding of functional dynamics. Lipid-dependent oligomerization is a so far rarely observed regulatory mechanism of membrane proteins. The reported study on the E.coli MraY translocase is one of the first examples showing such a lipid-triggered dimerization. Notably, even close homologues such as B. subtilis can significantly differ in their oligomeric assembly mechanism and the LILBID-MS observations nicely match with previous reports on MraYs functional activity (Henrich et al., 2016).

Instrumental improvements will continuously contribute to higher resolution and will open the method to extended applications. One further direction could be the identification of specific and tightly bound lipids, which could affect structural and functional features of a membrane protein. According to the identification of lipid-protein interactions in mixed micelles (Gault et al., 2016) or tightly bound lipids by a delipidation strategy (Bechara et al., 2015), individual lipid types selectively interacting with a protein might be identified out of a provided mixture in nanodiscs membranes.

Materials and methods

Detergents and lipids

Polyethylene glycol P-1,1,3,3-tetramethyl-butylphenyl-ether (Triton X-100), sodium cholate, 1,2 diheptanoyl-sn-glycero-3-phosphocholine (DHPC), dodecyl phosphocholine (DPC), glyco-diosgenin (GDN), 1,2-Dimyristoyl-sn-glycero-3-phosphocholine (DMPC), 1-palmitoyl-2-oleoyl-sn-glycero-3-phospho-(1′-racglycerol) (POPG), 1,2-dioleoyl-sn-glycero-3-phosphocholine (DOPC), 1,2-dimyristoyl-sn-glycero-3-phospho-(1′-racglycerol) (DMPG), 1,2-dioleoyl-sn-glycero-3-phospho-(1′-rac-glycerol) (DOPG), 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine (DOPE), 1,2-dioleoyl-sn-glycero-3-phospho-L-serine (DOPS), 1,2-dipalmitoyl-sn-glycero-3-phosphocholine (DPPC), 1',3'-bis[1,2-dimyristoyl-sn-glycero-3-phospho]-sn-glycerol (Cardiolipin), cholesterol.

Detergent stock solutions of DHPC, DPC and GDN were prepared with a concentration of 10% (w/v) and water as solvent. Lipid stock solutions were prepared with 50 mM of lipid and 100–300 mM of sodium cholate dissolved in water supported by vortexing and sonication in an ultrasonic bath at 37°C.

DNA techniques

Introduction of a C-terminal StrepII-tag in the hHv1-VSD (75-223) construct in pET15b, described elsewhere (Li et al., 2015), was achieved by using QuickChange mutagenesis.

Nanodisc preparation

The different membrane scaffold proteins were expressed and purified as mentioned elsewhere (Denisov et al., 2004; Hagn et al., 2013; Henrich et al., 2015a). Nanodiscs were formed by the dialysis of a mixture of MSPs and lipids in a defined protein to lipid ratio as described previously (Roos et al., 2012; Henrich et al., 2016). These ratios are critical for the reconstitution of homogenous nanodiscs. Furthermore, the transition temperature of the applied lipid species (Table 1) needs to be considered as disc formation below these temperatures can be affected. In brief, purified MSP and the desired lipids were mixed at the defined ratios, combined with 0.1% DPC and incubated for 1 hr at room temperature. For the nanodiscs formation, these mixtures were applied to dialysis bags with a MWCO of 12–14 kDa or Slide-A-Lyzer devices with a MWCO of 10 kDa and dialyzed against 5 l DF-buffer (40 mM Tris-HCl pH 8.0, 100 mM NaCl) for ~16 hr at room temperature. The buffer was exchanged two times, and dialysis was carried out for additional 16 hr each. Before concentration, nanodiscs solutions were centrifuged (22,000 xg, 20 min) to remove aggregates. Nanodiscs were concentrated to concentrations of 0.5–1.0 mM by multiple centrifugation steps (2000 xg, 15 min) using Centriprep concentrator devices (10 kDa MWCO). Concentrated nanodiscs were flash frozen using liquid nitrogen and stored at −80° C until usage. Buffer exchange of nanodiscs to MS-buffer (50 mM ammonium acetate pH 6.8) was achieved by dialysis against 5 l MS-buffer. The final concentration of empty discs samples was 30–50 µM.

Cell-free protein production

The membrane protein production is based on a continuous exchange cell-free system (CECF) utilizing lysates from E.coli A19 cells and on T7-RNA polymerase transcription. T7-polymerase expression and purification, lysate preparation and CECF expression were performed as described previously (Schwarz et al., 2007; Henrich et al., 2015a). Heavy isotope labeling was achieved by exchanging solutions of unlabeled amino acids to amino acids including 15N and 2H nuclei. This solution is made of algal amino acid mixture 15N, d (15N, 2H uniformly labeled) with a final concentration of 1.5 mg/ml containing 16 amino acids. For these 16 amino acids only non-exchanging protons are substituted to 2H. The residual four amino acids namely asparagine (15N labeled), cysteine (unlabeled), glutamine (15N labeled) and tryptophan (15N labeled), which are not included in the algal mixture, were added to this mix to a final concentration of 1.5 mg/ml. 55 µl of reaction mixture was applied to Mini-CECF containers that were placed in the cavities of a 24-well cell-culture plate holding 825 µl of feeding mixture. Reaction and feeding mix were separated by a semipermeable membrane with a cut-off of 12–14 kDa. Plates were incubated at 30°C for 14–20 hr on a shaker at 200 rpm. For membrane protein solubilization, 10–100 µM of nanodiscs of different sizes assembled with the scaffolds MSP1D1ΔH5 or MSP1E3D1 were added to the reaction mixture. Nanodisc concentrations in the CF reaction mixtures were 20 µM (EmrE, LspA, KcsA), 60 µM (hHv1-VSD) and 80–100 µM for MraYs. For PR expressions, 10 µM of MSP1E3D1 nanodiscs were supplemented. The big scaffold protein MSP1E3D1 was chosen for most samples as it offers the most membrane space and was previously shown to exhibit the best protein solubilization (Roos et al., 2012). Exceptions were made in the case of LspA and hHv1-VSD as for these proteins the solubilization using nanodiscs containing MSP1D1ΔH5 as scaffold was already shown to be successful (Laguerre et al., 2016). Concentrations were chosen to achieve a high but not totally complete degree of membrane protein solubilization (Roos et al., 2012; Henrich et al., 2016). The reaction mixtures of PR expressions were supplemented with 600 µM all trans-retinal dissolved in DMSO. For detergent mode (D-CF) production of PR (Reckel et al., 2011), the reaction mix and the feeding mix contained 0.4% GDN and 0.04% DHPC. Volumes of reaction mixtures of samples dedicated for MS measurements ranged from 400 µl up to 1 ml.

Purification of cell-free expressed membrane proteins

Unless stated otherwise, protein samples dedicated for mass spectrometry analysis were purified via the C-terminal StrepII-tag of the different membrane proteins. After expression, the reaction mix was centrifuged (22,000 xg for 10 min at 4° C) to remove residual aggregates and the supernatant was diluted with buffer A (100 mM Tris-HCl pH 8.0, 100 mM NaCl) in the ratio 1:3. Subsequently, the solution was applied on equilibrated Streptactin resin with a bed volume corresponding to the reaction mix volume. The flow trough was re-applied three to five times to ensure maximum binding. After washing the material with six column volumes of buffer A, the proteins were eluted with 2–4 column volumes of buffer B (100 mM Tris-HCl pH 8.0, 100 mM NaCl, 20 mM desthiobiotin). For mass spectrometry analysis, the elution fractions were concentrated using Amicon Ultra centrifugal filters with 10 kDa MWCO to a final volume of 40–80 µl. Purification buffers for KcsA and MraY samples contained 20 mM KCl and 2 mM β-mercapotethanol, respectively. D-CF expressed PR was purified using the described protocol with the addition of 0.1% DHPC to all used buffers.

hHv1-VSD and LspA were purified with a tandem purification (Laguerre et al., 2016). Ni2+-loaded sepharose resin was equilibrated with buffer C (100 mM Tris-HCl pH 8.0, 150 mM NaCl, 10 mM imidazole) and incubated in batch mode for 30 min at 4°C with the supernatant from the reaction mixture. After two washing steps with each 10 column volumes buffer C, followed by buffer C with 30 mM imidazole, the hHv1-VSD as well as LspA in nanodiscs were eluted with 250 mM imidazole in buffer C. The elution fraction was directly loaded onto the Strep-tactin resin and purified using the manual instructions from iba. All column steps were performed in gravity flow mode for hHv1-VSD and with an Äkta-Purifier system for LspA. The combined elution fractions were dialyzed against 20 mM Hepes pH 7.0, 20 mM NaCl over night with three buffer exchanges in case of hHv1-VSD. Buffer exchange for LspA into the MS-buffer was achieved in centrifugal concentration devices (10 kDa MWCO, Amicon). Protein solutions were concentrated as mentioned above.

The protein concentration was determined by A280 measurements using a Nanodrop (Roos et al., 2012). As the sample consist of the target protein as well as of scaffold protein and the ratio per discs is not known so far, the discrete concentrations of scaffold and membrane protein could not be determined. Total protein concentrations for all measurements were in between 1.5 mg/ml and 5 mg/ml. Only in the case of PR, the concentration of the inserted membrane protein could be determined by the specific absorbance of green-light absorbing PR at 530 nm with an extinction coefficient of 44,000 M−1cm−1.

SDS-PAGE

Protein samples were prepared by addition of SDS loading buffer (100 mM Tris-HCl pH 6.8, 8 M Urea, 0.12% (w/v) bromphenoleblue, 20% (w/v) SDS, 15% (v/v) glycerol, 20% (v/v) β-mercaptoethanol) and separated by Tris-Tricine SDS-PAGE (Schägger, 2006). Therefore, 11% Tris-Tricine gels were run for 15 min at 80 V and for 45–55 min at 150 V. For protein staining, gels were incubated for 20 min with a solution of 50% (v/v) ethanol and 10% (v/v) acetic acid, washed with 200 ml of ddH2O and incubated with a colloidal staining solution (0.02% (w/v) Commassie Brilliant Blue G250, 5% (w/v) aluminium sulphate-(14-18)-hydrate, 10% (v/v) ethanol and 2% (v/v) ortho-phosphoric acid).

Size-exclusion chromatography

Analytical size-exclusion chromatography was performed on an Äkta Purifier FPLC system using a Superdex 200 3.2/30 or a Superdex 200 3.2/30 Increase column as described elsewhere (Roos et al., 2012) with SEC-buffer (40 mM Tris-HCl pH 8.0, 100 mM NaCl) and a flow rate of 0.05 or 0.075 ml/min, respectively.

LILBID-MS

Nanodisc-samples were buffer exchanged into 50 mM ammonium acetate at pH 6.8 directly before measurement with LILBID-MS. Zeba Micro Spin Desalting Columns (article number 89887) from Thermo Scientific were used to exchange the buffer, operating with a 7 kDa cut-off filter. To equilibrate the desalting column, it was washed five times with the buffer at 1500 rpm for 1 min and the final sample buffer exchange was done for 2 min at 1500 rpm. Sample concentration was within a range between 10 and 100 µM. 3 µL of buffer exchanged sample was used for MS.

A piezo-driven droplet generator (MD-K-130 from Microdrop Technologies GmbH, Norderstedt, Germany) was used to produce droplets of 30 µm diameter with a frequency of 10 Hz at 100 mbar. The droplets are transferred to high vacuum and irradiated by an IR laser operating at 2.94 µm, a vibrational absorption wavelength of water. The laser is a pulsed Nd:YAG laser, pumping an optical parametric oscillator, converting the wavelength to 2.94 µm. Laser pulse length is 6 ns, and the pulse energy output is between 9.5 and 23 mJ. LILBID settings have previously been published in detail (Morgner et al., 2006). Laser irradiation leads to an explosive expansion of the sample droplet and ions are released which were accelerated by a pulsed electric field and analyzed by a homebuilt reflectron-time-of-flight (TOF) setup. Ion acceleration is based on a Wiley-McLaren type ion source with a delayed acceleration pulse of 370 µs and an overall acceleration of 6.6 kV, working at 10−5 mbar.

Data detection and processing was done with the software Massign (Morgner and Robinson, 2012) available at http://massign.chem.ox.ac.uk/. MS spectra show averaged signals between 1000 and 1500 droplets. The spectra were normalized with the software OriginPro 2016.

To calculate the number of attached lipids on the scaffold protein from empty nanodiscs, the full peak width at half maximum height (FWHM) of the scaffold protein was subtracted from the FWHM monomeric scaffold protein attached with lipids and divided by the lipid mass. For the statistical analysis of the distribution of different species within the spectra of PR, the integrals of the single peaks were normalized to the overall peak area. Mean values and standard deviation of 2–3 measurements were calculated. This was done separately for every of the three spectra with different laser intensities.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48

Decision letter

  1. Olga Boudker
    Reviewing Editor; Weill Cornell Medical College, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Analyzing native membrane protein assembly in nanodiscs by combined non-covalent mass spectrometry and synthetic biology" for consideration by eLife. Your article has been favorably evaluated by Richard Aldrich (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Morgner et al. present novel and interesting data on the use of LILBID MS to investigate transmembrane protein (complexes) in nanodiscs. There is a considerable number of different proteins, lipids and scaffold proteins shown and a relatively clear picture of the performance of "AMPLE-MS" for the characterization of these reconstituted particles emerges. The reviewers were positive in their evaluation of the work, but significant concerns were voiced.

The key shared concern was the use of LILBID MS as a bundled "novel" approach with protein production into nanodiscs. The production part has been described elsewhere and is not novel. Furthermore, it is unclear whether in vitro protein production in the context of LILBID MS provides any advantages over other ways of producing nanodisc-incorporated protein samples. Introduction of a new term "AMPLE-MS" seems unnecessary. Additionally, the experimental description is insufficient. There should be a much more detailed description of how the experiments are performed and analyzed. More specific concerns are:

Essential revisions:

1) While results are significant and their novelty warrants publication, the key findings are somewhat misrepresented. In particular, the use of cell-free expression (which facilitates direct transfer of lipid-bound protein into nanodiscs) is mixed with the novel MS approach (at least for this type of application) in a way, which may confuse the reader and blur the line between what is novel and what is not. Cell-free expression has been described before, and so has the production of lipid nanodiscs. Protein expression and purification in detergent is recently used to form protein-lipid nanodiscs, so how does the use of LILBID MS rely on cell-free expression? What is its performance with lipid nanodiscs, which were prepared differently, i.e. the "classic" way? How does LILBID compare with nano-ESI (see literature)? The innovation presented in this paper lies in the use of LILBID, but it is unclear how this is linked with the alternative origins and preparation methods of lipid nanodiscs. If the authors believe this to be the case, they should show the evidence.

2) If the nanodisc-based production were retained in the manuscript, then more details would be required. How does one select lipoproteins for the formation of the nanodiscs? Are there experimental advantages/disadvantages of distinct proteins in view of the proposed methodologies? What are checkpoints in the process; i.e. how does one know that the proteins have been properly expressed and folded in the nanodiscs? In general, the description of the cell-free expression into nanodiscs is only cursory.

3) How would one determine whether the observed species reflect heterogeneity of the sample following cell-free expression or disruption of the complex during gas phase formation? Could multiple copies of monomeric proteins be inserted into the same nanondiscs in the absence of protein:protein interactions? How would one know? Finally, it is unclear form the manuscript how common is LILBID instrumentation setup. If it is not common, how easy is it to establish based on more commonly accessible instruments. What are the advantages (current or potential) of LILBID compared to more common ESI?

4) The term "synthetic biology" is uncommon for cell-free expression. Statements are also made about the use of detergents (e.g. bacteriorhodopsin), which while true are somewhat misleading. In order to natively reconstitute a transmembrane protein, a suitable environment needs to be provided, i.e. the correct lipid or lipid mixture, or the correct detergent (which is obviously meant to mimic the lipid). Just comparing some lipids with some detergents is not sufficient to conclude which method is better.

5) The laser power required to resolve individual masses of nanodiscs is too high to keep them intact. All the investigations described in Figure 2 and supplements seem to be of the remaining few lipid molecules, not reflecting intact nanodiscs. It is not explained in sufficient detail what is the value of these experiments. The use of shorter lipids is based on these controls, but it is not clear how critical is this selection.

6) In all experiments, attention is given to resolving partially dissociated species. How is that information used to infer biologically relevant conclusions?

7) Subsection “Oligomeric state analysis of membrane proteins in nanodiscs”, second paragraph: if that was true, then switching to diff. scaffold proteins or isotopes should show such species, but I don't think that they are actually released intact from the nanodiscs! This is too important to brush over with a "cannot yet be assigned" comment. Please elaborate this point in the paper.

8) Subsection “Refinement of LILBID-MS signal resolution by isotope labeling”, first paragraph: what type of deuterium labeling is used (during expression or later?) and how stable do the authors think that such labels will be?

9) A reviewer is not fully convinced by data on MraY from B. subtilis and E. coli. It seems clear that there is dimer of B. subtilis MraY in both DMPG and DMPC, but the amount of a monomer/nanodisc complex is much greater in DMPC. In contrast, the amount of dimer is very small, barely out of the noise. This does not correlate with comparable activity observed in these two lipids. Overall, it is not clear whether similar amounts of proteins were produced and analyzed. SDS gels showing the protein assembled into different lipids would have been helpful. In contrast, inclusion of previously published data in the figure seems unnecessary.

10) The conclusion needs to be rewritten as it mixes and confuses issues of protein production, nanodisc preparation and MS characterization.

11) Discussion, third paragraph and elsewhere: I disagree that the spectra are straightforward to analyze. The authors use specialized, home-written software and peak shapes are often ambiguous (see above). More importantly, while I agree that the largest complex is here always matching the expected species, there are plenty of smaller subcomplexes visible. Are they due to fragmentation? What mechanism (asymmetric CID?) Often the intact protein complex cannot be released from the nanodisc or only forms a minor species among many in the spectra.

https://doi.org/10.7554/eLife.20954.016

Author response

Summary:

Morgner et al. present novel and interesting data on the use of LILBID MS to investigate transmembrane protein (complexes) in nanodiscs. There is a considerable number of different proteins, lipids and scaffold proteins shown and a relatively clear picture of the performance of "AMPLE-MS" for the characterization of these reconstituted particles emerges. The reviewers were positive in their evaluation of the work, but significant concerns were voiced.

The key shared concern was the use of LILBID MS as a bundled "novel" approach with protein production into nanodiscs. The production part has been described elsewhere and is not novel. Furthermore, it is unclear whether in vitro protein production in the context of LILBID MS provides any advantages over other ways of producing nanodisc-incorporated protein samples. Introduction of a new term "AMPLE-MS" seems unnecessary. Additionally, the experimental description is insufficient. There should be a much more detailed description of how the experiments are performed and analyzed. More specific concerns are:

We follow the recommendation of the reviewers and omit the term “AMPLE-MS”, while presenting a more detailed and structured description of our strategy. In particular, the advantages of extraction-and detergent-free preparation of membrane protein/nanodisc samples by cell-free expression are better indicated and discussed. We agree that the novel aspect of the work is rather the combination of the two previously described techniques, resulting into considerable synergies.

Overall, the Introduction and Discussion part of the manuscript have been completely re-written and major modifications have been made in the Results section. Furthermore, additional experiments have been done and two new figures have been added.

Essential revisions:

1) While results are significant and their novelty warrants publication, the key findings are somewhat misrepresented. In particular, the use of cell-free expression (which facilitates direct transfer of lipid-bound protein into nanodiscs) is mixed with the novel MS approach (at least for this type of application) in a way, which may confuse the reader and blur the line between what is novel and what is not. Cell-free expression has been described before, and so has the production of lipid nanodiscs. Protein expression and purification in detergent is recently used to form protein-lipid nanodiscs, so how does the use of LILBID MS rely on cell-free expression? What is its performance with lipid nanodiscs, which were prepared differently, i.e. the "classic" way? How does LILBID compare with nano-ESI (see literature)? The innovation presented in this paper lies in the use of LILBID, but it is unclear how this is linked with the alternative origins and preparation methods of lipid nanodiscs. If the authors believe this to be the case, they should show the evidence.

LILBID-MS does not principally depend on cell-free expression and it can be postulated that membrane protein/nanodisc complexes prepared by the “classical” post-translational reconstitution process involving detergent solubilization could also be analyzed. Previous reports showed the ESI-MS analysis of comparable samples prepared by the classical post-translational mechanism and corresponding references have been cited (see Introduction, third paragraph). However, the stoichiometry of membrane protein assemblies could be affected by the rigid membrane extraction and detergent solubilization process used for the “classical” strategy. One discussed example is proteorhodopsin, which is monomeric in the particular detergent DH7PC but multimeric in lipid environments (see new Figure 6—figure supplement 1). Furthermore, many membrane proteins are hard to synthesize in traditional cell-based expression systems or denature upon membrane extraction or contact with detergents. One shown example is E. coli MraY, which was completely inactive and aggregated in presence of detergents. This sample cannot be prepared by the classical technique. Therefore, cell-free expression largely extends the portfolio of membrane protein complexes that can be analyzed by LILBID-MS or similar techniques, it removes uncertainties and risks due to the necessary detergent treatment with classical protocols and it significantly accelerates and streamlines the overall sample preparation process concomitant with enabling numerous labelling and sample refinement opportunities (see Introduction, third paragraph).

We have rewritten the Introduction and Discussion sections in order to make these basic considerations and resulting advantages of our strategy clearer.

2) If the nanodisc-based production were retained in the manuscript, then more details would be required. How does one select lipoproteins for the formation of the nanodiscs? Are there experimental advantages/disadvantages of distinct proteins in view of the proposed methodologies? What are checkpoints in the process; i.e. how does one know that the proteins have been properly expressed and folded in the nanodiscs? In general, the description of the cell-free expression into nanodiscs is only cursory.

The in vitro production of empty nanodiscs and the co-translational integration of membrane proteins by cell-free expression was described in detail before and we have cited the references. For a better description the Methods section has been expanded (see subsections “Nanodisc preparation” and “Cell-free protein production”). Key advantages are the detergent-free process along with other general advantages of cell-free expression such as efficient labelling (see Introduction, first paragraph and following). We have now highlighted this better in the manuscript. In addition, a more detailed overview of the nanodisc production technique also indicating critical checkpoints, is included (see subsection “Nanodisc preparation”). Proper expression of all proteins could be revealed by MS-spectra or e.g. SDS-PAGE. Within this study, we only used proteins where the functional characterization of the corresponding samples has already been published in previous papers which have now been cited.

3) How would one determine whether the observed species reflect heterogeneity of the sample following cell-free expression or disruption of the complex during gas phase formation? Could multiple copies of monomeric proteins be inserted into the same nanondiscs in the absence of protein:protein interactions? How would one know?

This is an important consideration. As we learned from measurements of different protein complexes, we can monitor their stoichiometry present in nanodiscs. The nanodisc complexes may differ in the amount of proteins they carry, but always have two scaffold proteins. A key point of our platform is that we can probe the tightness of protein interactions by tuning the laser power of LILBID-MS (see subsection “Oligomer formation of proteorhodopsin (PR) in nanodiscs”, second paragraph). So, weak non-specific interactions, e.g. in between membrane proteins and the scaffold proteins or in between two different membrane protein complexes inside one nanodisc, will dissociate first at already low laser power. “Real” membrane protein complexes having a tight and specific interface will only disrupt at higher laser power. Tuning the disruption of the membrane protein/nanodisc complexes leads then to gradually loss of integrated membrane proteins as well as of scaffold proteins (see new Figure 6A and B). Spectra taken at lower laser power still reveal the integrated membrane proteins together with both scaffold proteins and thus could indicate potential sample heterogeneity, e.g. by multiple integration of monomeric or dimeric proteins. However, spectra taken at higher laser power, and this was the routine measurement condition in the manuscript, show the dissociation of the sample into complexes still remaining one or two scaffold proteins, but also gave signals of the free membrane proteins. The maximum stoichiometry of these free protein complexes, which have already lost the non-specific interaction to both scaffold proteins, therewith reflect the highest oligomeric stoichiometry of the particular membrane protein (see the aforementioned paragraph). We speculate, and this is supported by the results obtained with all six analyzed membrane proteins, that potential non-specific interaction in between multiple inserted proteins within one nanodisc membrane would not stay together after applying laser power conditions that already result into loss of both scaffold proteins.

As a note, we have not observed evidence of such a multiple insertion even with the analyzed relatively small monomeric or dimeric membrane proteins (see Figures 4 and 5). However, multiple integration may also depend on experimental conditions such as nanodisc size and concentration. So we would propose that it may occur, but with our strategy we either won’t detect it or we could easily identify it.

In short: Heterogeneity in complexes with two scaffold proteins reflect a heterogeneity of complexes present in solution. The highest observed Oligomeric state of a protein complex without scaffold proteins determine the biologically relevant stable complex.

We added an additional Figure (Figure 6A) showing a representative tuning of complex dissociation by applying different laser powers, and we added a better explanation of the theory behind (subsection “Oligomer formation of proteorhodopsin (PR) in nanodiscs”, third paragraph).

Finally, it is unclear form the manuscript how common is LILBID instrumentation setup. If it is not common, how easy is it to establish based on more commonly accessible instruments. What are the advantages (current or potential) of LILBID compared to more common ESI?

LILBID-MS is an emerging technique and we hope to increase its application by presenting results such as shown in this manuscript. The major difference if compared with Esi-MS is the mechanism of gas-phase transition of the analyzed sample. We use a single power transfer of a 6 nsec laser pulse while Esi-MS is based on a permanent ion collision mechanism. These differences could have significant effects on sample stability and dissociation kinetics. A corresponding study that directly compares Esi-MS with LILBID-MS by using identical samples is currently in preparation.

We added a sentence specifying the difference between the two MS techniques into the Introduction.

4) The term "synthetic biology" is uncommon for cell-free expression.

The term has recently been introduced and cell-free expression is accepted as a core platform in synthetic biology. We have added corresponding references (Hodgman & Jewett, Metab Engin 14, 261-269, 2013, or Smith et al., FEBS Lett 2014, 588: 2755-61.) (See Introduction, third paragraph).

Statements are also made about the use of detergents (e.g. bacteriorhodopsin), which while true are somewhat misleading. In order to natively reconstitute a transmembrane protein, a suitable environment needs to be provided, i.e. the correct lipid or lipid mixture, or the correct detergent (which is obviously meant to mimic the lipid). Just comparing some lipids with some detergents is not sufficient to conclude which method is better.

We completely agree that many membrane proteins stay folded and even in oligomeric assemblies in detergent micelles. However, to find out which detergent or detergent combination is suitable for a given membrane protein can become a time-consuming task. Membrane extraction and detergent treatment is a relatively harsh procedure and represents always a risk of complex disintegration. Whether oligomeric complexes re-assemble upon the classical reconstitution procedure into membranes cannot be predicted. Our strategy eliminates the solubilization step and the proteins are directly analyzed in the initial membrane, in which they have been co-translationally inserted (see Introduction, first paragraph and Figure 1). We therefore propose that our strategy provides a less risky procedure to view the native situation of membrane protein complexes and we support this by the analysis of six different systems (see Introduction, last paragraph).

In the discussed example of proteorhodopsin, also the monomeric form in the detergent DH7PC folds into its active conformation and its NMR structure has been solved in that detergent. In the detergent DDM it forms multimeric complexes similar to that in native membranes and we have included a corresponding reference of that (see subsection “Oligomer formation of proteorhodopsin (PR) in nanodiscs”, last paragraph). However, this example shows that functional assays alone must not be a proof of native conformation (see also Laguerre et al. 2016, which has been included now). The direct co-translational insertion of proteorhodopsin into nanodisc membranes results into the native multimeric complexes and eliminates tedious screening of detergents supporting multimer formation by photocycle kinetics. With the second example of E. coli MraY, we have previously shown that contact with detergent completely inactivates the protein (see corresponding citation Ma et al. 2011). The established strategy of detergent-free production with nanodiscs is therefore the only way to isolate this protein for in vitro characterization.

5) The laser power required to resolve individual masses of nanodiscs is too high to keep them intact. All the investigations described in Figure 2 and supplements seem to be of the remaining few lipid molecules, not reflecting intact nanodiscs. It is not explained in sufficient detail what is the value of these experiments. The use of shorter lipids is based on these controls, but it is not clear how critical is this selection.

These have been basic experiments in order to define optimal measurement conditions and to improve resolution. Figure 2 shows the different “stickiness” of the individual lipids on the scaffold proteins. This correlates with the “stickiness” to other proteins as well. Therefor the lipids which are less “sticky” are chosen for the rest of the experiments, as they allow for better spectral resolution (see subsection “LILBID-MS analysis of empty nanodiscs”, last paragraph). Depending of the mass differences one wants to observe, the lipid selection is more or less critical. An explanatory sentence is added to the aforementioned subsection and a new figure (see new Figure 6—figure supplement 1B) has been added for better illustration. Further refinement of the LILBID-MS technique will allow to stepwise implement a higher variety of different lipid types.

6) In all experiments, attention is given to resolving partially dissociated species. How is that information used to infer biologically relevant conclusions?

Please also refer to answer to point #3. The laser dissociation of the assemblies depends on the applied laser power in the experiment and on the strength of interaction. The largest complex in the spectra thus represents the highest stably incorporated oligomerization state and the biologically relevant complex in the membrane. The partially dissociated species under higher laser conditions originate from dissociation and appear with no or one scaffold protein as well. In order to support this assumption, we have analyzed several well-studied model proteins having different oligomeric forms such as proteorhodopsin (hexamer), KcsA (tetramer), EmrE (dimer) and LspA (monomer). In all cases, the detected highest oligomeric form exactly matches with the expected complex. Therefore, we think that our strategy is indeed suitable to analyze the biological relevant complexes in its native stoichiometry. However, for the dissociated lower order complexes, it cannot be ruled out that some of them may already exist in addition within the membrane as well. These would be observable as lower smaller complex with two scaffold proteins under low laser conditions. This should be clearer now from the changes we made in the second paragraph of the subsection “Oligomer formation of proteorhodopsin (PR) in nanodiscs” and Figure 6, and we further modified the statement on the interpretation of the spectra in the Discussion accordingly.

7) Subsection “Oligomeric state analysis of membrane proteins in nanodiscs”, second paragraph: if that was true, then switching to diff. scaffold proteins or isotopes should show such species, but I don't think that they are actually released intact from the nanodiscs! This is too important to brush over with a "cannot yet be assigned" comment. Please elaborate this point in the paper.

As seen later in the manuscript, the proposed species could be released intact from the nanodiscs. This issue is picked up in second paragraph of the subsection “Oligomeric state analysis of membrane proteins in nanodiscs”, where we show that labelling now allows for the unambiguous assignment.

8) Subsection “Refinement of LILBID-MS signal resolution by isotope labeling”, first paragraph: what type of deuterium labeling is used (during expression or later?) and how stable do the authors think that such labels will be?

The labels are applied during expression by the addition of labeled amino acids (see subsection “Cell-free protein production”). Besides some minor amino acid scrambling in the cell-free lysate specific to asparagine and glutamine residues, this labelling is extremely stable even at high temperatures used for NMR measurements. The labelling strategies by cell-free expression have been published numerous times before and they have been used to facilitate full assignments of rather large membrane proteins within NMR. We have added some corresponding references (Laguerre 2015,2016 and Reckel 2010).

9) A reviewer is not fully convinced by data on MraY from B. subtilis and E. coli. It seems clear that there is dimer of B. subtilis MraY in both DMPG and DMPC, but the amount of a monomer/nanodisc complex is much greater in DMPC. In contrast, the amount of dimer is very small, barely out of the noise. This does not correlate with comparable activity observed in these two lipids. Overall, it is not clear whether similar amounts of proteins were produced and analyzed. SDS gels showing the protein assembled into different lipids would have been helpful. In contrast, inclusion of previously published data in the figure seems unnecessary.

We apologize for that confusion; we zoomed in one spectrum for better illustration but forgot to indicate that (see revised Figure 7). Both spectra are now shown at identical scale and dimer formation in both lipids is quite comparable. The larger peak area of the monomer/scaffold protein signal with DMPC represents a dissociation product resulting from non-specific interactions in between MraY and the scaffold proteins. Those might be influenced by the different charge of DMPC versus DMPG, but are not of relevance for the interpretation of our results. Samples were always purified by Strep-tags of the inserted membrane proteins (see subsection “Purification of cell-free expressed membrane proteins”, first paragraph) and analyzed at similar concentrations of approx. 1.5 mg/mL. Yes, we agree that showing already published data is not necessary but we think that here it illustrates the results nicely and makes it simple for the reader to follow without having to download and going deeply into previous publications.

10) The conclusion needs to be rewritten as it mixes and confuses issues of protein production, nanodisc preparation and MS characterization.

The Discussion has been completely re-organized and re-written.

11) Discussion, third paragraph and elsewhere: I disagree that the spectra are straightforward to analyze. The authors use specialized, home-written software and peak shapes are often ambiguous (see above).

What is meant here is that the spectra are comparably easy to interpret (e.g. if compared with ESI spectra), as the LILBID desorption process leads to only few, very low charged gas phase ions (see Discussion, second paragraph). In the case of the here shown species, mainly the singly charged ones are observed. While the home-written software is helpful, it is not essential. However, the software is open accessible and the corresponding URL has been included. This is clarified now in the third paragraph of the subsection “LILBID-MS”.

More importantly, while I agree that the largest complex is here always matching the expected species, there are plenty of smaller subcomplexes visible. Are they due to fragmentation? What mechanism (asymmetric CID?) Often the intact protein complex cannot be released from the nanodisc or only forms a minor species among many in the spectra.

See also comments to point #3 and #6.

The intact complex can be released in all cases, if sufficient laser energy is used. This leads at the same time to fragmentation of part of these complexes and therewith to the detection of the full-size complex along with potentially all possible lower size complex fragments. This mechanism should now become clearer from the changes made in the second paragraph of the subsection “Oligomer formation of proteorhodopsin (PR) in nanodiscs”.

https://doi.org/10.7554/eLife.20954.017

Article and author information

Author details

  1. Erik Henrich

    Institute of Biophysical Chemistry, Centre for Biomolecular Magnetic Resonance, J W Goethe-University, Frankfurt am Main, Germany
    Contribution
    EH, Conceptualization, Software, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Oliver Peetz
    Competing interests
    No competing interests declared.
  2. Oliver Peetz

    Institute of Physical and Theoretical Chemistry, J W Goethe-University, Frankfurt am Main, Germany
    Contribution
    OP, Conceptualization, Formal analysis, Investigation, Visualization, Writing—original draft, Writing—review and editing
    Contributed equally with
    Erik Henrich
    Competing interests
    No competing interests declared.
  3. Christopher Hein

    Institute of Biophysical Chemistry, Centre for Biomolecular Magnetic Resonance, J W Goethe-University, Frankfurt am Main, Germany
    Contribution
    CH, Conceptualization, Formal analysis, Investigation, Visualization, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared.
  4. Aisha Laguerre

    Institute of Biophysical Chemistry, Centre for Biomolecular Magnetic Resonance, J W Goethe-University, Frankfurt am Main, Germany
    Contribution
    AL, Conceptualization, Formal analysis, Investigation, Visualization, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared.
  5. Beate Hoffmann

    Institute of Biophysical Chemistry, Centre for Biomolecular Magnetic Resonance, J W Goethe-University, Frankfurt am Main, Germany
    Contribution
    BH, Conceptualization, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared.
  6. Jan Hoffmann

    Institute of Physical and Theoretical Chemistry, J W Goethe-University, Frankfurt am Main, Germany
    Contribution
    JH, Conceptualization, Software, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared.
  7. Volker Dötsch

    Institute of Biophysical Chemistry, Centre for Biomolecular Magnetic Resonance, J W Goethe-University, Frankfurt am Main, Germany
    Contribution
    VD, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    VD: Reviewing editor, eLife
    ORCID icon 0000-0001-5720-212X
  8. Frank Bernhard

    Institute of Biophysical Chemistry, Centre for Biomolecular Magnetic Resonance, J W Goethe-University, Frankfurt am Main, Germany
    Contribution
    FB, Conceptualization, Software, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared.
  9. Nina Morgner

    Institute of Physical and Theoretical Chemistry, J W Goethe-University, Frankfurt am Main, Germany
    Contribution
    NM, Conceptualization, Software, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    For correspondence
    morgner@chemie.uni-frankfurt.de
    Competing interests
    No competing interests declared.
    ORCID icon 0000-0002-1872-490X

Funding

Deutsche Forschungsgemeinschaft (Collaborative Research Center (SFB) 807)

  • Erik Henrich
  • Oliver Peetz
  • Christopher Hein

Deutsche Forschungsgemeinschaft (DO545/11)

  • Aisha Laguerre

National Institutes of Health (U54GM087519)

  • Beate Hoffmann

Max Planck Research School for Structure and Function of Biological Membranes

  • Beate Hoffmann

Deutsche Forschungsgemeinschaft (Cluster of Excellence Frankfurt)

  • Volker Dötsch
  • Nina Morgner

European Strategy Forum on Research Infrastructures (Instruct)

  • Frank Bernhard

P4EU

  • Frank Bernhard

European Research Council (European Union's Seventh Framework Programme (FP7/2007-2013)/ ERC Grant agreement n° 337)

  • Nina Morgner

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Simone Prinz and Prof. Werner Kühlbrandt from the MPI of Biophysics, Frankfurt am Main for taking EM images of empty nanodiscs. We as well thank the P4EU network for valuable support. EH and OP are supported by Collaborative Research Center (SFB) 807 of the German Research Foundation (DFG) FB received funding from Instruct, part of the European Strategy Forum on Research Infrastructures (ESFRI). AL is funded by the German Research Foundation (DO545/11) BH was supported by NIH (U54GM087519) and by the International Max Planck Research School for Structure and Function of Biological Membranes VD and NM are supported by Cluster of Excellence Frankfurt (Macromolecular Complexes) NM received funding from the European Research Council under the European Union's Seventh Framework Programme (FP7/2007–2013) / ERC Grant agreement n° 337567.

Reviewing Editor

  1. Olga Boudker, Reviewing Editor, Weill Cornell Medical College, United States

Publication history

  1. Received: August 25, 2016
  2. Accepted: January 4, 2017
  3. Accepted Manuscript published: January 9, 2017 (version 1)
  4. Version of Record published: January 26, 2017 (version 2)

Copyright

© 2017, Henrich et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,923
    Page views
  • 684
    Downloads
  • 6
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading
