Multiple selection filters ensure accurate tail-anchored membrane protein targeting

  1. Meera Rao
  2. Voytek Okreglak
  3. Un Seng Chio
  4. Hyunju Cho
  5. Peter Walter
  6. Shu-ou Shan  Is a corresponding author
  1. California Institute of Technology, United States
  2. Howard Hughes Medical Institute, University of California, United States
  3. University of California, United States
Research Article
  • Cited 20
  • Views 1,582
  • Annotations
Cite this article as: eLife 2016;5:e21301 doi: 10.7554/eLife.21301

Abstract

Accurate protein localization is crucial to generate and maintain organization in all cells. Achieving accuracy is challenging, as the molecular signals that dictate a protein’s cellular destination are often promiscuous. A salient example is the targeting of an essential class of tail-anchored (TA) proteins, whose sole defining feature is a transmembrane domain near their C-terminus. Here we show that the Guided Entry of Tail-anchored protein (GET) pathway selects TA proteins destined to the endoplasmic reticulum (ER) utilizing distinct molecular steps, including differential binding by the co-chaperone Sgt2 and kinetic proofreading after ATP hydrolysis by the targeting factor Get3. Further, the different steps select for distinct physicochemical features of the TA substrate. The use of multiple selection filters may be general to protein biogenesis pathways that must distinguish correct and incorrect substrates based on minor differences.

https://doi.org/10.7554/eLife.21301.001

Introduction

Efficient and accurate protein localization is a prerequisite to generate and maintain compartmentalization in all cells. Understanding how protein-targeting pathways achieve accurate membrane protein localization has been challenging for multiple reasons. First, topogenic signals that define a protein’s final destination tend to be degenerate and lack consensus motifs (von Heijne, 1985; Zheng and Gierasch, 1996), which demands targeting machineries to be adaptable and able to recognize a diverse set of signals. Second, minor differences in targeting signals distinguish proteins that belong to alternative pathways or organelles (Emanuelsson and von Heijne, 2001; von Heijne, 1985; Zhang and Shan, 2014; Zheng and Gierasch, 1996). Thus, protein-targeting pathways must also evolve robust selection mechanisms that can detect these minor differences. Furthermore, hydrophobic transmembrane domains (TMDs) on membrane protein substrates are prone to irreversible aggregation that can lead to mislocalization and proteostatic stress, requiring targeting machineries to also effectively shield the TMDs during targeting (Shao and Hegde, 2011). Except for a few systems (see [Randall and Hardy, 1995; Zhang and Shan, 2014]), the molecular mechanisms by which protein targeting machineries overcome these challenges are not well understood for most pathways.

A salient example of these challenges is an essential class of tail-anchored (TA) membrane proteins, defined solely by a single TMD near the C-terminus. TA proteins comprise 3–5% of the eukaryotic membrane proteome and play essential roles in numerous processes including membrane fusion/fission, vesicular trafficking, protein translocation, quality control, and apoptosis (Beilharz et al., 2003; Hegde and Keenan, 2011; Kalbfleisch et al., 2007). TA proteins are found in nearly all membranes in eukaryotic cells including the endoplasmic reticulum (ER), the mitochondrial outer membrane (OMM), and peroxisomes (Kutay et al., 1993; Yabal et al., 2003). To a first approximation, sequences near the C-terminus of TA proteins (including the TMD) are necessary and sufficient to direct their proper localization to diverse organelles (Beilharz et al., 2003; Whitley et al., 1996). Previous work further showed that modulation of the TMD and basic residues at the extreme C-termini alter the localization of TA proteins to the ER or mitochondria (Beilharz et al., 2003; Borgese et al., 2007, 2003; Rapaport, 2003). Nevertheless, the molecular mechanism by which these sequences are recognized and decoded by protein targeting machineries remains poorly defined.

Recent advances in deciphering TA protein targeting pathways provide an opportunity to address this question. Biochemical and genetic analyses have identified the Guided Entry of Tail-anchored protein (GET) pathway, which targets TA proteins destined to the ER through a series of substrate handoff events (Schuldiner et al., 2008; Stefanovic and Hegde, 2007; Wang et al., 2010). The co-chaperone Sgt2 initially associates with the TMDs of TA proteins (Wang et al., 2010). A scaffolding complex, comprised of Get4 and Get5 (Get4/5), bridges Sgt2 and the central targeting factor, the Get3 ATPase (Chartron et al., 2010, 2012; Wang et al., 2010). Get4/5 also preorganizes Get3 into the optimal conformation and nucleotide state for TA binding (Gristick et al., 2014; Rome et al., 2013) and thus facilitates the transfer of TA substrates from Sgt2 to Get3 (Wang et al., 2010). TA loading on Get3 drives Get3’s dissociation from Get4/5 and also activates Get3’s ATP hydrolysis activity (Rome et al., 2014, 2013). After ATP hydrolysis, the Get3•TA complex associates with the Get1/2 receptor complex on the ER membrane, via which the TA protein is released from Get3 and inserted into the membrane (Schuldiner et al., 2008; Wang et al., 2014).

It has been established that a highly hydrophobic C-terminal TMD promotes the association of a TA protein with Sgt2 (Wang et al., 2010) or the mammalian Get3 homolog TRC40 (Mariappan et al., 2010). Nevertheless, it is unclear how the GET pathway distinguishes TAs destined to different organelles and selects the correct set of substrates; it is also unclear how Sgt2, Get3, or the target membrane contributes to this selection. Here, we address these questions by systematically varying the TA protein and quantitatively analyzing how individual molecular steps in the GET pathway sense and respond to these variations through a combination of biochemical, biophysical, and cell biological studies. Our results show that the GET pathway selects ER-destined TA proteins using multiple steps in the pathway, and different steps are capable of recognizing distinct physicochemical features in the TA protein. The combination of these mechanisms together ensures accurate substrate selection by the GET pathway.

Results

TAs are targeted to the ER based on features in both the TMD and the C-terminal element

Previous work suggested that highly hydrophobic TMDs direct TA proteins to the ER (Burri and Lithgow, 2004; Kalbfleisch et al., 2007). A comprehensive analysis of the Grand Average of Hydropathy (GRAVY) (Kyte and Doolittle, 1982) scores of TAs shows that: (i) the TMD of TAs span a wide range of hydrophobicity (Figure 1, GRAVY Score); (ii) among these, established GET substrates (Mateja et al., 2015; Schuldiner et al., 2008) (Figure 1A, highlighted in black) are enriched in the range of higher hydrophobicity; (iii) mitochondrial TAs tend to span a range of lower hydrophobicity, but exhibit significant overlap with that of GET substrates (Figure 1B vs. 1A). These observations suggest that features in addition to TMD hydrophobicity also dictate the localization of TAs. A potential distinguishing feature is the basic residues C-terminal to the TMD, which has been shown to direct proteins to outer mitochondrial membrane in Arabidopsis and mammalian cells (Marty et al., 2014; Borgese et al., 2001). As natural amino acid variations tend to change multiple physicochemical properties, additional features of the TMD besides hydrophobicity could also contribute to the localization of TA proteins.

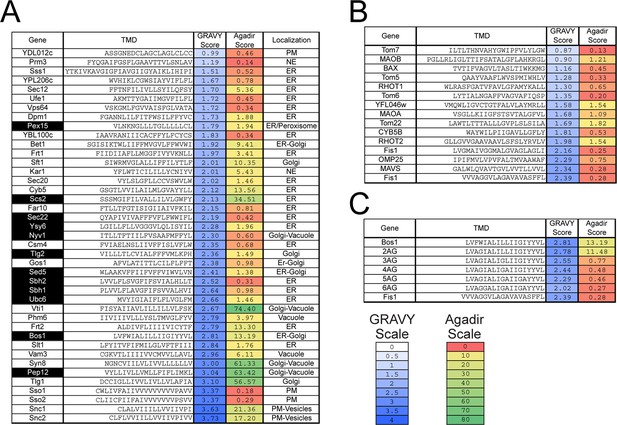

Sequences and properties of the TMDs of ER (A) and mitochondrial (B) TAs, as well as the model substrates used in this study (C).

Genes highlighted in black in panel (A) are previously established TA substrates for the GET pathway. Sequences of TMDs were obtained from UniProt (http://www.uniprot.org)(UniprotUniProt Consortium, 2015). Grand Average of Hydropathy (GRAVY) scores were calculated using the GRAVY calculator (http://www.gravy-calculator.de) and are color ramped as indicated by the scale bar. Agadir scores (% helical content) was calculated at pH 7.5, 298 K, ionic strength 0.15 M using the Agadir prediction algorithm based on helix/coil transition theory (http://agadir.crg.es) (Muñoz and Serrano, 1997), and are color ramped as indicated. We note that helix formation is highly environment-dependent and favored in apolar environments. The Agadir algorithm calculates the local helical content of the sequence in aqueous environments, and hence should be interpreted in a relative, rather than absolute sense. Abbreviations: PM, plasma membrane; NE, nuclear envelope.

https://doi.org/10.7554/eLife.21301.002

To understand how TA substrates are selectively targeted to the ER, we established a set of model TAs in which we independently varied the TMD and the C-terminal element (CTE). As model substrates destined to the ER and mitochondria, we focused on the TMD and CTE of Bos1p (residues 207–244) and Fis1p, respectively (Figure 2A). A non-cleavable, N-terminal 3xStrep-SUMO motif was fused to this sequence to enable purification and improve solubility of the substrate (Figure 2A; see also [Wang et al., 2010, 2011]). We replaced increasing numbers of hydrophobic residues in the Bos1 TMD with Ala and Gly, creating a set of substrates whose TMDs increasingly mimic that of Fis1p (Figure 2A, 2AG-6AG). We note that these variations change the hydrophobicity of the TMD (Figure 1C, GRAVY scores) but also alter other properties, such as helical propensity (Figure 1C, Agadir scores); these properties are partially distinguished by correlation analyses below. To isolate the contribution of C-terminal charges, we swapped the TMDs and CTEs of Bos1p and Fis1p (Figure 2A, Bos1-FisC and Fis1-BosC); we also systematically varied the number of basic residues in the CTE (Figure 2A, Bos1-RR, Bos1-RRRR and Fis1-RR, Fis1-RRRR).

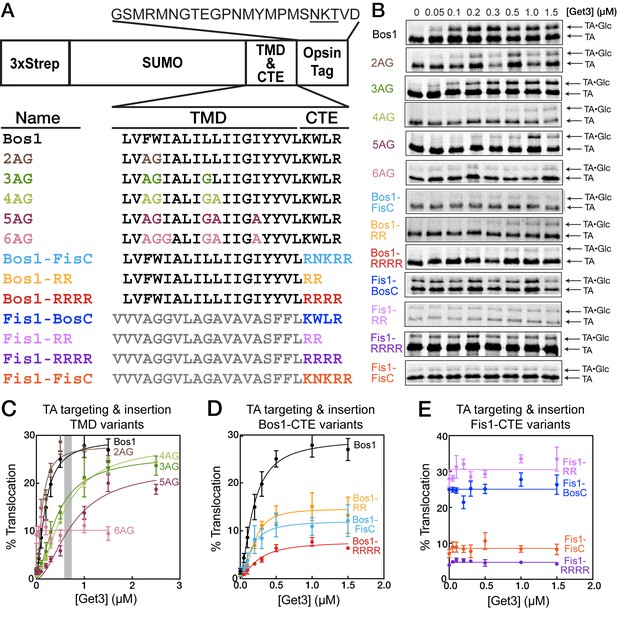

TA protein targeting and translocation into ER are sensitive to variations in both the TMD and CTE.

(A) Nomenclature and schematic of the model substrates used in this work. The oligosaccharide transferase recognition site in the opsin tag is underlined. (B) Overall targeting and translocation of model TA substrates into ER microsomes. TAs are translated in a ∆get3 yeast lysate and presented to ∆get3 microsomes in the presence of indicated concentrations of purified Get3. (C–E) Quantification of the translocation of TAs for TMD variants (C), CTE variants with Bos1-TMD (D), and CTE variants with Fis1-TMD (E). The grey bar in (C) denotes the cellular concentration of Get3 in yeast (Ghaemmaghami et al., 2003). With the exception of 6AG, the data in panels C and D were fit to Equation 1, and the derived parameters are summarized in Table 1. The data for 6AG (panel C), Fis1-BosC, Fis1-FisC, Fis1-RR, and Fis1-RRRR (panel E) were fit to horizontal lines with y = 10 ± 0.5, y = 25 ± 0.6, y = 9 ± 0.5, y = 31 ± 0.7, and y = 5 ± 0.2%, respectively. Values are reported as mean ± S.E.M, with n = 3–6.

https://doi.org/10.7554/eLife.21301.003
Table 1

Summary of kinetic parameters for TA targeting and translocation in ∆get3 lysate, derived from fits of the data in Figure 2C–D to Equation 1. Values are reported as mean ± S.E.M., with n = 3–6.

https://doi.org/10.7554/eLife.21301.004

Substrate

K1/2 (µM)

Hill coefficient

Tmax (%)

Bos1

0.18 ± 0.03

1.5 ± 0.3

29 ± 2.3

2AG

0.11 ± 0.02

1.6 ± 0.4

28 ± 1.8

3AG

0.42 ± 0.06

1.5 ± 0.2

26 ± 1.5

4AG

0.57 ± 0.06

1.6 ± 0.2

28 ± 1.6

5AG

0.76 ± 0.16

1.8 ± 0.4

23 ± 1.8

Bos1-FisC

0.15 ± 0.06

1.6 ± 0.8

12 ± 2.0

Bos-RR

0.19 ± 0.04

2.1 ± 0.8

15 ± 1.4

Bos-RRRR

0.24 ± 0.07

1.5 ± 0.5

8.0 ± 1.1

To test if the GET pathway can select substrates based on these features and whether this selection can be recapitulated in vitro, we measured the ability of purified Get3 to target and translocate TA substrates into ER microsomes in a ∆get3 yeast lysate (Rome et al., 2013; Wang et al., 2010) (Figure 2B–E). Successful translocation into the ER enables glycosylation of an opsin tag fused to the C-terminus of substrates (Figure 2A), providing a semi-quantitative measure for targeting and translocation efficiency (Rome et al., 2013). A spacer sequence between the CTE and glycosylation site (Figure 2A) allows efficient glycosylation of the substrate protein in the ER (Abell et al., 2007; Nilsson and von Heijne, 1993) and minimizes interference of oligosaccharide transferase by the CTE. Previous work also showed that the addition of four leucines to the Fis1p TMD enables efficient glycosylation of Fis1-opsin fusion protein in ER microsomes (Beilharz et al., 2003; Wang et al., 2010), indicating that the charged CTE from Fis1p does not interfere with glycosylation.

Of the TAs with altered TMDs, 2AG was translocated as efficiently as Bos1; 3AG, 4AG, and 5AG underwent Get3-dependent insertion but exhibited increasing defects, especially at physiological Get3 concentrations (Figure 2C, gray bar); and 6AG abolished Get3-dependent translocation (Figure 2B,C). Increasing the number and density of basic residues in the CTE of Bos1 (Bos1-RR, Bos1-FisC, and Bos1-RRRR) also substantially reduced Get3-dependent translocation (Figure 2B,D). Reciprocally, reducing the positive charges in the CTE of Fis1-FisC by replacing it with the Bos1 CTE (Fis1-BosC) or with two arginines (Fis1-RR) enhanced TA insertion into ER, whereas replacing the Fis1 CTE with four arginines (Fis1-RRRR) further reduced the level of ER insertion (Figure 2B,E). Thus, efficient TA targeting to the ER depends on both the TMD and positive charges in the CTE, and these dependences can be recapitulated in vitro using the tested model substrates.

Several additional inferences can be made from these data. First, the translocation defects of 3AG, 4AG, and 5AG are more pronounced at Get3 concentrations below 1 µM but can be rescued by higher amounts of Get3 to levels comparable to that of Bos1 (Figure 2C). In contrast, the translocation of Bos1-CTE mutants saturated at ≤0.5 µM Get3 and was not further improved by higher Get3 concentration (Figure 2D). This suggests that distinct mechanisms are used to reject a suboptimal TMD versus CTE of TA substrates; this hypothesis is supported by in-depth analyses below. Second, substrates containing a Fis1 TMD exhibited Get3-independent insertion into ER microsomes, and insertion was also abolished by a highly charged CTE (Figure 2E). Thus, substrates containing the Fis1p TMD can be targeted to the ER by alternative pathways, and importantly, a positively charged CTE serves as a general feature to reject TA proteins from the ER in both GET-dependent and GET-independent pathways.

The role of the TMD in directing proteins to the ER versus mitochondria has been extensively studied in vivo (Borgese et al., 2007, 2003, 2001; Marty et al., 2014; Pedrazzini, 2009). The ability of a basic CTE to help direct TA proteins to mitochondria has also been well documented (Borgese et al., 2003, 2001; Marty et al., 2014). However, whether a basic CTE can in addition serve as an ‘ER-avoidance’ sequence in vivo is unclear. To address this question, we examined the in vivo localization of GFP fused to the TMD and CTE variants of Fis1. As previously reported (Habib et al., 2003), the TMD and basic CTE of Fis1 (Figure 3, Fis1-TMD-CTE) were sufficient to direct GFP exclusively to the OMM. Deletion of the CTE led to a loss of specific mitochondrial targeting and accumulation of Fis1-TMD in the ER, as shown by the co-localization of GFP with the ER marker Sec63 tagged with tdTomato (Figure 3, Fis1-TMD). We next probed the minimal charge requirement of the CTE that provides mitochondrial specificity and excludes the Fis1-TMD from the ER. To this end, we created variants of Fis1-CTE with increasing numbers of arginine residues (Figure 3, Fis1-TMD-nR) and quantified their co-localization with Sec63-tdTomato and mitochondrially targeted TagBFP (mito-TagBFP). These data showed that there is a significant reduction in the ER localization of protein when the number of positive charges on the CTE is +3 (Figure 3, Fis1-TMD-RRR). When the number of charges in the CTE reached +4 (Figure 3, Fis1-TMD-RRRR), equivalent to that of the native Fis1-CTE, specific mitochondrial localization was fully restored. Thus, in agreement with the results of the in vitro experiments (Figure 2D,E), a highly basic CTE plays an important role in excluding mitochondria-destined TA proteins from the ER.

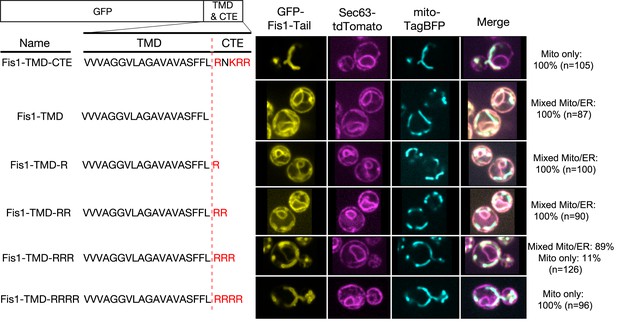

Positive charges in the CTE help reject TA proteins from ER and selectively target TAs to mitochondria.

Nomenclature and schematic of the constructs used for live-cell imaging of cells expressing GFP-tagged Fis1 tail constructs are shown on the left. Basic residues in the CTE are highlighted in red. Medial focal planes are shown on the right, with ER marked by Sec63-tdTomato and mitochondria by mitochondrially targeted TagBFP. Quantification denotes % of cells in each category (mixed Mito/ER or Mito only).

https://doi.org/10.7554/eLife.21301.005

Sgt2 discriminates against TAs with suboptimal TMDs

To understand how the GET pathway selects ER-destined TA substrates, we dissected the individual molecular steps in this pathway. To this end, we adapted an E. coli in vitro translation system (Goerke and Swartz, 2009; Jewett and Swartz, 2004). Highly efficient translation in this lysate provides a robust source of TA proteins. Further, the lack of GET homologues in bacteria makes this lysate a bio-orthogonal system in which most of the identified molecular steps in the GET pathway can be reconstituted using purified components.

The first known step in the GET pathway is the capture of TA substrates by the co-chaperone Sgt2. To understand whether and how TA substrates are distinguished during this step, we translated TA proteins in E. coli lysate in the presence of 35S-methionine and His6-tagged Sgt2, and analyzed the amount of TA substrate associated with Sgt2 after affinity-capture with Ni-NTA (Figure 4A). To provide better quantification and reduce variability, each substrate was translated and captured together with a smaller Bos1 construct lacking the 3xStrep tag (Ctrl). Both the substrate of interest and Ctrl were detected and analyzed on the same SDS-PAGE and autoradiogram (Figure 4B), so that the capture efficiencies of the substrates of interest were directly normalized against Ctrl. The only exceptions were the experiments with Fis1-FisC and Fis1-BosC, in which the 3xStrep tag was placed on the control (Ctrl + 3xStrep) rather than on the substrate of interest. This change was necessary to enhance the translation of Fis1-TMD containing substrates, but otherwise did not affect the outcome or interpretation of the experiment.

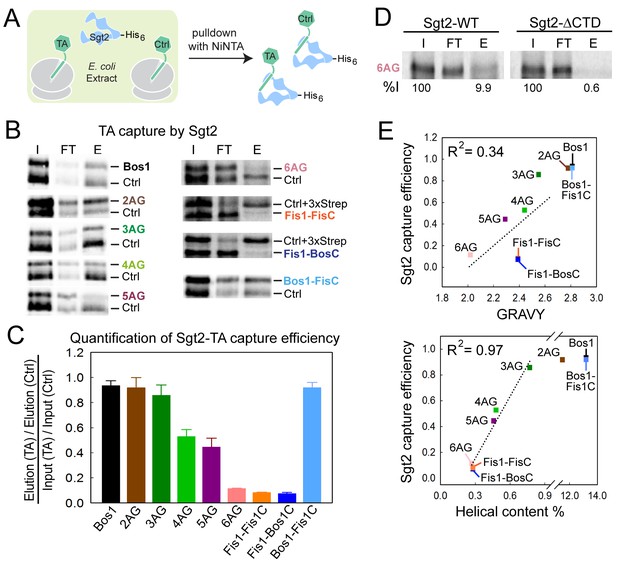

Sgt2 discriminates TAs based on features in the TMD.

(A) Schematic of the assay to measure and compare the efficiency of TA capture by Sgt2. All TAs were translated, captured, and purified in parallel with an internal control, Bos1 (Ctrl + 3xStrep) or Bos1 lacking the N-terminal 3xStrep tag (Ctrl). (B) Representative autoradiograms of 35S-methionine labeled TA substrates during affinity purification of His6-Sgt2•TA complexes. I, FT, and E denote input, flowthrough, and elution, respectively. (C) Quantification of the experiments in (B) and their repetitions. All values for the TA of interest were normalized against Ctrl or Ctrl + 3xStrep. Normalized TA capture efficiencies were reported as mean ± S.E.M, with n = 3–7. (D) Representative autoradiogram of 35S-methionine labeled 6AG during capture and purification by wildtype His6-Sgt2 (left panel) or mutant His6-Sgt2△CTD lacking the TA binding domain (right panel). Quantifications of substrate recovery in the elutions were indicated below the gels. (E) Correlation of the relative Sgt2 capture efficiencies of TA variants with the GRAVY scores (top panel) and helical content (bottom panel) of their TMDs. Substrates included in the correlation analyses are 3AG–6AG, Fis1-FisC and Fis1-BosC. The high capture efficiencies of Bos1, Bos1-FisC and 2AG (>90%) render them outside the dynamic range of this assay and were therefore not included in the correlation analysis. GRAVY scores and % helical content were from Figure 1C.

https://doi.org/10.7554/eLife.21301.006

The results showed that within the TMD variants, Bos1, 2AG, and 3AG were captured efficiently by Sgt2; 4AG and 5AG exhibited statistically significant defects; and 6AG, Fis1-FisC, and Fis1-BosC were poorly captured by Sgt2 (Figure 4B,C). The small amounts of TA capture observed with 6AG, Fis1-FisC, and Fis1-BosC were reproducible. Further, control experiments with a mutant Sgt2 lacking the C-terminal TA binding domain (Sgt2△CTD) showed that the background in these experiments was ~0.6% of input, 15-fold lower than the amount of 6AG captured by wildtype Sgt2 (Figure 4D). In contrast to the TMD variants, Bos1-FisC, which contains a highly charged CTE, was captured with the same efficiency as Bos1 (Figure 4B,C). Thus, the efficiency of TA capture by Sgt2 is sensitive to variations in the TMD, but not to basic residues in the CTE.

Much discussion has focused on the role of hydrophobicity of the TMD in TA targeting to ER (Borgese et al., 2007, 2003, 2001; Kutay et al., 1993; Marty et al., 2014; Pedrazzini, 2009) and recognition by the GET pathway (Mariappan et al., 2010; Stefanovic and Hegde, 2007; Wang et al., 2010). Although hydrophobicity is an important factor, we found that it alone is insufficient to account for the data observed here: the correlation between the GRAVY scores of the TMD variants and their efficiencies of capture by Sgt2 is R2 = 0.34 (Figure 4E, top panel). Instead, a much stronger correlation was found between the TA capture efficiency of Sgt2 and the predicted helical content of the TMD variants (R2 = 0.97; Figure 4E, bottom panel). This suggests that a combination of hydrophobicity and helical propensity in the TMD dictates substrate recognition by Sgt2. On average, the TMDs of most OMM TA proteins are lower in helical content compared to ER-targeted TAs (Figure 1, Agadir Score), providing independent support that helical propensity of the TMD may serve as another distinguishing feature between ER and mitochondrial TAs.

The Fis1 TMD is rejected prior to TA loading onto Get3

In the next step of the pathway, TA substrates are transferred from Sgt2 to Get3 with the help of the Get4/5 complex. To quantitatively understand this substrate handover event, we developed an assay based on Förster Resonance Energy Transfer (FRET). Using an E. coli translation lysate that harbors a pair of engineered amber suppressor tRNA and tRNA synthetase, a fluorescent unnatural amino acid, 7-hydroxycoumaryl ethylglycine (Cm), was efficiently and site-specifically incorporated into the TA substrate during translation (Figure 5A,B) (Saraogi et al., 2011; Wang et al., 2006). Cm was incorporated four residues upstream of the TMD of TA substrates and served as the FRET donor (denoted as TACm). As the FRET acceptor, CoA-BODIPY-FL was enzymatically conjugated to ybbR-tagged Get3 via the Sfp phosphopantetheinyl transferase enzyme (Figure 5E–G; [Yin et al., 2006]). BODIPY-FL-labeled Get3 (denoted as Get3BDP) exhibits translocation and ATPase activities similar to those of wildtype Get3 (Figure 5H,I).

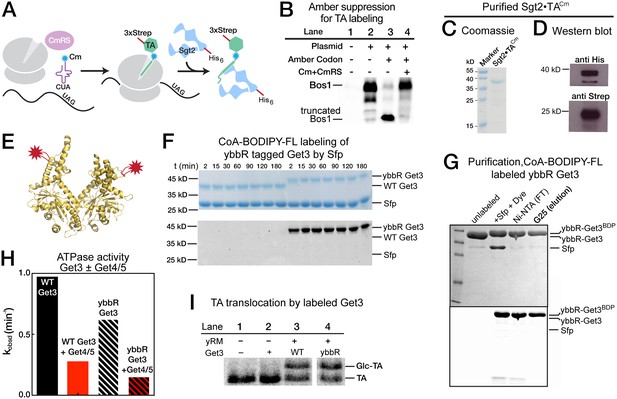

Labeling of TA and Get3.

(A) Scheme of TA labeling with the fluorescent amino acid Cm using amber suppression technology in E. coli lysate. (B) Autoradiogram showing amber suppression efficiency. Bos1 was translated in the presence of 35S-methionine without (lane 2) or with (lanes 3,4) an amber codon four residues N-terminal to the TMD, in the absence (lane 3) and presence (lane 4) of Cm and Cm synthetase. (C, D) Coomassie-stained SDS-PAGE gel (C) and western blot (D) of a purified Sgt2•TACm complex. Sgt2 was His6 tagged and TA was 3xStrep-tagged. (E) Location of the ybbR tag (for labeling) on the structure of Get3 (PDB: 3H84). (F) Coomassie-stained (top) and in-gel fluorescence (bottom) of Sfp-mediated conjugation of CoA-BODIPY-FL to the Get3 ybbR tag. (G) Purification of labeled ybbR-Get3. Top, coomassie-stain; bottom, in-gel fluorescence. (H) ATPase assays of wildtype and labeled ybbR-Get3. (I) Representative autoradiograms for the translocation reactions with wildtype and labeled ybbR-Get3.

https://doi.org/10.7554/eLife.21301.007

To reconstitute TA transfer from Sgt2 to Get3, we generated and affinity purified Sgt2•TACm complexes (Figure 5C,D) and incubated the complex with Get4/5, ATP, and Get3 to allow TA transfer (Figure 6A). We observed a significant reduction in Cm fluorescence when the transfer reaction was carried out with Get3BDP (Figure 6B, purple vs. green). As a control, no change in TACm fluorescence was observed when the transfer reaction was carried out with unlabeled Get3 (Figure 6B, purple vs. blue), indicating the absence of environmental effects on Cm fluorescence upon TA transfer. These results demonstrate a high efficiency of both TA transfer and FRET between TACm and Get3BDP. Consistent with the contribution of Get4/5 to TA transfer observed previously (Mateja et al., 2015; Wang et al., 2010), the presence of Get4/5 accelerated the TA transfer reaction 5–10 fold (Figure 6C, grey vs. black, and Table 2). Comparable fluorescence changes were obtained at the end of TA transfer reactions with and without Get4/5 present (Figure 6C); this corroborates that the observed FRET arose from loading of TACm onto Get3BDP, rather than their being adjacent to one another in a TA•Sgt2•Get4/5•Get3 complex. Finally, rapid TA transfer was observed even when the reaction was carried out in the presence of ribosome-depleted △get3 lysate (Figure 6D), suggesting that Get4/5-dependent TA transfer is robust and can withstand competition from cellular factors.

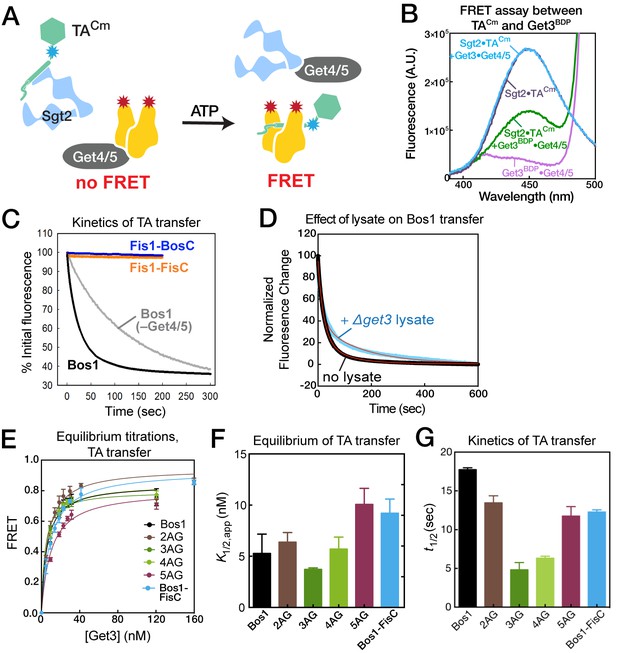

Equilibrium and kinetics of TA transfer from Sgt2 to Get3.

(A) Scheme of the TA transfer reaction and the FRET assay to monitor this transfer. Purified Sgt2•TACm complexes were presented to the Get3BDP•Get4/5 complex in the presence of ATP. Loading of TACm onto Get3BDP results in FRET between the dye pair. (B) Fluorescence emission spectra for purified Sgt2•TACm complex (purple; donor fluorescence), Sgt2•TACm incubated with unlabeled Get3, Get4/5 and ATP (blue; donor fluorescence corrected for environmental sensitivity), Get3BDP and Get4/5 (magenta; acceptor fluorescence), and Sgt2•TACm complex incubated with Get3BDP, Get4/5 and ATP (green; donor fluorescence in the presence of acceptor). (C) Representative time courses of the transfer of Bos1 with (black) and without Get4/5 (gray) present, and transfer of Fis1-FisC (orange) and Fis1-BosC (navy) with Get4/5 present. The data were fit to Equation 4, and the derived kinetic parameters are summarized in panel G and in Table 2. (D) Transfer of Bos1 from Sgt2 to Get3 in the presence (blue) and absence (black) of a ribosome depleted △get3 lysate. Red lines are fits of the data to Equation 4, and the derived values are summarized in Table 2. (E, F) Equilibrium measurements of TA transfer reactions as a function of Get3 concentration. All reactions used 50 nM Sgt2•TACm complexes supplemented to a final concentration of 150 nM Sgt2, 150 nM Get4/5, 2 mM ATP, and indicated concentrations of Get3BDP. The data in panel E were fit to Equation 3, and the values are reported in panel F and Table 2. (G) Summary of the half-times of TA transfer reactions for various TA proteins.

https://doi.org/10.7554/eLife.21301.008

Using this FRET assay, we asked whether TA transfer from Sgt2 to Get3 is sensitive to variations in the TA substrate. We first measured FRET when the transfer reaction was allowed to reach equilibrium at varying concentrations of Get3BDP (Figure 6E). These titrations showed that the apparent equilibrium of TA transfer between Sgt2 and Get3, quantified empirically by the concentration of Get3 required for 50% transfer (K1/2), ranged from 3.7–10 nM for various substrates in the presence of 150 nM Sgt2 (Figure 6E,F and Table 2). This indicates that, although both Sgt2 and Get3 bind TA substrates, the equilibrium for interaction with TA is 15–40 fold in favor of Get3. The modest variation of this transfer equilibrium (<3 fold) among Bos1 and 2AG–5AG indicates that the relative preference of Get3 for this set of TA variants closely parallels those of Sgt2, such that TA transfer from Sgt2 to Get3 is largely isoenergetic among these substrates. Real-time measurements of the TA transfer reaction showed that, although the transfer kinetics is complex and exhibited bi-phasic behavior (Figure 6C,D and Table 2), Bos1 and 2AG–5AG were all rapidly transferred from Sgt2 to Get3, with reaction halftimes (t1/2) of 5–17 s (Figure 6G). Analogously, Bos1-FisC, which contains a charged CTE, exhibited similar transfer equilibrium and kinetics compared to those of Bos1 (Figure 6E–G, blue). Thus, substrate handover from Sgt2 to Get3 is only modestly sensitive to changes in this set of TMD variants and insensitive to the positive charges in the CTE of TA substrates.

Table 2

Summary of the equilibrium and kinetic parameters for TA transfer from Sgt2 to Get3, derived from the data in Figure 6. Refer to Equations 3 and 4 for definitions of the parameters. Values are reported as mean ± S.E.M., with n ≥ 2. N.D., not determined.

https://doi.org/10.7554/eLife.21301.009

Substrate

K1/2 (nM)

FRET endpoint

kfast (10−3 s−1)

△Ffast

kslow (10−3 s−1)

△Fslow

t1/2 (s)

Bos1

(–Get4/5)

N.D.

N.D.

9.4 ± 0.07

0.76

±0.03

3.0 ± 0.1

0.24

±0.03

98 ± 8.7

Bos1

5.2 ± 1.0

0.84 ± 0.03

47 ± 0.4

0.75

±0.01

11 ± 0.4

0.25

±0.01

17.7 ± 0.2

2AG

6.4 ± 0.5

0.94 ± 0.02

77 ± 1

0.62

±0.01

7.0 ± 0.1

0.38

±0.01

13.5 ± 0.5

3AG

3.7 ± 0.1

0.80 ± 0.01

164 ± 2

0.77

±0.01

17 ± 0.8

0.23

±0.01

4.8 ± 0.5

4AG

5.7 ± 0.6

0.84 ± 0.02

183 ± 9

0.54

±0.01

33 ± 0.2

0.46

±0.01

6.3 ± 0.1

5AG

10 ± 1

0.80 ± 0.02

151 ± 9

0.43

±0.01

23 ± 0.8

0.57

±0.01

11.8 ± 0.7

Bos1FisC

9.2 ± 0.8

0.93 ± 0.02

63 ± 0.3

0.83

±0.01

9.0 ± 0.1

0.17

±0.01

12.3 ± 0.2

Notably, TA transfer to Get3 was not observed for Fis1-FisC (Figure 6C, orange). The Fis1-TMD is responsible for the absence of observed transfer, as Fis1-BosC was also strongly discriminated during this reaction (Figure 6C, navy), whereas Bos1-FisC was not (Figure 6E–G, blue). During the transfer experiment, the TA proteins could partition between multiple routes including transfer onto Get3 (observed by the FRET assay), dissociation from Sgt2, and potentially other off-pathway processes not observed in the FRET assay. The absence of any observed FRET in these measurements indicates highly unfavorable partitioning of Fis1-BosC and Fis1-FisC into the transfer reaction compared to the alternative routes. It is unclear whether the absence of observed transfer arises exclusively from the rapid dissociation of these substrates from Sgt2, or whether substrate transfer to Get3 imposes a higher barrier for TA proteins containing suboptimal TMDs. Nevertheless, these observations are consistent with the Get3-independent targeting of substrates containing the Fis1-TMD in complete targeting and translocation assays (Figure 2E) and indicates that these substrates are completely rejected at steps upstream of TA loading onto Get3.

C-terminal basic residues slow TA insertion into ER

In the last stage of the GET pathway, the Get3•TA complex is targeted to the Get1/2 receptor complex, and the TA substrate is inserted into the ER membrane. To reconstitute this step, we generated 35S-methionine labeled TAs during in vitro translation in the presence of Sgt2, Get4/5, and His6-tagged Get3, and affinity purified Get3•TA complexes using Ni-NTA. Purified complexes were presented to ER microsomes derived from ∆get3 yeast, and the efficiency of targeting and insertion was assessed by glycosylation (Figure 7A). Measurement of the reaction time courses showed that 2AG was targeted and inserted with similar kinetics and efficiency as Bos1 (Figure 7B,C). Compared to Bos1, the insertion of 3AG–6AG were also rapid, but 5AG showed a small reduction in insertion efficiency at steady state, and 6AG showed a marked reduction in the level of insertion at steady state (Figure 7C,E). On the other hand, Bos1-FisC, Bos1-RR, and Bos1-RRRR exhibited significantly slower rates to reach steady state compared to Bos1 (Figure 7C,E), mirroring their translocation defects observed in the complete yeast lysate. We note that although the absolute insertion efficiency of each substrate could vary with different yRM preparations, the change in TA insertion kinetics and steady-state level caused by the TMD and CTE variants are consistent across different yRM preps (Figure 7C,E and Table 3).

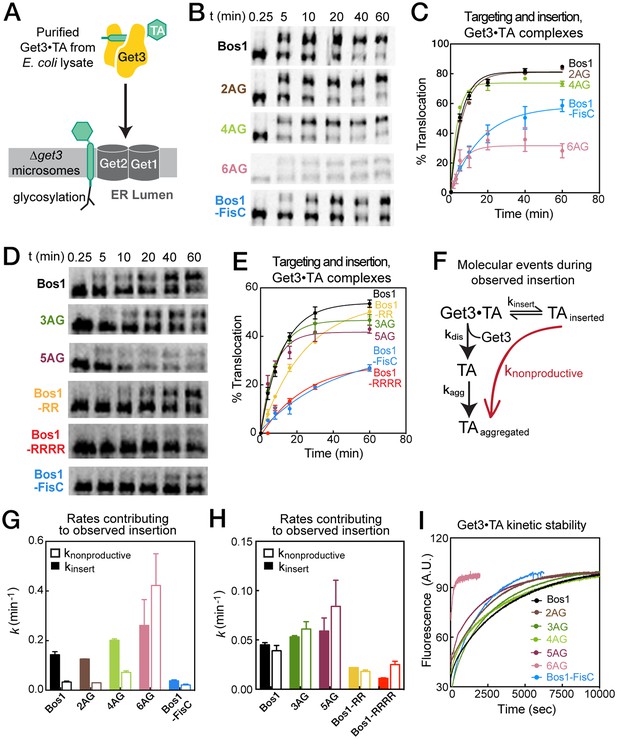

Basic residues in the CTE slow targeting and insertion of the Get3•TA complex into the ER membrane.

(A) Schematic of the reaction assayed in Figure 7. Get3•TA complexes generated and purified from E. coli lysate were presented to △get3 microsomes. Insertion was monitored by glycosylation of the opsin tag on TA substrates. (B, D) Representative autoradiograms of insertion reactions. The reactions in panels B and D used two different yRM preps. (C, E) Quantification of the insertion reactions shown in panels B and D, respectively. The data were fit to Equation 5, and the values obtained are summarized in Table 3. (F) Schematic of the molecular events during the insertion reaction. Productive TA insertion (kinsert) competes with nonproductive processes (collectively termed knonproductive), including reversal of the targeting reaction, disassembly of the Get3•TA complex (kdis) and aggregation of TA substrates (kagg). (G–H) Summary of the rate constants of competing events, defined in panel F and Equations 6–7, that contribute to the observed rate constants and efficiencies of the targeting/insertion reactions in panels C and E, respectively. See also Table 3 for a summary of the values of knonproductive and kinsert. (I) The kinetic stability of Get3•TA complexes (kdis defined in panel F) measured by pulse-chase experiments as described in the Materials and methods. The data were fit to Equation 8 and the obtained kdis values are summarized in Table 3.

https://doi.org/10.7554/eLife.21301.010
Table 3

Summary of rate constants for TA targeting and insertion from the Get3•TA complex, derived from the data in Figure 7. Refer to Equations 5-8 for definitions of the parameters. The thick line separates the quantifications derived from the data in Figure 7B and D, which used two different yRM preps. Values are reported as mean ± S.E.M., with n ≥ 2. N.D., not determined.

https://doi.org/10.7554/eLife.21301.011

Substrate

kobsd (min−1)

Translocation end point (%)

kinsert (min−1)

knonproductive (min−1)

kdis (min−1)

Bos1

0.18 ± 0.02

81.2 ± 0.5

0.14

±0.01

0.033 ± 0.004

0.018 ± 0.001

2AG

0.16 ± 0.01

80.8 ± 0.2

0.13

±0.01

0.030 ± 0.001

0.023 ± 0.001

4AG

0.27 ± 0.01

74 ± 2

0.20

±0.01

0.072 ± 0.006

0.017 ± 0.001

6AG

0.70 ± 0.20

36 ± 4

0.30

±0.10

0.40 ± 0.10

0.20 ± 0.0025

Bos1-FisC

0.059 ± 0.01

58.4 ± 4.6

0.038

±0.010

0.020 ± 0.003

0.029 ± 0.001

Bos1

0.085 ± 0.008

53.8 ± 2.1

0.045

±0.002

0.039 ± 0.005

0.018 ± 0.001

3AG

0.11 ± 0.01

46.7 ± 2.4

0.053

±0.001

0.060 ± 0.008

0.026 ± 0.001

5AG

0.14 ± 0.02

41.9 ± 2.3

0.060

±0.010

0.080 ± 0.030

0.034 ± 0.001

Bos1-RR

0.040 ± 0.002

54.8 ± 2.1

0.022

±0.001

0.018 ± 0.002

N.D.

Bos1-RRRR

0.036 ± 0.004

30.1 ± 1.7

0.011

±0.001

0.025 ± 0.003

N.D.

Bos1-FisC

0.023 ± 0.006

34.9 ± 1.9

0.009

±0.001

0.020 ± 0.005

0.029 ± 0.001

Further analysis of the kinetics of TA insertion strongly suggests that the observed translocation defects of the TMD and CTE variants arise from different mechanisms. During an observed insertion reaction, the productive targeting and insertion processes (Figure 7F, kinsert) must compete with nonproductive events (knonproductive) including the reversal of this reaction and more likely, disassembly of the Get3•TA complex (kdis) that could lead to aggregation of the TA substrate (kagg). The observed rate constant of the insertion reaction (kobsd) is the sum of the rate constants for insertion from the Get3/TA complex and competing nonproductive reactions, and the level of insertion at steady state is determined by the relative rates of the insertion reaction compared to the nonproductive processes (Equations 6–7 in Materials and methods). Dissection of the observed reaction kinetics into these components showed that the observed translocation defects of 5AG and 6AG arise primarily from a faster rate of nonproductive reactions (Figure 7G–H, open bars and Table 3, knonproductive). In contrast, the observed defects of Bos1-FisC, Bos1-RR, and Bos1-RRRR arise primarily from a slower rate of productive insertion into the ER (Figure 7G–H, solid bars and Table 3, kinsert).

We considered two alternative possibilities that could contribute to the slower observed insertion of the CTE variants. First, the Get3•TA complexes were purified via the affinity tag on Get3 for the experiments above; the presence of excess free Get3 could trap the Get4/5 complex during purification. The Get3•TA complex must dissociate from Get4/5 to interact with the Get1/2 receptors at the ER during the observed insertion reaction (Gristick et al., 2014; Rome et al., 2014), and this dissociation could be slower with the charged CTE variants compared to Bos1. To address this possibility, we re-purified Get3•TA complexes for Bos1, Bos1-FisC and Bos1-RRRR via the 3xStrep tag on the TA substrate. The Get3•TA complexes purified through this procedure were free of Get4/5 (Figure 8A). Targeting and insertion reactions with these complexes showed that the observed insertion reactions with Bos1-FisC and Bos1-RRRR remained significantly slower than those of Bos1 (Figure 8B–D) even without Get4/5 present. Second, ATP hydrolysis by Get3 precedes the disassembly of Get3•TA complex and insertion of TA by Get1/2 (Rome et al., 2014, 2013; Wang et al., 2011); as the TA substrate stimulates the ATPase activity of Get3 (Rome et al., 2013), the CTE variants could be defective in this ATPase stimulation. To rule out this possibility, we tested the targeting and insertion of Get3•TA complexes without ATP present. Although the absence of ATP reduced the overall amount of insertion, as anticipated from the role of ATP in enabling efficient Get3 turnover for multiple rounds of targeting (Mariappan et al., 2011; Rome et al., 2014; Stefer et al., 2011; Wang et al., 2011), the targeting and insertion of Bos1-FisC remained significantly slower than those of Bos1 (Figure 8C versus E). Together, these results show that the targeting and insertion of TA at the ER membrane provides the main selection mechanism by which substrates with charged CTE are rejected.

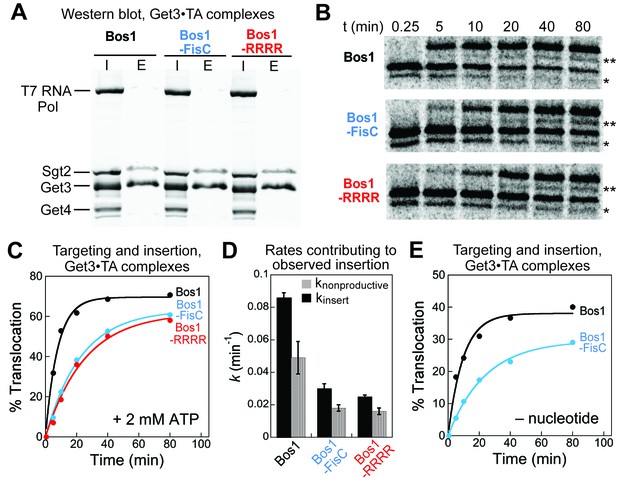

Defects of CTE variants in targeting and insertion cannot be attributed to Get4/5 or ATP hydrolysis.

(A) SDS-PAGE and western blot (against His6) analysis of purified Get3•TA complexes. Get3•TA complexes were assembled during in vitro translation in S30 extract in the presence of Sgt2, Get4/5 and Get3, and purified via the 3xStrep-tag on the TA protein as described in the Materials and methods. T7 RNA polymerase, Sgt2, Get3, and Get4 were His6-tagged. I denotes input onto the Strep-Tactin resin, E denotes elution. (B) Representative autoradiograms of insertion reactions. The asterisk (*) denotes a truncated translation product of the TA, which was inserted and glycosylated (**) with similar efficiencies as the full-length translation product. (C) Quantification of the insertion reactions in panel B. The data were fit to Equation 5, which (together with replicates) gave observed insertion rate constants (kobsd) of 0.14 ± 0.01, 0.048 ± 0.006, and 0.041 ± 0.003 min−1, and translocation end points (T) of 64 ± 8, 63 ± 1, and 61 ± 2% for Bos1, Bos1-FisC, and Bos1-RRRR, respectively. (D) Summary of the rate constants of competing molecular events, defined in Figure 7F and Equations 6–7, that contribute to the observed targeting/insertion reactions in panel C. Values represent mean ± S.E.M., with n = 2. (E) Targeting and insertion of Get3•Bos1 and Get3•Bos1-FisC complexes in the absence of nucleotides.

https://doi.org/10.7554/eLife.21301.012

A likely source of the nonproductive reactions is the disassembly of the Get3•TA complex, which can lead to TA aggregation and/or misfolding. To test whether this was the case, we measured the kinetic stabilities of different Get3•TA complexes. We generated and purified Get3•TA complexes as for the insertion reactions, except that TA and Get3 were labeled with Cm and BODIPY-FL, respectively. The disassembly rates for the Get3•TA complexes were measured using pulse-chase experiments and monitored by loss of FRET between TACm and Get3BDP. The results showed that, with the exception of 6AG, dissociation of the Get3•TA complexes is slow, with rate constants of ~0.018–0.034 min−1 (or life time of 30–60 min) for most of the substrates tested (Figure 7I and Table 3, kdis). Bos1-FisC, which contains the basic CTE, dissociated from Get3 with a rate constant similar to those of Bos1 and 2AG. In contrast, 6AG dissociated from Get3 more quickly, with a rate constant of 0.20 min−1. The measured rate constants of Get3•TA complex disassembly were consistent with those of nonproductive reactions calculated from the translocation data (Table 3). This provides independent evidence that, once TA proteins are loaded onto Get3, substrates with suboptimal TMDs and CTEs are rejected during the subsequent targeting and translocation via different mechanisms.

Discussion

Accurate protein localization is essential for cells to establish and maintain compartmentalization. TA proteins, with a TMD near the C-terminus as their only defining feature, pose special challenges for protein targeting pathways that need to sort these proteins to the correct cellular membranes. In this work, systematic analyses show that the GET pathway uses multiple mechanisms to recognize distinct physicochemical features on the TA protein and select for the correct substrates. These results also suggest new roles of the co-chaperone Sgt2 and rationalize, in part, the chemical logic for the series of substrate handover events in this targeting pathway.

During initial entry into the GET pathway, capture of TA proteins by Sgt2 provides the first selection filter to discriminate substrates with suboptimal TMDs (Figure 9A, Step 1). We found here that TA substrates with increasing number of Ala/Gly replacements in the TMDs form less stable complexes with Sgt2, consistent with previous work showing that addition of four leucines to the Fis1-TMD confers strong interaction with Sgt2 (Wang et al., 2010). The strong correlation between the TA capture efficiency of Sgt2 and the helical content of the TMD variants tested here was unexpected and suggests that overall hydrophobicity is not the sole determinant for recognition by Sgt2. Although a structure of the TA binding domain of Sgt2 is not available, these data suggest that this domain might be able to recognize secondary structure features such as a TMD helix. The overall lower helical content of the TMDs of OMM TAs compared to ER-targeted TAs (Figure 1) provides further support that recognition based on helical propensity could provide an effective mechanism to distinguish between ER and mitochondrial TAs. On the other hand, Sgt2 is insensitive to enrichment of basic residues at the extreme C-terminus that characterizes some mitochondrial TAs, suggesting that this property must be detected by other mechanisms.

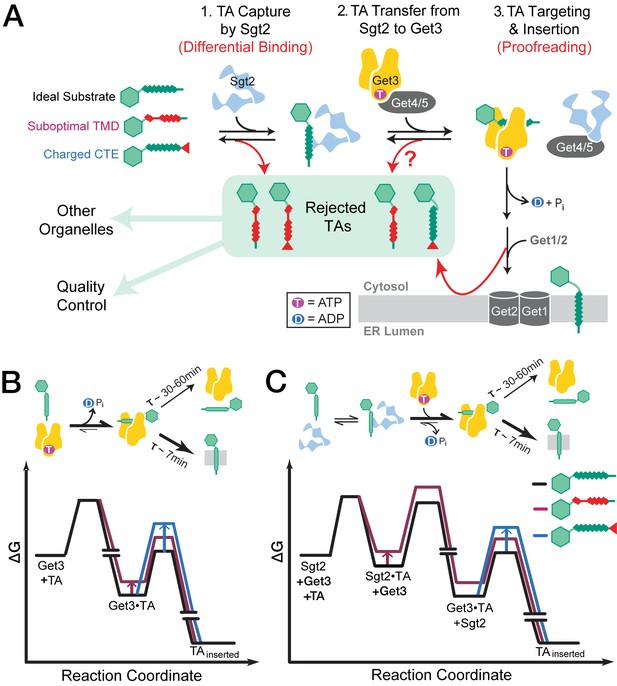

The GET pathway selects TA substrates using multiple mechanisms.

(A) Model of sequential TA selection by the GET pathway. Step 1: TAs are captured by Sgt2. TA substrates with less suboptimal TMDs (red coil) are less favorably captured. Step 2: Get4/5 mediates TA transfer from Sgt2 to ATP-bound Get3. The question mark indicates that it is unclear whether the TA transfer step selectively poses a higher barrier for substrates containing suboptimal TMDs. Step 3: after hydrolyzing ATP, the Get3•TA complex associates with the Get1/2 membrane receptors, and the latter facilitates TA insertion. TAs enriched in basic residues at the extreme C-termini (red tail) are discriminated at this step. (B–C) Free energy profiles for TA capture and insertion without (B) and with (C) Sgt2 in the GET pathway. The free energy profiles for a good substrate (Bos1) are indicated in black, for a substrate with a suboptimal TMD (5AG) are in maroon, and those for a substrate with a charged CTE (Bos1-FisC and Bos1-RRRR) are in blue. The off-pathway branch in which a TA dissociates from Get3 and aggregates is not shown for simplicity.

https://doi.org/10.7554/eLife.21301.013

The handover of TA proteins from Sgt2 to the targeting factor Get3 (Figure 9A, Step 2) appears to be isoenergetic amongst the TA variants examined here. The modest difference observed for most of the TMD variants during this transfer reaction indicates that the relative preference of Get3 for these variants closely parallels those of Sgt2. The basic CTE from Fis1p was also well tolerated during this handover, suggesting that analogous to Sgt2, Get3 does not recognize the positive charges in the CTE. It is unclear whether the lack of observed transfer for substrates containing the Fis1 TMD could be attributed solely to the lower kinetic stability of the Sgt2•TA complex with these substrates, or whether the TA handover event poses an additional selection filter for substrates with the Fis1-TMD. Nevertheless, the combination of the results from the Sgt2-TA capture and TA transfer experiments shows that substrates containing the Fis1-TMD are rejected before loading onto Get3; this explains the lack of Get3-dependence observed for these substrates in the overall targeting and insertion reactions in cell lysates.

Targeting of the Get3•TA complex to the ER and TA insertion into the membrane provides an additional selection filter (Figure 9A, Step 3). Our results show that two mechanisms can lead to further rejection of suboptimal substrates at this stage. TA proteins with suboptimal TMDs, such as 6AG, dissociate from Get3 more quickly than those with more hydrophobic TMDs; the rapid disassembly of the targeting complex could outcompete productive targeting and insertion processes. Importantly, this step provides the major mechanism to reject TA proteins with highly basic CTE, which are inserted into ER more slowly than those without (Figure 9A, step 3; and Figure 9B–C, blue). As the charged CTE compromised both Get3-dependent and Get3-independent TA insertions into ER, enrichment of basic residues in the CTE provides a general feature that enables TA proteins to escape insertion into the ER. In principle, transporting charges across a hydrophobic environment poses a high energetic barrier (Engelman and Steitz, 1981); this barrier could be imposed using either the phospholipid environment at the ER and/or translocases whose interior provide no compensation for these charges. In contrast to the ER, the mitochondrial membrane is enriched in anionic phospholipids such as cardiolipin (Gebert et al., 2009; van Meer et al., 2008) and might better tolerate a basic CTE on the TA protein. Finally, a four leucine substitution in the Fis1 TMD could compensate for its charged CTE and re-direct Fis1 to the GET pathway (Wang et al., 2010), suggesting that TA localization is specified by a combination of multiple physicochemical properties.

The GET pathway uses a variety of molecular strategies to select for correct substrates and reject suboptimal TAs. Selection during the initial substrate loading steps utilizes the difference in binding energy of various TAs for Sgt2 and for Get3. After TA proteins are loaded onto Get3, substrates can further partition between disassembly from Get3 and productive insertion into ER, during which authentic substrates partition more favorably into the productive insertion reaction compared to suboptimal substrates. As this partitioning occurs after irreversible ATP hydrolysis on Get3, it is analogous to proofreading mechanisms observed during rejection of near cognate tRNAs by the ribosome (Rodnina and Wintermeyer, 2001a, 2001b). Although each mechanism provides a modest discrimination, the use of multiple, sequential selection steps allows the GET pathway to distinguish TA proteins destined to different organelles while accommodating a variety of amino acid sequences in the substrate protein. This principle has been observed with DNA and RNA polymerases (Sydow and Cramer, 2009), in translation elongation by the ribosome (Ogle and Ramakrishnan, 2005; Rodnina and Wintermeyer, 2001b), and in co-translational protein targeting mediated by the signal recognition particle (Zhang et al., 2010), and may represent a general principle by which key biological processes attain a high degree of fidelity.

Our results also suggest a role of Sgt2 in the selection of TA substrates into the GET pathway. Although the substrate preferences of Get3 parallels those of Sgt2, the differences in substrate binding affinity of Get3 may not be fully realized in the GET pathway to generate effective selection. This is due to the high kinetic stability of the Get3•TA interaction, which dissociates more slowly (τ ~ 30–60 min) than its subsequent targeting and insertion (τ ~ 5–7 min). As a result, TA proteins that modestly destabilize the Get3•TA complex may not be effectively rejected based on differential binding (Figure 9B). Sgt2 could help overcome this problem by rejecting a fraction of GET-independent substrates prior to loading onto Get3. As Sgt2 forms less stable complexes with TA proteins than Get3, a borderline substrate bound to Sgt2 could more readily equilibrate with alternative machineries in the cytosol than if the same substrate were bound to Get3 (Figure 9C). This hypothesis, derived largely from energetic considerations, awaits to be tested rigorously in vivo.

Additional mechanisms could further enhance selection accuracy by the GET pathway. A simple extension of our model could include factors that compete with Get3 for receiving substrates from Sgt2, thus introducing a branch point upstream of Get3 that irreversibly directs suboptimal substrates from the GET pathway. The mammalian Sgt2 homolog, SGTA, associates with the Bag6 complex. Although the C-terminal domain of Bag6, together with TRC35 and Ubl4A, provides a structural analogue of the Get4/5 complex to mediate TA substrate transfer to TRC40 (the mammalian Get3 homologue) (Mock et al., 2015), Bag6 also contains additional domains that mediate membrane protein quality control (Hessa et al., 2011). Whether the Bag6 complex directs suboptimal TA substrates loaded on SGTA to quality control machineries and thus provides such a branch point is an attractive hypothesis that remains to be tested (Lee and Ye, 2013; Leznicki and High, 2012). Analogous branches have been suggested by physical interactions between Sgt2 and heatshock proteins in yeast (Kohl et al., 2011; Wang et al., 2010), but the mechanistic details of these and other machineries await discovery.

Materials and methods

Strains, plasmids, and transcripts

Request a detailed protocol

Yeast strains used for live-cell imaging are derivatives of W303 (ATCC201238) but were made TRP1 and ADE2 by repairing the endogenous auxotrophies. GFP-Fis1-tail constructs were made by PCR amplifying GFP(S65T) lacking a stop codon, with flanking SpeI and HindIII sites, the C-terminal 102 nt of Fis1 (plus additions for arginine codons and a stop codon included in the 3’ oligo) with flanking HindIII and XhoI sites and cloning both fragments into p416ADH. mt-TagBFP is described in (Okreglak and Walter, 2014) and Sec63-tdTomato was a kind gift of Sebastian Schuck, ZMBH, Universität Heidelberg.

A model substrate is comprised of three tandem Strep tags at the N-terminus, a mutant yeast Smt3 in which the Ulp1 cleavage site was removed (a Pro insertion at residue 98 of Smt3), residues 207–222 of Bos1p (SEQTITSINKRVFKDK), various TMDs and CTEs defined in Figure 2A, and an opsin tag at the extreme C-terminus (GSMRMNGTEGPNMYMPMSNKTVD). TMD and CTE variants were constructed using QuikChange mutagenesis (Stratagene) or FastCloning (Li et al., 2011). For translation in yeast lysate, the coding sequences for model TA substrates were cloned into pSPBP6 (Siegel and Walter, 1988) under control of the SP6 promoter, and transcribed using a SP6 Megascript kit (Ambion). For coupled transcription-translation in E. coli lysate, the substrate coding sequences were cloned into the pCAT vector (Kim and Swartz, 2001) to replace that of chloramphenicol acetyl transferase.

Sfp-His6 in a pET-29 vector was a gift from Jun Yin. For His6-Sgt2, a His6 tag and TEV protease cut site were fused to the N-terminus of full length Sgt2 and cloned into pET-33b. For untagged Sgt2, full length Sgt2 flanked by N-terminal and C-terminal TEV sites with a His6-tag inserted downstream of the C-terminal TEV site was cloned into the pMAL-c2 vector as a C-terminal fusion to the malE gene. For ybbR-Get3, amplified DNA encoding wild-type S. cerevisiae Get3 was first cloned into a pET-28 vector as a C-terminal fusion to His6-SUMO (a gift from André Hoelz) using SalI and NotI restriction sites. A ybbR tag (DSLEFIASKLA) was then inserted between residues S110 and D111 in Get3 through FastCloning (Li et al., 2011).

Translation extracts

Request a detailed protocol

Yeast translation extracts and microsomes were prepared from △get3 or SGT2FLAG/∆get3 (VDY 57; (Wang et al., 2010) strains as described in Rome et al. (2013). E. coli S30 lysate was prepared and coupled transcription-translation in the S30 extract was carried out as described (Saraogi et al., 2011), except that untagged T7 polymerase and untagged CmRS were used and anti-ssrA oligo was omitted. His6-tagged T7 polymerase was used for the experiments in Figure 8.

Fluorescence labeling

Request a detailed protocol

BODIPY-FL-CoA was synthesized and purified as described (Yin et al., 2006) with the exception that BODIPY-FL maleimide (Life Technologies) was used instead of Alexa Fluor 488 C5 maleimide. The lyophilized compound was dissolved in DMSO, and dye concentration was quantified after dilution in methanol using ε504 = 79,000 M−1cm−1.

30 µM ybbR-Get3 was mixed with 60 µM BODIPY-FL-CoA and 12 µM Sfp-His6 in Sfp labeling buffer (50 mM KHEPES, pH 7.4, 10 mM MgCl2) in a total volume of 800 µL. The reaction mixture was rotated at room temperature for 1 hr. 10 µL 2 M imidazole (pH 7.0) was added before passing the reaction through Ni-NTA to remove Sfp-His6. Gel filtration through a Sephadex G-25 (Sigma-Aldrich) column was used to remove excess BODIPY-FL-CoA and exchange ybbR-Get3BDP into GET buffer (50 mM KHEPES (pH 7.5), 150 mM KOAc, 5mM Mg(OAc)2, and 1 mM DTT). Translocation and ATPase reactions mediated by ybbR-Get3BDP were performed as described in Rome et al. (2013).

Protein expression and purification

Expression and purification of full length Get4/5 and His6-tagged Get3 were performed as described (Rome et al., 2013). His6-tagged Sfp was expressed and purified as described (Yin et al., 2006).

Purification of His6-Sgt2

Request a detailed protocol

Protein was expressed in BL21 Star (DE3) at 37°C for 4 hr after induction with 0.4 mM IPTG. Cell pellets were resuspended in lysis buffer (50 mM Tris-HCl (pH 7.5), 500 mM NaCl, 30 mM imidazole, and 5 mM β-mercaptoethanol (β-ME)) supplemented with 1X cOmplete Tablets EDTA free Protease Inhibitor Cocktail (Roche), Benzonase (Novagen), and lysed in 1X BugBuster (Novagen). Clarified lysates were loaded onto Ni Sepharose resin (GE Healthcare) and washed with 30 column volumes of lysis buffer. The protein was eluted using 50 mM Tris-HCl (pH 7.5), 500 mM NaCl, 300 mM imidazole, and then dialyzed against 50 mM KHEPES (pH 7.5), 150 mM NaCl, 20% glycerol for storage.

Purification of untagged Sgt2

Request a detailed protocol

Protein was expressed and purified as with His6-tagged Sgt2 with the following modifications: after affinity purification by Ni-NTA (Qiagen), protein was dialyzed against 20 mM Tris-HCl (pH 7.5), 20 mM NaCl, and 5 mM β-ME. TEV protease was included with partially purified Sgt2 to remove the MBP and His6 tags. Samples were then incubated with amylose resin to remove MBP and uncut MBP-fusion proteins. The flowthrough was further purified by anion exchange MonoQ 10/100 GL (GE Healthcare) using a gradient of 20–550 mM NaCl, followed by gel filtration chromatography on a Superdex 200 16/60 (GE Healthcare) in GET Buffer.

Purification of ybbR-Get3

Request a detailed protocol

Protein was expressed in E. coli BL21 Star (DE3) cells grown in LB media for 6–8 hr at 25°C after induction with 1 mM IPTG when cultures reached an A600 ~ 0.3–0.6. The fusion protein was purified first using Ni-NTA affinity chromatography (Qiagen), and then His6-tagged SUMO protease (gift from André Hoelz) was used to remove His6-SUMO. The digestion mixture was passed through Ni-NTA to remove His6-SUMO and SUMO protease. Dimeric Get3 was further isolated by gel filtration using a Superdex 200 16/60 (GE Healthcare). For ATPase assays, Get3 was further purified by anion exchange MonoQ 10/100 GL (GE Healthcare) before gel filtration chromatography.

Purification of untagged T7 RNA polymerase

Request a detailed protocol

A PreScission protease cut site was introduced between the N-terminal His6-tag and T7 polymerase. After purification of His6-tagged T7 polymerase via Ni-NTA, the elution was dialyzed overnight against 50 mM Tris-HCl (pH 8.0), 200 mM NaCl, 5% Glycerol, and 10 mM imidazole at 4°C in the presence of His6-tagged PreScission protease (a gift of André Hoelz). The mixture was passed through Ni-NTA to remove the PreScission protease and then further purified using a Superdex 200 16/60 (GE Healthcare). Purified T7 polymerase was stored in 50% glycerol at –30°C.

Purification of untagged coumarin-tRNA synthetase (CmRS)

Request a detailed protocol

A PreScission protease cut site was introduced between the N-terminal His6-tag and CmRS (Charbon et al., 2011; Li et al., 2011). After purification of His6-tagged CmRS via Ni Sepharose (GE Healthcare), the elution was dialyzed overnight against 25 mM KHEPES (pH 7.5), 300 mM NaCl, 10% Glycerol, 10 mM β-ME, and 50 mM imidazole at 4°C in the presence of His6-tagged PreScission protease (a gift of André Hoelz). The mixture was passed through Ni Sepharose to remove the PreScission protease and undigested CmRS. Purified CmRS was stored in 50% glycerol at –30°C.

Purification of Sgt2•TACm

Request a detailed protocol

7-hydroxycoumarin was incorporated into TA substrates using the amber suppression system described in Charbon et al. (2011), Saraogi et al. (2011). A TAG codon was introduced four residues upstream of the TMD. Coupled in vitro transcription-translation was carried out as described (Saraogi et al., 2011; Jewett and Swartz, 2004; Georke and Swartz, 2009) in the absence of anti-ssrA oligonucleotide and in the presence of 2 µM recombinantly purified Sgt2, untagged T7, and untagged CmRS. A 5 mL translation reaction was supplemented with 20 mM imidazole (pH 7.5), bound to 0.8 mL NiNTA agarose (Qiagen), and washed with 20 column volumes of GET Buffer containing 300 mM KOAc and 5 mM β-ME. Sgt2•TA complexes were eluted using GET buffer supplemented with 300 mM imidazole (pH 7.5) and 5 mM β-ME, concentrated (Amicon, 10K), and stored at –80 °C. For complexes containing Fis1-FisC and Fis1-BosC, excess Sgt2 was supplemented to a final concentration of 2 µM immediately after elution to maintain the TAs in a soluble complex with Sgt2. The presence of His6-Sgt2 and 3xStrep-TA was verified by western blotting. The amount of Sgt2 in the purified complex was quantified by western blotting and standardizing against known amounts of purified His6-Sgt2.

Purification of Get3•TA complexes

Request a detailed protocol

For targeting and insertion reactions, 100 µL S30 translations were carried out at 30°C for TA substrates of interest in the presence of 35S-methionine and 2 µM untagged Sgt2. After translation, the reactions were supplemented with 2 mM ATP, 2 µM Get4/5, and 2 µM His6-tagged Get3 to allow TA transfer to Get3 for 1 hr. Sample was diluted 1:1 with 2x capture buffer (1x capture buffer: 50 mM KHEPES, pH 7.5, 150 mM KOAc, 5 mM Mg(OAc)2, 10% Glycerol, 5 mM β-ME, 20 mM Imidazole) and purified as for the Sgt2•TA complex. Elutions were concentrated to ~50 µL and TA concentrations were measured by scintillation counting. Samples were normalized to the same number of counts using GET buffer supplemented with 20 mg/mL BSA and 5 mM ATP.

Get3BDP•TACm complexes were generated as above except that 5–10 mL translation-amber suppression reactions were carried out for TAG-containing TA constructs, and 500 nM Get3BDP was used. The mixture were loaded onto a 1 mL Strep-Tactin Sepharose (IBA Life Sciences) column and washed with 20 column volumes of GET buffer. Get3BDP•TA complex was eluted using GET buffer supplemented with 2 mg/mL desthiobiotin. Elutions (10 mL) were concentrated through 10K concentrators (Amicon) and stored at –80°C. For 6AG, 500 nM Get3BDP was supplemented during washing and elution.

For the experiments in Figure 8, 100 µL S30 translations were carried out for TA substrates of interest as above, except His6-tagged Sgt2, His6-tagged Get4/5, and His6-tagged Get3 were all added at the start of the reactions. The translation/transfer reactions were allowed to proceed for 2 hr, and then the reactions were loaded onto 50 µL Strep-Tactin Sepharose. The resin was first washed with 20 column volumes of GET buffer supplemented with 500 mM NaCl, and then washed with an additional 20 column volumes of GET buffer. The bound TA complexes were eluted with eight column volumes of GET buffer containing 100 mM KHEPES pH 7.5 supplemented with 30 mM biotin, concentrated to ~50 µL, and TA concentrations were measured by scintillation counting. Samples were normalized to the same number of counts using GET buffer without BSA or ATP.

In vitro assays

Overall targeting and translocation reactions in yeast lysate

Request a detailed protocol

Substrates of interest were translated for 1 hr in ∆get3 lysate with or without recombinant Get3 present (as indicated in the text). Cyclohexamide and ∆get3-derived microsomes were then added to initiate translocation. Substrates were allowed to translocate for an hour unless translocation time courses were followed. Reactions were quenched by flash freezing in liquid nitrogen following by boiling in SDS buffer and analyzed by SDS-PAGE and autoradiography. The dependence of translocation efficiency on Get3 concentration for Bos1, 2AG, 4AG and Bos1-FisC were fit to Equation 1.

(1) Tobsd=Tmax×[Get3]h[Get3]h+K1/2h

in which Tobsd is the observed translocation efficiency (%glycosylated TA) at a particular Get3 concentration, Tmax is the translocation efficiency at saturating Get3, Kd is the Get3 concentration required for half maximal translocation, and h is the hill coefficient. All curve-fitting were conducted using GraphPad Prism six for MacOS, GraphPad Software, San Diego California USA, www.graphpad.com.

Substrate capture by Sgt2

Request a detailed protocol

100 µL S30 translations were carried out for each TA substrate of interest together with Ctrl (or Ctrl + 3xStrep) in the presence of 35S-methionine and 2 µM His6-tagged Sgt2 at 30°C for 1 hr. Reactions were adjusted to 50 mM KHEPES, pH 7.5, 150 mM KOAc, 5 mM Mg(OAc)2, 10% Glycerol, 5 mM β-ME, 20 mM Imidazole (capture buffer), and incubated (with rotation) with 50 µL Ni-NTA agarose equilibrated in capture buffer at 4°C for 1 hr. The mixture was loaded into a Mini Bio-Spin Column (Bio-Rad). The resin was washed with 2 mL of capture buffer and eluted with 300 µL capture buffer containing 300 mM imidazole. The load, flowthrough, and elution fractions were analyzed by SDS-PAGE and autoradiography. Images were quantified using ImageQuantTL (GE Healthcare). All capture efficiencies were normalized against that of the internal control (Ctrl or Ctrl + 3xStrep) translated and captured in the same reaction mixture.

Equilibrium and kinetics of TA transfer

Request a detailed protocol

All proteins and complexes were ultracentrifuged (TLA100, Beckman Coulter Inc.) at 100,000 rpm for 30 min at 4°C prior to fluorescence measurements. Equilibrium titrations of TA transfer from Sgt2 to Get3 were carried out in GET buffer at 25°C in the presence of 20–50 nM Sgt2•TACm complex, 150 nM Sgt2, 150 nM Get4/5, 2 mM ATP, and indicated concentrations of Get3BDP in a Fluorolog-3–22 spectrofluorometer (Jobin Yvon). FRET efficiency (E) was calculated according to Equation 2,

(2) E=1FDAFD

in which FDA is the fluorescence in the presence of donor and acceptor, and FD is the fluorescence of donor in the absence of acceptor.

The Get3 concentration dependence of the transfer reaction was fit to Equation 3,

(3) Eobsd=EMax× [Get3]K1/2,app+[Get3]

in which Eobsd is the observed FRET efficiency at a given Get3 concentration, EMax is the FRET efficiency at saturating Get3 concentrations, and K1/2,app is the concentration of Get3 required to reach half of the maximal FRET at the Sgt2 concentration used (150 nM).

Time courses of TA transfer from Sgt2 to Get3 were measured using a Kintek stopped-flow apparatus (Kintek Inc.). Reactions were initiated by mixing equal volumes of ~50 nM Sgt2•TACm in 150 nM Sgt2 with a solution containing 400 nM Get3BDP, 400 nM Get4/5 and 2 mM ATP. For measurements in the presence of lysate, △get3 lysates were ultracentrifuged in a Beckman TLA 100.1 rotor for 1 hr at 100 k rpm, 4°C to remove ribosomes. TA transfer reactions were initiated by mixing equal volumes of ~50 nM purified Sgt2•TACm complex (supplemented with 100 nM Sgt2) with a mixture of 400 nM Get3BDP, 400 nM Get4/5 and 2 mM ATP in ribosome-depleted lysate. Fluorescence decay of the FRET donor was monitored at 445 nm (445D40M band pass filter [Chroma]). Kinetic traces were biphasic and fit to Equation 4,

(4) Fobsd=Fe+ΔFfast×ekfastt+ΔFslow×ekslowt

in which Fe is the fluorescence when the reaction reaches equilibrium, ∆Ffast and ∆Fslow are the amplitudes of the fluorescence changes in the fast and slow phases, respectively and kfast and kslow are the rate constants of the fast and slow phases, respectively. The overall halftime of the reaction, t1/2, was obtained by noting the time at which the fluorescence change is 50% complete.

Translocation of the Get3•TA complex

Request a detailed protocol

100 µL targeting and translocation reactions were initiated by adding 20 µL of ∆get3 microsomes to the purified Get3•TA complex. At various time points, 10 µL samples were removed and quenched by addition of 2XSDS buffer and flash freezing in liquid nitrogen. Samples were analyzed by SDS-PAGE and autoradiography. The time course of translocation was fit to Equation 5,

(5) %translocation=T(1ekobsdt)

in which T is the %insertion at the end of the reaction, and kobsd is the observed rate constant of the targeting/insertion reaction.

In a given translocation reaction, the observed rate constant (kobsd) and endpoint (T) are contributed by the rate constants of productive insertion (kinsert) and nonproductive reactions (knonproductive) according to Equations 6–7,

(6) kobsd=kinsert+knonproductive
(7) T=kinsertkinsert + knonproductive×100

The values of kinsert and knonproductive were obtained by solving Equations 6–7.

Kinetic Stability of the Get3•TA complex

Request a detailed protocol

Dissociation rate constants of Get3•TA complexes were measured by chasing 20–50 nM preformed Get3BDP•TACm complexes with a 10-fold excess of unlabeled Get3. The time course of loss of FRET was monitored and fit to Equation 8,

(8) F=Fe+(F0Fe)ekdist

in which F is the observed donor fluorescence at a particular time, F0 is the donor fluorescence at t = 0, Fe is the donor fluorescence when the reaction is complete, and kdis is the dissociation rate constant for the Get3•TA complex.

Cell imaging

Request a detailed protocol

Yeast strains were cultivated in SD –Trp lacking the appropriate nutrients for selection of episomal constructs at 25°C at early to mid-log phase (OD600 ~ 0.3–0.5). Cells were immobilized on coverslips coated with 0.1 mg/ml concanavalin A (Sigma) and imaged using a Nikon Eclipse Ti equipped with a spinning disk confocal (CSU-X1; Yokogawa), EMCCD camera (iXon3 897; Andor) and a 100×1.49 NA objective. Images were acquired with μManager software (Edelstein et al., 2010) and processed with ImageJ 1.49 (http://rsb.info.nih.gov/ij/).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
    Computer control of microscopes using µmanager
    1. A Edelstein
    2. N Amodaj
    3. K Hoover
    4. R Vale
    5. N Stuurman
    (2010)
    Current Protocols in Molecular Biology, Chapter 14, 10.1002/0471142727.mb1420s92, 20890901.
  11. 11
    Prediction of organellar targeting signals
    1. O Emanuelsson
    2. G von Heijne
    (2001)
    Biochimica et Biophysica Acta (BBA) - Molecular Cell Research 1541:114–119.
    https://doi.org/10.1016/S0167-4889(01)00145-8
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
    Determination of the distance between the oligosaccharyltransferase active site and the endoplasmic reticulum membrane
    1. IM Nilsson
    2. G von Heijne
    (1993)
    The Journal of Biological Chemistry 268:5798–5801.
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
    The affinity of signal recognition particle for presecretory proteins is dependent on nascent chain length
    1. V Siegel
    2. P Walter
    (1988)
    The EMBO Journal 7:1769.
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64

Decision letter

  1. Reid Gilmore
    Reviewing Editor; University of Massachusetts Medical School, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Multiple selection filters ensure accurate tail-anchored membrane protein targeting" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Randy Schekman as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The manuscript from Rao et al. describes a biochemical analysis of how the GET pathway distinguishes between closely related signals during targeting of tail-anchored membrane proteins to the ER and OMM. Previous studies implicate substrate transmembrane domain hydrophobicity and C-terminal basic charge as key features that allow discrimination. Here, the authors use an elegant in vitro approach to examine the role of distinct steps in the GET pathway, leading to a model where multiple steps contribute to fidelity. They also identify features of the targeting signals (hydrophobicity, helical content, C-terminal positive charge) that may be distinguished at different steps in the pathway.

Essential revisions:

1) The reviewers were convinced that there is clearly some discrimination of sub-optimal sequences during loading onto Sgt2. However, whether the key feature is helical content, hydrophobicity or some combination remains unclear (Figure 4E). The authors should perform a simple computational analysis of ER and OMM TA protein TMs-according to their helical content model to determine whether calculated helical content is more predictive than hydrophobicity for the complete list of yeast TA proteins shown in Figure 1. If the author's model is valid they should see a correlation between lower helical content and OMM TA proteins compared to ER TA proteins.

2) The 'helical content' prediction (Figure 4E) seems surprisingly low for these sequences given that they likely exist as helices in the membrane: only ~14% for Bos1, and less than 1% for most of the others. Are these surprisingly low helical content values explained by the choice of Agadir as the algorithm? The Agadir webserver lists three parameters (ionic strength, pH, temperature) that can be specified. The authors should indicate what parameters were used for their calculations and explicitly state that the calculated content is for a peptide in an aqueous environment. It seems odd that introducing a single glycine into 2AG reduces the helical content from 12% (2AG) to less than 1% (3AG). The reviewers also suggested that the authors test other algorithms that predict helical propensity.

3) All three reviewers had concerns with the conclusion that the Sgt2 to Get3 transfer step represents a second selectivity filter. The only significant effect is observed with Fis1-BosC and Fis1-FisC substrates, which raises two concerns: 1) these substrates were barely captured by Sgt2 in vitro (Figure 4). It wasn't clear how the complexes were even obtained for this experiment, or whether the complexes resembled those obtained with the optimal substrates. Were the TA segments of Fis1-BosC in a helical conformation and were they bound to the same surface of Sgt2? 2) More importantly, in yeast, Fis1 only binds Sgt2 indirectly, via heat shock proteins that bind to the Sgt2 TPR domain (Wang et al., 2010). Thus, in vivo, it never engages the C-terminal, met-rich substrate binding domain of Sgt2 and therefore never has a chance to transfer to Get3. The reviewers appreciate that the in vitro experiment described here lacks the yeast chaperones, but the physiologic significance of the result is unclear. It would be more compelling if a substrate that is efficiently captured by Sgt2 was transferred less efficiently to Get3. Instead, it seems that the vast majority of discrimination of Fis1-BosC and Fis1-FisC occurs upstream of the transfer reaction (i.e., at the initial Sgt2 loading step). For these reasons, the reviewers feel that this conclusion is not well supported, most likely not physiologically relevant, and should be de-emphasized in a revised version of this manuscript.

4) The Abstract and title of the manuscript would need to be modified to more accurately describe the findings. The role of the Sgt2-Get3 transfer step as a selectivity filet will need to be downplayed.

5) The third proposed selectivity step is proposed to occur during transfer of the substrate from Get3 to the membrane via Get1-Get2. Here, excess positive charge in the C-terminal region is proposed to slow the rate of membrane insertion (k-insert), thereby increasing the window of time for suboptimal substrates to dissociate from Get3 (k-nonproductive). This is an interesting proposal, but it was not clear whether the authors have considered other factors that might slow the insertion step. Suboptimal sequences may slow or prevent dissociation of Get3-substrate complexes from Get4/5 after transfer. The authors should test whether Get4/Get5 co-purify with Get3 TA protein complexes that contain optimal and non-optimal substrates. Could suboptimal sequences fail to activate the Get3 ATPase following dissociation of the complex from Get4/5? These possibilities would need to be checked before concluding that C-terminal charges slow the actual insertion step.

6) The authors should comment upon the finding that C-terminal charges reduce translocation for the Get3 independent substrates (Fis1-RR vs Fis1-RRRR). Could a reduced insertion rate for the highly charged tails be independent of the mechanism (uncatalyzed versus Get3/Get1/Get2 dependent) and be dependent upon ER lipid composition?

[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration. The first decision letter after peer review is shown below.]

Thank you for submitting your work entitled "Multiple selection filters ensure accurate tail-anchor membrane protein targeting" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Randy Schekman as the Senior Editor. Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work was considered to be too preliminary to warrant publication in eLife at this point.

As you will see, the reviewers appreciated your efforts to biochemically dissect the TA substrate selection mechanism by the GET pathway. The identification of multiple 'checkpoints' along the post-translational GET pathway is certainly conceptually satisfying, and the use of innovative and quantitative assays appealing. However, all reviewers raised technical issues that require additional extensive experimentation. Among the main points are the suggestions to use a trap strategy to minimize direct loading onto Get3, to prove that the in vitro transfer reaction is really Get4/5-dependent, to establish that the Sgt2 material is of sufficient quality, and to more systematically analyze the behavior of a cleaner set of substrates. In addition, there are many other points that also need to be addressed. We would welcome a new submission on this topic when you are able to address the concerns of the reviewers and we would endeavor to approach the same experts to help evaluate such a new submission.

Reviewer #1:

This paper addresses the mechanism by which the hydrophobic tail of tail-anchored membrane (TA) proteins is recognized. This question is particularly relevant for the distinction between TA proteins targeted to the ER or mitochondria. Previous work has provided evidence that positive charged following the hydrophobic sequence are required for targeting to mitochondria, although the lack of such charges can be compensated for by changes in the hydrophobic region (Beilharz et al., 2003; Wang et al., 2010). In the present paper, the authors use different versions of the anchor sequence to investigate the effect of hydrophobicity and of the charged C-terminus on various steps of the GET pathway that is involved in TA protein integration into the ER. They conclude that Sgt2, the first component in the pathway, discriminates TAs on the basis of hydrophobicity. In addition, less hydrophobic TAs are only slowly transferred to Get3, the next component in the pathway. Finally, there is discrimination at the last step, the insertion of TAs into the membrane, in part because less hydrophobic TAs rapidly dissociate from Get3. At this point, TAs with positive charges also seem to be rejected.

The strength of the paper is the use of innovative and quantitative assays. Unfortunately, the results seem too preliminary to warrant several of the conclusions. Below is a list of the major concerns:

1) There is a general lack of systematic analysis. For example, the constructs used in Figure 2 for the in vivo analysis (beautiful data), are not employed for the in vitro analysis. Several of the constructs used in vitro have some problems or at least abnormalities. For example, Fis1-BosC is Get3-independent, and it is difficult to derive conclusions from it. The 4AG constructs is said to bind in a different conformation to Get3 based on a different steady state FRET level (Figures 7A,B), so it may not be easily compared with other constructs. 6AG behaves very different from the other constructs in its dissociation rate from Get3 (Figure 9F). Finally, only one construct with a change of the C-terminal charge is tested (Bos1-FisC). Why wasn't the C-terminus varied in the same way as in Figure 2? It is also surprising that no experiments were done with the actual mitochondrial protein Fis1. Because of the lack of systematic analysis, it remains questionable whether hydrophobicity and charges are the only variables that need to be considered.

2) Some of the results are not entirely novel. For example, the conclusion that Sgt2 recognizes hydrophobicity has been reached before.

3. The authors claim that C-terminal charges are recognized late in the Get pathway. However, an effect of the charges is also seen for the Get3-independent pathway, so how charges are recognized remains unclear. This means that the scheme in Figure 11 is at least incomplete. The paper does not really contribute to the major question in the field, i.e. how mitochondrial and ER TA proteins are discriminated.

Reviewer #2:

Molecular fidelity mechanisms that ensure accurate transmission of genetic information are well understood. By comparison, we know relatively little about mechanisms that make accurate protein sorting decisions on the basis of small differences in the biophysical properties of signal sequences. The basic steps by which TA proteins are guided to the ER membrane for insertion (GET pathway) but it remains poorly understood how they are sorted away from mitochondrial TA proteins. In yeast, Sgt2 and Get3 sequentially recognize ER signal sequences on TA proteins (partly in the TA transmembrane domain or TMD) but the raison d'etre for multi-step signal recogntion remains unclear. An appealing hypothesis is that Sgt2 can also transfer TA proteins for ubiquitination if they are not captured efficiently by Get3 and in doing so increase sorting fidelity. Intriguingly, Bag6 is a mammalian protein that scaffolds mammalian Sgt2 (SGTA), mammalian Get3 (TRC40, via interactions with additional pathway components), and a ubiquitin ligase that marks TA proteins for degradation in competition with TRC40-TA complex formation. By contrast, yeast lack an apparent Bag6 homolog or equivalent and there is a need for a better mechanistic framework describing how this organism achieves TA protein targeting fidelity.

In this paper, the authors seek to establish such a framework by measuring how the biophysical properties of tail-anchored (TA) proteins influence TA protein binding to Sgt2, TA protein transfer from Sgt2 to Get3, and the membrane-associated steps in the GET pathway. This paper's appeal is in the interesting questions it poses and in the development of fluorescence-based reporters to quantitatively measure TA transfer from Sgt2 to Get3 and TA protein dissociation from Get3. With the exceptions noted below, I find the in vitro analysis well performed and interpreted. However, the paper is thin on physiological relevance but that could be addressed by the additional experiments suggested below, which should raise the interest of this work for readers of eLife.

1) The authors show that suboptimal hydrophobicity of the TMD influences the kinetics (but not the equilibrium state) of TA transfer from Sgt2 to Get3 (Figure 4). This is an interesting observation but it warrants more supporting experiments because 4AG might be behaving differently from the other TAs in these in vitro assays for other reasons. Specifically, there are two independent concerns. First, the authors argue that "4AG was bound in a different conformation on Get3 compared to Bos1 and 2AG", and refer to their immunoprecipitation data in Figure S4 to argue that comparable amounts of Bos1, 2AG, and 4AG are transferred from Sgt2 to Get3. However, the blot images in Figure S4A seem to show that Get3 co-purifies significantly less 4AG than Bos1 or 2AG and are inconsistent with the quantitation in Figure S4B. More to the point, it is not shown that Sgt2 is even required for TA protein binding to Get3 under these in vitro conditions. Without repeating the experiment in the absence of Sgt2, the claim that these data support the conclusions about TA transfer from Sgt2 to Get3 based on the FRET assay is unsupported. One way to obtain corroborating evidence that TA transfer at equilibrium is the same for 4AG as Bos1 is to repeat this experiment with a photocrosslinking approach using a tRNA amber suppressor to introduce a photocrosslinker instead of a fluorophore and monitoring TA transfer from Sgt2 to Get3 (at different concentrations) by photocrosslinking. In fact, this approach could also be used to independently monitor the rate of TA transfer even on relatively short timescales because timepoints can be snap frozen and then crosslinked in the frozen state.

The second concern relates to the kinetic measurements of 4AG transfer. The authors don't measure the rate of spontaneous release of TA proteins from Sgt2. This rate, together with the rate of TA protein rebinding to Sgt2 complicates interpretation and might lead to in vitro effects that are not relevant in vivo because they are measured without competing cellular factors (e.g. factors for mitochondrial TA targeting). The authors should repeat the experiment shown in Figure 4D in the presence of the TA substrate "trap" used in the field (truncated Sgt2 containing the TA protein binding domain but lacking the Sgt2 dimerization/Get5-interaction domain). The TA trap should bind released substrates and preclude their re-binding to full-length Sgt2 for later handoff to Get3 (this is conceptually similar to the Get3-TA kinetic stability experiment in Figure 5F). If the rate of 4AG dissociation from Sgt2 is much faster than Bos1, it would raise concerns about the in vivo relevance of these in vitro observations.

2) The authors argue that "Sgt2 plays a critical role….in enhancing discrimination against suboptimal substrates". It is difficult to accept this claim based on the data in Figure 6D because in the absence of Sgt2 the comparison with wild-type (in the absence of Get3 pre-incubation, which is the condition where 4AG is discriminated against) can't be made directly (ie. there is no detectable insertion). It is problematic to compare extracts prepared from wild-type cells with extracts prepared from deltaSGT2 cells and make mechanistic inferences on the basis of relatively small effects (less than 2-fold).

To remedy this issue, the authors should show that their purified Sgt2 rescues insertion to deltaSGT2 extracts and restores discrimination between Bos1 and 4AG. If the effect is indeed restored, the authors should exploit the add-back assay to test the role of Sgt2 interactions with Get5 by using Sgt2 point mutants that disrupt this interaction (Chartron et al. 2012).

Reviewer #3:

The manuscript by Rao et al., presents a biochemical dissection of the TA substrate selection mechanism by the GET pathway. This pathway must distinguish between closely related TA substrates for targeting and insertion into the ER or outer mitochondrial membranes (OMM). Previous work from a number of groups identified two critical substrate features that contribute to this discrimination-with TA substrates containing more hydrophobic TMDs tending to be ER-directed, and TA substrates containing less hydrophobic TMDs and sufficient positive charge at the extreme C-terminus tending to be OMM-directed. Using a largely in vitro approach the authors identify a series of steps in the GET pathway that they argue together contribute to fidelity in substrate selection:

1) As shown previously in Wang et al., 2010, the authors demonstrate that Sgt2 binds more tightly to TA proteins that have TMDs above a threshold level of hydrophobicity, than it does to those that do not. In addition, they demonstrate that the interaction with Sgt2 is insensitive to the presence (or absence) of significant C-terminal positive charge in the TA substrate.

2) Using a quantitative FRET assay to monitor the Sgt2-to-Get3 TA transfer reaction the authors argue for a second filter based on kinetic discrimination: more hydrophobic substrates are transferred to Get3 more quickly than less hydrophobic substrates.

3) Next, the authors present data suggesting that Get3 also loosely discriminates based on hydrophobicity (albeit less stringently than does Sgt2): below a threshold level of hydrophobicity, TA substrates more quickly dissociate from Get3, while above this threshold, they are more likely to remain bound.

4) Finally, the authors show that TA proteins containing sufficient positive charge at their C-terminus are less efficiently inserted into the bilayer.

The identification of multiple 'checkpoints' along the post-translational GET pathway is conceptually satisfying, and is similar to prior work in the co-translational system by the same lab. However, I have several concerns that should be addressed.

1) Recombinant Sgt2 is known to suffer from C-terminal degradation (e.g., Yeh et al., 2014). Because the C-terminal domain of Sgt2 contains the TA substrate binding region (Wang et al., 2010), degradation in this region may complicate the resulting kinetic analysis through, for example, formation of inactive (or less-active), truncated Sgt2 dimers that transfer substrates at different rates. The authors should show a coomassie stained gel to establish that their material is full-length. Note that Figure 5C shows a small portion of an Sgt2 western blot that already suggests the presence of degradation.

2) What is the basis of the Get3-independent insertion of the Fis1-BosC substrate shown in Figure 3B?

3) In Figure 4B there appears to be a significant amount of TA substrate present in the Ni-NTA flow-through fraction. Is this free substrate or excess Sgt2-TA complex? Also, I am confused by the behavior of the Bos1 'Ctrl' substrate in Figure 4B. If this is identical to the Bos1 substrate, except that it lacks the 3xStrep tag, shouldn't it bind to 6xHis-Sgt2 as efficiently as the 3xStrep-tagged Bos1 substrate?

4) Important controls are needed to demonstrate that the reconstituted Sgt2-to-Get3 substrate transfer reaction mimics the physiologic reaction-i.e., show Get4/5 dependence using appropriate point mutations, as has been done previously (Mock et al., 2015; Mateja et al., 2015). Direct TA loading onto Get3 can occur in vitro, and this might be exacerbated with the soluble SUMO substrates used here. Thus, it is important to distinguish between physiologic, Get4/5-dependent transfer from Sgt2 to Get3, and direct loading onto Get3, either from Sgt2 or from a pool of free, soluble TA substrate.

5) A related concern is that the fluorescent Sgt2-TA complexes, purified via a 3xStrep tag on the labeled substrate (Figure 5), are likely a mixture of Sgt2-TA and soluble TA substrate. Is this excess 'soluble' TA substrate competent for loading via Sgt2/Get4/Get5? Or via direct loading onto Get3? Are the kinetics of these steps identical to the loading kinetics of Get4/5-dependent transfer? As it stands, might this (and/or the concerns listed above) contribute to the biphasic transfer kinetics observed in Figure 7? If so, perhaps there is less substrate discrimination happening at the transfer step. A better way to do this is to purify the Sgt2-TA complex via an Sgt2 affinity tag rather than (or in addition to) the 3xStrep tag on the substrate (as was done in Figure 4)-this would help ensure that TA substrate is Sgt2 bound, which is likely a simpler starting point for characterization of the transfer reaction.

6) In Figure 8 and Figure 9F it appears they are monitoring TA binding to nucleotide-free Get3 (since bound nucleotide likely falls off during the Ni-pulldown (Figure 8) or the 'pulse-chase' experiment (Figure 9F)). Under these apo conditions, 6AG is observed to dissociate quickly from Get3. But isn't it likely that the ADP bound state of the targeting complex is the physiologic one (as drawn in Figure 11)? Do the release kinetics for different substrates change if this experiment is done in the presence of MgADP? Perhaps 6AG release becomes slower, comparable to the other substrates? If so, this would indicate that Get3 plays even less of a role in substrate discrimination.

https://doi.org/10.7554/eLife.21301.014

Author response

Essential revisions:

1) The reviewers were convinced that there is clearly some discrimination of sub-optimal sequences during loading onto Sgt2. However, whether the key feature is helical content, hydrophobicity or some combination remains unclear (Figure 4E). The authors should perform a simple computational analysis of ER and OMM TA protein TMs-according to their helical content model to determine whether calculated helical content is more predictive than hydrophobicity for the complete list of yeast TA proteins shown in Figure 1. If the author's model is valid they should see a correlation between lower helical content and OMM TA proteins compared to ER TA proteins.

We carried out helical content analyses for ER and OMM TA proteins, and the Agadir scores for each TA are integrated in the revised Figure 1. As indicated by the Agadir scores, on average the TMDs of OMM TAs have lower helical propensity than ER-destined TAs. This information is described in the Results and Discussion.

It is not clear at this stage whether helical content or hydrophobicity scores are more predictive. When a wide range of substrates needs to be recognized with sufficient specificity, it is likely that the combination of multiple features contributes to recognition, and the contribution of each feature is dependent on the other feature. For this reason, we refrained from making more explicit statements on whether helical content is a more dominant determinant than hydrophobicity.

2) The 'helical content' prediction (Figure 4E) seems surprisingly low for these sequences given that they likely exist as helices in the membrane: only ~14% for Bos1, and less than 1% for most of the others. Are these surprisingly low helical content values explained by the choice of Agadir as the algorithm? The Agadir webserver lists three parameters (ionic strength, pH, temperature) that can be specified. The authors should indicate what parameters were used for their calculations and explicitly state that the calculated content is for a peptide in an aqueous environment. It seems odd that introducing a single glycine into 2AG reduces the helical content from 12% (2AG) to less than 1% (3AG). The reviewers also suggested that the authors test other algorithms that predict helical propensity.

The Agadir algorithm calculates the helical content in aqueous solution. Model studies have shown that helical propensity generally increases in apolar environments, such as the membrane or when bound to protein, largely due to removal of competition from water for hydrogen bonding. However the difference in helical propensity between different TMDs still holds. The parameters for Agadir calculation are now included in the legend to Figure 1. We also added a note that these scores should be interpreted in a relative, rather than absolute sense (Figure 1 legend).

The disruption of helix formation from 2AG to 3AG results from the cooperative nature of helix formation. Consecutive i to i+4 hydrogen bonds reinforce one another to stabilize a helix, and at least two contiguous helical turns are needed to have a decent helical propensity (Creighton, Proteins, 2nd ed., Chapter 5, pp 182-186). Insertion of the additional Gly in 3AG (in the middle of an IALILLII sequence) disrupted this minimal requirement.

We asked several experts about alternative algorithms for helical propensity calculation. The answer was that aside from running an MD simulation, Agadir is by far the most inclusive and accurate algorithm, as it also takes into account dipole effects, local side chain interactions that (de)stabilize the helix, etc. (Munoz and Serrano, 1994; Lacroix, et al., 1998). It has been tested on >1000 peptides against experimental data (in aqueous solution). As explained above, the reduction in helical content score from 2AG to 3AG is anticipated from the highly cooperative nature of helix formation and unlikely an artifact of the Agadir algorithm.

3) All three reviewers had concerns with the conclusion that the Sgt2 to Get3 transfer step represents a second selectivity filter. The only significant effect is observed with Fis1-BosC and Fis1-FisC substrates, which raises two concerns: 1) these substrates were barely captured by Sgt2 in vitro (Figure 4). It wasn't clear how the complexes were even obtained for this experiment, or whether the complexes resembled those obtained with the optimal substrates. Were the TA segments of Fis1-BosC in a helical conformation and were they bound to the same surface of Sgt2? 2) More importantly, in yeast, Fis1 only binds Sgt2 indirectly, via heat shock proteins that bind to the Sgt2 TPR domain (Wang et al., 2010). Thus, in vivo, it never engages the C-terminal, met-rich substrate binding domain of Sgt2 and therefore never has a chance to transfer to Get3. The reviewers appreciate that the in vitro experiment described here lacks the yeast chaperones, but the physiologic significance of the result is unclear. It would be more compelling if a substrate that is efficiently captured by Sgt2 was transferred less efficiently to Get3. Instead, it seems that the vast majority of discrimination of Fis1-BosC and Fis1-FisC occurs upstream of the transfer reaction (i.e., at the initial Sgt2 loading step). For these reasons, the reviewers feel that this conclusion is not well supported, most likely not physiologically relevant, and should be de-emphasized in a revised version of this manuscript.

To answer the first question, Sgt2-TA complexes were purified via the tag on Sgt2, so the TAs eluted from the column are Sgt2-bound. For Fis1-FisC and Fis1-BosC, 2 µM Sgt2 were supplemented immediately after elution to maintain the TAs in complex with Sgt2 (described in the Materials and methods). We also ultracentrifuged the samples to remove any aggregates (including TAs that have dissociated from Sgt2) prior to all the fluorescence measurements. These procedures ensured that an Sgt2-TA complex was presented to Get3 during the measurement. Figure 6D shows that TA capture is completely lost with Sgt2△CTD, so these substrates are bound to Sgt2-CTD, but they are likely bound in a different conformation from that of a good TA substrate. Nevertheless, TA dissociation from Sgt2 is probable during the FRET measurement, in which the complex was diluted to an Sgt2 concentration of 150 nM (see more discussion in the next paragraph). Regarding the second question (Hsp70 vs Sgt2), we would like to point out that pull down experiments reflect the steady state distribution of the substrate on different factors in the cell or cell extract. By forcing Fis1 onto Sgt2 and watching its fate, our experiments attempt to understand, in part, the mechanism by which that steady state is achieved. Our results show that Fis1 bound Sgt2 weakly and even if it did, does not flux into the GET pathway; this is consistent with the steady-state observations of Fis1 accumulation on Hsp70 instead of Sgt2.

During the FRET measurement of TA transfer, the TAs partition between at least two fates: transfer to Get3 (monitored by FRET assay) and dissociation from Sgt2 (not directly observed). The absence of observed transfer with Fis1-FisC and Fis1-BosC indicate their highly unfavorable partitioning into the transfer reaction. This could arise from more rapid dissociation from Sgt2, less efficient transfer to Get3, or both. In the case that the absence of observed transfer arises exclusively from the lower kinetic stability of the Sgt2-TA complex, the mechanism becomes redundant with rejection at the Sgt2-TA binding step. We clarified these points in the Results and Discussion and toned down the conclusion that TA transfer could serve as a selection filter, as suggested by the reviewers.

4) The Abstract and title of the manuscript would need to be modified to more accurately describe the findings. The role of the Sgt2-Get3 transfer step as a selectivity filet will need to be downplayed.

We modified the Abstract and the model figure (new Figure 9) accordingly.

5) The third proposed selectivity step is proposed to occur during transfer of the substrate from Get3 to the membrane via Get1-Get2. Here, excess positive charge in the C-terminal region is proposed to slow the rate of membrane insertion (k-insert), thereby increasing the window of time for suboptimal substrates to dissociate from Get3 (k-nonproductive). This is an interesting proposal, but it was not clear whether the authors have considered other factors that might slow the insertion step. Suboptimal sequences may slow or prevent dissociation of Get3-substrate complexes from Get4/5 after transfer. The authors should test whether Get4/Get5 co-purify with Get3 TA protein complexes that contain optimal and non-optimal substrates. Could suboptimal sequences fail to activate the Get3 ATPase following dissociation of the complex from Get4/5? These possibilities would need to be checked before concluding that C-terminal charges slow the actual insertion step.

Since the Get3-TA complexes were previously purified using the tag on Get3, we agree that excess free Get3 could bring Get4/5 contaminations that introduce alternative possibilities. We think the most straightforward way to address these issues is to purify the Get3•TA complexes for Bos1, Bos1-FisC and Bos1-RRRR via the Strep3 tag on the TA substrate and re-perform the insertion assays in the absence and presence of ATP. As shown in the new Figure 8 (text on pages 15-16), the Get3•TA complexes purified via this procedure are free of Get4/5. Translocation assays using these complexes showed that slower insertions with Bos1-FisC and Bos1-RRRR are still observed in the absence of Get4/5, and the defects are similar with and without ATP present. These new data show that we can largely attribute the defect of the CTE mutants to targeting and insertion at the ER.

6) The authors should comment upon the finding that C-terminal charges reduce translocation for the Get3 independent substrates (Fis1-RR vs Fis1-RRRR). Could a reduced insertion rate for the highly charged tails be independent of the mechanism (uncatalyzed versus Get3/Get1/Get2 dependent) and be dependent upon ER lipid composition?

This is included in the Discussion as the following: “As the charged CTE compromised both Get3-dependent and Get3-independent TA insertions into ER, enrichment of basic residues in the CTE provides a general feature that enables TA proteins to escape insertion to the ER. In principle, transporting charges across a hydrophobic environment poses a high energetic barrier (Engelman and Steitz, 1981); this barrier could be imposed using either the phospholipid environment at ER and/or translocases whose interior provide no compensation for these charges.” We don’t currently know if the insertion of Fis1 CTE variants into ER is spontaneous or protein-dependent, and both lipid- and protein-dependent mechanisms could be envisioned with equal probability.

[Editors’ note: the author responses to the first round of peer review follow.]

[…]

As you will see, the reviewers appreciated your efforts to biochemically dissect the TA substrate selection mechanism by the GET pathway. The identification of multiple 'checkpoints' along the post-translational GET pathway is certainly conceptually satisfying, and the use of innovative and quantitative assays appealing. However, all reviewers raised technical issues that require additional extensive experimentation. Among the main points are the suggestions to use a trap strategy to minimize direct loading onto Get3, to prove that the in vitro transfer reaction is really Get4/5-dependent, to establish that the Sgt2 material is of sufficient quality, and to more systematically analyze the behavior of a cleaner set of substrates. In addition, there are many other points that also need to be addressed. We would welcome a new submission on this topic when you are able to address the concerns of the reviewers and we would endeavor to approach the same experts to help evaluate such a new submission.

[…]

Our original set of substrates (7) has been expanded to 13. We added two additional TMD variants, 3AG and 5AG, and four CTE mutants in which the number of charges is varied (Bos1-RR, Bos1-RRRR and Fis1-RR and Fis1-RRRR). Some of the major conclusions from the previous draft were substantiated by these additional substrate variants, that is, Sgt2 and Get3 are sensitive to variations in the TMD but not CTE, whereas the charged CTE is discriminated after substrate loading onto Get3 as the charges slow TA insertion into ER. In addition, by overcoming technical limitations in translation of the mitochondrial TA, Fis1p, we were able to further characterize this substrate in its transfer from Sgt2 to Get3 and show that Fis1 is completely rejected during this substrate handover. Finally, as natural amino acid substitutions tend to alter multiple physicochemical features, the larger set of TMD variants allowed us to perform an initial correlation analysis of capture efficiencies of Sgt2 with various features of the TMD. The result, surprisingly, indicated that hydrophobicity is not the sole determinant, and pointed at a significant role of the helical content of the TMDs in TA recognition by Sgt2. Collectivelly, the larger set of substrates corroborated some of the previous conclusions and gave unexpected new insights.

We provide two new pieces of data that address this concern. First, Figure 6C shows both the Get4/5-dependent and Get4/5-independent TA transfer reactions from Sgt2 to Get3; the latter is much slower than the former. As also shown in Figure 6G and Table 2, most of the TAs we tested (except for Fis1-TMD containing substrates) were transferred within 15 seconds and much faster than the Get4/5-independent reaction; thus these measurements reflect Get4/5-dependent TA transfer. Second, we re-performed the TA transfer reaction in the presence of Δget3 lysate, and found that transfer still occurred efficiently and rapidly (Figure 6D). We did not use the suggested Sgt2ΔN ‘trap’ for two reasons: (i) there is no Sgt2ΔN in vivo, and we feel that the complete yeast lysate is a better mimic for TA transfer under physiological conditions; (ii) control experiments showed that Sgt2ΔN is not a passive trap for TA dissociation; instead, it significantly catalyzed TA release from Sgt2. The implication of this observation in terms of the mechanism of TA transfer is beyond the scope of this study, and we will pursue and publish it separately. But the bottom line is that we agree that re-examining TA transfer under more physiological conditions is a good concept, and did so using an alternative approach.

We have repurified Sgt2•TA complex using the affinity tag on Sgt2 instead of TA, as suggested by the reviewers. In addition, we have maintained a constant, excess amount of Sgt2 in all TA transfer assays ([TACm] ~ 50 nM and [Sgt2] = 150 nM). For TA substrates that are captured inefficiently by Sgt2, excess Sgt2 was also included during the washes and elutions during purification of the Sgt2•TA complex to maintain TA solubility prior to the assay. These optimizations in the procedure did improve the efficiency of the TA transfer reactions. As described above, we observed rapid TA transfer from Sgt2 to Get3 with favorable equilibrium (half-complete transfer at 5-10 nM Get3) and high FRET efficiency (~70-80%) for most of the substrates tested (Figures 6C-G and Table 2). In addition, gels for the purified Sgt2•TA complex are shown in Figures 5C and D.

There are additional minor comments, but most of them are no longer applicable with the new sets of data and with changes in some of the conclusions. The only significant comment I would address upfront is Reviewer 2’s suggestion to use an alternative, crosslinking approach instead of FRET to measure TA transfer from Sgt2 to Get3. This is conceptually the same experiment and, as shown in Figure 6, most of the Get4/5-dependent transfer reactions are rapid and complete within the timescale of reliable manual mixing (τ ~5-15 sec); so it is necessary to use a continuous fluorescence assay coupled to rapid mixing devices to accurately make these measurements. Finally, the Get4/5-independent TA transfer reaction corroborated that the observed FRET is due to TA loading on Get3, rather than the TA being close to Get3 in a TASgt2-Get4/5-Get3 transfer complex.

https://doi.org/10.7554/eLife.21301.015

Article and author information

Author details

  1. Meera Rao

    Division of Chemistry and Chemical Engineering, California Institute of Technology, Pasadena, United States
    Contribution
    MR, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  2. Voytek Okreglak

    1. Howard Hughes Medical Institute, University of California, San Francisco, United States
    2. Department of Biochemistry and Biophysics, University of California, San Francisco, United States
    Contribution
    VO, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Un Seng Chio
    Competing interests
    The authors declare that no competing interests exist.
  3. Un Seng Chio

    Division of Chemistry and Chemical Engineering, California Institute of Technology, Pasadena, United States
    Contribution
    USC, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Contributed equally with
    Voytek Okreglak
    Competing interests
    The authors declare that no competing interests exist.
  4. Hyunju Cho

    Division of Chemistry and Chemical Engineering, California Institute of Technology, Pasadena, United States
    Contribution
    HC, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  5. Peter Walter

    1. Howard Hughes Medical Institute, University of California, San Francisco, United States
    2. Department of Biochemistry and Biophysics, University of California, San Francisco, United States
    Contribution
    PW, Conception and design, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6849-708X
  6. Shu-ou Shan

    Division of Chemistry and Chemical Engineering, California Institute of Technology, Pasadena, United States
    Contribution
    S-oS, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    sshan@caltech.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6526-1733

Funding

National Institutes of Health (GM107368)

  • Meera Rao
  • Un Seng Chio
  • Hyunju Cho
  • Shu-ou Shan

Howard Hughes Medical Institute

  • Peter Walter

Gordon and Betty Moore Foundation (GBMF2939)

  • Shu-ou Shan

Leukemia and Lymphoma Society

  • Voytek Okreglak

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Bil Clemons, Michael Rome, Kuang Shen, Xin Zhang, and members of the Shan and Clemons labs for critical discussions and comments on the manuscript, and the Dougherty lab for use of their HPLC. This work was supported by NIH grant GM107368 and Gordon and Betty Moore Foundation Grant GBMF2939 to SS, NIH grants R01GM32384 and U01GM098254 to PW, and the Leukemia and Lymphoma Society fellowship to VO. PW is an Investigator of the Howard Hughes Medical Institute.

Reviewing Editor

  1. Reid Gilmore, University of Massachusetts Medical School, United States

Publication history

  1. Received: September 6, 2016
  2. Accepted: December 6, 2016
  3. Accepted Manuscript published: December 7, 2016 (version 1)
  4. Version of Record published: January 5, 2017 (version 2)

Copyright

© 2016, Rao et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,582
    Page views
  • 472
    Downloads
  • 20
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    Ma Teresa Pellicer Martinez et al.
    Research Article
    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Michael S Woody et al.
    Research Article
