Carbon recovery dynamics following disturbance by selective logging in Amazonian forests

  1. Camille Piponiot Is a corresponding author
  2. Plinio Sist
  3. Lucas Mazzei
  4. Marielos Peña-Claros
  5. Francis E Putz
  6. Ervan Rutishauser
  7. Alexander Shenkin
  8. Nataly Ascarrunz
  9. Celso P de Azevedo
  10. Christopher Baraloto
  11. Mabiane França
  12. Marcelino Guedes
  13. Eurídice N Honorio Coronado
  14. Marcus VN d'Oliveira
  15. Ademir R Ruschel
  16. Kátia E da Silva
  17. Eleneide Doff Sotta
  18. Cintia R de Souza
  19. Edson Vidal
  20. Thales AP West
  21. Bruno Hérault Is a corresponding author
  1. UMR EcoFoG (Agroparistech, CNRS, Inra, Université des Antilles, Cirad), French Guiana
  2. UMR EcoFoG (Agroparistech, CNRS, Inra, Université des Antilles, Université de Guyane), French Guiana
  3. UMR EcoFoG (Agroparistech, Inra, Université des Antilles, Université de Guyane, Cirad), French Guiana
  4. Cirad, UR Forests and Societies, France
  5. Embrapa Amazônia Oriental, Brazil
  6. Wageningen University, Netherlands
  7. University of Florida, United States
  8. CarbonForExpert, Switzerland
  9. University of Oxford, United Kingdom
  10. Instituto Boliviano de Investigación Forestal, Bolivia
  11. Embrapa Amazônia Ocidental, Brazil
  12. Florida International University, United States
  13. Embrapa Amapa, Brazil
  14. Instituto de Investigaciones de la Amazonia Peruana, Peru
  15. Embrapa Acre, Brazil
  16. University of São Paulo, Brazil
Research Article
Cited
1
Views
1,509
Comments
0
Cite as: eLife 2016;5:e21394 doi: 10.7554/eLife.21394

Abstract

When 2 Mha of Amazonian forests are disturbed by selective logging each year, more than 90 Tg of carbon (C) is emitted to the atmosphere. Emissions are then counterbalanced by forest regrowth. With an original modelling approach, calibrated on a network of 133 permanent forest plots (175 ha total) across Amazonia, we link regional differences in climate, soil and initial biomass with survivors’ and recruits’ C fluxes to provide Amazon-wide predictions of post-logging C recovery. We show that net aboveground C recovery over 10 years is higher in the Guiana Shield and in the west (21 ±3 Mg C ha-1) than in the south (12 ±3 Mg C ha-1) where environmental stress is high (low rainfall, high seasonality). We highlight the key role of survivors in the forest regrowth and elaborate a comprehensive map of post-disturbance C recovery potential in Amazonia.

https://doi.org/10.7554/eLife.21394.001

eLife digest

The Amazon rainforest in South America is the largest tropical forest in the world. Along with being home to a huge variety of plants and wildlife, rainforests also play an important role in storing an element called carbon, which is a core component of all life on Earth. Certain forms of carbon, such as the gas carbon dioxide, contribute to climate change so researchers want to understand what factors affect how much carbon is stored in rainforests. Trees and other plants absorb carbon dioxide from the atmosphere and then incorporate the carbon into carbohydrates and other biological molecules. The Amazon rainforest alone holds around 30% of the total carbon stored in land-based ecosystems.

Humans selectively harvest certain species of tree that produce wood with commercial value from the Amazon rainforest. This “selective logging” results in the loss of stored carbon from the rainforest, but the loss can be compensated for in the medium to long term if the forest is left to regrow. New trees and trees that survived the logging grow to fill the gaps left by the felled trees. However, it is not clear how differences in the forest (for example, forest maturity), environmental factors (such as climate or soil) and the degree of the disturbance caused by the logging affect the ability of the forest ecosystem to recover the lost carbon.

Piponiot et al. used computer modeling to analyze data from over a hundred different forest plots across the Amazon rainforest. The models show that the forest’s ability to recover carbon after selective logging greatly differs between regions. For example, the overall amount of carbon recovered in the first ten years is predicted to be higher in a region in the north known as the Guiana Shield than in the south of the Amazonian basin where the climate is less favorable.

The findings of Piponiot et al. highlight the key role the trees that survive selective logging play in carbon recovery. The next step would be to couple this model to historical maps of logging to estimate how the areas of the rainforest that are managed by selective logging shape the overall carbon balance of the Amazon rainforest.

https://doi.org/10.7554/eLife.21394.002

Introduction

With on-going climate change, attention is increasingly drawn to the impacts of human activities on carbon (C) cycles (Griggs and Noguer, 2002), and in particular to the 2.1 ± 1.1 Pg C yr-1 of C loss caused by various forms and intensities of anthropogenic disturbances in tropical forests (Grace et al., 2014). Among those disturbances, selective logging, i.e. the selective harvest of a few merchantable tree species, is particularly widespread: in the Brazilian Amazon alone, about 2 Mha yr1 were logged in 1999–2002 (Asner et al., 2005). The extent of selective logging in the Brasilian Amazon was equivalent to annual deforestation in the same period, and resulted in C emissions of 90 Tg C yr-1 (Huang and Asner, 2010) which increased anthropogenic C emissions by almost 25% over deforestation alone (Asner et al., 2005). In contrast to deforested areas that are used for agriculture and grazing, most selectively logged forests remain as forested areas (Asner et al., 2006) and may recover C stocks (West et al., 2014). Previously logged Amazonian forests may thus accumulate large amounts of C (Pan et al., 2011), but this C uptake is difficult to accurately estimate, because while detecting selective logging from space is increasingly feasible (Frolking et al., 2009) (even if very few of the IPCC models effectively account for logging), directly quantifying forest recovery remains challenging (Asner et al., 2009; Houghton et al., 2012; Goetz et al., 2015). Studies based on field measurements (e.g. Sist and Ferreira, 2007; Blanc et al., 2009; West et al., 2014; Vidal et al., 2016), sometimes coupled with modeling approaches (e.g. Gourlet-Fleury et al., 2005; Valle et al., 2007) or airborne light detection and ranging (LiDAR) measurements (e.g. Andersen et al., 2014) have assessed post-logging dynamics at particular sites. Nonetheless, to our knowledge no spatially-explicit investigation of post-logging C dynamics at the Amazon biome scale is available.

C losses from selective logging are determined by harvest intensity (i.e. number of trees felled or volume of wood extracted) plus the care with which harvest operations are conducted, which affects the amount of collateral damage. After logging, C losses continue for several years due to elevated mortality rates of trees injured during harvesting operations (Shenkin et al., 2015). Logged forests may recover their aboveground carbon stocks (ACS) via enhanced growth of survivors and recruited trees (Blanc et al., 2009). Full recovery of pre-disturbance ACS in logged stands reportedly requires up to 125 years, depending primarily on disturbance intensity (Rutishauser et al., 2015). The underlying recovery processes (i.e. tree mortality, growth and recruitment) are likely to vary with the clear geographical patterns in forest structure and dynamics across the Amazon Basin and Guiana Shield. In particular, northeast-southwest gradients have been reported for ACS (Malhi and Wright, 2004), net primary productivity (Aragão et al., 2009), wood density (Baker et al., 2004), and floristic composition (ter Steege et al., 2006). Such gradients coincide with climate and edaphic conditions that range from nearly a seasonal nutrient-limited in the northeast to seasonally dry and nutrient-rich in the southwest (Quesada et al., 2012). These regional differences in biotic and abiotic conditions largely constrain demographic processes that ultimately shape forest C balances.

Here we partition the contributions to post-disturbance ACS gain (from growth and recruitment of trees 20 cm DBH) and ACS loss (from mortality) of survivors and recruited trees to detect the main drivers and patterns of ACS recovery in forests disturbed by selective logging across Amazonia sensu lato (that includes the Amazon Basin and the Guiana Shield). Based on long-term (8–30 year) inventory data from 13 experimentally-disturbed sites (Sist et al., 2015) across Amazonia (Figure 1—figure supplement 1), 133 permanent forest plots (175 ha in total) that cover a large gradient of disturbance intensities (ACS losses ranging from 1% to 71%) were used to model the trajectory of those post-disturbance ACS changes (Figure 1) in a comprehensive Bayesian framework. We quantify the effect of pre-disturbance ecosystem characteristics [the site’s average pre-logging ACS (acs0) and the relative difference between each plot and acs0 as a proxy of forest maturity (dacs)], disturbance intensity [percentage of pre-logging ACS lost (loss)], and interactions with the environment [annual precipitation (prec), seasonality of precipitation (seas), and soil bulk density (bd)] (Figure 2) on the rates at which post-disturbance ACS changes converge to a theoretical steady state (as in Figure 1, see Materials and methods for more details). With global maps of ACS (Avitabile et al., 2016), climatic conditions (Hijmans et al., 2005) and soil bulk density (Nachtergaele et al., 2008), we up-scale our results to Amazonia (sensu lato) and elaborate predictive maps of potential ACS changes over 10 years under the hypothesis of a 40% ACS loss, which is a common disturbance intensity after conventional logging in Amazonia (Blanc et al., 2009; Martin et al., 2015; West et al., 2014). Summing these ACS changes over time gives the net post-disturbance rate of ACS accumulation. Disentangling ACS recovery into demographic processes and cohorts is essential to reveal mechanisms underlying ACS responses to disturbance and to make more robust predictions of ACS recovery compared to an all-in-one approach (see Appendix).

Figure 1 with 1 supplement see all

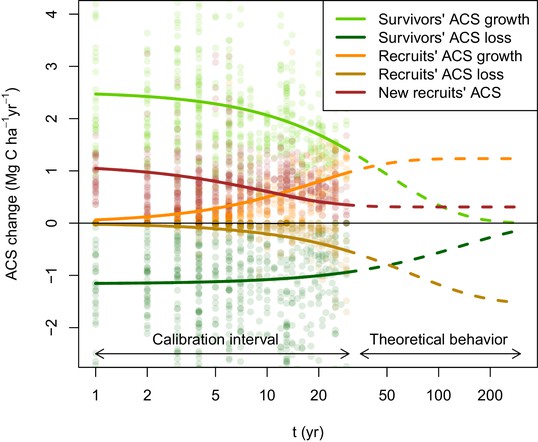

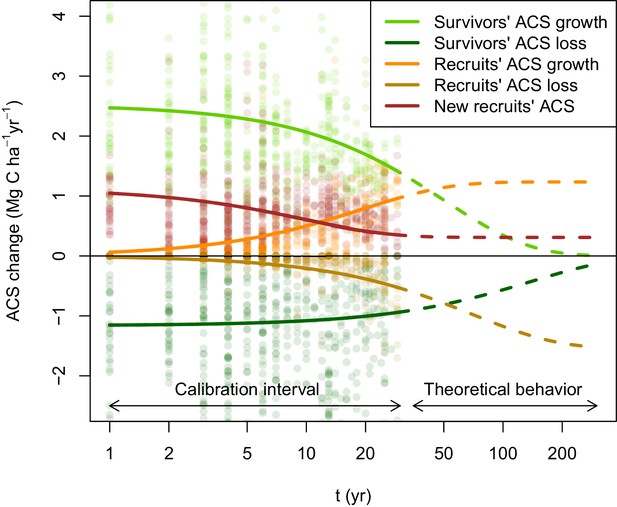

Post-disturbance annual ACS changes of survivors and recruits in 133 Amazonian selectively logged plots.

Data is available between the year of minimum ACS (t=0) and t=30 years. ACS changes are: recruits’ ACS growth (orange), recruits’ ACS loss (gold), new recruits’ ACS (red), survivors’ ACS growth (light green) and survivors’ ACS loss (dark green). Thick solid lines are the maximum-likelihood predictions (for an average plot, when all covariates are null), and dashed lines are the model theoretical behaviour. New recruits’ ACS, recruits’ ACS growth, and recruits’ ACS loss converge over time to constant values. A dynamic equilibrium is then reached: ACS gain from recruitment and recruits’ growth compensate ACS loss from recruits’ mortality. Survivors’ ACS growth and loss. decline over time and tend to zero when all initial survivors have died.

https://doi.org/10.7554/eLife.21394.003
Figure 2 with 1 supplement see all

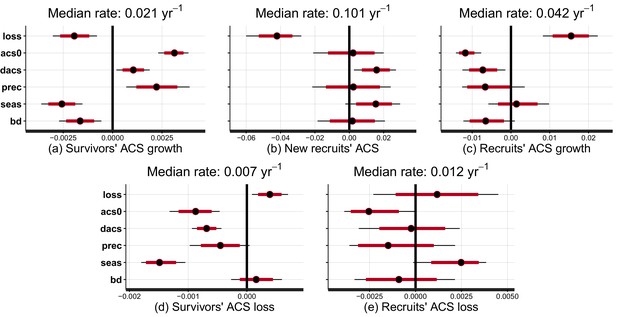

Effect of covariates on the rate at which post-disturbance ACS changes converge to a theoretical steady state (in yr-1).

Covariates are : disturbance intensity (loss) , i.e. the proportion of initial ACS loss; mean site’s ACS (acs0), and relative forest maturity, i.e. pre-logging plot ACS as a % of acs0 (dacs); annual precipitation (prec); seasonality of precipitation (seas), soil bulk density (bd). Covariates are centred and standardized. Red and black levels are 80% and 95% credible intervals, respectively. The median rate is the prediction of the convergence rate for an average plot (when all covariates are set to zero). Negative covariate values indicate slowing and positive values indicate accelerating rates. (a) Survivors’ ACS growth. (b) New recruits’ ACS. (c) Recruits’ ACS growth. (d) Survivors’ ACS loss. (e) Recruits’ ACS loss.

https://doi.org/10.7554/eLife.21394.005

Results

Local variations of ACS changes

At a given site, variations of post-logging ACS changes are explained with the disturbance intensity (loss) and the relative forest maturity (dacs). At high disturbance intensity (positive loss) as well as in relatively immature forests (negative dacs), ACS gain from recruits is high: recruitment decreases slowly (Figure 2b and Figure 3b) and recruits’ growth increases rapidly (Figure 2c and Figure 3c). In the same conditions of high disturbance intensity, survivors’ ACS growth is lower in the first years following logging than for low disturbance intensities, but declines slowly (Figure 2a and Figure 3a). Disturbance intensity and relative forest maturity have a weak effect on ACS loss from both survivors and recruits (Figures 2d,e and 3d,e). Overall, net ACS change stays high longer at high disturbance intensity (Figure 3f).

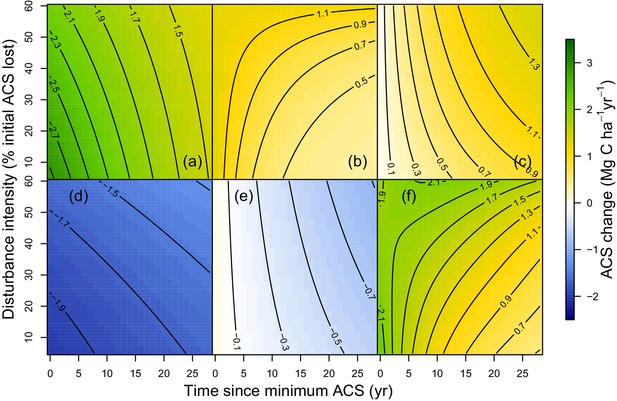

Predicted effect of disturbance intensity on ACS changes along time in an Amazonian-average plot.

(a) Survivors’ ACS growth. (b) New recruits’ ACS. (c) Recruits’ ACS growth. (d) Survivors’ ACS loss. (e) Recruits’ ACS loss. (f) Net ACS change. The net ACS change is the sum of all five ACS changes. ACS changes were calculated with all parameters set to their maximum-likelihood value and covariates (except standardized disturbance intensity loss) set to 0. Time since minimum ACS varies from 0 to 30 year (i.e. the calibration interval) and disturbance intensity ranges between 5% and 60% of initial ACS loss.

https://doi.org/10.7554/eLife.21394.008

Regional variations of ACS changes

Variations of post-logging ACS changes between sites are explained with the mean ACS of each site (acs0), climatic conditions [annual precipitation (prec), seasonality of precipitation (seas)] and the soil bulk density (bd). Contribution of survivors’ growth to ACS recovery declined slowly in sites with low acs0 and high water stress (low precipitation, high seasonality and high bulk density) (Figure 2a). Survivors’ ACS loss showed the opposite pattern (Figure 2d) except in apparent response to high seasonality of precipitation (seas) that slowed the post-disturbance rates of decline of both ACS growth and loss. Despite slower recruits’ ACS growth in sites with high pre-logging ACS (acs0), no other regional covariate had significant effects on recruits’ ACS changes (Figure 2b,c and e).

Prediction maps

While no significant environmental effects were detected for recruits’ ACS changes (Figures 2 and 4), the survivors showed a highly structured regional gradient: (i) ACS gain from survivors’ ACS growth is high in the west and in the Guiana Shield, but low in the south (Figure 4a), whereas (ii) survivors’ ACS loss is low in the south and in the Guiana Shield but high in the west (Figure 4d). To illustrate how these regional differences will be critical for future ACS across Amazonia, we developed a map of net ACS recovery over the first 10 years after a 40% ACS loss by integrating the sum of ACS change predictions through time (Figure 5). Across the region, net ACS recovery over the first ten years after a 40% ACS loss is predicted to be 17 ± 7 Mg C ha-1, with higher values in the west and in the Guiana Shield (Figure 5a). The uncertainty in predictions was low to medium (coefficient of variation under 40%) in 82% of the mapped area, and high (coefficient of variation above 50%) in 5% of the mapped area (Figure 5b).

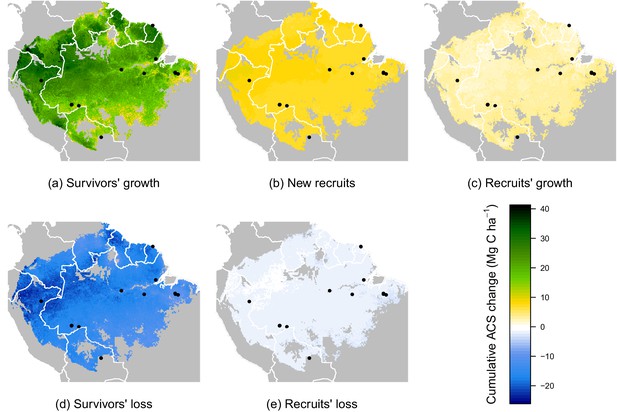

Predicted cumulative ACS changes (Mg C ha1) over the first 10 year after losing 40% of ACS.

Extrapolation was based on global rasters: topsoil bulk density from the Harmonized global soil database (Nachtergaele et al., 2008), Worldclim precipitation data (Hijmans et al., 2005) and biomass stocks from Avitabile et al. map (Avitabile et al., 2016). Cumulative ACS changes are obtained by integrating annual ACS changes through time. We here show the median of each pixel. Top graphs are ACS gain and bottom graphs are ACS loss. (a) ACS gain from survivors’ growth. (b) ACS gain from new recruits. (c) ACS gain from recruits’ growth. (d) ACS loss from survivors’ mortality. (e) ACS loss from recruits’ mortality. Black dots are the location of our experimental sites. Survivors’ ACS changes (a and d) show strong regional variations unlike to recruits’ ACS changes (b,c and e).

https://doi.org/10.7554/eLife.21394.009

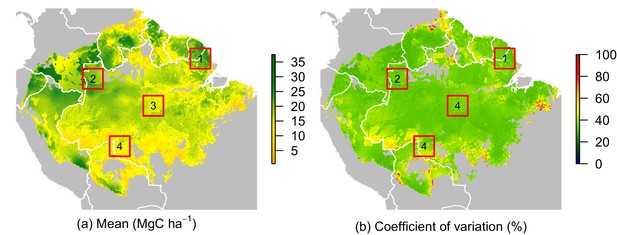

Predicted net ACS recovery over the first 10 year after losing 40% of pre-logging ACS.

(a) median predictions. (b) coefficient of variation (per pixel). Four areas were arbitrarily chosen to illustrate four different geographical behaviours: (1) the Guiana Shield and (2) northwestern Amazonia are two areas with high ACS recovery; the Guiana Shield has higher initial ACS and slower ACS dynamics whereas northwestern Amazonia has lower initial ACS and faster ACS dynamics. (3) central Amazonia has intermediate ACS recovery. (4) southern Amazonia has low ACS recovery.

https://doi.org/10.7554/eLife.21394.010

Four areas (Figure 5a) were selected to represent four contrasted cases of net ACS recovery in time (Figure 6): two areas, northwestern Amazonia and the Guiana Shield, with high ACS accumulation (21 ± 3 Mg C ha-1 over 10 year), one intermediate area, central Amazonia (15 ± 1 Mg C ha-1 over 10 year) and one area with low ACS accumulation, southern Amazonia (12 ± 3 Mg C ha-1 over 10 year). Survivors’ contribution to the sum of ACS gains (recruitment and growth) over the first 10 years after disturbance was 71 ± 4% in the Guiana Shield, 71 ± 2% in the west; 63 ± 4% in central Amazonia and 55 ± 6% in the south. Predicted net ACS recovery (Figure 5) and survivors’ ACS growth (Figure 4a) are highly correlated: ρ=0.90 (Pearson’s correlation coefficient).

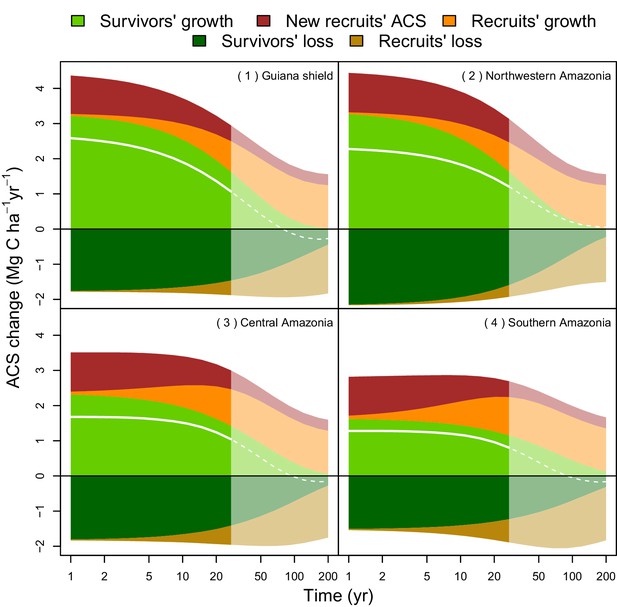

Predicted contribution of annual ACS changes in ACS recovery in four regions of Amazonia (Figure 5).

The white line is the net annual ACS recovery, i.e. the sum of all annual ACS changes. Survivors’ (green) and recruits’ (orange) contribution are positive for ACS gains (survivors’ ACS growth, new recruits’ ACS and recruits’ ACS growth) and negative for survivors’ and recruits’ ACS loss. Areas with higher levels of transparency and dotted lines are out of the calibration period (0–30 year). In the Guiana Shield and in nothwestern Amazonia, high levels of net ACS recovery are explained by large ACS gain from survivors’ growth. Extrapolation was based on global rasters: topsoil bulk density from the Harmonized global soil database (Nachtergaele et al., 2008), precipitation data from Worldclim (Hijmans et al., 2005) and biomass stocks from Avitabile et al. (Avitabile et al., 2016) map.

https://doi.org/10.7554/eLife.21394.011

Discussion

Contrasting post-disturbance ACS dynamics were detected among the western Amazon, Guiana Shield, and southern Amazon (Figure 4). (i) In the western Amazon, environmental stress is reduced due to fertile soils and abundant, mostly non-seasonal precipitation, but forests are prone to frequent and sometimes large-scale wind-induced disturbances (Espírito-Santo et al., 2014). Such conditions of low stress and high disturbance tend to favor fast-growing species with rapid life cycles (He et al., 2013), which results in fast ACS gain and loss from survivors even after the logging disturbance (Figures 4a,d and 6). (ii) Forests of the Guiana Shield are generally dense and grow on nutrient-poor soils (Quesada et al., 2012), where wood productivity is highly constrained by competition for key nutrients, especially phosphorus and nitrogen (Santiago, 2015; Mercado et al., 2011). The short duration pulse of nutrients released from readily decomposed stems, twigs and leaves of trees damaged and killed by logging may thus explain the substantial but limited-duration increase in growth of survivors on these nutrient-poor soils (Figure 6). Yet post-disturbance ACS loss from survivors’ mortality decreases slowly in the Guiana Shield (Figure 6). This is consistent with the low mortality rates and the high tree longevity reported in old-growth forests of this region (Phillips et al., 2004). (iii) In the southern Amazon, high seasonal water stress is the main constraint on ACS recovery (Wagner et al., 2016). Stress-tolerant trees are generally poor competitors (He et al., 2013) and this may explain the slow ACS changes of survivors in this region (Figures 4a,d and 6). Finally, Central Amazonia is a transition zone for the main environmental and biotic gradients found in Amazonia: (1) a competition gradient between dense and nutrient-poor northeastern forests and nutrient-rich western forests; (2) an environmental gradient between northern wet forests and southern drier forests (Quesada et al., 2012).

Across Amazonia, survivors contribute most to post-disturbance ACS recovery. In regions where survivors’ ACS gain is high (west and northeast), net ACS recovery is also high: annual ACS recovery is between 1 and 3 Mg C ha-1 yr-1 in the first 10 year after logging (Figure 6), lower than in Amazonian secondary forests (3–5 Mg C ha-1 yr1 in the first 20 year after abandonment of land use [Poorter et al., 2016]). Recruits, for their part, have very low geographical variations in post-logging ACS changes: 10 years after the disturbance they are predicted to store similar amounts of ACS almost everywhere in Amazonia. Nevertheless, small trees with DBH <20 cm have not been accounted for in our study and may play an important role in post-logging ACS changes. The 10–20 cm DBH size class contains as much as 14% of total ACS and may be highly dynamic in some Amazonian forests (Vieira et al., 2004). Because of the slow tree growth rates in Amazonia (Vieira et al., 2005; Herault et al., 2010), many trees will not reach the 20 cm DBH threshold 10 years after logging: the effects of the 10–20 cm DBH stratum on post-logging ACS changes are likely to be missed in sites with less than 10 years of measurements (e.g. Peteco, Ecosilva, Iracema, Cumaru) and should be studied, together with the natural regeneration, in the future.

At the stand level, high disturbance intensities reduce survivors’ ACS: survivors’ ACS growth is consequently lower (Figure 3a), resulting in lower net ACS change during the first 10 years of the recovery period (Figure 3f). High disturbance intensities as well as relatively low forest maturity alleviate competition, and this is probably why ACS contributions from recruits remain high for longer (Figure 2b) in such enhanced growth conditions (Herault et al., 2010). In the first years after logging, net ACS recovery depends little on disturbance intensity (Figure 3f), but recovery is predicted to last longer in heavily logged forests. In immature forests, intense self-thinning (Swaine et al., 1987) may explain fast ACS losses from survivors’ mortality (Figure 2d).

In the tropics, reduced-impact logging techniques (RIL; [Putz et al., 2008]) are promoted to reduce collateral damage to residual stands and biodiversity. Our results reveal that lower disturbance intensities, as a direct consequence of the employment of RIL techniques, could increase survivors’ ACS growth and slow down their ACS loss. Given that government specified minimum cutting cycles are short, e.g. 35 year in the Brazilian Amazon (Blaser et al., 2011), and that many commercial species are slow-growing and dense-wooded (Dauber et al., 2005; Wright et al., 2010), available timber stocks for the next cutting cycle will be comprised mostly of survivors. Attention should be taken to high harvest intensities and/or substantial incidental damage due to poor harvesting practices that diminish stocks of survivors, even if they promote recruitment. Most trees that recruit are fast-growing pioneers that are favored by disturbance but are vulnerable to water stress (Bonal et al., 2016) and competition (Valladares and Niinemets, 2008), and because their height is lower than in mature forests (Rutishauser et al., 2016), they might have reduced carbon sequestration potential. With ongoing climate change and increased frequencies and intensities of droughts in Amazonia (Malhi et al., 2008), betting on recruits to store C in forests disturbed by selective logging might thus be a risky gamble.

In this study, we focus on one type of disturbance: selective logging. Because of its economic value and implications for forest management, selective logging is a long-studied human disturbance in tropical forests, and the data gathered by the TmFO network are unique in terms of experiment duration and spatial extent. We nevertheless believe that our study gives clues on the regional differences in Amazonian forests response to large ACS losses induced by other disturbances (e.g. droughts, fire) that are expected to increase in frequency with ongoing global changes (Bonal et al., 2016).

Materials and methods

Site description

Our study includes data from thirteen long-term (8–30 year) experimental forest sites located in the Amazon Basin and the Guiana Shield (Figure 1—figure supplement 1). Sites meet the following criteria: (i) located in tropical forests with mean annual precipitation above 1000 mm; (ii) a total censused area above 1 ha; (iii) at least one pre-logging census and (iv) at least two post-logging censuses. For each site, we extracted annual precipitation and seasonality of precipitation data from WorldClim (RRID:SCR_010244) (Hijmans et al., 2005), topsoil bulk density data from the Harmonized World Soil database (Nachtergaele et al., 2008), and the synthetic climatic index from Chave et al. (Chave et al., 2014), using in all cases the highest resolution data available (30 arc-seconds). For one of our sites (La Chonta, see Figure 1—figure supplement 1), field measurements of precipitation (mean = 1580 mm yr-1) differed substantially from WorldClim data (1032 mm yr-1): in this particular case we used the measured value and adjusted the synthetic climatic index (E) in the allometric equation (Chave et al., 2014) accordingly. Sites' data is available at Dryad Digital Repository (Piponiot et al., 2016).

ACS computation

In all plots, diameter at breast height (DBH) of trees >20 cm DBH were measured, and trees were identified to the lowest taxonomic level: to the species level (75%) when possible, or to the genus level (15%); 10% of trees were not identified. To get the wood density, we applied the following standardized protocol to all sites: (i) trees identified to the species level were assigned the corresponding wood specific gravity value from the Global Wood Density Database (GWDD, doi:10.5061/dryad.234/1) (Zanne et al., 2009); (ii) trees identified to the genus level were assigned a genus-average wood density; (iii) trees with no botanical identification or that were not in the GWDD were assigned the site-average wood density. The aboveground biomass (AGB) was estimated with the allometric equations from Chave et al. (Chave et al., 2014). Biomass was assumed to be 50% carbon (Penman et al., 2003). The ACS of every tree i was then computed as follows:

(1) ACSi^=exp(1.8030.976×E+0.976×ln(WDi)++2.673×ln(DBHi)0.0299×ln(DBHi2))×0.5

where WDi and DBHi are the specific wood density and diameter at breast height of the tree i and E is the synthetic climatic index (Chave et al., 2014). The ACS changes data that was generated is available at Dryad Digital Repository (Piponiot et al., 2016).

The recovery period

After logging, plot ACS decreases rapidly until it reaches its minimum value (acsmin) a few years later. This transition point determines the beginning tmin=t0 of the recovery period. acsmin was estimated as the minimum ACS in the 4 years following logging activities. Because our focus is on post-logging ACS recovery, we did not include in our analysis plots where the minimum ACS value was not reached within the 4 years after logging, either because the logging activity did not affect the plot or because there were other sources of disturbance long after logging (fire, road opening, silvicultural treatments).

ACS changes computation

For each plot j and census k, with tk the time since the beginning of the recovery period t0, we define 5 ACS changes : new recruits’ ACS (Rrj,k) is the ACS of all trees <20 cm DBH at tk-1 and 20 cm DBH at tk; recruits’ ACS growth (Rgj,k) is the ACS increment of living recruits between tk-1 and tk ; recruits’ ACS loss (Rlj,k) is the C in recruits that die between tk-1 and tk; survivors’ ACS growth (Sgj,k) is the ACS increment of living survivors between tk-1 and tk; survivors’ ACS loss (Slj,k) is the ACS of survivors that die between tk-1 and tk. ACS gains (Sg, Rr, Rg) are positive and ACS losses (Sl, Rl) are negative. Instantaneous ACS changes are subject to stochastic variation over time: because we are less interested in year-to-year variations than in long-term ACS trajectories, we modelled cumulative ACS changes instead of annual ACS changes. Cumulative ACS changes (Mg C ha-1) were defined as follows:

(2) cChangej,k=m=0kChangej,m

where j is the plot, tk the time since t0 (yr) and Change is the annual ACS change (Mg C ha-1 yr-1), either recruits’ ACS (Rr), recruits’ ACS growth (Rg), recruits’ ACS loss (Rl), survivors’ ACS growth (Sg), or survivors’ ACS loss (Sl).

Covariates

To model ACS changes, we chose six covariates : (1) loss disturbance intensity, i.e. percentage of initial ACS loss; (2) acs0 mean ACS of the site; (3) dacs relative ACS of the plot, as a % of acs0; (4) prec annual precipitation; (5) seas precipitation seasonality; (6) bd topsoil bulk density. To give equivalent weight to all covariates, we centred and standardized them in order to have a mean of zero and a standard deviation of one over all observations. The uncertainty associated with ACS covariates (loss, acs0, dacs) is less than 10% (Chave et al., 2014). Climatic covariates (annual precipitation prec and precipitation seasonality seas) were extracted from Worldclim rasters (RRID:SCR_010244). Error in Worldclim precipitation data was estimated to be <10 mm in Amazonia (Hijmans et al., 2005). There is no information on the uncertainty on topsoil bulk density but we expect it to be higher than the uncertainty on other covariates, due to measurement (De Vos et al., 2005) and interpolation methods (Hendriks et al., 2016).

Survivors’ model

Survivors’ cumulative ACS changes are null at t=0 (by definition). When all survivors are dead, their ACS changes stop: annual ACS changes become null and cumulative ACS changes reach a constant/finite limit. We decided to model survivors’ cumulative ACS growth cSg and ACS loss cSl as:

(3) cSi,j,k𝒩(αjS×(1-exp(-βjS×tk)),(σES)2)

where j is the plot, tk is the time since t0,S is either Sg or Sl.αjS is the finite limit of the cumulative ACS change and βjS the rate at which the cumulative ACS change converges to this limit. By choosing an exponential kernel, we assume that survivors’ ACS change at tk is proportional to survivors’ ACS change at tk-1.

Because αjS values are expected to vary among plots, they are modelled with the following distribution:

(4) αjS𝒩(α0S,(σαS)2)

Parameter βjS is the rate at which survivors’ ACS change (from growth or mortality) on plot j converges to a finite limit after the disturbance: it reflects the response rapidity of survivors’ ACS changes to disturbance. Because we are interested in predicting variations in βjS (S is either Sg or Sl), we expressed βjS as a function of covariates:

(5) βjS=β0S+l=16(λlS×Vj,l)

where l=16(λlS×Vj,l), is the effect of covariates (Vj,l) on the post-logging rate βj. Covariates are centred and standardized and are (1) loss : disturbance intensity, i.e. percentage of initial ACS loss; (2) acs0 : mean ACS of the site; (3) dacs relative ACS of the plot, as a % of acs0; (4) prec annual precipitation; (5) seas precipitation seasonality; (6) bd topsoil bulk density.

When all survivors in plot j are dead, all the C gained by their growth (cSgj,=αjSg) plus their initial ACS (acsminj) will have been lost (cSlj,=αjSl). We thus added the following constraint to each plot j:

(6) αjSl+αjSg+acsminj=0

with αjSg,αjSl the finite limits of survivors’ cumulative ACS growth and ACS loss respectively, and acsminj the ACS of the plot j at tmin=t0.

Recruits’ model

When survivors are all dead, recruits will constitute the new forest. We made the assumption that the ACS of this new forest will reach a dynamic equilibrium: recruits’ annual ACS changes are expected to converge to constant values (that are however prone to small inter-annual variations), with ACS gains compensating ACS losses. Because there are no recruits yet at t0, recruits’ annual ACS growth (Rg) and ACS loss (Rl) are zero, and progressively increase to reach their asymptotic values. Recruits’ annual ACS growth and ACS loss can be thus modelled with the function:

(7) f(t;α,β)=α×(1-exp(-β×t))

where t is the time since the beginning of the recovery period. In the same logic as survivors’ cumulative ACS change, α is the asymptotic value of recruits’ annual ACS change (Mg C ha-1 yr-1), and β is the rate at which this asymptotic value is reached.

Contrary to recruits’ annual ACS growth and ACS loss, the ACS of new recruits (Rr) is high at t0 because of the competition drop induced by logging, but then progressively decreases to reach its asymptotic value. We modelled it with the following function:

(8) f(t;α,β,η)=α×(1+η×exp(-β×t))

where t is the time since logging. The parameter η was added to allow annual recruited ACS to be higher than α at t0.

As stated before, we chose to model cumulative ACS changes instead of annual ACS changes. The general model for recruits’ cumulative ACS changes is deduced by integrating annual ACS changes from t0 to tk:

(9) cRi,j,k𝒩(αiR×(tk+η×1exp(βjR×tk)βjR),(σER)2)

where i is the site, j is the plot, tk is the time since t0 R is either Rr,Rg or Rl. When R is Rg or Rl, η=-1; when R is Rr, η>0.

Once the forest reaches a new dynamic equilibrium, recruits’ annual ACS changes should depend mostly on each site’s characteristics: we expect there to be more inter-site than intra-site variation in recruits’ asymptotic ACS changes αR. This is why we use one value αiR per site i, and model it as follows:

(10) αiR𝒩(α0R;(σαR)2)

When the dynamic equilibrium is reached, annual ACS gain (growth and recruitment) compensates annual ACS loss (mortality). We thus added the following constraint for every site i:

(11) αiRr+αiRg+αiRl=0

With the same logic as for survivors, we are interested in predicting variation in βR. Given that we use one value αiR per site i (i.e. all plots in one site i have the same value for αiR), we chose to take into account the inter-plot variability as follows:

(12) βjR𝒩(β0R+l=16(λlR×Vj,l) , (σβR)2)

Inference

Bayesian hierarchical models were inferred through MCMC methods using an adaptive form of the Hamiltonian Monte Carlo sampling (Carpenter et al., 2015). Each observation was given a weight proportional to the size of the plot. Codes were developed using the R language (RRID:SCR_001905) (R Developement Core Team, 2015) and the Rstan package (Carpenter et al., 2015). A detailed list of priors is provided in Table 1.

Table 1

List of priors used to infer ACS changes in a Bayesian framework. Models are : (Sg) survivors’ ACS growth, (Sl) survivors’ ACS loss, (Rr) new recruits’ ACS, (Rg) recruits’ ACS growth, (Rl) recruits’ ACS loss. λloss is the parameter relative to the covariate loss (logging intensity).

https://doi.org/10.7554/eLife.21394.012
ModelParameterPriorJustification
SgαjSg𝒰[25,250]On average 100 survivors/ha storing 0.25 to 2.5 MgC each
SgβjSg𝒰[0.015,0.04]75<t0.95Sg<200 yr
SlβjSl𝒰[0.006,βSg]t0.95Sg<t0.95Sl<500 yr
RrαiRr𝒰[0.1,1]Range of observed values in TmFO control plots
RrβjRr𝒰[0.006,0.6]5<t0.95Rr<500 yr
Rrη𝒰[0,3]Rr(t=0)<3×Rr(t=)
RgαiRg𝒰[0.5,3]Range of observed values in Amazonia (Johnson et al., 2016)
RgβjRg𝒰[0.006,0.15]20<t0.95Rg<500 yr
RlβjRl𝒰[0.003,0.06]50<t0.95Rl<1000 yr
All models M λlossM𝒰[-βM,βM]Avoid multicollinearity problems
All models M (λlM)lloss𝒰[βM4,βM4]Avoid multicollinearity problems
  1. t0.95=ln(20)β is the time when the ACS change has reached 95% of its asymptotic value.

  2. M is one of the five models: either Sg, Sl, Rr, Rg, Rl.

Prediction maps

Maps were obtained with the following steps: (i) spatially-explicit covariates are extracted at the resolution of 30 arc-second from: the pan-tropical carbon map of Avitabile et al. for pre-disturbance aboveground carbon stocks (Avitabile et al., 2016); WorldClim (RRID:SCR_010244) (Hijmans et al., 2005) for annual precipitation and seasonality of precipitation, and the Harmonized World Soil database (Nachtergaele et al., 2008) for topsoil bulk density; (ii) disturbance intensity is set to 40% of pre-logging ACS loss, which is a common value for disturbance intensity after conventional logging in Amazonia (West et al., 2014; Blanc et al., 2009; Martin et al., 2015) , and the relative forest maturity dacs is set to zero; (iii) parameters are drawn from their previously calibrated distribution; (iv) to simulate random effects, all five parameters (α) are taken from their distribution 𝒩(α0,σα2); (v) for every pixel, we estimate the five cumulative ACS changes (cSg, cSl, cRr,cRg,cRl) 10 years after the 40% ACS loss, given the parameters value and the pixel covariates values extracted from global rasters. Steps (iii) to (v) are repeated 200 times and summary statistics are calculated for every pixel. Because a significant part of our sites have experiment duration lower than 10 years (Figure 1—figure supplement 1), we are less confident in Amazonian-wide predictions after that 10 year period. Maps were elaborated under the R statistical software (RRID:SCR_001905) (R Developement Core Team, 2015).

Appendix

The importance of a process-based approach

We here study C recovery dynamics with a demographic process-based approach, i.e. by segregating ACS changes into cohorts (survivors and recruits) and demographic processes (growth, recruitment, mortality), as opposed to an all-in-one model in which only the ecosystem net ACS change is modelled, without examination of demographic processes.

To compare the goodness of fit of the two approaches (all-in-one and process-based), we calibrated an all-in-one model with our data and compared the accuracy of its predictions with the process-based predictions reported in this study. The all-in-one model was written as follows:

(13) Cj,k𝒩((acs0j-acsminj)×(1-exp(-βjC×tk)),(σEC)2)

where Cj,k (MgC ha-1) is the total C accumulation tk years after the disturbance in plot j acs0j-acsminj is the ACS lost by logging and βjC is the rate at which the plot ACS returns to its pre-logging ACS. We took into account the effect of covariates and dependencies for βjC:

(14) βjCN(β0C+l=16(λlC×Vj,l);(σβC)2)

The process-based model made better predictions (RMSE = 0.24) than the all-in-one model (RMSE = 0.31). In some sites, for example Paracou (black diamonds in Appendix—figure 1), there is a clear bias in the all-in-one model predictions: C accumulation is overestimated at the beginning of the recovery period and underestimated towards the end. This bias may be due to the non-adequacy of the negative exponential curve in the classic all-in-one model ( Appendix—figure 2a) to the C recovery observed in experimental plots (Rutishauser et al., 2015). The process-based model does not predict a constant instantaneous C accumulation rate (Appendix—figure 2b), and is thus more accurate.

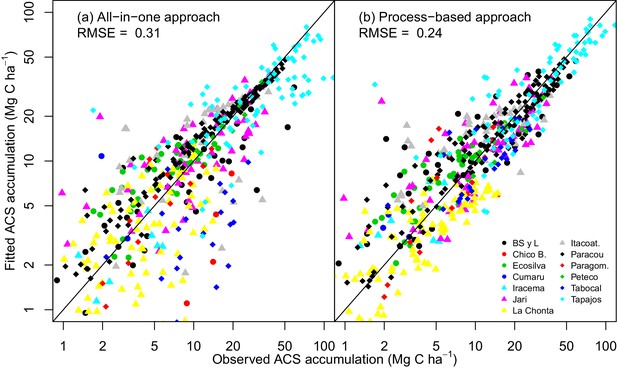

Appendix 1—figure 1
Observed vs fitted values of net ACS accumulation (MgC ha-1).

(a) Fitted values from the all-in-one model. (b) Fitted values from the process-based model (right). Net ACS accumulation is the sum of cumulative ACS changes (gain and loss). Each combination of a colour and shape is specific to a site. The closer the dots are to the x=y line, the better the prediction.

https://doi.org/10.7554/eLife.21394.013

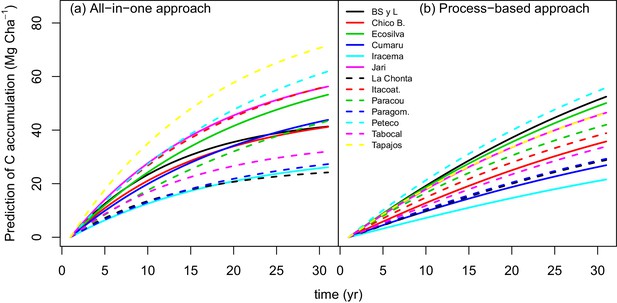

Appendix 1—figure 2
Predicted trajectories of net ACS accumulation (MgC ha-1) per site with (a) the all-in-one model and (b) the process-based model.
https://doi.org/10.7554/eLife.21394.014

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
    Status of Tropical Forest Management
    1. J Blaser
    2. A Sarre
    3. D Poore
    4. S Johnson
    (2011)
    Status of Tropical Forest Management.
  10. 10
  11. 11
    Stan: A probabilistic programming language
    1. B Carpenter
    2. A Gelman
    3. M Hoffman
    4. D Lee
    5. B Goodrich
    6. M Betancourt
    7. MA Brubaker
    8. P Li
    9. A Riddell
    (2015)
    Journal of Statistical Software.
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
    Harmonized world soil database
    1. F Nachtergaele
    2. HV Velthuizen
    3. L Verelst
    (2008)
    Technical Report.
  33. 33
  34. 34
    Good Practice Guidance for Land Use, Land-Use Change and Forestry
    1. J Penman
    2. M Gytarsky
    3. T Hiraishi
    4. T Krug
    (2003)
    The Intergovernmental Panel on Climate Change.
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
    R: A Language and Environment for Statistical Computing
    1. R Developement Core Team
    (2015)
    Vienna, Austria: R Foundation for Statistical Computing.
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
    Global wood density database
    1. AE Zanne
    2. G Lopez-Gonzalez
    3. DAA Coomes
    4. J Ilic
    5. S Jansen
    6. S Lewis
    7. RBB Miller
    8. NGG Swenson
    9. MCC Wiemann
    10. J Chave
    (2009)
    Technical Report, 235, 10.5061/dryad.234/1.

Decision letter

  1. Susan Trumbore
    Reviewing Editor; Max-Planck-Institute for Biogeochemistry, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Post-disturbance carbon recovery in Amazonian forests" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Ian Baldwin as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission; this decision relies heavily on the two reviewers' comments, as they largely agreed with each other.

Title: The authors use a very broad term "disturbance" when they actually deal with only a single type of disturbance: selective logging. They need to change the title to reflect their study more accurately. (Suggestion: C recovery following selective logging.)

Summary:

Piponiot et al. synthesize data from a number of sites across the Amazon Basin to assess carbon (C) recovery dynamics following selective logging. The novelty of their study is in the observation-driven approach that distinguishes growth and mortality in recruitments and survivors as controls on the rate of biomass recovery after logging. They linked regional differences in climate, soil and initial biomass with differences in the relative importance growth and mortality to build a model that can provide Amazon-wide predictions of post-logging accumulation of above ground C stocks. This study has potential implications for forest management as well as indicating the importance of selective logging on the C balance of the Amazon region.

Essential revisions:

The reviewers identified 5 main points that need to be addressed. These do not require major re-analysis of the data, but do require that the authors are clearer about what they have done and what the consequences of some of their decisions are for their overall results.

1) The Results and Discussion refer to disturbance intensity (for example in the last paragraph of the Discussion) but Results and Discussion were restricted to a single 'scenario' (ten years after losing 40% of pre-disturbance ACS). Could you add a figure and discussion on, for example, how fitted growth and mortality rates vary as a function of disturbance intensities? Alternatively, the post-disturbance dynamics could be plotted for a single region but for contrasting disturbance intensities. Logging intensity is too important and interesting to be not discussed in more detail.

2) Discussion, last paragraph: 'available timber stocks […]' is a statement with potentially far reaching consequences for forest management. Can you support/quantify this statement by making use of your model? Both reviewers would be interested in the authors could comment on, or even better, include more results on this topic. Reviewer 1 suggested a number of interesting questions: how many cutting cycles can one make before the forest is degraded? If the forest is degraded how long would it take for the recruits to recover the biomass to 50% of the pre-harvest level? What would be the time in between two cutting cycles to justify calling the forest management 'sustainable'? The whole point of selective logging should be to extract wood while at the same time enhance biomass recovery by maintaining high stand-level productivity. Any results analysis that could provide a more quantitative perspective on this issue (including regional differences across the Amazon) would be exciting.

While not insisting on additional analysis by the authors, some comment on how their study can contribute to these questions would be useful.

3) The authors show that variations in ACS changes of recruits are smaller than that of survivors. In fact, this is one of the main results of their study. Although large trees contain an important fraction of the stand aboveground biomass in tropical forests (Slik et al. 2013), small trees contribute significantly to the species diversity pool and biomass stocks/balance. This is especially important in Central and Western Amazon forests, where large trees are less abundant and account for a lower proportional biomass/basal area than in Eastern Amazon forests (Vieira et al. 2004). Therefore, a highly dynamic stratum (trees < 20 cm DBH) is missing in the analyses. This stratum will define the structure and floristic composition of the future forests, directly related to timber volume and quality for the next harvesting cycles. Moreover, given the low growth rates of Amazon species (Silva et al. 2002; Hérault et al. 2010) and the minimum DBH considered in this study (only trees ⩾ 20 cm DBH were monitored), trees that were considered 'recruits' are in fact more likely to be 'survivors' (i.e. already there before logging). This can be especially true in the first 5-10 yrs following logging (e.g. Iracema and Peteco), where trees established after logging probably did not reach the 20 cm DBH threshold. Apart from the distinction in size (only given in the last section of the paper), the authors do not provide clear evidence that 'recruits' survived the disturbance.

As the main results and conclusions of the paper rely on the importance/contribution of the cohorts, these limitations and their implications need to be addressed.

4) The authors need to be clearer about how they compute ACS and make sure some of their methods are stated early in the text. Specifically, reviewer 2 notes that the limitation to trees of > 20 cm DBH (and is this greater than or equal to, or greater than; see subsection “ACS changes computation”) has consequences for the results of the paper and should be mentioned as part of the study.

Also, the assignment of plot-level wood density to calculate ACS is problematic, especially when the plot is recovering from disturbance. While pioneer species can have wood density values lower than 0.35 g cm-3 (e.g. Tapirira obtusa and Jacaranda copaia), late-successional species can have wood density values three times higher (> 1 g cm-3; e.g. Swartzia corrugata and Licania laxiflora). When only trees with DBH ⩾ 20 cm are monitored, and a given plot has a higher abundance of 'survivors' (i.e. large and relatively old trees), the biomass of pioneer trees can be overestimated in an unknown order of magnitude. In contrast, in a plot dominated by pioneer species (e.g. those where logging was more intense), this effect will be the opposite. These two situations affect analyses on the importance of cohorts (i.e. survivors and recruits) and demographic processes (i.e. Rr, Rg, RI, Sg and SI).

At a minimum, the authors some assessment of how assumptions of wood density (as opposed to using local allometric equations that rely solely on DBH) could affect their conclusions.

5) Floristic data were acquired at the sites and mentioned in the Methods, but no results or summary was presented. It is not clear what the authors mean with 'trees were identified to the lowest taxonomic level' (i.e. 'species level')? Was there potentially important information that was not mentioned? Please add some information about the number of species, genera and botanical families recorded in each site, or give a citation where such information can be found. It is particularly of interest if floristic diversity varies among the 13 sites.

https://doi.org/10.7554/eLife.21394.019

Author response

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission; this decision relies heavily on the two reviewers' comments, as they largely agreed with each other.

Title: The authors use a very broad term "disturbance" when they actually deal with only a single type of disturbance: selective logging. They need to change the title to reflect their study more accurately. (Suggestion: C recovery following selective logging.)

The title has been changed to “Carbon recovery dynamics following disturbance by selective logging in Amazonian forests”.

We agree that our data only covers one type of disturbance: selective logging. It seems however important to us to stress out the fact that because selective logging is a long-studied disturbance (because of its implications for forest management and its economic value), we have a unique dataset (in terms of experiment duration and spatial extent) to study the effect of disturbance on Amazonian tropical forests. We thus believe that our study could give clues on the regional differences in Amazonian forests response to other disturbance types (i.e. drought-induced large mortalities, fire). This is why we added a section in the Discussion (last paragraph) to emphasize this point.

[…] Essential revisions:

The reviewers identified 5 main points that need to be addressed. These do not require major re-analysis of the data, but do require that the authors are clearer about what they have done and what the consequences of some of their decisions are for their overall results.

1) The Results and Discussion refer to disturbance intensity (for example in the last paragraph of the Discussion) but Results and Discussion were restricted to a single 'scenario' (ten years after losing 40% of pre-disturbance ACS). Could you add a figure and discussion on, for example, how fitted growth and mortality rates vary as a function of disturbance intensities? Alternatively, the post-disturbance dynamics could be plotted for a single region but for contrasting disturbance intensities. Logging intensity is too important and interesting to be not discussed in more detail.

Very important point. Thank you. The Figure 3 was added: it clearly illustrates the predicted effect of disturbance intensity (with all other covariates set to 0) on all 5 ACS changes, and on the net ACS change (i.e. the sum of all 5 ACS changes). The new figure is introduced in the Results section (subsection “Local variations of ACS changes”) and discussed later (Discussion, third paragraph). Thank you for this nice suggestion. It helps clarify our results and improve the manuscript.

2) Discussion, last paragraph: 'available timber stocks [...]' is a statement with potentially far reaching consequences for forest management. Can you support/quantify this statement by making use of your model? Both reviewers would be interested in the authors could comment on, or even better, include more results on this topic. Reviewer 1 suggested a number of interesting questions: how many cutting cycles can one make before the forest is degraded? If the forest is degraded how long would it take for the recruits to recover the biomass to 50% of the pre-harvest level? What would be the time in between two cutting cycles to justify calling the forest management 'sustainable'? The whole point of selective logging should be to extract wood while at the same time enhance biomass recovery by maintaining high stand-level productivity. Any results analysis that could provide a more quantitative perspective on this issue (including regional differences across the Amazon) would be exciting.

While not insisting on additional analysis by the authors, some comment on how their study can contribute to these questions would be useful.

We agree that the issues related to timber stocks raised by the reviewers are of great interest for forest managers and policy makers. Unfortunately, many of those questions are beyond the reach of our study:

We deal with carbon stocks of all trees > 20 cm DBH that cannot be directly converted into timber stocks (standard definition: volume of commercial trees with DBH > 50 cm): we thus cannot use our model to predict timber stock recovery. To call forest management ‘sustainable’, we should at least be sure that timber stocks recover at the end of a cutting cycle and this cannot be inferred from our “carbon-stock” model.

Because all the TmFO experimental plots have been logged only once (and this is equally true for many forest plots across the tropics), we have no data to predict the effect of multiple cutting cycles.

We can however provide partial answers to some of the questions raised:

When all covariates (except disturbance intensity loss) are set to 0, i.e. for an average Amazonian plot, recruits reach 50% of pre-logging ACS after 96, 88, 78 and 59 years when the initial ACS lost (disturbance intensity) is 5%, 10%, 20% and 40% respectively. We are not very confident in these figures because they are way out of our calibration interval (0-30 years). That’s why we prefer not to discuss those predicted numbers in the manuscript.

We also looked at predictions of the recovery time, i.e. the time taken to recover part of the C initially lost. This is a question that we have often asked ourselves because of its implications in defining ‘sustainable’ cutting cycles. Because our model has been calibrated with absolute C recovery rates (or ACS changes) and not relative recovery rates (% of ACS lost), we don’t believe that it is well-fitted to predict relative recovery. As an example, we plotted the 95% credible interval of time taken to recover 50% of ACS lost in the 4 regions highlighted in the manuscript (Guiana Shield, Northwestern Amazonia, Southern Amazonia, Central Amazonia), with varying disturbance intensities (Author response image 1). As shown previously (Rutishauser et al., 2015), recovery time clearly increases with disturbance intensity: that’s nothing new. Regional variations in recovery time are mostly driven by differences in initial ACS (e.g. northwestern Amazonia and the Guiana shield have similar absolute recovery rates but differ in initial ACS and thus in recovery times). At each disturbance intensity, 95% credible intervals of all 4 regions overlap and it is thus uneasy to have clear conclusions.

Author response image 1
Time to recover 50% of initial ACS per region and disturbance intensity.
https://doi.org/10.7554/eLife.21394.015

3) The authors show that variations in ACS changes of recruits are smaller than that of survivors. In fact, this is one of the main results of their study. Although large trees contain an important fraction of the stand aboveground biomass in tropical forests (Slik et al. 2013), small trees contribute significantly to the species diversity pool and biomass stocks/balance. This is especially important in Central and Western Amazon forests, where large trees are less abundant and account for a lower proportional biomass/basal area than in Eastern Amazon forests (Vieira et al. 2004). Therefore, a highly dynamic stratum (trees < 20 cm DBH) is missing in the analyses. This stratum will define the structure and floristic composition of the future forests, directly related to timber volume and quality for the next harvesting cycles. Moreover, given the low growth rates of Amazon species (Silva et al. 2002; Hérault et al. 2010) and the minimum DBH considered in this study (only trees ⩾ 20 cm DBH were monitored), trees that were considered 'recruits' are in fact more likely to be 'survivors' (i.e. already there before logging). This can be especially true in the first 5-10 yrs following logging (e.g. Iracema and Peteco), where trees established after logging probably did not reach the 20 cm DBH threshold. Apart from the distinction in size (only given in the last section of the paper), the authors do not provide clear evidence that 'recruits' survived the disturbance.

As the main results and conclusions of the paper rely on the importance/contribution of the cohorts, these limitations and their implications need to be addressed.

We agree that a 20 cm DBH threshold is unusually high, but imposed by the forest plot data, and that this should be made clearer and discussed. We added the DBH threshold in the Introduction (third paragraph) to make it more explicit. This issue is discussed in the second paragraph of the Discussion.

4) The authors need to be clearer about how they compute ACS and make sure some of their methods are stated early in the text. Specifically, reviewer 2 notes that the limitation to trees of > 20 cm DBH (and is this greater than or equal to, or greater than; see subsection “ACS changes computation”) has consequences for the results of the paper and should be mentioned as part of the study.

We added a mention to the DBH threshold in the Introduction and discuss the implications of not accounting for trees < 20 cm DBH (Discussion, second paragraph).

Also, the assignment of plot-level wood density to calculate ACS is problematic, especially when the plot is recovering from disturbance. While pioneer species can have wood density values lower than 0.35 g cm-3 (e.g. Tapirira obtusa and Jacaranda copaia), late-successional species can have wood density values three times higher (> 1 g cm-3; e.g. Swartzia corrugata and Licania laxiflora). When only trees with DBH ⩾ 20 cm are monitored, and a given plot has a higher abundance of 'survivors' (i.e. large and relatively old trees), the biomass of pioneer trees can be overestimated in an unknown order of magnitude. In contrast, in a plot dominated by pioneer species (e.g. those where logging was more intense), this effect will be the opposite. These two situations affect analyses on the importance of cohorts (i.e. survivors and recruits) and demographic processes (i.e. Rr, Rg, RI, Sg and SI).

At a minimum, the authors some assessment of how assumptions of wood density (as opposed to using local allometric equations that rely solely on DBH) could affect their conclusions.

Over our data, 75% of individual trees (>20 cm DBH) were allocated a wood density to the species level, 15% were assigned a genus-average wood density and only 10% were undetermined and were given the site average wood density (we added determination levels for every site on the Dryad table “Sites description”). Species-level wood density variation is mostly explained at the genus level (Jérôme Chave, Muller-Landau, Baker, Easdale, & ter Steege, 2006): only trees for which we have neither the species nor the genus wood density could be problematic, but they represent a minority of trees. We thus think that our assumptions on wood density don’t influence significantly ACS estimations. To explore that issue, we work with the only site where indetermination levels are higher than 5% (the Paracou site).

We tested the effect of botanical indetermination on cumulative ACS changes in Paracou (Figure 2) as follows:

1) We set wood density of all undetermined trees to either the site’s average wood density (as is done in the study, 0.692 in Paracou), either to 0.4 (lower bound) or to 0.9 (higher bound), and plotted the 5 cumulative ACS changes (i.e. the data that is used in the inference) for all 9 logged plots in Paracou.

2) Only survivors’ loss (dark green) is significantly affected by the low botanical identification (Author response image 2).

3) Given that the uncertainty range doesn’t increase with time after the initial 10 years period, this means that this uncertainty comes from trees that were not identified during the site set up and died in the first decade, so that they could not be formally identified later.

4) It is unlikely that the mean density of those unidentified trees (survivors present in the forest before logging) differs significantly from the site’s mean wood density.

This is why we believe that even in Paracou, the level of determination is not critical for our estimation of ACS changes.

Author response image 2
Effect of botanical indetermination on cumulative ACS changes in the 9 Paracou forest plots.

Wood density of all undetermined trees is set to 0.4 (lower bound), 0.9 (higher bound), or the plot average wood density (dashed lines): the latter is the method used in the study. Cumulative ACS changes are then calculated. Cumulative ACS changes (MgC/ha) are: survivors’ ACS growth (light green), survivors’ ACS loss (dark green), new recruits’ ACS (red), recruits’ growth (orange), recruits’ ACS loss (ocher).

https://doi.org/10.7554/eLife.21394.016

5) Floristic data were acquired at the sites and mentioned in the Methods, but no results or summary was presented. It is not clear what the authors mean with 'trees were identified to the lowest taxonomic level' (i.e. 'species level')? Was there potentially important information that was not mentioned? Please add some information about the number of species, genera and botanical families recorded in each site, or give a citation where such information can be found. It is particularly of interest if floristic diversity varies among the 13 sites.

We tried to make clearer how trees were identified, and especially the level of determination (subsection “ACS computation”). We add some information about the species richness (ha-1) range recorded at each site Dryad table “Sites description” (Dryad Digital Repository: http://dx.doi.org/10.5061/dryad.rc279).

https://doi.org/10.7554/eLife.21394.020

Article and author information

Author details

  1. Camille Piponiot

    1. Université de Guyane, UMR EcoFoG (Agroparistech, CNRS, Inra, Université des Antilles, Cirad), Kourou, French Guiana
    2. Cirad, UMR EcoFoG (Agroparistech, CNRS, Inra, Université des Antilles, Université de Guyane), Kourou, French Guiana
    3. CNRS, UMR EcoFoG (Agroparistech, Inra, Université des Antilles, Université de Guyane, Cirad), Kourou, French Guiana
    4. Cirad, UR Forests and Societies, Montpellier, France
    Contribution
    CP, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    camille.piponiot@gmail.com
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-3473-1982
  2. Plinio Sist

    Cirad, UR Forests and Societies, Montpellier, France
    Contribution
    PS, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  3. Lucas Mazzei

    Embrapa Amazônia Oriental, Belém, Brazil
    Contribution
    LM, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  4. Marielos Peña-Claros

    Forest Ecology and Forest Management Group, Wageningen University, Wageningen, Netherlands
    Contribution
    MP-C, Conception and design, Acquisition of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  5. Francis E Putz

    Department of Biology, University of Florida, Gainesville, United States
    Contribution
    FEP, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  6. Ervan Rutishauser

    CarbonForExpert, Hermance, Switzerland
    Contribution
    ER, Conception and design, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  7. Alexander Shenkin

    Environmental Change Institute, University of Oxford, Oxford, United Kingdom
    Contribution
    AS, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  8. Nataly Ascarrunz

    Instituto Boliviano de Investigación Forestal, Santa Cruz, Bolivia
    Contribution
    NA, Acquisition of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  9. Celso P de Azevedo

    Embrapa Amazônia Ocidental, Belém, Brazil
    Contribution
    CPdA, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  10. Christopher Baraloto

    Department of Biological Sciences, International Center for Tropical Botany, Florida International University, Miami, United States
    Contribution
    CB, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  11. Mabiane França

    Embrapa Amazônia Ocidental, Belém, Brazil
    Contribution
    MF, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  12. Marcelino Guedes

    Embrapa Amapa, Macapa, Brazil
    Contribution
    MG, Acquisition of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  13. Eurídice N Honorio Coronado

    Instituto de Investigaciones de la Amazonia Peruana, Iquitos, Peru
    Contribution
    ENHC, Acquisition of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0003-2314-590X
  14. Marcus VN d'Oliveira

    Embrapa Acre, Rio Branco, Brazil
    Contribution
    MVNd'O, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  15. Ademir R Ruschel

    Embrapa Amazônia Oriental, Belém, Brazil
    Contribution
    ARR, Acquisition of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  16. Kátia E da Silva

    Embrapa Amazônia Ocidental, Belém, Brazil
    Contribution
    KEdS, Acquisition of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  17. Eleneide Doff Sotta

    Embrapa Amapa, Macapa, Brazil
    Contribution
    EDS, Acquisition of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  18. Cintia R de Souza

    Embrapa Amazônia Ocidental, Belém, Brazil
    Contribution
    CRdS, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  19. Edson Vidal

    Departamento de Ciências Florestais, University of São Paulo, Piracicaba, Brazil
    Contribution
    EV, Acquisition of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  20. Thales AP West

    Department of Biology, University of Florida, Gainesville, United States
    Contribution
    TAPW, Acquisition of data, Drafting or revising the article
    Competing interests
    The authors declare that no competing interests exist.
  21. Bruno Hérault

    Cirad, UMR EcoFoG (Agroparistech, CNRS, Inra, Université des Antilles, Université de Guyane), Kourou, French Guiana
    Contribution
    BH, Conception and design, Acquisition of data, Analysis and interpretation of data, Drafting or revising the article
    For correspondence
    bruno.herault@cirad.fr
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-6950-7286

Funding

Agence Nationale de la Recherche (ANR-10-LABEX-0025)

  • Camille Piponiot
  • Bruno Hérault

Fundação de Amparo à Pesquisa do Estado de São Paulo (FAPESP: 2013/16262-4 and 2013/50718-5)

  • Edson Vidal

European Regional Development Fund (FEDER 2014-2020, GY0006894)

  • Camille Piponiot
  • Bruno Hérault

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are in debt with all technicians and colleagues who helped setting up the plots and collecting data over years. Without their precious work, this study would have not been possible and they may be warmly thanked here. We are grateful to CIRAD, the GFclim project (FEDER 2014–2020, Project GY0006894) and the Sao Paulo Research Foundation (FAPESP: 2013/16262–4 and 2013/50718–5) for financial support. This study was partially funded by an Investissement d’Avenir grant of the ANR (CEBA: ANR-10-LABEX-0025) and carried out in the framework of the Tropical managed Forests Observatory (TmFO), supported by the Sentinel Landscape program of CGIAR (Consultative Group on International Agricultural Research) - Forest Tree and Agroforestry Research Program.

Reviewing Editor

  1. Susan Trumbore, Reviewing Editor, Max-Planck-Institute for Biogeochemistry, Germany

Publication history

  1. Received: September 10, 2016
  2. Accepted: December 8, 2016
  3. Accepted Manuscript published: December 20, 2016 (version 1)
  4. Version of Record published: January 4, 2017 (version 2)

Copyright

© 2016, Piponiot et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,509
    Page views
  • 364
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Ecology
    2. Human Biology and Medicine
    Bonnie C Wintle et al.
    Feature Article
    1. Biochemistry
    Martin Steger et al.
    Research Advance Updated
