Yeast is a powerful model for systems genetics. We present a versatile, time- and labor-efficient method to functionally explore the Saccharomyces cerevisiae genome using saturated transposon mutagenesis coupled to high-throughput sequencing. SAturated Transposon Analysis in Yeast (SATAY) allows one-step mapping of all genetic loci in which transposons can insert without disrupting essential functions. SATAY is particularly suited to discover loci important for growth under various conditions. SATAY (1) reveals positive and negative genetic interactions in single and multiple mutant strains, (2) can identify drug targets, (3) detects not only essential genes, but also essential protein domains, (4) generates both null and other informative alleles. In a SATAY screen for rapamycin-resistant mutants, we identify Pib2 (PhosphoInositide-Binding 2) as a master regulator of TORC1. We describe two antagonistic TORC1-activating and -inhibiting activities located on opposite ends of Pib2. Thus, SATAY allows to easily explore the yeast genome at unprecedented resolution and throughput.


eLife digest

Genes are stretches of DNA that carry the instructions to build and maintain cells. Many studies in genetics involve inactivating one or more genes and observing the consequences. If the loss of a gene kills the cell, that gene is likely to be vital for life. If it does not, the gene may not be essential, or a similar gene may be able to take over its role.

Baker’s yeast is a simple organism that shares many characteristics with human cells. Many yeast genes have a counterpart among human genes, and so studying baker’s yeast can reveal clues about our own genetics. Michel et al. report an adaptation for baker’s yeast of a technique called “Transposon sequencing”, which had been used in other single-celled organisms to study the effects of interrupting genes. Briefly, a virus-like piece of DNA, called a transposon, inserts randomly into the genetic material and switches off individual genes. The DNA is then sequenced to reveal every gene that can be disrupted without killing the cell, and remaining genes are inferred to be essential for life.

The approach, named SATAY (which is short for “saturated transposon analysis in yeast”), uses this strategy to create millions of baker’s yeast cells, each with a different gene switched off. Because the number of cells generated this way vastly exceeds the number of genes, every gene will be switched off by several independent transposons. Therefore the technique allows all yeast genes to be inactivated several times in one single experiment. The cells can be grown in varying conditions during the experiment, revealing the genes needed for survival in different situations. Non-essential genes can also be inactivated beforehand to uncover if any genes might be compensating for their absence.

In the future, this technique may be used to better understand human diseases, such as cancer, since many disease-causing genes in humans have counterparts in yeast.



Saccharomyces cerevisiae is an invaluable model for cell biology (Weissman, 2010). Despite the simplicity of its genome, its inner working mechanisms are similar to that of higher eukaryotes. Furthermore, its ease of handling allows large-scale screenings. Yeast genetic screens have classically been performed by random mutagenesis, followed by a selection process that identifies interesting mutants. However elegant the ‘tricks’ implemented to expose the sought-after mutants, this selection phase remains a tedious process of finding a needle-in-a-haystack (Weissman, 2010). The selection phase can limit the throughput and the saturation of classical yeast genetic screens.

To circumvent these problems, a second-generation genetic screening procedure has been developed. Ordered deletion libraries for every non-essential gene have been generated (Giaever et al., 2002). The growth of each individual deletion strain can be assessed, either by robot-mediated arraying, or by competitive growth of pooled deletion strains, followed by detection of ‘barcodes’ that identify each deletion strain. These second-generation approaches also have limitations. First, ordered libraries of complete deletions only cover non-essential genes. Second, deletion strains are prone to accumulate suppressor mutations (Teng et al., 2013). To alleviate these problems, deletion libraries can be propagated in a diploid-heterozygous form. Additional steps are then required to make them haploid. In addition, while single genetic traits can be crossed into a pre-existing library, allowing for instance pairwise genetic-interaction analysis (Costanzo et al., 2010), introducing multiple and/or sophisticated genetic perturbations becomes problematic, since crossing requires a selection marker for each important trait. Typically, deletion libraries are missing in most biotechnology-relevant backgrounds. Finally, manipulating ordered libraries requires non-standard equipment, such as arraying robots, limiting the pervasiveness of these approaches.

Recently, an innovative approach called Transposon sequencing (Tn-seq) was developed in various bacterial models (Christen et al., 2011; Girgis et al., 2007; van Opijnen et al., 2009), and in the fungus Schizosaccharomyces pombe (Guo et al., 2013). By allowing en masse analysis of a pool of transposon mutants using next-generation sequencing, this strategy eliminates the drawbacks of previous genetic screens.

Here, we describe an adaptation of the Tn-seq strategy for S. cerevisiae, that combines the advantages of both first and second generation screens, while alleviating their limitations. The method is based on the generation of libraries of millions of different clones by random transposon insertion (Figure 1A). Transposons inserted in genes that are important for growth kill their hosts and are not subsequently detected. These genes therefore constitute transposon-free areas on the genomic map. Transposon-based libraries can be grown in any condition to reveal condition-specific genetic requirements. Unlike ordered deletion libraries, transposon-based libraries can easily be generated de novo from different strain backgrounds, are not limited to coding sequences and do not require the usage of robots.

Figure 1 with 3 supplements see all

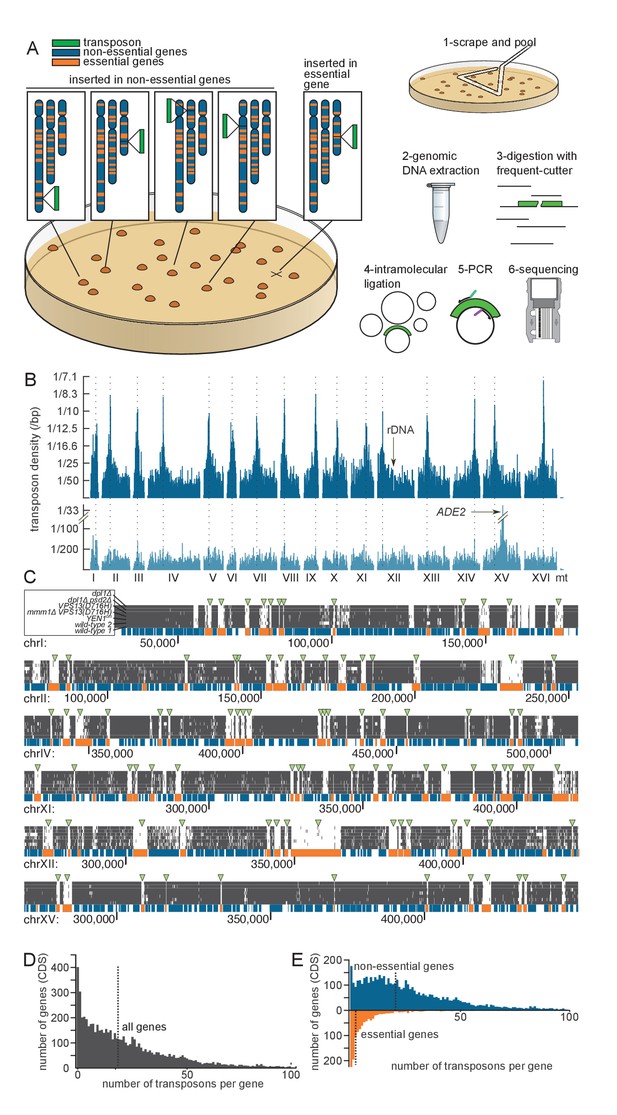

Principle of the method.

(A) Outline of the experimental procedure. Left, the transposon (green) can insert either into non-essential DNA (blue) and give rise to a clone, or into essential DNA (orange), in which case no clone is formed. Right, procedure to identify transposon insertion sites by deep-sequencing. (B) Profile of the transposon density across the whole genome, when the transposon original location is either a centromeric plasmid (top) or the endogenous ADE2 locus on chromosome XV (bottom). The dashed lines indicate the chromosome centromeres. (C) Six examples of genomic regions and their corresponding transposon coverage in seven independent transposon libraries of indicated genotypes. Each vertical grey line represents one transposon insertion event. Genes annotated as essential are shown in orange, others in blue. Green arrowheads indicate the places where the absence of transposon coverage coincides with an essential gene. (D) Histogram of the number of transposons found in every annotated gene (CDS). The vertical dashed line is the median of the distribution. (E) Same as D, with genes categorized as non-essential (blue) and essential (orange) according to previous annotations.


This method can successfully uncover sets of genes essential in given conditions, genome-wide genetic interactions and drug-targets. Transposon insertions can generate loss- and gain-of-function variants. Finally, our approach not only shows which protein is important for growth, but also which part of the protein is essential for function, allowing genome-wide mapping of structural protein domains and screening of phenotypes at a sub-gene resolution.


Library generation

The detailed procedure can be found in the Materials and methods section. The method utilizes the Maize Ac/Ds transposase/transposon system in yeast (Lazarow et al., 2012; Weil and Kunze, 2000). Briefly, cells in which the ADE2 gene is interrupted by the MiniDs transposon are induced to express the transposase Ac, on galactose-containing adenine-lacking synthetic defined medium (SD +galactose -adenine). Transposase-induced MiniDs excision is followed by repair of the ADE2 gene. Cells with repaired ADE2 will be able to form colonies. The excised transposon then re-inserts at random genomic locations with a frequency of ~60% (Lazarow et al., 2012).

We have generated seven libraries, displayed together in all figures to illustrate the reproducibility of the approach. All libraries were generated in ade2Δ strains derived from BY4741 and BY4742 backgrounds. Additional mutations (dpl1Δ, dpl1Δ psd2Δ, VPS13(D716H), mmm1Δ VPS13(D716H), YEN1on, Table 1) will be described in the following sections. The complete dataset is available (Supplementary file 1) and searchable here: http://genome-euro.ucsc.edu/cgi-bin/hgTracks?hgS_doOtherUser=submit&hgS_otherUserName=benjou&hgS_otherUserSessionName=23bDePuYrk

Table 1

Characteristics of the libraries

LibraryNumber of coloniesReads mappedTransposons mappedMedian read per transposonNumber of MiSeq runsOverlap between MiSeq runs
Wild-type 1~1.6×10631794831284162222*54%, 88%*
Wild-type 2~2.4×10615303285258568121NA
VPS13(D716H)~4.7×1062495845641411413241%, 42%
dpl1Δ psd2Δ~2.9×1061164956136317991NA
Wild-type 2 + rapamycin~2.4×106966495616932291NA
  1. * The harvested library was grown in two flasks, one at 30°C and the other at 37°C. DNA was extracted separately from the two cultures and sequenced in two separate MiSeq runs

  2. † The library was harvested as ten subpools, which were grown in ten separate flasks. DNA was extracted separately. In one case, DNA from all ten subpools was pooled and processed to sequencing in one MiSeq run. In the other case, DNAs were kept separate and processed until the PCR step (1 × 100 µl PCR by subpool). PCR products were pooled and sequenced as another MiSeq run.

Detection of transposon insertion sites

Typically 7,000–10,000 colonies with a narrow size distribution (Figure 1—figure supplement 1) can be generated on a 8.4 cm-Ø petri dish. In the case of wild-type library 1, 240 plates yielded ~1.6E6 clones (Table 1). To detect transposon insertion sites, transposed cells were scraped off the 240 plates and pooled (Figure 1A). This pool was used to reinocculate SD medium lacking adenine (SD +Dextrose -Adenine), and the culture was grown to saturation. This step was used to dilute non-transposed ade- cells still present on the petri dishes. The culture was then harvested by centrifugation. Genomic DNA was extracted and digested with frequent-cutting restriction enzymes, followed by ligase-mediated intramolecular circularization. Circular DNA was PCR-amplified using transposon-specific outwards-facing primers. PCR products were then sequenced on a MiSeq machine (Figure 1A).

Analysis of transposon insertion sites

We aligned the sequencing reads of the wild-type library (Table 1) to the reference yeast genome and counted the number of mapped transposons. To account for the fact that Illumina sequencing is imperfectly accurate, we considered that two reads of the same orientation mapping within two bp of each other originated from the same transposon (see Source code 1). In this analysis, 284,162 independent transposons could be mapped onto the genome, representing an average density of one transposon every 42 bp, and a median number of 22 reads per transposon. No large area of the genome was devoid of transposon (Figure 1B). Consistent with analyses in Maize (Vollbrecht et al., 2010), no strong sequence preference was detected in the insertion sites (Figure 1—figure supplement 2A).

In many instances, though, insertion frequency was modulated along the genome with a periodicity of ~160 bp. Superimposing nucleosome occupancy data (Lee et al., 2007) showed that this was due to favored transposon insertion in inter-nucleosomal DNA (Figure 1—figure supplement 2B, Gangadharan et al., 2010). This effect can be appreciated at the genome-scale. Indeed, an autocorrelation analysis unraveled a ~160 bp periodic signal in the genome-wide transposon density (measured using a 40 bp moving average, Figure 1—figure supplement 2C). This periodicity was comparable to that of the nucleosomal density data (Lee et al., 2007). Finally, while no large region was devoid of transposon, some regions were actually preferentially targeted by transposons. These were the pericentromeric regions (Figure 1B, top), which were specifically enriched by ~20% of the transposon insertions (Figure 1—figure supplement 2D). The explanation for this phenomenon may pertain to nuclear architecture and to the propensity of our transposon to insert close to its excision site (Lazarow et al., 2012). Because the transposon is initially excised from a centromeric plasmid, and because centromeres cluster in the nuclear periphery (Jin et al., 2000), the transposon might tend to reinsert in the pericentromeric regions of other chromosomes. We confirmed this assumption by sequencing a small-scale library (~30 000 insertions mapped) in which the MiniDS transposon was originally at the endogenous ADE2 locus, rather than on a centromeric plasmid. In this library, preferential targeting was not observed at pericentromeric regions, but rather in the vicinity of ADE2, confirming our assumption (Figure 1B, bottom).

Identification of essential genes

The transposon map clearly showed that a fraction of the coding DNA sequences (CDS) were devoid of insertions. These coincided almost exactly with genes annotated as essential (Figure 1C, green arrowheads). The median number of transposons inserted in the CDSs of all genes was 18 per gene (Figure 1D). This number raised to 21 for annotated non-essential genes, but dropped to three for annotated essential genes (Figure 1E). This decrease was not due to a difference in the length between essential and non-essential genes, since normalizing the number of transposon insertions to the CDS length (transposon density) did not abrogate this effect (Figure 1—figure supplement 3). Thus our method distinguishes, in a single step, genes that are required for growth from those that are not.

Several genes, although annotated as non-essential, harbored no or very few transposons (Supplementary file 2). This can be attributed to the following reasons. (1) Because sequencing reads mapping to repeated sequences were discarded during alignment, repeated genes appear as transposon-free. (2) Several annotated dubious ORFs overlap with essential genes, and thus appear as transposon-free. (3) Several genes are necessary for growth in particular conditions, and are therefore not annotated as essential, yet are required in our growth conditions (SD +galactose -adenine). These include genes involved, for instance, in galactose metabolism and adenine biosynthesis.

Identification of protein domains

It came as a surprise that some genes annotated as essential were tolerant to transposon insertion. While some of these clearly corresponded to annotation inconsistencies, many reflected an unanticipated outcome of our approach. We observed many instances of ‘essential’ CDSs containing transposon-permissive regions. A striking example is GAL10 (Figure 2A). GAL10 encodes a bifunctional enzyme with an N-terminal epimerase, and a C-terminal mutarotase domain (Majumdar et al., 2004). While the epimerase activity is indispensable in our conditions, the mutarotase activity is dispensable, as cells were fed a mixture of α- and β-D-Galactose, thus not requiring the conversion of one into the other. In accordance, the 3’ end of GAL10 was permissive for transposon insertion. The junction between the permissive and non-permissive domains of GAL10 corresponds exactly to the junction of the two domains in the Gal10 protein. Several examples of essential genes with dispensable 3’-ends are shown in Figure 2A. We confirmed the dispensability of the 3' end for two genes, TAF3 and PRP45 (Figure 3).

Figure 2 with 5 supplements see all

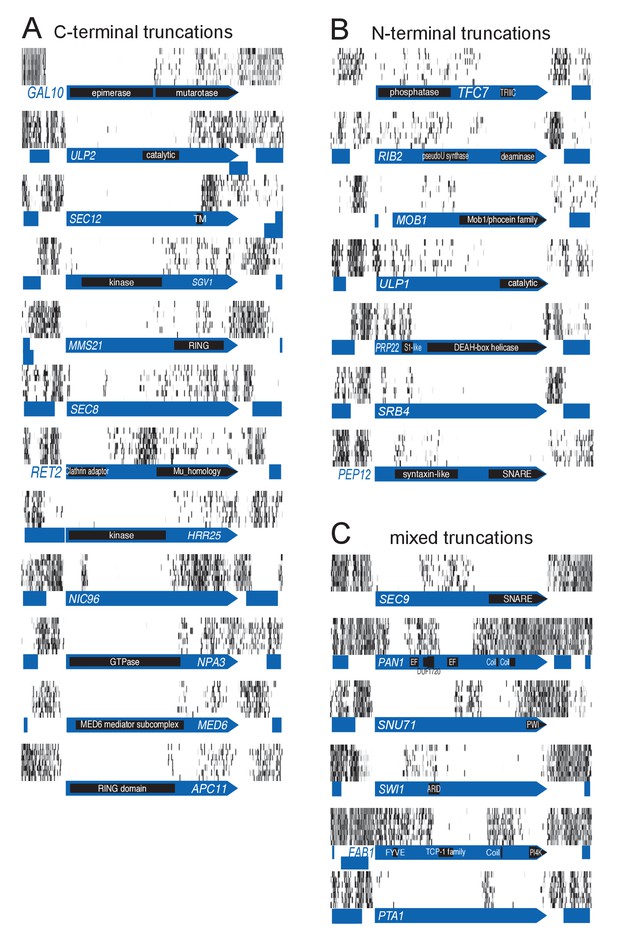

Examples of genes showing partial loss of transposon coverage.

The grey level is proportional to the number of sequencing reads. Known functional domains are indicated. (A) Essential genes for which C-terminal truncations yield a viable phenotype. (B) Essential genes for which N-terminal truncations yield a viable phenotype. (C) Essential genes for which various truncations yield a viable phenotype.

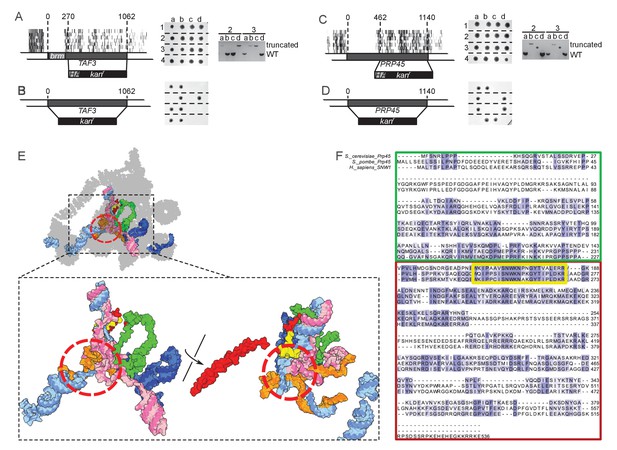

TAF3 and PRP45 can be truncated without visible effects on cell growth.

(A) A truncation of TAF3 was generated in a heterozygous diploid strain (left) by introduction of an HA tag and a G418-resistance cassette (HA kanr). The strain was tetrad dissected (middle). Tetrads 2 and 3 were further analyzed by PCR to confirm the Mendelian segregation of the truncated allele (right). (B) A complete TAF3 deletion was generated in a heterozygous diploid strain (left) by introduction of a G418-resistance cassette (kanr). Meiosis yields only two viable, G418-sensitive spores per tetrad, confirming that TAF3 complete deletion is lethal. (C–D) As in (A–B) but applied to PRP45. Asterisks in the right panel designate PCR reactions that were inefficient at amplifying the large truncated allele. The genotype of these spores can nevertheless be inferred from the Mendelian segregation of the G418 resistance. (E) Top, cryo-EM structure of the S. cerevisiae spliceosome (PDB accession 5GMK, Wan et al., 2016). Bottom, the same structure stripped of every protein except Prp45. The essential portion of Prp45 as defined in (C) is in green and the non-essential part is in red and yellow. U2, U6, U5 and substrate RNAs are depicted in pale blue, pink, dark blue and orange, respectively. The red circle indicates the catalytic active site of the spliceosome. (F) Alignment of the Human, S. cerevisiae, and S. pombe Prp45 orthologs. The green, red and yellow boxes are colored as in (E). The yellow box features the most conserved region of the protein.


TAF3 encodes a 47 kDa central component of TFIID (Sanders et al., 2002). Our data show that only the first 76 amino acids are necessary for growth. Using homologous recombination, we replaced all but the sequence coding for the first 90 amino acids with an HA tag and a G418-resistance cassette (KanMX6) in a diploid strain. Sporulation and progeny segregation confirmed that strains expressing only the first 90 amino acids of Taf3 were viable (Figure 3A). By contrast, complete replacement of TAF3 gave rise to only two viable, G418-sensitive spores per meiosis, confirming that TAF3 is essential (Figure 3B). The essential region of Taf3 corresponds to a predicted histone-like bromo-associated domain (Doerks et al., 2002).

PRP45 encodes a central component of the spliceosome. From our data, only the first 140 amino-acids of Prp45 are necessary for growth, which we confirmed using the same strategy as for TAF3 (Figure 3C–D). Prp45 is predicted to be intrinsically disordered, thus no clear domain boundaries are available to rationalize our data. However, a recent cryo-EM structure of the S. cerevisiae spliceosome offers clues on the structure of Prp45 (Wan et al., 2016). Prp45 is centrally located within the spliceosome, has an extended conformation and makes several contacts with various proteins and snRNAs. In particular, the most conserved region of Prp45 is a loop that makes extensive contacts with U2 and U6 snRNAs close to the active site (Figure 3E–F, yellow). This loop belongs to the dispensable part of Prp45, surprisingly suggesting that splicing can occur without it. Our method thus offers insights that neither sequence conservation nor structural analysis could have predicted.

We also observed CDSs in which the 5’ end is permissive for transposon insertion while the 3’ end is not (Figure 2B–C). Again, our data show a general good coincidence between indispensable regions and annotated domains. It is surprising that transposons can be tolerated in the 5’ of such genes, since several stop codons in all frames of the transposon should interrupt translation and prevent the production of the essential C-terminus. We speculate that the production of the C-terminus is enabled by spurious transcription events. A remarkable example is SEC9 (Figure 2C). SEC9 encodes a SNARE protein. The essential SNARE domain, located at the C-terminus (Brennwald et al., 1994), is devoid of transposons. The N-terminus of the protein is known to be dispensable for growth (Brennwald et al., 1994). We indeed observe several transposons inserted upstream of the SNARE domain. The extreme 5’ of the gene constitutes another transposon-free region even though it encodes a dispensable part of the protein (Brennwald et al., 1994). It is possible that transposon insertion in this 5’ region generates an unexpressed, unstable or toxic protein. Other examples of genes showing various combinations of essential domains are shown in Figure 2C.

We devised an algorithm to score genes according to their likelihood of bearing transposon-tolerant and -intolerant regions (Source code 2). In short, we computed for each CDS the longest interval between five adjacent transposons, multiplied it by the total number of transposons mapping in this CDS, and divided the result by the CDS length. We additionally imposed the following criteria: the interval must be at least 300 bp, must represent more than 10% and less than 90% of the CDS length, and a minimum of 20 transposons must map anywhere within the CDS. ~1200 genes fulfilled these requirements (Figure 2—figure supplement 1), of which the 400 best-scoring ones showed clear domain boundaries (Figure 2—figure supplements 25). Essential subdomains are only expected in essential genes and indeed, this gene set was overwhelmingly enriched for previously-annotated essential genes (Figure 2—figure supplement 1).

Thus, our method allows to identify not only genes, but also subdomains that are important for growth, yielding valuable structure-function information about their cognate proteins.

Comparison of independent libraries reveals genetic interactions

Our approach can easily identify essential genes and essential protein domains. In addition, its ease makes it a potential tool to uncover genes that are not essential in standard conditions but become important in specific conditions. Indeed, our approach yields two measures — the number of transposons mapping to a given gene, and the corresponding numbers of sequencing reads. Since in most cases, transposon insertion obliterates the gene function, both measures may be used as a proxy for fitness. We assessed the usefulness of these metrics in various genetic screens.

Synthetic genetic interaction screening is an extremely powerful approach to establish networks of functional connections between genes and biological pathways, and to discover new protein complexes (Costanzo et al., 2010; Schuldiner et al., 2005). We have recently identified single amino-acid substitutions in the endosomal protein Vps13 that suppress the growth defect of mutants of the ER-mitochondria encounter structure (ERMES) (Lang et al., 2015b). Suppression is dependent on the proper function of the mitochondrial protein Mcp1 (Tan et al., 2013) and on the endosomal protein Vam6/Vps39 (Elbaz-Alon et al., 2014; Hönscher et al., 2014). We generated a transposon library from a strain bearing both the VPS13 suppressor allele VPS13(D716H) and a deletion of the ERMES component MMM1. In these conditions, we expected VPS13, MCP1 and VAM6/VPS39 to become indispensable, while ERMES components (MDM10, MDM12 and MDM34) should become dispensable.

Figure 4A shows, for each of the 6603 yeast CDSs, the number of transposon insertion sites mapped in the wild-type (x-axis) and in the mmm1Δ VPS13(D716H) library (y-axis). Most CDSs fall on a diagonal, meaning that they were equally transposon-tolerant in both libraries. Consistent with the ERMES suppressor phenotype of the VPS13(D716H) mutation, ERMES components fell above the diagonal (that is, they bore more transposons in the mmm1Δ VPS13(D716H) than in the wild-type library, Figure 4A–B). By contrast, VPS13, MCP1 and VAM6/VPS39 fell under the diagonal, as expected (Lang et al., 2015a, Figure 4A, C). Many other genes known to display synthetic sick or lethal interaction with mmm1Δ (Hoppins et al., 2011) were also found, including TOM70, VPS41, YPT7, VMS1 and YME1 (Figure 4A, C).

Figure 4 with 1 supplement see all

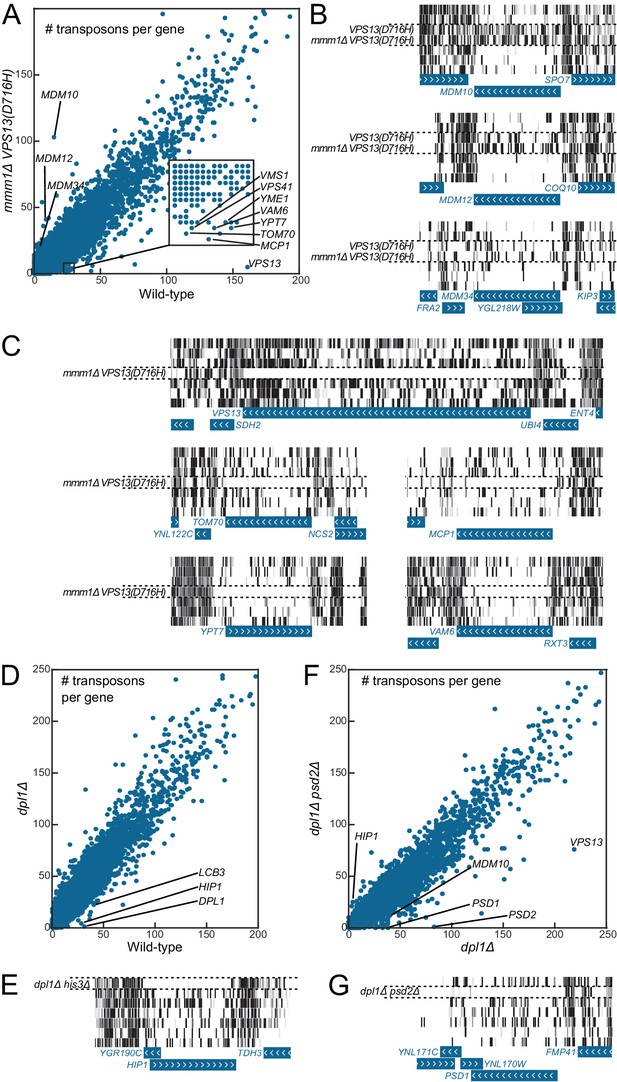

Genetic interaction analyses.

Libraries in panels B, C, E and G are displayed in the same order as in Figure 1C. (A) Comparison of the number of transposons inserted in each of the 6603 yeast CDSs in the wild-type (x-axis) and mmm1Δ VPS13(D716H) (y-axis) libraries. (B) Transposon coverage of genes encoding ERMES components is increased in libraries from strains bearing the VPS13(D716H) allele. (C) Examples of genes showing synthetic sick/lethal interaction with mmm1Δ VPS13(D716H). (D) Comparison of the number of transposons inserted in each of the 6603 yeast CDSs in the wild-type (x-axis) and dpl1Δ (y-axis) libraries. (E) Transposon coverage of the HIP1 locus in the dpl1Δ his3Δ library and in all the other libraries (HIS3). (F) Comparison of the number of transposons inserted in each of the 6603 yeast CDSs in the dpl1Δ (x-axis) and dpl1Δ psd2Δ (y-axis) libraries. (G) Transposon coverage of the PSD1 locus in the dpl1Δ psd2Δ and in all other libraries.


As a second proof-of-principle, we generated a library from a strain in which the dihydrosphingosine phosphate lyase gene DPL1 (Saba et al., 1997) was deleted, and another library from a strain in which both DPL1 and the phosphatidylserine decarboxylase 2 gene PSD2 (Trotter and Voelker, 1995) were deleted (Figure 4D,F). In this latter double-deleted strain, phosphatidylethanolamine can only be generated via the mitochondrial phosphatidylserine decarboxylase Psd1, and thus any gene required for lipid shuttling to and from mitochondria should become indispensable (Birner et al., 2001).

LCB3, which displays synthetic sick interaction with DPL1 (Zhang et al., 2001), was less transposon-tolerant in both the dpl1Δ and the dpl1Δ psd2Δ libraries (Figure 4D). By contrast PSD1, which displays a synthetic lethality with PSD2 on media lacking choline and ethanolamine (Birner et al., 2001), was transposon-intolerant in the dpl1Δ psd2Δ library only (Figure 4F–G). Interestingly, we also found that VPS13 was less transposon-tolerant in the dpl1Δ psd2Δ, consistent with a role for Vps13 in interorganelle lipid exchange (AhYoung et al., 2015; Kornmann et al., 2009; Lang et al., 2015a, 2015b).

Additionally, when comparing the dpl1Δ and wild-type libraries, one of the best hits was the histidine permease HIP1 (Figure 4D–E). This did not, however, reflect a genetic interaction between HIP1 and DPL1, but instead between HIP1 and HIS3; during the construction of the strains, ADE2 was replaced by a HIS3 cassette in the wild-type strain, while it was replaced by a NAT cassette in the dpl1Δ strain. The histidine-auxotroph dpl1Δ strain, therefore required the Hip1 permease to import histidine.

Thus, synthetic genetic interactions are visible through pairwise comparison of the number of transposons per genes. However, this metrics leads to a significant spread of the diagonal (Figure 4A,D,F). This spread is due to the intrinsic noise of the experiment. Indeed, the number of transposons per gene is expected, for each gene, to follow a binomial distribution. Sampling variability may thus mask biologically relevant differences. To overcome this limitation, we reasoned that comparing sets of one or more libraries against each other, rather than comparing two libraries in a pairwise fashion (as in Figure 4), would greatly improve the signal-to-noise ratio. We thus calculated an average fold-change of the number of transposons per gene between the experimental and reference sets, as well as a p-value (based on a Student’s t-test) associated with this change. The fold-change and p-values were then plotted as a volcano plot (Figure 4—figure supplement 1, Supplementary file 3). In volcano plots, synthetic genes appeared well separated from the bulk of neutral genes, showing that parallel library comparison is a robust way to increase the signal-to-noise ratio.

Synthetic lethality is one type of genetic interaction. Another type is rescue of lethal phenotype, where a gene deletion is lethal in an otherwise wild-type strain but can be rescued by a suppressor mutation. We describe two such phenomena observed in our libraries. The first concerns the septin gene CDC10. Septin proteins are cytoskeletal GTPases that form a ring at the bud neck. This structure is necessary for vegetative growth in S. cerevisiae, and all septin genes are essential with the exception of CDC10 (Bertin et al., 2008; McMurray et al., 2011). Indeed, at low temperature, cdc10Δ cells are viable and able to assemble a septin ring. This Cdc10-less ring is based on a Cdc3-Cdc3 interaction, instead of the normal Cdc3-Cdc10 interaction (McMurray et al., 2011). Because the propensity of Cdc3 to self-assemble is weak, low temperature is thought to be necessary to stabilize the interaction. Since we grew all libraries at moderately high temperature (30°C), CDC10 was, as expected, essentially transposon-free in most libraries (Figure 5A). In the dpl1Δ psd2Δ library, however, the number of transposons mapping within CDC10 increased significantly, indicating that the absence of Psd2 and Dpl1 suppressed the cdc10Δ phenotype (Figure 5A, Figure 4—figure supplement 1, bottom left). Genetic analysis revealed that the dpl1Δ allele alone allowed cdc10Δ cells to grow at higher temperature, indicating that the Cdc10-less septin ring was stabilized in the absence of Dpl1 (Figure 5B–C). Genetic analysis also demonstrated that the rescue of cdc10Δ by dpl1Δ was independent of PSD2. It is unclear why the suppressive effect was detected in the dpl1Δ psd2Δ library, but not in the dpl1Δ library. We speculate that differences in growth conditions between experiments have obscured either the suppression in the dpl1Δ library or the involvement of Psd2 in our tetrad analyses.

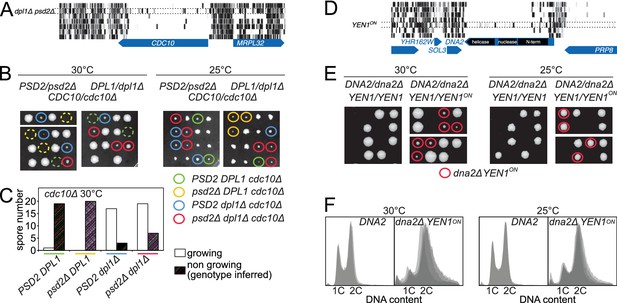

Synthetic rescue of lethal phenotypes.

(A) Transposon coverage of CDC10 in the seven libraries. The coverage is increased in the dpl1Δ psd2Δ library. (B) Tetrad dissection of a PSD2/psd2Δ DPL1/dpl1Δ CDC10/cdc10Δ triple heterozygote at 30°C (left) and 25°C (right). The cdc10Δ spores of ascertained genotype are circled with a color-coded solid line. cdc10Δ spores for which the genotype can be inferred from the other spores of the tetrad are circled with a color-coded dashed line. (C) Quantification of growing and non-growing cdc10Δ spores of the indicated genotype obtained from 48 tetrads (three independent diploids). (D) Transposon coverage of DNA2 in the seven libraries. The coverage is increased in the YEN1on library. (E) Tetrad dissection of a DNA2/dna2Δ YEN1/YEN1 single heterozygote and of a DNA2/dna2Δ YEN1/YEN1on double heterozygote at 30°C (left) and 25°C (right). All viable dna2Δ spores additionally carry the YEN1on allele (red circle). (F) FACS profile of propidium-iodide-stained DNA content in DNA2 and dna2Δ YEN1on strains exponentially growing at 30°C (left) and 25°C (right). For DNA2 panels, each profile is an overlay of two independent strains. For dna2Δ YEN1on panels, each profile is an overlay of four independent strains.


Dpl1 is an ER protein that does not contact any of the septin subunits; its destabilizing effect on the septin ring must therefore be indirect. Since Dpl1 is a regulator of sphingolipid precursors (Saba et al., 1997) and since the septin ring assembles in contact with the plasma membrane (Bertin et al., 2010), it is most likely the changing properties of the membrane in DPL1-deficient cells that allow or restrict the assembly of Cdc10-less septin rings. This hypothesis is particularly appealing because temperature has a profound effect on membrane fluidity and composition (Ernst et al., 2016). Thus, the stabilizing effect of low temperature on Cdc10-less septin rings might not only be the result of a direct stabilization of Cdc3-Cdc3 interaction, but also of changes in plasma membrane properties, which can be mimicked by DPL1 ablation.

The second example of rescue of a lethal phenotype was observed in a library made from a strain expressing a constitutively active version of the Holliday-junction resolvase Yen1, a member of the Xeroderma Pigmentosum G (XPG) family of 5’-flap endonucleases (Ip et al., 2008). In wild-type strains, Yen1 is kept inactive during the S-phase of the cell cycle via Cdk-mediated phosphorylation (Matos et al., 2011). Rapid dephosphorylation at anaphase activates Yen1 for the last stages of mitosis. When nine Cdk1 target sites are mutated to alanine, Yen1 becomes refractory to inhibitory phosphorylation and active during S-phase (Yen1on) (Blanco et al., 2014). To investigate the cellular consequence of a constitutively active Yen1, we generated a library in a YEN1on background. We discovered that, under these conditions, the essential gene DNA2 became tolerant to transposon insertion (Figure 5D). Further genetic analyses confirmed that the presence of the YEN1on allele led to a rescue of the lethal phenotype of dna2Δ strains; spores bearing the dna2 deletion failed to grow unless they additionally bore the YEN1on allele (Figure 5E). Moreover, at 25°C, the colony size of dna2Δ YEN1on spores was comparable to that of the DNA2 counterparts (Figure 5E, right). However, FACS analysis of DNA content revealed that dna2Δ YEN1on cells accumulated in S- and G2-phases (Figure 5F).

DNA2 encodes a large protein with both helicase and endonuclease activities (Budd and Campbell, 1995). Interestingly, while the helicase activity can be disrupted without affecting yeast viability, the nuclease activity is essential (Ölmezer et al., 2016), presumably due to its involvement in processing long 5’-flaps of Okazaki fragments. Our genetic data now reveal that Yen1 is able to partially fulfill the essential roles of Dna2, provided that its activity is unrestrained in S-phase. Since the spectrum of Yen1 substrates includes 5’-flap structures (Ip et al., 2008), Yen1on may be able to substitute the essential function of Dna2 by providing 5’-flap nuclease activity in S-phase. This finding extends previous work showing that Yen1 serves as a backup for the resolution of replication intermediates that arise in helicase-defective mutants of Dna2 (Ölmezer et al., 2016).

Thus, our method can be used to screen for negative and positive genetic interactions in a rapid, labor-efficient and genome-wide manner, in strains bearing single and multiple mutations.

Chemical genetics approach

To assess our method’s ability to uncover drug targets, we used the well-characterized immune-suppressive macrolide rapamycin. Rapamycin blocks cell proliferation by inhibiting the target of rapamycin complex I (TORC1), through binding to the Fk506-sensitive Proline Rotamase Fpr1 (Heitman et al., 1991). The TORC1 complex integrates nutrient-sensing pathways and regulates cellular growth accordingly. Rapamycin treatment therefore elicits a starvation response, which stops proliferation. We generated and harvested a wild-type library, then grew it in medium containing rapamycin at low concentration. To compare it to an untreated wild-type library, we counted the number of sequencing reads mapping to each of the 6603 yeast CDSs in both conditions (Figure 6A). Most genes fell on a diagonal, as they do not influence growth on rapamycin. By contrast, a few genes were robustly covered by sequencing reads in the rapamycin-treated library, indicating that their interruption conferred rapamycin resistance. Expectedly, the best hit was FPR1, encoding the receptor for rapamycin (Hall, 1996). Other hits included RRD1 (Rapamycin-Resistant Deletion 1), TIP41, GLN3, SAP190, PSP2, CCS1, ESL2 and members of the PP2A phosphatase PPH21 and PPM1 (Figure 6A). These genes are either directly involved in rapamycin signaling or known to confer rapamycin resistance upon deletion (Xie et al., 2005).

Figure 6 with 1 supplement see all

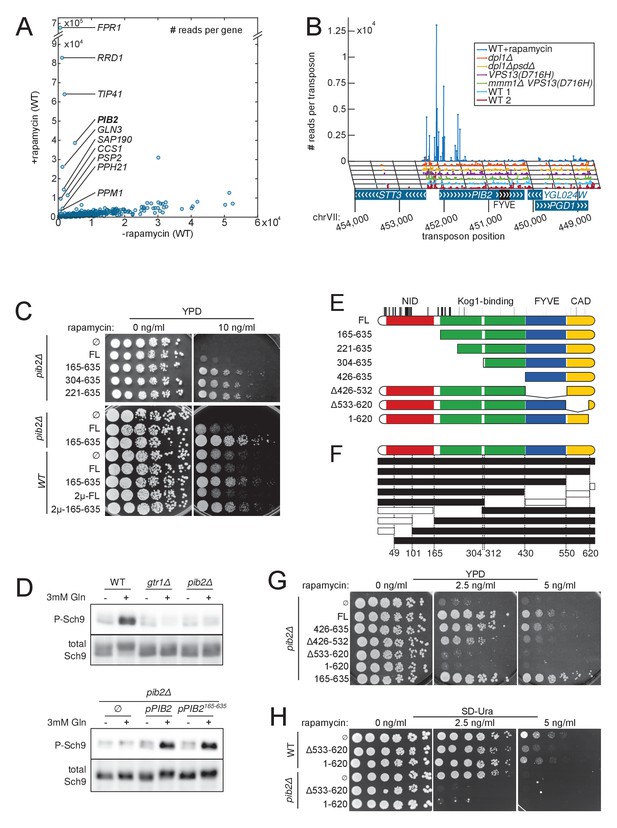

Detection of rapamycin resistant strains.

(A) Comparison of the number of sequencing reads mapping to each of the 6603 yeast CDSs in rapamycin-untreated (x-axis) and -treated (y-axis) libraries. Note the difference in scale between both axis due to the high representation of rapamycin-resistant clones. (B) Distribution of transposons and number of associated sequencing reads on the PIB2 gene. Transposons with high number of sequencing reads in the rapamycin-treated library are clustered at the 5’-end of the CDS. (C) Wild-type (WT) and pib2Δ strains were transformed with either an empty plasmid (∅) or plasmids encoding full-length (FL) or indicated fragments of Pib2 (see E, numbers refer to the amino acid position in the full-length Pib2 protein). 5-fold serial dilutions of these strains were spotted on YPD or YPD containing 10 ng/ml rapamycin. Centromeric plasmids were used in all strains, except in those denoted with 2 µ, which carried multi-copy plasmids. (D) Strains of the indicated genotypes, transformed with either an empty plasmid (∅) or plasmids encoding full length (pPIB2) or truncated (pPIB2165-635) versions of Pib2, were grown exponentially in minimal medium with proline as nitrogen source. 3 mM glutamine was added to the culture and the cells were harvested 2 min later. Protein extracts were resolved on an SDS-page and probed with antibodies either specific for Sch9-pThr737 (P-Sch9), or for total Sch9 to assess TORC1 activity. (E) Schematic overview of Pib2 architecture and of the fragments used for genetic studies. (F) Summary of yeast-two-hybrid interactions between Pib2 fragments and the TORC1 subunit Kog1 (Figure 6—figure supplement 1). Fragments indicated by a black box interacted with Kog1, fragments indicated by a white box did not. (G) pib2Δ cells expressing the indicated Pib2 fragments from plasmids (see E) were assayed for their sensitivity to rapamycin (2.5 or 5 ng/ml) as in C. (H) WT or pib2Δ cells expressing the indicated Pib2 fragments from plasmids were assayed as in G, except that cells were spotted on synthetic medium to apply a selective pressure for plasmid maintenance.


Finding the TORC1 regulator PIB2 (Kim and Cunningham, 2015) was however unexpected, because PIB2 deletion confers sensitivity, not resistance, to rapamycin (Kim and Cunningham, 2015; Parsons et al., 2004). To solve this conundrum, we looked at the distribution of transposons on the PIB2 coding sequence. All the insertions selected by rapamycin treatment mapped to the 5’-end of the gene (Figure 6B). On the contrary, the rest of PIB2 was less covered in the rapamycin-treated than in non-rapamycin-treated libraries (Figure 6—figure supplement 1A). Insertions in the 5’ end of PIB2 therefore conferred rapamycin resistance, while insertions elsewhere, like complete deletion of PIB2, conferred rapamycin sensitivity.

To confirm this result, we engineered N-terminal truncations of Pib2, guided by the transposon map. Strains expressing Pib2 variants that were truncated from the first until up to amino acid 304 were hyperresistant to rapamycin (Figure 6C, top). We also confirmed that, by contrast, complete PIB2 deletion caused rapamycin hypersensitivity. A larger N-terminal truncation extending beyond the mapped territory of rapamycin resistance-conferring transposons, did not mediate hyperresistance to rapamycin (Figure 6G, Pib2426-635).

To assess whether rapamycin-hyperresistant PIB2 truncations behaved as gain-of-function alleles, we co-expressed Pib2165-635 and full-length Pib2. In these conditions, the rapamycin hyperresistance was mitigated, indicating that the effect of the truncated Pib2 protein was semi-dominant (Figure 6C, bottom). Expressing the truncation from a high-copy (2 µ) vector did not further increase resistance to rapamycin, indicating that higher expression levels did not change the semi-dominance of the PIB2 truncation allele.

Thus, Pib2 truncation leads to a gain-of-function that translates into semi-dominant rapamycin hyperresistance. Because gain-of-function alleles of PIB2 lead to rapamycin resistance, while loss-of-function alleles lead to sensitivity, our data suggest that Pib2 positively regulates TORC1 function. To test this idea further, we investigated the effects of full-length and various truncations of Pib2 on TORC1 signaling. Switching yeast cells from a poor nitrogen source (proline) to a rich one (glutamine) triggers a fast activation of TORC1 (Stracka et al., 2014), leading to a transient surge in the phosphorylation of Sch9, a key target of TORC1 in yeast (Urban et al., 2007). We cultured cells on proline-containing medium and studied TORC1 activation 2 min following addition of 3 mM glutamine by determining the phosphorylation levels of Sch9-Thr737. Pib2 deficiency severely blunted TORC1 activation in these conditions (Figure 6D, top). In a control experiment, a strain lacking GTR1 – a component of the TORC1-activating EGO (Exit from rapamycin-induced GrOwth arrest) complex, which is orthologous to the mammalian Rag GTPase-Ragulator complex (Chantranupong et al., 2015; Powis and De Virgilio, 2016) – showed a similarly blunted response with respect to TORC1 activation following glutamine addition to proline-grown cells (Figure 6D, top). By contrast, glutamine-mediated TORC1 activation appeared normal in a strain expressing an N-terminally truncated Pib2 variant (pPIB2165-635, Figure 6D, bottom). Thus, like Gtr1, Pib2 is necessary to activate TORC1 in response to amino acids. The N-terminus of Pib2 appears to be an inhibitory domain. The ablation of this domain confers rapamycin resistance, yet is not sufficient to constitutively activate TORC1 (e.g. in proline-grown cells).

Having identified an inhibitory activity at the N-terminus of Pib2, we proceeded to address the function of other Pib2 domains. To this aim, we used a split-ubiquitin-based yeast-two-hybrid assay to probe the interaction of Pib2 fragments with the TORC1 component Kog1, and studied the rapamycin resistance of strains expressing various truncations of Pib2 (Figure 6E–F). We found that Pib2 harbored at least two central Kog1-binding regions, since two mostly non-overlapping fragments (Pib21-312 and Pib2304-635) showed robust interaction with Kog1 (Figure 6F and Figure 6—figure supplement 1B). Kog1 binding is, however, not essential for Pib2-mediated TORC1 activation, since cells expressing a fragment without these Kog1-binding domains (Pib2426-635) were as rapamycin-resistant as cells expressing full length Pib2 (FL, Figure 6G).

Pib2 harbors a phosphatidylinositol-3-phosphate (PI3P) -binding Fab1-YOTB-Vac1-EEA1 (FYVE) domain (Figure 6E). Pib2 truncations lacking the FYVE domain are unable to bind PI3P, and hence to properly localize to the vacuole (Kim and Cunningham, 2015). When cells expressed FYVE domain-truncated Pib2 (Pib2Δ426-532), their rapamycin resistance decreased, but not as severely as observed in pib2Δ strains (Figure 6G). This indicates that FYVE-domain-mediated vacuolar recruitment is not absolutely required for Pib2 to activate TORC1.

Strikingly, cells expressing Pib2 variants that were either truncated at the extreme C-terminus (PIB21-620) or carried a deletion within the C-terminus (PIB2533-620) were as sensitive to rapamycin as pib2∆ cells (Figure 6G). The C-terminus of Pib2 is therefore important to ensure proper TORC1 activation.

We conclude that Pib2 harbors the following functional domains: a large N-terminal Inhibitory Domain (NID), and a C-terminal TORC1-Activating Domain (CAD); the central portion of the protein harbors FYVE and Kog1-binding domains for proper targeting of Pib2 to the vacuole and TORC1, respectively.

Could the NID act in an auto-inhibitory allosteric fashion by preventing the CAD from activating TORC1? We reasoned that if this were the case, plasmid-encoded N-terminally truncated Pib2 should confer similar levels of rapamycin resistance independently of whether a genomic wild-type PIB2 copy was present or not. However, wild-type cells expressing N-terminally truncated Pib2165-635 from a centromeric or a multi copy 2 µ plasmid were less resistant to rapamycin than pib2∆ cells expressing Pib2165-635 from a centromeric plasmid (Figure 6C). Thus, the NID activity of the endogenously-expressed wild-type Pib2 is able to mitigate the rapamycin resistance conferred by ectopic expression (or overexpression) of the CAD. Therefore, our data suggest that the NID does not auto-inhibit the CAD within Pib2, but rather, that the NID and CAD act independently and antagonistically on TORC1.

This latter scenario predicts that, just as expressing NID-truncated Pib2 semi-dominantly activates TORC1 (Figure 6C), expressing CAD-truncated Pib2 should semi-dominantly inhibit it. To test this prediction, we expressed the two CAD truncations Pib2Δ533-620 and Pib21-620 in an otherwise wild-type strain. The resulting strains were significantly more sensitive to rapamycin than their counterparts expressing only full length Pib2 (Figure 6H). Furthermore, when pib2Δ cells expressed the Pib2 CAD truncation alleles, they became even more sensitive to rapamycin. Therefore, Pib2-NID does not act in an auto-inhibitory manner, but rather inhibits TORC1 independently of the presence of a Pib2-CAD.

Since the Rag GTPase Gtr1-Gtr2 module of the EGO complex also mediates amino acid signals to TORC1 (Binda et al., 2009; Dubouloz et al., 2005, see also Figure 6D), we tested the possibility that Pib2-NID inhibits TORC1 by antagonizing Gtr1-Gtr2. This does not appear to be the case; first, the expression of Pib2Δ533-620 or Pib21-620 further enhanced the rapamycin sensitivity of gtr1Δ gtr2Δ cells (Figure 6—figure supplement 1C), and second, the Pib2Δ533-620- or Pib21-620-mediated rapamycin hypersensitivity was not suppressed by expression of the constitutively active, TORC1-activating Gtr1Q65L-Gtr2S23L module (Binda et al., 2009; Figure 6—figure supplement 1D). These results suggest that Pib2-NID inhibits TORC1 independently of the EGO complex.

In summary, Pib2 is targeted to TORC1 by binding to the vacuolar membrane through its FYVE domain and to Kog1 via its middle portion. Pib2 harbors two antagonistic activities, one activating and the other repressing TORC1. The dose-independent semi-dominant nature of the respective truncations indicates that both repressing and activating activities influence TORC1 independently and do not appear to compete for the same sites on TORC1.

We speculate that high-quality amino acids, such as glutamine, balance the antagonistic TORC1-activating and -repressing activities of Pib2 to tune growth rate according to available resources. In this context, it will be interesting to elucidate how the activities of Pib2 and the EGO complex are coordinated to stimulate TORC1 in response to amino acids.


Here we present a novel method based on random transposon insertion and next-generation sequencing, to functionally screen the genome of Saccharomyces cerevisiae. SAturated Transposon Analysis in Yeast (SATAY) can reveal positive and negative genetic interactions, auxotrophies, drug-sensitive or -resistant mutants, and map functional protein domains. SATAY combines advantages from both classical genetics and high-throughput robotic screens. SATAY can in principle be implemented in any strain background, since it does not rely on the existence of available deletion libraries and does not necessitate markers to follow genetic traits. Moreover, SATAY explores a wide genetic space; exotic alleles can be generated as exemplified by PIB2 (Figure 6 and Figure 6—figure supplement 1), where transposon insertions in different regions of the gene generate opposite phenotypes. Transposon insertion is not limited to CDSs; we observe that promoters of essential genes are often transposon-intolerant (Figure 2, see GAL10, SGV1, MMS21, RET2, HRR25, NPA3, SEC9, SWI1). We also observe that known essential tRNA, snRNA, as well as SRP RNA genes are transposon intolerant (see Supplementary Dataset). Finally, our data reveal transposon-intolerant areas of the genome that do not correspond to any annotated feature, indicating that SATAY could help discover yet-unknown functional elements.

SATAY yields unprecedented insight on the domain structure-function relationship of important proteins, and allows the mapping of important functional domains, without prior knowledge. Dispensable domains in essential proteins might not be required for the essential function of these proteins, but may have other roles. The sub-gene resolution enabled by SATAY may thus unveil yet-unsuspected accessory or regulatory functions, even in otherwise well-studied proteins. In addition, structure-function information revealed by SATAY may guide 3D-structure determination efforts by indicating possibly flexible accessory domains.

The resolution of a SATAY screen is directly proportional to the number of transposons mapped onto the genome. The current resolution is ~1/40 bp, which is amply sufficient to confidently identify essential genes and protein domains. This resolution is achieved by mapping ~300,000 transposons, starting from a 1.6E6-colonies library. Not every colony generates a detectable transposon. This is due to several reasons. (1) Excised transposons only reinsert in 60% of the cases (our observations and Lazarow et al., 2012). (2) 7% of the sequencing reads mapped onto repetitive DNA elements (such as rDNA, Ty-elements and subtelomeric repeats) and were discarded because of ambiguous mapping. (3) Two transposons inserted in the same orientation within two bp of each other will be considered as one by our algorithm. This might be exacerbated at densely covered areas of the genome, such as pericentromeric regions. (4) Some transposon insertion products may not be readily amplifiable by our PCR approach.

We observe that increasing both the size of the original library and the sequencing depth leads to an increase in mapped transposon number (albeit non-proportional, Table 1). Therefore, the resolution of a screen can be tailored according to the question and the available resource.

We could not detect a preferred sequence for transposon insertion (Figure 1—figure supplement 2A), yet two features of the yeast genome biased insertion frequency in select regions. The first is nucleosome position; the Ds transposon has a tendency to insert more frequently within inter-nucleosomal regions, indicating that, like other transposases (Gangadharan et al., 2010), Ac might have better access to naked DNA (Figure 1—figure supplement 2B–C). The second pertains to a tendency of the transposon to integrate in the spatial proximity of its original location (Lazarow et al., 2012). Indeed, when originated from a centromeric plasmid, the transposon has an increased propensity to reinsert in the pericentromeric regions of other chromosomes. This is not due to a particular feature of pericentromeric chromatin, since this propensity is lost when the transposon original location is on the long arm of ChrXV (Figure 1B). Instead, the increased propensity is likely resulting from the clustering of centromeres in the nuclear space (Jin et al., 2000), indicating that centromeric plasmids cluster with the chromosomal centromeres. Thus, SATAY can be utilized to probe, not only the function of the genome, but also its physical and regulatory features, such as nucleosome position and 3D architecture.

Finally, SATAY does not require any particular equipment besides access to a sequencing platform, and involves a limited amount of work. It can be easily multiplexed to perform several genome-wide screens simultaneously. Each screen yields two measures, the number of transposons and the number of sequencing reads, both of which, for each gene, reveal the fitness of the cognate mutant. While the number of transposons per gene is appropriate to look for genes that become important for growth, as in genetic interaction screens, the number of sequencing reads is better suited to identify strains that are positively selected, like drug-resistant mutants. Both metrics suffer from intrinsic noise, stemming from the inherently discrete structure of the data, and probably also from unavoidable biases in the amplification and sequencing of the libraries. We show that this noise can be reduced by comparing multiple libraries against each other (Figure 4—figure supplement 1). Moreover, comparing multiple libraries allows to tailor the composition of each library set to needs. For instance, grouping the VPS13(D716H) with the mmm1Δ VPS13(D716H) libraries allows to selectively detect synthetic interactions with VPS13(D716H) (e.g. ERMES components). By contrast, comparing the mmm1Δ VPS13(D716H) library with all others, selectively finds genes important for the ERMES suppression phenomenon. Thus, while signal-to-noise ratio might be a limiting factor for the detection of genetic interactions, we anticipate that increasing the number of libraries, for instance by generating multiple libraries in each condition, will likely decrease the incidence of false positive and false negative. With the increasing number of screens performed in various conditions will also come the ability to find correlation patterns among genes that are required or dispensable for growth in similar sets of conditions. Such correlations are accurate predictors of common functions and have been extensively used in synthetic genetic screens, such as the E-MAP procedure (Kornmann et al., 2009; Schuldiner et al., 2005). However, while E-MAP screens compute patterns of genetic interaction on a subset of chosen genetic interaction partners, SATAY allows to detect genetic interactions at the genome scale.

Because the approach only necessitates a transposon and a transposase, it should not only be feasible in S. cerevisiae and S. pombe (Guo et al., 2013), but also amenable to other industrially-, medically- or scientifically-relevant haploid fungi, such as Y. lipolyticaC. glabrata, K. lactis and P. pastoris.

The Ds transposon can in principle accommodate extra sequences with no known length limitation (Lazarow et al., 2013). An interesting future development will be to incorporate functional units in the transposon DNA, for instance strong promoters, repressors or terminators, IRESs, recognition sites for DNA-binding proteins (LacI or TetR), recombination sites (LoxP, FRP), or coding sequences for in-frame fusion, such as GFP, protein- or membrane-binding domains, signal sequences, etc. Improved designs will not only permit finer mapping of protein domains without reliance on spurious transcription and translation, but might allow the exploration of an even wider genetic space, for instance by generating gain-of-function variants, thus enabling the development of novel approaches to interrogate the yeast genome.

Materials and methods

Plasmids and strains

Request a detailed protocol

All yeast strains, oligonucleotides and plasmids used herein are listed in Tables 2, 3 and 4, respectively. To generate pBK257, the ADE2 gene interrupted with the MiniDs transposon was PCR amplified from strain CWY1 (Weil and Kunze, 2000), using PCR primers #4 and #5. The PCR product and pWL80R_4x (plasmid encoding the Ac transposase under the control of the GAL1 promoter, Lazarow et al., 2012) were digested with SacI, then ligated together. This plasmid does not confer adenine prototrophy to ade2Δ cells unless the Ac transposase excises the MiniDS transposon, and repairs the ADE2 gene.

Table 2

Yeast strains used in this study.

 CWY1BY4723MATa his3Δ0 ura3Δ0 ade2:Ds-1Weil and Kunze (2000)
 ByK157BY4743MATα his3Δ1 leu2Δ0 lys2Δ0 ura3Δ0 VPS13(D716H)Lang et al. (2015b)
 ByK352BY4741MATa his3Δ1 leu2Δ0 met17Δ0 ura3Δ0 ade2Δ::HIS3*This study
 ByK484By4742MATα his3Δ1 leu2Δ0 lys2Δ0 ura3Δ0 ade2Δ::HIS3*This study
 ByK485ByK352 and ByK484MATa/α his3Δ1/his3Δ1 leu2Δ0/leu2Δ0 LYS2/lys2Δ0 met17Δ0/MET17 ura3Δ0/ura3Δ0 ade2Δ::HIS3*/ade2Δ::HIS3*This study
 ByK446ByK157MATα his3Δ1 leu2Δ0 ura3Δ0 ade2Δ::HIS3* VPS13(D716H)This study
 ByK528ByK446MATα his3Δ1 leu2Δ0 ura3Δ0 ade2Δ::HIS3* VPS13(D716H) mmm1Δ::KanMX6This study
 ByK530ByK352MATa his3Δ1 leu2Δ0 met17Δ0 ura3Δ0 ade2Δ::NAT* dpl1Δ::KanMX6This study
 ByK533ByK352 MATa his3Δ1 leu2Δ0 met17Δ0 ura3Δ0 ade2Δ::HIS3* psd2Δ::KanMX6 dpl1Δ::NATThis study
 ByK576ByK485MATa/α his3Δ1/his3Δ1 leu2Δ0/leu2Δ0 LYS2/lys2Δ0 met17Δ0/MET17 ura3Δ0/ura3Δ0 ade2Δ::HIS3*/ade2Δ::HIS3* prp45Δ::KanMX6/PRP45This study
 ByK579ByK485MATa/α his3Δ1/his3Δ1 leu2Δ0/leu2Δ0 LYS2/lys2Δ0 met17Δ0/MET17 ura3Δ0/ura3Δ0 ade2Δ::HIS3*/ade2Δ::HIS3* PRP451-462-HA(KanMX6)/ PRP45This study
 ByK583ByK485MATa/α his3Δ1/his3Δ1 leu2Δ0/leu2Δ0 LYS2/lys2Δ0 met17Δ0/MET17 ura3Δ0/ura3Δ0 ade2Δ::HIS3*/ade2Δ::HIS3* taf3Δ::KanMX6/TAF3This study
 ByK588ByK485MATa/α his3Δ1/his3Δ1 leu2Δ0/leu2Δ0 LYS2/lys2Δ0 met17Δ0/MET17 ura3Δ0/ura3Δ0 ade2Δ::HIS3*/ade2Δ::HIS3* TAF31-270-HA(KanMX6)/ TAF3This study
 ByK725ByK533 and ByK484MATa/α his3Δ1/his3Δ1 leu2Δ0/leu2Δ0 LYS2/lys2Δ0 met17Δ0/MET17 ura3Δ0/ura3Δ0 ade2Δ::HIS3*/ade2Δ::HIS3* psd2Δ::KanMX6/PSD2 dpl1Δ::NAT /DPL1This study
 ByK726ByK533 and ByK484MATa/α his3Δ1/his3Δ1 leu2Δ0/leu2Δ0 LYS2/lys2Δ0 met17Δ0/MET17 ura3Δ0/ura3Δ0 ade2Δ::HIS3*/ade2Δ::HIS3* psd2Δ::KanMX6/PSD2 dpl1Δ::NAT /DPL1This study
 ByK739ByK725MATa/α his3Δ1/his3Δ1 leu2Δ0/leu2Δ0 LYS2/lys2Δ0 met17Δ0/MET17 ura3Δ0/ura3Δ0 ade2Δ::HIS3*/ade2Δ::HIS3* psd2Δ::KanMX6/PSD2 dpl1Δ::NAT /DPL1 cdc10Δ::URA3/CDC10This study
 ByK740ByK726MATa/α his3Δ1/his3Δ1 leu2Δ0/leu2Δ0 LYS2/lys2Δ0 met17Δ0/MET17 ura3Δ0/ura3Δ0 ade2Δ::HIS3*/ade2Δ::HIS3* psd2Δ::KanMX6/PSD2 dpl1Δ::NAT /DPL1 cdc10Δ::URA3/CDC10This study
 ByK741ByK726MATa/α his3Δ1/his3Δ1 leu2Δ0/leu2Δ0 LYS2/lys2Δ0 met17Δ0/MET17 ura3Δ0/ura3Δ0 ade2Δ::HIS3*/ade2Δ::HIS3* psd2Δ::KanMX6/PSD2 dpl1Δ::NAT /DPL1 cdc10Δ::URA3/CDC10This study
 YJM3916ByK352MATa his3Δ1 leu2Δ0 met17Δ0 ura3Δ0 ade2Δ::HIS3* YEN1onThis study
 YL516BY4741/BY4742MATa his3Δ1 leu2Δ0 ura3Δ0Binda et al. (2009)
 MB32YL516MATa his3Δ1 leu2Δ0 ura3Δ0 gtr1Δ::kanMXBinda et al. (2009)
 RKH106YL516MATa his3Δ1 leu2Δ0 ura3Δ0 pib2Δ::kanMXThis study
 RKH241MB32MATa his3Δ1 leu2Δ0 ura3Δ0 gtr1Δ::kanMX gtr2Δ::hphMX4This study
his3∆200 trp1-901 leu2-3,112 ade2 LYS::(lexAop)4-HIS3 ura3::(lexAop)8- lacZ ade2::(lexAop)8-ADE2 GAL4Dualsystems Biotech AG
  1. *ADE2 deleted −56 before ATG +62 after STOP with PCR primers #6 and #7 on pFA6a-His3MX6.

Table 3

Oligonucleotides used in this study.

#Original nameSequencePurpose
1P5_MiniDsAATGATACGGCGACCACCGAGATCTACtccgtcccgcaagttaaataamplify library
2MiniDs_P7CAAGCAGAAGACGGCATACGAGATacgaaaacgaacgggataaaamplify library
3688_minidsSEQ1210tttaccgaccgttaccgaccgttttcatccctasequence library
13TAF3_aa90_F2AGGTATTGTTAAGCCTACGAACGTTCTGGATGTCTATGATcggatccccgggttaattaaTAF3 partial deletion
14Taf3_FwdGGCAAGATGTGATCAGGACGcheck TAF3 partial deletion
15Taf3_RevTCTTGAAGAAGCGAAAGTACACTcheck TAF3 partial deletion
20PRP45_FwdAGGTTGTAGCACCCACAGAAcheck PRP45 partial deletion
21PRP45_RevCAATCATCACACCTCAGCGAcheck PRP45 partial deletion
23PRP45_aa1_F1GCTCTGAGCCGAGAGGACGTATCAGCAACCTCAACCAAATtgaggcgcgccacttctaaaPRP45 complete deletion
24CDC10-Ura3_fwdAAGGCCAAGCCCCACGGTTACTACAAGCACTCTATAAATATATTAtgacggtgaaaacctctgacCDC10 complete deletion
30o3958gacggtatcgataagcttgatatcgGCGCTGGCATCTTTAATCTCPIB2 cloning
31o3959actagtggatcccccgggctgcaggTGCTTGGATCCTTCTTGGTCPIB2 cloning
32o3224TAATA CGACT CACTA TAGGGvarious PIB2 truncations
33o3225ATTAA CCCTC ACTAA AGGGA Avarious PIB2 truncations
34o4034atctagttcagggttcgacattctggtctccactacPIB2165-635 truncation
35o4010gtagtggagaccagaatgtcgaaccctgaactagatPIB2165-635 truncation
36o4012tagtggagaccagaatgttaccgcagcctgctPIB2304-635 truncation
37o4035tcaaattagaactagcattcattctggtctccactacaactgtgPIB2221-635 truncation
38o4011cacagttgtagtggagaccagaatgaatgctagttctaatttgaPIB2221-635 truncation
39o4062atagttggtattaagttgattctcattctggtctccactacaactgPIB2426-635 truncation
40o3996cagttgtagtggagaccagaatgagaatcaacttaataccaactatPIB2426-635 truncation
41o4063cgtgtttgcgttatggttgtcgctgttcggaatagaPIB2Δ426-532 truncation
42o3997tctattccgaacagcgacaaccataacgcaaacacgPIB2Δ426-532 truncation
43o4064cacagagccgataacactcgtggttgaaaggttctcPIB2Δ533-620 truncation
44o3998gagaacctttcaaccacgagtgttatcggctctgtgPIB2Δ533-620 truncation
45o4065gtctcgcaaaaaatgttcatcagcccaaaacatcattaccttctPIB21-620 truncation
46o3999agaaggtaatgatgttttgggctgatgaacattttttgcgagacPIB21-620 truncation
  1. Oligonucleotides #1 and #2, ordered as PAGE-purified and lyophilized, are resuspended at 100 μM in water. Oligonucleotide #3, ordered as HPLC-purified and lyophilized, is resuspended at 100 μM in water and distributed into single-use aliquots.

Table 4

Plasmids used in this study.

 pBK257pWL80R_4xCEN/URA3, carries MiniDs in ADE2 and hyperactive Ac transposase under GAL1 promoterThis study
CEN/URA3, carries hyperactive Ac transposase under GAL1 promoterLazarow et al. (2012)
Delitto pefetto URA3 cassetteStorici and Resnick (2003)
pENTRY-YEN1ONThis study
CEN/HIS3, empty vectorSikorski and Hieter, 1989
CEN/LEU2, empty vectorSikorski and Hieter, 1989
CEN/URA3, empty vectorSikorski and Hieter, 1989
 p1822pRS413CEN/HIS3, GTR1This study
 p1451pRS415CEN/LEU2, GTR2This study
 p1821pRS413CEN/HIS3, GTR1Q65LThis study
 p1452pRS415CEN/LEU2, GTR2S23LThis study
 p3084pRS416CEN/URA3, PIB2This study
 p3099p3084CEN/URA3, PIB2165-635This study
 p3097p3084CEN/URA3, PIB2304-635This study
 p3101p3084CEN/URA3, PIB2221-635This study
 p3253pRS4262 μ/URA3, PIB2This study
 p3255pRS4262 μ/URA3, PIB2165-635This study
 p3163p3084CEN/URA3, PIB2426-635This study
 p3153p3084CEN/URA3, PIB2Δ426-532This study
 p3154p3084CEN/URA3, PIB2Δ533-620This study
 p3156p3084CEN/URA3, PIB21-620This study
2 μ/TRP1, NubG-HADualsystems Biotech AG
CEN/LEU2, Aβ-Cub-LexA-VP16Dualsystems Biotech AG
 p3081pPR3N2 μ/TRP1, NubG-HA-KOG1This study
 p2966pCabWTCEN/LEU2, Aβ-PIB2-Cub-LexA-VP16This study
 p3002pCabWTCEN/LEU2, Aβ-PIB21-620-Cub-LexA-VP16This study
 p3007pCabWTCEN/LEU2, Aβ-PIB21-550-Cub-LexA-VP16This study
 p3001pCabWTCEN/LEU2, Aβ-PIB21-428-Cub-LexA-VP16This study
 p3051pCabWTCEN/LEU2, Aβ-PIB2440-550-Cub-LexA-VP16This study
 p3054pCabWTCEN/LEU2, Aβ-PIB2556-620-Cub-LexA-VP16This study
 p3052pCabWTCEN/LEU2, Aβ-PIB2621-635-Cub-LexA-VP16This study
 p3000pCabWTCEN/LEU2, Aβ-PIB21-312-Cub-LexA-VP16This study
 p2987pCabWTCEN/LEU2, Aβ-PIB2304-635-Cub-LexA-VP16This study
 p2999pCabWTCEN/LEU2, Aβ-PIB21-162-Cub-LexA-VP16This study
 p2986pCabWTCEN/LEU2, Aβ-PIB2165-635-Cub-LexA-VP16This study
 p2998pCabWTCEN/LEU2, Aβ-PIB21-101-Cub-LexA-VP16This study
 p2991pCabWTCEN/LEU2, Aβ-PIB2102-635-Cub-LexA-VP16This study
 p2997pCabWTCEN/LEU2, Aβ-PIB21-49-Cub-LexA-VP16This study
 p2990pCabWTCEN/LEU2, Aβ-PIB250-635-Cub-LexA-VP16This study

Deletion strains were generated by PCR-mediated gene replacement using the Longtine toolbox for KanMX6 and HIS3 replacement (Longtine et al., 1998) and the Janke toolbox for NATnt2 (Janke et al., 2004), with primers listed in Table 3. Strain YJM3916 carrying YEN1ON at the endogenous locus was generated using the delitto perfetto method (Storici and Resnick, 2003).

Library generation

Request a detailed protocol

ade2Δ strains were transformed with the pBK257 plasmid. These strains are phenotypically ade-, since the ADE2 gene borne on the plasmid is interrupted by the MiniDs transposon. One liter of freshly prepared SD -Ura +2% Raffinose +0.2% Dextrose is inoculated with ade2Δ cells freshly transformed with pBK257, directly scraped off the transformation plates, at a final OD600 = 0.15. The culture is grown to saturation for 18 to 24 hr at 30°C. Cells are spun for 5 min at 600x g, 20°C, and resuspended in their supernatant at a final OD600 = 39. 200 μl of this resuspension are plated on ~250–300×8.5 cm plates containing 25 ml of SD +2% Galactose -Adenine using glass beads. Plates are incubated in closed but not sealed plastic bags for 3 weeks at 30°C. Clones in which transposon excision has led to the repair of the ADE2 gene on pBK257 start to appear after 10–12 days. The density of clones on the plate reaches 150–200 colonies/cm2, i.e. 8000-11000 colonies/plates after 3 weeks. All colonies are then scraped off the plates using minimal volume of either water or SD +2% Dextrose -Adenine, pooled, and used to inoculate a 2-liter SD +2% Dextrose -Adenine culture at a density of 2.5 106 cells/ml, which is allowed to grow to saturation. This step is used to dilute any remaining ade- cells, which represent about 20% of the total number of cells, and ensures that each transposition event is well represented. For example, reseeding a 2 106 clones library in 2L at a density of 2.5 106 cells/ml will ensure that each clone is represented by ((2.500.000 × 1000×2)*0.8)/2.000.000 = 2000 cells. The saturated culture is harvested by centrifugation (5 min, 1600x g), washed with ddH2O, then cell pellets are frozen as ~500 mg aliquots.

Rapamycin treatment

Request a detailed protocol

Cells scraped off the plates were used to inoculate a 1-liter SD +2% Dextrose -Adenine culture at OD 0.08. After growing for 15 hr to OD 0.5, the culture was diluted to OD 0.1 in 500 ml SD +2% Dextrose -Adenine, treated with 10 nM (9.14 ng/ml) rapamycin (Sigma) and grown for 24 hr to OD 0.9. The culture was then diluted again to OD 0.1 in 500 ml SD +2% Dextrose -Adenine + 10 nM rapamycin. The treated culture was grown to saturation (OD 1.9), harvested by centrifugation and processed for genomic DNA extraction.

Genomic DNA

Request a detailed protocol

A 500 mg cell pellet is resuspended with 500 μl Cell Breaking Buffer (2% Triton X-100, 1% SDS, 100 mM NaCl, 100 mM Tris-HCl pH8.0, 1 mM EDTA) and distributed in 280 μl aliquots. 200 μl Phenol:Chloroform:Isoamylalcool 25:25:1 and 300 μl 0.4–0.6 mm unwashed glass beads are added to each aliquot. Samples are vortexed for 10 min at 4°C using a Disruptor Genie from Scientific Industrial (US Patent 5,707,861). 200 μl TE are added to each lysate, which are then centrifuged for 5 min at 16100x g, 4°C. The upper layer (~400 μl) is transferred to a fresh tube, 2.5vol 100% EtOH are added and the sample mixed by inversion. DNA is pelleted for 5 min at 16100x g, 20°C. The supernatant is removed and the pellets resuspended in 200 μl RNAse A 250 μg/ml for 15 min at 55°C, 1000 rpm on a Thermomixer comfort (Eppendorf). 2.5 vol 100% EtOH and 0.1 vol NaOAc 3 M pH5.2 are added and the samples mixed by inversion. DNA is pelleted by centrifugation for 5 min at 16100x g, 20°C. The pellets are washed with 70% EtOH under the same conditions, the supernatant removed completely, and the pellets dried for 10 min at 37°C. The pellets are resuspended in a total volume of 100 μl water for 10 min at 55°C, 700 rpm on a Thermomixer comfort (Eppendorf).

DNA is run on a 0.6% 1X TBE agarose gel against a standard 1 kb GeneRuler, and quantified using Fiji. 500 mg cell pellet should yield 20–60 μg DNA.

Library sequencing

Request a detailed protocol

Sequencing involves the following steps: (1) Digestion of genomic DNA with two four-cutter restriction enzymes, (2) ligase-mediated circularization of the DNA, (3) PCR of the transposon-genome junctions using outward-facing primers, (4) Illumina-sequencing of the combined PCR products.

2 × 2 μg of genomic DNA are digested in parallel in Non-Stick microfuge tubes (Ambion AM12450) with 50 units of DpnII (NEB #R0543L) and NlaIII (NEB #R0125L), in 50 μl for 16 hr at 37°C. The reactions are then heat inactivated at 65°C for 20 min and circularized in the same tube by ligation with 25 Weiss units T4 Ligase (Thermo Scientific #EL0011) for 6 hr at 22°C, in a volume of 400 μl. DNA is precipitated overnight or longer at −20°C in 0.3 M NaOAc pH5.2, 1 ml 100% EtOH, using 5 μg linear acrylamide (Ambion AM9520) as a carrier, then centrifuged for 20 min at 16100x g, 4°C. Pellets are washed with 1 ml 70% EtOH, for 20 min at 16100 x g, 20°C. After complete removal of the supernatant, pellets are dried for 10 min at 37°C. Each circularized DNA preparation is then resuspended in water and divided into 10 × 100 μl PCR reactions. Each 100 μl PCR reaction contains: 10 μl 10X Taq Buffer (500 mM Tris-HCl pH9.2, 22.5 mM MgCl2, 160 mM NH4SO4, 20% DMSO, 1% Triton X-100 – stored at −20°C), 200 μM dNTPs, 1 μM primer #1, 1 μM primer #2, 2.4 μl homemade Taq polymerase. PCR is performed in an MJ Research Peltier Thermal Cycler PTC-200 using the following conditions:

Block: calculated – 95°C 1 min, 35 × [95°C 30 s, 55°C 30 s, 72°C 3 min], 72°C 10 min.

The 2 × 10 PCR reactions are pooled into one NlaIII-digested pool and one DpnII-digested pool. 100 μl from each pool are purified using a PCR clean-up/gel extraction kit (Macherey-Nagel) according to the manufacturer protocol, with the following modifications. DNA is bound to the column for 30s at 3000x g; 30 μl of elution buffer (10 mM Tris-HCl pH8.5, 0.1% Tween) is applied to the column and incubated for 3 min, then spun for 1 min at 11000x g at 20°C. The eluate is reapplied to the column and a second elution is performed under the same conditions. Purified PCR products are quantified by absorbance at 260 nm. On a 1% agarose gel, the product runs as a smear from 250 bp to 1.2 kb, with highest density centered around 500 bp. The 867 bp size band present in the NlaIII-treated sample and the 465 bp size band present in the DpnII-treated sample correspond to untransposed pBK257. Equal amounts of DpnII- and NlaIII-digested DNA are pooled and sequenced using MiSeq v3 chemistry, according to manufacturer, adding 3.4 μl of 100 μM primer #3 into well 12 of the sequencing cartridge.

Bioinformatics analyses

Request a detailed protocol

The fastq file generated is uploaded into the CLC genomics workbench, trimmed using adaptor sequences ‘CATG’ and ‘GATC’ (the recognition sites for NlaIII and DpnII, respectively), allowing two ambiguities and a quality limit of 0.05. The trimmed sequence is then aligned to the reference genome, using the following parameters (mismatch cost, 2; insertion and deletion costs, 3; length fraction, 1; similarity fraction, 0.95; non-specific match handling, ignore). The alignment is then exported as a BAM file, which is further processed in MatLab, using the Source code 1, to detect individual transposition events. The outputted bed file is uploaded to the UCSC genome browser. Yeast annotations were downloaded from the Saccharomyces Genome Database (SGD). To generate our list of essential genes, we used YeastMine and searched the SGD for genes for which the null mutant has an ‘inviable’ phenotype (Balakrishnan et al., 2012).

Volcano plots were computed as follows. Two sets of libraries were defined. For each gene and each library, the number of transposons per gene (tnpergene variable) was normalized to the total number of transposons mapped in the library. For each gene, the fold-change is calculated as the mean of the normalized number of transposons per gene in the experimental set, divided by that in the reference set. The p-value is computed using the Student’s t-test by comparing, for each gene, the normalized number of transposons per gene for each library in the experimental and reference sets.

Western blotting

Request a detailed protocol

Cells were grown to mid-log phase in synthetic minimal medium containing 0.5 g/L proline as a sole nitrogen source and stimulated with 3 mM glutamine for 2 min. Cells were treated with 6.7% w/v trichloroacetic acid (final concentration), pelleted, washed with 70% ethanol and then lyzed in urea buffer (50 mM Tris-HCl [pH 7.5], 5 mM EDTA, 6 M urea, 1% SDS, 0.1 mg/ml Pefabloc/phosphatase inhibitor mix). After disrupting cells with glass beads and incubating with Laemmli SDS sample buffer, samples were subjected to regular SDS-PAGE and immunoblotting. The phosphorylation level of Sch9-Thr737 and the total amount of Sch9 were assessed using the phosphospecific anti-Sch9-pThr737 and anti-Sch9 antibodies, respectively (Péli-Gulli et al., 2015).

Split-ubiquitin yeast two-hybrid assay

Request a detailed protocol

The split-ubiquitin yeast two-hybrid system from Dualsystems Biotech AG was used following the manufacturer’s instructions.

Pib2 fragments (full-length or truncated) and full-length Kog1 were cloned into pCabWT and pPR3N plasmids, respectively, and transformed into the strain NMY51 as indicated. Protein-protein interactions were detected as growth of the resultant strains on agar plates lacking adenine.

Accession numbers

Request a detailed protocol

Sequencing data have been deposited at EMBL-EBI ArrayExpress: E-MTAB-4885.

Data availability

The following data sets were generated


    1. Jin QW
    2. Fuchs J
    3. Loidl J
    Centromere clustering is a major determinant of yeast interphase nuclear organization
    Journal of Cell Science 113:1903–1912.
    1. Sikorski RS
    2. Hieter P
    A system of shuttle vectors and yeast host strains designed for efficient manipulation of DNA in Saccharomyces cerevisiae
    Genetics 122:19–27.
    1. Weissman J
    Methods in Enzymology
    470, Guide to Yeast Genetics: Functional Genomics, Proteomics, and Other Systems Analysis, Methods in Enzymology.

Article and author information

Author details

  1. Agnès H Michel

    Institute of Biochemistry, ETH Zurich, Zurich, Switzerland
    AHM, Conceptualization, Data curation, Formal analysis, Supervision, Validation, Investigation, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  2. Riko Hatakeyama

    Department of Biology, University of Fribourg, Fribourg, Switzerland
    RH, Conceptualization, Investigation, Methodology, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  3. Philipp Kimmig

    Institute of Biochemistry, ETH Zurich, Zurich, Switzerland
    PK, Formal analysis, Investigation, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  4. Meret Arter

    Institute of Biochemistry, ETH Zurich, Zurich, Switzerland
    MA, Conceptualization, Investigation, Methodology, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  5. Matthias Peter

    Institute of Biochemistry, ETH Zurich, Zurich, Switzerland
    MP, Supervision, Funding acquisition, Project administration
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2160-6824
  6. Joao Matos

    Institute of Biochemistry, ETH Zurich, Zurich, Switzerland
    JM, Conceptualization, Supervision, Funding acquisition, Project administration, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3754-3709
  7. Claudio De Virgilio

    Department of Biology, University of Fribourg, Fribourg, Switzerland
    CDV, Conceptualization, Supervision, Funding acquisition, Project administration, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  8. Benoît Kornmann

    Institute of Biochemistry, ETH Zurich, Zurich, Switzerland
    BK, Conceptualization, Data curation, Software, Formal analysis, Supervision, Funding acquisition, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6030-8555


European Commission (337906-OrgaNet)

  • Benoît Kornmann

Schweizerischer Nationalfonds zur Förderung der Wissenschaftlichen Forschung (PP00P3_13365)

  • Benoît Kornmann

Human Frontier Science Program

  • Philipp Kimmig

Schweizerischer Nationalfonds zur Förderung der Wissenschaftlichen Forschung (310030_166474)

  • Claudio De Virgilio

Schweizerischer Nationalfonds zur Förderung der Wissenschaftlichen Forschung (31003A_153058)

  • Joao Matos

Schweizerischer Nationalfonds zur Förderung der Wissenschaftlichen Forschung (155823)

  • Joao Matos

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.


We thank Beat Christen for inspiring this work and expert insight on Tn-seq, Reinhard Kunze for kind gift of plasmid and strain, Asun Monfort Pineda and Anton Wutz for invaluable help with Illumina Sequencing, Jeremy Thorner, Karsten Weis, Jeffrey Tang, Judith Berman and Vladimir Gritsenko for helpful discussions, Christine Doderer for preliminary experiments, Alicia Smith for comments on the manuscript, and the Kornmann lab for comments and ideas. This work is supported by grants of the Swiss National Science Foundation (PP00P3_13365 to BK, 310030_166474 to CDV, 31003A_153058 and 155823 to JM), the European Research Council (337906-OrgaNet) to BK, and PK is supported by the Human Frontier Science Program Organization.

Version history

  1. Received: November 23, 2016
  2. Accepted: May 6, 2017
  3. Accepted Manuscript published: May 8, 2017 (version 1)
  4. Version of Record published: June 9, 2017 (version 2)
  5. Version of Record updated: October 26, 2017 (version 3)


© 2017, Michel et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.


  • 14,043
  • 1,908
  • 122

Views, downloads and citations are aggregated across all versions of this paper published by eLife.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Agnès H Michel
  2. Riko Hatakeyama
  3. Philipp Kimmig
  4. Meret Arter
  5. Matthias Peter
  6. Joao Matos
  7. Claudio De Virgilio
  8. Benoît Kornmann
Functional mapping of yeast genomes by saturated transposition
eLife 6:e23570.

Share this article


Further reading

    1. Cell Biology
    2. Genetics and Genomics
    Yangzi Zhao, Lijun Ren ... Zhukuan Cheng
    Research Article

    Cohesin is a multi-subunit protein that plays a pivotal role in holding sister chromatids together during cell division. Sister chromatid cohesion 3 (SCC3), constituents of cohesin complex, is highly conserved from yeast to mammals. Since the deletion of individual cohesin subunit always causes lethality, it is difficult to dissect its biological function in both mitosis and meiosis. Here, we obtained scc3 weak mutants using CRISPR-Cas9 system to explore its function during rice mitosis and meiosis. The scc3 weak mutants displayed obvious vegetative defects and complete sterility, underscoring the essential roles of SCC3 in both mitosis and meiosis. SCC3 is localized on chromatin from interphase to prometaphase in mitosis. However, in meiosis, SCC3 acts as an axial element during early prophase I and subsequently situates onto centromeric regions following the disassembly of the synaptonemal complex. The loading of SCC3 onto meiotic chromosomes depends on REC8. scc3 shows severe defects in homologous pairing and synapsis. Consequently, SCC3 functions as an axial element that is essential for maintaining homologous chromosome pairing and synapsis during meiosis.

    1. Cell Biology
    2. Physics of Living Systems
    Ivan Castello-Serrano, Frederick A Heberle ... Ilya Levental
    Research Article

    The organelles of eukaryotic cells maintain distinct protein and lipid compositions required for their specific functions. The mechanisms by which many of these components are sorted to their specific locations remain unknown. While some motifs mediating subcellular protein localization have been identified, many membrane proteins and most membrane lipids lack known sorting determinants. A putative mechanism for sorting of membrane components is based on membrane domains known as lipid rafts, which are laterally segregated nanoscopic assemblies of specific lipids and proteins. To assess the role of such domains in the secretory pathway, we applied a robust tool for synchronized secretory protein traffic (RUSH, Retention Using Selective Hooks) to protein constructs with defined affinity for raft phases. These constructs consist solely of single-pass transmembrane domains (TMDs) and, lacking other sorting determinants, constitute probes for membrane domain-mediated trafficking. We find that while raft affinity can be sufficient for steady-state PM localization, it is not sufficient for rapid exit from the endoplasmic reticulum (ER), which is instead mediated by a short cytosolic peptide motif. In contrast, we find that Golgi exit kinetics are highly dependent on raft affinity, with raft preferring probes exiting the Golgi ~2.5-fold faster than probes with minimal raft affinity. We rationalize these observations with a kinetic model of secretory trafficking, wherein Golgi export can be facilitated by protein association with raft domains. These observations support a role for raft-like membrane domains in the secretory pathway and establish an experimental paradigm for dissecting its underlying machinery.
