Abstract

Over 170 different mutations in the gene encoding SOD1 all cause amyotrophic lateral sclerosis (ALS). Available studies have been primarily focused on the mechanisms underlying mutant SOD1 cytotoxicity. How cells defend against the cytotoxicity remains largely unknown. Here, we show that misfolding of ALS-linked SOD1 mutants and wild-type (wt) SOD1 exposes a normally buried nuclear export signal (NES)-like sequence. The nuclear export carrier protein CRM1 recognizes this NES-like sequence and exports misfolded SOD1 to the cytoplasm. Antibodies against the NES-like sequence recognize misfolded SOD1, but not native wt SOD1 both in vitro and in vivo. Disruption of the NES consensus sequence relocalizes mutant SOD1 to the nucleus, resulting in higher toxicity in cells, and severer impairments in locomotion, egg-laying, and survival in Caenorhabditis elegans. Our data suggest that SOD1 mutants are removed from the nucleus by CRM1 as a defense mechanism against proteotoxicity of misfolded SOD1 in the nucleus.

https://doi.org/10.7554/eLife.23759.001

eLife digest

Amyotrophic lateral sclerosis (ALS) is a disease that leads to muscle weakness and paralysis. The symptoms become progressively worse over time to the point that patients die because they become unable to breathe. Over 170 different genetic mistakes (or mutations) in a gene that encodes a protein called SOD1 are known to cause ALS. These mutations cause the SOD1 protein to form different shapes that are toxic to nerve cells, leading to the gradual loss of the nerve cells that control movement. SOD1 is normally found in a compartment within nerve cells called the nucleus, which is where most of the cell’s genetic information is stored and managed.

A nematode worm called Caenorhabditis elegans has often been used as a model to study the role of SOD1 in ALS because its nervous system shares many features in common with ours but is much smaller. Some evidence suggests that cells may be able to defend themselves against the harmful effects of abnormal SOD1 proteins. However, it is not clear how these defences might work.

Zhong et al. examined variants of SOD1 proteins from human cells grown in a laboratory. The experiments show that some mutant SOD1 proteins fold in such a way that a small section of the protein that is normally buried within the protein’s structure is exposed on the surface. Mutant SOD1 proteins that expose this “peptide” are removed from the nucleus and are linked with faster progression of ALS in patients.

Further experiments show that another protein called CRM1 can recognise this exposed peptide, leading to the removal of the mutant SOD1 proteins from the nucleus. Zhong et al. found that if mutant SOD1 is not removed from the nucleus of nerve cells, the nematode worms developed ALS symptoms even faster.

These findings suggest that cells may be able to remove some mutant SOD1 proteins from the nucleus to defend themselves against the proteins’ toxic effects. Future work will reveal whether other cells use this approach to protect themselves against other diseases. The peptide discovered in this work may also have the potential to be used as a marker to predict how individual cases of ALS will progress, or as a target for treatments against the disease.

https://doi.org/10.7554/eLife.23759.002

Introduction

Amyotrophic lateral sclerosis (ALS) is a fatal neurodegenerative disease caused by progressive loss of upper and lower motor neurons in the brain and spinal cord. Most patients die from respiratory failure in 3–5 years after disease onset (Ajroud-Driss and Siddique, 2015). About 10% of ALS cases have positive family history and are classified as familial ALS (fALS). The remaining 90% of ALS cases are classified as sporadic ALS (sALS). Mutations in over 40 genes have been associated with fALS (Ajroud-Driss and Siddique, 2015), including the first identified gene encoding Cu/Zn superoxide dismutase (SOD1) (Deng et al., 1993; Rosen et al., 1993). To date, over 170 mutations involving 88 of the 154 amino acids of SOD1 have been identified in patients diagnosed with ALS (Taylor et al., 2016) (alsod.iop.kcl.uk). Mutations in SOD1 account for about 20% of familial and 2–7% of sporadic ALS cases (alsod.iop.kcl.uk), which makes SOD1 the second most frequently mutated gene after C9ORF72 in affected Caucasians (Ajroud-Driss and Siddique, 2015; Renton et al., 2014).

SOD1 is a highly conserved and ubiquitously expressed free-radical scavenging enzyme. It catalyzes the dismutation of superoxide radical (O2.) into oxygen and hydrogen peroxide (H2O2), which in turn is reduced to water and oxygen by catalase. SOD1 is highly abundant, comprising 1–2% of the total soluble protein in the nervous system (Pardo et al., 1995). Despite its important physiological function, SOD1 knockout mice failed to develop an ALS-like phenotype (Reaume et al., 1996). Increasing evidence indicates that a toxic gain-of-function in SOD1 mutants is a fundamental mechanism for the pathogenesis of ALS (Williamson et al., 2000; Deng et al., 2006; Sau et al., 2007; Rotunno and Bosco, 2013; Bunton-Stasyshyn et al., 2015; Silverman et al., 2016). Although the exact mechanisms by which diverse SOD1 mutations all cause ALS remains unclear, many toxic effects caused by SOD1 mutants have been reported, including excitotoxicity, oxidative stress, endoplasmic reticulum (ER) stress, mitochondrial dysfunction, axonal transport disruption, prion-like propagation, and non-cell autonomous toxicity of neuroglia (Hayashi et al., 2016). These toxic effects may contribute to mutant SOD1-induced neuronal degeneration. Aggregation of SOD1 mutants in motor neurons is a common pathological feature. Therefore, coaggregation of an unidentified essential component or components or aberrant catalysis by misfolded mutants may underlie part of the mutant-mediated toxicity (Bruijn et al., 1998).

Disease pathogenesis and progression is not only determined by the toxic effects of SOD1 mutants but also modulated by intrinsic cellular defenses against the toxic proteins, such as protein quality control. Indeed, it has been reported that removal of SOD1 mutants through degradation by the ubiquitin-proteasome system and autophagy, or through induction of heat shock proteins reduces their cytotoxicity (Kabuta et al., 2006; Tan et al., 2008; Ying et al., 2009; Crippa et al., 2010; Kalmar et al., 2014). However, available studies have been primarily focused on how mutant SOD1 exerts its toxicity, and much less is known about how cells defend against the toxic effects. In this study, we identified a novel mechanism that reduces mutant SOD1 cytotoxicity through limiting proteotoxicity in the nucleus.

Results

ALS-linked SOD1 mutants are cleared from the nucleus by CRM1

SOD1 is normally localized in both the cytoplasm and the nucleus of cells (Crapo et al., 1992). We found that when GFP-tagged wt-SOD1 (GFP-SOD1wt) and two mutants (GFP-SOD1G85R and GFP-SOD1G93A) were expressed in HeLa cells, both mutants showed predominantly cytoplasmic distribution while GFP-SOD1wt was evenly distributed in the cytoplasm and the nucleus as expected (Figure 1A). Impairment of the CRM1-dependent nuclear export pathway with a CRM1 inhibitor, leptomycin B (LMB), caused the mutants to accumulate in the nucleus (Figure 1A). Similarly, knockdown of CRM1 expression by RNAi or co-expression of a Q69L mutant of Ran GTPase, a dominant-negative inhibitor of CRM1 (Xu et al., 2010; Kehlenbach et al., 1999), also led to accumulation of the mutants in the nucleus (Figure 1B,C). To rule out the contribution of proteasomal degradation to the nuclear clearance of SOD1 mutants (Kabuta et al., 2006; Niwa et al., 2002), we inhibited the proteasome activity with a proteasome inhibitor MG132 along with inhibition of protein synthesis by cycloheximide (CHX). Proteasome inhibition for 60 min did not significantly affect the nuclear levels of GFP-SOD1G85R but again LMB treatment did (Figure 1D). These results suggest that the lack of nuclear distribution of SOD1 mutants is mediated by CRM1-dependent nuclear export.

ALS-linked SOD1 mutants are exported from the nucleus by CRM1.

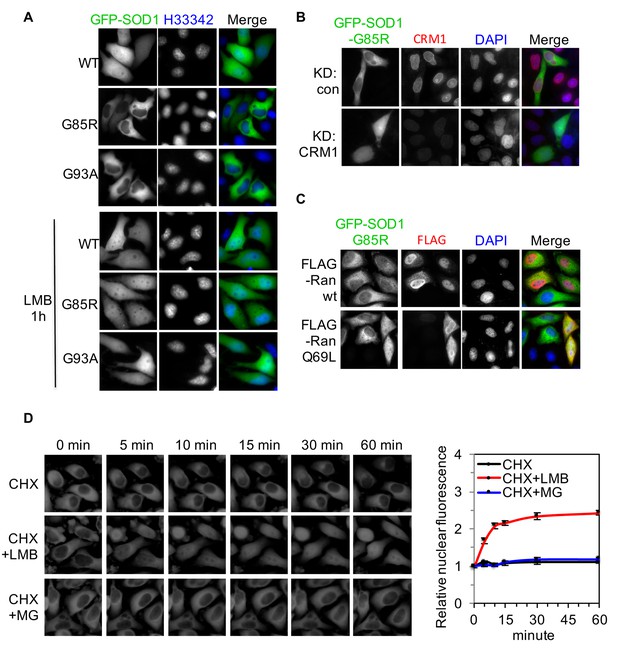

(A) Inhibition of CRM1-dependent nuclear export increases nuclear distribution of SOD1G85R and SOD1G93A. HeLa cells expressing GFP-tagged SOD1wt, SOD1G85R or SOD1G93A were treated with LMB (20 nM) for 1 hr. (B) Knockdown of CRM1 increases nuclear distribution of GFP-SOD1G85R. (C) Overexpression of FLAG-tagged RanQ69L but not wt Ran increases nuclear distribution of GFP-SOD1G85R. (D) Time-lapse imaging of SOD1G85R. HeLa cells expressing GFP-SOD1G85R were treated with cycloheximide (CHX, 100 nM), in combination with MG132 (30 μM) or LMB (20 nM) as indicated. Images were acquired at indicated time points. The nuclear (N) and total (T) GFP fluorescence was measured for each cell with ImageJ. The N/T ratio expressed as mean ± SEM was calculated from 30 cells for each group and plotted. The mean N/T ratios at start point (0 min) were arbitrary set as 1. Paired t-test, CHX vs CHX+LMB: p=0.008; CHX+LMB vs CHX+MG132: p=0.006; CHX vs CHX+MG132: p=0.494.

https://doi.org/10.7554/eLife.23759.003

A nuclear export signal (NES)-like peptide sequence is responsible for the nuclear clearance of SOD1 mutants

It is well known that CRM1 exports its physiological cargo proteins through the recognition of the leucine-rich nuclear export signal (NES) (Kosugi et al., 2008; Xu et al., 2012). Selective export of mutant but not wt SOD1 suggests that SOD1 does not have a physiological NES. We hypothesized that misfolding of SOD1 mutants reveals a normally buried hydrophobic peptide that contains a NES consensus sequence. To test this hypothesis, we analyzed SOD1 protein sequence and located two potential NES-like sequence-containing peptides (Figure 2A). The peptides were each fused to mCherry and expressed in HeLa cells. Fusion with peptide P1 corresponding to residues 24–55 of SOD1, but not with P2 resulted in the nuclear clearance of mCherry, which could be restored by LMB treatment (Figure 2B). GST pull-down experiments showed that P1 and the NES from protein kinase inhibitor (PKI) (Güttler et al., 2010) as a positive control, but not P2, interact with CRM1 protein (Figure 2C). These results suggest that peptide P1 in human SOD1 contains a functional NES consensus sequence.

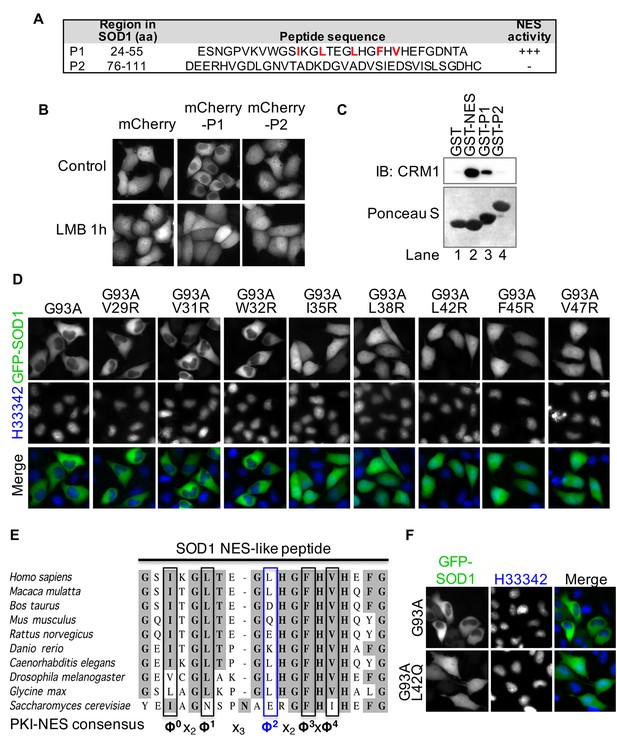

A nuclear export signal (NES)-like sequence is essential for the nuclear export of SOD1 mutants.

(A) Two putative regions containing NES consensus sequences in SOD1 (P1 and P2). (B) P1 or P2 fused with mCherry was expressed in HeLa cells and treated with LMB for 1 hr. (C) GST pull-down. Immobilized GST or GST-tagged PKI-NES (NES), P1 or P2 was incubated with recombinant CRM1 and RanGTP. (D) Identification of the key hydrophobic residues required for nuclear export activity in P1. Each of eight hydrophobic residues in P1 was mutated to Arginine in GFP-SOD1G93A. The mutants were expressed in HeLa cells. (E) Alignment of key residues in P1 with corresponding residues in human SOD1 orthologs and PKI-class NES consensus (Güttler et al., 2010). Note that residue Leu42 in human (Φ2) is not conserved in several other species, including mouse. (F) Mutation of Leu42 in GFP-tagged human SOD1G93A to mouse corresponding residue (Gln) abolishes nuclear export of the mutant SOD1.

https://doi.org/10.7554/eLife.23759.004

Next, we asked if the NES activity of P1 sequence is responsible for the nuclear export of SOD1 mutants. Eight hydrophobic residues in P1 are among the candidates for the NES consensus residues, and therefore, each was mutated to Arginine (R) in GFP-SOD1G93A. Five of the resulting mutants, including I35R, L38R, L42R, F45R, and V47R, showed even distribution in the cytoplasm and the nucleus, suggesting these five hydrophobic residues are essential for G93A nuclear export (Figure 2D). These essential residues are in good agreement with the PKI-class NES consensus Φ0-X21-X32-X2–33-X-Φ4 (Güttler et al., 2010) (Figure 2E), where Φ04 are five key hydrophobic residues spaced by different number of amino acids (denoted as Xn) that are preferentially charged, polar or small. Importantly, sequence alignment revealed that one of the five essential hydrophobic residues, Leu42 (Φ2), is not conserved in orthologs for human SOD1 (Figure 2E). Mutation of this residue to Glutamine (Q), as is naturally present in the mouse ortholog, abolished the nuclear export ability of GFP-SOD1G93A (Figure 2F). These results indicate that P1 is not an evolutionarily conserved physiological NES but may be exposed by misfolding of SOD1 mutants.

The NES-like sequence is normally buried but exposed in SOD1 mutants

To determine whether the NES-like sequence is normally buried, we analyzed the available structure of wt-SOD1 (PDB: 2c9v). The NES-like consensus sequence (aa35-47) forms part of strand β3, the crossover loop, and strand β4, and is almost completely buried in the structure (Figure 3A). In fact, Leu42 is the only one of the five essential hydrophobic residues exposed on the protein surface (Figure 3A), which may explain why natural substitution of Leu42 by Gln in mouse SOD1 does not affect its structure (Figure 2E). Next, we assessed the accessibility of the NES-like sequence to CRM1 in SOD1 mutants using pull-down assays with recombinant GST-tagged full-length wt or mutant SOD1. CRM1 was precipitated by all four ALS-linked mutants tested, including Q22L, G85R, G93A, and L144S, but not by wt-SOD1 (Figure 3B). Disruption of the NES consensus sequence by creating an L38R mutation in G85R or G93A largely diminished their binding to CRM1 (Figure 3B, Lane 7 vs 4, Lane 8 vs 5). Moreover, CRM1-NES-like sequence interaction was dependent on the presence of RanGTP. The interaction was diminished when RanGTP was omitted from the pull-down assay (Figure 3C), indicating a receptor-cargo relationship for CRM1-NES-like sequence of SOD1. The exposure of the NES-like sequence in cells was determined by native immunoprecipitation (IP). To do this, we generated rabbit polyclonal antibodies against the NES-like sequence-containing peptide (NLP). Under native condition, anti-NLP efficiently precipitated GFP-SOD1G93A and six other mutants but not GFP-SOD1wt from lysates prepared from HEK293T cells transiently expressing the respective protein (Figure 3D,E). These results indicate that the NES-like sequence of SOD1 is normally buried in the wild-type protein but is exposed in the mutants possibly due to protein misfolding.

The NES-like sequence is exposed only in SOD1 mutants but not in wt SOD1.

(A) Structural localization of the NES-like peptide in wt SOD1. The X-ray crystallographic structure of wt SOD1 (PDB: 2c9v, only chain A of the dimer was shown) is analyzed in UCSF Chimera 1.8. Key residues in the NES-consensus sequence are labeled in red, whereas other residues are labeled in blue. Note that only Leu42 is exposed in the surface. Upper panel: ribbon structure; lower panel: surface structure. (B) GST pull-down. Immobilized GST or GST-tagged protein as indicated was incubated with recombinant CRM1 and RanGTP. (C) RanGTP-dependent interaction between GST-SOD1G93A and CRM1. Recombinant CRM1 was precipitated by immobilized GST, GST-SOD1wt or GST-SOD1G93A with or without RanGTP. (D) Native immunoprecipitation (IP). GFP-SOD1wt and GFP-SOD1G93A were each expressed in HEK293T cells. The cell lysates prepared under native condition were immunoprecipitated with either the preimmune serum (control) or antibodies against a peptide containing the NES-like sequence of SOD1 (α-NLP). (E) Native IP. HEK293T cells expressing different GFP-tagged SOD1 proteins were lysed under native condition and immunoprecipitated with α-NLP. WCL: whole cell lysates.

https://doi.org/10.7554/eLife.23759.005

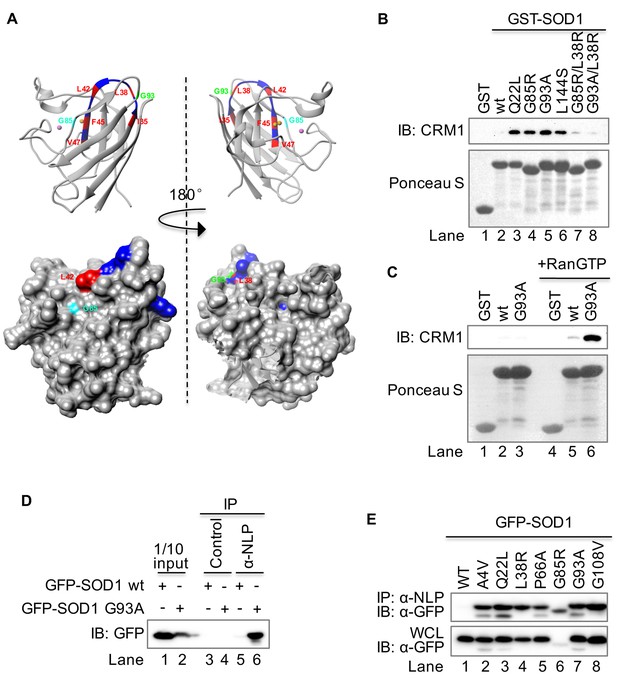

All ALS-linked SOD1 mutants tested assume NES-like sequence-exposed conformation but with different tendencies

The GST pull-down and IP results also suggest that the NES-like sequence is exposed in multiple ALS-linked SOD1 mutants. We then asked whether exposure of the NES-like sequence is a common feature for ALS-linked SOD1 mutants. We tested 17 representative ALS-linked SOD1 mutants, including those deficient in copper binding (H46R, H48R, and H120L) or zinc binding (H80R and D83G) and one that cannot form disulfide bond (C57R) (Valentine et al., 2005). These mutants were tagged with GFP and expressed in HeLa cells. GFP-SOD1wt was expressed as a negative control. As described above, exposure of the NES-like sequence can result in predominantly cytoplasmic distribution (nuclear < cytoplasmic: N<C) of some SOD1 mutants (Figure 1A). Therefore, we first evaluated the exposure of the NES-like sequence in these GFP-tagged mutants by directly observing GFP localization. We found that cells expressing GFP-tagged SOD1 mutants exhibited either a N<C distribution or a distribution pattern similar to GFP-SOD1wt (wt-SOD1-like). While N<C localization was the predominant pattern found in over half of the mutants tested, this localization pattern was found only in a fraction of cells expressing the remaining mutants, including L38R (0%), H46R (3.9%), C57R (62.6%), H80R (53.7%), D90A (59.5%), H120L (55.5%), L126S (66.5%) and L144S (59.8%) (Figure 4A and Figure 4—figure supplement 1). Importantly, disruption of the NES-consensus sequence by adding an L38R mutation to eight tested mutants resulted in wt-SOD1-like GFP distribution in all transfected cells (Figure 4—figure supplement 2). We then examined the exposure of the NES-like sequence by anti-NLP immunofluorescence. Positive anti-NLP staining was found in 90–100% of cells for all mutants except for L126S (81%) and L144S (77%) (Figure 4A,B and Figure 4—figure supplement 1). Consistent with the notion that exposure of the NES-like sequence exports misfolded SOD1 to the cytoplasm, anti-NLP immunofluorescence exhibited predominantly cytoplasmic localization, even in cells exhibiting wt-SOD1-like GFP localization, such as those expressing H46R (Figure 4A,B). The L38R mutant that has a disrupted NES-consensus sequence, as an exception, was stained both in the nucleus and the cytoplasm (Figure 4B). These results suggest that all SOD1 mutants tested expose the NES-like sequence, but the propensities to expose it vary among the mutants. Native IP with anti-NLP antibodies further confirmed that mutants with less N<C GFP distribution (H46R, D90A, L126S and L144S) were also less efficiently precipitated by anti-NLP, compared to mutants showing predominant N<C GFP distribution (A4V, G85R, G93A and G108V) (Figure 4C). Interestingly, available reports indicate that ALS patients with H46R, D90A, L126S or L144S mutation have slow disease progression, whereas disease progress faster in patients with A4V, G85R, G93A or G108V mutation (Bali et al., 2017; Byström et al., 2010). It is possible that SOD1 mutants can assume more than one conformations in cells, among which their tendencies to expose the NES-like sequence correlate with disease progression.

Figure 4 with 3 supplements see all

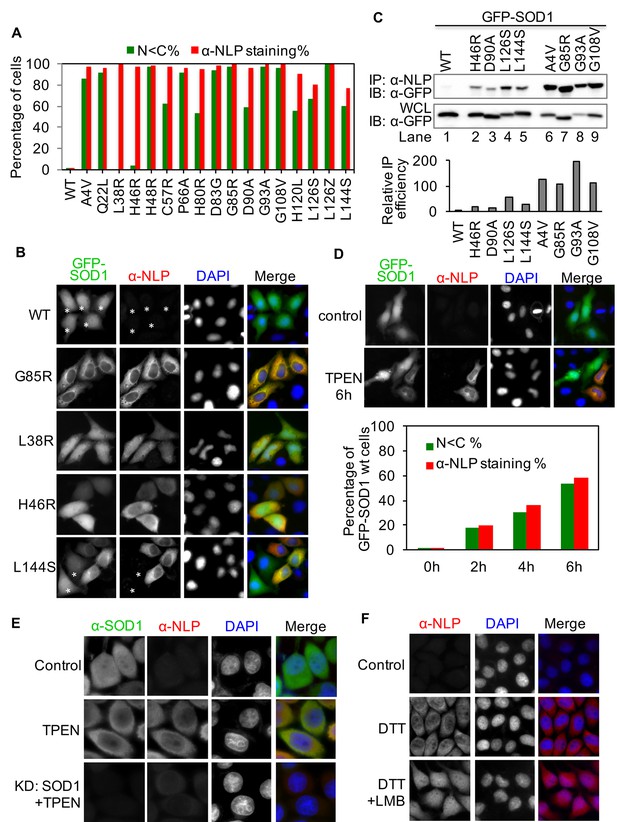

The NES-like sequence is exposed in ALS-linked SOD1 mutants and misfolded wt-SOD1.

(A) HeLa cells expressing GFP-tagged wt-SOD1 or indicated mutants were stained with α-NLP. Percentages of cells exhibiting predominantly cytoplasmic GFP distribution (N<C%) and cells positively stained by α-NLP were plotted. n = 392 (WT), n = 395 (A4V), n = 340 (Q22L), n = 431 (L38R), n = 389 (H46R), n = 411 (H48R), n = 423 (C57R), n = 376 (P66A), n = 393 (H80R), n = 402 (D83G), n = 450 (G85R), n = 435 (D90A), n = 408 (G93A), n = 495 (G108V), n = 355 (H120L), n = 367 (L126S), n = 462 (L126Z), n = 410 (L144S). (B) Anti-NLP specifically stained SOD1 mutants but not wt-SOD1 as detected by immunofluorescence microscopy. Asterisks indicate SOD1-expressing cells not being stained by α-NLP. (C) Native IP. HEK293T cells expressing different GFP-tagged SOD1 proteins were lysed under native conditions and immunoprecipitated with α-NLP. Immunoprecipitates and whole cell lysates (WCL) were blotted with α-GFP antibody. Relative IP efficiency for each SOD1 protein was calculated as the ratio of the band density from IP sample over that from corresponding WCL sample and was plotted as fold-difference relative to wt-SOD1. (D) Demetallation induces exposure of the NES-like sequence in GFP-SOD1wt. HeLa cells expressing GFP-SOD1wt were treated with TPEN (10 μM) and then stained with α-NLP. n = 392 (0h), n = 404 (2h), n = 527 (4h), n = 505 (6h). (E) Control HeLa cells or HeLa cells transfected with SOD1 siRNA (KD: SOD1) were treated with TPEN (4 μM) for 20 hr. Then the cells were stained with α-NLP and α-SOD1 antibodies and imaged for immunofluorescence. (F) DTT induces exposure of the NES-like sequence in endogenous SOD1. HeLa cells were treated with DTT (0.4 mM) and LMB (5 nM) as indicated for 20 hr. Then the cells were stained with α-NLP.

https://doi.org/10.7554/eLife.23759.006

Misfolded wt-SOD1 exposes the NES-like sequence

We found that about 2% of the cells expressing GFP-SOD1wt were positive for anti-NLP staining, suggesting that the NES-like sequence is exposed in misfolded wt SOD1 (Figure 4A). In support for this observation, previous studies have shown that wt-SOD1 can become misfolded under certain stress conditions and the misfolded wt-SOD1 adopts a ‘toxic conformation’ that is similar to ALS-linked SOD1 mutants (Rotunno and Bosco, 2013). We, therefore, further investigated whether the NES-like sequence is exposed in misfolded wt-SOD1. It was reported that zinc binding stabilizes wt-SOD1, whereas chelation of zinc leads SOD1 to adopt a ‘mutant-like conformation’ (Homma et al., 2013). We, therefore, treated HeLa cells expressing GFP-SOD1wt with the zinc chelator, N,N,N',N'-tetrakis (2-pyridylmethyl) ethylenediamine (TPEN) followed by anti-NLP staining. More cells lost nuclear distribution of GFP-SOD1wt following TPEN treatment, and these cells were specifically stained by anti-NLP (Figure 4D). Anti-NLP also stained endogenous SOD1 in TPEN-treated cells, whereas a non-conformation-specific anti-SOD1 antibody (71G8) stained both control and TPEN-treated cells (Figure 4E). Moreover, in TPEN-treated cells, both 71G8 and anti-NLP showed predominantly cytoplasmic staining (Figure 4E), suggesting that misfolded endogenous SOD1 is also exported from the nucleus. The specificity of anti-NLP staining of endogenous SOD1 was demonstrated by siRNA-mediated knockdown of SOD1 expression. RNAi dramatically decreased the staining by both 71G8 and anti-NLP staining (Figure 4E). Similarly, cells treated with sodium arsenite, an oxidative stress inducer, were also specifically stained by anti-NLP, and the staining was significantly reduced when SOD1 was knocked down (Figure 4—figure supplement 3). Treatment of HeLa cells with dithiothreitol (DTT), a strong reducing agent that may break the disulfide bond in SOD1, also resulted in predominantly cytoplasmic staining of anti-NLP (Figure 4F). LMB treatment of DTT-treated cells increased anti-NLP staining in the nucleus (Figure 4F), indicating that the reduced nuclear staining is due to CRM1-dependent nuclear export of misfolded SOD1. Taken together, these results suggest that certain environmental stresses can induce wt-SOD1 to adopt ‘mutant-like’ conformation with exposed NES-like sequence.

Anti-NLP detects mutant SOD1 in samples from ALS patients

To determine the clinical relevance of this novel conformation, we performed anti-NLP immunostaining of spinal cord sections from human ALS patients. The specificity of the anti-NLP immunohistochemistry was first demonstrated by a lack of staining in spinal cord sections from non-transgenic mice (Figure 5A). Conversely, the motor neurons and neurites in the spinal cord sections from SOD1L126Z transgenic mice were anti-NLP positive (Figure 5B) (Deng et al., 2011). In addition, the staining was predominantly cytoplasmic in most anterior horn neurons, which is consistent with the distribution pattern we have shown in HeLa cells for GFP-SOD1L126Z (Figure 4—figure supplement 1). The spinal cord sections from three ALS patients harboring A4V or G85R mutation were also stained with anti-NLP. The anti-NLP staining appeared cytoplasmic, both defuse and as aggregates, in anterior horn neurons and neurites (Figure 5C–E).

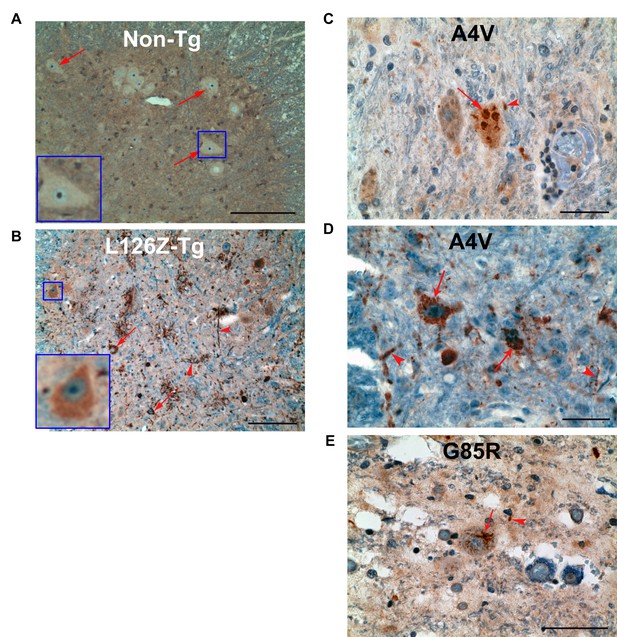

Exposure of the NES-like sequence in spinal cord sections from transgenic mice and ALS cases.

(A). Spinal cord sections from non-transgenic mice were stained with α-NLP. Representative anterior horn neurons are indicated by arrows and also showed in the inset. Scale bar: 100 m. (B) Spinal cord sections from SOD1L126Z transgenic mice were stained with anti-NLP. Representative SOD1 aggregates in anterior horn neurons and neuritis are indicated by arrows and arrowheads, respectively. Inset shows a representative anterior horn neuron with diffused α-NLP staining predominantly in the cytoplasm. Scale bar: 300 m. (C) to (E) Autopsy spinal cord sections from two SOD1A4V ALS patients (C and D) and a SOD1G85R ALS patient (E) were stained with anti-NLP. Representative SOD1 aggregates in anterior horn neurons and neurites are indicated by arrows and arrowheads, respectively. Scale bar: 100 m.

https://doi.org/10.7554/eLife.23759.011

Nuclear export of misfolded SOD1 decreases proteotoxicity in the nucleus

Misfolded SOD1 mutants are toxic to neurons. When present in the nuclei of neurons, SOD1 mutants are likely to cause proteotoxicity in the nucleus (Shibata and Morimoto, 2014; Gallagher et al., 2014). Therefore, nuclear clearance may modulate toxicity of SOD1 mutants through reducing proteotoxicity in the nucleus. To test this possibility, we proposed to restore the nuclear localization of SOD1 mutants by disrupting the NES-like consensus sequence using G85R as an example. As shown earlier in Figures 2E and 3A, Leu42, one of the NES consensus residue in human SOD1, normally exists as Gln (Q) in mouse and is exposed on the SOD1 protein surface. Therefore, a L42Q substitution is expected to disrupt the NES consensus sequence without affecting SOD1 structure. We generated lentiviral plasmids encoding GFP-SOD1wt, GFP-SOD1L42Q, GFP-SOD1G85R and GFP-SOD1G85R/L42Q, and expressed the variants in NSC34 motor neuron-like cells. As expected, GFP-SOD1wt, GFP-SOD1L42Q, and GFP-SOD1G85R/L42Q were localized in both the nucleus and the cytoplasm, whereas GFP-SOD1G85R was primarily in the cytoplasm (Figure 6A). Importantly, native IP showed that GFP-SOD1L42Q was not recognized by anti-NLP, whereas about same amounts of GFP-SOD1G85R/L42Q and GFP-SOD1G85R were precipitated (Figure 6B), supporting that L42Q mutation has little or no effects on SOD1 folding. The cytotoxic effects of GFP-SOD1G85R, GFP-SOD1L42Q, and GFP-SOD1G85R/L42Q were examined by a WST-1 assay for cell viability, and GFP-SOD1wt-expressing cells were used as a control. As previously reported (Kabashi et al., 2012; Kitamura et al., 2014), proteostress was imposed through inhibition of proteasomal degradation. Viability was similar for cells expressing GFP-SOD1wt and GFP-SOD1L42Q but significantly decreased in cells expressing GFP-SOD1G85R (Figure 6C). Cells expressing GFP-SOD1G85R/L42Q showed lower viability than those expressing GFP-SOD1G85R, suggesting that disruption of the NES by L42Q mutation increases the cytotoxicity of GFP-SOD1G85R (Figure 6C). These results suggest that nuclear export of SOD1 mutants plays a defensive role against proteotoxicity in the nucleus.

Disruption of the NES by L42Q mutation in SOD1G85R mutant results in higher cytotoxicity in NSC34 cells.

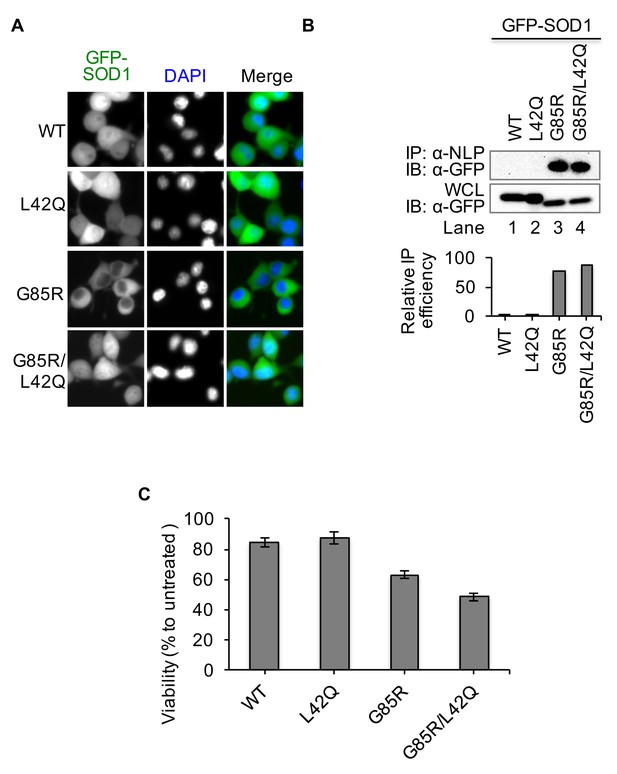

NSC34 cells were infected with lentiviruses expressing GFP-tagged WT, L42Q, G85R or G85R/L42Q SOD1 proteins. (A) SOD1L42Q and GFP-SOD1G85R/L42Q have similar subcellular localizations as GFP-SOD1wt in NSC34 cells. (B) Native IP. NSC34 cells expressing different GFP-tagged SOD1 proteins were lysed under native condition and immunoprecipitated with α-NLP. Immunoprecipitates and whole cell lysates (WCL) were blotted with α-GFP antibody. Relative IP efficiency for each SOD1 protein was calculated as the ratio of the band density from IP sample over that from corresponding WCL sample and was plotted as fold-difference relative to wt-SOD1. (C) Cell viability (WST-1 assay). NSC34 cells expressing GFP-tagged SOD1 proteins as indicated were treated with MG132 (5 μM) for 24 hr. Data represent means ± SEM, n = 4. Unpaired t-test, G85R/L42Q vs G85R: p=0.005; WT vs L42Q: p=0.564.

https://doi.org/10.7554/eLife.23759.012

We further determined the effects of restoring SOD1G85R nuclear localization in C. elegans. A C. elegans model of ALS has been established previously by expression of SOD1G85R-YFP in neurons (Wang et al., 2009). For comparison, we generated new transgenic C. elegans lines expressing SOD1L42Q-YFP or SOD1G85R/L42Q-YFP. Three independent C. elegans lines each for SOD1L42Q-YFP and SOD1G85R/L42Q-YFP were used in this study. As observed in cultured cells, SOD1wt-YFP and SOD1L42Q-YFP were localized in both the cytoplasm and the nucleus of the neurons throughout the lifespan of C. elegans (Figure 7A,B). SOD1G85R-YFP was cleared from the nuclei of motor neurons in both L1 and adult C. elegans (Figure 7A,B). In contrast, SOD1G85R/L42Q-YFP was localized in both the cytoplasm and the nuclei in motor neurons in L1 C. elegans (Figure 7B). In adult C. elegans, the nuclear localization of SOD1G85R/L42Q-YFP was only observed in a fraction of the neurons and no visible aggregate was observed in the nucleus. (Figure 7B). A possible explanation is that cytoplasmic aggregation of the mutant protein prevents its entry into the nucleus. Indeed, we found that in adult C. elegans, like SOD1G85R-YFP, SOD1G85R/L42Q-YFP formed large cytoplasmic aggregates (Figure 7B). Immunoblotting revealed that these new lines expressed similar levels of the SOD1 transgenes as the previously generated SOD1wt-YFP and SOD1G85R-YFP lines, with the exception of the line L42Q-1 (Figure 7C). Similar amount of SOD1G85R-YFP and SOD1G85R/L42Q-YFP, but not SOD1wt-YFP or SOD1L42Q-YFP were detected in the insoluble fractions (Figure 7C, upper panel, lanes 2, 6–8), indicating the formation of aggregates for the variants in these C. elegans lines. To assess the effects of SOD1G85R-YFP and SOD1G85R/L42Q-YFP on locomotion, we measured the body bending rates for L4 larvae of all these lines. As controls, the lines expressing SOD1wt-YFP and SOD1L42Q-YFP showed significantly higher bending rates than SOD1G85R-YFP and SOD1G85R/L42Q-YFP lines (Figure 7D). Importantly, all three SOD1G85R/L42Q-YFP lines showed significantly lower bending rates than the SOD1G85R-YFP line (Figure 7D). Next, we compared the survival rates of the transgenic lines. SOD1L42Q-YFP and SOD1wt-YFP worms showed similar survival rates, whereas the SOD1G85R-YFP line had significantly decreased survival rate, in agreement with previous reports. Remarkably, about 80% of all worms expressing SOD1G85R/L42Q-YFP died by day 3 (Figure 8A,B). A potential cause for the decreased survival of SOD1G85R/L42Q-YFP worms was identified, as these animals exhibited an egg-laying defect where eggs hatched inside mothers, a phenotype known as ‘bagging’. About 70% of SOD1G85R/L42Q-YFP worms showed the bagging phenotype, with an average of 4.2 eggs hatched per mother. This was significantly worse than observed for SOD1G85R-YFP animals, where about 17% of worms showed a bagging phenotype, with an average of 2.4 eggs hatched per mother (Figure 9A,B,C). Remarkably, less eggs were laid by SOD1G85R/L42Q-YFP animals in 48 hr compared to other lines (Figure 9D). These results support increased toxicity of SOD1G85R/L42Q-YFP compared to SOD1G85R-YFP when expressed in neurons of C. elegans.

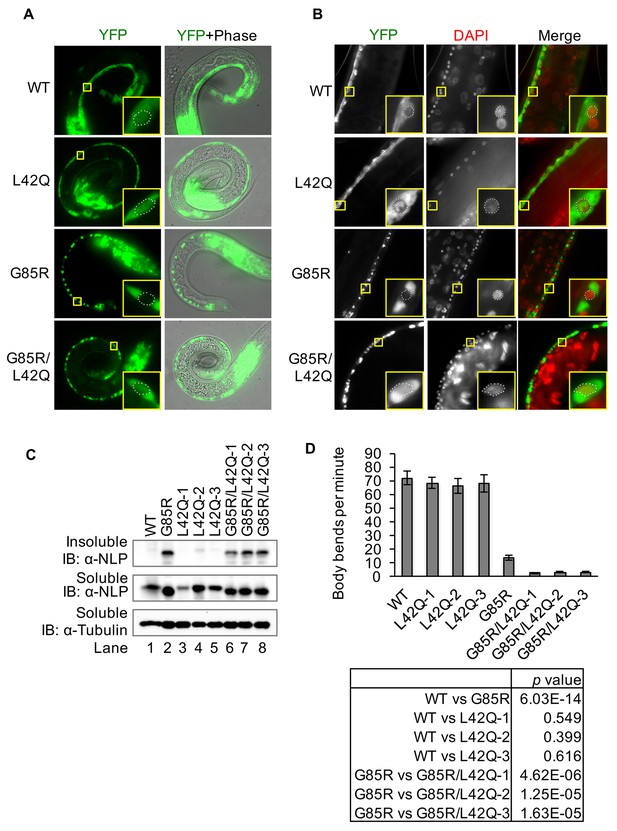

Disruption of the NES by L42Q mutation in SOD1G85R mutant causes severe defects in locomotion in transgenic C. elegans.

Transgenic worm lines neuronal specifically expressing SOD1wt-YFP (WT), SOD1L42Q-YFP (L42Q), SOD1G85R-YFP (G85R) or SOD1G85R/L42Q-YFP (G85R/L42Q) in neurons were generated previously or in this study. (A), Expression of YFP-tagged SOD1 proteins in L1 of transgenic worm lines. Insets show higher magnification of motor neurons. The dot lines depict the nuclear profiles of the enlarged neurons (also in B). (B) Microscopy of adult animals. DAPI (pseudo colored red) was used to stain the nucleus. (C) Immunoblotting. L1 larvae were lysed by sonication on ice. The soluble (S) and insoluble (P) fractions were processed for immunoblotting. (D) Body bending rates. L4 animals were transferred to a drop of M9 buffer and counted for their total body bends in 1 min. Data represent means ±SEM, n = 20. Two-tailed unpaired t-test was used to calculate the p values.

https://doi.org/10.7554/eLife.23759.014

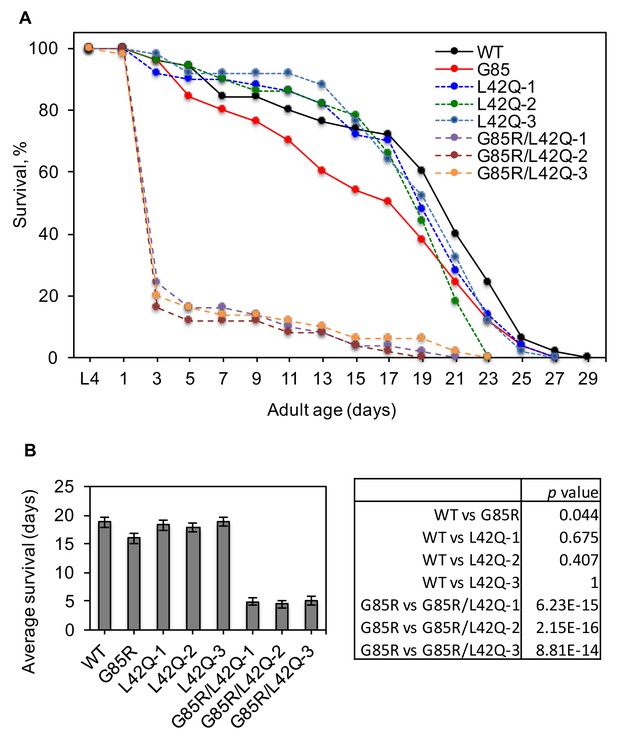

Disruption of the NES by L42Q mutation in SOD1G85R mutant decreases survival of transgenic C. elegans.

(A) Survival curves. Mid-L4 animals were picked and followed for their survival. The surviving worms were transferred to fresh plates every 2 days until all the worms died. n = 50 for each transgenic line. (B) Average survival days from (A). Two-tailed unpaired t-test was used to calculate the p values.

https://doi.org/10.7554/eLife.23759.016

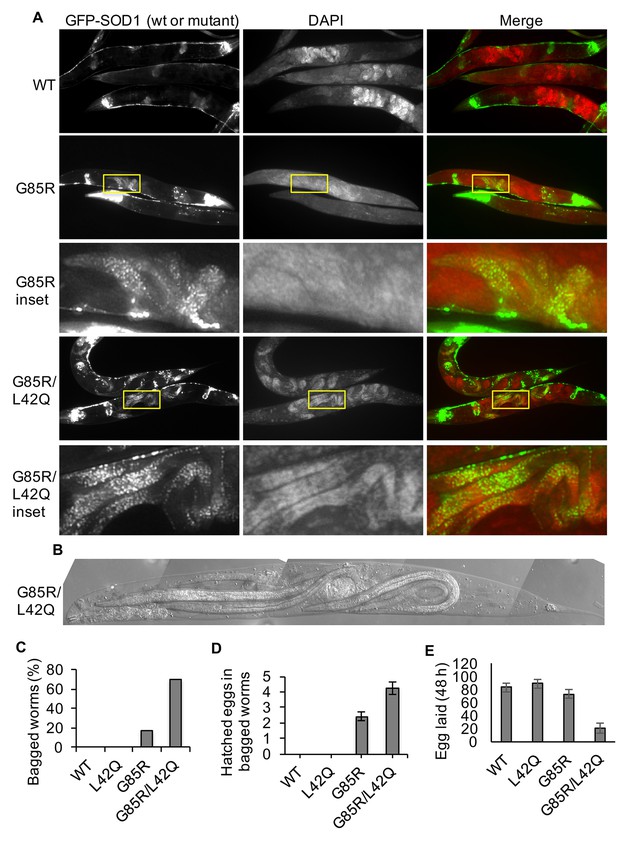

Disruption of the NES by L42Q mutation in SOD1G85R mutant causes severer egg-laying defect in transgenic C. elegans.

(A) Bagging in transgenic worms. Insets show hatched eggs in bagged worms. (B) An example of bagged G85R/L42Q C. elegans. (C) Rates of bagging in transgenic worms. L4 animals were transferred to fresh plates, and bagged worms were counted 48 hr later. n = 46 (WT), n = 45 (L42Q), n = 41 (G85R), n = 47 (G85R/L42Q). (D) Average hatched eggs in bagged worms from (C). n = 7 (G85R), n = 33 (G85R/L42Q). Data represent means±SEM. G85R/L42Q vs G85R: p=0.048 by two-tailed unpaired t-test. (E) Eggs laid in 48 hr. Each L4 animal was transferred to one well of 96-well dish containing S-complete medium with OP50. 48 hr later, larvae (hatched eggs) and unhatched eggs were counted for each well. Data represent means ±SEM. n = 12. G85R vs. G85R/L42Q: p=4.07E-05 by Two-tailed unpaired t-test.

https://doi.org/10.7554/eLife.23759.018

Taken together, results from the cell and the animal models indicate that accumulation of misfolded SOD1 in both the cytoplasm and nucleus is more toxic than accumulation only in the cytoplasm. Therefore, removal of the misfolded SOD1 from the nucleus, mediated by the exposed NES-like sequence and CRM1-dependent nuclear export, is potentially a defense mechanism against the proteotoxic effects of ALS-linked SOD1 mutants in the nucleus.

Discussion

In this study, we found that SOD1 misfolding caused by either mutation or chemical insults induces nuclear clearance of SOD1 protein. The underlying mechanism is the exposure of a normally buried NES-like sequence caused by the misfolding event. CRM1 can recognize the NES-like sequence and facilitates export of the misfolded SOD1 from the nucleus to the cytoplasm. Exposure of the NES-like sequence is a common conformational feature for all 17 representative ALS-linked SOD1 mutants tested, and also for misfolded wt-SOD1. Moreover, this conformational feature is also present in spinal cord motor neurons of human ALS patients. Our data also suggest that the exposure of the NES-like sequence is a disease-modifying feature for SOD1 mutants. First, this conformation appears to correlate with ALS disease progression. Several mutants that show lower propensities to acquire the NES-like sequence-exposed conformation, including H46R, D90A, L126S and L144S, have been previously reported to associate with slow progression of ALS (Bali et al., 2017; Byström et al., 2010). Second, although the potential toxic effects of this exposed NES-like sequence itself were not evaluated by the present study, data from cells and C. elegans suggest that nuclear export of misfolded SOD1 decreases the general toxicity of G85R mutant, probably due to diminishing the proteotoxicity in the nucleus. Disruption of the NES-consensus in SOD1G85R significantly increases defects in locomotion and egg-laying in C. elegans models. It is likely that loss of muscle function as a result of more severe motor neuron degeneration is responsible for these severe phenotypes. Therefore, the ability of neurons to remove misfolded proteins from the nucleus after exposure of the NES-like sequence may play an important role in pathogenesis of SOD1-linked ALS.

Nuclear export not only decreases the levels of SOD1 mutants in the nucleus, but also increases their levels in the cytoplasm. Loss of nuclear SOD1 may lead to loss of function in the nucleus, but it is unlikely a disease mechanism because SOD1 knockout does not lead to ALS phenotype and pathology (Reaume et al., 1996). To the contrary, knockdown of SOD1 mutants by siRNA are currently being pursued as a therapeutic approach for ALS (Ralph et al., 2005; Thomsen et al., 2014; van Zundert and Brown, 2017). Nuclear export may facilitate the removal of misfolded SOD1, which would produce beneficial effects. It is known that the nucleus relies on exclusively the proteasomal degradation pathway to remove misfolded and unwanted proteins, whereas the cytoplasm has both proteasomal and lysosome-dependent autophagy pathways. Thus, nuclear export may facilitate mutant SOD1 degradation by autophagy. On the other hand, nuclear export increases the cytoplasmic concentration of the abnormal SOD1, which may promote toxic effects on the functions of cytoplasmic organelles, for example, ER and mitochondria. It is likely that NES-like sequence-mediated changes in subcellular localization of SOD1 mutants would have complex effects on neuronal functions and survival, but collectively, may reduce the toxicity of SOD1 mutants. Future careful interrogation of this complex issue is warranted.

Our results also indicate that exposure of the NES-like sequence may be a common property of misfolded SOD1. Although we did not test every previously reported ALS-linked SOD1 mutations, those examined span almost the full length of SOD1 and also included almost all representative mutants. Misfolded wt-SOD1 also shares this feature, which supports the controversial proposition that misfolding of wt-SOD1 is involved in pathogenesis of sporadic ALS (Rotunno and Bosco, 2013; van Zundert and Brown, 2017; Ayers et al., 2016; Grad et al., 2014). The exposure of NES-like sequence can be specifically detected with anti-NLP antibody, which may become a useful tool for research and diagnosis. Interestingly, several other antibodies that recognize regions covered or partially overlapping with the NES-like sequence have been reported, including D3H5 (epitope: residues 24–55) (Rotunno and Bosco, 2013; Gros-Louis et al., 2010), AJ10 (epitope: residues 29–57) (Sábado et al., 2013), and USOD (epitope: residues 42–48) (Kerman et al., 2010). All these antibodies were also reported to selectively recognize mutant SOD1 over wt-SOD1, suggesting that the epitopes formed by the NES-like sequence are highly specific for misfolded SOD1. Therefore, the NES-like sequence may serve as a biomarker for the detection of misfolded SOD1 in ALS patients. Moreover, this immunogenic region may be used for immunotherapy for SOD1-linked ALS as was reported for the SOD1 exposed dimer interface (SEDI) peptide, that is specifically exposed in monomeric SOD1 (Rakhit et al., 2007; Liu et al., 2012).

Our findings also have far-reaching implications for nuclear protein quality control. Proper maintenance of nuclear protein homeostasis is important for preserving cell function (Shibata and Morimoto, 2014; Gallagher et al., 2014). Accumulation of misfolded proteins in the nucleus can affect cell function and cause diseases. A number of neurodegenerative diseases are associated with aggregates and inclusions formed by misfolded proteins in the nucleus, such as polyglutamine (polyQ) repeat diseases, polyalanine (polyA) repeat diseases, the RNA-mediated diseases, neuronal intranuclear inclusion disease (NIID), neuronal intermediate filament inclusion disease (NIFID), multiple system atrophy (MSA), neuroferritinopathy, and inclusion body myopathy with early onset Paget's disease and frontotemporal dementia (IBMPFD) (Gallagher et al., 2014; Woulfe, 2008). In addition to the known protein quality control mechanisms, such as chaperones and ubiquitin-proteasome system (Shibata and Morimoto, 2014; Gallagher et al., 2014), our findings suggest that exposure of a normally buried NES-like sequence leading to CRM1-dependent nuclear export of the misfolded SOD1 may represent a novel mechanism for maintaining nuclear proteostasis. Exposure of normally buried hydrophobic regions is a common feature of misfolded proteins. These hydrophobic regions are commonly recognized by chaperones and quality control E3 ubiquitin ligases, to initiate the refolding and ubiquitination of the misfolded proteins, respectively (Rosenbaum et al., 2011; Fredrickson et al., 2013; Horwich, 2014). Interestingly, proteomic analysis has revealed that NES consensus sequences are frequently observed in hydrophobic regions buried inside of proteins (Xu et al., 2012). This suggests that many misfolded proteins may expose buried hydrophobic regions containing NES consensus sequences, which may result in being exported from the nucleus by CRM1 if not efficiently degraded by the nuclear proteasomes or refolded by chaperones. Nuclear export may be a mechanism responsible for cytosolic mislocalization of many disease-causing mutant proteins (Hung and Link, 2011). Notably, failure in nuclear import is also a cause for mislocalization of some disease proteins. For example, mutations in the NLS of FUS, which also cause ALS, leads to its mislocalization to the cytoplasm (Dormann et al., 2010; Gal et al., 2011). Mutations in another ALS-linked gene, TDP43, also lead to exclusion of TDP43 protein from the nucleus of the neurons and the formation of cytoplasmic TDP43 aggregates, but the underlying mechanism is not clear (Mackenzie et al., 2007; Deng et al., 2010). Abnormal nucleocytoplasmic transport may represent a convergent pathogenic pathway for some neurodegenerative diseases. Most recent studies have suggested that the nuclear-cytoplasmic transport is disrupted by the hexanucleotide repeat expansion (HRE) GGGGCC (G4C2) in C9orf72, which causes ALS and frontotemporal dementia (FTD) (Zhang et al., 2015; Freibaum et al., 2015; Jovičić et al., 2015). It is possible that the exposure of NES-like sequence in mutant and misfolded SOD1 may also affect the nucleocytoplasmic transport of other cargo, because CRM1-mediated export is saturable and SOD1 is a highly abundant protein in the cell. However, there is an important distinction that nuclear export is deleterious in C9orf72-caused ALS, but it is protective in SOD1-linked ALS.

Materials and methods

Plasmid constructs

Request a detailed protocol

pAcGFP1-SOD1-WT, -A4V, -G93A were acquired from Addgene (Stevens et al., 2010). All other mutants used were created by site-directed mutagenesis. To express HIV Rev1 NES, P1 or P2 peptide of SOD1 in a fusion with mCherry, DNA fragments encoding these peptides were individually inserted into Bgl II/ Sal I sites of pmCherry-C1. To express recombinant GST-tagged SOD1 proteins or peptides, Bgl II/Sal I fragments encoding SOD1 wt or mutants, P1 or P2 peptide of SOD1, or PKI NES peptide were individually inserted into BamH I/Sal I sites of pGEX-4T-3. pET3a-CRM1 was kindly provided by Dr. Dirk Görlich (Paraskeva et al., 1999). Nde I/BamH I fragment of pET3a-CRM1 encoding CRM1 was inserted into Nde I/BamH I sites of pET28a(+), to create pET28a-CRM1 expressing N-terminal His-tagged CRM1. pcDNA3-FLAG-Ran WT and Q69L were kindly provided by Dr. Mien-Chie Hung (Giri et al., 2005).

Cell culture

Request a detailed protocol

HEK293T, HeLa, and NSC34 cells were obtained from ATCC. These cells were not independently authenticated. Mycoplasma contamination is monitored frequently in our laboratory by cytoplasmic DAPI staining and by PCR. All cells were cultured in DMEM (Dulbecco’s modified Eagle’s medium) supplemented with 10%(V/V) fetal bovine serum, 50 units/ml penicillin, 50 µg/ml streptomycin and 2 mM Glutamine under 5% CO2 in a humidified incubator.

Antibodies

Mouse monoclonal anti-CRM1 (C-1, sc-74454) antibody was purchased from Santa Cruz Biotechnology (Dallas, TX). Mouse monoclonal anti-FLAG (M2, F3165), anti-α-Tubulin (B-5-1-2) and anti-β-Actin (AC-74) antibodies were purchased from Sigma-Aldrich (St Louis, MO). Mouse monoclonal anti-SOD1 (71G8, #4266) antibody was purchased from Cell Signaling Technology (Danvers, MA), respectively. HRP-conjugated anti-GFP (MA5-15256-HRP) was purchased from Thermo scientific (Waltham, MA).

Polyclonal anti-NLP antibodies

Request a detailed protocol

To produce antibodies against the NES like sequence of SOD1, a SOD1 peptide corresponding to residues 33–51 (GSIKGLTEGLHGFHVHEFGC) was synthesized by Peptide 2.0 Inc. (Chantilly, VA). A Cysteine was added to the C-terminus for conjugation of the peptide to keyhole limpet hemocyanin (KLH) to improve the immunogenicity. Anti-NLP was purified from rabbit antiserum using the same peptide that was biotinylated at the C-terminus and bound to streptavidin magnetic beads (Thermo scientific, Waltham, MA).

Lentivirus production

Request a detailed protocol

plv-AcGFP1-SOD1(wt) was acquired from Addgene. plv-AcGFP1-SOD1-L42Q, G85R and G85R/L42Q were created by site-directed mutagenesis. These backbone plasmids were each co-transfected with helper vectors pDelta8.7 and pVSVG in a ratio of 5:5:3 to HEK293T cells to produce lentiviral particle as previously described (Zhong and Fang, 2012).

RNA interference

Request a detailed protocol

Negative control #1, Crm1 and SOD1 siRNAs (SOD266) were previously reported (Zhong and Fang, 2012; Strunze et al., 2005; Maxwell et al., 2004). siRNAs were transfected with Lipofectamine RNAiMAX (Invitrogen, Carlsbad, CA). 48 hr after siRNA transfection, cells were transfected with different plasmids as indicated with Lipofectamine 2000 (Invitrogen, Carlsbad, CA).

Recombinant proteins

Request a detailed protocol

His-tagged RanGTP was prepared as reported (Zhong et al., 2011). His-tagged CRM1 was expressed from BL21 (DE3) transformed with pET28a-CRM1. The bacteria were cultured at 30°C and induced with 0.1 mM Isopropyl β-D-1-thiogalactopyranoside (IPTG) for 1 hr. Then the bacteria were lysed by sonication in 50 mM Tris-HCl pH7.4, 100 mM NaCl, 250 mM Sucrose. His-CRM1 was purified using Ni- NTA-agarose (Qiagen, Germantown, MD) following the user’s manual. GST and GST-SOD1 wt and mutants were expressed from JM109 transformed with pGEX-4T-3 or pGEX- SOD1 constructs, respectively. The bacteria were cultured at 37°C and induced with 0.1 mM IPTG for 1 hr and then lysed by sonication in 20 mM Tris-HCl pH7.4, 50 mM NaCl, 0.5% Triton X-100.

GST pull-down

Request a detailed protocol

GST proteins were immobilized on Glutathione-Sepharose 4B beads (Amersham Biosciences, Pittsburgh, PA). Then pre-incubated CRM1 and RanGTP were added to the beads and incubated for 1 hr at room temperature in CRM1 pull-down buffer (20 mM Tris-HCl pH7.4, 50 mM NaCl, 0.5 mM GTP, and 0.15% Nonidet P-40). After washing three times, the beads were boiled in SDS sample buffer and processed for SDS-PAGE and immunoblotting.

Immunofluorescence and microscopy

Request a detailed protocol

For microscopy, the cells were grown on chambered coverglass and stained with a cell permeable nuclear dye Hoechst 33342. When required, the cells were fixed with 2% paraformaldehyde for 5 min at room temperature before microscopy. For immunofluorescence staining, the cells were fixed in 3.7% paraformaldehyde for 30 min and permeabilized in 0.25% Triton X-100 for 5 min. After blocking in 5% bovine serum albumin (BSA) for 30 min, the cells were incubated with primary antibodies as indicated for 1 hr and then labeled with Alexa Fluor 488 or 594 conjugated secondary antibodies for 1 hr. DAPI or Hoechst 33342 was used for nuclear staining. Fluorescent microscopy was performed using a Zeiss Axiovert 200M fluorescent microscope.

Time-lapse imaging

Request a detailed protocol

HeLa cells stably expressing GFP-SOD1G85R were treated with cycloheximide (CHX, 100 nM), in combination with MG132 (30 μM) or LMB (20 nM) as indicated. Live cell images were acquired under a 40x objective lens mounted on a Nikon Eclipse Ti fluorescence microscope equipped with Perfect Focus System, a high-sensitivity CCD camera (QuantEM 512SC; Photometrics, Tucson, AZ), and environment control units. At least 30 cells for each group were selected for time-lapse imaging.

Immunoprecipitation

Request a detailed protocol

Cells were lysed in cell lysis buffer (150 mM NaCl, 10 mM Tris-HCl pH7.4, 1 mM EDTA, 1 mM EGTA, 0.2% Nonidet P-40 and protease inhibitor cocktail). Cell lysate was incubated with antibodies as indicated and protein A Sepharose beads (Zymed) for 2 hr at 4°C. The beads were washed three times with cell lysis buffer and processed for immunoblotting.

Immunohistochemistry

Request a detailed protocol

Immunohistochemistry was performed as previously described (Deng et al., 2006, Deng et al., 2010). Briefly, 6 μm sections were cut from formalin-fixed, paraffin-embedded brain and spinal cord from mouse model or ALS patients with SOD1 mutations. The sections were deparaffinized and rehydrated by passing the slides in serial solutions as described. After antigen retrieval and blocking, the sections were incubated with affinity-purified anti-NLP rabbit polyclonal antibodies for 1 hr at room temperature and then with a biotinylated secondary antibody for 30 min. Positive signals were developed by first incubating the slides with peroxidase-conjugated streptavidin (BioGenex, San Ramon, CA) and then with 3-amino-9-ethylcarbazole chromogen (BioGenex, Fremont, CA). The slides were examined and photographed under light microscope.

Cytotoxicity assays

Request a detailed protocol

NSC34 cells expressing GFP-tagged SOD1 proteins were seeded to 96-well plates at 2 × 104 cells/well. The next day, cells were treated with MG132 (5 μM) for 24 hr. The cell viability was determined using Cell Proliferation Reagent WST-1 (Roche, South San Francisco, CA) according to the manufacturer’s protocol.

Caenorhabditis elegans

Request a detailed protocol

Stable transgenic N2 Bristol C. elegans lines expressing SOD1wt-YFP or SOD1G85R-YFP were previously reported (Wang et al., 2009). Psnb1:L42Q-YFP and Psnb1:G85R/L42Q-YFP were created by site-directed mutagenesis to express SOD1L42Q-YFP and SOD1G85R/L42Q-YFP in C. elegans, respectively (Wang et al., 2009). N2 Bristol strain of C. elegans was transformed by DNA injection and the extrachromosomal lines were further treated with gamma ray to generate integrated lines stably expressing SOD1L42Q-YFP or SOD1G85R/L42Q-YFP. Three independent integrants for each construct showing 100% transmission were used for further experiments. To analyze the expression levels and solubility of SOD1 proteins, L1 larvae were suspended in extraction buffer (PBS, 1 mM EDTA, 1 mM EGTA, 1 mM TCEP) with protease inhibitor cocktail (Sigma, St. Louis, MO) and lysed by sonication on ice. The large debris was removed by spinning at 1000 ×g for 5 min. Then the supernatant was centrifuged at 55,000 rpm (100,000×g) for 15 min to separate into soluble (supernatant) and insoluble (pellet) fractions. The insoluble fractions were washed once with the extraction buffer and then solubilized in 4% SDS. Equal amount of both fractions were processed for immunoblotting. The body bending rates and survival curves of transgenic worm lines were analyzed as previously reported (Wang et al., 2009). Briefly, L4 animals were transferred to a drop of M9 buffer and counted for their total body bends in 1 min. To analyze the survival curves of transgenic animals, mid-L4 animals were picked and the surviving worms were transferred to fresh plates every 2 days until all the worms died. For microscopy of the worms, L1 or adult worms were frozen in liquid nitrogen for 10 s to crack the cuticles and then fixed in 3.7% PFA for 30 min. After permeabilization in 0.1% Triton X-100 for 5 min, the worms were stained for nucleus with DAPI for 5 min.

Statistical analysis

Request a detailed protocol

All statistical analyses were performed using GraphPad Prism 5.0 or Microsoft Excel software. Statistical significance was assessed using paired or unpaired two-tailed Student’s t-test, as indicated in the corresponding figure legends. For all analyses, p<0.05 was considered statistically significant. Reported sample sizes indicate the number of biological replicates, with data obtained from individual cells, organisms, or sample wells. All collected data were included in analyses (no outlier removal). For experiments analyzing cytotoxicity, sample units (n) are the number of biological replicates. For all other experiments, n represents the number of cells or animals used in the analysis for each group. No statistical method was used to predetermine sample size. However, the sample sizes we used were similar to those reported in previous studies. No samples or animals were excluded from the analyses.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
    Nuclear bodies in neurodegenerative disease
    1. J Woulfe
    (2008)
    Biochimica Et Biophysica Acta (BBA) - Molecular Cell Research 1783:2195–2206.
    https://doi.org/10.1016/j.bbamcr.2008.05.005
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66

Decision letter

  1. Ramanujan S Hegde
    Reviewing Editor; MRC Laboratory of Molecular Biology, United Kingdom

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Nuclear export of misfolded SOD1 mediated by a normally buried NES-like sequence reduces proteotoxicity in the nucleus" for consideration by eLife. Your article has been favorably evaluated by Randy Schekman as the Senior Editor and three reviewers, one of whom is a member of our Board of Reviewing Editors. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission The requests for additional experiments may prove challenging so please let us know if you believe you can complete this work within a reasonable length of time.

Summary:

This study reports the observation that a wide range of ALS-associated mutations in SOD1 show diminished nuclear localization when over-expressed as GFP-tagged proteins in cultured mammalian cells. The basis for this altered localization is traced to increased nuclear export due to promiscuous interaction with the export factor Crm1 via a hydrophobic patch in SOD1 that is ordinarily buried in the folded protein. Antibodies against this region preferentially recognize mutant protein (or wild type protein under mis-folding conditions), supporting the idea that a wide range of mutants all partially destabilize SOD1 structure. Reversing mutant mis-localization by appending a NLS increased toxicity of the mutant in a motor neuron-like mammalian cell line and in neurons of C. elegans, suggesting that misfolded SOD1 is more toxic in the nucleus than in the cytosol. Evidence is offered to suggest altered nucleocytoplasmic transport when mutant SOD1 is retained in the nucleus. The authors suggest that exposure of NES-like regions in misfolded proteins might be a defense mechanism to reduce their toxicity in the nucleus.

All three referees agreed that the first part of the paper, documenting exposure of a cryptic and buried NES in numerous SOD1 mutants as the basis of altered localization, was thorough, convincing, and represented a new contribution to this field. However, the relevance of this observation for either normal cellular physiology or disease pathogenesis was not sufficiently clear from the experiments thus far, and alternative explanations for the observed changes in toxicity were raised. Furthermore, all the referees felt that the conclusion of altered nucleocytoplasmic transport was premature and insufficiently explored. Finally, one referee felt that the basis of mutant-dependent exposure of the NES remained to be clarified in some greater detail. On the basis of these comments, we recommend the following three areas for improvement.

Essential revisions:

1) A major conclusion of the study is that nuclear SOD1 is more toxic than cytosolic SOD1, suggesting that nuclear export by the mechanism described here is protective. However, the experiments to demonstrate this are not optimal, and some controls are missing. The authors have enforced wild type-like localization of mutant SOD1 by addition of a NLS. The consequence is that this rather abundant and over-expressed protein is constitutively imported and exported endlessly, thereby imposing a greater burden on the nuclear export machinery than would ordinarily be the case in the absence of a NLS. Thus, the increased toxicity might well be due to this (or to the appended NLS somehow having a toxic effect), and not necessarily to SOD1 localization per se. The more suitable and precise experiment is to determine whether L42Q (which is in fact the normal variant in mouse and not expected to disrupt folding by itself) changes the toxicity of G85R or other SOD1 mutants. By doing this, normal wild type-like localization is restored without adding any extra burden to the cell's trafficking pathways. In both the NLS and L42Q experiments, it is crucial to include wild type SOD1 as a control. This would ensure that any effects on toxicity are mutant-specific. These experiments in cultured mammalian cells are straightforward and the authors have all the tools to do it in a reasonable span of time. The referees and editor acknowledge that the analogous experiments in worms would take longer, but it is sufficiently important to wait for such results even if it exceeds the two-month revision timeline.

2) The experiment to suggest that nucleocytoplasmic transport is affected by SOD1 mutants (Figure 6E) is incomplete and rather preliminary. The observation of steady state differences in polyA FISH signal is insufficient to conclude an effect on transport, since other explanations such as altered mRNA processing or polyadenylation are possible. If the authors wish to make conclusions about transport, then the authors need to measure transport more directly. Furthermore, a key control in any experiments aimed at elucidating toxicity mechanisms would be to ensure that the effect is due to misfolded SOD1, and not just a highly-expressed NES-containing protein. Thus, it seems important to test whether their mCherry-P1 and mCherry-P2 constructs have any effect on mRNA localization (the prediction being that neither would have any effect in the authors' model, but P1 would have an effect in the alternative model above). The referees acknowledge that properly elucidating the effect on nucleocytoplasmic transport as a potential contributor to toxicity would require extensive studies. Thus, if the authors are not prepared to pursue such investigations for this paper, the recommendation is to remove Figure 6E and F and only speculate in the Discussion about toxicity mechanisms.

3) An important unanswered question is whether the exposure of NES by SOD1 mutations is an intrinsic property of the mutant protein, or is the result of an unfolding activity from the cell. A key experiment that may distinguish between these possibilities is to determine whether recombinant SOD1 purified from E. coli has the NES exposed in a mutant-specific manner, or if this is only a feature observed in the cellular context. Such an experiment would provide greater insight into the mechanism of NES exposure.

https://doi.org/10.7554/eLife.23759.020

Author response

Essential revisions:

1) A major conclusion of the study is that nuclear SOD1 is more toxic than cytosolic SOD1, suggesting that nuclear export by the mechanism described here is protective. However, the experiments to demonstrate this are not optimal, and some controls are missing. The authors have enforced wild type-like localization of mutant SOD1 by addition of a NLS. The consequence is that this rather abundant and over-expressed protein is constitutively imported and exported endlessly, thereby imposing a greater burden on the nuclear export machinery than would ordinarily be the case in the absence of a NLS. Thus, the increased toxicity might well be due to this (or to the appended NLS somehow having a toxic effect), and not necessarily to SOD1 localization per se. The more suitable and precise experiment is to determine whether L42Q (which is in fact the normal variant in mouse and not expected to disrupt folding by itself) changes the toxicity of G85R or other SOD1 mutants. By doing this, normal wild type-like localization is restored without adding any extra burden to the cell's trafficking pathways. In both the NLS and L42Q experiments, it is crucial to include wild type SOD1 as a control. This would ensure that any effects on toxicity are mutant-specific. These experiments in cultured mammalian cells are straightforward and the authors have all the tools to do it in a reasonable span of time. The referees and editor acknowledge that the analogous experiments in worms would take longer, but it is sufficiently important to wait for such results even if it exceeds the two-month revision timeline.

We agree with the reviewers that enforced wild type-like localization of mutant SOD1 by addition of a NLS could change it into a nuclear-cytoplasmic shuttling protein, which may impose a greater burden on the nuclear export machinery and thus may alter the toxicity of mutant SOD1. Thanks to the reviewers for suggesting the more suitable and precise experiment, that is, to use the L42Q substitution to restore mutant SOD1 nuclear localization instead of amending a NLS. Using this approach, we have confirmed that, as predicted, L42Q substitution restored SOD1G85R nuclear localization (Figure 6A). Using an anti-NLP immunoprecipitation approach (under native conditions), we demonstrated that the L42Q substitution does not cause exposure of the NES-like sequence in wild type SOD1 (Figure 6B). L42Q substitution also did not change the amount of SOD1G85R immunoprecipitated by anti-NLP, suggesting that it does not alter SOD1G85R structure (Figure 6B). We also showed that the toxicity of SOD1L42Q to NSC34 cells is similar to that of wild type SOD1 (Figure 6C). These results strongly support that L42Q substitution has minimal effects on SOD1 folding. Therefore, SOD1G85R/L42Q differs from SOD1G85R only in its ability to be exported from the nucleus. In sum, these results set the stage for further testing the toxicity of misfolded nuclear SOD1 by comparing SOD1G85R (misfolded, exported) versus SOD1G85R/L42Q (misfolded, retained) in a C. elegans model of ALS.

We generated several new transgenic C. elegans lines: SOD1G85R/L42Q and the control SOD1L42Q. Three independent lines each for SOD1 variant were made, and these animals were compared with SOD1G85R and wild type SOD1 lines using several approaches, including subcellular localization, effects on locomotion (body bending), and survival. All of the SOD1 proteins were tagged with YFP for direct observation by fluorescence microscopy. We found that SOD1L42Q behaves similarly to wild type SOD1 for all aspects examined, which further confirms the L42Q substitution does not cause misfolding of SOD1 (Figures 79). As observed in cultured cells, SOD1G85R was cleared from the nuclei of motor neurons in both L1 and adult C. elegans (Figure 7A,B). In contrast, SOD1G85R/L42Q was localized in both the cytoplasm and the nuclei in motor neurons in L1 C. elegans (Figure 7B). In adult C. elegans, the nuclear localization of SOD1G85R/L42Q was only observed in a fraction of the neurons (Figure 7B). A possible explanation is that cytoplasmic aggregation of the mutant protein prevents its entry into the nucleus. Indeed, we found that in adult C. elegans, like SOD1G85R, SOD1G85R/L42Q formed large cytoplasmic aggregates (Figure 7B). Biochemical characterization demonstrated that SOD1G85R and SOD1G85R/L42Q lines express the transgene at similar levels and also form similar amount of insoluble aggregates (Figure 7C). These results support that SOD1G85R/L42Q differs from SOD1G85R only in its nuclear localization.

We obtained two lines of evidence suggesting that nuclear localization of SOD1G85R is toxic to neurons in C. elegans. First, three lines of SOD1G85R/L42Q worms all exhibited more severe defects in locomotion compared to SOD1G85R animals (Figure 7D). As controls, three lines of SOD1L42QC. elegans showed body bending rates similar to their wild type counterparts (Figure 7D). Second, there was a strong effect on survival for all three SOD1G85R/L42Q lines, where lifespan decreased compared to the SOD1G85R line (Figure 8A). As controls, all three SOD1L42Q lines were found to have similar survival curves as the wild type SOD1 line (Figure 8A). In search for the potential cause of death, we found that about 70% of SOD1G85R/L42Q animals had egg-laying defects with an average of 4.2 eggs/worm hatched inside mothers, known as “bagging”. The bagging defect for SOD1G85R/L42Q was significantly worse than was found for SOD1G85R animals (Figure 9). About 17% of SOD1G85R animals had an average of 2.4 eggs/worm hatched inside mothers (Figure 9). It is likely that loss of muscle function caused by severe motor neuron degeneration is responsible for these bagging phenotypes in SOD1G85R/L42Q animals. Future studies are warranted to understand the mechanisms underlying the bagging phenotype observed for SOD1G85R/L42Q animals.

These results confirm that restoring nuclear localization of SOD1G85R, via an L42Q substitution, can cause additional toxicity, whereas nuclear export of misfolded SOD1 has a protective effect to the cells. Because the potential complex effects associated with the amended NLS, as pointed out by the reviewers, we have removed all data using NLS-tagged SOD1G85R in this revised manuscript.

2) The experiment to suggest that nucleocytoplasmic transport is affected by SOD1 mutants (Figure 6E) is incomplete and rather preliminary. The observation of steady state differences in polyA FISH signal is insufficient to conclude an effect on transport, since other explanations such as altered mRNA processing or polyadenylation are possible. If the authors wish to make conclusions about transport, then the authors need to measure transport more directly. Furthermore, a key control in any experiments aimed at elucidating toxicity mechanisms would be to ensure that the effect is due to misfolded SOD1, and not just a highly-expressed NES-containing protein. Thus, it seems important to test whether their mCherry-P1 and mCherry-P2 constructs have any effect on mRNA localization (the prediction being that neither would have any effect in the authors' model, but P1 would have an effect in the alternative model above). The referees acknowledge that properly elucidating the effect on nucleocytoplasmic transport as a potential contributor to toxicity would require extensive studies. Thus, if the authors are not prepared to pursue such investigations for this paper, the recommendation is to remove Figure 6E and F and only speculate in the Discussion about toxicity mechanisms.

We agree with the reviewers that the data to suggest that nucleocytoplasmic transport is affected by SOD1 mutants (Figure 6E) was rather preliminary. As suggested by the reviewers, we have removed this data and briefly discussed this possibility in the Discussion section.

3) An important unanswered question is whether the exposure of NES by SOD1 mutations is an intrinsic property of the mutant protein, or is the result of an unfolding activity from the cell. A key experiment that may distinguish between these possibilities is to determine whether recombinant SOD1 purified from E. coli has the NES exposed in a mutant-specific manner, or if this is only a feature observed in the cellular context. Such an experiment would provide greater insight into the mechanism of NES exposure.

As discussed with the editor, we have clarified how the experiments were done for Figure 3B and stated that GST-tagged SOD1 mutants, but not wt SOD1, interact with recombinant CRM1.

Disruption of the NES-consensus in SOD1 mutants also abolished their interaction with CRM1 (Figure 3B). As suggested by the editor, we have now added new data showing that the interaction between CRM1 and SOD1 mutants is RanGTP-dependent using recombinant proteins (Figure 3C). These results favor a model in which the exposure of NES by SOD1 mutations is an intrinsic property of the mutant protein.

https://doi.org/10.7554/eLife.23759.021
