Lithium is widely used as a treatment for Bipolar Disorder although the molecular mechanisms that underlie its therapeutic effects are under debate. In this study, we show brain-derived neurotrophic factor (BDNF) is required for the antimanic-like effects of lithium but not the antidepressant-like effects in mice. We performed whole cell patch clamp recordings of hippocampal neurons to determine the impact of lithium on synaptic transmission that may underlie the behavioral effects. Lithium produced a significant decrease in α-amino-3-hydroxyl-5-methyl-4-isoxazolepropionic acid receptor (AMPAR)-mediated miniature excitatory postsynaptic current (mEPSC) amplitudes due to postsynaptic homeostatic plasticity that was dependent on BDNF and its receptor tropomyosin receptor kinase B (TrkB). The decrease in AMPAR function was due to reduced surface expression of GluA1 subunits through dynamin-dependent endocytosis. Collectively, these findings demonstrate a requirement for BDNF in the antimanic action of lithium and identify enhanced dynamin-dependent endocytosis of AMPARs as a potential mechanism underlying the therapeutic effects of lithium.https://doi.org/10.7554/eLife.25480.001
Nerve cells, or neurons, communicate with each other by releasing chemical messengers that bind to and activate receptor proteins on the surface of the other cells. The chemicals affect the connections between neurons, and many diseases – including bipolar disorder – are related to there being too much or too little of these chemicals in the brain. Patients with bipolar disorder experience periods of both depression and mania. During a manic episode, affected individuals typically feel elated and have more energy than usual despite needing less sleep, but also can also be irritable and impulsive.
The exact cause of bipolar disorder is unknown. Patients with bipolar disorder often have low levels of a protein called brain-derived neurotrophic factor, or BDNF for short, which plays an essential role in keeping the brain healthy, and may also regulate the connections between neurons. One of the main treatments for bipolar disorder, a mood stabilizer called lithium, has also been linked to BDNF in previous studies; however, the details of the interaction were not clear.
Gideons et al. studied how lithium works by feeding mice food pellets that contained lithium. After a few weeks, the mice had concentrations of lithium in their blood comparable to those of people taking the drug, as well as increased levels of BDNF in the brain. Gideons et al. then examined if BDNF was needed for the lithium’s ability to treat manic episodes. Mice exposed to another drug, amphetamine, normally move around a lot, mimicking the increased energy of someone with mania. As expected, feeding normal mice lithium blocked this effect of amphetamine, but feeding lithium to mutant mice that lack BDNF did not. This indicates that BDNF is indeed needed for the antimanic effect of lithium. Further experiments showed that BDNF is not needed for lithium’s antidepressant effect.
By studying the animals’ brains, Gideons et al. went on to show that the lithium-fed mice had weaker connections between their neurons than mice that had eaten standard food. In the lithium-fed mice, many of the receptor proteins had been reabsorbed back into the neurons, lowering the ability of neurons to communicate with one another. This process depended on BDNF, suggesting that this protein is essential for lithium to suppress the connections between neurons.
Taken together, these results reveal that the effects of lithium on both an animal’s brain and its behavior rely on BDNF. This knowledge should make it easier to develop new strategies and identifying new molecularly specific targets for treating bipolar disorder as well as other neuropsychiatric diseases.https://doi.org/10.7554/eLife.25480.002
Lithium was initially reported for treatment as a mood stabilizer over 60 years ago (Cade, 1949) and is still widely used for the treatment of Bipolar Disorder (Mitchell, 2013; Poolsup et al., 2000; Vieta and Valentí, 2013). However, despite its extensive use for the treatment of bipolar disorder, the cellular and molecular mechanisms underlying its antimanic and antidepressant responses remain poorly understood (Can et al., 2014; Malhi and Outhred, 2016). Putative mechanisms for the therapeutic effects of lithium include inhibition of glycogen synthase kinase-3β (GSK3β) (Klein and Melton, 1996), upregulation of neurotrophins, as well as their receptors, and downregulation of α-amino-3-hydroxyl-5-methyl-4-isoxazolepropionic acid receptor (AMPAR) expression (Ankolekar and Sikdar, 2015; Du et al., 2004, 2010; Gray et al., 2003; Seelan et al., 2008; Wei et al., 2010) among others. However, which —if any— of these effects of lithium are the primary mechanism for treatment for bipolar disorder is currently unknown.
Earlier studies suggested a potential link between the action of lithium as a mood stabilizer and neurotrophins, in particular brain-derived neurotrophic factor (BDNF). BDNF and aberrant signaling through its high affinity receptor tropomyosin receptor kinase B (TrkB) have been proposed to underlie both the pathophysiology and treatment of bipolar disorder (Autry and Monteggia, 2012; Malhi et al., 2013; Scola and Andreazza, 2015). Previous work has shown that patients with bipolar disorder have decreased peripheral BDNF mRNA in blood lymphocytes and monocytes in comparison to healthy controls (D'Addario et al., 2012). Moreover, both manic and depressive states in patients with bipolar disorder have been associated with significantly decreased BDNF blood serum levels compared to patients in euthymic states and healthy controls (Fernandes et al., 2015; Tunca et al., 2014). Post-mortem analysis of hippocampal tissue has also revealed reduced BDNF protein levels in patients with bipolar disorder (Knable et al., 2004). In rodents, experimental interventions that cause manic-like (Frey et al., 2006; Fries et al., 2015; Jornada et al., 2010) and depressive-like behaviors (Smith et al., 1995; Tsankova et al., 2006; Ueyama et al., 1997) have also been shown to result in decreased BDNF mRNA and protein levels in the hippocampus. In contrast, lithium treatment is associated with increased BDNF protein levels in the serum of patients with bipolar disorder (Cunha et al., 2006; de Sousa et al., 2011; Tramontina et al., 2009). In rodent models, chronic lithium treatment has been shown to increase BDNF mRNA and protein expression in hippocampus, cortex, and amygdala as well as cortical neurons in culture (Fukumoto et al., 2001; Jornada et al., 2010; Yasuda et al., 2009). Lithium treatment has also been shown to increase TrkB activity in neuronal cultures suggesting an increase in BDNF-TrkB signaling (Hashimoto et al., 2002).
While previous work has demonstrated that BDNF is necessary for the antidepressant response of conventional antidepressants (Adachi et al., 2008; Ibarguen-Vargas et al., 2009; Monteggia et al., 2004, 2007), as well as the rapid antidepressant effects of ketamine (Autry et al., 2011; Lepack et al., 2014), it is currently unknown whether BDNF or the TrkB receptor are required for lithium’s antidepressant or antimanic effects. In this study, we establish the necessity of BDNF-TrkB signaling in the antimanic-like but not antidepressant-like response to lithium. We also identify a direct effect of lithium treatment on AMPAR trafficking, where AMPA receptor surface expression is decreased due to a sustained increase in dynamin mediated AMPAR endocytosis. This process is dependent on BDNF-TrkB function and results in synaptic downscaling where unitary postsynaptic responses are decreased in a manner proportional to their relative strengths. Collectively, our findings reveal a requirement for neurotrophic signaling in the behavioral and cellular effects of lithium. These data provide novel mechanistic insight into the action of lithium which may underlie its therapeutic effect for the treatment of bipolar disorder.

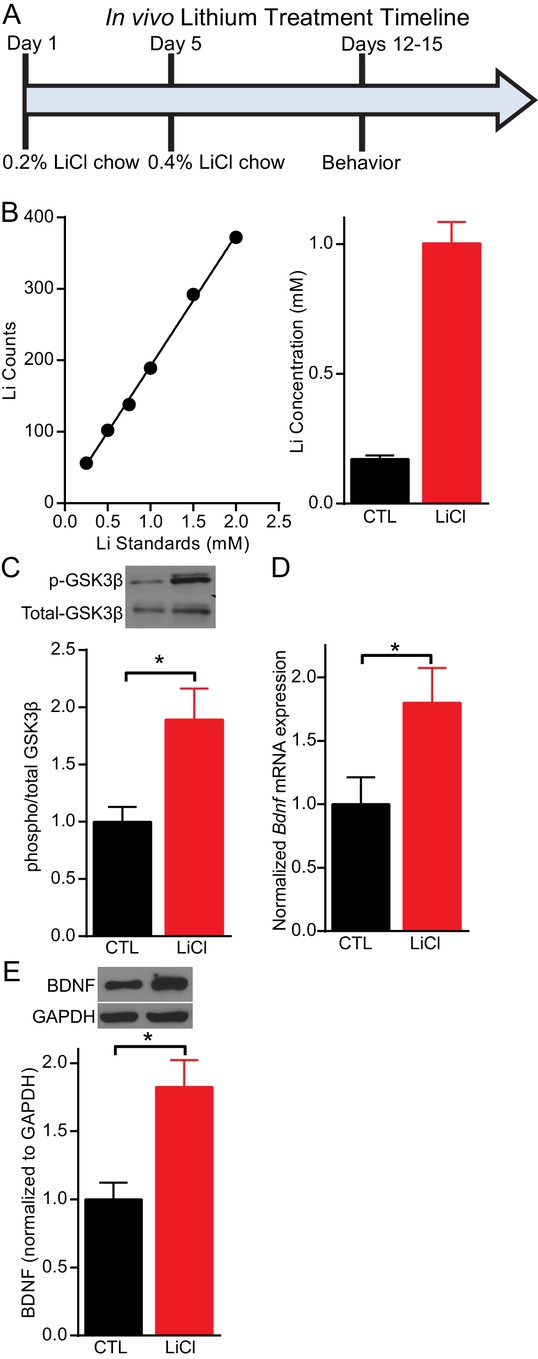

Previous studies have used mice to examine the impact of lithium treatment on molecular signaling. However, typically the lithium serum concentration is not determined in mice following lithium treatment leaving it unclear whether reported changes occur within the therapeutic range. We established a lithium protocol in which C57BL/6 mice were given 0.2% lithium chloride (LiCl) chow for four days, followed by 0.4% LiCl chow for the remainder of the treatment and testing period, which lasted a total of 11–17 days depending on the experiment (Figure 1A). This protocol resulted in a lithium serum concentration in treated mice that was within the therapeutic range of 0.5–2 mM (Amdisen, 1980), with an average concentration of 1 mM (Figure 1B). Control (CTL) mice were given the same chow without lithium. Following 11 days of lithium treatment, mice were sacrificed and the hippocampus rapidly removed. To confirm our lithium protocol produced the expected molecular effects, we examined GSK3 inhibition (Klein and Melton, 1996; Stambolic et al., 1996), by measuring the phosphorylation of GSK3β at serine nine with western blot analysis and found a significant increase relative to total GSK3β (Figure 1C). We next examined whether the lithium treatment regulated the expression of BDNF in the hippocampus. Using Q-PCR targeted to the coding exon of Bdnf, we found lithium treated mice had a significant increase in Bdnf mRNA expression (Figure 1D). We also found a significant increase in BDNF protein expression (Figure 1E) in lithium treated mice relative to CTL mice.

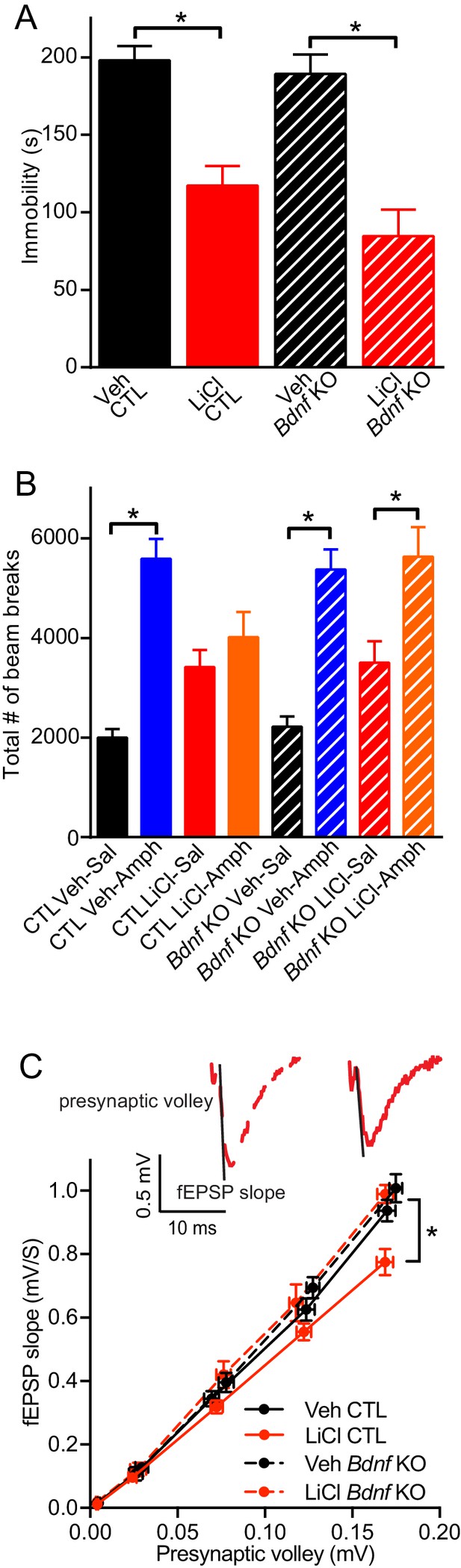

Since lithium increases the expression of BDNF mRNA and protein levels, we investigated whether BDNF was necessary for lithium’s behavioral action. Inducible Bdnf KO mice, in which Bdnf is deleted ~70–80% in broad forebrain regions (Monteggia et al., 2004), were given lithium treated chow following our protocol (Figure 1A). To determine whether this lithium treatment produced the expected behavioral effects, we tested mice in the forced swim test (FST), a test with predictive value for antidepressant responses (Porsolt et al., 1977). Littermate control (CTL) mice treated with lithium showed a significant reduction in immobility time that was suggestive of an antidepressant-like response compared to CTL mice that did not receive lithium (Figure 2A). In agreement with previous data we found that loss of Bdnf in the inducible Bdnf KO mice did not alter immobility in the FST compared to CTL mice (Monteggia et al., 2004). We also found that Bdnf KO mice administered lithium showed a significant reduction in immobility comparable to KO mice that did not receive lithium (Figure 2A) suggesting that BDNF is not necessary for the antidepressant-like effect of lithium in the FST.
To investigate whether BDNF was required for lithium’s antimanic-like effects, we used the amphetamine hyperlocomotor test in which lithium blunts the increased locomotor activity that occurs following acute amphetamine injection, a commonly used assay for the antimanic-like effects of lithium in mice (Flaisher-Grinberg and Einat, 2010; Gould et al., 2007). The amphetamine induced hyperlocomotor test was performed subsequent to the FST in the same cohorts of mice. Littermate CTL mice treated with acute amphetamine have the expected significant increase in the total number of horizontal beam breaks compared to vehicle treated mice (Figure 2B). CTL mice receiving lithium treatment showed a small non-significant increase in the total number of beam breaks compared to vehicle treated CTL mice, and were indistinguishable from chronic lithium treated mice receiving acute amphetamine, indicating that lithium treatment could prevent the hyperactivity induced by amphetamine (Figure 2B). In contrast, while inducible Bdnf KO mice receiving acute amphetamine showed a significant increase in the number of beam breaks compared to vehicle treated Bdnf KOs, and a slight increase with chronic lithium treatment, the chronic lithium treated Bdnf KO mice receiving acute amphetamine still had a significant increase in the number of beam breaks comparable to amphetamine treatment alone. These data demonstrate that lithium treatment does not block the hyperlocomotor effects of amphetamine in inducible Bdnf KO mice and thus suggests that BDNF is required for the antimanic-like effect of lithium.

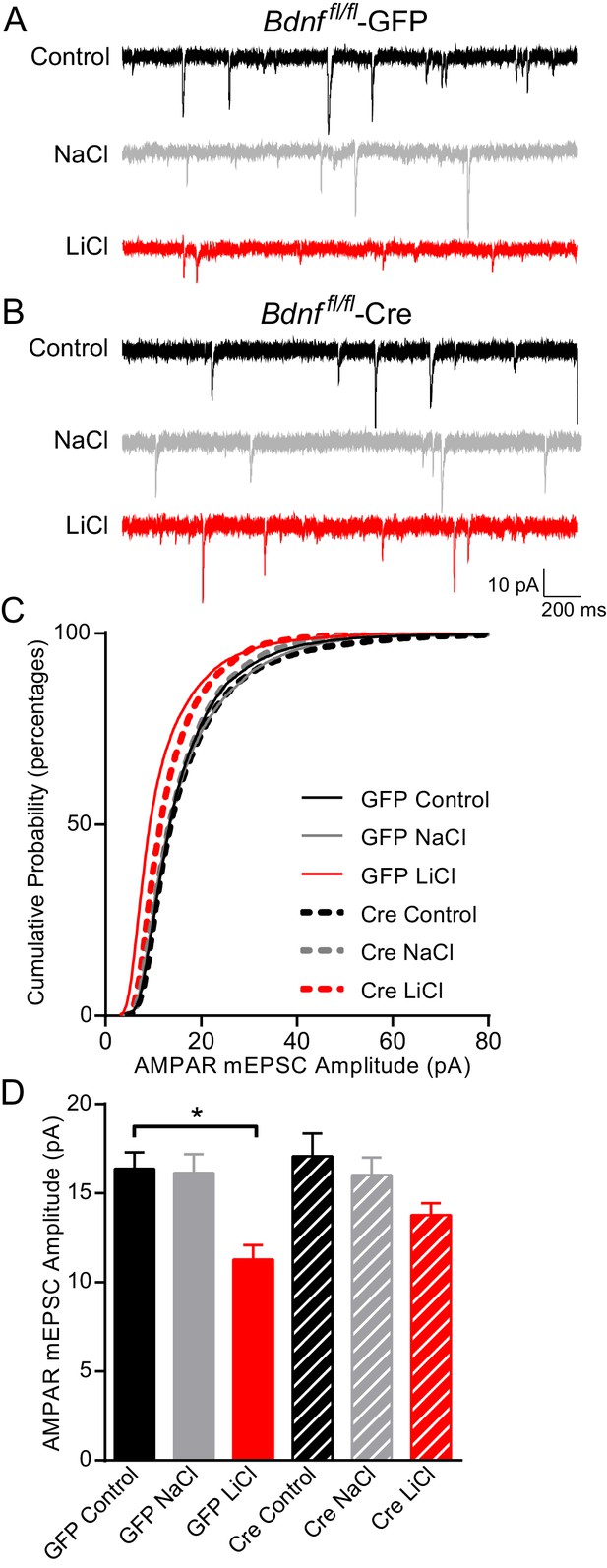

We next assessed whether the loss of BDNF impacted lithium’s effect on synaptic efficacy from hippocampal slices. Inducible Bdnf KO and littermate control mice were given lithium treated chow or untreated chow (Figure 1A). The slope of the input/output (I/O) curve, which was plotted as the presynaptic volley versus the fEPSC slope, was taken as a measure of synaptic efficacy associated with synaptic density or strength of individual synapse. We found that in CTL mice, chronic lithium treatment resulted in a significant reduction in the slope of the I/O curve in hippocampal slices in comparison to mice not treated with lithium (Figure 2C), indicating that chronic lithium treatment reduces hippocampal synaptic strength. Inducible Bdnf KO mice that did not receive lithium had a similar slope of the I/O curve compared to untreated littermate CTL mice (Figure 2C) showing that the loss of BDNF did not impact synaptic efficacy. We also found that the slope of the I/O curve in the hippocampal slices from the inducible Bdnf KO mice treated with lithium was also unchanged in comparison to the untreated CTL and Bdnf KO mice (Figure 2C), suggesting that BDNF expression is required for the lithium-mediated reduction of synaptic strength.

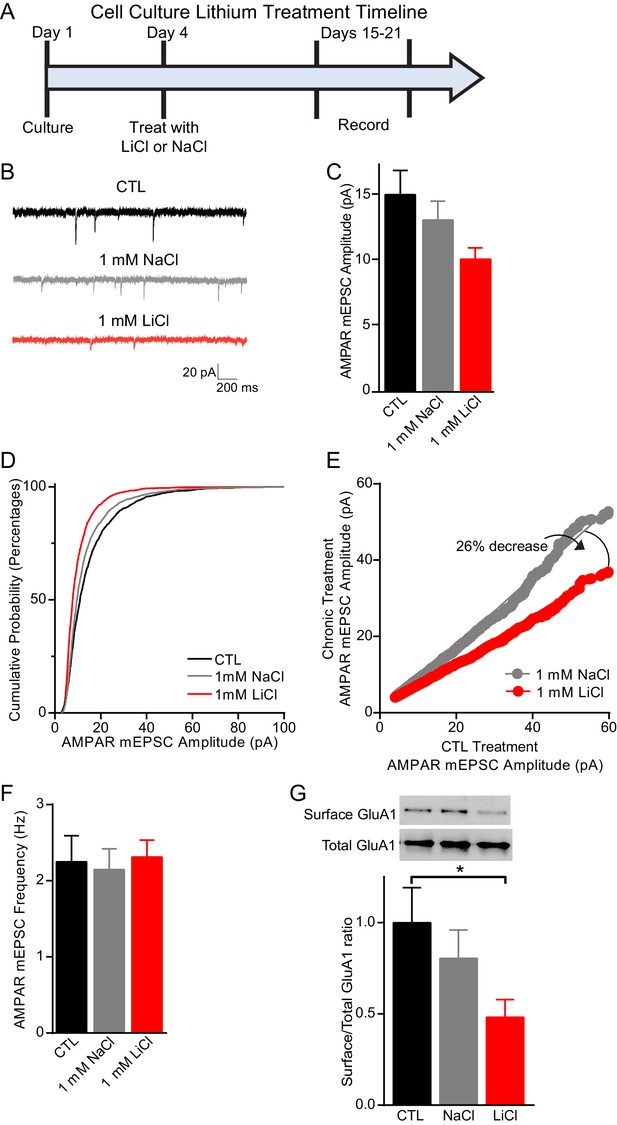

Previous work has shown that lithium treatment produces a significant decrease in AMPAR miniature excitatory postsynaptic current (mEPSC) amplitudes in cultured neurons, which has been suggested to underlie the antimanic effects of lithium (Ankolekar and Sikdar, 2015; Du et al., 2008; Wei et al., 2010). We therefore incubated dissociated C57BL/6 hippocampal neurons with 1 mM LiCl or 1 mM NaCl, to control for changes in osmolarity, for 11–15 days and then recorded AMPAR mEPSCs (Figure 3A). Lithium treatment resulted in a significant decrease in AMPAR mEPSC amplitudes in comparison to NaCl treated or untreated CTL neurons (Figure 3B–D). To examine whether lithium’s effect on AMPAR mEPSC amplitudes was due to synaptic scaling, we plotted in rank order the amplitudes from each condition with a linear fit equation. We found that lithium treatment resulted in a 41% and 26% decrease in the slope compared to untreated and NaCl treatment, respectively (Figure 3E). These data show lithium produces a downward scaling of all AMPAR mEPSC amplitudes and impacts post-synaptic homeostatic plasticity. Notably, lithium did not produce generalized effects on synaptic measures as there were no changes in mEPSC frequency compared to untreated or NaCl treated neurons (Figure 3F). Since lithium’s effects on AMPAR mEPSC amplitudes were due to synaptic scaling, which can be influenced by AMPAR trafficking, we examined the surface expression of the AMPAR subunit, GluA1. We performed surface biotinylation experiments and found lithium treatment results in a significant decrease in GluA1 surface expression relative to total GluA1 in comparison to untreated or NaCl treated neurons (Figure 3G).
Since our data demonstrated that BDNF was required for lithium’s antimanic-like effects in mice and lithium-mediated decrease in synaptic strength, we examined whether chronic lithium treatment’s effects on synaptic function, which may ultimately trigger the behavioral effects, were dependent on BDNF and its high affinity receptor TrkB. BDNF is a secreted protein that has been shown to influence synaptic upscaling and downscaling, depending on the brain region examined (Leslie et al., 2001; Reimers et al., 2014; Rutherford et al., 1998). We therefore examined whether lithium’s effects on AMPAR mEPSC amplitudes were dependent on BDNF. We cultured hippocampal neurons from Bdnf fl/fl mice and infected them with lentivirus expressing Cre recombinase (Cre) tagged with GFP to delete the gene of interest or GFP alone as a control. Previous studies from our laboratory have shown that this lentivirus construct expressing Cre tagged with GFP can efficiently knock out endogenous gene expression without triggering cell death (Akhtar et al., 2009; Nelson et al., 2006). As expected, GFP infected neurons treated with chronic lithium had a significant decrease in AMPAR mEPSC amplitudes in comparison to untreated or NaCl treated neurons (Figure 4A–D). In BDNF deficient cultures, Bdnffl/fl neurons infected with Cre, there was no difference in AMPAR mEPSC amplitudes compared to GFP infected neurons suggesting loss of BDNF does not impact this synaptic measure (Figure 4A–D). In contrast to wild-type neurons, we found chronic lithium treatment of BDNF deficient cultures induced a small but nonsignificant decrease in AMPAR mEPSC amplitudes (Figure 4D) suggesting a requirement for BDNF. We also examined mEPSC frequency from these six treatment groups and did not find a significant change with any condition (data not shown). Taken together, these data suggest that chronic lithium’s effect on AMPAR mEPSC amplitudes is dependent on BDNF.

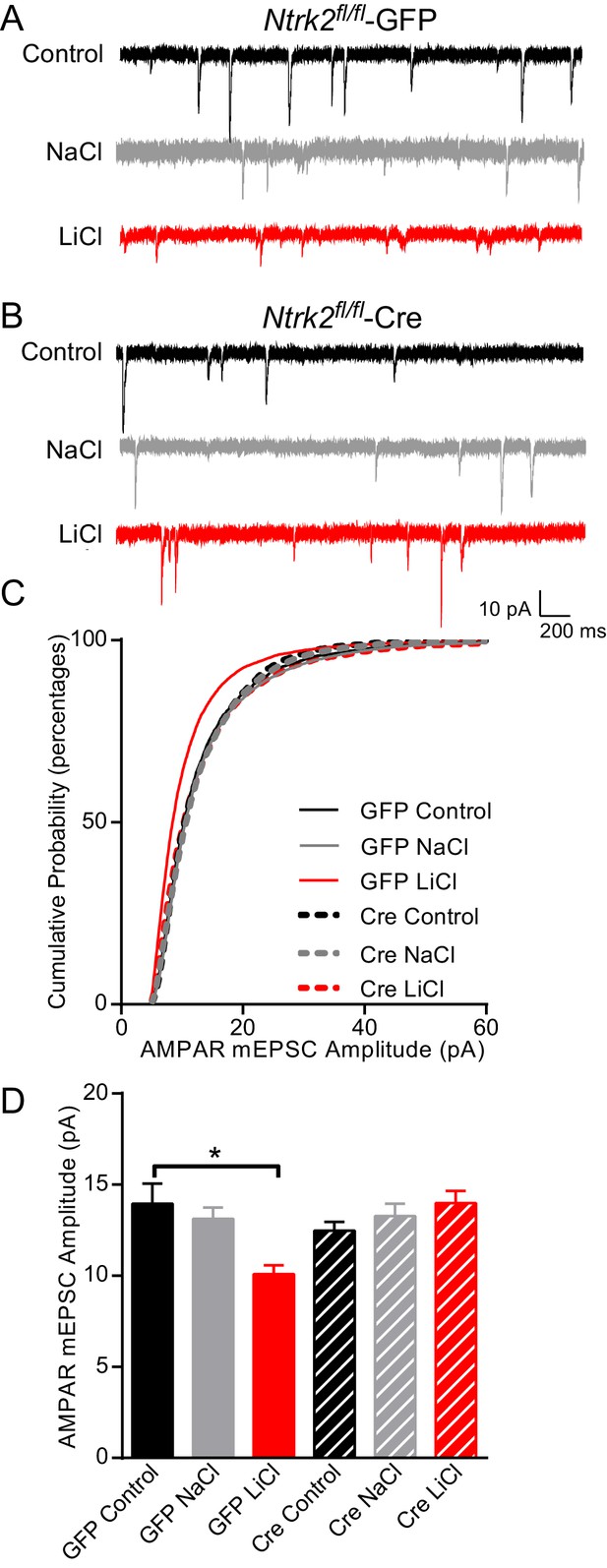

To further evaluate whether BDNF signaling is required for lithium’s effects on AMPAR mediated synaptic transmission, we explored the requirement for the TrkB receptor. We cultured hippocampal neurons from Ntrk2 fl/fl mice and infected them with either lentivirus expressing Cre or GFP. Consistent with our previous results, GFP infected neurons treated with lithium had a significant decrease in AMPAR mEPSC amplitude compared to untreated or NaCl treated neurons (Figure 5A–D). We found Ntrk2 fl/fl neurons infected with CreGFP, had indistinguishable AMPAR mEPSC amplitudes compared to GFP infected neurons demonstrating that loss of TrkB does not affect this synaptic measure (Figure 5D). In agreement with data from the Bdnf deficient neurons, we found lithium treatment of Ntrk2 deficient neurons did not affect AMPAR mEPSC amplitudes showing a requirement for TrkB in lithium’s effect on AMPAR mEPSC responses (Figure 5D). We measured mEPSC frequency in the six treatment groups and did not observe any significant differences demonstrating a specific effect of lithium on mEPSC properties (data not shown).

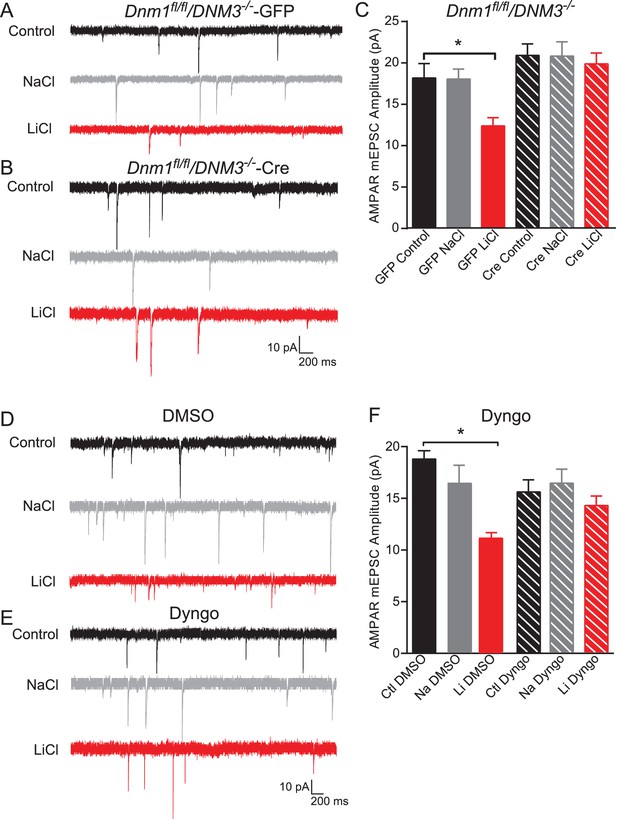

Our data so far shows that chronic lithium treatment of hippocampal neurons leads to a significant decrease in AMPAR mEPSC amplitudes that is dependent on BDNF-TrkB signaling. The decrease in AMPAR mEPSC amplitudes and the reduced GluA1 surface membrane expression suggests lithium is augmenting AMPAR endocytosis. Therefore, we examined whether inhibiting AMPAR endocytosis would rescue the synaptic phenotype observed with lithium treatment. AMPAR endocytosis is dependent on the GTPase dynamin (Lu et al., 2007), which is expressed by three related genes in mammals (Raimondi et al., 2011). Dynamin 1 and 3 (Dnm1 and Dnm3) are highly expressed in neurons and found in dendrites (Calabrese and Halpain, 2015; Noda et al., 1993). Previous work has shown that constitutive Dnm1−/−/ Dnm3−/− double KO mice are not viable (Raimondi et al., 2011). Therefore, to examine the contribution of both dynamin1 and dynamin3 on lithium mediated synaptic effects, we crossed Dnm1 fl/fl mice with Dnm3−/− mice as the constitutive deletion of Dnm3 does not impact synaptic function (Raimondi et al., 2011). We cultured Dnm1 fl/fl / Dnm3−/− neurons and infected them with lentivirus expressing Cre to delete Dnm1 and thus generate the double KOs, or GFP as a control. The GFP infected neurons treated with lithium had a significant reduction in AMPAR mEPSC amplitudes compared to untreated neurons showing that the loss of Dnm3 does not impact the effect of lithium on synaptic function (Figure 6A–C). In contrast, deletion of both Dnm1 and Dnm3 occluded the effect of chronic lithium treatment on AMPAR mEPSC amplitudes in comparison to untreated cultures demonstrating that lithium is potentiating dynamin dependent endocytosis of AMPAR (Figure 6C).
To control for possible compensatory effects due to the loss of Dnm1 and Dnm3, in our next experiments we cultured hippocampal neurons from C57BL/6 mice and acutely inhibited dynamin activity in the postsynaptic neuron. We chronically treated neurons with lithium and then added the pan-dynamin inhibitor Dyngo (McCluskey et al., 2013), or the vehicle 1% DMSO, to the internal pipette solution prior to our recordings. Consistent with previous data, chronic lithium treatment resulted in a significant decrease in AMPAR mEPSC amplitudes in neurons recorded with vehicle in the pipette solution (Figure 6D–F). In contrast, the presence of Dyngo in the pipette solution rescued the decrease in AMPAR mEPSC amplitudes seen after lithium treatment (Figure 6F). Taken together, these experiments demonstrate that chronic lithium treatment enhances AMPAR endocytosis to alter synaptic function in a dynamin dependent manner and the loss of dynamin, specifically Dnm1 and Dnm3, can rescue the synaptic deficits.
In the current study, we report that lithium requires BDNF-TrkB signaling to mediate its antimanic as well as synaptic effects. Chronic lithium treatment in vivo results in a sustained increase in BDNF mRNA and protein expression. However, while BDNF is required for the antimanic effects of lithium it is not required for the antidepressant effects. We determined that chronic lithium treatment in vivo caused a significant decrease in I/O curves from hippocampal slices that were dependent on BDNF expression. We investigated the effect of chronic lithium on synaptic function and found a significant synaptic downscaling of AMPAR mEPSC amplitudes that was dependent on BDNF as well as its high affinity receptor, TrkB. The decrease in AMPAR mEPSC amplitudes was due to a decrease in postsynaptic surface expression of GluA1 driven by dynamin-dependent AMPAR endocytosis, which could be acutely countered by administration of a dynamin inhibitor. Collectively, these data demonstrate that lithium can target AMPA receptor endocytosis to alter synaptic function.
In these experiments we used lithium treated chow to administer the drug to mice to more closely mimic the oral administration used by patients with bipolar disorder. In initial experiments, we established a chronic lithium regimen that resulted in clinically relevant lithium levels in serum. In each experiment we confirmed that an animal had a serum lithium level of 0.5–3.0 mM/L to ensure that the molecular and behavioral studies were performed under conditions similar to long-term treatment for Bipolar Disorder. We show that chronic lithium treatment in rodents causes a sustained increase in BDNF mRNA and protein in the hippocampus. However, BDNF was not required for the antidepressant action of lithium. Previous studies have shown that BDNF is required for the antidepressant effects of traditional antidepressants (Adachi et al., 2008; Monteggia et al., 2004), as well as rapid antidepressant effects of ketamine (Autry et al., 2011). While the current data showing lithium can exert an antidepressant effect in inducible Bdnf KOs is unexpected, the finding could be due to several possibilities. First, these data may suggest that mood stabilizers mediate an antidepressant response in a manner distinct from conventional antidepressants that target the monoamine system and independent of BDNF. Second, previous work with traditional antidepressants has largely focused on changes in Bdnf mRNA, with changes in BDNF protein not as fully explored leaving it unclear the time frame that conventional antidepressants increase BDNF protein (Duman and Monteggia, 2006). The rapid antidepressant action of ketamine requires BDNF and is protein translation dependent, with BDNF protein rapidly increased but then returning to baseline (Autry et al., 2011). In contrast, data from the current study shows that lithium treatment results in a sustained increase in Bdnf mRNA and protein expression. Taken together, these may data suggest acute manipulation of BDNF protein expression is involved in rapid antidepressant effects while a more chronic increase in BDNF expression is required for antimanic effects.
Lithium produces significant effects on synaptic transmission that may underlie its antimanic properties. Previous work has consistently shown that lithium application significantly decreases AMPAR mEPSC amplitudes in cultured neurons (Ankolekar and Sikdar, 2015; Du et al., 2004; Gray et al., 2003; Seelan et al., 2008; Wei et al., 2010). We replicated these data and showed chronic lithium treatment of hippocampal neurons results in a significant decrease in AMPA mEPSC amplitudes compared to control conditions. We also found that lithium treatment did not alter AMPA mEPSC frequency demonstrating specificity to the impact of the drug on synaptic transmission. Further analysis revealed that lithium produced a significant downward multiplicative synaptic scaling of all AMPAR-mEPSC amplitudes consistent with an impact on post-synaptic homeostatic plasticity. Previous in vivo and in vitro studies have shown that lithium decreases GluA1 and GluA2 surface expression in the hippocampus and in cultured cortical neurons (Du et al., 2003, 2008; Wei et al., 2010). In addition, we found that in vivo lithium treatment caused a significant decrease in I/O curves in hippocampal slices, which is reminiscent of the decreased AMPA/NMDA ratio previously seen in rats following chronic lithium treatment (Du et al., 2008). Lithium treatment has also been shown to decrease phosphorylation of Thr840 on GluA1, which is associated with decreased AMPAR signaling (Szabo et al., 2009). In the current study, we found that lithium treatment of hippocampal neurons elicits synaptic downscaling due to decreased GluA1 surface expression demonstrating a previously unknown effect of lithium on post-synaptic homeostatic plasticity.
The lithium triggered significant decrease on AMPAR mEPSC amplitudes and hippocampal I/O curves was occluded in neurons lacking Bdnf suggesting a requirement in lithium’s action. To confirm these data, we examined neurons with a deletion of Ntrk2 and found that lithium’s effect on AMPAR-mEPSC amplitudes was also occluded. While these data demonstrate that the effect of lithium on AMPA mEPSC amplitudes is dependent on BDNF and TrkB, the requirement for TrkB was more robust than BDNF per se. These findings may be due to low level expression of BDNF remaining after viral infection of Cre recombinase that acts on TrkB receptors or alternatively some minor effects of neurotrophin 3 (NT3) or neurotrophin 4 (NT4) activating the TrkB receptor to impact lithium’s effects on synaptic transmission. Regardless, these results demonstrate a rather unexpected requirement for BDNF-TrkB signaling in lithium mediated effects on synaptic scaling as increased BDNF expression is typically associated with increased AMPAR surface expression (Jakawich et al., 2010; Nakata and Nakamura, 2007; Nosyreva et al., 2013). However, there is precedent for BDNF to induce downscaling of AMPAR surface expression. Specifically, acute increases in BDNF have been shown to increase GluA1 and GluA2 surface expression, whereas chronic increases in BDNF decrease surface expression of GluA1 and GluA2 (Reimers et al., 2014). Collectively, these data suggest that chronic lithium treatment through a sustained increase in BDNF expression leads to synaptic downscaling.
The BDNF-TrkB dependence of lithium-mediated effects on mEPSC amplitudes was due to decreased surface expression of GluA1, suggesting the removal of AMPARs by endocytosis. In neuronal synapses, dynamin has been shown to be a key mediator of endocytosis. To determine whether lithium promotes AMPAR endocytosis by a dynamin-dependent mechanism, we utilized a genetic approach with deletion of Dnm1 and Dnm3 and reversed the lithium-mediated decrease in AMPAR mEPSC amplitudes. To further establish that lithium triggers AMPAR endocytosis, we treated individual cells acutely with the dynamin inhibitor, Dyngo and demonstrated that lithium’s impact on AMPAR endocytosis can be rapidly countered by dynamin inhibition. Previous work has shown that AMPAR internalization/endocytic membrane trafficking of the postsynaptic neuron can be regulated in a dynamin-dependent process to control strength (Lu et al., 2007). Taken together, our data show that lithium regulates dynamin-dependent endocytosis and rapidly removes AMPAR from the postsynaptic membrane altering synaptic efficacy.
Altered glutamatergic signaling and hyperactivity have been implicated in the pathology of bipolar disorder. Mania in bipolar patients has been associated with elevated glutamate signaling (Lan et al., 2009; Ongür et al., 2008). In post-mortem brain tissue of individuals with bipolar disorder an increase in expression of the vesicular glutamate transporter (VGlut1) mRNA and glutamate have been observed (Eastwood and Harrison, 2010; Hashimoto et al., 2007). Human induced pluripotent stem cell (IPSC) derived neurons from patients with bipolar disorder were shown to have lower action potential thresholds, increased evoked and spontaneous action potentials, and larger action potential amplitudes suggesting they are hyperactive in comparison to neurons derived from healthy controls (Mertens et al., 2015). Conversely, lithium treatment has been shown to reverse the glutamatergic hyperactivity from IPSC derived neurons from patients with bipolar disorder (Mertens et al., 2015). In addition, recent work has suggested that lithium may alter neuronal activity by regulating G-protein gated inward rectifier K+ (GIRK) channels (Farhy Tselnicker et al., 2014), which may modulate homeostatic scaling of AMPAR responses. Although, we cannot exclude lithium-mediated regulation of neuronal activity as a component of our observations, a parsimonious interpretation of our results suggests that direct biochemical effects of lithium mediated signaling is the key driver for the AMPAR downscaling we observed. Our findings showing that lithium triggers dynamin-dependent endocytosis of AMPARs may be a way in which to counteract the increased glutamatergic signaling associated with mania. Further work will be necessary to pursue this hypothesis and explore the role of lithium on dynamin-dependent endocytosis as a potential mechanism in antimanic action.
Findings from the current study identify a critical role for BDNF in the antimanic and synaptic effects of lithium treatment. These results demonstrate that lithium specifically impacts excitatory neurotransmission by decreasing AMPAR-mEPSCs through dynamin-dependent endocytosis to reduce surface expression of AMPAR subunits. These data start to provide a framework to elucidate the mechanisms underlying lithium’s effect on synaptic transmission which may offer insight into novel therapeutic targets for the treatment of bipolar disorder.
Male C57BL/6 mice aged 6–8 weeks were habituated to the animal facilities for at least 7 days prior to behavior testing. The mice were maintained on a 12 hr light/dark cycle with ad libitum access to food and water, unless otherwise noted for lithium treatment groups. The Bdnffl/fl and Ntrk2 fl/fl mice were generated as previously described and maintained as homozygous crosses (Luikart et al., 2005; Rios et al., 2001). The inducible Bdnf knockout (KO) mice were generated as previously described (Monteggia et al., 2004). The Dnm1 fl/fl and the Dnm3−/− null KO mice were generated as previously described (Ferguson et al., 2007; Raimondi et al., 2011). All behavioral testing was done with age and weight matched male mice that were balanced by genotype. In these experiments we utilized only male mice as previous work from our laboratory has shown that loss of BDNF can impact depression-related behaviors in a sex-dependent manner (Autry et al., 2009). All electrophysiology and biochemistry experiments utilized male and female mice. All experiments were performed and data analyzed by an experimenter blind to drug condition and genotype. Animal protocols were approved by the Institutional Care and Use Committee at UT Southwestern Medical Center.
The lithium treatment consisted of mice given 0.2% lithium chloride (LiCl) chow (Harlan Teklad, East Millstone, NJ) for 4 days and then switched to 0.4% LiCl (Harlan Teklad) chow for the remainder of the study, which lasted from 11 to 17 days total. All mice received water as well as a bottle of 0.9% sodium chloride (NaCl) to control for ion imbalances known to occur with lithium administration. Control mice were kept on identical chow except it did not contain lithium.
Trunk blood was collected from all animals after the completion of the lithium treatment and behavioral testing. Whole blood was kept on ice until it was spun at 3000 RPM at 4°C for 10 min to separate red blood cells and serum. Lithium ion counts were made using a flame photometer (Jenway PFP7) and concentration was calculated following the construction of a standard curve. Mice with serum lithium concentrations below 0.5 mM and above 3 mM were excluded from behavioral and biochemical analyses.
The forced swim test (FST) was performed in accordance with published protocols (Gideons et al., 2014). In brief, mice were placed in a glass 4 L beaker with 3 L of 23 ± 2°C water for 6 min and test session were video-recorded. The last 5 min of each trial were scored by an observer blinded to drug condition and genotype to determine immobility time.
Mice were habituated to the testing room for 1 hr and then given an intraperitoneal (i.p.) injection of amphetamine hydrochloride (Sigma, St. Louis, MO) at 2 mg/kg dissolved in saline or saline as a control. Mice were then immediately placed in standard home cages under red light and locomotor activity was measured for 2 hr by photocell beams linked to computer acquisition software (San Diego Instruments, San Diego, CA). The total beam counts for the 2 hr period were collected as a measurement of amphetamine induced hyperactivity (Yates et al., 2007).
Mice chronically treated with lithium (11–17 days) were anesthetized with isoflurane before decapitation. The brain was removed and immersed for 2–3 min in ice-cold dissection buffer containing the following (in mM): 2.6 KCl, 1.25 NaH2PO4, 26 NaHCO3, 0.5 CaCl2, 5 MgCl2, 212 sucrose and 10 glucose. The hippocampus was dissected out and cut with a vibratome into 400-μm-thick transverse sections in ice-cold dissection buffer continuously supplied with 95% O2 and 5% CO2. Area CA3 was surgically removed from each slice immediately after sectioning. The sections recovered in oxygenated ACSF containing the following (in mM): 124 NaCl, 5KCl, 1.25 NaH2PO4, 26 NaHCO3, 2 CaCl2, 2 MgCl2 and 10 glucose, pH 7.4 (continuously equilibrated with 95% O2 and 5% CO2) for 2–3 hr at 30°C. Hippocampal slices were transferred to the recording chamber and perfused with ACSF at a rate of 2–3 ml/min at 30°C. Field EPSPs (fEPSPs) were evoked by inserting a bipolar platinum-tungsten stimulating electrode (Frederick Haer, Bowdoin, ME) into Schaffer collateral/commissural afferents. The extracellular recording electrodes filled with ACSF (resistance, 1–2 MΩ) were placed into the CA1 just beneath the molecular layer. Baseline responses were collected every 30 s using an input stimulus intensity that induced 30–40% of the maximum response. After a 20 min stable baseline, an ascending series of stimulus input intensities (range, 5 to 200 μA) were applied and the input/output (I/O) curve was plotted by the slope of fEPSP versus afferent volley amplitude. Data are presented as mean ± SEM and analyzed using two-way ANOVA. Sidak’s multiple comparisons test were conducted after significant interaction effects were found. A p value of <0.05 was required for statistical significance.
Dissociated hippocampal cultures were prepared as previously described (Kavalali et al., 1999; Reese and Kavalali, 2015). Whole hippocampi were dissected from postnatal day 0–3 (P0-P3) mice. The hippocampi were trypsinized (~10 mg/mL trypsin; Invitrogen), dissociated mechanically, and plated on Matrigel (Corning Biosciences, Tewksbury, MA)-coated coverslips for electrophysiology or directly onto tissue culture treated plates for protein collection for western blot analysis. At 1 d in vitro (DIV), 4 µM cytosine arabinoside (ARAC; Sigma) was added. At 4 DIV, the ARAC concentration was decreased to 2 µM with a media change. Treatment with LiCl (1 mM) solution (Sigma) or NaCl (1 mM) solution (Sigma) was initiated at 4 DIV and lasted for 11–17 days. The Bdnffl/fl, Ntrk2 fl/fl, and Dnm1 fl/fl / Dnm3−/− cultures were infected with lentivirus expressing Cre recombinase (Cre) tagged with GFP or lentivirus expressing GFP alone as a control at 4 DIV. Lentivirus constructs and virus preparation from HEK293T/17 cells were prepared as previously described (Akhtar et al., 2009). HEK293T/17 cell line was purchased from ATCC (Cat. Number: CRL-11268). All electrophysiology experiments and protein collected for western blot analysis were done on 15–21 DIV cultures.
Whole-cell patch clamp recordings were performed on hippocampal pyramidal neurons as previously described (Gideons et al., 2014). The external Tyrode’s solution contained (in mM): 150 NaCl, 4 KCl, 2 CaCl2, 1.25 MgCl2, 10 glucose, and 10 Hepes (ph 7.4) at ~300 mOsm. The pipette internal solution contained (in mM): 110 K-gluconate, 20 KCl, 10 NaCl, 10 Hepes, 0.6 EGTA, 4 Mg-ATP, 0.3 Na-GTP, and 10 lidocaine N-ethyl bromide (pH 7.3) at ~300 mOsm. Pipettes had a resistance between 3–7 MΩ. The junction potential between the internal and external solutions was ~12 mV and was subtracted from all recordings. AMPAR-mediated mEPSCs were recorded in the presence of 50 µM (2R)-amino-5-phosphonovaleric acid (AP5; Tocris, Bristol, UK), 1 µM tetrodotoxin (TTX; EMD Millipore, Billerica, MA), and 50 µM picrotoxin (PTX; Sigma). For the acute dynamin inhibitor studies, dynamin activity was inhibited in the postsynaptic neuron by adding 30 µM Dyngo-4A (Abcam, Cambridge, MA) to the internal pipette solution (McCluskey et al., 2013). DMSO was added to the internal pipette solution as a control for these experiments. Data were acquired using a MultiClamp 700B amplifier and Clampex 10.0 software (Molecular Devices, Sunnyvale, CA). Recordings were sampled at 100 µs, filtered at 2 kHz with a gain of 5. No more than three recordings were obtained per coverslip. AMPAR-mEPSCs were analyzed from a 3–5 min recording using MiniAnalysis software by an experimenter blind to drug condition and genotype.
Briefly, fresh frozen hippocampi were dissected and total RNA was extracted using Trizol (Invitrogen) following the manufacturer’s instruction. Conditions for cDNA synthesis, amplification, and primer sequences were previously described (Adachi et al., 2008).
Anterior hippocampal slices (~1 mm thick, 2–3 per mouse) were dissected and flash-frozen following 11 days of lithium treatment or immediately following the last behavioral test depending on the experiment. Hippocampal tissue was lysed in a radio immunoprecipitation assay (RIPA) buffer containing: 50 mM Tris pH 7.4, 1% Igepal, 0.1% SDS, 0.5% Na deoxycholate, 4 mM EDTA, 150 mM NaCl, phosphatase inhibitors (10 mM Na pyrophosphate, 50 mM NaF, 2 mM Na orthovanadate), and protease inhibitors (cOmplete Mini tablets, Roche, Basel, Switzerland). Protein concentration was quantified with the Quick-Start Bradford assay (Bio-Rad, Hercules, CA). Approximately 30 µg of protein was electrophoresed on SDS-PAGE gels and then transferred to nitrocellulose membranes. The membranes were incubated with primary antibodies overnight at the following dilutions: BDNF (Abcam, Cat. Number: ab108319; RRID: AB_10862052), 1:1000, GAPDH (Cell Signaling, Cat. Number: 2118S; RRID: AB_561053) 1:50,000, phosphorylated GSK3β (Ser9, Cell Signaling, Cat. Number: 9323S) and total GSK3β (Cell Signaling, Cat. Number: 9315S) 1:30,000. Primary antibodies for phospho-GSK3β included 5% BSA. After washing, the membranes were incubated in anti-rabbit secondary antibodies: BDNF, 1:5000, GAPDH, 1:10,000, phospho-GSK3β and total GSK3β, 1:10,000. Protein bands were detected using ECL then exposed to film. Following development of phospho-GSK3β, membranes were stripped using Restore PLUS Western Blot Stripping Buffer (ThermoScientific, Waltham, MA), put in block, and then in primary antibody for total GSK3β. BDNF expression was normalized to GAPDH while a ratio of phospho- GSK3β intensity to total GSK3β was examined. The phospho-GSK3β and total GSK3β antibodies are known to recognize doublet bands (Cell Signaling).
Membrane biotinylation experiments were performed as previously described (Nosyreva et al., 2013). Dissociated hippocampal cultures from C57BL/6 mice were incubated in Tyrode’s solution containing 1 mg/ml sulfo-NHS-LC-biotin (Pierce/Thermofisher) for 20 min on ice. The biotin reactions were quenched by incubating the cultures in Tris-buffered saline (TBS) with 15 mM ammonium chloride for 5 min on ice, and then washed twice with TBS for 5 min on ice. Following the second TBS wash, the cultures were lysed in RIPA buffer (as described above) for 10 min on ice and spun at 12,000 rpm for 5 min to remove non-solubilized material. Total protein concentration was quantified by Quik-Start Bradford assay (Bio-rad). 100 µg of protein from each sample was incubated with 100 µL of washed UltraLink NeutrAvidin (Pierce/Thermofisher) immobilized beads and rotated overnight at 4°C. Beads were washed with three times with RIPA buffer, followed by three washes with TBS at 4°C. Protein was eluted from the beads with SDS-PAGE sample buffer supplemented with β-mercaptaethanol (BME) for 10 min at 95°C. Eluted surface protein and 20 µg of total protein in SDS-PAGE-BME sample buffer were resolved by 10% SDS-PAGE gel, transferred to nitrocellulose, and probed with anti-GluA1 antibody (1:1000, Chemicon/EMD Millipore, Cat. Number: MAB2263) and anti-GAPDH antibody (1:50,000) overnight. Secondary anti-rabbit antibodies were at 1:2000 and 1:10,000 for GluA1 and GAPDH respectively. Surface GluA1 over total GluA1 ratio is reported.
Data are reported as mean ± SEM. Statistical differences in the FST, locomotor tests, western blot, QPCR, mEPSC amplitude and frequency were assessed using unpaired two-tailed Student’s t test or one-way ANOVA when appropriate. Tukey and Bonferroni post hoc tests were used when appropriate. Differences in the cumulative probability histograms were assessed with Kolmogorov-Smirnov test. Statistical significance was defined at p≤0.05. Statistical outliers were identified with the Robust regression and Outlier removal (ROUT) method. All t-test, ANOVAs, associated post hoc tests, and ROUT method statistical tests were performed with Prism 6 (GraphPad, La Jolla, California). The Kolmogorov-Smirnov test was performed using Past 3.02 (http://folk.uio.no/ohammer/past/).
Serum concentration and clinical supervision in monitoring of lithium treatmentTherapeutic Drug Monitoring 2:73–84.https://doi.org/10.1097/00007691-198001000-00009
Brain-derived neurotrophic factor and neuropsychiatric disordersPharmacological Reviews 64:238–258.https://doi.org/10.1124/pr.111.005108
Differential targeting of dynamin-1 and dynamin-3 to nerve terminals during chronic suppression of neuronal activityMolecular and Cellular Neuroscience 68:36–45.https://doi.org/10.1016/j.mcn.2015.03.016
Molecular actions and clinical pharmacogenetics of lithium therapyPharmacology Biochemistry and Behavior 123:3–16.https://doi.org/10.1016/j.pbb.2014.02.004
Selective DNA methylation of BDNF promoter in bipolar disorder: differences among patients with BDI and BDIINeuropsychopharmacology 37:1647–1655.https://doi.org/10.1038/npp.2012.10
The role of hippocampal GluR1 and GluR2 receptors in manic-like behaviorJournal of Neuroscience 28:68–79.https://doi.org/10.1523/JNEUROSCI.3080-07.2008
Structurally dissimilar antimanic agents modulate synaptic plasticity by regulating AMPA glutamate receptor subunit GluR1 synaptic expressionAnnals of the New York Academy of Sciences 1003:378–380.https://doi.org/10.1196/annals.1300.031
A neurotrophic model for stress-related mood disordersBiological Psychiatry 59:1116–1127.https://doi.org/10.1016/j.biopsych.2006.02.013
Lithium regulates total and synaptic expression of the AMPA glutamate receptor GluR2 in vitro and in vivoAnnals of the New York Academy of Sciences 1003:402–404.https://doi.org/10.1196/annals.1300.036
Increased levels of glutamate in brains from patients with mood disordersBiological Psychiatry 62:1310–1316.https://doi.org/10.1016/j.biopsych.2007.03.017
Effects of mood stabilizers on Hippocampus and amygdala BDNF levels in an animal model of mania induced by ouabainJournal of Psychiatric Research 44:506–510.https://doi.org/10.1016/j.jpsychires.2009.11.002
BDNF release is required for the behavioral actions of ketamineInternational Journal of Neuropsychopharmacology 18:pyu033.https://doi.org/10.1093/ijnp/pyu033
TrkB has a cell-autonomous role in the establishment of hippocampal schaffer collateral synapsesJournal of Neuroscience 25:3774–3786.https://doi.org/10.1523/JNEUROSCI.0041-05.2005
Acute suppression of spontaneous neurotransmission drives synaptic potentiationJournal of Neuroscience 33:6990–7002.https://doi.org/10.1523/JNEUROSCI.4998-12.2013
Systematic overview of lithium treatment in acute maniaJournal of Clinical Pharmacy and Therapeutics 25:139–156.https://doi.org/10.1046/j.1365-2710.2000.00278.x
BDNF contributes to both rapid and homeostatic alterations in AMPA receptor surface expression in nucleus accumbens medium spiny neuronsEuropean Journal of Neuroscience 39:1159–1169.https://doi.org/10.1111/ejn.12422
Regulation of AMPA receptor trafficking and function by glycogen synthase kinase 3Journal of Biological Chemistry 285:26369–26376.https://doi.org/10.1074/jbc.M110.121376
Bimodal effect of amphetamine on motor behaviors in C57BL/6 miceNeuroscience Letters 427:66–70.https://doi.org/10.1016/j.neulet.2007.09.011
Inna SlutskyReviewing Editor; Tel Aviv University, Israel
In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.
Thank you for submitting your article "Chronic lithium treatment elicits its antimanic effects via BDNF-TrkB dependent synaptic downscaling" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by a Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Lu Chen (Reviewer #3).
The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission
This is a relatively straightforward but highly significant study demonstrating that chronic lithium administration to mice reduces amphetamine-induced locomotion (a model for anti-manic effects) through a mechanism that depends on BDNF-TrkB signaling, whereas lithium's ability to reduce immobility in the forced swim test (a model for anti-depressant effects) does not depend on BDNF. It is particularly compelling that both tests were conducted in the same cohort of mice. Furthermore, patch-clamp recordings showed that lithium reduced AMPAR-mediated mEPSC amplitude in cultured hippocampal neurons in a manner reminiscent of homeostatic downscaling, and that this effect also required BDNF-TrkB pathway. The decrease in AMPAR-mediated mEPSC amplitude in cultured hippocampal neurons was associated with reduced surface expression of GluA1 subunits. Two different strategies for inhibiting dynamin-dependent endocytosis rescued the lithium-induced decrease in mEPSC amplitude. These are novel findings that will be of broad interest. Experiments are well designed and the effects are convincing.
Here are some suggestions for the authors to consider in order to strengthen their findings and clarify the conclusions:
1) It remains unclear what is the signal triggering mEPSC downscaling. Does lithium trigger an acute increase in spontaneous neuronal activity probably through inhibition of GIRK channels (Farhy Tselnicker et al., 2014)? If so, it would justify the 'homeostatic' nature of a negative feedback response through the proposed postsynaptic downscaling.
2) The authors should provide further insight into the downstream signaling mechanisms that lead to down-regulation of mEPSC amplitude by lithium. In particular, it is important to better understand whether inhibition of GSK-3beta is involved in BDNF-induced synaptic downscaling by lithium. It can be tested by using specific inhibitors of GSK-3beta and examining if they occlude lithium-induced synaptic downscaling. As Akt can be activated by numerous growth factors, including BDNF, it may down-regulate synaptic AMPARs by inhibiting GSK3beta.
3) All recordings are done in cultured neurons. Although others have apparently shown that in vivo lithium exposure reduces mEPSC amplitude (three studies are cited), were those recordings done in hippocampal neurons and under conditions similar to those studied here (e.g., lithium dosing? age of animal?). If not, it would be important to use slice physiology to confirm in the current mouse model that lithium reduces mEPSC amplitude and perhaps show that this is absent in slices from BDNF knockout mice.
4) Is a reduction in amphetamine-induced locomotor activity an accepted model for lithium's anti-manic effects? Even if so, the authors should be a little more conservative in referring to lithium's action in this test as "anti-manic".https://doi.org/10.7554/eLife.25480.009
- Ege T Kavalali
- Lisa M Monteggia
- Ege T Kavalali
- Lisa M Monteggia
- Lisa M Monteggia
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
We thank members of the Monteggia laboratory for helpful advice and discussions on the manuscript. We thank Dr. Rudolf Jaenisch for the Bdnf fl/fl mice and Dr. Luis Parada for the NtrkB fl/fl mice. This work was supported by National Institutes of Health Grants MH070727 (to LMM) and MH066198 (to ETK) as well as awards from the Brain and Behavior Research Foundation and the International Mental Health Research Organization (to LMM).
Animal experimentation: Animal protocols were approved by the Institutional Care and Use Committee at UT Southwestern Medical Center (UTSW APN# 2017-101831G).
