Reactive oxygen species-dependent Toll/NF-κB activation in the Drosophila hematopoietic niche confers resistance to wasp parasitism

Research Article
Cited
0
Views
542
Comments
0
Cite as: eLife 2017;6:e25496 doi: 10.7554/eLife.25496

Abstract

Hematopoietic stem/progenitor cells in the adult mammalian bone marrow ensure blood cell renewal. Their cellular microenvironment, called ‘niche’, regulates hematopoiesis both under homeostatic and immune stress conditions. In the Drosophila hematopoietic organ, the lymph gland, the posterior signaling center (PSC) acts as a niche to regulate the hematopoietic response to immune stress such as wasp parasitism. This response relies on the differentiation of lamellocytes, a cryptic cell type, dedicated to pathogen encapsulation and killing. Here, we establish that Toll/NF-κB pathway activation in the PSC in response to wasp parasitism non-cell autonomously induces the lymph gland immune response. Our data further establish a regulatory network where co-activation of Toll/NF-κB and EGFR signaling by ROS levels in the PSC/niche controls lymph gland hematopoiesis under parasitism. Whether a similar regulatory network operates in mammals to control emergency hematopoiesis is an open question.

https://doi.org/10.7554/eLife.25496.001

Introduction

In adult mammals, Hematopoietic Stem and Progenitor Cells (HSPCs) present in the bone marrow are at the origin of blood cell production throughout an individual’s life. Self-renewal, proliferation and differentiation of HSPCs are under the control of the bone marrow microenvironment called the ‘niche’ which has emerged as a key regulator of hematopoiesis (Calvi and Link, 2015; Morrison and Scadden, 2014). While considerable effort has been directed toward uncovering the mechanisms that regulate HSPC/niche communication under normal conditions, processes that take place in response to infection and inflammation remain more elusive (Kobayashi et al., 2016; Zhao and Baltimore, 2015). With the discovery that many transcriptional regulators and signaling pathways controlling blood cell development are conserved between insects and humans, Drosophila has become an important model to investigate hematopoiesis under normal conditions and in response to immune stress (Letourneau et al., 2016; Martinez-Agosto et al., 2007).

Immune cells in Drosophila, called hemocytes, contribute to innate immune defense (Lemaitre and Hoffmann, 2007). Two phases of hematopoiesis occur in Drosophila (Gold and Brückner, 2015; Holz et al., 2003). A first wave of immune cell production takes place during embryogenesis and generates two types of hemocytes, plasmatocytes and crystal cells, which are involved in phagocytosis and melanisation/wound healing, respectively (Lemaitre and Hoffmann, 2007). Both cell types increase in numbers at larval stages and either circulate in the hemolymph or aggregate into pockets under the epidermis (sessile hemocytes) (Makhijani et al., 2011; Márkus et al., 2009). A second wave of de novo hematopoiesis takes place in a larval specialized hematopoietic organ, the lymph gland, a multi-lobed organ which develops along the anterior cardiac tube, the aorta region (Jung et al., 2005; Krzemien et al., 2010a; Lanot et al., 2001). During the third larval stage, the anterior lobes of the mature lymph gland are composed of a medullary zone (MZ) containing progenitors (prohemocytes), a cortical zone (CZ) composed of differentiating plasmatocytes and crystal cells, and the posterior signaling center (PSC) (Jung et al., 2005). During metamorphosis, lymph gland rupture releases all hemocytes into circulation (Grigorian et al., 2011; Lanot et al., 2001). A third blood cell type, called lamellocyte, differentiates in emergency situations, such as wasp parasitism, from lymph gland progenitors and circulating/sessile hemocytes (Anderl et al., 2016; Crozatier et al., 2004; Honti et al., 2010; Lanot et al., 2001; Márkus et al., 2009; Stofanko et al., 2010). Lamellocytes are specialized hemocytes which mediate the encapsulation and killing of pathogens too large to be phagocytosed. Following wasp egg laying inside the Drosophila larva, the egg is recognized as a foreign body. This leads to differentiation of lamellocytes at the expense of other immune cells (Honti et al., 2010; Krzemień et al., 2007; Márkus et al., 2009; Stofanko et al., 2010), the premature dispersal of the lymph gland and the release of lamellocytes into the hemolymph (Crozatier et al., 2004; Sorrentino et al., 2002).

The PSC plays a major role to control the immune response to wasp parasitism (Benmimoun et al., 2015; Crozatier et al., 2004; Krzemień et al., 2007; Oyallon et al., 2016; Sinenko et al., 2011). In the absence of PSC, such as in collier (col/kn/ebf) mutants, or upon its genetic ablation, massive differentiation of lamellocytes fails to occur. It was recently established that wasp parasitism increases Reactive Oxygen Species (ROS) levels in PSC cells, leading to the secretion of Spitz (Spi), one ligand of the Epidermal Growth Factor Receptor (EGFR) signaling pathway (Sinenko et al., 2011). These authors proposed that Spi released from PSC cells activates the EGFR pathway in circulating hemocytes, inducing them to differentiate into lamellocytes.

Several independent studies established that the evolutionarily conserved Toll/NF-κB pathway regulates Drosophila hematopoiesis both under homeostatic and wasp parasitism conditions (Gao et al., 2016; Gueguen et al., 2013; Matova and Anderson, 2006, 2010; Qiu et al., 1998; Schmid et al., 2014; Sorrentino et al., 2004). However, how Toll/NF-κB controls wasp egg encapsulation remains unknown. Here, we show that this pathway is activated in PSC cells in response to egg laying by Leptopilina boulardi wasps and non-cell autonomously controls lamellocyte differentiation in the lymph gland. This, in turn, leads to lymph gland disruption and in fine to successful wasp egg encapsulation. We establish that a regulatory network linking ROS to Toll/NF-κB in the PSC and to EGFR/Erk signaling in lymph gland progenitors controls the lymph gland response to parasitism and the success of wasp egg neutralization.

Results

Toll/NF-κB signaling controls the lymph gland response to wasp infection

In Drosophila, Toll/NF-κB pathway activation by the ligand Spätzle (Spz) leads to the recruitment of an adaptor complex that consists of three death domain-containing proteins, Myd88, Tube, and Pelle (Pll). This complex triggers phosphorylation and degradation of the IκB factor Cactus (Cact) and ultimately the release of the NF-κB transcription factors Dorsal (Dl) and Dorsal-related immunity factor (Dif) that translocate into the nucleus where they activate target gene transcription (Lemaitre and Hoffmann, 2007). When parasitized by the wasp Leptopilina boulardi, mutant larvae for either Toll (Tl), tube or pll fail to encapsulate wasp eggs (Sorrentino et al., 2004). To determine whether this failure is linked to impaired lymph gland response to parasitism, we analyzed lymph gland disruption in mutants of the Toll/NF-κB pathway. 30 hr post-wasp egg laying, 93% of wild-type (wt) larvae lymph glands are disrupted, that is, lymph gland cells are released into circulation (Figure 1A,C). In contrast, in pll2/pll7 mutants, 98% of the lymph glands remain intact (Figure 1B,C). Likewise, more than half of lymph glands are intact in parasitized Dif1 mutant, while the others start disrupting, that is, only some cells at the periphery of the anterior lobes disperse (Figure 1D,F). At a later time point, 48 hr post-parasitism, Dif and pll mutant lymph glands have disrupted (Figure 1H,I), similar to previously reported for Tl and tube mutants (Sorrentino et al., 2004). dl1 lymph glands, however, disrupt as in control larvae (Figure 1E,G). Corroborating these findings, lymph gland dispersal is delayed 30 hr post-parasitism in Dif1/Df(2L)J4 larvae - Df(2L)J4 removes both Dl and Dif - compared to +/Df(2L)J4 controls and dl1/Df(2L)J4 larvae (Figure 1—figure supplement 1). Delayed lymph gland disruption is also observed in Dif1 but not dl1 isogenic mutant larvae, further ruling out a genetic background effect (Figure 1—figure supplement 1). Collectively, these data show that Toll/NF-κB signaling is required for the proper timing of lymph gland dispersal in response to wasp infection and that Dif is the only NF-κB factor involved.

Figure 1 with 1 supplement see all

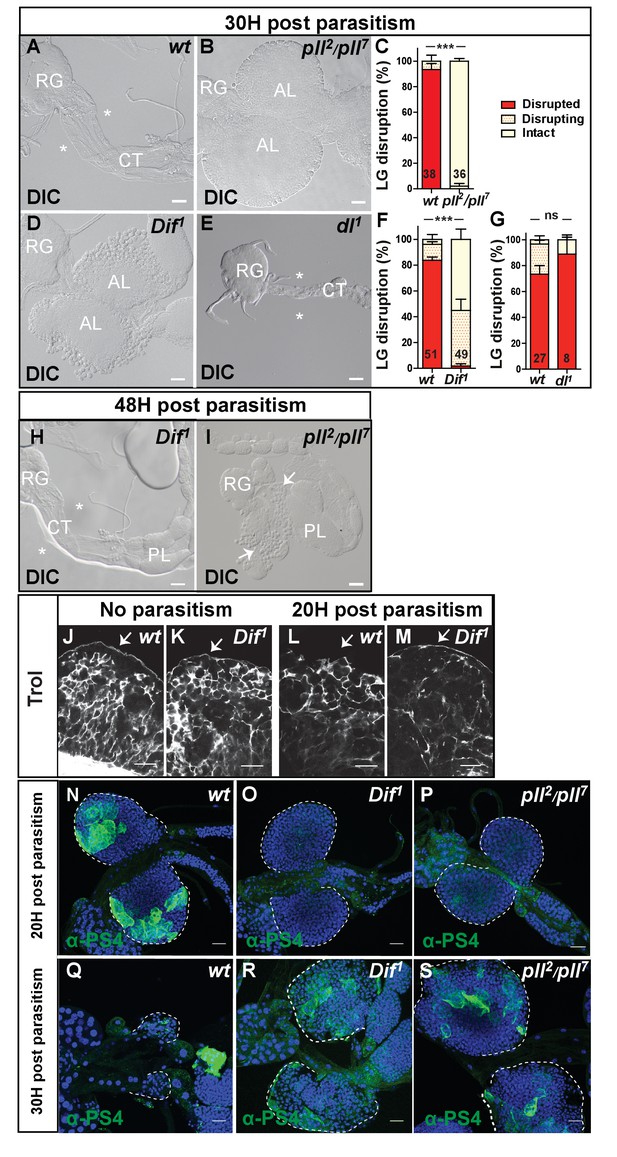

Dif-dependent Toll/NF-κB signaling is required for correct timing of lymph gland dispersal in response to wasp parasitism.

(A, B, D, E) Differential interference contrast (DIC) microscopy of lymph gland anterior lobes 30 hr post-parasitism. Lymph glands were classified into three groups (see Materials and methods): Disrupted (*) in wt (wild type, (A) or dl1 mutant (E); intact in pll2/pll7 mutant (B); disrupting in Dif1 mutant (D). Representative lymph glands are shown. Ring gland, RG; cardiac tube, CT; anterior lobe, AL; posterior lobe, PL. (C, F, G) Quantification of lymph gland disruption (%). The error bars correspond to SEM, ***p<0.001 and ns (not significant) (Pearson’s Chi-squared test). In this and subsequent similar analyses, numbers of lymph glands analyzed are indicated on histograms. (H, I) DIC microscopy of lymph glands in Dif1 (H) and pll2/pll7 (I) mutants 48 hr post-parasitism. Disrupted (*) and disrupting (arrows) lymph glands are shown. (J–M) Perlecan/Trol (white) immunostaining in control (J, L) and Dif1 anterior lobes (K, M). (N–S) αPS4 (green) immunostaining labels lamellocytes in lymph glands in wt (N, Q), Dif1 (O, R) and pll2/pll7 (P, S) mutants. 20 hr post-parasitism, more than 65% (n = 24) of wt lymph glands displayed lamellocytes, whereas none (n = 24) or less than 15% (n = 18) contained lamellocytes in Dif1 and pll2/pll7 mutants, respectively. 30 hr post-parasitism, Dif1 and pll2/pll7 mutant lymph glands have lamellocytes, whereas most wt lymph glands have disrupted. In this and subsequent figures (unless specified), the scale bar represents 20 µm and nuclei are labeled with TOPRO3 or Draq5.

https://doi.org/10.7554/eLife.25496.002

Lymph gland dispersal in response to wasp parasitism is associated with the loss of the basement membrane surrounding the organ, allowing the release of lamellocytes into circulation (Sorrentino et al., 2002). In contrast to control larvae (Figure 1J,L), immunostaining of parasitized Dif1 mutant lymph glands for an extracellular matrix (ECM) protein, the heparan sulfate proteoglycan Perlecan/Trol (Terribly Reduced Optic Lobes) (Dragojlovic-Munther and Martinez-Agosto, 2013; Grigorian et al., 2013) indicates the presence of a continuous ECM layer surrounding the anterior lobes 20 hr post parasitism (Figure 1K,M). Thus, the delayed lymph gland dispersal observed in Dif1 mutant is associated with basement membrane persistence. We then analyzed lamellocyte differentiation using α-PS4 immunostaining (Krzemień et al., 2007). 20 hr post-parasitism, lamellocytes are detected in control larvae (Figure 1N), whereas none are found in Dif1 and pll2/pll7 mutants (Figure 1O,P). 30 hr post-parasitism, while most control lymph glands have already released lamellocytes into circulation (Figure 1Q), few lamellocytes are detected in mutant lymph glands (Figure 1R–S). Altogether, these data show that Toll/NF-κB signaling, while not required for lamellocyte differentiation per se, is essential for the timely differentiation of lamellocytes in the lymph gland, breakdown of its basement membrane, and lamellocyte release into the hemolymph.

Lymph gland lamellocytes are required for successful wasp egg encapsulation

Upon parasitism, lamellocytes mediate wasp egg encapsulation, which is critical for host survival since it prevents hatching of wasp larvae (Crozatier et al., 2004). Wasp egg hatching, which reliably reflects the success of the immune response (Mortimer et al., 2013; Schmid et al., 2014; Vanha-Aho et al., 2015), is impaired in either Dif1 (Figure 2A–C, Figure 2—figure supplement 1) or pll2/pll21 and Tlrv1/Tlr mutants (Figure 2—figure supplement 1) (Sorrentino et al., 2004) but not in dl1 mutants (Figure 2—figure supplement 1), indicating that Dif-mediated activation of Toll/NF-κB pathway is required for wasp egg encapsulation. These data, together with the delay in lymph gland disruption observed in Dif and pll mutants (Figure 1), strongly suggest that lymph gland-derived lamellocytes are essential for successful wasp egg encapsulation. To strengthen this conclusion, we measured the percentage of circulating lamellocytes just prior, and immediately following lymph gland disruption. Before disruption, which occurs around 20 hr post-parasitism in control larvae and 30 hr post parasitism in Dif1 mutants, less than 10% of circulating hemocytes are lamellocytes (Figure 2D,F,G,I). This indicates that a few lamellocytes differentiate from sessile/circulating hemocytes prior to lymph gland dispersion. Following lymph gland disruption, however, more than 50% of circulating hemocytes are lamellocytes in both control and Dif1 mutant larvae (Figure 2E,F,H,I). We thus conclude that lymph gland disruption causes a rapid and major increase in the number of circulating lamellocytes and that this is delayed in Toll/NF-κB mutants. A delay in both lymph gland disruption (data not shown) and in the increase numbers of circulating lamellocytes, is observed in parasitized wild-type larvae raised at 18°C (Figure 2—figure supplement 2), indicating that the lymph gland response is temperature-dependent.

Figure 2 with 2 supplements see all

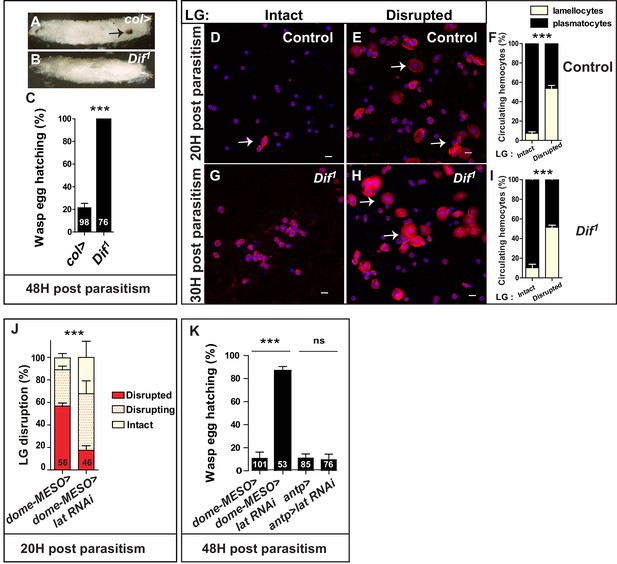

Dif, lymph gland lamellocyte differentiation and lymph gland disruption are required for wasp egg neutralization.

(A, B) Brightfield images of control (col>, A) and Dif1 mutant larvae 48 hr post parasitism (B). The arrow indicates a melanotic capsule. (C) Quantification (%) of wasp egg hatching in control (col>) and Dif1 mutant. In this and subsequent similar analyses, numbers of (infected) larvae analyzed are indicated on histograms. (D–I) Phalloidin (red) staining of circulating hemocytes in control (hml>, D, E) and Dif1 mutant (G, H) just prior (D, G) and following (E, H) lymph gland disruption. Arrows indicate discoidal-shaped lamellocytes that are larger than plasmatocytes. (F, I) Quantification (%) of circulating plasmatocytes and lamellocytes in control (F) and Dif1 mutant (I). Blue, TOPRO3. (J) Quantification of lymph gland disruption (%) in control larvae (dome-MESO>) and when latran is down-regulated in lymph gland progenitors (dome-MESO > lat RNAi). (K) Quantification of wasp egg hatching in control larvae (dome-MESO>) or (antp>) and when latran is down-regulated in lymph gland progenitors (dome-MESO > lat RNAi) or in PSC cells (antp > lat RNAi). Error bars correspond to SEM, ***p<0.001 and ns (not significant) (Pearson’s Chi-squared test).

https://doi.org/10.7554/eLife.25496.006

To further investigate the contribution of lymph gland-derived lamellocytes to the success of wasp egg encapsulation, we specifically impaired lymph gland progenitor differentiation and analyzed the consequence on wasp egg encapsulation. We had previously established that the dominant-negative JAK/STAT receptor latran (lat) (Eye transformer [Kallio et al., 2010]), down-regulates JAK/STAT signaling in lymph gland progenitors following wasp attack, allowing massive differentiation of lymph gland lamellocytes (Makki et al., 2010). Accordingly, we found that knocking-down lat specifically in lymph gland progenitors using double-stranded RNA-mediated interference (RNAi) (dome-MESO > lat RNAi) impairs lymph gland dispersal post-parasitism (Figure 2J). Moreover, 90% of wasp eggs hatched when lat was inactivated in progenitor cells (dome-MESO > lat RNAi) compared to 10% in controls (dome-MESO>), whereas no defect was observed when lat was inactivated in PSC cells (antp > lat RNAi) (Figure 2K). Altogether, these data link lymph gland disruption and lamellocyte release into circulation to successful wasp egg encapsulation.

Fighting wasp parasitism requires Toll/NF-κB activation in PSC cells

Having established that Dif plays an essential role in the lymph gland response to wasp infection, we analyzed whether and in which lymph gland cells Dif activity is required. Immunostaining of wt lymph glands shows that Dif is expressed in PSC cells (Figure 3A–A’’) (Gueguen et al., 2013). 6 hr post-parasitism, it is also expressed in hematopoietic progenitors (Figure 3B–B’’). NF-κB transcriptional activity can be monitored by the expression of a reporter transgene, D4-LacZ, which consists of four tandemly repeated NF-κB-binding sites upstream of lacZ (Flores-Saaib et al., 2001). In agreement with published data, D4–lacZ is expressed in PSC cells in uninfected wt larvae and upregulated in these cells 6 hr post parasitism, in addition to being expressed de novo in lymph gland progenitors (Figure 3C–C’’, D–D’’, E) (Gueguen et al., 2013). In pll2/pll7 mutants, D4-LacZ expression is still observed in the PSC under normal conditions (Figure 3F–F’’), whereas it is not expressed in the PSC in Dif1 mutants (Figure 3I–I’’). This indicates a Toll-independent, basal activity of Dif. 6 hr post-parasitism, no upregulation of D4-LacZ occurs in PSC cells in either pll2/pll7 or Dif1 mutants (Figure 3G–G’’, J–J’’, quantification in Figure 3H). These data show that Toll/NF-κB signaling is activated in the PSC upon parasitism and that this activation requires Dif. Further validating this conclusion, we found that D4-LacZ is not upregulated 6 hr post-parasitism when Dif is specifically down-regulated in PSC cells by driving Dif dsRNA expression with the PSC driver pcol-Gal4 (col > Dif RNAi) (Figure 3K,L; Figure 3—figure supplement 1A,B). 6 hr post-parasitism, unlike in pll2/pll7 mutants (Figure 3G), low levels of D4-LacZ expression persist in Dif1 mutant lymph gland progenitors (compare Figure 3J and D), possibly reflecting Dorsal expression in these cells (Figure 3—figure supplement 1C,D) (Gueguen et al., 2013). Altogether, these data establish that Toll/NF-κB signaling is induced both in the PSC and in lymph gland progenitors in response to parasitism and that Dif is the major NF-κB transactivator involved.

Figure 3 with 1 supplement see all

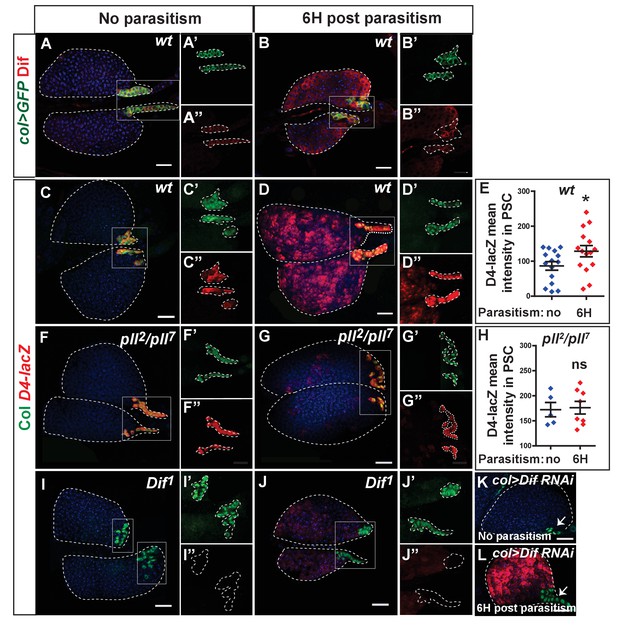

Dif-dependent Toll/NF-kB activation in PSC cells.

(A, B) Dif (red) immunostaining of col > mCD8 GFP (col > GFP, green) lymph glands without (A) and 6 hr post-parasitism (B). (A’, A’’, B’, B’’) enlarged views of the PSC. (C, D, F, G, I, J, K, L) LacZ (red) and Col (green) immunostaining of D4–LacZ of wt (C, D), pll2/pll7 (F, G), Dif1 (I, J), and col > Dif RNAi (K, L) lymph glands without (C, F, I, K), and 6 hr post-parasitism (D, G, J, L). (C’, C'’, D’, D'’, F’, F'’, G’, G”, I’, I”, J’ and J”) enlarged views of the PSC. Arrows (K, L) indicate Col-positive PSC cells that do not express D4–LacZ. (E, H) Quantifications of D4-LacZ mean intensity in PSC cells. Error bars represent SDs, *p<0.1 and ns (not significant) (Mann-Whitney nonparametric test).

https://doi.org/10.7554/eLife.25496.014

In order to distinguish between possible roles of Toll/NF-κB signaling in the PSC and progenitors following parasitism, we knocked down different components of the pathway, such as Dif (Figure 3—figure supplement 1A,B), pll and Myd88, by expressing RNAi in either PSC cells (col>) or in lymph gland progenitors using domeless-Gal4 (dome>). Toll/NF-κB down-regulation in MZ progenitors (dome > Myd88 RNAi; dome > cact > Dif RNAi) neither significantly reduced lymph gland dispersal (Figure 4—figure supplement 1C,D) nor lymph gland lamellocyte differentiation 20 hr post-parasitism (Figure 4—figure supplement 2A,B). By contrast, downregulation of Toll/NF-κB signaling in PSC cells (col > Dif RNAi; col > Myd88 RNAi; col > pll RNAi) delayed lymph gland dispersal post-parasitism (Figure 4A). Similar results were obtained when antp-Gal4 (antp>), another PSC driver, was used (Figure 4—figure supplement 1A,B). Next, we analyzed lymph gland lamellocyte differentiation 20 hr post-parasitism. Whereas lamellocytes were detected in control lymph glands, few, if any were found when Toll/NF-κB signaling was impaired in PSC cells (Figure 4B,C), corroborating our previous interpretation that lymph gland disruption is dependent on lamellocyte differentiation (Figure 1). Finally, we determined whether Toll/NF-κB signaling in PSC cells is required for successful wasp egg encapsulation. Whereas only 20% of wasp eggs hatched in control larvae (col>), 70% and 80% hatched when Myd88 or Dif were down-regulated in PSC cells (col > Myd88 RNAi; col > Dif RNAi), respectively (Figure 4D). Altogether, these data show that Toll/NF-κB signaling is required in PSC cells and not in lymph gland progenitors for the correct timing of lymph gland lamellocyte differentiation, which leads to lymph gland dispersal and thus a successful cellular immune response against wasp parasitism.

Figure 4 with 2 supplements see all
Toll/NF-kB activation in PSC cells controls lymph gland dispersal, lamellocyte differentiation and wasp egg encapsulation.

(A) Quantification (%) of lymph gland disruption post parasitism in col> (control), col > Dif RNAi, col > Myd88 RNAi and col > pll RNAi lymph glands. (B–C) Representative confocal images of lamellocyte differentiation 20 hr post-parasitism (β Integrin, red) in control lymph glands (col > GFP) (B) and when Toll/NF-kB is downregulated in PSC cells (col > GFP > Myd88 RNAi) (C). At least 60% (n = 44) of lymph glands displayed numerous lamellocytes in the control, whereas less than 15% (n = 41) are observed in col > Myd88 RNAi lymph glands. Note early signs of lymph gland disruption in (B, arrow). (D) Quantification (%) of wasp egg hatching 48 hr post-parasitism in col> (control), col > Myd88 RNAi and col > Dif RNAi lymph glands. Error bars correspond to SEM, ***p<0.001 (Pearson’s Chi-squared test).

https://doi.org/10.7554/eLife.25496.018

Spätzle and SPE are required for Toll/NF-kB activation

Spätzle (Spz), the ligand of the Toll/NF-κB pathway, is synthesized and secreted as an inactive cytokine, and its activation depends on cleavage by the Spätzle Processing Enzyme (SPE) (Jang et al., 2006). Previous studies established that both Spz and SPE are essential for wasp egg encapsulation (Paddibhatla et al., 2010; Sorrentino et al., 2004). Here, we further show that spz null mutant (spzrm7) larvae exhibit a strong lymph gland dispersal delay (Figure 5A). Furthermore, decreasing SPE expression in PSC cells (col > SPE RNAi) severely delays lymph gland dispersal (Figure 5B), whereas knocking down its expression in progenitors (dome > SPE RNAi) has no significant effect (Figure 5C). This suggests that SPE expression in PSC cells is required for Toll/NF-κB activation in the lymph gland. To confirm this, we analyzed D4-lacZ expression in col > SPE RNAi larvae. 6 hr post-parasitism, in contrast to control larvae, D4-LacZ expression is not upregulated either in the PSC or in progenitors (Figure 5D–F). Altogether, these data indicate that, in response to parasitism, SPE expression in PSC cells is essential for the production of active Spz and for Toll/NF-κB activation in all lymph gland cells.

Figure 5 with 1 supplement see all

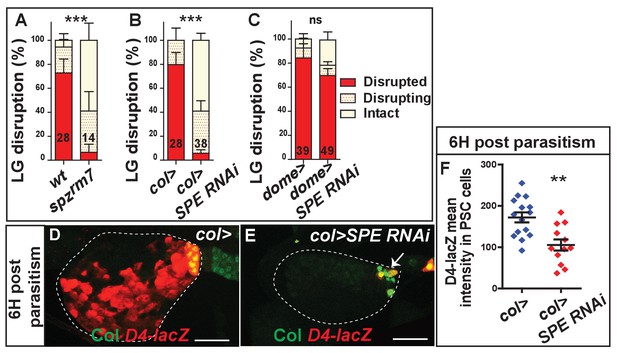

Toll/NF-kB activation depends on SPE expression in PSC cells.

(A–C) Quantification (%) of lymph gland disruption post parasitism in spzrm7 larvae (A) and when SPE is down-regulated in either PSC cells (col > SPE RNAi) (B) or lymph gland progenitors (dome > SPE RNAi) (C). Error bars correspond to SEM, ***p<0.001 and ns (not significant) (Pearson’s Chi-squared test). (D, E) LacZ (red) and Col immunostaining (green) of D4–LacZ expressing lymph glands 6 hr post-parasitism in wt (col>) (D) and when SPE is down-regulated in the PSC (white arrow) (col > SPE RNAi) (E). (F) Quantifications of D4-lacZ mean intensity in PSC cells 6 hr post-parasitism. Error bars represent SDs. **p<0.01 (Mann-Whitney nonparametric test).

https://doi.org/10.7554/eLife.25496.024

SPE itself is activated by proteolytic cleavage (Jang et al., 2006). Two parallel extracellular cascades, namely a pattern recognition receptor-dependent pathway involving the protease ModSP (Modular Serine Protease), and a Psh (Persephone)-dependent pathway are involved in SPE processing upon bacterial and fungal infections (reviewed in [Valanne et al., 2011]). To address whether ModSP and/or Psh are required in the fight against wasp parasitism, we looked at wasp egg hatching in mutants (Figure 5—figure supplement 1A). No significant difference, compared to the control, was observed in modSP1 mutant, whereas survival of wasp larvae was significantly enhanced in psh1 and psh1; modSP1 mutant larvae, indicating that Psh is required for successful wasp egg encapsulation. We further observed that lymph gland disruption is delayed in psh1 mutant larvae (Figure 5—figure supplement 1B), demonstrating that Psh is required for timely lymph gland dispersal. These results strongly suggest that Psh-dependent Spz cleavage activates the Toll/NF-κB pathway in lymph gland cells following parasitism.

Toll/NF-κB activation in PSC cells upon parasitism requires high ROS levels

ROS levels are increased in PSC cells in response to wasp parasitism (Sinenko et al., 2011). We therefore investigated possible cross-regulation between ROS and Toll/NF-κB signaling. To monitor ROS levels, we looked at the expression of the gstD-lacZ transgene, where lacZ is placed under the control of the promoter of Glutathione S-transferase D1, which encodes an anti-oxidant enzyme that is expressed in response to oxidative stress (Sykiotis and Bohmann, 2008). In the absence of parasitism, low, scattered expression of gstD-lacZ was observed in the lymph gland (Figure 6A), consistent with a previous report (Owusu-Ansah and Banerjee, 2009). 6 hr post-parasitism, gstD-lacZ expression is increased in both the PSC (Figure 6B,C) (Sinenko et al., 2011) and the progenitors (Figure 6B,D), indicating that parasitism induces a global oxidative stress in the lymph gland. Interestingly, depleting ROS specifically in PSC cells by expressing an intracellular anti-oxidant catalase (col > catalase) strongly decreased gstD-lacZ expression in both the PSC and progenitors (compare Figure 6E and B, quantified in G, H). In contrast, expressing the extracellular catalase IRC (Immune-Related Catalase) (Ha et al., 2005) in PSC cells (col > IRC), did not prevent gstD-lacZ expression in the lymph gland (Figure 6—figure supplement 1D). Likewise, PSC downregulation of the membrane NADPH oxydase enzymes Duox (dual oxydase) (col > Duox RNAi) or Nox (col > Nox RNAi) (Bae et al., 2010), able to generate extracellular ROS, did not prevent gstD-lacZ upregulation in PSC cells (Figure 6—figure supplement 1B,C). Altogether, these results indicate that following parasitism, ROS are intrinsically produced by PSC cells, which in turn leads to oxidative stress in lymph gland progenitors. Switching off the Toll/NF-κB pathway in PSC cells (col > cact > Dif RNAi) has no effect on gstD-lacZ expression 6 hr post-parasitism (compare Figure 6F and B, quantified in G and H), indicating that the increase of ROS levels does not require Toll/NF-κB activity. In contrast, scavenging ROS in PSC cells both suppresses D4-lacZ expression in progenitors and its upregulation in the PSC (Figure 6I–K), leading us to conclude that Toll/NF-κB activation in PSC cells is a response to increased ROS levels in these cells. To confirm the epistatic relationship between ROS and Toll/NF-κB in PSC cells, we simultaneously reduced ROS levels and activated Toll/NF-κB, through the expression of a constitutively active form of the Toll receptor (Toll10B) in PSC cells (col > catalase > Toll10B). A partial rescue of lymph gland dispersal was observed (Figure 6L). These data indicate that, in response to wasp egg laying, ROS level increase in PSC cells leads to Toll/NF-κB activation and lymph gland dispersal.

Figure 6 with 3 supplements see all

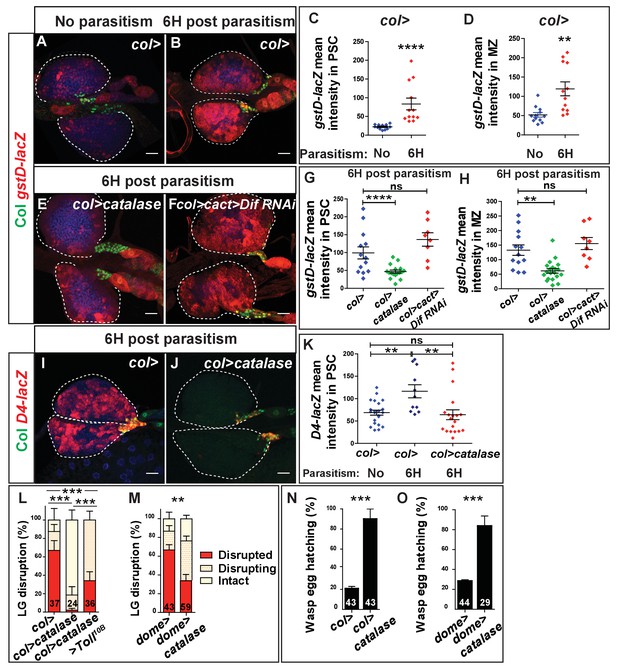

Wasp-mediated oxidative stress promotes Toll/NF-kB activation in the PSC and lymph gland disruption.

(A, B, E, F) LacZ (red) and Col (green) immunostaining in gstD-lacZ expressing lymph glands in wt context (col>; A, B), when Catalase is expressed in the PSC (col > catalase) (E) and when Toll/NF-kB is inactivated in PSC cells (col > cact > Dif RNAi)(F). (C, D, G, H) Quantifications of gstD-lacZ mean intensity in PSC and progenitor (MZ) cells. Error bars represent SDs. **p<0.01, ****p<0.0001 and ns (not significant) (Mann-Whitney nonparametric test). (I, J) LacZ (red) and Col (green) immunostaining in D4-LacZ expressing lymph glands in wt (col>) (I) and when an intracellular catalase is expressed in the PSC (col > catalase) (J). (K) Quantifications of D4-lacZ mean intensity in PSC cells. **p<0.01 and ns (not significant) (Mann-Whitney nonparametric test). (L–M) Quantifications of lymph gland disruption post parasitism. (N,O) Quantification (%) of wasp egg hatching. Error bars correspond to SEM, **p<0.01, ***p<0.001 (Pearson’s Chi-squared test).

https://doi.org/10.7554/eLife.25496.031

Since 6 hr post parasitism gstD-lacZ is expressed in all lymph gland cells, we examined in which cells modifying ROS levels could affect the immune response. Decreasing ROS levels either in the PSC (col > catalase) or in progenitors (dome > catalase) delay lymph gland lamellocyte differentiation (Figure 6—figure supplement 2), postpone lymph gland rupture (Figure 6L,M; Figure 6—figure supplement 3A–C) and enhance wasp egg hatching (Figure 6N,O). Thus, increased ROS levels in both PSC cells and progenitors following parasitism are essential for the mounting of an efficient lymph gland response and for wasp egg encapsulation.

Toll/NF-κB and EGFR/Erk pathways act in parallel to trigger lymph gland disruption

The incomplete rescue of lymph gland dispersal when simultaneously scavenging ROS and activating Toll/NF-κB signaling in PSC cells, suggested that additional signaling pathway(s) act downstream of ROS. One obvious candidate is EGFR/Erk which is required for wasp egg encapsulation (Sinenko et al., 2011). According to the authors, increased ROS levels in PSC cells, in response to wasp parasitism, lead to the secretion of Spitz (sSpi) into the hemolymph, which activates EGFR/Erk signaling in circulating hemocytes and triggers their differentiation into lamellocytes. However, a direct role of EGFR activation in lymph gland progenitors was not ruled out. We therefore looked at phosphorylated ERK (p-ERK), an EGFR activation readout (Sinenko et al., 2011). Whereas p-ERK was not, or barely, detected in the lymph gland under normal conditions (Figure 7A–A’’), it was detected in lymph gland progenitors 6 hr post parasitism, indicating EGFR activation (Figure 7B–B’’). Furthermore, decreasing Spitz expression in the PSC (antp >spi RNAi) or down-regulating the EGFR pathway in lymph gland progenitors, by expressing a dominant-negative form of the EGFR receptor (dome > EgfrDN), delays lymph gland dispersal post-parasitism (Figure 7C,D; Figure 6—figure supplement 3D–F). Collectively, these data indicate that, in response to parasitism, the EGFR pathway is activated in lymph gland progenitors, leading to lymph gland dispersal.

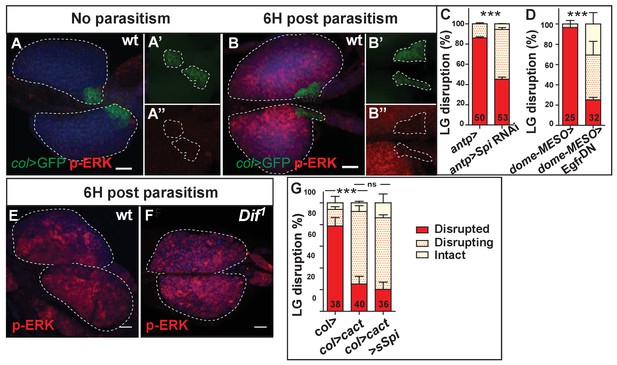

Epistatic relationships between EGFR/Erk and Toll/NF-κB signaling.

(A, B) p-ERK (red) immunostaining in col > GFP (PSC, green) larvae. (A’, A”, B’, B”), enlarged views of PSC cells. (C, D) Quantifications of lymph gland disruption post parasitism. (E, F) p-ERK (red) immunostaining in wt (E) and Dif1 (F) mutant lymph glands. (G) Quantifications (%) of lymph gland disruption post parasitism. Error bars correspond to SEM, ***p<0.001, ns (not significant) (Pearson’s Chi-squared test).

https://doi.org/10.7554/eLife.25496.040

For proper timing of lymph gland dispersal in response to parasitism, EGFR and Toll/NF-κB pathways are required in progenitors and PSC cells, respectively. This raised the question of whether these two pathways are functionally connected. We therefore tested whether Toll/NF-κB activation in PSC cells controls Spitz expression, by looking at p-ERK expression in progenitors of parasitized Dif1 mutant larvae. No significant difference with controls was observed (Figure 7E,F), indicating that Toll/NF-κB activation is not required for EGFR activation. Second, we reciprocally tested whether expressing sSpi in PSC cells could rescue the lymph gland dispersal delay observed upon Toll/NF-κB inactivation in the PSC. Simultaneous overexpression of sSpi and inactivation of Toll/NF-κB in PSC cells (col > cactus > sSpi) did not rescue the lymph gland dispersal defect (Figure 7G), leading us to conclude that Toll/NF-κB and EGFR pathways act in parallel.

Discussion

Toll/NF-κB signaling is well known in Drosophila for its roles in embryonic dorsal/ventral axis formation and in the humoral innate immune response (Lemaitre and Hoffmann, 2007; Moussian and Roth, 2005). In mammals, it plays important roles in various aspects of innate and adaptive immunity (Espín-Palazón and Traver, 2016). Toll/NF-κB function in the Drosophila cellular response induced by wasp parasitism, although long reported (Qiu et al., 1998; Sorrentino et al., 2004), has only recently started to be investigated in some detail (Gueguen et al., 2013; Schmid et al., 2014). Inactivation of the pathway in two immune tissues, namely the fat body and hemocytes, did not impact on either wasp egg encapsulation or lymph gland lamellocyte differentiation and disruption (Schmid et al., 2014) (data not shown). Thus, when and in which cells Toll/NF-κB signaling is activated and required to fight wasp infection remained unknown. Here, we provide evidence that in response to Leptopilina boulardi parasitism, activation of Toll/NF-κB signaling in PSC cells non cell-autonomously controls the timing of wasp-induced lymph gland dispersal and the release of lymph gland lamellocytes into circulation, both required to prevent wasp egg hatching. Toll/NF-κB activation in PSC cells is dependent on both an increase in ROS levels in these cells, and the expression of SPE which cleaves the ligand Spz. Our data show that EGFR pathway activation in lymph gland progenitors is also required for on time lymph gland dispersal. This activation is mediated by the secretion of Spitz from PSC cells, itself dependent upon ROS signaling. In conclusion, our data identify a signaling cascade that links the PSC response to wasp parasitism to lymph gland lamellocyte differentiation, lymph gland disruption and wasp egg neutralization (Figure 8).

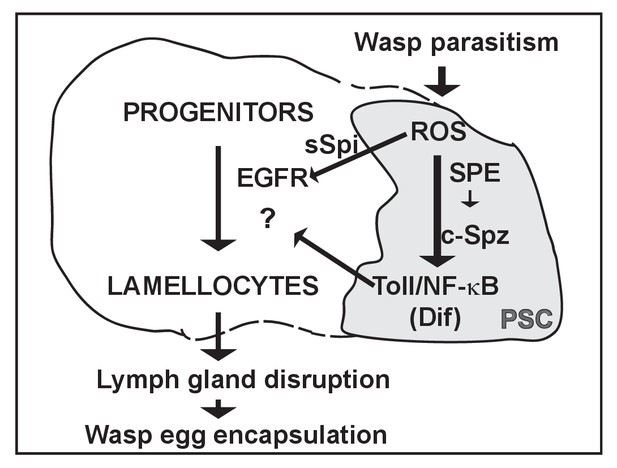

Proposed gene regulatory network that controls lymph gland rupture upon wasp parasitism.

The PSC is drawn in grey. Wasp parasitism increases ROS in PSC cells that activate Toll/NF-κB and Spitz secretion (sSpi). Toll/NF-kB activation in PSC cells requires SPE in the same cells for Spätzle processing (c-Spz). sSpi non cell-autonomously activates the EGFR pathway in lymph gland progenitors. Both EGFR and Toll/NF-κB activation are required for lymph gland lamellocyte differentiation, lymph gland disruption and wasp egg encapsulation.

https://doi.org/10.7554/eLife.25496.044

In the absence of parasitism, hemocyte homeostasis in the lymph gland relies on various signaling pathways active in progenitors and/or differentiating hemocytes, including Hedgehog, Wnt, Pvf and JAK/STAT (for review see Letourneau et al., 2016). Previous work established that downregulation of Col expression or JAK/STAT signaling in progenitors, is a prerequisite for wasp-induced lamellocyte differentiation in the lymph gland (Makki et al., 2010; Oyallon et al., 2016). Our present data show that increasing ROS levels in PSC cells, in response to parasitism, leads to activation of Toll/NF-κB and EGFR signaling in the PSC and hematopoietic lymph gland progenitors, respectively, and that both signaling events are required for timely lamellocyte differentiation. How EGFR signaling, a signal downstream of NF-κB integrates with other signaling pathways active in hematopoietic progenitors, remains to be addressed.

Surviving wasp parasitism is dependent on the ability of the Drosophila larva to reroute basal hematopoiesis and produce, in a timely manner, lamellocytes to neutralize wasp eggs before they hatch in the fly larva. Here, we establish a critical function of Toll/NF-κB signaling in PSC cells in ensuring the proper timing of lamellocyte differentiation and lymph gland disruption in response to parasitism. This temporal control is essential for a successful neutralization of the wasp egg. Drosophila lamellocytes have been reported to differentiate both from sessile/circulating hemocytes of embryonic origin, and from larval lymph gland progenitors (Anderl et al., 2016; Crozatier et al., 2004; Honti et al., 2010; Lanot et al., 2001; Márkus et al., 2009; Sorrentino et al., 2002; Stofanko et al., 2010). This dual origin poses questions as to the relative contributions of these two lamellocyte sources to successful wasp egg encapsulation. We found that, while few lamellocytes are found in circulation before lymph gland disruption, after disruption, their number sharply increases, constituting nearly half of all circulating hemocytes. We further observed that delaying lymph gland disruption impairs the success of wasp egg encapsulation. Altogether, these data indicate that the release of lymph gland lamellocytes is paramount for successful wasp egg neutralisation. One independent study concluded that the sessile compartment is the major source of lamellocytes necessary for fighting parasitism, although melanisation of wasp eggs rather than their hatching was examined (Márkus et al., 2009). In addition, the authors reported a substantial delay of lymph gland disruption (i.e. 48 hr post-wasp egg deposition) in their control condition, compared to 20 hr in our study. The discrepancy between their and our present conclusions could therefore, in part, reflect the use of different conditions for wasp infestation, including the time and/or the temperature since the time scale of lymph gland disruption is highly dependent on temperature (Figure 2—figure supplement 2), or the use of distinct fly genetic backgrounds (Sorrentino et al., 2004). Here, we have investigated the success of wasp egg hatching in different conditions, and our data establish a functional link between timely differentiation of lamellocytes in the lymph gland, their release into circulation and efficient wasp egg neutralization.

In Drosophila, Gram-positive or fungal infections trigger the activation of the Toll/NF-κB pathway, leading to the systemic production of antimicrobial peptides by the fat body, a functional equivalent of the mammalian liver (Lemaitre and Hoffmann, 2007). The antifungal peptide Drosomycin, one main effector of the Toll humoral response, is directly regulated by NF-κB (Ferrandon et al., 1998). We have shown here that wasp parasitism activates Toll/NF-κB in the lymph gland. Drosomycin-GFP expression was, however, not observed in response to wasp parasitism in the lymph gland (Figure 3—figure supplement 1E,F), in agreement with previous observations that antimicrobial peptides are not produced in larvae under these conditions (Nicolas et al., 1996). This suggests that Dif target genes activated in the lymph gland under parasitism are specific to this response. Among these targets, identifying which one(s) code for signal(s) required to trigger efficient lamellocyte differentiation in the lymph gland is of primary interest. Indeed, we found that it directly impacts the timing of lymph gland dispersal. A recent study established that constitutive activation of Toll/NF-κB in PSC cells impairs the permeability barrier of the PSC, possibly facilitating diffusion of signal(s) from the PSC to lymph gland progenitors (Khadilkar et al., 2017). Whether modification of the permeability barrier is also triggered by Toll/NF-κB signaling in PSC cells in response to parasitism to promote lamellocyte differentiation in the lymph gland remains to be investigated.

Oxidative stress, in particular reactive oxygen species (ROS), regulates hematopoiesis both in mammals and in Drosophila (Ludin et al., 2014; Owusu-Ansah and Banerjee, 2009; Sinenko et al., 2011). In mammals, there is a complex interplay between ROS and NF-κB signaling during this process. Oxidative stress can either affect IκB kinase complex (IKK) activity in the cytoplasm or NF-κB DNA-binding capacity in the nucleus (Gupta et al., 2014; Siomek, 2012). In the fly lymph gland, increased ROS levels are observed in both the PSC and hematopoietic progenitors in response to parasitism. ROS increase in lymph gland progenitors, which could reflect changes in cell metabolism since progenitors actively divide as an immediate response to parasitism (Krzemien et al., 2010b; Sorrentino et al., 2002), is dependent on ROS production by PSC cells. ROS-induced signaling in both PSC cells and progenitors is required to trigger wasp-induced dispersal of the lymph gland and release of lamellocytes into circulation. This ROS effect is both relayed by Toll/NF-κB activation in PSC cells and EGFR activation in lymph gland progenitors (Sinenko et al., 2011). ROS-dependent Toll/NF-κB activation, following infection by the Wolbachia bacteria, was reported in the mosquito Aedes aegypti, but the mechanism involved was not defined (Pan et al., 2012). How can an oxidative burst in PSC cells lead to Toll/NF-κB activation in the same cells? ROS could control the production by PSC cells of secreted product(s) required for Spätzle activation, like SPE (Figure 5). Alternatively, Spätzle activation could be independent of the oxidative stress in PSC cells, and ROS could regulate intracellular steps of Toll/NF-κB activation, like the DNA-binding properties of NF-κB, as previously reported in mammals (Gloire et al., 2006). What type of regulation is operational remains to be determined.

In mammals, systemic bacterial infection induces an ‘emergency granulopoiesis’ characterized by de novo production of neutrophils in the bone marrow (Zhao and Baltimore, 2015). In this process, the TLR (Toll-like Receptors)/NF-κB pathway is activated via TLR4 in mouse bone marrow endothelial cells, a component of the vascular niche (Boettcher et al., 2014). The cellular immune response to parasitism in Drosophila can be compared to an emergency hematopoiesis. Establishing that Toll/NF-κB activation in the Drosophila hematopoietic niche is essential for this response extends the evolutionary parallels between Drosophila and mouse to the control of stress-induced hematopoiesis. The role of the EGFR pathway in mammalian hematopoiesis is largely unknown (Kerpedjieva et al., 2012). It will be important to determine whether the regulatory network uncovered here in Drosophila, in which ROS dually regulate EGFR and Toll/NF-κB signaling, also operates in vertebrates under emergency hematopoiesis.

Materials and methods

Fly strains

w1118 (wild type, wt), pcol-Gal4, UAS-mCD8-GFP and PG125dome-gal4 (Jung et al., 2005; Krzemień et al., 2007), Antp-gal4 (Mandal et al., 2007), Df(2L)J4 (Meng et al., 1999); gstD-lacZ (Wang et al., 2003), UAS-sSpi (Sudarsan et al., 2002), UAS-EgfrDN (Saxena et al., 2014), D4-lacZ on the third chromosome (Flores-Saaib et al., 2001). A D4-lacZ insertion on the second chromosome, at the integration site attP-51B (II), was generated in this study by re-injecting the original D4/hsp70 construct (Flores-Saaib et al., 2001; Pan and Courey, 1992). UAS-Cact was a gift from S. Govind (The Graduate School and University Center of The City University of New York, New York, USA). The isogenic (iso) strains, w1118, Dif1, pll2, pll21, dl1, Tlrv1, Tlr (Ferreira et al., 2014) were kindly given by Luis Teixeira; modSP1, psh1, double modSP1; psh1 mutant, UAS-Duox RNAi, UAS-Nox RNAi and UAS-IRC by Bruno Lemaitre. Other Drosophila strains were obtained from the Bloomington (BL) stock center: pll2 (BL3111), pll7 (BL3112), Dif1 (BL36559), dl1 (BL3236), spzrm7 (BL55718) (Tzou et al., 2002), UAS-catalase (BL24621), UAS-Toll10B (BL58987)(Schneider et al., 1991), UAS-pll RNAi (BL34733 and BL3577) (Wu et al., 2015), UAS-Dif RNAi (BL30513), or from the Vienna Drosophila RNAi stock center (VDRC): UAS-spi RNAi (3922) (Chen et al., 2016), UAS-Myd88 RNAi (25402) (Schmid et al., 2014), UAS-latran RNAi (19756 and 100881) (Kallio et al., 2010); UAS-SPE RNAi (Jang et al., 2006). For all RNAi experiments, UAS-Dicer2 (BL24650) was introduced and Drosophila development proceeded at 22°C until L1 stage, before shift to 29°C. Controls correspond to Gal4 drivers crossed with w1118.

Generation of dome-MESO-Gal4 transgenic lines

The dome-MESO sequence from pCasHs43DomeMESO-lacZ (Rivas et al., 2008) was sub-cloned into the Gal4 pBPGUw (17575, Addgene). The resulting plasmid was used to generate dome-MESO-Gal4 (dome-MESO>) transgenic flies using attP/attB technology (Bischof et al., 2007). Two independent Drosophila lines were created by integration at the attP-51B (II) and attP-68A4 (III) sites. domeMESO-Gal4 > GFP-positive cells overlapped with domeless-Gal4 > GFP (PG125; [Krzemień et al., 2007]) progenitors in lymph gland anterior lobes at L3 stage. At L2 stage, in addition to its expression in progenitors, a weak and transient expression was also detected in a subset of PSC cells.

Immunostaining

Lymph glands were dissected and processed as previously described (Krzemień et al., 2007). Antibodies used were rabbit anti-αPS4 (1/200) (Krzemień et al., 2007), mouse anti-Col (1/100) (Krzemień et al., 2007), rabbit anti-Dif (1/500, gift from D. Ferrandon), rabbit anti-Trol (1/1000, gift from S. Baumgartner), chicken anti-βgal (1/1000, Abcam), mouse anti-diphosphorylated Erk kinase (pERK) antibody (1/100, Sigma-Aldrich), mouse anti-β Integrin (Developmental Studies Hybridoma Bank, CF.6G11c, 1/100) (Irving et al., 2005). Nuclei were labeled with TOPRO3 (Thermo Fisher Scientific, Waltham, USA) or Draq5 (Thermo Fisher Scientific). Images were captured using a Zeiss 710 or a Leica SP8 confocal microscope. Three independent biological replicates were analyzed, and one representative image of at least 20 lymph glands analyzed is shown.

Wasp parasitism, lymph gland rupture and wasp egg hatching assays

Late second instar or early third instar Drosophila larvae raised at 27°C or 29°C (for RNAi experiments) were subjected to parasitism for 1 hr at 22°C by Leptopilina boulardi (G486 avirulent strain; [Russo et al., 1996]). Larvae were allowed to develop further at 27°C or 29°C before dissection 6, 20, 30, or 48 hr post-parasitism. Quantification of lymph gland dispersal and wasp egg hatching was performed in un-fixed infected larvae. Quantification of lymph gland dispersal was performed 20 hr post-parasitism for the isogenic strains, modSP1, psh1 mutants, double modSP1; psh1 mutant, col> , dome> , domeMESO> and antp> lines or 30 hr post-parasitism for wt, Dif1, pll2/pll7, dl1, spzrm7, +/Df(2L)J4, dl1/Df(2L)J4 and Dif1/Df(2L)J4 mutants. Lymph glands were classified into three groups: disrupted when anterior lobes were absent or rudimentary, disrupting when some cells had escaped the anterior lobes, or intact when the anterior lobe border was regular. The percentage of lymph gland dispersal was calculated by scoring the number of lymph glands in each group, divided by the total number of infected larvae. Wasp egg hatching was analyzed 48 hr post-parasitism and the number of fly larvae containing melanized/unhatched wasp eggs or living hatched wasp larvae, was counted. The % of wasp egg hatching was calculated by scoring the number of living hatched wasp larvae inside the body of the dissected fly larvae, divided by the total number of infected fly larvae. In all experiments, genotypes were analyzed in parallel. Each experiment was repeated independently at least three times, and quantification represents the mean of three independent biological replicates. Graphs and statistical analyses t-test (Mann–Whitney nonparametric test) were performed using GraphPad Prism five software.

Larval bleeding and hemocyte counting

Individual parasitized larvae were bled on microscope coverslips. Hemolymph samples were dried 10 min, fixed for 10 min in 4% paraformaldehyde in 1XPBS, then stained 2 hr with Phalloidin (1/100; Sigma). Samples were mounted in Vectashield (Vector Laboratories) and examined using a Leica SP8 confocal microscope. In parallel, each larva was examined for lymph gland disruption. At least 10 independent bleedings corresponding to intact or disrupted lymph gland larvae were analyzed for control (hml>) and Dif1 mutant, and 4 and 3 samples, respectively, were quantified. The percentage of lamellocytes and plasmatocytes was calculated relative to the total number of circulating hemocytes. Lamellocytes are easily distinguishable from plasmatocytes by their elongated shape and large size.

Quantification of expression intensity

Expression intensities of D4-lacZ and gstD-lacZ reporters in PSC cells were quantified using Fiji software as described previously (Morin-Poulard et al., 2016). Briefly, ROIs (Regions Of Interest) corresponding to PSC cells, labeled by Col, were defined, and the mean intensity of reporter staining by pixel in each ROI was quantified. For quantifying expression intensity in lymph gland progenitors (gstD-lacZ), representative areas of reporter staining were defined as ROIs in each lymph gland primary lobe, and the mean intensity by pixel was quantified using Fiji software. For each experiment, middle slides of a Z stack were analyzed. In all experiments, genotypes were analyzed in parallel. Each experiment was repeated independently at least three times, and one quantification is shown. Graphs and statistical analyses t-test (Mann–Whitney nonparametric test) were performed using GraphPad Prism five software.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
    Activation and repression by the C-terminal domain of Dorsal
    1. RD Flores-Saaib
    2. S Jia
    3. AJ Courey
    (2001)
    Development 128:1869–1879.
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
    The same dorsal binding site mediates both activation and repression in a context-dependent manner
    1. D Pan
    2. AJ Courey
    (1992)
    The EMBO Journal 11:1837–1842.
  55. 55
  56. 56
    A role for the Drosophila Toll/Cactus pathway in larval hematopoiesis
    1. P Qiu
    2. PC Pan
    3. S Govind
    (1998)
    Development 125:1909–1920.
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
    NF-κB signaling pathway and free radical impact
    1. A Siomek
    (2012)
    Acta Biochimica Polonica 59:323–331.
  64. 64
  65. 65
  66. 66
  67. 67
    A genetic hierarchy establishes mitogenic signalling and mitotic competence in the renal tubules of Drosophila
    1. V Sudarsan
    2. S Pasalodos-Sanchez
    3. S Wan
    4. A Gampel
    5. H Skaer
    (2002)
    Development 129:935–944.
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74

Decision letter

  1. Bruno Lemaître
    Reviewing Editor; Ecole Polytechnique Fédérale de Lausanne, Switzerland

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Reactive oxygen species-dependent Toll/NF-κB activation in the Drosophila hematopoietic niche confers immune resistance" for consideration by eLife. Your article has been reviewed by four peer reviewers, one of whom, Bruno Lemaitre, is a member of our Board of Reviewing Editors, and the evaluation has been overseen by K VijayRaghavan as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Élio Sucena.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted a list of essential changes that would make this work attractive for publication in eLife. A substantial amount of revision has been required.

Summary:

The manuscript of Louradour et al. reveals a new role of the Toll pathway in the disruption of the Drosophila lymph gland (LG) and the differentiation of lamellocytes from the LG. It provides new insights on the mechanism of encapsulation, which is an important immune defense mechanism against parasitoid wasps. The main conclusion is that a wasp infection triggers a burst of ROS in the posterior signaling center (PSC) of the lymph gland, which results in Toll activation in the PSC and in hemocyte progenitors of the LG. It additionally leads to the production of Spitz, a ligand of the EGFR-pathway. Both pathways are involved in the rupture of the lymph gland and the differentiation of lamellocytes. Nevertheless, the mechanisms by which the Toll pathway is activated and how it mediates its effect remain elusive.

While the general function for Toll/NF-κB signaling has been studied in a number of publications previousl. This study has some strengths that go beyond the initial correlations of the pathway activity with phenotypes and could therefore make an interesting advance for publication at eLife. Yet, for this to be so some open questions need to be addressed and the presentation/focus of the paper must be significantly improved. The manuscript therefore has potential, with appropriate additions and modifications but these need to be robustly addressed.

Essential revisions:

1) The Toll pathway mutants used in this study have different genetic backgrounds. To avoid any background effect (and taking in consideration that the Dif mutation has been subjected to reevaluation (Le Bourg 2011)), I would recommend the authors to use isogenic fly stocks. Importantly, isogenic fly stocks for Dif, pll and dl have already been produced by the Teixeira lab (Ferreira, 2014). In addition, it would be interesting to know if silencing Toll itself gave the same phenotype as silencing of the downstream components and SPE? Although it sounds trivial, this may be an important question to understand the upstream regulation of the pathway in the PSC.

2) What remains unclear is whether mutants or knockdowns of the Toll pathway components indeed block the response altogether, or rather delay the response? This should be addressable by examining the LG at later time points following wasp egg parasitism. In the same line, it would be interesting to know what the contribution of the Toll pathway in the disruption of the LG at the early pupal stage is.

3) Lamellocytes can originate from both sessile/circulating hemocytes and the lymph gland. The authors make the point that this study proves that the LG is a major source of lamellocytes, somewhat contrasting a previous publication by Markus et al. showing that the lamellocyte response can be largely mediated by the embryonic lineage of hemocytes in the larva. This statement is a little difficult to take for granted if the authors do not provide any data of embryonic lineage hemocytes in the larva, in parallel to the LG data. Compared to the LG differentiation, when do the authors find lamellocyte differentiation of the embryonic lineage (assuming that is occurs at some point)? Can the authors describe what might be the difference between their own experiments and the study by Markus et al.? For example, is there a difference in the nutritional status or temperature under which the experiments are being carried out? Clarifying these apparently contradicting points would be important to consolidate the findings from the different labs and thereby provide much needed insight and important guidelines for researchers in the field. This is especially important since many GAL4 line have broader expression pattern than expected. Thus, it could not be excluded that the phenotype observed (lack of encapsulation) is also linked to a defect in sessile/circulating hemocytes. Therefore, the authors should analyze lamellocyte differentiation in the hemolymph compartment (and more globally the state of the sessile/circulating hemocyte compartments). It would be interesting to decipher the respective function of Toll in the PSC, LG progenitors, circulating/sessile hemocytes and the fat body in the cellular response by using specific driver. Can lamellocyte differentiation be blocked by silencing Toll activity in circulating/sessile hemocytes or in the fat body? Such an experiment will add a lot in our understanding of the cellular response.

4) The authors use wasp production as readout for the effectiveness of the lamellocyte/encapsulation response. While presumably other immune cell types also play a role, this may nevertheless be a reasonable measure to quantify the response.

Since this seems a readout that is not used routinely in many papers, it would be helpful to emphasize the strategy and establish this assay formally in the manuscript. In later figures, this could then be used as a reference point. More precisely, is the first set of experiments meant to establish a strict relationship, sequentially linking lamellocyte differentiation and numbers in the lymph gland, to the rate of lymph gland breakdown and to encapsulation success? If so, this must be declared explicitly because it justifies why the rest of the experiments only measure the latter two. From Figures 12 onwards, lamellocytes are no longer quantified and there is an assumption that success of encapsulation and/or lymph gland breakdown correlates with the hematopoietic control, namely lamellocyte differentiation. Although this assumption might be correct it must be declared and sustained in a more explicit manner.

5) Mechanism of Toll activation: The authors should provide more information on the mechanism of Toll activation in the PSC. According to current model, Spz and SPE need to be cleaved by a serine protease. Is the activation of the Toll pathway dependent of Psh, ModSP, or PGRP-SA/GNBP1? All the mutants to test this hypothesis are available including Psh, ModSp double mutants.

6) The source of ROS could be identified as good RNAi lines exist for Duox or Nox. ROS could be visualized using a Kit. The catalase used is expressed intracellularly. Can they reproduce the phenotype by using an extra cellular catalase? How can an intracellular ROS burst lead to the activation of an extracellular serine protease?

7) It is unclear whether the role of Toll in the PSC is to promote the rupture of the LG or to stimulate the differentiation of lamellocyte, the latter inducing the rupture of the lymph gland. Can they separate the two processes? This point requires at least further discussion. What is the function of Toll pathway activation in progenitor cells?

8) Many figures lack statistical analysis.

Figure 1: and every other disruption quantification lacks statistical analysis. As convincing as they are, a simple χ2 on the raw numbers should provide unequivocal confirmation of the statements made. Idem for Figure 1: in panels L-Q there is no quantification of lamellocytes comparing the different conditions.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Reactive oxygen species-dependent Toll/NF-κB activation in the Drosophila hematopoietic niche confers resistance to wasp parasitism" for further consideration at eLife. Your revised article has been favorably evaluated by K VijayRaghavan (Senior editor), a Reviewing editor, and two of the three original referees. The decision is to request specific revisions to increase the robustness of your findings. Details are included below and these issues need to be addressed before we recommend acceptance.

Essential Revisions

1) Figure 1 (after N-Q), it is important to show an image or quantification showing lymph gland disruption in Dif and Pell mutant at 48h.

2) Psh and ModSp (Figure 5—figure supplement 1) the double mutant should be included. The role of Psh should be investigated in the context of LG disruption and not only in the context of wasp encapsulation. The phenotype could be explained by a role of Psh in the melanization reaction around the wasp and not LG disruption.

3) Do a deficiency in ROS or EGF-R block LG dispersal or just delay the process like a Toll mutant? The authors assume the effect is the same, which seems like a reasonable assumption given the relationship they have between the pathways. Nevertheless the paper will be reinforced if they can document this

4) Reading the revised version, the reviewers better realize that Toll mutants do not block lymph gland dispersal but rather delay it. This was not so clear in the original version since the authors focus at the 30h time point. We encourage the authors to highlight this point throughout the paper and discuss it in the Discussion.

Discussion should underline the following points:a) How the Lymph gland disrupt in Toll deficient mutant? It is important to underline that the processed is delayed but not block.b) How an intracellular burst of ROS can lead to the activation of extracellular serine protease cascade?

https://doi.org/10.7554/eLife.25496.046

Author response

Essential revisions:

1) The Toll pathway mutants used in this study have different genetic backgrounds. To avoid any background effect (and taking in consideration that the Dif mutation has been subjected to reevaluation (Le Bourg 2011)), I would recommend the authors to use isogenic fly stocks. Importantly, isogenic fly stocks for Dif, pll and dl have already been produced by the Teixeira lab (Ferreira, 2014). In addition, it would be interesting to know if silencing Toll itself gave the same phenotype as silencing of the downstream components and SPE? Although it sounds trivial, this may be an important question to understand the upstream regulation of the pathway in the PSC.

We have now studied lymph gland disruption and wasp egg hatching in the isogenic mutants for Dif, pll, dl as well as Toll, generated by Teixeira and col. This analysis confirmed our previous results for dif, pll and dl mutants which were generated in different genetic backgrounds, and further confirmed that Toll is required for wasp encapsulation as previously reported by Sorrentino et al., 2004. These additional data are reported in Figure 1—figure supplement 2, Figure 2—figure supplement 1 and in the Results section.

2) What remains unclear is whether mutants or knockdowns of the Toll pathway components indeed block the response altogether, or rather delay the response? This should be addressable by examining the LG at later time points following wasp egg parasitism. In the same line, it would be interesting to know what the contribution of the Toll pathway in the disruption of the LG at the early pupal stage is.

This is an important point. In all mutants and knock down conditions where we observed a delay in the response of the lymph gland to wasp egg laying, e.g., lamellocyte differentiation and disruption, the hematopoietic organ ultimately disrupts. This indicates that knocking down the Toll pathway does not block the lymph gland response but induces a delay in this response. These data are now reported in Figure 1—figure supplement 1 and in the Results section.

3) Lamellocytes can originate from both sessile/circulating hemocytes and the lymph gland. The authors make the point that this study proves that the LG is a major source of lamellocytes, somewhat contrasting a previous publication by Markus et al. showing that the lamellocyte response can be largely mediated by the embryonic lineage of hemocytes in the larva. This statement is a little difficult to take for granted if the authors do not provide any data of embryonic lineage hemocytes in the larva, in parallel to the LG data. Compared to the LG differentiation, when do the authors find lamellocyte differentiation of the embryonic lineage (assuming that is occurs at some point)?

We now analysed the percentage of lamellocytes (relative to total hemocytes) in the hemolymph of individual parasitized larvae prior to, and immediately after, lymph gland dispersal. For this analysis, we first determined for each genotype analyzed (the hml> control and Dif1 mutant) the time window of lymph gland disruption and performed individual bleeding of larvae in this time window. Second, and this is crucial, we dissected each bled larva to check for 1) the presence of a wasp egg (confirming that it has been infected) and 2) the status of the lymph gland (intact or disrupted). The hml> control and Dif1 mutant displayed different timings of lymph gland disruption (20H and 30H post parasitism, respectively). Only few circulating lamellocytes (less than 10% of all circulating hemocytes), most likely differentiating from embryonic sessile/circulating hemocytes, were observed before lymph gland disruption in both the control and mutant strains. The percentage of circulating lamellocytes increased sharply when lymph glands started disrupting to reach >50% of all circulating hemocytes after full disruption. We were thus able to conclude that lymph gland disruption contributes a major fraction of circulating lamellocytes post parasitism. These additional data are provided in Figure 2 and described in subsection “Lymph gland lamellocytes are required for successful wasp egg encapsulation”.

Can the authors describe what might be the difference between their own experiments and the study by Markus et al.? For example, is there a difference in the nutritional status or temperature under which the experiments are being carried out? Clarifying these apparently contradicting points would be important to consolidate the findings from the different labs and thereby provide much needed insight and important guidelines for researchers in the field.

Markus et al., 2009 have reported that lymph gland anterior lobes remain intact until 48H post parasitism in a “control” Hemese-GAL4, UAS-GFP.nls strain. They performed wasp infection overnight, at 18°C. In our hands also, when parasitized larvae are grown at 18°C, lymph gland disruption is delayed compared to larvae grown at 27°C or 29°C, somewhat expectedly since larval development altogether is slower. In our assays, wasp infection was allowed for only 1H at 22°C and then the larvae were grown either at 27°C or at 29°C. We observed that control lymph glands disperse from 20H post parasitism onwards and at the latest 30H post parasitism, depending on the genetic background. More importantly, Markus et al. did not perform, as we did, any wasp egg hatching assay in their conditions. Such a test is crucial to validate that the kinetics of lamellocyte differentiation allow successful wasp egg encapsulation.

In the revised version of the manuscript, we have added data relative to the delay of the lymph gland response when larvae are grown at 18°C, in subsection “Lymph gland lamellocytes are required for successful wasp egg encapsulation” and Figure 2—figure supplement 2. In addition, we have discussed in paragraph three of the Discussion our data relative to those previously published by Markus et al.

This is especially important since many GAL4 line have broader expression pattern than expected. Thus, it could not be excluded that the phenotype observed (lack of encapsulation) is also linked to a defect in sessile/circulating hemocytes.

We impaired lymph gland lamellocyte differentiation and lymph gland disruption using the two drivers domeMESO> (domeMESO> lat RNAi) and dome> (dome>catalase) which are expressed in lymph gland progenitors and not in sessile/circulating hemocytes (data not shown). In these two contexts, an enhancement of wasp egg hatching was observed, supporting the conclusion that successful host defense against wasp parasitism is linked to the lymph gland response. These data are provided in Figures 2 and 6.

Therefore, the authors should analyze lamellocyte differentiation in the hemolymph compartment (and more globally the state of the sessile/circulating hemocyte compartments).

As mentioned above in the response to point 3, we quantified the% of circulating lamellocytes in individual parasitized larvae and checked in parallel the status of lymph glands (intact or disrupted) (Figure 2D-I). Of note, a recent paper (Anderl et al., 2016) from the lab of Dan Hultmark, (a co-author of Markus et al., 2009), established that no major change of sessile hemocyte organisation occurs in response to parasitism.

It would be interesting to decipher the respective function of Toll in the PSC, LG progenitors, circulating/sessile hemocytes and the fat body in the cellular response by using specific driver. Can lamellocyte differentiation be blocked by silencing Toll activity in circulating/sessile hemocytes or in the fat body? Such an experiment will add a lot in our understanding of the cellular response.

The function of the Toll pathway in the PSC and lymph gland progenitors is documented in Figure 4 and Figure 4—figure supplement 1, respectively. Schmid et al., 2014 investigated the requirement of the Toll pathway in the fat body and sessile hemocytes for wasp egg encapsulation. To inactivate the Toll pathway, they expressed Myd88 RNAi and pelle RNAi in the fat body and/or sessile/circulating hemocytes using the FB-Gal4 and Hml-Gal4 drivers, respectively. They measured the% of killed wasp parasites and wasp egg encapsulation (Figure 5 in Schmid et al., 2014). They concluded that the Toll pathway is not required in these two tissues for the response to wasp parasitism. We further addressed this question by analysing both lymph gland lamellocyte differentiation and lymph gland dispersal in parasitized larvae in which the Toll pathway is knocked down in either hemocytes (Hml-Gal4>Myd88 RNAi) or fat body (FB-Gal4> Myd88 RNAi). No effect was observed, indicating that the Toll pathway is not required in hemocytes or fat body for proper lymph gland response to parasitism. Since our data confirm Schmid et al. results, we did not include them in a supplementary figure but reported on them in the Discussion as data not shown.

4) The authors use wasp production as readout for the effectiveness of the lamellocyte/encapsulation response. While presumably other immune cell types also play a role, this may nevertheless be a reasonable measure to quantify the response.

Since this seems a readout that is not used routinely in many papers, it would be helpful to emphasize the strategy and establish this assay formally in the manuscript.

Wasp larvae production has been used as a functional test to measure wasp egg encapsulation in several other recent articles: Vanha-aho et al., 2015; Schmid et al., 2014; Mortimer et al., 2013,. These references are now added in the Results section to emphasize that this criterion is currently used by many labs.

In later figures, this could then be used as a reference point. More precisely, is the first set of experiments meant to establish a strict relationship, sequentially linking lamellocyte differentiation and numbers in the lymph gland, to the rate of lymph gland breakdown and to encapsulation success? If so, this must be declared explicitly because it justifies why the rest of the experiments only measure the latter two. From Figures 12 onwards, lamellocytes are no longer quantified and there is an assumption that success of encapsulation and/or lymph gland breakdown correlates with the hematopoietic control, namely lamellocyte differentiation. Although this assumption might be correct it must be declared and sustained in a more explicit manner.

This is a very important point, indeed. To challenge the assumption that lymph gland breakdown and encapsulation success correlate with lamellocyte differentiation in the lymph gland, we looked at lamellocyte differentiation in several genetic contexts where lymph gland dispersal is either impaired such as col>Myd88 RNAi or col>catalase, or similar to control such as dome>Myd88 RNAi. Our data allow us to conclude that encapsulation success and/or lymph gland breakdown correlate with lymph gland lamellocyte differentiation. This result is now better documented in Figure 4, Figure 4—figure supplement 2 and Figure 6—figure supplement 2, and stated more explicitly in the Results section.

5) Mechanism of Toll activation: The authors should provide more information on the mechanism of Toll activation in the PSC. According to current model, Spz and SPE need to be cleaved by a serine protease. Is the activation of the Toll pathway dependent of Psh, ModSP, or PGRP-SA/GNBP1? All the mutants to test this hypothesis are available including Psh, ModSp double mutants.

Following the suggestions of the reviewer, we performed wasp egg encapsulation assays in pshAnderl et al., 2016, modSPAnderl et al., 2016 and pshAnderl et al., 2016;modSPAnderl et al., 2016 double mutants. Whereas no defect was observed in modSPAnderl et al., 2016mutants, pshAnderl et al., 2016 and pshAnderl et al., 2016;modSPAnderl et al., 2016mutants failed to encapsulate wasp eggs. These new data on pshAnderl et al., 2016 and modSPAnderl et al., 2016mutants are shown in Figure 5—figure supplement 1 and mentioned in the Results section.

6) The source of ROS could be identified as good RNAi lines exist for Duox or Nox. ROS could be visualized using a Kit. The catalase used is expressed intracellularly. Can they reproduce the phenotype by using an extra cellular catalase? How can an intracellular ROS burst lead to the activation of an extracellular serine protease?

PSC ROS levels were analysed 6H post parasitism, in larvae where Duox or Nox were specifically downregulated in PSC cells (col>Duox RNAi and col>Nox RNAi, respectively) or where extracellular catalase was overexpressed (col>UAS-IRC). In none of these contexts did we observe a difference in ROS levels in PSC cells, indicating that they are generated by PSC cells. These new data are reported in Figure 6—figure supplement 1 and in the Results section. Deciphering how ROS activates Toll/NF-κB in PSC cells requires further considerable investigations and is out of scope in the present article.

7) It is unclear whether the role of Toll in the PSC is to promote the rupture of the LG or to stimulate the differentiation of lamellocyte, the latter inducing the rupture of the lymph gland. Can they separate the two processes? This point requires at least further discussion. What is the function of Toll pathway activation in progenitor cells?

We showed that Dif mutants exhibit a delay of lymph gland lamellocyte differentiation correlating with a delay in lymph gland dispersal (Figure 1). We have now analysed lymph gland lamellocyte differentiation when the Toll pathway is specifically inactivated in the PSC and, as reported in Dif mutants (see response to point 4), we found a delay in lymph gland lamellocyte differentiation associated with the defect of lymph gland disruption. Together, these data strongly suggest that Toll activation in the PSC promotes rapid differentiation of lamellocytes in the lymph gland that in turn leads to lymph gland dispersal.

8) Many figures lack statistical analysis.

Figure 1: and every other disruption quantification lacks statistical analysis. As convincing as they are, a simple χ2 on the raw numbers should provide unequivocal confirmation of the statements made. Idem for Figure 1: in panels L-Q there is no quantification of lamellocytes comparing the different conditions.

As recommended by the reviewer, we performed χ2 tests on all lymph gland disruption and wasp egg hatching assays as well as in Figure 1; panels L-Q. These data were added in the revised version.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Essential Revisions

1) Figure 1 (after N-Q), it is important to show an image or quantification showing lymph gland disruption in Dif and Pell mutant at 48h.

We have added images of lymph gland disruption in Dif and pelle mutants 48H post parasitism (Figure 1, panels H, I).

2) Psh and ModSp (Figure 5—figure supplement 1) the double mutant should be included. The role of Psh should be investigated in the context of LG disruption and not only in the context of wasp encapsulation. The phenotype could be explained by a role of Psh in the melanization reaction around the wasp and not LG disruption.

We have added the quantification of wasp egg hatching in the double pshAnderl et al., 2016; modSPAnderl et al., 2016 mutant. We have also examined lymph gland disruption in the PshAnderl et al., 2016mutant and found a delay compared to control larvae. These data are added in Figure 5—figure supplement 1.

3) Do a deficiency in ROS or EGF-R block LG dispersal or just delay the process like a Toll mutant? The authors assume the effect is the same, which seems like a reasonable assumption given the relationship they have between the pathways. Nevertheless the paper will be reinforced if they can document this

In both mutant conditions (ROS suppression in PSC cells or EGFR downregulation in progenitors), 100% of lymph glands are disrupted 48H post parasitism, indicating a delay compared to control. These data are now reported in an additional figure (Figure 6—figure supplement 3).

4) Reading the revised version, the reviewers better realize that Toll mutants do not block lymph gland dispersal but rather delay it. This was not so clear in the original version since the authors focus at the 30h time point. We encourage the authors to highlight this point throughout the paper and discuss it in the Discussion.

We have now modified the text throughout the paper to emphasize that in all mutants and knock down conditions analysed, we observed a delay in lymph gland disruption compared to control.

Discussion should underline the following points:a) How the Lymph gland disrupt in Toll deficient mutant? It is important to underline that the processed is delayed but not block.

We discuss in the revised version of the article how Toll/NF-κB signalling could promote lymph gland dispersion, in light of a recent publication proposing that this pathway might regulate the permeability barrier of PSC cells (Khadilkar et al., 2017) (see Discussion, fourth paragraph).

b) How an intracellular burst of ROS can lead to the activation of extracellular serine protease cascade?

We have found that Toll/NF-κB activation in the lymph gland requires SPE production from PSC cells (Figure 5). Thus, an intracellular burst of ROS in PSC cells could activate SPE processing/secretion from these cells and trigger pathway activation in the lymph gland. Alternatively, the extracellular protease cascade leading to Spätzle cleavage could be independent of the oxidative stress occurring in PSC cells, and ROS might regulate an intracellular step of Toll/NF- κB activation in the PSC, such as modifying iκB kinase complex (IKK) activity in the cytoplasm or NF-κB DNA binding capacity in the nucleus, as reported in mammals. These two possibilities are now proposed (see Discussion section).

https://doi.org/10.7554/eLife.25496.047

Article and author information

Author details

  1. Isabelle Louradour

    Centre de Biologie du Développement, Centre de Biologie Intégrative, Université de Toulouse, CNRS, UPS, Toulouse, France
    Present address
    National Institutes of Health, Bethesda, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Visualization, Methodology, Writing—original draft
    Competing interests
    No competing interests declared
  2. Anurag Sharma

    Centre de Biologie du Développement, Centre de Biologie Intégrative, Université de Toulouse, CNRS, UPS, Toulouse, France
    Present address
    Department of Biomedical Sciences, NU Centre for Science Education and Research, Nitte University, Mangalore, India
    Contribution
    Formal analysis, Visualization, Methodology
    Competing interests
    No competing interests declared
  3. Ismael Morin-Poulard

    Centre de Biologie du Développement, Centre de Biologie Intégrative, Université de Toulouse, CNRS, UPS, Toulouse, France
    Present address
    Hubrecht Institute, Utrecht, Netherlands
    Contribution
    Formal analysis, Methodology
    Competing interests
    No competing interests declared
  4. Manon Letourneau

    Centre de Biologie du Développement, Centre de Biologie Intégrative, Université de Toulouse, CNRS, UPS, Toulouse, France
    Contribution
    Methodology
    Competing interests
    No competing interests declared
  5. Alain Vincent

    Centre de Biologie du Développement, Centre de Biologie Intégrative, Université de Toulouse, CNRS, UPS, Toulouse, France
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-2769-7501
  6. Michèle Crozatier

    Centre de Biologie du Développement, Centre de Biologie Intégrative, Université de Toulouse, CNRS, UPS, Toulouse, France
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Investigation, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    michele.crozatier-borde@univ-tlse3.fr
    Competing interests
    No competing interests declared
  7. Nathalie Vanzo

    Centre de Biologie du Développement, Centre de Biologie Intégrative, Université de Toulouse, CNRS, UPS, Toulouse, France
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    nathalie.vanzo@univ-tlse3.fr
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-6659-0299

Funding

Fondation ARC pour la Recherche sur le Cancer (Graduate Student Fellowship)

  • Isabelle Louradour

Centre National de la Recherche Scientifique

  • Alain Vincent
  • Michèle Crozatier
  • Nathalie Vanzo

Agence Nationale de la Recherche (Bench grant and post-doc fellowship)

  • Michèle Crozatier

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank S Govind, WJ Lee, A Courey, B Lemaitre, L Teixeira, the Bloomington and Vienna Stock Centers for plasmids and fly stocks; D Ferrandon, I Ando, A Moore and T Trenczek for antibodies; L Bataillé, A Davy, M Meister, C Monod, for critical reading of the manuscript. We are grateful to the Toulouse RIO imaging patform, J Favier, and V Nicolas for fly culture. This work was supported by the CNRS, Ministère de la Recherche (ANR) and Association pour la Recherche sur le Cancer (ARC).

Reviewing Editor

  1. Bruno Lemaître, Reviewing Editor, Ecole Polytechnique Fédérale de Lausanne, Switzerland

Publication history

  1. Received: February 3, 2017
  2. Accepted: October 29, 2017
  3. Accepted Manuscript published: November 1, 2017 (version 1)
  4. Version of Record published: November 10, 2017 (version 2)

Copyright

© 2017, Louradour et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 542
    Page views
  • 160
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Scopus, Crossref.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry
    Martin Steger et al.
    Research Advance Updated
