Cryo-electron tomography reveals novel features of a viral RNA replication compartment

  1. Kenneth J Ertel
  2. Desirée Benefield
  3. Daniel Castaño-Diez
  4. Janice G Pennington
  5. Mark Horswill
  6. Johan A den Boon
  7. Marisa S Otegui
  8. Paul Ahlquist Is a corresponding author
  1. University of Wisconsin-Madison, United States
  2. Howard Hughes Medical Institute, University of Wisconsin-Madison, United States
  3. University of Basel, Switzerland
Research Article
  • Cited 6
  • Views 2,333
  • Annotations
Cite as: eLife 2017;6:e25940 doi: 10.7554/eLife.25940

Abstract

Positive-strand RNA viruses, the largest genetic class of viruses, include numerous important pathogens such as Zika virus. These viruses replicate their RNA genomes in novel, membrane-bounded mini-organelles, but the organization of viral proteins and RNAs in these compartments has been largely unknown. We used cryo-electron tomography to reveal many previously unrecognized features of Flock house nodavirus (FHV) RNA replication compartments. These spherular invaginations of outer mitochondrial membranes are packed with electron-dense RNA fibrils and their volumes are closely correlated with RNA replication template length. Each spherule’s necked aperture is crowned by a striking cupped ring structure containing multifunctional FHV RNA replication protein A. Subtomogram averaging of these crowns revealed twelve-fold symmetry, concentric flanking protrusions, and a central electron density. Many crowns were associated with long cytoplasmic fibrils, likely to be exported progeny RNA. These results provide new mechanistic insights into positive-strand RNA virus replication compartment structure, assembly, function and control.

https://doi.org/10.7554/eLife.25940.001

Introduction

Positive-strand RNA viruses, whose virions contain mRNA-sense single stranded RNA, represent the largest genetic class of viruses (King et al., 2012), including many human, animal, and plant pathogens. These viruses complete their entire replication cycle in the host cell cytoplasm. To generate sites for their genomic RNA replication, positive-strand RNA viruses expand and rearrange host cellular membranes (Fernández de Castro et al., 2017; den Boon et al., 2010; Kovalev et al., 2016; Paul and Bartenschlager, 2013; Paul et al., 2014; Romero-Brey and Bartenschlager, 2014). Such membrane-associated RNA replication sites are thought to concentrate essential viral and host factors, and to organize successive steps for efficient viral RNA synthesis (Atasheva et al., 2010; Neuvonen et al., 2011). Depending on their architecture and topology, such sites also might provide some protection from cellular nucleases and recognition by antiviral double-stranded RNA (dsRNA) sensors, such as RIG-I, MDA-5, and AGO (Ahmad and Hur, 2015; Andrejeva et al., 2004; Diao et al., 2007; Fagard et al., 2000; van Rij et al., 2006; Weinmann et al., 2009; Yoneyama et al., 2004) and help to spatially segregate the viral RNA genome’s competing functions as an mRNA for viral protein synthesis, a template for viral RNA synthesis, and a substrate for encapsidation. RNA replication on expanded, rearranged cellular membranes is universal among positive-strand RNA viruses and thus presents a target for broadly applicable antiviral therapies.

The structural organization of viral RNAs and proteins at such membrane-associated sites of RNA replication has been largely unknown. For example, in various studies, viral RNA replication templates and replication proteins have contrastingly been suggested to reside on the cytoplasmic face of membranes or inside vesicular compartments (Belov et al., 2007, 2012; Diaz et al., 2012, 2010; Knoops et al., 2012; Kopek et al., 2007; Miller et al., 2001; Schwartz et al., 2002; Welsch et al., 2009).

To address these questions, we turned to flock house virus (FHV), a well-studied, model positive-strand RNA virus in the nodavirus family. The FHV genome organization is shown in Figure 1A. The bi-partite genome comprises RNA1 and RNA2, encoding the viral replicase protein A and the viral capsid proteins, respectively (Venter and Schneemann, 2008). RNA1 further directs the synthesis of RNA3, a subgenomic mRNA encoding protein B2, which counters host RNA interference defenses (Chao et al., 2005; Li et al., 2002; Lingel et al., 2005). RNA3 retains part of the protein A coding sequence and thus potentially encodes an uncharacterized C-terminal protein A segment, referred to as B1. Figure 1B shows the organization of protein A functional domains, including an N-terminal mitochondrial membrane association domain (Miller and Ahlquist, 2002), an RNA-dependent RNA polymerase domain, an RNA capping domain, and multiple independent multimerization regions identified by fluorescence resonance energy transfer (Dye et al., 2005b).

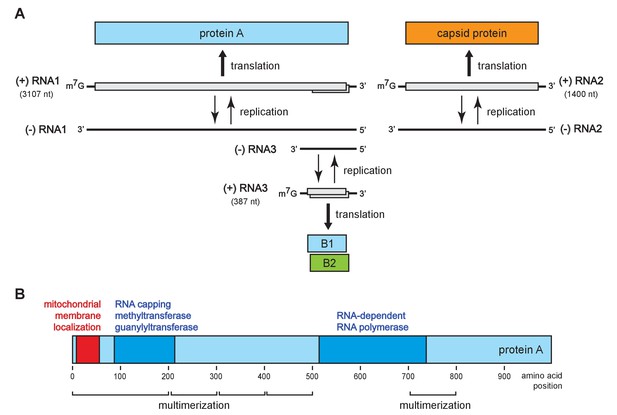

Flock house virus genome organization and functional map of replicase protein A.

(A) The bipartite FHV RNA genome encodes the viral replicase protein A on RNA1 and the capsid protein precursor on RNA2. Protein A mediates synthesis of a negative strand copy of the genomic RNAs which serves as template for synthesis of progeny positive strand RNAs, and an additional partial negative strand copy of RNA1 to template a 3’ co-terminal subgenomic RNA3. RNA3 potentially encodes protein B1, co-terminal with the C-terminus of protein A, and protein B2 which has anti-RNAi function. (B) A linear representation of protein A annotated to show membrane-association and enzymatic domains, and several regions independently capable of homotypic multimerization.

https://doi.org/10.7554/eLife.25940.002

Previous transmission electron microscopy (TEM) and EM tomography by our group and others showed that FHV infection of Drosophila cells induces ~50 nm diameter ‘spherule’ invaginations of the outer mitochondrial membranes (Kopek et al., 2007; Lanman et al., 2008; Miller et al., 2001; Short et al., 2016). These spherules are the sites of viral protein A replicase accumulation and viral RNA synthesis (Kopek et al., 2007), and remain connected to the cytoplasm via a neck-like aperture (Kopek et al., 2007; Miller et al., 2001). Similar spherule RNA replication compartments are formed on various intracellular membranes by many positive-strand RNA viruses, such as the human-infecting flaviviruses, alphaviruses, and many others (Belov et al., 2007, 2012; den Boon and Ahlquist, 2010; den Boon et al., 2010; Diaz et al., 2012, 2010; Knoops et al., 2012; Kopek et al., 2007; Miller et al., 2001; Schwartz et al., 2002; Welsch et al., 2009). While informative, these older images were derived from FHV-infected and other virus-infected cells and cell fractions that were chemically fixed and embedded in plastic, which are prone to fixation-induced artifacts (McDonald and Auer, 2006). Moreover, these heavy metal stained samples defined the low-resolution ultrastructure of the bounding spherule membranes, but did not allow visualizing the viral RNAs and replication proteins.

Here we report visualization of FHV RNA replication compartments in mitochondria from FHV-infected Drosophila cells by cryo-electron microscope (cryo-EM) tomography. Cryo-EM presents samples in a much more native state, bypasses heavy metal staining, and images the sample’s intrinsic electron density, providing direct visualization of all components – lipid, RNA, and protein – of the RNA replication complexes (Bertin et al., 2012; Gold et al., 2014; Meyerson et al., 2011). Moreover, we used sub-tomogram averaging to powerfully enhance image resolution. The resulting images reveal numerous striking new features, including previously unrecognized features of the spherule membrane structure, crowning of the cytoplasmic side of the spherule neck by a dramatic 12-fold symmetrical structure containing FHV replicase protein A, and densely coiled interior filaments and single exterior filaments strongly implicated as viral template and product RNAs. Together with complementary genetic manipulations and biochemical results, the data provide substantial insights not only into replication complex structure but also function and assembly.

Results

Cryo-EM reveals new interior and exterior features of FHV RNA replication compartments

Previously our group showed that mitochondria isolated from FHV-infected Drosophila cells retain RNA replication compartments (spherules) that are active in viral RNA synthesis with a specific activity approaching that in infected cells (Kopek et al., 2007). Accordingly, to image FHV RNA replication compartments in a near native state while avoiding distortions and artifacts due to chemical fixation (McDonald and Auer, 2006), we isolated mitochondria from mock-infected and FHV-infected Drosophila cells and arrested them by rapid plunge freezing. These vitrified, hydrated, unstained samples then were examined by cryo-EM using a high resolution direct electron detector. As expected, mitochondria from mock-infected cells had closely appressed outer and inner mitochondrial membranes, with inner membrane cristae extensions into the interior matrix (Figure 2A). By contrast, and consistent with previous reports (Kopek et al., 2007, 2010; Lanman et al., 2008; Miller et al., 2001; Short et al., 2016), the outer and inner membranes of mitochondria from FHV-infected cells were separated, and the intervening space filled with numerous membrane spherules. While, in chemically-fixed samples, FHV RNA replication complexes had oblong shapes significantly elongated perpendicular to the outer mitochondrial membrane (Kopek et al., 2007; Miller et al., 2001), in plunge-frozen samples they were much more spherical (Figure 2B). As in our prior studies (Kopek et al., 2007), we confirmed that mitochondria isolated from FHV-infected cells retained the biological integrity of the spherules that were highly active in viral RNA synthesis (Figure 2C), and preserved all known features of spherule architecture as seen in infected whole cells.

Cryo-EM images of Drosophila S2 cell mitochondria.

Mitochondria were isolated from mock-infected or FHV-infected S2 cells, applied to carbon-coated grids, plunge-frozen, and imaged using a TF-30 electron microscope under cryogenic conditions. (A) Intact mitochondrion with inner (white arrowhead) and outer (black arrowhead) membranes approximately 10 nm apart. Scale bar = 200 nm. (B) Mitochondria isolated from FHV-infected cells were closely associated with numerous round vesicular compartments in the extensively dilated lumen between inner and outer membranes. Scale bar = 100 nm. (C) Mitochondria preparations from FHV-infected cells show active continued viral RNA synthesis when incubated in the presence of radiolabeled [32P]UTP. Results are representative of three independent experiments.

https://doi.org/10.7554/eLife.25940.003

To reveal additional critical features and structural relationships, we acquired cryo-electron tomography (cryo-ET) tilt series of images of mitochondria from FHV-infected and uninfected cells and processed these to reconstruct three-dimensional views. Video 1 shows such a tomographic reconstruction of a typical mitochondrion from an FHV-infected cell, including hundreds of spherule RNA replication compartments. As expected, rapid cryo-fixation improved preservation and direct imaging of the native electron density of these samples greatly facilitated visualizing non-membrane components of these replication compartments, including RNAs and protein structures, at much higher resolution and revealing multiple striking features. These included a wider range of spherule diameters than previously observed, coiled interior filaments filling the invaginated membrane vesicle, an ~25–30 nm diameter by 20 nm-high cupped density crowning the cytoplasmic side of each spherule neck, and usually single exterior filaments extending from these crown structures into the extra-mitochondrial cytoplasmic space (Videos 1 and 2). Below we present further imaging and analysis of the interior filaments, the relation of spherule volume to RNA template length, and the crown structure. The exterior filaments proceeding from crowns into the cytoplasm are considered further in the Discussion.

Video 1
Cryo-EM Tomogram of a Mitochondrion from FHV-infected cells.

Complete tomographic reconstruction of a mitochondrion bearing numerous FHV spherules, at 19,500x magnification, and represented as a series of Z-stack images. Scale bar = 200 nm.

https://doi.org/10.7554/eLife.25940.004
Video 2
Higher Magnification View of a Mitochondrion from FHV-infected cells.

Tomographic reconstruction of the mitochondrion with FHV spherules shown in Figure 3. Note particularly the closely packed fibrillar material in the spherule interiors. At 41,000x magnification, represented as a series of Z-stack images. Scale bar = 100 nm.

https://doi.org/10.7554/eLife.25940.005

Coiled interior filaments fill FHV RNA replication vesicles

Previous EM of chemically fixed, heavy metal-stained FHV spherules (Kopek et al., 2007, 2010; Lanman et al., 2008; Miller et al., 2001; Sosinsky et al., 2008) and other positive-strand RNA virus replication compartments (Belov, 2016; Belov et al., 2012; Diaz et al., 2010; Junjhon et al., 2014; Knoops et al., 2012; Oudshoorn et al., 2016) defined their membrane ultrastructure but, while showing some electron density inside such compartments, did not reveal any significant, consistent interior structure. Nevertheless, diverse biochemical and immunogold localization results from our group and others have shown that the replication compartments of FHV and many other positive-strand RNA viruses contain membrane-protected positive- and negative-strand template RNAs, likely in dsRNA form, and nascent progeny viral RNA (Hatta and Francki, 1981; Kopek et al., 2007; Lee et al., 1994; Russo et al., 1983; Schwartz et al., 2002). In keeping with this, our new cryo-EM imaging revealed FHV spherule interiors to be densely packed with filaments that appeared in cross-section as closely packed rods and in side views as long strands curved within the spherules (Figure 3A). Videos 2 and 3 provide continuous views through the complete volume of numerous spherules, showing that many of the filament segments visualized in individual cross-sections are connected between successive tomographic slices. Highlighting this interior electron density with a computed tomography software package (AMIRA, FEI) provided three-dimensional views, further illustrating that these curved filaments occupy essentially the full spherule interior in a pattern reminiscent of a ball of yarn (Figure 3B and C). While the current tomographic resolution did not allow unambiguous tracing of the full length of these filaments, individual sectioned views such as in Figure 3D frequently displayed continuous, relatively straight segments at least 40 nm long, consistent with estimates of ~60–64 nm for the persistence length of dsRNA, i.e. the length of dsRNA required to show significant bending (Abels, Moreno-Herrero, Abels et al., 2005).

Figure 3 with 1 supplement see all
Viral RNA and protein complex association with FHV spherules.

(A) Cryo-ET image of a mitochondrion associated with FHV spherules, taken from a reconstructed tomogram obtained at 41,000 x magnification, defocus of −6. Mitochondrial outer membrane, spherule membrane, interior spherule filaments, and spherule aperture structures are indicated with red, blue, black, and white arrowheads, respectively, consistent with arrowhead colors used in Figures 5 and 6. Scale bar is 100 nm. (B–D) Segmentation of the white-outlined area in panel A. The Amira program (FEI) was used to trace and structurally segment spherule membrane in white and interior spherule density in red. Panels B and C provide three dimensional renditions, panel D segments the structure in a single plane. Scale bars are 50 nm. See Video 2 for complete tilt series.

https://doi.org/10.7554/eLife.25940.006
Video 3
Tomographic View of Crowns and Cytoplasmic Filaments on a Mitochondrion from FHV-infected cells.

Detailed view of a portion the mitochondrion used in Figure 5 and Video 1. Viral RNA exits FHV spherules in close proximity to the ‘crown’ protein complexes at the spherule necks. Scale bar = 100 nm.

https://doi.org/10.7554/eLife.25940.008

Spherule replication compartment volume correlates with RNA template length

Our earlier studies using chemical fixation discerned no clear relation between FHV RNA template length and spherule size (Kopek et al., 2007, 2010). However, as noted above, our current studies using cryo-fixation preserved more spherules and revealed a much greater range of spherule sizes. To explore this distribution of spherule sizes more precisely, we measured the volume of 1592 spherules from four reconstructed tomograms derived from FHV-infected cells across four independent experiments. The average spherule diameter was ~50 nm, consistent with prior observations (Kopek et al., 2007, 2010; Miller et al., 2001), but the range of spherule diameters varied from ~30 to nearly 70 nm. The corresponding volume range was between 13,600 nm3 and 145,500 nm3, with an average spherule volume of 66,100 nm3 and a standard deviation of ±32,900 nm3. When plotted, the distribution of spherule volumes showed three to four peaks, suggesting the possibility of distinct size classes of spherules (Figure 4A). All FHV spherules observed in these cryo-EM experiments contained interior filaments at similar packing density (Figure 3 and Video 3), implying that spherules of varying diameter must contain varying amounts of RNA. Thus, the presence of multiple spherule size classes in full FHV infection might be related to the replication of three viral RNA templates, genomic RNA1 and RNA2, and subgenomic (sg) RNA3, with respective lengths of 3.1, 1.4, and 0.4 kb, occurring in different spherules.

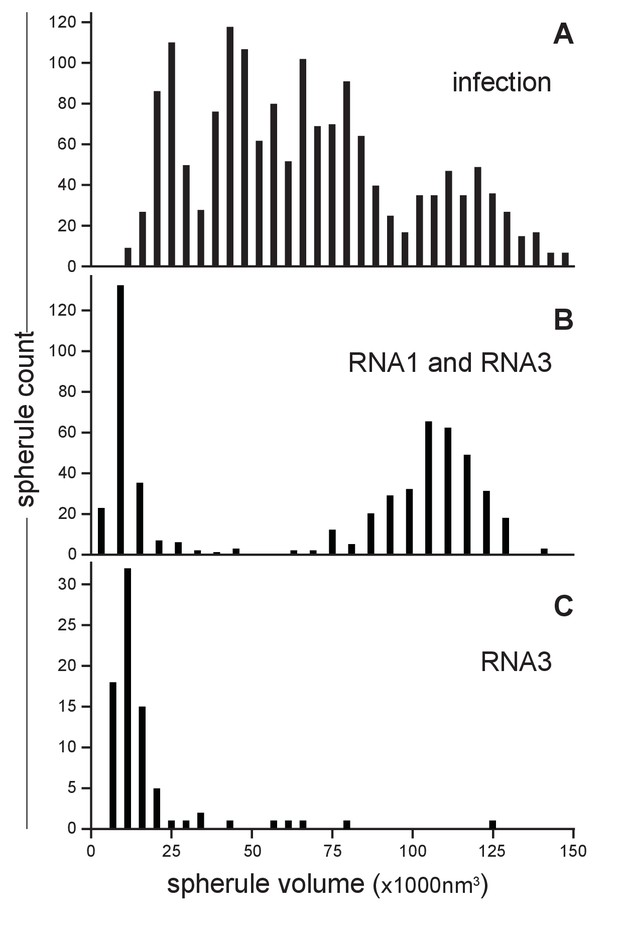

FHV RNA template length determines replication spherule vesicle volume.

(A) FHV infection involves the simultaneous replication of RNA1, RNA2, and RNA3 resulting in a range of spherule volumes from 13,600 to 145,000 nm3. Spherule volumes were calculated from measurements of spherule radius at the widest circumference using IMOD software (Nicastro et al., 2006). (B) Cells that transiently express protein A from a non-replicating RNA in addition to RNA1 template have spherule volumes that sort into two pronounced populations suggesting a volume range for spherules containing either RNA1 or RNA3. (C) Cells expressing protein A and RNA3 show only the smaller spherule volume population.

https://doi.org/10.7554/eLife.25940.009

To test such possible relationships between viral RNA templates and spherule size, spherule volumes were measured in mitochondria from Drosophila cells transiently expressing FHV RNA replication protein A (from a non-replicating mRNA) and a defined FHV RNA replication template transcribed in vivo from a DNA plasmid. Figure 4B shows the results for cells expressing protein A and an FHV genomic RNA1 template: volumes measured for 541 spherules from three tomograms from two independent transfection experiments revealed that this combination produced two distinct spherule size populations reflecting the extremes of the distribution produced by full FHV infection, consistent with the fact that RNA1 replication gives rise to 3.1 kb RNA1 and 0.4 kb sgRNA3 progeny. The larger spherule class distributed around a volume of ~108,000 nm3, the smaller spherule class around ~12,000 nm3. Similarly, Figure 4C shows the results for cells expressing protein A and an FHV sgRNA3 template: the resulting spherules volumes closely matching the smaller size class of spherules induced by simultaneous replication of RNA1 and RNA3. Thus, the size distribution of FHV RNA replication compartments is strongly correlated with the length of the viral RNA template or templates being replicated.

Subtracting the RNA1- and RNA3-associated spherule peaks from the size distribution for full infection leaves a broad range of intermediate sizes possibly containing more than the single peak that might be expected for replication of the remaining 1.4 kb genomic RNA2 (Figure 4A). RNA2 replication requires trans-activation by RNA3 (Lindenbach et al., 2002; Eckerle and Ball, 2002), which could lead to some spherules containing both RNA2 and RNA3. Moreover, through ongoing processes of RNA synthesis and RNA export, the size and RNA content of individual spherules might vary dynamically. These and other issues that might contribute to the breadth of spherule size distributions associated with individual RNA templates (Figure 4B and C) and the apparent complexity of the size distribution for full infection (Figure 4A) are considered further in the Discussion.

To more precisely address the relationship between FHV RNA template length and spherule volume, we further considered packaging density under the assumption that the filaments in FHV spherules are dsRNA, which as noted above appears likely from biochemical and other data. The filaments and their arrangement in concentric, wound layers were generally similar to those of dsRNA templates in the replicative cores of dsRNA viruses (Figure 3, Video 1), and we used the published measurements on dsRNA in the replicative virion core particles of cytoplasmic polyhydrosis dsRNA virus (CPV) (Zhang et al., 2015) as a reference to calculate packaging density. Over short distances within which the RNA filaments of such dsRNA viruses or the FHV spherules are relatively straight, their packing density can be locally approximated as the packing of parallel cylinders, which is proportional to the square of their center-to-center distance. For CPV and FHV the average inter-filament distances are 2.7 nm (Zhang et al., 2015) and 6.4 nm (Figure 3—figure supplement 1), respectively. Thus, the dsRNA packing density in FHV spherules should be ~5.8 fold lower than CPV’s 334 bp / 1000 nm3 (~24.7 kbp dsRNA genome per ~74,000 nm3 [Cheng et al., 2011]). At a resulting calculated density of ~58 bp / 1000 nm3, dsRNA1 (3.1 kbp), dsRNA2 (1.4 kbp), and dsRNA3 (0.4 kbp) would occupy ~53,000 nm3, ~24,000 nm3, and ~7000 nm3, respectively. Accordingly, even the smallest of the RNA1-associated ~80,000–130,000 nm3 spherules (Figure 4B) could accommodate a complete RNA1 dsRNA, consistent with the need for at least one negative-strand template to support positive-strand synthesis and our finding for each of FHV RNAs 1, 2 and 3 that similar levels of negative- and positive-strand fractionate from infected cells in a mitochondrially-associated, nuclease-protected state (N. Unchwaniwala and P. Ahlquist, unpublished results). Similarly, even the smallest of the RNA3-associated ~7,000–15,000 nm3 spherules (Figure 4B and C) could accommodate a complete RNA3 dsRNA. Again, multiple mechanisms potentially contributing to a range of larger spherule sizes in these populations are noted above and considered further in the Discussion.

FHV spherule necks are crowned by cupped structures

Our previous examination of chemically-fixed, plastic-embedded samples of FHV replication compartments in whole infected cells, using both two-dimensional transmission EM imaging (Kopek et al., 2010; Miller et al., 2001) and three-dimensional tomographic reconstruction (Kopek et al., 2007), had revealed the regular presence of electron-dense structures on the cytoplasmic surface of outer mitochondrial membranes immediately above the necks of FHV spherules. The cryo-EM images presented here revealed these neck-surmounting structures dramatically (Figure 5A, Videos 2 and 3). Cross-sectional views showed that these structures were cup-shaped and that their interiors were associated with extruding cytoplasmic filaments (Figure 5A). In top views perpendicular to the mitochondrial surface these structure appeared circular, with a small central electron density (Figure 5B). In many cases, close inspection of such top views revealed an outer concentric ring of regularly spaced small densities (Figure 5B inset, Figure 5—figure supplement 1).

Figure 5 with 1 supplement see all
FHV spherule aperture densities are ordered protein complexes associates with viral RNA extrusions.

(A) A single tomographic slice perpendicular to the outer membrane of a mitochondrion from an FHV-infected cell, showing multiple spherule cross sections. The image was obtained from a reconstructed tomogram at 19,500x magnification, defocus of −6. The protein complex at the spherule neck aperture is indicated with white arrowheads and extruding filaments (likely product RNA strands - see main text) with black arrowheads. The mitochondrial outer membrane and the spherule membrane are indicated with red and blue arrowheads, respectively. (B) Tomographic slice nearly parallel to the outer membrane of an FHV-modified mitochondrion. The upper portion shows multiple spherule apertures (two of which are boxed in white) viewed from above the cytoplasmic side of the membrane. Filamentous protusions associated with these apertures again are marked with black arrowheads. Inset: magnified view to show the aperture-surrounding concentric circular arrangement of additional smaller densities (yellow arrowheads). In the lower portion, the plane of sectioning passes below the outer mitochondrial outer membrane to section multiple spherule vesicles. Scale bars are 100 nm. Arrowhead colors are consistent with those used in Figures 3 and 6. Tomograms were gauss-filtered to remove noise. See Videos 1 and 4 for complete tilt series and tomogram reconstructions.

https://doi.org/10.7554/eLife.25940.010

To better visualize these striking new features, we performed iterative subtomogram averaging (Castaño-Díez et al., 2012) of the regions surrounding the apertures of over 300 individual spherules, and reconstructed a three-dimensional image with a resolution estimated at approximately 3.3 nm (Figure 6G, Figure 6—figure supplement 1, and Video 4). While no symmetry was artificially imposed, power spectrum calculations showed a strong peak at rotational Fourier component 12 (Figure 6H) and accordingly, the averaged reconstruction of the spherule aperture structure revealed a clear twelve-fold symmetry. The reconstructed structure showed a central ~19 nm diameter ‘turret’ projection, surrounded by an outer, ~35 nm diameter ring of twelve smaller ‘teeth’ (Figure 6) spaced ~4 nm apart, projected ~3 nm above the outer membrane surface, and angled slightly toward the turret (Figure 6C–F). This combined turret-and-teeth structure is hereafter referred to as a ‘crown.’ Contiguous groups of outer teeth were readily visible in the unaveraged top views of many individual crown subtomograms (Figure 5B and inset). However, due to the limited resolution of such individual cryo-tomograms prior to subtomogram averaging, it was not possible to clearly visualize this outer ring completely around individual crowns to determine whether each crown had a complete set of twelve teeth. Nevertheless, no gaps within an otherwise contiguous array of teeth were ever observed, implying that the occupation frequency across all 12 possible positions was high.

Figure 6 with 1 supplement see all

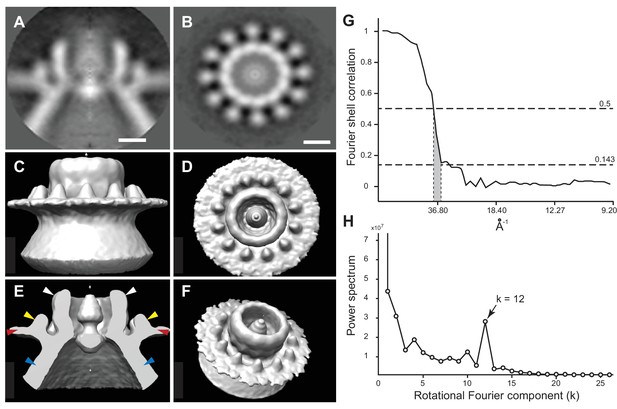

Subtomogram average of FHV crown structure.

(A–B) FHV crown subtomogram averages viewed from the X/Y plane (A), or from the Z-plane looking towards the spherule interior (B). Scale bars = 10 nm. (C–F) Density maps of FHV crown structures. (C) View of crown density map from the X/Y plane or as depicted in panel A. (D) View of FHV crown from the Z-plane towards the spherule interior as depicted in panel B. (E) Cut-away view of FHV crown. Arrowheads indicate the central turret (white) with interior cone-shaped central density, the teeth surrounding the central turret (yellow), the outer mitochondrial membrane (red), and the spherule membrane (blue). (F) The crown density map angled to show the entirety of all crown features. (G) Fourier shell correlation curve indicating the commonly used 0.5 and 0.143 cut-off intersections indicating the resolution of the reconstruction to be ~3.3–3.8 nm. (H) Averaged power spectra derived from Fourier transformed intensity profiles along the angular direction of all individually analyzed crown particles, strongly indicating 12-fold symmetry.

https://doi.org/10.7554/eLife.25940.012
Video 4
Subtomogram-averaged FHV crown structure.

Rotating views of the highly symmetrical subtomogram-averaged structure at the FHV spherule aperture.

https://doi.org/10.7554/eLife.25940.014

At its highest dimension, the turret was raised ~14 nm above the outer mitochondrial membrane surface and in cross-section was seen to reside in a slight depression of the outer mitochondrial membrane (Figure 6A and E). Within the turret, a central, ~11 nm diameter open channel into the spherule was in close agreement with previous size estimates of spherule neck apertures (Kopek et al., 2007; Miller et al., 2001; Short et al., 2016). A strongly averaged central density within the turret was consistent with the above-mentioned filamentous extrusions observed in the original tomograms (Figure 5 and Video 3). Retention of this central density in the reconstructions implies that it must have been present in the majority of crown densities used for the subtomogram averaging, consistent with its regular visualization in top views of individual crowns (Figure 5B).

FHV replication protein A is a major constituent of the spherule crown

The presence of crown structures on FHV spherules and their absence on mitochondria from mock-infected cells (Video 5) indicated that they either consist of or are induced by viral factors. From among FHV-encoded proteins (see Introduction), we considered the prime candidate to form crowns to be the 112 kDa, multifunctional FHV protein A, based on many prior observations: First, protein A, having RNA-dependent RNA polymerase, RNA capping, and other functions, is the sole FHV protein required for RNA replication (Dye et al., 2005a; Miller and Ahlquist, 2002; Miller et al., 2003). Protein A localizes to outer mitochondrial membranes via an N-terminal trans-membrane segment (Miller and Ahlquist, 2002; Miller et al., 2003), self-interacts through multiple domains in ways critical for RNA replication (Dye et al., 2005b), and induces spherule formation in a process strongly linked to copying FHV RNA templates (Kopek et al., 2010). Moreover, in the absence of a replication competent FHV RNA template, protein A still localizes to mitochondrial membranes, but ‘zippers’ adjacent mitochondria together through large patches of regularly spaced electron dense connections, likely reflecting protein A’s mitochondrial surface location and strong ability to self-interact (Dye et al., 2005a).

Video 5
Cryo-EM tomographic view of a mitochondrion from mock-infected cells.

Tomogram of mock-infected mitochondrion as a Z-stack series. In the absence of FHV infection, mitochondria isolated from 2 cells contain no apparent spherules or crown protein complex densities. The inner and outer mitochondrial membranes are closely appressed with little or no membrane dilation. Scale bar = 100 nm.

https://doi.org/10.7554/eLife.25940.015

To test for the possible presence of protein A in crowns, we used a rabbit antiserum against protein A and gold-conjugated secondary antibodies under cryo-EM conditions. This treatment produced abundant gold labeling on the cytoplasmic side of outer mitochondrial membranes, but only above membrane regions where spherules were present, and not above areas where spherules were absent (Figure 7 and Video 7). The distribution of gold particles relative to the outer membrane surface also was well within the expected maximum of ~30 nm estimated by adding two ~ 8 nm primary and secondary antibody lengths and the ~14 nm height of the FHV crown above the membrane surface (see prior section, [Amiry-Moghaddam and Ottersen, 2013]). Negative controls with regular rabbit IgG antibodies did not show significant immuno-gold labeling, confirming the specificity of the anti-FHV protein A antiserum (Figure 7—figure supplement 1). Also, the high density of anti-protein A gold particles in the vicinity of each spherule (Video 6) was potentially consistent with the 12-fold symmetry of crowns (Figure 6). Thus, the dense clustering of protein A-targeted immunogold labeling strictly above spherules strongly indicates that protein A is a major component of the FHV crown structure.

Figure 7 with 1 supplement see all
FHV protein A replicase is a major component of spherule crown structures.

Immunogold labeling of a mitochondrion from FHV-infected cells. (A) Mitochondrial extracts were incubated with anti-protein A polyclonal serum and a secondary antibody conjugated to 6 nm gold, loaded onto grids, plunge-frozen, and imaged under cryogenic conditions. White arrows indicate 6 nm gold conjugated to a goat-anti rabbit antibody, black arrows indicate 15 nm fiducial gold used to align the tilt series. (B) Image from a reconstructed tomogram of the mitochondrion in panel A. Gold-conjugated antibodies accumulate at the outer mitochondria membrane at sites with spherules, and not in areas where spherules are absent. Inset provides a magnified view and indicate the inner (white arrowhead) and outer (black arrowhead) mitochondrial membranes. Scale bar (A–B) = 100 nm, inset scale bar = 50 nm. See Video 6 for complete tilt series.

https://doi.org/10.7554/eLife.25940.016
Video 6
Immunogold-labeled mitochondrion from FHV-infected cells.

Tomogram of the mitochondrion from Figure 7 represented as a Z-stack series. Note the high accumulation of gold-conjugated anti-FHV protein A antibodies that occurs just outside of the outer mitochondrial membrane in the immediate vicinity of the FHV spherule necks, but is absent from portions of the outer membrane lacking spherules. Scale bar = 200 nm.

https://doi.org/10.7554/eLife.25940.018
Video 7
Three-dimensional image segmentation illustrating multiple features of an FHV spherule.

The outer spherule membrane (white) is contiguous with the outer mitochondrial membrane (dark blue). In the first half of the video, a section of the spherule membrane and the underlying spherule interior are purposely removed to show the internal fibrils (red). On the outer mitochondrial membrane at its junction with the invaginated spherule membrane, the crown (light blue) is shown facing toward the cytoplasmic space and surmounting the membrane neck connecting the spherule interior to the extra-mitochondrial cytoplasmic space. The crown density shown is derived from the subtomogram-averaged crown structure of Figure 6 and Video 4. In the final views, the spherule membrane is removed from the image to reveal more detail of the inner fibrillar contents. Segmentation was carried out using the Amira software package (FEI).

https://doi.org/10.7554/eLife.25940.019

Discussion

Electron microscopy and electron tomography have been used to visualize the basic membrane architecture of RNA replication compartments for a number of positive-strand RNA viruses (Belov et al., 2007, 2012; Belov and Sztul, 2014; Egger et al., 2002; Grimley et al., 1968; Hatta et al., 1973; Knoops et al., 2012; Motoyoshi et al., 1973; Romero-Brey et al., 2012; Welsch et al., 2009), although for many viruses the exact sites of viral RNA synthesis remain to be determined. Here we report detailed analysis of synthetically active nodavirus RNA replication compartments or ‘spherules’ by cryo-electron tomography, whose substantial advantages include rapid cryo-fixation of samples in a much more native state and direct imaging of intrinsic electron density without the obscuring effects of heavy metal stains. Among other striking features, the resulting spherule structures and complementary assays reveal filamentous internal RNA templates, a dramatic multimeric protein crown gating the necked connection to the cytoplasm, associated cytoplasmic filaments that likely represent nascent product RNAs, and strong correlation between RNA template length and spherule size. Moreover, as outlined below, these findings motivate a possible model for RNA replication compartment formation and function. Since varied other positive-strand RNA viruses also invaginate intracellular membranes to form comparable spherule RNA replication compartments, many of these results may have implications for other viruses.

Relationships among spherule shape, filamentous contents, size distributions, and RNA templates

When imaged previously by EM and electron tomography of chemically fixed samples, spherules appeared elongated parallel to the neck axis and with indistinct contents, often shrunken, possibly due to chemical crosslinking (Kopek et al., 2007, 2010; Miller et al., 2001). More native preservation by rapid cryo-fixation uniformly revealed nearly round spherules that were densely packed with internal filaments (Figure 3). In keeping with numerous results showing that spherules of FHV and many other positive-strand RNA viruses contain positive- and negative-strand template RNAs, likely in dsRNA form (Hatta and Francki, 1981; Kopek et al., 2007; Lee et al., 1994; Russo et al., 1983; Schwartz et al., 2002), these filaments strongly resemble genomic dsRNAs in reovirus virions (Zhang et al., 2015) and dsDNA in DNA bacteriophage (Cerritelli et al., 1997; Liu and Cheng, 2015).

The average spherule diameter of ~50 nm measured here was similar to earlier estimates (Kopek et al., 2007, 2010; Miller et al., 2001). However, prior EM studies using chemical fixation revealed a limited range of FHV spherule sizes and failed to discriminate the size ranges of spherules produced by sgRNA3 replication from spherules produced by full FHV infection (Kopek et al., 2007, 2010; Miller et al., 2001). In the current studies, cryo-fixation preserved a much wider, multiple-peaked distribution of spherule sizes from ~14,000 to~145,000 nm3 and linked the replication of sgRNA3 (0.4 kb) and genomic RNA1 (3.1 kb) with the smallest and largest subsets, respectively (Figure 4). While there was a clear general correlation between the RNA template length and spherule size, the spherules associated with individual RNA templates showed a range of sizes. Thus, calculations above estimated that the ~80,000–130,000 nm3 spherules associated with RNA1 replication (Figure 4B) were large enough to potentially accommodate ~1–3 copies of dsRNA1, while the peak of ~7,000–15,000 nm3 spherules linked with RNA3 replication each might accommodate 1 to 2 copies of dsRNA3 (Figure 4B and C). These estimates are consistent with several non-exclusive possibilities, including that some spherules may contain more than one dsRNA, that more than one positive-strand RNA may be simultaneously synthesized on a single negative-strand template, or that export of progeny positive-strand RNAs may not be coincident with their synthesis. In keeping with these possibilities, the sizes of individual spherules might vary over time through RNA synthesis, export, or both. Since the cryo-EM snapshots of these presumably unsynchronized processes likely would not capture all spherules in identical states, such dynamic variation might contribute significantly to the range of spherule sizes associated with specific template RNAs. Future studies are needed to address these important mechanistic questions.

The correlation between spherule volume and RNA template size might be a more general property of positive-strand RNA virus replication. For example, the alphavirus Semliki forest virus (SFV), which replicates its genome in similar spherular replication compartments on the plasma membrane, also shows a correlation of spherule size and template length (Kallio et al., 2013).

Multimeric FHV protein A crowns the cytoplasmic side of spherule apertures

Another unprecedented feature of these replication compartments revealed by cryo-EM was the striking crown structure on the cytoplasmic side of the spherule aperture. Elements visible in individual images and refined by sub-tomogram averaging of hundreds of independent crowns included an ~18 nm high x 19 nm diameter, 12-fold symmetrical, cup-like main body, a central density within the cup, and an outer ring of 12 smaller projections (Figures 5 and 6 and Figure 6—figure supplement 1). Immunogold labeling with antiserum against protein A, which was closely restricted to mitochondrial membrane regions harboring spherules, revealed that crowns contained a high concentration of the highly multifunctional FHV RNA replication protein A (Figure 7 and Video 6). Consistent with the symmetry and dense structure of the crown, our prior fluorescence resonance energy transfer and co-immunoprecipitation experiments show that protein A multimerizes through multiple non-overlapping segments (Dye et al., 2005a). Moreover, calculations based on the average density of globular proteins show that the crown volume is sufficient to encompass 12 copies of protein A. However, the present lack of structural information on protein A does not permit meaningful modeling of protein A into the crown. In addition, while these findings show that protein A is a major component of the crown, present results do not rule out that other viral or host proteins might also be recruited into the crown along with protein A.

The crown’s prominent position ringing the necked spherule aperture, its extensive engagement with the mitochondrial outer membrane, its 12-fold symmetry, and its dense labeling by antibodies against trans-membrane FHV protein A all imply that the crown plays a major role in stabilizing the high-energy spherule membrane deformation. Interestingly, another prominent example of 12-mer viral protein rings are the DNA packaging portal complexes of herpes simplex virus (Trus et al., 2004), bacteriophages Φ29 (Simpson et al., 2000), and SPP1 (Lhuillier et al., 2009). Similarly, dsRNA Cystoviridae encode a hexameric portal protein ring that also translocates parental RNA genome templates into virions and releases nascent viral RNA products to the cytoplasm (Kainov et al., 2004). The next section considers multiple findings suggesting that the crowns revealed here might have similar roles in the generation and function of FHV spherules.

While the immunolabeling of intact mitochondria shown in Figure 7 documents the high density of protein A in the crown, prior immunogold labeling of sectioned mitochondria using a different anti-protein A antibody revealed that some protein A also resides within spherules (Kopek et al., 2007). Localization to more than one site, possibly in alternate multimeric forms (Dye et al., 2005a), could be related to protein A’s many roles in spherule formation, negative- and positive-strand genomic RNA synthesis, sgRNA3 synthesis, and RNA capping (Ball, 1995; Eckerle et al., 2003; Johnson and Ball, 1999; Kopek et al., 2010; Lindenbach et al., 2002; Wu et al., 2014). Estimates of the number of spherules per cell also suggested a ratio of up to 100 protein A molecules per spherule, raising the possibility that protein A might form a lattice within spherules (Kopek et al., 2007). While higher resolution is needed to be definitive, our new cryo-EM analysis did not reveal any ordered, membrane-lining lattice in FHV spherules (Videos 13). Rather, the present study suggests that prior analysis of chemically-fixed samples might have underestimated the number of spherules per infected cell, leading to an overestimate of protein A copies per spherule. Alternately, a fraction of protein A might be associated with the RNA filaments of the spherule interior, similar to the association of birnavirus VP3 nucleocapsid protein with the dsRNA genome (Luque et al., 2009).

Model for spherule formation and function

Figure 8 outlines a dynamic model for FHV spherule formation that integrates multiple findings of this study on spherule structure and the linkage of spherule size and template RNA length, with diverse results including the dependence of spherule formation on viral RNA synthesis (Kopek et al., 2010). A similar model was proposed in conjunction with Semliki Forest virus (Balistreri, 2010; Kallio et al., 2013). Figure 8A, a single image from Video 7, and Figure 8B, a corresponding schematic, integrate the new three-dimensional features of the FHV replication complex spherule – the invaginated outer-mitochondrial membrane, the densely-packed interior fibrils, and the aperture crown. Figure 8C shows this model for FHV RNA replication, in which all steps are strongly based on our prior and new results. As shown previously, protein A localizes to mitochondrial membranes in the absence of other viral factors and, in a step separable from later RNA synthesis and spherule formation, recruits FHV genomic RNA to mitochondrial membranes through specific cis-acting RNA signals (Van Wynsberghe and Ahlquist, 2009; Van Wynsberghe et al., 2007). Subsequent invagination of the outer mitochondrial membrane to form a spherule requires viral RNA synthesis by FHV protein A with an active polymerase domain (Kopek et al., 2010). A possible mechanistic unification of FHV RNA synthesis and spherule formation is suggested by the similarity of the 12-fold symmetric, protein A-containing crown to 12-mer genome-loading viral portal protein rings (Lhuillier et al., 2009; Simpson et al., 2000; Trus et al., 2004). Specifically, the dependence on viral RNA synthesis, the densely filament-packed state of spherules (Videos 1 and 3), and the scaling of spherule size with RNA template length over a ≥10 fold range (Figure 4), all would be explained if the spherule was formed by injecting the nascent RNA product of negative-strand RNA synthesis onto the cytoplasmic side on the mitochondrial membrane, causing its deformation and invagination (Figure 8C). The FHV crown, strongly stabilized by the trans-membrane domains of multiple copies of protein A, could provide a highly stable platform to drive such genome translocation and the associated lipid flow required to expand the growing spherule vesicle. While virion portal multimers use NTPase activity to translocate viral RNA or DNA, the protein A polymerase domain might directly translocate its initial viral RNA product into the growing vesicle (Figure 8C), since single RNA polymerases generate forces of ~25 pN (Wang et al., 1998). While substantial, this is half of the maximal force generated by the Phi 29 DNA packaging protein, one of the most powerful biological motors known (Smith et al., 2001). Such differences might in part account for the significantly lower RNA packing density in FHV spherules relative to that in reovirus virions, as noted above in the Results.

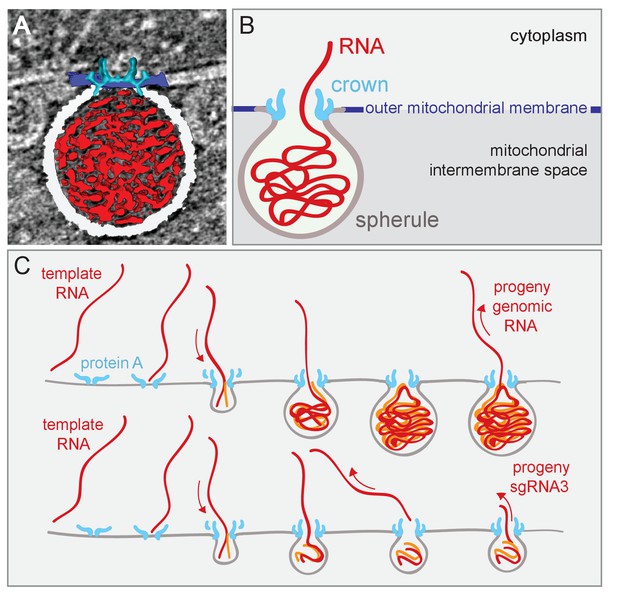

Model of FHV replication complex structure and function.

(A) Amira-assisted 3D segmentation of a single virus replication compartment in FHV-infected cells. The spherule membrane (white) encloses the viral RNA (red) and is anchored to the mitochondrial outer membrane (dark blue), by the FHV protein A crown (light blue, derived from the subtomogram average). (B) Cartoon rendering of the image in (A). Viral RNA is shown as exiting the spherule to include the observation of fibrillary extrusions in many other tomograms. (C) Model of the FHV RNA complex and RNA synthesis, where positive-strand RNA (red) associates with protein A on the mitochondrial membrane to initiate the synthesis of negative-strand RNA (orange) and progeny positive-strand RNA accommodated by increasing volume of the spherule as if blowing up a balloon. In this model, subgenomic RNA3 results from attenuated negative strand synthesis and subse- quent positive-strand production in small spherules.

https://doi.org/10.7554/eLife.25940.020

Regardless of their mechanisms of genesis, established FHV spherules synthesize almost exclusively positive-strand RNAs (Kopek et al., 2007), which are capped and released to the cytoplasm (Figure 8C). In keeping with their strategic positioning above spherule apertures to the cytoplasm, Figure 5 and Videos 13 show that crowns are frequently sources of cytoplasmic filaments extending from spherules into the surrounding extra-mitochondrial space. Such RNA release by crowns could be similar to the dsRNA Cystoviridae portal protein rings, which actively translocate parental RNA genome templates into virions and passively channel release of nascent positive-strand progeny genomes (Kainov et al., 2004). Moreover, in cross-section, the crown is strikingly similar to the turrets of transcriptionally active dsRNA reovirus cores, which both release and add 5’ m7G caps to nascent positive-strand ssRNA products (Zhang et al., 2015, 2003). Since protein A contains a methyltransferase/guanylyltransferase domain involved in capping viral RNAs (Ahola and Karlin, 2015; Johnson and Ball, 1999), the crown may also be the site of FHV RNA capping,

The calculations above that some spherules may contain more than one dsRNA genome copy imply that either more than one genomic RNA copy can be introduced when the spherule is formed or, as happens for some dsRNA viruses (Wickner, 1996), progeny positive-strand RNA may occasionally be retained rather than exported to the cytoplasm. Nevertheless, such progeny positive-strand RNA export must be quite efficient. Late in FHV infection, cells contain ~70–100 copies of positive strand RNA1 or RNA2 per corresponding negative strand genomic RNA (Kopek et al., 2007). Thus, even if each mature spherule contained two copies of either FHV genomic RNA1 or RNA2, ~140 to 200 positive-strand RNAs must previously have been synthesized and exported to the cytoplasm per spherule.

In conclusion, cryo-EM tomography has dramatically enhanced our understanding of RNA viral replication complex structure and function. Further advancements in cryo-EM tomography and X-ray crystallography will continue to reveal new and exciting insights into the critical structure-function relationships between viral proteins, viral RNA templates and host membranes that drive positive-strand RNA virus genome replication. Ultimately, such insights should further instruct efforts to interfere with viral replication, including potentially the design of broad-spectrum antivirals.

Materials and methods

Cell culture, infection, and transfection

Schneider’s Drosophila line 2 (S2) cells, purchased from ATCC in the course of these experiments ([D. Mel. (2), SL2] (ATCC CRL1963); RRID:CVCL_Z232), were grown at 28°C in Schneider’s medium and 8% fetal bovine serum or in serum-free Express-Five media, supplemented with penicillin, streptomycin, and L-glutamine (Gibco). Passages 2–4 of this ATCC stock were frozen and on a regular basis, portions of these early passages were thawed to seed new batches of cells, yielding results that were highly reproducible. Sucrose gradient-purified FHV stocks were produced as previously described (Friesen and Rueckert, 1984). Drosophila S2 cells were infected at a multiplicity of infection of 10 for all experiments and allowed to proceed for 16 hr unless otherwise noted. DNA plasmid transfections of S2 cells used kit V and G-030 pulse settings on an Amaxa nucleofector (Lonza) or two 30 ms pulses of 1200 V in 100 µL tips on a Neon electroporator (Bio-Rad) and were harvested 48–72 hr post-electroporation.

Plasmids

Plasmid constructs to express FHV RNA1 (pIE1-FHVRNA1), FHV RNA3 (pIE1-FHVRNA3), or protein A (pIE1PtnA) in Drosophila cells under control of the baculovirus immediate-early 1 (IE1) promoter and trans-activating hr5 enhancer have been described previously (Kopek et al., 2010). Plasmids to express FHV RNA replication templates additionally contained the hepatitis delta virus anti-genomic ribozyme to ensure precise 3’ ends.

Mitochondrion isolation

Mitochondria were extracted from 6 × 107 S2 cells using the Q-proteome kit (Qiagen) according to the manufacturer’s protocol. Briefly, cells were pelleted and re-suspended in a series of lysis buffers before being physically disrupted by drawing the suspensions ten times through a 25-gauge syringe needle. The resulting cell lysates were fractionated using several rounds of differential centrifugation until a pellet of concentrated mitochondria was obtained.

FHV RNA synthesis

FHV mitochondria RNA synthesis reactions were assembled using a modification of a previously described protocol (Barton et al., 1995). Briefly, re-suspended isolates of mitochondria from FHV-infected cells (45% of total sample volume, with a protein concentration of approximately 30 µg/µL) were incubated in RNA synthesis buffer (final concentration: 1 mM ATP, 0.25 mM CTP and GTP, 0.01 mM UTP, 30 mM creatine phosphate, 20 µg creatine kinase, 20 U RNasin (Promega), 15 mM HEPES (pH 7.4)), 10 µCi [32P]UTP (GE Healthcare), to a final volume of 25 µL. Reactions were incubated at room temperature and flash-frozen in liquid nitrogen. RNAs were extracted using RNaqueous spin columns (Thermo-Fisher) according to manufacturer specifications. Following elution, samples were ethanol-precipitated, and RNA pellets were washed with 70% ethanol, dried, and re-suspended in RNase-free water supplemented with formaldehyde loading dye. Samples were electrophoresed at 100 mV for 2.5 hr on a 1.0% Tris-borate-EDTA agarose gel. The gel was then dried at 60°C, and exposed to a phosphorimager screen for imaging.

Immunogold labeling

EM-visualization of protein A replicase on mitochondria used a modification of the protocol from Yi et al. (2015). Briefly, at room temperature, mitochondrial preparations were incubated in PBS supplemented with 5% BSA for 20 min, pelleted at 7000 x g for 2 min and washed three times with incubation buffer (PBS + 0.1% Aurion-BSA(c) (Aurion)). Rabbit polyclonal anti-FHV protein A antibody (Miller et al., 2001) or normal rabbit IgG (Abcam) as a negative control were added at 1:50 dilution and samples were rotated for 1.5 hr. After four washes with incubation buffer, samples were incubated with goat anti-rabbit antibody conjugated to 6 nm colloidal gold (EMS) for 1.5 hr at room temperature. Following four washes, samples were re-suspended in Q-proteome kit storage buffer (Qiagen) supplemented with 10 nm fiducial gold (EMS), and applied to glow-discharged grids for plunge freezing.

Cryo-electron microscopy

Mitochondrial pellets were re-suspended to a final volume of approximately 50 µL isotonic buffer and supplemented with 10 nm fiducial gold particles (EMS). Copper grids with a 3.5 µm hole-size and 1.0 µm spacing (Quantifoil) were glow-discharged for 30 s using a Pelco GD unit and loaded onto a Mark IV Vitrobot (FEI). 3 µL of the mitochondrial preparation was loaded onto a grid at approximately 95% humidity and blotted for 2 s with Whatman paper at a −2 force offset. Grids were plunge-frozen in liquid nitrogen-cooled liquid ethane and stored under liquid nitrogen prior to loading into the cryo-EM holder and the microscope. Cryo-tomograms were acquired using either a Titan Krios electron microscope at 300 keV (FEI) at Janelia Research Campus (HHMI) with a pixel size of 2.9 Å or 5.6 Å or on a TF-30 electron microscope at 300 keV (FEI) at UW Madison with a pixel size of 4.6 Å. Both microscopes were equipped with post-column energy filters and post-GIF K2 Summit direct electron detectors (Gatan). Low and medium magnification maps were acquired using either UCSF tomo (Zheng et al., 2007) or SerialEM (Mastronarde, 2005). Tomograms were collected at 2° tilt increments for a range spanning −60° to +60° using defocus values ranging from 4 to 6 µm. The total electron dose per tomogram averaged 130–150 electrons/Å2. The energy filter slit size during collection ranged between 10–25 eV on both microscopes.

Subtomogram averaging

The FHV crown data set included 6 tomograms, each containing between one and four mitochondria. Mitochondrial membranes were segmented semi-automatically (Castaño-Díez et al., 2017), and modeled as surfaces. Particles were located by visual inspection, and each was assigned an initial orientation given by the normal to the membrane. Using the Dynamo software (Castaño-Díez et al., 2012), an initial template was created by averaging a total of 320 extracted particles, using the initial orientation. Refinement iterations were computed by scanning orientations in a cone around the initial orientations. The initial search range was 60° around the initial axis, and a full azimuthal rotation range of 360°. Particles were forced to stay in a neighborhood around their original location. Convergence was observed after 12 iterations (with an angular search range of 5° around the axis located at the previous iteration). The resolution of the resulting average was estimated at 3.3 nm (criterion FSC = 0.143, Figure 6G), by dividing the total set of particles into two data sets refined independently. Subtomogram averaging was independently achieved by a second researcher using the Particle Estimation for Electron Tomography (PEET) set of programs from the IMOD tomography suite (Nicastro et al., 2006; RRID_SCR_003297) without prior knowledge of the results obtained using Dynamo. The independent Dynamo and PEET subtomogram reconstructions revealed essentially identical structures, providing assurance of negligible unintentional error or bias.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
    Requirements for the self-directed replication of flock house virus RNA 1
    1. LA Ball
    (1995)
    Journal of Virology 69:2722.
  9. 9
    Complete replication of poliovirus in vitro: preinitiation RNA replication complexes require soluble cellular factors for the synthesis of VPg-linked RNA
    1. DJ Barton
    2. EP Black
    3. JB Flanegan
    (1995)
    Journal of Virology 69:5516–5527.
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
    Early and late functions in a bipartite RNA virus: evidence for translational control by competition between viral mRNAs
    1. PD Friesen
    2. RR Rueckert
    (1984)
    Journal of Virology 49:116–124.
  33. 33
  34. 34
    Cytoplasmic structures associated with an arbovirus infection: loci of viral ribonucleic acid synthesis
    1. PM Grimley
    2. IK Berezesky
    3. RM Friedman
    (1968)
    Journal of Virology 2:1326–1338.
  35. 35
  36. 36
  37. 37
    Induction and maintenance of autonomous flock house virus RNA1 replication
    1. KL Johnson
    2. LA Ball
    (1999)
    Journal of Virology 73:7933–7942.
  38. 38
  39. 39
  40. 40
  41. 41
    Virus Taxonomy: Classification and Nomenclature of Viruses: Ninth Report of the International Committee of Viruses
    1. AMQ King
    2. MJ Adams
    3. EB Carstens
    4. EJ Lefkowitz
    (2012)
    Virus Taxonomy: Classification and Nomenclature of Viruses: Ninth Report of the International Committee of Viruses.
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
    Double-stranded RNA viruses of Saccharomyces cerevisiae
    1. RB Wickner
    (1996)
    Microbiological Reviews 60:250–265.
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88

Decision letter

  1. Wesley I Sundquist
    Reviewing Editor; University of Utah School of Medicine, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Cryo-electron tomography reveals novel features of a viral RNA replication compartment" for consideration by eLife. Your article has been favorably evaluated by Wenhui Li (Senior Editor) and two reviewers, one of whom, Wesley I Sundquist (Reviewer #1), is a member of our Board of Reviewing Editors.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

The authors report cryo-EM tomographic reconstructions of Flock house Virus viral replication "spherules" formed as invaginations in the outer mitochondrial membrane. The structure is a relatively low resolution (nominally 32 A) but nevertheless reveals a number of new features that had not been characterized, including a 12-fold symmetric "crown" structure that contains viral replicase protein A, coiled dsRNA in the spherule interior, an unappreciated range of spherule volumes and a correlation between transcript size and spherule volume (which the authors interpret to mean that each spherule contains 1-2 copies of a single specific viral RNA), and what appear to be progeny (positive sense) RNA strands being released from the spherule through the crown.

Despite the relatively modest resolution of the reconstruction, the spherule structures are remarkable and other strengths of the paper include: 1) the experiments are generally well conceived and controlled, 2) the data provide strong support for models for spherule biogenesis and activity (summarized in Figure 7), and 3) the potential generalizability of these structures to the many other positive sense RNA viruses that also build replication factories on cellular membranes.

Significant issues that must be addressed:

1) The paper is generally straightforward and well written, but details of the reconstruction methodology and statistics are sparse (e.g., the FSC curve is not shown, the meaning of the sentence "Local resolution estimate of 3.2 nm" is unclear -what does "local" mean, what is the average resolution of the structure, etc.). Most importantly, the assumption of 12-fold symmetry is not sufficiently justified – for example by providing a power spectrum showing a clear peak corresponding to 12-fold symmetry. There is no reason to think this assumption is incorrect, but the symmetry and structure of the crown are key new features and the experimental underpinnings should therefore be presented in detail.

2) Interpretations of spherule size and content are an important component of this paper, but require clarification. There are several issues:

A) Please explain exactly what is meant by the sentence: "Consistent with estimates of the persistence length of dsRNA" – didn't understand this sentence.

B) Figure 3: Should address whether/how RNA2 explains the remaining size classes of spherules between those assigned to RNA1 and RNA3.

C) The interpretation of Figure 3 is that differing size RNAs and their associated replication results in different size classes of spherules. Is it alternatively possible that spherules are dynamic and not all of them are being captured at the same time during imaging? Therefore, spherules are at different stages of "growth" in this instance but may contain all the RNAs.

D) Please clarify further the calculations between template length and spherule volume were derived and what relationship they have to cytoplasmic polyhydrosis virus (CPV) dsRNA. Perhaps it would be useful to show Figure 2E together with a table to comparing internal volumes of CPV and FHV spherules together.

E) Postulating that 1.5 – 2.5 copies of dsRNA1 fit inside each spherule is not particularly satisfying or intuitive. Since multiple (+) strands come from the (-) strand wouldn't it be more logical to frame this argument in the context of a single (-) strand and multiple nascent (+) strands?

Other issues that should be addressed:

Introduction

• "Understanding and potential antiviral manipulation would be greatly assisted[…]" – clumsy sentence.

• It would be valuable to provide a brief discussion of structural information on Protein A that would be relevant and helpful to readers who are not familiar with Nodavirus research.

Results

Figure 2 – A) would be useful to use arrows and identify crown, turrets, filaments as in Figure 5. B – D). Scale bars would allow a better idea of what magnification and scale is being shown. E) Unclear when referring to Figure 2 in the results as to why distance between interior filaments plot is shown and how it is calculated.

• Subsection “Spherule replication compartment volume correlates with RNA template length”, first sentence is missing a period.

Discussion

• The composition of the crown is not adequately discussed. It is clear that Protein A is involved but does it make up the crown or not? Is it possible that a host protein is co-opted? Are there any predictions about the structure of protein A that would allow fitting the structure into the crown? From the data it appears that the crown is likely to be a motor akin to the phage packaging motors, which was indeed mentioned, but a possible role in assembly was never discussed.

https://doi.org/10.7554/eLife.25940.021

Author response

Significant issues that must be addressed:

1) The paper is generally straightforward and well written, but details of the reconstruction methodology and statistics are sparse (e.g., the FSC curve is not shown, the meaning of the sentence "Local resolution estimate of 3.2 nm" is unclear -what does "local" mean, what is the average resolution of the structure, etc.).

In the Results subsection “FHV spherule necks are crowned by cupped structures”, second paragraph, we have added further description of the reconstruction methodology and statistics. This added section refers to new panel G in what is now Figure 6 to provide the Fourier Shell Correlation (FSC) curve in support of statements on the structure’s resolution. We agree that use of “local” to describe resolution was unnecessary and confusing, and have omitted that term.

Most importantly, the assumption of 12-fold symmetry is not sufficiently justified – for example by providing a power spectrum showing a clear peak corresponding to 12-fold symmetry. There is no reason to think this assumption is incorrect, but the symmetry and structure of the crown are key new features and the experimental underpinnings should therefore be presented in detail.

The power spectrum in question is now shown in new panel H of Figure 6, and is introduced in the new comments in the second paragraph of the subsection “FHV spherule necks are crowned by cupped structures”, as the basis for the statements on crown symmetry. We have included clarifying statements that no symmetry was imposed for subtomographic reconstruction, and that individual tomograms prior to averaging show clear indications of 12-fold symmetry in displaying parts of the outer ring of 12 tooth-like projections.

2) Interpretations of spherule size and content are an important component of this paper, but require clarification. There are several issues:

A) Please explain exactly what is meant by the sentence: "Consistent with estimates of the persistence length of dsRNA" – didn't understand this sentence.

At the end of the subsection “Coiled interior filaments fill FHV RNA replication vesicles”, we have provided further information and explanation to clarify that the presence of relatively straight, continuous segments of at least 40 nm is consistent with the prior estimate of dsRNA persistence length, i.e. the length of dsRNA required to show significant bending, as ~60- 64 nm.

B) Figure 3: Should address whether/how RNA2 explains the remaining size classes of spherules between those assigned to RNA1 and RNA3.

In the relevant Results section, we have added a new paragraph (subsection “Spherule replication compartment volume correlates with RNA template length”, third paragraph) noting that the breadth of spherule sizes between those assignable to RNA1 and RNA3 appears greater than expected for a single peak associated with RNA2. We also note that potential contributions to this complexity could include the dependence of RNA2 replication on trans-activation by RNA3, which could lead to some spherules containing both RNA2 and RNA3, and the possibility, noted in reviewer comment 2C immediately below, that spherule sizes might vary dynamically through ongoing RNA synthesis and export. Since further comments on these points necessarily involve alternatives that cannot be resolved from present data, readers then are referred to the Discussion, where a fuller consideration of factors possibly contributing to the breadth of spherule sizes has been added (subsection “Relationships among spherule shape, filamentous contents, size distributions, and RNA templates”, third paragraph).

C) The interpretation of Figure 3 is that differing size RNAs and their associated replication results in different size classes of spherules. Is it alternatively possible that spherules are dynamic and not all of them are being captured at the same time during imaging? Therefore, spherules are at different stages of "growth" in this instance but may contain all the RNAs.

Please see the response to comment 2B immediately above. As indicated there, the possibility that spherule sizes may vary dynamically is now noted in the subsection “Spherule replication compartment volume correlates with RNA template length”, third paragraph and discussed further in the subsection “Relationships among spherule shape, filamentous contents, size distributions, and RNA templates”, third paragraph.

D) Please clarify further the calculations between template length and spherule volume were derived and what relationship they have to cytoplasmic polyhydrosis virus (CPV) dsRNA. Perhaps it would be useful to show Figure 2E together with a table to comparing internal volumes of CPV and FHV spherules together.

In the last paragraph of the subsection “Spherule replication compartment volume correlates with RNA template length”, we have more explicitly explained that we used published measurements of the diameter and packaging density of cytoplasmic polyhydrosis virus (CPV) dsRNA in dsRNA virus virion particles as a reference to calculate packaging density of FHV dsRNA in spherules. We appreciate the suggestion of a table comparing the CPV and FHV compartment volumes, but after testing some alternatives concluded that the presentation was simpler and more straightforward without this addition.

E) Postulating that 1.5 – 2.5 copies of dsRNA1 fit inside each spherule is not particularly satisfying or intuitive. Since multiple (+) strands come from the (-) strand wouldn't it be more logical to frame this argument in the context of a single (-) strand and multiple nascent (+) strands?

We agree that discussing spherule volumes in units of fractional dsRNA equivalents is not mechanistically well-founded and would only confuse readers. The relevant section in the last paragraph of the subsection “Spherule replication compartment volume correlates with RNA template length”, has been replaced with more meaningful comments noting that (i) these calculations show that even the smallest spherules associated with RNA1 and RNA3 (Figure 4B and 4C) are large enough to contain a single dsRNA1 or dsRNA3 template, respectively, and (ii) multiple mechanisms contributing to larger spherule volumes are considered in the Discussion. The corresponding Discussion section (subsection “Relationships among spherule shape, filamentous contents, size distributions, and RNA templates”, second paragraph) includes the potential for synthesis of multiple positive strands from a single negative strand, as well as the potentially dynamic nature of spherule volumes and other points raised in comments 2B and 2C above.

Other issues that should be addressed:

Introduction

• "Understanding and potential antiviral manipulation would be greatly assisted[…]" – clumsy sentence.

The sentence in question was not essential and was simply deleted.

• It would be valuable to provide a brief discussion of structural information on Protein A that would be relevant and helpful to readers who are not familiar with Nodavirus research.

To provide such introduction to protein A and nodavirus biology, we added a new Figure 1 illustrating FHV genome organization (panel A) and a map of summarizing current knowledge on Protein A’s structure and function (panel B). This new figure and protein A structure/function in particular are discussed in the third paragraph of the Introduction.

Results

Figure 2A) would be useful to use arrows and identify crown, turrets, filaments as in Figure 5.

As requested, we have added arrowheads in what is now Figure 3A, and also in what is now Figure 5, to indicate spherule membrane, crowns and internal filaments. For consistency, the same arrowhead color scheme from what is now Figure 6 (old Figure 5) is used in new Figures 3 and 5.

B – D). Scale bars would allow a better idea of what magnification and scale is being shown.

As suggested, we have added scale bars to what is now Figure 3, panels B-D.

E) Unclear when referring to Figure 2 in the results as to why distance between interior filaments plot is shown and how it is calculated.

The plot showing the distribution of inter-filament distance in what was Figure 2 was indeed not discussed in the text until a later section on calculating RNA packaging density. To avoid this confusion, this plot was removed from that early figure and is now provided as a Supplement to what is now Figure 3, and cited at the appropriate point in the Results (subsection “Spherule replication compartment volume correlates with RNA template length”, last paragraph). The figure supplement legend now notes how the distances were measured and the aforementioned paragraph explains how these data were used to calculate RNA packing density inside the spherules.

• Subsection “Spherule replication compartment volume correlates with RNA template length”, first sentence is missing a period.

We have added the missing period.

Discussion

• The composition of the crown is not adequately discussed. It is clear that Protein A is involved but does it make up the crown or not? Is it possible that a host protein is co-opted? Are there any predictions about the structure of protein A that would allow fitting the structure into the crown?

While the composition of the crown is a question of great importance, no further information is available at present. To address this, in the first paragraph of the subsection “Multimeric FHV protein A crowns the cytoplasmic side of spherule apertures”, we have further clarified how the immunogold labeling and additional results are consistent with protein A being a major component of the crown. We also added sentences noting that while protein volume calculations show that crowns are sufficiently large to accommodate 12 protein A molecules, no structural information is available for protein A to a level that would permit meaningful modeling into the crown, and that not only host proteins but additional viral proteins might be recruited into the crown with protein A.

From the data it appears that the crown is likely to be a motor akin to the phage packaging motors, which was indeed mentioned, but a possible role in assembly was never discussed.

The potential molecular motor-like role of the FHV crowns in driving RNA translocation into growing spherules, via the force of RNA polymerization, is discussed in the context of the proposed model for FHV replication complex assembly in the first paragraph of the subsection “New model for spherule formation and function”.

https://doi.org/10.7554/eLife.25940.022

Article and author information

Author details

  1. Kenneth J Ertel

    1. Institute for Molecular Virology, University of Wisconsin-Madison, Madison, United States
    2. Howard Hughes Medical Institute, University of Wisconsin-Madison, Madison, United States
    Present address
    Janelia Research Campus, Howard Hughes Medical Institute, Ashburn, United States
    Contribution
    KJE, Conceptualization, Investigation, Writing—original draft, Writing—review and editing
    Contributed equally with
    Desirée Benefield
    Competing interests
    The authors declare that no competing interests exist.
  2. Desirée Benefield

    1. Institute for Molecular Virology, University of Wisconsin-Madison, Madison, United States
    2. Morgridge Institute for Research, University of Wisconsin-Madison, Madison, United States
    Contribution
    DB, Conceptualization, Investigation, Writing—original draft, Writing—review and editing
    Contributed equally with
    Kenneth J Ertel
    Competing interests
    The authors declare that no competing interests exist.
  3. Daniel Castaño-Diez

    BioEM lab, Biozentrum, University of Basel, Basel, Switzerland
    Contribution
    DC-D, Software, Investigation, Methodology, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  4. Janice G Pennington

    1. Institute for Molecular Virology, University of Wisconsin-Madison, Madison, United States
    2. Howard Hughes Medical Institute, University of Wisconsin-Madison, Madison, United States
    Contribution
    JGP, Investigation, Methodology
    Competing interests
    The authors declare that no competing interests exist.
  5. Mark Horswill

    1. Institute for Molecular Virology, University of Wisconsin-Madison, Madison, United States
    2. Morgridge Institute for Research, University of Wisconsin-Madison, Madison, United States
    Contribution
    MH, Investigation, Methodology
    Competing interests
    The authors declare that no competing interests exist.
  6. Johan A den Boon

    1. Institute for Molecular Virology, University of Wisconsin-Madison, Madison, United States
    2. Morgridge Institute for Research, University of Wisconsin-Madison, Madison, United States
    Contribution
    JAdB, Conceptualization, Supervision, Investigation, Writing—original draft, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0002-5507-917X
  7. Marisa S Otegui

    1. Department of Botany, University of Wisconsin-Madison, Madison, United States
    2. Laboratory of Cell and Molecular Biology, University of Wisconsin-Madison, Madison, United States
    Contribution
    MSO, Supervision, Funding acquisition, Investigation, Writing—review and editing
    Competing interests
    The authors declare that no competing interests exist.
  8. Paul Ahlquist

    1. Institute for Molecular Virology, University of Wisconsin-Madison, Madison, United States
    2. Howard Hughes Medical Institute, University of Wisconsin-Madison, Madison, United States
    3. Morgridge Institute for Research, University of Wisconsin-Madison, Madison, United States
    Contribution
    PA, Conceptualization, Supervision, Funding acquisition, Investigation, Writing—original draft, Writing—review and editing
    For correspondence
    ahlquist@wisc.edu
    Competing interests
    The authors declare that no competing interests exist.
    ORCID icon 0000-0003-4584-9318

Funding

Howard Hughes Medical Institute (Investigator)

  • Paul Ahlquist

Morgridge Institute for Research (Investigator)

  • Paul Ahlquist

National Science Foundation (DBI 1126441)

  • Marisa S Otegui
  • Paul Ahlquist

National Science Foundation (MCB 1614965)

  • Marisa S Otegui

Rowe Family Virology Venture Fund (Investigator)

  • Paul Ahlquist

National Institutes of Health (T32 AI078985)

  • Desirée Benefield

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

For cryo-EM tomography, we thank Jason de la Cruz, Chuan Hong, Rick Huang, and Zhiheng Yu for assistance with the HHMI Janelia Farm Research Campus facilities, Alex Kvit and Jerry Hunter for assistance with the University of Wisconsin – Madison Materials Science Center (MSC) facilities, and Z Hong Zhou for the use of facilities at the University of California – Los Angeles Electron Imaging Center for NanoMachines (EICN) during preliminary stages of the project. We also thank Daniel Toso for assistance with tomogram reconstructions, Lauren Michaels and Miron Livny at the Morgridge Institute for Research for computer resource assistance, and members of our own laboratory for helpful discussions.

Reviewing Editor

  1. Wesley I Sundquist, Reviewing Editor, University of Utah School of Medicine, United States

Publication history

  1. Received: February 10, 2017
  2. Accepted: June 20, 2017
  3. Accepted Manuscript published: June 27, 2017 (version 1)
  4. Version of Record published: July 18, 2017 (version 2)

Copyright

© 2017, Ertel et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,333
    Page views
  • 537
    Downloads
  • 6
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading
