1. Genomics and Evolutionary Biology
Download icon

A large gene family in fission yeast encodes spore killers that subvert Mendel’s law

  1. Wen Hu
  2. Zhao-Di Jiang
  3. Fang Suo
  4. Jin-Xin Zheng
  5. Wan-Zhong He
  6. Li-Lin Du Is a corresponding author
  1. National Institute of Biological Sciences, China
  2. Tsinghua University, China
Research Article
Cited
1
Views
1,254
Comments
0
Cite as: eLife 2017;6:e26057 doi: 10.7554/eLife.26057

Abstract

Spore killers in fungi are selfish genetic elements that distort Mendelian segregation in their favor. It remains unclear how many species harbor them and how diverse their mechanisms are. Here, we discover two spore killers from a natural isolate of the fission yeast Schizosaccharomyces pombe. Both killers belong to the previously uncharacterized wtf gene family with 25 members in the reference genome. These two killers act in strain-background-independent and genome-location-independent manners to perturb the maturation of spores not inheriting them. Spores carrying one killer are protected from its killing effect but not that of the other killer. The killing and protecting activities can be uncoupled by mutation. The numbers and sequences of wtf genes vary considerably between S. pombe isolates, indicating rapid divergence. We propose that wtf genes contribute to the extensive intraspecific reproductive isolation in S. pombe, and represent ideal models for understanding how segregation-distorting elements act and evolve.

https://doi.org/10.7554/eLife.26057.001

eLife digest

During evolution, new species emerge when individuals from different populations of similar organisms no longer breed with each other, or when the offspring produced if they do breed are sterile. This process is known as “reproductive isolation” and, for over 100 years, evolutionary biologists have tried to better understand how this process happens.

Animals, plants and fungi produce sex cells – known as gametes – when they are preparing to reproduce. These cells are made when cells containing two copies of every gene in the organism divide to produce new cells that each only have one copy of each gene. Therefore, a particular gene copy usually has a 50% chance of being carried by an individual gamete. There are genes that selfishly increase their chances of being transmitted to the next generation by destroying the gametes that do not carry them. These “gamete killer” genes reduce the fertility of the organism and lead to reproductive isolation.

Fission yeast is a fungus that is widely used in research. There are different strains of fission yeast that are reproductively isolated from each other, but it is not known whether gamete killers are responsible for this isolation. To address this question, Hu et al. investigated the causes of reproductive isolation in fission yeast.

The experiments identified two gamete killers, referred to as cw9 and cw27. Both genes belong to the wtf gene family. Each gene is believed to encode two different proteins, one that acts as a poison and one that acts as an antidote. The poison is capable of killing all gametes, but the antidote protects the cells that contain the gamete killer gene. Further experiments show that the antidote produced by one of the gamete killer genes cannot protect cells against the poison produced by the other gene.

A separate study by Nuckolls et al. found that another member of the wtf family also acts as a gamete killer in fission yeast. Together, these findings shed new light on the causes of reproductive isolation, and will contribute to deeper understanding of speciation and evolution in general.

https://doi.org/10.7554/eLife.26057.002

Introduction

Mendel’s law of equal segregation stipulates that paternal and maternal alleles of a gene should have an equal chance of being transmitted to progenies. This law guarantees a fair competition between different alleles and enables beneficial ones to prevail during natural selection. Meiotic drivers, a type of selfish genetic element, break Mendel’s law by skewing transmission ratios to their advantage, and thus can spread in a population even when having a deleterious effect on organismal fitness (Lindholm et al., 2016; Werren, 2011). The term ‘meiotic drive’ was initially coined to describe segregation distortion resulting from preferential inclusion in the gamate during asymmetric female meiosis but has now been used more broadly to include biased transmission caused by postmeiotic mechanisms. In fact, some of the best-known meiotic drivers, such as Segregation Distorter in Drosophila and the t haplotype in mouse (Lyon, 2003; Larracuente and Presgraves, 2012), act postmeiotically to disable male gametes (sperms) that do not inherit them. This type of meiotic driver, called gamete killer, exists in animals, plants, and fungi (Burt and Trivers, 2006). Fungal gamete killers, or spore killers, have been found in several filamentous ascomycetes, most notably Neurospora and Podospora anserina (Dalstra et al., 2003; Grognet et al., 2014; Hammond et al., 2012; Turner and Perkins, 1979). It is unclear how widespread spore killers are among fungal species.

The fission yeast Schizosaccharomyces pombe is a prominent model organism for molecular and cell biology and has been increasingly used to study natural variation and genome evolution (Brown et al., 2011; Hu et al., 2015; Jeffares et al., 2015; Rhind et al., 2011). S. pombe natural isolates, which are nearly all haploids and have pair-wise nucleotide differences of less than 1% (Jeffares et al., 2015; Rhind et al., 2011), can readily mate with each other to form hybrid diploids, but the viability of spores derived from inter-isolate crosses is often below 5% and in many instances under 1% (Gutz and Doe, 1975; Kondrat’'eva and Naumov, 2001; Naumov et al., 2015). This is in stark contrast to Saccharomyces cerevisiae, whose natural isolates have a similar level of nucleotide diversity but much better spore viability when inter-crossed (Hou et al., 2014). One explanation for the within-species hybrid sterility in S. pombe is chromosomal rearrangement (Avelar et al., 2013; Brown et al., 2011; Zanders et al., 2014). However, because one rearrangement reduces spore viability at most by half (Avelar et al., 2013; Hou et al., 2014), other factors are likely in play. It was shown recently that when the S. pombe laboratory strain, which was isolated from French grape juice (Hu et al., 2015; Osterwalder, 1924), was crossed to a strain isolated from fermented tea (initially called Schizosaccharomyces kambucha [Singh and Klar, 2003], later renamed S. pombe var. kambucha [Rhind et al., 2011]), at least three spore killers contributed to hybrid sterility (Bomblies, 2014; Zanders et al., 2014), but the identities of the killer genes were unknown.

In this study, through investigating the causes of intraspecific hybrid sterility of fission yeast, we uncovered the molecular identities of two active spore killers, which both belong to the wtf gene family. We analyzed their killing behaviors in both native and non-native genomic contexts. Furthermore, we performed comparative genomic analysis of wtf genes and revealed interesting patterns of divergence among them.

Results

We have previously studied CBS5557, an S. pombe strain isolated from grapes in Spain (Hu et al., 2015; Rankine and Fornachon, 1964). Like most S. pombe isolates, CBS5557 differs from the laboratory strain, whose genome is the S. pombe reference genome, in a 2.23 Mb pericentric inversion on chromosome I (Brown et al., 2011). After introducing the same inversion into the laboratory strain (Hu et al., 2015), the viability of spores derived from the cross between the laboratory strain and CBS5557 increased from 14% to 22% (Figure 1—figure supplement 1 and Supplementary file 1). To uncover the causes of the remaining sterility, we performed next-generation sequencing (NGS)-assisted bulk segregant analysis (Hu et al., 2015) and found that among the viable progenies from the cross, SNP alleles of the laboratory strain (reference alleles) on chromosome III were markedly under-represented (Figure 1A). Two broad transmission distortion peaks, one on the left arm (hereafter referred to as the left peak) and one on the right arm (hereafter referred to as the right peak), were observed, suggesting that there are at least two spore killer genes on chromosome III of CBS5557.

Figure 1 with 3 supplements see all

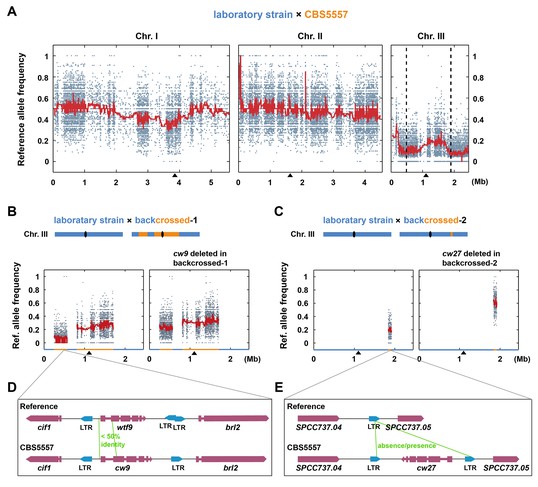

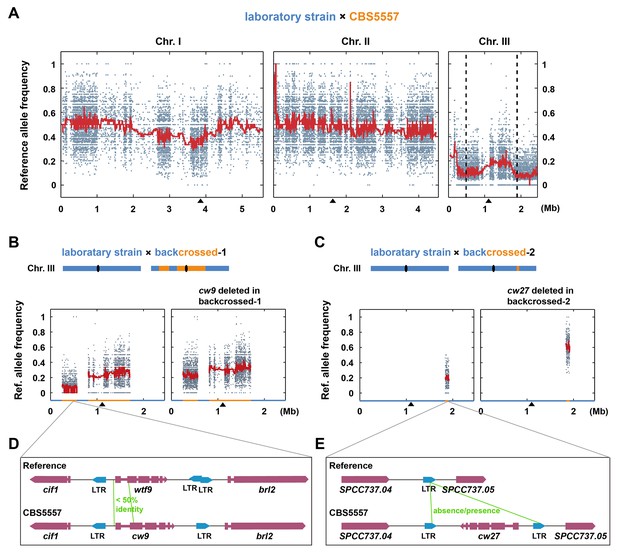

The identification of cw9 and cw27 genes as spore killers.

(A) NGS-assisted bulk segregant analysis of viable progenies from a cross between DY9974, a heterothallic derivative of CBS5557, and DY8531, a laboratory strain harboring the 2.23 Mb chromosome I inversion (Hu et al., 2015). Reference allele frequencies at SNP positions are plotted as dots. Red trend lines are based on a rolling median calculation. Two vertical dashed lines denote the positions of cw9 and cw27 genes on chromosome III. Black triangles mark the positions of centromeres. (B and C) Bulk segregant analysis of viable progenies from crosses between a laboratory strain and the backcrossed-1 strain, and between a laboratory strain and the backcrossed-2 strain, respectively. Blue and orange colored segments in the diagrams and on the X-axes of the plots denote chromosome III regions with reference genome sequence and those with CBS5557 genome sequence, respectively, in the two backcrossed strains. (D and E) Schematics of the regions surrounding cw9 and cw27 in the CBS5557 genome and the corresponding regions in the reference genome. Gene structures of cw9 and cw27 were predicted using the AUGUSTUS web server (Stanke et al., 2008). Solo LTRs were annotated based on BLAST analysis.

https://doi.org/10.7554/eLife.26057.003

To narrow down the genomic regions containing the spore killer genes, we performed multiple rounds of backcross and obtained strains with only a portion of chromosome III originating from CBS5557 and the rest of the genome coming from the laboratory strain (see 'Materials and methods'). We selected two backcrossed strains that retained the ability to skew inheritance of markers inserted in the left and right peak regions, respectively. These two strains, referred to as backcrossed-1 and backcrossed-2, respectively, were crossed to the laboratory strain and viable progenies were subjected to NGS-assisted bulk segregant analysis, which revealed the locations of the CBS5557 genomic segments present in the two backcrossed strains and confirmed the allele transmission bias (left-side plots in Figure 1B and C).

Through inspecting the Illumina and PacBio sequencing data of the CBS5557 genome, we discovered that, within the CBS5557 genomic segments in the two backcrossed strains, sequences most divergent from the reference genome are those containing wtf family genes (Figure 1D and E). wtf (for with Tf LTRs) genes were so named because they are often in close proximity to solo long terminal repeats (LTRs) derived from Tf retrotransposons (Bowen et al., 2003; Wood et al., 2002). wtf genes are predicted to contain multiple introns and encode multi-transmembrane proteins and have been shown to be highly up-regulated transcriptionally during meiosis and sporulation by large-scale analyses (Bowen et al., 2003). No homologs of wtf genes have been found in any other species, including other Schizosaccharomyces species (Rhind et al., 2011). We deleted from the backcrossed-1 strain a wtf gene locating at the position of wtf9 in the reference genome but exhibiting a low sequence identity (42%) to wtf9 in the 5’ portion (Figure 1D and Figure 1—figure supplement 2) and found that the deletion notably reduced the segregation distortion (right-side plot in Figure 1B), suggesting that this wtf gene, which we named cw9 (the nomenclature of wtf genes in the CBS5557 genome will be explained later in this paper), is a spore killer. The residual allele frequency bias is probably due to additional spore killer gene(s) in the CBS5557 genomic segments present in the backcrossed-1 strain. Within the CBS5557 genomic segment in the backcrossed-2 strain, we found a wtf gene absent in the reference genome, possibly owing to a deletion event mediated by homologous recombination between LTRs (Figure 1E and Figure 1—figure supplement 3). Removing this wtf gene, which we named cw27, from the backcrossed-2 strain completely abolished segregation distortion (right-side plot in Figure 1C).

To determine how cw9 and cw27 behave in their native strain background, we generated h+/h- CBS5557 diploid strains containing homozygous or heterozygous deletion of cw9 or cw27, and performed tetrad analysis to evaluate spore viability (Figure 2A and Supplementary file 1). Homozygous deletion of cw9 or cw27 had no effect on spore viability (Figure 2A and Figure 2—figure supplement 1). In contrast, heterozygous deletion of either cw9 or cw27 caused a significant reduction of spore viability, which resulted mainly from the death of spores carrying the deletion (Figure 2B). When cw9 and cw27 were both in the heterozygous state, a more severe loss of spore viability was observed, with the double deletion mutant spores suffering a particularly high level of death (Figure 2A and B, and Supplementary file 1). These data indicate that cw9 and cw27 can act as spore killers in the self-cross of CBS5557 when either of them is in the heterozygous state, and inheriting one killer can prevent its killing effect but not that of the other killer.

Figure 2 with 1 supplement see all

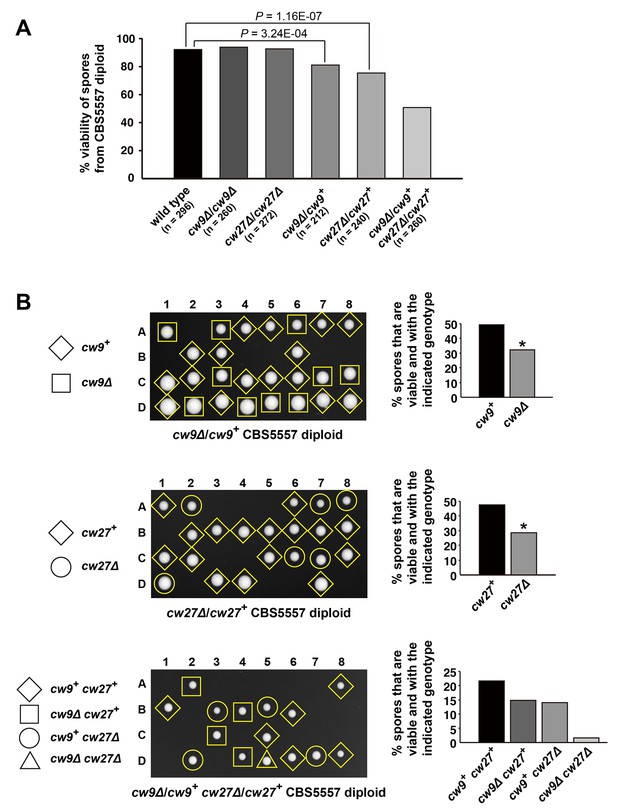

cw9 and cw27 act as spore killers when in the heterozygous state in the CBS5557 background.

(A) Heterozygous deletion but not homozygous deletion of cw9 or cw27 in CBS5557 h+/h- diploid caused spore viability loss. Spore viability was measured using tetrad analysis. Representative tetrads are shown in Figure 2—figure supplement 1 and in panel B. p-values were calculated using Fisher’s exact test. Numerical data are provided in Supplementary file 1. (B) Among the spores derived from CBS5557 diploids with heterozygous deletion, loss of viability mainly occurred to spores with deletion. Asterisks indicate significant deviation from 50% (p=1.94E-7 and 1.42E-11 for cw9∆ spores from cw9∆/cw9+ diploid and cw27∆ spores from cw27∆/cw27+ diploid, respectively, exact binomial test). Numerical data are provided in Supplementary file 1.

https://doi.org/10.7554/eLife.26057.007

To determine whether cw9 and cw27 can cause spore killing in a non-native genomic context, we constructed integrating plasmids carrying cw9 or cw27, integrated the plasmids at various genomic locations in the laboratory strain, and subjected the resulting strains to crosses. In crosses where only one of the parental strains harbored cw9 or cw27, spores inheriting the killer had normal viability, whereas spores not inheriting the killer suffered significant loss of viability, regardless of the genomic location of the killer (Figure 3A and Figure 3—figure supplement 1). We then performed crosses in which both parental strains harbored a killer at the leu1 locus (Figure 3B and Figure 3—figure supplement 2). When both parental strains contained the same killer, spore viability was normal. In contrast, when one parental strain had cw9 and the other parental strain had cw27, spores inheriting either cw9 or cw27 experienced a dramatic loss of viability. These results demonstrate that cw9 and cw27 can act independently of genomic context and confirm that they do not exhibit mutual resistance.

Figure 3 with 2 supplements see all

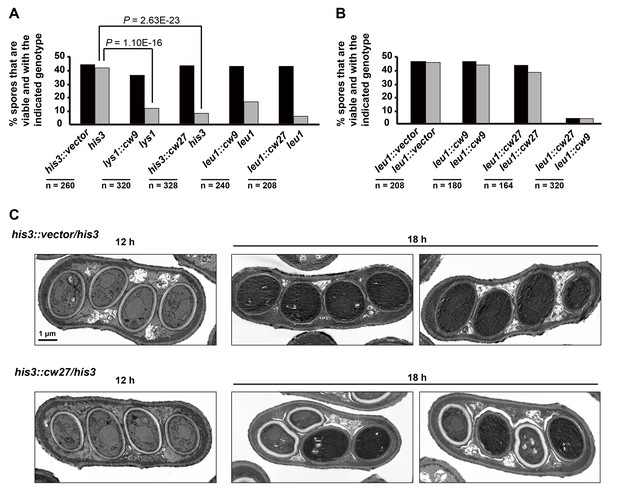

cw9 and cw27 act as spore killers when inserted into the genome of the laboratory strain.

(A) In crosses of laboratory strains, when only one parental strain had an insertion of cw9 or cw27 at his3, lys1, or leu1 locus, spores without the insertion suffered viability loss. Representative tetrads are shown in Figure 3—figure supplement 1. p-values were calculated using Fisher’s exact test. Numerical data are provided in Supplementary file 1. (B) In crosses of laboratory strains, when both parental strains had an insertion of cw9 or cw27 at the leu1 locus, spore viability was normal when parents had the same killer, but was severely low when parents had different killers. The two parental alleles were distinguished by leu1-linked antibiotic resistance markers. Representative tetrads are shown in Figure 3—figure supplement 2. Numerical data are provided in Supplementary file 1. (C) Electron microscopy analysis of laboratory-background h+/h- diploid cells undergoing synchronous meiosis and sporulation.

https://doi.org/10.7554/eLife.26057.009

To observe the ultrastructural details of the spore killing process, we performed electron microscopy analysis on laboratory-background h+/h- diploid cells undergoing synchronous meiosis and sporulation induced by a shift to a nitrogen-free synthetic sporulation medium (SSL-N medium) (Figure 3C). Two diploid strains were used: a strain heterozygous for a cw27-containing plasmid integrated at the his3 locus and a control strain heterozygous for an empty vector integrated at the same locus. 12 hr after the shift, cw27-containing cells formed four-spored asci indistinguishable from those formed by the control cells. At this time point, organelles inside spores were clearly visible. 18 hr after the shift, the cytoplasm of spores derived from the control cells became electron-dense and organelles were no longer discernable, owing to a little-understood spore maturation process (Yoo et al., 1973). Interestingly, at the same time point, asci derived from the cw27-containing cells often exhibited a 2:2 pattern of spore morphology: two spores in an ascus looked like the matured spores in the control sample, whereas the other two spores exhibited cytoplasm with a lower electron density and visible organelles, an electron-lucent spore wall, and frequently a non-spherical shape. These data suggest that killer-affected spores fail to undergo a proper maturation process.

cw9 and cw27 are both flanked by solo LTRs, and upstream of their predicted start codons they share a nearly identical 288-bp-long sequence (hereafter referred to as the conserved_up sequence) (Figure 4—figure supplement 1), which is also conserved upstream of the coding sequences of many other wtf genes (Bowen et al., 2003). To determine whether these and other sequence features are important for spore killing, we performed truncation analysis (Figure 4A and Figure 4—figure supplement 2). The truncated versions were named Ta, Tb, Tc, Td, and Te. Their effects on spore viability in a heterozygous cross of laboratory strains were examined. The Ta versions, which lack the LTRs, caused spore killing phenotypes similar to those caused by longer constructs containing the flanking LTRs, indicating that the LTRs are not important. Interestingly, the Tb versions missing the sequence between the upstream LTR and the conserved_up sequence caused spores containing the killer to suffer a moderate viability loss, suggesting that these truncated killer genes partially lost the ability to protect killer-containing spores from being harmed. Removing from the Ta versions, the sequence downstream of the predicted stop codon (Tc versions) did not have a notable effect. Removing from the Tc versions, the last 10 amino-acid-coding codons (Td versions) greatly diminished spore killing, whereas removing from the Tc versions the sequences upstream of the start codons (Te versions) resulted in more indiscriminate killing than that caused by the Tb versions. These results suggest that intact C termini are important for the killing activity, and the upstream sequences are important for the protecting activity.

Figure 4 with 3 supplements see all

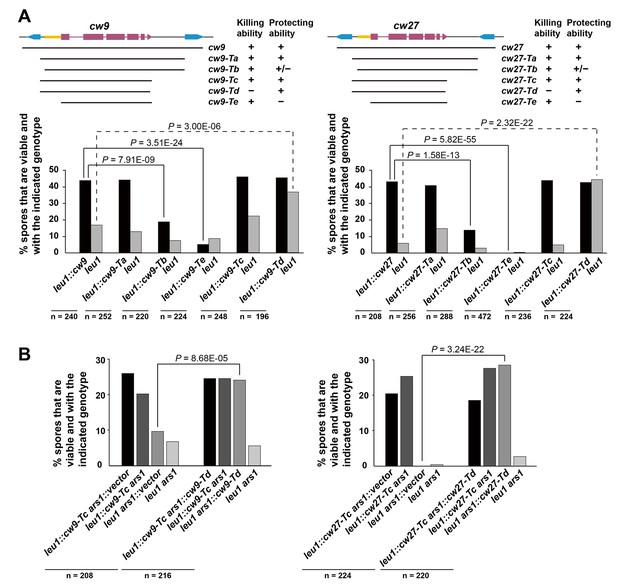

Sequence requirement for the killing and the protecting activities of cw9 and cw27.

(A) Truncation analysis to assess the involvement of the 5’ and 3’ sequences of cw9 and cw27 in spore killing. In the diagrams on top, blue arrows represent LTRs and yellow bars represent the conserved_up sequence. Representative tetrads are shown in Figure 4—figure supplement 1. p-values were calculated using Fisher’s exact test. Numerical data are provided in Supplementary file 1. (B) The Td versions of cw9 and cw27 are able to effectively protect against killing despite their lack of killing activity. Representative tetrads are shown in Figure 4—figure supplement 2. p-values were calculated using Fisher’s exact test. Numerical data are provided in Supplementary file 1.

https://doi.org/10.7554/eLife.26057.012

To determine whether the Td versions, which are largely devoid of the killing activity, can still protect, we performed crosses in which a strain with a Td-version-containing plasmid integrated at the ars1 locus was crossed to a strain with a Tc-version-containing plasmid integrated at the leu1 locus, and found that the Td versions of both cw9 and cw27 can effectively protect spores harboring them from being killed by the respective Tc-version killers (Figure 4B and Figure 4—figure supplement 3). Thus, perturbing the C termini resulted in separation-of-function mutants that retain the protecting activity but can no longer kill. Such kind of mutants, if present in natural populations, would behave similarly to the resistant alleles of other previously studied gamete killers, and may also represent an intermediate state toward the extinction of a killer (Burt and Trivers, 2006).

In the reference genome, there are 25 wtf genes at 20 locations (15 singletons and five tandem pairs) (Bowen et al., 2003) (Figure 5A and B). Using PacBio sequencing, we found that in the CBS5557 genome, these 20 locations are occupied by 29 wtf genes (12 singletons, seven pairs, and one triplet), with four locations containing an extra wtf gene compared to the reference genome (Figure 5A and B). We systematically named these 29 genes according to their syntenic relationship with the 25 wtf genes in the reference genome, with each name consisting of the prefix cw, a number (from 1 to 25), and a suffix for genes at locations where extra genes exist in the CBS5557 genome (Figure 5A and B). In addition, there are three CBS5557 singleton wtf genes without syntenic counterparts in the reference genome and we named them cw26, cw27, and cw28 according to their order in the genome (Figure 5A). Like cw27, cw26 and cw28 also appeared to have been lost in the laboratory strain through LTR-mediated recombination (Figure 5—figure supplement 1), suggesting that this is a common mode of wtf gene turnover.

Figure 5 with 5 supplements see all

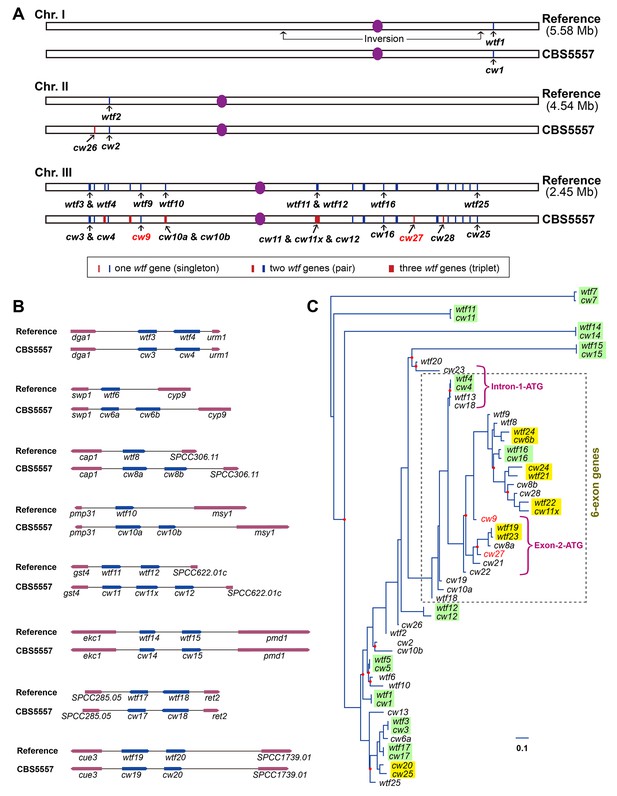

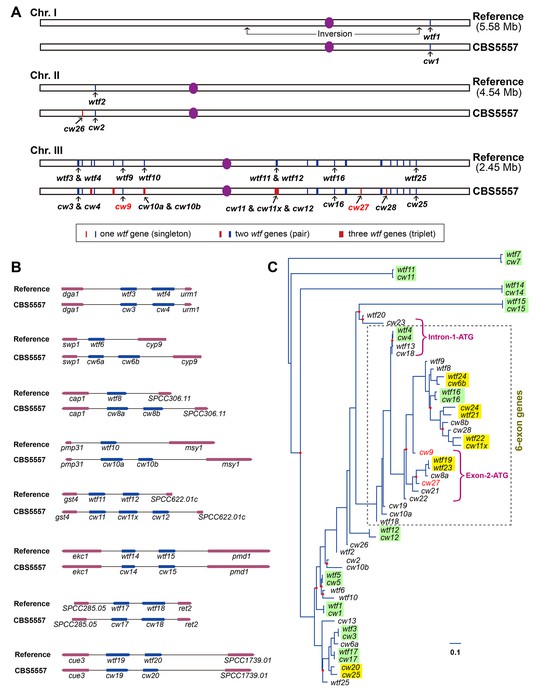

wtf genes vary both in numbers and sequences between the reference genome and the CBS5557 genome.

(A) Genomic locations of wtf genes in the reference genome and in the CBS5557 genome. The 25 wtf genes in the reference genome have been named according to their order in the genome (Bowen et al., 2003). Their locations are depicted as 20 blue vertical bars, including five thick bars denoting five tandem pairs. Our PacBio sequencing analysis revealed that in the CBS5557 genome, there are 32 wtf genes, whose locations are depicted as 23 vertical bars, including three thin red bars at locations where no wtf genes exist in the reference genome and four thick red bars at locations where compared to the reference genome one extra wtf gene is found. The wtf genes in the CBS5557 genome are named with the prefix cw and a number from the name of the syntenic gene in the reference genome. Two genes of a tandem pair corresponding to a singleton in the reference genome are distinguished using the suffixes a and b. Among the three genes of the triplet, two are named cw11 and cw12 based on their homology to wtf11 and wtf12, respectively, and the gene situated between cw11 and cw12 is named cw11x. Genes at new locations are named cw26, cw27, and cw28. Chromosome lengths are not drawn to scale. (B) Diagrams depicting the eight genomic locations with more than one wtf gene in at least one of the two genomes. Genes are shown as arrows. Introns are not shown. wtf17 is depicted not according to its annotation at PomBase, with its 5’ boundary revised based on sequence alignment. (C) Maximum likelihood phylogenetic tree of 57 wtf genes of the reference genome and the CBS5557 genome. DNA sequences including the conserved_up regions, predicted coding sequences, and associated introns were aligned using the L-INS-i iterative refinement algorithm of MAFFT (Katoh and Standley, 2014) (Figure 5—source data 1). Maximum likelihood analysis was performed using IQ-TREE (Nguyen et al., 2015). The tree was rooted by midpoint rooting (Hess and De Moraes Russo, 2007). Red dots on nodes indicate IQ-tree-calculated ultrafast bootstrap (UFBoot) support values < 95%. Colored rectangles highlight phylogenetic neighbors. Two genes are considered phylogenetic neighbors if they are separated by a single internal node with a support value >= 95%. Green rectangles indicate the 11 pairs of neighbors each composed of a reference wtf gene and a syntenic CBS5557 wtf gene. Yellow rectangles indicate the five pairs each composed of two wtf genes locating at different genomic positions. Magenta brackets denote the 12 genes that share a 150 bp sequence within the predicted intron 1 (see Figure 5—figure supplement 3). These 12 genes are divided into two subtypes, Intron-1-ATG genes and Exon-2-ATG genes, based on the locations of the first ATG codons downstream of the 150-bp-long sequence. The brown dashed box indicates genes with six exons. Scale bar, 0.1 nucleotide substitutions per nucleotide site.

https://doi.org/10.7554/eLife.26057.016

Among the 12 CBS5557 singleton wtf genes with syntenic counterparts in the reference genome, cw9 and five others exhibit exceptionally high DNA sequence diversity (<85% identity) from their counterparts in the reference genome (Figure 1D, Figure 1—figure supplement 2, and Figure 5—figure supplement 2). Given that the genome-wide nucleotide difference between CBS5557 and the laboratory strain is only 3.1 SNPs/kb (Hu et al., 2015), wtf genes must have diverged at a much faster pace than average genes.

To examine the phylogenetic relationship among all 57 wtf genes of the two genomes, we performed a maximum likelihood analysis (Figure 5C). In the resulting phylogenetic tree, we used colored rectangles to highlight 16 pairs of genes, with each pair consisting of phylogenetic neighbors, defined as two genes separated by a single internal node that has an ultrafast bootstrap support value >= 95% (Figure 5C). Interestingly, only 11 of these 16 pairs conform to typical orthologous relationship where two members of a pair are syntenic (highlighted by green rectangles in Figure 5C), whereas the five other pairs each consist of two genes that are non-syntenic (highlighted by yellow rectangles in Figure 5C). This pattern suggests that ectopic gene conversion (also called non-allelic or interlocus gene conversion) may contribute to the inter-isolate difference of wtf genes (Chen et al., 2007; Petes and Hill, 1988). Interestingly, genes belonging to the same gene cluster (pair or triplet), despite being subject more strongly to the homogenizing effect of gene conversion due to their physical proximity, are without exception very distinct from each other. One possible explanation is that diversifying selection may have prevented sequence homogenization within gene clusters.

The substantial difference in the numbers and sequences of wtf gene between the laboratory strain and CBS5557 suggests that rapid sequence divergence and independent loss/gain of wtf genes have resulted in different S. pombe natural isolates harboring distinct sets of active spore killers, which become reproductive barriers during inter-isolate crosses and contribute to the extensive and severe hybrid sterility within this species.

Discussion

Only a small number of gamete killers have been characterized at the molecular level. Two well-studied gamete killers in animals, Segregation Distorter in Drosophila and the t haplotype in mouse, both contain at least two key loci, a killer locus and a target locus (Lyon, 2003; Burt and Trivers, 2006; Larracuente and Presgraves, 2012; Lindholm et al., 2016; Bauer et al., 2012). In fungi, spore killers of Neurospora also appear to comprise of two genes, rsk (resistant to Spore killer) and a yet-to-be-identified killer gene, which are proposed to act together in a fashion similar to the toxin-antitoxin (TA) systems of bacterial plasmids, in which a stable toxin and a labile antitoxin together ensure that bacterial cells cannot lose the plasmid expressing them (Hammond et al., 2012; McLaughlin and Malik, 2017; Saupe, 2012). The involvement of more than one gene renders these gamete killer systems vulnerable to recombination that may separate the component genes, and as a consequence, they have all evolved recombination-suppressing features such as chromosomal inversions (Burt and Trivers, 2006; Harvey et al., 2014). On the other hand, two types of single-gene spore killers, [Het-s] prion and the Spok genes, have been found in the filamentous fungus Podospora anserina (Dalstra et al., 2003; Grognet et al., 2014). The killing activity of the [Het-s] prion requires the presence of the HET-S protein, whereas the Spok genes can act autonomously. Fission yeast wtf killers share two prominent features with the Spok killers: being composed of a single predicted coding sequence and acting in a self-sufficient manner. These features arguably make wtf and spok killers the most compact and efficient forms of gamete killers.

Despite the similarities they share, wtf and spok killers are very different entities. Firstly, wtf genes only exist in a single fission yeast species S. pombe, indicating that they probably have arisen after the divergence of S. pombe from its closest relatives S. octosporus and S. cryophilus around 120 million years ago (Rhind et al., 2011), and have not jumped across the species barriers. In contrast, Spok family genes have a patchy but widespread distribution among Pezizomycotina species (Grognet et al., 2014), whose last common ancestor dates to 400 million years ago (Prieto and Wedin, 2013), suggesting that Spok killers have originated much earlier than wtf killers or have been especially prone to transfer horizontally across species. Secondly, spok family genes encode soluble proteins with a C-terminal kinase-like domain (InterPro:IPR011009), whereas wtf genes are predicted to encode multi-transmembrane proteins, suggesting that the detailed molecular mechanisms of these two types of killers are likely to be quite distinct.

The single-gene nature of wtf killers begs the question: how does a single gene encode both the killing and the protecting activities? Our findings on the mutations that can disrupt one but not the other activity suggest the possibility that more than one type of expression products can be generated from a wtf killer gene. Consistent with this idea, Nuckolls et al. showed that the wtf4 gene from the S. pombe var. kambucha strain (Sk wtf4) acts as a spore killer by expressing two overlapping transcripts, with the shorter transcript encoding a spore-killing poison and the longer transcript encoding an antidote that protects the spores from the killing effect of the poison (Nuckolls et al., 2017). This dual-transcript model can satisfactorily explain why the Tb and Te forms of cw9 and cw27 lost protecting activities but not killing activities (Figure 4A). Presumably, the transcription of the longer isoforms, which encode antidote proteins initiated from a start codon in the predicted exon 1, partially relies on the sequence between the upstream LTR and the conserved_up sequence and absolutely requires the conserved_up sequence; in contrast, the transcription of the shorter isoforms, which encode poison proteins initiated from a downstream alternative start codon, is not affected by removing the upstream sequences.

We hypothesized that the transcription of the poison isoforms may depend on a special promoter residing within the predicted intron 1 of cw9 and cw27. Indeed, through inspecting the DNA sequence alignment (Figure 5—source data 1), we found that cw9, cw27, and 10 other wtf genes in the reference genome and the CBS5557 genome share a 150 bp conserved sequence in the predicted intron 1, and this sequence is closely upstream of the transcription start site of a shorter-than-predicted wtf23 transcript isoform uncovered by the Iso-Seq long-read RNA sequencing method (Figure 5—figure supplement 3) (Kuang et al., 2017). These 12 genes can be classified into two subtypes, which we call Intron-1-ATG genes (wtf4, wtf13, cw4, cw18, and cw23) and Exon-2-ATG genes (wtf19, wtf23, cw8a, cw9, cw21, cw22, and cw27), based on the locations of the first ATG codons downstream of the 150 bp sequence (Figure 5C and Figure 5—figure supplement 3). These ATG codons are all in frame with the predicted coding sequences. The within-intron-1 ATG codons in the 5 Intron-1-ATG genes are only 7 bp away from the predicted exon 2, and if used as start codons, would result in proteins beginning with three intron-1-coded amino acids (Met, Leu, and Ser). The two active spore killer genes found in the S. pombe var. kambucha strain by Nuckolls et al., Sk wtf4 and Sk wtf28, also possess this 150 bp sequence and can be classified as an Intron-1-ATG gene and an Exon-2-ATG gene, respectively. We propose that this 150 bp sequence is a hallmark of the ‘poison-and-antidote’ genes that can, at least potentially, generate both poison and antidote isoforms according to the dual-transcript model proposed by Nuckolls et al.

The other 45 wtf genes in the reference genome and the CBS5557 genome lack this 150 bp sequence. In addition, except for the eight most divergent genes (wtf7, cw7, wtf11, cw11, wtf14, cw14, wtf15, and cw15), they do not have an in-frame ATG codon in intron one or in the 5’-section of exon 2, suggesting that most of these genes are not able to generate a shorter isoform according to the dual-transcript model, and are thus ‘antidote-only’ genes. Alternatively, it is possible that they may generate two different protein products using other mechanisms, such as alternative splicing (Kuang et al., 2017), overlapping proteins translated in different frames (Duncan and Mata, 2014), and post-translational processing and modification.

Five wtf genes in the reference genome, wtf1, wtf2, wtf3, wtf22, and wtf24, are annotated by PomBase as pseudogenes (McDowall et al., 2015). Our analysis of the gene structures of the 57 wtf genes in the reference genome and the CBS5557 genome showed that in addition to these five genes, four other wtf genes in the reference genome (wtf6, wtf8, wtf12, and wtf17), and three wtf genes in the CBS5557 genome (cw3, cw12, and cw16), appear to have suffered pseudogenizing mutations (see Materials and methods and Figure 5—source data 2), which include loss of start codons (wtf3 and cw3), premature stop codons (wtf1, wtf12, cw12, and cw16), frameshifting indels (wtf6, wtf8, wtf22, and wtf24), and segmental deletions (wtf2 and wtf17). These ‘dead’ wtf genes presumably are not able to generate either antidote or poison proteins.

Most of the wtf genes in the reference genome and the CBS5557 genome are predicted to contain either 5 or 6 exons. Interestingly, the 6-exon genes, including cw9, cw27, and all but one of the other ten 150-bp-sequence-containing genes, clustered together in the DNA sequence-based phylogenetic tree (Figure 5C), and their protein products are predicted to be longer and contain two or three more transmembrane helices than the protein products of 5-exon genes (Figure 5—source data 3, Figure 5—figure supplement 4, and Figure 5—figure supplement 5). For each of the 12 150-bp-sequence-containing genes, the antidote protein product is approximately 50 amino acids longer than the poison protein product at the N-terminal soluble region. The 10 C-terminal amino acids missing from the protein products of the Td forms of cw9 and cw27 are downstream of the last transmembrane helix, and are strongly conserved among the predicted protein products of 6-exon genes (Figure 5—figure supplement 4), indicating that Td-like mutations do not occur naturally to a significant extent.

How do transmenbrane proteins act as killers? In the prokaryotic toxin-antitoxin (TA) systems, many toxins are transmembrane proteins and kill cells by damaging cellular membranes (Schuster and Bertram, 2013). The best-known examples include the type I TA toxins Hok and TisB, and the type V TA toxin GhoT (Cheng et al., 2014; Gerdes et al., 1986; Unoson and Wagner, 2008). We speculate that Wtf proteins may also possess abilities to disrupt the integrity of certain cellular membranes.

wtf genes were named after their association with the solo LTRs of the Tf retrotransposons (Wood et al., 2002). It was initially hypothesized that retrotransposition may aid the expansion of the wtf gene family (Wood et al., 2002). However, the presence of introns in wtf genes and the lack of sequence similarity between wtf-flanking LTRs indicate that wtf genes have not been retrotransposed (Bowen et al., 2003). Bowen et al. have put forward an explanation for the enrichment of LTRs near wtf genes: the regions flanking wtf genes may have been favored insertion targets of Tf retrotransposons, perhaps owing to the high transcription levels of wtf genes during meiosis and sporulation (Bowen et al., 2003). Our findings that LTRs flanking cw9 and cw27 are dispensable for spore killing support the idea that the wtf-LTR association does not benefit wtf genes but may rather reflect an exploitation of wtf genes by Tf retrotransposons for their own expression and/or inheritance benefit. Furthermore, we show that three singleton wtf genes (cw26, cw27, and cw28) appear to have been lost in the laboratory strain due to LTR-mediated recombination, suggesting that the wtf-LTR association promotes wtf gene loss and is detrimental to the long-term persistence of wtf genes. In addition, it may not be coincidental that both cw9 and cw27 require an approximately 90-bp-long sequence between the upstream LTR and the conserved_up sequence for the full protecting activity, raising the possibility that some wtf genes that lack such an intervening sequence (e.g. wtf4 and cw4) may have suffered functional loss due to a Tf insertion too close to the conserved_up sequence or may have become functionally dependent on the upstream LTR.

In terms of the number of genes per genome, wtf genes are probably the most evolutionarily successful gamete killers known to date. During a relatively short evolutionary time span, wtf gene family has emerged and become the largest species-specific gene family in S. pombe (Lespinet et al., 2002). The compactness (minimal sizes of fully functional cw9 and cw27 are both around 1.9 kb) and the self-sufficiency of the wtf killers likely have been advantageous to its family size expansion. Furthermore, given the dramatic divergence of wtf genes between the reference genome and the CBS5557 genome, and the mutual-killing behaviors of cw9 and cw27, it is possible that two identical copies of a wtf gene generated by a gene duplication event can undergo relatively rapid sequence diversification to become mutually non-resistant, so that their selective advantage is not diminished by resistance. Ectopic gene conversion is known to play a causal role in the sequence diversification of animal major histocompatibility complex (MHC) genes (Ohta, 1991; Takuno et al., 2008), plant disease-resistance genes (R genes) (Mondragon-Palomino and Gaut, 2005), and Plasmodium falciparum var genes (Claessens et al., 2014). Our phylogenetic analysis suggests that ectopic gene conversion may also contribute to the historical expansion and the ongoing dynamic change of the wtf gene family.

It is intriguing that most of the wtf genes locate on chromosome III, the smallest of the three fission yeast chromosomes. To explain this phenomenon, Bowen et al. proposed that the laboratory strain may have inherited only chromosome III but not the other two chromosomes from an ancestor strain in which wtf genes were abundant on all three chromosomes (Bowen et al., 2003). Our finding here of the same kind of chromosomal distribution bias in CBS5557, whose nucleotide diversity from the laboratory strain is higher on chromosome III than on the other two chromosomes (Hu et al., 2015), makes this explanation less likely. The only type of viable aneuploidy in fission yeast is chromosome III disomy (Niwa et al., 2006; Niwa and Yanagida, 1985), which occurs at a frequency of >1% during normal meiosis (Molnar et al., 1995). We speculate that the tolerance of chromosome III disomy may in some way be advantageous to the expansion of the wtf gene family on this chromosome.

Spore killers and other meiotic drivers, despite having only been found in a small number of taxa, are believed to exist in a wide range of species, where they are an important force influencing genome organization, gametogenesis, and speciation (Burt and Trivers, 2006; Lindholm et al., 2016; Werren, 2011). The molecular basis of their action and the evolutionary mechanisms behind their birth, spread, and extinction are scarcely known. The unveiling of the molecular identities of spore killers in S. pombe by this study and that of Nuckolls et al. (Nuckolls et al., 2017), promises to bring the power of a highly tractable model organism to the pursuit of the many mysteries of these evolutionary wonders.

Materials and methods

Strains

Fission yeast strains used in this study are listed in Supplementary file 2 in Microsoft Word format. Genetic methods and composition of media are as described (Forsburg and Rhind, 2006). Gene deletion was constructed by PCR-based gene targeting. Integrating plasmids were based on pDUAL and related vectors (Matsuyama et al., 2004, Matsuyama et al., 2008). A pDUAL-based plasmid was linearized with NotI digestion and integrated at the leu1 locus, or linearized with MluI digestion and integrated at the ars1 replication origin region upstream of the hus5 gene.

To convert homothallic strains to heterothallic and to mark the mating type locus, we created the mat1Δ17 mutation (Arcangioli and Klar, 1991), by replacing a 140 bp sequence between the H1 homology box at the mat1 locus and the nearby SspI restriction site with an antibiotic resistance marker using PCR-based gene targeting. h+/h- diploid strains were constructed by mating on SPAS medium h+ and h- strains with different antibiotic resistance markers inserted at the mat1 locus, and a few hours later restreaking the mating mixture onto YES medium containing two types of antibiotics.

To construct strains with only a portion of chromosome III originating from CBS5557 and the rest of the genome coming from the laboratory strain, we first introduced rec12∆ mutation, which blocks meiotic recombination, into the laboratory strain and CBS5557, respectively. Through crossing the two resultant strains with each other, we obtained a strain whose chromosome I and II are from the laboratory strain and whose chromosome III is from CBS5557. This strain was then crossed to a rec12+ laboratory-background strain carrying an antibiotic resistance marker at a locus on the left arm of chromosome III (mug123:hphMX) and another antibiotic resistance marker at a locus on the right arm of chromosome III (rps2802:natMX) (first backcross). Progeny strains with only one of the loci marked were kept. They were then crossed to laboratory-background strains with the other locus marked by kanMX (second backcross). By scoring the marker segregation ratios of the second backcross, we selected those first-backcross progenies that conferred strong segregation distortion at the kanMX-marked locus. Their second-backcross progenies that harbored the kanMX marker were tested by crossing, and those that conferred segregation distortion at the kanMX-marked locus were selected. One of the second-backcross progenies that conferred segregation distortion at the mug123 locus is the backcrossed-1 strain used in the bulk segregant analysis shown in Figure 1B. Two chromosome III genomic regions from CBS5557, one between coordinates 247743 and 568805, and the other between coordinates 814348 and 1711635, are present in the backcrossed-1 strain. Another second-backcross progeny that conferred segregation distortion at the rps2802 locus underwent additional rounds of backcross to yield the backcrossed-2 strain used in the bulk segregant analysis shown in Figure 1C. The CBS5557 chromosome III genomic region present in the backcrossed-2 strain is between coordinates 1839246 and 1916857.

Bulk segregant analysis

For Illumina sequencing-assisted bulk segregant analysis, >150 viable progeny colonies derived from random spore analysis were pooled together. Genomic DNA extraction, sequencing libraries construction, and Illumina sequencing were performed as described (Hu et al., 2015). Sequencing data were deposited at NCBI SRA under the following accession numbers: viable progenies from CBS5557 × laboratory strain (DY9974 × DY8531), SRR5131575; viable progenies from backcrossed-1 × laboratory strain (cross-derived diploid strain was named DY26097), SRR5131578; viable progenies from backcrossed-1 cw9∆ × laboratory strain (cross-derived diploid strain was named DY26100), SRR5131579; viable progenies from backcrossed-2 strain × laboratory strain (cross-derived diploid strain was named DY26095), SRR5131577; viable progenies from backcrossed-2 cw27∆ strain × laboratory strain (cross-derived diploid strain was named DY26092), SRR5131576. Sequencing reads were mapped to the reference genome using BWA-MEM (version 0.7.15-r1140, RRID:SCR_010910). SAM files were converted to BAM files and duplicates were removed using SAMtools (version 0.1.19–44428 cd, RRID:SCR_002105). The average read depths were 14.9× for DY9974 × DY8531, 10.4× for DY26097, 18.4× for DY26100, 16.2× for DY26095, and 23.1× for DY26092. The software bam-readcount version 0.7.4 was run with the option -q 60 -b 35 (-q 60 -b 27 for DY26097, which had lower depth coverage and lower sequencing quality) to obtain the read counts of four different bases at each of the 38783 SNP positions identified previously (Hu et al., 2015). Reference allele frequency at each SNP position was calculated by dividing the read count of the reference base by the sum of the read counts of the reference base and the variant base. Only SNP positions with the sum of the read counts of the reference base and the variant base >= 10 (> = 7 for DY26097) were used in the plots. A trend line was drawn in each plot by calculating a rolling median of reference allele frequencies at 45 consecutive SNP positions using the rollapply function of R’s zoo package (version 1.7–13).

PacBio sequencing

For PacBio sequencing of CBS5557 genome, we prepared genomic DNA from DY9971, an h- derivative of CBS5557, by first grinding cells in liquid nitrogen and then extracting DNA using the Maxi Column Fungal DNAOUT kit (Tiandz, Beijing, China). Sequencing library construction and sequencing on the PacBio RS II platform using P6C4 chemistry were performed by BGI (Shenzhen, China). After filtering out low-quality reads and removing adaptor sequences, we obtained 91,333 subreads no shorter than 1000 bp (mean length 7370 bp). These reads were used for de novo assembly by the SMRT Analysis software. The assembly was polished using Pilon version 1.21 (RRID:SCR_014731) together with our previously published CBS5557 Illumina sequencing data (Hu et al., 2015; Walker et al., 2014). PacBio sequencing data were deposited at NCBI SRA under the accession number SRR5133273.

Electron microscopy analysis

For the induction of synchronous meiosis and sporulation, h+/h- diploid strains were pre-grown in liquid YES medium to log phase, cultured in SSL+N synthetic liquid medium for 10 hr, and then shifted to nitrogen-free SSL-N medium (Egel and Egel-Mitani, 1974). Four-spored asci represented about half of the cells 10 hr after shifting to SSL-N (Olson et al., 1978). Electron microscopy was performed as described (Sun et al., 2013).

Spore viability analysis

Spore viability was assessed by tetrad analysis using a TDM50 tetrad dissection microscope (Micro Video Instruments, Avon, USA). At least 40 tetrads (160 spores) were analyzed for each cross. Based on empirical evidence, such a sample size is large enough for reliably assessing spore viability. Numerical data of the tetrad analysis in Excel format are provided as Supplementary file 1. For statistical analysis of the spore viability data, Fisher’s exact test and exact binomial test of goodness-of-fit were performed using Excel spreadsheets downloaded from http://www.biostathandbook.com/fishers.html and http://www.biostathandbook.com/exactgof.html, respectively (McDonald, 2014).

Sequence and phylogenetic analysis

Except for the phylogenetic analysis, DNA sequences were aligned using MAFFT via Jalview (Katoh et al., 2002; Waterhouse et al., 2009). Pair-wise identity was calculated by dividing the numbers of identical bases by the alignment length using the Sequence Manipulation Suite web server (http://www.bioinformatics.org/sms2/ident_sim.html) (Stothard, 2000).

For the phylogenetic analysis shown in Figure 5C, an alignment of DNA sequences containing the conserved_up regions, the coding sequences, and the associated introns was generated using the L-INS-i algorithm of MAFFT version 7.310 for Mac OS X (RRID:SCR_011811) with the command line option --localpair --maxiterate 16 --reorder (Katoh and Standley, 2014), and manually adjusted to correct an obvious misalignment of the wtf2 sequence. The final alignment of 57 wtf genes of the reference and CBS5557 genome in FASTA format is provided as Figure 5—source data 1. Maximum likelihood analysis was performed using IQ-TREE version 1.5.3 for Mac OS X with the command line option -m TEST -alrt 1000 -bb 1000 (Nguyen et al., 2015). The tree was rooted by midpoint rooting using FigTree version 1.4.2 (http://tree.bio.ed.ac.uk/software/figtree/) and was visualized using Phylo.io (Robinson et al., 2016).

Gene structures of the 57 wtf genes were predicted using the AUGUSTUS web server (version 3.2.3, RRID:SCR_008417) with the parameter settings --genemodel=exactlyone --sample=100 --keep_viterbi=true --alternatives-from-sampling=true --minexonintronprob=0.08 --minmeanexonintronprob=0.3 --maxtracks=20 (Stanke et al., 2008). When multiple predications were made for a gene, we manually inspected the predictions and selected the one that best conforms to conserved patterns of intron positions. For the majority of genes, the selected prediction is the top-scoring prediction, and for 10 genes (wtf6, wtf7, wtf14, wtf24, cw6a, cw7, cw12, cw14, cw16, cw25), the selected prediction is the one with the second best score. The final predictions for all 57 genes in plain text format are provided as Figure 5—source data 2, which can be loaded into Jalview as an annotation file for the DNA sequence alignment in Figure 5—source data 1. The failure to predict an exon flanked by conserved intron-exon junction sequences is an indication that pseudogenizing mutation(s) exist. Among the predicted protein sequences obtained based on these gene structure predictions, the sequences of Wtf4, Wtf6, Wtf7, Wtf12, Wtf13, Wtf15, Wtf17, and Wtf18 are different from those annotated at PomBase. A MAFFT (L-INS-i algorithm)-generated alignment of the 57 predicted protein sequences in FASTA format is provided as Figure 5—source data 3.

Data availability

Illumina and PacBio sequencing data reported in this paper are available at the Sequence Read Archive (SRA) under the accession number SRP095878 (BioProject PRJNA358837) (Hu et al., 2017). The DNA sequences and annotations of the 32 wtf genes of the CBS5557 genome have been deposited at GenBank under the accession numbers KY926712-KY926743.

References

  1. 1
    A novel switch-activating site (SAS1) and its cognate binding factor (SAP1) required for efficient mat1 switching in Schizosaccharomyces pombe
    1. B Arcangioli
    2. AJ Klar
    (1991)
    The EMBO Journal 10:3025–3032.
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
    Genes in Conflict: The Biology of Selfish Genetic Elements
    1. A Burt
    2. R Trivers
    (2006)
    Cambridge, Mass: Belknap Press of Harvard University Press.
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
    Mechanism of postsegregational killing by the hok gene product of the parB system of plasmid R1 and its homology with the relF gene product of the E. coli relB operon
    1. K Gerdes
    2. FW Bech
    3. ST Jørgensen
    4. A Løbner-Olesen
    5. PB Rasmussen
    6. T Atlung
    7. L Boe
    8. O Karlstrom
    9. S Molin
    10. K von Meyenburg
    (1986)
    The EMBO Journal 5:2023–2029.
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
    Schizosaccharomyces pombeGenome sequencing
    1. W Hu
    2. F Suo
    3. L-L Du
    (authors) (2017)
    NCBI - BioProject.
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
    Handbook of Biological Statistics (3rd edn)
    1. JH McDonald
    (2014)
    Sparky House Publishing.
  38. 38
  39. 39
  40. 40
    The rec8 gene of Schizosaccharomyces pombe is involved in linear element formation, chromosome pairing and sister-chromatid cohesion during meiosis
    1. M Molnar
    2. J Bähler
    3. M Sipiczki
    4. J Kohli
    (1995)
    Genetics 141:61–73.
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
    Schizosaccharomyces liquefaciens n. sp., Eine Gegen freie schweflige säure widerstandsfähige gärhefe
    1. A Osterwalder
    (1924)
    Mitt Gebiete Lebensmittelunters Hyg 15:5–28.
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
    The sequence manipulation suite: javascript programs for analyzing and formatting protein and DNA sequences
    1. P Stothard
    (2000)
    BioTechniques 28:1102–1104.
  60. 60
  61. 61
  62. 62
    Spore killer, a chromosomal factor in neurospora that kills meiotic products not containing it
    1. BC Turner
    2. DD Perkins
    (1979)
    Genetics 93:587–606.
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69

Decision letter

  1. Antonis Rokas
    Reviewing Editor; Vanderbilt University, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "A large gene family in fission yeast encodes spore killers that subvert Mendel's law" for consideration by eLife. Your article has been favorably evaluated by Diethard Tautz (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors. The following individuals involved in review of your submission have agreed to reveal their identity: Nick Rhind (Reviewer #2); Michael Lichten (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Hu et al. have identified, in the genome of S. pombe strain CBS5557 two members of the wtf repeated gene family that serve as meiotic drive elements when crossed to the reference strain. Using deletions of the two loci, they show that the protective function can be separated from the killing function, and show that the C-terminus of the putative open-reading frame is important for killing but not for protection. In addition, they show that the two genes actually kill their sister spores, using both viability and EM-based assays. They then analyze the ensemble of wtf/cw loci in CBS5557 and show that these elements appear to frequently "move" by ectopic gene conversion. Combined with Nuckolls et al., this paper makes an intriguing and interesting story.

Essential revisions:

1) The switch in nomenclature, from k1wtf and k2wtf to cw9 and cw27, is needlessly confusing. Why not simply call these loci cw9 and cw27 from the start, and just say that the reasons for doing so will be presented below? Along similar lines, the wtf nomenclature depicted in Figure 5 seems unnecessarily complicated. In situations in which similarity and synteny make homology unambiguous, ambiguous nomenclature is not useful. For instance, cw[3-4]a and cw[3-4]b should be named cw3 and cw4, respectively, likewise the homologs of wtf11, 12, 14, 15, 17 and 18 are unambiguous.

2) Figure 1B/C is confusing, especially since it hides the fact that there actually are no SNPs segregating in the regions where the red line is at 1. Why not simply display the rolling median for regions where there actually are SNPs? The first and last 40 SNPs will not be displayed, but there appear to be so many that this will not materially affect the presentation. The terms "left-peak" and "right-peak" strain are also confusing; we suggest adding a panel that shows a chr 3 map for the two strains with the reference and CBS5557-introgressed sequences in different colors, and including that color code on the X-axis of the plots in panel B.

3) It's not clear why k1wft∆ does not restore reference allele recovery to 50% in the left-peak strain x laboratory strain cross (Figure 1B). Is it possible that cw[11-12]c also has drive activity?

4) Figure 5, panel C would be considerably more useful if it contained a horizontal scale, to roughly indicate the extent of divergence between different alleles. Criteria for considering two alleles to be paired should also be indicated; for example, it's not clear why cw8a and cw24 are considered to be a homeologous pair, but wtf24 and cw6b are not. Furthermore, the phylogeny should be shown as an unrooted tree – the authors reconstructed the phylogeny as unrooted and they should depict it that way too.

5) For readers interested in further numerical analysis, it would be useful if the actual numerical data underlying all of the bar graphs were included in a supplementary file. For example, we were wondering if the loss of spore viability in k1k2∆ double mutant spores (Figure 2) is greater than what one would expect on an additive basis of spore viability loss in the two single mutant spore types-it looks as if it is, but with the current presentation it's impossible to check.

6) It would be useful to use the translation start site-criterion outlined in Nuckolls et al. for whether the cw loci are "dead", "antidote-only", or "antidote-toxin". Similarly, since the C-termini of cw9 and cw27 appear to be important for toxin activity, is this region more conserved among the wtf loci than other parts of the protein? In "antidote-only" or in "antidote-toxin" loci?

7) It is not clear why the variation of allele frequency depicted in Figure 1 is so large. If over 150 segregants were sequenced, how can some loci in regions that segregate 50:50 (e.g. on the left end of Chromosome I) be represented by only one allele?

8) The authors should extend the discussion of their findings and take into account the findings of Nuckolls et al. In particular:

What do the other wtf genes do? Could they be acting as rescuers but not as killers? Could they have assumed other unrelated functions?

Figure 5A shows an unusual concentration of wtf genes in chr III. Why is that the case? (Could it have to do with the fact that it is the only chromosome where disomy is tolerated?)

On the second page of the Discussion, the authors speculate as to how one locus could produce both a toxin and an antidote. It should be possible to eliminate, or at least deprioritize, one or more of the proposed mechanisms by inspecting the sequence of the loci and perhaps publicly available RNA-seq data. It would be of great interest to have some speculation on how a putative trans-membrane protein could function in a toxin-antidote system.

https://doi.org/10.7554/eLife.26057.029

Author response

Essential revisions:

1) The switch in nomenclature, from k1wtf and k2wtf to cw9 and cw27, is needlessly confusing. Why not simply call these loci cw9 and cw27 from the start, and just say that the reasons for doing so will be presented below? Along similar lines, the wtf nomenclature depicted in Figure 5 seems unnecessarily complicated. In situations in which similarity and synteny make homology unambiguous, ambiguous nomenclature is not useful. For instance, cw[3-4]a and cw[3-4]b should be named cw3 and cw4, respectively, likewise the homologs of wtf11, 12, 14, 15, 17 and 18 are unambiguous.

We have followed the suggestions of the reviewers and changed the nomenclature of the wtf genes in the CBS5557 genome.

2) Figure 1B/C is confusing, especially since it hides the fact that there actually are no SNPs segregating in the regions where the red line is at 1. Why not simply display the rolling median for regions where there actually are SNPs? The first and last 40 SNPs will not be displayed, but there appear to be so many that this will not materially affect the presentation. The terms "left-peak" and "right-peak" strain are also confusing; we suggest adding a panel that shows a chr 3 map for the two strains with the reference and CBS5557-introgressed sequences in different colors, and including that color code on the X-axis of the plots in panel B.

Figure 1B and C have been revised according to the suggestions of the reviewers. We have renamed the two backcrossed strains backcrossed-1 and backcrossed-2, respectively.

3) It's not clear why k1wft∆ does not restore reference allele recovery to 50% in the left-peak strain x laboratory strain cross (Figure 1B). Is it possible that cw[11-12]c also has drive activity?

We agree with the reviewers that the residual allele frequency bias is probably due to additional active spore killer gene(s) in the CBS5557 genomic regions still present in the backcrossed-1 strain. We have added a sentence about this possible explanation in the Results section. There are 12 cw genes remaining in the backcrossed-1 strain. Future work will be needed to determine which one(s) are active killer genes.

4) Figure 5, panel C would be considerably more useful if it contained a horizontal scale, to roughly indicate the extent of divergence between different alleles. Criteria for considering two alleles to be paired should also be indicated; for example, it's not clear why cw8a and cw24 are considered to be a homeologous pair, but wtf24 and cw6b are not. Furthermore, the phylogeny should be shown as an unrooted tree – the authors reconstructed the phylogeny as unrooted and they should depict it that way too.

During the revision, we have improved the de novo assembly of CBS5557 genome by adding a polishing step using the software Pilon. With polished sequences of the cw genes, we have generated a new phylogenetic tree, which has a topology similar to, but not exactly the same as, the tree in the original manuscript. This new tree is shown in Figure 5C of the revised manuscript. We now include a scale bar in Figure 5C, as suggested by the reviewers. In the Results section and in the legend of Figure 5, we have now more precisely defined the criteria for highlighting a pair of genes, which we now term phylogenetic neighbors. Two genes are considered phylogenetic neighbors if they are separated on the phylogenetic tree by a single internal node with an IQ-tree-calculated ultrafast bootstrap support value >= 95%. We agree with the reviewers that it is inappropriate to draw unrooted tree in a rooted format. We have now rooted the tree using midpoint rooting, which is a widely used method for rooting a phylogenetic tree when no suitable outgroup is available (see the reference Hess & De Moraes Russo, 2007).

5) For readers interested in further numerical analysis, it would be useful if the actual numerical data underlying all of the bar graphs were included in a supplementary file. For example, we were wondering if the loss of spore viability in k1∆ k2∆ double mutant spores (Figure 2) is greater than what one would expect on an additive basis of spore viability loss in the two single mutant spore types-it looks as if it is, but with the current presentation it's impossible to check.

Numerical data are now provided in Supplementary file 1 of the revised manuscript. The double mutant spores indeed appeared to have suffered a greater loss of viability than expected from a simple additive effect, but the exact reason is not clear at this moment.

6) It would be useful to use the translation start site-criterion outlined in Nuckolls et al. for whether the cw loci are "dead", "antidote-only", or "antidote-toxin". Similarly, since the C-termini of cw9 and cw27 appear to be important for toxin activity, is this region more conserved among the wtf loci than other parts of the protein? In "antidote-only" or in "antidote-toxin" loci?

We have more carefully examined the sequences of the 57 wtf genes in the reference genome and the CBS5557 genome, and uncovered a within-intron-1 150-bp sequence shared by all currently known active wtf killers (cw9 and cw27 found in our study and Sk wtf4 and Sk wtf28 found by Nuckolls et al.). We added a new figure (Figure 5—figure supplement 3) about this sequence. We propose that this sequence may serve as a promoter driving the transcription of the poison isoforms and the presence of this sequence is a useful criterion for identifying "poison-and-antidote" genes. In the Discussion section of the revised manuscript, we added three paragraphs to discuss "poison-and-antidote" genes that share this 150-bp sequence, "antidote-only" genes lacking this 150-bp sequence, and the "dead" genes that have suffered pseudogenizing mutations, respectively.

Based on the predicted gene structures of the wtf genes, most of them have either 5 or 6 exons. All currently known active wtf killers are 6-exon genes. We have added two new figures (Figure 5—figure supplement 4 and Figure 5—figure supplement 5) depicting the sequence alignments of the protein products of the 6-exon genes and the 5-exon genes, respectively. From the alignment, it can be seen that the C-terminal sequences of Cw9 and Cw27 proteins are strongly conserved among the protein products of 6-exon genes, regardless of whether they are "poison-and-antidote" genes or "antidote-only" genes.

7) It is not clear why the variation of allele frequency depicted in Figure 1 is so large. If over 150 segregants were sequenced, how can some loci in regions that segregate 50:50 (e.g. on the left end of Chromosome I) be represented by only one allele?

For cost reasons, we usually limit the Illumina sequencing of the bulk segregant analysis (BSA) samples to an average read depth of between 10× and 20×. Therefore, the read depth at any SNP loci is much lower than the number of segregants, and as a consequence, the allele frequency data shown in Figure 1 are much noisier than expected from the number of segregants. We have now listed in the Materials and methods section the average read depths of the five BSA sequencing datasets.

8) The authors should extend the discussion of their findings and take into account the findings of Nuckolls et al. In particular:

What do the other wtf genes do? Could they be acting as rescuers but not as killers? Could they have assumed other unrelated functions?

We have added several paragraphs in the Discussion section to describe the classification the 57 wtf genes in the reference genome and the CBS5557 genome into "poison-and-antidote" genes, "antidote-only" genes, and "dead" genes.

Figure 5A shows an unusual concentration of wtf genes in chr III. Why is that the case? (Could it have to do with the fact that it is the only chromosome where disomy is tolerated?)

We agree with the reviewers that tolerance of chromosome III disomy may be a reason why wtf genes concentrate on chromosome III. We have added a paragraph in the Discussion section to discuss the possible reasons behind this intriguing phenomenon.

On the second page of the Discussion, the authors speculate as to how one locus could produce both a toxin and an antidote. It should be possible to eliminate, or at least deprioritize, one or more of the proposed mechanisms by inspecting the sequence of the loci and perhaps publicly available RNA-seq data. It would be of great interest to have some speculation on how a putative trans-membrane protein could function in a toxin-antidote system.

In the newly added paragraphs of the Discussion section, by more carefully inspecting the sequences, we have classified the 57 wtf genes in the reference genome and the CBS5557 genome into "poison-and-antidote" genes, which conform to the dual-transcript model of Nuckolls et al., "antidote-only" genes, and "dead" genes. We speculate that it remains possible that the "antidote-only" genes may be able to generate poison isoforms through mechanisms other than alternative transcription start sites. We have also added a paragraph in the Discussion section to speculate on how transmembrane proteins can act as spore killers.

https://doi.org/10.7554/eLife.26057.030

Article and author information

Author details

  1. Wen Hu

    National Institute of Biological Sciences, Beijing, China
    Contribution
    WH, Conceptualization, Investigation, Writing—original draft
    Competing interests
    WH: A patent application related to this work has been filed
    ORCID icon 0000-0002-0604-2119
  2. Zhao-Di Jiang

    1. National Institute of Biological Sciences, Beijing, China
    2. PTN Graduate Program, School of Life Sciences, Tsinghua University, Beijing, China
    Contribution
    Z-DJ, Investigation
    Competing interests
    No competing interests declared.
  3. Fang Suo

    National Institute of Biological Sciences, Beijing, China
    Contribution
    FS, Formal analysis, Writing—original draft
    Competing interests
    FS: A patent application related to this work has been filed
  4. Jin-Xin Zheng

    National Institute of Biological Sciences, Beijing, China
    Contribution
    J-XZ, Investigation
    Competing interests
    No competing interests declared.
  5. Wan-Zhong He

    National Institute of Biological Sciences, Beijing, China
    Contribution
    W-ZH, Formal analysis
    Competing interests
    No competing interests declared.
  6. Li-Lin Du

    National Institute of Biological Sciences, Beijing, China
    Contribution
    L-LD, Conceptualization, Funding acquisition, Writing—original draft, Writing—review and editing
    For correspondence
    dulilin@nibs.ac.cn
    Competing interests
    L-LD: A patent application related to this work has been filed
    ORCID icon 0000-0002-1028-7397

Funding

Ministry of Science and Technology of the People's Republic of China (National Basic Research Program of China 2014CB849901)

  • Li-Lin Du

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Sarah Zanders for communicating results prior to publication. We are grateful to Meng-Qiu Dong for critical reading of the manuscript. This work was supported by the National Basic Research Program of China (973 Program, 2014CB849901).

Reviewing Editor

  1. Antonis Rokas, Reviewing Editor, Vanderbilt University, United States

Publication history

  1. Received: February 15, 2017
  2. Accepted: May 6, 2017
  3. Version of Record published: June 20, 2017 (version 1)

Copyright

© 2017, Hu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,254
    Page views
  • 230
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: PubMed Central, Crossref, Scopus.

Comments

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Genes and Chromosomes
    2. Genomics and Evolutionary Biology
    J Dylan Shropshire, Antonis Rokas
    Insight

    Some alleles of the wtf gene family can increase their chances of spreading by using poisons to kill other alleles, and antidotes to save themselves.

    1. Genes and Chromosomes
    2. Genomics and Evolutionary Biology
    Sarah N Deffit et al.
    Research Article
