A novel region in the CaV2.1 α1 subunit C-terminus regulates fast synaptic vesicle fusion and vesicle docking at the mammalian presynaptic active zone
Abstract
In central nervous system (CNS) synapses, action potential-evoked neurotransmitter release is principally mediated by CaV2.1 calcium channels (CaV2.1) and is highly dependent on the physical distance between CaV2.1 and synaptic vesicles (coupling). Although various active zone proteins are proposed to control coupling and abundance of CaV2.1 through direct interactions with the CaV2.1 α1 subunit C-terminus at the active zone, the role of these interaction partners is controversial. To define the intrinsic motifs that regulate coupling, we expressed mutant CaV2.1 α1 subunits on a CaV2.1 null background at the calyx of Held presynaptic terminal. Our results identified a region that directly controlled fast synaptic vesicle release and vesicle docking at the active zone independent of CaV2.1 abundance. In addition, proposed individual direct interactions with active zone proteins are insufficient for CaV2.1 abundance and coupling. Therefore, our work advances our molecular understanding of CaV2.1 regulation of neurotransmitter release in mammalian CNS synapses.
https://doi.org/10.7554/eLife.28412.001eLife digest
The points of contact between nerve cells are called synapses, and nerve cells communicate across synapses via chemicals known as neurotransmitters. These chemical messengers are initially stored within bubble-like packages called synaptic vesicles that are released after they fuse with the membrane of the nerve cell at a specialized site referred to as the “active zone”.
Calcium ions are one of the major factors that lead to the release of synaptic vesicles. Ion channel proteins in the membrane of the nerve cell control the flow of calcium ions into the cell. There are often many different ion channels at a synapse, but one type called CaV2.1 most effectively triggers the release of synaptic vesicles when a nerve impulse reaches the synapse. Various proteins at the active zone can bind directly to parts of the CaV2.1 channel that are identified by a short sequence of amino acids – the building blocks of all proteins. Several researchers have proposed that the interactions with some of these short sequences, which are also known as motifs, control how much of this ion channel is in the synapse and how it interacts with synaptic vesicles to regulate the release of neurotransmitters. However, other researchers do not agree with this proposed explanation.
Lübbert, Goral et al. set out to determine which parts in a specific part of the CaV2.1 channel (called the “α1 subunit C-terminus”) are critical for its interaction with synaptic vesicles. The experiments revealed a new motif that regulates how many synaptic vesicles could be released in response to electrical impulses travelling along nerve cells from mice. The same motif also regulates the total number of synaptic vesicles at the active zone.
Lübbert, Goral et al. went on to show that binding to known active proteins at most played a minor role in controlling the abundance of the CaV2.1 channels and how close they were to the synaptic vesicles. As such, these findings counter prevailing views of the roles of certain motifs in the α1 subunit of the CaV2.1 channel. Thus, it may be necessary to re-think how the CaV2.1 channel regulates the release of synaptic vesicles.
Ion channels are vital to the activity of all nerve cells, and working out how the numbers and organization of CaV2.1 and related ion channels are regulated will be fundamental to understanding how information is encoded in brain. In addition, problems with these kinds of ion channel may result in disorders such as migraines and epilepsy. Therefore, the new findings may help to guide further studies investigating possible ways to treat these disorders.
https://doi.org/10.7554/eLife.28412.002Introduction
A critical determinant in regulating synaptic vesicle (SV) release probability and kinetics is coupling, the physical distance of SVs and voltage-gated calcium channels (VGCCs) at the presynaptic terminal (Neher and Sakaba, 2008). Differences in coupling distances between CaV2 VGCCs subtypes underpin the differences in CaV2 VGCC subtype effectiveness in eliciting AP evoked release and define the SV release mode in response to APs (Eggermann et al., 2011). They are: nanodomain, a few tightly coupled VGCCs (<30 nm), and microdomain, many loosely coupled VGCCs (~100 nm) trigger SV release (Baur et al., 2015; Eggermann et al., 2011; Fedchyshyn and Wang, 2005). In the majority of central nervous system synapses, CaV2.1 VGCCs (CaV2.1) are the principal CaV subtype that supports AP mediated neurotransmitter release, and CaV2.1 channels are thought to exist in closest proximity to SVs compared to other CaV subtypes (Eggermann et al., 2011). The CaV2.1 α1 subunit cytoplasmic C-terminus is mutated in a class of CaV2 channelopathies (Pietrobon, 2010) and contains many motifs implicated to directly interact with key active zone (AZ) proteins to control CaV2.1 coupling and abundance in the presynaptic terminal (Simms and Zamponi, 2014). Nevertheless, the necessity and mechanism of action of these motifs are highly controversial due to disparate results from different model systems and from knockout mouse models of AZ proteins (Acuna et al., 2015; Atasoy et al., 2007; Butz et al., 1998; Cao et al., 2004; Das, 2016; Davydova et al., 2014; Ho et al., 2006; Hu et al., 2005; Kaeser et al., 2011; Wong et al., 2014; Wong and Stanley, 2010). In addition, it is unclear whether the mechanisms that control coupling and abundance are interrelated or separable.
To address these questions, we utilized the calyx of Held/Medial Nucleus of the Trapezoid Body (MNTB) synapse, a large glutamatergic axosomatic synapse, in which: (1) individual AZs ultrastructure and (2) CaV2 subtype abundance and proximity to SVs controlling SV release at the calyx of Held is similar to many other synapses (Borst and Soria van Hoeve, 2012). Furthermore, due to its unparalleled experimental accessibility, molecular manipulations can be made exclusively in the presynaptic terminals (Wimmer et al., 2004; Young and Neher, 2009), and presynaptic Ca2+ currents can be recorded and correlated with synaptic vesicle release rates (Neher and Sakaba, 2001b), which allows for well-controlled measurements not achievable in other model systems. By directly manipulating the CaV2.1 α1 subunit in a native neuronal circuit, we were able to overcome the previous limitations in prior studies (Acuna et al., 2015; Atasoy et al., 2007; Butz et al., 1998; Cao et al., 2004; Davydova et al., 2014; Ho et al., 2006; Hu et al., 2005; Kaeser et al., 2011; Wong et al., 2014; Wong and Stanley, 2010). Thus, we were able to identify a novel intrinsic motif in the C-terminus that regulates coupling and demonstrate that coupling and abundance are separable. Finally, we found that this novel C-terminal region in the CaV2.1 α1 subunit also regulates SV docking at the AZ. Therefore, our work provides new molecular insights into CaV2.1 α1 subunit regulation of SV release from presynaptic terminals in CNS synapses.
Results
Genetic manipulation of CaV2.1 channels at the calyx
To manipulate CaV2.1 at the calyx, Helper-Dependent Adenoviral vectors (HdAd) (Palmer and Ng, 2005) were utilized in conjunction with a Cacna1a conditional knock-out (CKO) mouse line (Todorov et al., 2006). HdAds can package large amounts of foreign DNA, which is critical as the CaV2.1 α1 subunit cDNA is larger than commonly used viral vectors (Lentz et al., 2012). To modify CaV2.1 expression at the calyx, we used stereotactic surgery to deliver our HdAd viral vectors expressing Cre recombinase (HdAd Cre) to create a Cacna1a null background (CaV2.1−/−) and the full transcript of CaV2.1 α1 subunit, (HdAd CaV2.1 FT) into the cochlear nucleus (Chen et al., 2013) (Figure 1). CaV2.1 full transcript (FT) is the longest CaV2.1 α1 subunit cDNA (Mus musculus NP_031604.3). By testing Ca2+ current sensitivity to CaV2 subtype-specific blockers ω-Agatoxin IVA (Aga, CaV2.1-selective) and ω-Conotoxin GVIA (Cono, CaV2.2-selective), we confirmed that we could ablate CaV2.1 and subsequently rescue CaV2.1 abundance (Figure 1).
Active zone protein binding sites in the CaV2.1 α1 subunit C-terminus are dispensable for CaV2.1 abundance in the presynaptic terminal
Since we could manipulate CaV2.1 at the calyx, we tested whether various previously proposed direct binding sites are necessary for regulating CaV2.1 localization and abundance at the presynaptic membrane. This includes binding sites for RIM1/2 (Kaeser et al., 2011), MINT1 (Maximov et al., 1999), Rim Binding Proteins (RBP) (Hibino et al., 2002), and CASK proteins (Maximov et al., 1999), a secondary CaVβ4 interaction site (Walker et al., 1998) as well as PXXP motifs (Davydova et al., 2014). To do so we generated HdAd vectors with mutations in CaV2.1 α1 subunits in which we deleted these interaction sites (Figures 1A–B, 2 and 3A). We expressed them at the CaV2.1−/− calyx and carried out whole-cell patch clamp recordings of the presynaptic Ca2+ currents (Figure 2—figure supplement 2 and 1 and Table 1); CaV2.1Δ2365–2368 deletes the α1 subunit DDWC motif that is implicated to bind directly to RIM1/2 and MINT (Kaeser et al., 2011). CaV2.1Δ2213–2368 corresponds to a CaV2.1 α1 subunit splice variant which removes the RIM1/2, MINT1, RBP, and part of the CASK binding site and majority of PXXP motifs (Soong et al., 2002). CaV2.1Δ2016–2368 removes the complete CASK binding site, a proposed secondary CaVβ4 interaction site, and two remaining PXXP motifs in the α1 subunit (Figure 1, Figure 2—figure supplement 1). Analysis of the Ca2+ current as a function of voltage (I(V)) and tail currents revealed that expression of mutants lacking motifs located within the last 350 amino acids revealed no significant difference in Ca2+ current amplitudes or voltage dependent activation compared to CaV2.1 FT rescue (Figure 2, Figure 2—figure supplement 1 and Table 1). Although there appeared to be a slight reduction in maximal Ca2+ current amplitudes compared to FT rescue, there was no statistically significant difference among mutants and control. Thus, the MINT1, RIM1/2, RBP, CASK proteins and the secondary CaVβ4 binding sites within the CaV2.1 α1 subunit C-terminus are not necessary for CaV2.1 localization to the presynaptic membrane.
![](https://iiif.elifesciences.org/lax/28412%2Felife-28412-fig1-v1.tif/full/617,/0/default.jpg)
CaV2.1 can be selectively ablated and functionally rescued at the calyx of Held.

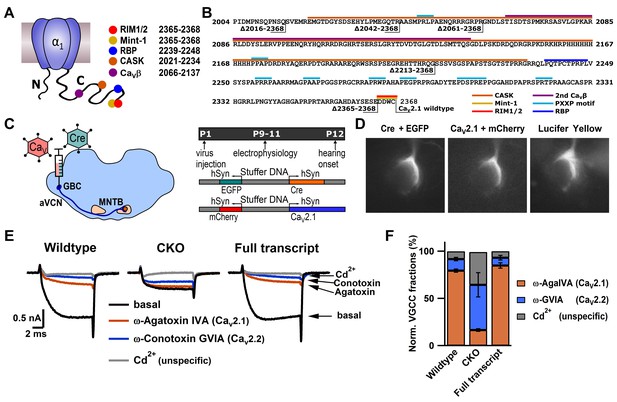

(A) Cartoon depicting CaV2.1 α1 subunit distal C-terminal interaction partners. (B) Amino acid sequence of the distal Cav2.1 C-terminus indicating interaction sites and truncation mutants. (C) left: Schematic view of stereotactic surgery to inject/coinject HdAd vectors expressing Cre + eGFP and CaV2.1 constructs + mCherry into the aVCN at age P1. Right: top: Experimental timeline from virus injection at P1 to electrophysiological recordings at P9-P11 prior to the onset of hearing (P12). Middle and bottom: schematic view of the viral constructs used, expressing either Cre + eGFP or CaV2.1 constructs + mCherry, respectively, driven by individual promotors. (D) Calyx of Held terminals transduced with Cre + eGFP (top) and CaV2.1 + mCherry (middle). eGFP and mCherry signals overlap with those of a calyx of Held loaded with Lucifer Yellow via a patch pipette (bottom). (E) Pharmacological isolation of presynaptic CaV2 isoforms in wildtype, CKO and CaV2.1 full transcript rescue calyxes. Traces in absence of any blockers (black), after blocking CaV2.1 fraction with 200 nM ω-AgaIVA (brown), after blocking CaV2.2 fraction with 2 µM ω-GVIA (blue) and after blocking all CaV2 channels with 50 µM Cd2+ (gray). (F) Relative CaV2 current fractions in wildtype, CKO and CaV2.1 full transcript rescue calyxes (n = 3 for each condition).
![](https://iiif.elifesciences.org/lax/28412%2Felife-28412-fig2-v1.tif/full/617,/0/default.jpg)
C-terminal deletions in CaV2.1 do not affect CaV2 abundance at the presynaptic terminal.

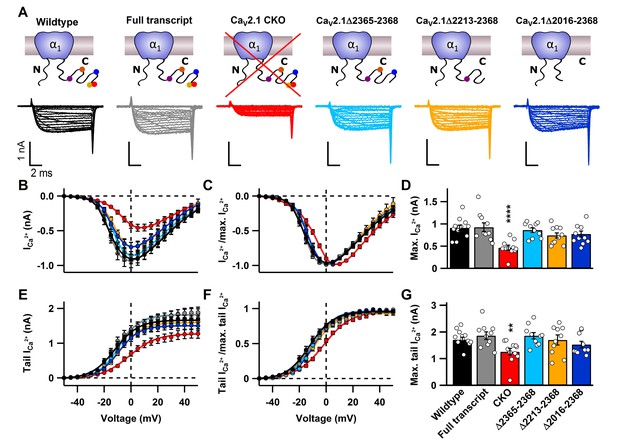

(A) Cartoons depicting CaV2.1 full transcript or mutants (top) with corresponding exemplary Ca2+ currents (bottom) triggered by 10 ms voltage steps from d -50 mV to 50 mV in 5mV steps. (B–C) Current-voltage relationship of absolute Ca2+ currents (B) and normalized current-voltage relationships (I/Imax; C). (D) Mean absolute Ca2+ currents. (E–F) Absolute tail currents (E) and normalized (I/Imax; F) tail currents as a function of voltage. (G) Mean tail Ca2+ currents at +40 mV. For CaV2.1 α1 CKO (n = 11), wildtype (n = 12), CaV2.1 α1full transcript (n = 10), Δ2365–2368 (n = 10), Δ2213–2368 (n = 10) and Δ2016–2368 (n = 10). All data are depicted as mean ± SEM. Detailed values can be derived from Table 1.
![](https://iiif.elifesciences.org/lax/28412%2Felife-28412-fig3-v1.tif/full/617,/0/default.jpg)
A novel role for a C-terminal region between amino acids 2042 and 2061 that regulates fast release independent of CaV2.1 abundance.
(A) Cartoon depicting truncated regions in our CaV2.1 α1 deletion mutants including the binding sites for CaVβ4, CASK, RBP, PXXP, RIM1/2 and Mint-1 along with the effects of C-terminal truncations on ICa. (B) Averaged traces of RRP and total releasable pool measurements from mice expressing Cre + full transcript CaV2.1 rescue (grey), Δ2365–2368 (cyan), Δ2213–2368 (yellow), Δ2061–2368 (purple), Δ2042–2368 (green) or Δ2016–2368 (blue). ICa (top) and EPSCs (bottom) triggered by 3 ms and 30 ms pulses, plotted on top of each other (n = 10 for each group, except for Δ2212–2368: n = 8). (C–H) Quantification of ICa charge (3 ms: C; and 30 ms: F), max. EPSC amplitudes (3 ms: D; 30 ms: G) and the 10–90% rise of the EPSCs (3 ms: E; 30 ms: H). All data are depicted as mean ± SEM. Detailed values can be derived from Table 2.
Electrophysiological parameters of IV relations of Ca2+ currents.
Parameter | Mean ± SEM (n) | OW-ANOVA Dunnett’s Test |
---|---|---|
Max. Ca2+ current amplitude Imax (pA) | ||
Wild type | 911 ± 63 (12) | p=0.9998 (n.s.) |
Full transcript | 925 ± 99 (10) | control group |
CKO | 464 ± 59 (11) | p<0.0001 (****) |
△2365–2368 | 863 ± 53 (10) | p=0.9513 (n.s.) |
△2213–2368 | 741 ± 56 (10) | p=0.2261 (n.s.) |
△2016–2368 | 744 ± 67 (10) | p=0.2383 (n.s.) |
Membrane capacitance Cslow (pF) | ||
Wild type | 20.9 ± 1.6 (12) | p=0.5071 (n.s.) |
Full transcript | 18.2 ± 1.2 (10) | control group |
CKO | 18.1 ± 1.8 (11) | p>0.9999 (n.s.) |
△2365–2368 | 16.9 ± 1.1 (10) | p=0.9593 (n.s.) |
△2213–2368 | 19.8 ± 1.4 (10) | p=0.9933 (n.s.) |
△2016–2368 | 17.2 ± 1.8 (10) | p=0.8986 (n.s.) |
IV fit: Half-maximal activation voltage Vm (mV) | ||
Wild type | −24.6 ± 1.3 (12) | p=0.9986 (n.s.) |
Full transcript | −25.1 ± 1.3 (10) | control group |
CKO | −22.3 ± 1.3 (11) | p=0.3604 (n.s.) |
△2365–2368 | −23.1 ± 1.1 (10) | p=0.6831 (n.s.) |
△2213–2368 | −23.8 ± 1.5 (10) | p=0.9298 (n.s.) |
△2016–2368 | −23.3 ± 0.9 (10) | p=0.7924 (n.s.) |
IV fit: Voltage-dependence of activation km (mV) | ||
Wild type | 8.0 ± 0.5 (12) | p=0.9524 (n.s.) |
Full transcript | 7.4 ± 0.5 (10) | control group |
CKO | 12.6 ± 1.3 (11) | p<0.0001 (****) |
△2365–2368 | 7.6 ± 0.3 (10) | p=0.9997 (n.s.) |
△2213–2368 | 8.4 ± 0.4 (10) | p=0.7154 (n.s.) |
△2016–2368 | 8.2 ± 0.3 (10) | p=0.8481 (n.s.) |
Boltzmann fit: Half-maximal activation voltage V0.5 (mV) | ||
Wild type | −10.6 ± 1.4 (12) | p=0.9997 (n.s.) |
Full transcript | −11 ± 0.1 (10) | control group |
CKO | −1.7 ± 1.1 (11) | p<0.0001 (****) |
△2365–2368 | −8.7 ± 1.1 (10) | p=0.6311 (n.s.) |
△2213–2368 | −8.2 ± 1.8 (10) | p=0.4343 (n.s.) |
△2016–2368 | −8.9 ± 1.1 (10) | p=0.7130 (n.s.) |
Boltzmann fit: Voltage-dependence k (mV) | ||
Wild type | 8.3 ± 0.5 (12) | p=0.9111 (n.s.) |
Full transcript | 8.9 ± 0.7 (10) | control group |
CKO | 10.3 ± 0.6 (11) | p=0.3117 (n.s.) |
△2365–2368 | 7.7 ± 0.7 (10) | p=0.4951 (n.s.) |
△2213–2368 | 8.9 ± 0.4 (10) | p=0.9947 (n.s.) |
△2016–2368 | 7.2 ± 0.3 (10) | p=0.1578 (n.s.) |
-
*One-Way ANOVA with a Dunnett’s Test with condition knockout as reference group was performed to calculate statistical significance.
A novel C-terminal region in the CaV2.1 α1 subunit is required SV to CaV2.1 channel coupling and regulates fast vesicle fusion and RRP size
To determine the intrinsic motif(s) involved in the regulation of coupling, we performed paired whole cell voltage clamp recordings on the pre- and postsynaptic compartments of the calyx of Held/MNTB synapse with these deletion mutants (Neher and Sakaba, 2001a, 2001b). For finer mapping we generated two additional deletion constructs (Figure 3A). CaV2.1Δ2061–2368 deletes up to the secondary CaVβ4 interaction in the α1 subunit and CaV2.1Δ2042–2368 deletes an additional arginine rich stretch in the CaV2.1 α1 subunit, not found in CaV2.2 and CaV2.3 and the final shared PXPP motif. Conotoxin was included to block possible CaV2.2 channel contributions. First we applied either a 3 ms step depolarization pulse (Figure 3—figure supplement 1A) to the calyx which selectively depletes SVs within ~50–80 nm of CaV2 VGCCs (Chen et al., 2015) which participate in synchronous transmitter release (fast pool) (Chen et al., 2015; Lee et al., 2012). The fast pool is the relevant SV pool that supports AP-mediated release and thus considered the readily-releasable pool (RRP) (Figures 3–4, Figure 3—figure supplement 1 and Table 2) (Sakaba, 2006). Then we applied a 30 ms step depolarization (Figure 3—figure supplement 1) which measures the entire pool of fusion competent SVs, all within ~200 nm of CaV2 and considered the total releasable pool (Chen et al., 2015; Lee et al., 2012) (Figures 3–4, Figure 3—figure supplement 1 and Table 2). To validate our approach we compared the effects of SV release between calyces expressing Cre + CaV2.1 FT construct and wild-type calyces. We found no differences in SV release between the CaV2.1 FT and wild-type calyces (Figure 3, Figure 3—figure supplement 1 and Table 2), indicating that exogenous expression of the CaV2.1 α1 subunit did not alter calyx/MNTB synaptic transmission.
Summary of currents from synaptic vesicle pool measurements.
Parameter | 3 ms (mean ± SEM (n) | OW-ANOVA Dunnett’s Test | 30 ms (mean ± SEM (n) | OW-ANOVA Dunnett’s Test |
---|---|---|---|---|
Ca2+ current amplitude (nA) | ||||
Wild type | 0.99 ± 0.07 (10) | p=0.2671 (n.s.) | 0.93 ± 0.07 (10) | p=0.3557 (n.s.) |
Full transcript | 1.24 ± 0.12 (10) | control group | 1.18 ± 0.12 (10) | control group |
△2365–2368 | 1.14 ± 0.84 (10) | p=0.9320 (n.s.) | 1.01 ± 0.12 (10) | p=0.9451 (n.s.) |
△2213–2368 | 1.04 ± 0.09 (8) | p=0.5366 (n.s.) | 0.9 ± 0.1 (8) | p=0.2766 (n.s.) |
△2061–2368 | 1.23 ± 0.08 (10) | p=0.9999 (n.s.) | 1.13 ± 0.08 (10) | p=0.9993 (n.s.) |
△2042–2368 | 1.13 ± 0.15 (10) | p=0.9121 (n.s.) | 1.03 ± 0.13 (10) | p=0.8410 (n.s.) |
△2016–2368 | 0.93 ± 0.38 (10) | p=0.1091 (n.s.) | 0.86 ± 0.46 (10) | p=0.1175 (n.s.) |
Ca2+ influx charge (pC) | ||||
Wild type | 2.95 ± 0.3 (10) | p=0.5713 (n.s.) | 25.93 ± 2.22 (10) | p=0.4932 (n.s.) |
Full transcript | 3.62 ± 0.36 (10) | control group | 31.71 ± 2.87 (10) | control group |
△2365–2368 | 3.89 ± 0.31 (10) | p=0.9838 (n.s.) | 33.52 ± 2.65 (10) | p=0.9943 (n.s.) |
△2213–2368 | 3.48 ± 0.35 (8) | p=0.9996 (n.s.) | 28.09 ± 2.7 (8) | p=0.8924 (n.s.) |
△2061–2368 | 3.87 ± 0.33 (10) | p=0.9893 (n.s.) | 34.94 ± 2.93 (10) | p=0.9132 (n.s.) |
△2042–2368 | 3.8 ± 0.54 (10) | p=0.9977 (n.s.) | 33.71 ± 4.22 (10) | p=0.9910 (n.s.) |
△2016–2368 | 3.12 ± 0.14 (10) | p=0.8063 (n.s.) | 27.81 ± 1.14 (10) | p=0.8255 (n.s.) |
EPSC amplitude (nA) | ||||
Wild type | 8.99 ± 1.12 (10) | p=0.9995 (n.s.) | 9.77 ± 0.87 (10) | p=0.8167 (n.s.) |
Full transcript | 8.54 ± 0.9 (10) | control group | 8.31 ± 0.79 (10) | control group |
△2365–2368 | 6.88 ± 0.78 (10) | p=0.7024 (n.s.) | 7.45 ± 0.73 (10) | p=0.9789 (n.s.) |
△2213–2368 | 6.05 ± 1.2 (8) | p=0.3672 (n.s.) | 6.7 ± 0.94 (8) | p=0.7880 (n.s.) |
△2061–2368 | 7.05 ± 1.25 (10) | p=0.7836 (n.s.) | 7.72 ± 1.44 (10) | p=0.9963 (n.s.) |
△2042–2368 | 3.38 ± 0.89 (10) | p=0.0028 (**) | 5.28 ± 1.31 (10) | p=0.1689 (n.s.) |
△2016–2368 | 2.49 ± 0.89 (10) | p=0.0004 (***) | 3.61 ± 0.91 (10) | p=0.0098 (**) |
EPSC 10–90% rise time (ms) | ||||
Wild type | 1.46 ± 0.14 (10) | p=0.9908 (n.s.) | 1.71 ± 0.31 (10) | p=0.9995 (n.s.) |
Full transcript | 1.25 ± 0.13 (10) | control group | 1.41 ± 0.18 (10) | control group |
△2365–2368 | 1.79 ± 0.09 (10) | p=0.5934 (n.s.) | 2.18 ± 0.27 (10) | p=0.9097 (n.s.) |
△2213–2368 | 1.88 ± 0.06 (8) | p=0.4956 (n.s.) | 2.43 ± 0.3 (8) | p=0.7964 (n.s.) |
△2061–2368 | 1.8 ± 0.12 (10) | p=0.5792 (n.s.) | 2.07 ± 0.21 (10) | p=0.9529 (n.s.) |
△2042–2368 | 2.46 ± 0.42 (10) | p=0.0200 (*) | 4.67 ± 0.72 (10) | p=0.0046 (**) |
△2016–2368 | 3.2 ± 0.57 (10) | p<0.0001 (****) | 6.99 ± 1.45 (10) | p<0.0001 (****) |
Synaptic delay (ms) | ||||
Wild type | 1.82 ± 0.13 (10) | p=0.9569 (n.s.) | 1.92 ± 0.2 (10) | p=0.9977 (n.s.) |
Full transcript | 1.7 ± 0.12 (10) | control group | 1.73 ± 0.11 (10) | control group |
△2365–2368 | 2.11 ± 0.1 (10) | p=0.1170 (n.s.) | 2.22 ± 0.16 (10) | p=0.8464 (n.s.) |
△2213–2368 | 2.19 ± 0.1 (8) | p=0.0615 (n.s.) | 2.33 ± 0.19 (8) | p=0.7507 (n.s.) |
△2061–2368 | 2.14 ± 0.14 (10) | p=0.0748 (n.s.) | 2.28 ± 0.15 (10) | p=0.7714 (n.s.) |
△2042–2368 | 2.8 ± 0.07 (10) | p<0.0001 (****) | 3.68 ± 0.3 (10) | p=0.0019 (**) |
△2016–2368 | 2.55 ± 0.2 (10) | p<0.0001 (****) | 4.78 ± 0.83 (10) | p<0.0001 (****) |
-
*One-Way ANOVA with a Dunnett’s Test with full transcript as a control group was performed to calculate statistical significance.
Summary of 3ms /30ms EPSC ratios.
EPSC ratio (3 ms/30 ms) | ||
Wild type | 0.89 ± 0.05 (10) | p=0.5456 (n.s.) |
Full transcript | 1.03 ± 0.03 (10) | control group |
△2365–2368 | 0.92 ± 0.04 (10) | p=0.6887 (n.s.) |
△2213–2368 | 0.87 ± 0.05 (8) | p=0.4631 (n.s.) |
△2061–2368 | 0.93 ± 0.04 (10) | p=0.7858 (n.s.) |
△2042–2368 | 0.61 ± 0.09 (10) | p=0.0004 (***) |
△2016–2368 | 0.50 ± 0.12 (10) | p<0.0001 (****) |
![](https://iiif.elifesciences.org/lax/28412%2Felife-28412-fig4-v1.tif/full/617,/0/default.jpg)
The novel C-terminal region between amino acids 2042 and 2061 regulates size of the fast and total releasable pool and synaptic vesicle release kinetics.

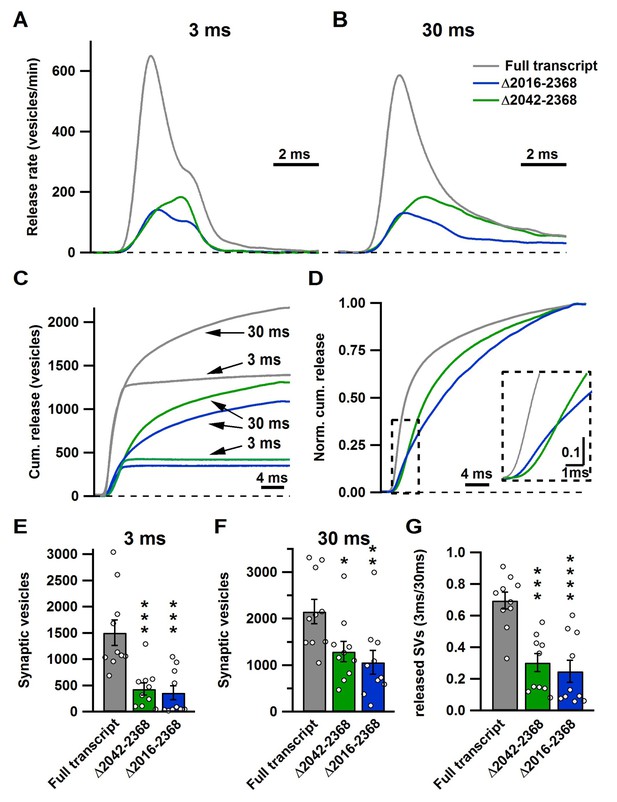

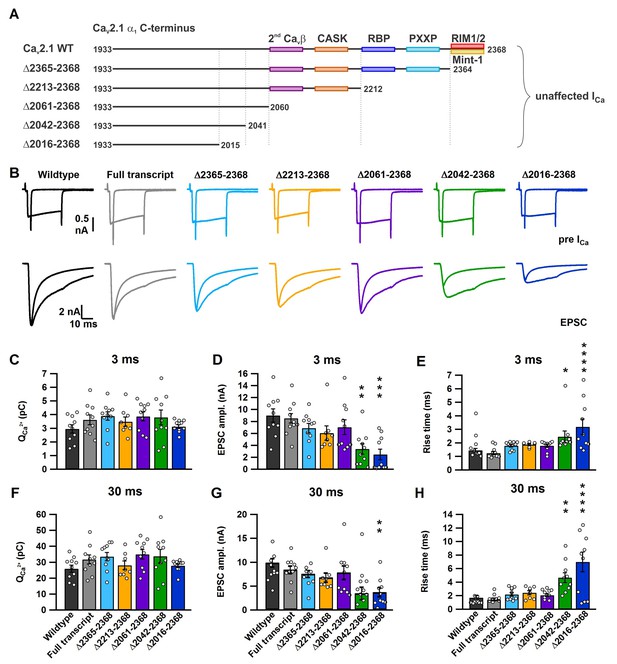

(A–B) Average release rate trace after 3 ms (A) or 30 ms stimulation (B) from calyces expressing either Cre + full transcript rescue (grey), Δ2042–2368 (green) or Δ2016–2368 (blue); n = 10 for each group; (C) Averaged cumulative release after 3 ms and 30 ms stimulation. (D) Normalized cumulative release of the total releasable pool triggered by 30 ms stimulation. Inset presents a magnified view of the area encircled by the dashed box. (E–G) Quantification of SV numbers released by 3 ms (E) and 30 ms (F) as well as the ratio of SVs released by 3 ms and 30 ms stimulation (G). All data are depicted as mean ± SEM.
In response to 3 ms and 30 ms presynaptic depolarizations, we found no difference in the presynaptic Ca2+ currents in all mutants, thus confirming our results depicted in Figure 2 (Figure 3 and Table 2). Since the 3 ms peak EPSC amplitude directly correlates to those SVs that are tightly coupled to CaV2 channels at the P9-11 calyx (Chen et al., 2015; Lee et al., 2012), we measured the peak 3 ms EPSC peak amplitudes in all our deletion mutants. Thus, if these intrinsic motifs were essential for SV to CaV2.1 coupling, we should see a dramatic reduction in the 3 ms peak EPSC amplitude, and if they were not essential there should be no change. Analysis of the 3 ms peak EPSC amplitudes revealed no change in the peak amplitudes with deletions from amino acid 2265 and beyond (CaV2.1Δ2365–2368, CaV2.1Δ2213–2368 and CaV2.1Δ2061–2368), when compared to control (CaV2.1 FT; Figure 3 and Table 2). However, we saw a dramatic reduction in the EPSC amplitudes with CaV2.1Δ2042–2368 and CaV2.1Δ2016–2368 (FT: 8.54 ± 0.9 nA; Δ2042–2368: 3.38 ± 0.89 nA (p<0.01); Δ2016–2368: 2.47 ± 0.89 nA (p<0.001); Figure 3 and Table 2). In addition, only the CaV2.1Δ2042–2368 and CaV2.1Δ2016–2368 mutants showed a significant slowdown in the 10–90 rise time compared to FT and a significant increases in the synaptic delay time (Figure 2 and Table 2).
In response to the 30 ms step pulse, we found no significant change in the 10–90 rise time or EPSC amplitudes with CaV2.1Δ2365–2368, CaV2.1Δ2213–2368 and CaV2.1Δ2061–2368 compared to control (Figure 2, Table 2). It is important to note that unlike the 3 ms peak EPSC amplitude, the 30 ms 10–90 peak EPSC rise time is an inaccurate measure of coupling of all SVs in the total releasable pool, as the 30 ms peak amplitude does not accurately measure the total releasable pool size (Chen et al., 2015; Lee et al., 2012). We found a significant increase in the 10–90 rise time with CaV2.1Δ2042–2368 and CaV2.1Δ2016–2368 (FT: 1.41 ± 0.18 ms; Δ2042–2368: 4.67 ± 0.72 ms (p<0.01); Δ2016–2368: 6.99 ± 1.45 ms (p<0.0001)), with reduced EPSC amplitudes (Figure 3 and Table 2). In all cases, there was no difference between CaV2.1Δ2042–2368 and CaV2.1Δ2016–2368 indicating that the further deletion did not lead to more severe reductions in the ESPC amplitude or 10–90 rise time. Although, there appeared to be a slight slowing in the 10–90 rise time with CaV2.1Δ2365–2368, CaV2.1Δ2213–2368 and CaV2.1Δ2061–2368 compared to control in both the 3 ms and 30 ms EPSC (Figure 3, Table 2), this change was not statistically significant and was very minor compared to the dramatic deceleration in in the 10–90 rise times found in CaV2.1Δ2042–2368 and CaV2.1Δ2016–2368. Based on these results, we conclude that a novel C-terminal region including at least the amino acids 2042–2061 is critical for fast release.
A novel C-terminal region in CaV2.1 α1 subunit regulates the total releasable pool size
To understand how the CaV2.1Δ2042–2368 and CaV2.1Δ2016–2368 truncations impacted the size and release kinetics of the fast pool (AP-evoked release) and the total releasable pool (Figure 3 and Figure 3—figure supplement 1), we used a deconvolution analysis routine to calculate release rates (Neher and Sakaba, 2001a, 2001b). We found that both CaV2.1Δ2042–2368 and CaV2.1Δ2016–2368 lead to a dramatic reduction in peak vesicle release rates (Figure 4) with a significant increase in the delayed release (slow pool component) and slower time to peak EPSC release rates compared to control (Figure 4). Integration of the release rates for both the 3 ms and 30 ms pulses revealed a dramatic reduction in both mutants of both the fast pool and the total releasable pool. (RRP: FT: 1505 ± 245 SVs;Δ2042–2368: 430 ± 116 SVs (p<0.001); Δ2016–2368: 357 ± 134 SVs (p<0.001); total releasable pool: FT: 2152 ± 263 SVs; Δ2042–2368: 1292 ± 221 SVs (p<0.05); Δ2016–2368: 1061 ± 258 SVs (p<0.01)) (Figure 4). To test how the kinetics of release were affected by the fast component of release, the cumulative release rates were normalized to their respective total number of vesicles released during the 30 ms depolarizing pulse (Figure 4D). This clearly demonstrates that both mutants had a significantly decreased fast component. In all cases, there were no differences between CaV2.1Δ2042–2368 and CaV2.1Δ2016–2368. Comparison of the ratio of the RPP size to the total releasable pool size revealed a significant reduction in the contribution of the RRP to the total releasable pool size in the mutants. (Figure 4G)(Table 3). Thus, based on our results we can conclude that the region between 2016 and 2042 is essential for both regulating the total number of releasable vesicles, as well as the relative contributions of fast and slow SV pool components.
A novel C-terminal region in CaV2.1 α1 subunit regulates SV Docking at the active zone
Since docked synaptic vesicles at the AZ are the morphological correlates of the RRP (Schikorski and Stevens, 2001), we next assessed how CaV2.1Δ2042–2368 and CaV2.1Δ2016–2368 affected presynaptic ultrastructure. To do so, we acquired and analyzed electron microscopy (EM) images from the uninfected contralateral in slice control, CaV2.1Δ2042–2368 and CaV2.1Δ2016–2368 expressing calyces to examine whether SV docking and distribution or AZ length were altered. Analysis of EM images revealed that AZ lengths were unchanged (CaV2.1Δ2042–2368: 267.1 ± 8.1 nm vs. in slice control: 280.6 ± 8.2 nm (n = 120); CaV2.1Δ2016–2368:268. ± 7.9 nm vs. in slice control: 292.5 ± 8.1 nm (n = 100)), but revealed a specific reduction in only those SVs within 5 nm of the plasma membrane, in both CaV2.1Δ2042–2368 and CaV2.1Δ2016–2368 (CaV2.1Δ2042–2368: 0.77 ± 0.08 nmvs. in-slice control: 1.39 ± 0.1 (n = 120; p<0.0001); CaV2.1Δ2016–2368: 0.63 ± 0.08 nm vs. in-slice control:1.58 ± 0.12 nm (n = 100; p<0.0001) (Figure 5). Thus, morphological analysis revealed that the region between 2042 and 2061 in CaV2.1 α1 subunit regulates SV docking, and its deletion results in a reduced fast pool (RRP) size and total releasable pool size.
![](https://iiif.elifesciences.org/lax/28412%2Felife-28412-fig5-v1.tif/full/617,/0/default.jpg)
The novel C-terminal region between amino acids 2042 and 2061 regulates the number of docked synaptic vesicles at the active zones.

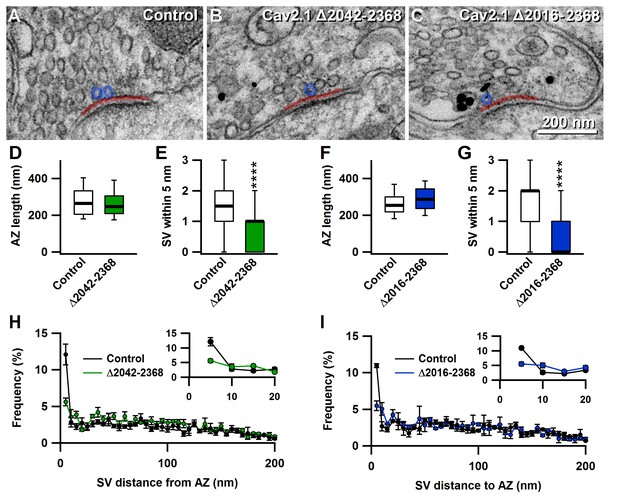

(A–C) Representative EM images showing AZs from nontransduced calyces (A), and calyces transduced with Δ2042–2368 (B) or Δ2016–2368 (C). Transduced cells were identified by pre-embedded nanogold immunolabelling for eGFP (black dots in B and C). (D–G) Quantification of mean AZ length and docked SVs (within 5 nm of the membrane) of calyces transduced with Δ2042–2368 (n = 120; D E) or Δ2016–2368 (n = 100; F G), compared to AZs from the nontransduced contralateral MNTB, respectively. (H–I) Quantification of the mean distribution of SVs up to 200 nm distant from AZs for calyces expressing Δ2042–2368 (n = 120; H) or Δ2016–2368 (n = 100; I). Insets show SVs in closest proximity to the membrane (up to 20 nm). All data are depicted as mean ± SEM.
Discussion
By carrying out structure function studies of the CaV2.1 α1 subunit on a Cacna1a null (CaV2.1 −/−) background at the calyx of Held, we were able to identify a novel intrinsic motif in the CaV2.1 α1 subunit’s C-terminus between amino acids 2042 and 2061 that regulates SV release rates, SV docking at the AZ, and size of the fast pool (RRP for AP-evoked release), as well as the total releasable pool. Since our deletion mutants did not impact Ca2+ currents but resulted in a slowdown in SV release rates this demonstrates that this region in the CaV2.1 α1 subunit plays a role in coupling SVs to CaV2.1 channels (Figures 3, 4 and 6). Finally, by deleting the motifs that are proposed to directly interact with the CaV2.1 α1 subunit we demonstrate that the intrinsic motifs required for CaV2.1 presynaptic abundance are distinct from those responsible for coupling.
![](https://iiif.elifesciences.org/lax/28412%2Felife-28412-fig6-v1.tif/full/617,/0/default.jpg)
A novel C-terminal region in CaV2.1 α1 subunit regulates SV docking at the active zone and RRP size independent of Ca2+ signaling.

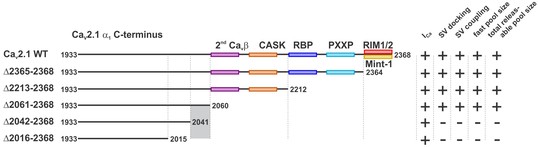

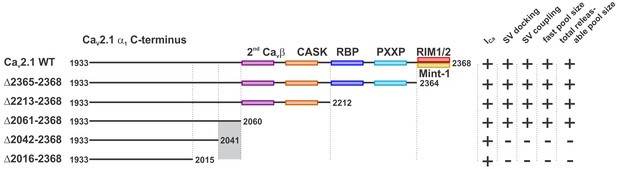

Cartoon depicting truncated regions in our CaV2.1 α1 deletion mutants including the binding sites for CaVβ, CASK, RBP, RBP, RIM1/2, Mint-1 as well as PXXP motifs and the effects of truncations on ICa, SV docking, SV coupling as well as size of the fast and the total releasable synaptic vesicle pools. The critical region 2042–2061 is highlighted in grey.
Genetic manipulation of CaV2.1 at the Calyx of Held
In our study, we specifically ablated the CaV2.1 α1 subunit in the calyx of Held using a flox mouse line of the CaV2.1 α1 subunit (Todorov et al., 2006) which circumvents potential artifacts due to global loss of CaV2.1 in the brain and lethality issues in the Cacna1a KO mouse line (Jun et al., 1999). A major road block to studying CaV2.1 channel function in native mammalian neuronal circuits has been difficulties with the ability to make routine presynaptic molecular manipulations of CaV2.1 α1 subunit. The CaV2.1 α1 subunit (>7 kb cDNA), (Catterall, 2011) is larger than common viral vectors such as recombinant Adeno-associated virus (rAAV) or lentiviral vectors (rLVV), 5 kb and 9 kb maximum packaging capacity (Lentz et al., 2012). To overcome these challenges we utilized HdAd vectors which supplant earlier versions of recombinant Ad technology, permit packaging of up to 37 kb of foreign DNA, overcome the limitations of rAAV and rLVV, and do not impact neuronal viability (Montesinos et al., 2016; Muhammad et al., 2012; Palmer and Ng, 2003; Palmer and Ng, 2005).
We used a small modified 470 bp human synapsin promoter (hSyn) (Kügler et al., 2003) that is in widespread use throughout the neuroscience field. This promoter is a relatively weak promoter and does not lead to massive overexpression as seen with CMV or CBA promoters (Glover et al., 2002). Our rescue experiments showed CaV2.1 α1 subunit expression with our HdAd vectors in the CaV2.1−/− background lead to similar Ca2+ current amplitudes, CaV2.1 subtype levels and similar SV release rates as wild-type, thereby validating our experimental approach (Figure 1, Figure 2—figure supplement 1). Thus, our HdAd vectors in conjunction with the Cacna1a CKO mouse line and our stereotactic surgery techniques (Chen et al., 2013) will be a useful platform technology to help decipher CaV2.1 function in native neuronal circuits.
CaV2.1 localization to the presynaptic membrane
By deleting multiple AZ protein binding sites in the CaV2.1 α1 subunit and making direct presynaptic recordings at the calyx, we demonstrated that these binding sites and other motifs in the last 350 amino acids of the CaV2.1 α1 subunit are not necessary for CaV2.1 localization to the presynaptic membrane. Based on our results (Figures 2 and 3) which demonstrated no significant changes in Ca2+ currents, we can rule out that proposed direct interactions with either RIM1/2 (Kaeser et al., 2011), MINT1, CASK (Maximov and Bezprozvanny, 2002; Maximov et al., 1999) and RBP (Davydova et al., 2014; Hibino et al., 2002) proteins are essential. Our results are similar to those studies (Cao and Tsien, 2010; Hu et al., 2005) that expressed the CaV2.1 α1 subunit splice variant lacking the RIM1/2, RBP, or MINT1 binding sites (Soong et al., 2002). This splice variant is localized to the presynaptic terminal (Hu et al., 2005) and could rescue the CaV2.1 channel contribution to AP evoked release in Cacna1a KO primary hippocampal neurons (Cao and Tsien, 2010). Furthermore, our data is in line with studies from Cask KO (Atasoy et al., 2007) and X11α KO (Ho et al., 2003) which had no impact on basal AP-evoked release kinetics and Rim-bp1/ Rim-bp2 cKO (Acuna et al., 2015) animals which demonstrated no loss of CaV2.1 current density. Although our results cannot rule out that Bassoon controls CaV2.1 abundance, our results do not support the model in which Bassoon regulates CaV2.1 abundance at the presynaptic terminal through direct RBP interaction with the CaV2.1 α1 subunit (Davydova et al., 2014).
RIM proteins have been demonstrated to be important for regulating CaV2 channel current density and abundance at both invertebrate and vertebrate presynaptic terminals, as knock out RIM proteins lead to dramatic reductions in Ca2+ currents (Graf et al., 2012; Han et al., 2011; Kaeser et al., 2011). However, deletion of the DDWC motif in the CaV2.1 α1 subunit which interacts both with MINT1 and RIM1/2 did not lead to any changes in CaV2.1 currents (Figures 2 and 3) indicating this motif is not necessary for CaV2.1 targeting to the presynaptic membrane. Although the RIM1/2 PDZ domain interaction with the CaV2.1 α1 subunit DDWC is proposed to be critical for CaV2.1/2.2 abundance and localization to the presynaptic terminal, the necessity of this interaction was not directly demonstrated in vivo (Kaeser et al., 2011). Furthermore, other biochemical assays have failed to detect this direct interaction (Wong et al., 2013, 2014; Wong and Stanley, 2010). Previous studies demonstrated that the RIM PDZ domain interacts with the CAST/ELKS proteins with an affinity of 200 nM (Lu et al., 2005), while the RIM PDZ domain interaction with the CaV2.1/2.2 α1 subunit has an affinity of 20 µM (Kaeser et al., 2011). Thus, an alternative interpretation is that RIM1/2 PDZ interacts with CAST/ELKS proteins to form a macromolecular complex that controls CaV2.1/2.2 abundance (Hida and Ohtsuka, 2010).
What then could be the motifs that are essential for CaV2.1 localization/abundance at the presynaptic terminal? In addition to the C-terminal region, the synprint region which binds to SNARE proteins has been proposed to be an integral motif for CaV2.1 incorporation into the presynaptic terminal (Catterall, 2011). However, syntaxin 1A binding sites in CaV2.2 are dispensable for synaptic targeting and AP-evoked release (Szabo et al., 2006). Interestingly, synprint domains lacking syntaxin 1A binding sites have reduced levels of incorporation into the neuroendocrine cell membranes (Rajapaksha et al., 2008). Another potential motif is the AID domain in the CaV2.1 α1 subunit which interacts with the CaVβ subunit to regulate CaV2.1 localization to the presynaptic membrane via a RIM1/2-dependent mechanism (Kiyonaka et al., 2007). Since the CaV2.1 α1 subunit is heavily spliced depending on the neuronal cell-type (Simms and Zamponi, 2014), it is possible that no single motif is responsible for CaV2.1 localization and incorporation in the presynaptic membrane, but that various motifs may act in concert or independently to ensure CaV2.1 abundance. In addition, the necessity of these motifs may also vary at different synapses and the developmental state of the neuronal circuit in which the synapses are embedded.
CaV2.1 channels are not randomly distributed in the presynaptic membrane but cluster within AZs (Holderith et al., 2012; Nakamura et al., 2015). Since the calyx of Held is a large presynaptic terminal that contains many AZs, the conclusions based our presynaptic recordings are limited to CaV2.1 localization to the presynaptic terminal. Thus, we cannot rule out that the C-terminal domains contained within amino acids 2016–2368 which are not essential for localization to the presynaptic membrane, are critical for CaV2.1 clustering/organization within individual AZs. To determine if the mechanisms that control CaV2.1 clustering and presynaptic membrane localization are independently regulated, morphological studies will need to be carried out.
Although exons 44–47 of CaV2.1 can impact voltage dependent activation and inactivation in HEK293 cells (Hirano et al., 2017), our direct recordings did not detect differences in the overall biophysical parameters of these mutants compared to terminals rescued with full length CaV2.1 α1 subunits or in a wild-type background. We did not block CaV2.2 or CaV2.3 currents which are present in prehearing calyces (Doughty et al., 1998; Iwasaki and Takahashi, 1998). Therefore, the presence of these currents could obscure possible changes in CaV2.1 current with our mutants. In addition, we did not test for these regions role in the regulation of Calcium-dependent activation or facilitation. Thus, depending on the synapse and its developmental state, it is possible that these regions are critical for modulation of CaV2.1 function in response to high frequency stimulation.
CaV2.1 controls coupling to SVs, RRP and total releasable pool size
Although many proteins interact with the CaV2.1 channel complex (Müller et al., 2010), it is largely unknown whether they interact with the CaV2.1 α1 subunit to regulate coupling in its native environment. Our paired recordings revealed a dramatic reduction in the 3 ms peak EPSC amplitude which measures the RRP, while release kinetics with both the 3 ms and 30 ms EPSCs were dramatically slowed down in the CaV2.1Δ2042-2368 mutant but not Δ2061-2368 mutant. Thus, our data demonstrates a motif or motif(s) in amino acids 2042–2061 in the CaV2.1 α1 subunit regulates RRP size and coupling (Figure 6). Prior studies using step depolarizations at the prehearing calyx have shown that loss of RIM and RBPs resulted in a 2–3 fold slowdown in release kinetics respectively and indicating that these proteins are involved in pathways that regulate the RRP size, coupling (Acuna et al., 2015; Han et al., 2011). In contrast, we did not see any dramatic slowdown in release or changes in RRP size that mimicked these phenotypes previously seen with RIM or RBP KO animals when these direct binding motifs in the CaV2.1 α1 subunit were deleted. Although we observed a slight slowing of the 10–90 rise times, ~20–30%, which was similar for the Δ2365–2368, Δ2213–2368, Δ2061–2368 mutants, this was not statistically significant. We did not directly measure AP-evoked release in this study, but it has been previously demonstrated that a CaV2.1 splice variants lacking RIM or RBP binding sites rescued AP-evoked release (Cao and Tsien, 2010). Finally, it has been demonstrated in PC12 cells that CaVβ interactions with RIM1/2 are critical for anchoring SVs to CaV2 calcium channels to control coupling (Uriu et al., 2010). Thus, our results strongly support that proposed individual direct interactions in between the CaV2.1 α1 subunit with RIM1/2 (Han et al., 2011; Kaeser et al., 2011) or RBP proteins (Acuna et al., 2015; Hibino et al., 2002) at most play a minor role in regulating RRP size and coupling.
In addition to the reduction in RRP size, we observed a reduction in the total releasable pool size, indicating a loss in the number of fusion competent vesicles. Our morphological analysis revealed that this corresponded to a 50% reduction in the number of docked SVs compared to wild-type. Recent work proposed that SV docking corresponds to priming (Imig et al., 2014), therefore we propose that this region in the CaV2.1 α1 subunit is involved in priming. Close inspection of the amino acid sequence reveals little homology to CaV2.2 and CaV2.3 α1 subunits (ClustalW-Gonnet series algorithm), however BLAST homology search reveals no known binding motifs (data not shown). It is possible that this region may bind to known or unknown AZ proteins that organize/cluster CaV2.1 channels in the AZ, which in turn couple to SVs and promote docking of SVs in the AZ. An alternative explanation is that removal of the 2061 to 2041 region results in a misfolding of this specific region so that CaV2.1 channels cannot interact with other proteins through other regions and cannot cluster CaV2.1 channels in the AZ. In both cases, SV docking would rely on CaV2.1 clustering through another protein to promote SV docking. However, to delineate the molecular mechanisms of how this motif regulates coupling, RRP and total releasable pool size, future experiments to identify potential binding partner(s) or solving of the CaV2.1α1 subunit structure and these mutants will need to be performed.
Despite containing CaV2.1, some presynaptic terminals transition from microdomain to nanodomain during maturation of neuronal circuits that encode temporal fidelity at high firing rates (Baur et al., 2015; Fedchyshyn and Wang, 2005). Therefore, these release states are not specific to individual CaV2 subtypes, but instead the intrinsic motifs within the CaV2.1 α1 subunit are differentially utilized based on the developmental state. Our results presented here focused solely on the regulation of fast release at the prehearing calyx P9-11 which utilizes microdomain release mode (Borst and Sakmann, 1996; Fedchyshyn and Wang, 2005). Since the calyx transitions from microdomain to nanodomain release after the onset of hearing it is highly possible that intrinsic motifs in the CaV2.1 α1 subunit dispensable for microdomain release are necessary to support nanodomain release. Finally, since proteome composition at the AZ may vary in different various presynaptic terminals, different CaV2.1 motifs may or may not be essential to support coupling.
Taken together, these findings counter the prevailing views that (1) individual direct interactions between the CaV2.1 α1 subunit and RIM1/2, MINT, RBP proteins are crucial for controlling CaV2.1 abundance and coupling to SVs (Südhof, 2013) and (2) that PXXP motifs are involved in capturing and coupling SVs to calcium channels (Wong et al., 2014). Thus, our results suggest that the mechanisms of action by which known AZ proteins regulate SV coupling and CaV2.1 channel abundance involve indirect interactions with protein(s) that bind directly to the CaV2.1 α1 subunit.
Materials and methods
Animal handling and stereotactic surgery
Request a detailed protocolAll procedures were performed in accordance with the animal welfare laws of the Max Planck Florida Institute for Neuroscience Institutional Animals Care and Use Committee (IACUC). Stereotactic surgery was performed as described previously (Chen et al., 2013; Montesinos et al., 2015). In brief, Cacna1afl/fl (floxed) mice (Todorov et al., 2006) at P1 were anesthetized by hypothermia. Subsequently, 1–2 µl HdAd (1 µl/min) in storage buffer (in mM: 10 HEPES, 250 sucrose, 1 MgCl2 at pH: 7.4% and 6.6% mannitol) was injected into the aVCN using pulled glass pipettes with a 20 µm opening (Blaubrand IntraMARK, Wertheim, Germany). Two viral vectors, one expressing Cre + eGFP and the other vector one of our CaV2.1 α1 constructs + mCherry were co-injected (Figure 1). The amount of virus injected did not exceed a total of 2*109 viral particles as higher amounts of viral particles have been reported to cause neuronal cell loss (Muhammad et al., 2012). To dissipate pressure after injection, the needle was slowly removed after the injection. After full recovery under an infrared lamp at ~37°C, pups were returned to their respective cages with their mother.
Preparation of acute slices
Request a detailed protocolAcute brainstem slices were prepared as previously described (Chen et al., 2013). Briefly, after decapitation of P9-P11 mice of either sex, the brains were immersed in ice-cold low Ca2+artificial cerebrospinal fluid (aCSF) containing (in mM): 125 NaCl, 2.5 KCl, 3 MgCl2, 0.1 CaCl2, 10 glucose, 25 NaHCO3, 1.25 Na2HPO4, 0.4 L-ascorbic acid, 3 myo-inositol, and 2 Na-pyruvate, pH 7.3–7.4 (310 mosmol/l). Coronal 200 µm slices of the brainstem containing MNTB were obtained using a vibrating tissue slicer (Campden 7000 smz, Campden Instruments LTD, Loughborough, England) or Leica VT1200 (Leica Biosystems, Wetzlar, Germany). Slices were immediately transferred to standard aCSF (37°C, continuously bubbled with 95% O2 – 5% CO2) containing the same as the cutting buffer except that it contained 1 mM MgCl2 and 1–2 mM CaCl2. After 45 min incubation, slices were transferred to a recording chamber with the same extracellular buffer at room temperature (RT: 25°C).
Acute slice electrophysiology
Request a detailed protocolDuring all experiments, slices were continuously perfused with aCSF and visualized by an upright microscope (BX51WI, Olympus) through a 60x water-immersion objective (LUMPlanFL N, Olympus, Tokyo, Japan) and a CCD camera (QI-Click, QImaging, Surrey, BC, Canada) or a EMCCD camera (LucaEM S, Andor Technology, Belfast, UK). Patch-clamp recordings were performed by using an EPC 10/2 patch-clamp amplifier (HEKA, Lambrecht, Germany), operated by PatchMaster version 2×80 (Harvard Instruments, Holliston, MA, USA). Data were low-pass filtered at 6 kHz and sampled with a rate of 50 kHz. Calyces transduced with HdAd expressing CaV2.1 α1 were identified visually with two coexpressed eGFP and mCherry markers. To visualize eGFP and mCherry, slices were illuminated with light of 470 nm or 560 nm, respectively, using a Lumen 200 metal arc lamp (Prior Scientific, Rockland, MA, USA) or a Polychrome V xenon bulb monochromator (TILL Photonics, Gräfelfing, Germany).
Presynaptic Ca2+ current recordings
Request a detailed protocolTo isolate presynaptic Ca2+ currents, aCSF was supplemented with 1 µM tetrodotoxin (TTX, Alomone labs, Jerusalem, Israel), 100 µM 4-aminopyridin (4-AP, Tocris, Bristol, UK) and 20 mM tetraethylammonium chloride (TEA, Sigma Aldrich, Darmstadt, Germany) to block Na+ and K+ conductance. Calyxes were whole-cell voltage-clamped at −80 mV. Current-voltage relationships were recorded in the presence of 1 mM CaCl2, pharmacological isolation of VGCC subtypes was performed in 2 mM CaCl2. We used 200 nM ω-agatoxin IVA (Alomone labs) to selectively block CaV2.1 and 2 µM ω-conotoxin GVIA (Alomone labs) for CaV2.2 VGCCs. Remaining current was blocked by 50 µM CdCl2. All experiments to isolate CaV2 subtypes were conducted in presence of cytochrome c (0.1 mg/ml). Presynaptic patch pipettes with open tip diameters 4–6 MΩ resistance were pulled from 2.0 mm thin-walled borosilicate glass (Hilgenberg, Malsfeld, Germany) and were filled with the following (in mM): 145 Cs-gluconate, 20 TEA-Cl, 10 HEPES, 2 Na2-phosphocreatine, 4 MgATP, 0.3 NaGTP, and 0.5 EGTA, pH 7.2, 325–340 mOsm). Pipettes were coated with Sylgard. Presynaptic series resistance was between 6 and 20 MΩ (usually between 10–15 MΩ) and was compensated online to 6 MΩ. Leak and capacitive currents were subtracted online with a P/5 routine. Cells with series resistance >20 MΩ and leak currents >100 pA were excluded from the analysis.
Paired recordings
Request a detailed protocolFor paired recordings, calyx of Held terminals and principal neurons of MNTB were simultaneously whole-cell voltage-clamped at −80 mV and −60 mV, respectively. Patch pipettes were pulled to open tip diameters of 3.5–6 MΩ for presynaptic and to 2.5–4 MΩ for postsynaptic recordings. Both pipettes were filled with the following: (in mM): 145 Cs-gluconate, 20 TEA-Cl, 10 HEPES, 2 Na2-phosphocreatine, 4 MgATP, 0.3 NaGTP, pH 7.2, 325–340 mOsm. To separate the fast and slow release components in the prehearing calyx, 0.5 mM EGTA were added in the presynaptic recording pipette (Sakaba and Neher, 2001). EGTA concentration in the postsynaptic pipette solution was 5 mM. Presynaptic series resistance was between 8 and 25 MΩ (usually between 10–15 MΩ) and was compensated online to 8 MΩ. Postsynaptic Rs (<8 MΩ) was online compensated to Rs <3 MΩ and remaining Rs was further compensated offline to 0 MΩ for all EPSCs, with a custom routine (Traynelis, 1998) and can be found at (http://www3.mpibpc.mpg.de/groups/neher/index.php?page=software). Recordings were performed in aCSF supplemented with 1 mM MgCl2 and 2 mM CaCl2, cytochrome c (0.1 mg/ml; Sigma Aldrich), 100 µM 4-AP, 1 µm TTX, 50 µM D-AP5 and 20 mM TEA-Cl to isolate presynaptic Ca2+ currents and postsynaptic AMPA receptor-mediated EPSCs. Furthermore, 2 mM kynurenic acid (Tocris) and 100 µM Cyclothiazide (CTZ, Tocris) were added to prevent saturation and desensitization of AMPA receptors and CaV2.1-mediated ICa were isolated by 2 µM ω-conotoxin GVIA (Alomone labs). Cells with series resistance >20 MΩ (pre) or >10 MΩ (post) and leak currents >100 pA (pre) or >200 pA (post) were excluded from the analysis.
Analysis of electrophysiological data
Request a detailed protocolAll data was analyzed offline with FitMaster version 2 × 80 (Harvard Instruments), and custom routines written in Igor Pro (version 6.37, Wavemetrics, Portland, OR, USA). Voltage dependence of channel activation was described by both peak and tail currents as functions of voltage and in FitMaster. Peak currents were fitted according to a Hodgkin-Huxley formalism with four independent gates assuming a Goldman-Hodgkin-Katz (GHK) open-channel conductance Γ:
with Erev as reversal potential, Vm as half-maximal activation voltage per gate, and km as the voltage-dependence of activation. Tail currents were measured as peaks minus baseline and fitted with a Boltzmann function:
where V1/2 represents the half-maximal voltage and k the corresponding slope factor.
For EPSC analysis, EPSC amplitudes were measured as peak minus baseline. Synaptic delays in response to step depolarization (step) were defined as the duration between the onset of the ICa and the time at which the EPSCs were 50% of their maximum. 10–90 rise times were measured by subtracting the time at 10% of EPSC from 90% of peak amplitude. To estimate the presynaptic ICa charge the presynaptic ICa was integrated. The Ca2+ charges were measured from the onset of the Ca2+ influx to the point where 10% of the peak ICa remained.
Deconvolution
Request a detailed protocolAn established deconvolution approach for the calyx of Held/MNTB synapse was used to estimate quantal release rates and to measure the size of fast and slow vesicle pools (30 ms step depolarization) and fast pool contribution (3 ms step depolarization) (http://www3.mpibpc.mpg.de/groups/neher/index.php?page=software) (Neher and Sakaba, 2001a, 2001b; Sakaba and Neher, 2001). This method compensates for residual current, caused by delayed glutamate clearance in the synaptic cleft. After subtracting the estimated residual current, it deconvolves the remaining EPSCs. We determined quantal release rates and time constants of decay by using an empirically generated template miniature EPSC (mEPSC) waveform and by further offline analysis in IgorPro (Wavemetrics). Quantal release rates were subsequently integrated to obtain the cumulative release. The fast pool was defined as the cumulative release at 3 ms. For the 30 ms long depolarization step to determine the total releasable pool, the cumulative release rates were further corrected for the refilling of the SV pools during the stimulation, assuming an average refilling rate assumed to be 10 SVs/ms.
DNA construct and recombinant viral vector production
Request a detailed protocolcDNAs, codon-optimized for expression in mouse (GeneArt, Regensburg, Germany) were used for Cre recombinase and CaV2.1 α1 subunit cDNA (Mus musculus, Accession No.: NP_031604.3). A series of mutants with deletions increasing in size from the end of the CaV2.1 α1 subunit cDNA C-terminal were generated to remove previously described protein interaction sites (Butz et al., 1998; Davydova et al., 2014; Hibino et al., 2002; Kaeser et al., 2011; Maximov et al., 1999; Wong et al., 2013, 2014). Subsequently, each CaV2.1 expression cassette was cloned into the AscI site of a modified version of pdelta 28E4, gift from Dr. Philip Ng (Palmer and Ng, 2003) using InFusion (Clontech, Takara Bioscience, Mountain View, CA, USA). This version of pdelta28E4 has been altered by removal of 5 kb stuffer sequence and the addition of a separate neurospecific mCherry expression cassette that is driven by the 470 bp hSyn promoter. The final HdAd plasmid allows for expression of CaV2.1 independently of mCherry as a dual expression recombinant Ad vectors similar to the strategy used with second generation rAd (Montesinos et al., 2015, 2016; Young and Neher, 2009). For HdAd Cre, the Cre recombinase cDNA was cloned into the AscI site of a different version of pdelta28E4 that has been modified to also contain a separate neurospecific EGFP expression cassette that is driven by the 470 bp hSyn promoter and the final HdAd plasmid allows for expression of Cre independently of EGFP.
Production of HdAd was carried out as previously described (Montesinos et al., 2016; Palmer and Ng, 2003; Palmer and Ng, 2011). Briefly, pHAD plasmid was linearized with PmeI and then transfected (Profection Mammalian Transfection System, Promega, Madison, WI, USA) into 116 producer cells, a derivative of 293N3S, developed for specifically for large scale HdAd production (Palmer and Ng, 2003). We did not test for mycoplasma contamintation. Helper virus (HV) was added the following day. Forty-eight hours post infection, after cytopathic effects have taken place, cells were subjected to three freeze/thaw cycles for lysis and release of the viral particles. To increase the HdAd titer, this lysate was amplified in a total of five serial coinfections of HdAd and HV from 3 × 6 cm tissue culture dishes followed by a 15 cm dish and finally 30 × 15 cm dishes of 116 cells (confluence ~90%). HdAd was purified by CsCl ultracentrifugation. HdAd was stored at −80°C in storage buffer (10 mM Hepes, 1 mM MgCl2, 250 mM sucrose, pH 7.4).
Immuno-electron microscopy
Request a detailed protocolMice (P9-11) were anesthetized with Avertin (250 mg/kg of body weight, i.p.) and perfused transcardially with warm phosphate-buffered saline (PBS, in mM: 150 NaCl, 25 Na2HPO4, 25 NaH2PO4, pH 7.4) followed by warm fixative solution for 7–9 min containing 4% paraformaldehyde (PFA), 0.5% glutaraldehyde, and 0.2% picric acid solved in phosphate buffer (PB, in mM: 100 Na2HPO4, 100 NaH2PO4, pH 7.4). Brains were postfixed with 4% PFA in PB for overnight and 50 µm coronal sections of the brainstem were obtained on a vibratome (Leica VT1200). Expression of EGFP at the calyx of Held was visualized using an epifluorescence inverted microscope (CKX41, Olympus) equipped with XCite Series 120Q lamp (Excelitas technologies, Wiesbaden, Germany) and only those samples showing EGFP were further processed as follows. After washing with PB several times, sections were cryoprotected with 10% and 20% sucrose in PB for 1 hr each, followed by 30% sucrose in PB for 2 hr and submersed into liquid nitrogen for 1 min, then thawed at room temperature. Afterwards, sections were incubated in a blocking solution containing 10% normal goat serum (NGS), 1% fish skin gelatin (FSG), 0.05% Na3N in 50 mM Tris-buffered saline (TBS, in mM: 150 NaCl, 50 Tris, pH 7.3) for 1 hr, and incubated with an anti-GFP antibody (0.1 µg/ml, ab6556, Abcam, Cambridge, UK) diluted in TBS containing 1% NGS and 0.1% FSG at 4°C for 48 hr. After washing with TBS, sections were incubated for overnight in nanogold-conjugated goat anti-rabbit IgG (1:100, Cat. No. 2003, Nanoprobes, Yaphank, NY, USA) diluted in TBS containing 1% NGS and 0.1% FSG. Immuno-labeled sections were washed in PBS, briefly fixed with 1% glutaraldehyde in PBS, washed in PBS followed by MilliQ-H2O, and silver intensified for 6–8 min using HQ silver intensification kit (Nanoprobe). After washing with PB, sections were briefly rinsed with H2O and treated with 0.5% OsO4 in 0.1M PB for 20 min, en-bloc stained with 1% uranyl acetate for 25 min, dehydrated in a graded series of ethanol, acetone, and propylene oxide, and flat embedded in Durcupan resin (Sigma-Aldrich). After trimming out the MNTB region, ultrathin sections were prepared with 40 nm-thickness using an ultramicrotome (EM UC7, Leica). Sections were counterstained with uranyl acetate and lead citrate, and examined in a Tecnai G2 Spirit BioTwin transmission electron microscope (FEI) at 100 kV acceleration voltage. Images were taken with a Veleta CCD camera (Olympus) operated by TIA software (FEI). Images used for quantification were taken at 60,000x magnification.
TEM data analysis
Request a detailed protocolAll TEM data were analyzed using Fiji imaging analysis software (http://fiji.sc/Fiji) (Schindelin et al., 2012). Positive calyces were identified by the existence of gold particles, and compared to contralateral nontransduced calyces. Each presynaptic AZ was defined as the membrane directly opposing postsynaptic density, and the length of each one was measured. Vesicles within 200 nm from each AZ were manually selected and their distances relative to the AZ were calculated using a 32-bit Euclidean distance map generated from the AZ. For data analysis, vesicle distances were binned every 5 nm and counted. Vesicles less than 5 nm from the AZ were considered ‘docked’ (Taschenberger et al., 2002; Yang et al., 2010) and their numbers were averaged per animal. Three animals for each condition were analyzed. For both CaV2.1Δ2016–2368 and CaV2.1Δ2042–2368, at least 100 individual AZs were analyzed and compared with the same number of AZs of respective calyces from the contralateral MNTB (nontransduced in-slice control AZ).
Statistical analysis
Request a detailed protocolAll statistical tests were conducted in Prism 6 (GraphPad Software). Sample sizes for all experiments were chosen based on assuming a population with a normal distribution, a sample size of seven is sufficient to invoke the Central Limit Theorem. All data were tested for normal distribution by performing a Shapiro-Wilk test for normality and variances of all data were estimated and compared using Bartlett’s test. Electrophysiological data were compared with one-way analysis of variance (ANOVA) with a post hoc Dunnett’s test, always using Full transcript rescue as control dataset. Patch clamp recordings lacking proper clamp quality and with high leak were excluded from data sets. EM-data were compared using an unpaired t-test. Statistical significance was accepted at *p<0.05; **p<0.01; ***p<0.001; ****p<0.0001. In Figures and Tables, data are reported as mean ± SEM, unless otherwise stated.
References
-
Developmental tightening of cerebellar cortical synaptic influx-release couplingJournal of Neuroscience 35:1858–1871.https://doi.org/10.1523/JNEUROSCI.2900-14.2015
-
The Calyx of held synapse: from model synapse to auditory relayAnnual Review of Physiology 74:199–224.https://doi.org/10.1146/annurev-physiol-020911-153236
-
Voltage-gated calcium channelsCold Spring Harbor Perspectives in Biology 3:a003947.https://doi.org/10.1101/cshperspect.a003947
-
Department of Biological SciencesMolecular Mechanisms of Cav2.1 expression and functional organization at the presynaptic terminal, Department of Biological Sciences, Florida Atlantic Univesity.
-
Contrasting Ca2+ channel subtypes at cell bodies and synaptic terminals of rat anterioventral cochlear bushy neuronesThe Journal of Physiology 512 (Pt 2):365–376.https://doi.org/10.1111/j.1469-7793.1998.365be.x
-
Nanodomain coupling between Ca²⁺ channels and sensors of exocytosis at fast mammalian synapsesNature Reviews Neuroscience 13:7–21.https://doi.org/10.1038/nrn3125
-
Developmental transformation of the release modality at the Calyx of held synapseJournal of Neuroscience 25:4131–4140.https://doi.org/10.1523/JNEUROSCI.0350-05.2005
-
RIM promotes calcium channel accumulation at active zones of the Drosophila neuromuscular junctionJournal of Neuroscience 32:16586–16596.https://doi.org/10.1523/JNEUROSCI.0965-12.2012
-
CAST and ELKS proteins: structural and functional determinants of the presynaptic active zoneJournal of Biochemistry 148:131–137.https://doi.org/10.1093/jb/mvq065
-
C-terminal splice variants of P/Q-type ca(2+) channel CaV2.1 α1 subunits are differentially regulated by Rab3-interacting molecule proteinsJournal of Biological Chemistry 292:9365–9381.https://doi.org/10.1074/jbc.M117.778829
-
Developmental changes in calcium channel types mediating synaptic transmission in rat auditory brainstemThe Journal of Physiology 509 (Pt 2):419–423.https://doi.org/10.1111/j.1469-7793.1998.419bn.x
-
Viral vectors for gene delivery to the central nervous systemNeurobiology of Disease 48:179–188.https://doi.org/10.1016/j.nbd.2011.09.014
-
Solution structure of the RIM1alpha PDZ domain in complex with an ELKS1b C-terminal peptideJournal of Molecular Biology 352:455–466.https://doi.org/10.1016/j.jmb.2005.07.047
-
Association of neuronal calcium channels with modular adaptor proteinsJournal of Biological Chemistry 274:24453–24456.https://doi.org/10.1074/jbc.274.35.24453
-
Synaptic targeting of N-type calcium channels in hippocampal neuronsJournal of Neuroscience 22:6939–6952.
-
Helper-Dependent adenoviral vectors and their use for Neuroscience applicationsMethods in Molecular Biology 1474:73–90.https://doi.org/10.1007/978-1-4939-6352-2_5
-
Combining deconvolution and noise analysis for the estimation of transmitter release rates at the Calyx of heldJournal of Neuroscience 21:444–461.
-
Estimating transmitter release rates from postsynaptic current fluctuationsJournal of Neuroscience 21:9638–9654.
-
Improved system for helper-dependent adenoviral vector productionMolecular Therapy 8:846–852.https://doi.org/10.1016/j.ymthe.2003.08.014
-
Helper-dependent adenoviral vectors for gene therapyHuman Gene Therapy 16:1–16.https://doi.org/10.1089/hum.2005.16.1
-
Rescue, amplification, and large-scale production of helper-dependent adenoviral vectorsCold Spring Harbor Protocols 2011:pdb.prot5627–.5866.https://doi.org/10.1101/pdb.prot5627
-
CaV2.1 channelopathiesPflügers Archiv - European Journal of Physiology 460:375–393.https://doi.org/10.1007/s00424-010-0802-8
-
Novel splice variants of rat CaV2.1 that lack much of the synaptic protein interaction site are expressed in neuroendocrine cellsJournal of Biological Chemistry 283:15997–16003.https://doi.org/10.1074/jbc.M710544200
-
Quantitative relationship between transmitter release and calcium current at the Calyx of held synapseJournal of Neuroscience 21:462–476.
-
Morphological correlates of functionally defined synaptic vesicle populationsNature Neuroscience 4:391–395.https://doi.org/10.1038/86042
-
Fiji: an open-source platform for biological-image analysisNature Methods 9:676–682.https://doi.org/10.1038/nmeth.2019
-
Systematic identification of splice variants in human P/Q-type channel alpha1(2.1) subunits: implications for current density and Ca2+-dependent inactivationJournal of Neuroscience 22:10142–10152.
-
Role of the synprint site in presynaptic targeting of the calcium channel CaV2.2 in hippocampal neuronsEuropean Journal of Neuroscience 24:709–718.https://doi.org/10.1111/j.1460-9568.2006.04947.x
-
Software-based correction of single compartment series resistance errorsJournal of Neuroscience Methods 86:25–34.https://doi.org/10.1016/S0165-0270(98)00140-X
-
A beta 4 isoform-specific interaction site in the carboxyl-terminal region of the voltage-dependent Ca2+ channel alpha 1A subunitThe Journal of Biological Chemistry 273:2361–2367.https://doi.org/10.1074/jbc.273.4.2361
-
Targeted in vivo expression of proteins in the calyx of HeldPflüGers Archiv - European Journal of Physiology 449:319–333.https://doi.org/10.1007/s00424-004-1327-9
-
Synaptic vesicle capture by CaV2.2 calcium channelsFrontiers in Cellular Neuroscience 7:101.https://doi.org/10.3389/fncel.2013.00101
-
Synaptic vesicle tethering and the CaV2.2 distal C-terminalFrontiers in Cellular Neuroscience 8:71.https://doi.org/10.3389/fncel.2014.00071
Article and author information
Author details
Funding
National Institute on Deafness and Other Communication Disorders (R01 DC014093)
- Samuel M Young
Max-Planck-Gesellschaft
- Samuel M Young
The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.
Acknowledgements
We thank Drs. E Neher, and D DiGregorio for comments on the manuscript. We thank current and former members of the Young lab and MPFI EM core for discussion throughout the project. We thank Dr. Phillip Ng and Dr. Brendan Lee for gifts of HdAd packing plasmids and HdAd stuffer DNA, respectively. This work was supported by research grants to SMY, Jr. from the National Institutes of Deafness and Communication Disorders (R01 DC014093) and the Max Planck Society. The authors declare no conflict of interests.
Ethics
Animal experimentation: All procedures were performed in accordance with the animal welfare laws of the Max Planck Florida Institute for Neuroscience Institutional Animals Care and Use Committee (IACUC) protocols (#16-001)
Copyright
© 2017, Lübbert et al.
This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.
Metrics
-
- 2,930
- views
-
- 487
- downloads
-
- 47
- citations
Views, downloads and citations are aggregated across all versions of this paper published by eLife.
Download links
Downloads (link to download the article as PDF)
Open citations (links to open the citations from this article in various online reference manager services)
Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)
Further reading
-
- Structural Biology and Molecular Biophysics
Complementary structural biology approaches reveal how an agonist and a covalent inhibitor simultaneously bind to a nuclear receptor.
-
- Structural Biology and Molecular Biophysics
The protein dynamical transition at ~200 K, where the biomolecule transforms from a harmonic, non-functional form to an anharmonic, functional state, has been thought to be slaved to the thermal activation of dynamics in its surface hydration water. Here, by selectively probing the dynamics of protein and hydration water using elastic neutron scattering and isotopic labeling, we found that the onset of anharmonicity in the two components around 200 K is decoupled. The one in protein is an intrinsic transition, whose characteristic temperature is independent of the instrumental resolution time, but varies with the biomolecular structure and the amount of hydration, while the one of water is merely a resolution effect.
