Several techniques have been developed to manipulate gene expression temporally in intact neural circuits. However, the applicability of current tools developed for in vivo studies in Drosophila is limited by their incompatibility with existing GAL4 lines and side effects on physiology and behavior. To circumvent these limitations, we adopted a strategy to reversibly regulate protein degradation with a small molecule by using a destabilizing domain (DD). We show that this system is effective across different tissues and developmental stages. We further show that this system can be used to control in vivo gene expression levels with low background, large dynamic range, and in a reversible manner without detectable side effects on the lifespan or behavior of the animal. Additionally, we engineered tools for chemically controlling gene expression (GAL80-DD) and recombination (FLP-DD). We demonstrate the applicability of this technology in manipulating neuronal activity and for high-efficiency sparse labeling of neuronal populations.https://doi.org/10.7554/eLife.30327.001
Tools for precise spatial and temporal control of gene expression are essential for understanding how neuronal circuits develop and function. For example, limiting genetic manipulation of a target gene to a specific time and a defined neuronal population permits the separation of the developmental role of the gene from its contribution to circuit function in the adult stage. In the vinegar fly, Drosophila melanogaster, bipartite expression systems (GAL4/UAS, LexA/LexAop, QF/QUAS) provide a powerful means to control gene expression in a spatially selective manner (Brand and Perrimon, 1993; Lai and Lee, 2006; Potter et al., 2010). Several modifications of these expression systems have been made to permit temporal control over the exogenous transcription factors (GAL4, LexA or QF) (Chan et al., 2015; McGuire et al., 2003; Osterwalder et al., 2001; Potter et al., 2010). Much of the effort has been focused on using temperature or chemicals as means to control the gene expression systems. Temperature-dependent expression systems have been previously engineered by the direct fusion of a heat-inducible promoter to a gene of interest (Lis et al., 1983), or by using a temperature sensitive allele of GAL80, GAL80ts. In the GAL4/UAS system, GAL80ts suppresses GAL4-induced gene expression at a low temperature (18°C) but not at a high temperature (29°C) (McGuire et al., 2003). Chemical-dependent tools include tetracycline-inducible systems (Bello et al., 1998; Bieschke et al., 1998), steroid hormone-inducible GAL4/LexA hormone receptor chimeras (Han et al., 2000; Osterwalder et al., 2001; Roman et al., 2001) and the quinic acid-inducible QS/QF/QUAS system (Potter et al., 2010). For example, an RU486-inducible GAL4 was made by fusing the GAL4 DNA-binding domain to the human progesterone receptor and the p65 transcriptional activation domain (Roman et al., 2001). However, there are limitations associated with the existing tools for temporal control of gene expression. First, temperature can have a significant impact on the physiology and behavior of a fly (Parisky et al., 2016; Sigrist et al., 2003), which may prevent detection of the phenotype of interest. For example, temperature-dependent tools are unlikely to be suitable for the study of thermosensory circuits and related behaviors. Second, temporal control of gene expression using GAL80ts can only be achieved with transcription factors containing the GAD-activation domain, making it incompatible with a majority of the driver lines (LexA, QF and split-GAL4) that do not have the GAD domain. Third, application of the current chemical-dependent tools requires the generation of new transgenic stocks, such as new promoter-GAL4 lines. Additionally, RU486, a chemical used to induce gene expression in the Geneswitch system, has been reported to cause developmental lethality in flies with pan-neuronal expression of the RU486-sensitive GAL4 (Li and Stavropoulos, 2016).
We propose an alternative chemically inducible system, in which gene expression is controlled at the post-translational stage, making it compatible with the existing library of GAL4 stocks. We adopted the destabilizing domain (DD) derived from dihydrofolate reductase (ecDHFR) of E. coli to control protein stability in a ligand-inducible manner (Cho et al., 2013; Iwamoto et al., 2010), a strategy that has been used to control gene expression in mice and worms (Cho et al., 2013; Iwamoto et al., 2010; Sando et al., 2013). On fusing the destabilizing domain to a protein of interest, the chimeric protein is degraded by the proteasome, but its degradation is blocked by trimethoprim (TMP), a cell-permeable ligand for DD (Figure 1A) (Iwamoto et al., 2010). Thus, the protein of interest can be temporally controlled by TMP. A recent study demonstrated that TMP can regulate activity of the yeast I-SceI endonuclease in Drosophila larvae expressing the fusion protein I-SceI-DD (Janssen et al., 2016). Here, we characterized the efficiency and dynamics of this technology in vivo in the fly brain. We then used the DD technology to develop tools for mapping and manipulating neural circuits in Drosophila. As a proof of its utility, we fused DD to GAL80 and controlled GAL4-dependent gene expression in a TMP-dependent manner. We show that TMP can activate GAL80-DD to manipulate neuronal activity in behaviorally relevant sensory neurons. Additionally, by fusing DD to the FLP recombinase, we devised a strategy to control the recombination frequency within a neuronal population by controlling the concentration of TMP in fly food. We further used the destabilized FLP recombinase to refine the expression pattern arising from the intersection of two transgenic lines by temporally limiting the availability of TMP. In summary, we present a chemically inducible system optimized for neurogenetics in Drosophila with broader utility than comparable tools.

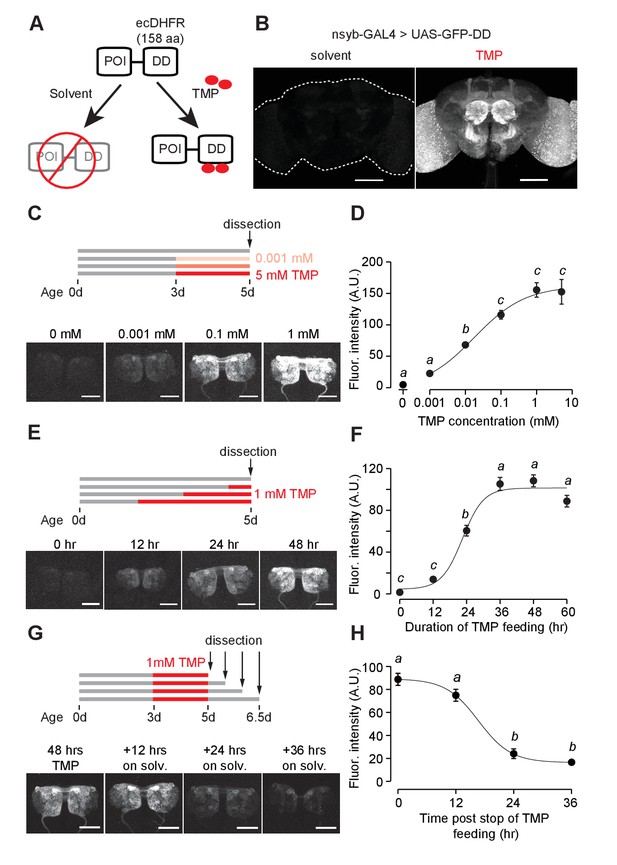

We first tested whether the ecDHFR-derived destabilizing domain (DD) can be used to control GFP expression levels. DD was genetically fused to the C-terminus of GFP and cloned into a 10XUAS construct (Figure 1A, Figure 1—figure supplement 1) to make UAS-GFP-DD transgenic flies. We reasoned that GFP expression should be conditioned on both the presence of the transcriptional activator GAL4 and the availability of the stabilizing ligand TMP. The expression of GAL4 in select neuronal populations affords spatial specificity. Feeding these flies with TMP at a specific time could provide a temporal control of GFP expression.
Using the pan-neuronal nsyb-GAL4 to drive GFP-DD expression, we observed robust GFP expression throughout the brain of adult flies fed with TMP (Figure 1B). In the absence of TMP, GFP expression was low throughout the brain; this is consistent with the previous studies in mice and nematodes showing that unbound DD is an effective tag to mark the fusion protein for degradation (Cho et al., 2013; Sando et al., 2013) (Figure 1B). However, TMP levels may start to decline at the beginning of pupation, during which flies do not feed. To determine the efficiency of TMP-dependent GFP-DD stabilization during development, we measured GFP-DD expression throughout the brain from the larval to the adult stage (Figure 1—figure supplement 2A). We found substantial differences in GFP-DD expression between flies fed with solvent versus TMP during the larval (44 fold), 48 hr APF (19 fold) and three day old adult (27 fold) stages. Notably, even though flies do not feed for several days leading up to the late pupal stage (96 hr APF) and eclosion (<12 hr adult), we observed a five-fold difference in GFP-DD expression between flies raised on solvent versus TMP (Figure 1—figure supplement 2A). In summary, the TMP-inducible DD system is maximally effective during the larval, early pupal and adult stages. During the late pupal stage, however, the utility of the system may be limited by unavailability of TMP.
Because TMP-dependent protein stabilization acts through post-translational modification of protein levels, it should be compatible with any GAL4, LexA, QF or split-GAL4 line. To illustrate this principle, we visualized TMP-dependent GFP-DD expression across several different cell types in the adult brain using previously characterized driver lines (Figure 1—figure supplement 3A). We observed a significant difference in GFP-DD expression (ranging from 4 to 64 fold) between solvent and TMP feeding for every cell type that we tested. Maximum differences were observed in the axon terminals of sensory neurons (at least 45 fold). Interestingly, different cell types innervating the same anatomical region showed differential susceptibility to the DD system. For example, olfactory sensory neurons showed a much larger difference between TMP and solvent feeding (45 fold) compared to olfactory projection neurons (6 fold), even though both cell types innervate the antennal lobe. Similarly, PAM dopamine neurons showed a larger difference in GFP-DD expression (12 fold) compared to Kenyon cells (4 fold), even though both cell types innervate the mushroom body. Based on these results, we conclude that at least some of the differences between cell types arise from the variability in their proteasome activity levels. We also observed that the DD system was effective in non-neuronal tissues, such as ovaries (Figure 1—figure supplement 3B). Finally, to demonstrate that the DD system can be used in combination with other binary systems apart from GAL4/UAS, we generated a 13XLexAop-GFP-DD transgenic fly line and observed similar TMP-dependent GFP expression in olfactory sensory neurons using the Orco-LexA driver line (Figure 1—figure supplement 3D).
We next carried out experiments to determine the kinetics and dynamic range of this chemical induction system using Orco-GAL4 to drive GFP-DD expression in olfactory sensory neurons. Feeding adult flies with food containing varying concentrations (0–5 mM) of TMP for 48 hr resulted in a dose-dependent change in GFP expression in the antennal lobe (Figure 1C,D). The maximum GFP expression, induced by 1 mM TMP, was between 34 and 45 times higher than that of control flies fed with the solvent-containing food (Figure 1D, Figure 1—figure supplement 3A). Results from an experiment in which flies were fed for varying durations (0–60 hr) with food containing 1 mM TMP show that GFP levels increase initially but plateau within 36 hr (Figure 1E,F). To test if TMP-dependent GFP expression is reversible, we fed flies with food containing 1 mM TMP for 48 hr and then switched them to regular food (Figure 1G). We found that the GFP intensity was reduced by 73% within 24 hr (Figure 1H). In sum, using GFP as a test molecule, we show that genetic fusion of the ecDHFR-derived destabilizing domain confers instability to a protein of interest in Drosophila. Feeding flies with TMP can control protein levels in a reversible and dose-dependent manner with a large dynamic range.
We then investigated whether TMP has adverse effects on survival and behavior. Feeding adult flies with a defined medium containing TMP ranging from 0 to 10 mM did not have any detectable effect on their survival (Figure 1—figure supplement 4A). Moreover, feeding adult flies with 1 mM TMP for 48 hr did not alter their locomotion speed (Figure 1—figure supplement 4C) or their ability to locate an odor source (Figure 1—figure supplement 4D) during foraging. We then tested if TMP affects the development of the fly. Flies raised on TMP ranging from 0 to 10 mM throughout development were equally likely to survive to adulthood (Figure 1—figure supplement 4B). However, we observed a delay in the developmental time for flies raised on 1 mM TMP (11.2 ± 0.1 days to eclosion) and 10 mM TMP (15.3 ± 0.3 days) as compared to solvent (10.2 ± 0.1 days) (Figure 1—figure supplement 4B). In summary, feeding adult flies TMP at 1 mM can induce GFP-DD expression at saturation level (Figure 1D) without any observable side effects on their survival or behavior. Notably, however, the same dosage of TMP delays development by about one day. Thus, we settled on the concentration of 1 mM TMP for further experiments except for cases when a lower level of induction was desirable.

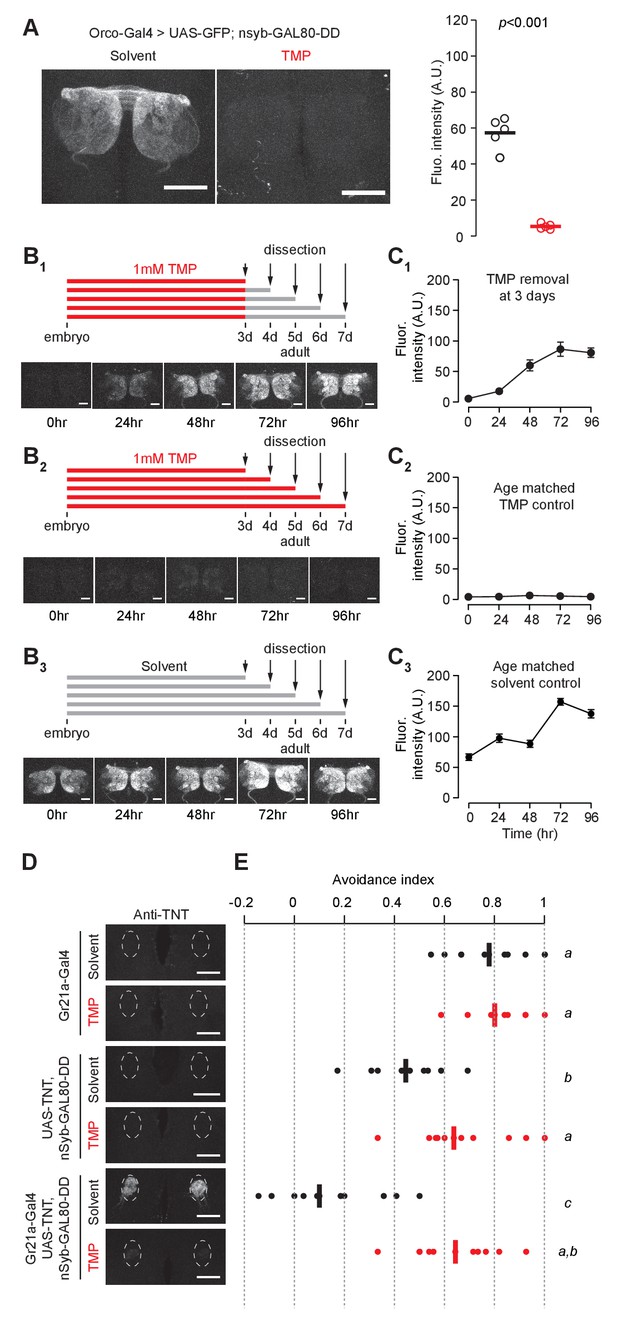

To evaluate the utility of the DD system for manipulating circuit function, we next investigated whether expression of GAL80 could be controlled by TMP. Binding of GAL80 to GAL4 prevents GAL4-mediated transcriptional activation in the GAL4/UAS expression system (Lee and Luo, 1999). We engineered a chemically inducible GAL80 by fusing DD to the C-terminus of GAL80. GAL80-DD was cloned downstream of a pan-neuronal promoter, n-synaptobrevin (nsyb). Addition of GAL80-DD to the GAL4/UAS expression system could allow TMP to control gene expression. Indeed, we found that nsyb-GAL80-DD was able to suppress GAL4-dependent GFP expression in olfactory sensory neurons (Figure 2A). This suppression of GFP expression in flies carrying the Orco-GAL4, UAS-GFP and nsyb-GAL80-DD transgenes was TMP-dependent (Figure 2A). This feature can be used to control gene expression to perturb neuronal function in a stage-dependent manner. For example, RNAi expression could be targeted to specific neurons during the adult stage by removing TMP from the food, which causes the degradation of GAL80. As a proof-of-concept experiment, we fed flies with TMP throughout development and up to 3 days post-eclosion (Figure 2B,C). When flies were moved from TMP-containing food to regular food, GFP expression started to increase after 24 hr, and peaked at 72 hr post-TMP removal (Figure 2B1, C1). In contrast, flies fed with TMP continuously, from embryo to adult, showed low GFP expression throughout the course of the experiment (Figure 2B2, C2). Furthermore, flies that were raised on regular fly food throughout showed high GFP expression (Figure 2B3, C3). To determine how soon after eclosion it is possible to activate gene expression, we raised flies on TMP during development up to eclosion and measured GFP expression in the brains of young adult flies (Figure 2—figure supplement 1A). We observed a difference between flies raised on TMP and those switched to solvent-containing food starting at one day post-eclosion (Figure 2—figure supplement 1B,C). However, we did not detect any GFP expression in flies younger than eight hours for either condition (Figure 2—figure supplement 1B,C). This lack of GFP expression even in the absence of TMP is most likely due to the time that is required to inactivate GAL80-DD upon TMP withdrawal (Figure 1H), although it is formally possible that the expression level of Orco-Gal4 is low at eclosion. Either way, these results suggest that fusion of the ecDHFR-derived destabilizing domain to GAL80 permits TMP to control GAL80 activity, providing a chemically inducible system to control gene transcription in a temporal manner.
We further tested if GAL80-DD can be used to manipulate neuronal activity underlying behavior. We focused on the innate olfactory aversion to CO2 in a T-maze assay. Olfactory aversion to CO2 can be abolished by silencing Gr21a-expressing sensory neurons (Suh et al., 2004). We controlled the expression of tetanus toxin, a potent inhibitor of synaptic transmission (Sweeney et al., 1995), in Gr21a neurons using nsyb-GAL80-DD and TMP feeding (Figure 2D). Gr21a-GAL4-derived tetanus toxin expression was blocked in the presence of GAL80-DD when flies were fed TMP, but not when they were fed the solvent (Figure 2D). Accordingly, aversion to CO2 was observed only when flies expressing Gr21a-GAL4, UAS-TNT, nsyb-GAL80-DD were fed with TMP, and not when they were fed with the solvent (Figure 2E). In comparison, control flies with GAL4 alone had high avoidance for both solvent and TMP feeding conditions. We observed a difference between solvent- and TMP-fed flies expressing UAS-TNT, nsyb-GAL80-DD (Figure 2E). However, the avoidance indices of both solvent- and TMP-fed UAS-TNT, nsyb-GAL80-DD flies were significantly higher than the avoidance index of Gr21a-GAL4, UAS-TNT, nsyb-GAL80-DD flies fed with the solvent (Figure 2E). In summary, we show that GAL80-DD can be used to manipulate GAL4-dependent expression of neuronal effectors and thereby alter the function of neuronal circuits underlying behavior.
Flippase-mediated removal of a stop cassette has been widely used for lineage analysis and sparse neuronal labeling (Lee and Luo, 1999; Marin et al., 2002; Wong et al., 2002). Lineage analysis requires transient high-level expression of flippase (FLP) at specific developmental stages. On the other hand, sparse neuronal labeling requires low-level FLP expression in post-mitotic neurons for the stochastic removal of a stop cassette. Owing to the large dynamic range of the DD system, we reasoned it could be used to control FLP expression at different levels by varying TMP concentrations in fly food, thereby accommodating both sparse labeling and lineage mapping. The heat-shock promoter has been used previously to drive different levels of FLP expression by varying the duration of the heat-shock pulses. However, heat-shock driven FLP activity cannot be limited to a subset of cells due to the ubiquitous expression of the heat shock promoter. This limitation restricts the utility of hs-FLP for lineage analysis in an intersectional manner.

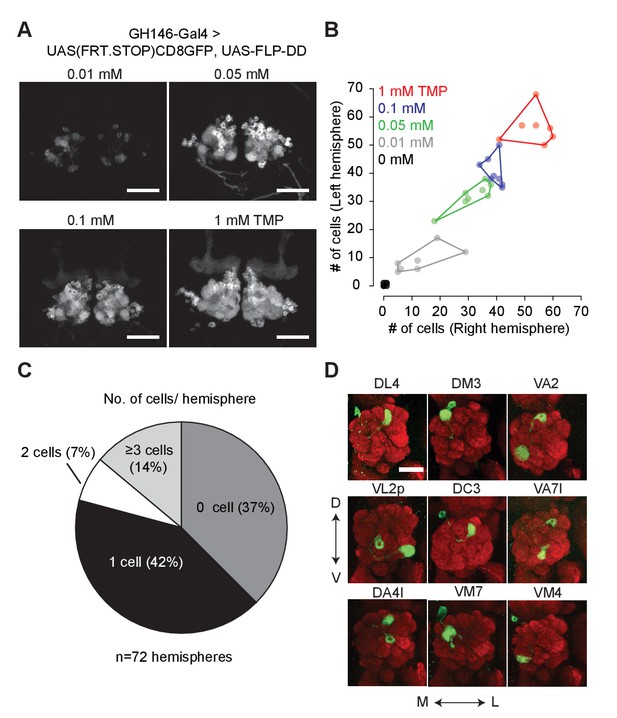

We fused DD to the C-terminus of FLP and incorporated the coding sequence into a 10XUAS construct (10XUAS-FLP-DD). We tested the destabilized flippase in olfactory projection neurons using GH146-GAL4 to drive UAS-FLP-DD and a GFP stop-cassette reporter, UAS(FRT.STOP)CD8GFP. In these flies, stabilization of FLP-DD by TMP should permit FLP-mediated excision of the stop cassette, resulting in GFP expression in certain projection neurons. We observed that the number of GFP-positive olfactory projection neurons was correlated to the TMP dosage (Figure 3A,B). By varying the concentration of TMP (0.01–1 mM) in fly food, we could control the number of labeled projection neurons (Figure 3A). Furthermore, there were similar numbers of labeled neurons in both brain hemispheres for a given sample (Figure 3B). For flies fed with standard fly food without TMP, 42% of the brain hemispheres had only one GFP-positive cell (Figure 3C). This feature of FLP-DD can be used to generate single-cell clones at a reasonable probability for connectomics applications. As a proof-of-concept, we analyzed GFP-labeled neurons in the brains of 36 flies fed with solvent only. Out of the 72 brain hemispheres, 30 had only a single GFP-positive projection neuron (see Figure 3D for examples). In summary, dose-dependent expression of FLP-DD can be used to control the number of genetically manipulated cells within a population.

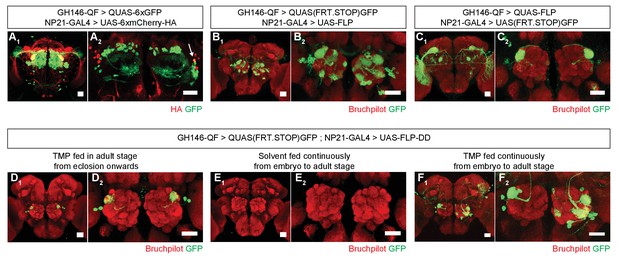

Restricting the activity of FLP-DD in a spatial and temporal manner should further refine expression patterns which arise from the intersection of two expression systems (eg. GAL4/UAS and QF/QUAS). To illustrate this principle, we focused on the intersection of GH146-QF and NP21-GAL4. It has been reported that the expression patterns for NP21-GAL4 and GH146-GAL4 overlap only in the DA1 lateral projection neurons (lPNs) in the adult brain (Potter et al., 2010), which we validated (Figure 4A1,A2). However, when UAS-FLP expression is driven by NP21-GAL4, the adult intersection pattern includes additional olfactory projection neurons, ellipsoid body neurons and neurons with cell bodies close to the lateral horn (Figure 4B1,B2). Similarly, when QUAS-FLP is driven by GH146-QF, the adult intersection pattern includes additional neurons (visual projection neurons in this case) (Figure 4C1,C2). This discrepancy between the overlap and the intersection patterns arises because of the broader expression patterns for GH146-QF and NP21-GAL4 before the adult stage. Thus, the stop cassette is prematurely excised during development in neurons outside of the overlapping adult pattern. We reasoned that the adult expression pattern can be recapitulated by limiting TMP feeding to the adult stage thereby inactivating FLP during development. Indeed, when UAS-FLP-DD was expressed by the NP21-GAL4 line and 1 mM TMP was fed to flies only during the adult stage, GFP expression was limited only to DA1 lPNs in the whole brain (Figure 4D1,D2). In comparison, flies fed with solvent alone did not have GFP expression in any neurons in the brain (Figure 4E1,E2). Furthermore, flies fed with 1 mM TMP throughout development have GFP expression in additional olfactory projection neurons (Figure 4F1,F2). We noted that the expression pattern in UAS-FLP-DD flies fed with 1 mM TMP throughout development was a subset of that observed with UAS-FLP flies (Figure 4B,F). It is possible that TMP levels decline in the fly brain during metamorphosis after the larvae stop feeding. In fact, similar results have been observed in the context of RU486-induced FLP activity (Harris et al., 2015). To mitigate this potential decline of TMP, we fed flies with 10 mM TMP throughout the larval stage and obtained a larger portion of the UAS-FLP expression pattern (Figure 4B, Figure 4—figure supplement 1). In sum, we show that TMP can be used to limit FLP-DD activity temporally in a way such that the intersection pattern is identical to the overlap in the adult expression patterns.
Here we report a chemically inducible system to control gene expression in a dose-dependent and reversible manner. The DD system broadens the functionality of the Drosophila genetic toolkit as it provides an independent axis of control which can be used in combination with existing reagents. The DD system provides several advantages over existing chemical-dependent tools. First, TMP-induced DD stabilization is dose-dependent over several orders of magnitude of TMP concentration. This dose-dependency can be exploited for titration of in vivo gene expression levels. Here, we use this dose-dependent relationship to predictably alter the number of labeled projection neurons in the fly brain. Second, in contrast to existing chemical reagents, tools such as GAL80-DD can be combined with existing GAL4 lines to knockdown targeted genes by RNAi or to perform neuronal silencing screens in a temporally refined manner. Third, when TMP is withdrawn, the degradation kinetics of the DD fusion protein are most likely faster than those of the native protein. Thus, it is possible that the DD system offers fast temporal control in experiments which require reversible gene expression. Finally, it is worth noting that the cost of TMP is almost 150 times less than RU486 or quinic acid at their respective working concentrations, making the DD system conducive to large scale behavioral screens.
The applicability of the DD system for a given cell type is limited by two factors: (1) the cell type should have an active proteasome; (2) orally-fed TMP should be able to reach the cell. In the absence of TMP, the level of proteasome activity in a given cell type may influence the residual level of a DD chimeric protein. For instance, low proteasome activity may result in high residual levels of the chimeric protein. It may be possible to reduce the residual expression by co-expressing components of the protein degradation machinery, similar to how co-expression of Dicer enhances RNAi efficiency (Dietzl et al., 2007). As it is, the background accumulation of the DD-fusion protein and the sensitivity of the downstream targets should be taken into consideration while designing experiments using the DD-system. As TMP is a cell-permeable ligand which can cross the blood-brain barrier, it should be accessible to all tissues during the adult and larval stages. However, the effectiveness of TMP in stabilizing the protein of interest during late pupal stages is reduced due to lack of feeding for several days leading up to this stage (Figure 1—figure supplement 2). This may lead to undesirable leaky expression when GAL80-DD is used with a GAL4 line that is highly expressed during the late pupal stage. Therefore, the level of gene expression controlled by GAL80-DD should always be determined using reporters before manipulating neuronal activity with effector transgenes. Due to the nature of chemical delivery, the utility of the DD-system is also limited to applications which can tolerate gene expression at a relatively slower rate. We anticipate that it will take roughly 24 hr to activate or inactivate the DD-system to an appreciable degree. However, the optimal delay from the start or stop of drug feeding is dependent on the level of gene expression required for a specific application. It may also be possible to achieve faster induction by using photocaged forms of trimethoprim (Ballister et al., 2015). During the course of our experiments, we observed a detrimental effect of the solvent DMSO (greater than 0.1%) on the survival of larvae (see Materials and methods). This toxicity can be circumvented by using a water-soluble form of TMP- trimethoprim lactate or by mixing pure TMP directly into the food. Finally, as trimethoprim is an antibiotic, experiments using the DD system should incorporate appropriate controls to rule out the effect of gut microbes on the phenotype of interest.
DD-based tools are conducive for mapping and manipulating neural circuits underlying behavior. We illustrate this concept by using destabilized GAL80-DD to chemically manipulate neural activity in olfactory sensory neurons. To our knowledge, GAL80-DD is the first construct that allows control of GAL80 activity in vivo by a small molecule. Conventional experimental designs utilize the heat-inducible GAL80ts to suppress GAL4-depdendent transcription at low temperatures. While GAL80ts may still be preferable in experiments that require low background expression, GAL80-DD is a useful alternative for experiments that are disrupted by temperature manipulations. To further illustrate the utility of the DD-system for circuit mapping, we engineered FLP-DD for sparse neuronal labeling at high-efficiency and temporally controlled genetic intersection. In a previous study, an RU486-inducible FLP recombinase was constructed by fusing it with the human progesterone receptor (Flp-Switch) (Harris et al., 2015). Although this construct can be chemically induced similar to FLP-DD, further experiments will be required to compare the efficacy and dose-dependency of the two recombinases. All DD-fusion proteins presented in this study are soluble molecules which function in the cytoplasm or the nucleus. However, previous studies have used ecDHFR-derived destabilized domains to conditionally alter membrane protein expression (Iwamoto et al., 2010). Therefore, we predict that this tool can be used to temporally control expression of membrane proteins such as ion channels and G-protein-coupled receptors.
In addition to chemically inducible forms of GAL80 and FLP, the DD technology can be used in flies for several other applications. DD can be knocked-in and fused to endogenous proteins to control their expression by limiting TMP feeding. This can be done using custom-designed genome editing strategies or by integration into the large number of available MiMIC sites within coding introns (Venken et al., 2011). DD can also be fused to a variety of effector genes for the purpose of inducible neuronal silencing or genome editing (Maji et al., 2017). Due to its inducible nature, GFP-DD can be coupled with knock-in GAL4 lines to compare gene expression in individual cells across time points spanning only a few hours, such as circadian fluctuation of gene expression. GFP-DD may also be useful as a sensor for proteasome activity.
In conclusion, we have developed a new set of tools for chemical control of gene expression in Drosophila which has broad-ranging applications and several advantages over existing tools of a similar nature. We characterized its efficiency and temporal limitations, and demonstrated its utility by engineering tools for chemical control of gene expression, recombination and neuronal activity.
Flies were raised on standard fly food (unless otherwise noted) at 25°C in a 12:12 light-dark cycle. The following transgenes were used in this study - nsyb-GAL4 (Riabinina et al., 2015) (BDSC_51941), Orco-GAL4 (Kreher et al., 2005) (BDSC_23292), UAS-GFP, GH146-GAL4 (Stocker et al., 1997)(BDSC_30026), Gr5a-GAL4 (Thorne et al., 2004), R58E02-GAL4 (Liu et al., 2012), P1a-split GAL4 (Hoopfer et al., 2015), MB434B-split GAL4 (Aso et al., 2014), Tdc2-GAL4 (Cole et al., 2005), MB247-GAL4 (Zars et al., 2000), UAS-(FRT.STOP)mCD8-GFP (Potter et al., 2010) (BDSC_30032) and UAS-(FRT.STOP)GFP.myr (BDSC_55810), UAS-6XmCherry-HA(Shearin et al., 2014) (BDSC_52267), QUAS-6xGFP(BDSC_52264)(Shearin et al., 2014), 20XUAS-FLPD5 (Nern et al., 2011)(BDSC_55805), GH146-QF(Potter et al., 2010) (BDSC_30014), QUAS(FRT.STOP)GFP (Potter et al., 2010) (BDSC_30134), NP21-GAL4 (Hayashi et al., 2002) (BDSC_30027), Actin5C-GAL4 (BDSC_4414), Orco-LexAVP16 (Lai et al., 2008), Gr21-GAL4 (Scott et al., 2001), UAS-TNT (Sweeney et al., 1995), 10XUAS-GFP-DD (this study), 10XUAS-FLP-DD (this study), nsyb-GAL80-DD (this study), 13XLexAop-GFP-DD (this study). See supplementary information for list of fly genotypes for every experiment.
Drosophila codon optimized destabilized domain (DD) was synthesized with 5' XhoI and 3' XbaI overhangs by Genewiz, Inc. (La Jolla, CA). Plasmids were generated using standard protocols for PCR, restriction digestion and ligation.
To generate the 10XUAS-GFP-DD fly, DD was ligated to the c-terminus of GFP in the pJFRC81 vector (Pfeiffer et al., 2012). GFP was subcloned from the pJFRC81 plasmid using primer P1 and P2. DD was ligated to the c-terminus of GFP using the XhoI cut site. GFP-DD was ligated into the pJFC81 vector between the PshAI and XbaI cut sites. To generate the 13XLexAop2-GFP-DD fly, GFP-DD was cut from the 10XUAS-GFP-DD and ligated to the pJFRC95 plasmid (Pfeiffer et al., 2012) between the NotI and XbaI sites. Both GFP-DD constructs were transformed using phiC31 integrase mediated recombination into the attP2 landing site (Groth et al., 2004) by Genetic Services Inc. (Cambridge, MA).
To generate the nsyb-GAL80-DD fly, DD was ligated to the c-terminus of GAL80. GAL80 was subcloned with 5' EcoRI and 3' XhoI overhangs from pAC-GAL80 plasmid (Addgene, Cambridge, MA. #24346) using primers P3 and P4. DD was subcloned from the 10XUAS-GFP-DD plasmid with 5' XhoI and 3' AatII overhangs using primers P5 and P6. GAL80-DD was triple ligated between EcoRI and AatII sites in the cut nsyb-GAL4-hsp70 plasmid (Addgene #46107) (Riabinina et al., 2015). The resulting construct was transformed using phiC31 integrase mediated recombination into the VK00005 landing site (Groth et al., 2004) by Genetic Services Inc. (Cambridge, MA).
The 10XUAS-FLP-DD plasmid was generated by ligating DD to the c-terminus of FLPD5. FLPD5 was subcloned with 5' NotI and 3' XhoI overhangs from pCaSpeR-DEST5 (DGRC, Bloomington, IN. #1031) using primers P7 and P8. FLP was ligated between the NotI and XhoI sites in the cut 10XUAS-GFP-DD plasmid. The construct was transformed using phiC31 integrase-mediated recombination into the attP2 landing site by Bestgene Inc. (Chino Hills, CA).
To generate new protein of interest (POI)-DD fusion constructs driven by UAS, the POI can be cloned in a non-directional manner (between XhoI restriction sites) or in a directional manner (between NotI and XhoI) (See Figure 1—figure supplement 1) using the UAS-GFP-DD plasmid as template. Note that for directional cloning between NotI and XhoI, the XhoI site upstream of Syn21 must be mutated during primer design (see P7 for example).The Syn21 sequence (21 bp) can be included within the primer if desired (see P7 for example).
Trimethoprim (Teknova Inc., CA) was maintained as a 100 mM stock solution in DMSO. To prepare food containing TMP for adult flies, standard fly food was heated to a liquid state. After cooling, TMP (or pure DMSO) was added to the food and vortexed to achieve a homogenous mixture of the required concentration. Food was poured into standard fly vials and allowed to solidify. Adult flies were transferred to new vials with TMP-containing food every 3 days. 1% DMSO was found to severely affect survival of larvae. Therefore, to feed flies with TMP from the embryo stage, pure TMP in powder form was mixed in fly food to attain the required concentrations. Detailed information on the feeding regimen for every experiment can be found in the supplementary information.
Tissue samples were prepared for imaging using protocols that have been previously described (Lin et al., 2013). Tissues were dissected in cold PBS and fixed in 4% (w/v) paraformaldehyde for 3 min on ice in a microwave. Next, tissues were fixed in 4% (w/v) paraformaldehyde containing 0.25% Triton-X-100 for 3 min on ice in a microwave. Fixed tissues were placed in blocking solution (2% Triton X-100, 0.02% sodium azide and 10% normal goat serum in PBS) and degassed in a vacuum chamber for 6 × 15 mins to expel tracheal air. For the purpose of quantification in Figures 1 and 2, samples were not immunostained. All samples for a given experiment were prepared and imaged in parallel to allow for comparison among them. Rabbit anti-GFP (Invitrogen, Carlsbad, CA. A-11122, 1:200), mouse anti-bruchpilot nc82 (DSHB AB_2314866, 1:50), mouse anti-HA (Biolegend, San Diego, CA. 901501, 1:500) and rabbit anti-TeTx antibody (Statens Serum Institut, Denmark. POL 016, 1:1000) were used as primary antibodies in this study. Alexa Fluor 488 anti-rabbit immunoglobulin G (Invitrogen A-31628; 1:100) and Alexa Fluor 647 anti-mouse immunoglobulin G (Invitrogen A-21235, 1:100) were used as secondary antibodies. Brains were incubated in primary antibodies in dilution buffer (1% normal goat serum, 0.02% sodium azide and 0.25% Triton X-100 in PBS) for 48 hr at 4°C, rinsed for 3 × 15 mins in washing buffer (1% Triton X-100, 3% NaCl in PBS), incubated in secondary antibodies in dilution buffer for 24 hr at 4°C, and rinsed again for 3 × 15 mins in washing buffer. Samples were mounted in Focusclear (Cedarlane Labs, Canada) between glass coverslips separated by spacer rings.
Samples were imaged with a 10X/0.3 or 20X/0.75 objective using a Zeiss LSM 510 confocal microscope to collect Z-stacks at 2 μm intervals. During the course of an experiment, the laser power and gain were held constant to allow for comparison among images from different experimental conditions. To quantify GFP expression, maximum intensity Z-projections were prepared using ImageJ (NIH). Average fluorescent intensity in the background was subtracted from the sample fluorescent intensity and the result was used as a proxy for GFP expression.
Flies were raised in standard fly food or food containing 1 mM TMP from embryo to adult stages up to the time of the experiment. Behavioral tests were performed as described previously (Su et al., 2012). About 30 flies were transferred from food vials into a 15 mL centrifuge tube (Fisher Scientific, Hampton, NH. 14959B) using a funnel. The tube containing the flies was connected to the T-maze apparatus and the flies were transferred into a horizontal elevator in the dark. Flies were held in the elevator for one minute before being pushed forward to choose between the test and the control arm. A fluorescent lamp was switched on at this point to phototactically draw flies out of the elevator. Flies were given one minute to choose between either arm, following which the elevator was retracted to separate the flies in the test arm from those in the control arm. The tubes serving as the test and the control arms were detached and flies in them were counted.
Flies were forced to choose between the control arm containing air and the test arm containing 0.28% CO2. 400 μL of 10% CO2 was injected into the test arm using a 10 mL syringe. The positions of the test arm and the control arm were alternated for each trial. The avoidance index was calculated as (no. of flies in the control arm - no. of flies in the test arm) /(no. of flies in the test arm + no. of flies in the control arm).
Adult flies were raised on a defined medium (1 M sucrose, 1% agar) with 0–10 mM TMP from eclosion to death. Each experimental vial contained 5 males and 10 females. Flies were transferred to new vials every two days. Number of living flies was recorded every day. To quantify survival during development, 20 eggs were manually placed using forceps in a vial of fly food containing 0–10 mM TMP. Vials were observed daily to quantify the developmental timing for puparium formation and time to eclosion.
Odor localization ability and walking speed were measured using a setup described previously (Root et al., 2011; Zaninovich et al., 2013). Single flies were introduced in custom built chambers (60 mm diameter, 6 mm height) and tracked at 2 Hz under 660 nm LED illumination using custom software written in Labview (V.8.5, National Instruments, Austin, TX. Code available from Zaninovich et al., 2013). Wild type flies were fed with regular fly food containing 1 mM TMP or 1% DMSO for 48 hr before the experiment. The average walking speed of each fly during the first 50 s of each trial was determined using a custom macro with Igor Pro (V.6, Wavemetrics, Inc., Portland, OR). To perform the odor localization experiment, flies were transferred to starvation vials containing water with 1 mM TMP or 1% DMSO in Kimwipes 24 hr prior to the experiment. 1% apple cider vinegar in low melting agarose was used as the odor source. Latency to localization is defined as the elapsed time before a fly spends more than 5 s within 5 mm of the odor source.
Statistical results (p value, effect size, n) are indicated in figure legends corresponding to each experiment. All statistical analyses were performed in Igor Pro (V.6, Wavemetrics, Inc.). Sample size for each experiment was pre-determined based on variation in experimental groups in pilot experiments. Most experiments were performed at least twice to confirm results. Data from one representative experiment is shown.
Doxycycline-induced transgene expression during Drosophila development and agingMolecular and General Genetics MGG 258:571–579.https://doi.org/10.1007/s004380050770
Two functional but noncomplementing Drosophila tyrosine decarboxylase genes: distinct roles for neural tyramine and octopamine in female fertilityThe Journal of Biological Chemistry 280:14948–14955.https://doi.org/10.1074/jbc.M414197200
Genetic mosaic with dual binary transcriptional systems in DrosophilaNature Neuroscience 9:703–709.https://doi.org/10.1038/nn1681
Evaluation of ligand-inducible expression systems for conditional neuronal manipulations of sleep in drosophilaG3: Genes|Genomes|Genetics 6:3351–3359.https://doi.org/10.1534/g3.116.034132
Improved and expanded Q-system reagents for genetic manipulationsNature Methods 12:219–222.https://doi.org/10.1038/nmeth.3250
Inducible control of gene expression with destabilized CreNature Methods 10:1085–1088.https://doi.org/10.1038/nmeth.2640
A single-fly assay for foraging behavior in DrosophilaJournal of Visualized Experiments 1:e50801.
Mani RamaswamiReviewing Editor; Trinity College Dublin, Ireland
In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.
Thank you for submitting your article "A versatile genetic tool for post-translational control of gene expression in Drosophila melanogaster" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by Mani Ramaswami as Reviewing Editor and K VijayRaghavan as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Christopher J Potter (Reviewer #2).
The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.
In the manuscript, Sethi et al. developed a clever strategy to reversibly regulate protein degradation. They introduce and characterize the use of destabilizing domains (DD) to 3 proteins of interest: GFP, GAL80, and FLPase. A C-terminal DD leads to proteasome degradation of the tagged protein, which can be prevented (in a dose dependent manner) by the presence of the antibiotic trimethoprim. The authors characterize the temporal dynamics of DD-mediated turnover, demonstrate it is amendable to a variety of neuronal tissues, and utilize it for behavioral analyses and intersectional expression studies. Particularly interesting is using UAS-FLP-DD instead of hs-FLP for the selective labelling of FLP-out constructs. to acutely manipulate neuronal activity and perform circuit analysis by adopting the destabilizing domain (DD) derived from ecDHFR of E. coli. The authors engineered GAL80-DD and FLP-DD, and tested their effectiveness using immunohistochemistry and behavioral assay. The results from proof-of-concept experiments are absolutely striking and clear. The manuscript is well written. The reagents presented here will be valuable additions to the Drosophila toolkit, and introduce a new method of temporal control over protein function.
1) The system may not work to regulate protein levels at time-scales < 24 hrs, or at pupal stages. This could limit some of its applications and, if so, then these should be formally detailed and prominently acknowledged.
2) Figure 2, Orco-GAL4, UAS-GFP, nsyb-GAL80-DD. TMP feeding was always performed from eclosion to 3 days. This allows ~2 days for adults to feed on TMP food. Is there GFP expression in newly eclosed flies? This should be checked. This is an important consideration, as it could suggest TMP+GAL80-DD may not function efficiently at late development stages (pupal), and the method needs a couple days post-eclosion of TMP feeding to stabilize protein levels in adult stages. This will influence the age at which adult animals are examined in many POI-DD experiments, as well as how future experiments are interpreted; for example, those that use the DD approach to ablate neurons.https://doi.org/10.7554/eLife.30327.021
1) The system may not work to regulate protein levels at time-scales < 24 hrs, or at pupal stages. This could limit some of its applications and, if so, then these should be formally detailed and prominently acknowledged.
We thank the reviewers for bringing up this important issue and have added new experiments to characterize the efficacy of the DD system at pupal stages. We have revised the manuscript accordingly.
a) To address the temporal limitations of the system, we have added the following section to the Discussion:
“Due to the nature of chemical delivery, the utility of the DD system is also limited to applications which can tolerate gene expression on a relatively slower rate. We anticipate that it will take roughly 24 hours to activate or inactivate the DD-system to an appreciable degree. However, the optimal delay from the start or stop of drug feeding is dependent on the level of gene expression required for a specific application.”
b) To characterize the efficiency of the system during development, we measured GFP-DD expression throughout in the brain in the larval, early pupal (48 hr APF), late pupal (96 hr APF), at eclosion (<12 hr adult) and adult (3 day old) stages. We found substantial differences in GFP-DD expression between flies fed with food containing solvent versus TMP during the larval (44 times), 48 hr APF (19 times) and three day old adult (27 times) stages. Notably, even though flies do not feed for several days leading up to the late pupal stage (96 hr APF) and eclosion (<12 hr adult), we observed a five-fold difference in GFP-DD expression between flies raised on solvent versus TMP. This new data is now presented in Figure 1—figure supplement 2. We agree that it is important to inform readers of the smaller difference in the late pupal stage, which may not be enough to substantially manipulate a phenotype of interest. Accordingly, we have added the following section to the Discussion:
“However, the effectiveness of TMP in stabilizing the protein of interest during late pupal stages is reduced due to lack of feeding for several days leading up to this stage (Figure 1—figure supplement 2). This may lead to undesirable leaky expression when GAL80-DD is used with a GAL4 line that is highly expressed during the late pupal stage. Therefore, the level of gene expression controlled by GAL80-DD should always be determined using reporters before manipulating neuronal activity with effector transgenes.”
2) Figure 2, Orco-GAL4, UAS-GFP, nsyb-GAL80-DD. TMP feeding was always performed from eclosion to 3 days. This allows ~2 days for adults to feed on TMP food. Is there GFP expression in newly eclosed flies? This should be checked. This is an important consideration, as it could suggest TMP+GAL80-DD may not function efficiently at late development stages (pupal), and the method needs a couple days post-eclosion of TMP feeding to stabilize protein levels in adult stages. This will influence the age at which adult animals are examined in many POI-DD experiments, as well as how future experiments are interpreted; for example, those that use the DD approach to ablate neurons.
We agree with the reviewers that it is important to know whether GAL80-DD is functioning during the pupal stage. As mentioned above, we found that there is significant amount of TMP in late pupal stage to stabilize GFP-DD. Therefore, we expect that there may be sufficient TMP to power GAL80DD in newly eclosed Orco-GAL4, UAS-GFP, nsyb-GAL80-DD flies. We therefore repeated the experiment presented in Figure 2 by feeding the flies with TMP only up to eclosion and measured GFP expression at eclosion, 1 day and 2 days. Our new results show that there is a difference between flies raised on TMP and flies switched on to solvent containing food starting at one day post eclosion (Figure 2—figure supplement 1B, C). However, we did not detect any GFP expression in flies younger than eight hours for either condition (Figure 2—figure supplement 1B, C). This lack of GFP expression even in the absence of TMP is most likely due to the longer time (~24 hr) that is required to inactivate GAL80-DD upon TMP withdrawal, although it is formally possible that the expression level of Orco-Gal4 is low at eclosion. Nevertheless, potential leaky expression is an important issue that may affect data interpretation for future experiments. Therefore, we have added caution remarks in the Discussion (see above).https://doi.org/10.7554/eLife.30327.022
