The transcription factors Runx3 and ThPOK cross-regulate acquisition of cytotoxic function by human Th1 lymphocytes

  1. Yasmina Serroukh
  2. Chunyan Gu-Trantien
  3. Baharak Hooshiar Kashani
  4. Matthieu Defrance
  5. Thien-Phong Vu Manh
  6. Abdulkader Azouz
  7. Aurélie Detavernier
  8. Alice Hoyois
  9. Jishnu Das
  10. Martin Bizet
  11. Emeline Pollet
  12. Tressy Tabbuso
  13. Emilie Calonne
  14. Klaas van Gisbergen
  15. Marc Dalod
  16. François Fuks
  17. Stanislas Goriely
  18. Arnaud Marchant  Is a corresponding author
  1. Université Libre de Bruxelles, Belgium
  2. Aix Marseille Université UM2, France
  3. MIT and Harvard University, United States
  4. Massachusetts Institute of Technology, United States
  5. Sanquin Research and Landsteiner Laboratory, Netherlands
Research Article
  • Cited 0
  • Views 1,164
  • Annotations
Cite this article as: eLife 2018;7:e30496 doi: 10.7554/eLife.30496

Abstract

Cytotoxic CD4 (CD4CTX) T cells are emerging as an important component of antiviral and antitumor immunity, but the molecular basis of their development remains poorly understood. In the context of human cytomegalovirus infection, a significant proportion of CD4 T cells displays cytotoxic functions. We observed that the transcriptional program of these cells was enriched in CD8 T cell lineage genes despite the absence of ThPOK downregulation. We further show that establishment of CD4CTX-specific transcriptional and epigenetic programs occurred in a stepwise fashion along the Th1-differentiation pathway. In vitro, prolonged activation of naive CD4 T cells in presence of Th1 polarizing cytokines led to the acquisition of perforin-dependent cytotoxic activity. This process was dependent on the Th1 transcription factor Runx3 and was limited by the sustained expression of ThPOK. This work elucidates the molecular program of human CD4CTX T cells and identifies potential targets for immunotherapy against viral infections and cancer.

https://doi.org/10.7554/eLife.30496.001

Introduction

The thymic differentiation of helper CD4 and cytotoxic CD8 T lymphocytes results from the opposite activity of key transcription factors (TF) including ThPOK and Runx3 repressing the expression of CD8 and CD4 T cell lineage genes, respectively. After emigration from the thymus, naive CD8 and CD4 T cells maintain the expression of Runx3 or ThPOK, respectively, suggesting that the lineage-defining role of these TF is also active in the periphery (Vacchio and Bosselut, 2016). However, the repression of a cytotoxic program in peripheral CD4 T cells is not absolute as these cells can acquire perforin-dependent cytotoxic activity (Appay et al., 2002a; van de Berg et al., 2008; Cheroutre and Husain, 2013).

Initially considered as a phenomenon of peripheral importance, the acquisition of cytotoxic function by CD4 T cells is now recognized as a key component of immunity against viruses and tumors (Swain et al., 2012) and correlates with positive outcome in multiple human and animal models (Brown et al., 2012; Wilkinson et al., 2012; Johnson et al., 2015; Ma et al., 2015; Weiskopf et al., 2015; Verma et al., 2016; Xie et al., 2010; Quezada et al., 2010; Fu et al., 2013). Beside their role in viral infections and cancer, cytotoxic CD4 (CD4CTX) T cells may also have a pathogenic role in chronic inflammatory disorders (Dumitriu, 2015).

The development of CD4CTX T cells remains incompletely understood. In humans, CD4CTX T cell function is a hallmark of terminally differentiated antigen-experienced cells producing large amounts of gamma interferon (IFNγ) and low levels of interleukin-2 (IL-2) (Appay et al., 2002a; Casazza et al., 2006). This suggests that CD4CTX T cell differentiation might be induced by the prolonged stimulation of Th1 lymphocytes. On the other hand, recent studies suggest that CD4CTX T cells form a distinct lineage emerging from precursors expressing class-I restricted T cell-associated molecule (CRTAM) (Takeuchi et al., 2016). Several TF probably contribute to the differentiation of CD4CTX T cells within or outside the Th1 pathway. In the mouse intestine, the acquisition of cytotoxicity by CD4 T cells is associated with the down regulation of ThPOK and the upregulation of Runx3 (Mucida et al., 2013; Reis et al., 2013; Sujino et al., 2016). In CD8 T cells, the cytotoxic program is activated by the cooperation of TF from the T-box family (T-bet and Eomes) and Runx3, (Cruz-Guilloty et al., 2009; Pearce et al., 2003). In mouse models of cancer or neuroinflammation, Eomes was required for the induction of CD4CTX T cells (Curran et al., 2013; Raveney et al., 2015). In murine influenza infection, Blimp1 was required for CD4CTX T cell differentiation (Marshall et al., 2017). The role of these TF in human CD4CTX T cell differentiation remains to be determined.

The transcriptional program and lineage fate of effector T cells are established and maintained at the epigenetic level through DNA and histone modifications (Wilson et al., 2009; Araki et al., 2008; Sellars et al., 2015). Hypomethylation of the PRF1 promoter, the gene encoding perforin, is associated with increased perforin expression in human CD4 T cells (Kaplan et al., 2004). The epigenetic modifications underlying the differentiation of CD4CTX T cells have not been determined.

Here, we studied circulating CD4CTX T cells isolated from the peripheral blood of cytomegalovirus-seropositive (CMV+) healthy adults. Compared to mouse models of infection (Brown et al., 2012) or cancer (Curran et al., 2013), this situation allows access to a significant number of cells presenting a fully established cytotoxic functional program at steady state. Using transcriptomic and epigenomic approaches, we defined the molecular events that dictate human CD4CTX differentiation. We further show that the increased expression of Runx3 and T-bet and key epigenetic modifications at the PRF1 promoter, without downregulation of ThPOK, underlie the acquisition of cytotoxic function by human Th1 lymphocytes.

Results

Phenotype and function of in vivo differentiated perforin+ human CD4 T cells

In healthy humans, chronic CMV infection is associated with the expansion of perforin+/granzyme B+ CD4 (Figure 1a–b and Figure 1—source data 1) (van Leeuwen et al., 2004). In order to use this model for transcriptomic and epigenomic analyses of CD4CTX T lymphocytes, we characterized their phenotype and function in CMV+ healthy adults and compared them to cytotoxic CD8 T cells. As previously reported, high perforin expression was observed in terminally differentiated CD4 and CD8 T cells that had downregulated the co-stimulatory molecules CD28 and CD27, respectively (Figure 1c) (van de Berg et al., 2008; Appay et al., 2002b). Perforin+ CD4 T cells were CD8β-negative and a minority expressed low levels of CD8α (Figure 1—figure supplement 1a–b). Further analyses were conducted on sorted naive (CD45RO-CD28+) and terminally differentiated (CD28-) CD4 T cells and on naive (CD45RO-CD27+) and terminally differentiated (CD27-) CD8 T cells (Figure 1d). Increased PRF1 gene expression by CD28- CD4 and CD27- CD8 T cells was confirmed by mRNA quantification and was associated with potent cytotoxic activity in a polyclonal cell lysis assay (Figure 1e, Figure 1f and Figure 1—source data 1). This activity was abolished by Concanamycin A, supporting a perforin-dependent mechanism (Kataoka et al., 1996). Bisulphite sequencing indicated an inverse correlation between the expression of the PRF1 gene and the DNA methylation status of its promoter region (Figure 1g and Figure 1—source data 1). Whereas PRF1 promoter was hypermethylated in a perforin- fibroblastic cell line (HEL-299), all CpG sites were hypomethylated in CD28- CD4 and CD27- CD8 T cells. Low DNA methylation levels were detected at intermediate (16 to 28; middle grey line on Figure 1g) CpG sites in naive CD8 T cells and at proximal (CpG sites 29 to 34; right grey line) sites in both naive CD4 and CD8 T cells, suggesting that the PRF1 gene is transcriptionally poised in naive T lymphocytes. Together, these results indicate that CD28- CD4 T cells exert a cytotoxic activity comparable to CD27- CD8 T cells and that this subset can therefore be used as a relevant model of in vivo differentiated CD4CTX T cells.

Figure 1 with 1 supplement see all

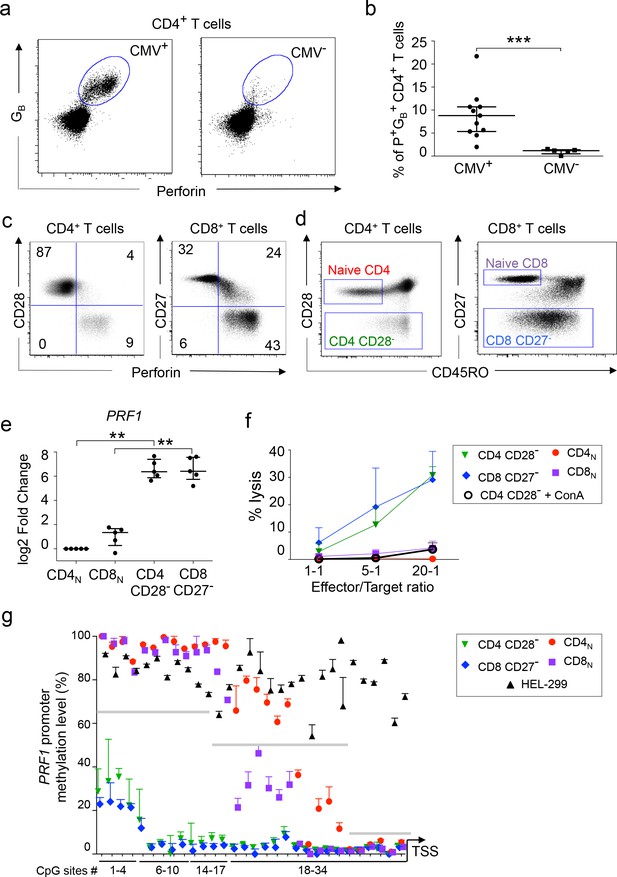

Phenotype and function of in vivo differentiated perforin+human CD4 T cells.

(a–b). The expression of perforin (P) and granzyme B (GB) was analyzed by flow cytometry in total CD4 T cells of CMV seropositive (CMV+) and seronegative (CMV-) healthy adults. (a) Representative dot plots of log10 fluorescence. (b) Proportions (median ±interquartile range) of P+GB+ CD4 T cells in 11 CMV+ and 5 CMV- subjects. (c) Perforin expression in CD28- CD4 T cells and CD27- CD8 T cells of CMV+ subjects Numbers indicate cell proportions in each quadrant. (d) Sorting strategy of naive and cytotoxic T cells according to expression of CD45RO, CD28 and CD27. Representative dot plot of log10 fluorescence. (e) The expression of PRF1 mRNA was measured by qPCR in purified T cell subsets of 5 CMV+ subjects. Results are median ± interquartile range of log2 fold change as compared to naive CD4 T cells. **:p<0,01 and ***:p<0,01. (f) The cytolytic activity of purified T cell subsets against anti-CD3-loaded target cells was assessed with or without pre-incubation with Concanamycin A (ConA). Data are mean ± SEM of three independent experiments on cells from different donors. (f) The methylation status of the PRF1 promoter was assessed in T cell subsets by bisulphite pyrosequencing. Data are median ± interquartile range of five donors for CD28-CD4 T cells and HEL-299 and of 9 donors for the other indicated subsets. Grey lines indicate three regions with distinct methylation profiles. See also Figure 1—figure supplement 1 and Source data file.

https://doi.org/10.7554/eLife.30496.002

The transcriptional program of CD4CTX T cells is enriched in CD8 T cell lineage genes without down regulation of ThPOK

In order to elucidate the molecular basis of CD4CTX T cell differentiation, their transcriptome was first compared to that of naive CD4, naive CD8 and CD8CTX T cells. Unsupervised analysis of transcriptional programs indicated that naive and cytotoxic T cells formed separate clusters and that CD4CTX and CD8CTX T cells were more closely related than their naive counterparts (Figure 2a–b). Gene set enrichment analysis (GSEA) was used to quantify the degree of sharing of the transcriptional program of CD4CTX T cells with the CD4 and CD8 T cell lineages. Genes expressed at higher levels in CD4CTX and CD8CTX T cells as compared to their naive counterparts were identified and their enrichment in naive CD8 and CD4 T cell transcriptomes was assessed (Supplementary file 1 and Figure 2c). As expected, genes that were upregulated in CD8CTX T cells were significantly enriched in genes of the CD8 T cell lineage (Figure 2c). Strikingly, genes upregulated in CD4CTX T cells were also enriched in CD8 rather than CD4 T cell lineage genes. The transcriptional program common to CD4CTX and CD8CTX T cells included RUNX3, TBX21 (T-bet) and EOMES, TF known to promote effector and memory functions in CD8 T cells (Supplementary file 1, Figure 2d and Figure 2—source data 1) (Cruz-Guilloty et al., 2009).

Figure 2 with 1 supplement see all

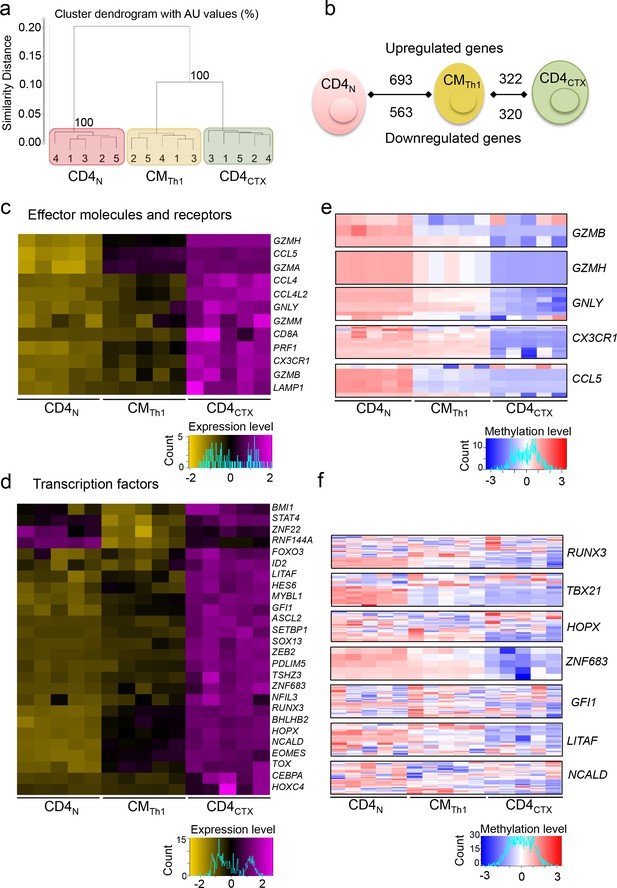

The transcriptional program of CD4CTX T cells is enriched in CD8 lineage genes without downregulation of ThPOK.

The transcriptome of T cell subsets from five CMV-seropositive donors (four for CD8CTX T cells) was analyzed by gene expression arrays. Log2 expression values of 14,372 probes with a variance >0.01 corresponding to 11,200 unique genes were submitted to unsupervised clustering (a) and principal component (b) analyses. (c) GSEA was used to test the enrichment of CD8CTX and CD4CTX T cell GeneSets (Supplementary file 1) in naive CD8 and naive CD4 T cell expression datasets. Genes showing no differential expression in CD8CTX and CD4CTX T cells were used as negative controls (n = 379). Bar codes show the ranking of the log2 fold change of gene expression values in naive CD8 versus naive CD4 T cells. Green lines represent enrichment profiles. False discovery rates (FDR) below 0.25 were considered significant and are indicated in red. NES: normalized enrichment score. (d) TF mRNA expression by T cell subsets purified from four to six donors, as indicated, was assessed by qPCR (upper panels). Results are expressed as median ±interquartile range of the log2 fold change as compared to naive CD4 or naive CD8 T cells. #:p<0.05 and ##:p<0.01 as compared to CD4 T cell counterparts; *:p<0.05 and **:p<0.01 as compared to naive counterparts. (e) TF protein expression was analyzed in T cell subsets by flow cytometry Upper panels: co-expression with perforin from one representative subject. Gated populations include naive CD4 (red), CD4CTX (green), naive CD8 (purple) and CD8CTX (blue) T cells. Lower panels: individual median intensity of fluorescence (MFI) of 5 CMV+ subjects. *:p<0.05. NS: not significant. Naive and cytotoxic T cell subsets were gated using the markers and strategy illustrated in Figure 1d. (f) GSEA was used to determine the correlation between gene expression and DNA methylation for each indicated T cell subset. Graphs show the enrichment of indicated GeneSets (Supplementary file 1) in genes that were either hypo or hypermethylated at the level of the promoter in the corresponding T cell subset. Black rectangles represent saturated bar codes of ranked delta beta values of 205,783 probes between the indicated subsets. (g) Heatmap of methylation beta values of RUNX3, TBX21 and ZBTB7B gene promoter in T cell subsets of five donors.. See also Figure 2—figure supplement 1 and Source data file.

https://doi.org/10.7554/eLife.30496.005

Strikingly, the enrichment in CD8 T cell lineage genes by CD4CTX T cells was not associated with the downregulation of ZBTB7B (ThPOK) (Figure 2d and Figure 2—source data 1). As expected, ThPOK expression was higher in naive CD4 as compared to naive CD8 T cells. However, in contrast to mouse intestinal CD4 T cells (Mucida et al., 2013), ThPOK gene expression was not downregulated by human circulating CD4 T cells, CD4CTX T cells expressing higher levels of ThPOK mRNA than naive CD4 T cells (Figure 2d and Figure 2—source data 1). Protein expression analysis by flow cytometry confirmed mRNA expression profiles for Runx3, T-bet and Eomes (Figure 2e and Figure 2—source data 1). This analysis showed high and similar expression of ThPOK in CD4CTX and naive CD4 T cells and a higher expression of ThPOK in CD8CTX as compared to naive CD8 T cells (Figure 2e and Figure 2—source data 1).

We explored the epigenetic basis of the transcriptional program of CD4CTX T cells by analysing their DNA methylome and comparing it to that of naive CD4 and CD8CTX T cells. The acquisition of cytotoxic function by CD4CTX and CD8CTX T cells was associated with changes in methylation, primarily hypomethylation, of large numbers of genes (Figure 2—figure supplement 1a–d). Unsupervised analysis of DNA methylomes indicated that naive and cytotoxic T cells formed separate clusters (Figure 2—figure supplement 1e). GSEA indicated that genes expressed at higher levels in CD4CTX or CD8CTX T cells as compared to their naive counterparts were significantly enriched in hypomethylated CpG located in their promoter regions (Figure 2f). In contrast, genes that were downregulated in CD4CTX or CD8CTX T cells were not enriched in hypermethylated CpG, suggesting distinct epigenetic mechanisms in the up- and downregulation of genes upon differentiation of cytotoxic T cells. Analysis of probes located in the promoter region of TF up regulated in cytotoxic as compared to naive T cells suggested significant hypomethylation for RUNX3 and TBX21 in both CD4CTX and CD8CTX (Figure 2g and Figure 2—source data 1), but not for EOMES (data not shown). As observed during thymopoiesis (Vacchio and Bosselut, 2016), ZBTB7B promoter was significantly hypomethylated in naive CD4 as compared to naive CD8 T cells, but no significant difference was observed between CD4CTX and CD8CTX cells (Figure 2g and Figure 2—source data 1). Most analyzed RUNX3 probes (77%) were located in the distal promoter (TSS1500), a region suspected to be involved in the control of RUNX3 mRNA translation (Kim et al., 2015), whereas most TBX21 (77%) and ZBTB7B probes (76%) were located in the proximal promoter (5’UTR, 1st exon and TSS200). Together, these results indicate that the transcriptional program of human CD4CTX T cells is enriched in CD8 T cell lineage genes. Acquisition of this program involves extensive hypomethylation of the promoter regions of a large number of genes, including TF, and is not accompanied by ThPOK downregulation.

Stepwise differentiation of CD4CTX T cells within the Th1 lymphocyte lineage

In order to decipher the molecular pathways involved in the differentiation of CD4CTX T cells, we measured the expression of cytotoxicity-related genes in subsets of memory CD4 T cells. The production of perforin was associated with the expression of the Th1 chemokine receptors CCR5 and, to a lower extend, CXCR3 but not with Th17 or Th2 receptors CCR6, CCR4 or CRTh2 (Figure 3a). (Sallusto et al., 1998; Cosmi et al., 2000; Rivino et al., 2004; Cohen et al., 2011; Couturier et al., 2014). To determine at which stage of their differentiation Th1 cells initiate the production of perforin, central memory (CM) and CD28+effector memory (EM) T cells expressing Th1 chemokine receptors were compared to naive and CD4CTX T cells (Figure 3b). No perforin+ cells were detected by flow cytometry among CM CD4 T cells. A small proportion of perforin+ cells were detected among CD28+ EM CD4 T cells in some donors and these cells were CCR5+. Mean fluorescence intensity analysis indicated high perforin expression by CD4CTX cells and low and comparable expression in naive, CCR5+ CM (CMTh1) and CCR5+ CD28+ EM (EM28+Th1) CD4 T cells (Figure 3c and Figure 3—source data 1). In contrast, PRF1 mRNA expression analysis of sorted cells (sorting strategy shown in Figure 3—figure supplement 1a) indicated that the PRF1 gene was already expressed at higher levels in CMTh1 as compared to naive cells and was further upregulated in EM28+Th1 cells and in CD4CTX cells (Figure 3d and Figure 3—source data 1). Notably, this pattern of progressive up regulation of gene expression was similar for RUNX3 and TBX21 and contrasted with the high expression of IFNG and EOMES mRNA already detected at the CMTh1 stage of differentiation (Figure 3d, and Figure 3—source data 1 and Supplementary file 1). Analysis of sorted CM Th1, Th2 and Th17 cells indicated that the increased expression of perforin and associated TF was specific to the Th1 lineage (Figure 3—figure supplement 1b–c). Epigenetic analyses of the PRF1 promoter further supported the stepwise acquisition of perforin expression within the Th1 lineage. DNA methylation levels at intermediate CpGs (sites 16 to 28) progressively decreased from naive to CMTh1, EM28+Th1 and CD4CTX T cells (Figure 3e and Supplementary file 2a). As observed in naive and CD4CTX T cells, proximal CpGs (sites 29 to 34) were hypomethylated in CMTh1 and CD28+ EMTh1 T cells. H3K4me3 (active promoter) and H3K27ac (active promoter and enhancer [Shlyueva et al., 2014]) enrichment was analyzed in previously identified putative regulatory regions (Figure 3f, left panel) (Pipkin et al., 2010; Adams et al., 2012). In agreement with PRF1 gene expression and promoter methylation, high enrichment of H3K4me3 and of H3K27ac was detected at the PRF1 proximal promoter region in CD4CTX T cells (Figure 3f, middle and right panels and Figure 3—source data 1). Interestingly, an H3K27ac enrichment was observed in a region located 5,5 to 7,7 kb upstream of the TSS in Th1 cell subsets, suggesting the presence of an active enhancer.

Figure 3 with 2 supplements see all

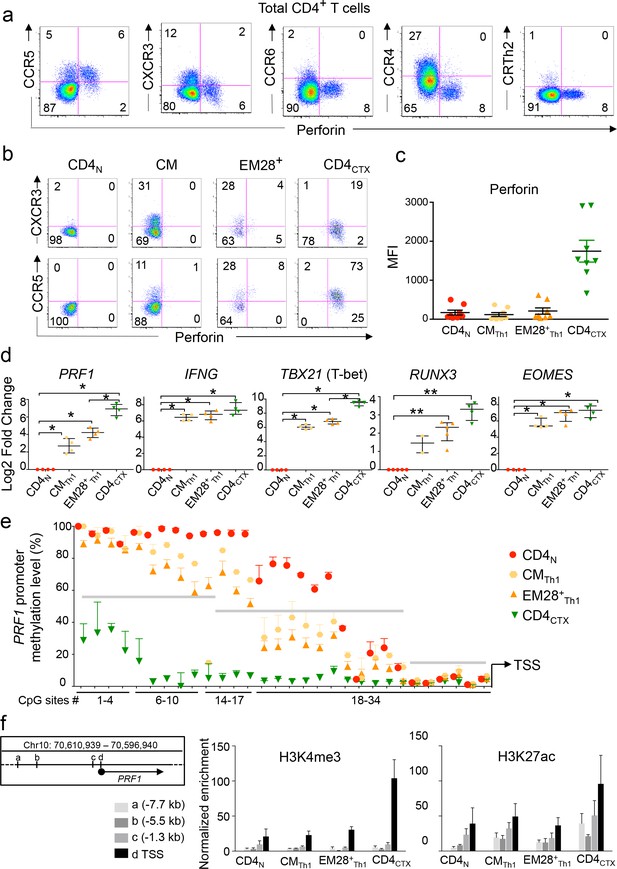

Differentiation of CD4CTX T cells within the Th1 lineage.

(a–b). Expression of perforin and chemokine receptors was assessed by flow cytometry in total CD4 T cells (a) central memory (CM), effector memory (EM) CD28+ and CD4CTX T cells (b). Log10 fluorescence of one representative donor out of 9. (c) Median intensity of fluorescence (MFI) of perforin expression in T cell subsets from 7 CMV+ subjects. (d) mRNA expression of indicated genes was assessed by qPCR in T cell subsets purified from two to five donors, as indicated. CMTh1 and EM28+Th1 were CCR5+CCR6- as illustrated in Supplementary Figure 3. Results are median ±interquartile range of the log2 fold change as compared to naive CD4 T cells. *:p<0.05 and **:p<0.01. (e) Methylation status of PRF1 promoter was assessed by bisulphite pyrosequencing in indicated purified T cell subsets. Results are presented as median ±interquartile range of two to five donors depending on the CpG site, as detailed in Supplementary file 2a. Grey lines indicate three regions with distinct methylation profiles. (e) Histone modifications at indicated regions of the PRF1 locus were studied by ChIP-qPCR in purified CD4 T cell subsets of three donors. Results are % of input after normalization for the enrichment in pan H3. Letters refer to indicated distances from the transcription start site (TSS) (left panel). See also Figure 3—figure supplements 1 and 2 and Source data file.

https://doi.org/10.7554/eLife.30496.008

Together, these results indicate the progressive acquisition of PRF1 gene expression from CMTh1 to EMTh1 lymphocytes. Single-cell PCR analysis revealed that this process is related to a progressive increase in the proportion of PRF1 mRNA+ Th1 cells (Figure 4a and Figure 4—source data 1). Gene co-expression analysis at the single-cell level indicated that PRF1 mRNA was co-expressed with distinct sets of TF in Th1 cell subsets (Figure 4b and Figure 4—source data 1). In CMTh1 cells, PRF1 expression was co-expressed with a relatively restricted set of TF, including PRDM1, RUNX3 and EOMES. In CD4CTX T cells, a larger set of co-expressed TF was identified, including TBX21, HOPX, ZNF683 (Hobit), PRDM1 and RUNX3 and EOMES. Notably, a lower proportion of perforin+ CD4CTX T cells co-expressed EOMES as compared to the other co-expressed TF. In conclusion, the analysis of PRF1 gene expression in vivo suggests a model in which Th1 lymphocytes acquire permissive modifications of the local chromatin environment and a network of TF factors that could underlie the acquisition of cytotoxic functions.

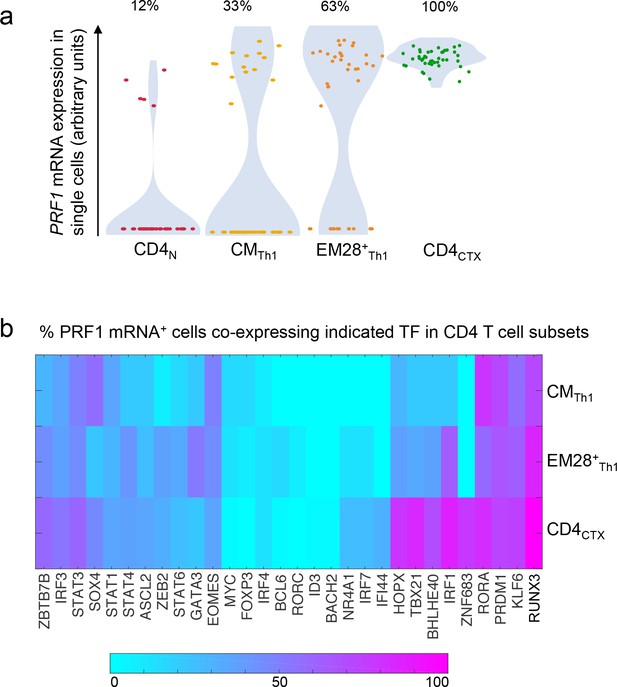

Proportion of PRF1 mRNA+cells and co-expression with transcription factors in the Th1 lineage.

The expression of PRF1 and transcription factors (TF) mRNA was analyzed in 43 single naive, central memory (CM) Th1, effector memory (EM) CD28+ Th1 and CD4CTX T cells from one donor. (a) PRF1 mRNA expression in single cells and proportions of PRF1+ cells in Th1 cell subsets. (b) Heat map of PRF1+ cells co-expressing individual TF in Th1 cell subsets. (calculated proportion: double-positive cells/perforin-positive cells). See also Figure 4—source data 1.

https://doi.org/10.7554/eLife.30496.012

Transcriptional program underlying the expression of perforin in Th1 cells

In order to identify the key steps that drive the acquisition of cytotoxic functions along the Th1 pathway, we compared the gene expression profile of CD4CTX T cells to that of CMTh1 cells. Unsupervised gene expression analysis indicated that CMTh1 cells formed a cluster separated from naive and CD4CTX T cells and were more closely related to CD4CTX T cells than to naive cells (Figure 5a). Including CD8 T cell subsets in this analysis indicated that the transcriptome of CMTh1 cells was more distant to CD8CTX T cells than CD4CTX T cells (Figure 3—figure supplement 2a–b). 693 genes were significantly upregulated in CMTh1 as compared to naive cells and 322 genes were up regulated in CD4CTX T cells as compared to CMTh1 cells (Figure 5b and Supplementary file 1). Similar gene numbers were downregulated in the two subsets. As expected, genes upregulated in CD4CTX T cells as compared to CMTh1 cells included cytotoxicity-related molecules, among which GNLY (granulysin), granzymes, CD107a (LAMP1), CX3CR1 and CD8A as well as TF RUNX3 and EOMES (Figure 5c–d). T-bet was not up regulated in the transcriptome dataset, in line with reported lack of sensitivity of the Illumina array for this gene (Dimova et al., 2015). Expression of IFNG, TNF and GZMK was increased in CMTh1 as compared to naive cells but was not further up regulated in CD4CTX T cells (Supplementary file 1).

Figure 5 with 2 supplements see all
Transcriptional program underlying the expression of perforin in Th1 cells.

The transcriptome of CD4 T cell subsets from five donors was analyzed by gene expression arrays. (a) Log2 expression values of 13,551 probes with a variance >0.01 corresponding to 10,669 unique genes were submitted to unsupervised cluster analysis. See also Supplementary Figure 4. (b) Genes differentially expressed by naive CD4 (CD4N), central memory (CM) Th1 and CD4CTX T cells were identified. (c-d) Heatmaps of mean log2 expression values of all probes for each selected effector molecules and receptors (c) and transcription factors (d) upregulated in CD4CTX T cells as compared to CMTh1 cells. See also Figure 5—figure supplement 1. (e-f) Heatmaps of methylation beta values of all the probes located in the promoter region of effector molecules and receptors (e) and transcription factors (f) significantly hypomethylated in CD4CTX as compared to CMTh1 as assessed by a two-way ANOVA with Tukey’s multiple comparisons (p<0.01). See also Figure 5—figure supplement 2 and Source data file.

https://doi.org/10.7554/eLife.30496.014

Additional TF were upregulated in CD4CTX T cells (Figure 5d). Most of them were selectively upregulated in CD4CTX T cells as compared to CMTh1 cells or were up regulated from naive T cells to CMTh1 cells and from CMTh1 cells to CD4CTX T cells. Some TF were first downregulated in CMTh1 as compared to naive cells and were up regulated in CD4CTX T cells as compared to CMTh1 cells, indicating a more complex regulation pathway (Figure 5—figure supplement 1 and Supplementary file 1). Methylome analysis indicated that gene up regulation in CMTh1 and CD4CTX T cells was primarily associated with DNA hypomethylation, as observed in the naive to CD4CTX T cell differentiation (Figure 5—figure supplement 2a). Analysis of probes located in the promoter region of effector molecules and receptors and of TF upregulated in CD4CTX cells were also hypomethylated in these cells (Figure 5e–f and Figure 5—source data 1).

Among the upregulated TF identified through transcriptomic analysis, ASCL2, HOPX, ZEB2 and ZNF683 (Hobit) were selected for further analyses because of the high magnitude of their expression in CD4CTX T cells (Figure 5—figure supplement 2b and Supplementary file 1) and because they have been previously studied for their effector functions in T cells (Liu et al., 2014; Albrecht et al., 2010; Dominguez et al., 2015; van Gisbergen et al., 2012; Vieira Braga et al., 2015a2015a).

TF controlling the expression of perforin in CD4 T cells

The role of selected TF in the acquisition of cytotoxic function by CD4 T cells was analyzed in a novel in vitro model of CD4CTX T cell differentiation involving the stimulation of naive CD4 T cells in the presence of Th1, Th2 or Th17 polarizing cytokines and the analysis of perforin and granzyme B expression at multiple time points (Figure 6a). In line with our in vivo observations, cytotoxicity was acquired under Th1 and not under Th2 or Th17 culture conditions (Figure 6b to e and Figure 6—source data 1). In vitro differentiated Th1 cells included a diverse repertoire of clonotypes with similar proportions of large and intermediate expansions as compared to Th1 and Th2 cells (Figure 6—figure supplement 1a). Furthermore, Th1 cells expressed low levels of the PLZF TF (Figure 6—figure supplement 1b) indicating that they were conventional and not innate-type effector T lymphocytes.

Figure 6 with 2 supplements see all

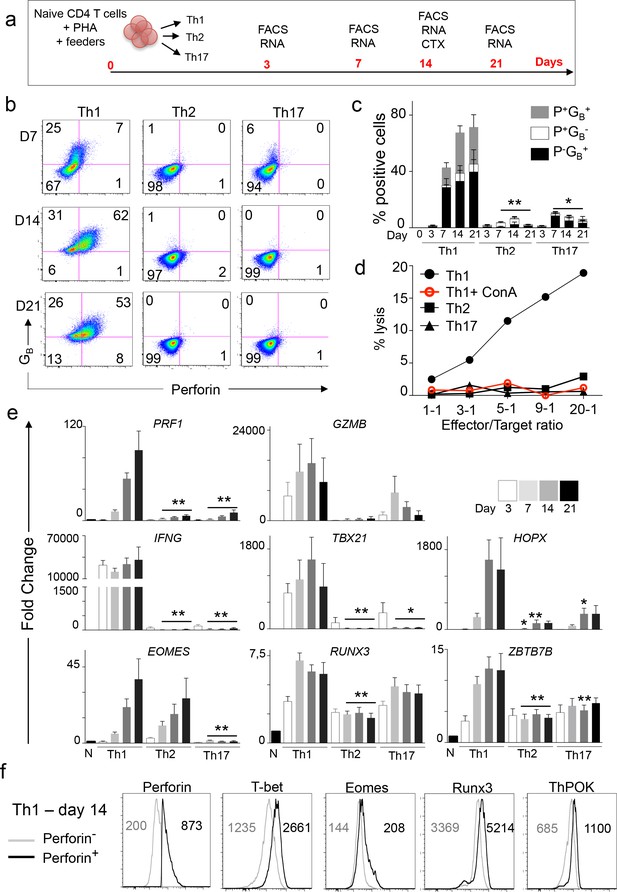

Naive CD4 T cells differentiate into CD4CTX in Th1 culture conditions in vitro.

(a) Naive CD4 T cells were stimulated polyclonally in the presence of Th1, Th2 or Th17 polarizing cytokines. Flow cytometry (FACS), gene expression (RNA) and cytotoxicity analyses were performed at the indicated time points. (b-c) Perforin (P) and GranzymeB (GB) expression was assessed by flow cytometry. (b) Dot plots (Log10 fluorescence of one representative out of six different donors. Numbers indicate % of cells in individual quadrants. (c) Mean ±SEM of % of perforin (P) and granzyme B (GB) positive cells from six independent experiments on different donors (only 4 for day 21 and 5 for day 3). (d) Cytotoxic activity of in vitro differentiated effector T cells against anti-CD3-loaded target cells was assessed at indicated effector/target ratios with or without pre-incubation with Concanamycin A. Figure shows one representative out of four experiments on different donors. (e) mRNA expression of indicated genes was quantified by qPCR. Results are mean ±SEM fold change as compared to naive CD4 T cells from six independent experiments on different donors (only 3 for day 3). *:p<0.05 and **:p<0.01 as compared to Th1 condition at the corresponding time point. (f) Expression of TF was measured by flow cytometry in perforinhigh and perforinlow Th1 cells after 14 days of in vitro stimulation. Histograms of one representative out of six experiments. Numbers are median fluorescence intensity (MFI) of six experiments (only four for ThPOK). See also Figure 6—figure supplements 1 and 2 and Source data file.

https://doi.org/10.7554/eLife.30496.018

Frequencies of perforin+granzyme B+ cells and levels of PRF1 mRNA increased from day 7 to day 21 in Th1 polarized cells (Figure 6b–c–e and Figure 6—source data 1). GNLY and TNF mRNA levels increased following a similar kinetics, whereas GZMB, IFNG and GZMK already reached maximum levels at day 7 (Figure 6e, Figure 6—figure supplement 2, and Figure 6—source data 1). CX3CR1 mRNA presented a unique expression profile with an initial upregulation followed by a marked downregulation (Figure 6—figure supplement 2a). At day 14, Th1 polarized cells acquired potent Concanamycin A-sensitive cytotoxic activity (Figure 6d and Figure 6—source data 1).

Most selected TF were induced by cell activation but their pattern of expression was differently associated with polarizing conditions (Figure 6e and Figure 6—source data 1). TBX21 and HOPX expression was specifically induced under Th1 conditions. RUNX3 and ZBTB7B mRNA were upregulated in all conditions but reached higher levels in Th1 cells. EOMES was induced in both Th1 and Th2 cells, suggesting that expression of this TF is not sufficient to promote cytotoxic function in CD4 T cells. The pattern of expression of ASCL2 and ZEB2 was inconsistent and ZNF683 mRNA was not detected in in vitro differentiated effector T cells (Figure 6—figure supplement 2a). Flow cytometry analysis of Th1 cells indicated that the expression of perforin was correlated with those of T-bet, Eomes, Runx3 and ThPOK (Figure 6f and Figure 6—figure supplement 2b).

Based on these results, we further evaluated the role of Runx3, T-bet, Eomes, Hopx and ThPOK in this model using shRNA silencing (Figure 7a). Significant knockdown was achieved for each target TF at mRNA and protein levels (Figure 7—figure supplement 1a), whereas the non-silencing (N-S) shRNA and the empty vector (EV) had no significant effect on any of the studied genes (Figure 7—figure supplement 1b–c). Knockdown of Runx3 and, to a lesser extend, T-bet resulted in the decreased expression of perforin and granzyme B. Knockdown of Hopx affected GZMB but not PRF1 mRNA expression, whereas knockdown of Eomes had no significant effect on the expression of either perforin or granzyme B (Figure 7b–d and Figure 7—source data 1). Of note, IFNG expression was principally dependent on T-bet with no significant effect of Runx3 knockdown (Figure 7b). T-bet also controlled TNF, CX3CR1 and GZMK expression whereas GNLY was controlled by both Runx3 and T-bet (Figure 7—figure supplement 1b). Significant interactions were observed between TF, with Runx3 and T-bet controlling the expression of HOPX and T-bet and Hopx controlling the expression of EOMES (Figure 7—figure supplement 1c). In line with its central influence on the expression of cytotoxic molecules, Runx3 also significantly modulated the acquisition of cytotoxic activity by CD4 T cells, whereas T-bet knockdown reduced cytotoxicity of CD4 T cells only at low E/T ratios (Figure 7e and Figure 7—source data 1). ThPOK globally acted as a negative regulator of the cytotoxic program (Figure 7f–g, Figure 7—figure supplement 1b–c and Figure 7—source data 1). ThPOK knockdown markedly increased PRF1 and GZMB expression and cytotoxic activity of CD4 T cells and also upregulated the expression of all the other TF studied and of CD8A.

Figure 7 with 2 supplements see all

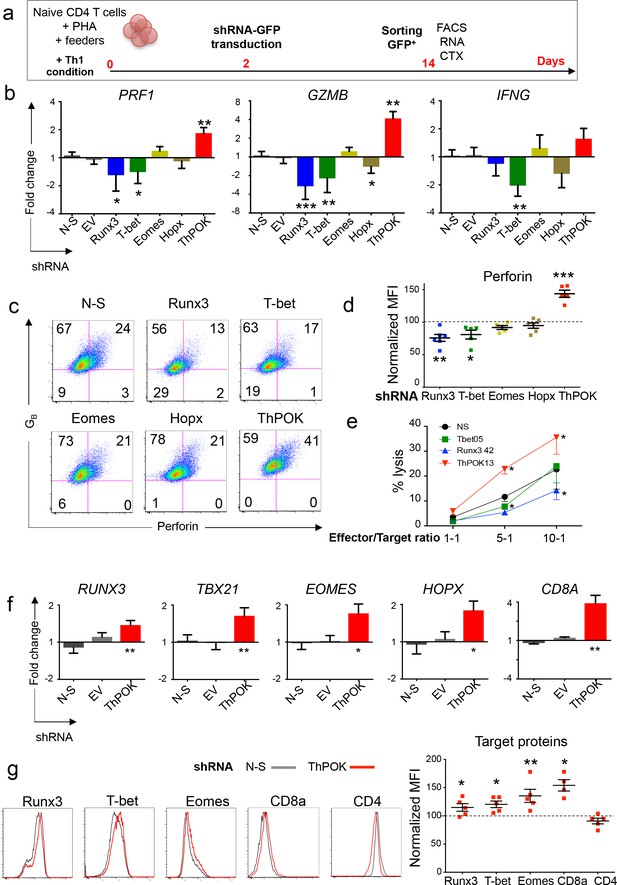

TF controlling the expression of perforin in CD4 T cells.

(a) Naive CD4 T cells were stimulated polyclonally in the presence of Th1 polarizing cytokines and were transduced on day 2 with shRNA-GFP. GFP+ cells were purified on day 14 for flow cytometry, mRNA expression and cytotoxicity analyses. (b) Expression of PRF1, GZMB and IFNG mRNA was quantified by qPCR in cells transduced with indicated targeting shRNA, non-silencing (N-S) shRNA or empty vector (EV). Data are mean ± SD log2 fold change as compared to controls (mean of N-S and EV), from seven biological replicates generated in four independent experiments on different donors. (c-d) Expression of perforin (P) and granzyme B (GB) was measured by flow cytometry in cells transduced with N-S or indicated gene targeting shRNA. (c) Representative dot plot (log10 fluorescence) of the proportions of double positive cells from seven independent experiments on different donors. Numbers indicate % of cells in individual quadrants. (d) Perforin expression following knockdown of indicated TF. Data are median fluorescence intensity (MFI) normalized for perforin MFI in cells transduced with N-S shRNA (dotted line, 100%). Experiments in which gene knockdown was below 10% were excluded from the analysis. (e) Cytotoxic activity of transduced cells against anti-CD3-loaded target cells. Data are mean ± SEM of five independent experiments on different donors. *:p<0.05 as compared to N-S shRNA. (f-g) The effect of ThPOK knockdown on the expression of indicated TF, CD8A and CD4 was studied by qPCR and flow cytometry. (f) Data are mean ± SD log2 fold change as compared to mean RNA expression in control shRNA (N-S and EV) from seven biological replicates generated in four independent experiments on different donors. *:p<0.05; **:p<0.01 as compared to control shRNA. (g) Histograms (Log10 fluorescence) from one representative donor. Data are MFI normalized for TF MFI in cells transduced with N-S shRNA (dotted line, 100%) of seven independent experiments on different donors. See also Figure 7—figure supplements 1 and 2 and Source data file.

https://doi.org/10.7554/eLife.30496.022

Together, these results indicate that the acquisition of a cytotoxic program by naive CD4 T cells is dependent on Runx3 and, to a lesser extend, T-bet and is limited by the sustained expression of the CD4 lineage TF ThPOK. Because ThPOK was upregulated in CD8CTX T cells in vivo (Figure 2d–e and Figure 2—source data 1), we studied its expression and role in the in in vitro differentiation of CD8 T cells. In vitro activation of naive CD8 T cells induced the differentiation of perforin+ cells that co-expressed ThPOK (Figure 7—figure supplement 2a). Knockdown of ThPOK in differentiated CD8 T cells did not significantly influence the expression of perforin but significantly increased the expression of granzyme B as compared to N-S shRNA (Figure 7—figure supplement 2b), suggesting that ThPOK may limit the cytotoxic function of human CD8 T cells.

Discussion

This study demonstrates that the acquisition of cytotoxic function by human CD4 T cells is an integral part of the Th1 linear differentiation pathway. Several concordant observations support this conclusion. First, PRF1 gene expression was detected in all subsets of memory Th1 cells. The proportion of PRF1 expressing cells increased from CM to terminally differentiated EM Th1 cells and this process was associated with the diversification of co-expressed TF networks. The epigenetic modifications detected at the PRF1 gene promoter reflect this increase in perforin expression and suggest that the local chromatin environment becomes progressively more favorable from naive T cells to CM Th1 cells to terminally differentiated EM Th1 cells. Progressive acquisition of specific transcriptional and epigenetic marks is a hallmark of the linear differentiation model of CD4 T cell memory development (DEEP Consortium et al., 2016). Our work suggests that acquisition of cytotoxic functions by CD4 T cells follows a similar stepwise program.

The accessibility and expression of PRF1 gene in all subsets of Th1 cells also provide a basis for the classical observation that memory Th1 cells of diverse antigen-specificities that do not express the perforin protein ex vivo become perforin positive and cytotoxic upon in vitro expansion and cloning (Parronchi et al., 1992; Riaz et al., 2016). This in vitro acquisition of perforin expression likely reflects pre-established PRF1 chromatin modifications in precursors of CD4CTX T cells.

The cytotoxic potential of Th1 cells is also supported by the in vitro model of CD4CTX T cell differentiation. In this model, human naive CD4 T cells stimulated in the presence of Th1, and not Th2 or Th17, polarizing cytokines differentiated in perforin+granzyme B+ cells with potent cytotoxic activity. This could be due to the promotion of the cytotoxic phenotype by Th1 cytokines or to its repression by the Th2 or Th17 transcriptional programs, or both (Parronchi et al., 1992; Xiong et al., 2013; Ciucci et al., 2017). In contrast to the rapid acquisition of IFNG expression, naive CD4 T cells expressed high levels of PRF1 1 to 2 weeks after stimulation. This observation also contrasts with the more rapid acquisition of cytotoxic function by CD8 T lymphocytes (Araki et al., 2008) and suggests that the initial steps of Th1 cell differentiation provide the required epigenetic and transcriptional signals promoting the expression of PRF1. The relatively delayed acquisition of cytotoxicity also suggests that CD4CTX T cells are induced by prolonged antigen stimulation in vivo and may intervene when Th1 and CD8 T cells do not adequately control pathogens.

The acquisition of cytotoxic function within the Th1 lineage was promoted by Runx3 and T-bet. Runx3 knockdown reduced the expression of perforin, granzyme B and granulysin by CD4CTX and decreased their cytotoxic activity. In contrast to mouse Th1 cells, Runx3 did not influence IFN-γ mRNA expression by human Th1 cells (Djuretic et al., 2007; Wang et al., 2014). This discrepancy may be related to inter-species differences or to incompleteness of the knockdown in our experimental conditions. T-bet knockdown reduced the expression of IFN-γ and cytotoxic molecules but had a more moderate impact than Runx3 knockdown on the acquisition of cytotoxic activity. This result is in line with a recent report indicating a role of T-bet in the induction of cytotoxic molecules by TCR-engineered tumor-specific CD4 T cell lines (Jha et al., 2015). Together these results indicate that human Th1 cells acquire cytotoxic functions under the control of the master regulator Runx3 cooperating with T-bet (Cruz-Guilloty et al., 2009; Jha et al., 2015). Runx3 and T-bet also controlled the expression of other TF that were not directly involved in the acquisition of cytotoxic function in these experimental conditions, including Eomes and Hopx.

Eomes was upregulated in CD4CTX T cells as compared to naive cells in vivo but its expression was less correlated with perforin than Runx3 and T-bet. In vitro, Eomes was neither sufficient nor necessary to induce cytotoxicity as it was upregulated in Th2 cells that did not express perforin and its knockdown did not impact the expression of perforin in Th1 cells. Together, these results suggest that the role of Eomes in the acquisition of cytotoxic function by human CD4 T cells may be limited. This contrasts with a report indicating that overexpression of Eomes induces cytotoxic function in CD4 T cell lines, suggesting that this TF may promote cytotoxicity when expressed at high levels in CD4 T cells, as observed in CD8 T cells (Pearce et al., 2003; Eshima et al., 2012; Intlekofer et al., 2008). The role of Eomes could also be restricted to specific conditions of co-stimulation as recently reported (Mittal et al., 2018). The expression of Hopx by CD4CTX T cells showed a similar pattern as T-bet and Runx3 both in vivo and in vitro. Its knockdown reduced the expression of granzyme B but did not significantly impact perforin. Therefore, the primary role of Hopx in CD4CTX T cells may not be the induction of cytotoxicity but may include other functions, including survival (Albrecht et al., 2010).

Two other TF, Hobit (ZNF683) and ZEB2, were specifically expressed by CD4CTX T cells in vivo but not in vitro. Hobit is upregulated in human effector CD8 T cells and murine NKT cells and therefore appears to be part of a signature common to cytotoxic lymphoid cells (van Gisbergen et al., 2012; Vieira Braga et al., 2015a2015a; Vieira Braga et al., 2015b). A recent study revealed that Hobit induces a transcriptional program promoting tissue residency of memory T cells and suggests that it could regulate cytotoxic function in murine NKT1 cells (Mackay et al., 2016). Its role in the promotion of cytotoxic function by CD4 T cells in vivo therefore remains to be established. Similarly, further studies should establish the role of ZEB2 in terminally differentiated CD4+ T lymphocytes (Dominguez et al., 2015; Omilusik et al., 2015).

In parallel with the positive regulation operated by T-bet and Runx3, the cytotoxic function of human CD4 T cells was negatively regulated by ThPOK. In CD4+CD8lo thymocytes, ThPOK decreases the expression of Runx3 and perforin and promotes the development of the CD4 T cell lineage (Liu et al., 2005). In the periphery, ThPOK also inhibits the expression of Runx3, T-bet and Eomes by mouse CD4 T cells and restricts their cytotoxic differentiation (Wang et al., 2008). We observed that the expression of Runx3 and ThPOK is not mutually exclusive in human CD4CTX and CD8CTX T cells. Co-expression of Runx3 and ThPOK has been observed in murine Th1 cells (Djuretic et al., 2007) and in simian MHCII-restricted CD8αα T cells after CD4 downregulation (Vinton et al., 2017). Also, ThPOK is up regulated by mouse effector CD8 T cells during acute viral infection and promotes their expansion and effector function upon rechallenge (Setoguchi et al., 2009). On the other hand, ThPOK is required for the development of other murine lymphoid subsets with cytotoxic potential including CD4+ NKT cells and γδ T cells (Wang et al., 2010; Park et al., 2010). Together, these observations indicate that the expression of high levels of ThPOK is compatible with the expression of Runx3 and with cytotoxic function. Yet, the in vitro model of T cell differentiation revealed that ThPOK is an important regulator of the cytotoxic activity of human CD4 and possibly CD8 T lymphocytes. This observation suggests that ThPOK may contribute to the regulation of antiviral, anticancer and immunopathological properties of Th1 cells in vivo.

In conclusion, this study shows that Runx3 and ThPOK cross-regulate the acquisition of cytotoxic function by Th1 lymphocytes and therefore represent targets for interventions against viral infections, cancer and autoimmune disorders.

Materials and methods

Key resources table
Reagent type (species)
or resource
DesignationSource or referenceIdentifiers
Cell line (mouse leukemia)RAW 264.7ATCC Cat# TIB-71RRID:CVCL_0493
Cell line (human kidney cell line)HEK-293 human kidney cell lineATCC Cat# CRL-1573,RRID:CVCL_0045
Cell line (human)HEL 299ATCC Cat# CCL-137,RRID:CVCL_2480
Transfected constructsReferences of all shRNAs are listed in Supplementary file 2f
Antibody-ChIPReferences of used antibodies are indicated in the method section
Antibody-cytometryReferences of all used cytometry antibodies, including company and clone are listed in Supplementary file 2b.
Sequence-based reagentAll sequences are listed in Supplementary files 2c, d and e
Chemical compound, drugConcanamycin ASigma-Aldrich (Merck, Germany)C 9705
OtherPKH26 stainingSigma-Aldrich (Merck, Germany)

Catalog numbers MINI26 and PKH26GL

Cell collection and purification

Blood samples were collected from CMV-seropositive or seronegative healthy adult volunteers, aged 26 to 60 (median (interquartile range): 45 (39.5–51.25)) years. Volunteers were recruited by the research centre ImmuneHealth, CHU Tivoli, La Louvière. Clinical staff informed the volunteers about the objectives of the study and obtained their written consent to use the human material for research purposes. The study and the informed consent form were approved by the Ethics committee of the CHU Tivoli, La Louvière, Belgium (Reference B09620097253). The study followed the Good Clinical Practice (ICH/GCP) guidelines, the Belgian Law and the declaration of Helsinki (‘World Medical Association Declaration of Helsinki; Ethical Principles for Medical Research Involving Human Subjects’). Transcriptomic and methylomic analyses were conducted on 3 CMV-seropositive women, aged 38, 48 and 60 years, and 2 CMV-seropositive men, aged 40 and 52 years.

The number of samples analyzed in each experiment was defined on the basis of previous experience of the investigators or on published literature. No sample size was computed. Peripheral blood mononuclear cells (PBMC) were purified by density gradient centrifugation and stained with titrated conjugated antibodies. Cells were sorted on a BD FACS Aria III or acquired with a BD LSR Fortessa cytometer and data were analyzed using the FlowJo software (v9.2). The RAW 264.7 murine macrophage cell line (RRID:CVCL_0493; obtained from ATCC) and the HEK-293 human kidney cell line (RRID:CVCL_0045, obtained from ATCC) were cultured in DMEM (Lonza) supplemented with 10% fetal calf serum, 1% AAG, 1% Na Pyruvate and 1% Pen/strep. The HEL-299 fibroblastic cell line (RRID:CVCL_2480; obtained from ATCC) was cultured in EMEM (Lonza) supplemented with 10% fetal calf serum, 1% NEAA, 1% Hepes, 1% Glutamine, 1% Na Pyruvate and 1% Pen/strep. All cell lines were tested negative for mycoplasma infection (MycoAlert, Lonza). Because they were used only as tools to produce lentivirus particles, as targets of cytotoxic cells, and as a negative control in one methylation analysis, they were not re-authenticated after purchase.

FACS-staining

For membrane staining, cells were washed with PBS containing 0.1% bovine serum albumin (BSA). Antibodies were incubated in PBS + 0.1% BSA for 10 min at 37°C or 15 min at room temperature. Cells were then washed with PBS + 0.1% BSA before addition of Cellfix (BD) or intracellular staining. Cells were permeabilized for intranuclear and intravesicular staining using the FoxP3 staining kit (eBiosciences). Active caspase3 staining was performed using the cytofix-cytoperm and Permwash buffers (BD). References of used antibodies are presented as Supplementary file 2b.

FACS-sorting

Naive CD4 T cells were isolated by negative selection for in vitro stimulation. Before cell sorting, fresh PBMC were enriched in CD4 T cells with the Miltenyi human CD4 +T Cell Isolation Kit. Membrane staining was then performed as mentioned above with a dump channel in PE including CD14, CD19, CD16, CD56, TCRgd and CD8 mAbs. CD25-, CD45RO- and CXCR3-negative cells were further selected in order to exclude regulatory T cells, memory and stem cell memory CD4 T cells, respectively. A small fraction of these untouched naive CD4 T cells (CD3+CD4+CD45RO-CCR7+CD28+) cells were then stained to verify their naive phenotype. Cell purity was 96 [94-97]% (Median [IQ]). CD4 and CD8 T cell subsets were isolated by positive selection. Before cell sorting, fresh PBMC were depleted of glycophorin A-, CD19- and CD14-positive cells as well as CD8- or CD4-positive cells using an Automacs instrument (Miltenyi). Membrane staining was then performed as mentioned above. Cells were resuspended in complete antibiotics-containing medium, sorted and collected in the same complete medium, centrifuged and lysed in RLT Plus buffer +10 μl betamercaptoethanol for later nucleic acid extraction or immediately tested for cytotoxic activity. Cell purity was 98 [95-99]% (Median [IQ]). Single cells were sorted on a FACS Aria III cell sorter (BD) following staining and suspension in an EDTA-containing sorting buffer. Quality of sorting was assessed using the staining index from the DIVA software version 8.0.

Cytotoxicity assay

Effector cells were pre-incubated for 1 hr with or without 100 nM Concanamycin A (Sigma-Aldrich-Merck, Germany). RAW target cells were labelled with PKH-26 (Sigma-Aldrich-Merck, Germany) as previously described (Sheehy et al., 2001). Effector cells were added to 5000 RAW cells at appropriate effector/target ratios and incubated for 4 hr in the presence of 2 μg/ml mouse anti-human CD3 antibody (clone OKT3). RAW cells incubated with the anti-CD3 antibody but without effector cells were used as controls. Percentage of lysis was calculated as the percentage of caspase3-positive RAW cells after subtraction of the % of active caspase3 in the control wells (He et al., 2005).

Quantitative PCR

qPCR was performed using the Taqman RNA Amplification kit or the LightCycler Multiplex RNA Virus Master and a LightCycler 480 instrument (Roche). Raw data were analyzed using the fit points method and fold change was calculated with the Delta-Delta Cp method using the housekeeping gene EEF1A1 (EF1) as a reference. Primers and fluorescent probes were designed using Primer3 and purchased from Eurogentec. A Taqman Gene Expression assay was used for RUNX3 (Hs00231709_m1, Thermo Fisher) and PLZF (ZBTB16, Hs00232313_m1, Thermo Fisher) analyses. Oligonucleotide sequences are presented as Supplementary file 2c.

Bisulphite pyrosequencing

The PRF1 promoter was divided into 11 amplicons covering 34 CpG sites as previously described (Narasimhan et al., 2009). Genomic DNA was bisulphite-converted using the Qiagen FAST Epitect bisulfite kit and sequenced using a Pyromark Q96 device after isolation of single strand biotinylated DNA from the PCR product using streptavidin and a pyromark Q96 vacuum prep station. Quality assessment and methylation level calculation were performed using the software Pyro Q-CpG and the CpG assay 1.0.9 (Biotage).

Nucleic acid material

DNA and RNA were extracted using the Qiagen AllPrep DNA/RNA kit. Concentration and purity were assessed by spectrophotometry (nanodrop - Thermoscientific). Median [interquartile range] of A260/A280 ratios were 1.93 [1.77–2.10] and 1.82 (1.71–1.91) for RNA and DNA samples, respectively. For microarray analyses, RNA integrity number (RIN) was measured using the Eukaryote Total RNA Nano assay and a Bioanalyzer (Agilent). One sample out of 25 had a RIN below seven and was excluded from the analyses.

Gene expression and methylation microarrays

Total RNA was amplified with the Illumina TotalPrep RNA Amplification Kit (Ambion) and hybridized with the HumanHT-12 v4 array containing 47,323 probes for 44,053 annotated genes, according to the instructions of the Whole-Genome Gene Expression Direct Hybridization Assay (Illumina). Chips were scanned with the HiScan Reader (Illumina). For methylation analyses, genomic DNA was bisulphite-converted using an EZ DNA methylation Kit (ZYMO). DNA methylation level was measured using the Illumina Infinium HD Methylation Assay. Bisulphite converted DNA was hybridized with the Illumina HumanMethylation450 BeadChip 450K array (12 samples/chip), as described previously (Dedeurwaerder et al., 2011). Data from both arrays are available on GEO (https://www.ncbi.nlm.nih.gov/geo/) under the accession number GSE75406.

Chromatin immunoprecipitation (ChIP) and ChIP-qPCR

MACS-purified CD4 T cells were stained and fixed with 1% formaldehyde. Glycine was added at a final concentration of 0.125 M to quench the crosslinking reaction. Cells were washed twice with ice-cold PBS and resuspended in complete medium for FACS sorting. Dry pellets of sorted cells were frozen at −80°C. Thawed pellets were lysed in 1% SDS-containing buffer and sonicated to obtain DNA fragments of 300–800 bp using a Bioruptor device (Diagenode). Chromatin of 200,000 cells was immunoprecipitated with an anti-histone antibody and protein G magnetic-activated beads. Chromatin was incubated overnight at 4°C with the following antibodies: 1 µg anti-H3K4me3 (Millipore 17–614 rabbit monoclonal), 0.5 µg anti-H3K27ac (abcam ab4729 rabbit polyclonal) or anti-H3 (diagenode C15310135 rabbit polyclonal). 1% of the IP reaction was collected before adding the antibody and the beads and was used as total chromatin input. Beads were washed five times: once with low-salt buffer, once with high-salt buffer, once with lithium chloride containing buffer and twice with TE buffer. After washing and reverse crosslinking (incubation with NaCl 200 mM for 4 hr at 65°C), chromatin was eluted with a buffer containing 1% SDS and 100 mM NaHCO3 and treated with RNAse A and Proteinase K for 1 hr at 45°C. IP-DNA was purified using the MinElute PCR purification kit (Qiagen) and then analyzed by qPCR using the Probe Master 480 kit with primers encompassing different regulatory regions of the perforin locus (sequences are presented as Supplementary file 2d). The DeltaCp method was used to calculate the % of input for each IP. Results were normalized for the DeltaCp of H3-IP DNA.

Singe-cell qPCR assay

Single cells were collected in 5 μL lysis buffer (CelluLyser micro lysis buffer from Tataa biocenter), immediately frozen on dry ice and stored at −80°C until used (Svec et al., 2013). Reverse transcription (RT) was performed using the CelluLyser Micro Lysis and cDNA Synthesis Kit following manufacturer’s instructions (Tataa biocenter). RT step was validated using the Universal RNA Spike (TATAA Universal RNA Spike I from Tataa biocenter) in each well to ensure the absence of inhibitions. Wells most likely to contain single cells were selected on the basis of housekeeping gene expression and exclusion of outliers. cDNA was then pre-amplified for 20 cycles using the TATAA PreAmp GrandMaster Mix kit from the same company. Single-cell qPCR was performed on 43 cells per subset in 96.96 Dynamic Array IFC plates for Gene Expression (BMK-M-96.96) using the fluidigm technology (Biomark HD). Primer sequences are presented in Supplementary file 2e.

In vitro activation and polarisation of naive CD4 T cells

Ex vivo isolated naive CD4 T cells were activated with 0.5 µg/ml phytohemagglutinin (PHA) in the presence of allogeneic CD4-depleted irradiated PBMC used as feeders at the ratio of 1/1. Cells were then cultured in the presence of IL-2 (R and D, 6 ng/ml), IL-15 (R and D, 5 ng/ml) and Th1, Th2 or Th17 polarising cytokines for 3 to 21 days. Culture medium was RPMI 1640 (Lonza) supplemented with 10% Fetal calf serum, 1% amino acids and glutamine, 1% Penicillin/Streptomycin. All incubation steps were performed at 37°C with 5% CO2. IL-2 and IL-15 were added on day 2 and medium was replenished when required on the basis of cell proliferation. Polarizing cytokines and neutralizing antibodies were purchased from eBiosciences and used at final concentration of 10 ng/ml and 10 μg/ml, respectively. Th1 polarizing medium contained IFNγ, IL-12, anti-IL-4 (clone MP4-25D2), and anti-IL-17 (clone eBio64CAP17). Th2 polarizing medium contained IL-4, anti-IL 17, anti-IFNγ (clone NIB42), and anti-IL-12 (clone 20C2). Th17 polarizing medium contained IL-1β, IL-6, IL-23, TGFβ, anti-IL-4, anti-IFNγ, and anti-IL-12. On day 3, CD4 T cells were isolated by MACS-positive selection before nucleic acid extraction. On days 7, 14 and 21, cells were collected for downstream analyses.

Transcription factor knockdown

Lentiviral particles were produced by transient transfection of packaging HEK 293 T cells. pMD2.G and psPAX2 were used as envelop and core packaging plasmids, respectively, together with the gene transfer plasmid (Supplementary file 2f). Before transduction, 50,000 freshly isolated naive CD4 T cells were stimulated during 46 hr in the presence of feeders and PHA (5 µg/ml) in Th1-cytokines containing X-Vivo15 medium (Lonza). For transduction, viral particles were added at a MOI of 10, together with IL-2 and IL-15 in 50 µl of fresh medium. Cells were amplified during 10 days before sorting of GFP+ transduced cells for down-stream analysis.

TCR CDR3 sequencing

Purified cDNA (AMPure XP Beads (Agencourt)) was obtained from total RNA and used in template-switch anchored RT-PCR experiment with specific alpha and beta chain primers. PCR products were then submitted to high-throughput sequencing as previously described (Van Caeneghem et al., 2017). Briefly, V2 300 kit with 200 bp at the 3’ end (read 2) and 100 bp at the 5’ end (read 1) were used on the Illumina MiSeq platform.

Statistical analyses

Data were analyzed with the GraphPad Prism software unless otherwise specified. After one-way ANOVA analysis of variance, a Mann-Whitney test was performed for selected two-by-two comparisons and a Dunnet’s test for multiple comparisons when appropriate. For grouped analysis, we used two-way ANOVA with multiple Tukey’s tests. Differences were considered statistically significant at p-values<0.05.

Illumina Expression HT12 Arrays

Raw data were quantile normalized using the normalization method from the lumi package (Du et al., 2008). Unsupervised clustering (Uc) analysis of gene expression datasets was performed using the pvclust package of the R software (R)(Suzuki and Shimodaira, 2006). The robustness of the Uc tree was tested by multiscale bootstrap resampling using Pearson's correlation as distance and Ward.D2 as clustering method, with 1000 iterations. An AU (approximately unbiased) p-value (percentage) was calculated and placed on the nodes of the cluster dendrogram. Principal component analysis (PCA) on the expression dataset was performed using the MultiExperiment Viewer (MeV) tool and the scatter plot function in R. The GeneSign module of the BubbleGUM software (Spinelli et al., 2015) was used with the Min/max method to identify lists of genes specifically expressed in cell subsets. A probe was considered specific of a given cell subset if its minimal expression value across the replicates of the cell subset of interest (test population) was higher than its maximal expression value across the replicates of the cell population used as reference (reference population). To obtain a limited number of genes, probes for which the ratio between the maximal and minimal expression values across all samples was below 1.2 were considered not regulated in any cell subsets and thus excluded from the analysis. Finally, probe lists were transformed into gene lists (or GeneSets). Heatmaps were generated using the heatmap.2 function of gplots package of R.

Illumina HumanMethylation450 BeadChip arrays

Raw data were filtered using a detection p-value<0.05. Cross-reactive probes were filtered out while probes containing SNPs, which do not introduce an important confounder in intra-individual studies, were kept in the analysis as previously detailed.(Dedeurwaerder et al., 2014) β-values were computed using the following formula: β-value = M/[U + M] where M and U are the raw ‘methylated’ and ‘unmethylated’ signals, respectively. The β-values were corrected for type I and type II bias using the peak-based correction (Dedeurwaerder et al., 2011; Dedeurwaerder et al., 2014). The differential analyses were applied according to published recommendations (Dedeurwaerder et al., 2014): first the methylation values were converted to M-values using the following formula: M-value = log2 (β-value/(1–β-value)). The statistical significance of the differential methylation was then assessed using a paired t-test applied on these M-values. In parallel, a Delta-β was computed as the absolute difference between the median β-values. Cytosine showing a p-value<1e-4 together with an absolute delta-β>0.1 were reported as differentially methylated. Heatmaps were generated based on the scaled beta values of all the probes located in the promoter region of each represented gene, using the heatmap.2 function of gplots package of R. Promoter regions included 5’prime, TSS1500, TSS200 and 1st exon.

Gene Set Enrichment Analysis (GSEA)

GSEA was used to analyze the enrichment of GeneSets obtained by GeneSign on the pairwise comparisons of our gene expression microarray data (Subramanian et al., 2005). Catalog c3 from MsigDB was added to our GeneSets for robust statistical analysis. GSEA was used with 1000 GeneSet-based permutations and 'difference of classes' as a metric for ranking the genes since the expression values were in Log2 scale. The software quantifies enrichments by computing the Normalized Enrichment Score (NES) and the False Discovery Rate (FDR). FDR below 0.25 was considered significant (Subramanian et al., 2005). Genes showing no differential expression between CD8CTX and CD4CTX were used as negative control. GSEA was also used to quantify the correlation between gene expression and methylation. The identifiers of the genes included in the GeneSets were transformed to match the DNA methylation probe identifiers (Perl scripts included in Supplementary file 3). GSEA Pre‐ranked analysis was then used to assess the enrichment of our expression-based GeneSets on the pairwise comparisons of the pre-ranked methylation delta β values. Genesets of catalog c3 from MsigDB were similarly converted to probe identifiers and added to our GeneSet file for robust statistical evaluation.

Single-cell qPCR

Data mining was performed using the Fluidigm Real-time PCR analysis (V1.4.3), and data analysis was performed using the Genex6 MultiD software as previously described (Ståhlberg et al., 2013). Heat Map was created using the standard function in R.

TCR repertoire

Raw sequencing reads from fastq files (both reads) were aligned to reference V, D and J genes specifically for ‘TRA’ or ‘TRB’ to build CDR3 sequences using the MiXCR software version 1.7. (Bolotin et al., 2015). CDR3 sequences were then assembled and clonotypes were exported and analyzed using the tcR package (Nazarov et al., 2015).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
    Concanamycin A, a powerful tool for characterization and estimation of contribution of perforin- and Fas-based lytic pathways in cell-mediated cytotoxicity
    1. T Kataoka
    2. N Shinohara
    3. H Takayama
    4. K Takaku
    5. S Kondo
    6. S Yonehara
    7. K Nagai
    (1996)
    Journal of Immunology 156:3678–3686.
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
    IL-4 and IFN (alpha and gamma) exert opposite regulatory effects on the development of cytolytic potential by Th1 or Th2 human T cell clones
    1. P Parronchi
    2. M De Carli
    3. R Manetti
    4. C Simonelli
    5. S Sampognaro
    6. MP Piccinni
    7. D Macchia
    8. E Maggi
    9. G Del Prete
    10. S Romagnani
    (1992)
    Journal of Immunology 149:2977–2983.
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81

Decision letter

  1. Ronald N Germain
    Reviewing Editor; National Institute of Allergy and Infectious Diseases, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "The transcription factors Runx3, T-bet and ThPOK co-regulate acquisition of cytotoxic function by human Th1 lymphocytes" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Tadatsugu Taniguchi as the Senior Editor. The following individual involved in review of your submission has agreed to reveal his identity: Remy Bosselut, whose comments have been incorporated with those of the other referees below.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Serroukh et al. investigate the transcriptional control of human CD4 cytotoxic cell differentiation. They demonstrate that these cells express transcription factors Runx3, Eomes and T-bet, and maintain high levels of the CD4-differentiating factor Thpok. The latter result contrasts with previous studies on mouse IELs by the Cheroutre and Mucida groups. Combining in vitro cytotoxic CD4 T cell differentiation and shRNA knock-down, the manuscript further shows that T-bet and Runx3, but not Eomes, are important for the acquisition of cytotoxic properties. Conversely, in agreement with mouse studies (including NI, 15:947), Thpok knock-down increases expression of T-bet, Runx3, Eomes and CD8α.

CD4 cytotoxic cells are increasingly focusing interest because of their frequency in human viral infections and their potential in anti-tumor responses. Thus, the present investigation of their transcriptional landscape is timely and should be of interest to a broad audience. The data are of high quality and well presented. While many results recapitulate observations in mouse models, others, including the persistent Thpok expression, would not have been predicted from such studies. Additionally, the extensive analysis of gene expression and DNA methylation in human effector T cells will be a useful resource.

Major comments requiring attention:

1) Various sets of data related to key findings could be improved by adding extra information or quantification. For example, flow cytometry profiles of transcription factors are usually not very clear. The authors use this technique a few times during their work. In particular, in Figure 2D ThPOK level in CD8 CTX mRNA does not match the protein level as well as EOMES in the CD8 N. Do the authors have an explanation for this? It is also vital to introduce some sort of quantification when analyzing the protein level of these transcription factors. It would be advisable to add the respective MFIs on the plots.

2) The non-essential effect of Eomes in CD4CTX cells is an interesting finding. The authors should further build on this point through comparing the relative importance of T-bet and Eomes in CD4CTX and CD8CTX cells. The authors should also clarify whether ThPOK is indeed expressed by CD8CTX cells and whether knocking-down ThPOK in CD8CTX cells has any effect on their cytotoxic function.

3) Even though they differentiate in vitro from bulk populations, one key question is whether the ex vivo CD4 cytotoxic effectors are conventional MHC-II restricted cells, or include non-conventional T cells. Analyses of TCR Vβ expression are needed to address this question, and would also provide insight into the clonality of ex vivo cytotoxic cells. Staining for PLZF expression would also be informative. It is not clear whether the "CD4CTX" cells generated in vitro under Th1 culture conditions can represent CD4CTX cells found in vivo. Have the authors compared the transcriptomes of these cells? The authors should try to knockdown Runx3, T-bet etc. in CD4CTX cells isolated from PBMC to assess the effect on cytotoxic function.

4) RT-PCR or staining for Eomes is needed to resolve the contrast between Figure 5 (Eomes up-regulated in cytotoxic CD4s by microarray) and Figure 4 (mutually exclusive with perforin in single cell analyses).

5) Eomes knock-down is actually modest (Figure 7—figure supplement 1A), and the conclusion that cytotoxic gene expression in CD4 cells is Eomes-independent should be toned down. Because shRNA experiments are notoriously difficult and prone to off-target effects, the study would be much strengthened if the authors verified shRNA impact on their target by immunoblot analyses of protein expression rather than RT-PCR or the rather inconclusive flow cytometry data shown in Figure 7—figure supplement 1A.

6) The conclusion that stepwise changes in the chromatin environment promote expression of cytotoxic genes should be tempered. The supporting data is correlative only and the population-level changes in DNA methylation and histone modifications may simply reflect increased fractions of cytotoxic cells in each population.

7) In Figure 2, authors only compared CD4CTX and CD8CTX cells with naïve CD4 and CD8 T cells. Other memory CD4 and CD8 T cells, such as CMTh1, EMTh1 and CD27+ CD8 T cells, should be included for comparison to reach a solid conclusion on similarity between CD4CTX and CD8CTX cells, at least for Figure.2A, 2B and 2D. These cells should also be included as controls in the cell lysis assay in Figure 1E.

8) Is CD28 downregulated in perforin+ Th1 cells generated in vitro compared to perforin- Th1 cells in the same culture? If so, the authors should separate CD28+ and CD28- Th1 cells to test their progressive development model. An alternative explanation for increased Granzyme+Perforin+ cells over time is that these cells were selectively expanded.

9) It is surprising (possibly important and novel) that Eomes does not play an important role in the acquisition of cytotoxicity by CD4CTX cells. Can this shRNA affect the cytotoxicity of CD8CTX cells? Are Runx3 and T-bet important for CD8CTX cells? It is also curious that Eomes mRNA does not co-express with PRF1 in CD4CTX cells. Co-staining of Eomes and PRF1 protein should be shown.

10) In the beginning of the study the authors define two major populations of CD4 T cells, naïve and cytotoxic. However, it seems the naïve subset is defined using CD45RO and the cytotoxic using perforin. There is no reference or explanation on why the authors use CD45RO. They should be consistent in using Perforin or CD45RO to distinguish between these two populations and ideally identify such populations in Figure 1C, and not only in Supplementary Figure 1B.

11) In Figure 3E it is not clear why the authors use EM CD8+ T cells versus total CD4. Furthermore, the figure legend only mentions the ChIP done on the CD4 subsets. This CD8 population is never defined and the total CD4 population is very heterogeneous, limited the conclusions that can be drawn by the authors. In this regard, the ChIP peaks should be shown for the different populations of CD4 T cells that are further shown in the plots with the normalized enrichment.

12) It would be suitable that a further quantification of the protein level of perforin would be depicted upon the knockdown of the different subsets in Figure 7C. A simple set of representative plots is not enough to draw proper conclusions.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "The transcription factors Runx3 and ThPOK cross-regulate acquisition of cytotoxic function by human Th1 lymphocytes" for further consideration at eLife. Your revised article has been favorably evaluated by Tadatsugu Taniguchi (Senior Editor), a Reviewing Editor, and three reviewers.

The manuscript has been improved but there are some remaining issues that need to be addressed before acceptance, as outlined below. As you can see, these focus on the issue of quantification of some of the key data added to the paper. We hope that these issues can be rapidly addressed without additional experimentation and, provided the quantification supports the claims made, the revised paper can be rapidly reviewed by the editor for a final decision.

Reviewer #1:

[Minor comments not shown.]

Reviewer #2:

The authors have addressed my previous concerns.

Reviewer #3:

The authors have extensively revised their original manuscript providing now a much more compelling and complete story. In this revised version, the authors have addressed all my previous concerns. There are however two main points that require further attention.

In Figure 2E the authors have added the much needed quantification of the expression of the different transcription factors in the populations of interest. This is represented by a FACS plot and the respective MFI quantification in a dot plot. Yet, the FACS plots are lacking the respective gates that give rise to the MFI quantification. It would vital that these gates are illustrated in Figure 2E. Specially, since TBX21 and EOMES expression in CD8s appears to be across 3 populations for perforin expression, making it unclear which one was considered CD8 N and CD8CTX.

Additionally, in Figure 2G the authors claim that there was no apparent difference in the methylation of the ZBTB7B promoter between CD4CTX and CD8CTX. The data shown is inconclusive and subjective to the reader's interpretation. If anything it appears that ZBTB7B promoter is more hypomethylated in CD4CTX compared to CD8CTX but without any sort of quantification all of these conclusions are very individual specific. The authors conclusions on this piece of data need to be tempered down.

[Minor comments not shown.]

https://doi.org/10.7554/eLife.30496.035

Author response

Major comments requiring attention:

1) Various sets of data related to key findings could be improved by adding extra information or quantification. For example, flow cytometry profiles of transcription factors are usually not very clear. The authors use this technique a few times during their work. In particular, in Figure 2D ThPOK level in CD8 CTX mRNA does not match the protein level as well as EOMES in the CD8 N. Do the authors have an explanation for this? It is also vital to introduce some sort of quantification when analyzing the protein level of these transcription factors. It would be advisable to add the respective MFIs on the plots.

We thank the reviewers for this helpful suggestion. We now provide protein expression quantification data in Figure 2Ee, Figure 3C, Figure 6F, Figure 7D, Figure 7G, Figure 6—figure supplement 2 and Figure 7—figure supplement 1. Overall, these data confirm the conclusions proposed in our initial manuscript. In particular, ThPOK and Eomes protein expression data confirmed mRNA expression data in CD8 T cell subsets (Figure 2E). The only observed discrepancy relates to ThPOK expression in CD4 T cell subsets where mRNA data indicate a higher expression in CD4CTX as compared to naive T cells whereas protein data indicate a high and similar expression in both subsets. This difference may be related to post-transcriptional regulation of ThPOK gene expression or to a higher sensitivity of the quantitative PCR as compared to flow cytometry. We consider that both results confirm our conclusion that the differentiation of human CD4CTX T cells is not associated with, and does not require the down regulation of ThPOK expression.

2) The non-essential effect of Eomes in CD4CTX cells is an interesting finding. The authors should further build on this point through comparing the relative importance of T-bet and Eomes in CD4CTX and CD8CTX cells. The authors should also clarify whether ThPOK is indeed expressed by CD8CTX cells and whether knocking-down ThPOK in CD8CTX cells has any effect on their cytotoxic function.

As suggested by the reviewers, we examined the expression and role of ThPOK and Eomes in the in vitro differentiation of CD8CTX T cells. In three independent experiments, CD8CTX T cells expressed high levels of Eomes and ThPOK. ThPOK knockdown up regulated the expression of granzyme B but did not consistently modify the expression of perforin. These results suggest that ThPOK may limit the cytotoxic activity of CD8CTX T cells through the regulation of granzyme B expression and are presented in Supplementary Figure 10. The results are also in line with the notion that ThPOK promotes the anti-viral functions of CD8 T cells and the differentiation of cytotoxic innate T lymphocytes (1-3).

In the same experiments, Eomes knockdown did not impact the expression of perforin or granzyme B. This negative result could be related to the relatively moderate knockdown of the transcription factor (see Author response image 1) and/or to a non-essential role of Eomes in our experimental system. It is important to note that, to our knowledge, the existing literature does not provide a direct demonstration of a role for endogenous Eomes in the differentiation of CD8CTX T cells. Ectopic expression of Eomes is sufficient to induce cytotoxicity in both CD4 and CD8 T cells (Cheroutre and Husain, 2013) and the inhibition of the common sequence of T-bet and Eomes (T-box cassette) decreases perforin expression (5). However, to our knowledge, data on the impact of Eomes knockdown in mice or humans are lacking. We consider that this important point requires more in-depth analyses and that it would not be appropriate to include these results in our manuscript.

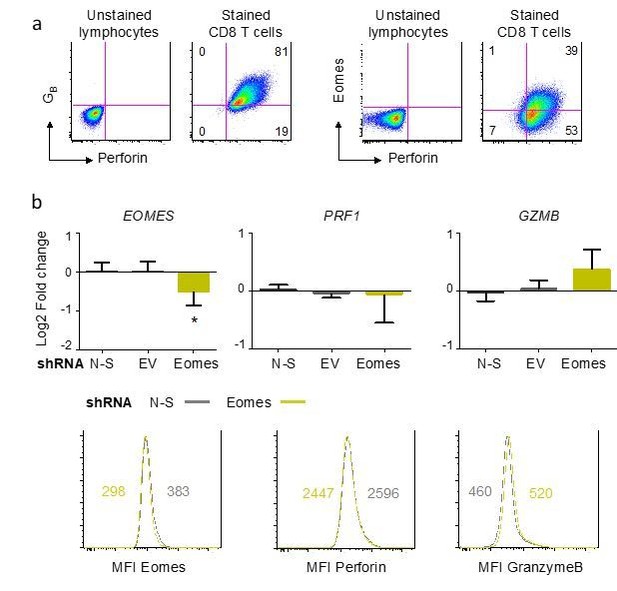

Author response image 1
Influence of Eomes on the differentiation of cytotoxic CD8 T cells.

Naive CD8 T cells were submitted to polyclonal stimulation with PHA in the presence of irradiated allogeneic feeder cells, IL-2, IL-15 and Th1 polarizing cytokines for 7 to 14 days. Perforin, granzyme B (GZMB) and Eomes expression was measured by flow cytometry and by qPCR. a) Differentiated CD8 T cells expressed perforin and a fraction of them also expressed Eomes. Gates were placed using an unstained control and numbers indicate the% of cells in each quadrant. Comparable results were obtained in three independent experiments. b) Suppression of Eomes expression in differentiated CD8 T cells was performed using specific shRNA. Eomes knockdown, verified at mRNA and protein levels, did not significantly influence the expression of perforin or granzyme B as compared to non-silencing (N-S) shRNA. Data are mean +/- SD log2 Fold change of 5 replicates from 3 independent experiments (upper panels) and one histogram with median fluorescence intensity (MFI) of 2 independent experiments. *:p<0.05.

https://doi.org/10.7554/eLife.30496.031

3) Even though they differentiate in vitro from bulk populations, one key question is whether the ex vivo CD4 cytotoxic effectors are conventional MHC-II restricted cells, or include non-conventional T cells. Analyses of TCR Vβ expression are needed to address this question, and would also provide insight into the clonality of ex vivo cytotoxic cells. Staining for PLZF expression would also be informative. It is not clear whether the "CD4CTX" cells generated in vitro under Th1 culture conditions can represent CD4CTX cells found in vivo. Have the authors compared the transcriptomes of these cells? The authors should try to knockdown Runx3, T-bet etc. in CD4CTX cells isolated from PBMC to assess the effect on cytotoxic function.

Following the suggestion of the reviewers, we analysed TCR repertoire and PLZF expression analyses on in vitro differentiated CD4 T cells. TCR α and β CDR3 sequencing revealed that CD4CTX T cells included a diverse repertoire of clonotypes with similar proportions of large and intermediate expansions as compared to Th17 and Th2 cells. Furthermore, CD4CTX T cells expressed low levels of PLZF. These results indicate that in vitro differentiated CD4CTX T cells are conventional and not innate-type effector T lymphocytes and are presented as Figure 6—figure supplement 1.

We consider that our analysis of the expression of cytotoxic molecules, cytokines, chemokine receptor and transcription factors by in vitro differentiated CD4CTX T cells and of their perforin-dependent cytotoxic activity shows that these cells express key features of CD4CTX differentiated in vivo. We did not perform transcriptome analysis of the in vitro differentiated cells as the strategy we followed was to concentrate our analyses on candidate transcription factors identified through the study of cells differentiated in vivo.

in vivo differentiated human CD4CTX are terminally differentiated, have short telomere length (Brown et al., 2012) and are difficult to maintain in culture in vitro. Our attempts to grow sorted CD4CTX T cells have not been successful. Therefore, we could not follow the suggestion of the reviewers to perform knockdown experiments with this cell population. The in vitromodel of CD4CTX T cell differentiation was developed to overcome this constraint.

4) RT-PCR or staining for Eomes is needed to resolve the contrast between Figure 5 (Eomes up-regulated in cytotoxic CD4s by microarray) and Figure 4 (mutually exclusive with perforin in single cell analyses).

We now provide staining and protein quantification data of Eomes and perforin expression by CD4 T cells (Figure 2E). These data confirm that Eomes is expressed at higher levels in CD4CTX as compared to naive cells but they also indicate that the magnitude of this up regulation is lower than those of Runx3 and T-bet and does not reach the levels observed in CD8CTX. RT-PCR data were included in our initial manuscript (Figure 3D) and indicated that, in contrast to perforin, the expression of Eomes mRNA was not higher in CD4CTX as compared to CD28+ EMTh1 cells. Data presented in Figure 4 did not indicate a mutually exclusive expression of Eomes and perforin in CD4CTX T cells but rather that only a fraction of CD4CTX T cells expressed Eomes mRNA whereas all expressed perforin mRNA. We realize that the Results section and the figure legend were not sufficiently clear and that this generated some confusion. They have now been amended to indicate more clearly that data are proportions of perforin+ cells co-expressing individual transcription factors. We performed RT-PCR verification of Eomes expression to further validate our observation. A somewhat higher proportion of Eomes+ cells was detected in CD4CTX T cells as compared to our initial experiment. This did not change the observation that a lower proportion of perforin+ CD4CTX T cells co-expressed Eomes as compared to the other co-expressed transcription factors. Figure 4 has been amended to include these results. The colour code of the figure has also been amended, avoiding the use of white colour, to make it clearer.

5) Eomes knock-down is actually modest (Figure 7—figure supplement 1A), and the conclusion that cytotoxic gene expression in CD4 cells is Eomes-independent should be toned down. Because shRNA experiments are notoriously difficult and prone to off-target effects, the study would be much strengthened if the authors verified shRNA impact on their target by immunoblot analyses of protein expression rather than RT-PCR or the rather inconclusive flow cytometry data shown in Figure 7—figure supplement 1A.

We now provide quantification of transcription factors knockdown by flow cytometry and we increased the number of experiments to perform statistical analyses (Figure 7D and Figure 7—figure supplement 1). These results confirmed the knockdown of Eomes by specific shRNA. We acknowledge in our manuscript that the relatively low magnitude of the knockdown may have contributed to the absence of impact on perforin expression. We discuss these results as well as the Eomes/perforin co-expression data obtained in vivo and in vitro and we suggest that, together, these observations do not support an essential role of Eomes in the acquisition of cytotoxic function by human CD4 T cells.

6) The conclusion that stepwise changes in the chromatin environment promote expression of cytotoxic genes should be tempered. The supporting data is correlative only and the population-level changes in DNA methylation and histone modifications may simply reflect increased fractions of cytotoxic cells in each population.

We agree with the comment of the reviewers and we have amended our manuscript accordingly.

7) In Figure 2, authors only compared CD4CTX and CD8CTX cells with naïve CD4 and CD8 T cells. Other memory CD4 and CD8 T cells, such as CMTh1, EMTh1 and CD27+ CD8 T cells, should be included for comparison to reach a solid conclusion on similarity between CD4CTX and CD8CTX cells, at least for Figure 2A, 2B and 2D. These cells should also be included as controls in the cell lysis assay in Figure 1E.

Data on the expression of transcription factor mRNA by CMTH1 and EMTH1 cells were already included in our initial manuscript (Figure 3D). Following the suggestion of the reviewer, we now also provide transcriptome data for CMTh1 cells in Supplementary Figure 4. These data indicate that the transcriptional program of CD4CTX is closer than the one of CMTh1 cells to the transcriptional program of CD8CTX T cells. We did not conduct transcriptome analysis of EM CD28+Th1 cells because the perforin expression profile of this subset was more variable between donors than that of CMTh1 cells. Also, we did not conduct cytotoxicity assays with CMTh1 and EM CD28+Th1 cells because these subsets did not show significantly different expression of perforin protein as compared to naive cells (Figure 3C).

8) Is CD28 downregulated in perforin+ Th1 cells generated in vitro compared to perforin- Th1 cells in the same culture? If so, the authors should separate CD28+ and CD28- Th1 cells to test their progressive development model. An alternative explanation for increased Granzyme+Perforin+ cells over time is that these cells were selectively expanded.

The expression of CD28 was not downregulated by in vitro differentiated CD4CTX T cells after 2 weeks (see Author response image 2). This observation is in line with results obtained in in vitro model of effector CD8 T cell differentiation and indicating that only incomplete down regulation of CD27 was detected after 6 weeks of cell activation (Wilkinson et al., 2012).

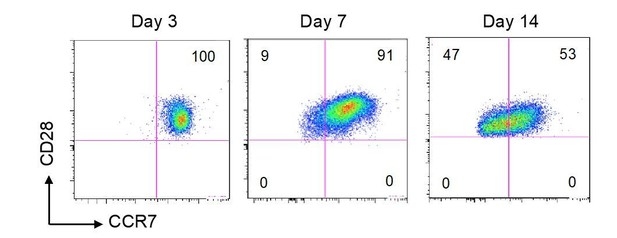

Author response image 2
Stable CD28 expression upon 14 days in vitro stimulation.

Naive CD4 T cells were subjected to polyclonal stimulation as described in the manuscript (Figure 6). Results are flow cytometry plots of CD28 and CCR7 expression 3, 7 and 14 days after stimulation. Numbers indicate the% of cells in each quadrant.

https://doi.org/10.7554/eLife.30496.032

9) It is surprising (possibly important and novel) that Eomes does not play an important role in the acquisition of cytotoxicity by CD4CTX cells. Can this shRNA affect the cytotoxicity of CD8CTX cells? Are Runx3 and T-bet important for CD8CTX cells? It is also curious that Eomes mRNA does not co-express with PRF1 in CD4CTX cells. Co-staining of Eomes and PRF1 protein should be shown.

Answers to this comment are provided under comments 2 and 4. Our attempts to knockdown the expression of Runx3 and T-bet in in vitro differentiated CD8CTX T cells with specific shRNA have not been successful. Also, we consider that a detailed analysis of the transcription factors involved in the in vitro differentiation of human CD8CTX T cells goes beyond the scope of our manuscript.

10) In the beginning of the study the authors define two major populations of CD4 T cells, naïve and cytotoxic. However, it seems the naïve subset is defined using CD45RO and the cytotoxic using perforin. There is no reference or explanation on why the authors use CD45RO. They should be consistent in using Perforin or CD45RO to distinguish between these two populations and ideally identify such populations in Figure 1C, and not only in Supplementary Figure 1B.

We thank the reviewers for this helpful suggestion. We now explain more carefully the gating strategy of naive and cytotoxic CD4 and CD8 T cells and we illustrate this strategy in Figure 1D.

11) In Figure 3E it is not clear why the authors use EM CD8+ T cells versus total CD4. Furthermore, the figure legend only mentions the ChIP done on the CD4 subsets. This CD8 population is never defined and the total CD4 population is very heterogeneous, limited the conclusions that can be drawn by the authors. In this regard, the ChIP peaks should be shown for the different populations of CD4 T cells that are further shown in the plots with the normalized enrichment.

The comment of the reviewers indicate that Figure 3E was not clear. The EM CD8 and total CD4 T cell data had been obtained from a public database and were meant to illustrate the regulatory regions in the perforin promoter. To avoid confusion, we now provide a simpler version of the figure that does not include data that were not generated through our study (Figure 3F).

12) It would be suitable that a further quantification of the protein level of perforin would be depicted upon the knockdown of the different subsets in Figure 7C. A simple set of representative plots is not enough to draw proper conclusions.

As suggested by the reviewers, we now provide protein quantification data of perforin knockdown. We have also increased the number of experiments to perform statistical analyses (Figure 7D).

1) Setoguchi R, Taniuchi I, Bevan MJ. ThPOK derepression is required for robust CD8 T cell responses to viral infection. J Immunol. 2009 Oct 1;183(Wilkinson et al., 2012):4467–74.

2) Park K, He X, Lee H-O, Hua X, Li Y, Wiest D, et al. TCR-mediated ThPOK induction promotes development of mature (CD24-) gammadelta thymocytes. The EMBO Journal. EMBO Press; 2010 Jul 21;29(Fu et al., 2013):2329–41.

3) Wang L, Carr T, Xiong Y, Wildt KF, Zhu J, Feigenbaum L, et al. The sequential activity of Gata3 and Thpok is required for the differentiation of CD1d-restricted CD4+ NKT cells. European Journal of immunology. WILEY‐VCH Verlag; 2010 Sep;40(9):2385–90.

4) Eshima K, Chiba S, Suzuki H, Kokubo K, Kobayashi H, Iizuka M, et al. Ectopic expression of a T-box transcription factor, eomesodermin, renders CD4(+) Th cells cytotoxic by activating both perforin- and FasL-pathways. Immunol Lett. 2012 May 30;144(1-2):7–15.

5) Pearce EL, Mullen AC, Martins GA, Krawczyk CM, Hutchins AS, Zediak VP, et al. Control of effector CD8+ T cell function by the transcription factor Eomesodermin. Science. 2003 Nov 7;302(5647):1041–3.

6) van de Berg PJEJ, Griffiths SJ, Yong S-L, Macaulay R, Bemelman FJ, Jackson S, et al. Cytomegalovirus infection reduces telomere length of the circulating T cell pool. J Immunol. 2010 Apr 1;184(Wilkinson et al., 2012):3417–23.

7) Papagno L, Spina CA, Marchant A, Salio M, Rufer N, Little S, et al. Immune activation and CD8+ T-cell differentiation towards senescence in HIV-1 infection. PLoS Biol. 2004 Feb;2(Appay et al., 2002a):E20.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Reviewer #3:

The authors have extensively revised their original manuscript providing now a much more compelling and complete story. In this revised version, the authors have addressed all my previous concerns. There are however two main points that require further attention.

In Figure 2E the authors have added the much needed quantification of the expression of the different transcription factors in the populations of interest. This is represented by a FACS plot and the respective MFI quantification in a dot plot. Yet, the FACS plots are lacking the respective gates that give rise to the MFI quantification. It would vital that these gates are illustrated in Figure 2E. Specially, since TBX21 and EOMES expression in CD8s appears to be across 3 populations for perforin expression, making it unclear which one was considered CD8 N and CD8CTX.

We thank the reviewer for this comment and suggestion. Figure 2E has been amended to show the gated populations using the same color code as the one used for the other panels of the figure. The strategy used to gate the naive and cytotoxic subsets was the same as the one illustrated in Figure 1D. This is now clarified in the legend of Figure 2E.

Additionally, in Figure 2G the authors claim that there was no apparent difference in the methylation of the ZBTB7B promoter between CD4CTX and CD8CTX. The data shown is inconclusive and subjective to the reader's interpretation. If anything it appears that ZBTB7B promoter is more hypomethylated in CD4CTX compared to CD8CTX but without any sort of quantification all of these conclusions are very individual specific. The authors conclusions on this piece of data need to be tempered down.

We agree with the reviewer that the sentence describing these results could be misinterpreted. As suggested, we revised the sentence and tempered down the conclusion.

https://doi.org/10.7554/eLife.30496.036

Article and author information

Author details

  1. Yasmina Serroukh

    Institute for Medical Immunology, Université Libre de Bruxelles, Charleroi, Belgium
    Contribution
    Conceptualization, Formal analysis, Investigation, Writing—original draft, Writing—review and editing
    Contributed equally with
    Chunyan Gu-Trantien and Baharak Hooshiar Kashani
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8751-5725
  2. Chunyan Gu-Trantien

    Institute for Medical Immunology, Université Libre de Bruxelles, Charleroi, Belgium
    Contribution
    Conceptualization, Formal analysis, Investigation, Writing—original draft, Writing—review and editing
    Contributed equally with
    Yasmina Serroukh and Baharak Hooshiar Kashani
    Competing interests
    No competing interests declared
  3. Baharak Hooshiar Kashani

    Institute for Medical Immunology, Université Libre de Bruxelles, Charleroi, Belgium
    Contribution
    Conceptualization, Formal analysis, Investigation, Writing—original draft, Writing—review and editing
    Contributed equally with
    Yasmina Serroukh and Chunyan Gu-Trantien
    Competing interests
    No competing interests declared
  4. Matthieu Defrance

    Laboratoire d’Epigénétique du Cancer, Université Libre de Bruxelles, Bruxelles, Belgium
    Contribution
    Formal analysis, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Thien-Phong Vu Manh

    Centre d’Immunologie de Marseille-Luminy 13288, Aix Marseille Université UM2, Marseille, France
    Contribution
    Formal analysis, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0294-342X
  6. Abdulkader Azouz

    Institute for Medical Immunology, Université Libre de Bruxelles, Charleroi, Belgium
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  7. Aurélie Detavernier

    Institute for Medical Immunology, Université Libre de Bruxelles, Charleroi, Belgium
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  8. Alice Hoyois

    Institute for Medical Immunology, Université Libre de Bruxelles, Charleroi, Belgium
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  9. Jishnu Das

    1. Ragon Institute of MGH, MIT and Harvard University, Cambridge, United States
    2. Department of Biological Engineering, Massachusetts Institute of Technology, Cambridge, United States
    Contribution
    Formal analysis, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5747-064X
  10. Martin Bizet

    Laboratoire d’Epigénétique du Cancer, Université Libre de Bruxelles, Bruxelles, Belgium
    Contribution
    Formal analysis, Writing—review and editing
    Competing interests
    No competing interests declared
  11. Emeline Pollet

    Centre d’Immunologie de Marseille-Luminy 13288, Aix Marseille Université UM2, Marseille, France
    Contribution
    Formal analysis, Writing—review and editing
    Competing interests
    No competing interests declared
  12. Tressy Tabbuso

    Institute for Medical Immunology, Université Libre de Bruxelles, Charleroi, Belgium
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  13. Emilie Calonne

    Laboratoire d’Epigénétique du Cancer, Université Libre de Bruxelles, Bruxelles, Belgium
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  14. Klaas van Gisbergen

    Department of Haematopoiesis, Sanquin Research and Landsteiner Laboratory, Amsterdam, Netherlands
    Contribution
    Conceptualization, Resources, Writing—review and editing
    Competing interests
    No competing interests declared
  15. Marc Dalod

    Centre d’Immunologie de Marseille-Luminy 13288, Aix Marseille Université UM2, Marseille, France
    Contribution
    Conceptualization, Resources, Writing—review and editing
    Competing interests
    No competing interests declared
  16. François Fuks

    Laboratoire d’Epigénétique du Cancer, Université Libre de Bruxelles, Bruxelles, Belgium
    Contribution
    Conceptualization, Resources, Writing—review and editing
    Competing interests
    No competing interests declared
  17. Stanislas Goriely

    Institute for Medical Immunology, Université Libre de Bruxelles, Charleroi, Belgium
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7005-6195
  18. Arnaud Marchant

    Institute for Medical Immunology, Université Libre de Bruxelles, Charleroi, Belgium
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing—review and editing
    For correspondence
    arnaud.marchant@ulb.ac.be
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0578-0467

Funding

Fonds De La Recherche Scientifique - FNRS (PhD Student Fellowship)

  • Yasmina Serroukh

Belgian Federal Public Planning Service Science Policy (Research Project Grant)

  • Stanislas Goriely
  • Arnaud Marchant

European Regional Development Fund and Walloon Region (Research Project Grant (411132-957270))

  • Stanislas Goriely
  • Arnaud Marchant

Fonds De La Recherche Scientifique - FNRS (Research Project Grant (PDR))

  • François Fuks
  • Stanislas Goriely
  • Arnaud Marchant

Fonds Erasme (PhD Student Fellowship)

  • Alice Hoyois

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the blood donors and ImmuneHealth for the clinical sample collection. We are grateful to Véronique Olislagers, Sandra Lecomte, Margreet Brouwer, Muriel Nguyen, Séverine Thomas, Inès Vu Duc, Charlotte Givord and Iain Welsby for technical assistance, Ariane Huygens for precious expertise in flow cytometry and Charles Dehout, Nicolas Dauby, Muriel Moser, Alain Le Moine and Fabienne Willems for helpful discussions, Sophie Lucas (Institut de Duve – Université Catholique de Louvain) for providing single cell PCR reagents as well as Thierry Voet and Koen Theunis (Katholieke Universiteit Leuven) for single cell PCR analyses. YS is research assistant, SG senior research associate and AM research director at the Fonds de la Recherche Scientifique (FRS – FNRS), Belgium. A.H. was supported by the ASCO grant of the Fonds Erasme. This work was supported by the FRS. – FNRS, by the Belgian Federal Public Planning Service Science Policy and by the European Regional Development Fund (ERDF) and the Walloon Region (Wallonia-Biomed portfolio, 411132–957270).

Ethics

Human subjects: Volunteers were recruited by the research centre ImmuneHealth, CHU Tivoli, La Louvière. Clinical staff informed the volunteers about the objectives of the study and obtained their written consent to use the human material for research purposes. The study and the informed consent form were approved, following approval by the Ethics committee of the CHU Tivoli, La Louvière, Belgium (Reference B09620097253). The study followed the Good Clinical Practice (ICH/GCP) guidelines, the Belgian Law and the declaration of Helsinki ("World Medical Association Declaration of Helsinki; Ethical Principles for Medical Research Involving Human Subjects").

Reviewing Editor

  1. Ronald N Germain, National Institute of Allergy and Infectious Diseases, United States

Publication history

  1. Received: July 18, 2017
  2. Accepted: February 20, 2018
  3. Accepted Manuscript published: February 28, 2018 (version 1)
  4. Version of Record published: March 9, 2018 (version 2)

Copyright

© 2018, Serroukh et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,164
    Page views
  • 201
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Immunology and Inflammation
    Florin Tudor Ilca et al.
    Research Article
    1. Immunology and Inflammation
    2. Microbiology and Infectious Disease
    Damián Pérez-Mazliah et al.
    Research Article Updated
