Tumor-derived CSF-1 induces the NKG2D ligand RAE-1δ on tumor-infiltrating macrophages

Research Article
  • Cited 0
  • Views 1,103
  • Annotations
Cite this article as: eLife 2018;7:e32919 doi: 10.7554/eLife.32919

Abstract

NKG2D is an important immunoreceptor expressed on the surface of NK cells and some T cells. NKG2D recognizes a set of ligands typically expressed on infected or transformed cells, but recent studies have also documented NKG2D ligands on subsets of host non-tumor cells in tumor-bearing animals and humans. Here we show that in transplanted tumors and genetically engineered mouse cancer models, tumor-associated macrophages are induced to express the NKG2D ligand RAE-1δ. We find that a soluble factor produced by tumor cells is responsible for macrophage RAE-1δ induction, and we identify tumor-derived colony-stimulating factor-1 (CSF-1) as necessary and sufficient for macrophage RAE-1δ induction in vitro and in vivo. Furthermore, we show that induction of RAE-1δ on macrophages by CSF-1 requires PI3K p110α kinase signaling. Thus, production of CSF-1 by tumor cells leading to activation of PI3K p110α represents a novel cellular and molecular pathway mediating NKG2D ligand expression on tumor-associated macrophages.

https://doi.org/10.7554/eLife.32919.001

Introduction

NKG2D is a lectin-like cell surface immunoreceptor expressed on all NK cells and some T cell subsets (Raulet, 2003). NKG2D recognizes a diverse set of MHC-like proteins. In mice, these include the RAE-1 family (including isoforms α, β, γ, δ, and ε), the H60 family (a, b, c), and MULT1. Human NKG2D ligands include the ULBP family (with isoforms 1–6) and the MICA and MICB proteins (Raulet et al., 2013).

Interactions between NKG2D and its ligands mediate diverse immunological functions. Acute ligation of NKG2D on NK cells transmits a powerful activation signal through the DAP10 and DAP12 adaptors, triggering NK cell release of cytotoxic granules and pro-inflammatory cytokines such as interferon-γ (Raulet, 2003). In contrast, recent studies have shown that steady-state interactions of NKG2D with ligands in vivo, such as with endogenous expression of RAE-1ε in mice (Thompson et al., 2017) or transgenically enforced overexpression of various NKG2D ligands in vivo (Oppenheim et al., 2005; Wiemann et al., 2005), cause NK cells to adopt a state of global desensitization to acute activation. NKG2D has also been implicated as a co-stimulatory molecule for T cells (Bauer et al., 1999; Markiewicz et al., 2005), and in some cases NKG2D can mediate lymphocyte trafficking to sites of inflammation (Markiewicz et al., 2012). Various auto-inflammatory conditions, such as atherosclerosis in a mouse model, have also been shown to be mediated in part by NKG2D (Ogasawara et al., 2004; Xia et al., 2011; Guerra et al., 2013). Thus, NKG2D has diverse roles in immune cell activation and regulation depending on the cellular and physiological context.

Most cells in healthy mice lack surface NKG2D ligand expression, whereas many tumors and infected cells show expression in vitro and in vivo (Raulet et al., 2013). NKG2D ligand expression is tightly regulated at multiple levels of biogenesis. In general, NKG2D ligand expression on diseased cells is usually understood as a cellular response to stresses associated with transformation or infection (Eagle et al., 2006; Mistry and O'Callaghan, 2007; Raulet et al., 2013). A prominent example is the induction of NKG2D ligands in mouse and human cells as a result of an activated DNA damage response (Gasser et al., 2005). Subsequent studies found that rapidly proliferating fibroblasts upregulate NKG2D ligands in vitro and in vivo independently of the DNA damage response, due to transactivation of the promoter of the Raet1e gene (which encodes RAE-1ε) by E2F transcription factors (Jung et al., 2012). Heat shock stress and the integrated stress response have also been implicated in NKG2D ligand expression (Groh et al., 1996; Venkataraman et al., 2007; Nice et al., 2009; Gowen et al., 2015). In some cells, steady-state expression of micro-RNAs may confer post-transcriptional regulation of NKG2D ligand expression (Heinemann et al., 2012; Codo et al., 2014). In human but not mouse cells, activation of p53 has also been implicated in NKG2D ligand induction (Li et al., 2011; Textor et al., 2011; Iannello et al., 2013). Thus, animals have evolved numerous mechanisms to sense abnormal cellular activity and alert the immune system through NKG2D.

Interestingly, some reports have described NKG2D ligand expression on cells that are not themselves infected or transformed. For example, Toll-like receptor (TLR) agonists induced NKG2D ligands on mouse macrophages and human monocyte-derived dendritic cells (Hamerman et al., 2004; Ebihara et al., 2007). There is also increasing evidence that subsets of tumor-associated cells show NKG2D ligand induction in animals and humans. Tumor-associated myeloid cells and circulating monocytes in glioblastoma patients were shown to upregulate NKG2D ligands (Crane et al., 2014). In transplant and spontaneous mouse models, tumor-associated endothelial cells were found to induce high levels of the NKG2D ligand RAE-1ε (Thompson et al., 2017). Expression of RAE-1 molecules was also found on macrophages infiltrating a mouse model of melanoma and a model of lymphoma (Deng et al., 2015; Nausch et al., 2008).

Tumors establish a complex microenvironment characterized by an intricate interplay between cancer cells and associated stroma. Some tumor-infiltrating cells, such as cytotoxic lymphocytes, can be activated to kill tumor cells and protect the host (Vesely et al., 2011). Other tumor-associated stroma can have pleiotropic effects depending on tumor type and physiological context. For example, many tumors are extensively infiltrated by macrophages, which often have pro-tumor functions such as promoting angiogenesis or impairing the functions of cytotoxic lymphocytes, but can also exert anti-tumor activities depending on the molecular and cellular milieu (Noy and Pollard, 2014). Macrophages can sense the character of tumor microenvironments using an array of receptors and respond to different microenvironments by expressing various secreted and surface-bound immunomodulatory molecules (Noy and Pollard, 2014). Understanding the cellular and molecular factors that control the activity and expression profile of tumor-associated macrophages is critical to understanding tumor microenvironments and revealing new targets for therapy.

Here we show that the NKG2D ligand RAE-1δ is induced on tumor-associated macrophages but not other cells that infiltrate several models of transplanted and autochthonous cancer. Unexpectedly, we find that the cytokine colony-stimulating factor-1 (CSF-1) is released by tumor cells and is necessary and sufficient to induce RAE-1δ at the mRNA and cell surface levels on macrophages in vitro and on tumor-associated macrophages in vivo. Furthermore, we show that the p110α catalytic subunit of PI3K is required for CSF-1-mediated macrophage RAE-1δ induction. Thus, tumor cell secretion of CSF-1 is sensed by macrophages through CSF-1R and PI3K p110α, leading to induction of the NKG2D ligand RAE-1δ.

Results

RAE-1δ induction on tumor-associated macrophages

A limited number of studies have described NKG2D ligand expression on subsets of tumor-associated hematopoietic cells (Crane et al., 2014; Deng et al., 2015; Nausch et al., 2008). To further investigate this phenomenon, we used flow cytometry to analyze NKG2D ligands on hematopoietic cells infiltrating several transplant tumor models. First, WT C57BL/6 mice were injected subcutaneously with a high dose (1 × 106) of B16-BL6 melanoma cells, hereafter referred to as B16. Once established at approximately 1 cm in diameter (10–17 days post-injection), tumors were dissociated and stained with lineage markers and monoclonal antibodies for NKG2D ligands, including RAE-1δ, RAE-1ε, MULT1, or a polyclonal antibody that recognizes multiple H60 isoforms. As RAE-1 molecules are quite similar, we validated the specificity of the antibodies by staining B16 cells transduced with RAE-1δ or RAE-1ε with the antibodies targeting these ligands (Figure 1—figure supplement 2A), and we previously confirmed isoform-specific blocking by these antibodies (Thompson et al., 2017).

Tumor-associated macrophages (hereafter called TAMs) are an important subset of myeloid cells identified as CD45-pos; CD11b-hi; Ly6G-neg; F4/80-hi (Figure 1—figure supplement 1A). Interestingly, TAMs in B16 tumors expressed RAE-1δ but not other NKG2D ligands (Figure 1A). In addition to strong expression on TAMs, RAE-1δ was weakly expressed on monocytes in B16 tumors (identified as CD45-pos; CD11b-hi; Ly6G-neg; F4/80-low; Ly6C-hi – gating strategy in Figure 1—figure supplement 3A) – but negligible on other hematopoietic cells (Figure 1B). Importantly, RAE-1δ staining on TAMs was completely absent in RAE-1-KO mice, which contain frameshift mutations in the genes encoding RAE-1δ and RAE-1ε, confirming the specificity of the RAE-1δ staining (Figure 1—figure supplement 1B). In contrast to robust TAM expression of RAE-1δ, splenic macrophages, peritoneal macrophages, and blood monocytes in mice bearing B16 tumors expressed little to no RAE-1δ (Figure 1—figure supplements 1C and 3B,C). These data indicate that macrophages within the B16 tumor microenvironment are induced to express the NKG2D ligand RAE-1δ. Expression of RAE-1δ in TAMs within B16 tumors was similar at various stages of tumor growth (Figure 1—figure supplement 2B). Gating strategies for blood monocytes and peritoneal macrophages are shown in Figure 1—figure supplement 3.

Figure 1 with 3 supplements see all

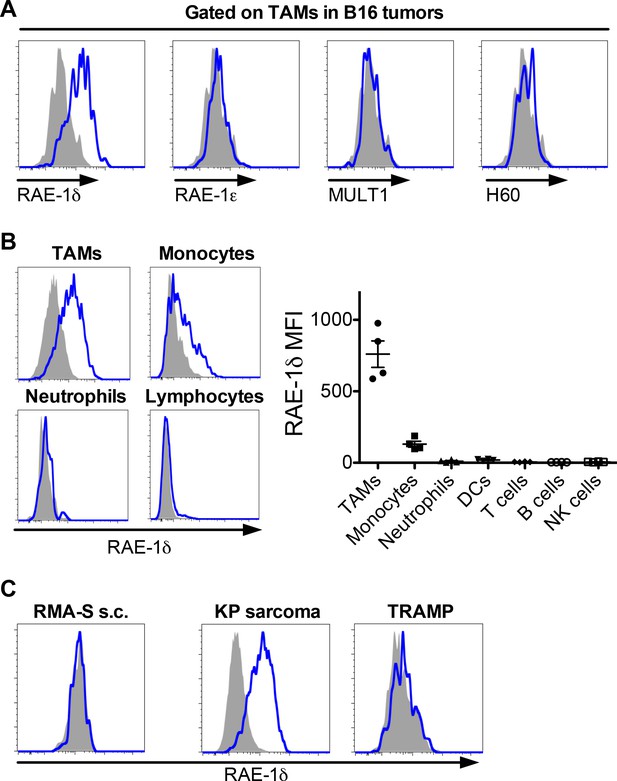

RAE-1δ is induced on tumor-associated macrophages in subcutaneously transferred and spontaneous tumors.

(A) Established B16 S.C. tumors were dissociated and analyzed for NKG2D ligand expression on tumor-associated macrophages. (B) RAE-1δ expression (left) and MFI quantification (right) on the indicated cell types in B16 tumors. (C) RAE-1δ expression on TAMs in spontaneous KP sarcoma, but not in spontaneous TRAMP prostate adenocarcinoma or transferred RMA-S lymphoma. Data are representative of >3 independent experiments.

https://doi.org/10.7554/eLife.32919.002

In contrast to the findings with B16 tumors, RAE-1δ staining was negligible or very low on TAMs in similarly sized S.C. tumors generated by injection of the RMA-S T cell lymphoma cell line (5 × 106 cells injected) (Figure 1C). We next sought to analyze NKG2D ligands on tumor-associated cells in spontaneous tumor models. In the KP sarcoma model driven by lentiviral-Cre activation of oncogenic Kras and deletion of Trp53 (DuPage et al., 2009), TAMs in primary tumors expressed robust RAE-1δ (Figure 1C). In contrast, TAMs within primary TRAMP prostate tumors -- a spontaneous adenocarcinoma model driven by expression of SV40 T antigens (Greenberg et al., 1995) -- mostly lacked RAE-1δ (Figure 1C). Together, these data indicate that TAMs, but not other hematopoietic cells, are induced to express RAE-1δ in some transplant and spontaneous tumors (B16 tumors and primary KP sarcomas), but not in others (RMA-S tumors and primary TRAMP adenocarcinomas) (see Figure 1—figure supplement 2C for comparisons). Thus, tumor microenvironments are differentially capable of inducing NKG2D ligand expression by macrophages.

A tumor-derived soluble factor induces RAE-1δ on macrophages in vitro

To interrogate the mechanism of RAE-1δ induction on TAMs, we began by testing the hypothesis that a soluble factor released from tumor cells induces macrophage RAE-1δ. Resident macrophages were obtained from naïve WT mice by peritoneal lavage and cultured ex vivo with concentrated cell culture medium from B16 cells (diluted 1:1 with fresh medium) or similarly diluted concentrated fresh medium as a control. Macrophages cultured in the control medium showed little to no RAE-1δ expression, but culture with B16-conditioned medium led to a robust induction of cell surface RAE-1δ (Figure 2A). RAE-1δ was similarly induced by culture medium from a KP sarcoma cell line (Figure 2B). These results indicated that a soluble factor(s) produced by B16 tumor cells and KP sarcoma cells is sufficient to induce RAE-1δ on macrophages ex vivo.

Figure 2 with 1 supplement see all

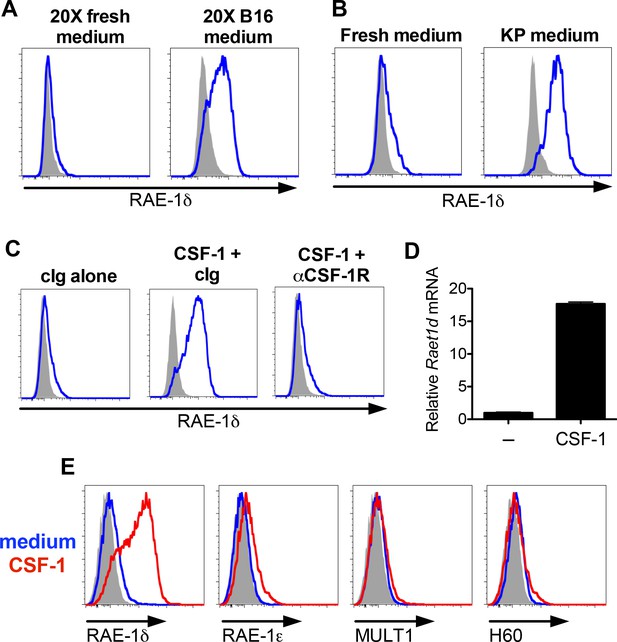

B16 and KP cell line conditioned medium and CSF-1 induces RAE-1δ on macrophages.

(A) Peritoneal wash cells were cultured with a 1:1 mixture of fresh medium plus 20X concentrated fresh medium or 20X concentrated B16 cell culture supernatants, and macrophage RAE-1δ was analyzed by flow cytometry 48 hr later. (B) Peritoneal wash cells were stimulated 48 hr ex vivo with a 1:1 mixture of fresh medium supplemented with fresh medium or conditioned medium from cultures of a KP sarcoma cell line generated from a primary KP sarcoma, and macrophage RAE-1δ was analyzed 48 hr later by flow cytometry. (C) Peritoneal wash cells were cultured with or without 10 ng/ml CSF-1, with the addition of control Ig or CSF-1R antibody (1 μg/ml), and macrophage RAE-1δ was analyzed 48 hr later by flow cytometry. (D) Peritoneal macrophage Raet1d mRNA 48 hr after stimulation with or without the addition of CSF-1 (10 ng/ml). (E) Peritoneal macrophage expression of the indicated NKG2D ligands 48 hr after stimulation with CSF-1 or control medium. Data are representative of >3 independent experiments.

https://doi.org/10.7554/eLife.32919.006

CSF-1 is sufficient to induce macrophage RAE-1δ ex vivo

To identify soluble factors that induce RAE-1δ on macrophages, we stimulated peritoneal macrophages with a panel of recombinant cytokines known to ligate receptors expressed on macrophages (Table 1). Alone among the cytokines tested, recombinant colony-stimulating factor-1 (CSF-1), also known as macrophage colony-stimulating factor (MCSF), was sufficient to induce robust RAE-1δ expression on macrophages (Figure 2C). Macrophages express the CSF-1 receptor (CSF-1R) (Figure 2—figure supplement 1A), and macrophages cultured with recombinant CSF-1 along with blocking antibody against CSF-1R failed to induce RAE-1δ, establishing that the added cytokine acts through CSF-1R (Figure 2C). We performed qPCR on reverse-transcribed RNA from CSF-1-stimulated macrophages and found that recombinant CSF-1 caused upregulation of transcripts of the Raet1d gene, which encode RAE-RAE-1δ (Figure 2D). Stimulation with graded doses of CSF-1 showed that as little as 3 ng/ml was sufficient to induce detectable RAE-1δ in this system, with high induction levels seen at 10 ng/ml (Figure 2—figure supplement 1B). Interestingly, induction of other NKG2D ligands by CSF-1 was negligible (Figure 2E), indicating that CSF-1 upregulates RAE-1δ highly selectively. Macrophages can be derived from bone marrow cells in vitro using CSF-1 or GM-CSF. Consistent with our findings, macrophages derived from bone marrow cells via 7 days of culture with CSF-1 induced robust RAE-1δ, whereas parallel cultures in GM-CSF showed little to no RAE-1δ expression (Figure 2—figure supplement 1C)

Table 1
Cytokine stimulation of macrophages for RAE-1δ induction.
https://doi.org/10.7554/eLife.32919.008
TreatmentMacrophage RAE-1δ induction?
IL-1α
IL-1β
IL-4
IL-6
IL-12
IFNβ
IFNγ
TNFα
CSF1+++

CSF-1 is necessary for macrophage RAE-1δ induction by tumor cell supernatants ex vivo

To further assess whether CSF-1 contributes to induction by tumor cells of RAE-1δ on macrophages, we analyzed CSF-1 secretion by B16 cells (in which TAMs express RAE-1δ – Figure 1A) and RMA-S cells (in which TAMs lack RAE-1δ – Figure 1C). As measured by ELISA of cell culture supernatants, B16 cells secreted substantial CSF-1, whereas RMA-S cells did not (Figure 3A). KP sarcoma cell lines also produced CSF-1, and much more robustly than did B16 cells (Figure 3—figure supplement 1A). We used ELISA to analyze CSF-1 protein levels in tumor microenvironments in vivo from mechanically dissociated S.C. tumors and found the concentrations of intratumoral CSF-1 were much greater in B16 tumors than in RMA-S tumors (Figure 3B). Furthermore, the level of CSF-1 within B16 tumors was substantially greater than serum CSF-1 levels in naïve or tumor-bearing mice (Figure 3—figure supplement 1B), consistent with previous reports describing steady-state CSF-1 levels in circulation (Menke et al., 2009).

Figure 3 with 1 supplement see all

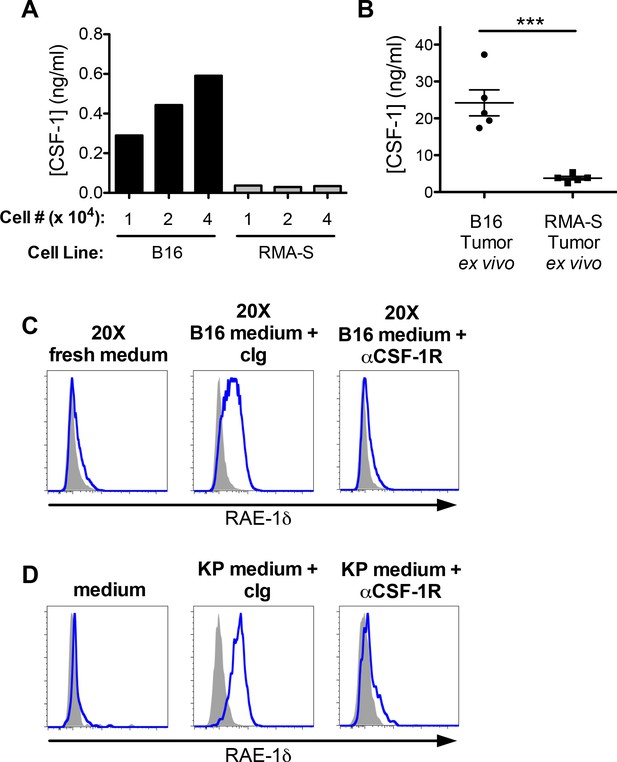

CSF-1 is necessary for macrophage RAE-1δ induction by tumor conditioned media.

(A) The indicated numbers of B16 or RMA-S cells were seeded in 12-well plates, and CSF-1 levels in the supernatants were measured by ELISA 48 hr later. (B) Established B16 or RMA-S tumors were dissociated, and CSF-1 levels in dissociation supernatants were measured by ELISA; intra-tumoral concentrations were calculated using tumor volume measurements (total ng of CSF-1 divided by the tumor volume at time of harvest). (C) Peritoneal macrophage RAE-1δ expression 48 hr after culture with concentrated fresh medium, concentrated B16 conditioned medium plus control Ig (1 ug/ml), or concentrated B16 conditioned medium plus anti-CSF-1R (1 ug/ml). (D) Peritoneal macrophage RAE-1δ 48 hr after culture with fresh medium, KP conditioned medium plus control Ig, or KP conditioned medium plus anti-CSF-1R (1 ug/ml). Data are representative of >3 independent experiments.

https://doi.org/10.7554/eLife.32919.009

These observations suggested that tumor cell secretion of CSF-1 might contribute to macrophage RAE-1δ induction. To directly test this hypothesis in vitro, peritoneal macrophages were cultured with concentrated B16-conditioned medium in the presence of control Ig or anti-CSF-1R blocking antibody. We found that CSF-1R blockade completely abrogated macrophage RAE-1δ induction by B16-conditioned medium (Figure 3C). RAE-1δ induction by KP cell line-conditioned medium was also completely prevented by antibody blockade of CSF-1R (Figure 3D). Collectively, these data indicated that CSF-1 is sufficient to induce RAE-1δ on macrophages, and that CSF-1 is necessary for macrophage RAE-1δ induction by B16 and KP tumor cell supernatants in vitro.

Short-term blockade of CSF-1 or CSF-1R abrogates TAM RAE-1δ expression in vivo

We sought to determine whether the CSF-1/CSF-1R axis controlled RAE-1δ expression on TAMs in vivo. Mice with established B16 tumors were treated with anti-CSF-1 or anti-CSF-1R, and RAE-1δ on TAMs was analyzed 48 hr post-treatment. Blockade of CSF-1 or CSF-1R each led to substantial reductions in RAE-1δ expression by TAMs (Figure 4A). As it has been shown that steady-state CSF-1 signaling is necessary for monocyte and macrophage survival in vivo, we injected tumor-bearing mice with CSF-1R antibody and monitored tumor-infiltrating macrophage numbers and RAE-1δ expression at various time points. Blockade of CSF-1R for 2 days had no impact on macrophage cell numbers but drastically reduced macrophage RAE-1δ expression, whereas treatments for 5 days or longer caused a major depletion in TAM numbers, associated with low RAE-1δ levels on the few remaining macrophages (Figure 4—figure supplement 1A). Similar to the findings with B16 tumors, a 2 day treatment with CSF-1R antibody resulted in a substantial reduction in RAE-1δ on TAMs in primary KP tumors without a significant reduction in TAM numbers, generalizing our findings to spontaneous tumors (Figure 4B and Figure 4—figure supplement 1B). Thus, antibody blockade of the CSF-1/CSF-1R axis suppresses RAE-1δ expression by TAMs in B16 S.C. tumors and autochthonous KP sarcomas.

Figure 4 with 1 supplement see all

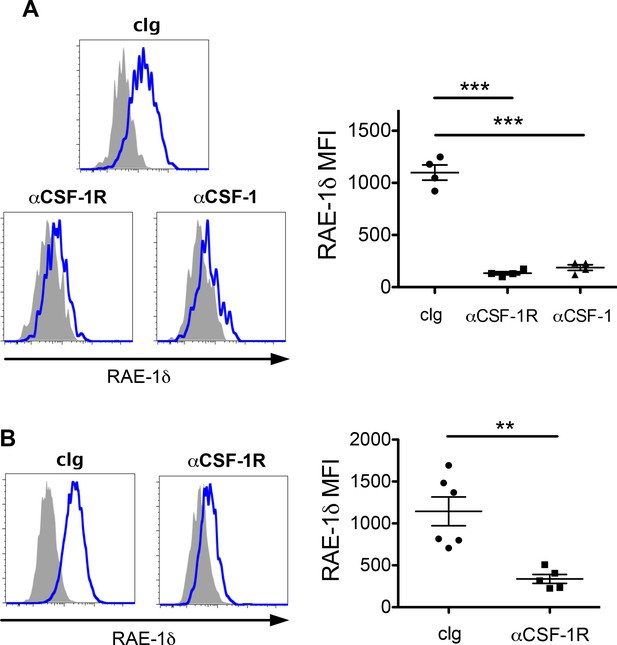

Blockade of CSF-1 or CSF-1R abrogates RAE-1δ expression by TAMs in vivo.

(A) Mice with established B16 tumors were injected i.p. with 200 ug of the indicated antibody, and RAE-1δ on TAMs was analyzed 48 hr later. (B) KP mice with established sarcomas were injected i.p. with 200 ug of the indicated antibody, and RAE-1δ on TAMs was analyzed 48 hr later. Statistical significance was determined using one-way ANOVA with Bonferroni post-tests (A) or a two-tailed unpaired Student’s t test (B). Data represent means ±SEM. Data are representative of >3 independent experiments.

https://doi.org/10.7554/eLife.32919.011

Tumor-derived CSF-1 is required for RAE-1δ expression by TAMs in vivo

To formally test whether tumor-derived CSF-1 was responsible for inducing TAM RAE-1δ, we used CRISPR/Cas9 to target the Csf1 open reading frame for deletion in B16 cells. B16 cells were transiently transfected with plasmids encoding Cas9 and two guide RNAs targeting loci immediately adjacent to the Csf1 ORF. Transfected cells were single-cell cloned, and clones were analyzed for CSF-1 secretion by ELISA. CSF-1-negative cells were injected into WT mice alongside parental B16 tumors, and established tumors were analyzed for RAE-1δ expression by TAMs. Mice were given a high dose (1 × 106 cells) to standardize tumor growth rates. Compared with control tumors, Csf1-KO B16 tumors showed markedly lower RAE-1δ expression by TAMs (Figure 5A). Mice injected with a second, independent Csf1-KO B16 clone also showed substantially reduced RAE-1δ expression by TAMs (Figure 5B). To control for off-target effects of Cas9, Csf1-KO B16 cells were stably transduced with control empty vector or a Csf1-expression vector, and injected into mice. Csf1-transduction completely reversed the KO phenotype, and restored RAE-1δ expression on TAMs (Figure 5C).

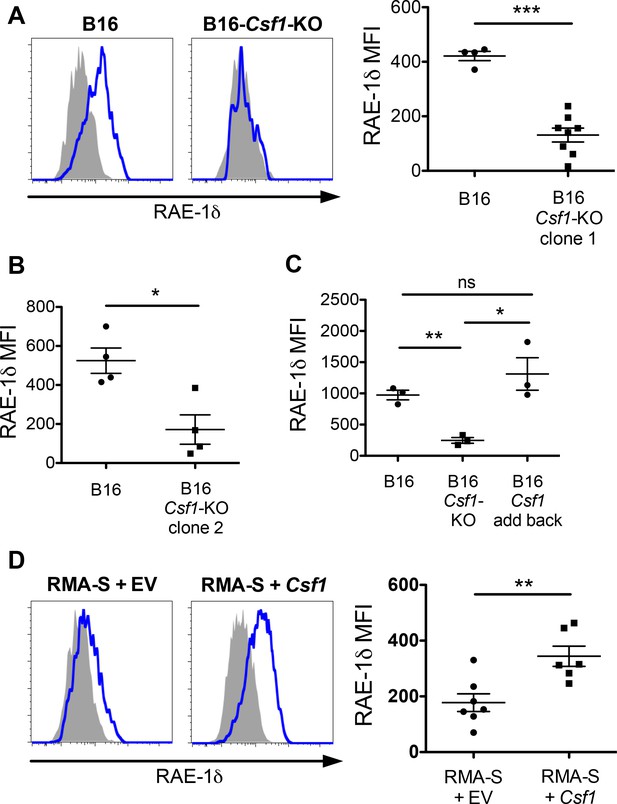

Tumor-derived CSF-1 is required for TAM RAE-1δ expression in vivo.

(A) RAE-1δ expression on TAMs in established B16 or B16-Csf1-KO tumors. (B) RAE-1δ on TAMs in mice with established B16 tumors or tumors of a second clone of B16-Csf1-KO cells. (C) RAE-1δ on TAMs in mice with established B16, B16 Csf1-KO, or B16 Csf1-KO tumors in which CSF-1 expression had been restored by transduction (add-back tumors). (D) RAE-1δ on TAMs in mice with established RMA-S or RMA-S-Csf1-overexpressing tumors. Statistical significance was determined using one-way ANOVA with Bonferroni post-tests (C) or a two-tailed unpaired Student t test (A, B, D). Data represent means ±SEM, and are representative of 2–4 independent experiments.

https://doi.org/10.7554/eLife.32919.013

Unlike B16 cells, RMA-S cells fail to secrete CSF-1 (Figure 3A) and also fail to induce significant RAE-1δ expression by TAMs (Figure 1C). In contrast, RMA-S cells stably transduced with a CSF-1-expression vector efficiently induced RAE-1δ expression by TAMs whereas transduction with empty vector had little or no effect (Figure 5D). Collectively, these data provide decisive evidence that production of CSF-1 by tumor cells in vivo drives RAE-1δ expression on tumor-associated macrophages.

PI3K p110α signals are required for macrophage RAE-1δ induction by CSF-1

CSF-1 binds the CSF-1 receptor to initiate a variety of intracellular signaling pathways. PI3K is an important signaling molecule and a known target downstream of CSF-1R. PI3K signals have also been linked to induction of RAE-1 molecules in other contexts (Tokuyama et al., 2011), so we sought to determine whether PI3K activation by CSF-1 was involved in macrophage RAE-1δ induction. First, we analyzed activation of the PI3K pathway by intracellular flow cytometry for phosphorylated-S6, a known downstream target of PI3K signaling, in peritoneal macrophages stimulated with CSF-1. Indeed, macrophages showed robust S6 phosphorylation after CSF-1 stimulation (Figure 6—figure supplement 1A). There are four isoforms of the catalytic p110 unit of PI3K, denoted α, β, γ, and δ. We cultured macrophages with CSF-1 plus isoform-specific PI3K inhibitors and analyzed RAE-1δ induction. Interestingly, specific inhibition of PI3K p110α with two different chemical inhibitors (PI3Ka2i and PI-103) prevented CSF-1-induced RAE-1δ expression at low inhibitor concentrations, whereas inhibitors of p110 isoforms β, δ, and γ only inhibited RAE-1δ induction at high inhibitor concentrations, likely due to nonspecific inhibition or off-target effects (Figure 6A and B). The two PI3K p110α inhibitors also inhibited accumulation of Raet1d mRNA in CSF-1-treated macrophages (Figure 6C). These results indicate that PI3K p110α activity is required for induction of RAE-1δ gene expression by CSF-1.

Figure 6 with 1 supplement see all

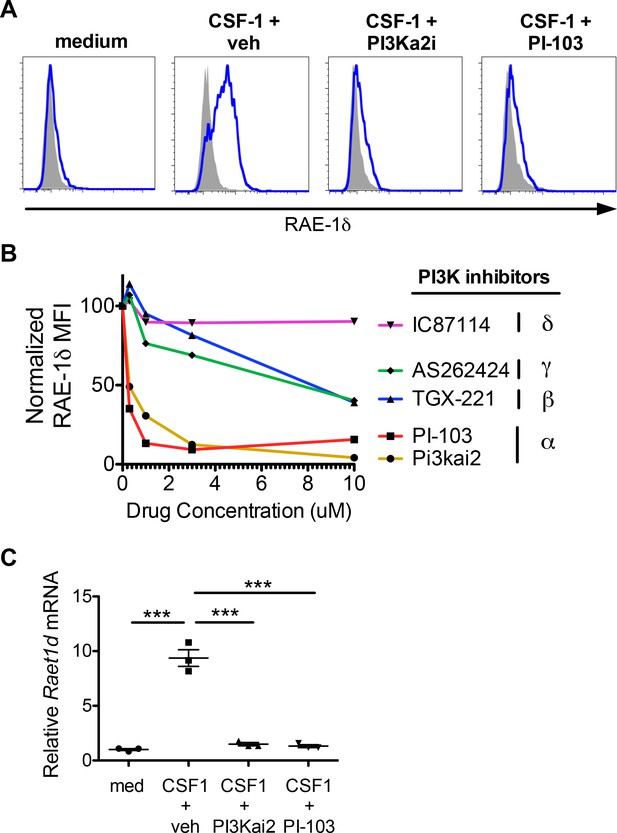

PI3Kα signals are required for macrophage RAE-1δ induction by CSF-1.

(A) Peritoneal wash cells were stimulated with CSF-1 plus vehicle control or PI3Kα inhibitors at 3 μM, and macrophage RAE-1δ was analyzed at 24 hr. (B). Relative macrophage RAE-1δ MFI 24 hr after stimulation with CSF-1 plus the indicated concentrations of the indicated PI3K inhibitors. (C) Relative Raet1d mRNA levels 24 hr after macrophage stimulation with CSF-1 plus vehicle control or PI3Kα inhibitors at 3 μM. Statistical significance was determined using one-way ANOVA with Bonferroni post-tests. Data are representative of 3–4 independent experiments.

https://doi.org/10.7554/eLife.32919.014

Interactions of macrophage RAE-1δ with NKG2D and NK cells

RAE-1 molecules ligate NKG2D to regulate NK cell activity. We sought to investigate the functional role of CSF-1-induced macrophage RAE-1δ using an in vitro co-culture system. Peritoneal macrophages from WT or RAE-1-KO mice were stimulated with CSF-1 for 48 hr, followed by co-culture with WT splenocytes for 18 hr. In parallel, WT splenocytes were co-cultured with B16 or B16-RAE-1δ cells for 18 hr to analyze the effect of tumor-expressed RAE-1δ vs. macrophage-expressed RAE-1δ. Following co-culture, NKG2D levels on NK cells were analyzed by flow cytometry as a measure of receptor engagement (because NKG2D is internalized from the cell surface upon engagement), or the co-cultured cells were subjected to 5 hr stimulation with platebound antibodies ligating the NK cell activating receptor NKp46, and NK cell degranulation and IFNγ expression were analyzed by flow cytometry.

Co-culture of NK cells with CSF-1-induced macrophages expressing RAE-1 molecules efficiently downregulated NKG2D from the NK cell surface, whereas co-culture with RAE-1-KO macrophages had little to no effect on NKG2D levels (Figure 7A). Similarly, co-culture with RAE-1δ-expressing B16 cells led to NKG2D downregulation, whereas parental B16 cells had little to no effect (Figure 7B). Thus, CSF-1-induced RAE-1δ on macrophages is capable of binding and engaging NKG2D, leading to receptor internalization.

Figure 7 with 1 supplement see all

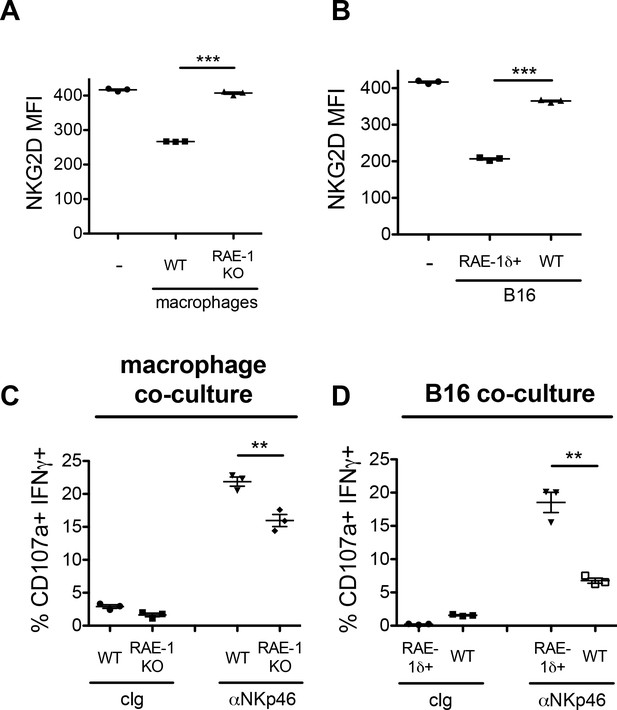

Co-culture of NK cells with RAE-1δ-expressing macrophages and tumor cells.

(A) Peritoneal macrophages from WT or RAE-1-KO mice or were stimulated with 10 ng/ml CSF-1 for 48 hr and then co-cultured with WT splenocytes for 18 hr, and NKG2D levels were analyzed by flow cytometry. (B) B16 or B16-RAE-1δ cells were co-cultured with WT splenocytes for 18 hr, and NKG2D levels on NK cells were analyzed by flow cytometry. (C) WT splenocytes were co-cultured with CSF-1-stimulated WT or RAE-1-KO macrophages for 18 hr, followed by 5 hr stimulation with plate-bound antibody against the NK cell activating receptor NKp46, or control Ig, and NK cell IFNγ and degranulation were analyzed by flow cytometry. (D) WT splenocytes were co-cultured with B16 or B16-RAE-1δ cells for 18 hr, followed by 5 hr stimulation with plate-bound antibody against the NK cell activating receptor NKp46, and NK cell IFNγ and degranulation were analyzed by flow cytometry.

https://doi.org/10.7554/eLife.32919.016

NK cells co-cultured with RAE-1δ-expressing macrophages showed an augmented functional response in vitro to anti-NKp46 stimulation compared to NK cells co-cultured with RAE-1-KO macrophages (Figure 7C). Similarly, NK cells co-cultured with B16-RAE-1δ cells showed augmented functional responses compared with NK cells co-cultured with parental B16 cells (Figure 7D). These data indicate that, in this in vitro system, short-term interactions with CSF-1-stimulated macrophages expressing RAE-1δ had the effect of priming NK cells to respond better when stimulated through a distinct activating receptor. A recent report from our group explored the role of host RAE-1 molecules on NK cell function in vivo in greater detail, and is described in the discussion section.

We also considered the hypothesis that RAE-1δ-expressing TAMs were being targeted for killing in vivo. However, the frequency of TAMs among CD45+ cells in B16 tumors was similar in WT and RAE-1-KO mice (Figure 7—figure supplement 1A). To test whether NKG2D-RAE-1δ interactions select against TAMs with high RAE-1δ expression, we analyzed RAE-1δ expression on TAMs in B16 tumors in WT and NKG2D-KO mice. RAE-1δ levels on TAMs were similar in these two genotypes (Figure 7—figure supplement 1B).

Discussion

Here we describe a novel cellular and molecular axis regulating NKG2D ligand expression on tumor-associated macrophages. We find that, in a set of transplant and spontaneous cancer models, tumor cells secrete the cytokine CSF-1, which induces the NKG2D ligand RAE-1δ on tumor-associated macrophages via a CSF-1R-PI3Kα-dependent signaling pathway. These data expand our knowledge of NKG2D ligand regulation on tumor-associated cells and enhance our understanding of the complex cellular and molecular dynamics within tumor microenvironments.

The specificity of NKG2D ligand induction on tumor-associated hematopoietic cells was striking. Macrophages and monocytes were the only hematopoietic cells found to express NKG2D ligands, and ligand expression on those cells was completely limited to RAE-1δ. Along with our previous study describing RAE-1 molecules expressed on tumor-associated endothelium (Thompson et al., 2017), these datasets represent a substantial addition to our understanding of NKG2D ligand expression on tumor-associated cells in multiple tumor models.

It is notable that macrophages treated with CSF-1 upregulated RAE-1δ but not other NKG2D ligands, matching the specificity of RAE-1δ induction on TAMs. These data suggest that regulation of NKG2D ligands is tightly controlled and highly specific, which has also been noted in other cellular and molecular contexts. We show here that PI3K p110α is required for macrophage RAE-1δ by CSF-1. A previous study also implicated PI3K p110α in NKG2D ligand induction upon in vitro MCMV infection (Tokuyama et al., 2011). More research is needed to ascertain whether PI3K collaborates with other signals to induce NKG2D ligands, and to uncover the downstream events linking PI3K activity to transcription of NKG2D ligands. The regulatory factors mediating this specificity remain an area of ongoing investigation.

To our knowledge, this report is the first to describe CSF-1 as an inducer of NKG2D ligands. CSF-1, but not other tested cytokines, induced RAE-1δ on macrophages. Previous reports of NKG2D ligand expression on myeloid cells are relatively limited. Stimulation of macrophages through TLRs was found to induce RAE-1 molecules but not H60 family ligands or MULT1 (Hamerman et al., 2004). Tumor-associated myeloid cells and circulating monocytes in glioblastoma patients were found to upregulate the human NKG2D ligands ULBP1 and MICB (Crane et al., 2014). A handful of reports have indicated that dendritic cells can upregulate NKG2D ligands in vitro as a result of certain maturation conditions (Schrama et al., 2006; Ebihara et al., 2007). Thus, the data presented in this manuscript represent a novel molecular signature linked to NKG2D ligand induction. Notably, these data do not implicate RAE-1δ expression within the classical (Italiani and Boraschi, 2014) -- and controversial (Martinez and Gordon, 2014) -- M1/M2 paradigm of macrophage activation. CSF-1 is associated with macrophage renewal and activation, but it induces a transcriptional signature distinct from M1 or M2 expression profiles (Hume and MacDonald, 2012). Indeed, classical M1 and M2 cytokines (IFNγ and IL-4, respectively) both failed to induce macrophage RAE-1δ in our hands (Table 1 and not shown).

We find here that induction RAE-1δ on TAMs occurred in tumor microenvironments containing high levels of CSF-1. Steady state amounts of CSF-1 are known to be present and required for maintaining monocytes and macrophages, but those concentrations were insufficient to induce RAE-1δ expression. Hence, RAE-1δ induction requires a higher dose of CSF-1 than is necessary for survival and renewal of macrophages. These considerations suggest the intriguing possibility that macrophage detection of elevated CSF-1 levels, in this case driven by dense concentrations of CSF-1-producing tumor cells, could be considered a sensing mechanism for local disturbances in homeostasis. CSF-1 is associated with macrophage programs that promote tumor growth (Hume and MacDonald, 2012), and tumor cell secretion of CSF-1 may be an adaptive feature of some cancers. It is interesting to speculate on other scenarios that might resemble these CSF-1-producing tumor microenvironments.

The physiological role of macrophage RAE-1δ expression in tumors and other contexts remains enigmatic. NKG2D interactions with RAE-1 molecules are typically thought to provide an activating signal to NKG2D-expressing cells. Indeed, in the current study, macrophage RAE-1δ had a stimulatory effect in an in vitro co-culture model, as short-term incubation of CSF-1-stimulated RAE-1δ-expressing macrophages with NK cells caused elevated NK responses to subsequent acute stimulation compared to incubation with macrophages lacking RAE-1 molecules. These findings are similar to a previous study showing that expression of RAE-1 molecules on mononuclear myeloid-derived suppressor cells in certain tumor-bearing mice has a stimulatory effect on NK cells in a co-culture setting (Nausch et al., 2008). However, a recent study from our laboratory employed antibody blockade and genetic deletion studies to show that endogenously expressed RAE-1ε ligated NKG2D and desensitized NK cells in steady state conditions and in tumors, whereas RAE-1δ had little or no effect on NKG2D levels or desensitization (Thompson et al., 2017). Furthermore, bone marrow chimera experiments in that study demonstrated that the impact of RAE-1 expressed by hematopoietic cells was relatively modest (Thompson et al., 2017). Because NKG2D is known to induce killing of RAE-1-expressing cells by NK cells in vivo, we tested the hypothesis that RAE-1δ expression may render TAMs sensitive to NKG2D-mediated killing in tumors or select for macrophages with lower RAE-1δ surface levels. However, WT and RAE-1-KO mice had similar macrophage numbers in B16 tumors, and TAM RAE-1δ levels were similar in WT and NKG2D-KO mice.

Collectively, data here and in previous studies (Diefenbach et al., 2001; Guerra et al., 2008; Thompson et al., 2017) revealed multiple roles of RAE-1 molecules on macrophages, tumor cells, endothelial and other cells. It is possible that the frequency or duration of the interaction between NKG2D and RAE-1δ may modulate its functional effect on NK cells, revealing different effects in vitro vs. in vivo. Or, perhaps other signals in the tumor environment influence this outcome. It is also possible that RAE-1δ on TAMs has an as-yet-undiscovered effect on macrophage biology or other features of the tumor microenvironment. Indeed, a previous report documented expression of RAE-1 molecules in microglia in mice with experimental allergic encephalitis, and RAE-1 mRNA expression was found to correlate with CSF-1-induced microglial proliferation in vitro (Djelloul et al., 2016). It is also possible that macrophage RAE-1δ interacts with and modulates other NKG2D-expressing cells in tumors. The interactions of immune cells in vivo with NKG2D ligands expressed by distinct untransformed cell types, as well as with transformed and infected cells, appears to impact immune cell activation and function in several respects, in some cases in opposing fashion, and will be the continued subject of future research.

Materials and methods

Mice and in vivo procedures

C57BL/6J mice were bred from mice obtained from The Jackson Laboratory (Bar Harbor, ME). RAE-1-KO mice were previously generated in our lab using CRISPR-Cas9 and guide RNAs targeting the open reading frames of the Raet1d and Raet1e genes, as described (Deng et al., 2015). KP mice contain an inducible activating mutation in the proto-oncogene Kras and an inducible deletion mutation in the tumor suppressor gene Trp53 (DuPage et al., 2009; DuPage et al., 2012) and were bred from mice obtained from The Jackson Laboratory. TRAMP mice contain a transgene expressing the SV40 large T and small T antigens under the rat probasin promoter (Gingrich et al., 1996). All mice were maintained at the University of California, Berkeley in accordance with guidelines from the Animal Care and Use Committee. Sex- and age-matched (8- to 12-week-old) mice were used for the experiments.

All transplant tumor models were injected subcutaneously using an insulin syringe (BD Biosciences, San Jose, CA) after suspension in 100 ul PBS. B16-BL6 cells and derivatives were injected at a dose of 1 × 106 cells, and parental RMA-S cells and derivatives were injected at 5 × 106 cells per mouse. These high doses were used to establish tumors of uniform size, and tumors were harvested for most analyses at 10–17 days post-injection upon reaching approximately 1 cm in diameter. To generate KP sarcomas, lentivirus-expressing Cre recombinase was generated as described (DuPage et al., 2009), and 25,000 PFU was injected intramuscularly into the right hind leg of KP mice. KP sarcomas were harvested when they reached a size of approximately 1 cm in diameter.

In some experiments, mice were given blocking antibody (200 ug/injection) against CSF-1 or CSF-1R by i.p. injection using the schedule shown in the figures and legends.

Spleens were dissociated by mashing through a 70 uM filter into PBS. To dissociate tumors for flow cytometry, tumors were excised and minced using a sharp blade, and then incubated in complete medium with 3.5 mg/ml Collagenase D, 1 mg/ml Collagenase IV for 30 min at 37°C with rotation. Cells were then pipetted up and down rigorously 100 times to create a single cell suspension, with additional 10 min, 37°C incubations as needed.

CSF-1 ELISA

CSF-1 concentrations were analyzed by standard sandwich ELISA. The capture antibody (clone 5A1) was used at 1 ug/ml. Recombinant CSF-1 (Peprotech) was used as a standard. The detection antibody (biotinylated polyclonal anti-CSF-1, R and D systems cat # BAF416) was used at 0.5 ug/ml. Avidin-HRP and TMB substrate (ebioscience) were used for detection. To quantify CSF-1 levels in tumor microenvironments, tumors were dissociated as described above, and the supernatants from the dissociation were subjected to CSF-1 ELISA; intra-tumor concentrations were calculated according to measured tumor volumes calculated using the modified ellipsoid formula: V = 0.5 x [(length + width)/2]3, and the volume of dissociation supernatant.

RNA, cDNA and qPCR

Total RNA was isolated from cells using the RNeasy kit (Qiagen, Hilden, Germany) and converted to cDNA using the iScript system (Bio-Rad, Hercules, CA) according to the manufacturer’s instructions. cDNA was subjected to real-time PCR using SsoFast EvaGreen supermix (Bio-Rad) in the presence of primers to amplify Raet1d mRNA, or the transcripts of the housekeeping genes β-actin and Rpl19, in a CFX96 RT-qPCR thermocycler (BioRad). Relative mRNA values for Raet1d were normalized to the levels of the housekeeping genes, using CFX96 software.

Cell culture

All cell culture was performed in a humidified 37°C incubator at 5% CO2. Cells were cultured in DMEM or RPMI media (Life Technologies, Carlsbad, CA) supplemented with 5% fetal calf serum (Omega Scientific, Tarzana, CA), 0.2 mg/ml glutamine, 100 U/ml penicillin, 100 μg/ml streptomycin (Sigma–Aldrich, St. Louis, MO), 10 μg/ml gentamicin sulfate (Lonza, Basel, Switzerland), and 20 mM HEPES (Thermo Fisher Scientific, Waltham, MA). Cell lines were obtained from ATCC, authenticated by expression analyses for cell line-specific markers, and routinely tested negative for mycoplasma. For generation of bone marrow-derived macrophages, bone marrow cells were cultured in medium supplemented with 10 ng/ml CSF-1 or GMCSF for 7 days, with fresh medium added every two days.

Ex vivo peritoneal macrophage stimulation

Cells were obtained by peritoneal lavage of C57BL/6 mice. Briefly, mice were euthanized and injected i.p. with 5 ml ice-cold PBS using a 24-gauge needle, and the peritoneal lavage fluid was then captured using the same syringe. Cells were washed in complete medium and cultured in 12- or 6-well non-TC-treated cell culture plates (Corning, Corning, NY) for 12–48 hr. In some experiments, medium was supplemented with recombinant cytokines (Peprotech, Rocky Hill, NJ) and/or blocking antibodies as indicated. In other experiments, medium was supplemented with conditioned medium from tumor cell lines, which was filtered through a 0.22 uM filter to remove cellular debris. B16-conditioned medium was concentrated 20X using a 10 kDa centrifugal filter unit (cat #UFC901008, Millipore-Sigma). After culture, cells were washed to remove suspension cells, and macrophages were lifted by vigorous pipetting of ice-cold PBS. Macrophages were identified as live F4/80 + cells by flow cytometry.

Flow cytometry and FACS

For all flow cytometry experiments, single cell suspensions were generated and incubated for 20 min with supernatant from the 2.4G2 hybridoma to block FcγRII/III receptors, followed by incubation with fluorochrome- or biotin-conjugated specific antibodies for an additional 20 min. In some experiments, an additional incubation with fluorophore-conjugated streptavidin (Biolegend) was performed. For phospho-S6 staining, cells were cultured for the indicated time, and an equal volume of 37°C-prewarmed Cytofix solution (BD Biosciences) was added for 10 min at 37°C. Cells were then suspended in Perm Buffer III (BD Biosciences) for 30 min at 4°C, then washed with regular flow cytometry buffer before staining with anti-phospho-S6 and lineage markers. All flow cytometry samples were analyzed on a LSR Fortessa or LSR Fortessa X20 (BD Biosciences) and data were analyzed with FlowJo software (Tree Star Inc.). Dead cells were excluded from analysis using DAPI (Biolegend) or Live-Dead fixable dead cell stain kits (Molecular Probes) following the manufacturer’s instructions.

Antibodies

We used the following antibodies: from Biolegend: anti-CD3ε (clone 145–2 C11), anti-CD11b (clone M1/70), anti-CD19 (clone 6D5), anti-NKp46 (clone 29A1.4), anti–NK1.1 (clone PK136), anti-Ter119 (clone TER-119), anti-Ly6G (clone 1A8), anti-Ly6C (clone HK1.4), anti-F4/80 (clone BM8) mouse IgG2b isotype control, and rat IgG2b isotype control; from eBioscience: anti-CD45.2 (clone 104), from R and D Systems: anti-RAE-1δ (clone 199205), anti-RAE-1ε (clone 205001), anti-MULT1 (clone 237104), polyclonal anti-H60 (cat # BAF1155); from BioXCell: anti-CSF-1R (clone AFS98), anti-CSF-1 (clone 5A1); from Cell Signaling: anti-phospho-S6 (clone D57.2.2E). For flow cytometry analysis of NKG2D ligands, antibodies were biotinylated in house using the EZ-Link-Sulfo-NHS-LC biotin kit (Thermo Fisher).

Csf1 knockout, complementation, and overexpression

Guide RNA sequences targeting the Csf1 open-reading frame were cloned into the Cas9-expression plasmid px330. Guide RNA sequences are as follows, with bold indicating the PAM: GACGACCAGGCGGCCCGCTTGGG and ATGGAATCCACGTGCAGGGTTGG. B16 cells were co-transfected with both px330 plasmids containing the guide RNAs targeting Csf1. Seven days after transfection, cells were single cell cloned. Clones were analyzed by ELISA for CSF-1, and two CSF-1-negative clones were selected for further experiments. To restore CSF-1 expression in B16-Csf1-KO cells or express Csf1 in RMA-S cells, we used an MSCV-IRES-Thy1.1 plasmid containing cDNA encoding secreted CSF-1, a kind gift from Dr. Richard Stanley (Albert Einstein College of Medicine). Thy1.1+cells were sorted by FACS, and CSF-1 production was confirmed by ELISA.

NK responsiveness assay

To analyze the responsiveness of NK cells ex vivo, 96-well high-binding flat-bottom plates (Thermo Fisher) were coated overnight with PBS plus anti-NKp46 or control Ig at 5 ug/ml. Plates were washed three times with PBS before stimulation. Cells were cultured in the coated plates for 5 hr in the presence of Golgi-Stop and Golgi-Plug (1:1000 each) (BD Biosciences), 1000 U/ml human IL-2, and fluorophore-conjugated anti-CD107a (0.5 ug/ml) (Biolegend). After stimulation, cells were stained for extracellular markers to identify NK cells and then subjected to intracellular staining for IFN-γ, followed by flow cytometry analysis.

Statistics and sample size

All statistical analysis was conducted using Prism software (Graphpad, La Jolla, CA), as indicated in the figure legends. Statistical significance is indicated as follows: *p<0.05, **p<0.01, ***p<0.001. For most data sets, pilot experiments were performed with a small sample size (usually n = 3) to determine approximate experimental variances and effect magnitudes, and this information was used to determine sample sizes for subsequent experiments.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
    Metastatic prostate Cancer in a transgenic mouse
    1. JR Gingrich
    2. RJ Barrios
    3. RA Morton
    4. BF Boyce
    5. FJ DeMayo
    6. MJ Finegold
    7. R Angelopoulou
    8. JM Rosen
    9. NM Greenberg
    (1996)
    Cancer Research 56:4096–4102.
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44

Decision letter

  1. Wayne M Yokoyama
    Reviewing Editor; Howard Hughes Medical Institute, Washington University School of Medicine, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Tumor-derived CSF-1 induces the NKG2D ligand RAE-1δ on tumor-infiltrating macrophages" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Michel Nussenzweig as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Three reviewers, experts in NK cell biology, and a Reviewing Editor have evaluated your paper and they found it to be of interest to the readership of eLife. In particular, the manuscript convincingly describes a novel mechanism for up-regulating NKG2D ligand expression via CSF-1 produced by tumor cells. However, their opinion was that the paper needed revision before it is acceptable for publication. They discussed the review of your manuscript, allowing them to come to a consensus statement.

Essential revisions:

1) The primary concern for this manuscript is that the functional importance of this finding needs validation. While its importance may be challenging to demonstrate in vivo, an in vitro experiment, as described by reviewer #2, point #4 would nicely address this issue.

2) The Reviewing Editor is aware of another manuscript submitted to eLife by the authors. Since, it appears to be relevant to the current manuscript, the authors are advised to submit it as a companion manuscript with the revision. Hopefully, by the time the revision is submitted, more detailed description of the other manuscript can be incorporated into the Discussion.

3) The full reviews from all three reviewers are appended below in order to allow the authors to enhance the manuscript. They also should be addressed in the revised manuscript. In particular, additional information (reviewer #1), additional data (reviewer #2, point #1), and controls (reviewer #2, point #3; reviewer #3, specificity of anti-RAE mAb) are desirable, and should be presented in the revised manuscript. Other clarifications should be addressed as noted. A comprehensive analysis of RAE-1 members in different myeloid cells and tumor models is not required.

Reviewer #1:

The paper by Thompson et al. describes the ability of CSF-1 to specifically stimulate the expression of RAE-1δ on tumor-infiltrating macrophages.

The finding is novel and interesting, but a major weakness is represented by the lack of evidence on the pathophysiological relevance of this finding. In addition as the role of PI3K p110α activation in the regulation of NKG2D ligand expression was already reported, it would be important to provide novel evidence on the down-stream signaling pathway involved in up-regulation of RAE-1δ mRNA expression.

Moreover, a number of experimental details are needed to strengthen the results presented. In particular:

- The authors should provide more details on the tumour models analyzed. It is unclear what they mean with "established tumors": i.e. How many tumor cells were injected, which was the volume of the tumour analyzed, when the tumour was dissociated after transplantation, was RAE-1δ expression on tumor-infiltrating macrophages stable during tumor progression? This last point seems quite relevant as macrophages modify their phenotype during tumour progression.

- Does the in vivo treatment with anti-CSF-1 or anti-CSF1-R antibody affect the number of tumor-infiltrating macrophages? Can the authors show the CSF-1 tumor levels after in vivo anti-CSF-1 antibody administration?

- Is the growth rate of B16, B16-Cfs1 KO, and B16-Cfs1 KO with a restored expression of CFS-1, comparable? Were TAM from the different tumors harvested at the same time point? The authors need to provide more details.

Reviewer #2:

In this study Thompson and colleagues describe a novel mechanism for induction of NKG2D ligand tumor-associated macrophages. They show that CSF-1 secreted by tumor cells drives expression of RAE-1δ on macrophages via PI3K dependent signals. This work displays an interesting and novel mechanism used by tumor cells to subvert the NKG2D mediated NK cell response. The findings described are of great interest in how the tumor microenvironment and infiltrating cells can drive immune escape.

1) For Figure 1C it would be helpful to also show pooled data for the noted tumor models, rather than just the representative histogram. If space is an issue the pooled data could be added to the supplementary figures.

2) For consistency in experimental design it would be nice, but not critical, to show anti-CSF-1 treatment on the KP sarcoma model in Figure 4B.

3) A better control for the CSF1-CRISPR KO in Figure 5A and B would be a Cas9 (alone) transfected cells (without guide RNAs) to ensure that the transfection itself is not impairing the ability of the B16 cells to produce CSF1, as well as other possible cytokines and chemokines. That being said, the add back experiment (5C) does seem to indicate that CSF1 is the main mediator of RAE-1δ induction.

4) Given the implications of tumor mediated induction of NKG2D ligands on tumor infiltrating macrophages and the expertise of the Raulet lab it seems logical to evaluate the effect of these CSF-1 induced RAE-1δ expressing macrophages on NK cells. While doing this in vivo would be interesting, evaluation of NKG2D desensitization on NK cells co-cultured with macrophages pre-treated with B16 supernatants or B16 supernatants with CSF-1 blocking antibody would be very interesting and biologically relevant. This would drive home the biologic point of tumor mediated RAE-1δ induction on TAMs.

Reviewer #3:

The manuscript entitled: "Tumor derived CSF-1 induces the NKG2D ligand RAE-1d on tumor infiltrating macrophages" by Thompson et al. reveals a mechanism of regulation of NKG2D-ligands in mice on tumor-infiltrated macrophages. The manuscript is well written, and experiments are well performed, however data are rather descriptive and the functional importance of RAE-1 expression on TAMs is not addressed. Data are cited from a submitted manuscript (Introduction, second paragraph and others) that should be potentially included in the manuscript.

The authors should address the following points to improve the manuscript:

• Introduction: There have been several reports about RAE-1 regulation on myeloid cells. These should be cited and critically discussed. For example:

Djelloul et al., 2016; Nausch et al., 2008.

• Abstract and Introduction: "NKG2D ligands on subset of healthy cells in tumor bearing animals" it is unclear what is meant by healthy cells. Please change accordingly.

• RAE-1 molecules are very similar. Evidence should be provided that the mAb used is specific for RAE-1d and not for other RAE-1s (this should be cited in Materials and methods).

• In Figure 1, tumor associated monocytes are tested –.how were these cells defined? Are these cells similar to MDSC? Gating dot plots for blood monocytes and peritoneal macrophages should be included (Figure 1—figure supplement 1C).

• A comprehensive analysis of different RAE-1 members on different subsets of tumor infiltrating myeloid cells in different tumor models would be very informative.

• Functional analysis of the interaction of RAE-1+ TAMs and NKG2D expressing cells needs to be provided.

https://doi.org/10.7554/eLife.32919.021

Author response

Essential revisions:

1) The primary concern for this manuscript is that the functional importance of this finding needs validation. While its importance may be challenging to demonstrate in vivo, an in vitro experiment, as described by reviewer #2, point #4 would nicely address this issue.

2) The Reviewing Editor is aware of another manuscript submitted to eLife by the authors. Since, it appears to be relevant to the current manuscript, the authors are advised to submit it as a companion manuscript with the revision. Hopefully, by the time the revision is submitted, more detailed description of the other manuscript can be incorporated into the Discussion.

We thank the reviewers for raising this concern. The recent acceptance of our companion manuscript “Endothelial cells express NKG2D ligands and desensitize anti-tumor NK responses” – PMID 29231815 – to eLife allows us to rigorously discuss this issue. We offer revisions of the current manuscript under consideration, along with the following analysis for your consideration. In this response letter, data from the companion manuscript will be referenced as (Endothelial, Figure X) for clarity.

The functional role of host RAE-1 molecules in modulating NK responses is the central focus of the Endothelial manuscript. We clearly show that host RAE-1 molecules engage NKG2D and desensitize NK cells at steady-state and in tumors (Endothelial, Figures 1, 2, and 5). Importantly, we find that radio-resistant cells are the dominant source of RAE-1 molecules responsible for NKG2D engagement and NK desensitization at steady state and in tumors, whereas radiosensitive cells have a small or negligible effect (Endothelial, Figures, 4 and 5). Macrophages in the tumor models studied are completely radio-sensitive and therefore are replaced with donor cells in chimeras (unpublished data available upon request). Using antibody blockade, we showed that RAE-1ε is the relevant RAE-1 molecule responsible for NKG2D engagement and NK desensitization, whereas RAE-1δ had little to no effect (Endothelial, Figures 1 and 5). We went on to show that endothelial cells in lymphoid tissue, but not any other non-hematopoietic cells, express RAE-1ε at steady state (Endothelial, Figure 4). Furthermore, RAE-1ε was super-induced on endothelial cells within all tumors tested (Endothelial, Figure 5). These data are consistent with a model in which endogenous expression of RAE-1ε by endothelial cells engages NKG2D and causes NK cell desensitization, mitigating anti-tumor NK responses.

The present manuscript under consideration describes parallel experiments concerning regulation of RAE-1δ (but not RAE-1ε) induction on tumor-associated macrophages. We chose not to include functional analyses in the initial draft of this manuscript because the in vivo effect of RAE-1 molecules on NK cell function seemed limited to RAE-1ε (not RAE-1δ) molecules on nonhematopoietic cells, as described in the Endothelial paper. Upon consideration of the reviewers’ helpful comments, we now include data from in vitro experiments that test the role of CSF-1 induced macrophage RAE-1δ on NK function in a cell culture system; we have also added data on the number of intra-tumor macrophages in WT vs. RAE-1-KO mice. These experiments have been added to the revised manuscript (Figure 7) and are discussed in the Discussion section.

For the in vitro functional experiments, NK cells were incubated with CSF-1-stimulated macrophages from WT or RAE-1-KO mice, and subsequently analyzed for NKG2D downregulation or NK responsiveness to plate-bound antibody stimulation. NK cells were also incubated with parental B16 or RAE-1δ-overexpressing B16 cells (this was an attempt to determine if the effect of macrophage-expressed RAE-1δ differed from that of tumor-expressed RAE-1δ). In this in vitro model, incubation with RAE-1δ-expressing macrophages or RAE-1δ-expressing B16 tumor cells both caused efficient downregulation of NKG2D on NK cells and increased NK responses to subsequent stimulation compared to culture with RAE-1-deficient cells (Figure 7). This acute priming effect is similar to findings from previous studies showing heightened NK responses following co-culture with RAE-1-expressing MDSCs (Nausch, Galani, et al., 2008).

In addition, we considered the hypothesis that NK cells were killing RAE-1δ-expressing macrophages in tumors, which should result in fewer TAMs or selection for TAMs with lower RAE1δ expression. However, the number of intra-tumoral macrophages was similar in WT and RAE-1KO mice, and the expression of RAE-1δ on macrophages was similar in WT vs. NKG2D-KO mice. These data have been added to the manuscript (Figure 7—figure supplement 1) and do not support the hypothesis that RAE-1δ-expressing macrophages are targeted for killing in vivo.

Because the in vitro data showed a stimulatory effect of macrophage RAE-1δ (Macrophage, Figure 7), whereas in vivo experiments showed a desensitizing effect of RAE-1ε molecules on endothelial cells (Endothelial, Figures 1, 2, 4, and 5), we now include a robust discussion of these datasets and their implications (Discussion, last paragraph), as suggested by the reviewers. We hope that these revisions address the reviewers’ concerns, and we look forward to future studies to further elucidate the complex role of these ligands and receptors.

3) The full reviews from all three reviewers are appended below in order to allow the authors to enhance the manuscript. They also should be addressed in the revised manuscript. In particular, additional information (reviewer #1), additional data (reviewer #2, point #1), and controls (reviewer #2, point #3; reviewer #3, specificity of anti-RAE mAb) are desirable, and should be presented in the revised manuscript. Other clarifications should be addressed as noted. A comprehensive analysis of RAE-1 members in different myeloid cells and tumor models is not required.

Listed below are point-by-point responses to the remaining reviewers’ comments.

Reviewer #1:

The paper by Thompson et al. describes the ability of CSF-1 to specifically stimulate the expression of RAE-1δ on tumor-infiltrating macrophages.

The finding is novel and interesting, but a major weakness is represented by the lack of evidence on the pathophysiological relevance of this finding. In addition as the role of PI3K p110α activation in the regulation of NKG2D ligand expression was already reported, it would be important to provide novel evidence on the down-stream signaling pathway involved in up-regulation of RAE-1δ mRNA expression.

We appreciate the reviewer’s suggestion to include data on the physiological role of macrophage RAE-1δ expression. We have attempted to address these concerns, as outlined above in the responses to Essential Revisions 1 and 2. In addition, we acknowledge that our data on the role of PI3K p110α corroborate a previous finding in CMV-infected cells (Tokoyama, Lorin, et al., 2011), and we feel that this common mechanism is an important finding because the regulation of RAE-1 molecules is mediated by diverse signaling pathways in different pathophysiological contexts (see Raulet, Gasser et al., 2014). Unfortunately, we do not have any additional data on the mediators downstream of PI3K; because of the intricacy of this regulatory system and the ongoing nature of these investigations in our lab and others, we respectfully request that such datasets be reserved for future publications.

Moreover, a number of experimental details are needed to strengthen the results presented. In particular:

- The authors should provide more details on the tumour models analyzed. It is unclear what they mean with "established tumors": i.e. How many tumor cells were injected, which was the volume of the tumour analyzed, when the tumour was dissociated after transplantation, was RAE-1δ expression on tumor-infiltrating macrophages stable during tumor progression? This last point seems quite relevant as macrophages modify their phenotype during tumour progression.

We thank the reviewer for this helpful feedback. We have clarified the details of our analysis in the Results and Materials and Methods sections. For all experiments, we injected high doses of tumor cells (1 x 106 B16 and 5 x 106 RMA-S) in an attempt to standardize tumor size. Tumors were typically harvested upon reaching approximately 1 cm in diameter, roughly 10-17 days after injection. According to the reviewer’s suggestion, we have included time course data on macrophage RAE-1δ expression in B16 tumors. Mice were injected with 1 x 106 cells, and tumors were harvested at early (day 6), mid (day 11) and late (day 16) time points. Tumor-infiltrating macrophages did not show significant differences across these time points. These data have been added to the manuscript (Figure 1—figure supplement 2).

- Does the in vivo treatment with anti-CSF-1 or anti-CSF1-R antibody affect the number of tumor-infiltrating macrophages? Can the authors show the CSF-1 tumor levels after in vivo anti-CSF-1 antibody administration?

As shown in Figure 4—figure supplement 1A, intra-tumoral macrophage numbers are reduced upon anti-CSF-1R treatment as early as day 5 post-treatment, whereas macrophage RAE-1δ expression is reduced as early as day 2 post-treatment. Because cells of the macrophage/monocyte lineage are known to depend on CSF-1 for survival, these results are expected. The anti-CSF-1 antibody (5A1) is a well-established blocking antibody, but because of the technical difficulties of quantifying CSF-1 in vivo after blocking antibody injection, we do not have data on the intra-tumoral levels of CSF-1 following blockade of the cytokine. The finding that the antibody has large effects (reducing RAE-1δ expression and eventually depleting macrophages) shows that the availability of the antibody is clearly sufficient to have strong biological effects.

- Is the growth rate of B16, B16-Cfs1 KO, and B16-Cfs1 KO with a restored expression of CFS-1, comparable? Were TAM from the different tumors harvested at the same time point? The authors need to provide more details.

We thank the reviewer for this comment. Similar to the comment addressed above, mice were given high-dose tumor cells in an effort to standardize tumor growth. At the high dose of 1 x 106 cells, B16, B16-CSF1-KO and B16-CSF-1-add-back grew at similar rates (data presented in Author response image 1) and were harvested at the same time point (14 +/- 3 days post-injection) for analysis. We have added these details to the manuscript (Results, subsection “Tumor-derived CSF-1 is required for RAE-1δ expression by TAMs in vivo”).

Author response image 1
WT mice were injected with 1 x 106 of the indicated tumors.

Volumes were analyzed at day of harvest (day 15).

https://doi.org/10.7554/eLife.32919.020

Reviewer #2:

In this study Thompson and colleagues describe a novel mechanism for induction of NKG2D ligand tumor-associated macrophages. They show that CSF-1 secreted by tumor cells drives expression of RAE-1δ on macrophages via PI3K dependent signals. This work displays an interesting and novel mechanism used by tumor cells to subvert the NKG2D mediated NK cell response. The findings described are of great interest in how the tumor microenvironment and infiltrating cells can drive immune escape.

1) For Figure 1C it would be helpful to also show pooled data for the noted tumor models, rather than just the representative histogram. If space is an issue the pooled data could be added to the supplementary figures.

We thank the reviewer for this useful suggestion. We have added this pooled data to Figure 1—figure supplement 2C. Note that this represents compiled data from multiple experiments because we did not have a single experiment where we simultaneously analyzed RAE1δ in the different tumors.

2) For consistency in experimental design it would be nice, but not critical, to show anti-CSF-1 treatment on the KP sarcoma model in Figure 4B.

We agree that having this data would be good for matching the experimental setup in the B16 tumors, but unfortunately because of the lengthy tumorigenesis time for KP mice and their use in unrelated experiments, we do not have this data, and we respectfully request that the manuscript be allowed to move forward without it.

3) A better control for the CSF1-CRISPR KO in Figure 5A and B would be a Cas9 (alone) transfected cells (without guide RNAs) to ensure that the transfection itself is not impairing the ability of the B16 cells to produce CSF1, as well as other possible cytokines and chemokines. That being said, the add back experiment (5C) does seem to indicate that CSF1 is the main mediator of RAE-1δ induction.

We agree that the add back experiment represents a strong control that tumor-derived CSF1 mediates TAM RAE-1δ induction. Relatedly, we point to our use of two different CSF1-KO B16 clones (Figure 5A and 5B) as an additional control for potential off-target effects of Cas9. We believe that these data, taken together, make a compelling case that the defect is due to CSF1 deficiency and not other features of the cells. Although we did not test Cas9 transfection alone, we know that in general, transfection of B16 cells does not affect their ability to make CSF-1 (data not shown).

4) Given the implications of tumor mediated induction of NKG2D ligands on tumor infiltrating macrophages and the expertise of the Raulet lab it seems logical to evaluate the effect of these CSF-1 induced RAE-1δ expressing macrophages on NK cells. While doing this in vivo would be interesting, evaluation of NKG2D desensitization on NK cells co-cultured with macrophages pre-treated with B16 supernatants or B16 supernatants with CSF-1 blocking antibody would be very interesting and biologically relevant. This would drive home the biologic point of tumor mediated RAE-1δ induction on TAMs.

We thank the reviewer for this comment, and we agree that additional information on the functional role of RAE-1 would be useful. We hope that our experiments described above in response to Essential Revisions 1 and 2 are satisfactory.

Reviewer #3:

The manuscript entitled: "Tumor derived CSF-1 induces the NKG2D ligand RAE-1d on tumor infiltrating macrophages" by Thompson et al. reveals a mechanism of regulation of NKG2D-ligands in mice on tumor-infiltrated macrophages. The manuscript is well written, and experiments are well performed, however data are rather descriptive and the functional importance of RAE-1 expression on TAMs is not addressed. Data are cited from a submitted manuscript (Introduction, second paragraph and others) that should be potentially included in the manuscript.

The authors should address the following points to improve the manuscript:

• Introduction: There have been several reports about RAE-1 regulation on myeloid cells. These should be cited and critically discussed. For example:

Djelloul et al., 2016; Nausch et al., 2008.

We thank the reviewer for these helpful additions; the findings from these papers are now described in the revised manuscript in the Discussion section.

• Abstract and Introduction: "NKG2D ligands on subset of healthy cells in tumor bearing animals" it is unclear what is meant by healthy cells. Please change accordingly.

Based on the context of the text, we have revised this to more explicitly denote the cells referenced.

• RAE-1 molecules are very similar. Evidence should be provided that the mAb used is specific for RAE-1d and not for other RAE-1s (this should be cited in Materials and methods).

We thank the reviewer for this comment. We analyzed the specificity of the RAE-1 antibodies by staining B16 cells transduced to specifically express RAE-1δ or RAE-1ε. The antibodies showed high specificity for their targets. The anti-RAE-1δ did show some staining of the RAE-1ε – expressing cells, but the difference in staining intensity was nearly 100-fold. These data have been added to Figure 1—figure supplement 2A. Furthermore, we showed in the Endothelial paper that the RAE-1δ antibody blocked binding of NKG2D-Fc to RAE-1δ and had no effect in blocking binding of NKG2D-Fc to RAE-1ε – and vice-versa (Endothelial Figure 1—figure supplement 1A).

• In Figure 1, tumor associated monocytes are tested – how were these cells defined? Are these cells similar to MDSC? Gating dot plots for blood monocytes and peritoneal macrophages should be included (Figure 1—figure supplement 1C).

Monocytes in tumors were identified as CD45+ CD11b+ Ly6G-neg F4/80-low Ly6C-hi. In blood, monocytes were identified as by CD3e-neg CD19-neg Ly6G-neg Ly6C-hi. In the peritoneum, macrophages were identified clearly as the F4/80-hi cells. In accordance with the reviewer’s comment, we have added these gating strategies to the manuscript (Figure 1—figure supplement3).

https://doi.org/10.7554/eLife.32919.022

Article and author information

Author details

  1. Thornton W Thompson

    Department of Molecular and Cell Biology, Cancer Research Laboratory, University of California, Berkeley, Berkeley, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Validation, Investigation, Visualization, Writing—original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6352-8238
  2. Benjamin T Jackson

    Department of Molecular and Cell Biology, Cancer Research Laboratory, University of California, Berkeley, Berkeley, United States
    Contribution
    Validation, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  3. P Jonathan Li

    Department of Molecular and Cell Biology, Cancer Research Laboratory, University of California, Berkeley, Berkeley, United States
    Contribution
    Validation, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Jiaxi Wang

    Department of Molecular and Cell Biology, Cancer Research Laboratory, University of California, Berkeley, Berkeley, United States
    Contribution
    Validation, Investigation
    Competing interests
    No competing interests declared
  5. Alexander Byungsuk Kim

    Department of Molecular and Cell Biology, Cancer Research Laboratory, University of California, Berkeley, Berkeley, United States
    Contribution
    Validation, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6425-4566
  6. Kristen Ting Hui Huang

    Department of Molecular and Cell Biology, Cancer Research Laboratory, University of California, Berkeley, Berkeley, United States
    Contribution
    Validation, Investigation
    Competing interests
    No competing interests declared
  7. Lily Zhang

    Department of Molecular and Cell Biology, Cancer Research Laboratory, University of California, Berkeley, Berkeley, United States
    Contribution
    Validation, Investigation
    Competing interests
    No competing interests declared
  8. David H Raulet

    Department of Molecular and Cell Biology, Cancer Research Laboratory, University of California, Berkeley, Berkeley, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Methodology, Project administration, Writing—review and editing
    For correspondence
    raulet@berkeley.edu
    Competing interests
    is a co-founder of Dragonfly Therapeutics, and serves on the Scientific Advisory Boards of Innate Pharma, Aduro Biotech and Ignite Immmunotherapy; he has a financial interest in all four companies and received research support from Innate Pharma, and may benefit from commercialization of the results of this research
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1257-8649

Funding

National Cancer Institute (R01 CA093678)

  • David H Raulet

Innate Pharma, SAS

  • David H Raulet

National Cancer Institute (F31 CA203262)

  • Thornton W Thompson

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We are grateful to all members of the Raulet lab, as well as former Raulet lab members for their helpful feedback on this manuscript. We thank Hector Nolla, Alma Valeros, Kartoosh Heydari for their invaluable help with cell sorting and maintenance of the flow cytometry facility at UC-Berkeley. We thank Dr. Richard Stanley for providing the CSF-1-expression vector. Research reported in this publication was supported by NIH/NCI grants R01-CA093678 (DHR) and F31CA203262 (TWT), and a research grant from Innate Pharma, SAS (DHR). The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health or Innate Pharma.

Ethics

Animal experimentation: This study was performed in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. All of the animals were handled according to approved institutional animal care and use committee (IACUC) protocols of the University of California - Berkeley under protocol #AUP-2015-10-8058.

Reviewing Editor

  1. Wayne M Yokoyama, Howard Hughes Medical Institute, Washington University School of Medicine, United States

Publication history

  1. Received: October 18, 2017
  2. Accepted: May 13, 2018
  3. Accepted Manuscript published: May 14, 2018 (version 1)
  4. Version of Record published: June 7, 2018 (version 2)

Copyright

© 2018, Thompson et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,103
    Page views
  • 204
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
