Antibiotic-induced population fluctuations and stochastic clearance of bacteria

  1. Jessica Coates
  2. Bo Ryoung Park
  3. Dai Le
  4. Emrah Şimşek
  5. Waqas Chaudhry
  6. Minsu Kim  Is a corresponding author
  1. Emory University, United States
Research Article
  • Cited 0
  • Views 2,288
  • Annotations
Cite this article as: eLife 2018;7:e32976 doi: 10.7554/eLife.32976

Abstract

Effective antibiotic use that minimizes treatment failures remains a challenge. A better understanding of how bacterial populations respond to antibiotics is necessary. Previous studies of large bacterial populations established the deterministic framework of pharmacodynamics. Here, characterizing the dynamics of population extinction, we demonstrated the stochastic nature of eradicating bacteria with antibiotics. Antibiotics known to kill bacteria (bactericidal) induced population fluctuations. Thus, at high antibiotic concentrations, the dynamics of bacterial clearance were heterogeneous. At low concentrations, clearance still occurred with a non-zero probability. These striking outcomes of population fluctuations were well captured by our probabilistic model. Our model further suggested a strategy to facilitate eradication by increasing extinction probability. We experimentally tested this prediction for antibiotic-susceptible and clinically-isolated resistant bacteria. This new knowledge exposes fundamental limits in our ability to predict bacterial eradication. Additionally, it demonstrates the potential of using antibiotic concentrations that were previously deemed inefficacious to eradicate bacteria.

https://doi.org/10.7554/eLife.32976.001

Introduction

The frequent failure of antibiotic treatments is a serious public health threat. A recent study projects treatment failures caused by antibiotic resistance will lead to 300 million deaths and a healthcare burden of $100 trillion by 2050 (O’Neill, 2016). This epidemic is further exacerbated by our inability to reliably eradicate antibiotic-susceptible bacteria. For example, antibiotic treatments of infections caused by antibiotic-susceptible bacteria never achieve a success rate of 100%, often failing to eradicate them unexpectedly (Doern and Brecher, 2011; Weidner et al., 1999; Gopal et al., 1976; Ficnar et al., 1997; Forrest et al., 1993). To design effective treatments and avoid antibiotic failure, there is a strong need to better understand the dynamics of bacterial populations exposed to antibiotics.

Previously, laboratory studies have extensively characterized how large bacterial populations (e.g., ~108 cells in a culture) decline under antibiotic treatment; e.g., see (Nielsen et al., 2011; Ferro et al., 2015; Regoes et al., 2004). These studies have led to the current, deterministic model of the pharmacodynamics, that is, the population dynamics of bacteria exposed to antibiotics follows a predetermined course and can be predicted deterministically a priori; see (Regoes et al., 2004; Czock et al., 2009) and references therein. This deterministic framework successfully captures the reproducible dynamics of a large bacterial population declining to a small population under antibiotic treatments. However, due to their experimental detection limits (e.g., >>100 cells [Nielsen et al., 2011; Ferro et al., 2015]), the dynamics of a small population undergoing extinction have not been directly characterized.

Inoculum size as small as a few cells can produce infections (Jones et al., 2006; Haas and Rose, 1994; Jones et al., 2005; Tuttle et al., 1999; DuPont et al., 1989; Hara-Kudo and Takatori, 2011; Kaiser et al., 1992). Thus, if antibiotics manage to reduce a large bacterial population to a very small population but fail to eradicate it, the survivors may replicate and restore infections. Additionally, these survivors are more likely to develop antibiotic resistance, making subsequent antibiotic treatment of the restored population more difficult (Gullberg et al., 2011; Kohanski et al., 2010; Lopatkin et al., 2016; Dagan et al., 2001; Allen et al., 2014). Thus, in many cases, including life-threatening infections or even minor infections in immuno-compromised patients, treatment success depends on complete clearance of the infection-causing bacteria. To effectively clear bacteria using antibiotics, it is critical that we understand not only how a large population of bacteria declines to a small population, but also how a small population eventually goes extinct. Extensive studies focused on the former process (discussed above). The present study focuses on the latter process.

By employing a conventional plate assay, single-cell microscopy, and quantitative modeling, we directly characterized the extinction dynamics of antibiotic-susceptible Escherichia coli populations. We found that antibiotics known to kill bacteria (i.e., bactericidal drugs) induce population fluctuations. At high drug concentrations, all populations go extinct (as expected), but the extinction time is highly variable and cannot be deterministically predicted a priori. Even at low drug concentrations, due to these fluctuations, populations go extinct with a non-zero probability. We found that the Markovian birth-death model quantitatively accounted for the probabilistic occurrence of population extinction. Informed by the model, we then altered the extinction probability by manipulating cell growth and showed that a bacterial population could be eradicated at low drug concentrations that were previously deemed inefficacious. Our work demonstrates that the deterministic knowledge obtained from previous studies of large bacterial populations cannot be extrapolated to population extinction. Our findings also have significant implications for the prediction of treatment outcomes, development of innovative therapies, and assessment of antibiotic efficacy.

Results

Contrasting trends in plating efficiency for bacteriostatic and bactericidal drugs

Previous studies of large populations have established the ‘minimum inhibitory concentration’ (MIC; the lowest concentration of the drug that inhibits population growth) as the most critical parameter for characterizing the dynamics of a bacterial population under antibiotics (Regoes et al., 2004; Czock et al., 2009; Craig, 1998; Falagas et al., 2012). The dynamics of bacterial populations exposed to different concentrations of antibiotics have been examined and modeled deterministically in relation to the MIC, as follows. First, without drugs, the growth rate of cells, λ, is higher than the death rate, ϕ (i.e., λ > ϕ), and thus a bacterial population always grows. When drug concentration increases, as long as the concentration remains below the MIC (i.e., sub-MIC), growth rate is higher than death rate (λ > ϕ), and thus a population still grows, albeit at slower rates. When the drug concentration increases further and reaches the MIC, growth rate becomes equal to death rate (λ = ϕ), and the population size is maintained at a constant level. Only at drug concentrations above the MIC does a bacterial population decline. Extrapolating this deterministic knowledge to population extinction, studies often claimed that maintaining drug concentrations above the MIC was absolutely essential to eradicate bacterial populations. As will become evident later, our data challenge this deterministic framework.

As a first step to examine the dynamics of a small population in relation to the MIC, we used a plate assay and characterized how single E. coli cells grew and formed colonies at various antibiotic concentrations. Antibiotic-susceptible, wild-type (WT) E. coli cells were cultured in liquid LB medium without antibiotics and then spread on LB agar plates containing increasing concentrations of antibiotics. After 18 hr of incubation, the number of colony-forming units (NCFU) was determined. By normalizing the NCFU to that for an antibiotic-free plate (N0CFU), we then obtained the plating efficiency (=NCFU/N0CFU), which indicates the fraction of cells forming colonies. Following the definition of MIC as the lowest drug concentration that inhibits population growth, the lowest concentration yielding no visible colonies on the plates was defined as the MIC here. See Figure 1—figure supplement 1 for a detailed illustration of this procedure and Supplementary file 1 for the MIC values for all of the antibiotics examined.

When we performed this plate assay for various antibiotic drugs, we observed two strikingly distinct trends, which depended on whether the drug used was bacteriostatic (which suppresses cell growth) or bactericidal (which induces cell death). For bacteriostatic drugs, at increasing concentrations, the plating efficiency remained nearly constant and abruptly dropped to zero when the drug concentration reached the MIC (Figure 1A); the grey line was obtained from a linear regression analysis of the whole data set below 0.75 × MIC (see Figure 1A caption for details). This trend indicates that almost every single cell spread on the plate grew and formed colonies at a wide range of sub-MIC drug concentration, and no cells formed colonies at (and above) MIC. This observation, suggesting homogeneous population dynamics, agrees with the deterministic prediction discussed above. Additionally, we observed a decrease in colony size at increasing drug concentrations (Figure 1—figure supplement 2).

Figure 1 with 4 supplements see all

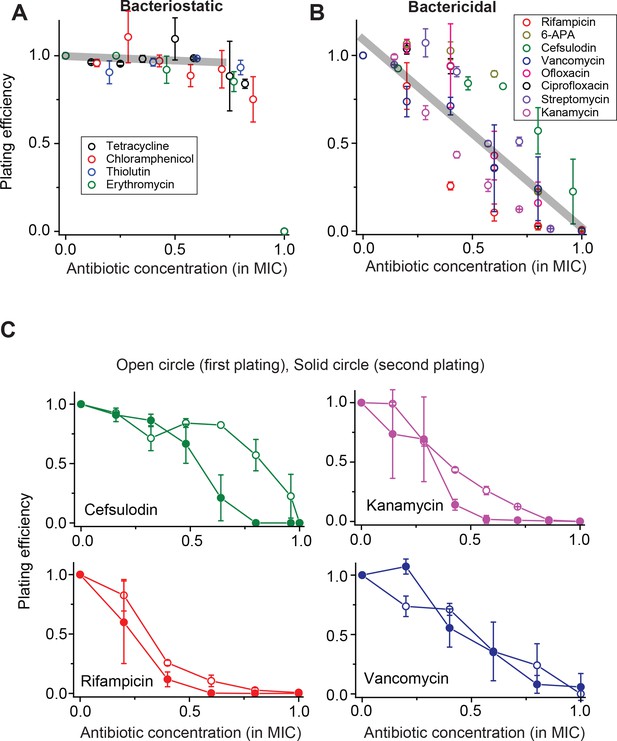

Contrasting trends in plating efficiency at increasing concentrations of bacteriostatic and bactericidal drugs.

(A) When we performed the plate assay using bacteriostatic drugs, NCFU was generally maintained at increasing drug concentrations. See Figure 1—figure supplement 1 for a detailed illustration of how this plot was made. A linear regression analysis was performed for the whole data set below 0.75 × MIC, resulting in the grey line (slope = −0.05, intercept = 0.9942, R-squared = 0.99). Colony size decreased at increasing drug concentrations (Figure 1—figure supplement 2). (B) For bactericidal drugs, NCFU decreased at increasing drug concentrations, indicating heterogeneous population dynamics of bacteria. A linear regression analysis was performed for the whole data set, and the result was plotted as a grey line (slope = −1.07, intercept = 1.10, R-squared = 0.79). For both groups of drugs, the lowest concentration yielding no colonies was defined as the MIC. The Supplementary File 1 lists the MICs for all drugs examined in this study. We plotted plating efficiency for each antibiotic in separate panels in Figure 1—figure supplement 4. (C) For each bactericidal drug used in the experiment (for which the results were shown in Figure 1B), we picked a few colonies from the agar plate exhibiting a plating efficiency of ~0.5 (e.g., near 0.6 × MIC) and plated them immediately on fresh agar plates containing various concentrations of the same drug. The plating efficiency was similar or marginally lower on the second plating, possibly because exposure to the antibiotics on the first plate adversely affected the cells and rendered them more susceptible to the antibiotics on the second plating. See Figure 1—figure supplement 3 for similar results for other drugs. Therefore, the ability of bacteria to grow and form colonies on plates containing bactericidal drugs was not heritable. We performed at least two biological repeats for all the experiments and plotted the mean here. The error bars represent one standard deviation from the repeats.

https://doi.org/10.7554/eLife.32976.002

For bactericidal drugs, at increasing concentrations, the plating efficiency decreased gradually from 1 to 0 (Figure 1B); the grey line was obtained from a linear regression analysis of the whole data set (see Figure 1B caption for details). This trend contrasts with our finding for bacteriostatic drugs (compare the grey lines in Figure 1A and B) and cannot be explained by the deterministic model. In the literature, other studies have reported a similar gradual decrease in the plating efficiency (Liu et al., 2011; Ernst et al., 2002; Dong et al., 2000). However, those studies primarily concerned how to better determine the MIC in the face of such a gradual decrease, and have not characterized population dynamics underlying the gradual decrease.

A subsequent plate assay reveals a lack of heritable resistance

The plating efficiency between 0 and 1 indicates heterogeneous colony formation. In the plate assay above, we found that at ~0.6 × MIC, the plating efficiency was ~0.5, meaning that approximately 50% of the cells plated formed colonies and 50% did not. One possible explanation is that the colony-forming cells were intrinsically more resistant to the drugs than the cells that did not form colonies, subsequently giving rise to resistant daughter cells (i.e., heritable resistance). To examine this possibility, for each bactericidal drug used in the experiment (for which the results are shown in Figure 1B), we picked colonies from agar plates exhibiting a plating efficiency of ~0.5 (near 0.6 × MIC), suspended them in liquid medium, and immediately plated them on fresh agar plates containing various concentrations of the same drug. The results were plotted in Figure 1C and Figure 1—figure supplement 3. Contrary to our expectation, the plating efficiency of the second plating was about the same as that of the first plating, or in some cases, marginally lower (possibly because cells were challenged with drugs twice consecutively). This observation rules out heritable resistance as an explanation for heterogeneous colony formation at sub-MIC drug concentrations.

Bactericidal drugs induce stochastic fluctuations in population dynamics

Our data above showing the absence of heritable resistance in the surviving populations suggest the possible involvement of stochasticity. That is, bactericidal drugs might induce stochastic fluctuations in the bacterial population size. To investigate this possibility, we performed a plate assay as above and followed the population dynamics of growing micro-colonies at single-cell resolution; we spread cells on agar plates, and rather than waiting for 18 hr and counting colonies visible to the naked eye, we examined how isolated single cells grew to form micro-colonies using time-lapse microscopy. First, as a control, we examined the dynamics in the absence of antibiotics (Video 1). We counted the number of growing cells in each colony and plotted the number versus time (Figure 2A). The colonies proliferated homogeneously, meaning that different colonies grew similarly. We then repeated the experiment using a bacteriostatic drug (chloramphenicol, thiolutin, or tetracycline) at a sub-MIC level. Visually inspecting the image sequences, we found that cells stably grew, albeit at lower rates (Video 2). The number of growing cells in each micro-colony increased homogeneously and similarly (Figure 2B and Figure 2—figure supplement 1). Previously, we developed a microfluidic chemostat for cell culture (Kim et al., 2012; Deris et al., 2013). When we repeated these experiments using this device, we again observed the same homogeneous population dynamics (Figure 2—figure supplement 2A).

Figure 2 with 6 supplements see all

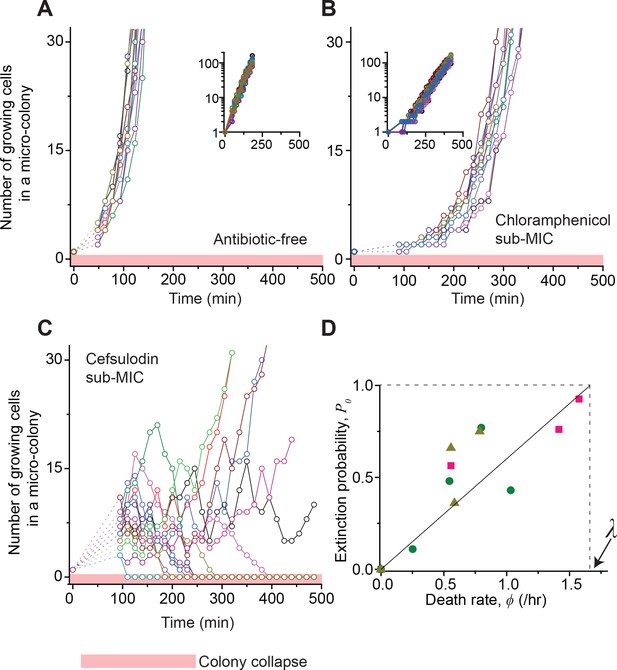

Stochastic population dynamics of bacteria exposed to bactericidal drugs.

We characterized how cells grow and form micro-colonies on LB agar plates containing different concentrations of antibiotics using time-lapse microscopy. At time zero, we transferred cells growing in antibiotic-free LB liquid medium to a LB agar plate, and confirmed that individual cells were spread out and isolated. Setting up a time-lapse imaging experiment after the transfer took 1 ~ 2 hr, which is why there is a gap in the data immediately after time zero (dashed lines). The experiments were independently repeated twice (biological repeats) and the data from one experiment are shown here. (A, B) We counted the number of growing cells in each micro-colony (represented by a different color). In the absence of antibiotics (panel A) or with a sub-MIC level of a bacteriostatic drug (panel B, 0.7 × MIC of chloramphenicol), the number increased similarly for different colonies, revealing homogeneous population growth. Example image sequences are shown in Videos 1 and 2. The data are replotted on a semi-log scale (insets). Such homogeneous population growth was observed for other bacteriostatic drugs (thiolutin and tetracycline) as well; see Figure 2—figure supplement 1. When we repeated the experiment using a microfluidic device, we again observed the same homogeneous population dynamics (Figure 2—figure supplement 2A). (C) In contrast, the population dynamics of bacteria exposed to a bactericidal drug were highly heterogeneous. An example image sequence was shown in Video 3. The number of growing cells within micro-colonies at 0.8 × MIC of cefsulodin is plotted here; the result shows stochastic population fluctuations. Such population fluctuations were again observed when experiments were repeated using other bactericidal drugs (ofloxacin, kanamycin, and 6-APA); see Figure 2—figure supplement 3A–C. The light red-shaded region indicates the number equal to zero (i.e., population extinction). When we repeated these experiments using a microfluidic device, we again observed population fluctuations (Figure 2—figure supplement 2B–D). (D) Our model predicts that the probability of population extinction increases linearly with death rate, with the slope being 1 / λ (the solid line). We experimentally characterized the extinction probability (Figure 2—figure supplement 4), and the death rate (Figure 2—figure supplements 56), at different concentrations of bactericidal drugs. Using these data, we obtained the relationship between the extinction probability and the death rate, and plotted it here (green circles: cefsulodin, pink squares: ofloxacin, and grey triangles: 6-APA). We found good agreement between the model prediction and experimental data. Note that at increasing drug concentrations, λ changed little (Figure 2—figure supplement 6B), and thus was taken as a constant in the analysis here.

https://doi.org/10.7554/eLife.32976.007
Video 1
The growth of micro-colonies in the absence of a drug.

We characterized how cells grew and formed micro-colonies on LB agar using time-lapse microscopy. An example image sequence is shown here. The time interval between each frame is 20 min.

https://doi.org/10.7554/eLife.32976.014
Video 2
The growth of micro-colonies with a bacteriostatic drug

We characterized how cells grew and formed micro-colonies on LB agar using time-lapse microscopy. 0.7 × MIC of chloramphenicol was used. An example image sequence is shown here. The time interval between each frame is 19 min.

https://doi.org/10.7554/eLife.32976.015

Next, we characterized population dynamics for a bactericidal drug (cefsulodin, ofloxacin, kanamycin, or 6-APA), at a sub-MIC level. We found that the population dynamics were highly stochastic (Video 3). Visual inspection of such image sequences indicated that within a given population, some cells were killed stochastically, whereas other cells survived and divided. Such demographic stochasticity would lead to random fluctuations in the population size. Indeed, the number of growing cells in each colony fluctuated randomly over time (Figure 2C and Figure 2—figure supplement 3A–C). These fluctuations led to dramatically different dynamics for different colonies, even though they originated from genetically identical cells and were cultured under homogeneous antibiotic conditions. When we repeated these experiments using the microfluidic chemostat, we again observed significant population fluctuations (Figure 2—figure supplement 2B–D).

Video 3
The growth of micro-colonies with a bactericidal drug

We characterized how cells grew and formed micro-colonies on LB agar using time-lapse microscopy. 0.8 × MIC of cefsulodin was used. An example image sequence is shown here. The time interval between each frame is 15 min.

https://doi.org/10.7554/eLife.32976.016

Importantly, the fluctuations drove some colonies into extinction (the light red-shaded area in Figure 2C). We counted the number of colonies that went extinct and plotted the probability of colony extinction at various drug concentrations; here, we are interested in colony extinction because it is equivalent to bacterial clearance, which means treatment success. Figure 2—figure supplement 4 showed that the extinction probability increased with increasing drug concentrations. This increase in the extinction probability agrees with the trend of decreasing plating efficiency we found above (Figure 1B).

The effects of bactericidal drugs on cell growth and death

A population will undergo extinction if cells die more frequently than divide. Because bactericidal drugs induce cell death, an increase in extinction probability at higher drug concentrations is expected to be due to an increase in the rate of cell death, ϕ. Additionally, bactericidal drugs inflict damage on cells (Belenky et al., 2015; Lobritz et al., 2015). Thus, the rate of cell growth, λ, might decrease at higher drug concentrations, which could also contribute to colony extinction. We next sought to determine how bactericidal drugs affect ϕ and λ. Previous studies of population growth have shown that at a higher concentration of bactericidal drugs, the ‘net growth rate’, which is equal to λ− ϕ, decreases (Regoes et al., 2004). But, to separately resolve changes in ϕ and λ, the growth and death of cells must be examined at single-cell resolution. We analyzed the single-cell-level image sequences we obtained above (see Figure 2—figure supplement 5 for details of the analysis), and determined λ and ϕ at various concentrations of bactericidal drugs. We found that at increasing drug concentrations, ϕ increased (Figure 2—figure supplement 6A). But λ changed little, remaining nearly constant (Figure 2—figure supplement 6B). Therefore, bactericidal drugs have significant effects on cell death, but not on cell growth.

A simple, stochastic model of the population dynamics accounts for stochastic clearance of bacterial populations

Our data above suggest that an increase in the probability of population extinction at higher drug concentrations (Figure 2—figure supplement 4) is likely due to an increase in the rate of cell death (Figure 2—figure supplement 6). To quantitatively understand the relationship between the extinction probability and death rate, we employed a stochastic model, known as the Markovian birth-and-death process, that has been widely used to study the basic features of stochastic population dynamics (Novozhilov et al., 2006; Pavel Krapivsky and Ben-Naim, 2010; Kendall, 1948). This model contains two parameters, the rate of cell growth and death, λ and ϕ, respectively. Each individual cell can divide or die stochastically with the probabilities determined by these parameters. Due to this demographic stochasticity, the number of cells within a population, n, fluctuates over time. Thus, n cannot be predicted deterministically but only probabilistically, and the probability is described as follows,

(1) Pn.=λ(n1)Pn1(λ+ϕ)nPn+ϕ(n+1)Pn+1,

where Pn refers to the probability of n cells being present in a population. The key boundary condition in this model is that once n reaches 0, it cannot change afterward. Known as an ‘absorbing boundary’, this condition reflects the biological reality that once a population goes extinct, it cannot revive. Therefore, a solution of this model for n = 0 (i.e., Pn=0 or simply P0) describes the dynamics of population extinction. Please see Appendix 1 for the detail and solution.

We first considered the extinction probability P0 at low drug concentrations in which the death rate is lower than the growth rate (ϕ < λ). In this range, P0 is given by their ratio, P0 = ϕ / λ; see Equation A6. Thus, if the death rate is zero (ϕ = 0), the extinction probability P0 is 0, meaning n always increases (this makes intuitive sense). As the death rate increases (0 < ϕ < λ), P0 increases and becomes non-zero, meaning that n may stochastically reach the absorbing boundary, agreeing with our observation of stochastic population extinction at sub-MIC drug concentrations; Figure 2C shows that some populations reached n = 0 (marked by the light red-shaded area), while other populations thrived (also see Figure 2—figure supplement 3A–C). The solution P0 = ϕ / λ predicts that the extinction probability increases linearly with death rate, with the slope being 1 / λ (the solid line in Figure 2D). We sought to test this prediction quantitatively by comparing it with experimental data. Above, analyzing time-lapse microscope images, we obtained the probability of population extinction (Figure 2—figure supplement 4), and the death rate (Figure 2—figure supplement 6), at different concentrations of bactericidal drugs. Using these data, we obtained the relationship between the probability of population extinction and the death rate, and plotted it in Figure 2D. We found good agreement between the model prediction and experimental data (compare the solid line and symbols in Figure 2D).

Next, using the quantitative relationship we found above (P0 = ϕ / λ), we will specify the condition for the MIC. In our plate assay (Figure 1B), we observed that the plating efficiency decreases at higher drug concentrations (in the sub-MIC range) and reaches zero at the MIC. Also, the quantitative relationship we found above showed that extinction probability increases at higher drug concentrations (consistent with a decrease in the plating efficiency), reaching one when the death rate is equal to the growth rate (see the dashed line in Figure 2D); thus, P0 = 1 at ϕ = λ. The extinction probability equal to one (P0 = 1) means that all colonies go extinct, which corresponds to zero plating efficiency. The drug concentration at which the plating efficiency reaches zero is the MIC (Figure 1B). Taken together, at the MIC, the plating efficiency is zero because extinction probability is one (P0 = 1), and the extinction probability is one because the growth rate and death rate are equal to each other (ϕ = λ). In short, ϕ = λ at the MIC.

Next, we considered drug concentrations above the MIC, where the death rate is higher than the growth rate (ϕ > λ). In this range, the model predicts that all populations eventually go extinct (P0 = 1 in Equation A6); this makes intuitive sense. Importantly, due to population fluctuations, populations are expected to go extinct at various times (Equation A5), meaning that the number of live populations (the populations that have not undergone extinction yet) decreases gradually over time. The model predicts that this decrease can be approximated by an exponential decay in the long time limit (t1/|ϕλ|); see Equation A7. We tested these model predictions by repeating time-lapse microscope experiments at drug concentrations above the MIC. All the populations indeed went extinct at various times (Figure 3A and Figure 2—figure supplement 3D–F). When we counted the number of live colonies, this number decreased gradually over time (Figure 3B). In this semi-log plot, the decrease was linear (compare it with the dashed line), consistent with the model prediction of an exponential decay (Equation A7).

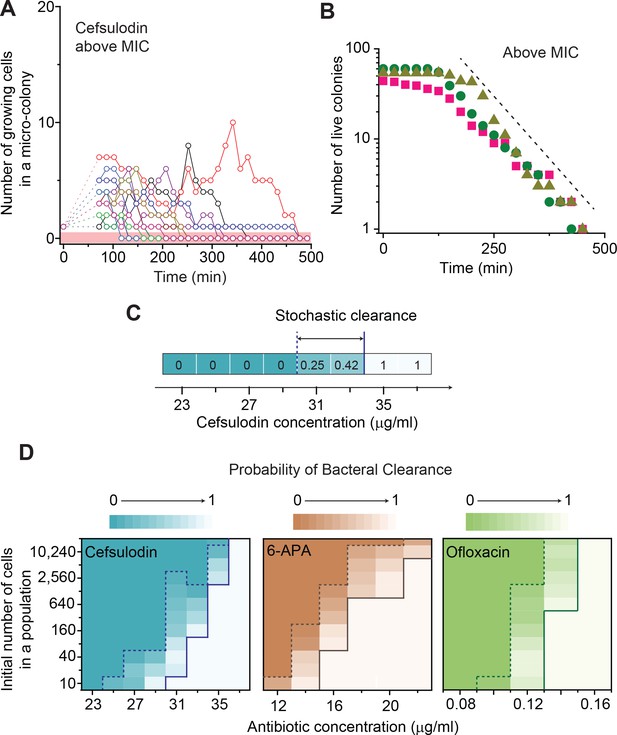

Further characterization of stochastic population dynamics.

(A, B) In Figure 2C and Figure 2—figure supplement 3A–C, we showed the population dynamics of bacteria exposed to sub-MIC levels of bactericidal drugs. Here, we show the dynamics at drug concentrations above MIC (1.2 × MIC). The number of growing cells within micro-colonies for cefsulodin is plotted in panel A. The results for other bactericidal drugs were plotted in Figure 2—figure supplement 3D–F. We observed that all populations went extinct at various times. We then counted the number of live colonies (colonies that have not undergone extinction yet) at various times (~150 colonies monitored). The number decreased gradually over time (green circles: cefsulodin, pink squares: ofloxacin, and grey triangles: 6-APA); see panel B. The decrease was linear in a semi-log plot, consistent with the model prediction of an exponential decay (Equation A7). (C) We characterized the extinction probability of populations starting with ~640 cells. We prepared a large volume of a cell culture with the cell density of ~640 cells/ 200 µL, supplemented the culture with a low concentration of cefsulodin (23 µg/ml), and then distributed 200 µL of the cell culture equally to 12 isolated chambers in a microtiter plate. We repeated this procedure using higher cefsulodin concentrations (but maintaining the inoculum size). We then incubated the microtiter plate overnight. By counting the chambers that became turbid or clear, we calculated the extinction probability. We used a heat map to graphically represent the probability; for illustration purpose, we also added the values of the probability to the plot. At low cefsulodin concentrations (to the left of the dashed line), all chambers became turbid (P0 = 0). At high concentrations (to the right of the solid line), all chambers were clear (P0 = 1); thus, the solid line indicates MIC. At intermediate concentrations (between the dashed and solid lines), we observed heterogeneous results (only some chambers were clear, 0 < P< 1). (D) We repeated this experiment using different inoculum sizes and bactericidal drugs. Please note that although we prepared a large volume culture and distributed it equally to chambers, the number of cells in each chamber might vary. We found that the variation was ~10% or less. See Appendix 3 for details.

https://doi.org/10.7554/eLife.32976.017

A population with large inoculum size is subject to stochastic clearance at sub-MIC drug concentrations

Our findings above indicate that the simple stochastic model can adequately capture the extinction dynamics of populations exposed to bactericidal drugs. What is striking in our findings is that, due to drug-induced population fluctuations, a bacterial population may undergo extinction even at sub-MIC concentrations, the concentrations that were previously deemed inefficacious to clear bacteria. We have established this result by examining the dynamics of colonies originated from single bacterial cells, the smallest possible inoculum size. Clinical studies have characterized the bacterial inoculum size that can produce infections (i.e., infectious dose). The infectious dose can be as low as one (Jones et al., 2006; Haas and Rose, 1994; Jones et al., 2005), but is generally 10–100 (Tuttle et al., 1999; DuPont et al., 1989; Hara-Kudo and Takatori, 2011; Kaiser et al., 1992) or larger (Kothary and BABU, 2001; Gama et al., 2012). It is expected that, with larger inoculum size, a population experiences less fluctuations (because demographic stochasticity gets averaged out). When we estimated the magnitudes of fluctuations by the coefficient of variation (CV), that is, the standard deviation divided by the mean, using our model, Equation A16 shows decreasing CV with increasing inoculum size, supporting the expectation above. Interestingly, Equation A16 also predicted that the magnitude of population fluctuations depends on rates of cell growth and death as well (Equation A16); CV increases as the death rate approaches the growth rate, meaning that population fluctuations become intensified when neither growth nor death is a dominant event. This prediction, together with our finding above that the death rate approaches the growth rate as the drug concentration increases to the MIC (Figure 2D), suggests that near the MIC, a population with relatively large inoculum size may still be prone to stochastic extinction.

To test this possibility, we experimentally characterized stochastic clearance of a bacterial population starting with different inoculum sizes. First, we prepared a large volume of a cell culture with the cell density of ~640 cells/ 200 µL, supplemented the culture with a low concentration of cefsulodin (23 µg/ml), and then distributed 200 µL of the cell culture equally to 12 isolated chambers in a microtiter plate. Here, an isolated cell culture in each chamber represents a separate population. We repeated this procedure using higher cefsulodin concentrations (but maintaining the inoculum size). We then incubated the microtiter plate overnight. We found that, at low cefsulodin concentrations (to the left of the dashed line in Figure 3C), all chambers became turbid, meaning all populations grew. Thus, the probability of population extinction was zero (P0 = 0). In Figure 3C, we used a heat map to graphically represent the probability (we also added the values of the probability in the graph for additional clarification). At high concentrations (to the right of the solid line), all chambers were clear (P0 = 1); thus, the solid line indicates the MIC. At intermediate concentrations (between the dashed and solid lines), we observed heterogeneous population growth; some chambers were clear while others were turbid (0 < P0 < 1). Subsequent plating of the clear cultures on drug-free LB agar plates yielded no colonies, indicating population extinction.

We then repeated this experiment by using different inoculum sizes and bactericidal drugs. The results were plotted as heat maps in Figure 3D; here, the Y axis represents different inoculum sizes. As above, a solid line represents the MIC, above which all chambers were clear (P0 = 1). MIC values were higher at higher cell densities. We note that the higher MIC at higher cell density (inoculum effect) has been observed previously and is being actively studied by others in the field (Artemova et al., 2015; Brook, 1989; Tan et al., 2012; Karslake et al., 2016). Thus, it is not the focus of our study; rather, we focus on stochastic clearance below the MIC. As above, a dashed line represents the concentrations below which all chambers were turbid (P0 = 0). The area between the dashed and solid lines indicates the range of drug concentrations and inoculum sizes that exhibited heterogeneous population growth (0 < P< 1), meaning stochastic clearance. Figure 3D shows that stochastic clearance occurs even for a population starting with as large as ~20,000 cells, inoculum size much larger than infectious doses for many infectious diseases.

Alteration of the extinction probability to facilitate bacterial eradication at sub-MIC drug concentrations

Previously, antibiotic treatment at sub-MIC levels was not considered a viable option for bacterial eradication, because the deterministic model predicts that all bacterial populations should grow at sub-MIC levels (i.e., antibiotic treatment failure). However, our experimental results and stochastic model above indicate that at sub-MIC levels of bactericidal drugs, a population might undergo extinction stochastically. An increase in this probability while keeping the drug concentration low would be therapeutically useful; with an increased probability of extinction, sub-MIC ranges of drugs could be used to eradicate bacteria reliably. We therefore employed our model to explore how the extinction probability can be altered by means other than changing the bactericidal drug concentration.

Our model indicates that the extinction probability is determined by the ratio of the death and growth rates (P0 = ϕ /λ; Equation A6). Thus, based on the model, a reduction in growth rate (denominator) should lead to an increase in the extinction probability. Growth rate can be reduced by using poor growth media, or alternatively using bacteriostatic drugs. This means, for a sub-MIC concentration of a bactericidal drug (for which the extinction probability is less than 1), either a switch to poor growth media or addition of a sub-MIC level of a bacteriostatic drug would lead to an increase in the extinction probability. We note that the latter represents combination therapies, and other studies have characterized bacterial responses to combination therapies (Bollenbach, 2015). However, these studies primarily concerned deterministic changes in the MIC of a large population. Conversely, our study focuses on how combination therapies affect stochastic occurrence of population extinction. Another difference is our focus on sub-MIC drug ranges, an important point given previous research showing that the effects of drug combinations at the MIC might differ from those at sub-MIC levels (Ocampo et al., 2014).

To characterize the extinction probability, we introduced the plating inefficiency (= 1 – plating efficiency); the plating efficiency reflects the probability that a bacterial cell forms a population of a bacterial colony, and therefore, the plating inefficiency reflects the probability of population extinction. We first calculated the plating inefficiency using the plate assay results in Figure 1B and plotted it as white columns in Figure 4A; thus, white columns represent the extinction probability in rich growth media (LB) with bactericidal drugs alone. To test the effect of our growth reduction strategy, we repeated the plate assay, either by replacing LB with casamino acids (a poor nutrient source that leads to slower growth than LB; see Figure 4—figure supplement 1), or by adding a sub-MIC concentration of chloramphenicol or tetracycline. The plating inefficiency obtained with these treatments was plotted as solid columns in Figure 4A. The rise of solid columns above white columns indicates that growth reduction indeed led to an increase in the extinction probability, in agreement with our prediction.

Figure 4 with 4 supplements see all

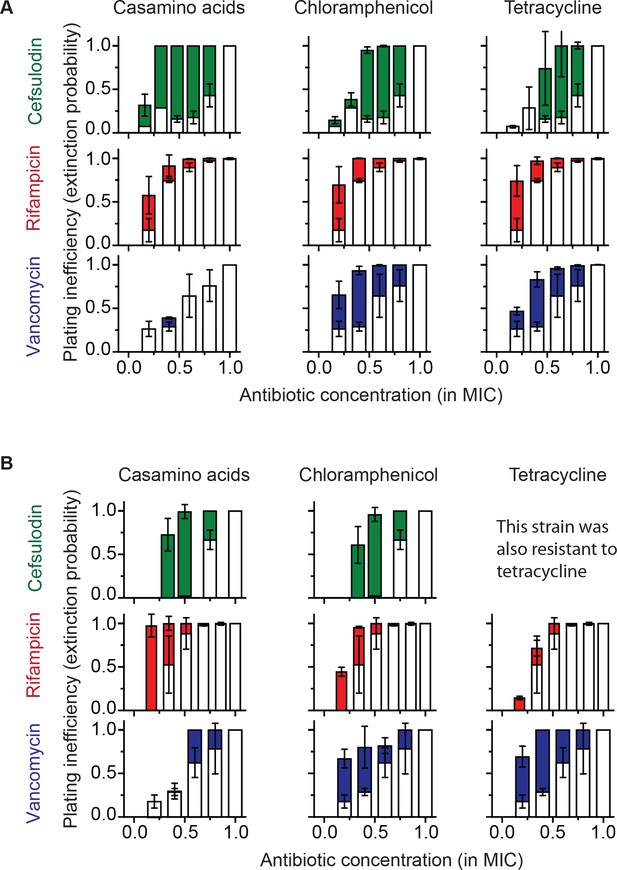

Increasing the population-extinction probability by a growth reduction strategy.

(A, B) Previously, we plated WT (antibiotic-susceptible) E. coli cells on LB agar plates at various concentrations of cefsulodin and plotted the plating efficiency in Figure 1B. Here, we plotted the plating inefficiency (1- plating efficiency) as white columns in the top row; the plating inefficiency represents the extinction probability. We then repeated a plate assay, either by using casamino acids agar plates (left), or by adding a sub-MIC concentration of a bacteriostatic drug, chloramphenicol (0.7 × MIC, middle) or tetracycline (0.5 × MIC, right), to LB agar plates. Note that casamino acids lead to slower growth than LB; see Figure 4—figure supplement 1. We plotted the plating inefficiency obtained with these treatments as solid columns in panel A. We repeated this procedure for rifampicin (middle row) and vancomycin (bottom row), for kanamycin and 6-APA (Figure 4—figure supplement 3), and for ciprofloxacin and ofloxacin (Figure 4—figure supplement 4). Note that how generally growth reduction leads to an increase in the extinction probability depends on whether ϕ is dependent on λ or not; see the main text and Figure 4—figure supplement 2. We then used antibiotic-resistant strains and repeated these experiments (panel B). Please note that the MICs of these mutants were five to ten fold higher than those of the WT strain. The rise of solid columns above white columns indicates an increase in the extinction probability. We performed at least two biological repeats for all the experiments and plotted the mean. The error bars represent one standard deviation from the repeats.

https://doi.org/10.7554/eLife.32976.018

We next examined how generally such an increase in the extinction probability might occur. The extinction probability depends on the growth rate (λ) and death rate (ϕ), which we assumed to be independent. Because the probability is equal to their ratio (ϕ/λ; Equation A6), this growth reduction strategy might not work when ϕ is not independent but decreases in response to a decrease in λ. Such coupling between ϕ and λ could occur for bactericidal drugs that kill only growing cells, possibly because these drugs target processes critical for cell growth. This means that, for bactericidal drugs that exhibit a killing rate of zero for non-growing cells (i.e., ϕ→ 0 when λ→ 0), neither the switch to poor growth medium nor addition of bacteriostatic drugs would increase the extinction probability. To test this possibility, we first identified such bactericidal drugs; we stopped cell growth in cultures by depriving the cells of nutrients, added bactericidal drugs at concentrations capable of eradicating growing cells, and then determined which drugs were no longer capable of killing the bacteria. As shown in Figure 4—figure supplement 2, killing was completely abolished for kanamycin and 6-APA, indicating that ϕ→ 0 when λ→ 0. As expected, for these drugs, neither the switch to poor growth medium nor addition of bacteriostatic drugs resulted in an increase in the extinction probability (Figure 4—figure supplement 3).

Furthermore, our model does not consider specific drug-drug interactions. For example, a previous study showed bacteriostatic translation-inhibiting drugs and bactericidal quinolone drugs affect gene expression in a way to negate their effects (Bollenbach et al., 2009). Consistent with this study, we failed to observe significant changes in the extinction probability when ofloxacin or ciprofloxacin (quinolone drugs) is used with and without bacteriostatic translation-inhibiting drugs (Figure 4—figure supplement 4).

Extending the growth-reduction strategy to antibiotic-resistant strains

Above, we tested the growth reduction strategy for a WT (antibiotic-susceptible) E. coli strain. Although the strategy did not work for some drugs due to their complex effects on cells, for those that worked, the strategy substantially increased the chance of bacterial clearance at sub-MIC drug concentrations. We wondered if this strategy could be applicable to antibiotic-resistant strains. Resistant strains are difficult to eradicate because their MICs are very high, to levels that are toxic to hosts. Therefore, the development of therapies that utilize sub-MIC doses would be highly useful. To test if our growth-reduction strategy would work for antibiotic-resistant bacteria, we repeated a plate assay using resistant strains. Laboratory evolution of rifampicin resistance has been frequently reported in the literature (Goldstein, 2014). By plating WT (antibiotic-susceptible) E. coli cells on a LB agar plate containing the rifampicin concentration equal to 2 × MIC, we isolated a rifampicin-resistant (Rifr) mutant; the MIC of this mutant was ~10 fold higher than that of the parent strain. We then plated the mutant on LB agar plates containing various rifampicin concentrations. Additionally, we acquired clinically-isolated E. coli strains that were resistant to either cefsulodin or vancomycin (see Methods), and plated them on LB agar plates with increasing concentrations of cefsulodin or vancomycin. These resistant strains exhibited non-zero plating inefficiency at sub-MIC concentrations of bactericidal drugs (white columns in Figure 4B), indicating stochastic clearance. We then repeated the experiments either by replacing LB with casamino acids or by adding a sub-MIC concentration of a bacteriostatic drug. As with the antibiotic-susceptible strain, these treatments led to an increase in the plating inefficiency (Figure 4B), indicating that our growth reduction strategy facilitated the clearance of antibiotic-resistant bacteria at sub-MIC concentrations.

Discussion

Antibiotic treatment typically targets mature infection which contains a large number of bacterial cells (e.g., ≥108) (Smith and Wood, 1956; Palaci et al., 2007; Feldman, 1976; Canetti, 1965; Canetti, 1956). To clear infections and avoid post-treatment relapse, not only the reduction of a large population of bacteria to a small population, but also the complete extinction of the small population is desired (Tomita et al., 2002; Wilson et al., 2013; Bayston et al., 2007); this is especially so for immuno-compromised hosts and also for infections involving bacteria with a low infectious dose. Previous studies of large bacterial populations adequately accounted for the former process. This study focused on the latter process. Our results directly revealed that antibiotics induce significant fluctuations in population size, leading to stochastic population extinction. Modeling population fluctuations using a probabilistic model, we then established a quantitative understanding of stochastic extinction. This model further predicted how the extinction probability could be manipulated to facilitate bacterial eradication at sub-MIC drug concentrations. We experimentally tested how amenable the extinction probability is to manipulation.

One possible molecular-level mechanism that gives rise to population fluctuations could be cell-to-cell variability in gene expression. Previous studies showed that variation in expression of antibiotic-resistance genes, marA, cat, kagG, ompC or bla, results in variation in antibiotic susceptibility to carbenicillin, chloramphenicol, isoniazid, kanamycin or ceftriaxone, respectively (Deris et al., 2013; El Meouche et al., 2016; Wakamoto et al., 2013; SanchezSánchez-Romero and Casadesus, 2014; Wang et al., 2014). Although our study mostly focuses on antibiotic-susceptible bacteria, a similar mechanism might play a role, leading to heterogeneous growth/death of bacterial cells and eventually population fluctuations. We note that there were attempts to stochastically model large populations of antibiotic-susceptible bacteria (e.g., see [Ferrante et al., 2005]). But, given the deterministic nature of observed dynamics, the need for stochastic models was not clear, and the model prediction of stochasticity was not tested in the work. On the other hand, previous theoretical studies of the evolution of antibiotic resistance typically modeled the growth and death of newly-emerged mutants as stochastic processes, showing how fluctuations in the size of small mutant populations affect evolutionary dynamics; e.g., see (Hermsen et al., 2012; Nissen-Meyer, 1966). Our study validates this modeling approach.

Our findings expose fundamental limits in our predictive ability for bacterial clearance. Clinical studies of antibiotic therapies have often reported unexpected failures of eradicating antibiotic-susceptible bacteria (Doern and Brecher, 2011; Weidner et al., 1999; Gopal et al., 1976; Ficnar et al., 1997; Forrest et al., 1993). Laboratory studies of simple model organisms such as worms have reported similar observations (Moy et al., 2006; Needham et al., 2004; Kaito et al., 2002). The variability in host environments could certainly contribute to such unexpected antibiotic failures. For example, a recent study showed the effects of variability in host immunity on infection course (Duneau et al., 2017). Our study demonstrates that even in the absence of host variability, bacterial clearance occurs stochastically due to antibiotic-induced population fluctuations. At sub-MIC drug concentrations, bacterial populations may or may not go extinct. At drug concentrations above the MIC, all populations eventually go extinct, but not all at once. Rather, the extinction time is highly variable, meaning that in some cases, it can take significantly longer to eradicate bacteria. This inherent stochasticity, together with host variability, makes it difficult (or even impossible) to deterministically predict antibiotic-mediated clearance of bacterial infection.

More studies are needed to elucidate the impact of these population fluctuations on treatment outcomes in clinical settings. However, we observed such fluctuations even for a relatively large population (~104 cells). In comparison, previous in vivo studies showed that the population size needed to establish infections (i.e., infectious dose) can be as small as 1–100 cells (Jones et al., 2006; Haas and Rose, 1994; Jones et al., 2005; Tuttle et al., 1999; DuPont et al., 1989; Hara-Kudo and Takatori, 2011; Kaiser et al., 1992), which is well within the stochasticity range. This means that if tens of cells (or even a few cells) happen to stochastically survive a fixed course of antibiotic treatment, this small population can re-establish infections once antibiotics are removed, leading to treatment failure. Importantly, a recent article raised an issue regarding the conventional wisdom of ‘complete the prescribed course’, and argued for re-consideration of antibiotic duration (Llewelyn et al., 2017). We believe that our observation of stochastic extinction dynamics, especially inherent variability in extinction time, has significant bearing on this issue.

Furthermore, our study may guide the design of new therapeutic strategies. Based on the deterministic understanding of population dynamics, it has been generally accepted that only at drug concentrations above the MIC, bacterial populations go extinct. Contrarily, we observed that stochastic population fluctuations drive a population to extinction even at sub-MIC drug concentrations. This observation suggests an intriguing possibility that sub-MIC drug ranges can be used as a clinical option to clear bacteria. We acknowledge that the stochastic nature in the population dynamics is a double-edged sword. Stochasticity can be advantageous because it can drive a population to extinction even at low drug concentrations. But, stochasticity makes it impossible to pre-determine whether the bacterial population of particular interest will go extinct or not; this is disadvantageous because we cannot predict a priori if a specific treatment will work or not. However, this disadvantage can be minimized by manipulating population fluctuations and thereby increasing the probability of extinction. In the present study, we explored this possibility with the help of the probabilistic model, showing that it is possible to increase the probability of clearance. This idea of using sub-MIC drug concentrations to clear bacteria is particularly attractive in the context of antibiotic resistance. Antibiotic-resistant bacteria have very high MICs, often above the levels that are toxic to hosts. Thus, antibiotic concentrations above the MIC cannot be administered, which is why antibiotic resistance is a serious public concern worldwide (O’Neill, 2016). Our plate assay using bactericidal drugs revealed that, like antibiotic-susceptible bacteria, resistant bacteria exhibited non-zero plating inefficiency below the MIC, indicating a non-zero probability of clearance at sub-MIC drug concentrations. We also showed that this probability of clearance could be manipulated, facilitating the clearance of antibiotic-resistant bacteria. For comparison, we note a recent study in the field of viral infections, which showed that stochastic noise in HIV gene expression may be used to treat HIV infections (Dar et al., 2014). This study further supports the idea that stochasticity can be advantageous and be used to combat infections. We believe that the time is ripe for the development of clinical treatment strategies to take advantage of stochasticity, especially so given recent advances in our understanding of stochasticity in biological processes (Jones et al., 2014; Ackermann, 2015; Tanouchi et al., 2015; Banerjee et al., 2017; Scott et al., 2007; Schmiedel et al., 2015; Sigal et al., 2006; Blount et al., 2008; Ray and Igoshin, 2012).

Our study will also have positive impacts on in vitro assessment of antibiotic efficacy. MIC is the most critical parameter to assess antibiotic efficacy. In the deterministic framework, MIC is defined as the drug concentration at which the population size is maintained, which is realized when the death rate is equal to growth rate (ϕ = λ); see Equation A2. Accordingly, in a broth dilution method, the drug concentration that yields no change in the turbidity of bacterial cultures is defined as the MIC. Above, we found that in the stochastic framework, at the MIC, the rates of death and growth are equal (ϕ = λ; see Figure 2D) and the extinction probability is 1 (Equation A6), meaning all populations go extinct at the MIC. Therefore, in both deterministic and stochastic frameworks, at the MIC, the condition, ϕ = λ, is satisfied, but population dynamics are very different (population maintenance versus population extinction). This clarification can reconcile two common ways to determine the MIC, a plate assay based on complete colony extinction and a broth method based on no change in culture turbidity (population maintenance); although the MICs were determined based on different population dynamics in these two cases, both methods identify the drug concentration at which growth rate is equal to death as the MIC. This clarification is particularly important in light of recent efforts to increase the efficiency of the broth method by using small culture volumes (which include a few or tens of bacterial cells) (Avesar et al., 2017). With such small volumes, MIC should be defined based on population extinction, not population maintenance.

Lastly, our findings have implications on bacterial persistence. Dormant cells are refractory to antibiotics, persisting through antibiotic treatments (Allison et al., 2011; Balaban et al., 2004). They are present in very low frequencies (typically 10−5, meaning 1 out of 105 cells) (Lewis, 2010), and thus have little effects on population dynamics in small populations considered here (<<105). However, a study of persister formation requires the enrichment of persisters. To enrich them, studies often treat a large population using antibiotics and characterize a small population of survivors as persisters. The inherently stochastic nature of a small population may lead to variability in this process of enrichment and characterization, complicating studies of persisters. In fact, such variability was reported by a recent quantitative study of persistence (Brauner et al., 2017). Therefore, our findings on the dynamics of small populations could be useful for a better understanding of persistence.

Materials and methods

Bacterial strains and culture

Experiments were conducted using E. coli strain NCM3722 (Soupene et al., 2003; Lyons et al., 2011; Brown and Jun, 2015). Bacteria were grown in 5 mL of Lysogeny Broth (LB, Fisher Bioreagents) in 20 mL borosilicate glass culture tubes at 37° C with shaking (250 rpm). Our typical experimental procedure is as follows. Cells were first cultured in LB broth overnight (pre-culture). The next morning, the cells were sub-cultured into pre-warmed LB broth at the optical density (OD600) of ~0.001 (measured using a Genesys20 spectrophotometer, Thermo-Fisher) and allowed to grow exponentially. The culture at the OD600 of ~0.4 was used for a plate assay or for microscope experiments.

We evolved a rifampicin-resistant mutant from our WT strain (NCM3722). We plated ~108 WT cells on a LB agar plate containing 20 μg/ml (2 × MICWT). 18 colonies were formed next day. We chose one colony and purified it by re-streaking. The mutant (EMK32) had the MIC of 160 μg/ml. We obtained the cefsulodin-resistant strain (EMK35, MIC = 170 μg/ml) and vancomycin-resistant strain (EMK36, MIC = 250 μg/ml) from Georgia Emerging Infections Program MuGSI collection (their MuGSI strain numbers were Mu519 and Mu107, respectively.)

Plate assay

Cells were spread on LB agar plates containing different concentrations of various antibiotics (see below). Through serial dilutions (using 1.16% (w/v) NaCl solution), we ensured the number of colonies to be between 50 and 250 on a plate (100 × 15 mm Petri dish). The plates were then incubated at 37°C. After 18 hr of incubation, the number of visible colonies on plates was determined. As indicated in the main text, we also used casamino acids agar plates. We dissolved 2% casamino acids in N-C- minimal medium (Csonka et al., 1994) and filtered the medium. We separately autoclaved agar, and when agar was cooled and felt warm to the touch, the casamino acids medium was added.

Antibiotics

Stock solutions of ciprofloxacin (1 mg/ml), kanamycin (50 mg/ml), 6-APA (2 mg/ml), streptomycin (25 mg/ml), ofloxacin (1 mg/ml), erythromycin (10 mg/ml), vancomycin (100 mg/ml), and cefsulodin (30 mg/ml) were prepared in sterilized water. Stock solutions of tetracycline (50 mg/ml) and chloramphenicol (10 mM) were prepared in methanol. Stock solutions of thiolutin (2 mg/ml) and rifampicin (50 mg/ml) were prepared in DMSO. Antibiotics were purchased from Biobasic Inc (Canada), Acros Organics, or Sigma-Aldrich (St. Louis, MO.).

Time-Lapse microscopy

Cells were cultured as described above without antibiotics first. At OD600 of ~0.4, 2 µL of aliquot from a culture was loaded into a pre-warmed 35 mm glass-bottom Petri dish (InVitro Scientific). A pre-warmed LB agarose pad containing antibiotics was placed over them (this procedure marked time zero). The dish was then moved into a pre-warmed (at 37°C) inverted microscope (Olympus IX83), and appropriate stage positions (typically ~50 positions) were selected. Selection of multiple state positions and setting up the software for automatic image acquisition normally took 1 ~ 2 hr. The microscope had an automated mechanical XY stage and auto-focus, and was controlled by the MetaMorph software (Molecular Devices). Also, it was housed by a microscope incubator (InVivo Scientific) which maintained the temperature of samples at 37°C during experiments. An oil immersion phase-contrast 60 × objective was used for imaging. Images were captured using a Neo 5.5 sCMOS camera (Andor). We also cultured cells in a microfluidic chemostat (using LB broth as growth medium). The detailed procedure for the microfluidic experiments was published in our previous articles (Kim et al., 2012; Deris et al., 2013). Images were analyzed using MicrobeJ, a plug-in for the ImageJ software (Ducret et al., 2016), and the analysis results were validated manually. In our experiments, all cells that stopped growing eventually underwent lysis. Although dormant cells that survive antibiotics (i.e., persisters) may complicate our analysis, their frequency is very low, ~10−5 (i.e., 1 in 105 cells) (Lewis, 2010). Because our study involves small populations (less than 100 cells), dormancy has little relevance to our study.

Replicate culture using a microtiter plate

We first cultured cells in 5 mL LB medium to the OD600 of ~0.4, as described above. Previously, using a plate assay, we determined that OD600 of 0.4 contains 2 × 108 cells per 1 mL. Using this relation, we diluted the culture in 10 mL LB broth such that there were ~640 cells per 200 μL (we separately confirmed this density by plating cells on LB agar plates containing no antibiotics and counting colony-forming units). We supplemented this culture with various concentrations of antibiotics. We then equally distributed 200 μL of this culture to 12 chambers in a microtiter plate. We repeated this procedure by varying cell density. Next day, we measured the OD600 of each chamber.

Appendix 1

A deterministic model of population dynamics

If cells replicate at rate, λ, and die at rate, ϕ, a general deterministic model of population growth can be described by

(A1) dndt=λnϕn,

where n is the number of cells in the population. Its solution is

(A2) n(t)=n(0)e(λϕ)t.

Previous studies modeled the population dynamics of bacteria exposed to antibiotics using this solution; e.g., see (Regoes et al., 2004; Czock et al., 2009). At drug concentrations below the MIC (sub-MIC), growth rate is higher than death rate (λ > ϕ); thus, a bacterial population grows. When the drug concentration reaches the MIC, growth rate and death rate are equal (λ = ϕ); thus, the population size is maintained. At drugs concentrations above the MIC, growth rate is lower than death rate (λ < ϕ); thus, a bacterial population declines.

A stochastic model of population dynamics

We found that bactericidal drugs induce demographic stochasticity (i.e., cells may replicate or die stochastically), and thus the population size fluctuates over time. To account for such fluctuations, we use the Markovian birth-and-death process model, which represents the most fundamental formulation of stochastic population growth (Novozhilov et al., 2006; Pavel Krapivsky and Ben-Naim, 2010; Kendall, 1948) and consider the probability of there being n cells at time t in a population, Pn(t). Temporal evolution of Pn(t) is given by the following master equation,

(A3) Pn.=λ(n1)Pn1(λ+ϕ)nPn+ϕ(n+1)Pn+1.

This equation can be solved analytically; see (Novozhilov et al., 2006; Pavel Krapivsky and Ben-Naim, 2010; Kendall, 1948). For a population that originates from a single cell (e.g., a colony on agar originates from a single bacterium in our experiments), the initial condition is P1(0)=1. Then, the solution is

(A4) Pn(t)=A(t)a(t)n1,

where A(t)=E(t)(1ϕ/λE(t)ϕ/λ)2, a(t)=(E(t)1E(t)ϕ/λ), and E(t)=e(λϕ)t.

For n = 0,

(A5) P0(t)=ϕλ(E(t)1E(t)ϕ/λ),

which represents the probability that a population has gone extinct before time t.

In the long-time limit, P0(t) converges to

(A6) P0={1, if ϕλϕλ, if ϕ<λ.

Because bactericidal drugs induce cell death, the death rate ϕ can be increased by using higher concentrations of drugs (Figure 2—figure supplement 6A). The solution (Equation A6) indicates that, if ϕ is equal to or greater than λ, a population will always go extinct, meaning that the lowest value of ϕ that can consistently achieve population extinction is equal to λ. This means that the lowest drug concentration that guarantees bacterial eradication, c1, is determined by ϕ (c1) = λ. In our plate assay (Figure 1B), c1 corresponds to the lowest antibiotic concentration at which no cells form colonies, that is, MIC; thus c1 = MIC. Alternatively put, at the MIC, ϕλ; see the main text for details.

Above the MIC (ϕ > λ), all populations eventually undergo extinction (Equation A6), but the extinction time cannot be predetermined. Equation A5 predicts that as time goes by, the probability of population extinction converges to P0(t)1+(λϕ1)e(λϕ)t. In our experiments, we have counted the number of live colonies, i.e., colonies that have not gone extinct yet (i.e., n≠ 0). The probability of finding live colonies at time t, Pn0(t), which is equal to 1P0(t), is

(A7) Pn0(t)=1P0(t)(1λϕ)e(λϕ)t.

Thus, at later times, the probability of finding live colonies can be approximated by an exponential decay.

Using Equation A3, moment dynamics can be derived (Novozhilov et al., 2006; Pavel Krapivsky and Ben-Naim, 2010; Kendall, 1948). The first moment, n=0nP, is equal to the mean of n, ⟨n⟩, and the equation for the first moment is

(A8) n˙=λnϕn.

In our experiments, the initial condition, n(0), is the same across the populations. For example, for all our microscope experiments, n(0)=1.

Its solution is

(A9) n(t)=n(0)e(λϕ)t.

These equation and solution are the same as the deterministic equation and solution we discussed above (Equation A1 and A2); therefore, the mean of the stochastic variable n obeys the deterministic model.

Next, we consider the mean number of dead cells nD . Because live cells die at the rate of ϕ, we have

(A10) n˙D=ϕn.

Solving Equation A10 together with Equation A9, we have

(A11) nD(t)=ϕn(0)λϕ[e(λϕ)t1].

or alternatively,

(A12) nD(t)=ϕλϕ[n(t)n(0)].

We can also write an equation for the second moment, n=0n2Pn,

(A13) dn2dt=2(λϕ)n2+(λ+ϕ)n.

The solution is

(A14) n2=n(0)λ+ϕλϕe(λϕ)t[e(λϕ)t1]+n(0)2e2(λϕ)t.

Using Equation A9 and S14, we can calculate the variance Var[n]= n2 n 2,

(A15) Var[n]=n(0)λ+ϕλϕe(λϕ)t[e(λϕ)t1].

Next, we quantified population fluctuations by calculating the coefficient of variation (CV), that is, standard deviation relative to the mean. The standard deviation is equal to Var[n] and can be calculated using Equation A15. The mean is given by Equation A9. Thus, we have

(A16) CV=Var[n]nλ+ϕλϕn(0)1/2.

Equation A16 holds for a sub-MIC region (λ > ϕ) and considers the long-time limit. It indicates that the magnitude of fluctuations in population size depends on inoculum size (n(0)), and the rates of growth and death.

Appendix 2

To rule out heritable resistance as an explanation for heterogeneous colony formation (Figure 1B), we performed two rounds of plating at sub-MIC drug concentrations (Figure 1C and Figure 1—figure supplement 3). We picked a few colonies from the agar plate exhibiting a plating efficiency of ~0.5 (e.g., near 0.6 × MIC) and plated them immediately on fresh agar plates containing various concentrations of the same drug. The plating efficiency was similar or marginally lower on the second plating, possibly because exposure to the antibiotics on the first plate adversely affected the cells and rendered them more susceptible to the antibiotics on the second plating. This observation rules out heritable resistance as an explanation for heterogeneous colony formation at sub-MIC drug concentrations. Of course, if we perform multiple rounds of plating, we might eventually select for antibiotic-resistant mutants. However, for each round, we collect ~105 cells from a previous plate and plate ~100 cells on a fresh plate. This procedure creates a bottleneck effect, which reduces genetic variation and effectively weakens selection pressure for antibiotic resistance. Therefore, we expect that the evolution of antibiotic resistance is slow.

Appendix 3

We characterized the fluctuations in inoculum size by determining standard deviation and percent variation; see Appendix 3—table 1. The variation was ~10% or less. In Figure 3D, which shows the extinction probability at various (average) inoculum size, the probability changes only gradually for two-fold increment in inoculum size (which is equivalent to a 100% increase). Therefore, we do not believe that these fluctuations in inoculum size have a significant effect on the results.

Appendix 3—table 1
Percent variation of inoculum size in a microtiter plate.
https://doi.org/10.7554/eLife.32976.028
Average inoculum sizeStandard deviationPercent variation
11.41.4913%
58.43.76.3%
135.87.87.8%

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
    Inoculum Effect
    1. I Brook
    (1989)
    Clinical Infectious Diseases 11:361–368.
    https://doi.org/10.1093/clinids/11.3.361
  15. 15
  16. 16
    Dynamic aspects of the pathology and bacteriology of tuberculous lesions
    1. G Canetti
    (1956)
    American Review of Tuberculosis 74:13–21.
  17. 17
  18. 18
    Pharmacokinetic/pharmacodynamic parameters: rationale for antibacterial dosing of mice and men
    1. WA Craig
    (1998)
    Clinical Infectious Diseases : An Official Publication of the Infectious Diseases Society of America 26:1–12.
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
    Failure of vancomycin treatment in Staphylococcus aureus endocarditis. In vivo and in vitro observations
    1. V Gopal
    2. AL Bisno
    3. FJ Silverblatt
    (1976)
    Jama 236:1604–1606.
  40. 40
  41. 41
    Reconciliation of Microbial Risk Models and Outbreak Epidemiology: The Case of the Milwaukee Outbreak
    1. C Haas
    2. J Rose
    (1994)
    Water Quality: American Water Works Association Annual Conference. pp. 517–523.
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
    Annual Review of Microbiology, Vol. 64
    1. K Lewis
    (2010)
    S Gottesman, C. S Harwood, editors. Palo Alto: Annual Reviews.
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
    Tackling Drug-Resistant Infections Globally: Final Report and Recommendations
    1. J O’Neill
    (2016)
    Review on Antimicrobial Resistance.
  68. 68
  69. 69
    A Kinetic View of Statistical Physics
    1. SR Pavel Krapivsky
    2. E Ben-Naim
    (2010)
    Cambridge: Cambridge University Press.
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85

Decision letter

  1. Aleksandra M Walczak
    Reviewing Editor; Ecole Normale Superieure, France

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Antibiotic-induced population fluctuations and stochastic clearance of bacteria" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Arup Chakraborty as the Senior Editor. The following individual involved in review of your submission has agreed to reveal his identity: Bartek Waclaw (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

The reviewers found the topic very interesting, however they raise major concerns, both technical and in terms of the discussion of the results, that need to be addressed in great detail if publication is warranted. Please provide a detailed response to all points, the technical points of all reviewers, comparison between the model and experiments, discussion of previous work and the points about the impact of these findings, the parameter regimes where they occur and their link to real environments. While to the best of our knowledge the results presented here have never been reported in exactly this form, the lack of references to past work gives a false impression that no stochastic models of antibiotic resistance have been studied, which is not true (e.g., work from Hermsen and Hwa, the Dunlop group and others, additionally to the ones named by the reviewers (see point 5 below) build on similar ideas). This should be discussed in more detail, especially work that does try to make connections between theory and experiment. In view of these previous papers, the present result is maybe not extremely unexpected and should be presented more as an extension and careful regime exploration than a completely new idea. We therefore urge the authors to present the novelty of these results in a more balanced way.

Major points to be addressed:

1) All reviewers feel that the relevance of the conclusions to real infections is overstated. First, there is a relatively narrow window in which stochastic clearance occurs and it may be challenging to hit this precise window outside of a well-controlled lab experiment. Real infections are not treated when the number of cells is 100 to 10^4 but rather 10^8 or more since only an infection becomes evident. In such large populations different stochastic effects (de novo mutations that confer resistance to antibiotics, phenotypic adaptation) are likely to be more important than demographic fluctuations. Second, antibiotics only help to clear infections in vivo, and the most work is probably done by the immune system. Extrapolating from in vitro experiments where no immune response is present can be misleading. It would be interesting to discuss the possible role of the immune system in bacterial clearance within an actual patient. The authors should discuss these points in detail and tone down their statement.

2) Although the authors present data in Figure 1C showing this is not the case for the two rounds of exposure they use here, please discuss the effect of repeated sub-MIC antibiotic exposure and how this will ultimately impact the evolution of antibiotic resistance in the cells that do survive.

3) The manuscript would be improved by a more thorough and explicit comparison between the data and the model predictions:

- In Figures 1A, 1B and Figure 1—figure supplement 2, trends in the data have been highlighted by gray arrows. While we agree that the data show these trends, such "guides for the eye" can be misleading. Please graph linear regressions of the data (on the whole data set for Figures 1B and figure 1—figure supplement 2, and for concentrations below a certain threshold for Figure 1A). It would be useful to indicate the slope and the correlation coefficients obtained.

- Figure 3B and subsection “A simple, stochastic model of the population dynamics accounts for stochastic clearance of bacterial populations”, last paragraph: The data follow the predicted exponential decay at long enough times, but it would be interesting to push the analysis further:

- Does the slope of the data in this regime agree with the prediction from Equation S7?

- Can the delay before the onset of this decay be understood by the full expression of 1-P0, or are there extra complications at early times?

- Subsection “A population with large inoculum size is subject to stochastic clearance at sub-MIC drug concentrations”, last two paragraphs: Here the fluctuations in inoculum size could play a role in the stochasticity of the outcome, especially for small inoculum sizes. This point should be briefly discussed.

- Figures 4, Figure 4—figure supplements 2-4 and subsection “Alteration of the extinction probability to facilitate bacterial eradication at sub-MIC drug concentrations”, last three paragraphs: The data look quite deterministic, while the phenomenon is stochastic, and while Figure 1B (which corresponds to the same data as the white columns in Figure 4A) included error bars corresponding to a standard deviation over several experimental replicates.

If only one replicate was considered for some experiments, this should be stated. If the mean over different replicates was plotted, it should be mentioned, and error bars should be added, similarly to Figure 1B.

- For example, could the slope of the dashed line in Figure 3B be predicted from the model? Or Figures 3D and 4A – do they quantitatively agree with model predictions? This should be fairly easy to do given the existing data on growth and death rates.

4) In some cases, it would be nice to show more data, especially if it already exists:

- "CV decreased with increasing inoculum size, supporting the expectation above": It would be nice to show the corresponding data.

- Video: it would be helpful to include other videos for comparison purposes, e.g. one without antibiotic and one with a bacteriostatic antibiotic (sub-MIC).

5) As noted in the summary, please reference and discuss previous work more exhaustively. The reviewers feel the novelty of the findings with respect to existing models is exaggerated. It is not true that current models of population dynamics of bacteria exposed to antibiotics are almost exclusively deterministic and that this work is the first to account for stochastic death and replication. A similar approach was used as early as in the 60's, see Nissen-Meyer, 1966. See also a more recent paper that combines stochastic modelling and experiments, Ferrante et al., 2005. in vitro

https://doi.org/10.7554/eLife.32976.031

Author response

Major points to be addressed:

1) All reviewers feel that the relevance of the conclusions to real infections is overstated. First, there is a relatively narrow window in which stochastic clearance occurs and it may be challenging to hit this precise window outside of a well-controlled lab experiment. Real infections are not treated when the number of cells is 100 to 10^4 but rather 10^8 or more since only an infection becomes evident. In such large populations different stochastic effects (de novo mutations that confer resistance to antibiotics, phenotypic adaptation) are likely to be more important than demographic fluctuations. Second, antibiotics only help to clear infections in vivo, and the most work is probably done by the immune system. Extrapolating from in vitro experiments where no immune response is present can be misleading. It would be interesting to discuss the possible role of the immune system in bacterial clearance within an actual patient. The authors should discuss these points in detail and tone down their statement.

We extensively modified the first three paragraphs in the Discussion to incorporate this comment. For example, we a) deleted the statement "…the present study is the first to show…"; b) acknowledged that a mature infection is a typical target of antibiotic treatment and contains many cells; c) cited prior work discussing stochasticity; and d) acknowledged the role of host immune systems.

2) Although the authors present data in Figure 1C showing this is not the case for the two rounds of exposure they use here, please discuss the effect of repeated sub-MIC antibiotic exposure and how this will ultimately impact the evolution of antibiotic resistance in the cells that do survive.

We discussed this point in Appendix 2. Briefly, although multiple rounds of plating will ultimately lead to selection of antibiotic-resistant mutants, our plating procedure creates a bottleneck effect, which reduces genetic variation and effectively weakens selection pressure for antibiotic resistance.

3) The manuscript would be improved by a more thorough and explicit comparison between the data and the model predictions:

- In Figures 1A, 1B and Figure 1—figure supplement 2, trends in the data have been highlighted by gray arrows. While we agree that the data show these trends, such "guides for the eye" can be misleading. Please graph linear regressions of the data (on the whole data set for Figures 1B and figure 1—figure supplement 2, and for concentrations below a certain threshold for Figure 1A). It would be useful to indicate the slope and the correlation coefficients obtained.

Thank you for the suggestion. Linear regression analyses were performed, and results were plotted as a grey line in Figure 1A, 1B and Figure 1—figure supplement 2. The slope, intercept, and R-squared values were provided in the captions.

- Figure 3B and subsection “A simple, stochastic model of the population dynamics accounts for stochastic clearance of bacterial populations”, last paragraph: The data follow the predicted exponential decay at long enough times, but it would be interesting to push the analysis further:

- Does the slope of the data in this regime agree with the prediction from Equation S7?

This is an interesting question. The number of live populations decreases exponentially when exposed to drug concentrations above MICs (Figure 3B). Quantitative prediction of the exponential decay requires the determination of growth and death rates. But, we were not able to determine these rates for cells exposed to drug concentrations above the MIC, because cells died too quickly; we tried hard but were not able to monitor enough division/death events to reliably determine these rates. We plan to pursue this question in the future by developing high-throughput methods.

- Can the delay before the onset of this decay be understood by the full expression of 1-P0, or are there extra complications at early times?

In our experiments, we culture cells in drug-free liquid medium and then plate them on LB solid medium containing an antibiotic. The plating defines time zero. Upon exposure to an antibiotic, cells change their morphology. This change proceeds for some time before cell death takes place, indicating a delay in antibiotic killing. This delay is expected to result from influx/uptake of antibiotic molecules, binding of antibiotic molecules to their targets, etc. This delay leads to the initial plateau in the number of live populations (Figure 3B), complicating the analysis.

- Subsection “A population with large inoculum size is subject to stochastic clearance at sub-MIC drug concentrations”, last two paragraphs: Here the fluctuations in inoculum size could play a role in the stochasticity of the outcome, especially for small inoculum sizes. This point should be briefly discussed.

Thank you for pointing this out. We characterized the fluctuations in inoculum size by determining standard deviation and percent variation; see the table below. The variation was ~10% or less. In Figure 3D, which shows the extinction probability at various (average) inoculum size, the probability changes only gradually for two-fold increment in inoculum size (which is equivalent to 100% increases). Therefore, we do not believe that these fluctuations in inoculum size have a significant effect on the results. We added this discussion in Appendix 3 and added a pointer to this discussion in Figure 3 legend.

Average inoculum sizeStandard deviationPercent variation
11.41.4913%
58.43.76.3%
135.87.87.8%

- Figures 4, Figure 4—figure supplements 2-4 and subsection “Alteration of the extinction probability to facilitate bacterial eradication at sub-MIC drug concentrations”, last three paragraphs: The data look quite deterministic, while the phenomenon is stochastic, and while Figure 1B (which corresponds to the same data as the white columns in Figure 4A) included error bars corresponding to a standard deviation over several experimental replicates.

If only one replicate was considered for some experiments, this should be stated. If the mean over different replicates was plotted, it should be mentioned, and error bars should be added, similarly to Figure 1B.

We added errors bars in the figures and the statement “We performed two biological repeats and plotted the mean. The error bars represent one standard deviation from the repeats.” in the legends.

- For example, could the slope of the dashed line in Figure 3B be predicted from the model?

Yes, we agree that such a comparison would be useful. However, we were not able to make the comparison due to experimental limitations. The limitations were discussed in A4 above.

Or Figures 3D and 4A – do they quantitatively agree with model predictions? This should be fairly easy to do given the existing data on growth and death rates.

In the main text, we characterized populations starting with single cells. We determined extinction probability, P0,using experiments and the model, which showed good agreement (Figure 2D). Here, we compare the model predictions with experimental data plotted in Figure 3D (P0 with higher inoculum size) and Figure 4A (P0 with growth reduction).

First, we used the data shown in Figure 3D and plotted P0 at various inoculum size for ~0.9× MIC of cefsulodin as red columns in the figure (on the right). We then plotted the model prediction as the black line, which shows a similar trend but somewhat underestimates P0. With respect to Figure 4A, we can infer how well the model captures experimental data directly from the figure. We designed our experiments such that the growth rate is reduced by a half. Therefore, the model predicts a two-fold increase in extinction probability, meaning that the colored columns should be twice higher than the open columns. Figure 4A shows that the former is higher, but not always by two-fold. Therefore, the model predictions and experimental data show similar trends but do not exactly match.

We note that we used the Markov model to capture the most fundamental processes, and its prediction agreed well with the experimental data obtained with simple conditions (e.g., populations starting with single cells, Figure 2D). However, the model does not include other details of antibiotic action (as discussed in the subsection “Alteration of the extinction probability to facilitate bacterial eradication at sub-MIC drug concentrations”), which can play a role in more complicated conditions, e.g., populations starting with many cells (Figure 3D) or changing the growth rate (Figure 4A). We believe this is why the model predictions and experimental data show similar trends but do not exactly agree. We plan to construct more realistic models in the future, as soon as this manuscript is published.

4) In some cases, it would be nice to show more data, especially if it already exists:

- "CV decreased with increasing inoculum size, supporting the expectation above": It would be nice to show the corresponding data.

We apologize that the description was not clear. In this sentence, we were describing the model prediction; we clarified this by directly citing the equation number. Unfortunately, we do not have the experimental data because the experiments were performed using 96-chamber microtiter plates and the number of cells in each chamber was not determined.

- Video: it would be helpful to include other videos for comparison purposes, e.g. one without antibiotic and one with a bacteriostatic antibiotic (sub-MIC).

Yes. We included these videos.

5) As noted in the summary, please reference and discuss previous work more exhaustively. The reviewers feel the novelty of the findings with respect to existing models is exaggerated. It is not true that current models of population dynamics of bacteria exposed to antibiotics are almost exclusively deterministic and that this work is the first to account for stochastic death and replication. A similar approach was used as early as in the 60's, see Nissen-Meyer, 1966. See also a more recent paper that combines stochastic modelling and experiments, Ferrante et al., 2005.

As discussed in A1, we toned down our statement of novelty and cited previous studies including the ones recommended here.

https://doi.org/10.7554/eLife.32976.032

Article and author information

Author details

  1. Jessica Coates

    Microbiology and Molecular Genetics Graduate Program, Graduate Division of Biological and Biomedical Sciences, Emory University, Atlanta, United States
    Contribution
    Validation, Investigation, Methodology
    Contributed equally with
    Bo Ryoung Park
    Competing interests
    No competing interests declared
  2. Bo Ryoung Park

    Department of Physics, Emory University, Atlanta, United States
    Contribution
    Validation, Investigation, Methodology
    Contributed equally with
    Jessica Coates
    Competing interests
    No competing interests declared
  3. Dai Le

    Department of Physics, Emory University, Atlanta, United States
    Contribution
    Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Emrah Şimşek

    Department of Physics, Emory University, Atlanta, United States
    Contribution
    Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Waqas Chaudhry

    Department of Physics, Emory University, Atlanta, United States
    Contribution
    Visualization
    Competing interests
    No competing interests declared
  6. Minsu Kim

    1. Microbiology and Molecular Genetics Graduate Program, Graduate Division of Biological and Biomedical Sciences, Emory University, Atlanta, United States
    2. Department of Physics, Emory University, Atlanta, United States
    3. Emory Antibiotic Resistance Center, Emory University, Atlanta, United States
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Investigation, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    minsu.kim@emory.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1594-4971

Funding

Research Corporation for Science Advancement (24097)

  • Jessica Coates
  • Bo Ryoung Park
  • Dai Le
  • Emrah Şimşek
  • Minsu Kim

Human Frontier Science Program (RGY0072/2015)

  • Jessica Coates
  • Bo Ryoung Park
  • Dai Le
  • Emrah Şimşek
  • Minsu Kim

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Jeff Gore, Véronique Perrot, and Bruce Levin for helpful comments on the manuscript. We also thank Emily Crispell and David Weiss for sharing strains with us. This work was funded by Research Corporation for Science Advancement (#24097) and the Human Frontier Science Program (RGY0072/2015).

Reviewing Editor

  1. Aleksandra M Walczak, Ecole Normale Superieure, France

Publication history

  1. Received: October 20, 2017
  2. Accepted: February 15, 2018
  3. Accepted Manuscript published: March 6, 2018 (version 1)
  4. Version of Record published: March 12, 2018 (version 2)
  5. Version of Record updated: March 15, 2018 (version 3)

Copyright

© 2018, Coates et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,288
    Page views
  • 341
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Computational and Systems Biology
    2. Developmental Biology
    Inna Averbukh et al.
    Research Article
    1. Computational and Systems Biology
    2. Neuroscience
    Dilawar Singh, Upinder Singh Bhalla
    Research Article Updated
