We started with the question of whether the spatial pattern of approaching objects influences escape behavior. To control the stimulus pattern, as in our earlier work (Jones and Gabbiani, 2010), we generated stimuli equivalent to standard looming stimuli but pixelated at the spatial resolution of photoreceptors on the retina, called ‘coarse’ looming stimuli (Figure 1C,D). The LGMD receives similar synaptic excitation and responds equally for standard and coarse looming stimuli (Jones and Gabbiani, 2010). We could then alter the coherence of these stimuli with minimal change to the temporal pattern of activation experienced by individual photoreceptors by adding a random spatial jitter to each ‘coarse pixel’ (Figure 1C). Spatial stimulus coherence was varied from random (0%) to perfectly coherent (100% = standard or coarse looming stimulus; see Materials and methods; Videos 1 and 2). Looming stimuli with full and reduced coherence were presented to unrestrained animals while recording the probability of escape jumps (Figure 1E, Video 3). Locusts showed a strong behavioral selectivity to spatial coherence; stimuli with less than 50% spatial coherence elicited no escape jumps, but jump probability increased rapidly with coherence above 50% (Figure 1F). The firing rate of the LGMD was also highly sensitive to stimulus coherence, with sharply reduced spike count and peak spike rate at 0% coherence (Figure 1G). Thus, the spatial coherence of an approaching object determines both the LGMD's response and the animal's decision of whether to escape.

Video 1

Download asset

Video 2

Download asset

Video 3

Download asset

None of the known properties of the LGMD or its presynaptic circuitry could explain this spatial selectivity. Previous experiments showed that the strength of excitatory inputs encodes the temporal characteristics of the approaching object by tracking local changes in luminance independent of their spatial pattern (Jones and Gabbiani, 2010). Additionally, the spatial clustering of synaptic inputs that occurs with coherent stimuli reduced summation in simulations of passive LGMD dendrites (Peron et al., 2009), as further elaborated below. The LGMD's selectivity for the spatial characteristics of an approaching object are therefore likely determined by active processing within the dendrites of field A. No active conductances, however, have yet been characterized within these dendrites. Evidence suggests that neither the fast Na⁺ nor Ca²⁺ channels that produce supralinear summation in other neurons are present there (Jones and Gabbiani, 2010; Peron and Gabbiani, 2009). Since in many cells HCN channels influence dendritic computations, and previous experiments suggested putative HCN channels within the LGMD (Gabbiani and Krapp, 2006), we hypothesized that HCN channels within field A might be involved in discriminating the spatial coherence of approaching objects. Specifically, HCN channels narrow the membrane's temporal and spatial integration window to excitatory synaptic currents over an extended dendritic harbor. As approaching objects expand toward collision time, the closing of HCN channels could broaden the integration window and thus provide a slow positive feedback mechanism to tune a neuron to the visual stimuli associated with approaching objects.

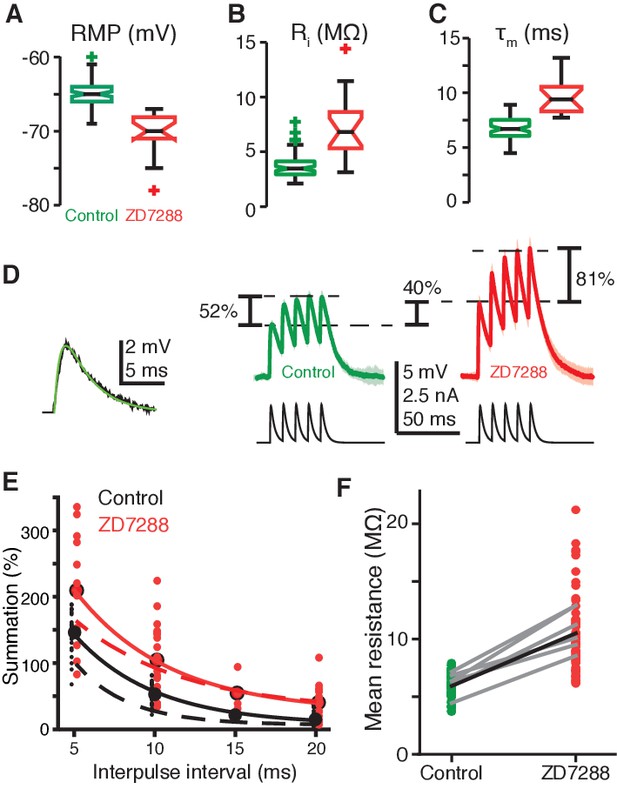

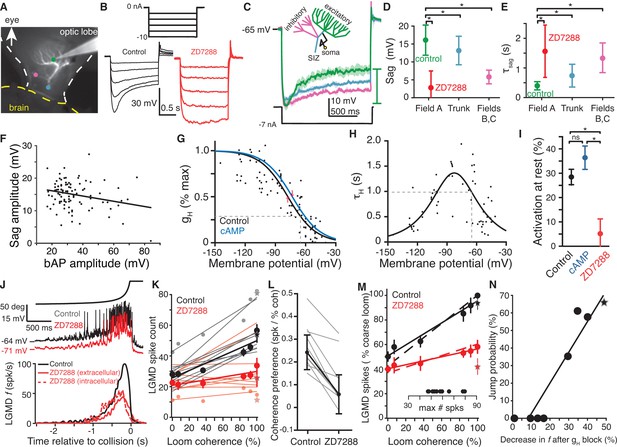

To test for the presence of HCN channels, we used current and voltage steps, as well as application of known channel blockers and modulators (Robinson and Siegelbaum, 2003), during visually guided recordings from each of LGMD's three dendritic fields and near the spike initiation zone (SIZ; Figure 2A). Hyperpolarization of field A produced a characteristic rectifying sag, which was abolished by the HCN channel blockers ZD7288 (Figure 2B) and Cs⁺ (Figure 2—figure supplement 1A,B). Applying step currents that generated similar peak hyperpolarization (Figure 2C, Materials and methods), produced a larger, faster sag in field A than in either field B or C, or near the SIZ. To quantify these results across our sample population, we measured sag amplitude from the peak hyperpolarization elicited by these step currents and fitted single exponentials to the sag time course (Figure 2—figure supplement 1C). On average, sags recorded from field A without HCN channel block were significantly larger and faster than those recorded from other neuronal regions (Figure 2D,E; compare Field A control, vs. trunk and Field B, C). Similarly, block of HCN channels by ZD7288 in field A removed these sags (Figure 2D,E; compare Field A control vs. ZD7288). This shows a greater effect of HCN channels’ conductance (g_H) in field A, consistent with HCN channels being localized there and the current passively propagating to the rest of the LGMD.

Figure 2 with 2 supplements see all

Download asset Open asset

Figure 2—source code 1

A Matlab script that will import the data in Figure 2—source data 1 and generate the plots in Figure 2.

https://doi.org/10.7554/eLife.34238.012

Download elife-34238-fig2-code1-v3.m

Figure 2—source code 2

A Matlab script that will import the data in Figure 2—source data 2 and generate the plots in Figure 2—figure supplement 1.

To run the script requires auxiliary matlab files 'ErrorBars.m' and 'isvect.m'.

https://doi.org/10.7554/eLife.34238.013

Download elife-34238-fig2-code2-v3.m

Figure 2—source code 3

A Matlab script that will import the data in Figure 2—source data 3 and generate the plots in Figure 2—figure supplement 2.

To run the script requires auxiliary matlab files 'linear_plotter.m', 'lin_Fit.m', 'ErrorBars.m', and 'isvect.m'.

https://doi.org/10.7554/eLife.34238.014

Download elife-34238-fig2-code3-v3.m

Figure 2—source data 1

An.xlsx spreadsheet with data plotted in Figure 2.

Associated code for generating plots is in the Matlab file Figure2_SourceCode1.m.

https://doi.org/10.7554/eLife.34238.015

Download elife-34238-fig2-data1-v3.xlsx

Figure 2—source data 2

An.xlsx spreadsheet with source data plotted in Figure 2—figure supplement 1.

Associated code for generating plots is in the Matlab file Figure2_SourceCode2.m.

https://doi.org/10.7554/eLife.34238.016

Download elife-34238-fig2-data2-v3.xlsx

Figure 2—source data 3

An.xlsx spreadsheet with source data plotted in Figure 2—figure supplement 2.

Code for generating plots is in the Matlab file Figure2_SourceCode3.m.

https://doi.org/10.7554/eLife.34238.017

Download elife-34238-fig2-data3-v3.xlsx

Within the dendrites, back-propagating action potentials decay with electrotonic distance from the SIZ. Their amplitude was thus used as a measure of electrotonic distance from the SIZ to the recording location. Recordings at different locations within the dendritic trunk and field A revealed an increase in sag with electrotonic distance from the SIZ (Figure 2F) suggesting a higher channel density distally in field A. To characterize the channel kinetics, field A dendrites were voltage clamped. As HCN channels are distinctive in their activation range and time course we were able to measure and fit their currents (see Materials and methods; Figure 2—figure supplement 1D), revealing an activation curve (Figure 2G) and time constant (Figure 2H) similar to that of HCN2 channels (Robinson and Siegelbaum, 2003). Next, we tested modulation of the HCN channels by cAMP. Application of cAMP shifted the half-activation potential (v_1/2) of g_H from −77.6 ± 3.8 to −73.4 ± 2.2 mV (mean ±sd; Figure 2G) and slightly increased activation at rest (Figure 2I). Both changes, however, were not different from controls (p=0.18 and p=0.076, respectively). These observations are in agreement with a recent report of a decrease in exogenous cAMP modulation of HCN channels in vivo post-developmentally, likely due to saturation of naturally occurring cAMP levels (Khurana et al., 2012). In contrast, ZD7288 application unambiguously abolished resting g_H activation (Figure 2I).

To examine whether these HCN channels could be responsible for spatial discrimination, we presented visual stimuli before and after their pharmacological blockade. For standard looming stimuli, g_H was excitatory with responses reduced by 61% after HCN blockade (Figure 2J). Responses to localized luminance transients, however, were similar before and after blockade of g_H (Figure 2—figure supplement 2A–C). Next, we quantified the responses to looming stimuli of varying coherence in control and after HCN blockade by computing the spike counts elicited over each entire trial. Since the LGMD did not exhibit any significant spontaneous activity, changes in spike counts were entirely caused by changes in the stimulus coherence. Under control conditions, there was a large increase in LGMD response with stimulus coherence which was reduced after ZD7288 blockade (42% for coarse looming stimuli; Figure 2K). For each experiment, we defined coherence preference as the slope of the linear fit to the number of spikes fired by the LGMD as a function of coarse looming stimulus coherence. For every animal tested, the coherence preference was reduced after g_H blockade, decreasing from a median of 0.24 to 0.06 spikes per percent coherence (Figure 2L; similar results were observed for the peak firing rate, see Figure 2—figure supplement 2D,E). To compare this relationship across animals, we normalized responses to the control response to fully coherent coarse stimuli before averaging across animals (Figure 2M). LGMD responses consistently increased less with stimulus coherence after g_H block (Figure 2M). After blockade, the mean response to all stimuli fell within ±1 sd of the mean control response to 0% coherence (p=0.10; KW). As explained below, this change in selectivity was reproduced by a biophysical model of the LGMD (Figure 2M, dashed lines). To ensure that these effects were intrinsic to the LGMD, we ascertained that blocking g_H with intracellular Cs⁺ application also reduced the coherence selectivity (Figure 2—figure supplement 2F; Materials and methods).

Next, we compared the jump probabilities at each coherence level (Figure 1F) with the g_H-dependent increase in firing for that coherence level (difference between control and HCN block in Figure 2M). This revealed a strong correlation between physiology and behavior (Figure 2N). Furthermore, responses to faster looming stimuli, which fail to produce escape behaviors before the projected time of collision (Fotowat and Gabbiani, 2007), showed a smaller g_H-dependent increase in firing (Figure 2—figure supplement 2G). Therefore, g_H increased responses specifically to stimuli which evoke escape, suggesting that the g_H-dependent enhancement produced the escape selectivity.

Having found that g_H-dependent increase in firing is strongly correlated with jump probabilities (Figure 2N), we sought a direct test of the hypothesis that g_H within the LGMD played a role in the animals’ escape from approaching objects. So, we blocked g_H in the LGMD in freely behaving animals (Materials and methods). As a control, we developed a chronic recording technique allowing us to monitor the descending LGMD output during escape behaviors before and after g_H blockade.

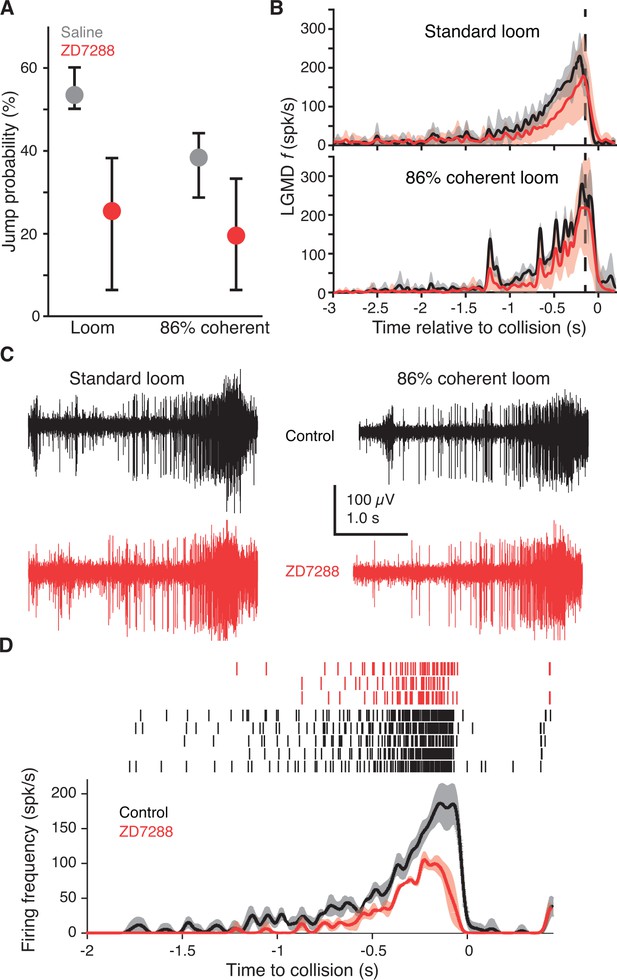

Blocking g_H in the LGMD reduced escape behavior by 53% for standard looming stimuli compared to saline injection (Figure 3A, left two dots). The coherence preference was also removed by blockade of g_H: standard looming stimuli no longer produced a higher percentage of escape than reduced coherence stimuli (Figure 3A, red dots). That these behavioral changes were caused by g_H blockade within the LGMD was further confirmed by examination of the LGMD's firing pattern. g_H blockade by ZD7288 decreased responses to both standard looming stimuli and 86% coherent stimuli (Figure 3B,C). The reduction in firing in the freely moving animals was less than that in the restrained preparation (36% and 60%, respectively), which might be due to an incomplete block of g_H after stereotactic injection compared to visually guided puffing (see Materials and methods) or differences in arousal state. To test this, we used the stereotactic injection procedure in restrained animals and saw a 56% reduction in looming responses (Figure 3D) suggesting the difference in firing rate change was more likely due to a difference in behavioral state. Our ability to produce a change in behavior of freely moving animals from blockade of g_H was confirmed by simultaneous extracellular recordings revealing a LGMD firing rate change resembling that of intracellular drug application, verification that the surgical procedures did not reduce the response, and postmortem anatomical verification that drug application occurred within the region encompassing the LGMD’s dendrites (Figure 3—figure supplement 1).

Figure 3 with 1 supplement see all

Download asset Open asset

Figure 3—source code 1

A Matlab script that will import the data in Figure 3—source data 1 and generate the plots in Figure 3.

To run the script requires auxiliary matlab files 'ErrorPlot.m', 'ErrorBars.m' and 'isvect.m'.

https://doi.org/10.7554/eLife.34238.020

Download elife-34238-fig3-code1-v3.m

Figure 3—source code 2

A Matlab script that will import the data in Figure 3—source data 2 and generate the plots in Figure 3—figure supplement 1.

To run the script requires auxiliary matlab files 'ErrorBars.m' and 'isvect.m'.

https://doi.org/10.7554/eLife.34238.021

Download elife-34238-fig3-code2-v3.m

Figure 3—source data 1

An.xlsx spreadsheet with data plotted in Figure 3.

https://doi.org/10.7554/eLife.34238.022

Download elife-34238-fig3-data1-v3.xlsx

Figure 3—source data 2

An.xlsx spreadsheet with source data plotted in Figure 3—figure supplement 1.

https://doi.org/10.7554/eLife.34238.023

Download elife-34238-fig3-data2-v3.xlsx

The precise biophysical mechanisms by which HCN channels could impart the selective enhancement of coherent stimulus responses are not immediately obvious. HCN channels are not known to increase summation of spatially coherent inputs, and often g_H has net inhibitory effects (Robinson and Siegelbaum, 2003; Poolos et al., 2002). To determine how HCN channels produced the selective enhancement of looming responses, we investigated the effects of g_H on membrane excitability within field A. g_H increased the resting membrane potential (RMP) by ~6 mV in field A, which would bring the neuron closer to spike threshold (Figure 4A). Blockade also revealed g_H to decrease input resistance by 50% and the membrane time constant (τ_m) by 30% (Figure 4B,C), which should substantially reduce the temporal summation of excitatory postsynaptic potentials (EPSPs), as occurs in cortical pyramidal neurons (Magee, 1998; Mishra and Narayanan, 2015). To confirm this point, we injected currents yielding membrane depolarizations with the same time course as EPSPs to generate ‘simulated EPSPs’ (sEPSPs; Figure 4D). After g_H blockade, summation from the first to fifth sEPSP increased for all tested delays (Figure 4E; the dashed lines are from the biophysical model described below). Additionally, the integrated sEPSPs normalized by the integrated current increased by 77% (Figure 4F). This normalized integral generates a measure of effective input resistance for the sEPSPs which was similar to the input resistance to step currents, but with a slightly larger increase after HCN blockade (compare Figure 4B and F). Neither before nor after g_H blockade was supralinear summation ever seen in LGMD dendrites. Thus, the mix of local excitatory and inhibitory electrotonic effects of g_H does not provide any simple explanation for the large enhancement in looming responses or the conveyed coherence selectivity.

Figure 4

Download asset Open asset

Figure 4—source code 1

A Matlab script that will import the data in Figure 4—source data 1 and generate the plots in Figure 4.

https://doi.org/10.7554/eLife.34238.025

Download elife-34238-fig4-code1-v3.m

Figure 4—source data 1

An.xlsx spreadsheet with data plotted in Figure 4.

https://doi.org/10.7554/eLife.34238.026

Download elife-34238-fig4-data1-v3.xlsx

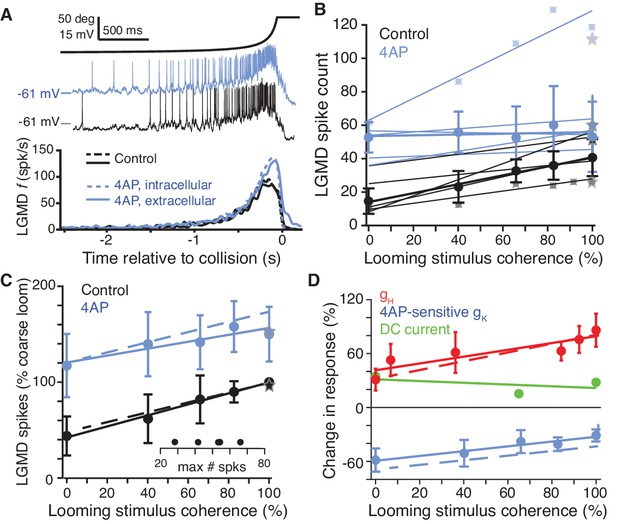

It may seem counterintuitive that g_H increased looming responses twofold despite decreasing sEPSP amplitude and temporal summation by half. To explain this apparent contradiction, we considered interactions between HCN and other dendritic channels. In several systems, HCN channels have indirect excitatory effects through inactivation of co-localized voltage-gated K⁺ channels (Mishra and Narayanan, 2015; Khurana et al., 2011; MacLean et al., 2005; Amendola et al., 2012). To test whether this was also the case in dendritic field A of the LGMD, we measured visual responses in the presence of 4-aminopyridine (4AP), a blocker of inactivating K⁺ channels (Storm, 1988). Application of 4AP, either intracellularly or extracellularly, increased the resting membrane potential in field A by 2–5 mV and the spiking response and instantaneous firing rate to standard looming stimuli (Figure 5A). Application of 4AP also increased responses to coarse looming stimuli of varying degree of coherence, but responses to fully coherent looming stimuli increased the least (Figure 5B). A similar result was observed after normalizing responses to the control response to fully coherent coarse stimuli before averaging across animals (Figure 5C). This relative increase in incoherent responses after blocking inactivating K⁺ channels was also reproduced in a biophysical model (Figure 5C, dashed lines; see below). The complementary effects of HCN and K⁺ channels was best revealed by plotting their relative changes to looming responses, shown as the percent difference from block to control (Figure 5D). Thus, while HCN channels predominantly boosted responses to coherent stimuli, inactivating K⁺ channels mainly decreased responses to incoherent ones.

Figure 5 with 1 supplement see all

Download asset Open asset

Figure 5—source code 1

A Matlab script that will import the data in Figure 5—source data 1 and generate the plots in Figure 5.

To run the script requires auxiliary matlab files 'linear_plotter.m', 'lin_Fit.m', 'ErrorBars.m' and 'isvect.m'.

https://doi.org/10.7554/eLife.34238.029

Download elife-34238-fig5-code1-v3.m

Figure 5—source code 2

A Matlab script that will import the data in Figure 5—source data 2 and generate the plots in Figure 5—figure supplement 1.

To run the script requires auxiliary matlab files 'linear_plotter.m', 'lin_Fit.m', 'ErrorBars.m' and 'isvect.m'.

https://doi.org/10.7554/eLife.34238.030

Download elife-34238-fig5-code2-v3.m

Figure 5—source data 1

An.xlsx spreadsheet with data plotted in Figure 5.

https://doi.org/10.7554/eLife.34238.031

Download elife-34238-fig5-data1-v3.xlsx

Figure 5—source data 2

An.xlsx spreadsheet with source data plotted in Figure 5—figure supplement 1.

https://doi.org/10.7554/eLife.34238.032

Download elife-34238-fig5-data2-v3.xlsx

The increase in RMP caused by g_H (Figure 4A) could result in a change in the resting inactivation level of the 4AP sensitive K⁺ channels. To test whether the effects of g_H on coherent stimuli were primarily due to the shift in the RMP, we hyperpolarized the LGMD during visual stimuli to a potential like that achieved by HCN blockade (~6 mV, see above). However, lowering the RMP without the changes to input resistance and membrane time constant caused by g_H blockade (Figure 4B,C) only produced a modest reduction in coherence preference, with responses to standard looming stimuli reduced by 20% vs. 61% after ZD7288 blockade (p=0.03, WRS; see above and Figure 5—figure supplement 1). This reduction in coherence preference was less than that produced by blockade of either dendritic channel and was independent of stimulus coherence (p=0.36, KW; Figure 5D). This result corroborates the idea that dynamic changes of the g_H conductance occurring during looming stimulation and their effects on electrical compactness and membrane time constant play a central role in coherence selectivity.

To further confirm that the inactivating K⁺ channels were exerting a spatially dependent effect on synaptic integration, we measured subthreshold activity in dendritic field A before and after 4AP application while presenting looming stimuli with varying degrees of coherence. As illustrated in Figure 6A (top), we measured during a given period of the visual stimulus (vertical green lines) the average membrane depolarization before and after application of 4AP (grey horizontal lines). During this period, a distinct group of coarse pixels were decreasing in luminance. As illustrated in the two bottom panels of Figure 6A, we measured the mean angular distance of each currently changing pixel from the nearest previously darkened pixel (red lines). A short distance example is depicted on the left and large one on the right of Figure 6A. In the control condition (the top panels), the membrane potential was closer to the baseline for the larger angular distance (compare left and right black traces). This decrease in depolarization was attenuated after 4AP application (blue traces). Since mean angular distance increased on average with decreasing coherence, we could obtain a broad sample of distances by carrying out this analysis across trials and animals. This revealed that the membrane depolarization systematically decreased with increasing stimulus distance in the control condition, but this effect was abolished after 4AP (Figure 6B). We repeated this process for a total of six distinct time periods for each looming stimulus. Throughout stimulus expansion, the more dispersed excitatory inputs were, the less dendritic depolarization they produced in control conditions, a feature absent after 4AP application (Figure 6—figure supplement 1). These results are summarized across the six time periods in Figure 6C, by normalizing angular distance and membrane potential depolarization since their ranges vary over the stimulus time course. We further quantified the change in depolarization caused by currently changing coarse pixels as a function of their mean angular distance to fully darkened ones by computing the slope of the linear fits between these two quantities (Figure 6D). Smaller slopes were observed in the earlier time windows when angular distances were larger and only a few coarse pixels were changing and, vice-versa, larger slopes were observed in later time windows when distances were smaller, but more pixels were changing their luminance. For each time window, 4AP increased the depolarization produced in field A by more distant stimuli with an average slope difference of 1.05 mV per degree of visual separation (Figure 6E). These experiments confirm that inactivating K⁺ channels selectively reduce excitation for the spatially dispersed inputs generated in dendritic field A by incoherent looming stimuli and thus contribute to the selectivity of the neuron to coherently expanding looming stimuli.

Figure 6 with 1 supplement see all

Download asset Open asset

Figure 6—source code 1

A Matlab script that will import the data in Figure 6—source data 1 and generate the plots in Figure 6.

To run the script requires auxiliary matlab files 'linear_plotter.m' and 'lin_Fit.m'.

https://doi.org/10.7554/eLife.34238.035

Download elife-34238-fig6-code1-v3.m

Figure 6—source code 2

A Matlab script that will import the data in Figure 6—source data 2 and generate the plots in Figure 6—figure supplement 1.

To run the script requires auxiliary matlab files 'linear_plotter.m' and 'lin_Fit.m'.

https://doi.org/10.7554/eLife.34238.036

Download elife-34238-fig6-code2-v3.m

Figure 6—source data 1

An.xlsx spreadsheet with data plotted in Figure 6.

https://doi.org/10.7554/eLife.34238.037

Download elife-34238-fig6-data1-v3.xlsx

Figure 6—source data 2

Acsv file with source data plotted in Figure 6—figure supplement 1.

https://doi.org/10.7554/eLife.34238.038

Download elife-34238-fig6-data2-v3.csv

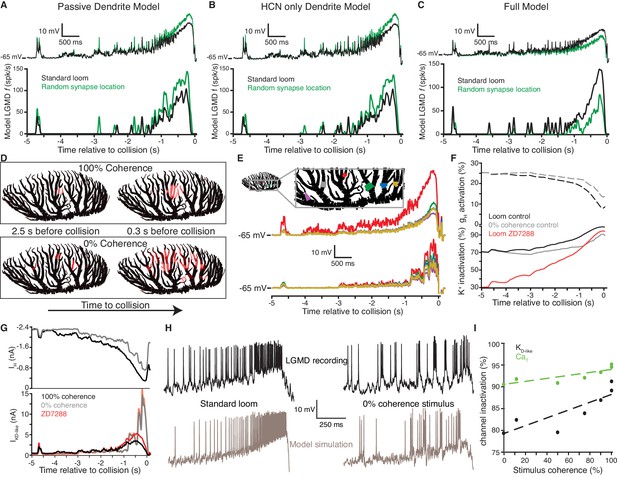

Detailed biophysical modeling was employed to further understand the biophysical mechanisms by which HCN and inactivating K⁺ channels allow the LGMD to discriminate spatiotemporal input patterns based on coherence. First, we confirmed that a model of the LGMD with passive dendrites generated a smaller response to retinotopically arranged looming inputs than the same inputs impinging on random dendritic locations both in terms of the mean membrane potential and the instantaneous firing rate (Figure 7A, top and bottom panels, respectively). This illustrates why implementing coherence preference is nontrivial: the spatially distributed excitatory inputs that occur during incoherent looming stimuli produce less reduction in driving force, thus generating a larger current from the same synaptic conductance. Adding HCN channels to the dendrites of this model while adjusting the leak conductance to maintain RMP and R_i, also resulted in stronger responses to spatially scrambled inputs (Figure 7B). As suggested by the results of Figures 5 and 6, the subsequent addition of inactivating K⁺ channels in dendritic field A reduced responses to the spatially scrambled inputs, bringing the model in broad agreement with experimental findings (Figure 7C).

Figure 7 with 1 supplement see all

Download asset Open asset

Figure 7—source code 1

A Matlab script that will import the data in Figure 7—source data 1 and generate the plots in Figure 7.

To run the script requires auxiliary matlab files 'linear_plotter.m' and 'lin_Fit.m'.

https://doi.org/10.7554/eLife.34238.041

Download elife-34238-fig7-code1-v3.m

Figure 7—source data 1

An.xlsx spreadsheet with data plotted in Figure 7.

Rich media files.

https://doi.org/10.7554/eLife.34238.042

Download elife-34238-fig7-data1-v3.xlsx

More precisely, the model reproduced key experimental results, including the LGMD's preference for spatially coherent inputs and the reduction of this preference after block of g_H (Figure 2M; Figure 5D); the electrotonic and summation effects of g_H (Figure 4E; Figure 7—figure supplement 1A–C); the coherence-dependent increase in firing caused by blocking the inactivating K⁺ channels and their role in suppressing responses to incoherent stimuli (Figure 5C,D). In the model, the inactivating K⁺ channel activity was similar to the K_D current that has been hypothesized to influence dendritic integration in pyramidal and Purkinje neurons (Storm, 1988; Hounsgaard and Midtgaard, 1989; Zagha et al., 2010). This similarity extended to its activity at rest, its influence on subthreshold integration within field A dendrites, its apparent slow inactivation, and its 4AP sensitivity. We thus call it K_D-like.

During coherent looming stimuli, inputs continue to impinge on nearby dendritic segments for a prolonged period, spreading slowly (Figure 7D, top). With spatially incoherent stimuli, inputs spread out over a much larger region of the dendritic arbor (Figure 7D, bottom). The dendritic branches receiving the concentrated inputs of a coherent loom depolarize more than the surrounding branches, while the spatially dispersed inputs of an incoherent loom produce a similar level of depolarization across the dendrites (Figure 7E).

The prolonged depolarization generated by a coherent loom causes HCN channels to close (Figure 7F, dashed black line) and the K_D-like channels to inactivate (Figure 7F, solid black line). The deactivation of HCN channels leads to increased spatial compactness and summation (Figure 4) providing a slow positive feedback while the faster negative feedback provided by K_D-like decreases as it inactivates. During spatially incoherent stimuli, however, HCN channels close less and the K_D-like channels across the arbor undergo less inactivation (Figure 7F, gray lines). In control conditions, K_D-like inactivation is due to the resting depolarization from g_H and activity-induced depolarization. After HCN blockade, the lower resting membrane potential reduces the baseline K_D-like channel inactivation (Figure 7F, red line) so that even with spatially coherent inputs the channels never reach the same level of inactivation. The K_D-like channel activation was highest for control looming stimuli and lowest for incoherent looming stimuli (Figure 7—figure supplement 1D) as it tracked the membrane potential (Figure 7E). However, the overall conductance of the K_D-like channels was lowest for coherent looming stimuli contributing to the higher response (Figure 7—figure supplement 1E).

Examination of the membrane currents generated by the channels reveals even larger differences. Toward the end of a looming stimulus, the dendrites approach the HCN channel reversal potential, and the net HCN current approaches zero (Figure 7G, top). Conversely, the K⁺ driving force increases during the stimulus approach. As a result, the K_D-like channels that remain activatable produce a larger current (Figure 7G, bottom). For the coherent stimulus, this late depolarization occurs in the same dendritic region activated by the earlier inputs and since the nearby K_D-like channels have already inactivated, it yields little increase in K⁺ current, irrespective of g_H block. The incoherent inputs, however, impinge onto branches where the channels have not already inactivated, yielding a much larger current.

In addition to these dendritic channels, the model also included low-threshold Ca²⁺ channels (Ca_T) and Ca²⁺-dependent K⁺ channels (K_Ca) near the SIZ that allowed the LGMD model to fire in bursts (Gabbiani and Krapp, 2006; Peron and Gabbiani, 2009). In both experimental data and simulations, responses to spatially coherent stimuli generated more sustained, non-burst firing than transient burst firing (Figure 7H; Figure 7—figure supplement 1F,G). The model reproduced the trends in these data qualitatively rather than quantitatively (see Discussion). The decrease in bursting for coherent stimuli was also dependent on Ca_T channel inactivation. Coherent stimuli produced a steady ramp up of membrane potential increasing Ca_T inactivation, while incoherent stimuli produced more sudden depolarization, producing bursts. To investigate the role played in the smooth ramp up of activity during looming stimuli by dendritic K_D-like inactivation vs. SIZ Ca_T inactivation and the concomitant suppression of bursting, we plotted the two inactivation variables as a function of stimulus coherence. During the last 2 s before collision, when most firing occurred, the average inactivation of both Ca_T and K_D-like channels increased with stimulus coherence (Figure 7I). Yet, the slope of the best fit line for K_D-like inactivation vs. stimulus coherence was three times as steep as that of Ca_T inactivation. This confirms the relative importance of K_D-like in coherence selectivity but also shows that interactions of multiple channels underlie the coherence selectivity of the LGMD model.

Figure 8 illustrates the interactions of the channels involved in coherence selectivity during object approach. Dendritic field A receives retinotopic inputs across a compartmentalized arbor. The resting g_H contributes to this compartmentalization by decreasing the electrical compactness and membrane time constant. In the model, the selectivity arises from fast negative feedback of K_D-like activation embedded in the context of two slow positive feedbacks: one from K_D-like inactivation and the other from g_H deactivation. Spatially incoherent visual stimuli generate spatially dispersed synaptic inputs that depolarize many branches, rapidly increasing negative feedback by activation of K_D-like. This reduces its own slow inactivation and further depolarization generated by subsequent synaptic inputs (Figure 6; Figure 6—figure supplement 1). The spatially dispersed, transient excitation of incoherent stimuli generate transient depolarizations of the SIZ activating burst firing followed by K_Ca activation that inhibits sustained spiking.

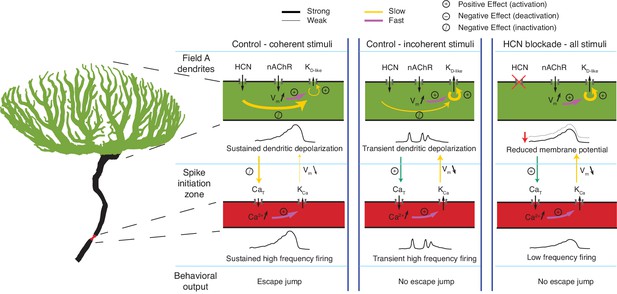

Figure 8

Download asset Open asset

For spatially coherent stimuli, in contrast, the synaptic inputs continue to excite the same dendritic branches for a prolonged period. This prolonged local activation eventually causes K_D-like inactivation and HCN deactivation, resulting in positive feedback by reducing K⁺ current and increasing EPSP amplitude and summation. Additionally, the slow increase in depolarization propagates to the SIZ where it inactivates Ca_T channels, reducing burst spiking and its subsequent negative feedback caused by K_Ca.

All experiments were performed on adult grasshoppers 7–12 weeks of age (Schistocerca americana). Animals were reared in a crowded laboratory colony under 12 hr light/dark conditions. For experiments preference was given to larger females ~ 3 weeks after final molt that were alert and responsive. Animals were selected for health and size without randomization, and investigators were not blinded to experimental conditions. Sample sizes were not predetermined before experiments. For many experiments, a large number of experiments were conducted (e.g. >100 experiments in Figure 2). For technically difficult experiments (e.g. Figure 3), smaller sample sizes were used with enough replications to see a clear effect.

The surgical procedure for intracellular recordings was described previously (Peron et al., 2009; Jones and Gabbiani, 2010). For extracellular DCMD recordings in freely moving animals, we developed a novel chronic implant technique, allowing the same animals to be recorded over many days, based on previous methods (Fotowat et al., 2011). Grasshoppers were fixed ventral side up and a rectangular window was opened in their thorax. Air sacs were removed and the trachea were carefully separated to expose the ventral nerve cords. Two teflon-coated stainless steel wires 50 µm in diameter were cut to a length of ~4 cm and fashioned into hooks with the coating removed from the inside edge of the crook (supplier: California Fine Wire, Grover Beach, CA). The electrodes were implanted with the deinsulated region placed against the dorsomedial edge of the left nerve cord between the pro- and meso-thoracic ganglia. Slight tension was applied to the cord to maintain a fixed position against the wires, and the wires were set in place by waxing them to the left side of the thorax. The cuticle window was then closed and sealed with a wax-rosin mixture and Vetbond (3M, St. Paul, MN). A ground electrode made of the same wire as the hooks was placed outside on the thorax and embedded in the wax. All three wires were routed laterally and fixed to the dorsal pronotum using the wax-rosin mixture with just enough slack to allow normal pronotum movement. The ends of the wires were de-insulated and positioned pointing up to prevent the animal from reaching them. After the surgery, animals were allowed a day to recover, and survived for up to 7 months during which time the animals behaved normally.

To connect the electrode wires to the amplifier during an experiment, the animals were held in place with transparent surgical tape (Dukal Corp, Ronkonkoma, NY). The free ends of the implanted electrodes were each attached to polyurethane-coated hook-up wire with a pair of gold-plated miniature connectors (0508 and 3061, Mill-Max, Oyster Bay, NY; wire diameter: 160 µm or 34 AWG, Belden, St. Louis, MO). The hook-up wires were braided together and loosely suspended directly above the animal to allow unrestrained movement. Neither the implantation surgery nor the connection of implanted wires to the amplifier caused a significant reduction in escape behavior (Figure 3—figure supplement 1).

Visual stimuli presented during jump experiments were generated with custom software on a personal computer (PC) running the real-time operating system QNX 4 (QNX Software Systems), as previously described (Gabbiani et al., 1999). Identical visual stimuli for electrophysiological experiments were generated using Matlab and the PsychToolbox (PTB-3) on a PC running Windows XP. In both cases, a conventional cathode ray tube (CRT) monitor refreshed at 200 frames per second was used for stimulus display (LG Electronics, Seoul, Korea). Both monitors were calibrated to ensure linear, 6-bit resolution control over luminance levels. Visual stimuli were presented in blocks with each stimulus shown once per block and the order within the block randomized by the stimulus software for all experiments. For wide field stimuli presented to restrained animals, a 90–120 s delay was used between stimuli and grasshoppers were repeatedly brushed and exposed to light flashes and high frequency sounds to decrease habituation. Some animals still exhibited pronounced visual habituation (>50% reduction in peak firing rate from that animal's average response to the stimulus), and these data were excluded from analysis. In escape behavior experiments, a delay of at least 5 min (and usually ~15 min) was used between stimuli to prevent habituation. The drug effects were long lasting, so in all cases the control data was collected before the drug condition. Stimuli were randomly interleaved, no fatigue was evident within experimental conditions, and the drug effects reported are stimulus specific, so habituation or fatigue cannot explain the coherence-dependent results described. It cannot be ruled out that the exact change in firing is unaffected by habituation or fatigue, however.

Looming stimuli consisted of dark squares simulating the approach of a solid object on a collision course with the animal (Hatsopoulos et al., 1995). Briefly, the instantaneous angular size, 2θ(t), subtended at one eye by a square of radius, l, approaching the animal at constant speed, v, is fully characterized by the ratio, l/|v|, since θ(t) = tan⁻¹ [l/(v t)]. By convention, v < 0 for approaching stimuli and t < 0 before collision. Stimuli simulated approach with l/|v| values of 50 or 80 ms from an initial subtended angle of 1.2° until filling the vertical axis of the screen (300 mm), lasting approximately 4 and 7 s for l/|v| = 50 and 80 ms, respectively. The maximum 2θ values reached by the stimuli were either 136° or 80° for the freely behaving or restrained preparations, respectively, due to the differing distances of the eye to the screen.

‘Coarse’ looming stimuli were generated as in our earlier work (Jones and Gabbiani, 2010). Briefly, the stimulation monitor was first pixelated with a spatial resolution approximating that of the locust eye (2–3° x 2–3°), referred to as ‘coarse’ pixels. Each coarse pixel’s luminance followed the same time course as that elicited by the edge of the simulated approaching object sweeping over its area. To alter the spatial coherence of these stimuli, a random two-dimensional Gaussian jitter with zero mean was added to each coarse pixel screen location. The jittered positions were rounded to the nearest available coarse pixel location on the screen to prevent any coarse pixels from overlapping. To control the amount of shifting and thus the resulting spatial coherence of the randomized stimulus, the standard deviation, σ, of the Gaussian was altered between 0° and a maximal angular value σ_max determined by the procedure described in the next paragraph.

For a given Gaussian jitter σ, we determined the corresponding percent spatial coherence by averaging over 30 pseudo-random draws the minimal total angular distance that jittered coarse pixels had to be moved in each movie image to reconstitute the unaltered coarse looming stimulus. This distance was then normalized by the angular distance computed in the same way between a coarse loom and one with uniformly and independently drawn random spatial positions. Subtracting this normalized distance from one yields coherence values ranging from 100% when σ = 0% to 0% when σ reaches a value σ_max for which the jittered stimulus is indistinguishable from a totally random one. The value of σ_max was different for freely behaving (80°) and restrained preparations (40°), due to the different distance between the screen and animal and thus the different angular expanse of the stimulus (see above).

For localized light flashes, a 1° x 1° luminance increase was presented briefly (~1 s) on a black background in the dark (Figure 2—figure supplement 1A–C). A window of 200 ms following the flash onset was used to quantify LGMD activity.

The behavioral experiments were conducted as previously described (Fotowat and Gabbiani, 2007). They were recorded with a high-speed digital video camera (GZL-CL-22C5M; Point Grey, Richmond, BC, Canada), equipped with a variable zoom lens (M6Z 1212–3S; Computar, Cary, NC). Image frames were recorded at 200 frames per second with the acquisition of each frame synchronized to the vertical refresh of the visual stimulation display (Xtium-CL PX4; Teledyne Dalsa, Waterloo Canada). Videos were made from the images and saved in lossless motion JPEG format using custom Matlab code. Measurements of the stimulus coherence's effect on escape behavior (Figure 1F) include a total of 202 trials from 66 animals with 1–9 trials per animal. Animals which did not jump in response to any stimuli were excluded from analysis, as done previously (Fotowat and Gabbiani, 2007).

Electrophysiological experiments were performed as described previously (Peron et al., 2009; Jones and Gabbiani, 2010). Briefly, sharp-electrode LGMD intracellular recordings were carried out in both voltage-clamp and current-clamp modes using thin walled borosilicate glass pipettes (outer/inner diameter: 1.2/0.9 mm; WPI, Sarasota, FL). After amplification, intracellular signals were low-pass filtered (cutoff frequency: 10 kHz for V_m, and 5 kHz for I_m) and digitized at a sampling rate of at least 20 kHz.

We used a single electrode clamp amplifier capable of operating in discontinuous mode at high switching frequencies (typically ~25 kHz; SEC-10, NPI, Tamm, Germany). Responses to visual stimulation were measured in bridge mode, current injections were applied in discontinuous current clamp mode (DCC), and voltage-clamp recordings in discontinuous single-electrode voltage-clamp mode (dSEVC). All dSEVC electrodes had resistances < 15 MΩ. Electrode resistance and capacitance were fully compensated in the bath immediately prior to tissue penetration and capacitance compensation was readjusted after entering the neuron. If capacitance could not be fully compensated the recording was not used. In addition to previously described methods, a fluorescent dye (Alexa Fluor 594 hydrazide salt; Invitrogen, Thermo Fisher Scientific, Carlsbad, CA) was injected intracellularly and the cell was imaged with a CCD camera mounted to a stereomicroscope (GuppyPro F125B; Allied Vision Technologies, Exton, PA). This allowed subsequent visually guided positioning of the recording electrode. Within the LGMD, back-propagating action potentials (bAPs; measured from RMP to peak) decay as they spread into the dendrites. Data from dual recordings (unpublished) has revealed that the decay in bAPs is a better indicator of electrotonic distance than the path length, and it is also easier to reliably determine. So, we used bAP amplitude as the measure of electrotonic distance from the SIZ (Figure 2E).

During voltage clamp recordings, the membrane potential and current were measured simultaneously to ensure the desired membrane potential was maintained at the electrode location. The LGMD neuron is not electrotonically compact (Peron et al., 2007) and therefore the issue arises of how well its dendritic membrane potential is controlled through voltage-clamping at a single location ('space clamp'). The quality of the space clamp cannot be measured with a single electrode recording. In pyramidal neurons, the steady-state dendritic membrane potential is largely uncontrolled when voltage clamping originates at the soma (Williams and Mitchell, 2008). In contrast, in Purkinje cells, which have a dendritic structure more closely resembling that of the LGMD, the steady-state dendritic membrane potential is well controlled from the soma (Roth and Häusser, 2001). Simulations in NEURON (details below) were used to estimate the quality of the space clamp in the LGMD. For electrodes placed at the base of field A the average steady-state change in membrane potential within field A was 95% of the desired change (i.e. starting at rest, $-65$ mV, a $-30$ mV step to $-95$ mV, yielded an average membrane potential across field A of $-65+0.95\bullet (-30)$ or $-93.5$ mV). For electrodes placed further away from the base of field A, the quality of the space clamp decreased. Across the dendritic region used for voltage clamp recordings, the estimated quality of the space clamp ranged from 83-95% (average voltage command attenuation of 5-17%). We also carried out simulations as described in Roth and Häusser (2001) to assess the impact of these findings on the characterization of g_H activation and kinetics. The effects were found to be mild, suggesting that the activation curve in Figure 2F might be slightly less steep and the time constants in Figure 2G slightly higher than if they were measured with perfectly space-clamped dendrites.

For characterizing g_H, 1–2 s hyperpolarizing current or voltage steps were injected in DCC or dSEVC mode, respectively, with 5 s between steps. Voltage clamp was needed to calculate the activation and time constant at a given membrane potential (Figure 2G,H), while current clamp was used for all other experiments because it allowed for easier to hold, longer lasting recordings. Different step amplitudes were randomly interleaved and at least six trials per step amplitude per animal were acquired. For each recording, we used at least four step amplitudes, with values selected to cover the activation range of g_H. Example recordings are shown in Figure 2—figure supplement 1. In most experiments, no holding current was applied between steps (held at the resting membrane potential), while in some experiments a positive holding current was applied (held near −50 mV) before hyperpolarizing steps and in other experiments a negative holding current was used (held near −115 mV) with depolarizing steps. Estimated activation curves (see below) were not different for recordings with different holding potentials, and the data were combined for analysis. Extracellular recordings were taken between the two hook electrodes on the nerve cord, differentially amplified and bandpass filtered from 100 to 5000 Hz (A-M Systems, model 1700, Carlsborg, WA). The amplitude of DCMD spikes was consistently the largest, allowing their identification with a simple threshold. DCMD spikes uniquely identify the LGMD neuron as they are in one-to-one correspondence with those of the LGMD (O'Shea and Williams, 1974).

Experiments with hyperpolarizing current during visual stimulation (Figure 5—figure supplement 1) were conducted by first staining the LGMD and then inserting an electrode near the base of field A. Within our LGMD model, the resting membrane current magnitude generated by HCN channels was ~2.5 nA. Experimentally, injecting –2.5 nA produced local hyperpolarization to ≦ −75 mV, which is as hyperpolarized as any LGMD neuron became after HCN blockade (see Figure 4A). Visual stimuli of different coherences were presented either with zero current or –2.5 nA current injected from 20 s before stimulus onset through the end of the stimulus. Sets of single trials of each stimulus (randomized) were presented while alternating between 0 and –2.5 nA currents and continued until at least three trials of each stimulus were presented for both conditions.

Drugs were prepared in aqueous solution and mixed with physiological saline containing fast green (0.5%) to visually monitor the affected region. They were puffed using a pneumatic picopump (WPI, PV830, Sarasota, FL). For restrained experiments, injection pipettes had tip diameters of ~2 µm and were visually positioned with a micromanipulator against the posterior edge of the lobula, close enough that the ejected solution penetrated the optic lobe. Drugs were gradually applied while monitoring responses of the LGMD to visual inputs, and care was taken to prevent spread into presynaptic neuropils. Additionally, saline in the bath was exchanged immediately after puffing to prevent diffusion to other brain areas. We used drug concentrations of 10 mM for both ZD7288 and 4AP in the extracellular puff pipette. These concentrations were adjusted in pilot experiments to account for the low mobility of the drugs through the tissue in vivo, taking into account their approximate final concentration, as explained below.

Due to dilution of the drugs in the saline bath after puffing, the exact drug concentration at the level of the LGMD cannot be determined. However, our best estimate is ~200 µM for both ZD7288 and 4AP. This estimate comes from comparing the effect of the puffed drugs to those observed after bath application of the same drugs. For example, when bath applying ZD7288, the same level of blockade as from local puffing was achieved by adding 100 µl of 20 mM drug to ~5.5 ml of bath saline for a final concentration of ~350 µM. This concentration is an upper bound on the concentration at the level of the LGMD, since it lies ~150 µm deep within the optic lobe. For local puffing, less than 1 µl of drug was used, which would generate a final bath concentration well below 1 µM after exchanging the saline in the bath, as explained above.

For intracellular application, the drug concentrations in the pipette were 1–5 mM for ZD7288 and 5 mM for 4AP. The final concentration inside the LGMD cannot be determined but is likely considerably lower, due to the large volume of the cell and the submicron diameter of the pipette. In those experiments, the effects of the drugs were comparable to those observed with extracellular application.

Although it cannot be known whether intracellularly applied ZD7288 or 4AP diffused out from within the LGMD, this seems highly unlikely to have affected our results. For example, the effects of intracellular ZD7288 application on the LGMD's membrane properties were consistent from a minute to an hour after application, giving no evidence of a slow diffusion across tissue that may have affected presynaptic sites. Further, the membrane effects on the LGMD were the same whether excitatory synaptic inputs were blocked with mecamylamine or not. To further rule out the possibility that the effects of ZD7288 observed during visual stimulation were caused by diffusion to presynaptic sites after intracellular application, we conducted visual stimulation experiments in which the g_H conductance was blocked intracellularly with Cs⁺ (Figure 2—figure supplement 2). Similar effects were seen on visual responses compared to ZD7288 application, although Cs⁺ was not as specific a blocker since there was also evidence of partial block of K⁺ conductances. For these experiments, a concentration of 150 mM CsCl was used in the recording pipette. We also attempted to block intracellularly the inactivating K⁺ conductance by using 4-aminopyridine methiodide (4APMI) which is membrane impermeant (Stephens et al., 1994). 4APMI reacted strongly with the silver wire in the electrode forming AgI crystals, so a platinum wire was used for the experiments. Unfortunately, 4APMI which is larger than 4AP failed to block the inactivating K⁺ conductance even at recording pipette concentrations as high as 50 mM. Nonetheless, presynaptic effects are unlikely as we never observed increases in spontaneous EPSPs within the LGMD following 4AP application and the presynaptic neurons have no information about the overall spatial pattern of the stimulus. In all there were no indications of any nonspecific drug effects on presynaptic neurons that might have influenced visual responses.

To observe the effects of ZD7288 in freely moving animals, stereotaxic injections were made through a hole in the dorsal rim region of the right eye. The animal was restrained and the head was placed in a small clamp attached to a 3-axis micromanipulator (Narishige, Tokyo, Japan). Head tilt was positioned manually by fixing the animal at the pronotum. After the head was precisely positioned, a ~ 0.5 mm hole was made through the dorsal end of the eye with a steel probe. A drop of saline solution was placed covering the hole to prevent drying or coagulation of the hemolymph. A glass pipette with a tip diameter of 1–2 µm and a taper length >2 mm from shoulder to tip was positioned with a Leica (Wetzlar, Germany) manual micromanipulator and lowered just above the eye. The ZD7288 solution (2 mM in saline with 1% fast green) was puffed into the saline drop covering the dorsal rim to determine the appropriate air pressure ejection level. The saline droplet was immediately removed and replaced to prevent spread of ZD7288 to photoreceptors. Next, the pipette was lowered through the eye along the dorsal rim of the optic lobe to the lobula (~1.5 mm) while enough positive pressure was maintained to prevent clogging. In control experiments, LGMD activity was measured before and after penetration of the pipette in the lobula to ensure that visual inputs were not damaged by the procedure (Figure 3—figure supplement 1C). Ejection volume was estimated from monitoring changes in the meniscus position of the saline within the visible region of the pipette. After pressure ejection of ZD7288, the pipette was removed and checked for clogs or breaks. The hole in the eye was sealed with a small amount of Vetbond (3M, St. Paul, MN), carefully ensuring that no glue spread onto the rest of the eye.

Following the conclusion of the experiment, the animal was euthanized and the head was dissected (~2 hr post injection). Fast green staining was used to confirm that the solution was injected into the lobula (Figure 3—figure supplement 1D). In initial experiments, bath application of ZD7288 was found to reduce visual responses as did application of ZD7288 directly to photoreceptors. When puffing ZD7288 within the lobula, however, even if the solution occasionally spread to the medulla or lamina, visual responses remained similar to those observed after intracellular application. This suggests that there are likely HCN channels within the photoreceptor layer, as is the case in mammals (Barrow and Wu, 2009), but that any HCN channels within the medulla and lamina (Hu et al., 2015) do not influence LGMD inputs under our experimental conditions. Because ZD7288 was applied extracellularly, it may have affected other descending neurons whose processes are located in the immediate vicinity of the LGMD dendrites. This is, however, unlikely to have affected escape behaviors, since decrease in escape was tightly correlated with a reduction of LGMD firing rate determined in independent experiments (Figure 2N). In addition, earlier selective ablation experiments have shown that under our experimental conditions nearly all escape behaviors depend solely on LGMD firing (Fotowat et al., 2011).

Data analysis was carried out with custom MATLAB code (MathWorks, Natick, MA). Linear fits were based on Pearson's linear correlation coefficient, denoted by 'r' in figure legends, with corresponding p values testing significant differences from zero. Non-linear fits, including the activation curve and time constant in Figure 2 and all exponential fits described below were made with the Matlab function ‘lsqcurvefit’, which minimizes the least square error between the data and fitting function. Goodness of fit was denoted by R², calculated as one minus the sum squared error of the fit divided by the sum square deviation from the mean of the data. For behavioral experiments and the comparison of membrane depolarization with stimulus angular distance (Figure 6 and Figure 6—figure supplement 1), individual trials were used as independent sample points for statistical tests. In all other cases, individual trials were averaged and these trial averages were used for statistical tests.

The sag amplitude was measured as the difference in membrane potential between the peak hyperpolarization during a current step and the steady-state value at the end of the step. The sag time constant was calculated from fitting a single exponential to the membrane potential for the period starting 15 ms after peak hyperpolarization to the end of the current step (Figure 2—figure supplement 1C). The hyperpolarizing step currents were also used for calculating membrane time constants. The membrane time constant was calculated by fitting a single exponential to the membrane potential for the period from 0.5 to 13 ms after the start of hyperpolarizing current injection.

The fitted activation curve of the HCN conductance was based on a Boltzmann equation reflected along the vertical axis to produce decreasing g_H with increasing v:

The steady-state conductance, $g_H,$ is a function of the membrane potential, v, depending on three parameters: the maximum conductance, $g_{max},$ the half-activation potential, $v_{1/2},$ and the steepness, s. The parameters were fitted from voltage-clamp data based on the equation

where v₁ and v₂ are the starting and ending clamp potentials and E_H is the reversal potential of the HCN conductance, −35 mV, used for all animals. ∆I_H is the experimentally measured change in membrane current produced by the voltage step after transients have settled. ∆I_H was measured by fitting a single exponential to the current time-course 15 ms after the step onset and up to its end (Figure 2—figure supplement 1D). This period captured the slow change in clamp current due to g_H and offered clear experimental advantages over other estimations methods. As all experiments were done in vivo, it was not feasible to reliably block other putative voltage-gated channels. Hence, the most reliable measurements of ∆I_H were obtained at hyperpolarized membrane potentials where other active conductances can be safely discounted. Voltage clamping the LGMD to depolarized potentials where all HCN channels will be closed (> −40 mV) was not technically feasible, and the use of tail currents yielded less reliable measurements due to contamination by other active conductances.

The time constant of the HCN conductance (τ_H) was fit using a function symmetric with respect to its maximum, τ_max,

Here, v_1/2 is the membrane potential with the slowest activation, s is the steepness, and τ_min the minimum activation time. Fitted points were obtained from the single exponential fits to I_H for both hyperpolarizing (channel opening) and depolarizing (channel closing) voltage steps.

Comparisons of sag amplitudes were obtained with current steps yielding a peak hyperpolarization of ~105 mV (Figure 2D–F). For Figure 2D,E, all values to steps within the range of −95 to −115 mV were pooled. For Figure 2F interpolation of values at nearby potentials was used to estimate sag amplitude at −105 mV to have a single common value for all recordings. Statistical comparisons between sag measurements in different subcompartments of the LGMD (Figure 2D,E) were carried out using a Kruskall-Wallis analysis of variance (KW) corrected for multiple comparisons with Tukey's Honestly Significant Difference Procedure (KW-MC). To determine the correct statistical test for comparison, we used a Lillifors test of normality (alpha = 0.20) and comparison of equality of variance. Much of the data was non-normally distributed and variances increased after drug application so most comparisons were made using the Wilcoxon rank sum test (WRS) which does not assume normality or equality of variance. For displaying non-normal data, average values were given as median and variance was displayed as median average deviation (mad). Mean and standard deviation were used for normally distributed values, as indicated in figure legends. Before carrying out paired tests, we determined if the paired differences where normally distributed. The changes in slope reported in Figure 6D,E were the only non-normal paired difference, so for this we used the non-parametric signed-rank test. Percent activation at rest (Figure 2I) was calculated through bootstrapped activation curves from current clamp data. Unpaired t statistics were calculated from the bootstrapped mean and variance of activation at the resting membrane potential (−65 mV) (Efron and Tibshirani, 1993).

Simulated excitatory postsynaptic potentials (sEPSPs) were generated by injecting a series of five current waveforms with a set delay between them. Each waveform, I(t), had a time course resembling that of an excitatory synaptic current,

with peak amplitude A, rising time constant τ₁ = 0.3 ms, and falling time constant τ₂ = 3.0 ms. Summation was calculated as the ratio (p₅-p₁)/p₁, with p₁ and p₅ being the peak amplitude of the membrane potential relative to rest during the 1^st and 5^th sEPSP. In Figure 4F, we plotted the integrated membrane potential (relative to rest) divided by the integrated input current (charge) giving a value in units of mV ms/nA ms=M Ω that is readily comparable to input resistance.

Spike counts elicited by looming stimuli were measured from the start of the stimulus until the time of expected collision, and peak firing rates were calculated by convolving the spike rasters with a 20 ms sd Gaussian as has been done in previous studies (Hatsopoulos et al., 1995; Gabbiani et al., 1999; Peron et al., 2009; Jones and Gabbiani, 2010; Fotowat and Gabbiani, 2007). After statistics were conducted on unnormalized data, firing rates were normalized before averaging across animals to reduce the between animal variability in responses. This allowed for the clearest comparison of the role of stimulus coherence across conditions and with the biophysical model of the LGMD. Normalized firing rates (Figure 2M and Figure 5C) were calculated by dividing the response amplitude for each stimulus by that animal's maximal response amplitude under control conditions (insets of Figures 2M and 5C). Dividing by the maximum response was chosen to show that 100% coherent stimuli generated the maximum response and to give an easy indication of the amount of change from a standard/fully coherent looming response. These individually normalized rates were then averaged across animals. The relative change in response due to a drug (Figure 5D) was calculated by dividing the difference in response between control and drug conditions by the drug condition response. This produced percentages covering similar ranges, and so allowed for the best comparison and graphical illustration of their relative effects.

‘Sustained firing’ was defined as the longest period in which the instantaneous firing frequency remained above a 20 spk/s threshold. For each trial, the number of spikes within this longest period was considered the ‘sustained response’ and all spikes outside of this period were counted as the ‘transient response’ (Figure 7—figure supplement 1F,G). These 'sustained' and 'transient' measures were used instead of 'burst' and 'non-burst' statistics based on interspike intervals because the LGMD can generate sustained high frequency firing with similar interspike intervals within and outside of bursts.

To compare changes in membrane potential and stimulus angular distance (Figure 6; Figure 6—figure supplement 1), we identified newly changing coarse pixels in a specified stimulus frame from those that had begun to darken from their background luminance value in earlier frames (‘earlier changing’). We then computed the mean minimal distance of newly changing coarse pixels with respect to earlier changing ones. In parallel, changes in the membrane potential were averaged from 25 ms following the appearance of the newly changing coarse pixels until a new group of pixels began to darken. More precisely, we identified six time periods during the stimuli when the luminance of newly changing coarse pixels is decreasing for over 50 ms and they typically have mean angular distances larger than 1° from earlier changing ones. For these six different time periods during each trial, we calculated the linear correlation between these mean angular distances and membrane depolarizations, as explained above. Early in the stimulus presentation, there are fewer coarse pixels changing luminance and less resulting depolarization. To better illustrate the relationship between these variables, the angular distances and membrane potentials were normalized independently for each of the six time windows. The normalization consisted of subtracting the minimum control value and then dividing by the range for control data within each time window. The unnormalized data and example stimulus frames from all time periods are shown in Figure 6—figure supplement 1.

To compare jump probabilities between saline- and ZD7288-injected animals (Figure 3A), we computed 95% bootstrap confidence intervals of the population mean in each condition with the help of the built-in Matlab function ‘bootci’ (using the bias corrected and accelerated method). If there was no overlap of the 95% confidence intervals, the groups were considered significantly different. The reported p-values for these comparisons were the ‘achieved significance level’ (ASL) statistic for two-sample testing of equality of means with unequal variance (Algorithm 16.2 in Efron and Tibshirani, 1993 ).

Coherence selectivity was calculated as the slope of the relationship between stimulus coherence and spike count and is reported in units of spikes per percent coherence. For control experiments, the median correlation coefficient of this relationship between stimulus coherence and spike count was 0.97, making the regression slope a reliable indicator of the selectivity.

For box plots, the center line shows the median, the upper and lower box limits mark the 25th and 75th percentile of the distribution, and the ‘whiskers’ above and below each box extend 1.5 times the interquartile range up to the minimum and maximum values. Points beyond the whiskers mark outliers. Notches, when present, have a width of 1.57 times the interquartile range divided by the square root of the number of data points.

To better understand the mechanisms of the LGMD's remarkable coherence selectivity, we developed a detailed biophysical model using the NEURON simulation environment. We employed the parallel version of NEURON and a Rice University supercomputing cluster for extensive parameter sweeps and simulations. Three-dimensional reconstructions of the LGMD's dendritic morphology were obtained from two-photon scans using the software suite Vaa3D (vaa3d.org). The resulting model contained 2518 compartments, 1266 of which belonged to dendritic field A.

To reproduce the active properties of the LGMD several voltage-gated channel types were included. Some of them had been used in previous simulations (Peron et al., 2007; Jones and Gabbiani, 2012), including the fast Na⁺ and delayed rectifier K⁺ (K_DR) channels generating action potentials. K_DR channels were distributed throughout the cell, but dendritic branches contained no fast Na⁺ channels as supralinear summation is never seen in LGMD dendrites. HCN channels had kinetics matching experimental data (Figure 2) and were placed in dendritic field A with density increasing towards the distal dendritic endings. Inactivating K⁺ channels (K_D-like) were also distributed throughout field A with density increasing toward distal endings. A slow non-inactivating K⁺ channel (M) was distributed throughout the axon, the spike initiation zone (SIZ), and the main neurite connecting the dendritic subfields to the SIZ. Its peak density was at the SIZ. Additionally, low-threshold Ca²⁺ (Ca_T) and Ca²⁺-dependent K⁺ (K_Ca) channels were placed at the SIZ and on half of the neurite connecting the SIZ and the dendritic subfields, matching results from our earlier work (Peron and Gabbiani, 2009).

Effective modeling often relies on keeping things as simple as possible, so we initially tested a previous LGMD model (Jones and Gabbiani, 2012) with additional HCN channels matching experimental kinetics (Figure 2) added to the dendrites. When this failed to reproduce any coherence selectivity, K_D-like channels were added. Then we added a complex dendritic morphology, complex presynaptic transforms, and additional active conductances to the model. While a wide range of parameters of this more complex model reproduced responses to current injection data, only a narrow parameter regime was found that reproduced the roles of g_H and K_D-like in the spatial coherence preference. The resulting model and mechanistic explanation (Figure 7 and 8), while quite complex, is still the simplest model that reproduced the wide range of LGMD responses tested.

To test the impact of the elaborate dendritic structure of field A on coherence selectivity, we simplified its electrotonic structure in successive steps using Rall’s law of electrotonically equivalent cylinders (Rall, 1959). This was done by iterating through dendritic branches by selecting dendritic segments according to their electrotonic distance from the base of field A in steps of 0.04 times the dendritic space constant (λ). An equivalent compartment was created from the group of dendritic segments found at each successive electrotonic distance from the base of field A. For the least reduction (the 'six branch' case shown in Figure 7—figure supplement 1), the grouping was limited to dendritic segments that shared a common connection with the base of field A. For further reduction, the group of selected compartments was expanded to segments with adjacent connections to the base of field A. The equivalent compartment size was set by Rall’s equivalent 3/2 diameter law. Each channel’s density was set to the surface area weighted mean of its density in the selected dendritic segments, and all synaptic inputs to these segments were transferred. Tests of channel kinetics were run using 10-fold changes to the time constant of HCN activation and K_D-like inactivation. For the 'fast' kinetics, the maximal HCN channel activation was set to τ_max = 135 ms and the K_D-like inactivation to τ_max = 105 ms. For the 'slow' kinetics, the maximal HCN channel activation was τ_max = 13.5 s and the K_D-like inactivation was τ_max = 10.5 s. The values used for all other simulations in the manuscript were 1.35 s and 1.05 s, respectively.

Evaluation of how well this model informs about the actual neural processes requires some review of the experimental data to which it was constrained. The strength and timing of synaptic inputs was generated based on single facet stimulation data (Jones and Gabbiani, 2010). Excitatory synaptic input locations were based on the retinotopy and synaptic overlap determined by functional imaging (Zhu and Gabbiani, 2016; Peron et al., 2009). The time course of synaptic inputs was based on experiments stimulating individual facets (Jones and Gabbiani, 2010) and the pattern of depolarization measured during the current experiments. The presence of standard Hodgkin-Huxley Na⁺ and K⁺ currents was assumed, HCN and K_D-like channels were based on the current work, the Ca_T and K_Ca channels were based on Peron and Gabbiani, 2009 , the M current was based on our own currently unpublished findings. For each of these channels, conductance and kinetic parameters were adjusted to match experimental data with firing frequency vs. injected current curves and spike waveform used to tune fast Na⁺ and K⁺ channels, changes in input resistance and resting membrane potential after pharmacological blockade used to adjust HCN, K_D-like, and M parameters, while Ca_T and K_Ca were adjusted to match intrinsic burst (currently unpublished) and spike frequency adaptation data (Peron and Gabbiani, 2009). Channel distributions were similarly grounded in experimental data, when available, and were manually fit to find working parameters.

To estimate space clamp quality (see Materials and methods: Electrophysiology), we used the Impedance object class in NEURON and measured the percent voltage attenuation from an electrode location to each compartment within field A of the model. The average attenuation was calculated by weighting each section by its surface area to calculate the average change of membrane potential within field A.

The full model and simulation code are available in the public repository ModelDB, accession number 195666. Experimental data and code used to generate figures are available as Source Data and Code.
