Routine single particle CryoEM sample and grid characterization by tomography

  1. Alex J Noble
  2. Venkata P Dandey
  3. Hui Wei
  4. Julia Brasch
  5. Jillian Chase
  6. Priyamvada Acharya
  7. Yong Zi Tan
  8. Zhening Zhang
  9. Laura Y Kim
  10. Giovanna Scapin
  11. Micah Rapp
  12. Edward T Eng
  13. William J Rice
  14. Anchi Cheng
  15. Carl J Negro
  16. Lawrence Shapiro
  17. Peter D Kwong
  18. David Jeruzalmi
  19. Amedee des Georges
  20. Clinton S Potter
  21. Bridget Carragher  Is a corresponding author
  1. Simons Electron Microscopy Center, New York Structural Biology Center, United States
  2. Columbia University, United States
  3. City College of New York, United States
  4. The Graduate Center of the City University of New York, United States
  5. National Institute of Allergy and Infectious Diseases, National Institutes of Health, United States
  6. Merck & Co., Inc, United States
Tools and Resources
  • Cited 0
  • Views 1,262
  • Annotations
Cite as: eLife 2018;7:e34257 doi: 10.7554/eLife.34257

Abstract

Single particle cryo-electron microscopy (cryoEM) is often performed under the assumption that particles are not adsorbed to the air-water interfaces and in thin, vitreous ice. In this study, we performed fiducial-less tomography on over 50 different cryoEM grid/sample preparations to determine the particle distribution within the ice and the overall geometry of the ice in grid holes. Surprisingly, by studying particles in holes in 3D from over 1000 tomograms, we have determined that the vast majority of particles (approximately 90%) are adsorbed to an air-water interface. The implications of this observation are wide-ranging, with potential ramifications regarding protein denaturation, conformational change, and preferred orientation. We also show that fiducial-less cryo-electron tomography on single particle grids may be used to determine ice thickness, optimal single particle collection areas and strategies, particle heterogeneity, and de novo models for template picking and single particle alignment.

https://doi.org/10.7554/eLife.34257.001

Introduction

For decades, single particle cryo-electron microscopy (cryoEM) grids have commonly been imaged and processed under the assumption that most particles imaged were not adsorbed to the air-water interfaces and were in a single layer as they were plunge-frozen. An ideal grid and sample for single particle collection would have the majority of areas in holes maximally occupied by non-adsorbed, non-interacting particles 10 nm or farther from the air-water interfaces, particles oriented randomly, vitreous ice thin enough to contain the particles plus about 20 nm of additional space, where none of the particles overlap in the beam direction, and where the beam direction is normal to the areas of interest (Figure 1). Collection in such ideal areas of a grid would then be the most efficient use of resources and would result in the highest resolution structure possible for a given number of particles, collection hardware, and collection parameters.

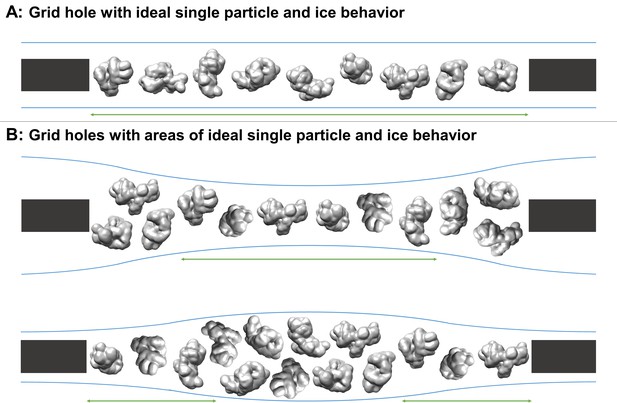

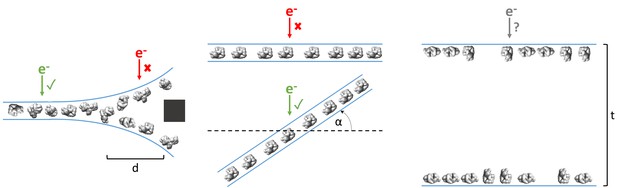

Schematic diagrams of grid hole cross-sections containing regions of ideal particle and ice behavior for single particle cryoEM collection.

(A) A grid hole where all regions of particles and ice exhibit ideal behavior. (B) Grid holes where there are areas that exhibit ideal particle and ice behavior. Green arrows indicate areas with ideal particle and ice behavior. The generic particle shown is a low-pass filtered holoenzyme, EMDB-6803 (Yin et al., 2017). The particles were rendered with UCSF Chimera (Pettersen et al., 2004).

https://doi.org/10.7554/eLife.34257.002

In practice, during single particle grid preparation and data collection there are many issues that contribute to preventing a sample from following this ideal behavior. As depicted in Figure 2, numerous combinations of air-water interface, particle, and ice behavior are possible for each hole and for regions within each hole, without taking into account surface ice contamination. Each air-water interface might be: (i) free from sample solution constituents (Figure 2, A1), (ii) covered with a layer of primary, secondary, and/or tertiary protein structures (either isolated or forming protein networks) from denatured particles (A2), or (iii) covered with one or more layers of surfactants if present during preparation (A3). It is difficult to distinguish between air-water interfaces that are clean, covered in primary protein structures, or covered in surfactants as they are likely indistinguishable by cryoEM or cryo-electron tomography (cryoET) analysis without a sample-free control for comparison (cryoET may be able to resolve lipid layers at the air-water interface if high tilt angles are collected [Vos et al., 2008]). Bulk particle behavior in regions of holes might include any combination of: (i) non-adsorbed particles without preferred orientation (B1), (ii) particles at an air-water interface without preferred orientation (B2), (iii) particles at an air-water interface with N-preferred orientations (B3), (iv) partially denatured particles at an air-water interface with M-preferred orientations (B4), and/or (v) significantly denatured particles at an air-water interface (B5). Protein degradation in A2 might be considered to be a continuation of the denaturation in B4 and B5. Interactions between neighboring particles at the air-water interface might induce different preferred orientations in B3 and B4, particularly at high concentrations. Ice behavior at the air-water interfaces of each hole might be characterized by any two combinations of: convex ice (C1), flat ice (C2), concave ice where the center is thicker than the particle’s minor axis (C3), and/or concave ice where the center is thinner than the particle’s minor axis (C4). In the case of a convex air-water interface, the particle’s minor axis might be larger than the ice thickness at the edge of the hole.

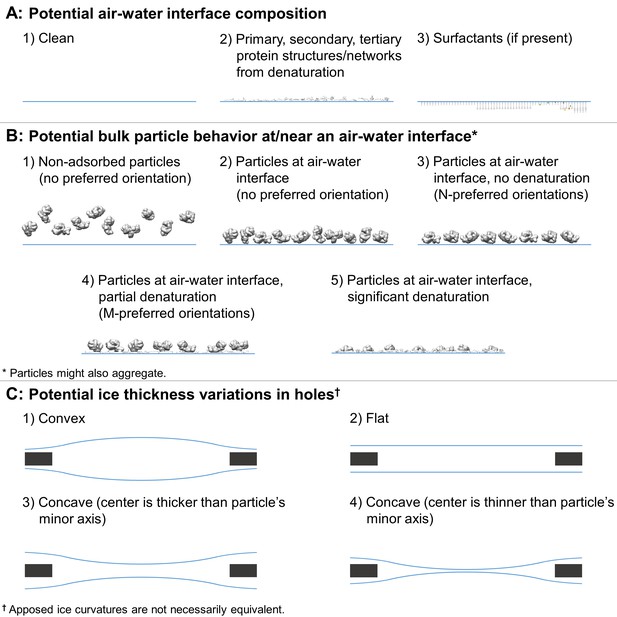

Depictions of potential ice and particle behavior in cryoEM grid holes, based on Figure 6 from (Taylor and Glaeser, 2008).

A region of a hole may be described by a combination of one option from (A) for each air-water interface and one or more options from (B). An entire hole may be described by a set of regions and one or more options from (C). (A) Each air-water interface might be described by either (1), (2), or (3). Note that cryoET might only be able to resolve tertiary and secondary protein structures/network elements at the air-water interface. (B) Particle behavior between air-water interfaces and at each interface might be composed of any combination of (1) through (5), with or without aggregation. B3 is different from B4 if, for example, a particle prone to denaturation is frozen before or after denaturation has begun, thus potentially changing the set of preferred orientations. At high enough concentrations additional preferred orientations might become available in B3 and B4 due to neighboring protein-protein interactions. (C) Ice thickness variations through a central cross-section of hole may be described by one option for one air-water interface and one option for the apposed interface. Note that in C1 the particle's minor axis may be larger than the ice thickness. In both C1 and C4, the particle may still reside in areas thinner than its minor axis if the particle is compressible. Phenomenon such as bulging or doming (Brilot et al., 2012) may be represented as a combination of C1-4.

https://doi.org/10.7554/eLife.34257.003

The most common technique for preparing cryoEM grids, pioneered in the labs of Robert Glaeser (Jaffe and Glaeser, 1984; Taylor and Glaeser, 1974; Taylor and Glaeser, 1976) and Jacques Dubochet (Adrian et al., 1984; Dubochet et al., 1985; Dubochet et al., 1982), involves applying about 3 microliters of purified protein in solution onto a metal grid covered by a holey substrate that has been glow-

discharged to make hydrophilic, blotting the grid with filter paper, and plunge-freezing the grid with remaining sample into a cryogen to form vitreous ice. Incubation times before and after blotting are on the order of seconds, allowing for the possibility of protein adsorption to the air-water interface due to Brownian motion. Concerns regarding deleterious air-water interface interactions with proteins have been often discussed in the literature. For instance, Jacques Dubochet et al., 1988 observed issues with regards to air-water interface and particle orientation for a small number of samples. In a recent review by Robert Glaeser (Glaeser and Han, 2017), evidence (Trurnit, 1960) using Langmuir-Blodgett (LB) troughs (Langmuir, 1917) was used to propose that upon contact with a clean air-water interface, proteins in solution will denature, forming an insoluble, denatured protein film. This film reduces the surface tension at the air-water interface and might act as a barrier between the remaining particles in solution and the air. Particles in solution might then adsorb to the denatured layer of protein depending on the local particle affinity with the interface, thus creating an ensemble of preferred orientations. Estimates for the amount of time a particle with a mass of 100 kDa to 1 MDa in solution might take to first reach the air-water interface (bulk diffusion) range from 1 ms to 0.1 s (Naydenova and Russo, 2017; Taylor and Glaeser, 2008).

More recent literature, using LB troughs, substantiates that 10–1000 mL volumes of various proteins (commonly 10–1000 kDa and at ≲1 mg/mL) in buffer commonly adsorb to the air-water interface and form <10 nm thick (Gunning et al., 1996; Vliet et al., 2002) denatured viscoelastic protein network films (Birdi, 1972; Damodaran and Song, 1988; de Jongh et al., 2004; Dickinson et al., 1988; Graham and Phillips, 1979; Yano, 2012). The time it takes for adsorption to begin due to bulk diffusion may be on the order of 0.1 to 1 ms, depending on the protein (Kudryashova et al., 2005). For a protein that denatures at the air-water interface (surface diffusion), the surface diffusion time might be on the order of tens of milliseconds (Kudryashova et al., 2005), depending on factors including protein and concentration, surface hydrophobicity, amount of disordered structure, secondary structure, concentration of intramolecular disulfide bonds, buffer, and temperature. Higher bulk protein concentrations have been shown to increase the protein network thickness (Meinders et al., 2001). When several proteins and/or surfactants in solution are exposed to a clean air-water interface, competitive and/or sequential adsorption may occur (Ganzevles et al., 2008; Le Floch-Fouéré et al., 2010; Stanimirova et al., 2014). It has been shown using atomic force microscopy (AFM) imaging of LB protein films that these protein network films may not completely denature down to individual amino acids: adding surfactants to protein solutions in which a protein network film has already formed at the air-water interface will displace the protein layer (desorption [MacRitchie, 1998]) (Gunning and Morris, 2018; Mackie et al., 1999; Wilde et al., 2004) and the resulting protein network segments might partially re-fold in solution (Gunning and Morris, 2018; Mackie et al., 1999; Morris and Gunning, 2008). Time-resolved AFM surfactant-protein displacement experiments for a specific protein, β-lactoglobulin, and different surfactants, Tween 20 and Tween 60, show that displacement of the protein network film by the surfactants occurs at equivalent surface pressures and results in non-uniform surfactant domain growth, implying that the protein network is not uniform (Gunning et al., 2004). Different surfactant displacement behavior and patterns are observed while varying only the proteins, where the degree of protein network displacement isotropy by surfactant decreases for more ordered, globular proteins (Mackie et al., 1999). Non-uniformity of the protein network has also been seen by 3D AFM imaging of β-lactoglobulin LB-protein network films placed on mica (Gunning et al., 1996; Morris and Gunning, 2008). Similar experiments using LB troughs have also shown that proteins with β-sheets partially unfold, with the hydrophobic β-sheets remaining in-tact at the air-water interface and with potentially one or more layers of unstructured, but connected, hydrophilic amino acid strands just below the air-water interface (Yano et al., 2009). This potential for β-sheets to survive bulk protein denaturation is likely due to β-sheets commonly consisting of alternating hydrophobic and hydrophilic (polar or charged) sidechains (Zhang et al., 1993), with the hydrophobic sidechains orienting towards the air. Intermolecular β-sheets may also bind together, strengthening the protein network (Martin et al., 2005; Renault et al., 2002). Moreover, the number of random coils, α-helices, and β-sheets for a protein in bulk solution might each increase or decrease when introduced to a hydrophobic environment (Reddy and Nagara, 1989; Zangi et al., 2002), including the air-water interface (Martin et al., 2003; Yano, 2012), implying that protein conformation when adsorbed to the air-water interface could be different than when in solution (Lad et al., 2006; Vance et al., 2013; Yano, 2012). Measurements of shear stress and compressibility of protein network films versus the internal cohesion of the constituent protein show a correlation: the more stable a protein in bulk solution, the more robust the resulting protein network film at the air-water interface (Martin et al., 2005). At high enough surface concentrations and depending on surface charge distribution, neighboring globular proteins might interact to induce additional preferred orientations as has been shown in surface-protein studies (Billsten et al., 1995; Rabe et al., 2011; Tie et al., 2003). Such nearest neighbor protein-protein interactions may in turn decrease protein affinity to the interface and increase desorption. Similar effects might occur at protein-air-water interfaces.

Given the length of incubation time commonly permitted before plunging a grid for cryoEM analysis, the cross-disciplinary research discussed above suggests that some particles in a thin film on a cryoEM grid will form a viscoelastic protein network film at the air-water interface. The composition and surface profile of the resulting protein network film will vary depending on the structural integrity of the bulk protein and the bulk protein concentration. Bulk protein affinity to the protein network film will then vary depending on the local affinity between the film and the proteins. To better understand the range of particle behaviors with respect to the air-water interfaces in cryoEM grid holes, a representative ensemble of grid and sample preparations needs to be studied in three dimensions.

One method of studying single particle cryoEM grids is using cryoET. CryoET is typically practiced by adding gold fiducials to the sample preparation for tilt-series alignment, which requires additional optimization steps and might not be representative of the same sample prepared without gold fiducials. To avoid the issues imposed by gold fiducials, we have employed the fiducial-less tilt-series alignment method of Appion-Protomo (Noble and Stagg, 2015), allowing for cryoET analysis of all single particle cryoEM grids we have attempted. We used this fiducial-less cryoET method to investigate over 50 single particle cryoEM samples sourced from dozens of users and using grids prepared using either conventional grid preparation techniques or the new Spotiton (Jain et al., 2012) method. Our aim was to determine the locations of particles within the vitreous ice and the overall geometry of the ice in grid holes (related to the possible combinations in Figure 2).

We have also found that the usefulness of performing cryoET on a single particle cryoEM grid extends beyond the goal of understanding the arrangements of particles in the ice. CryoET allows for the determination of optimal collection locations and strategies, single particle post-processing recommendations, understanding particle structural heterogeneity, understanding pathological particles, and de novo model building. We contend that cryoET should be routinely performed on single particle cryoEM grids in order to fully understand the nature of the sample on the grid and to assist with the entire single particle collection and processing workflow. We have made available a standalone Docker version of the Appion-Protomo fiducial-less tilt-series alignment suite used in these investigations at https://github.com/nysbc/appion-protomo.

Results and discussion

The fiducial-less tomography pipeline at the New York Structural Biology Center (NYSBC) consisting of Leginon (Suloway et al., 2005; Suloway et al., 2009) or SerialEM (Mastronarde, 2003) for tilt-series collection and Appion-Protomo (Noble and Stagg, 2015; Winkler and Taylor, 2006) for tilt-series alignment allows for the routine study of grids and samples prepared for single particle cryoEM in three dimensions. The resulting analysis sheds light on long standing questions regarding how single particle samples prepared using traditional methods (manual, Vitrobot, and CP3 plunging), or with new automated plunging with Spotiton (Jain et al., 2012), behave with respect to the air-water interfaces. In the following sections, we report and discuss how tomography collection areas were determined and analyzed, the observation that the vast majority of particles are local to the air-water interfaces and the implications with regards to potential denaturation, the prevalence of overlapping particles in the direction orthogonal to the grid, the observation that most cryoEM imaging areas and particles are tilted several degrees with respect to the electron beam, the value of cryoET to determine optimal collection locations and strategies, the benefits of using cryoET to understand pathological particle behavior, and the use of fiducial-less cryoET for isotropic de novo model generation.

Determination of tomography collection locations

The single particle samples studied here were sourced from a diverse set of grids, samples, and preparation techniques. Grid substrates include carbon and gold holey films, either lacey or with a variety of regularly spaced holes, and various nanowire grids (Razinkov et al., 2016) prepared using Spotiton. Grid types also include carbon Quantifoil (Ermantraut et al., 1998), gold Quantifoil (Russo and Passmore, 2014), and C-flat carbon on metal (Quispe et al., 2007). Plunging methods include plunging manually, with a Vitrobot (FEI Company, Hillsboro, OR) or CP3 (Gatan, Inc., Pleasanton, CA), and with Spotiton (Jain et al., 2012). With such diversity in samples and preparation techniques, we determined that the most feasible and representative collection strategy for analyzing particle and ice behaviors over dozens of preparations would be to collect in areas typical of where the sample owner intended to collect or had already collected single particle micrographs. For a typical grid, a low-magnification grid atlas or montage is collected, promising squares are imaged at increasing magnifications, and potential exposure locations are examined at high magnification until sufficient particle contrast and concentration is found as determined by the sample owner. Then before or after a single particle collection, typically three or more tilt-series are collected as described in the Materials and methods. Tilt-series were typically collected from −45° to 45° with a tilt increment of 3°, defocus of ~5 microns, total dose of ~100 e-/Å2, and a pixelsize between 1 and 2 Å. For most grids, one or two tilt-series are collected at the center of a typical hole and one or two tilt-series are collected at the edge of a typical hole, often including the edge of the hole if the grid substrate is carbon. Tilt-series are then aligned with Appion-Protomo (Noble and Stagg, 2015; Winkler and Taylor, 2006) for analysis as described in the Materials and methods.

Analysis of single particle tomograms

Single particle tomograms of samples described in Table 1 have each been analyzed visually using 3dmod from the IMOD package (Kremer et al., 1996). After orienting a tomogram such that one of the air-water interfaces is approximately parallel to the visual plane, traversing through the slices of the tomogram allows for the determination of relative particle locations, orientations, ice thickness variations in holes, and measurement of the minimum particle distance from the air-water interfaces. For many of the samples shown here and made available in the data depositions, particle orientations can be explicitly determined by direct visualization. Contamination on the surface of the air-water interface is used to determine the approximate location of the interface and to measure the ice thicknesses. After analyzing hundreds of single particle tomograms, we have concluded that sequestered layers of proteins in holes always correspond to an air-water interface, thus providing a second method for determining the location of the interface.

Table 1
Ice thickness measurements, number of particle layers, preferred orientation estimation, and distance of particle layers from the air-water interface as determined by cryoET of single particle cryoEM grids for 46 grid preparations of different samples.

The table is ordered in approximate order of increasing particle mass. Several particles are un-named as they are yet to be published. Sample concentration in solution is included with the sample name if known. Distance measurements are measured with an accuracy of a few nanometers due to binning of the tomograms by a factor of 4 and estimation of air-water interface locations using either contamination or particle layers. Grid types include carbon and gold holey grids and lacey and holey nanowire grids, plunged using conventional methods or with Spotiton. Edge measurements are made ~100 nm away from hole edges. ‘--’ indicates that these values were not measurable. Samples highlighted with blue contain regions of ice with near-ideal conditions (<100 nm ice, no overlapping particles, little or no preferred orientation). Samples highlighted with green contain regions of ice with ideal conditions (non-ideal plus no particle-air-water interface interactions). Incubation time for the samples on the grid before plunging is on the order of 1 s or longer.

https://doi.org/10.7554/eLife.34257.004
Sample #Sample nameGrid typeIce thickness
(center, edge,
substrate) in
nm ± a few nm
# of Layers
(center,
edge,
substrate)
Apparent
preferred
orientation
in layer?
Min. particle/layer
distance from air-
water interface

(nm ± a few nm)
1*32 kDa KinaseCarbon Spotiton6545--000Unknown<5
232 kDa KinaseGold Spotiton30----0----Unknown<5
3Insulin ReceptorGold Spotiton55----1–2----No5
4*HemagglutininCarbon Spotiton25–95100–210--0 or 22--Some5
5*HIV-1 Trimer Complex 1Carbon Spotiton75–210----2----Yes5–10
6*HIV-1 Trimer Complex 1Gold Spotiton20----1----Some5
7*HIV-1 Trimer Complex 2Carbon Spotiton190265--222Yes5
8147 kDa KinaseGold Spotiton15----1----Unknown<5
9150 kDa ProteinHoley Carbon Spotiton3570--222Some<5
10*Stick-like Protein 1Carbon Spotiton80----1----No<5
11Stick-like Protein 2
(150 kDa)
Carbon CFlat100100--11--Unknown5
12*Stick-like Protein 2Gold Spotiton135–190----1----Some5
13*Neural ReceptorCarbon Spotiton60–90----1----Yes5
14*Neural ReceptorCarbon Spotiton80–90100–140135111Yes5
15200 kDa ProteinCFlat Carbon + Gold mesh40–6095110112No5
16Small, Popular ProteinCarbon Spotiton3070--122No5
17*Glycoprotein with Bound Lipids (deglycosylated)Carbon Spotiton1590130122Yes<5
18Glycoprotein with Bound Lipids (deglycosylated)Gold Spotiton155----2----Some<5
19*Lipo-proteinHoley Carbon0–9585–100--Uniformly distributed in iceUnknown5
20*GPCRCarbon Spotiton25----12--No5
21*†Rabbit Muscle Aldolase (1 mg/mL)Gold Spotiton1550--12--No<5
22*†Rabbit Muscle Aldolase (6 mg/mL)Carbon Spotiton60–11075–13085222Some5
23Un-named ProteinHoley Carbon35--601--2Yes5
25*Protein in Nanodisc
(0.58 mg/mL)
Gold Spotiton3065--1–22--No5–10
26IDECarbon Spotiton256095122Unknown5
27*IDEGold Spotiton40----1----No5–10
28Small, Helical ProteinGold Spotiton5075--12--Some5
29300 kDa ProteinCarbon Spotiton30100--122No5
30*GDHHoley Carbon3085100113Some5
31*GDHHoley Carbon60120140123Yes5
32*GDH (2.5 mg/mL)+0.001% DDMCarbon Spotiton5018019012--Yes<5
33*DnaB Helicase-helicase LoaderGold Quantifoil50–5580–100--12--No5
34*ApoferritinGold Spotiton25–30----1----No5
35*ApoferritinGold Spotiton25----1----No5
36*ApoferritinHoley Carbon Spotiton30125135122No5
37*Apoferritin (1.25 mg/mL)Holey Carbon Spotiton30–50100105122No5
38*Apoferritin (0.5 mg/mL)Holey Gold Spotiton25–3055--12--No<5
39*Apoferritin with 0.5 mM TCEPCarbon Spotiton40–90145–175--1–221No5
40Protein with Carbon Over HolesCarbon Quantifoil11070–100--11--Some5–10
41Protein and DNA Strands with
Carbon Over Holes
Carbon Quantifoil60----1----Some5–10
42*T20S ProteasomeHoley Carbon35115120123Some<5
43*T20S ProteasomeHoley Carbon125140–160150222Some5
44*T20S ProteasomeGold Quantifoil50–75----1----Some5
45*Mtb 20S ProteasomeCarbon Spotiton3580115011No5–10
46Protein on StreptavidinHoley Carbon20–10080–120--0–21–2--No10
  1. *A video is included for this sample.

    †A dataset is deposited for this sample.

  2. ‡Intentionally thick ice.

Table 1 is organized with the single particle sample mass in roughly descending order. Over 1000 single particle tomograms of over 50 different sample preparations have been collected over a 1-year period. Most of these samples are reported on here. These samples include widely studied specimen such as glutamate dehydrogenase (GDH), apoferritin, and T20S proteasome (samples #30–32, #34–39, and #42–44, respectively), along with various unique specimens such as a neural receptors, lipo-protein, and particles on affinity grids (samples #13,14, #19, and #40, 41, 46, respectively). Samples that are not specifically named have yet to be published. Over half of the samples were prepared on gold or carbon nanowire grids, while the remaining were prepared on a variety of carbon and gold holey grids using common cryo-plunging machines and techniques. Samples showing regions of ice in grid holes with near-ideal conditions – less than 100 nm ice thickness, no overlapping particles, and little or no preferred orientation – are highlighted in blue (21 of 46 samples; 46%) in Tables 1 and 2. Samples showing regions of ice in grid holes with ideal conditions – near-ideal conditions plus no particle-air-water interface interaction – are highlighted in green (2 of 46 samples; 4%). Over half of the samples only contained areas that are not ideal for collection due to ice thickness being greater than 100 nm, overlapping particles, and/or preferred orientation.

Table 2
Apparent air-water interface, particle, and ice behavior of the same samples in Table 1 using the descriptions in Figure 1.

Tilt-series were aligned and reconstructed using the same workflow and thus are oriented in the same direction. However, the direction relative to the sample application is not known. The bottom air-water interface corresponds to lower z-slice values, and the top to higher z-slice values as rendered in 3dmod from the IMOD package (Kremer et al., 1996). ‘A’ means that the air-water interface is apparently clean and cannot be visually differentiated between A1, A2 (primary structure), or A3. Percentages in parentheses are particle layer saturation estimates. Reported angles are the angles (absolute value) between the particle layer’s normal and the electron beam direction, measured using ‘Slicer’ in 3dmod. It is often difficult to distinguish between flat and curved ice at the air-water interfaces (e.g. Figure 2, ‘C1 or C2’ or ‘C2 or C3’) because most fields of view do not span entire holes. ‘’ indicates that the top layer of objects is the same layer as the bottom layer. ‘--’ indicates that these values were not measurable.

https://doi.org/10.7554/eLife.34257.005
Sample #Sample nameAir-water interface, particle behavior, and layer/ice angle
(bottom, center)
Air-water interface, particle behavior, and layer/ice angle
(bottom, edge)
Ice behavior (bottom)Air-water interface, particle behavior, and layer/ice angle
(top, center)
Air-water interface, particle behavior, and layer/ice angle
(top, edge)
Ice behavior
(top)
Notes
1*32 kDa KinaseA, B1 or B2 or B3 (50%), 8°A, B1 or B2 or B3 (50%), 10°C2A, B1 or B2 or B3 (50%), 8°A, B1 or B2 or B3 (50%), 10°C2Particles aggregate into clouds.
232 kDa KinaseA, B1 or B2 or B3
(50%), 4–8°
--C1 or C2A, B1 or B2 or B3 (50%), 4–8°--C1 or C2Gold beads are glow discharge contamination.
3Insulin ReceptorA, B1 or B2 or B3 (100%), 3–5°--C2 or C3A, B1 or B2 or B3 (100%), 3–5°--C2 or C3Gold beads are glow discharge contamination.
4*HemagglutininA2, No particles, 3–7°A, B3 (40%), 5° or
A, B3 (40%), 3°
C3 or C4A2, No particles, 3–7° or
A, B3 (50%), 7°
A, B3 (50%), 5–7°C3 or C4Where very thin ice in the center of holes excludes particles, protein fragments remain.
5*HIV-1 Trimer Complex 1A2, B1, B3 (30%), 1–5°--C1, C2, or C3A2, B1, B3 (30%), 1–5°--C1, C2, or C3Trimer domains and/or unbound receptors are adsorbed to air-water interfaces.
6*HIV-1 Trimer Complex 1A2, B3 (80%), 6°--C2A2, B3 (80%), 6°--C2Trimer domains and/or unbound receptors are adsorbed to air-water interfaces.
7*HIV-1 Trimer Complex 2A, B2 or B3 (50%), 1°A, B2 or B3 (50%), 3°C1 or C2A, B2 or B3 (70%), 1°A, B2 or B3 (70%), 3°C1 or C2
8147 kDa KinaseA, B2 or B3 (50%), 0°--C2 or C3A, B2 or B3 (50%), 0°--C2 or C3Gold beads are glow discharge contamination.
9150 kDa ProteinA, B2 or B3 (60%), 7–10°A, B2 or B3 (60%), 8°C2 or C3A, B2 or B3 (60%), 7°A, B2 or B3 (40%), 9°C2 or C3
10*Stick-like Protein 1A and A2, B4 and B5 (1%), 10°--C2A2, B4 and B5 (50%), 10°--C2
11Stick-like Protein 2
(150 kDa)
A2, B3 and B4 and B5 (70%), 7°A2, B3 and B4 and B5 (70%), 7°--A2, B3 and B4 and B5 (70%), 7°A2, B3 and B4 and B5 (70%), 7°--Determinations are not accurate due to over focusing and minimal tilt angles.
12*Stick-like Protein 2A2, B3 (80%), 0°--C2 or C3A2, B3 (1%), 0°--C2 or C3Note 1. Note 2.
13*Neural ReceptorA2, B3 (80%), 3–10°--C2 or C3A2, No particles, 3–10°--C2 or C3Note 1. Note 2.
14*Neural Receptor--A2, No particles, 2–7° or A2, B3 (70%), 5°C3--A2, B3 (70%), 7° or A2, No particles, 7°C3Note 1. Note 2. Two tomograms have one orientation, one has the opposite.
15200 kDa ProteinA, B2 or B3 (60%), 2°A, B2 or B3 (50%), 4°C3No particles or A, B2 or B3 (60%), 2°A, No particles, 11°C3
16Small, Popular ProteinA, B2 or B3 (90%), 6°A, B2 or B3 (90%), 9°C2A, B2 or B3 (90%), 6°A, B2 or B3 (90%), 1°C3
17*Glycoprotein with Bound Lipids (deglycosylated)A, B3 (70%), 4°A, B3 (80%), 10°C3A, B3 (70%), 4°A, B3 (80%), 11°C3Lipid membrane dissociates from protein in center.
18Glycoprotein with Bound Lipids (glycosylated)A, B3 (50%), 10°--C2 or C3A, B3 (60%), 4°--C2 or C3
19*Lipo-proteinNo particles or A, B2, 3°A, B3, 11°C3, C4No particles or A, B2, 5°A, B3, 11°C3, C4Particles are uniformly distributed in the ice.
20*GPCRA, B2 or B3 (70%), 3°A, B2 or B3 (60%), --C3A, B2 or B3 (70%), 3°A, B2 or B3 (60%), --C3
21*Rabbit Muscle Aldolase (1 mg/mL)A, B2 or B3 (90%), 3–9°A, B2 or B3 (80%), 6°C3A, B2 or B3 (90%), 3–9°A, B2 or B3 (80%), 10°C3
22*Rabbit Muscle Aldolase (6 mg/mL)A, B1, B2 or B3 (90%), 5°A, B1, B2 or B3 (90%), 5°C2 or C3A, B1, B2 or B3 (90%), 5°A, B1, B2 or B3 (90%), 5°C2 or C3
23Un-named ProteinA, B3 (40%), 0–3°--C2 or C3A, B3 (40%), 0–3°--C2 or C3
24Un-named ProteinA, B3 (80%), 2°A, B3 (60%), 4–6°C3A, B3 (80%), 2°A, B3 (60%), 4–9°C3
25*Protein in Nanodisc
(0.58 mg/mL)
A, B2 (80%), 8–10°A, B2 (80%), 8–10°C2 or C3A, B2 (80%), 8–10°A, B2 (80%), 8–10°C2 or C3
26IDEA2, B2 or B3 and B4 and B5 (50%), 0°A2, B1, B2 or B3 and B4 and B5 (50%), 5°C3A2, B2 or B3 and B4 and B5 (50%), 0°A2, B1, B2 or B3 and B4 and B5 (50%), 2°C3Note 1.
27*IDEA, B2 or B3 (95%), 0–4°--C2A, B2 or B3 (95%), 0–4°--C2
28Small, Helical ProteinA, B2 or B3 (80%), 5°A, B2 or B3 (70%), 3°C3A, B2 or B3 (80%), 5°A, B2 or B3 (70%), 7°C3
29300 kDa ProteinA or A2, B2 or B3 (70%), 7°A or A2, B2 or B3 (50%), 13°C3A or A2, B2 or B3 (70%), 7°A or A2, B2 or B3 (50%), 9°C3
30*GDHA, B3 (70%), 10°A, B1, B3 (50%), 1°C2A, B3 (70%), 10°A, B1, B3 (50%), 16°C3Note 2. Some non-adsorbed particles stack between layers.
31*GDHA, B3 (40%), --A, B1, B3 (40%), 10°C3A, B3 (40%), --A, B1, B3 (40%), 2°C2
32*GDH (2.5 mg/mL)+0.001% DDMA, B3 (40%), 4°A, B1, B3 (40%), 7°C2A, B3 (30%), 4°A, B1, B3 (30%), 6°C3Some non-adsorbed particles stack between layers.
33*DnaB Helicase-helicase LoaderA, B2 or B3 (90%), 1°A, B2 or B3 (90%), 4°C3A, B2 or B3 (<5%), 1°A, B2 or B3 (<5%), 1°C2Gold flakes from Quantifoil are on the top.
34*ApoferritinA2, B2 or B3 (50%), 4–6°--C2 or C3A2, B2 or B3 (50%), 4–6°--C2 or C3Note 1. Note 2.
35*ApoferritinA2, B2 or B3 (60%), 4–12°--C2 or C3A2, B2 or B3 (60%), 4–12°--C2 or C3Note 1. Note 2.
36*ApoferritinA2, B3 (50%), 5°A2, B1, B3 (50%), 10°C3A2, B3 (70%), 5°A2, B1, B3 (60%), 3°C3Note 1. Note 2.
37*Apoferritin (1.25 mg/mL)A2, B2 or B3 (50%), 4–7°A2, B1, B2 or B3 (50%), 6°C3A2, B2 or B3 (40%), 4°A2, B1, B2 or B3 (30%), 4°C3Note 1. Note 2.
38*Apoferritin (0.5 mg/mL)A2, B2 or B3 (20%), 5°--C2 or C3A2, B2 or B3 (20%), 1°--C2 or C3Note 1. Note 2.
39*Apoferritin with 0.5 mM TCEPA, B2 or B3 (40%), -- or
A, B2 or B3 (50%), 3°
A, B1, B2 or B3 (40%), 5–9°C3A, B2 or B3 (40%), -- or
A, B2 or B3 (50%), 3°
A, B1, B2 or B3 (40%), 2–8°C3Note 1. Note 2.
40Protein with Carbon Over HolesCarbon, B1 (30%), B3 (60%), 5°Carbon, B1 (30%), B3 (60%), 5–9°C2A, B3 (5%), 5°A, B3 (5%), 5°C1 or C2Note 3.
41Protein and DNA Strands with Carbon Over HolesA, No particles, 2–3°--C2 or C3Carbon, B1 (20%), B3 (60%), 2–3°--C2Some non-adsorbed particles make contact with particle layer. Most non-adsorbed particles are attached to DNA strands.
42*T20S ProteasomeA, B3 (80%), 3°A, B1 (5%),
B3 (80%), 14°
C3A, B3 (80%), 3°A, B1 (5%),
B3 (20%), 3°
C2Note 2. Note 3.
43*T20S ProteasomeA, B3 (10%), 2–5°A, B3 (10%), 2–5°C2A, B1 (20%),
B3 (90%), 5–7°
A, B1 (20%),
B3 (95%), 5–7°
C3Note 3.
44*T20S ProteasomeA, B1 (10%), B3 (80%), 11°--C3A, B3 (2%), 11°--C2Note 2. Note 3.
45*Mtb 20S Proteasome--A, B1, B2 or B3 (30%), 6°C3--A, B1, B2 or B3 (30%), 11°C3Heavy contamination.
46Protein on StreptavidinStreptavidin, B2 (10–30%), 0° or
Streptavidin, No particles, 12°
Streptavidin or A2, 2 (10–30%), 12°C1, C2, or C3Streptavidin,
B2 (10–30%), 0° or
Streptavidin, No particles, 12°
Streptavidin, 2 (10–30%), 13–14°C1, C2, or C3Note 1. Some holes have a layer of streptavidin only on top, some have a layer on top and bottom. Particles are attached to streptavidin and sometimes the apposed air-water interface.
  1. *A video is included for sample.

    †A dataset is deposited for sample.

  2. Note 1: Apparent protein fragments/domains are adsorbed to the air-water interfaces.

    Note 2: Partial particles exist.

  3. Note 3: Non-adsorbed particles make contact with particle layer.

Ice thickness

Averages ± (one standard deviation and measurement error) of the minimum ice thickness at the center and near the edge of grid holes was calculated. At the center, the ice thickness is about 30 ± 13 nm for gold nanowire grids prepared with Spotiton (N = 11), 47 ± 40 nm for carbon nanowire grids prepared with Spotiton (N = 17), and 56 ± 35 nm for carbon holey grids prepared using conventional methods (N = 10) (Figure 3A). Ice thickness about 100 nm from the edge of grid holes is about 61 ± 11 nm for gold nanowire grids prepared with Spotiton (N = 4), 107 ± 54 nm for carbon nanowire grids prepared with Spotiton (N = 16), and 99 ± 24 nm for carbon holey grids prepared using conventional methods (N = 8) (Figure 3B).

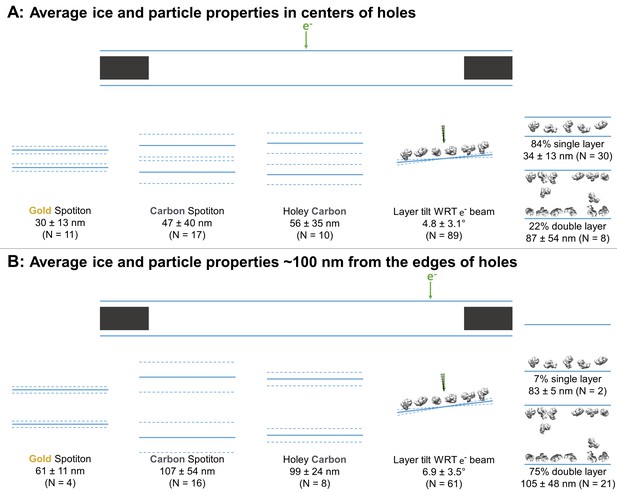

Schematic diagrams of the average ice thickness (solid lines) ± (1 standard deviation and measurement error) (dashed lines) using the minimum measured values, average particle layer tilt (solid lines) ± (1 standard deviation and measurement error) (dashed lines), and percentage of samples with single and/or double particle layers (‘1’ and/or ‘2’ as defined in Table 1) at the centers of holes (A) and about 100 nm from the edge of holes (B).
https://doi.org/10.7554/eLife.34257.006

Table 2 categorizes each sample in terms of Figure 2. Categorizations into A, B, and C, where possible, have been judged by visual inspection. Air-water interfaces that are visually clean are denoted with ‘A’ from Figure 2 due to A1, A2 (primary structure), and A3 being indistinguishable by cryoET without collecting high tilt angles, which was not done in this study. For particles smaller than about 100 kDa, distinguishing between A1/A3 and A2 was not possible by cryoET.

If a region in grid holes contains layers of particles relative to the air-water interface (possibly B1 – B4), then the particle saturation of the corresponding layer is recorded in Table 2 as an approximate percentage in parentheses where 100% means that no additional particles could be fit into the layer. The angle of particle layer with respect to the electron beam is recorded for each region if applicable. The average tilt ± (one standard deviation and measurement error) of layers at the centers of holes is 4.7 ± 3.0° and at the edges of holes is 6.9 ± 3.5° (Figure 3). There is no apparent correlation between microscope and tilt direction or magnitude. About 83% of the samples contained single particle layers (N = 30) in the centers of holes while about 22% contained double particle layers (N = 8; several samples have different holes with single and double layers of particles in their centers). Near the edges of holes, about 7% contain single particle layers (N = 2), while about 75% contained double particle layers (N = 21). Finally, in Table 2 the ice curvature of each air-water interface is specified using the options in Figure 2C. For these measurements, the bottom of each tomogram is defined as having a lower z-slice value than the top as viewed in 3dmod, yet the relative orientation of each recorded sample is not known due to unknown sample application orientation on the grid relative to the EM stage. Thus, correlations between air-water interface behavior and sample application direction on the grids cannot be made from this study.

Cross-sectional depictions

Several schematic diagrams of cross-sections of particle and ice behavior in holes as determined by cryoET are shown in Figure 4 for selected samples and tomograms. Ice thickness measurements and particle sizes are approximately to scale. Each cross-section is tilted corresponding to the tilt of the tomogram from which it was derived relative to the electron beam. The preferred orientation distributions are reflected in the cross-sectional depictions. The cross-sectional characteristics depicted are not necessarily representative of the average because only one of several collected tomograms are depicted.

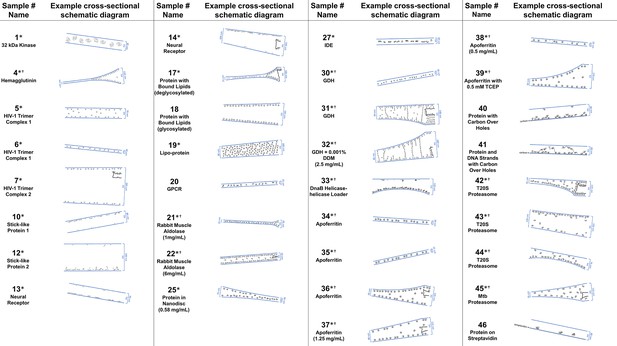

A selection of cross-sectional schematic diagrams of particle and ice behaviors in holes as depicted according to analysis of individual tomograms.

The relative thicknesses of the ice in the cross-sections are depicted accurately. Each diagram is tilted corresponding to the tomogram from which it is derived; i.e. the depicted tilts represent the orientation of the objects in the field of view at zero-degree nominal stage tilt. If the sample concentration in solution is known, then it has been included below the sample name. Black lines on schematic edges are the grid film. The cross-sectional characteristics depicted here are not necessarily representative of the aggregate. An asterisk (*) indicates that a Video of the schematic diagram alongside the corresponding tomogram slice-through video is included for the sample. A dagger () indicates that a dataset is deposited for sample. A generic particle, holoenzyme EMDB-6803 (Yin et al., 2017), is used in place of some confidential samples (samples #40, 41, and 46).

https://doi.org/10.7554/eLife.34257.008

Several tomographic slice-through videos from representative imaging areas of samples are shown in the included Videos. Most of the Videos include the corresponding hole magnification image, which is an order of magnitude lower magnification than exposure magnification, with the location of the targeted area specified. Tilt-series collection range, grid type, and collection equipment are also specified. Tomography may also be performed at hole magnification, allowing for particle location determination across multiple sized holes, ice thickness determination, and local grid tilt (Video 1 - sample #20). For sample #20, a GPCR with a particle extent of about 5 nm, a tomographic analysis at hole magnification (about 20 Å pixelsize) is sufficient to localize ice contamination, particle layers, and to measure ice thickness with an accuracy of about 10 nm. To orient the reader to this single particle tomography data, Figure 5 shows tomogram slice-throughs of adsorbed and non-adsorbed particles for a selection of samples with thicker ice.

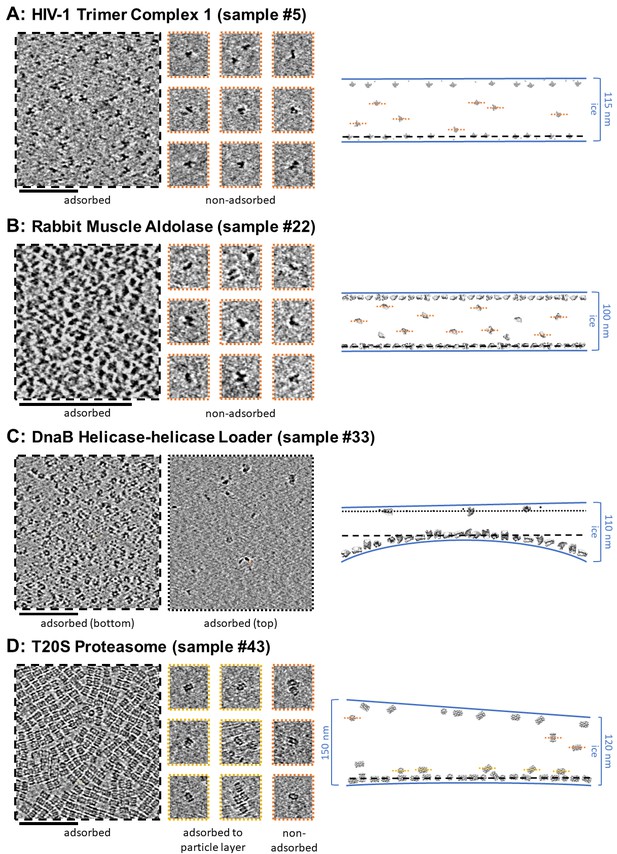

Slices of tomograms, about 7 nm thick, showing variations in particle orientation of adsorbed and non-adsorbed particles for several samples.

Cross-sectional schematic diagrams showing the approximate locations of the slices are shown on the right. (A) HIV-1 trimer complex 1 shows a high degree of preferred orientation for particles adsorbed to the air-water interface and no apparent preferred orientation for non-adsorbed particles. (B) Rabbit muscle aldolase shows several views for adsorbed particles and non-preferred views for non-adsorbed particles. (C) DnaB helicase-helicase loader shows no apparent preferred orientation for adsorbed particles. (D) T20S proteasome shows predominantly one view for adsorbed particles, the same view for particles adsorbed to the primary layer of particles, and less preferred views for non-adsorbed particles. Scale bars are 100 nm.

https://doi.org/10.7554/eLife.34257.009
Video 1
Sample 20.
https://doi.org/10.7554/eLife.34257.010

The vast majority of particles are localized to the air-water interfaces

The primary result gleaned from over 1000 single particle tomograms of over 50 different grid/sample preparations is that the vast majority of all particles (approximately 90%) are local to an air-water interface. As shown in Table 1, Table 2, Figure 4, and the Videos, most particles

prepared with sample incubation times on the order of 1 s on the grid are within 5–10 nm of an air-water interface (ie. are characterized by B2, B3, or B4 in Table 2). This observation implies that most particles, not only in this study but in cryoEM single particle studies as a whole, are adsorbed to an air-water interface.

Particle adsorption sometimes implies preferred orientation

A sequestered particle that is adsorbed to a clean air-water interface and that has had time to equilibrate will likely be oriented relative to that air-water interface such that the local surface hydrophobicity of the particle is maximally exposed, assuming that the particle is not prone to denaturation at the interface. If a particle is prone to denaturation at the interface and if the interface is already coated with a denatured layer of protein, then the preferred orientations of the same sequestered particle on the protein film-air-water interface might change. If the particle is not sequestered, but is in a protein-concentrated environment, then neighboring particle-particle interactions might change the possible preferred orientations of the particles. For each of these cases, an ensemble of particles at air-water interfaces arrived at by diffusion, as is the case with most single particle cryoEM datasets, will exhibit all possible particle orientations. The percentage of particles in each preferred orientation might be then mapped back onto all possible relative local particle-air-water interface affinities. Particles that have had less time to equilibrate before observation (e.g. before plunge-freezing) might have more realized orientations in the ensemble than if they had more time to equilibrate at the air-water interfaces. Several example tomogram slice-throughs of samples with varying amounts of apparent preferred orientations at and away from air-water interfaces are shown in Figures 5 and 6.

Slices of tomograms, about 10 nm thick, at air-water interfaces of samples that show clear protein fragments (examples indicated with blue arrows) and/or partial particles (examples indicated with green arrows), presented roughly in order of decreasing overall fragmentation.

(A) Neural receptor shows a combination of fragmented 13 kDa domains consisting primarily of β-sheets and partial particles. (B) Apoferritin shows apparent fragmented strands and domains along with partial particles. (C) Hemagglutinin shows a clear dividing line, marked with blue, where the ice became too thin to support full particles, but thick enough to support protein fragments. (D) HIV-1 trimer complex one shows several protein fragments on the order of 10 kDa; however, these might be receptors intentionally introduced to solution before plunge-freezing. (E) GDH shows protein fragments interspersed between particles. (F) T20S proteasome shows partial particles, determined by measuring their heights in the z-direction, on an otherwise clean air-water interface (see the end of Video 10 for sample #42). For the examples shown here, it is not clear whether the protein fragments and partial particles observed are due to unclean preparation conditions, protein degradation in solution, or unfolding at the air-water interfaces, or a combination; all cases are expected to result in the same observables due to competitive and sequential adsorption. Scale bars are 100 nm.

https://doi.org/10.7554/eLife.34257.011

Protein adsorption to an air-water interface has potential consequences with regard to protein denaturation, data collection, and image processing. In the remainder of this section, we will discuss the implications of protein adsorption on protein denaturation and present possible evidence of air-water interface denaturation from cryoET.

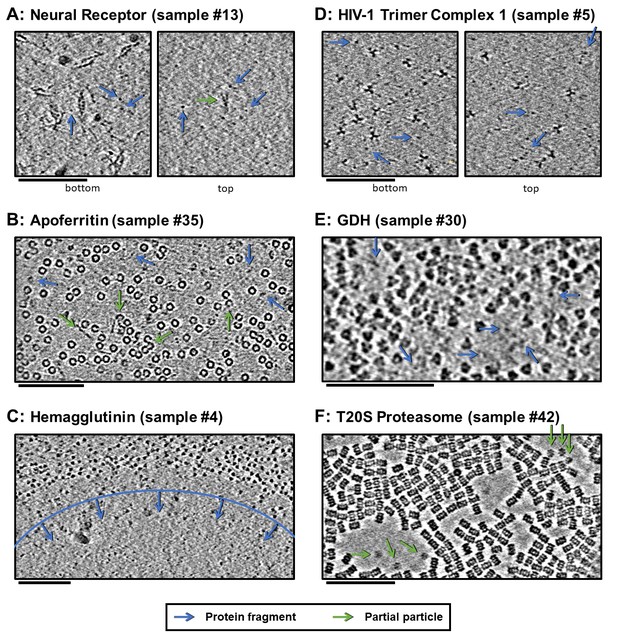

Observed denatured proteins by cryoET

Several samples show clear protein fragments at air-water interfaces (samples #4–6, 10–14, 26, 30, 34–38, and 46; Figure 6A–E, blue arrows). The neural receptor, hemagglutinin, HIV-1 trimer complex 1, apoferritin, and GDH samples in particular (samples #13, #35, #4, #5, and #30, respectively) show protein fragments and domains on the air-water interfaces (Figure 6A–E and corresponding Videos, blue arrows). For the neural receptors (sample #13), densities on the air-water interface show a clear relationship in size to the 13 kDa Ig-like domains that constitute the proteins. Several apoferritin samples (samples #34–38) also show apparent protein fragments at the air-water interfaces (Figure 6B and Videos 27 corresponding to samples #34–38). One hemagglutinin sample contained holes where the ice became too thin for whole particles to reside and is instead occupied exclusively by protein fragments (Figure 6C and Video 7 corresponding to sample #4). An HIV-1 trimer sample also shows clear protein fragments on each air-water interface, although these are likely receptors intentionally introduced to solution before plunge-freezing (Figure 6D and Video 8 corresponding to sample #5). GDH similarly shows sequestered protein fragments in open areas near particles at the air-water interface (Figure 6E and Video 9 corresponding to sample #30).

Video 2
Sample 34.
https://doi.org/10.7554/eLife.34257.012
Video 3
Sample 35.
https://doi.org/10.7554/eLife.34257.013
Video 4
Sample 36.
https://doi.org/10.7554/eLife.34257.014
Video 5
Sample 37.
https://doi.org/10.7554/eLife.34257.015
Video 6
Sample 38.
https://doi.org/10.7554/eLife.34257.016
Video 7
Sample 04.
https://doi.org/10.7554/eLife.34257.017
Video 8
Sample 05.
https://doi.org/10.7554/eLife.34257.018
Video 9
Sample 30.
https://doi.org/10.7554/eLife.34257.019

Several samples show clear partial particles at air-water interfaces (samples 10–14, 34–39, and 46; Figure 6A,B,F, green arrows). Neural receptor (sample #13) particle fragments can be seen adsorbed to the air-water interface (Figure 6A, green arrow). Sample #13 consists of two distinct air-water interfaces, as can be seen in Figure 6A, where the bottom interface is covered with particles and protein fragments while the top interface is covered with protein fragments and a small number of partial particles (see also Video 11 corresponding to sample #13). The partial T20S proteasome particles shown in Figure 6F and the Video 10 (sample #42) might be an example of protein denaturation at the air-water interface. In this sample, the observed partial particles are oriented as rare top-views rather than abundant side-views of the particle and exist adjacent to areas of the air-water interface that do not harbor adsorbed particles. Also of note is that all of the domains of the neural receptor and some of the domains of apoferritin, hemagglutinin, HIV-1 trimer complex 1, and GDH are composed of series of β-sheets, which have the potential to not denature at the air-water interface. This observation might correlate with the cross-disciplinary literature presented in the introduction showing that β-sheets may potentially survive air-water interface interaction (Martin et al., 2005; Renault et al., 2002; Yano et al., 2009). It is unclear, however, whether these unclean air-water interfaces are due to unclean preparation conditions (Glaeser et al., 2016), protein degradation in solution, unfolding at the air-water interfaces, or a combination of these factors.

Video 10
Sample 42.
https://doi.org/10.7554/eLife.34257.020
Video 11
Sample 13.
https://doi.org/10.7554/eLife.34257.021

While the observations described above might correlate with the research from the food science and surface physics literature as outlined in the introduction, it is not clear from this study whether particles are adsorbed to films of denatured protein at the air-water interface or if some particles are adsorbed directly to the air-water interface. From the cross-disciplinary literature presented in the introduction, we speculate that adsorption rates for proteins that first denature at the air-water interface will differ from those that adsorb directly to the air-water interface. For a protein that does denature at the air-water interface, there is an additional amount of diffusion time, possibly on the order of tens of milliseconds, for surface diffusion to take place. Proteins that adsorb directly to the air-water interface are only time-limited by the bulk diffusion time of that sample preparation. The bulk diffusion time may be orders of magnitudes less than the surface diffusion time. The rate at which proteins adsorb to a protein network film depends on the affinity between that protein film and the bulk particles. The additional surface diffusion time along with the additional bulk protein adsorption time to the denatured protein film may allow for speed advances in sample application and plunging to outrun bulk protein adsorption to the denatured proteins on the air-water interfaces, depending on the grid preparation and particle behavior. Secondary effects, such as bulk particle flow – in conventional grid preparation when blotting paper is applied and in nanowire grid preparation with Spotiton when the protein solution reaches the nanowires on the grid bars and wicks away – and flow due to thermal convection – potentially due to contact with tweezers and the blotting process – may change the effective concentration of bulk particles near the air-water interfaces.

Protein network films may not be particle-friendly

Evidence from the literature in the introduction shows that proteins do denature at air-water interfaces, with an apparent dependency on protein concentration and structural rigidity. Evidence from this study showing that some air-water interfaces do harbor protein fragments and/or partial particles might be additional examples of denaturation due to the air-water interface. Evidence from LB trough studies of the small, disordered protein β-casein additionally show that increasing the concentration of bulk proteins in solution from 0.1 to 100 mg/mL results in an increased thickness of the denatured protein film at the air-water interface from 5 to 50 nm (Meinders et al., 2001). This observation implies that bulk proteins may denature not only at the air-water interface, but also at the subsequently formed protein network film interface depending on the bulk protein concentration. This in turn implies that proteins adsorbed to the protein film undergo conformational change, at least at higher concentrations. Thus, if an increase in the thickness of a protein network film of a given protein at high concentration is observed, concern that bulk proteins adsorbed to the protein network film are undergoing conformational change might be warranted. We speculate that if particles are undergoing conformational change at either the protein-air-water interface or at the protein-protein network interface, then anomalous structures might be present after 2D and 3D classification that are practically indistinguishable from the nominal structures. These anomalous structures might contribute toward artefactual 3D reconstructions, towards lower resolutions, and/or toward lower density contributions on the peripheries of resulting 3D reconstructions. In the last two cases, lower resolutions on the peripheries of the reconstruction might also be a result of radial inaccuracies in alignment, and thus these two resolution-degrading factors would need to be decoupled on a per-sample basis before drawing conclusions. Apoferritin, as shown in Figure 6B and the Videos 26 (samples #34–38), might be an explicit example of observed conformational change due to the air-water interface if the observed particle degradation is indeed caused by air-water interface denaturation.

Air-water interface symmetries and asymmetries

Several samples show an asymmetry between particle saturation at the top and bottom air-water interfaces. For example, samples #10, 12–15, 33, and 44 have particles covering one air-water interface with the other interface showing no particles, samples #4, 7, 9, 18, 32, 36, 39, 42, and 43 have more particles covering one air-water interface than the other, and samples #1, 8, 9, 16, 17, 20–22, 24–31, 39, and 45 have a roughly equal number of particles on each air-water interface (Figure 6). Particles that layer only on one air-water interface suggest that they are either sticking to the first available air-water interface (the interface on the back of the grid prior to blotting for conventional grid preparation techniques or the interface in the direction of application momentum for Spotiton), or to the first-formed protein network film. This first-formed protein network film might form nearly instantaneously after the first air-water interface is created with the sample dispenser. For a particle that denatures at the air-water interface, since the bulk diffusion time is one or more orders of magnitude less than the surface diffusion time, if the second available air-water interface is formed before the first air-water interface is saturated with bulk particles and if the protein concentration is high enough, then one might expect denaturation to occur at the second air-water interface. This would allow for a layer of particles to adsorb to each air-water interface. Further study into such sample behavior using cryoET while taking into account sample application directionality might lead to a clearer model for why particles adsorb preferentially to one air-water interface over the other.

Ideal samples are a rarity

Only two samples, #25: protein in nanodisc and #46: protein on streptavidin, exhibit ideal characteristics – less than 100 nm ice thickness, no overlapping particles, little or no preferred orientation, and areas with no particle-air-water interface interaction. Sample #25 contains regions of single layers of particles in nanodiscs without preferred orientation in 30 nm ice (see corresponding Video 12). While the particle layers are on the air-water interfaces in thicker areas near the edges of holes, the lack of preferred orientation implies that some fraction of the particles contain protein that is not in contact with the air-water interface, thus satisfying the ideal condition. Sample #46 contains particles dispersed on streptavidin, which is used to both randomly orient the particles and to avoid at least one air-water interface (Figure 4). The majority of areas with particles consists of ice thin enough to satisfy the ideal condition.

Video 12
Sample 12.
https://doi.org/10.7554/eLife.34257.022

A single particle dataset consisting primarily of adsorbed particles to air-water interfaces not only opens up the possibility of protein and degradation conformational change as described in this section, but additionally has implications on data collection and image processing as described in the next three sections.

A significant fraction of areas in holes have overlapping particles in the electron beam direction

A large fraction of the samples studied here contain imaging areas in holes, often limited to near the edges of holes, contain a single layer of particles at an air-water interface with additional non-adsorbed particles or two layers of particles with or without additional non-adsorbed particles (denoted in Table 1 as having 1+, 2, or 2+ layers in holes) (Figure 3). When this occurs, it is often the case that projection images collected in these areas will contain overlapping particles (Figure 7A, middle and right). These overlapping particles may cause several issues. First, overlapping particles picked as one particle will need to be discarded during post-processing (particles not circled in Figure 7). If these particles are not discarded, then anomalous results might be expected in any 3D refinement containing these particles – particularly in refinement models that use maximum likelihood methods such as Relion (Scheres, 2012), cryoSPARC (Punjani et al., 2017), and Xmipp (Scheres et al., 2007; Scheres et al., 2008) – thus reducing the reliability and accuracy of the refinement results. Second, overlapping particles reduce the accuracy of whole-image defocus estimation (as depicted by particle color in Figure 7). For instance, an exposure area perpendicular to the electron beam containing two parallel layers of particles with identical concentrations will result in a whole-image defocus estimation located halfway-between the two layers, thus limiting the resolution of each particle depending on their distance from the midway point. For such an image collected with a defocus range of 1 to 2 microns and with a 10 nm deviation from the midway point, the particles will have a resolution limit of about 2.5 Å. A 50 nm deviation from the midway point will result in a resolution limit of about 6 Å. Third, overlapping particles might reduce the accuracy of per-particle or local defocus estimation. If the concentrations of overlapping particles are too high, then local and potentially per-particle defocus estimation might contain fragments of particles at different heights than the particle of interest. Fourth, overlapping particles reduce the efficiency of data processing and thus data collection. The second and the third issues posed above might be partially resolved if the ice thickness is known by duplicating each particle, CTF correcting one

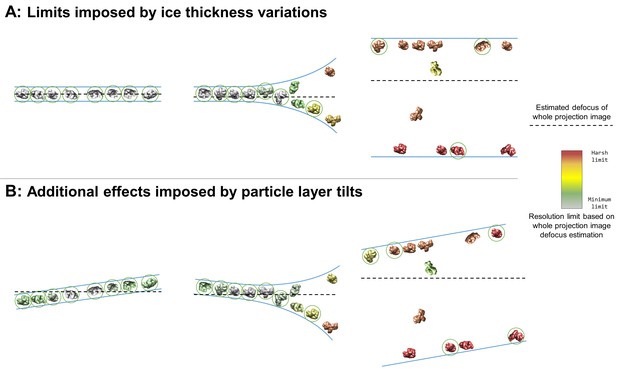

Collection and processing limits imposed by variations in ice thickness (A) and particle layer tilt (B), given that the vast majority of particles in holes on conventionally-prepared cryoEM grids are adsorbed to an air-water interface.

(A) Variations in ice thickness within and between holes might limit the number of non-overlapping particles in projection images (efficiency of collection and processing), the accuracy of whole image and local defocus estimation (accuracy in processing), the signal-to-noise ratio in areas of thicker ice (efficiency of collection and processing), and the reliability of particle alignment due to overlapping particles being treated as a single particle. (B) Variations in the tilt angle of a given particle layer might affect the accuracy of defocus estimation if the field of view is not considered to be tilted, yet will increase the observed orientations of the particle in the dataset if the particle exhibits preferred orientations. Dashed black lines indicate the height of defocus estimation on the projected cross-section if sample tilt is not taken into account during defocus estimation. Particles are colored relative to their distance from the whole image defocus estimation to indicate the effects of ice thickness and particle layer tilt. Gray particles would be minimally impacted by whole-image CTF correction while red particles would be harshly impacted by whole-image CTF correction. Particles that would be uniquely identifiable in the corresponding projection image are circled in green.

https://doi.org/10.7554/eLife.34257.023

with (midway defocus + thickness/2) and the other with (midway defocus – thickness/2), then discarding the particle with the lower high-frequency cross correlation value partway through single particle alignment. The issues posed above may be a primary source of discarded particles during mean filtering, CTF confidence filtering, 2D classification, and 3D classification.

Most air-water interfaces are tilted with respect to the electron beam

We have shown that the majority of samples studied contain particles at one or both air-water interfaces (Tables 1 and 2, Figure 3). Tomography also has allowed us to study the orientation of the normal of each air-water interface with respect to the direction of the electron beam, and thus the tilt of the particles local to each air-water interface. We have found that air-water interfaces are tilted between 0° and 16° relative to the electron beam when at a nominal stage tilt of 0° (Table 2). The average tilt ± (one standard deviation and measurement error) of particle layers at the centers of holes is 4.8°±3.1° (N = 89) and at the edges of holes is 6.9°±3.5° (N = 61) (Table 2, Figure 3, Figure 4). These tilts may be due to a combination of errors in stage orientation, local grid deformations, and/or local air-water interface curvatures. In most cases, these tilts are not systematic with respect to particle orientation in the ice, and thus contribute beneficially to angular particle coverage.

As shown previously, most particles are adsorbed to an air-water interface (Tables 1 and 2, Figure 3, Figure 4, and Videos). It is important to note that a lack of apparent preferred orientation in single particle micrographs does not imply that the particles are not adsorbed to the air-water interfaces. Indeed, most of the particles listed in Tables 1 and 2 that have no apparent preferred orientations are adsorbed to the air-water interfaces. Figure 5 shows a selection of adsorbed particles with and without preferred orientations. A distinction should be made between preferred orientation and apparent preferred orientation of particles. A particle may have N and/or M preferred orientations on the grid as shown in Figure 2B. Collection on a given grid with non-zero tilts effectively increases the number of imaged preferred orientations of the particle. Depending on the numbers N and/or M, the locations of the preferred orientations on the particle, the symmetry of the particle, and the range of non-zero tilts on the grid, a preferentially oriented particle might have no apparent preferred orientations in a full single particle dataset. As a hypothetical example, both T20S proteasome and apoferritin might have two preferred orientations each, yet T20S proteasome may appear to have a small number of preferred orientations while apoferritin may appear to have no preferred orientations when micrographs are collected with a nominal tilt of zero degrees, but with non-zero degree local air-water interface tilts. This would be due to apoferritin having a high number of uniformly distributed asymmetric units and ~6° tilts in the exposure areas.

The potential effect of tilted particle layers on CTF estimation, and thus resolution limit, of a single particle cryoEM dataset can be nearly as harmful as there being a layer of particles at each air-water interface, as described in the previous section and depicted in Figure 7. Figure 7B depicts the additional effects imposed by air-water interface and thus particle layer tilts. CTF correction on individual particles using defocus estimation on whole fields of view will limit the resolution of particles above and below the corrected defocus (Figure 7B, left and middle) and will alleviate the resolution limit of some particles in thicker areas (Figure 7B, middle and right). Additionally, areas of thick ice that are tilted might change which particles are uniquely identifiable (Figure 7, right) relative to being untilted. As a hypothetical example, consider a micrograph with a single particle layer in the exposure area and a particle layer tilt of 10° collected at 1 Å pixelsize on a 4 k × 4 k camera with a defocus range of 1 to 2 microns. If the CTF for this micrograph is estimated and corrected for on a whole-image basis, then the worst-corrected particles will have a resolution limit of around 4 Å. These particles might be down-weighted or removed during processing, effectively decreasing the efficiency of the collection.

Several datasets in Tables 1 and 2 exhibit both of the issues described in this section and in the previous section: overlapping particles in the direction of the electron beam and tilted exposure areas (Figure 4, Figure 7B). Most of these locations are near hole edges where the ice is often curved and thicker. It is not uncommon for a user to collect single particle micrographs near the edges of holes in order to maximize the collection area in each hole, to avoid the potentially greater beam-induced motion in the center of the holes, and/or to avoid the thin center of holes that are more prone to tearing during exposure. Without previously characterizing the sample in the grid holes by cryoET, collection in these areas might severely limit the number of alignable particles due to projection overlap, the resolution due to CTF estimation and correction error, and the signal due to ice thickness. Thus, for many samples, it is advisable to first determine the distance from the edge of a representative grid hole to collect in order to reliably image single layered particles in thin ice. Doing so will increase the signal due to ice thickness and the reliability and efficiency of single particle alignment and classification due to there being no overlapping particles. CTF estimation and correction should also be performed with the assumption that the field of view is tilted relative to the electron beam (see Figure 3), either by performing estimation and correction with whole-image CTF tilt processing, local CTF processing, or per-particle CTF processing (Grigorieff et al., 2018; Hu, 2018; Zhang, 2016). If the ice in thinner areas in the centers of holes is prone to tearing, then one solution might be to image at a lower dose rate.

Fiducial-less cryoET may be used to determine optimal single particle collection areas and strategies

As shown in Table 1 and Figure 3, ice thickness in holes is commonly greater at the edges than in the centers. Most samples that have this ice behavior have a single layer of particles on one air-water interface, with either a second layer on the apposed air-water interface or additional non-adsorbed particles, or both (Figure 3). At a certain distance from the edge of the holes (usually between 100 to 500 nm from the edge), the ice commonly becomes thin enough for only one layer of particles to fit between – usually the particle’s minor axis plus 10 to 20 nm of space between the particles and the air-water interfaces. Provided that particle concentration is high enough for accurate CTF estimation, specimen drift is low enough for sufficient correction, and the particles have little or no apparent preferred orientation, then collection a certain distance away from the edges of these holes would be the most efficient use of resources. Collection in these areas would be less likely to result in anomalous structures compared with collecting in thicker areas with overlapping particles in projections (Figure 8, left). If in the same case the

Examples of typical single particle and ice behavior as might be revealed by fiducial-less cryoET and how such characterization might influence strategies for single particle collection.

Left: For a sample that exhibits thick ice near the edges of holes and ice in the center of holes that is thin enough for a single layer of particles to reside, single particle micrographs would optimally be collected a distance, d, away from the edges of holes. Middle: A sample that exhibits a high degree of preferred orientation may require tilted single particle collection by intentionally tilting the stage by a set of angles, α, in order to recover a more isotropic set of particle projections (Tan et al., 2017). Right: For a sample that consists of multiple layers of particles across holes, the sample owner may decide to proceed with collection with the knowledge that the efficiency will be limited by the particle saturation in each layer and that the resolution will be limited by the decrease in signal due to the ice thickness, t, and the accuracy of CTF estimation and correction. The results of cryoET on a given single particle cryoEM grid might also result in the sample owner deciding that the entire grid is not worth collecting on, potentially due to the situations described here or due to observed particle degradation. Due to depiction limitations, the single orientation of the particle in the middle column is depicted as being only in one direction, when in practice the particles may rotate on the planes of the air-water interfaces.

https://doi.org/10.7554/eLife.34257.024

particles show preferred orientations in tomography, then the second most efficient and accurate collection method would be collecting while intentionally tilting the stage (Tan et al., 2017), provided that the sample drift is sufficiently low and the concentration is not so high that neighboring particles begin to overlap in the tilted projections (Figure 8, middle).

However, if the ice is consistently thick across the holes and across the grid, and/or there is a significant number of overlapping particles in the direction of the electron beam, then it might be determined from cryoET that the sample is not fit for high resolution collection (Figure 8, right). If the type of grid used is lacey, then tomography at hole magnification where the imaging area includes several hole sizes may be used to determine hole sizes with thinner ice and to determine if there are one or two particle layers in these areas (Video 1 for sample #20, deposition data for sample #36). Routinely performing cryoET on cryoEM grids allows for sample owners to determine where and how to collect optimal data most efficiently, or to determine whether or not the grid is collectible to the desired resolution. It takes about 30 to 45 min to collect, process, and analyze a single tomogram. Thus, routine single particle grid and sample characterization by cryoET may not only provide information for optimizing grid preparation of a particular sample, but may also increase microscope efficiency.

Fiducial-less cryoET may be used to understand critical protein behavior

During the course of this study, cryoET of single particle cryoEM grids has been valuable and even critical for understanding particle stoichiometry and anomalous behavior. For example, cryoET has been used on several HIV-1 trimer preparations with receptors to understand the stoichiometry of the bound receptors by direct visualization of individual particles in 3D (samples #5–7 corresponding to Videos 8, 13 and 14). In another example, sample #17, the size of the ‘glycoprotein with bound lipids’ particles varied discretely with the radial distance from the edge of holes (Figure 4 and Video 15). In single particle cryoEM micrographs, this observation was not immediately explicable and would have required a single particle data collection followed by alignment and classification before reliable conclusions could be made. Instead, a single tomogram of the sample was collected and it was observed that near the edges of the hole the particles with lipids existed in two layers at the air-water interfaces. Beyond a radial distance from the edge of about 300 nm where the ice became about 15 nm thin the particles and lipids dissociated, with the particles remaining in a single layer (see Video 1 for sample #20). A solution to this issue was found where glycosylated particles were prepared using Spotiton with conditions that intentionally created thick ice (Figure 4, sample #18). A further example highlighting the importance of using cryoET to understand the behavior of samples on grids is sample #40 (Figure 4). This sample consisted of a very low concentration of particles in solution prepared with a carbon layer over holes to increase the concentration in holes. CryoET showed that the particles were forming two layers on the carbon: a layer directly on the carbon with about 60% saturation and a layer scattered on top of the first layer with about 30% saturation. This observation made clear that particle overlap would be an issue in single particle processing and introduced the possibility that since the particle layers were directly touching that this might induce conformational change in some of the particles. Similarly for sample #41 (Figure 4), cryoET on particles and DNA strands prepared with carbon over holes revealed that a considerable fraction of projection areas consisted of overlapping particles due to some non-adsorbed particles attached to DNA strands. In this situation, it was determined that single particle cryoEM on this sample would be highly inefficient for studying the complex of interest. In the cases described here, cryoET was an expedient and sometimes indispensable method for determining particle behavior.

Video 13
Sample 6.
https://doi.org/10.7554/eLife.34257.025
Video 14
Sample 7.
https://doi.org/10.7554/eLife.34257.026
Video 15
Sample 17.
https://doi.org/10.7554/eLife.34257.027

Fiducial-less SPT can generate de novo initial models with no additional preparation

A useful and sometimes critical benefit of being able to perform fiducial-less cryoET on a single particle grid is that the resulting tomograms can be processed through single particle tomography alignment and classification in order to generate de novo templates for single particle micrograph picking and for use as initial models in single particle alignment (Cong and Ludtke, 2010). Inconsistencies in ab initio reconstructions can lead to structural uncertainties during refinement, as shown in the literature (Ludtke et al., 2011). In one example reported here (sample #33 and the corresponding Video 16), Gaussian particle picking and 2D classification of DnaB helicase-helicase loader particles from single particle micrographs showed one predominant orientation with apparent C6 symmetry and very few different orientations (Figure 9A). Efforts to generate an ab initio reconstruction with common-lines approaches (Elmlund and Elmlund, 2012; Ludtke et al., 1999) failed (Figure 9A). We suspected that a reliable template could not be generated due to missing many low contrast side-views and more complete particle picking could not be performed without a reliable template – a classic catch-22.

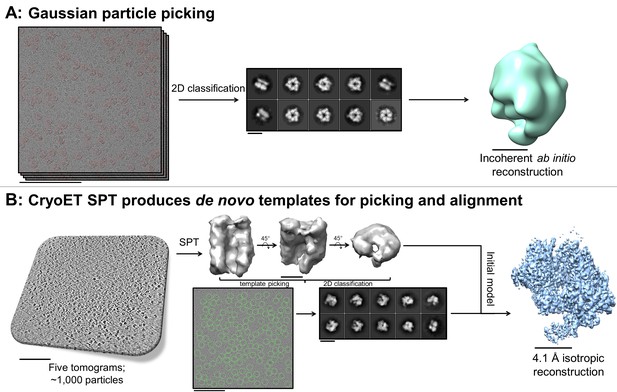

De novo initial model from fducial-less SPT.

(A) Gaussian picking of single particle datasets of DnaB helicase-helicase loader was not able to identify many low contrast side-views of the particle and 2D classification of the top-views incorrectly suggested C6 symmetry, resulting in unreliable initial model generation and stymying efforts to process the datasets further. (B) Fiducial-less single particle tomography (SPT) on the same grids used for single particle collection was employed to generate a de novo initial model, which was then used both as a template for picking all views of the particle in the single particle micrographs and as an initial model for single particle alignment, resulting in a 4.1 Å isotropic structure of DnaB helicase-helicase loader (manuscript in preparation). This exemplifies the novelty of applying this potentially crucial fiducial-less SPT workflow on cryoEM grids. Scale bars are 100 nm for the micrographs and tomogram, 10 nm for the 2D classes, and 5 nm for the 3D reconstructions.

https://doi.org/10.7554/eLife.34257.028
Video 16
Sample 33.
https://doi.org/10.7554/eLife.34257.029
Video 17
Sample 01.
https://doi.org/10.7554/eLife.34257.030
Video 18
Sample 10.
https://doi.org/10.7554/eLife.34257.031
Video 19
Sample 14.
https://doi.org/10.7554/eLife.34257.032
Video 20
Sample 19.
https://doi.org/10.7554/eLife.34257.033
Video 21
Sample 21.
https://doi.org/10.7554/eLife.34257.034
Video 22
Sample 22.
https://doi.org/10.7554/eLife.34257.035
Video 23
Sample 25.
https://doi.org/10.7554/eLife.34257.036
Video 24
Sample 27.
https://doi.org/10.7554/eLife.34257.037
Video 25
Sample 31.
https://doi.org/10.7554/eLife.34257.038
Video 26
Sample 32.
https://doi.org/10.7554/eLife.34257.039
Video 27
Sample 39.
https://doi.org/10.7554/eLife.34257.040
Video 28
Sample 43.
https://doi.org/10.7554/eLife.34257.041
Video 29
Sample 44.
https://doi.org/10.7554/eLife.34257.042
Video 30
Sample 45.
https://doi.org/10.7554/eLife.34257.043

To ameliorate this problem, five tilt-series in representative areas were collected at the end of a single particle collection session, aligned in Appion-Protomo (Noble and Stagg, 2015; Winkler and Taylor, 2006), and about 1000 particles were processed through sub-tomogram alignment, classification, and multireference alignment using Dynamo (Castaño-Díez et al., 2012; Castaño-Díez et al., 2017). This resulted in three de novo initial models, each showing an asymmetric cracked ring (Figure 9B), contradicting the C6-symmetric reconstruction determined by 2D classification and common-lines approaches. The most populated class from single particle tomography (SPT) was then used to both template pick the single particle micrographs in Relion (Scheres, 2012) and as initial models for single particle alignment, resulting in a 4.1 Å structure of the DnaB helicase-helicase loader (manuscript in preparation) (Figure 9B). In this example, cryoET revealed that the apparent symmetry in the prevalent top view particles as seen in the Gaussian picked 2D class averages was in fact a projection of the globally asymmetric particle. There are two key benefits to performing fiducial-less cryoET to generate de novo initial models as opposed to fiducial-based cryoET: (1) No additional gold bead + sample preparation and optimization is involved as with conventional fiducial-based tilt-series alignment and (2) the exact sample from which single particle micrographs are collected is used, thus removing the possibility of sample variation across grid preparations.

Conclusion

We have shown that over a wide range of single particle cryoEM samples, particle and ice behaviors vary widely, yet the vast majority of particles on grids prepared using conventional techniques and using Spotiton with nanowire grids end up adsorbed to air-water interfaces. This varied behavior shown in Tables 1 and 2 – varied in particle denaturation, particle preferred orientation, particle overlap in the direction of the beam, particle layer tilt, ice thickness, and ice thickness variation across holes – provides impetus for researchers to routinely perform cryoET on their single particle cryoEM grids. Routine characterization of cryoEM grids allows for the determination of particle behavior, whether a single particle sample might produce desirable results, and optimal collection areas and strategies, thus increasing microscope and single particle processing efficiency. Moreover, cryoET on single particle cryoEM grids can be used to generate de novo initial models through single particle sub-tomogram alignment and classification.

The observation that the vast majority of particles are adsorbed to air-water interfaces warrants further research into methods for avoiding the air-water interface. Possible methods include preparing grids with non-ionic surfactants, using affinity grids, encapsulating particles in carbon layers, encapsulating particles in scaffolds, and, perhaps, faster plunging technologies to outrun air-water interface adsorption. Adding surfactants to single particle sample/grid preparation prior to freezing in order to protect bulk proteins from the air-water interfaces has been proposed and used (Frederik et al., 1989), yet might be revisited by adding non-ionic surfactants below the CMC. Alternatively, spreading a layer of surfactant (ionic or non-ionic) onto the surface of the air-water interfaces during grid preparation might both reduce the surfactant-protein interaction in solution along with competitive adsorption, and increase the mechanical strength of the resulting surfactant layer on the air-water interface (Morris and Gunning, 2008) (perhaps using a method similar to that described in [Vos et al., 2008]). Affinity substrates, such as carbon, streptavidin, or ionic lipid monolayers over holes may be used in an attempt to escape the air-water interfaces, and potentially have the additional benefit of requiring lower protein concentrations in solution. However, the usage of affinity grids requires further grid optimization with regard to collecting only in areas where the ice is thick enough to more than cover the particles adsorbed to the affinity substrate, and signal is degraded due to the affinity substrate. Encapsulating two-dimensional crystals between carbon layers in order to avoid excessive dehydration due to open air-water interfaces has been performed successfully (Yang et al., 2013), opening up the possibility of encapsulating particles in-between carbon, or possibly graphene layers, to avoid air-water interface interactions. Particle encapsulation using protein scaffolds (Kedersha and Rome, 1986) or synthetic DNA structures (Martin et al., 2016) has also been proposed for avoiding air-water interface and preferred orientation issues. Lastly, decreasing the time between sample application and freezing in order to outrun air-water interface adsorption altogether might be possible with further technological development (Arnold et al., 2017; Feng et al., 2017; Frank, 2017; Jain et al., 2012; Noble et al., 2018). The time it takes for a particle to diffuse to an air-water interface, to diffuse across the air-water interface, and for subsequent bulk particles to adsorb to the resulting viscoelastic protein network film might be on the order of tens of milliseconds or greater. This process appears to be largely dependent on protein surface hydrophobicity, protein concentration, and protein structure. Avoiding the air-water interface may prove critical for obtaining higher resolution structures of more fragile proteins.

Materials and methods

Grid preparation

About one-third of the grids characterized were prepared using conventional techniques as determined by the sample owner. Generally, a purchased holey grid (most were Quantifoil (Quantifoil Micro Tools, GmbH, Jena, Germany) or C-flat (Protochips, Inc., Morrisville, North Carolina) carbon or gold) was glow-discharged, sample was applied at appropriate conditions, incubation on the order of 1 to 10 s took place, the grid was blotted (most commonly face blotted), further incubation on the order of 1 s took place, and then the grid was plunged into liquid ethane.

The remaining grids were prepared using Spotiton (Jain et al., 2012). Generally, a home-made lacey or holey carbon or gold nanowire grid (Razinkov et al., 2016) was glow-discharged, sample was sprayed onto the grid in a stripe, incubation on the order of 1 s or less took place as determined by the calibrated self-wicking time or by the maximum plunging speed of the robot, and then the grid was plunged into liquid ethane.

Tilt-series collection

Tilt-series were collected at NYSBC on one of the Titan Krios microscopes (FEI Company, Hillsboro, OR) with a Gatan K2 (Gatan, Inc., Pleasanton, CA) or on the Tecnai F20 (FEI Company, Hillsboro, OR) with a DE-20 (Direct Electron, San Diego, CA) or a Tietz F416 (TVIPS GmbH, Gauting, Germany). Several tilt-series were collected using a Gatan Bioquantum energy filter (Gatan, Inc., Pleasanton, CA), and a small number were collected with a Volta phase plate (FEI Company, Hillsboro, OR). Most tilt-series were collected using Leginon (Suloway et al., 2005; Suloway et al., 2009) on the Krios microscopes and the F20, with the remaining collected using SerialEM (Mastronarde, 2003) on the F20. Most tilt-series were collected with 100 ms frames for each tilt image and full-frame aligned using MotionCor2 (Zheng et al., 2017). Most tilt-series were collected bi-directionally with a tilt range of −45° to 45° and a tilt increment of 3°. Most tilt-series were collected at a nominal defocus between 4 to 6 microns. Most tilt-series were collected with a dose rate around 8 e-/pixel/s and an incident dose between 1.5 and 3.0 e-/Å2 for the zero-degree tilt image, with increasing dose for higher tilt angles according to the cosine of the tilt angle, resulting in a total dose between 50 and 150 e-/Å2. Most tilt-series were collected at a pixelsize between 1 and 2.2 Å. Hole magnification tilt-series were typically collected with a tilt range of −60° to 60° with a tilt increment of 1°, a pixelsize around 20 Å, and negligible dose. Each high-magnification tilt-series typically collect in around 15 min, while hole magnification tilt-series take about 30 min. Most tilt-series were collected without hardware binning. Two samples were collected using super-resolution.

Tilt-series alignment

Tilt-series collected with Leginon are automatically available for processing in Appion (Lander et al., 2009), while tilt-series collected with SerialEM (Mastronarde, 2003) were uploaded to Appion prior to alignment. All tilt-series were aligned using Appion-Protomo (Noble and Stagg, 2015). Briefly, most tilt-series were first dose compensated using the relation in (Grant and Grigorieff, 2015), coarsely aligned, manually aligned if necessary, refined using a set of alignment thicknesses, then the best aligned iteration was reconstructed for visual analysis using Tomo3D SIRT (Agulleiro and Fernandez, 2011; Agulleiro and Fernandez, 2015). CTF correction was not performed. Tilt-series typically align well in 20–60 min. Nearly all tilt-series were alignable.

CTF resolution limit

Resolution limits due to errors in defocus estimation as reported in the Results and Discussion were determined by plotting two CTF curves at about 1.5 microns defocus but differing by defocus error and locating the approximate resolution where the curves are out of phase by 90°.

Estimations and measurement error

Ice thickness measurements were performed as follows: After orienting a binned by four high magnification tomogram (pixel size of about 8 Å) or an unbinned hole magnification tomogram (pixel size of about 20 Å) in 3dmod such the one air-water interface is approximately parallel to the field of view, either contamination local to the surface of the ice or an adsorbed particle layer was used to locate the two air-water interfaces, and the distance between the two interfaces was measured. If contamination was used, then the tomogram slice nearest to the vitreous ice and still containing the contamination was used to locate the interface. If particles were used, then then the tomogram slice nearest to the air and still containing the particles was used to locate the interface. For these measurements, the estimated error in measuring ice thickness and particle layer distance from the air-water interface is several nanometers for high magnification and ~10 nm for hole magnification.

Statistical and systematic errors for measurements presented in Figure 3 were propagated as follows. Each reported value for ice thickness and particle layer tilt is reported with an estimated error that is the sum under the quadrature of the standard deviation and the propagated measurement error. The standard deviation was calculated using all measured values (indicated by N size). For measurement error, ice thickness measurements contain an approximate error of 5 nm for each measurement and particle layer tilt contain an approximate error of 1°. Measurement error of the average values presented in Figure 3 was propagated by assuming independent random errors using the following equation:

δq=((δx)2)N

where δq is the propagated measurement error, δx is each independent measurement error, and N is the sample size. Most propagated measurement errors are an order of magnitude less than the standard deviation.

The smoothness of the depicted ice surfaces is an approximation.

Data deposition and software availability

Several representative tilt-series from the datasets have been deposited to the Electron Microscopy Data Bank (EMDB) in the form of binned by 4 or 8 tomograms and to the Electron Microscopy Pilot Image Archive (EMPIAR) in the form of unaligned tilt-series images (one including super-resolution frames), Appion-Protomo tilt-series alignment runs, and aligned tilt-series stacks. Their accession codes are:

Sample #Sample nameEMDB (tomogram)EMPIAR (tomogram)EMPIAR
(single particle)
4Hemagglutinin713510129--
21Rabbit Muscle Aldolase (1 mg/mL)713810130--
22Rabbit Muscle Aldolase (6 mg/mL)71391013110187
25Protein in Nanodisc
(0.58 mg/mL)
7140----
30GDH71411013210132
31GDH714210133--
32GDH (2.5 mg/mL)+0.001% DDM71431013410134
33DnaB Helicase-helicase Loader714410135--
34Apoferritin714510136--
35Apoferritin714610137--
36Apoferritin71471013810138
37Apoferritin
(1.25 mg/mL)
714810139--
38Apoferritin
(0.5 mg/mL)
714910140--
39Apoferritin with
0.5 mM TCEP
715010141--
42T20S Proteasome715110142--
43T20S Proteasome71521014310143
44T20S Proteasome71531014410188
45Mtb 20S Proteasome715410145--

Protomo estimations for the orientation of the local ice normal based on the tilt-series alignment of the particles in the ice, which includes potential systematic stage and beam axis error, are available in all deposited EMPIAR datasets as a plot located: protomo_alignments/tiltseries####/media/angle_refinement/series####_orientation.gif

A Docker-based version of Appion-Protomo fiducial-less tilt-series alignment is available at https://github.com/nysbc/appion-protomo.

Videos

Each Video (except for sample #20) shows slice-throughs (with bottom/top oriented as described in the text) of one tomogram from a given sample in Table 1 and 2 alongside a schematic cross-sectional diagram of the sample and the ice. Most tomograms are oriented such that the plane of one of the particle layers is parallel to the viewing plane. A hole magnification tomogram is shown in the Video for sample #20. The tomograms were rendered with 3dmod from the IMOD package (Kremer et al., 1996) and the schematic particles were rendered with UCSF Chimera (Pettersen et al., 2004).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
    Advances in Food Emulsions and Foams
    1. E Dickinson
    2. BS Murray
    3. G Stainsby
    (1988)
    Protein adsorption at air-water and oil-water interfaces, Advances in Food Emulsions and Foams.
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
    cisTEM: user-friendly software for single-particle image processing
    1. N Grigorieff
    2. T Grant
    3. A Rohou
    (2018)
    BioRxiv, 10.1101/257618.
  27. 27
  28. 28
  29. 29
  30. 30
    Personal communication
    1. M Hu
    (2018)
    Personal communication.
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
    Measuring the effects of particle orientation to improve the efficiency of electron cryomicroscopy
    1. K Naydenova
    2. CJ Russo
    (2017)
    Nature Communications, 8, 10.1038/s41467-017-00782-3, 28931821.
  50. 50
  51. 51
    Reducing effects of particle adsorption to the air-water interface in cryoEM
    1. AJ Noble
    2. H Wei
    3. VP Dandey
    4. Z Zhang
    5. CS Potter
    6. B Carragher
    (2018)
    BioRxiv, 10.1101/288340.
  52. 52
  53. 53
    Chapter Eight - Single Particle Analysis at High Resolution
    1. Y Cong
    2. SJ Ludtke
    (2010)
    In: G. J Jensen, editors. Methods in Enzymology, 482. Academic Press. pp. 211–235.
  54. 54
    Reversibility of protein adsorption
    1. F MacRitchie
    (1998)
    In: D Möbius, R Miller, editors. Studies in Interface Science, 7. Elsevier. pp. 149–177.
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
    Circular dichroism studies on synthetic signal peptides indicate beta-conformation as a common structural feature in highly hydrophobic environment
    1. GL Reddy
    2. R Nagara
    (1989)
    The Journal of Biological Chemistry 264:16591–16597.
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
    Plant Biopolymer Science
    1. T Vliet
    2. A Martin
    3. M Renkema
    4. M Bos
    5. GD Valle
    6. Y Popineau
    (2002)
    241–252, Gel formation by sy glycinin in bulk and at interfaces, Plant Biopolymer Science.
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86

Decision letter

  1. Axel T Brunger
    Reviewing Editor; Stanford University Medical Center, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Routine Single Particle CryoEM Sample and Grid Characterization by Tomography" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and John Kuriyan as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Christopher J Russo (Reviewer #1); Georgios Skiniotis (Reviewer #2); John AG Briggs (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Noble et al. applied cryo-electron tomography in a large variety of single-particle samples prepared with a range of vitrification devices and grids to characterize the particle distribution in vitreous ice and the ice geometry in vitrified layers. The results demonstrate convincingly that the vast majority of particles in most cases adsorb to the air-water interface, a phenomenon with potential consequences regarding protein denaturation or complex dissociation, non-physiological conformational changes, as well as preferred particle orientation based on the preferential exposure of the most hydrophobic regions. This study, being the first to systematically examine particle localization in vitrified ice, is important given its implications for the rapidly developing cryo-EM field. However, a weakness of the paper is that it does not directly assess whether particle position really correlates with protein denaturation, orientation and reconstruction quality.

Essential revisions:

The authors suggest that the preferred orientation of particles in many cases is due to the exposure at the air-water interface. To this end it would be very helpful if they demonstrate through sub-tomogram averaging, e.g. as they show in Figure 8, that indeed the particles at the interface assume more preferred orientations compared to particles in the middle of the ice layer.

The authors state, e.g. in reference to Figure 5, that it is not clear whether observed protein fragments are from denaturation at the air-water interface, unclean preparation conditions, or protein degradation in solution. This is an important point. Can the authors show that in the majority of these cases there was no degradation in solution, e.g. by SDS PAGE or even negative stain visualization? Could the authors design an experiment showing that particles away from the air water interface are better than those at the air water interface?

It is disappointing that there is no overall analysis of whether sample distribution has an effect on the final 3D reconstruction. Could this be done?

The authors discuss that "protein network films may not be particle friendly", and suggest this might contribute to artefactual reconstructions. This is all rather speculative, but could this be assessed? There must be 3D reconstructions of most of such samples, is an effect seen in the 3D reconstructions where a protein network film is present?

The authors discuss that "particle adsorption implies preferred orientation". There is no explanation as to how preferred orientation was assessed or quantified. Could the authors design an experiment to show whether preferred orientation does correlate with interaction with the air water interface?

The discussion on collection and processing limits (illustrated in Figure 6) could also be followed up in the 3D structures – where the sample is tilted or thick, then changing away from whole-image based CTF estimation toward tilted or per-particle CTF should improve the reconstruction?

Some of the sample properties that the authors suggest should be measured by cryoET can typically also be assessed directly from 2D images. For example, one paragraph is spent on the observation that some areas have overlapping particles. This can be often assessed in 2D for the majority of samples. Concerning the statement "without previously characterizing the sample in the grid holes by cryoET, collection in these areas might severely limit the number of alignable particles due to projection overlap" – many users would see the overlapping particles in 2D images and decide to collect elsewhere. Similarly, people have used CTFtilt in the past to assess whether the field of view is tilted relative to the beam, and estimate the gradient. Tilted exposure areas are not a serious problem for all processing pipelines. Collecting some tomograms can provide a quick and relatively easy sample assessment, and it is a good idea to do this, it is not the case that users who do not do this are doomed to collecting bad images. Please provide a discussion along these lines.

The claims in the subsection “A significant fraction of areas in holes have overlapping particles in the electron beam direction”, about the effects of overlapping particles on cryoEM reconstructions should have citations for each claim or should be left out unless the authors wish to present additional evidence to support the claims.

Technical comments:

In reporting the tilt angles of the specimen in the holes, the authors have provided the magnitude but not the direction of the tilt angles. Even though the tilt direction w.r.t. the grid was unfortunately not tracked, the direction of tilt with respect to the beam axis is important for interpreting the results and statistics so the authors should include the tilt direction for all the tilt angles reported.

If 3D reconstructions of any of the specimen or sub-tomogram particles were performed, plots of the orientation distributions, especially from different regions within the same specimen corresponding to the tomograms presented, should be included. In addition, a more specific reporting of the extent of preferred orientation than "some" "yes" or "unknown" (Table 1) would be helpful.

A detailed description of the measurement of ice thickness, and the determination of the error in this measurement should be reported, i.e. how the value of 10 nm on P14L26 was determined and what are the possible sources of systematic error in these measurements.

For the errors reported in Figure 3, it is not clear if the standard deviation includes the propagated error from the individual measurements or is just the statistical error. This should be described.

For an individual tomogram, the error in the tilt measurement should be determined and included when reporting statistics on multiple tomograms. For example, Figure 3 column 4, the error in an individual tilt angle may be comparable to the value of the angle itself, but one cannot tell currently if this is the case or not.

There is little exploration of the relationships of the parameters that have been measured. For example, is there any correlation between particle size and ice thickness, or between ice thickness and grid type? Given the heterogeneity of the samples, is it appropriate to show average properties (Figure 3), but not explore relationships between parameters?

Comments on presentation:

The manuscript text needs rewriting for readability, at the moment it is very challenging. There are lots of very long sentences and very long paragraphs. The heavy use of "codes" (B2, 2+, M-preferred) is extremely irritating and often unnecessary, forcing the reader to reference figures and tables to understand the text.

The results are all contained within two tables are very difficult to use and understand. Why put three values in one column in brackets running over two lines rather than just three columns or sub-columns? Why use rather cryptic nomenclature like "3+" which requires some thought by the reader to imaging what it might really mean. Entries like "A2, B2 or B3 and B4 and B5‡ (50%), 0°" are hard to interpret, requiring the reader to repeatedly look at legends and other figures to understand anything. The presentation of the data should be rethought.

There are apparent inconsistencies in the manuscript. Some examples: Samples 25 and 46 are said to be ideal, but looking at the schematics in Figure 4, these are not the ideal samples? It seems to me that B1 "Free floating particles (no preferred orientations)" in Table 2 should correlate with + "indicates that there are free-floating proteins" in Table 1 but this does not seem to be the case? How can B3 and B4 be distinguished?

The tables are too small to read when printed – please make fonts larger or put in landscape mode.

The authors often use the term "freely-floating" when they actually mean "randomly oriented" or "randomly positioned." The particles are always under the influence of a variety of forces in solution, some in equilibrium and some not, and are never "freely floating" in liquid water; after vitrification they are stationary.

Throughout the text and tables there is unnecessary complication. Why refer to "ice behaviour (bottom)" as C2, rather than "flat". Why define "N-preferred" and "M-preferred" orientations?

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for resubmitting your work entitled "Routine Single Particle CryoEM Sample and Grid Characterization by Tomography" for further consideration at eLife. Your revised article has been favorably evaluated by John Kuriyan (Senior Editor), a Reviewing Editor, and three reviewers.

We thank the authors for addressing many of our concerns. In particular, the new Figure 5 is very informative and a nice addition. However, it is disappointing that there is no further quantification as regards the effect of the surface-air water interface on the particles and the orientation of the particles. Comments expressed by the reviewers are given below, but note that we are not asking for any further work on the manuscript, except for dataset deposition (see below).

Despite the mixed opinions expressed by reviewers, after discussion among the reviewers and the reviewing editor we have concluded that your paper represents a significant contribution that we will be happy to publish in eLife. We are prepared to accept this manuscript as a Tools and Resources article, provided that some of the raw data are publicly deposited. Specifically, we request that both the 2D single particle data and the tilt-series/tomograms be deposited for at least a few specimen, such as, apoferritin, proteasome and maybe another one of the dozens in the tables that are of structures that are already available in the literature. We believe that these deposited datasets will become a resource to the community. When resubmitting the manuscript, please specify which datasets are deposited, and what the accession codes or preliminary processing information is for those datasets.

Detailed comments by the reviewers:

Reviewer #1:

I still feel that the authors have done a significant service to the field of single-particle electron cryomicroscopy by presenting this systematic and comprehensive study of single-particle specimen by tomography. It takes several somewhat abstract concepts, like preferential orientation and the air water interface and makes them strikingly obvious and easy to both quantify, and understand for new-comers to the field. The authors have addressed many of the statistical rigour concerns and certainly improved the paper from its previous version. Still, I am somewhat disappointed that the authors have not made better use of this data to address the questions which are not already clear to experts in the field: namely in what percentage of particles, for a particular specimen, and among different specimen, does adsorption to the air-water interface actually prevent structure determination by either destruction or preferential orientation. By quantifying these two outstanding problems the authors could have set a goal and a benchmark for the field as to the current state of the art as well as point toward the opportunity for improvement by some technological solution. Instead we only have the new Figure 5 which sort of hints that it is a mixture, but with no quantification of either effect.

Ultimately, this paper contains important and useful experiments and analysis that should definitely be published. But to the expert reader, the paper sometimes reads a bit like a straw man argument in that the authors claim that most people believe one thing, which is not universally true historically, given section 6 of Dubochet et al. 1988, so their claims about the "wide-ranging implications" of these observations ring less true. This is what makes the lack of quantification of the both the denaturation and orientation distribution of the particles disappointing as it strikes me as a slightly missed opportunity to push the understanding of the problem, and thus the entire field beyond what Dubochet clearly realised more than 30 years ago.

I think the paper can and should be published in eLife with minor revision if the authors are willing and able to deposit all the raw data (both tomograms and subsequent 2D micrographs/movies) for at least the specimen shown in the figures. In this way others will also be able to perform analyses to help understand the relationship, if there is one, between the location of a particle in a vitrified specimen and its usefulness in structure determination by cryoEM.

Reviewer #2:

I find that the authors have done a good job in addressing most reviewer concerns and comments. The new Figure 5 is very informative and a nice addition. Even though not all comments or suggestions could be addressed with updated experiments, the work is important to the cryo-EM field and the revised manuscript should be published without further delay.

Reviewer #3:

The authors have declined to address most of the essential revisions requested by the reviewers, reasonably arguing that the work required is substantial and it would be better to get the paper out there.

Here is the background to my opinion:

There are already some examples of particles clustering at the air water interface from tomograms – the ribosomes in Bharat and Scheres, Nature Protocols 2016, Figure 6 are a good example. It has been assumed since Dubochet, though has not been demonstrated, that particles at the air-water interface may be subjected to denaturation. It has also been broadly accepted in the field that particles showing preferred orientations often due so due to interactions at the air water interface:

"Occasionally particles adopt preferred orientations, presumably due to interactions with the air/water interface.": A primer to single particle cryo-electron microscopy, Cheng et al., 2015.

"In situations where the target adopts a preferred orientation due to interactions with the air-water interface or substrate, there may be a problem similar to the missing wedge problem": Single particle analysis at high-resolution, Cong and Ludtke., 2010.

This manuscript describes an interesting study, showing that the majority of particles in large number samples are located at the air water interface, but it doesn't tell us how detrimental this is for reconstruction, or why it does/doesn't happen. Many of the structures solved from these samples presumably went to high resolution, so this is an interesting question. I think that a descriptive study of the distribution of particles in ice is informative and interesting for the cryo-EM field, but in the first round of reviews we asked to go beyond this and ask how particle position influences the results of the single particle experiment. Without this, I feel that the manuscript is still of interest to the cryo-EM field, but does not have the importance that is typical of papers in eLife.

https://doi.org/10.7554/eLife.34257.120

Author response

Summary:

Noble et al. applied cryo-electron tomography in a large variety of single-particle samples prepared with a range of vitrification devices and grids to characterize the particle distribution in vitreous ice and the ice geometry in vitrified layers. The results demonstrate convincingly that the vast majority of particles in most cases adsorb to the air-water interface, a phenomenon with potential consequences regarding protein denaturation or complex dissociation, non-physiological conformational changes, as well as preferred particle orientation based on the preferential exposure of the most hydrophobic regions. This study, being the first to systematically examine particle localization in vitrified ice, is important given its implications for the rapidly developing cryo-EM field. However, a weakness of the paper is that it does not directly assess whether particle position really correlates with protein denaturation, orientation and reconstruction quality.

We thank the reviewers and the editors for considering this manuscript, and for their helpful comments and suggestions. We note that the comment on the weakness of the paper above is echoed many times below in various forms. It is clear that the reviewers really want to know whether the tendency of particles to adhere to an air-water interface affects the integrity of the particles and thus the quality of 3D maps derived from these particles. As shown in the manuscript, the vast majority of particles for all samples are absorbed to the air water interface. An experiment to distinguish the quality of maps derived from non-adsorbed vs. adsorbed particle would involve a prohibitive amount of images to accumulate enough non-adsorbed particles and also an enormous amount of additional processing and analysis. We respectfully propose that this new work proposed is not essential to support the major conclusions of our paper (which is that most particles reside at the air-water interface), that it would entail a major amount of work that would significantly delay the publication of this paper, and that it is beyond the scope of the current paper which makes no claims or conclusions regarding whether particle position correlates to protein denaturation or reconstruction quality. Since submitting this paper, we have been doing additional work on some of the issues of interest to the reviewers and some discussion on these matters was presented in a different manuscript now available on bioRxiv (https://doi.org/10.1101/288340). We do intend to try and address whether the quality of maps derived from non-adsorbed particles is different from that of adsorbed particles by using the methods described in that paper which aims to increase the number of non-adsorbed particles and thus reduce the onerousness of this task. We also want to note that it is of course clear that while 90% of particles adhere to the air-water interface, for several of these samples we can readily reconstruct sub 3A maps. Thus, we believe it is very likely that the integrity of particles will be highly sample dependent. But as this is pure speculation and we are not yet able to undertake the necessary experiments to prove this, we prefer not to discuss this further regarding this point.

With that stated we do note that indeed particle position appears to show some correlation with preferred orientation, as can be seen by direct observation of the particles in the tomograms. An analysis of particle position versus orientation and reconstruction was also partially addressed in the bioRxiv manuscript:

https://doi.org/10.1101/288340. This has been cited in the revised manuscript.

These points are addressed further below in response to various specific related comments by the reviewers.

Essential revisions:

The authors suggest that the preferred orientation of particles in many cases is due to the exposure at the air-water interface. To this end it would be very helpful if they demonstrate through sub-tomogram averaging, e.g. as they show in Figure 8, that indeed the particles at the interface assume more preferred orientations compared to particles in the middle of the ice layer.

We thank the reviewers for suggesting that the potential change in preferred orientation between particles adsorbed at the air-water interface and those not adsorbed should be shown explicitly. To this end, we have included an additional figure, new Figure 5, with examples of particles, observed directly in the tomograms, showing preferred orientation with respect to the air-water interface when adsorbed but without preferred orientation when not adsorbed (HIV-1 trimer, rabbit muscle aldolase, and T20S proteasome) and without preferred orientation when adsorbed (DnaB helicase-helicase loader). We note that the orientation of particles as observed in tomograms can be determined directly without the need for sub-tomogram processing for most of the samples reported on here. These tomograms are available in the tomogram videos accompanying this manuscript and from the deposited EMDB and EMPIAR datasets. As discussed above, we respectfully suggest that performing sub-tomogram averaging would entail an onerous amount of additional work and substantially delay the publication of this paper. (Note that the references to figures in this response to reviewers are with respect to the figure order in the original submission. The additional figure is referred to as ‘new Figure 5’.)

We have weakened the sub-section name in response to this suggestion. It now reads: ‘Particle adsorption sometimes implies preferred orientation’. We have added references to new Figure 5 in this section.

We note that nearly all of the particles depicted in Figure 8 and the video for Sample #33 in the original manuscript and in the entire dataset (EMPIAR-10135) are adsorbed to air-water interfaces. Virtually no particles in this dataset were in the middle of the ice layer. This has been clarified in the figure caption.

The authors state, e.g. in reference to Figure 5, that it is not clear whether observed protein fragments are from denaturation at the air-water interface, unclean preparation conditions, or protein degradation in solution. This is an important point. Can the authors show that in the majority of these cases there was no degradation in solution, e.g. by SDS PAGE or even negative stain visualization? Could the authors design an experiment showing that particles away from the air water interface are better than those at the air water interface?

We do not have the means to assess the majority of samples reported on in the manuscript as much of the data was gathered from users of our facilities who agreed to have their samples evaluated by tomography during data collection sessions otherwise devoted to single particle analysis.

As shown in this paper, the vast majority of particles for all samples are absorbed to the air-water interface. An experiment to distinguish the quality of maps derived from non-adsorbed vs. adsorbed particle would thus involve a prohibitive amount of additional work and be well beyond the scope of the current paper. We instead intend to address this at a future data by using the methods described in a different paper (https://doi.org/10.1101/288340) that aims to increase the number of non-adsorbed particles.

In response to what we see as the heart of the reviewers’ questions here, we suspect, based on the food and colloidal literature cited in the Introduction, that proteins might undergo minor conformational changes in secondary structure and random coils exposed to the air-water interface (see specifically Table 2 in Yano, Journal of Physics: Condensed Matter, 2012 for a review of observed secondary structural change between bulk proteins in solution and proteins adsorbed to an air-water interface). These higher-resolution structural changes are very unlikely to be resolvable with sub-tomogram processing of the data presented and included in this manuscript. We also note that while the majority of particles like apoferritin and the T20S proteasome are undoubtedly adsorbed to air-water interfaces, we nevertheless routinely produce sub-3Å maps from these structures, so any differences due to the air-water interface are unlikely to be resolved by sub-tomogram averaging.

It is disappointing that there is no overall analysis of whether sample distribution has an effect on the final 3D reconstruction. Could this be done?

This point has been partly addressed above. Also, please see Tan et al., 2017 (cited in our paper) for an explicit example of how conventional untilted single particle cryoEM on a particle, hemagglutinin, with a very high degree of preferred orientation (due to air-water interface adsorption, as shown in this manuscript) affects the final 3D reconstruction compared to tilted collection.

In the bioRxiv preprint (https://doi.org/10.1101/288340) discussed above, we showed that decreasing the time from spot to plunge affects particle orientation at air-water interfaces with regards to the final 3D reconstruction. In that manuscript, we also show how plunging faster can increase the number of non-adsorbed particles for some samples.

The authors discuss that "protein network films may not be particle friendly", and suggest this might contribute to artefactual reconstructions. This is all rather speculative, but could this be assessed? There must be 3D reconstructions of most of such samples, is an effect seen in the 3D reconstructions where a protein network film is present?

We thank the reviewers for allowing us to clarify this point. While we acknowledge that this is speculation in terms of its effects on cryoEM maps, and indeed state this in the manuscript, we also cite several sources in food and colloidal studies that show that proteins denature at air-water interfaces, potentially causing conformational changes. For instance, Meinders, Bosch and Jongh, 2001 shows that by increasing bulk protein concentration in solution, a protein film of increasing thickness forms on the air-water interface consisting of ‘a single homogeneous protein solution.’ This implies that subsequent proteins adsorbing to the already existing protein film at the air-water interface denature. Also, Table 2 in Yano, 2012 cites several results in the literature showing that protein secondary structure at air-water interfaces has been observed to transmute between beta sheets, alpha helices, and random coils.

We thank the reviewers for suggesting that the protein network film might be visible in 3D reconstructions of particles adsorbed to the air-water interface with preferred orientation. We examined the 3D reconstruction of a severely preferentially oriented particle, hemagglutinin, to see if there is a visible protein network. The 3D reconstruction of hemagglutinin was collected at tilts to fill in Fourier space (EMD-8731), as described in Tan et al., 2017. Increasing the threshold of the map in Chimera does not appear to reveal any coherent protein network film. We have not included this assessment in the manuscript because it is inconclusive.

The authors discuss that "particle adsorption implies preferred orientation". There is no explanation as to how preferred orientation was assessed or quantified. Could the authors design an experiment to show whether preferred orientation does correlate with interaction with the air water interface?

This has been partially addressed in the previous discussion above. Preferred orientation was assessed by direct examination of the tomograms (deposited in EMDB and EMPIAR) containing particles whose orientations can be determined. The preferred orientations observed in these tomograms are reflected in the cross-sectional depictions accompanying each video and in Figure 4. We have added a sentence to the ‘Cross-sectional depictions’ section to clarify this for the reader.

Regarding the correlation between air-water interface interaction and preferred orientation, several tomograms in this manuscript where particle orientation can be determined directly explicitly show this correlation. For instance, the tomogram of Sample #5, HIV-1 trimer, shows that the vast majority of the trimers are adsorbed to the air-water interface with the 3-fold symmetric view facing the interface, while the few particles away from the interfaces are in random orientations. The tomogram video of Sample #42, T20S proteasome, show that the vast majority of particles are adsorbed to the air-water interface in the proteasome’s side-view, while the few non-adsorbed particles are in random orientations. We have added a figure, new Figure 5, showing the preferred orientation variation by location of a selection of examples, including the HIV trimer and proteasome. We have also added a reference in the conclusion to our recent bioRxiv preprint (https://doi.org/10.1101/288340), which shows explicit examples of how air-water interface interaction affects preferred orientation.

The discussion on collection and processing limits (illustrated in Figure 6) could also be followed up in the 3D structures – where the sample is tilted or thick, then changing away from whole-image based CTF estimation toward tilted or per-particle CTF should improve the reconstruction?

We understand that the reviewers are requesting that we illustrate that using per-particle CTF processing results in better 3D structures.

Several times throughout the manuscript, we refer to Tan et al., 2017, which explicitly details how per-particle CTF estimation and correction is essential for processing tilted images.

We have added a reference to Mingxu Hu’s upcoming software, Thunder, to the end of the section titled “Most air-water interfaces are tilted with respect to the electron beam” (Hu et al. 2018 https://www.biorxiv.org/content/early/2018/05/23/329169). This software refines per-particle CTF based on a maximum likelihood model. The authors show that their per-particle CTF processing on the public EMPIAR dataset of 2.8 Å T20S proteasome by Campbell et al., 2015 results in a 2.35 Å structure. This T20S sample and the T20S shown in this manuscript were both sourced from the lab of Yifan Cheng. We have also added references in the same location to existing per-particle CTF estimation and correction software, gCTF and CisTEM.

Some of the sample properties that the authors suggest should be measured by cryoET can typically also be assessed directly from 2D images. For example, one paragraph is spent on the observation that some areas have overlapping particles. This can be often assessed in 2D for the majority of samples. Concerning the statement "without previously characterizing the sample in the grid holes by cryoET, collection in these areas might severely limit the number of alignable particles due to projection overlap" – many users would see the overlapping particles in 2D images and decide to collect elsewhere. Similarly, people have used CTFtilt in the past to assess whether the field of view is tilted relative to the beam, and estimate the gradient. Tilted exposure areas are not a serious problem for all processing pipelines. Collecting some tomograms can provide a quick and relatively easy sample assessment, and it is a good idea to do this, it is not the case that users who do not do this are doomed to collecting bad images. Please provide a discussion along these lines.

Thank you for pointing out that we are over-emphasizing the dangers here. However, from our own experience, we cannot agree with the statement that overlapping particles can always be assessed directly from 2D images, particularly for novel samples where the shape of the particle is unknown, for small particles, and for very crowded fields of view. For example, rabbit aldolase, Sample #21 (1 layer) and #22 (2+ layers), are difficult or impossible to differentiate in the 2D projection images.

With regards to somewhat tilted exposures areas significantly degrading single particle collection quality, we did not state this in in the manuscript and did not intend to make this point. We state “In most cases, these tilts are not systematic with respect to particle orientation in the ice, and thus contribute beneficially to angular particle coverage.” We also suggest that collecting with a tilt can be beneficial, e.g. in Figure 7 discussion and in the several references to Tan et al., 2017.

The claims in the subsection “A significant fraction of areas in holes have overlapping particles in the electron beam direction”, about the effects of overlapping particles on cryoEM reconstructions should have citations for each claim or should be left out unless the authors wish to present additional evidence to support the claims.

We have softened the statement to say “may” rather than “will” cause issues. We do not see how this should be cited (do the reviewers have any suggestions?) as these are simple statements about the geometry and the method of projection matching.

Technical comments:

In reporting the tilt angles of the specimen in the holes, the authors have provided the magnitude but not the direction of the tilt angles. Even though the tilt direction w.r.t. the grid was unfortunately not tracked, the direction of tilt with respect to the beam axis is important for interpreting the results and statistics so the authors should include the tilt direction for all the tilt angles reported.

Every dataset released on EMPIAR includes the aligned tilt-series of each tomogram reported on with regards to tilt angle with respect to the beam. AppionProtomo estimates and records the three Euler angles required to orient the normal of the specimen to the normal of the Protomo WBP reconstruction. The plots of each of these angles are included in the protomo_alignments/tiltseries####/media/angle_refinement/series####_orientati on.gif images on EMPIAR. Psi is the in-plane rotation required to reach the tilt direction, theta is the tilt with respect to the electron beam, and phi is in-plane rotation required to return to the tomogram coordinate system. The directional angle, Psi, appears to have no correlation with microscope: for example, EMPIAR-10138 (collected on Krios#01 at NYSBC), tiltseries0002 is a hole-magnification tomogram collected near the edge of the grid with (psi, theta, phi) ~= (100, -2, -100), while tiltseries0008 is a high magnification tomogram collected near the center of the grid with (psi, theta, phi) ~= (-50, 10, 50). As a second example on the same Krios microscope, tiltseries0004 and 0005 of EMPIAR10143 were each collected near the center of the grid and have (psi, theta, phi) of about (-40, -1, 40) and (-25, -6, 25), respectively. From the tilt-series we have checked for the microscopes used in this manuscript, the tilt magnitudes and directions do not appear to correlate with the microscope they were collected on; i.e. they are not systematic with respect to the microscope. The main cause of tilt area direction and magnitude appears to be due to variations in local bends in the grid and local ice curvature, and thus particle layer curvature. We have added a sentence stating that “there is no apparent correlation between microscope and tilt direction or magnitude” (section ‘Analysis of single particle tomograms’) and have pointed interested readers to the tomogram tilt orientation plots of all deposited data in the ‘Data deposition and software availability’ section.

If 3D reconstructions of any of the specimen or sub-tomogram particles were performed, plots of the orientation distributions, especially from different regions within the same specimen corresponding to the tomograms presented, should be included. In addition, a more specific reporting of the extent of preferred orientation than "some" "yes" or "unknown" (Table 1) would be helpful.

Again, this has been partly addressed above. Apart from the DnaB helicase-helicase loader tomograms, no other sub-tomogram processing was performed. We have only a few single particle Euler angle distributions and we do not feel these would add substantially to the discussion as these seem to be highly sample dependent (e.g. hemagglutinin is completely preferred while for the T20S the symmetry presumably compensates for the preferred orientation). Again, we feel that this request is well beyond the scope of this paper. We again note that the provided tomogram videos and tomograms on EMDB and EMPIAR show explicit orientations of many of the samples by going slice-by-slice through the tomograms. We have added a sentence clarifying this in the ‘Analysis of single particle tomograms’ section: “For many of the samples shown here and made available in the data depositions, particle orientations can be explicitly determined by direct visualization.”

A detailed description of the measurement of ice thickness, and the determination of the error in this measurement should be reported, i.e. how the value of 10 nm on P14L26 was determined and what are the possible sources of systematic error in these measurements.

We thank the reviewers for prompting us to include proper descriptions of estimations and errors. A section in the Materials and methods titled ‘Estimations and measurement error’ has been added.

For the errors reported in Figure 3, it is not clear if the standard deviation includes the propagated error from the individual measurements or is just the statistical error. This should be described.

A section in ‘Estimations and measurement error’ has been added to describe error propagation.

For an individual tomogram, the error in the tilt measurement should be determined and included when reporting statistics on multiple tomograms. For example, Figure 3 column 4, the error in an individual tilt angle may be comparable to the value of the angle itself, but one cannot tell currently if this is the case or not.

The measurement error is about 1 degree for each tomogram measured, which is the estimated error in orienting a particle layer to the viewing area in 3dmod’s ‘Slicer’ window. 1-5 tomograms per sample were measured for the data presented in Figure 3. The measurement error for the particle layer tilts in particular is an order of magnitude less than the value of the angle itself. An explanation of this measurement and its error has been added to the ‘Estimations and measurement error’ section in the Materials and methods.

There is little exploration of the relationships of the parameters that have been measured. For example, is there any correlation between particle size and ice thickness, or between ice thickness and grid type? Given the heterogeneity of the samples, is it appropriate to show average properties (Figure 3), but not explore relationships between parameters?

We thank the reviewers for allowing us to clarify. As stated at the outset in the manuscript, the exposure areas were determined by the user, thus correlations versus ice thickness would not decouple user subjectivity. Also, we think that there are many parameters that may be implicated (e.g. grid type, plasma cleaning method, buffer, time between cleaning and sample application, sample incubation time, sample incubation temperature, sample incubation humidity, blot force (if used), blot time (if used), nanowire count, grid thickness, etc.); Most of these were not tracked and analysis of these relationships would require a full, separate study.

Comments on presentation:

The manuscript text needs rewriting for readability, at the moment it is very challenging. There are lots of very long sentences and very long paragraphs. The heavy use of "codes" (B2, 2+, M-preferred) is extremely irritating and often unnecessary, forcing the reader to reference figures and tables to understand the text.

We thank the reviewers for pointing this out. We have edited and split up several long sentences throughout the text. We think that the longest paragraph – the introductory paragraph briefly reviewing food and colloidal air-water interface studies – is necessary to keep in-tact as it is a departure from the rest of the Introduction. Furthermore, we do not wish to shorten this paragraph because it is an in-depth mini-review of these adjacent fields of study that, to the best of our knowledge, have not been analyzed to this extent in the cryoEM field, and because nearly all results mentioned are referred to throughout the manuscript.

We strongly believe that abbreviation of repeating information is absolutely necessary in dense tables and figures due to the amount of information that must be condensed for the reader. Every abbreviation and nomenclature is explained in the tables, figures, and their captions.

The results are all contained within two tables are very difficult to use and understand. Why put three values in one column in brackets running over two lines rather than just three columns or sub-columns? Why use rather cryptic nomenclature like "3+" which requires some thought by the reader to imaging what it might really mean. Entries like "A2, B2 or B3 and B4 and B5‡ (50%), 0°" are hard to interpret, requiring the reader to repeatedly look at legends and other figures to understand anything. The presentation of the data should be rethought.

We thank the reviewers for the suggestion. We have divided up the columns with three values into sub-columns.

There are apparent inconsistencies in the manuscript. Some examples: Samples 25 and 46 are said to be ideal, but looking at the schematics in Figure 4, these are not the ideal samples? It seems to me that B1 "Free floating particles (no preferred orientations)" in Table 2 should correlate with + "indicates that there are free-floating proteins" in Table 1 but this does not seem to be the case? How can B3 and B4 be distinguished?

We thank the reviewers for pointing out these inconsistencies. The subsection “Ideal samples are a rarity” explains why samples #25 and #46 are ideal.

With regards to inconsistencies between B1 and ‘+’, we have re-assessed the data and have simplified the tables by only including B1 and not ‘+’ to indicate the presence of non-adsorbed particles.

Whether B3 and B4 can be practically differentiated is not the point of Figure 2. This figure is an attempt to encapsulate all potential particle and ice behaviors in grid holes. As the figure caption states, this figure is based on a similar attempt by Tayler and Glaeser, 2008. Regarding B3 and B4 in particular, there might be proteins that adsorb to air-water interfaces, but take a long time relative to plunging time to begin denaturing. If those proteins are frozen before denaturation, they may have a different set of preferred orientations (N) than if they are frozen during/after denaturation (M). To clarify this, the following sentence has been added to the Figure 2 caption: “B3 is different from B4 if, for example, a particle prone to denaturation is frozen before or after denaturation has begun, thus potentially changing the set of preferred orientations.”

The tables are too small to read when printed – please make fonts larger or put in landscape mode.

The tables have been put in landscape mode. We cannot make the font size any bigger as the tables have many columns. High-resolution tables were uploaded to the eLife website during manuscript submission.

The authors often use the term "freely-floating" when they actually mean "randomly oriented" or "randomly positioned." The particles are always under the influence of a variety of forces in solution, some in equilibrium and some not, and are never "freely floating" in liquid water; after vitrification they are stationary.

We thank the reviewers for bringing this inconsistency to our attention. The reviewers are correct that ‘freely-floating’ was used incorrectly as a synonym for ‘randomly oriented/positioned’, when in fact such particles may not be in equilibrium. We have opted to replace instances of ‘free/freely floating’ with ‘non-adsorbed’ or ‘not adsorbed to’.

Throughout the text and tables there is unnecessary complication. Why refer to "ice behaviour (bottom)" as C2, rather than "flat". Why define "N-preferred" and "M-preferred" orientations?

We understand the reviewers concern but we believe that unless we use abbreviations the entire paper will be unnecessarily wordy. As mentioned previously, Figure 2 is intended to show all potential particle and ice behaviors in grid holes. There might be proteins that adsorb to air-water interfaces, but take a long time relative to plunging time to begin denaturing. If those proteins are frozen before denaturation, they may have a different set of preferred orientations (N) than if they are frozen during/after denaturation (M). To clarify

this, the following sentence has been added to the Figure 2 caption: “B3 is different from B4 if, for example, a particle prone to denaturation is frozen before or after denaturation has begun, thus potentially changing the set of preferred orientations.”

[Editors' note: further revisions were requested prior to acceptance, as described below.]

We thank the authors for addressing many of our concerns. In particular, the new Figure 5 is very informative and a nice addition. However, it is disappointing that there is no further quantification as regards the effect of the surface-air water interface on the particles and the orientation of the particles. Comments expressed by the reviewers are given below, but note that we are not asking for any further work on the manuscript, except for dataset deposition (see below).

Despite the mixed opinions expressed by reviewers, after discussion among the reviewers and the reviewing editor we have concluded that your paper represents a significant contribution that we will be happy to publish in eLife. We are prepared to accept this manuscript as a Tools and Resources article, provided that some of the raw data are publicly deposited. Specifically, we request that both the 2D single particle data and the tilt-series/tomograms be deposited for at least a few specimen, such as, apoferritin, proteasome and maybe another one of the dozens in the tables that are of structures that are already available in the literature. We believe that these deposited datasets will become a resource to the community. When resubmitting the manuscript, please specify which datasets are deposited, and what the accession codes or preliminary processing information is for those datasets.

Two single particle datasets have been added to EMPIAR as the reviewers requested and the manuscript has been edited to reflect the additions.

https://doi.org/10.7554/eLife.34257.121

Article and author information

Author details

  1. Alex J Noble

    National Resource for Automated Molecular Microscopy, Simons Electron Microscopy Center, New York Structural Biology Center, New York, United States
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon 0000-0001-8634-2279
  2. Venkata P Dandey

    National Resource for Automated Molecular Microscopy, Simons Electron Microscopy Center, New York Structural Biology Center, New York, United States
    Contribution
    Investigation
    Contributed equally with
    Hui Wei
    Competing interests
    No competing interests declared
  3. Hui Wei

    National Resource for Automated Molecular Microscopy, Simons Electron Microscopy Center, New York Structural Biology Center, New York, United States
    Contribution
    Investigation
    Contributed equally with
    Venkata P Dandey
    Competing interests
    No competing interests declared
  4. Julia Brasch

    1. National Resource for Automated Molecular Microscopy, Simons Electron Microscopy Center, New York Structural Biology Center, New York, United States
    2. Department of Biochemistry and Molecular Biophysics, Columbia University, New York, United States
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Jillian Chase

    1. Department of Chemistry and Biochemistry, City College of New York, New York, United States
    2. Program in Biochemistry, The Graduate Center of the City University of New York, New York, United States
    Contribution
    Formal analysis, Investigation, Visualization, Writing—review and editing
    Competing interests
    No competing interests declared
  6. Priyamvada Acharya

    1. National Resource for Automated Molecular Microscopy, Simons Electron Microscopy Center, New York Structural Biology Center, New York, United States
    2. Vaccine Research Center, National Institute of Allergy and Infectious Diseases, National Institutes of Health, Maryland, United States
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  7. Yong Zi Tan

    1. National Resource for Automated Molecular Microscopy, Simons Electron Microscopy Center, New York Structural Biology Center, New York, United States
    2. Department of Biochemistry and Molecular Biophysics, Columbia University, New York, United States
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon 0000-0001-6656-6320
  8. Zhening Zhang

    National Resource for Automated Molecular Microscopy, Simons Electron Microscopy Center, New York Structural Biology Center, New York, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  9. Laura Y Kim

    National Resource for Automated Molecular Microscopy, Simons Electron Microscopy Center, New York Structural Biology Center, New York, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  10. Giovanna Scapin

    1. National Resource for Automated Molecular Microscopy, Simons Electron Microscopy Center, New York Structural Biology Center, New York, United States
    2. Department of Structural Chemistry and Chemical Biotechnology, Merck & Co., Inc, New Jersey, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  11. Micah Rapp

    1. National Resource for Automated Molecular Microscopy, Simons Electron Microscopy Center, New York Structural Biology Center, New York, United States
    2. Department of Biochemistry and Molecular Biophysics, Columbia University, New York, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  12. Edward T Eng

    National Resource for Automated Molecular Microscopy, Simons Electron Microscopy Center, New York Structural Biology Center, New York, United States
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-8014-7269
  13. William J Rice

    National Resource for Automated Molecular Microscopy, Simons Electron Microscopy Center, New York Structural Biology Center, New York, United States
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  14. Anchi Cheng

    National Resource for Automated Molecular Microscopy, Simons Electron Microscopy Center, New York Structural Biology Center, New York, United States
    Contribution
    Software, Investigation
    Competing interests
    No competing interests declared
  15. Carl J Negro

    National Resource for Automated Molecular Microscopy, Simons Electron Microscopy Center, New York Structural Biology Center, New York, United States
    Contribution
    Software
    Competing interests
    No competing interests declared
  16. Lawrence Shapiro

    Department of Biochemistry and Molecular Biophysics, Columbia University, New York, United States
    Contribution
    Resources, Supervision, Funding acquisition
    Competing interests
    No competing interests declared
  17. Peter D Kwong

    Vaccine Research Center, National Institute of Allergy and Infectious Diseases, National Institutes of Health, Maryland, United States
    Contribution
    Resources, Supervision, Funding acquisition
    Competing interests
    No competing interests declared
  18. David Jeruzalmi

    1. Department of Chemistry and Biochemistry, City College of New York, New York, United States
    2. Program in Biochemistry, The Graduate Center of the City University of New York, New York, United States
    3. Program in Biology, The Graduate Center of the City University of New York, New York, United States
    4. Program in Chemistry, The Graduate Center of the City University of New York, New York, United States
    Contribution
    Resources, Supervision, Funding acquisition
    Competing interests
    No competing interests declared
    ORCID icon 0000-0001-5886-1370
  19. Amedee des Georges

    1. Department of Chemistry and Biochemistry, City College of New York, New York, United States
    2. Program in Biochemistry, The Graduate Center of the City University of New York, New York, United States
    3. Program in Chemistry, The Graduate Center of the City University of New York, New York, United States
    4. Advanced Science Research Center, The Graduate Center of the City University of New York, New York, United States
    Contribution
    Resources, Supervision, Funding acquisition, Writing—review and editing
    Competing interests
    No competing interests declared
  20. Clinton S Potter

    1. National Resource for Automated Molecular Microscopy, Simons Electron Microscopy Center, New York Structural Biology Center, New York, United States
    2. Department of Biochemistry and Molecular Biophysics, Columbia University, New York, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon 0000-0003-2394-0831
  21. Bridget Carragher

    1. National Resource for Automated Molecular Microscopy, Simons Electron Microscopy Center, New York Structural Biology Center, New York, United States
    2. Department of Biochemistry and Molecular Biophysics, Columbia University, New York, United States
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Project administration, Writing—review and editing
    For correspondence
    bcarr@nysbc.org
    Competing interests
    No competing interests declared
    ORCID icon 0000-0002-0624-5020

Funding

Simons Foundation (SF349247)

  • Clinton S Potter
  • Bridget Carragher

New York State Foundation for Science, Technology and Innovation

  • Clinton S Potter
  • Bridget Carragher

National Institute of General Medical Sciences (GM103310)

  • Clinton S Potter
  • Bridget Carragher

Agouron Institute (F00316)

  • Clinton S Potter
  • Bridget Carragher

National Institutes of Health (S10 OD019994-01)

  • Clinton S Potter
  • Bridget Carragher

National Institute on Minority Health and Health Disparities (5G12MD007603-30)

  • David Jeruzalmi

National Institute of Allergy and Infectious Diseases (Intramural Funding from the Vaccine Research Center)

  • Peter D Kwong

Agency for Science, Technology and Research

  • Yong Zi Tan

National Institutes of Health (R01-MH1148175)

  • Lawrence Shapiro

National Institutes of Health (R01 GM084162)

  • David Jeruzalmi

The authors declare that the funders played no role in this work, including the experimental design, data collection, or data analysis.

Acknowledgements

The authors wish to thank Prof. Robert Glaeser (Lawrence Berkeley National Laboratory) and Prof. Pete Wilde (Quadram Institute) for helpful discussions. The authors wish to thank Neil Voss (Roosevelt University) for the base Appion CentOS7 Docker image. The authors wish to thank several un-named sample sources. The Mtb 20S Proteasome sample was a kind gift from Huilin Li (Van Andel Research Institute). Some of this work was performed at the Simons Electron Microscopy Center and National Resource for Automated Molecular Microscopy located at the New York Structural Biology Center, supported by grants from the Simons Foundation (SF349247), NYSTAR, and the NIH National Institute of General Medical Sciences (GM103310) with additional support from the Agouron Institute (F00316) and NIH (OD019994). Studies on stick-like particles and neural receptors were supported in part by the National Institutes of Health (R01-MH1148175). Science in the Jeruzalmi lab was supported by the National Institutes of Health (R01 GM084162), and the National Institute on Minority Health and Health Disparities (5G12MD007603-30). Studies on the HIV-1 trimers were supported in part by Intramural Funding from the Vaccine Research Center, NIAID, NIH. Studies on the protein in nanodisc were supported in part by the Agency for Science, Technology and Research Singapore.

Reviewing Editor

  1. Axel T Brunger, Reviewing Editor, Stanford University Medical Center, United States

Publication history

  1. Received: December 12, 2017
  2. Accepted: May 17, 2018
  3. Accepted Manuscript published: May 29, 2018 (version 1)
  4. Version of Record published: June 13, 2018 (version 2)

Copyright

This is an open-access article, free of all copyright, and may be freely reproduced, distributed, transmitted, modified, built upon, or otherwise used by anyone for any lawful purpose. The work is made available under the Creative Commons CC0 public domain dedication.

Metrics

  • 1,262
    Page views
  • 305
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Structural Biology and Molecular Biophysics
    Ana Sánchez-Moreno et al.
    Short Report Updated
    1. Cell Biology
    2. Structural Biology and Molecular Biophysics
    Elisabeth A Geyer et al.
    Research Article
