Microtubules soften due to cross-sectional flattening

  1. Edvin Memet
  2. Feodor Hilitski
  3. Margaret A Morris
  4. Walter J Schwenger
  5. Zvonimir Dogic
  6. L Mahadevan  Is a corresponding author
  1. Harvard University, United States
  2. Brandeis University, United States
  3. University of California, Santa Barbara, United States
Research Article
  • Cited 9
  • Views 2,647
  • Annotations
Cite this article as: eLife 2018;7:e34695 doi: 10.7554/eLife.34695

Abstract

We use optical trapping to continuously bend an isolated microtubule while simultaneously measuring the applied force and the resulting filament strain, thus allowing us to determine its elastic properties over a wide range of applied strains. We find that, while in the low-strain regime, microtubules may be quantitatively described in terms of the classical Euler-Bernoulli elastic filament, above a critical strain they deviate from this simple elastic model, showing a softening response with increasingdeformations. A three-dimensional thin-shell model, in which the increased mechanical compliance is caused by flattening and eventual buckling of the filament cross-section, captures this softening effect in the high strain regime and yields quantitative values of the effective mechanical properties of microtubules. Our results demonstrate that properties of microtubules are highly dependent on the magnitude of the applied strain and offer a new interpretation for the large variety in microtubule mechanical data measured by different methods.

https://doi.org/10.7554/eLife.34695.001

Introduction

Microtubules (MTs) are long slender hollow cylindrical filaments with an approximate inner and outer diameter of 15 nm and 25 nm (Nogales et al., 1999). They are an indispensable structural element in biology, and their mechanical properties play an critical role in defining the shape and functionalities of various cellular architectures including neuronal axons, cilia and flagella, centrioles as well as the mitotic spindle (Howard, 2001). Therefore, a quantitative understanding of their mechanical properties is essential for elucidating the properties of various biological structures and functions (Schaedel et al., 2015; Wells and Aksimentiev, 2010; Schaap et al., 2006). A number of experimental studies have measured either the flexural rigidity (EI) or persistence length (lP) of MTs, two closely related quantities that determine a filament’s resistance to bending (see Hawkins et al., 2010). However, there is a considerable disagreement between different reported values of MT elastic moduli (Mickey and Howard, 1995), the dependence of the elastic moduli on the presence of stabilizing agents (taxol and GMPCPP), as well as a possible length-dependence of flexural rigidity (Pampaloni et al., 2006; Kis et al., 2002).

In principle, the properties of microtubules can be measured by either visualizing their intrinsic thermal fluctuations (Gittes et al., 1993; Mickey and Howard, 1995; Pampaloni et al., 2006; Brangwynne et al., 2007; Janson and Dogterom, 2004; Cassimeris et al., 2001) or by applying an external force through optical trapping or hydrodynamic flow experiments (Kikumoto et al., 2006; van Mameren et al., 2009; Van den Heuvel et al., 2008; Venier et al., 1994; Felgner et al., 1996; Kurachi et al., 1995; Dye et al., 1993). Because of significant rigidity of MTs these two types of measurements typically probe different deformation (strain) regimes. Thermally induced fluctuations only induce small strain deformations, while methods that use external forces are more suited to probe the high-strain regime. The existing measurements of microtubule mechanics have been extensively reviewed iteHawkins2010. Careful review of this data shows that the majority of measurements that rely on the filament fluctuations in the low strain regime yield values of microtubule flexural rigidity around , while measurements at high strains, tend to be for similarly prepared MTs (Supplementary file 2).

Here we describe experiments that comprehensively probe the mechanical response of GMPCPP stabilized microtubules across a wide range of imposed strains. Using optical trapping, we attach micron-sized silica beads at different points along a single filament and subject it to tensile and compressive forces. This allows us to construct a force-strain relationship for an individual filament that connects the low and high strain regimes that were probed separately in previous experiments. In the compression region, which corresponds to microtubule bending, the buckling force increases linearly in the initial (low strain) region, but quickly deviates from this trend and saturates at some critical strain, and it gradually decreases at high strain values. Such behavior indicates softening of MTs, an outcome that cannot be captured by the ideal Euler-Bernoulli model. We show that the mechanical response of MTs is well-captured by an anisotropic elastic shell model with three coarse grained elastic parameters (oneshear, and two stretching moduli). Our numerical simulations demonstrate that the softening in the high strain regime can be ascribed to cross-sectional ovalization and eventual buckling, an effect first described for macroscopic hollow cylinders by Brazier (Brazier, 1927; Calladine, 1983). For microtubule filaments in particular, cross-sectional flattening and buckling in response to compressive radial strains has also been described (Kononova et al., 2014).

To test the validity of our method we calibrate our experiments and theory using a different biological filament - the bacterial flagellum. Similar to microtubules, flagella are long-filamentous cylindrical biopolymers with an outer diameter of 24 nm (Yonekura et al., 2003). Furthermore, like microtubules flagella have a hollow core; however, their core diameter is only 2 nm. Therefore flagella should effectively behave as solid cylinders. Most wild-type flagella have a characteristic helical superstructure. We use flagellin monomers isolated from Salmonella typhimurium, strain SJW1660, which have a point mutation in their amino-acid sequence that causes them to assemble into straight filaments (Kamiya et al., 1980). A simple model based on Euler-Bernoullibeams quantitatively describes the measured force curve in all strain regimes. Such measurements validate our experimental method while also providing an estimate of the elastic properties of flagellar filaments that are in reasonable agreement with thefew existing measurements (Louzon et al., 2017; Darnton and Berg, 2007; Fujime et al., 1972).

Results

Optical tweezers buckle microtubules

Optical trapping techniques have been used to manipulate and characterize diverse biological systems, including individual biological filaments and their assemblages (van Mameren et al., 2009; Hilitski et al., 2015; Wang et al., 1997; Darnton and Berg, 2007). We use independently controlled optical traps to attach a pair of neutravidin-coated silica beads (D=1μm) to a single, segmented partially biotinylated MT filament (Figure 1A). One of the traps - the detection trap - is held stationary and used as a force detector by measuring the displacement of its captured bead with back focal- plane interferometry (see Video 1 of the experiments in supplementary information). The second optical trap - the manipulation trap - is moved in increments of 2–20 nm in order to exert a force on the filament, which connects the two beads. Our instrumentation allows us to simultaneously apply an external force with optical tweezers and visualize the filament configuration (Figure 1B). Strain ϵ is defined as:

(1) ϵ=(dbL)/L.

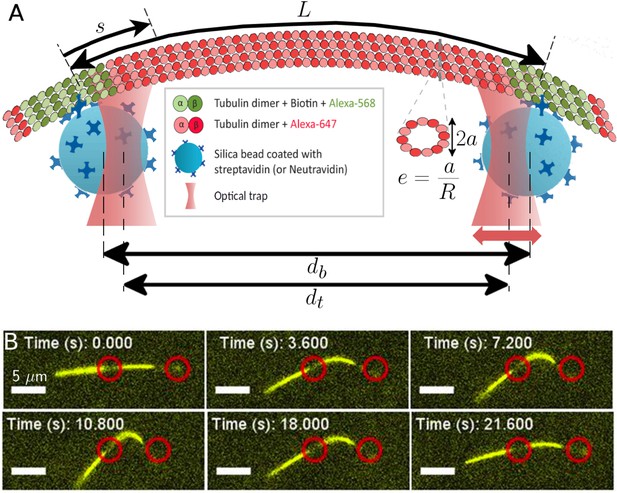

Probing the bending and stretching of microtubules using an optical trap.

(A) Schematic of the experimental setup for microtubule compression and stretching (note: not to-scale). Beads of radius 0.5 μm manipulated through optical traps are attached to the filament via biotin-streptavidin bonds. The left trap remains fixed, while the right one is incrementally displaced towards or away. The bead separation db is different from the trap separation dt due to the displacement between the centers of each bead and the corresponding trap. The force exerted by the traps on the beads is proportional to this displacement, with the constant of proportionality being the optical trap stiffness. The (effective) MT length L is the length between the attachment points of the two beads (but note that multiple bonds may form). The arclength coordinate s is measured from the left attachment point and takes value between 0 and L: 0<s<L. A cross-sectional profile is shown to illustrate our definition of ‘eccentricity’ or ‘flatness’ e=(Ra)/R (Equation 4) where 2a is the length of the small axis and R is the radius of the undeformed MT cross-section, taken to be R=12 nm in our simulations. (B) Series of fluorescence images from microtubule compression experiment. Trap positions represented through red circles of arbitrary size are drawn for illustration purposes and may not precisely represent actual trap positions, since neither beads nor traps are visible in fluorescence imaging. The mobile trap is moved progressively closer to the detection trap in the first four snapshots, resulting in increasingly larger MT buckling amplitudes. The mobile trap then reverses direction, decreasing the buckling amplitude as seen in the last two snapshots. The scale bar represents 5 μm, the end-to-end length of the MT is approximately 18 μm, and the length of the MT segment between the optical beads is 7.7 μm.

https://doi.org/10.7554/eLife.34695.002
Video 1
Microtubule buckling experiment, showing two ‘back-and-forth’ cycles.

The microtubule is labeled with fluorescent dye Alexa-647 and is actively kept in the focal plane. The scale bar represents 5 μm. Approximate positions of the optical traps are shown by red circles of arbitrary size.

https://doi.org/10.7554/eLife.34695.003
Video 2
Flagellum buckling experiment.

(left) Simulation of microtubule buckling experiment shown in Figure 4, first panel. The length of the microtubule between the optical bead attachment points is 3.6 μm while the size of the optical beads is 0.5 mum. The shape of the cross-section located halfway along the microtubule is also shown. (right) Force-strain curves from experiment (blue) and simulation (red). The simulation curve is synchronized with the visualization on the left.

https://doi.org/10.7554/eLife.34695.004
Video 3
Flagellum buckling experiment, showing three ‘back-and-forth’ cycles.

The scale bar represents 5 μm. Approximate positions of the optical traps are shown by green circles of arbitrary size. Measured force vector and magnitude are also indicated.

https://doi.org/10.7554/eLife.34695.005

where db is the bead separation once the MT has been deformed, and L is the distance between the beads when there is no force on the MT. The measured force-strain curve exhibits an unexpected feature (Figure 2B). For small deformations, the force increases linearly as a function of the applied strain. Surprisingly, above a critical applied strain (ϵ0.1) the force-compression curve exhibits a qualitatively different behavior. In this regime the applied force remains flat or in some cases it even declines slightly, even as the strain changes from −0.1 to −0.5. Filaments subjected to repeated cycles of compression/extension do not seem to exhibit any aging (Figure 2B, inset).

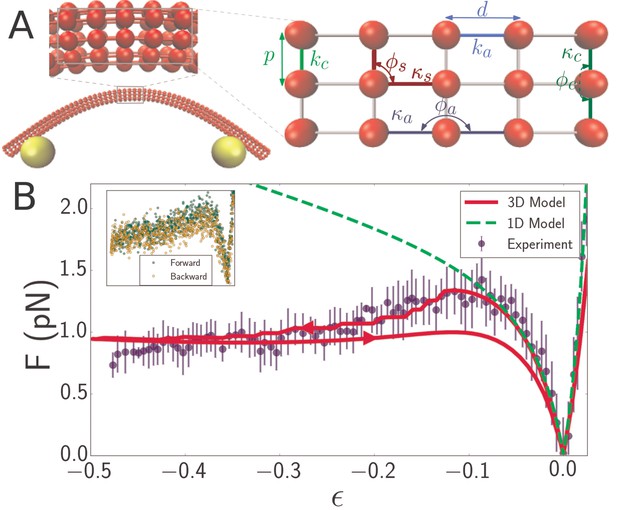

Discrete mechanical network model of microtubule.

(A) Schematic of spring network model of microtubule. Red particles discretize the filament while yellow particles represent the optical beads. Top inset: closeup of a region of the microtubule model, showing the 3D arrangement of the particles. Right inset: further closeup of the region, showing the defined interactions between particles. In the circumferential direction, ten particles are arranged in a circle of radius R=12 nm, (only three particles are shown in the inset) with neighboring pairs connected by springs of stiffness kc and rest length p (light green). Neighboring triplets in the circumferential direction form an angle ϕc and are characterized by a bending energy interaction with parameter κc (dark green). In the axial direction, cross-sections are connected by springs of stiffness ka (light blue) running between pairs of corresponding particles. Bending in the axial direction is characterized by a parameter κa and the angle ϕa formed by neighboring triplets (dark blue). All other triplets of connected particles that do not run exclusively in the axial or circumferential direction encode a shearing interaction with energy given by Vbend(κs,ϕs,π/2) (Table 1) with parameters κs and ϕs (yellow), where the stress-free shear angle is π/2. (B) Force-strain curve for a microtubule of length 7.1 μm from experiment (blue) and simulation using a 1D model (green, dashed) or a 3D model (red). Arrows on the red curve indicate forward or backward directions in the compressive regime. The bending rigidity for the 1D model fit is B=12pNμm2. The fit parameters for the 3D model are Ea=0.6 GPa, Ec=3 MPa, and G=1.5 GPa. Errorbars are obtained by binning data spatially as well asaveraging over multiple runs. Inset: Raw data from individual ‘forward’ (green) and ‘backward’ (yellow) runs.

https://doi.org/10.7554/eLife.34695.006

Flagellar filaments exhibit no anomalous softening at high strains

The softening of microtubules at high-strains is not predicted by simple elastic filament models of microtubule elasticity. A plausible hypothesis is that the hollow core of the microtubules significantly changes the effective elastic properties of the filament. To examine this hypothesis and quantitatively test our experimental method we measured the force-strain curve of bacterial flagellar filaments. As mentioned previously, the hollow core of flagellar filaments is only 2 nm. Therefore, we expect theywill exhibit classical slender-rod-like behavior that should be captured by a one-dimensional filament model.

The measured strain-force curve of a flagellar filament is qualitatively different from that observed for microtubules (Figure 3B). In both the compression and extension regime, the force monotonically increases. For classical buckling, the amplitude of thedeformed beam scales as FFc, where Fc=π2B/L2 is the classical buckling force (Timoshenko and Gere, 2012). For small deflections, since the strain goes like the square of the amplitude, the force-displacement curve should be roughly linear with strain, starting at Fc (albeit growing very slowly). However, for the classical buckling analysis, the compressive force is assumed to apply directly along the centerline of the beam. Experimentally, this is not the case, since the force is exerted on the filament through trapped micron-sized beads, which displace the force contact points away from the beam’s long axis. Therefore to quantitatively compare experiments to theory we numerically solved a more realistic problem that accounts for the entire filament-bead configuration. We also note that the slope in the extension region is higher than that in the compression region. Because the force is not applied along the filament centerline, in response to extensional forces the filament bends in the proximity of the bead attachments point. It is more difficult to bend the filament into such a configuration, hence the larger slope of the extensional regime.

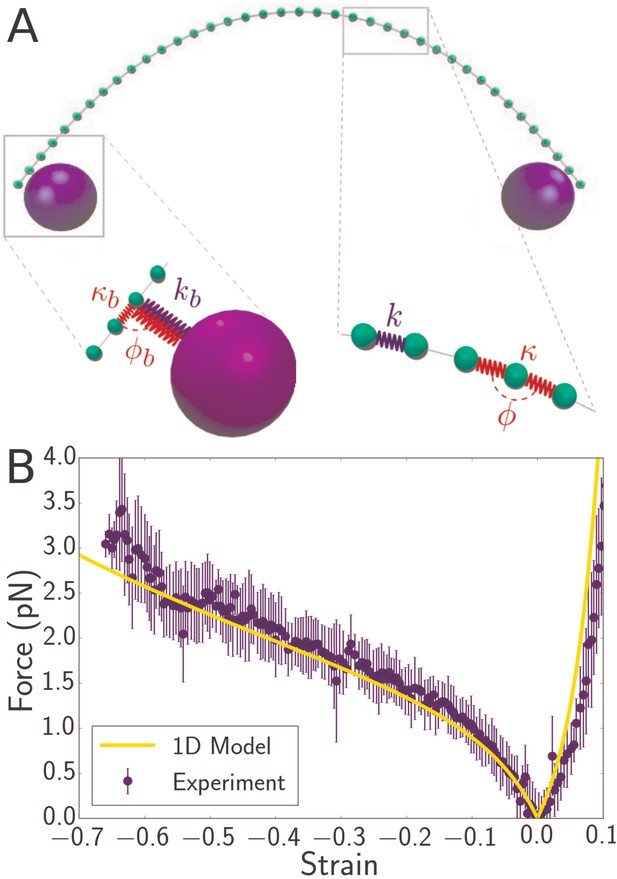

Discrete mechanical model of bacterial flagellum.

(A) Schematic of spring network model for bacterial flagellum. Green particles discretize the flagellum while blue particles represent the optical beads. Right inset: closeup of a region of the filament, showing that neighboring masses are connected by linear springs of stiffness k which give rise to a stretching energy Vstretch(k,l,l0) according to Equation 2, where l0 is the stress-free length of the springs. In addition, each triplet of neighbors determines an angle ϕ which dictates the bending energy of the unit: Vbend(κ,ϕ,π) (Equation 3). Left inset: closeup of the region where the bead connects to the flagellum. The bead particle is connected to a single particle of the flagellum by a very stiff spring kb of stress-free length b corresponding to radius of the optical bead. In addition, there is a bending interaction Vbend(κb,ϕb,π/2), where ϕb is the angle determined by the bead, its connecting particle on the flagellum, and the latter’s left neighbor. (B) Force-strain curve from experiment (blue) and simulation (yellow) for a flagellum of length L= 4.1 μm. Errorbars are obtained by binning data spatially as well as averaging over multiple runs. The bending rigidity obtained from the fit is B=4pN×μm2. The classical buckling force for a rod of the same length and bending rigidity with pinned boundary conditions is Fc2.3pN.

https://doi.org/10.7554/eLife.34695.007

By tuning a single parameter, flexural rigidity B, the force-strain curve obtained from simulations of a 1D filament model can be quantitatively fitted to the experimental data (Figure 3B). In the compressive regime, the data is well fitted by simulationsin which the bending rigidity B=4pN×μm2. Note that the agreement extends to very large strains approaching −0.7. The fitting procedure was repeated for eight distinct flagella filaments, yielding flexural rigidity that ranges from 3.2 to 5.25 pN×μm2, with a mean around 4.1±0.6 pN×μm2,. Interestingly, this value is close to the value of 3.5pN×μm2 and 2.9pN×μm2 reported, respectively for the coiled and straight forms of flagella (Louzon et al., 2017; Darnton and Berg, 2007). The magnitude of B suggests that Young’s modulus for the straight flagellum is GPa.

3d model explains microtubule softening

Quantitative agreement between experimentally measured force-strain curves of flagellar filaments and simulation results validate our experimental technique, while also demonstrating that the flagellar filaments behave as simple elastic filaments. However, the same one-dimensional model is not capable of reproducing the more complex elastic behavior observed in microtubule filaments. At most, it can describe the low strain regime of the force-compression curve (Figure 2B, green dashed curve). To explain theelastic behavior of microtubules over the entire strain regime we developed a more comprehensive 3D model of microtubules that explicitly accounts for their hollow center. We model the microtubule as a 3D orthogonal network of springs wrapped into a cylinder (Figure 2A). All interactions between particles are defined in terms of a stretching energy Vstretch(k,l,l0) or a bending energy Vbend(κ,ϕ,ϕ0), where l is the distance between a particle pair, ϕ is the angle defined by a triplet, and the subscript’ zero’ denotes the separation that minimizes particle interaction energy. Explicitly,

(2) Vstretch(k,l,l0)=12k(ll0)2,
(3) Vbend(κ,ϕ,ϕ0)=12κ(ϕϕ0)2.

Neighboring triplets in the axial and azimuthal directions encode bending energies (Table 1) through the parameters κa (Figure 2A, dark blue), respectively κc (Figure 2A, dark green) and equilibrium angles of π, respectively 144π/180. Shearing is encoded by the same type of energy function as bending (Table 1), but with parameter κs (Figure 2A, brown) and rest angle π/2: Vshear(κs,ϕs)=Vbend(κs,ϕs,π/2). The shearing interaction is defined for any triplet of neighbors that are not all along the axial or azimuthal directions. The microtubule-optical bead contact is modeled via parameters kb and κb, which are made sufficiently large to enforce the constraints of inextensibility and fixed attachment point. The relationship between these microscopic parameters and the macroscopic parameters Ea, Ec, and G (axial Young’s modulus, circumferential Young’s modulus, and shear modulus) can be derived based on the planar spring-network model and the orthotropic elastic shell model (Sim and Sept, 2013; Wang et al., 2006) and are shown in Table 1.

Table 1
List of microscopic parameters for the 3D model, their physical significance, the energy functional associated with them (Equation2 or Equation 3), and their connection to the relevant macroscopic elastic parameter.

Parameters, angles, and lengths are highlighted in Figure 2A. where h2.7 nm and h01.6 nm are the microtubule’s thickness and effective thickness (see Materials and methods), respectively and factors involving the Poisson ratios νa and νc are neglected.

https://doi.org/10.7554/eLife.34695.008
MicroscopicPhysicalAssociatedRelation to
ParameterSignificanceEnergyMacroscopic moduli

ka

Axial stretching

12ka(lad)2

Eahpd

κa

Axial bending

12κa(ϕaπ)2

16Eah03pd

kc

Circumferential stretching

12kc(lcp)2

Echdp

κc

Circumferential bending

12κc(ϕc144π/180)2

16Ec h03d/p

κs

Shearing

12κs(ϕsπ/2)2

2Ghpd

The 3D microtubule model quantitatively explains the softening that is observed in experimentally measured force-strain curves of microtubules. Overall we investigated the properties of 10 different filaments with lengths between 3 and 15 μm (Figure 4) and fitted 10 different force-strain curves to our theoretical model. Fitting each measurement curve yields independent yet consistent estimates of the Young’s modulus in axial and circumferential directions, Ea, Ec, as well as the shear modulus, G. We obtain Ec that varies between 3–10 MPa, and Ea between 0.6–1.1 GPa, which is in reasonable agreement with values reported in the literature (see Discussion). This observation confirms that microtubules are highly anisotropic materials. Interestingly, our values for shear modulus, G, are in the GPa range (Table 2), which is significantly higher than the largest values reported in the literature. This likely indicates that the microtubule deformations in our experiments are large enough to reach the point of deforming the tubulin units themselves rather than the bonds between them (see Discussion).

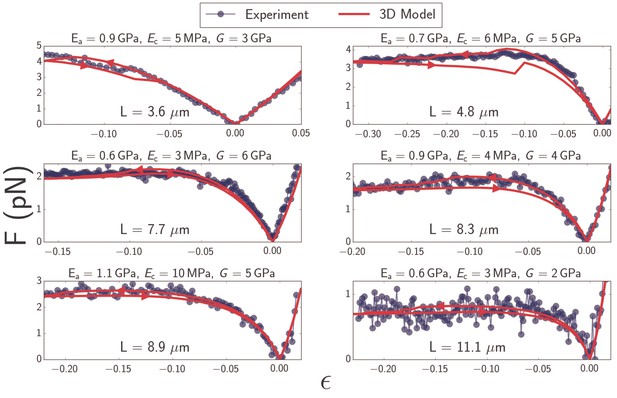

Plots of force F as a function of strain ϵ (Equation 1) for microtubules ranging in length from 3.6 to 11.1μm (blue).

Best-fit curves from simulation of the 3D model (red) and fit parameters (top) are shown for each plot. Arrows on the red curves indicate forward or backward directions in the compressive regime.

https://doi.org/10.7554/eLife.34695.009
Table 2
Range of macroscopic elastic parameters that fit experimental data for microtubules and flagella.
https://doi.org/10.7554/eLife.34695.010
SystemFit parametersRange that fits data

Ea

0.6–1.1 GPa
Microtubule

Ec

3–10 MPa

G

1.5–6 GPa
Flagellum

B

3–5 pNμm2

Cross-sections flatten and eventually buckle

With quantitative agreement between experiments and theory we are in a position to elucidate the microscopic origin of the microtubule softening at high strains. The decrease in the buckling force is directly associated with ovalisation of the microtubulecross-section. Plotting the microtubule cross-section at different deformation strains effectively demonstrates this effect. Figure 5A show the force-strain data for a microtubule of length 8.3 μm. The point labeled a is close to the boundary of the region where the 1D model (Figure 5A, green dashed line) fails, while points b and c are both inside the high-strain non-classical regime. The large inset shows a snapshot of the simulatedmicrotubule corresponding to point c and smaller insets show cross-sectional profiles at indicated locations. While cross-sectional deformations vanish at the endpoints (i.e. at the locations of the optical beads, shown in blue), deformations in the interior are considerable.

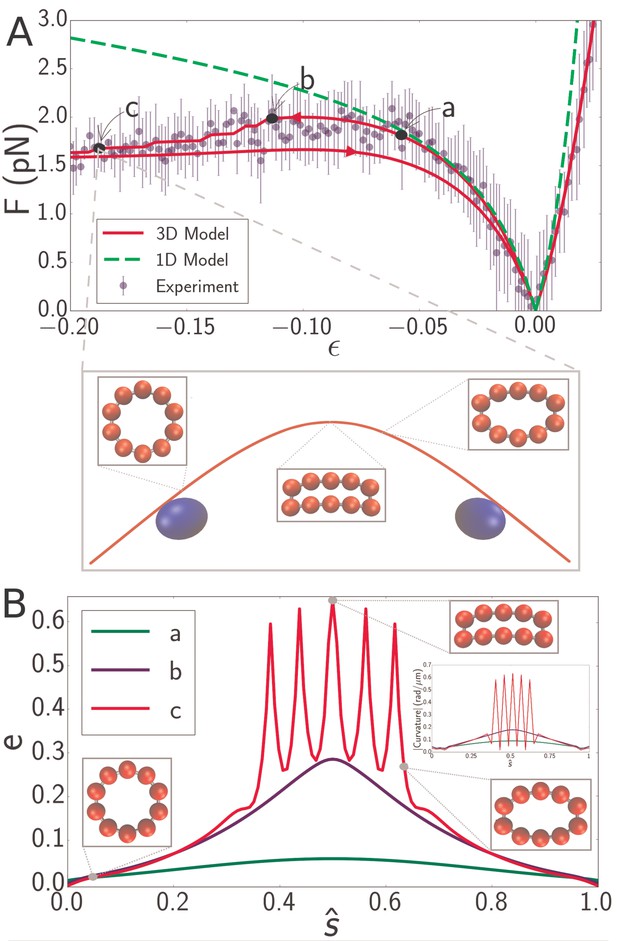

(A) Force-strain curve for a microtubule of length 8.3 μm from experiment (blue) and simulation using a 1D model (green, dashed) or a 3D model (red). Arrows on the red curve indicate forward or backward directions in the compressive regime. Errorbars are obtained by binning data spatially as well as averaging over multiple runs. The fit parameters for the 3D model are Ea=0.9 GPa, Ec=4 MPa, and G=4 GPa. The bending rigidity for the 1D model fit is B=23pNμm2. Labels a, b, and c indicate specific points in the 3D simulation model. (inset) Snapshot from simulation corresponding to the point labeled c. Smaller insets show the shape of the cross-section at indicated points. (B) Profiles of flatness e (Equation 4) along the dimensionless arclength coordinate s^=s/L (see Figure 1A) at points identified in panel A as a (green), b (blue), and c (red). Three insets show the shape of the cross-section at indicated points for the curve labeled c (red). A fourth inset shows the curvature profiles corresponding, by color, to the flatness profiles in the main figure.

https://doi.org/10.7554/eLife.34695.011

To quantify the cross-sectional deformation profiles more explicitly, we define a measure of cross-sectional eccentricity as:

(4) e=RaR,

where a is semi-minor axis (Figure 1A) and R=12 nm is the radius of the undeformed microtubule cross-section. e=0 corresponds to a circular cross-section, while larger values of e correspond to increasingly flatter cross-sections. The cross-sectional profile of a buckled filament in the low-strain regime (point a in Figure 5A) has e0 almost everywhere (Figure 5B, green line), reflecting the fact that the simplified 1D model (Figure 5A, green dashed line) semi-quantitatively predicts the applied force. Point b in Figure 5A marks the onset of the high-strain regime. Here the flatness e measurably deviates from its undeformed value. Noticeably, e also varies along the filament contour length, attaining largest distortions at the filament midpoint (Figure 5B, blue line line). The significant cross-sectional deformations in the high-strain regime demonstrate that the non-classical behavior of force with compressive strain in microtubules isindeed due to cross-sectional flattening. The location of the force plateau is highly sensitive on the circumferential Young’s modulus, Ec, and significantly less on the other parameters. Increasing Ec shifts the onset of the plateau towards larger compressive strains, eventually leading to its disappearance.

It is well-established that local cross-sectional buckling (kinking) can occur in a thin-walled tube because of cross-sectional ovalization (Huang et al., 2017). This is indeed what we observe - the cross-section is circular (Figure 5B, green and blue curves) until a critical bending moment is reached. The blue curve in Figure 5B represents the profile right before the local buckling transition; afterwards, a sharp increase in e takes place at the middle, representing the development of a kink. With further compression, subsequent kinks can develop - one at a time - in its vicinity. The red curve in Figure 5B, for example, shows five kinks (visible as spikes in the flatness profile) in the microtubule configuration corresponding to the point labeled esc in Figure 5A. The inset in Figure 5B shows that the corresponding curvature profiles effectively mirror the flatness profiles in the main figure. Thus, discontinuities in the curvature profile of a filament signal the existence of cross-sectional ovalization and eventual kinking. In simulations, the formation of kinks can be identified directly from the force-strain plots as a small drop in the buckling force (Figure 5A, red). Indeed, hysteresis associated with forward and backward compressionis observed in simulations in which the filament forms kinks. The often observed persistence of hysteresis at very low strains, as seen in Figures 2B, 4 and 5, is likely a simulation artefact, due to the lattice getting trapped in a local minimum; the addition of thermal noise either eliminates hysteresis or eliminates its low-strain persistence. Experimental data is too noisy to draw any conclusions regarding the presence or absence of hysteresis.

Critical curvature is relatively small

The critical bending moment MB at which a hollow tube becomes unstable, leading to local collapse and kinking, is given by (Brazier, 1927):

(5) MB22π9h2RE,

where h is the tube thickness, R is the radius, and E is its elastic modulus. Brazier’s result applies to isotropic, infinitely long tubes. It has been extended to orthotropic materials (Huang et al., 2017) by replacing E with the geometric mean of Ea and Ec and to finite-length tubes by including a numerical correction factor (Takano, 2013), so that we expect the following scaling for MB:

(6) MBh2REaEc1νaνch2REaEc.

To understand this result, we first carry out simulations after subtracting the energy due to shear deformations and compute a ‘modified’ force as the derivative of all energies except for the shear energy. This modified force is then used to calculatea modified, shear-agnostic, critical bending moment. Multiplying force computed this way by the maximum vertical displacement of the filament yields the value of MB observed in simulation (Figure 6, vertical axis), which we compare to values of MBcomputed according to Equstion 6 using a numerical factor of unity (Figure 6, horizontal axis). We confirmed the scaling predicted in Equation 6 by running additional simulations, varying the length of the microtubule L, their elastic moduli Ea, Ec, and G, and the size of the trapped bead beyond the typical range of our experiments (see Figure 6).

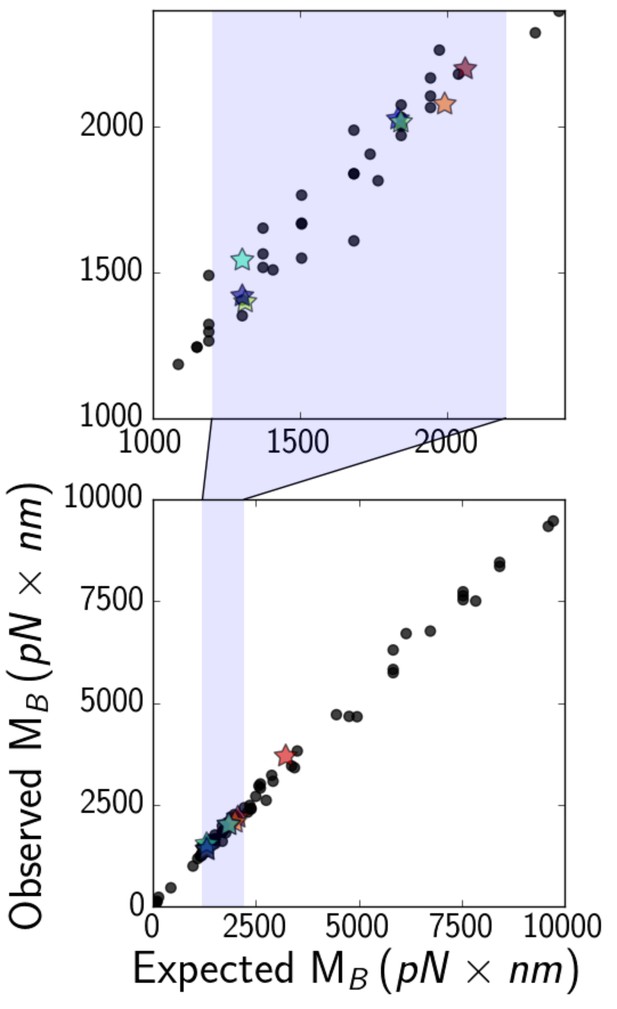

(bottom) Expected (Equation 6, with a numerical factor of unity) versus observed critical bending moments MB of simulated microtubules of various lengths, elastic moduli, and optical bead sizes.

Data points that correspond to actual experimental parameters are marked with stars, while the rest are marked with black circles. The shaded region is zoomed-in on (top), to show that most experimental points fall in the range about 1000–2000 pN×nm.

https://doi.org/10.7554/eLife.34695.012

Our experimental results (Figure 6, stars) suggest that the critical bending moment is generally in the range MB1000–2000 pN nm. This approximate range of the critical bending moment enables us to estimate the critical curvature at which softening occurs (as curvatures may be more easily extracted from experiments). Upon Brazier buckling, the curvature profile spikes at the location of the kink(s), just like the flatness profile (Figure 5B, inset), showing the correspondence betweencritical curvature and critical bending moment. Values of MB of around 1000–2000 pN nm imply a critical curvature for the onset of softening on the order of 0.1 rad / μm, given a bending rigidity B of 10–20 pN ×μm2. This estimate is confirmed by simulations, which show that the critical curvature at the onset of the Brazier buckling is close to 0.2 rad / μmfor seven of eight experimental datasets (and 0.3 for the other dataset). Such values are small enough that they are likely reached and exceeded at least in some systems both in vivo, as in the beating flagella of Chlamydomonas (Sartori et al., 2016; Geyer et al., 2016) and in vitro, as in microtubule rings observed in gliding assays (Liu et al., 2011).

Discussion

Using optical trapping we have determined the mechanical properties of microtubules by measuring how the strain changes with an applied extensile/compressive force. We found that the force required to buckle the filament levels off or decreases with increasing compressive strain, demonstrating that microtubules significantly soften above a critical strain. Such non-classical behaviors are quantitatively captured by overdamped molecular dynamics simulations of an orthotropic cylindrical shell model. The simulations reveal that microtubule softening is a consequence of cross-sectional deformations enabled by a small circumferential Young’s modulus of a few MPa.

MT softening could explain large variation of bending rigidity results

While it is known that MTs do not behave as isotropic Euler-Bernoulli slender rods - since, for instance, lateral bonds between adjacent protofilaments are much weaker than longitudinal bonds along protofilaments (Nogales et al., 1999; VanBuren et al., 2002; Huang et al., 2008) -many groups have used the Euler-Bernoulli beam model to interpret their data (Kikumoto et al., 2006; Brangwynne et al., 2006; Li, 2008; Takasone et al., 2002; Jiang and Zhang, 2008). Introducing a shear degree of freedom to the Euler-Bernoulli beam results in a Timoshenko beam model. This model remains inadequate, however, since it does not allow for anisotropy between the axial and circumferential directions, which is substantial and plays an important role in the mechanical behavior of MTs (Deriu et al., 2010; Huang et al., 2008; Tuszyński et al., 2005). Clearevidence supporting this assertion comes from experiments in which microtubules subject to osmotic pressure buckle radially at very low critical pressures (600 Pa) – over four orders of magnitude lower than what is expected for an isotropic shellwith E1 GPa (Needleman et al., 2005). More sophisticated models of MTs as anisotropic elastic cylindrical shells allow for an additional degree of freedom in the radial direction and can be found in papers that examine MT persistence length (Sim and Sept, 2013; Deriu et al., 2010; Ding and Xu, 2011; Gao et al., 2010), oscillation modes (Kasas et al., 2004), response to radial indentation (Huang et al., 2008), or buckling under osmotic pressure (Wang et al., 2006).

Despite numerous studies on microtubule mechanics, considerable disagreement continues to persists regarding their coarse-grained elastic properties, including their bending rigidity or shear modulus (Hawkins et al., 2010). It is even unclear whether bending rigidity depends on the MT length or not (see, for example, [Pampaloni et al., 2006; Kis et al., 2002; Deriu et al., 2010; Zhang and Meguid, 2014] versus [Gittes and Schmidt, 1998; Kikumoto et al., 2006; Van den Heuvel et al., 2008]). Some of the disparity in measured elastic properties can be attributed to the variations in theexperimental protocols that could affect density of defects and filament heterogeneity as well as the number of microtubule protofilaments (Zhang and Meguid, 2014). Furthermore, different methods of stabilizing microtubules could also affect their coarse-grainedproperties. However, our work suggests that a significant source of variation could arise for a more fundamental reason, especially when interpreting results on mechanically deformed filaments. This is because theoretical models used so far to analyze properties of mechanical MT experiments may lack sufficient complexity to accurately describe all deformation regimes, and experiments that rely on the mechanical interrogation techniques have rarely if ever simultaneously explored the behavior of filaments in both large and small deformation regimes. In such a case, the force-strain curves are frequently measured only at high strains and thus leads to significant errors when extrapolated across all strain regimes using overly-simplistic Euler-Bernoulli or Timoshenko beam models. This methodology can significantly underestimate the microtubule persistence lengths that are measured using applied mechanical deformations. Indeed, a comprehensive summary of experimental results on MT flexural rigidity (Hawkins et al., 2010) strongly supports this interpretation: for example, the average flexural rigidity of Taxol stabilized MTs found via thermal fluctuations is more than twice as large as the average rigidity found from force-based experiments.

Large shear modulus likely reflects physical deformation of tubulin units

Fitting experimentally measured force-strain curve to our theoretical model provides an estimate of the microtubule elastic moduli Ea, Ec, and G (Table 2), which can be compared to values reported in the literature. The range of axial Young’s moduli Ea that fits our experiments is 0.6–1.1 GPa, consistent with values of 0.5–2 GPa reported previously in the literature (Deriu et al., 2010; Enemark et al., 2008; Wells and Aksimentiev, 2010; Sept and MacKintosh, 2010). Similarly, we find Ec between 3–10 MPa, which is consistent with figures of a few MPa reported by some groups (Wang et al., 2006; Tuszyński et al., 2005), though other groups also report Ec on the order of 1 GPa (Zeiger and Layton, 2008; Schaap et al., 2006). The discrepancy can be reconciled by noting that small radial deformations only impactthe weak bridges between adjacent protofilaments, while larger ones may deform the tubulin dimers, which, like typical proteins, have a high stiffness in the GPa range (Huang et al., 2008; Pampaloni et al., 2006; Needleman et al., 2005).

We also extract the microtubule shear modulus G, which assumes values of a few GPa (Table 2), which is significantly larger than values reported in the literature (which can vary by as much as five orders of magnitude) from around 1 (Pampaloni et al., 2006), to 1 MPa (Kis et al., 2002), up to 100 MPa (Deriu et al., 2010; Ding and Xu, 2011; Sept and MacKintosh, 2010). This is surprising, since it is well-established that microtubule lateral bonds are very compliant; a small shear modulus is believed to potentially help the microtubule correct defects in assembly by shifting the offset between protofilaments during the nucleation phase (Sim and Sept, 2013). However, inter-protofilament bonds may be very compliant for small deformations (on the 0.2 nm scale), while larger deviations may approach the limit of physically deforming the tubulin units (Pampaloni et al., 2006). Following estimates in (Pampaloni et al., 2006), a strain on the order of −0.01 would lead to deformations on the 0.2 nm scale, while our experiments routinely go up to much larger strains around −0.2. Therefore, it’s likely that the large values we obtained for shear modulus are due to large shear deformations that surpass the elastic limits of inter-protofilament bonds.

Notably, sufficiently large deformations can induce (reversible) breaking of lateral contacts between protofilaments and eventually even of longitudinal contacts between subunits in a protofilament as observed in radial indentation simulations (Kononova et al., 2014; Jiang et al., 2017) and corroborated with scanning force microscopy experiments (Schaap et al., 2004). Therefore, contact breaking may constitute an alternate or co-occurring reason for the large shear modulus obtained from fitting our experimental data. Thisis supported by comparable values of bending rigidity emerging from radial indentation simulations in (Kononova et al., 2014) (25 pN ×μm2) and from the current paper (10–20 pN ×μm2 where flattening and buckling become noticeable).

Softening may occur in parameter ranges typical of typical biological systems

Our experimentally measured force-strain curves imply that the critical curvature for the onset of Brazier buckling is relatively small, around 0.2 rad /μm. Such curvatures are frequently observed in both in vitro and in vivo systems. For example, long-lived arcs and rings observed in microtubule gliding assays (Liu et al., 2011; Bourdieu et al., 1995) have curvatures between 0.4–2 rad /μm. From a different perspective, microtubules are the essential structural motif of diverse non-equilibrium materials including active isotropic gels, nematic liquid crystals, motile emulsions and deformable vesicles (Sanchez et al., 2012; Keber et al., 2014). The rich dynamics of all these systems is driven by the buckling instability of microtubule bundles that is driven by internal active stress generated by kinesin motors. In some systems the curvature associated with this buckling instability is large enough for microtubule softening to be relevant.

In living organisms, the static curvatures of the quiescent eukaryotic flagella, such as those found in Chlamydomonas Reinhardtii, are about 0.25 rad /μm (Sartori et al., 2016) while the oscillating dynamic component can increase the curvature up to about 0.6 rad /μm (Geyer et al., 2016), although presence of numerous microtubule associated proteins could significantly alter filament’s mechanical properties. Furthermore, diverse active processes within a cellular cytoskeleton are also capable of generating highly curved microtubule configurations (Brangwynne et al., 2006). We may thus speculate about the biological significance of MT softening, with one hypothesis being that it decreases MT susceptibility to mechanical failure or depolymerization (Mohrbach et al., 2012).

The majority of other previous experiments have only examined the properties of stabilized microtubules which do not polymerize/depolymerize on relevant timescales. In comparison, a recent significant advance examined mechanical properties of dynamical microtubules that coexist with a background suspension of tubulin dimers (Schaedel et al., 2015). In particular, this study demonstrated that repeated large-scale deformations locally damage microtubules, which leads to effectively softer filaments. This damageis accompanied by a loss of tubulin monomers. Furthermore, after the external force ceases the damaged filaments effectively self-repair, as the tubulin monomers from the background suspensions incorporate back into the damaged regions. In comparison, here we study stabilized filaments that do not show any aging phenomena. However, it seems plausible that the ovalization and the formation of kinks is also relevant to dynamical microtubules, and the regions of high strain might be the location where monomers preferentially dissociate from filament.

It is also worth noting that the softening of microtubules we observe is analogous to phenomena that have already been observed and quantified in carbon nanotubes (e.g. see reviews by [Thostenson et al., 2001; Wang et al., 2007]). In particular, experiments demonstrate the formation of a single kink, followed by a multiple kink pattern upon further bending (Iijima et al., 1996), while simulations predict a reduction in effective nanotube stiffness, as the buckling force drops and remains almost constant after kinking eYakobson1996. Hysteresis due to plastic deformations triggered by kinking events has also been observed, at least in the case of multi-walled carbon nanotubes (Jensen et al., 2007). Stiffness variations of carbon nanotubes arise from deformation modes which cannot be explained by simple Euler-Bernoulli or Timoshenko rod models.

In conclusion, we have found that micron-long microtubules subject to buckling forces of a few pN become more mechanically compliant at relatively low strains due to significant cross-sectional deformations and subsequent buckling. This result seems biologically relevant, as the critical curvatures for the softening transition are surpassed, for instance, in the beating of Chlamydomonas flagella. Additionally, the softening of MTs with increasing strain provides an explanation for the discrepancy between values of flexural rigidity inferred by passive (thermal fluctuations) versus active methods, since the latter typically access higher strains and thus infer effectively lower rigidities. Despite the complex nature of microtubules, we found that their mechanical properties - at least as concerning buckling experiments via optical trapping - can be quantitatively summarized by three elastic moduli, even for very large strains, and need to be accounted for to explain observations that arise naturally in many biological systems.

Materials and methods

Tubulin and microtubule polymerization

Request a detailed protocol

Tubulin was purified from bovine brain tissue according to the established protocol (Castoldi and Popov, 2003). We conjugated two fluorescent dyes: Alexa Flour 568 NHS Ester (Life Technologies, A-20006), Alexa Flour 647 NHS Ester (Life Technologies, A-20003) orbiotin-PEG-NHS (Thermo Scienti1c, 20217) to tubulin as described previously (Hyman et al., 1991). We prepared NEM-modified tubulin by incubation of unmodified dimers at a concentration of 13 mg/ml with 1 mM NEM (N-Ethylmaleimide, Sigma, E3876) and 0.5 mM GMPCPP (Jena Bioscience, NU-405S) on ice for 10 min and then quenching the reaction with 8 mM beta-mercapthoethanol (Sigma, M6250) for another 10 mins (Hyman et al., 1991). All labeled and unlabeled tubulin monomers were stored at −80C.

Bead functionalization

Request a detailed protocol

Carboxyl silica microspheres (d = 0.97 μm, Bangs Labs SC04N/9895) were coated with NeutrAvidin-DyLight488 conjugate (Thermo Scientific, 22832) by incubating the mixture of beads and protein at pH = 8.0 in presence of N-Hydroxysuccinimide (NHS, Sigma, 130672) and N-(3-Dimethylaminopropyl)-N’-ethylcarbodiimide hydrochloride (EDC, Sigma, E6383). The use of fluorescently labeled protein allows the bead to be imaged with fluorescence microscopy in order to verify Neutravidin presence on the surface. However, this is not always desirable. We have tested the protocol with a number of Neutravidin and Streptavidin proteins from various suppliers (Sigma, Thermo Fisher) and concluded that the protein attachment to the surface is reliable and reproducible.

Buffer solutions

Request a detailed protocol

Microtubules (MTs) were polymerized in the M2B buffer that contained 80 mM PIPES (Sigma, P6757), 2 mM MgCl 2, 1 mM EGTA (Sigma, E3889) and was titrated to pH = 6.8 with KOH. As a result of titration with potassium hydroxide, the buffer contained 140 mM of K + ions. In order to extend the range of accessible ionic strength in the solution, we used M2B- 20 buffer that contained 20 mM PIPES, 2 mM MgCl 2, 1 mM EGTA and was titrated to pH = 6.8 with KOH. As a result of titration with potassium hydroxide, the buffer contained 35 mM of K + ions. Oxygen scavenger solution was prepared immediately before use by combining equal volumes of solutions of glucose (Sigma, G7528), glucose oxidase (Sigma, G2133) and catalase (Sigma, C40). Resulting mixture was dilutedinto the final sample in order to achieve the following concentrations: 40 mM Glucose, 250 nM glucose oxidase, 60 nM catalase (Gell et al., 2010).

Microscopy and optical trapping

Request a detailed protocol

The position of the detection bead is sampled with the QPD at a rate of 100 KHz and averaged in bins of 1000 samples, effectively resulting in a sampling rate of 100 Hz, that is about 100 times per step. The force on the detection bead is obtained by multiplying the displacement of the bead by the stiffness ko of the optical trap.

All experiments required simultaneous use of fluorescence and brightfield microscopy modes, as well as optical trapping. We used an inverted Nikon Eclipse TE2000-U with Nikon PlanFlour 100x oil-immersion objective (NA = 1.3) equipped with the epifluorescence illumination arm, either a mercury-halide (X-Cite 120Q) or LED (Lumencor SOLA) light source, and an appropriate set of filter cubes (Semrock). In order to have multiple independently controlled optical traps we used an optical bench set-up based on two acousto-optical deflectors (AODs) - see (Ward et al., 2015). Briefly, the AOD consists of a transparent crystal, in which an acoustic wave is inducedby applied radio-frequency (RF, several MHz) electric current. The incoming laser beam interacts with the traveling sound wave and is deflected at a small angle, which depends on the RF current frequency. When the AOD crystal is imaged onto the back focal plane of a microscope objective, deflection of the beam is converted into translation of the focused laser spot in the focal (specimen) plane. By combining two AODs with perpendicular orientation, one can achieve precise control of the laser trap position in two dimensions within the focal plane of the microscope Molloy1997.

In our set-up, laser beam from a continuous infrared laser (1064 nm, Coherent Compass CW IR) is expanded and sent through the AOD (Intra-Action Corp., Model DTD-276HD2). The deflected beam is sent through a set of telescope lenses into the objective. The deflection angle of the AOD is controlled by custom LabVIEW software, which allows for positioning of optical traps in the x-y plane with nanometer precision.

In order to calibrate the optical traps, the setup was equipped with a separate laser (830 nm, Point Source iFlex 2000) and a quadrant photodiode (QPD) detection system (Simmons et al., 1996). Voltage readings from the QPD, which are directly proportional to the bead x and y coordinates, were obtained with 100 kHz frequency. The voltage readings were Fourier transformed and the trap stiffness was obtained from the Lorentzian fit to the power spectrum (Berg-Sørensen and Flyvbjerg, 2004; Gittes and Schmidt, 1998)

Bead attachment

Request a detailed protocol

We follow bead-microtubule attachment protocols very similar to those in the literature (van Mameren et al., 2009; Kikumoto et al., 2006). We prepare segmented microtubules in which short regions (seeds) are labeled with biotin. The biotinylated seeds and the biotin-free elongated segment are labeled with two different fluorescent dyes, which allows us to distinguish them and attach the Neutravidin-coated silica beads to the biotin labeled MT seeds through manipulations with laser tweezers (Figure 1A). Presence of biotin either throughout the filaments or in localized segments does not affect the measured single filament buckling force. For the case of the bacterial flagella, we labeled the entire filament with the fluorescent dye and biotin. In the end, our experiments seem consistent with an essentially rigid microtubule-bead attachment. We note that a finite range of bead movement or rotation relative to the attachment point would appear as a flat region near zero strain in the force-strain curve, which we do not observe.

Force averaging

Request a detailed protocol

Trap separation is controlled by acousto-optical deflectors (AODs), and changed in discreet steps of 2–10 nm every 0.5–1 s. For a given trap separation, the force on the detection bead is obtained by multiplying the displacement of the bead (from the center of the optical trap) with the stiffness of the calibrated optical trap. The position of the detection bead is sampled with a quadrant photodiode (QPD) at a rate of 100 KHz and averaged in bins of 1000 samples, effectively resulting in a sampling rate of 100 Hz. Since trap separation is changed every 0.5–1 s, the force on the bead is measured 50–100 times at a given distance. Several cycles of buckling and extension (”back-and-forth runs’) are performed for a given filament so that in the end, the raw force data is binned by trap separation and the average and standard deviation of the force in each bin are computed. Notably, then, force is averaged both over time and over multiple runs.

The minimum in the force-displacement curve separates the tensile and the compressive regimes and allows us to determine the equilibrium bead separation of the beads, that is the effective length L of the filament segment being actively stretched or buckled. Due to thermal fluctuations and other noise, experimentally measured forces fluctuate in direction (and magnitude). Since fluctuations in the direction perpendicular to the line connecting the optical traps average out to zero, the forces reported in our manuscript are the parallel components. In the manuscript, we present force - averaged and projected as explained - in terms of strain corresponding to bead separation, rather than optical trap separation (the schematic in Figure 1A illustrates the distinction). We compute bead separation from trap separation, measured force, and optical trap stiffness.

Simulations of flagellar buckling

Request a detailed protocol

To quantitatively describe the measured force-strain curve, the flagellar filament is modeled as a collection of N masses connected to their neighbors with very stiff linear springs of constant k (Figure 3A, right inset, blue). Bending energy of a triplet is encoded by a parameter κ, and ϕ, the angle determined by the triplet (Figure 3A, right inset, red) according to Equation 3. The trapped beads are represented as masses connected to their attachment points by springs of stiffness kb and rest length equal to the radius of the bead b. The optical beads are enforced to remain normal to the filament at the attachment point by defining a bending energy Vbend(κb,π/2) with a sufficiently large κb and rest angle π/2 for the triplet consisting of the bead, its attachment point, and a neighboring mass (Figure 3A, left inset).

Since the flagellum and the bead are essentially inextensible, k and kb are set to values which are sufficiently large to essentially establish them as fixed parameters. The same is true for κb, as explained above, and for the number N of beads used that make up the flagellum. Thus, the only free parameter is κ, which is related to flexural rigidity B as follows:

κ=BNL.

Simulations of microtubule buckling

Request a detailed protocol

To fit experimental data for microtubules we model them as 3D networks of springs and simulate their quasistatic, overdamped mechanical response via the molecular dynamics software Espresso (Arnold et al., 2013; Limbach et al., 2006)

In vivo, MTs most commonly appear with 13 protofilaments (although there are exceptions depending on the cell type), whereas in vitro structures with 9–16 protofilaments have been observed (Mohrbach et al., 2012). Since the exact structure of microtubules can vary and since it has been shown that protofilament orientation is not important with respect to mechanical properties (Hunyadi et al., 2007; Donhauser et al., 2010), we consider the simplest case of 10 aligned protofilaments. Because microtubule monomers are composed of alpha- and beta-tubulin, they can contact other monomers laterally through alpha-alpha, beta-beta, or alpha-beta interactions. While there are differences in these interactions (and generally, in the mechanical properties of alpha- and beta-tubulin), they are relatively small so that it is safe to neglect these differences (Sim and Sept, 2013; Zhang and Meguid, 2014).

The microtubule is modeled as a planar spring network network wrapped into a cylindrical shell (Figure 2A). Energies are of two types: stretching energies Vstretch (Equation 2) determined by the distance between pairs of particles connected by springs, and bending energies Vbend (Equation 3) determined by the angle formed by neighboring triplets. Anisotropy is achieved by setting independent parameters ka, κa and kc, κc for the bending and stretching energies in the axial and circumferential directions, respectively (Figure 2A). The parameter d (the distance between consecutive simulated dimers along the same protofilament) can set the level of coarse-graining, with d8 nm for real microtubules. The distance between dimers at the same cross-section is denoted by p=2Rsin(π/10).

Table 1 shows the relationship between the microscopic parameters of the model and the three corresponding macroscopic elastic constants Ea, Ec and G. The formulas are based on the orthothropic elastic shell model and involve an ‘equivalent’ thickness h and a ‘effective’ thickness for bending h0. The reason for this duality is that the actual thickness of the cross section of a microtubule varies periodically along the circumferential direction, between a minimum of about 1.1 nm (the ‘bridge’ thickness) and a maximum of about 4–5 nm (Huang et al., 2008). When modeled as a shell of uniform thickness, the actual cross section of a microtubule is replaced by an annular cross section with equivalent thickness h2.7 nm (de Pablo et al., 2003). However, the effective bending stiffness is different; since most of the strain is localized to the bridges between the protofilaments (Schaap et al., 2006), the effective bending stiffness is closer to the bridge thickness. According to (de Pablo et al., 2003; Schaap et al., 2006), h01.6 nm.

It must be noted that microtubules are not exactly thin shells, while the formulas shown in Table 1 apply in that limit. As a consequence, the numerical factors in the formulas are not precisely correct. Because of this, the formulas need to be adjusted by numerical factors; we do so by considering, for instance, a basic shear deformation, computing its elastic strain energy and adjusting the numerical factor to ensure agreement between the energy computed in the simulation and the theoretical energy. Interestingly, the orthotropic shell model does not contain an energy penalty for cross-sectional shearing. In simulations, this leads to an unphysical instability which can be resolved, for instance, by running the simulation at very high damping (which would, however, greatly increase the runtime). A faster way of resolving this artifact is to stabilize the microtubule in the lateral direction, effectively not allowing its centerline to break lateral symmetry by going out of plane.

Each optical bead is represented by a particle connected to a single particle on the microtubule by a very stiff spring as well as a very stiff angle interaction aimed at keeping the ‘bead’ perpendicular to the attachment point. The left bead is fixed, while the right one is free to move. Starting with the filament unstretched, we move the mobile bead in small increments dx. After each move, we fix the position of the bead and allow the system to relax. The relaxation time is (Gittes et al., 1993):

τrelaxγL4B,

where γ is the friction coefficient. The parameter γ determines both how fast the system relaxes (smaller γ leads to faster relaxation) and how fast its kinetic energy decays (larger γ leads to faster decay). Sufficiently large values of γ correspond to overdamped kinetics, but the trade-off between relaxation and decay of kinetic energy implies that intermediate values of γ optimize computation time. Such values of γ are still acceptable, as theywill lead to the same results provided kinetic energy has dissipated sufficiently and that there are no instabilities. To check that the value of γ and the relaxation timescales are adequate, the system can be run forwards then backwards - if there is no hysteresis, then the parameters are adequate. This only holds until the system undergoes a kinking transition; once kinking takes place, hysteresis will occur even in the truly overdamped limit.

References

  1. 1
    ESPResSo 3.1 — Molecular Dynamics Software for Coarse-Grained Models
    1. A Arnold
    2. O Lenz
    3. S Kesselheim
    4. R Weeber
    5. F Fahrenberger
    6. D Roehm
    7. P Košovan
    8. C Holm
    (2013)
    In: M Griebel, M. A Schweitzer, editors. Meshfree Methods for Partial Differential Equations VI, 89. Springer. pp. 1–23.
    https://doi.org/10.1007/978-3-642-32979-1_1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
    On the flexure of thin cylindrical shells and other "Thin" Sections
    1. LG Brazier
    (1927)
    Proceedings of the Royal Society A: Mathematical, Physical and Engineering Sciences 116:104–114.
    https://doi.org/10.1098/rspa.1927.0125
  7. 7
    Theory of Shell Structures
    1. CR Calladine
    (1983)
    Cambridge University Press.
  8. 8
    XMAP215 is a long thin molecule that does not increase microtubule stiffness
    1. L Cassimeris
    2. D Gard
    3. PT Tran
    4. HP Erickson
    (2001)
    Journal of Cell Science 114:3025–3033.
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
    Taxol-induced flexibility of microtubules and its reversal by MAP-2 and tau
    1. RB Dye
    2. SP Fink
    3. RC Williams
    (1993)
    The Journal of Biological Chemistry 268:6847–6850.
  16. 16
  17. 17
    Flexural rigidity of microtubules measured with the use of optical tweezers
    1. H Felgner
    2. R Frank
    3. M Schliwa
    (1996)
    Journal of Cell Science 109:509–516.
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
    Mechanics of Motor Proteins and the Cytoskeleton
    1. J Howard
    (2001)
    Sinauer Associates.
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
    Microtubule elasticity: connecting all-atom simulations with continuum mechanics
    1. D Sept
    2. FC MacKintosh
    (2010)
    Physical Review Letters, 104, 10.1103/PhysRevLett.104.018101, 20366396.
  58. 58
  59. 59
  60. 60
    Interaction between euler buckling and brazier instability
    1. A Takano
    (2013)
    Journal of Solid Mechanics and Materials Engineering 7:92–101.
    https://doi.org/10.1299/jmmp.7.92
  61. 61
  62. 62
  63. 63
    Theory of Elastic Stability
    1. SP Timoshenko
    2. JM Gere
    (2012)
    Dover Publications.
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
    Analysis of microtubule rigidity using hydrodynamic flow and thermal fluctuations
    1. P Venier
    2. AC Maggs
    3. MF Carlier
    4. D Pantaloni
    (1994)
    The Journal of Biological Chemistry 269:13353–13360.
  69. 69
    Orthotropic elastic shell model for buckling of microtubules
    1. CY Wang
    2. CQ Ru
    3. A Mioduchowski
    (2006)
    Physical Review E, 74, 10.1103/PhysRevE.74.052901.
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77

Decision letter

  1. Manuel Thery
    Reviewing Editor; CEA, France

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Microtubules soften due to cross-sectional flattening" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a guest Reviewing Editor and Anna Akhmanova as the Senior Editor. The following individual involved in review of your submission has agreed to reveal his identity: Gregory M Alushin (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission. As you will see only one set of additional experiment is suggested. Other comments can be addressed by clarification and discussion in the main text.

Summary:

The manuscript addresses a long-standing problem in microtubule mechanics, namely the discrepancy between the estimation of mechanical parameters (especially the bending rigidity) from different methods (passive - thermal fluctuations versus active - AFM or optical trapping).

Here the mechanical response of microtubules to bending forces has been investigated using an optical trap setup combined with coarse grained molecular dynamics simulations.

The main results are:

- Microtubule lattice experiences softening under relatively large compressive strains.

- This behaviour can be fitted with a new 3D microtubule lattice model which takes into account lattice anisotropy and its hollow cylindrical geometry. In contrast, the 1D elastic beam model is unable to reproduce the experimental behavior for microtubules except for the regime of very small (compressive or tensile) strains.

- An engineered bacterial flagellum more akin to a classical 1D beam, displays the expected Euler-Bernoulli bending mechanics, confirming that the microtubule behavior is not an experimental artifact. In this case the 1D model fits the experimental data very well.

Overall, the manuscript is clearly written, and the results are interesting. Presented data offer a new interpretation for the large variety in microtubule mechanical data measured by different methods and point at the key role of microtubule flattening in the modulation of their apparent stiffness, which is likely to significantly impact our understanding of microtubule mechanics and microtubule network architecture.

Essential revisions:

- Although the present data is potentially too noisy, a step experimental protocol could likely be employed to test the "aging" hypothesis. Specifically, a microtubule could be subjected to a sufficient force to buckle and soften it, followed by a low force. If the microtubule remains soft for some time after buckling, the time between the two force applications could be varied to establish the time constant for "healing". If this is feasible, including these experiments would substantially strengthen the study.

- The authors should explain how they control the attachment between bead and microtubule to obtain a configuration as shown in Figure 1A. The cartoon implies that the beads attach to the side of the microtubule in the direction of the curvature. Can the authors indicate the bead position in the experimental example in Figure 1B to make the cartoon in Figure 1A more credible? Indicated trap positions seem not consistent with the cartoon. Please describe in more detail, how the bead-microtubule attachment is controlled.

- Please describe in more detail how the force strain curve is obtained. For example, is there some averaging for the bead-trap distance, or bead-bead distance?

- From the simulations in Figure 2, Figure 4 and Figure 5 it seems that even at very low compressive strain < 0.05 a hysteresis is still present, and the microtubule may exist in two different conformations, associated with two different forces acting on the optical bead. Is this an artefact of the simulation algorithm, that the lattice gets trapped in a local minimum or do the authors have a physical explanation for the persistence of the hysteresis at very low strains? How is the steady state determined?

- In Figure 4, did the authors test experimentally compressive strains beyond 0.3? Did microtubules break and if so, at which point?

- It is unclear why the authors used a 10 protofilament model rather than a 13 protofilament one. Would the computational expense be so much greater in the latter case? One issue is that this choice leads to unrealistic lateral interactions/distances etc. And usually in vitro lattices with 10 protofilaments differ substantially from the 13 protofilament ones as they can exhibit more than the 1 seam from the 13 case. An explanation is needed.

- A clear comparison of the calculated with the experimentally measured microtubule shapes to validate the presence of the kinking instability is missing.

It seems that the model parameters are determined from a fit against the experimental force-strain curves. Could the authors show, e.g. in additional plots in Figure 5, how the experimental microtubule shapes compare to the simulated microtubule shapes at the points a,b, and c from Figure 5A?

- Alternative explanations could be envisaged and discussed:

Can the authors exclude a twisting of the microtubule lattice? The model calculations (Figure 5) show, that the microtubule lattice undergoes very drastic deformations in the kinking region. Is it plausible, that the microtubule lattice can accommodate these high strains without undergoing structural damage?

Can the authors exclude, that a lattice perturbation at the point of attachment between optical bead and microtubule is responsible for the observed softening?

- The mechanical lattice model is as simple as possible, which is a good thing since it limits the number of microscopic parameters. However, it is unclear whether a single shearing interaction (i.e. $\kappa_s$) in an effective 2D lattice is sufficient to stabilize the deformation of the lattice at the kinking instability. Furthermore, there seems to be some ambiguity concerning the relations between microscopic and macroscopic elastic constants (i.e. two different effective tube wall thicknesses are postulated, see. Table 2), which limits the quality of the predicted macroscopic elastic constants. This problem could be avoided by using for example a double shell lattice (with some diagonal elastic elements) which naturally includes stability against shear and bending in all directions.

https://doi.org/10.7554/eLife.34695.022

Author response

- Although the present data is potentially too noisy, a step experimental protocol could likely be employed to test the "aging" hypothesis. Specifically, a microtubule could be subjected to a sufficient force to buckle and soften it, followed by a low force. If the microtubule remains soft for some time after buckling, the time between the two force applications could be varied to establish the time constant for "healing". If this is feasible, including these experiments would substantially strengthen the study.

Our model makes a number of specific predictions about the mechanical properties of microtubules. Most importantly it demonstrates that microtubules soften above a certain critical strain. Another prediction is that, in the absence of thermal noise, there is a hysteresis in the “forward” and “backwards” force-strain curve that may depend on the rate of strain change. (We find, however, that the addition of thermal noise generally eliminates hysteresis or at least eliminates its low-strain persistence.) Our paper unambiguously demonstrates the first effect. The second prediction is significantly more challenging to test experimentally, since most frequently the predicted jumps are of the same order of magnitude as the noise sources in our detection system. We have performed the force-extension experiments at multiple velocities but have failed to observe any statistically meaningful signature of hysteresis. The main limitation of this measurement lies in the stiffness of the optical trap and the various noise sources that introduce drift into our detection system. Serious efforts to identify the hysteresis steps would require a significant investment into the capabilities of our trapping setup, in order to track down and reduce all sources of detection error. The referees suggest an alternative method of looking for hysteresis, but it is not obvious for us that it would enhance our ability to detect it. We very much hope to pursue this question in the future studies once we upgrade our optical trap system.

- The authors should explain how they control the attachment between bead and microtubule to obtain a configuration as shown in Figure 1A. The cartoon implies that the beads attach to the side of the microtubule in the direction of the curvature. Can the authors indicate the bead position in the experimental example in Figure 1B to make the cartoon in Figure 1A more credible? Indicated trap positions seem not consistent with the cartoon. Please describe in more detail, how the bead-microtubule attachment is controlled.

All of the beads are attached to the side of a microtubule via a biotin streptavidin bond. We follow bead-microtubule attachment protocols very similar to those in the literature (van Mameren et al., 2009; Kikumoto et al., 2006). The former paper, in particular, contains a thorough description of the method. We bring an optically trapped bead to the microtubule side but the precise location of the bead attachment to the microtubule side is not exactly known.

In the end, our experiments seem consistent with an essentially rigid microtubulebead attachment. We note that a finite range of bead movement or rotation relative to the attachment point would appear as a flat region near zero strain in the force-strain curve, which we do not observe.

We know precisely the relative distance between the two trap positions. However, the relative position of the microtubule relative to traps is not precisely known. Therefore, circles in Figure 1B are drawn for illustration purposes and may not precisely represent actual trap positions, since neither beads nor traps are visible in fluorescence imaging. Moreover, bead positions would be practically indistinguishable from trap positions, since the maximum displacement of beads from the centers of their optical traps is on the order of 100 nm, corresponding to about one pixel in the image.

The uncertainty in the precise attachment of the bead to filaments is one of the main motivations for repeating our experiments with structurally simpler bacterial flagellar filaments. In both cases, our simulations include the model of the bead-filaments attachment described in Figure 1. With such a model we are able to quantitatively describe the buckling of the flagellar filaments with a simple one-dimensional elasticity. This provides strong evidence in support of rigid-side attachment of beads to filaments.

- Please describe in more detail how the force strain curve is obtained. For example, is there some averaging for the bead-trap distance, or bead-bead distance?

Trap separation is the independent variable, controlled by acousto-optical deflectors (AODs), and changed in discreet steps of 2 – 10 nm every 0.5 – 1 seconds. For a given trap separation, the force on the detection bead is obtained by multiplying the displacement of the bead (from the center of the optical trap) with the stiffness of the calibrated optical trap. The position of the detection bead is sampled with a quadrant photodiode (QPD) at a rate of 100 KHz and averaged in bins of 1000 samples, effectively resulting in a sampling rate of 100 Hz. Since trap separation is changed every 0.5 – 1 seconds, the force on the bead is measured 50 – 100 times at a given distance. Several cycles of buckling and extension (”back-and-forth runs”) are performed for a given filament so that in the end, the raw force data is binned by trap separation and the average and standard deviation of the force in each bin are computed. Notably, then, force is averaged both over time and over multiple runs.

Due to thermal fluctuations and other noise, experimentally measured forces fluctuate in direction (and magnitude). Since fluctuations in the direction perpendicular to the line connecting the optical traps average out to zero, the forces reported in our manuscript are the parallel components. In the manuscript, we present force – averaged and projected as explained – in terms of strain corresponding to bead separation, rather than optical trap separation (the schematic in Figure 1A illustrates the distinction). We compute bead separation from trap separation, measured force, and optical trap stiffness.

- From the simulations in Figure 2, Figure 4 and Figure 5 it seems that even at very low compressive strain < 0.05 a hysteresis is still present, and the microtubule may exist in two different conformations, associated with two different forces acting on the optical bead. Is this an artefact of the simulation algorithm, that the lattice gets trapped in a local minimum or do the authors have a physical explanation for the persistence of the hysteresis at very low strains? How is the steady state determined?

Video 2 illustrates the reason for the persistence of hysteresis at very low strains, showing that the simulated microtubule mostly but not fully recovers its circular cross-section on the backward run. However, as shown in the first panel of the figure below, we find that the addition of thermal noise greatly reduces or eliminates hysteresis, suggesting that, indeed, persistence of hysteresis in the noise-free simulations is due to the lattice getting trapped in a local minimum.

The simulation curves shown in the manuscript all correspond to a single back-and-forth run starting from the equilibrium position going into either compressive or extensive direction. It is a valid observation that due to the lattice being trapped in a local minimum, the buckling force in consecutive runs will generally fail to perfectly match the force measured in the previous runs until a steady state is reached. However, the discrepancy is bounded by hysteresis size, which is typically small, i.e. within experimental error bars.

- In Figure 4, did the authors test experimentally compressive strains beyond 0.3? Did microtubules break and if so, at which point?

In the experiment corresponding to Figure 2, we tested compressive strains up to almost 0.5 without any apparent breaking or irreversible damage of the microtubule. In other experiments, we did not go beyond a compressive strain of 0.3, since our focus was on doing multiple runs in the force plateau/decline region, which starts at significantly smaller strains (around 0.1). We have repeated our measurements hundreds of times and we observed noticeable microtubule breaking in just one instance, where microtubule exhibited a visible kick and the damage was irreparable. More typically, the first point of failure is the connection with the optical bead.

- It is unclear why the authors used a 10 protofilament model rather than a 13 protofilament one. Would the computational expense be so much greater in the latter case? One issue is that this choice leads to unrealistic lateral interactions/distances etc. And usually in vitro lattices with 10 protofilaments differ substantially from the 13 protofilament ones as they can exhibit more than the 1 seam from the 13 case. An explanation is needed.

Since it has been argued that protofilament orientation is not important with respect to mechanical properties (Hunyadi et al., 2007; Donhauser et al., 2010), our simulated microtubule does not exhibit, for instance, a seam; instead it is composed of straight/parallel protofilaments. In this simplified configuration, the precise number of protofilaments should not have a significant effect. The interaction strengths are scaled so as to correspond to the same macroscopic elastic moduli, regardless of the number of protofilaments (e.g. see Table 1, manuscript, for the relationship between Ec, κc, and p). We chose to work with 10 protofilaments initially to allow for slightly simpler troubleshooting/debugging of our simulations.

The reason is that the precise number of protofilaments in our simulation has little effect on the result (see Author response image 1A). The longer, technical answer starts by noting, as pointed out in a separate question, that our single shell model is insufficient to stabilize the lattice at the kinkink instability (likely because the model does not contain an energy penalty for cross-sectional shearing). As a result, the cross-section essentially collapses completely at the location of the kink (in the absence of steric interactions), with the buckling force practically dropping to zero. This instability can be avoided by using very high damping (which becomes computationally expensive) or, equivalently, by fixing the positions of the’ middle’ (top and bottom) particles in each cross-section. This shortcut cannot be used with an odd number of protofilaments, as the symmetry plane of the cross-section passes through only one particle instead of two, which still allows for the instability to occur. Due to geometrical peculiarities, simulations with 12 PF (or 8, 16, and so on) are also difficult to stabilize without extremely high damping or additional parameters introduced through a second shell or diagonal springs. Simulations with 14 PF, however, agree well with results for 10 protofilaments (or 6, 18, and so on), though the rate of force decline in the’ plateau’ region is slightly higher for 14 PF. The discrepancy is due to the fact that the 14 PF cross-sections flatten somewhat more at kink locations than the 10 PF ones, reaching’ eccentricities’ (as defined in the manuscript) typically around 0.8 compared to 0.6 (see Author response image 1B).

Author response image 1

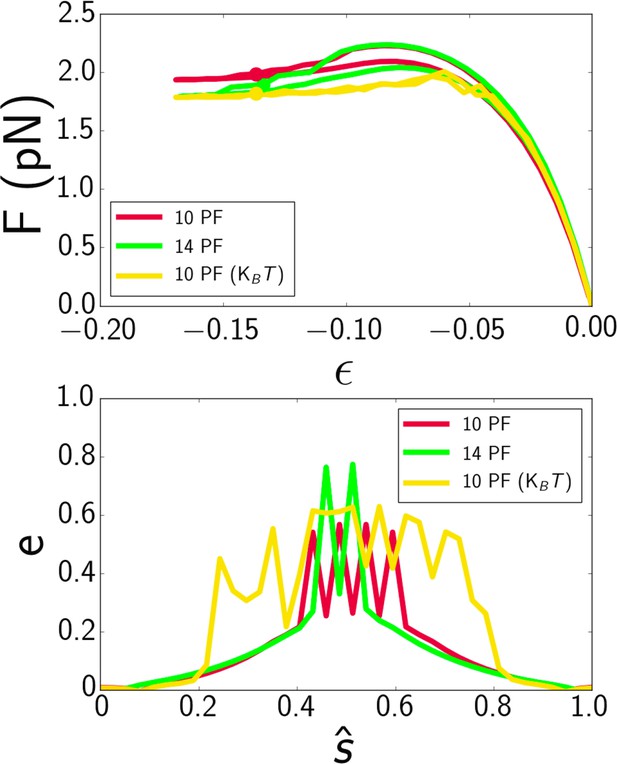

(A) Force-strain curve for a microtubule of length 7.7 μm from simulation using 10 protofilaments (red), 10 protofilaments with thermal noise (yellow), and 14 protofilaments (green).

The fit parameters are E a = 0.6 GPa, E c = 4 MPa, and G = 6 GPa. B) Profiles of flatness e (Eq. 4, manuscript) along the dimensionless arclength coordinate ŝ = s/L (see Fig. 1A, manuscript) at pointsidentified in panel A with dots.

https://doi.org/10.7554/eLife.34695.018

In conclusion, results are qualitatively robust between, say, 10 and 14 PF. Because of geometrical peculiarities arising from discretization, some choices for the number of protofilaments are difficult to stabilize (without extremely high damping) against cross-sectional shear instabilities.

- A clear comparison of the calculated with the experimentally measured microtubule shapes to validate the presence of the kinking instability is missing.

It seems that the model parameters are determined from a fit against the experimental force-strain curves. Could the authors show, e.g. in additional plots in Figure 5, how the experimental microtubule shapes compare to the simulated microtubule shapes at the points a,b, and c from Figure 5A?

Simultaneous measurement of the force-strain curve and measurement of microtubule shape are generally not possible. The main reason is that microtubule filaments easily rotate along the axis connecting the two beads and are thus are most of the time out of the focal plane. While it is possible to keep the microtubule in the focal plane by applying a very slight flow, this comes at the expense of the ability to measure the buckling force. Other issues include the optical beads and the seed regions of the microtubule (labeled with a different dye) not being visible in fluorescence and the low resolution of experimental images.

For a few images where the filaments are seen to be in focus we have tried to fit the microtubule shape to theoretical predictions. For example, the filament in Figure 5 from the manuscript seems to be in focus at a strain around -0.21, near the point labeled (c) in that figure. Trying to match the contour from fluorescence imaging to the profile of the simulated filament at that strain reveals decent agreement but does not lead to perfectly compatible bead positions (Author response image 2A). Similarly, trying to match the optical bead positions between simulation and experiment leads to non-matching filament shapes (Author response image 2B). This can easily be attributed to the filament not being perfectly in the focal plane, but rather tilted at some angle. With this assumption, the shapes seem fairly consistent. However, due to the concerns raised above it seems to us that such analysis should not be included in the manuscript.

Author response image 2

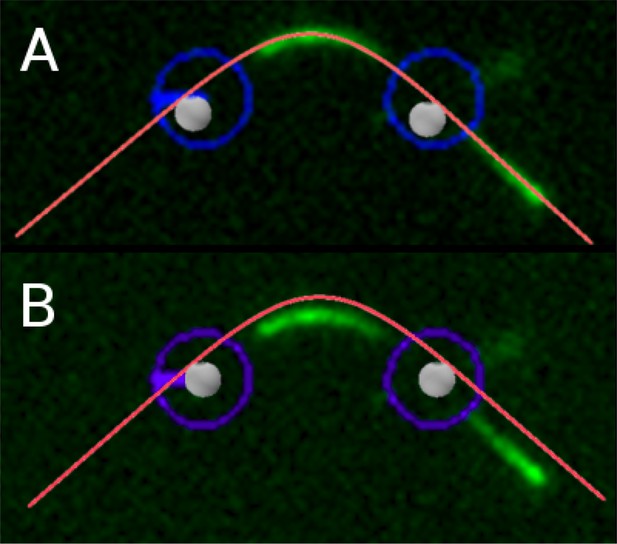

Comparison of shape between experiment (filament: (green); approx-imate trap positions: (blue)) and simulation (filament: (red); optical beads:(gray)) for a microtubule of length 8.3 μm (same as in figure 5, manuscript) at astrain ε ≈ −0.21 by A) aligning filament profiles and B) aligning bead positions(estimated).
https://doi.org/10.7554/eLife.34695.019

- Alternative explanations could be envisaged and discussed:

Can the authors exclude a twisting of the microtubule lattice? The model calculations (Figure 5) show, that the microtubule lattice undergoes very drastic deformations in the kinking region. Is it plausible, that the microtubule lattice can accommodate these high strains without undergoing structural damage? Can the authors exclude, that a lattice perturbation at the point of attachment between optical bead and microtubule is responsible for the observed softening?

The simulation does indeed exhibit a twisting mode in a parameter regime in which the shear modulus is small (order MPa) and the circumferential Young’s modulus is large (order GPa). The large value of the latter modulus, however, seemingly conflicts with the observation by Needleman et al. of cross-sectional collapse of microtubules at very low osmotic pressures. Moreoever, we weren’t able to fit our experimental data to simulations in the twisting regime; while twisting does lead to a decline in the buckling force, this decline is generally steeper than observed experimentally. Twisting in simulations eventually leads to an instability whereby a single segment accommodates all the twist (unphysical due to absence of steric interactions from simulation), causing a sudden sharp drop in the buckling force.

In addition, the twisting mode may not be consistent with the continued decline of buckling force observed experimentally; we expect that beyond a certain limit, twisting microbubules could become more rigid rather than soft, perhaps because of steric interactions, or breaking of bonds. In contrast, the cross-sectional ovalisation model allows for continued softening by the formation of increasingly more kinks. Further support for the ovalisation explanation comes from the fairly good agreement in shape between actual and simulated microtubules (see Figure 2).

We don’t know whether the microtubule can accommodate these high strains without undergoing structural damage. A lattice perturbation at the point of attachment between microtubule and optical bead may be expected to have immediate effect. In contrast, we see softening occur past some critical strain, whose value is consistent with the Brazier buckling mode, based on our fits.

- The mechanical lattice model is as simple as possible, which is a good thing since it limits the number of microscopic parameters. However, it is unclear whether a single shearing interaction (i.e. $\kappa_s$) in an effective 2D lattice is sufficient to stabilize the deformation of the lattice at the kinking instability. Furthermore, there seems to be some ambiguity concerning the relations between microscopic and macroscopic elastic constants (i.e. two different effective tube wall thicknesses are postulated, see. Table 2), which limits the quality of the predicted macroscopic elastic constants. This problem could be avoided by using for example a double shell lattice (with some diagonal elastic elements) which naturally includes stability against shear and bending in all directions.

A single shearing interaction fails, in fact, to stabilize the lattice deformation at the kinking instability unless the system is highly overdamped. The failure results in a complete cross-sectional collapse (in the absence of steric interactions) accompanied by a sharp, sudden drop in the buckling force and is likely due to the fact that in the 2D shell model there is no energy penalty for cross-sectional shear.

Since simulations under extremely damped conditions required to avoid complete cross-sectional collapse at the kinking instability are very time-consuming, we employ a shortcut in using slightly lower damping while fixing the positions of the middle (top and bottom) points of each cross-section in the transverse plane, preventing them from breaking transverse symmetry (thus preventing collapse through shearing), yet still allowing for cross-sectional ovalisation. Two different effective thicknesses are used due to the corrugated profile of microtubules. When modeled as a shell of uniform thickness, the actual cross section of a microtubule is replaced by an annular cross section with equivalent thickness h ≈ 2.7 nm (de Pablo et al., 2003). However, the effective bending stiffness is different; since most of the strain is localized to the bridges between the protofilaments (Schaap et al., 2006), the effective bending stiffness is closer to the bridge thickness. A double shell lattice (or a spoke-like geometry, perhaps) can certainly stabilize against cross-sectional shear, for example. However, this comes at a cost – increasing the number of parameters and the complexity of the model and possibly introducing reduncancy/degeneracy in the relations between microscopic and macroscopic elastic constants. For instance, circumferential stretching is now governed by two microscopic constants – the stiffnesses of both the diagonal and circumferential elements – such that the same macroscopic modulus may correspond to different combinations of the microscopic constants. Since we are able to use symmetry constraints to stabilize the much simpler single shell model, we may argue that a more complex model is not necessary.

https://doi.org/10.7554/eLife.34695.023

Article and author information

Author details

  1. Edvin Memet

    Department of Physics, Harvard University, Cambridge, United States
    Contribution
    Conceptualization, Software, Formal analysis, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Feodor Hilitski
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9414-597X
  2. Feodor Hilitski

    Department of Physics, Brandeis University, Waltham, United States
    Contribution
    Data curation, Software, Validation, Investigation, Methodology, Writing—review and editing
    Contributed equally with
    Edvin Memet
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5629-1407
  3. Margaret A Morris

    Department of Physics, Brandeis University, Waltham, United States
    Contribution
    Formal analysis, Investigation
    Competing interests
    No competing interests declared
  4. Walter J Schwenger

    Department of Physics, Brandeis University, Waltham, United States
    Contribution
    Data curation, Software, Formal analysis
    Competing interests
    No competing interests declared
  5. Zvonimir Dogic

    1. Department of Physics, Brandeis University, Waltham, United States
    2. Department of Physics, University of California, Santa Barbara, Santa Barbara, United States
    Contribution
    Formal analysis, Funding acquisition, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0142-1838
  6. L Mahadevan

    1. Department of Physics, Harvard University, Cambridge, United States
    2. Paulson School of Engineering and Applied Sciences, Harvard University, Cambridge, United States
    3. Kavli Institute for Nano-Bio Science and Technology, Harvard University, Cambridge, United States
    Contribution
    Conceptualization, Formal analysis, Supervision, Funding acquisition, Methodology, Project administration, Writing—review and editing
    For correspondence
    lmahadev@g.harvard.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5114-0519

Funding

U.S. Department of Energy (DE-SC0010432TDD)

  • Feodor Hilitsk
  • Zvonimir Dogic

National Science Foundation (NSF-MCB-1329623)

  • Zvonimir Dogic

National Science Foundation (DMR-1420382)

  • Zvonimir Dogic

Harvard MRSEC (NSF DMR 14-20570)

  • Edvin Memet
  • L Mahadevan

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The experimental portion of this work was primarily supported by the U.S. Department of Energy, Office of Basic Energy Sciences, through award DE-SC0010432TDD (FH and ZD) while the theoretical portion was supported by Harvard MRSEC through grant NSF DMR 14-20570. Experiments on bacterial flagella were supported by National Science Foundationthrough grant NSF-MCB-1329623 and NSF- DMR-1420382. We also acknowledge use of the Brandeis Materials Research Science and Engineering Center (MRSEC) optical and biosynthesis facilities supported by NSF-MRSEC-1420382

Reviewing Editor

  1. Manuel Thery, CEA, France

Publication history

  1. Received: February 6, 2018
  2. Accepted: June 1, 2018
  3. Accepted Manuscript published: June 1, 2018 (version 1)
  4. Version of Record published: July 12, 2018 (version 2)
  5. Version of Record updated: February 28, 2019 (version 3)

Copyright

© 2018, Memet et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,647
    Page views
  • 331
    Downloads
  • 9
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Cell Biology
    2. Chromosomes and Gene Expression
    Leah F Rosin et al.
    Research Article Updated
    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Leslie A McCauliff et al.
    Research Article Updated
