Hexameric and pentameric complexes of the ExbBD energizer in the Ton system

  1. Saori Maki-Yonekura
  2. Rei Matsuoka
  3. Yoshiki Yamashita
  4. Hirofumi Shimizu
  5. Maiko Tanaka
  6. Fumie Iwabuki
  7. Koji Yonekura  Is a corresponding author
  1. RIKEN SPring-8 Center, Japan
  2. University of Fukui, Japan
Research Article
  • Cited 1
  • Views 1,081
  • Annotations
Cite this article as: eLife 2018;7:e35419 doi: 10.7554/eLife.35419

Abstract

Gram-negative bacteria import essential nutrients such as iron and vitamin B12 through outer membrane receptors. This process utilizes proton motive force harvested by the Ton system made up of three inner membrane proteins, ExbB, ExbD and TonB. ExbB and ExbD form the proton channel that energizes uptake through TonB. Recently, crystal structures suggest that the ExbB pentamer is the scaffold. Here, we present structures of hexameric complexes of ExbB and ExbD revealed by X-ray crystallography and single particle cryo-EM. Image analysis shows that hexameric and pentameric complexes coexist, with the proportion of hexamer increasing with pH. Channel current measurement and 2D crystallography support the existence and transition of the two oligomeric states in membranes. The hexameric complex consists of six ExbB subunits and three ExbD transmembrane helices enclosed within the central channel. We propose models for activation/inactivation associated with hexamer and pentamer formation and utilization of proton motive force.

https://doi.org/10.7554/eLife.35419.001

eLife digest

Many biological processes that are essential for life are powered by the flow of ions across the membranes of cells. Similar to how energy is stored in the water behind a dam, energy is also stored when the concentration of ions on one side of a biological membrane is higher than it is on the other. When these ions then flow down this concentration gradient, the energy can be harnessed to power other processes.

In many bacteria, the concentration of hydrogen ions, or protons, is higher on the outside of the cell. When the protons flow down the concentration gradient, a protein complex called the Ton system in the bacteria’s inner membrane harnesses the energy to transport various compounds, including essential nutrients, across the outer membrane, which is about 20 nanometres away. Toxins, and viruses that infect bacteria, can also hijack the Ton system to gain entry into these cells. This means that the Ton system could perhaps be targeted via drugs to treat bacterial infections.

Though the Ton system is important, structural information on this protein family is limited. The Ton complex is composed of three proteins – ExbB, ExbD and TonB – located in the bacteria’s inner membrane. ExbB and ExbD together form a channel for the protons and the complex made from these two proteins can be thought of as the system’s engine.

Maki-Yonekura et al. wanted to understand how the ExbB / ExbD complex works, which was challenging because the complex was not well suited to any single structural biology technique. To get around this issue, a combination of two techniques called X-ray crystallography and single particle cryo-EM were used. This approached revealed that the two proteins form complexes made up of either five or six ExbB subunits with one or three ExbD subunits, respectively. It also showed that the proteins transition between the two forms in a cell’s membrane. More of the larger six-unit complex (also called a “hexamer”) formed at higher pH. This is consistent with the increased flow of protons through the channel when the local conditions inside the cell become less acidic.

Based on these results, Maki-Yonekura et al. propose that some subunits in the core of the complex rotate to harness the energy from the flow of protons, and the number of subunits in the complex changes when it switches to become active or inactive. The discoveries may provide a new vision of dynamic membrane biology. Further studies are now needed to see how general this mechanism is in biology, and the new structural information could also be used to help develop more anti-bacterial drugs.

https://doi.org/10.7554/eLife.35419.002

Introduction

Many essential biological processes are coupled to ion potentials across the lipid membrane. These include, amongst others, ATP synthesis (Junge et al., 2009), uptake of nutrients (Faraldo-Gómez and Sansom, 2003; Noinaj et al., 2010; Krewulak and Vogel, 2011; Abramson et al., 2003), protein secretion (Tsukazaki et al., 2011), multi-drug excretion (Murakami et al., 2006), and rotation of the flagellar motor (Kojima, 2015). The Ton complex (Faraldo-Gómez and Sansom, 2003; Noinaj et al., 2010; Krewulak and Vogel, 2011) in gram-negative bacteria is an interesting example of a molecular machine that depends on proton motive force (PMF). While other systems use this transmembrane (TM) energy at source (that is at the membrane with the proton gradient) the Ton system conveys it to the distant outer membrane, ~20 nm away from the energy source sited at the inner membrane (Du et al., 2014; Matias et al., 2003) (Figure 1—figure supplement 1). The Ton complex is composed of three proteins ExbB, ExbD and TonB located in the inner membrane. It utilizes PMF to take up diverse compounds such as iron-loaded siderophores, haem, and vitamin B12 through outer membrane receptors (Faraldo-Gómez and Sansom, 2003; Noinaj et al., 2010; Krewulak and Vogel, 2011; Schauer et al., 2008). Toxins such as colicin and some antibiotics, as well as phages, hijack the Ton system to gain entry to these cells (Noinaj et al., 2010; Krewulak and Vogel, 2011; Schauer et al., 2008; Lloubès et al., 2012). It could perhaps be used, through drug targeting, to attack pathogenic gram-negative bacteria (Neelapu et al., 2015).

In response to proton flux through the Ton complex, the C-terminal domain of TonB interacts with TonB-dependent outer membrane receptors, which bind specific substrates. A conformational change releases the bound substrate from the receptor into the periplasmic space. Each substrate is then transported into the cell by its specific inner membrane transporters and related proteins (Figure 1—figure supplement 1). In all cases, the Ton complex initiates the process and works as the energizer for outer membrane substrate uptake. ExbB has three TM helices with a large cytoplasmic domain (Celia et al., 2016), and both ExbD and TonB are predicted to have single TM helices and a compact periplasmic domain (Garcia-Herrero et al., 2007; Ködding et al., 2005). ExbB and ExbD together form a proton channel, and isolated ExbBD complexes show ion conductivity and cation selectivity in vitro (Celia et al., 2016). The ExbBD complex can be thought of as the engine and TonB a drive shaft connecting the engine to the gate in the outer membrane.

Other channel complexes such as MotAB/PomAB (Kojima, 2015), TolQR (Lloubès et al., 2012; Godlewska et al., 2009), and AglRQS (Agrebi et al., 2015) exhibit sequence homology to ExbBD and also utilize ion motive force, but have different physiological functions. MotAB and PomAB generate torque for flagellar rotation, TolQR maintains outer membrane integrity, and AglRQS energizes surface gliding and sporulation in slime bacteria. Although structural information on this family is limited, recently crystal structures of the ExbB pentamer with and without a short segment of ExbD including the TM region have been solved, giving valuable insights into the architecture of the ExbB complex. However, a pentameric functional unit seems not to fit with previous studies (Higgs et al., 2002; Jana et al., 2011; Pramanik et al., 2011; Sverzhinsky et al., 2014; Sverzhinsky et al., 2015).

Here, we report the structures of complexes of hexameric ExbB and ExbD revealed by X-ray crystallography and single particle cryo-EM. Image analyses show hexameric and pentameric complexes coexisting in detergent micelles and within lipid bilayers. Formation of the hexamer is promoted at higher pH, in line with an increased macroscopic channel conductance. The architecture of the ExbB hexamer and ExbD trimer complex suggests a model for utilization of PMF.

Results

Crystal structure determination

We expressed and purified Escherichia coli full-length ExbB-ExbD complexes. The structure of crystals grown at pH 9.0 was solved to 2.8 Å by molecular replacement. A starting hexamer model was constructed by docking the coordinates of the ExbB monomer cut out from the pentamer (Celia et al., 2016) into a low-resolution cryo-EM map of the hexameric complex (See Materials and methods). The asymmetric unit in the lattice with space group P21 (Supplementary file 1-Table S1) contains two ExbB hexamers, one disposed upside down with respect to the other, and interacting laterally with each other (Figure 1—figure supplement 2). The overall hexamer structure resembles a bell with a vertical dimension of ~110 Å and a maximal horizontal dimension on the cytoplasmic side of ~85 Å (Figure 1). Throughout this paper ‘top’ and ‘bottom’ correspond to the periplasmic and cytoplasmic ends, respectively. We also define the periplasmic side ‘up’ and the cytoplasmic side ‘down’ and describe the structure accordingly.

Figure 1 with 3 supplements see all

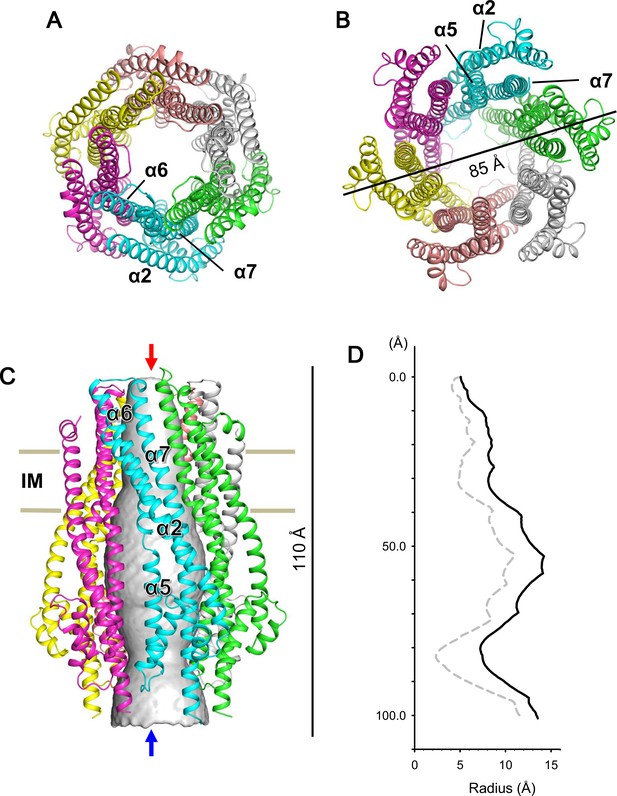

Crystal structure of the ExbB hexamer.

(A) Viewed from the periplasmic side indicated by a red arrow in (C). (B) From the cytoplasmic side indicated by a blue arrow in (C). (C) Viewed parallel to the membrane. Overlaid with volume rendering (Smart et al., 1996) inside the central channel. Long α-helices are labelled α2, α5, α6 and α7 for one subunit in cyan. See also Figure 2A. (D) Plots of the channel radii (Smart et al., 1996) of the hexamer (solid line) and pentamer (dashed line; Celia et al., 2016).

https://doi.org/10.7554/eLife.35419.003

The proportion of ExbD tended to decrease upon crystallization, as deduced from SDS-PAGE patterns of crystal samples (Figure 1—figure supplement 3). Yet, peptide mass finger printing analysis showed that some ExbD is retained in the crystals. A Fourier difference map revealed untraceable masses, probably parts of ExbD TM helices, inside the channel of the hexamer. Low occupancy and possibly flexibility may account for the lack of clarity.

Comparison with the pentamer structure

The ExbB monomers in the hexamer show similar structures to those in the pentamer (the average RMSD of Cα atoms between two monomers is 1.4 Å), despite the different subunit number (Figure 2A). The structure has been described previously (Celia et al., 2016), and, briefly, consists of three long α-helices (80 ~ 100 Å), one of which is broken at its middle in the cytoplasm, extending across the cytoplasmic and periplasmic spaces, and connected with short α-helices and loops; in total 7 α-helices (α1 - α7 from the N-terminus) are in each monomer. The TM region is well conserved over species (Figure 2A).

Figure 2 with 1 supplement see all

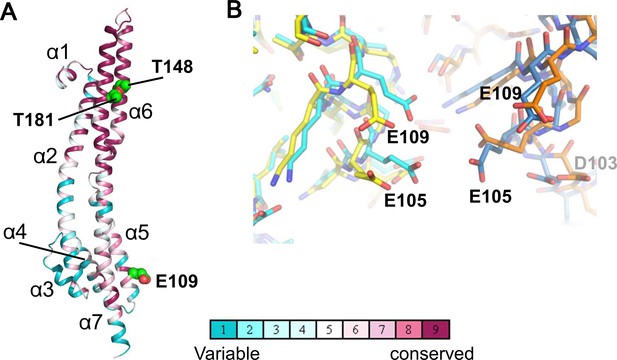

Structure of the ExbB monomer and interface between two subunits at the cytoplasmic end in the crystal.

(A) ExbB monomer in gradient colour representation for conserved and variable amino acids (Landau et al., 2005). Sequences were compared over 150 homologous proteins from the Uniprot database and aligned with BLAST. Thr 148 and Thr 181 face inside the channel. These threonines and Glu 109 in the acidic cluster (B) are displayed in CPK representation. (B) The acidic cluster between two neighbouring subunits in the cytoplasmic end. Viewed from inside the channel. See also Figure 2—figure supplement 1C. Stick representations for subunits of the hexamer in yellow and orange, and those of the pentamer in cyan and sky blue.

https://doi.org/10.7554/eLife.35419.007

The hexamer and pentamer form similar funnel structures with large cytoplasmic and smaller periplasmic domains connected through the TM region (Figures 1 and Figure 2—figure supplement 1). The overall volume is ~60,400 Å3 in the hexamer with an outermost diameter of ~85 Å on the cytoplasmic side and ~43,900 Å3 and ~75 Å respectively in the pentamer. The channel at center is surrounded by TM helices α6 and α7 in the membrane region and α5 and α7 further down (Figures 1, 2A and Figure 2—figure supplement 1). The channel in the hexamer is significantly larger than that in the pentamer (Figure 1D). The diameter in the hexamer is ~17 Å and that in the pentamer ~10 Å through the TM region. The pentamer structure of the crystal grown at pH 4.5 resolved one rod-like density located in the central channel towards the periplasm, and a part of the rod was assigned to a TM segment of ExbD (Celia et al., 2016). The channel of the pentamer can accommodate only one helix, whereas that of the hexamer has multiple helices. This is confirmed in cryo-EM maps seen below. The larger central channel in the hexamer would fit better with a multimerizing nature of ExbD (Higgs et al., 2002; Ollis et al., 2009; Gresock et al., 2015).

In both complexes, the large cytoplasmic domain has a cluster of positively charged residues surrounding the channel close to the membrane surface and a group of negatively-charged residues at the end on the cytoplasmic side (Figure 2—figure supplement 1C). Neighboring monomers of ExbB in the hexamer and in the pentamer bury approximately the same surface areas (3000 Å2) and the residues contributing to interactions are also similar. It is not obvious why hexamers crystallized at pH 9.0, but the negatively charged amino acids in the acidic cluster at the cytoplasmic end are further apart in the hexamer, and the channel radius is particularly large here (Figures 1D, 2B, Figure 2—figure supplement 1A and B). Lower pH increases chances for hydration of ionised acidic residues, which may allow the denser packing here of the pentamer. This region is important for function, as deletion of residues 100–109, which include four acidic residues (Asp 102, Asp 103, Glu 105, and Glu 109) decreases iron transport activity (Bulathsinghala et al., 2013). It should be noted that in the previous structure study, well-diffracting crystals of pentamers at pH 7.0 or lower were obtained following treatment of ExbB with a methyl-reducing reagent to modify the amide in lysine side chains (Celia et al., 2016). Indeed, the modified lysine near Glu 109 and a calcium ion bound to all five Glu 105 side chains appeared to be needed for pentamer formation in the crystals (Figure 2d of Celia et al., 2016). Our crystals do not need such treatment.

Coexistence of the hexameric and pentameric complexes

We measured the channel conductance of ExbBD complexes reconstituted into planar lipid bilayers. The behaviour of the channel is similar to that reported in Celia et al., 2016: The conductance shows high pH dependence, poor at low pH and greater at neutral pH or above (Figure 3; Celia et al., 2016).

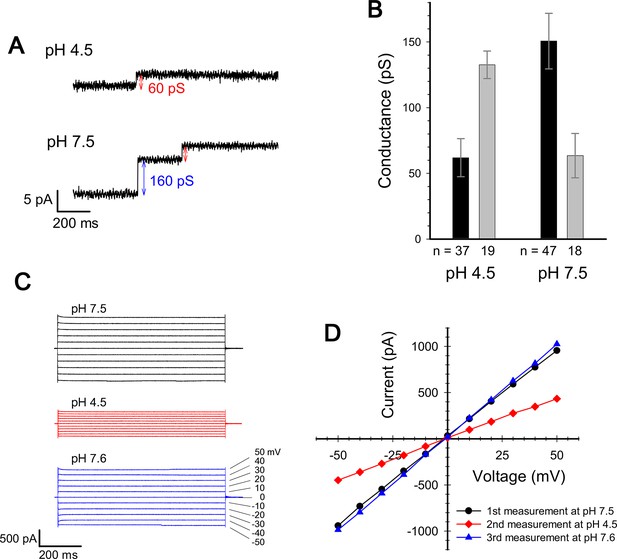

Current measurement for ExbBD complexes in planar lipid bilayers.

(A) Typical charts of channel current at pH 7.5 and pH 4.5 with a voltage of ± 50 mV. (B) The single channel conductance at pH 4.5 and 7.5. Two major modes are shown with number of observations (n). Incremental points as in (A) were counted as the event of the single channel, as it is unlikely that two events occur simultaneously. (C) Macroscopic current traces upon voltage steps for many ExbBD complexes in the planar bilayers. The current was first measured at pH 7.5 (black) and then the solutions in the cis and trans chambers were changed to pH 4.5 (red) for another measurement by adding succinic acid. After that, it was returned to pH 7.6 (blue) with Tris buffer. (D) Current-voltage diagrams of the datasets in (C).

https://doi.org/10.7554/eLife.35419.009

We then examined frozen-hydrated specimens of ExbBD complexes (Figure 4—figure supplement 1A and B) purified at various pHs with cryo-EM. Reference-free 2D class average of molecular images produced characteristic projections (Figures 4A, B, Figure 4—figure supplement 1B and E). They include hexameric and pentameric structures corresponding to projections normal to the membrane plane. The hexameric and pentameric images resolve axial projections of the α-helices and well resemble the crystal structures viewed from the same direction (Figure 4A and B). Complexes of ExbB pentamer and hexamer coexist in the sample solution and the proportion of each depends on pH, being 3:1 at pH 5.4, 1:3 at pH 8.0, and almost entirely hexamers at pH 9.0 (Figure 4C and Supplementary file 1-Table S2).

Figure 4 with 1 supplement see all

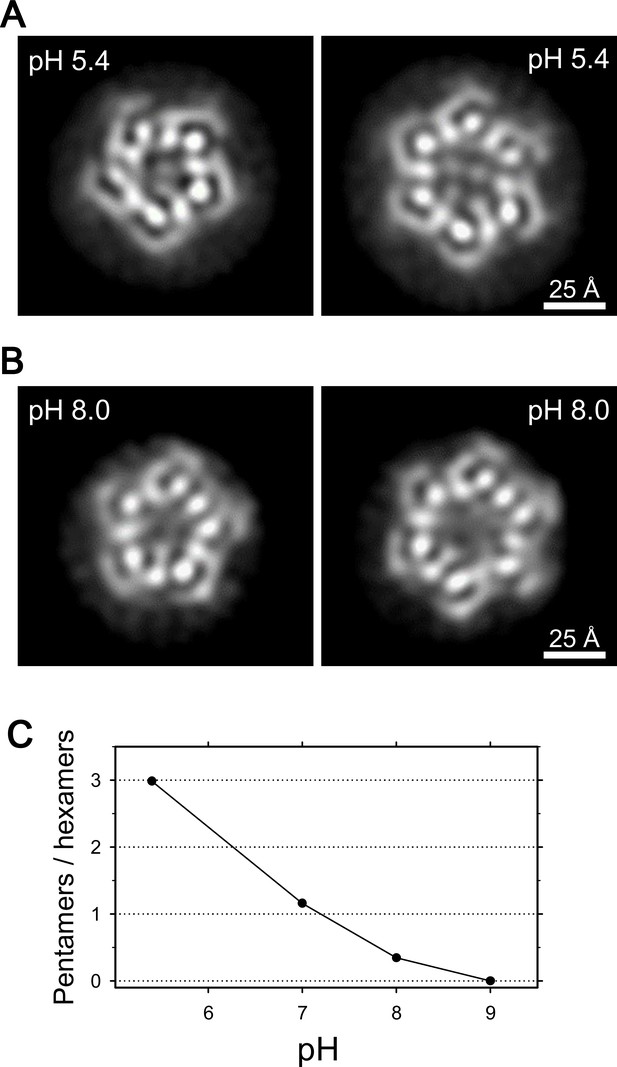

Coexistence of hexameric and pentameric ExbBD complexes.

(A) 2D class average at pH 5.4. (B) 2D class average at pH 8.0. (C) Plot showing the ratio of particle numbers contributed to pentameric averages against those to the hexameric averages. See also Supplementary file 1-Table S2 for the particle numbers.

https://doi.org/10.7554/eLife.35419.010

The number of ExbB and ExbD subunits in the functional unit has been argued for years (Higgs et al., 2002; Jana et al., 2011; Pramanik et al., 2011; Sverzhinsky et al., 2014; Sverzhinsky et al., 2015). Estimation of the subunit number has been elusive likely due to this pH dependent pentamer/hexamer equilibrium. A previous MS analysis showed that the main fraction of the sample in the weak basic condition used corresponded to ExbB hexamers and small amounts of the pentamer were also found (Pramanik et al., 2011). This proportion is consistent with our results (Figure 4).

Hexamers and pentamers also coexist within lipid bilayers. We prepared 2D crystals at pH 5.4 by reconstituting purified ExbBD complexes into liposomes. Fourier transform of the crystals showed pseudo-hexagonal lattice patterns as in 3D crystals in P1 lattices of another crystal form found by X-ray diffraction experiments (See Materials and methods). Fourier filtering of different patches from negatively-stained 2D crystals revealed pentagonal and hexagonal images (Figure 5). The coexistence of pentamers and hexamers probably prevents growth of well-diffracting crystals at pH 5.4 (see Materials and methods).

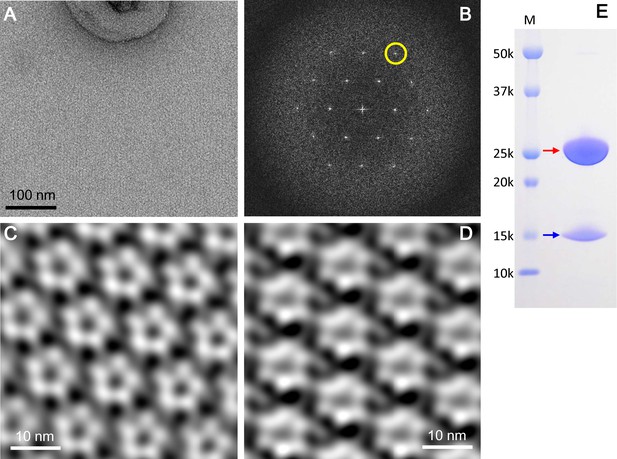

2D crystals of the ExbBD complex in lipid bilayers.

(A) A representative EM image of a negatively-stained 2D crystal. (B) Fourier transform of a crystal patch. A pseudo-hexagonal lattice pattern is visible. A yellow circle refers to a diffraction spot at ~35 Å resolution. (C) A typical array of pentagonal molecules obtained by Fourier-filtering of crystal patches. (D) A typical array of hexagonal molecules by Fourier-filtering other crystal patches. All the figures in (A), (B), (C) and (D) were produced from 2D crystals grown at pH 5.4. Eleven images were analysed. (E) A SDS-PAGE pattern of 2D crystals. Red and blue arrows correspond to ExbB and ExbD, respectively. Lane marked 'M' indicates marker.

https://doi.org/10.7554/eLife.35419.012

The 2D crystals contained both full-length ExbB and ExbD (Figure 5E). In contrast, loss of ExbD occurred in 3D crystals (Figure 1—figure supplement 3C). The 3D crystals appeared to be built by stacking of 2D crystal layers (Figure 1—figure supplement 2A and B). The periplasmic part of ExbD, which includes a long loop and a compact peptidoglycan-binding motif, would be difficult to fit between the 2D crystal layers in both P21 and P1 3D crystal lattices without deforming these domains (Figure 1—figure supplement 2A and B). Thus, stacking of 2D crystal layers might exclude ExbD because of these steric effects.

The measurement of the single channel conductance showed that there are two major conductance states at both pH 7.5 and at pH 4.5, exhibiting conductances of 140–150 pS and ~60 pS (Figure 3A and B). The frequency of the high conductance state was about 2.6 times that of the low at pH 7.5 (47 events versus 18), and was about half that of the low at pH 4.5 (19 events versus 37). Thus two distinct states co-exist and frequency distributions depend on pH, tying in with the EM data if the hexamer and pentamer represent channels with high and low conductance, respectively. The two states/channels appear interchangeable in the lipid bilayer as macroscopic currents are reversible on adjusting pH (Figure 3C and D).

Cryo-EM structures

As shown, the electron density map of the crystal of the ExbB hexamer and ExbD complex does not allow modelling of ExbD (Figure 1—figure supplement 2C and D), even though the crystal retains a small amount of ExbD (Figure 1—figure supplement 3C). Purified samples actually contain a significant amount of ExbD (Figure 1—figure supplement 3B). To identify ExbD in the complex, we carried out 3D reconstruction from the cryo-EM images of the samples at pH 8.0 by single particle analysis (Supplementary file 1-Table S2). Starting from a reference map filtered to 30 Å resolution from the atomic model of the ExbB hexamer, a 3D structure was determined at 6.7 Å resolution (Figure 4—figure supplement 1C) with Bayesian-based algorisms implemented in RELION (Scheres, 2012). The heterogeneity (Figure 4B) as well as the relatively low molecular weight and low-symmetry did not allow reconstruction at higher resolutions and densities corresponding to side chains were not visible.

Nonetheless, the map clearly resolves all α-helices and loops in the ExbB hexamer except for small parts of the loops at the periplasmic and at the cytoplasmic ends (Figures 6 and Figure 6—figure supplement 1A). Densities corresponding to bound detergent around the TM region are visible at a lower contour level (Figure 6—figure supplement 1A). The map also reveals three rod-like densities inside the channel, which likely correspond to the TM helices of three ExbD molecules (Figure 6). The helices fit snugly into the hexamer channel, with the arrangement off-centre and asymmetrical. Indeed, the rod-like densities disappear if 3-fold symmetry is enforced. The local resolutions were estimated to be 4 ~ 5.5 Å for most of the α-helices both in the ExbB hexamer and the central channel (Figure 4—figure supplement 1D). Several lines of evidence show that ExbD has a propensity for dimerization (Celia et al., 2016; Higgs et al., 2002; Ollis et al., 2009), but can be monomeric as in an NMR experiment at low pH (Garcia-Herrero et al., 2007). Also, ExbD forms a heterodimer with TonB (Ollis et al., 2009; Gresock et al., 2015), further suggesting more than one oligomerization possibility for ExbD.

Figure 6 with 1 supplement see all

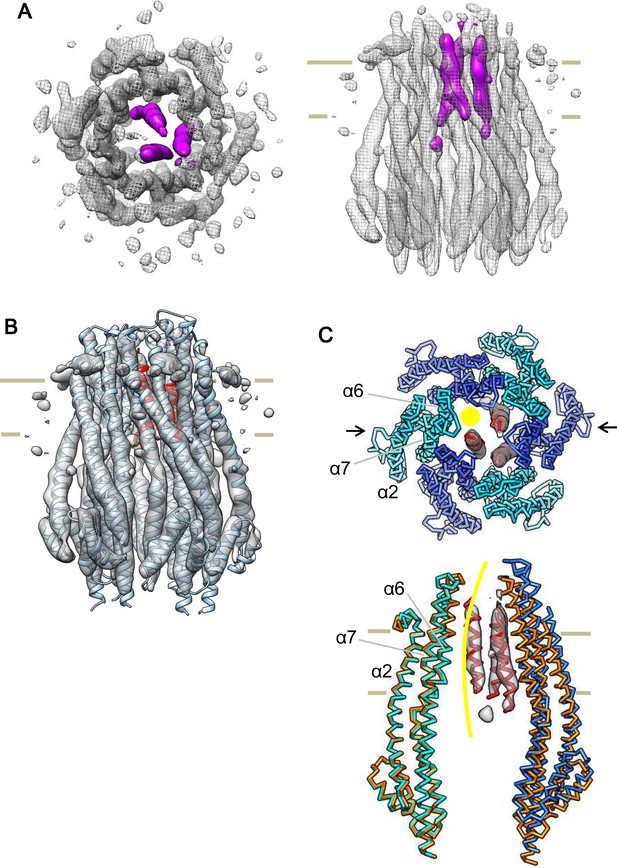

Cryo-EM structure of the ExbB hexamer and ExbD trimer complex.

(A) Top and side views of the hexameric complex. Reconstructed to 6.7 Å resolution from cryo-EM images of samples at pH 8.0. The arrangement of the ExbD helices coloured in magenta is asymmetric inside the channel. (B) The same side view as in (A). Overlaid with the atomic models of ExbB in cyan and ExbD TM helices (ExbDTM) in red. The model of ExbB6D3TM, ExbB subunits in the hexamer crystal and ExbDTM were fitted into the cryo-EM reconstruction by rigid-body refinement in real space (Adams et al., 2010). (C) Structure changes in the ExbB6D3TM model. The cryo-EM map corresponding to ExbDTM is displayed. Side view only shows two ExbB subunits in cyan and sky blue (indicated with arrows in the top view in C) overlaid with the same ones in the crystal (orange). The subunit on the left is superimposed on that of the crystal and that on the right shows the dislocation from the position of the crystal subunit needed to fit the cryo-EM map. The viewing direction of the side view in (C) is rotated anticlockwise by ~40° around the channel axis from those in (A) and (B). A yellow circle in the top view and curve in the side view indicates the putative ion pathway.

https://doi.org/10.7554/eLife.35419.013

Another interesting feature in the cryo-EM map is that a single mass in the periplasm becomes visible at ~ a half-contour level (Figure 6—figure supplement 1B) of that in Figure 6—figure supplement 1A. The mass is ~ 50 Å above the membrane surface. ExbD is predicted to consist of a compact periplasmic domain, one TM helix, and a loop region connecting these two. The compact periplasmic domain in the NMR structure of ExbD consists of several short β-strands and α-helices facing each other, and this arrangement is seen in other peptidoglycan binding proteins (Garcia-Herrero et al., 2007; Wojdyla et al., 2015). We docked this domain of ExbD in the cryo-EM map, and the dimension of the mass in the periplasm is such that it accommodates three domain structures well (Figure 6—figure supplement 1B).

We also reconstructed a 3D structure of the pentameric complex at pH 5.4 in the same way. The 3D map resolved a pentameric structure with clear three long α-helices per subunit in the cytoplasmic domain but poorer masses in the TM region except for a rod-like density inside the channel. This is probably due to the lower molecular weight of the complex compared with the hexamer and more preferential orientations for top views in cryo-EM images of samples at pH 5.4. Five-fold symmetrization, however, gave a better map. Although the quality of this pentamer map, particularly the continuity of α-helices at the periplasm, is still not quite as good as those of the hexameric complex, a single rod-like density appears again inside the channel in the TM region (Figure 6—figure supplement 1C). The rod probably corresponds to the TM helix of ExbD. There is insufficient space to accommodate more helices in the channel. The findings are consistent with the crystal structure of the pentamer at pH 4.5 (Celia et al., 2016).

Structural changes in the single particle reconstructions

The crystal structure of the ExbB hexamer needed slight modifications to be fitted into the cryo-EM map of the hexameric complex (Figure 6). This was done by rigid-body refinement of the atomic model of the ExbB hexamer and three ExbD TM helices (ExbDTM) against the cryo-EM map in real space (Supplementary file 1-Table S3). In the crystal, each ExbB subunit is settled on a flat plane parallel to the membrane and well follows the six-fold symmetry normal to this plane. In contrast, each subunit in the fitted model (ExbB6ExbD3TM) is gradually dislocated by 1 ~ 3 Å from the membrane plane downwards towards the cytoplasmic side in the cryo-EM structure (Figure 6C).

The arrangement of the ExbB models in the ExbB pentamer with one ExbDTM (ExbB5ExbD1TM) shows little change from the crystal structure (Figure 6—figure supplement 1C).

Discussion

Ion pathway

Our results show that pentameric and hexameric complexes coexist in detergent micelles and within lipid bilayers (Figures 4 and Figure 4—figure supplement 1), and the ratio of the hexamer to the pentamer increases with pH (Figure 4 and Supplementary file 1-Table S2), similar to the pH dependence of the macroscopic channel conductance (Figure 3; Celia et al., 2016). This suggests that the pentamer is less active and the hexamer more active. The crystal structure at pH 4.5 (Celia et al., 2016) and our cryo-EM reconstruction of the pentameric complex (Figure 6—figure supplement 1C) show a central single TM helix of ExbD, which makes a ~2 Å pore at the shortest diameter (Figure 7C). The ExbBD complex has been shown to be a cation-selective channel (Celia et al., 2016), but this pore size is too small for permeation of cations unless there are large fluctuations of the central helix. Thus, the structure of this pentameric complex suggests a low efficiency, blocked or semi-blocked, energy transducing state. The ExbB hexamer and ExbD trimer complex has a ~5.5 Å pore (Figure 7C), which fits with the reported pore size of cation channels.

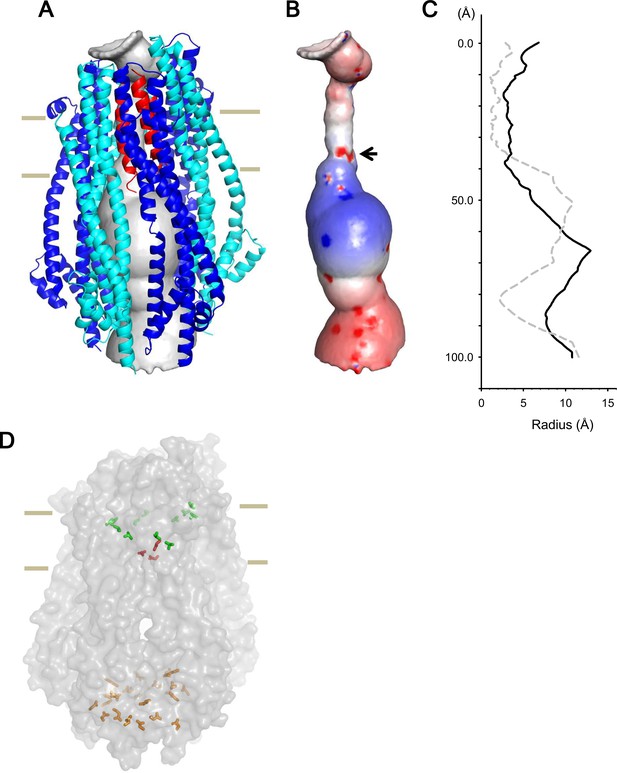

Model of the hexameric ExbBD complex.

(A) A structure model of the ExbB hexamer and the TM helices of ExbD. Overlaid with volume rendering (Smart et al., 1996) inside the channel. (B) Electrostatic surface of the channel is displayed with electropositivity in blue and electronegativity in red. An arrow indicates electronegative surface of an ion-selective filter formed by Asp 25. (C) Plots of the channel radii of the model in (A) (solid line) and the pentamer with a ExbD helix in the crystal (dashed line; Celia et al., 2016). The central helix in the pentamer crystal is shifted to the periplasmic side (upper; Celia et al., 2016). (D) A side view of ExbB6ExbD3TM in surface rendering. The side chains of Thr 148, Thr 181 (green) in ExbB and Asp 25 (red) in ExbD are displayed as markers. The side chains of Asp 103, Glu 105, Glu 109, and Asp 225 are also displayed at the cytoplasmic end of the channel in orange. As the ExbB subunits are gradually shifted downwards towards the cytoplasm, residues surrounding the channel such as Thr 148 and 181 follow a spiral downward path.

https://doi.org/10.7554/eLife.35419.015

The inner surface of the hexameric subunits of ExbB in the TM region is lined with hydrophobic residues and polar residues such as Thr 148 and Thr 181 (Figures 2A, Figure 1—figure supplement 2C and D). A thorough mutational study has indicated that there are no critical residues in ExbB directly involved in proton transport (Baker and Postle, 2013). In the case of ExbD, Asp 25 in the lower part of the TM helix is critical for transport mediated by the Ton system (Braun et al., 1996), and conserved over this family, and is likely part of the proton conductance pathway. Significantly, the cryo-EM structure shows that each of the subunits of the hexamer are slightly shifted downwards with respect to the prior adjacent molecule, resulting in a downward spiral of the hydrophobic ExbB wall that leads to the Asp 25 residues of the trimer (Figure 7D). These aspartates may form a cation selective filter (Celia et al., 2016). In our model, the aspartates reside at the lower part of the TM region and two of them face the pore, producing an electronegative field in the ion path (Figure 7B). The aspartates likely allow only cations to pass, and those cations may be funnelled by the electropositive circle of residues lower down and propelled towards the electronegative toroid at the exit (Figures 7B and Figure 2—figure supplement 1C).

A model for utilization of proton motive force

The asymmetric disposition of the three TM helices of ExbD within the channel may be important for utilizing PMF. Many biological molecular machines depend on asymmetry. Vacuolar-type ATPase is an example, where a part of the single c’ subunit is located off-centre of the symmetric integral membrane c-ring, resulting in rotation and proton pumping using the energy of ATP hydrolysis (Mazhab-Jafari et al., 2016). A similar mechanism may operate in the ExbBD complex, as dynamic motion of TonB, possibly rotation, has been observed by fluorescent optical microscopy (Jordan et al., 2013). The proton gradient through the spiral of ExbB subunits could generate a torsional force (Chang et al., 2001) to induce rotational movement of the ExbD TM helices relative to the ExbB ring (Figure 8A) and step-wise participation of two of the three Asp 25 residues as they become exposed in the channel (Figures 6C and 7B and D). The force could be transduced to TonB – it is known that ExbD interacts with TonB through their periplasmic domains (Ollis et al., 2009; Gresock et al., 2015). TonB resides around the ExbB complex, as TonB TM residues interact with the outward-facing side of the first TM helix (α2) of ExbB (Figures 1 and 6C; Larsen et al., 1994; Larsen et al., 1999; Larsen and Postle, 2001). We have tried to obtain stable complexes of TonB-ExbB-ExbD, TonB-ExbB and TonB-ExbD for structural studies, but without success. The difficulties may reflect the peripheral location of TonB, outside of the hexameric complex, and a tendency to dissociate from it. In this model, TonB would have little effect on the complexation of ExbB and ExbD (Celia et al., 2016). TonB may move around the outer rim of the hexamer, and also promote lateral movement of the whole TonB complex in the inner membrane through transient contact of the periplasmic C-terminal domain of TonB with the PG layer as proposed by Klebba, 2016. This movement could facilitate linking up with outer membrane receptors (Klebba, 2016) to induce a conformational change that releases receptor-bound substrate into the periplasmic space (Chang et al., 2001; Klebba, 2016).

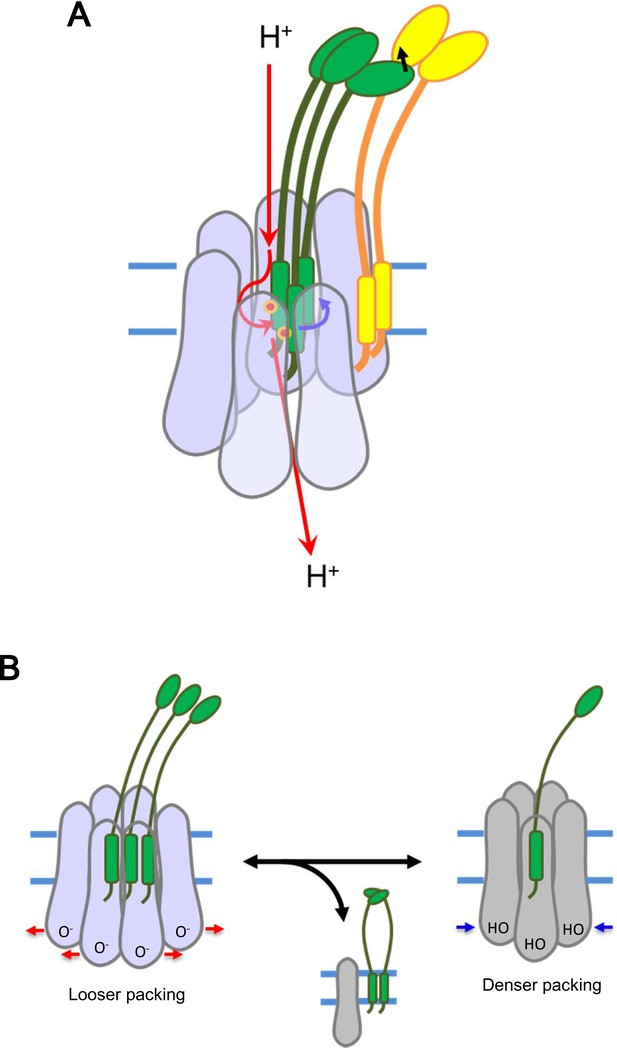

Models for energy conversion of the ExbBD complex and activation/inactivation.

(A) Energy transduction mechanism. Protons coming from the periplasmic funnel could spiral down around the ExbB wall as indicated red arrows. The spiral flux could generate a torsional force (a blue arrow; Chang et al., 2001) to induce rotational movement of the ExbD TM helices relative to the ExbB ring. ExbD interacts with TonB through their periplasmic domains (Ollis et al., 2009; Gresock et al., 2015) and the force could be transduced to TonB (a black arrow), which resides around the ExbB complex. TonB may move around the outer rim of the hexamer, facilitating linking up with outer membrane receptors (Klebba, 2016). The interaction of the TonB C-terminal domain with the periplasmic domain of the receptor induces conformational changes to release a substrate bound to the receptor into the periplasmic space (Chang et al., 2001; Klebba, 2016). (B) Transition mechanism between the hexameric and pentameric ExbBD complexes. If the hydronium concentration rises in the cytoplasmic funnel including many acidic residues, protonation (HO in the right figure) of these residues and easing the electrostatic repulsion may allow denser packing among ExbB subunits, which repels one ExbB subunit from the hexamer ring and excludes two ExbD from the central space to form the pentamer ring. The ExbD dimer is a stable complex and excluded ExbB molecules may form multimers. Thus, the pentameric complex prevents excessive proton influx into the cell. A hydronium concentration decrease and deprotonation (O- in the left figure) of the acidic residues would shift to looser packing, which recruits two ExbD to the ring and one ExbB to form the hexameric complex. ExbB, ExbD and TonB are displayed in violet or grey, green and yellow, respectively. Small red circles in (A) indicate Asp 25 in the ExbD TM helix.

https://doi.org/10.7554/eLife.35419.016

Oligomeric variety and transformation

The equilibrium of hexamer and pentamer may depend on the protonation state of acidic residues such as Glu 105, Glu 109, Asp 103, Asp 225 at the cytoplasmic end of the channel (Figures 2B and 7D), in accordance with PMF. If the hydronium concentration rises in this vicinity, protonation of these residues and easing of electrostatic repulsion may allow denser packing among ExbB subunits, which repels one ExbB subunit from the hexamer ring and excludes two ExbD from the central space to form the pentamer ring (Figure 8B). Reversely, a hydronium concentration decrease and deprotonation of the acidic residues would shift to looser packing, which recruits two ExbD to the ring and one ExbB to form the hexameric complex. The channel in the hexameric complex accommodates three but not four TM helices. Also, a lower number of TM helices in the hexamer channel, as well as a vacant pentamer channel, produce larger pores and unproductive and high proton influx. Thus, the channel activity may be controlled by joining/ejecting two ExbD molecules and one ExbB through partial complex disruption. The ExbD dimer is stable (Celia et al., 2016; Jana et al., 2011; Ollis et al., 2009) and excluded ExbB molecules may merge into smaller multimers according to cross linking (Jana et al., 2011). The low conductance of the pentamer would not only stop import of compounds, but decreased proton influx could also prevent excessive hydronium accumulation within the cytoplasm of the bacterium (Figure 8B).

Oligomeric variation is displayed by the mechano-sensitive channel, MscL (Walton et al., 2015) and other homologous oligomeric membrane proteins such as F0-ATPases (Watt et al., 2010) and light harvesting complexes (Cogdell et al., 1997). It is, however, not clear whether these various oligomeric states relate to function or are artefacts due to detergent solubilisation, or deletion mutation (Walton et al., 2015). Unlike other examples, we observe formation of hexamer and pentamer complexes in detergent micelles and within lipid bilayers, and record two distinct ion conductivities in a pH dependent ratio in planar lipid membranes for the same ExbBD sample. These characteristics could be relevant to the biological nature of the energizer in vivo. Oligomeric transformation may be facilitated by a highly fluid lipid membrane. Indeed, high fluidity allows diffusion of MotB molecules within the cell membrane (Leake et al., 2006) and expedites large movements of TM helices in Ca2+-ATPase during the reaction cycle (Norimatsu et al., 2017). The observations reported here may provide a new vision of dynamic membrane biology and spur further studies to explore the processes involved.

Materials and methods

Cloning, co-expression and purification of the ExbBD complex

The E. coli exbB and exbD genes were subcloned into vector pET-21b (Novagen). A hexahistidine tag was added at the C-terminus of ExbB, but not on ExbD. The plasmid was transformed in E. coli BL21 (DE3) Gold cells (Novagen), and the cells were grown at 37°C in LB medium. To induce ExbB and ExbD, IPTG was added to a final concentration of 0.5 mM when the culture reached an optical density at 600 nm (OD600nm) of ~1.0. After additional culture for 3 hr at 30°C, the cells were harvested by centrifugation at 4000 g for 30 min at 4°C. The pellet was resuspended in 50 mM Tris-HCl, pH 8.0, 0.3 M NaCl, 10% (v/v) glycerol, 10 mM imidazole, protease inhibitor cocktail cOmplete (Roche), DNase I (Roche), 5 mM MgCl2, and 0.2 mg/ml lysozyme and disrupted with ~7 passages at ~10,000 psi through a high pressure homogenizer EmulsiFlex C-5 (AVESTIN). Cell debris was removed by centrifugation at 10,000 g for 30 min at 4°C, and the membrane fraction was collected by ultracentrifugation at 125,000 g for 90 min at 4°C.

The ExbBD complex was purified by immobilized metal affinity (IMAC) and size-exclusion chromatography (SEC). The membrane fraction was first solubilized with 1–2% (w/v) n-dodecyl-β-D-maltoside (DDM; Dojindo) in 50 mM Tris-HCl, pH 8.0, 0.3 M NaCl, 10 mM imidazole, 10% glycerol, and cOmplete. The insoluble membrane fraction was removed by centrifugation at 125,000 g for 60 min at 4°C. The supernatant was then loaded onto a column filled with a metal affinity resin COSMOGEL His-Accept (Nacalai tesque) at 4°C. The column was washed with the solubilization buffer except for containing 0.018% (w/v; × 2 critical micelle concentration; cmc) DDM, and developed with a stepwise gradient of imidazole concentration. Fractions eluting at ~0.3 M imidazole were collected and concentrated using a spin concentrator with a molecular weight cut-off of 100,000. The concentrate was then applied to a SEC column Superdex 200 10/300 GL (GE Healthcare), and run in 10 mM glycine, pH 9.0, 0.2 M NaCl, 10% glycerol, 1 mM TCEP, 0.5% (v/v; × 2 cmc) tetraethylene glycol monooctyl ether (C8E4; Anatrace) or 0.07% (v/v; × 2 cmc) pentaethylene glycol monodecyl ether (C10E5; Anatrace). The peak was collected and the purity was checked by SDS-PAGE. The protein concentration was measured by the BCA assay (Pierce).

We also prepared a construct of the ExbBD complex with a TEV protease recognition site (Glu-Asn-Leu-Tyr-Phe-Gln-Gly-Ser) inserted between the C-terminus of ExbB and a hexahistidine tag. The protein complex was induced and purified in the same way except for cleavage of the histidine tag by 3 hr incubation with TEV protease at r.t. Then, the sample, passing through a desalting column to remove imidazole, was mixed with the metal affinity resin and stirred for 1 hr at 4°C. The unbound fraction was run on SEC with the buffer.

Crystallization and protein identification

Samples were concentrated to ~10 mg/ml and subjected to extensive screening over sparse matrix conditions with a Mosquito crystallization robot (TTP Labtech). Crystals were grown by hanging-drop vapor diffusion at 20°C in a mother liquor containing 0.1 M glycine, pH 9.0, 0.15 M CaCl2, ~40% PEG 350 MME and 0.05–0.2 M L-arginine. Plate-like crystals of approximately 100 μm × 100 μm × 10 μm grew over 1–2 months. Hexagonal crystals grew in mother liquors at pH 5.4.

To identify the crystal content, crystals were collected with a nylon loop and washed with the crystallization buffer. The crystals were dissolved in SDS sample buffer, heated at ~95°C for 5 min, and then run on a 15% homogeneous polyacrylamide gel. Bands cut out from the gel stained with Coomassie brilliant blue were digested with trypsin. The digestion mixtures were subjected to MALDI-LIFT TOF/TOF MS on an Ultraflextreme mass spectrometer (Bruker Daltonics) and/or LC MS/MS on a Q Exactive (Thermo Fisher Scientific) followed by peptide mass finger printing analysis. The obtained MS spectra were used to search the SwissProt database using the Mascot program (Perkins et al., 1999). ExbB and ExbD were identified with remarkably high identity scores. No other candidates were flagged in the database.

Data collection and structure determination by X-ray crystallography

Crystals were flash-frozen in liquid nitrogen and diffraction data were collected on the synchrotron radiation beam at BL26, BL32XU and BL41XU of SPring-8 at a wavelength of 1 Å. The datasets from crystals grown at pH ~9 were processed with XDS (Kabsch, 2010). The crystals belonged to space group P1 or P21. Crystals grown at pH 5.4 yielded anisotropic patterns with high diffuse scattering backgrounds, where diffraction spots were limited to 7–8 Å resolution from their hexagonal crystal plane. The datasets from these crystals could not be processed.

To phase the diffraction data, we used a cryo-EM map and the atomic coordinates of the ExbB pentamer (PDB accession code: 5SV0; Celia et al., 2016). The atomic model of the ExbB monomer cut-out from the pentamer was fitted into a low-resolution cryo-EM map of the hexamer (see below) using UCSF Chimera (Pettersen et al., 2004). Starting from the constructed hexamer model, molecular replacement was carried out using PHASER (McCoy et al., 2007). The solutions were unique and of high scores, achieved for the diffraction data from both crystals in P1 and in P21 lattices (Supplementary file 1-Table S1). The asymmetric unit contains two ExbB hexamers disposed upside down with respect to each other. The two hexamers interacted mostly through the cytoplasmic end in the P1 lattices along the c-axis, but laterally through long α-helices over the TM and cytoplasmic domains in the P21 lattice (Figure 1—figure supplement 2A and B). The latter probably made the crystal packing tight. Since crystals in the P1 lattices showed incomplete data statistics (Supplementary file 1-Table S1) and poorer isomorphism, structure refinement was carried out only against the data from the crystals in the P21 lattice. The structure of the ExbB hexamer was refined using BUSTER (Bricogne et al., 2016), and manually adjusted with COOT (Emsley et al., 2010). The electron density map resolved amino acids 10–234 (subunit A), 20–234 (subunit B), 10–232 (subunit C), 19–233 (subunit D), 11–232 (subunit E) and 19–234 residues (subunit F) for one hexamer, and 10–234 (subunit G), 19–234 (subunit H), 10–232 (subunit I), 20–233 (subunit J), 11–234 (subunit K) and 20–234 residues (subunit L) for the other. In σA-weighted 2 |Fobs| - |Fcalc| and |Fobs| - |Fcalc| maps, significant densities appeared in the central channel, but assignment of any model for ExbD was not possible. Data collection and refinement statistics are shown in Supplementary file 1-Table S1. The channels were analysed by HOLE (Smart et al., 1996) and buried surface areas and volumes were calculated by PDBePISA (Krissinel and Henrick, 2007).

Sample preparation for cryo-EM SPA

To achieve the optimal contrast of molecular images, we used lauryl maltose neopentyl glycol (LMNG; Anatrace), which is a detergent with a low cmc, and glycerol was not included in the buffer for all experiments. Samples were solubilized with 1% (w/v) LMNG and purified in 0.002% (v/v; × 2 cmc) LMNG by IMAC and SEC as described. To examine samples at different pH values, SEC was carried out in buffers containing either 10 mM Na-citrate, pH 5.4, 10 mM HEPES, pH 7.0, 10 mM Tris-HCl, pH 8.0, or 10 mM glycine, pH 9.0. The SEC patterns showed a small peak consisting of ExbB and ExbD at a lower molecular weight than those in the main fraction. The corresponding peak became smaller when run at pH 8.0 and disappeared at pH 9.0, which is consistent with an equilibrium of pentamer and hexamer (Figure 4C and Supplementary file 1-Table S2).

For frozen-hydrated sample preparation, gold was manually sputtered on holey carbon film-coated copper grids (Quantifoil R1.2/1.3, Quantifoil Micro Tools GmbH). This reduced charging of samples in ice and thereby minimized beam-induced movement (Russo and Passmore, 2014), when the samples were exposed to the electron beam. Three μl of ExbBD samples at a protein concentration of 0.25 - 0.5 mg/ml were applied onto the grid, deposited manually with filter paper from the reverse side of the grid, and rapidly frozen in liquid ethane with a home-made plunger in a cold chamber with a humidifier. The sample grids were screened with a JEOL-2100 electron microscope (JEOL) equipped with a LaB6 gun operated at an accelerating voltage of 200 kV.

Cryo-EM image acquisition

The grids frozen in seemingly good conditions were first examined on Falcon II detectors (FEI) in Titan Krios electron microscopes (FEI) at the Research Center for UHVEM, Osaka University and NeCEN, Leiden University. We found that the modulation transfer function (MTF) of the Falcon II (FEI) was not sufficiently high enough to obtain high-resolution information from molecular images in this sample size. Hence, all the data used for image analysis were collected on the K2 Summit direct electron detector (GATAN) as below.

Images of samples at pH 8.0 and pH 5.4 were collected with a Tecnai Polara scope (FEI) operated at an accelerating voltage of 300 kV at UCSF and a Titan Krios operated at 300 kV in eBIC, Diamond Light Source, respectively. Dose-fractionated images were recorded on a K2 summit in super-resolution counting mode. At eBIC, inelastically scattered electrons were removed through a GATAN Quantum energy filter with an energy slit width of 20 eV. The dose rate was six electrons per pixel per s, the total exposure time was 20 s, and one physical pixel corresponded to 1.22 Å at UCSF. The dose rate was 7.2 electrons per pixel per s, the total exposure time was 6 s, and one physical pixel corresponded to 1.06 Å at eBIC. Each frame accumulated electrons for 0.2 s. Defocus values ranged from 0.6 to 3.1 μm both at UCSF and at eBIC. Collected images were used for 3D reconstruction (Supplementary file 1-Table S2).

For only 2D classification analysis in this study, images of samples at pH 7.0 and 9.0 were collected on a K2 summit with a Tecnai Arctica (FEI) operated at 200 kV. The dose rate was 7.5 electrons per pixel per s, the total exposure time was 6.4 s with an accumulation time of 0.2 s for each frame, and one physical pixel corresponded to 0.99 Å. Defocus values ranged from 0.5 to 4.9 μm (Supplementary file 1-Table S2).

We also collected images of the complex at pH 8.0 with the histidine tag cleaved off. Images were collected with a Titan Krios operated at 300 kV in eBIC. The dose rate was ~ 5 electrons per pixel per s, the total exposure time was 10 s with an accumulation time of 0.2 s for each frame, and one physical pixel corresponded to 1.06 Å. Defocus values ranged from 0.6 to 2.9 μm (Supplementary file 1-Table S2).

Structure determination by cryo-EM

Image stacks were × 2 binned in Fourier space, drift-corrected, dose-weighted, and summed with MotionCor2 (Zheng et al., 2017). Contrast transfer function (CTF) parameters were estimated with CTFFIND (Rohou and Grigorieff, 2015) and a few thousand particles were manually picked up with EMAN2 (Tang et al., 2007) for initial templates. Automatic particle picking and reference-free 2D classification were carried out with RELION (Scheres, 2012). This yielded clear hexameric and pentameric 2D class averages. An initial 3D structure of the hexamer was reconstructed from well-defined class averages at pH 8.0 through probabilistic orientation assignment by PRIME (Elmlund et al., 2013). GPU-accelerated RELION (Kimanius et al., 2016) was used for all the following steps unless noted otherwise. Particles belonging to the selected classes were refined against the initial structure by 3D auto refinement. This gave a ~ 8.5 Å-resolution map based on the gold standard Fourier shell correlation (FSC) criteria (Chen et al., 2013), where the FSC between two volumes, each independently generated from half the data set, drops to 0.143. The map resolved some α-helices running through the cytoplasmic, TM and periplasmic domains. The map was used to construct the initial 3D atomic model of the hexamer for solving the crystal structure as described.

For final reconstructions, initial 3D references were generated from the crystal structures of the pentamer (accession code: 5SV0; Celia et al., 2016) and the hexamer in this study using EMAN2 (Tang et al., 2007), and then low-pass filtered to 30 Å for the hexamer and 20 Å for the pentamer. Particles at pH 8.0 and 5.4 were subjected to 3D classification and 3D auto refinement. No symmetry was applied during these procedures. The numbers of particles for final 3D reconstruction of the hexameric complex was 38,323 from a total of 276,526 picked-up particles for datasets at pH 8.0. Reconstructions from dataset at pH 5.4 resolved a pentameric structure with clear α-helices in the cytoplasmic domain but poorer masses in the TM region except for a rod-like density inside the channel. To improve the structure, 5-fold symmetry was enforced for 3D classification and 3D auto refinement. The numbers of particles for final 3D reconstruction of the pentameric complex was 22,243 from 122,908 picked-up particles.

A soft mask was estimated and applied to the two half-maps in the post-processing process of RELION (Scheres, 2012). B-factor estimation and map sharpening were also carried out in the post-processing step. The resolutions based on the gold standard FSC 0.143 criteria (Chen et al., 2013) were measured to be 6.69 Å for the hexamer at pH 8.0 and 7.11 Å for the pentamer at pH 5.4. Local resolution was estimated using ResMap (Kucukelbir et al., 2014) and Blocres in the Bsoft package (Heymann and Belnap, 2007) from unfiltered half maps. Both programs gave similar estimates, but the latter values appeared to be of slightly lower resolution. Details related to cryo-EM SPA are summarized in Supplementary file 1-Table S2.

Construction of the ExbB-ExbD model

The ExbD TM helix (ExbDTM) was determined by hydrophobicity calculation along the sequence. Atomic models of the ExbB hexamer and ExbDTM trimer (ExbB6ExbD3TM) and the ExbB pentamer and ExbDTM monomer (ExbB5ExbD1TM) were constructed based on the cryo-EM maps of the hexameric and pentameric complexes, respectively, by using COOT (Emsley et al., 2010). Phe 23 and Pro22 in ExbDTM were adjusted to the TM level of aromatic residues such as Tyr 195, Tyr 132, Phe 198, Phe 41, Phe 42, and Trp 38 in ExbB. The detergent belt encloses these residues near the cytoplasmic surface (Figure 6—figure supplement 1A). Then, the models were fitted into the maps with rigid-body refinement of individual ExbB subunits and ExbDTM in real space using Phenix.refine (Adams et al., 2010). This gave good geometries and high cross correlation (CC) values against the cryo-EM maps for both the models (Supplementary file 1-Table S3). Structure figures in Figures 1, 2,7A,B and DFigure 1—figure supplement 2 and Figure 2—figure supplement 1 were prepared with PyMol (The PyMOL Molecular Graphics System, Schrödinger, LLC), and those in Figure 6A–C , Figure 4—figure supplement 1D and Figure 6—figure supplement 1 were prepared with UCSF Chimera (Pettersen et al., 2004). Electrostatic distributions were calculated using PDB2PQR and displayed using APBS (Unni et al., 2011).

Channel current recording

The lipid mixture of DOPG, DOPC and DOPE at a molar ratio 2:3:5 (Celia et al., 2016) was spread over a 200 μm diameter hole in a 0.5 mm thick Teflon sheet partition. A planar lipid bilayer formed at the hole separated two chambers filled with 2 mM KPi at pH 7.5. Purified ExbBD complexes were mixed with liposomes of the same lipid mixture at a lipid-protein weight ratio of 20:1 or 10:1. After 2 hr incubation at room temperature, the detergent was removed with a Bio-Spin six column (Bio-Rad) equilibrated with 10 mM KPi, pH 7.5, 50 mM KCl, and 0.3 M sucrose. Proteoliposomes were then injected from the cis chamber and fused into the bilayers. The reference electrode was placed in the cis chamber. Current data were recorded and stored in a PC using pCLAMP software (Molecular Devices, Sunnyvale, CA) through Axopatch 200B amplifier and Digidata 1550A digitizer (Molecular Devices). The low pass filter was set to 1 kHz for the cut-off frequency, and data were sampled at 10 kHz. To change pH, 0.5 M succinic acid, pH 4.0 or 0.5 M Tris-HCl, pH 8.95 was added to both chambers.

Preparation, electron microscopy and image analysis of 2D crystals

ExbBD complexes purified with C8E4 were mixed with E. coli total lipid extract (Avanti Polar Lipids). The samples were dialyzed over a semipermeable membrane with a molecular weight cut-off of 10,000 to remove the detergent in 150 mM NaCl, 1 mM TCEP, 0.01% NaN3, and 25 mM Na-citrate, pH 5.4 or 25 mM HEPES, pH 7.0 or 25 mM glycine, pH 9.0 at 4°C. The samples were negatively-stained with 2% (w/v) uranyl acetate and examined with the JEOL-2100 electron microscope (JEOL). Many 2D crystals were formed at pH 5.4, but few at pH 7.0 and none at pH 9.0. Crystal images showing diffraction spots were selected and analysed by Fourier filtering of diffraction spots with a modified version of the MRC package (Crowther et al., 1996). Crystals were centrifuged and the pellet was washed with the buffer. This process was repeated twice. Then, the sample was dissolved in SDS sample buffer, heated at ~ 95°C for 5 min, and run on a polyacrylamide gel.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
    BUSTER, version 2.10.3
    1. G Bricogne
    2. E Blanc
    3. M Brandl
    4. C Flensburg
    5. P Keller
    6. W Paciorek
    7. P Roversi
    8. A Sharff
    9. OS Smart
    10. C Vonrhein
    11. TO Womack
    (2016)
    Global Phasing Ltd, Cambridge, United Kingdom.
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
    Features and development of Coot
    1. P Emsley
    2. B Lohkamp
    3. WG Scott
    4. K Cowtan
    (2010)
    Acta Crystallographica Section D Biological Crystallography 66:486–501.
    https://doi.org/10.1107/S0907444910007493
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
    XDS
    1. W Kabsch
    (2010)
    Acta Crystallographica. Section D, Biological Crystallography 66:125–132.
    https://doi.org/10.1107/S0907444909047337
  26. 26
  27. 27
  28. 28
  29. 29
    TonB or not TonB: is that the question?
    1. KD Krewulak
    2. HJ Vogel
    (2011)
    Biochemistry and Cell Biology = Biochimie Et Biologie Cellulaire 89:87–97.
    https://doi.org/10.1139/o10-141
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63

Decision letter

  1. Nikolaus Grigorieff
    Reviewing Editor; Janelia Research Campus, Howard Hughes Medical Institute, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

[Editors’ note: a previous version of this study was rejected after peer review, but the authors submitted for reconsideration. The first decision letter after peer review is shown below.]

Thank you for submitting your work entitled "Hexameric and pentameric complexes of the ExbBD energizer in the Ton system" for consideration by eLife. Your article has been evaluated by a Senior Editor and three reviewers, one of whom is a member of our Board of Reviewing Editors. The following individuals involved in review of your submission have agreed to reveal their identity:, Nikolaus Grigorieff (Reviewer #1); Phillip Klebba (Reviewer #2).

Our decision has been reached after consultation between the reviewers. Based on these discussions and the individual reviews below, we regret to inform you that your work will not be considered further for publication in eLife.

The reviewers recognize that you present new and interesting structures of the ExbBD sub-complex, which is part of the Ton complex. However, the lack of clear mechanistic implications makes the manuscript unsuitable for publication in eLife. If, at a later stage, you have new data to tie the new structures to a mechanism, I encourage you to resubmit a revised manuscript.

Summary:

The authors present an interesting study of different oligomeric states of the bacterial Ton complex that is involved in transducing the energy of an electrochemical gradient across the inner membrane, where it resides, to drive transport across the outer membrane. It is currently unknown how the Ton complex harvests the proton gradient and how it connects to the outer membrane to transfer the harvested energy to transporters.

The authors looked at a sub-complex consisting of ExbB and ExbD subunits with stoichiometries that are pH-dependent. Previously, only a low-pH form was known at atomic detail consisting of five ExbB subunits and one ExbD subunit. The authors show that there is an equilibrium between this "pentameric" form and a "hexameric" form that includes six ExbB and three ExbD subunits. They confirm the co-existence of these two forms by electron crystallography of 2D crystals grown at a single (intermediate) pH showing different crystal types made of the two different oligomeric forms. The equilibrium between the two forms is shifted towards the hexameric form at higher pH. The authors also obtained an X-ray crystal structure of the ExbB hexamer, albeit with very little ExbD, and cryo-EM structures of the "pentameric" and "hexameric" forms at low and high pH, respectively. They correlate the pH-dependent shift in the equilibrium with changes in the ion conductance of the complex across membranes, measured by single-channel and multichannel measurements, and show that it is reversible. The Ton complex has pronounced selectivity for cations and conductance increases as the equilibrium shifts from the pentameric form to the hexameric form, presumably because the size of the pore formed by ExbB is larger in the hexamer compared to the pentamer. Finally, the presence of asymmetry in the ExbB hexamer is an interesting detail that is likely important for the mechanism of the Ton complex.

The description of the hexameric form and its dynamic equilibrium with the pentameric form is interesting and may represent a significant advance in the field. However, it remains unclear how the new structural insights advance our understanding of the molecular mechanism of the Ton complex. The authors offer some speculations on what the hexameric form and other new structural details mean for the energy transduction mechanism and coupling to transporters in the outer membrane. Unfortunately, these speculations are quite vague and the mechanistic insight gained from the structures presented here is very limited. Furthermore, the authors offer no explanation of how the dynamic conversion between pentameric and hexameric forms occurs, which in itself would be an interesting mechanism to study. It is unclear how the purified complex relates to the active complex in bacteria, especially since important parts of the machinery are missing or unresolved, including TonB and parts of ExbD. Presumably, TonB plays an important role in the transduction mechanism as it is thought to interact with the transporters in the outer membrane.

The lack of clear mechanistic implications is the main weakness of the manuscript, making it unsuitable for publication in eLife. If, at a later stage, the authors have new data to tie their new structures to a mechanism, they are encouraged to resubmit a revised manuscript. The full reviews are appended below for your reference.

Reviewer #1:

The authors investigated different oligomeric states of the bacterial Ton complex that is involved in transducing the energy of an electrochemical gradient across the inner membrane, where it resides, to drive transport across the outer membrane. It is currently unknown how the Ton complex harvests the proton gradient and how it connects to the outer membrane to transfer the harvested energy to transporters.

The authors looked at a sub-complex consisting of ExbB and ExbD subunits with stoichiometries that are pH-dependent. Previously, only a low-pH form was known at atomic detail, consisting of five ExbB subunits and one ExbD subunit. The authors show that there is an equilibrium between this "pentameric" form and a "hexameric" form that includes six ExbB and three ExbD subunits. They confirm the co-existence of these two forms by electron crystallography of 2D crystals grown at a single (intermediate) pH, showing different crystal types made of the two different oligomeric forms. The equilibrium between the two forms is shifted towards the hexameric form at higher pH. The authors also obtained an X-ray crystal structure of the ExbB hexamer, albeit with very little ExbD, and cryo-EM structures of the "pentameric" and "hexameric" forms at low and high pH, respectively. They correlate the pH-dependent shift in the equilibrium with changes in the ion conductance of the complex across membranes, measured by single-channel and multichannel measurements. The Ton complex has pronounced selectivity for cations and conductance increases as the equilibrium shifts from the pentameric form to the hexameric form, presumably because the size of the pore formed by ExbB is larger in the hexamer compared to the pentamer.

An interesting detail of the hexameric cryo-EM structure is that is does not display any symmetry: the subunits in the ExbB hexamer are somewhat staggered along the pseudo-symmetry axis and the ExbD trimer is off-center inside the ExbB hexamer. The authors offer some speculations on what this may mean for the energy transduction mechanism and coupling to transporters in the outer membrane. Unfortunately, these speculations are quite vague and the mechanistic insight gained from the structures presented here is very limited. The description of the hexameric form, a pseudo-atomic model of it, and an electrophysiological characterization of the different forms together may represent a significant advance in our understanding of these complexes. However, the authors must explain more clearly how these results help us understand the mechanism of the Ton complex.

Reviewer #2:

The authors report the architecture of a purified TonBExbBD complex that normally resides in the cytoplasmic membrane of E. coli. These proteins are proposed to transduce energy between the inner and outer membranes of the Gram-negative bacterial cell envelope, in a way that allows the active transport of iron by cell surface siderophore receptor proteins. In this manuscript the authors present crystallographic and other data suggesting the stoichiometry of the various proteins in the TonBExbBD complex. It is not the first effort to either quantify or structurally define the system. Buchanan and colleagues already did so in their 2016 paper (Celia, Nature 538: 60-65, 2016). The Yonekura manuscript describes the same proteins, with about the same findings. Consequently, this paper is more confirmatory than discovery, and in that way lacks the novelty one might expect for publication in eLife. Along those lines, Celia et al. did not report the 6:3 ExbB:D form: now the 4 or more groups that estimated the stoichiometry of purified, reconstituted TonBExbBD all reached different conclusions. Which of these are pertinent in vivo? The authors ultimately propose that the mechanism of TonBExbBD utilization of PMF involves conversion between pentameric/hexameric forms of the ExbB component, and monomeric/trimeric forms of the ExbD component: an ExbBExbD(2) subunit moves into and out of the complex in response to movement of protons. This is a novel idea. However, its feasibility is in doubt, and how might TonB fit into it? It's also possible, as the authors acknowledge, that one of the oligomeric complexes is a crystallization artifact. They do not sort this out with experiments, nor determine what actually occurs in living cells. They put a mechanistic spin on their pentameric-hexameric forms, but offer no evidence of a biologically relevant conversion between them. One thing that's problematic about the mechanistic conclusions is that the change in pH that's proposed to convert the complex between pentamer and hexamer (pH 4-5 vs. pH 8-9) likely never occurs in actively metabolizing, iron transporting bacterial cells: the pH near the inner bacterial membrane will remain acidic in actively growing cells.

The paper contains a large amount of technically acceptable research. The authors reveal the ExbB hexamer at 2.8 Å; the overall resolution of the ExbBD structures is only 6-9 Å. The manuscript reports new attributes of ExbBD from their X-ray data and cryoEM: the alkaline pH-driven hexameric ExbB component purportedly (i.e., no data) has an ExbD trimer at its core, rather than the monomer proposed in the pentamer crystal, that was seen in both their experiments and those of Celia et al. Hence, Yonekura et al. infer a base ExbB:ExbD stoichiometry of 6:3 under one condition, and, along with Celia et al., a complex 5:2 in another condition. The images of ExbB may provide some insight into potential mechanisms. But, even if protons (pH) drive a change in ExbBD organization, from hexamer at alkaline pH to pentamer at acidic pH, it's anyone's guess how this change in quaternary structure might deliver an energy transducing force to the outer membrane. The authors do not substantially explore this point. One of the weaknesses of this article is that it does not reconcile other data nor consider existing models on TonB-dependent transport (Chang et al., 2001; Klebba, 2016). Yet, what's truly missing from their results are any data on TonB (and ExbD) that reveal what is the relevant structure of the complex, in vitro or in vivo. Consequently, the paper only makes an incremental advance in its own narrow field (that may be artifactual) and does not have broader impact on the bioenergetics of Gram-negative bacterial active transport through the outer membrane, or membrane biochemistry in general. This lack of significance and scope makes me question its appropriateness in this venue, and its value to the overall understanding of TonB-dependent transport.

Reviewer #3:

In this manuscript, the high-resolution "hexameric" complex of ExbB and ExbD was reported for the first time by crystal and cryo-EM structural analyses. Authors showed that co-existence of pentameric and hexameric complexes, and demonstrated that the latter complex appeared exclusively at basic pH (9.0) and exhibited more channel conductance. The structure of hexameric complex revealed that six subunits of ExbB and three ExbD transmembrane helices enclosed within the central channel. Based on the structures and functional analyses, authors proposed the model for ExbB/D activation and usage of proton motive force. Although this is not the first report of the structure of ExbB/D complex, I think the findings reported in this manuscript, the new hexameric complex and its active properties, are novel and provide new insights into understanding of the functional mechanism based on the high-resolution structural information, especially on the activation/inactivation step in this machinery. Experiments are well conducted and presented, and interpretation is reasonable. However I feel some descriptions in the Discussion are speculative and more discussion for activation mechanism is required. Specific comments are listed below:

1) In the single channel recording of ExbB/D complex shown in Figure 3A, lower panel, two increments of channel current are shown (160pS then 60pS). Does this reflect opening of two channels in the same time (one in low conductance state and the other in high conductance)? Since in Figure 3B there are no results shown for 220pS, it is unlikely that this trace represents channel activation moment. Showing longer traces would be informative to understand the channel performance.

2) “The two states / channels appear interchangeable in the lipid bilayer as macroscopic currents are reversible on adjusting pH (Figures 3C and D)”, and” Thus, the channel activity might be controlled by joining / ejecting two ExbD molecules and one ExbB through partial disruption of the structures”, I agree with this interpretation. If so, sub-complex consisting of one molecule of ExbB and two molecules of ExbD would be detected at lower pH. Would it be possible to detect such sub-complex by the analytical size exclusion column experiment, simply purified hexameric complex were run at pH 9.0?

3) I think "rotation mechanism" proposed in the Discussion is interesting and plausible, but in this stage, it is speculative. The only supporting evidence derived from the data presented here is asymmetric helix disposition of ExbD, so I thought it may be better not to emphasize rotation model at this stage. On the other hand, authors did not discuss how the activation happens on the basis of their structure. The notable difference and new important finding from the previous study (Celia et al.) is the hexameric complex, which contains three helices within the channel, showed higher conductance. Celia et al. showed that ExbB pentamer, which does not have ExbD plug in the channel, showed high conductance. But here, the presence of ExbD in the channel still allows high ion conduction. How does this happen? Such point should be discussed. Also, as pointed in 2), Figure 3 showed that ExbB/D complex seems to dynamically changes its active and inactive state by incorporating/dissociating the ExbB1/ExbD2 sub-complex, and it is regulated by the pH. I would like to know authors' idea of how this happens.

4) In the second paragraph of the subsection “A model for utilization of proton motive force”, authors emphasized that the functional importance of ExbD Asp25. However, in Celia et al., ExbB/D complex with D25A mutation in ExbD did not change the channel conductance. I would like to know the authors' idea regarding the function of D25, from the structural point of view, from their hexameric complex.

[Editors’ note: what now follows is the decision letter after the authors submitted for further consideration.]

Thank you for submitting your article "Hexameric and pentameric complexes of the ExbBD energizer in the Ton system" for consideration by eLife. Your article has been favorably evaluated by Richard Aldrich (Senior Editor) and three reviewers, one of whom is a member of our Board of Reviewing Editors. The following individuals involved in review of your submission have agreed to reveal their identity: Nikolaus Grigorieff (Reviewer #1); Seiji Kojima (Reviewer #2).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The authors submitted a revised manuscript that represents a significant improvement over the original manuscript. They have added a description of how a proton gradient may cause rotation of TonB that ultimately drives transport across the outer membrane. They also suggest a mechanism that drives interconversion between pentameric and hexameric forms of ExbB, based on the protonation states of side chains inside the channel. While these hypotheses remain untested, they suggest new experiments that will shed more light on the energy transduction mechanism. Overall, the manuscript reports a large amount of new data, new structures and interesting ideas of how this fascinating molecular machine may utilize a proton gradient to drive membrane transport. Clearly, more work will have to be done but the present manuscript represents a significant advance that warrants publication in eLife.

The following points must be addressed by the authors before the manuscript can be published:

1) Density maps and atomic coordinates of the models described in the manuscript must be deposited in the EMDB and PDB.

2) The authors should explain the loss of ExbD in the crystal structures.

3) The authors should provide a structural reason for the observed number of ExbD helices in ExbB pentamers and hexamers and explain why other numbers do not occur. They should consider the role of symmetry in the ExbB complex in their discussion.

Reviewer #1:

This is a resubmission of a manuscript originally submitted last November. The authors present an interesting study of different oligomeric states of the bacterial Ton complex that is involved in transducing the energy of an electrochemical gradient across the inner membrane, where it resides, to drive transport across the outer membrane. It is currently unknown how the Ton complex harvests the proton gradient and how it connects to the outer membrane to transfer the harvested energy to transporters.

The authors looked at a sub-complex consisting of ExbB and ExbD subunits with stoichiometries that are pH-dependent. Previously, only a low-pH form was known at atomic detail consisting of five ExbB subunits and one ExbD subunit. The authors show that there is an equilibrium between this "pentameric" form and a "hexameric" form that includes six ExbB and three ExbD subunits. They confirm the co-existence of these two forms by electron crystallography of 2D crystals grown at a single (intermediate) pH showing different crystal types made of the two different oligomeric forms. The equilibrium between the two forms is shifted towards the hexameric form at higher pH. The authors also obtained an X-ray crystal structure of the ExbB hexamer, albeit with very little ExbD, and cryo-EM structures of the "pentameric" and "hexameric" forms at low and high pH, respectively. They correlate the pH-dependent shift in the equilibrium with changes in the ion conductance of the complex across membranes, measured by single-channel and multichannel measurements, and show that it is reversible. The Ton complex has pronounced selectivity for cations and conductance increases as the equilibrium shifts from the pentameric form to the hexameric form, presumably because the size of the pore formed by ExbB is larger in the hexamer compared to the pentamer. Finally, the presence of asymmetry in the ExbB hexamer is an interesting detail that is likely important for the mechanism of the Ton complex.

The description of the hexameric form and its dynamic equilibrium with the pentameric form is interesting and may represent a significant advance in the field. In the original manuscript, it remained unclear how the new structural insights advance our understanding of the molecular mechanism of the Ton complex. The authors have now added a description of how a proton gradient may cause rotation of TonB that ultimately drives transport across the outer membrane. They also suggest a mechanism that drives interconversion between pentameric and hexameric forms of ExbB, based on the protonation states of side chains inside the channel. While these hypotheses remain untested, they suggest new experiments that will shed more light on the energy transduction mechanism.

The manuscript reports a large amount of new data, new structures and interesting ideas of how this molecular machine may utilize a proton gradient to drive membrane transport. Clearly, more work will have to be done but the present manuscript represents a significant advance that warrants publication in eLife.

Reviewer #2:

This revised version significantly improved the manuscript. The previous version lacks the mechanistic explanation of the function and activation of ExbB/D complex from the point of new structural features discovered by the authors. In my opinion, this time these points are explained clearly based on their findings. Last time I requested to discuss the reason why existence of three helices of ExbD allows the complex to higher conductance, and now authors show the reasonable interpretation (pore size) based on the calculation using the newly developed structural model. Authors also described their idea how the channel activation occurs. It is plausible that protonation state of the acidic residues in the cytoplasmic tip of the complex is key to induce transition between hexamer-pentamer complexes. Authors also include the TonB story in their model, and rotation of the transmembrane segment is now more understandable than previous version. Although the basic structure of the ExbB/D complex is already published by Celia et al., and some parts of their structural finding are confirmatory, but I think the discoveries of the ExbB6/ExbD3 complex and transition between hexamer-pentamer complex related to activation mechanism are important enough, at least to provide testable ideas for researchers in the field. Therefore, I now feel comfortable that this version is suitable for eLife publication standard.

Reviewer #3:

ExbBD is a fascinating energizer and the fact that functional structures are becoming available is very exciting. This paper describes X-ray structure of the hexameric ExbB complexes (unfortunately missing ExbD) from crystals that diffract to similar resolution (2.84 Å) compared to the recently published 2.6 Å resolution structure of the pentameric ExbB (Celia et al., 2016) and the cryoTEM structures of the ExbB hexamer and ExbD trimer complex. The crystallographic statistics in the table are good enough and the quality of the cryoTEM map is also good from the figures provided and has allowed to construct the helices of the model at 6.7 Å. Although, more work will be necessary to complete the functional mechanism in the complex, this paper describes interesting differences between their structural models (which contains the hexameric cryoTEM structures with ExbB molecules with different features at pH 8.0) and the pentameric X-ray structure at pH 4.5 (Celia et al., 2016) and is thus worth a publication. Since the pentameric structures at pH 4.5 and the hexameric structure at pH 8.0 likely correspond to different states, publication of this new structure and release of coordinates to compare these two structures of ExbBD energizer complexes would be greatly beneficial for the community.

From these structures and previous work, the authors also proposed the transition mechanism between the hexameric and pentameric ExbBD complexes. In particular, they confirmed the coexistence of the hexameric and pentameric complexes within lipid bilayers. Their proposed molecular mechanism that deprotonation of the acidic residues in the channel is a key for the complex formation to function as an energizer is also worth a publication.

The authors should address following points.

1) Authors should submit their coordinates and experimental data to the worldwide Protein Data Bank (wwPDB) prior to a submission of manuscript. In addition, the submission with the wwPDB validation report is highly recommended.

2) The authors described the decrease of proportion of ExbD during crystallization process. Why did this happen?

3) The discussion on the transition mechanism between the hexameric and pentameric ExbBD is still a bit vague. Authors mentioned that three helices of ExbD are enough and four is too much. Can the hexamer accommodate two TM helices of ExbD? Why two ExbD molecules are always recruited during the transition from 5mer to 6mer? Does the symmetrical arrangement help to form the ExbD trimer within the ExbB hexamer?

https://doi.org/10.7554/eLife.35419.034

Author response

[Editors’ note: the author responses to the first round of peer review follow.]

[…] However, it remains unclear how the new structural insights advance our understanding of the molecular mechanism of the Ton complex. The authors offer some speculations on what the hexameric form and other new structural details mean for the energy transduction mechanism and coupling to transporters in the outer membrane. Unfortunately, these speculations are quite vague and the mechanistic insight gained from the structures presented here is very limited.

We had shown that the hexameric and pentameric complexes coexist in solution and within lipid membrane. The samples contained both full-length ExbB and ExbD (Figure 1—figure supplement 3B and Figure 5E (new figure)). These results support the existence of the biological relevance of the ExbB hexameric complex. We have added a new figure built from an atomic model of the ExbB hexamer and ExbD trimer, consisting of full side chains. The new model has revealed electrostatic details of the ion path (Figure 6) and a cation-selective filter made of Asp 25 in the ExbD TM helix at the right place. The ExbB hexamer and ExbD trimer complex has a ~ 5.5 Å pore in the thinnest diameter (Figure 6C), which is well fitted with the reported pore size of cation channels. In contrast, the pore in the pentameric complex with a central helix is too small for permeation of cations (Figure 6C), and the structure of the pentameric complex would reduce the efficiency of energy transduction. Thus, the hexameric complex is most likely the active form. The manuscript also includes experiments on TonB-ExbB-ExbD complexes and the disposition of TonB on the structures, not inside but outside the ExbB ring. Due to this disposition, TonB would little affect complexation of ExbB and ExbD. This was also shown by Celia et al., 2016. In addition, comparison of the ExbB pentamer and hexamer structures suggests that protonation / deprotonation of acidic residues at the cytoplasmic end of the channel controls the interconversion of pentamer / hexamer (Figures 2B, 6D and 7B). Based on these findings, we have proposed improved models for utilization of proton motive force and oligomeric transformation (text and Figure 7).

Furthermore, the authors offer no explanation of how the dynamic conversion between pentameric and hexameric forms occurs, which in itself would be an interesting mechanism to study.

We added the explanation of our model on the conversion mechanism as below and in Figure 7.

“The equilibrium of hexamer and pentamer may depend on the protonation state of the acidic residues such as Glu 105, Glu 109, Asp 103 and so on at the cytoplasmic end of the channel (Figures 2B and 6D), in accordance with PMF. […] The channel in the hexameric complex can accommodate three TM helices but cannot four helices”.

It is unclear how the purified complex relates to the active complex in bacteria, especially since important parts of the machinery are missing or unresolved, including TonB and parts of ExbD. Presumably, TonB plays an important role in the transduction mechanism as it is thought to interact with the transporters in the outer membrane.

The samples we examined contained full-length ExbB and full-length ExbD (Figure 1—figure supplement 3B and Figure 6—figure supplement 1B). We had described that TonB likely resides around the ExbB complex, as the TonB TM residues interact with the first TM helix (α2) of ExbB that faces the lipid interface around the ExbB hexamer (Figures 1 and 5C). We have also tried to obtain stable complexes of TonB-ExbB-ExbD, TonB-ExbB and TonB-ExbD complexes for structural study but not succeed yet. The difficulties probably reflect that TonB tends to more dissociate from the complex due to this disposition, not inside but outside the ExbB ring. Thus, TonB would little affect complexation of ExbB and ExbD. This was also shown by Celia et al., 2016. We added this explanation in Discussion.

The lack of clear mechanistic implications is the main weakness of the manuscript, making it unsuitable for publication in eLife. If, at a later stage, the authors have new data to tie their new structures to a mechanism, they are encouraged to resubmit a revised manuscript. The full reviews are appended below for your reference.

Reviewer #1:

[…] An interesting detail of the hexameric cryo-EM structure is that is does not display any symmetry: the subunits in the ExbB hexamer are somewhat staggered along the pseudo-symmetry axis and the ExbD trimer is off-center inside the ExbB hexamer. The authors offer some speculations on what this may mean for the energy transduction mechanism and coupling to transporters in the outer membrane. Unfortunately, these speculations are quite vague and the mechanistic insight gained from the structures presented here is very limited. The description of the hexameric form, a pseudo-atomic model of it, and an electrophysiological characterization of the different forms together may represent a significant advance in our understanding of these complexes. However, the authors must explain more clearly how these results help us understand the mechanism of the Ton complex.

We have improved the manuscript and described mechanisms based on the structures. Please also refer to responses to the Summary above.

Reviewer #2:

The authors report the architecture of a purified TonBExbBD complex that normally resides in the cytoplasmic membrane of E. coli. These proteins are proposed to transduce energy between the inner and outer membranes of the Gram-negative bacterial cell envelope, in a way that allows the active transport of iron by cell surface siderophore receptor proteins. In this manuscript the authors present crystallographic and other data suggesting the stoichiometry of the various proteins in the TonBExbBD complex. It is not the first effort to either quantify or structurally define the system. Buchanan and colleagues already did so in their 2016 paper (Celia, Nature 538: 60-65, 2016). The Yonekura manuscript describes the same proteins, with about the same findings. Consequently, this paper is more confirmatory than discovery, and in that way lacks the novelty one might expect for publication in eLife.

We disagree. In this report, we have shown a complex structure made of six ExbB and three ExbD molecules revealed by using X-ray crystallography and single particle cryo-EM. This complex has not been described before and the structure reveals a striking spiral arrangement of the six ExbB subunits and asymmetrical disposition of the three ExbD TM helices, both features likely key for channel function. The manuscript has also shown that hexameric and pentameric complexes coexist, with the proportion of hexamer increasing with pH. Channel current measurement and 2D crystallography all support the formation of the two oligomeric states in membrane. Based on our findings, we have proposed a model for activation / inactivation associated with hexamer and pentamer formation and utilization of proton motive force. We believe that these data and models provide significant advances in our understanding this complex system. Indeed, the other two reviewers acknowledged the novelty of this work. Please also refer to responses to the Summary above.

Along those lines, Celia et al. did not report the 6:3 ExbB:D form: now the 4 or more groups that estimated the stoichiometry of purified, reconstituted TonBExbBD all reached different conclusions. Which of these are pertinent in vivo?

We have shown that hexameric and pentameric complexes coexist both in detergent micelles and within membrane and the ratio of the pentameric and hexameric complexes changes depending on conditions (Figure 4). In an equilibrium of pentamers and hexamers, it is likely that interconversion occurs through the presence of monomers and multimers. This should explain why the number of ExbB and ExbD subunits in the functional unit has been argued for years (Higgs et al., 2002; Jana et al., 2011; Pramanik et al., 2011; Sverzhinsky et al., 2014; Sverzhinsky et al., 2015). A previous MS analysis showed that the main fraction of the sample in the weak basic condition used corresponded to ExbB hexamers and small amounts of the pentamer were also found (Pramanik et al., 2011). This proportion is consistent with our results. Other studies were based on rather crude methods such as cross-linking and negative-staining EM. We have also showed that 2D crystals contained both full-length ExbB and ExbD (Figure 5E). Please also see our fourth response to reviewer #2.

The authors ultimately propose that the mechanism of TonBExbBD utilization of PMF involves conversion between pentameric/hexameric forms of the ExbB component, and monomeric/trimeric forms of the ExbD component: an ExbBExbD(2) subunit moves into and out of the complex in response to movement of protons. This is a novel idea. However, its feasibility is in doubt, and how might TonB fit into it?

Please refer to our second and third responses to the Summary above.

It's also possible, as the authors acknowledge, that one of the oligomeric complexes is a crystallization artifact. They do not sort this out with experiments, nor determine what actually occurs in living cells.

Unlike the other examples such as MscL, V0, F0-ATPases and light harvesting complexes, we have observed the formation of the hexamer and pentamer in solution and within lipid bilayers and the distinct ion conductivities in the planar lipid membrane associated with pHs for the same ExbBD sample. These behaviors should reflect biological natures in vivo as described in Discussion. The samples in solution and 2D crystals contained both full-length ExbB and ExbD (Figure 1—figure supplement 3B and Figure 5E (new figure)). Thus, the hexameric and pentameric complexes are not a crystallization artifact. TonB would little affect complexation of ExbB and ExbD as described in our third response to the Summary above.

They put a mechanistic spin on their pentameric-hexameric forms, but offer no evidence of a biologically relevant conversion between them. One thing that's problematic about the mechanistic conclusions is that the change in pH that's proposed to convert the complex between pentamer and hexamer (pH 4-5 vs. pH 8-9) likely never occurs in actively metabolizing, iron transporting bacterial cells: the pH near the inner bacterial membrane will remain acidic in actively growing cells.

We have shown that the proportion of the hexameric and pentameric complexes depends on pH (Figure 4 and Table S2 in Supplementary file 1). The hexamer and pentamer were also observed at the neutral pH (Figure 4C and Table S2 in Supplementary file 1). The two states / channels appear interchangeable in the lipid bilayer as macroscopic currents are reversible on adjusting pH (Figures 3C and D). Combined with other data, these behaviors should reflect biological natures. We think that a local concentration of the hydronium around the cytoplasmic domains is critical, but the global pH near the inner membrane is not. The conversion mechanism was described in our second response to the Summary above.

The paper contains a large amount of technically acceptable research. The authors reveal the ExbB hexamer at 2.8 Å; the overall resolution of the ExbBD structures is only 6-9 Å. The manuscript reports new attributes of ExbBD from their X-ray data and cryoEM: the alkaline pH-driven hexameric ExbB component purportedly (i.e., no data) has an ExbD trimer at its core, rather than the monomer proposed in the pentamer crystal, that was seen in both their experiments and those of Celia et al. Hence, Yonekura et al. infer a base ExbB:ExbD stoichiometry of 6:3 under one condition, and, along with Celia et al., a complex 5:2 in another condition. The images of ExbB may provide some insight into potential mechanisms. But, even if protons (pH) drive a change in ExbBD organization, from hexamer at alkaline pH to pentamer at acidic pH, it's anyone's guess how this change in quaternary structure might deliver an energy transducing force to the outer membrane. The authors do not substantially explore this point. One of the weaknesses of this article is that it does not reconcile other data nor consider existing models on TonB-dependent transport (Chang et al., 2001; Klebba, 2016).

We have improved the explanation of the working mechanisms by reconciling the exiting models as below and in Figure 7. We also cited Chang, et al., 2001 and Klebba, 2016.

“The proton gradient through the spiral of ExbB subunits would generate a torsion force (Chang et al., 2001) and may induce rotational movement of the ExbD TM helices. […] This movement would facilitate to find the outer membrane receptors (Klebba, 2016) and interaction of the TonB C-terminal domain with the periplasmic domain of the receptor induces conformational changes to release a substrate bound to the receptor into the periplasmic space (Chang et al., 2001; Klebba, 2016)”.

Yet, what's truly missing from their results are any data on TonB (and ExbD) that reveal what is the relevant structure of the complex, in vitro or in vivo.

Please refer to our third response to the Summary above.

Consequently, the paper only makes an incremental advance in its own narrow field (that may be artifactual) and does not have broader impact on the bioenergetics of Gram-negative bacterial active transport through the outer membrane, or membrane biochemistry in general. This lack of significance and scope makes me question its appropriateness in this venue, and its value to the overall understanding of TonB-dependent transport.

Please refer to our first response to reviewer #2.

Reviewer #3:

[…] However I feel some descriptions in the Discussion are speculative and more discussion for activation mechanism is required. Specific comments are listed below.

We have improved the manuscript by incorporating a new figure based on an atomic model of the ExbB hexamer and ExbD trimer (Figure 6), new crystallographic data (Table S1 in Supplementary file 1), experiments on TonB complexes (text). We have also proposed improved models for utilization of proton motive force and oligomeric transformation (text and Figure 7).

1) In the single channel recording of ExbB/D complex shown in Figure 3A, lower panel, two increments of channel current are shown (160pS then 60pS). Does this reflect opening of two channels in the same time (one in low conductance state and the other in high conductance)? Since in Figure 3B there are no results shown for 220pS, it is unlikely that this trace represents channel activation moment. Showing longer traces would be informative to understand the channel performance.

Yes. The data showed opening of two channels. Only incremental points as in Figure 3A were treated as the event of the single channel, since it is unlikely that two events occur simultaneously. This is the standard treatment for measurement of single channel conductance. We added this description in the legend of Figure 3. No single event jumping to ~ 220 pS was observed and longer traces only showed similar patterns as in Figure 3A.

2) “The two states / channels appear interchangeable in the lipid bilayer as macroscopic currents are reversible on adjusting pH (Figures 3C and D)”, and” Thus, the channel activity might be controlled by joining / ejecting two ExbD molecules and one ExbB through partial disruption of the structures”, I agree with this interpretation. If so, sub-complex consisting of one molecule of ExbB and two molecules of ExbD would be detected at lower pH. Would it be possible to detect such sub-complex by the analytical size exclusion column experiment, simply purified hexameric complex were run at pH 9.0?

We observed a small peak consisting of ExbB and ExbD at a lower molecular weight in the SEC patterns. The corresponding peak became smaller when run at pH 8.0 and disappeared at pH 9.0, which is consistent with the equilibrium of pentamer / hexamer. We added this description in text.

3) I think "rotation mechanism" proposed in the Discussion is interesting and plausible, but in this stage, it is speculative. The only supporting evidence derived from the data presented here is asymmetric helix disposition of ExbD, so I thought it may be better not to emphasize rotation model at this stage.

We have modified text not to emphasize the rotation. Please also refer to our sixth response to reviewer #2.

On the other hand, authors did not discuss how the activation happens on the basis of their structure. The notable difference and new important finding from the previous study (Celia et al.) is the hexameric complex, which contains three helices within the channel, showed higher conductance. Celia et al. showed that ExbB pentamer, which does not have ExbD plug in the channel, showed high conductance. But here, the presence of ExbD in the channel still allows high ion conduction. How does this happen? Such point should be discussed.

We have described the activation mechanism in the revised manuscript. Please refer to our sixth response to reviewer #3 below. The very high conductance (~ 220 pS) in Celia et al. (2016) was only observed for ExbB without ExbD. The behaviour of the channel with ExbD in our measurement is similar to that reported in Celia et al. (2016).

Also, as pointed in 2), Figure 3 showed that ExbB/D complex seems to dynamically changes its active and inactive state by incorporating/dissociating the ExbB1/ExbD2 sub-complex, and it is regulated by the pH. I would like to know authors' idea of how this happens.

The equilibrium of hexamer and pentamer may depend on the protonation state of the acidic residues such as Glu 105, Glu 109, Asp 103, and so on at the cytoplasmic end of the channel (Figures 2B and 6D), in accordance with PMF. If the hydronium concentration is elevated around this region, excess protonation of these residues might shift the equilibrium to denser packing among ExbB subunits by easing the electronegativity, which repels one ExbB subunit from the hexamer ring and excludes two ExbD from the central space to form the pentamer ring. Reversely, deprotonation of the acidic residues would shift to looser packing, which recruits two ExbD inside the ring and one ExbB to form the hexamer ring, if the local hydronium concentration is decreased. The channel in the hexameric complex can accommodate three TM helices but cannot four helices. We added this explanation in Discussion and Figure 7.

4) In the second paragraph of the subsection “A model for utilization of proton motive force”, authors emphasized that the functional importance of ExbD Asp25. However, in Celia et al., ExbB/D complex with D25A mutation in ExbD did not change the channel conductance. I would like to know the authors' idea regarding the function of D25, from the structural point of view, from their hexameric complex.

Asp 25 forms a cation selective filter, but the mutation of this aspartate does not affect the channel conductance (Celia et al., 2016). In our model, the aspartates reside at the lower part of the TM region and two of the aspartates facing to the pore produce an electronegative field inside the ion path (Figure 6B). The aspartates could allow only cations to pass through. We added this description in Discussion.

[Editors' note: the author responses to the re-review follow.]

The following points must be addressed by the authors before the manuscript can be published:

1) Density maps and atomic coordinates of the models described in the manuscript must be deposited in the EMDB and PDB.

Done. Atomic coordinates and structure factors for the crystal structure of the ExbB hexamer and coordinates of ExbB6ExbD3TM and ExbB5ExbD1TM have been deposited in the Protein Data Bank under accession number 5ZFP, 5ZFU and 5ZFV respectively. Cryo-EM density maps of the hexameric and pentameric complexes have been deposited in the Electron Microscopy Data Bank under the accession number EMD-6927 and EMD-6928, respectively.

2) The authors should explain the loss of ExbD in the crystal structures.

The 2D crystals contained both full-length ExbB and ExbD (Figure 5E). The 3D crystals appeared to be built by stacking of 2D crystal layers (Figure 1—figure supplement 2A and B). The periplasmic part of ExbD, which includes a long loop and a compact peptidoglycan-binding motif, would be difficult to fit between the 2D crystal layers in both P21 and P1 3D crystal lattices without deforming these domains (Figure 1—figure supplement 2A and B). Thus, stacking of 2D crystal layers might exclude ExbD because of these steric effects. We added this explanation in text.

3) The authors should provide a structural reason for the observed number of ExbD helices in ExbB pentamers and hexamers and explain why other numbers do not occur. They should consider the role of symmetry in the ExbB complex in their discussion.

Two TM helices in the hexamer channel as well as no helix in the pentamer channel produce larger pores and would result in unproductive and high proton influx. Thus, ejecting three or one helices from the hexamer ring would be undesirable and the ExbD dimer, which is reported to be a stable complex, would be secreted / incorporated during the oligomeric transition from / to hexamer. This explanation is now in the text.

Reviewer #3:

3) The discussion on the transition mechanism between the hexameric and pentameric ExbBD is still a bit vague. Authors mentioned that three helices of ExbD are enough and four is too much. Can the hexamer accommodate two TM helices of ExbD? Why two ExbD molecules are always recruited during the transition from 5mer to 6mer? Does the symmetrical arrangement help to form the ExbD trimer within the ExbB hexamer?

The ExbD TM trimer is asymmetrically located off-centre of the hexamer channel. We can’t see at the moment how the symmetrical arrangement of the six ExbB subunits could especially facilitate the formation of the ExbD trimer, except in so far as the hexamer ring provides the right size to accommodate the ExbD trimer and the right pore size for utilization of PMF.

https://doi.org/10.7554/eLife.35419.035

Article and author information

Author details

  1. Saori Maki-Yonekura

    Biostructural Mechanism Laboratory, RIKEN SPring-8 Center, Sayo, Japan
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  2. Rei Matsuoka

    Biostructural Mechanism Laboratory, RIKEN SPring-8 Center, Sayo, Japan
    Contribution
    Data curation, Formal analysis, Visualization
    Competing interests
    No competing interests declared
  3. Yoshiki Yamashita

    Biostructural Mechanism Laboratory, RIKEN SPring-8 Center, Sayo, Japan
    Contribution
    Data curation, Formal analysis, Visualization
    Competing interests
    No competing interests declared
  4. Hirofumi Shimizu

    Department of Molecular Physiology and Biophysics, Faculty of Medical Sciences, University of Fukui, Fukui, Japan
    Contribution
    Data curation, Formal analysis, Funding acquisition, Validation, Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Maiko Tanaka

    Biostructural Mechanism Laboratory, RIKEN SPring-8 Center, Sayo, Japan
    Contribution
    Data curation, Investigation, Sample production, purification and crystallization
    Competing interests
    No competing interests declared
  6. Fumie Iwabuki

    Biostructural Mechanism Laboratory, RIKEN SPring-8 Center, Sayo, Japan
    Contribution
    Data curation, Investigation, Sample production, purification and crystallization
    Competing interests
    No competing interests declared
  7. Koji Yonekura

    Biostructural Mechanism Laboratory, RIKEN SPring-8 Center, Sayo, Japan
    Contribution
    Conceptualization, Resources, Data curation, Software, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    yone@spring8.or.jp
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5520-4391

Funding

Japan Society for the Promotion of Science (15K06986)

  • Saori Maki-Yonekura

Japan Society for the Promotion of Science (15H04675)

  • Hirofumi Shimizu

Japan Society for the Promotion of Science (17H05876)

  • Hirofumi Shimizu

Japan Society for the Promotion of Science (16H04757)

  • Koji Yonekura

Japan Society for the Promotion of Science (20370064)

  • Koji Yonekura

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank M Watanabe for the early stage of this work, K Hirata, K Yamashita, Y Kawano, M Yamamoto, G Ueno, and other beam line staff for their help in X-ray diffraction data acquisition at SPring-8, MB Braunfeld, AF Brilot, KA Verba, DA Agard (UCSF), A Siebert, Y Chaban, C Hecksel (Diamond), H Shigematsu, T Yokoyama (RIKEN), K Mitsuoka (Osaka University), and S De Carlo (NeCEN) for cryo-EM data collection, and S Zheng for allowing us use of MotionCor2 before the software was available to the public. We are also grateful to T Suzuki and N Dohmae for peptide mass finger printing analysis, S Oiki for use of electrophysiological devices, and D B McIntosh for help in improving the manuscript. This work was supported by the Japan Society for the Promotion of Science Grant-in-Aid for Scientific Research Grant Number 15K06986 to (SY-M), 16H04757 (to KY), 15H04675 and 17H05876 (to HS). X-ray diffraction experiments were performed at BL32XU, BL41XU and BL26 in SPring-8 with the approval of the Japan Synchrotron Radiation Research Institute (JASRI) and RIKEN (Proposal Nos. 2012B1061, 2013B1085, 2014B1045, 2015A1021, 2015B2021, 2016A2530, and 2016B2530). We also acknowledge Diamond for access and support of the Cryo-EM facilities at the UK national electron bio-imaging centre (eBIC), proposal EM14838-1 and EM16817-1, funded by the Wellcome Trust, MRC and BBSRC.

Reviewing Editor

  1. Nikolaus Grigorieff, Janelia Research Campus, Howard Hughes Medical Institute, United States

Publication history

  1. Received: January 26, 2018
  2. Accepted: March 18, 2018
  3. Version of Record published: April 17, 2018 (version 1)
  4. Version of Record updated: April 17, 2018 (version 2)
  5. Version of Record updated: May 4, 2018 (version 3)

Copyright

© 2018, Maki-Yonekura et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,081
    Page views
  • 164
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Structural Biology and Molecular Biophysics
    Alan Brown et al.
    Research Article Updated
