Neurexin directs partner-specific synaptic connectivity in C. elegans

  1. Alison Philbrook
  2. Shankar Ramachandran
  3. Christopher M Lambert
  4. Devyn Oliver
  5. Jeremy Florman
  6. Mark J Alkema
  7. Michele Lemons
  8. Michael M Francis  Is a corresponding author
  1. University of Massachusetts Medical School, United States
  2. Assumption College, United States
Research Article
  • Cited 2
  • Views 1,636
  • Annotations
Cite this article as: eLife 2018;7:e35692 doi: 10.7554/eLife.35692

Abstract

In neural circuits, individual neurons often make projections onto multiple postsynaptic partners. Here, we investigate molecular mechanisms by which these divergent connections are generated, using dyadic synapses in C. elegans as a model. We report that C. elegans nrx-1/neurexin directs divergent connectivity through differential actions at synapses with partnering neurons and muscles. We show that cholinergic outputs onto neurons are, unexpectedly, located at previously undefined spine-like protrusions from GABAergic dendrites. Both these spine-like features and cholinergic receptor clustering are strikingly disrupted in the absence of nrx-1. Excitatory transmission onto GABAergic neurons, but not neuromuscular transmission, is also disrupted. Our data indicate that NRX-1 located at presynaptic sites specifically directs postsynaptic development in GABAergic neurons. Our findings provide evidence that individual neurons can direct differential patterns of connectivity with their post-synaptic partners through partner-specific utilization of synaptic organizers, offering a novel view into molecular control of divergent connectivity.

https://doi.org/10.7554/eLife.35692.001

eLife digest

Nervous systems are complex networks of interconnected cells called neurons. These networks vary in size from a few hundred cells in worms, to tens of billions in the human brain. Within these networks, each individual neuron forms connections – called synapses – with many others. But these partner neurons are not necessarily alike. In fact, they may be different cell types. How neurons form distinct connections with different partner cells remains unclear.

Part of the answer may lie in specialized proteins called cell adhesion molecules. These proteins occur on the cell surface and enable neurons to recognize one another. This helps ensure that the cells form appropriate connections via synapses. Cell adhesion molecules are therefore also known as synaptic organizers. Philbrook et al. have now examined the role of synaptic organizers in wiring up the nervous system of the nematode worm and model organism Caenorhabditis elegans.

Motor neurons form connections with two types of partner cell: muscle cells and neurons. Philbrook et al. screened C. elegans that have mutations in genes encoding various synaptic organizers. This revealed that a protein called neurexin must be present for motor neurons to form synapses with other neurons. By contrast, neurexin is not required for the same neurons to establish synapses with muscles. Philbrook et al. found that neuron-to-neuron synapses arise at specialized finger-like projections. These resemble the dendritic spines at which synapses form in the brains of mammals, and had not been previously identified in C. elegans. In worms that lack neurexin, these spine-like structures do not form correctly, disrupting the formation of neuron-to-neuron connections.

Previous work has implicated neurexin in synapse formation in the mammalian brain. But this is the first study to reveal a role for neurexin in establishing partner-specific synaptic connections. Mutations in synaptic organizers, including neurexin, contribute to disorders of brain development. These include schizophrenia and autism spectrum disorders. Learning more about how neurexin helps establish specific synaptic connections may help us understand how these disorders arise.

https://doi.org/10.7554/eLife.35692.002

Introduction

Neurons are typically wired into discrete circuits through stereotyped patterns of synaptic connections geared to perform specific functions. Individual neurons within circuits may receive convergent synaptic inputs from multiple classes of presynaptic partnering neurons, and likewise, make divergent synaptic outputs onto distinct postsynaptic targets. We have gained an understanding of some of the core mechanisms that sculpt convergent connectivity through studies of developmental processes such as activity-dependent synapse elimination (Brown et al., 1976; Campbell and Shatz, 1992; Okawa et al., 2014a; Sanes and Lichtman, 1999; Shatz and Kirkwood, 1984; Walsh and Lichtman, 2003). In contrast, the molecular processes controlling the establishment of divergent synaptic connections (between a single presynaptic partner and multiple postsynaptic target cells) are not clearly defined (Okawa et al., 2014b). Neural circuit models often represent divergent connections as a means for enabling the same signal from an individual presynaptic neuron to reach many different postsynaptic target cells. However, the strength of connections with postsynaptic partners can vary widely, strongly suggesting that presynaptic neurons have the capacity to establish and regulate connections with each postsynaptic target independently. While molecular guidance cues directing axon outgrowth have been well-studied, an understanding of the molecular mechanisms responsible for directing target-specific connectivity has remained elusive.

A primary mechanism for establishing nascent synapses is through the actions of synaptic adhesion molecules, also known as synaptic organizers (de Wit and Ghosh, 2016; Missler et al., 2012). These organizers are often anchored to the pre- and post-synaptic membranes (e.g. neurexins, neuroligins, leucine-rich repeat transmembrane proteins/LRRTMs) and promote synapse formation through trans-synaptic adhesion and signaling. The importance of these processes in establishing proper neural circuit connectivity is highlighted by the links between mutations in genes encoding these synaptic adhesion/organizing molecules and neuropsychiatric and neurodevelopmental disorders, such as autism spectrum disorder and schizophrenia (Kim et al., 2008; Reichelt et al., 2012; Rujescu et al., 2009). Intriguingly, synaptic organizers are capable of acting in a cell-specific manner to promote synapse formation (Chen et al., 2017; Siddiqui et al., 2013; Zhang et al., 2015). Thus, an exciting possibility is that individual neurons could encode connections with alternate synaptic partners through differential deployment of synaptic organizers.

We have investigated this possibility in the motor circuit of the nematode Caenorhabditis elegans where individual excitatory cholinergic motor neurons form synapses with both body wall muscles and GABAergic motor neurons. Through a screen for genes that govern the formation of these divergent synaptic connections, we demonstrate that the synaptic organizer nrx-1/neurexin directs the outgrowth of previously uncharacterized dendritic spine-like structures and the formation of synaptic connections with GABAergic neurons, but is not required for synaptic connectivity with muscles. Conversely, genes previously shown to be required for cholinergic connectivity with muscles (Francis et al., 2005; Gally et al., 2004; Pinan-Lucarré et al., 2014) are not required for the formation of synapses onto GABAergic neurons. Our findings demonstrate that cholinergic neurons utilize distinct molecular signals to establish synapses with GABAergic motor neurons versus body wall muscles, thus revealing that a single presynaptic neuron establishes divergent connections by employing parallel molecular strategies for the formation of connections with each postsynaptic partner.

Results

Clusters of the GFP-tagged acetylcholine receptor subunit ACR-12 are localized to spine-like dendritic protrusions on DD GABAergic neurons

To establish a system to investigate mechanisms instructing synaptic connectivity, we labeled post-synaptic specializations on dorsally directed GABAergic DD neurons using cell-specific expression (flp-13 promoter) of the GFP-tagged acetylcholine receptor subunit ACR-12. Prior work showed that ACR-12 receptors in GABAergic motor neurons are clustered opposite cholinergic terminals and GABAergic expression of ACR-12::GFP rescues acr-12 mutant phenotypes (Barbagallo et al., 2017; Petrash et al., 2013). Moreover, postsynaptic ACR-12::GFP clusters relocate appropriately during developmental synaptic remodeling of the DD neurons, suggesting these clusters faithfully report synaptic inputs (He et al., 2015; Howell et al., 2015).

The morphology of DD neurons is highly polarized, facilitating clear visualization of the axonal and dendritic neuronal compartments. In the present work, we focus much of our analysis on the spatially isolated neurites of the DD1 neuron (Figure 1A–C). In adults, the anterior DD1 process extends from the soma to enter the ventral nerve cord fascicle (the dendritic compartment), where prior EM studies show that approximately 26 synaptic inputs from cholinergic neurons are concentrated (the synaptic region, Figure 1C,D) (White et al., 1978, 1976). The process then crosses the longitudinal midline of the worm via a commissural connection and enters the dorsal nerve cord where it forms en passant synaptic outputs onto body wall muscles (the axonal compartment) (Figure 1A,B) (White et al., 1976). We find that ACR-12::GFP receptor clusters in DD1 are confined to the synaptic region of the ventral dendritic process in the mature animal (Figure 1C). As C. elegans synapses are formed en passant, pre- and post-synaptic specializations typically appear, at the light level, to be localized along the main shafts of neuronal processes. Surprisingly, we noted that the majority of ACR-12::GFP clusters do not appear localized to the shaft of the primary DD1 dendritic process, instead appearing to protrude from the primary DD1 dendrite shaft (Figure 1C). To investigate this finding in more detail, we examined morphological features in the synaptic region of the DD1 dendrite (Figure 1D). Intriguingly, we noted finger-like structures (~0.3–1 μm in length) projecting outward from the DD1 dendrite in this region (Figure 1D, Figure 1—figure supplement 1A). In contrast, these structures are not present in the asynaptic region of the process immediately adjacent to the cell soma (Figure 1D). These protrusions are obscured by the processes of other ventral cord neurons when using promoters that provide for more broad expression (e.g. unc-47), and are therefore most clearly identifiable with specific labeling of DD neurons (Figure 1—figure supplement 1B). Spine-like protrusions are also clearly identifiable in the dendrites of more posterior DD neurons (Figure 1—figure supplement 1C), but are not apparent in a related class of post-embryonic born, ventrally directed GABAergic (VD) neurons (Figure 1—figure supplement 1D), although the density of VD processes may complicate their detection. The dendritic protrusions concentrate clusters of ACR-12 receptors at their tips (Figure 1E), and over 60% of ACR-12::GFP clusters appear localized to protrusions (Figure 1F). The dendritic protrusions increase in abundance through larval development, and this increase correlates well with a similar developmental increase in ACR-12::GFP receptor clusters (Figure 1—figure supplement 2). Together, our results provide evidence that cholinergic receptors cluster at morphologically distinct finger-like structures present on DD neuron dendrites, raising the interesting possibility that these structures serve similar roles to dendritic spines in the mammalian nervous system.

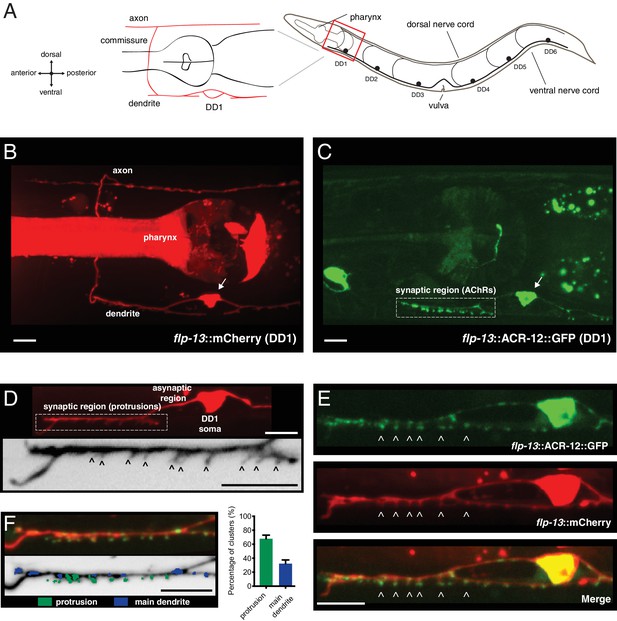

Figure 1 with 2 supplements see all
Characterization of post-synaptic specializations in the DD neurons.

(A) Diagrams of C. elegans showing the six DD GABAergic neurons in the ventral nerve cord and expanded view of DD1. After the L1/L2 transition, the DD neurons exclusively make dorsal synaptic outputs onto muscles (axon), while receiving a majority of synaptic inputs on the ventral side (dendrite). (B) Morphology of the DD1 neuron, visualized by expression of the flp-13::mCherry transcriptional reporter. Pharyngeal fluorescence indicates expression of the lgc-11::mCherry co-injection marker. Arrow indicates DD1 cell body. For this and all subsequent figures, images of L4 animals are shown unless otherwise noted. (C) Cholinergic ACR-12 receptors (flp-13::ACR-12::GFP) are localized to a defined region of the DD1 dendritic compartment, labeled as the synaptic region (boxed). Arrow indicates DD1 cell body. (D) Top, confocal image of the DD1 dendritic region visualized by expression of flp-13::mCherry. Bottom, inverted image showing expanded view of the synaptic region containing dendritic protrusions (indicated by arrowheads). (E) Confocal images of DD1 soma and synaptic region with coexpression of flp-13::ACR-12::GFP and flp-13::mCherry. Arrowheads indicate ACR-12 clusters located at the tips of dendritic protrusions. (F) Left, representative confocal image showing the distribution of ACR-12::GFP clusters. ACR-12::GFP receptor clusters associated with either protrusions (green) or the main dendritic shaft (blue) are indicated. Right, the percentage of clusters classified into each category (142 receptor clusters from 11 animals were analyzed). Scale bars, 5 μm (B–F).

https://doi.org/10.7554/eLife.35692.003

Heteromeric ACR-12-containing AChRs are located on the cell surface opposite cholinergic release sites

To explore the above possibility further, we evaluated the spatial relationship between ACR-12 clusters located on these spine-like structures and cholinergic release sites. We found that dendritic protrusions and ACR-12 receptor clusters are both located opposite clusters of cholinergic synaptic vesicles (Figure 2A,B), indicating that these likely represent mature synapses. We therefore next investigated whether these clusters indicate post-synaptic receptors residing at the cell surface. To address this question, we inserted an HA epitope tag into the extracellular C-terminus of ACR-12::GFP (diagram in Figure 2C) (Gottschalk and Schafer, 2006). Injection of Alexa594 conjugated anti-HA antibody into live transgenic animals expressing this construct produces specific labeling in the DD1 synaptic region, and is also evident in coelomocytes (scavenger cells that take up excess antibody), confirming successful injection (Figure 2C). The anti-HA signal colocalizes with ACR-12::GFP clusters in the synaptic region of DD1, but is not evident in the cell soma. In contrast, the intracellular GFP moiety produces fluorescence that is evident in both the soma and the synaptic region of the dendrite, representing both synaptic and internal receptor pools (Figure 2C). Injection of anti-GFP antibody did not produce specific labeling, confirming that the intracellularly positioned GFP is not accessible to antibody (Figure 2—figure supplement 1A). Our analysis of ACR-12 localization in DD1 indicates that ACR-12 is incorporated into mature receptor complexes that are specifically targeted for transport to DD neuron dendrites, and reside on the cell surface at post-synaptic sites.

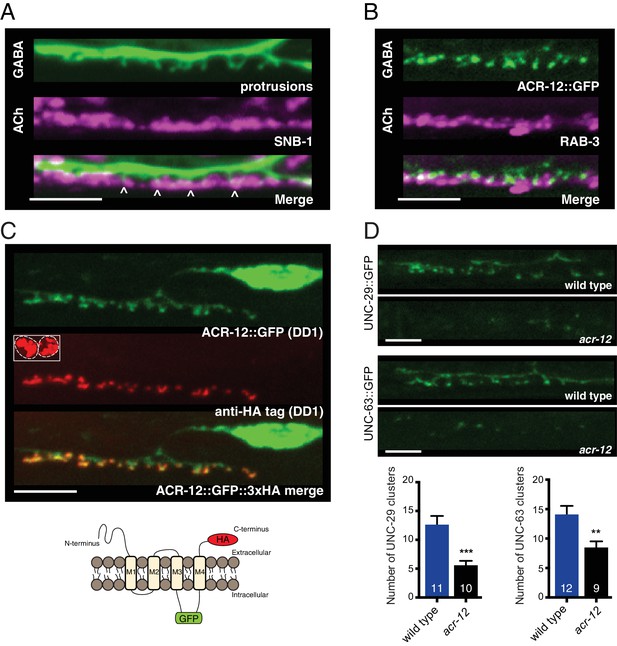

Figure 2 with 1 supplement see all
Heteromeric ACR-12 receptors are localized at the cell surface opposite sites of release.

(A) Confocal images of presynaptic (acr-2::SNB-1::GFP) and postsynaptic (flp-13::mCherry) domains in the DD1 synaptic region. Note violet/green coloring to more clearly depict presynaptic structures and protrusions (arrowheads). (B) Confocal images showing apposition of pre- and post-synaptic components with coexpression of the cholinergic synaptic vesicle marker acr-2::mCherry::RAB-3 (violet) and the AChR reporter ACR-12::GFP (green) in the DD1 synaptic region. (C) Top, confocal images showing ACR-12 receptor clusters as visualized by GFP fluorescence (green) or anti-HA antibody fluorescence (red) 6 hr following antibody injection. Note the extracellular location of the HA epitope tag (schematic below), enabling selective visualization of synaptic receptor clusters at the cell surface. Inset, anti-HA uptake by coelomocytes indicating successful injection. (D) Top, confocal images of UNC-29::GFP and UNC-63::GFP clusters in the DD1 dendrite (flp-13 promoter) in wild type or acr-12(ok367) mutants. Bottom, quantification of the average number of UNC-29::GFP and UNC-63::GFP clusters in the DD1 dendrite for wild type and acr-12(ok367) mutants. Each bar represents the mean ± SEM. For this and all subsequent figures, numbers in bars indicate the n for each genotype. **p<0.01, ***p<0.001, student’s t-test. Scale bars, 5 μm (A–D).

https://doi.org/10.7554/eLife.35692.008

We next sought to gain an understanding of the subunit composition of ACR-12 receptors in GABAergic neurons. Most acetylcholine receptors are formed as heteromeric combinations of five subunits. Prior work has demonstrated that partially or improperly assembled acetylcholine receptor intermediates are not transported out of the ER and are instead targeted for degradation (Blount and Merlie, 1990; Merlie and Lindstrom, 1983). We therefore reasoned that genetic ablation of obligate ACR-12 partnering subunits, by interfering with assembly, transport, and synaptic targeting of ACR-12 receptor complexes, could provide an efficient strategy for identifying subunit partners. We found that single mutations in the acetylcholine receptor subunit genes unc-38, unc-63, lev-1 or unc-29 strongly decrease ACR-12::GFP clustering. In wild type, we observe approximately 15 receptor clusters within the DD1 synaptic region. These clusters are eliminated almost completely with mutation of these subunit genes (Figure 2—figure supplement 1B,C). In contrast, mutations in other nAChR subunit genes with previously reported neuronal expression, such as acr-9 and acr-14 (Cinar et al., 2005; Fox et al., 2005), do not disrupt synaptic ACR-12 clustering (Figure 2—figure supplement 1B). Mutations in genes important for AChR assembly and trafficking (unc-50, unc-74, and ric-3) (Boulin et al., 2008; Eimer et al., 2007; Halevi et al., 2002; Haugstetter et al., 2005) also abolish synaptic clusters of ACR-12::GFP (Figure 2—figure supplement 1B,C). GABA neuron-specific expression of wild type cDNAs encoding individual AChR subunits (UNC-63 or UNC-38) or accessory proteins in the respective mutants is sufficient to restore ACR-12 clustering to wild type levels, providing support that both gene classes act cell-autonomously in GABA neurons to promote receptor assembly, maturation and synaptic delivery (Figure 2—figure supplement 1B,C). Cell-specific expression of either UNC-29::GFP or UNC-63::GFP in DD neurons produces punctate labeling in the DD1 synaptic region that closely resembles ACR-12::GFP clustering (Figure 2D). Mutation of acr-12 in these transgenic animals significantly reduces UNC-29::GFP or UNC-63::GFP receptor clusters and fluorescence signal in the DD1 synaptic region (Figure 2D, Figure 2—figure supplement 1D,E), providing further evidence that they coassemble with ACR-12. Together, our results indicate UNC-38, UNC-63, LEV-1, UNC-29 and ACR-12 subunits coassemble into a pentameric acetylcholine receptor in GABAergic neurons.

Neurexin directs cholinergic connectivity with GABAergic neurons

To decipher molecular mechanisms by which these newly defined post-synaptic structures develop, we examined ACR-12::GFP labeling in DD neurons of 28 strains carrying mutations in 36 candidate genes. These candidates predominantly encode scaffold and cell-cell interaction proteins previously implicated in synapse formation, many of which have previously demonstrated expression in GABAergic neurons (Cinar et al., 2005) (Figure 3—figure supplement 1). Mutations in most genes tested (75%) produce no significant disruption in ACR-12 receptor clustering (Figure 3A, light blue). A second group, comprising 8 of the 36 genes analyzed (Figure 3A, green), produces mild to moderate (26–39%) decreases in ACR-12 clustering. Many of the mutants in this second group identify genes (e.g. lev-10, madd-4) that perform previously characterized functions in neuromuscular synapse development and muscle AChR clustering (Gally et al., 2004; Pinan-Lucarré et al., 2014) (Figure 3—figure supplement 2A,B), but appear to play comparatively minor roles in establishing synaptic connectivity with GABAergic neurons.

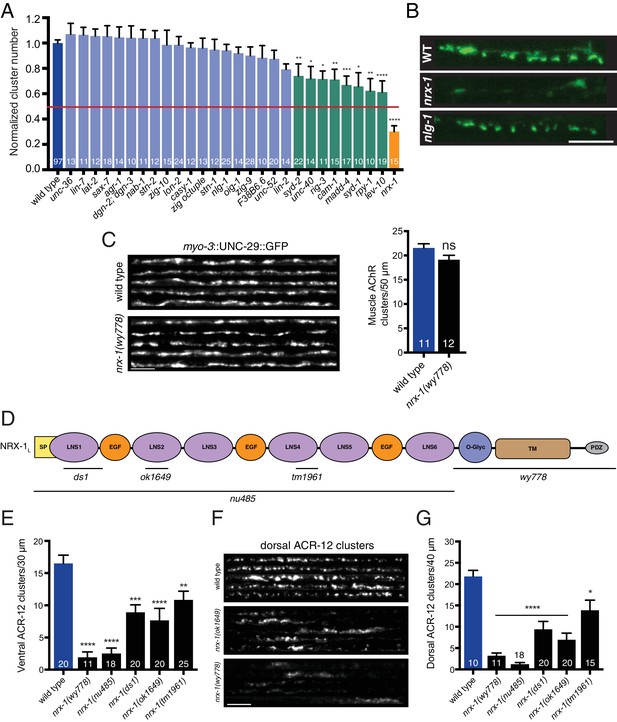

Figure 3 with 4 supplements see all
nrx-1/neurexin is required for AChR localization in GABAergic motor neurons, but not muscles.

(A) Quantification of ACR-12::GFP clusters in the synaptic region of the DD1 dendrite for the genotypes indicated, normalized to wild type. Red line indicates 50% reduction in puncta number. Colored bars indicate wild type (blue), no effect (light blue), modest effect (green), and severe clustering defects (orange). *p<0.05, **p<0.01, ***p<0.001, ****p<0.0001, ANOVA with Dunnett’s multiple comparisons test. (B) Representative confocal images showing ACR-12::GFP clusters in the synaptic region of the DD1 dendrite for wild type (WT), nrx-1(ok1649), and nlg-1(ok259) mutants. Scale bar, 5 μm. (C) Left, representative confocal images of the dorsal nerve cord region from five wild type and nrx-1(wy778) adult animals expressing myo-3::UNC-29::GFP to label muscle AChRs. Scale bar, 5 μm. Right, quantification of UNC-29::GFP clusters in a 50 μm region of the posterior dorsal nerve cord. (D) Domain structure of the NRX-1 long isoform (NRX-1L). Deletion regions are indicated (black line). N-terminal signal peptide (SP), extracellular LNS, EGF, transmembrane (TM), PDZ binding (PDZ) domains, and O-linked glycosylation site are shown. (E) Quantification of ACR-12 receptor clusters (unc-47::ACR-12::GFP) in the ventral nerve cord for the genotypes indicated. **p<0.01, ***p<0.001, ****p<0.0001, ANOVA with Dunnett’s multiple comparisons test. (F) Representative confocal images showing dorsal nerve cord ACR-12 receptor clusters for five wild type, nrx-1(ok1649), and nrx-1(wy778) animals expressing unc-47::ACR-12::GFP. Scale bar, 5 μm. (G) Quantification of ACR-12 receptor clusters (unc-47::ACR-12::GFP) in the dorsal nerve cord for the genotypes indicated. *p<0.05, ****p<0.0001, ANOVA with Dunnett’s multiple comparisons test.

https://doi.org/10.7554/eLife.35692.012

One of the 36 mutations tested is clearly distinguishable by a striking decrease in ACR-12 clustering. Mutation of the nrx-1 gene (orange, Figure 3A) does not significantly affect transgene expression in GABAergic neurons (Figure 3—figure supplement 2C,D), but produces a ~70% reduction in ACR-12 receptor clustering (nrx-1(ok1649), p<0.0001) (Figure 3A,B). nrx-1 encodes the sole C. elegans ortholog of the synaptic organizer neurexin. Neurexin has been well documented to play roles in mammalian synapse formation and function (Chen et al., 2017; Dean et al., 2003; Graf et al., 2004; Missler et al., 2003). Roles for NRX-1 in C. elegans synapse formation remain, by comparison, less well defined. Moreover, roles for neurexin in establishing divergent connectivity have not been previously addressed in any system. Importantly, we do not observe appreciable alterations in the clustering of muscle AChRs in nrx-1 mutants (Figure 3C), similar to previously reported findings (Hu et al., 2012). The profound alterations in ACR-12 localization described above, coupled with the lack of effect on muscle AChRs, therefore warranted an in-depth analysis of cholinergic synapses with GABAergic neurons in nrx-1 mutants.

We first sought to distinguish whether nrx-1 performs a specific role in synapse formation or serves more generalized functions in the developmental maturation of DD neurons. We studied the developmental remodeling of DD neurons, characterized by the dorsoventral repositioning of synaptic markers, which occurs at the L1/L2 transition in wild type animals (Jin and Qi, 2018; White et al., 1978). In particular, we examined the repositioning of pre- and post-synaptic markers expressed specifically in DD motor neurons (Figure 3—figure supplement 3A). Presynaptic remodeling, as measured using the synaptic vesicle marker mCherry::RAB-3, proceeds normally in nrx-1 mutants, indicating that this process does not require neurexin expression. The clustering of ACR-12 receptors, however, is impaired both prior to and following remodeling in nrx-1 mutants, suggesting that NRX-1 is required for receptor clustering in each of these developmental stages.

As is the case for mammals, the C. elegans nrx-1 locus encodes both long (nrx-1L) and short (nrx-1S) neurexin isoforms (Figure 3—figure supplement 3B). The long isoform encodes a single pass transmembrane protein harboring intracellular PDZ binding and interleaved extracellular LNS (laminin-neurexin-sex hormone-binding globulin) and EGF-like domains (Figure 3D). The ok1649 allele generates an in-frame deletion, eliminating 861 bp predicted to encode an extracellular LNS domain, raising the possibility that partial NRX-1 function may still be present in this strain. We therefore expanded our analysis to include additional nrx-1 deletions, three of which (ds1, tm1961, and nu485) are predicted to primarily impact the long isoform, while another (wy778) removes the transmembrane and cytoplasmic domains shared by all NRX-1 isoforms (Calahorro and Ruiz-Rubio, 2013; Maro et al., 2015; Tong et al., 2015). All of the deletions tested disrupt ACR-12 receptor clustering in DD GABAergic neurons, with the most severe disruptions occurring in nrx-1(wy778) and nrx-1(nu485) mutants (Figure 3E). Strikingly, we also observe significant disruption of ACR-12 receptor clustering in the VD GABAergic neurons (Figure 3F,G) of nrx-1 mutants, indicating a requirement for nrx-1 at synapses onto both GABAergic neuron classes.

In some instances (14 of 34 animals for nrx-1(wy778)), we noted that a few ACR-12 receptor clusters remain detectable. We investigated whether these residual ACR-12 receptors are localized to the cell surface by injecting Alexa594 conjugated anti-HA antibody into nrx-1 mutants expressing ACR-12::GFP::3xHA. Antibody fluorescent signal clearly colocalizes with ACR-12::GFP fluorescence, providing evidence that the few remaining receptor clusters in nrx-1 mutants are present at the cell surface (Figure 3—figure supplement 3C). We interpret this result to indicate that neurexin is not essential for membrane insertion, although we can’t rule out that this process may occur less efficiently in nrx-1 mutants.

We next examined whether the localization of putative ACR-12 partnering subunits is also disrupted by mutation of nrx-1. As noted above, ACR-12 receptors are formed as heteromeric complexes in GABAergic neurons that likely incorporate the UNC-29 and UNC-63 AChR subunits. Neurexin deletion (wy778) reduces UNC-29::GFP and UNC-63::GFP clusters in DD1 by 60%, consistent with a requirement for neurexin in the proper localization of mature, heteromeric receptor complexes (Figure 3—figure supplement 3D,E). In contrast to our findings for GABAergic neurons, nrx-1 deletion does not appreciably disrupt the clustering of AMPA-type glutamate receptors in interneurons (Figure 3—figure supplement 4A), consistent with the idea that neurexin is not globally required for the establishment of synaptic connectivity in worms. Additionally, we do not observe an appreciable decrease in cholinergic synaptic vesicle clusters (acr-2::SNB-1::GFP), although this analysis does not rule out all potential presynaptic defects (Figure 3—figure supplement 4B).

To elucidate mechanisms by which nrx-1 may instruct the formation of synapses between cholinergic and GABAergic motor neurons, we evaluated mutations in the nlg-1 gene. nlg-1 encodes the sole C. elegans ortholog of neuroligin, a well characterized binding partner of neurexin (Banerjee et al., 2017; Boucard et al., 2005; Hu et al., 2012; Ichtchenko et al., 1995, Ichtchenko et al., 1996). We find that mutation of nlg-1 produces no appreciable defects in ACR-12 receptor clustering (Figure 3A,B), indicating, surprisingly, that NRX-1 operates independently of NLG-1 to direct post-synaptic development in GABAergic neurons.

Post-synaptic morphological development requires NRX-1

We next investigated whether neurexin is required for the outgrowth or stabilization of the spine-like processes we observe in DD dendrites. Wild type animals (at the L4 stage) have an average of 7–8 of these spiny protrusions within the synaptic region of the anterior DD1 dendrite (Figure 4A,B). In contrast, nrx-1 mutants have strikingly reduced numbers of spiny protrusions. For example, only two spiny protrusions are visible on average in DD1 dendrites of nrx-1(ok1649), and nrx-1(wy778) mutants show a near complete absence of spines (Figure 4A,B). nrx-1 deletion disrupts both ACR-12 receptor clustering and spine outgrowth in posterior DD neurons to a similar extent as observed for DD1 (Figure 4C, Figure 4—figure supplement 1A), indicating that the requirement for nrx-1 is shared across DD neurons. Roughly 15% of the receptor clusters remaining in nrx-1(ok1649) mutants are associated with the remaining spines (compared with 67% in wild type). In contrast, the number of dendritic receptor clusters is not appreciably altered by nrx-1 deletion (p=0.67, student’s t test), suggesting NRX-1 may preferentially regulate spine-associated receptor clusters in DD neurons. nrx-1 deletion also significantly reduces spiny protrusions in L2 animals (the earliest stage at which they are visible) (Figure 4—figure supplement 1B), suggesting that neurexin is required for initial spine outgrowth, although an additional role in maintenance is also possible. In accordance with our finding that nlg-1 is not required for ACR-12::GFP localization, mutation of nlg-1 does not alter spine number (Figure 4A,B), arguing against an essential role for neuroligin in the formation of cholinergic synapses with GABAergic neurons. Likewise, spine number is not appreciably altered in either acr-12 or unc-63 mutants (Figure 4A,B), indicating that spine outgrowth proceeds normally in the absence of functional ACR-12 receptors.

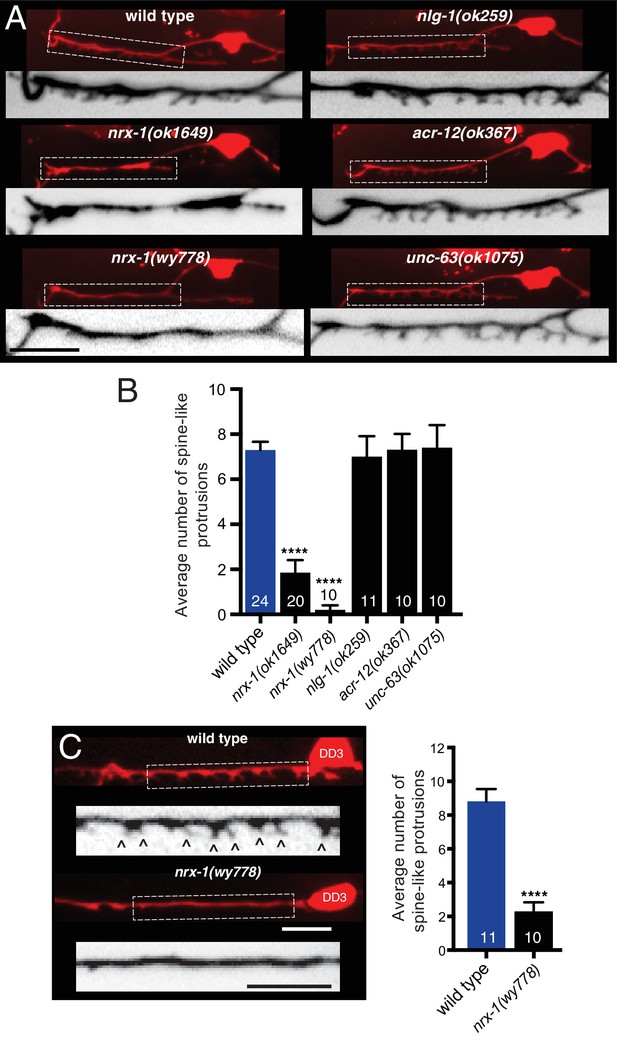

Figure 4 with 1 supplement see all
Synaptic architecture is dependent on nrx-1/neurexin.

(A) Fluorescent confocal images of spine-like protrusions in the synaptic region of the DD1 dendrite (flp-13::mCherry) for the genotypes indicated. Inverted images show expanded views of the synaptic regions (indicated by dashed boxes in fluorescent images). Scale bar, 5 μm. (B) Quantification of spine-like protrusions in the DD1 dendrite for the genotypes indicated. ****p<0.0001, ANOVA with Dunnett’s multiple comparisons test. (C) Left, fluorescent confocal images of spine-like protrusions (arrowheads) in the DD3 neuron dendrite (flp-13::mCherry) for wild type and nrx-1(wy778) mutants. Inverted images show expanded views of the DD3 dendrites (indicated by dashed boxes in fluorescent images). Scale bars, 5 μm. Right, quantification of spine-like protrusions in the DD3 dendrite (25 μm region anterior to the cell body) for wild type and nrx-1(wy778) mutants. ****p<0.0001, student’s t-test.

https://doi.org/10.7554/eLife.35692.019

nrx-1 is expressed and functionally required in cholinergic motor neurons

To understand how NRX-1 regulates the formation of cholinergic synapses with GABAergic neurons, we sought to define the requirements for nrx-1 expression. We first examined expression of a nrx-1L::GFP transcriptional reporter incorporating ~4.8 kb of sequence upstream of the nrx-1L start site, and found that this reporter is strongly expressed in cholinergic motor neurons (Figure 5A). We next asked whether specific nrx-1 expression in cholinergic neurons is sufficient to rescue the post-synaptic defects of nrx-1 mutants. We found that cholinergic nrx-1L expression reverses the ACR-12 clustering defects of nrx-1(wy778) mutants, while expression in either GABAergic neurons or muscles fails to rescue (Figure 5B–D). Notably, cholinergic expression of nrx-1L also restores spine-like protrusions in nrx-1 mutants (Figure 5—figure supplement 1A,B). Thus, our results suggest that presynaptic NRX-1 acts non-autonomously to direct post-synaptic assembly in GABAergic neurons. To investigate this possibility in more detail, we examined the subcellular localization of NRX-1 by expressing GFP-tagged NRX-1L (NRX-1L::GFP) (Maro et al., 2015) in a subset of cholinergic neurons (DA/DB). Expression of unc-129::NRX-1L::GFP produces discrete puncta along the dorsal nerve cord where the synaptic outputs of DA/DB neurons are located (Figure 5E). NRX-1L::GFP clusters colocalize with clusters of mCherry::RAB-3 fluorescence, providing evidence that NRX-1L is preferentially localized to cholinergic presynaptic sites (Figure 5E,F). Intriguingly, cholinergic expression of a rescuing transgene lacking the PDZ binding motif located at the intracellular NRX-1 C-terminus (nrx-1LΔPDZ) in nrx-1 mutants can also rescue ACR-12 clustering defects (Figure 5—figure supplement 2A,B). NRX-1LΔPDZ::GFP is exclusively expressed in cholinergic axons and partially colocalizes with mCherry::RAB-3 fluorescence, indicating that NRX-1 presynaptic localization and function is possible without PDZ protein binding via this motif (Figure 5—figure supplement 2C–E). Loss of nlg-1 function does not affect the axonal localization of NRX-1L::GFP (Figure 5—figure supplement 3A,C–D). NRX-1L::GFP localization is also not appreciably altered by acr-12 deletion, suggesting that the positioning of NRX-1 at presynaptic terminals occurs independently of post-synaptic receptor clustering (Figure 5—figure supplement 3B–D). Our results indicate NRX-1 positioning at presynaptic sites occurs independently of post-synaptic receptor localization, and raise the intriguing possibility that NRX-1 localization to the presynaptic domain may serve as an initiation signal for developmental maturation of post-synaptic specializations in GABAergic neurons.

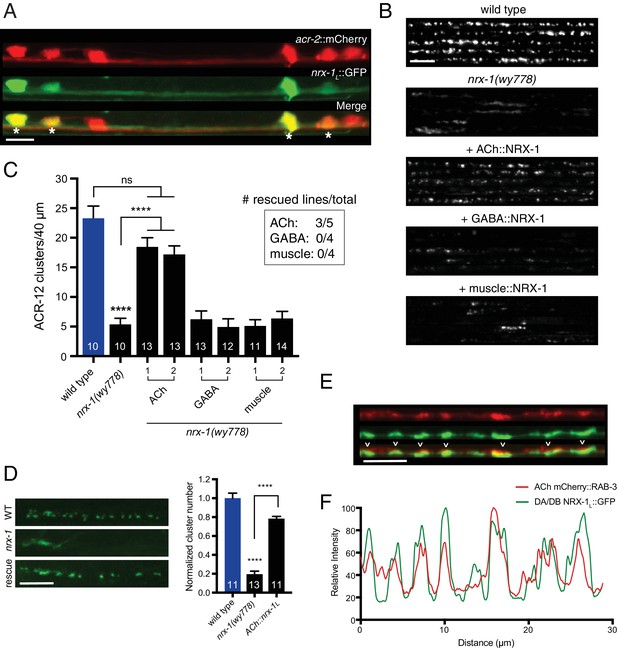

Figure 5 with 3 supplements see all
Cell-specific expression of neurexin in cholinergic motor neurons restores ACR-12 localization to synapses.

(A) Confocal images of the ventral nerve cord in a transgenic strain expressing nrx-1L::GFP together with the cholinergic motor neuron marker acr-2::mCherry. Asterisks indicate coexpression. Scale bar, 5 μm. (B) Confocal images of the dorsal nerve cord (unc-47::ACR-12::GFP) for the genotypes indicated. For each, five representative images are shown. In B and C, rescue was evaluated by cholinergic (unc-17β promoter), GABAergic (unc-47 promoter), or muscle-specific (myo-3 promoter) expression of a NRX-1L minigene in nrx-1(wy778) mutants. Scale bar, 5 μm. (C) Quantification of ACR-12::GFP receptor clusters in the dorsal nerve cord for the genotypes indicated. ****p<0.0001, ns = not significant, ANOVA with Tukey’s multiple comparisons test. Two transgenic lines are shown for each rescue construct. Inset, number of rescuing lines/total transgenic lines tested for each construct. (D) Left, confocal images of ACR-12::GFP clusters in the DD1 synaptic region for the genotypes indicated. Rescue refers to cholinergic expression (ufEx1114, line #1 in Figure 5C) of NRX-1L in nrx-1(wy778) mutants. Scale bar, 5 μm. Right, quantification of ACR-12::GFP clusters in the DD1 synaptic region for the genotypes indicated, normalized to control (ufEx441). ****p<0.0001, ANOVA with Tukey’s multiple comparisons test. (E) Confocal images of the dorsal nerve cord in an adult animal expressing NRX-1L::GFP (unc-129 promoter) with mCherry::RAB-3 (acr-2 promoter). Colocalization is indicated by arrowheads. Scale bar, 5 μm. (F) Line scans showing relative fluorescent intensity of NRX-1L::GFP (green) and mCherry::RAB-3 (red) for a 30 μm region of the dorsal nerve cord.

https://doi.org/10.7554/eLife.35692.023

The COE-type transcription factor unc-3 directly controls neurexin expression

We have previously demonstrated that mutation of the COE-type (Collier/Olf/Ebf) transcription factor unc-3 disrupts ACR-12 clustering in VD GABAergic neurons (Barbagallo et al., 2017). In light of our findings here that nrx-1 deletion similarly disrupts ACR-12 clustering and spine-like protrusion outgrowth in DD neurons (Figure 6A,B), we next investigated the role of UNC-3 transcriptional regulation in the development of cholinergic connectivity with GABAergic DD neurons. Prior work has shown that activity of UNC-3 is essential for the specification of cholinergic neurotransmitter identity (Kratsios et al., 2015, 2011). To investigate the requirement for unc-3 in ACR-12 clustering, we first evaluated whether cholinergic transmission itself is critical for the development of post-synaptic specializations on DD neurons. We found that mutations in the unc-17 cholinergic vesicular ACh transporter produces no appreciable changes in spine-like protrusion number or ACR-12 clusters (Figure 6B), arguing against a strong requirement for cholinergic transmission in the formation of these structures.

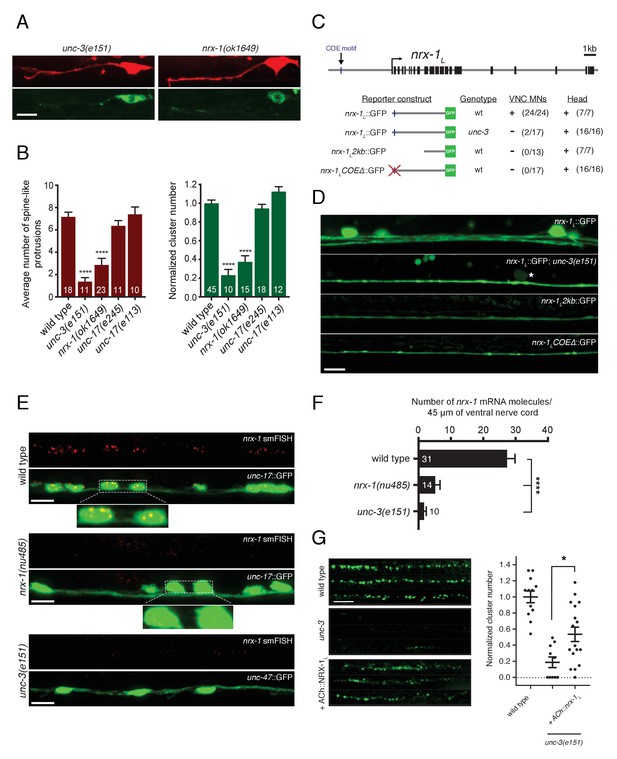

Transcriptional control of neurexin expression in ACh motor neurons by UNC-3.

(A) Confocal images of the DD1 synaptic region and cell soma in nrx-1(ok1649) and unc-3(e151) mutants expressing flp-13::mCherry (upper) or flp-13::ACR-12::GFP (lower). Note the absence of spine-like protrusions and ACR-12 receptor clusters for both genotypes. Although we also note variable defects in neurite extension in unc-3 mutants, reductions in spine-like protrusions and ACR-12 clusters are clearly evident when neurite extension appears unaffected. Notably, flp-13::mCherry fluorescence is not altered by mutation of unc-3, arguing against unc-3 regulation of the flp-13 promoter. (B) Left, quantification of spine-like protrusions in the DD1 dendrite for the genotypes indicated. ****p<0.0001, ANOVA with Dunnett’s multiple comparisons test. Right, quantification of ACR-12::GFP clusters in the DD1 synaptic region for the genotypes indicated, normalized to control (ufIs126). ****p<0.0001, ANOVA with Dunnett’s multiple comparisons test. (C) Mutational analysis of the regulatory region of the nrx-1L promoter. Upper, genomic organization of the nrx-1 locus. Black boxes, exons. Blue line, COE motif upstream of the nrx-1 start site. Lower, schematics of promoter regions fused with GFP (green) corresponding to the images in D. (+) indicates strong expression in ventral nerve cord or head neurons of fourth larval stage animals, (-) indicates lack of expression. Number of animals with GFP expression in either ventral nerve cord or head neurons is indicated in parentheses. (D) Confocal images of nrx-1L::GFP expression in the ventral nerve cord for the genotypes indicated. Note the decreased nrx-1L::GFP fluorescence in unc-3(e151) mutants, with expression from a truncated (2 kb) promoter (nrx-1L2kb), or with disruption of the COE motif (nrx-1LCOEΔ). The remaining fluorescent signal is associated with processes originating from head neurons. (E) Fluorescent in situ hybridization (FISH) signals indicating nrx-1 mRNA abundance in wild type, nrx-1(nu485), and unc-3(e151) mutant animals expressing unc-17::GFP or unc-47::GFP to visualize the ventral nerve cord. mRNA molecules are labeled by CAL Fluor Red 590 Dye conjugated probes and appear as red dots. Insets, expanded views of mRNA labeling associated with cholinergic motor neuron cell bodies. (F) Quantification of nrx-1 mRNA molecules per 45 μm segment of the ventral nerve cord for the genotypes indicated. ****p<0.0001, ANOVA with Dunnett’s multiple comparisons test. (G) Left, representative confocal images showing ACR-12::GFP clusters in the dorsal nerve cord for three wild type, unc-3(e151) or unc-3 rescue animals expressing unc-47::ACR-12::GFP. Rescue refers to cholinergic-specific (unc-3 promoter) expression of NRX-1L in unc-3(e151) mutants (ACh::nrx-1L). Right, scatterplot of ACR-12 receptor cluster number in a 40 μm region of the dorsal nerve cord for the genotypes indicated, normalized to control. n ≥ 10 for each genotype. *p<0.05, ANOVA with Tukey’s multiple comparisons test. Scale bars, 5 μm (A, D–E, G).

https://doi.org/10.7554/eLife.35692.029

We next asked whether UNC-3 transcriptional regulation of nrx-1 expression is critical for the development of cholinergic connectivity with GABAergic neurons. To address this question, we first tested whether unc-3 is required for expression of the nrx-1L::GFP transcriptional reporter described above. We found that mutation of unc-3 significantly reduces nrx-1L::GFP fluorescence in motor neuron cell bodies of the ventral nerve cord, as well as the majority of fluorescence in ventral cord processes (Figure 6C,D). The remaining ventral cord GFP fluorescence is associated with the processes of head neurons that project into the nerve cord, which are presumably not subject to unc-3 regulation. We next used fluorescent in situ hybridization (FISH) to determine the effects of unc-3 mutation on nrx-1 mRNA abundance. Fluorescent signals indicating nrx-1 mRNA are clearly associated with cholinergic motor neuron cell bodies (co-labeled with unc-17::GFP) in wild type animals (Figure 6E), consistent with our prior analysis using the nrx-1L::GFP transcriptional reporter. The smFISH signals are strongly diminished in nrx-1(nu485) deletion mutants (Figure 6E,F), confirming they accurately report nrx-1 mRNA abundance. Labeled nrx-1 mRNA signals in cholinergic motor neurons are strikingly reduced by mutation of unc-3, consistent with the possibility that nrx-1 is a transcriptional target of unc-3 (Figure 6E,F).

We noted that a second nrx-1L transcriptional reporter incorporating only ~2 kb of nrx-1 regulatory sequence did not produce strong fluorescence in ventral cord motor neurons (Figure 6C,D). We reasoned that regulatory elements required for nrx-1 expression in these neurons may be present in the sequence that differs across these two transcriptional reporters (2 versus 4.8 kb) (Figure 6C,D). As both mammalian COE transcription factors and UNC-3 bind a conserved COE binding motif (TCCCNNG/AG/AG/AG/A) to regulate transcription of target genes (Kim et al., 2005; Kratsios et al., 2011; Wang et al., 2015, 1993), we searched for COE binding motifs within this region. We identified a potential COE motif (TCCCAAAGGG) located approximately 20 bp from the 5’ end of the 4.8 kb nrx-1L::GFP transcriptional reporter. Mutation of this site (TCCCAAAGGG >>TAAAAAAGGG) within the 4.8 kb nrx-1L::GFP transcriptional reporter eliminates all fluorescence from ventral cord motor neurons, while fluorescence in the processes extending from head neurons remains visible (Figure 6C,D), offering evidence that UNC-3 directly regulates nrx-1 transcription in ventral cord neurons.

We reasoned that forced expression of nrx-1L in cholinergic neurons using a promoter not subject to unc-3 regulation may allow NRX-1 to coordinate synapse development independently of UNC-3 transcriptional regulation. We expressed the nrx-1L isoform using a regulatory region of the unc-3 gene that drives expression in ventral cord cholinergic neurons (Barbagallo et al., 2017). We found that cholinergic-specific expression of the nrx-1L isoform significantly restored receptor clusters in the dendritic region of unc-3 animals (Figure 6G), indicating that the lack of ACR-12 receptor clusters in unc-3 mutants is largely driven by the absence of nrx-1 expression, although additional phenotypes associated with mutation of unc-3 may contribute (e.g. variable nerve cord defasciculation) (Barbagallo et al., 2017). These findings define the gene regulatory mechanisms controlling neurexin expression in presynaptic neurons and illustrate their involvement in the establishment of synaptic connectivity.

nrx-1 deletion impairs cholinergic neurotransmission onto GABAergic neurons

To investigate how nrx-1 deletion impacts the spatial arrangement of pre- and post-synaptic specializations, we examined strains coexpressing ACR-12::GFP in GABAergic neurons with the synaptic vesicle marker mCherry::RAB-3 in cholinergic neurons. In the wild type, ACR-12 receptor clusters at the tips of spiny protrusions are submerged within the presynaptic domains of cholinergic axons, where synaptic contacts are presumably located (Figure 7A, left). In nrx-1 mutants, however, we noted a gap between the neurites of the pre- and post-synaptic neurons (Figure 7A, right), suggesting that nrx-1 coordinates the extension of receptor-bearing spiny protrusions to presynaptic domains of cholinergic axons. These results, in combination with the receptor clustering defects in VD GABAergic neurons and the lack of an appreciable effect on muscle synapses described above, predict that nrx-1 deletion would impair cholinergic synaptic activation of GABAergic neurons, while cholinergic transmission onto muscles would remain unaffected.

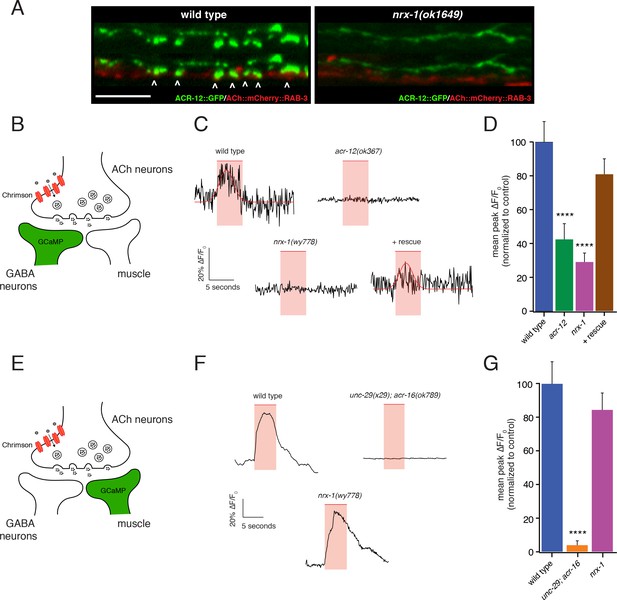

Figure 7 with 1 supplement see all
nrx-1 mutants show functional defects in synaptic connectivity.

(A) Confocal images of pre-synaptic (acr-2::mCherry::RAB-3) and post-synaptic (flp-13::ACR-12::GFP) specializations in the DD1 synaptic region for the genotypes indicated. Arrowheads indicate receptor-bearing spiny protrusions extending into the presynaptic region of cholinergic axons in wild type. Note gap between the pre- and post- synaptic regions in nrx-1(ok1649) mutants. Scale bar, 5 μm. (B) Cartoon depicting specific expression of Chrimson (acr-2::Chrimson) in cholinergic neurons together with GCaMP (ttr-39::GCaMP6s::SL2::mCherry, green) in GABAergic neurons, applies to C-D. (C) Representative calcium transients in GABAergic motor neurons evoked by light stimulation (red shaded region) of cholinergic neurons for the genotypes indicated. Rescue refers to cholinergic expression of NRX-1L in nrx-1(wy778) mutants (C–D). Red line indicates Gaussian fit to the wild type and rescue traces. (D) Quantification of the mean peak ΔF/F0 upon Chrimson stimulation for the genotypes indicated, normalized to control (ufIs155; ufIs157). ****p<0.0001, ANOVA with Dunnett’s multiple comparisons test. (E) Cartoon depicting specific expression of Chrimson (acr-2::Chrimson) in cholinergic neurons together with GCaMP (myo-3::NLSwCherry::SL2::GCaMP6s, green) in muscles, applies to F-G. (F) Representative calcium transients in muscle cells evoked by light stimulation (red shaded region) of cholinergic motor neurons for the genotypes indicated. (G) Quantification of the mean peak ΔF/F0 upon Chrimson stimulation for the genotypes indicated, normalized to control (zfEx813; ufIs157). ****p<0.0001, ANOVA with Dunnett’s multiple comparisons test.

https://doi.org/10.7554/eLife.35692.031

We recorded Ca2+ transients from either GABAergic motor neurons or muscles immediately following presynaptic cholinergic depolarization in order to address this question (Figure 7—figure supplement 1A). We used combined cell-specific expression of Chrimson for cholinergic depolarization (Klapoetke et al., 2014; Larsch et al., 2015), and GCaMP6s for monitoring [Ca2+] changes (Chen et al., 2013) in either post-synaptic GABAergic motor neurons or body wall muscles (Figure 7B,E). Strikingly, we found that nrx-1 deletion disrupts GABA neuron Ca2+ transients in response to cholinergic stimulation, but produces no appreciable effect on muscle Ca2+ transients, consistent with a specific requirement for nrx-1 in the development of functional connectivity between cholinergic and GABAergic neuron, but not muscle, synaptic partners (Figure 7B–G).

Cholinergic depolarization (5 s) evokes robust stimulus-coupled Ca2+ transients in both GABAergic neurons (67% of stimuli) and muscles (88% of stimuli) that occur within 250 ms of stimulus onset (average response latency: 0.22 ± 0.06 s in motor neurons and 0.25 ± 0.02 s in muscles). These transients are not observed in the absence of cholinergic Chrimson expression or in the absence of retinal (Figure 7—figure supplement 1B,C), consistent with a requirement for presynaptic Chrimson-mediated depolarization. In both cell types, evoked Ca2+ transients rise rapidly following stimulation (τrise: 0.48 ± 0.08 s in GABA neurons; 0.74 ± 0.06 s in muscles), and persist throughout the duration of stimuli before decaying to baseline. Motor neuron transients are typically shorter in duration (mean duration: 7.7 ± 1 s in GABA neurons; 10.8 ± 0.5 s in muscles) and decay more rapidly (τdecay: 1.1 ± 0.4 s in GABA neurons; 4.6 ± 0.6 s in muscles) compared with muscle transients, likely reflecting differences in both synaptic connectivity and physiology across the two cell types.

For both GABA neurons and muscles, evoked Ca2+ responses are eliminated almost completely by mutations that impair post-synaptic AChR function in the respective cell types (acr-12 or unc-29;acr-16, respectively). Specifically, acr-12 deletion reduces the mean peak amplitude of GABA neuron calcium responses to cholinergic stimulation by 60% (Figure 7C–D, Figure 7—figure supplement 1D) and increases the failure rate (no response to stimulation) by 53% compared to wild type, consistent with prior electrophysiology studies (Petrash et al., 2013). Similarly, for muscles, the mean peak amplitude of calcium responses to cholinergic stimulation is reduced by 95% in unc-29;acr-16 double mutants (Figure 7F–G, Figure 7—figure supplement 1E), and the failure rate is increased roughly 15-fold to 77%, consistent with prior electrophysiology studies of evoked synaptic responses in these double mutants (Francis et al., 2005). nrx-1 deletion reduces the mean peak amplitude of GABA neuron calcium responses to cholinergic stimulation by roughly 71% (Figure 7C–D, Figure 7—figure supplement 1D), and increases the failure rate for GABA neuron recordings by 47%. By comparison, nrx-1 deletion does not produce a significant decrease in either mean peak fluorescence (Figure 7F–G, Figure 7—figure supplement 1E) or the failure rate in recordings of evoked muscle activity. Together, these findings support a specific requirement for nrx-1 in cholinergic transmission onto GABA neurons, while nrx-1 appears dispensable for transmission onto muscles under our recording conditions. Notably, both the failure rate and mean peak amplitude of evoked GABA neuron Ca2+ responses are restored to wild type levels with expression of a rescuing nrx-1L transgene in nrx-1 mutants using a cholinergic neuron-specific promoter (Figure 7C–D, Figure 7—figure supplement 1D).

Consistent with a requirement for NRX-1 in cholinergic synaptic connectivity with GABAergic motor neurons, automated worm track analysis showed that nrx-1 mutants display defects in the amplitude of dorsoventral bending, a feature of worm movement previously associated with GABAergic function (McIntire et al., 1993; Petrash et al., 2013). These effects are rescued with cell-specific expression of nrx-1L in cholinergic neurons (Figure 7—figure supplement 1F). Thus, presynaptic nrx-1 expression in cholinergic neurons is required for synaptic connectivity between cholinergic and GABAergic motor neurons, and deficits in these connections alter motor performance. Together, our data indicate that NRX-1 located in presynaptic cholinergic neurons is required for establishing synaptic connectivity with partnering GABAergic neurons, but not muscle cells. NRX-1 signaling promotes both receptor clustering and the outgrowth of post-synaptic spine-like morphological features in GABAergic dendrites. Our findings support a model where distinct synaptic organizers, acting on specific post-synaptic targets, are coordinately regulated with neuronal identity, perhaps offering a mechanism for independent developmental regulation of synaptic outputs across alternate partners (Figure 8).

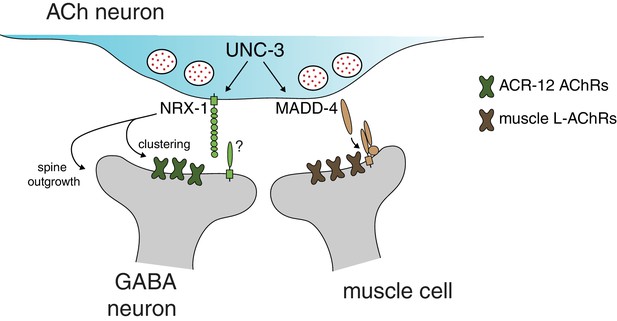

Distinct molecular scaffolds direct partner-specific connectivity.

Distinct molecular scaffolds coordinate post-synaptic development in GABAergic neurons vs muscle. NRX-1/neurexin located at sites of presynaptic cholinergic release acts to coordinate ACR-12 receptor localization (green) and spine outgrowth in GABA neurons. A complex of proteins direct receptor clustering (brown) at the neuromuscular junction (Gally et al., 2004; Gendrel et al., 2009; Pinan-Lucarré et al., 2014; Rapti et al., 2011). NRX-1 and MADD-4 (Kratsios et al., 2015) expression in cholinergic neurons is transcriptionally co-regulated with neurotransmitter identity by the COE transcription factor UNC-3.

https://doi.org/10.7554/eLife.35692.035

Discussion

Neurons often make divergent synaptic connections onto multiple postsynaptic partners, and these connections are critical for proper neural circuit performance in the brain. In this study, we use dyadic C. elegans synapses between cholinergic motor neurons and their muscle and GABAergic motor neuron postsynaptic partners as a model to define novel molecular mechanisms controlling divergent connectivity. First, we identify spine-like dendritic specializations on GABAergic DD neurons. We find that heteromeric post-synaptic AChR complexes composed of the ACR-12, UNC-63, UNC-38, UNC-29 and LEV-1 subunits are localized to these structures. Second, we identify a novel neurexin signaling pathway required both for the formation of post-synaptic specializations and for AChR clustering. In contrast, nrx-1/neurexin is not required for the development of cholinergic synapses onto muscles, which instead require molecularly distinct pathways that have been described previously (Francis et al., 2005; Gally et al., 2004; Gendrel et al., 2009; Jensen et al., 2012; Pinan-Lucarré et al., 2014; Rapti et al., 2011). Third, we find that presynaptic nrx-1 expression in cholinergic neurons is required for the establishment of synapses with GABAergic neurons, and transcriptional regulation of nrx-1 is achieved through actions of the COE transcription factor unc-3. These findings suggest a model where cholinergic expression of nrx-1 initiates synapse formation with GABAergic neurons via NRX-1 mediated trans-synaptic signaling. Finally, the ACh-GABA connectivity defects that we observe in nrx-1 mutants are paralleled by significant impairment of evoked cholinergic transmission onto GABAergic neurons, and altered sinusoidal movement. In contrast, functional connectivity with muscles is unaffected. Together, our findings provide evidence that distinct molecular signaling pathways act in parallel to establish divergent connections at dyadic synapses in the motor circuit, raising the interesting possibility that differential use of synaptic organizers may be similarly utilized in the brain to provide a molecular code directing divergent connectivity (Figure 8).

Heteromeric ACR-12 receptor complexes cluster in specialized post-synaptic domains of GABAergic DD dendrites

Using candidate deletion analysis and cell-specific rescue, we identified AChR subunits and accessory proteins required for the assembly and localization of ACR-12 receptors in GABAergic neurons, defining the subunit composition of this neuronal receptor. Our findings implicate four additional receptor subunits (UNC-38, UNC-63, UNC-29, LEV-1) that co-assemble with ACR-12 to form pentameric receptor complexes in GABAergic neurons, and demonstrate that three accessory proteins (UNC-74, UNC-50, RIC-3) with more generalized roles in AChR assembly and maturation (Boulin et al., 2008; Halevi et al., 2002; Jospin et al., 2009) are also required. These findings provide evidence that ACR-12 receptors in GABA neurons are similar in subunit composition to muscle L-AChRs, differing only in the inclusion of the ACR-12 subunit in GABA neurons, whereas muscle L-AChRs incorporate the LEV-8 subunit (Boulin et al., 2008; Towers et al., 2005). Consistent with our analysis, a prior study showed that ACR-12 can be co-purified with the UNC-29 or LEV-1 subunits (Gottschalk et al., 2005). We have previously shown that unc-29 is expressed in GABAergic motor neurons, and UNC-29::GFP localizes similarly to ACR-12::GFP in DD neurons, both in the mature animal and during developmental remodeling of these neurons (He et al., 2015).

We show that ACR-12 receptor complexes are concentrated at the tips of spine-like dendritic protrusions in GABAergic DD neurons. Spiny processes associated with D-type GABAergic neurons had been noted in prior electron microscopy studies (White et al., 1976; 1986), but, to our knowledge, were not characterized further. We find that these AChR-containing dendritic protrusions are apposed by presynaptic clusters of cholinergic vesicles and increase in number during the course of larval development, perhaps representing new synaptic connections formed with post-embryonic born cholinergic neurons that are integrated into the circuit following the L1/L2 transition (White et al., 1978). While further investigation of these structures will undoubtedly reveal additional insights, the characteristics we define here raise the interesting possibility that these dendritic protrusions are structural specializations for housing neurotransmitter receptors and other proteins required for post-synaptic signaling, perhaps representing an evolutionary precursor to mammalian dendritic spines.

The synaptic organizer neurexin directs post-synaptic development in a partner-specific manner

nrx-1 deletion impairs both AChR localization and spiny outgrowths in DD neurons, creating a gap between the pre- and post-synaptic neurons. Similarly, in Drosophila, mutation of the single neurexin gene dnrx causes disorganization of synaptic structure at the neuromuscular junction (Li et al., 2007). Knockout of two out of the three mouse alpha neurexins reduces dendrite length and total spine number in the cortex (Dudanova et al., 2007), though significant numbers of dendritic spines remain detectable. In our studies, we find that nrx-1 is required for ACR-12 receptor localization in GABAergic DD and VD neurons, although we observe spine-like protrusions only in DD neurons. These findings may point toward the idea that NRX-1 is not solely involved in directing spine development, but serves an additional role in receptor clustering. Further, we show that dendritic protrusions form independently of a requirement for AChRs containing either ACR-12 or UNC-63, offering additional support that spine outgrowth and receptor clustering may be independently regulated by NRX-1. Similarly, dendritic spines on mouse CA1 pyramidal neurons form normally in the absence of functional glutamate receptors (Lu et al., 2013).

Although GABA neuron ACR-12 AChRs and muscle L-AChRs share very similar subunit composition (Boulin et al., 2008; Lewis et al., 1980), we find that genes required for proper localization of muscle L-AChRs (e.g. madd-4, lev-10) play comparatively minor roles at synapses onto GABA neurons. Conversely, loss of nrx-1 function specifically affects GABAergic, but not muscle, AChR clustering, and cholinergic transmission onto muscles appears largely unaffected. Our cell-specific rescue experiments indicate nrx-1 acts in cholinergic neurons to coordinate post-synaptic development in GABAergic neurons via trans-synaptic signaling.

Numerous studies support neuroligin as a primary trans-synaptic binding partner with neurexin (Boucard et al., 2005; Comoletti et al., 2006; Ichtchenko et al., 1995, Ichtchenko et al., 1996; Nguyen and Südhof, 1997). Indeed, C. elegans NRX-1/neurexin function has been characterized almost exclusively in the context of its partnership with NLG-1/neuroligin. A retrograde neurexin-neuroligin signaling pathway that regulates neurotransmitter release has been described, involving signaling through the Ca2+ channel auxiliary subunit UNC-36/α2δ (Hu et al., 2012; Tong et al., 2017). Consistent with this representing a distinct mechanism from that described in our work, mutation of unc-36 has no appreciable effect on post-synaptic development in our experiments. Postsynaptic expression of NLG-1/neuroligin is required at GABAergic synapses. However, MADD-4/Punctin likely acts as a major presynaptic partner for NLG-1 in this case, with NRX-1 playing a comparatively minor role (Maro et al., 2015; Tong et al., 2015; Tu et al., 2015). Finally, recent work also implicates neurexin-neuroligin signaling in sexually dimorphic neurite plasticity (Hart and Hobert, 2018). In contrast to these studies, we find that NRX-1 operates independently of NLG-1 to direct the formation of cholinergic synapses with GABAergic neurons. How therefore might presynaptic neurexin direct postsynaptic maturation? Our analysis shows that presynaptic NRX-1 localizes properly in the absence of acr-12, arguing against a requirement for direct binding of neurexin to the postsynaptic receptor. Prior studies offer strong evidence for alternate neurexin binding partners that support trans-synaptic signaling (Boucard et al., 2012; de Wit et al., 2009; Ko et al., 2009; Missler et al., 1998; Petrenko et al., 1996; Pettem et al., 2013; Sugita et al., 2001; Uemura et al., 2010). For several of these gene families (e.g. neurexophilins, cerebellins), clear C. elegans orthologs are not present. Others are included in our candidate analysis (e.g. casy-1/calsyntenin, lat-2/latrophilin), but single gene mutations do not produce post-synaptic defects comparable to mutation of nrx-1, suggesting either the possibility of a novel post-synaptic nrx-1 binding partner or redundant post-synaptic mechanisms. Additional genetic or proteomic studies will be required to distinguish between these possibilities and address this important question.

Transcriptional control of partner-specific synaptic connectivity

Transcriptional regulators of neurexin expression are only beginning to be elucidated (Runkel et al., 2013). Previously, we found that mutation of the COE-type transcription factor unc-3 disrupts AChR clustering in GABAergic dendrites (Barbagallo et al., 2017). These disrupted clusters are unlikely to reflect a requirement for acetylcholine release in AChR clustering, as neither tetanus toxin expression nor mutation of unc-17/vAChT produces appreciable defects in ACR-12 clustering (Barbagallo et al., 2017) (this study). Here, we find that neurexin is a transcriptional target of UNC-3, and we propose that UNC-3 regulation of nrx-1 expression directs development of postsynaptic specializations in GABAergic neurons. Prior work indicates that UNC-3 transcriptional regulation of MADD-4/Punctin is essential for proper development of cholinergic synapses with muscles (Kratsios et al., 2015). However, madd-4 is dispensable for cholinergic receptor clustering in neighboring GABAergic neurons (Barbagallo et al., 2017) (this study). Thus, cholinergic connectivity with distinct synaptic targets–muscles and GABAergic neurons–is coordinately regulated with cholinergic neuronal identity by unc-3 transcriptional control of alternate synaptic organizers.

Our work here defines a novel yet essential role for NRX-1 during synapse formation. Neurexin acts in a target-specific manner to coordinate postsynaptic development. Presynaptic neurexin instructs receptor localization and the development of spine-like processes in postsynaptic GABAergic neurons, and nrx-1 expression is critical for cholinergic transmission onto GABAergic neurons, while not required for signaling onto neighboring muscle. Our work suggests synaptic target-specific utilization of organizers such as neurexin may specify divergent connectivity, and provide a molecular mechanism for target-specific regulation of synapse development.

Materials and methods

Strains

C. elegans strains were maintained at room temperature (22–24°C) on nematode growth media plates (NGM) seeded with the Escherichia coli strain OP50. All strains are derivatives of the N2 Bristol strain (wild type). Transgenic strains were obtained by microinjection to achieve germline transformation (Mello et al., 1991) and identified with co-injection markers as previously (Barbagallo et al., 2017). Integrated lines were produced by X-ray irradiation and outcrossed to wild type. A complete list of all strains used in this work is included in Supplementary file 1.

Molecular biology

Plasmids were constructed using the two-slot Gateway Cloning system (Invitrogen) as described previously (Bhattacharya et al., 2014) and confirmed by restriction digest and/or sequencing as appropriate. All plasmids and primers used in the study are described in Supplementary files 2 and 3 respectively.

Tagged receptor constructs: To generate flp-13::ACR-12::GFP::3xHA, ACR-12::GFP was amplified from pDEST-38, removing the original stop codon and adding a 3X HA tag. The product (3195 bp) was ligated into a destination vector to generate pDEST-113. pDEST-113 was recombined with pENTR-3’-flp-13 to create pAP138 (flp-13::ACR-12::GFP::3xHA). To generate flp-13::UNC-63::GFP, 5’ and 3’ fragments of unc-63 cDNA were PCR amplified from pDEST-57, ligated into pPD117.01 (mec-7::GFP), converted into the destination vector pDEST-79, and recombined with pENTR-5’-flp-13 to create pAP84 (flp-13::UNC-63::GFP), where GFP is inserted into the intracellular loop of UNC-63.

AChR subunit and accessory rescue constructs: Wild type unc-38 (1536 bp), unc-63 (1509 bp), unc-74 (1344 bp), unc-50 (906 bp), and ric-3 (1137 bp) rescue constructs were PCR amplified and ligated into destination vectors to generate pDEST-51, pDEST-57, pDEST-58, pDEST-56, and pDEST-59, respectively. Each of these was recombined with pENTR-unc-47 to create pAP45 (unc-47::unc-38 cDNA), pAP59 (unc-47::unc-63 cDNA), pAP53 (unc-47::unc-74 cDNA), pAP57 (unc-47::unc-50 cDNA), and pAP55 (unc-47::ric-3 cDNA).

nrx-1 reporter and rescue constructs: To generate the 5 kb nrx-1L::GFP transcriptional reporter, the nrx-1L promoter was amplified from wild type genomic DNA (−4786 bp relative to start) and cloned into pENTR-D-TOPO to generate pENTR-5’-nrx-1L. pENTR-5’-nrx-1L was then recombined with pDEST-93 (GFP) to generate pAP156 (nrx-1L::GFP). The 2 kb nrx-1L promoter::GFP fusion construct (−2033 bp relative to start) was created using the same strategy, recombining pENTR-5’-nrx1L2kb with pDEST-93 to create pAP118 (nrx-1L2kb::GFP). nrx-1LCOEΔ::GFP (pAP178) was generated by PCR amplification using mutant primers that disrupt the COE motif (TCCCAAAGGG >TAAAAAAGGG).

Rescuing NRX-1L minigene constructs were generated by ligation of a 10,598 bp NheI fragment of the nrx-1 genomic locus extending from the nrx-1L start to exon 21 (amplified from cosmid C29A12) with a 715 bp fragment of the nrx-1 cDNA (isoform A) amplified from a plasmid containing the nrx-1 coding sequence (GM470, provided by Kang Shen [Maro et al., 2015]), and converted into the destination vector pDEST-143. For cell-specific rescue, pDEST-143 was recombined with pENTR-3’-unc17β, pENTR-3’-unc47, pENTR-3’-myo3, and pENTR-3’-unc3 to create minigene plasmids pAP204 (unc-17β::nrx-1L), pAP206 (unc-47::nrx-1L), pAP208 (myo-3::nrx-1L), and pAP202 (unc-3::nrx-1L), respectively. A nrx-1L gene fragment (Integrated DNA Technologies) lacking sequence encoding the PDZ binding domain was synthesized, digested and ligated into pAP204 (unc-17β::nrx-1L) to generate the pCL83 rescuing construct (unc-17β::nrx-1LΔPDZ).

unc-129::NRX-1L::GFP was generated by conversion of the NRX-1L::GFP plasmid GM477 (provided by Kang Shen [Maro et al., 2015]) into the destination vector pDEST-99 and recombination with pENTR-3’-unc129 to create pAP120 (unc-129::NRX-1L::GFP). unc-129::NRX-1LΔPDZ::GFP was generated by amplifying nrx-1L (from start to PDZ binding domain) and GFP from pAP120 and ligating into a construct containing unc-129 promoter to generate pAP199 (unc-129::NRX-1LΔPDZ::GFP).

Chrimson and GCaMP constructs: To generate acr-2::Chrimson, Chrimson coding sequence was amplified from odr-7::Chrimson (construct provided by Dirk Albrecht [Larsch et al., 2015]) and ligated into a destination vector to create pDEST-104. pDEST-104 was recombined with pENTR-5’-acr2 to create pRB2 (acr-2::Chrimson). To generate ttr-39::GCaMP6s::SL2::mCherry, GCaMP6s was amplified from pGP-CMV-GCaMP6s (Addgene) and ligated into a destination vector to create pDEST-95. pDEST-95 was recombined with pENTR-5’-ttr39 (promoter provided by David Miller [Petersen et al., 2011]) to create pAP130 (ttr-39::GCaMP6s::SL2::mCherry).

Confocal microscopy

For all imaging, nematodes were immobilized with sodium azide (0.3 M) on a 2 or 5% agarose pad. Each n represents analysis of the nerve cord from an independent animal. Images were obtained using either a 3i (Intelligent Imaging Innovations) Everest spinning-disk confocal microscope or Olympus BX51WI spinning disk confocal equipped with a 63x objective. All DD1 confocal images were obtained by imaging L4 hermaphrodites of similar size in the region near the pharynx using identical image and laser settings for each marker, and receptor clusters were quantified in a region from the DD1 cell body to connecting commissure (i.e. the synaptic region).

Analysis of synapse number/fluorescence intensity was conducted using either Volocity 6.3 or ImageJ software (open source) using defined intensity threshold values acquired from control experiments for each fluorescent marker. Specifically, the ‘find objects’ function in Volocity was used, excluding objects > 10 μm2 and <0.2 μm2. Alternatively, the ‘analyze particles’ function of ImageJ was used. For ImageJ analyses, background fluorescence was first subtracted by calculating the average intensity of each image in a region devoid of puncta. In some cases, fluorescence intensity within a region of interest was also measured and normalized to wild type control as indicated. Confocal montages of the nerve cord were assembled by using the ‘straighten to line’ function in ImageJ. Only images where the DD1 neuron was clearly distinguishable from neighboring cells were included in analyses.

For measurements of dendritic morphology, post-synaptic protrusions in the ventral dendritic region anterior to the DD1 soma (i.e. the synaptic region) were quantified in L4 hermaphrodites. For posterior DD neurons, post-synaptic protrusions were quantified anterior to the DD3 soma (25 μm region). All protrusions ≥ 0.3 μm were analyzed, measuring from the base of the main dendritic process to the tip of the protrusion.

For imaging and quantification of flp-13::ACR-12::GFP in Figure 3A and Figure 2—figure supplement 1B, strains IZ1458 (ufIs126) and IZ1557 (ufIs126; acr-12(ok367)) were included in the analysis as wild type control. There was no appreciable difference in the number of receptor clusters between the two strains (ufIs126; acr-12(ok367) 14.4 ± 0.6, n = 49; ufIs126 14.8 ± 0.6, n = 48). ACR-12 receptor clusters positioned within 0.5 μm of the dendritic shaft were scored as dendritic, while receptors outside this region were scored as associated with spiny protrusions.

Staging and timecourse of receptors/protrusion growth during development

Spine and receptor cluster number in the DD1 synaptic region were analyzed in synchronized animals using strains IZ1458 and IZ1464 as described previously (He et al., 2015). Briefly, embryos for each strain were picked to separate 60 mm unseeded plates and allowed to hatch for 40 min. Newly hatched L1 larvae were moved to freshly seeded plates, and the midpoint of the 40 min in which the embryos hatched was considered t = 0. Plates were incubated at 25°C for 28, 34, 46, and 52 hr. Developing protrusions ≥ 0.2 μm in the synaptic region were analyzed, and ACR-12 receptor clusters were quantified as above.

Single molecule RNA fluorescent in situ hybridization (FISH) and imaging

Custom Stellaris FISH probes against nrx-1 mRNA were obtained from Biosearch Technologies as a mix of 48 probes conjugated to CAL Fluor Red 590 Dye. Experiments were performed using wild type, unc-3(e151) mutants, and nrx-1(nu485) mutants expressing either unc-47::GFP (oxIs12), unc-4::GFP (wdIs5), or unc-17::GFP (vsIs48) markers to label populations of GABA and ACh motor neurons. Synchronized populations of L3-L4 larval animals were fixed and hybridized as described previously (Ji and van Oudenaarden, 2012; Raj et al., 2008). Images were obtained using spinning disk microscopy as above. Z-projections were analyzed in ImageJ using the ‘analyze particles’ function. Following background subtraction, the total number of nrx-1 mRNA molecules was calculated for a 45 x 5.5 μm straightened region of the anterior ventral nerve cord using a defined intensity threshold across all images.

Injection of fluorescent antibodies for in vivo labeling of nAChRs

For staining of ACR-12 receptors at the cell surface, mouse monoclonal α-HA antibodies (16B12) coupled to Alexa594 were diluted in injection buffer (20 mM K3PO4, 3 mM K citrate, 2% PEG 6000, pH 7.5). Antibody was injected into the pseudocoelom of early L4 stage wild type or nrx-1(wy778) animals as described previously (Gottschalk and Schafer, 2006). Animals were allowed to recover for six hours on seeded NGM plates. Only animals in which fluorescence was observed in coelomocytes (indicating uptake of excess antibody and successful injection) were included in the analysis. Injections of anti-GFP Alexa594 antibody followed the same protocol.

nrx-1 behavioral assays

One-day old adults were placed on thinly seeded NGM plates and tracked for a period of 5 min using Single Worm Tracker 2.0 (WT2) (Yemini et al., 2011). Worm tracker software version 2.0.3.1, created by Eviatar Yemini and Tadas Jucikas (Schafer lab, MRC, Cambridge, UK), was used to analyze movement.

Calcium imaging

Transgenic animals expressing ttr-39::GCaMP6s::SL2::mCherry (GABA neurons) or myo-3::NLSwCherry::SL2::GCaMP6s (muscle, from M. Alkema) along with acr-2::Chrimson (cholinergic neurons) were placed on plates seeded with OP50 containing 2.75 mM All-Trans Retinal (ATR) for 24 hr prior to experiments. Young adults were immobilized on 5% agarose pads in 2,3-Butanedione monoxime (BDM) (30 mg/ml). For all genotypes, control animals grown in the absence of ATR were imaged.

Imaging was carried out on a Yokogawa CSU-X1-A1N spinning disk confocal system equipped with EM-CCD camera (Hammamatsu, C9100-50) and 40X C-Apochromat 1.2 NA water immersion objective. Optogenetic stimulation experiments employed a 625 nm (40 W) LED (Mightex Systems). Optical output through the objective was 0.3 mW/mm2 at the focal plane of the specimen. Simultaneous GCaMP excitation (488 nm) and emission (525 nm) acquisition and Chrimson activation were achieved using a 556 nm edge BrightLine single-edge short-pass dichroic beam splitter positioned in the light path (Semrock).

Data were acquired using Volocity software. Images were binned at 4 × 4 during acquisition and sampled at 10 Hz. GABA motor neuron and muscle ROIs in respective experiments were identified by mCherry fluorescence. Recordings from motor neuron cell bodies were obtained systematically, beginning at the anterior end of the ventral nerve cord and moving in a posterior direction. Each field typically contained 1–5 GABA motor neurons. Only recordings of neurons located anterior to the vulva were included in the analysis. Muscle recordings were obtained either directly anterior or posterior to the vulva.

Photobleaching correction was carried out by fitting an exponential function to the data (CorrectBleach plugin, ImageJ). A linear fit (Igor Pro, Wavemetrics) of the background fluorescence was subtracted from the cell body fluorescence across all time points. Pre-stimulus baseline fluorescence (F0) was calculated as the average of the corrected background-subtracted data points in the first 4 s of the recording and the corrected fluorescence data was normalized to prestimulus baseline as ∆F/F0, where ∆F = F – F0. Peak ∆F/F0 was determined by fitting a Gaussian function to the ∆F/F0 time sequence using Multi peak 2.0 (Igor Pro, WaveMetrics). All data collected were analyzed, including failures (no response to stimulation). Peak ∆F/F0 values were calculated from recordings of >10 animals per genotype. Mean peaks ± SEM were calculated from all peak ∆F/F0 data values and normalized to the wild type mean. Latency was calculated as the time required from stimulus onset for fluorescence (∆F/F0) to reach two times the pre-stimulus baseline standard deviation (Larsch et al., 2015). Duration was measured as the time between the onset of the transient and the completion of the decay back to the baseline. Rise and decay time constants were determined from the time constant of exponential fits between the baseline and peak fluorescence as appropriate.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
    The C. elegans vulval induction gene lin-2 encodes a member of the MAGUK family of cell junction proteins
    1. R Hoskins
    2. AF Hajnal
    3. SA Harp
    4. SK Kim
    (1996)
    Development 122:97–111.
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
    The genetics of levamisole resistance in the nematode Caenorhabditis elegans
    1. JA Lewis
    2. CH Wu
    3. H Berg
    4. JH Levine
    (1980)
    Genetics 95:905–928.
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
    Efficient gene transfer in c.elegans: extrachromosomal maintenance and integration of transforming sequences
    1. CC Mello
    2. JM Kramer
    3. D Stinchcomb
    4. V Ambros
    (1991)
    The EMBO Journal 10:3959–3970.
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
  99. 99
  100. 100
  101. 101
  102. 102
  103. 103
  104. 104
  105. 105
  106. 106
  107. 107
  108. 108
  109. 109
  110. 110
  111. 111
  112. 112
  113. 113
  114. 114
  115. 115

Decision letter

  1. Oliver Hobert
    Reviewing Editor; Howard Hughes Medical Institute, Columbia University, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Neurexin directs partner-specific synaptic connectivity in C. elegans" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor (Oliver Hobert) and Marianne Bronner as the Senior Editor. The reviewers have opted to remain anonymous.

As you will see below, the overall importance of the manuscript was appreciated by the reviewers, but each of the reviewers identified a number of points that need to be addressed. Some of these points require experimentation, while many others can be addressed through editorial changes.

Reviewer #1:

This paper features a genetically regulated pathway that functions in presynaptic cholinergic neurons to control morphogenesis and receptor clustering at post synaptic domains in a mechanism that depends on the conserved cell surface protein, Neurexin. Interestingly, the function of this synaptogenic pathway is limited to only one of the two types of postsynaptic cells receiving cholinergic innervation. The authors emphasize the selectivity of this effect on "divergent" synapses which will no doubt stimulate future studies to reveal the cell biological mechanism of this example of synaptic discrimination. This work exploits the power of live cell imaging and genetics in C. elegans to good effect. Experiments are comprehensive, and the paper is well written. As noted below, however, additional experiments are needed to validate key findings.

1) CRISPR-induced mutations that are predicted to disrupt translation of the C-terminal PDZ domain are used in structure-function experiments to argue that the PDZ domain is required for NRX-1 function. This approach does not rule out the alternative explanation, however, that expression of the entire NRX-1 protein is also disrupted. Indeed, this possibility seems very likely for the nrx-1(uf181) allele which introduces a premature stop codon and thus is predicted to result in nonsense mediated decay (NMD) of the entire nrx-1 transcript, and hence, a mutant phenotype equivalent to that of nrx-1 null alleles. To remedy this ambiguity, the authors need to show either that the truncated NRX-1 protein is expressed in the CRISPR alleles or demonstrate that a NRX-1 protein lacking the PDZ domain fails to rescue the nrx-1 mutant.

2) The nrx-1 mutation results in fewer ACR-12 clusters which the authors interpret to mean that NRX-1 is required for ACR-12 clustering. This result could also arise, however, from reduced acr-12 expression. This alternative possibility should be addressed.

3) Are spine-like protrusions unique to the DD1 neuron or are they also visible in other members of the DD class? This point seems important since ACR-12 receptor clustering is disrupted in other DD neurons.

4) In subsection “The synaptic organizer neurexin directs post-synaptic development in a partner-specific manner”. The authors state "…we find that nrx-1 is required for ACR-12 receptor localization in GABAergic DD and VD neurons, although we observe spine-like protrusions only in DD neurons. These findings argue that NRX-1 is not solely involved in directing spine development but serves an additional role in receptor clustering." Did this work rule out the existence of post synaptic spines in VDs or was it simply not possible to resolve them due to overlapping GFP signal from DDs in the dorsal cord? This point needs to be addressed.

Reviewer #2:

Philbrook et al., examine the role of the cell adhesion molecule neurexin in synapse assembly, and find that C. elegans presynaptic neurexin drives the development of one but not the other postsynaptic partner in a dyadic synapse. They show that nrx is responsible for the development of dendritic "spines" on postsynaptic GABAergic neurons as well as the clustering/stabilization of acetylcholine receptors opposite sites of presynaptic release. Loss of nrx leads to a loss of spines, AChR clusters, and functional connectivity between these two classes of neurons, while leaving intact the development and connectivity onto muscle cells. The authors go on to demonstrate the transcriptional control over nrx expression in these neurons. This is a technically impressive study that lends some insight into how individual neurons might form molecularly distinct synapses onto multiple partners, and perhaps also identifies a new model system for studying dendritic "spine" development.

The weakness of the paper is that the molecular conclusions are not novel (neurexin is well known to be involved in trans-synaptic receptor clustering). In addition, the effect of neurexin in regulating postsynaptic development could be indirect, possibly due to the presynaptic deficits. Lastly, the main conceptual conclusions regarding dyadic synapse development and/or the establishment of a model for spine development in the worm are not adequately fleshed out.

1) The authors fail to show that the effect of nrx is mediated by a direct interaction with a postsynaptic partner, as opposed to through disruption of presynaptic assembly. This is especially salient given the lack of phenotype in neuroligin mutants or any other putative postsynaptic partner. Their evidence for a direct role in postsynaptic development relies on the fact that they can disrupt nrx function with mutations in the extracellular domain, but these could still have an effect on the protein as a whole. In fact, in their candidate screen they found that syd-1 mutants, which are known to play a role in presynaptic assembly and to bind nrx in other organisms, also exhibit a defect in postsynaptic receptor clustering. The authors should determine whether other (stronger) presynaptic assembly mutants such as syd-2/liprin-α also exhibit defects in postsynaptic receptor clustering. If so, this could indicate a more indirect role for nrx. Their analysis of presynaptic development is cursory (they look at one synaptic vesicle marker expressed in all cholinergic neurons), so their conclusions that presynaptic development is normal should be much more tempered.

2) A major conclusion of the paper is that neurexin is responsible for the proper development and function of one half of a dyadic synapse. This is a novel and intriguing conclusion, but the idea that these specific synapses are functionally dyadic rests primarily on the EM connectomics data. The functional assays performed here were not performed at the same synapses that were developmentally characterized in the first part of the paper: according to the methods section, muscle function was assessed near the vulva, and GABAergic function was assessed in many different GABAergic neurons. Moreover, presynaptic stimulation was targeted quite broadly to all cholinergic neurons. To properly conclude that the DD1 synapses, whose development is dependent on nrx, are functionally part of a dyadic synapse, the authors should record calcium transients from the muscles that are in the same region as DD1, and from DD1 itself rather than all GABAergic neurons. Moreover, to exclude the possibility that different classes of presynaptic neurons exert preferentially control of different postsynaptic partners, they should express their Chrimson in as small a subset of presynaptic neurons as possible (for example, VAs, for which there is a specific promoter, unc-4). Showing that a functional readout from the same location is differentially controlled by nrx would greatly strengthen their main conclusion.

3) Another interesting facet of the current study is the possibility to establish this as a system in which to study dendritic spine development in such a genetically tractable organism. If the authors choose to emphasize this aspect of the work though, they should demonstrate that these structures indeed behave like spines, for example, by showing that there is some intracellular signaling component that is restricted to the spines. Perhaps more importantly, it is unclear how neurexin acts non-cell-autonomously to promote initial spine outgrowth, which the authors suggest, due to the lack of spines even early in development. Given the significant gap between the pre- and postsynaptic neurons, it seems unlikely that presynaptic nrx could directly induce the initial outgrowth of these spines. More likely, if the interaction is indeed direct, nrx stabilizes spines that have already grown out. To determine whether this is the case, and strengthen their model of spine development, the authors could conduct live imaging of the spines during their development, to see whether initial spine outgrowth is coupled with retraction.

Reviewer #3:

In this study the authors make use of cell biology, molecular genetics, behavior and calcium imaging to determine the mechanisms that specify formation of postsynaptic sites in GABA neurons. They discover that transcription factor unc-3 directs expression in presynaptic cholinergic cells of Neurexin, and that Neurexin acts non-cell autonomously to specify both the formation of dendritic spine-like structures, and clustering of cholinergic postsynaptic receptors. Their studies also demonstrate that the molecular mechanisms used by Neurexin to instruct formation of postsynaptic sites are independent of the canonical interacting partner, Neuroligin. This suggests that the newly identified, in vivo mechanisms are different from those that have been previously reported. Importantly, the mechanisms used by cholinergic neurons to connect to GABAergic neurons are distinct from the mechanisms used by the same cholinergic neurons to form neuromuscular junctions. The study is elegant, rigorous and a significant contribution to the field.

1) This work has a number of interesting contributions, including the one that the authors chose to emphasize, the concept of genetically separable molecular mechanism specifying partner choice in dyadic synapses (which they refer to as divergent synapses, a term that should be defined early in the Introduction). If the framing remains on dyadic synapses, the paper would benefit from the authors reproducing and showing the muscle phenotypes they refer to throughout the text.

2) Have the authors validated ACR-12:GFP construct as functional with phenotypic rescue in acr-12 mutants?

3) In Figure 1F, the authors observed 60%-70% of the cholinergic receptor clusters are located on the spine-like structure and 30-40% are located on the main dendrites. Do nrx-1 mutants reduce ACR-12 clustering to the same level in both pools?

4) In VD GABAergic neurons there are no spiny protrusions, but the ACR-12 clustering is still reduced in nrx-1 mutants. Could the authors comment on these differences between DD neurons and VD neurons (in terms of the spine-like structures)?

5) Mutations in the acetylcholine receptor subunit genes, such as unc-63 and acr-12, reduce cholinergic receptor clustering without affecting spiny protrusions. Are there any mutants that abolish spiny protrusion without affecting receptor clustering in the DD neurons?

6) In Figure 3E, what does the allele tm1961 do to nrx-1? Does it not cause decrease in ACR-12 cluster numbers?

7) In Figure 2D, UNC-29::GFP or UNC-63::GFP were expressed in DD neurons and their pattern resembles ACR-12::GFP clustering. Were the three subunits co-expressed with different fluorophores? Was their relative localization to each other (or co-localization) examined?

8) In Figure 6G (left), it seems there is a significant difference between wild-type and unc-3(e151)+Ach:nrx-1L. If so, does lacking NRX-1L alone explain the reduced cluster number in unc-3(e151)?

9) Was unc-3 rescued in cholinergic neurons?

10) The authors demonstrate that the intracellular domain of Neurexin is required for its function, yet Neurexin plays a non-cell autonomous role in postsynaptic vesicle clustering. Can the authors integrate their observations of the intracellular domain requirement to the model/discussion?

https://doi.org/10.7554/eLife.35692.041

Author response

Reviewer #1:

This paper features a genetically regulated pathway that functions in presynaptic cholinergic neurons to control morphogenesis and receptor clustering at post synaptic domains in a mechanism that depends on the conserved cell surface protein, Neurexin. Interestingly, the function of this synaptogenic pathway is limited to only one of the two types of postsynaptic cells receiving cholinergic innervation. The authors emphasize the selectivity of this effect on "divergent" synapses which will no doubt stimulate future studies to reveal the cell biological mechanism of this example of synaptic discrimination. This work exploits the power of live cell imaging and genetics in C. elegans to good effect. Experiments are comprehensive, and the paper is well written. As noted below, however, additional experiments are needed to validate key findings.

We thank the reviewer for their positive comments.

1) CRISPR-induced mutations that are predicted to disrupt translation of the C-terminal PDZ domain are used in structure-function experiments to argue that the PDZ domain is required for NRX-1 function. This approach does not rule out the alternative explanation, however, that expression of the entire NRX-1 protein is also disrupted. Indeed, this possibility seems very likely for the nrx-1(uf181) allele which introduces a premature stop codon and thus is predicted to result in nonsense mediated decay (NMD) of the entire nrx-1 transcript, and hence, a mutant phenotype equivalent to that of nrx-1 null alleles. To remedy this ambiguity, the authors need to show either that the truncated NRX-1 protein is expressed in the CRISPR alleles or demonstrate that a NRX-1 protein lacking the PDZ domain fails to rescue the nrx-1 mutant.

We thank the reviewer for raising this important point. We agree that the effects of the CRISPR alleles may not be restricted to the PDZ binding motif, and this may complicate interpretation of our findings using these mutants. We have therefore removed these alleles from the revised manuscript and instead, as the reviewer suggests, show that cholinergic expression of a nrx-1L rescuing construct lacking the PDZ binding domain rescues ACR-12::GFP clustering defects in nrx-1 mutants (Figure 5—figure supplement 2A-B). Further, we show that a nrx-1L transgene lacking the predicted PDZ binding sequence localizes to cholinergic synaptic terminals, suggesting that presynaptic localization can occur without PDZ protein binding to this motif (Figure 5—figure supplement 2C-E). These results argue that protein interactions via the PDZ binding motif may not be required for directing cholinergic connectivity with GABAergic neurons and are discussed in subsection “nrx-1 is expressed and functionally required in cholinergic motor neurons” of the revised submission.

2) The nrx-1 mutation results in fewer ACR-12 clusters which the authors interpret to mean that NRX-1 is required for ACR-12 clustering. This result could also arise, however, from reduced acr-12 expression. This alternative possibility should be addressed.

To address this possibility, we quantified the fluorescence of a flp-13::mCherry transcriptional reporter (the same promoter used for cell-specific expression of ACR-12::GFP) in the DD1 neuron of nrx-1 deletion animals compared with wild type. We did not observe a significant reduction in flp-13::mCherry fluorescence intensity (p=0.52, student’s t-test), arguing against reduced transgene expression in nrx-1 mutants. We now clarify this point in Figure 3—figure supplement 2C-D and in subsection “Neurexin directs cholinergic connectivity with GABAergic neurons” of the text.

3) Are spine-like protrusions unique to the DD1 neuron or are they also visible in other members of the DD class? This point seems important since ACR-12 receptor clustering is disrupted in other DD neurons.

This is an interesting point. We now show that spine-like protrusions are visible in other DD neurons (Figure 1—figure supplement 1C), include quantification in Figure 4C, and discuss this result in subsection “Clusters of the GFP-tagged acetylcholine receptor subunit ACR-12 are localized to spine-like dendritic protrusions on the DD1 GABAergic neuron” and subsection “Post-synaptic morphological development requires NRX-1” of the revised text. Mutation of nrx-1 disrupts spine-like protrusions in both DD1 and more posterior DD neurons.

4) In subsection “The synaptic organizer neurexin directs post-synaptic development in a partner-specific manner”. The authors state "…we find that nrx-1 is required for ACR-12 receptor localization in GABAergic DD and VD neurons, although we observe spine-like protrusions only in DD neurons. These findings argue that NRX-1 is not solely involved in directing spine development but serves an additional role in receptor clustering." Did this work rule out the existence of post synaptic spines in VDs or was it simply not possible to resolve them due to overlapping GFP signal from DDs in the dorsal cord? This point needs to be addressed.

Using a reporter that labels VD and DD processes, we did not find postsynaptic spines in VD neurons (representative image now included in Figure 1—figure supplement 1D). However, as the reviewer notes, we cannot rule out the possibility that these features may be obscured by the density of nerve cord processes. This point is now clarified in subsection “Clusters of the GFP-tagged acetylcholine receptor subunit ACR-12 are localized to spine-like dendritic protrusions on the DD1 GABAergic neuron” of the revised text.

Reviewer #2:

Philbrook et al., examine the role of the cell adhesion molecule neurexin in synapse assembly, and find that C. elegans presynaptic neurexin drives the development of one but not the other postsynaptic partner in a dyadic synapse. They show that nrx is responsible for the development of dendritic "spines" on postsynaptic GABAergic neurons as well as the clustering/stabilization of acetylcholine receptors opposite sites of presynaptic release. Loss of nrx leads to a loss of spines, AChR clusters, and functional connectivity between these two classes of neurons, while leaving intact the development and connectivity onto muscle cells. The authors go on to demonstrate the transcriptional control over nrx expression in these neurons. This is a technically impressive study that lends some insight into how individual neurons might form molecularly distinct synapses onto multiple partners, and perhaps also identifies a new model system for studying dendritic "spine" development.

We thank the reviewer for their positive assessment.

The weakness of the paper is that the molecular conclusions are not novel (neurexin is well known to be involved in trans-synaptic receptor clustering). In addition, the effect of neurexin in regulating postsynaptic development could be indirect, possibly due to the presynaptic deficits. Lastly, the main conceptual conclusions regarding dyadic synapse development and/or the establishment of a model for spine development in the worm are not adequately fleshed out.

We reply to the reviewer’s specific points below and hope the reviewer will agree that these additional analyses address their concerns.

1) The authors fail to show that the effect of nrx is mediated by a direct interaction with a postsynaptic partner, as opposed to through disruption of presynaptic assembly. This is especially salient given the lack of phenotype in neuroligin mutants or any other putative postsynaptic partner. Their evidence for a direct role in postsynaptic development relies on the fact that they can disrupt nrx function with mutations in the extracellular domain, but these could still have an effect on the protein as a whole. In fact, in their candidate screen they found that syd-1 mutants, which are known to play a role in presynaptic assembly and to bind nrx in other organisms, also exhibit a defect in postsynaptic receptor clustering. The authors should determine whether other (stronger) presynaptic assembly mutants such as syd-2/liprin-α also exhibit defects in postsynaptic receptor clustering. If so, this could indicate a more indirect role for nrx.

We thank the reviewer for their insights and agree that this is an important point to address. We now include new analysis of a syd-2 deletion allele in the revised version of the manuscript. The effects of syd-2 deletion on ACR-12 receptor clustering are substantially less severe than observed for mutation of nrx-1, and comparable to mutation of syd-1 (Figure 3A). As the reviewer notes, our findings related to syd-1 and syd-2 may point to an interesting link between presynaptic organization and postsynaptic assembly, and we plan to pursue these questions in future work. Based on the severity of the nrx-1 deletion phenotype compared with mutation of syd-1 or syd-2, and the specific alterations in GABAergic post-synaptic specializations that we observe (muscle receptors are normally clustered in nrx-1 mutants), we propose a specific requirement for neurexin in guiding post-synaptic assembly in GABA neurons independent of contributions to presynaptic organization.

Their analysis of presynaptic development is cursory (they look at one synaptic vesicle marker expressed in all cholinergic neurons), so their conclusions that presynaptic development is normal should be much more tempered.

The reviewer raises a good point. Our analysis of the SNB-1::GFP synaptic vesicle marker in cholinergic neurons suggests that synaptic vesicles are grossly normally in nrx-1 mutants, but does not exclude all potential defects in presynaptic development. Based on our observation that evoked stimulation of cholinergic motor neurons produces normal muscle Ca2+ transients in nrx-1 mutants, we suggest that presynaptic organization is sufficiently preserved to support evoked cholinergic transmission, consistent with prior electrophysiology studies of nrx-1 mutants from the Kaplan lab. We now clarify our discussion of these findings as suggested by the reviewer (subsection “Neurexin directs cholinergic connectivity with GABAergic neurons”).

2) A major conclusion of the paper is that neurexin is responsible for the proper development and function of one half of a dyadic synapse. This is a novel and intriguing conclusion, but the idea that these specific synapses are functionally dyadic rests primarily on the EM connectomics data. The functional assays performed here were not performed at the same synapses that were developmentally characterized in the first part of the paper: according to the methods section, muscle function was assessed near the vulva, and GABAergic function was assessed in many different GABAergic neurons. Moreover, presynaptic stimulation was targeted quite broadly to all cholinergic neurons. To properly conclude that the DD1 synapses, whose development is dependent on nrx, are functionally part of a dyadic synapse, the authors should record calcium transients from the muscles that are in the same region as DD1, and from DD1 itself rather than all GABAergic neurons.

We thank the reviewer for these comments. We now realize that we did not provide a clear explanation of the rationale underlying our Ca2+ imaging studies. Our initial light microscopy studies focused on DD1 as an experimentally tractable model, but we note that our findings for DD1 are generalizable to other GABAergic neurons. In the revised version we include new data to make this point more clearly. In particular, we show that more posterior DD neurons also have spines, and that both spine outgrowth and receptor clustering in these neurons require nrx-1 (Figure 4C and Figure 4—figure supplement 1A). Similarly, we show that acetylcholine receptor clusters in VD neurons are disrupted by mutation of nrx-1 (Figure 3E-G). We have recorded evoked Ca2+ transients directly from DD1 neurons, but, due to the close proximity of DD1 to the pharynx, these recordings are challenging. We therefore included GABAergic neurons posterior to DD1 in our analysis. We clarify our rationale in subsection “nrx-1 deletion impairs cholinergic neurotransmission onto GABAergic neurons” of the revised text.

Moreover, to exclude the possibility that different classes of presynaptic neurons exert preferentially control of different postsynaptic partners, they should express their Chrimson in as small a subset of presynaptic neurons as possible (for example, VAs, for which there is a specific promoter, unc-4). Showing that a functional readout from the same location is differentially controlled by nrx would greatly strengthen their main conclusion.

For our studies, we elected for broad presynaptic cholinergic stimulation in order to minimize any potential difficulties arising from preferential connectivity. The available connectivity data suggest that individual GABAergic neurons receive inputs from multiple classes of cholinergic neurons. Thus, we reasoned that stimulation of all presynaptic cholinergic neurons would offer the best opportunity for an unbiased investigation of post-synaptic responses. Nonetheless, we agree with the reviewer that the question of preferential connectivity is intriguing. As the reviewer suggests, we generated strains expressing unc-4::Chrimson, but, in our initial attempts, have been unable to record Ca2+ transients from either GABAergic neurons or muscles following light stimulation. This may be due to low expression of the unc-4::Chrimson transgene in A motor neurons, as we observe measurable expression in only a small number of ventral cord neurons (we think these are VC neurons) by the age at which we record (young adult). We hope the reviewer will agree that additional exploration of this interesting question is more suitable for a future study following the optimization of these tools.

3) Another interesting facet of the current study is the possibility to establish this as a system in which to study dendritic spine development in such a genetically tractable organism. If the authors choose to emphasize this aspect of the work though, they should demonstrate that these structures indeed behave like spines, for example, by showing that there is some intracellular signaling component that is restricted to the spines. Perhaps more importantly, it is unclear how neurexin acts non-cell-autonomously to promote initial spine outgrowth, which the authors suggest, due to the lack of spines even early in development. Given the significant gap between the pre- and postsynaptic neurons, it seems unlikely that presynaptic nrx could directly induce the initial outgrowth of these spines. More likely, if the interaction is indeed direct, nrx stabilizes spines that have already grown out. To determine whether this is the case, and strengthen their model of spine development, the authors could conduct live imaging of the spines during their development, to see whether initial spine outgrowth is coupled with retraction.

We agree with the reviewer that our study poses some intriguing questions about dendritic spine development in worms. By L4 stage, we note an appreciable gap between the pre- and postsynaptic domains in nrx-1 mutants, due to the absence of spine-like protrusions contacting the presynaptic axon (Figure 7A). As the size of this gap is expected to be significantly smaller in younger animals, we envision that NRX-1 promotes spine outgrowth early in development. We have not been able to detect these structures prior to the L2 stage, and we therefore suggest that they form coincident with, or shortly after, DD neuron remodeling, when the post-embryonic ventral cholinergic neurons are integrated into the circuit. To directly address temporal requirements for nrx-1 expression, we have attempted to delay neurexin expression using an inducible (heat-shock) promoter, but, to date, our attempts have been unsuccessful (due to leaky expression of nrx-1). We agree with the reviewer that live imaging of the spines during their outgrowth is likely to be informative, and we are currently pursuing this approach. Nonetheless, these experiments are technically challenging given the small size of these structures in L2 animals and will likely require considerable time for optimization. While we favor the idea that neurexin is required for spine outgrowth, at this point we do not rule out a potential maintenance role. We now include this possibility in the text (subsection “Post-synaptic morphological development requires NRX-1”).

Reviewer #3:

In this study the authors make use of cell biology, molecular genetics, behavior and calcium imaging to determine the mechanisms that specify formation of postsynaptic sites in GABA neurons. They discover that transcription factor unc-3 directs expression in presynaptic cholinergic cells of Neurexin, and that Neurexin acts non-cell autonomously to specify both the formation of dendritic spine-like structures, and clustering of cholinergic postsynaptic receptors. Their studies also demonstrate that the molecular mechanisms used by Neurexin to instruct formation of postsynaptic sites are independent of the canonical interacting partner, Neuroligin. This suggests that the newly identified, in vivo mechanisms are different from those that have been previously reported. Importantly, the mechanisms used by cholinergic neurons to connect to GABAergic neurons are distinct from the mechanisms used by the same cholinergic neurons to form neuromuscular junctions. The study is elegant, rigorous and a significant contribution to the field.

We thank the reviewer for their positive assessment.

1) This work has a number of interesting contributions, including the one that the authors chose to emphasize, the concept of genetically separable molecular mechanism specifying partner choice in dyadic synapses (which they refer to as divergent synapses, a term that should be defined early in the Introduction). If the framing remains on dyadic synapses, the paper would benefit from the authors reproducing and showing the muscle phenotypes they refer to throughout the text.

We thank the reviewer for the suggestion. We have more clearly defined divergent connectivity in the Introduction as the reviewer suggested, and have reproduced the muscle phenotypes referred to in the text, now included in Figure 3—figure supplement 2A, B.

2) Have the authors validated ACR-12:GFP construct as functional with phenotypic rescue in acr-12 mutants?

We have previously shown that GABAergic expression of ACR-12::GFP rescues acr-12 mutant phenotypes, demonstrating that this construct is functional (Petrash et al., 2013). We now indicate this in the text in the Introduction.

3) In Figure 1F, the authors observed 60%-70% of the cholinergic receptor clusters are located on the spine-like structure and 30-40% are located on the main dendrites. Do nrx-1 mutants reduce ACR-12 clustering to the same level in both pools?

In wild type, 67% of receptor clusters are associated with spines, while just 14.7% of receptor clusters are associated with remaining spines in nrx-1(ok1649) mutants. In contrast, the number of receptor clusters associated with the main dendritic shaft is not appreciably altered by mutation of nrx-1 (p=0.67, student’s t test). This point is now clarified in the text (subsection “Post-synaptic morphological development requires NRX-1”).

4) In VD GABAergic neurons there are no spiny protrusions, but the ACR-12 clustering is still reduced in nrx-1 mutants. Could the authors comment on these differences between DD neurons and VD neurons (in terms of the spine-like structures)?

Using a reporter that labels VD and DD processes, we did not find postsynaptic spines in VD neurons (representative image now included in Figure 1—figure supplement 1D). This suggests either neurexin promotes receptor clustering independently of spines in VD neurons, or spines are present, but we are unable to detect them due to the number of GABAergic processes. Please also see the response to reviewer 1.

5) Mutations in the acetylcholine receptor subunit genes, such as unc-63 and acr-12, reduce cholinergic receptor clustering without affecting spiny protrusions. Are there any mutants that abolish spiny protrusion without affecting receptor clustering in the DD neurons?

Independent of this study, we have isolated several mutants from a forward genetic screen in which spine-like protrusions are significantly decreased, but receptor clustering is less strongly affected, perhaps indicating a redistribution of receptor clusters to the main dendritic shaft. We are currently in the process of identifying and characterizing the genes affected by these mutations.

6) In Figure 3E, what does the allele tm1961 do to nrx-1? Does it not cause decrease in ACR-12 cluster numbers?

nrx-1(tm1961) significantly reduces ACR-12 receptor clusters, **p<0.01, ANOVA with Dunnett’s multiple comparisons test (updated in Figure 3E).

7) In Figure 2D, UNC-29::GFP or UNC-63::GFP were expressed in DD neurons and their pattern resembles ACR-12::GFP clustering. Were the three subunits co-expressed with different fluorophores? Was their relative localization to each other (or co-localization) examined?

Great idea. We are still working on creating constructs to co-express subunits with different fluorophores. To date, we have not identified additional fluorophores that provide sufficient fluorescent signal for analysis, and also accommodate proper receptor assembly and trafficking. We hope to re-examine the relative co-localization of the three subunits in the future as we develop new reagents to address this question.

8) In Figure 6G (left), it seems there is a significant difference between wild-type and unc-3(e151)+Ach:nrx-1L. If so, does lacking NRX-1L alone explain the reduced cluster number in unc-3(e151)?

Expression of unc-3::NRX-1L::GFP in unc-3 mutants does not restore ACR-12::GFP receptor clustering fully to wild type levels. However, in this analysis we are using a different promoter (unc-3 promoter compared to the unc-17β promoter used in Figure 5C-D for rescue) so the levels of expression likely differ across these two strains. We suggest that decreased nrx-1L expression in unc-3 mutants is a major contributor to decreased receptor clustering. However, reduced nrx-1L expression is unlikely to account for all of the defects. For example, mutation of unc-3 produces variable changes in process outgrowth and nerve cord fasciculation, which do not occur with disruption of nrx-1, and therefore may influence our analysis of receptor clustering in unc-3 mutants and rescue animals. We now clarify this point in the text (subsection “The COE-type transcription factor unc-3 directly controls neurexin expression”).

9) Was unc-3 rescued in cholinergic neurons?

We have previously demonstrated that unc-3 is required in cholinergic motor neurons for ACR12 receptor clustering (Barbagallo et al., 2017).

10) The authors demonstrate that the intracellular domain of Neurexin is required for its function, yet Neurexin plays a non-cell autonomous role in postsynaptic vesicle clustering. Can the authors integrate their observations of the intracellular domain requirement to the model/discussion?

We have now revised this model in response to comments from reviewer 1. Specifically, we have removed the CRISPR alleles from the revised manuscript, and instead show that cholinergic expression of a nrx-1Lrescuing construct lacking the PDZ binding domain rescues ACR-12 clustering defects in nrx-1 mutants. Based on these findings, we propose that NRX-1 can promote post-synaptic assembly in GABAergic neurons without a requirement for protein interactions via the PDZ binding motif. We have revised the text accordingly (subsection “nrx-1 is expressed and functionally required in cholinergic motor neurons”).

https://doi.org/10.7554/eLife.35692.042

Article and author information

Author details

  1. Alison Philbrook

    Department of Neurobiology, University of Massachusetts Medical School, Worcester, United States
    Contribution
    Conceptualization, Formal analysis, Funding acquisition, Validation, Investigation, Methodology, Writing—original draft, Writing—review and editing, AP, Wrote the paper, Assisted with experimental design, Carried out all aspects of experiments, Collected and analyzed the data, Assisted with preparing the manuscript, Assisted with funding support
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3330-3086
  2. Shankar Ramachandran

    Department of Neurobiology, University of Massachusetts Medical School, Worcester, United States
    Contribution
    Conceptualization, Formal analysis, Validation, Investigation, Methodology, Writing—review and editing, SR, Designed the calcium imaging experiments, Carried out all aspects of the calcium imaging experiments and collected the data, Assisted with preparing the manuscript
    Competing interests
    No competing interests declared
  3. Christopher M Lambert

    Department of Neurobiology, University of Massachusetts Medical School, Worcester, United States
    Contribution
    Investigation, Methodology, CL, Assisted with the generation of all molecular biology reagents and strains
    Competing interests
    No competing interests declared
  4. Devyn Oliver

    Department of Neurobiology, University of Massachusetts Medical School, Worcester, United States
    Contribution
    Formal analysis, Investigation, Writing—review and editing, DO, Assisted with strain generation and fluorescent microscopy experiments, data collection and analysis, Assisted with manuscript preparation
    Competing interests
    No competing interests declared
  5. Jeremy Florman

    Department of Neurobiology, University of Massachusetts Medical School, Worcester, United States
    Contribution
    Formal analysis, Investigation, JF, Assisted with behavioral experiments, data collection and analysis
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7578-3511
  6. Mark J Alkema

    Department of Neurobiology, University of Massachusetts Medical School, Worcester, United States
    Contribution
    Supervision, Funding acquisition, MJA, Assisted with funding for the project and supervision of behavioral experiments
    Competing interests
    No competing interests declared
  7. Michele Lemons

    1. Department of Neurobiology, University of Massachusetts Medical School, Worcester, United States
    2. Department of Natural Sciences, Assumption College, Worcester, United States
    Contribution
    Conceptualization, Investigation, Methodology, Writing—review and editing, ML, Conducted FISH experiments, data collection and analysis, Assisted with manuscript preparation
    Competing interests
    No competing interests declared
  8. Michael M Francis

    Department of Neurobiology, University of Massachusetts Medical School, Worcester, United States
    Contribution
    Conceptualization, Resources, Formal analysis, Supervision, Funding acquisition, Validation, Methodology, Writing—original draft, Writing—review and editing, MMF, Supervised all experiments, Assisted with experimental design and analysis, Wrote the paper, Provided funding support
    For correspondence
    michael.francis@umassmed.edu
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8076-6668

Funding

National Institute of Neurological Disorders and Stroke (R01NS064263)

  • Michael M Francis

National Institute on Drug Abuse (F31DA038399)

  • Alison Philbrook

National Institute of General Medical Sciences (R01GM084491)

  • Mark J Alkema

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to thank Dori Schafer, Vivian Budnik, Alexandra Byrne and members of the Francis lab for critical reading of the manuscript, Claire Bénard, Kang Shen, and David Miller for sharing reagents, and Michael Gorczyca, Will Joyce, and the UMMS Model Organism CRISPR Core for technical assistance. Some nematode strains used in this work were provided by the Caenorhabditis Genetics Center, which is funded by the NIH National Center for Research Resources (NCRR). This research was supported by NIH NINDS R01 NS064263 (MMF), NIH NIDA F31 DA038399 (AP), and NIH NIGMS R01 GM084491 (MJA).

Reviewing Editor

  1. Oliver Hobert, Howard Hughes Medical Institute, Columbia University, United States

Publication history

  1. Received: February 6, 2018
  2. Accepted: June 21, 2018
  3. Version of Record published: July 24, 2018 (version 1)

Copyright

© 2018, Philbrook et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,636
    Page views
  • 193
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

  1. Further reading

Further reading

    1. Neuroscience
    Daniel Marten van Es et al.
    Research Article
    1. Neuroscience
    Noah C Benson, Jonathan Winawer
    Tools and Resources
