Blumenols as shoot markers of root symbiosis with arbuscular mycorrhizal fungi

  1. Ming Wang
  2. Martin Schäfer
  3. Dapeng Li
  4. Rayko Halitschke
  5. Chuanfu Dong
  6. Erica McGale
  7. Christian Paetz
  8. Yuanyuan Song
  9. Suhua Li
  10. Junfu Dong
  11. Sven Heiling
  12. Karin Groten
  13. Philipp Franken
  14. Michael Bitterlich
  15. Maria J Harrison
  16. Uta Paszkowski
  17. Ian T Baldwin  Is a corresponding author
  1. Max Planck Institute for Chemical Ecology, Germany
  2. University of Chinese Academy of Sciences, China
  3. Leibniz-Institute of Vegetable and Ornamental Crops, Germany
  4. Humboldt Universität zu Berlin, Germany
  5. Boyce Thompson Institute for Plant Research, United States
  6. University of Cambridge, United Kingdom
https://doi.org/10.7554/eLife.37093
Share this article
Cite this article
  1. Ming Wang
  2. Martin Schäfer
  3. Dapeng Li
  4. Rayko Halitschke
  5. Chuanfu Dong
  6. Erica McGale
  7. Christian Paetz
  8. Yuanyuan Song
  9. Suhua Li
  10. Junfu Dong
  11. Sven Heiling
  12. Karin Groten
  13. Philipp Franken
  14. Michael Bitterlich
  15. Maria J Harrison
  16. Uta Paszkowski
  17. Ian T Baldwin
(2018)
Blumenols as shoot markers of root symbiosis with arbuscular mycorrhizal fungi
eLife 7:e37093.
https://doi.org/10.7554/eLife.37093
  2. Download BibTeX
  3. Download .RIS

Abstract

High-through-put (HTP) screening for functional arbuscular mycorrhizal fungi (AMF)-associations is challenging because roots must be excavated and colonization evaluated by transcript analysis or microscopy. Here we show that specific leaf-metabolites provide broadly applicable accurate proxies of these associations, suitable for HTP-screens. With a combination of untargeted and targeted metabolomics, we show that shoot accumulations of hydroxy- and carboxyblumenol C-glucosides mirror root AMF-colonization in Nicotiana attenuata plants. Genetic/pharmacologic manipulations indicate that these AMF-indicative foliar blumenols are synthesized and transported from roots to shoots. These blumenol-derived foliar markers, found in many di- and monocotyledonous crop and model plants (Solanum lycopersicum, Solanum tuberosum, Hordeum vulgare, Triticum aestivum, Medicago truncatula and Brachypodium distachyon), are not restricted to particular plant-AMF interactions, and are shown to be applicable for field-based QTL mapping of AMF-related genes.

https://doi.org/10.7554/eLife.37093.001

eLife digest

All plants need a nutrient called phosphorus to grow and thrive. Phosphorus is found in soil, but the supply is limited so plants often struggle to acquire enough of it. To overcome this problem, many plants form friendly relationships (or symbioses) with certain fungi in the soil known as arbuscular mycorrhizal fungi. The fungi colonize plant roots and supply phosphorus and other nutrients in return for sugars and various molecules.

Although many crop plants – including barley and potatoes – are able to form these symbioses, farmers commonly apply fertilizers containing phosphate and other nutrients to their fields to increase the amount of food they produce. Breeding new crop varieties that are better at forming symbioses with the fungi could reduce the need for fertilizers. However, the methods currently available to study these relationships are laborious and time-consuming, typically requiring samples of plant roots to be examined in a laboratory.

Wang, Schäfer et al. used an approach called metabolomics to search for molecules in coyote tobacco plants that indicate the plants have formed symbioses with arbuscular mycorrhizal fungi. The experiments found that a group of molecules called blumenols accumulate in the roots and also in the shoots and leaves of plants with these symbioses, but not in the tobacco plants that were not able to associate with the fungi. Experiments in several other plant species including tomato, potato and barley produced similar findings, suggesting that the blumenols may be a useful and potentially universal indicator of symbioses between many different plants and fungi.

Measuring the levels of blumenols in plant shoots and leaves is much quicker and easier than current methods of identifying fungal symbioses in plant root samples. Therefore, blumenols may be a useful tool for plant breeders who would like to screen large numbers of plants for these symbioses, and breed crops that negotiate better interactions with the beneficial fungi.

https://doi.org/10.7554/eLife.37093.002

Introduction

More than 70% of all higher plants, including crop plants, form symbiotic associations with arbuscular mycorrhizal fungi (AMF) (Brundrett and Tedersoo, 2018). While the fungus facilitates the uptake of mineral nutrients, in particular phosphorous (P) and nitrogen, the plant supplies the fungus with carbon (Helber et al., 2011; Bravo et al., 2017; Jiang et al., 2017; Keymer et al., 2017; Luginbuehl et al., 2017). The interaction affects plant growth (Rooney et al., 2009; Adolfsson et al., 2015) and resistance to various abiotic and biotic stresses (Pineda et al., 2010; Vannette et al., 2013; Chitarra et al., 2016; Sharma et al., 2017). Although AMF interactions are physically restricted to the roots, they influence whole-plant performance, hence systemic metabolic responses have been anticipated, and searched for, but no general AMF-specific responses have been found (Bi et al., 2007; Toussaint, 2007; Schweiger and Müller, 2015). While changes in foliar levels of carbohydrates, proteins, and amino acids, as well as secondary metabolites and phytohormones have been shown to respond to AMF inoculation (Schweiger et al., 2014; Aliferis et al., 2015; Adolfsson et al., 2017), these changes are not specific to AMF interactions and tend to be general responses to various abiotic and biotic stresses. Moreover, these metabolic responses also tend to be taxa-specific, and many are likely indirect consequences of AMF-mediated effects on plant growth and development.

In contrast, large amounts of blumenol-type metabolites accumulate in roots after AMF inoculation. These compounds are apocarotenoids, in particular C13 cyclohexenone derivatives, produced by the cleavage of carotenoids. After AMF colonization, a C40 carotenoid is cleaved by carotenoid cleavage dioxygenase 7 (CCD7) to produce a C13 cyclohexenone and a C27 apocarotenoid which is further cleaved by CCD1 to yield a second C13 cyclohexenone (Floss et al., 2008; Vogel et al., 2010; Hou et al., 2016). The compounds have been found to accumulate in the roots of AMF-colonized plants in a manner highly correlated with the fungal colonization rate (Fester et al., 1999). Other stimuli such as pathogen infection and abiotic stresses, do not induce their accumulations (Maier et al., 1997). The AMF-induced accumulation of these compounds is widespread and has been observed in roots of plant species from different families, including mono- and dicotyledons, (Hordeum vulgare, Peipp et al., 1997); Solanum lycopersicum and Nicotiana tabacum, Maier et al., 2000; e.g., Zea mays, Fester et al., 2002; Lotus japonicus and Medicago truncatula, Fester et al., 2005; Ornithogalum umbellatum, Schliemann et al., 2006; Allium porrum, Schliemann et al., 2008).

Blumenols are classified into three major types; blumenol A, blumenol B and blumenol C (Figure 1A). However, previous studies have reported that only blumenol glycosides containing a blumenol C-based aglycone are positively correlated with mycorrhizal colonization. The aglycone can be additionally hydroxylated at the C11 or carboxylated at the C11 or C12 position (Maier et al., 1997; Maier et al., 2000). Additionally, 7,8-didehydro versions of blumenol C have been reported (Peipp et al., 1997). The glycosylation usually occurs as an O-glycoside at the C9 position (Strack and Fester, 2006), but glycosylations at the hydroxylated C11 position have also been observed (Schliemann et al., 2008). The glycosyl moiety can be a single sugar or combinations of glucose (Glc), rhamnose, apiose, arabinose and/or glucuronic acid, which, in turn can be additionally malonylated or contain a 3-hydroxy-3-methylglutarate decoration (Strack and Fester, 2006; Schliemann et al., 2008). The connections among sugar components can also vary (e.g., glucose-(1’’→4’)-glucose or glucose-(1’’→6’)-glucose; Maier et al., 2000; Fester et al., 2002). The particular type of decorations appears to be highly species-specific and it is likely that additional structural variants remain to be discovered. Exemplary structures are shown in Figure 1B.

Figure 1
Download asset Open asset

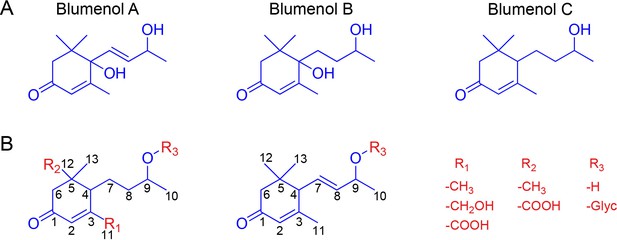

Blumenol core structures and exemplary modifications.

(A) Structure of blumenol A, blumenol B and blumenol C. (B) Exemplary blumenol C derivatives. Glyc, glycoside.

https://doi.org/10.7554/eLife.37093.003

Interestingly, blumenols such as blumenol A, blumenol A-9-O-Glc, blumenol B, blumenol C and blumenol C-9-O-Glc, were also reported to occur in the aerial parts of various plant species (Galbraith and Horn, 1972; Bhakuni et al., 1974; Takeda et al., 1997). However, most of these studies focused on the identification of natural products using large scale extractions (up to several kg of plant material) and were not performed in the context of AMF colonization. Furthermore, some blumenol compounds were also found in plant families that are known to have lost their ability to establish AMF interactions (Brassicaceae: Cutillo et al., 2005; Urticaceae: Aishan et al., 2010). These reports indicate AMF-independent constitutive levels of particular blumenols in aerial plant parts. Adolfsson et al., 2017 analyzed blumenol accumulations together with other metabolites in leaves of plants with and without AMF colonization. None of these studies reported AMF-specific accumulations of blumenols or transcripts specific for their biosynthesis. The concentrations of some blumenol derivatives were even reported to be down-regulated in response to AMF colonization (Adolfsson et al., 2017).

The identification of a reliable metabolite marker in aerial plant tissues would be highly useful for AMF research since the characterization of AMF-associations is still laborious and time-consuming, typically requiring destructive root harvesting and microscopic examination or transcript analyses (Vierheilig et al., 2005; Parádi et al., 2010). To identify readily accessible AMF-indicative shoot metabolites, we hypothesized that a subset of the AMF-induced root metabolites would accumulate in shoots as a result of transport or systemic signaling.

Results

Blumenols are AMF-indicative metabolic fingerprints in roots

We performed an untargeted metabolomics analysis of root tissues in a transgenic line of Nicotiana attenuata, silenced in the calcium- and calmodulin-dependent protein kinase (irCCaMK) and empty vector (EV) plants co-cultured with or without Rhizophagus irregularis (Figure 2A). By using irCCaMK plants, unable to establish a functional AMF-association (Groten et al., 2015), we were able to dissect the AMF association-specific metabolic responses from those changes that result from more general plant-fungus interactions. Untargeted metabolome profiling of roots using liquid chromatography (LC) coupled to time-of-flight mass spectrometry (qTOF-MS) resulted in a concatenated data matrix consisting of 943 mass features (m/z signals detected at particular retention times). A co-expression network analysis was conducted in which nodes represent m/z features and edges connect metabolite mass features originating from similar in-source fragmentations and sharing biochemical relationships (Li et al., 2015; Li et al., 2016). For example, features representing well-known compounds, like nicotine and phenylalanine, were tightly connected (Figure 2B). A STEM clustering pipeline was performed to recognize patterns of metabolite accumulations in the genotype × treatment data matrix [(EV/irCCaMK) × (-/+AMF inoculation)]. As a result, 5 of 8 computed distinct expression patterns were mapped onto the covariance network in Figure 2B (shown in different colors). A tightly grouped cluster of unknown metabolites, highlighted in red (Figure 2B) occupied a distinct metabolic space. Metabolites grouped in this cluster were highly elicited upon mycorrhizal colonization in EV, but not in irCCaMK plants and not found in plants without AMF associations (Figure 2C). The structures of the compounds of this cluster were annotated based on tandem-MS and NMR data. Five metabolites were annotated as blumenols: 11-hydroxyblumenol C-9-O-Glc (Figure 2C; Compound 1), 11-carboxyblumenol C-9-O-Glc (Figure 2C; Compound 2), 11-hydroxyblumenol C-9-O-Glc-Glc (Compound 3), blumenol C-9-O-Glc-Glc (Compound 4) and blumenol C-9-O-Glc (Compound 5).

Figure 2 with 1 supplement see all
Download asset Open asset

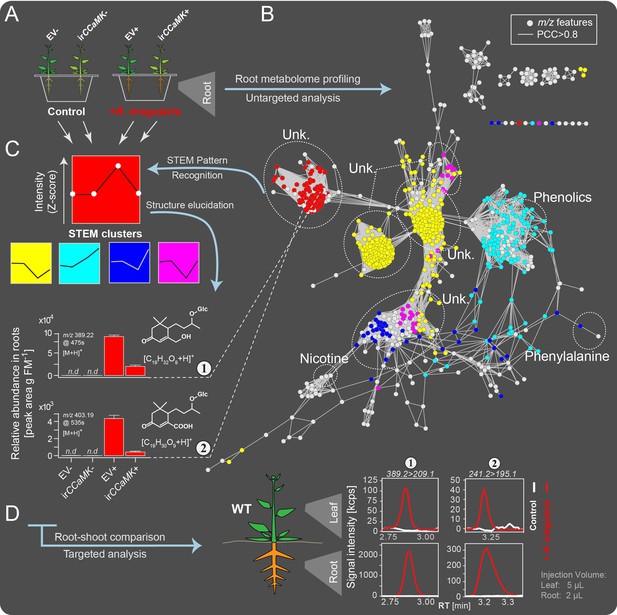

Combined targeted and untargeted metabolomics identified blumenol derivatives as AMF-indicative in-planta metabolic fingerprints in the roots and leaves of Nicotiana attenuata plants.

(A) Experimental set-up. EV and irCCaMK plants were co-cultured and inoculated with or without R. irregularis. Six weeks after inoculation (wpi), root samples were harvested for metabolite profiling. (B) Covariance network visualizing m/z features from UHPLC-qTOF-MS untargeted analysis (n = 8). Known compounds, including nicotine, phenylalanine and various phenolics, and unknown metabolites (Unk.) are enclosed in dashed ellipses. (C) Normalized Z-scores of m/z features were clustered using STEM Clustering; 5 of 8 significant clusters are shown in different colors and mapped onto the covariance network. The intensity variation (mean +SE) of 2 selected features (Compounds 1 and 2) are shown in bar plots (n.d., not detected). (D) Representative chromatograms of Compounds 1 and 2 in roots and leaves of plants with and without AMF inoculation, as analyzed by targeted UHPLC-triple quadrupole-MS metabolomics.

https://doi.org/10.7554/eLife.37093.004
Figure 2—source data 1

Source data for Figure 2.

https://doi.org/10.7554/eLife.37093.007

To quantify these compounds throughout the plant, we used a more sensitive and specifically targeted metabolomics approach based on LC-triple-quadrupole-MS. The abundance of the five blumenol C-glycosides continually increased with mycorrhizal development (Figure 2—figure supplement 1A) and was highly correlated with the mycorrhizal colonization rate as determined by the transcript abundances of classical arbuscular mycorrhizal symbiosis-marker genes (fungal house-keeping gene, Ri-tub; plant marker genes, Vapyrin, RAM1, STR1 and PT4; Park et al., 2015; Figure 2—figure supplement 1B, Data Set 1).

Hydroxy- and carboxyblumenol C-glucoside levels in leaves positively correlate with root colonizations

Compounds 1 and 2 showed a similar AMF-specific accumulation in the leaves, as observed in the roots (Figure 2D). The other analyzed blumenols were not detected in leaves (Compounds 3 and 4; Figure 3—figure supplement 1A) or showed a less consistent AMF-specific accumulation (Compound 5; due to its constitutive background level; Figure 3—figure supplement 1A). The identity of Compounds 1 and 2 in the leaves was verified by high resolution qTOF-MS (Figure 3—figure supplement 1B–E).

Next, we determined the correlations between the contents of AMF-indicative foliar Compounds 1 and 2 and root colonization rates. In a kinetic experiment, the amount of both compounds steadily increased in the leaves of plants inoculated with R. irregularis (Figure 3A, Figure 3—figure supplement 2). At three wpi, the abundance of compounds 1 and 2 in the leaves was sufficient to reflect the colonization level of the roots. In contrast, the classical AMF-marker-genes, which are usually analyzed in the roots, did not respond in the leaves (Figure 4). In an inoculum-gradient experiment using increasing inoculum concentrations, proportionally higher Compound 1 and 2 levels were observed (Figure 3B), accurately reflecting the differential colonization of roots across treatments (Figure 3E). In addition to inoculation with a single AMF species (R. irregularis), we also tested mycorrhizal inoculum originally collected from the plant’s native habitat, the Great Basin Desert in Utah, USA, which mainly consists of Funneliformis mosseae and R. irregularis. EV plants inoculated with this ‘natural inoculum’ also accumulated Compounds 1 and 2 in leaves, while irCCaMK plants did not (Figure 3C). The analysis of a second independently transformed irCCaMK line confirmed the result that when the association with R. irregularis was genetically abrogated, Compounds 1 and 2 failed to accumulate in leaves of plants co-cultured with the AMF (Figure 3—figure supplement 3). When planted into the plant’s natural environment in Utah, both EV and irCCaMK plants could be clearly distinguished by their leaf Compound 1 and 2 contents. The signature of Compound 2 provided a better quality marker in these field-grown plants (Figure 3D, Figure 3—figure supplement 4). The foliar contents of these two compounds were highly correlated with the percentage of arbuscules in roots, the core structure of AMF interactions (Figure 3F, Figure 3—figure supplement 2). In contrast, other biotic or abiotic stresses, including herbivory, pathogen infection and drought stress, did not elicit the foliar accumulations of Compounds 1 and 2 (Figure 5). Such stimuli also do not induce blumenol accumulation in roots (Maier et al., 1997). An analysis of various plant tissues, including different leaf positions, stem pieces, flowers and capsules revealed that these AMF-specific signatures accumulated throughout the shoot (Figure 3G). Taken together, we conclude that the contents of particular blumenols in aerial plant parts robustly reflect the degree of mycorrhizal colonization in N. attenuata plants.

Figure 3 with 4 supplements see all
Download asset Open asset

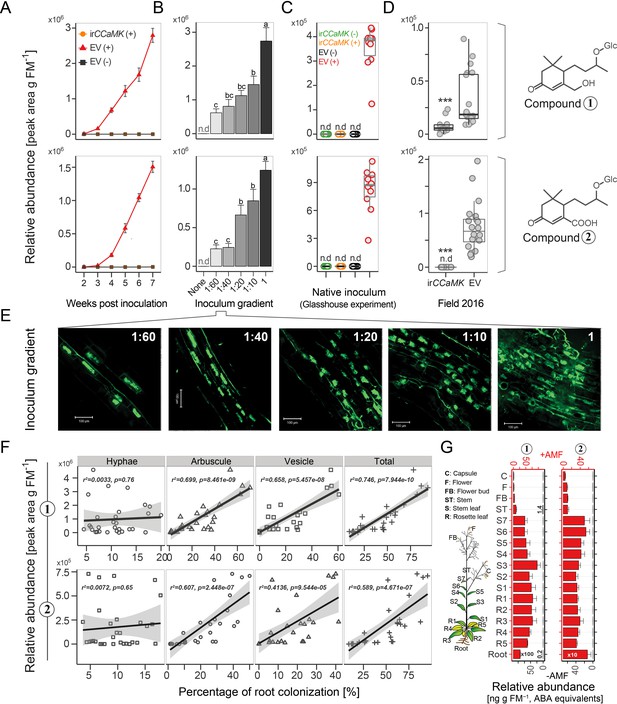

Compounds 1 and 2 are leaf markers of root AMF colonization in N. attenuata.

(A) Time lapse accumulations of Compounds 1 and 2 in leaves of EV plants with (EV+, red) or without (EV-, black) AMF-inoculation and of irCCaMK plants with AMF-inoculation (irCCaMK+, orange, covered by black) (means ± SE, n ≥ 5). (B) Leaf abundances of Compounds 1 and 2 (five wpi) of plants inoculated with different inoculum concentrations (means + SE, n ≥ 4); different letters indicate significant differences (p<0.05, one-way ANOVA followed by Fisher’s LSD). (C) Compounds 1 and 2 in leaf samples of EV and irCCaMK plants inoculated with (+) or without (-) AMF inoculum isolated from the plant’s native habitat (six wpi); different letters indicate significant differences (p<0.05, one-way ANOVA followed by Tukey’s HSD, n = 10). (D) Field experiment (Great Basin Desert, Utah, USA): Compounds 1 and 2 in leaf samples of EV (n = 20) and irCCaMK (n = 19) plants sampled eight weeks after planting. (Student’s t-test: ***p<0.001). (E) Representative images of WGA-488 stained roots of plants shown in B) (bar = 100 μm). (F) Leaf Compounds 1 and 2 relative to the percentage of root colonization by hyphae, arbuscules, vesicles and total root length colonization of the same plants (linear regression model). (G) Compounds 1 and 2 in 17 different tissues of plants with (+AMF, n = 3, red bars) or without (-AMF, n = 1, black bars) AMF-inoculation harvested at six wpi.

https://doi.org/10.7554/eLife.37093.008
Figure 3—source data 1

Source data for Figure 3.

https://doi.org/10.7554/eLife.37093.015
Figure 4
Download asset Open asset

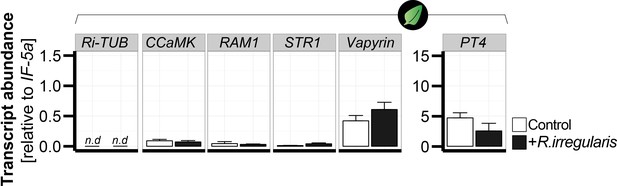

Transcript abundance of classical arbuscular mycorrhizal symbiosis-marker genes do not respond in leaves of mycorrhizal and control N. attenuata plants.

The transcript abundance (relative to NaIF-5a) of classical root marker genes was analyzed in leaves of N. attenuata plants in the presence (+R. irregularis, black bars) and absence (control, white bars) of root colonization with R. irregularis. The marker genes include the R. irregularis specific housekeeping gene, Ri-tub, as well as the plant-derived marker genes CCaMK, Vapyrin, PT4, STR1 and RAM1. Leaf samples were harvested six wpi and analyzed by qPCR. Data represent means +SE (n ≥ 3), n.d., not detected.

https://doi.org/10.7554/eLife.37093.016
Figure 4—source data 1

Source data for Figure 4.

https://doi.org/10.7554/eLife.37093.017
Figure 5
Download asset Open asset
Different biotic and abiotic stresses do not elicit accumulations of Compounds 1 and 2 in leaves.

(A–D) Representative leaves of N. attenuata plants subjected to different stresses (right leaf), as well as the untreated controls (left leaf): (A) Manduca sexta feeding for 10 days; (B) Botrytis cinerea infection for five days. (C) Infection for two weeks with Agrobacterium tumefaciens carrying the Tobacco Rattle Virus; (D) Dehydration for three days. For each treatment, four biological replicates were used. (E) Accumulation of Compounds 1 and 2 in treated samples from (A–D). n.d., not detected.

https://doi.org/10.7554/eLife.37093.018

AMF–indicative blumenols in shoots most likely originate from the roots

Blumenols are apocarotenoids originating from a side branch of the carotenoid pathway (Hou et al., 2016). Most of the candidate genes for blumenol biosynthesis were upregulated in roots, but not in leaves of N. attenuata plants in response to mycorrhizal colonization (Figure 6A, Figure 6—figure supplement 1A). We inferred that these AMF-indicative leaf apocarotenoids are transported from their site of synthesis in colonized roots to other plant parts. This is consistent with the occurrence of blumenols in stem sap (Figure 6—figure supplement 1B) which was collected by centrifuging small stem pieces. To clarify the origins (local biosynthesis vs. transport) of these leaf blumenols, we genetically manipulated the carotenoid biosynthesis of N. attenuata plants. To minimize the effects of a disturbed carotenoid biosynthesis on the AMF-plant interaction, we used the dexamethasone (DEX)-inducible pOp6/LhGR system to silence phytoene desaturase (PDS) expression in a single DEX-treated leaf position (Schäfer et al., 2013). Treated leaves showed clear signs of bleaching, indicating PDS silencing (Figure 6B, Figure 6—figure supplement 1C), but levels of the AMF-indicative Compounds 1 and 2 were not affected, consistent with their transport from other tissues, likely the highly accumulating roots. As a control, we analyzed the non-AMF-inducible Compound 6, showing constitutive levels in aerial tissues (Figure 6—figure supplement 2). In DEX-treated leaves, Compound 6 concentrations were reduced by nearly 40%, consistent with local production (Figure 6B, Figure 6—figure supplement 1D). To confirm the within-plant transport potential of blumenols, we dipped roots of seedlings into aqueous solutions of Compounds 1 or 2. After overnight incubation, the blumenol derivatives were clearly detected not only in roots, but also in shoots (Figure 6C, Figure 6—figure supplement 1E).

Figure 6 with 2 supplements see all
Download asset Open asset

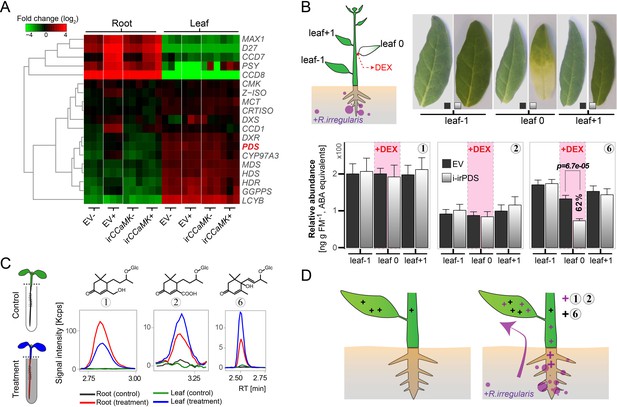

AMF-indicative Compounds 1 and 2 in shoots of mycorrhizal plants originate from the roots.

(A) Hierarchical clustering analysis of transcript abundance from RNA-seq of methylerythritol 4-phosphate (MEP) and (apo)carotenoid biosynthetic genes (for details see Figure 6—figure supplement 1A). (B) Compounds 1, 2 (AMF-specific) and 6 (not AMF-specific) in AMF-inoculated i-irPDS and EV plants. On each plant, a single stem leaf (leaf 0) was elicited with 100 μM DEX-containing paste for three weeks; treated and adjacent, untreated control leaves (leaf −1 and leaf +1) were harvested. Representative leaves are shown (bleaching indicates PDS silencing); (means +SE, n ≥ 6). The same leaf positions in i-irPDS and EV plants were compared by Student’s t-tests. (C) Contents of Compounds 1, 2 and 6 in the roots and shoots of seedlings whose roots were dipped for 1 d into an aqueous solution with (treatment) or without (control) AMF-indicative blumenols. (D) Model of blumenol distribution in plants with (right panel) and without (left panel) AMF colonization. The model illustrates constitutive blumenols (e.g., Compound 6 in N. attenuata) and AMF-indicative ones (e.g., Compounds 1 and 2 in N. attenuata) and their inferred transport.

https://doi.org/10.7554/eLife.37093.019
Figure 6—source data 1

Source data for Figure 6.

https://doi.org/10.7554/eLife.37093.024

The analysis of AMF-indicative blumenols as HTP screening tool for forward genetics approaches

To test the potential of the foliar AMF-indicative metabolites as a screening tool, we quantified the concentration of Compounds 1 and 2 in leaves of plants of a population of recombinant inbred lines (RILs) of a forward genetics experiment, an experiment which would be challenging with the classical screening tools of root staining or nucleic acid analysis. We focused our analysis on Compound 2 due to the superior quality of its signature in the leaves of field-grown plants (Figure 3—figure supplement 4). The experiment consisted of a population of RILs from a cross of two N. attenuata accessions (Utah, UT and Arizona, AZ) (Zhou et al., 2017) which differ in their mycorrhizal colonization (Figure 7A–B, Figure 7—figure supplement 1) and accumulation of foliar Compound 2 in the glasshouse (Figure 7C). A QTL analysis of 728 plants grown across a 7200 m2 field plot (Figure 7D) revealed that the abundance of Compound 2 mapped to a single locus on linkage group 3 (Figure 7E), which harbored a homologue of NOPE1 (NIATv7_g02911) previously shown to be required for the initiation of AMF symbioses in maize and rice (Nadal et al., 2017). Transcripts of NaNOPE1 were more abundant in AZ roots after AMF inoculation, but did not differ significantly in leaves (Figure 7—figure supplement 1B). While clearly requiring additional follow-up work, these results highlight the value of these signature metabolites for HTP screens, which form the basis of most crop improvement programs.

Figure 7 with 2 supplements see all
Download asset Open asset

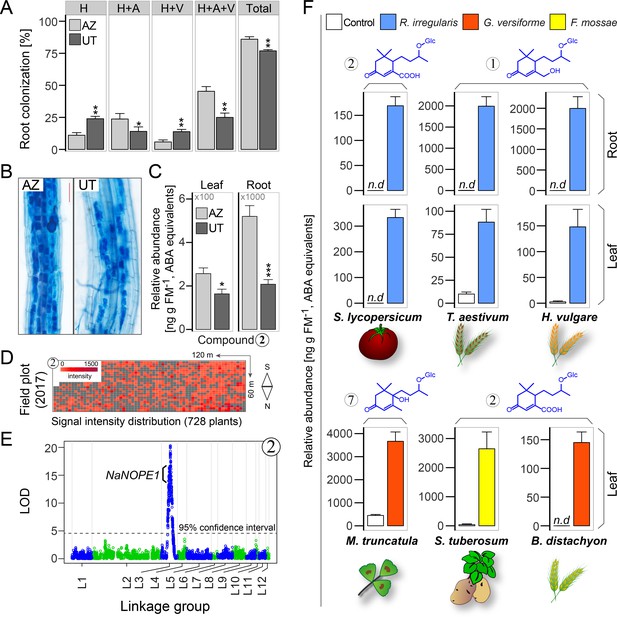

AMF-indicative changes in blumenols in aerial plant parts are valuable research tools providing accurate assessments of functional AMF associations in high-throughput screenings of multiple plant and AMF species.

(A) Root colonization analysis in two N. attenuata accessions (UT/AZ). H: hyphae; A: arbuscules; V: vesicles; Total: total root length colonization (n = 4; Student’s t-test, *p<0.05, **p<0.01, ***p<0.001). (B) Representative images of trypan blue stained roots (six wpi; bar = 100 μm). (C) Compound 2 in roots and leaves of UT and AZ plants with and without AMF-inoculation (means +SE, n = 8). (D) Heatmap of the normalized abundance of foliar Compound 2 in plants of a UT-AZ RIL population (728 plants) planted across a 7,200 m2 field plot. (E) QTL mapping analysis of the data from D. The QTL on linkage group three contains NaNOPE1, an AMF-associated gene, in addition to others. LOD, logarithm of the odds ratio. (F) Blumenol contents of different crop and model plants with and without AMF inoculation (S. lycopersicum (n = 6), T. aestivum (n = 10), H. vulgare (n = 5): eight wpi; M. truncatula (n = 3): seven wpi; S. tuberosum (n = 5): six wpi; B. distachyon (n = 4): five wpi). Different plant and AMF species were used as indicated (means +SE; n.d., not detected).

https://doi.org/10.7554/eLife.37093.025
Figure 7—source data 1

Source data for Figure 7.

https://doi.org/10.7554/eLife.37093.030

AMF-indicative blumenols in shoots are a widespread response of various plant species to different kinds of AMF

The AMF-specific accumulation of blumenol C-derivatives in roots is a widespread phenomenon within higher plants (Strack and Fester, 2006); however, how general are the observed blumenol changes in aerial parts across different combinations of plants and AMF species? We analyzed Solanum lycopersicum, Triticum aestivum and Hordeum vulgare plants with and without AMF inoculation and again we found an overlap in the AMF-specific blumenol responses in roots and leaves, consistent with the transport hypothesis. Further analyses led to the identification of additional AMF-indicative blumenols in the leaves of Medicago truncatula, Solanum tuberosum and Brachypodium distachyon. We identified various types of blumenols that showed an AMF-specific accumulation in the shoot, including blumenol B (Compound 7), which has not previously been reported in an AMF-dependent context (Figure 7F; Figure 7—figure supplement 2). As reported for roots, the particular blumenol types were species-dependent, but the general pattern was widespread across monocots and dicots in experiments conducted at different research facilities. In tests with diverse fungal species (R. irregularis, F. mosseae and Glomus versiforme), the observed effects were not found to be restricted to specific AMF taxa (Figure 7F; Figure 7—figure supplement 2). In short, the method is robust.

Discussion

AMF-interactions are proposed to have played an important role for the colonization of land by plants and still play an important role for a majority of plants by improving the function of their roots and increasing whole-plant performance. Consequently, the investigation of AMF-mediated effects on a host plant’s physiology has been an important research field for many decades and characteristic transcriptional and metabolic changes have been observed in the roots of AMF-colonized plants. However, the cumbersome analysis of AMF-interactions, involving destructive harvesting of root tissues and microscopic or transcript analysis, restrains large-scale investigations and commercial applications. AMF interactions were also shown to affect the primary and secondary metabolism in the systemic, aerial tissues of plants; however none of these responses proved to be widespread and sufficiently specific to function as reliable markers (Schweiger and Müller, 2015). Here we describe the discovery of particular blumenols as AMF-indicative markers in leaves and other systemic aerial tissues and illustrate their potential application as tools for research and plant breeding.

Systemic AMF-mediated metabolite changes

Metabolites and metabolite responses are often specific to particular parts and tissues of a plant (Li et al., 2016; Lee et al., 2017), but it is also known that local responses can spread to other plant parts. Additionally, metabolites do not only accumulate at their place of biosynthesis but can be readily transported throughout the plant (Baldwin, 1989). Therefore, we hypothesized that local changes in the roots might also be reflected in the systemic aerial tissues, either by signaling or transport. This allowed us to identify specific AMF-indicative blumenols in the shoot (Figure 3) despite the occurrence of other highly abundant and constitutively produced compounds and blumenols that are not indicative of AMF-associations. Interestingly, the confirmation of compound identities in leaf samples with high resolution MS techniques proved to be challenging and required additional sample purification steps. Likely, such matrix effects thwarted the detection of these AMF-indicative, systemic blumenol responses in previous investigations. Under our conditions, AMF-indicative blumenols began mirroring the colonization rates of roots at around three wpi (Figure 3—figure supplement 2). Although microscopic methods can detect first signs of AMF colonization of the roots already after a few days (Brundrett et al., 1985), the sensitivity of our method was found to be sufficient to analyze colonization rates observed in the glasshouse and, more importantly, in nature (Figures 3 and 7). The discovery of these AMF-indicative blumenol compounds in diverse plant species interacting with different AMF species (Figure 7, Figure 7—figure supplement 2) further indicates that these responses are widespread. AMF-induced blumenols in the roots have been shown to be quantifiable by various MS and photodiode array based detector setups. However, AMF-induced blumenols occur in many-fold lower amounts in the leaves compared to the roots (e.g., Compound 1 in N. attenuata approximately 1/10) and, at these low concentrations, their analysis is likely thwarted by complex matrix effects. Therefore, their analysis requires detection systems with advanced sensitivity and selectivity as is offered by state-of-the-art triple quadrupole technology and enhanced sample preparations (e.g., by solid-phase-extraction based purification and concentration) which were used in the quantitative detection of leaf blumenols described here. In addition to the blumenols, mycorradicin, another biosynthetically related type of apocarotenoids, was reported to accumulate in AMF-colonized roots (Klingner et al., 1995) and it would be interesting to investigate if mycorradicin accumulates throughout the plant, as well.

Root-to-shoot transport of AMF-indicative blumenols

Despite the AMF-induced accumulation of blumenols in the shoot, putative candidate genes of the apocarotenoid biosynthesis pathway were only induced in the roots of AMF-inoculated plants (Figure 6A, Figure 6—figure supplement 1A). To exclude other mechanisms (e.g., post-transcriptional regulation) mediating the local production of the blumenol compounds in the leaves, we genetically manipulated the carotenoid pathway in a tissue-specific manner. It is challenging to manipulate blumenols without affecting the AMF-colonization of the plant, since other carotenoid-derived compounds, such as strigolactones, are known to play an important role in this process (Lanfranco et al., 2018). To circumvent these problems, we used the LhGR/pOp6 system for chemically inducible RNAi-mediated gene silencing of PDS (Schäfer et al., 2013) to impair carotenoid biosynthesis only in a particular leaf of AMF-inoculated plants. Interestingly, only the constitutively produced Compound 6 was reduced in the treated leaves, while the AMF-indicative Compounds 1 and 2 were not affected by our treatment (Figure 6B). This indicated that instead of being locally produced, Compound 1 and 2 are translocated from the roots, an inference consistent with the occurrence of AMF-indicative blumenols in stem sap and the capacity of seedlings to transport blumenols from the root to the shoot from hydroponic solution (Figure 6C, Figure 6—figure supplement 1B,D). It seems likely that the AMF-indicative blumenols are transported in the xylem with the transpiration stream (Figure 6D). The blumenol glucosides (Compounds 1, 2 and 6) are hydrophilic low-molecular weight (402, 388 and 386 Da) compounds that are unlikely to pass membranes without further support, e.g., by transporters. It was recently demonstrated that ATP-binding cassette (ABC) transporters (G-type) are involved in the root-to-shoot transport of ABA, a phytohormone with a molecular structure related to blumenols, and these transporters resemble the function of other ABCG-type proteins reported to mediate the long-distance transport of cytokinins and strigolactones (Borghi et al., 2015). Whether blumenols are transported by similar mechanisms remains an interesting question.

Functional implication of blumenol accumulation and transport

Blumenols were shown to accumulate in large amounts in the roots of various plants after AMF-inoculation (Strack and Fester, 2006) and our data indicate that they are subsequently distributed throughout the plant (Figure 3G). While the conservation of this response in various plants after inoculation with different AMF species (Figure 7F, Figure 7—figure supplement 2) indicates an important functional role in the AMF-plant interaction, this function remains to be explored. Unfortunately, the current knowledge of the biological activity of blumenols only vaguely indicates potential systemic functions of AMF-induced blumenols in shoot tissues. Activity studies on vomifoliol, the aglycone of the not AMF-indicative Compound 6, showed that this compound induces stomatal closure similar to the structurally related abscisic acid (Stuart and Coke, 1975). Additionally, blumenols are known to suppress seed germination and plant growth (Kato-Noguchi et al., 2012; Kato-Noguchi et al., 2015). Therefore, AMF-induced blumenols could serve as systemic signals that mediate the large-scale adjustments in general physiology that are thought to accompany AMF-interactions. For example, AMF-induced blumenols could be involved in the regulation of differential susceptibility of AMF-inoculated plants to stresses, such as drought or pathogen infection.

AMF-indicative blumenols as tool for research and plant breeding

Even if classical tools for the quantification of AMF-plant interactions can offer superior sensitivity they are labor intensive and highly destructive which limits their application in studies that require high sample throughput, as well as in experiments that require repeated analysis of plants. We propose that the analysis of AMF-indicative blumenols in the shoot provides a convenient, easy-to-use, and minimally destructive tool to interrogate plant-AMF interactions in a HTP manner that allows for forward genetic studies even under field conditions (Figure 7E) and empowers plant breeding programs to produce mycorrhiza-responsive and P-efficient high-yielding lines (van de Wiel et al., 2016). Currently, phosphate fertilizer is derived from phosphate rock, a non-renewable resource, which is predicted to be depleted soon (Vaccari and Strigul, 2011). By enabling breeding programs to select crop varieties which have negotiated AMF symbioses that deliver high yields with minimal P inputs, this discovery could help steer the ‘green revolution’ away from intense agricultural inputs and the collateral environmental damage they cause. While some of the ‘green revolution’ crop varieties with gibberellin response defects are potentially more efficient in Pi uptake as a result of their higher root colonization rates by AMF (Floss et al., 2013; Foo et al., 2013) this serendipitous breeding event underscores the value of explicitly designing crop breeding programs to produce crops that negotiate more favorable AMF associations.

Materials and methods

Key resources table
Reagent type (species)
or resource		DesignationSource or referenceIdentifiersAdditional information
Genetic reagent (N. attenuata)A-09-1212-1Groten et al. (2015), DOI: 10.1111/pce.12561Stably silenced in CCaMK via RNAi
Genetic reagent (N. attenuata)A-09-1208-6Groten et al. (2015), DOI: 10.1111/pce.12561Stably silenced in CCaMK via RNAi
Genetic reagent (N. attenuata)A-11-92−4 ×
A-11-325-4		Schäfer et al. (2013), DOI: 10.1111/tpj.12301Chemically-inducible silenced in PDS via RNAi
Genetic reagent (N. attenuata)A-04-266-3Bubner et al. (2006),
DOI: 10.1007/s00299-005-0111-4		Empty vector control
Biological sample (N. attenuata)AZ-UT RILZhou et al. (2017), DOI: 10.1016/j.cub.2017.03.017Biparental QTL mapping population

Plant material and AMF inoculation

View detailed protocol

For our experiments with Nicotiana attenuata (Torr. ex S. Wats.), we used plants from the 31st inbred generation of the inbred ‘UT’ line, irCCaMK [A-09-1208-6 and A-09-1212-1(Groten et al., 2015) plants that are stably silenced in CCaMK via RNAi, i-irPDS plants (A-11-92−4 × A-11-325-4; Schäfer et al., 2013) harboring the LhGR/pOp6 system for chemically-inducible RNAi-mediated gene silencing of phytoene desaturase (PDS) and the respective empty vector (EV) transformed plants (A-04-266-3; Bubner et al., 2006) as controls. Details about the transformation and screening of the irCCaMK plants are described by Groten et al. (2015) and for the i-irPDS plants by Schäfer et al. (2013). Seeds were germinated on Gamborg B5 as described by Krügel et al. (2002). The advance intercross recombinant inbred line (RIL) population was developed by crossing two N. attenuata inbred lines originating from accessions collected in Arizona (AZ) and Utah (UT), USA (Glawe et al., 2003; Zhou et al., 2017). Additionally, we used Solanum lycopersicum ‘Moneymaker‘, Hordeum vulgare ‘Elbany ‘and Triticum aestivum ‘Chinese Spring ‘plants.

For glasshouse experiments, plants were treated according to Groten et al. (2015). In brief, they were transferred into dead (autoclaved twice at 121°C for 30 min; non-inoculated controls) or living inoculum (R. irregularis, Biomyc Vital, inoculated plants) diluted 1:10 with expanded clay (size: 2–4 mm). Pots were covered with a thin layer of sand. Plants were watered with distilled water for 7 d and subsequently fertilized every second day either with a full strength hydroponic solution (for 1 L: 0.1292 g CaSO4 × 2H2O, 0.1232 g MgSO4 × 7H2O, 0.0479 g K2HPO4, 0.0306 g KH2PO4, 2 mL KNO3 (1 M), 0.5 mL micronutrients, 0.5 mL Fe diethylene triamine pentaacetic acid) or with a low P hydroponics solution containing only 1/10 of the regular P-concentration (0.05 mM). Plants were grown separately in 1L pots, if not stated otherwise. In the paired design (Figure 2), irCCaMK plants were grown together with EV plants in 2L pots and the watering regime was changed to ¼ of the regular P-concentration after plants started to elongate. Glasshouse experiments with natural inoculum (Figure 3C) were conducted in a mesocosm system (four boxes, each 2 pairs of EV and irCCaMK plants). Plants were maintained under standard glasshouse conditions (16 hr light, 24–28°C, and 8 hr dark, 20–24°C and 45–55% humidity) with supplemental light supplied by high-pressure sodium lamps (Son-T-Agro).

The field experiments were conducted as described by Schuman et al. (2012). Seedlings were transferred to Jiffy pots and planted into a field plot at the Lytle Ranch Preserve in the Great Basin Desert (Utah, USA: N 37.1412, W 114.0275). Field season 2016 (Figure 3D): field experiments were conducted under the US Department of Agriculture Animal and Plant Health Inspection Service (APHIS) import permission numbers 10-004-105m (irCCaMK) and 07-341-101n (EV) and the APHIS release permission number 16-013-102r. EV and irCCaMK plants were planted in communities of six plants, either of the same genotype or with both genotypes in equal number.

Sample collection

Request a detailed protocol

During harvests, roots were washed and briefly dried with a paper towel. Subsequently, they were cut into 1 cm pieces and mixed. Plant tissues were shock-frozen in liquid nitrogen immediately after collection, ground to a fine powder and stored at −20°C (short-term storage)/−80°C (long-term storage) until extraction. From the root samples, an aliquot was stored in root storage solution (25% ethanol and 15% acetic acid in water) at 4°C for microscopic analysis.

For stem sap collection, branches of N. attenuata plants were cut into 1.5 cm long pieces and placed into small 0.5 mL reaction tubes with a small hole in the tip, which were placed in a larger 1.5 mL reaction tube. The tubes were centrifuged for 15 min at 10 000 × g. The stem sap from the larger reaction tubes was collected and stored at −20°C.

Samples prepared at other laboratory facilities

Request a detailed protocol

Medicago truncatula (Figure 7 and Figure 7—figure supplement 2) and Brachypodium distachyon (Figure 7 and Figure 7—figure supplement 2) samples were prepared at the laboratory of Prof. Maria Harrison from the Boyce Thompson Institute for Plant Research (Ithaca, NY, USA). M. truncatula plants were grown in a growth chamber with a 16 hr light (25°C)/8 hr dark (22°C) cycle. B. distachyon plants were grown in growth chamber with a 12 hr light (24°C)/12 hr dark (22°C) cycle. All experiments were carried out in surface sterilized containers, autoclaved growth substrates and with surface sterilized spores and seeds as described previously (Liu et al., 2004; Hong et al., 2012; Floss et al., 2013). The growth substrates were mixtures of play sand (average particle 200–300 μm), black sand (heterogeneous particle size 50–300 μm) and gravel (heterogeneous particle size 300 μm −10 mm) as outlined below. For M. truncatula, 2 d-old seedlings were planted into 20.5 cm cones (Cone-tainers) containing a 1:1 mixture of sterile black sand and gravel with 200 surface-sterilized G. versiforme spores placed on a layer of play sand positioned 4 cm below the top of the cones. Five seedlings were planted into each cone. Plants were fertilized twice weekly with 20 mL of modified 1/2-strength Hoagland’s solution (Millner and Kitt, 1992) containing 100 µM potassium phosphate. Plants were harvested 49 d post planting and tissue frozen in liquid nitrogen and stored at −80 C. One cone containing five seedlings represents one biological replicate. The harvest date was 3/3/2015. B. distachyon seedlings were planted into cones (Cone-tainers) containing a 2:1:1 mixture of black sand:play sand:gravel with 300 surface-sterilized G. versiforme spores placed on a layer of play sand positioned 4 cm below the top of the cones. Plants were fertilized twice weekly with 20 mL of modified 1/4-strength Hoagland’s solution (Millner and Kitt, 1992) containing 20 µM potassium phosphate. Plants were harvested 35 d post planting and tissue frozen in liquid nitrogen and stored at −80 C. Each cone contained three plants and each biological replicate consisted of a pool of 4 cones. The harvest date was 6/20/2016.

S. lycopersicum ‘Moneymaker ‘(Figure 7—figure supplement 2) and Solanum tuberosum ‘Wega’ (Figure 7) samples were prepared at the laboratory of Prof. Philipp Franken by Dr. Michael Bitterlich from the Leibniz-Institute of Vegetable and Ornamental Crops (Großbeeren/Erfurt Germany). S. lycopersicum were transplanted into 10 L open pots containing a sand/vermiculite mixture (sand: grain size 0.2–1 mm; Euroquarz, Ottendorf-Okrilla, Germany, vermiculite: agra vermiculite, Pullrhenen, Rhenen, The Netherlands; 1:1 v:v) and grown in the glass house from March to May (20-28:17 °C day:night, PAR: 300–2000 µmol m−2 s−1). Mycorrhizal plants were inoculated with a commercial inoculum either containing R. irregularis DAOM 197198 (INOQ, Schnega, Germany) or F. mosseae BEG12 (MycAgro Laboratory, Breteniere, France) with 10% of the substrate volume and were harvested after 11 or 6 weeks, respectively. S. tuberosum tubers of similar size were planted into 3 L pots filled with the same substrate and grown in a growth cabinet (20:16 °C day:night, 16 hr light, 8 hr dark; PAR: 250–400 µmol m−2 s−1, 50% rH). Mycorrhizal plants were inoculated with a commercial inoculum containing F. mosseae BEG12 (MycAgro Laboratory, Breteniere, France) with 10% of the substrate volume and were harvested after 6 weeks. Non-mycorrhizal counterparts were inoculated with the same amount of autoclaved (2 hr, 121°C) inoculum and a filtrate. The filtrate was produced for every pot by filtration of 200 mL deionized water through Whatman filter (particle retention 4–7 μm; GE Healthcare Europe GmbH, Freiburg, Germany) containing approx. 200 mL of inoculum. The same amount of deionized water (200 mL) was added to mycorrhizal pots. Plants were irrigated every other day with 400–600 mL nutrient solution (De Kreij et al., 1997); 40% of full strength) with 10% of the standard phosphate to guarantee good colonization (N: 10.32 mM; P: 0.07 mM, K: 5.5 mM, Mg: 1.2 mM, S: 1.65 mM, Ca: 2.75 mM, Fe: 0.02 mM, pH: 6.2, EC: 1.6 mS). For the experiment in the glasshouse, additional irrigation was carried out with deionized water until pot water capacity every other day. The pooled bulk leaf sample was dried at 60°C for 48 hr, ground to a fine powder and stored under dry conditions at room temperature until further analyses.

Stress treatments

Request a detailed protocol

Herbivory treatments were conducted by placing Manduca sexta neonates, originating from an in-house colony, on the plants. After feeding for two weeks, rosette leaves were harvested. As controls, we harvested leaves from untreated plants.

For bacteria and virus infection, plants were inoculated with Agrobacterium tumefaciens carrying the Tobacco Rattle Virus. The inoculation was conducted by infiltrating leaves with a bacteria suspension using a syringe. The treatment was conducted as described for virus-induced gene silencing described by Ratcliff et al. (2001) and by Saedler and Baldwin (2004). After incubation for three weeks, stem leaves of the treated plants and untreated control plants were harvested.

The fungal infection was done with Botrytis cinerea. On each plant, three leaves were treated by applying six droplets, each containing 10 µL of B. cinerea spore suspension (106 spores mL−1 in Potato Extract Glucose Broth, Carl Roth GmbH), to the leaf surface. As control, plants were treated with broth without spores in the same way. Samples were collected after four days incubation.

Drought stress was induced by stopping the watering for four days. Subsequently, stem leaves of the drought-stressed plants and the continuously watered control plants were harvested. In contrast to the other samples of the stress experiment, leaves were dried before analysis to compensate for weight differences caused by changes in the water content.

Sample preparation - extraction and purification

Request a detailed protocol

For extraction, samples were aliquoted into reaction tubes, containing two steel balls. Weights were recorded for later normalization. Per 100 mg plant tissues (10 mg in case of dry material), approximately 1 mL 80% MeOH was added to the samples before being shaken in a GenoGrinder 2000 (SPEX SamplePrep) for 60 s at 1150 strokes min−1. After centrifugation, the supernatant was collected and analyzed. For triple-quadrupole MS quantification, the extraction buffer was spiked with stable isotope-labeled abscisic acid (D6-ABA, HPC Standards GmbH) as an internal standard.

Stem sap was diluted 1:1 with MeOH spiked with D6-ABA as an internal standard. After centrifugation, the supernatant was collected and analyzed.

The purification of N. attenuata leaf extracts for high resolution qTOF-MS was conducted by solid-phase-extraction (SPE) using Chromabond HR-XC 45 µm benzensulfonic acid cation exchange columns (Machery-Nagel) to remove abundant constituents, such as nicotine and phenolamides. After purification the samples were evaporated to dryness and reconstituted in 80% methanol.

Compound identification was conducted by NMR with purified fractions of root and leaf extracts. Compounds 1, 3 and 4 were extracted from root tissues of N. attenuata and purified by HPLC (Agilent-HPLC 1100 series; Grom-Sil 120 ODS-4 HE, C18, 250 × 8 mm, 5 μm; equipped with a Gilson 206 Abimed fraction collector). Compounds 2 and 7 were extracted from a mixture of leaf tissues from different plant species (M. truncatula, Z. mays, S. lycopersicum and N. attenuata). The first purification step was conducted by SPE using the Chromabond HR-XC 45 µm benzensulfonic acid cation exchange columns (Machery-Nagel) to remove hydrophilic and cationic constituents. Additional purification steps were conducted via HPLC (Agilent-HPLC 1100 series; Phenomenex Luna C18(2), 250 × 10 mm, 5 µm; equipped with a Foxy Jr. sample collector) and UHPLC (Dionex UltiMate 3000; Thermo Acclaim RSLC 120 C18, 150 × 2.1 mm, 2.2 µm; using the auto-sampler for fraction collection).

Untargeted MS based analyses

Request a detailed protocol

For high resolution mass spectrometry (MS), indiscriminant tandem mass spectrometry (idMS/MS), tandem MS (MS2) and pseudo-MS3 were used. Ultra-high performance liquid chromatography (UHPLC) was performed using a Dionex UltiMate 3000 rapid separation LC system (Thermo Fisher), combined with a Thermo Fisher Acclaim RSLC 120 C18, 150 × 2.1 mm, 2.2 µm column. The solvent composition changed from a high % A (water with 0.1% acetonitrile and 0.05% formic acid) in a linear gradient to a high % B (acetonitrile with 0.05% formic acid) followed by column equilibration steps and a return to starting conditions. The flow rate was 0.3 mL min-1. MS detection was performed using a micrOTOF-Q II MS system (Bruker Daltonics), equipped with an electrospray ionization (ESI) source operating in positive ion mode. ESI conditions for the micrOTOF-Q II system were end plate offset 500 V, capillary voltage 4500 V, capillary exit 130 V, dry temperature 180°C and a dry gas flow of 10 L min−1. Mass calibration was performed using sodium formiate (250 mL isopropanol, 1 mL formic acid, 5 mL 1 M NaOH in 500 mL water). Data files were calibrated using the Bruker high-precision calibration algorithm. Instrument control, data acquisition and reprocessing were performed using HyStar 3.1 (Bruker Daltonics). idMS/MS was conducted in order to gain structural information on the overall detectable metabolic profile. For this, samples were first analyzed by UHPLC-ESI/qTOF-MS using the single MS mode (producing low levels of fragmentation that resulted from in-source fragmentation) by scanning from m/z 50 to 1400 at a rate of 5000 scans s-1. MS/MS analyses were conducted using nitrogen as collision gas and involved independent measurements at the following four different collision-induced dissociation (CID) voltages: 20, 30, 40 and 50 eV. The quadrupole was operated throughout the measurement with the largest mass isolation window, from m/z 50 to 1400. Mass fragments were scanned between m/z 50 to 1400 at a rate of 5000 scans s-1. For the idMS/MS assembly, we used a previously designed precursor-to-product assignment pipeline (Li et al., 2015; Li et al., 2016) using the output results for processing with the R packages XCMS and CAMERA (Data Set 2).

Additional MS/MS experiments were performed on the molecular ion at various CID voltages. For the fragmentation of the proposed aglycones via pseudo-MS3, we applied a 60 eV in-source-CID transfer energy which produced spectra reflecting the loss of all sugar moieties.

Structure elucidation by NMR

Request a detailed protocol

Purified fractions were completely dried with N2 gas and reconstituted with MeOH-d3 prior to analysis by nuclear magnetic resonance spectroscopy (NMR). Structure elucidation was accomplished on an Avance III AV700 HD NMR spectrometer (Bruker-Biospin, Karlsruhe, Germany) at 298 K using a 1.7 mm TCI CryoProbeTM with standard pulse programs as implemented in Bruker TopSpin (Version 3.2). Chemical shift values (δ) are given relative to the residual solvent peaks at δH 3.31 and δC 49.05, respectively. Carbon shifts were determined indirectly from 1H-13C HSQC and 1H-13C HMBC spectra. The data are shown in Table 1 and compared with previously published reference data (Matsunami et al., 2010). Blumenol C glucoside and byzantionoside B differ only in the configuration of position C-9; blumenol C glucoside is (9S)-configured whereas byzantionoside B has a (9R)-configuration. Characteristic 13C-chemical shift differences can thus be found for the positions C-9, C-10 and C-1’. In byzantionoside, C-9 and C-10 were reported to have chemical shifts of δC 75.7 and δC 19.9, respectively. In contrast, the chemical shifts for the same positions in blumenol C glucoside were reported to be lowfield shifted to δC 77.7 and δC 22.0, respectively. Experimental chemical shifts of C-9 for the compounds identified in this publication were in the range from δC 77.2 to δC 78.2, and for C-10 in the range from δC 21.6 to δC 21.9, respectively. C-1’ of byzantionoside was reported to have a chemical shift of δC 102.3, while for blumenol C glucoside the chemical shift was δC 104.1. The experimental chemical shifts for C-1’ of the compounds of this publication are in the range from δC 103.8 to δC 104.1. Hence the 13C-chemical shift data are completely consistent with the structures being blumenol C glucosides rather than byzantionoside B. More characteristic differences can be found in the 1H chemical shifts. The methylene shifts for H-7 of byzantionoside were reported to have chemical shifts of δH 1.50 and δH 1.98 while for blumenol C glucoside the same position showed chemical shifts of δH 1.67 and δH 1.81. Experimental 1H chemical shifts for H-7 of the compounds 1–4 of this publication were found in the range of δH 1.62 to δH 1.69 and δH 1.80 to δH 1.88, respectively. Consequently, the NMR data clearly establish the structures to be blumenol C derivatives and not byzantionosides.

Table 1
1H and 13C NMR data for compounds 1–4 and 7.
https://doi.org/10.7554/eLife.37093.031
No.Compound 1Compound 2Compound 3Compound 4Compound 7
Pos.δHmult.,
J [Hz]		δCδHmult.,
J [Hz]		δCδHmult.,
J [Hz]		δCδHmult.,
J [Hz]		δCδHmult.,
J [Hz]		δC
1--202.3--203.1--202.2--202.3--200.9
26.06dd,
1.8/1.8		121.36.40s128.56.06s br121.35.81s br125.25.82s126.4
3--172.4--172.6--172.2--169.8--171.5
41.92dd,
5.2/5.2		47.82.64m46.31.92dd,
5.2/5.2		48.01.97dd,
5.0/5.0		52.4--79.2
5--37.2--36.9--37.2--37.2--42.9
62.59
2.02		d, 17.5
d, 17.5		48.52.03
2.60		d, 17.4
d, 17.4		48.02.59
2.02		d, 17.6
d, 17.6		47.72.49
1.98		d, 17.3
d, 17.3		48.02.13
2.16		d, 18.0
d, 18.0		50.8
71.66
1.82		m m26.81.62
1.88		m m27.61.66
1.82		m m27.11.69
1.80		m m26.51.83
2.07		m m34.6
81.63m37.11.60m36.01.63m37.21.68
1.61		m m37.41.49
1.78		m m32.7
93.82dd, 6.2/
11.7		77.23.80m77.73.83dd, 6.3/
11.7		77.73.83dd, 6.3/
11.6		77.73.80ddd, 6.3/
11.8/11.8		78.2
101.24d, 6.221.61.21d, 6.121.91.24d, 6.321.91.25d, 6.321.91.24d, 6.321.9
114.32
4.16		dd,
17.8/1.8
dd,
17.8/1.8		64.9--160.14.33
4.16		m/m64.92.05d, 1.224.92.04d, 1.021.7
121.02s28.41.01s28.41.02s28.61.02s28.71.01s24.3
131.12s27.51.12s27.51.11s27.51.10s27.41.09s23.7
1'4.31d, 7.9103.84.30d, 7.9104.14.32d, 7.9103.84.32d, 7.8104.04.31d, 7.9104.0
2'3.15dd,
7.9/9.0		75.03.13dd,
7.9/8.9		75.13.15dd, 7.9/
9.0		75.13.16dd,
7.8/9.0		75.23.14dd,
7.9/8.9		75.1
3'3.33dd,
9.0/9.0		77.93.35dd,
8.9/8.9		78.03.33m77.83.34dd,
9.0/9.0		78.03.33dd,
8.9/8.9		77.8
4'3.27dd,
9.0/9.0		71.43.27dd,
8.9/8.9		71.53.33m71.43.33dd,
9.0/9.0		71.53.27dd,
8.9/8.9		71.4
5'3.25m77.63.25m77.63.45m77.03.44m76.93.24m77.7
6'3.85
3.65		dd,
11.8/2.2
dd,
11.8/5.5		62.53.84
3.66		dd,
2.0/12.3
dd,
5.0/12.3		62.64.11
3.78		dd,
11.7/2.0
dd,
11.7/5.7		69.64.11
3.79		dd,
11.6/1.6
dd,
11.6/5.9		69.73.85
3.65		d, 11.7
dd,
4.5/11.7		62.3
1''4.40d, 7.9104.64.40d, 7.8104.8
2''3.21dd,
7.9/9.0		74.93.21dd,
7.8/9.0		75.0
3''3.34dd,
9.0/9.0		77.93.34dd, 9.0/9.077.9
4''3.28dd,
9.0/9.0		71.43.28dd,
9.0/9.0		71.5
5''3.26m77.93.26ddd,
9.0/5.4/1.8		78.0
6''3.87
3.66		dd,
11.9/2.0
dd,
11.9/5.2		62.53.86
3.66		dd,
11.6/1.8
dd,
11.6/5.4		62.7

  1. s, singlet; s br, broad singlet; d, doublet; dd, doublet of doublet; m, multiplet

Targeted metabolite analysis

Request a detailed protocol

For chromatographic separations, a UHPLC (Dionex UltiMate 3000) was used to provide a maximum of separation with short run times. This reduced the interference from other extract components (matrix effects), increased the specificity of the method, and met the requirements of a HTP analysis. The auto-sampler was cooled to 10°C. As a stationary phase, we used a reversed phase column (Agilent ZORBAX Eclipse XDB C18, 50 × 3.0 mm, 1.8 µm) suitable for the separation of moderately polar compounds. Column temperature was set to 42°C. As mobile phases, we used: A, 0.05% HCOOH, 0.1% ACN in H2O and B, MeOH, the composition of which was optimized for an efficient separation of blumenol-type compounds within a short run time. We included in the method a cleaning segment at 100% B and an equilibration segment allowing for reproducible results across large samples sets. The gradient program was as follows: 0–1 min, 10% B; 1–1.2 min, 10–35% B; 1.2–5 min, 35–50% B; 5–5.5 min, 50–100% B; 5.5–6.5 min, 100% B; 6.5–6.6 min, 100–10% B and 6.6–7.6 min, 10% B. The flow rate was set to 500 µL min−1. Analysis was performed on a Bruker Elite EvoQ triple quadrupole MS equipped with a HESI (heated electrospray ionization) ion source. Source parameters were as follows: spray voltage (+), 4500V; spray voltage (-), 4500V; cone temperature, 350°C; cone gas flow, 35; heated probe temperature, 300°C; probe gas flow, 55 and nebulizer gas flow, 60. Samples were analyzed in multiple-reaction-monitoring (MRM) mode; the settings are described in Table 2.

Table 2
MRM-settings used for targeted blumenol analysis.
https://doi.org/10.7554/eLife.37093.032
Nr.Compound nameRTQ1 [m/z]*, †Q3 [m/z] ‡, § (CE [V])
111-hydroxyblumenol C-Glc¶, **2.82+389.22227.16 (-2.5), 209.15 (-7.5), 191.14 (-12.5), 163.10 (-15), 149.10 (-17.5)
211-carboxyblumenol C-Glcf¶, **3.22+403.22241.16 (-2.5), 223.15 (-7.5), 177.10 (-15), 195.14 (-12.5)
+241.16 #223.15 (-5), 177.10 (-15), 195.14 (-10)
311-hydroxyblumenol C-Glc-Glc ¶, **2.5+551.27389.22 (-2.5), 227.16 (-7.5), 209.15 (-10), 191.14 (-15), 149.10 (-20)
4Blumenol C – Glc-Glc ¶, **3.47+535.27373.22 (-2.5), 211.00 (-10), 193.10 (-17.5), 135.00 (-22.5), 109.00 (-22.5)
5Blumenol C - Glc ¶, ††4.18+373.22211.20 (-6), 193.16 (-9), 175.10 (-15), 135.12 (-16), 109.10 (-20)
6Blumenol A - Glc¶, ††2.51- 385.20153.10 (14)
+387.20225.15 (-5), 207.14 (-8), 149.10 (-18), 135.12 (-16), 123.08 (-23)
7Blumenol B - Glc¶, **2.5+389.22227.16 (-5), 209.15 (-7.5), 191.14 (-12.5), 153.10 (-17.5), 149.10 (-17.5)
8Blumenol C – Glc-GlcU¶, ‡‡3.25+549.27373.22 (-2.5), 211.00 (-10), 193.10 (-17.5), 135.00 (-22.5), 109.00 (-22.5)
and 3.38
911-hydroxylumenol C – Glc-Rha‡‡2.8+535.27389.22 (-2.5), 227.16 (-7.5), 209.15 (-10), 191.14 (-15), 149.10 (-20)
10Blumenol C – Glc-Rha¶, ‡‡4.1+519.27373.22 (-2.5), 211.00 (-10), 193.10 (-17.5), 135.00 (-22.5), 109.00 (-22.5)
11Hydroxyblumenol C-Hex-Pen‡‡2.5+521.27389.22 (-2.5), 227.16 (-7.5), 209.15 (-10), 191.14 (-15), 149.10 (-20)
D6-ABA††4.5- 269.17159.00 (10)

  1. RT: retention time

    CE: collision energy

  2. Glc: glucose

    GlcU: glucuronic acid

  3. Rha: rhamnose

    Hex: hexose

  4. Pen: pentose

    *Resolution: 0.7

  5. †[M + H]+ or [M-H]- if not stated differently

    ‡Resolution: 2

  6. § Quantifiers are depicted in bold

    # [M + H-Glc]+

  7. Verified by high resolution MS

    **Verified by NMR

  8. ††Optimized with commercial available standards

    ‡‡Transitions predicted based on structural similar compounds and literature information

Method for targeted blumenol analysis in N. attenuata

View detailed protocol

The compound list was limited to the AMF-indicative markers in N. attenuata, Compound 1 and 2, the not AMF-indicative Compound 6 and the internal standard (D6-ABA). Accordingly, the gradient program was adjusted as follows: 0–1 min, 10% B; 1–1.2 min, 10–35% B; 1.2–3 min, 35–42% B; 3–3.4 min, 42–100% B; 3.4–4.4 min, 100% B; 4.4–4.5 min, 100–10% B and 4.5–5.5 min, 10% B. The MRM settings are given in Table 3.

Table 3
MRM-settings for the analysis of selected blumenols in N. attenuata.
https://doi.org/10.7554/eLife.37093.033
Nr.Compound nameRTQ1 [m/z]*, †Q3 [m/z]‡, § (CE [V])
111-hydroxyblumenol C-Glc¶, **2.82+389.22227.16 (-2.5), 209.15 (-7.5), 191.14 (-12.5), 163.10 (-15), 149.10 (-17.5)
211-carboxyblumenol C-Glc¶, **3.22+403.22241.16 (-2.5), 223.15 (-7.5), 177.10 (-15), 195.14 (-12.5)
+241.16#223.15 (-5), 177.10 (-15), 195.14 (-10)
6Blumenol A - Glc ¶, ††2.51- 385.20153.10 (14)
+387.20225.15 (-5), 207.14 (-8), 149.10 (-18), 135.12 (-16), 123.08 (-23)
D6-ABA††4.0- 269.17159.00 (10)

  1. RT: retention time

    CE: collision energy

  2. Glc: glucose

    Hex: hexose

  3. Pen: pentose

    *Resolution: 0.7

  4. †[M + H]+ or [M-H]- if not stated differently

    ‡Resolution: 2

  5. §Quantifiers are depicted in bold

    #[M + H-Glc]+

  6. Verified by high resolution MS

    **Verified by NMR

  7. ††Optimized with commercial available standards

Determination of the AMF colonization rate

Request a detailed protocol

To determine the fungal colonization rates and mycorrhizal structures, root samples were stained and analyzed by microscopy. For WGA-Alexa Fluor 488 staining, roots were first washed with distilled water and then soaked in 50% (v/v) ethanol overnight. Roots were then boiled in a 10% (w/v) KOH solution for 10 min. After rinsing with water, the roots were boiled in 0.1 M HCl solution for 5 min. After rinsing with water and subsequently with 1x phosphate-buffered saline solution, roots were stained in 1x phosphate-buffered saline buffer containing 0.2 mg mL−1 WGA-Alexa Fluor 488 overnight in the dark. Zeiss confocal microscopy (LSM 510 META) was used to detect the WGA-Alexa Fluor 488 (excitation/emission maxima at approximately 495/519 nm) signal. Trypan blue staining was performed as described by Brundrett et al. (1984) to visualize mycorrhizal structures. For the counting of mycorrhizal colonization, 15 root fragments, each about 1 cm long, were stained with either trypan blue or WGA-488 followed by slide mounting. More than 150 view fields per slide were surveyed with 20x object magnification and classified into five groups: no colonization, only hyphae (H), hyphae with arbuscules (H + A), hyphae with vesicles (V + H), and hyphae with arbuscules and vesicles (A + V + H). The proportions of each group were calculated by numbers of each group divided by total views.

For the molecular biological analysis of colonization rates, RNA was extracted from the roots using the RNeasy Plant Mini Kit (Qiagen) or NucleoSpin RNA Plant (Macherey-Nagel) according to the manufacturer’s instructions and cDNA was synthesized by reverse transcription using the PrimeScript RT-qPCR Kit (TaKaRa). Quantitative (q)PCR was performed on a Stratagene Mx3005P qPCR machine using a SYBR Green containing reaction mix (Eurogentec, qPCR Core kit for SYBR Green I No ROX). We analyzed the R. irregularis specific housekeeping gene, Ri-tub (GenBank: EXX64097.1), as well as the transcripts of the AMF-induced plant marker genes RAM1, Vapyrin, STR1 and PT4. The signal abundance was normalized to NaIF-5a (NCBI Reference Sequence: XP_019246749.1). The primer sequences are summarized in Table 4.

Table 4
Sequences of primers used for qPCR-based analysis of AMF-colonization rates.
https://doi.org/10.7554/eLife.37093.034
GeneForward primerReversed primer
NaIF-5aGTCGGACGAAGAACACCATTCACATCACAGTTGTGGGAGG
NaRAM1ACGGGGTCTATCGCTCCTTGTGCACCAGTTGTAAGCCAC
NaVapyrinGGTCCCAAGTGATTGGTTCACGACCTTCAAAGTCAACTGAGTCAA
NaSTR1TCAGGCTTCCACCTTCAATATCTGACTCTCCGACGTTCTCCC
NaPT4GGGGCTCGTTTCAATGATTAAACACGATCCGCCAAACAT
NaCCaMKTTGGAGCTTTGTTCTGGTGGTATACTTGCCCCGTGTAGCG
NaNOPE1ACTTGATGCCATGTTTCAGAGCTCCAATTCGCGATAAGCTGGT
Ri-TUBTGTCCAACCGGTTTTAAAGTAAAGCACGTTTGGCGTACAT

Transcript analysis of the apocarotenoid pathway

Request a detailed protocol

The transcript analysis of the (apo)carotenoid pathway was conducted based on RNA-seq (Data Set 3) by using N. attenuata roots with or without R. irregularis inoculations. The data analysis methods are based on the previously published pipeline of Ling et al. (2015). Representative values for transcripts abundances are TPM (Transcripts per kilobase of exon model per million mapped reads).

Blumenol transport experiment

Request a detailed protocol

To analyze the root-to-shoot transfer potential of blumenols, we placed three N. attenuata seedlings, previously germinated on petri dishes with GB5 Agar for approximately 10 days, into 0.5 mL reaction tubes. The roots were placed into the tube, while the shoot projected out of the tube. The tubes were carefully covered with parafilm, which held the seedlings in place and isolated roots from shoots (see Figure 6C). The tubes were filled with tap water supplemented with 0.5% v/v plant extracts enriched in Compounds 1 or 2 (unknown concentration; purified fractions), or a commercial available standard of Compound 6 (25 ng µL−1 end concentration; Roseoside; Wuhan ChemFaces Biochemical Co., Ltd.). Compound 1 or 2 were prepared from a mix of leaf tissues from different plant species (M. truncatula, Z. mays, S. lycopersicum and N. attenuata) by methanol extraction followed by purification by SPE (Chromabond HR-XC column) and HPLC (Agilent-HPLC 1100 series; Phenomenex Luna C18(2), 250 × 10 mm, 5 µm; equipped with a Foxy Jr. fraction collector). As a control, we used tap water supplemented with the respective amounts of MeOH. The seedlings were incubated for one day in a Percival climate chamber (16 hr of light at 28°C, and 8 hr of dark at 26°C). During sample collection, roots and shoots were separated and the roots were rinsed in water (to reduce the surface contamination with the incubation medium). While the shoots were analyzed separately, the roots of all seedlings from the same treatment were pooled. Sample extraction was conducted as described above.

Inducible PDS silencing

Request a detailed protocol

For the temporal and spatial restriction of PDS gene silencing, we treated the petiole of the second oldest stem leaf of AMF-inoculated and non AMF-inoculated i-irPDS and EV plants with a 100 µM dexamethasone-containing lanolin paste (1% v/v DMSO). The lanolin paste was prepared and applied as described by Schäfer et al. (2013). The treatment started three weeks after potting and was conducted for three weeks. The lanolin paste was refreshed twice per week. On each plant the treated leaf and the adjacent, untreated leaves were harvested for analysis.

QTL analysis

Request a detailed protocol

The field experiments for QTL analysis were conducted in 2017. Collected leaf samples were extracted as described with 80% MeOH spiked with D6-ABA as internal standard and analyzed with the method described under ‘Method for targeted blumenol analysis in N. attenuata’. The peak areas for Compound 2 were normalized by the amount of extracted tissue and internal standard and log-transformed. Samples with missing genotype or phenotype information were removed. In total, 728 samples were used for QTL mapping analysis. For quantitative trait loci (QTL) mapping, we used the AZ-UT RIL population and data analysis described by Zhou et al. (2017).

Statistics

Statistical analysis of the data was performed with R version 3.0.3 (http://www.R-project.org/). The statistical methods used and the number of replicates are indicated in the figure legends.

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for all figures.

References

    1. Bi HH
    2. Song YY
    3. Zeng RS
    (2007)
    Biochemical and molecular responses of host plants to mycorrhizal infection and their roles in plant defence
    Allelopathy Journal 20:15–27.
  16. Book
    1. De Kreij C
    2. Voogt W
    3. van den Bos AL
    4. Baas R
    (1997)
    Voedingsoplossingen voor de teelt van tomaat in gesloten teeltsystemen
    Naaldwijk: Brochure VG Tomaat.

Decision letter

  1. Detlef Weigel
    Senior and Reviewing Editor; Max Planck Institute for Developmental Biology, Germany
  2. Martin Parniske
    Reviewer; Ludwig Maximilian University of Munich, Munich, Germany

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Blumenols as effective shoot markers for root symbiosis with arbuscular mycorrhizal fungi" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by Detlef Weigel as the Reviewing and Senior Editor. The following individual involved in review of your submission has agreed to reveal their identity: Martin Parniske (Reviewer #1).

The reviewers and the editor agreed that this is potentially important work, showing that a relatively simple marker can be exploited to detect AMF colonization in the field. However, there was also agreement that you need to be clearer what the limitations of the work are (such as the apparent lag between colonization and blumenol accumulation) and that you need to give more credit to what has been possible before. In addition, we require the following essential revisions:

• Measure colonization and blumenol levels and directly compare both over a time course.

• Assess the correlation between colonisation and blumenol levels within at least a small number of RILs, to determine whether blumenol can mirror arbuscule abundance in the root at a very high level of resolution.

• Document that you can unequivocally identify blumenol C glucoside and not byzantionoside B. The two compounds are stereochemically different but carry the same molecular weight.

"Good-to-have" revisions:

We encourage you to look at a second CCaMK silenced line, if at all possible, and to ask how AMF colonization levels, as read out by blumenol, are reflected in plant performance in the field.

The full reviews are attached for your information.

Reviewer #1:

The observation that secondary plant compounds that accumulate in the leaves of all investigated plant species in response to AM colonisation is very exciting because of its novelty and its potential as a marker for the above-ground analysis of below-ground AM colonization without uprooting.

The authors observed that blumenols (and derivatives) specifically accumulate in the leaves of AM colonized plants. This phenomenon was consistently observed in all tested vascular plants species ranging from monocots such as rice to dicots such as tomato and legumes. They also show that this accumulation is specific to AM and is not induced by other tested biotic or abiotic stimuli. This in itself is already a very interesting observation. They obtained data from a cleverly designed "localized RNAi" assay the results of which, in combination with other analyses strongly suggest that specific AM-induced blumenols are transported from the AM colonized roots to the leaves.

The authors suggest to use blumenol levels in the leaves to screen for novel mutants/genotypes defective in AM. They present a convincing example in which they use blumenol levels in the leaves of Nicotiana RILs to map a genetic locus correlated with quantitative AM colonization differences.

Overall the work appears solid and the experiments are convincingly designed. The main claims of the authors are well supported by the data provided.

Major request: Unfortunately, the specific blumenols accumulate in the leaves only relatively late during the colonization (no signal at 4 weeks after inoculation; weak at 5 weeks; solid and screen-compatible levels only from 6 weeks onwards). This is not unexpected because blumenols were previously observed to increase over time in roots during AM development. However, depending on the cultivation and inoculation system, the colonization of the root typically happens weeks earlier. This delayed detection of the colonization somewhat limits the resolution possible with that setup. For example, slow colonizers that suffer from a slightly delayed colonization that may be detectable by microscopical analysis, may have caught up at such a late time point. To assist the evaluation of this assay by potential users, the authors should also present the data that indicate its limitations and determine the relationship between AM age, colonization level and blumenol levels. Colonization and blumenol levels should be measured and directly compared over a time course. As it stands, colonization alone was tested over a time course, but correlation between blumenol and colonization are only presented for one late timepoint.

Reviewer #2:

Summary:

1) The authors summarize work which provides evidence for the existence of markers accumulating in leaves of mycorrhizal host plants indicative for root colonization by AMF. This compounds include blumenols which have previously been suggested to compose the yellow pigment which accumulates in mycorrhizal roots. Blumenols are likely to be transported from roots to leaves in good correlation with mycorrhizal colonization and marker gene expression at the root level. Moreover, a high-throughput screening of blumenol levels in a RIL population provides a proof-of-principle that blumenols can be used as markers to identify gene loci involved in the AM symbiosis.

Significance and novelty:

The identification of leaf marker metabolites for root colonization by AMF in a broad range of AM symbiotic associations is timely and their use in HTP screening for root colonization is a promising tool to identify high yielding varieties exhibiting high root mycorrhizal colonization under adverse field conditions.

Abstract:

2) The authors report in the Abstract that foliar markers are not restricted to particular mycorrhizal species. It should be specified whether the foliar markers are metabolites other than blumenols or whether blumenols are addressed explicitly. Moreover, should "mycorrhizal species" comprise mycorrhizal host species, i.e. plants colonized by any mycorrhizal fungus, or specifically by AMF? The authors should use these terms more precisely according to their scientific definitions, because, alternatively, mycorrhizal species could also include AMF or other mycorrhizal fungi, since a mycorrhizal species, i.e. a species which is part of a mycorrhiza (root colonized by mycorrhizal fungus), could by definition be a plant or a fungus.

eLife Digest:

3) In their eLife Digest draft, the authors state that AMF symbioses are usually studied destructively and the analysis of mycorrhizal roots is time consuming. This is in essence true but it misses work from other groups which have shown that specific compounds accumulate in leaves of mycorrhizal plants, such as miRNA or secondary metabolites (such as e.g. terpenoids), or that leaf elemental profiles alter in response to root colonization. It would be interesting to know whether the authors have addressed these known physiological changes in their plants (leaves) and whether they have identified said compounds in their MS survey as well. This would show whether published results can be reproduced in N. attenuata.

4) According to Matsunami et al. (2010) blumenol C glucoside and byzantionoside B are stereochemically different but carry the same molecular weight. Have the authors considered this issue?

5) The authors experimentally interfere with carotenoid biosynthesis in leaves and conclude from unaltered blumenol content and the proven capacity of seedlings to transport blumenol from root to shoot that blumenol in the leaves originates from mycorrhizal roots. Although lacking final proof, e.g. through the application of labeled blumenols to the roots or through grafting with "blumenol mutants", the data resulting from independent approaches provides sufficient support for this hypothesis.

6) The authors claim that 728 plants can´t be realistically analyzed within two weeks. It is unclear which parameters were used for their calculations. For example, do they base their claim on the work capacity of one person?

Introduction:

7) In the Introduction it is stated that no general AMF-specific metabolites have been found previously. This statement somehow stays in contradiction with what has been shown in Adolfsson et al. (2017) and in Gerlach et al. (2015; cited in Adolfsson et al. 2017). Adolfsson et al. (2017) even show that genes involved in secondary metabolite biosynthesis are upregulated by AM colonization of roots. It is unclear to me why the authors believe that blumenol C glycoside is the first AM-specific compound found in leaves. Clarification is needed.

8) It is unclear in which work it has been shown that only blumenol C-based aglycone are positively correlated with mycorrhizal colonization (see Introduction, third paragraph). Moreover, I´m wondering whether it would be informative for a broad readership that blumenol is not the only apocarotenoid which accumulates in mycorrhizal roots (like e.g. mycorradicin possibly accumulating in the "yellow pigment" which is characteristic for AM roots). Despite my critical remarks I fully agree that a reliable leaf marker for efficient AM colonization would accelerate and facilitate breeding for beneficial AM symbiosis.

Results:

9) In Groten et al. (2015) three independent lines silenced in CCaMK were described. In the current work one of these lines was studied in detail. Why did the authors only study one line and did they confirm that the silencing effect was maintained in this line throughout their study? This is not apparent in the entire set of their results. The use of two independently transformed lines would probably have resulted in more robust results (e.g. with respect to Compound 1).

10) In Figure 2 untargeted metabolomics resulted in a number of AMF-specific hits. Wouldn´t it be interesting to know whether published work on compounds which accumulate in leaves upon mycorrhization also accumulate in N. attenuata? Moreover, blumenols and mycorradicin likely compose the yellow pigment in mycorrhizal roots. Could the authors detect mycorradicin or derivatives in the leaves of mycorrhizal plants? As I´m not a specialist in metabolomics, I don´t know, though, whether the used MS technology is sensitive enough to accurately identify these compounds.

11) As described in the Materials and methods, the field test described from line 20 onwards was performed with control and silenced plants alone or in combination in pots. It is likely that the AM symbiosis could establish at least to some degree when control and silenced lines were grown in combination. Did the authors investigate the degree of colonization by AMF in the roots of these plants and could reduced colonization in silenced plants explain why compound 2 provided a better quality marker than compound 1? Unfortunately data on growth phenotypes of field-grown as well as "lab-grown" plants is not provided to evaluate the impact of root interactions with AMF and other microorganisms on growth performance.

12) The authors denote the identified blumenol C-derivatives "AMF-indicative metabolites" and they show that the effect is not AMF taxa-specific. How can they be sure that other fungi colonizing plant roots and spanning the spectrum from parasitic over commensalistic to mutualistic interactions don´t affect blumenol biosynthesis in roots and its transport to the shoot?

13) The finding that blumenol derivatives can be used as a screening tool for forward genetics approaches is highly interesting and deserves great attention. In a HTP approach based on levels of compounds 1 and 2, the authors identify a locus which harbors the NOPE1 orthologue. They, however, do not provide evidence for differential expression of this gene in accessions UT and AZ which differ in their response to AMF. Since Figure 7 presents key data supposed to provide the proof of principle for the successful use of HTP screening towards breeding of crops improved in AM colonisation, this link between blumenol derivative levels, AMF colonization and expression of marker genes (Figure 7—figure supplement 1) should in my view include the NaNOPE1 gene. Moreover, physiological data revealing whether indicative blumenol level, marker gene expression and AMF colonization correlate with plant performance in the field would be highly interesting for agricultural applications and should be provided in this work if available.

Discussion:

14) The authors should evaluate whether the literature on mycorrhizal secondary metabolites detected in leaves doesn´t provide alternative candidates for HTP screening and whether these papers deserve being cited in the submitted work.

15) The addition of references linking to the transport of root-derived compounds to the shoot in mycorrhizal plants seems to be appropriate also in the Discussion (see also 7, 8, 14).

16) Yellow pigment accumulates predominantly in old and senescent arbscules. Blumenol levels in leaves correlate with colonization, but colonization per se is not a good marker for growth performance of mycorrhizal plants due to functional diversity in AMF-host plant interactions (see e.g. Smith et al., 2003 and 2004). Since the authors propose to use their tool to produce mycorrhiza-responsive and P-efficient high-yielding lines, it would be highly interesting, if not even required, to show more correlative data suggesting that blumenol levels in leaves correlate with plant growth performance at low phosphate conditions.

https://doi.org/10.7554/eLife.37093.038

Author response

The reviewers and the editor agreed that this is potentially important work, showing that a relatively simple marker can be exploited to detect AMF colonization in the field. However, there was also agreement that you need to be clearer what the limitations of the work are (such as the apparent lag between

colonization and blumenol accumulation) and that you need to give more credit to what has been possible before.

We agree that this aspect wasn’t sufficiently addressed and we hope that the revised text provides a more even-handed treatment of the limitations of the procedure in light of what was possible with previously available procedures. The specific changes are detailed in the responses to the respective reviewer comments below.

In addition, we require the following essential revisions:

• Measure colonization and blumenol levels and directly compare both over a time course.

We agree that such a comparison would be useful and have added new data (Figure 3—figure supplement 2) to address this point.

• Assess the correlation between colonisation and blumenol levels within at least a small number of RILs, to determine whether blumenol can mirror arbuscule abundance in the root at a very high level of resolution.

We agree that this data would be nice to have, and it’s a major experimental objective of research planned for the 2019/2020 field seasons, when we will plant out a much more powerful MAGIC population into our Arizona field sites. However (for obvious manpower reasons), we did not harvest the roots, and conduct microscopic and transcriptional analyses of the 728 plants that were planted at the field sites in 2017. Nevertheless, we think that the robust correlation between the colonization and the blumenol levels in the RILs is well supported by the following data presented in the revised manuscript: 1) the comparison of all relevant parameters in the parental lines of RILs (Figure 7, Figure 7—figure supplement 1), which are consistent with the validation using: 2) the irCCaMK plants (Figure 3, Figure 3—figure supplement 3) under glasshouse and field condition; 3) the kinetic assay which directly compares the development of root colonization with the accumulation of the indicative compounds in roots and systemic leaves (Figure 3, Figure 3—figure supplement 2); and 4) the inoculum gradient test which establishes a direct correlation between experimentally titrated root colonization and the accumulation of the indicative compounds in leaves (Figure 3).

• Document that you can unequivocally identify blumenol C glucoside and not byzantionoside B. The two compounds are stereochemically different but carry the same molecular weight.

Thank you for pointing out the similarity of the two compounds which cannot be distinguished with our LCMS analysis. We carefully analyzed our NMR data and compared the results with previously published reference data[1]. Blumenol C glucoside and byzantionoside B differ only in the configuration of position C-9; blumenol C glucoside is (9S)-configured whereas byzantionoside B has the (9R)-configuration. Characteristic 13C-chemical shift differences can thus be found for the positions C-9, C-10 and C-1’. In byzantionoside, C-9 and C-10 were reported to have chemical shifts of δC 75.7 and δC 19.9, respectively. In contrast, the chemical shifts for the same positions in blumenol C glucoside were reported to be lowfield shifted to δC 77.7 and δC 22.0, respectively. Experimental chemical shifts of C-9 for the compounds identified in this publication were in the range from δC 77.2 to δC 78.2, and for C-10 in the range from δC 21.6 to δC 21.9, respectively. C-1’ of byzantionoside was reported to have a chemical shift of δC 102.3, while for blumenol C glucoside the chemical shift was δC 104.1. The experimental chemical shifts for C-1’ of the compounds of this publication are in the range from δC 103.8 to δC 104.1. Hence the 13C-chemical shift data are completely consistent with the structures being blumenol C glucosides rather than byzantionoside B.

More characteristic differences can be found in the 1H chemical shift data. The methylene shifts for H-7 of byzantionoside were reported to have chemical shifts of δH 1.50 and δH 1.98 while for blumenol C glucoside, the same position showed chemical shifts of δH 1.67 and δH 1.81. Experimental 1H chemical shifts for H-7 of the compounds 1-4 of this publication were found in the range of δH 1.62 to δH 1.69 and δH 1.80 to δH 1.88, respectively.

Consequently, the data clearly establish the structures to be blumenol C derivatives and not byzantionosides.

[1]Matsunami, Otsuka and Takeda, 2010.

"Good-to-have" revisions:

We encourage you to look at a second CCaMK silenced line, if at all possible, and to ask how AMF colonization levels, as read out by blumenol, are reflected in plant performance in the field.

We agree that this information would provide desired robustness to our inferences and in the revision we have added data for an independently transformed irCCaMK line, A-09-1208-6 (to complement the data from line A-09-1212-1 which was presented in the first submission; see Figure 3—figure supplement 3; subsection “Plant material and AMF inoculation”). This irCCaMK line has already been well-characterized by Groten et al. (2015), including growth and fitness parameters. Adding the effect of AMF colonization on plant performance is clearly out of the scope of the current manuscript as it would require another 1-2 years of work (see comments below).

The full reviews are attached for your information.

Reviewer #1:

[…] Major request: Unfortunately, the specific blumenols accumulate in the leaves only relatively late during the colonization (no signal at 4 weeks after inoculation; weak at 5 weeks; solid and screen-compatible levels only from 6 weeks onwards). This is not unexpected because blumenols were previously observed to increase over time in roots during AM development. However, depending on the cultivation and inoculation system, the colonization of the root typically happens weeks earlier. This delayed detection of the colonization somewhat limits the resolution possible with that setup. For example, slow colonizers that suffer from a slightly delayed colonization that may be detectable by microscopical analysis, may have caught up at such a late time point. To assist the evaluation of this assay by potential users, the authors should also present the data that indicate its limitations and determine the relationship between AM age, colonization level and blumenol levels. Colonization and blumenol levels should be measured and directly compared over a time course. As it stands, colonization alone was tested over a time course, but correlation between blumenol and colonization are only presented for one late time point.

We thank the reviewer for this important comment. The changes are clearly observable already at the earlier time-points (Figure 3—figure supplement 2B-C, insertions), but the strong increases in accumulation of blumenols in the later stages in root and leaves visually mask the effect in the earlier stages, when the same y-axis is used to present the data. For example, in root tissues, good signals of Compound 1 were observed at 2 wpi, and already at 3 wpi compound 1 and 2 in leaves, signals which also mirrored root colonization (Figure 3, Figure 3—figure supplement 2). We added this information to the text (subsection “Hydroxy- and carboxyblumenol C-glucoside levels in leaves positively correlate with root colonizations”, second paragraph; subsection “Systemic AMF-mediated metabolite changes”, last paragraph) and address the differences between the available methods in the Discussion (see the aforementioned paragraph; subsection “AMF-indicative blumenols as tool for research and plant breeding”). Additionally, we added a figure that allows the comparison of blumenol levels and colonization rate over a time course (Figure 3—figure supplement 2).

Reviewer #2:

[…] Abstract:

2) The authors report in the Abstract that foliar markers are not restricted to particular mycorrhizal species. It should be specified whether the foliar markers are metabolites other than blumenols or whether blumenols are addressed explicitly. Moreover, should "mycorrhizal species" comprise mycorrhizal host species, i.e. plants colonized by any mycorrhizal fungus, or specifically by AMF? The authors should use these terms more precisely according to their scientific definitions, because, alternatively, mycorrhizal species could also include AMF or other mycorrhizal fungi, since a mycorrhizal species, i.e. a species which is part of a mycorrhiza (root colonized by mycorrhizal fungus), could by definition be a plant or a fungus.

We thank the reviewer for this comment and tuned the Abstract to make this point more precise.

eLife Digest:

3) In their eLife Digest draft, the authors state that AMF symbioses are usually studied destructively and the analysis of mycorrhizal roots is time consuming. This is in essence true but it misses work from other groups which have shown that specific compounds accumulate in leaves of mycorrhizal plants, such as miRNA or secondary metabolites (such as e.g. terpenoids), or that leaf elemental profiles alter in response to root colonization. It would be interesting to know whether the authors have addressed these known physiological changes in their plants (leaves) and whether they have identified said compounds in their MS survey as well. This would show whether published results can be reproduced in N. attenuata.

We did not analyze all other reported traits induced by AMF inoculation in N. attenuata such as terpenoids and miRNA. Previous reports show various alterations in the leaf metabolism; however these currently known compounds didn’t qualify as general marker since they are often plant species dependent and not specific to AMF-interactions. The authoritative review of this work by Schweiger and Müller (2015) came to the conclusion: “AM-mediated effects on the leaf metabolome are highly diverse, with a plethora of metabolite classes being specifically modified in numerous plant species across various taxa. Even within the more conserved primary metabolism, no common response patterns to AM were found.” In the presented investigation we focused on the blumenols as a result from an untargeted metabolomics screen, but we agree that it might be interesting for future work to expand the analysis to other compounds. In the eLife digest we only shortly address this point to be easily understood by mentioning the absence of known “widespread and specific AMF-induced responses”; we address this point in more detail in the first paragraph of the Introduction.

4) According to Matsunami et al. (2010) blumenol C glucoside and byzantionoside B are stereochemically different but carry the same molecular weight. Have the authors considered this issue?

We thank the reviewer for pointing out that this information was missing and added it accordingly (please see the response to editor’s point 3).

5) The authors experimentally interfere with carotenoid biosynthesis in leaves and conclude from unaltered blumenol content and the proven capacity of seedlings to transport blumenol from root to shoot that blumenol in the leaves originates from mycorrhizal roots. Although lacking final proof, e.g. through the application of labeled blumenols to the roots or through grafting with "blumenol mutants", the data resulting from independent approaches provides sufficient support for this hypothesis.

Thanks for this!

6) The authors claim that 728 plants can´t be realistically analyzed within two weeks. It is unclear which parameters were used for their calculations. For example, do they base their claim on the work capacity of one person?

The claim was based on the experience in our laboratory of what is possible to accomplish by one person working with N. attenuata plants. We clarified this point in the manuscript (“eLife digest” section, last paragraph).

Introduction:

7) In the Introduction it is stated that no general AMF-specific metabolites have been found previously. This statement somehow stays in contradiction with what has been shown in Adolfsson et al. (2017) and in Gerlach et al. (2015; cited in Adolfsson et al. 2017). Adolfsson et al. (2017) even show that genes involved in secondary metabolite biosynthesis are upregulated by AM colonization of roots. It is unclear to me why the authors believe that blumenol C glycoside is the first AM-specific compound found in leaves. Clarification is needed.

As mentioned in the second half of the first paragraph of the Introduction, various metabolite responses have been reported (including the work of Adolfsson et al., 2017). While these changes might play important roles in the plant-AMF interaction, they are not suitable markers as they are not specific to AMF interactions or vary among different plant taxa. Additionally, most studies focus on a single plant species making it hard to evaluate if the reported changes also apply to other taxa.

8) It is unclear in which work it has been shown that only blumenol C-based aglycone are positively correlated with mycorrhizal colonization (see Introduction, third paragraph). Moreover, I´m wondering whether it would be informative for a broad readership that blumenol is not the only apocarotenoid which accumulates in mycorrhizal roots (like e.g. mycorradicin possibly accumulating in the "yellow pigment" which is characteristic for AM roots). Despite my critical remarks I fully agree that a reliable leaf marker for efficient AM colonization would accelerate and facilitate breeding for beneficial AM symbiosis.

To our knowledge all reported AMF-induced blumenol glucosides contained a blumenol C-based aglycon. Still, no information is available that directly excludes other unknown blumenol aglycons and it was not our intention to claim this. We wanted to mention the observation regarding the currently known AMF-induced blumenols, and we agree that the sentence might be misunderstood and have rephrased it for clarity (Introduction, third paragraph). In our untargeted metabolomics analysis, mycorradicin did not show up. Like many AMF-colonized roots, N. attenuata roots also accumulate a yellow color in AMF inoculated plants, and it’s possible that our extraction and quantification method is not suitable for this compound. We added a comment mentioning mycorradicin as potential candidate for further studies to the Discussion (subsection “Systemic AMF-mediated metabolite changes”, last paragraph).

Results:

9) In Groten et al. (2015) three independent lines silenced in CCaMK were described. In the current work one of these lines was studied in detail. Why did the authors only study one line and did they confirm that the silencing effect was maintained in this line throughout their study? This is not apparent in the entire set of their results. The use of two independently transformed lines would probably have resulted in more robust results (e.g. with respect to Compound 1).

Please see the response to the editor’s point 4.

10) In Figure 2 untargeted metabolomics resulted in a number of AMF-specific hits. Wouldn´t it be interesting to know whether published work on compounds which accumulate in leaves upon mycorrhization also accumulate in N. attenuata? Moreover, blumenols and mycorradicin likely compose the yellow pigment in mycorrhizal roots. Could the authors detect mycorradicin or derivatives in the leaves of mycorrhizal plants? As I´m not a specialist in metabolomics, I don´t know, though, whether the used MS technology is sensitive enough to accurately identify these compounds.

Please see the response to reviewer 2’s point 3 and 8. The identified MS features are provided in Figure 2—figure supplement 1—source data 1.

11) As described in Materials and methods, the field test described from line 20 onwards was performed with control and silenced plants alone or in combination in pots. It is likely that the AM symbiosis could establish at least to some degree when control and silenced lines were grown in combination. Did the authors investigate the degree of colonization by AMF in the roots of these plants and could reduced colonization in silenced plants explain why compound 2 provided a better quality marker than compound 1? Unfortunately data on growth phenotypes of field-grown as well as "lab-grown" plants is not provided to evaluate the impact of root interactions with AMF and other microorganisms on growth performance.

We agree with the reviewer that this is an interesting point. irCCaMK plants in the co-cultured system have been intensively studied and the growth parameters under glasshouse and field conditions can be found in Groten et al. (2015) and Wang et al. (2017). Quantifying the effect of the AMF interaction on the plant performance is clearly out of the scope of this manuscript as it will require many additional years of field work to robustly understand. In general, despite years of optimization, the growth conditions required for AMF association in the glasshouse produce plants which are smaller and slower growing than those grown under field conditions. So a scientifically robust answer to this question is not a trivial endeavor. At the moment we are not sure about the reason for the lower quality of Compound 1 under field conditions, but suspect that it might be caused by other co-occurring compounds within the leaf extracts of field-grown plants which interfere with the detection.

12) The authors denote the identified blumenol C-derivatives "AMF-indicative metabolites" and they show that the effect is not AMF taxa-specific. How can they be sure that other fungi colonizing plant roots and spanning the spectrum from parasitic over commensalistic to mutualistic interactions don´t affect blumenol biosynthesis in roots and its transport to the shoot?

We agree with the reviewer that this can’t be completely ruled out, but based on the currently available experimental data, various AMFs are known to induce these compounds, while other tested biotic interaction partners failed to do so (see Figure 5 and Maier et al., 1997). Based on previous reports and our data, blumenol accumulations appear to be robustly associated with the formation of arbuscules, which is likely the reason for the specificity.

13) The finding that blumenol derivatives can be used as a screening tool for forward genetics approaches is highly interesting and deserves great attention. In a HTP approach based on levels of compounds 1 and 2, the authors identify a locus which harbors the NOPE1 orthologue. They, however, do not provide evidence for differential expression of this gene in accessions UT and AZ which differ in their response to AMF. Since Figure 7 presents key data supposed to provide the proof of principle for the successful use of HTP screening towards breeding of crops improved in AM colonisation, this link between blumenol derivative levels, AMF colonization and expression of marker genes (Figure 7—figure supplement 1) should in my view include the NaNOPE1 gene. Moreover, physiological data revealing whether indicative blumenol level, marker gene expression and AMF colonization correlate with plant performance in the field would be highly interesting for agricultural applications and should be provided in this work if available.

We added the expression data for the NOPE1 orthologue in the parent lines (Figure 7—figure supplement 1B, Table 4). Still, NOPE1 is just a potential candidate and the analysis of the QTL data will require extensive additional work, as mentioned in the manuscript. We agree that it would be interesting to correlate the blumenol levels to the respective growth performance data, but again this is clearly out of the scope of the current manuscript.

Discussion:

14) The authors should evaluate whether the literature on mycorrhizal secondary metabolites detected in leaves doesn´t provide alternative candidates for HTP screening and whether these papers deserve being cited in the submitted work.

We agree that probably other compounds exist that would be suitable AMF markers. But we have spent months scouring the literature and, in agreement with the conclusion of Schweiger and Müller (2015), to the best of our knowledge no other markers with similar characteristics (AMF specific, responsive in various plant species, induced by various AMF) have been reported so far. More general information about the value of understanding AMF-induced changes in leaf metabolism is provided in the first paragraph of the Introduction.

15) The addition of references linking to the transport of root-derived compounds to the shoot in mycorrhizal plants seems to be appropriate also in the Discussion (see also 7, 8, 14).

We agree with the reviewer and added additional references to the Discussion.

16) Yellow pigment accumulates predominantly in old and senescent arbscules. Blumenol levels in leaves correlate with colonization, but colonization per se is not a good marker for growth performance of mycorrhizal plants due to functional diversity in AMF-host plant interactions (see e.g. Smith et al., 2003 and 2004). Since the authors propose to use their tool to produce mycorrhiza-responsive and P-efficient high-yielding lines, it would be highly interesting, if not even required, to show more correlative data suggesting that blumenol levels in leaves correlate with plant growth performance at low phosphate conditions.

The plant-AMF interaction is highly complex and the effects on plant performance depends on various factors, also including other factors than just the colonization rate – still the colonization rate is one of them. The accumulation of AMF-induced blumenols is well correlated with the abundance of arbuscules – the core structure of AMF interactions. Therefore, we suspect it to be a suitable proxy for a functional AMF interaction. We hope that before Baldwin retires from the MPG (in 8 years), we will be able to provide a robust analysis of the effect of colonization on plant performance.

https://doi.org/10.7554/eLife.37093.039

Article and author information

Author details

  1. Ming Wang

    Department of Molecular Ecology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Martin Schäfer
    Competing interests
    European patent application EP 18 15 8922.7

  2. Martin Schäfer

    Department of Molecular Ecology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Present address
    Institute for Evolution and Biodiversity, University of Münster, Münster, Germany
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Ming Wang
    Competing interests
    Martin Schäfer: European patent application EP 18 15 8922.7
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4580-6337

  3. Dapeng Li

    Department of Molecular Ecology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—review and editing
    Competing interests
    Dapeng Li: European patent application EP 18 15 8922.7

  4. Rayko Halitschke

    Department of Molecular Ecology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    Conceptualization, Data curation, Software, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    Rayko Halitschke: European patent application EP 18 15 8922.7
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-1109-8782

  5. Chuanfu Dong

    Department of Bioorganic Chemistry, Max Planck Institute for Chemical Ecology, Jena, Germany
    Present address
    Department of Integrative Evolutionary Biology, Max Planck Institute for Developmental Biology, Tübingen, Germany
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3043-7257

  6. Erica McGale

    Department of Molecular Ecology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    Data curation, Software, Formal analysis, Investigation, Visualization, Writing—review and editing
    Competing interests
    Erica McGale: European patent application EP 18 15 8922.7
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-5996-4213

  7. Christian Paetz

    Research Group Biosynthesis / NMR, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    Resources, Data curation, Formal analysis, Supervision, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared

  8. Yuanyuan Song

    Department of Molecular Ecology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Present address
    College of Crop Science, Fujian Agriculture and Forestry University, Fuzhou, China
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared

  9. Suhua Li

    Department of Molecular Ecology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared

  10. Junfu Dong

    1. Department of Molecular Ecology, Max Planck Institute for Chemical Ecology, Jena, Germany
    2. College of Life Sciences, University of Chinese Academy of Sciences, Beijing, China
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared

  11. Sven Heiling

    Department of Molecular Ecology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Present address
    1. Institute of Clinical Chemistry and Laboratory Diagnostics, Jena University Hospital, Jena, Germany
    2. Integrated Biobank Jena, Jena University Hospital, Jena, Germany
    Contribution
    Validation, Investigation, Writing—review and editing
    Competing interests
    Sven Heiling: European patent application EP 18 15 8922.7

  12. Karin Groten

    Department of Molecular Ecology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    Conceptualization, Supervision, Writing—review and editing
    Competing interests
    No competing interests declared

  13. Philipp Franken

    1. Leibniz-Institute of Vegetable and Ornamental Crops, Grossbeeren, Germany
    2. Institute of Biology, Humboldt Universität zu Berlin, Berlin, Germany
    Contribution
    Resources, Supervision, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5710-4538

  14. Michael Bitterlich

    Leibniz-Institute of Vegetable and Ornamental Crops, Grossbeeren, Germany
    Contribution
    Resources, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3562-7327

  15. Maria J Harrison

    Boyce Thompson Institute for Plant Research, Ithaca, United States
    Contribution
    Resources, Supervision, Writing—review and editing
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8716-1875

  16. Uta Paszkowski

    Department of Plant Sciences, University of Cambridge, Cambridge, United Kingdom
    Contribution
    Resources, Supervision, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7279-7632

  17. Ian T Baldwin

    Department of Molecular Ecology, Max Planck Institute for Chemical Ecology, Jena, Germany
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Visualization, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    baldwin@ice.mpg.de
    Competing interests
    Senior editor, eLife; European patent application EP 18 15 8922.7
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5371-2974

Funding

Max-Planck-Gesellschaft (Open-access funding)

  • Ming Wang
  • Martin Schäfer
  • Dapeng Li
  • Rayko Halitschke
  • Chuanfu Dong
  • Erica McGale
  • Christian Paetz
  • Yuanyuan Song
  • Suhua Li
  • Junfu Dong
  • Sven Heiling
  • Karin Groten
  • Ian T Baldwin

European Innovation Partnership Agricultural Productivity and Sustainability (276033540220041)

  • Philipp Franken
  • Michael Bitterlich

Ministry of Consumer Protection, Food and Agriculture of the Federal Republic of Germany

  • Philipp Franken
  • Michael Bitterlich

Ministry of Science, Research and Culture of the State of Brandenburg

  • Philipp Franken
  • Michael Bitterlich

Thuringian Ministry for Infrastructure and Agriculture

  • Philipp Franken
  • Michael Bitterlich

Elsa-Neumann Scholarship

  • Michael Bitterlich

U.S. Department of Energy (# DESC0012460)

  • Maria J Harrison

European Research Council (Advanced Grant ClockworkGreen (293926))

  • Ian T Baldwin

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank the Brigham Young University for the use of their Lytle Preserve field station, Matthias Schöttner, Dechang Cao, Wenwu Zhou, Julia Cramer, Wibke Seibt and Eva Rothe for technical assistance, Danny Kessler, Andreas Schünzel, Andreas Weber, Jana Zitzmann from the glasshouse team for plant cultivation. This work was funded by the Max-Planck-Society, the ERC Advanced Grant (293926): ClockworkGreen and the Elsa Neumann Grant of Berlin, European Innovation Partnership Agri (276033540220041), Ministry of Consumer Protection, Food and Agriculture of the Federal Republic of Germany, Ministry for Science, Research and Culture of the State of Brandenburg, Thuringian Ministry of Infrastructure and Agriculture. Plant samples provided by the Harrison lab were generated with support from U.S. DOE # DE-SC0012460.

Senior and Reviewing Editor

  1. Detlef Weigel, Max Planck Institute for Developmental Biology, Germany

Reviewer

  1. Martin Parniske, Ludwig Maximilian University of Munich, Munich, Germany

Version history

  1. Received: March 29, 2018
  2. Accepted: August 22, 2018
  3. Accepted Manuscript published: August 28, 2018 (version 1)
  4. Version of Record published: September 25, 2018 (version 2)

Copyright

© 2018, Wang et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 6,863
    Page views
  • 1,325
    Downloads
  • 47
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Ming Wang
  2. Martin Schäfer
  3. Dapeng Li
  4. Rayko Halitschke
  5. Chuanfu Dong
  6. Erica McGale
  7. Christian Paetz
  8. Yuanyuan Song
  9. Suhua Li
  10. Junfu Dong
  11. Sven Heiling
  12. Karin Groten
  13. Philipp Franken
  14. Michael Bitterlich
  15. Maria J Harrison
  16. Uta Paszkowski
  17. Ian T Baldwin
(2018)
Blumenols as shoot markers of root symbiosis with arbuscular mycorrhizal fungi
eLife 7:e37093.
https://doi.org/10.7554/eLife.37093

Categories and tags

Further reading

    1. Computational and Systems Biology
    2. Ecology

    Gut Health: The value of connections

    Vanessa Rossetto Marcelino
    Insight

    High proportions of gut bacteria that produce their own food can be an indicator for poor gut health.

    1. Ecology

    Engineering multifunctional rhizosphere probiotics using consortia of Bacillus amyloliquefaciens transposon insertion mutants

    Jingxuan Li, Chunlan Yang ... Zhong Wei
    Research Article

    While bacterial diversity is beneficial for the functioning of rhizosphere microbiomes, multi-species bioinoculants often fail to promote plant growth. One potential reason for this is that competition between different species of inoculated consortia members creates conflicts for their survival and functioning. To circumvent this, we used transposon insertion mutagenesis to increase the functional diversity within Bacillus amyloliquefaciens bacterial species and tested if we could improve plant growth-promotion by assembling consortia of highly clonal but phenotypically dissimilar mutants. While most insertion mutations were harmful, some significantly improved B. amyloliquefaciens plant growth-promotion traits relative to the wild-type strain. Eight phenotypically distinct mutants were selected to test if their functioning could be improved by applying them as multifunctional consortia. We found that B. amyloliquefaciens consortium richness correlated positively with plant root colonization and protection from Ralstonia solanacearum phytopathogenic bacterium. Crucially, 8-mutant consortium consisting of phenotypically dissimilar mutants performed better than randomly assembled 8-mutant consortia, suggesting that improvements were likely driven by consortia multifunctionality instead of consortia richness. Together, our results suggest that increasing intra-species phenotypic diversity could be an effective way to improve probiotic consortium functioning and plant growth-promotion in agricultural systems.

    1. Ecology
    2. Epidemiology and Global Health

    Mosquito community composition shapes virus prevalence patterns along anthropogenic disturbance gradients

    Kyra Hermanns, Marco Marklewitz ... Sandra Junglen
    Research Article

    Previously unknown pathogens often emerge from primary ecosystems, but there is little knowledge on the mechanisms of emergence. Most studies analyzing the influence of land-use change on pathogen emergence focus on a single host-pathogen system and often observe contradictory effects. Here, we studied virus diversity and prevalence patterns in natural and disturbed ecosystems using a multi-host and multi-taxa approach. Mosquitoes sampled along a disturbance gradient in Côte d’Ivoire were tested by generic RT-PCR assays established for all major arbovirus and insect-specific virus taxa including novel viruses previously discovered in these samples based on cell culture isolates enabling an unbiased and comprehensive approach. The taxonomic composition of detected viruses was characterized and viral infection rates according to habitat and host were analyzed. We detected 331 viral sequences pertaining to 34 novel and 15 previously identified viruses of the families Flavi-, Rhabdo-, Reo-, Toga-, Mesoni- and Iflaviridae and the order Bunyavirales. Highest host and virus diversity was observed in pristine and intermediately disturbed habitats. The majority of the 49 viruses was detected with low prevalence. However, nine viruses were found frequently across different habitats of which five viruses increased in prevalence towards disturbed habitats, in congruence with the dilution effect hypothesis. These viruses were mainly associated with one specific mosquito species (Culex nebulosus), that increased in relative abundance from pristine (3%) to disturbed habitats (38%). Interestingly, the observed increased prevalence of these five viruses in disturbed habitats was not caused by higher host infection rates but by increased host abundance, an effect tentatively named abundance effect. Our data show that host species composition is critical for virus abundance. Environmental changes that lead to an uneven host community composition and to more individuals of a single species is a key driver of virus emergence.
