SETD3 protein is the actin-specific histidine N-methyltransferase

  1. Sebastian Kwiatkowski
  2. Agnieszka K Seliga
  3. Didier Vertommen
  4. Marianna Terreri
  5. Takao Ishikawa
  6. Iwona Grabowska
  7. Marcel Tiebe
  8. Aurelio A Teleman
  9. Adam K Jagielski
  10. Maria Veiga-da-Cunha  Is a corresponding author
  11. Jakub Drozak  Is a corresponding author
  1. University of Warsaw, Poland
  2. Université Catholique de Louvain, Belgium
  3. German Cancer Research Center (DKFZ), Germany
  4. Heidelberg University, Germany
Research Article
  • Cited 6
  • Views 2,397
  • Annotations
Cite this article as: eLife 2018;7:e37921 doi: 10.7554/eLife.37921

Abstract

Protein histidine methylation is a rare post-translational modification of unknown biochemical importance. In vertebrates, only a few methylhistidine-containing proteins have been reported, including β-actin as an essential example. The evolutionary conserved methylation of β-actin H73 is catalyzed by an as yet unknown histidine N-methyltransferase. We report here that the protein SETD3 is the actin-specific histidine N-methyltransferase. In vitro, recombinant rat and human SETD3 methylated β-actin at H73. Knocking-out SETD3 in both human HAP1 cells and in Drosophila melanogaster resulted in the absence of methylation at β-actin H73 in vivo, whereas β-actin from wildtype cells or flies was > 90% methylated. As a consequence, we show that Setd3-deficient HAP1 cells have less cellular F-actin and an increased glycolytic phenotype. In conclusion, by identifying SETD3 as the actin-specific histidine N-methyltransferase, our work pioneers new research into the possible role of this modification in health and disease and questions the substrate specificity of SET-domain-containing enzymes.

https://doi.org/10.7554/eLife.37921.001

Introduction

Protein methylation is one of the most common post-translation modifications (PTMs) in eukaryotic cells (for a review, see Clarke, 2013) and histones are the best studied substrates of protein N-methyltransferases. Consequently, much is known about the methylation of lysine and arginine residues in histones and about the fundamental role of such modifications in the epigenetic control of mammalian gene expression (Greer and Shi, 2012). In addition, there are a growing number of examples showing that the methylation of non-histone proteins is a prevalent PTM that regulates diverse biological processes, including protein synthesis and signal transduction (for a review, see Biggar and Li, 2015). More interestingly, non-histone proteins may be methylated on atypical residues such as glutamate, glutamine, cysteine and histidine (Clarke, 2013). The methylation of histidine residues in proteins has been known for many years but, curiously, only for a few proteins in Nature, including β-actin (Johnson et al., 1967), S100A9 protein (Raftery et al., 1996), myosin (Elzinga and Collins, 1977), myosin kinase (Meyer and Mayr, 1987) and ribosomal protein RPL3 (Webb et al., 2010). However, a recent study from Ning et al. (2016) suggests that protein methylation on histidine residues may actually be a quite common phenomenon, modifying dozens if not hundreds of intracellular proteins in mammalian cells.

The current knowledge on histidine N-methyltransferases, which are the enzymes that catalyze the methylation of histidines in proteins is still sparse. The yeast protein Yil110w (Hpm1p), which methylates histidine 243 in the ribosomal protein Rpl3p, is the first and only histidine protein methyltransferase molecularly identified to date (Webb et al., 2010). Hpm1p is the seven β-strand methyltransferase (7BS MTase), which has been classified in the methyltransferase family 16 (MTF16) (for review, see Falnes et al., 2016). The MTF16 group comprises mostly protein-lysine methyltransferases, such as Mettl20–23 and Camkmt, with the noticeable exceptions of Hpm1p and of Efm7, which methylates the N-terminal glycine in the eukaryotic translation elongation factor one alpha (eEF1A). The MTF16 group appears to be distinct from both the other known 7BS protein-lysine MTases (e.g. Dot1L, Mettl10 and N6amt2) and the non-protein methylating 7BS MTases (e.g. Mettl1, Comt and Gnmt). On the other hand, the enzyme responsible for actin-specific histidine methylation has been partially purified, but the gene encoding this enzyme remains to be identified (Vijayasarathy and Narasinga Rao, 1987; Raghavan et al., 1992).

Actin is one of the most abundant proteins in eukaryotic cells and a major component of the cytoskeleton (for a review, see Pollard and Cooper, 2009). It is a highly conserved protein during evolution (≈90% identity between yeast and human protein), and in vertebrates there are three main isoforms that only differ by a few amino acids at their N-terminus. α-Actins are expressed in skeletal, cardiac and smooth muscle, whereas β- and γ-isoforms are present in non-muscle and muscle cells. Under physiological conditions, actin exists as a 42-kDa monomeric globular protein (G-actin) that binds ATP and spontaneously polymerizes into stable filaments (F-actin). Once these filaments have been assembled, the terminal phosphate of the bound ATP is hydrolyzed and slowly released from actin, leading to the sequential depolymerization of the filament. The maintenance of a pool of actin monomers, the initialization of the polymerization process, and the regulation of the assembly and turnover of actin filaments are extremely complex and well controlled. These involve more than 100 interacting partner proteins, so that actin contributes to more protein–protein interactions than any other protein (Lappalainen, 2016). Actin plays a role in many central cell functions, including cell growth, division, and motility (Dominguez and Holmes, 2011), which makes it essential for cell survival. Consequently, various efforts have been made to elucidate the role of the conserved methylation of the H73 residue (Nyman et al., 2002). As a result, it was shown in vitro that H73 methylation stabilizes actin filaments, and that the rate of filaments depolymerization was increased when actin was non-methylated (Nyman et al., 2002). Nevertheless, the physiological effects of actin hypomethylation have yet to be reported in cells, tissues or organisms.

Here, we report the identification of actin-specific histidine N-methyltransferase (EC 2.1.1.85) as SET domain-containing protein 3 (SETD3, C14orf154), which was previously shown to act as a histone lysine methyltransferase (Eom et al., 2011). We reveal that SETD3 is responsible for the methylation of H73 in human and drosophila actin, and that a loss of SETD3 activity impacts the phenotype of the human HAP1 cell line by lowering F-actin content and increasing glycolytic activity.

Results

Purification and identification of rat actin-specific histidine N-methyltransferase

Actin-specific histidine N-methyltransferase activity was assayed by measuring the incorporation of the [3H]methyl group of [3H]S-adenosyl methionine ([3H]SAM) into either homogeneous recombinant human β-actin produced in Escherichia coli or a H73A β-actin mutant (Figure 1—figure supplement 1), which served as a negative control, ensuring that only the H73-specific N-methyltransferase activity was measured (Figure 1—figure supplement 2). The use of recombinant human β-actin as the rat methyltransferase substrate was reasonable because the sequences of human and rat β-actin cannot be distinguished from one another, owing to an extreme evolutionary conservation. Following numerous purification steps, the N-methyltransferase activity was purified from rat leg muscle approximately 1200-fold (see Table 1). The methyltransferase was eluted as a single peak in each of the purification steps (Figure 1), indicating the presence of a single enzyme species. No methylation of H73A β-actin was detected at any stage of the purification, suggesting that the myofibrillar extract of rat muscle is devoid of other β-actin-methylating enzymes. The overall yield of the purification was only about 0.6% (see Table 1), largely because of the fact that in the last two steps of purification, only the most active fractions were used for the next step of the procedure.

Figure 1 with 3 supplements see all

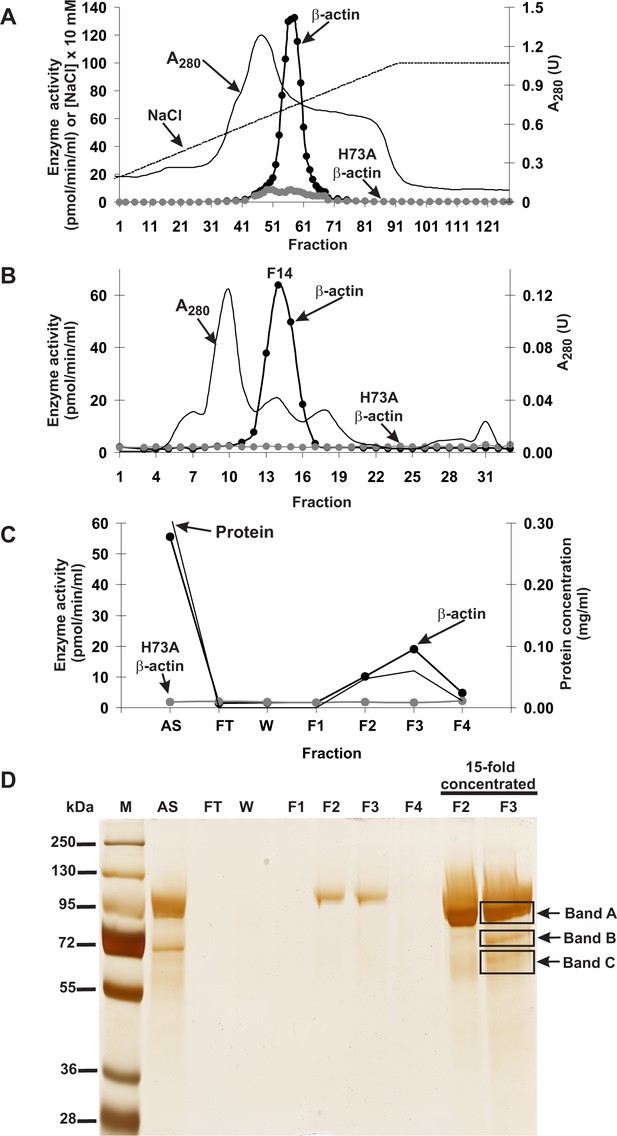

Purification of the rat actin-specific histidine N-methyltransferase.

The enzyme was purified by chromatography on (A) DEAE-Sepharose, (B) Q-Sepharose, Phenyl-Sepharose, HiScreen Blue-Sepharose (shown in Figure 1—figure supplement 3), Superdex 200, and (C) Reactive Red 120 Agarose, as described in the 'Materials and methods' section. Fractions were tested for actin-specific histidine N-methyltransferase activity using either homogeneous recombinant human β-actin or its mutated form H73A. (D) The indicated fractions eluted from the Reactive Red 120 Agarose column were analyzed by SDS-PAGE and the gel was silver-stained (Shevchenko et al., 1996). M, prestained protein marker; AS, applied sample (Fraction 14 from Superdex 200); FT, flow through; W, wash. Fractions F1, F2, F3 and F4 were eluted with 200, 400, 900 and 1400 mM NaCl, respectively. In addition, fractions F2 and F3 were concentrated 15-fold by ultrafiltration (Vivaspin 500) before being analyzed. The indicated bands were cut out of the gel for mass spectrometry analysis.

https://doi.org/10.7554/eLife.37921.002
Table 1
Purification of actin-specific histidine N-methyltransferase from rat skeletal muscles
https://doi.org/10.7554/eLife.37921.006
FractionVolumeTotal proteinTotal activitySpecific activityPurificationYield
mlmgpmol min−1pmol min−1 mg−1-fold%
Myofibrillar extract
(20,000 × g supernatant)
240035,27387680.2481100
20% PEG fraction100016,33348530.2971.255.4
DEAE Sepharose84.5275757532.098.465.7
Q Sepharose63.780045075.63722.751.5
Phenyl Sepharose93.46696414.60258.811.0
HiScreen Blue2714.368247.6191.77.8
Superdex 200#31.20185.5154.8623.42.12
Reactive Red 120#30.1852.04291.21172.50.59
  1. # The data represent mean values for the most purified fraction of the step applied. PEG, polyethylene glycol.

SDS-PAGE analysis of the activity peak fractions (F2 and F3) from the Reactive Red 120-agarose showed a protein concentration that was too low to allow the identification of the proteins coeluting with the enzymatic activity (Figure 1D). Thus, the proteins in these fractions were concentrated about 15-fold and reanalyzed by SDS-PAGE. Actin-methylating activity coeluted with three protein bands of about 65, 75 and 90 kDa, which were clearly visible in the concentrated fraction F3 (Figure 1D). These bands were cut out from the gel, digested with trypsin and analyzed by MS/MS. The sequences of the identified peptides were compared with the rat reference proteome from the NCBI Protein database. This comparison indicated that there was only one methyltransferase among these peptides, present in band ‘C’, and this was identified as histone lysine N-methyltransferase SETD3 (Table 2). Eighteen peptide sequences from the rat SETD3 (underlined in Figure 2) that had shared identity with other SETD3 proteins in the National Center for Biotechnology Information (NCBI) Protein database were found to cover about 39% of its sequence. However, to exclude the possibility of missing any potential methyltransferase as the result of a poor extraction of tryptic peptides from protein bands, we performed the MS/MS identification of all proteins present in the entire fraction 14 of Superdex 200 (see Figure 1B) and fraction F3 of Reactive red 120 (see Figure 1C), and SETD3 protein was again the only methyltransferase found in these fractions.

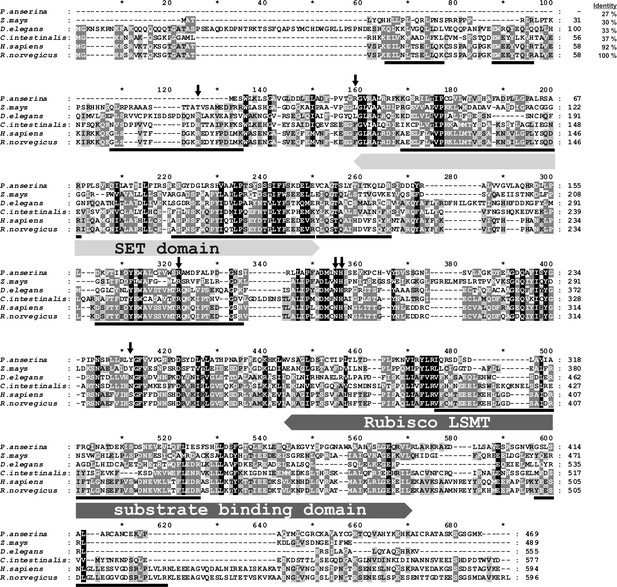

Amino-acid sequence alignment of the rat SETD3 protein with its orthologs.

Sequences of rat (Rattus norvegicus, XP_002726820.2), human (Homo sapiens, NP_115609.2), Ciona intestinalis (C. intestinalis, XP_002131202.1), Drosophila elegans (D. elegans, XP_017114801.1), Podospora anserina (P. anserina, CDP29262.1) and Zea mays (Z. mays, NP_001168589.1) protein were obtained from the National Center for Biotechnology Information (NCBI) Protein database. Both the rat and the human sequences have been confirmed by PCR amplification of the cDNA and DNA sequencing. The percentage of amino-acid identities with the rat SETD3 protein is given in the top right corner of the figure. The conserved protein substrate-binding domains (SET and Rubisco large subunit methyltransferase (LSMT) substrate binding) are labeled above the alignment, while amino-acid residues that interact with S-adenosyl-L-methionine (SAM) are indicated by arrows, as inferred from the crystal structure of the human SETD3 enzyme (PDB 3SMT). The peptides identified by mass spectrometry in the protein purified from rat leg muscle are underlined in the rat sequence. The level of residue conservation is indicated by black (100%), dark grey (70% and more) and light gray (50% and more) background.

https://doi.org/10.7554/eLife.37921.007
Table 2
Proteins identified in the gel bands submitted to trypsin digestion and MS/MS analysis. Identified proteins are listed for each band according to their score as calculated using ProteinLynx Global Server software (PLGS).

For each protein, the molecular weight (mW) and sequence coverage are also indicated. Occasional peptide hits corresponding to keratins have not been included.

https://doi.org/10.7554/eLife.37921.008
Gel bandProtein nameNCBI Protein accession numberPLGS score*mW
(Da)
Coverage
(%)
AElongation factor 2NP_058941.116,24995,22273.5
BCalpain one catalytic subunitNP_062025.1302482,06747.7
Elongation factor 2NP_058941.178995,22215.2
Nuclear protein localization
protein four homolog
NP_542144.177868,01331.7
CElongation factor 2NP_058941.1202495,22242.1
Nuclear protein localization
protein four homolog
NP_542144.1126368,01337.3
Histone lysine N-methyltransferase SETD3XP_002726820.2113667,37839.1
Eukaryotic peptide chain release
factor GTP binding subunit ERF3A
NP_001003978.150568,70841.2
Guanylate binding protein 1NP_598308.140467,31221.8
Filamin-B-like isoform X2XP_003751493.2272121,9011.4
  1. *PLGS Score is calculated by the ProteinLynx Global Server (v2.4) software using a Monte Carlo algorithm to analyze all acquired mass spectral data and it is a statistical measure of accuracy of assignation. A higher score implies a greater confidence of protein identity.

As SETD3 protein was shown to methylate histones (Eom et al., 2011) and all of the SET-domain-containing enzymes characterized to date are protein lysine methyltransferases (Clarke, 2013), we were surprised to find that SETD3 was the protein histidine N-methyltransferase responsible for the measured activity. To double check our results, we performed another complete, though modified, round of purification of the actin-methylating enzyme from rat leg muscles, as well as MS/MS analysis of the most purified fractions from Superdex 200. Once again, we identified SETD3 protein as the only meaningful candidate for rat actin-specific histidine N-methyltransferase, suggesting we had identified the correct protein. Moreover, our results were in agreement with previous reports suggesting that the actin-specific histidine N-methyltransferase corresponded to a ≈70 kDa protein (Raghavan et al., 1992).

Analysis of SETD3 protein sequences

Protein BLAST searches (Altschul et al., 1997) with rat SETD3 and phylogenetic analysis of the resulting sequences indicated that orthologs of this protein were found in almost all eukaryotes including vertebrates (≈75–98% identity with the rat sequence), insects (≈35–40% identity), plants and fungi (≈30% identity) (Figure 3). No SETD3 orthologs were detected in the sequenced proteome of Saccharomyces cerevisiae or of Naegleria gruberi in agreement with previous reports, showing the absence of actin-specific histidine methyltransferase activity in these species (Kalhor et al., 1999). All taxa followed the expected lines of descent, indicating that the enzyme was present in a common eukaryotic ancestor (see Figure 3). A low similarity in amino-acid sequence between eukaryotic SETD3 orthologs and some bacterial proteins was also detected (e.g. ≈30% identity, Cystobacter fuscus, NCBI Reference Sequence: WP_095987699.1), suggesting that the eukaryotic enzyme might have been acquired from an ancestral prokaryote.

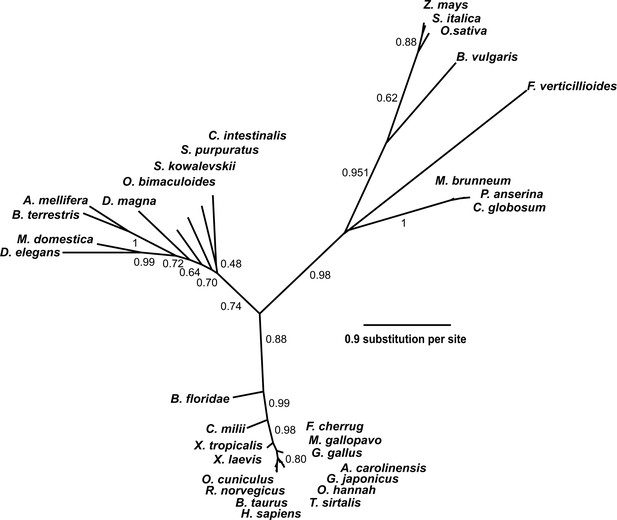

Phylogenetic tree of the SETD3 proteins.

Protein sequences were aligned using Muscle (Edgar, 2004), and the phylogenetic tree was inferred with the use of PhyML (Guindon and Gascuel, 2003) implemented in phylogeny.fr web service (Dereeper et al., 2008). Branch support values assessed using the aLRT test are indicated (Anisimova and Gascuel, 2006). The protein sequences used for the analysis are as follows: Anolis carolinensis (XP_003214383.2); Apis mellifera (XP_016770011.1); Beta vulgaris (XP_010683122.1); Bombus terrestris (XP_003398458.1); Bos taurus (XP_589822.3); Branchiostoma floridae (XP_002596839.1); Callorhinchus milii (XP_007906724.1); Chaetomium globosum (XP_001224775.1); Ciona intestinalis (XP_002131202.1); Daphnia magna (KZS12928.1); Drosophila elegans (XP_017114801.1); Falco cherrug (XP_005438913.1); Fusarium verticillioides (XP_018752240.1); Gallus gallus (NP_001006486.1); Gekko japonicus (XP_015275964.1); Homo sapiens (NP_115609.2); Meleagris gallopavo (XP_003206761.2); Metarhizium brunneum (XP_014542924.1); Musca domestica (XP_011294563.1); Octopus bimaculoides (XP_014787293.1); Ophiophagus hannah (ETE71402.1); Oryctolagus cuniculus (XP_008247172.2); Oryza sativa (XP_015651332.1); Podospora anserina (CDP29262.1); Rattus norvegicus (XP_002726820.2); Saccoglossus kowalevskii (XP_006819296.1); Setaria italica (XP_004956796.1); Strongylocentrotus purpuratus (XP_798530.2); Thamnophis sirtalis (XP_013914404.1); Xenopus laevis (OCT68299.1); Xenopus tropicalis (XP_012823880.1); and Zea mays (NP_001168589.1).

https://doi.org/10.7554/eLife.37921.010

All identified SETD3 proteins contain the SET and Rubisco LSMT substrate-binding domains at their N- and C-terminus, respectively. The SET domain is thought to interact directly with the protein substrate and most probably contributes indirectly to SAM binding too, whereas the Rubisco LSMT substrate-binding domain seems to interact with a protein substrate only (see Figures 2 and 4). Although the sequence identity between orthologs from distinct species such as rat and maize (Zea mays) was rather low (about 30%), the alignment of their sequences showed the presence of several motifs that were well conserved in both domains, suggesting that these orthologs may have similar substrates (see Figure 2).

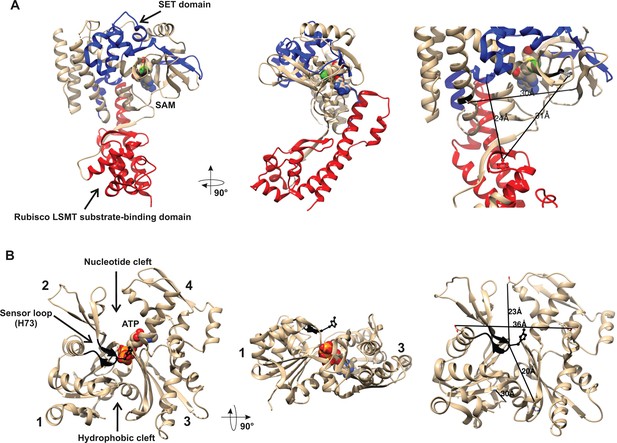

Structures of human β-actin and SETD3 enzyme.

Ribbon representations of the structures of both (A) the SETD3 protein and (B) the actin monomer are shown in different projections. (A) The ‘SET’ and ‘Rubisco LSMT’ substrate-binding domains of SETD3 are highlighted in blue and red, respectively. The spatial organization of these domains gives the enzyme a cradle-like shape. The S-adenosyl-L-methionine (SAM) molecule is bound at the bottom of this cradle, exposing its labile methyl group (green) to a protein substrate. (B) The four subdomains of actin are marked with numbers. Subdomains 1 and 2 form the small (outer) domain, whereas subdomains 3 and 4 constitute the large (inner) domain. Two large clefts are present between these domains: the nucleotide binding cleft and the hydrophobic one, while ATP is bound at the center of the molecule. The nucleotide sensor loop, which contains the methyl-accepting H73 residue, spans from Pro70 to Asn78 and is shown in black. Several residue–residue distances are shown to give information concerning the molecular dimension of these proteins. All models were prepared using UCSF Chimera (Pettersen et al., 2004) from the Protein Data Bank (PDB) structures of β-actin (2BTF) and SETD3 (3SMT).

https://doi.org/10.7554/eLife.37921.011

A partial protein structure of human SETD3 has been published (PDB 3SMT). It lacks about 100 amino acids at the C-terminus, but it shows both substrate-binding domains. As shown in Figure 4A, these two domains form a wide cleft in the center of SETD3, so that the enzyme adopts a cradle-like shape. The SAM molecule is bound in the bottom of the cleft, exposing its labile methyl group (see Figure 4A). It seems likely that the cradle-shape of the enzyme allows it to arch over a protein substrate, and that the position of SAM facilitates the subsequent transfer of the methyl group onto a specific amino acid (in the case of actin, a histidine), most probably located at the surface of a substrate protein.

As shown in Figure 4B, β-actin has a globular shape, flattened in one dimension. It consists of large and small domains that are further subdivided into subdomains 1, 2 and 3, 4, respectively. The nucleotide-binding cleft (for ATP or ADP binding) is located inside the cleft between subdomains 2 and 4, while a hydrophobic cleft is present between subdomains 1 and 3 at the ‘bottom’ of the actin molecule, and serves as a primary binding site for numerous actin-binding proteins. The methyl-accepting H73 residue is present in a nucleotide sensor loop (P70 to N78) in an insert between subdomains 1 and 2. The H73 is present at the surface of the actin monomers and seems to be easily accessed by the methyltransferase. Furthermore, the estimated dimensions of the actin monomer and of the substrate-binding cleft in SETD3 indicate that actin could be accommodated well at the cleft of the methyltransferase and that steric hindrance should not prevent interactions between these proteins.

Characterization of recombinant SETD3 proteins

To confirm the molecular identity of rat actin-specific histidine N-methyltransferase with that of rat SETD3 and to compare the activities of rat and human methyltransferases, these two SETD3 orthologs were expressed in COS-7 cells as fusion proteins with the C-terminal polyhistidine tag (Figure 5). The recombinant enzymes catalyzed the methylation of recombinant β-actin, but not of the H73A mutant (see Figure 5). In further studies, large amounts of recombinant enzymes were produced in COS-7 cells, purified to homogeneity (Figure 6—figure supplement 1) and shown to catalyze the methylation of actin (Figure 6). In addition, the recombinant human and rat SETD3 with the N-terminal His6-tag were produced in E. coli, purified (Figure 7—figure supplement 1) and also shown to methylate actin (Figure 7). Their specific activity was similar to that determined for the enzymes produced in the COS-7 cells (≈5 nmol.min−1.mg−1 protein), which further confirms the identification of SETD3 as the actin-specific methyltransferase.

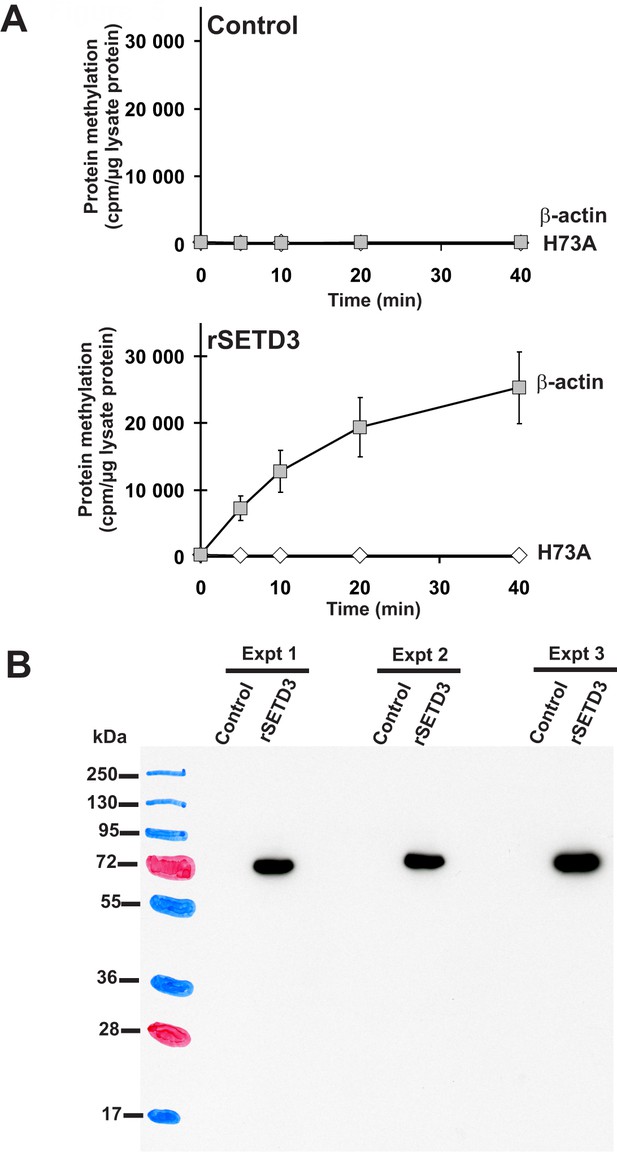

Time course of β-actin methylation present in lysates from COS-7 cells that overexpress recombinant rat SETD3.

COS-7 cells were transfected for 48 hr with an empty vector (Control) or a vector encoding the rat SETD3 protein (rSETD3). Cells were next harvested and lysed, as described in the 'Materials and methods'. (A) The cell-free lysates obtained (≈3 µg of protein) were incubated at 37°C for the indicated times in the presence of 1 µM (100 pmol, ≈370–460 × 103 cpm) [1H+3H]SAM and 2 µM (200 pmol, 8.9 µg) purified recombinant human β-actin (β-actin) or its mutated form (H73A). The reaction was stopped and the proteins present in the assay mixture were precipitated by adding 10% trichloroacetic acid. This allowed for the separation and specific measurement of the radioactivity incorporated in the protein pellet (extent of actin methylation) from the total radioactivity present in the assay mixture. Values are the means ± S.E. (error bars) of three independent transfections. When no error bar is shown, the error is smaller than the width of the line. (B) The presence of recombinant SETD3 protein in the cell lysates was verified by Western blot analysis using 20 µg of total protein and an antibody against the His6 tag. The secondary antibody was detected by employing enhanced chemiluminescence and signals acquisition with ECL film, whereas the pattern of the prestained protein ladder was copied from the blotting membrane onto the film using a set of felt-tip pens.

https://doi.org/10.7554/eLife.37921.012
Figure 6 with 1 supplement see all

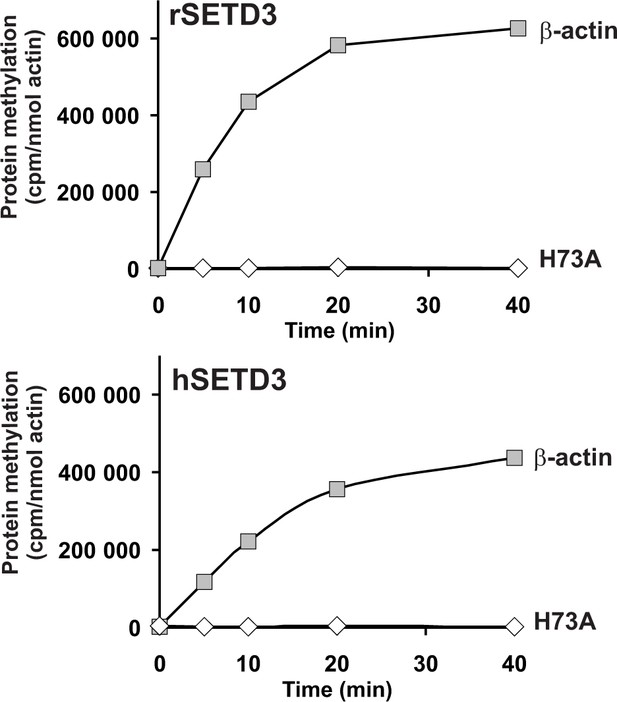

In vitro β-actin methylation in the presence of purified recombinant rat or human SETD3 overexpressed in COS-7 cells.

Homogeneous recombinant rat SETD3 (rSETD3, 0.4 µg protein) or its human orthologue (hSETD3, 0.3 µg protein) were incubated at 37°C for the indicated times in the presence of 1 µM (100 pmol, ≈300–400 × 103 cpm) [1H+3H]SAM and 2 µM (200 pmol, 8.9 µg) homogenous recombinant human β-actin or its mutated form (H73A). Proteins were precipitated with 10% trichloroacetic acid to determine the incorporation of radioactivity. The figure shows results of representative experiments from two independent experiments performed.

https://doi.org/10.7554/eLife.37921.014
Figure 7 with 1 supplement see all

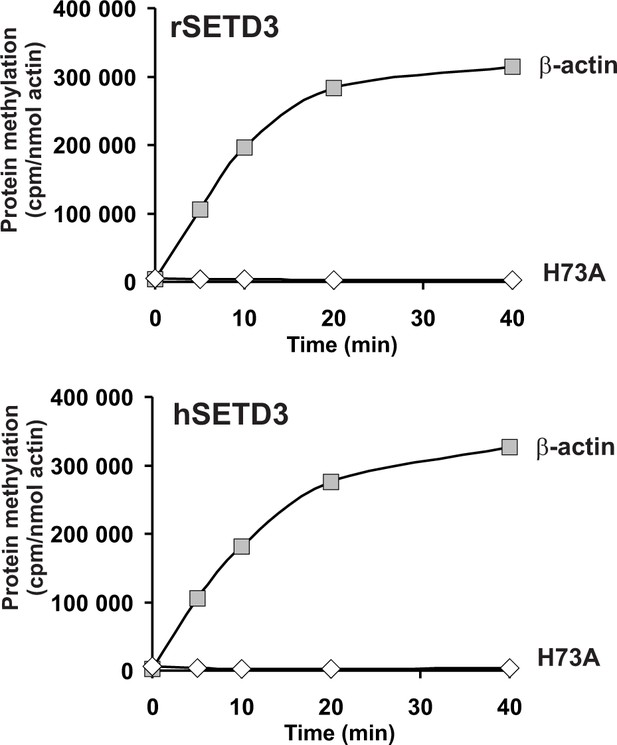

In vitro β-actin methylation in the presence of purified recombinant rat or human SETD3 overexpressed in E. coli.

Mammalian SETD3 proteins were produced in E. coli and purified by affinity chromatography on nickel-Sepharose (HisTrap HP), as described in the 'Materials and methods' section. Recombinant rat SETD3 (rSETD3, 0.4 µg protein) or its human orthologue (hSETD3, 0.4 µg protein) were incubated at 37°C for the indicated times in the presence of 1 µM (100 pmol, ≈230 × 103 cpm) [1H+3H]SAM and 2 µM (200 pmol, 8.9 µg) homogenous recombinant human β-actin or its mutated form (H73A). Proteins were precipitated with 10% trichloroacetic acid to determine the incorporation of radioactivity. The figure shows the results of single experiments.

https://doi.org/10.7554/eLife.37921.017

As partially purified rabbit actin-specific histidine N-methyltransferase (Raghavan et al., 1992) was shown to methylate a synthetic peptide (Peptide H: YPIEHGIVT), corresponding to the H73-containing nucleotide sensor loop of the actin molecule, we wanted to know whether SETD3 can methylate peptide H. As shown in Figure 8, the two SETD3 orthologs catalyzed the methylation of peptide H, but they did not methylate peptide A (YPIEAGIVT), a variant of the nucleotide sensor loop in which H73 is replaced by an alanine. Even if the rat and human SETD3 activities measured with peptide H were very poor (≈ 0.02 nmol.min−1.mg−1 protein) compared with the actual methylation of actin (≈ 5 nmol. min−1.mg−1 protein), these activities further indicated that SETD3 is the histidine-specific N-methyltransferase.

Figure 8 with 1 supplement see all

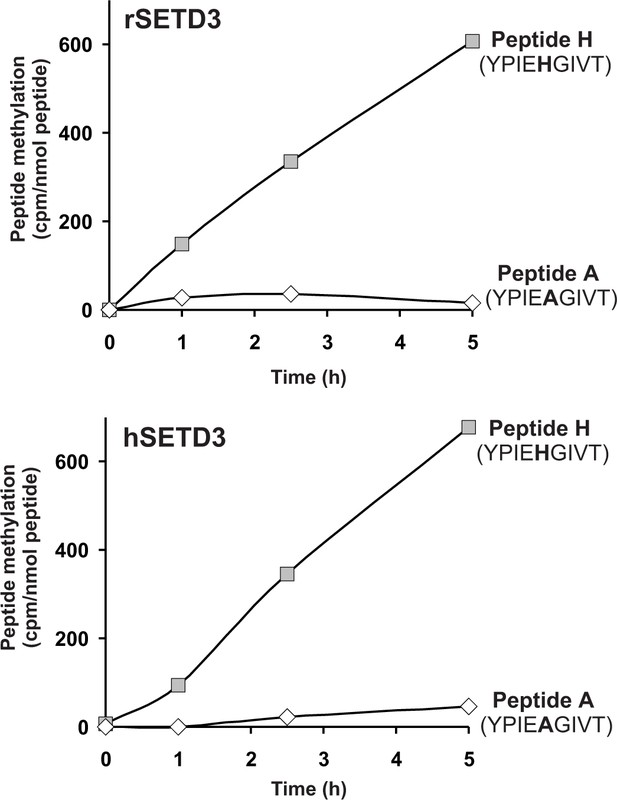

SETD3-dependent methylation of synthetic peptides that incorporate the methylation site in β-actin.

Homogeneous recombinant rat SETD3 (rSETD3, 5.8 µg protein) or its human orthologue (hSETD3, 4.6 µg protein) was incubated at 37°C for the indicated times in the presence of 1 µM (100 pmol, ≈350–400 × 103 cpm) [1H+3H]SAM and 2 mM (200 nmol) synthetic peptides corresponding to residues 69–77 of either β-actin (Peptide H: YPIEHGIVT) or its mutated form (Peptide A: YPIEAGIVT). Methylated peptides were separated from [1H+3H]SAM by fractionation on ion exchange Dowex 50W columns. The figure shows the results of single experiments.

https://doi.org/10.7554/eLife.37921.020

To confirm the specific methylation of H73 in recombinant human β-actin, we incubated it with homogenous recombinant rat and human SETD3 enzymes in the presence of deuterated SAM ([2H]SAM). This resulted in approximately 35% of the actin being methylated, as measured using a radiochemical assay that was run in parallel. At the end of the reaction, the proteins in the assay mixture were separated by SDS-PAGE, and the bands corresponding to the β-actin polypeptide were analyzed by nanoUPLC-Q-TOF. At least 74% of the actin sequence coverage was achieved in each MS analysis, including all of the known methyl-accepting sites in human β-actin (K18, K68, H73, K84, K191 and K326, see http://www.phosphosite.org). Peptide YPIEHGIVTNWDDMEK (M + H = 1963.9355 Da) containing the H73 residue was the only tri-deuterium-methylated peptide detected by the PLGS 2.4 software (Waters, USA). Manual inspection of the MS/MS spectra of both the parent ion of this peptide and its fragments confirmed the presence of tri-deuterium-methylated H73 (Figure 9). Both rat and human SETD3 enzymes catalyzed tri-deuterium-methylation of H73 in β-actin, whereas no such modification was detected in YPIEHGIVTNWDDMEK peptide (M + H = 1946.9021 Da) or in any other tryptic peptide derived from β-actin protein incubated in the absence of SETD3 (see Figure 9).

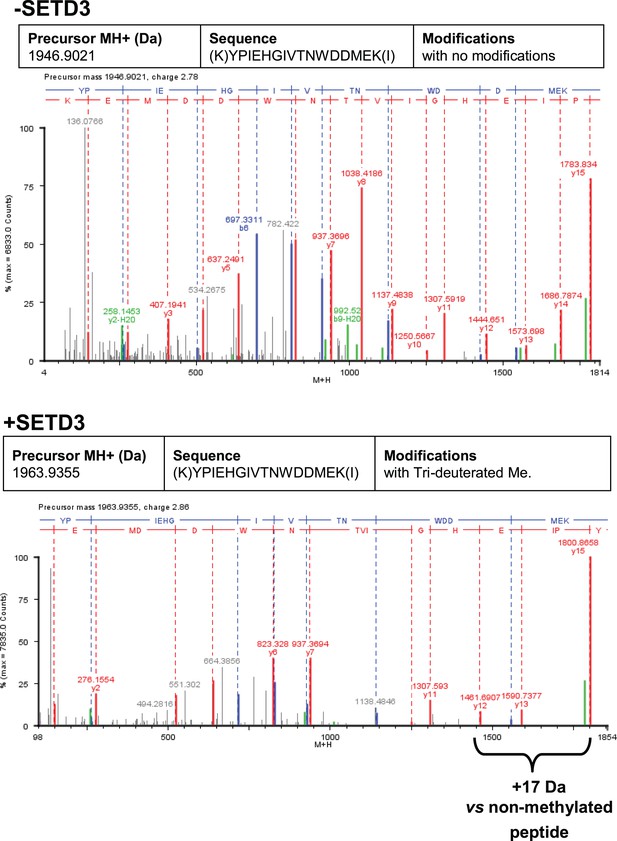

Deconvoluted Q-TOF spectra of both non-modified and deuterium(D3)-methylated β-actin peptides produced by the human SETD3 protein.

Homogenous recombinant human β-actin (6.4 µg) was incubated for 90 min at 37°C in a reaction mixture containing 20–30 µM ([2H]SAM), 4.5–9.0 µg SAH nucleosidase and 1.75–3.5 µg adenine deaminase in either the absence (–SETD3) or presence of 1.1–3.5 µg the homogenous recombinant human SETD3 protein (+SETD3). Following the reaction, β-actin was separated from other proteins by SDS-PAGE and analyzed by tandem mass spectrometry, as described in the 'Materials and methods' section. Detection of the trideuterium-methylated peptides was performed by ProteinLynx Global Server 2.4 software (Waters, USA) in a fully automatic mode, and the trideuterium methylation (+1,703,448 Da) of Cys, Asp, Asn, His, Lys, Arg, Glu, Gln residues of tryptic peptides was examined. At least 75% of the actin sequence coverage was achieved in each MS analysis. None of the (trideuterium-)methylated peptides was detected in the control reaction (–SETD3), whereas the H73-containing peptide: YPIEHGIVTNWDDMEK (M + H = 1946.9021 Da, y16 ion) was the only trideuterium-methylated peptide (M + H = 1963.9355 Da, y16 ion) in the presence of SETD3. The mass shift (+17.03448 Da) was detected only in His-containing peptide fragments (y12, y13, y15, y16), indicating that the H73 residue is the site of methylation. The figure shows results of a representative experiment. Two independent methyl(D3)-labeling reactions were performed.

https://doi.org/10.7554/eLife.37921.024

SETD3 was originally reported as a methyltransferase that methylates histone H3 in zebrafish and mouse (Kim et al., 2011; Eom et al., 2011). Specifically, the enzyme was shown to methylate a histone H3.3 peptide (H3N4: STGGVK), suggesting that it could methylate K36 of mouse histone H3. We therefore compared the SETD3-dependent methylation of actin peptide H (see Figure 8) and the histone peptide H3N4. We could see that SETD3 methylated both peptides (Figure 8—figure supplement 1), but peptide H was at least 10-fold more efficiently methylated than peptide H3N4, confirming that SETD3 is most probably a histidine N-methyltransferase rather than a lysine-specific methyltransferase.

The kinetic properties of recombinant SETD3 proteins were studied in detail using either recombinant human β-actin or the synthetic peptide H as substrates in the presence of E. coli  S-adenosyl-L-homocysteine (SAH) nucleosidase and Bacillus subtilis adenine deaminase. The two bacterial enzymes collaborated to break down SAH, a potent inhibitor of methyltransferases, preventing its accumulation in the reaction mixture (Dorgan et al., 2006). Rat and human SETD3 have a very high affinity towards both SAM and human β-actin (Table 3), with KM values well below the physiological concentrations of SAM and β-actin monomers in vertebrate cells (≈ 30 µM and 50–100 µM, respectively (Clarke and Banfield, 2001; Pollard, 2017). Both enzymes had comparable estimates of Vmax value at saturating concentrations of SAM, but the KM for β-actin (≈0.8 µM) was about 4-fold lower for human SETD3 than for the rat enzyme (3 µM). Consequently, the catalytic efficiency (KM/kcat) of human SETD3 towards β-actin was 3-fold higher than that of the rat enzyme (see Table 3). Taking into account the intracellular concentrations of SAM and β-actin monomers, however, the two enzymes probably operate at similar Vin vivo, i.e. close to their Vmax (≈10 nmol.min−1.mg−1 protein). By contrast, actin peptide H was a very poor substrate for SETD3 as rat and human SETD3 catalyzed methylation of the peptide with extremely low Vmax values and showed several thousand–fold lower affinity towards the peptide in comparison to the values determined with human β-actin (see Table 3).

Table 3
Kinetic properties of rat and human SETD3 proteins

Kinetic properties were determined with the use of purified recombinant C-terminal His6-tagged SETD3 protein.

https://doi.org/10.7554/eLife.37921.026
SubstrateRat SETD3Human SETD3
VmaxKMkcatkcat/KMVmaxKMkcatkcat/KM
nmol min−1 mg−1µMmin−1min−1 µM−1nmol min−1 mg−1µMmin−1min−1 µM−1
 β-actin11.280 ± 1.0182.996 ± 0.5070.800.279.091 ± 0.3080.752 ± 0.0700.650.86
S-adenosyl-L- methionine8.053 ± 0.1360.109 ± 0.0080.575.238.649 ± 0.1190.116 ± 0.0070.615.25
 Peptide H0.064 ± 0.00410590 ± 13730.0054.7 × 10−70.029 ± 0.0038729 ± 19490.0022.3 × 10−7
  1. Determinations for S-adenosyl-L-methionine (SAM) were performed with the SETD3 preparations (0.04–0.05 µg protein, 5–7 nM), which were incubated for 8 min at 37°C in the reaction mixture containing 5 µM recombinant β-actin and variable concentrations of [1H+3H] SAM (≈320 × 103 cpm). The measurements for β-actin were obtained following a 5 min incubation of SETD3 in the presence of 1 μM concentration of [1H+3H] SAM (100 pmol, ≈300 × 103 cpm). The kinetic parameters of the enzymatic reaction for actin peptide H (YPIEHGIVT) were determined with SETD3 preparations (8.5–9.2 µg protein, 1.2–1.3 µM) incubated for 30 min in the presence of [1H+3H] SAM (100 pmol, ≈290 × 103 cpm). In all experiments, the reaction mixture contained the homogenous recombinant S-adenosyl-L-homocysteine (SAH) nucleosidase (1.6 µg protein, 600 nM, E. coli) and adenine deaminase (3.9 µg protein, 600 nM, B. subtilis) to prevent SAH accumulation. Values are the means of three or four independent experiments. The values for standard error of the mean (S.E.) are also given.

It is well-established that actin that is produced in bacteria forms non-native mis-folded species that aggregate into inclusion bodies (Stemp et al., 2005). This is because actin requires the assistance of the eukaryotic chaperonin CCT (TRiC) to enable it to fold into its native conformation (Martín-Benito et al., 2002; Stemp et al., 2005). Completely denatured actin is, however, largely capable of re-folding in a spontaneous manner into its native tertiary structure (Martín-Benito et al., 2002), and it was this re-folded recombinant β-actin that we used in the experiments described above. We next wanted to know whether STED3 would methylate natively folded actin, like that found in cells, equally well. To this end, recombinant human β-actin was produced in Saccharomyces cerevisiae, an eukaryotic species that is devoid of actin-specific histidine methyltransferase activity (Kalhor et al., 1999). Surprisingly, neither rat nor human SETD3 methylated ATP-β-actin or ADP-β-actin, as determined using the radiochemical assay (Figure 10, see Figures 6 and 7), suggesting that the endogenous substrate of SETD3 might not be the natively folded nucleotide-bound actin monomers. More importantly, yeast-produced human β-actin became a good substrate for SETD3 when purified in denaturing conditions and re-folded into nucleotide-free quasi-native actin, as did E. coli-produced recombinant human β-actin (see Figure 10). This effect was not due to the absence of free nucleotides in the reaction mixture because the addition of either 0.5 mM ATP or ADP (a 10-fold excess over the concentrations of nucleotides in the preparation of yeast-produced actin) did not impact the activity of SETD3 towards the refolded actin. To try to solve this puzzle, we prepared nucleotide-free yeast-produced human β-actin monomers in complex with either profilin or cofilin (two well known interacting partner proteins of β-actin [Lappalainen, 2016]) and tested whether the actin complexes became good substrates for SETD3. The methylation of profilin-β-actin was negligible and that of cofilin-β-actin complex was low (only ≈3–4% of the total protein in the complex could be methylated). Taken together, our results indicate that globular actin monomers (probably in complex with some actin-binding proteins) or possibly also F-actin can be methylated by SETD3 in vivo.

SETD3-dependent methylation of human β-actin that is overexpressed in S. cerevisiae.

Homogeneous recombinant rat SETD3 (rSETD3, 0.6 µg protein) or its human orthologue (hSETD3, 0.45 µg protein) were incubated at 37°C for 40 min in the presence of 1 µM (100 pmol, ≈220 × 103 cpm) [1H+3H]SAM and 2 µM (200 pmol, 8.9 µg) homogenous recombinant human β-actin produced in S. cerevisiae, and either purified in non-denaturing conditions as complexes with ATP (ATP-actin) or ADP (ADP-actin) or denatured and refolded to obtain soluble nucleotide-free protein (refolded nucleotide-free actin). Proteins were precipitated with 10% trichloroacetic acid to determine the incorporation of radioactivity. Values are the means ± range (error bars) of two independent measurements performed with two different β-actin preparations.

https://doi.org/10.7554/eLife.37921.030

SETD3 is the β-actin H73 methyltransferase in HAP1 human cells and Drosophila melanogaster

To assess the importance of SETD3 in methylating the β-actin H73 residue in vivo, we used CRISPR/Cas9 technology to inactivate the Setd3 gene in HAP1 cells. Five distinct Setd3-KO clonal HAP1 cell-lines were generated, as described in the 'Materials and methods', and three of these were ultimately selected for further studies (KO-A1, KO-A3 and KO-A5). Sequencing of the DNA showed the presence of mutations, preventing the production of active SETD3 in these cell lines (see 'Materials and methods' for details of the mutations introduced), which was further confirmed by the absence of SETD3 protein in cell extracts from KO-A1, KO-A3 and KO-A5 (Figure 11).

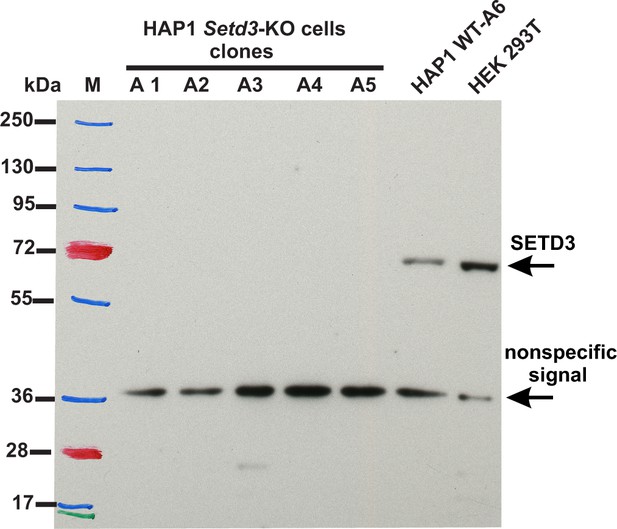

Absence of SETD3 expression in Setd3-deficient HAP1 cell lines compared to endogenous expression detected in control HAP1 and HEK293T cells.

Western blot analysis of SETD3 expression in five Setd3-deficient HAP1 clonal cell lines and two different control cell lines: HEK293T and the HAP1 cell line (WT-A6). The HAP1 cell line was also submitted to the CRISPR/Cas9 gene-inactivation procedure, but the Setd3 gene was not modified; this was done to exclude off-target effects of the procedure on the HAP1 phenotype. The analysis was performed using 50 µg of the cell lysate protein with a rabbit primary antibody against the human SETD3 (ab174662, Abcam) along with a horseradish-peroxidase-conjugated goat anti-rabbit secondary antibody. The secondary antibody was detected by measuring enhanced chemiluminescence. The presence of a nonspecific signal (≈ 36 kDa) is in agreement with the specification of the primary antibody.

https://doi.org/10.7554/eLife.37921.032

To analyze the methylation of H73 in actin from wildtype and SETD3-KO HAP1 cell lines, we partially purified the actin from these lines (Figure 12A) and analyzed these proteins by tandem mass spectrometry of the band corresponding to actin from the fraction containing the highest concentration of actin (Figure 12B). As shown in Figure 12C, methylation of the H73 residue was detected in almost all H73-containing β-actin peptides derived from the wildtype HAP1 cells, whereas close to 90% of the same β-actin peptides derived from two different Setd3-deficient cell lines were not methylated at H73. Importantly, the total number of β-actin peptides identified in MS/MS experiments was comparable for wildtype (300–400 Peptide Spectrum Matches) and KO cells (≈500 Peptide Spectrum Matches), indicating that similar amounts of actin protein were analyzed in all experiments.

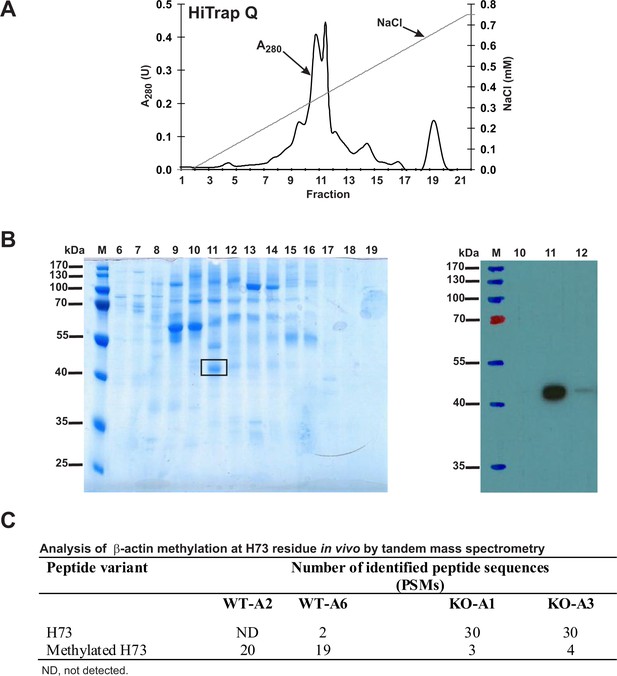

Purification of endogenous actin from HAP1 cells and analysis of H73 methylation by tandem mass spectrometry.

(A) Endogenous actin was purified from Setd3-deficient HAP1 cells (clone KO-A1) by chromatography on HiTrap Q HP, as described in the 'Materials and methods' section. (B) The indicated fractions that were eluted from the anion-exchange column were analyzed by SDS-PAGE and by western-blotting with the use of an anti-actin primary antibody (A2066, Sigma-Aldrich) to identify protein bands corresponding to the actin protein. M, prestained protein marker. Similar purification and identification procedures were performed with cell lysates from wildtype HAP1 cells (clone WT-A2, WT-A6) and another Setd3-deficient HAP1 clone (KO-A3). The indicated band was cut out of the gel, submitted to trypsin digestion, and analyzed by tandem mass spectrometry. (C) The table shows the total number of identified peptide sequences (peptide spectrum matches, PSMs) for β-actin that contain either methylated or non-methylated H73 depending on whether the β-actin was isolated from wildtype (WT-A2, WT-A6) or Setd3-deficient clonal HAP1 cells (KO-A1, KO-A3). The total number of PSMs recorded for β-actin (Uniprot, P60709) in these MS/MS experiments is as follows: 301 (WT-A2), 387 (WT-A6), 485 (KO-A1) and 529 (KO-A3).

https://doi.org/10.7554/eLife.37921.033

We next took advantage of the recently published knock-out model of SETD3 in D. melanogaster (Tiebe et al., 2018) to investigate the methylation status of actin in vivo. The absence of SETD3 in the fly prevented the methylation of Drosophila actin on H74 (which corresponds to the H73 in the mammalian protein). Soluble proteins in homogenates from wildtype and Setd3-deficient Drosophila larvae were analyzed by tandem mass spectrometry. As shown in Table 4, the knock-out of SETD3 prevented the methylation of all three different forms of actin (actin-42A, −57B and −87E) present in extracts from the fly larvae, whereas all H74-containing actin peptides derived from wildtype larvae were methylated.

Table 4
Analysis of actin methylation at the H74 residue in the tissues of Drosophila larvae by tandem mass spectrometry.

The total number of identified peptide sequences with H74 (peptide spectrum matches, PSMs) for three different forms of actin present in either wildtype Drosophila larvae (WT) or Setd3 KO animals (SETD3 KO) are indicated. The total numbers of PSMs recorded for actin proteins in these MS/MS experiments are as follows: 90 (Actin-42A, WT), 118 (Actin-57B, WT), 111 (Actin-87E, WT), 86 (Actin-42A, SETD3 KO), 111 (Actin-57B, SETD3 KO), 78 (Actin-87E, SETD3 KO).

https://doi.org/10.7554/eLife.37921.035
ActinPeptide variantNumber of identified peptide sequences
(PSMs)
WTSETD3 KO
Actin-42A (P02572)H74014
Methylated H74120
Actin-57B (P53501)H74019
Methylated H7490
Actin-87E (P10981)H74019
Methylated H7490

Taken together, we show that actin from wildtype HAP1 cells or Drosophila flies was > 90% methylated, whereas in the absence of SETD3, neither human cells nor Drosophila can methylate actin H73 or H74, respectively. This confirms the molecular identification of SETD3 as the evolutionarily conserved actin-specific histidine N-methyltransferase, and the extent of actin methylation suggests the high functional importance of this post-translational modification.

Absence of SETD3 reduces F-actin and increases glycolytic rate in SETD3-deficient HAP1 cells

Methylation of the actin H73 residue has been shown to stabilize actin filaments, whereas the absence of such modification resulted in an increased rate of depolymerization of these filaments in vitro (Nyman et al., 2002). To determine the effect of Setd3-deficiency on the organization of actin filaments, we used confocal microscopy following F-actin staining with TRITC-phalloidin. To obtain a comprehensive picture of actin filaments, the morphology of F-actin was reconstructed in 3D with the use of Zeiss Zen software (Zeiss, Germany). This technique showed a clear decrease in F-actin content in SETD3-KO cells, where actin was largely non-methylated at H73 (Figure 13), suggesting an accelerated actin depolymerization and a loss of cytoskeleton integrity. These effects were more pronounced after 48 hr culture (compared to 24 hr), and are in agreement with the results of previous studies using purified recombinant actin (Nyman et al., 2002). To exclude artifacts associated with the clonal populations of HAP1 cells, we analyzed two other SETD3-KO clones that showed comparable results (Figure 13—figure supplement 1).

Figure 13 with 1 supplement see all
Organization of the actin cytoskeleton in Setd3-deficient HAP1 cells visualized by confocal microscopy.

Control HAP1 cells (WT-A6) and Setd3-deficient clonal HAP1 cells (KO-A1) were cultured for either 24 or 48 hr. The localization of filamentous actin was determined by staining with TRITC-phalloidin (green), while nuclei were visualized by staining with Hoechst 33342 (blue). Three-dimensional confocal microscope images of actin cytoskeleton are shown with or without stained nuclei (blue). For 3D analysis, confocal Z-stacks comprising 10–13 optical slices were reconstructed into each 3D image with the aid of Zeiss Zen software. Representative images are shown here, but similar results were obtained with two other HAP1 Setd3-deficient clonal cell lines (KO-A3 and KO-A5, see Figure 13—figure supplement 1).

https://doi.org/10.7554/eLife.37921.037

Since Nyman et al. (2002) showed that the replacement of H73 by an alanine decreased the thermal stability of actin monomers in vitro, this suggested that the methylation of actin at H73 could contribute to its stability, in agreement with our results in HAP1 cells. Therefore, we wanted to compare the in vitro thermostability of actin in cell-free lysates of wildtype (methylated actin) and SETD3-KO (non-methylated actin) HAP1 cells. When cell extracts were heated at increasing temperatures, it became clear that the absence of methylation of H73 destabilized actin in the temperature range between 30°C to 46°C (Figure 14). Taken together, these results suggest that the loss of methylation in H73 leads to a structural instability of actin monomers that might, in turn, result in the accelerated depolymerization of actin filaments in SETD3-KO cells.

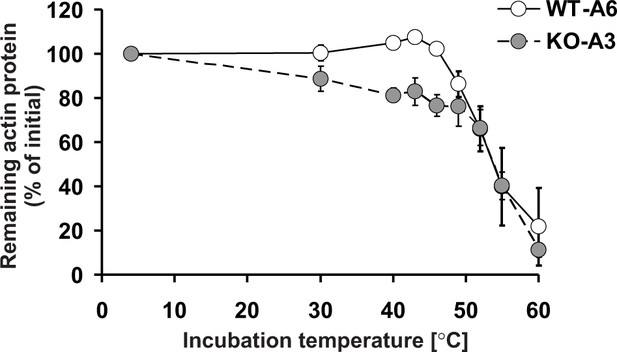

Thermal stability of actin in Setd3-deficient HAP1 cells.

Cell free lysates of control HAP1 cells (WT-A6) and Setd3-deficient clonal HAP1 cells (KO-A3) were incubated for 5 min at 4, 30, 40, 43, 46, 49, 52, 55 and 60°C. Precipitated proteins were then pelleted, and the resulting supernatants (24 or 48 µg protein) were analyzed by SDS-PAGE and by western-blotting, with the use of anti-actin primary antibody (A2066, Sigma-Aldrich) to visualize protein bands corresponding to the actin protein. The levels of actin were quantified by densitometry using Quantity One software (BioRad) and normalized to the intensity of the actin band of the sample incubated at 4°C. Values are the means ± S.E. (error bars) of three independent experiments. When no error bar is shown, the error is smaller than the width of the line.

https://doi.org/10.7554/eLife.37921.039

A routine daily inspection of HAP1 cell cultures revealed that at about 80–90% culture confluency, Setd3-deficient HAP1 cells tended to acidify Iscove's Modified Dulbecco's Medium (IMDM) faster than the control cells. This phenotype was not attributable to the differences in cell culture density between control and SETD3-KO cell lines, suggesting an increased formation of lactate from glucose by Setd3-deficient cells. To test this possibility, both control and Setd3-deficient HAP1 cells (90% culture confluency) were further incubated in fresh IMDM medium for 20 hr, after which the medium was collected, and glucose consumption and lactate production were measured in a neutralized HClO4 extract. As shown in Figure 15, both the formation of lactate and the consumption of glucose in SETD3-KO cell lines were increased by about 15–20% in comparison with those determined for the control cells, indicating a shift of their metabolism towards a more glycolytic phenotype. Taken together, these results suggest that the lack of methylation at H73 in HAP1 cells destabilizes F-actin, which possibly explains the increase in glucose consumption that occurs in these cells.

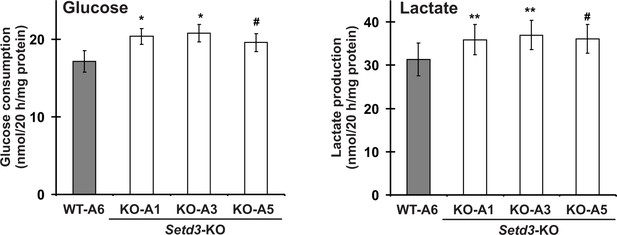

Impact of SETD3 inactivation on glucose consumption and lactate production in HAP1 cells.

Experiments were performed on three HAP1 cell lines that were deficient in Setd3 (KO-A1, KO-A3 and KO-A5) and a control HAP1 cell line (WT-A6) that has been submitted to the CRISPR/Cas9 gene inactivation procedure, but yielding no modification of the Setd3 gene. HAP1 cells (≈90% culture confluency) were supplemented with fresh medium and incubated for 20 hr as described in the 'Materials and methods'. The glucose and lactate concentrations in samples of deproteinized culture medium were determined spectrophotometrically as described in the 'Materials and methods'. Values are the means ± S.E. (error bars) of three independent experiments performed with cells from three different culture passages (n = 3). The data were assumed to be distributed normally, and the homogeneity of variances was verified with F tests. Statistical significance was analyzed using a one-tailed paired Student’s t-test (GraphPad Prism 4.0). #p<0.09, *p<0.05, **p<0.01.

https://doi.org/10.7554/eLife.37921.041

Discussion

Molecular identity of rat actin-specific histidine N-methyltransferase

The presence of two distinct histidine N-methyltransferases in rabbit leg muscle has been reported by Raghavan et al. (1992). The first enzyme, carnosine N-methyltransferase catalyzes the Nπ-methylation of the histidine imidazole ring of carnosine (β-alanyl-L-histidine), an abundant dipeptide in the skeletal muscle of vertebrates. The second enzyme was shown to methylate the Nτ position of the H73 residue of mammalian β-actin protein. The previous studies performed in our laboratory resulted in the identification of genes coding for carnosine N-methyltransferase in vertebrates (Drozak et al., 2013Drozak et al., 2015), whereas the current investigation presents data that reveal the molecular identification of rat actin-specific histidine N-methyltransferase as the SET domain-containing protein 3 (SETD3), disclosing the molecular identity of the mammalian actin-methylating enzyme. This conclusion is supported by the following findings: (i) two different and extensive rounds of purification of the actin-methylating activity from rat skeletal muscle resulted in the identification of the protein SETD3 as the only logical candidate matching the enzymatic activity; (ii) recombinant rat SETD3 catalyzes the specific methylation of the H73 residue present in both the recombinant β-actin protein and the synthetic peptide corresponding to the nucleotide sensor loop of β-actin; (iii) in contrast to actin isolated from control HAP1 cells, the protein present in Setd3-deficient cells is essentially devoid of methylated H73 residues, as verified by MS/MS analysis; and (iv) the inactivation of SETD3 in Drosophila Setd3 knockout larvae results in the complete absence of H74 methylation in all three different actins found in Drosophila.

The methylation of H73 is a highly conserved modification among actins from many different eukaryotes, although it has been found to be absent from the actin of the amoeboflagellate N. gruberi and the yeast S. cerevisiae (Sussman et al., 1984; Nyman et al., 2002). Orthologues of the protein SETD3 are present in animals, plants and certain fungi, but not in the proteomes of the abovementioned proteozoan and yeast species, further supporting the identification of SETD3 as the actin-specific histidine N-methyltransferase.

SETD3 was originally reported as a methyltransferase that catalyzes the modification of histone H3 at K4 and K36 residues in zebrafish and mouse (Kim et al., 2011; Eom et al., 2011). The independent studies of Chen et al., 2013 confirmed the histone methyltransferase activity of SETD3 and suggested that the enzyme may have other non-histone substrates in the cytoplasm owing to the presence of the Rubisco LSMT substrate-binding domain in its structure. This view was further strengthened by the finding that SETD3 is predominantly localized in the cytosol of human cells, while only a small portion is found in the nucleus (Cheng et al., 2017). In the present study, we have not examined the activity of recombinant SETD3 towards histones because isolated histones are extremely poor substrates (Chen et al., 2013). When we investigated the methyltransferase activity of SETD3 with either the actin peptide H or the histone peptide H3N4, however, the activity with the histone peptide was at least a 4000-fold lower than that of recombinant β-actin. Consequently, we identified actin as the novel physiological substrate of SETD3, which is present in the cytoplasm and is likely to be the most abundant actin methyltransferase. It is possible however, that SETD3 may also be a dual methyltransferase able to methylate both the Lys and His residues of other proteins, but this still requires in vivo confirmation.

Quasi-native β-actin from bacterial inclusion bodies is a good substrate for the actin-specific histidine N-methyltransferase

The molecular identification of the actin-specific histidine N-methyltransferase through its extensive purification from rat muscles was only possible because we were able to prepare large amounts of pure β-actin monomers to be used as the substrate for measuring the enzymatic activity in radiochemical assays. Although this β-actin was produced and subsequently purified from the inclusion bodies of E. coli in the nucleotide-free form, it remained a good substrate for the methyltransferase. Given that, on the one hand, it is not possible to produce natively folded actin in bacteria (Stemp et al., 2005; Martín-Benito et al., 2002) and that, on the other hand, the ATP/ADP-free actin denatures rapidly and irreversibly (Graceffa and Dominguez, 2003), it is likely that the actin preparation used in our study may comprise actin molecules with stable non-native spatial structures. Indeed, the actin methylation reaction was still substoichiometric, and we have observed the methylation of up to 35% of the total actin present in the reaction mixture. This observation was readily reproducible in the presence of bacterial SAH nucleosidase and adenine deaminase, suggesting that it was not due to a potential accumulation of SAH in the reaction mixture (unpublished data, Drozak et al.). This indicates that only a small portion of the actin monomers produced in bacteria and purified under denaturing conditions adopted a conformation that was recognized by the SETD3 enzyme. This observation is in line with a previous report, showing only a minor methylation of actin inclusion bodies (up to 1% protein) by rabbit actin methyltransferase (Raghavan et al., 1992). Furthermore, SETD3 was at least 200-fold less active towards the synthetic peptide H, corresponding to the amino acid sequence surrounding the H73, than was recombinant β-actin (see Table 3). This indicated that structural features of the actin molecule other than the primary sequence of the sensor loop are probably important for its recognition by the actin methyltransferase.

Both tested SETD3 orthologs are rather ‘lazy’ enzymes, with a kcat of 0.6–0.8 min−1, resembling the values estimated for protein methyltransferases rather than those measured for enzymes catalyzing the methylation of low-molecular-weight substrates (Clarke and Banfield, 2001; Osborne et al., 2007). Considering that the intracellular concentrations of SAM and β-actin monomers in vertebrate cells are about 30 µM and 50–100 µM, respectively (Clarke and Banfield, 2001; Pollard, 2017), both rat and human SETD3 have a high affinity for both SAM (KM≈ 0.3 µM) and β-actin (KM≈ 0.8–3 µM). These observations suggest that the enzymes may be fully saturated by substrates and operate at rates that are close to their Vmax in vivo. It is important to keep in mind, however, that the recombinant β-actin used in the present kinetic studies is certainly not a physiological form of β-actin. Therefore, the affinity of SETD3 to physiological β-actin remains to be verified.

It is very intriguing to note that in our hands both the recombinant ATP- and ADP-β-actins produced in yeast (S. cerevisiae), which are expected to have a native conformation, were not methylated by the SETD3 enzyme. By contrast, the yeast-produced actin that was purified in denaturing conditions to yield nucleotide-free quasi native protein became a good substrate for the methyltransferase. This finding may suggest that the presence of ATP or ADP could create a structural hindrance that prevents SETD3 from reaching the H73 residue if the methyltransferase interacts with actin through the nucleotide-binding cleft (see Figure 4).

Taken together, these observations have led us to hypothesize that nucleotide-free actin monomers in a complex with one or more actin-binding proteins of yet unknown identity could be the physiological substrate for the SETD3 methyltransferase. If so, this resembles the activity of the yeast Yil110w protein, the only other known protein histidine N-methyltransferase, which methylates His243 of the ribosomal Rpl3 protein only when Rpl3 is associated with the ribosome (Webb et al., 2010; Al-Hadid et al., 2014).

This hypothesis fits with the current knowledge on the enzymes belonging to the family of SET-domain-containing proteins. Indeed, many of these methyltransferases are found in complexes with numerous other proteins that are essential for their catalytic activity and substrate specificity. For example, to exert its catalytic activity, the yeast histone H3 methyltransferase SET1 requires the presence of seven different proteins that form a complex named COMPASS (Complex of Proteins Associated with Set1), and similar COMPASS-like complexes are formed by other mammalian SET-domain-containing methyltransferases (for a review, see Herz et al., 2013).

Biological importance of the SETD3 methyltransferase

Several reports describing the role of SETD3 in the regulation of the cell cycle and apoptosis (Kim et al., 2011), myocyte differentiation (Eom et al., 2011), cell response to hypoxic conditions (Cohn et al., 2016) and tumorigenesis (Pires-Luís et al., 2015; Cheng et al., 2017) have been published to date. Some of these studies identified the methylation of histones as a primary mechanism of SETD3 action (Kim et al., 2011; Eom et al., 2011), whereas others suggested that the enzyme may instead modify non-histone substrates that are present in the cytosol (Chen et al., 2013; Cohn et al., 2016). The existence of two distinct domains in SETD3, i.e. SET and Rubisco LSMT substrate-binding domains, has been suggested to be the structural basis for such dual substrate specificity (Chen et al., 2013).

Our results identify β-actin as a novel substrate of SETD3 and show that disruption of its activity leads to the depletion of F-actin and a loss of cytoskeleton integrity. This observation is probably explained by an increased rate of depolymerization of the non-methylated actin filaments. As a result, there is an accelerated conversion of a more structurally stable ATP-F-actin into a less stable ADP-F-actin, as also shown for a hypomethylated form of recombinant actin in vitro (Nyman et al., 2002). Thus, the biochemical role of the methylated H73 residue is likely to contribute to stabilizing the structure of monomers that build the ATP-F-actin and to delay the intermolecular conformational rearrangements of F-actin that complement the hydrolysis of ATP. This conclusion finds at least partial confirmation in the thermal stability assay, which shows that the methylated actin derived from the wildtype HAP1 cells is clearly more thermo-stable than the non-methylated one (SETD3-KO cells) (see Figure 14). Taken together, our results show that the phenotype that we have identified in Setd3-deficient human HAP-1 cells is caused by the absence of the catalytic activity of SETD3, rather than by a non-catalytic or actin-stabilizing interaction between SETD3 and actin filaments.

The inherent instability of F-actin in Setd3-deficient HAP1 cells is likely to be at the origin of the increased lactate production by these cells. Both the polymerization and the depolymerization of actin filaments occur continuously even in resting cells and constitute a major energy drain, causing up to 50% of total ATP consumption in vertebrate cells (Kudryashov and Reisler, 2013). Thus, the destabilization that leads to the accelerated degradation of hypomethylated F-actin probably drives an increasing demand for ATP that could be fulfilled by shifting the cell metabolism towards glycolysis. The phenotype of Setd3-deficient cells is therefore somewhat similar to that of malignant cells, suggesting that SETD3 activity may play a role in suppressing tumor development. Indeed, the hypomethylation of actin was observed in rat cells following their transformation with the Src oncogen (Chiou et al., 2012). Furthermore, the enzymatically inactive SET-domain-loss form of SETD3 was shown to function as a dominant-negative mutant, promoting oncogenesis in human cells (Chen et al., 2013), most probably by blocking the methylation of an unknown SETD3 substrate. It is tempting to speculate that actin could be this substrate.

Conclusions

In the current investigation, we have identified the rat actin-specific histidine N-methyltransferase as SETD3, an enzyme catalyzing the extremely well-conserved methylation of H73 in β-actin. The SETD3 enzyme is therefore the first protein-histidine methyltransferase to be identified in vertebrates and the first SET-domain-containing enzyme possibly displaying a dual methyltransferase specificity towards both Lys and His residues in proteins. SETD3 is responsible for the methylation of H73 in human and Drosophila actin, and a loss of SETD3 activity in human HAP1 cells induces phenotypic changes resembling those present in cancer cells, suggesting that the hypomethylation of actin might be involved in tumorigenesis. Finally, this work also shows that non-native protein substrates might be useful tools in the search for novel protein methyltransferases.

Note added in proof

While this paper was in production, similar and complementary data describing the identification of SETD3 as the actin-specific histidine N-methyltransferase was accepted for publication (Wilkinson et al., 2018). Since the work was independently carried out by both research groups and equally contributes to reveal the biochemical importance of SETD3 enzyme as the actin-specific H73 N-methyltransferase, we ask the authors referring to the function SETD3 in their future publications to mention both this paper, as well as Wilkinson et al. (2018).

Materials and methods

Key resources table
Reagent type
(species)
or resource
DesignationSource
or
reference
IdentifiersAdditional

information
AntibodyRabbit
anti-SETD3
antibody
Abcamab174662; RRID:AB_2750852(1:10,000)
AntibodyRabbit
anti-Actin
antibody
Sigma-AldrichA2066; RRID:AB_476693(1:1000)
AntibodyHorseradish peroxidase-
conjugated
goat
anti-rabbit
IgG antibody
AgriseraAS09602; RRID:AB_1966902(1:20,000; 1:25,000)
AntibodyMouse
anti-His6
tag antibody
GE Healthcare; PMID: 2370501527-4710-01; RRID:AB_771435(1:2000)
AntibodyHorseradish
peroxidase
-conjugated
goat
anti-mouse
antibody
Sigma-Aldrich; PMID: 23705015A2554; RRID:AB_258008(1:10,000)
Cell line
(Homo sapiens)
HAP1Horizon DiscoveryC859; RRID:CVCL_Y019The HAP1
cell line
was
bought
directly from
Horizon Discovery (Waterbeach, UK)
and
has
been
control
quality checked
by the
vendor
Cell line
(Cercopithecus aethiops)
COS-7Cell Lines Service605470; RRID:CVCL_0224The COS-7
cell
line
was
bought
directly
from
CLS (Eppelheim, Germany)
and has
been
control
quality checked
by the
vendor
Gene
(Escherichia coli)
SAH
nucleosidase
NANCBI: NC_000913.3
Gene
(Bacillus subtilis)
Adenine
deaminase
NANCBI: NC_000964.3
Gene
(H. sapiens)
β-actinNAGenBank: NM_001101.4
Gene
(H. sapiens)
SETD3NANCBI: NM_032233.2
Gene
(Rattus norvegicus)
SETD3NANCBI: XM_002726774.2
Gene
(H. sapiens)
Cofilin-1NANCBI: NM_005507.2
Gene
(H. sapiens)
Profilin-1NANCBI: NM_005022.3
Recombinant
DNA
reagent
pCOLD I
(plasmid)
Takara Bio3361
Recombinant
DNA
reagent
pESC-URA
(plasmid)
Agilent Technologies217454
Recombinant
DNA
reagent
pEF6/Myc-His A (plasmid)InvitrogenV96220
Recombinant
DNA
reagent
pSpCas0n(BB)−2A-Puro
(plasmid)
OtherKind gift
of F.
Zhang, Massachusetts Institute
of
Technology
Genetic
reagent
(C. aethiops)
pEF6/SETD3This paperTransient overexpression of the recombinant human and rat SETD3 proteins in the COS-7 cell line
Genetic
reagent
(E. coli)
pCOLD I/SETD3This paperOverexpression of the recombinant human and rat SETD3 proteins in the E. coli BL21 (DE3)
Genetic
reagent
(E. coli)
pCOLD I/β-actinPMID: 20851184Kind gift of M. Tamura, Ehime University
Genetic
reagent
(E. coli)
pCOLD
I/SAH
nucleosidase
This paperOverexpression of the recombinant E. coli
SAH nucleosidase in the E.coli BL21 (DE3)
Genetic
reagent
(E. coli)
pCOLD
I/adenine
deaminase
This paperOverexpression of the recombinantB.subtilis adenine deaminase in the E. coli BL21 (DE3)
Genetic
reagent
(E. coli)
pCOLD I/Cofilin-1This paperOverexpression of the recombinant human cofilin-1 in the E. coli BL21 (DE3)
Genetic
reagent
(E. coli)
pCOLD I/Profilin-1This paperOverexpression of the recombinant human profilin-1 in the E. coli BL21 (DE3)
Genetic
reagent
(Saccharomyces
cerevisiae)
pESC-URA/β-actinThis paperOverexpression of the recombinant human β-actin in the S. cerevisiae BY4742 strain
Strain,
strain
background
(B. subtilis)
Bacillus
subtilis
Sigma-AldrichATCC:6633
Strain,
strain
background
(E. coli)
E. coli BL21 (DE3)Agilent Technologies200131
Strain,
strain
background
(S. cerevisiae)
BY4742EUROSCARFY10000
Strain,
strain
background
(S. cerevisiae)
BY4742/β-actinThis paperBY4742 strain overexpressing
recombinant human β-actin
Peptide,
recombinant
protein
Peptide HCaslo Laboratory
Peptide,
recombinant
protein
Peptide ACaslo Laboratory
Peptide,
recombinant
protein
Peptide H3N4Caslo
Laboratory
Chemical
compound,
drug
S-[methyl-3H]adenosyl-L-methionine; [3H]SAMPerkinElmerNET155V250UC;
NET155V001MC
Chemical
compound,
drug
S-[methyl-2H]adenosyl-L-methionine; [2H]SAMC/D/N Isotopes Inc.D-4093
Software,
algorithm
ProteinLynx
Global Server
2.4; PLGS 2.4
WatersRRID:SCR_016664
Software,
algorithm
Quantity OneBioRadRRID:SCR_016622
Software,
algorithm
GraphPad
Prism 4.0
GraphPad SoftwareRRID:SCR_002798
Software,
algorithm
Proteome DiscovererThermo Fisher ScientificRRID:SCR_014477
Software,
algorithm
Zeiss ZenZeissRRID:SCR_013672

Materials

DEAE-Sepharose, Q-Sepharose, Phenyl-Sepharose, Superdex 200, HiScreen Blue FF, HisTrap HP (Ni2+ form) and PD-10 columns were obtained from GE Healthcare Life-Sciences (Little Chalfont, UK). Reactive Red 120-Agarose and Dowex 50W-X4 (200 mesh) resins came from Sigma-Aldrich, and Vivaspin-500 and 20 centrifugal concentrators were from Sartorius Stedim (Goettingen, Germany). All other enzymes and DNA-modifying enzymes as well as the TurboFect transfection reagent were obtained from Thermo-Fermentas (Waltham, USA), A and A Biotechnology (Gdynia, Poland) or BioShop (Burlington, Canada).

Assay of the actin-specific histidine N-methyltransferases activity

Protein substrates

Request a detailed protocol

Enzyme activity was determined by measuring the incorporation of the [3H]methyl group from S-[methyl-3H]adenosyl-L-methionine ([3H]SAM) into homogenous recombinant human (mammalian) β-actin or its mutated form in which histidine 73 was replaced by an alanine residue (H73A). The standard incubation mixture (0.11 ml) contained 25 mM Tris-HCl, pH 7.2, 10 mM KCl, 1 mM DTT, 2 µM protein substrate and 1 μM [1H+3H] SAM (≈ 400 × 103 cpm). When appropriate, the incubation mixture was supplemented with recombinant S-adenosyl-L-homocysteine (SAH) nucleosidase and adenine deaminase, as indicated in the legends to the figures and tables. Both auxiliary enzymes were added in ≈100-fold molar excess in comparison to SETD3. The reaction was started by the addition of the enzyme preparation and carried out at 37°C for 15 min unless otherwise described. Protein methylation was linear for at least 15 min under all of the conditions studied. By analogy to assays of nonribosomal peptide synthetase activity (Richardt et al., 2003; Drozak et al., 2014), the incubation was stopped by the addition of 0.1 ml of the reaction mixture to 0.025 ml of bovine serum albumin (BSA) (1 mg) and 0.8 ml of ice-cold 10% (w/v) trichloroacetic acid (TCA). After 10 min on ice, the precipitate was pelleted and washed twice with ice-cold 10% TCA. The pellet was finally dissolved in pure formic acid.

Peptide substrates

Request a detailed protocol

The enzyme-dependent methylation of synthetic peptides — Peptide H (YPIEHGIVT) and Peptide A (YPIEAGIVT), analogs of methylation sites in mammalian β-actin, or peptide H3N4 (STGGVK), corresponding to a putative methylation site in mouse histone H3.3 — was determined by measuring the incorporation of the [3H]methyl group from [3H]SAM into a corresponding peptide. The composition of a standard incubation mixture was similar to that described above, excepting that protein substrates were replaced by peptides at 2 mM concentration. Blanks containing no peptides were included in all assays. The reaction was started by the addition of enzyme preparation and carried out at 37°C for the time periods indicated in the figure captions. The incubation was stopped by the addition of 0.1 ml of the reaction medium to 0.2 ml of ice-cold 10% (w/v) HClO4. The samples were diluted with 0.12 ml of H2O and centrifuged at 13,000 × g for 10 min. After neutralization of the supernatant with 3 M K2CO3/3 M KOH, the salts were removed by centrifugation (13,000 × g for 10 min) and the clear supernatant was diluted five times with 20 mM Hepes, pH 7.5. 2 ml of the diluted supernatant was applied to Dowex 50W-X4 columns (1 ml, Na+ form) and equilibrated with 20 mM Hepes, pH 7.5. The columns were washed with 3 × 2 ml of 20 mM Hepes pH 7.5, and the resulting fractions contained (non)methylated peptides H and A. Methylated peptide H3N4 was eluted with 3 × 2 ml of 20 mM Hepes pH 7.5, containing 0.5 M NaCl. To elute a non-consumed [1H + 3H]SAM, the columns were washed with 3 × 2 ml of 1 M NH4OH. In addition, in experiments in which peptide H3N4 was the substrate of the SETD3 enzyme, fractions eluted with ammonium solution were dried out at 60°C for 48 hr to break down [1H + 3H]SAM (Parks and Schlenk, 1958). The remaining residues were dissolved in 2 ml of 20 mM Hepes (pH 7.5) and refractionated on Dowex 50W-X4 columns to verify the possible presence of di- and tri-methylated forms of peptide H3N4. No such polymethylated derivatives of peptide H3N4 were detected.

In all cases, the samples to be counted were mixed with 10 ml of scintillation fluid (Ultima Gold) and the incorporated radioactivity was analyzed with a Beckman LS6000 IC liquid scintillation counter.

Protein purification

Purification of rat actin-specific histidine N-methyltransferase

Request a detailed protocol

A myofibrillar extract of rat skeletal muscle was prepared as described by Vijayasarathy and Narasinga Rao (1987). Briefly, rat leg muscles (200 g) from 18 male WAG rats, aged 3 months, were homogenized in a Waring Blender 7011HS with three volumes (w/v) of buffer consisting of 10 mM Tris-HCl, pH 7.4, 1 mM DTT, 250 mM sucrose, 5 μg/ml leupeptin and 5 μg/ml antipain. The homogenate was centrifuged for 15 min at 10,000 × g at 4°C. The pellet was resuspended in 2400 ml of borate buffer (39 mM potassium borate, pH 7.2, 275 mM KCl, 1 mM DTT, 3 μg/ml leupeptin and 3 μg/ml antipain), extracted by shaking at 160 rpm for 1 hr at 5°C and centrifuged for 15 min at 10,000 × g at 4°C. The resulting supernatant solution (2400 ml) was then fractionated between 0% and 20% concentration (w/v) of PEG 4000. The 0–20% precipitate was dissolved in 1000 ml of buffer A (20 mM Tris-HCl, pH 8.0, 1 mM DTT, 3 μg/ml leupeptin and 3 μg/ml antipain), centrifuged for 20 min at 25,000 × g at 4°C and filtered through six layers of gauze to remove fat particles.

The clarified supernatant was applied to a DEAE-Sepharose column (350 ml bed volume) equilibrated with buffer A. The column was washed with 500 ml of buffer A and developed with a NaCl gradient (0–1 M in 962 ml) in buffer A, before fractions (6.5 ml) were collected. The enzymatically active fractions of the DEAE-Sepharose column (84 ml) were diluted to 350 ml with buffer A and applied to a Q-Sepharose column (100 ml bed volume) equilibrated with the same buffer. The column was washed with 360 ml of buffer A and the retained protein was eluted with a NaCl gradient (0–0.95 M in 500 ml in buffer A) before fractions (5 ml) were collected. The active fractions of the Q-Sepharose column (64 ml) were pooled, supplemented with solid NaCl so that a final salt concentration in the sample equal to 0.6 M was reached, and applied to a Phenyl-Sepharose six column (40 ml bed volume) equilibrated with buffer B (20 mM Tris-HCl, pH 7.2, 10 mM KCl, 1 mM DTT, 2 μg/ml leupeptin and 2 μg/ml antipain) containing 0.6 M NaCl. The hydrophobic interaction column was washed with 100 ml of buffer B with NaCl and the retained protein was eluted with a NaCl gradient (600–0 mM in 360 ml in buffer B). Fractions (5 ml) were collected. The enzymatically active fractions of the Phenyl-Sepharose column (93 ml) were pooled and loaded onto a HiScreen Blue-Sepharose column (4.7 ml bed volume) equilibrated with buffer B. The column was washed with 20 ml of buffer B and developed with a NaCl gradient (0–1.5 M in 70 ml) in buffer B, before fractions (3 ml) were collected. The active fractions of the HiScreen Blue-Sepharose column (27 ml) were pooled, supplemented with 100 mM KCl, 2 mM ATP and 0.2 mM CaCl2, and concentrated to 2.5 ml in Vivaspin-20 ultrafiltration devices. Two milliliters of the ultrafiltrate were loaded onto a Superdex 200 16/60 column (120 ml bed volume) equilibrated with buffer C (20 mM Tris-HCl, pH 7.2, 100 mM KCl, 1 mM DTT, 0.2 mM ATP, 0.2 mM CaCl2, 2 μg/ml leupeptin and 2 μg/ml antipain). The gel filtration column was then developed with 140 ml of buffer C and 3 ml fractions were collected. To obtain more purified enzyme preparations for a tandem mass spectrometry, the most active fraction (№ 14, 2.5 ml) from the Superdex 200 purification step was loaded onto a Reactive Red 120-Agarose column (1.5 ml bed volume) equilibrated with buffer C. The column was first washed with 6 ml of buffer C and the retained proteins were eluted (four fractions of 3 ml) with buffer C containing an increasing concentration of NaCl (0–1.4 M).

All purification steps were performed at 4°C and the enzymatic preparation was stored at −70°C between steps.

Overexpression and purification of the recombinant β-actin inclusion-body protein

Request a detailed protocol

Plasmid pCOLD I encoding human β-actin (ACTB, GenBank: NM_001101.4, pCOLD I/β-actin) was a kind gift from Dr. Minoru Tamura (Ehime University, Japan) and was prepared as described by Tamura et al. (2011).

For β-actin production, E. coli BL21(DE3) (Agilent, USA) cells were transformed with the DNA construct and a single colony was selected to start an over-night pre-culture. 500 mL of LB broth (with 100 μg/mL ampicilin) was inoculated with 50 ml of the pre-culture and incubated at 37°C and 200 rpm until an OD600 of 0.5 was reached. The culture was placed on ice for 20 min (cold-shock) and isopropyl β-D-1-thiogalactopyranoside (IPTG) was added to a final concentration of 0.2 mM to induce protein expression. Cells were incubated for 20 hr at 15°C, 200 rpm, and harvested by centrifugation (6000 × g for 10 min). The cell paste was resuspended in 27.5 ml lysis buffer consisting of 20 mM Hepes, pH 7.5, 1 mM DTT, 1 mM ADP, 0.5 mM PMSF, 2 μg/ml leupeptin and 2 μg/ml antipain, together with 0.2 mg/ml hen egg white lysozyme (BioShop), and 1000 U Viscolase (A and A Biotechnology, Poland). The cells were lysed by freezing in liquid nitrogen and, after thawing and vortexing, the extracts were centrifuged at 4° C (20,000 × g for 30 min).

The pellet, containing inclusion bodies, was completely resuspended in buffer A (20 mM Hepes, pH 7.5, 2M urea, 0.5 M NaCl, 5 mM DTT and 2 mM EDTA) with the use of Potter-Elvehjem homogenizer and centrifuged at 4° C (20,000 × g for 10 min). The resulting pellet was then subjected to a further two rounds of sequential wash in buffer B (20 mM Hepes, pH 7.5, 0.5 M NaCl, 5 mM DTT and 2 mM EDTA) and buffer C (20 mM Hepes, pH 7.5, and 0.5 M NaCl). The washed inclusion bodies were finally solubilized in loading buffer (20 mM Tris-HCl, pH 7.5, 6 M guanidine HCl, 0.5 M NaCl, and 10 mM imidazole) and applied onto a HisTrap FF column (5 ml) equilibrated with the same buffer.

The column was washed with 20 ml of loading buffer and the bound protein was refolded by the use of a linear gradient of 6–0 M guanidine HCl in loading buffer (40 ml for 20 min). Next, the column was washed with 15 ml of loading buffer without guanidine HCl and the retained proteins were eluted with a stepwise gradient of imidazole (25 ml of 40 mM, 25 ml of 60 mM and 20 ml of 500 mM). The recombinant proteins were eluted with 500 mM imidazole in homogeneous form as confirmed by SDS-PAGE (see Figure 1—figure supplement 1). The β-actin preparation was immediately desalted on PD-10 columns equilibrated with 20 mM Tris-HCl, pH 7.5, 1 mM DTT, 6% sucrose, 2 μg/ml leupeptin and 2 μg/ml antipain. The purified β-actin was stored at −70°C.

Overexpression and purification of the soluble recombinant β-actin

Request a detailed protocol

Plasmid pCOLD I encoding human β-actin (pCOLD I/β-actin) was used as a template for PCR amplification of β-actin cDNA. The resulting ORF was then cloned into pESC-URA yeast expression vector (pESC-URA/β-actin). Saccharomyces cerevisiae BY4742 strain (EUROSCARF, Germany) was transformed with the above-mentioned plasmid using the high-efficiency lithium acetate transformation method (Gietz and Woods, 2002). The resulting yeast strain was designated as BY4742/β-actin.

The method for the purification of recombinant β-actin expressed in S. cerevisiae was that reported by Karlsson (1988). BY4742/β-actin was cultivated in 500 ml of SG medium (0.67% yeast nitrogen base without amino acids, 2% galactose, supplemented with histidine, leucine and lysine) for 24 hr. Cells were collected, washed with water, and suspended in 30 ml of buffer C (5 mM Tris-HCl pH 7.6, 0.2 mM CaCl2, 0.2 mM DTT, and 0.3 mM PMSF). After the addition of 100 U of DNase I, cells were homogenized in Braun MSK cell homogenizer using glass beads (B. Braun Melsungen). Crude lysate was centrifuged (5000 × g, 5 min), diluted twice with the buffer, and applied to the Ni-NTA-agarose column (Sigma-Aldrich). Next, the column was washed with 30 ml of buffer C supplemented with 8 mM imidazole, and retained proteins were eluted with buffer C containing 500 mM imidazole (≈15 ml, 0.7 ml fractions). Protein concentration in each fraction was estimated by SDS-PAGE and the most concentrated samples were taken for further procedures.

To obtain a yeast-produced refolded human β-actin, pellet of yeast cells (1000 ml culture) was suspended in 30 ml of buffer D (20 mM Tris-HCl pH 7.2, 0.5 M NaCl, 1 mM DTT, and 100 U of DNase I) and homogenized in a Braun MSK cell homogenizer. Crude lysate was then supplemented with 6 M guanidine HCl and 10 mM imidazole, centrifuged (20,000 × g, 20 min) and applied on a HisTrap FF column (5 ml). The subsequent on-column refolding and purification of β-actin was performed as described for E. coli-derived protein.

For preparation of β-actin complexes with either cofilin or profilin (see below), an equimolar amount of the recombinant homogenous actin-binding protein was mixed with the yeast-produced β-actin and dialyzed twice against 1000 ml of dialysis buffer (20 mM Tris-HCl pH 7.6, 1 mM DTT, 6% sucrose, and 0.2 mM CaCl2), for 2 hr in 250 ml and then overnight in 500 ml. When obtaining β-actin complexed with either ADP or ATP, samples eluted from Ni-NTA-agarose were dialyzed under the same conditions against dialysis buffer containing 50 μM of an appropriate nucleotide. In all cases, dialyzed protein preparation was concentrated using an Amicon 10K device (Merck, Germany).

Overexpression in COS-7 cells and purification of the recombinant SETD3 proteins

Request a detailed protocol

Rat total RNA was prepared from 200 mg of leg muscles with the use of TriPure reagent according to the manufacturer’s instructions, whereas human skeletal muscle total RNA was purchased from Clontech (USA). cDNA was synthesized using Moloney murine leukemia virus-reverse transcriptase (Thermo-Fermentas), with oligo(dT)18 primer and 2.5 μg total RNA according to the manufacturer’s instructions.

The open reading frames encoding rat (NCBI Reference Sequence: XM_002726774.2) and human (NM_032233.2) SETD3 protein were PCR-amplified using Pfu DNA polymerase in the presence of 1 M betaine. The SETD3 genes were amplified using 5′ primers containing the initiator codon preceded by the Kozak consensus sequence (Kozak, 1987) and an KpnI site, and 3′ primers in which the original stop codon was replaced by an amino-acid-coding codon flanked by a NotI site (for primer sequences, see Table 5). The amplified DNA products of the expected size were digested with the appropriate restriction enzymes, cloned in the pEF6/Myc-His A expression vector (Invitrogen, USA) (which allows the production of proteins with an C-terminal His6-tag), and verified by DNA sequencing (Macrogen, The Netherlands). The resulting vector was designated as pEF6/SETD3. For transfections, COS-7 cells (Cell Lines Service, Germany) were plated in 100 mm Petri dishes at a cell density of 1.7 × 106 or 2.1 × 106 cells per plate in Dulbecco's minimal essential medium supplemented with 100 units/ml penicillin, 100 μg/ml streptomycin, and 10% (v/v) fetal bovine serum, and grown in a humidified incubator under 95% air and 5% CO2 atmosphere at 37°C. After 24 hr, each plate was transfected with 7–8 μg of either unmodified pEF6/Myc-His A vector or pEF6/SETD3 using the TurboFect transfection reagent according to the protocol provided by the manufacturer. After 48 hr, the culture medium was removed, the cells were washed with 5 ml phosphate buffered saline and harvested in 1 ml of 20 mM Tris-HCl pH 7.2, containing 10 mM KCl, 1 mM DTT, 5 μg/ml leupeptin and 5 μg/ml antipain. The cells were lysed by freezing in liquid nitrogen and, after thawing and vortexing, the extracts were centrifuged at 4° C (20,000 × g for 30 min) to remove insoluble material.

Table 5
Sequences of primers used in PCR experiments The nucleotides corresponding to the coding sequences are in capital letters, the Kozak consensus sequence is shown in bold, and the added restriction sites are underlined.
https://doi.org/10.7554/eLife.37921.044
PrimerSequenceRestriction sitePlasmidProtein
expressed
Preparation of SEDT3 protein expression vectors
 #1taaggtaccgccaccATGGGTAAGAAGAGTCGAGTGKpnIpEF6/Myc-His AC-terminal His6-tagged rat SEDT3 protein
 #2*taagcggccgCCAGAGTCGCTCCTTCACCGCNotI
 #3taaggtaccgccaccATGGGTAAGAAGAGTCGAGTAAKpnIpEF6/Myc-His AC-terminal His6-tagged rat SEDT3 protein
 #4*taagcggccgCCACTCCTTAACTCCAGCAGTGNotI
Preparation of cofilin-1 and profilin-1 expression vectors
 #5tatacatATGGCCTCCGGTGTGGCTGNdeIpCOLD IN-terminal His6-tagged human cofilin-1
 #6tataaagcTTATCACAAAGGCTTGCCCTCCAGHindIII
 #7tatacatATGGCCGGGTGGAACGCCNdeIpCOLD IN-terminal His6-tagged human profilin-1
 #8tataaagcTTATCAGTACTGGGAACGCCGAAGHindIII
Preparation of S-adenosyl-L-homocysteine nucleosidase and andenine deaminase expression vectors
 #9tatacatATGAAAATCGGCATCATTGGTGNdeIpCOLD IN-terminal His6-tagged E. coli SAH nucleosidase
 #10tataaagcTTAGCCATGTGCAAGTTTCTGCHindIII
 #11tataggtaccTTGAATAAAGAAGCGCTAGTCAATKpnIpCOLD IN-terminal His6-tagged B. subtilis andenine deaminase
 #12tataggatccTTATTGCAGTGATATGTGTTGAAATBamHI
  1. *Original STOP codons were replaced by CCA (shown in italic and underlined) to allow C-terminal HisTag translation.

For the purification of recombinant SETD3 proteins, the supernatant of the COS-7 lysate (13–18 ml) was diluted 3-fold with buffer A (50 mM Tris-HCl pH 7.4, 400 mM NaCl, 10 mM KCl, 30 mM imidazole, 3 μg/ml leupeptin and 3 μg/ml antipain) and applied onto a HisTrap HP column (1 ml) equilibrated with the same buffer. The column was washed with 6–10 ml buffer A and the retained protein was eluted with a stepwise gradient of imidazole (6 ml of 60 mM, 6 ml of 150 mM and 6 ml of 300 mM) in buffer A. The recombinant proteins were eluted with 150 mM imidazole in homogeneous form, as confirmed by SDS-PAGE (see Figure 6—figure supplement 1). The enzyme preparations were desalted on PD-10 columns equilibrated with 20 mM Tris-HCl pH 7.2, 50 mM KCl, 1 mM DTT, 6% sucrose, 2 μg/ml leupeptin and 2 μg/ml antipain. The yield of recombinant proteins was 0.5–0.6 mg of homogenous protein per about 25–40 mg of soluble COS-7 cell protein. The purified enzymes were aliquoted and stored at −70°C. Repeated freeze-thawing was avoided because it impairs SETD3 activity.

Overexpression in E. coli and purification of the recombinant SETD3 proteins

Request a detailed protocol

Bacterial expression plasmids for human and rat SETD3 fused to an N-terminal His6-tag were constructed by sub-cloning the open reading frames from the pEF6/SETD3 plasmids into the pCOLD I vector (Takara Bio, Kusatsu, Japan), using KpnI and XbaI enzymes (pCOLD I/SETD3).

For protein production, E. coli BL21(DE3) cells were transformed with an appropriate DNA construct and a single colony was selected to start an over-night pre-culture. 500 mL of LB broth (with 100 μg/mL ampicilin) was inoculated with 50 ml of the pre-culture and incubated at 37°C and 200 rpm until an OD600 of 0.6 was reached. The culture was placed on ice for 20 min (cold-shock) and IPTG was added to a final concentration of 0.3 mM to induce protein expression. Cells were incubated for 16 hr at 13°C, 200 rpm, and harvested by centrifugation (6000 × g for 10 min). The cell paste was resuspended in 25 ml lysis buffer consisting of 25 mM Hepes pH 7.5, 300 mM NaCl, 10 mM KCl, 1 mM DTT, 2 mM MgCl2, 1 mM PMSF, 0.25 mg/ml hen egg white lysozyme (BioShop, Canada) and 1250 U Viscolase (A and A Biotechnology, Poland). The cells were lysed by freezing in liquid nitrogen and, after thawing and vortexing, the extracts were centrifuged at 4° C (20000 × g for 20 min).

For the purification of recombinant SETD3 proteins, the supernatant of E. coli lysate (22 ml) was diluted 3-fold with buffer A (50 mM Hepes pH 7.5, 300 mM NaCl, 10 mM KCl, 30 mM imidazole, 1 mM DTT and 0.5 mM PMSF) and applied onto a HisTrap FF column (5 ml) equilibrated with the same buffer. The column was then washed with 35 ml buffer A, and the retained proteins were eluted with a stepwise gradient of imidazole (15 ml of 60 mM, 16 ml of 150 mM and 16 ml of 300 mM) in buffer A. The recombinant proteins were present in both 150 mM and 300 mM imidazole fractions (see Figure 7—figure supplement 1), but only SETD3 protein eluted at the highest concentration of imidazole, exhibiting >95% purity as confirmed by SDS-PAGE, was further processed. The enzyme preparation was desalted onto PD-10 columns equilibrated with 20 mM Tris-HCl pH 7.2, 50 mM KCl, 1 mM DTT and 6% sucrose. The yield of recombinant proteins was 6.6 mg and 8.2 mg of homogenous rSETD3 and hSETD3, respectively, per 500 ml of culture. The purified proteins were aliquoted and stored at −70°C.

Overexpression and purification of the recombinant cofilin and profilin proteins

Request a detailed protocol

Human skeletal muscle total RNA was obtained from Clontech (USA) and cDNA was synthesized as described above. The open reading frames encoding human cofilin-1 and profilin-1 (NCBI Reference Sequence: NM_005507.2 and NM_005022.3, respectively) were PCR-amplified using Pfu DNA polymerase in the presence of 1 M betaine. ORFs of both proteins were amplified using 5′ primers containing the initiator codon preceded by an NdeI site and 3′ primers flanked by a HindIII site (for primer sequences, see Table 5). The amplified DNA products of the expected size were digested with the appropriate restriction enzymes and cloned into the pCOLD I expression vector (Takara Bio, Kusatsu, Japan), which allows the production of proteins with an N-terminal His6-tag (pCOLD I/Cofilin-1 and pCOLD I/Profilin-1), and verified by DNA sequencing (Macrogen, The Netherlands).

For protein production, E. coli BL21(DE3) cells were transformed with the appropriate DNA construct, and a single colony was selected to start an over-night pre-culture. 200 mL of LB broth (with 100 μg/mL ampicilin) was inoculated with 20 ml of the pre-culture and incubated at 37°C and 200 rpm until an OD600 of 0.6 was reached. The culture was placed on ice for 20 min (cold-shock) and IPTG was added to a final concentration of 0.25 mM to induce protein expression. Cells were incubated for 16 hr at 13°C, 200 rpm, and harvested by centrifugation (6000 × g for 10 min). The cell paste was resuspended in 10 ml lysis buffer consisting of 25 mM Hepes pH 7.5, 300 mM NaCl, 50 mM KCl, 1 mM DTT, 2 mM MgCl2, 1 mM PMSF, 5 μg/ml leupeptin and 5 μg/ml antipain, together with 0.25 mg/ml hen egg white lysozyme (BioShop, Canada) and 50 U DNase I (Roche). The cells were lysed by freezing in liquid nitrogen and, after thawing and vortexing, the extracts were centrifuged at 4° C (20,000 × g for 30 min).

For the purification of recombinant actin-binding proteins, the supernatant of E. coli lysate (10 ml) was diluted 4-fold with buffer A (50 mM Hepes pH 7.5, 300 mM NaCl, 10 mM KCl, 30 mM imidazole and 1 mM DTT) and applied onto a HisTrap FF column (5 ml) equilibrated with the same buffer. The column was sequentially washed with 23 ml buffer A and 23 ml of the same buffer supplemented with urea at 1.8 M concentration. Next, the retained protein was eluted with a stepwise gradient of imidazole (23 ml of 60 mM, 23 ml of 150 mM and 22 ml of 300 mM) in buffer A. The recombinant proteins were eluted with 300 mM imidazole in homogeneous form, as confirmed by SDS-PAGE (not shown). The enzyme preparations were dialyzed three times against 400 ml of dialysis buffer consisting of 20 mM Tris-HCl pH 7.5, 200 mM NaCl, 1 mM DTT and 6% sucrose. The yield of recombinant proteins was 7.1 and 17.7 mg of homogenous cofilin-1 and profilin-1, respectively, per 200 ml of E. coli culture. The purified proteins were aliquoted and stored at −70°C.

Overexpression and purification of the recombinant SAH nucleosidase and adenine deaminase

Request a detailed protocol

E. coli DNA was extracted by heating 50 µl of over-night cultured BL21(DE3) cells at 95°C for 15 min, whereas Bacillus subtilis (ATCC 6633, Sigma-Aldrich) genomic DNA was purified from 100 mg of bacterial cells with the use of TriPure reagent according to the manufacturer’s instructions.

The open reading frames encoding E. coli SAH nucleosidase and B. subtilis adenine deaminase (NCBI Reference Sequence: NC_000913.3 and NC_000964.3, respectively) were PCR-amplified using either Pfu DNA polymerase alone or a mixture of Taq:Pfu polymerases (1:0.2), respectively, in the presence of 1 M betaine. SAH nucleosidase ORF was amplified using a 5′ primer containing the initiator codon preceded by an NdeI site and a 3′ primer with a HindIII site, whereas adenine deaminase DNA was amplified using a 5′ primer with the initiator codon preceded by an KpnI site and a 3′ primer with a BamHI site (for primer sequences, see Table 5). The amplified DNA products of expected size were digested with the appropriate restriction enzymes, cloned into the pCOLD I expression vector (pCOLD I/SAH nucleosidase and pCOLD I/adenine deaminase) and verified by DNA sequencing (Macrogen, The Netherlands).

For protein production, E. coli BL21(DE3) cells were transformed with the appropriate DNA construct and a single colony was selected to start an over-night pre-culture. 100 mL of LB broth (with 100 μg/mL ampicilin) was inoculated with 10 ml of the pre-culture and incubated at 37°C and 200 rpm until an OD600 of 0.6 was reached. The culture was placed on ice for 20 min (cold-shock) and IPTG was added to a final concentration of 0.25 mM to induce protein expression. Cells were incubated for 16 hr at 13°C, 200 rpm, and harvested by centrifugation (6000 × g for 10 min). The cell pellet was resuspended in 10 ml lysis buffer consisting of 25 mM Hepes pH 7.5, 300 mM NaCl, 50 mM KCl, 1 mM DTT, 2 mM MgCl2, 1 mM PMSF, 5 μg/ml leupeptin and 5 μg/ml antipain, together with 0.25 mg/ml hen egg white lysozyme (BioShop) and 25 U DNase I (Roche). The cells were lysed by freezing in liquid nitrogen and, after thawing and vortexing, the extracts were centrifuged at 4°C (20,000 × g for 30 min).

For protein purification, the supernatant of the E. coli lysate (10 ml) was diluted 3-fold with buffer A (50 mM Tris-HCl, pH 7.2, 400 mM NaCl, 10 mM KCl, 30 mM imidazole, 1 mM DTT, 3 μg/ml leupeptin and 3 μg/ml antipain) and applied onto a HisTrap FF column (5 ml) equilibrated with the same buffer. The column was washed with 20–30 ml buffer A and the retained protein was eluted with a stepwise gradient of imidazole (25 ml of 60 mM, 20 ml of 150 mM and 20 ml of 300 mM) in buffer A. The recombinant proteins were eluted with 150–300 mM imidazole in homogeneous form, as confirmed by SDS-PAGE (not shown). The enzyme preparations were desalted onto PD-10 columns equilibrated with 20 mM Tris-HCl pH 7.2, 50 mM KCl, 1 mM DTT, 6% sucrose, 2 μg/ml leupeptin and 2 μg/ml antipain. The yield of recombinant proteins was 1.2 mg and 3.1 mg of homogenous adenine deaminase and SAH nucleosidase, respectively, per 200 ml of E. coli culture. The purified enzymes were aliquoted and stored at −70°C.

Identification of the rat actin-specific histidine N-methyltransferase by tandem mass spectrometry

Request a detailed protocol

A preliminary SDS-PAGE analysis of the peak activity fractions from the Reactive Red 120-agarose purification step revealed the presence of very faint protein bands with a low protein content, consequently the fractions were 15-fold concentrated in a Vivaspin-500 ultrafiltration device and reanalyzed by SDS-PAGE. All bands present in the concentrated fractions were cut from a 10% gel and digested with trypsin. In-gel digestions of the peptides were performed as described (Shevchenko et al., 2006). Peptides were analyzed by nanoUPLC-tandem mass spectrometry employing Acquity nanoUPLC coupled with a Synapt G2 HDMS Q-TOF mass spectrometer (Waters, Milford, USA) fitted with a nanospray source and working in MSˆE mode under default parameters. Briefly, the products of in-gel protein digestion were loaded onto a Waters Symmetry C18 trapping column (20 mm × 180 μm) coupled to the Waters BEH130 C18 UPLC column (250 mm × 75 μm). The peptides were eluted from these columns in a 1–85% gradient of acetonitrile in water (both containing 0.1% formic acid) at a flow rate of 0.3 µl/min. The peptides were directly eluted into the mass spectrometer. Data were acquired and analyzed using MassLynx 4.1 software (Waters, USA) and ProteinLynx Global Server 2.4 software (PLGS, Waters, USA) with a False Discovery Rate ≤ 4%. To identify actin-specific histidine N-methyltransferase, the complete rat (Rattus norvegicus) reference proteome was downloaded from the NCBI Protein database, randomized and used as a databank for the MS/MS software.

Generation of the HAP1 cell lines deficient in SETD3 by the CRISPR/Cas9 method

Request a detailed protocol

Human-derived HAP1 cells (Horizon Discovery, Waterbeach, UK) have a haploid karyotype except for a disomy of chromosome 8 (25, XY,+8, Ph+) and are therefore considered near-haploid. The cell line expresses Setd3 gene at the level of 32.04 transcripts per kilobase million (https://www.horizondiscovery.com/human-setd3-knockout-cell-line-hzghc84193). Since Setd3 gene is on chromosome 14, all generated Setd3-defficent HAP1 cells will show the complete loss of SETD3 expression. The parental cells were therefore used to create HAP1 cell lines that are deficient in SETD3 by using CRISPR/Cas9 technology.

Two CRISPR/Cas9 constructs were generated to target exon 4 of the human Setd3 gene by ligating two different sets of annealed primer pairs (CRISPR-hSETD3-s1 CACCGgttctgtcgagggttttgaaa, CRISPR-hSETD3-as1 AAACtttcaaaaccctcgacagaacC and CRISPR-hSETD3-s2 CACCGgaggcccatttcattagatc, CRISPR-hSETD3-as2 AAACgatctaatgaaatgggcctcC). The annealed primer pairs were ligated into the vector pSpCas9n(BB)−2A-Puro (PX462) V2.0 (a gift from F. Zhang, Massachusetts Institute of Technology; Addgene plasmid no. 62987) (Ran et al., 2013) digested by BbsI. Constructs were validated by sequencing (Beckman Coulter Genomics). HAP1 cells were cultured in IMDM (Iscove’s Modified Dulbecco’s Medium) containing 10% FBS, 2 mM L-glutamine and penicillin/streptomycin (Thermo-Life Technologies). Cells were transfected with the CRISPR constructs exactly as described in Collard et al., 2016. Genomic DNA from puromycin-resistant clones was used to PCR-amplify the regions encompassing the targeted site and the PCR products were sequenced to evaluate the gene modification present in each clone. The three SETD3-KO clones that were ultimately selected for further studies presented the following modifications: clone KO-A1, a 16 bp deletion after Phe71, which introduces a frame shift and a premature stop codon at position 75; clone KO-A3, a 4 bp deletion and 6 bp insertion that introduce a frame shift after Met83 and a premature stop codon at position 109; and clone KO-A5, a 18 bp deletion and 107 bp insertion after Trp85, with a premature stop codon at position 292.

The absence of SETD3 protein from each SETD3-KO cell lines was confirmed by western blotting performed as described previously (Drozak et al., 2013), with the use of rabbit polyclonal primary antibody against human SETD3 (ab174662, Abcam, UK) and a horseradish peroxidase-conjugated goat anti-rabbit secondary IgG antibody (AS09602, Agrisera, Vannas, Sweden).

Product analysis

Detection of in vitro methylated β-actin by tandem mass spectrometry

Request a detailed protocol

To obtain a sufficient amount of the methylated β-actin formed in the reaction catalyzed by recombinant rat or human SETD3 protein for mass spectrometry analysis, the reaction mixture was scaled up. Briefly, 15 µg recombinant human β-actin was incubated for 90 min at 37°C in 70 µl of a reaction mixture containing 25 mM Tris-HCl pH 7.2, 10 mM KCl, 1 mM DTT, 20 µM MnCl2, 6% sucrose, 20–30 µM [2H]SAM, 4.5–9.0 µg SAH nucleosidase and 1.75–3.5 µg adenine deaminase in the absence or presence of 1.1–3.5 µg SETD3 protein. The incubation was stopped by the addition of 30 µl of the reaction mixture to 10 µl 4 × Laemmli buffer and by heating the sample for 5 min at 95°C, while the remaining 40 µl of the mixture was flesh-frozen in LN2 and stored at −70°C. The yield of β-actin methylation was about 30%, as determined for the parallel labeling reaction in the presence of [2H +3H]SAM.

For MS/MS analysis of deuterated protein, 35 µl of denatured sample (≈18 µg protein) was separated in 10% SDS-PAGE and silver stained (Shevchenko et al., 1996). The bands corresponding to β-actin were excised from the gels, destained and digested with trypsin according to the methods described in Shevchenko et al., 2006. In addition, 18 µl of the flesh-frozen sample (12 µg protein) was trypsin-digested ‘in solution’ for 16 hr at 30°C in 30 µl of the reaction mixture containing 100 mM NH4HCO3 and 1.5 µg trypsin (MS grade, Sigma-Aldrich). The digestion reaction was terminated by the addition of trifluoroacetic acid to a final concentration of 1%. Resulting peptides were analyzed by nanoUPLC-tandem mass spectrometry, as described above in the section ‘Identification of rat actin-specific histidine N-methyltransferase by tandem mass spectrometry’. To identify actin peptides, the full amino-acid sequence of recombinant human β-actin in fusion with the His6-tag at the N-terminus was used as a databank for the MS/MS software. Detection of the trideuterium-methylated peptides was performed in a fully automatic mode by PLGS 2.4 software (Waters, USA), following its update by adding trideuterium-methylation (+17.03448 Da) of Cys, Asp, Asn, His, Lys, Arg, Glu and Gln residues as a possible modification of peptides.

Detection of methylated β-actin from HAP1 human cell lines by tandem mass spectrometry

Request a detailed protocol

HAP1 wildtype (WT-A1 and WT-A2) and SETD3-KO cells (KO-A1 and KO-A3) were cultured in IMDM containing 10% FBS, 2 mM L-glutamine and penicillin/streptomycin (Life Technologies), each in four 10 cm diameter plates. At confluence, the medium was rapidly removed, the plates were washed with 5 ml cold PBS and each of them scraped in 0.8 ml of buffer A (25 mM Hepes pH 7.4, 20 mM NaCl, 2.5 µg/ml leupeptin and 2.5 µg/ml antipain) and combined to collect the cells. The four soluble cell extracts were prepared by two cycles of freezing the cell suspension in liquid nitrogen and thawing before vortex-mixing and centrifuging for 15 min at 15,000 × g and 4°C to recover soluble proteins.

To purify the actin partially, the cell lysates were diluted 5-fold in buffer A (20 ml final volume) and loaded onto a 1 ml-HiTrap Q HP (GE Healthcare) equilibrated with the same buffer. The column was washed with 6 ml of buffer A and proteins were eluted with a linear NaCl gradient (20–750 mM in 20 ml buffer A). The elution fractions (1 ml) were analysed by SDS-PAGE followed by Coomassie blue staining and by western blotting using a rabbit anti-actin antibody (A2066, Sigma-Aldrich). The actin band of the richest fraction was cut out of the gel and digested with trypsin.

The resulting peptides were analysed by LC-MS/MS with a LTQ XL (ThermoFisher Scientific) equipped with a microflow ESI source interfaced with a Dionex Ultimate Plus Dual gradient pump, a Switchos column switching device, and a Famos Autosampler (Dionex, Amsterdam, The Netherlands) as described (Houddane et al., 2017). Raw data files were then analyzed by bioinformatics using Proteome Discoverer (Thermo Fisher Scientific). Peak lists were generated using the application spectrum selector in the Proteome Discoverer 1.4 package. From raw files, MS/MS spectra were exported as individual files in the .dta format with the following settings: peptide mass range, 400–3500 Da; minimal total ion intensity, 500; and minimal number of fragment ions, 12. The resulting peak lists were searched using SequestHT against a human protein database obtained from Uniprot and containing only actin sequences. The following parameters were used: trypsin was selected with semi-proteolytic cleavage only after lysine and arginine; the number of internal cleavage sites was set to 2; the mass tolerance for precursor and fragment ions was 1.0 Da; and the considered dynamic modifications were + 15.99 Da for oxidized methionine,+14.00 Da for methylation on histidine and + 42.00 Da for acetylation of N-terminus or lysines. Peptide spectral matches (PSM) were filtered using charge-state versus cross-correlation scores (Xcorr) and methylation sites were validated manually.

Detection of actin methylation in Drosophila melanogaster by tandem mass spectrometry

Request a detailed protocol

To investigate whether the absence of SETD3 in D. melanogaster also prevented actin methylation, we prepared protein extracts by homogenizing approximately 20 larvae from wildtype or SETD3 KO flies (Tiebe et al., 2018) in 0.5 ml of 25 mM Hepes pH 7.5 with 2.5 µg/ml of leupeptin and antipain. After centrifugation (15 min at 16 000 ×g), the supernatant was recovered, protein concentration was measured (Bradford, 1976) and 10 µg of total proteins were digested with trypsin and used for LC-MS/MS analysis. Peptides were dissolved in solvent A (0.1% trifluoroacetic acid (TFA) in 2% acetonitrile (ACN)), directly loaded onto reversed-phase pre-column (Acclaim PepMap 100, Thermo Scientific) and eluted in backflush mode. Peptide (250 ng) separation was performed using a reversed-phase analytical column (Acclaim PepMap RSLC, 0.075 × 250 mm, Thermo Scientific) with a linear gradient of 4–27.5% solvent B (0.1% formic acid (FA) in 98% ACN) for 100 min, 27.5–40% solvent B for 10 min, 40–95% solvent B for 1 min and holding at 95% for the last 10 min at a constant flow rate of 300 nl/min on an EASY-nLC 1000 ultra-performance liquid chromatography (UPLC) system. The peptides were analyzed by an Orbitrap Fusion Lumos tribrid mass spectrometer (ThermoFisher Scientific). The peptides were subjected to NSI source followed by tandem mass spectrometry (MS/MS) in Fusion Lumos coupled online to the UPLC. Intact peptides were detected in the Orbitrap at a resolution of 120,000. Peptides were selected for MS/MS using a higher-energy C-trap dissociation (HCD) setting of 30; ion fragments were detected in the ion trap. A data-dependent procedure that alternated between one MS scan followed by 20 MS/MS scans was applied for the top 20 precursor ions above a threshold ion count of 5.0E3 in the MS survey scan with 30.0 s dynamic exclusion. The electrospray voltage applied was 2.1 kV. MS1 spectra were obtained with an automatic gain control (AGC) target of 4E5 ions and a maximum injection time of 50 ms, whereas MS2 spectra were acquired with an AGC target of 5E3 ions and a maximum injection time of 300 ms. For MS scans, the m/z scan range was 350 to 1500. The resulting MS/MS data were processed using the Sequest HT search engine within Proteome Discoverer 2.2 against a protein database containing Drosophila melanogaster sequences obtained from Swissprot (4810 entries, version 27 10 2017). Trypsin was specified as cleavage enzyme allowing up to two missed cleavages, four modifications per peptide and up to five charges. Mass error was set to 10 ppm for precursor ions and 0.6 Da for fragment ions. Oxidation on Met, carbamidomethyl on Cys and methylation on His (+14.015 Da) were considered as variable modifications. False discovery rate (FDR) was assessed using Percolator and thresholds for protein, peptide and modification site were specified at 1%.

Phenotypic analysis

Glucose consumption and lactate production

Request a detailed protocol

HAP1 cells (150 × 103) were seeded in 12-well plates and incubated in IMDM with 10% FBS for 40 hr with a change of medium every 20 hr. Following 40 hr incubation, cell confluency was about 90% and the fresh medium was added to start the final incubation lasting for the next 20 hr. To finish the incubation, 1 ml of the culture medium was transferred to 100 μl of 35% HClO4 and centrifuged at 10,000 × g for 10 min, before the resulting supernatant was neutralized with 3 M K2CO3/3 M KOH. The lactate produced was determined spectrophotometrically using lactate dehydrogenase (Roche) (Noll, 1984), whereas glucose consumption was measured in a spectrophotometric assay that uses hexokinase and glucose-6-phosphate dehydrogenase (Roche) (Kunst and Draeger, 1984). Adherent cells were washed three times with 3 ml of PBS and then solubilized in 0.1 M NaOH containing 0.125% Triton X-100 for protein quantification (Bradford) to allow normalization of lactate produced and glucose consumed to biomass.

Organization of actin cytoskeleton

Request a detailed protocol

Visualization of actin filaments was performed as described Domanski et al., 2016Domanski et al., 2016. Briefly, HAP1 cells, both control and Setd3-KO clones, were cultured in IMDM supplemented with 10% FBS, penicillin (100 U/ml) and streptomycin (100 µg/ml) at 37°C in a humidified atmosphere containing 5% CO2. For confocal microscopy, 5 × 105 cells were seeded on a 22 × 22 mm glass coverslip in a 35 mm plate. Either 24 or 48 hr after cell seeding, culture medium was removed and the cells were washed three times with PBS, fixed with 3% paraformaldehyde for 10 min at room temperature, permeabilized with 0.05% Triton X-100 in PBS for 3 min and washed again three times with PBS. F-actin was visualized by staining with TRITC-phalloidin (Sigma-Aldrich) in PBS for 1 hr at room temperature. Nuclei were localized with Hoechst 33342 dye (Sigma-Aldrich). After rinsing in PBS, coverslips were mounted using fluorescence mounting medium (DakoCytomation-Agilent, Santa Clara, USA). Samples were analyzed with the use of a Zeiss Axio Observer.Z1 LSM 700 confocal laser scanning microscope equipped with a Plan-Apochromat 63/1.40 Oil objective (Zeiss, Oberkochen, Germany). To detect the fluorescence of TRITC-phalloidin, a 555 nm excitation line was used, and for detecting blue fluorescence of Hoechst 33342, a 405 nm excitation line was employed. For 3D analysis, confocal Z-stacks comprising 10–13 optical slices were reconstructed into a 3D image using Zeiss Zen software with default settings.

Analysis of the impact of actin methylation on its thermal stability

Request a detailed protocol

For determination of the thermostability of actin protein present in cell-free lysates of HAP1 wildtype (WT-A2) and SETD3-KO cells (KO-A3), 40 µl of lysates (73.6 µg protein) were incubated for 5 min at 4, 30, 40, 43, 46, 49, 52, 55 and 60°C, followed by a 5 min incubation at 4°C. The denatured proteins were removed in the pellet following centrifugation (13,000 × g, 10 min) and the remaining non-denatured and still soluble proteins present in the supernatant were subsequently separated by SDS-PAGE. Soluble actin was detected by western blotting with the use of rabbit polyclonal primary antibody against vertebrate actin (A2066, Sigma-Aldrich, USA) and a horseradish peroxidase-conjugated goat anti-rabbit secondary IgG antibody (AS09602, Agrisera, Sweden). The quantitative analysis of the protein band corresponding to actin was performed by densitometry using Quantity One software (BioRad, Hercules, USA).

Phylogenetic analysis

Request a detailed protocol

Sequences homologous to rat SETD3 protein (NCBI Reference Sequence: XM_002726774.2) were identified by Protein Blast searches. A phylogenetic analysis was performed on the Phylogeny.fr platform (www.phylogeny.fr) (Dereeper et al., 2008). Amino acid sequences were aligned with MUSCLE (v3.7) (Edgar, 2004). After alignment, ambiguous regions were removed with Gblocks (v0.91b) (Castresana, 2000). Phylogenetic trees were generated using the Phylogenetic estimation using Maximum Likelihood (PhyML) (Guindon and Gascuel, 2003) with the WAG model for amino acid substitution (Whelan and Goldman, 2001). The final tree was customized with the editing interface TreeDyn (Chevenet et al., 2006). A confidence level was assessed using the approximate likelihood ratio test (aLRT) (minimum of SH-like and χ2-based parametric) (Anisimova and Gascuel, 2006).

Analytical methods

Request a detailed protocol

Protein concentration was determined spectrophotometrically according to Bradford (1976) using bovine γ-globulin as a standard. When appropriate, the His6-tagged recombinant proteins were detected by western blot analysis, employing a mouse primary antibody against His6-tag (27-4710-01, GE Healthcare, USA) and a horseradish peroxidase-conjugated goat anti-mouse antibody (A2554, Sigma-Aldrich, USA), as described previously (Drozak et al., 2013). All western-blotting analyses employed chemiluminescence and signals acquisition with Amersham Hyperfilm ECL, with the pattern of the prestained protein ladder being copied from the blotting membrane onto the film using a set of felt-tip pens.

Calculations

Request a detailed protocol

Vmax, KM and kcat for the methyltransferase activities of the studied enzymes were calculated with Prism 4.0 (GraphPad Software, La Jolla, USA) using a nonlinear regression.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
    Homocysteine in Health and Disease
    1. S Clarke
    2. K Banfield
    (2001)
    R Carmel, D Jacobsen, editors. Cambridge: Cambridge University Press.
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
    D-Glucose In: Methods of Enzymatic Analysis
    1. A Kunst
    2. B Draeger
    (1984)
    ScienceDirect.
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
    L-(+)-LactateMethods of Enzymatic Analysis, 6
    1. F Noll
    (1984)
    J Bergmeyer, M Grabal, editors.  Weinheim, Basel: Verlag Chemie.
  44. 44
  45. 45
  46. 46
    SCHLENK F. The stability and hydrolysis of S-adenosylmethionine; isolation of S-ribosylmethionine
    1. LW Parks
    2. F Schlenk
    (1958)
    The Journal of Biological Chemistry 230:295–305.
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
    Actin of Naegleria gruberi. Absence of N tau-methylhistidine
    1. DJ Sussman
    2. JR Sellers
    3. P Flicker
    4. EY Lai
    5. LE Cannon
    6. AG Szent-Györgyi
    7. C Fulton
    (1984)
    The Journal of Biological Chemistry 259:7349–7354.
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
    SETD3 is an actin histidine methyltransferase that prevents primary dystocia
    1. AW Wilkinson
    2. J Diep
    3. S Dai
    4. S Liu
    5. YS Ooi
    6. D Song
    7. T-M Li
    8. JR Horton
    9. X Zhang
    10. C Liu
    11. DV Trivedi
    12. KM Ruppel
    13. JG Vilches-Moure
    14. KM Casey
    15. J Mak
    16. T Cowan
    17. JE Elias
    18. CM Nagamine
    19. JA Spudich
    20. X Cheng
    21. JE Carette
    22. O Gozani
    (2018)
    Nature, 10.1038/s41586-018-0821-8.

Decision letter

  1. Philip A Cole
    Senior and Reviewing Editor; Harvard Medical School, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "SETD3 protein is the actin-specific histidine N-methyltransferase" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by Philip Cole as the Senior Editor and Reviewing Editor. The following individual involved in review of your submission has agreed to reveal his identity: Paul R Thompson. Two other reviewers remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The manuscript by Kwiatkowski et al. describes the discovery that SETD3 is the actin-specific histidine N-methyltransferase. The paper uses classical purification techniques and enzymatic assays to enrich for actin-specific histidine N-methyltransferase from rat muscle. Proteomic techniques then identified SETD3 as a candidate histidine N-methyltransferase, which was subsequently validated in vitro. The authors went on to develop CRISPR knockout lines and showed that this modification is important for maintaining cellular F-actin levels and for regulating glycolysis. Overall, this paper represents the beginnings of a field of study, and we expect that it will be widely appreciated. The authors should be roundly applauded for their comprehensive Materials and methods section as it demonstrates the rigor of the work.

Essential revisions:

1) Regarding Table 4, please provide kinetic data for the methylation of peptide mimics of histone H3 and actin in the table. If saturation is not achieved, provide estimates of kcat/KM for each peptide. This is important for putting the catalytic efficiency in context with other enzymes that catalyze methyl transfer reactions.

2) The authors compared peptide substrates derived from actin and histone to compare SETD3 methylation activity on His and Lys. Since differences between actin protein and peptide are ~250-fold, it would be important to compare the histone H3 protein with actin protein as substrates for methyltransferase studies to put into better context the relative substrate recognition. In addition, it would be valuable to use docking to understand how SETD3 recognizes two different substrates for methyl transfer. Since the structure of human SETD3 is available, more efforts should be made to compare the structure with other well-characterized SET-domain lysine methyltransferases at the sequence and 3D levels. Given the different physical properties between Lys and His, the residues that favor Lys binding may not be conserved for His binding. More comparisons of this sort will strengthen this manuscript.

3) To access recombinant human/rat SETD3, the authors expressed these enzymes in mammalian cells, which also contain their endogenous histine methyltransferase activities. There is thus a small possibility that the histine methyltransferase activity comes from a polypeptide that can associate with SETD3 rather than intrinsic to SETD3 itself. To most effectively address this concern, the authors should access recombinant human/rat SETD3 with a single-point mutation in a conserved residue in the active site that is predicted to eliminate catalytic activity and demonstrate that such a mutation is sufficient to abolish the activity. The modeling effort described above (point 2) should allow for identification of such a mutant(s). Alternatively, SETD3 should be expressed in a cell strain which lacks endogenous His methyltransferase activity to authenticate that the enzymatic activity comes from SETD3.

4) To characterize the functional roles of SETD3-mediated actin His74me, only Setd3-deficient lines were examined. The limitation of this experiment is that it is possible that the full length protein of SETD3 rather than its catalytic activity accounts for the observed biological outcomes. Therefore, a recue experiment with active and catalytically dead SETD3 should be conducted to further validate the roles of SETD3. Alternatively, the authors could compare the functional outcomes of wild-type actin with those of His74X actin in wild-type and Setd3-deficient contexts.

5) To understand the scope of the SETD3 reaction, it would be valuable to incubate the enzyme with lysate and determine whether there are multiple substrates. If they could demonstrate that multiple proteins are methylated by this enzyme, it would greatly ramp up enthusiasm in the methyltransferase field for this PTM and enzyme function.

Other points:

6) Subsection “Characterization of Recombinant SETD3 Proteins”, last paragraph: The lack of methylation of yeast produced actin is a concern, however, the authors data are consistent with their conclusion that there must be a conformational difference that precludes methylation of this form. Does ATP inhibit methylation of refolded actin? Please comment on this possibility.

7) Ideally, the authors could develop an antibody to detect methylated histidine 73 in actin and then specifically test whether the SETD3 knockouts show less methylated actin. However, this experiment is not critical at this stage because their mass spectrometry is consistent with the loss of this modification in the knockout cells.

8) Introduction, second paragraph: Please provide information on Hpm1p homology to other known methyltransferases

9) Subsection “Generation of the HAP1 Cell Lines Deficient in SEDT3 by CRISPR/Cas9 Method”: The authors should specify whether the CRISPR knockouts represent single or double allele knockouts.

10) Subsection “Glucose Consumption and Lactate Production”: The authors use PCA for perchloric acid whereas earlier they used the molecular formula. Since PCA is used only once, HClO4 is preferred.

11) The authors should provide a figure depicting the overall reaction and should comment on what nitrogen gets methylated (if known). The side chain of His contains two nitrogen atoms. It is not clear whether one of the two or both nitrogen atoms can be methylated by SETD3. If the latter is the case, did the authors identify a di-methylated product?

12) Figure 1: The fraction numbers 200, 400, 900, 1400 are confusing and it is unclear why they are provided in this format instead of, for example, 1, 2, 3 etc.

13) Figure 4: Change the color of H73 in panel B as the current colors are not color blind friendly.

14) Figure 5 legend: The legend is incomplete and it is difficult to evaluate the data in the figure.

15) "Actin-specific histidine N-methyltransferase" and "specifically modifies H73 residue" are imprecise descriptions for the following two reasons: 1) Authors used actin as the only protein substrate for SETD3. It is unknown if SETD3 can methylate His residues in other proteins. 2) SETD3 is a known lysine methyltransferase for K4 and K36 of H3. Therefore, "dual methyltransferase" may be a better choice in this case.

16) There is about a 250-fold activity difference between peptide and protein substrate measured here. Such differences may be caused by different recognition efficiency and possibly a specificity shift to other methylation sites. The authors stated that the His73 residue was the only tri-deuterium-methylated peptide in the MS analysis (subsection “Characterization of Recombinant SETD3 Proteins”, third paragraph). It is not clear if mono- and di-deuterium-methylated sites have been scrutinized.

17) The authors applied 6 purification steps to isolate the active fraction for His methylation. It would be helpful to provide the rationale for each purification step. Also, it is not clear how the purification (-fold) in Table 2 was calculated.

18) Since only nucleotide-free actin is the substrate, is it possible that methylated His facilitates the binding of actin with nucleotide and affects the dynamics of polymerization and depolymerization?

19) Protein markers in some figures including Figure 5, 8, Figure 6—figure supplement 1 seem to be a drawing instead of an image.

20) Professional editing to improve the writing would be helpful.

21) To characterize that His73 is the only target site of SETD3 with MS with recombinant proteins, the authors mentioned that only a His73 peptide contains this modification. In this situation, the authors should describe the percentage of MS coverage of actin was achieved (hopefully close to 100%).

22) It would be appreciated if the authors could comment on the percentage of His73me-containing actin out of the total actin. In general, the higher the percentage is, the more likely it is that this methylation event is functionally important.

https://doi.org/10.7554/eLife.37921.047

Author response

Essential revisions:

1) Regarding Table 4, please provide kinetic data for the methylation of peptide mimics of histone H3 and actin in the table. If saturation is not achieved, provide estimates of kcat/KM for each peptide. This is important for putting the catalytic efficiency in context with other enzymes that catalyze methyl transfer reactions.

We have now determined the kinetic parameters for the methylation of actin peptide H (an analogue of methylation sites in vertebrate actin) with both human and rat SETD3 and these data are now included into Table 4. However, we were unable to obtain reasonable results for the histone peptide H3N4, due to the extremely low activity of SETD3 enzymes towards peptide H3N4, resulting in a very week and highly non-reproducible radiolabeling of this peptide as well as a high background radioactivity (a consequence of [3H]SAM degradation).

This kind of problem was expected, since the activity of SETD3 on histone peptide H3N4 is at least 10-fold lower than it is on actin peptide H (cf. Figure 8 – —figure supplement 1) and close to 5000-fold lower than the SETD3 activity on actin protein (cf. Table 4). However we tried to overcome these limitations by using very high concentrations of histone peptide H3N4 (up to 40 mM) and increased the radio assay time, which resulted in a loss of the enzyme’s activity.

Together, these results further support our hypothesis that SETD3 is an actin-methylating enzyme rather than a histone methyltransferase in vivo, resembling, for example, SETD7 enzyme that displays limited activity on nucleosomes in vitro, and efficiently methylates numerous non-histone substrates in vivo [for review see Herz, Garruss and Shilatifard, 2013].

2) The authors compared peptide substrates derived from actin and histone to compare SETD3 methylation activity on His and Lys. Since differences between actin protein and peptide are ~250-fold, it would be important to compare the histone H3 protein with actin protein as substrates for methyltransferase studies to put into better context the relative substrate recognition. In addition, it would be valuable to use docking to understand how SETD3 recognizes two different substrates for methyl transfer. Since the structure of human SETD3 is available, more efforts should be made to compare the structure with other well-characterized SET-domain lysine methyltransferases at the sequence and 3D levels. Given the different physical properties between Lys and His, the residues that favor Lys binding may not be conserved for His binding. More comparisons of this sort will strengthen this manuscript.

We find the reviewers’ suggestions interesting and we thank them for it. However, we think it is unlikely that either (1) the comparison of SETD3 activity towards histone H3 and actin proteins or (2) the suggested docking experiments will be successful and help to elucidate the mechanism of substrate recognition by the methyltransferase studied. The reasons for this are stated below:

At this stage we still do not know what is the native form(s) of actin that is the in vivo substrate of SETD3. As we emphasize in the manuscript, native ATP-/ADP-actin, for which the crystallographic data is indeed available, is not a substrate for SETD3 in vitro. The enzyme methylates only non-physiological, quasi-native nucleotide-free actin of unknown structure, indicating that the nucleotide-free native actin, probably in complex with one or more as yet not identified stabilizing protein(s), is likely to be the actual substrate for SETD3 in vivo. The same is also true for histone H3 protein, since the purified histone H3 is not a substrate for SETD3 enzyme either, in agreement with the observation that the histone methyltransferase was shown to modify H3 protein only if it is incorporated into isolated native nucleosomes (Chen et al., 2013).

All these observations are in fact in good agreement with the current knowledge for the enzymes belonging to the family of SET domain-containing proteins. Many of these methyltransferases are found in complexes with numerous other proteins that are essential for their catalytic activity and substrate specificity. For example, to exert its catalytic activity, yeast histone H3 methyltransferase SET1 requires the presence of 7 different proteins that form a complex named COMPASS (Complex of Proteins Associated with Set1), and similar COMPASS-like complexes are formed by mammalian SET-domain containing methyltransferases [for review see Herz, Garruss and Shilatifard,2013].

To fulfill the suggestion from the reviewers diligently, the docking experiments should be performed employing 3D structures of SETD3 and the actin peptide H that could be reasonably predicted with, for example, PEP-Fold server. We have in fact started such experiments and ceased them eventually, when we identified a yet non-released PDB record by Horton et al. (PDB: 6MBL), describing a crystallographic structure of SETD3 with the actin peptide (but not with the actin protein!). Therefore, since this should provide the required results very soon, we have decided to drop these experiments.

We have however tried to strengthen the in vivo function of SETD3 as the actin-specific histidine N-methyltransferase, as suggested by the reviewers, by determining the methylation status of actin in tissues of SETD3 knock-out Drosophila melanogaster larvae, employing the tandem mass spectrometry. These results are now included in Table 5, showing that the knockout of SETD3 prevented methylation of all three different forms of actin (actin-42A, -57B and -87E) present in extracts from the fly larvae, while all H74-containg actin peptides (which corresponds to the H73 in the mammalian protein) derived from wild-type larvae were all methylated. We believe that these findings further confirm the molecular identification of SETD3 as the actin-specific histidine N-methyltransferase.

3) To access recombinant human/rat SETD3, the authors expressed these enzymes in mammalian cells, which also contain their endogenous histine methyltransferase activities. There is thus a small possibility that the histine methyltransferase activity comes from a polypeptide that can associate with SETD3 rather than intrinsic to SETD3 itself. To most effectively address this concern, the authors should access recombinant human/rat SETD3 with a single-point mutation in a conserved residue in the active site that is predicted to eliminate catalytic activity and demonstrate that such a mutation is sufficient to abolish the activity. The modeling effort described above (point 2) should allow for identification of such a mutant(s). Alternatively, SETD3 should be expressed in a cell strain which lacks endogenous His methyltransferase activity to authenticate that the enzymatic activity comes from SETD3.

We agree with the reviewers’ objections, and to provide an unambiguous answer, we have produced both rat and human recombinant SETD3 in E. coli and purified them with Ni-NTA affinity chromatography (see Figure 7—figure supplement 1.). As now shown in Figure 7, E coli-derived purified recombinant SETD3 enzymes methylate actin protein with specific activity similar to that determined for SETD3 expressed in mammalian COS-7 cells (≈ 5 nmol × min-1× mg-1 protein). We believe that, this together with the various knock out models solve the concerns of the reviewers that are stated above.

We have now included the activity of E. coli-produced SETD3 towards actin in the Results section (subsection “Characterization of Recombinant SETD3 Proteins”, first paragraph).

4) To characterize the functional roles of SETD3-mediated actin His74me, only Setd3-deficient lines were examined. The limitation of this experiment is that it is possible that the full length protein of SETD3 rather than its catalytic activity accounts for the observed biological outcomes. Therefore, a recue experiment with active and catalytically dead SETD3 should be conducted to further validate the roles of SETD3. Alternatively, the authors could compare the functional outcomes of wild-type actin with those of His74X actin in wild-type and Setd3-deficient contexts.

We agree that rescue experiments could help strengthen that the phenotypic observations in HAP1 cells are indeed due to a lack of SETD3 catalytic activity. We think however, that the facts mentioned below rather support a crucial role of the catalytic activity (instead of the suggested structural effects) for the observed biological outcomes of Setd3-deficiency.

First, proteomics data show that actin protein is at least 40-fold more abundant than SETD3 in mammalian cells (protein expression level: 1836,1 and 44,1 ppm for β-actin and SETD3, respectively, The MaxQuant DataBase), indicating that only catalytic amounts of SETD3 are present in cells. This becomes even more apparent when it is contrasted with corresponding data for the well-characterized actin-binding proteins. For example, human cofilin-1 and profilin-2, actin-interacting proteins that regulate the rate of its polymerization/depolymerization through “a structural mechanism” are present in cells at levels similar to that of actin (2859,7 and 1577,4 ppm for cofilin-1 and profilin-2, respectively, The MaxQuant DataBase), while tropomyosin β chain that binds to actin filaments and stabilizes them is present in about 20-fold excesses over the SETD3 in various human cells (804,0 ppm, The MaxQuant DataBase).

Secondly, Nyman and colleagues [Nyman et al., 2002] reported that purified actin filaments built of monomers lacking H73 methylation show a significantly increased rate of depolymerization. This effect is due to an inherent structural instability of non-methylated actin monomers (and not the loss of any actin-interacting protein), which the authors detected using a thermal stability assay. We have thus tested the thermostability of actin present in cell-free lysates of control (methylated actin) and SETD3-KO (non-methylated actin) HAP1 cells. This was performed by heating the lysates for 5 min and subsequent quantification of the still soluble (non-denatured) actin by western blotting. As now shown in a novel Figure 14, at temperatures between 30 and 46 °C, the methylated actin (WT) is clearly more stable than the protein devoid of such modification (SETD3-KO). These results unambiguously show that the loss of SETD3 enzymatic activity and not the protein itself is the cause of observed disturbances in the cytoskeleton integrity of SETD3 KO cells.

We have now included into the Results section a short paragraph describing the results of the thermostability assay (subsection “Absence of SETD3 reduces F-actin and increases glycolytic rate in SETD3-deficient HAP1 cells”, second paragraph).

Summing up, we believe that these data are a reasonable argument in support that the phenotype we have identified in Setd3-deficient human HAP-1 cells is indeed due to lack of catalytic action of SETD3, rather than a non-catalytic/actin stabilizing interaction of SETD3. However, we took into consideration the reviewer’s comment and have now introduced a short paragraph addressing these concerns in the Discussion section (subsection “Biological Importance of SETD3 Methyltransferase”).

5) To understand the scope of the SETD3 reaction, it would be valuable to incubate the enzyme with lysate and determine whether there are multiple substrates. If they could demonstrate that multiple proteins are methylated by this enzyme, it would greatly ramp up enthusiasm in the methyltransferase field for this PTM and enzyme function.

We agree with the reviewers’ suggestions, and such experiments have already been done and their results are freely available now. Briefly, Cohn and colleagues [Cohn et al., 2016] performed a proteomic screen using the ProtoArray platform to identify interactors of SETD3 among 9500 human proteins tested. They found 172 novel SETD3 interacting proteins (including actin!), belonging to very different ontology classes (nucleic acid binding, transcription factors, enzymes modulators, cytoskeleton protein, etc.). Next, the authors decided to concentrate on the transcription factor FoxM1, showing that SETD3 apparently methylates this protein, though the identification of methylated site was not performed.

In contrast to this, when we searched for other proteins (in addition to actin) that might have been differently methylated in their histidines among those identified by LCMS in the larvae extracts of the WT flies and SETD3 KO ones, we did not to see any others.

Together, these findings suggest that one should not exclude the possibility that SETD3 might have multiple substrates yet, but more dedicated work is necessary to provide an answer to this question which could be the subject of another investigation.

Other points:

6) Subsection “Characterization of Recombinant SETD3 Proteins”, last paragraph: The lack of methylation of yeast produced actin is a concern, however, the authors data are consistent with their conclusion that there must be a conformational difference that precludes methylation of this form. Does ATP inhibit methylation of refolded actin? Please comment on this possibility.

In fact, we had already addressed that exact same question but had not included the results in the manuscript. We found that the addition of either 0.5 mM ATP or ADP (10-fold excess over the nucleotides concentration in the preparation of yeast produced actin) did not impact the activity of either human or rat SETD3 towards the refolded actin.

We have now introduced a short sentence into the Results section, that provides this information (subsection “Characterization of Recombinant SETD3 Proteins”, last paragraph).

7) Ideally, the authors could develop an antibody to detect methylated histidine 73 in actin and then specifically test whether the SETD3 knockouts show less methylated actin. However, this experiment is not critical at this stage because their mass spectrometry is consistent with the loss of this modification in the knockout cells.

We agree with the reviewers’ suggestion, and it is indeed an option that could replace the MS experiments, but we have not developed such antibody yet. However, we now show (by MS analysis) that the methylhistidine-containing actin is also absent from tissues of SETD3 knock-out Drosophila melanogaster larvae (see comment 2.).

8) Introduction, second paragraph: Please provide information on Hpm1p homology to other known methyltransferases

Hpm1p (also known as YIL110W) is the seven β-strand methyltransferase (7BS MTase), containing motifs I, post I and motif II that are hallmarks of this group of enzymes [Webb et al., 2010]. Recently Hpm1p has been classified in the so-called methyltransferase family 16 (MTF16), based on the presence of the conserved DXXY motif localized immediately downstream of Motif II [for review see Falnes et al., 2016]. The MTF16 group comprises mostly protein-lysine methyltransferases such as Mettl20 – 23 and Camkmt, with the noticeable exception of Hpm1p and Efm7 that methylate His243 of the yeast ribosomal protein Rpl3p ribosomal and the N-terminal glycine in the eukaryotic translation elongation factor 1 α (eEF1A), respectively. The MTF16 group appears to be distinct from both other known 7BS protein-lysine MTases (e.g., Dot1L, Mettl10, N6amt2) and non-protein methylating 7BS MTases (e.g. Mettl1, Comt, Gnmt). These observations illustrate well that in general, the 7BS MTase represent a diverse set of enzymes, both in terms of amino acid sequence and of protein structure. They all share the core 7BS fold, but the additional structural elements required to make up the catalytically active enzyme vary greatly.

We have now introduced a short paragraph into the Introduction section to provide information on the homology of Hpm1p to other members of methyltransferase family 16 (Introduction, second paragraph).

9) Subsection “Generation of the HAP1 Cell Lines Deficient in SEDT3 by CRISPR/Cas9 Method”: The authors should specify whether the CRISPR knockouts represent single or double allele knockouts.

The HAP1 cells have a haploid karyotype except for a disomy of chromosome 8 (25, XY, +8, PH+) and are therefore considered near-haploid. They are derived from the male chronic myelogenous leukemia (CML) cell line KBM-7 [Carette et al., Nature. 2011; 477:340-3]. Since Setd3 gene is in chromosome 14, all generated Setd3-defficent HAP1 cells are single allele knockouts, showing the complete loss of SETD3 expression.

We have now clarified the text of Materials and methods section to highlight the near-haploid nature of HAP1 cells (subsection “Generation of the HAP1 Cell Lines Deficient in SEDT3 by CRISPR/Cas9 Method”, second paragraph).

10) Subsection “Glucose Consumption and Lactate Production”: The authors use PCA for perchloric acid whereas earlier they used the molecular formula. Since PCA is used only once, HClO4 is preferred.

We have changed the text accordingly.

11) The authors should provide a figure depicting the overall reaction and should comment on what nitrogen gets methylated (if known). The side chain of His contains two nitrogen atoms. It is not clear whether one of the two or both nitrogen atoms can be methylated by SETD3. If the latter is the case, did the authors identify a di-methylated product?

We detected only a mono-methylated histidine residue in both recombinant actin protein and synthetic peptide H by mass spectrometry analysis. To the best of our knowledge, no di-methylated histidine residues have ever been identified in proteins or metabolites.

We did not investigate which nitrogen of imidazole ring is methylated by SETD3 since this information is provided by Raghavan and collaborators [Raghavan, Lindberg and Schutt, 1992] who show that the actin-specific histidine methyltransferase catalyzes exclusively Nτ-methylation of H73 residue.

We have now introduced a new Figure 1—figure supplement 2, describing the reaction catalyzed by the actin-specific histidine methyltransferase (SETD3), clearly showing the position of methylated nitrogen in the imidazole ring of histidine. The requested commentary is provided in the legend to this figure and is mentioned in the Discussion section (subsection “Molecular Identity of Rat Actin-specific Histidine N-Methyltransferase”, first paragraph).

12) Figure 1: The fraction numbers 200, 400, 900, 1400 are confusing and it is unclear why they are provided in this format instead of, for example, 1, 2, 3 etc.

We have now modified the figure and its legend accordingly.

13) Figure 4: Change the color of H73 in panel B as the current colors are not color blind friendly.

We have changed the color of H73 to black, one that is unambiguous both to colorblinds and non-colorblinds.

14) Figure 5 legend: The legend is incomplete and it is difficult to evaluate the data in the figure.

We have now modified both Figure 5 and its legend as requested by this reviewer.

15) "Actin-specific histidine N-methyltransferase" and "specifically modifies H73 residue" are imprecise descriptions for the following two reasons: 1) Authors used actin as the only protein substrate for SETD3. It is unknown if SETD3 can methylate His residues in other proteins. 2) SETD3 is a known lysine methyltransferase for K4 and K36 of H3. Therefore, "dual methyltransferase" may be a better choice in this case.

We understand the reviewers’ objection, but we would rather keep this description to indicate that: 1) SETD3 is the protein which indeed corresponds to the actin-specific histidine N-methyltransferase that is currently referenced as EC 2.1.1.85 and 2) actin is the only well-characterized substrate for SETD3, and much research effort is still needed to reliably identify other physiologically relevant substrates for this enzyme.

16) There is about a 250-fold activity difference between peptide and protein substrate measured here. Such differences may be caused by different recognition efficiency and possibly a specificity shift to other methylation sites. The authors stated that the His73 residue was the only tri-deuterium-methylated peptide in the MS analysis (subsection “Characterization of Recombinant SETD3 Proteins”, third paragraph). It is not clear if mono- and di-deuterium-methylated sites have been scrutinized.

We share the reviewers’ opinion that the difference in the activity of SETD3 towards peptide H and actin substrates is plausibly the consequence of the several thousand-fold lower affinity of the enzyme for the peptide substrate (see Table 4). Though, in our opinion, the simplest explanation of this phenomenon is that the more rigid H73-containg sensor loop of actin is much better fitted into the catalytic pocket of SETD3 than the unstructured peptide H.

We detected neither mono-deuterium (-CH2D, + 15.021926 Da) nor di-deuterium methylation (-CHD2, +16.028203 Da) of recombinant actin protein by Q-TOF mass spectrometry. This was in fact expected as the isotopic enrichment of utilized (S-methyl-d3)SAM (D-4093, C/D/N Isotopes Inc., Canada) was equal to 99% atom D.

17) The authors applied 6 purification steps to isolate the active fraction for His methylation. It would be helpful to provide the rationale for each purification step. Also, it is not clear how the purification (-fold) in Table 2 was calculated.

Since the molecular properties of the investigated methyltransferase were unknown, the choice of the purification strategy used is based both on our protein purification experience and on preliminary small scale trials. Once the purification conditions were optimized, the protocol was scaled-up for the FPLC as shown in the manuscript. The chromatographic methods used here, included ion-exchanger, gel filtration and affinity chromatography columns, which are those classically used when one is aiming to purify (and obtain a significantly enriched preparation) of a naturally abundant protein from a tissue.

The purification-fold is an enrichment in specific activity of SETD3 from one purification step to the next. So if the specific activity of SETD3 is 1 nmole/min/mg prot in the initial myofibrillar extract and 100 nmole/min/mg prot in the preparation obtained after 2 purification steps, the purification fold for SETD3 is 100/1 = 100-fold (there is a 100-fold enrichment in the activity of SETD3 after these two purification steps compared to the activity in the initial extract).

This way of measuring protein enrichment is classically used during protein purification experiments.

18) Since only nucleotide-free actin is the substrate, is it possible that methylated His facilitates the binding of actin with nucleotide and affects the dynamics of polymerization and depolymerization?

Nyman et al. [Nyman et al., 2002] showed that the rate constant for dissociation of ATP-H73A-actin is 10-fold higher than that for the ATP-actin, indicating that the methylated His73 may indeed facilitate/stabilize the binding of ATP to the actin monomer. However, based on the overall results, the authors concluded that the main biochemical role of methylated H73 is to delay the hydrolysis of ATP and Pi-release, which prevents too rapid conversion of F-actin from ATP-state to ADP-state. Hence, an accelerated appearance of ADP-actin is likely the major cause of the observed disturbances in the integrity of nonmethylated F-actin.

We have now introduced a few sentences into Discussion section to clarify the importance of H73 methylation for the stability of ATP-actin (subsection “Biological Importance of SETD3 Methyltransferase”).

19) Protein markers in some figures including Figure 5, 8, Figure 6—figure supplement 1 seem to be a drawing instead of an image.

We thank the reviewers for this observation that in fact is correct. All western-blotting analyses were performed, employing chemiluminescence and signals acquisition with X-ray film, while the pattern of prestained protein ladder was copied from the blotting membrane onto the film using a set of felt-tip pens.

We have now modified the Materials and methods section to explain the presence of the hand-drawn protein ladder (subsection “Analytical Methods”).

20) Professional editing to improve the writing would be helpful.

The text has now been read and the English improved and edited by a senior scientist, fluent in English.

21) To characterize that His73 is the only target site of SETD3 with MS with recombinant proteins, the authors mentioned that only a His73 peptide contains this modification. In this situation, the authors should describe the percentage of MS coverage of actin was achieved (hopefully close to 100%).

The percentage of actin sequence coverage in MS analysis was equal to 75% (see Figure 9—source data 1). Though, this value is still quite far from 100%, taking into account that all known methyl-accepting sites in human actin (K18, K68, H73, K84, K191 and K326, see PhosphoSitePlus database) were covered and H73 was the only methylated residue in our analysis, and no radiolabeling of H73A actin was detected in the presence of SETD3, we think that our data fully support the conclusion that H73 is the only target site for SETD3 activity.

We took into consideration the reviewers’ comment and we have now modified the text of the Results section to provide required information (subsection “Characterization of Recombinant SETD3 Proteins”, third paragraph).

22) It would be appreciated if the authors could comment on the percentage of His73me-containing actin out of the total actin. In general, the higher the percentage is, the more likely it is that this methylation event is functionally important.

The data shown in the newly added Table 5 strongly indicates that 100% of actin is methylated in H73 in vivo, as non-methylated actin was not detected in extracts from Setd3-deficient fly larvae. However, to obtain a more comprehensive picture it would be easier to use an antibody that specifically recognizes meH73, which we have not developed, that could be used to quantify the amount of the methylated actin.

The functional importance of results shown in Table 5 has been now highlighted in the Results section (subsection “SETD3 is the β-actin H73 methyl transferase in HAP1 Human Cells and Drosophila melanogaster”, last paragraph.

https://doi.org/10.7554/eLife.37921.048

Article and author information

Author details

  1. Sebastian Kwiatkowski

    Department of Metabolic Regulation, Faculty of Biology, University of Warsaw, Warsaw, Poland
    Contribution
    Data curation, Funding acquisition, Validation, Investigation, Writing—review and editing
    Contributed equally with
    Agnieszka K Seliga
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-4908-1633
  2. Agnieszka K Seliga

    Department of Metabolic Regulation, Faculty of Biology, University of Warsaw, Warsaw, Poland
    Contribution
    Data curation, Validation, Investigation, Writing—review and editing
    Contributed equally with
    Sebastian Kwiatkowski
    Competing interests
    No competing interests declared
  3. Didier Vertommen

    Protein Phosphorylation Unit, de Duve Institute, Université Catholique de Louvain, Brussels, Belgium
    Contribution
    Resources, Data curation, Funding acquisition, Validation, Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Marianna Terreri

    Department of Metabolic Regulation, Faculty of Biology, University of Warsaw, Warsaw, Poland
    Contribution
    Funding acquisition, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Takao Ishikawa

    Department of Molecular Biology, Faculty of Biology, University of Warsaw, Warsaw, Poland
    Contribution
    Resources, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3558-0880
  6. Iwona Grabowska

    Department of Cytology, Faculty of Biology, University of Warsaw, Warsaw, Poland
    Contribution
    Resources, Data curation, Validation, Investigation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6455-9434
  7. Marcel Tiebe

    1. German Cancer Research Center (DKFZ), Heidelberg, Germany
    2. Heidelberg University, Heidelberg, Germany
    Contribution
    Resources, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-7699-0587
  8. Aurelio A Teleman

    1. German Cancer Research Center (DKFZ), Heidelberg, Germany
    2. Heidelberg University, Heidelberg, Germany
    Contribution
    Resources, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-4237-9368
  9. Adam K Jagielski

    Department of Metabolic Regulation, Faculty of Biology, University of Warsaw, Warsaw, Poland
    Contribution
    Resources, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  10. Maria Veiga-da-Cunha

    Metabolic Research Unit, de Duve Institute, Université Catholique de Louvain, Brussels, Belgium
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Methodology, Writing—review and editing
    For correspondence
    maria.veiga@uclouvain.be
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2968-7374
  11. Jakub Drozak

    Department of Metabolic Regulation, Faculty of Biology, University of Warsaw, Warsaw, Poland
    Contribution
    Conceptualization, Resources, Data curation, Formal analysis, Supervision, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    jdrozak@biol.uw.edu.pl
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3601-3845

Funding

Narodowe Centrum Nauki (Opus Grant (DEC-2013/11/B/NZ1/00078))

  • Jakub Drozak

Fonds De La Recherche Scientifique - FNRS (Chercheurs qualifié)

  • Maria Veiga-da-Cunha

European Commission (The Erasmus+ Programme)

  • Marianna Terreri

European Commission (CePT infrastructure)

  • Adam K Jagielski
  • Jakub Drozak

Fonds De La Recherche Scientifique - FNRS

  • Didier Vertommen

Ministerstwo Nauki i Szkolnictwa Wyższego (DSM 501-D114-86-011500-23)

  • Sebastian Kwiatkowski

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors would like to express their appreciation to Professor Jadwiga Bryla (University of Warsaw) who read the first draft of this article and provided numerous helpful suggestions.

Senior and Reviewing Editor

  1. Philip A Cole, Harvard Medical School, United States

Publication history

  1. Received: April 28, 2018
  2. Accepted: November 6, 2018
  3. Version of Record published: December 11, 2018 (version 1)

Copyright

© 2018, Kwiatkowski et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 2,397
    Page views
  • 316
    Downloads
  • 6
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, Scopus, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Structural Biology and Molecular Biophysics
    Evgenia Afanasieva et al.
    Research Article Updated
    1. Biochemistry and Chemical Biology
    Priyesh Mohanty et al.
    Research Article
