T-ALL leukemia stem cell 'stemness' is epigenetically controlled by the master regulator SPI1

  1. Haichuan Zhu
  2. Liuzhen Zhang
  3. Yilin Wu
  4. Bingjie Dong
  5. Weilong Guo
  6. Mei Wang
  7. Lu Yang
  8. Xiaoying Fan
  9. Yuliang Tang
  10. Ningshu Liu
  11. Xiaoguang Lei
  12. Hong Wu  Is a corresponding author
  1. Peking University, China
  2. Bayer Pharmaceuticals, Germany
Research Article
  • Cited 0
  • Views 538
  • Annotations
Cite this article as: eLife 2018;7:e38314 doi: 10.7554/eLife.38314

Abstract

Leukemia stem cells (LSCs) are regarded as the origins and key therapeutic targets of leukemia, but limited knowledge is available on the key determinants of LSC ‘stemness’. Using single-cell RNA-seq analysis, we identify a master regulator, SPI1, the LSC-specific expression of which determines the molecular signature and activity of LSCs in the murine Pten-null T-ALL model. Although initiated by PTEN-controlled β-catenin activation, Spi1 expression and LSC ‘stemness’ are maintained by a β-catenin-SPI1-HAVCR2 regulatory circuit independent of the leukemogenic driver mutation. Perturbing any component of this circuit either genetically or pharmacologically can prevent LSC formation or eliminate existing LSCs. LSCs lose their ‘stemness’ when Spi1 expression is silenced by DNA methylation, but Spi1 expression can be reactivated by 5-AZ treatment. Importantly, similar regulatory mechanisms may be also present in human T-ALL.

https://doi.org/10.7554/eLife.38314.001

Introduction

Acute T cell lymphoblastic leukemia (T-ALL) is an aggressive hematological malignancy caused by the accumulation of genetic mutations and altered signaling pathways that affect normal T cell development (Belver and Ferrando, 2016; Ferrando and López-Otín, 2017; Girardi et al., 2017). Current treatment for T-ALL includes high-intensity combination chemotherapies. However, such treatment may cause short- and long-term side effects, and up to 20% of pediatric and 40% of adult T-ALL patients relapse (Atak et al., 2013; Girardi et al., 2017). Leukemia stem cells (LSCs) are considered to be one of the main causes of drug resistance and therapeutic relapse (Batlle and Clevers, 2017; Blackburn et al., 2014; Chiu et al., 2010; Visvader, 2011). Like hematopoietic stem cells, LSCs can self-renew and differentiate into leukemic blast cells (Bonnet and Dick, 1997; Reya et al., 2001), which makes them ideal candidates for high-efficiency and low-toxicity targeted therapies. However, many questions related to the control mechanisms of LSCs and cancer stem cells (CSCs) in general remain unanswered.

One question is how CSCs maintain ‘stemness’. Although many driver mutations and dysregulated pathways have been identified in cancers, these are unlikely to be the only mechanisms that maintain CSC ‘stemness’, since the same driver mutations or dysregulated pathways are also present in most cancer cells. One good example is the Pten-null T-ALL model that we have generated by the conditional deletion of the Pten tumor suppressor gene in fetal liver hematopoietic stem cells (Guo et al., 2008). In this model, LSCs are enriched in the Lin-CD3+KITmid cell subpopulation; these cells are self-renewable and responsible for T-ALL initiation and drug resistance (Guo et al., 2008Guo et al., 2011Schubbert et al., 2014). However, since both LSC-enriched and leukemic blast subpopulations share similar genetic alterations, including Pten loss and Tcra/d-Myc translocation (Guo et al., 2008), these driver mutations are unlikely to determine LSC ‘stemness’. Furthermore, treating the Pten-null T-ALL model with PI3K inhibitors is effective only before the onset of leukemia, not after leukemia is already underway (Guo et al., 2011; Schubbert et al., 2014), suggesting that this driver mutation is not responsible for the maintenance of LSC ‘stemness’ once it has been generated.

A related question is how CSCs lose ‘stemness’ and whether this process is unidirectional or reversible. Such plasticity or reversibility may contribute to some of the conflicting results in the literature regarding the nature and frequency of CSCs (Batlle and Clevers, 2017). As small-molecule inhibitors of epigenetic modifiers have been developed and applied to cancer treatments (Topper et al., 2017), understanding the nature of CSC maintenance may bear important clinical implications.

Using the Pten-null T-ALL model, we identify a master regulator, SPI1, and a β-catenin-SPI1-HAVCR2 regulatory circuit that are responsible for LSC ‘stemness’ maintenance. This ‘stemness’ maintenance circuit is initiated by the leukemogenic driver mutations, that is, PTEN loss and PI3K-mediated β-catenin activation, but after it is formed, it becomes independent of the driver mutation and the associated PI3K pathway. Furthermore, SPI1’s LSC-specific expression is silenced by DNA methylation, resulting in the loss of LSC ‘stemness’. Our study also provides the fate mapping of leukemia development from LSCs to leukemic blasts at single-cell resolution and identifies potential novel targets for LSC-mediated therapies.

Results

Redefine heterogeneous LSCs at single-cell resolution

We reported previously that the LSC-enriched Lin-CD3+KITmid subpopulation in the Pten-null T-ALL model contains heterogeneous cells, of which 30% are MYC low, rapamycin- and JQ1 (a BRD4 inhibitor)-resistant, and relatively quiescent in terms of cell cycle (Guo et al., 2008Schubbert et al., 2014) (Figure 1—figure supplement 1A). To further define this heterogeneous subpopulation, we isolated LSC-enriched and blast subpopulations for RNA-seq analysis (Figure 1—figure supplement 1B, upper panel) and identified one module with a LSChigh-Blast0 expression pattern by Weighted Gene Co-expression Network Analysis (WGCNA) (Zhang and Horvath, 2005) (Figure 1A, yellow module). Approximately, 45% of the genes in this module encode membrane proteins such as Havcr2 (HAVCR2) and Itgax (ITGAX) (Figure 1B–C). Although Havcr2 and Itgax are only expressed in the LSC-enriched subpopulation, the expression levels of these genes vary among different isolates (Figure 1C), which may reflect the heterogeneity of the LSC-enriched subpopulation. The cell surface expression of HAVCR2 and ITGAX, as measured by FACS analysis, are highly correlated and can further separate the previously identified Lin-CD3+KITmid LSC-enriched subpopulation into several subgroups (Figure 1D, upper panel), among which the HAVCR2high or HAVCR2high ITGAXhigh subgroups are most abundant in the thymus, the critical organ for T cell development and T-ALL initiation (Guo et al., 2008;Guo et al., 2011) (Figure 1D, lower panel).

Figure 1 with 2 supplements see all

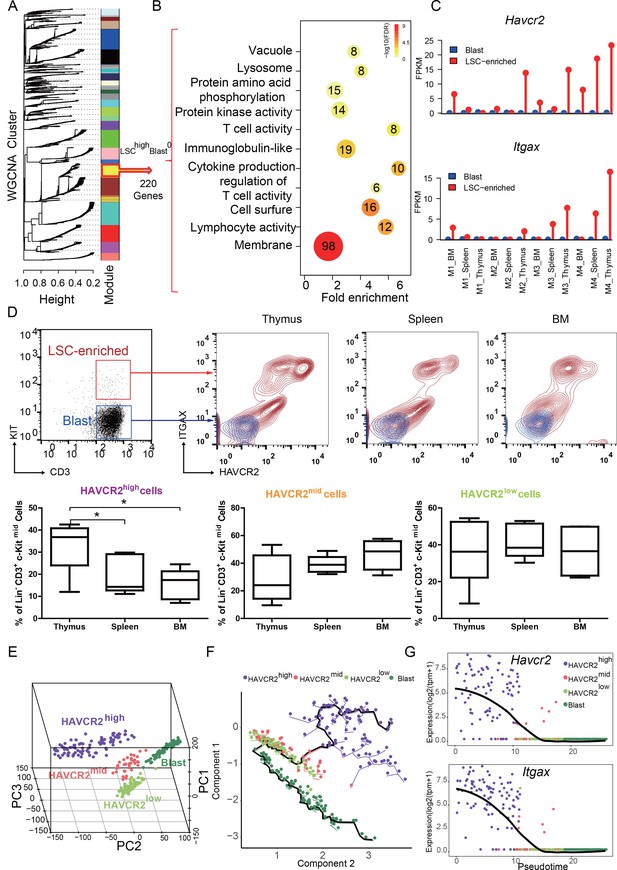

HAVCR2 redefines a heterogeneous LSC-enriched subpopulation at single-cell resolution (A) WGCNA analysis for the bulk RNA-seq of LSC-enriched and leukemic blast subpopulations.

The yellow module contains 220 genes that are preferentially expressed in the LSC-enriched subpopulation (LSChigh-Blast0); (B) Gene Ontology (GO) analysis of LSC-enriched genes in the yellow module; (C) Havcr2 and Itgax are specifically expressed in LSC-enriched (red) but not in leukemic blast (blue) subpopulations isolated from the indicated hematopoietic organs of M1-M4 Pten-null T-ALL mice; (D) Upper panel: FACS plots are overlaid to show the differential expression of HAVCR2 and ITGAX in the LSC and blast subpopulations. The previously defined Lin-CD3+KITmid LSC-enriched subpopulation (in the red box in the left panel) can be further separated into several subgroups based on the expression of the cell-surface markers HAVCR2 and ITGAX. The Lin-CD3+KIT- leukemic blast subpopulation (in the blue box in the left panel) does not express HAVCR2 or ITGAX. Lower panel: Quantitative measurement of the HAVCR2high, HAVCR2mid and HAVCR2low subgroups in different hematopoietic organs from Pten-null T-ALL mice (n = 5; *, p<0.05). The HAVCR2high subgroup is enriched in the thymus; (E) PCA analysis of the single-cell transcriptome shows four subgroups, labeled in different colors. Cells from two independent mice are indicated by different shapes; (F) Pseudotime analysis shows the expression profiles of T-ALL cells in 2-D component space. The solid black line shows the main differentiation path from HAVCR2high (purple) to blasts (dark green); (G) Pseudotemporal ordering of single cells based on Havcr2 or Itgax expression.BM: bone marrow.

https://doi.org/10.7554/eLife.38314.002

To determine whether these heterogeneous groups are organized hierarchically from LSCs to blasts during T-ALL development, we conducted single-cell RNA-seq analysis and identified four subgroups (Figure 1E; Figure 1—figure supplement 1B, lower panel; Figure 1—figure supplement 2). Pseudotime analysis (Trapnell et al., 2014) further indicates that LSCs follow a continuous developmental path towards blasts, progressing from HAVCR2high through HAVCR2mid and HAVCR2low to blasts (Figure 1F), which can also be visualized by pseudotime analysis of Havcr2 and Itgax expression (Figure 1G). Collectively, these results confirm the heterogeneity of the previously identified LSC-enriched subpopulation and provide fate mapping of LSC differentiation into blasts at single-cell resolution.

The HAVCR2high subgroup contains the vast majority of LSC activity

Single-cell transcriptome analysis indicates that the HAVCR2high subgroup is enriched in the hematopoietic stem cell/late progenitor pathways and is relatively quiescent, while the blast subpopulation is enriched in Myc lymphoma pathways and active in the cell cycle (Figure 2A). Consistent with this observation, the HAVCR2high subgroup also has the lowest c-MYC level among the four subgroups (Figure 2B), suggesting that the HAVCR2high subgroup may contain the MYClow cells within the previously defined Lin-CD3+KITmid LSC-enriched subpopulation (Guo et al., 2008Schubbert et al., 2014).

Cells in the HAVCR2high subgroup are in a quiescent cell cycle state.

(A) Left panel: GSEA analysis shows signaling pathways enriched in the HAVCR2high and blast subpopulations. Right panel: Percentage of cells in each phase of the cell cycle based on single-cell RNA-seq; (B) Intracellular FACS analyses of MYC levels in the HAVCR2high,HAVCR2mid, HAVCR2low and blast subgroups. Gray line: isotype control.

https://doi.org/10.7554/eLife.38314.005

To determine whether HAVCR2high cells are true LSCs, we performed limiting dilution and bone marrow transplantation analyses using 10 to 1000 bone marrow cells from the Lin-CD3+KITmid, Lin-CD3+KITmidHAVCR2high, and Lin-CD3+KITmidHAVCR2low subgroups (Figure 3A). Cells from the HAVCR2high subgroup have the highest leukemia-initiating capacity—nearly every Lin-CD3+KITmidHAVCR2high cell is capable of inducing T-ALL development, compared to 1/14 of the cells in the Lin-CD3+KITmid subgroup and 1/28 of the cells in the Lin-CD3+KITmidHAVCR2low subgroup (Figure 3B). Consistent with these findings, cells from the HAVCR2high subgroup can also induce T-ALL lethality much earlier than cells from the other two subgroups (Figure 3C). Thus, HAVCR2 is a novel surface marker for the isolation of pure LSCs, and the HAVCR2high subgroup represents the true LSC population in the Pten-null T-ALL model (Table 1).

Table 1
The biological properties of the newly defined HAVCR2high LSC subgroup in comparison to other subgroups in the Pten-null T-ALL model.
https://doi.org/10.7554/eLife.38314.006
Cell type
HAVCR2High
HAVCR2mid and HAVCR2lowBlasts
MYClowhighhigh
Rapamycinresistancesensitivesensitive
JQ1resistancesensitivesensitive
BrdUlowhighhigh
Surface markerKIT midKIT -
HAVCR2high/ITGAXhigh

HAVCR2mid/low/ITGAXmid/low
HAVCR2-/ITGAX-
β-catenin activityhighmediumlow
LIC activity1/11/281/104–105
PathwayStem/progenitorMyc/lymphoma
The HAVCR2high subgroup contains the vast majority of LSC activity.

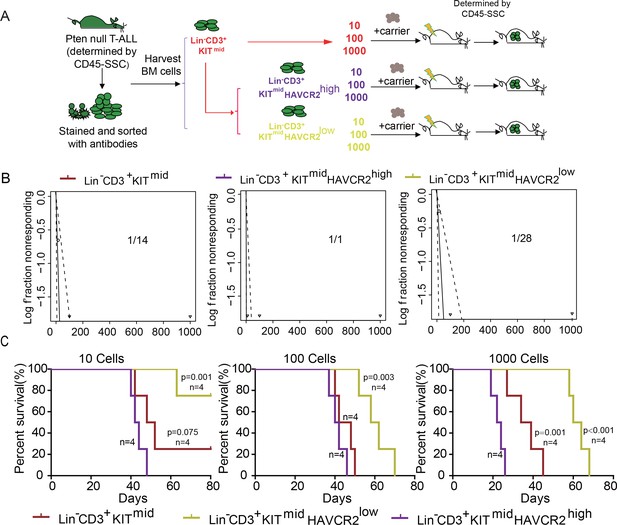

(A) Schematic illustrating the cell isolation, limiting dilution and transplantation procedures used for testing LSC activity as described in Guo et al. (Guo et al., 2008); (B) LSC frequencies were calculated for each subgroup according to Hu et al. (Hu and Smyth, 2009);(C) Survival curves showing LSC activity in each of the sorted subgroups upon transplantation (n = 4). Student’s t-test was used to calculate the p-value.

https://doi.org/10.7554/eLife.38314.007

SPI1 is the master regulator of LSC signature genes

The identification of HAVCR2high cells as the true LSC population allows us to define the key determinant for LSC ‘stemness’. We used network component analysis (Tran et al., 2012), in which the activity of transcription factors can be deduced based on the expression levels of their target genes. Among the predicted transcription factors (Liberzon et al., 2011) that may control the expression of HAVCR2high LSC signature genes, SPI1 scores the highest (data not shown). Importantly, approximately 70% of the HAVCR2high LSC signature genes overlap with SPI1 target genes identified during T cell development (Zhang et al., 2012)(Figure 4A). Therefore, we decided to focus our subsequent analysis on SPI1.

Figure 4 with 1 supplement see all
SPI1 is the master regulator of LSC signature genes and controls HAVCR2 and c-MYC expression.

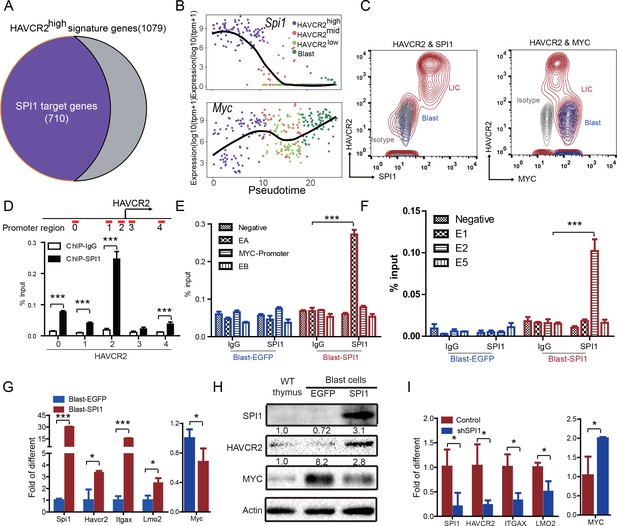

(A) Nearly 70% of the genes highly expressed in the HAVCR2high subgroup—the LSC signature genes—are potential SPI1 target genes (purple);(B) Pseudotemporal ordering of single cells based on Spi1 or Myc expression; (C) FACS analysis shows the correlation of HAVCR2 cell surface expression and intracellular SPI1 and c-MYC levels in the LSC-enriched (Lin-CD3+KITmid; red) and blast (Lin-CD3+KIT-; blue) subpopulations. Gray, isotype control; (D–E) ChIP-qPCR analysis identifies SPI1 binding regions in the HAVCR2 promoter (left) and Tcra/d enhancer A(EA) region (right), using Blast-SPI1 cells; (F) ChIP analysis identifies a SPI1 binding site in the endogenous Myc enhancer;(G) q-PCR shows the fold changes in Havcr2, Itgax, Lmo2 and Myc expression between Blast-SPI1 cells (red) and Blast-EGFP cells (blue); (H) Western blotting shows the SPI1, HAVCR2 and c-Myc protein levels in WT thymus, Blast-EGFP and Blast-SPI1 cells. The fold changes relative to expression in the WT thymus are shown above each lane; (I) q-PCR analysis shows the fold changes in HAVCR2, ITGAX, LMO2 and MYC expression in control shRNA (blue) and shSPI1 knockdown human T-ALL KE-37 cells (red); (D–I) All experiments were performed at least three independent times, and the data in D, E, F, G, and I are the means ± S.Ds; *p≤0.05; **p≤0.01; ***p≤0.001.

https://doi.org/10.7554/eLife.38314.008

Since the HAVCR2high MYClow phenotype signifies LSCs, we first examined the correlation of Spi1, Havcr2 and Myc expression in HAVCR2high and blast cells. The pseudotemporal ordering of the single-cell RNA-seq data and the FACS analyses demonstrate that Spi1 expression is highest in the HAVCR2high subgroup, which is opposite to the differential expression of Myc (Figure 4B–C).

We further investigated whether SPI1 could transcriptionally regulate Havcr2 and Myc expression by conducting SPI1 ChIP-qPCR analysis on Spi1-Egfp stably transformed blasts, using Egfp-transfected blasts as a control (Figure 4—figure supplement 1). SPI1 binds strongly to Havcr2 promoter region 2 (Zhu et al., 2015) (Figure 4D) and the Tcra enhancer (EA) region in the translocated Tcra/d-Myc allele (Figure 4E), as well as to the E2 region of the WT allele (Shi et al., 2013)(Figure 4F), suggesting that it may have regulatory effects on both genes. The overexpression of Spi1 in T-ALL blast cells significantly increases the expression of Havcr2 and other known SPI1 target genes, such as Itgax and Lmo2 (Champhekar et al., 2015; Turkistany and DeKoter, 2011; Yashiro et al., 2017), but downregulates Myc mRNA and protein levels (Figure 4G–H). In contrast, SPI1 knockdown in a human T-ALL cell line downregulates the expression of SPI1 target genes but upregulates MYC expression (Figure 4I). Importantly, the positive correlation between SPI1 and the expression of HAVCR2 as well as that of SPI1 target genes such as ITGAX and LMO2 can be found in human T-ALL datasets (Liu et al., 2017; Van Vlierberghe et al., 2011)(Figure 5), suggesting that the regulation of HAVCR2 expression by SPI1 could play an important role in human T-ALLs.

SPI1 expression is positively correlated with HAVCR2, ITGAX and LMO2 expression in human T-ALL.

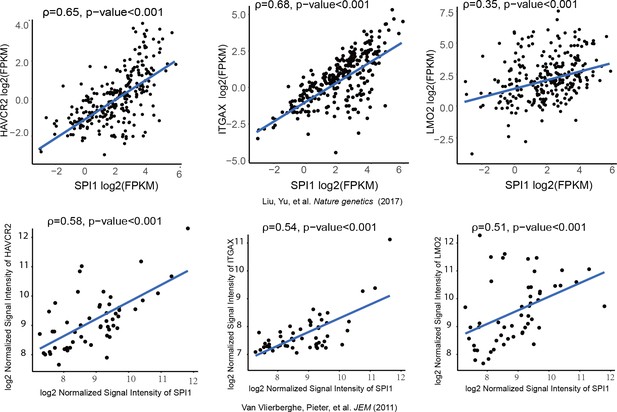

Correlation of SPI1 expression with HAVCR2, ITGAX and LMO2 expression in two different cohorts of human T-ALL samples, ρ: Spearman’s rank correlation coefficient, p-value: p-value of Spearman’s rank correlation test.

https://doi.org/10.7554/eLife.38314.010

SPI1 is essential for LSCs ‘stemness’ and T-ALL development

SPI1 is an ETS domain-containing transcription factor critical for early T cell progenitor function (Zhang et al., 2012), and its overexpression or translocation induces T progenitor cell proliferation and blocks differentiation (Anderson et al., 2002; Seki et al., 2017), similar to the effects we observed in the Pten-null T-ALL model. To functionally determine the role of SPI1 in LSC ‘stemness’ and T-ALL development, we conditionally deleted Spi1 in the Pten-null T-ALL model. Kaplan-Meier survival analysis shows that the lethality caused by T-ALL is delayed proportionally to the numbers of Spi1 allele that are deleted (Figure 6A). The tissue architectures of the thymus and spleen appear normal, and no infiltrating leukemia cells can be detected in the liver of the mutant mice (dKO) (Figure 6B). FACS analyses also show the absence of HAVCR2high LSCs and CD3+ blasts in the thymus, spleen and bone marrow (BM) of the dKO mice (Figure 6C–D). Spi1 deletion can also restore spleen weight and organ morphology (Figure 6B; Figure 6E). Notably, the lethality seen in the compound homozygotes after 3 months is at least partially due to myeloid abnormalities, a known phenotype associated with SPI1 loss in the myeloid lineage (Dakic et al., 2007; Rosenbauer et al., 2004; Steidl et al., 2006)(data not shown).

SPI1 is essential for LSC formation and T-ALL development.

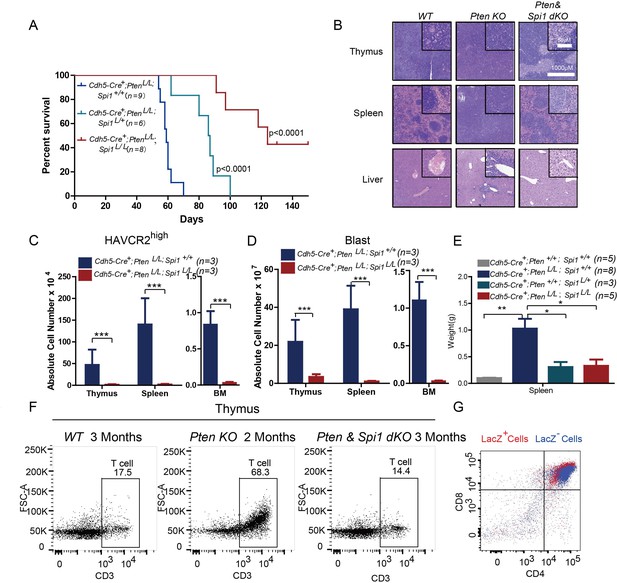

(A) Survival curves for Cdh5-Cre+;PtenL/L T-ALL model mice (blue line) with heterozygous (Cdh5-Cre+;PtenL/L;Spi1L/+; green line) or homozygous (Cdh5-Cre+;PtenL/L;Spi1L/L; red line) Spi1 conditional deletion; (B) HE-stained images of thymus, spleen and liver tissue from 2-month-old mice with the indicated genotypes;(C–D) Comparison of the absolute number of HAVCR2high and blast cells in each organ in 2-month-old Cdh5-Cre+;PtenL/L (blue bars) and Cdh5-Cre+;PtenL/L;Spi11L/L (red bars) mice;(E) Comparison of spleen weights in the mice in B-C; (F) Representative FACS plots show CD3-positive T cells in the thymus of WT, Pten-null T-ALL and Pten/Spi1 double knockout mice. WT and Pten/Spi1 double knockout mice were 3 months old, and Pten-null T-ALL mice were 2 months old. n = 3; (G) FACS-Gal analysis of T cell development in the thymus of Pten/Spi1 double knockout mice. LacZ+ cells (red dots) and LacZcells (blue dots) from the same sample are overlaid. C-D, the data are presented as the means ± S.Ds; *p≤0.05; **p≤0.01; ***p≤0. 001.The bars in the HE images and inserts represent 1000 μM and 50 μM, respectively.

https://doi.org/10.7554/eLife.38314.011

To confirm that the absence of T-ALL in dKO mice is not due to a block in T cell development in the Pten; Spi1-null T progenitor cells (Champhekar et al., 2015; Spain et al., 1999), we first quantified CD3+ T cells in the WT, Pten-null and dKO mice and found relatively normal numbers of CD3+ cells in the dKO thymus (Figure 6F). We then crossed dKO mice with mice of the Rosa26loxp-stop-loxp-LacZ reporter line so that LacZ expression could be used to trace the behavior of cells with Cre-mediated deletion of Pten and Spi1 (Guo et al., 2008Guo et al., 2011). Our FACS-Gal analysis shows that like LacZ- WT cells (blue), LacZ+ dKO cells (red) in the same animals can undergo differentiation to become CD4+CD8+ double-positive T cells (Figure 6G). These results suggest that PI3K activation can rescue the T cell developmental block in Spi1-null T cell progenitors (Champhekar et al., 2015; Spain et al., 1999), similar to the findings in our previous report on Pten;Rag-null mice (Guo et al., 2011).Therefore, SPI1 is essential for Pten-null LSC ‘stemness’ and T-ALL development.

Spi1 is upregulated at the ETP/DN1 stage during T cell development

The essential role of SPI1 in regulating LSC signature genes and ‘stemness’ prompted us to investigate how Spi1 is regulated in the Pten-null T-ALL model. During T cell development, Spi1, with other T progenitor cell factors and growth factor receptors such as Bcl11a, Lmo2, Flt3 and Kit, is highly expressed at the early T progenitor (ETP) and double-negative 1 (DN1) stage and is then immediately downregulated during T cell commitment (Zhang et al., 2012) (Figure 7A, upper panel). Interestingly, our pseudotemporal ordering of the single-cell RNA-seq data indicates that the expression patterns of Spi1 and these factors and receptors are largely unchanged in the Pten-null T-ALL model compared to normal T cell development (Figure 7A, lower panels). Furthermore, these factors and receptors are highly expressed in the HAVCR2high subgroup and downregulated in the HAVCR2mid and HAVCR2low subgroups, suggesting that HAVCR2highSPI1high LSCs may be generated at the ETP/DN1 stage (Figure 7A, low panels). Indeed, when we crossed Spi1-GFP reporter mice (Nutt et al., 2005) to Pten-null T-ALL model mice, we found that Spi1-GFP expression is significantly upregulated at the ETP/DN1 stage (Figure 7B).

Spi1 is upregulated at the ETP/DN1 stage during T cell development.

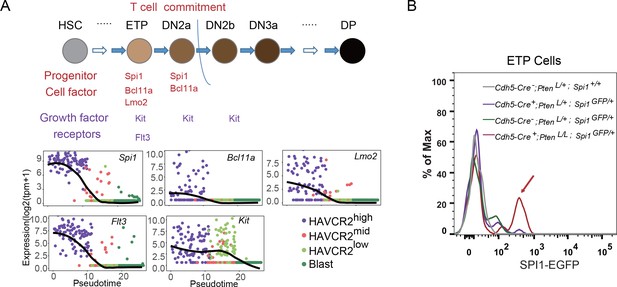

(A) Upper panel: Diagram of progenitor cell factors and growth factor receptors involved in early T cell development, modified from (Rothenberg et al., 2016); lower panels: pseudotemporal ordering of single cells based on Spi1, Bcl11a, Lmo2, Flt3 and Kit expression; (B) Spi1-GFP expression is upregulated in ETP/DN1progenitor cells from Cdh5-Cre+;PtenL/L;Spi1GFP/+Pten null (red line), compared to that in Cdh5-Cre-;Pten+/L;Spi1+/+ WT (gray line), Cdh5-Cre+;Pten+/L;Spi1GFP/+Pten heterozygous (purple line) and Cdh5-Cre-;Pten+/L;Spi1GFP/+ WT GFP+ (green line) mice.

https://doi.org/10.7554/eLife.38314.012

A β-catenin-SPI1-HAVCR2 regulatory circuit is required for Spi1 upregulation and LSC ‘stemness’

β-Catenin is an important transcription factor regulating Spi1 expression in the T cell lineage (Rosenbauer et al., 2006). Previous works by us and others suggest that β−catenin is critical for LSC self-renewal (Guo et al., 2008) and RAG-dependent aberrant TCR rearrangement (Dose et al., 2014Guo et al., 2011), a mechanism underlying the reoccurring Tcra/d -Myc translocation caused by PTEN loss or β−catenin activation observed in T-ALLs (Guo et al., 2008 Kaveri et al., 2013). Indeed, the overexpression of β-catenin in a human T-ALL cell line leads to the significantly increased expression of SPI1 from its endogenous promoter and subsequently promotes the expression of its target gene HAVCR2 but downregulates MYC expression (Figure 8A).

Spi1 expression is maintained by β-catenin-SPI1-HAVCR2 regulatory circuit.

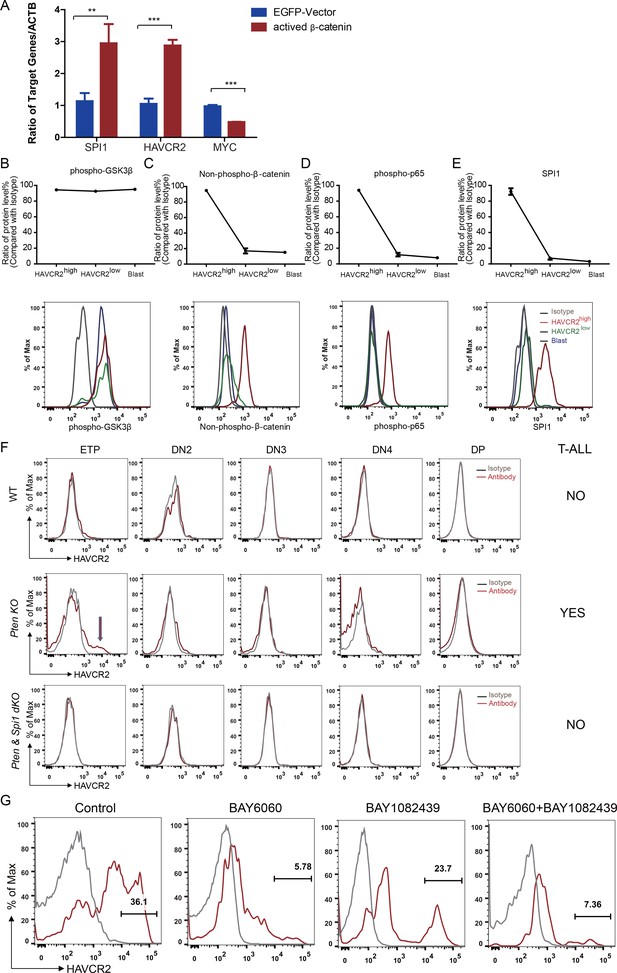

(A) q-PCR analysis of SPI1 and SPI1-regulated HAVCR2 and c-MYC expressions after the overexpression of active β-catenin in the Jurkat T-ALL cell line (red bars). The data are normalized to that of empty plasmid controls (blue bars); (B–E) Upper panels: quantitative intracellular FACS analyses of P-GSK-3β, non-phospho-β-catenin, P-p65 and SPI1 levels in the HAVCR2high, HAVCR2low and blast subgroups; lower panels: representative intracellular FACS analysis of P-GSK-3β, non-phospho-β-catenin, P-p65 and SPI1 levels in the HAVCR2high, HAVCR2low and blast subgroups. Gray line, isotype control;(F) FACS analysis shows cells in the HAVCR2high subgroup at the ETP/DN1 stage, which are absent in WT and dKO mice; (G) Representative FACS plots show the number of cells in the HAVCR2high subgroup in the different drug treatment groups. The data in A, B, C, D and E are the means ± S.Ds of 3 independent tests; *p≤0.05; **p≤0.01; ***p≤0.001.

https://doi.org/10.7554/eLife.38314.013

PTEN loss or PI3K/AKT activation is known to activate β−catenin by phosphorylating GSK-3β and preventing GSK-3β-mediated β−catenin degradation (Dan et al., 2008; Kikushige et al., 2015; Persad et al., 2001). Although the HAVCR2high, HAVCR2low and blast subgroups have similar levels of P-GSK-3β due to PTEN loss (Figure 8B, upper and lower panels), the HAVCR2high subgroup has a much higher level of non-phospho-β−catenin (the active form of β−catenin) and SPI1 than HAVCR2low and blast subgroups in vivo (Figure 8C and E, upper and lower panels), suggesting that SPI1-mediated LSC formation may depend on mechanisms other than the oncogenic driver mutation PTEN loss.

HAVCR2 signaling can activate NFκB and β−catenin and promote AML LSC formation and self-renewal (Kikushige et al., 2015). Since we identified HAVCR2 as the SPI1 target gene, we hypothesized that HAVCR2 signaling may in turn activate Spi1 expression and promote T-ALL LSC formation. Intracellular FACS analyses show that among the four subgroups, the HAVCR2high subgroup, which has the highest Spi1 expression, also has the highest level of both phospho-p65 and non-phospho-β−catenin (Figure 8D–E, upper and lower panels), indicating that HAVCR2 signaling must play an important role in the hyperactivation of NFκB and β−catenin. Consistent with this hypothesis, the genetic deletion of Spi1 can prevent both HAVCR2high LSC formation at the ETP/DN1 stage and T-ALL development (Figure 8F). The pharmacological inhibition of β−catenin activation by the novel tankyrase inhibitor BAY6060, but not the inhibition of PI3K activity by BAY1082439 alone (Hill et al., 2017), can also significantly reduce the number of HAVCR2high LSCs in vivo in late-stage T-ALL (Figure 8G). Together, these results suggest that although Spi1 upregulation is initiated by PTEN loss, SPI1-mediated LSC formation and ‘stemness’ are maintained by the β−catenin–SPI1-HAVCR2 regulatory circuit.

LSCs loses their ‘stemness’ when Spi1 expression is silenced by DNA methylation

How cancer stem cells lose ‘stemness’ and whether this process is unidirectional or reversible are currently unknown. Since Spi1 expression is drastically reduced from the HAVCR2high stage to the HAVCR2low stage (Figure 7A, lower panel), we hypothesized that a Spi1 silencing mechanism may explain the loss of LSC ‘stemness’ during differentiation. DNA methylation is one of the major epigenetic mechanisms in regulating gene expression during normal development. Although the global methylation patterns across the LSC signature and blast signature genes are similar (Figure 9A–B), the Spi1 promoter is significantly hypomethylated in LSCs compared to blasts and normal T cell controls (Figure 9C). Consistently, the 4 CpG islands on the Spi1 promoter (Fernández-Nestosa et al., 2013) are not methylated in the HAVCR2high subgroup but gradually become methylated in the HAVCR2mid and HAVCR2low subgroups and are completely methylated in blasts (Figure 9D), which may explain the trend in Spi1 expression and Spi1-controlled Havcr2 and Itgax expression (Figure 4B, upper panel; Figure 1G). Conversely, treating leukemic blasts with the DNMT inhibitor 5-AZ can increase the expression of Spi1 and its regulated LSC signature genes in vitro (Figure 9E) and induces the SPI1+ and MYClow subgroups in vivo (Figure 9F), demonstrating that Spi1 expression is reversibly regulated by DNA methylation, which in turn regulates LSC signature gene expression.

Spi1 expression is controlled by DNA methylation

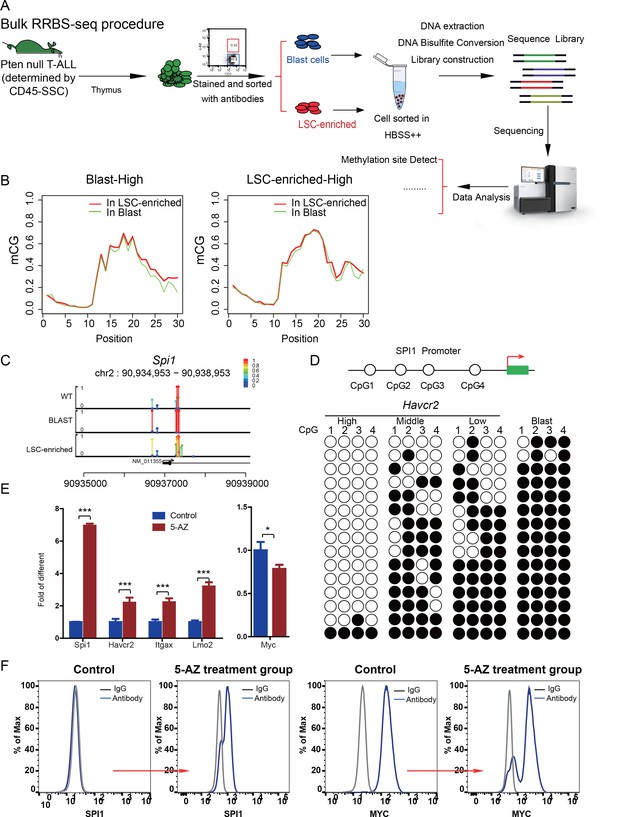

(A) Schematic illustrating the procedures involved in cell isolation and RRBS analysis; (B) DNA methylation status of genes specifically expressed in the leukemic blast (left) and LSC-enriched (right) subpopulations; (C) Spi1 promoter methylation status in normal T cells, LSC-enriched cells and blast-enriched cells.

https://doi.org/10.7554/eLife.38314.014

To test the relevance of our findings to human T-ALL, we used two human T-ALL cell lines, KE-37 and CEM (Burger et al., 1999; Tatetsu et al., 2007). KE-37 expresses SPI1 and HAVCR2, while CEM does not (Figure 10A), consistent with the methylation status of the SPI1 promoter (Figure 10B). 5-AZ treatment can upregulate the expression of SPI1 and its target HAVCR2 but downregulate c-MYC expression in CEM cells, similar to the effects of our blast treatment, while no change can be detected in KE-37 cells (Figure 10C), demonstrating that SPI1 expression is also regulated by DNA methylation in human T-ALL. To test whether the leukemogenic activity could be modulated by SPI1 expression in human T-ALL cell lines, we injected placebo- or 5-AZ-treated CEM cells and monitored the T-ALL development induced by these cells in vivo. 5-AZ treatment significantly accelerated T-ALL development (Figure 10D). However, cell lines are not the best model system for studying LSC activity, and the essential role of SPI1 in regulating LSC activity in human T-ALL needs to be determined using patient samples and PDX models.

Human SPI1 expression is silenced by DNA methylation

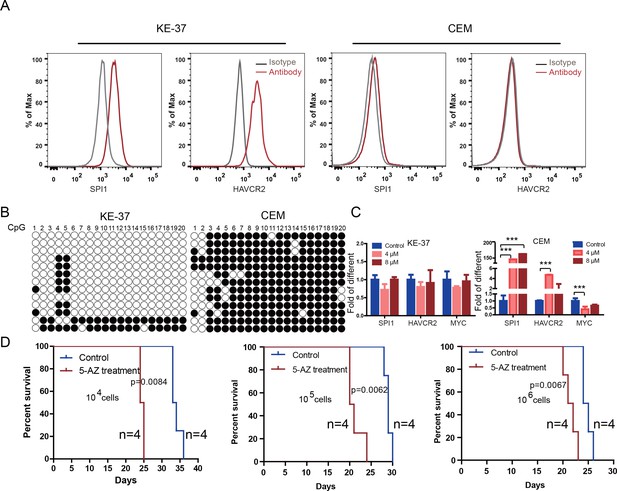

(A) FACS analysis shows the surface expression of HAVCR2 and the intracellular level of SPI1 in the human T-ALL cell lines KE-37 and CEM.(B) Methylation status of CpG islands in the SPI1 promoter in the human T-ALL cell lines KE-37 and CEM; (C) q-PCR analysis of SPI1, HAVCR2 and Myc expression in KE-37 and CEM cells without (blue) and with(pink and red) 5-AZ treatment in vitro; (D) Survival curves show T-ALL development by CEM cells without (blue) and with (red) 5-AZ treatment upon transplantation (n = 4; t-test). The data in Care the means ± S.Ds of 3 independent tests; *p≤0.05; **p≤0.01; ***p≤0.001.

https://doi.org/10.7554/eLife.38314.015

Cotargeting oncogenic driver mutations and LSC ‘stemness’ maintenance circuit

We previously reported that treating Pten-null T-ALL model mice with a PI3K inhibitor is effective only at the preleukemia stage, not after leukemia has developed (Guo et al., 2011; Blackburn et al., 2014), suggesting the importance of cotargeting the LSC ‘stemness’ maintenance pathway once LSCs have been generated. Since SPI1 is essential for LSC formation and SPI1 expression is regulated and maintained by the β-catenin-SPI1-HAVCR2 regulatory circuit, we hypothesized that cotargeting any component of this circuit with an anti-PI3K inhibitor may effectively eliminate existing T-ALL cells.

To test this hypothesis, we first treated age-matched leukemia-stage Pten-null T-ALL mice with DB1976 (Figure 11—figure supplement 1A–B), a compound known to specifically disrupt the interactions between SPI1 and its targets (Antony-Debré et al., 2017; Munde et al., 2014; Stephens et al., 2016). DB1976 can significantly inhibit the expression of Havcr2 and other SPI1 target genes in vitro (Figure 11A) and reduce the number of HAVCR2high LSCs in vivo (Figure 11B, left panel), confirming that SPI1 is not only important for LSC formation but also for LSC maintenance. However, only when combined with a debulking anti-PI3K agent such as rapamycin (Guo et al., 2008) could DB1976 significantly reduce the leukemia burden, as demonstrated by the nearly complete absence of leukemic blasts in the hematopoietic organs (Figure 11B, right panel). Consequently, combination treatment can markedly prolong the animal lifespan (Figure 11C), restore the spleen weight and morphology, and eliminate infiltrating leukemic cells in the lung, kidney and liver without a significant change in animal body weight (Figure 11D–E; Figure 11—figure supplement 1C). Similar results were obtained when we replaced DB1976 and rapamycin with BAY6060 and BAY1082439, respectively (Figure 11D–E; Figure 11—figure supplement 1D). BAY1082439 can inhibit PI3Kδ, which is essential for Pten-null leukemia (Subramaniam et al., 2012), at nanomolar concentrations (Antony-Debré et al., 2017). The inhibition of tankyrase by BAY6060 can significantly reduce β-catenin activity and consequently decrease Spi1 expression and the number of HAVCR2high LSCs in vivo (Figure 12A). In combination, BAY6060 and BAY1082439 could significantly prolong the animal lifespan and almost completely eliminate LSCs and blasts (Figure 12B, Figure 11E and Figure 8G).

Figure 11 with 1 supplement see all
Cotargeting oncogenic driver mutations and the LSC ‘stemness’ maintenance circuit eliminated LSC and T-ALL cells

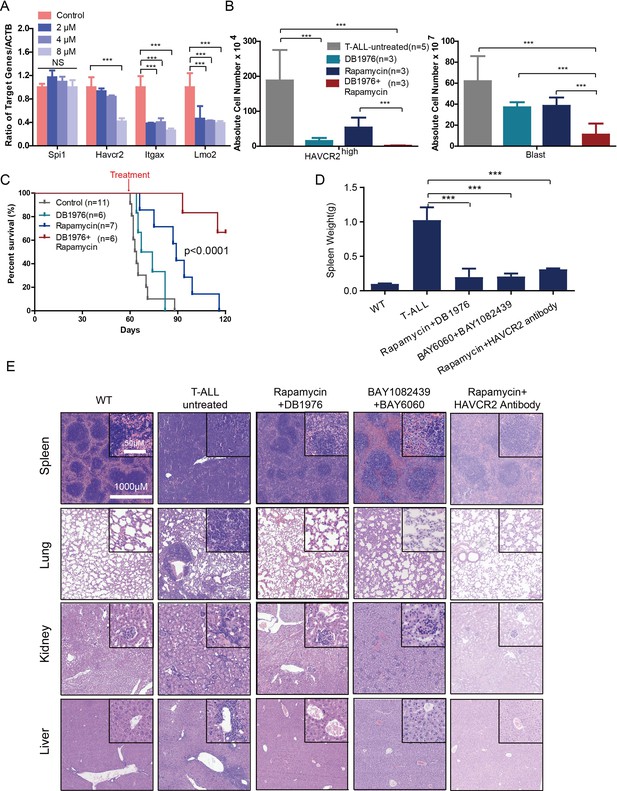

(A) q-PCR analysis of Spi1 and Spi1-regulated Havcr2, Itgax and Lmo2 expression after 24 hr of DB1976 treatment (blue bars). The data are normalized to that of the untreated controls (red bars); (B) A comparison of the absolute number of HAVCR2high and blast cells in the untreated (gray bars) and differently treated groups; (C) Survival curve of Cdh5-Cre+;PtenL/L model mice treated with DB1976 and rapamycin alone and in combination; (D) A comparison of the spleen weights of 2-month-old WT mice, untreated Cdh5-Cre+;PtenL/L mice, and combination-treated mice upon euthanasia; (E) HE-stained images of spleen, lung, kidney and liver tissue from2-month-old WT, untreated and combination-treated mice. A, B and D: the data are presented as the means ± S.Ds; ***p≤0.001; the bars in the HE images and inserts represent 1000 μM and 50 μM, respectively.

https://doi.org/10.7554/eLife.38314.016
Cotargeting oncogenic driver mutations and LSC ‘stemness’ maintenance circuit.

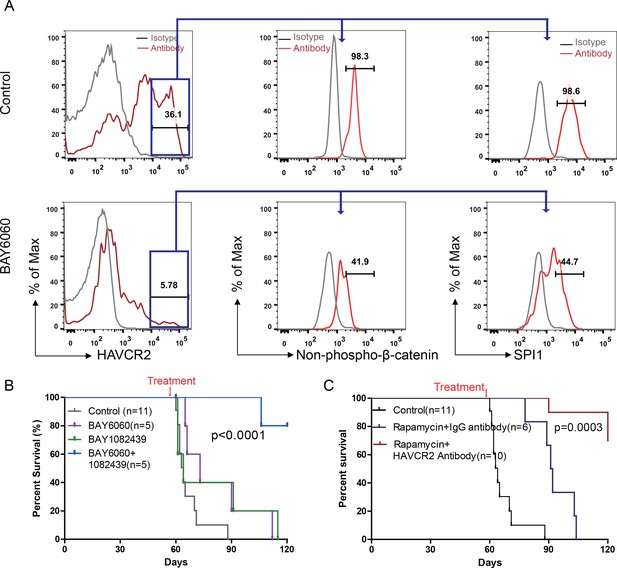

(A) Comparison of the HAVCR2high subgroup population (left panel) and of the levels of non-phosphorylated β-catenin (middle panel) and SPI1 (right panel) within the HAVCR2high subgroup without (upper panels) and with BAY6060 treatment (low panels); (B) Survival curve for Cdh5-Cre+;PtenL/L mice treated with BAY6060 and BAY1082439 alone and in combination; (C) Survival curve for Cdh5-Cre+;PtenL/L mice treated with rapamycin in combination with either an IgG control antibody or an anti-HAVCR2 antibody.

https://doi.org/10.7554/eLife.38314.018

Compared with β-catenin and SPI1, HAVCR2 may be a better therapeutic target as it is normally not expressed in hematopoietic stem and progenitor cells (Kikushige et al., 2010), and inhibition of HAVCR2 would therefore be less toxic. An anti-HAVCR2 antibody has been used clinically in immunotherapy and in targeting AML LSCs (Kikushige et al., 2010; Koyama et al., 2016). When combined with rapamycin, the anti-HAVCR2 antibody showed a therapeutic effect similar to that seen for DB1976/rapamycin and BAY6060/BAY1082439 combinations (Figure 11D–E and Figure 12C; Figure 11—figure supplement 1E). Together, these results suggest that inhibiting any component in the β-catenin-SPI1-HAVCR2 regulatory circuit will inhibit LSC ‘stemness’ maintenance and lead to the effective elimination of HAVCR2-positive T-ALL cells in the presence of an effective debulking agent targeting the PI3K pathway, such as rapamycin or BAY1082439.

Discussion

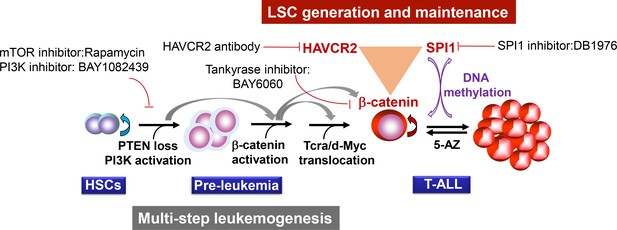

Our study suggests that two layers of control mechanisms may play essential roles in leukemogenesis (Figure 13). The first layer is driven by the loss of the PTEN tumor suppressor or the activation of the PI3K pathway, which leads to β-catenin activation, Tcra/d-Myc translocation and T-ALL development. The second layer is controlled by the master regulator SPI1, which determines LSC signature gene expression and maintains LSC ‘stemness’ (Figures 46). SPI1 upregulation is initiated by PI3K-controlled β-catenin activation,while the LSC-specific expression of SPI1 is reinforced by the β-catenin-SPI1-HAVCR2 regulatory circuit (Figure 8). Once formed, LSCs are very sensitive to any perturbation of this regulatory circuit but are less dependent on the PI3K pathway, as inhibiting the PI3K pathway at the leukemia stage has little effect on the LSC number (Figures 1112)(Guo et al., 2008; Blackburn et al., 2014). SPI1 is silenced by DNA methylation, which leads to the downregulated expression of LSC signature genes, the loss of LSC ‘stemness’ and leukemic differentiation (Figures 910). Although the PTEN loss and Tcra/d-Myc translocation in the first layer of the leukemogenesis mechanism are hardwired and present in both LSCs and leukemia blasts, the SPI1 expression and maintenance in the second layer of the LSC ‘stemness’ mechanism is reversible and present only in LSCs (Figure 13). Similar two-layer control mechanisms may also be present in other types of cancer in which CSCs are known to play essential roles.

Two-layer control mechanisms for leukemogenesis and LSC maintenance.
https://doi.org/10.7554/eLife.38314.019

This two-layer model may have important implications for LSC-targeted therapies. First, targeting driver mutations or dysregulated pathways in the first layer may be sufficient for debulking the leukemia mass but not for eliminating LSCs unless the mechanism for maintaining LSC ‘stemness’ is simultaneously inhibited (Figures 1112). Second, since the expression of the LSC master regulator SPI1 can be reversibly regulated by epigenetic mechanisms (Figures 910), this model would predict poorer outcomes if leukemia controlled by such a mechanism was treated with 5-AZ or similar agents and would suggest that the reactivation of SPI1 expression could be a potential mechanism for LSC-mediated therapeutic resistance.

A broad spectrum of epigenetic and genetic alterations has been found in virtually all cancer types. In certain cases, mutations within the epigenetic control machinery can influence global gene expression and cause subsequent cancer heterogeneity and clonal diversity; in other cases, epigenetic mechanisms may act on a specific transcription factor. Although we did not detect significant global methylation differences between LSC signature genes and blast signature genes, SPI1, the master regulator found in this study, is specifically methylated during differentiation from the HAVCR2high to the HAVCR2low phenotype (Figure 9), resulting in down regulating the expression of LSC signature genes. The mechanism that controls the specific methylation of SPI1 is currently unknown, but we predict that a similar mechanism may also regulate SPI1 silencing during T cell commitment (Zhang et al., 2012). The alteration of this silencing mechanism may lead to a block of T cell development and contribute to early progenitor type of T-ALL, such as ETP-T-ALL.

The identification of specific markers expressed only in LSCs is essential for isolating pure LSCs and studying their control mechanisms. Using an advanced single-cell sequencing technique, we identified HAVCR2 as an LSC-specific biomarker that can be used to isolate ‘pure’ LSCs, as determined by our limiting dilution and transplantation experiments (Figures 13). Most of the cell surface markers currently used to isolate LSCs or CSCs are irrelevant to the function of LSCs or CSCs. HAVCR2 is not just another biomarker but is an important regulator of the function of LSCs in Pten-null T-ALL. HAVCR2 is directly regulated by SPI1 and serves as an important component of the β-catenin-SPI1-HAVCR2 regulatory circuit, which is essential for maintaining the LSC-specific expression of SPI1 and LSC ‘stemness’ (Figures 45 and 78). HAVCR2 can also serve as an LSC-specific target (Figures 1112); this finding is similar to that in a recent AML publication (Kikushige and Akashi, 2012; Kikushige et al., 2015).

PTEN and the PI3K/AKT/mTOR pathway controlled by PTEN are critical for the etiology of human T-ALL (Gutierrez et al., 2009; Larson Gedman et al., 2009; Liu et al., 2017; Maser et al., 2007; Palomero et al., 2007), and our study may illuminate the understanding and treatment of T-ALLs associated with PTEN loss or PI3K activation. We demonstrate that SPI1 expression is upregulated by β-catenin and silenced by DNA methylation in human T-ALL cell lines, similar to the findings in the Pten-null T-ALL model (Figures 910). SPI1 also controls the expression of HAVCR2 and other LSC signature genes in human T-ALL cell lines and clinical samples (Figure 5). However, whether the β-catenin-SPI1-HAVCR2 regulatory circuit also presents in human T-ALLs, especially the ETP T-ALL subtype, and determines LSC activity needs follow-up study using human T-ALL samples and PDX models. Such information may be used for the molecular classification of human T-ALLs, identifying human T-ALL LSCs and designing targeted treatment, as we showed in the mouse model. As HAVCR2high LSCs can be detected in the peripheral blood of leukemic mice (our unpublished data), further investigation is worthwhile to explore the potential use of this approach as a noninvasive strategy for stratifying T-ALL and monitoring the treatment response.

Materials and methods

Key resources table
Reagent type
(species)
or resource
DesignationSource or
reference
IdentifiersAdditional
information
Strain,
strain
background
(Mus musculus)
Cdh5-Cre+;
PtenloxP/loxP;
Rosa26floxedSTOP-LacZ+
(Guo et al., 2008)
Strain, strain
background
(Mus musculus)
Spi1loxP/loxP(Dakic et al., 2005)
Strain, strain
background
(Mus musculus)
Spi1-GFP(Nutt et al., 2005)
Strain, strain
background
(Mus musculus)
Pten/Spi1
double KO
This Paper
Cell line
(Homo sapiens)
KE-37Deutsche
Sammlung von
Mikroorganismen
und Zellkulturen
(DSMZ)
ACC-46,
RRID:CVCL_1327
Cell line
(Homo sapiens)
Jurkat(Schubbert et al., 2014)Received
Drs. G. Cheng at
UCLA
Cell line
(Homo sapiens)
CEM(Schubbert et al., 2014)Received
C. Radu at UCLA
Cell line
(Homo sapiens)
HEK 293TAmerican Type Culture Collection
(ATCC)
CRL-3216, RRID:CVCL_0063
Cell line
(Mus musculus)
HE001(Schubbert et al., 2014).
AntibodyTER119-
APC-Cy7
Biolegend116223
AntibodyB220-APC-Cy7Biolegend103224
AntibodyCD45-PEBiolegend103108
AntibodyCD3-PE-Cy7Biolegend100320
Antibodyc-Kit-APCBiolegend105812
AntibodyHAVCR2-PEBiolegend134004
AntibodyITGAX-FITCBiolegend117306
AntibodyMac-1-PBBiolegend101224
AntibodyGr-1-APCBiolegend108412
AntibodySPI1-PEBiolegend681308
AntibodyMYCCell Signaling
Technology
5605S
AntibodyNonphospho
(active)-β-
catenin
Cell Signaling
Technology
70034 s
Antibodyrabbit IgGCell Signaling
Technology
3900 s
AntibodyPhospho-
NF-κB p65
Cell Signaling
Technology
3033 s
AntibodySPI1Cell Signaling
Technology
2258 s
AntibodyPhospho-
GSK-3β
Cell Signaling
Technology
5558 s
AntibodyHAVCR2Abcamab185703
AntibodyHAVCR2BioxCellRMT3-23
AntibodyIgGBioxCell2A3
AntibodyFluorescein (FITC)
AffiniPure
Fab Fragment
Donkey Anti-Rabbit
IgG (H + L)
Jackson
Immuno
Research
711-097-003
Chemical
compound,
drug
RapamycinLC
laboratories
R-5000
Chemical
compound,
drug
DB1976(Belver and Ferrando, 2016)
Chemical
compound,
drug
5-AZSelleckS1782
Chemical
compound,
drug
BAY10
82439
(Hill et al., 2017)Provided by
Bayer
Pharmaceuticals
Chemical
compound,
drug
BAY 6060This paperProvided
by Bayer
Pharmaceuticals

Mice

The Cdh5-Cre+;PtenloxP/loxP;Rosa26floxedSTOP-LacZ+ floxedSTOP-LacZ line was described previously (Guo et al., 2008; Guo et al., 2011; Schubbert et al., 2014). The Spi1loxP/loxP and Spi1-GFP mouse lines were kindly provided by Dr. Stephen L. Nutt. Mouse genotypes were determined by genomic PCR analyses with the primer sets listed in Supplementary File 1. Animal housing, breeding, and surgical procedures were approved by the Ethics Committee under ID LSC-WuH-1 and conducted in accordance with the regulations of the Division of Laboratory Animal Medicine at Peking University.

Cell lines

The KE-37 human T-ALL cell line was purchased from DMSZ, CEM and Jurkat cell lines were generously provided by C. Radu and Drs. G. Cheng at UCLA, respectively. All of the human T-ALL cell lines were maintained in 1640 (Life Technologies) supplemented with 10% FBS, penicillin, and streptomycin. The Pten-null T-ALL cell line (HE001) was generated previously reported, and cultured in DMEM (Life Technologies) added with 20% FBS(Omega Scientific), 10 ng/mL IL-2, and 10 ng/mL IL-7 (both Invitrogen), 10 mmol/L HEPES, nonessential amino acids, sodium pyruvate, glutamine, penicillin, and streptomycin (Life Technologies), and 2-mercaptoethanol (β-ME; Sigma)(Schubbert et al., 2014). All cell lines were maintained according to the manufacturer recommendations or previous publications. CEM, Jurkat, HEK293, and KE-37 cells were authenticated by the providers and independently authenticated (via Hi-C, WES and RNAseq analyses for genome-wide alteration, mutation signatures and gene expression profiles) in the lab. All lines tested negative for mycoplasma.

Fluorescence-activated cell sorting (FACS) analyses

FACS analyses were performed on BD LSR Fortessa or Influx system from BD Biosciences. The numbers of leukemia blasts, LSC-enriched subpopulations, and HAVCR2/ITGAX subgroups, as well as intracellular protein levels, were analyzed as described previously (Guo et al., 2008; Guo et al., 2011; Schubbert et al., 2014).

Bulk RNA-seq analysis

For bulk RNA-seq analysis, total RNA was extracted from FACS-sorted cells using a RNeasy Micro Kit (Qiagen, 74004). Strand-specific libraries were generated using an NEBNext Ultra RNA Library Prep Kit (NEB, E7530) following the manufacturer’s protocol. Libraries of 350±20 bp were obtained, and the quality was determined using a Fragment Analyzer system (Advanced Analytical).

Barcoded libraries were subjected to 150 bp paired-end sequencing on an Illumina HiSeq 2500, and the paired-end reads were aligned to the mouse reference genome (Version mm9 from UCSC) using Tophat (v2.0.13)(Trapnell et al., 2009). The expression value was generated as the number of fragments per kilobase of transcript per million mapped reads (FPKM) using Cufflinks (v2.2.1) (Trapnell et al., 2012).

Single-cell RNA-seq analysis

For single-cell RNA-seq analysis, we essentially followed a published protocol (Li et al., 2017). Raw reads were processed as previously reported (Li et al., 2017; Trapnell et al., 2009) to generate expression values. Low-quality cells with less than 10,000 reads or less than 3000 covered genes were filtered out. Genes with a mean expression (TPM) value of less than one were discarded, leaving 276 cells and 12972 genes for further analysis. The unique gene set was then used for PCA, t-SNE, and pseudotime analyses (Qiu et al., 2017a; Qiu et al., 2017b; Trapnell et al., 2014). Differentially expressed genes were identified by SCDE (Fan et al., 2016; Kharchenko et al., 2014), and genes with Z > 4 were selected. Gene Ontology analysis was performed by Cluster Profiler (Yu et al., 2012), followed by Gene Set Enrichment Analysis (GSEA)(Subramanian et al., 2005) to identify gene sets that show significant differences between the blast and HAVCR2highsubgroups.

Transplantation assay

Pten-null T-ALL cells harvested from primary Pten-null T-ALL mice were FACS-sorted and diluted before transplantation, as described previously (Guo et al., 2008). Leukemia development was monitored daily by physical appearance, and weekly by peripheral blood smear and FACS analysis.. T-ALL was confirmed if the bone marrow or peripheral blood contained 20% leukemic blasts (Guo et al., 2008).

For human T-ALL cell transplantation, CEM cells were treated with 5 μM 5-AZ or PBS for 6 days in vitro, and an equal number of untreated and treated cells were then transplanted by tail vein injection into NSG recipients.

Real-time PCR

Total RNA was isolated using the RNeasy Micro Kit (Qiagen, 74004) and was reverse transcribed into cDNA using a HiScript II Q RT SuperMix for qPCR Kit (Vazyme, R223-01). Gene expression levels were measured with quantitative real-time PCR using a HiScript II One Step RT-PCR Kit (Vazyme, P611-01) and a CFX Real-Time PCR detection system (Bio-Rad). All expression data were normalized toβ-actin expression, and the relative expression levels were derived from the delta-delta Ct values using CFX software (Bio-Rad). For the primer sequences used, please see Supplementary File 2.

Plasmid construction

The full-length Spi1 sequence was PCR-amplified from cDNAs generated from HAVCR2high cells (primers: EcoRI-SPI1-Forward 5’-GAATTCATGTTACAGGCGTGCAAAATGGAAG-3’ and XhoI-SPI1-Reverse 5’-CTCGAGTCAGTGGGGCGGGAGGCG-3’). The PCR products were purified and cloned into the MSCV-IRES-EGFP vector, generously provided by Dr. Owen Witt of UCLA, and the sequence was confirmed. The pll3.7-shSPI1 and control constructs were kindly provided by Dr. Junwu Zhang of the Chinese Academy of Medical Sciences and Peking Union Medical College, PLVX-IRES-RFP plasmid and PLVX-active-β-catenin (S33A, S37A, S45A) plasmid were kindly provided by Dr. Wei Guo of Tsinghua University.

Western blot analysis

To quantify the protein levels of MYC and SPI1, Western blotting was performed as described previously (Schubbert et al., 2014) and the membranes were probed with antibodies against MYC (5605s),and SPI1(2258s) from Cell Signaling Technology, using HAVCR2 (ab185703) antibody from abcam, β-actin (7210,Santa Cruz) as a loading control.

Inhibitor and antibody treatments

Two-month-old Pten-null T-ALL leukemic mice were treated with 1) a daily dose of rapamycin (4 mg/kg, i.p; LC laboratories), DB1976 (2.5 mg/kg, oral; synthesized by Dr. Lei’s laboratory), or a combination of the two drugs; 2) a daily dose of BAY1082439 (75 mg/kg, oral; provided by Bayer Company), BAY6060(10 mg/kg, oral; provided by Bayer Company), or a combination of the two drugs; and 3) a daily dose of rapamycin (4 mg/kg, i.p; LC Laboratories) with twice weekly IgG (200 µg, i.p; 2A3,BioxCell) control or monoclonal anti-HAVCR2 (200 µg, i.p; RMT3-23,BioxCell) antibody. The durations of the treatments are indicated in Figure 11—figure supplement 1. HE and immunohistochemical(IHC) analyses were performed as described (Guo et al., 2008).

For 5-AZ (S1782, Selleck) treatment, 6-week-old Pten-null T-ALL mice were treated with either vehicle or 5-AZ (1.25 mg/kg, i.p.; 3 days per week) for 2 weeks before intracellular FACS analysis.

RRBS library preparation

Blast- and LSC-enriched subpopulations were collected by FACS sorting, and genomic DNA was extracted using a DNA micro kit or a DNA mini kit (Qiagen). The RRBS library was prepared according to a previous publication (Smallwood and Kelsey, 2012). Genomic DNA was digested with MspI (Fermentas), followed by end repair, adapter ligation and bisulfite modification (Qiagen, #59104). The converted DNA library was sequenced on a HiSeq 4000 (Illumina) after two-round PCR amplification and size selection.

DNA methylation analysis

BS-seq reads were aligned to the reference genome (mm9) by BS-Seeker2 (Guo et al., 2013). The lollipop plot and region-specific distribution profiles were generated by CGmap Tools (Guo et al., 2018). The methylation status of murine and human SPI1 promoter CpG islands was determined according to (Fernández-Nestosa et al., 2013).

Conventional bisulfite sequencing

For bisulfite conversion, genomic DNA was treated with an EZ-DNA Methylation-Direct Kit (D5021, Zymo Research) according to the manufacturer’s protocol. The converted DNA was subjected to PCR amplification and cloned into a pEASY-T1 Simple cloning vector (Transgene Biotech). The bisulfite primers for the mouse and human promoters were described previously (Fernández-Nestosa et al., 2013; Tatetsu et al., 2007)(Table S2). Individual clones were sequenced by Sanger sequencing, and the data were analyzed by the online software Quma (http://quma.cdb.riken.jp).

Chromatin immunoprecipitation (ChIP)

Approximately 5 × 106 Blast-EGFP and Blast-SPI1 cells were used, and ChIP analysis was performed using a Zymo-Spin ChIP Kit (D5210, Zymo Research). The antibodies used for the ChIP assays were anti-SPI1 (sc-352, Santa Cruz) and normal rabbit IgG (2729, Cell Signaling Technology). The enriched regions were quantified by qPCR using the primers described in Supplementary File 2.

Data access

All the Bulk RNA-seq, Single cell RNA-seq and BiSulfite-seq data for this study are deposited in NCBI Gene Expression Omnibus (GEO; accession # GSE115356; https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE115356).

Statistical analysis

GraphPad Prism software was used to calculate the means and standard deviations (SDs). The t-test or two-way ANOVA was used to determine statistical significance, and p<0.05 was considered statistically significant. The data are presented as the means ± SDs.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
    T cell development in PU.1-deficient mice
    1. LM Spain
    2. A Guerriero
    3. S Kunjibettu
    4. EW Scott
    (1999)
    Journal of immunology 163:2681-7.
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
    A general framework for weighted gene co-expression network analysis
    1. B Zhang
    2. S Horvath
    (2005)
    Statistical Applications in Genetics and Molecular Biology, 4, 10.2202/1544-6115.1128, 16646834.
  69. 69
  70. 70

Decision letter

  1. A Thomas Look
    Reviewing Editor; Harvard Medical School, United States
  2. Sean J Morrison
    Senior Editor; Howard Hughes Medical Institute, University of Texas Southwestern Medical Center, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "T-ALL Leukemia Stem Cell "stemness" is Epigenetically Controlled by the Master Regulator PU.1" for consideration by eLife. Your article has been reviewed by three peer reviewers, one of whom is a member of our Board of Reviewing Editors, and the evaluation has been overseen by Sean Morrison as the Senior Editor and Thomas Look as Reviewing Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The manuscript by Wu and coworkers explores the mechanisms driving leukemia initiating cell activity in a mouse model of T cell lymphoblastic leukemia driven by loss of the Pten tumor suppressor gene in hematopoietic progenitors. This model characteristically acquires Myc activating chromosomal rearrangements during disease progression and leukemia growth becomes uncoupled with PI3K signaling. Early work had identified enrichment of leukemia initiating cell activity in Lin-CD3+Kitmid. Now transcriptomic analyses of this population compared to blasts identifies a transcriptional program enriched in surface markers and with prominent expression of TIM-3 and CD11c. Using these markers the authors can further enrich for the LIC compartment and refine the LIC-associated transcriptional signature. PU.1 emerges from these analyses as a potential master regulator of this transcriptional program and LIC activity directly linked with the regulation of TIM-3. A mechanistic link is proposed between PI3K signaling, β-catenin activation, PU.1 upregulation, TIM-3 expression as initiating cascade in leukemia development. Later on, a PI3K independent loop involving β-catenin, Pu.1 and TIM-3 maintains this program in LICs. PU.1 methylation in blast cells is shown as a potential mechanism for abrogating the activity of this program in blast cells. Therapeutically, inhibition of PU.1 with DB1976, an anti-TIM-3 antibody and rapamycin or BAY1082439 for debulking blast cells induces profound antileukemic effects.

This is an interesting, mature and clearly presented manuscript that dissects in great depth the mechanisms of LIC activity operating in mouse tumors generated by hematopoietic specific inactivation of Pten. Key strengths of the work as presented include the compelling phenotypes resulting from genetic inactivation of Pu.1 in the Pten knockout mouse model and the profound antileukemic effects observed with inhibitors targeting the regulatory circuit implicated here in the maintenance of LIC activity.

While overall the findings are intriguing, the reviewers have suggestions to correct gaps in the experimental evidence provided. If the authors can address the issues noted below this could be a very interesting article.

1) Enthusiasm for the manuscript is limited by the lack of a compelling case for the relevance of the mechanisms proposed in human disease. KE-37 and CEM cell lines are analyzed as examples of PU.1+ and PU.1- leukemia to illustrate the regulatory role of PU.1 on TIM-3 and CD11c, yet it is unclear that PU.1 expression or knockdown modifies the LIC activity in these lines or whether these lines really still have true LIC. Attention should be paid to the presence of MYC translocations and PTEN mutations in these lines. Correlative data on PU.1 TIM-3 and LMO2 in primary T-ALL samples is of interest but as the authors correctly and insightfully point out this correlation may reflect primarily developmental programs, which are potentially but not necessarily linked with LIC activity.

Evaluation of the LIC activity in primary human T-ALL xenografts (PDX models) following the TIM-3 CD11c markers and ideally testing the effects of PU.1 inhibition in human T-ALL LIC activity would greatly enhance the relevance and general interest of the results presented here. We ask this in the hope that the authors may already have data in human T-ALL models, because this type of data would take more than a few months to generate, which is a goal of eLife. If such data is not available, the authors should at least point out the need for such studies and acknowledge the limitations of established T-ALL cell lines for studying the biology of LSC populations.

2) In Figure 3D, the authors use PU.1-EGFP for PU.1 ChIP analysis. Was it not possible to do the ChIP-PU.1 experiment without introducing PU.1-EGFP? Isn't there an antibody suitable to detect PU.1 in ChIP-seq? The authors should do a straightforward ChIP-seq experiment for endogenous PU.1 and detect the genes that bind PU.1 in the TIM-3high mouse leukemia cell population. ChIP-PCR is subject to bias and it would be nice to show which of the 710 possible PU.1 target genes are actually bound by PU.1?

3) Figure 3H. Please include Western blot for TIM-3.

4) Figure 5C. β-catenin is also known to upregulate MYC and yet the TIM-3highPU.1high LSC T-ALL subpopulation appears to have low levels of MYC expression due to PU.1 activation. Could the authors include Myc expression levels in Figure 5C? Does the Myc expression level go up or down when β-catenin is becomes activated by TIM-3?

5) The authors propose a feed forward loop between PU.1/TIM-3 that is further regulated by active β-catenin, but the key data presented (Figure 5) are correlative and do not formally demonstrate that this is either a feed forward loop (i.e. that TIM-1 regulates PU.1 as well as the converse; nor that these are directly regulated by β-catenin). This needs to be strengthened or the concept of a feed forward loop should be downplayed in the interpretation.

Stylistic comments:

1) eLife does not limit the number of figures. Also each figure can have linked supplemental figures. In the current paper, each of the figures has too many panels, such that the panels are very small and the font size is much too small. These panels should be broken up, with an increased number of main figures and figure supplements so that the results are more accessible. Please label the graphs with bigger font size – it is hard to read the labels.

2) Figure 2E is a table in a figure, and lists a lot of sensitivity, resistance data etc. that are not described.

3) Overall the English in this paper is very understandable, but grammatical mistakes are found throughout the text. A scientific editor familiar with English grammar could very quickly improve the English grammar and clarity of the paper.

https://doi.org/10.7554/eLife.38314.032

Author response

Please note some of the gene names, such as PU.1, TIM-3, CD11c, have been changed to approved gene names systematically per editorial suggestions.

[…] While overall the findings are intriguing, the reviewers have suggestions to correct gaps in the experimental evidence provided. If the authors can address the issues noted below this could be a very interesting article.

1) Enthusiasm for the manuscript is limited by the lack of a compelling case for the relevance of the mechanisms proposed in human disease. KE-37 and CEM cell lines are analyzed as examples of PU.1+ and PU.1- leukemia to illustrate the regulatory role of PU.1 on TIM-3 and CD11c, yet it is unclear that PU.1 expression or knockdown modifies the LIC activity in these lines or whether these lines really still have true LIC. Attention should be paid to the presence of MYC translocations and PTEN mutations in these lines. Correlative data on PU.1 TIM-3 and LMO2 in primary T-ALL samples is of interest but as the authors correctly and insightfully point out this correlation may reflect primarily developmental programs, which are potentially but not necessarily linked with LIC activity.

We appreciate reviewers’ critical comments on the human T-ALL cell lines used in our study. As indicated in the table below, KE-37 is PTEN null, NOTCH1WT and carries TRAD-MYC translocation, very similar to the genetic alterations associated with the Pten null T-ALL model used in our study, while CEM is PTEN null, NOTCH mutated and WT for c-MYC (Milani et al., 2018; Schubbert et al., 2014). We used these two lines to validate (1) the transcription regulation of the SPI1 target genes in human T-ALL (revised Figure 4I); and (2) the epigenetic regulation of the human SPI1 expression (revised Figure 10). Our recent analysis also indicates that the expression levels of SPI1 and HAVCR2 are higher in human ETP T-ALL as compared to non-ETP T-ALL (Author response image 1A). We concur that cell lines are most suitable for studying signaling and regulatory mechanism but not LIC activity.

Author response table 1.

PTENNOTCH1Myc
Pten null T-ALLNullWTTcra/b-Myc
KE-37NullWTTRAD-MYC
CEMNullMutWT

Evaluation of the LIC activity in primary human T-ALL xenografts (PDX models) following the TIM-3 CD11c markers and ideally testing the effects of PU.1 inhibition in human T-ALL LIC activity would greatly enhance the relevance and general interest of the results presented here. We ask this in the hope that the authors may already have data in human T-ALL models, because this type of data would take more than a few months to generate, which is a goal of eLife. If such data is not available, the authors should at least point out the need for such studies and acknowledge the limitations of established T-ALL cell lines for studying the biology of LSC populations.

We totally agree with reviewer’s comment and have indeed generated six T-ALL PDX models. Unfortunately, none of PDXs growing up in the NSG mice so far belong to ETP T-ALL subtype, which our model closely mimics to (revised Figures 7 and 8). We have now collected more bone marrow samples and transplanted equal number of ETP and non-ETP T-ALL cells into NSG mice. Our preliminary study reveals that non-ETP cells may have better reconstitution ability than ETP T-ALL cells in NSG mice (Author response image 1B). Since ETP T-ALL is originated from early marrow or thymic progenitor cells before T cell commitment and its development depends on the functional thymic environment, NSG mice may not be suitable for studying human ETP T-ALL LICs without certain supplements or pre-requisitions, such as PTEN loss, which enables T cell differentiation in the absence of the recombination-activating gene (Reg) and substitutes for both IL-7 and pre-TCR signals (Guo et al., 2011; Hagenbeek et al., 2004).

Author response image 1

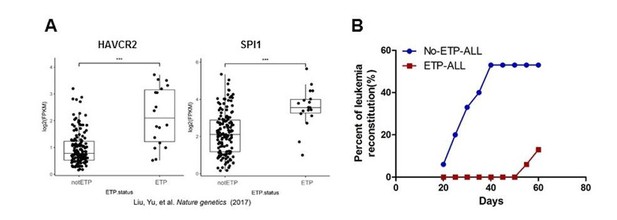

ETP and non-ETP T-ALL have different HAVCR2 and SPI1 expression levels and leukemia reconstitution abilities.

(A). The HAVCR2 and SPI1 expression levels are significant higher in ETP T-ALL samples as compared to non-ETP T-ALL samples. ***, p<0.001. (B). Bone marrow cells (1X106) from human T-ALL patients were i.v. injected into the NSG mice. Leukemia reconstitution was determined when >25% of the cells in the peripheral blood were human CD45+;CD7+ leukemic cells.

https://doi.org/10.7554/eLife.38314.026

There are very few publications on T-ALL LIC and T-ALL PDX models. The majority of these published works are based on non-ETP subtype and their conclusions about LIC are not consistent with each other (Chiu et al., 2010; Cox et al., 2007). We are conducting more detailed LIC-enrichment studies as well as genomic analyses of all T-ALL samples we have in hand. In the meantime, we are also exploring in vitro culture systems.

Since these works will take more than several months to accomplish, we have revised our manuscript and acknowledged the limitations of established human T-ALL cell lines for studying the biology of LICs (Subsection “LSCs loses their “stemness” when Spi1 expression is silenced by DNA methylation”, second paragraph and Discussion, last paragraph).

2) In Figure 3D, the authors use PU.1-EGFP for PU.1 ChIP analysis. Was it not possible to do the ChIP-PU.1 experiment without introducing PU.1-EGFP? Isn't there an antibody suitable to detect PU.1 in ChIP-seq? The authors should do a straightforward ChIP-seq experiment for endogenous PU.1 and detect the genes that bind PU.1 in the TIM-3high mouse leukemia cell population. ChIP-PCR is subject to bias and it would be nice to show which of the 710 possible PU.1 target genes are actually bound by PU.1?

The frequency of HAVCR2high subpopulation is about 1/10000 while regular ChIP-seq requires 106-7 cells. Since we can only sort about 4000 cells/hour, it is technically difficult to do the ChIP-seq analysis on endogenously isolated HAVCR2high subpopulation. Our attempts of expanding HAVCR2high subpopulation in vitro without changing its LSC activity have not been successful.

We also like to clarify the path that leads to the discovery of SPI1 in our study, which was not clearly described in our initial submission. We first used network component analysis, in which the activity of transcription factors can be deduced based on the expression levels of their target genes. Among the predicted transcription factors that may control the expression of HAVCR2high LSC signature genes, SPI1 scores the highest. We then compared 1079 HAVCR2high LSC-signature genes to 7180 T cell development related SPI1 target genes determined by the endogenous SPI1 ChIP-seq analysis (Zhang et al., 2012) and found 710 overlapping genes (please see revised description in the first paragraph of the subsection “SPI1 is the master regulator of LSC signature genes”).

3) Figure 3H. Please include Western blot for TIM-3.

We have now included Western blot for HAVCR2 in our revised Figure 4H.

4) Figure 5C. β-catenin is also known to upregulate MYC and yet the TIM-3highPU.1high LSC T-ALL subpopulation appears to have low levels of MYC expression due to PU.1 activation. Could the authors include Myc expression levels in Figure 5C? Does the Myc expression level go up or down when β-catenin is becomes activated by TIM-3?

As shown in the revised Figure 8A (original Figure 5C), Myc expression is indeed downregulated upon β-catenin activation in this in vitro system. MYC protein levels are also negatively correlated with the levels of non-phosphorylated β-catenin and HAVCR2 in vivo(revised Figure 2B and Figure 8C).

5) The authors propose a feed forward loop between PU.1/TIM-3 that is further regulated by active β-catenin, but the key data presented (Figure 5) are correlative and do not formally demonstrate that this is either a feed forward loop (i.e. that TIM-1 regulates PU.1 as well as the converse; nor that these are directly regulated by β-catenin). This needs to be strengthened or the concept of a feed forward loop should be downplayed in the interpretation.

We now have additional data to support the role of HAVCR2 in SPI1 regulation:

1) Treating the Pten null T-ALL model with the anti-HAVCR2 antibody for 2 days is sufficient to reduce HAVCR2high subpopulation, accompanied by reduced non-phosphorylated β-catenin levels in vivo, similar to the effects of tankyrase/β-catenin inhibitor BAY6060 shown in revised Figure 8G and Figure 12A.

2) Gal-9 is a ligand of HAVCR2. Previous studies indicate that Gal-9 is critical for HAVCR2 signaling and human AML LSC self-renewal (Kikushige et al., 2015). We have genetically deleted Gal-9 and found that Gal-9 loss prevents the Pten null T-ALL development and HAVCR2high LSC formation in vivo, an effect similar to that of Spi1 deletion (Author response image 2).

Author response image 2
Gal-9 is essential for the Pten null T-ALL LSC formation and leukemia development.

(A). Deletion of the HAVCR2 ligand Gal-9 delays or prevents the Pten null T-ALL development in vivo. (B). HAVCR2high LSCs at ETP stage in the Pten null T-ALL are eliminated by SPI1 or Gal-9 deletion in vivo.

https://doi.org/10.7554/eLife.38314.027

Nevertheless, we do agree with reviewer’s critical comment since β-catenin-SPI1-HAVCR2 forms an inter-dependent regulatory circuit and lacking anyone of them will influence LSC generation and self-renewal, as indicated by our Pten;Spi1 and Pten;Gal-9 knockouts and combination treatment experiments. In our revised Figure 13, we replaced feed forward arrows with a shaded triangle to more accurately present our take-home message. We also replaced “feedback loop” with “regulatory circuit” in our revised manuscript.

Stylistic comments:

1) eLife does not limit the number of figures. Also each figure can have linked supplemental figures. In the current paper, each of the figures has too many panels, such that the panels are very small and the font size is much too small. These panels should be broken up, with an increased number of main figures and figure supplements so that the results are more accessible. Please label the graphs with bigger font size – it is hard to read the labels.

We have revised figures per your instruction and the revised manuscript now contains 13 figures, 1 table and 4 supplementary figures:

– Revised Figure 1 is the original Figure 1.

– Revised Figures 2-3 and Table 1 are from the original Figure 2.

– Revised Figures 4 – 5 are from the original Figure 3.

– Revised Figure 6 is the original Figure 4.

– Revised Figures 7-8 are from the original Figure 5 and supplementary Figure 4.

– Revised Figures 9–10 are from the original Figure 6 and supplementary Figure 5.

– Revised Figures 11–13 are from the original Figure 7 and supplementary Figure 6.

2) Figure 2E is a table in a figure, and lists a lot of sensitivity, resistance data etc. that are not described.

The original Figure 2E has been moved to Table 1 with a clear description.

3) Overall the English in this paper is very understandable, but grammatical mistakes are found throughout the text. A scientific editor familiar with English grammar could very quickly improve the English grammar and clarity of the paper.

Thanks for pointing out this deficiency. The revised manuscript has been edited by Nature Research Editing Service.

References:

Hagenbeek, T.J., Naspetti, M., Malergue, F., Garçon, F., Nunès, J.A., Cleutjens, K.B.J.M., Trapman, J., Krimpenfort, P., Spits, H. (2004) The Loss of PTEN Allows TCR αβ Lineage Thymocytes to Bypass IL-7 and Pre-TCR–mediated Signaling. J Exp Med. Oct 4; 200(7): 883–894, doi: 10.1084/jem.20040495

https://doi.org/10.7554/eLife.38314.033

Article and author information

Author details

  1. Haichuan Zhu

    1. The MOE Key Laboratory of Cell Proliferation and Differentiation, School of Life Sciences, Peking University, Beijing, China
    2. Peking-Tsinghua Center for Life Sciences, Peking University, Beijing, China
    3. Beijing Advanced Innovation Center for Genomics, Peking University, Beijing, China
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
  2. Liuzhen Zhang

    1. The MOE Key Laboratory of Cell Proliferation and Differentiation, School of Life Sciences, Peking University, Beijing, China
    2. Peking-Tsinghua Center for Life Sciences, Peking University, Beijing, China
    3. Beijing Advanced Innovation Center for Genomics, Peking University, Beijing, China
    Contribution
    Data curation, Formal analysis, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Yilin Wu

    1. The MOE Key Laboratory of Cell Proliferation and Differentiation, School of Life Sciences, Peking University, Beijing, China
    2. Peking-Tsinghua Center for Life Sciences, Peking University, Beijing, China
    3. Beijing Advanced Innovation Center for Genomics, Peking University, Beijing, China
    Contribution
    Data curation, Formal analysis, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Bingjie Dong

    1. The MOE Key Laboratory of Cell Proliferation and Differentiation, School of Life Sciences, Peking University, Beijing, China
    2. Peking-Tsinghua Center for Life Sciences, Peking University, Beijing, China
    3. Beijing Advanced Innovation Center for Genomics, Peking University, Beijing, China
    Contribution
    Software, Formal analysis, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Weilong Guo

    1. The MOE Key Laboratory of Cell Proliferation and Differentiation, School of Life Sciences, Peking University, Beijing, China
    2. Peking-Tsinghua Center for Life Sciences, Peking University, Beijing, China
    3. Beijing Advanced Innovation Center for Genomics, Peking University, Beijing, China
    Contribution
    Data curation, Formal analysis, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-5199-1359
  6. Mei Wang

    1. The MOE Key Laboratory of Cell Proliferation and Differentiation, School of Life Sciences, Peking University, Beijing, China
    2. Peking-Tsinghua Center for Life Sciences, Peking University, Beijing, China
    3. Beijing Advanced Innovation Center for Genomics, Peking University, Beijing, China
    Contribution
    Software, Formal analysis, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-3292-1413
  7. Lu Yang

    1. The MOE Key Laboratory of Cell Proliferation and Differentiation, School of Life Sciences, Peking University, Beijing, China
    2. Peking-Tsinghua Center for Life Sciences, Peking University, Beijing, China
    3. Beijing Advanced Innovation Center for Genomics, Peking University, Beijing, China
    Contribution
    Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  8. Xiaoying Fan

    1. The MOE Key Laboratory of Cell Proliferation and Differentiation, School of Life Sciences, Peking University, Beijing, China
    2. Peking-Tsinghua Center for Life Sciences, Peking University, Beijing, China
    3. Beijing Advanced Innovation Center for Genomics, Peking University, Beijing, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  9. Yuliang Tang

    1. Peking-Tsinghua Center for Life Sciences, Peking University, Beijing, China
    2. Department of Chemical Biology, College of Chemistry and Molecular Engineering, Peking University, Beijing, China
    Contribution
    Investigation
    Competing interests
    No competing interests declared
  10. Ningshu Liu

    Drug Discovery Oncology, Bayer Pharmaceuticals, Berlin, Germany
    Contribution
    Investigation, Writing—review and editing, Providing BAY1082439 and BAY6060
    Competing interests
    is an employee of Bayer AG
  11. Xiaoguang Lei

    1. Peking-Tsinghua Center for Life Sciences, Peking University, Beijing, China
    2. Department of Chemical Biology, College of Chemistry and Molecular Engineering, Peking University, Beijing, China
    Contribution
    Supervision, Funding acquisition, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
  12. Hong Wu

    1. The MOE Key Laboratory of Cell Proliferation and Differentiation, School of Life Sciences, Peking University, Beijing, China
    2. Peking-Tsinghua Center for Life Sciences, Peking University, Beijing, China
    3. Beijing Advanced Innovation Center for Genomics, Peking University, Beijing, China
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    Hongwu@pku.edu.cn
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-7545-7919

Funding

National Natural Science Foundation of China (81602254)

  • Lu Yang

National Key Research (2017YFA0505200)

  • Xiaoguang Lei

National Natural Science Foundation of China (21472010)

  • Xiaoguang Lei

National Natural Science Foundation of China (21561142002)

  • Xiaoguang Lei

National Natural Science Foundation of China (21625201)

  • Xiaoguang Lei

National Natural Science Foundation of China (81570118)

  • Xiaoguang Lei

Center for Life Sciences

  • Hong Wu

Beijing Advanced Innovation Center for Genomics

  • Hong Wu

Bayer

  • Hong Wu

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Ethics

Animal experimentation: All experimental protocols were approved by the Peking University Animal Care and Use Committee (IACUC).This study were approved by the Peking University Animal Care and Use Committee (LSC-WuH-1).

Senior Editor

  1. Sean J Morrison, Howard Hughes Medical Institute, University of Texas Southwestern Medical Center, United States

Reviewing Editor

  1. A Thomas Look, Harvard Medical School, United States

Publication history

  1. Received: May 13, 2018
  2. Accepted: November 9, 2018
  3. Accepted Manuscript published: November 9, 2018 (version 1)
  4. Version of Record published: November 23, 2018 (version 2)

Copyright

© 2018, Zhu et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 538
    Page views
  • 120
    Downloads
  • 0
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)
