A liquid-like organelle at the root of motile ciliopathy

  1. Ryan L Huizar
  2. Chanjae Lee
  3. Alexander A Boulgakov
  4. Amjad Horani
  5. Fan Tu
  6. Edward M Marcotte
  7. Steven L Brody
  8. John B Wallingford  Is a corresponding author
  1. University of Texas, United States
  2. Washington University School of Medicine, United States
Research Article
  • Cited 6
  • Views 2,150
  • Annotations
Cite this article as: eLife 2018;7:e38497 doi: 10.7554/eLife.38497

Abstract

Motile ciliopathies are characterized by specific defects in cilia beating that result in chronic airway disease, subfertility, ectopic pregnancy, and hydrocephalus. While many patients harbor mutations in the dynein motors that drive cilia beating, the disease also results from mutations in so-called dynein axonemal assembly factors (DNAAFs) that act in the cytoplasm. The mechanisms of DNAAF action remain poorly defined. Here, we show that DNAAFs concentrate together with axonemal dyneins and chaperones into organelles that form specifically in multiciliated cells, which we term DynAPs, for dynein axonemal particles. These organelles display hallmarks of biomolecular condensates, and remarkably, DynAPs are enriched for the stress granule protein G3bp1, but not for other stress granule proteins or P-body proteins. Finally, we show that both the formation and the liquid-like behaviors of DynAPs are disrupted in a model of motile ciliopathy. These findings provide a unifying cell biological framework for a poorly understood class of human disease genes and add motile ciliopathy to the growing roster of human diseases associated with disrupted biological phase separation.

https://doi.org/10.7554/eLife.38497.001

Introduction

Motile cilia are microtubule-based cellular projections that beat in an oriented manner to generate fluid flows that are critical for development and homeostasis (Figure 1A). Accordingly, genetic defects that disrupt motile cilia function are associated with the motile ciliopathy syndrome known as primary ciliary dyskinesia (PCD; MIM 244400) (Horani et al., 2016; Mitchison and Valente, 2017). PCD is a rare inherited disease that results in repeated sinopulmonary disease, bronchiectasis, cardiac defects such as heterotaxy, situs anomalies, and infertility. Lung disease is the predominant feature of this syndrome, with significant morbidity, and can result in end-stage lung disease requiring lung transplantation (Horani et al., 2016). PCD is caused by mutations in at least 40 different genes, and the function of many remains unclear. There is no cure for PCD, so understanding the genetic control of motile cilia assembly and function is an important challenge.

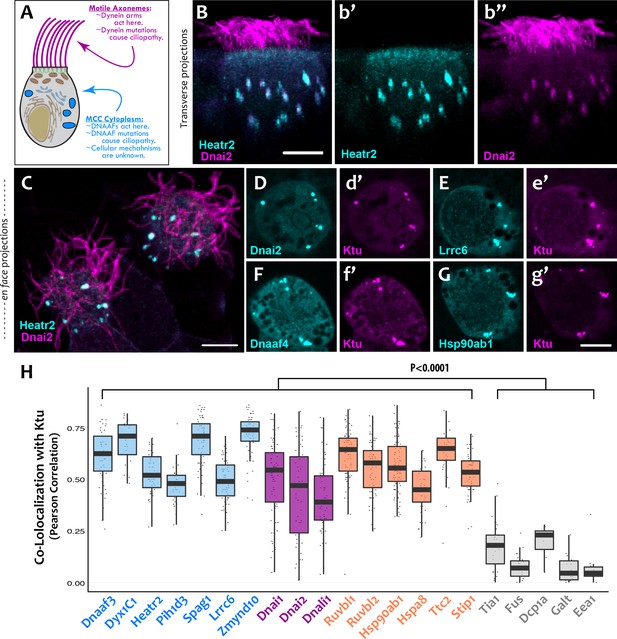

Figure 1 with 5 supplements see all
DNAAFs, Dyneins, and chaperones co-localize together in DynAPs.

(A) Schematic showing a multiciliated cell (MCC) indicating the site of function for proteins linked to motile ciliopathy. Proteins and events in the cytoplasm are indicated in blue; those in the axonemes are indicated in magenta (B) Cross-sectional projection of mucociliary epithelium; GFP-Heatr2 is localized in MCCs to cytoplasmic foci (b’), whereas mCherry-Dnai2 localizes to both axonemes and cytoplasmic foci (b’’). (C) En face projection showing mCherry-Dnai2 localization in motile axonemes and cytoplasmic foci (magenta), with GFP-Heatr2 showing restricted localization to cytoplasmic foci. (D–G) En face optical sections showing co-localization of fluorescent protein (FP) fusions to the indicated proteins. (H) Graph displaying Pearson Correlation Coefficients for colocalization of GFP fusion proteins with mCherry-Ktu at DynAPs. Scale bars 10 µm. p < 0.0001 by one-way ANOVA and post-hoc Tukey-Kramer HSD test. n-values for each FRAP experiment can be found in Table 2.

https://doi.org/10.7554/eLife.38497.002

PCD can arise from mutation of any one of the genes encoding subunits of the multi-protein dynein motors that drive ciliary beating (Figure 1A, pink) (Horani et al., 2016; Mitchison and Valente, 2017). These so-called axonemal dyneins are similar in structure and function to cytoplasmic dyneins but are encoded by distinct genes. Interestingly, axonemal dynein motors are pre-assembled in the cytoplasm before deployment to cilia (Fowkes and Mitchell, 1998), and it is now clear that PCD also arises from mutations in genes encoding any of an array of cytoplasmic proteins collectively known as dynein axonemal assembly factors (DNAAFs) (Figure 1A, blue) (Desai et al., 2018).

The initial description of DNAAFs came with the identification of KTU (aka DNAAF2), which encodes a novel protein present in the cytoplasm yet causes motile ciliopathy when mutated (Omran et al., 2008). As in human patients, mutation of ktu in fish and the green algae Chlamydomonas also elicits defects specifically in cilia beating (Omran et al., 2008). Subsequent studies of motile ciliopathy patients defined several additional cytoplasmic DNAAFs, and in all cases, these genes encode cytoplasmic proteins but their mutation results in loss of dyneins specifically from the axonemes, and as a result, defects in cilia beating (Diggle et al., 2014; Horani et al., 2012; Horani et al., 2013; Kott et al., 2012; Mitchison et al., 2012; Moore et al., 2013; Olcese et al., 2017; Paff et al., 2017; UK10K et al., 2013; Zariwala et al., 2013). Despite their well-known role in human disease, the molecular mechanisms of DNAAF action are only now emerging.

Proteomic experiments initially indicated a link between DNAAFs and heat shock family chaperones (Omran et al., 2008) and many of the DNAAFs contain PIH, TAH1, or CS domains that are common in heat shock co-chaperones (Olcese et al., 2017; Omran et al., 2008; Paff et al., 2017; UK10K et al., 2013; Yamamoto et al., 2010). Moreover, genetic ablation of the Hsp90 co-chaperone Ruvbl1/2 results in defective dynein arm assembly in zebrafish and mice (Li et al., 2017; Zhao et al., 2013). More recently, work in diverse model animals has led to a model in which DNAAFs function as part of a ‘chaperone relay,’ with distinct DNAAFs mediating specific steps in the dynein assembly process (Cho et al., 2018; Mali et al., 2018; Olcese et al., 2017; Yamaguchi et al., 2018; Zur Lage et al., 2018). Several of these studies suggest that the DNAAFs and chaperones act together in cytosolic ‘foci’ (e.g. Diggle et al., 2014; Horani et al., 2012; Li et al., 2017), and it has been suggested that different steps in the chaperone relay are somehow compartmentalized (Mali et al., 2018), but the nature and mechanisms remain to be defined.

Here, we use live imaging to show that DNAAFs, dynein subunits and chaperones all co-localize to discrete, multiciliated cell (MCC)-specific organelles that display hallmarks of biological phase separation. Remarkably, while DNAAFs and chaperones flux through rapidly, dynein subunits are very stably retained in these organelles, suggesting that these organelles may serve as a specialized compartment for the proposed dynein/chaperone relay system. Finally, in an animal model of motile ciliopathy, altered liquid-like behavior was associated with disrupted assembly and a failure of ciliary beating. Thus, our data identify a novel cell type-specific, liquid-like organelle, provide a cell biological mechanism unifying an emerging class of disease proteins, and suggest a key role for biological phase separation in the etiology of motile ciliopathies.

Results

DNAAFs and dynein subunits concentrate in cytosolic foci in multiciliated cells

We found that the DNAAF Heatr2 is present in cytosolic foci in human airway multiciliated cells (MCCs) (Horani et al., 2012), and we recently showed that these foci also contain dynein subunits (Horani et al., 2018). We have found that another DNAAF, LRRC6 (Horani et al., 2013; Kott et al., 2012; Serluca et al., 2009) is likewise present in dynein-containing cytosolic foci (Figure 1—figure supplement 1), but imaging of these structures in human MCCs has proven challenging. We therefore turned to the MCCs of Xenopus embryos, which are highly amenable to live imaging, are molecularly tractable, and reliably model the biology of mammalian MCCs (Walentek and Quigley, 2017). In Xenopus MCCs, GFP-Heatr2 was easily detectable in cytosolic foci in both transverse and en face projections of 3D confocal image stacks (Figure 1B,b’; C; Video 1). These foci were also labeled by mCherry-Dnai2, an outer arm dynein that also strongly labeled axonemes (Figure 1B,b’’; C). To ask if such foci are a general feature of DNAAFs, we examined the canonical DNAAF Ktu, and found that it too co-localized with Dnai2 in cytosolic foci (Figure 1D,d’). As in human MCCs, Lrrc6 displayed a punctate pattern in Xenopus MCCs (Figure 1E).

Video 1
DynAPs form specifically in the cytoplasm of multiciliated cells.

This annotated movie shows a rotating nearest-point projection of a 3D confocal stack of a section of mucociliary epithelium labeled by expression of membrane-RFP (red) and GFP-Ktu (green).

https://doi.org/10.7554/eLife.38497.009

To ask if these different proteins were present in a common compartment, we calculated Pearson Correlations for co-localization (Dunn et al., 2011), finding strong co-localization in en face projections through the MCC cytoplasm for Heatr2, Lrrc6, and Dnai2 as compared to Ktu (Figure 1H); the Costes algorithm (Costes et al., 2004) demonstrated that these co-localizations were statistically significant (Figure 1—figure supplement 2). Because measures of co-localization can be biased by manual selection of regions of interest in the data, we also developed custom software for automated, object-based detection of cytosolic foci and quantification of co-localization in three dimensions (Figure 1—figure supplement 3A; see Materials and methods). Using this method, we again observed strong co-localization between the DNAAFs and Dyneins (Figure 1—figure supplement 3B). As a negative control for this approach, we computationally randomized the position of foci within these cells, generating ten independent randomized replicates per cell; we found essentially no co-localization after randomization (Figure 1—figure supplement 3C).

We next performed a series of control experiments to ask if the cytosolic foci we observed were specific structures, because fluorescent protein (FP) fusions have been found to aggregate non-specifically in some cases (e.g. Landgraf et al., 2012). First, we found that DNAAFs did not co-localize with FP-fusions to several known foci-forming proteins, including the P-body marker Dcp1a or the amyloid forming protein Fus (Kedersha et al., 2005; Patel et al., 2015) (Figure 1—figure supplement 4A,B,D). These proteins displayed significantly lower Pearson correlation with Ktu, as compared to DNAAFs or dyneins (Figure 1H) and also displayed non-significant Costes values for co-localization with Ktu (Figure 1—figure supplement 2A). Second, other components of motile axonemes also require cytoplasmic assembly factors (Desai et al., 2018), but FP-fusions to several radial spoke and docking complex-related proteins did not localize in cytosolic foci (Figure 2A,B). Finally, a recent screen examining the localization of roughly 200 FP-fusions in Xenopus MCCs suggests non-specific aggregation of FPs is rare in these cells (Tu et al., 2017).

DynAPs concentrate DNAAFs, dynein subunits, and Hsp70/90 chaperones.

All left panels show GFP fusions (cyan) to indicated proteins, note all co-localize in DynAPs with the mCherry-Ktu (magenta) shown in middle panels. All right panels are merged views. The docking complex protein Ttc25 (panel A) and the radial spoke protein Rsph1 (panel B) serve as negative controls and do not localize in DynAPs. All other do co-localize; see quantifications in Figure 1H and Figure 1—figure supplements 2 and 3. Scale bars = 10 um.

https://doi.org/10.7554/eLife.38497.010

Our data therefore suggest that the DNAAF- and dynein-containing foci represent novel and specific structures, so we examined FP fusions to seven additional DNAAFs. Consistent with genetic studies demonstrating that all DNAAFs share a common function, we found that all tested DNAAFs co-localized significantly in cytosolic foci (Figure 2C–F; Figure 1H). In all cases, these foci were irregularly shaped, measured roughly 1–3 microns across, were typically present in the middle third of the apicobasal axis of MCCs, and in en face optical sections tended to reside near the cell periphery (Figure 1B–G, Figure 2C–F). Additional subunits of both inner and outer arm dyneins were also present in these foci (Figure 2G,H; Figure 1H). Together, these data demonstrate that nine distinct DNAAFs co-localize with axonemal dynein subunits in a common compartment in the MCC cytoplasm (Table 1). Based on the nomenclature for the genes encoding both the dyneins and their assembly factors, we propose the term DynAP, for Dynein Axonemal Particles.

Table 1
List of proteins investigated in this study, their functions, and their localization.
https://doi.org/10.7554/eLife.38497.011
ProteinLocalizationFunction
Ciliopathy Associated
DNAAFs
Ktu (Dnaaf2)DynAPsDNAAF
Dnaaf3DynAPsDNAAF
Dyx1C1(Dnnaf4)DynAPsDNAAF
Heatr2 (Dnaaf5)DynAPsDNAAF
Lrrc6DynAPsDNAAF
Zmynd10DynAPsDNAAF
Spag1DynAPsDNAAF
Pih1d3DynAPsDNAAF
C21orf59DynAPsDNAAF
Dynein Arm
Subunits
Dnai1DynAPsOuter Dynein Arm
Dnai2DynAPsOuter Dynein Arm
DnaL1DynAPsOuter Dynein Arm
Dnal4DynAPsOuter Dynein Arm
Dnali1DynAPsInner Dynein Arm
Wdr78DynAPsInner Dynein Arm
Hsp Family
Chaperone-Related
Hsp90ab1DynAPsHsp90 Chaperone
Hspa8DynAPsHsp70 Chaperone
Ruvbl1 (Pontin)DynAPsHsp90 Co-chaperone (R2TP)
Ruvbl2 (Reptin)DynAPsHsp90 Co-chaperone (R2TP)
DnajC7 (Ttc2)DynAPsHsp70 Co-chaperone
Stip1 (Hop)DynAPsHsp70 Co-chaperone
Ttc9cDynAPsHsp Co-chaperone
Other
MCC-Related
Centrin4Baseal BodiesBasal Bodies
Ccdc63Other fociDeuterosome marker
Mns1Baseal BodiesDocking complex-related
Armc4AxeonemeDocking complex-related
Ttc25CytosolDocking complex-related
Rsph1CytosolRadial Spoke
Nme5CytosolRadial Spoke
Known
Foci-Forming
Dcp1aOther fociP-body marker
Lsm4Other fociP-body marker
FusNuclear fociKnown foci forming
Tia1(Tiar)Other fociStress granule marker
G3bp1DynAPs (+other foci)Stress granule marker
Other
Organelles
GalTGolgi
EEA1Other foci

DynAPs concentrate core Hsp70/90 chaperones and specific co-chaperones

As discussed above, DNAAFs act in concert with heat shock chaperones, and genetic mutants in the co-chaperones Ruvbl1 and Ruvbl2 result in defective dynein assembly and cilia beating. We were satisfied therefore to find that immunostaining for endogenous Ruvbl2 also strongly labeled DynAPs in Xenopus MCCs (Figure 1—figure supplement 5; Video 2), consistent with results from zebrafish and mice (Li et al., 2017). This result also further demonstrates that these structures are not artifacts of FP fusions. We note that Ruvbl2 immunostaining also reported much smaller foci that were present in both MCCs and neighboring cells (Figure 1—figure supplement 5), consistent with previous reports that this broadly acting co-chaperone can form cellular foci (Rizzolo et al., 2017). However, these much smaller foci were readily distinguishable from DynAPs by their size.

Video 2
Endogenous Ruvbl2 is present in DynAPs specifically in the cytoplasm of multiciliated cells.

This annotated movie shows a rotating maximum intensity projection of a 3D confocal stack of a section of mucociliary epithelium labeled by immunostaining for acetylated tubulin to label cilia (red) and Ruvbl2 (green). Note that the contrast levels in this projection obscure the smaller Ruvbl2 foci present in both MCCs and gobelt cells (see Figure 1—figure supplement 5).

https://doi.org/10.7554/eLife.38497.012

In addition, we also observed that DynAPs were strongly labeled by FP fusions to other known Hsp co-chaperones, including Stip1 and Dnajc7 (e.g. (Moffatt et al., 2008; Odunuga et al., 2004)). Finally, we also identified Ttc9c as a DynAP component, which is of interest because the function of this protein is essentially unknown, but it binds Hsp90 and is implicated in cilia beating (Gano and Simon, 2010; Xu et al., 2015). These data provide a cell biological context for understanding the interplay of axonemal dyneins, ciliopathy-associated DNAAFs, and the ubiquitous machinery of protein folding and homeostasis.

DynAPs are MCC-specific organelles that assemble under the control of the motile ciliogenic transcriptional circuitry

We next sought to understand the developmental biology of DynAP formation. Xenopus MCCs develop and function in concert with other cell types that lack motile cilia, including mucus-secreting goblet cells, ion pumping cells, and seratonin secreting cells (Walentek and Quigley, 2017). We reasoned that if DynAPs were dedicated organelles related to axonemal dyneins, they should be cell type specific. To test this idea directly, we ectopically expressed FP-fusions to DNAAFs throughout the mucociliary epithelium (i.e. in MCC as well as other cell types). Strikingly, FP fusions to DNAAFs reported foci only in MCCs and not in adjacent cells lacking motile cilia (Figure 3A,C,E; Figure 1—figure supplement 4D). This MCC-specificity was not a general property of FP fusions, as the P-body marker Dcp1a assembled into foci in both MCCs and goblet cells (Figure 1—figure supplement 4D). Thus, both immunostaining for Ruvbl2 (above) and expression of FP fusions to DNAAFs demonstrate that DynAPs assemble specifically in MCCs and not in neighboring non-ciliated cells.

DynAPs are MCC-specific and controlled by the motile ciliogenic transcriptional circuitry.

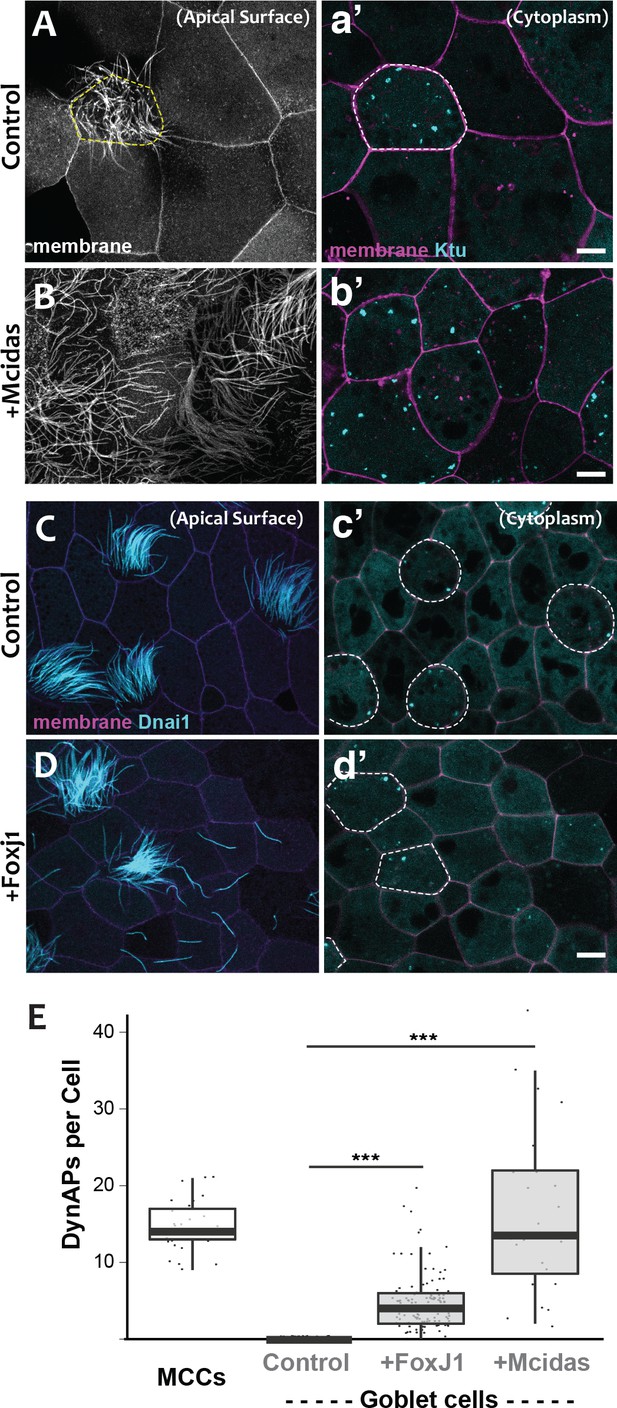

(A) Membrane labeling with CAAX-RFP at the apical surface reveals a single MCC (cilia, dashed circle) surrounded by non-ciliated goblet cells. (a’) Projection of the cytoplasm of the same cells in A. GFP-Ktu is expressed throughout, but forms foci only in the MCC. (B) Membrane labeling at the apical surface reveals that expression of Mcidas converts all cells to MCCs. (b’) Projection of the cytoplasm of the same cells in B; GFP-Ktu forms foci in all cells upon expression of Mcidas.( C–D) Apical surface views of a control mucociliary epithelium (C) and one ectopic expressing Foxj1 (D). (c’–d’) Projection of the cytoplasm of the same cells in C and D. GFP-Dnai1 labels both of axonemes at the surface in C, D and DynaAPs in cytoplasm in c’d’. CAAX-BFP labels membranes; Dashed lines mark MCCs. Expression of Foxj1 induces solitary ectopic motile cilia (D) and ectopic DynAPs (d’).(E) Graph displaying number of cytoplasmic GFP-Ktu foci in wild-type MCCs and goblet cells as well as ciliogenesis-induced goblet cells. p < 2.2×10−16 for Foxj1 and p = 1.68×10−7 for Mcidas experiments by two-sample t-test. n = 29 (wild-type MCC), n = 130 (wild-type goblet cell), n = 122 (Foxj1-OE goblet cells), and n = 24 (Mcidas-HGR Goblet cells) across three embryos. Scale bars 10 µm.

https://doi.org/10.7554/eLife.38497.013

For a direct test of the cell type-specificity of DynAPs, we turned our attention to the evolutionarily conserved transcriptional circuitry that directs MCC differentiation in vertebrates ranging from Xenopus and zebrafish to mice and humans (Brody et al., 2000; Stubbs et al., 2008; Stubbs et al., 2012). At the top of this hierarchy is the master regulator Mcidas, which is necessary and sufficient for the specification of MCCs (Stubbs et al., 2012). As previously reported, ectopic expression of Mcidas significantly increased the percentage of MCCs in the mucociliary epithelium, and importantly, all of these MCCs contained obvious DynAPs (Figure 3B,b’, E). We then tested the Foxj1 transcription factor, which is essential for motile ciliogenesis and acts downstream of Mcidas (Brody et al., 2000; Stubbs et al., 2008). Expression of Foxj1 can induce the formation of solitary motile cilia (Stubbs et al., 2008), and we found that these ectopic motile cilia were associated with assembly of ectopic DynAPs (Figure 3C–E). Thus, DynAPs are specific features of MCCs and their assembly is controlled by the evolutionarily conserved motile ciliogenic transcriptional program.

DynAPs display hallmarks of biological phase separation

We next explored the cell biological basis of DynAP assembly. DynAPs were not labeled by a general membrane marker (CAAX-RFP) (Video 1) or by markers of known membrane-bound organelles such as Golgi or endosomes (Figure 1—figure supplement 4B,C). We hypothesized, then, that DynAPs may represent biomolecular condensates formed by liquid-liquid phase separation (Banani et al., 2017; Shin and Brangwynne, 2017). This possibility was exciting, because while phase separation has emerged as a widespread mechanism for compartmentalizing ubiquitous cellular processes, such as RNA processing and stress responses (Banani et al., 2017; Shin and Brangwynne, 2017), examples of cytoplasmic phase separated organelles with cell-type specific functions in differentiated somatic cells remain comparatively rare.

One hallmark of phase separated organelles is rapid fission and fusion, such as that observed in C. elegans p-granules and mammalian stress granules (Brangwynne et al., 2009; Li et al., 2012). Time-lapse imaging of DynAPs revealed similar behaviors. DynAPs underwent fission and coalescence on the order of only a few minutes (Figure 4A; Video 3). A second hallmark of biological phase separation is rapid exchange of material both within organelles and between the organelle and the cytoplasm (Brangwynne et al., 2009; Li et al., 2012). Using ‘half-bleach’ FRAP experiments, in which only a portion of the organelle is bleached (Brangwynne et al., 2009; Patel et al., 2015; Schmidt and Rohatgi, 2016; Woodruff et al., 2017), we observed rapid intra-DynAP exchange of Ktu (Figure 4B,C). GFP-Ktu displayed similarly rapid FRAP kinetics after bleaching of entire DynAPs, suggesting rapid exchange of Ktu between DynAPs and the cytoplasm (Figure 4B,D). As a negative control we performed FRAP on the Golgi resident protein GalT, and it displayed no recovery over similar time frames (Figure 4E). Thus, both the fission/coalescence behaviors and FRAP kinetics of DynAPs are similar to those observed in organelles known to form via biological phase separation (Brangwynne et al., 2009; Li et al., 2012; Patel et al., 2015; Schmidt and Rohatgi, 2016; Woodruff et al., 2017).

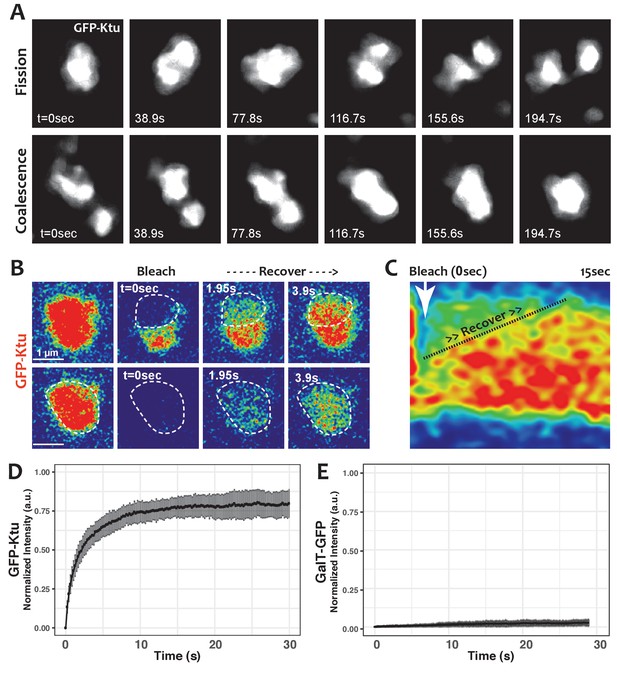

DynAPs display liquid-like behaviors.

(A) Stills from time-lapse imaging of an individual DynAP labeled with GFP-Ktu undergoing fission (upper) and later coalescence (lower) (time in seconds). (B) Time-lapse images of GFP-Ktu recovery after photobleaching of partial (upper) or entire DynAPs (lower). Images are color-coded to highlight changes in pixel intensity (blue = low; red = high; green = intermediate. Dashed line marks the photobleaching area. (C) Kymograph of GFP-Ktu recovery after partial bleach, showing that recovery of the bleached area occurs from within the DynAP, rather than from the cytoplasm. Note, however, that FRAP of whole DynAPs indicates that rapid exchange also occurs between DynAPs and the cytoplasm (Panel B, lower; and see Table 2). (D) FRAP kinetics of GFP-Ktu after bleaching entire DynAPs. (E) FRAP kinetics of the trans-golgi protein GalT-GFP after bleaching golgi-derived vesicles.

https://doi.org/10.7554/eLife.38497.015
Video 3
Liquid-like fission and fusion of a single DynAP.

This non-annotated movie shows smoothened data from a time-lapse movie of a single Heatr2-labeled DynAP. Stills from this movie are presented in Figure 4A.

https://doi.org/10.7554/eLife.38497.017

DynAPs stably concentrate dynein subunits, while allowing DNAAFs and chaperones to flux through rapidly

Since dyneins are the clients for DNAAFs, we next examined dynein kinetics within DynAPs using FRAP. In stark contrast to Ktu, dynein subunits were stably retained inside DynAPs. We observed very limited mobility within DynAPs in ‘half-bleach’ FRAP experiments and between DynAPs and the cytoplasm when entire organelles were bleached (Figure 5A,B,b’). Similar results were obtained with both inner and outer arm dynein subunits (Figure 5D). These results prompted us to test other DynAP-localized proteins, and we found that all tested DNAAFs and chaperones displayed significantly higher mobile fractions when compared to all dynein subunits (Figure 5C,D; Table 2). Thus, DynAPs stably concentrate dynein subunits, while assembly factors and chaperones rapidly flux through.

Table 2
FRAP data for all tested proteins.
https://doi.org/10.7554/eLife.38497.018
ProteinMobile fraction (%)N
Total BleachKtu77.38 ± 6.6325
Dnaaf377.57 ± 6.646
Dnaaf461.64 ± 10.0114
heatr260.71 ± 6.0214
Lrrc658.53 ± 10.7532
Pih1d361.66 ± 7.147
Ruvbl261.82 ± 7.1413
Hsp90ab154.60 ± 2.894
Hspa874.00 ± 9.6716
Dnai125.15 ± 5.7613
Dnai216.88 ± 5.7513
Dnali122.02 ± 5.715
G3bp1 (DynAP)84.11 ± 6.4311
G3bp1(SG)83.93 ± 11.0811
Partial BleachKtu66.66 ± 8.4313
Ruvbl255.20 ± 9.594
Dnai220.10 ± 9.777
G3bp1 (DynAP)74.83 ± 12.2612
G3bp1(SG)88.95 ± 10.066

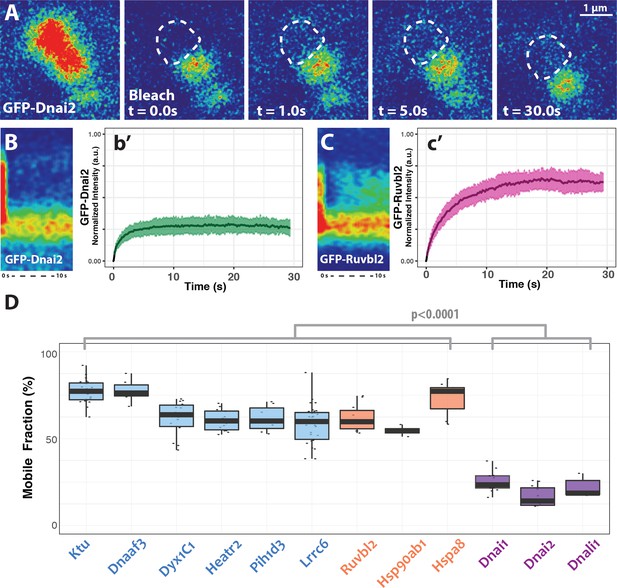

DynAP stably retain axonemal dynein subunits.

(A) Time-lapse images of GFP-Dnai2 recovery after partial photobleaching of a DynAP reveals little recovery after 30 s. Dashed line marks the photobleaching area. (B) Kymograph of the first 10 s following photobleaching displays little recovery of GFP-Dnai2. This is reflected by the FRAP kinetics of Dnai2 after complete bleaching of DynAPs (b’). (C) In stark contrast, the kymograph of the first 10 s following partial photobleaching of the DNAAF GFP-Ruvbl2 displays rapid recovery at DynAPs. This is reflected by the FRAP kinetics of GFP-Ruvbl2 after complete bleaching of DynAPs (c’). (D) Boxplots of the mobile fractions of various resident proteins at DynAPs. Ciliopathy-related DNAAFs (blue) and canonical chaperones (orange) display greater fluorescence recovery than dynein arm components (purple). p<0.0001 by one-way ANOVA and post-hoc Tukey-Kramer HSD test. n-values for each FRAP experiment can be found in Table 2.

https://doi.org/10.7554/eLife.38497.019

DynAPs are distinct from stress granules but share a subset of molecular machinery

The mixture of more-fluid and more-stable components we observed in DynAPs is consistent with data from other phase-separated organelles, and recent studies suggest that these organelles frequently share protein machinery (Aizer et al., 2008; Feric et al., 2016; Jain et al., 2016; Kedersha et al., 2005). Because stress granules also contain Ruvbl2 and the Hsp70/90 chaperones (Jain et al., 2016), we next probed the relationship between DynAPs and stress granules. We found that the canonical stress granule marker G3bp1 (Kedersha et al., 2005; Wheeler et al., 2016) was strongly enriched in DynAPs, where it co-localized significantly with Ktu (ovals in Figure 6A,a2; Figure 6B). Curiously, however, G3bp1-FP also consistently labeled a second population of smaller foci in MCCs that did not contain DNAAFs (boxes in Figure 6A,a2). FRAP experiments revealed turnover kinetics in both populations of foci that were similar to those reported for G3bp1 in stress granules (Figure 6C) (Kedersha et al., 2005). Thus, G3bp1 is a component of at least two populations of cytoplasmic foci in MCCs, including DynAPs.

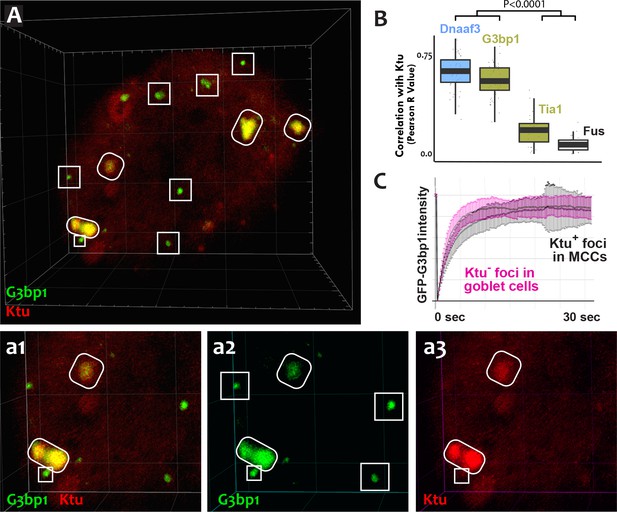

DynAPs share molecular and physical properties with stress granules.

(A) GFP-G3bp1 strongly co-localizes with DNAAFs in DynAPs (ovals), but also labels smaller foci that do not contain DNAAFs (boxes). (a1–a3) Higher magnification views of the bottom left corner of the MCC shown in panel A. (B) Quantification of co-localization relative to mCherry-Ktu (Dnaaf4 and Fus data from Figure 1 are recapitulated here for comparison). (C) FRAP kinetics of GFP-G3bp1 in Ktu-positive DynAPs (black) in MCCs and in Ktu-negative foci in neighboring goblet cells (pink). p < 0.0001 by one-way ANOVA and post-hoc Tukey-Kramer HSD test. n-values for each FRAP experiment can be found in Table 2.

https://doi.org/10.7554/eLife.38497.021

To ask if DynAP localization was a common feature of stress granule proteins, we examined Tia1, which also functions in stress granules (Kedersha et al., 1999). Tia1-FP localized to small foci in MCCs similar to the DNAAF-negative foci labeled by G3bp1 (Figure 1—figure supplement 4E). However, unlike G3bp1, Tia1-FP was typically not present in DynAPs, though in some cases partial co-localization between Tia1 and DNAAFs was observed (e.g. Figure 1—figure supplement 4E, arrow). However, the Pearson correlation between Tia1 and Ktu was significantly lower than that observed for G3bp1 or for other DynAP proteins (Figure 6B). Thus, despite sharing a similar semi-liquid-like behavior, DynAPs share only a subset of molecular components with stress granules, including G3bp1, Ruvbl1/2, and the Hsp70/90 chaperones (Jain et al., 2016).

Loss of the DNAAF Heatr2 disrupts assembly of DynAPs and alters their liquid-like behavior

Our data suggest that DynAPs share properties with stress granules, but even in those well-studied organelles, it remains unclear just how their liquid like properties impact organelle function. We considered two models for DynAP function. First, given that genetic disruption of either DNAAFs or DynAP-localized chaperones results in specific failure of axonemal dynein assembly, we considered that the kinetics observed in DynAPs could reflect a modified ‘reaction crucible’ function (Shin and Brangwynne, 2017), whereby dynein clients are stably retained as they are acted upon by a procession of assembly factors fluxing through. Consistent with this idea, we found that DynAPs were present not only in mature MCCs but also in nascent MCCs undergoing ciliogenesis (Figure 7). On the other hand, the continued presence of DynAPs in mature MCCs may instead indicate a sequestration function, for example preventing deployment of mis-assembled dynein arms to axonemes during homeostasis.

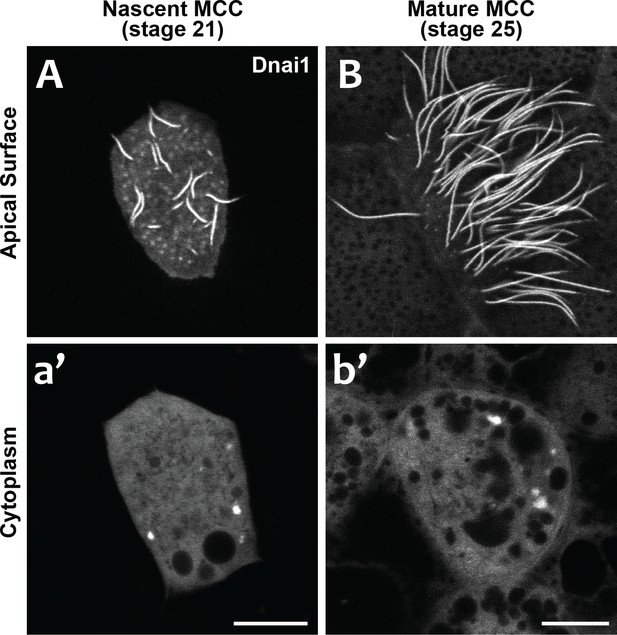

DynAPs are present in nascent MCCs during ciliogenesis.

(A) GFP-Dnai1 labels the short, still-growing axonemes during MCC ciliogenesis at stage 21. (B) GFP-Dnai1 also labels the longer, mature axonemes at stage 25. (a', b') GFP-Dnai1 labeled DynAPs are present in the cytoplasm at both stages. Scale bars = 10 um.

https://doi.org/10.7554/eLife.38497.023

We reasoned that modeling motile ciliopathy might shed light on DynAP function: If DynAPs are sequestering organelles for mis-assembled dyneins, we expect their numbers to increase if DNAAF function is disrupted; if they are assembly organelles, we expect the converse. To test this idea, we focused on Heatr2, which acts early in the assembly process (Horani et al., 2018). Nonsense mutations in HEATR2 that lead to protein loss cause disease (Diggle et al., 2014; Horani et al., 2012), and thus can be modeled simply by knockdown in Xenopus. To this end, we performed knockdown using morpholino antisense oligonucleotides (MOs). Like all knockdown reagents, MOs have their caveats, so it is important that the MO experiments described below meet the current standards for use (Blum et al., 2015; Eisen and Smith, 2008; Stainier et al., 2017), as MOs targeting two distinct regions of heatr2 eliminated the mRNA for the targeted gene and the two elicited identical phenotypes that closely recapitulate those observed in humans and flies with genetic mutations.

We designed separate MOs to disrupt splicing of the L and S alloalleles of heatr2 in the allotetraploid genome of X. laevis (Session et al., 2016) (see Materials and methods), and RT-PCR demonstrated that co-injection of the two MOs was effective. Not only was splicing severely disrupted, but the overall level of heatr2 mRNA was also severely reduced, a common effect of nonsense mediated decay when splicing is disrupted by MOs (Figure 8—figure supplement 1A). Time-lapse imaging of cilia beating revealed that the loss of heatr2 mRNA was accompanied by a severe defect in cilia beating (Figure 8A,B). Moreover, confocal imaging of the apical surface of MCCs revealed that while cilia length was not disrupted, Heatr2 knockdown eliminated the axonemal localization of the outer arm dynein Dnai2, (Figure 8C,D). A second MO targeting a different splice site in heatr2 elicited the same phenotypes in Xenopus, indicating that this phenotype was not the result of off-target effects (Figure 8—figure supplement 1). Thus, MO knockdown targeting either of two distinct sites closely recapitulated the phenotype observed after loss of Heatr2 by genetic mutation in both human PCD patients and in Drosophila (Diggle et al., 2014; Horani et al., 2012).

Figure 8 with 1 supplement see all

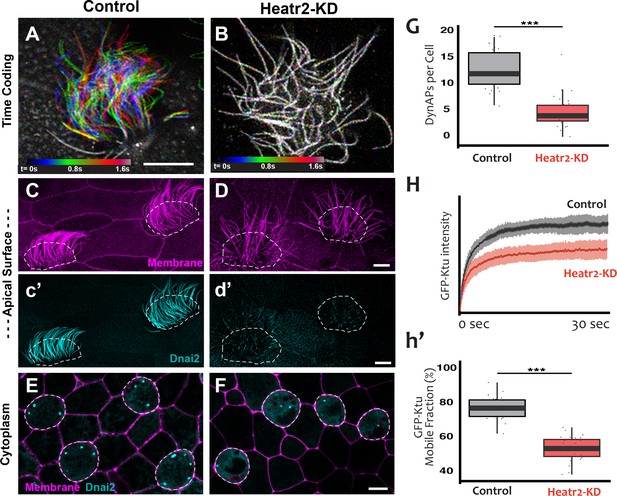

Loss of Heatr2 disrupts formation of DynAPs and alters the liquid-like behavior of Ktu.

(A) Color-based time coding of a high-speed time-lapse movie of an MCC; Successive frames of the movie are color coded as indicated in the time key and overlaid; distinct colors in the overlay reveals ciliary movement. (B) Similar time-coding of an MCC after Heatr2-KD; the lack of color reflects the absence of ciliary movement between frames in the movie. (C) Membrane labeling with CAAX-RFP (pink) reveals normal cilia morphology in control MCCs (an projection of the confocal optical slices specifically through the apical surface is shown with; dashed lines indicate MCCs. (c’) Labelling with GFP-Dnai2 reveals normal localization to the motile axonemes shown in panel C. (D) Membrane labeling reveals normal morphology of motile cilia in MCCs after Heatr2 KD. (d’) GFP-Dnai2 is lost from the motile cilia shown in panel D. (E) Dnai2 is present in DynAPs visible in an en face projection through the cytoplasm of control MCCs (indicated by dashed lines). (F) Despite loss from motile axonemes, Dnai2 remains localized to DynAps in the cytoplasm of MCCs after Heatr2 knockdown. (G) Despite the presence of DynAPs in Heatr2-KD MCCs, the number of foci in these cells is significantly reduced relative to wild-type MCCs. p = 1.27 × 10 −10 by two-sample t-test (n = 25 wild-type cells, 26 Heatr2-KD cells across two experiments, three embryos each). (H, h’) FRAP reveals that Heatr2 knockdown significantly impairs the mobility of GFP-Ktu in DynAPs. Control vs. Heatr2-KD GFP-Ktu mobile fraction, p < 2.2 × 10 −16 by two-sample t-test (n = 25 vs. 31 observations, each in independent cells across three experiments, three embryos each). Scale bars 10 µm.

https://doi.org/10.7554/eLife.38497.024

Strikingly, knockdown with either of the MO sets also elicited a significant reduction in the number of DynAPs (Figure 8E–G; Figure 8—figure supplement 1E–G). This result suggested a role for Heatr2 in DynAP assembly, which was intriguing because Heatr2 is not implicated in chaperone function, but does act early in the dynein assembly process in human MCCs (Horani et al., 2018). Interestingly, changes in protein FRAP mobility accompany pathological alterations of phase separated organelles in neurodegenerative diseases (Patel et al., 2015; Schmidt and Rohatgi, 2016), so we used FRAP to ask if Heatr2 loss may impact the liquid-like behavior of DynAPs. Indeed, loss of Heatr2 significantly decreased the FRAP mobile fraction of Ktu in DynAPs (Figure 8H,h’), suggesting that an alteration in liquid like behavior is linked to defects in DynAP assembly that in turn associate with defects in cilia beating in an animal model of motile ciliopathy.

Discussion

Here, we have shown that an entire class of motile ciliopathy genes (the DNAAFs) encode proteins that co-localize together with axonemal dynein subunits and chaperones in discrete organelles we term DynAPs (Table 1). DynAPs are MCC-specific, form under the control of the conserved genetic circuitry that governs motile ciliogenesis, and display hallmarks of biological phase separation. Moreover, loss of dynein arms from axonemes after disruption of DNAAF function was associated with defective DynAP assembly and altered liquid like character in these organelles. These findings provide a unifying cell biological framework for a poorly understood class of human disease genes and add motile ciliopathy to the growing roster of human diseases associated with disrupted biological phase separation.

As is the case for most phase separated organelles, the significance of concentrating DNAAFs and dyneins into organelles remains a key unanswered question. Nonetheless, our data suggest a model in which client dyneins are concentrated into DynAPs so they can be acted upon by chaperones and co-chaperones that rapidly flux through. This model is parsimonious for integrating three essential functions required for dyneins assembly: First, dyneins are particularly large multi-protein complexes; their assembly takes time and requires multiple assembly factors. Sequestering the client in one compartment would allow the many requisite assembly factors to work together efficiently. Second, large protein complexes require strict quality control, and concentration in DynAPs provides an efficient means to couple assembly and quality control. Third, assembled dyneins might then be stored in DynAPs until they are needed for rapid deployment, which is important because motile cilia are known to very rapidly regenerate.

Finally, our description of DynAPs suggests an attractive hypothesis regarding compartmentalization of the myriad biochemical processes that arise as cell types proliferate in developing embryos. Despite the emergence of phase separation as a mechanism for compartmentalizing cellular functions, cell type-specific, phase separated organelles remain relatively rare, for example Cajal bodies control genome organization in the nuclei of some cell types and the Balbiani body facilitates oocytes’ long-term dormancy (Banani et al., 2017; Shin and Brangwynne, 2017). Our description of DynAP formation specifically in MCCs predicts that a wide range of cell-type specific-liquid like organelles may await discovery. Moreover, our data suggest a model whereby the molecular framework of known ubiquitous liquid-like organelles such as stress granules (e.g. G3bp1) is differentially modified by cell type-specific transcriptional circuits in order to assemble novel organelles to achieve specific functions.

Materials and methods

Xenopus embryo manipulations

Request a detailed protocol

Female adult Xenopus were induced to ovulate by injection of hCG (human chorionic gonadotropin). In vitro fertilization was carried out by homogenizing a small fraction of a testis in 1X Marc’s Modified Ringer’s (MMR). Embryos were dejellied in 1/3x MMR with 2.5%(w/v) cysteine at pH7.8, microinjected with mRNA or morpholinos (MOs) in 2% ficoll (w/v) in 1/3x MMR. Injected embryos were washed with 1/3x MMR after 2 hr and were reared in 1/3x MMR until the appropriate stages.

Plasmids, MOs and microinjections

Request a detailed protocol

Xenopus gene sequences were provided from Xenbase (www.xenbase.org) (James-Zorn et al., 2018; Karimi et al., 2018) and open reading frames (ORF) of genes were amplified from the Xenopus cDNA library by polymerase chain reaction (PCR). The PCR products were inserted into a pCS vector containing a fluorescence tag. The cloned genes are as follows: KTU, Heatr2, DNAI2, DNALI1, ZMYND10, LRRC6, PHI1D1, PHI1D3, Hsp90ab1, TTC9C, STIP1, DnajC7, G3BP1, Fus, and Tia1 into pCS10R-N-term GFP; DNAAF4 and Ruvbl2 into pCS10R-C-term GFP; Ruvbl2, KTU, Heatr2, DNAI2 into pCS10R-N-term mCherry; DCP1a into pCS-dest-mCherry. Ccdc39 and Lsm4 were obtained from the Human ORFeome and DNAAF3, Dyx1c1, and EEA1 were amplified from the Xenopus cDNA library were cloned into pCS2 +Gateway destination vectors containing an alpha tubulin promoter and an RFP tag or a GFP tag respectively, via the Gateway LR Clonase II Enzyme. Human GalT-GFP or RFP was derived from GalT-CFP (Nichols et al., 2001) by exchange of CFP. Capped mRNAs were synthesized using mMESSAGE mMACHINE SP6 transcription kit (ThermoFisher Scientific, AM1340). Morpholino antisense oligonucleotides (MOs) against Heatr2 were designed to block splicing of mRNAs transcribed from both L and S alloalleles (Gene Tools). Heatr2 MO sequences and injected doses are as follow:

Heatr2 MO set #1: Heatr2.L (30 ng): 5’-ACATTATCAATCACAACCTGGTATA-3’

Heatr2.S (30 ng): 5’-CATTGAATTCCTCACCTGATTTCAG-3’

Heatr2 MO set #2: Heatr2.L (5 ng): 5’- GGATCATGTAAGACACCTACCTGCA-3’

Heatr2.S (5 ng): 5’-GGTAAAAAACACCTACCTGAACTGA-3’

For imaging, mRNAs and DNAs for fluorescence proteins were injected into two ventral blastomeres of 4 cell stage embryos with 100 pg/injection and 40 pg/injection, respectively. mRNA of FoxJ1 (Pohl and Knöchel, 2004) was injected with 200 pg/injection into two ventral blastomeres. mRNA of MCIDAS(Stubbs et al., 2012)-hGR from CS10R-MCIDAS-hGR (100 pg/injection) was injected into all four blastomeres at the 4 cell stage and animal cap explants were dissected at stage 8, treated with 10−7 M dexamethasone at stage 11, cultured until stage 26 and then imaged. For all experiments, embryos were selected at random from multiple clutches, and cells were selected randomly from individual embryos for imaging. No blinding to treatment was employed. Unless otherwise noted, all experiments were performed for at least three replicates, each consisting of a minimum three embryos per condition.

Imaging, FRAP and image analysis

Request a detailed protocol

Embryos expressing fluorescent proteins were fixed at stage 26 with 1x MEMFA (0.1 M MOPS, 2 mM EGTA, 1 mM MgSO4, 3.7% formaldehyde, pH7.4) for 40 min at stage 26, washed with PBS and then imaged. For live images, Xenopus embryos were mounted between cover glass and submerged in 1/3x MMR at stage 25–28. Imaging was performed on a Zeiss LSM700 laser scanning confocal microscope using a plan-apochromat 63 × 1.4 NA oil objective lens (Zeiss) or Nikon eclipse Ti confocal microscope with a 63 × 1.4 oil immersion objective. For FRAP experiments, a region of interest (ROI) was defined for full bleach experiments as a 1.75 µm× 1.75 µm box and for half-bleach experiments as a 0.8 µm× 0.4 µm box. ROIs were bleached using 50% laser power of a 488 nm laser and a 0.64 µs pixel dwell time. Fluorescence recovery was recorded at ~0.20 s intervals for up to 300 frames. Bleach correction and normalization was carried out using a custom python script (modified from http://imagej.net/Analyze_FRAP_movies_with_a_Jython_script). Plots were generated using the ggplot2 package in R. 3D projections were generated in Fiji or IMARIS.

3D object-based co-localization algorithm

Request a detailed protocol

This algorithm and the steps within were primarily implemented using scikit-image (van der Walt et al., 2014). First, we segment the cell across all z-stack layers. An Otsu threshold (Otsu, 1979) is applied to each layer in the GFP channel. All pixels above threshold in each image are assigned a value of 1, and all background pixels are assigned a value of 0. These thresholded layers are then summed (projected) into a single image. Each disjoint island of positive pixel values represents a projected 3D object, and the sum of pixel values in each island is a proxy of its volume. We identify the object with the largest pixel sum (volume) as the cell, and hence select the thresholded areas in each z layer as being part of the cell if they projected to this largest object. After thus identifying the cell’s cross-section in each layer, we apply morphological closing and opening to each image to remove small features caused by noise. We then apply a second round of Otsu thresholding within each thresholded area to identify intracellular vacuoles and organelles that have a significantly lower concentration of GFP. This final segment mask obtained from the GFP channel is used to identify the cell in both channels; areas outside of this mask in either channel are no longer relevant to downstream processing. Second, we isolate cellular areas with a significantly higher than average fluorescence by subtracting the fluorescent background present across the cell. This is performed for both channels separately. We apply a median filter to the cell, effectively subtracting the background fluorescence, and then apply morphological opening and closing to remove noise. One of the resulting areas frequently over-represented using this approach as an area of enriched fluorescence is the cell boundary: quite often, the cell’s edges are significantly more fluorescent than the rest of the cell. We attenuate this effect by multiplying areas near the edge by a factor linearly interpolated between 0 and 1 with increasing distance from the edge: that is at the edge values are multiplied by 0, at a distance of 20 pixels from the edge values are multiplied by 0.5, and at a distance of 40 pixels from the edge values are multiplied by 1. Below, we will call the resulting image the fluorescent foreground. Third, the Laplacian of Gaussian (LoG) is applied to the fluorescent foreground to identify puncta in both GFP and RFP channels. Fourth, we segment each punctum’s body to accurately capture its intensity. LoG identifies the puncta, but it does not accurately capture their size or intensity; we need to identify which pixels are contiguous to each punctum and thus are a part of it. To do this, we apply the watershed algorithm to the fluorescent foreground, with each LoG identified punctum acting as a watershed marker. Fifth, we measure the intensity of each punctum by summing the fluorescent foreground pixels in each watershed basin. Sixth, we collate these 2D puncta from each z-layer into 3D puncta. We do this by simply querying whether puncta watersheds obtained in step four overlap in adjacent z-layers. Seventh, we measure the overlap between 3D puncta in RFP and GFP channels. For a punctum in the RFP channel, the overlap metric is its area overlapping any GFP punctum divided by its total area. Both overlapped and total areas are summed for each punctum across all z-layers in which it is present, thus acting as a volume-based overlap metric. For GFP channel puncta, this is computed analogously. Finally, we create a background overlap rate by randomly shuffling puncta positions in each cell and computing their overlaps using the same metric. Puncta in each channel are randomized independently. Randomization is performed for each punctum one at a time. For each punctum, a random set of coordinates is chosen in 3D space. Coordinates in the image plane are pixel coordinates; z-stack coordinates are the discrete layers. Once a random triplet of coordinates is chosen, the entire 3D punctum is placed at the new position by simply shifting all of its components in each layer by the same amount in the 2D planes, and then shifted a discrete number of layers up or down in the z direction as appropriate. We check whether any part of the punctum lies outside of the cell segmentation found above and whether it overlaps any previously placed punctum. If either is true, we generate new random coordinates again. We continue until all puncta have been placed or a computational limit is reached (in practice, all puncta were placed successfully). For each cell, we generated ten such synthetic replicates to obtain background overlap rates for each cell. Code for this algorithm has been deposited in GitHub (Boulgakov, 2018).

Immunostaining

Request a detailed protocol

Xenopus embryos were fixed at stage 25 by cold Dent’s fixative (80% methanol +20% DMSO) overnight and then were transferred in 100% methanol. Embryos were rehydrated consecutively with TBS (155 mM NaCl, 10 mM Tris-Cl, pH7.4) and then were blocked in 10% FBS, 5% DMSO in TBS. Monoclonal anti-acetylated alpha-tubulin antibody (Sigma-Aldrich, T6793, RRID:AB_477585, 1:500 dilution) and rabbit polyclonal anti-Ruvbl2 (Abcam, ab91462, RRID:AB_2050278, 1:1000 dilution) antibody were used as primary antibodies. Primary antibodies were detected by FITC-goat anti-rabbit antibody (Sigma-Aldrich, F9887, RRID:AB_259816, 1:400 dilution) and AlexaFluor 555-anti-mouse IgG antibody (Invitrogen, A21422, AB_141822, 1:400 dilution).

Human airway cells were fixed and immunostained as previously described using primary and secondary antibodies.(Pan et al., 2007; You et al., 2002) Primary antibodies and dilution used included rabbit monoclonal LRRC6 (Sigma-Aldrich, HPA028058, RRID:AB_1853337, 1:100 dilution), mouse monoclonal DNAI1(Neuromatb, cat# 73–372, RRID:AB_2315828, 1:2000 dilution) and mouse mono clonal acetylated α−tubulin (Sigma-Aldrich, RRID: T7451, clone 6–11-B1, RRID:AB_609894, 1:5000). Primary antibodies were detected using fluorescently labeled, species-specific donkey antibodies (Alexa Fluor, Life Technologies, Grand Island, NY, USA). Nuclei were stained using 4’, 6-diamidino-2-phenylindole (Sigma-Aldich).

Airway epithelial cell culture

Request a detailed protocol

Human airway epithelial cells were isolated from de-identified surgical excess of trachea and bronchi removed from lungs donated for transplantation. The use of these cells was exempt from human studies by the Institutional Review Board at Washington University School of Medicine. Tracheobronchial epithelial cells were expanded in culture, seeded on supported membranes (Transwell, Corning Inc., Corning, NY), and differentiated using air-liquid interface conditions as previously described and maintained in culture for up to 10 weeks.

RT-PCR

Request a detailed protocol

To verify the efficiency of HEATR2 MOs, both L and S MOs were injected into all cells at the 4 cell stage and total RNA was isolated using the TRIZOL reagent (Invitrogen Cat#15596026) at stage 25. cDNA was synthesized using M-MLV Reverse Transcriptase (Invitrogen, Cat# 28025013) and random hexamers. Heatr2 cDNAs were amplified by Taq polymerase (NEB, M0273S) with these primers:

Heatr2.L 25F GCGACTTCCGATGTGACTAA

Heatr2.L 661R CTTCCCACTGCTGTACTGTATAA

Heatr2.S 649F GGCAATGGAAAGTCCGTAGAT

Heatr2.S 1058F CAACAACCCAGTCCGTTACA

Heatr2.L 471F CTTCCCAGAGGTGAAGAAAGAG

Heatr2.L 944R GAAGGACATGGAGCACTGAA

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
    Cytoplasmic Preassembly and Trafficking of Axonemal Dyneins
    1. PB Desai
    2. AB Dean
    3. DR Mitchell
    (2018)
    In Dyneins: Structure, Biology, and Disease., Cytoplasmic Preassembly and Trafficking of Axonemal Dyneins, 1, London, Academic Press/Elsevier.
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63

Decision letter

  1. Anthony A Hyman
    Reviewing Editor; Max Planck Institute of Molecular Cell Biology and Genetics, Germany
  2. Anna Akhmanova
    Senior Editor; Utrecht University, Netherlands

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "A liquid-like organelle at the root of motile ciliopathy" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Anna Akhmanova as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Mary E Porter (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

The study by Huizar et al. is an elegant demonstration that many of the so-called dynein axonemal assembly factors (DNAAFs) co-localize with axonemal dynein subunits in cytoplasmic foci in multiciliated cells (MCCs) of the human airway (Figure 1—figure supplement 1) and Xenopus embryos (Figure 1). This manuscript focuses in particular on studying this phenomenon in the Xenopus embryo, which is more experimentally tractable than human airway cells. Using robust statistical measurements for co-localization, they demonstrate that the DNAAFs co-localize with axonemal dynein subunits, whereas other cytoplasmic fusion proteins do not (Figure 1—figure supplements 2, 3, 4). They name these cytoplasmic foci DynAPs or dynein axonemal particles. These authors have described the behavior of the DynAPs as liquid-like phase separated organelles. What controls the formation and dynamics of these organelles is still unknown, and their exact function, beyond concentrating cytoplasmic proteins in a discrete location, is also unknown. However, the demonstration that these foci exist is exciting and opens the door for future study of their formation, behavior, function, and regulation.

While all the reviewers appreciated the technical quality of the paper, and the rigorous statistical analysis, they had some concerns. However, I feel confident that you can answer these concerns and look forward to seeing a revised manuscript.

In particular, please pay attention to point 9 below, concerning the off target effects of morpholinos, which are well documented as a problem that requires extensive controls. There is no western blot or immunostaining shown for HEATR2 in the MO-treated cells, this control needs to be included.

1) Membrane-RFP stains the axonemal and plasma membrane in Xenopus ciliated cells. What are the red foci that are highlighted by the membrane-RFP staining in Video 1? What is membrane-RFP and why should it light up equivalently sized, presumably membrane bound, structures alongside the fluid phase organelles – what do these contain and look like for their content?

2) Tia1 results seem a bit confusing though explained at some length, because we are told it is typically not present in DynAPs but we can see it present in them, in Figure 1—figure supplement 4E, whilst Figure 1—figure supplement 4E versus Figure 1H graph do not seem to correlate together. The immunofluorescence suggests some level of co-localization but we are not clear how much – it could be helpful to draw a line of cut off in Figure 1H, showing where this decision is made regards to whether a protein is considered to co localize or not with the KTU. What about subcellular fractionation or coIP data, to look in more quantified way at these other liquid phase compartment markers?

3) The Results state '200 FP-fusions that report specific localization patterns in Xenopus MCCs but do not co-localize with DNAAFs'. This hasn't been done using a co-localization scheme on this scale in Tu et al. (2017), so this should be edited to make clearer this is based upon not having a foci-type localization pattern only, not on co-localization with DNAAF data, if that is the case.

Related to this: "Consistent with this idea, we found that DynAPs were present not only in mature MCCs but also in nascent MCCs undergoing ciliogenesis (Figure 7), and we also observed DynAP in immature human airway MCCs prior to ciliogenesis (Figure 1—figure supplement 1)." It seems that the number of DynAPs in the mature MCC is reduced. Authors should provide quantification of the number DynAP in nascent and mature MCCs to show if there is a difference in numbers of DynAP between cells undergoing ciliogenesis and mature MCCs.

4) Video 2 illustrates a distinct localization for endogenous Ruvbl2 and the tubulin-axonemes, but Ruvbl2 is a multifunctional co-chaperone complex protein presumably working on recruiting HSPs to multiple other events than cilia assembly. As the text mentions later, Ruvbl2 is a component of stress granules for example. How can we account for this very specific staining of the protein and not a more widespread localisation – does this differ according to ciliation status and different cell types?

5) In Figure 3A, what is the 'membrane' label marker exactly? As no other cell lineage-specific markers are shown how do we know the other cells are all goblet cells – does the Xenopus epithelium contain only two cell types the MCC and goblet cells?

6) Figure 3C shows the ectopic DynAPs quite well in panel c' but in panel C it is not very clear that motile cilia have been labelled here – please show in higher mag or else add in a specific tubulin staining or similar axonemal marker to make this clear the overlap between cilium and DynAP.

7) Figure 3D is useful on the relationship between cilia versus DynAP number. Can an additional quantification be graphed, to show cilia versus DynAP number in each of these 3 cell types, WT and Mcidas/Foxj1 treated? Mcidas overexpression does not seem to correlate with significantly increased DynAP number, unlike the clearly increased cilia numbers, does it mean there is an upper threshold of some kind limiting their numbers.

8) Figure 7 – an important question needs to be better measured in this superior model system, over 100 cells or similar – to quantify more precisely the number of DynAP vs. cilia length/number.

9) Off target effects for morpholinos are well documented as a problem that requires extensive controls. There is no western blot or immunostaining shown for HEATR2 in the MO-treated cells, this control needs to be included.

10) Figure 8A needs the accompanying video supplied. Figure 8G – how were DynAPs quantified in this experiment, how were they visualised? It is hard to reconcile how DNAI2 is clearly reduced in the immunofluorescence images of the HEATR2 KD cells, but the western blot does not show reduced levels of protein. How is this explained? Is it to be believed that the levels of DNAI2 in Figure 8d' are the same as those in Figure 8c'?

11) What exactly is reduced mobility of KTU testing, in Figure 8H – how was this tested, what is the experiment? Just make it clearer here.

12) Subsection “DynAPs are distinct from stress granules but share a subset of molecular machinery”, first paragraph: The authors show that G3bp1 co-localizes with Ktu. Did the authors also observe co-localization of G3bp1 with dynein arm components?

https://doi.org/10.7554/eLife.38497.033

Author response

[…] While all the reviewers appreciated the technical quality of the paper, and the rigorous statistical analysis, they had some concerns. However, I feel confident that you can answer these concerns and look forward to seeing a revised manuscript.

In particular, please pay attention to point 9 below, concerning the off target effects of morpholinos, which are well documented as a problem that requires extensive controls. There is no western blot or immunostaining shown for HEATR2 in the MO-treated cells, this control needs to be included.

1) Membrane-RFP stains the axonemal and plasma membrane in Xenopus ciliated cells. What are the red foci that are highlighted by the membrane-RFP staining in Video 1? What is membrane-RFP and why should it light up equivalently sized, presumably membrane bound, structures alongside the fluid phase organelles – what do these contain and look like for their content?

The memRFP is simply a CAAX domain fused to RFP; it labels the plasma membrane as well as diverse endo-membranes. This has been clarified in the first paragraph of the subsection “DynAPs display hallmarks of biological phase separation”.

2) Tia1 results seem a bit confusing though explained at some length, because we are told it is typically not present in DynAPs but we can see it present in them, in Figure 1—figure supplement 4E, whilst Figure 1—figure supplement 4E versus Figure 1H graph do not seem to correlate together. The immunofluorescence suggests some level of co-localization but we are not clear how much – it could be helpful to draw a line of cut off in Figure 1H, showing where this decision is made regards to whether a protein is considered to co localize or not with the KTU. What about subcellular fractionation or coIP data, to look in more quantified way at these other liquid phase compartment markers?

There is in fact no clear consensus on how to establish significance for co-localization data (see Dunn et al., 2011). Thus, to establish which markers were and were not present in DynAPs, we chose a multiple ANOVA test to compare the Pearson correlation coefficients for all combinations. As shown in Figure 1H, all of the markers we designate as "not present" in DynAPs display significantly lower Pearson correlation values as compared to all markers we designate as "present." Accordingly, as shown in Figure 6B, G3bp1 did not differ from the DynAP markers but did significantly differ from Tia1, so we designate Tia1 is "not present." This has been clarified.

That said, the reviewer brings up an important point: the new manuscript highlights recent large-scale proteomic analyses of P bodies and stress granules that revealed substantial overlap (Aizer et al., 2008; Feric et al., 2016; Jain et al., 2016; Kedersha et al., 2005) and discusses the fact that while DynAPs appear distinct from stress granules they do share some machinery (subsection “DynAPs are distinct from stress granules but share a subset of molecular machinery”).

Finally, fractionation is an excellent idea but will first demand that we perfect sorting of MCCs from Xenopus and then perfecting the fractionation and then detecting the proteins (for which antibodies do not cross react in Xenopus). Also, co-IP may or may not reveal interactions, as many proteins in liquid like organelles do not make stable associations; this experiment may require BioID or Apex. We hope the reviewer agrees that this would be beyond the scope the initial characterization in this paper.

3) The Results state '200 FP-fusions that report specific localization patterns in Xenopus MCCs but do not co-localize with DNAAFs'. This hasn't been done using a co-localization scheme on this scale in Tu et al. (2017), so this should be edited to make clearer this is based upon not having a foci-type localization pattern only, not on co-localization with DNAAF data, if that is the case.

This is a good point, and we regret overstating our case. We have made the change.

Related to this: "Consistent with this idea, we found that DynAPs were present not only in mature MCCs but also in nascent MCCs undergoing ciliogenesis (Figure 7), and we also observed DynAP in immature human airway MCCs prior to ciliogenesis (Figure 1—figure supplement 1)." It seems that the number of DynAPs in the mature MCC is reduced. Authors should provide quantification of the number DynAP in nascent and mature MCCs to show if there is a difference in numbers of DynAP between cells undergoing ciliogenesis and mature MCCs.

We have noted no difference in DynAP numbers between stages, so we replaced this image with one that is more representative. We feel that careful quantification of the time course of DynAPs is beyond the scope of the present work, and we hope the reviewers agree.

4) Video 2 illustrates a distinct localization for endogenous Ruvbl2 and the tubulin-axonemes, but Ruvbl2 is a multifunctional co-chaperone complex protein presumably working on recruiting HSPs to multiple other events than cilia assembly. As the text mentions later, Ruvbl2 is a component of stress granules for example. How can we account for this very specific staining of the protein and not a more widespread localisation – does this differ according to ciliation status and different cell types?

The reviewer is correct that Ruvbl2 is a broadly acting chaperone, and we regret that the initial submission was not explicit about this point and did not place it in the proper context:

A close look at Figure 1—figure supplement 5 reveals that Ruvbl2 is present in large foci that are specific to MCCs (DynAPs), but Ruvbl2 is also present in much smaller foci in both MCCs and the neighboring goblet cells. This result is in fact consistent with previous reports of Ruvbl2 as a foci-forming protein (Rizzolo et al., 2017). We now discuss that previous work and explicitly describe this result in the revision (subsection “DynAPs concentrate core Hsp70/90 chaperones and specific co-chaperones”). We also note that this result is less apparent in the projections in Video 2, and we have added a note to the legend of Video 2 directing the reader to Figure 1—figure supplement 5.

We also hasten to add that genetic data from mouse and zebrafish reveal a surprisingly specific role for Ruvbl2 in dynein assembly: Xiaoxia Sun's lab at Yale has shown that MCCs that are mutant for this gene develop largely normally and make multiple cilia, but that these cilia fail to beat and lack dynein arms.

Ultimately, while surprising, both their functional genetic data and our localization data argue for a surprisingly specific role for Ruvbl2 in MCCs.

5) In Figure 3A, what is the 'membrane' label marker exactly? As no other cell lineage-specific markers are shown how do we know the other cells are all goblet cells – does the Xenopus epithelium contain only two cell types the MCC and goblet cells?

We regret that we failed to explain this assay adequately. There are, in fact, four cell types in the epidermis: MCCs, goblet cells, ionocytes and small secretory cells. The latter two cell types are easily apparent by the their far smaller apical surface areas. More importantly, only the MCCs are ciliated. We now describe this assay more clearly, and as per comment 6, we have repeated this experiment with a specific marker of motile cilia and replaced the figure. These changes are in the subsection “DynAPs are MCC-specific organelles that assemble under the control of the motile ciliogenic transcriptional circuitry”.

6) Figure 3C shows the ectopic DynAPs quite well in panel c' but in panel C it is not very clear that motile cilia have been labelled here – please show in higher mag or else add in a specific tubulin staining or similar axonemal marker to make this clear the overlap between cilium and DynAP.

We have repeated this experiment with a specific marker of motile cilia.

7) Figure 3D is useful on the relationship between cilia versus DynAP number. Can an additional quantification be graphed, to show cilia versus DynAP number in each of these 3 cell types, WT and Mcidas/Foxj1 treated? Mcidas overexpression does not seem to correlate with significantly increased DynAP number, unlike the clearly increased cilia numbers, does it mean there is an upper threshold of some kind limiting their numbers.

While we agree that the issue of DynAP numbers will be important, accurately counting individual cilia from confocal images is challenging, and we feel this question is beyond the scope of this initial characterization of the DynAPs. We hope that the reviewers will agree.

8) Figure 7 – an important question needs to be better measured in this superior model system, over 100 cells or similar – to quantify more precisely the number of DynAP vs. cilia length/number.

As noted above, we feel that the issue of DynAP numbers would be an excellent topic for a forthcoming paper but is beyond the scope of the current paper, which focuses on describing this novel organelle.

9) Off target effects for morpholinos are well documented as a problem that requires extensive controls. There is no western blot or immunostaining shown for HEATR2 in the MO-treated cells, this control needs to be included.

We fully agree that MOs require extensive controls, specifically to rule out off-target effects. In light of this serious concern, we have added new data to address both efficacy and off-target issues with our MOs.

First, we respectfully point out that the suggested control of a western blot –while useful – does not address off-target effects, but rather demonstrates efficacy of the reagent to disrupt the target. However, we were unable to use western blotting because existing Heatr2 antibodies did not cross-react in Xenopus. As a proxy, we performed RT-PCR to validate the efficacy of our MO (Figure 8—figure supplement 1), and showed that injection of the MOs led to both disruption of splicing and a near total loss of the Heatr2 mRNA (a common effect of splice-blocking MOs due to nonsense mediated mRNA decay).

To address the off-target issue directly, we also repeated our experiment using a second, non-overlapping set of MOs that target different splice sites in the L and S alleles of heatr2. Like the first MO set, the second MOs disrupted splicing and reduced mRNA levels of heatr2 and also elicited reductions in DynAP numbers as well as disrupting deployment of dyneins to axonemes.

Finally, we note that both MOs precisely recapitulate the phenotype observed in humans with genetic mutations in HEATR2 (e.g. normal length cilia lacking axonemal dyneins).

We now feel very confident in these results, and we hope the reviewers do as well.

10) Figure 8A needs the accompanying video supplied. Figure 8G – how were DynAPs quantified in this experiment, how were they visualised? It is hard to reconcile how DNAI2 is clearly reduced in the immunofluorescence images of the HEATR2 KD cells, but the western blot does not show reduced levels of protein. How is this explained? Is it to be believed that the levels of DNAI2 in Figure 8d' are the same as those in Figure 8c'?

We regret not being clear. Figure 8c' and 8d' show only the apical slices of the Z-stack to focus attention on the cilia, which almost entirely lack dyneins in the Heatr2 morphant, while Figure 8E and 8F show slices of similar cells but focusing on the cytoplasm, where dynein is present in both controls and knockdowns. DynAPs were quantified by counting foci in the cytoplasm. We have made this clearer in the revised text.

11) What exactly is reduced mobility of KTU testing, in Figure 8H – how was this tested, what is the experiment? Just make it clearer here.

This is the mobile fraction in FRAP assays; this has been clarified.
