Predicting mutational routes to new adaptive phenotypes

  1. Peter A Lind  Is a corresponding author
  2. Eric Libby
  3. Jenny Herzog
  4. Paul B Rainey
  1. Massey University at Albany, New Zealand
  2. Umeå University, Sweden
  3. Santa Fe Institute, United States
  4. Max Planck Institute for Evolutionary Biology, Germany
  5. CNRS UMR 8231, PSL Research University, France

Abstract

Predicting evolutionary change poses numerous challenges. Here we take advantage of the model bacterium Pseudomonas fluorescens in which the genotype-to-phenotype map determining evolution of the adaptive ‘wrinkly spreader’ (WS) type is known. We present mathematical descriptions of three necessary regulatory pathways and use these to predict both the rate at which each mutational route is used and the expected mutational targets. To test predictions, mutation rates and targets were determined for each pathway. Unanticipated mutational hotspots caused experimental observations to depart from predictions but additional data led to refined models. A mismatch was observed between the spectra of WS-causing mutations obtained with and without selection due to low fitness of previously undetected WS-causing mutations. Our findings contribute toward the development of mechanistic models for forecasting evolution, highlight current limitations, and draw attention to challenges in predicting locus-specific mutational biases and fitness effects.

https://doi.org/10.7554/eLife.38822.001

eLife digest

Predicting evolution might sound like an impossible task. The immense complexity of biological systems and their interactions with the environment has meant that many biologists have abandoned the idea as a lost cause. But despite this, evolution often repeats itself. This repeatability offers hope for being able to spot in advance how evolution will happen. To make general predictions, it is necessary to understand the mechanisms underlying evolutionary pathways, and studying microbes in the laboratory allows for real-time experiments in evolution.

One of the best studied microbes for experimental evolution is Pseudomonas fluorescens, which repeatedly evolves flattened wrinkled colonies instead of round smooth ones when there is limited oxygen. The underlying molecular pathways that lead to this change have been studied in detail.

Lind et al. developed mathematical models to predict how often the three most common pathways would be used and which genes were most likely to be mutated. After controlling for the effects of natural selection and refining the models to take into account mutation hotspots, Lind et al. were able to accurately predict the genes that would be targeted by mutations.

The findings suggest that biologists need not lose hope when it comes to the goal of predicting evolution. A deep understanding of the molecular mechanisms of evolutionary changes are essential to predicting the mutations that lead to adaptive change. The results are an important first step towards forecasting organisms’ responses to changing conditions in the future. In the short term, this is important for medical issues, including antibiotic resistance, cancer and immune receptors. In the long term, predicting the course of evolution could be essential for survival of life on the planet.

https://doi.org/10.7554/eLife.38822.002

Introduction

Adaptation requires the realization of beneficial mutations. As self-evident as this may be, predicting the occurrence of beneficial mutations and their trajectories to improved fitness is fraught with challenges (Lässig et al., 2017). Nonetheless progress has been made for phenotypically diverse asexual populations subject to strong selection. Effective approaches have drawn upon densely sampled sequence data and equilibrium models of molecular evolution to predict amino acid preferences at specific loci (Luksza and Lässig, 2014). Predictive strategies have also been developed based on selection inferred from the shape of coalescent trees (Neher et al., 2014). In both instances the models are coarse-grained and sidestep specific molecular and mutational details.

There is reason to by-pass molecular details: mutation, being a stochastic process, means that for the most part details are likely to be idiosyncratic and unpredictable. But an increasing number of investigations give reason to think otherwise – that adaptive molecular evolution might follow rules (Yampolsky and Stoltzfus, 2001; Pigliucci, 2010; Stern, 2013; Laland et al., 2015). This is particularly apparent from studies of parallel molecular evolution (Colosimo et al., 2005; Woods et al., 2006; Ostrowski et al., 2008; Flowers et al., 2009; Meyer et al., 2012; Tenaillon et al., 2012; Zhen et al., 2012; Herron and Doebeli, 2013; Galen et al., 2015; Bailey et al., 2017; Kram et al., 2017; Stoltzfus and McCandlish, 2017), and particularly from studies that show parallel evolution to be attributable – at least in part – to factors other than selection (McDonald et al., 2009; Lind et al., 2015; Bailey et al., 2017).

A standard starting position for predicting adaptive evolution recognises the importance of population genetic parameters including mutation rate, generation time, population size, selection and more recently information on the distribution of beneficial fitness effects. An often used approach appeals to ‘origin-fixation’ models that estimate the probability that selection will realise particular mutational trajectories based on the assumption that the rate of evolution is a function of the rate at which mutations originate, multiplied by their fixation probability (for review, see (McCandlish and Stoltzfus, 2014), for application, see for example (Weinreich et al., 2006)). Leaving aside a number of simplifying and restrictive assumptions, population genetic approaches such as those encompassed by origin-fixation models require pre-existing knowledge of (or assumptions concerning) mutation rate to a particular phenotype and selection coefficients (obtained in the absence of frequency dependent effects) and thus have predictive power only in specific situations and with the benefit of hindsight (McCandlish and Stoltzfus, 2014).

Looking to the future, there is hope that one day it might be possible to predict the course of evolutionary change in response to specific environmental challenges in much the same way as gene function, regulation and interactions can be predicted today based on knowledge of nucleotide sequence data. A central issue is to define the necessary information. Mechanistic understanding of the connection between genotype and phenotype combined with knowledge of the genomic bases of mutational bias offer opportunities for progress.

Mutations arise randomly with respect to utility, but genetic architecture can influence the translation of mutation into phenotypic variation: the likelihood that a given mutation generates phenotypic effects depends on the genotype-to-phenotype map (Alberch, 1991; Gompel and Prud'homme, 2009; Stern and Orgogozo, 2009; Rainey et al., 2017). Thus, the functions of gene products and their regulatory interactions provide information on likely mutational targets underpinning particular phenotypes. For example, consider a hypothetical structural determinant subject to both positive and negative regulation and whose over-expression generates a given adaptive phenotype. Assuming a uniform distribution of mutational events, mutations in the negative regulator (and not the positive activator) will be the primary cause of the adaptive phenotype. This follows from the fact that loss-of-function mutations are more common than gain-of-function mutations. Indeed, an emerging rule indicates that phenotypes determined by genetic pathways that are themselves subject to negative regulation are most likely to arise by loss-of-function mutations in negative regulatory components (McDonald et al., 2009; Tenaillon et al., 2012; Lind et al., 2015; Fraebel et al., 2017).

Mutation is not equally likely at each nucleotide of a given genome (Lind and Andersson, 2008; Lynch, 2010; Seier et al., 2011; Foster et al., 2015; Reijns et al., 2015; Sankar et al., 2016; Stoltzfus and McCandlish, 2017). Numerous instances of mutational bias have been reported. Prime examples are simple sequence repeats such as homopolymeric nucleotide tracts or di-, tri- and tetrameric repeats that mutate at high frequency via slipped strand mispairing (Levinson and Gutman, 1987). These readily identifiable sequences define contingency loci in obligate human pathogens and commensals (Moxon et al., 1994) and are widespread in eukaryotic genomes (Tautz and Renz, 1984). The behaviour of contingency loci can be further modulated by defects in components of methyl-directed mismatch repair systems (Richardson and Stojiljkovic, 2001; Martin et al., 2004; Hammerschmidt et al., 2014; Heilbron et al., 2014).

Certain palindromic structures also lead to mutational bias (Viswanathan et al., 2000; Lovett, 2004) and promote amplification events that can increase target size for additional mutations (Roth et al., 1996; Kugelberg et al., 2010; Reams and Roth, 2015) Transition-transversion bias (Stoltzfus and McCandlish, 2017) and elevated mutation rates at CpG sites (Galen et al., 2015) can further skew the distributions of mutational effects. Additional bias arises from the chromosomal neighbourhood of genes under selection (Steinrueck and Guet, 2017), the location of genes with regard to interactions with DNA replication/transcription machineries (Sankar et al., 2016), and environmental factors that affect not only mutation rate but also the spectra of mutational events (Krašovec et al., 2017; Maharjan and Ferenci, 2017; Shewaramani et al., 2017).

Beyond the genotype-to-phenotype map and mutational biases, predicting adaptive evolution requires ability to know a priori the fitness effects of specific mutations. At the present time there is much theoretical and empirical interest in the distribution of fitness effects (DFE) (Eyre-Walker and Keightley, 2007) — and particularly the DFE of beneficial mutations (Orr, 2005) — because of implications for predicting the rate of adaption and likelihood of parallel evolution (de Visser and Krug, 2014), but knowledge of the shape of the distribution is insufficient to connect specific mutations to their specific effects, or to their likelihood of occurrence. Such connections require a means of knowing the connection between mutations and their environment-specific fitness effects. This is a tall order. A starting point is to understand the relationship between all possible mutational routes to a particular phenotype and the set that are realised by selection.

Here we take a bacterial system in which the genetic pathways underpinning evolution of the adaptive ‘wrinkly spreader’ (WS) type are known and use this to explore the current limits on evolutionary forecasting. Pseudomonas fluorescens SBW25 growing in static broth microcosms rapidly depletes available oxygen establishing selective conditions that favour mutants able to colonise the air-liquid interface. The most successful mutant-class encompasses the WS types (Ferguson et al., 2013; Lind et al., 2017b). These types arise from mutational activation of diguanylate cyclases (DGCs) that cause over-production of the second messenger c-di-GMP (Goymer et al., 2006; McDonald et al., 2009), over-production of an acetylated cellulose polymer (Spiers et al., 2002; Spiers et al., 2003) and ultimately formation of a self-supporting microbial mat (Figure 1A).

The Pseudomonas fluorescens SBW25 wrinkly spreader model.

(A) Selection for access to oxygen allows wrinkly spreader (WS) mutants to invade the ancestral smooth (SM) population in static microcosms. WS mutants form a mat at the air-liquid interface through increased expression of the main structural component, cellulose, encoded by the wss operon. Expression of cellulose is controlled by the second messenger c-di-GMP, which is produced by diguanylate cyclases (DGCs). Mutations in the wsp, aws and mws operons, that activate their respective DGCs (WspR, AwsR, MwsR), are the primary mutational pathways to WS. (B) When a reporter construct connecting expression of the wss operon to resistance to kanamycin is used under shaken non-selective conditions, WS mutants can be isolated without the biasing influence of natural selection. This allows estimation of the mutation rate to WS and an unbiased spectrum of mutations defining the mutational target. Fitness can then be assayed in competition with a common reference strain.

https://doi.org/10.7554/eLife.38822.003

McDonald et al. (McDonald et al., 2009) showed that each time the tape of WS evolution is re-run mutations generating the adaptive type arise in one of three DGC-encoding pathways (Wsp, Aws, or Mws) (Figure 1A). Subsequent work revealed that when these three pathways are eliminated from the ancestral type evolution proceeds along multiple new pathways (Lind et al., 2015) resulting in WS types whose fitnesses are indistinguishable from those arising via mutations in Wsp, Aws, or Mws. Parallel evolution of WS involving preferential usage of the Wsp, Aws and Mws pathways is therefore not explained by selection: repeated use of Wsp, Aws and Mws stems from the fact that these pathways are subject to negative regulation and thus, relative to pathways subject to positive regulation, or requiring promoter-activating mutations, gene fusion events, or other rare mutations, present a large mutational target (Lind et al., 2015).

Given repeatability of WS evolution, knowledge of the Wsp/Aws/Mws pathways, plus genetic tools for mechanistic investigation — including capacity to obtain WS mutants in the absence of selection — the WS system offers a rare opportunity to explore the extent to which knowledge of the genotype-to-phenotype map can lead mechanistic models for evolutionary forecasting. Our findings show that short-term mechanistic-level predictions of mutational pathways are possible, but also draw attention to challenges that stem from current inability to a priori predict locus-specific mutational biases and environment-specific fitness effects.

Results

Obtaining an unbiased measure of pathway-specific mutation rates to WS

Knowledge of the rate at which mutation generates WS types via each of the Wsp, Aws and Mws pathways — unbiased by the effects of selection — provides a benchmark against which the predictive power of null models can be appraised. To achieve such measures we firstly constructed a set of genotypes containing just one of the three focal pathways: PBR721 carries the Wsp pathway but is devoid of Aws and Mws, PBR713 carries the Aws pathway but is devoid of Wsp and Mws, while PBR712 harbours the Mws pathway but is devoid of Wsp and Aws. Into each of these genotypes a promoterless kanamycin resistance gene was incorporated immediately downstream of the promoter of the cellulose-encoding wss operon and transcriptionally fused to an otherwise unaffected wss operon (Figure 1B).

In the ancestral SM genotype the cellulose promoter is inactive in shaken King’s Medium B (KB) broth (Spiers et al., 2002) and thus the strain is sensitive to kanamycin. When a WS-causing mutation occurs, the wss promoter becomes active resulting in a kanamycin-resistant WS type (Fukami et al., 2007; McDonald et al., 2011). Individual growth of this set of three genotypes in shaken KB, combined with plating to detect kanamycin-resistant mutants, makes possible a fluctuation assay (Luria and Delbrück, 1943; Hall et al., 2009) from which a direct measure of the rate at which WS mutants arise can be obtained. Importantly, because WS types are maladapted in shaken broth culture, the screen for kanamycin-resistant clones allows the pathway-specific mutation rate to WS to be obtained without the biasing effects of selection for growth at the air-liquid interface (Figure 1B). The results are shown in Figure 2.

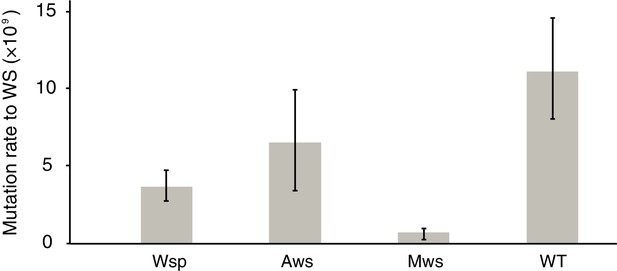

Mutation rates to WS.

Fluctuation tests were used to estimate the mutation rate to WS for the three common mutational pathways to WS. Error bars represent mean and 95% confidence intervals. All mutation rates are significantly different from all others (t-test p<0.05, see Materials and method section for details). Number of replicates n = 200 for Aws and Wsp, n = 400 for Mws, n = 100 for WT.

https://doi.org/10.7554/eLife.38822.004

The mutation rate was highest for the Aws pathway (6.5 × 10−9); approximately double that of Wsp (3.7 × 10−9) and an order of magnitude higher than that of the Mws pathway (0.74 × 10−9) (Figure 2). The rate at which WS mutants arose from the ancestral genotype in which the three pathways are intact (11.2 × 10−9) was approximately the sum of the rates for the three pathways (11.0 × 10−9) confirming that the Wsp, Aws and Mws pathways are the primary routes by which WS types evolve (Lind et al., 2015). That the Aws pathway has the greatest capacity to generate WS is surprising given the smaller target size (three genes and 2.3 kb compared to seven genes (8.4 kb) in the Wsp pathway).

The genotype-to-phenotype map underpinning WS evolution

Much is known about the function and interactions among components of each of the three focal pathways. This knowledge allows development of models that capture the dynamic nature of each pathway and thus allow predictions as to the likelihood that evolution will precede via each of the three mutational routes. An unresolved issue is the extent to which these models match experimental findings. Following a brief description of each pathway we describe the models.

The 8.4 kb Wsp pathway is a chemotaxis-like system (Goymer et al., 2006; Güvener and Harwood, 2007; Römling et al., 2013; Micali and Endres, 2016) composed of seven genes with the first six genes (wspA-wspF) being transcribed as a single unit and the last (wspR from its own promoter (Bantinaki et al., 2007). WspA (PFLU1219) is a methyl-accepting chemotaxis (MCP) protein that forms a complex with the CheW-like scaffolding proteins WspB (PFLU1220) and WspD (PFLU1222). WspA senses environmental stimuli and transmits the information via conformational changes in the WspA/WspB/WspD complex to effect activity of WspE (PFLU1223), a CheA/Y hybrid histidine kinase response regulator. WspE activates both the WspR (PFLU1225) diguanylate cyclase (DGC) and the CheB-like methylesterase WspF (PFLU1224) following transference of an active phosphoryl group. The activity of WspA is modulated by methylation by the constitutively active CheR-like methyltransferase WspC (PFLU1221) that transfers methyl groups to conserved glutamine residues on WspA. The demethylase WspF serves to remove these groups when in the phosphorylated active form. WS mutants are known to arise by mutations in the WspF negative regulator and also in the WspE kinase (McDonald et al., 2009). In vitro manipulations of WspR that abolish repression of the DGC domain by the response regulator domain are known, but have never been observed to occur in experimental populations (Goymer et al., 2006).

The 2.3 kb aws operon contains three genes transcribed from a single promoter (awsXRO). Homologous genes in Pseudomonas aeruginosa (yfiRNB, PA1121-1119) have been characterised in detail (Malone et al., 2010; Malone et al., 2012; Xu et al., 2016). The outer membrane lipoprotein AwsO (PFLU5209) has an OmpA domain, a signal peptide and binds to peptidoglycan. AwsO is thought to be the sensor whose activity is modulated in response to envelope stress (Malone et al., 2012). AwsO sequesters the periplasmic protein AwsX (PFLU5211) at the outer membrane. AwsX functions as a negative regulator of the DGC AwsR (PFLU5210) in the inner membrane. Both increased binding of AwsX to AwsO or loss of negative regulation by inactivation of the interaction between AwsX and AwsR can lead to WS (McDonald et al., 2009; Malone et al., 2010; Malone et al., 2012).

The 3.9 kb mwsR gene (PFLU5329) is known as morA (PA4601) in Pseudomonas aeruginosa, and encodes a predicted membrane protein with both a DGC domain that produces c-di-GMP and a phosphodiesterase (PDE) domain that degrades c-di-GMP. Little is known of the molecular details determining its function, but both catalytic domains appear to be active (Phippen et al., 2014). Deletion of the PDE domain results in a WS phenotype with activity being dependent on a functional DGC domain (McDonald et al., 2009).

Development of mechanistic models predicting mutational routes to WS

If the specific effects of changing each nucleotide (and sets of nucleotides) were known then models for each pathway would not be required. Here, we show how knowledge of genetic architecture can be used to build models that predict the likelihood that mutations generating WS types will arise in a given pathway – and even in specific genes. In the following section we present four null models that incorporate increasing levels of information concerning the genotype-to-phenotype map. The goal of these models is two-fold: firstly to demonstrate that incorporation of knowledge of genetic architecture allows development of models with explanatory value and secondly, to define minimal necessary information for reliable forecasting. The results are summarised in Figure 3, which displays the experimental data from Figure 2 (Figure 3A), along with predictions from each of the null models.

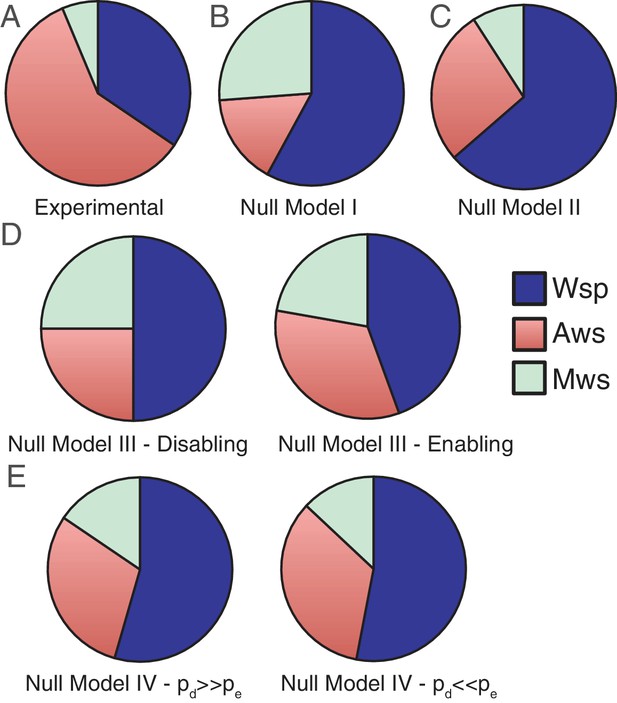

Comparisons of experimental data and null model predictions for the use of the Wsp, Aws and Mws pathways.

(A) Experimental data from Figure 2. (B) Null Model I: number of base pairs as proxy for mutational target size. (C) Null Model II: number of genes as a proxy for mutational target size. (D) Null Model III: function and interactions between components determine mutational target size. To indicate the range of possible states we consider the situation with enabling mutations only (left hand panel) and disabling mutations only (right hand panel). (E) Null Model IV: as per null Model III, but interactions have both pleiotropic and continuous effects. To indicate the range of possible states we consider the probability of disabling mutational effects (pd) to be 10 times more common than enabling changes (pe), pd = 0.001, pe = 0.0001 (left hand panel) the probability of enabling mutational effects (pe) to be 10 times more common than disabling changes (pd), pd = 0.0001, pe = 0.001.

https://doi.org/10.7554/eLife.38822.005

Null Model I is intentionally naïve. It uses sequence length as a proxy for mutational target size, but ignores genetic organisation, function of predicted proteins and interaction among proteins. The model assumes that mutational target size is proportional to the number of nucleotides at a given locus and thus the probability that a given pathway is used to generate WS relative to another is simply the ratio of the probability of generating WS for the two focal pathways. For any one pathway the probability that a mutation generates WS is given by 1-(1-p)n, where p is the probability of a mutation at a nucleotide and n is the number of nucleotides in the pathway. If the mutation probability is low such that the expected number of mutations in a pathway is below 1, that is, np <<1 then the binomial approximation can be used: 1-(1-p)n = np. Thus the probability that evolution follows the Wsp pathway over the Aws pathway is: 8400 p1/ 2300 p2 = 3.65 p1/p2, where p1 and p2 are the mutation rates for each pathway. Assuming equivalency of mutation rate, p1 = p2, evolution is predicted to proceed via the Wsp pathway 3.65 times more often than via Aws, with evolution predicted to proceed via Mws 1.65 times more often than Aws. Comparison with experimental data shows a departure both in terms of the priority of pathways used by evolution and the frequency of pathway usage (Figure 3A versus 3B).

Null Model II builds on Model I but only in a marginal sense. It recognises that nucleotides defining loci of interest are organised into genes, and therefore adopts gene number as a proxy for mutational target size. As above, the probability that a pathway is used is 1-(1-p)n = np, but in this instance n is the number of genes. Model II predicts that mutations in Wsp generate WS types 2.33 times more often than mutations in Aws, with mutations in Mws being 3-fold less likely to generate WS compared to mutations in Aws (Figure 3C). This marginal adjustment makes little difference to the fit between experimental data and predictions.

Past work has shown the explanatory value of information that comes from knowledge of gene (protein) function and interactions (McDonald et al., 2009; Lind et al., 2015). These form the basis of Null Model III. The relevant functions and interactions are depicted in Figure 4 as reaction diagrams that reflect how changes in different interactions affect the production of WS types. Organizing interactions within each pathway according to reactions has the advantage that it allows for a standard mathematical description of the biochemical dynamics using differential equations (see Figure 4 and Figure 4—figure supplement 1 to 3,). An additional advantage is that such an approach allows ready incorporation of new experimental data including interaction type and interaction strength.

Figure 4 with 3 supplements see all

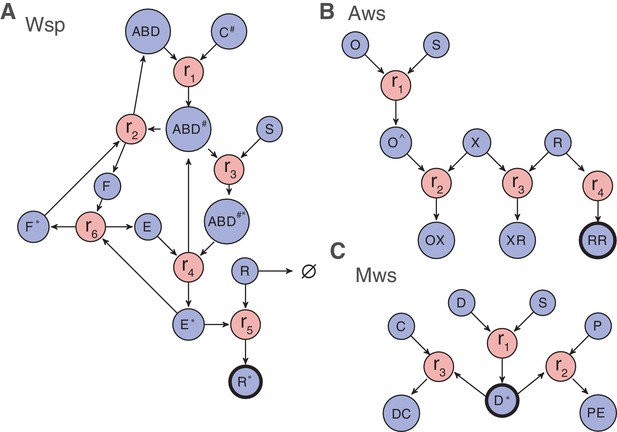

Reaction diagrams for null models III and IV.

Reaction diagrams show the interactions governing production of a wrinkly spreader in (A) Wsp, (B) Aws and (C) Mws pathways. The blue circles indicate molecular components, the red circles indicate reactions, and arrows indicate which molecular components are reactants and which are products. Full descriptions of the models including all reactions and the resulting systems of differential equations are found in Figure 4—figure supplement 1 for Wsp, Figure 4—figure supplement 2 for Aws and Figure 4—figure supplement 3 for Mws. The black edged circles are the reporter proteins, which is the activated forms of the diguanylate cyclases that directly determine whether a pathway generates a wrinkly spreader. Increased production of any reporter leads to increased c-di-GMP concentration causing increased cellulose production and thereby a wrinkly spreader.

https://doi.org/10.7554/eLife.38822.006

One immediate consequence of this approach is that production of WS types is described entirely through biochemical reactions. Knowing whether a WS-type is generated by a particular mutation amounts to determining which reaction rates are altered by the mutation and whether those changes affect the likelihood of producing WS types. This leads to an approach where mutations in components can be classified according to their effects on reaction rates: enabling mutations increase reaction rates, whereas disabling mutations decrease reaction rates.

Based on the mathematical models for the pathways, each reaction rate can be altered (either increased or decreased) to generate higher levels of the key WS effector (the active DGC). For example, in the Wsp pathway, if reactions 2 or 6 experience a disabling mutation, or alternatively, if any of the reactions 1, 3, 4, or 5 experience an enabling mutation, then the level of activated (phosphorylated) WspR is increased. For now, it is assumed that increased activity of the relevant DGC generates a WS type. Reactions whose enabling/disabling mutations increase the amount of WS effector are termed enabling/disabling reactions.

By comparing the number of disabling and enabling reactions in different pathways it is possible to calculate the relative likelihood that evolution uses each mutational pathway. The Wsp pathway encompasses two disabling and four enabling reactions, whereas the Aws pathway is defined by one disabling and three enabling reactions. Mws encompasses a single disabling reaction and two enabling reactions. If disabling mutations are as likely as enabling mutations, then the likelihood that a pathway will be used by evolution is simply the ratio of the total number of enabling and disabling reactions: 6:4:3 (Wsp:Aws:Mws). If instead, disabling mutations are much more likely than enabling mutations, then enabling reactions can be ignored and the likelihood that a pathway will be used by evolution becomes simply the ratio of the number of disabling reactions: 2:1:1 (Wsp:Aws:Mws) (Figure 3D left hand panel). If the reverse is true, then the likelihood of use is a ratio of the number of enabling reactions: 4:3:2 (Wsp:Aws:Mws) (Figure 3D right hand panel). In all cases, mutations in the Wsp pathway are predicted to be 1.3–2 times more likely to generate WS than mutations in the Aws pathway, with the Aws pathway being the target of evolution 1–1.5 times more often than the Mws pathway. Although still inflating the importance of the Wsp pathway relative to Aws, Mws is more prominent than in null Model II.

Null Model IV takes a further step toward mechanistic accuracy by endowing interactions with pleiotropic and continuous effects. This removes two simplifying assumptions of null Model III likely to limit predictive power. In Model III mutations affect one reaction at a time, but mutations in certain components, for example wspA, can affect more than a single reaction (WspA appears in reactions 1–4). Additionally, in Model III, changes in reaction rate are assumed to be binary, however reactions may have a range of effects on the evolution of WS types.

To accommodate pleiotropic effects, null Model IV systematically considers all combinations of enabling and disabling changes to reaction rates and determines the likelihood that a WS type is generated. An example of one set of the possible mutations (mi) in Wsp is 1,–1, 0, 0, 0, 0 (an increase in r1, a decrease in r2, but no change in r3, r4, r5, or r6 (Figure 3A)). Since the Wsp pathway has six reaction rates this amounts to 36 or 729 total combinations. However, note that reaction 3 does not share any reactants or products with reactions 5 or 6. Thus, mutations such as 0, 0, 1, 0, 1, 0 or 0, 0, 1, 0, 0, 1 are not considered because they require mutations in two separate genetic components.

To accommodate a range of effects null Model IV simulates enabling/disabling changes of different magnitudes and determines the resulting effect on the respective effector DGC (see Materials and methods). Briefly, the approach addresses the lack of information concerning biochemical reaction rates and molecular concentrations in the mathematical models describing WS-producing pathway dynamics. By repeatedly sampling from the space of all possible reaction rates, initial concentrations, and magnitudes of effects, this approach computes the probability that a particular set of mutations (mi), for example 1,–1, 0, 0, 0, 0, results in a wrinkly spreader. This probability is represented as the conditional probability P (WS |mi ∈ Wsp), which motivates a Bayesian formulation to compare the relative probability that the different pathways produce WS. To this end, the probability that a particular pathway will be used is decomposed into two terms: the probability that a particular set of mutations (mi) occurs in Wsp (or Aws, or Mws) represented as P (mi ∈ Wsp) and the probability that those mutations give rise to a wrinkly spreader represented as P (WS |mi ∈ Wsp) (or Aws, or Mws).

(1) P(WSmWsp)=iP(WS|miWsp)P(miWsp)

To estimate P (mi ∈ Wsp) we assume fixed probabilities of enabling and disabling changes and compute the product. Thus, the probability of mi = 1,–1, 0, 0, 0, 0 is pepd(1 − pe − pd)4, where pe is the probability of a mutation with an enabling effect and pd is the probability of a mutation with a disabling effect. Recognising the value of accommodating the possibility of localised mutational bias we note that pe and pd can be adjusted for the affected reactants. The second term, P (WS |mi ∈ Wsp), relies on our sampling methodology and describes the probability that a set of disabling/enabling changes of different magnitudes will yield a WS type (see Materials and methods).

Despite the mechanistic advances incorporated into null Model IV the Wsp pathway is still predicted to be the pathway most commonly used by evolution. The extreme cases in which disabling mutations are more probable than enabling mutations (and vice versa) are shown in Figure 3E. The results of simulations for the full range of pd and pe values are shown in Figure 5. Figure 5A shows that the Wsp pathway is predicted to be the target of mutation 1.5–1.9 times more often than the Aws pathway while Figure 5B shows that the Mws pathway is predicted to be the target of mutation 0.4–0.5 times less often that the Aws pathway. While these results agree with the experimental data showing Mws to be least likely pathway to be followed, the predictions are at odds with the data showing WS types to be twice as likely to arise from mutation in Aws, versus Wsp. The causes of this discrepancy are accounted for in the next section ‘analysis of mutants reveals sources of mutational bias’.

Figure 5 with 3 supplements see all

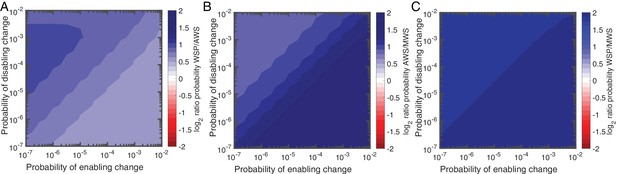

Null Model 4 predictions of the probability of using the Wsp, Aws and Mws pathways.

(A) Probability of Wsp relative to Aws. (B) Probability of Mws relative to Aws. (C) Probability of Mws relative to Wsp. The relative contributions of individual reactions rates are available in Figure 5—figure supplement 1 for Wsp and Figure 5—figure supplement 2 for Aws. Sensitivity analysis is shown in Figure 5—figure supplement 3.

https://doi.org/10.7554/eLife.38822.010

The Bayesian approach of null Model IV has additional utility: it allows prediction of genes likely to be affected by mutation. Predictions as to specific genetic targets come from appraisal of the relative importance of each reaction in terms of generating WS types (Figure 5—figure supplements 1 and 2). While it is recognised that a majority of WS mutations arise from defects in negative regulators of DGCs, such as WspF and AwsX (McDonald et al., 2009; Lind et al., 2015), further predictions are possible based on impacts of alterations in gene function on reaction rates. For example, with reference to the Wsp pathway (Figure 5—figure supplement 1), there are two reactions (2 and 6) that are affected by WspF function: r2 describes the rate of removal of methyl groups from the WspA signalling complex and r6 the rate at which WspF is activated by transfer of active phosphoryl groups from the WspE kinase. Loss-of-function (disabling) mutations being much more common than gain-of-function (enabling) mutations means that WspF, WspA and WspE are all likely targets. The null model predicts that in the area of parameter space in which Wsp is most likely compared to Aws, 45% of the time WS will be generated when the second reaction, r2, is altered (Figure 5—figure supplement 1). The same is true for reaction r6. Thus the presence of a negative regulator is predicted to extend the mutational target size well beyond the gene itself. This is also true for Aws, where r3 is the main contributor to the WS phenotype in the case where disabling change is more common than enabling change. Here mutations are predicted not only in the negative regulator AwsX, but also in the interacting region of the DGC AwsR (Figure 5—figure supplement 2).

Loss-of-function mutations in negative regulators and their interacting partners are not the only predicted targets. For Wsp r1, r3, r4, and r5 are altered approximately 5% of the time in the parameter region where disabling mutations are more common than enabling mutations, but contribute more when the rate of enabling mutations is increased (Figure 5—figure supplement 1). Enabling mutations based on null Model IV are likely to be found in WspC (increasing r1), WspABD (increasing r3), WspABD/WspE (increasing r4) and WspR (increasing r5) (Figure 4A). For Aws, enabling mutations are predicted to increase reaction r1 by mutations causing constitutive activation of AwsO, r2 increasing binding of AwsO and AwsX and r4 increasing formation of the active AwsR dimer (Figure 4B, Figure 5—figure supplement 2).

In summary, high rates of WS mutations are predicted for wspF, wspE, wspA, awsX and awsR with lower rates for wspC, wspR and awsO. Several of these predictions sit in accord with previous experimental observations, however, notable are predictions that evolution might also target wspA and wspR, two genes that have not previously been identified as mutational causes of WS types (McDonald et al., 2009).

Analysis of mutants reveals sources of mutational bias

There are several reasons why predictions from the models might be out of kilter with experimental data on mutation rates. We firstly looked to the distribution of WS generating mutations among the 109 mutants collected during the course of the fluctuation assays. Of the 109 mutants, 105 harboured a mutation in wsp (46 mutants), aws (41 mutants) or mws (18 mutants) (Figure 6A, Figure 6—source data 1). The remaining four had mutations in previously described rare pathways (PFLU0085, PFLU0183), again confirming that these non-focal pathways produce just a fraction of the total set of WS mutants (Lind et al., 2015).

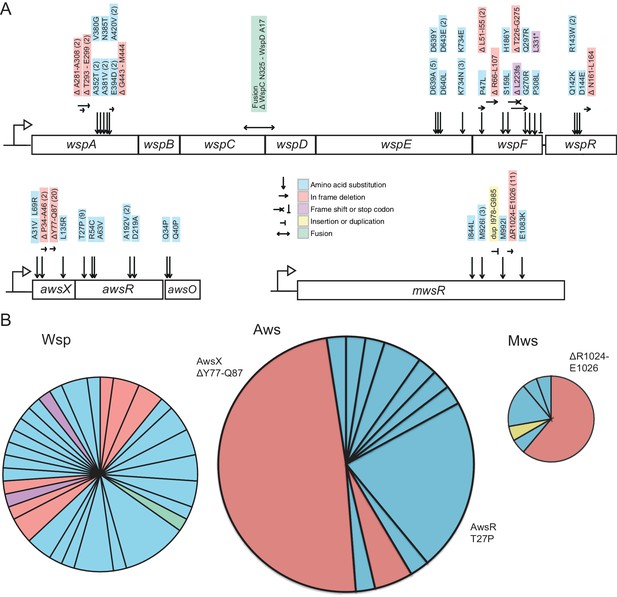

Mutational targets.

(A) 105 independent mutations in the wsp (n = 46), aws (n = 41) and mws (n = 18) operons were identified. Numbers of independent mutants are shown in brackets. Full details on the mutations are available in Figure 5—source data 1. (B) Diversity of mutations with area proportional to mutation rate (Figure 2). Two mutations (AwsX ΔY77-Q87 and AwsR T27P) contribute 41% of all mutations to WS suggesting that these are mutational hot spots.

https://doi.org/10.7554/eLife.38822.014
Figure 6—source data 1

Table of all WS mutations in Wsp, Aws and Mws.

https://doi.org/10.7554/eLife.38822.015

The distribution of mutations for each of the three pathways is indicative of bias. As shown in Figure 6B, almost 29% of all WS-causing mutations (adjusted for differences in mutation rates between the three pathways) were due to an identical 33 base pair in-frame deletion in awsX (Δt229-g261, ΔY77-Q87), while a further 13% were due to an identical mutation (79 a->c, T27P) in awsR. At least 41 different mutations in Aws lead to WS: if mutation rates were equal for these sites the probability of observing 20 identical mutations would be extremely small. In fact 10 million random samplings from the observed distribution of mutations failed to recover this bias. While the Wsp pathway also contains sites that were mutated more than once (six positions were mutated twice, one site three times and one five times), sources of mutational bias in Wsp were less evident than in Aws (Figure 6B).

Incorporating mutational bias into null models

The mathematical models presented above assumed no mutational bias, but the null models can be modified to incorporate such bias. With focus on the AwsX hotspot, we show this for models II-IV.

Null Model II

The probability of a mutation at the hotspot is kp where k > 1 and p is the probability of a mutation in non-hotspot locations. The probability that a pathway is used is: kp + (1-kp)(1-(1-p) (n-1)) where kp is the probability of a mutation at the hotspot and (1-kp)(1-(1-p)(n-1)) is the probability there is no mutation at the hotspot, but that there is a mutation elsewhere in the pathway. Using the binomial approximation, the probability a given pathway is used is: kp + (1-kp)(n-1)p, which for Aws is kp+(1-kp)2p. Figure 7A shows that if the mutation rate at the hotspot increases 10-fold (k = 10.3) then Aws is used 1.8 times more often than Wsp. While this matches experimental data, the same 10-fold increase applied to Mws results in mismatch. Only with a reduced mutation rate at the same locus (k = 6.8) do predicted and observed data agree (Figure 7B).

Figure 7 with 1 supplement see all

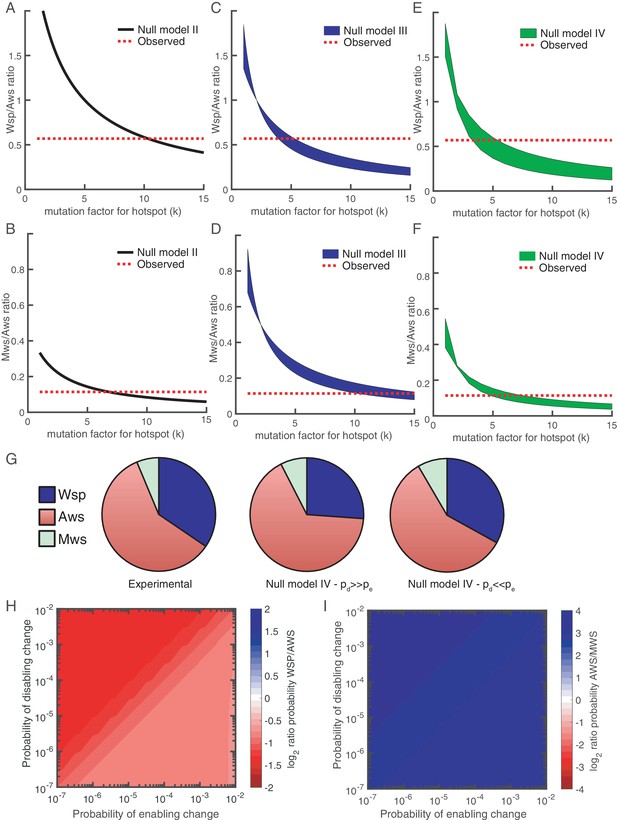

Revised models including mutational hot spot.

Null Models II (A, B), III (C, D) and IV (E, F) can be revised to take into account the mutational hot spot in AwsX by including a mutation factor (k). Each plot (A-F) shows the predicted ratios of Wsp/Aws or Aws/Mws compared to the experimental results (dashed red line). For null models III and IV a range is shown that depends on the probabilities of enabling (pe) and disabling (pd) changes. (G) Comparison of experimental data (left) and revised predictions from null model IV (middle, right), incorporating a five-fold increase in pe and pd for r2 and r3 in the Aws differential equation system. Middle pie chart use pd = 0.001, pe = 0.0001 and right pie chart pd = 0.0001, pe = 0.001 to allow comparison to Figure 3F and G. (H) Null Model IV predicted probability of Wsp relative to Aws with a hotspot in AwsX that increases the mutation rate five-fold for pe and pd for r2 and r3 in the Aws system of differential equation (I) Null Model IV predicted probability of Aws relative to Mws with a hotspot in AwsX that increase the mutation rate five-fold for pe and pd for r2 and r3 in the Aws system of differential equation. Figure 7—figure supplement 1 shows the relative contribution of each reaction rate in the Aws network to the production of WS for the revised null model IV with a 5 times increase for pe and pd for r2 and r3.

https://doi.org/10.7554/eLife.38822.016

Null Model III

The mutational hotspot in the Aws pathway occurs in AwsX, which is involved in both an enabling and a disabling reaction. If the hotspot increases the rate of a disabling reaction by a factor k where k > 1, then the probability the pathway is used is:

k pd+(1k pd) (1(1pd)d(n1)) + (1k pd) (1pd)d(n1) (1(1pe)en),

which is the sum of probabilities of the events the hotspot is used, the hotspot is not used but a disabling change occurs, and the hotspot is not used but only an enabling change occurs. Figure 7C shows that if k is between 4 and 5.3, then there is a good fit to experimental data. The actual value depends on the probabilities of enabling/disabling change and which reaction has the hotspot. For Mws the mutational hotspot must have a factor between 10 and 15 (Figure 7D).

Null Model IV

The mutational hotspot in awsX affects reaction rates r2 and r3 in the Aws system of differential equations (Figure 4B, Figure 4—figure supplement 2). If the mutation factor is between 3.3–5.6 for the Wsp/Aws comparison (Figure 7E) or 4.8–7.6 for the Mws/Aws comparison (Figure 7F), then predictions match observed data. Thus Model IV is the only one where the same five-fold change in the probability of enabling/disabling change predicts observed data for all three mutational pathways (Figure 7G). This model, updated with hotspot data, predicts that the Aws pathway is more likely to generate WS types than Wsp for all probability values (see Figure 7H). If disabling changes are more probable than enabling changes, then r3 dominates the predicted rate, whereas when enabling changes are more common r2 is the major contributor (Figure 7—figure supplement 1). Knowledge of the functional interaction between AwsX and AwsR allows interpretation of the likely effect of the hotspot mutations in AwsX and AwsR as disabling change in r3 (Table 1).

Table 1
Connection of mutational effects to reaction rates
https://doi.org/10.7554/eLife.38822.018
ProteinMutation classProposed molecular effectProposed reaction rate effectReferences
WspAAmino acidsubstitutions 352–420Trimer-of-dimer formation,
localisation of Wsp clusters,interaction with WspD
Increase r3(O'Connor et al., 2012Griswold et al., 2002 )
WspADeletions A281-A308Disrupt demethylation by WspFDecrease r2(McDonald et al., 2009)
WspC/DFusion of WspC and WspDIncreased methylation byWspC, blocking access of WspFIncrease r1, decrease r2
WspEResponse regulatory domain phosphorylation siteDisrupt phosphorylation of WspFDecrease r6Homology model
WspFAny disabling mutationLoss of negative regulation by WspF by demethylation of WspADecrease r2(Bantinaki et al., 2007; McDonald et al., 2009)
WspRAmino acid substitutionsand small deletion inlinker region betweenresponse regulator and DGC domainConstitutive activationof DGC withoutphosphorylation.Effects on subcellular clustering or multimeric state.Increase r5(Goymer et al., 2006; De et al., 2009; Huangyutitham et al., 2013)
AwsXIn frame loss of function mutationsLoss of negative
regulation of AwsR
Decrease r3(Malone et al., 2012)
AwsRAmino acidsubstitutionstransmembranehelix, periplasmic domainDisruption of interaction with AwsXDecrease r3(Malone et al., 2012)
AwsRAmino acid substitutionsHAMP linker domainChanges in dimerization, packing of HAMP domainscausing constitutive activationIncrease r4(Parkinson, 2010; Malone et al., 2012)
AwsOAmino acid substitutionsin between signal peptide and OmpA domainConstitutive activation andsequestering of AwsXIncrease r2(McDonald et al., 2009; Malone et al., 2012;
Xu et al., 2016)
MwsRAmino acid substitutions
and small in frame deletions in interfacebetween EAL and DGC
domains
Changes to interdomain interaction or dimerization leading to constitutive activation of DGC functionDecrease r2, increase r1Homology model, (McDonald et al., 2009)
MwsRAmino acid substitutionsnear DGC active siteLoss of feedback regulationor changes to interdomain interactionDecrease r2, increase r1Homology model, (McDonald et al., 2009)

Analysis of mutants reveals mutational targets and effects

Null Model IV of the Wsp, Aws, and Mws pathways allow estimation of the relative probability that a WS is produced by enabling or disabling changes in a certain reaction rate. This means that in order to evaluate the success of our predictions, the 105 WS mutations must be connected to their likely effects on reaction rates. For some mutations this is straightforward. If a mutation completely disables the negative regulator WspF, this will reduce r2 and r6, thereby producing a wrinkly spreader. In other cases interpretations of likely effects are more difficult and requires knowledge of the molecular functions of the proteins and their interactions, which needs to be obtained from literature, bioinformatics and structural modelling. For example, mutations in WspA can potentially produce WS by disruption of the interaction with WspF (reducing r2), increase methylation by WspC (increasing r1), increase signalling rate (r3) or increase phosphorylation of WspE (r4). A summary of the interpretation of the molecular effects of mutations and how they are connected to reaction rates is available in Table 1 with a more detailed description in Appendix 1.

Mutations were found in five genes in the Wsp pathway. The majority of the mutations were found in the negative regulator WspF or its interacting partners WspE and WspA. These mutations likely reduced reaction rates of r2 and r6 in accord with predictions of null Model IV. The remaining mutations in WspC and WspR were less common, in accord with predictions and likely due to increases in reaction rates r1 and r5, respectively. Results for the Aws pathway were also in line with predictions with the majority of the mutations arising in the negative regulator AwsX or the interacting part of AwsR (both decreasing r3), with rare mutations in AwsO and other parts of AwsR. For MwsR, loss-of-function mutations were expected primarily in the phosphodiesterase (PDE) domain, but mutations were found in both diguanylate cyclase (DGC) and PDE domains. A structural analysis revealed that mutations were clustered in the interface between the domains and unlikely to disrupt PDE function. These mutations most likely change the dynamics between the DGC and EAL domains in a way that increases production of c-di-GMP.

Differences of mutational spectra with and without selection

The null models – and especially null Model IV – successfully predicted the mutational targets and explained mutation rates to WS when knowledge of mutational hot spots was included. To what degree can such knowledge allow prediction of the outcome of the original experimental evolution under selection (McDonald et al., 2009)? A comparison between the frequencies of mutations isolated here (without selection) with those isolated under selection, reveals several notable differences (Figure 8). The most obvious difference is in use of the Wsp pathway, which is most commonly used (15/24) under selection and yet produces WS types at a lower rate than the Aws pathway. Differences are also apparent in the spectrum of wsp mutations, with no wspA mutations being found under selection despite being the most commonly mutated gene without selection (15/46), and the previous failure to detect wspR mutants in a screen of 53 WS mutants (Goymer et al., 2006).

WS mutations isolated with and without selection.

(A) The mutational spectrum observed under selection suggests underrepresentation of WspA and WspR compared to WspF and WspE. (B) Similar fitness effects of different Aws mutants lead to similar patterns regardless of selective conditions. However the frequency of all Aws mutants isolated under selection is much lower than expected from its high mutation rate. (C) The low number of MwsR mutants isolated does not allow an analysis of relative rates. Only within operon comparisons are valid for this figure as the mutants isolated without selection had double deletions of the other operons. Between operon mutation rates are available in Figure 2.

https://doi.org/10.7554/eLife.38822.019

Fitness of WS types

The most obvious explanation for the differences in mutational spectra between WS isolated with or without selection (Figure 8) is that certain mutants have a lower fitness and thus their relative frequencies will be lower in the original evolution experiment (McDonald et al., 2009). We measured the fitness of representative WS types with mutations in each of the mutated genes (wspA, wspC/D, wspE, wspF, wspR, awsX, awsR, awsO, mwsR) in 1:1 competitions against a reference WspF ΔT226-G275 deletion mutant marked with GFP (Figure 9). This type of fitness data should be interpreted with caution because the fitness of WS mutants are frequency-dependent (Rainey and Travisano, 1998) and some WS mutants are superior in early phase attachment as opposed to growth at the air-liquid interface (Lind et al., 2015). Nevertheless, the competition experiments provide an estimate of fitness when several different WS mutants compete at the air-liquid interface (a likely situation given a ~ 10−8 mutation rate to WS and a final population size of >1010). The fitness data account for the over- or under-representation of some WS mutants when grown under selection (McDonald et al., 2009) compared to those uncovered without selection (as reported here).

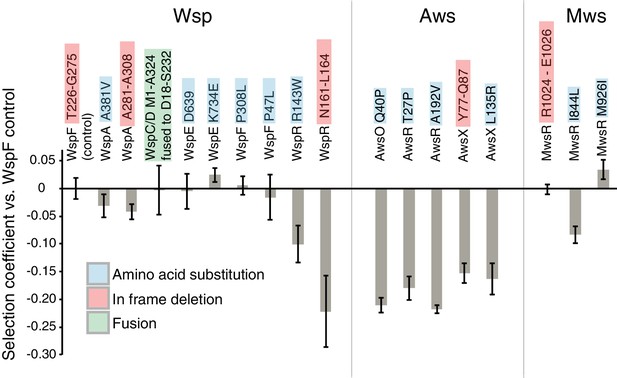

Fitness of different WS mutants.

Competitive fitness against a WspF ΔT226-G275 reference strain was measured for representative mutations in the Wsp, Aws, Mws pathways. Pairwise competitions were performed in quadruplicates and error bars represent ±one standard deviation. Full data, including statistical tests are available in Figure 9—source data 1.

https://doi.org/10.7554/eLife.38822.020

The three wspF mutants, the wspC-wspD fusion, and the wspE mutants have similar fitness (p>0.38, except for WspE K734E that has slightly higher fitness (p=0.027), two-tailed t-tests). In contrast, both wspA mutants are slightly less fit (p<0.0214, two-tailed t-test) and both wspR mutants are severely impaired (p<0.00007, two-tailed t-test) (Figure 9). This sits in accord with previous work in which mutations generating WS obtained with selection have been detected in wspF and wspE, but not wspA or wspR (Goymer et al., 2006; McDonald et al., 2009). All awsXRO mutants have similar lower fitness (p<10−6, two-tailed t-test) compared to the wspF reference strain (Figure 9), which explain why under selection these are found at lower frequencies compared to mutations in the wsp pathway (McDonald et al., 2009) despite a roughly two-fold higher mutation rate to WS.

Discussion

The issue of evolutionary predictability and the relative importance of stochastic events compared to deterministic processes have a long history in evolutionary biology (Darwin, 1872; Simpson, 1949; Jacob, 1977; Gould, 1989; Conway Morris, 2003; Orgogozo, 2015). Recent interest has been sparked by an increasing number of observations that both phenotypic and molecular evolution, under certain circumstances, can be remarkably repeatable (Colosimo et al., 2005; Shindo et al., 2005; Jost et al., 2008; Barrick et al., 2009; Lee and Marx, 2012; Meyer et al., 2012; Zhen et al., 2012; Herron and Doebeli, 2013), but whether these cases are representative for evolutionary processes in general remains to be determined. A related question, with greater potential for practical applications, is whether it is possible to forecast short-term evolutionary events and if so, then the challenge is to stipulate the data necessary to make successful predictions.

Our uniquely detailed knowledge of the WS experimental evolution system has provided a rare opportunity to determine the contributions of mutational bias and genetic architecture to the generation of new adaptive phenotypes, and consequently explore the limits of evolutionary forecasting. A thorough understanding of the function of the molecular species and their interactions allowed development of null models (see especially Model IV) that capture essential features of the genotype-to-phenotype map sufficient to predict the relative likelihood that evolution will follow each of the three principle pathways, along with specific mutational (genetic) targets. Even the most sophisticated of these models failed to forecast outcomes that matched the experimental data shown in Figure 2, however, the reason became apparent upon characterisation of the set of WS mutants obtained without selection: the presence of mutational hotspots. Armed with knowledge of sources of mutational bias it was a simple matter to refine Model IV leading to predictions matching those observed by experiment.

Problematic at the current time is inability to a priori detect all causes of mutational bias, however, it is likely that this will improve as understanding of the biochemical causes of bias improves and algorithms trained to recognise and detect nucleotide patterns indicative of bias are implemented. One specific deletion (ΔY77-Q87) in awsX was found to account for nearly half (20/41) of the mutations in the Aws pathway. Thus, despite the existence of hundreds of possible mutations leading to WS (this work and (McDonald et al., 2009; McDonald et al., 2011; Lind et al., 2015)) one single mutation accounts for more than one quarter of all WS mutations. While the six base pair direct repeat flanking the deletion provides a convincing explanation for its increased rate, it is not clear why this deletion would be ten times more common than the ΔP34-A46 deletion in the same gene that is flanked by ten base pair repeats and contains five base pairs identical to those from the ΔY77-Q87 deletion (Figure 6—source data 1). There are also instances where single base pair substitutions are overrepresented: the AwsR T27P mutation is found in nine cases, while eight other single pair substitutions in Aws were found only once. Consider further the fact that wspE (a gene of ~2.3 kb), where changes to only four specific amino acids repeatedly cause WS, and wspF (a gene of ~1 kb) where any mutation that disrupts function results in WS (Figure 6A) contribute equally to the rates of at which new WS types arise.

It is evident from these findings and from related studies (Pollock and Larkin, 2004) that there is need for detailed experimental measurement of local mutation rates in specific systems. Such investigations stand to contribute to understanding of the causes of mutational bias and the extent to which biases might be conserved among related or even unrelated organisms. If local nucleotide sequence is the major determinant, an estimate of mutation rate will apply strictly to very closely related species, but if the dynamics of molecular processes, such as transcription and replication (Sankar et al., 2016), are major influences then estimates might be applicable to a wider range of species.

Forecasting mutational routes to new phenotypes is one component of a comprehensive forecasting strategy. The second requirement is ability to a priori predict fitness effects. Solving this problem is the Holy Grail for predicting evolution, but at the current time this is not possible. That it matters is made clear by the observation that a subset of all possible WS mutants was found after experimental evolution (Figure 8) due to inability of some to successfully compete with high fitness WS types (Figure 9).

Direct measurement of the fitness effects of large numbers of mutations is difficult, time-consuming, typically only possible for microbial species and against the spirit of identifying a priori predictors of fitness effects. Future success likely rests on ability to infer fitness from parameters such as estimated effects of mutations on thermodynamic stability (Capriotti et al., 2005; Dean and Thornton, 2007; Rodrigues et al., 2016), molecular networks, evolutionary conservation of amino acid residues (Glaser et al., 2003; Ng and Henikoff, 2003; Landau et al., 2005; Kumar et al., 2009; Celniker et al., 2013; Choi and Chan, 2015) or machine-learning methods combining several types of information (Bromberg and Rost, 2007; Li et al., 2009; Capriotti et al., 2013; Yates et al., 2014; Hecht et al., 2015). Possibilities likely also exist to extrapolate findings from a small number of mutations that are either directly constructed and assayed in the laboratory or through fitness estimates of polymorphism data from natural populations. Recent work on the prediction of the fitness effects of random mutations in several genes suggests that in many cases large effect mutations can be predicted using methods based on evolutionary conservation (Lind et al., 2017a).

On a less ambitious scale it may be possible to take advantage of the fact that the distribution of fitness effects associated with mutations in single genes is often bimodal – a consequence of many mutations causing complete loss-of-function rather than intermediate deleterious; effects (Sanjuan, 2010; Hietpas et al., 2011; Jacquier et al., 2013; Firnberg et al., 2014; Lind et al., 2017a; Sarkisyan et al., 2016; Lundin et al., 2017). As such it may be sufficient to know gene function plus consequences arising from loss of function mutations and thus treat mutations within single genes as having equivalent fitness (Sanjuan, 2010; Jacquier et al., 2013; Sarkisyan et al., 2016; Lind et al., 2017a). Interestingly WS mutations occurring in the same gene typically show similar fitness effects (Figure 9). While still requiring experimental data, this simplification may fuel exploration of the relationship between large numbers of mutations and their fitness effects and thus understanding of the extent to which fitness effects are transferable between strains with different genetic backgrounds or closely related species (Ungerer et al., 2003; Pearson et al., 2012; Wang et al., 2014).

Taken at face value, our findings give reason to question the value of aspiring to forecast evolution from first principles based on mechanistic understanding. But we argue against such pessimism and point firstly to the value that stems from a clear understanding of current limitations on forecasting: defining what is known, what is not known, and what needs to be known. That it is possible to take knowledge of the genotype-to-phenotype map and forecast with good accuracy targets and rates is an important advance. There is good reason to suspect that the principles outlined here and previously (Lind et al., 2015) are transferable to other systems and even generalizable (Lind, 2018).

Evolutionary forecasting is in its infancy. In the short term it is likely to be most successful for biological systems where there are experimental data on a large number of independent evolutionary events, such as is the case for influenza, HIV and cancer (Kouyos et al., 2012; Fraser et al., 2014; Lawrence et al., 2014; Luksza and Lässig, 2014; Neher et al., 2014; Eirew et al., 2015). Evolution might appear idiosyncratic indicating that every specific system requires detailed investigation, but our hope is that deeper knowledge of the genotype-to-phenotype map, distribution of fitness effects and mutational biases will allow short term forecasts to be produced using modelling without the need for large-scale experimental studies. A major boost to further refinement of evolutionary forecasting is likely to come from combining coarse (top down) and fine-grained (bottom-up) approaches. Our demonstration that simple null models of functional networks can produce quantitative predictions is a step forward allowing predictions to be directly tested in other experimental systems (Lind, 2018).

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
GenewspA; PFLU1219NA
GenewspB; PFLU1220NA
GenewspC; PFLU1221NA
GenewspD; PFLU1222NA
GenewspE; PFLU1223NA
GenewspF; PFLU1224NA
GenewspR; PFLU1225NA
GeneawsX; PFLU5211, yfiRNA
GeneawsR; PFLU5210, yfiN, tpbBNA
GeneawsO; PFLU5209, yfiBNA
GenemwsR; PFLU5329, morANA
Genewss; PFLU0300-PFL0309NA
Strain, strainbackgroundPseudomonas fluorescens SBW25PMID: 19432983;PMID: 8830243
Genetic reagentPBR721; ∆aws ∆mwsPMID: 19704015
Genetic reagentPBR713; ∆wsp ∆mwsPMID: 19704015
Genetic reagentPBR712; ∆wsp ∆awsPMID: 19704015
Genetic reagentWT with pMSCPMID: 17377582
Genetic reagentPBR721 with pMSCThis workWsp pathway with pMSC
Genetic reagentPBR713 with pMSCThis workAws pathway with pMSC
Genetic reagentPBR712 with pMSCThis workMws pathway with pMSC
Cell line
Transfected construct
Biological sample
Antibody
RecombinantDNA reagentpMSCPMID: 17377582
Recombinant DNA reagentmini-Tn7(Gm)PrrnB P1 gfp-aPMID: 15186351
Sequence-based reagentPFLU1219_1294RSigma-Aldrichagacactgcggactggatct
Sequence-based reagentPFLU1219_UFSigma-Aldrichttgcctgtggagcgttctat
Sequence-based reagentPFLU1219_1130FSigma-Aldrichaccaggtggtggtgaccat
Sequence-based reagentPFLU1220_DRSigma-Aldrichgacgatcactgcttcgatca
Sequence-based reagentwspD1rSigma-Aldrichgttgcgttccagggcgag
Sequence-based reagentPFLU1221_DRSigma-Aldrichacttatcgccatggataccg
Sequence-based reagentPFLU1221_UFSigma-Aldrichtggatcggtgtaaacgacct
Sequence-based reagentPFLU1223_1511FSigma-Aldrichatgacatcgtgcaactggaa
Sequence-based reagentPFLU1223_DRSigma-Aldrichcaggtccatcaggatcaggt
Sequence-based reagentPFLU1223_841FSigma-Aldrichcgcccaagtgttgtatgaca
Sequence-based reagentPFLU1223_DRSigma-Aldrichcaggtccatcaggatcaggt
Sequence-based reagentPFLU1224_160RSigma-Aldrichtccatcaccggcatgatca
Sequence-based reagentPFLU1224_DRSigma-Aldrichttttcgtcggtcttgatgtc
Sequence-based reagentPFLU1224_UFSigma-Aldrichaagccagtttccacgatgac
Sequence-based reagentPFLU1225_DRSigma-Aldrichgtgagggtacaccgagccta
Sequence-based reagentPFLU1225_UFSigma-Aldrichtgccaaatgaacatgacctc
Sequence-based reagentPFLU5329_1888FSigma-Aldrichcgtggattgggtgttcaaga
Sequence-based reagentPFLU5329_3118RSigma-Aldrichcggttggtaatagagcacga
Sequence-based reagentwspF-seqRSigma-Aldrichataacggtcggcttgatacg
Sequence-based reagentAws11fSigma-Aldrichgctggttcagcttgatcgaaccc
Sequence-based reagentAws16rSigma-Aldrichatggatgctgccgatggttc
Sequence-based reagentAws7fSigma-Aldrichgcaaactcaccgcggatgag
Sequence-based reagentAorSigma-Aldrichcccgtcgattctccgtgcgc
Peptide, recombinantprotein
Commercial assay or kit
Chemicalcompound, drug
Software, algorithmMa-Sandri-Sarkar MLE estimatorPMID: 19369502www.keshavsingh.org/protocols/FALCOR.html
Software, algorithmJulia v1.0https://julialang.org
Software, algorithmMatlab 9.4
Software, algorithmPhyre2PMID: 25950237http://www.sbg.bio.ic.ac.uk/phyre2
Software,algorithmGeneious 7.1https://www.geneious.com
Software, algorithmFACSDiva 7.0BD Biosciences
Other

Strains and media

Request a detailed protocol

The strains used in the study are all Pseudomonas fluorescens SBW25 (Silby et al., 2009) or derivatives thereof. The reporter construct (pMSC), used for isolation of WS mutants before selection, fused the Pwss promoter to a kanamycin resistance marker (nptII) (Fukami et al., 2007; McDonald et al., 2011). P. fluorescens strains with deletions of the wsp (PFLU1219-1225), aws (PFLU5209-5211) and mws (PFLU5329) operons were previously constructed as described by McDonald et al. (McDonald et al., 2011). All experiments used King’s medium B (KB) (King et al., 1954), solidified with 1.5% agar and incubation was at 28°C. All strains were stored in glycerol saline KB at −80°C.

Fluctuation tests and isolation of WS mutants before selection

Request a detailed protocol

Strains with the pMSC reporter construct and either wild type genetic background or double deletions of aws/mws, wsp/mws or wsp/aws were used to estimate mutation rates to WS before selection. Overnight cultures were diluted to approximately 103 cfu/ml and 60 independent 110 μl cultures were grown for 16–19 hr (OD600 = 0.9–1.0) with shaking (200 rpm) in 96-well plates before plating on KB plates with 30 mg/l kanamycin. Viable counts were estimated by serial dilution and plating on KB agar. One randomly chosen colony per independent culture with WS colony morphology was restreaked once on KB agar. The assay was repeated at least four times for the double deletion mutants and twice for the wild type strain in order to obtain enough mutants to allow estimation of mutation rates. Mutations rates and confidence intervals were estimated using the Ma-Sandri-Sarkar Maximum Likelihood Estimator (Hall et al., 2009) available at www.keshavsingh.org/protocols/FALCOR.html. The mutation rates between the different strains were statistically evaluated using a t-test as previously described (Rosche and Foster, 2000), but this method has only been shown to be valid in cases where total population size is not significantly different for the strains used. In our assay this was not the case, as determined by ANOVA, and therefore the results of the statistical analysis should be interpreted with caution. As the estimated number of mutants per well was <0.5 for all strains, the biasing effect of differences in fitness between WS mutants is minimal.

Sequencing

Request a detailed protocol

Mutations causing the WS phenotype were identified by Sanger sequencing of candidate genes in the remaining common pathway to WS, for example the wsp operon for the aws/mws deletion strain. In a few cases where no mutations were identified in the previously established WS target genes, we used genome sequencing (Illumina HiSeq, performed by Macrogen Korea).

Fitness assays

Request a detailed protocol

Competition assays were performed as previously described (Lind et al., 2015) by mixing the WS mutant 1:1 with a reference strain labelled with green fluorescent protein and measuring the ratio of each strain before and after static growth for 24 hr using flow cytometry (BD FACS Canto). We used a WspF ΔT226-G275 deletion mutant as the reference strain because WspF mutants are the most commonly found WS type when grown under selective conditions (McDonald et al., 2009) and the in frame deletion of 50 amino acids most likely represents a complete loss-of-function mutation with minimal polar effects on the downstream wspR. Selection coefficients per generation were calculated as s = [ln(R(t)/R(0))]/[t], as previously described (Dykhuizen, 1990) where R is the ratio of alternative WS mutant to WspF ΔT226-G275 GFP and t the number of generations. Viable counts on KB plates of initial and final populations were performed to calculate the number of generations. Stability of colony morphologies was confirmed and data from microcosms with >5% smooth colonies were excluded (two cases). Control competition experiments with isogenic WspF ΔT226-G275 reference strains with and without GFP were used to correct for the cost of the GFP marker. Control competitions were also used to determine the cost of the double deletions and the reporter construct relative to a wild type genetic background, for example an AwsX ΔY77-Q87 mutant in Δwsp/Δmws background with pMSC was competed with a GFP labeled AwsX ΔY77-Q87 mutant in wild type background. Competitions were performed in independently inoculated quadruplicates for each strain with the number of replicates based on previous work (Lind et al., 2015).

Homology models

Request a detailed protocol

Homology models of the structure of WspA, WspE, WspR, AwsR, AwsO and MwsR were made using Phyre2 in intensive mode (http://www.sbg.bio.ic.ac.uk/phyre2) (Kelley et al., 2015).

Probability estimation in the null model IV

View detailed protocol

The differential equation models describe the interactions between proteins in each of the three WS pathways. In order to solve the differential equations, two pieces of information are required: (i) the initial concentrations of the molecular species and (ii) the reaction rates. Although this information is unavailable a random-sampling approach was used to generate different random sets of initial concentrations and reaction rates. Each random set was used to establish a baseline of potential WS expression making it possible to evaluate whether a set of mutations results in a WS type. Effectively, this approach allows sampling of the probability distribution P (WS |mi ∈ Wsp) used in our Bayesian model.

We randomly sample 1000 different sets of reaction rates and initial concentrations from uniform priors: reaction rates were sampled randomly from a uniform distribution on log space (i.e. 10U[−2,2]) and initial concentrations of reactants were sampled from a uniform distribution U[0,10]. For each set, the appropriate differential equation model was integrated and the steady state concentration of the compounds that correspond to a wrinkly spreader (RR in Aws, R* in Wsp and D* for Mws) computed. This served as a baseline for the non-WS phenotype that was used for comparison to determine whether combinations of mutations result in increased WS expression. After obtaining the baseline, we implemented particular combinations of enabling/disabling mutations (a mi). Ideally, a distribution linking enabling/disabling mutations to a fold change in reaction rates would be used, but this information is unavailable. In order to progress the effect sizes for enabling and disabling mutations were sampled from 10U[0,2] and 10U[−2,0], respectively, and then multiplied by the reaction rates. The differential equations were then solved for the same time that it took the baseline to reach steady state. The final concentration of R* (Figure 4A), RR (Figure 4B) and D* (Figure 4C) was then compared to the baseline and the number of times out of 1000 that the WS-inducing compound increased served as an estimate of P (WS|mi ∈ Wsp). The probability distribution stabilized by 500 random samples and additional sampling did not produce significant changes (data not shown).

The absence of empirical data on reaction rates, initial concentrations, and expected mutation effect size meant using a random sampling approach requiring estimates for parameter ranges. Parameter ranges were chosen to be broad enough to capture differences spanning several orders of magnitudes while allowing numerical computations for solving the differential equations. To assess the effect of these ranges on the results, the sampling procedure was repeated for WSP for three different parameter regimes (i) an expanded range for initial concentrations [0–50], (ii) an expanded range for reaction rates 10[-3,3], (iii) a compressed range for mutational effect size 10^[-1,1]. This analysis shows that qualitative results are robust to these changes (see Figure 5—figure supplement 3).

Source code and equations are available in Supplementary file 1.

Appendix 1

Predicting mutational routes to new adaptive phenotypes

Peter A. Lind, Eric Libby, Jenny Herzog and Paul B. Rainey

Analysis of mutations and molecular effects

Wsp pathway: Mutations were identified in five genes of the seven-gene pathway all of which were predicted by null model IV (Figure 5—figure supplement 1). The most commonly mutated gene was wspA (PFLU1219), with ten out of 15 mutations (Figure 6) being amino acid substitutions (six unique) clustered in the region 352–420 at the stalk of the signalling domain. This region has been implicated in trimer-of-dimer formation for the WspA homologue in Pseudomonas aeruginosa (O'Connor et al., 2012) which is critical for self-assembly and localization of Wsp clusters in the membrane. It is possible that these mutations stabilize trimer of dimer formation, change the subcellular location of the Wsp complex, or affect interaction with WspD (putative interface 383–420 in WspA) (Griswold et al., 2002) and thus affecting relay of signal to WspE. These effects we interpreted as enabling mutations increasing r3 in Figure 4A. The four additional mutations were in frame deletions in a separate region of the transducer domain (ΔT293 - E299, ΔA281-A308). Although it is possible that these mutations could also affect trimer-of-dimer formation, there are predicted methylation sites in the region (Rice and Dahlquist, 1991) that regulate the activity of the protein via methyltransferase WspC and methylesterase WspF. Given that disabling mutations are more common than enabling mutations it is likely that these mutations decrease r2 in Figure 4A by disrupting the interaction with WspF. We also identified a single mutation that fused the open reading frame of WspC, the methyltransferase that positively regulates WspA activity, to WspD, resulting in a chimeric protein (Figure 6, Figure 6—source data 1). This mutation is likely to be a rare enabling mutation that increases the activity of WspC (increasing r1 in Figure 4A) by physically tethering it to the WspABD complex thus allowing it to more effectively counteract the negative regulator WspF. Alternatively, the tethering may physically block the interaction with WspF (decrease of r2 in Figure 4A).

The second most commonly mutated gene in the wsp operon was wspE (PFLU1223) (Figure 6). Four amino acids were repeatedly mutated in the response regulatory domain of WspE and all cluster closely in a structural homology model made with Phyre2 (Kelley et al., 2015). All mutated residues surround the active site of the phosphorylated D682 and it is likely that they disrupt feedback regulation by decreasing phosphorylation of the negative regulator WspF (decreasing r6) rather than increasing activation of WspR (r5 in Figure 4A).

Twelve mutations were detected in wspF (PFLU1224). These are distributed throughout the gene and include amino acid substitutions, in-frame deletions as well as a frame-shift and a stop codon (Figure 6). The pattern of mutations is consistent with both the role of WspF as a negative regulator of WspA activity and the well-characterised effect of loss-of-function mutations in this gene (Bantinaki et al., 2007; McDonald et al., 2009). The mutations are interpreted as decreasing r2 in Figure 4A.

Five mutations were found in WspR (PFLU1225), the DGC output response regulator that produces c-di-GMP and activates expression of cellulose (Figure 6). All mutations were located in the linker region between the response regulator and DGC domains. Mutations in this region are known to generate constitutively active wspR alleles by relieving the requirement for phosphorylation (Goymer et al., 2006). They may additionally affect subcellular clustering of WspR (Huangyutitham et al., 2013) or shift the equilibrium between the dimeric form of WspR, with low basal activity, towards a tetrameric activated form (De et al., 2009). In our model these increase reaction r5.

Aws pathway: Mutations were identified in all three genes of the Aws pathway – all of which were predicted by the null Model IV. In the Aws pathway, mutations were most commonly found in awsX (25 out of 41 mutations (Figure 6). The above-mentioned mutational hotspot produced in-frame deletions likely mediated by 6 bp direct repeats (Figure 6—source data 1). The deletions are consistent with a loss of function and a decrease in r3 (Figure 4B) that would leave the partially overlapping open reading frame of the downstream gene (awsR) unaffected.

The DGC AwsR, was mutated in 14 cases with an apparent mutational hot spot at T27P (nine mutants) in a predicted transmembrane helix (amino acids 19–41). The remaining mutations were amino acid substitutions in the HAMP linker and in the PAS-like periplasmic domain between the two transmembrane helices. These amino acid substitutions are distant to the output DGC domain (Figure 6) and their effects are difficult to interpret, but they could cause changes in dimerization (Malone et al., 2012) or the packing of HAMP domains, which could, in turn, alter transmission of conformational changes in the periplasmic PAS-like domain to the DGC domain causing constitutive activation (Parkinson, 2010). Such effects would increase r4 in Figure 4B. Mutations in the N-terminal part of the protein are easier to interpret based on the existing functional model (Malone et al., 2012) and most likely disrupt interactions with the periplasmic negative regulator AwsX resulting in a decrease in r3 in Figure 4B.

Two mutations were found in the outer membrane lipoprotein protein AwsO between the signal peptide and the OmpA domain (Figure 6). Both mutations were glutamine to proline substitutions (Q34P, Q40P), which together with a previously reported G42V mutation (McDonald et al., 2009) suggest that multiple changes in this small region can cause a WS phenotype. This is also supported by data from Pseudomonas aeruginosa in which mutations in nine different positions in this region lead to a small colony variant phenotype similar to WS (Malone et al., 2012). A functional model based on the YfiBNR in P. aeruginosa (Malone et al., 2012; Xu et al., 2016), suggest that AwsO sequesters AwsX at the outer membrane and that mutations in the N-terminal part of the protein lead to constitutive activation and increased binding of AwsX. This would correspond to an increase in r2 in Figure 4B, which would relieve negative regulation of AwsR.

Mws pathway: The MwsR pathway (comprising just a single gene) harbours mutations in both DGC and phosphodiesterase (PDE) domains. Mainly mutations in the C-terminal phosphodiesterase (PDE) domain were predicted (Figure 4C). Eleven of 18 mutations were identical in-frame deletions (ΔR1024-E1026) in the PDE domain, mediated by 8 bp direct repeats (Figure 6, Figure 6—source data 1). It has been shown previously that deletion of the entire PDE domain generates the WS phenotype (McDonald et al., 2009), suggesting a negative regulatory role that causes a decrease of r2 in the model in Figure 4C. One additional mutation was found in the PDE domain (E1083K) located close to R1024 in a structural homology model made with Phyre2 (Kelley et al., 2015), but distant to the active site residues (E1059-L1061). Previously reported mutations (A1018T, ins1089DV) (McDonald et al., 2009) are also distant from the active site and cluster in the same region in a structural homology model. This suggests that loss of phosphodiesterase activity may not be the mechanism leading to the WS phenotype. This is also supported by the high solvent accessibility of the mutated residues, which indicates that major stability-disrupting mutations are unlikely and changes in interactions between domains or dimerization are more probable. Thus, it is likely that the WS phenotype resulting from a deletion in the PDE domain is caused by disruption of domain interactions or dimerization rather than loss of phosphodiesterase activity.

The remaining mutations within mwsR are amino acid substitutions in the GGDEF domain, close to the DGC active site (G927-F931) with the exception of a duplication of I978-G985. While it is possible that these mutations directly increase the catalytic activity of the DGC, increasing r1 in Figure 4C, such enabling mutations are considered to be rare. An alternative hypothesis is that these mutations either interfere with c-di-GMP feedback regulation or produce larger conformational changes that change inter-domain or inter-dimer interactions, similar to the mutations in the PDE domain. Based on these data we reject the current model of Mws function, which predicted mutations decreasing r2 (Figure 4C) through mutations inactivating the PDE domain. We instead suggest that the mutations are likely to disrupt the conformational dynamics between the domains and could be seen either as activating mutations causing constitutive activation or disabling mutations with much reduced mutational target size that must specifically disrupt the interaction surface between the domains. In both cases the previous model leads to an overestimation of the rate to WS for the Mws pathway.

https://doi.org/10.7554/eLife.38822.024

Data availability

All data generated or analysed during this study are included in the manuscript and supporting files. Source data files have been provided for Figures 6 and 9.

References

  1. Book
    1. Conway Morris S
    (2003)
    Life's Solution Inevitable Humans in a Lonely Universe
    New York: Cambridge University Press.
  2. Book
    1. Darwin C
    (1872)
    The Origin of Species by Means of Natural Selection, Or, the Preservation of Favoured Races in the Struggle for Life
    London: John Murray.
  3. Book
    1. Gould SJ
    (1989)
    Wonderful Life: The Burgess Shale and the Nature of History
    New York: W.W. Norton.
    1. King EO
    2. Ward MK
    3. Raney DE
    (1954)
    Two simple media for the demonstration of pyocyanin and fluorescin
    The Journal of Laboratory and Clinical Medicine 44:301–307.
    1. Luria SE
    2. Delbrück M
    (1943)
    Mutations of Bacteria from Virus Sensitivity to Virus Resistance
    Genetics 28:491–511.
    1. Rice MS
    2. Dahlquist FW
    (1991)
    Sites of deamidation and methylation in Tsr, a bacterial chemotaxis sensory transducer
    The Journal of Biological Chemistry 266:9746–9753.
  4. Book
    1. Roth JR
    2. Benson N
    3. Galitsky T
    4. Haack K
    5. Lawrence JG
    6. Miesel L
    (1996)
    Escherichia Coli and Salmonella: Cellular and Molecular Biology
    Neidhardt F. C, editors. Washington: Cell Press.
    1. Sarkisyan KS
    2. Bolotin DA
    3. Meer MV
    4. Usmanova DR
    5. Mishin AS
    6. Sharonov GV
    7. Ivankov DN
    8. Bozhanova NG
    9. Baranov MS
    10. Soylemez O
    (2016)
    Local fitness landscape of the green fluorescent protein
    Nature 533:397–401.
  5. Book
    1. Simpson GG
    (1949)
    The meaning of evolution: a study of the history of life and of its significance for man
    New Haven: Yale University Press.
    1. Spiers AJ
    2. Kahn SG
    3. Bohannon J
    4. Travisano M
    5. Rainey PB
    (2002)
    Adaptive divergence in experimental populations of Pseudomonas fluorescens. I. Genetic and phenotypic bases of wrinkly spreader fitness
    Genetics 161:33–46.
    1. Ungerer MC
    2. Linder CR
    3. Rieseberg LH
    (2003)
    Effects of genetic background on response to selection in experimental populations of Arabidopsis thaliana
    Genetics 163:277–286.

Decision letter

  1. Patricia J Wittkopp
    Senior and Reviewing Editor; University of Michigan, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

[Editors’ note: the authors were asked to provide a plan for revisions before the editors issued a final decision. What follows is the editors’ letter requesting such plan.]

Thank you for submitting your article "Disentangling the effects of genetic architecture, mutational bias and selection on evolutionary forecasting" for consideration by eLife. Your article has been reviewed by Patricia Wittkopp as the Senior Editor, a Reviewing Editor, and three reviewers. The following individuals involved in review of your submission have agreed to reveal their identity: James Bull (Reviewer #3).

Overall, we were impressed by the experimental data presented, but had concerns about the predictions and model testing. These concerns included both the clarity of presentation and the substance of the modeling. Different reviewers had different interpretations of some elements of the work because key elements (including Figure 3) were not clearly explained. The mutation model was one element identified as particularly difficult to understand. The lack of statistical tests comparing the predictions to data was also identified as a missing element. Especially in light of the title of the paper; making sure these predictions are made and tested appropriately, is key - we agree that this is where some of the most exciting aspects of the paper lie. Critical points raised during our discussion are provided below. Minimally, we request that you make it clear that you are evaluating two different prediction models and clarify them. Ideally, we'd also like you to make the evolution model explicit and quantitative as well as evaluate each model separately by computing numerical predictions and reporting statistics on the fit with results.

We recognize that the refinement of the modeling work we are requesting may be substantial. Given the list of essential revisions, the editors and reviewers invite you to respond within the next two weeks with an action plan and timetable for the completion of the additional work. We plan to share your responses with the reviewers and then issue a binding recommendation.

This paper reports important experimental work that could easily become a paradigm copied by others. We appreciated the study's span of known biochemical pathways for a phenotype, of documented mutations and mutation counts in those pathways leading to that phenotype, and the attempt to model/quantify the mutation rates in light of some genomic details. The topic is of sufficient interest to publish in eLife.

1) A major strength of the study was that there is an in-depth analysis of different mutational pathways to the WS phenotype. This is a data-intensive part of the paper with lots of detail about gene identity of mutations that were found in WS mutants. However, descriptions of gene functions would be better presented in a table with the in text discussion streamlined more.

2) A much better description of Figure 3 is needed. Not only are the colors not explained, but the meaning of the arrows isn't given either (are they quantitative, qualitative; how do they plug into the model?). I thus cannot easily understand how the figure connects to their models. We ultimately found this information in the supplementary materials, but the reader shouldn't need to look there to understand this key element of the paper. As one reviewer wrote: the manuscript describes Figure 3 as a diagram of a "pathway" or "molecular network" but it does not use ordinary conventions for biochemical or regulatory pathways. It is better described as a graph of mathematical dependencies between reaction rates (red) and gene-product concentrations (blue). Once you know this, you can read out some of the implied reactions like F + E* ==(r6)==> E + F*. In the supplement, see reaction 6, Figure 3—figure supplement 1, "Phosphorylated WspE can phosphorylate WspF". It would be more understandable to just list the reactions, I think.

3) Most importantly, we felt that the modeling elements were presented superficially and were not well-integrated. There are two different prediction models developed and evaluated in the paper: one of mutation rates and one of evolutionary tendencies. Regarding mutational predictability, we have (1) a model for predicting relative mutability for 3 pathways, (2) measured mutation rates for the 3 pathways, and (3) a revised model. But there are no statistics telling us how well the model fits and how much it was improved.

In theoretical population genetics there is a simple "origin-fixation" or SSWM framework for considering the relative chances of different discrete evolutionary changes. Whether or not one wishes to criticize this formalism for being too simplistic, it is the obvious framework for making a prediction when one has measured mutation rates and selection coefficients. It allows precise quantitative statements about the relative contributions of selection and mutational heterogeneity to parallel evolution, as per "What drives parallel evolution?" by Bailey et al., 2017, which uses the theory explained more thoroughly in "Parallel evolution: what does it (not) tell us and why is it (still) interesting?" by Lenormand et al., 2016. The analysis also needs statistical tests, e.g., tests of differences where the authors are making claims about differences.

Regarding the modeling framework, let me explain this concretely. The relevant facts on mutation rate, selection coefficient, and frequency evolved are (subsection “Obtaining an unbiased measure of pathway-specific mutation rates to WS”, Figure 6 and Figure 7):

Wsp: u = 3.7E-9; s ~ x; E = 15

Aws: u = 6.5E-9; s ~ x – 0.2; E = 7

Mws: u = 7.4E-10; s ~ x – 0.05; E = 3

Here x is the selection coefficient of the WspF control used in growth competitions, and I have estimated s by eye from Figure 6.

The authors talk about predictability, but they do not compute a prediction using a model, nor compute the fit between results and predictions. One way to do this is to invoke origin-fixation dynamics, yielding 3 relative predictions of u * Pr_fixation(s), which can be compared to the 3 E values using a chi-squared test (or, better, define expected Wsp and Aws as sums over the 5 and 3 relevant gene targets). Given all the numbers and Kimura's formula for Pr_fixation(s, N), this can be done in a spreadsheet in 15 minutes.

If the authors do not want to commit to the assumptions underlying origin-fixation dynamics, they can just do a multinomial regression on the assumption that E(p) = f(u_p, s_p) where p is the pathway.

In summary, we all agreed that under the origin-fixation framework, having estimates of mutation rates for different phenotypes is important and that these are not easy to obtain in most systems. We are excited about the opportunity to test how well a model based on known information can recapitulate observed mutation rates. It is interesting that it does a relatively poor job unless they incorporate information about mutational hotspots. We think that making this analysis more formal in addition to formally testing your evolutionary predictions using an origin-fixation framework (or similar approach) would both strengthen the paper and be in the spirit of what the title claims the paper does.

[Editors’ note: formal revisions were requested, following approval of the authors’ plan of action.]

Thank you for describing your proposed revisions. This summary has been reviewed and discussed by the reviewers and myself. We all agree that your proposed responses to everything except point 3 is satisfactory. For point 3, the reviewers were disappointed in the response. They all agreed that their recommendation to take advantage of your rich and powerful dataset to model the evolutionary process more formally had been dismissed too quickly.

After considering your response and their comments, it seems to me that you are thinking about "predictability" in the way that David Stern does (i.e., which genes/pathways are most likely to be changed to give rise to a particular phenotypic change given the molecular/developmental functions of all genes in the genome), and they are thinking about predictability in a more population/quantitative genetics sense (i.e., given that you know the relative mutation rates and fitness effects for different genes, you should be able to make predictions using theoretical models about how the trait should evolve, which you can then compare to the observed data). In the reviewers’ opinion, you are focused more on the effects of mutations as they arise and they want to see these combined with other evolutionary forces to make more robust evolutionary predictions.

I do not want to be so heavy handed in the review process as to try force you to make your paper something you didn't intend it to be. However, I also see the potential for modeling with your data that has the reviewers excited. It is rare to have the type of data that you have, and there are well-developed models that could make your data even more impactful.

Ultimately, I will leave it up to you to decide whether or not to go beyond the response you propose and fit a specific evolutionary model and compare it to your observed data with statistical tests. If you choose not to do this, however, it is essential that the title, abstract, and other parts of the paper are modified so that readers do not think this type of analysis is included within the paper.

https://doi.org/10.7554/eLife.38822.026

Author response

[Editors’ note: what follows is the authors’ plan to address the revisions.]

Overall, we were impressed by the experimental data presented, but had concerns about the predictions and model testing. These concerns included both the clarity of presentation and the substance of the modeling. Different reviewers had different interpretations of some elements of the work because key elements (including Figure 3) were not clearly explained. The mutation model was one element identified as particularly difficult to understand. The lack of statistical tests comparing the predictions to data was also identified as a missing element. Especially in light of the title of the paper; making sure these predictions are made and tested appropriately, is key – we agree that this is where some of the most exciting aspects of the paper lie. Critical points raised during our discussion are provided below. Minimally, we request that you make it clear that you are evaluating two different prediction models and clarify them. Ideally, we'd also like you to make the evolution model explicit and quantitative as well as evaluate each model separately by computing numerical predictions and reporting statistics on the fit with results.

We recognize that the refinement of the modeling work we are requesting may be substantial. Given the list of essential revisions, the editors and reviewers invite you to respond within the next two weeks with an action plan and timetable for the completion of the additional work. We plan to share your responses with the reviewers and then issue a binding recommendation.

This paper reports important experimental work that could easily become a paradigm copied by others. We appreciated the study's span of known biochemical pathways for a phenotype, of documented mutations and mutation counts in those pathways leading to that phenotype, and the attempt to model/quantify the mutation rates in light of some genomic details. The topic is of sufficient interest to publish in eLife.

1) A major strength of the study was that there is an in-depth analysis of different mutational pathways to the WS phenotype. This is a data-intensive part of the paper with lots of detail about gene identity of mutations that were found in WS mutants. However, descriptions of gene functions would be better presented in a table with the in text discussion streamlined more.

We propose including a table similar to that pasted below into which we move information about the probable molecular effects and the effects of reaction rates on different classes of mutations. This will allow streamlining of the text and improved focus on the motivation for determining the molecular effects on mutations. This is important because it forms the link between targeted genes and reaction rates. It will also allow more attention to be given to the proposed effects of mutations on gene function and reaction rates and their agreement (or not) with the model. However, in removing this information to a table we are concerned that we may leave the reader interested in important detail frustrated. To accommodate this possibility we propose including a supplementary text that complements the table in which we will include relevant detail and where necessary, nuanced interpretations (removed from the current text). This is readily achievable.

Protein Mutation class Proposed molecular effect Proposed reaction rate effect Reference
s
WspAAmino acid substitutions 352-420trimer-of-dimer formation, localization of Wsp
clusters, interaction with WspD
Increase r3O'Connor et al. 2012, Griswold, et al. 2002,
WspADeletions A281-A308Disrupt
demethylation by
WspF
Decrease r2Rice and
Dahlquist
1991
WspC/DFusion of WspC and WspDIncreased methylation by WspC, blocking access for WspFIncrease r1, decrease r2
WspEResponse regulatory domain phosphorylation
site
Disrupt
phosphorylation of WspF
Decrease r6Homology model
WspFAny disabling mutationLoss of negative regulation by WspF
by demethylation of
WspA
Decrease r2Bantinaki, et al. 2007, McDonald, et al. 2009
WspRAmino acid substitutions and small deletion in linker region between response regulator and DGC domainConstitutive activation of DGC without phosphorylation. Effects on subcellular clustering or multimeric state.Increase r5Goymer, et al.
2006,Huang yutitham, et al. 2013, De, et al. 2009
AwsXIn frame loss of function mutationsLoss of negative regulation of AwsRDecrease r3Malone, et al. 2012
AwsRAmino acid substitutions transmembrane
helix, periplasmic
domain
Disruption of interaction with AwsXDecrease r3Malone, et al. 2012
AwsRAmino acid substitutions HAMP linker domainChanges in dimerization, packing of HAMP domains causing constitutive
activation
Increase r4Malone, et al. 2012,
Parkinson 2010
AwsOAmino acid substitutions in between signal peptide and OmpA domainConstitutive activation and
sequestering of
AwsX
Increase r2McDonald, et al. 2009, Malone, et al. 2012, Xu, et al. 2016
MwsRAmino acid substitutions and small in frame deletions in interface between EAL and DGC domainsChanges to interdomain interaction or dimerization leading to constitutive activation of DGC functionDecrease r2, increase r1Homology model, McDonald, et al. 2009
MwsRAmino acid substitutions near DGC active siteLoss of feedback regulation or changes to interdomain interactionDecrease r2, increase r1Homology model, McDonald, et al. 2009

2) A much better description of Figure 3 is needed. Not only are the colors not explained, but the meaning of the arrows isn't given either (are they quantitative, qualitative; how do they plug into the model?). I thus cannot easily understand how the figure connects to their models. We ultimately found this information in the supplementary materials, but the reader shouldn't need to look there to understand this key element of the paper. As one reviewer wrote: the manuscript describes Figure 3 as a diagram of a "pathway" or "molecular network" but it does not use ordinary conventions for biochemical or regulatory pathways. It is better described as a graph of mathematical dependencies between reaction rates (red) and gene-product concentrations (blue). Once you know this, you can read out some of the implied reactions like F + E* ==(r6)==> E + F*. In the supplement, see reaction 6, Figure 3—figure supplement 1, "Phosphorylated WspE can phosphorylate WspF". It would be more understandable to just list the reactions, I think.

We agree that a better description of Figure 3 is required. In response to your point 3 (below) we propose to include null models for each of the pathways. These will allow a better introduction / motivation and description of our mathematical model that will lead to a revision of Figure 3. We will take care to ensure that the caption serves as a complete description of the figure and its significance. This will require one month.

3) Most importantly, we felt that the modeling elements were presented superficially and were not well-integrated. There are two different prediction models developed and evaluated in the paper: one of mutation rates and one of evolutionary tendencies. Regarding mutational predictability, we have (1) a model for predicting relative mutability for 3 pathways, (2) measured mutation rates for the 3 pathways, and (3) a revised model. But there are no statistics telling us how well the model fits and how much it was improved.

In theoretical population genetics there is a simple "origin-fixation" or SSWM framework for considering the relative chances of different discrete evolutionary changes. Whether or not one wishes to criticize this formalism for being too simplistic, it is the obvious framework for making a prediction when one has measured mutation rates and selection coefficients. It allows precise quantitative statements about the relative contributions of selection and mutational heterogeneity to parallel evolution, as per "What drives parallel evolution?" by Bailey et al., 2017, which uses the theory explained more thoroughly in "Parallel evolution: what does it (not) tell us and why is it (still) interesting?" by Lenormand et al., 2016. The analysis also needs statistical tests, e.g., tests of differences where the authors are making claims about differences.

We have given this particular attention. It seems, especially from the suggestion that we borrow from origin-fixation models, there is some misunderstanding of what we have done: our motivation, aims and overall long-term aspiration. Clearly, we need to improve.

Ultimately – although perhaps not for some time – we think that it will be possible to take a given genome sequence and, armed with knowledge of the genotype-to-phenotype map underpinning a particular phenotype, combined with knowledge of localised mutational biases, predict the genetic bases of phenotypic evolution in the absence of additional data. Our work is a small step in this direction and perhaps its most important contribution is to outline a way forward and uniquely (because of our experimental system) assess its validity in terms of what is currently known, what is not known, and what needs (in the future) to be known.

Importantly, our approach aids understanding of why evolution follows a particular route. Indeed in our previous work (McDonald et al.,2009; Lind et al.,2015) we have shown the genotype-to-phenotype map to be a significant contributor to parallel evolution (it’s not all about selection and mutation rate). Our work thus contributes to development of a body of knowledge that deepens understanding of the mechanisms of evolution.

Our approach is readily extendable to other organisms that harbour Wsp, Aws and Mws pathways. Precisely this transferability is demonstrated in Lind 2018 (https://www.biorxiv.org/content/early/2018/06/08/342261). By extension to other systems, this stands to feedback to affect the value and predictive power of bottom-up approaches in the future. Further, our approach is amenable to the study of future evolutionary change, for example, that involving reverse evolution of the WS phenotype as evident in studies of lifecycle evolution (Hammerschmidt et al., 2014). In contrast, approaches involving measurement of mutation rate and selection coefficient will be — in absence of mechanistic understanding — specific to each particular instance of adaptive evolution.

We appreciate that origin-fixation models can be useful in predicting the rise and fixation of new mutants. As you and the referees point out such models require estimation of (1) the probability that a mutant will arise and (2) the selection coefficient of that mutant. These parameters, particularly the first, are difficult to predict a priori and usually require fitting to experimental data or an assumption about the probability distribution of mutations. The framework introduced in our paper is different, in that it attempts to estimate the probability that a particular mutant (Wsp, Aws, Mws) will arise in the absence of experimental data (with only knowledge of the genes in a pathway and how they interact to produce a particular phenotype). While we compare predictions arising from our models to experimental data, we do not use these data in our predictions.

Initially we make incorrect predictions based solely on knowledge of the genotype-to-phenotype map (although we are not out by much) but show that we are able to refine predictions through incorporation of information concerning mutational hotspots. The capacity to weigh the influences of gene interactions with gene mutation rates avoids lumping these factors into a single term as is the norm for origin-fixation models. In the revised version of this paper, we propose to spell out these differences more clearly.

In addition to the comments above we believe that using an origin-fixation framework is not appropriate here. Although the selection coefficients could of course be used in combination with mutation rates to predict the probability of fixation this is not what we are trying to do, moreover to do so would be to mislead the reader. There are three reasons. Firstly, the fitness of WS is frequency-dependent and thus a mutant’s selection coefficient is very different at the time it originates compared to when it is established at the air-liquid interface (Rainey and Travisano,1998; Lind et al.,2015). Secondly, the selection coefficient is also dependent on the frequency of other WS types and other phenotypes selected at the air-liquid interface (Lind et al., 2017, Ferguson et al.,2013). Thirdly, fitness in our study is measured against a wspF (WS) mutant and not the wild type ancestor, which is needed for use in origin-fixation models. In our experiment, it is not the case that fitness can be estimated by using s=x-0.2 for aws as suggested in the comments.

The way forward: we propose as a vehicle for improvement, inclusion of null models for each of the pathways in which we firstly ignore genetic architecture. This means the first line of prediction – as to which pathway evolution will follow – will be based solely on target size. Preliminary analyses show that these null models are hopelessly inaccurate. Next, as we better develop the argument for the importance of genetic architecture, we propose a set of three null models that incorporate genetic architecture with the same number of components and interactions but with randomly assigned architectures. Comparison between these arbitrary models and those informed by current knowledge can then be made – and will be statistically appraised. Together these comparisons will demonstrate the value of incorporating valid architectural information. Finally, as we move to introduce known mutational bias into our models (based on our experimental data) we will compare these to null models where the hotspot is placed randomly in the pathway. Again, we will subject the comparisons to statistical testing. The proposed new analyses will lead to clarifications in the Introduction and Discussion concerning our objectives and the differences with current approaches and particularly the difference between our strategy and origin-fixation models.

This analysis will be completed within two months and will offer many points of comparison and demonstrate the value of the predictive power of our approach.

Additionally, we propose: (1) to perform a statistical analysis of differences between all mutation rates (Figure 2) and fitness (for example wspA and wspR vs. the control in Figure 6). The number of replicates will be added to all figures. (2) Provide a better motivation for our measurements of fitness: an explanation of why mutations in certain genes have not previously been found (wspA and wspE) and why Aws is is more rarely used than Wsp despite a higher mutation rate to WS. (3) Add information concerning controls for fitness assays in order to account for effects of the kanamycin marker and double deletions and clarify that the number of mutants per independent culture for the mutation rate assay is <0.5 so that differences in fitness between different WS mutants thus making the point that these have minimal influence on results. These modifications will be completed within a month.

Regarding the modeling framework, let me explain this concretely. The relevant facts on mutation rate, selection coefficient, and frequency evolved are (subsection “Obtaining an unbiased measure of pathway-specific mutation rates to WS”, Figure 6 and Figure 7):

Wsp: u = 3.7E-9; s ~ x; E = 15

Aws: u = 6.5E-9; s ~ x – 0.2; E = 7

Mws: u = 7.4E-10; s ~ x – 0.05; E = 3

Here x is the selection coefficient of the WspF control used in growth competitions, and I have estimated s by eye from Figure 6.

The authors talk about predictability, but they do not compute a prediction using a model, nor compute the fit between results and predictions. One way to do this is to invoke origin-fixation dynamics, yielding 3 relative predictions of u * Pr_fixation(s), which can be compared to the 3 E values using a chi-squared test (or, better, define expected Wsp and Aws as sums over the 5 and 3 relevant gene targets). Given all the numbers and Kimura's formula for Pr_fixation(s, N), this can be done in a spreadsheet in 15 minutes.

If the authors do not want to commit to the assumptions underlying origin-fixation dynamics, they can just do a multinomial regression on the assumption that E(p) = f(u_p, s_p) where p is the pathway.

In summary, we all agreed that under the origin-fixation framework, having estimates of mutation rates for different phenotypes is important and that these are not easy to obtain in most systems. We are excited about the opportunity to test how well a model based on known information can recapitulate observed mutation rates. It is interesting that it does a relatively poor job unless they incorporate information about mutational hotspots. We think that making this analysis more formal in addition to formally testing your evolutionary predictions using an origin-fixation framework (or similar approach) would both strengthen the paper and be in the spirit of what the title claims the paper does.

[Editors’ notes: the authors’ response after being formally invited to submit a revised submission follows.]

Thank you for describing your proposed revisions. This summary has been reviewed and discussed by the reviewers and myself. We all agree that your proposed responses to everything except point 3 is satisfactory. For point 3, the reviewers were disappointed in the response. They all agreed that their recommendation to take advantage of your rich and powerful dataset to model the evolutionary process more formally had been dismissed too quickly.

After considering your response and their comments, it seems to me that you are thinking about "predictability" in the way that David Stern does (i.e., which genes/pathways are most likely to be changed to give rise to a particular phenotypic change given the molecular/developmental functions of all genes in the genome), and they are thinking about predictability in a more population/quantitative genetics sense (i.e., given that you know the relative mutation rates and fitness effects for different genes, you should be able to make predictions using theoretical models about how the trait should evolve, which you can then compare to the observed data). In the reviewers’ opinion, you are focused more on the effects of mutations as they arise and they want to see these combined with other evolutionary forces to make more robust evolutionary predictions.

I do not want to be so heavy handed in the review process as to try force you to make your paper something you didn't intend it to be. However, I also see the potential for modeling with your data that has the reviewers excited. It is rare to have the type of data that you have, and there are well-developed models that could make your data even more impactful.

Ultimately, I will leave it up to you to decide whether or not to go beyond the response you propose and fit a specific evolutionary model and compare it to your observed data with statistical tests. If you choose not to do this, however, it is essential that the title, abstract, and other parts of the paper are modified so that readers do not think this type of analysis is included within the paper.

We have changed the title to “Predicting mutational routes to new adaptive phenotypes”. This we have done after realizing that our previous title gave the unintended message that we were combining mutation and selection into our model of evolutionary forecasting. This, as the referees have correctly understood, is not what we have done. What we have done (by virtue of being able to obtain a set of mutants with and without selection) is to show that there really is a need to link mutations to their fitness effects. We have made sure that this message is consistently made in the Abstract and elsewhere. In the revised Discussion section we emphasize that construction of models that link mutations to their fitness effects is the yet to be achieved Holy Grail of forecasting.

We have added new material to the Introduction to acknowledge origin-fixation models. We point out briefly their limitations, but importantly, we make clear that what we aspire to is quite different. Our hope is that at some future time it will be possible to read a genome sequence and be able to forecast future evolutionary change based on mechanistic understanding of rules underpinning expression of the phenotype from genotype, knowledge of mutational biases and understanding of the connection between mutations and their fitness effects, just as today we use the genome to interrogate various databases to infer much about gene function and regulation.

We have removed from the text the detailed descriptions of the likely effect of mutations on reaction rates of each pathway – leaving just a short summary – and placed this in Table 1.

We have substantially revised the modeling section as per our proposed plan. Specifically, in order to show the thinking behind our modeling approach we have included three new models, that begin with a simple (and intentionally naïve) expression of the relationship between genotype and the probability of generating WS phenotypes and conclude with a comprehensive model that expresses the relationship between genotype and WS phenotype based on interaction rates among pathway components (the model previously presented). We describe this as a graph of mathematical dependencies and provide full details of the models in terms of functional descriptions and system of differential equations in the child figures (Figure 4—figure supplement 1, Figure 4—figure supplement 2 and Figure 4—figure supplement 3). We have also clarified the use of multiple changes to reaction rates by single mutations and modified the model to disregard multiple changes that are likely to require several mutations. This has led to minor changes in the ratios of the different pathways and in also in the Figure 4 (now Figure 5), but they do not change our conclusions.

We have added a new Figure 3 showing the predictions of the different null models compared to the experimental data.

The complex graph depicting interactions among pathway components (previously Figure 3), is now Figure 4 and we have taken care to explain its significance fully both in the text and in the caption.

A new Figure 7 has been added that presents an analysis of the results of the different models the experimentally supported mutational hotspot and the predicted relationship between mutation and likelihood of generating WS via each of the three focal pathways. For the two comprehensive models we include the range of predicted states arising from extremes of all enabling and all disabling reactions allowing the reader to assess the full range of predictions and not just values from a single hotspot as previously. This was previously Figure 4D,E and part of the Figure 4—figure supplement 2B.

We have reorganized the end of the Results section to make it clear to the reader that we do not attempt to predict the outcome of experimental evolution using mutation rates and selection coefficients. Instead we now first present the differences in mutational spectrum with and without selection. We have provided a better motivation for the fitness assays, which is to provide an explanation for these differences. We show that there are significant differences in fitness between different mutants and that the direction of these fitness differences explains the underrepresentation of certain types of mutations in the experimental evolution data thus highlighting the importance of incorporating selection in forecasting evolution. We deal with the origin-fixation framework in the Introduction (see above) touching on various assumptions, in particular the need for interactions between mutants to show no frequency dependence. As our decades long experience with the WS system has shown that it is replete with frequency dependent interactions we make no further mention in the Results section. To attempt to place our data in context of origin-fixation models would constitute misuse of the fitness data.

We have included statistical tests for all claims of differences as well as number of replicates. A table of key resources has been added to the Results section. Information about controls for fitness assays have been added to the methods section and we have clarified that the number of mutants per independent culture is so low that differences in fitness between different WS mutants will have minimal influence on results.

Finally, we have substantially revised the Discussion section with much clearer focus on the issues surrounding mechanistic (bottom-up) evolutionary forecasting.

https://doi.org/10.7554/eLife.38822.027

Article and author information

Author details

  1. Peter A Lind

    1. New Zealand Institute for Advanced Study, Massey University at Albany, Auckland, New Zealand
    2. Department of Molecular Biology, Umeå University, Umeå, Sweden
    Contribution
    Conceptualization, Data curation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    For correspondence
    peter.lind@umu.se
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1510-8324
  2. Eric Libby

    1. New Zealand Institute for Advanced Study, Massey University at Albany, Auckland, New Zealand
    2. Santa Fe Institute, New Mexico, United States
    3. Department of Mathematics, Umeå University, Umeå, Sweden
    Contribution
    Conceptualization, Software, Formal analysis, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Jenny Herzog

    New Zealand Institute for Advanced Study, Massey University at Albany, Auckland, New Zealand
    Contribution
    Data curation, Investigation, Methodology
    Competing interests
    No competing interests declared
  4. Paul B Rainey

    1. New Zealand Institute for Advanced Study, Massey University at Albany, Auckland, New Zealand
    2. Department of Microbial Population Biology, Max Planck Institute for Evolutionary Biology, Plön, Germany
    3. Ecole Supérieure de Physique et de Chimie Industrielles de la Ville de Paris, ESPCI Paris-Tech, CNRS UMR 8231, PSL Research University, Paris, France
    Contribution
    Conceptualization, Supervision, Funding acquisition, Validation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0879-5795

Funding

Royal Society of New Zealand (Marsden Fund Council)

  • Paul B Rainey

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Senior and Reviewing Editor

  1. Patricia J Wittkopp, University of Michigan, United States

Publication history

  1. Received: June 3, 2018
  2. Accepted: November 27, 2018
  3. Version of Record published: January 8, 2019 (version 1)

Copyright

© 2019, Lind et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 3,453
    Page views
  • 413
    Downloads
  • 35
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

  1. Peter A Lind
  2. Eric Libby
  3. Jenny Herzog
  4. Paul B Rainey
(2019)
Predicting mutational routes to new adaptive phenotypes
eLife 8:e38822.
https://doi.org/10.7554/eLife.38822

Further reading

    1. Ecology
    2. Evolutionary Biology
    Shiri Graff van Creveld, Sacha N Coesel ... E Virginia Armbrust
    Research Article

    Phytoplankton rely on diverse mechanisms to adapt to the decreased iron bioavailability and oxidative stress-inducing conditions of today's oxygenated oceans, including replacement of the iron-requiring ferredoxin electron shuttle protein with a less-efficient iron-free flavodoxin under iron limiting conditions. And yet, diatoms transcribe flavodoxins in high-iron regions in contrast to other phytoplankton. Here, we show that the two clades of flavodoxins present within diatoms exhibit a functional divergence, with only clade II flavodoxins displaying the canonical role in acclimation to iron limitation. We created CRISPR/Cas9 knock-outs of the clade I flavodoxin from the model diatom Thalassiosira pseudonana and found these cell lines are hypersensitive to oxidative stress, while maintaining a wild-type response to iron limitation. Within natural diatom communities, clade I flavodoxin transcript abundance is regulated over the diel cycle rather than in response to iron availability, whereas clade II transcript abundances increase either in iron‑limiting regions or under artificially induced iron-limitation. The observed functional specialization of two flavodoxin variants within diatoms reiterates two major stressors associated with contemporary oceans and illustrates diatom strategies to flourish in diverse aquatic ecosystems.

    1. Ecology
    2. Evolutionary Biology
    Laure Olazcuaga, Raymonde Baltenweck ... Julien Foucaud
    Short Report

    Most phytophagous insect species exhibit a limited diet breadth and specialize on a few or a single host plant. In contrast, some species display a remarkably large diet breadth, with host plants spanning several families and many species. It is unclear, however, whether this phylogenetic generalism is supported by a generic metabolic use of common host chemical compounds (‘metabolic generalism’) or alternatively by distinct uses of diet-specific compounds (‘multi-host metabolic specialism’)? Here, we simultaneously investigated the metabolomes of fruit diets and of individuals of a generalist phytophagous species, Drosophila suzukii, that developed on them. The direct comparison of metabolomes of diets and consumers enabled us to disentangle the metabolic fate of common and rarer dietary compounds. We showed that the consumption of biochemically dissimilar diets resulted in a canalized, generic response from generalist individuals, consistent with the metabolic generalism hypothesis. We also showed that many diet-specific metabolites, such as those related to the particular color, odor, or taste of diets, were not metabolized, and rather accumulated in consumer individuals, even when probably detrimental to fitness. As a result, while individuals were mostly similar across diets, the detection of their particular diet was straightforward. Our study thus supports the view that dietary generalism may emerge from a passive, opportunistic use of various resources, contrary to more widespread views of an active role of adaptation in this process. Such a passive stance towards dietary chemicals, probably costly in the short term, might favor the later evolution of new diet specializations.
