A re-inducible gap gene cascade patterns the anterior–posterior axis of insects in a threshold-free fashion

Version of Record

Accepted for publication after peer review and revision.

Download
Cite
Share
CommentOpen annotations (there are currently 0 annotations on this page).

Version of Record published: January 11, 2019 (This version)
Accepted Manuscript published: December 20, 2018 (Go to version)
Accepted: December 19, 2018
Received: August 17, 2018

1. Of interest
Predictive nonlinear modeling of malignant myelopoiesis and tyrosine kinase inhibitor therapy

Jonathan Rodriguez, Abdon Iniguez ... Richard A Van Etten

Research Article Updated May 25, 2023
Further reading

Article
Figures and data
Abstract
Introduction
Results
Discussion
Materials and methods
Appendix 1
Data availability
References
Decision letter
Author response
Article and author information
Metrics

Abstract

Gap genes mediate the division of the anterior-posterior axis of insects into different fates through regulating downstream hox genes. Decades of tinkering the segmentation gene network of Drosophila melanogaster led to the conclusion that gap genes are regulated (at least initially) through a threshold-based mechanism, guided by both anteriorly- and posteriorly-localized morphogen gradients. In this paper, we show that the response of the gap gene network in the beetle Tribolium castaneum upon perturbation is consistent with a threshold-free ‘Speed Regulation’ mechanism, in which the speed of a genetic cascade of gap genes is regulated by a posterior morphogen gradient. We show this by re-inducing the leading gap gene (namely, hunchback) resulting in the re-induction of the gap gene cascade at arbitrary points in time. This demonstrates that the gap gene network is self-regulatory and is primarily under the control of a posterior regulator in Tribolium and possibly other short/intermediate-germ insects.

https://doi.org/10.7554/eLife.41208.001

Introduction

The French Flag model is one of the earliest models of pattern formation in development (Wolpert, 1969), in which thresholds of a morphogen gradient (e.g. T1 and T2 in Figure 1A’) set the boundaries between different gene expression domains. Recent studies of morphogen-mediated patterning, however, presented several challenges to this simple picture. First, gene expression domains are usually found to be dynamic, and in many cases, are expressed sequentially in a wave-like fashion (e.g. during neural tube and limb bud patterning in vertebrates and during anterior-posterior (AP) fate specification in vertebrates and insects) (Briscoe and Small, 2015; Panovska-Griffiths et al., 2013; Cohen et al., 2014; Balaskas et al., 2012; Dessaud et al., 2007; Zeller, 2004; Harfe et al., 2004; El-Sherif et al., 2014; El-Sherif et al., 2012a; Zhu et al., 2017; Kuhlmann and El-Sherif, 2018). Even if activated simultaneously, gene expression domains usually undergo continuous shifts in space (e.g. gap and pair-rule domains in Drosophila) (El-Sherif and Levine, 2016; Verd et al., 2018; Jaeger et al., 2004). In such cases, it is difficult to correlate the locations of gene expression domains with specific values of morphogen concentrations. Second, morphogen exposure time was found to have a crucial effect on patterning. For example, the exposure time of Caudal (Cad) regulates the timing of gap and pair-rule genes in insects and that of Hox genes in vertebrates (Zhu et al., 2017; Neijts et al., 2017). Similarly, the concentration and exposure time of Sonic hedgehog (Shh) determines which fate a cell in the vertebrate neural tube and limb bud will take (Dessaud et al., 2007; Zeller, 2004; Harfe et al., 2004).

Figure 1 with 1 supplement see all

Download asset Open asset

French Flag model versus Speed Regulation model.

(**A–A’’**). In the French Flag (FF) model, different concentrations of a morphogen gradient (grey) activate different cellular states (**A, A’**) based on a set of morphogen thresholds (here T1 and T2; A’). In A and A’, cells are represented by circles and cellular states are shown in blue, red and green. Shown in A’’ is a GRN realization of the FF model (genes representing different cellular states are shown in circles; arrowheads stand for activation, and flat bars stand for repression; the thicker the line, the stronger the activation/repression; dashed lines stand for the weakest activation/repression). (**B-B’’**) In the Speed Regulation (SR) model, all cells (shown in circles in B and B’) transit through different cellular states (shown in blue, red, and green) with a speed that is proportional to the concentration of a morphogen gradient (grey). Shown in B’’ is a GRN realization of the SR model (genes representing different cellular states are shown in circles; arrowheads stand for activation, and flat bars stand for repression; dashed lines stand for weak activation/repression). (**C,E**) Computer simulation of FF GRN shown as plots of expression domains along space for selected time points (C) and as a kymograph (E). (**D,F**) Computer simulation of SR GRN shown as plots of expression domains along space for selected time points (D) and as a kymograph (F).

© 2017, PNAS. All rights reserved. Panels B-B’’ are re-produced from (Zhu et al., 2017) under the following license agreement: http://www.pnas.org/sites/default/files/advanced-pages/authorlicense.pdf. They are not available under CC-BY and are exempt from the CC-BY 4.0 license.

https://doi.org/10.7554/eLife.41208.002

For these reasons, recent works in morphogen-mediated patterning are suggesting a more dynamic and time-based paradigm rather than threshold-based (Briscoe and Small, 2015; Dessaud et al., 2007; Zhu et al., 2017; Verd et al., 2018; Jaeger et al., 2004; Verd et al., 2017; Clark, 2017; Clark and Akam, 2016; Clark and Peel, 2018; Brena and Akam, 2013; García-Solache et al., 2010; Chipman and Akam, 2008). However, the general description of the French Flag model (Wolpert, 1969) (Figure 1A,A’) is purely phenomenological (i.e. descriptive). Hence, it is unclear if a gene regulatory network (GRN) realization of the French Flag model, while still threshold-based, would reconciliate the experimentally observed deviations (namely, the dynamic nature of gene expression domains and the sensitivity of patterning to morphogen exposure times). In this paper, we show that indeed important classes of GRN realization of the French Flag model ‘transiently’ exhibit exactly these features. In particular, at an initial transient phase, gene expression domains are dynamic and keep shifting and shrinking as long as the morphogen gradient is applied, hence its sensitivity to the exposure time of the morphogen gradient. However, gene expression domains finally stabilize at the thresholds set by the morphogen gradient, adhering to the tenets of the French Flag model. Hence, we argue that the defining feature of the French Flag model is not its transient dynamics, but its threshold-based steady state behavior.

However, a recently devised mechanism (termed ‘Speed Regulation’ model, Figure 1B,B’) (Zhu et al., 2017; Kuhlmann and El-Sherif, 2018), that has been suggested to be the basis of the AP fate specification in insects, is purely time-based and threshold-free (by ‘threshold’ we mean thresholds of the morphogen gradient, not other possible thresholds in the cross-regulatory interactions between patterning genes). In this model, segmentation genes of the gap class are wired into a genetic cascade, so that gap genes are activated sequentially in time. The temporal progression of gap gene expressions is translated into a spatial pattern through modulating the speed (or timing) of the gap gene cascade by a morphogen gradient of the transcription factor caudal (cad) (or of factor(s) which expression correlate with that of cad).

In contrast to the French Flag model, the Speed Regulation model is completely threshold-free, where gene expression domains keep shifting and shrinking as long as the morphogen gradient is applied (without ever reaching a steady state) until the gradient is retracted. In this paper, to demonstrate the threshold-free nature of gap gene regulation, we re-induce the leading gene in the gap gene cascade (namely, hunchback, hb) at arbitrary times during the AP specification phase of the beetle Tribolium castaneum using a transgenic line carrying a heat-shock-driven hb CDS. This resulted in resetting the gap gene cascade and re-establishing the gap gene expression sequence in time and space. This argues against the existence of a spatial or temporal signal that sets the locations of gap gene expression boundaries in a threshold-based fashion. Using computational modeling, we show that this self-regulatory behavior of gap gene regulation is difficult to explain using the French Flag model and, alternatively, is indicative of time-based (or ‘speed regulation’-based) patterning.

The paper is organized as follows. First, we contrast the French Flag model to Speed Regulation model and their corresponding GRN realizations, highlighting their similarities and differences. We argue that the basic French Flag model, in contrast to the Speed Regulation model, is incapable of reproducing the phenomenology of insect development and evolution. Secondly, we use a modified version of the French Flag model (called ‘French Flag with a Timer Gene’) as a possible contender to the Speed Regulation model in explaining the AP axis fate specification in insects. We show that the major difference between the two models is that the French Flag model (and its modified version) depends on morphogen thresholds in setting the boundaries between gene expression domains, whereas the Speed Regulation model is self-regulatory and threshold-free. We suggest an experimental test to differentiate between the two mechanisms: whether the patterning scheme can be reset independently from any temporal or positional signal. We then carry out this test experimentally in the beetle Tribolium castaneum, concluding that the Speed Regulation model is a more plausible mechanism to explain insect development and evolution.

Results

Comparing French Flag and Speed Regulation models in patterning non-growing tissues

A common problem in development is how to divide a group of cells into different identities, each specified by the expression of one or more genes. Two different patterning mechanisms to partition a static (i.e. non-growing) tissue along a spatial axis are shown in Figure 1: the French Flag (FF) model (Figure 1A,A’) (Wolpert, 1969) and the Speed Regulation (SR) model (Figure 1B,B’) (Zhu et al., 2017; Kuhlmann and El-Sherif, 2018). In the FF model, different ranges of a morphogen concentration (grey in Figure 1A,A’) activate different cellular states (specified by the expression of one or a group of genes; different states are given different colors in Figure 1A,A’).

In the SR model, all cells have the capacity to transit through all cellular states in the same order (blue, red, then green in Figure 1B). However, in contrast to the FF model, different morphogen concentrations do not directly activate specific cellular states but regulate the speed of state transitions in time (Figure 1B). Applying a gradient of the morphogen along a row of such cells induces kinematic waves of cellular states that propagate from high to low values of the gradient (Figure 1B’). Eventually, cells are partitioned into different domains of cellular states, and the morphogen gradient should decay and/or retract to stabilize the pattern (otherwise the expression pattern would continue to shrink and propagate towards the lower end of the gradient; last row of cells in Figure 1B’).

While the final results of both models are the same, their dynamics look very different. Whereas bands of cellular states in the FF model are established simultaneously without any need for a temporal component, cellular states are very dynamic in the SR model, where timing is very critical (both morphogen concentration and exposure time determine which state a cell will end up in). However, the absence of the temporal component in the French Flag model is probably unrealistic since any real life molecular implementation of the model would exhibit some transient dynamics. Hence, we aim here to use GRN realizations for both the FF and SR models and compare them on equal footing.

Using in silico evolution techniques, Francois and Siggia in ref (François and Siggia, 2010) performed an unbiased exploration of possible morphogen-regulated GRNs that can divide an embryonic tissue into different fates. Although several solutions were found, they were mostly variations on the same underlying principle, which happened to be a straightforward realization of the FF model. A simple instance of this family of GRN solutions is shown in Figure 1A’’ using three genes (more genes can be added to the scheme in a straightforward manner; see Appendix 1). In the example GRN in Figure 1A’’, the morphogen gradient (grey) activates different genes with different strengths: strongly activates the blue gene, moderately activates the red gene, and weakly activates the green gene. Cross-regulatory interaction between genes further delimit gene expression bands (See Appendix 1 for description of how the FF GRN in Figure 1A’’ works; see simulation of a 5-genes FF GRN in Figure 1C, Video 1 and Video 2).

Video 1

Download asset

posterframe for video — Computer simulation of the French Flag GRN.

A computer simulation of a 5-genes French Flag GRN (a 5-genes version of Figure 1A’’). Genes are initially expressed in sequential waves, but their expressions eventually reache a steady state. Patterning genes are shown in blue, red, green, gold, and brown. Morphogen gradient is shown in grey. Horizontal axis is space and vertical axis is gene expression concentration.

https://doi.org/10.7554/eLife.41208.004

Video 2

Download asset

Now we turn to a molecular realization for the SR model recently suggested in refs (Zhu et al., 2017; Kuhlmann and El-Sherif, 2018). In this realization, two GRN modules are employed: a dynamic module and a static module (see Figure 1B’’ for a 3-genes realization and Appendix 1 for a 5-genes realization). The dynamic module is a genetic cascade that mediates the sequential activation of its constituent genes. The static module is a multi-stable network that mediates the refinement and stabilization of gene expression patterns. The morphogen gradient activates the dynamic but represses the static module. Hence, as we go from high to low values of the morphogen gradient, the dynamic module experiences excessively higher stabilizing effect from the static module, and consequently, runs slower. This is a straightforward realization of the core mechanism of the SR model (Figure 1B,B’) and, hence, a morphogen gradient applied to such scheme induces sequential kinematic waves that propagate from the high to the low end of the gradient as shown by the computer simulations in Figure 1D and Videos 3–5.

Video 3

Download asset

Video 4

Download asset

Video 5

Download asset

Comparing the spatiotemporal dynamics of the molecular realizations of the FF model and that of the SR model shows striking similarities, where gene expression domains are activated sequentially at the high end of the morphogen gradient (grey) and propagate in kinematic waves towards the low end of the gradient (compare Figure 1C,E–1D,F and Videos 1–4), especially if a morphogen buildup dynamics are introduced (compare Video 2 and Video 5). Both morphogen concentration and exposure time are important factors to determine which cellular state a certain cell will have at a certain point of time (at least at the initial transient phase). A main difference, however, is that gene expression domains in the FF model realizations are only dynamic during the initial transient phase, but eventually reach a steady state where they stabilize at certain morphogen thresholds (Figure 1—figure supplement 1A, Video 1). On the other hand, gene expression domains in the SR model keep shrinking and propagating towards the low end of the morphogen and never stabilize or reach a steady state (Figure 1—figure supplement 1C, Video 3), unless the morphogen gradient decays or retracts (Videos 4 and 5).

Comparing French Flag and Speed Regulation models in reproducing the phenomenology of insect development and evolution

So far, we have considered the application of the FF and SR models in patterning a static group of cells (i.e. a non-growing tissue). Here, we consider their application to the problem of insect development and evolution, where a patterning mechanism is needed to pattern both growing and non-growing tissues.

The anterior fates of insects (Figure 2A) form in a non-growing tissue (called the ‘blastoderm’), whereas posterior fates form in a growing tissue (called the ‘germband’) (Davis and Patel, 2002; El-Sherif et al., 2012b). The number of fates specified in the blastoderm versus germband differ in different insects. In short-germ insects, (most of) AP fates are specified in the germband (first column in Figure 2A). In long-germ insects, (most of) AP fates form in the blastoderm before transiting into the germband stage (third column in Figure 2A). Intermediate-germ insects lie somewhere in between these two extreme cases, where several fates are specified in the blastoderm, and the rest in the germband (second column in Figure 2A). Throughout evolution, the specification of AP fates seems to shift easily from the germband to the blastoderm, resulting in a trend of short-germ to long-germ evolution (Davis and Patel, 2002; Peel et al., 2005; Peel, 2004).

Figure 2

Download asset Open asset

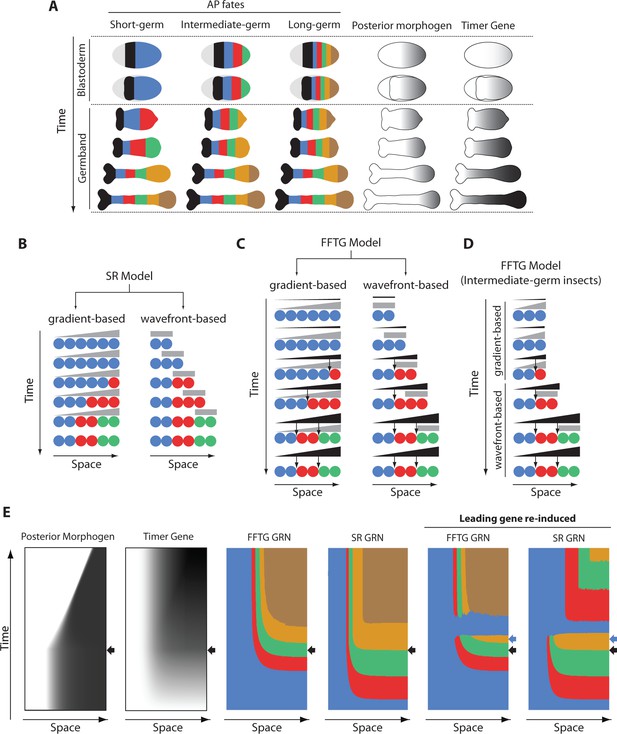

Application of FF and SR model to the problem of insect development and evolution.

(A) Anterior-posterior (AP) fate specification in insects of different germ types: short-, intermediate- and long-germ. Different fates are shown in different colors. In short-germ embryogenesis, most of fates are specified in an elongating embryonic structure called ‘germband’. In long-germ embryongenesis, most of fates are specified in a non-elongating embryonic structure called ‘blastoderm’. In intermediate-germ embryogenesis, anterior fates are specified in the blastoderm, while posterior fates are specified in the germband. A posteriorly-localized morphogen is shown in grey. Timer Gene, as required by French Flag with Timer Gene (FFTG) model is shown in black with different shades (the darker the higher the concentration). (B) The Speed Regulation (SR) model can operate in two modes: gradient-based and wavefront-based. In the gradient-based mode, a static gradient of the speed regulator (grey) is applied to a static field of cells (shown in circles). In the wavefront-based mode, a boundary of the speed regulator retracts along an elongating field of cells. (C) The FFTG model can operate in a gradient-based or a wavefront-based mode as well. The Timer Gene (black) is activated by a posterior morphogen (grey) and suffers little or no decay so that it unfolds into a long-range gradient along the entire AP axis in either the gradient-based or the wavefront-based mode. Different concentrations of the Timer Genes (arrows) set the boundaries between different fates. (D) FFTG model can pattern the AP axis of intermediate-germ insects: acting in the gradient-based mode to pattern anterior fates (during the blastoderm stage) and acting in the wavefront-based mode to pattern posterior fates (during the germband stage). (E) Kymographs of FFTG and SR GRNs when applied to AP patterning of intermediate-germ insects (first four panels; black arrow marks blastoderm-to-germband transition). Panels 5 and 6 show the response of the FFTG and SR GRNs to the re-activation of the leading gene (blue; the time of blue gene re-induction is marked by a blue arrow). In FFTG GRN, normal expression pattern is restored after a brief dominance of the blue gene. In SR GRN, already formed expression is down-regulated and the genetic cascade is reset.

© 2017, PNAS. All rights reserved. Panels A and B are re-produced from (Zhu et al., 2017) under the following license agreement: http://www.pnas.org/sites/default/files/advanced-pages/authorlicense.pdf. They are not available under CC-BY and are exempt from the CC-BY 4.0 license.

https://doi.org/10.7554/eLife.41208.009

In ref (Zhu et al., 2017), it was suggested that AP fate specification in short- and intermediate-germ insects is mediated by the SR model, where a posterior morphogen (cad in Tribolium, or some other graded factor which expression correlates with that of cad) regulates the sequential activation of the AP-determinant genes of the gap class. This suggestion was based on the observation that the SR model can operate in two modes (Figure 2B): a gradient-based, which can pattern a non-elongating tissue (as discussed in the previous section), and a wavefront-based mode in which the posterior morphogen gradient continuously retracts as the tissue elongates, in a set-up similar to the Clock-and-Wavefront model (Pourquié, 2003; Palmeirim et al., 1997; Dubrulle et al., 2001; Lauschke et al., 2013). The wavefront-based mode is best suited for patterning elongating tissues. It was also shown that the flexibility of the SR model to pattern both elongating and non-elongating tissues could offer an evolutionary mechanism where a smooth transition between short- and long-germ modes of insect development is possible (Video 6).

Video 6

Download asset

However, in ref (François and Siggia, 2010), Francois and Siggia suggested a simple modification that enables also the FF model to exhibit such flexibility in patterning both elongating and non-elongating tissues. In this scheme, the posterior morphogen (fourth column in Figure 2A, and grey in Figure 2C) activates a gene (termed a ‘Timer Gene’ (François and Siggia, 2010); fifth column in Figure 2A, and black in Figure 2C). The Timer Gene is assumed to have negligible decay rate, so that it continuously builds up in a non-growing tissue (left column in Figure 2C). In a growing tissue, the expression of the Timer Gene (black in Figure 2C, right column) builds up in the presence of the retracting posterior gradient (grey in Figure 2C, right column), while it stabilizes upon its retraction. Hence, a long-range gradient of the Timer Gene forms along the whole axis of the full-grown tissue (last row in the fifth column of Figure 2A and the right column of Figure 2C). Thresholds of different concentrations of the Timer Gene then set the boundaries between different fates, in a similar fashion to the FF model (thresholds are shown in arrows in Figure 2C). We call this scheme ‘French Flag model with a Timer Gene’ (FFTG). We notice that both the SR model and the FFTG model can operate in gradient-based and wavefront-based modes (and, hence, can pattern both non-elongating and elongating tissues) and exhibit similar dynamics and final pattern (compare Figure 2B and C; see Figure 1—figure supplement 1).

A transition from a gradient-based to wavefront-based patterning would still result in a long-range gradient of the Timer Gene along the tissue axis (Figure 2D). Hence, similar to the SR model, the FFTG model can mediate AP fate specification in insects of different germ types: operating in the wavefront-based mode for short-germ insects, operating in the gradient-based mode for long-germ insects, and operating in the gradient-based then switching to wavefront-based mode for intermediate-germ insects (Video 7; compare to Video 6).

Video 7

Download asset

Since gene expression dynamics of both the SR and FFTG models are very similar, we sought an experimental test to differentiate between the two models. In our demonstration of the experimental test, we will use the GRN realization of both SR and the FFTG models (5-genes version of Figure 1B’’ and 5-genes version of 1A’’ after adding a Timer Gene, respectively; see Appendix 1). We apply both models to the case of AP fate specification of an intermediate-germ insect.

Here, we note that the sequential activation of genes in the SR model is mediated by the interaction between the fate-specifying genes themselves, whereas the Timer Gene is the mediator of sequential gene activation in the FFTG model. Hence, force-resetting the fate-specification gene sequence will reset the SR model, whereas resetting the expression pattern for the FFTG model would require resetting the Timer Gene instead. This is evident in our simulations of both models in Figure 2E and Videos 8 and 9. After the expression of the first three AP fate-specifying genes (blue, red, and green in Figure 2E), the blue gene was briefly re-induced. In the FFTG model, the blue gene becomes briefly dominant, but the already formed pattern and the newly forming pattern are largely unchanged (compare 5^th to 3^rd column of Figure 2E). This is a natural consequence of the fact that the Timer Gene (Figure 2E, second column) is the main driver of the patterning process, which is unaffected by the blue gene re-induction. On the other hand, re-inducing the blue gene had two consequences in the case of our GRN realization of the SR model (compare 4^th and 6^th columns of Figure 2E): (i) the already formed pattern outside of the expression domain of the posterior morphogen is deleted and dominated by the continued expression of the blue gene, and (ii) the temporal gene sequence is re-established within the expression of the posterior morphogen, resulting in the re-establishment of the patterning process. This dual effect results from the dual regulation mode of our realization of the SR model: a dynamic genetic module is active within the posterior morphogen expression domain, whereas a static module is active outside. In our GRN realization, re-inducing the blue gene resets the dynamic module (which is basically a genetic cascade), while it down-regulates all the genes of the static module except the re-induced blue gene (since it is a multi-stable mutually exclusive GRN).

Video 8

Download asset

Video 9

Download asset

A dual response upon re-inducing hunchback in the Tribolium embryo

During AP patterning of the Tribolium embryo, gap genes (namely, hunchback (hb), Krüppel (Kr), milles-pattes (mlpt), and giant (gt); Figure 3) (Bucher and Klingler, 2004; Wolff et al., 1998; Savard et al., 2006; Cerny et al., 2005; Marques-Souza, 2007) are expressed in sequential waves of gene expressions that propagate from posterior to anterior in the presence of a gradient of the master regulator caudal (cad) (based on a correlational evidence, however) (Zhu et al., 2017). Hereafter, we will call the region of the embryo where cad is expressed: the ‘Active-Zone’. Upon retraction of the cad gradient, gap gene expressions stabilize into static domains before they gradually fade. Some of the gap genes have two trunk expression domains, namely: hb, mlpt and gt (shown in blue, green and gold, respectively in Figure 3; late trunk domains are outlined in black).

Figure 3

Download asset Open asset

Expression dynamics of *caudal* and gap genes during AP axis specification in *Tribolium*.

*caudal* is expressed in a static (i.e. non-retracting) posterior-to-anterior gradient during the blastoderm stage, while is expressed in a retracting posterior-to-anterior gradient during the germband stage. Gap genes are expressed in sequential waves of gene expressions that propagate from posterior to anterior. Expression of different gap genes are tracked with differed colors: blue for hb, red for Kr, green for *mlpt*, and gold for gt. The second trunk domains of hb, *mlpt* and gt are outlined in black. Weak expressions are shown in faint colors. Non-trunk and extraembryonic expressions of gap genes (not considered in our analysis) are marked with asterisks. Posterior to the right in all embryos shown.

https://doi.org/10.7554/eLife.41208.014

To determine whether the FF or the SR model is involved in regulating gap genes in Tribolium, we sought to re-induce the first gene in the gap gene sequence, namely hb, at arbitrary times during AP patterning in the Tribolium embryo. To this end, we constructed a transgenic line carrying a hb CDS under the control of a heat-shock promoter (hs-hb line; see Materials and methods and Figure 4—figure supplement 1). Briefly heat-shocking hs-hb embryos at 26–29 hr After Egg Lay (AEL) indeed resulted in a ubiquitous expression of hb that lasted for 6 hr post heat-shock (Figure 4—figure supplement 2; for a basic description of the cuticular and morphological phenotypes of heat-shocked hs-hb embryos, see Appendix 1). As a control, we also heat-shocked WT embryos at 26–29 hr AEL, and noticed a normal progression of gap gene expression, albeit with an initial delay of around 9 hr, compared to non-heat-shocked WT embryos (compare Figure 4A and Figure 4—figure supplement 2 to Figure 3; see also Figure 4C).

Figure 4 with 3 supplements see all

Download asset Open asset

Dual response of *Tribolium* embryos upon re-inducing hb expression at 26–29 hr AEL.

(A) Expression dynamics of gap genes Kr, *mlpt*, and gt upon heat-shocking both WT and hs-hb embryos at 26–29 hr AEL. Shown are posterior halves of embryos (see Figure 4—figure supplement 2 for whole embryos). Expression of different gap genes are tracked with differed colors: red for Kr, green for *mlpt*, and gold for gt. The second trunk domains of *mlpt* and gt are outlined in black. Weak expressions are shown in faint colors. Posterior to the right in all embryos shown. (B) Dividing heat-shocked *Tribolium* embryos into three domains: Active-Zone (*caudal*-expressing zone at the posterior end of the embryo), Anterior (anterior to the Active-Zone), and HS Anterior (anterior to the Active-Zone at the time of applying heat-shock). See Materials and methods for a description of the used morphological landmarks to differentiate between these three regions. (C) Quantification (see Materials and methods) of gap gene expressions in WT, heat-shocked WT, and heat-shocked hs-hb embryos (heat-shocks applied at 26–29 hr AEL). Quantifications are carried out separately for HS Anterior, Anterior, and Active-Zone. While heat-shock application resulted in only a temporal delay in gap gene expression in WT, it resulted in dual response for hs-hb embryos: already established gap gene domains are pre-maturely down-regulated in HS Anterior, while the gap gene sequence is re-activated in Active-Zone. Re-induced gap gene sequence eventually propagates into Anterior. Time-windows where heat-shock is applied are shown in yellow.

https://doi.org/10.7554/eLife.41208.015

Figure 4—source data 1 Raw numerical data of quantitative analyses for embryos heat-shocked at 26–29 hr AEL. Listed are the percentages of embryos with detectable expression found in each region of the embryo (HS Anterior: HS-A, Anterior: A, and Active-Zone: AZ) in each egg collection in our quantitative analyses in Figure 4 (C) and Figure 4—figure supplement 3. Listed also are the numbers of embryos analyzed in each egg collection (n).: https://doi.org/10.7554/eLife.41208.019
Download elife-41208-fig4-data1-v2.xlsx

Next, we examined and contrasted the expressions of the other gap genes (Kr, mlpt, and gt) in heat-shocked hs-hb and heat-shocked WT embryos. We observed that cells in hs-hb embryos had two distinct responses depending on whether they are within or anterior to the active-zone. Gene expression domains anterior to the active-zone are pre-maturely repressed, compared to heat-shocked WT. Within the active-zone, the gap gene domains sequence is re-induced, and eventually propagates towards anterior (Figure 4A). Specifically, in heat-shocked hs-hb embryos, at around 35–38 hr AEL, Kr expression anterior to the active-zone was down-regulated (Figure 4A). At around 41 hr AEL, Kr expression was re-initiated in the active-zone of heat-shocked hs-hb embryos, an effect that is not noticed in heat-shocked WT embryos (Figure 4A). The re-initiated Kr expression then propagated towards anterior. A similar effect is observed for the gap gene mlpt. At 35 hr AEL, the already established mlpt expression at the anterior of hs-hb embryos was down-regulated. By 41 hr AEL, mlpt expression was re-established in the active-zone and propagated towards anterior. The second domain of the re-established mlpt expression appeared at 56 hr AEL. Similarly, the already formed two domains of gt expression were repressed in the anterior and new two domains of expressions were re-established in the posterior of hs-hb embryos that eventually propagated towards anterior (Figure 4A).

We then characterized the response of the Tribolium embryo upon hb re-induction more quantitatively within and anterior to the active-zone. Since cells within the active-zone progressively move out of this region during axis elongation, we performed our analysis for three regions (Figure 4B; see Materials and methods): (i) the active-zone, (ii) anterior to the active-zone at the time of heat-shock application (hereafter called ‘HS Anterior’), and (iii) anterior to the active-zone at the time of analysis (hereafter called the ‘Anterior’, which includes HS Anterior and the cells that have moved out of the active-zone since the time of heat-shock application (see Materials and methods for the morphological markers used to differentiate between these three regions). By examining the distribution of gene activities within these three regions (Active-Zone, HS Anterior, and Anterior) over time, we confirmed the dual response of Tribolium embryos upon re-inducing hb (Figure 4C; See Figure 4—figure supplement 3 for error bars; see Figure 4—source data 1 for source data and sample sizes). In HS Anterior cells, gap genes are pre-maturely down-regulated; while within the Active-Zone, gap gene sequence is re-induced and eventually propagates towards the Anterior region (as shown in HS Anterior, Active-Zone, and Anterior, respectively in Figure 4C).

It is worth noting here that, in WT, starting from 14 hr AEL, hb, Kr, mlpt and gt expression domains arise sequentially in the active-zone (Figure 3). By 26 hr AEL, the majority of gap gene expression domains already propagated out of the active-zone towards anterior, and the active-zone becomes virtually void of any gap gene expression. Around 29 hr AEL, the second abdominal domains of mlpt and hb arise in the active-zone (Figure 3). In Figure 4, we performed our heat-shock experiments within the 26–29 hr AEL time window when the active-zone is void of gap gene expression. The fact that the entire gap gene sequence is re-induced upon re-inducing hb in the active-zone at a point in time and space where gap genes are not expressed in WT indicates that gap genes are wired into an ‘aperiodic’ clock that can be reset at any point in time and strongly argues against a threshold-based French Flag model underlying gap gene regulation in Tribolium and is consistent with a mechanism based on the Speed Regulation model, as discussed in our earlier theoretical analysis. Furthermore, the dual response of the Tribolium embryo to the re-induction of hb provides an indirect support for the two-modules GRN realization of the SR model (Figure 1B’’). The difference in response between the active-zone and anterior cells can be explained by a difference in the genetic wiring of gap genes in these two regions, encoded by two different GRNs (e.g. dynamic and static modules).

So far, we considered the effects of re-inducing hb at 26–29 hr AEL, a time window where the active-zone is void of gap gene expressions. This helped avoiding a possible interference between gap gene expressions already present in the active-zone and the re-induced expressions. To investigate the outcome of re-inducing the gap gene sequence while the original gene expression sequence is unfolding, we preformed our heat-shock experiments also at time windows 23–26 hr AEL (Figure 5A and Figure 5—figure supplement 1; See Figure 5—figure supplement 2 for error bars; see Figure 5—source data 1 for source data and sample sizes) and 20–23 hr AEL (Figure 5B and Figure 5—figure supplement 3; See Figure 5—figure supplement 4 for error bars; see Figure 5—source data 2 for source data and sample sizes). For both time windows, the expression within the active-zone suffered a transient down-regulation before the gap gene sequence is re-induced. This indicates that the gap gene clock is based on a genetic cascade with mutual-repressive links, like the one we used in our theoretical analysis (dynamic module in Figure 1B’’).

Figure 5 with 4 supplements see all

Download asset Open asset

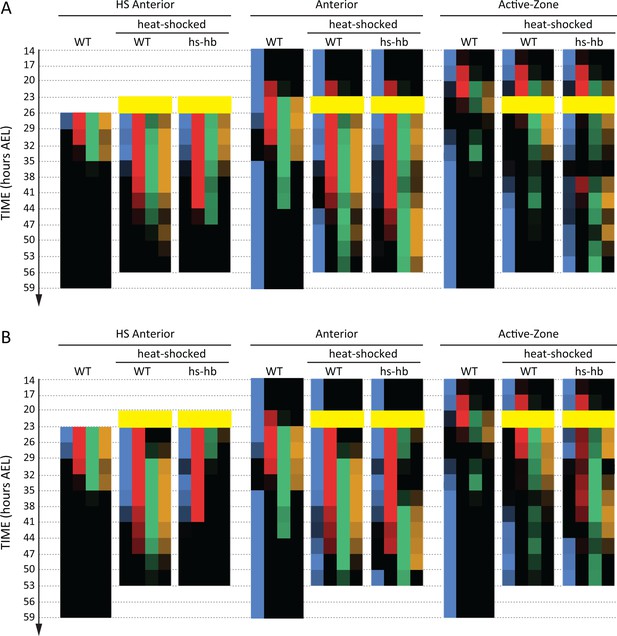

Dual response of *Tribolium* embryos upon re-inducing hb expression at 23–26 and 20–23 hr AEL.

Quantification (see Materials and methods) of gap gene expressions in WT, heat-shocked WT, and heat-shocked hs-hb embryos. Heat-shocks are applied at 23–26 hr AEL (A) and 20–23 hr AEL (B). Quantifications are carried out separately for HS Anterior, Anterior, and Active-Zone. While heat-shock application resulted in only a temporal delay in gap gene expression in WT, it resulted in dual response for hs-hb embryos: already established gap gene domains are pre-maturely down-regulated in HS Anterior, while the gap gene sequence is re-activated in Active-Zone. Re-induced gap gene sequence eventually propagates into Anterior. Time-windows where heat-shock is applied are shown in yellow.

https://doi.org/10.7554/eLife.41208.020

Figure 5—source data 1 Raw numerical data of quantitative analyses for embryos heat-shocked at 23–26 hr AEL. Listed are the percentages of embryos with detectable expression found in each region of the embryo (HS Anterior: HS-A, Anterior: A, and Active-Zone: AZ) in each egg collection in our quantitative analyses in Figure 5 (A) and Figure 5—figure supplement 2. Listed also are the numbers of embryos analyzed in each egg collection (n).: https://doi.org/10.7554/eLife.41208.025
Download elife-41208-fig5-data1-v2.xlsx
Figure 5—source data 2 Raw numerical data of quantitative analyses for embryos heat-shocked at 20–23 hr AEL. Listed are the percentages of embryos with detectable expression found in each region of the embryo (HS Anterior: HS-A, Anterior: A, and Active-Zone: AZ) in each egg collection in our quantitative analyses in Figure 5 (B) and Figure 5—figure supplement 4. Listed also are the numbers of embryos analyzed in each egg collection (n).: https://doi.org/10.7554/eLife.41208.026
Download elife-41208-fig5-data2-v2.xlsx

The re-induction of gap gene sequence upon re-inducing hb is specific to the active-zone

In our earlier theoretical analysis (Zhu et al., 2017), we considered a realization of the SR model that relies on the gradual switching between two genetic modules. An alternative realization would be to jointly regulate the activation and degradation rates of gap genes by a posterior morphogen gradient (computational modeling in Appendix 1; Video 10). A major prediction of the module switching model in the case of gap gene regulation in Tribolium is that the genetic wiring of gap genes in the presence of the morphogen cad (i.e. within the active-zone) is different from their wiring in the absence of cad (i.e. anterior to the active-zone). As discussed above, the difference in response to the re-induction of hb between the active-zone and the anterior supports the module switching model (and disfavors a degradation rate modulation model; Video 11). To further test this, we sought to examine if the transient down-regulation and the subsequent re-activation of gap genes is specific to the active-zone, i.e. the region of the embryo expressing cad. To this end, we utilized the axin (axn) RNAi phenotype in Tribolium, where the cad gradient extends to cover most of the embryo, transforming the embryo into an enlarged active-zone (albeit still expressed in a gradient; Figure 6—figure supplement 1) (Zhu et al., 2017; Fu et al., 2012). We performed our heat-shock experiments at 20–23 hr AEL time window for WT embryos, hs-hb embryos, embryos laid by WT mothers injected with axn dsRNA (axn RNAi embryos), and embryos laid by hs-hb mothers injected with axn dsRNA (hs-hb; axn RNAi embryos). We then analyzed the expression of mlpt at consecutive 3 hr time windows starting from 32 hr AEL. As shown earlier, in hs-hb embryos, mlpt initially suffered a transient down-regulation. Shortly after, mlpt expression is re-established within the active-zone. In axn RNAi embryos, mlpt expression proceeded as in WT but propagated across the whole embryo and never stabilized, consistent with the fact that the whole embryo transformed into an active-zone (Zhu et al., 2017). In hs-hb; axn RNAi embryos, after a transient down-regulation of mlpt expression, mlpt expression emerged at the posterior then expanded to cover the whole embryo, an effect only observed in the active-zone in WT embryos. This effect is recapitulated in a computer simulation of the axn phenotype (Video 12; Appendix 1). This supports the hypothesis that the re-activation of gap gene sequence in Tribolium upon re-inducing hb is specific to the region of the embryo where the posterior morphogen cad is expressed.

Video 10

Download asset

Video 11

Download asset

Figure 6 with 1 supplement see all

Download asset Open asset

Gap gene sequence re-activation upon re-inducing hb is specific to the active-zone.

*mlpt* expression is re-activated only in the active-zone (posterior *cad*-expressing region) upon heat-shocking hs-hb embryos (compare WT and hs-hb embryos). Knocking-down *axn* completely posteriorized *Tribolium* embryos (*axn* RNAi) such that nearly the entire embryo becomes a big active-zone (as evident from *cad* expression; see Figure 6—figure supplement 1), where *mlpt* expression is very dynamic and propagates across the entire embryo. Upon heat-shocking hs-hb embryos whose mothers had been injected with *axn* dsRNA (hs-hb; *axn* RNAi), *mlpt* expression is first activated at the posterior then propagates to cover the whole embryo, supporting the hypothesis that gap gene re-activation in specific to the *cad*-expressing domain (the active-zone). *mlpt* expresssion is tracked in green. The second trunk domain of *mlpt* is outlined in black. Weak expressions are shown in faint colors. Posterior to the right in all embryos shown.

https://doi.org/10.7554/eLife.41208.029

Video 12

Download asset

Discussion

In this paper, we argued that an important class of GRN realizations of the FF model exhibits dynamic gene expression patterns and are sensitive to morphogen exposure time, at least during an initial transient phase. Nonetheless, such realization is faithful to the essence of the FF model where morphogen concentration thresholds set the boundaries between different gene expression domains. These thresholds are inscribed either explicitly by tuning the binding affinities of the morphogen gradient to the cis-regulatory elements of downstream genes (like the FF GRN we presented in this study), implicitly by tuning cross-regulatory strengths between genes (like the AC-DC motif that was found to be involved in patterning the ventral neural tube of vertebrates (Panovska-Griffiths et al., 2013; Balaskas et al., 2012; Perez-Carrasco et al., 2018)) or using a combination of both strategies. In contrast, the SR model is essentially threshold-free and drives ever-changing gene expression patterns as long as the morphogen gradient is applied. We also considered a modified version of the FF model (the FFTG model) that, while exhibiting similar spatiotemporal dynamics as SR model, is still threshold-based.

In fact, the SR and the FFTG models are more intimately related than it first appears. Both models can be thought of as composed of an ‘aperiodic’ clock whose speed is regulated by the posterior morphogen (grey in Figure 2B and C). The main difference between the two mechanisms is the nature of the clock. In the SR model, the clock is mediated by the regulatory interactions between the fate-specifying genes themselves (e.g. the dynamic module in Figure 1B’’). Each tick of the clock is specified by a different (combination of) fate specifying gene(s). In the suggested molecular realization of the SR model, the speed of the clock can be regulated by the relative proportions of the dynamic and static modules. In the FFTG model, the clock is the Timer Gene, where each tick of the clock is specified by a different concentration of the Timer Gene. Different concentrations of the Timer Gene are translated into different fates by means of a FF model. The speed of the Timer Gene clock is regulated by the activating posterior morphogen (grey in Figure 2C), since the concentration of an activator naturally regulates the transcription rate of its target gene. Although a gene with expression dynamics like that of a Timer Gene has not so far been discovered in insects, its existence is still a viable possibility.

Resetting the clock of the SR model would, then, requireresetting the gap gene cascade itself, while resetting the clock of the FFTG model would require resetting the Timer Gene. To investigate whether gap gene regulation in insects are mediated by the SR or the FFTG model, we re-induced the leading gap gene in the gap gene sequence (hb) in the Tribolium embryo, which resulted in the re-induction of the gap gene cascade. These experimental observations are consistent with a Speed Regulation model of gap gene regulation in Tribolium. Interestingly, hox genes are expressed sequentially in waves in vertebrates, and are hypothesized to be regulated by a clock mechanism (termed the ‘hox clock’) (Deschamps and Duboule, 2017; Deschamps and van Nes, 2005; Gaunt, 2001). It is not clear, however, if this clock is self-regulatory or regulated by a threshold-based mechanism. Similar perturbations like the one suggested in this study might resolve this issue.

One limitation of our theoretical analysis and comparison of the SR, FF, and FFTG models is that we used specific GRN realizations for these models, since other GRN realizations could also be possible. However, we used our GRN realizations to illustrate arguments that are general. The GRN realizations of FF and FFTG models are used to show that important classes of FF realizations exhibit similar dynamics to the SR model. The failure of FF GRN to re-induce the patterning genes sequence upon the re-induction of one of the constituent genes is due to a general feature of the FF model rather than to some modeling specifics of the used GRNs, namely due to that fact that the morphogen gradient is the driving factor behind the sequential activation of genes rather than the cross-regulatory interactions between patterning genes themselves, as the case in the SR model.

In this paper, we used a GRN realization of the SR model based on the gradual switching between two genetic circuits. Another realization of the SR model would be to regulate both the activation and decay rates of the constituent genes of a genetic cascade by the morphogen gradient. However, the dual response of Tribolium embryos upon re-inducing hb supports the two-module realization (compare Videos 8 and 11). Yet another possible GRN realization for the SR model is the composite AC/DC mode of the AC-DC motif (Perez-Carrasco et al., 2018). The AC-DC GRN can operate either as a multi-stable circuit (the DC mode) or as a clock (the AC mode), depending on the concentration of a morphogen gradient. At certain ranges of the morphogen gradient, both modes could co-exist, resulting in the fine-tuning of the speed of the clock. Hence, the AC-DC GRN has a somewhat similar logic as the two-modules GRNs; however, it uses one gene circuit that can work as both dynamic or static modules depending on an external factor rather than explicitly using two genetic modules as in the two-modules GRN. However, it is not clear if the AC-DC GRN would be able to mediate a morphogen-mediated transition from the composite AC-DC mode to a pure DC mode to fully realize wavefront-based patterning. In addition, while the AC-CD GRN is economical as it uses one module to achieve both AC and DC behaviors, it lacks the flexibility of the two-modules model, since different realizations of the dynamic and static modules in the two-modules model could be employed to mediate a wide range of final spatial patterns without the constraint of using one module to mediate two functions.

In this paper, we studied the effect of re-inducing hb on gap gene regulation. However, gap genes are known to interact with pair-rule genes (albeit a limited interaction in Tribolium (El-Sherif et al., 2012b)). Indeed, hb re-activation in our experiments induced the generation of extra segments in cuticles (see Appendix 1 for a basic description of cuticlular phenotype of hs-hb experiments). Interestingly, depleting hb transcripts by RNAi led to extra segments as well in the moth Bombyx mori (Nakao, 2016) (a phenotype that is not observed upon knocking down hb in Tribolium). However, this could be either due to a difference in the mode of gap gene regulation between the two species or due to the timing of applying RNAi perturbation (as the hb RNAi was done via embryonic injection in Bombyx and via parental injection in Tribolium, leading to the depletion of both maternal and zygotic hb). Investigating this and the interaction between gap and pair-rule gene networks in general will be addressed in future work.

In summary, in this paper we showed that the gene expression dynamics driven by a French Flag mechanism can be indistinguishable from those driven by a threshold-free mechanism. We then suggested a test to differentiate between the two cases and carried it out experimentally in the beetle Tribolium castaneum. The test confirmed that the AP fate specification in Tribolium (and possibly other insects) is based on the regulation of an aperiodic clock of gap genes in a threshold-free fashion.

Materials and methods

Key resources table

Reagent type (species) or resource	Designation	Source or reference	Identifiers	Additional information
Strain (Tribolium castaneum)	San Bernardino WT (SB)	NA	NA	Most Tribolium labs (including El-Sherif and Klinger labs)
Strain background (Tribolium castaneum)	vermilion white v(w)	NA	NA	Most Tribolium labs (including El-Sherif and Klinger labs)
Recombinant DNA reagent	pBac[3xP3-v; Tc'hsp68-Tc’hb-Tc'hsp68 3’UTR]	NA	NA	Klingler lab

In situ hybridization, RNAi, and imaging of fixed embryos

Request a detailed protocol

In situ hybridization was performed using DIG-labeled RNA probes and anti-DIG::AP antibody (Roche). Signal was developed using NBT/BCIP (BM Purple, Roche) according to standard protocols (Schinko et al., 2009; Shippy et al., 2009). All expression analyses were performed using embryos from uninjected females or females injected with double-stranded RNA (dsRNA) of gene of interest. dsRNA was synthesized using the T7 megascript kit (Ambion) and mixed with injection buffer (5 mM KCl, 0.1 mM KPO₄, pH 6.8) before injection. Used dsRNA concentration for axn RNAi: 100 ng/µl. Embryos were imaged using ProgRes CFcool camera on Zeiss Axio Scope.A1 microscope and ProgRes CapturePro image acquisition software. Brightness and contrast of all images were adjusted and placed on a white background using Adobe Photoshop.

Overexpression construct

Request a detailed protocol

A 1757 bp fragment of the Tc-hb mRNA cDNA22 (Wolff et al., 1995) was amplified using PCR primers Tc-hb_left 5’-CGTCTAGAGCAAAAATTTCGAACAGTCG-3’ and Tc-hb_right 5’-CCGCTCGAGTCCAACCCGTACATCTCCAT-3’ which were designed to include restriction sites XbaI and XhoI, respectively. This Tc-hb fragment contains the complete coding region and partial 5'UTR and 3'UTR sequences and was cloned between a Tc'hsp68 promotor and 3'UTR sequences via the XbaI-XhoI sites in plasmid pSLfa[Tc'hsp5'-dsRedEx-3'UTR; 5'3'UTR]fa (Johannes Schinko and Gregor Bucher, unpublished). From this plasmid, an AscI-FseI fragment including the hs-hb cassette was subcloned as AscI-FseI fragment into the piggyBac transformation vector pBac[3xP3-gTcv] (Johannes Schinko, unpublished), resulting in pBac[3xP3-v; Tc'hsp68-Tc’hb-Tc'hsp68 3’UTR] (Figure 4—figure supplement 1). This vector uses the Tribolium vermilion gene as transformation marker (Lorenzen et al., 2002).

Generation of hs-hb transgenic beetles

Request a detailed protocol

Plasmid DNAs were isolated using the Quiagen plasmid Midi Kit, and germline transformation was performed as described in refs (Berghammer et al., 1999; Berghammer et al., 2009). In one experimental series, 408 vermilion white embryos were injected of which 22% hatched. 44 crosses were set up, from which 10 transgenic strains could be generated. In another experimental series, 210 embryos were injected with a hatch rate of 56%. 59 crosses were set up, from which five transgenic strains could be generated. Ten of these hs-hb lines were tested for heat-shock phenotypes. Phenotype strength was measured by determining the proportion of larvae which (i) developed homeotic transformations, and (ii) which displayed, in addition to the homeotic transformations, additional trunk segments (see Appendix 1 for basic description of the cuticle phenotype of heat-shocked hs-hb embryos). Two out of those ten lines (hs-hb one and hs-hb 2) seemed most effective in generating heat-shock phenotypes and were further studied. The strain hs-hb two was used to generate the data in this paper.

Non-heat-shocked egg collections

Request a detailed protocol

Three hours developmental windows were generated by incubating three-hours egg collections at 23–24°C for the desired length of time before fixation. Beetles were reared in whole-wheat flour supplemented with 5% dried yeast.

Heat-shocked egg collections

Request a detailed protocol

Three hours developmental windows were generated by incubating three-hours egg collections at 23–24°C for the desired length of time. Egg collections are then heat-shocked in a water bath at 48°C for 10 min and then re-incubated at 23–24°C for the desired length of time before fixation.

Quantification of gene expressions in HS Anterior, Anterior, and Active-Zone

Request a detailed protocol

Gene expression quantifications (Figure 4C and Figure 5, with numerical data in Figures 4—figure supplement 3, Figure 5—figure supplements 2 and 4, Figure 5—figure supplement 4 see source data in Figure 5—source data 1, and Figure 5—source data 2) were created by counting proportions of embryos that have detectable expression in the three regions: HS Anterior, Anterior, and Active-Zone. Dividing an embryo into HS Anterior, Anterior, and Active-Zone is carried out using morphological markers in the Tribolium germband (Figure 4B) as follows. The posterior end of the germband usually has a roundish shape that gets gradually fused into a long rectangular shape as we go towards anterior, ending with the head at far anterior. The ‘Active-Zone’ starts from the posterior end of the germband and ends at the point of fusion of the roundish posterior and the rectangular region of the embryo. The ‘Anterior’ is everything anterior to the Active-Zone. The ‘HS Anterior’ is only the rectangular region of the germband. These morphological landmarks are still present in heat-shocked hs-hb germbands, albeit the whole germband is shortened.

Error bars in Figures 4—figure supplement 3, Figure 5—figure supplements 2 and 4, Figures 4-figure supplement 4 represent standard error (SE) of proportions, estimated with the formula:

S E = \sqrt{\frac{p (1 - p)}{n}}

where p is the proportion of embryos with detectable expression in the designated region of the embryo (either HS Anterior, Anterior, or Active Zone) within an egg collection, while n is the total number of embryos in the egg collection.

We used egg collections of 15 embryos on average (see Figure 5—source data 1, Figure 5—source data 1, and Figure 5—source data 2 for exact sample sizes), which yielded standard errors small enough for our analysis (See Figures 4—figure supplement 3, Figure 5—figure supplements 2 and 4, Figures 4-figure supplement 4). We used one replicate for each egg collection (per gene visualized per time point). However, the large number of consecutive time points and parallel egg collections (each per gene visualized) carried out in this study confirms the described trend in the presented data. A total of 3500 embryos were analyzed in this study.

Computational modeling

Request a detailed protocol

See Appendix 1 and Supplementary file 1.

Appendix 1

Cuticular and morphological phenotype of heat-shocked hs-hb embryos

Hunchback overexpressing larvae show two main phenotypic traits, homeotic transformation of one or several (sometimes most) abdominal segments into segments with thoracic identity. Often imperfect transformations are observed, for example development of incomplete leg structures, or occurrence of fully transformed segments surrounded by segments with weak transformation. A subset of affected larvae display, in addition to the homeotic transformation, a disturbed segment pattern in the abdomen, sometimes with several fused or partially fused abdominal segments. Most interestingly, a sizable portion of larvae with homeotic transformation display supernumerary abdominal segments such that up to a total number of 19 trunk segments might be found. Germbands of heat-shocked hs-hb embryos appear shorter than WT embryos at the same stage, either due to the involvement of gap genes directly in the process of convergent extension or due to defects in the segmentation process, as segmentation seems to direct convergent extension in Tribolium (Benton et al., 2016).

A basic description of how French Flag GRN works

In the example GRN in Figure 1A’’, the morphogen gradient (grey) activates different genes with different strengths: strongly activates the blue gene, moderately activates the red gene, and weakly activates the green gene. Being strongly activated by the morphogen gradient, the blue gene is first activated in all cells exposed to the morphogen gradient. Being moderately activated by the morphogen, the red gene is then (after a delay) activated only at regions where the morphogen value exceeds its activation threshold. Since the red gene represses the blue gene, the blue gene now turns off where the red gene is now expressed. In a similar fashion, the green gene turns on (after a delay) only in regions where the morphogen concentration exceeds its activation threshold and then, eventually, represses the red gene there.

Computational Modeling

All computational models were created using Matlab. For all GRN models in this study, the transcriptional activity E of gene X that is regulated by N_a activators (A_i, i = 1 to N_a) and N_r repressors (R_j, j = 1 to N_r) is modelled using AND gated Hill functions of individual binding proteins:

E = \prod_{i = 1}^{N a} \frac{{(A_{i} / K_{i})}^{n a_{i}}}{1 + {(A_{i} / K_{i})}^{n a_{i}}} \prod_{j = 1}^{N r} \frac{1}{1 + {(R_{j} / K_{j}^{'})}^{n r_{j}}}

where A_i is the concentration of activator A_i, R_j is the concentration of repressor R_j, na_i is the cooperativity of A_i, nr_j is the cooperativity of R_j, K_i is the dissociation constant of activator A_i, and K^’_j is the dissociation constant of repressor R_j.

Below are complete differential equations for GRN models used in this study.

French Flag GRN

The following are the equations used for modeling 5-genes French Flag GRN (5-genes version of the GRN in Figure 1A’’). X_i is the mRNA concentration transcribed by gene X_i. G is the concentration of the gradient G (see Gradient Setup section below). Autorepression links are added for steady-state level control.

\begin{aligned} \frac{d X_{1}}{d t} & = \frac{{(\frac{G}{0.2})}^{3}}{1 + {(\frac{G}{0.2})}^{3}} \times \frac{1}{1 + {(\frac{X_{2}}{2.5})}^{5}} \times \frac{1}{1 + {(\frac{X_{3}}{0.2})}^{5}} \times \frac{1}{1 + {(\frac{X_{4}}{0.2})}^{5}} \times \frac{1}{1 + {(\frac{X_{5}}{0.2})}^{5}} \times \frac{1}{1 + {(\frac{X_{1}}{0.8})}^{5}} - X_{1} \\ \frac{d X_{2}}{d t} & = \frac{{(\frac{G}{0.6})}^{3}}{1 + {(\frac{G}{0.6})}^{3}} \times \frac{1}{1 + {(\frac{X_{3}}{2.5})}^{5}} \times \frac{1}{1 + {(\frac{X_{4}}{0.2})}^{5}} \times \frac{1}{1 + {(\frac{X_{5}}{0.2})}^{5}} \times \frac{1}{1 + {(\frac{X_{2}}{0.8})}^{5}} - X_{2} \\ \frac{d X_{3}}{d t} & = \frac{{(\frac{G}{1})}^{3}}{1 + {(\frac{G}{1})}^{3}} \times \frac{1}{1 + {(\frac{X_{4}}{2.5})}^{5}} \times \frac{1}{1 + {(\frac{X_{5}}{0.2})}^{5}} \times \frac{1}{1 + {(\frac{X_{3}}{0.8})}^{5}} - X_{3} \\ \frac{d X_{4}}{d t} & = \frac{{(\frac{G}{1.4})}^{3}}{1 + {(\frac{G}{1.4})}^{3}} \times \frac{1}{1 + {(\frac{X_{5}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{4}}{0.8})}^{5}} - X_{4} \\ \frac{d X_{5}}{d t} & = \frac{{(\frac{G}{1.8})}^{3}}{1 + {(\frac{G}{1.8})}^{3}} \times \frac{1}{1 + {(\frac{X_{5}}{0.8})}^{5}} - X_{5} \end{aligned}

Initial conditions: X₁=X₂=X₃=X₄=X₅=0.

Speed Regulation GRN (Module Switching model)

The transcription rate of gene X (X) is modeled as a weighted sum of the activity of two modules, dynamic module (X_D) and static module (X_s),

X = c_{1} X_{D} + c_{2} X_{S}

The following are the equations used for modeling the 5-genes gradual module switching model (5-genes version of the GRN in Figure 1B’’). X_Di is the activity of the dynamic module of gene X_i. X_Si is the activity of the static module of gene X_i. X_i is the mRNA concentration transcribed by gene X_i. G is the concentration of the (speed regulator) gradient G (see ‘Modeling gradients and gradient dynamics’ section below).

Dynamic Modules:

\frac{d X_{D 1}}{d t} = \frac{G}{1 + G} \times \frac{1}{1 + {(\frac{X_{2}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{3}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{4}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{5}}{0.4})}^{5}}

\frac{d X_{D 2}}{d t} = \frac{G}{1 + G} \times \frac{1}{1 + {(\frac{X_{1}}{2.5})}^{5}} \times \frac{1}{1 + {(\frac{X_{3}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{3}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{5}}{0.4})}^{5}}

\frac{d X_{D 3}}{d t} = \frac{G}{1 + G} \times \frac{1}{1 + {(\frac{X_{1}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{2}}{2.5})}^{5}} \times \frac{1}{1 + {(\frac{X_{4}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{5}}{0.4})}^{5}}

\frac{d X_{D 4}}{d t} = \frac{G}{1 + G} \times \frac{1}{1 + {(\frac{X_{1}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{2}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{3}}{2.5})}^{5}} \times \frac{1}{1 + {(\frac{X_{5}}{0.4})}^{5}}

\frac{d X_{D 5}}{d t} = \frac{G}{1 + G} \times \frac{1}{1 + {(\frac{X_{1}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{2}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{3}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{4}}{2.5})}^{5}}

Static Modules:

\frac{d X_{S 1}}{d t} = \frac{1}{1 + G} \times \frac{1}{1 + {(\frac{X_{2}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{3}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{4}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{5}}{0.4})}^{5}}

\frac{d X_{S 2}}{d t} = \frac{1}{1 + G} \times \frac{1}{1 + {(\frac{X_{1}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{3}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{4}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{5}}{0.4})}^{5}}

\frac{d X_{S 3}}{d t} = \frac{1}{1 + G} \times \frac{1}{1 + {(\frac{X_{1}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{2}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{4}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{5}}{0.4})}^{5}}

\frac{d X_{S 4}}{d t} = \frac{1}{1 + G} \times \frac{1}{1 + {(\frac{X_{1}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{2}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{3}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{5}}{0.4})}^{5}}

\frac{d X_{S 5}}{d t} = \frac{1}{1 + G} \times \frac{1}{1 + {(\frac{X_{1}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{2}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{3}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{4}}{0.4})}^{5}}

Combining the activities of Dynamic and Static Modules:

\frac{d X_{1}}{d t} = 3 \frac{d X_{D 1}}{d t} + 2 \frac{d X_{S 1}}{d t} - X_{1}

\frac{d X_{2}}{d t} = 3 \frac{d X_{D 2}}{d t} + 2 \frac{d X_{S 2}}{d t} - X_{2}

\frac{d X_{3}}{d t} = 3 \frac{d X_{D 3}}{d t} + 2 \frac{d X_{S 3}}{d t} - X_{3}

\frac{d X_{4}}{d t} = 3 \frac{d X_{D 4}}{d t} + 2 \frac{d X_{S 4}}{d t} - X_{4}

\frac{d X_{5}}{d t} = 3 \frac{d X_{D 5}}{d t} + 2 \frac{d X_{S 5}}{d t} - X_{5}

Initial conditions: X₁ = 0.1, X₂=X₃=X₄=X₅=0.

We would like to note here that in this paper, we used the ‘module switching model’ (Zhu et al PNAS 2017) as a molecular realization of the speed regulation model. The model basically posits that gene regulation changes its wiring depending on the presence of a posterior morphogen or not. This prediction is supported by the dual response of the Tribolium embryo upon re-inducing hb reported in this paper. The ‘module switching’ can be realized either by assuming that the same enhancers change their wiring depending on posterior morphogen concentration, or, alternatively, there is a set of enhancers that are active in the presence of the morphogen and other set of enhancers active in the absence of the morphogen. In Zhu et al PNAS 2017, we favored the latter possibility. However, the ‘two enhancer sets’ assumption is not an essential part of the ‘module switching’ model.

French Flag with a Timer Gene GRN

Same as French Flag GRN but with gradient G replaced with a Timer Gene TG as activator of genes X_i, i = 1 to 5. TG is activated by the gradient G and has zero decay rate:

\frac{d T G}{d t} = 0.05 \times G

Speed Regulation model realization by jointly modulating gene activation and gene product decay rates

Another realization of the Speed Regulation model is for the morphogen gradient to activate the constituent genes of a genetic cascade (or oscillator) and at the same time positively regulate their decay rates. The following is a set of differential equations realizing this concept. X_i is the mRNA concentration transcribed by gene X_i. G is the concentration of the (speed regulator) gradient G.

\frac{d X_{1}}{d t} = \frac{G}{1 + G} (\frac{1}{1 + {(\frac{X_{2}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{3}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{4}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{5}}{0.4})}^{5}} - 3 X_{1})

\frac{d X_{2}}{d t} = \frac{G}{1 + G} (\frac{1}{1 + {(\frac{X_{1}}{2.5})}^{5}} \times \frac{1}{1 + {(\frac{X_{3}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{4}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{5}}{0.4})}^{5}} - 3 X_{2})

\frac{d X_{3}}{d t} = 2 \times \frac{G}{1 + G} (\frac{1}{1 + {(\frac{X_{1}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{2}}{2.5})}^{5}} \times \frac{1}{1 + {(\frac{X_{4}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{5}}{0.4})}^{5}} - 3 X_{3})

\frac{d X_{4}}{d t} = 2 \times \frac{G}{1 + G} (\frac{1}{1 + {(\frac{X_{1}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{2}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{3}}{2.5})}^{5}} \times \frac{1}{1 + {(\frac{X_{5}}{0.4})}^{5}} - 3 X_{4})

\frac{d X_{5}}{d t} = 2 \times \frac{G}{1 + G} (\frac{1}{1 + {(\frac{X_{1}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{2}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{3}}{0.4})}^{5}} \times \frac{1}{1 + {(\frac{X_{4}}{2.5})}^{5}} - 3 X_{5})

Modeling gradients and gradient dynamics

Here we present how we modeled gradients with different dynamics in our simulations. Consider a group of cells arranged along a spatial axis x. We then apply a concentration gradient G along x. The gradient could be of two forms: (i) a smooth non-retracting gradient, and (ii) a retracting steep gradient (i.e. a retracting boundary or a wavefront). The smooth static gradient resembles that of caudal (cad; a strong candidate for the speed gradient in Tribolium) during the blastoderm stage of insect embryogenesis. The retracting wavefront is analogous to cad expression during the germband stage.

Here we will devise two mathematical formulae for each of the two forms of the speed gradient.

The smooth static gradient can be modeled with the sigmoid function:

G (x) = \frac{1}{1 + e^{- m (x - a)}}

The infliction point of the sigmoid is specified by a. The constant m specifies how steep the sigmoid is. A value of m = 20 gives reasonably smooth gradient and matches well the expression of cad in the blastoderm of the intermediate germ insect Tribolium castaneum.

To model a retracting wavefront with speed v, the following modified version of the sigmoid function can be used:

G (t, x) = \frac{1}{1 + e^{- m (x - a - v t)}}

We find a value of m = 100 to yield a reasonably steep wavefront.

Since in most insects, the blastoderm stage eventually transits into a germband stages, we will devise a flexible mathematical formula for the gradient so that it can (smoothly) transit from the static smooth form to the retracting wavefront form. If the transition from the blastoderm to germband takes place at $t = T_{b g}$ , then G could be written as follows:

G (t, x) = \frac{1}{1 + e^{- m (t) (x - a - u (t) t)}}

where,

m (t) = {\begin{cases} 20, t <; T_{b g} \\ 20 e^{10 (t - T_{b g})}, t \geq T_{b g} \end{cases}

and,

u (t) = {\begin{cases} 0, t <; T_{b g} \\ v, t \geq T_{b g} \end{cases}

In the case of a static gradient, we model the dynamics of gradient buildup or decay by multiplying the static gradient formula G mentioned above by a dynamics term D(t), where

D (t) = 1 - {(α \frac{t}{T} - β)}^{2}

and,

G (t, x) = D (t) \frac{1}{1 + e^{- m (x - a - v t)}}

Parameters α and β specifies what type of dynamics D(t) introduces. For α = 1 and β = 1, D(t) will introduce buildup dynamics. For α = 2 and β = 1, D(t) will introduce buildup followed by decay dynamics. For α = 1 and β = 0, D(t) will introduce only decay dynamics. T is the total duration of the simulation.

Modeling heat shock experiments

Heat-shocked hs-hb experiments were simply modeled by introducing a pulse of transcription in the anterior most expressed gene (X₁) at a desired point of time. Let $\frac{d X_{1}}{d t}$ be the rate of transcription of X1 without introducing the possibility of applying a heat-shock experiment (like the formulae of $\frac{d X_{1}}{d t}$ introduced in different models of patterning above). Then the rate of transcription of X₁ after introducing the possibility of applying a heat-shock experiment (X’₁) will be:

\frac{d X_{1}^{'}}{d t} = H (t) + \frac{d X_{1}}{d t}

where the heat-shock term H(t) is given by,

H (t) = {\begin{cases} h, T h s_{1} < t < T h s_{2} \\ 0, e l s e w h e r e \end{cases}

where Ths₁ and Ths₂ are start and end times of heat-shock application, and h is the transcription rate of the heat-shock transgene under the heat-shock conditions.

Modeling the axin phenotype

We modeled the axin phenotype using Speed Regulation model of patterning by simply not retracting the posterior gradient (speed regulator). This is equivalent to our simulation of the long-germ mode of embryogenesis (Video 6C and Video 12A). In Video 12B, we applied the heat-shock perturbation to this model.

Matlab implementation

Matlab implementations for the different models presented in our study and the parameter sets used to generate each of our simulations (Videos 1–12) can be found in Supplementary file 1.

https://doi.org/10.7554/eLife.41208.034

Data availability

Numerical data and sample sizes are all documented in Figure 4–source data 1, Figure 5–source data 1, and Figure 5–source data 2

References

1. Balaskas N
2. Ribeiro A
3. Panovska J
4. Dessaud E
5. Sasai N
6. Page KM
7. Briscoe J
8. Ribes V
(2012) Gene regulatory logic for reading the Sonic Hedgehog signaling gradient in the vertebrate neural tube
Cell 148:273–284.
https://doi.org/10.1016/j.cell.2011.10.047
- PubMed
- Google Scholar
1. Benton MA
2. Pechmann M
3. Frey N
4. Stappert D
5. Conrads KH
6. Chen YT
7. Stamataki E
8. Pavlopoulos A
9. Roth S
(2016) Toll genes have an ancestral role in axis elongation
Current Biology 26:1609–1615.
https://doi.org/10.1016/j.cub.2016.04.055
- PubMed
- Google Scholar
(1999) A universal marker for transgenic insects
Nature 402:370–371.
https://doi.org/10.1038/46463
- PubMed
- Google Scholar
(2009) Red flour beetle (Tribolium) germline transformation and insertional mutagenesis
Cold Spring Harbor Protocols 2009:pdb.prot5259.
https://doi.org/10.1101/pdb.prot5259
- PubMed
- Google Scholar
1. Brena C
2. Akam M
(2013) An analysis of segmentation dynamics throughout embryogenesis in the centipede Strigamia maritima
BMC Biology 11:112.
https://doi.org/10.1186/1741-7007-11-112
- PubMed
- Google Scholar
1. Briscoe J
2. Small S
(2015) Morphogen rules: design principles of gradient-mediated embryo patterning
Development 142:3996–4009.
https://doi.org/10.1242/dev.129452
- PubMed
- Google Scholar
1. Bucher G
2. Klingler M
(2004) Divergent segmentation mechanism in the short germ insect Tribolium revealed by giant expression and function
Development 131:1729–1740.
https://doi.org/10.1242/dev.01073
- PubMed
- Google Scholar
(2005) Breakdown of abdominal patterning in the Tribolium Kruppel mutant jaws
Development 132:5353–5363.
https://doi.org/10.1242/dev.02154
- PubMed
- Google Scholar
1. Chipman AD
2. Akam M
(2008) The segmentation cascade in the centipede Strigamia maritima: involvement of the Notch pathway and pair-rule gene homologues
Developmental Biology 319:160–169.
https://doi.org/10.1016/j.ydbio.2008.02.038
- PubMed
- Google Scholar
1. Clark E
2. Akam M
(2016) Odd-paired controls frequency doubling in Drosophila segmentation by altering the pair-rule gene regulatory network
eLife 5:e18215.
https://doi.org/10.7554/eLife.18215
- PubMed
- Google Scholar
1. Clark E
(2017) Dynamic patterning by the Drosophila pair-rule network reconciles long-germ and short-germ segmentation
PLOS Biology 15:e2002439.
https://doi.org/10.1371/journal.pbio.2002439
- PubMed
- Google Scholar
1. Clark E
2. Peel AD
(2018) Evidence for the temporal regulation of insect segmentation by a conserved sequence of transcription factors
Development dev.155580.
https://doi.org/10.1242/dev.155580
- PubMed
- Google Scholar
(2014) A theoretical framework for the regulation of Shh morphogen-controlled gene expression
Development 141:3868–3878.
https://doi.org/10.1242/dev.112573
- PubMed
- Google Scholar
1. Davis GK
2. Patel NH
(2002) Short, long, and beyond: molecular and embryological approaches to insect segmentation
Annual Review of Entomology 47:669–699.
https://doi.org/10.1146/annurev.ento.47.091201.145251
- PubMed
- Google Scholar
1. Deschamps J
2. Duboule D
(2017) Embryonic timing, axial stem cells, chromatin dynamics, and the Hox clock
Genes & Development 31:1406–1416.
https://doi.org/10.1101/gad.303123.117
- PubMed
- Google Scholar
1. Deschamps J
2. van Nes J
(2005) Developmental regulation of the Hox genes during axial morphogenesis in the mouse
Development 132:2931–2942.
https://doi.org/10.1242/dev.01897
- PubMed
- Google Scholar
1. Dessaud E
2. Yang LL
3. Hill K
4. Cox B
5. Ulloa F
6. Ribeiro A
7. Mynett A
8. Novitch BG
9. Briscoe J
(2007) Interpretation of the sonic hedgehog morphogen gradient by a temporal adaptation mechanism
Nature 450:717–720.
https://doi.org/10.1038/nature06347
- PubMed
- Google Scholar
(2001) FGF signaling controls somite boundary position and regulates segmentation clock control of spatiotemporal Hox gene activation
Cell 106:219–232.
https://doi.org/10.1016/S0092-8674(01)00437-8
- PubMed
- Google Scholar
(2012a) A segmentation clock operating in blastoderm and germband stages of Tribolium development
Development 139:4341–4346.
https://doi.org/10.1242/dev.085126
- PubMed
- Google Scholar
(2012b) Comparisons of the embryonic development of Drosophila, Nasonia, and Tribolium
Wiley Interdisciplinary Reviews. Developmental Biology 1:16–39.
https://doi.org/10.1002/wdev.3
- PubMed
- Google Scholar
1. El-Sherif E
2. Zhu X
3. Fu J
4. Brown SJ
(2014) Caudal regulates the spatiotemporal dynamics of pair-rule waves in Tribolium
PLOS Genetics 10:e1004677.
https://doi.org/10.1371/journal.pgen.1004677
- PubMed
- Google Scholar
1. El-Sherif E
2. Levine M
(2016) Shadow enhancers mediate dynamic shifts of gap gene expression in the drosophila embryo
Current Biology 26:1164–1169.
https://doi.org/10.1016/j.cub.2016.02.054
- PubMed
- Google Scholar
1. François P
2. Siggia ED
(2010) Predicting embryonic patterning using mutual entropy fitness and in silico evolution
Development 137:2385–2395.
https://doi.org/10.1242/dev.048033
- PubMed
- Google Scholar
1. Fu J
2. Posnien N
3. Bolognesi R
4. Fischer TD
5. Rayl P
6. Oberhofer G
7. Kitzmann P
8. Brown SJ
9. Bucher G
(2012) Asymmetrically expressed axin required for anterior development in Tribolium
PNAS 109:7782–7786.
https://doi.org/10.1073/pnas.1116641109
- PubMed
- Google Scholar
(2010) A systematic analysis of the gap gene system in the moth midge Clogmia albipunctata
Developmental Biology 344:306–318.
https://doi.org/10.1016/j.ydbio.2010.04.019
- PubMed
- Google Scholar
1. Gaunt SJ
(2001) Gradients and forward spreading of vertebrate Hox gene expression detected by using a Hox/lacZ transgene
Developmental Dynamics 221:26–36.
https://doi.org/10.1002/dvdy.1122
- PubMed
- Google Scholar
1. Harfe BD
2. Scherz PJ
3. Nissim S
4. Tian H
5. McMahon AP
6. Tabin CJ
(2004) Evidence for an expansion-based temporal Shh gradient in specifying vertebrate digit identities
Cell 118:517–528.
https://doi.org/10.1016/j.cell.2004.07.024
- PubMed
- Google Scholar
1. Jaeger J
2. Surkova S
3. Blagov M
4. Janssens H
5. Kosman D
6. Kozlov KN
7. Myasnikova E
8. Vanario-Alonso CE
9. Samsonova M
10. Sharp DH
11. Reinitz J
(2004) Dynamic control of positional information in the early Drosophila embryo
Nature 430:368–371.
https://doi.org/10.1038/nature02678
- PubMed
- Google Scholar
Preprint
1. Kuhlmann L
2. El-Sherif E
(2018) Speed regulation and gradual enhancer switching models as flexible and evolvable patterning mechanisms
BioRxiv.
https://doi.org/10.1101/261891
- Google Scholar
(2013) Scaling of embryonic patterning based on phase-gradient encoding
Nature 493:101–105.
https://doi.org/10.1038/nature11804
- PubMed
- Google Scholar
(2002)
Cloning and characterization of the Tribolium castaneum eye-color genes encoding tryptophan oxygenase and kynurenine 3-monooxygenase

Genetics 160:225–234.
- PubMed
- Google Scholar
Thesis
1. Marques-Souza H
(2007) Evolution of the gene regulatory network controlling trunk segmentation in insects
University of Cologne.

http://kups.ub.uni-koeln.de/2167/
- Google Scholar
1. Nakao H
(2016) Hunchback knockdown induces supernumerary segment formation in Bombyx
Developmental Biology 413:207–216.
https://doi.org/10.1016/j.ydbio.2016.03.024
- PubMed
- Google Scholar
(2017) Cdx is crucial for the timing mechanism driving colinear Hox activation and defines a trunk segment in the Hox cluster topology
Developmental Biology 422:146–154.
https://doi.org/10.1016/j.ydbio.2016.12.024
- PubMed
- Google Scholar
(1997) Avian hairy gene expression identifies a molecular clock linked to vertebrate segmentation and somitogenesis
Cell 91:639–648.
https://doi.org/10.1016/S0092-8674(00)80451-1
- PubMed
- Google Scholar
(2013) A gene regulatory motif that generates oscillatory or multiway switch outputs
Journal of the Royal Society Interface 10:20120826.
https://doi.org/10.1098/rsif.2012.0826
- Google Scholar
1. Peel A
(2004) The evolution of arthropod segmentation mechanisms
BioEssays 26:1108–1116.
https://doi.org/10.1002/bies.20097
- PubMed
- Google Scholar
(2005) Arthropod segmentation: beyond the Drosophila paradigm
Nature Reviews Genetics 6:905–916.
https://doi.org/10.1038/nrg1724
- PubMed
- Google Scholar
(2018) Combining a toggle switch and a repressilator within the ac-dc circuit generates distinct dynamical behaviors
Cell Systems 6:521–530.
https://doi.org/10.1016/j.cels.2018.02.008
- PubMed
- Google Scholar
1. Pourquié O
(2003) The segmentation clock: converting embryonic time into spatial pattern
Science 301:328–330.
https://doi.org/10.1126/science.1085887
- PubMed
- Google Scholar
(2006) A segmentation gene in tribolium produces a polycistronic mRNA that codes for multiple conserved peptides
Cell 126:559–569.
https://doi.org/10.1016/j.cell.2006.05.053
- PubMed
- Google Scholar
(2009) Single and double whole-mount in situ hybridization in red flour beetle (Tribolium) embryos
Cold Spring Harbor Protocols 2009:pdb.prot5258.
https://doi.org/10.1101/pdb.prot5258
- PubMed
- Google Scholar
(2009) Concurrent in situ hybridization and antibody staining in red flour beetle (Tribolium) embryos
Cold Spring Harbor Protocols 2009:pdb.prot5257.
https://doi.org/10.1101/pdb.prot5257
- PubMed
- Google Scholar
(2017) Dynamic maternal gradients control timing and shift-rates for drosophila gap gene expression
PLOS Computational Biology 13:e1005285.
https://doi.org/10.1371/journal.pcbi.1005285
- PubMed
- Google Scholar
1. Verd B
2. Clark E
3. Wotton KR
4. Janssens H
5. Jiménez-Guri E
6. Crombach A
7. Jaeger J
(2018) A damped oscillator imposes temporal order on posterior gap gene expression in Drosophila
PLOS Biology 16:e2003174.
https://doi.org/10.1371/journal.pbio.2003174
- PubMed
- Google Scholar
1. Wolff C
2. Sommer R
3. Schröder R
4. Glaser G
5. Tautz D
(1995)
Conserved and divergent expression aspects of the Drosophila segmentation gene hunchback in the short germ band embryo of the flour beetle Tribolium

Development 121:4227–4236.
- PubMed
- Google Scholar
1. Wolff C
2. Schröder R
3. Schulz C
4. Tautz D
5. Klingler M
(1998)
Regulation of the Tribolium homologues of caudal and hunchback in Drosophila: evidence for maternal gradient systems in a short germ embryo

Development 125:3645–3654.
- PubMed
- Google Scholar
1. Wolpert L
(1969) Positional information and the spatial pattern of cellular differentiation
Journal of Theoretical Biology 25:1–47.
https://doi.org/10.1016/S0022-5193(69)80016-0
- PubMed
- Google Scholar
1. Zeller R
(2004) It takes time to make a pinky: unexpected insights into how shh patterns vertebrate digits
Science Signaling 2004:pe53.
https://doi.org/10.1126/stke.2592004pe53
- Google Scholar
1. Zhu X
2. Rudolf H
3. Healey L
4. François P
5. Brown SJ
6. Klingler M
7. El-Sherif E
(2017) Speed regulation of genetic cascades allows for evolvability in the body plan specification of insects
PNAS 114:E8646–E8655.
https://doi.org/10.1073/pnas.1702478114
- PubMed
- Google Scholar

Decision letter

Naama Barkai

Senior and Reviewing Editor; Weizmann Institute of Science, Israel

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "A re-inducible gap gene cascade patterns the anterior-posterior axis of insects in a threshold-free fashion" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by Naama Barkai as the Senior and Reviewing Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

Boos et al. propose that the anterior-posterior axis in Tribolium is regulated by a threshold-free speed regulation mechanism based on a gradient of caudal and gap gene interactions. This is largely based on the observation that pulsed hb expression re-initiates the patterning cascade, which is roughly consistent with the predictions from a model of the gap gene network.

Essential revisions:

1) Include a basic description of the HS-hb phenotype (or range of phenotypes) – i.e. describe the effects on segment number, segment identity, duration of segmentation, and germband morphology. The data visualization in Figures 4—figure supplement 3, Figure 5—figure supplement 2 and Figure 5—figure supplement 4 should also be improved.

2) The paper should be rewritten to minimize content overlap with the PNAS paper, i.e. streamline everything before "A dual response upon re-inducing hunchback in the Tribolium embryo", and appropriately discuss previous studies.

3) Address the axin RNAi results with additional simulations (i.e. show the simulation results for the axin RNAi experiment), and examine gap gene expression after cad RNAi (using late stage knockdown if appropriate).

4) Add missing details regarding the methodology (e.g. dsRNA concentration, gradient modeling, morphological landmarks to define the three embryonic regions, etc..)

Strongly encouraged revisions:

1) Repeat the hs:hb experiment in a caudal loss-of-function background (mutant or RNAi) to assess whether patterning after hb activation is still dependent on the initial morphogen caudal.

2) Provide examples of enhancers in the gap gene network, in which caudal acts as both an activator and a repressor for a given target gene to make the work less speculative.

Additional desirable revisions:

1) Optimize the heatshock conditions to make the experiments interpretable in the framework of the speed-regulation model.

2) To add novelty to the model, the paper could benefit from an extension to analyze dynamic gradient formation rather than assuming a static caudal protein gradient for the initial phases of patterning.

3) Tone down the relevance for patterning in other insects unless additional evidence is provided. It would be interesting for the authors to comment on the relationships between their own findings and those of Hajime Nakao in the Bombyx embryo (Nakao 2016). That study implicated Hb in the termination of segment addition and Hox gene expression, rather than reinitiating it.

In addition, please consider all points in the individual reviews below.

Reviewer #1:

Most bilaterians generate their main body axis progressively over time, from anterior to posterior. During axial extension, expression domains of axial patterning genes (e.g. Hox genes, or the gap genes as discussed here) appear dynamically and sequentially in posterior, unspecified tissue; this temporal pattern is the origin of the spatial pattern of axial identity seen in the fully-developed animal. In general, two contrasting regulatory mechanisms might give rise to the temporal pattern. One option is that residence time within the progenitor zone is measured directly, on the basis of some "timer" signal that increases or decreases as the zone matures. Alternatively, the patterning genes themselves might constitute the timer mechanism, with regulatory interactions between the various genes resulting in dynamic and sequential expression. In the first case, the patterning genes simply respond to temporal information, in the second case, they create it.

Boos and colleagues aim to distinguish between these possibilities in the case of a series of gap genes expressed in a sequentially segmenting insect, Tribolium castaneum. These genes are expressed in a temporal sequence (hb, Kr, mlpt, gt), and contribute to axial patterning of the embryo. A previous paper from the authors proposed that these genes form a genetic cascade, and that the rate of progression through this cascade is regulated in a concentration dependent manner by a posteriorly expressed factor, Caudal. This model is an example of the latter category of timer mechanisms. As a representative of the former category, the authors point to a model proposed by Francois and Siggia in 2010, whereby the posterior zone promotes the expression of a timer gene, which successively activates more "posterior" gap genes as its expression level progressively builds up over time. (In that paper, Caudal itself was identified as a potential timer gene, but Caudal levels have not been shown to increase over time in the manner suggested. Instead, in the formulation in the current manuscript, Caudal activates a hypothetical and as yet undiscovered timer gene.)

The authors find that misexpressing hunchback (the first gene in the gap sequence) using a heat-shock promoter turns out to reinitiate the entire four gene sequence of gap gene expression, as predicted by the genetic cascade model, and against the predictions of the "timer gene" alternative. Experiments comparing HS-Hb with HS-Hb; axn RNAi embryos further show that the zone of re-initiation consistently correlates with the extent of caudal expression, indicating that genetic regulatory logic differs between different regions of the embryo, and that Caudal may be (one of) the factors responsible for this difference.

The HS-Hb treatment is a neat functional perturbation, while the experimental findings of gap gene expression re-initiation are striking, and the theoretical predictions for the genetic cascade vs timer gene scenarios are well contrasted. As such, the manuscript supports and extends existing ideas in the field about the role of gap gene networks in insect development. However, I have reservations about the focus, organisation and presentation of the paper, which could all be significantly improved.

1) The manuscript takes a long time (nearly 200 lines) to home in on the question actually addressed by the experiments – that of a genetic cascade vs a concentration dependent timer gene. I think that readability, focus, and clarity would all be improved by streamlining the paper and removing/drastically shortening the long introductory diversion into models of patterning mediated by static morphogen gradients. Aside from being beside the point, much of this material simply repeats the authors' 2017 PNAS paper, or re-describes points already made in Francois and Siggia 2010. (Indeed, Figures 1B, 1D, 2A, 2B, and 3A all reproduce images from the 2017 paper, without remark.) In addition, I am concerned about a misleading presentation of Drosophila gap gene regulation as being of the "French Flag" type, instead of discussing the authors' models in the context of published work on emergent gap gene dynamics from the Reinitz, Jaeger, and Gregor labs.

2) I find some of the terminology used when discussing the models to be unhelpful – particular the comparison between "French flag"/"threshold-based" scenarios and the authors' "speed-regulation" model. First, the key hypothesis being tested is the presence of a concentration dependent timing factor in the "active" zone, vs timing information emerging from the interplay of the gap factors themselves. (I have used the terms "timer gene" and "genetic cascade" in this review to refer to these respective concepts.) While the authors repeatedly state that their findings validate their "speed regulation" model (e.g. subsection “A dual response upon re-inducing hunchback in the Tribolium embryo”, fifth paragraph, Discussion, third and last paragraphs), this claim is potentially misleading as they instead simply rule out the "timer gene" hypothesis; the experimental results are not informative regarding the "speed regulation" aspect of the speed regulation model.

Second, the use of "threshold-free" to refer to the absence of a concentration-dependent timer gene is potentially confusing, because this "threshold-free" scenario doesn't rule out the existence of other regulatory thresholds within the genetic network. Third, the authors use the French flag model as a reference point when introducing their models. However, they also argue for a redefinition of the French flag (Introduction, second paragraph) that fits with their GRN implementations. Given that their study system isn't well represented by a French flag scenario anyway, this strategy seems unnecessarily complicated and potentially confusing.

3) While the paper is understandably focused on the effects on gap gene expression, it should also include some basic description of the terminal phenotypes resulting from the HS-Hb treatments. There is a line in the Materials and methods section (subsection “Generation of transgenic beetles”) about larvae developing homeotic transformations and/or additional trunk segments. This strikes me as very interesting (and increases support for the authors' model) and I would have ideally liked to have seen some characterisation of these effects: for example, cuticle preparations and in situs against Hox genes and segmentation genes. In addition, the HS-Hb germbands shown in Figure 4—figure supplement 2, Figure 5—figure supplement 1, and Figure 5—figure supplement 1 are clearly much shorter than their HS-wt counterparts (whereas the model suggests that they ought to generate more segments). This is also interesting but not remarked upon. Is the morphological difference due to effects on convergent extension, cell proliferation, or both? And, if these short germbands eventually produce larvae with extra segments, is the duration of segmentation/axial extension therefore significantly protracted?

Reviewer #2:

In this manuscript, Boos et al. propose that the anterior-posterior axis in Tribolium is regulated by a threshold-free speed regulation mechanism based on a gradient of caudal and gap gene interactions. This is largely based on the observation that pulsed hb expression re-initiates the patterning cascade, which is roughly consistent with the predictions from a model of the gap gene network. The experimental observation is very interesting, but the model in its current state remains speculative. The study therefore needs to be extended to further test the validity of the model as detailed below:

1) Model extensionsa) Are there examples of enhancers in the gap gene network, in which caudal acts as both an activator and a repressor for a given target gene? Providing evidence for such regulation would make the work less speculative.

b) Information on how the hs:hb experiment was modeled is missing. Importantly, ectopic hb does not contain enhancers that are responsive to the other genes and therefore should not be regulated by them. This appears to be an essential flaw in the model.

c) The Materials and methods section doesn't contain details about how the gradient G was modeled. Since this is integral to the understanding of the paper, please add this important information.

d) In Figure 6, why is mlpt localized posteriorly with uniform caudal (i.e. axn RNAi)? In my simulations of the model with a domain size of length 1E-4 and G=1.5 (rather than G=1.5*exp(-x/0.3E-4), which recapitulates the modeling results in this paper), the concentrations of all network constituents are uniform (with X_5 being the highest and X_4 or X_3, presumably representing mlpt, being very low) rather than posteriorly localized. Please clarify this discrepancy with additional simulations.

e) From a theoretical point of view, this paper is very similar in many ways to a previous PNAS paper from the El-Sherif lab (even containing the same typo in the dX_D2/dt equation appearing in the subsection “Speed Regulation GRN (Module Switching model)” of the current paper, i.e. X_3 in the fourth term of the second equation should be X_4). To add novelty to the model, the paper could benefit from an extension to analyze dynamic gradient formation rather than assuming a static caudal protein gradient for the initial phases of patterning.

2) Experimental extensions and methodological detailsa) If feasible, the validity of the model should be further tested by repeating the hs:hb experiment in a caudal null mutant to assess whether patterning after hb activation is still dependent on the initial morphogen caudal.

b) Even a heatshock in WT embryos has a large influence on hb expression, which complicates the analysis. Are there milder heatshock conditions that do not influence normal development in WT embryos?

c) The information for the piggyback vector, which should appear in Figure 4—figure supplement 1, is missing. Please add this information.

d) The formula for standard error quantification in the Materials and methods section is unclear.

e) The axn dsRNA concentration is missing. Please add this information.

3) Manuscript organizationa) The authors claim in several instances that this model might also underlie patterning in "possibly all insects". Unless tested in at least one more organism, this claim should be toned down throughout the manuscript.

b) Several references are missing (e.g. Berghammer et al., 1999). Please correct this throughout the manuscript.

https://doi.org/10.7554/eLife.41208.036

Author response

Essential revisions:

1) Include a basic description of the HS-hb phenotype (or range of phenotypes) – i.e. describe the effects on segment number, segment identity, duration of segmentation, and germband morphology. The data visualization in Figures 4—figure supplement 3, Figure 5—figure supplement 2 and Figure 5—figure supplement 4 should also be improved.

We added a description of the cuticular and morphological phenotypes of heat-shocked hs-hb embryos to Appendix 1, including effects on segment number, segment identity, and germband morphology. Further analysis of the segmentation phenotype will be described in detail in future work. In this paper, we restricted our analysis to the gap gene level.

Visualization in Figure 4—figure supplement 3, Figure 5—figure supplement 2 and Figure 5—figure supplement 4 is now improved.

2) The paper should be rewritten to minimize content overlap with the PNAS paper, i.e. streamline everything before "A dual response upon re-inducing hunchback in the Tribolium embryo", and appropriately discuss previous studies.

Now we shortened our theoretical sections. In addition, for brevity, we removed the analysis of the AC-DC circuit (and we removed the corresponding Supplementary Figure 1 in the original manuscript).

3) Address the axin RNAi results with additional simulations (i.e. show the simulation results for the axin RNAi experiment), and examine gap gene expression after cad RNAi (using late stage knockdown if appropriate).

In axn RNAi embryos, cad gradient extends to cover the whole embryo (but still expressed in a gradient, nonetheless). This is now mentioned in the section “The re-induction of gap gene sequence upon re-inducing hb is specific to the active-zone” of the revised manuscript. In addition, we added a quantification of the cad gradient in WT and axn RNAi embryos to Figure 6—figure supplement 1 of the revised manuscript. Simulations of axn phenotype (with and without pulsed hb re-activation) are as well added to the manuscript (Video 12) and described in the documentation of computational modeling (now moved to Appendix 1).

cad RNAi, unfortunately, results in very low fecundity; so it is not possible to do the same type of analysis done in our work for cad RNAi. Anyway, strong cad RNAi embryos are completely transformed into head fates (not patterned by the gap gene expression that we are analyzing here). This could be circumvented by late embryonic injection of dsRNA in order to skip the head/trunk fate determination phase. However, performing late RNAi perturbations by embryonic injection is challenging in Tribolium. Alternative techniques like applying dsRNA + electroporation to germband cultures is needed. However, such methods are still under development.

4) Add missing details regarding the methodology (e.g. dsRNA concentration, gradient modeling, morphological landmarks to define the three embryonic regions, etc..)

dsRNA concentration is now provided.

Details of gradient modeling is now added to the computational modeling documentation (computational modeling in Appendix 1). In addition, we provided Matlab codes for all of our simulations (Supplementary file 1).

We added the morphological landmarks we used to define the three embryonic regions: Active-Zone, Anterior, and HS-Anterior in the Materials and methods section under “Quantification of gene expressions in HS Anterior, Anterior, and Active-Zone”.

Strongly encouraged revisions:

1) Repeat the hs:hb experiment in a caudal loss-of-function background (mutant or RNAi) to assess whether patterning after hb activation is still dependent on the initial morphogen caudal.

See our answer to point (3) of “Essential revisions” above.

2) Provide examples of enhancers in the gap gene network, in which caudal acts as both an activator and a repressor for a given target gene to make the work less speculative.

See our answer to point (3) of “Essential revisions” above.

Additional desirable revisions:

1) Optimize the heatshock conditions to make the experiments interpretable in the framework of the speed-regulation model.

Unfortunately, it was not possible to generate a series of hs-hb perturbations of varying strengths that would give a homogenous response in populations of embryos.

2) To add novelty to the model, the paper could benefit from an extension to analyze dynamic gradient formation rather than assuming a static caudal protein gradient for the initial phases of patterning.

In the revised manuscript, we added simulations of dynamic gradients applied to the French flag and the Speed Regulation models (Videos 2 and 5 of the revised manuscript). In addition, we provided modeling methods (computational modeling, Appendix 1) and Matlab code for our simulations in which we added an option to adjust gradient buildup dynamics as needed (Supplementary file 1).

3) Tone down the relevance for patterning in other insects unless additional evidence is provided.

Done.

It would be interesting for the authors to comment on the relationships between their own findings and those of Hajime Nakao in the Bombyx embryo (Nakao 2016). That study implicated Hb in the termination of segment addition and Hox gene expression, rather than reinitiating it.

We now discuss this point in the Discussion of the revised manuscript.

In addition, please consider all points in the individual reviews below.

Reviewer #1:

[…] 1) The manuscript takes a long time (nearly 200 lines) to home in on the question actually addressed by the experiments – that of a genetic cascade vs a concentration dependent timer gene. I think that readability, focus, and clarity would all be improved by streamlining the paper and removing/drastically shortening the long introductory diversion into models of patterning mediated by static morphogen gradients.

We now shortened the Introduction. We would like to point out, though, that an important component of our manuscript (at least to us) is to highlight and contrast the difference between the French Flag model and the Speed Regulation model. Specifically, we wanted to show that the dynamics of the French Flag model could be very similar to the Speed Regulation model, and hence, we need other measures to differentiate between the two models, as exemplified by the heat-shock perturbation we are documenting in the manuscript. This point is not discussed in Francois and Siggia 2010, and we needed to describe the essence of that work to make the comparison clear.

Aside from being beside the point, much of this material simply repeats the authors' 2017 PNAS paper, or re-describes points already made in Francois and Siggia 2010. (Indeed, Figures 1B, 1D, 2A, 2B, and 3A all reproduce images from the 2017 paper, without remark.)

We now pointed out that these are adapted from Zhu et al., 2017. We find it very difficult to discuss the ideas presented in the current manuscript without referring to some of the models in Zhu et al., 2017.

In addition, I am concerned about a misleading presentation of Drosophila gap gene regulation as being of the "French Flag" type, instead of discussing the authors' models in the context of published work on emergent gap gene dynamics from the Reinitz, Jaeger, and Gregor labs.

This part is omitted in the revised manuscript.

2) I find some of the terminology used when discussing the models to be unhelpful – particular the comparison between "French flag"/"threshold-based" scenarios and the authors' "speed-regulation" model. First, the key hypothesis being tested is the presence of a concentration dependent timing factor in the "active" zone, vs timing information emerging from the interplay of the gap factors themselves. (I have used the terms "timer gene" and "genetic cascade" in this review to refer to these respective concepts.) While the authors repeatedly state that their findings validate their "speed regulation" model (e.g. subsection “A dual response upon re-inducing hunchback in the Tribolium embryo”, fifth paragraph, Discussion, third and last paragraphs), this claim is potentially misleading as they instead simply rule out the "timer gene" hypothesis; the experimental results are not informative regarding the "speed regulation" aspect of the speed regulation model.

We modified our wording in the revised manuscript, stating that our results are ‘consistent with’ the speed regulation model instead of ‘validating it’, since our simulations based on the speed regulation model recapitulate the heat-shock experiments.

Second, the use of "threshold-free" to refer to the absence of a concentration-dependent timer gene is potentially confusing, because this "threshold-free" scenario doesn't rule out the existence of other regulatory thresholds within the genetic network.

By ‘threshold-free’ we mean thresholds on the morphogen gradients, not other regulatory interactions within the network. We clarified this in the revised manuscript.

Third, the authors use the French flag model as a reference point when introducing their models. However, they also argue for a redefinition of the French flag (Introduction, second paragraph) that fits with their GRN implementations. Given that their study system isn't well represented by a French flag scenario anyway, this strategy seems unnecessarily complicated and potentially confusing.

3) While the paper is understandably focused on the effects on gap gene expression, it should also include some basic description of the terminal phenotypes resulting from the HS-Hb treatments. There is a line in the Materials and methods section (subsection “Generation of transgenic beetles”) about larvae developing homeotic transformations and/or additional trunk segments. This strikes me as very interesting (and increases support for the authors' model) and I would have ideally liked to have seen some characterisation of these effects: for example, cuticle preparations and in situs against Hox genes and segmentation genes. In addition, the HS-Hb germbands shown in Figure 4—figure supplement 2, Figure 5—figure supplement 1, and Figure 5—figure supplement 1 are clearly much shorter than their HS-wt counterparts (whereas the model suggests that they ought to generate more segments). This is also interesting but not remarked upon. Is the morphological difference due to effects on convergent extension, cell proliferation, or both? And, if these short germbands eventually produce larvae with extra segments, is the duration of segmentation/axial extension therefore significantly protracted?

See our response to point (1) of “Essential Revisions” in the Editor’s summary above.

Reviewer #2:

In this manuscript, Boos et al. propose that the anterior-posterior axis in Tribolium is regulated by a threshold-free speed regulation mechanism based on a gradient of caudal and gap gene interactions. This is largely based on the observation that pulsed hb expression re-initiates the patterning cascade, which is roughly consistent with the predictions from a model of the gap gene network. The experimental observation is very interesting, but the model in its current state remains speculative. The study therefore needs to be extended to further test the validity of the model as detailed below:

1) Model extensionsa) Are there examples of enhancers in the gap gene network, in which caudal acts as both an activator and a repressor for a given target gene? Providing evidence for such regulation would make the work less speculative.

See our response to point (2) of “Strongly encouraged revisions” in the Editor’s summary above.

b) Information on how the hs:hb experiment was modeled is missing. Importantly, ectopic hb does not contain enhancers that are responsive to the other genes and therefore should not be regulated by them. This appears to be an essential flaw in the model.

See our response to point (2) of “Strongly encouraged revisions” in the Editor’s summary above.

c) The Materials and methods section doesn't contain details about how the gradient G was modeled. Since this is integral to the understanding of the paper, please add this important information.

Details of gradient modeling is now added to the computational modeling documentation (Appendix 1). In addition, we provided Matlab codes for all of our simulations (Supplementary file 1).

d) In Figure 6, why is mlpt localized posteriorly with uniform caudal (i.e. axn RNAi)? In my simulations of the model with a domain size of length 1E-4 and G=1.5 (rather than G=1.5*exp(-x/0.3E-4), which recapitulates the modeling results in this paper), the concentrations of all network constituents are uniform (with X_5 being the highest and X_4 or X_3, presumably representing mlpt, being very low) rather than posteriorly localized. Please clarify this discrepancy with additional simulations.

See our response to point (3) of “Essential Revisions” in the Editor’s summary above.

The typo is fixed.

e) From a theoretical point of view, this paper is very similar in many ways to a previous PNAS paper from the El-Sherif lab (even containing the same typo in the dX_D2/dt equation appearing in the subsection “Speed Regulation GRN (Module Switching model)” of the current paper, i.e. X_3 in the fourth term of the second equation should be X_4). To add novelty to the model, the paper could benefit from an extension to analyze dynamic gradient formation rather than assuming a static caudal protein gradient for the initial phases of patterning.

See our response to point (2) of “Additional desirable revisions” in the Editor’s summary above.

2) Experimental extensions and methodological detailsa) If feasible, the validity of the model should be further tested by repeating the hs:hb experiment in a caudal null mutant to assess whether patterning after hb activation is still dependent on the initial morphogen caudal.

See our response to point (3) of “Essential revisions” in the Editor’s summary above.

b) Even a heatshock in WT embryos has a large influence on hb expression, which complicates the analysis. Are there milder heatshock conditions that do not influence normal development in WT embryos?

See our response to point (1) of “Additional desirable revisions” in the Editor’s summary above.

c) The information for the piggyback vector, which should appear in Figure 4—figure supplement 1, is missing. Please add this information.

Now added (Figure 4—figure supplement 1).

d) The formula for standard error quantification in the Materials and methods section is unclear.

Done.

e) The axn dsRNA concentration is missing. Please add this information.

Now added.

3) Manuscript organizationa) The authors claim in several instances that this model might also underlie patterning in "possibly all insects". Unless tested in at least one more organism, this claim should be toned down throughout the manuscript.

Done.

b) Several references are missing (e.g. Berghammer et al., 1999). Please correct this throughout the manuscript.

Done.

https://doi.org/10.7554/eLife.41208.037

Article and author information

Author details

Alena Boos

Division of Developmental Biology, Department of Biology, Friedrich-Alexander Universität Erlangen-Nürnberg, Erlangen, Germany

Contribution
Investigation

Contributed equally with
Jutta Distler

Competing interests
No competing interests declared
Jutta Distler

Division of Developmental Biology, Department of Biology, Friedrich-Alexander Universität Erlangen-Nürnberg, Erlangen, Germany

Contribution
Investigation

Contributed equally with
Alena Boos

Competing interests
No competing interests declared
Heike Rudolf

Division of Developmental Biology, Department of Biology, Friedrich-Alexander Universität Erlangen-Nürnberg, Erlangen, Germany

Contribution
Investigation

Competing interests
No competing interests declared
Martin Klingler

Division of Developmental Biology, Department of Biology, Friedrich-Alexander Universität Erlangen-Nürnberg, Erlangen, Germany

Contribution
Conceptualization, Funding acquisition, Investigation

For correspondence
martin.klingler@fau.de

Competing interests
No competing interests declared
Ezzat El-Sherif

Division of Developmental Biology, Department of Biology, Friedrich-Alexander Universität Erlangen-Nürnberg, Erlangen, Germany

Contribution
Conceptualization, Supervision, Funding acquisition, Investigation, Writing—original draft

For correspondence
ezzat.el-sherif@fau.de

Competing interests
No competing interests declared

"This ORCID iD identifies the author of this article:" 0000-0003-1738-8139

Funding

Alexander von Humboldt-Stiftung (Fellowship)

Ezzat El-Sherif

Deutsche Forschungsgemeinschaft (KL 656_5-1)

Martin Klingler

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Paul François and Erik Clark for their comments on an early version of the manuscript.

Senior and Reviewing Editor

Naama Barkai, Weizmann Institute of Science, Israel

Publication history

Received: August 17, 2018
Accepted: December 19, 2018
Accepted Manuscript published: December 20, 2018 (version 1)
Version of Record published: January 11, 2019 (version 2)

Copyright

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

1,384

Page views
209

Downloads
7

Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Mendeley

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

Alena Boos
Jutta Distler
Heike Rudolf
Martin Klingler
Ezzat El-Sherif

(2018)

A re-inducible gap gene cascade patterns the anterior–posterior axis of insects in a threshold-free fashion

eLife 7:e41208.

https://doi.org/10.7554/eLife.41208

Share this article

Cite this article

French Flag model versus Speed Regulation model.

Computer simulation of the French Flag GRN.

Computer simulation of the French Flag GRN with gradient buildup dynamics.

Computer simulation of Speed Regulation GRN.

Computer simulation of Speed Regulation GRN driven by a decaying morphogen gradient.

Computer simulation of Speed Regulation GRN driven by a building up then decaying morphogen gradient.

Application of FF and SR model to the problem of insect development and evolution.

Speed Regulation GRN patterning the Anterior-Posterior axis of short-germ, intermediate-germ and long-germ insects.

French Flag with a Timer Gene GRN patterning the Anterior-Posterior axis of short-germ, intermediate-germ and long-germ insects.

Re-inducing the leading gene in the Speed Regulation GRN during intermediate-germ patterning.

Re-inducing the leading gene in the French Flag with a Timer Gene GRN during intermediate-germ patterning.

Expression dynamics of caudal and gap genes during AP axis specification in Tribolium.

Dual response of Tribolium embryos upon re-inducing hb expression at 26–29 hr AEL.

Figure 4—source data 1

Dual response of Tribolium embryos upon re-inducing hb expression at 23–26 and 20–23 hr AEL.

Figure 5—source data 1

Figure 5—source data 2

Simulation of GRN realizing the Speed Regulation model by jointly modulating gene activity and gene product decay rates.

Re-inducing the leading gene in the Speed Regulation GRN realization by jointly modulating gene activity and gene products decay rates during intermediate-germ patterning.

Gap gene sequence re-activation upon re-inducing hb is specific to the active-zone.

Simulation of axn RNAi and hs-hb; axn RNAi phenotypes in Tribolium.

Author details

Alena Boos

Contribution

Contributed equally with

Competing interests

Jutta Distler

Contribution

Contributed equally with

Competing interests

Heike Rudolf

Contribution

Competing interests

Martin Klingler

Contribution

For correspondence

Competing interests

Ezzat El-Sherif

Contribution

For correspondence

Competing interests

Downloads (link to download the article as PDF)

Open citations (links to open the citations from this article in various online reference manager services)

Cite this article (links to download the citations from this article in formats compatible with various reference manager tools)

Categories and tags

Further reading
