Pericentrin-mediated SAS-6 recruitment promotes centriole assembly

  1. Daisuke Ito  Is a corresponding author
  2. Sihem Zitouni
  3. Swadhin Chandra Jana
  4. Paulo Duarte
  5. Jaroslaw Surkont
  6. Zita Carvalho-Santos
  7. José B Pereira-Leal
  8. Miguel Godinho Ferreira
  9. Mónica Bettencourt-Dias  Is a corresponding author
  1. Instituto Gulbenkian de Ciência, Portugal
  2. Precision Medicine, Portugal
  3. Institute for Research on Cancer and Aging of Nice (IRCAN), INSERM U1081 UMR7284 CNRS, France
Research Article
  • Cited 1
  • Views 794
  • Annotations
Cite this article as: eLife 2019;8:e41418 doi: 10.7554/eLife.41418

Abstract

The centrosome is composed of two centrioles surrounded by a microtubule-nucleating pericentriolar material (PCM). Although centrioles are known to regulate PCM assembly, it is less known whether and how the PCM contributes to centriole assembly. Here we investigate the interaction between centriole components and the PCM by taking advantage of fission yeast, which has a centriole-free, PCM-containing centrosome, the SPB. Surprisingly, we observed that several ectopically-expressed animal centriole components such as SAS-6 are recruited to the SPB. We revealed that a conserved PCM component, Pcp1/pericentrin, interacts with and recruits SAS-6. This interaction is conserved and important for centriole assembly, particularly its elongation. We further explored how yeasts kept this interaction even after centriole loss and showed that the conserved calmodulin-binding region of Pcp1/pericentrin is critical for SAS-6 interaction. Our work suggests that the PCM not only recruits and concentrates microtubule-nucleators, but also the centriole assembly machinery, promoting biogenesis close by.

https://doi.org/10.7554/eLife.41418.001

Introduction

The centrosome is the major microtubule organizing center found in animals, being composed of two microtubule-based cylinders, the centrioles, which are surrounded by an electron-dense proteinaceous pericentriolar material (PCM) that nucleates microtubules. The centriole can also function as a basal body, nucleating cilia formation. Centrioles are normally formed in coordination with the cell cycle, one new centriole forming close to each existing one, within a PCM cloud (Bettencourt-Dias and Glover, 2007; Fu et al., 2015).

The first structure of the centriole to be assembled is the cartwheel, a ninefold symmetrical structure, composed of SAS-6, CEP135/Bld10, STIL/Ana2/SAS-5, amongst others (Kitagawa et al., 2011; Lin et al., 2013; Nakazawa et al., 2007; Tang et al., 2011; van Breugel et al., 2011). This is followed by centriole elongation through the deposition of centriolar microtubules which is dependent on components such as CPAP/SAS-4 (Kohlmaier et al., 2009; Schmidt et al., 2009; Tang et al., 2009). Remarkably, SAS-6 and CEP135/Bld10 can self-assemble in vitro to generate a ninefold symmetrical cartwheel (Guichard et al., 2017). In vivo, active PLK4 is known to recruit and phosphorylate STIL, which then recruits SAS-6 (Arquint et al., 2012; Arquint et al., 2015; Moyer et al., 2015; Ohta et al., 2014). In a process called ‘centriole-to-centrosome conversion’, the centriole recruits centriole-PCM linkers, such as CEP192/SPD2 and CEP152/asterless, which contribute to both centriole biogenesis and PCM recruitment (Cizmecioglu et al., 2010; Dzhindzhev et al., 2010; Hatch et al., 2010; Sonnen et al., 2013). Finally, CDK5RAP2/CNN and pericentrin are recruited, which then recruit and activate γ-tubulin and create an environment favorable for concentrating tubulin, leading to the formation of a proficient matrix for microtubule nucleation and organization (Delaval and Doxsey, 2010; Feng et al., 2017; Megraw et al., 2011; Woodruff et al., 2017).

The cascade of phosphorylation and interaction events between centriole components leading to centriole biogenesis is an intricate succession of positive feedback interactions. That circuit leads to amplification of an original signal present at the centriole, such as the presence of active PLK4, or its substrate STIL, hence perpetuating centriole biogenesis there (Arquint and Nigg, 2016; Lopes et al., 2015; Moyer et al., 2015). Additionally, the already existing ‘older’ centriole is surrounded by PCM, which could help to localize and concentrate centriole components during centriole assembly, reinforcing centriole formation close by. In support of this idea, when centrioles are eliminated in human cells by laser ablation, they form de novo within a PCM cloud (Khodjakov et al., 2002). Moreover, exaggeration of the PCM cloud by overexpressing a PCM component, pericentrin, in S-phase-arrested CHO cells, induces the formation of numerous daughter centrioles (Loncarek et al., 2008). Although pericentrin is not shown to be implicated in centriole biogenesis per se to date, dissociation of another pericentrin-related protein, AKAP450, from the centrosome, interferes with centriole duplication in human cells (Keryer et al., 2003). Moreover, PCM components, γ-tubulin and Spd-5, a functional analogue of Drosophila CNN and Hs Cdk5rap2, contribute to centriole assembly in C. elegans (Dammermann et al., 2004). Downregulation of the PCM in Drosophila, has been shown to lead to: i) fragmented and short centrioles, in the case of pericentrin (PLP) (Martinez-Campos et al., 2004; Roque et al., 2018), ii) disengaged centrioles, in the case of CNN (Lucas and Raff, 2007; Megraw et al., 2001), and iii) centriole disassembly, in the case of the removal of all PCM components (Pimenta-Marques et al., 2016). It is thus likely that the PCM plays critical roles in assembling and/or maintaining centriole structures. Despite the possible importance of the PCM, it is difficult to study its roles on centrioles due to confounding effects of the many centriole-centriole component interactions that exist in centriole-containing animal cells.

To define the contribution of PCM in regulating centriole components, we explored a system that has no endogenous centriole components, taking advantage of the diverged centrosomes observed in nature. While centrioles are ancestral in eukaryotes, they were lost in several branches of the eukaryotic tree, concomitantly with the loss of the flagellar structure (Carvalho-Santos et al., 2010). Instead of a canonical centrosome, yeasts have a spindle pole body (SPB), a layered structure composed of a centriole-less scaffold that similarly recruits γ-tubulin and other PCM components and nucleates microtubules (Cavanaugh and Jaspersen, 2017). The timing and regulation of SPB biogenesis are similar to the one observed in animal centrosomes (Lim et al., 2009; Kilmartin, 2014; Rüthnick and Schiebel, 2016). It is likely that the animal centrosome and yeast SPB evolved from a common ancestral structure that had centrioles (Figure 1A), as early-diverged basal fungi such as chytrids (e.g. Rhizophydium spherotheca) have a centriole-containing centrosome (Powell, 1980). By expressing animal centriole components in fission yeast, we observed that the SPB recruits them. We further demonstrate that the SPB conserved PCM component Pcp1/pericentrin recruits the centriole component SAS-6. We further validated this interaction in animals and show it is important for centriole elongation. Our work reveals an important role for pericentrin in recruiting centriole components and regulating centriole structure in animals.

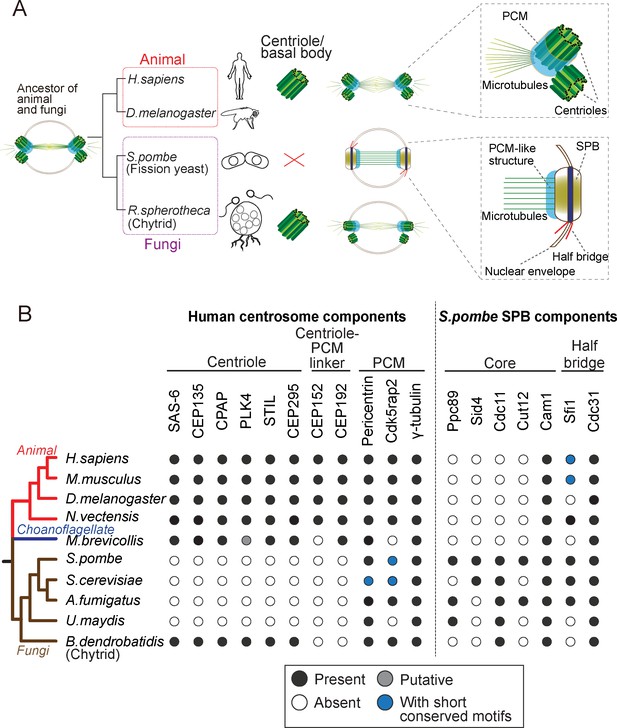

Evolution of the morphology and protein content of animal and fungi centrosomes.

(A) The structure of the centrosome in mitosis in most animals, chytrids (flagellated fungi) and fission yeast. Animals and chytrids have a centriole/basal body and a canonical centrosome composed of a pair of centrioles surrounded by PCM, which anchors and nucleates microtubules. Fission yeast lacks a centriole but has a spindle pole body (SPB) inserted in the nuclear envelope. The SPB nucleates microtubules from the PCM-like structure, inside the nucleus. Parsimoniously, it is likely that the common ancestor of animals and fungi had a centriole-containing centrosome with a PCM structure (model shown). (B) Phylogenetic distribution of centrosome components in opisthokonts (animals, fungi and choanoflagellates). We searched for orthologues of components of the human centrosome localizing to centrioles, centriole-PCM linkers and PCM, and the fission yeast SPB components. Black circles represent the presence of orthologues that were identified by the bidirectional best hit approach to the human or fission yeast proteins, respectively; gray circle represents the presence of a putative orthologue identified by constructing phylogenetic trees; blue circles indicate that previous studies showed the presence of a protein with short conserved motifs (Kilmartin, 2003; Samejima et al., 2010; Lin et al., 2014) although we failed to identify it by the computational methods highlighted above; white circles indicate no detectable orthologue.

https://doi.org/10.7554/eLife.41418.002

Results

We first investigated the conservation of centrosome components, searching for orthologues of the known animal proteins comprising: components of centrioles that are required for centriole biogenesis (SAS-6, STIL/Ana2/SAS-5, CPAP/SAS-4, CEP135/Bld10 and CEP295/Ana1), linkers of the centriole to the PCM, which are bound to the centriole and are required for PCM recruitment (CEP152 and CEP192), and the PCM itself, which is involved in γ-tubulin recruitment and anchoring (pericentrin, Cdk5rap2 and γ-tubulin itself). In addition, to better understand when the SPB originated, we also searched for orthologs of the fission yeast SPB components: the core scaffold proteins (Ppc89, Sid4, Cdc11, Cut12 and Cam1; Bestul et al., 2017; Chang and Gould, 2000; Krapp et al., 2001; Moser et al., 1997; Rosenberg et al., 2006) and the half-bridge proteins (Sfi1 and Cdc31; Kilmartin, 2003; Paoletti et al., 2003), which are required for SPB duplication.

Consistent with previous studies (Carvalho-Santos et al., 2010; Hodges et al., 2010), the proteins required for centriole biogenesis in animals were not identified in the fungal genomes, with exception of chytrids, which have centrioles (Figure 1B). Centriole-PCM connectors were not found in both chytrids and yeasts. In contrast, when investigating the PCM composition, pericentrin and Cdk5rap2 were found in all fungal species, although the budding yeast Spc110 and Spc72 only share short conserved motifs with pericentrin and Cdk5rap2, respectively (Lin et al., 2014).

Regarding the SPB components, we found that Cam1 and Cdc31 are both highly spread across opisthokonts, which may reflect a conserved module or, alternatively an MTOC-independent conserved function of these proteins. On the other hand, we could only find proteins such as Ppc89 and Sid4 in yeasts, but not in chytrids, suggesting that some of the yeast-specific structural building blocks of the SPB appeared after branching into yeasts (Figure 1B).

Altogether, these results suggest the yeast centrosome is very different from the animal canonical centrosome, not having centriole and centriole-PCM adaptors, and being composed of several yeast-specific SPB components. Our results suggest that different proteins are involved in assembling different modules of the centrosome and that they can be lost when that module is lost, leading to a divergence of the remaining structures. Importantly, while centriole components were lost, the PCM module is conserved in animals and fungi in terms of composition and function, establishing fission yeast as an interesting system to study the interaction between components of the centriole and the PCM. We thus expressed key animal centriole components in fission yeast and asked whether they would interact with the PCM at the SPB or other yeast microtubule organizing centers.

Animal centriole components localize to the fission yeast SPB

We used individual Drosophila centriole components as they are well-characterized and tested their localization when expressed in fission yeast. We chose five critical components, SAS-6, CEP135/Bld10, CPAP/SAS-4, STIL/Ana2/SAS-5 and PLK4 for the test. All genes coding for these proteins are absent from the yeast genomes (Figure 1B). Fission yeast SPBs are easily recognizable under light microscopy with fluorescent protein-tagged SPB marker proteins, such as Sid4 and Sfi1 (Chang and Gould, 2000; Kilmartin, 2003), which show distinct localization as a clear focus. Therefore, we examined if the animal centriole proteins could recognize and thus localize to the SPB.

GFP or YFP-tagged Drosophila centriole proteins were heterologously expressed under control of the constitutive atb2 promoter (Matsuyama et al., 2008) or the inducible nmt1 promoter (Maundrell, 1990) in fission yeast. Despite the one billion years separating yeasts from animals (Douzery et al., 2004; Parfrey et al., 2011), SAS-6-GFP, Bld10-GFP and YFP-SAS-4 co-localized with fission yeast Sid4 to the SPB (Figure 2A and B). In addition to the localization on the SPB, YFP-SAS-4 signal was also weakly observed along interphase cytoplasmic microtubules, likely reflecting its microtubule-binding capacity (Gopalakrishnan et al., 2011). In contrast, GFP-Plk4 and YFP-Ana2 did not localize to the SPB and existed as foci in the cytoplasm (Figure 2A and B). We confirmed the expression of the fusion proteins with the expected sizes (Figure 2—figure supplement 1A). Cells expressing centriole proteins which localize to the SPB grew as well as control cells, which have no centriole protein (Figure 2—figure supplement 1B), suggesting their expression does not impair yeast growth.

Figure 2 with 1 supplement see all

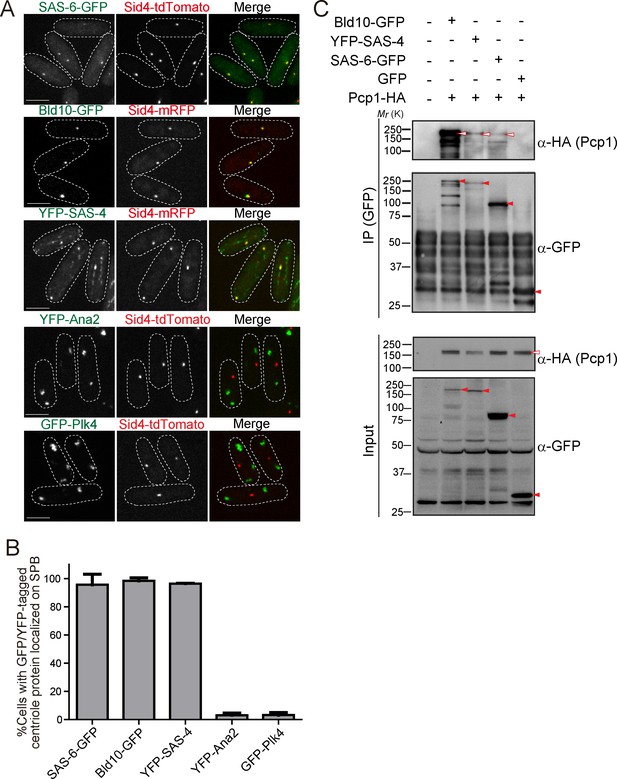

Drosophila centriole proteins localize to the centrosome of fission yeast.

(A) SAS-6, Bld10 and SAS-4 localize to the SPBs, while Ana2 and Plk4 do not (see Materials and methods for details on expression constructs). Scale bar, 5 μm. (B) Quantification of cells with GFP or YFP-tagged centriole proteins localized on the SPB. Data are the average of three experiments ± s.d. (N > 50, GFP/YFP-positive cells). (C) Physical interaction between the centriole proteins and fission yeast Pcp1. Protein extract was prepared from fission yeast cells expressing HA-tagged Pcp1 and either SAS-6-GFP, or Bld10-GFP, or YFP-SAS-4 or GFP. The GFP-tagged proteins were immunoprecipitated with anti-GFP antibody. Immunoprecipitates and inputs (4%) were analyzed by western blotting using the indicated antibodies. Red open and filled arrowheads indicate the bands of Pcp1-HA and GFP/YFP fusion proteins, respectively.

https://doi.org/10.7554/eLife.41418.004

The surprising result that SAS-6, Bld10 and SAS-4 independently localize to the SPB, suggests that one or more fission yeast SPB component can recruit them. These results indicate that SPBs and canonical centrosomes have diverged less than what would be expected from their diverse morphology and divergent protein composition.

Fission yeast pericentrin, Pcp1, interacts with centriole proteins

Given the conservation of PCM components (Figure 1B), we wondered whether fission yeast PCM components localized on the SPB could be recruiting the Drosophila centriole components. We first examined the interaction between the centriole proteins (SAS-6, Bld10 and SAS-4) and Pcp1, the fission yeast pericentrin ortholog, which recruits the γ-tubulin ring complex (γ-TuRC) to regulate mitotic spindle formation (Fong et al., 2010). In animals, pericentrin is a key component of the PCM, extending with its C-terminus at the centriole wall into the PCM (Lawo et al., 2012; Mennella et al., 2012). Surprisingly, we found that SAS-6, Bld10 and SAS-4, all interacted with Pcp1 as revealed by co-immunoprecipitation (Figure 2C).

Fission yeast Pcp1 is required for SAS-6 recruitment

Next, we examined if Pcp1 is required for localization of SAS-6, Bld10 and SAS-4 on the SPBs using a temperature-sensitive mutant of Pcp1 (pcp1-14), in which the amount of Pcp1 protein is already reduced, and further reduced when grown at the restrictive temperature (Tang et al., 2014). These cells also arrest in mitosis when at the restrictive temperature. To compare the signal intensity in cells at the same cell cycle stage, mitosis, we introduced the cut7-446 allele both in wild-type and pcp1-14 background. Cut7 is a mitotic kinesin, its mutation fails in interdigitating the mitotic spindle and causes the cells to arrest in early mitosis (Hagan and Yanagida, 1990). Hereafter, we refer to the strains with cut7-446 and pcp1-14 cut7-446 alleles, as the control and pcp1 mutant, respectively. The intensity of SAS-6-GFP per SPB was significantly increased in control cells when arrested in prometaphase (Figure 3A and B). We observed reduced SAS-6-GFP intensity in the pcp1 mutant both at the permissive and restrictive temperatures (Figure 3A and B). This indicates that Pcp1 is required for SAS-6 recruitment to the SPB. Unlike SAS-6, Bld10-GFP intensity was not reduced, but slightly increased in the pcp1 mutant (Figure 3C and D). It is possible that Bld10 is recruited to the SPB by another SPB component(s) which is upregulated in the pcp1 mutant. Although the intensity of SAS-4 was reduced in the pcp1 mutant (Figure 3E and F), we found that the total protein of YFP-SAS-4 was also lower in the pcp1 mutant while that of SAS-6-GFP and Bld10-GFP was comparable in control and pcp1 mutant lysates (Figure 3G). We think that YFP-SAS-4 might be stabilised by Pcp1 in fission yeast cells, and therefore we cannot conclude whether Pcp1 is required for YFP-SAS-4 localization on the SPB. Since SAS-6 is such a critical component in centriole assembly, and its localization is determined by Pcp1, we decided to explore further how SAS-6 is recruited to the SPB by Pcp1.

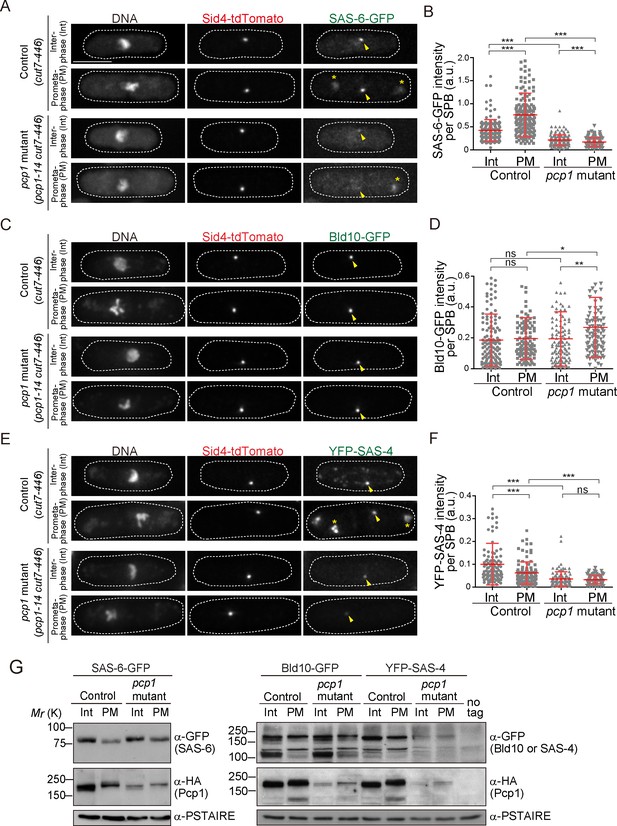

Fission yeast pericentrin-like protein Pcp1 is required to recruit SAS-6 to the SPB.

(A, C, E) SAS-6-GFP, Bld10-GFP and YFP-SAS-4 intensities on the SPB in the pcp1 mutant in asynchronous and prometaphase-arrested cells. The cut7-446 (labeled ‘control’) and cut7-446 pcp1-14 (labeled ‘pcp1 mutant’) strains expressing SAS-6-GFP and Sid4-tdTomato were incubated at the restrictive temperature (36°C) for three hours to block cells in prometaphase due to the cut7-446 mutation (temperature-sensitive allele of a mitotic kinesin, which causes failure in mitotic spindle formation). Representative images of the cells collected before shifting the temperature (interphase, Int) and three hours after the shift to 36°C (prometaphase, PM, restrictive temperature) in control and pcp1 mutant are shown. DNA was stained with DAPI. Arrowheads indicate the signal on the SPB. Note that we also observed aggregation of SAS-6-GFP and YFP-SAS-4 in the cytoplasm both in the control and pcp1 mutant in all the cells exposed to the restrictive temperature (indicated with an asterisk), and never at the normal and permissive culture condition. We think that aggregate formation might stem from the cut7-446 genetic background and/or the heat stress. Scale bar, 5 μm. (B, D, F) Quantification of the intensity of the centriole proteins per SPB in the indicated conditions. Means ± s.d. are shown in red (N > 100 SPBs, ns-not significant, *p<0.05, **p<0.001, ***p<0.0001, Mann-Whitney U test). (G) Western blotting analysis of protein extracts prepared from the indicated conditions.

https://doi.org/10.7554/eLife.41418.007

It is known in Drosophila and human cells that phosphorylation and interaction of PLK4 with STIL/Ana2, facilitates STIL recruitment to the centriole and its interaction and recruitment of SAS-6 (Arquint et al., 2012; Moyer et al., 2015; Ohta et al., 2014; Vulprecht et al., 2012). However, neither Plk4 nor STIL are present in the fission yeast genome (Figure 1B), suggesting that Pcp1/pericentrin is part of an additional and ancestral molecular pathway for SAS-6 recruitment.

SAS-6 interacts with the conserved region of Pcp1, and Pcp1 is sufficient to recruit SAS-6

We reasoned that if the interaction between SAS-6 and Pcp1/pericentrin is an ancient and conserved connection, they should interact through an evolutionarily conserved domain in Pcp1. Subsequently, we determined which part of Pcp1 is required for its interaction with SAS-6. Full-length and truncation mutants of Pcp1 (N, M and C) were co-expressed with SAS-6-GFP (Figure 4A). Only full-length Pcp1 and its C-terminal region containing the conserved PACT domain interacted strongly with SAS-6 (Figure 4B). Given that the Pcp1-M fragment was weakly expressed, we cannot exclude completely the possibility that it also interacts with SAS-6-GFP (Figure 4B). The PACT domain localizes to the centriole wall in animals and is required for MTOC targeting both in animal and fungi (Gillingham and Munro, 2000).

Figure 4 with 3 supplements see all

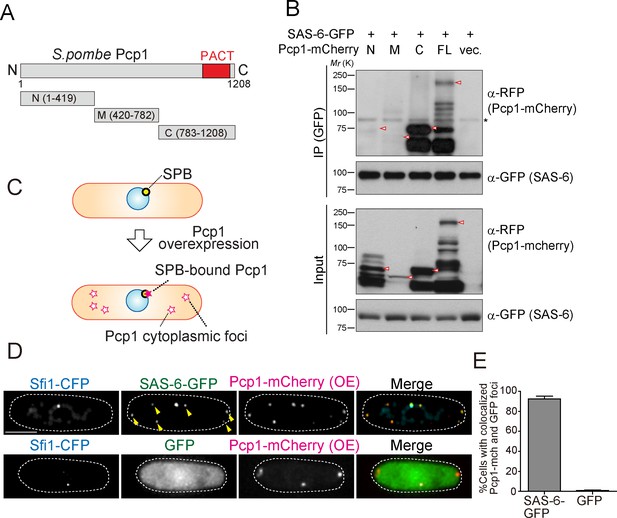

SAS-6 interacts with Pcp1 through the conserved carboxyl-terminal region, and Pcp1 is sufficient for SAS-6 localization.

(A) Schematic illustration of the truncation constructs of Pcp1. (B) Pcp1 interacts with SAS-6 through the conserved carboxyl-terminal region. mCherry-tagged full-length or truncation mutants of Pcp1 were expressed in cells constitutively expressing SAS-6-GFP. Immunoprecipitation was performed and analyzed similarly as in Figure 2B. Red arrowheads indicate bands with the expected size of each fusion protein. The asterisk indicates non-specific bands. (C, D) Pcp1 is sufficient to recruit SAS-6. Overexpression of Pcp1 leads to the formation of Pcp1 containing cytoplasmic foci (schematic illustration, (C). Pcp1-mCherry was overexpressed under control of nmt41 promoter in the strain expressing SAS-6-GFP and GFP alone. Sfi1-CFP is shown (SPB marker). Arrowheads indicate the SAS-6-GFP signal on the Pcp1-cytoplasmic foci. Scale bar, 5 μm. (E) Quantification of the cells with colocalized Pcp1-mCherry and GFP foci. Data are the average of three experiments ± s.d. (N > 50, Pcp1-mCherry positive cells).

https://doi.org/10.7554/eLife.41418.009

We next asked whether Pcp1 could recruit SAS-6 ectopically. It is known that Pcp1 overexpression forms multiple Pcp1-containing foci in the cytoplasm (Flory et al., 2002). We thus examined if the cytoplasmic Pcp1 foci recruit SAS-6 (illustrated in Figure 4C). Overexpressed mCherry-tagged Pcp1 recruited SAS-6-GFP, but not GFP (control), to such foci (Figure 4D and E), indicating that Pcp1 can ectopically recruit SAS-6.

Though epifluorescence micrographs suggest SAS-6 co-localizes with Sid4 and Pcp1 (Figures 2 and 4), due to the resolution limit of a conventional optical microscope (~200 nm), we failed to conclude precisely where SAS-6 localizes to. To further determine the precise localization of SAS-6, we analyzed the relative position of SAS-6-GFP with respect to core SPB components Pcp1-tdTomato or Sid4-tdTomato (Figure 4—figure supplement 1A) by structured illumination microscopy (SIM). The foci of Pcp1-tdTomato and Sid4-tdTomato within the duplicated SPBs were distinguishably separated (60 ± 10 nm) (Figure 4—figure supplement 1B and C). Importantly, SAS-6-GFP center of mass localizes at ~50 nm distance from both Pcp1-tdTomato and Sid4-tdTomato center of mass. Given that the diameter and height of SPB is 180 nm and 90 nm respectively (Ding et al., 1997), our data suggest that ectopically expressed SAS-6-GFP localizes to the core of the SPB.

Regulation of SAS-6 localization to the SPB

To further understand how SAS-6 is recruited to the SPB, we asked which of its domains are required for that localization. It has been reported that the coiled-coil region of human SAS-6 is sufficient for its localization to the animal centriole. This process is mediated by its interaction with other centriole components, such as STIL and CEP135 (Keller et al., 2014; Moyer et al., 2015). We expressed full-length SAS-6 and truncation mutants N-terminal (aa 1–176) and C-terminal (aa 177–472) and asked which co-localized with the SPB marker Sid4 (Figure 4—figure supplement 2A). Similar to what happens in animals, the C-terminal coiled-coil region of SAS-6 is required for its localization at the SPB (Figure 4—figure supplement 2B,C and D).

To approach the timing of SAS-6 targeting to the SPB, we asked when it would be targeted during the cell cycle. Firstly, we confirmed that SAS-6 expression under atb2 promoter was constant throughout the cell cycle in synchronized cells (Figure 4—figure supplement 3A and B). We observed that SAS-6 accumulated at the SPB before entering mitosis, similar to its described regulation in animals, and also similar to the reported recruitment of Pcp1 to the SPB at that cell cycle stage in fission yeast (Keller et al., 2014; Strnad et al., 2007; Wälde and King, 2014).

Conservation of the Pcp1/pericentrin - SAS-6 interaction

Our experiments suggest that there are conserved interactions between centrioles and pericentrin, whose evolution is constrained. They further suggest that pericentrin has an important role in recruiting centriole components. To test our prediction, we examined in animal cells whether pericentrin interacts with SAS-6 and helps to recruit it to the centriole.

The pericentrin family varies in protein length but contains the conserved PACT domain in the C-terminal region (Figure 5A). Since we observed that fission yeast Pcp1 interacts with SAS-6 through the PACT-domain containing region, we tested whether SAS-6 interacts with the PACT domain of Drosophila pericentrin ortholog, pericentrin-like protein (PLP). EGFP-tagged SAS-6 and HA-tagged PLP fragment containing the conserved PACT domain were co-expressed in Drosophila melanogaster tissue cultured cells (D.Mel cells). Consistent with the results obtained in fission yeast, SAS-6 interacts with the PACT domain (Figure 5B). To verify whether this interaction is direct, we validated this result in vitro, by performing in vitro binding assays using purified GST, GST-tagged SAS-6 and His-tagged PACT. GST-SAS-6 was specifically bound to His-PACT, indicating a direct interaction between these two proteins (Figure 5C).

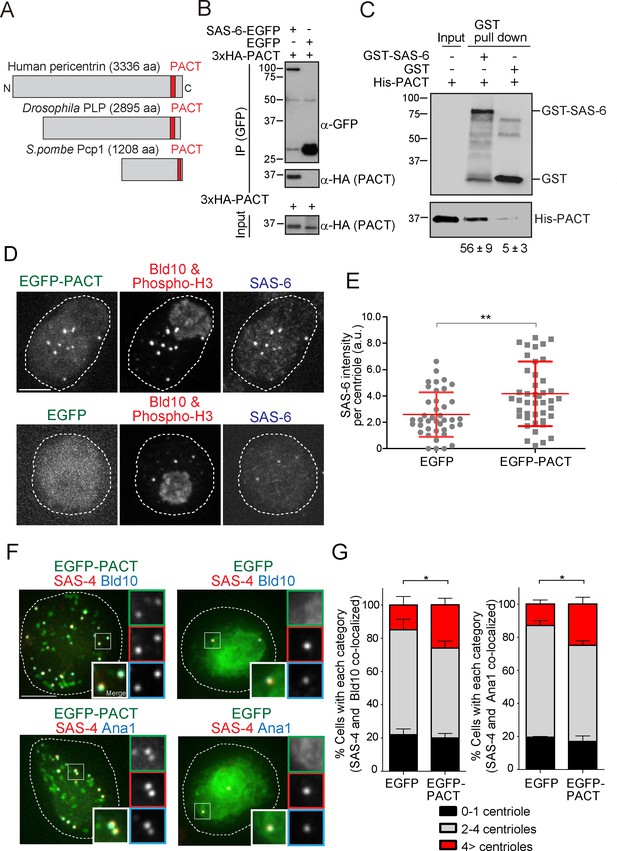

The Drosophila pericentrin (PLP) conserved domain –PACT- interacts with SAS-6, and its overexpression causes centriole amplification.

(A) Schematic illustration of human pericentrin, Drosophila PLP and S. pombe Pcp1. (B) Physical interaction between SAS-6-EGFP and the conserved Drosophila PACT domain. Protein extract was prepared from Drosophila tissue culture cells (D.Mel cells) expressing HA-tagged PACT, and SAS-6-EGFP or EGFP. The GFP-tagged proteins were immunoprecipitated with anti-GFP antibody. Immunoprecipitates and inputs (20%) were analyzed by western blotting using the indicated antibodies. (C) Direct binding between SAS-6 and PACT. The in vitro binding assay was performed using purified GST or GST-fused SAS-6 and His-tagged PLP PACT. Note that we loaded 100% for each sample on each lane after pull-down to compare the efficiency of direct binding (bound vs input). Quantification of His-PACT bound to the GST-fusion protein is shown below the panel (data are the average of three experiments ± s.d) (D) Cells overexpressing EGFP-PACT or EGFP were arrested in mitosis by colchicine treatment for six hours and stained with the antibodies against Bld10 (centriole marker), phospho-H3 (mitotic marker) and SAS-6. Scale bar, 5 μm. (E) Quantification of SAS-6 intensity per centriole in cells overexpressing EGFP-PACT or EGFP arrested in mitosis. Means ± s.d. are shown in red (**p<0.001, Mann-Whitney U test). Results are representative of three independent experiments (N > 40 centrioles for each condition). (F) Cells overexpressing EGFP-PACT or EGFP were stained for two centriole markers (SAS-4 and Bld10, SAS-4 and Ana1) to count centriole number. Scale bar, 5 μm. (G) Quantification of centriole number per cell (N > 50, EGFP-positive cells). Data are the average of three experiments ± s.d. (*p<0.05, Mann-Whitney U test). Note that although control Drosophila tissue culture cells already show cells with underduplicated and over-duplicated centrioles as published before (Bettencourt-Dias et al., 2005), the expression of PACT leads to a significant amplification of centrioles.

https://doi.org/10.7554/eLife.41418.017

The conserved SAS-6-pericentrin interaction plays a role in centriole assembly

Pericentrin is highly expressed and correlates with the levels of centrosome aberrations in acute myeloid leukemia (AML) (Krämer et al., 2005; Neben et al., 2004). Moreover, overexpression of pericentrin in S-phase-arrested CHO cells induces the formation of numerous daughter centrioles (Loncarek et al., 2008). We thus wondered whether those effects were mediated by excessive SAS-6 recruitment since SAS-6 overexpression leads to supernumerary centriole formation (Peel et al., 2007; Strnad et al., 2007).

We first examined whether overexpression of EGFP-tagged PACT domain under the actin5C promoter has an effect on SAS-6 recruitment and centriole biogenesis. To enrich for mitotic cells, a stage where SAS-6 levels are homogeneous and highest (our own unpublished observations; see also recent publication [Aydogan et al., 2018]), D.Mel cells overexpressing either EGFP-PACT or EGFP were arrested in mitosis by a colchicine treatment (Dobbelaere et al., 2008; Goshima et al., 2007). Indeed, overexpressing PACT in cells led to increased recruitment of SAS-6 to centrioles, suggesting PACT recruits SAS-6 (Figure 5D and E). This is consistent with our findings in fission yeast (Figure 4D). Moreover, other centriole components may also be perturbed directly through PACT interaction or indirectly, given that SAS-6 is known to interact and recruit other centriole components, such as Bld10 and Ana2 (Galletta et al., 2016; Jana et al., 2018; Lin et al., 2013; Stevens et al., 2010). Since SAS-6 upregulation leads to centriole amplification (Leidel et al., 2005), we examined if PACT overexpression has the same phenotype. In the absence of electron microscopy, we confirmed the presence of supernumerary centrioles by staining with two combinations of reliable centriole markers (SAS-4 and Bld10, and SAS-4 and Ana1). Reflecting the increased recruitment of SAS-6 to centrioles, we observed a significant increase in the percentage of cells with more than four centrioles compared to the EGFP control (Figure 5F and G).

SAS-6 is recruited to the centriole by two complementary pathways

In animal cells, it is known that STIL/Ana2/SAS-5 recruits SAS-6 to the centriole (Arquint et al., 2012; Ohta et al., 2014; Moyer et al., 2015). However, it has been observed that STIL depletion does not completely prevent HsSAS-6 recruitment, and contribution of STIL does not fully account for centrosomal targeting of HsSAS-6 during interphase (Arquint et al., 2012; Keller et al., 2014). These results suggest that other factor(s) may also recruit SAS-6 in animals. Since overexpression of PACT recruits more SAS-6, we examined if PLP has a role in recruiting SAS-6 to the centriole in addition to STIL/Ana2. We performed a single depletion of PLP and Ana2 and a co-depletion of both (Ana2 and PLP) in D.Mel cells. We used mCherry depletion as a negative control for this experiment. Firstly, we investigated if SAS-6 recruitment is impaired by Ana2 and PLP RNAi. We focused on mitotic cells to compare all cells at the same cell cycle stage. The intensity of SAS-6 per centrosome was quantified in each RNAi condition. Upon depletion of Ana2 or PLP, SAS-6 intensity per pole was significantly reduced compared to control (Figure 6A and B). Moreover, double depletion of Ana2 and PLP caused an additive reduction of SAS-6 intensity. This result suggests SAS-6 is recruited by two complementary pathways, which depend on Ana2 and PLP. Western blotting analysis confirmed that the targeted proteins were efficiently depleted, while total SAS-6 protein levels were comparable in all conditions (Figure 6C). Considering that depletion of SAS-6 leads to a reduction in centriole number in both D.Mel cells and the fly (Dobbelaere et al., 2008; Rodrigues-Martins et al., 2007), we asked whether altered recruitment of SAS-6 by depleting Ana2 and PLP could also affect centriole biogenesis. We observed that co-depletion of Ana2 and PLP leads to stronger reduction in the number of centrioles as compared to the single depletions, indicating both pathways contribute to centriole biogenesis (Figure 6D,E, and Figure 6—figure supplement 1).

Figure 6 with 2 supplements see all

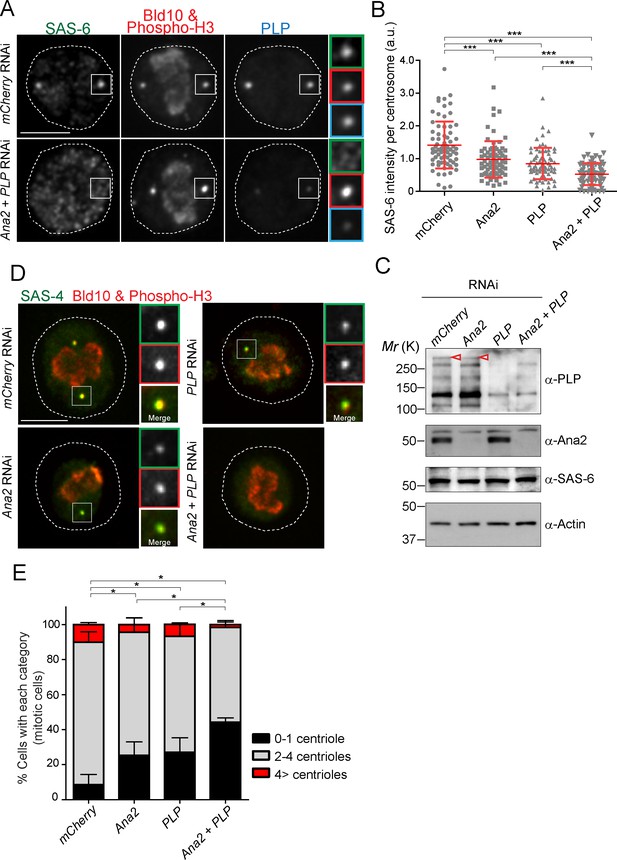

SAS-6-PACT complex formation complements the PLK4-STIL pathway in recruiting SAS-6 to the centrosome, and in promoting centriole biogenesis in tissue cultured cells.

(A) Images of mitotic D.Mel cells after depletion of PLP and Ana2 by RNAi. D.Mel cells were depleted of PLP (PLP RNAi), Ana2 (Ana2 RNAi), and were double-depleted with Ana2 and PLP (Ana2 +PLP RNAi) (mCherry RNAi was used as negative control) for three days. Cells were immunostained with anti-SAS-6, Bld10, phospho-H3 and PLP antibodies. Scale bar, 5 μm. (B) Quantification of the SAS-6 intensity per centrosome in the mitotic cells in the indicated RNAi conditions. Means ± s.d are shown in red (***p<0.001, Mann-Whitney U test). Results are representative of three independent experiments (N > 50 centrosomes for each condition). (C) Western blotting analysis of PLP, Ana2 and SAS-6 protein levels in the cells treated with the indicated dsRNAs using the antibodies against PLP, Ana2, SAS-6 and actin (loading control). Red arrowheads indicate expected bands of the longest PLP isoform. (D) Images of mitotic cells, after depletion of PLP and Ana2 by RNAi, used for centriole counting. Cells were immunostained with anti-Bld10 (red), phospho-H3 (red), and SAS-4 (another centriole marker, green) antibodies. Scale bar, 5 μm. (E) Quantification of centriole number per cell (N > 50). Data are the average of three experiments ± s.d (*p<0.05, Mann-Whitney U test performed for the 0–1 centriole category).

https://doi.org/10.7554/eLife.41418.019

Furthermore, we asked if the centriole number reduction observed in PLP-depleted cells is attributable to PLP function or is an off-target effect, through a rescue experiment. We first depleted the endogenous PLP using another dsRNA against the 3’UTR region (3’UTR PLP RNAi) and expressed EGFP-tagged full-length PLP. Similar to Figure 4D and E, 3’UTR PLP RNAi efficiently depleted endogenous PLP protein and caused a significant reduction in centriole number (Figure 6—figure supplement 2). Since we treated the cells with 3’UTR PLP RNAi for two rounds aiming at a more efficient protein removal, the percentage of cells with reduced centriole number was slightly higher than in former PLP RNAi used for Figure 6. In contrast, when we expressed full-length PLP after PLP depletion, the centriole number defect was rescued, indicating the specific contribution of PLP for centriole formation (Figure 6—figure supplement 2). Moreover, we noticed that expression of full-length PLP in the presence of endogenous PLP induced centriole amplification similar to PACT overexpression (Figure 6—figure supplement 2).

Drosophila pericentrin is required for SAS-6 recruitment and is important for centriole/basal body (BB) elongation in vivo

It is noteworthy that D.Mel cells are a sensitized system in which depletion of centriole components often shows an enhanced phenotype as compared to what is observed in the whole organism (the fly). For example, depletion of Bld10/CEP135 and CP110 by RNAi in D.Mel cells leads to a reduction in centriole number and length, respectively (Carvalho-Santos et al., 2010; Delgehyr et al., 2012), but the Drosophila mutants of these proteins only exhibit mild centriole defects (Carvalho-Santos et al., 2010; Franz et al., 2013; Roque et al., 2012). In previous studies using PLP-mutant flies, centriole number was not reduced, but centrioles were recently observed to be shorter in wing disc cells (Martinez-Campos et al., 2004; Roque et al., 2018), suggesting an underappreciated generic role of PLP in centriole structure.

To further investigate the role of pericentrin in SAS-6 recruitment and centriole biogenesis we focused on fly spermatogenesis, as centrioles are converted to basal bodies to form cilia and elongate to more than 1 μm, becoming highly visible and easy to study. To investigate this, we depleted PLP during centriole assembly and basal body maturation in spermatocytes (PLPRNAi) using Gal4Bam (Chen and McKearin, 2003; see the timeline in Figure 7A). We studied its consequences in the localization of basal body components and basal body structure and, subsequently, in male fertility (Figure 7). The knockdown of PLP by RNAi did not affect centriole number in sperm cells (Figure 7B and C), suggesting that the STIL/Ana2 pathway recruits sufficient SAS-6 to initiate centriole biogenesis. However, PLP RNAi led to a decrease in centriole length, as observed with the PLP mutant in somatic cells (Roque et al., 2018), and to male infertility. Our laboratory has recently shown that SAS-6 is important for centriole elongation (Jana et al., 2018). We wondered whether PLP is necessary for recruiting a pool of SAS-6 that is needed for centriole elongation. Remarkably, PLP RNAi affected SAS-6 recruitment to the BBs (Figure 7D and E). Altogether, these results indicate that PLP is involved in sperm BB elongation by recruiting SAS-6, a phenotype that is further accentuated in tissue culture cells.

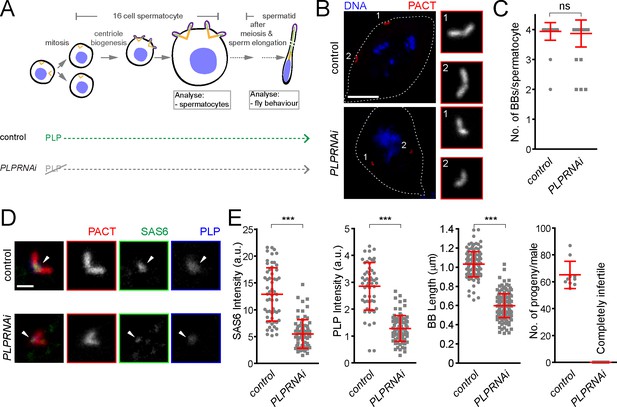

Drosophila pericentrin (PLP) is required for SAS-6 recruitment to the sperm centriole/basal body and for its elongation.

(A) Schematic illustration of the experiments to deplete PLP during centriole biogenesis and elongation. (B) Representative images of mature spermatocytes in flies with different genotypes. PACT (red) is a commonly used marker for basal bodies (BB) and DAPI (blue) stains DNA. Insets show RFP::PACT close to the numbers (in gray scale). (C) Quantification of the number of BBs per cell in mature spermatocytes. (D) Representative images of mature spermatocyte BB in flies with different genotypes. RFP::PACT (red) marks BBs, Anti-SAS-6 (green) and Anti-PLP (blue) antibodies stain the proximal part of BB (arrowheads). (E) Quantification of SAS-6, PLP, BB length and the number of progeny in flies with different genotypes. We repeated all experiments three times. For SAS-6 and PLP intensities and BB length analysis, the number of BBs quantified for each genotype is N ≥ 108 (54 pairs of BBs) and N ≥ 128, respectively. The total number of males used for each histogram bar is N ≥ 10. Notably, given that moderate overexpression of PACT domain (using polyUbiquitin promoter) in the plp mutant fly fails to rescue the observed centriole as well as behavior defects of the mutant (Martinez-Campos et al., 2004), we used RFP::PACT to study the sperm basal bodies in the knockdown experiments. Scale bars in (B) and (D) represent 10 and 1 µm, respectively. Means ± s.d are shown in red (ns-not significant, ***p<0.001, Mann-Whitney U test).

https://doi.org/10.7554/eLife.41418.025

The Calmodulin-PACT conserved interaction is likely to constrain the evolution of the PACT domain

We showed that the PACT domain has the capacity to interact with SAS-6 both in fission yeast and Drosophila cells, and the interaction between SAS-6 and pericentrin through PACT contributes to centriole assembly and elongation. It is possible that this interaction is ancestral, linking the two modules, the centriole and the PCM before the split between animals and fungi occurred one billion years ago. However, given the lack of centrioles and the divergence of the PCM in yeasts, we wondered why the PACT domain has retained the SAS-6 interaction surface. We hypothesized that other protein(s) that interact with the same region of the PACT domain as SAS-6, could be constraining the evolution of the interacting surface.

The PACT domain contains two highly conserved calmodulin (CaM)-binding domains (CBD1 and CBD2) (Galletta et al., 2014, Figure 8A). The interaction of pericentrin with calmodulin at the CaM-binding domain is conserved and is important for its function both in animals and yeasts. In Drosophila, this interaction controls the targeting of PLP to the centrosome and is, therefore, critical for its function (Galletta et al., 2014). The interaction of the budding yeast pericentrin, Spc110, with calmodulin, is required for the SPB to nucleate microtubules and to form the spindle (Kilmartin and Goh, 1996; Spang et al., 1996; Stirling et al., 1994; Stirling et al., 1996). Therefore, we asked whether SAS-6 interacts with a conserved PLP segment, starting just before CBD1 and ending just after CBD2, hereafter called CBD (see Figure 8A in yellow). Similarly, as in Figure 5B, we co-expressed EGFP-tagged SAS-6 and the HA-tagged CBD in D.Mel cells to examine their interaction. Indeed, similar to the PACT domain, CBD interacted with SAS-6-EGFP (Figure 8B). This result indicates that this conserved segment within the PACT domain is sufficient for interaction with SAS-6.

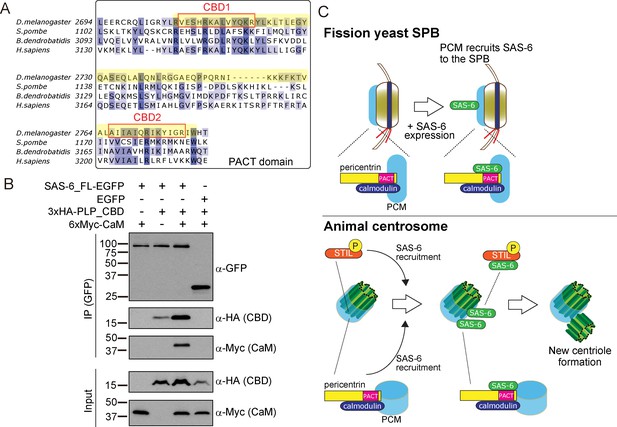

SAS-6 interacts with the calmodulin binding domain within PACT.

(A) Graphical representations of the calmodulin (CaM)-binding domains (CBD1 and CBD2) within the multiple sequence alignment of the PACT domain of pericentrin proteins in the indicated species. CBD1 and CBD2 are marked with red squares. In yellow, minimal fragment containing both CBD1 and CBD2 (hereafter called CBD and used for subsequent experiments). The sequences of the PACT domain were aligned using Clustal Omega multiple sequence alignment tool and visually represented using Jalview software (McWilliam et al., 2013; Waterhouse et al., 2009). The alignments are color-coded in shades of blue for the percentage identity of amino acids; darkest blue (>80%), mid blue (>60%), light blue (>40%), white (<=40%). (B) Complex formation between SAS-6, the highly conserved CBD within PACT domain and calmodulin. Protein extract was prepared from the D.Mel cells expressing SAS6-EGFP or EGFP, HA-tagged CBD and Myc-tagged calmodulin. The GFP-tagged proteins were immunoprecipitated with anti-GFP antibody. Immunoprecipitates and inputs (20%) were analyzed by western blotting using the indicated antibodies. (C) Schematic representation of the ancestral role of the PCM in recruiting centriole proteins, centriole biogenesis and elongation. When SAS-6 was heterologously expressed in fission yeast cells, it localized to the SPB through interaction with Pcp1/pericentrin (upper panel). This revealed a novel interaction between SAS-6 and pericentrin in animals, which is important for centriole biogenesis (lower panel). It is likely that SAS-6 is recruited to the pre-existing centriole prior to new centriole formation by two complementary pathways: PLK4-STIL/Ana2 and pericentrin. Eventhough yeast and animals are separated by one billion years of evolution, the pericentrin/Pcp1-SAS-6 interaction surface has been conserved, likely because the binding of pericentrin to calmodulin constrained its evolution.

https://doi.org/10.7554/eLife.41418.027

Next, we asked whether SAS-6 is present in the same complex with calmodulin. Intriguingly, we found that SAS-6-EGFP, CBD and calmodulin formed a complex (Figure 8B). Since SAS-6-EGFP and calmodulin did not interact directly, we concluded that the complex forms through the CBD segment. Moreover, we observed that the CBD polypeptide was stabilised in the presence of SAS-6-EGFP, and this was more pronounced with the addition of calmodulin, suggesting that formation of this complex might stabilize pericentrin (Figure 8B). Since the binding of SAS-6 and calmodulin to the CBD was not competitive, it is likely that these two proteins interact with adjacent but distinct amino acids within the CBD. Further biochemical analysis will be necessary to estimate the exact stoichiometry of the protein complex.

Our result suggests that the fact that pericentrin function and stability has always relied on its interaction with calmodulin has constrained the evolution of the pericentrin´s CBD’s local structure, therefore retaining its affinity for SAS-6.

Discussion

In this study, we examined the relationship between the PCM and centriole components, taking advantage of a heterologous system, the fission yeast, which does not have centrioles, and has lost the coding sequences for its components. Surprisingly, the Drosophila core centriole components SAS-6, Bld10 and SAS-4 localized to the fission yeast SPB. In particular, SAS-6 was specifically recruited to the SPB through its interaction with the conserved PCM component, Pcp1/pericentrin, via its PACT domain. Importantly, this interaction was also observed in animals (Drosophila). Further analysis revealed that pericentrin is required for both SAS-6 recruitment to centrioles in addition to the STIL/Ana2 pathway, and for proper centriole assembly, in particular, centriole elongation. It is estimated that animals and fungi diverged from their common ancestor about one billion years ago (Douzery et al., 2004; Parfrey et al., 2011). Our results reveal an evolutionarily conserved relationship between the centriole and the PCM, in which the PCM is needed for centriole component recruitment (Figure 8C). Therefore, the localization of new centrioles is likely to be dictated not just by positive regulatory feedbacks amongst centriole components, but also through the regulation of centriole component localization by the PCM.

Implications of the pericentrin-SAS-6 interaction in centriole assembly and elongation

SAS-6 is a critical structural component of centrioles. It builds the cartwheel by self-assembly, which helps to define the centriole nine-fold symmetry (Kitagawa et al., 2011; van Breugel et al., 2011). It had been previously observed that the STIL/Ana2-dependent SAS-6 recruitment pathway did not account for all SAS-6 present at the centriole (Arquint et al., 2012; Keller et al., 2014), but alternative pathways for SAS-6 recruitment were not known. In this study, we serendipitously discovered that SAS-6 is also recruited to the centriole through another undescribed pathway mediated by pericentrin, though complementary to the previously characterized STIL/Ana2 pathway. Then, how and where does pericentrin interact with SAS-6? Given that in human cells, SAS-6 was previously seen to co-localize with pericentrin at the proximal end of the centriole where it accumulates from S phase (Keller et al., 2014), we suggest that pericentrin might recruit SAS-6 at that stage. However, in Drosophila tissue cultured cells, it has been shown that pericentrin forms a ring around the mother centriole and SAS-6 occupies the central region of the centriole, indicating that the two proteins may not show overlapping localization (Dzhindzhev et al., 2014; Mennella et al., 2012). We propose that the pericentrin-SAS-6 interaction might be transient and highly dynamic and therefore co-localization is more difficult to observe.

Previous biophysical studies have shown that self-interaction between the head group of SAS-6 is relatively weak (characterized by micro-molar range dissociation constant), which suggested the existence of other factors that contribute to the nine-fold symmetry of the centriole (Cottee et al., 2011). Indeed, further work revealed that STIL/Ana2/SAS-5 forms higher-order assemblies and it is likely to concentrate SAS-6 molecules and contribute to cartwheel formation in C. elegans and Drosophila (Cottee et al., 2015; Rogala et al., 2015). We propose that pericentrin might also concentrate SAS-6 around the PCM-bearing mother centriole, and thus contribute to centriole formation, in particular, its elongation, in addition to the STIL/Ana2 pathway. This role would be similar to the recently discussed role of the PCM in concentrating MT nucleators (Woodruff et al., 2017). Our data also provide a framework to understand why pericentrin overexpression leads to centrosome amplification (Krämer et al., 2005; Loncarek et al., 2008; Neben et al., 2004).

How are pericentrin and SAS-6 implicated in centriole elongation? Previous studies showed that SAS-6 is important for centriole maintenance (Izquierdo et al., 2014), and expression of a symmetry-changing SAS-6 mutant leads to reduced centriole length in human cells (Hilbert et al., 2016). That work suggests that intactness of the SAS-6 protein is indispensable for centriole stability and length control. We recently reported that SAS-6 is dynamically recruited to the spermatocyte BBs to promote elongation (Jana et al., 2018). Here, our data suggest that pericentrin regulates centriole length and stability by recruiting a dynamic pool of SAS-6 to the centriole/BB.

Calmodulin-binding to pericentrin may have constrained the evolution of the pericentrin-SAS-6 interaction surface

We proposed that the binding of molecules such as calmodulin, to the PACT domain of pericentrin, might constrain PACT evolution. This is also the domain that interacts with SAS-6. Calmodulin binding is important for pericentrin centriole-targeting, and also for its function and protein stability (Galletta et al., 2014). Moreover, the fission yeast pcp1-14 mutant, which harbors a point mutation in the residue adjacent to CBD2, also exhibits reduced protein stability (Tang et al., 2014), implying a conserved role of calmodulin binding in stabilizing Pcp1/PLP. Indeed, we observed that calmodulin binding stabilized PLP (Figure 8B). Previous studies in budding yeast suggested that calmodulin binding to the C-terminal region of Spc110 regulates the interaction between Spc110 and a critical inner plaque component, Spc29 (Elliott et al., 1999). Perhaps calmodulin binding modulates the conformation of pericentrin into an ‘active form’ which is stable and capable of interacting with the centriole and SPB component(s), similarly to the regulation of calmodulin-dependent kinases by calmodulin (Crivici and Ikura, 1995). Intriguingly, it is reported that a single amino acid deletion of the conserved lysine residue (3154K) mapped in CBD1 of the human pericentrin gene is associated with a genetic syndrome microcephalic primordial dwarfism type II (MOPDII), characterized with severe developmental anomalies (Kantaputra et al., 2011). Although the contribution of this mutation at the cellular level is not known, it is possible that this disease phenotype is caused by abnormal centriole formation due to failure to recruit SAS-6, as we observed in this study. To support this possibility, it is also known that mutation in the evolutionary-conserved PISA (present in SAS-6) motif of the SAS-6 gene (Leidel et al., 2005) that affects its function in centriole formation, is associated with autosomal recessive primary microcephaly (Khan et al., 2014).

Implications for the study of cellular evolution and future application

Although fission yeast and other fungi lost centrioles, while acquiring the centrosome-equivalent SPBs, our study indicates that fission yeast SPBs still retain part of the ancestral PCM structure. Centrioles have a critical role in motility as basal bodies of cilia/flagella and in microtubule nucleation by recruiting the PCM. After centriole loss upon the lack of requirement for flagella-based movement, the necessity to maintain microtubule nucleation might have constrained the evolution of the PCM structure. Indeed, pericentrin orthologs in fungi, play essential roles in microtubule organization, mitotic spindle assembly, and cell cycle regulation similarly as in animals, and their function is dependent on calmodulin-binding (Geiser et al., 1993; Kilmartin et al., 1993; Flory et al., 2002; Fong et al., 2010; Chen et al., 2012). We suggest that the critical role of the calmodulin-pericentrin interaction for proper microtubule nucleation has been retained in evolution, and constrained the evolution of the pericentrin structure even after other interactors, such as SAS-6, were lost upon centriole loss. Our results support the hypothesis that the yeast SPB evolved from an ancestral centriolar centrosome by a step-wise remodeling process: an SPB precursor appeared on the centrosome, interacting with the PCM and replacing the role of the centriole as a PCM-recruiting entity (Ito and Bettencourt-Dias, 2018; McLaughlin et al., 2015).

It has been shown that many of the yeast genes can be substituted by human orthologs (e.g. rescuing the fission yeast cdc2 mutant with the human CDK1 gene), indicating that critical ancestral functions have been conserved across a billion years (Lee and Nurse, 1987; Osborn and Miller, 2007; Kachroo et al., 2015). The present study demonstrated that critical functional modules can retain not only the same function, but also interaction capacities even when a binding partner is completely lost. The approach to heterologously expressing evolutionary-lost components of organelles in diverse organisms/cells could be useful to identify such novel interactions and important conserved interaction domains and divergent orthologue proteins across species.

Finally, since fission yeast SPB recruits centriole proteins, it might be feasible to use fission yeast to assemble multiple centriole components at the SPBs. This synthetic biological approach could be useful to study the process of centriole biogenesis, such as the interaction between components and the order of recruitment, which will ultimately lead to the successful reconstitution of the evolutionary-lost centriole structure in fission yeast.

Materials and methods

Key resources table
Reagent type
(species) or resource
DesignationSource or referenceIdentifiersAdditional
information
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-
D18 lys1::Patb2-DmSAS-6-GFP-FLAG-6xHis-ura4 + sid4-tdTomato-natMX6
This paperDI 456Figure 2A,B,Figure 2
—figure supplement 1A,B, Figure 4—figure supplement 3C,D
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 lys1::Patb2-DmBld10-GFP-FLAG-6xHis-ura4 + sid4-mRFP-natMX6This paperDI 190Figure 2A,B
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 lys1::Patb2-6xHis-FLAG-YFP-DmSAS-4-ura4
 + sid4-mRFP-natMX6
This paperDI 202Figure 2A,B
Strain (Schizosaccharomyces pombe)h- ura4-D18 lys1::Pnmt1-6xHis-FLAG-YFP-
DmAna2-ura4 + sid4-tdtomato-
natMX6
This paperDI 655Figure 2A,B
Strain (Schizosaccharomyces pombe)h + ura4-D18 leu1::Pnmt41-6xHis-FLAG-GFP-DmPlk4-ura4 + sid4-tdtomato-natMX6This paperDI 665Figure 2A,B
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 lys1::Patb2-DmSAS-6-GFP-FLAG-6xHis-ura4 + sid4
-tdtomato-natMX6 pcp1-HA-hphMX6 cut7-446
This paperDI 492Figure 2C, Figure 3
Strain (Schizosaccharomyces pombe)h + leu1-32 ura4-D18 lys1::Patb2-DmBld10-GFP-FLAG-6xHis-ura4 + sid4-tdtomato-natMX6 pcp1-HA-hphMX6 cut7-446This paperDI 706Figure 2C, Figure 3
Strain (Schizosaccharomyces pombe)h + leu1-32 ura4-D18 lys1::Patb2-6xHis-
FLAG-YFP-DmSAS-4-ura4 + sid4-tdtomato-natMX6 pcp1-HA-hphMX6 cut7-446
This paperDI 709Figure 2C, Figure 3
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 lys1::Patb2-GFP-FLAG-6xHis-ura4 + sid4-tdtomato-natMX6 pcp1-HA-hphMX6 cut7-446This paperDI 486Figure 2C
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18This paperDI 7Figure 2CFigure 3, Figure 2—figure supplement 1A,BFigure 4—figure supplement 2A–C, Figure 4—figure supplement 3A,B
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 lys1::Patb2-DmSAS-6-GFP-FLAG-6xHis-ura4 + sid4-tdtomato-natMX6 pcp1-14-HA-hphMX6 cut7-446This paperDI 631Figure 3
Strain (Schizosaccharomyces pombe)h + leu1-32 ura4-D18 lys1::Patb2-DmBld10-GFP-FLAG-6xHis-ura4 + sid4-tdtomato-natMX6 pcp1-14-HA-hphMX6 cut7-446This paperDI 710Figure 3
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 lys1::Patb2-6xHis-FLAG-YFP-DmSAS-4-ura4 + sid4-tdtomato-natMX6 pcp1-14-HA-hphMX6 cut7-446This paperDI 719Figure 3
Strain (Schizosaccharomyces pombe)h + leu1-32 ura4-D18 lys1::Patb2-DmSAS-6-GFP-FLAG-6xHis-ura4+This paperDI 105Figure 4B
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 lys1::Patb2-DmSAS-6-GFP-FLAG-6xHis-ura4 + sfi1-CFP-natMX6This paperDI 636Figure 4D,E
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 lys1::Patb2-GFP-FLAG-6xHis-ura4 + sfi1-CFP-natMX6This paperDI 638Figure 4D,E
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 lys1::Patb2-DmSAS-6-
GFP-FLAG-6xHis-ura4 + sid4-tdTomato-natMX6
This paperDI 456Figure 2—figure supplement 1A,B
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 lys1::Patb2-DmBld10-
GFP-FLAG-6xHis-ura4 + sid4-mRFP-natMX6
This paperDI 190Figure 2—figure supplement 1A,B
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 lys1::Patb2-6xHis-FLAG-YFP-DmSAS-4-ura4 + sid4-mRFP-natMX6This paperDI 202Figure 2—figure supplement 1A,B
Strain (Schizosaccharomyces pombe)h- ura4-D18 lys1::Pnmt1-
6xHis-FLAG
-YFP-DmAna2-ura4 + sid4-
tdtomato-natMX6
This paperDI 655Figure 2—figure supplement 1A,B
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18This paperDI 7Figure 2—figure supplement 1A,B
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 pcp1-
GFP-kanMX6 sid4-tdtomato-natMX6
This paperDI 547Figure 4—figure supplement 1A,B
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 arg1::Pnmt1-DmSAS-6-GFP-FLAG-6xHis-kanMX6 sid4-
tdtomato
-natMX6
This paperDI 646Figure 4—figure supplement 1A,B
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 arg1::Pnmt1-DmSAS-6-GFP-FLAG-6xHis-kanMX6 pcp1-tdTomato-natMX6This paperDI 721Figure 4—figure supplement 1A,B
 Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 arg1::Pnmt1-DmSAS-6-GFP-FLAG-6xHis-kanMX6 sid4-tdtomato-natMX6This paperDI 646Figure 4—figure supplement 2A–C
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 arg1::Pnmt1-DmSAS-6(Reg7, 1–176 aa)
-GFP-FLAG-6xHis-kanMX6 sid4-tdTomato-natMX6
This paperDI 671Figure 4—figure supplement 2A–C
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 arg1::Pnmt1-DmSAS-6
(Reg6, 177–472 aa)-
GFP-FLAG-6xHis-kanMX6 sid4-tdtomato-natMX6
This paperDI 648Figure 4—figure supplement 2A–C
Strain (Schizosaccharomyces pombe)h- leu1-32 ura4-D18 lys1::Patb2-DmSAS-6-
GFP-FLAG-6xHis-ura4 + sid4-tdTomato-natMX6
pcp1-HA-
hphMX6 cdc25-22
This paperDI 454Figure 4—figure supplement 3A,B
Recombinant
DNA reagent (plasmid)
pLYS1U-GFH21c-DmSAS-6This paperExpression of DmSAS-6-GFP in
S. pombe
(atb2 promoter)
Recombinant
DNA reagent (plasmid)
pLYS1U-GFH21c-DmBLD10This paperExpression of DmBld10-GFP in S. pombe
(atb2 promoter)
Recombinant DNA reagent (plasmid)pLYS1U-HFY21c-DmSAS-4This paperExpression of YFP-DmSAS-4 in S. pombe (atb2 promoter)
Recombinant DNA reagent (plasmid)pLYS1U-HFY1c-DmAna2This paperExpression of YFP-DmAna2 in S. pombe (nmt1 promoter)
Recombinant DNA reagent (plasmid)pDUAL2-HFG1c-DmPlk4This paperExpression of GFP-DmPlk4 in S. pombe (nmt1 promoter)
Recombinant DNA reagent (plasmid)pARG1-GFH1c-DmSAS-6This paperExpression of DmSAS-6-GFP in S. pombe (nmt1 promoter)
Recombinant DNA reagent (plasmid)pARG1-GFH1c-DmSAS-6(Reg7, 1–176 aa)This paperExpression of DmSAS-6-GFP (Reg7, 1–176 aa) in S. pombe (nmt1 promoter)
Recombinant DNA reagent (plasmid)pARG1-GFH1c-DmSAS-6(Reg6, 177–472 aa)This paperExpression of DmSAS-6-GFP (Reg6, 177–472 aa) in S. pombe (nmt1 promoter)
Recombinant DNA reagent (plasmid)pREP41-pcp1-mcherryThis paperExpression of Pcp1-mCherry (full length) in S. pombe (nmt41 promoter)
Recombinant DNA reagent (plasmid)pREP41-pcp1 (N 1–419)-mcherryThis paperExpression of Pcp1-mCherry (N 1–419) inS. pombe (nmt41 promoter)
Recombinant DNA reagent (plasmid)pREP41-pcp1 (M 420–782)-mcherryThis paperExpression of Pcp1-mCherry (M 420–782) in S. pombe (nmt41 promoter)
Recombinant DNA reagent (plasmid)pREP41-pcp1 (C 783–1208)-mcherryThis paperExpression of Pcp1-mCherry (C 783–1208) in S. pombe (nmt41 promoter)
Recombinant DNA reagent (plasmid)pAWG-DmSAS-6This paperExpression of DmSAS-6-EGFP in D.Mel cells (actin5c promoter)
Recombinant DNA reagent (plasmid)pAGWThis paperDGRC:1071Expression of EGFP in D.Mel cells (actin5c promoter)
Recombinant DNA reagent (plasmid)pAHW-DmPLP_PACTThis paperExpression of 3xHA-DmPLP_PACT in D.Mel cells (actin5c promoter)
Recombinant DNA reagent (plasmid)pAHW-DmPLP_CBDThis paperExpression of 3xHA-DmPLP_CBD in D.Mel cells (actin5c promoter)
Recombinant DNA reagent (plasmid)pAMW-DmCaMThis paperExpression of 6xMyc-DmCaM in D.Mel cells (actin5c promoter)
Recombinant DNA reagent (plasmid)pAGW-DmPLP_PACTThis paperExpression of EGFP-DmPLP_PACT in D.Mel cells (actin5c promoter)
Recombinant DNA reagent (plasmid)pAGW-DmPLP_FLThis paperExpression of EGFP-DmPLP_FL in D.Mel cells (actin5c promoter)
Recombinant DNA reagent (plasmid)pDEST15-DmSAS-6This paperExpression of GST-DmSAS-6 (full length) in E. coli
Recombinant DNA reagent (plasmid)pGEX6p-1GE HealthcareExpression of GST in E. coli
Recombinant DNA reagent (plasmid)pET30b-DmPLP_PACTThis paperExpression of 6xHis-DmPLP_PACT in E. coli
Cell line (Drosophila melanogaster)D.Mel cellsThermo Fisher ScientificATCC Cat# CRL-1963, RRID:CVCL_Z232Drosophila cultured cells
Sequence-based reagentPLP-Forward primer (dsRNA synthesis (PLP))This paperTAATACGACTCACTATAGGGAGAGGAGCGCCTAAAGAACAGTG
Sequence-
based reagent
PLP-Reverse primer (dsRNA synthesis (PLP))This paperTAATACGACTCACTATAGGGAGACTGATCGAGCTGTTTGTGGA
Sequence-based reagentAna2-Forward primer (dsRNA synthesis (Ana2))This paperGAATTAATACGACTCACTATAGGGAGAATGTTTGTTCCCGAAACGGAGG
Sequence-based reagentAna2-Reverse
primer (dsRNA synthesis (Ana2))
This paperGAATTAATACGACTCACTATAGGGAGACAGAGCCGCCAGATCACTCTTA
Sequence-based reagentmCherry-Forward primer (dsRNA synthesis (mCherry))This paperATAATACGACTCACTATAGGGATGGTGAGCAAGGG
Sequence-based reagentmCherry-Reverse primer (dsRNA synthesis (mCherry))This paperATAATACGACTCACTATAGGGGTTGACGTTGTAGG
Sequence-based reagentplp_3UTR_Forward primer (dsRNA synthesis (PLP_3'UTR))This paperTAATACGACTCACTATAGGGAGAGCCCAGGATAGCAGAGTTGAG
Sequence-based reagentplp_3UTR_Reverse primer (dsRNA synthesis (PLP_3'UTR))This paperTAATACGACTCACTATAGGGAGACGAATGTGAAATAAATTTGGTTTAA
Strain
(Drosophila melanogaster)
w1118; Ubq-RFP::PACT;+Carvalho-Santos et al., 2010
Strain (Drosophila melanogaster)w1118; +; bamGal4Chen and McKearin, 2003
Strain (Drosophila melanogaster)yv; +; UAS-mCherryRNAiPerkins et al., 2015
Strain (Drosophila melanogaster)w1118; UAS-PLPRNAi; +Dietzl et al., 2007
Strain (Drosophila melanogaster)w1118; Ubq-RFP::PACT/+; UAS-mCherryRNAi/ bamGal4This paper
Strain (Drosophila melanogaster)w1118; Ubq-RFP::PACT/UAS-PLPRNAi; bamGal4/+This paper
Antibodyanti-GFP (rabbit polyclonal)AbcamAbcam Cat# ab290, RRID:AB_303395WB 1:1000
Antibodyanti-RFP (rat monoclonal)ChromotekRRID:AB_2336064WB 1:1000
Antibodyanti-HA (rat monoclonal)RocheRoche Cat# 11867431001, RRID:AB_390919WB 1:1000
Antibodyanti-Cdc2 PSTAIRE (rabbit polyclonal)Santa Cruz BiotechnologyCat# sc-53, RRID:AB_2074908WB 1:2000
Antibodyanti-Drosophila SAS-6 (rabbit polyclonal)Gift from J GopalakrishnanWB 1:500
Antibodyanti-Drosophila SAS-6 (rat polyclonal)Gift from N Dzhindzhev and D GloverIF 1:500
Antibodyanti-Drosophila Ana2 (rat polyclonal)Gift from N Dzhindzhev and D GloverWB 1:4000
Antibodyanti-phospho Histone H3 (Ser10) (rabbit polyclonal)MilliporeMillipore Cat# 06–570, RRID:AB_310177IF 1:2000
Antibodyanti-Drosophila Bld10 (rabbit polyclonal)Gift from T MegrawIF 1:5000
Antibodyanti-Drosophila PLP (guinea pig polyclonal)Gift from G RogersWB 1:1000
Antibodyanti-Drosophila PLP (chicken polyclonal)Bettencourt-Dias et al., 2005IF 1:500
Antibodyanti-Actin (rabbit polyclonal)Sigma-AldrichSigma-Aldrich Cat# A2066, RRID:AB_476693WB 1:2000
Antibodyanti-GST (mouse monoclonal)Cell Signaling TechnologyCell Signaling Technology Cat# 3513, RRID:AB_1642209WB 1:1000
Antibodyanti-His-tag (mouse monoclonal)MilliporeMillipore Cat# 70796–3,
RRID:AB_11213479
WB 1:1000
Antibodyanti-Myc (9E10) (mouse monoclonal)Santa Cruz Bio
technology
Santa Cruz Biotechnology Cat# sc-40,
RRID:AB_627268
WB 1:1000
Antibodyanti-Rat IgG (secondary, DyLight 488, Donkey)Bethyl LaboratoriesIF 1:100
Antibodyanti-Rabbit IgG
(secondary, Rhodamine-Red, Donkey)
Jackson ImmunoResearchIF 1:100
Antibodyanti-Rabbit IgG (secondary, Cy5, Donkey)Jackson ImmunoResearchIF 1:100
Antibodyanti-Chicken IgY (secondary, Cy5, Donkey)Jackson ImmunoResearchIF 1:100
Antibodyanti-Rat IgG (secondary, Cy5, Donkey)Jackson ImmunoResearchIF 1:100
Antibodyanti-Mouse IgG (secondary, HRP-conjugated, Donkey)Jackson ImmunoResearchWB 1:5000
Antibodyanti-Rabbit IgG (secondary, HRP-conjugated, Donkey)Jackson ImmunoResearchWB 1:5000
Antibodyanti-Guinea pig IgG (secondary, HRP-conjugated, Donkey)Jackson ImmunoResearchWB 1:5000
 antibodyanti-Rat IgG (secondary, HRP-conjugated, Goat)Bethyl LaboratoriesWB 1:5000
 antibodyanti-Rat IgG (secondary, IRDye 800CW, Goat)LI-CORWB 1:10000
 antibodyanti-Mouse IgG (secondary, IRDye 680CW, Goat)LI-CORWB 1:10000

Fission yeast strains and culture

Request a detailed protocol

The S. pombe strains used in this study are listed in Key Resources Table. The strains were grown in yeast extract with supplements media (YE5S) or synthetic Edinburgh minimal media (EMM) in which ammonium chloride is replaced with glutamic acid (also called as PMG) with appropriate nutrient supplements as previously described (Moreno et al., 1991; Petersen and Russell, 2016).

Plasmid DNA constructions

Request a detailed protocol

Integration and expression vectors for S. pombe and Drosophila cells used in this study were constructed using the Gateway system (Invitrogen). All cDNA encoding Drosophila centriole components (SAS-6, Bld10, SAS-4, Ana2 and Plk4), PACT domain and calmodulin-binding domain of PACT (CBD) were amplified by PCR and cloned into pDONR221 vector.

To create integration plasmid for S. pombe, the pLYS1U-GFH21c (atb2 promoter, C-terminal GFP tag), pLYS1U-HFY1c (atb2 promoter, N-terminal YFP tag), pLYS1U-HFY1c (nmt1 promoter, N-terminal YFP tag), and pDUAL2-HFG1c (nmt1 promoter, N-terminal GFP tag) destination vectors (RIKEN Bioresource Center, Japan) were used. To express proteins in D.Mel cells, we used the destination vectors (Drosophila Genomics Resource Center, DGRC) containing the actin promoter termed: pAWG for the C-terminal EGFP tag, pAGW for N-terminal EGFP tag, pAHW for the N-terminal 3xHA tag, and pAMW for the N-terminal 6xMyc tag.

The plasmids for overexpression of fission yeast full length and truncated Pcp1-mCherry were constructed as follows. Each region of the pcp1+ gene was amplified by PCR and inserted into the SalI-NotI site of the expression plasmids pREP41 with mCherry at the carboxyl terminus in which gene expression is controlled under nmt1 promoter (Maundrell, 1990).

For recombinant protein expression, we used pGEX6p-1 (GE Healthcare) for GST and the Gateway pDEST15 (N-terminal GST, Thermo Fisher Scientific) destination vector for GST-DmSAS-6. To express 6xHis-PACT, the region of the PACT was amplified by PCR and inserted into the SalI-NotI site of the expression plasmid pET30-b (N-terminal 6xHis, Novagen). The plasmids used in this study are listed in Key Resources Table.

Gene targeting and strain construction in fission yeast

Request a detailed protocol

To generate the fission yeast strains expressing Drosophila centriole proteins SAS-6, Bld10 and SAS-4, the integration plasmids were linearized by digesting with NotI and integrated into each chromosomal locus. The integration into the targeted locus was verified by PCR.

Expression of Drosophila centriole proteins in fission yeast

Request a detailed protocol

We initially used the strong inducible nmt1 promoter (Maundrell, 1990) to screen the localization of five Drosophila centriole proteins (SAS-6, Bld10, SAS-4, Ana2 and Plk4) in fission yeast. Gene expression under the nmt1 promoter was induced by removing thiamine from the culture media. We observed that while Ana2 and Plk4 did not localize to the SPB (Figure 2A), the other three localized there (data not shown). Subsequently, we investigated those proteins that localize at the SPB using a constitutively-expressing atb2 promoter (Matsuyama et al., 2008) (Figure 2A and subsequent figures, unless otherwise indicated) to simplify experiments. Notably, the localization pattern was the same using both the nmt1 and atb2 promoters.

Drosophila cell culture and transfections

Request a detailed protocol

Drosophila melanogaster (D.Mel) cells (Thermo Fisher Scientific) were cultured in Express5 SFM (GIBCO) supplemented with 1 × L Glutamine-Penicillin-Streptomycin. DsRNA synthesis was performed as previously described (Bettencourt-Dias et al., 2005). Transient plasmid transfections were performed with Effectene reagent (QIAGEN) according to the manual. The primers used to amplify DNA templates for dsRNA synthesis are shown in Key Resources Table. Cells were regularly tested for mycoplasma.

Drosophila stocks and culturing

Request a detailed protocol

All the fly stocks used in this study are described in Key Resources Table and publicly available stocks are listed in Flybase (www.flybase.org). Flies were reared according to standard procedures at 25°C on corn meal media (Jana et al., 2016).

Preparation of cell extracts, Western blotting and immunoprecipitation

Request a detailed protocol

S. pombe lysates were prepared using glass beads in extraction buffer (20 mM Hepes-NaOH (pH 7.5), 50 mM KOAc, 200 mM NaCl, 1 mM EDTA, 0.2% Triton X-100, and 0.1 mM NaF, additionally supplemented with 1 × EDTA free protease inhibitors (Roche) and 1 mM PMSF). Total cell lysates from D.Mel cells were prepared by resuspending cell pellets in lysis buffer described in Galletta et al. (2014) (50 mM Tris (pH 7.2), 125 mM NaCl, 2 mM DTT, 0.1% Triton X-100, supplemented with 1 × EDTA free protease inhibitors (Roche) and 1 mM PMSF). Equal amounts of total cell lysates were separated in SDS-PAGE and analyzed by immunoblotting. For the immunoprecipitation, the cell extracts prepared from S. pombe or D.Mel cells were incubated for three hours at 4°C with Dynabeads Protein A (Thermo Fisher Scientific) pre-incubated with rabbit anti-GFP (Abcam). The beads were then washed three times with lysis buffer, and boiled in the Laemmli buffer for SDS-PAGE and western blotting.

Protein purification and in vitro binding assay

Request a detailed protocol

Escherichia coli strain Rosetta (DE3) was transformed with the expression plasmid, and protein expression was induced at 25°C by the addition of 0.5 mM IPTG overnight. For purification of GST fusion proteins, cell pellets were lysed by sonication in lysis buffer (25 mM Tris pH 7.5, 150 mM NaCl, 1 mM EDTA, and protease inhibitors), and 10% Triton X-100 was added to the lysate at 0.5% final concentration. GST fusion protein was affinity-purified with MagneGST Glutathione Particles (Promega). For purification of 6xHis-PACT, cell pellets were lysed by sonication in lysis buffer (50 mM NaH2PO4, 300 mM NaCl, 10 mM Imidazole, proteases inhibitors, and 0.1% Tween, pH 8) supplemented with lysozyme at 1 mg/ml final concentration. The protein 6xHis-PACT was affinity-purified with TALON Metal Affinity Resins (Clontech), and eluted with the elution buffer (50 mM NaH2PO4, 300 mM NaCl, 150 mM Imidazole, proteases inhibitors, 0.1% Tween) and then dialyzed was in the Dialysis Buffer (50 mM NaH2PO4, 200 mM NaCl, 5 mM Imidazole, pH8).

Recombinant GST or GST-DmSAS-6 beads were incubated with His-PACT supplemented with 500 µl of binding buffer (50 mM Na-HEPES, pH 7.5, 100 mM NaCl, 2 mM MgCl2, 1 mM DTT, 0.1% Triton X-100 and protease inhibitor) at 4°C for 1 hr, and the beads were washed three times in binding buffer. The proteins were eluted in SDS sample buffer and analyzed by SDS-PAGE and western blotting.

Immunostaining and imaging of S. pombe and D.Mel cells

Request a detailed protocol

Living or fixed S. pombe cells were mounted with a lectin-coated coverslip to immobilize before imaging. Immunostaining of D.Mel cells was performed as previously described (Cunha-Ferreira et al., 2013). Cells were mounted with Vectashield containing DAPI (Vector Laboratories). Cell imaging was performed on Nikon Eclipse Ti-E microscopes with Evolve 512 EMCCD camera (Photometrics) or DeltaVision Core system (Applied Precision) inverted microscope (Olympus, IX-71) with Cascade 2 EMCCD camera (Photometrics). Images were acquired as a Z-series (0.3 μm interval) and are presented as maximal intensity projections.

Structured illumination microscopy (SIM)

Request a detailed protocol

All SIM images were collected using Deltavision OMX V3 (GE Healthcare Life Sciences). For SIM images, an oil-immersion Plan-Apo 1.4 NA objective and two different lasers (488 nm and 560 nm) were used and their alignments were corrected using multicolor beads before imaging. All SIM images collected using OMX were reconstructed in OMX SoftWoRx (Deltavision). Subsequently, all images were processed in ImageJ.

Time-lapse imaging

Request a detailed protocol

To capture the localization of SAS-6-GFP in fission yeast, cells were cultured in minimal medium at 30°C, mounted onto a lectin-coated glass-bottomed dish (MatTek). Live cell imaging was performed on Nikon Eclipse Ti-E microscopes with Evolve 512 EMCCD camera (Photometrics) in a chamber maintained at 30°C by a temperature controller (Tokai Hit). Images were acquired as a Z-series (0.3 μm interval) and are presented as maximal intensity projections.

Immunostaining, imaging and image analysis of Drosophila sperm cells

Request a detailed protocol

Testes from adult flies were dissected in testes buffer, transferred to poly-L-lysine glass slides, squashed, and snap frozen in liquid nitrogen as previously described (Jana et al., 2016). Then, testes were stained using different primary antibodies and secondary antibodies following the published method (Jana et al., 2016). Samples were mounted in Vectashield mounting media (Vector Laboratories) and they were examined in microscopes. Given that Drosophila has different stages of spermatocytes, we focused on the mature, large G2 spermatocytes and measured the total amount of SAS-6 and PLP at the basal bodies. All Confocal images were collected using Leica TCS SP 5X (Leica Microsystems, Germany) and processed in ImageJ.

Male fertility tests

Request a detailed protocol

Fertility tests were performed by crossing single males with three wild-type females during 3 days. The progeny per tube was scored and averaged for ≥10 males for each genotype.

Fluorescence intensity quantification and centriole counting

Request a detailed protocol

For fluorescence intensity quantification, Z-stack images (0.3 um intervals) of 21 sections (for fission yeast) or 61 sections (for D.Mel cells) were acquired. Integrated intensity of the fission yeast SPB (6 × 6 pixel) or the centrosome/centriole in D.Mel cells (7 × 7 pixel) were recorded in the maximum projected images. Cellular background intensity was subtracted from the SPB or centriole intensity. Image processing and quantification were performed in ImageJ.

Statistical analysis

Request a detailed protocol

The statistical analysis (non-parametric Mann Whitney U test) was performed in Graphpad Prism version 5.0 software.

Bioinformatics analysis to predict orthologs

Request a detailed protocol

Complete proteomes were downloaded from Ensembl and Ensembl Genomes databases. EST information was downloaded from JGI. We performed orthology prediction based on multiple methods. Candidate orthologs were identified using pairwise sequence-based (BLASTP and phmmer) and domain-based (hmmsearch) methods (Altschul et al., 1990; Finn et al., 2015). The orthologs were then manually verified by (1) confirming the presence of critical domains and motifs, (2) using the bidirectional best hit approach. If results were ambiguous (i.e. there are multiple candidates), a putative ortholog was identified by constructing phylogenetic trees of the protein family using MrBayes 3.2.5 (Ronquist and Huelsenbeck, 2003). The species tree was downloaded from NCBI taxonomy.

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
    Pcp1p, an Spc110p-related calmodulin target at the centrosome of the fission yeast Schizosaccharomyces pombe
    1. MR Flory
    2. M Morphew
    3. JD Joseph
    4. AR Means
    5. TN Davis
    (2002)
    Cell Growth & Differentiation : The Molecular Biology Journal of the American Association for Cancer Research 13:47–58.
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
    Lessons from yeast: the spindle pole body and the centrosome
    1. JV Kilmartin
    (2014)
    Philosophical Transactions of the Royal Society B: Biological Sciences 369:20130456.
    https://doi.org/10.1098/rstb.2013.0456
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
    nmt1 of fission yeast. A highly transcribed gene completely repressed by thiamine
    1. K Maundrell
    (1990)
    The Journal of Biological Chemistry 265:10857–10864.
  76. 76
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
    Calmodulin localizes to the spindle pole body of Schizosaccharomyces pombe and performs an essential function in chromosome segregation
    1. MJ Moser
    2. MR Flory
    3. TN Davis
    (1997)
    Journal of Cell Science 110:1805–1812.
  83. 83
  84. 84
  85. 85
  86. 86
  87. 87
    Rescuing yeast mutants with human genes
    1. MJ Osborn
    2. JR Miller
    (2007)
    Briefings in Functional Genomics and Proteomics 6:104–111.
    https://doi.org/10.1093/bfgp/elm017
  88. 88
  89. 89
  90. 90
  91. 91
  92. 92
  93. 93
  94. 94
  95. 95
  96. 96
  97. 97
  98. 98
  99. 99
  100. 100
  101. 101
  102. 102
  103. 103
  104. 104
  105. 105
    The spacer protein Spc110p targets calmodulin to the central plaque of the yeast spindle pole body
    1. A Spang
    2. K Grein
    3. E Schiebel
    (1996)
    Journal of Cell Science 109:2229–2237.
  106. 106
  107. 107
  108. 108
    Mutations which block the binding of calmodulin to Spc110p cause multiple mitotic defects
    1. DA Stirling
    2. TF Rayner
    3. AR Prescott
    4. MJ Stark
    (1996)
    Journal of Cell Science 109:1297–1310.
  109. 109
  110. 110
  111. 111
  112. 112
  113. 113
  114. 114
  115. 115
  116. 116
  117. 117

Decision letter

  1. Anthony A Hyman
    Reviewing Editor; Max Planck Institute of Molecular Cell Biology and Genetics, Germany
  2. Anna Akhmanova
    Senior Editor; Utrecht University, Netherlands

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Pericentrin-mediated SAS-6 recruitment promotes centriole assembly" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Andrea Musacchio as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission. As you can see, we are interested in publishing your paper, but we would like you to address some control experiments that we think would greatly strengthen your conclusions.

Ito and colleagues investigated whether Drosophila centriole proteins localize to the fission yeast spindle pole body (SPB), and found this to be the case for SAS-6, Bld10 and SAS-4, but not Ana2 and Plk4. Further analysis uncovered that fission yeast Pcp1 is required for SAS-6 SPB localization, and that Pcp1 overexpression generates multiple foci that harbor SAS-6. The authors report that the PACT domain-containing region of Pcp1 mediates interaction with SAS-6, and that the same holds for the PACT domain of Drosophila Plp. Furthermore, the authors find in Drosophila tissue culture cells that Plp acts in a partially redundant manner with PLK4-STIL in recruiting SAS-6 to centrioles, as well as in promoting centriole formation. The authors then investigate the role of Plp in SAS-6 recruitment and centriole formation during Drosophila spermatogenesis. They find that centriole number is not affected by PLPRNAi, but that centriole length is impaired, as reported previously upon SAS-6 depletion. Finally, SAS-6 is shown to interact with the calmodulin binding domain within the PACT domain.

Overall, this is an interesting study that takes advantage in a creative manner of what evolution has to offer, revealing a potentially important facet of the mechanisms regulating centriole formation. However, a few outstanding issues need to be addressed by the authors before publication in eLife can be endorsed.

Our main concern is that the authors have not shown that the interaction is direct between Pcp1 and SAS6. They have one experiment using recombinant proteins (showing Figure 5C). That is an IP showing GST-SAS6 pulls down His-PACT. However, there is no quantification of the IP. If GST-SAS6 pulls down nearly all the His-PACT, that is more convincing evidence of a direct interaction. Often in these IPs, though, only 1% of the target protein is pulled down and that is not convincing of a direct interaction. it would be helpful to state what fraction of the total sample is loaded in each well, for the input and the pull down. Then it would be possible to judge the fraction of the protein that is bound. A PACT domain mutant (such has the C911R from Spc110; see Geier et al., 1993) would be useful, particularly in Figure 4D as a control instead of GFP only.

Along these lines, The SIM data reported in Figure 4—figure supplement 1 do not support the claims made in the main text. In the last paragraph of the subsection “SAS-6 interacts with the conserved region of Pcp1, and Pcp1 is sufficient to recruit SAS-6”, the authors conclude that the SIM data supports the notion that SAS-6-GFP associates with Pcp1. However, the data in panel C shows that the distance between SAS-6-GFP and Pcp1-TdT is the same as that between SAS-6-GFP and Sid4-TdT, which is located further away from the nuclear envelope, as schematized also in panel A. Therefore, these data cannot be taken as support that SAS-6-GFP associates with Pcp1 more than it does for instance with Sid4. This is not to say that the data rules out this possibility, but simply that the present analysis by SIM does not allow one to tell one way or the other. The text should be altered accordingly. It would be greatly desirable if additional evidence could be provided that the interaction is indeed direct.

Several of the quantifications need to be conducted in a different manner. It appears that in general the authors report absolute quantifications, for instance of SAS-6-GFP in Figure 2D, and not quantifications relative to another spindle pole body marker, such as Sid4-tdTomato in the case of Figure 2D. Reporting relative quantifications is important to ensure that alterations in signal intensity do not simply reflect differences in the structure of the SPB. A related concern holds for Figure 4—figure supplement 3. Here, the authors take the data as supporting evidence that SAS-6 localization on spindle pole bodies is not due to random binding to a SPB structure. However, levels of Sid4-tdTomato appear to vary as well, calling into question the conclusions drawn from the current quantification. Likewise, the signal intensity per focus reported in Figure 5E should be expressed as a function of the Bld10 signal. Linked to this The authors state that SAS-6 accumulates at the beginning of mitosis, but there seems to be SAS-6 at the unseparated SPBs as well. What do Pcp1 levels look like during these time points? Is this increase a general property of SPB proteins and represents the growth of the second SPB?

There are concerns with the way the Drosophila tissue culture cell experiments are analyzed. First, the authors write that cells were arrested in mitosis using colchicine for six hours. One potential concern is that levels of SAS-6 at centrioles may vary during such a long arrest. Analyzing mitotic cells in an unperturbed population would be much preferable. Moreover, no information is given about the concentration of colchicine that was used. Second, after having explained the importance of comparing mitotic cells (subsection “The conserved SAS-6-pericentrin interaction plays a role in centriole assembly”, last paragraph), the authors analyze the number of centrioles in interphase, not in mitosis (in Figure 6D and 6E). Why is this? As stated by the authors themselves, this may potentially lead to confounding effects, for instance if cell cycle progression is altered. Mitotic cells in an unperturbed population must be analyzed instead here as well. The same comment holds for Figure 7, where it appears also that interphase cells were examined. Likewise, mitotic cells should be scored in Figure 5F and 5G. In this case, the legend should also indicate how many cells have been analyzed. Furthermore, instead of simply indicating the fraction of cells with more than 4 centrioles, it would be interesting to show the actual distribution of foci numbers per cell.

This manuscript could benefit from general editing. The text switches between British and American spelling. Some of the results or conclusions are confusing due to wording. For example: "To compare the signal intensity in cells at the same cell cycle stage, mitosis, we introduced both in wild-type and pcp1-14 background the mutation in a mitotic kinesin (cut7-446), which fails in interdigitating the mitotic spindle and causes the cells to arrest in early mitosis.”

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for submitting your article "Pericentrin-mediated SAS-6 recruitment promotes centriole assembly" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Anna Akhmanova as the Senior Editor. The reviewers have opted to remain anonymous.

As you can see, there are a few points that have been raised in review of your revised manuscript. Reading through them, I believe that you can answer them by some textural rewrite.

Essential revisions:

A) The four Drosophila proteins that localized to the fission yeast SPB were driven from the constitutive atb2 promoter, whereas the two that did not were driven from the inducible nmt1 promoter. Could the use of different promoters have an impact on the localization? Have the authors attempted to swap promoters? At a minimum, further discussion of this experimental difference should be provided. If you have used other promotors, please add this to the text. If not, please explain why you do not see this as a worry.

B) You suggest that time limitations prevented them from "generating a large set of new mutant constructs". Could you be more specific here- please specific why it was hard to make them.

C) You now explain that Drosophila possesses centrin1/2-like proteins and quote a book chapter that cannot be accessed on line as supporting evidence (Results, third paragraph). Given the importance of this assertion for the implications of the present study, and also considering the thorough analysis that the authors have put in the bioinformatics analysis presented in Figure 1, these centrin1/2-like proteins should be analyzed using the same methods as the ones used in the present work and included in some fashion in Figure 1. This will enable readers to more fully appreciate whether such proteins are expected to interact with Calmodulin.

I think the best way to deal with this point is to report that this has been done before, and say that you are redoing it with your bioinformatic pipeline for clarity's sake.

D) You indicate that it is difficult to find a centriole component that could be used as an independent marker in the tissue culture experiments reported in Figure 5D and 5E. In this case, the authors should state explicitly in the main text that overexpressing PACT leads to the recruitment not only of SAS-6, but also of Bld10, and perhaps of other centriole proteins. The current writing may give the wrong impression that there is something special about the impact of PACT overexpression on SAS-6 recruitment, whereas it is obvious from Figure 5D that this is also the case for Bld10p at the least.

E) You acknowledge that it is better to analyze cells not treated with colchicine, but assert that it is "technically difficult" to find non-drug treated cells in mitosis. This argument is not serious: a sparsely seeded 6 cm dish will have something like 100'000 cells or more. Even if only 20% are transfected and if only 5% are in mitosis, this would still leave 1000 mitotic transfected cells to score per dish. It seems like this experiment could have been done.

https://doi.org/10.7554/eLife.41418.030

Author response

Overall, this is an interesting study that takes advantage in a creative manner of what evolution has to offer, revealing a potentially important facet of the mechanisms regulating centriole formation. However, a few outstanding issues need to be addressed by the authors before publication in eLife can be endorsed.

Our main concern is that the authors have not shown that the interaction is direct between Pcp1 and SAS6. They have one experiment using recombinant proteins (showing Figure 5C). That is an IP showing GST-SAS6 pulls down His-PACT. However, there is no quantification of the IP. If GST-SAS6 pulls down nearly all the His-PACT, that is more convincing evidence of a direct interaction. Often in these IPs, though, only 1% of the target protein is pulled down and that is not convincing of a direct interaction. it would be helpful to state what fraction of the total sample is loaded in each well, for the input and the pull down. Then it would be possible to judge the fraction of the protein that is bound. A PACT domain mutant (such has the C911R from Spc110; see Geier et al., 1993) would be useful, particularly in Figure 4D as a control instead of GFP only.

We thank the reviewer for this question. In our experiment in Figure 5C, 100% of all the samples were loaded in each lane after pull-down. We observed that 56 ± 9% of His-PACT is bound to GST-SAS-6 (three experimental repeats), indicating a direct interaction between PACT and SAS-6. All this information is now mentioned in Figure 5 legend.

We appreciate the suggestion to use a set of PACT domain mutants to better understand the nature of the interaction between SAS-6 and PACT. However, this would demand generating a large set of new mutant constructs within the PACT domain, as they do not exist for S. pombe, as they do for S. cerevisiae, and their extensive characterization. We were not able to perform these experiments, due to time limitation. This is certainly one of many research avenues opened with the manuscript.

Along these lines, The SIM data reported in Figure 4—figure supplement 1 do not support the claims made in the main text. In the last paragraph of the subsection “SAS-6 interacts with the conserved region of Pcp1, and Pcp1 is sufficient to recruit SAS-6”, the authors conclude that the SIM data supports the notion that SAS-6-GFP associates with Pcp1. However, the data in panel C shows that the distance between SAS-6-GFP and Pcp1-TdT is the same as that between SAS-6-GFP and Sid4-TdT, which is located further away from the nuclear envelope, as schematized also in panel A. Therefore, these data cannot be taken as support that SAS-6-GFP associates with Pcp1 more than it does for instance with Sid4. This is not to say that the data rules out this possibility, but simply that the present analysis by SIM does not allow one to tell one way or the other. The text should be altered accordingly. It would be greatly desirable if additional evidence could be provided that the interaction is indeed direct.

We agree with the reviewer’s concern and have now addressed this limitation by changing the conclusion of the SIM results in the last paragraph of the subsection “SAS-6 interacts with the conserved region of Pcp1, and Pcp1 is sufficient to recruit SAS-6”. Using biochemical (Figure 2, 4) and genetic (Figure 3, 4) approaches, we showed SAS-6-GFP is recruited to the SPB by Pcp1. Though we showed SAS-6 co-localizes with Sid4 and Pcp1 (Figure 2, 4) using epifluorescence micrographs, due to the resolution limit (~200 nm) of a conventional optical microscope, we failed to conclude that SAS-6 is indeed a part of SPB. Thus, using SIM data we found that SAS-6-GFP localizes at ~50 nm distant from both Pcp1-TdT and Sid4-TdT. Given that the diameter and height of fission yeast SPB is 180 nm and 90 nm (Ding et al., 1997), and both Pcp1 and Sid4 are considered as core SPB components, our SIM results suggest that the ectopically expressed SAS-6-GFP localizes to the core of the SPB.

Several of the quantifications need to be conducted in a different manner. It appears that in general the authors report absolute quantifications, for instance of SAS-6-GFP in Figure 2D, and not quantifications relative to another spindle pole body marker, such as Sid4-tdTomato in the case of Figure 2D. Reporting relative quantifications is important to ensure that alterations in signal intensity do not simply reflect differences in the structure of the SPB.

We thank the reviewer for raising this important question. However, it is not clear what would be the ideal spindle pole marker for this quantitation. In fact, we also observed that the signal intensity of Sid4-tdTomato was significantly higher in the pcp1 mutant at the restrictive temperature (Author response image 1B, D and F), instead of reduced as predicted by the reviewer. This is perhaps due to some uncharacterized relationship between these molecules. Therefore, Sid4 is not a suitable indicator of the SPB structure in the pcp1 mutant background and we thus believe that, in these experiments, it would not be appropriate to normalize the SAS-6 amount (or other centriole components) with respect to Sid4, and preferred to show unnormalized data. Importantly, a similar reduction in SAS-6 was observed in Drosophila, upon PLP depletion (Figures 6 and 7).

Author response image 1
Intensity of Sid4 is increased in the pcp1 mutant.

(A-F) Quantification of the intensity of the centriole proteins and Sid4-tdTomato per SPB in the indicated conditions. B, D and F correspond to A, C, and E.Means ± s.d. are shown in red (ns-not significant, * p<0.05, ** p<0.001, *** p<0.0001, Mann-Whitney U test).

A related concern holds for Figure 4—figure supplement 3. Here, the authors take the data as supporting evidence that SAS-6 localization on spindle pole bodies is not due to random binding to a SPB structure. However, levels of Sid4-tdTomato appear to vary as well, calling into question the conclusions drawn from the current quantification. Linked to this The authors state that SAS-6 accumulates at the beginning of mitosis, but there seems to be SAS-6 at the unseparated SPBs as well. What do Pcp1 levels look like during these time points? Is this increase a general property of SPB proteins and represents the growth of the second SPB?

We now understand the reviewer’s view and perhaps we were not clear enough in describing the localization behavior of SAS-6-GFP in cycling fission yeast. Previously, we stated that “SAS-6 accumulates at the beginning of mitosis”, but it is incorrect. Now we corrected the sentence to “SAS-6 accumulates at the SPB before entering mitosis”. We apologize for the error.

As correctly pointed by the reviewer, the enrichment of SAS-6-GFP to the SPB before mitosis is positively correlated with that of Sid4 (Figure 4—figure supplement 3D).Furthermore, the behavior of SAS-6-GFP accumulation at the SPB just before mitosis is very similar to that of Pcp1 reported before (Wälde and King, 2014). Therefore, SAS-6-GFP enrichment at the SPB seems to correlate with the growth and maturation of the SPB, with Pcp1 accumulation. We have included this modified description in the main text. Please check the last paragraph of the subsection “Regulation of SAS-6 localization on SPB”.

Likewise, the signal intensity per focus reported in Figure 5E should be expressed as a function of the Bld10 signal.

We understand the reviewer’s concern, but a recent study from our group (Jana et al., 2018) demonstrated that SAS-6 and Ana2 are required for Bld10 localization to the centriole. Therefore, Bld10 is not an independent marker and not a suitable indicator of the centriole size. We think that it is not appropriate to normalize SAS-6 intensity with respect to Bld10 in Figures 5 and 6. Moreover, given that SAS-6 is a critical component of the procentriole, deregulation of SAS-6 at a given centriole would change its composition. Therefore, it is difficult to find a centriole component, which could be used as an independent marker in these experiments.

There are concerns with the way the Drosophila tissue culture cell experiments are analyzed. First, the authors write that cells were arrested in mitosis using colchicine for six hours. One potential concern is that levels of SAS-6 at centrioles may vary during such a long arrest. Analyzing mitotic cells in an unperturbed population would be much preferable. Moreover, no information is given about the concentration of colchicine that was used.

We agree with the reviewer’s concern. Although it is better to use untreated cells, in D.Mel cells, the transfection efficiency is usually about 20-30% and the mitotic index is around 5%, therefore finding transfected cells in mitosis is technically difficult. Mitotic cells were thus enriched by colchicine-induced M arrest, with controls being treated the same way (so far there is no indication in the literature that PLP depletion would impair or enhance mitotic progression in Drosophila cultured cells-see for example (Goshima et al., 2007). We treated cells with 12.5μM of colchicine for 6 hours. We have now added this information in the legend of Figure 5.

Second, after having explained the importance of comparing mitotic cells (subsection “The conserved SAS-6-pericentrin interaction plays a role in centriole assembly”, last paragraph), the authors analyze the number of centrioles in interphase, not in mitosis (in Figure 6D and 6E). Why is this? As stated by the authors themselves, this may potentially lead to confounding effects, for instance if cell cycle progression is altered. Mitotic cells in an unperturbed population must be analyzed instead here as well. The same comment holds for Figure 7, where it appears also that interphase cells were examined. Likewise, mitotic cells should be scored in Figure 5F and 5G. In this case, the legend should also indicate how many cells have been analyzed.

We thank the reviewer for pointing out this inconsistency. In addition to the quantification of SAS6 intensity at the centrioles, we have now analysed the number of centrioles in mitotic cells upon depletion of Ana2, PLP and both. Importantly, the defects in centriole numbers are well correlated to the SAS-6 localization defects observed in Ana2 and PLP depleted situations. Moreover, we found that, in RNAi treated conditions, the centriole number defects observed in interphase cells (Figure 6—figure supplement 1) are very similar to the defects observed in mitotic cells (Figure 6D, E). The latter result suggests that the effect of deregulation of centrosome components can be monitored in both interphase and mitosis. Therefore, in PACT overexpression (Figure 5) and PLP rescue (Figure 6—figure supplement 2) experiments, we analysed the centriole number in interphase as it is difficult to image a large number of mitotic cells in transfection experiments as discussed above.

Following the reviewer’s suggestion, we have now added the number of cells analysed for counting centriole numbers in the respective figure legends.

Furthermore, instead of simply indicating the fraction of cells with more than 4 centrioles, it would be interesting to show the actual distribution of foci numbers per cell.

We thank the reviewer for the suggestion. We have now replaced the graph with a new one showing the distribution of centriole numbers in Figure 5G.

This manuscript could benefit from general editing. The text switches between British and American spelling. Some of the results or conclusions are confusing due to wording. For example: "To compare the signal intensity in cells at the same cell cycle stage, mitosis, we introduced both in wild-type and pcp1-14 background the mutation in a mitotic kinesin (cut7-446), which fails in interdigitating the mitotic spindle and causes the cells to arrest in early mitosis.”

We thank the reviewer for the suggestion. Please check the modified text in the first paragraph of the subsection “Fission yeast Pcp1 is required for SAS-6 recruitment”. Other grammatical errors have also been corrected in the text.

[Editors' note: further revisions were requested prior to acceptance, as described below.]

Thank you for submitting your article "Pericentrin-mediated SAS-6 recruitment promotes centriole assembly" for consideration by eLife. Your article has been reviewed by three peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Anna Akhmanova as the Senior Editor. The reviewers have opted to remain anonymous.

As you can see, there are a few points that have been raised in review of your revised manuscript. Reading through them, I believe that you can answer them by some textural rewrite.

Essential revisions:

A) The four Drosophila proteins that localized to the fission yeast SPB were driven from the constitutive atb2 promoter, whereas the two that did not were driven from the inducible nmt1 promoter. Could the use of different promoters have an impact on the localization? Have the authors attempted to swap promoters? At a minimum, further discussion of this experimental difference should be provided. If you have used other promotors, please add this to the text. If not, please explain why you do not see this as a worry.

We thank the reviewer for pointing this out. We have indeed used nmt1 promoters for all the Drosophila centriole genes studied in this manuscript. Notably, the localization pattern was the same using both the nmt1 and atb2 promoters. We have now mentioned this information in the Materials and methods section (subsection “Expression of Drosophila centriole proteins in fission yeast”). In the manuscript, we focused on how the localization of the three proteins on the SPB is regulated using the constitutively-expressing atb2 promoter in order to simplify the experiments (no induction needed; Figure 2A).

B) You suggest that time limitations prevented them from "generating a large set of new mutant constructs". Could you be more specific here- please specific why it was hard to make them.

We thank the reviewer for raising this point, and we do apologize for not having explained well the problems associated with this experiment in our previous rebuttal. The reviewer wrote, “a PACT domain mutant (such as the C911R from Spc110; see Geier et al., 1993) would be useful, particularly in Figure 4D as a control instead of GFP only.“

Though the budding yeast (S. cerevisiae) Spc110-C911R mutant is known to be deficient in binding to calmodulin (Sundberg et al., 1996), we believe that at this stage, the suggested mutation would not be the ideal control for our experiment for the following reasons:

1) Until we characterize the critical fission yeast Pcp1 residues in the PACT domain that are required to bind to Drosophila SAS-6, the suggested mutant might not be the best negative control.

2) The residue C911 in Spc110 (S. cerevisiae) is not conserved in fission yeast (Flory et al., 2002).

Future work aimed at further understanding the evolution of the SAS-6-PACT interaction, should ideally get the 3D structure of the interacting surfaces and then test for PACT mutants that are deficient in interacting with SAS-6 in vitro and in vivo.

C) You now explain that Drosophila possesses centrin1/2-like proteins and quote a book chapter that cannot be accessed on line as supporting evidence (Results, third paragraph). Given the importance of this assertion for the implications of the present study, and also considering the thorough analysis that the authors have put in the bioinformatics analysis presented in Figure 1, these centrin1/2-like proteins should be analyzed using the same methods as the ones used in the present work and included in some fashion in Figure 1. This will enable readers to more fully appreciate whether such proteins are expected to interact with Calmodulin.

I think the best way to deal with this point is to report that this has been done before, and say that you are redoing it with your bioinformatic pipeline for clarity's sake.

We thank the reviewer for raising this critical point. We have detected a putative Cdc31/centrin3 ortholog in Drosophila (FBpp0080611) by the bi-directional BLAST approach. We, however, did not initially value this result, in face of the closer relationship of FBpp0080611 with centrin1/2 (Azimzadeh and Bornens, 2005). Re-examination of this, as per the reviewer’s suggestions, led us to the conclusion that the distance diagram presented in (Azimzadeh and Bornens, 2005) is not sufficient to invalidate the claim that the Drosophila gene shares a common ancestor with cdc31 and that they are likely orthologues as the bi-directional BLAST approach indicates. We apologize for this error in the interpretation of the data in the previous version of the manuscript and have now modified Figure 1B and the text accordingly (Results, third paragraph).

Furthermore, perhaps we were also not clear in our previous rebuttal in describing the differential roles of centrins and pericentrin known from the literature. Importantly, centrin is not described as a calmodulin-binding protein, but a calcium-binding protein (Salisbury, 1995), while pericentrin, the central molecule in this manuscript, is a calmodulin-binding protein.

D) You indicate that it is difficult to find a centriole component that could be used as an independent marker in the tissue culture experiments reported in Figure 5D and 5E. In this case, the authors should state explicitly in the main text that overexpressing PACT leads to the recruitment not only of SAS-6, but also of Bld10, and perhaps of other centriole proteins. The current writing may give the wrong impression that there is something special about the impact of PACT overexpression on SAS-6 recruitment, whereas it is obvious from Figure 5D that this is also the case for Bld10p at the least.

We thank the reviewer for raising this point. We have now described in the text the possibility that PACT overexpression also impacts the recruitment of other components, directly or indirectly (subsection “The conserved SAS-6-pericentrin interaction plays a role in centriole assembly”, last paragraph).

E) You acknowledge that it is better to analyze cells not treated with colchicine, but assert that it is "technically difficult" to find non-drug treated cells in mitosis. This argument is not serious: a sparsely seeded 6 cm dish will have something like 100'000 cells or more. Even if only 20% are transfected and if only 5% are in mitosis, this would still leave 1000 mitotic transfected cells to score per dish. It seems like this experiment could have been done.

We apologize for not being clear on why we chose this experimental strategy. The aim of this experiment was to test whether overexpression of PACT leads to more recruitment of endogenous SAS-6 and increase in centriole numbers. Given the low amounts of SAS-6 observed in interphase in D.Mel cells, and that SAS-6 levels increase as interphase progresses and are higher in mitosis (our own unpublished observations; see also recent paper (Aydogan et al., 2018)), we scored its levels in mitosis. This ensured a homogeneous population regarding SAS-6 levels, with high levels, allowing for better quantitation. Previously, it had been shown that colchicine treatment for 8 hours does not interfere with centrosome maturation and centriole duplication (Dobbelaere et al., 2008), thus facilitating the finding and therefore analysis of mitotic cells. Goshima and collaborators (Goshima et al., 2007) also arrested cells in mitosis (by targeting APC/C) to analyse multiple phenotypes, including those related to centrosome duplication and maturation. In our case, we used lower concentration and shorter incubation with colchicine (half the amount and 6 hours incubation as compared to (Dobbelaere et al., 2008)), to enrich for mitotic, transfected cells. We now refer to those papers in the main text (subsection “The conserved SAS-6-pericentrin interaction plays a role in centriole assembly”, last paragraph), where this strategy was used and no perturbation was observed in reading out centriole duplication and maturation.

https://doi.org/10.7554/eLife.41418.031

Article and author information

Author details

  1. Daisuke Ito

    Instituto Gulbenkian de Ciência, Oeiras, Portugal
    Contribution
    Conceptualization, Data curation, Formal analysis, Funding acquisition, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing, Created fission yeast strains, Performed fission yeast experiments, Performed bioinformatics analyses, Performed cell biology in D.Mel cells and biochemistry experiments, Performed super-resolution imaging, Conceived the study, Analyzed data
    For correspondence
    itodaisuke1982@gmail.com
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6759-0901
  2. Sihem Zitouni

    Instituto Gulbenkian de Ciência, Oeiras, Portugal
    Contribution
    Data curation, Formal analysis, Investigation, Performed cell biology in D.Mel cells and biochemistry experiments
    Contributed equally with
    Swadhin Chandra Jana
    Competing interests
    No competing interests declared
  3. Swadhin Chandra Jana

    Instituto Gulbenkian de Ciência, Oeiras, Portugal
    Contribution
    Data curation, Formal analysis, Investigation, Performed super-resolution imaging, Performed Drosophila experiments
    Contributed equally with
    Sihem Zitouni
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8311-3849
  4. Paulo Duarte

    Instituto Gulbenkian de Ciência, Oeiras, Portugal
    Contribution
    Data curation, Formal analysis, Investigation, Created fission yeast strains
    Competing interests
    No competing interests declared
  5. Jaroslaw Surkont

    Instituto Gulbenkian de Ciência, Oeiras, Portugal
    Contribution
    Data curation, Formal analysis, Investigation, Performed bioinformatics analyses
    Competing interests
    No competing interests declared
  6. Zita Carvalho-Santos

    Instituto Gulbenkian de Ciência, Oeiras, Portugal
    Present address
    Champalimaud Centre for the Unknown, Lisbon, Portugal
    Contribution
    Data curation, Formal analysis, Investigation, Created fission yeast strains, Contributed to the conception
    Competing interests
    No competing interests declared
  7. José B Pereira-Leal

    1. Instituto Gulbenkian de Ciência, Oeiras, Portugal
    2. Ophiomics, Precision Medicine, Lisboa, Portugal
    Contribution
    Supervision, Contributed to the conception
    Competing interests
    No competing interests declared
  8. Miguel Godinho Ferreira

    1. Instituto Gulbenkian de Ciência, Oeiras, Portugal
    2. Institute for Research on Cancer and Aging of Nice (IRCAN), INSERM U1081 UMR7284 CNRS, Nice, France
    Contribution
    Supervision, Contributed to the conception
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-8363-7183
  9. Mónica Bettencourt-Dias

    Instituto Gulbenkian de Ciência, Oeiras, Portugal
    Contribution
    Conceptualization, Supervision, Funding acquisition, Writing—original draft, Writing—review and editing, Conceived the study, Analyzed data
    For correspondence
    mdias@igc.gulbenkian.pt
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-1987-5598

Funding

Human Frontier Science Program (LT000344/2013)

  • Daisuke Ito

Uehara Memorial Foundation

  • Daisuke Ito

Fundação para a Ciência e a Tecnologia (195/BPD/17)

  • Daisuke Ito

Fundação para a Ciência e a Tecnologia (SFRH/BPD/87479/2012)

  • Swadhin Chandra Jana

Fundação para a Ciência e a Tecnologia (PTDC/BIM-ONC/6858/2014)

  • Mónica Bettencourt-Dias

European Research Council (CoG683528)

  • Mónica Bettencourt-Dias

Calouste Gulbenkian Foundation

  • Mónica Bettencourt-Dias

Fundação para a Ciência e a Tecnologia (FCT Investigator Grant)

  • Mónica Bettencourt-Dias

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

The authors thank E Levy and P Beltrão for critical reading of the manuscript, I Hagan and P Tran for helpful discussions. We are grateful to M Gomes and C Bicho for help with experiments. We thank I Hagan, M Sato, T Toda, K Tanaka, JQ Wu, A Paoletti, K Gould, T Matsumoto, M Bornens, T Megraw, N Dzhindzhev, D Glover, G Rogers, B Galletta, N Rusan, J Raff, RIKEN BRC and NBRP (Japan) for yeast strains, antibodies and plasmids. D Ito is supported by a long-term fellowship from the Human Frontier Science Program (LT000344/2013), and postdoctoral fellowships from the Uehara Memorial Foundation, Japan and Fundação para a Ciência e a Tecnologia (FCT) (195/BPD/17). Work was funded by the Gulbenkian Foundation, an FCT grant (PTDC/BIM-ONC/6858/2014), an FCT investigator grant and a European Research Council Consolidator Grant to MBD (CoG683528).

Senior Editor

  1. Anna Akhmanova, Utrecht University, Netherlands

Reviewing Editor

  1. Anthony A Hyman, Max Planck Institute of Molecular Cell Biology and Genetics, Germany

Publication history

  1. Received: August 29, 2018
  2. Accepted: May 14, 2019
  3. Version of Record published: June 11, 2019 (version 1)

Copyright

© 2019, Ito et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 794
    Page views
  • 126
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Biochemistry and Chemical Biology
    2. Cell Biology
    Xuchen Hu et al.
    Research Article Updated
    1. Cell Biology
    2. Genetics and Genomics
    Malini Rajan et al.
    Research Article
