Screening for insulin-independent pathways that modulate glucose homeostasis identifies androgen receptor antagonists

  1. Sri Teja Mullapudi
  2. Christian SM Helker
  3. Giulia LM Boezio
  4. Hans-Martin Maischein
  5. Anna M Sokol
  6. Stefan Guenther
  7. Hiroki Matsuda
  8. Stefan Kubicek
  9. Johannes Graumann
  10. Yu Hsuan Carol Yang
  11. Didier YR Stainier  Is a corresponding author
  1. Max Planck Institute for Heart and Lung Research, Germany
  2. CeMM Research Center for Molecular Medicine of the Austrian Academy of Sciences, Austria
  3. German Centre for Cardiovascular Research, Germany
Short Report
  • Cited 2
  • Views 1,646
  • Annotations
Cite this article as: eLife 2018;7:e42209 doi: 10.7554/eLife.42209

Abstract

Pathways modulating glucose homeostasis independently of insulin would open new avenues to combat insulin resistance and diabetes. Here, we report the establishment, characterization, and use of a vertebrate ‘insulin-free’ model to identify insulin-independent modulators of glucose metabolism. insulin knockout zebrafish recapitulate core characteristics of diabetes and survive only up to larval stages. Utilizing a highly efficient endoderm transplant technique, we generated viable chimeric adults that provide the large numbers of insulin mutant larvae required for our screening platform. Using glucose as a disease-relevant readout, we screened 2233 molecules and identified three that consistently reduced glucose levels in insulin mutants. Most significantly, we uncovered an insulin-independent beneficial role for androgen receptor antagonism in hyperglycemia, mostly by reducing fasting glucose levels. Our study proposes therapeutic roles for androgen signaling in diabetes and, more broadly, offers a novel in vivo model for rapid screening and decoupling of insulin-dependent and -independent mechanisms.

https://doi.org/10.7554/eLife.42209.001

eLife digest

Diabetes is a disease that affects the ability of the body to control the level of sugar in the blood. Individuals with diabetes are unable to make a hormone called insulin – which normally stimulates certain cells to absorb sugar from the blood – or their cells are less able to respond to this hormone. Most treatments for diabetes involve replacing the lost insulin or boosting the hormone’s activity in the body. However, these treatments can also cause individuals to gain weight or become more resistant to insulin, making it harder to control blood sugar levels.

In addition to insulin, several other factors regulate the levels of sugar in the blood and some of them may operate independently of insulin. However, little is known about such factors because it is impractical to carry out large-scale screens to identify drugs that target them in humans or mice, which are often used as experimental models for human biology.

To overcome this challenge, Mullapudi et al. turned to another animal known as the zebrafish and generated mutant fish that lack insulin. The mutant zebrafish had similar problems with regulating sugar levels as those observed in humans and mice with diabetes. This observation suggests that insulin is just as important in zebrafish as it is in humans and other mammals.

The mutant zebrafish did not survive into adulthood, and so Mullapudi et al. transplanted healthy tissue into the zebrafish to allow them to produce enough insulin to survive. These adult zebrafish produced many offspring that still carried the insulin mutation. Mullapudi et al. used these mutant offspring to screen over 2,000 drugs for their ability to decrease blood sugar levels in the absence of insulin. The screen identified three promising candidate drugs, including a molecule that interferes with a receptor for a signal known as androgen.

These findings will help researchers investigate new ways to treat diabetes. In the future, the screening approach developed by Mullapudi et al. could be adapted to search for new drugs to treat other human metabolic conditions.

https://doi.org/10.7554/eLife.42209.002

Introduction

Characterized by the inability to control blood glucose levels, diabetes is a metabolic disease of major socio-economic concern. Blood glucose levels are regulated by multiple tissues including the pancreas, muscle, liver, adipocytes, gut and kidney (Defronzo, 2009). Signals from endocrine hormones are integrated by each tissue to effectively maintain glucose homeostasis, and aberrations in this interplay underlie the pathogenesis of diabetes. Currently, seven classes of antidiabetic drugs exist, of which only three function without increasing circulating insulin levels and only one that definitively functions independently of insulin (Chaudhury et al., 2017). Restoring normoglycemia independently of insulin secretion or action could delay disease progression as an improved glycemic status can restore β-cell mass and function (Wang et al., 2014). Lower dependence on insulin-stimulating therapies can also prevent hyperinsulinemia-driven insulin resistance (Shanik et al., 2008) and obesity (Mehran et al., 2012). In contrast to insulin stimulators, Biguanides (e.g., Metformin) and Thiazolidinediones (e.g., Pioglitazone) are effective antidiabetic agents that primarily sensitize tissues to insulin (reviewed by (Soccio et al., 2014; Rena et al., 2017)). Likewise, sodium-glucose transporter two inhibitors (e.g., Dapagliflozin) have a complementary mechanism of reducing glucose reabsorption in the kidney (Bailey et al., 2013). Increasing evidence points to additional molecular pathways that can improve metabolic homeostasis independently of insulin, for instance, using leptin therapy (Neumann et al., 2016) or exercise (Stanford and Goodyear, 2014). Interestingly, currently prescribed drugs were discovered from their historical use in herbal medicine (Ehrenkranz et al., 2005; Bailey, 2017) or from screens directed against hyperlipidemia (Fujita et al., 1983). However, so far, an unbiased search for insulin-independent pathways controlling glucose metabolism has remained elusive, primarily due to the lack of a disease-relevant animal model for rapid screening. Due to its high fecundity and amenability to chemical screening, the zebrafish serves as an excellent platform to study diabetes, and it has been successfully used to study β-cell mass and activity, as well as glucose metabolism (Andersson et al., 2012; Gut et al., 2013; Tsuji et al., 2014; Nath et al., 2015; Li et al., 2016; White et al., 2016; Gut et al., 2017; Matsuda et al., 2018). Here, using the zebrafish model, we generated an innovative drug discovery strategy, screened chemical libraries and specifically identified insulin-independent effects of androgen signaling on glucose homeostasis.

Results and discussion

insulin is crucial for zebrafish metabolic homeostasis already at larval stages

Insulin plays a central role in glucose homeostasis by increasing glucose uptake in peripheral tissues, promoting glycogenesis in the liver and decreasing glucose production by inhibiting glucagon secretion (Aronoff et al., 2004). We generated zebrafish devoid of insulin signaling and determined the degree to which these mutants recapitulate core features of diabetic metabolism observed in mammals. The zebrafish genome contains two insulin genes – insulin (ins) and insulinb (insb). Using CRISPR/Cas9 mutagenesis, we generated a 16 bp deletion allele of ins (Figure 1A) and a 10 bp insertion allele of insb. Although ins and insb mutant embryos appear morphologically unaffected (Figure 1—figure supplement 1A), Insulin was entirely absent in pancreatic islets of ins mutants (Figure 1B), whereas there was no observable change in insb mutant islets (Figure 1—figure supplement 1B and C). ins mutants exhibit a drastic increase in total glucose levels (up to 10-fold), measured from 1 to 6 days post fertilization (dpf) (Figure 1C). Additionally, staining for lipid content using Nile Red revealed large unused yolk reserves (Figure 1D), suggesting defects in lipid absorption and processing. Due to a combination of these metabolic defects, ins mutants do not survive beyond 12 dpf (Figure 1E). Moreover, although 3 month old (adult) ins +/- animals are normoglycemic (Figure 1—figure supplement 1D), 50 dpf (juvenile) ins +/- animals are noticeably smaller (Figure 1—figure supplement 1E), consistent with a role for Insulin in growth control (Nakae et al., 2001). insb mutants, on the other hand, are viable and fertile. During WT development, insb expression is minimal beyond 48 hpf (Papasani et al., 2006; White et al., 2017) (Figure 1—figure supplement 1F), and it is undetectable in adult β-cells (Tarifeño-Saldivia et al., 2017). To assess whether it is capable of function, we overexpressed insb under the ins promoter. Under the hyperglycemic conditions resulting from morpholino (MO)-mediated ins knockdown, insb overexpression successfully lowered glucose levels, thus indicating that insb is functional (Figure 1—figure supplement 1G). However, due to the post-embryonic expression of ins, survival and metabolic homeostasis in zebrafish depends primarily on ins. This predominant role of ins distinguishes the zebrafish insulins from the redundant metabolic roles of mouse Ins1 and Ins2 (Duvillié et al., 1997). To further explore the nature of the metabolic defects in zebrafish ins mutants, we probed the proteome of 108 hpf ins mutants compared to their WT siblings and assessed this dataset relative to seven other proteomes from diabetic tissues of rodent or human origin (Hwang et al., 2010; Mullen and Ohlendieck, 2010; Giebelstein et al., 2012; Valle et al., 2012); S.-J. Kim et al., 2014a; Capuani et al., 2015; Braga et al., 2016; Zabielski et al., 2016). Strikingly, pathways like gluconeogenesis, mitochondrial dysfunction, sirtuin signaling, and oxidative phosphorylation, which were affected in diabetic conditions across these studies, were similarly disrupted in zebrafish ins mutants (Figure 1F and supplementary file 1). Together, these findings indicate that zebrafish ins is crucial for metabolic homeostasis and survival, and that its absence causes core features of diabetic metabolism already at larval stages.

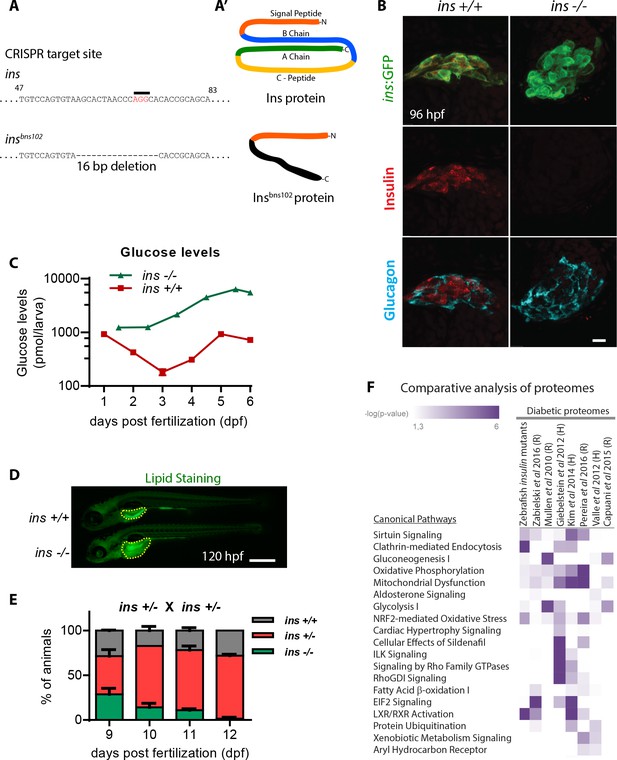

Figure 1 with 1 supplement see all
insulin is crucial for zebrafish metabolic homeostasis.

(A) CRISPR target site in the insulin gene, with PAM sequence highlighted, and the resulting 16 bp deletion allele (below). (A’) Schematic of wild-type Insulin protein and the predicted mutant protein which contains novel sequence (black). (B) Confocal projection images of the pancreatic islet in 96 hpf Tg(ins:GFP) ins +/+ and ins -/- animals immunostained for Insulin (red) and Glucagon (cyan). (C) Free glucose levels in wild-type and mutant animals from 1 to 6 dpf; mean ± SEM, n = 2–4 replicates. (D) Nile Red staining (green) for neutral lipids in 120 hpf wild-type (top) and mutant (bottom) larvae, with yolk lipid content outlined (yellow dots). (E) Genotype distribution from ins ± incross, calculated as the percentage of total animals at each stage; mean ± SEM, n = 32 animals at each stage. (F) Heat map of the proteomic signature of zebrafish ins mutants at 120 hpf compared to signatures from rodent (R) and human (H) diabetic proteome studies. Canonical pathways implicated in most studies are listed first. P-value cut-off set at <0.05. Scale bars: 10 μm (B), 500 μm (D).

https://doi.org/10.7554/eLife.42209.003

Highly efficient endoderm transplant technique rescues ins mutants to adulthood

Screening of small molecules in ins mutants requires large numbers of mutant animals. However, the early lethality of ins mutants did not allow the generation of adult animals that can be incrossed. To overcome this obstacle, we used an efficient endoderm induction (Kikuchi et al., 2001) and transplantation technique (Stafford et al., 2006) (Figure 2A) to selectively modify endodermal tissues without altering the germline. Tg(ins:DsRed); ins +/+ embryos were injected with sox32 mRNA at the one-cell stage, conferring an endodermal fate on all cells. Between 3 to 4 hpf, cells were transplanted from these embryos to the mesendoderm of similarly staged embryos from Tg(ins:RasGFP); ins +/- incrosses. This transplantation procedure was remarkably efficient at contributing to host endoderm (Figure 2—figure supplement 1A–A’’), and the pancreatic islet of nearly every host embryo contained both donor derived (i.e., ins +/+) as well as host β-cells (Figure 2B–B’’). These chimeric animals were raised to adulthood and genotyping (Figure 2—figure supplement 1B–C) revealed a near Mendelian ratio of mutant animals (Figure 2C). In summary, these chimeric animals contain ins +/+ endodermal tissues but retain an ins -/- germline, thereby allowing an all-mutant progeny to be obtained by incrossing.

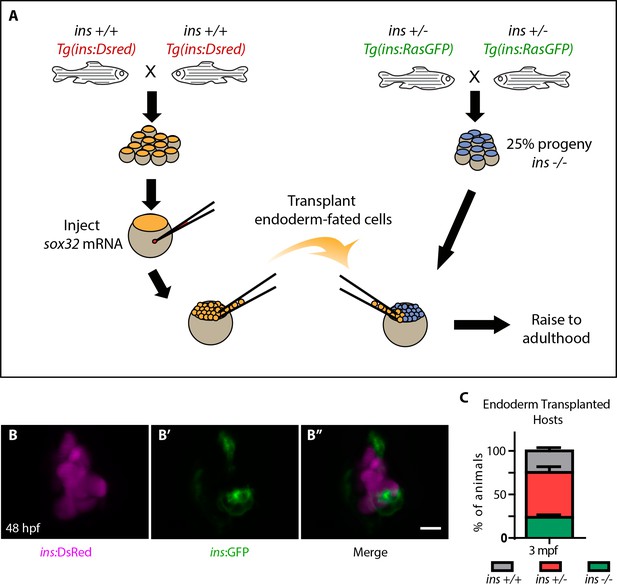

Figure 2 with 1 supplement see all
Highly efficient endoderm transplant technique rescues ins mutants to adulthood.

(A) Schematic depicting the endoderm transplantation protocol; sox32 mRNA-injected ins +/+ donor cells (orange) were transplanted into host embryos (blue) to form chimeric animals. (B–B’’) Confocal projection images of the pancreatic islet of a 48 hpf chimeric animal showing β-cells from the host (green, (B’) and the transplanted ins +/+ cells (magenta, (B). (C) Genotype distribution in the raised three mpf chimeric animals, determined by genotyping fin tissue; mean ± SEM, n = 3 transplant experiments, 18–32 animals per experiment. Scale bar: 10 μm.

https://doi.org/10.7554/eLife.42209.005

Small molecule screen in ins mutants reveals insulin-independent modulators of glucose metabolism

With the ability to obtain large numbers of ins mutant embryos, we next aimed to analyze the effect of known glucose homeostasis modulators and also to screen for novel ones. We tested the effects of molecules that have been proposed to help normalize glucose levels in an insulin-independent manner as well as others that do so in an insulin-dependent manner. Anti-diabetics such as metformin, pioglitazone and dapagliflozin, as well as the Lyn kinase activator MLR1023 (Saporito et al., 2012), were tested. We also tested fraxidin, identified in a screen for molecules that increase glucose uptake in zebrafish (Lee et al., 2013). Surprisingly, metformin and MLR1023 exhibited no glucose-lowering effect in ins mutants, suggesting that they act more as sensitizers of insulin signaling rather than independently of insulin (Figure 3A). In ins mutants, Pck1 levels are higher compared to wild types (Supplementary file 1), suggesting increased gluconeogenesis in the absence of the inhibitory action of insulin. This observation is also supported by the drastic reduction of glucose levels in ins mutants treated with the Pck1 inhibitor, 3 MPA (Figure 3A). Metformin has well-known abilities to reduce hepatic gluconeogenesis, and it also reduces glucose levels in isoprenaline-treated wild-type zebrafish (Gut et al., 2013). However, metformin’s inability to reduce glucose levels in zebrafish ins mutants reveals metformin’s dependence on insulin signaling for its action. MLR1023’s glucose level lowering effects have been proposed to be insulin-dependent (Ochman et al., 2012), and thus, its inability to lower glucose levels in zebrafish ins mutants further suggests the lack of any insulin signaling in these animals. On the other hand, fraxidin, dapagliflozin, and pioglitazone reduced glucose levels by 5, 12, and 11% respectively (Figure 3A), thus attributing part of their glucose lowering effect to an insulin-independent mechanism. The lack of adipose tissue (Minchin and Rawls, 2017) and the primitive nature of kidney (pronephros) function at these developmental stages (Elmonem et al., 2018) may result in an incomplete recapitulation of adipose signaling and renal function on glucose homeostasis (Defronzo, 2009). This limitation could also explain the small magnitude of glucose level reduction observed with the PPARγ agonist or SGLT2 inhibitor treatments in zebrafish ins mutants. Based on these data with known glucose level lowering drugs, we decided to screen chemical libraries to identify molecules that could reduce glucose levels by more than 10% in zebrafish ins mutants.

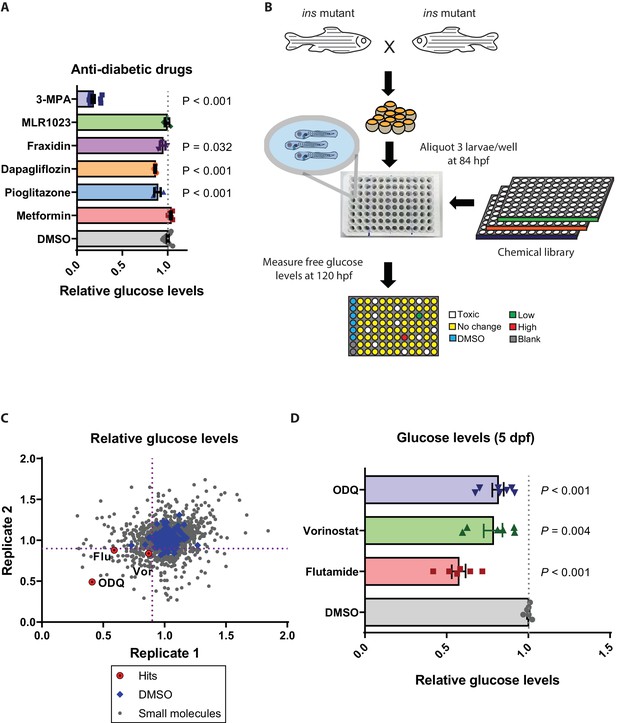

Figure 3 with 1 supplement see all
Small molecule screen in ins mutants reveals insulin-independent modulators of glucose metabolism.

(A) Relative glucose levels in 120 hpf ins mutant larvae after 36 hr of treatment with anti-diabetic drugs (dapagliflozin, pioglitazone, metformin) or reported insulin mimetics (MLR1023, Fraxidin) or the Pck1 inhibitor, 3 MPA; mean ± SEM, n = 3–7 replicates. (B) Schematic representation of the screening pipeline: ins mutant larvae were treated with small molecules starting at 84 hpf and free glucose levels measured at 120 hpf. (C) Scatter plot showing relative change in glucose levels upon treatment with 2233 small molecules. X and Y axes represent two replicates performed for each drug, with the dotted purple lines marking 0.9 on each axis. 72 molecules satisfied the pre-specified cut-off. (D) Relative glucose levels at 120 hpf upon treatment of ins mutants with the three hits – ODQ, Vorinostat, and Flutamide; mean ± SEM, n = 6–7 replicates. P values from t-tests.

https://doi.org/10.7554/eLife.42209.007

To rapidly measure free glucose levels in a 96-well plate format, we adapted a kit-based protocol that is sensitive to endogenous changes in larval glucose levels (Figure 3—figure supplement 1A–C), and established a screening pipeline (Figure 3B). We screened 2233 molecules in 2 replicates at 10 μM concentration and found three hits (Figure 3C) that reproducibly reduced glucose levels upon retesting with independent chemical stocks and the unmodified standard glucose measurement kit. These three hits - flutamide (androgen receptor antagonist), ODQ (soluble guanylyl cyclase (sGC) inhibitor (Boulton et al., 1995)) and vorinostat (broad HDAC inhibitor (Finnin et al., 1999)) were found, upon retesting multiple times, to reduce glucose levels by 40, 22% and 19%, respectively (Figure 3D, Figure 3—figure supplement 1D). sGC inhibition by ODQ has been previously reported to increase net hepatic glucose uptake and shift the balance towards glycogenesis (An et al., 2010). Contrary to our findings, clinical use of vorinostat has been associated with hyperglycemia as a side effect (Mann et al., 2007). This difference could be due to the broad nature of Vorinostat’s HDAC inhibition properties including anti-proliferative effects (Richon, 2006), which are likely to affect developmental processes in zebrafish ins mutants. These three drugs did not prolong the survival of zebrafish ins mutants, likely because lowering glucose levels alone was not sufficient to normalize all the metabolic, growth, and differentiation processes (Taniguchi et al., 2006) dysregulated in these animals.

Androgen receptor (AR) antagonism reduces glucose levels in hyperglycemic larval and adult animals

Given the strong reduction in glucose levels observed after flutamide treatments, we further tested the hypothesis that glucose levels in ins mutants were being reduced through androgen receptor antagonism. First, flutamide caused a dose-dependent decrease in glucose levels in ins mutants (Figure 4—figure supplement 1A). Second, we treated ins mutants with AR antagonists of two types: (i) steroidal (Cyproterone) and (ii) non-steroidal (nilutamide, hydroxyflutamide, bicalutamide, enzalutamide), and observed a consistent decrease in glucose levels across all treatments, albeit at varying efficiency (Figure 4A), possibly reflecting the different efficacy of these antagonists towards zebrafish AR (Raynaud et al., 1979; Teutsch et al., 1994; Tran et al., 2009). Finally, to modulate AR protein levels, we injected 1 ng of control or ar MO into one-cell stage embryos and observed a reduction of glucose levels in ar MO injected ins mutants (Figure 4B) but not in ar MO injected wild-type animals (Figure 4C). These data support a role, and a benefit, for antagonizing AR specifically in hyperglycemic conditions.

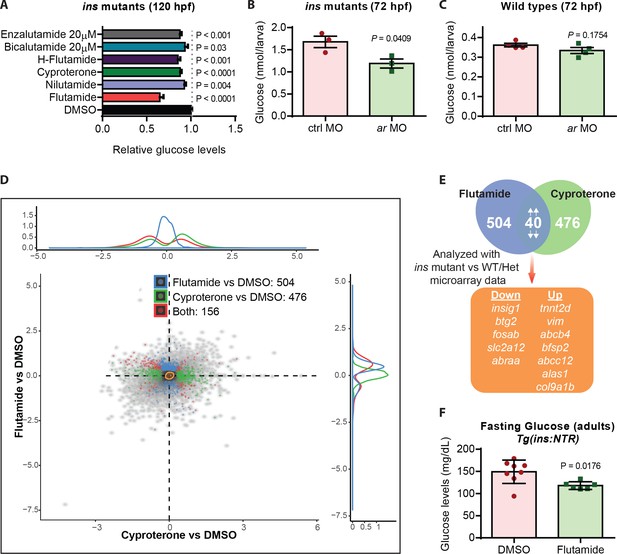

Figure 4 with 1 supplement see all
Androgen receptor (AR) antagonism reduces glucose levels in hyperglycemic larvae and adults.

(A) Relative glucose levels in ins mutants at 120 hpf upon treatment with various AR antagonists starting at 84 hpf; mean ± SEM, n = 3–7 replicates. (B) Glucose levels in 72 hpf ins mutants after injection with 1 ng of ctrl or ar MO; mean ± SEM, n = 3 replicates. (C) Glucose levels in 72 hpf wild types after injection with 1 ng of ctrl or ar MO; mean ± SEM, n = 4 replicates. (D) RNA-seq analysis of 120 hpf ins mutant larvae treated with flutamide or cyproterone starting at 84 hpf, showing differentially expressed genes (DEGs) compared to DMSO-treated larvae in blue and green, respectively. Red dots indicate DEGs common to both treatments. (E) Workflow used to filter candidate genes: 40 DEGs modulated in the same direction (both up or both down) were analyzed in relation to the microarray dataset (ins mutant vs phenotypically wild-type 108 hpf larvae). (F) Glucose levels measured in adult Tg(ins:NTR) animals after β-cell ablation and intraperitoneal injection with vehicle (DMSO) or flutamide; mean ± SEM, n = 6–8 animals. P values from t-tests.

https://doi.org/10.7554/eLife.42209.009

A number of mechanisms have been proposed to explain the predisposition of women with androgen excess to diabetes, including insulin resistance, visceral adiposity, and β-cell dysfunction (Navarro et al., 2015). Under high fat diet, a combination of neuronal and pancreatic β-cell specific roles for AR have been proposed to predispose female mice with androgen excess to diabetes (Navarro et al., 2018). Supporting this role, ar gene expression was observed in the zebrafish central nervous system and, additionally, in the liver (Gorelick et al., 2008) (Figure 4—figure supplement 1B). To investigate how AR antagonism mediates glucose level reduction in zebrafish ins mutants, we used a transcriptomic approach. RNA-Seq analyses of 120 hpf ins mutants treated with flutamide or cyproterone revealed 504 and 476 differentially expressed genes (DEGs) compared to vehicle treated mutants (Figure 4D), respectively. Of these DEGs, 40 were regulated in parallel (both up or both down) for both AR antagonists tested, likely highlighting the common AR-specific effects. Cross-referencing these 40 genes with a transcriptomic comparison of ins mutants to phenotypically wild-type siblings, led to 12 genes (Figure 4E) that were differentially expressed upon loss of ins, and were partially or fully restored to wild-type levels upon treatment with AR antagonists (Figure 4—figure supplement 1C). Amongst these 12 genes, btg2 and insig1 have been reported to play crucial roles in controlling liver gluconeogenesis (Carobbio et al., 2013; Kim et al., 2014b), and they also contain two androgen response elements (AREs) close to their transcription start site (Figure 4—figure supplement 1D). Additionally, upon intraperitoneal injections of flutamide in hyperglycemic adult animals (Figure 4—figure supplement 1E), we observed 19% lower fasting plasma glucose levels (Figure 4F), likely due to reduced hepatic glucose production. Our findings corroborate the observations of better anthropometric indices previously observed with flutamide (Sahin et al., 2004) or metformin +flutamide combination therapies (Gambineri et al., 2004; Amiri et al., 2014), and attribute a part of this beneficial effect to flutamide’s insulin-independent action through AR antagonism.

In conclusion, to the best of our knowledge, ours is the first study to report the generation and use of a rapid screening strategy to identify insulin-independent pathways modulating metabolism in vertebrates. Given the recent success of SGLT2 inhibitors as combination therapy in diabetes (Bailey et al., 2013), our study is an important step towards identifying more insulin-independent mechanisms governing glucose homeostasis. One of the limitations of our screen is the relatively low size of the chemical library screened. However, as the endoderm transplant technique reported here can be combined with several genetic or metabolic readouts, future studies with larger chemical libraries should unveil mechanisms governing other disease-relevant phenomena as well. Such comprehensive insight into insulin-independent mechanisms and their interactions with insulin signaling in homeostasis and disease will open new avenues for designing therapies to treat metabolic disorders.

Materials and methods

Key resources table
Reagent type
or resource
DesignationSource or referenceIdentifiersAdditional
information
Genetic reagent (Danio rerio)insbns102This paper16 bp deletion allele of ins (Gene ID: 30262)
Antibodyα-Insulin (Guinea Pig
Polyclonal)
DakoA0564(1:300)
Sequence-based reagentsox32Kikuchi et al., 2001(RNA)
Commercial assay or kitmMessage mMachine SP6 Transcription KitThermoFisherAM1340
Commercial assay or kitGlucose assay kitMerckCBA086
Software, algorithmZEN Blue 2012Zeiss, Germany
Software, algorithmGraphPad Prism 7GraphPad Software,
California

Zebrafish lines

Zebrafish husbandry was performed under standard conditions in accordance with institutional (MPG) and national ethical and animal welfare guidelines. The transgenic and mutant lines used in this study are Tg(ins:DsRed)m1018 (Anderson et al., 2009), Tg(‐4.0ins:GFP)zf5 (Huang et al., 2001), Tg(sox17:GFP)s870 (Sakaguchi et al., 2006), Tg(ins:Flag-NTR, cryaa:mCherry)s950 (Andersson et al., 2012), Tg(ins:EGFP-HRas, cryaa:mCherry)bns294, Tg(ins:TagRFPt-P2A-insB)bns285, insbns102 (ins mutants), and insbbns295 (insb mutants).

1, 2, 3, 4, 5, and 6 days post fertilization (dpf) correspond to 24, 48, 72, 96, 120, and 144 hr post fertilization (hpf), and 3 months post fertilization (mpf) corresponds to 90 dpf.

CRISPR/Cas9 mutagenesis

CRISPR design platform (http://crispr.mit.edu) was used to design sgRNAs against ins (targeting sequence: TCCAGTGTAAGCACTAACCCAGG) and insb (targeting sequence: GGATCGCAGTCTTCTCC) genes and constructs were assembled as described previously (Jao et al., 2013; Varshney et al., 2015). Briefly, a mixture of 25 pg gRNA with 300 pg Cas9 mRNA was injected into one cell stage wild-type embryos. High-resolution melt analysis (HRMA) (Eco-Illumina) was used to determine efficiency of sgRNAs and genotype animals with ins primers 5’-GTGCTCTGTTGGTCCTGTTGG-3’ and 5’-CATCGACCAGATGAGATCCACAC-3’, and insb primers: 5’-AGTATTAATCCTGCTGCTGGCG-3’and 5’-GTGTAGAAGAAACCTCTAGGC-3’.

Immunostaining and Nile Red staining

Immunostaining and imaging was performed as described previously (Yang et al., 2018). Briefly, zebrafish larvae were euthanized and fixed overnight at 4°C with 4% paraformaldehyde (dissolved in buffer with composition: 22.6 mM NaH2PO4, 77 mM Na2HPO4, 120 μM CaCl2, 117 mM sucrose, pH 7.35). After two PBS washes, the larvae were deskinned, and permeabilized using PBS containing 0.5% TritonX-100% and 1% DMSO for 1 hr. Larvae were then incubated in blocking buffer (Dako) containing 5% goat serum for 2 hr, and incubated with primary antibody overnight at 4°C. Next, samples were washed 3 × 10 min with PBS containing 0.1% TritonX-100, incubated overnight at 4°C with secondary antibody and DAPI (10 µg/ml), washed 3 × 10 min and mounted in agarose. Antibody dilutions used are as follows: guinea pig anti-Insulin polyclonal (1:100, Thermo), mouse anti-Glucagon (1:300, Sigma), chicken anti-GFP (1:300, Aves), goat anti-guinea pig AlexaFluor568 (1:300, Thermo), goat anti-mouse AlexaFluor647 (1:300, Thermo), goat anti-chicken AlexaFluor488 (1:500, Thermo). Zeiss LSM700 (10X) and LSM800 (25X) were used to acquire data, and Imaris (Bitplane) was used to analyze data and to create maximum intensity projection images.

Neutral lipid staining using Nile Red dye was performed at a working concentration of 0.5 μg/mL for 30 min in the dark, followed by acquisition of fluorescent images using an LP490 filter on a Nikon SMZ25 stereomicroscope.

Morpholino injections

For knockdown of gene expression, the following splice-blocking antisense morpholinos (Gene Tools, LLC) were injected into one-cell embryos at the indicated dosage per embryo: insa MO (4 ng, 5′-CCTCTACTTGACTTTCTTACCCAGA-3’) (Ye et al., 2016) ar MO (1 ng, 5'-AGCAGAGCCGCCTCTTACCTGCCAT-3') (Peal et al., 2011) standard control MO (4 or 1 ng, 5'-CCTCTTACCTCAGTTACAATTTATA-3').

Intraperitoneal injections

Intraperitoneal injections and glucose level measurement in 6-month-old adult zebrafish was performed as described previously (Curado et al., 2008; Moss et al., 2009; Eames et al., 2010). Briefly, ablation of β-cells in Tg(ins:Flag-NTR, cryaa:mCherry)s950 (Andersson et al., 2012) animals was performed by injecting 0.25 gm MTZ/kg body weight twice – on day 0 and day 1 – injecting twice improved the consistency of ablation. Flutamide (10 mg/kg) or vehicle (DMSO) was injected on days 2, 3 and 4. For injections, animals were anaesthetized using 0.02% Tricaine. On day 4, animals were euthanized and blood glucose was measured using a FreeStyle Freedom Lite Glucose Meter (Abbott).

Larval glucose measurement

Free glucose level measurements were performed as described previously (Jurczyk et al., 2011), with minor modifications. After desired treatment conditions, pools of 10 animals were collected in 1.5 mL Eppendorf tubes and frozen at −80°C after complete removal of water. For analysis, pools of wild-type embryos were resuspended in PBS. Samples were homogenized using a tissue homogenizer (Bullet Blender Gold, Next Advance). A Glucose Assay Kit (CBA086, Merck) was used for glucose detection. Different volumes were used for resuspension and glucose detection between wild types and ins mutants: wild-type samples were resuspended in a volume corresponding to 8 μl/animal and 8 μl was used for the glucose detection reaction. ins mutant embryos, due to their much higher glucose content, were resuspended in a volume corresponding to 16 μl/animal and only 2 μl was used for glucose detection.

Transplantations

For the endoderm transplant experiment, sox32 mRNA was transcribed using an Sp6 mMessage mMachine kit (Ambion). Using a micro-injector, 100 pg of sox32 mRNA was injected into Tg(ins:DsRed) embryos, which served as donors. Embryos from an ins +/- incross served as hosts. Between the 1 k-cell and sphere stages (3–4 hpf), 15–20 cells from donor embryos were transplanted to host embryos, targeting the host mesendoderm at the margin of the blastoderm.

Wholemount in situ hybridization

Larvae were collected at 120 hpf and fixed with 4% paraformaldehyde in PBS overnight at 4°C. In situ hybridization was performed as described previously (Thisse and Thisse, 2008). ar digoxigenin-labelled anti-sense probe was synthesized using T7 polymerase (Roche) and DIG RNA labelling kit (Roche). The probe template was amplified using the following primers: ar ISH-forward 5′‐TGGAGTTTTTCCTTCCTCCA-3’ and ar ISH-reverse 5’- TAATACGACTCACTATAGGGTCATTTGTGGAACAGGATT- 3’, obtaining a 1100 bp probe as described previously (Gorelick et al., 2008). Embryos were imaged on a Nikon SMZ25 stereomicroscope. Wild-type and mutant larvae were processed in the same tube and genotyped after the images were taken.

Drug screening

3-mercaptopicolinic acid (3 MPA) treatment was performed at 1.5 mM concentration, metformin treatment at 250 μM concentration, and enzalutamide and bicalutamide treatments at 20 μM concentration. All other drug treatments were performed at 10 μM. For plate based screening, three 84 hpf ins mutant larvae were placed in each well of a 96-well plate in 200 μl of egg water buffered with 10 mM HEPES. All drug treatments were performed at 10 μM with 1% DMSO, unless otherwise stated. Drug treatment was performed from 84 to 120 hpf, after which each well was visually analyzed to assess toxicity. Subsequently, 100 μl of egg water was removed and 25 μl of 5X cell culture lysis buffer (Promega) was added. The plate was left shaking for 1 min at 750 rpm, and after gentle shaking at 150 rpm for 30 min, another round of vigorous shaking was performed for 1 min at 750 rpm. 8 μl from each well was used for the glucose detection reaction in a new 96-well plate using the Glucose Assay Kit (CBA086, Merck).

Drug libraries used in this screen are:

  1. 1440 molecules from Edelris Keymical Collection (Edelris) (0 hits).

  2. 285 molecules from the CLOUD collection (Licciardello et al., 2017) (two hits).

  3. 156 molecules identified as insulin stimulators (Matsuda et al., 2018) (one hit).

  4. 352 kinase inhibitors (SelleckChem) (0 hits)

Transcriptomic analyses

For RNA-seq analysis, total RNA was isolated from 120 hpf zebrafish using the RNA Clean and Concentrator kit (Zymo Research), and samples were treated with DNase (RNase-free DNase Set, Promega) to avoid contamination by genomic DNA. Integrities of the isolated RNA and library preparation were verified with LabChip Gx Touch 24 (Perkin Elmer). 3 µg of total RNA was used as input for Truseq Stranded mRNA Library preparation following manufacturer’s ‘low sample’ protocol (Illumina). Sequencing was performed on NextSeq500 instrument (Illumina) using v2 chemistry, resulting in a minimum of 23M reads per library with 1 × 75 bp single end setup. The resulting raw reads were assessed for quality, adapter content and duplication rates with FastQC (Andrews, 2010). Trimmomatic (version 0.33) was employed to trim reads after a quality drop below a mean of Q20 in a window of 5 nucleotides (Bolger et al., 2014). Only reads between 30 and 150 nucleotides were cleared for further analyses. Trimmed and filtered reads were aligned with the Ensembl Zebrafish genome version DanRer10 (GRCz10.90), using STAR 2.4.0a with the parameter ‘--outFilterMismatchNoverLmax 0.1’ to increase the maximum ratio of mismatches to mapped length to 10% (Dobin et al., 2013). The number of reads aligning to genes was counted with featureCounts 1.4.5-p1 tool from the Subread package (Liao et al., 2014). Only the reads that mapped, at least partially, to within exons were admitted and aggregated for each gene. Reads that overlapped multiple genes or aligned to multiple regions were excluded. Differentially expressed genes were identified using DESeq2 version 1.62 (Love et al., 2014). Maximum Benjamini-Hochberg corrected p-value of 0.05, along with a minimum combined mean of 5 reads, were set as inclusion criteria. The Ensembl annotation was enriched with UniProt data (release 06.06.2014) based on Ensembl gene identifiers (‘Activities at the Universal Protein Resource (UniProt)," 2014). RNA-seq data have been deposited in the ArrayExpress database at EMBL-EBI (www.ebi.ac.uk/arrayexpress) under accession number E-MTAB-7283. From this dataset, normalized read counts for ins and insb expression are:

Conditioninsinsb
DMSO1831
Flutamide1762
Cyproterone1732

Average normalized counts for ins and insb from transcriptomic data from zebrafish adult β-cells (Tarifeño-Saldivia et al., 2017) are 4324351 and 0 respectively.

For microarray expression profiling, RNA was isolated from pooled 108 hpf zebrafish larvae using the RNA Clean and Concentrator kit (Zymo Research) combined with DNase digestion (RNase-free DNase Set, Promega). 10 animals were used for each pooled sample. Sample quality was tested using a Bioanalyzer and microarray analysis was performed by Oak Labs (Germany). Microarray data have been deposited in the ArrayExpress database at EMBL-EBI (www.ebi.ac.uk/arrayexpress) under accession number E-MTAB-7282.

Mass spectrometric analysis

For each of the three biological replicates within a genotype, protein was extracted from pools of 600 larvae at 5 dpf using 4% SDS in 0.1 M Tris/HCl, pH 7.6 and a tissue disrupting sterile pestle (Axygen) for lysis. After heating to 70°C at 800 rpm for 10 min and DNA shearing by sonication, cell debris was removed by centrifugation at 14.000 x g for 10 min and retaining the supernatant. Using a DC protein assay (BioRad), 7 mg of solubilized proteins per sample were acetone precipitated at −20°C overnight, followed by centrifugation at 14.000 x g for 10 min and washing the pellet using 90% acetone. After evaporation of residual acetone, samples were dissolved in urea buffer (6 M urea, 2 M thiourea, 10 mM HEPES, pH 8.0), followed by enzymatic peptidolysis as described (Graumann et al., 2008; Kim et al., 2018) with the following modifications: 10 mM dithiothreitol, 55 mM iodoacetamide and 100:1 protein to enzyme ratio of the proteolytic enzymes were used. Subsequent sample processing and data analyses were performed as described previously (Sokol et al., 2018). The mass spectrometry proteomics data have been deposited to the ProteomeXchange Consortium via the PRIDE partner repository with the dataset identifier PXD012027.

Canonical pathway analysis was performed using Ingenuity Pathway Analysis (IPA) (Qiagen). Differentially expressed proteins from our study (log2FC ± 1.5) and from previously published datasets were subjected to a Comparison analysis in IPA. P-value maximum cut-off was set at 0.05 and the processes are listed according to those affected across most studies.

References

  1. 1
    Effect of Metformin and Flutamide on Anthropometric Indices and Laboratory Tests in Obese/Overweight PCOS Women under Hypocaloric Diet
    1. M Amiri
    2. M Golsorkhtabaramiri
    3. S Esmaeilzadeh
    4. F Ghofrani
    5. A Bijani
    6. L Ghorbani
    7. MA Delavar
    (2014)
    Journal of Reproduction & Infertility 15:205–213.
  2. 2
  3. 3
  4. 4
  5. 5
    FastQC: A Quality Control Tool for High Throughput Sequence Data
    1. S Andrews
    (2010)
    FastQC: A Quality Control Tool for High Throughput Sequence Data.
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
    Proteomic profiling of non-obese type 2 diabetic skeletal muscle
    1. E Mullen
    2. K Ohlendieck
    (2010)
    International Journal of Molecular Medicine 25:445–458.
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
    Insulin Resistance and Hyperinsulinemia
    1. MH Shanik
    2. Y Xu
    3. J Škrha
    4. R Dankner
    5. Y Zick
    6. J Roth
    (2008)
    Diabetes Care 31:S262.
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72
  73. 73
  74. 74
  75. 75
  76. 76
    Activities at the Universal Protein Resource (UniProt)
    1. UniProt Consortium
    (2014)
    Nucleic Acids Research 198:D191.
  77. 77
  78. 78
  79. 79
  80. 80
  81. 81
  82. 82
  83. 83
  84. 84

Decision letter

  1. Richard M White
    Reviewing Editor; Memorial Sloan Kettering Cancer Center, United States
  2. Mark I McCarthy
    Senior Editor; University of Oxford, United Kingdom

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Screening for insulin-independent pathways that modulate glucose homeostasis identifies androgen receptor antagonists" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by a Reviewing Editor and Mark McCarthy as the Senior Editor. The following individual involved in review of your submission has agreed to reveal his identity: Charles Hong (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Overall, the reviewers were enthusiastic about this manuscript and think that it adds an important new tool to the glucose homeostasis field. It will be of great interest to both zebrafish and non-zebrafish researchers and imagine it can be easily extended to identify even more pathways. The requests from the reviewers are relatively minor.

– More commentary on the efficacy of known anti-diabetic drugs, as depicted in Figure 3A, would be helpful in arriving at an understanding of the model itself. Why do some drugs work and others not, and what does this tell us about the strengths/limitations of the model?

– Similarly, more commentary on the human effects of the three hits would be helpful. In particular, hyperglycemia is a well-known side effect of vorinostat, so discussion of why zebrafish mutants respond differently would be helpful.

– It would be interesting to know if the glucose lowering effects of known drugs or novel hits prolonged survival in the ins mutants.

– Because the insb gene is apparently still intact in the ins mutants (although presumably expressed only at a low level), it might be helpful to show that the effects reported as insulin independent are also independent of insb.

– In Figure 3C, it appears that there are many more than 3 compounds that lowered glucose levels in the 2 replicate experiments. I assume of these, only 3 were found to "reproducibly reduced glucose levels upon retesting…" Can the authors explicitly state the number of compounds that made their prespecified cut-off in 2 replicates (perhaps in the figure legend)? This assay will be of interest to many investigators, and it would be good to know what the hit confirmation rate is.

– In Figure 4F, it appears that there is a trend toward lower fasting glucose levels in "diabetic" adult fish treated with flutamide, but this does not reach statistical significance (p=0.069). Looking at the data, this is likely due to the fact that only 5 fish were in the DMSO group. A few additional diabetic adult fish treated with DMSO would enable authors to make a more definitive conclusion.

https://doi.org/10.7554/eLife.42209.020

Author response

Overall, the reviewers were enthusiastic about this manuscript and think that it adds an important new tool to the glucose homeostasis field. It will be of great interest to both zebrafish and non-zebrafish researchers and imagine it can be easily extended to identify even more pathways. The requests from the reviewers are relatively minor.

– More commentary on the efficacy of known anti-diabetic drugs, as depicted in Figure 3A, would be helpful in arriving at an understanding of the model itself. Why do some drugs work and others not, and what does this tell us about the strengths/limitations of the model?

We have incorporated additional points into the Results and Discussion section to discuss the implications of our results with the known anti-diabetic drugs. To provide greater detail, we have also included a Pck1 inhibitor, 3-MPA, in our analyses in Figure 3A.

– Similarly, more commentary on the human effects of the three hits would be helpful. In particular, hyperglycemia is a well-known side effect of vorinostat, so discussion of why zebrafish mutants respond differently would be helpful.

We have incorporated additional points into the Results and Discussion section to address this question.

– It would be interesting to know if the glucose lowering effects of known drugs or novel hits prolonged survival in the ins mutants.

Glucose lowering drugs did not prolong survival of the ins mutants.

Insulin plays a versatile role in growth and metabolic signaling during development (Taniguchi et al., 2006). While our study contributes to the search for a small molecule as potent as insulin, we do not expect that lowering glucose levels alone will normalize all the processes dysregulated in ins mutants. We have now incorporated this information into the Results and Discussion section.

– Because the insb gene is apparently still intact in the ins mutants (although presumably expressed only at a low level), it might be helpful to show that the effects reported as insulin independent are also independent of insb.

insb expression peaks at 6 hours post fertilization (hpf) and is drastically decreased by 120 hpf (Papasani et al., 2006) (Figure 1—figure supplement 1F), and it is undetectable in adult β-cells (Tarifeño-Saldivia et al., 2017) with 0 normalized counts, as opposed to over 4 million for ins.

Our RNA-Seq analyses on 120 hpf ins mutants show normalized read count for insb transcript to be 1, which is minimal compared to 181 for ins. Additionally, upon treatment with the AR antagonists, Flutamide and Cyproterone, the normalized read counts for insb remain at a low level of 2 units (ArrayExpress accession number: E-MTAB-7283). Together, these data suggest that it is unlikely that insb could be contributing to the metabolic effects we observe. We have now incorporated these data into the Materials and methods section, under ‘Transcriptomic analyses’.

– In Figure 3C, it appears that there are many more than 3 compounds that lowered glucose levels in the 2 replicate experiments. I assume of these, only 3 were found to "reproducibly reduced glucose levels upon retesting…" Can the authors explicitly state the number of compounds that made their prespecified cut-off in 2 replicates (perhaps in the figure legend)? This assay will be of interest to many investigators, and it would be good to know what the hit confirmation rate is.

This information has been added to the legend of Figure 3.

– In Figure 4F, it appears that there is a trend toward lower fasting glucose levels in "diabetic" adult fish treated with flutamide, but this does not reach statistical significance (p=0.069). Looking at the data, this is likely due to the fact that only 5 fish were in the DMSO group. A few additional diabetic adult fish treated with DMSO would enable authors to make a more definitive conclusion.

We have now performed the experiment with additional animals and modified Figure 4 accordingly.

https://doi.org/10.7554/eLife.42209.021

Article and author information

Author details

  1. Sri Teja Mullapudi

    Department of Developmental Genetics, Max Planck Institute for Heart and Lung Research, Bad Nauheim, Germany
    Contribution
    Conceptualization, Data curation, Formal analysis, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-3916-8148
  2. Christian SM Helker

    Department of Developmental Genetics, Max Planck Institute for Heart and Lung Research, Bad Nauheim, Germany
    Present address
    Faculty of Biology, Cell Signaling and Dynamics, Philipps-University Marburg, Marburg, Germany
    Contribution
    Resources, Supervision, Validation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Giulia LM Boezio

    Department of Developmental Genetics, Max Planck Institute for Heart and Lung Research, Bad Nauheim, Germany
    Contribution
    Validation, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  4. Hans-Martin Maischein

    Department of Developmental Genetics, Max Planck Institute for Heart and Lung Research, Bad Nauheim, Germany
    Contribution
    Investigation, Methodology
    Competing interests
    No competing interests declared
  5. Anna M Sokol

    Biomolecular Mass Spectrometry, Max Planck Institute for Heart and Lung Research, Bad Nauheim, Germany
    Contribution
    Resources, Software, Formal analysis, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  6. Stefan Guenther

    ECCPS Bioinformatics and Deep Sequencing Platform, Max Planck Institute for Heart and Lung Research, Bad Nauheim, Germany
    Contribution
    Resources, Software, Formal analysis, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  7. Hiroki Matsuda

    Department of Developmental Genetics, Max Planck Institute for Heart and Lung Research, Bad Nauheim, Germany
    Present address
    Department of Biomedical Sciences, College of Life Sciences, Ritsumeikan University, Kusatsu, Japan
    Contribution
    Resources, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-8639-2719
  8. Stefan Kubicek

    CeMM Research Center for Molecular Medicine of the Austrian Academy of Sciences, Vienna, Austria
    Contribution
    Resources, Writing—review and editing, Designed the CLOUD drug library
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0003-0855-8343
  9. Johannes Graumann

    1. Biomolecular Mass Spectrometry, Max Planck Institute for Heart and Lung Research, Bad Nauheim, Germany
    2. German Centre for Cardiovascular Research, Berlin, Germany
    Contribution
    Resources, Software, Formal analysis, Investigation, Writing—review and editing
    Competing interests
    No competing interests declared
  10. Yu Hsuan Carol Yang

    Department of Developmental Genetics, Max Planck Institute for Heart and Lung Research, Bad Nauheim, Germany
    Contribution
    Conceptualization, Resources, Supervision, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  11. Didier YR Stainier

    Department of Developmental Genetics, Max Planck Institute for Heart and Lung Research, Bad Nauheim, Germany
    Contribution
    Conceptualization, Resources, Supervision, Funding acquisition, Validation, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    Didier.Stainier@mpi-bn.mpg.de
    Competing interests
    Senior editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-0382-0026

Funding

Max-Planck-Gesellschaft (Open-access funding)

  • Sri Teja Mullapudi
  • Christian SM Helker
  • Giulia LM Boezio
  • Hans-Martin Maischein
  • Anna M Sokol
  • Stefan Guenther
  • Hiroki Matsuda
  • Johannes Graumann
  • Yu Hsuan Carol Yang
  • Didier YR Stainier

Deutsches Zentrumfür Herz-Kreislaufforschung

  • Anna M Sokol
  • Johannes Graumann

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We would like to thank Drs. Rashmi Priya and Sonja Sievers for discussion and comments, Dr. Radhan Ramadass for expert help with microscopy, Jasmin Gäbges and Roshan Satapathy for experimental assistance, and Martin Laszczyk and the rest of the animal caretaking team for zebrafish care. These studies were supported by funding from the Max Planck Society (DYRS).

Ethics

Animal experimentation: Zebrafish husbandry was performed under standard conditions in accordance with institutional (MPG) and national ethical and animal welfare guidelines approved by the ethics committee for animal experiments at the Regierungspräsidium Darmstadt, Germany (permit numbers B2/1017, B2/1041, B2/1089, B2/1138 and B2/Anz. 1007).

Senior Editor

  1. Mark I McCarthy, University of Oxford, United Kingdom

Reviewing Editor

  1. Richard M White, Memorial Sloan Kettering Cancer Center, United States

Publication history

  1. Received: September 20, 2018
  2. Accepted: December 3, 2018
  3. Accepted Manuscript published: December 6, 2018 (version 1)
  4. Version of Record published: December 19, 2018 (version 2)

Copyright

© 2018, Mullapudi et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,646
    Page views
  • 310
    Downloads
  • 2
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Chromosomes and Gene Expression
    2. Developmental Biology
    Albert Tsai et al.
    Research Advance
    1. Developmental Biology
    2. Genetics and Genomics
    Samuel Andrew Malone et al.
    Research Article
