1. Chromosomes and Gene Expression
Download icon

Multiple decay events target HAC1 mRNA during splicing to regulate the unfolded protein response

  1. Patrick D Cherry
  2. Sally E Peach
  3. Jay R Hesselberth  Is a corresponding author
  1. University of Colorado, United States
Research Article
  • Cited 1
  • Views 1,063
  • Annotations
Cite this article as: eLife 2019;8:e42262 doi: 10.7554/eLife.42262

Abstract

In the unfolded protein response (UPR), stress in the endoplasmic reticulum (ER) activates a large transcriptional program to increase ER folding capacity. During the budding yeast UPR, Ire1 excises an intron from the HAC1 mRNA and the exon products of cleavage are ligated, and the translated protein induces hundreds of stress-response genes. Using cells with mutations in RNA repair and decay enzymes, we show that phosphorylation of two different HAC1 splicing intermediates is required for their degradation by the 5′→3′ exonuclease Xrn1 to enact opposing effects on the UPR. We also found that ligated but 2′-phosphorylated HAC1 mRNA is cleaved, yielding a decay intermediate with both 5′- and 2′-phosphates at its 5′-end that inhibit 5′→3′ decay and suggesting that Ire1 degrades incompletely processed HAC1. These decay events expand the scope of RNA-based regulation in the budding yeast UPR and have implications for the control of the metazoan UPR.

https://doi.org/10.7554/eLife.42262.001

eLife digest

Like any economical factory, cells tune the size of their protein assembly line to suit demand. Proteins consist of strings of amino acids, built from template molecules called mRNAs, that must be folded into specific 3D structures for them to work correctly. If these protein strings are produced faster than they can be folded, the cell triggers the unfolded protein response. This response slows protein production, gets rid of any misshapen proteins, and increases the size of the protein assembly line.

It is not clear exactly how the unfolded protein response is tuned, though an mRNA molecule called HAC1 is known to signal the response. First, enzymes remove a short section of HAC1 and join the remaining parts back together in a process called splicing. Spliced HAC1 is then used as a template to make a protein that activates the unfolded protein response.

To understand more about this processing of HAC1, Cherry et al. studied yeast cells that had mutated, non-working versions of some of the enzymes that repair and degrade RNA. This revealed that the splicing of HAC1 competes with another process that breaks down mRNA. Under normal conditions, this means that HAC1 is degraded before it can trigger the unfolded protein response. In addition, for the cell to trigger the unfolded protein response, it needs to break down the part of HAC1 that is removed during splicing. Otherwise, the removed section interferes with the spliced HAC1 mRNA, preventing it from being a signal to activate the unfolded protein response.

Cherry et al. also found that a unique, chemically modified fragment of HAC1 mRNA was protected from degradation. They do not know how the unique chemical modification regulates the unfolded protein response, but stabilizing modifications are generally useful in RNA biology.

Understanding how the unfolded protein response is tuned could help researchers to find new ways to treat conditions where it does not work correctly, such as neurodegeneration, diabetes and cancer. Additionally, researchers are already trying to develop treatments for a number of diseases that work by inserting new RNA molecules into cells. Understanding how the chemical modification discovered by Cherry et al. protects RNAs from degradation could therefore improve the effectiveness of such treatments.

https://doi.org/10.7554/eLife.42262.002

Introduction

During the unfolded protein response (UPR), protein folding stress in the lumen of the endoplasmic reticulum leads to oligomerization of the transmembrane kinase/endoribonuclease Ire1 and the processing of a cytoplasmic mRNA to yield splicing intermediates with 2′,3′-cyclic phosphate (PO4) and 5′-hydroxyl (OH) termini (Gonzalez et al., 1999). In budding yeast, excision of an intron from the HAC1u mRNA (u’ denoting the unspliced mRNA) by Ire1 is followed by exon ligation by the multifunctional Trl1 RNA ligase (Sidrauski et al., 1996) involving 5′-phosphorylation of the 5′-OH product, adenylylation of the 5′-PO4, and resolution of the 2′,3′-cyclic PO4 to a 2′-PO4/3′-OH. The newly produced 3′-OH serves as the nucleophile to attack the 5′-adenylate intermediate, yielding a ligated mRNA with an internal 2′-PO4. The 2′-PO4 is assumed to be removed in a separate reaction by the 2′-phosphotransferase, Tpt1, in a NAD+-dependent reaction (Culver et al., 1997). The spliced mRNA, called HAC1s mRNA (s’ denoting spliced mRNA) (Li et al., 2018), is translated into a transcription factor that activates the expression of dozens of stress-response genes to mitigate protein-folding stress (Ron and Walter, 2007). In addition, Hac1 activates its own promoter in a positive feedback loop that generates more HAC1u and permits sustained UPR activation (Ogawa and Mori, 2004) (Figure 1A).

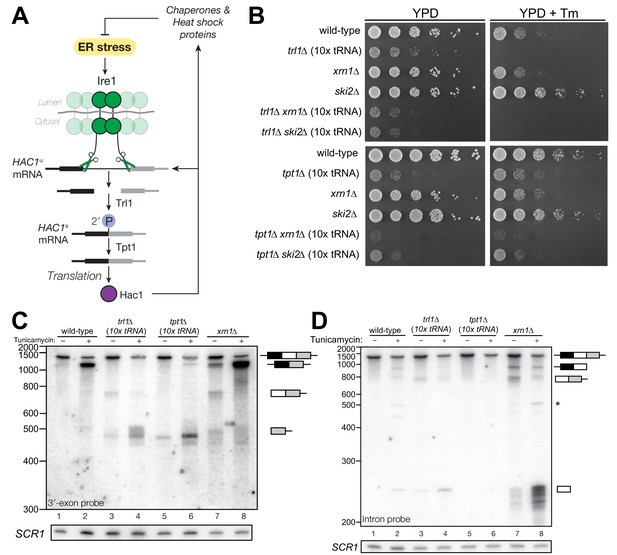

HAC1 mRNA processing defects in RNA repair and decay mutants.

(A) Schematic of the budding yeast unfolded protein response. ER stress activates Ire1 (green), which excises an intron (thin line) from HAC1u mRNA. The 5′ (black) and 3′ (grey) exons are ligated by Trl1 yielding spliced HAC1 (HAC1s) with a 2′-phosphate at the newly-formed ligation junction, which is subsequently removed by the 2′-phosphotransferase Tpt1. HAC1s mRNA is translated into a transcription factor (Hac1, purple) that upregulates the HAC1 gene itself (a positive feedback loop), as well as several chaperones and heat shock proteins that resolve the stress. (B) Yeast cells with mutations in RNA repair and decay factors were serially diluted (5-fold) and spotted onto agar media (YPD and YPD containing tunicamycin (Tm; 0.16 µg/mL)), grown at 30°C for 2 days, and photographed. The ‘10x tRNA’ plasmid encodes 10 intronless tRNAs that bypass the lethality of trl1∆ and tpt1∆ (Cherry et al., 2018). The top panels depict cells with deletions of the RNA ligase TRL1 and the bottom panels depict growth of cells deletions of the 2′-phosphotransferase TPT1. (C) HAC1 processing in RNA repair and decay mutants (3′-exon probe). HAC1u cleavage and ligation were analyzed in mutants of TRL1 RNA ligase and TPT1 2′-phosphotransferase by denaturing acrylamide gel northern blotting using a probe to the HAC1 3′-exon. Diagrams of HAC1u, HAC1s, and HAC1 splicing intermediates are drawn next to predominant bands (see Table 1 for descriptions and sizes of all annotations). HAC1u is cleaved and ligated to produce HAC1s in wild-type cells (lanes 1 and 2). Intron/3′-exon and 3′-exon splicing intermediates accumulate in trl1∆ cells, but HAC1s is not produced (lanes 3 and 4). In tpt1∆ cells, a small amount of cleaved 3′-exon is present in the absence of tunicamycin (lane 5), whereas HAC1s and 3′-exon accumulate upon tunicamycin induction (lane 6). Cells lacking xrn1∆ grown in the absence of tunicamycin produce HAC1s and Intron/3′-exon and 3′-exon splicing intermediates (lane 7), and tunicamycin addition causes an increase in production of HAC1s (lane 8). The blot was stripped and reprobed using a probe for SCR1 as a loading control. (D) HAC1 processing in RNA repair and decay mutants (intron probe). Linear intron (252 nt) is excised from HAC1u upon tunicamycin treatment (lanes 1 and 2) and linear intron is excised and accumulates in trl1∆ cells in the presence and absence of treatment (lanes 3 and 4). Excised intron is present a low levels in tpt1∆ cells (lanes 5 and 6), whereas xrn1∆ cells accumulate high levels of full-length intron and shorter, intron-derived decay intermediates (lanes 7 and 8). A star denotes excised and circularized intron, which migrates at ~500 nt.

https://doi.org/10.7554/eLife.42262.003
Table 1
HAC1 processing intermediates.
https://doi.org/10.7554/eLife.42262.004
NameSize (nt)Visual summaryDescription
HAC1u1450*Full-length, genomic HAC1 transcript
HAC1s1198*Spliced HAC1; intron removed
HAC1 5′-exon728Everything 5′ of the intron
Cleaved 5′-exon~678Fragment of 5′-Exon missing ~ 50 nt off its 3′-end
HAC1 intron252Liberated intron (alone)
circularized intron~500Circularized intron, visible in wild-type and RtcB cells
HAC1 3′-exon474*Everything 3′ of the intron
Cleaved 3′-exon~524*3′-Exon with ~ 50 nt of 5′-Exon on its 5′-end
5′-exon + intron9805′-exon + Intron
Intron + 3′-exon726*Intron + 3′-exon
  1. Sizes of HAC1 processing intermediates are predicted from strand-specific RNA sequencing data (Levin et al., 2010) mapped to the sacCer1 genome. *Size does not include poly(A) tail.

Control of this positive feedback loop ensures UPR suppression during normal growth and rapid activation upon stress exposure. To facilitate the control of UPR activation, HAC1u contains cis-regulatory elements that suppress unintended translation and promote rapid processing. A long-range base-pairing interaction between the 5′-UTR and intron prevents ribosome initiation to suppress translation of HAC1u mRNA (Chapman and Walter, 1997Di Santo et al., 2016). If a ribosome initiates on HAC1u, translation through the 5′-exon/intron junction yields a truncated protein with an intron-encoded C-terminal peptide ‘degron’ that targets it for ubiquitylation and degradation (Di Santo et al., 2016). A stem-loop (the ‘3′-BE’) in the 3′-untranslated region of HAC1 tethers the mRNA to the ER membrane, ensuring rapid Ire1-mediated cleavage following ER stress (Aragón et al., 2009).

Previous work found unexpected roles for RNA decay and repair enzymes acting on HAC1 mRNA in the budding yeast unfolded protein response. Ire1 is a metal-ion-independent endonuclease that produces RNA cleavage products with 5′-OH termini (Gonzalez et al., 1999). In cells lacking the cytoplasmic 5′→3′ exonuclease Xrn1, HAC1 splicing intermediates accumulate with 5′-PO4 termini, indicating that a RNA 5′-kinase phosphorylates HAC1 processing intermediates and that not all HAC1 splicing intermediates are productively ligated (Harigaya and Parker, 2012; Peach et al., 2015). In addition to its role in HAC1 exon ligation, Trl1 is required to relieve translational attenuation of HAC1s by an unknown mechanism (Mori et al., 2010). In cells expressing the T4 bacteriophage RNA repair enzymes PNK and RNL1 in lieu of TRL1, ligated HAC1 molecules contained single nucleotide deletions from the 3′-terminus of the 5′-exon, indicating that a 3′→5′ exonucleolytic activity acts on the cleaved 5′-exon (Schwer et al., 2004) and nuclear 3′→5′ decay of HAC1u liberates the 3′-BE, tuning the activation potential of the UPR (Sarkar et al., 2018).

Recent studies showed that RNA decay also plays a role in the UPR in other organisms. During UPR activation in the fission yeast, Ire1 incises specific mRNAs to promote their stabilization or degradation (Guydosh et al., 2017; Kimmig et al., 2012). This mode of Ire1 cleavage is similar to the metazoan Regulated Ire1-Dependent Decay (RIDD) pathway wherein Ire1 incises some ER-localized mRNAs and the cleavage products are degraded by Xrn1 and the cytoplasmic exosome (Hollien and Weissman, 2006).

Here, we used budding yeast with mutations in RNA repair and decay enzymes to show that HAC1 splicing intermediates are processed at multiple steps prior to ligation, limiting the impact of spurious Ire1 activation and unintentional HAC1 cleavage. Our studies also show that incompletely spliced HAC1s mRNA is targeted for degradation, which may be used to attenuate the UPR.

Results

RNA repair mutants have unique HAC1 mRNA processing defects

We recently showed that the functions of the essential RNA repair enzymes Trl1 and Tpt1 in budding yeast can be genetically bypassed by the expression of intronless tRNAs, which are able to support translation in trl1∆ and tpt1∆ cells (Cherry et al., 2018). Because Trl1 is required for HAC1s ligation and subsequent UPR activation (Sidrauski et al., 1996), trl1∆ cells are unable to grow on media containing tunicamycin (Figure 1B). In contrast, the general growth defect of tpt1∆ cells is unaffected by tunicamycin (Cherry et al., 2018) (Figure 1B), indicating that these cells can activate the UPR. Combination of trl1∆ and tpt1∆ with mutations in 5′→3′ and 3′→5′ decay factors xrn1∆ or ski2∆ led to more pronounced growth defects than the single deletions, but removal of these decay factors did not affect the growth deficit of trl1∆ or tpt1∆ cells on tunicamycin (Figure 1B).

Given the multiple enzymatic roles of Trl1 and Tpt1 during RNA repair, we sought to understand how the loss of these enzymes affected HAC1 mRNA splicing. We visualized HAC1 splicing intermediates by northern blotting with probes for the HAC1 3′-exon and intron (Figure 1C,D) and found cleavage and ligation of HAC1u in wild-type cells in the presence of tunicamycin, leading to high levels of HAC1s. As expected, trl1∆ cells lacking RNA ligase activity did not produce HAC1s upon tunicamycin treatment. However, cleaved 3′-exon and intron accumulated upon tunicamycin treatment in trl1∆ cells (Figure 1C,D), indicating a defect in 3′-exon decay. Cleaved HAC1 3′-exon often appears as a smear of products between ~450 nt and ~575 nt (Figure 1C); we attribute this size heterogeneity to differences in poly(A) tail presence or length, as the 5′-ends of these products occur uniformly at one site (Figure 5A).

The 2′-phosphotransferase Tpt1 is essential in budding yeast to remove 2′-phosphate groups from ligated tRNAs (Culver et al., 1997), but its role in HAC1 mRNA processing during the UPR has not been defined. Although the growth of tpt1∆ cells is unaffected by tunicamycin (Figure 1B), specific perturbations of HAC1 processing in tpt1∆ cells indicate that residual 2′-phosphate groups on HAC1 mRNA cause defects in cleavage and ligation. Whereas tunicamycin treatment led to cleavage of HAC1u and production of HAC1s in tpt1∆ cells, the levels of HAC1s (Figure 1C) and excised intron (Figure 1D) are lower than in wild-type cells. In addition, despite the fact that tpt1∆ cells have functional RNA ligase, cleaved 3′-exon accumulated to high levels upon tunicamycin treatment (Figure 1C, lane 6).

Kinase-mediated decay of cleaved HAC1 3′-exon competes with its ligation

To further investigate the 3′-exon decay defect, we examined splicing of HAC1 in xrn1∆ cells. We found that HAC1s accumulated in the absence of tunicamycin (Figures 1C, 2A, D, E and F). This promiscuous processing was surprising given that HAC1s is undetectable in wild-type cells under normal growth conditions, and it suggested that Xrn1 somehow limits production of HAC1s. In xrn1∆ cells, 3′-exon accumulated to modest levels in both the absence and presence of tunicamycin (Figure 2A), whereas in trl1∆ cells, HAC1 3′-exon accumulated to higher levels (Figure 2A and B). Moreover, the abundance of 3′-exon was similar in trl1∆ and trl1∆ xrn1∆ cells (Figure 2A), indicating that Xrn1 requires Trl1 for 3′-exon degradation. Previous work showed that Trl1 5′-kinase activity is required for the Xrn1-mediated degradation of excised tRNA introns in budding yeast (Wu and Hopper, 2014), and we considered whether this pathway also degraded HAC1 3′-exon. Indeed, expression of a kinase-inactive version of Trl1 (Trl1-D425N) (Wang et al., 2006) did not restore Xrn1-mediated decay of the 3′-exon (Figure 2B), affirming that the 5′-kinase activity of Trl1 ligase is required for Xrn1-mediated suppression of HAC1 splicing. We also tested whether the ligase activity of Trl1 affected HAC1 3′-exon abundance using an adenylyl-transferase/ligase defective allele (Trl1-K114A) (Sawaya et al., 2003) and found that additional 3′-exon accumulates compared to wild-type (Figure 2C), indicating that ligation also contributes to processing of free 3′-exon. Furthermore, we examined the accumulation of 3′-exon in cells lacking Dxo1, a distributive, 5′-phosphate-dependent 5′→3′ exonuclease (Chang et al., 2012), and found that HAC1 3′-exon accumulation was unaffected in dxo1∆ cells. In addition, the levels of 3′-exon were similar in xrn1∆ and dxo1∆ xrn1∆ cells (Figure 2D), indicating that Xrn1 is the primary factor responsible for 5′→3′ decay of the 3′-exon.

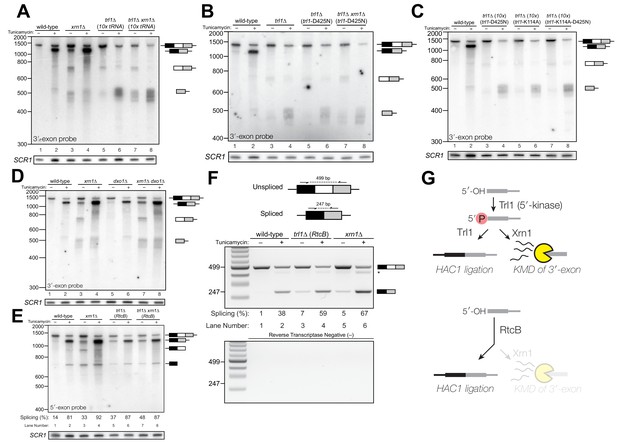

Kinase-mediated decay of HAC1 3′-exon competes with its ligation.

(A) Decay of cleaved HAC1 3′-exon requires Trl1. A northern blot for HAC1 3′-exon reveals that xrn1∆ (lanes 3 and 4) and trl1∆ (lanes 5 and 6) are mutations sufficient to cause 3′-exon to accumulate compared to wild-type. In xrn1∆ cells, the accumulation appears tunicamycin-treatment independent, whereas in trl1∆ cells the accumulation increases upon treatment. The accumulation is also present in xrn1trl1∆ cells (lanes 7 and 8). (B) Decay of cleaved HAC1 3′-exon requires the catalytic activity of Trl1 5′-kinase. We expressed a kinase-inactive missense mutant of Trl1 (Wang et al., 2006), trl1-D425N, to assess the contribution of RNA 5′-kinase activity to decay of HAC1 intermediates. Expression of trl1-D425N (lanes 5 and 6) caused similar accumulation of 3′-exon as in the trl1∆ deletion, and xrn1trl1-D425N cells have levels of 3′-exon similar to trl1-D425N alone (compare lanes 6 and 8), indicating that Trl1 5′-kinase activity is required for Xrn1-mediated decay. (C) 5′-kinase and ligase domains contribute to the abundance of liberated 3′-exon. We expressed a ligase-inactive missense mutant of Trl1 (Sawaya et al., 2003), trl1-K114A, to assess the contribution of ligation activity to levels of HAC1 intermediates. Expression of trl1-K114A (lanes 5 and 6) lead to a moderate accumulation of 3′-exon. The double missense mutant, trl1-K114A-D425N (lanes 7 and 8), has 3′-exon accumulation much like that of trl1-D425N, albeit stronger. (D) Dxo1 activity does not affect HAC1 3′-exon abundance or cause promiscuous ligation. Northern blot analysis of 3′-exon shows that dxo1∆ cells phenocopy wild-type cells, whereas xrn1∆ and dxo1xrn1∆ cells accumulate similar levels of 3′-exon, indicating that Dxo1 does not contribute substantially to 3′-exon abundance. (E) Cells lacking Trl1 and expressing E. coli RtcB promiscuously splice HAC1s. Northern blot analysis for HAC1 5′-exon shows that trl1∆ (RtcB) cells promiscuously splice HAC1s, similar to xrn1∆ cells (compare lanes 5 and 7 to lane 3), and the defects in HAC1 splicing in trl1∆ (RtcB) cells are unaffected by xrn1∆ (compare lanes 7 and 8 to 5 and 6). (F) RT-PCR assay to measure HAC1 splicing shows promiscuous splicing of HAC1s in RtcB and xrn1∆ cells. Similar to E), here an endpoint RT-PCR assay using primers that flank the intron or splice junction assesses and semi-quantifies HAC1 splicing. Tunicamycin induces HAC1s production in wild-type cells, (lanes 1 and 2) but HAC1s is detected in in trl1∆ (RtcB) and xrn1∆ cells under normal growth conditions (without tunicamycin, lanes 3 and 5). An asterisk marks an unidentified PCR product. (G) Model for kinase-mediated decay of cleaved HAC1 3′-exon. Ire1 cleavage produces a 3′-exon with a 5′-OH that is phosphorylated by Trl1 5′-kinase. The 5′-phosphorylated product is then adenylylated and ligated to the HAC1 5′-exon by Trl1, or degraded by the 5′-phosphate-dependent 5′→3′ exonuclease Xrn1. In xrn1∆ cells (top), the lack of robust 5′→3′ decay favors ligation, leading to promiscuous splicing under normal growth conditions. In trl1∆ cells expressing RtcB (bottom), RtcB directly ligates the 5′-OH products of Ire1 cleavage, and the lack of Trl1 5′-kinase activity renders Xrn1 decay irrelevant, causing promiscuous production of HAC1s.

https://doi.org/10.7554/eLife.42262.005

Together these data indicate that ligation and Xrn1-mediated 5′→3′ decay compete for the 5′-phosphorylated 3′-exon splicing intermediate (Figure 2G, top). Examination of HAC1 splicing in trl1∆ cells expressing the E. coli RtcB RNA ligase (Tanaka et al., 2011) provided additional evidence of a competition between ligation and decay. RtcB catalyzes ligation of 2′,3′-cyclic PO4 and 5′-OH RNA termini via a unique mechanism involving nucleophilic attack of the 5′-OH on a 3′-guanylate intermediate; accordingly, RtcB does not have 5′-kinase activity (Chakravarty et al., 2012). We found that upon tunicamycin treatment, HAC1s was produced in trl1∆ (RtcB) cells (Figure 2E), as shown previously (Tanaka et al., 2011). However, under normal growth conditions, trl1∆ (RtcB) cells also promiscuously spliced HAC1s at levels similar to xrn1∆ cells (Figure 2E and F). We propose that because HAC1 ligation by RtcB does not involve a 5′-phosphate intermediate, Xrn1 is unable to degrade the 5′-hydroxyl exon product of Ire1 cleavage, tipping the balance toward ligation and producing HAC1s under normal growth conditions (Figure 2G, bottom). Thus Xrn1-mediated decay of HAC1 3′-exon appears to counteract a low rate of background Ire1 cleavage to ensure the UPR is only activated when legitimately stressed.

Kinase-mediated decay of excised intron is required for HAC1s translation

In several instances, cells with mutations in repair and decay factors can splice HAC1 but fail to grow on media containing tunicamycin (Figure 3A), indicating that HAC1s production is not sufficient to activate the UPR. We assayed expression of KAR2, an ER chaperone and direct target of the Hac1 transcription factor (Kohno et al., 1993), and found that all repair and decay mutants express significantly less KAR2 mRNA upon tunicamycin treatment (Figure 3B), consistent with another layer of UPR regulation downstream of HAC1s production. Excised HAC1 intron accumulates upon tunicamycin treatment in trl1∆, xrn1∆, and trl1∆ xrn1∆ cells (Figure 3C). The intron decay products that accumulate in these cells are indicative of kinase-mediated decay: in xrn1∆ cells that lack Xrn1 but have 5′-kinase activity, intron products appear with a few distinct, smaller products below the full-length 252 nt excised intron (Figure 3C, lanes 3 and 4). In contrast, excised intron accumulated as a uniform,~250 nt product in trl1∆ cells that lack 5′-kinase activity (Figure 3C, lanes 5–8), independent of XRN1 status. Moreover, production of shorter decay products (like those present in xrn1∆ cells) was dependent on Trl1 5′-kinase catalytic activity (Figure 3D). Interestingly, expression of the adenylyl-transferase-dead/ligase-dead allele, trl1-K114A, also led to accumulation of some free HAC1 intron (Figure 3I), potentially indicating a role for ligation in the processing of liberated HAC1 intron. Together, these data show that excised HAC1 intron is a substrate for kinase-mediated decay with strict dependence on a 5′-phosphorylation step to promote 5′→3′ decay.

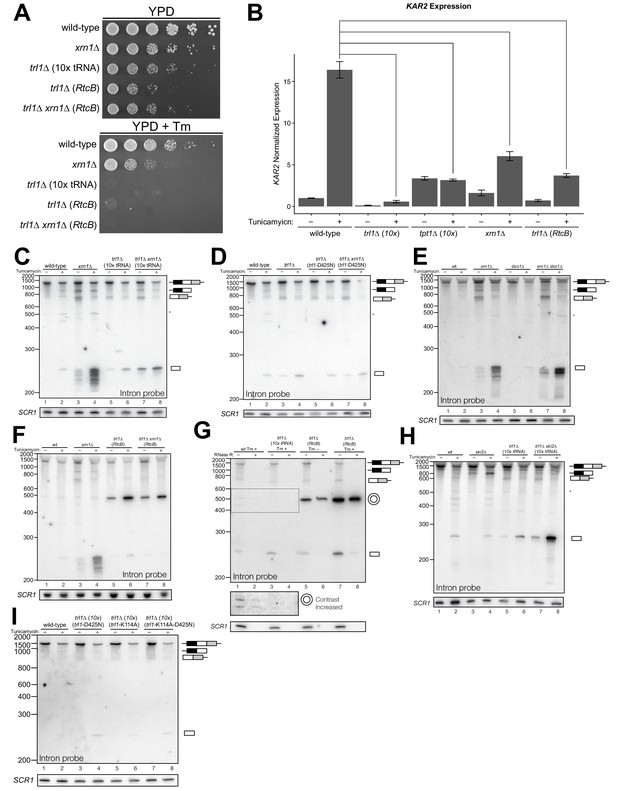

Kinase-mediated decay of excised HAC1 intron is required to activate the unfolded protein response.

(A) A serial dilution (5-fold) yeast growth assay on rich media (YPD) and tunicamycin-containing media (+Tm) compares the growth of xrn1∆, trl1∆ (10x tRNA), and trl1∆ (RtcB) cells to resist protein-folding stress. Growth of wild-type cells is modestly affected by tunicamycin, whereas growth of xrn1∆ cells is partially inhibited by tunicamycin. Cells that lack ligase (trl1∆), and cells expressing E. coli RtcB RNA ligase in lieu of TRL1 (Tanaka et al., 2011) both fail to grow on media containing tunicamycin, and this growth defect is not affected by xrn1∆. (B) Expression of a UPR-responsive gene is compromised in RNA repair and decay mutants. RT-qPCR of mRNA for KAR2 (BiP), a direct target of Hac1 (Kohno et al., 1993), performed on total RNA from the indicated genotypes shows that wild-type cells induce KAR2 expression by 16-fold upon tunicamycin treatment. (Error bars are 95% confidence interval, n = 3; comparison bars represent p<0.01, Student’s t-test.) trl1∆ cells show an insignificant increase in UPR induction, whereas tpt1∆ cells have elevated KAR2 levels in the absence of tunicamycin, which does not change significantly after tunicamycin treatment. trl1∆ (RtcB) and xrn1∆ cells have a modest increase in expression, but not to the same degree as wild-type (p<0.01). (C) Excised HAC1 intron is stabilized in xrn1∆ and trl1∆ cells. Northern blot analysis using a probe to HAC1 intron reveals that excised intron (252 nt) and partially-degraded intron intermediates accumulate in xrn1∆ cells. Ligase-delete cells (trl1∆) also accumulate intron as a uniformly sized 252 nt product. In xrn1∆ and trl1∆ cells, intron accumulates in the absence tunicamycin. (D) Catalytic activity of Trl1 5′-kinase is required for 5′→3′ decay of excised HAC1 intron. Northern blot analysis using a probe to HAC1 intron shows that a missense mutation in the 5′-kinase domain of Trl1 (trl1-D425N) phenocopies the HAC1 accumulation of trl1∆ cells (lanes 4 and 6, also C). (E) The distributive 5′→3′ exonuclease Dxo1 can partially degrade HAC1 intron. Northern blot analysis for HAC1 intron on total RNA from dxo1∆ and dxo1xrn1∆ cells shows that Dxo1 can partially degrade HAC1 intron when it accumulates in xrn1∆ cells (compare lanes 4, 6 and 8). (F) A slow-migrating intron species accumulates in trl1∆ cells expressing RtcB. Northern blot analysis of RNA from wild-type and trl1∆ cells shows that wild-type cells accumulate linear, partially degraded intron (lanes 1–4), whereas trl1∆ (RtcB), and trl1xrn1∆ (RtcB) cells accumulate a slower-migrating species (~500 nt; lanes 5–8). (G) Cells expressing RtcB accumulate circular HAC1 intron. To test whether the slower-migrating band was circularized, total RNA was treated with RNase R and analyzed by northern blot. The slower-migrating species is largely protected from degradation, indicating it is a circle. Linear HAC1 intron and SCR1 (bottom) are degraded upon RNase R treatment (lanes 2, 4, 6 and 8). A panel of enhanced contrast shows that the slower migrating species in wild-type cells are circular, excised HAC1 introns, resistant to RNase R. Circular intron only occurs in samples from cells expressing a ligase. (H) The cytoplasmic exosome degrades HAC1 intron when 5′→3′ decay is disabled. Northern blot analysis using a HAC1 intron probe on total RNA from ski2∆ (a component of the cytoplasmic exosome) cells showed that ski2∆ cells accumulate excised HAC1 intron (lane 4) at levels similar to wild-type (lane 3). In trl1ski2∆ cells, a lack of both kinase-mediated decay (trl1∆) and 3′→5′ decay (ski2∆) causes accumulation of excised intron relative to trl1∆ cells (compare lanes 6 and 8). (I) Catalytic activity of Trl1 ligase domain contributes to processing of excised HAC1 intron. We expressed a ligase-inactive Trl1 allele, trl1-K114A, as in Figure 2C. Expression of trl1-K114A (lanes 5 and 6) lead to a modest accumulation of intron, though not to the same extent as in the kinase-inactivated mutant (trl1-D425N) (lanes 3 and 4). The double missense mutant, trl1-K114A-D425N (lanes 7 and 8), exhibits intron accumulation similar that of trl1-D425N.

https://doi.org/10.7554/eLife.42262.006

A single deletion of Dxo1 had no effect on HAC1 intron degradation (Figure 3E); however, the sizes of smaller decay products in xrn1∆ dxo1∆ cells were subtly different than in xrn1∆ cells (Figure 3E), indicating that Dxo1 and other exonucleases partially degrade excised HAC1 intron, but only when it accumulates in xrn1∆ cells. Consistent with this notion, we found that the cytoplasmic exosome also contributes to HAC1 intron turnover (Figure 3H), but this mode of decay is unlikely to regulate the UPR as the growth of ski2∆ cells is unaffected by tunicamycin (Figure 1B).

In trl1∆ (RtcB) cells, excised HAC1 intron accumulates as a circle, evinced by its altered mobility and resistance to Xrn1-mediated decay in vivo (Figure 3F), and its resistance to RNase R degradation in vitro (Figure 3G). Circularization of the HAC1 intron by RtcB in trl1∆ cells is facilitated by 5′-OH and 2′,3′-cyclic PO4 termini created by Ire1 cleavage and the absence of Trl1 end modification activities that could otherwise produce termini incompatible with RtcB ligation (5′-PO4 or adenylylate; and 2′-PO4/3′-OH). It is noteworthy that circularized intron accumulates to high levels in the absence of tunicamycin (Figure 3F and G), indicating that Ire1 catalyzes a low level of intron excision (and 3′-exon excision (Figure 1C)) from HAC1u during normal growth, leading to the accumulation of stable, circularized introns in the presence of RtcB.

The HAC1 intron and 5′-UTR form an extensive base-pairing interaction that inhibits ribosome initiation (Chapman and Walter, 1997; Di Santo et al., 2016). Thus, together these data evoke a model in which kinase-mediated decay of the excised HAC1 intron is required for HAC1s translation, and a failure to degrade HAC1 intron—even when HAC1s is produced—prevents HAC1s translation and subsequent expression of stress-responsive genes. Despite their ability to make HAC1s, xrn1∆ and trl1∆ (RtcB) cells have growth defects on media containing tunicamycin (Figure 3A) and the relative severity of their defects parallels the accumulation of excised intron in these cells. Cells lacking Xrn1 have a modest growth defect and accumulate linear intron, which can be degraded by other exonucleases (Figure 3). In contrast, trl1∆ (RtcB) cells have a severe growth defect and accumulate high levels of a stable, circularized intron that is immune to exonucleolytic decay (Figure 3F and G). We believe these findings resolve the mystery of the previously identified ‘second function’ of Trl1 required for UPR activation (Mori et al., 2010), namely that—in addition to its ligase activity—Trl1 initiates kinase-mediated decay of the excised HAC1 intron, relieving its repressive effect on HAC1s and activating translation.

Incompletely processed HAC1s mRNA is endonucleolytically cleaved and degraded

In addition to the canonical 5′-exon product of 5′-splice site cleavage, a second product uniquely accumulates in tpt1∆ and tpt1∆ ski2∆ cells that is ~50 nt shorter than full-length 5′-exon (Figure 4A). Expression of a catalytically inactive form of Tpt1 (Tpt1-R138A, (Sawaya et al., 2005)) in tpt1∆ cells failed to rescue this defect (Figure 4B), affirming that the catalytic activity of Tpt1 is required to prevent accumulation of the shorter 5′-exon fragment. A corresponding elongated 3′-exon fragment accumulates in tpt1∆, and more intensely in tpt1xrn1∆ cells, indicating it is degraded by Xrn1 (Figure 4C–E). The elongated 3′-exon is specifically detected using a northern probe with a sequence complementary to the distal 3′-end of the 5′-exon (Figure 4C,D), indicating that a portion of the 5′-exon is responsible for the increased size of this decay intermediate. Moreover, a fragment of similar size hybridizes to a probe for the 3′-exon, suggesting that the sequence derived from 5′-exon is linked to the 3′-exon (Figure 4E); together these data indicate that HAC1s is cleaved upstream of the 2′-phosphorylated ligation junction in tpt1∆ cells, and these products are degraded by both Xrn1 and the cytoplasmic exosome.

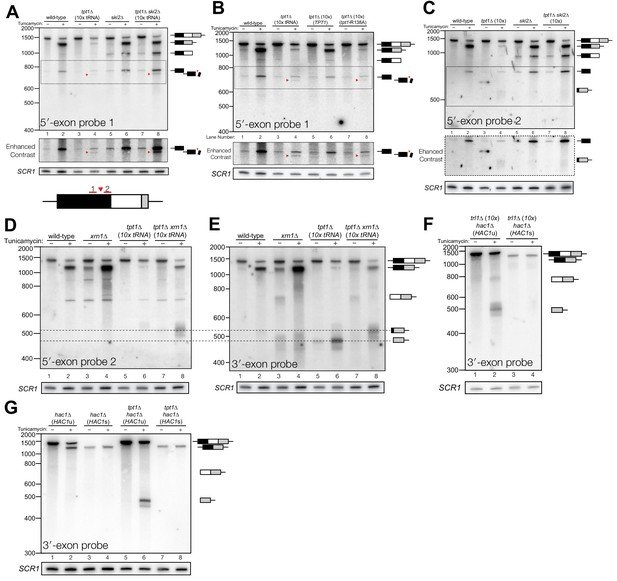

Incompletely processed HAC1s mRNA is cleaved and degraded.

(A) A shortened form of 5′-exon accumulates in tpt1∆ cells and is degraded by the cytoplasmic exosome. Northern blot analysis of tpt1∆ and tpt1ski2∆ using a probe to 5′-exon identified a shortened form of liberated 5′-exon, about 50 nt smaller than full-length (red arrowheads). A region of enhanced contrast shows the specific accumulation of this product in tpt1∆ and tpt1∆ ski2∆ cells. The bottom diagram depicts the relative positions of probes 1 and 2 on the HAC1 5′-exon; a red arrowhead marks the putative site of cleavage. (B) Production of shortened 5′-exon requires the catalytic activity of Tpt1. Northern blot analysis of tpt1∆ cells expressing either a plasmid-encoded wild-type copy of TPT1 or a catalytically-inactive missense mutant (tpt1-R138A) (Sawaya et al., 2005) using a probe for 5′-exon. Production of the cleaved 5′-exon seen in tpt1∆ cells (lane 4, red arrow marks the band) is rescued by plasmid-mediated expression of wild-type TPT1 (lane 6) but not by Tpt1-R138A (lane 8, red arrow marks the band), confirming that Tpt1 catalytic activity is required to prevent HAC1s secondary cleavage. (C) The shortened 5′-exon is missing a portion of its 3′-end. A northern blot was probed with 5′-exon probe 2, which hybridizes to the 3′-most 30 nt of HAC1 5′-exon (see diagram in A). Compared to the blot in (A), the shortened 5′-exon species is absent (lanes 4 and 8) and instead the probe detects smaller bands consistent with the length of the elongated 3′-exon (see region of enhanced contrast). (D) A lengthened form of 3′-exon accumulates in tpt1∆ cells. Total RNA from tpt1∆ and xrn1∆ cells was analyzed by northern blot with 5′-exon probe 2, a probe that anneals to the 3′-most 30 nt of HAC1 5′-exon. (D) and E) share the same band interpretation key, so dashed lines have been drawn across to illustrate the different positions of typical 3′-exon (474 nt) and elongated 3′-exon (524 nt). (E) The elongated 3′-exon from tpt1∆ cells co-migrates and co-hybridizes with 5′-exon probe 2 (see D). Stripping the blot from D) and re-hybridizing it with HAC1 3′-exon probe detects the same, elongated band(s) as in the 5′-exon probe two blot (lane 8), as well as HAC1 3′-exon bands of typical length. (F) Expression of ‘pre-spliced’ HAC1s is not sufficient to promote cleavage. Total RNA from trl1hac1∆ cells expressing HAC1u and HAC1s from a plasmid was analyzed by northern blot with a 3′-exon probe. Full length HAC1u expressed from this construct is cleaved upon tunicamycin addition (lane 2). Expression of ‘pre-spliced’ HAC1s yields a single product with no decay intermediates (lanes 3 and 4), indicating that ‘pre-spliced’ HAC1s—which was not produced by ligation and therefore lacks a 2′-phosphate—is not sufficient to recapitulate the cleavage found in tpt1∆ cells. (G) Expression of ‘pre-spliced’ HAC1s is not sufficient to promote secondary cleavage. Total RNA from hac1∆ and tpt1hac1∆ cells expressing HAC1u and ‘pre-spliced’ HAC1s from a plasmid was analyzed by northern blot with a 3′-exon probe. In hac1∆ cells, full length HAC1u expressed from this construct is cleaved and ligated upon tunicamycin addition (lane 2). Expression of ‘pre-spliced’ HAC1s yields a single product with no processing intermediates (lanes 3 and 4), indicating that ‘pre-spliced’ HAC1s is not further processed. The HAC1u construct expressed in cells of genotype tpt1hac1∆ (10x tRNA) gets cleaved upon tunicamycin treatment (lane 6), yielding a secondary cleavage fragment. Expression of pre-spliced HAC1s in tpt1hac1∆ cells does not produce any additional processing fragments, indicating that 2′-phosphorylated products from HAC1u are required for secondary cleavage in tpt1∆ cells.

https://doi.org/10.7554/eLife.42262.007

To determine whether HAC1s sequence is sufficient for cleavage, we expressed plasmid-encoded HAC1u and HAC1s in hac1∆ cells to identify HAC1 splicing intermediates. We performed the analysis on trl1∆ cells, reasoning that if HAC1s sequence were sufficient to cause cleavage, we would expect an accumulation of 3′-exon in cells unable to carry out ligation or degrade the products by kinase-mediated decay. Tunicamycin treatment of trl1∆ hac1∆ cells expressing HAC1u caused Ire1-mediated cleavage and accumulation of cleaved 3′-exon (Figure 4F). However, we found that full length HAC1s was the only product produced in the trl1∆ hac1∆ cells in the presence and absence of tunicamycin (Figure 4F). Furthermore, expression of HAC1s in a tpt1∆ background failed to produce additional fragments (Figure 4G), whereas expression of HAC1u is sufficient in the tpt1∆ background to produce free HAC1 3′-exon, consistent with its secondary cleavage. Together, these results (Figure 4F and G) indicate that the HAC1s transcript is not sufficient to recapitulate the secondary cleavage, and that HAC1u must be cleaved and ligated to produce the 2′-phosphorylated HAC1s secondary cleavage substrate.

To further characterize this secondary cleavage product, we determined the 5′ end of the elongated 3′-exon. We analyzed the 5′-ends of cleaved 3′-exon by primer extension and found that cleaved 3′-exon was barely detectable in wild-type cells upon tunicamycin addition, whereas 3′-exon accumulated in trl1∆ cells due to a lack of kinase-mediated decay (Figure 5A). In tpt1∆ cells treated with tunicamycin, two products accumulated upon tunicamycin addition: a product consistent with canonical length 3′-exon and a small amount of elongated 3′-exon (Figure 5A). The elongated product accumulated in tpt1∆ xrn1∆ cells, again indicating it is degraded by Xrn1 (Figure 5A). To test this prediction (summarized in Figure 5B), we measured the susceptibility of 3′-exon fragments to treatment in vitro with recombinant Xrn1 (rXrn1/TEX). As expected, fragments from xrn1∆ cells were degraded by rXrn1 (Figure 5C), establishing that they have 5′-PO4 termini, whereas 3′-exon fragments from trl1∆ cells were resistant to rXrn1 degradation (Figure 5C), indicating that they have 5′-OH termini.

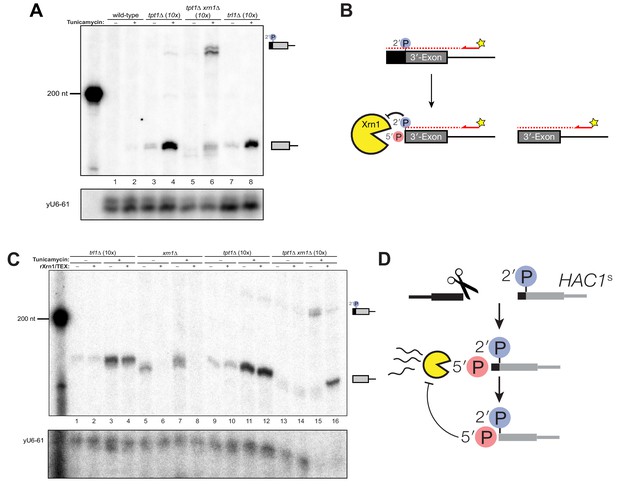

A 5′- and 2′-phosphorylated HAC1 decay intermediate inhibits Xrn1.

(A) Primer extension analysis of HAC1 3′-exon cleavage products. Primer extension using a probe for 3′-exon was performed on total RNA from wild-type, tpt1∆ (10x tRNA), tpt1∆ xrn1∆ (10x tRNA), and trl1∆ (10x tRNA) cells treated with or without tunicamycin. A loading control for U6 snRNA is depicted in the bottom panel. The extension product of cleaved 3′-splice site is 174 nt, found in wild-type cells treated with tunicamycin (lane 2) and is present in untreated trl1∆ cells but increases upon tunicamycin treatment (lanes 7 and 8). An extension product from tpt1∆ cells accumulates upon tunicamycin treatment (lanes 3 and 4) and co-migrates with the product from wild-type (lane 2) and trl1∆ (lane 8) cells. In addition, a faint elongated product at ~225 nt is present in tpt1∆ cells (lane 4). This elongated product accumulates to higher levels in tpt1∆ xrn1∆ cells treated with tunicamycin (lane 6). (B) Model of HAC1 3′-exon primer extension product lengths. A 5′-radiolabeled (yellow star) primer (HAC1 3′-exon probe, see Table 2) anneals to HAC1 3′-exon mRNA and primes cDNA synthesis by a reverse transcriptase. The reverse transcriptase stops synthesizing cDNA when it runs out of RNA template at the 5′-terminus of the 3′-exon. The model shows three situations as observed in (A): 1) canonical 3′-exon cleavage fragments (lower right), as observed in trl1∆ cells; 2) extended HAC1 3′-exon (above reaction arrow), as caused by secondary cleavage of HAC1s, observed in tpt1xrn1∆ (10x) cells; and 3) extended HAC1 3′-exon on which Xrn1 (cellular or in vitro) initiated decay, but failed to proceed past the 2′-P (beneath arrow). (C) Susceptibility of 3′-exon cleavage products to in vitro Xrn1 degradation. Total RNA from (A) was treated with recombinant Xrn1 (rXrn1) and analyzed by primer extension for the 3′-exon. The loading control performed on U6 snRNA is depicted in the bottom panel. The 3′-exon from trl1∆ cells accumulates upon tunicamycin treatment (compare lanes 1 and 2 to 3 and 4) but the 3′-exon is resistant to rXrn1 (lanes 3 and 4) because it lacks a 5′-phosphate due to lack of Trl1 5′-kinase activity in these cells. In contrast, the 3′-exon products from xrn1∆ cells, which have Trl1 5′-kinase and thus 5′-phosphates, are degraded by rXrn1 (lanes 6 and 8). The 3′-exon product in tpt1∆ cells is resistant to rXrn1 treatment (compare lanes 9 to 10, and 11 to 12), despite the fact these cells have both Trl1 and Xrn1. The elongated 3′-exon product that accumulates in tpt1∆ xrn1∆ cells is partially degraded by rXrn1 (compare lane 15 to 16) and the decay intermediate co-migrates with cleaved 3′-exon. (D) Model depicting cleavage and decay of 2′-phosphorylated HAC1s. HAC1s is cleaved (likely by Ire1)~50 nt upstream of the 2′-phosphorylated ligation junction, creating a 3′-product with ~50 nt of sequence of the 5′-exon (black) and an internal 2′-phosphate. Xrn1 initiates decay at the 5′-terminus, degrading the 5′-exon portion (black) up to the site of 2′-phosphorylation. The product of partial decay contains a 5′- and 2′-phosphate at its first position, which inhibits further degradation by Xrn1.

https://doi.org/10.7554/eLife.42262.008

The instructive findings came from examining 3′-exon accumulation in tpt1∆ cells. The 3′-exon fragment of canonical length that accumulates in tpt1∆ cells was resistant to rXrn1 treatment (Figure 5C), while the elongated fragment of 3′-exon is susceptible to rXrn1 treatment (Figure 5C, lanes 15 and 16). These observations indicate that 3′ product of secondary cleavage of HAC1s is a substrate of Xrn1 in vivo and in vitro, raising the possibility that it may also be a substrate of kinase-mediated decay, depending on the chemistry of the endoribonuclease that generates the secondary cleavage. We propose these products are created via two steps: (i) HAC1s is cleaved ~50 nt upstream of the 2′-phosphorylated ligation junction; (ii) Xrn1 partially degrades the intermediate fragment to the site of 2′-phosphorylation, which inhibits further degradation (Figure 5D). Under this model, the 3′-exon fragment that accumulates in tpt1∆ cells has both 5′-PO4 and 2′-PO4 moieties at its first position, which inhibits Xrn1-mediated decay in vivo and in vitro (Figures 1C, 4D, 5A and C).

The accumulation of HAC1 decay intermediates in tpt1∆ cells over time further supports a model of HAC1s cleavage by Ire1. In tpt1∆ cells, the accumulation of secondary cleavage product coincides with the increase in production of HAC1s at 20 min (Figure 6). In tpt1∆ cells, cleaved HAC1 3′-exon is present at low levels at steady state and accumulates over the course of two hours upon tunicamycin treatment (Figure 6A). HAC1s is also generated in tpt1∆ cells, but at significantly reduced levels compared to wild-type (Figure 6A). It is also notable that tpt1xrn1∆ cells and tpt1ski2∆ cells accumulate more spliced HAC1s than tpt1∆ cells (Figure 6E), suggesting that some HAC1s molecules or splicing intermediates in tpt1∆ cells are degraded, possibly because they contain 2′-PO4 moieties. At all time points, tpt1∆ cells contain more free 3′-exon than HAC1s, a ratio opposite to wild-type cells (Figure 6A), indicating that that 3′-exon cleaved from HAC1u accumulates as a result of partial decay of 5′- and 2′-phosphorylated HAC1s. The augmented accumulation of 3′-exon in tpt1∆ cells is also observed in the primer extension analysis (Figure 5A). The in vitro ability of Xrn1 to only partially degrade elongated HAC1 3′-exon from tpt1xrn1∆ cells, and inability to degrade canonical 3′-exon from tpt1∆ cells, indicates that the accumulation of free HAC1 3′-exon is likely caused primarily by blocked 5′→3′ degradation.

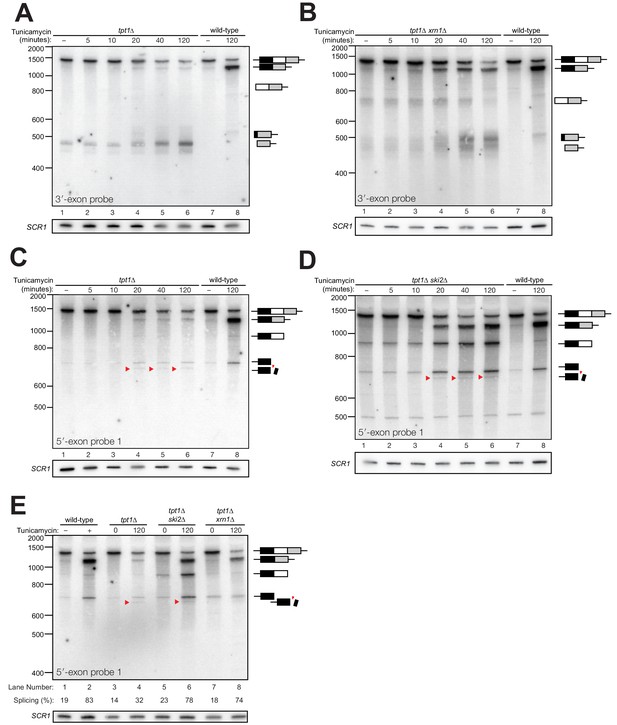

Kinetic analysis of HAC1 mRNA processing in cells lacking Tpt1.

(A) Northern blot analysis of a time course of tunicamycin treatment (0 to 120 min) in tpt1∆ (10x tRNA) cells showing the dynamics of HAC1u splicing using a probe for 3′-exon. The SCR1 loading control is shown below the panel. RNA from wild-type cells treated for 0 and 120 min tunicamycin was loaded in lanes 7 and 8. HAC1s accumulates slowly over 120 min and its abundance at the end of the time-course is 35-fold lower than wild-type (lanes 6 and 8). A 3′-exon cleavage product (~475 nt) is present at time 0 and accumulates over time; its increase is coincident with the appearance of HAC1s (20 min time point) and its abundance at 120 min exceeds the level of HAC1s. A 3′-exon cleavage product in wild-type cells (~500 nt) is apparent at 120 min (lane 8). (B) Northern blot analysis of HAC1 splicing in tpt1∆ xrn1∆ (10x tRNA) cells using a probe for 3′-exon. Conditions are the same as A). HAC1s increases at 20 min and its final level (lane 6) is higher than HAC1s in tpt1∆ cells (A), lane 6), approaching wild-type levels (lane 8). Levels of the product of 5′-splice site cleavage (intron/3′-exon) accumulate over 120 min. The 3′-exon product (~475 nt) and cleaved 3′-exon (~500 nt) begin accumulating at 20 min, coincident with increased levels of HAC1s. A 3′-exon cleavage product in wild-type cells (~500 nt) is apparent at 120 min (lane 8). (C) Northern blot analysis of HAC1 splicing in tpt1∆ (10x tRNA) cells using a probe for 5′-exon. Conditions are the same as A). HAC1s increases at 20 min up to final level. Canonical 5′-exon (728 nt) and secondarily-cleaved 5′-exon (~675 nt; red arrowheads) begin accumulating at 20 min, coincident with increased levels of HAC1s. (D) Northern blot analysis of HAC1 splicing in tpt1∆ ski2∆ (10x tRNA) cells using a probe for 5′-exon. Deletion of SKI2 in the context of tpt1∆ increases the abundance of nearly all intermediates relative to tpt1∆ alone (A). Shortened HAC1 5′-exon is marked with red arrowheads. The product of 3′-splice site cleavage (5′-exon/intron) is present at time 0 and accumulates over 120 min, whereas HAC1s accumulates beginning at 20 min. (E) Northern blot analysis of HAC1 splicing using a probe for 5′-exon to compare the beginning and end time points of time course experiments performed on tpt1∆, tpt1xrn1∆, and tpt1ski2∆. Results from densitometry of the spliced and unspliced bands are written beneath the blot. Less HAC1 splicing takes place in tpt1∆ cells compared to wild type, and disabling decay factors ski2∆ and xrn1∆ in the tpt1∆ mutant lead to increased HAC1 splicing, compared to tpt1∆ alone.

https://doi.org/10.7554/eLife.42262.009

Discussion

Many different regulatory events impinge on HAC1 mRNA to control its localization and processing. It has been assumed that cleavage of HAC1u by Ire1 is the rate-limiting step for UPR activation. Counter to this view, we found that decay of HAC1 splicing intermediates is required for both UPR activation and suppression. We found several examples wherein ‘kinase-mediated decay’ (KMD) degrades HAC1 splicing intermediates containing 5′-OH termini by sequential 5′-phosphorylation and 5′-phosphate-dependent 5′→3′ exonucleolytic degradation (Figure 7).

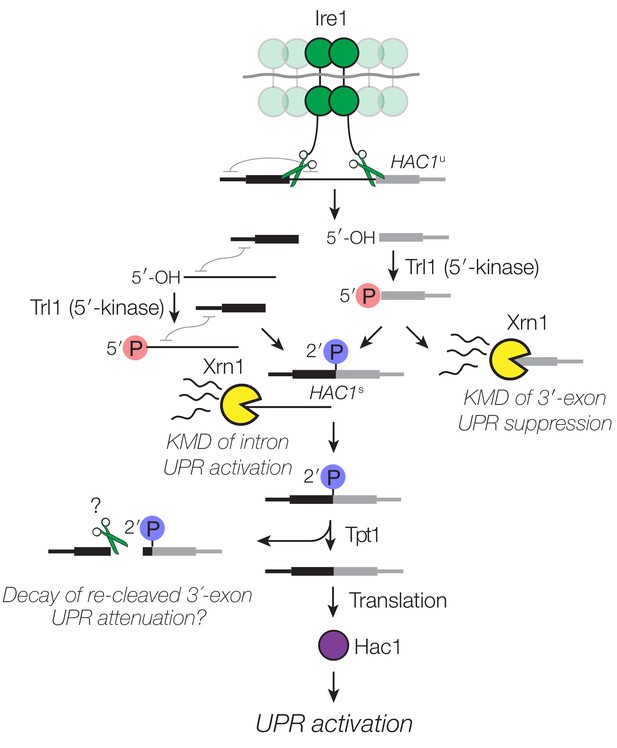

Decay of HAC1 splicing intermediates regulates UPR activation, suppression, and attenuation.

Activation of Ire1 by ER stress activates its endoribonuclease activity, leading to cleavage of the 5′- and 3′-splice sites of HAC1u. The cleaved 3′-exon (grey) is phosphorylated by the 5′-kinase activity of Trl1, permitting either its ligation or decay by Xrn1. The 5′-exon (black) and intron (thin line) form an extensive base-pairing interaction (grey squiggle). Kinase-mediated decay of the intron is required to activate the translation of HAC1s. Ligated but 2′-phosphorylated HAC1s may also be cleaved by Ire1 upstream of the ligation junction, and the cleavage products are degraded by Xrn1 and the cytoplasmic exosome. In cells lacking Tpt1, a unique KMD intermediate accumulates with 5′- and 2′-phosphates, which inhibit Xrn1-mediated degradation.

https://doi.org/10.7554/eLife.42262.010

We propose that after 3′-splice site cleavage by Ire1, the Trl1 5′-kinase domain associates with and phosphorylates the 5′-OH of the 3′-exon product (Figure 7). Dissociation of the Trl1 kinase active site from the 5′-PO4 product then enables a competition between reassociation of Trl1 (now its adenylyltransferase/ligase domain) to catalyze ligation—or Xrn1 to catalyze degradation. In some circumstances, this balance is tipped to favor ligation even in the absence of overt UPR stimulation: a lack of decay in xrn1∆ cells favors ligation, whereas the lack of 5′-kinase activity in trl1∆ (RtcB) cells renders Xrn1 decay irrelevant (Figure 2E and F). Xrn1 is abundant in budding yeast (Ghaemmaghami et al., 2003), which may efficiently suppress the UPR under normal conditions by degrading spuriously cleaved HAC1 3′-exon intermediates. Regulation of the ligation step of HAC1s splicing makes intuitive sense because it is the last opportunity to act during splicing; once ligated, HAC1s is again protected by a 7-methylguanosine cap and a poly-(A) tail. Spurious HAC1 splicing was previously reported in trl1∆ cells expressing the tRNA ligase from Arabidopsis thaliana (Mori et al., 2010). It is noteworthy that there are mechanistic differences between the tRNA ligases of A. thaliana and another yeast (K. lactis) (Remus and Shuman, 2014), suggesting that these differences could impact the balance between kinase-mediated decay and ligation in budding yeast expressing plant RNA ligase.

We also found that excised HAC1 intron is a substrate of kinase-mediated decay (Figure 3). Indeed, we believe that phosphorylation of HAC1 intron by Trl1 to promote kinase-mediated decay is the previously proposed ‘second role’ of Trl1 ligase in activating HAC1 translation independent of ligation (Mori et al., 2010). In this previous study, excised and circularized HAC1 intron was found to remain associated with HAC1s, inhibiting translation. Kinase-mediated decay of excised intron therefore likely relieves the long-range base-pairing interaction that prevents HAC1s translation (Chapman and Walter, 1997; Di Santo et al., 2016; Rüegsegger et al., 2001), explaining how HAC1s can accumulate without concomitant UPR activation. This second layer of control over HAC1s translation by KMD adds another failsafe mechanism to prevent its translation and unintentional UPR activation.

Previous examples of kinase-mediated decay of bacterial mRNAs (Durand et al., 2012), eukaryal tRNA introns (Wu and Hopper, 2014), ribosomal RNA processing intermediates (Gasse et al., 2015), and no-go mRNA decay cleavage products (Navickas et al., 2018) suggest that this mode of decay may be widespread. Coupling of RNA 5′-kinase and 5′→3′ exonucleolytic decay activities in the context of kinase-mediated decay may regulate the UPR in other organisms. Splicing of Xbp-1 mRNA in metazoans (the functional homolog of HAC1) is catalyzed by Ire1-mediated removal of an intron and ligation by RtcB RNA ligase (Kosmaczewski et al., 2014; Lu et al., 2014). Fundamental differences in the chemistry of RNA ligation between fungal and metazoan ligases suggest that Xbp-1 may be subject to a biochemically distinct mode of regulation. Because RtcB depends on 5′-OH and 3′-PO4 termini for catalysis (Chakravarty et al., 2012), activities that remodel 5′-OH RNA termini could divert Ire1-generated 5′-OH splicing intermediates from productive ligation. To that point, cyclic nucleotide phosphodiesterase (CNP) and RtcA (a 2′,3′-RNA cyclase) were shown to ‘tune’ the UPR in metazoans by competing with RtcB/HSCP117 for ligation substrates (Unlu et al., 2018). Specifically, CNP hydrolyzes the 2′,3′-cyclic phosphate compatible RtcB to a 2′-PO4 incompatible with RtcB, decreasing ligation of Xbp1. Conversely, RtcA, which converts 2′-PO4 RNA to 2′,3′-cyclic phosphate, makes the terminus compatible with RtcB, thus enhancing Xbp1 splicing.

Additionally, an RNA 5′-kinase (e.g., Clp1) may phosphorylate the 3′-exon product of Xbp-1 cleavage, simultaneously inhibiting ligation by RtcB and promoting its degradation by a 5′-phosphate-dependent exoribonuclease to limit UPR activation. In this vein, it is noteworthy that kinase-inactivating mutations in Clp1 cause neurodevelopmental defects and neuronal dysfunction in humans, mice, and zebrafish (Hanada et al., 2013; Karaca et al., 2014; Schaffer et al., 2014), possibly due to chronic UPR activation in neural tissues (Clayton and Popko, 2016). Xrn1 degrades mRNA fragments generated during metazoan Regulated Ire1-dependent Degradation (RIDD) (Hollien and Weissman, 2006); however, it is not known how these 5′-OH cleavage products of Ire1 are phosphorylated for Xrn1-mediated decay. The RNA 5′-kinase Clp1 (Weitzer and Martinez, 2007) and polynucleotide kinase Nol9 (Heindl and Martinez, 2010) are candidates for this activity, though neither are known to phosphorylate mRNA decay intermediates.

While 5′→3′ decay plays a major role in UPR regulation, we found little evidence for UPR regulation by 3′→5′ decay activity. As shown previously (Schwer et al., 2004), the exposed 3′-end of cleaved HAC1 5′-exon is a substrate for 3′→5′ decay (Figure 4). But while excised HAC1 intron is stabilized in ski2∆ cells lacking cytosolic 3′→5′ decay (Figure 3H), their growth is unaffected by tunicamycin (Figure 1B), indicating that 3′→5′ decay of the excised intron does not contribute substantially to intron-mediated HAC1s repression.

We also found evidence that incompletely processed HAC1s mRNA is cleaved, which is ligated but contains an internal 2′-PO4 moiety. Cleavage of HAC1s leads to 5′ and 3′ fragments that are degraded; however, the 3′-fragment is only partially degraded by kinase-mediated decay, producing a 5′- and 2′-phosphorylated molecule that cannot be degraded by Xrn1. Consistent with these findings, a recent study also showed that an RNA with an internal 2′-phosphate group is protected from 3′→5′ decay by E. coli PNPase in vitro (Munir et al., 2018); those and our results together indicate that site-specific installation of a 2′-PO4 is an effective strategy to protect an RNA from complete exonucleolytic degradation in vivo or in vitro.

Decay intermediates produced from incompletely processed, 2′-phosphorylated HAC1s have not been previously observed and suggest a plausible regulatory role for Tpt1 in regulating HAC1s fate. We have yet to determine the impact of 2′-phosphorylation on HAC1s translation, but given that tpt1∆ cells grow on tunicamycin (Figure 1B and Cherry et al., 2018) and activate KAR2 gene expression (Figure 3B), it is likely that some Hac1 protein is produced from 2′-PO4 HAC1s mRNA. It also remains to be determined how and why incompletely processed HAC1s is cleaved. Insofar as the HAC1s cleavage substrate is initially produced by tunicamycin-dependent Ire1 cleavage and ligation, we conjecture that Ire1 incises ligated, 2′-phosphorylated HAC1s upstream of the original ligation junction, yielding smaller 5′-exon and larger 3′-exon fragments. Formally, we cannot currently rule out the possibility that another endonuclease catalyzes secondary HAC1s cleavage; however, Ire1 is the only endoribonuclease known to site-specifically incise HAC1 mRNA. We note that ire1∆ mutants are unable to initiate processing of HAC1u and therefore do not make HAC1s in the first place (Sidrauski and Walter, 1997), precluding direct analysis of HAC1s cleavage in ire1∆ mutants.

We showed that the 2′-PO4 is required for cleavage, as expression of ‘pre-spliced’ HAC1s does not lead to cleavage (Figure 4F and G). It is possible that the presence of a 2′-PO4 in the context of a composite Ire1 splice site (i.e., formed from two halves of the original 5′- and 3′-splice sites (Hooks and Griffiths-Jones, 2011; Sidrauski and Walter, 1997)) on HAC1s is recognized by Ire1, but because a 2′-OH is the nucleophile for transesterification by metal-independent Ire1 (Gonzalez et al., 1999), the 2′-PO4 inhibits the chemical step of incision. This model also provides a plausible mechanism to explain how Ire1 incises a neighboring, non-canonical site. We propose that a failure of Ire1 to release 2′-phosphorylated HAC1s would enable the active site of a nearby Ire1 molecule—in the context of its activated, oligomeric form (Korennykh et al., 2009)—to catalyze site-specific incision at the second, upstream site. Our results also raise the question of why Ire1 would cut incompletely processed HAC1s. Here, cleavage of incompletely processed (ligated, but 2′-phosphorylated) HAC1s could be a means to inactivate HAC1s after prolonged stimulation to attenuate the UPR (Chawla et al., 2011; Rubio et al., 2011).

Materials and methods

Yeast strains and plasmids

Yeast strains and sources used in this study are listed in Table 3. Plasmids were created as indicated in Table 3.

Cell culture and RNA preparation

Single colonies were inoculated in drop-out media supplemented with relevant amino acids and incubated at 30°C overnight with rotation. Cultures were diluted to an OD600 of 0.2 in yeast-extract, peptone, dextrose (YPD) media, and UPR induction was carried out when yeast were growing at mid-log phase with a 2 hr treatment (unless otherwise indicated) with tunicamycin (final concentration of 2.5 µg/mL, Sigma-Aldrich) or DMSO mock treatment. Cells were harvested by centrifugation, and total RNA was isolated by hot acid phenol extraction. For RT-PCR and RT-qPCR experiments, total RNA was treated with TURBO DNase (2 U, Ambion) to degrade contaminating genomic DNA.

RT-PCR/qPCR

DNase-treated RNA was reverse transcribed with 200 U of SuperScript III reverse transcriptase (Invitrogen) using a gene-specific reverse primer (Table 2). Products analyzed on a 1.5% agarose TBE gel, stained with 1x GelRed (Sigma) and imaged with a Bio Rad GelDoc. Densitometry was performed with Bio-Rad Image Analysis software and splicing quantifications were computed and visualized in R using ggplot2 and cowplot R Packages. Quantitative PCR (qPCR) for KAR2 was also performed on cDNA as generated above, and assayed for KAR2 and PGK1 using Sso Advanced Universal SYBR Green Supermix (Bio Rad) and cycled on a Bio Rad C1000 384-well thermal cycler and plate reader. Output Ct values were analyzed in Microsoft Excel and plotted in R using ggplot2 and cowplot R Packages.

Table 2
Oligonucleotide sequences.
https://doi.org/10.7554/eLife.42262.011
Oligonucleotide nameOligonucleotide sequence (5′→3′)
HAC1-F RT-PCRACCTGCCGTAGACAACAACAAT
HAC1-R RT-PCRAAAACCCACCAACAGCGATAAT
KAR2 qPCR FAAGACAAGCCACCAAGGATG
KAR2 qPCR RAGTGGCTTGGACTTCGAAAA
PGK1 qPCR FTCTTAGGTGGTGCCAAAGGTT
PGK1 qPCR RGCCTTGTCGAAGATGGAGTC
HAC1 5′-exon probe 1AAGTCTCTTGGTCCGACGCGGAATCGCGCA
HAC1 5′-exon probe 2CTGGATTACGCCAATTGTCAAGATCAATTG
HAC1 intron probe 1AACCGGCTCCTCCCCCATCAGAGAACCACGA
HAC1 intron probe 2GGACAGTACAAGCAAGCCGTCCATTTCTTAGT
HAC1 3′-exon probe (primer extension and northern)ACCGGAGACAGAACAGTAGAAACCACTAAGCG
KAR2 probeACCGTAGGCAATGGCGGCTGCGGTTGGTTC
SCR1 probe (oRP100)GTCTAGCCGCGAGGAAGG

Primer extension

Primers specific for HAC1 mRNA and U6 snRNA were PAGE-purified and ethanol precipitated. Oligonucleotide primers were 5′-end-labeled with PNK (Enzymatics) and γ-32P-ATP (Perkin Elmer) and purified with Sephadex G-25 spin columns (GE Healthcare resin, Thermo empty columns). Radiolabeled primers and total RNA (15 µg) were heated to 65°C for 5 min and cooled to 42°C. SuperScript III reverse transcriptase (200 U, Invitrogen) was added and reverse transcription reactions were run with a final concentration of 500 µM dNTPs. Primers were extended for 30 min at 42°C, 15 min at 45°C, and 15 min at 50°C. SuperScript III RT was inactivated by heating for 20 min at 75°C. RNA was destroyed with in 10 mM NaOH at 90°C for 3 min and neutralized with HCl. Formamide loading dye was added and products were run on a 8% acrylamide TBE 7M Urea gel. Gels were dried (Bio Rad) and exposed on a phosphor-imager screen and imaged on a Typhoon 9400 (GE Healthcare).

Northern blotting

Total RNA (3 µg) was electrophoresed on 6% acrylamide TBE 7M urea gels and transferred to nylon membrane (Hybond N+, GE) by electroblotting. Membranes were UV-crosslinked (254 nm, 120 mJ dose), blocked in ULTRAhyb-Oligo Buffer (Ambion), and incubated with 5′-32P-labeled oligonucleotide probes (Table 2) in ULTRAhyb-Oligo at 42°C for 18 hr. Membranes were washed with 2X SSC/0.5% SDS washing buffer two time for 30 min each, exposed on a phosphor-imager storage screen, and imaged on a Typhoon 9400 (GE Healthcare). Membranes were stripped of original probe with three washes in stripping buffer (2% SDS) at 80°C for 30 min per wash. Membranes were re-blocked and probed a second time for the loading control, SCR1 (Table 2).

Table 3
Strain numbers and genotypes.

All strains are background W303 (MATa {leu2-3,112 trp1-1 can1-100 ura3-1 ade2-1 his3-11,15}).

https://doi.org/10.7554/eLife.42262.012
Strain IDGenotypeSource
YJH682‘wild-type’ (CRY1)Mingxia Huang
YJH632xrn1∆::HygMX
YJH745ski2∆::NatMX
YJH898dxo1∆::KanMX
YJH867xrn1∆::HygMX dxo1∆::KanMX
YJH829tpt1∆::LEU2 (TPT1 CEN ARS URA3)Schwer et al., 2004
YJH830tpt1∆::LEU2 (TPT1 CEN ARS URA3) (pAG424-ccdB)
YJH832tpt1∆::LEU2 (TPT1 CEN ARS URA3) (pAG424-10x-tRNA)
YJH834tpt1∆::LEU2 (pAG424-10x-tRNA)
YJH980tpt1∆::LEU2 (pAG424-10x-tRNA) (pAG413-NPr-TPT1)
YJH891tpt1∆::LEU2 (pAG424-10x-tRNA) (pAG413-NPr-tpt1-R138A)
YJH902tpt1∆::LEU2 xrn1∆::HygMX (pAG424-10x-tRNA)
YJH901tpt1∆::LEU2 ski2∆::NatMX (pAG424-10x-tRNA)
YJH681trl1∆::KanMX (pRS416-TRL1)Schwer et al., 2004
YJH708trl1∆::KanMX (pRS416-TRL1) (pAG424)
YJH709trl1∆::KanMX (pRS416-TRL1) (pAG424-10x-tRNA)
YJH835trl1∆::KanMX (pAG424-10x-tRNA)
YJH887trl1∆::KanMX (pAG424-10x-tRNA) (pRS413-TRL1)
YJH811trl1∆::KanMX (pAG424-10x-tRNA) (pRS413-trl1-D425N)
YJH812trl1∆::KanMX xrn1∆::HygMX (pAG424-10x-tRNA) (pRS413-trl1-D425N)
YJH912trl1∆::KanMX (pAG424-10x-tRNA) (pRS413-trl1-K114A)
YJH913trl1∆::KanMX (pAG424-10x-tRNA) (pRS413-trl1-K114A-D425N)
YJH808trl1∆::KanMX (pRS423-TPI-RtcB)
YJH809trl1∆::KanMX xrn1∆::HygMX (pRS423-TPI-RtcB)
YJH899trl1∆::KanMX xrn1∆::HygMX (pAG424-10x-tRNA)
YJH900trl1∆::KanMX ski2∆::NatMX (pAG424-10x-tRNA)
YJH903trl1∆::KanMX hac1∆::NatMX (pAG424-10x-tRNA) (pAG413-GPD-HAC1u)
YJH904trl1∆::KanMX hac1∆::NatMX (pAG424-10x-tRNA) (pAG413-GPD-HAC1s)
YJH920hac1∆::NatMX (pAG424-10x-tRNA) (pAG413-GPD-HAC1u)
YJH921hac1∆::NatMX (pAG424-10x-tRNA) (pAG413-GPD-HAC1s)
YJH923tpt1∆::LEU2 hac1∆::NatMX (pAG424-10x-tRNA) (pAG413-GPD-HAC1u)
YJH924tpt1∆::LEU2 hac1∆::NatMX (pAG424-10x-tRNA) (pAG413-GPD-HAC1s)

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48

Decision letter

  1. Timothy W Nilsen
    Reviewing Editor; Case Western Reserve University, United States
  2. James L Manley
    Senior Editor; Columbia University, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Multiple decay events target HAC1 mRNA during splicing to regulate the unfolded protein response" for consideration by eLife. Your article has been reviewed by two peer reviewers, and the evaluation has been overseen by Timothy Nilsen as the Reviewing Editor and James Manley as the Senior Editor. The reviewers have opted to remain anonymous.

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

The reviewers were quite positive about the work and thought that it provided fundamental new insight into UPR biology and alternative fates of RNA. That said, both reviewers believed that a few additional straightforward experiments would enhance the impact of the work. The following revisions are required.

Essential revisions:

1) The authors should explicitly do an experiment along the lines of Figure 4F to determine in tpt1Δ hac1Δ cells if the 5' extended 3' exon or the 3' shortened 5' exon are produced when HAC1u or HAC1s are expressed. This experiment would unequivocally examine the origin of these fragments.

2) The authors should do a northern as part of Figure 6 to explicitly show that HAC1s is substantially increased in tpt1Δ xrn1Δ and in tpt1Δ ski2Δ cells, relative to that in tpt1Δ cells. It is a major finding, discussed in the Abstract, that this decay is occurring, and the direct comparison by Northern is easy to do.

3) In both examples of the kinase mediated decay pathway (Figure 2 for decay of the 3' exon, and Figure 3 for the decay of the excised intron), the authors have provided convincing evidence that the kinase activity of Trl1 is required for the accumulation of 3' exon and the intron. However, the authors should also show results from expressing a ligase-dead mutant to demonstrate that ligase activity is not required.

4) In Figure 3, it is not clear to this reader why trl1Δ mutants have less accumulated intron than xrn1Δ cells, if intron decay is occurring by kinase mediated decay. Would the authors speculate?

https://doi.org/10.7554/eLife.42262.015

Author response

Essential revisions:

1) The authors should explicitly do an experiment along the lines of Figure 4F to determine in tpt1Δ hac1Δ cells if the 5' extended 3' exon or the 3' shortened 5' exon are produced when HAC1-u or HAC1-s are expressed. This experiment would unequivocally examine the origin of these fragments.

We generated and verified cells with the ​tpt1​∆ hac1​∆ (10x tRNA​) genotype and transformed them with HAC1​ and ​HAC1​ expression plasmids. We analyzed HAC1 by northern blot and present the new result in a new panel Figure 4G. We describe the result with the additional sentence: “Furthermore, expression of ​HAC1s in a ​tpt1​∆ background also fails to produce additional fragments (Figure 4G), whereas expression of ​HAC1​ is sufficient in the tpt1​∆ background to produce the double-band secondary cleavage molecular phenotype.”

2) The authors should do a northern as part of Figure 6 to explicitly show that HAC1-s is substantially increased in tpt1Δ xrn1Δ and in tpt1Δ ski2Δ cells, relative to that in tpt1Δ cells. It is a major finding, discussed in the Abstract, that this decay is occurring, and the direct comparison by Northern is easy to do.

We analyzed both the time 0 and 120 minute samples from the relevant genotypes and blot for HAC1​ 3′-exon, quantifying the splicing percentages in each lane below (Figure 6E).

3) In both examples of the kinase mediated decay pathway (Figure 2 for decay of the 3' exon, and Figure 3 for the decay of the excised intron), the authors have provided convincing evidence that the kinase activity of Trl1 is required for the accumulation of 3' exon and the intron. However, the authors should also show results from expressing a ligase-dead mutant to demonstrate that ligase activity is not required.

We generated and confirmed yeast expression plasmids for the Trl1 alleles trl1​ ​-K114A (ligase-dead/adenylylation-dead) (Sawaya et al., 2003) and double-mutant trl1​ ​-K114A-D425N. We expressed those in a ​trl1​∆ (10x tRNA) background and performed intron and 3′-exon northern blots on these samples (new Figure 2C and Figure 3I).

In doing so, we add the sentences:

A) “We also tested whether the ligase activity of Trill affected HAC1​ 3′-exon abundance using an adenylyl-transferase/ligase defective allele (Trl1-K114A) ​(Sawaya et al., 2003) and found that additional 3′-exon accumulates compared to wild-type (​Figure 2C​), indicating that ligation also contributes to processing of free 3′-exon.”

And

B) “Interestingly, expression of the adenylyl-transferase-dead/ligase-dead allele, trl1​ ​-K114A, also led to accumulation of some free HAC1​ intron (Figure ​ 3I​), potentially indicating a role for ligation in the processing of liberated HAC1​ ​ intron.”

4) In Figure 3, it is not clear to this reader why trl1Δ mutants have less accumulated intron than xrn1Δ cells, if intron decay is occurring by kinase mediated decay. Would the authors speculate?

In fulfilling essential revision 3, we added a blot using trl1-K114A, a adenylylation-dead/ligase-dead allele of Trl1. This blot showed that both the kinase and adenylylation domains contribute to clearance of liberated ​HAC1​ intron from the cells. Sentence (2) from above addresses this point.

https://doi.org/10.7554/eLife.42262.016

Article and author information

Author details

  1. Patrick D Cherry

    1. Department of Biochemistry and Molecular Genetics, Program in Molecular Biology, School of Medicine, University of Colorado, Aurora, United States
    2. RNA Bioscience Initiative, School of Medicine, University of Colorado, Aurora, United States
    Contribution
    Conceptualization, Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6421-2035
  2. Sally E Peach

    Department of Biochemistry and Molecular Genetics, Program in Molecular Biology, School of Medicine, University of Colorado, Aurora, United States
    Contribution
    Conceptualization, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  3. Jay R Hesselberth

    Department of Biochemistry and Molecular Genetics, Program in Molecular Biology, School of Medicine, University of Colorado, Aurora, United States
    Contribution
    Conceptualization, Supervision, Funding acquisition, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    For correspondence
    jay.hesselberth@gmail.com
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-6299-179X

Funding

University of Colorado (RNA Bioscience Initiative)

  • Patrick D Cherry

National Institutes of Health (T32 GM008730)

  • Patrick D Cherry
  • Sally E Peach

University of Colorado (Victor W Bolie and Earleen D Bolie Graduate Scholarship)

  • Patrick D Cherry

National Institutes of Health (R35 GM119550)

  • Jay R Hesselberth

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank B Schwer and S Shuman for yeast strains and plasmids, and R Davis and S Jagannathan for comments on the manuscript. We thank Roy Parker for fruitful discussions. This work was supported in part by funding from National Institutes of Health (R35 GM119550 to JH; T32 GM008730 to SP and PC), the RNA Bioscience Initiative at the University of Colorado School of Medicine (PC), and the Victor W Bolie Graduate Scholarship (PC).

Senior Editor

  1. James L Manley, Columbia University, United States

Reviewing Editor

  1. Timothy W Nilsen, Case Western Reserve University, United States

Publication history

  1. Received: October 24, 2018
  2. Accepted: March 14, 2019
  3. Accepted Manuscript published: March 15, 2019 (version 1)
  4. Version of Record published: April 9, 2019 (version 2)

Copyright

© 2019, Cherry et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 1,063
    Page views
  • 184
    Downloads
  • 1
    Citations

Article citation count generated by polling the highest count across the following sources: Crossref, PubMed Central, Scopus.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Chromosomes and Gene Expression
    Robert F Levendosky, Gregory D Bowman
    Research Advance
    1. Chromosomes and Gene Expression
    Cori K Cahoon, Diana E Libuda
    Insight
