Dengue genetic divergence generates within-serotype antigenic variation, but serotypes dominate evolutionary dynamics

  1. Sidney M Bell
  2. Leah Katzelnick
  3. Trevor Bedford  Is a corresponding author
  1. Fred Hutchinson Cancer Research Center, United States
  2. University of Washington, United States
  3. University of California, Berkeley, United States
  4. University of Florida, United States
Research Article
Cite this article as: eLife 2019;8:e42496 doi: 10.7554/eLife.42496
6 figures, 5 tables and 1 additional file

Figures

Figure 1 with 1 supplement

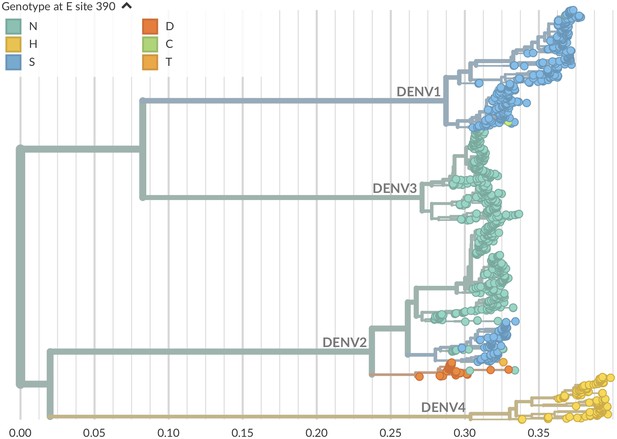

Phylogeny of dengue virus sequences and normalized antigenic distances.

(A) Maximum likelihood phylogeny of the E (envelope) gene from titered dengue viruses. Notably, each of the four serotypes contains substantial genetic diversity. (B) Pairwise antigenic distances were estimated by Katzelnick et al. (2015) using plaque reduction neutralization titers (PRNT50, see Materials and methods). Aggregated titer values are standardized such that the distance between autologous virus-serum pairs is 0, and each titer unit corresponds to a two-fold change in PRNT50 value. Light gray areas represent missing data. Larger values correspond to greater antigenic distance.

https://doi.org/10.7554/eLife.42496.002
Figure 1—figure supplement 1

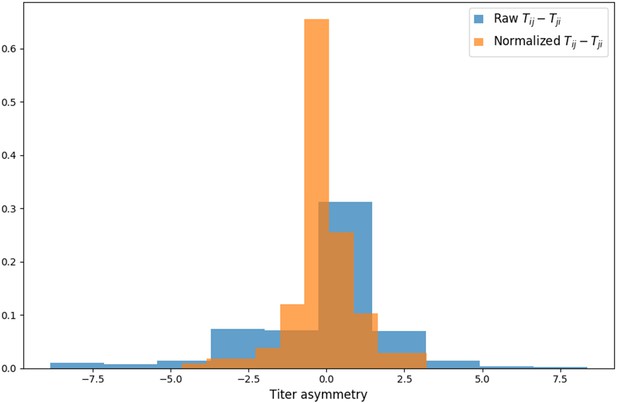

Titer value symmetry.

Some viruses have greater avidity overall, and some sera are more potent overall. We normalize for these row and column effects (vi and pj, respectively) in the titer model. Once overall virus avidity and serum potency are accounted for, titers are roughly symmetric (i.e., DijDji).

https://doi.org/10.7554/eLife.42496.003
Figure 2 with 2 supplements
Distribution and effect size of antigenic mutations.

Each point represents one antigenically relevant mutation or colinear mutation cluster. Clustered mutations are connected with dashed lines with point size proportionate to cluster size (N = 2–6). The x axis indicates mutations’ position in E, relative to each functional domain as noted in (B). The y axis indicates antigenic effect size.

https://doi.org/10.7554/eLife.42496.004
Figure 2—figure supplement 1
Genotype as site E 390 across dengue phylogeny.

Dengue virus genotypes can be seen on Nextstrain (Hadfield et al., 2018). A live view of this figure is available at nextstrain.org/dengue/.

https://doi.org/10.7554/eLife.42496.006
Figure 2—figure supplement 2

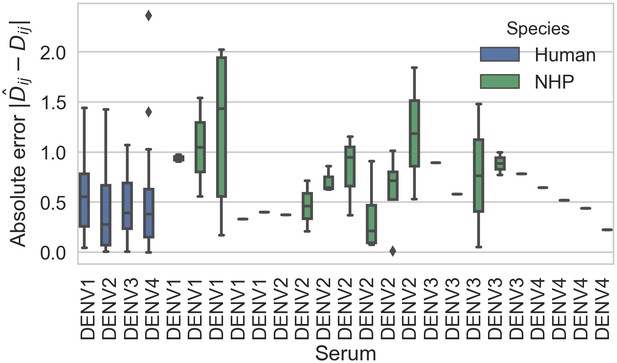

Titer prediction error by serum strain and species.

Human sera was raised against four different virus strains (the monovalent vaccine components); non-human primate (NHP) sera was raised against many different virus strains. Here, we excluded NHP sera raised against the monovalent vaccine components, such that each normalized titer measurement is aggregated across individuals, but not across species. We report the out-of-sample titer prediction error for each serum strain (versus all available test viruses), aggregated across 100-fold Monte Carlo cross-validation.

https://doi.org/10.7554/eLife.42496.005
Antigenic distance from NIH vaccine strains.

By assigning a discrete increment of antigenic change to each mutation, we can estimate the asymmetrical antigenic distance between any serum strain and test virus strain based on their genetic differences. Here, we show the estimated antigenic distance between serum raised against each monovalent component of the NIH vaccine candidate (indicated as ‘X’) and each test virus in the tree.

https://doi.org/10.7554/eLife.42496.008
Titer distance by genotype.

Values represent the mean interpolated antigenic distance between canonical dengue genotypes (in standardized log2 titer units). Columns represent sera; rows represent test viruses.

https://doi.org/10.7554/eLife.42496.009
Figure 5 with 3 supplements
Antigenic novelty predicts serotype success.

(A) The relative frequency of each serotype, xi, in Southeast Asia estimated every 3 months based on available sequence data. (B) Total fitness of each serotype. We calculate antigenic fitness for each serotype over time as its frequency-weighted antigenic distance from recently circulating viruses. We then add this to a time-invariant intrinsic fitness value to calculate total fitness. (C) DENV1 frequencies between 1994 and 1996 alongside model projection. At each timepoint t, we blind the model to all empirical data from timepoints later than t and predict each serotype’s future trajectory based on its initial frequency, time-invariant intrinsic fitness, and antigenic fitness at time t (Materials and methods, Equation 11). We predict forward in 3-month increments for a total prediction period of dt=2 years. At each increment, we use the current predicted frequency to adjust our estimates of antigenic fitness on a rolling basis (Materials and methods, Equation 15). (D) Predicted growth rates, g^=xi^(t+dt)xi(t), compared to empirically observed growth rates, g=xi(t+dt)xi(t). Predicted and empirical growth rate of the example illustrated in (C) is shown in (D) as the blue point. Serotype growth versus decline is accurate (i.e. the predicted and actual growth rates are both >1 or both <1, all points outside the gray area) for 66% of predictions.

https://doi.org/10.7554/eLife.42496.010
Figure 5—figure supplement 1

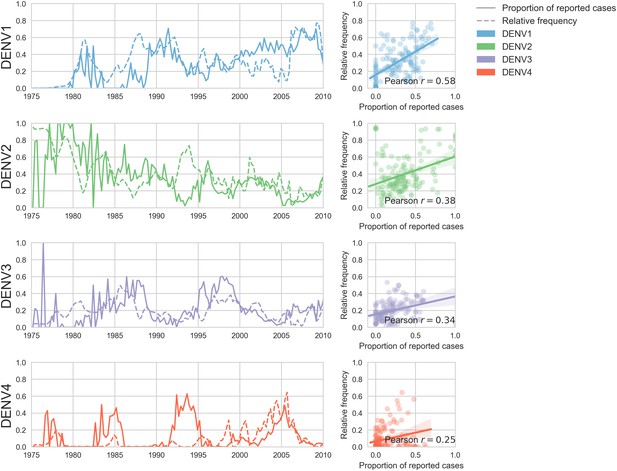

Case counts versus clade frequencies in Thailand.

As described in the Materials and methods, we estimate clade frequencies based on observed relative abundance in the ‘slice’ of the phylogeny at each quarterly timepoint. These frequency estimates are smoothed using a discretized Brownian motion diffusion process. Here, we compare estimated serotype frequencies across Thailand (all available high quality sequences) to case counts from a hospital in Bangkok between 1975–2010 (Reich et al., 2013). Biweekly case counts were aggregated into quarterly timepoints, but were not smoothed. While there are some instances where case counts and frequencies diverge (e.g. DENV4 in the early 1990s), the noisy nature of the unsmoothed case counts artificially deflates estimates of concordance.

https://doi.org/10.7554/eLife.42496.011
Figure 5—figure supplement 2

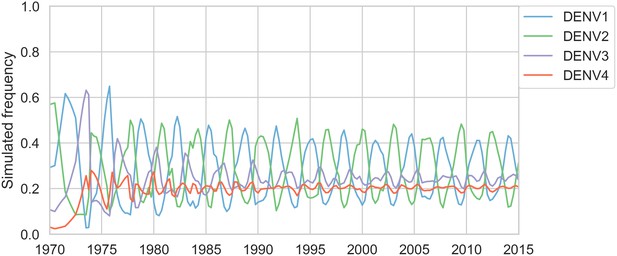

Simulated serotype frequencies (model parameters).

As described in the Materials and methods, we seeded a simulation with two years of empirical frequencies and predicted forward to simulate the remainder of the timecourse. Here, we simulated under the model parameters described in Table 2. This results in damped oscillations around the intrinsic fitness value for each serotype, but these intrinsic fitnesses alone are unable to predict observed clade dynamics (Table 3).

https://doi.org/10.7554/eLife.42496.013
Figure 5—figure supplement 3
Simulated serotype frequencies.

As described in the Materials and methods, we seeded a simulation with 2 years of empirical frequencies and predicted forward to simulate the remainder of the timecourse. Here, we simulated under the model parameters described in Table 5.

https://doi.org/10.7554/eLife.42496.012
Antigenic novelty partially predicts genotype success.

(A) Relative frequencies of each canonical dengue genotype across Southeast Asia, estimated from available sequence data. (B) Antigenic fitness is calculated for each genotype as its frequency-weighted antigenic distance from recently circulating genotypes. We then add this to a time-invariant, serotype-specific intrinsic fitness value to calculate total fitness (shown here, arbitrary units). We assess antigenic distance at either the ‘intergenotype’ or the ‘interserotype’ resolution. In this panel, we show total fitness over time, incorporating estimates of antigenic fitness derived from the ‘intergenotype’ model. (C, D) Fitness estimates were used to predict clade growth rates over 2 years, compounding immunity every 3 months based on predicted frequency changes (Materials and methods Equation 15). Here, we compare observed vs. predicted growth rates for both formulations of the fitness model (using fitness derived from either ‘interserotype’ or ‘intergenotype’ antigenic distances). Growth versus decline was accurate (predicted and actual growth rates both >1 or both <1, points outside the gray shaded area) for 67% and 61% of predictions, respectively.

https://doi.org/10.7554/eLife.42496.017

Tables

Table 1
Antigenically relevant mutations.

Each entry represents a mutation (or colinear cluster of mutations) inferred by the titer model to have a non-zero antigenic effect size dm (shown in parentheses).

https://doi.org/10.7554/eLife.42496.007
I6V, S29G, F90Y, T176P, V197I, L475M (0.71)D154E (0.03)T339I (0.65)
A19T (0.02)K160V (0.03)V347A (0.28)
N83K (0.34)E161T (0.22)I380V (0.45)
A88K (0.08)A162I (0.19)V382A (0.04)
A88Q (1.39)I162A (0.29)V382I (0.37)
Y90F (0.43)I164V (0.01)N385K, V454I (0.12)
V91I (0.35)T171S (0.23)D390S (0.12)
K93R (0.20)V174E (0.46)N390S (0.18)
V114I (0.90)E180T (0.43)V454T (0.25)
L122S (0.03)N203E (0.04)V461F (0.01)
S122L (0.07)N203K (0.08)F461I (0.03)
N124K (0.10)D203N (0.14)I462V (0.10)
V129I (0.01)E203N (1.09)L462I (0.16)
I129V (0.21)E203D (1.34)V462L (2.11)
I129A (0.23)I308V (0.18)T478S (0.10)
Y132I (0.12)G330D (0.22)S478M (0.43)
Y132P, R233Q (0.34)I335V, N355T, P364V(0.18)V484I (0.39)
I139V (0.05)L338E (0.43)
Table 2
Optimized fitness model parameters for primary analysis.
https://doi.org/10.7554/eLife.42496.015
ParameterValueDescription
β1.02Slope of linear relationship between population immunity and viral fitness
γ0.83Proportion of titers waning each year since primary infection
σ0.76Slope of linear relationship between titers and probability of protection
f0(1)0.74Relative intrinsic fitness of DENV1
f0(2)0.84Relative intrinsic fitness of DENV2
f0(3)0.50Relative intrinsic fitness of DENV3
f0(4)0.00Relative intrinsic fitness of DENV4 (fixed)
Table 3
Fitness model performance comparisons.

Here we compare the performance of the antigenically-informed fitness models to model performance under two null formulations. In the ‘equal’ null model, all clades are assigned equal fitness (i.e. antigenic and intrinsic fitness are set to 0, Equation 17; Equation 18). In the ‘intrinsic’ null model formulation, only the serotype-specific, time-invariant intrinsic fitness values contribute to clade fitness (i.e. antigenic fitness is set to 0, Equation 19; Equation 20). For both formulations of generalized waning, all other parameters were set to the values reported in Table 2 (optimized for RMSE). Parameters for heterotypic waning were optimized separately.

https://doi.org/10.7554/eLife.42496.014
ResolutionFitness modelWaningRMSEPearson R2Accuracy
SerotypeInterserotypeGeneralized0.1050.5470.660
SerotypeEqual fitness nullGeneralized0.1300.0000.480
SerotypeIntrinsic fitness nullGeneralized0.1400.0420.510
GenotypeInterserotypeGeneralized0.0620.2860.666
GenotypeIntergenotypeGeneralized0.0620.2540.610
GenotypeEqual fitness nullGeneralized0.0700.0000.440
GenotypeIntrinsic fitness nullGeneralized0.0720.0320.530
SerotypeInterserotypeHeterotypic0.1090.5330.666
GenotypeInterserotypeHeterotypic0.0630.2910.661
GenotypeIntergenotypeHeterotypic0.0630.2030.599
Table 4
Titer model performance comparisons.

We compared performance across several different variations of the titer model. As described in Neher et al. (2016), incremental antigenic change can be assigned to either amino acid substitutions (‘Substitution’ model) or to branches in the phylogeny (‘Tree’ model). For each of these models, we can constrain the model such that antigenic change is allowed to occur only between serotypes (‘Interserotype’) or between AND within serotypes (‘Full’). For the substitution model, we constrain the interserotype model by reconstructing the amino acid sequence of the most recent common ancestor for each serotype and allowing the model to assign antigenic change only to mutations between these ancestral sequences. For the tree model, we constrain the interserotype model by allowing the model to assign antigenic change only to branches in the phylogeny that lie between serotypes. We also assess the impact of the virus avidity and serum potency terms, va and pb. For all models and metrics, we report the mean and 95% confidence interval across 100-fold Monte Carlo cross validation with random 90%:10%, training:test splits.

https://doi.org/10.7554/eLife.42496.018
ModelAntigenic resolutionvaAnd pbRMSEPearson R2
SubstitutionFullYes0.75 (0.74–0.77)0.78 (0.77–0.79)
SubstitutionFullNo1.13 (1.11–1.16)0.50 (0.48–0.52)
SubstitutionInterserotypeYes0.86 (0.85–0.88)0.72 (0.70–0.73)
SubstitutionInterserotypeNo0.86 (0.84–0.87)0.71 (0.70–0.72)
TreeFullYes0.84 (0.83–0.86)0.72 (0.71–0.73)
TreeFullNo1.40 (1.38–1.42)0.24 (0.23–0.26)
TreeInterserotypeYes0.87 (0.85–0.88)0.70 (0.69–0.71)
TreeInterserotypeNo0.86 (0.84–0.88)0.72 (0.71–0.73)
Table 5
Parameter recovery against simulated data.
https://doi.org/10.7554/eLife.42496.016
ParameterInput valueOptimized value
β3.253.10
γ0.550.56
σ2.352.57
f0(1)0.700.72
f0(2)0.850.78
f0(3)0.400.41

Data availability

All data, code, model implementations, analyses and figures are available via our online repository at github.com/blab/dengue-antigenic-dynamics (copy archived athttps://github.com/elifesciences-publications/dengue-antigenic-dynamics).
