Protein denaturation at the air-water interface and how to prevent it

  1. Edoardo D'Imprima  Is a corresponding author
  2. Davide Floris
  3. Mirko Joppe
  4. Ricardo Sánchez
  5. Martin Grininger
  6. Werner Kühlbrandt
  1. Max Planck Institute of Biophysics, Germany
  2. Goethe University Frankfurt, Germany
  3. Sofja Kovalevskaja Group, Max Planck Institute of Biophysics, Germany
Research Article
  • Cited 3
  • Views 5,532
  • Annotations
Cite this article as: eLife 2019;8:e42747 doi: 10.7554/eLife.42747

Abstract

Electron cryo-microscopy analyzes the structure of proteins and protein complexes in vitrified solution. Proteins tend to adsorb to the air-water interface in unsupported films of aqueous solution, which can result in partial or complete denaturation. We investigated the structure of yeast fatty acid synthase at the air-water interface by electron cryo-tomography and single-particle image processing. Around 90% of complexes adsorbed to the air-water interface are partly denatured. We show that the unfolded regions face the air-water interface. Denaturation by contact with air may happen at any stage of specimen preparation. Denaturation at the air-water interface is completely avoided when the complex is plunge-frozen on a substrate of hydrophilized graphene.

https://doi.org/10.7554/eLife.42747.001

Introduction

In the short time since the resolution revolution (Kuhlbrandt, 2014), single-particle electron cryo-microscopy (cryo-EM) has developed into a main technique for high resolution structure determination of proteins (Bai et al., 2015a). To achieve high contrast and high resolution in cryo-EM, a small volume of protein solution is applied to an EM support grid (Cheng et al., 2015; Passmore and Russo, 2016) and blotted before vitrification by plunge-freezing in liquid ethane (Dubochet et al., 1988; McDowall et al., 1983). During this process, the protein is inevitably exposed to the atmosphere at a high surface-to-volume ratio. It has often been suggested that the air-water interface is a hostile environment for proteins (Glaeser and Han, 2017; Ramsden, 1994; Taylor and Glaeser, 2008; Trurnit, 1960; Yoshimura et al., 1994). Numerous studies from the first half of the 20th century (reviewed by Neurath and Bull (Neurath and Bull, 1938)) have shown that globular proteins applied to dilute buffers will eventually form an insoluble monolayer of ~10 Å thickness at the air-water interface, which means that they denature completely. A recent systematic investigation by electron cryo-tomography (cryo-ET) of 31 different proteins on cryo-EM grids has shown that all have a more or less pronounced tendency to adhere to the air-water interface (Noble et al., 2018). Even if the proteins do not denature, adsorption often results in preferential orientation, which is undesirable for image processing and high-resolution structure determination. The standard method of preparing cryo-EM specimens by plunge-freezing of thin, unsupported layers of protein solution is therefore potentially problematic. Recent studies (Glaeser, 2018; Glaeser and Han, 2017; Han et al., 2017) have drawn attention to the effects of the air water interface on proteins in solution, in particular on their integrity and orientation on cryoEM grids.

Proteins diffuse from the bulk phase of a thin layer of aqueous solution to the air-water interface in a millisecond or less (Israelachvili, 2011; Naydenova and Russo, 2017; Taylor and Glaeser, 2008), so that each protein can make thousands of contacts with the atmosphere during the few seconds it takes to prepare a cryo-EM grid. At each encounter, the protein is at risk of partial unfolding. Fast nanodispensers (Jain et al., 2012) in combination with self-blotting grids (Wei et al., 2018) have been developed to minimize protein exposure to the air-water interface, and initial results look promising (Dandey et al., 2018; Scapin et al., 2018; Xu et al., 2018). Attempts to overcome preferential orientation include saturation of the surface with surfactants, such as fluorinated detergents (Popot, 2010) that interact poorly with the protein (Blees et al., 2017; Efremov et al., 2015). These approaches require careful screening or access to a sophisticated (and costly) apparatus that is not universally available. As a simpler and potentially more general solution, we propose to use a physical support that largely prevents protein contact with, and consequently denaturation at, the air-water interface.

Continuous thin layers of amorphous carbon help to spread proteins evenly on cryo-EM grids (Bai et al., 2013; D'Imprima et al., 2017; Nguyen et al., 2015; Schraidt and Marlovits, 2011). Amorphous carbon is, however, far from ideal as a support film for cyro-EM because it adds background and conducts electrons poorly (Brink et al., 1998; Larson et al., 2011). Beam-induced movement is more severe on amorphous carbon support films than on unsupported films of vitrified solutions (Russo and Passmore, 2014).

In contrast to amorphous carbon, graphene, a monomolecular layer of crystalline carbon, has a number of desirable properties. It is the thinnest and strongest material known and at the same time an excellent conductor (Geim and Novoselov, 2007). It is stable under a 300 kV electron beam (Sader et al., 2013), and almost completely electron-transparent to 2.13 Å resolution (the position of the first Bragg peak) and beyond (Pantelic et al., 2012). The main problem of graphene for cryo-EM is its extreme hydrophobicity. For an even spread of the protein solution, the graphene surface has to be made hydrophilic. Graphene oxide is less hydrophobic than graphene, but more difficult to apply to EM grids as a monolayer (Boland et al., 2017). Graphene can be rendered hydrophilic by plasma etching (Russo and Passmore, 2014) or non-covalent chemical doping, exploiting the π-π stacking interaction between graphene and aromatic planar compounds such as 1-pyrenecarboxylic acid (Pantelic et al., 2014). For cryo-EM, advantages of non-covalent doping include (i) the graphene structure is preserved; (ii) surface charge can be selectively modified; (iii) the number of adsorbed particles per unit area can be tuned by adjusting the concentration of the doping chemical.

We explored the denaturing effect of the air-water interface on fatty acid synthase (FAS) from Saccharomyces cerevisiae as an example of a large protein complex, and devised a way to avoid it. The structure of FAS is well-characterized by protein crystallography (Jenni et al., 2007; Johansson et al., 2008; Lomakin et al., 2007) and cryo-EM (Gipson et al., 2010). This makes it easy to detect and analyze which part of the complex contacts the interface and to what extent it is denatured. We use cryo-ET to locate the FAS particles on cryo-EM grids and visualize the denaturation of individual protein complexes in contact with the air-water interface. Finally, we demonstrate by high-resolution single-particle cryo-EM that a stable substrate of hydrophilized graphene avoids the denaturation of FAS complex during cryo-EM specimen preparation completely.

Results

Fatty acid synthase is intact prior to cryo-EM grid preparation

The FAS complex used for cryo-EM data collection was pure and homogeneous, as shown by size exclusion chromatography, SDS-polyacrylamide gel electrophoresis and blue-native polyacrylamide gel electrophoresis (Figure 1—figure supplement 1A–C). Thermal shift assays indicated that the complex was stable (Figure 1—figure supplement 1D), and at 1500–3000 mU/mg it was enzymatically fully active (Fichtlscherer et al., 2000; Oesterhelt et al., 1969; Wieland et al., 1979). Negative-stain EM of freshly purified FAS samples indicated that the complex was structurally intact (Figure 1—figure supplement 2A). Cryo-EM of the same samples in plunge-frozen, unsupported thin layers of vitrified solution on holey carbon film revealed that around 90% of the particles had suffered major structural damage (Figure 1). FAS particles in two-dimensional (2D) and in particular three-dimensional (3D) classification lacked between one third and one half of their density or had weak density at the distal part of the beta-domes (Figure 1A,B). A reconstruction of ~8000 particles was limited to 9.5 Å resolution, according to the gold-standard 0.143 FSC criterion (Scheres and Chen, 2012) (Figure 1C). Back-tracking of incomplete particles in the 3D classes (Figure 1B) revealed major structural defects of the protein complexes in the raw micrographs (Figure 1—figure supplement 2B,C). These observations led us to conclude that the protein must have been damaged prior to or during cryo-EM grid preparation.

Figure 1 with 2 supplements see all

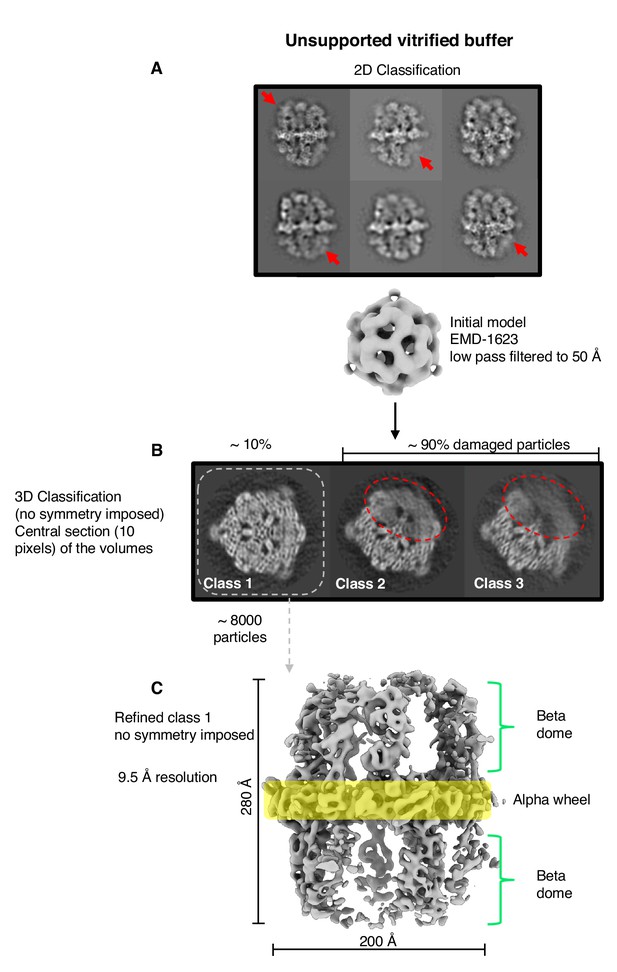

Single-particle cryo-EM results from unsupported vitrified buffer.

(A) Two-dimensional classification of particles shows weak or absent density of beta-domes (red arrows). (B) The alpha-wheel structure reveals major damage to about 90% of particles (dashed red). The remaining ∼10% (dashed grey) contributed to a reconstruction (C) at 9.5 Å resolution.

https://doi.org/10.7554/eLife.42747.002

Particle distribution in vitrified cryo-EM grids

Next, we performed cryo-ET on the vitrified specimens prepared for single-particle cryo-EM. Several batches of purified FAS plunge-frozen by different users under different conditions were examined. All experiments indicated damaged FAS complexes in all imaged areas (Figure 2A). In most instances, small fragments of denatured FAS were found in the areas surrounding individual complexes (red arrows in Figure 2A, Figure 2—video 1).

Figure 2 with 2 supplements see all

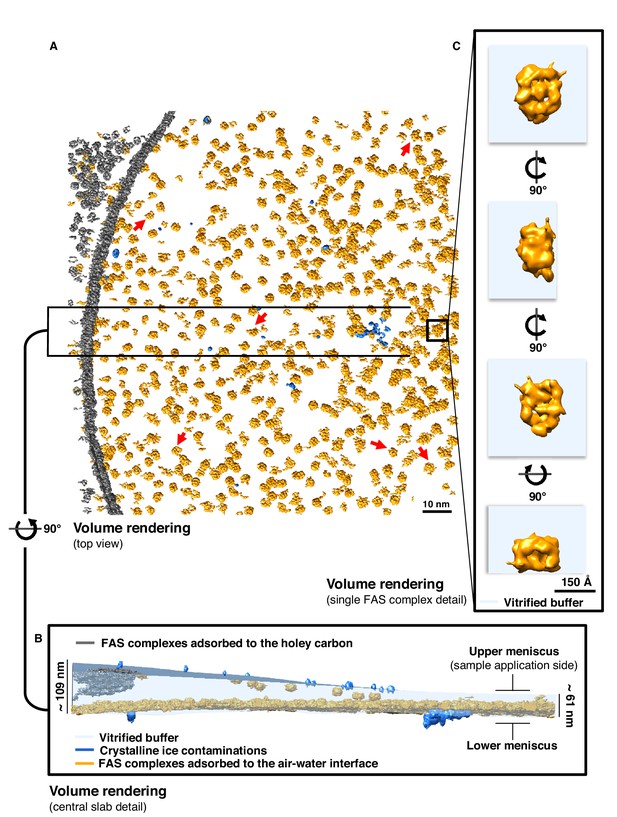

Particle distribution and structure of FAS in unsupported vitrified buffer.

(A) Segmentation of a typical Quantifoil R2/2 grid hole with FAS complexes. Red arrows indicate fragments of FAS particles. (B) Slab of vitrified buffer, delimited by carbon and small contaminating ice crystals. (C) Detail of a single FAS complex showing morphological differences between sides facing the air-water interface or away from it.

https://doi.org/10.7554/eLife.42747.005

Cryo-ET revealed that FAS adhered to the two opposite surfaces of the unsupported thin layers of vitrified buffer. One surface, which we refer to as the lower meniscus, was densely packed with adsorbed protein complexes. The opposite surface (the upper meniscus) had only a small number of particles attached (Figure 2B and Figure 2—figure supplement 1). Together with small ice crystals from atmospheric contamination on the outside surface of the vitrified layer, the FAS complexes on the upper and lower meniscus allowed us to trace the air-water interface exactly (Figure 2B).

Tomographic volumes suggested that nearly all the FAS particles in contact with the air-water interface were damaged. The particles were mostly flattened on one side and appeared incomplete (Figure 2C). The flattened regions aligned with the plane of the air-water interface. Particles attached to the lower and upper meniscus appeared to be equally affected, although the small number of particles on the upper meniscus precluded a statistically significant analysis. Our observations thus suggest that at some point during cryo-specimen preparation, the large majority of FAS complexes encountered the air-water interface, attached to it, and the air-exposed side unfolded before vitrification.

Orientation of damaged FAS particles on the air-water interface

FAS particles at the air-water interface were investigated by subtomogram averaging (STA). A set of 1724 subvolumes was manually selected, and a subset of 20 randomly picked volumes was used as a reference for initial alignment. No symmetry constraints were applied. The final reconstruction indicated that one side of the FAS map lacked density, whereas the opposite side of the complex appeared complete (Figure 3A). FAS attached with its long axis parallel to the air-water interface, which accounts for the scarcity of top views in the single-particle analysis. To determine the orientation of the partly denatured FAS complexes relative to the air-water interface, we fitted a surface through the centers of all particles (Figure 3B). We then calculated the vectors pointing from the center of a complex towards its flattened side (Figure 3C). Finally, we assessed by how much the vectors diverged from the normal of the previously calculated plane through all particles at that position, and whether they pointed toward the air-water interface or away from it. This analysis indicated clearly that the vectors pointed towards the air-water interface (Figure 3D).

Figure 3 with 1 supplement see all

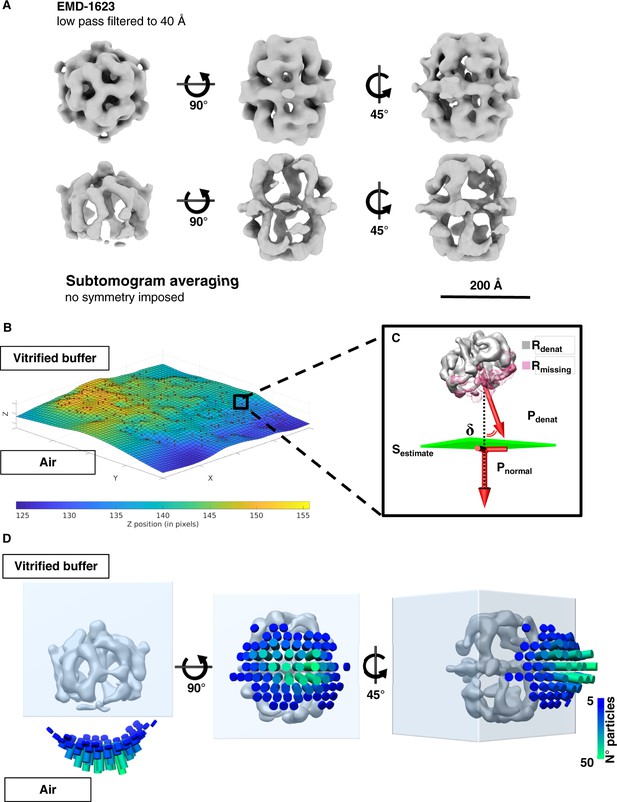

Sub-tomogram averaging and orientation of denatured FAS in unsupported vitrified buffer.

(A) Subtomogram averaging confirms localized denaturation of FAS. The published cryo-EM structure of intact FAS (Gipson et al., 2010) (above) is shown for comparison. (B) Surface (Sestimate) through the center of all FAS complexes in the selected area. (C) Vector Pdenat describing the orientation of denatured FAS (Rdenat), of the missing density (Rmissing) and the perpendicular direction (Pnormal) relative to Sestimate. The displacement angle is δ. (D) Angular distribution of δ for all particles in reconstructed tomograms.

https://doi.org/10.7554/eLife.42747.008

The structural heterogeneity of the partly denatured FAS complexes was examined by multi-reference alignment. In line with the single-particle results (Figure 1B), we found different degrees of particle damage. About 86% were extensively damaged, with one third or even half of the characteristic quaternary FAS structure weak or absent (Figure 3—figure supplement 1A). The remaining 14% had poorly resolved densities (Figure 3—figure supplement 1B), suggesting that even those particles on the air-water interface that appeared intact had suffered some damage. The set of subvolumes probably contained a small number of undamaged particles from the bulk phase, but visual inspection of the tomographic volumes did not reveal any. We conclude that most if not all particles at or near a meniscus were damaged to a greater or lesser extent by contact with the air-water interface.

Air exposure induces protein denaturation

In a series of three experiments, we tested different ways in which exposure to air could cause protein denaturation. As before, negative-stain EM confirmed that the particles were initially undamaged (Figure 4A). In one experiment, we bubbled air through the sample to maximize air contact. In another experiment, we poured the protein solution over a glass rod (Trurnit, 1960) to expose a continuous thin aqueous film to the atmosphere (Figure 4B). In the third experiment, we applied a 20 μl volume of FAS solution to a standard EM support grid coated with continuous carbon, and then touched the top of the droplet with a second carbon-coated grid (Figure 4C). In this way, we separated the particles adsorbed to the air-water interface from those adsorbed to the carbon film (Figure 4D). The result of each experiment was then examined by negative-stain EM (upper panels in Figure 4B–D). Bubbling air through the sample (experiment 1) completely denatured all FAS complexes (not shown), whereas in experiments 2 and 3 a small proportion remained intact. Denatured proteins were a predominant feature in all the three conditions except that particles adsorbed to the carbon film in experiment 3 (Figure 4D) were apparently undamaged. These results show that FAS at the air-water interface is denatured, whereas it remains intact when adsorbed to a solid substrate in liquid.

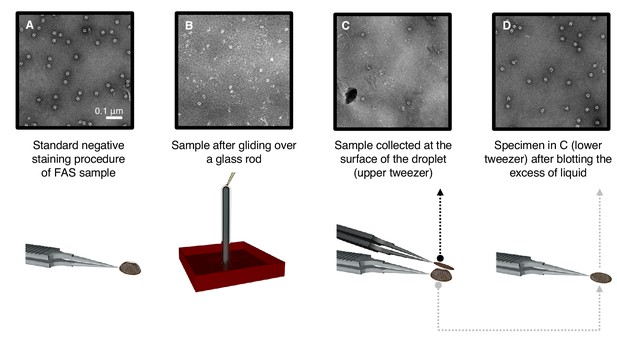

Denaturation by controlled exposure to air as analyzed by negative-stain EM.

(A) Untreated FAS sample (control). (B) A thin film of FAS solution flowing over a glass rod. Most complexes are denatured. (C) Denatured FAS particles picked up from the top of the droplet. (D) Undamaged FAS particles adsorbed to amorphous carbon at the opposite drop surface.

https://doi.org/10.7554/eLife.42747.010

Hydrophilized graphene-coated grids prevent denaturation at the air-water interface

To find out whether adsorption to a continuous support film would prevent damage also under cryo-conditions, we prepared FAS on EM-grids coated with a layer of graphene rendered hydrophilic with 1-pyrene carboxylic acid (1-pyrCA). To assess the quality of the graphene, all grids were examined by electron diffraction before vitrification. Sharp diffraction spots indicated flat monolayers of graphene (Figure 5—figure supplement 1A,B). The hydrophobic nature of the untreated graphene film was apparent from the repulsion of a water droplet pipetted onto the grid (Figure 5—figure supplement 1C). The same grids were then chemically doped with a solution of 1-pyrCA, which did not degrade the crystalline order of the graphene layer (Figure 5—figure supplement 1D,E). The hydrophilic character of the 1-pyrCA-doped graphene was indicated by the reduced contact angle of a water droplet on the grid (Figure 5—figure supplement 1F). The FAS solution was applied as before, and grids were blotted and plunge-frozen as for unsupported vitreous films. The hydrophilized graphene/FAS grids were then used for cryo-ET and single-particle cryo-EM.

Cryo-ET indicated the position of the air-water and graphene-water interfaces by atmospheric ice crystals and small patches of contaminants (Figure 5A,B). When the graphene layer was rendered hydrophilic by 1-pyrCA, FAS had a strong preference for the graphene-water interface over the air-water interface (Figure 5B, Figure 5—figure supplement 2 and Figure 5—video 1).

Figure 5 with 6 supplements see all
Sub-tomogram averaging of FAS vitrified on hydrophilized graphene.

(A) Zero degree view of tomographic tilt series. (B) Slab of vitrified buffer delimited by carbon and ice contaminants, indicating adsorption of FAS complexes to the graphene-water interface. (C) Subtomogram averaging confirms the structural integrity of FAS. (D) Three-dimensional impression (not drawn to scale) indicating the relative position of Quantifoil carbon film (dark grey) and hydrophilized graphene (mid-grey) on the copper support grid (dark red). The solution containing FAS particles (light grey) was applied from the uncoated side of the grid.

https://doi.org/10.7554/eLife.42747.011

To investigate the state of preservation of FAS on hydrophilized graphene, we hand-picked a set of 2090 subvolumes and performed subtomogram averaging and multi-reference classification as for unsupported vitrified samples. Reconstructions both before (Figure 5C and Figure 5—figure supplement 3) and after (Figure 5—figure supplement 4) multi-reference alignment indicated that all particles were intact. The best sub-tomogram averages yielded maps at 24.6 Å and 17.1 Å resolution before and after masking (Figure 5—figure supplement 5). Since few if any particles stuck to the air-water interface and multi-reference alignment did not reveal any damage, we conclude that FAS does not denature on hydrophilized graphene.

Hydrophilized graphene is suitable for high-resolution cryo-EM

To find out whether hydrophilized graphene films are suitable for high-resolution structure determination, we analyzed FAS on these grids by single-particle cryo-EM. Typical micrographs recorded at 0.9 μm defocus showed well-preserved particles (Fig. Figure 6—figure supplement 1A), although the background is not completely transparent. Presumably, the pristine graphene surface became contaminated to some extent with atmospheric hydrocarbons during specimen preparation, and the high dopant concentration may contribute to some loss of contrast. These factors may compromise the detection and alignment of particles that are significantly smaller than yeast FAS. The 2D (Figure 6—figure supplement 1B) and rotationally averaged 1D power spectra (Figure 6—figure supplement 1C) indicated oscillations beyond 3 Å spatial frequency (Figure 6—figure supplement 1C).

All 2D class averages displayed high-resolution detail (Figure 6A) and confirmed that FAS was structurally undamaged. This was verified by 3D classification, which showed intact complexes with well-resolved secondary structure. Note that this dataset contained only intact particles (Figure 6B), whereas 90% of the particles in the single-particle FAS dataset from unsupported vitrified samples had suffered major damage (Figure 1B classes 2, 3), and even the remaining 10% were compromised (Figure 1B class one and Figure 1C).

Figure 6 with 5 supplements see all
Single-particle cryo-EM results on hydrophilized graphene.

Two-dimensional (A) and three-dimensional (B) classification both show intact particles. A final map calculated without (C) or with (D) imposed D3 symmetry indicated a resolution of 4.8 Å or 4.0 Å.

https://doi.org/10.7554/eLife.42747.018

After merging the best 3D classes, we obtained a final set of ∼28,000 particles. Auto-refinement without symmetry (C1) or with imposed D3 symmetry yielded maps at 4.8 and 4.0 Å resolution, respectively (Figure 6C,D). Local resolution estimates indicated better than 3.5 Å resolution for the rigid alpha wheel (Figure 6—figure supplement 2). For an unbiased comparison to the 9.5 Å map obtained from FAS in unsupported vitrified buffer (Figure 6—figure supplement 3A), we randomly selected 8000 particles from the dataset collected on hydrophilized graphene. The resulting map (Figure 6—figure supplement 3B) attained a resolution of 6.4 Å, confirming that hydrophilized graphene works very much better as a substrate for single-particle cryo-EM of FAS than unsupported vitrified buffer. The particles were intact and the map contained all the main features of the best non-symmetrized 4.8 Å map (Figure 6—figure supplement 3C). Finally, although not random, particle orientation was much more evenly distributed on hydrophilized graphene, compared to unsupported vitrified buffer (Figure 6—figure supplement 4).

Discussion

An earlier single-particle cryo-EM structure of S. cerevisiae FAS in unsupported vitrified buffer (Gipson et al., 2010) reported a resolution of 7.2 Å at the 0.5 FSC threshold and

5.9 Å at 0.143 FSC. The ‘gold-standard FSC’ procedure of estimating map resolution by comparing reconstructions derived from two independent halves of the particle data set (Chen et al., 2013; Scheres and Chen, 2012) had not been introduced at the time and was not applied. Therefore, the 0.5 FSC resolution estimate of that map was realistic, as confirmed by a comparison of the FAS alpha wheel in the earlier structure to the gold-standard FSC maps in the present study (Figure 6—figure supplement 5). The resolution of the earlier map is clearly between that of the 6.4 Å map of FAS on graphene and the 9.5 Å map of FAS in unsupported vitrified buffer, which were obtained with ∼8000 particles each. The better quality of the earlier map (Gipson et al., 2010) is fully accounted for by the larger number of particles contributing to it, and the application of D3 symmetry. The 4 Å resolution of our present map from 28,000 particles on hydrophilized graphene is most likely limited by the inherent flexibility of the complex. This is implied by the cryo-EM structure of a FAS complex from the thermophilic fungus Chaetomium thermophilum (Kastritis et al., 2017), which attained a gold standard, FSC 0.143 resolution of 4.7 Å from only ∼ 4000 particles. It is well known that protein complexes from thermophilic organisms are more stable than those of mesophilic origin. By comparison, more than 100,000 particles contributed to the 7.5 Å cryo-EM structure of a FAS complex from Mycobacterium smegmatis (Boehringer et al., 2013), suggesting that the mycobacterial complex is significantly less stable.

In many of the cryo-EM grids examined by electron tomography (Noble et al., 2018), the curvatures of the upper and lower meniscus were different. In the case of FAS, the less densely populated upper meniscus was more strongly curved than the lower meniscus (Figure 2B, Figure 2—video 1). The reason for the difference in curvature is not known and most likely stochastic. The asymmetric distribution of protein on the upper and lower meniscus is surprising, because the grids were blotted symmetrically from both sides. Possibly, the more densely populated lower meniscus remained in contact with air for longer during the blotting process, so that more protein accumulated on it. At this stage, the reason for the asymmetrical particle distribution on the two surfaces is unknown.

Our cryo-EM analysis of FAS, a soluble 2.6 MDa protein complex, revealed that only a minority of the particles in unsupported vitreous films retained intermediate-resolution features, whereas up to 90% were at least partly denatured by the air-water interface. A survey of recently reported high-resolution cryo-EM structures shows that usually only a minor fraction of a large single-particle data set contributes to the final high-resolution map. Percentages of good particles were 19% for the 3.8 Å map of a human synaptic GABAA receptor (Zhu et al., 2018); 15% for human P-glycoprotein at 3.4 Å (Kim and Chen, 2018); 11.8% for a 4 Å nucleosome map (Takizawa et al., 2018); 8.9% for the 3.4 Å structure of human γ-secretase (Bai et al., 2015b); and only 5.7% for the 4 Å structure of a sodium channel complex from electric eel (Yan et al., 2017). All were prepared in unsupported vitrified buffer. These numbers suggest that up to 94% of the particles may have suffered partial denaturation at the air-water interface. Future studies will show whether this is indeed the case, and whether denaturation can be avoided by using hydrophilized graphene grids, as we have shown for yeast FAS. If hydrophilized or otherwise functionalized graphene grids prove to work as well for other proteins to overcome denaturation at the air-water interface, a much higher proportion of particles would contribute to the final structure. This would result in a large increase in data collection efficiency and significantly better maps. It would be a major boost for cryo-EM.

Materials and methods

Strain cultivation and protein purification

Request a detailed protocol

Yeast cultures were grown and FAS was purified as previously reported (Chakravarty et al., 2004; Gajewski et al., 2017b). Haploid FAS-deficient S. cerevisiae cells were transfected with plasmids carrying FAS-encoding genes, then grown in YPD medium. After bead disruption and differential centrifugation, the soluble components were purified by strep-Tactin affinity chromatography then by size-exclusion chromatography. The main peak was concentrated to ∼4 mg/ml. All purification steps were analyzed by SDS-PAGE.

Thermal shift assay (TSA) and activity assay

Request a detailed protocol

Thermal shift assays were performed as previously reported. Briefly, 2 μl of protein solution (0.9 mg/ml) were mixed with 21 μl of phosphate buffer (100 mM; pH 6.5) and 2 μl of 62.5 X SYPRO Orange protein gel stain, then fluorescence was measured from 5°C to 95°C with a step of 0.5 °C/min, with excitation wavelength set to 450–490 nm, and emission wavelength to 560–580 nm. FAS activity was determined by tracing NADPH consumption at 334 nm as reported (Gajewski et al., 2017a), and adapted for plate reader read-out (120 μl scale containing 200 mM NaH2PO4/Na2HPO4 (pH 7.3), 1.75 mM 1,4-dithiothreitol, 0.03 mg/ml BSA, 0.7 μg FAS, 500 μM malonyl CoA, 417 μM acetyl CoA and 250 μM NADPH).

Grid preparation

Request a detailed protocol

Quantifoil R0.6/1 and R2/2 grids (Quantifoil Micro Tools, Jena, Germany) were used to prepare cryo-specimens with or without graphene support. Grids were washed thoroughly overnight in chloroform. For graphene-coated grids, graphene pads (1 cm2) (Graphenea, Cambridge, MA) were floated onto Quantifoil grids in a water bath. The graphene layer was deposited on the holey carbon side of the grids, whereas the protein sample is later applied on the copper side after mild glow discharge (15 mA for 45 s). Quantifoil R1/2 and R1.2/1.3 grids were tested but found to be less suitable as the smaller hole size yields flatter graphene layers. Grids were dried under nitrogen flow for 30 min and then heated to 150°C for one hour to anneal the graphene layer to the Quantifoil film. Graphene-coated grids were stored under vacuum until use. Graphene-coated grids were washed in pure acetone for one hour to dissolve the protective PMMA layer and then rinsed with isopropanol for another hour, followed by drying under a nitrogen stream. Finally, the grids were dipped into 50 mM 1-pyrenecarboxyilic acid (Sigma Aldrich, Munich, Germany) dissolved in DMSO (Sigma Aldrich, Munich, Germany) for one minute, rinsed in one change of isopropanol and ethanol, and dried under a nitrogen stream. Grid quality was assessed in a FEI Tecnai G2 Spirit BioTwin (FEI Company, Hillsboro, OR) operated at 120 kV, at a nominal magnification of 9300x, yielding a pixel size at the specimen level of 1.19 nm. Electron diffraction patterns were recorded at a nominal camera length of 540 mm, with a 1 s exposure time and 150 μm aperture.

Negative staining

Request a detailed protocol

FAS was diluted in purification buffer (100 mM sodium phosphate, pH 6.5) 0.05 mg/ml and negatively stained with 2% (w/v) sodium silicotungstate (Agar Scientific, Stansted, UK). Specimen preparation was performed as described previously (Salzer et al., 2016). Micrographs were recorded in a FEI Tecnai G2 Spirit (FEI Company, Hillsboro, OR) operated at 120 kV, with a pixel size of 2.68 Å.

Controlled protein denaturation at the air-water interface

Request a detailed protocol

Three different experiments of controlled protein denaturation at the air-water interface were carried out in triplicate. Freshly purified FAS solution was diluted to 0.01 mg/ml with purification buffer (100 mM sodium phosphate, pH 6.5). For experiment 1, air was bubbled through 200 μL of protein solution through a pipette tip for about 10 s, and EM grids were prepared from a 3 μl aliquot. For experiment 2, 200 μl of protein solution were passed over a 5 cm 100 μl intraMARK disposable glass micropipette (Brand, Wertheim, Germany) sealed at both ends, and collected for EM analysis in negative stain. For experiment 3, 20 μl of FAS solution were pipetted onto EM grid coated with amorphous carbon and incubated in air. After 15 s, the drop was touched with a second carbon-coated EM grid and blotted. Both grids were negatively stained as before.

Single-particle cryo-EM

Request a detailed protocol

Three μl of FAS solution (1.0 mg/ml for unsupported grids or 0.2 mg/ml for hydrophilized graphene grids) were applied to freshly glow-discharged Quantifoil R2/2 holey carbon grids (Quantifoil Micro Tools, Jena, Germany) for unsupported samples or Quantifoil R0.6/1 holey carbon grids for hydrophilized graphene. Grids were vitrified in a Vitrobot Mark IV plunge-freezer at 100% humidity and 10°C after blotting for 6–8 s. Cryo-EM images were collected in a Titan Krios (FEI Company, Hillsboro, OR) electron microscope operating at 300 kV. Images were recorded automatically with EPU at a pixel-size of 1.053 Å, on a Falcon III EC direct electron detector (FEI Company, Hillsboro, OR) operating in counting mode. A total of 2648 and 1055 dose-fractionated movies were recorded to a cumulative dose of ∼ 32 e-2 for FAS in unsupported vitrified buffer and on hydrophilized graphene, respectively. Image drift correction was performed using Unblur (Grant and Grigorieff, 2015) and MotionCor2 (Zheng et al., 2017). CTF determination with CTFFIND 4.1.10 (Rohou and Grigorieff, 2015). All subsequent image processing steps were performed within Relion 2.1 (Kimanius et al., 2016). An initial dataset of 81,163 unsupported particles was automatically picked, 2D classified, and used for the first consensus refinement with a 50 Å low pass filtered FAS EM map (EMD-1623 (Gipson et al., 2010)) as initial reference. No symmetry was imposed. The same procedure was applied to the data collected on hydrophilized graphene grids, starting from a dataset of 57,021 particles. The best particles, sorted by 3D classification, were combined to perform a reconstruction imposing C1 (no symmetry) or D3 symmetry. This yielded maps at 9.5 Å resolution (unsupported samples, C1 symmetry), 4.8 and 4.0 Å resolution (hydrophilized graphene, C1 and D3 symmetry, respectively). All maps were corrected for the modulation transfer function (MTF) of the detector and sharpened with a B-factor of −130 Å2. Particle back-tracking was performed with the script star2jpg (https://github.com/olibclarke/EM-scripts/blob/master/star2jpg.bash).

Electron cryo-tomography

Request a detailed protocol

Vitrified specimens were imaged in a Titan Krios (FEI Company, Hillsboro, OR) electron microscope operating at 300 kV, equipped with a K2 summit direct electron detector and a Quantum energy filter (Gatan, Inc., Pleasanton, CA). The magnification was set to a pixel size of 3.39 Å or 2.20 Å for the dataset in unsupported aqueous films and hydrophilized graphene, respectively. Dose-fractionated tomographic images were automatically recorded in counting mode from −60° to + 60° using a dose-symmetric acquisition scheme (Hagen et al., 2017) implemented in SerialEM (Mastronarde, 2005) to a cumulative dose of 90 e-2 per tilt series. After movie frame alignment with MotionCor2 (Zheng et al., 2017) and CTF correction with Gctf (Zhang, 2016), the image stack files were processed with IMOD (Kremer et al., 1996). Weighted back projection was used to reconstruct the 3D volumes after patch track alignment. If necessary, the tomograms were processed with a Nonlinear Anisotropic Diffusion (NAD) filter (Frangakis and Hegerl, 2001) for visualization.

Subtomogram averaging, volume segmentation and rendering

Request a detailed protocol

All processing steps were performed with Dynamo (Castaño-Díez, 2017). A set of 1724 and 2090 particles was manually picked from unsupported and hydrophilized graphene-coated grids, respectively. In both cases a subset of 20 random particles was used to generate an initial reference, and subtomogram averaging was performed according to the ‘gold standard’ procedure (Scheres and Chen, 2012). The final map was band-pass filtered to 308 and 12 Å. To assess mask bias, FSC was also performed on the masked half-maps with phases randomized beyond 60 Å. The correlation dropped at the resolution above which the phases were randomized, indicating that the mask did not affect the resolution estimate. Finally, particle heterogeneity was explored by multi-reference alignment. To exclude reference bias, average volumes of damaged and intact FAS complexes were used as initial models for the graphene and the dataset unsupported dataset, respectively. Both references were low-pass filtered to 50 Å. For illustrative purposes, final maps were Gaussian-filtered (standard deviation of two physical pixels) within UCSF Chimera (Pettersen et al., 2004) and tomographic volumes segmented with the convolutional neural network method implemented in EMAN2.2 (Chen et al., 2017; Tang et al., 2007).

Estimation of particle-to-interface orientation

Request a detailed protocol

To determine the orientation of partly denatured FAS with respect to the air-water interface, MATLAB was used to correlate the tomographic reconstruction with a geometrical model assuming that, upon adsorption, the plane describing the denatured side of the FAS particles would be parallel to the air-water interface. The missing density due to denaturation (Rmissing) was treated as the difference between the reconstruction of intact FAS (Rintact) and the map obtained from sub-tomogram averaging of denatured particles (Rdenat). The analysis consisted of five sequential steps: (i) coordinates of the center of FAS complexes previously determined by sub-tomogram averaging were used to model the air-water interface (Sestimate) by the Thin-plate interpolator option of the Curve Fitting Toolbox in MATLAB; (ii) for each particle location the vector Pnormal was calculated, which represents the normal of Sestimate at that position; (iii) a vector Pdenat was computed that describes the relative orientation of the denatured side as the vector pointing from the center of Rintact to the center of mass of Rmissing; (iv) the Pdenat vector was calculated for every particle detected in all the tomographic volumes; (v) finally, the displacement angle δ between the vectors Pdenat and Pnormal was calculated with a 7.5° sampling step. The distribution of δ was plotted as a bild file. All the 3D rendering and movie editing were performed with Blender, Chimera (Pettersen et al., 2004) and ChimeraX (Goddard et al., 2018).

Data and materials availability

Request a detailed protocol

The EM maps have been deposited in the EMDB with accession codes EMD-0178 (single particle cryo-EM FAS map on graphene support) and EMD-0179 (subtomogram averaging FAS map on graphene support).

References

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  16. 16
  17. 17
  18. 18
  19. 19
  20. 20
  21. 21
  22. 22
  23. 23
  24. 24
  25. 25
  26. 26
  27. 27
  28. 28
  29. 29
    Intermolecular and Surface Forces
    1. JN Israelachvili
    (2011)
    Academic press.
  30. 30
  31. 31
  32. 32
  33. 33
  34. 34
  35. 35
  36. 36
  37. 37
  38. 38
  39. 39
  40. 40
  41. 41
  42. 42
  43. 43
  44. 44
  45. 45
  46. 46
  47. 47
  48. 48
  49. 49
  50. 50
  51. 51
  52. 52
  53. 53
  54. 54
  55. 55
  56. 56
  57. 57
  58. 58
  59. 59
  60. 60
  61. 61
  62. 62
  63. 63
  64. 64
  65. 65
  66. 66
  67. 67
  68. 68
  69. 69
  70. 70
  71. 71
  72. 72

Decision letter

  1. Axel T Brunger
    Reviewing Editor; Stanford University, United States
  2. John Kuriyan
    Senior Editor; University of California, Berkeley, United States
  3. Robert M Glaeser
    Reviewer; Lawrence Berkeley National Laboratory, University of California, Berkeley, United States
  4. Georgios Skiniotis
    Reviewer; University of Michigan, United States

In the interests of transparency, eLife includes the editorial decision letter and accompanying author responses. A lightly edited version of the letter sent to the authors after peer review is shown, indicating the most substantive concerns; minor comments are not usually included.

Thank you for submitting your article "Protein denaturation at the air-water interface and how to prevent it" for consideration by eLife. Your article has been reviewed by three peer reviewers, including Axel Brunger as Reviewing Editor, and the evaluation has been overseen by John Kuriyan as the Senior Editor. The following individuals involved in review of your submission have agreed to reveal their identity: Robert M Glaeser (Reviewer #2); Georgios Skiniotis (Reviewer #3).

The reviewers have discussed the reviews with one another and the Reviewing Editor has drafted this decision to help you prepare a revised submission.

Summary:

This study explores the effects of adsorption to the air-water interface on protein particle structure and orientation. Using both single-particle cryo-EM and cryo-ET coupled to sub-tomogram averaging, the authors provide a thorough topological and structural analysis of vitrified protein particles using the well characterized yeast fatty acid synthase (FAS) as a model system. This work follows the recent cryo-ET study by Carragher and colleagues showing that most particles prepared with the typical vitrification process preferentially adsorb to the air-water interface with potentially detrimental effects to their structure. Here, D'Imprima and colleagues build on those findings and demonstrate convincingly that up to ~90% of particles residing at the interface have suffered damage through denaturation, with the denatured region facing the interface. The cryo-EM analysis, coupled to simple but very elegant negative stain imaging of particle integrity under different conditions, clearly reveals that particles have been damaged during vitrification and that this is associated with exposure to air; an event that accounts for a large fraction of discarded particles with important implications for data collection and structural analysis. The authors go further to demonstrate that the use of hydrophilized (through non-covalent doping) graphene prevents FAS denaturation and allows the calculation of highly improved 3D reconstructions.

Essential revisions:

The authors propose the use of hydrophilized graphene oxide as a general solution to avoid protein denaturation during vitrification. To make such a strong impact however, this work should include a demonstration of the general use of this support with additional and different types of samples. In the absence of such additional experiments, the paper may be acceptable only if it focuses its message on yeast FAS. Statements in the title, Abstract and throughout the paper about the general application of this method should be removed.

The treatment by 1-pyrCA is interesting. In previous publications (e.g., Russo and Passmore, 2014), hydrogen-plasma treatment was used. Did the authors try this method? If so, how does it compare with the 1-pyrCA method?

It is common that papers about using graphene or graphene oxide as support films claim that such specimen-support films give much less background noise in the images than is the case for evaporated carbon support films. While that is clearly expected to be true, in this case the data seem to show that the background noise is much higher after the functionalization steps than it was before, and the authors properly point this out. The authors should either not make such a big point at the beginning about there being a low-noise background (i.e. do not raise false expectations), or point out, whenever making such statements, that the FGM reported here do not fully deliver the desired low-noise support film.

• It is not enough to suggest, as the authors do, that the increased RMS background is similar in height to that of the functionalized chemical groups that were added.

• Nor is it enough to point out, as the authors might do, that the noise did not interfere with getting a high-resolution map of FAS, because this quite a large particle.

• The community will still be skeptical that the same type of grids will be useful for particles in the size range of 200 kDa or smaller.

The manuscript does not fully represent the extent to which the cryo-EM community now appreciates that the air-water interface can do bad things. The unintended consequence is that the manuscript appears to claim more credit for originality than is perhaps due.

• A simple change might be to remove the statement, at the end of the first paragraph of the Introduction, which says "Effects of adsorption.… are not widely appreciated."

• A more extensive change would be to add a more comprehensive review of recent literature.

Please clarify which surface it is, in Figure 2B, to which the sample was applied. When sample is applied to a holey carbon grid, there are small disks of air-water interface within each hole and a large, continuous air-water interface on the top side of the sitting drop of sample. Of these two air-water interfaces, which is the one that has so many particles adsorbed to it?

It would be informative if the authors would describe whether bubbling air through their sample, in the way that they described, resulted in foam, and if so, how long it persisted. Indeed, a photo of the foam (if there was any) would be a good addition to the supplementary material.

The discussion on the lower and upper meniscus of the vitrified layer requires further explanation and clarification. What is their relation to the direction the sample is applied?

In reference to the 2010 cryo-EM study, the authors state that "The fact that the resolution was limited to 7.2 Å even with more than twice the number of particle images suggests that the complex was equally affected by denaturation at the air-water interface". This statement needs correction. The resolution was primarily limited by recording on film without the ability to correct for specimen motion.

There are particles in Figure 4D that do appear half, not unlike damaged particles at the interface, although they have adsorbed to the carbon. How do the authors explain these types of particles, also compared to the ones in the typical experiment of 4A?

https://doi.org/10.7554/eLife.42747.030

Author response

Essential revisions:

The authors propose the use of hydrophilized graphene oxide as a general solution to avoid protein denaturation during vitrification. To make such a strong impact however, this work should include a demonstration of the general use of this support with additional and different types of samples. In the absence of such additional experiments, the paper may be acceptable only if it focuses its message on yeast FAS. Statements in the title, Abstract and throughout the paper about the general application of this method should be removed.

First, the reviewers seem to be under the impression that we used graphene oxide to coat the grids (see first line of the reviewer comments), we would like to clarify that we used only pristine graphene.

Second, we did not propose anywhere in the manuscript that the use of hydrophilized graphene is a general solution to the problem of protein denaturation. On the contrary, we were careful not to make such a claim. In this respect, we explicitly say that future studies will have to show that our method works as well for other proteins, and if it does, it will be a major boost. The final paragraph of the Discussion reads:

“These numbers suggest that up to 94% of the particles may have suffered partial denaturation at the air-water interface. […] This would result in a large increase in data collection efficiency and significantly better maps. It would be a major boost for cryo-EM.”

Nevertheless, to avoid any appearance of making such a claim, we added “potentially” to the sentence “As a simpler and potentially more general solution, we propose to use a physical support that largely prevents protein contact with, and consequently denaturation at, the air-water interface.”

We modified the sentence “We used fatty acid synthase (FAS) from Saccharomyces cerevisiae to explore the denaturing effect of the air-water interface and how to avoid it.” with “We explored the denaturing effect of the air-water interface on fatty acid synthase (FAS) from Saccharomyces cerevisiae as an example of a large protein complex and devised a way to avoid it.”

We modified the sentence “Finally, we demonstrate by high-resolution single-particle cryo-EM that a stable substrate of hydrophilized graphene avoids the denaturation during cryo-EM specimen preparation completely.” with “Finally, we demonstrate by high-resolution single-particle cryo-EM that a stable substrate of hydrophilized graphene avoids denaturation of FAS complex during cryo-EM specimen preparation completely.”

The treatment by 1-pyrCA is interesting. In previous publications (e.g., Russo and Passmore, 2014), hydrogen-plasma treatment was used. Did the authors try this method? If so, how does it compare with the 1-pyrCA method?

We did not have a hydrogen plasma cleaner at the time when this work was conducted. One important advantage of our method is that it does not depend on such a device, which is expensive and not available in many cryoEM laboratories.

It is common that papers about using graphene or graphene oxide as support films claim that such specimen-support films give much less background noise in the images than is the case for evaporated carbon support films. While that is clearly expected to be true, in this case the data seem to show that the background noise is much higher after the functionalization steps than it was before, and the authors properly point this out. The authors should either not make such a big point at the beginning about there being a low-noise background (i.e. do not raise false expectations), or point out, whenever making such statements, that the FGM reported here do not fully deliver the desired low-noise support film.

• It is not enough to suggest, as the authors do, that the increased RMS background is similar in height to that of the functionalized chemical groups that were added.

• Nor is it enough to point out, as the authors might do, that the noise did not interfere with getting a high-resolution map of FAS, because this quite a large particle.

• The community will still be skeptical that the same type of grids will be useful for particles in the size range of 200 kDa or smaller.

We agree that our images are noisier than one would expect for pristine graphene (not graphene oxide). While the contrast we obtained is significantly better than for standard evaporated carbon support films, we cannot exclude some extent of hydrocarbon contamination before or after doping. After submitting our manuscript, we found that 1-pyrCA renders graphene hydrophilic at a very much lower concentration, i.e. in the nanomolar range. The millimolar concentration of 1-pyrCA reported in the manuscript may have contributed to background noise in the images.

We modified statements in the text which may have raised unrealistic expectations regarding our chemical doping method. Specifically, we modified “The advantage of non-covalent doping is that the pristine graphene surface is preserved, and that particle adsorption can be tuned by adjusting the concentration of the doping chemical.” to “The advantage of non-covalent doping is that the mechanical and chemical properties of graphene surface are preserved, and that particle adsorption can be tuned by adjusting the concentration of the doping chemical.”. We exchanged “Typical micrographs recorded at 0.9 μm defocus showed good contrast (Figure 6—figure supplement 1A).” with “Typical micrographs recorded at 0.9 μm defocus showed well-preserved particles (Figure 6—figure supplement 1A), although image contrast was not as good as expected. Presumably the pristine graphene surface became contaminated to some extent with atmospheric hydrocarbons during specimen preparation, and the high dopant concentration may contribute to some loss of contrast. These factors may compromise the detection and alignment of particles that are significantly smaller than yeast FAS.”

The manuscript does not fully represent the extent to which the cryo-EM community now appreciates that the air-water interface can do bad things. The unintended consequence is that the manuscript appears to claim more credit for originality than is perhaps due.

• A simple change might be to remove the statement, at the end of the first paragraph of the Introduction, which says "Effects of adsorption.… are not widely appreciated."

• A more extensive change would be to add a more comprehensive review of recent literature.

We rephrased the statement “Effects of adsorption to the air-water interface on protein integrity, orientation, and structure have not been investigated in detail and are not widely appreciated.” to “Recent studies (Glaeser, 2018; Glaeser and Han, 2017; Han, Watson, Cate, and Glaeser, 2017) have drawn attention to the effects of the air water interface on proteins in solution, in particular on their integrity and orientation cryoEM grids.”

Please clarify which surface it is, in Figure 2B, to which the sample was applied. When sample is applied to a holey carbon grid, there are small disks of air-water interface within each hole and a large, continuous air-water interface on the top side of the sitting drop of sample. Of these two air-water interfaces, which is the one that has so many particles adsorbed to it?

We have now tracked the grid orientation from sample application to subtomogram averaging carefully and can confirm that the densely populated meniscus is on the lower side of the drop, i.e. on the side opposite from where the sample was applied. This agrees with our thoughts that the more populated meniscus had been exposed to air for longer than the fresh meniscus that forms upon blotting. It also explains why we did not detect damaged particles in graphene supported samples, since the “lower meniscus” (as in Figure 2B) is protected by a graphene layer (as shown in Figure 5D).

It would be informative if the authors would describe whether bubbling air through their sample, in the way that they described, resulted in foam, and if so, how long it persisted. Indeed, a photo of the foam (if there was any) would be a good addition to the supplementary material.

In our experiments, air bubbling did not produce foam.

The discussion on the lower and upper meniscus of the vitrified layer requires further explanation and clarification. What is their relation to the direction the sample is applied?

The upper meniscus, mentioned in Figure 2B, represents the side from which the sample was applied. Please see the comment above.

In reference to the 2010 cryo-EM study, the authors state that "The fact that the resolution was limited to 7.2 Å even with more than twice the number of particle images suggests that the complex was equally affected by denaturation at the air-water interface". This statement needs correction. The resolution was primarily limited by recording on film without the ability to correct for specimen motion.

Sentence removed.

There are particles in Figure 4D that do appear half, not unlike damaged particles at the interface, although they have adsorbed to the carbon. How do the authors explain these types of particles, also compared to the ones in the typical experiment of 4A?

When the droplet surface is touched with a second grid (upper tweezers in Figure 4C), it is difficult to control the exact amount of liquid remaining on the first grid (lower tweezers). When the film becomes too thin, all FAS particles in the small remaining volume are at risk from damage at the air-water interface. Most likely the few damaged particles in Figure 4D became denatured in the thin film of solution before stain was applied.

https://doi.org/10.7554/eLife.42747.031

Article and author information

Author details

  1. Edoardo D'Imprima

    Department of Structural Biology, Max Planck Institute of Biophysics, Frankfurt, Germany
    Contribution
    Conceptualization, Data curation, Formal analysis, Supervision, Validation, Investigation, Visualization, Methodology, Writing—original draft, Project administration, Writing—review and editing
    Contributed equally with
    Davide Floris
    For correspondence
    edoardo.dimprima@biophys.mpg.de
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-9830-7929
  2. Davide Floris

    Department of Structural Biology, Max Planck Institute of Biophysics, Frankfurt, Germany
    Contribution
    Data curation, Formal analysis, Validation, Investigation, Visualization, Methodology, Writing—original draft, Writing—review and editing
    Contributed equally with
    Edoardo D'Imprima
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-9144-5459
  3. Mirko Joppe

    Buchmann Institute for Molecular Life Sciences, Institute of Organic Chemistry and Chemical Biology, Goethe University Frankfurt, Frankfurt, Germany
    Contribution
    Formal analysis, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0001-6463-0253
  4. Ricardo Sánchez

    Sofja Kovalevskaja Group, Max Planck Institute of Biophysics, Frankfurt, Germany
    Contribution
    Software, Formal analysis, Validation, Methodology, Writing—review and editing
    Competing interests
    No competing interests declared
  5. Martin Grininger

    Buchmann Institute for Molecular Life Sciences, Institute of Organic Chemistry and Chemical Biology, Goethe University Frankfurt, Frankfurt, Germany
    Contribution
    Resources, Supervision, Funding acquisition, Writing—review and editing
    Competing interests
    No competing interests declared
  6. Werner Kühlbrandt

    Department of Structural Biology, Max Planck Institute of Biophysics, Frankfurt, Germany
    Contribution
    Resources, Supervision, Funding acquisition, Writing—review and editing
    Competing interests
    Reviewing editor, eLife
    ORCID icon "This ORCID iD identifies the author of this article:" 0000-0002-2013-4810

Funding

Max-Planck-Gesellschaft

  • Edoardo D'Imprima

Volkswagen Foundation (85701)

  • Martin Grininger

Max-Planck-Gesellschaft

  • Davide Floris
  • Ricardo Sánchez

Volkswagen Foundation

  • Mirko Joppe

The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication.

Acknowledgements

We thank Deryck J. Mills, Simone Prinz and Mark Linder for EM support. We are grateful to Martin Centola, Niklas Klusch and Dr. David Wöhlert for discussions. We thank Dr. Janet Vonck, Dr. Roberto Covino and Dr. Mikhail Kudryashev for critically reading the manuscript.

Senior Editor

  1. John Kuriyan, University of California, Berkeley, United States

Reviewing Editor

  1. Axel T Brunger, Stanford University, United States

Reviewers

  1. Robert M Glaeser, Lawrence Berkeley National Laboratory, University of California, Berkeley, United States
  2. Georgios Skiniotis, University of Michigan, United States

Publication history

  1. Received: October 10, 2018
  2. Accepted: February 27, 2019
  3. Version of Record published: April 1, 2019 (version 1)
  4. Version of Record updated: April 9, 2019 (version 2)

Copyright

© 2019, D'Imprima et al.

This article is distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use and redistribution provided that the original author and source are credited.

Metrics

  • 5,532
    Page views
  • 692
    Downloads
  • 3
    Citations

Article citation count generated by polling the highest count across the following sources: Scopus, Crossref, PubMed Central.

Download links

A two-part list of links to download the article, or parts of the article, in various formats.

Downloads (link to download the article as PDF)

Download citations (links to download the citations from this article in formats compatible with various reference manager tools)

Open citations (links to open the citations from this article in various online reference manager services)

Further reading

    1. Structural Biology and Molecular Biophysics
    Zhijie Chen et al.
    Research Article Updated
    1. Structural Biology and Molecular Biophysics
    Babette E de Jong, John van Noort
    Insight
