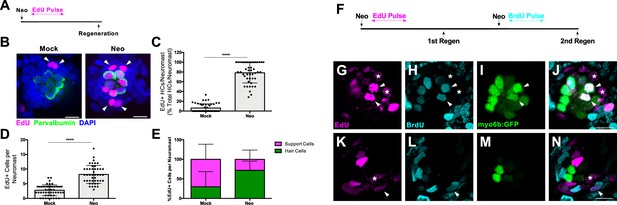

Previous studies have shown that the majority of support cell proliferation occurs during the first twenty-four hours following hair cell death (Ma et al., 2008). We replicated this finding by administering a pulse of F-ara-EdU (EdU), which has been shown to be far less toxic than BrdU (Neef and Luedtke, 2011). The EdU pulse was administered for twenty-four hours following neomycin-induced hair cell ablation at 5 days post fertilization (five dpf) and neuromasts were imaged at seventy-two hours post treatment (72 hpt), the time at which regeneration is nearly complete (Figure 1A). In neomycin-treated larvae, roughly 78% of regenerated hair cells were EdU-positive, compared to 6% in mock-treated larvae (Figure 1B–C; p<0.0001). We noticed that at the same timepoint that 28% of EdU-positive cells remained support cells (Figure 1E and B arrowheads). We hypothesized that these cells may represent hair cell progenitors that had been replaced via proliferation. If so, then these EdU-positive cells should have the capacity to generate a new round of hair cells after subsequent damage. In order to test this, we subjected larvae to two rounds of hair cell ablation and regeneration. EdU was administered for 24 hr following the first ablation, and BrdU was administered for the same duration following the second ablation (Figure 1F). Of the 90 neuromasts analyzed, 14 retained EdU labeling. Within these 14 neuromasts, we observed hair cells after the second regeneration that were both EdU- and BrdU-positive (Figure 1G–J, arrowheads; 1.50 ± 1.45 hair cells per neuromast; mean ±SD), indicating that support cells that divide after the first ablation can in fact serve as hair cell progenitors after subsequent damage. However, we also observed double-positive cells that remained support cells (Figure 1K–N, arrowheads; 1.07 ± 0.73 support cells per neuromast; mean ±SD), as well as support cells that were only labeled by EdU (Figure 1G–N, asterisks). These observations indicate that support cells that divided after the first round of damage do not always serve as hair cell progenitors (or even as progenitors at all). Altogether, these data provide evidence of proliferation-mediated replenishment of hair cell progenitors by support cells in the neuromast, but also suggest that new hair cells arise from a pool of progenitors that are not strictly defined by their proliferation history.

Figure 1

Download asset Open asset

Figure 1—source data 1

Hair cell progenitors are replenished via proliferation of other support cells

https://doi.org/10.7554/eLife.43736.004

Download elife-43736-fig1-data1-v2.xlsx

We next sought to determine whether hair cell progenitors could be defined via gene expression. As part of a broader screen to be described elsewhere, we employed CRISPR-mediated transgenesis (Kimura et al., 2014; Ota et al., 2016) to target expression constructs to genes that had been shown to be differentially expressed in support cells (Jiang et al., 2014; Steiner et al., 2014). This method inserts a construct with a minimal hsp70l1 promoter driving fluorescent protein expression to a targeted break, so that expression is regulated by adjacent genomic elements. During this screen, we found that targeted insertion in three genes (sfrp1a, tnfsf10l3, and sost) resulted in distinct spatial expression in primary neuromast support cells: a transgene inserted in the sfrp1a locus is restricted to the most peripheral support cells (Peripheral cells; Figure 2A); insertion in tnfsf10l3 is more broadly expressed throughout the periphery but is enriched in anteroposterior support cells (AP cells; Figure 2C); and insertion in sost is limited to the dorsal and ventral support cells (DV cells; Figure 2E). Secondary neuromasts are oriented orthogonally to primary neuromasts (Lopez-Schier et a., 2004); we found that the position of the distinct support cell populations are correspondingly rotated (Figure 2—figure supplement 1). We also generated GFP lines for each insertion site. We did not observe GFP labeling in hair cells in stable lines (Figure 2—figure supplement 2).

Figure 2 with 3 supplements see all

Download asset Open asset

Figure 2—source data 1

Genetic labeling of distinct support cell populations

https://doi.org/10.7554/eLife.43736.010

Download elife-43736-fig2-data1-v2.xlsx

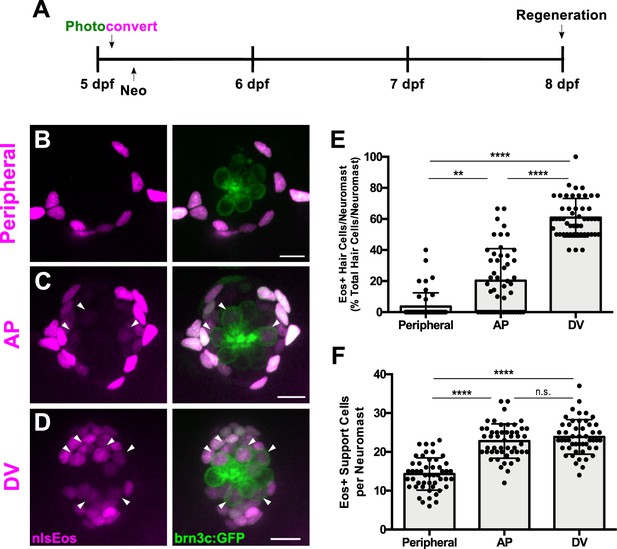

We used these distinct expression patterns to examine whether there were any functional differences between marked support cells with respect to their ability to serve as hair cell progenitors. To this end, we generated stable transgenic lines for all three loci: Tg[sfrp1a:nlsEos]^w217; Tg[tnfsf10l3:nlsEos]^w218; and Tg[sost:nlsEos]^w215 (hereafter known as sfrp1a:nlsEos, tnfsf10l3:nlsEos, and sost:nlsEos, respectively). Eos is a photoconvertible protein that switches from green to red fluorescence (shown in magenta throughout this paper) after exposure to UV light (Wiedenmann et al., 2004). The converted protein is stable for months. Its nuclear localization presumably protects it from degradative elements in the cytoplasm, allowing for a more permanent label than a standard fluorescent reporter (Cruz et al., 2015; McMenamin et al., 2014). We could thus chase this label from support cell to hair cell if these cells serve as hair cell progenitors, as hair cells that derived from these support cells would have converted Eos in their nuclei. To ensure that expression of the nlsEos transgene didn’t disrupt hair cell development or regeneration, we used the vital dye FM 1-43FX to label hair cells in transgenic fish and their non-transgenic siblings. In all three lines, we observed no significant difference between transgenic fish and their siblings (Figure 2—figure supplement 3). Because the uptake of FM 1-43FX requires proper mechanotransduction and can thus be used as a proxy for proper hair cell function (Seiler and Nicolson, 1999; Gale et al., 2001; Meyers et al., 2003), we conclude that expression of these nlsEos transgenes does not impact hair cell number or function during development or regeneration.

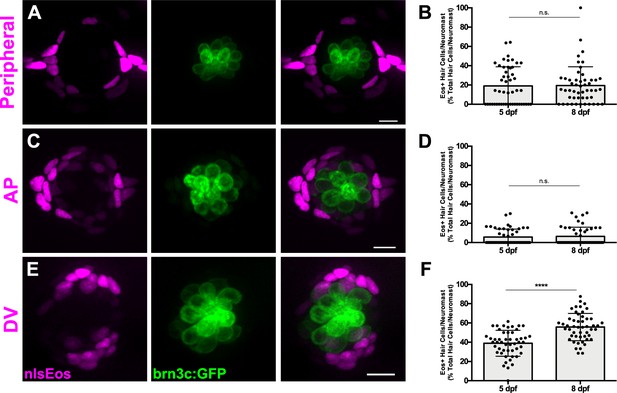

We first examined how these different support cell populations contributed to hair cell development and turnover under homeostatic conditions. All three nlsEos lines were crossed to a hair cell-specific transgenic line (Tg[Brn3c:GAP43-GFP]^s356t (Xiao et al., 2005), hereafter known as brn3c:GFP) in order to distinguish hair cell nuclei. Eos in support cells was photoconverted at 5 dpf and larvae were fixed and immunostained for GFP either immediately or at 8 dpf. At 5 dpf, 19% of hair cells were labeled with Eos expressed by the Peripheral cell transgene, and this number remained the same by 8 dpf (Figure 2B; p=0.7047). Eos from the AP cell transgene labeled about 6% of hair cells at both 5 and 8 dpf (Figure 2D; p=0.9668). Since there is no change over the three-day span, neither of these populations are responsible for generating new hair cells under homeostatic conditions. In contrast, the amount of hair cells labeled with photoconverted Eos from the DV cell transgene increased from 39% to 56% over that three-day span (Figure 2F; p<0.0001). Thus, the DV cell population seems to be predominantly involved in ongoing hair cell generation during homeostasis.

We next used these transgenic lines to determine whether there was any functional difference between these support cell subpopulations regarding their ability to serve as hair cell progenitors during regeneration. Each of the nlsEos lines were once again crossed to brn3c:GFP fish in order to distinguish hair cell nuclei. Eos in support cells was photoconverted at 5 dpf, and larvae were subjected to neomycin-induced hair cell ablation and then fixed and immunostained for GFP at 72 hpt (Figure 3A). Only 4% of regenerated hair cells were derived from the Peripheral cell population, whereas the AP cell and DV cell populations contributed significantly more, generating 20% and 61% of regenerated hair cells, respectively (Figure 3B–D, arrowheads; Figure 3E; p=0.003 [Peripheral vs. AP], p<0.0001 [Peripheral/AP vs. DV]). In order to ensure that this difference in Eos incorporation was not simply due to relative proportion of available Eos-positive support cells, we counted the number of Eos-positive support cells in each transgenic line at 5 dpf, prior to hair cell ablation. There were about half as many Peripheral cells relative to the other two populations, but no significant difference between the number of AP cells and the number of DV cells (Figure 3F; Peripheral = 14.30 ± 4.17; AP = 22.8 ± 4.40; DV = 23.86 ± 4.45; p<0.0001 [Peripheral vs. AP/DV], p>0.9999 [AP vs. DV]). Thus, the difference in regenerative capacity between these populations is not simply a reflection of the number of available cells, but rather of differences in the progenitor identity of the populations.

Figure 3

Download asset Open asset

Figure 3—source data 1

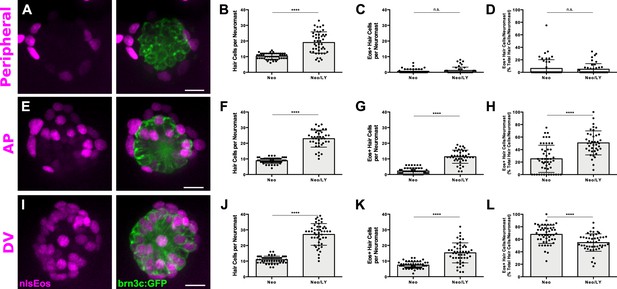

Distinct support cell populations have different regenerative capacities

https://doi.org/10.7554/eLife.43736.012

Download elife-43736-fig3-data1-v2.xlsx

Notch-mediated lateral inhibition plays a crucial role in ensuring the proper number of hair cells are regenerated, and inhibition of Notch signaling following hair cell damage dramatically increases the number of regenerated hair cells (Ma et al., 2008; Wibowo et al., 2011; Romero-Carvajal et al., 2015). Thus, we examined how Notch inhibition impacted the progenitor function of our three support cell populations. We crossed all of our nlsEos lines to the brn3c:GFP line, and treated double-positive larvae with 50 μM LY411575 (LY), a potent γ-secretase inhibitor (Mizutari et al., 2013; Romero-Carvajal et al., 2015), for 24 hr immediately following neomycin treatment. Fish were fixed at 72 hpt and immunostained for GFP. In all three lines, after Notch inhibition (Neo/LY) there were roughly twice as many hair cells as control fish (Neo) (Figure 4A–B,E–F,I–J; p<0.0001 [all lines]), consistent with previous studies. The small number of Peripheral cell-derived hair cells was no different between LY-treated fish and non-treated fish (Figure 4C; 0.62 ± 1.28 [Neo] vs. 1.15 ± 2.16 [Neo/LY]; p=0.2481). By contrast, the number of nlsEos-positive hair cells from both AP and DV cells increased in fish treated with LY. Moreover, while the number of nlsEos-positive hair cells derived from DV cells doubled in LY-treated fish (Figure 4K; 7.40 ± 2.13 [Neo] vs. 15.25 ± 6.36 [Neo/LY]; p<0.0001), those derived from AP cells increased roughly five-fold (Figure 4G; 2.22 ± 1.94 [Neo] vs. 11.38 ± 4.23 [Neo/LY]; p<0.0001). As a consequence, the percentage of hair cells derived from DV cells decreased correspondingly (Figure 4L; 67.86 ± 14.63 [Neo] vs. 54.69 ± 14.01 [Neo/LY]; p<0.0001), whereas those derived from AP cells doubled (Figure 4H; 25.19 ± 21.72 [Neo] vs. 50.68 ± 19.23 [Neo/LY]; p<0.0001). These data suggest that generation of hair cells from both the AP and DV populations is regulated by Notch signaling (with the AP population being regulated to a greater extent), whereas Peripheral cells are not responsive to Notch signaling.

Figure 4

Download asset Open asset

Figure 4—source data 1

Notch signaling differentially regulates support cell populations

https://doi.org/10.7554/eLife.43736.014

Download elife-43736-fig4-data1-v2.xlsx

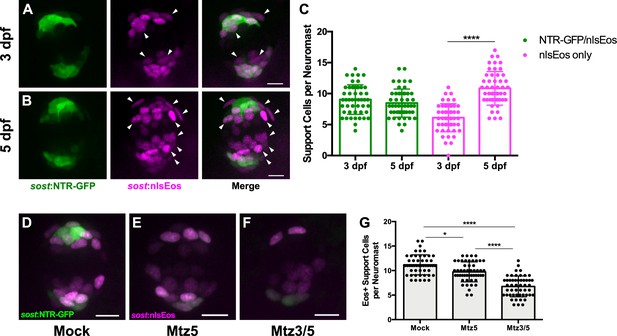

Since the DV cell population generates roughly 60% of regenerated hair cells, we sought to determine whether these cells were required for hair cell regeneration. To this end, we generated a transgenic line in which an enhanced-potency nitroreductase (epNTR; Tabor et al., 2014) fused to GFP was introduced into the sost locus using CRISPR (Tg[sost:epNTR-GFP]^w216, hereafter known as sost:NTR-GFP). Nitroreductase is a bacterial enzyme that selectively binds its prodrug Metronidazole (Mtz), converting Mtz into toxic metabolites that kill the cells expressing it (Curado et al., 2007). We then compared the extent of sost:NTR-GFP expression in DV cells, as defined by the sost:nlsEos transgene. At three dpf, soon after the initiation of transgene expression, we see considerable overlap between NTR-GFP and nlsEos. All NTR-GFP +cells were also positive for nlsEos, while an additional subset of cells expressed nlsEos alone. When we compared expression at five dpf, the size of the double-positive (NTR-GFP+; nlsEos+) population did not change, whereas the number of cells expressing nlsEos alone increased significantly, occupying a more central location (Figure 5A–B, arrowheads; Figure 5C; NTR-GFP/nlsEos: 9.04 ± 2.39 [3 dpf] vs. 8.47 ± 2.27 [5 dpf]; nlsEos only: 6.10 ± 2.27 [3 dpf] vs. 10.86 ± 2.72 (5 dpf); p>0.9999 [NTR-GFP/nlsEos], p<0.0001 [nlsEos only]). These observations are consistent with the idea that both transgenes initiate expression at the same time, but that nlsEos protein is retained longer than NTR-GFP protein as cells mature and as a result, NTR-GFP is expressed in a subset of DV cells. We next tested to the efficacy of DV cell ablation at 3 and 5 dpf. Treatment of these fish with 10 mM Mtz for 8 hr was sufficient to ablate the majority of NTR-GFP cells. Treating fish with Mtz for 8 hr at five dpf (Mtz5) slightly but significantly decreased the number of support cells solely expressing nlsEos by about 13%. Treating fish with Mtz for 8 hr at three dpf, followed by a second 8 hr Mtz treatment at five dpf (Mtz3/5) decreased the number of solely nlsEos-positive cells even further, by about 40% (Figure 5D–G; Mock: 11.18 ± 2.04; Mtz5: 9.72 ± 2.03; Mtz3/5: 6.76 ± 2.12; p=0.0288 [Mock vs. Mtz5], p<0.0001 [Mock vs. Mtz3/5, Mtz5 vs. Mtz3/5]).

Figure 5

Download asset Open asset

Figure 5—source data 1

Differences in overlap between sost:NTR-GFP and sost:nlsEos populations

https://doi.org/10.7554/eLife.43736.016

Download elife-43736-fig5-data1-v2.xlsx

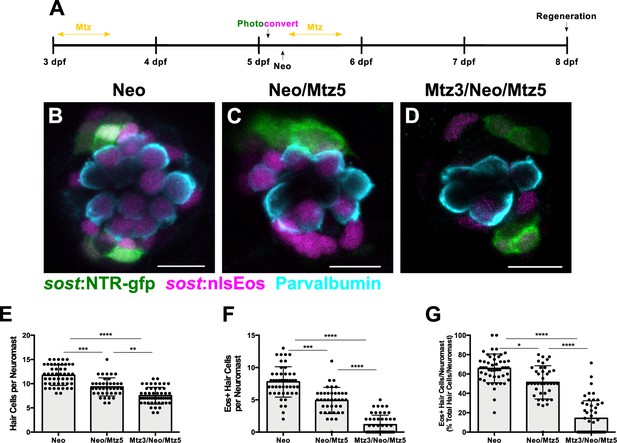

We next tested the impact of DV cell ablation on hair cell regeneration. We compared two groups: neomycin exposure followed by Mtz treatment at 5 dpf (Neo/Mtz5), compared to Mtz treatment at 3 dpf, then neomycin treatment at 5 dpf followed by a second Mtz treatment (Mtz3/Neo/Mtz5; Figure 6A). For both groups, nlsEos was photoconverted at 5 dpf, just prior to neomycin treatment, and larvae were fixed at 72 hpt and immunostained for GFP and Parvalbumin (to label NTR-GFP+ cells and hair cells, respectively). The Neo/Mtz5 treatment resulted in a small but significant reduction in both hair cells and nlsEos-positive hair cells per neuromast relative to normal regeneration (Figure 6B–C,E–F; Total hair cells: 11.73 ± 2.10 [Neo] vs. 9.33 ± 1.88 [Neo/Mtz5]; p=0.0001; nlsEos+ hair cells: 7.78 ± 2.36 [Neo] vs. 4.90 ± 2.02 [Neo/Mtz5]; p=0.0003). The Mtz3/Neo/Mtz5-treated larvae exhibited even fewer hair cells per neuromast (Figure 6D,E; 11.73 ± 2.10 [Neo] vs. 7.52 ± 1.74 [Mtz3/Neo/Mtz5]; p<0.0001), with nlsEos-labeled hair cells decreased to a mere 14% of total regenerated hair cells (Figure 6G; 65.81 ± 14.89 [Neo] vs. 14.29 ± 18.10 [Mtz3/Neo/Mtz5]; p<0.0001). Importantly, Mtz treatment of siblings without the sost:NTR-GFP transgene had no impact on hair cell regeneration (Figure 6—figure supplement 1; Neo: 9.5 ± 1.50; Mtz3/Neo/Mtz5: 9.98 ± 1.51; p=0.2317). Transgenes also had no obvious effect on hair cell development or regeneration in the absence of Mtz either alone or in combination (Figure 6—figure supplement 2). Thus, ablation of DV cells reduces the number of hair cells regenerated.

Figure 6 with 2 supplements see all

Download asset Open asset

Figure 6—source data 1

Ablation of DV cells decreases number of regenerated hair cells

https://doi.org/10.7554/eLife.43736.022

Download elife-43736-fig6-data1-v2.xlsx

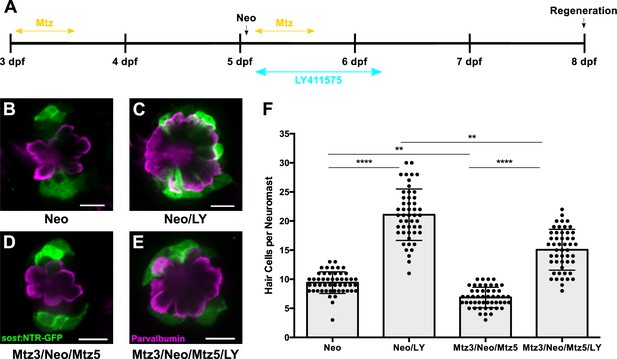

We then examined how Notch signaling impacted hair cell regeneration in the context of DV cell ablation. We treated sost:NTR-GFP larvae with 50 μM LY for 24 hr following ablation (Mtz3/Neo/Mtz5/LY) and assayed hair cell number at 72 hpt (Figure 7A). As expected, the number of regenerated hair cells increased significantly after LY treatment in all groups (Figure 7B–F; p<0.0001), and DV cell ablation significantly decreased hair cell regeneration (Figure 7B,D,F; 9.42 ± 1.85 [Neo] vs. 6.86 ± 1.76 [Mtz3/Neo/Mtz5]; p=0.0058). However, LY treatment following Mtz ablation resulted in significantly fewer regenerated hair cells than LY alone (Figure 7C,E,F; 21.08 ± 4.42 [Neo/LY] vs. 15.06 ± 3.51 [Mtz3/Neo/Mtz5/LY]; p=0.0029), indicating that inhibiting Notch signaling cannot fully compensate for the loss of the DV population.

Figure 7

Download asset Open asset

Figure 7—source data 1

DV cell-ablation reduces the number of supernumerary hair cells formed during Notch-inhibited hair cell regeneration

https://doi.org/10.7554/eLife.43736.024

Download elife-43736-fig7-data1-v2.xlsx

While the DV population generates roughly 60% of hair cells after damage, the other 40% must derive from a different population. Consistent with this observation, reduction of DV cells by Mtz treatment only partially blocks new hair cell formation, indicating that there must be additional progenitor populations. We believed that AP cells could define this additional population, since they were capable of generating roughly 20% of regenerated hair cells (Figure 3E). However, there may be some overlap between the expression of tnfsf10l3:nlsEos defining the AP domain and sost:nlsEos defining the DV domain. When we crossed the tnfsf10l3:nlsEos and sost:nlsEos lines together, we found that roughly 88% of regenerated hair cells were nlsEos positive when larvae expressed both transgenes, compared to 65% from sost:nlsEos alone and 28% from tnfsf10l3:nlsEos alone (Figure 8A–E; p<0.0001). Thus, while not completely additive, these data suggest that the AP population is distinct from the DV population in terms of its progenitor function.

Figure 8

Download asset Open asset

Figure 8—source data 1

AP cells and DV cells define separate progenitor populations

https://doi.org/10.7554/eLife.43736.026

Download elife-43736-fig8-data1-v2.xlsx

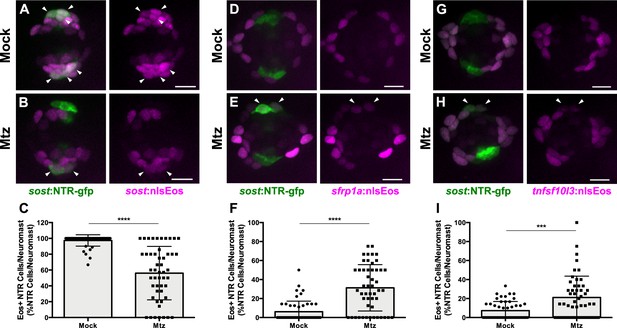

We next examined how the AP population would respond to the ablation of the DV population. We crossed the tnfsf10l3:nlsEos line to the sost:NTR-GFP line, sorted out double-positive larvae, and compared normal regeneration to that after Mtz treatment (Mtz3/Neo/Mtz5, since this had served to be the best treatment paradigm). As above, nlsEos was photoconverted at 5 dpf, immediately prior to neomycin treatment, and larvae were fixed at 72 hpt and immunostained for GFP and Parvalbumin. Mtz-ablated larvae had significantly fewer hair cells than non-ablated larvae, as in previous experiments (Figure 9C; 10.36 ± 1.60 [Neo] vs. 7.98 ± 1.74 [Mtz3/Neo/Mtz5]; p<0.0001), but the number of nlsEos-positive hair cells was no different between the two groups (Figure 9A–B, arrowheads; Figure 9D; 2.88 ± 1.83 [Neo] vs. 3.14 ± 1.43 [Mtz3/Neo/Mtz5]; p=0.3855). Thus, the AP population’s progenitor function remains unchanged following DV ablation, providing further support that it is a separate progenitor population from the DV population.

Figure 9

Download asset Open asset

Figure 9—source data 1

AP population doesn’t compensate for the loss of the DV population during hair cell regeneration

https://doi.org/10.7554/eLife.43736.028

Download elife-43736-fig9-data1-v2.xlsx

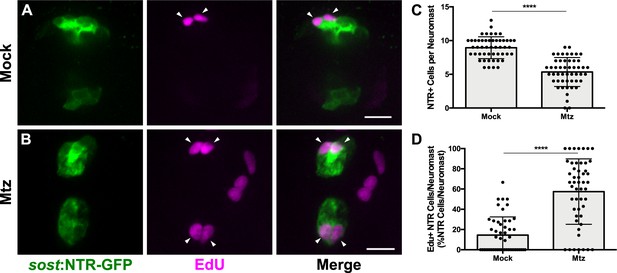

When examining hair cell regeneration following DV cell ablation, we consistently noticed that there was an increase in NTR-GFP +cells at 72 hpt. This led us to hypothesize that DV cells were capable of regeneration even in the absence of hair cell damage. To test this, we first administered a 48 hr pulse of EdU (changing into fresh EdU solution after the first 24 hr) immediately following Mtz ablation at 5 dpf and fixed immediately after EdU washout. At 48 hr post ablation, we observed slightly more than half the number of the NTR-GFP +cells relative to unablated larvae (Figure 10C; 8.94 ± 1.62 [Mock] vs. 5.34 ± 2.14 [Mtz]; p<0.0001). However, 58% of NTR-GFP +cells were EdU-positive in fish treated with Mtz, compared to just 15% in unablated larvae (Figure 10A–B, arrowheads; Figure 10D; p<0.0001). These results indicate that new DV cells arise from proliferation.

Figure 10

Download asset Open asset

Figure 10—source data 1

DV population regenerates via proliferation

https://doi.org/10.7554/eLife.43736.030

Download elife-43736-fig10-data1-v2.xlsx

To determine the source of new DV cells, we crossed sost:NTR-GFP fish to our three different nlsEos lines. Double-transgenic fish were photoconverted at 5 dpf, Mtz-ablated, and then fixed at 72 hpt and immunostained for GFP. Following ablation, 56% of NTR-GFP+ cells expressed photoconverted nlsEos when DV cells were labeled, compared to 97% in unablated controls (Figure 11A–B, arrowheads; Figure 11C; p<0.0001). 31% of NTR-GFP+ cells expressed photoconverted nlsEos when Peripheral cells were labeled, compared to 6% in controls (Figure 11D–E, arrowheads; Figure 11F; p<0.0001) and 21% of NTR-GFP+ cells expressed photoconverted nlsEos when AP cells were labeled, compared to 7% in controls (Figure 11G–H, arrowheads; Figure 11I; p=0.0004). Thus, DV cells are capable of being replenished after Mtz ablation by other DV cells as well as by both AP and Peripheral cells.

Figure 11 with 2 supplements see all

Download asset Open asset

Figure 11—source data 1

DV cells are replenished by other support cell populations

https://doi.org/10.7554/eLife.43736.036

Download elife-43736-fig11-data1-v2.xlsx

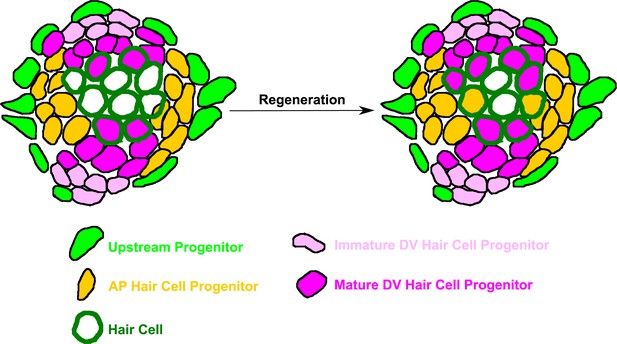

The data shown above indicate that there are at least three functionally distinct progenitor populations within the neuromast: (1) a highly regenerative, dorsoventral (DV) population, marked by sost:nlsEos, which generates the majority of regenerated hair cells; (2) an anteroposterior (AP) population, marked by tnfsf10l3:nlsEos, which also contributes to hair cell regeneration albeit to a far lesser extent than sost; and (3) a peripheral population (Peripheral), marked by sfrp1a:nlsEos, that does not contain hair cell progenitors (Figure 12). This model of high regenerative capacity in the dorsoventral region and low regenerative capacity in the anteroposterior region is consistent with the label-retaining studies performed by Cruz et al. (2015) as well as the BrdU-localization studies of Romero-Carvajal et al. (2015). However, an examination of the overlap in expression between sost:nlsEos and sost:NTR-GFP reveals distinctions even amongst this DV progenitor population. We hypothesize that cells that express only nlsEos have matured from those that express both NTR-GFP and nlsEos. We posit that these more mature nlsEos cells serve as hair cell progenitors. Consistent with this idea, Mtz treatment at five dpf that spares nlsEos cells not expressing NTR-GFP has only a small effect on hair cell regeneration while Mtz treatment at both 3 and 5 dpf results in substantial reduction in hair cell regeneration.

Figure 12

Download asset Open asset

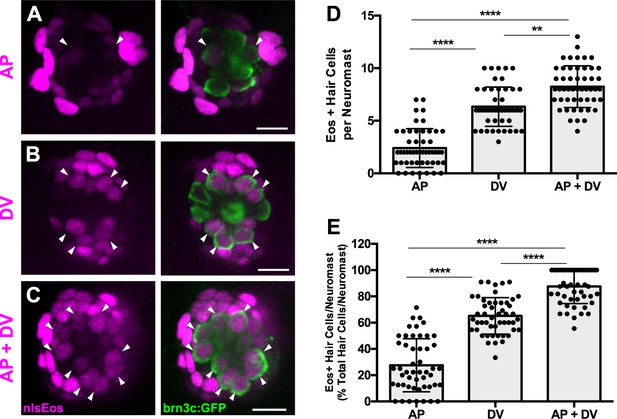

While we have identified distinct hair cell progenitor populations (DV and AP), these populations do not account for all of the hair cell progenitors in the neuromast. The combination of these cells generated 88% of new hair cells, meaning that the remaining 12% were derived from other sources. Furthermore, the AP population only accounted for 40% of new hair cells generated after neomycin treatment following DV cell ablation. Thus, there must be some other population (or populations) of support cells that are serving as hair cell progenitors that we have not labeled with our transgenic techniques. The best candidates for this role are centrally located support cells found ventral to hair cells, although the identity of these cells remains to be determined.

It is worth noting that Peripheral and DV lines (both nlsEos and NTR-GFP) were generated by targeted integration of the transgene into exons (see Materials and methods for details). Although CRISPR-mediated exonic integration has been shown to generate loss-of-function mutations (Ota et al., 2016), proper hair cell development and regeneration were unaffected in lines heterozygous for transgene insertion (Figure 2—figure supplement 3). Zebrafish expressing both nlsEos and NTR-GFP in DV cells (Figures 5, 6 and 11A–C) would theoretically be null for sost function, yet these double positive larvae have the same number of hair cells during development (five dpf) and after hair cell regeneration as their non-transgenic and heterozygotic siblings (Figure 6—figure supplement 2). This would suggest that sost function is dispensable for hair cell development and regeneration, in spite of the contribution DV cells make to both processes. However, we did not formally test whether sost function was actually disrupted by transgene insertion, so it is possible that these double-positive larvae are not indicative of true sost loss-of-function or that there are mechanisms to compensate for the loss of sost.

It is possible that our transgenic lines do not reflect the corresponding gene expression of the locus of insertion, although this CRISPR-mediated transgenesis method has been shown to do so for other genes (Kimura et al., 2014; Ota et al., 2016). While we have not verified that the expression patterns of our transgenes correspond to those of the endogenous loci by in situ hybridization, a recent comprehensive analysis of gene expression in neuromast support cells (Lush et al., 2019) confirms that the endogenous transcripts of sfrp1a, sost, and tnfsf10l3 have similar patterns to those of the transgenic insertions reported here. We stress that the purpose of this study is not to correlate progenitor function to specific gene function, but to examine the functional differences between populations of support cells marked by transgene insertion. While our study may not definitively link the action of underlying loci with progenitor identity, our experiments demonstrate that these genetically labeled support cells have distinct progenitor functions, and can serve as important tools in future studies determining the precise mechanisms underlying regeneration in the lateral line.

Neuromasts located on the trunk develop at different times from different migrating primordia. Within a given neuromast, hair cells are arranged such that their apical stereocilia respond to directional deflection in one of two directions along the body axis. Hair cells derived from the first primordium (primI) respond along the anteroposterior axis, and hair cells derived from the second primordium (primII) respond along the dorsoventral axis (López-Schier et al., 2004; López-Schier and Hudspeth, 2006). Spatial restriction of support cell proliferation is orthogonal to hair cell planar polarity, with proliferation occurring dorsoventrally in primI-derived neuromasts and anteroposteriorly in primII-derived neuromasts (Romero-Carvajal et al., 2015). This 90-degree switch between prim1- and primII-derived neuromasts is reflected in the distribution of labeled cell populations as well: tnfsf10l3:nlsEos and sost:nlsEos retain their asymmetric localization in primII-derived neuromasts, but tnfsf10l3:nlsEos is predominantly expressed in the dorsoventral region and sost:nlsEos is restricted to the anteroposterior region (Figure 2—figure supplement 1). Thus, within a given neuromast along the trunk, expression of sost:nlsEos is orthogonal to hair cell planar polarity, and that of tnfsf10l3:nlsEos is parallel to hair cell planar polarity.

The relationship between asymmetric progenitor localization and hair cell planar polarity remains unknown. Planar cell polarity (PCP) signaling often drives asymmetry in other tissues and has been implicated in the planar polarity of lateral line hair cells. Zebrafish deficient in Vangl2, a critical component of the PCP pathway, still develop neuromasts, but their hair cells are oriented randomly toward one another and do not respond along a single axis (López-Schier and Hudspeth, 2006). Furthermore, this random orientation stems from misaligned divisions of hair cell progenitors (Mirkovic et al., 2012). The transcription factor Emx2 has also been recently implicated in determining hair cell planar polarity (Jiang et al., 2017). Whether these genes or other components of PCP signaling mediate the asymmetric expression of sost:nlsEos and tnfsf10l3:nlsEos remains to be determined. It would also be interesting to examine whether hair cell planar polarity is influenced by the asymmetric localization of these progenitor populations, or vice versa.

Since zebrafish are able to properly regenerate their hair cells after multiple successive insults (Cruz et al., 2015; Pinto-Teixeira et al., 2015), and both daughters of progenitors give rise to hair cells, there must be a means of replenishing hair cell progenitors. Our EdU/BrdU double labeling experiment qualitatively demonstrated that hair cell progenitors could be replenished via proliferation of other support cells. It was thus unsurprising that DV cells could themselves regenerate. It is notable, however, that DV cells could be replenished even in the absence of hair cell damage, which means that hair cell death is not the sole signal that triggers support cell proliferation. Support cell regeneration in the absence of hair cell death has been observed in mammals, as certain types of cochlear support cells (inner border cells and inner phalangeal cells) are capable of regeneration following selective ablation, a process that occurs via transdifferentiation (Mellado Lagarde et al., 2014). In contrast, zebrafish DV cell regeneration primarily occurs via proliferation, as a majority of new DV cells were EdU-positive following Mtz-induced ablation. DV cells that were not EdU-positive could have arisen after the EdU pulse, been retained due to incomplete ablation, or potentially resulted from transdifferentiation from another source.

All three labeled support cell populations were able to replenish DV cells following Mtz-induced ablation. DV cells themselves contributed nearly 60% of new DV cells, although we cannot rule out that this number is inflated due to incomplete ablation. This result suggests that DV cells choose to either generate new hair cells or replenish lost DV cells, undergoing a form of self-renewal that does not require asymmetric division. The AP population is also capable of replenishing DV cells. That both of these populations can generate new DV cells is consistent with recent findings from Viader-Llargués et al. (2018). This study defined support cells as a peripheral mantle population and a central sustentacular population. Following laser ablation of large portions of the neuromast, they found that sustentacular cells were able to regenerate mantle cells and other sustentacular cells, as well as hair cells, and could thus be considered tripotent progenitors. The transgenic lines they used to label sustentacular cells were broadly expressed, and thus should encompass both AP and DV populations. We were unfortunately unable to drive functional expression of NTR in Peripheral or AP cells, and were thus unable to test how ablation of these support cell populations would affect regeneration. However, we can conclude that the DV and AP populations are at least bipotent, since they can both generate new hair cells and new DV cells.

We found that the Peripheral population could also generate new DV cells following Mtz-induced ablation. Furthermore, it contributes more to DV regeneration than does the AP population. This was especially surprising since proliferation has rarely been observed in peripheral cells, at least during normal hair cell regeneration (Ma et al., 2008; Romero-Carvajal et al., 2015). However, the loss of a progenitor population could be considered to be a case of extreme damage to the neuromast, thus prompting the Peripheral cell population to respond. That Peripheral cells can serve as progenitors only in extreme circumstances is consistent with the findings of Romero-Carvajal et al. (2015) and Viader-Llargués et al. (2018). Both studies suggested that mantle cells are capable of regenerating other cell types in the neuromast following extreme damage. However, the latter study found that mantle cells could only generate other mantle cells. Whether the Peripheral cell population in particular is capable of doing the same remains to be tested. Mantle cells have also been shown to proliferate following tail amputation, forming a migratory placode that forms new neuromasts along the regenerated tail (Jones and Corwin, 1993; Dufourcq et al., 2006). Given the differences across studies, we have hesitated to designate the sfrp1a:nlsEos labeled cells as mantle cells and have instead adopted the ‘Peripheral’ label. Since Peripheral cells can generate hair cell progenitors, we have characterized them as ‘upstream progenitors’ (Figure 12).

The zebrafish lateral line system continues to grow through larval and adult stages (Nuñez et al., 2009; Ledent, 2002; Sapède et al., 2002), with new neuromasts formed from budding from extant neuromasts (Nuñez et al., 2009; Wada et al., 2013a; Wada et al., 2013b) and generated anew from interneuromast cells, latent precursors deposited between neuromasts by the migrating primordium (Nuñez et al., 2009; Grant et al., 2005). These interneuromast cells can also serve as progenitors in the event of whole neuromast ablation (Sánchez et al., 2016). We note that the sfrp1a:nlsEos transgene is expressed in interneuromast cells as well as Peripheral neuromast cells. Whether these cells share similar properties to generate new neuromasts remains to be tested.

Our model of neuromast progenitor identity does bear some similarities with other regenerative tissues. Both the hair follicle and intestinal epithelium contain a niche of stem cells (bulge cells and crypt cells, respectively) which generate transit-amplifying cells that are able to generate other cell types (Ito et al., 2005; Taylor et al., 2000; Barker et al., 2007). Due to their high rate of proliferation and multipotency, the DV cells in the neuromast could be likened to these transit-amplifying cells. However, progenitors in the neuromast may bear the most similarity to those of the olfactory epithelium, which contains two distinct progenitor populations: globose basal cells (GBCs), which are transit-amplifying cells that can restore lost olfactory neurons; and horizontal basal cells (HBCs), a quiescent population that can generate multiple cell types, including GBCs, in instances of extreme damage (Iwai et al., 2008; Leung et al., 2007). In our model, the DV and Peripheral cells are comparable to the GBCs and HBCs, respectively. However, we cannot make the claim that the Peripheral population is a resident stem cell population (like bulge cells, crypt cells, and HBCs), as we do not yet know if it is capable of self-renewal or of generating every cell type within the neuromast.

Inhibition of Notch signaling during hair cell regeneration significantly increased the number of hair cells derived from both DV and AP cells, which was not unexpected given that both are hair cell progenitor populations. However, Notch inhibition had a greater impact on the AP population than on the DV population, suggesting that it may be more strongly regulated by Notch signaling. The receptor notch3, in particular, is most strongly expressed in the anteroposterior portions of the neuromast (Wibowo et al., 2011; Romero-Carvajal et al., 2015). Furthermore, a transgenic reporter of Notch activity is also expressed in the anteroposterior region (Romero-Carvajal et al., 2015; Wibowo et al., 2011). It is thus likely that asymmetrically-localized Notch signaling maintains quiescence among AP cells during homeostasis and is responsible for suppressing the contribution of the AP population to hair cell regeneration (compared to DV contribution). Since Notch signaling is not as strong in the dorsoventral regions of the neuromast, the DV population is less affected and could already be more ‘primed’ to serve as hair cell progenitors than the AP population. In addition, Notch signaling regulates Wnt signaling in the neuromast, particularly through activation of the Wnt inhibitor dkk2 (Romero-Carvajal et al., 2015). It is possible that Notch signaling may repress Wnt signaling in AP cells, further contributing to their low regenerative capacity. More work needs to be done regarding the role of Wnt signaling in these support cell populations.

Notch inhibition did not have any impact on the Peripheral population’s contribution to hair cell regeneration, indicating that Notch signaling does not suppress hair cell production by Peripheral cells. While it is difficult to tell from in situ expression, it seems that the Notch reporter is not active in the peripheral mantle cells (Wibowo et al., 2011; Romero-Carvajal et al., 2015). Thus, there must be some other mechanism, either intrinsic or extrinsic, that maintains relative quiescence among the Peripheral population.

It is not clear why these distinct populations of progenitors exist, as there is no clear difference in the types of hair cells they produce. Hair cells polarized in opposing direction are daughters of the final division of the hair cell progenitor (López-Schier and Hudspeth, 2006). Heterogeneity has also been recently described in the synaptic responses of lateral line hair cells (Zhang et al., 2018), but these differences appear lineage-independent. Instead, the allocation of distinct progenitors may serve an advantage with respect to their differential regulation. For example, our data suggest that DV cells contribute more to homeostatic addition of new hair cells to the neuromast in the absence of damage, while both AP and DV cells are engaged after hair cell damage. AP cells were unable to overcome the loss of the DV population, suggesting that feedback mechanisms regulating both hair cell production and progenitor replacement operate independently. While both AP and DV populations are regulated by Notch signaling, this regulation appears to operate independently as Notch inhibition does not compensate for DV ablation. Independent progenitors may offer the flexibility to add new hair cells under a variety of conditions for both ongoing hair cell turnover and in the face of catastrophic hair cell loss.

Experiments were conducted on 5–8 dpf larval zebrafish (except for the double hair cell ablation experiment, which was conducted on 15–18 dpf fish). Larvae were raised in E3 embryo medium (14.97 mM NaCl, 500 μM KCL, 42 μM Na₂HPO₄, 150 μM KH₂PO₄, 1 mM CaCl₂ dihydrate, 1 mM MgSO₄, 0.714 mM NaHCO₃, pH 7.2) at 28.5°C. All wildtype animals were of the AB strain. Zebrafish experiments and husbandry followed standard protocols in accordance with University of Washington Institutional Animal Care and Use Committee guidelines.

The myo6b:mKate2 construct was generated via the Gateway Tol2 system (Invitrogen). A pME-mKate2 (the mKate2 sequence being cloned from pMTB-Multibow-mfR, Addgene #60991) construct was generated via BP Recombination, and then a pDEST-myo6b:mKate2 construct was generated via LR recombination of p5E-myo6b, pME-mKate2, p3E-pA, and pDEST-iTol2-pA2 vectors. The mbait-GFP construct was a gift from Shin-Ichi Higashijima’s lab. The mbait-nlsEos construct was also generated via Gateway LR recombination of p5E-mbait/HSP70l, pME-nlsEos, p3E-pA, and pDEST-iTol2-pA2 vectors. The mbait-epNTR-GFP construct was generated via Gibson assembly (Gibson et al., 2009), inserting the coding sequence of epNTR (cloned from pCS2-epNTR obtained from Harold Burgess’ lab) plus a small linker sequence in front of the GFP in the original pBSK mbait-GFP vector. All plasmids were maxi prepped (Qiagen) prior to injection.

Gene-specific guide RNA (gRNA) sequences were as follows:

• sfrp1a: GTCTGGCCTAAAGAGACCAG

• tnfsf10l3: GGGCTTGTATAGGAGTCACG

• sost: GGGAGTGAGCAGGGATGCAAGGGCGAAGAACGGTGGAAGG

All gRNAs were synthesized according to the protocol outlined in Shah et al. (2015), but were purified using a Zymo RNA Clean and Concentrator kit. Upon purification, gRNAs were diluted to 1 μg/μL, aliquoted into 4 μL aliquots, and stored at −80°C. Sfrp1a and tnfsf10l3 gRNA sequences were designed via http://crispr.mit.edu, and the sost gRNA sequences were designed via http://crisprscan.org. The tnfsf10l3 gRNA was targeted 388 base pairs upstream of the gene’s start ATG codon, whereas the sfrp1a and sost guides were targeted to exons (the sfrp1a guide was targeted to exon 1, and the sost guides were targeted to exon2 and exon 1, respectively, in the order listed above).

The Tg[myosin6b:mKate2]^w232 (hereafter called myo6:mKate2) line was generated via Tol2 transgenesis. 1–2 nL of a 5 μL injection mix consisting of 20 ng/μL myo6b:mKate2 plasmid, 40 ng/μL transposase mRNA, and 0.2% phenol red were injected into single cell wildtype embryos. Larvae were screened for expression at three dpf and transgenic F₀ larvae were grown to adulthood. F₀ adults were outcrossed to wildtype fish, transgenic offspring were once again grown to adulthood, and the resulting adults were used to maintain a stable line.

All support cell transgenic lines were generated via CRISPR-mediated transgenesis, first described by Kimura et al. (2014). This technique utilizes the targeted double strand breaks of the CRISPR/Cas9 system to insert a reporter construct into a gene of interest. In addition to a gene-specific gRNA and Cas9 protein, single cell-embryos are injected with a plasmid that contains a reporter (such as GFP or nlsEos) downstream of a minimal promoter (in this case a heat-shock promoter) and a ‘bait’ sequence that is not present in the zebrafish genome (we used the mbait sequence) in addition to another gRNA that targets the bait sequence. Following injection, Cas9 will recognize both the gene-specific gRNA as well as the bait gRNA, cleaving both the genomic DNA and linearizing the plasmid. This reporter plasmid can then be integrated into the genome via non-homologous end joining. These reporters can be targeted just upstream of the start codon of a gene of interest (about 200–600 base pairs) in order to co-opt the gene’s cis-regulatory elements (the strategy we used for tnfsf10l3 insertions) or can also be targeted directly to exons (as we did for sfrp1a and for sost insertions). Exonic insertions can thus be used to visualize potential loss of function mutations (Ota et al., 2016).

For most injections, a 5 μL injection mix was made consisting of 200 ng/μL gene-specific gRNA, 200 ng/μL mbait gRNA, 800 ng/μL Cas9 protein (PNA Bio #CP02), 20 ng/μL mbait-reporter plasmid, and 0.24% phenol red. The gRNAs and Cas9 protein were mixed together first, then heated at 37°C for 10 min, after which the other components were added. In the case of sost, in which two gRNAs were co-injected, each gRNA was added to the mix at a final concentration of 100 ng/μL (so 200 ng/μL of total guide-specific gRNA). When reconstituting the Cas9 protein, DTT was added to a final concentration of 1 mM DTT (per manufacturer’s instructions). This is highly recommended to reduce needle clogging during the injection process. 1–2 nL of these injection mixes were injected into single cell wildtype embryos. Larvae were screened for expression at three dpf and transgenic F₀ larvae were grown to adulthood. F₀ adults were outcrossed to wildtype fish, transgenic offspring were once again grown to adulthood, and the resulting adults were used to maintain a stable line.

In order to photoconvert multiple nlsEos fish at once, larvae were transferred to a 60 × 15 mm petri dish and placed in a freezer box lined with aluminum foil. Then, an iLumen 8 UV flashlight (procured from Amazon) was placed over the dish and turned on for 15 min. Following the UV pulse, larvae were returned to standard petri dishes to await experimentation.

For all drug treatments, zebrafish larvae were placed in baskets in six well plates to facilitate transfer of larvae between media. Larvae were treated at five dpf unless otherwise noted. All wells contained 10 mL of drug, E3 embryo medium with the same effective % DMSO as the drug (for mock treatments), or plain E3 embryo medium for washout. Following treatment, the fish were washed twice into fresh E3 embryo medium by moving the baskets into adjacent wells in the row, then washed a third time by transferring them into a 100 mm petri dish with fresh E3 medium. All drugs were diluted in E3 embryo medium. The drug treatment paradigms were as follows: for hair cell ablation, 400 μM neomycin (Sigma) for 30 min; for sost:NTR ablation, 10 mM metronidazole (Mtz; Sigma) with 1% DMSO; for Notch inhibition, 50 μM LY411575 (LY; Sigma; effective DMSO concentration of 0.5%) for 24 hr; for the sost ablation/Notch inhibition experiment (Figure 7): 10 mM Mtz/50 μM LY for 8 hr, then 50 μM LY for 16 hr.

For double hair cell ablation studies, larvae that were treated with neomycin were raised on a nursery in the UW fish facility beginning at seven dpf and then treated with 400 μM neomycin again at 15 dpf in standard petri dishes (10 days following the first neomycin treatment). These juvenile fish were washed into fresh system water multiple times before being returned to the nursery and were then fixed three days later (18 dpf).

Following hair cell ablation with neomycin, larvae were incubated in 500 μM F-ara-EdU (Sigma #T511293) for 24 hr. Following sost:NTR ablation with Mtz, larvae were incubated in the same concentration of EdU for 48 hr. Larvae were placed into fresh EdU after the first 24 hr. F-ara-EdU was originally reconstituted in 50% H₂O and 50% DMSO to 50 mM, so the working concentration of DMSO of 500 μM was 0.5%. In the case of the double ablation studies, juvenile fish were incubated in 10 mM BrdU (Sigma) with 1% DMSO in system water (used in the UW fish facility) following the second neomycin treatment for 24 hr. Following treatment, larvae were washed in fresh system water several times.

Zebrafish larvae were fixed in 4% paraformaldehyde in PBS containing 4% sucrose for either 2 hr at room temperature or overnight at 4°C. Larvae were then washed three times (20 min each) in PBS containing 0.1% Tween20 (PBT), incubated for 30 min in distilled water, then incubated in antibody block (5% heat-inactivated goat serum in PBS containing 0.2% Triton, 1% DMSO, 0.02% sodium azide, and 0.2% BSA) for at least one hour at room temperature. Larvae were then incubated in mouse anti-parvalbumin or rabbit anti-GFP (or sometimes both simultaneously) diluted 1:500 in antibody block overnight at 4°C. The next day, larvae were once again washed three times (20 min each) in PBT, then incubated in a fluorescently-conjugated secondary antibody (Invitrogen, Alexa Fluor 488, 568, and/or 647) diluted 1:1000 in antibody block for 4–5 hr at room temperature. From this point onward, larvae were protected from light. Larvae were then rinsed three times (10 min each) in PBT and then stored in antibody block at 4°C until imaging. For BrdU immunohistochemistry, juvenile fish were rinsed once in 1N HCl, then incubated in 1N HCl following washout of Click-iT reaction mix (see below). IHC proceeded as above, except that the antibody block contained 10% goat serum and the fish were incubated in mouse anti-BrdU at a dilution of 1:100. All wash and incubation steps occurred with rocking.

Cells that had incorporated F-ara-EdU were visualized via a Click-iT reaction. In the case of the double hair cell ablation experiment, Click-iT was performed before immunohistochemistry. Following fixation, fish were washed three times (10 min each) in PBT, then permeabilized in PBS containing 0.5% Triton-X for 30 min, then washed another three times (10 min each) in PBS. Next, fish were incubated for 1 hr at room temperature in a Click-iT reaction mix consisting of 2 mM CuSO₄, 10 μM Alexa Fluor 555 azide, and 20 mM sodium ascorbate in PBS (made fresh). Fish were protected from light from this point onwards. Afterwards, the standard IHC protocol listed above was performed (beginning with the 3 20 min washes in PBT). For the sost:NTR regeneration experiment, the Click-iT reaction was performed after IHC. Following incubation in secondary antibody, larvae were washed three times (10 min each) in PBS, then incubated in 700 μL of the Click-iT reaction mix (again, made immediately prior to incubation) for 1 hr at room temperature. Larvae were then washed six times (20 min each) in PBT to ensure proper clearing of background labeling and stored in antibody block at 4°C until imaging.

With the exception of imaging requiring a far-red laser (Figure 1F–N, Figure 3C–I, Figure 5) and Figure 2—figure supplement 2A and D, all imaging was performed using an inverted Marianas spinning disk system (Intelligent Imaging Innovations, 3i) with an Evolve 10 MHz EMCCD camera (Photometrics) and a Zeiss C-Apochromat 63x/1.2W numerical aperture water objective. For Figure 2—figure supplement 2A and D, larvae were imaged with a Zeiss Plan-Apochromat 20x/0.8 objective. All imaging experiments were conducted with fixed larvae ages 5–8 dpf. Fish were placed in a chambered borosilicate coverglass (Lab-Tek) containing 2.5–2.5 mL E3 embryo medium and oriented on their sides with a slice anchor harp (Harvard Instruments). Imaging was performed at ambient temperature, generally 25°C. Fish were positioned on their sides against the cover glass in order to image the first five primary neuromasts of the posterior lateral line (P1-P5). All imaging was performed with camera intensification of 650, gain of 3. Exposure time between 25–1500 ms was determined empirically to maintain imaging within the camera’s linear range; imaging parameters were held constant across all groups within an experiment. Step size was 1 μm. All 3i Slidebook images were exported as. tif files to Fiji.

In cases when a far-red laser was required, imaging was performed on a Zeiss LSM 880 microscope with a Zeiss C-Apochromat 40x/1.2W numerical water objective. Fish were immersed in a solution of 50%glycerol/50% PBS, and then mounted on a plain microscope slide (Richard-Allen) beneath a triple wholemount coverslip. Imaging was performed at ambient temperature, generally 25°C. Fish were positioned on their sides against the cover glass in order to image the first five primary neuromasts of the posterior lateral line (P1-P5). For the double hair cell ablation experiment, following fixation the tails of fish were cut off and mounted underneath a single wholemount coverslip. The 3 neuromasts of the terminal cluster were imaged per tail. All imaging was performed at 4-5x digital zoom with master gain between 500–800 (as set in controlling software) for 488, 561, and 647 lasers, and a step size of 1 μm. All images were captured through the Zen Black software and opened in Fiji as. czi files.

All statistical analyses were done with GraphPad Prism 6.0. The Mann Whitney U test was used for comparisons between two groups, whereas the Kruskal-Wallis test, with a Dunn’s post-test, was used for comparisons between three or more groups. Statistical significance was set at p=0.05. All data presented in this paper are from individual, non-pooled experiments. However, the following data are representative of multiple experimental trials (number of trials in parentheses): Figure 1B–D (3); Figure 2 (2); Figure 3A–E (3); Figure 6 (2); Figure 7 (2); Figure 9 (2); Figure 10 (2); Figure 11D–I (2).
